Page 1
T H E U L T I M A T E D I S P L A Y
OWNER’S MANUAL
Please read this manual carefully before operating your set and retain it
for future reference.
EC93**
EC97**
EG97**
*MFL68601905*
www.lg.com
P/NO : MFL68601905 (1507-REV05)
Printed in Korea
Page 2
2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
3 OPEN SOURCE SOFTWARE NOTICE
INFORMATION
3 EXTERNAL CONTROL DEVICE
SETUP
4 SAFETY INSTRUCTIONS
9 - Viewing 3D Imaging
10 INSTALLATION PROCEDURE
10 ASSEMBLING AND PREPARING
10 Unpacking
12 Separate purchase
13 Parts and buttons
15 - Using the joystick button
16 Lifting and moving the TV
17 Setting up the TV
17 - Detaching the stand
18 - Attaching the AV cover
18 Mounting on a table

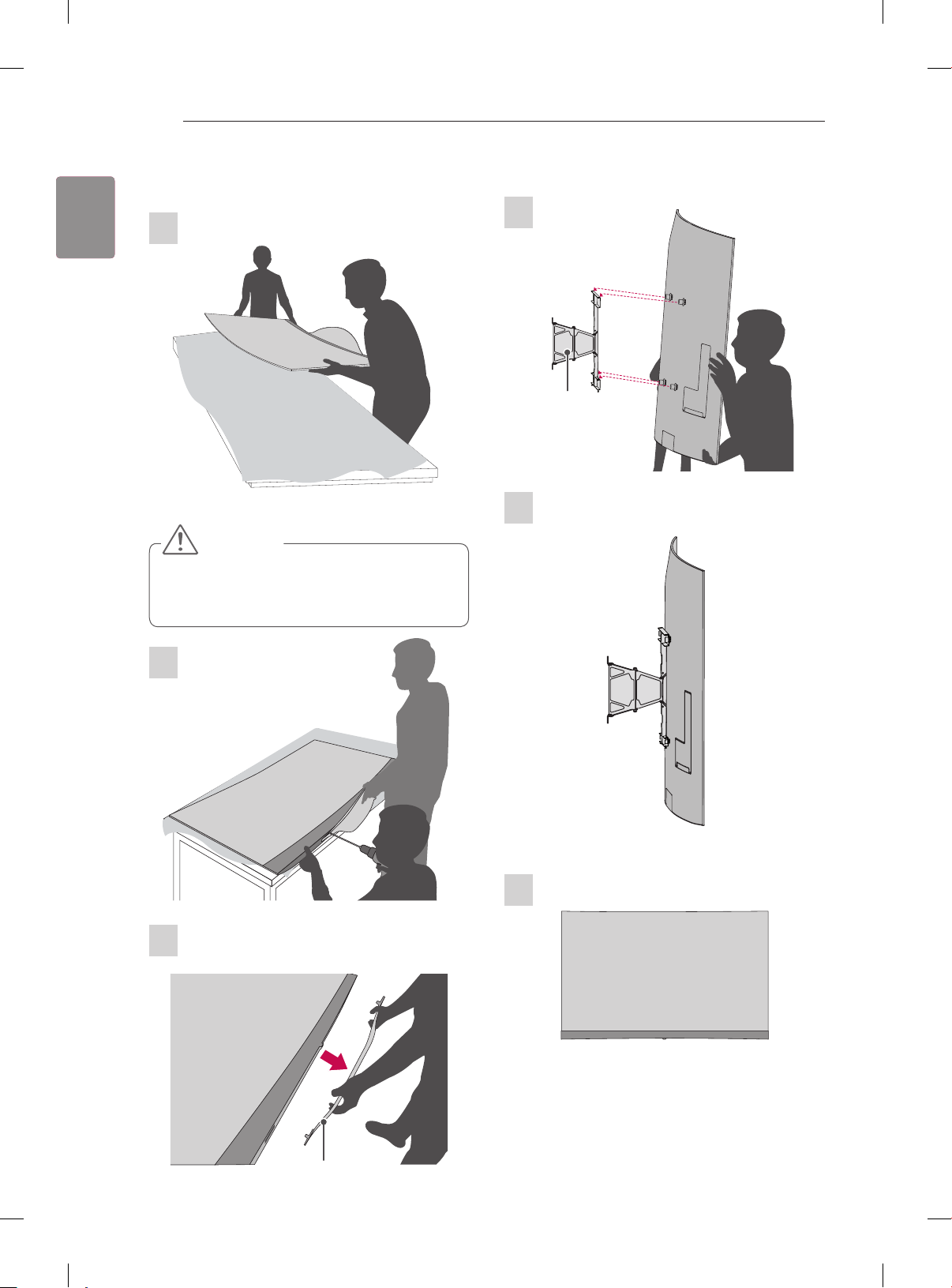

20 Mounting on a wall
21 Wall Type Set-up Guide
21 - How to detach the stand

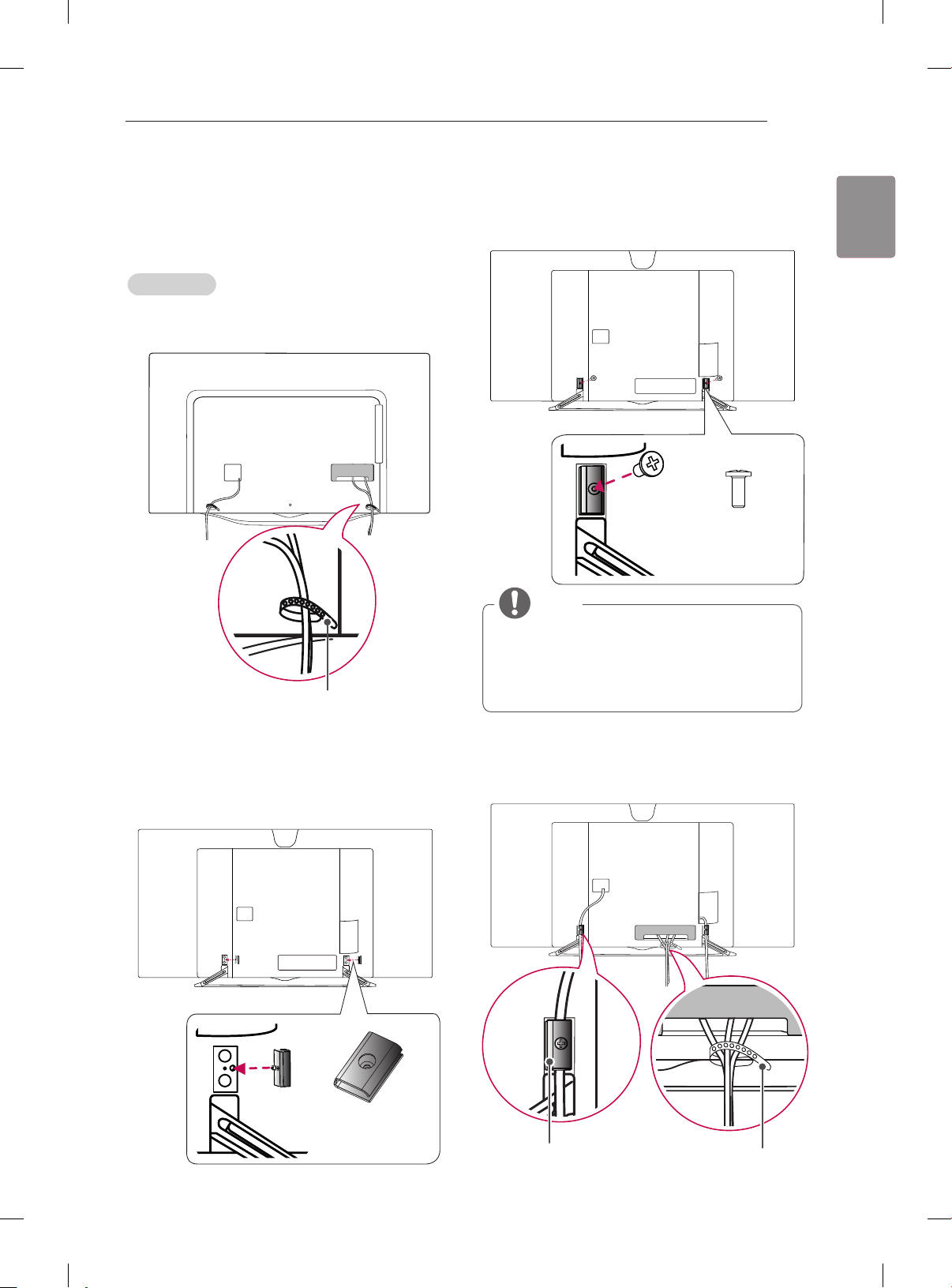

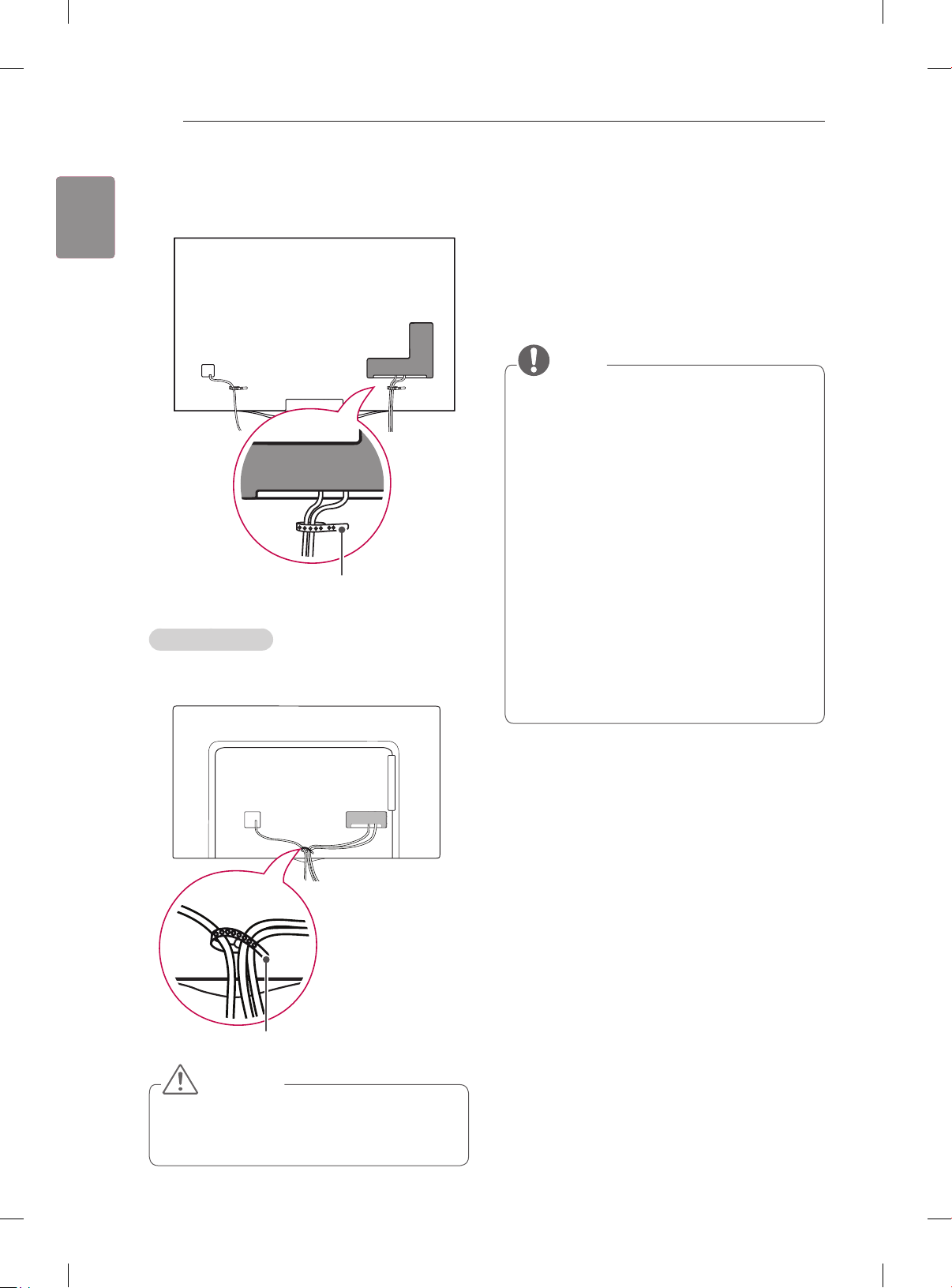

23 Tidying cables

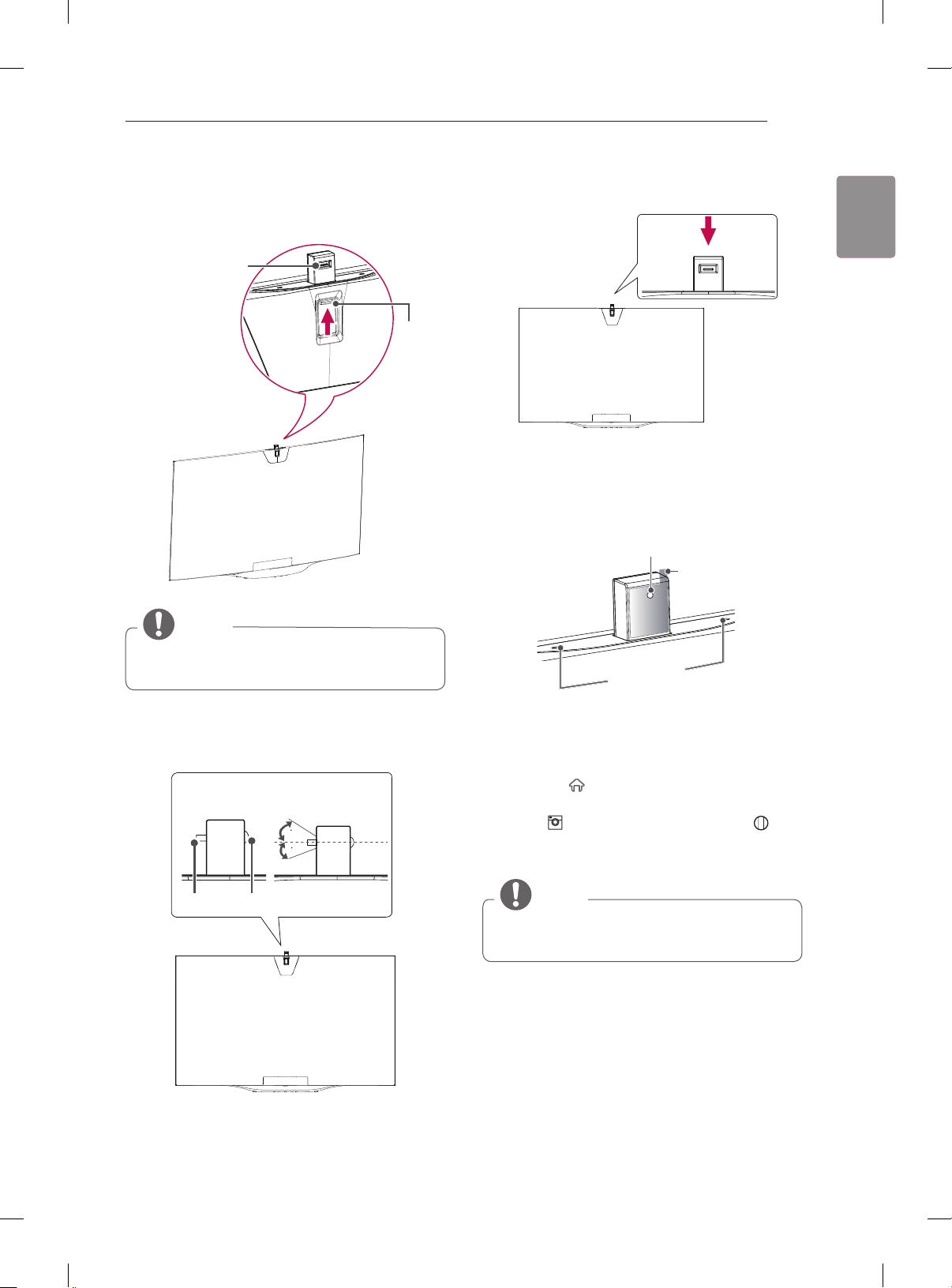

24 Using Built-in Camera
25 - Preparing Built-in Camera
25 - Name of Parts of Built-in camera
25 - Checking the Camera’s Shooting Range

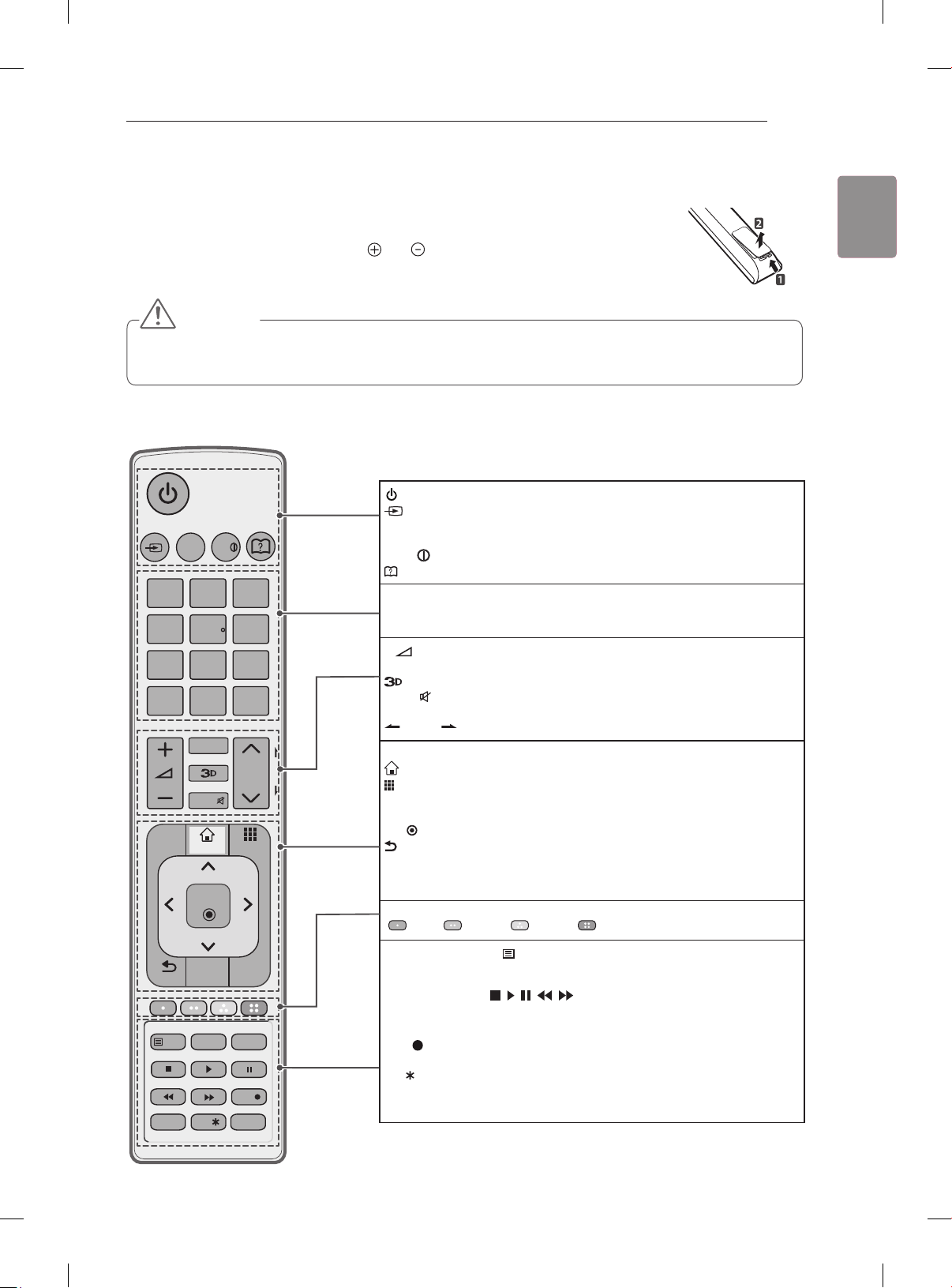

35 REMOTE CONTROL
36 MAGIC REMOTE FUNCTIONS
37 Registering Magic Remote
37 How to use magic remote
37 Precautions to Take when Using the Magic
Remote
38 USING THE USER GUIDE
39 MAINTENANCE
39 Cleaning Your TV
39 - Screen, frame, cabinet and stand
39 - Power cord
39 TROUBLESHOOTING

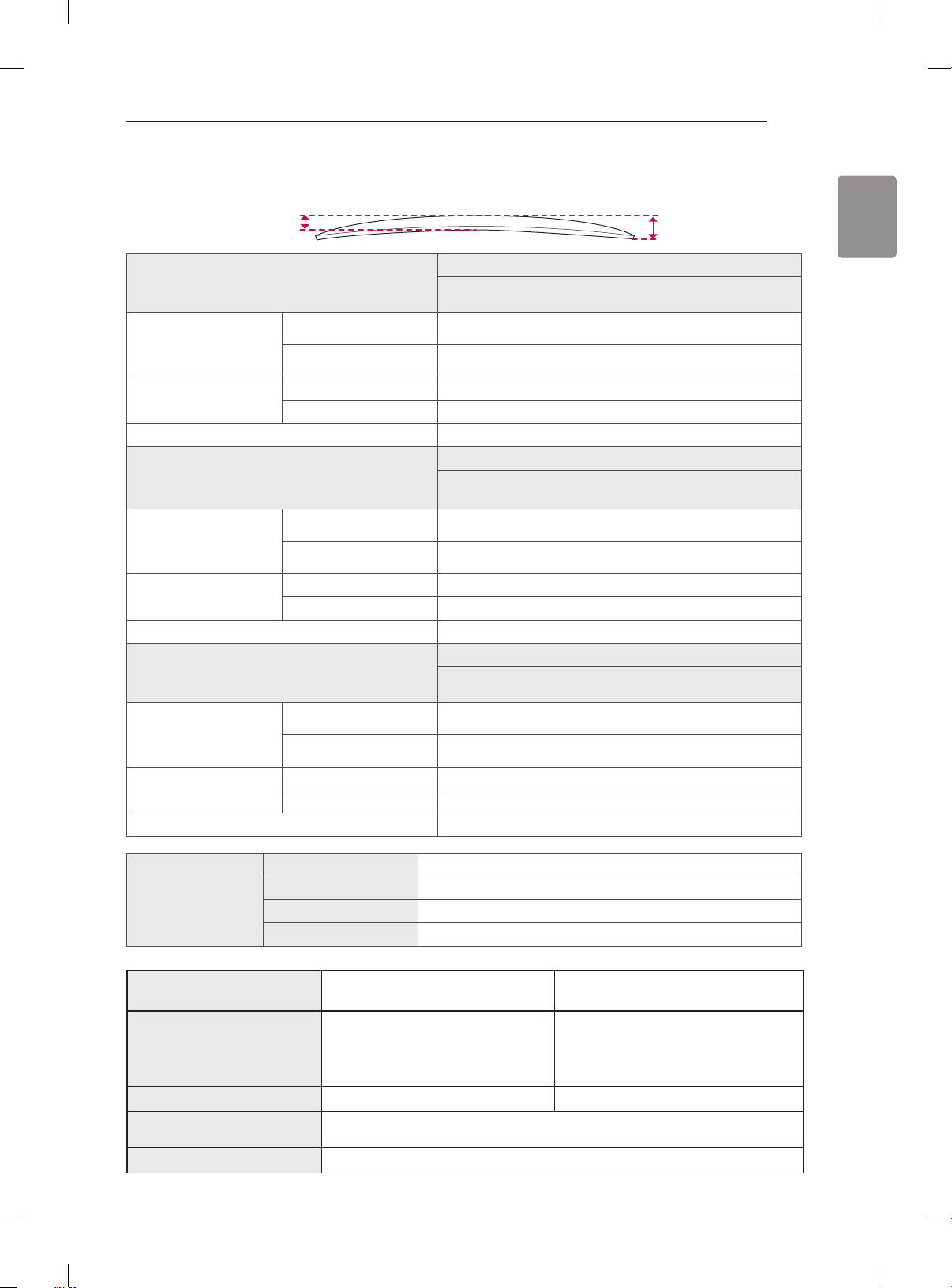

40 SPECIFICATIONS
26 MAKING CONNECTIONS

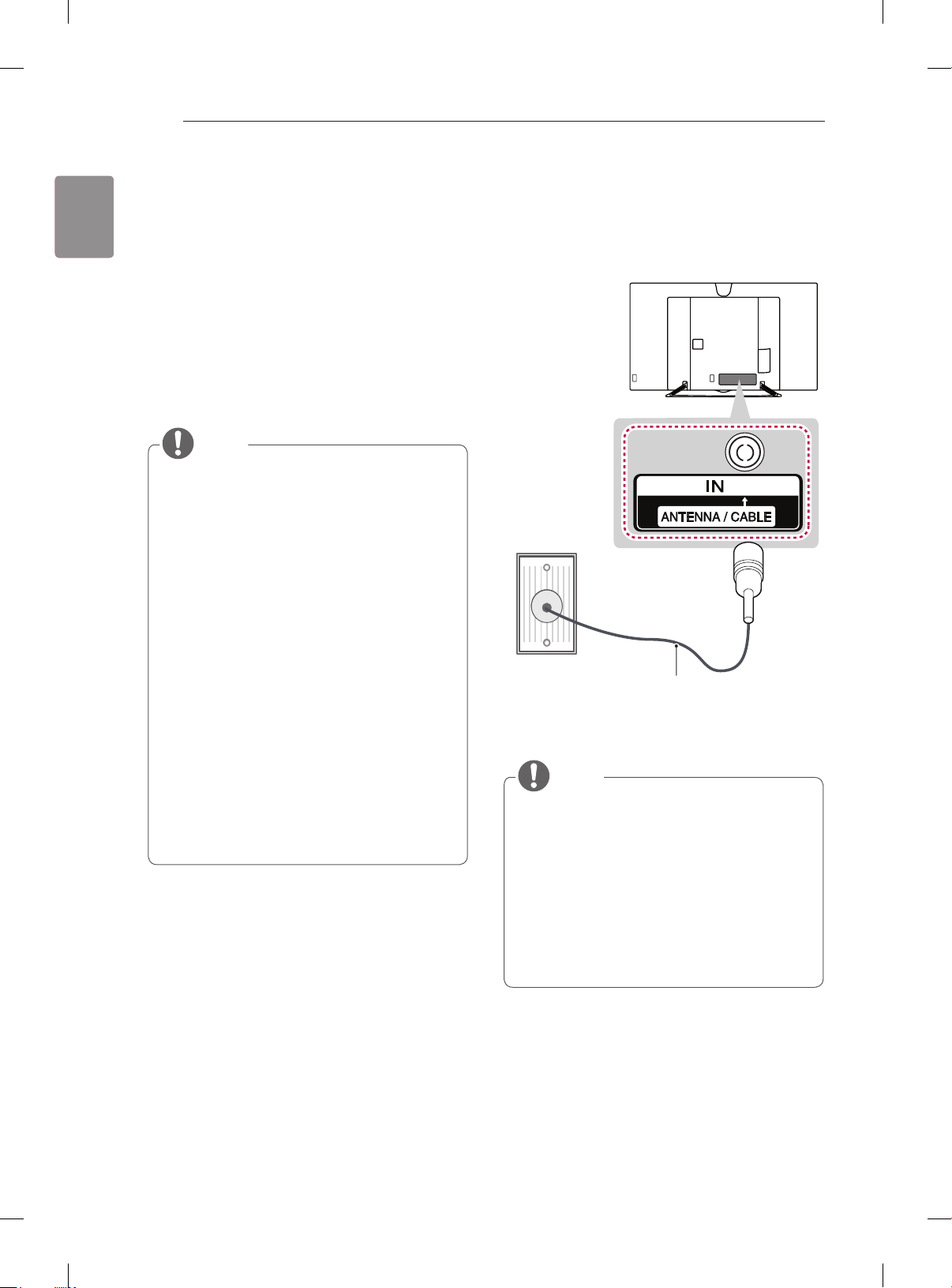

26 Antenna connection

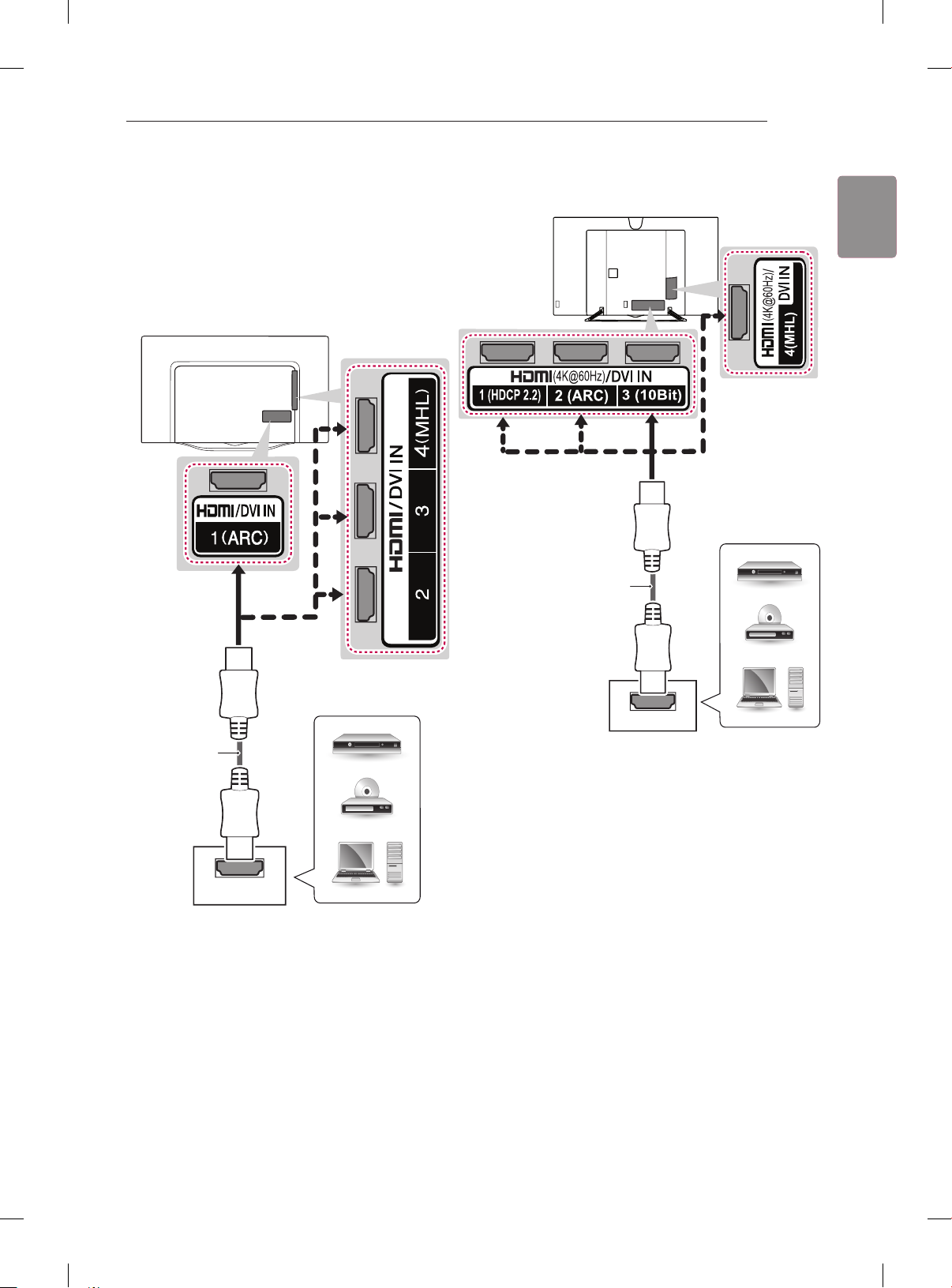

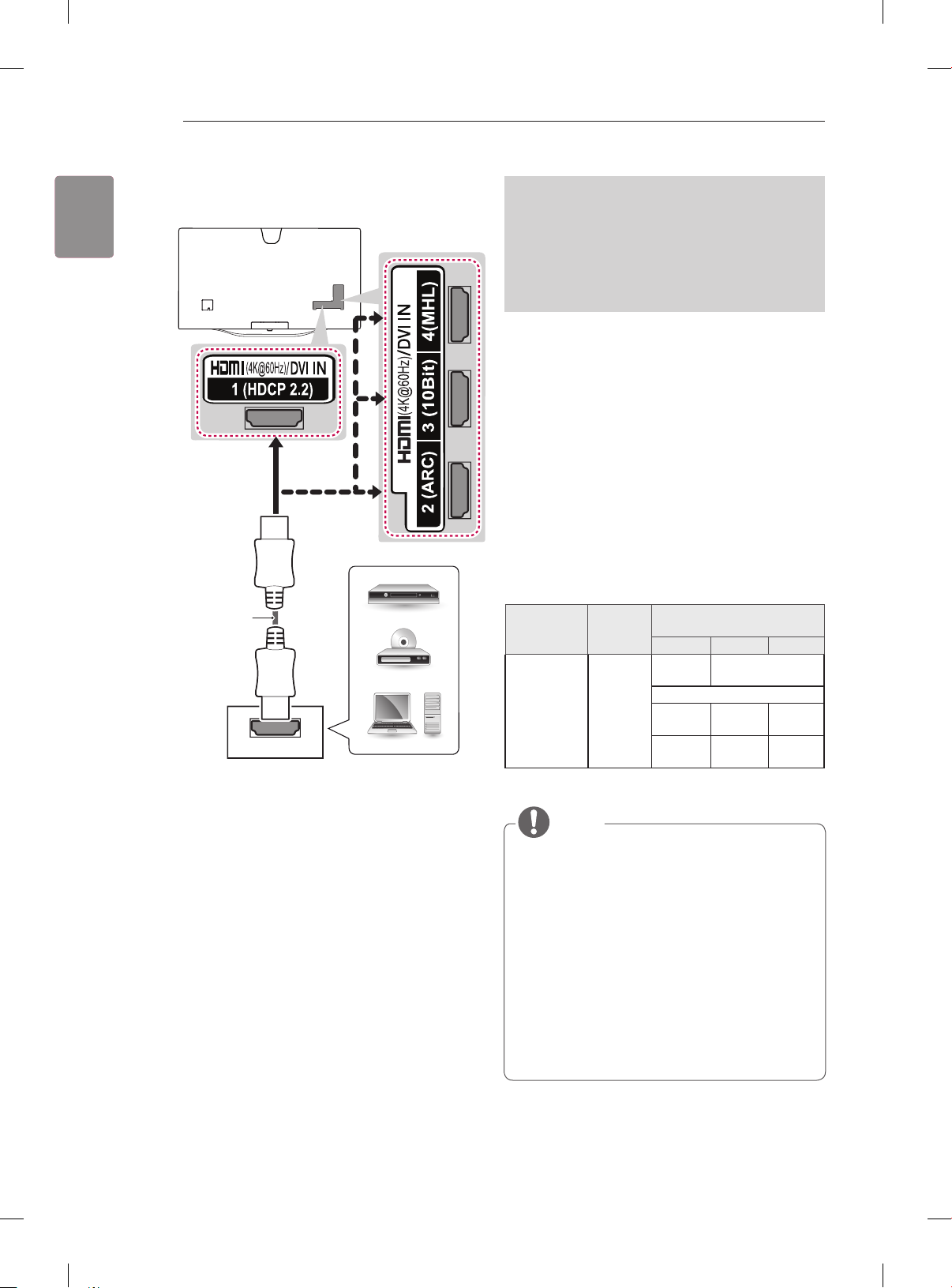

27 HDMI connection

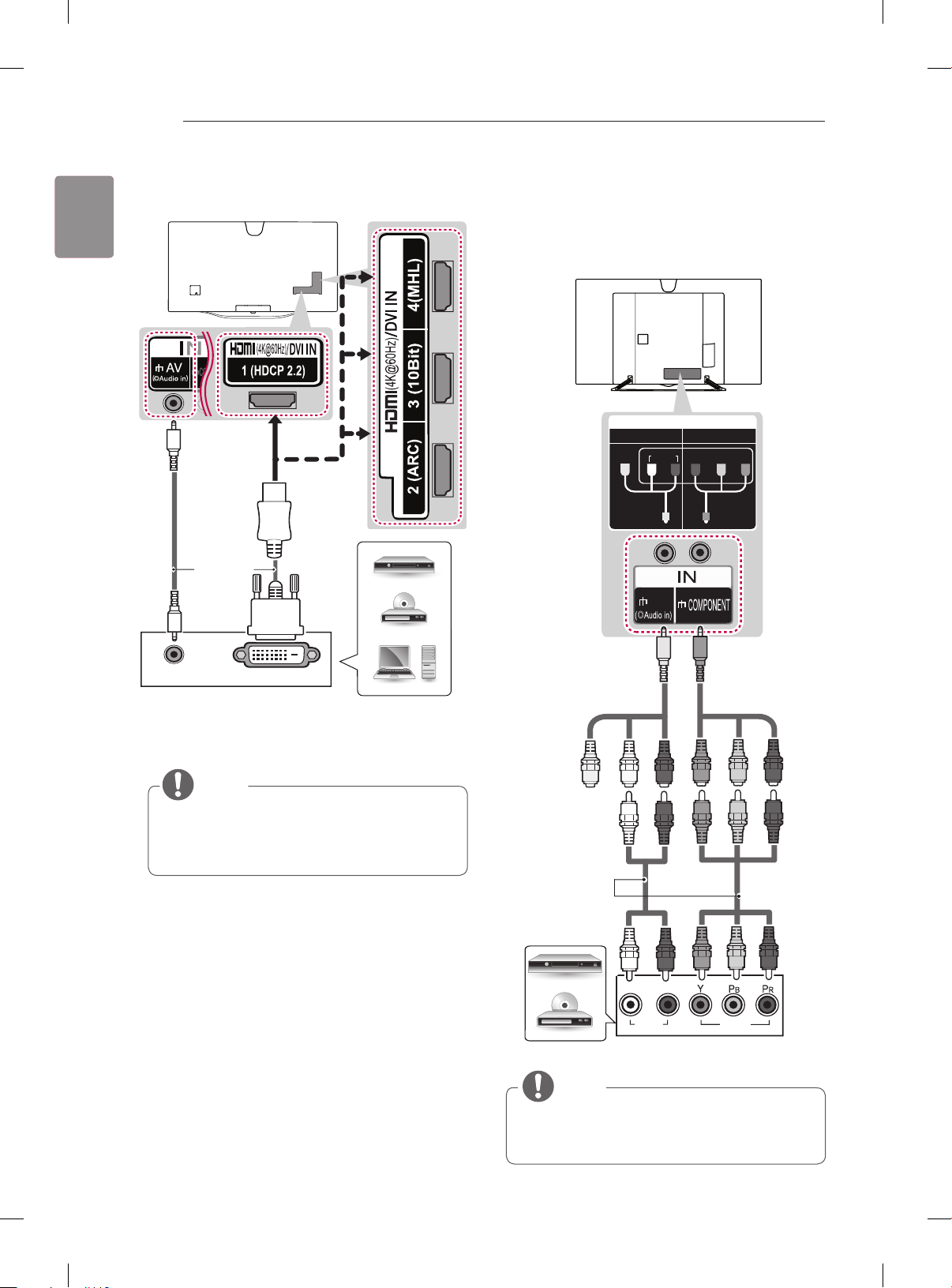

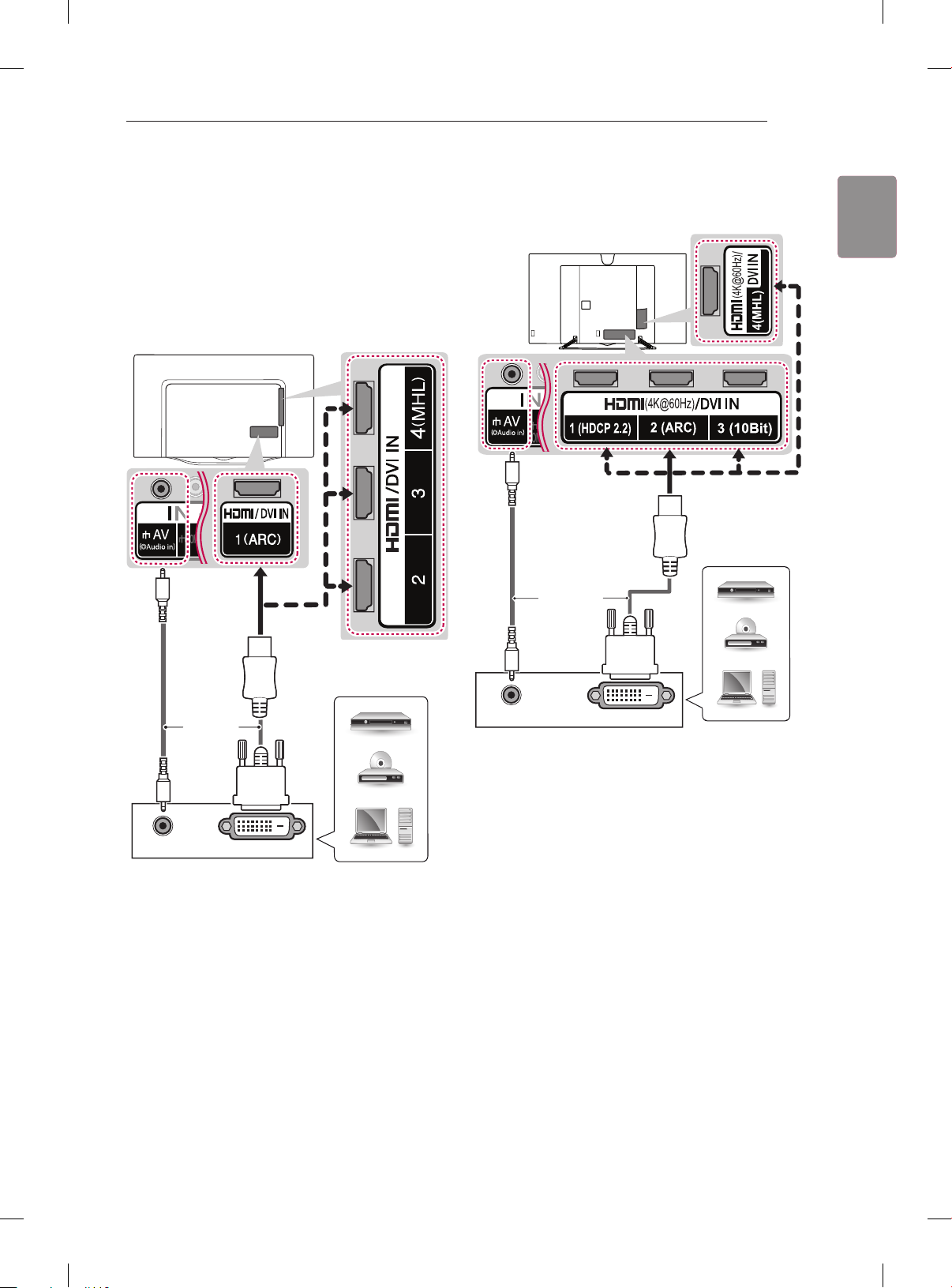

29 DVI to HDMI connection

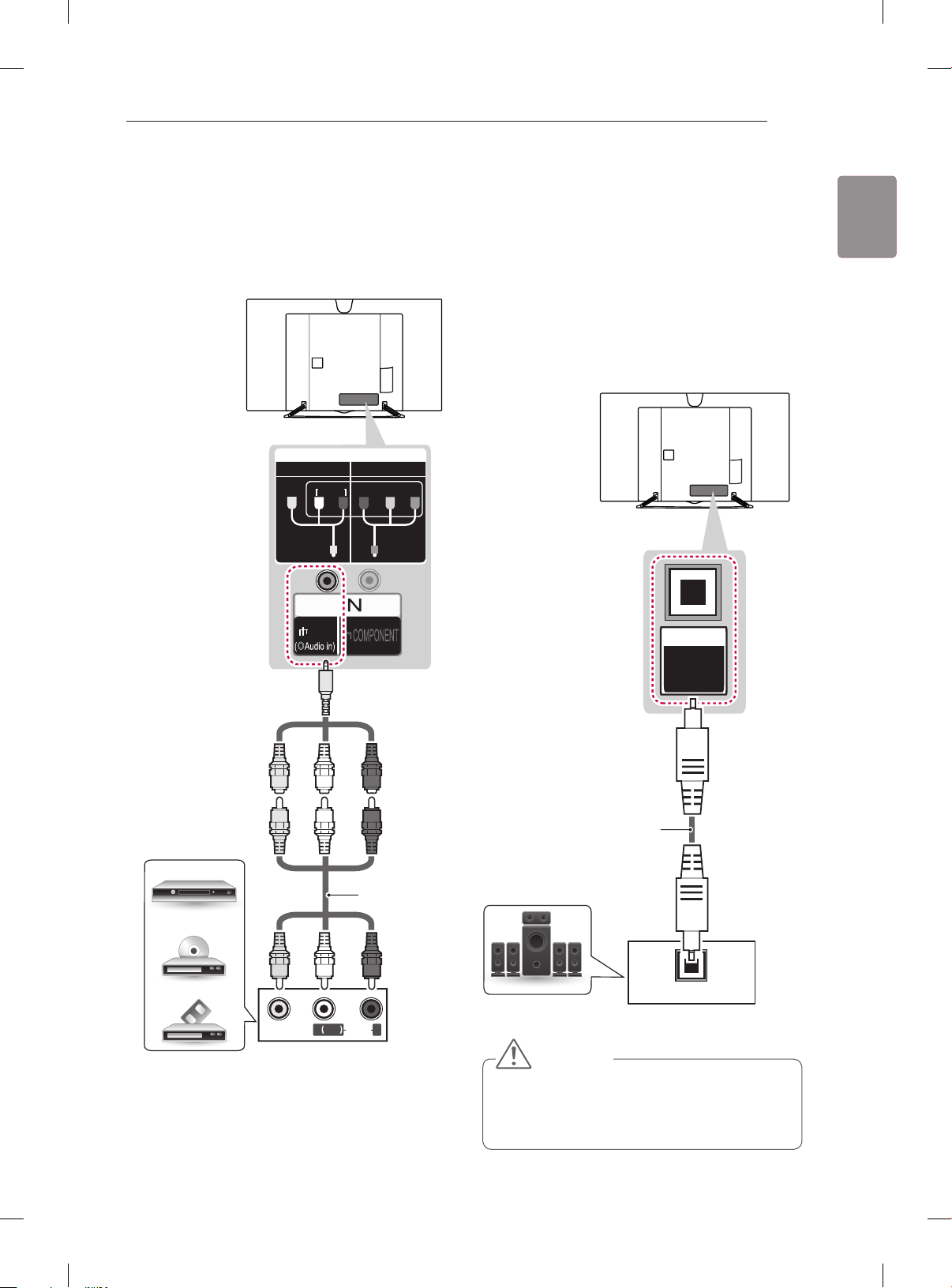

30 Component connection
31 Composite connection
31 Audio connection
31 - Digital optical audio connection

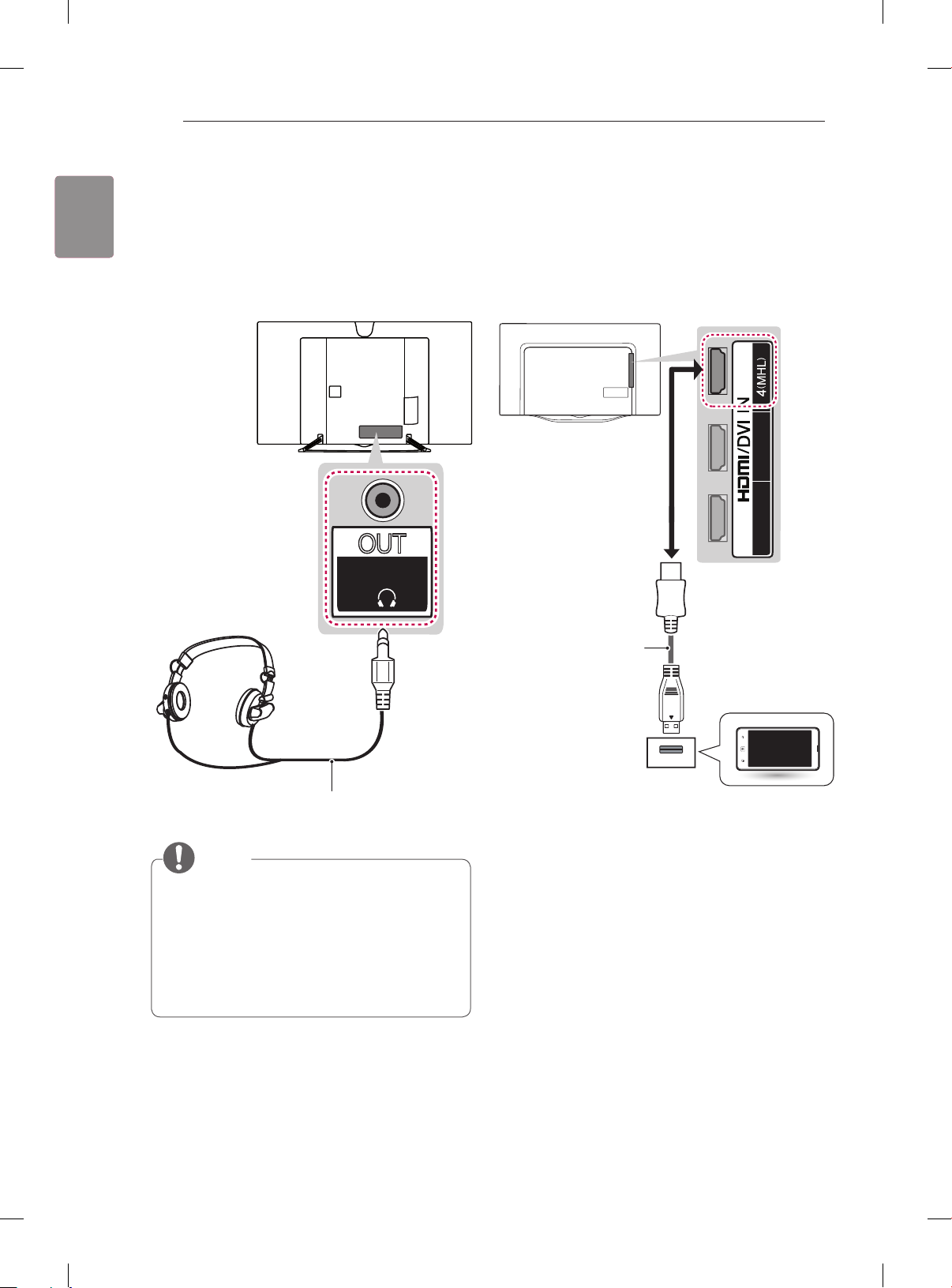

32 Headphone connection
32 MHL connection

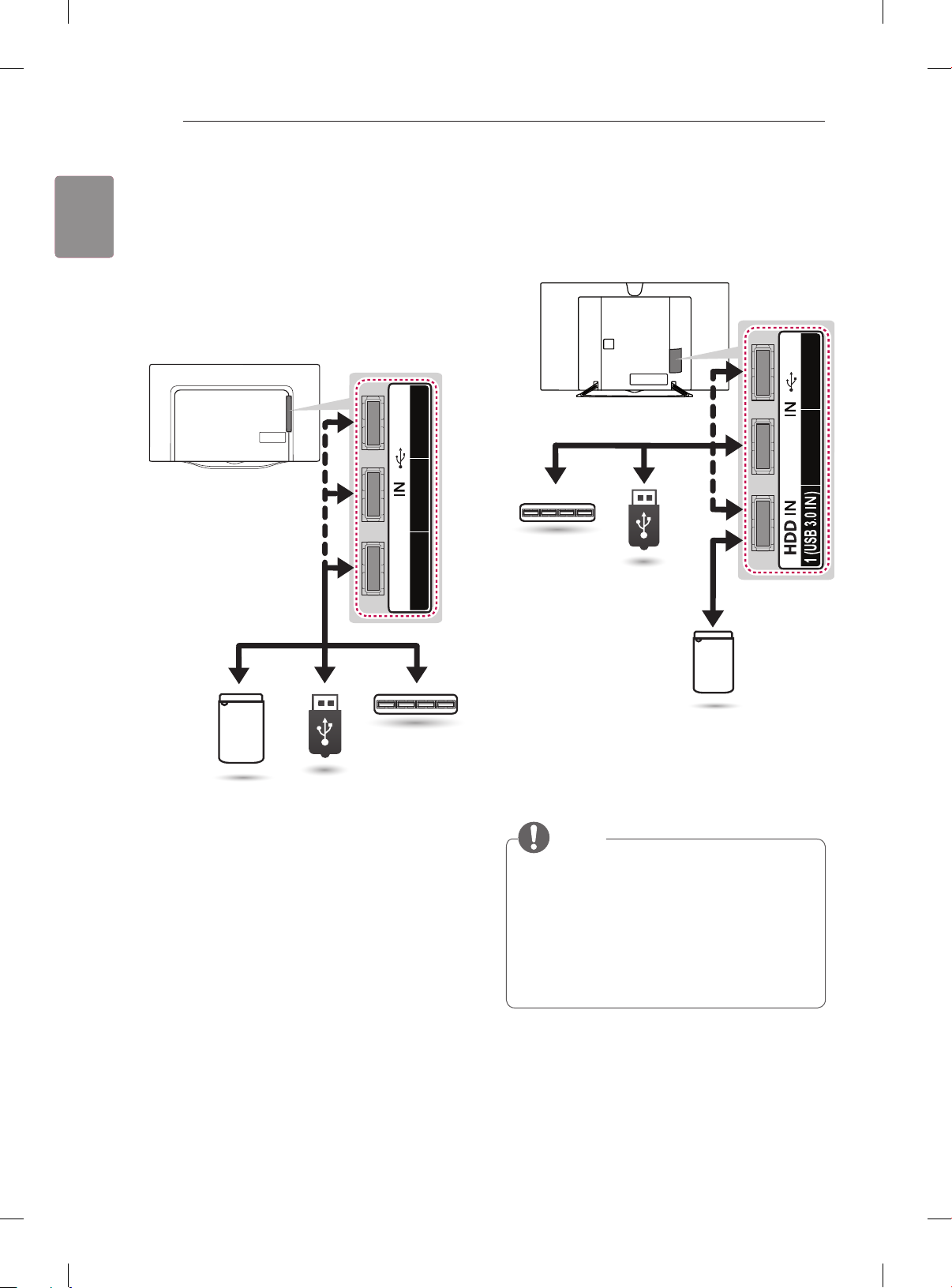

34 USB connection
WARNING
If you ignore the warning message, you may
be seriously injured or there is a possibility of
accident or death.
CAUTION
If you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
Page 3
ENG
ENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE INFORMATION / EXTERNAL CONTROL DEVICE SETUP
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
OPEN SOURCE SOFTWARE NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is
valid for three (3) years from the date on which you purchased the product.
3

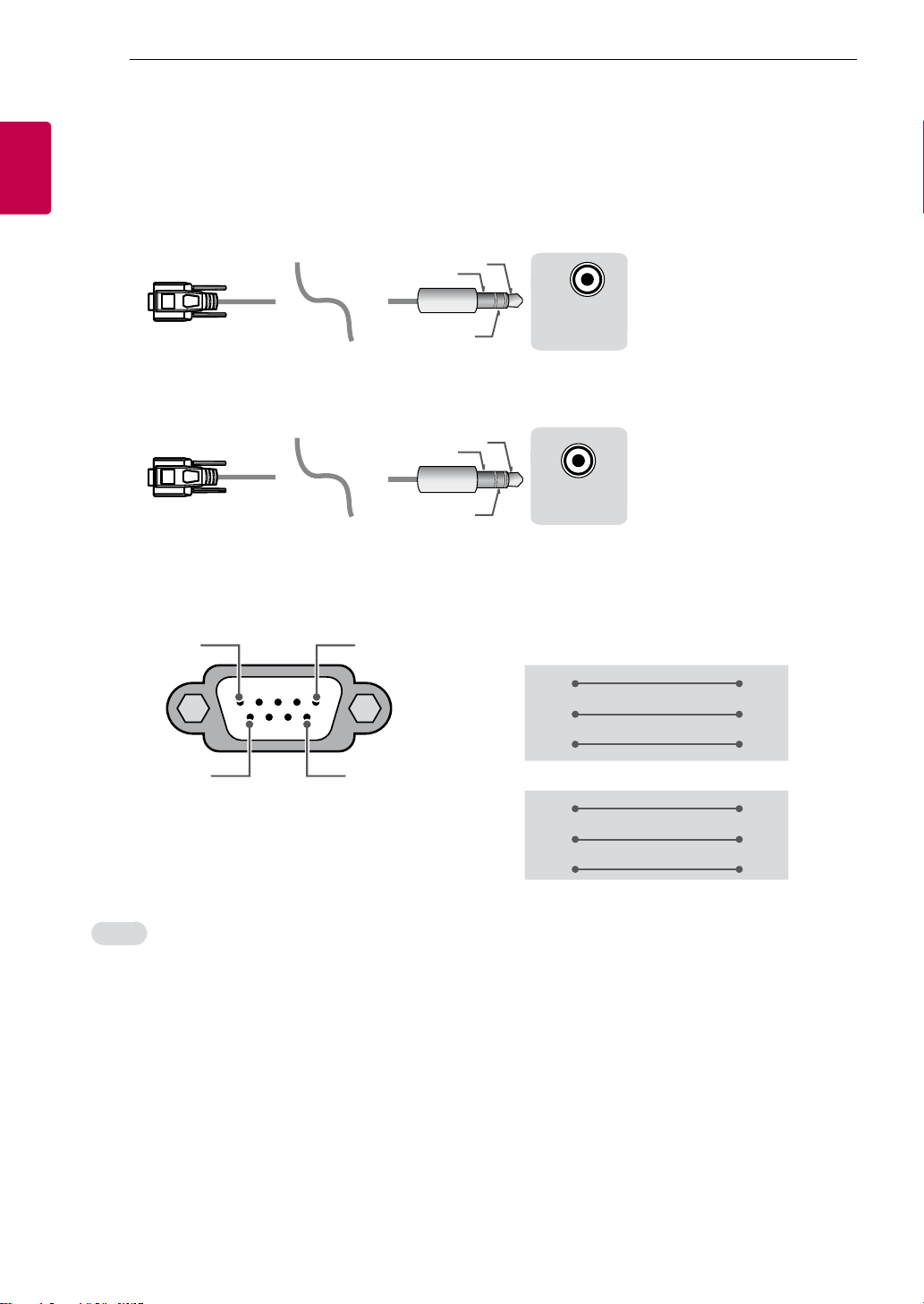

EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www.lg.com.
Page 4
ENG
ENGLISH
SAFETY INSTRUCTIONS
4
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
Do not place the TV and/or remote control in the
following environments:
- A location exposed to direct sunlight
- An area with high humidity such as a bathroom
- Near any heat source such as stoves and other
devices that produce heat
- Near kitchen counters or humidifiers where they
can easily be exposed to steam or oil
- An area exposed to rain or wind
- Near containers of water such as vases
Otherwise, this may result in fire, electric shock,
malfunction or product deformation.
Do not place the product where it might be exposed
to dust.
This may cause a fire hazard.
Mains Plug is the TV connecting/disconnecting
device to AC mains electric supply. This plug must
remain readily attached and operable when TV is
in use.
Insert power cable plug completely into wall socket
otherwise if not secured completely into socket, fire
ignition may break out.
Ensure the power cord does not come into contact
with hot objects such as a heater.
This may cause a fire or an electric shock hazard.
Do not place a heavy object, or the product itself, on
power cables.
Otherwise, this may result in fire or electric shock.
Bend antenna cable between inside and outside
building to prevent rain from flowing in.
This may cause water damaged inside the Product
and could give an electric shock.
Do not touch the power plug with wet hands. Ad-
ditionally, if the cord pin is wet or covered with dust,
dry the power plug completely or wipe dust off.
You may be electrocuted due to excess moisture.
Make sure to connect Mains cable to compliant AC
mains socket with Grounded earth pin. (Except for
devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.
When mounting TV onto wall make sure to neatly
install and isolate cabling from rear of TV as to not
create possibility of electric shock /fire hazard.
Do not plug too many electrical devices into a single
multiple electrical outlet.
Otherwise, this may result in fire due to overheating.
Page 5
ENG
ENGLISH
SAFETY INSTRUCTIONS
Do not drop the product or let it fall over when con-
necting external devices.
Otherwise, this may result in injury or damage to the
product.
Keep the anti-moisture packing material or vinyl
packing out of the reach of children.
Anti-moisture material is harmful if swallowed. If
swallowed by mistake, force the patient to vomit and
visit the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
Do not drop metallic objects such as coins, hair
pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children
must pay particular attention. Electrical shock, fire
or injury can occur. If a foreign object is dropped into
the product, unplug the power cord and contact the
service centre.
Do not spray water on the product or scrub with an
inflammable substance (thinner or benzene). Fire or
electric shock accident can occur.
5
Do not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause
serious injury.
Dispose of used batteries carefully to ensure that
a small child does not consume them. Please seek
Doctor- Medical Attention immediately if child consumes batteries.
Do not insert any metal objects/conductors (like a
metal chopstick/cutlery/screwdriver) between power
cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally,
do not touch the power cable right after plugging
into the wall input terminal. You may be electrocuted. (Depending on model)
Do not put or store inflammable substances near
the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
Do not allow any impact, shock or any objects to
fall into the unit, and do not drop anything onto the
screen.
You may be injured or the product can be damaged.
Never touch this product or antenna during a thun-
der or lighting storm.
You may be electrocuted.
Never touch the wall outlet when there is leakage of
gas, open the windows and ventilate.
It may cause a fire or a burn by a spark.
Do not disassemble, repair or modify the product at
your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check, calibration or
repair.
Page 6
ENG
ENGLISH
SAFETY INSTRUCTIONS
6
If any of the following occur, unplug the product im-
mediately and contact your local service centre.
- The product has been impacted by shock
- The product has been damaged
- Foreign objects have entered the product
- The product produced smoke or a strange smell
This may result in fire or electric shock.
Unplug the TV from AC mains wall socket if you do
not intend to use the TV for a long period of time.
Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/
fire.
If you install the TV on a stand, you need to take
actions to prevent the product from overturning.
Otherwise, the product may fall over, which may
cause injury.
If you intend to mount the product to a wall, attach
VESA standard mounting interface (optional parts)
to the back of the product. When you install the set
to use the wall mounting bracket (optional parts), fix
it carefully so as not to drop.
Only use the attachments / accessories specified by
the manufacturer.
When installing the antenna, consult with a qualified
service technician. If not installed by a qualified
technician, this may create a fire hazard or an electric shock hazard.
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
CAUTION
Install the product where no radio wave occurs.
There should be enough distance between an
outside antenna and power lines to keep the former
from touching the latter even when the antenna
falls.
This may cause an electric shock.
Do not install the product on places such as unsta-
ble shelves or inclined surfaces. Also avoid places
where there is vibration or where the product cannot
be fully supported. Otherwise, the product may fall
or flip over, which may cause injury or damage to
the product.
We recommend that you maintain a distance of at
least 2 to 7 times the diagonal screen size when
watching TV.
If you watch TV for a long period of time, this may
cause blurred vision.
Only use the specified type of battery.
This could cause damage to the remote control.
Do not mix new batteries with old batteries. This
may cause the batteries to overheat and leak.
Batteries should not be exposed to excessive heat.
For example, keep away from direct Sunlight, open
fireplace and electric heaters.
Page 7
ENG
ENGLISH
SAFETY INSTRUCTIONS
Do not place non-rechargeable batteries in charging
device.
Make sure there are no objects between the remote
control and its sensor.
Signal from Remote Control can be interrupted due
to external/internal lighting eg Sunlight, fluorescent
lighting.If this occurs turn off lighting or darken viewing area.
When connecting external devices such as video
game consoles, make sure the connecting cables
are long enough.
Otherwise, the product may fall over, which may
cause injury or damage the product.
Do not turn the product On/Off by plugging-in or
unplugging the power plug to the wall outlet. (Do not
use the power plug for switch.)
It may cause mechanical failure or could give an
electric shock.
Periodically examine the cord of your appliance,
and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and
have the cord replaced with an exact replacement
part by an authorized servicer.
Prevent dust collecting on the power plug pins or
outlet.
This may cause a fire hazard.
Protect the power cord from physical or mechani-
cal abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular
attention to plugs, wall outlets, and the point where
the cord exits the appliance.
Do not press strongly upon the panel with a hand or
sharp object such as nail, pencil or pen, or make a
scratch on it, as it may cause damage to screen.
7
Please follow the installation instructions below to
prevent the product from overheating.
- The distance between the product and the wall
should be more than 10 cm.
- Do not install the product in a place with no venti-
lation (e.g., on a bookshelf or in a cupboard).
- Do not install the product on a carpet or cushion.
- Make sure the air vent is not blocked by a table-
cloth or curtain.
Otherwise, this may result in fire.
Take care not to touch the ventilation openings
when watching the TV for long periods as the
ventilation openings may become hot. This does not
affect the operation or performance of the product.
Avoid touching the screen or holding your finger(s)
against it for long periods of time. Doing so may
produce some temporary or permanent distortion/
damage to screen.
When cleaning the product and its components,
unplug the power first and wipe it with a soft cloth.
Applying excessive force may cause scratches or
discolouration. Do not spray with water or wipe with
a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc.,
which can damage the product and its panel.
Otherwise, this may result in fire, electric shock or
product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall out-
let, it is not disconnected from the AC power source
even if you turn off this unit by SWITCH.
Page 8
ENG
ENGLISH
SAFETY INSTRUCTIONS
8
When unplugging the cable, grab the plug and un-
plug it, by pulling at the plug. Don’t pull at the cord
to unplug the power cord from the power board, as
this could be hazardous.
When moving the product, make sure you turn
the power off first. Then, unplug the power cables,
antenna cables and all connecting cables.
The TV set or power cord may be damaged, which
may create a fire hazard or cause electric shock.
When moving or unpacking the product, work in
pairs because the product is heavy.
Otherwise, this may result in injury.
The panel is a high technology display product with
resolution of two million to six million pixels. You
may see tiny black dots and/or brightly coloured
dots (white, red, blue, green) at a size of 1 ppm on
the panel. This does not indicate a malfunction and
does not affect the performance and reliability of the
product.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
You may find different brightness and colour of the
panel depending on your viewing position(left/right/
top/down).
This phenomenon occurs due to the characteristic
of the panel. It is not related with the product performance, and it is not malfunction.
Contact the service centre once a year to clean the
internal parts of the product.
Accumulated dust can cause mechanical failure.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
If the product feels cold to the touch, there may be
a small “flicker” when it is turned on. This is normal,
there is nothing wrong with product.
Displaying a still image (e.g., broadcasting channel
logo, on-screen menu, scene from a video game or
computer screen) for a prolonged time may cause
damage to the screen, resulting in retention of the
image, which is known as image sticking. It can remain for long time or never disappear. The warranty
does not cover the product for image sticking.
Avoid displaying a fixed image on your television’s
screen for a prolonged period (1 or more hours for
OLED).
Also, if you watch the TV at a ratio of 4:3 for a long
time, image sticking may occur on the borders of
the panel.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
Generated Sound
“Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is generated by
plastic thermal contraction due to tempera-ture and
humidity. This noise is common for products where
thermal deformation is required. Electrical circuit
humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product.
It varies depend-ing on the product.
This generated sound does not affect the performance and reliability of the product.
Do not use high voltage electrical goods near the
TV(e.g. electric mosquito-swatter). This may result
in product malfunction.
Page 9
ENG
ENGLISH
SAFETY INSTRUCTIONS
Viewing 3D Imaging
WARNING
Viewing Environment
Viewing Time
- When watching 3D contents, take 5 - 15 minute
breaks every hour. Viewing 3D contents for a
long period of time may cause headache, dizzi-
ness, fatigue or eye strain.
Those that have a photosensitive seizure
or chronic illness
Some users may experience a seizure or other
abnormal symptoms when they are exposed to a
ashing light or particular pattern from 3D contents.
Do not watch 3D videos if you feel nausea, are
pregnant and/ or have a chronic illness such
as epilepsy, cardiac disorder, or blood pressure
disease, etc.
3D Contents are not recommended to those who
suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be
experienced.
If you have strabismus (cross-eyed), amblyopia
(weak eyesight) or astigmatism, you may have
trouble sensing depth and easily feel fatigue due to
double images. It is advised to take frequent breaks
than the average adult.
If your eyesight varies between your right and left
eye, correct your eyesight prior to watching 3D
contents.
CAUTION
Viewing Environment
Viewing Distance
- Maintain a distance of at least twice the screen
diagonal length when watching 3D contents.
If you feel discomfort in viewing 3D contents,
move further away from the TV.
Viewing Age
Infants/Children
- Usage/ Viewing 3D contents for children under
the age of 5 are prohibited.
- Children under the age of 10 may overreact and
become overly excited because their vision is in
development (for example: trying to touch the
screen or trying to jump into it.) Special monitoring and extra attention is required for children
watching 3D contents.
- Children have greater binocular disparity of 3D
presentations than adults because the distance
between the eyes is shorter than that of adults.
Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.
Teenagers
- Teenagers under the age of 19 may react with
sensitivity due to stimulation from light in 3D
contents. Advise them to refrain from watching
3D contens for a long time when they are tired.
Elderly
- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV
than the recommended distance.
9
Symptoms which require discontinuation
or refraining from watching 3D contents
Do not watch 3D contents when you feel fatigue from
lack of sleep, overwork or drinking.
When these symptoms are experienced, stop using/
watching 3D contents and get enough rest until the
symptom subsides.
- Consult your doctor when the symptoms persist.
Symptoms may include headache, eyeball
pain, dizziness, nausea, palpitation, blurriness,
discomfort, double image, visual inconvenience
or fatigue.
Cautions when using the 3D glasses
Make sure to use LG 3D glasses. Otherwise, you
may not be able to view 3D videos properly.
Do not use 3D glasses instead of your normal
glasses, sunglasses or protective goggles.
Using modied 3D glasses may cause eye strain or
image distortion.
Do not keep your 3D glasses in extremely high or
low temperatures. It will cause deformation.
The 3D glasses are fragile and are easily scratched.
Always use a soft, clean piece of cloth when wiping
the lenses.
Do not scratch the lenses of the 3D glasses with
sharp objects or clean/wipe them with chemicals.
Page 10
ENG
ENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
A
A
10
NOTE
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are using.
New features may be added to this TV in the future.
The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it
will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and
this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Connect an external device to the TV set.
3 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
* If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few
minutes.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product.
The illustrations in this manual may differ from the actual product and item.
CAUTION
Do not use any unapproved items to ensure the safety and product life span.
Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.
Some models have a thin film attached on to the screen and this must not be removed.
WARNING
You need to enable easy access for connecting and disconnecting electric cables fed from the mains.
NOTE
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to upgrade of product func-
tions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width.
Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB
port.
B
B
A 10 mm
*
*B 18 mm
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
(Recommended HDMI Cable Types)
- High-Speed HDMI
- High-Speed HDMI
®/TM
Cable
®/TM
Cable with Ethernet
Page 11
ENG
ENGLISH
ASSEMBLING AND PREPARING
11
Owner’s manual Remote control,
Cable Holder
(See p.23, 24)
AV Cover
(Only EC93**)
(See p.18)
batteries (AAA)
The remote control will not
be included for all sales
market.
(Depending on model)
(See p.35)
Component gender cable
(See p.30)
AV Cover
(Only EC97**)
(See p.18)
Magic remote,
Batteries (AA)
(See p.36)
Composite gender cable
(See p.30, 31)
AV Cover
(Only EG97**)
(See p.18)
Cinema 3D glasses
The number of 3D glasses
may differ depending on
the model or country.
HDMI Cable
(Depending on model)
(See p.27, 28)
Cable Managements
2 EA
(Only EC97**)
(See p.23)
Cable Management
Screws
2 EA, M4 x L10
(Only EC97**)
(See p.23)
Cleaning Cloth
(Depending on model)
Page 12
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Separate purchase
Separate purchase items can be changed or modied for quality improvement without any notication.
Contact your dealer to buy these items.
These devices only work with certain models.
AG-F***
Cinema 3D Glasses
LG Audio Device
Compatibility
AG-F***
Cinema 3D Glasses
AN-MR500
Magic Remote
AN-VC5**
Video call camera
AN-MR500
Magic Remote
EC93** EC97** EG97**
AN-VC5**
Video call camera
• • •
• • •
•
AG-F***DP
Dual Play Glasses
AG-F***DP
Dual Play Glasses
LG Audio Device • • •
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.
• • •
Page 13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
13
A type : EC93**
<Front>
Speakers
Remote Control Sensor and
Intelligent Sensor
LG Logo Light
Screen
<Rear>
1
Joystick button
2
B type : EC97**
Joystick button
Built-In Camera
Speakers
Remote Control Sensor
and Intelligent Sensor
LG Logo Light
3
Screen
1
Page 14
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
C type : EG97**
LG Logo Light
<Front>
Built-In Camera
Speakers
Remote Control Sensor and
Intelligent Sensor
Screen
1
Joystick button
<Rear>
2
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button - This button is located behind the TV screen.
3 Joystick Button - This button is located below the TV screen.
NOTE
You can set the LG Logo Light to on or off by selecting GENERAL in the main menus.
Page 15
ENG
ENGLISH
ASSEMBLING AND PREPARING

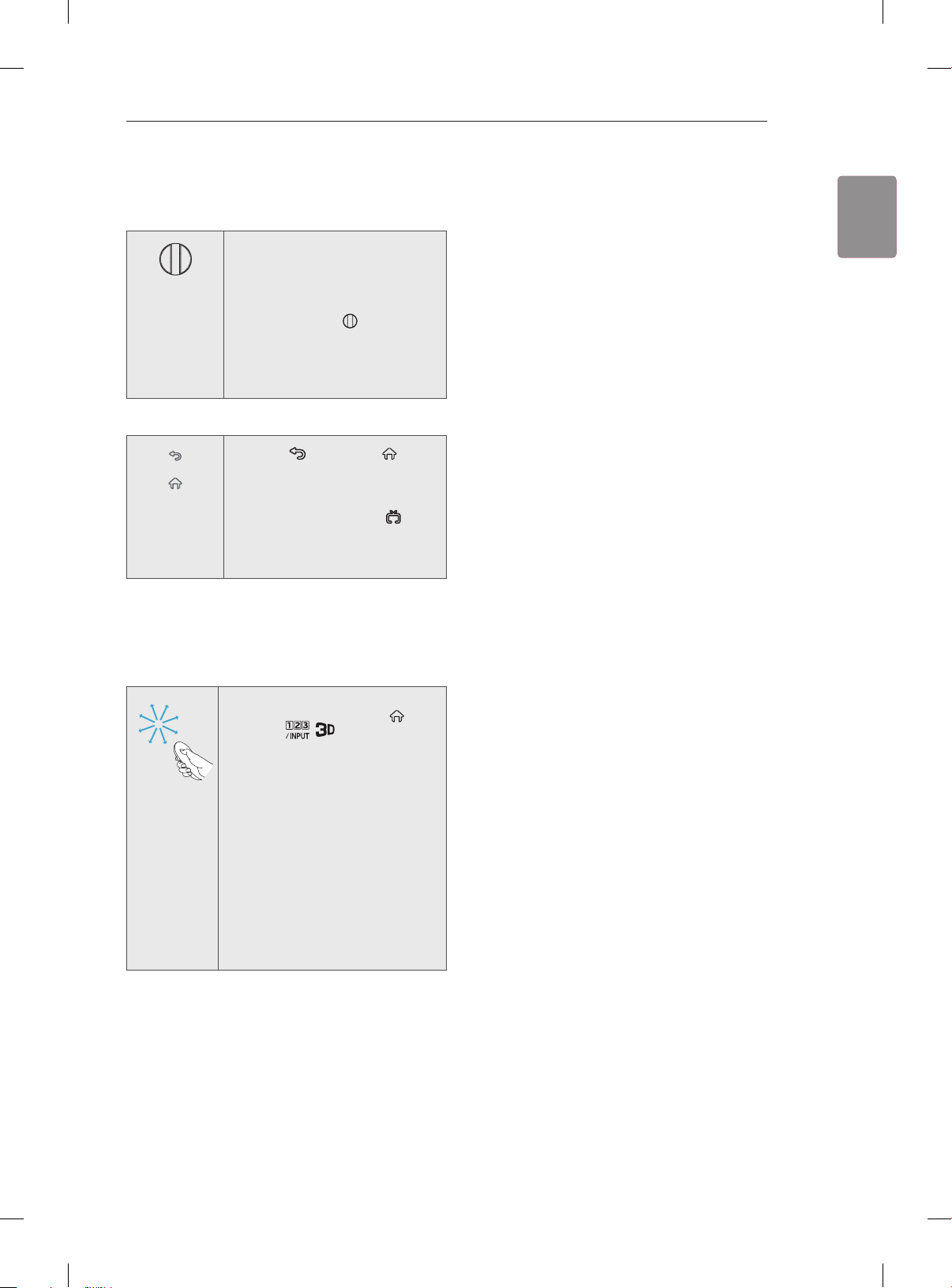

Using the joystick button
15
You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
Basic Functions
Power On
Power Off
Volume Control
Programmes
Control
When the TV is turned off, place your finger on the joystick button and press
it once and release it.
When the TV is turned on, place your finger on the joystick button and press
it once for a few seconds and release it.
If you place your finger over the joystick button and move it left or right, you
can adjust the volume level you want.
If you place your finger over the joystick button and move it up or down, you
can scrolls through the saved programmes you want.
NOTE
When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the
joystick button. If you press the joystick button first, you may not be able to adjust the volume level and saved
programmes.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items ( , , ) moving the joystick button left or right.
TV OFF Turns the power off.
CLOSE Clears on-screen displays and returns to TV viewing.
INPUT Changes the input source.
Page 16
ENG
ENGLISH
ASSEMBLING AND PREPARING
16
Lifting and moving the TV
Please note the following advice to prevent the TV from
being scratched or damaged and for safe transportation
regardless of its type and size.
CAUTION
Avoid touching the screen at all times, as this may
result in damage to the screen.
It is recommended to move the TV in the box or
packing material that the TV originally came in.
Before moving or lifting the TV, disconnect the
power cord and all cables.
When holding the TV, the screen should face away
from you to avoid damage.
When transporting a large TV, there should be at
least 2 people.
When transporting the TV by hand, hold the TV as
shown in the following illustration.
When transporting the TV, do not expose the TV to
jolts or excessive vibration.
When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left or
right.
Do not apply excessive pressure to cause flexing /
bending of frame chassis as it may damage screen.
Be sure to keep your TV upright instead of laying or
tilting it while moving the TV.
When handling the TV, be careful not to damage the
protruding joystick button.
Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grill area.
Page 17
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
17
(Image shown may differ from your TV.)
Detaching the stand
(Only EC93**, EG97**)
1
Screen
(Only EC93**)
4 EA
M4 x L20
(Only EG97**)
8 EA
M4 x L20
(Only EC97**)
1
2
Back cover
8 EA
M4 x L20
Back cover
2
Screen
CAUTION
When you assemble the stand, have the arrows on
the bottom of the stand base looking towards the
same direction as the screen.
When detaching the stand, make sure to hold it
firmly while removing the screws to stop it from
falling.
CAUTION
When detaching the stand to the TV set, place the
screen(or back) facing down on a cushioned table
or flat surface to protect the screen(or back) from
scratches.
Make sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after being installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and not
tighten correctly.
NOTE
When you assemble the stand again, performing
the stand detaching in reverse.
Page 18
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
10 cm
10 cm
10 cm
10 cm

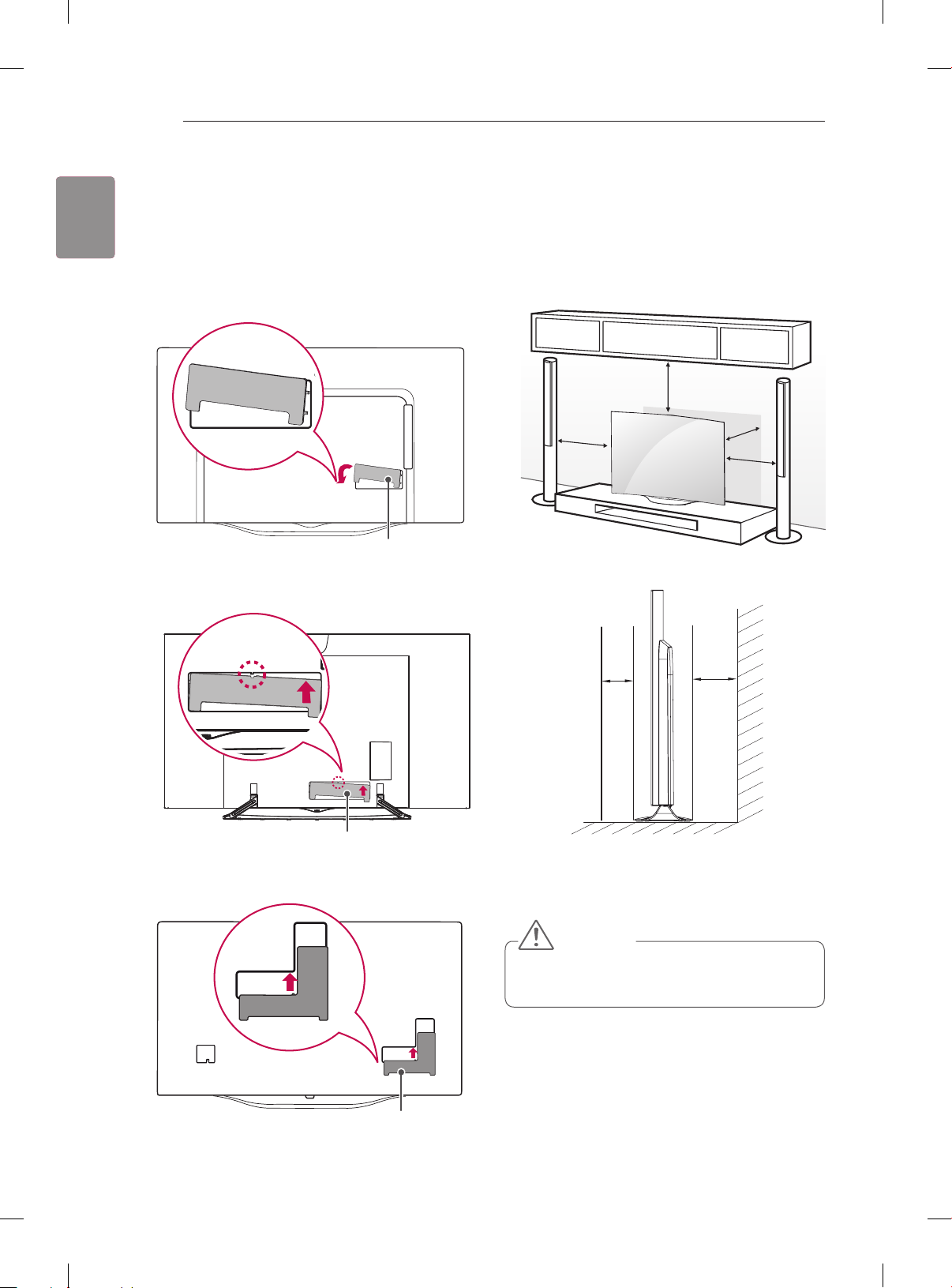

Attaching the AV cover
Assemble the AV Cover as shown.
(Only EC93**)
(Only EC97**)
AV cover
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall for
proper ventilation.
10 cm
10 cm
10 cm
10 cm
(Only EG97**)
AV cover
AV cover
5 cm
2 Connect the power cord to a wall outlet.
10 cm
CAUTION
Do not place the TV near or on sources of heat, as
this may result in fire or other damage.
Page 19
ENG
ENGLISH
ASSEMBLING AND PREPARING
WARNING
If a television is not positioned in a sufficiently
stable location, it can be potentially hazardous
due to falling. Many injuries, particularly to
children, can be avoided by taking simple
precautions such as:
» Using cabinets or stands recommended by
the manufacturer of the television.
» Only using furniture that can safely support
the television.
» Ensuring the television is not overhanging
the edge of the supporting furniture.
» Not placing the television on tall furniture (for
example, cupboards or bookcases) without
anchoring both the furniture and the television to a suitable support.
» Not standing the televisions on cloth or other
materials placed between the television and
supporting furniture.
» Educating children about the dangers of
climbing on furniture to reach the television
or its controls.
19

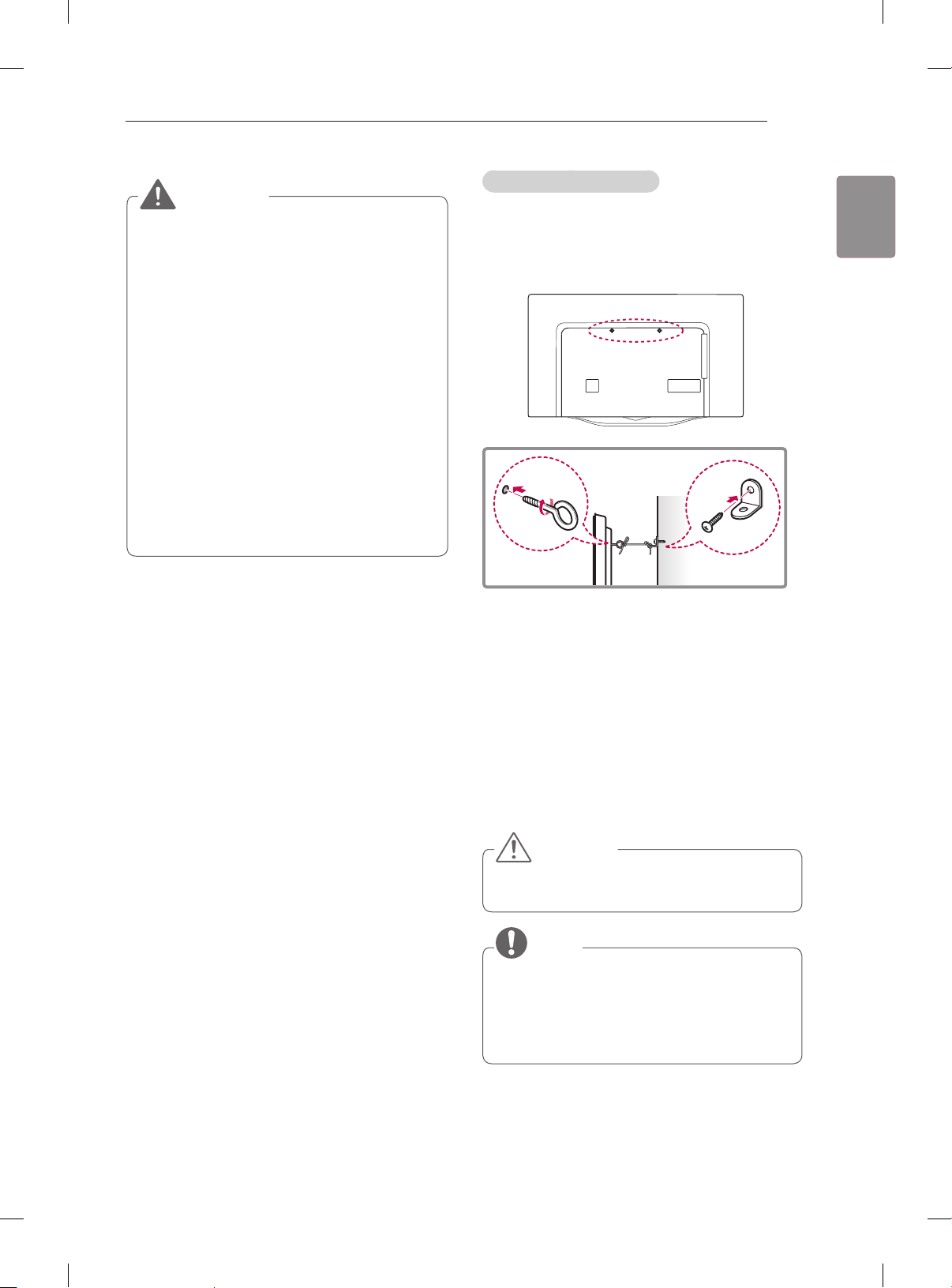

Securing the TV to a wall
(This feature is not available for all models.)
To use the desk-type stand safely, make sure to securely
attach it to a wall.
1 Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eyebolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a
sturdy rope.
Make sure to keep the rope horizontal with the at
surface.
CAUTION
Make sure that children do not climb on or hang
on the TV.
NOTE
Use a platform or cabinet that is strong and large
enough to support the TV securely.
Brackets, bolts and ropes are not provided. You
can obtain additional accessories from your local
dealer.
Page 20
ENG
ENGLISH
ASSEMBLING AND PREPARING
A
B
20

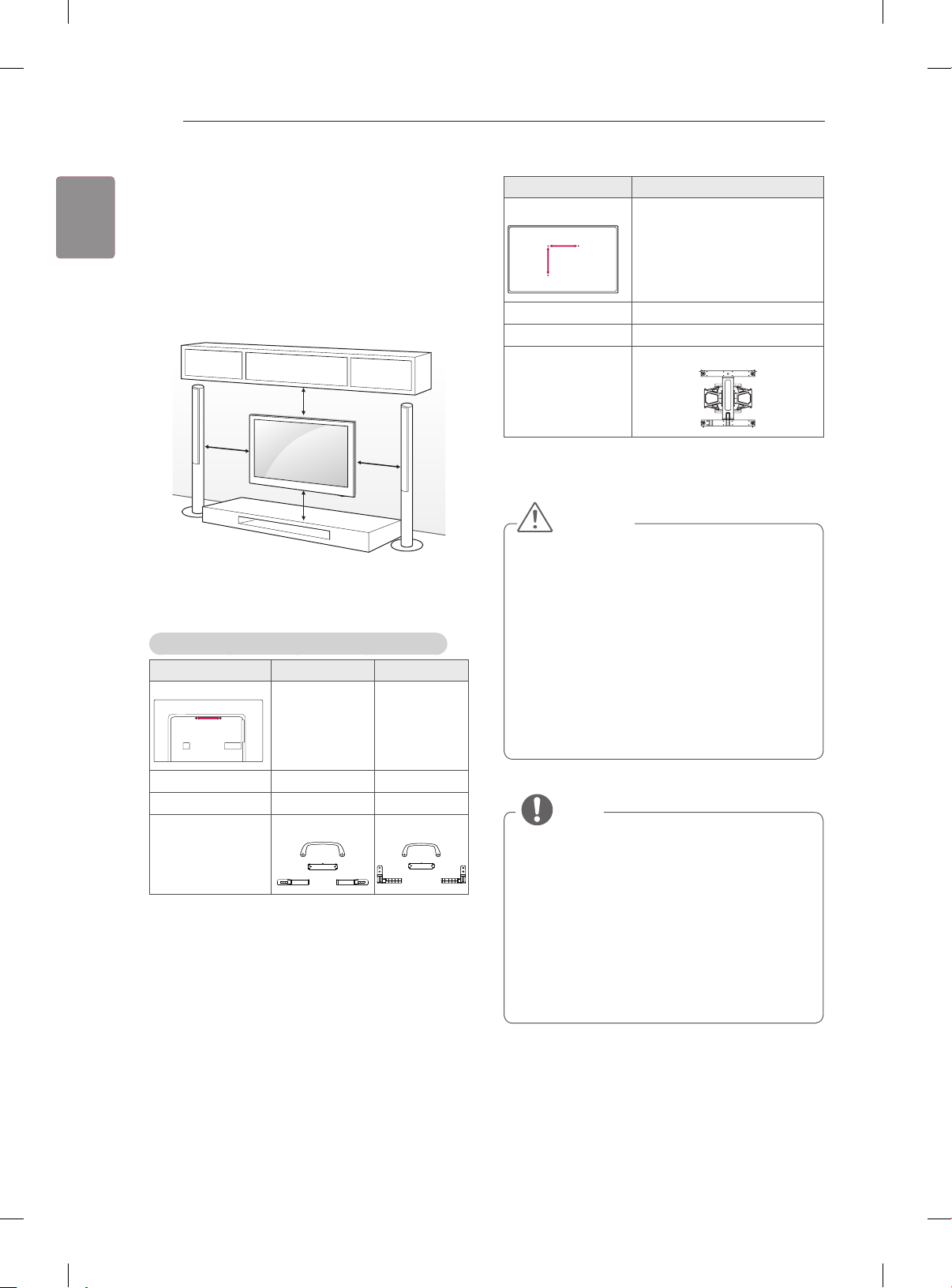

Mounting on a wall
Attach an optional wall mount bracket at the rear of the
TV carefully and install the wall mount bracket on a solid
wall perpendicular to the floor. When you attach the
TV to other building materials, please contact qualified
personnel.
LG recommends that wall mounting be performed by a
qualified professional installer.
Model 77EG97**
VESA (A x B) (mm)
400 x 400
Standard screw M6
Number of screws 4
LSW420BX
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount bracket that
meet the VESA standard. Standard dimensions for the
wall mount kits are described in the following table.
Separate purchase(Wall Mounting Bracket)
Model 55EC93** 65EC97**
(A) (mm)
A
210 210
Standard screw
Number of screws
Wall mount bracket
M6 M6
2 2
OSW100 OSW200
Wall mount bracket
CAUTION
Disconnect the power first, and then move or
install the TV. Otherwise electric shock may
occur.
If you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury.
Use an authorized LG wall mount and contact the
local dealer or qualified personnel.
Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
Use the screws and wall mounts that meet the
VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the manufacturer’s warranty.
NOTE
Use the screws that are listed on the VESA
standard screw specifications.
The wall mount kit includes an installation manual
and necessary parts.
The wall mount bracket is not provided. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending on the
wall mount. Make sure to use the proper length.
For more information, refer to the manual supplied
with the wall mount.
Page 21
ENG
ENGLISH
ASSEMBLING AND PREPARING
21

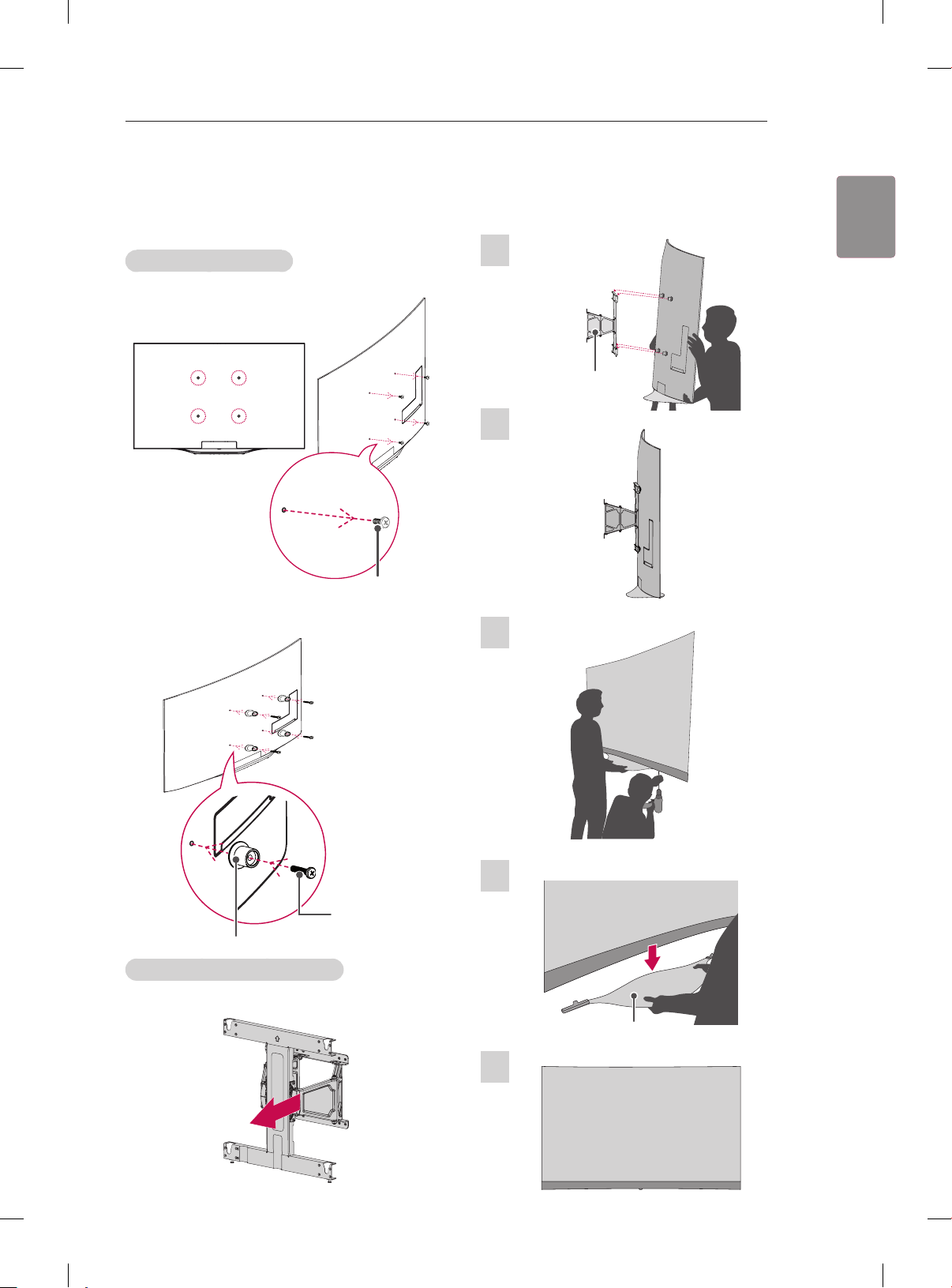

Wall Type Set-up Guide
(Only EG97** - Separate purchase)
Guide spacer assembly
1 Remove the VESA screws (4 EA).
VESA screw
2 Assemble Guide spacer (4 EA) and Guide spacer
screws (4 EA).
How to detach the stand
Type 1. Hanging the TV on the wall before removing a
stand.
1
Wall mount
bracket
2
3
Guide spacer
screw
Guide spacer
Wall mount bracket installation
1 After installation, move the bracket forward.
4
Stand
5
Page 22
ENG
ENGLISH
ASSEMBLING AND PREPARING
22
Type 2. Hanging the TV on the wall after removing a
stand.
4
1
Wall mount
bracket
5
CAUTION
When laying the TV on its back on a padded
table or surface, be careful to prevent the TV from
being damaged.
2
3
6
Stand
Page 23
ENG
ENGLISH
ASSEMBLING AND PREPARING
Tidying cables
23
2 Fix the cable management with cable management
screw.
(Image shown may differ from your TV.)
Stand Type
(Only EC93**)
Gather and bind the cables with the cable holder.
Cable Holder
M4 x L10
2 EA
NOTE
When attaching the cable management, use a
magnetic screwdriver.
If you don’t have a magnetic screwdriver, insert
the screws into the cable management and then
attach it to the TV.
(Only EC97**)
1 Put the cable management in the hole of TV back
cover.
Cable
Management
2 EA
3
Gather and bind the cables with the cable holder.
Arrange the cables in the cable mangement.
Cable Management
Cable Holder
Page 24
24
ENG
ENGLISH
ASSEMBLING AND PREPARING
(Only EG97**)
Gather and bind the cables with the cable holder.
Using Built-in Camera
Wall Mount Type
(Only EC93**)
Cable Holder
(Only EC97**, EG97**)
You can make a video call or use the motion recognition
function using the built-in camera of the TV. This TV
does not support the use of an external camera.
NOTE
Before using the built-in camera, you must recognize
the fact that you are legally responsible for the use
or misuse of the camera by the relevant national
laws including the criminal law.
The relevant laws include the Personal Information
Protection law which regulates the processing and
transferring of personal information and the law
which regulates the monitoring by camera in a
workplace and other places.
When using the built-in camera, avoid questionable,
illegal, or immoral situations. Other than at public
places or events, consent to be photographed may
be required. We suggest avoiding the following
situations :
(1) Using the camera in areas where the use of
camera is generally prohibited such as restroom,
locker room, fitting room and security area.
(2) Using the camera while causing the infringement of
privacy.
(3) Using the camera while causing the violation of
the relevant regulations or laws.
Cable Holder
CAUTION
Do not move the TV by holding the cable holder,
as the cable holder may break, and injuries and
damage to the TV may occur.
Page 25
ENG
ENGLISH
ASSEMBLING AND PREPARING
Preparing Built-in Camera
25
3 Push down the built-in camera when you are not
using it.
1 Pull up the built-in camera at the back of the TV.
Angle Adjustment
Lever
Slide
NOTE
Remove the protective film before using the built-in
camera.
Name of Parts of Built-in camera
Camera Lens
Protective
Film
Microphone
2 You can adjust the angle of the camera with the
angle adjustment lever on the back on the back of
the built-in camera.
[Side View]
7
5
Lever
Lens
Checking the Camera’s
Shooting Range
1 Press the (Home) button on the remote
control to display the HOME menu.
2 Select CAMERA and then press the
Wheel(OK) button.
NOTE
The optimal distance from the camera to use the
motion recgnition function is between 1.5 m and 4.5 m.
Page 26
26
ENG
ENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses
diagrams for the EC97** models.
Connect various external devices to the TV and switch input modes to select an external device. For more information on external device’s connection, refer to the manual
provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.
NOTE
The external device connection may differ from
the model.
Connect external devices to the TV regardless of
the order of the TV port.
If you record a TV program on a DVD recorder or
VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information of recording, refer to the
manual provided with the connected device.
Refer to the external equipment’s manual for
operating instructions.
If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture
is clear.
In PC mode, some resolution settings may not
work properly depending on the graphics card.
If Ultra HD content is played via PC, the video
or audio may have disruptions intermittently
depending on your PC’s performance.
(Depending on model)
Antenna connection
Connect the TV to a wall antenna socket with an RF cable
(75 Ω).
Wall Antenna
Socket
NOTE
Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal
amplifier properly to improve the image quality.
If the image quality is poor with an antenna
connected, try to realign the antenna in the correct
direction.
An antenna cable and converter are not provided.
Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
This TV cannot receive UHD (3840 x 2160 pixels)
broadcasts directly because the related standards
have not been confirmed. (Depending on model)
(*Not
Provided)
Page 27
ENG
ENGLISH
MAKING CONNECTIONS
HDMI connection
HDMI
27
(Only EC97**)
Transmits the digital video and audio signals from an
external device to the TV. Connect the external device
and the TV with the HDMI cable as shown.
(Only EC93**)
(*Not Provided -
Depending on model)
(*Not Provided)
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
HDMI
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
Page 28
ENG
ENGLISH
MAKING CONNECTIONS
HDMI
28
(Only EG97**)
ARC (Audio Return Channel)
An external audio device that supports
SIMPLINK and ARC must be connected using
HDMI/DVI IN 1 (ARC) or HDMI(4K @ 60 Hz)/DVI
IN 2 (ARC) port.
When connected with a high-speed HDMI cable,
the external audio device that supports ARC
outputs optical SPDIF without additional optical
audio cable and supports the SIMPLINK function.
(Only EC97**, EG97**)
1) HDMI specifications may be different for each input
port, so make sure to check the device specifications
before connecting.
2) The HDMI IN 3 port is especially suitable for the
specifications to enjoy UHD Video (4:4:4, 4:2:2) of 4K
@ 50/60 Hz.
However, video or audio may not be supported
depending on the specifications of the external
equipment. In that case, use any other HDMI IN port.
3) Contact customer service for more information on the
HDMI specifications of each input port.
(*Not Provided -
Depending on model)
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
4K @ 50/60 Hz Support Format
Colour Depth /
Chroma Sampling
8 bit 10 bit 12 bit
YCbCr
4:2:0
YCbCr 4:2:0
YCbCr 4:2:2
YCbCr
4:4:4
RGB
4:4:4
1
1
- -
- -
Resolution
3840 x 2160p
4096 x 2160p
Frame
rate (Hz)
50.00
59.94
60.00
1: Only Supported at HDMI IN 3 Port
NOTE
It is recommended to use the TV with the HDMI
connection for the best image quality.
Use the latest High Speed HDMI™ Cable with
CEC (Customer Electronics Control) function.
High Speed HDMI™ Cables are tested to carry an
HD signal up to 1080p and higher.
Supported HDMI Audio format : Dolby Digital (32
KHz, 44.1 KHz, 48 KHz), DTS (44.1 KHz, 48 KHz),
PCM (32 KHz, 44.1 KHz, 48 KHz, 96 KHz, 192
KHz)
When you use HDMI IN 3 port, it is recommended
that you use the cable provided. (Depending on
model)
If you want to use a regular HDMI cable, use one
that is a highspeed HDMI cable (3m or less).
1
1
Page 29
ENG
ENGLISH
MAKING CONNECTIONS
DVI to HDMI connection
Transmits the digital video signal from an external device
to the TV. Connect the external device and the TV with
the DVI-HDMI cable as shown. To transmit an audio
signal, connect an audio cable.
(Only EC93**)
29
(Only EC97**)
Provided)
AUDIO OUT
(*Not
DVI OUT
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
AUDIO OUT
(*Not
Provided)
DVI OUT
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
Page 30
30
ENG
ENGLISH
MAKING CONNECTIONS
VIDEO
AUDIO
LR
IN
COMPONENT
YP
B
AUDIOAVP
R
VIDEO
AV
AUDIO OUT
DVI OUT
(Only EG97**)
Component connection
Provided)
(*Not
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
Transmits analogue video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component gender cable as shown.
(Use the composite
YELLOW
gender cable
provided.)
YELLOW
WHITE
GREEN
(Use the component
gender cable
provided.)
GREEN GREEN
RED RED
BLUE
RED
Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
When using the HDMI / DVI cable, Single link is
only supported.
NOTE
WHITE
BLUE
(*Not Provided)
GREEN
WHITE
RED
BLUE
DVD / Blu-Ray / HD Cable Box
NOTE
If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
RED
RED
Page 31
ENG
ENGLISH
MAKING CONNECTIONS
31
Composite connection
Transmits analogue video and audio signals from an
external device to the TV. Connect the external device
and the TV with a composite gender cable as shown.
IN
COMPONENT
VIDEO
YELLOW
(Use the composite gender
cable provided.)
YELLOW YELLOW
COMPONENT
AUDIOAVP
AV
WHITE
Y
P
B
YP
B
R
RED RED
Audio connection
You may use an external audio system instead of the
built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and the TV
with the optical audio cable as shown.
OUT
OPTICAL
DIGITAL
AUDIO
YELLOW
VIDEO
LR
DVD / Blu-Ray / HD Cable Box / VCR
( )
MONO
WHITE
WHITE
AUDIO
(*Not Provided)
RED
(*Not Provided)
OPTICAL
AUDIO IN
Digital Audio System
CAUTION
Do not look into the optical output port. Looking at
the laser beam may damage your vision.
Audio with ACP (Audio Copy Protection) function
may block digital audio output.
Page 32
32
ENG
ENGLISH
MAKING CONNECTIONS
3
2
Headphone connection
Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with
the headphone as shown.
OUT
Ext.Speaker
H/P
/
MHL connection
Mobile High-definition Link (MHL) is an interface for
transmitting digital audiovisual signals from mobile
phones to television sets.
(Only EC93**)
MHL passive cable
(*Not Provided)
Headphone
(*Not Provided)
NOTE
AUDIO menu items are disabled when connect-
ing a headphone.
Optical Digital Audio Out is not available when
connecting a headphone.
Headphone impedance: 16 Ω
Max audio output of headphone: 0.627 mW to
1.334 mW
Headphone jack size: 0.35 cm
Mobile phone
Page 33
ENG
ENGLISH
MAKING CONNECTIONS

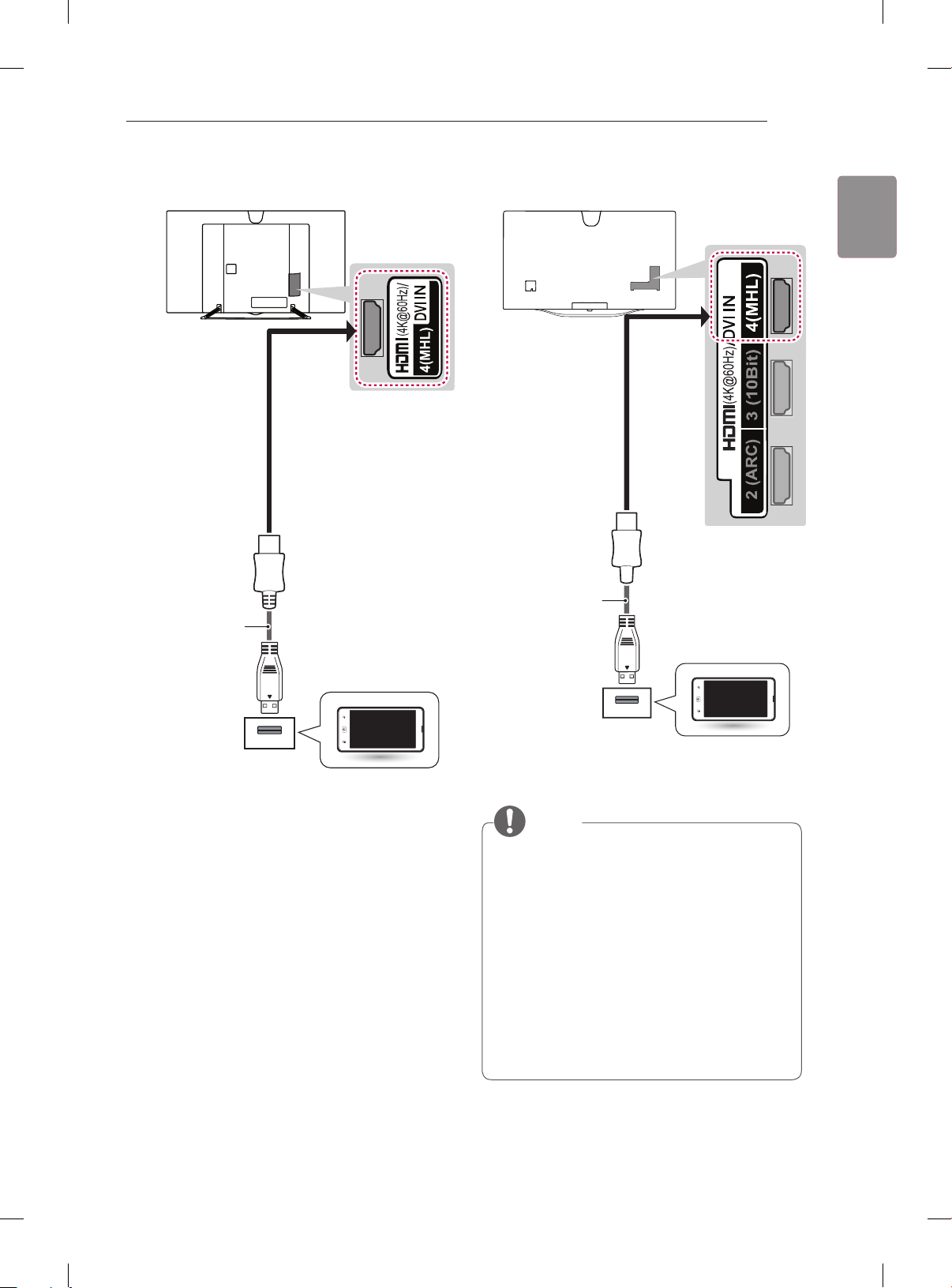

(Only EC97**)
33
(Only EG97**)
MHL passive cable
(*Not Provided)
Mobile phone
MHL passive cable
(*Not Provided)
Mobile phone
NOTE
Connect the mobile phone to the HDMI/DVI IN
4(MHL) or HDMI(4K @ 60 Hz)/DVI IN 4(MHL)
port to view the phone screen on the TV.
The MHL passive cable is needed to connect the
TV and a mobile phone.
This only works for the MHL-enabled phone.
Some applications can be operated by the remote
control.
For some mobile phones supporting MHL, you
can control with the magic remote control.
Remove the MHL passive cable from the TV
when:
» the MHL function is disabled
» your mobile device is fully charged in standby
mode
Page 34
34
ENG
ENGLISH
MAKING CONNECTIONS
USB connection
Connect a USB storage device such as a USB flash
memory, external hard drive or a USB memory card
reader to the TV and access the Smart Share menu to
use various multimedia files.
(Only EC93**)
3
2
USB
1
(Only EC97**, EG97**)
HUB
(*Not Provided)
(*Not Provided)
USB
3
USB
2
HDD
(*Not Provided)
USB
(*Not Provided)
HUB
(*Not Provided)
HDD
(*Not Provided)
NOTE
Some USB Hubs may not work. If a USB device
connected using a USB Hub is not detected,
connect it to the USB IN port on the TV directly.
Connect the external power source if your USB is
needed.
Connecting via USB 3.0 : Some USB device may
not work if it dose not meet USB 3.0 standard. In
case, connect it to USB IN 2 or USB IN 3 port.
(Only EC97**, EG97**)
Page 35
ENG
ENGLISH
REMOTE CONTROL
INFO
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please read
this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment,
and close the battery cover. To remove the batteries, perform the installation actions in reverse.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
In Analogue TV and some countries, some remote control buttons may not work.
The remote control will not be included for all sales market.
Make sure to point the remote control toward the remote control sensor on the TV.
(Depending on model)
(POWER) Turns the TV on or off.
Q.MENU
INPUT
SETTINGS
12 3
456
7809
GUIDE
FAV
MUTE
RECENT
SMART
OK
INFO
Q.VIEW
P
MY APPS
P
A
G
E
INPUT Changes the input source.
Q.MENU
SETTINGS
Accesses the Quick menus.
Accesses the main menus.
Views the information of the current programme and screen.
(User Guide) Sees User Guide.
Number buttons Enters numbers.
GUIDE Shows programme guide.
Q.VIEW Returns to the previously viewed programme.
+ - Adjusts the volume level.
FAV Accesses your favourite programme list.
Uses for viewing 3D video.
MUTE Mutes all sounds.
ꕌPꕍ Scrolls through the saved programmes.
PAGE Moves to the previous or next screen.
RECENT Shows the previous history.
SMART
MY APPS
Navigation Buttons (up/down/left/right)
Accesses the HOME menu.
Shows the list of Apps.
Scrolls through menus or op-
tions.
OK Selects menus or options and confirms your input.
BACK Returns to the previous level.
LIVE MENU Shows the list of Recommended, Programmes, Search
and Recorded.
Clears on-screen displays and return to TV viewing.
EXIT
Coloured buttons These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
35
BACK
LIVE TV
SUBTITLE
LIVE MENU
T.OPTTEXT
AD/
EXIT
SLEEP
REC
TV/RAD
TELETEXT buttons( TEXT, T.OPT) These buttons are used for teletext.
SLEEP Sets the length of time until the TV to turns off.
LIVE TV
Returns to the LIVE TV.
Control buttons ( ) Controls the Premium contents, Time
Machine or SmartShare menus or the SIMPLINK compatible devices
(USB or SIMPLINK or Time Machine
REC
Uses to adjust Time Machine menu.
SUBTITLE Recalls your preferred subtitle in digital
).
mode.
AD/ By pressing the AD button, audio descriptions function will be ena-
bled. (Depending on model)
TV/RAD Selects Radio, TV and DTV programme.
Page 36
36
ENG
ENGLISH

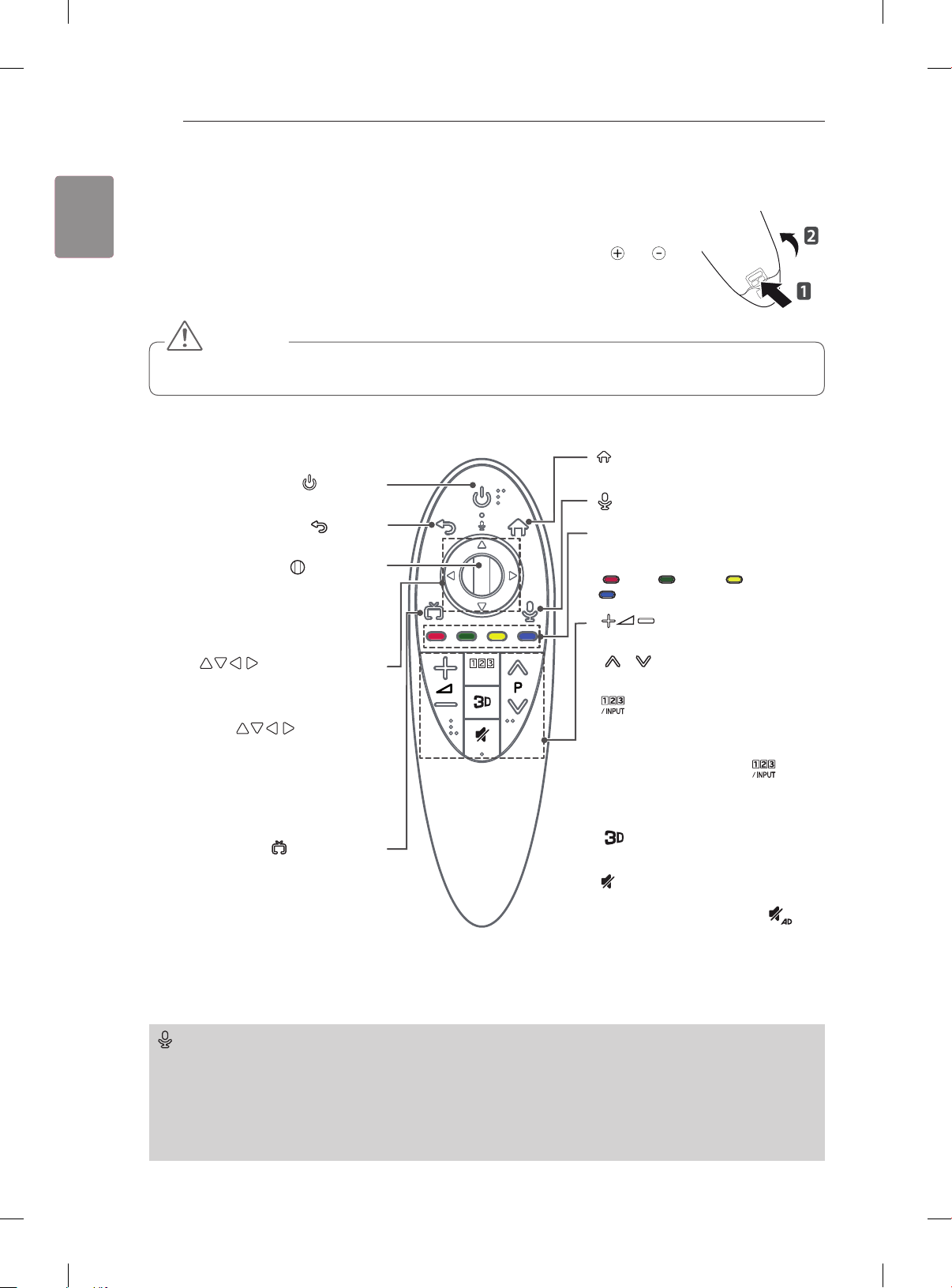

MAGIC REMOTE FUNCTIONS
MAGIC REMOTE FUNCTIONS
When the message "Magic remote battery is low. Change the battery." is displayed, replace the
battery.
To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching and
ends to the label inside the compartment, and close the battery cover. Be sure to point the magic
remote toward the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
In Analogue TV and some countries, some remote control buttons may not work.
(Home)
(POWER)
Turns the TV on or off.
(BACK)
Returns to the previous screen.
Wheel (OK)
Press the center of the Wheel button to
select a menu.
You can change programmes by using
the wheel button.
Navigation buttons
(up/down/left/right)
Press the up, down, left or right button to
scroll the menu.
If you press buttons while
the pointer is in use, the pointer will
disappear from the screen and Magic
Remote will operate like a general
remote control.
To display the pointer on the screen again,
shake Magic Remote to the left and right.
(EXIT to LIVE)
Switches among broadcast (antenna)
and various inputs.
/INPUT
Accesses the Home menu.
(Voice recognition)
Coloured buttons
These access special functions in some
menus.
( : Red, : Green, : Yellow,
: Blue)
Adjusts the volume level.
P
Scrolls through the saved programmes.
Displays the Screen Remote.
* Accesses the Universal Control
Menu. (Depending on model)
* Pressing and holding the but-
ton will display a menu to select an
external device that is connected to
the TV.
Used for viewing 3D video.
(MUTE)
Mutes all sounds.
* By pressing and holding the but-
ton, audio descriptions function will
be enabled. (Depending on model)
(Voice recognition)
Network connection is required to use the voice recognition function.
1. Press the voice recognition button.
2. Speak when the voice display window appears on the left of the TV screen.
• Use the Magic Remote no further than 10 cm from your face.
• The voice recognition may fail when you speak too fast or too slowly.
• The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation, and
speed) and the environment (noise and TV volume).
Page 37
ENG
ENGLISH
MAGIC REMOTE FUNCTIONS
Registering Magic Remote
HOME
How to register the Magic Remote
To use the Magic Remote, rst pair
it with your TV.
(Wheel)
How to deregister the Magic Remote
(BACK)
(Home)
1 Put batteries into the Magic Re-
mote and turn the TV on.
2 Point the Magic Remote at your
TV and press the Wheel (OK)
on the remote control.
* If the TV fails to register the Magic
Remote, try again after turning the
TV off and back on.
Press the (BACK) and
(Home) buttons at the same time,
for ve seconds, to unpair the Magic
Remote with your TV.
* Pressing and holding the (EXIT
to LIVE) button will let you cancel
and re-register Magic Remote at
once.
37
Precautions to Take when Using
the Magic Remote
Use the Magic Remote within the maximum
communication distance (10 m). Using the Magic
Remote beyond this distance, or with an object
obstructing it, may cause a communication failure.
A communication failure may occur due to nearby
devices. Electrical devices such as a microwave
oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz)
as the Magic Remote.
The Magic Remote may be damaged or may mal-
function if it is dropped or receives a heavy impact.
Take care not to bump into nearby furniture or
other people when using the Magic Remote.
Manufacturer and installer cannot provide service
related to human safety as the applicable wireless
device has possibility of electric wave interference.
It is recommended that an Access Point (AP) be
located more than 1 m away from the TV. If the
AP is installed closer than 1 m, the Magic Remote
may not perform as expected due to frequency
interference.
How to use magic remote
Shake the Magic Remote slightly
to the right and left or press
(Home), , buttons to make
the pointer appear on the screen.
(In some TV models, the pointer
will appear when you turn the
Wheel button.)
If the pointer has not been used for
a certain period of time or Magic
Remote is placed on a flat surface,
then the pointer will disappear.
If the pointer is not responding
smoothly, you can reset the pointer by moving it to the edge of the
screen.
The Magic Remote depletes bat-
teries faster than a normal remote
due to the additional features.
Page 38
ENG
ENGLISH

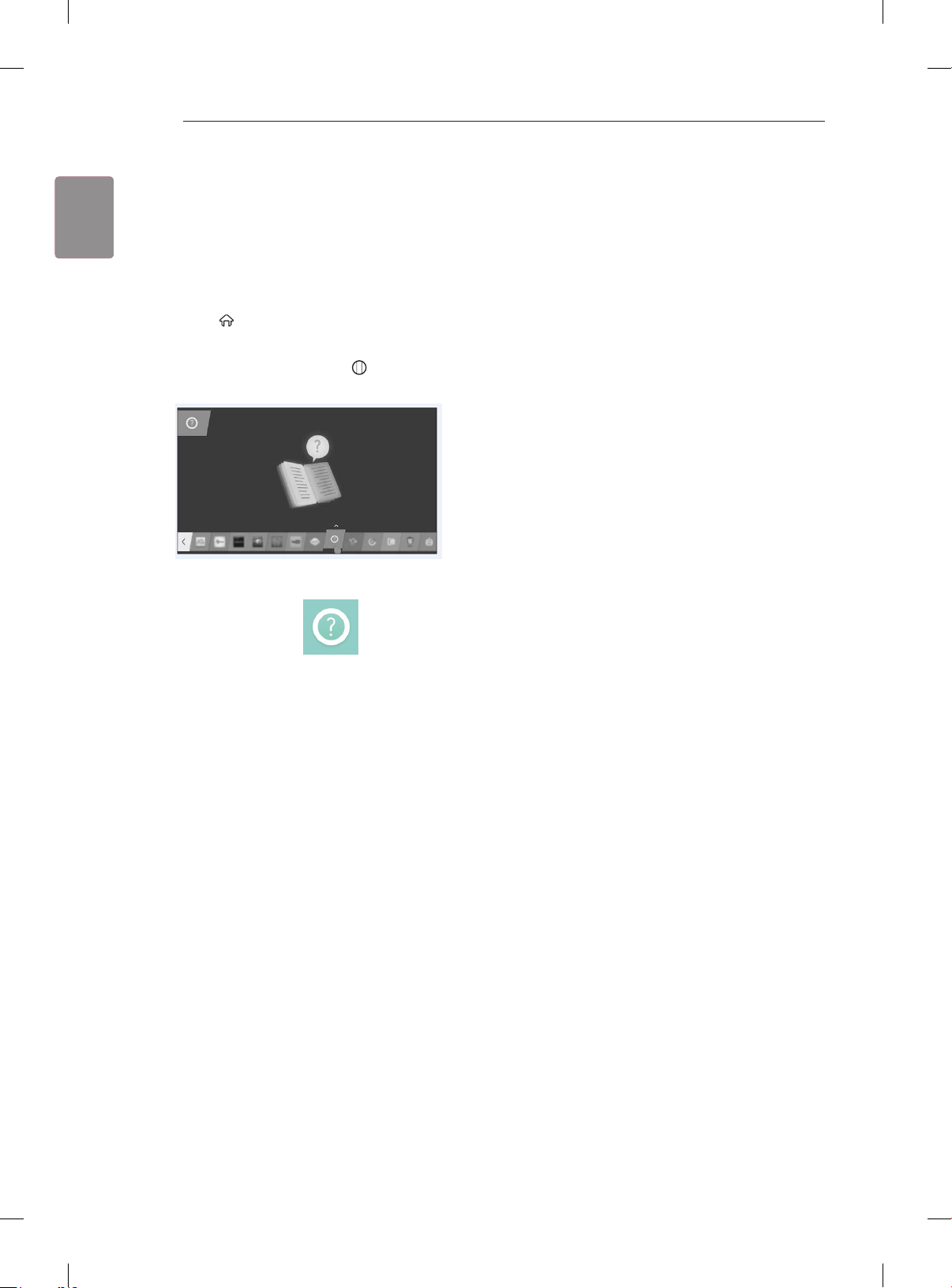

USING THE USER GUIDE
38
USING THE USER GUIDE
User Guide allows you to more easily access the detailed
TV information.
1 Press the (Home) button to access the Home
menu.
2 Select User Guide and press the Wheel(OK)
button.
Page 39
ENG
ENGLISH
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
Make sure to turn the power off and disconnect the power cord and all other cables first.
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to
prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then
wipe immediately with a dry cloth.
CAUTION
Avoid touching the screen at all times, as this may result in damage to the screen.
Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the
screen and image distortions.
Do not use any chemicals as this may damage the product.
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
39
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with
the remote control.
No image display and no
sound is produced.
The TV turns off suddenly. Check the power control settings. The power supply may be interrupted.
When connecting to the PC
(HDMI/DVI), ‘No signal’ or
‘Invalid Format’ is displayed.
Check the remote control sensor on the product and try again.
Check if there is any obstacle between the product and the remote control.
Check if the batteries are still working and properly installed ( to , to ).
Check if the product is turned on.
Check if the power cord is connected to a wall outlet.
Check if there is a problem in the wall outlet by connecting other products.
Check if the Sleep Timer or Timer Power Off feature is activated in the TIMERS set-
tings.
If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes
of inactivity.
Turn the TV off/on using the remote control.
Reconnect the HDMI cable.
Restart the PC with the TV on.
Page 40
40
ENG
ENGLISH
SPECIFICATIONS
0197
0197
SPECIFICATIONS
(Only EC93**)
Wireless module (LGSBW41) Specication
Wireless LAN Bluetooth
Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 3.0
Frequency Range
Output Power
(Max.)
Because band channel used by the country could be different, the user can not change or adjust the operating fre-
quency and this product is set for the regional frequency table.
This device should be installed and operated with minimum distance 20 cm between the device and your body. And
this phrase is for the general statement for consideration of user environment.
(Only EC97**, EG97**)
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
802.11a: 13 dBm
802.11b: 15 dBm
802.11g: 14 dBm
802.11n - 2.4 GHz: 16 dBm
802.11n - 5 GHz: 16 dBm
Frequency Range 2400 to 2483.5 MHz
Output Power
(Max.)
10 dBm or Lower
Wireless module (LGSWF41) Specication
Standard IEEE 802.11a/b/g/n/ac
Frequency Range
Output Power
(Max.)
Because band channel used by the country could be different, the user can not change or adjust the operating fre-
quency and this product is set for the regional frequency table.
This device should be installed and operated with minimum distance 20 cm between the device and your body.
And this phrase is for the general statement for consideration of user environment.
Bluetooth module (BM-LDS401) Specication
Standard Bluetooth Version 3.0
Frequency Range 2400 to 2483.5MHz
Output Power
(Max.)
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
802.11a: 14.5 dBm
802.11b: 16 dBm
802.11g: 13.5 dBm
802.11n - 2.4 GHz: 14 dBm
802.11n - 5 GHz: 15.5 dBm
802.11ac - 5 GHz: 16 dBm
10dBm or Lower
Page 41
ENG
ENGLISH
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
Thickness(T)
55EC93**
Dimensions
Weight
Dimensions
Weight
Dimensions
Weight
MODEL
With stand (mm)
(W x H x D)
Without stand (mm)
(W x H x T(D))
With stand (kg) 16.7
Without stand (kg) 14.7
Power requirement
MODEL
With stand (mm)
(W x H x D)
Without stand (mm)
(W x H x T(D))
With stand (kg) 25.5
Without stand (kg) 24.1
Power requirement
MODEL
With stand (mm)
(W x H x D)
Without stand (mm)
(W x H x T(D))
With stand (kg) 43.3
Without stand (kg) 39.9
Power requirement
55EC930T-TA
55EC939Y-TA
1225 x 753 x 204
1225 x 715 x 44(81)
AC 100-240 V~ 50 / 60 Hz
65EC97**
65EC970T-TA
65EC979Y-TA
1447 x 880 x 256.6
1447 x 844 x 56.3(108.7)
AC 100-240 V~ 50 / 60 Hz
77EG97**
77EG970T-TA
77EG979Y-TA
1718 x 1110 x 322
1718 x 1064 x 34.7(108.2)
AC 100-240 V~ 50 / 60 Hz
Depth(D)
41
Operating Temperature 0 °C to 40 °C
Environment
condition
Television System DVB-T(*DVB-T/T2)
Programme Coverage VHF, UHF VHF, UHF, CATV
Maximum number of storable
programmes
External Antenna Impedance 75 Ω
* : Only DVB-T2 support models.
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C
Storage Humidity Less than 85 %
Digital TV
(Depending on Country)
DVB-T/T2 & Analogue TV : 1,500
(Depending on Country)
PAL B/B, PAL B/G, PAL D/K, PAL-I
SECAM B/G, SECAM D/K
Analogue TV
NTSC-M
Page 42
Page 43
Page 44
Record the model number and serial
number of the TV.
Refer to the label on the back cover and
quote this information to your dealer
when requiring any service.
MODEL
SERIAL
(Only DTV)
Page 45
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
Page 46
KEY CODES
2
2
ENGLISH
ENG
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
00 CH +, PR + R/C Button 53 List R/C Button
01 CH -, PR - R/C Button 5B Exit R/C Button
02 Volume + R/C Button 60 PIP(AD) R/C Button
03 Volume - R/C Button 61 Blue R/C Button
06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button
07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button
08 Power R/C Button 72 Red R/C Button
09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button
0B Input R/C Button 91 AD (Audio Description) R/C Button
0E SLEEP R/C Button 7A User Guide R/C Button
0F TV, TV/RAD R/C Button 7C Smart / Home R/C Button
10 - 19 * Number Key 0 - 9 R/C Button 7E SIMPLINK R/C Button
1A Q.View / Flashback R/C Button 8E ►► (Forward) R/C Button
Function Note
Code
(Hexa)
Function Note
1E FAV (Favorite Channel) R/C Button 8F ◄◄ (Rewind) R/C Button
20 Text (Teletext) R/C Button AA Info R/C Button
21 T. Opt (Teletext Option) R/C Button AB Program Guide R/C Button
28 Return (BACK) R/C Button B0 ► (Play) R/C Button
30 AV (Audio / Video) Mode R/C Button B1 ꕗ (Stop / File List) R/C Button
39 Caption/Subtitle R/C Button BA
40 Λ
41
42 My Apps R/C Button DC 3D R/C Button
43 Menu / Settings R/C Button 99 AutoConfig R/C Button
44 OK / Enter R/C Button 9F App / * R/C Button
45 Q.Menu R/C Button 9B TV/PC R/C Button
4C List, - (ATSC Only) R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
(Arrow Key / Cursor Up)
V (Arrow Key / Cursor
Down)
R/C Button BB Soccer R/C Button
R/C Button BD ꔄ (REC) R/C Button
ꕘ (Freeze / Slow Play /
Pause)
R/C Button
Page 47
EXTERNAL CONTROL DEVICE SETUP
USB IN
(TV)
(PC)
3
3
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.

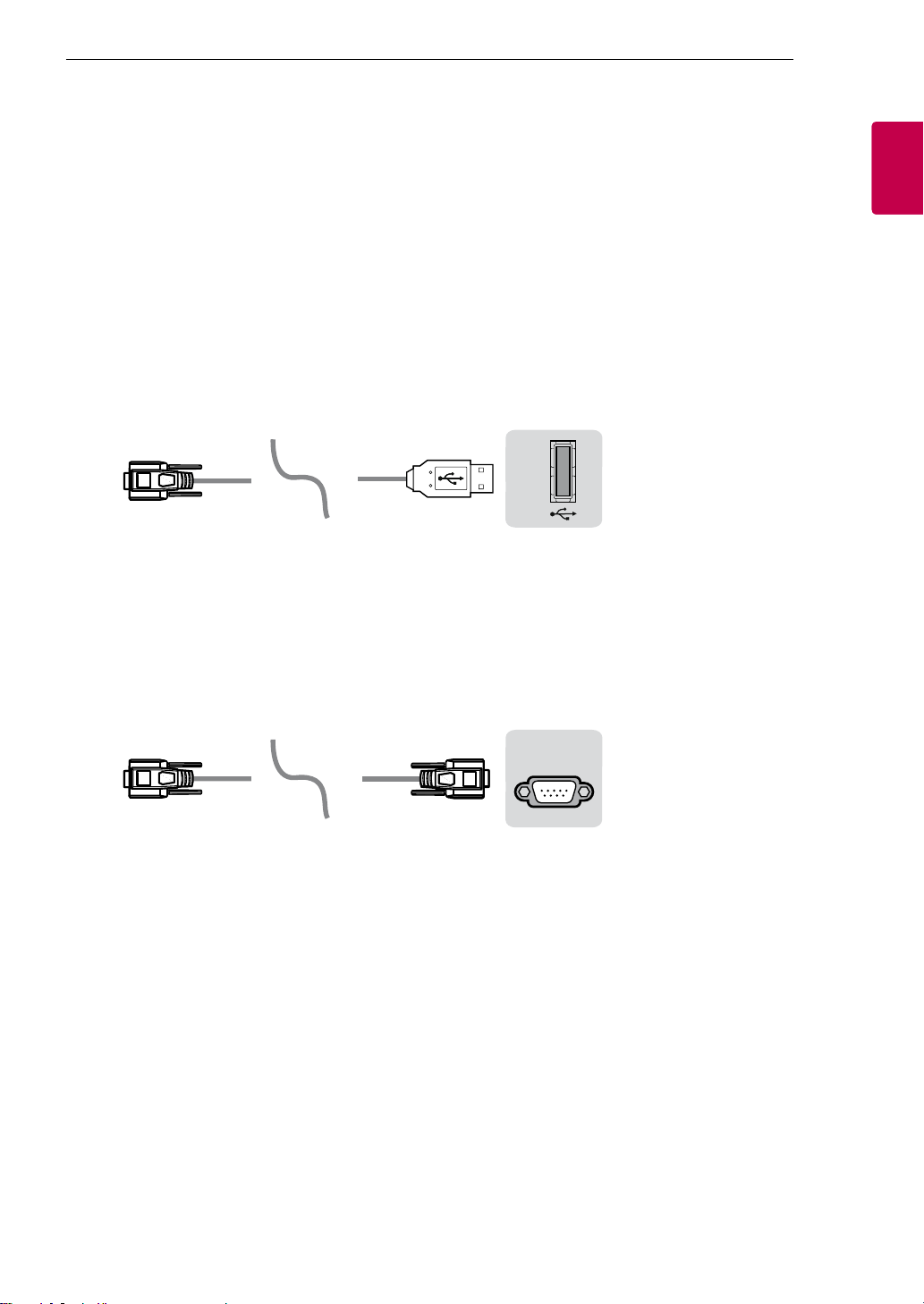

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
(PC)
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
USB IN
RS-232C With RS232C Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
(TV)
ENGENGLISH
(PC)
The connection interface may differ from your TV.
(CONTROL & SERVICE)
RS-232C IN
(TV)
Page 48
EXTERNAL CONTROL DEVICE SETUP
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(PC
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(PC
SERVICE ONLY
1
3
2
4
4
ENGLISH
ENG
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
1
3
(TV)
(TV)
- or
)
2
1
3
SERVICE ONLY
)
RS-232C IN
2
(CONTROL & SERVICE)
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
5
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
9
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
PC TV
OR
D-Sub 9 Phone
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)
Page 49
EXTERNAL CONTROL DEVICE SETUP
5
5
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
01. Power* k a 00 to 01 15. Balance k t 00 to 64
02. Aspect
Ratio
03. Screen
Mute
04. Volume
Mute
05. Volume
Control
06. Contrast k g 00 to 64
07.
Brightness
08. Color/
Colour
09. Tint k j 00 to 64
10.
Sharpness
11. OSD
Select
12. Remote
Control Lock
Mode
13. Treble k r 00 to 64
k c (p.7)
k d (p.7)
k e 00 to 01 18. Equalizer j v (p.8)
k f 00 to 64
k h 00 to 64
k i 00 to 64 22. Key m c Key Codes
k k 00 to 32
k l 00 to 01
k m 00 to 01
DATA
(Hexadecimal)
16. Color
(Colour)
Temperature
17. ISM
Method (Only
Plasma TV)
19. Energy
Saving
20. Tune
Command
21. Channel
(Programme)
Add/Del(Skip)
23. Control
Backlight,
Control Panel
Light
24. Input
select (Main)
25. 3D (Only
3D models)
26. Extended
3D (Only 3D
models)
27. Auto
Configure
COMMAND1 COMMAND2
x u 00 to 64
j p (p.8)
j q 00 to 05
m a (p.9)
m b 00 to 01
m g 00 to 64
x b (p.11)
x t (p.11)
x v (p.11)
j u (p.12)
DATA
(Hexadecimal)
ENGENGLISH
14. Bass k s 00 to 64
* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not
executed and treated as NG.
With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with
USB-to-Serial converter cable, the command works only if TV is on.
Page 50
EXTERNAL CONTROL DEVICE SETUP
6
6
ENGLISH
ENG
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...
Page 51
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power *On or Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off 01 : *Power On
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
7
7
ENGENGLISH
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show TV is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
05 : Zoom 2
(Latin America
except Colombia
Only)
06 : Set by Program/
Original
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
07 : 14:9
(Europe, Colombia, Mid-East,
Asia except South Korea and
Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, MidEast, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1
to 16
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Page 52
EXTERNAL CONTROL DEVICE SETUP
8
8
ENGLISH
ENG
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
* (Depending on model)
14. Bass (Command: k s)
► To adjust Bass.
You can also adjust in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
15. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
16. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
13. Treble (Command: k r)
► To adjust treble.
You can also adjust in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
17. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
18. Equalizer (Command : j v)
► Adjust EQ of the set.
Transmission [j][v][ ][Set ID][ ][Data][Cr]
MSB
0 0 0 0 0 0 0 0
LSB
Frequency Data
7 6 5
0 0 0
0 0 1
0 1 0
0 1 1
Frequency
1st Band
2nd Band
3rd Band
4th Band
4 3 2 1 0 Step
0 0 0 0 0
0 0 0 0 1
... ... ... ... ...
1 0 0 1 1
0(decimal)
1(decimal)
...
19(decimal)
Page 53
EXTERNAL CONTROL DEVICE SETUP
9
9
1 0 0
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
5th Band
1 0 1 0 0
20(decimal)
19. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto (For LCD TV / LED TV) /
Intelligent sensor (For PDP TV)
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
20. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ]
[Data 01][ ][Data 02][Cr]
* Analog Antenna/Cable
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analog)
- 00 : Antenna TV (ATV)
- 80 : Cable TV (CATV)
* Digital Antenna/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Antenna TV (DTV)
- 20 : Antenna Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the Analog antenna (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analog Antenna TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital antenna (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Antenna TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
* Analog Antenna/Cable
Data 00 : Physical Channel Number
- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analog)
- 00 : Antenna TV (ATV)
- 01 : Cable TV (CATV)
* Digital Antenna/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Antenna TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
ENGENGLISH
Page 54
EXTERNAL CONTROL DEVICE SETUP
10
10
ENGLISH
ENG
Number
- 22 : Antenna TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1. Tune to the Analog cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital antenna (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Antenna/Satellite
Data 00: xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Antenna TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1
Tune to the digital antenna (ISDB-T) channel 17-1
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Antenna TV = 02
Total = ma 00 00 00 11 00 01 02
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 =
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
Digital BS TV = 07
21. Channel(Programme) Add/Del(Skip)
(Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
22. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
23. Control Backlight (Command: m g)
• For LCD TV / LED TV
► To control the backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
.
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Page 55
EXTERNAL CONTROL DEVICE SETUP
11
11
24. Input select (Command: x b)
(Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
02 : Satellite DTV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
20 : AV or AV1 21 : AV2
40 : Component1
60 : RGB
90 : HDMI1
92 : HDMI3
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
01 : CADTV
10 : ATV
41 : Component2
91 : HDMI2
93 : HDMI4
25. 3D(Command: x t) (only 3D models)
(Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
* (Depending on model)
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side
02 : Check Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* [Data 02], [Data 03] functions depend on model
and signal.
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03 (2D to 3D), [Data 01] and
[Data 02] have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only.
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O O
01 X X X
02 X X X
03 X O O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
26. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When [Data 00] is 06, 07
00 : Off
01 : On
4) When [Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 2D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
5) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
01 : Sport
03 : Extreme
05 : Auto
ENGENGLISH
Page 56
EXTERNAL CONTROL DEVICE SETUP
12
12
ENGLISH
ENG
27. Auto Configure (Command: j u)
(Depending on model)
► To adjust picture position and minimize image
shaking automatically. It works only in RGB (PC)
mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01 : Run Auto Configure
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
