LG Electronics 52LG5000-ZA, 32LG5000-ZA, 37LG3000-ZA, 32LG3200-ZA, 37LG2000-ZA User Manual
...
Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)
ID Number(s): 5499: 22LS4D-ZD 5629: 32LG2000-ZA 5630: 37LG2000-ZA 5088: 19LG3000-ZA 5080: 26LG3000-ZA 5087: 37LG3000-ZA 5085: 32LG5000-ZA 5083: 42LG5000-ZA 5081: 52LG5000-ZA 5386: 47LG5010-ZD 5388: 37LG5010-ZD 5390: 52LG5020-ZB 5392: 42LG5020-ZB 5394: 32LG5020-ZB 5396: 47LG5030-ZE 5398: 37LG5030-ZE 5671: 32LG5700-ZF 5818: 22LG3050-ZA 5880: 22LG3060-ZB 6507: 32LG3200-ZA
5507: 19LS4D-ZD 5721: 26LG3050-ZA 5631: 42LG2000-ZA 5090: 22LG3000-ZA 5089: 32LG3000-ZA 5086: 42LG3000-ZA 5084: 37LG5000-ZA 5082: 47LG5000-ZA 5385: 52LG5010-ZD 5387: 42LG5010-ZD 5389: 32LG5010-ZD 5391: 47LG5020-ZB 5393: 37LG5020-ZB 5395: 52LG5030-ZE 5397: 42LG5030-ZE 5399: 32LG5030-ZE 5820: 19LG3050-ZA 5879: 19LG3060-ZB 5878: 32LG5600-ZB 6511: 42LG3200-ZA
LCD TV
OWNER’S MANUAL
LCD TV MODELS
19LS4D* 32LG30** 22LS4D* 32LG32** 32LG20** 37LG30** 37LG20** 42LG30** 42LG20** 42LG32** 19LG30** 32LG5***
22LG30** 37LG50** 26LG30** 42LG50** 47LG50** 52LG50**
Please read this manual carefully before operating your TV.
Retain it for future reference.
Record model number and serial number of the TV. Refer to the label on the back cover and quote this information.
To your dealer when requiring service.
Extended Owner’s Manual that contains advanced features of these LG TV-sets is located on CD-ROM in electronic version.
To read it You need to open chosen files by using Personal Computer (PC) equipped with CD-ROM drive.
P/NO: MFL34441652 (0901-REV01)
Printed in Korea
Downloaded From TV-Manual.com Manuals

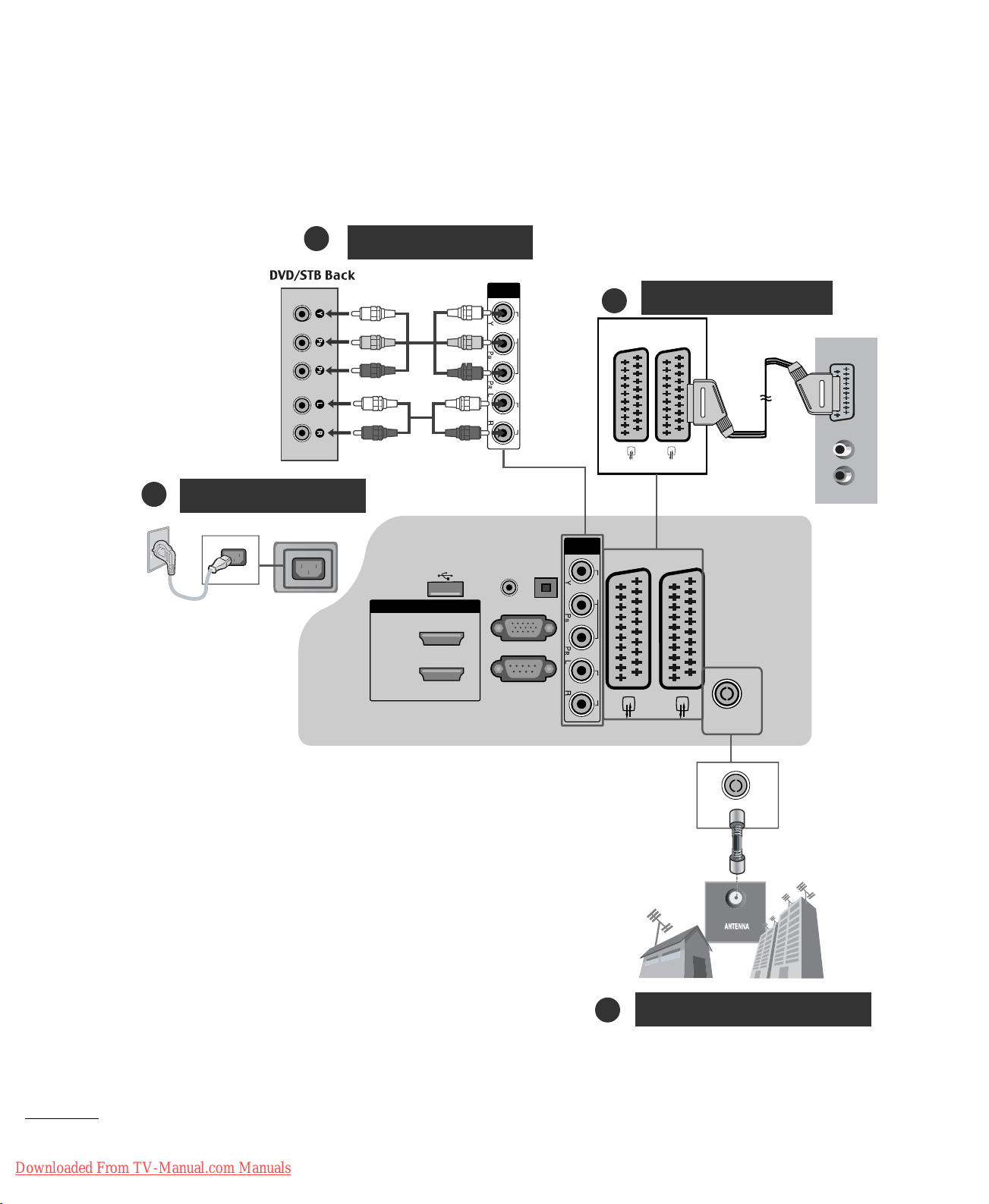

CONNECTING YOUR UNIT
■ Image shown may differ from your TV.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 DVD/STB
COMPONENT
IN
VIDEO
AUDIO
3 Power Cord
2 |
|
|
|
VCR Connection |
|
|||||||
AV 1 |
AV 2 |
|
|
|
|
|||||||
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
USB IN
SERVICE ONLY
HDMI/DVI IN
2
1(DVI)
|
OPTICAL |
COMPONENT |
|
AUDIO IN |
IN |
AV 2 |
|
(RGB/DVI) |
DIGITAL |
AV 1 |
|
|
AUDIO OUT |
|
|
|
|
VIDEO |
|
RGB IN (PC) |
|
|
|
RS-232C IN |
AUDIO |
|
|
|
|
||
(CONTROL & SERVICE)
ANTENNA IN
ANTENNA IN
1 Antenna Connection
*To connect an additional equipment, see the External equipment Setup section in CD Manual.
2
Downloaded From TV-Manual.com Manuals

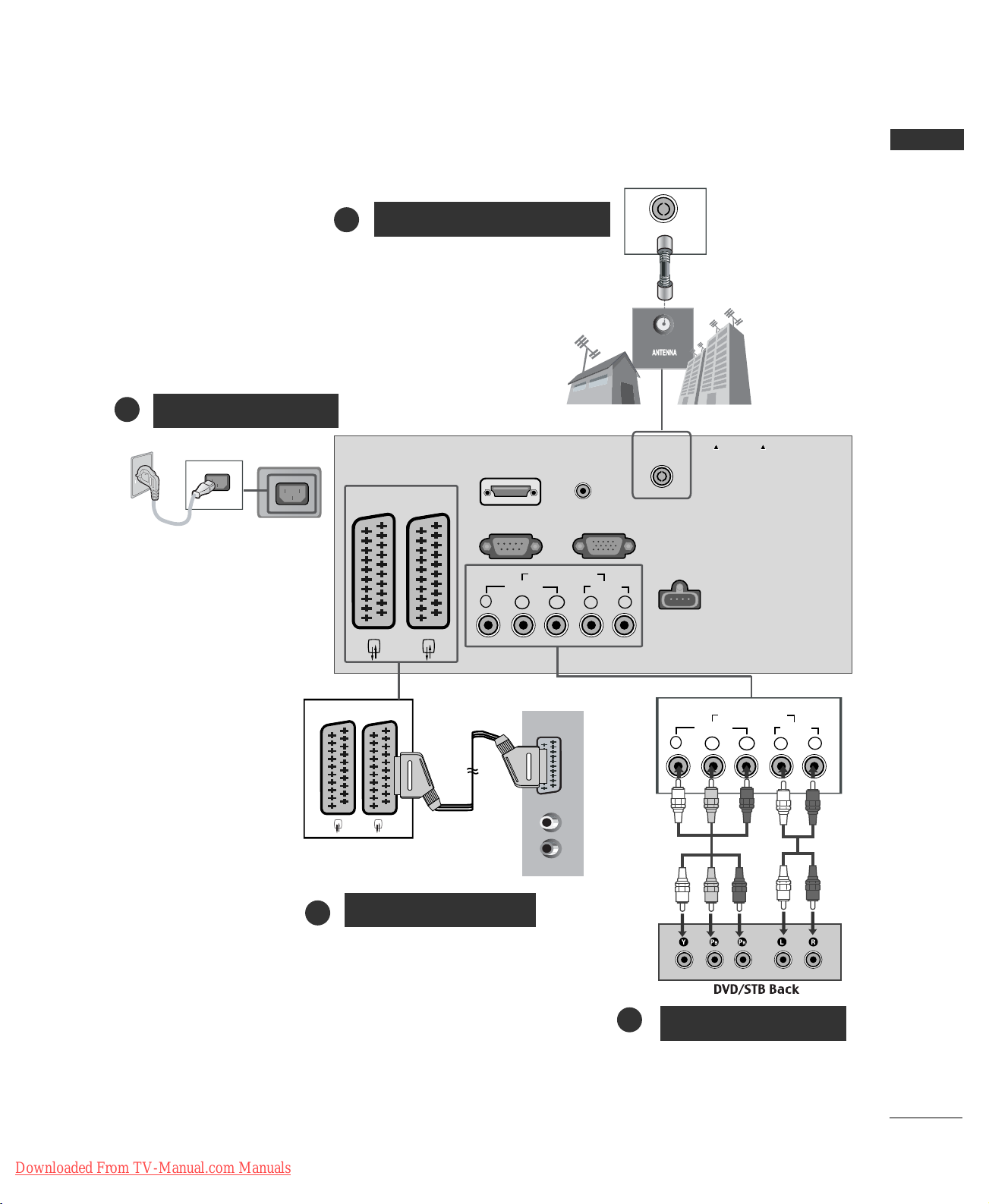

■ Image shown may differ from your TV.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

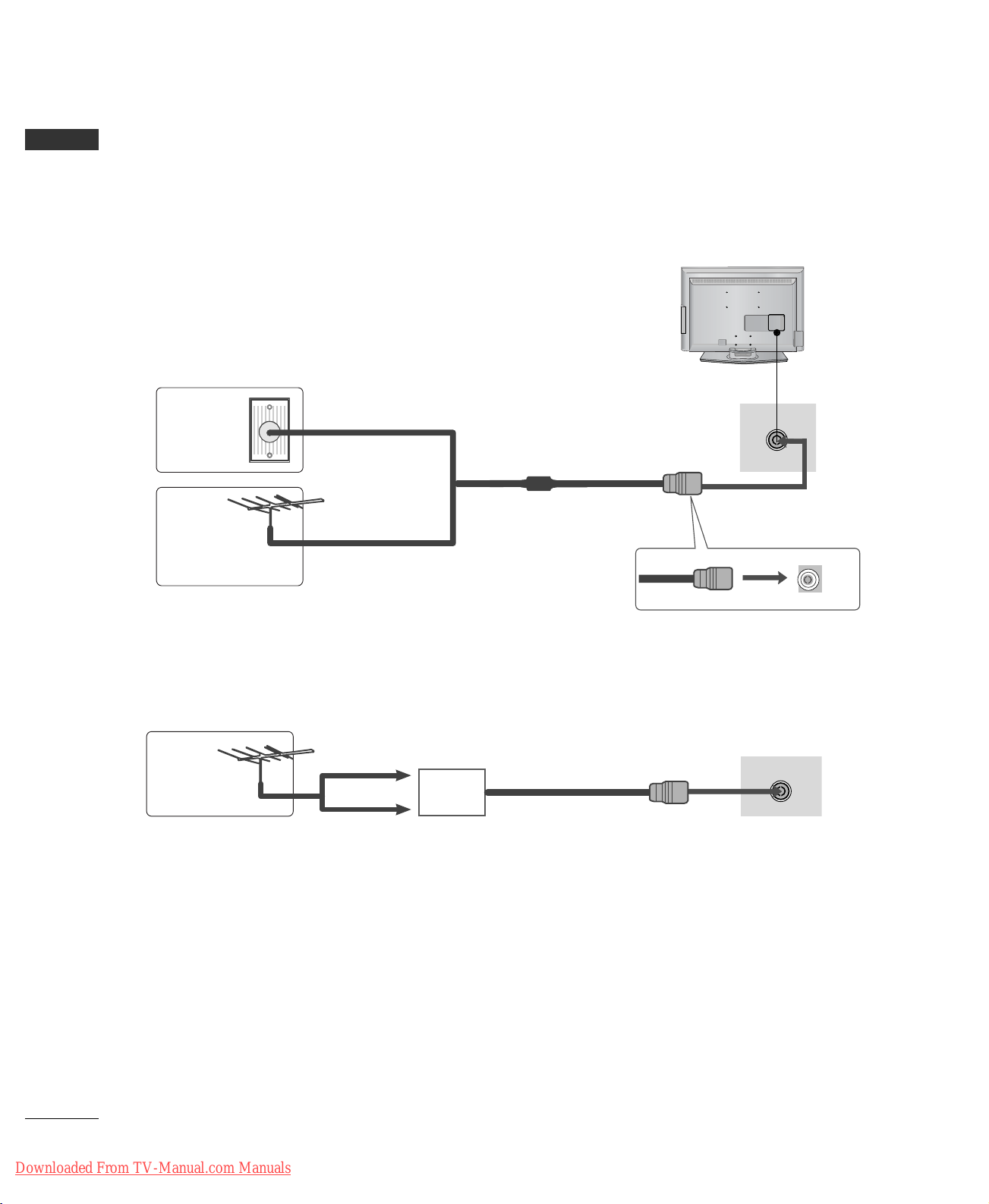

1 Antenna Connection
ENGLISH
3 Power Cord
AUDIO IN |
ANTENNA IN |
PCMCIA |
EJECT |
|
CARD SLOT |
|
HDMI/DVI IN |
(RGB/DVI) |
|
AV 1 |
AV 2 |
|
|
|
|
|
RS-232C IN |
|
RGB (PC) IN |
||
|
(CONTROL & SERVICE) |
||||
|
|
COMPONENT IN |
|
||
|
|
VIDEO |
|
AUDIO |
|
|
Y |
PB |
PR |
L |
R |
SERVICE
ONLY
AV 1 AV 2
2 VCR Connection
2 DVD/STB
*To connect an additional equipment, see the External equipment Setup section in CD Manual.
3
Downloaded From TV-Manual.com Manuals

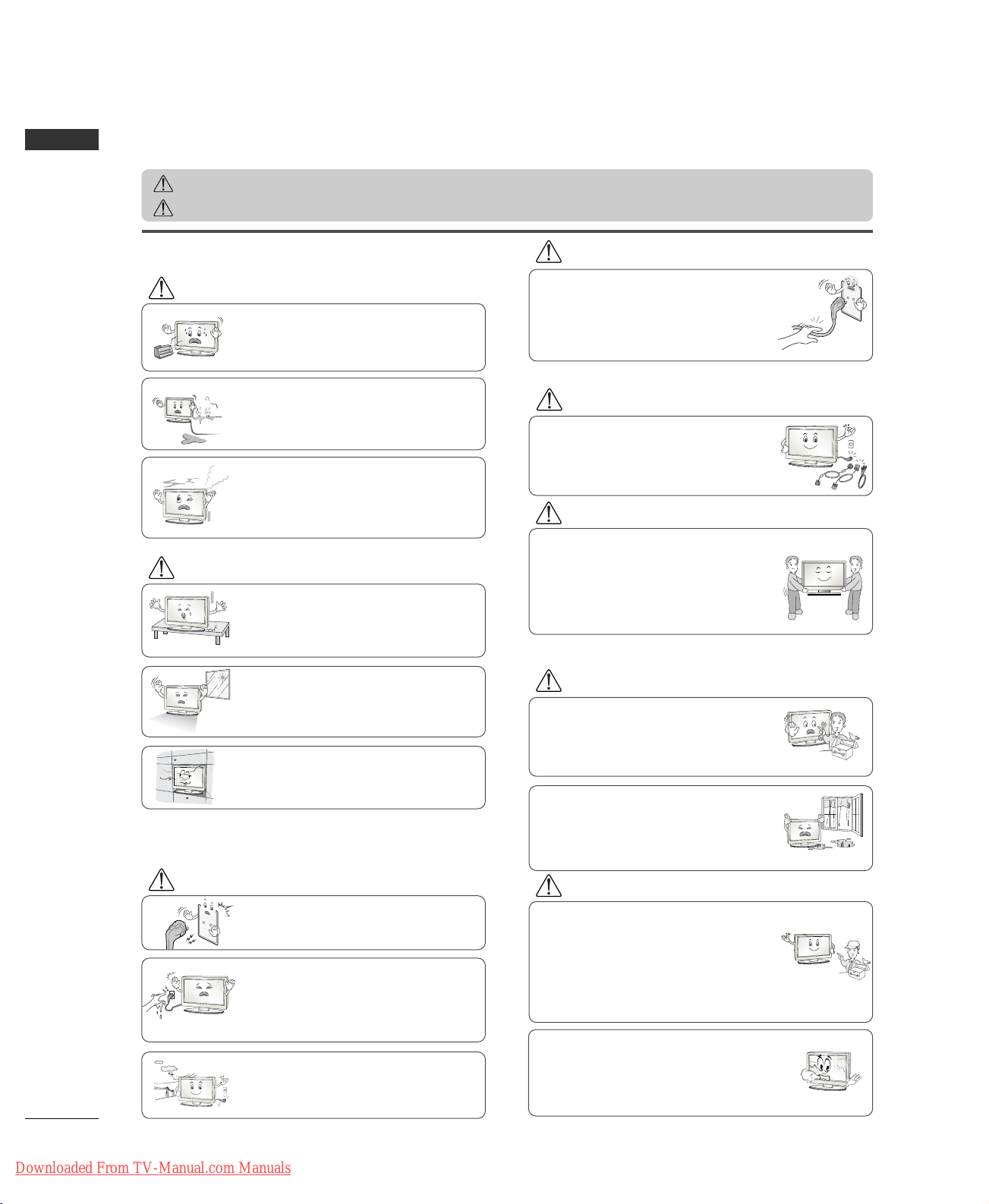

SAFETY INSTRUCTIONS
ENGLISH
•Please read these safety precautions carefully before using the product.
•In this manual, the illustration may be somewhat different from your product because it is just example to help the instruction.
WARNING |
If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. |
CAUTION |
If you ignore the caution message, you may be slightly injured or the product may be damaged. |
Precaution in Installing the Product
WARNING
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
Do not use the product in damp place such as a bathroom or any place where it is likely to get wet.
- This may cause a fire or could give an electric shock.
If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
CAUTION
Install the product on a flat and stable place that has no risk of dropping the product.
- If the product is dropped, you may be injured or the product may be broken.
Keep the product away from direct sunlight.
- The product can be damaged.
Do not place the product in a built-in installation such as bookcase or rack.
- Ventilation required.
Electrical Power Related Precautions
WARNING
Make sure to connect the power cable to the ground-
ed current.
- You may be electrocuted or injured.
Do not touch the power plug with wet hands.
Additionally, it the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
During a thunder or lightning storm, unplug the power cable or signal cable.
- You may be electrocuted or a fire can break out.
CAUTION
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Precautions in Moving the Product
WARNING
Make sure to turn off the product.
Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
CAUTION
Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
Make the panel face forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire. Contact with the service center for repair.
Precautions in Using the Product
WARNING
Do not disassemble, repair or modify the product at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Do not keep a still image on the screen for an extended period (e.g. by pausing a video) as the fixed image may remian visible on the screen. This is known as image burn. Image burn is not covered under the manufacturer’s warranty.
4
Downloaded From TV-Manual.com Manuals
PREPARATION

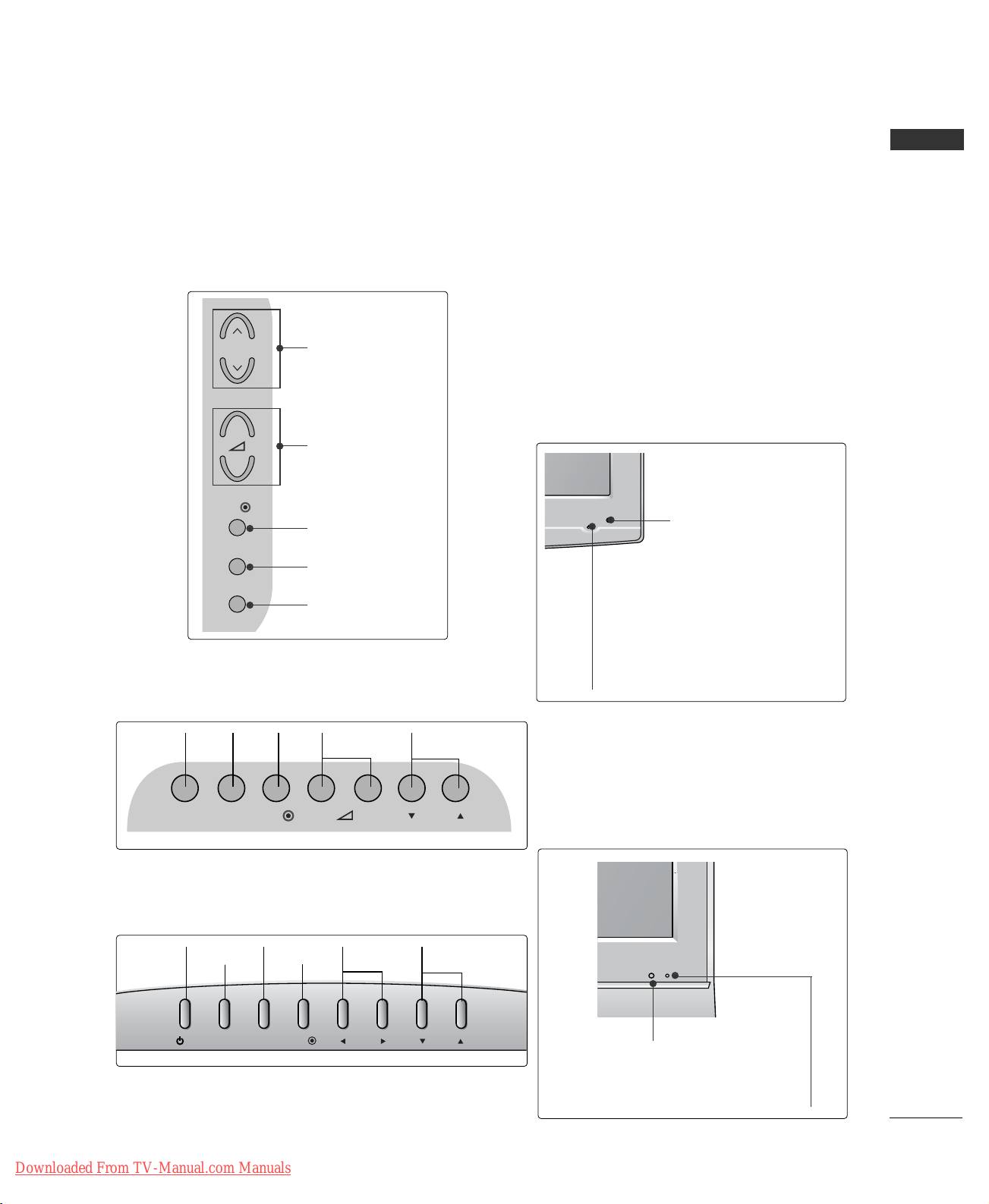

FRONT PANEL CONTROLS
■Image shown may differ from your TV.
■If your TV has a protection film attached, remove the film and then wipe the TV with a polishing cloth.
LCD TV Models :
32/37/42LG20**, 26/32/37/42LG30**, 32/42LG32**, 32/37/42/47/52LG5***
P |
PROGRAMME |
+ |
|
|
|
|
VOLUME |
|
|
- |
|
|
|
|
|
|
Intelligent Sensor |
OK |
|
|
Adjusts picture according to |
|
OK |
|
the surrounding conditions. |
|
|
(32/37/42/47/52LG5*** |
|
MENU |
|
|
|
|
|
only) |
|
|
MENU |
|
POWER |
INPUT |
|
|
|
|
|
Remote Control Sensor |
|
|
INPUT |
|
|
|
|
Power/Standby Indicator |
|
|
|
|
|
|
|
|
• illuminates red in standby mode. |
|
|
|
• illuminates blue when the TV is switched on. |
|
|
|
Note: You can adjust Power Indicator |
LCD TV Models : 19/22LG30** |
in the OPTION menu. |
||
|
|||
INPUT MENU OK |
VOLUME |
PROGRAMME |
|
INPUT MENU OK |
- |
+ |
P |
LCD TV Models : 19/22LS4D* |
|
|
||
POWER |
MENU |
VOLUME |
PROGRAMME |
|
INPUT |
OK |
|
|
|
/I INPUT MENU OK |
VOL |
PR |
Remote Control Sensor |
|
|
||||
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates green when the TV is switched on.
ENGLISH
5
Downloaded From TV-Manual.com Manuals
PREPARATION
ENGLISH

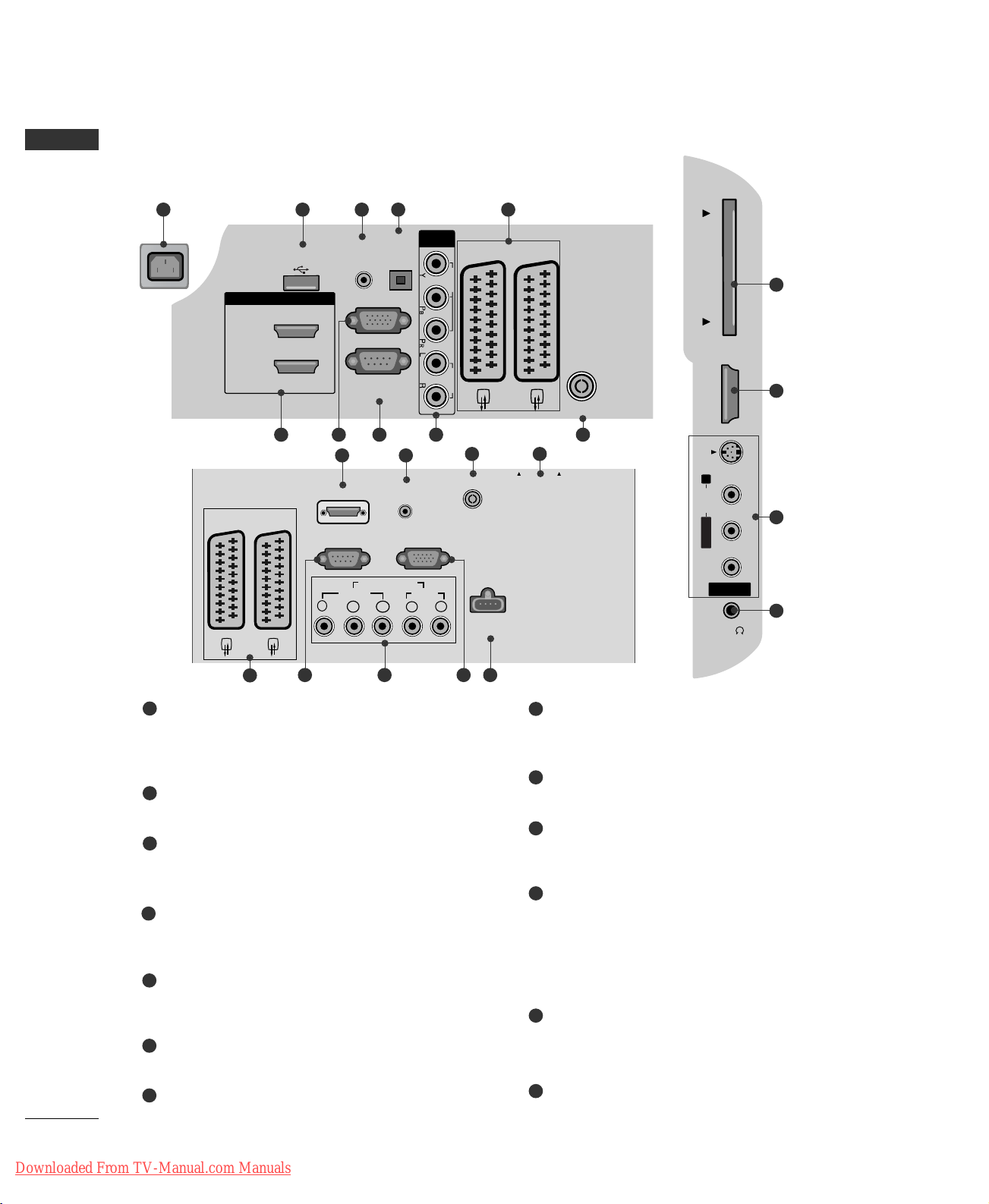

BACK PANEL INFORMATION
A Image shown may differ from your TV.
1 |
13 |
2 |
3 |
|
4 |
|
|
|
OPTICAL |
COMPONENT |
|
|
USB IN |
AUDIO IN |
IN |
AV 2 |
|
|
(RGB/DVI) |
DIGITAL |
AV 1 |
||
|
SERVICE ONLY |
|
AUDIO OUT |
|
|
|
HDMI/DVI IN |
|
|
VIDEO |
|
|
|
|
|
|
|
|
2 |
RGB IN (PC) |
|
|
|
|
|
|
|
||
|
1(DVI) |
|
|
AUDIO |
|
|
|
RS-232C IN |
|
||
|
|
(CONTROL & SERVICE) |
|
|
|
ANTENNA IN
5 |
6 |
7 |
|
8 |
|
9 |
|
5 |
|
2 |
9 |
10 |
|
|
|
|
AUDIO IN |
ANTENNA IN |
PCMCIA |
EJECT |
|
HDMI/DVI IN |
|
|
CARD SLOT |
|
|
|
|
(RGB/DVI) |
|
|
|
|
|
|
|
|
|
|
AV 1 |
AV 2 |
RS-232C IN |
RGB (PC) IN |
(CONTROL & SERVICE) |
|
COMPONENT IN |
|
VIDEO |
AUDIO |
Y PB PR L R
SERVICE
ONLY
4 |
7 |
8 |
6 |
13 |
VIDEO L/MONO AUDIO R HDMI IN 3 PCMCIA CARD SLOT
10
5
Except for 32/37/42LG20**, 32/42LG32**
S-VIDEO
11
AV IN 3
12
H/P
1Power Cord Socket
This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power.
2RGB/DVI Audio Input
Connect the audio from a PC or DTV.
3DIGITAL AUDIO OUT OPTICAL (Except for 19/22LS4D*)
Connect digital audio from various types of equipment. Note: In standby mode, these ports do not work.
4Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an external device to these jacks.
5HDMI Input
Connect a HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.
6RGB IN (PC)
Connect the output from a PC.
7RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
8Component Input
Connect a component video/audio device to these jacks.
9Antenna Input
Connect RF antenna to this jack.
10PCMCIA (Personal Computer Memory Card International Association) Card Slot
(This feature is not available in all countries.)
11Audio/Video Input (Except for 19/22LS4D*)
Connect audio/video output from an external device to these jacks.
S-VIDEO (Except for 19/22LS4D*, 32/37/42LG20**, 32/42LG32**)
Connect S-Video out from an S-VIDEO device.
12Headphone Socket (Except for 19/22LS4D*, 32/37/42LG20**, 32/42LG32**)
Connect the headphone plug to this socket.
13SERVICE ONLY PORT
6
