LG 52DC2DUC User Manual

Installation and Operating Guide | Warranty

Model Numbers | Z52DC2D/Z56DC1D/Z62DC1D | DLP PROJECTION

As an ENERGY STAR Partner LGE U.S.A., Inc. has determined that this product meets the ENERGY STAR guidelines for energy drriciency.

2 DLP Projection TV

WARNING/CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is: Zenith Electronics Corporation

1-201-816-2000 Marked and Distributed in the United States by LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 http://www.zenith.com

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

/CAUTION

arning/Caution

Warning/Caution

Owner’s Manual 3

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers)that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Safety Instructions

PORTABLE CART WARNING

4 DLP Projection TV

Safety Instructions

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION concerning the Power Cord :

Most appliances recommend they be placed upon a dedicated circuit; that

is, a single outlet circuit which powers only that appliance and has no

additional outlets or branch circuits. Check the specification page of

this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of these conditions could

result in electric shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and the point where the

cord exits the appliance.

16. Outdoor Use Marking :

WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.

17. Wet Location :

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall

be placed on the apparatus.

Owner’s Manual 5

Contents

After reading this manual, keep it handy for future reference.

Warnings/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4

Introduction

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Connection Options . . . . . . . . . . . . . . . . . . . .7~8 Remote Control Key Functions . . . . . . . . . . .9~10

Installation

External Equipment Connections . . . . . . . . . .11~16

Antenna Connection . . . . . . . . . . . . . . . . . . . . .11 VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .12 External A/V Source Setup . . . . . . . . . . . . . . . .13 DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . . .14 AV Out Setup . . . . . . . . . . . . . . . . . . . . . . . . . .14 Digital Audio Output . . . . . . . . . . . . . . . . . . . . .15 PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .16~18

Operation

Turning the TV On . . . . . . . . . . . . . . . . . . . . . .19

TV Setup

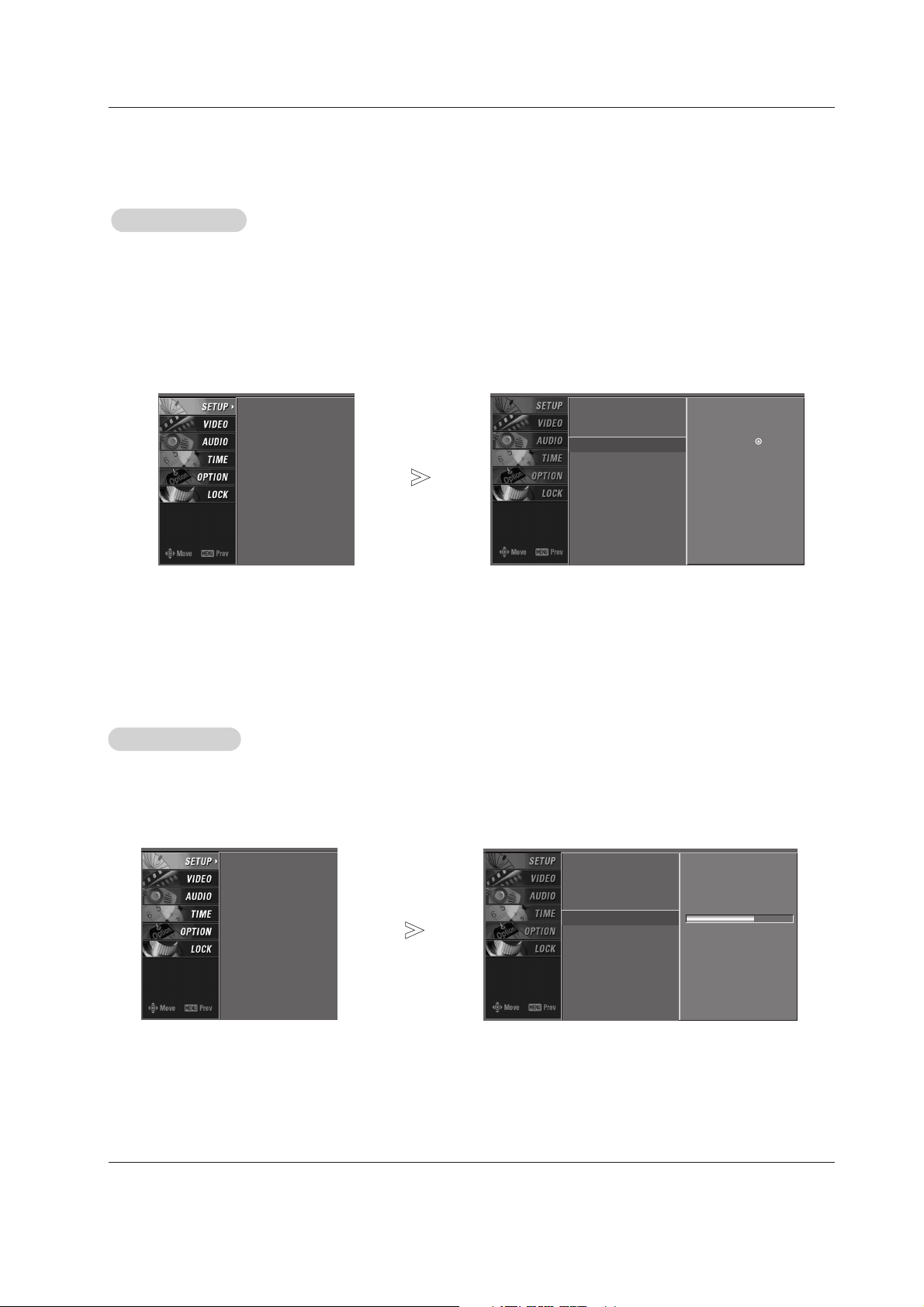

On-screen Menus Language Selection . . . . . . .20 Channel Selection . . . . . . . . . . . . . . . . . . . . . . .20 Volume Adjustment . . . . . . . . . . . . . . . . . . . . . .20

Setup Menu Options

EZ Scan (Channel Search) . . . . . . . . . . . . . . . .21 Manual Scan . . . . . . . . . . . . . . . . . . . . . . . . . .21

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .22

DTV Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Input Source Selection . . . . . . . . . . . . . . . . . . .23 Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Video Menu Options

Auto Picture Control (EZ Picture) . . . . . . . . . . .24 Color Temperature Control . . . . . . . . . . . . .24~25 XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Advanced-Cinema 3:2 Mode / Black Level . . . .27 Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Audio Menu Options

Audio Language . . . . . . . . . . . . . . . . . . . . . . . .29 Auto Volume Leveler (EZ SoundRite) . . . . . . . .29 Auto Sound Control (EZ Sound) . . . . . . . . . . . .29 Manual Sound Control (EZ sound-User Option) . . .30 Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 TV Speakers On/Off Setup . . . . . . . . . . . . . . . .31

Time Menu Options

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .32 Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .32

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .33 Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Option Menu Options

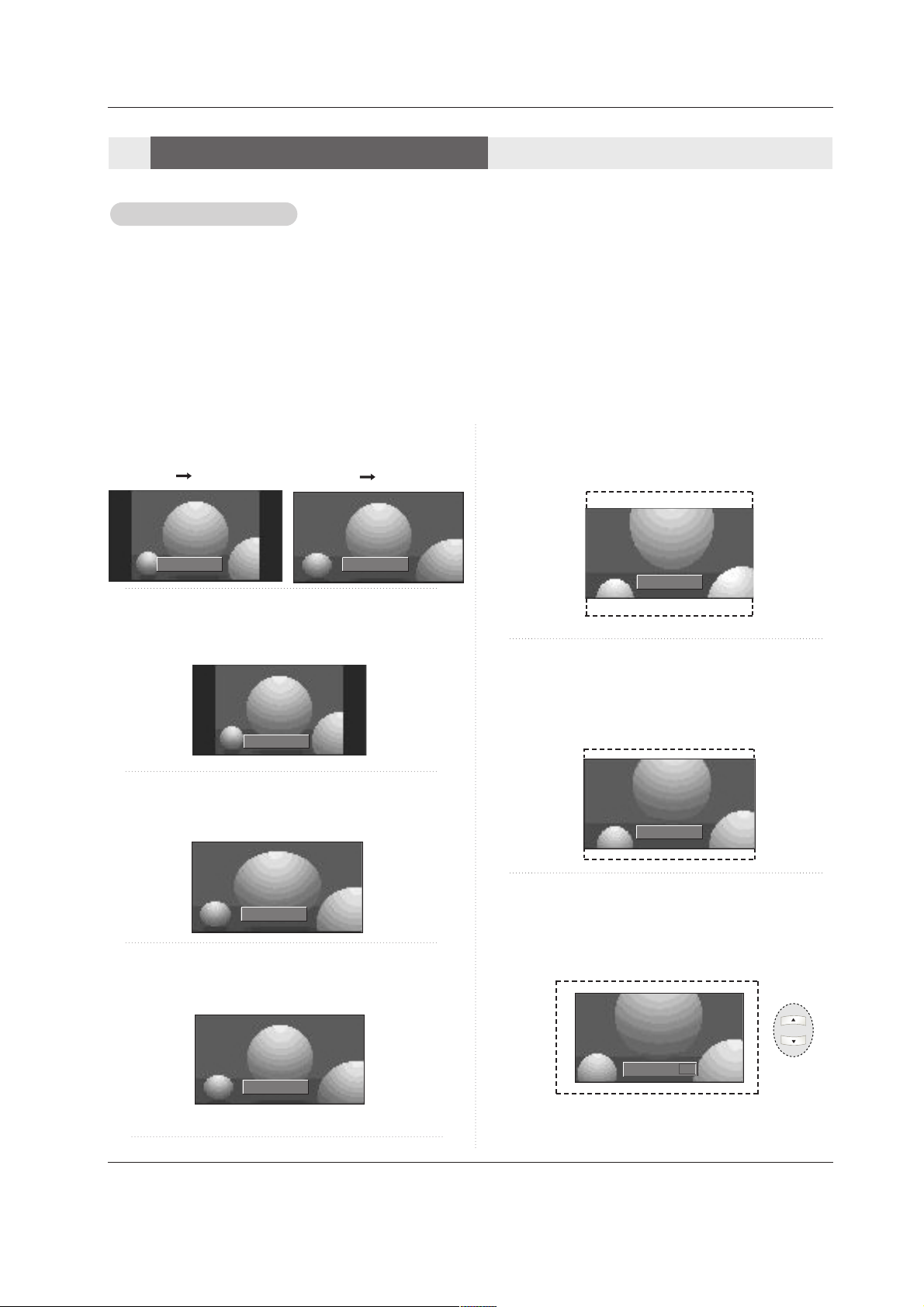

Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .35 Caption / Text . . . . . . . . . . . . . . . . . . . . . . . . . .36 Caption Option . . . . . . . . . . . . . . . . . . . . . . . . .37 Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Lock Menu Options

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .39

Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Brief Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Programming the Remote . . . . . . . . . . . . . . . . . . . . . .42

Programming Codes . . . . . . . . . . . . . . . . . . . . . . .43~45

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . .46~47

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .49

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Contents

6 DLP Projection TV

Introduction

INPUT

VOL CH

ENTER

- Lamp indicator, operation indicator, and temperature indicator located below the front panel controls, reveal the operating status of the DLP projection TV.

Function Status Indicators

Controls

Front Panel Controls

Off Power cord is not connected. Red Power Cord is connected, TV is in standby mode. Green TV turns on. Orange (blinking) Preparing operation in standby mode. Red (blinking) There is a problem with the lamp or around it. Contact an

authorized service center. Green (blinking) The lamp cover is not closed. Orange The projection TV is overheating. Check for blocked vents on

the projection TV. Red The projection TV shut down due to overheating. Red (blinking) The projection TV shut down, check the cooling fan. Contact

your service center.

Operation Indicator

Lamp Indicator

Temperature Indicator

- This is a simplified representation of a front panel.

- Image shown may be somewhat different from your TV.

POWER Button

MENU Button

ENTER Button

VOLUME (FF,GG) Buttons

CHANNEL (EE, DD) Buttons

Operation Indicator/ Lamp Indicator/ Temperature Indicator

INPUT Button

Owner’s Manual 7

Introduction

Back Connection Panel

Connection Options

CABLE IN

COMPONENT IN 1/2

SERVICE ONLY

HDMI/DVI IN

DIGITAL AUDIO OPTICAL OUT

AV I N 1

AV OUT

RGB/DVI

AUDIO IN

ANTENNA

AC IN

RGB(PC/DTV)

VIDEO IN

ANTENNA

COMPONENT IN 2

RGB IN

AV IN 1

AV OUT

VIDEO

RGB

VIDEO

(PC/DTV)

(L)

AUDIO

MONO

(R)

DIGITAL AUDIO OPTICAL OUTPUT

(L)

S-VIDEO

AUDIO RGBDVI

AUDIO

(R)

HDMI /DVI IN

SERVICE ONLY

COMPONENT IN

VIDEO

(L)

AUDIO

(R)

AC IN

SERVICE ONLY

RGB IN

RGB

(PC/DTV)

(L)

AUDIO

RGB/DVI

(R)

CABLE

ANTENNA

AV IN 1

MONO

AV OUT

VIDEO

AUDIO

S-VIDEO

(L)

(R)

HDMI

/DVI IN

DIGITAL AUDIO

OPTICAL OUTPUT

8 DLP Projection TV

Introduction

LEFT/RIGHT AUDIO

Used for stereo sound from various types of equipment.

S-VIDEO

A connection available on some very highend equipment that provides better picture quality than video input.

VIDEO

Connects the video signals from any piece of equipment.

AV IN 2 AV IN 2

AV IN 2

There are four jacks on the left side on your projection TV that make connecting Audio/Video devices like video games and camcorders very simple.

The jacks are like those found on the back jack connection panel. This means that most equipment that connects to those types of jacks on the rear jackpack, may be connected to the front connection panel.

To use the side jacks as the signal source, select them using Main Input menu as described on page 22. They will be named “AV 2 ” in the Main Input menu.

If you input both AV 2 and SVideo, only the S-Video will work.

If you’re connecting a video game device, make sure to change the picture settings with the EZ Picture option in the Video menu (see page 24).

Mini glossary

A/V CABLES Audio/Video cables. Three cable connector—Right audio (red), Left audio (white), and Video (yellow). A/V cables

are used for stereo playback of videocassettes and for higher quality picture and sound from other A/V devices.

A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box, or television).

Front Connection Panel

Owner’s Manual 9

Introduction

1 2 3 4 5 6 7 8 9

MODE

LIGHT

POWER

INPUT

INFO

HDMI/DVI

VCR

CABLE

DVD

SAT

MUTE

EZ PICSRS APM

EZ SOUND

RATIO

MENU EXIT

CC FREEZE

GUIDE

VOL

FAV

SAP

ADJUST

TIMER

RGB PC/DTV

TV INPUT

FLASHBK

ENTER

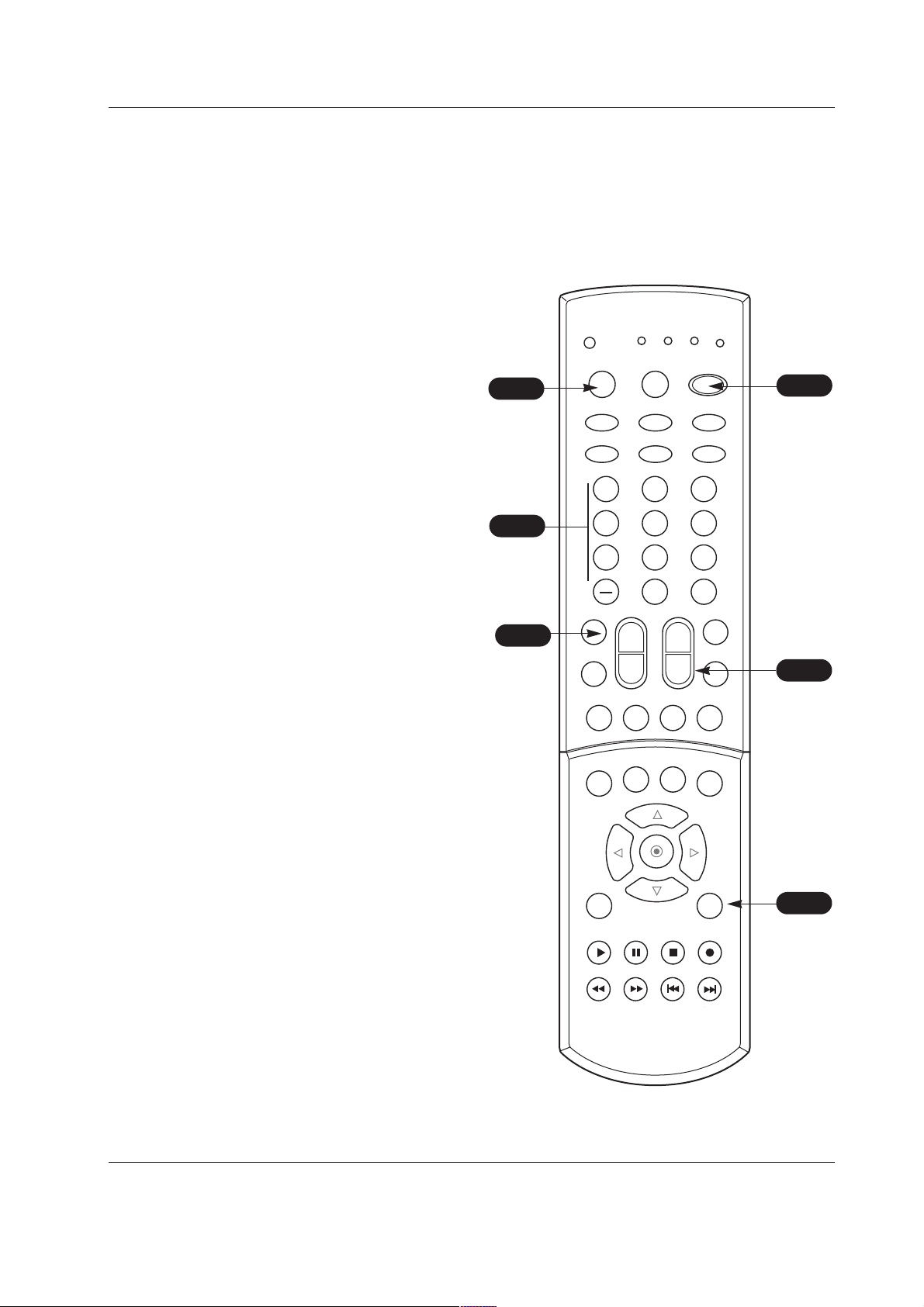

- When using the Remote Control, aim it at the remote control sensor on the TV.

Remote Control Key Functions

INDICATOR LIGHTS

Show active remote mode every time any button is pressed.

MODE

Selects the remote operating mode: TV, VCR, Cable, DVD and Satellite.

Select other operating modes, for the

remote to control external devices.

LIGHT

Illuminates the Remote Control keys.

INPUT

Selects: Antenna, Cable, AV1, AV2,

Component1-2, RGB and HDMI/DVI

input sources.

FAV

Scrolls the Favorite channels.

INFO

When you watch the TV, information displays on top of the screen.

MUTE

Switches the sound on or off.

(Refer to

p.20)

ADJUST

Adjusts screen position, size, and phase in RGB-DTV/PC mode.

VOLUME UP/DOWN

Increases/decreases the sound level.

NUMBER KEYPAD

For direct channel selection and

programming functions.

RATIO

Changes the screen format or aspect

ratio.

GUIDE

Shows program schedule.

ENTER

When in the menu system and other on-screen displays, selects highlighted options.

Brings up the main menu to the

screen.

EXIT

Clears all on-screen displays and returns to TV viewing from any menu.

SKIP

Playing CDs: Selects songs.

Playing DVDs: Selects movie chapters.

10 DLP Projection TV

Introduction

• Open the battery compartment cover on the back side and install the batteries matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones. Close cover.

Installing Batteries

1 2 3 4 5 6 7 8 9

MODE

LIGHT

POWER

INPUT

INFO

HDMI/DVI

VCR

CABLE

DVD

SAT

MUTE

EZ PICSRS APM

EZ SOUND

RATIO

MENU EXIT

CC FREEZE

GUIDE

VOL

FAV

SAP

ADJUST

TIMER

RGB PC/DTV

TV INPUT

FLASHBK

ENTER

back of

remote

TV INPUT

• Rotates the input mode between Antenna and Cable.

• AV1-2, Component 1-2, RGB-DTV (or RGB-PC) and HDMI/DVI input sources, TV will return to the last TV channel.

Selects a closed caption mode for dis-

playing captioning information if avail-

able on program.

POWER

Turns your TV or any other programmed equipment on or off, depending on mode.

TIMER

Lets you select the amount of time

before your TV turns itself off auto-

matically.

RGB PC/DTV

Rotates the RGB input mode

between DTV and PC.

In other input sources, change to the

RGB -DTV(or PC) mode.

Remote Control Key Functions

HDMI/DVI

SAP

Selects MTS sound: Mono, Stereo, and

SAP in Analog mode. Change the audio

language in DTV mode.

CHANNEL UP/DOWN

Scrolls through available channels in EZ Scan memory.

FLASHBK

Tunes to the last channel viewed.

APM(Adaptive Picture Mode)

Concurrently, compare with the Daylight, Normal, Night Time.and Custom on the screen.

EZ PIC

Adjusts the factory preset picture depending on the viewing environment.

SRS

Selects the sound appropriate for the

Select the desired sound (Off, 3D

EchoSound System or SRS TruSu

rround XT)

in Front Surround function.

EZ SOUND

Selects the sound appropriate for the

program's character.

FREEZE

Freezes the currently-viewed picture. Main picture is frozen in PIP/Twin picture mode.

THUMBSTICK

Allows you to navigate the on-screen menus and to adjust the system settings and preferences, by moving to an option

with

F G

and selecting the highlighted

option with .

D E

RECORD, PAUSE, REW, FFWD, PLAY, STOP

Control the functions on your VCR.

Owner’s Manual 11

Installation

- Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

Antenna Connection

1. Analog and Digital TV signals provided on one antenna

2. Analog and Digital TV signals provided on cable

Multi-family Dwellings/Apartments (Connect to wall antenna socket)

Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna)

Outdoor Antenna

Wall Antenna Socket

VHF Antenna UHF Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Bronze Wire

Be careful not to bend the Copper Wire when connecting the antenna.

Bronze Wire

Cable TV Wall Jack

RF Coaxial Wire (75 ohm)

ANTENNA

Installation

External Equipment Connections

Turn clockwise to tighten.

CABLE

12 DLP Projection TV

Connection Option 1

Set VCR output switch to channel 3 or 4 and then tune the

TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the VCR's output jacks to the TV input jacks, as shown in the figure. When connecting the TV to VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). If you connect an S-VIDEO output from VCR to the S-VIDEO input, the picture quality is improved; compared to connecting only the Video input.

2. Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)

3. Select the input source with using the INPUT button on the remote control. Note that this TV finds the connected input sources automatically for AV 1-2 and Component 1-2.

Do not connect to both AV1-2 and S-Video at the same time. In the event that you connect both AV and the S-Video cables, only the S-Video will work.

VCR Setup

S-VIDEO

(R) AUDIO (L)

OUT

VIDEO

OUTPUT SWITCH

ANT OUT

ANT IN

RGB

(PC/DTV)

S-VIDEO

MONO

RGB IN

COMPONENT IN

(L)

(R)

AUDIO

RGB/DVI

(L)

(R)

AUDIO

VIDEO

(L)

(R)

AV IN 1

AV OUT

DIGITAL AUDIO

OPTICAL OUTPUT

SERVICE ONLY

VIDEO

AUDIO

HDMI

/DVI IN

CABLE

AC IN

ANTENNA

VCR Rear

Installation

Note: The TV will let you know when the TV(analog antenna), DTV(digital antenna), CATV(analog cable) and CADTV(digital

cable) channel scans are complete.

• In a poor signal area to improve picture quality, purchase and install a signal amplifier.

• If the antenna or cable needs to be split for two TV’s, install a “2-Way Signal Splitter” in the connections.

• If the antenna or cable is not installed properly, contact your dealer for assistance.

CABLE

3. Analog and Digital TV signals provided on cable and antenna

Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Cable TV Wall Jack

RF Coaxial Wire (75 ohm)

CABLE

ANTENNA

Signal

Amplifier

Owner’s Manual 13

Installation

• Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports

on the TV

Y PB

Video output ports on DVD player

Y Y Y Y

B-Y

Cb PB

R-Y

How to connect

1. Connect the DVD video outputs (Y, P

B, PR) to the COMPO-

NENT (Y, PB

, PR) INPUT jacks on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

Note: If your DVD player does not have component video output,

use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the INPUT button on the Remote Control to select Component 1 or Component 2. (If connected to S-VIDEO, select the AV 1 or AV 2 external input source.)

3. Refer to the DVD player's manual for operating instructions.

DVD Setup

(R) AUDIO (L)

S-VIDEO

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

RGB

(PC/DTV)

S-VIDEO

MONO

RGB IN

COMPONENT IN

(L)

(R)

AUDIO

RGB/DVI

(L)

(R)

AUDIO

VIDEO

(L)

(R)

AV IN 1

AV OUT

DIGITAL AUDIO

OPTICAL OUTPUT

SERVICE ONLY

VIDEO

AUDIO

HDMI

/DVI IN

CABLE

AC IN

ANTENNA

DVD

How to connect

Connect the audio and video cables from the external equipment's output jacks to the TV input jacks, as shown in the figure. When connecting the TV to external equipment, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

How to use

1. Select the input source by using the INPUT button on the

Remote Control. Note that this TV finds the connected input sources automatically for AV 1-2 and Component 1-2. It is presumed that RGB and HDMI/DVI sources are connected.

2. Operate the corresponding external equipment.

External

A/V Source Setup

Camcorder

Video Game

Set

AV IN 1

MONO

AV OUT

(L)

(R)

S-VIDEO

VIDEO

(L)

AUDIO

(R)

HDMI

/DVI IN

DIGITAL AUDIO

OPTICAL OUTPUT

AUDIO VIDEO

14 DLP Projection TV

Installation

The TV has a special signal output capability which allows you to hook up a second TV or monitor.

Connect the second TV or monitor to the TV’s MONITOR OUTPUT. See the Operating Manual of the second TV or monitor for further details regarding that device’s input settings.

Note

• Component, RGB-PC/RGB-DTV, HDMI/DVI, DTV input sources cannot be used for AV out.

AAV Out Setup

V Out Setup

How to connect

Use the TV’s COMPONENT (Y, P

B, PR

) INPUT, RGB, HDMI/DVI jack for video connections, depending on your set-top box connector. Then, make the corresponding audio connections.

Note: HDMI(High Definition Multimedia Interface): Input that accepts uncom-

pressed digital signal and multi channel digital audio signal.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)

2. Use INPUT on the Remote Control to select Component 1, Component 2, RGB-DTV or HDMI/DVI source.

HDSTB Setup

- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you want to receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).

Signal 480i 480p 720p 1080i

Component 1/2

Yes Yes Yes Yes

RGB-DTV,HDMI/DVI

No Yes Yes Yes

AV IN 1

MONO

AV OUT

(L)

(R)

VIDEO

AUDIO

S-VIDEO

(L)

(R)

DIGITAL AUDIO

OPTICAL OUTPUT

S-VIDEO

(R) AUDIO (L) VIDEO

HDMI

/DVI IN

Owner’s Manual 15

Send the TV’s audio to external audio equipment (stereo system) via the Digital Audio Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.

2. Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment.

3. Set the “ TV Speaker option - Off” in the AUDIO menu. Refer to page 26. See the external audio equipment instruction manual for operation.

Caution: Do not look into the optical output port. Looking

at the light may damage your vision.

Digital

Audio Output

AV IN 1

MONO

AV OUT

AUDIO

S-VIDEO

VIDEO

(L)

(R)

/DVI IN

DIGITAL AUDIO

OPTICAL OUTPUT

HDMI

C A B L E C A R D

DVI

HDMI

16 DLP Projection TV

Installation

PC Setup

- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic card accordingly.

RGB-PC OUTPUT

AUDIO

RGB

(PC/DTV)

RGB IN

COMPONENT IN

(L)

(R)

AUDIO

RGB/DVI

(L)

(R)

SERVICE ONLY

VIDEO

AUDIO

How to connect

1. Connect the PC to RGB INPUT port of this TV with a RGB cable.

2. If the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT port located on the right side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60 Hz.

2. Select RGB-PC input source in main input option of SETUP menu.

Once you select RGB-PC in main input option of SETUP menu,

INPUT button is also available for this purpose.

When supporting RGB

DVI-PC OUTPUT

AUDIO

RGB

(PC/DTV)

S-VIDEO

RGB IN

(L)

(R)

AUDIO

RGB/DVI

(L)

(R)

AUDIO

VIDEO

AV IN 1

AV OUT

DIGITAL AUDIO

OPTICAL OUTPUT

HDMI

/DVI IN

MONO

How to connect

1. Connect the PC to HDMI/DVI port of this TV with an HDMI-to-DVI cable(not supplied with this product).

2. If the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT port located on the right side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz.

2. Select HDMI/DVI input source in main input option of SETUP menu.

INPUT button is also available for this purpose.

When supporting DVI

Note:

-Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate, adjust Phase Calibration using the ADJUST button or adjust the brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

+ 36 hidden pages
