LG 50PZ550-UA, 50PZ540-UB Schematic

PLASMA TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : PU13A

MODEL : 50PZ550 50PZ550-UA MODEL : 50PZ540 50PZ540-UB

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in Korea

P/NO : MFL67001501(1101-REV00)

- 2 -

Only for training and service purposes

CONTENTS

CONTENTS ............................................................................................................................... 2

SAFETY PRECAUTIONS ...........................................................................................................3

SPECIFICATION.........................................................................................................................4

ADJUSTMENT INSTRUCTION ..................................................................................................6

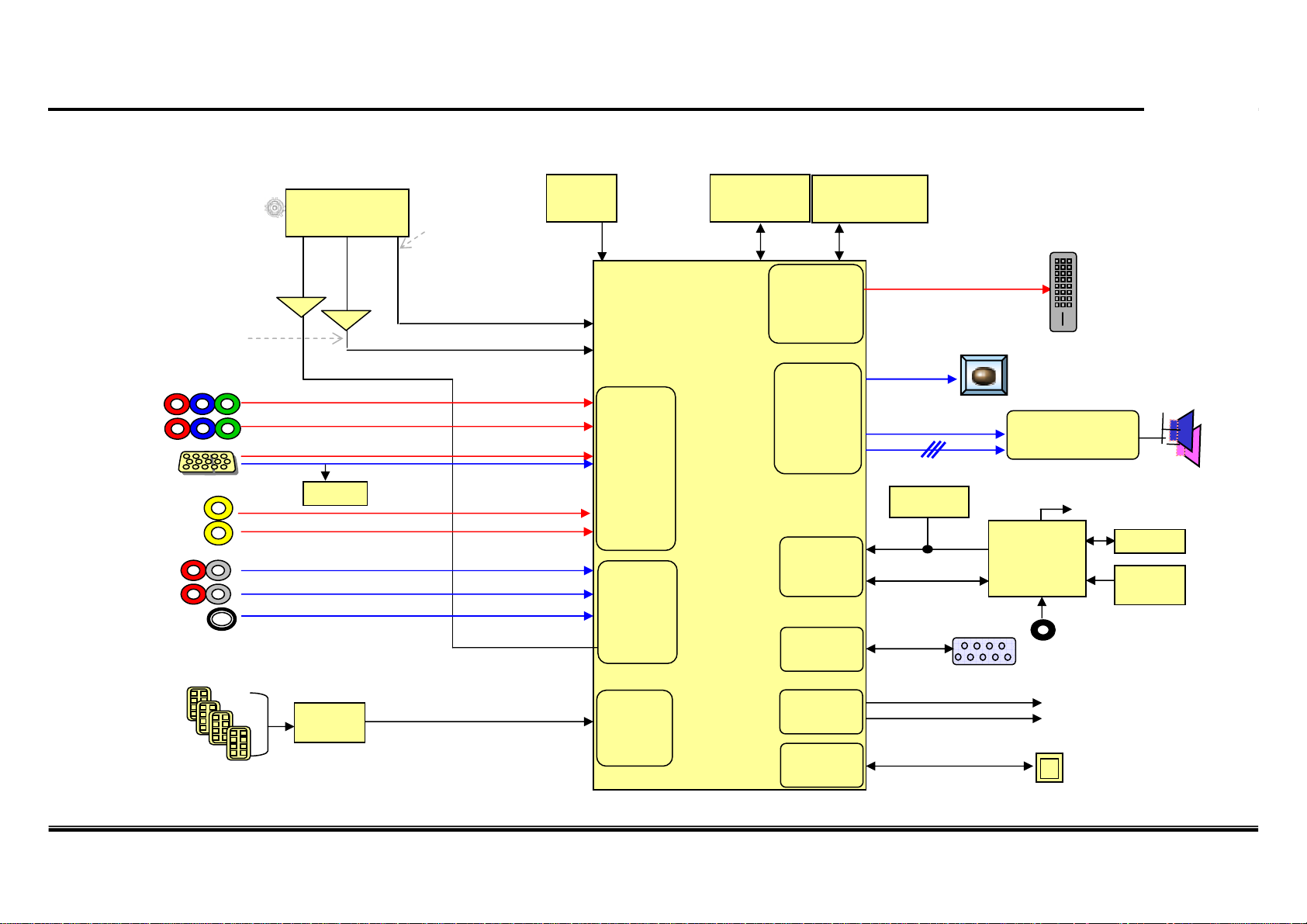

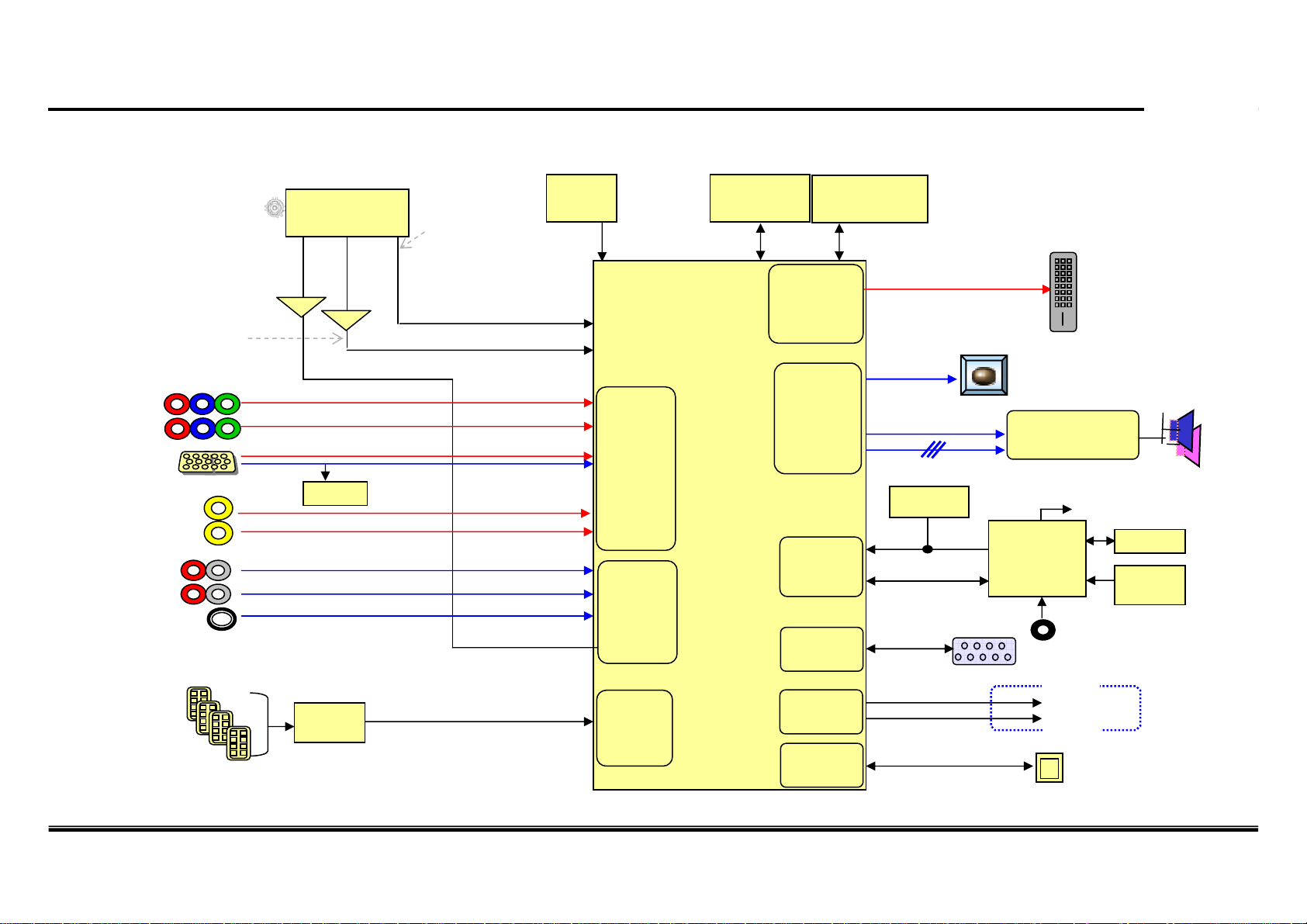

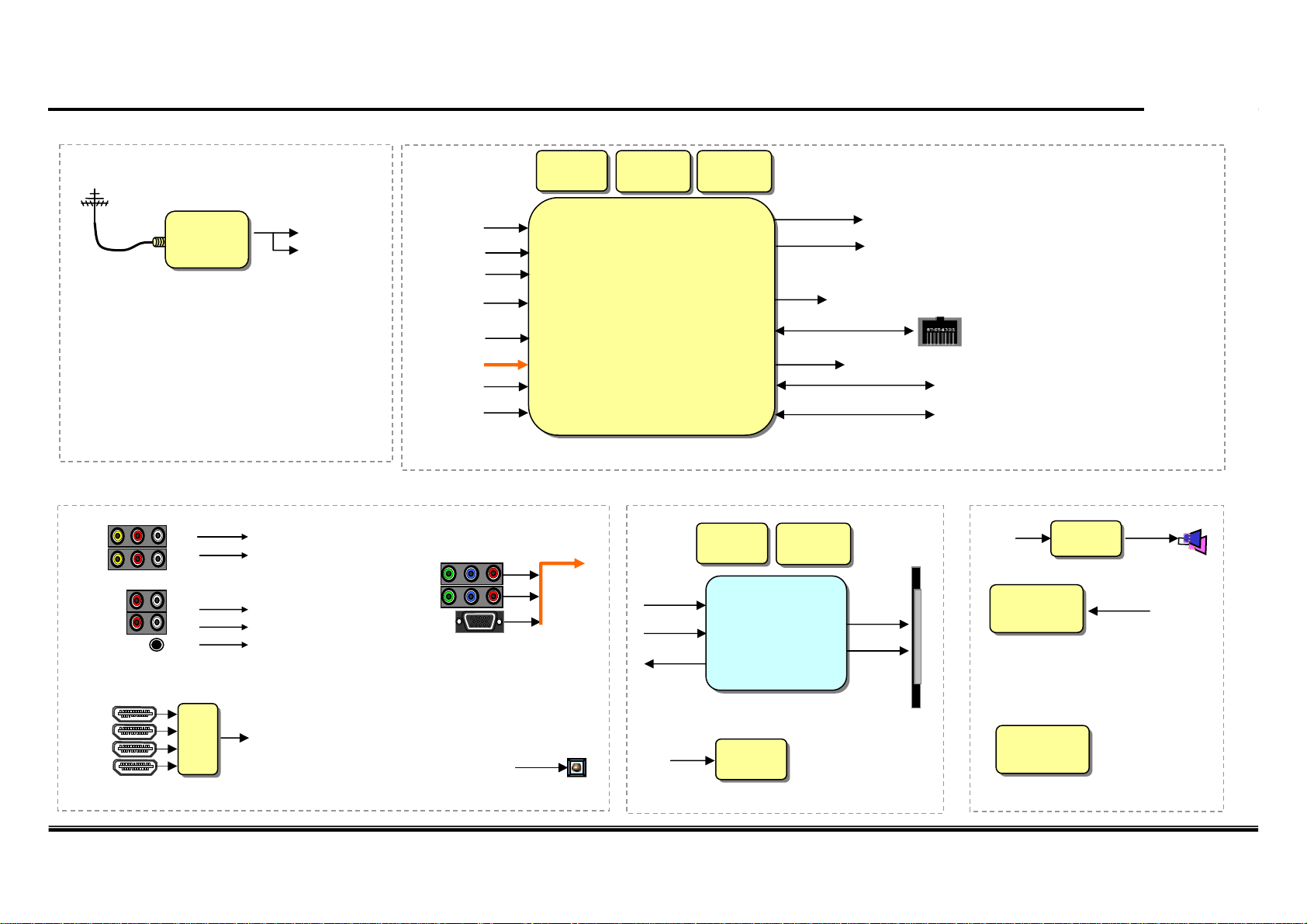

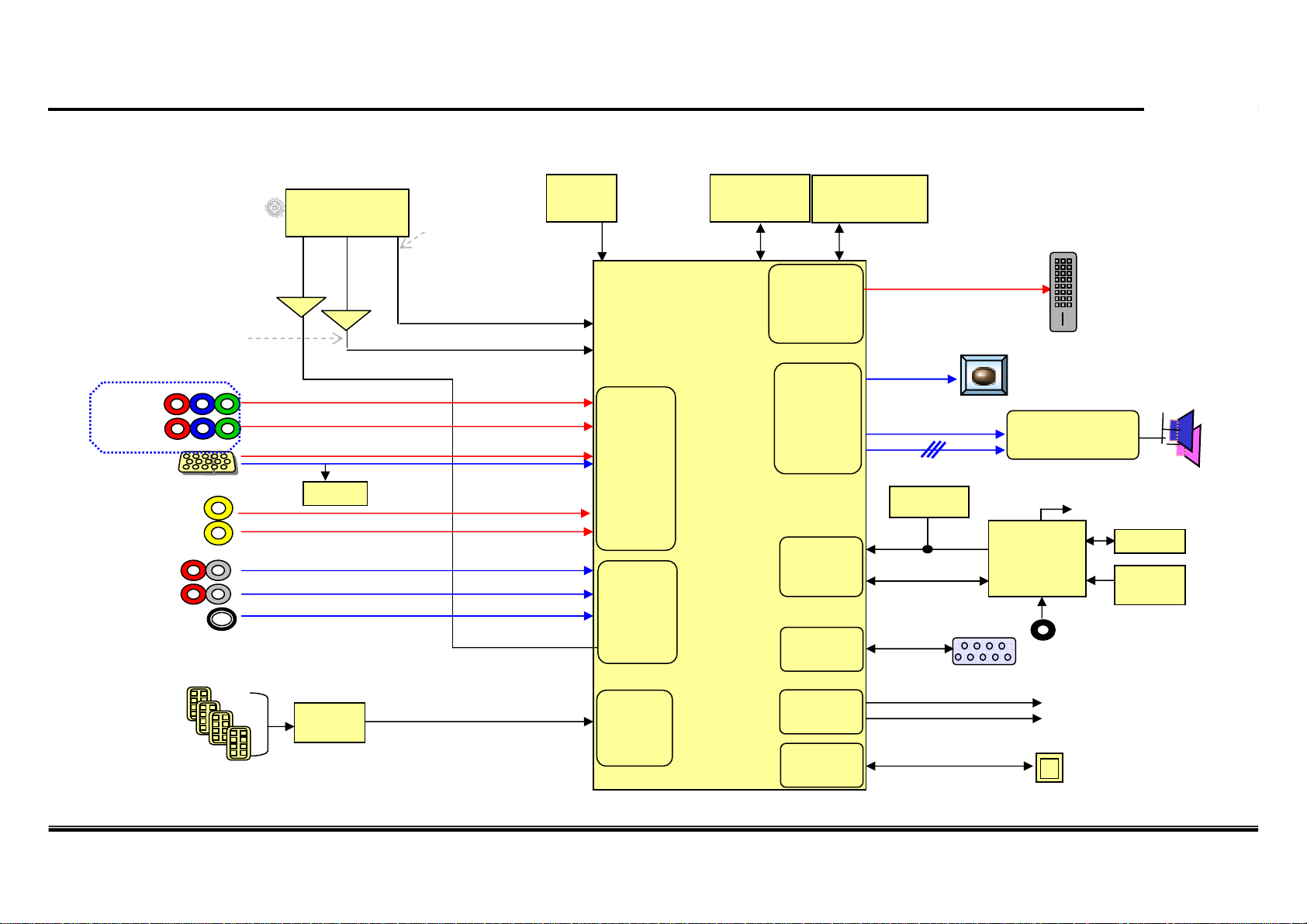

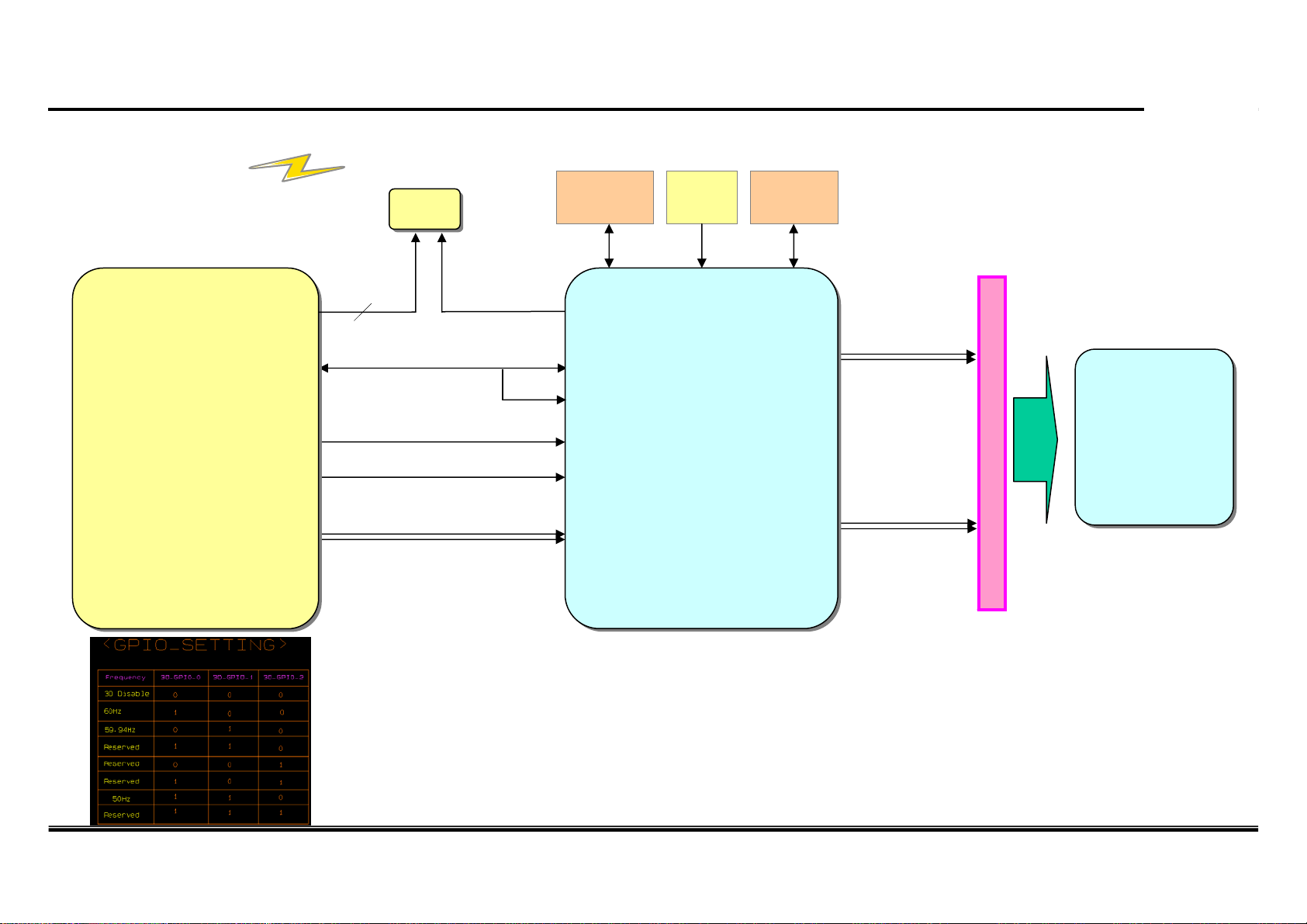

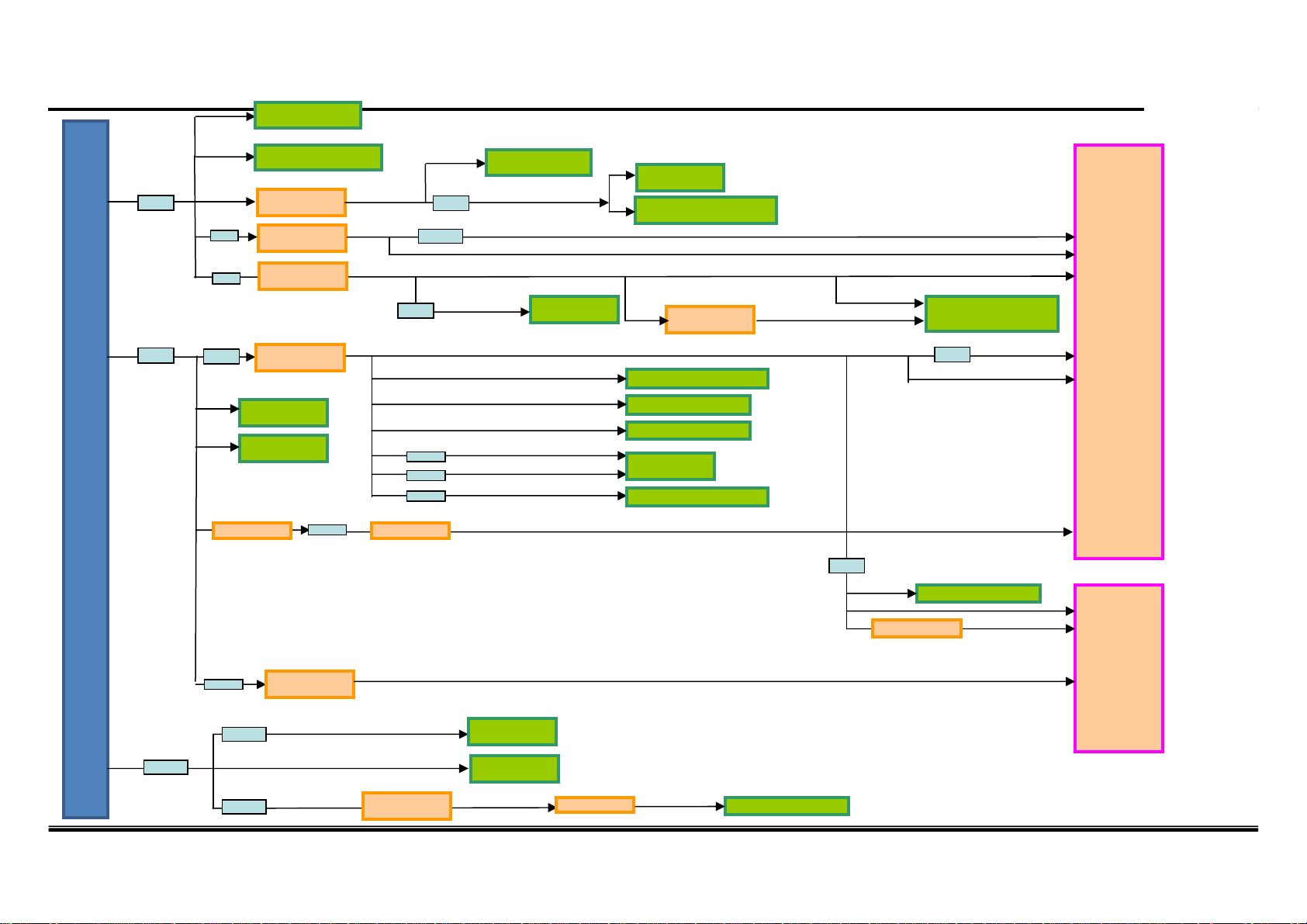

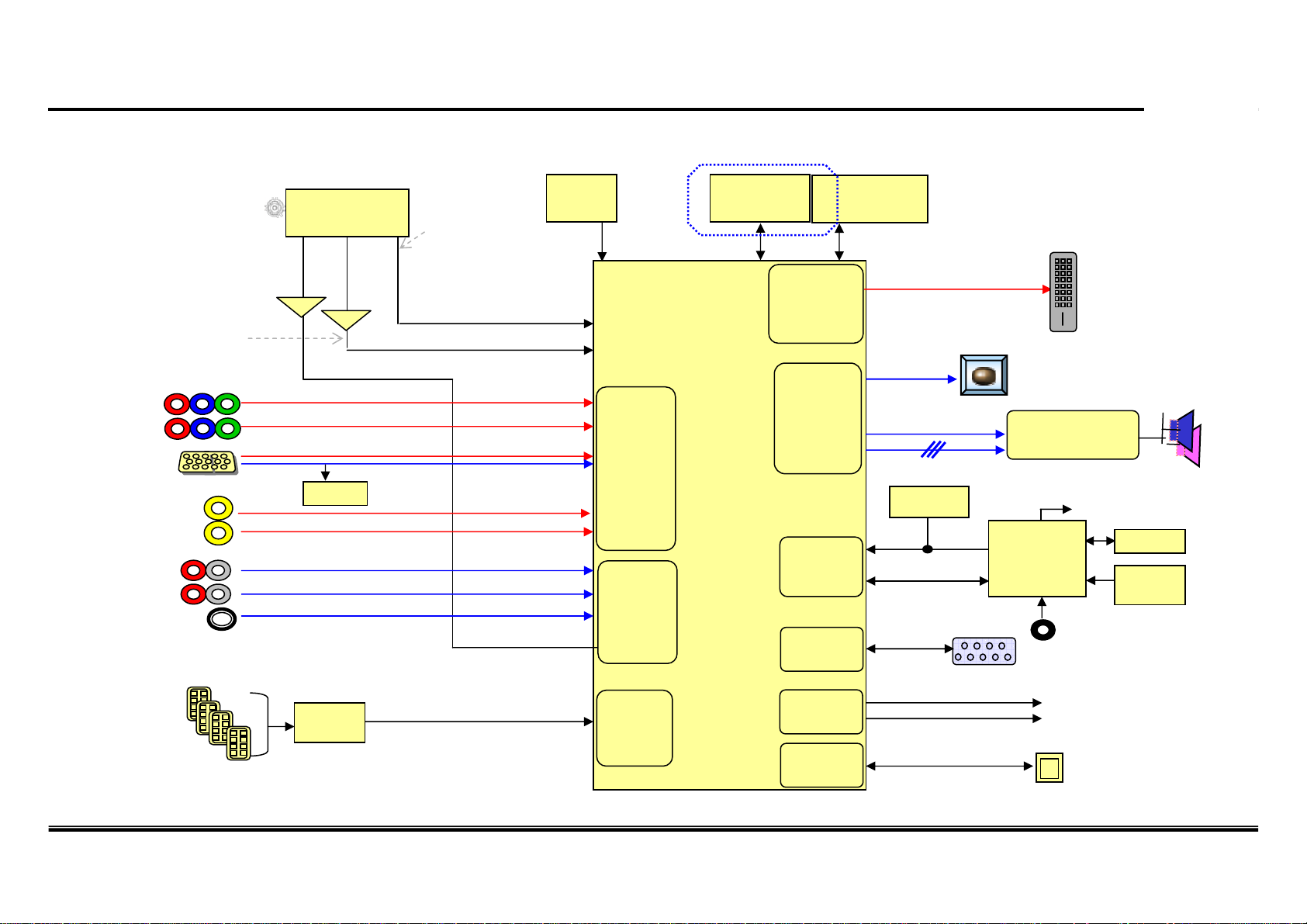

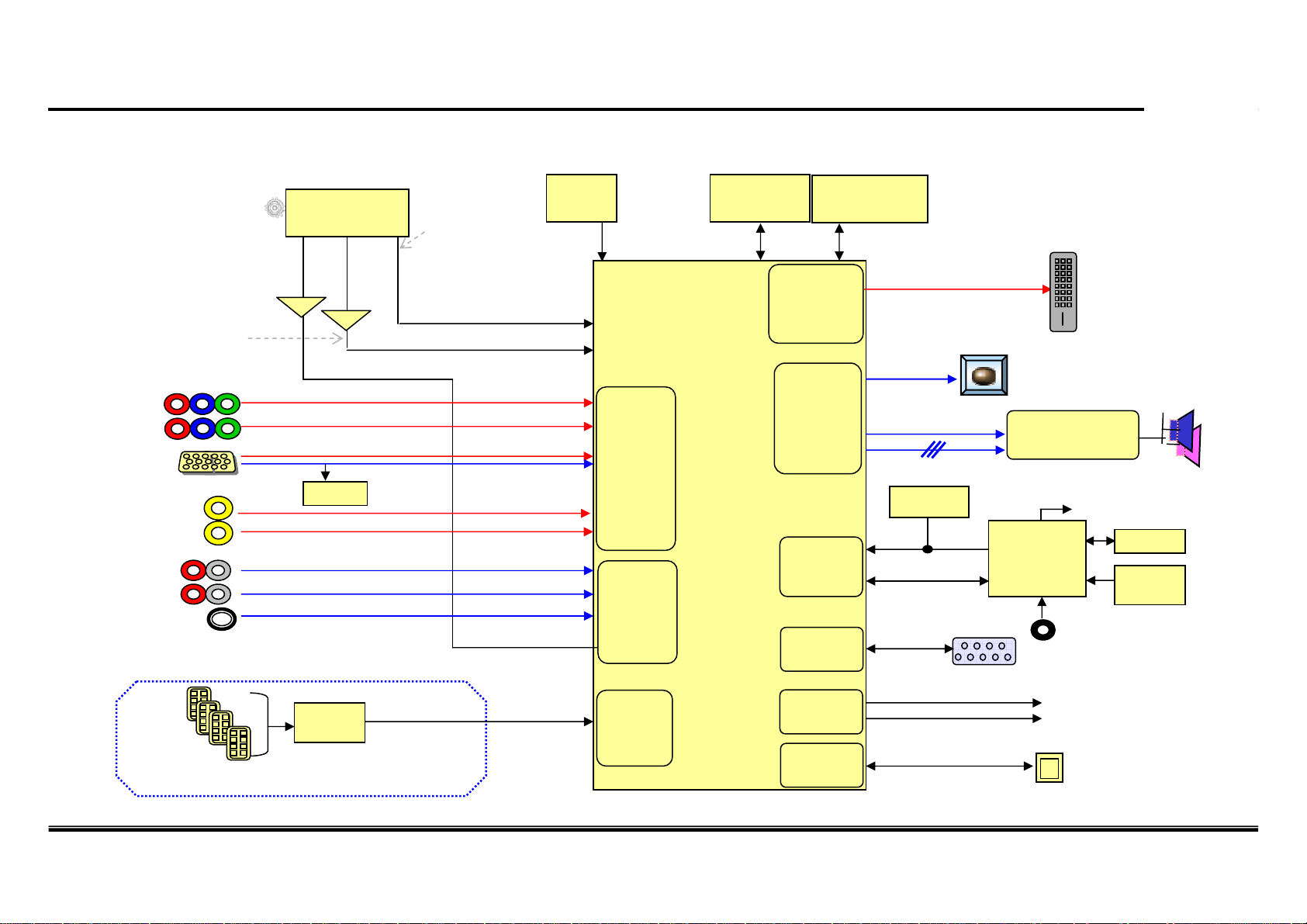

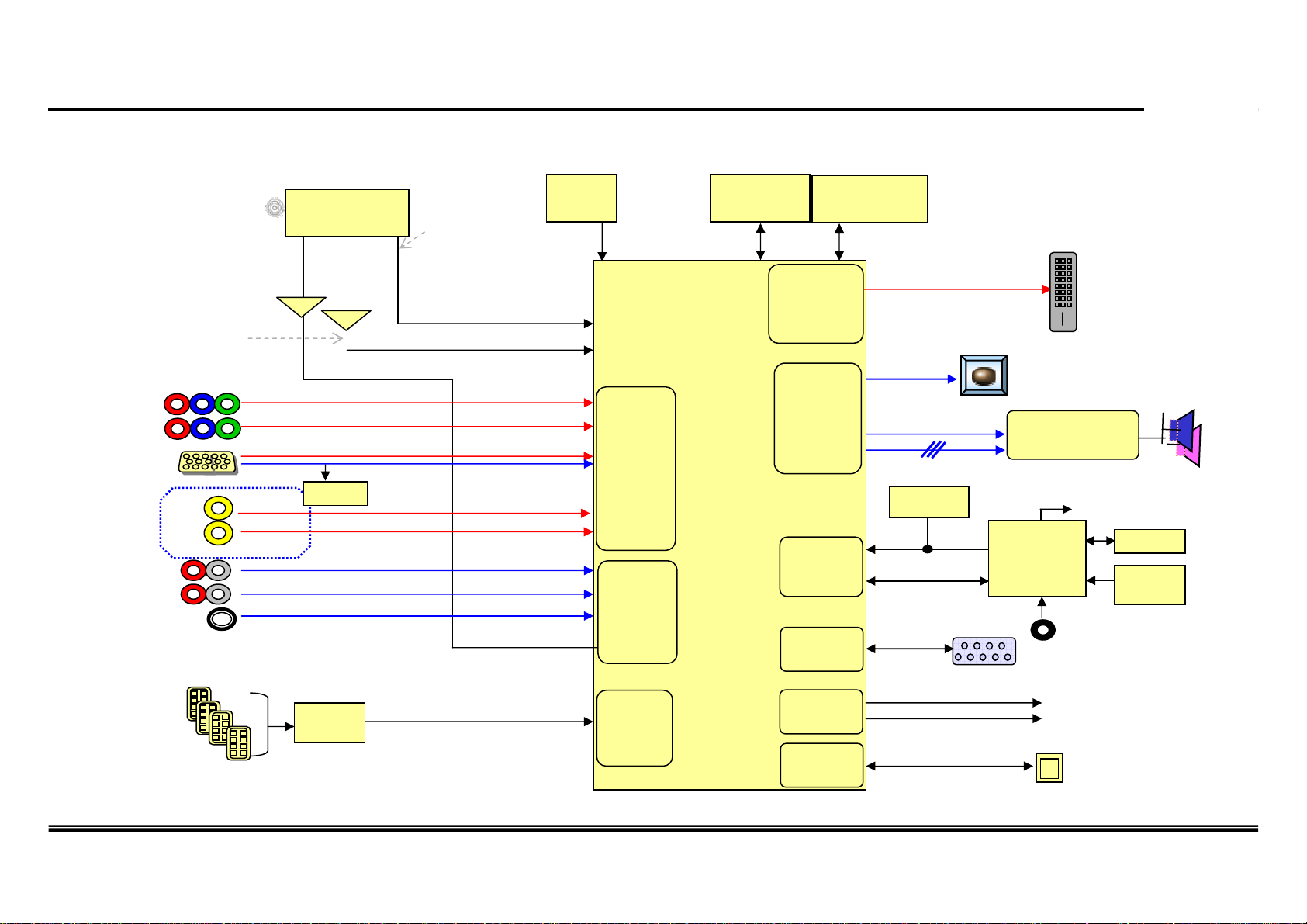

BLOCK DIAGRAM ...................................................................................................................13

EXPLODED VIEW ...................................................................................................................14

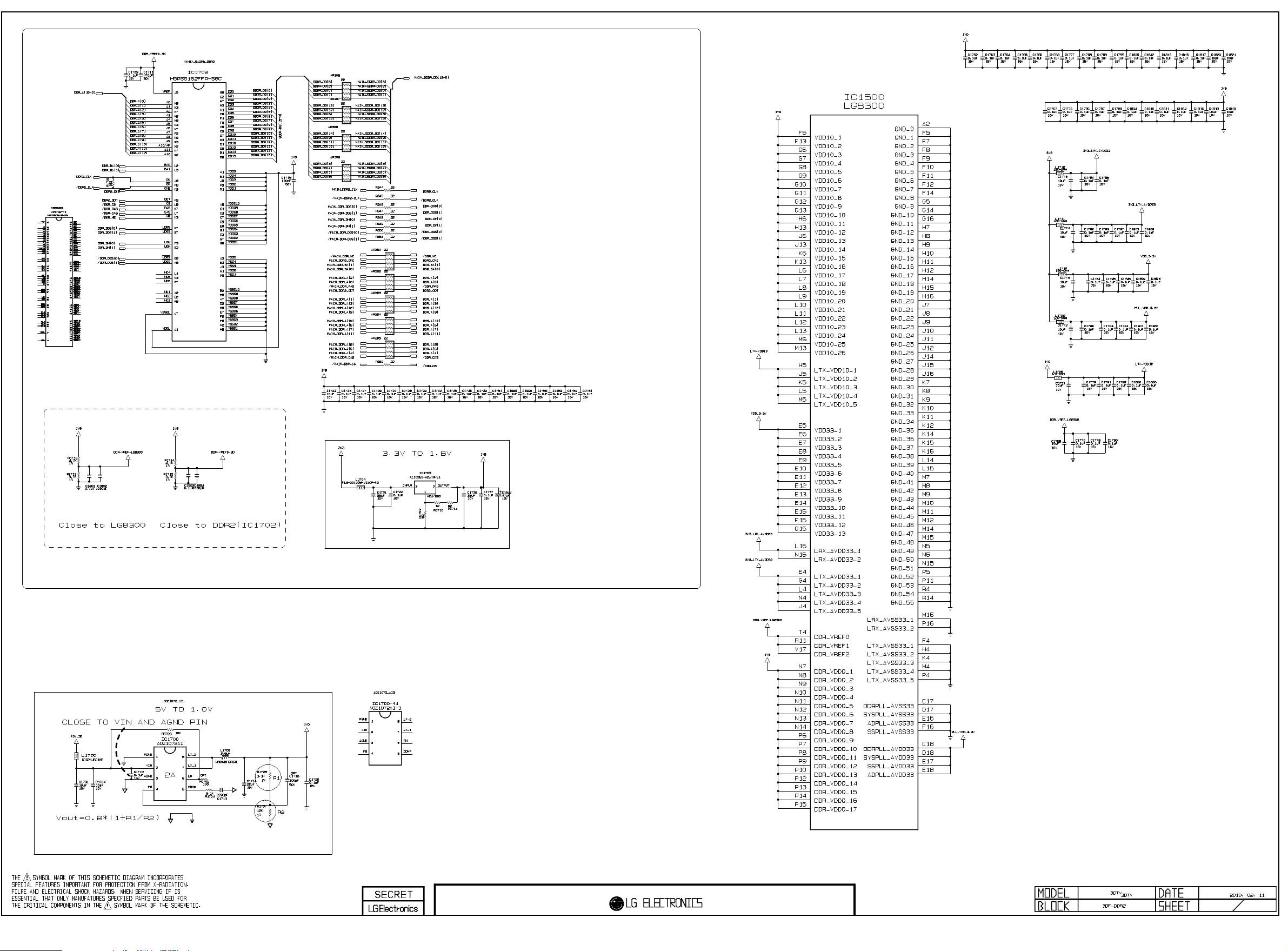

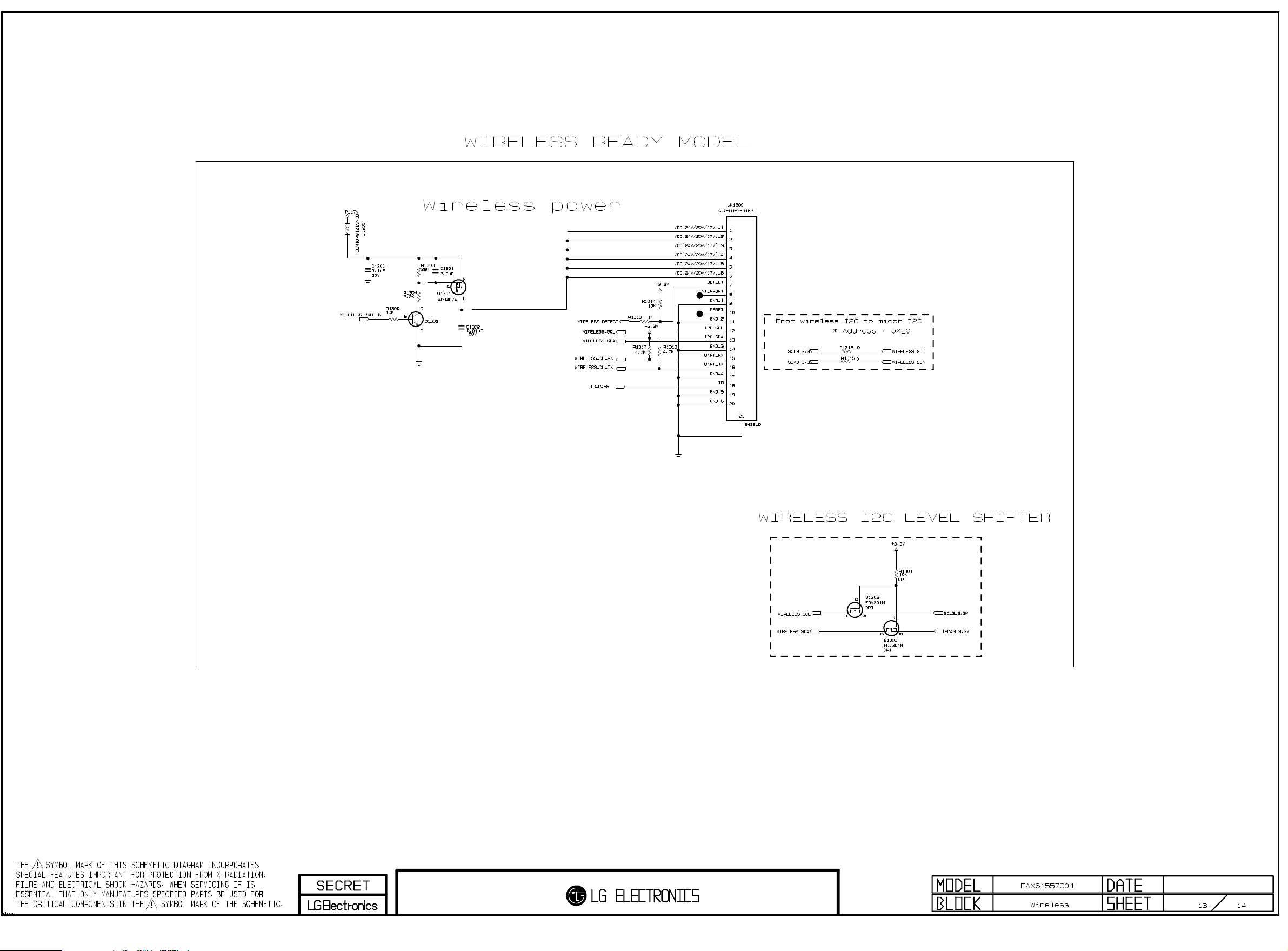

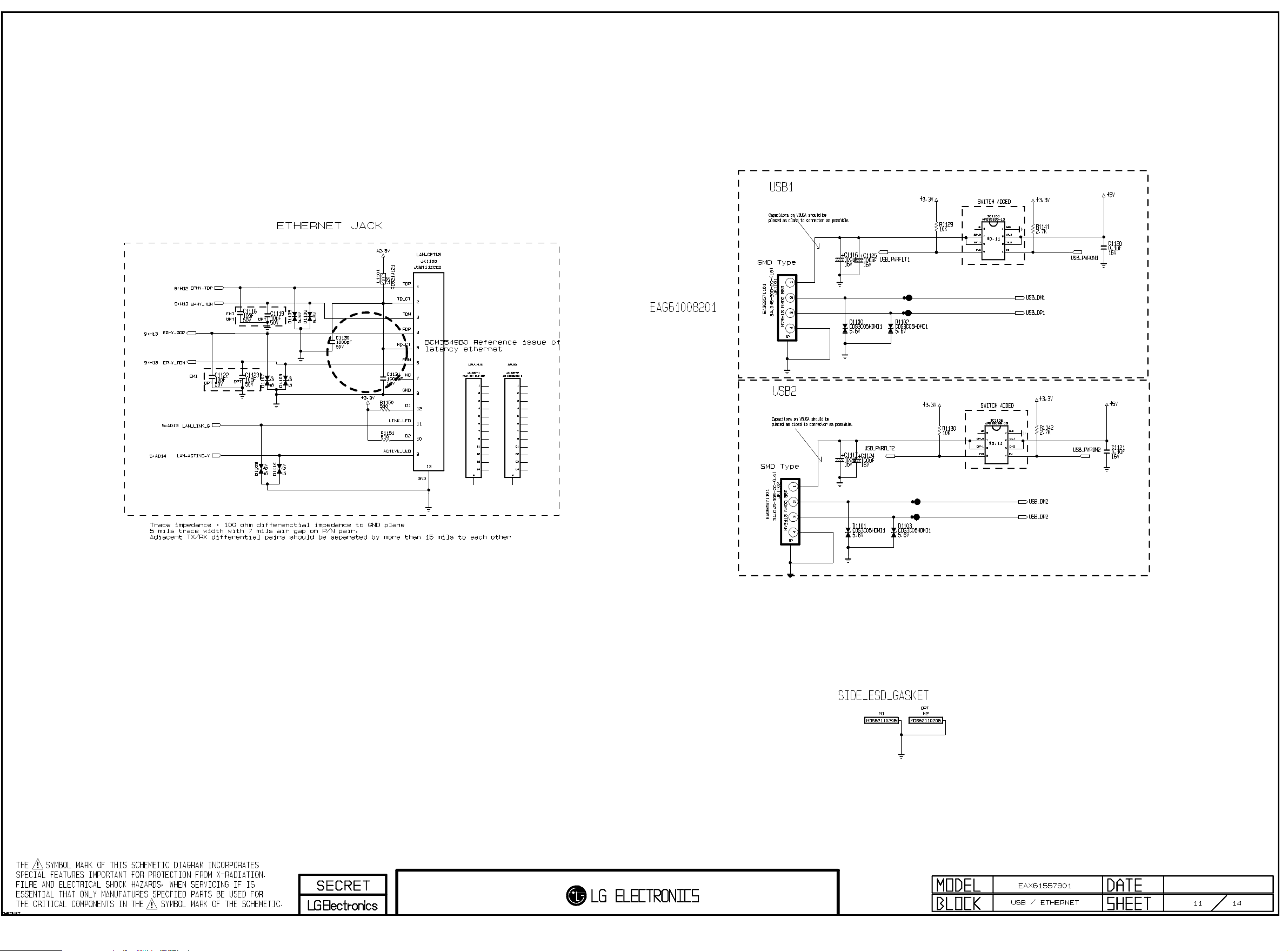

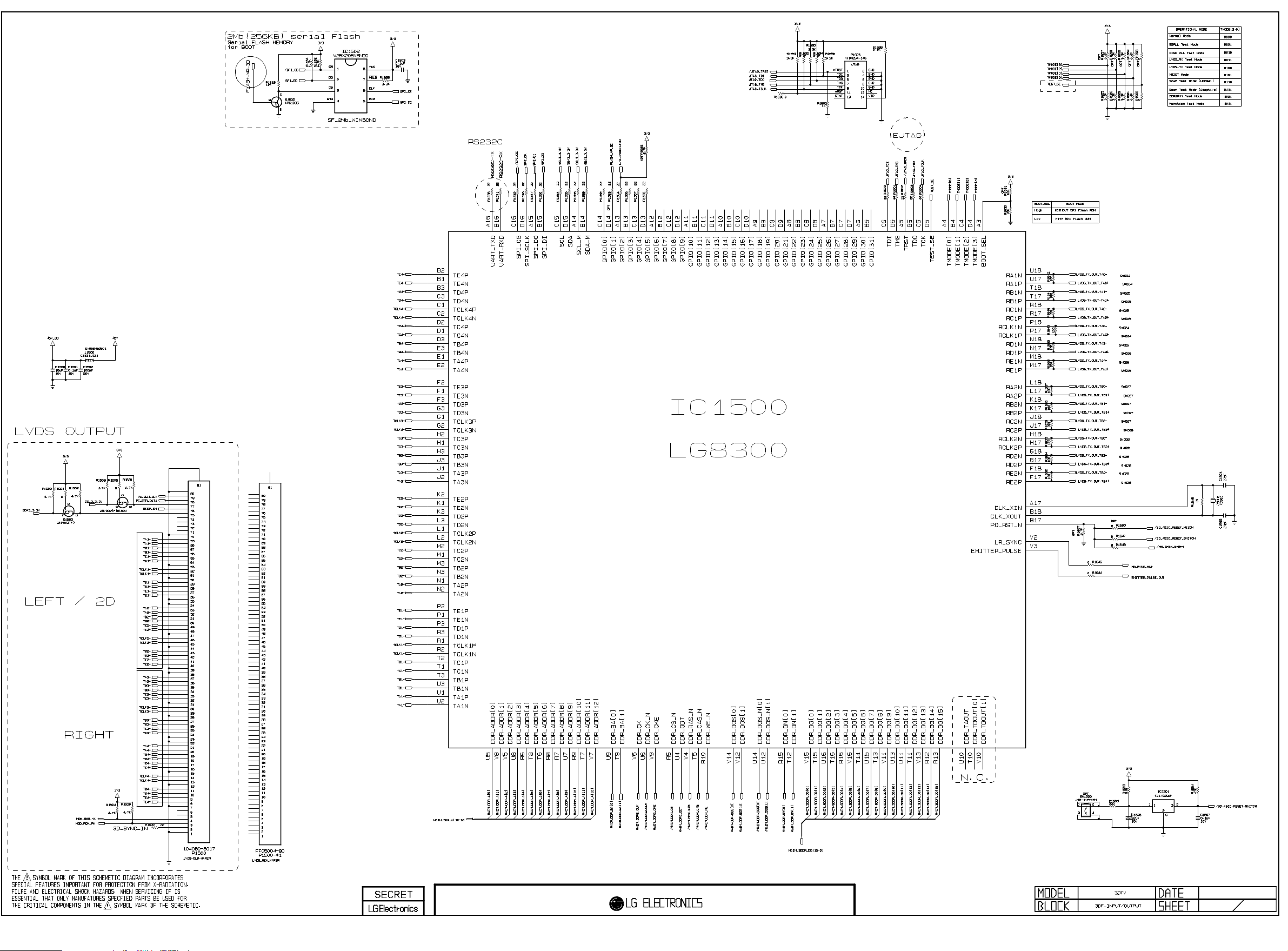

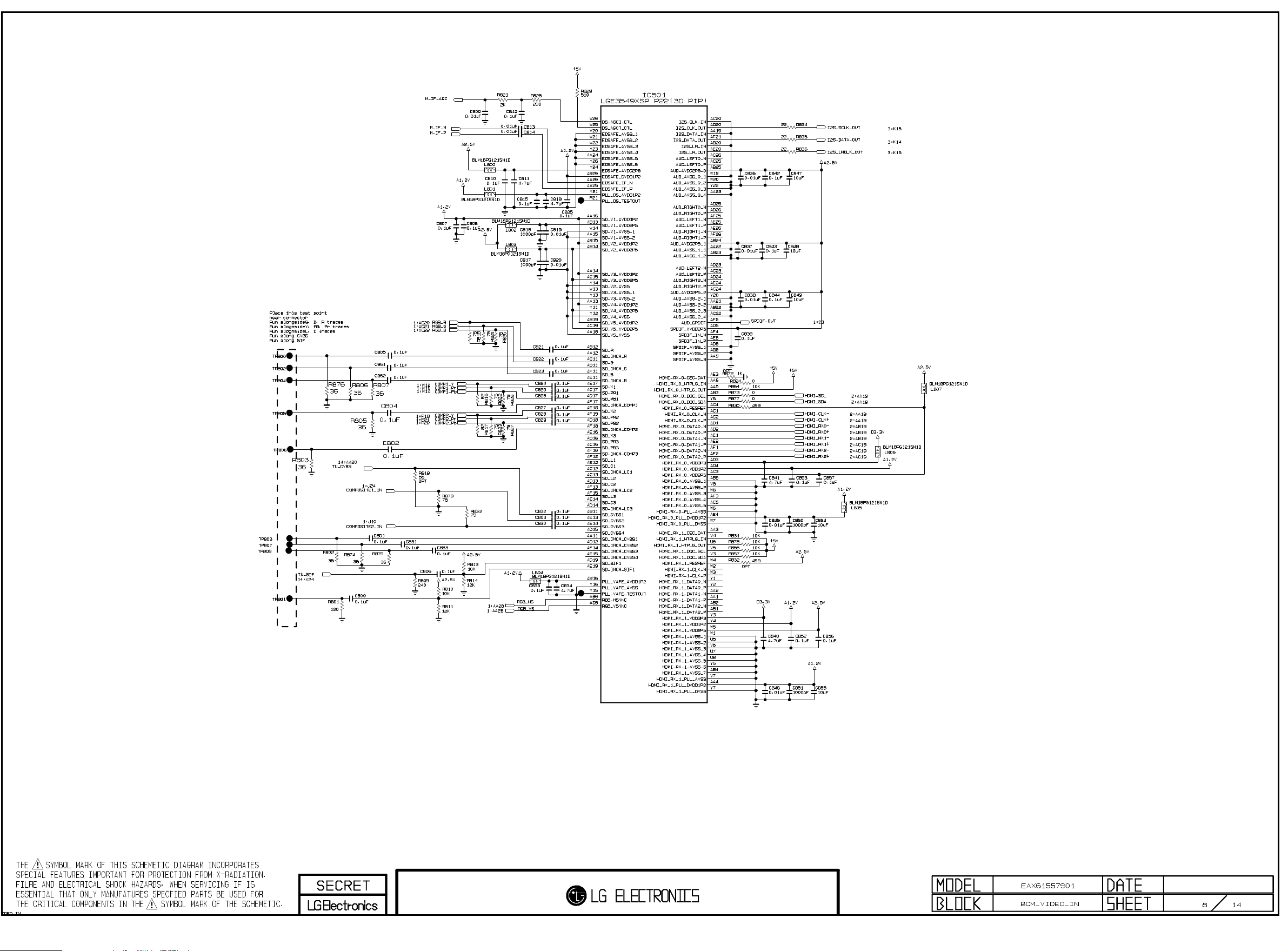

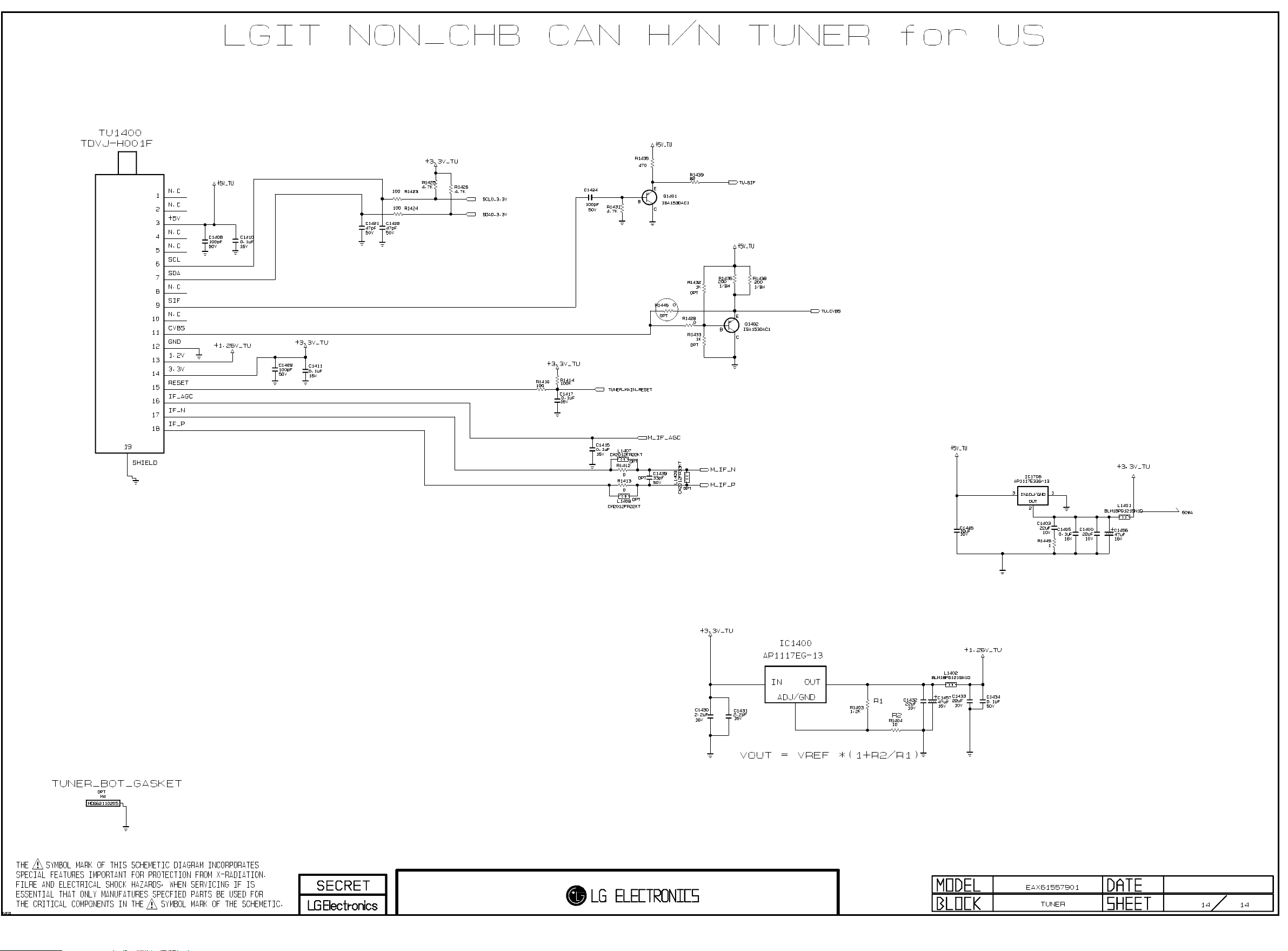

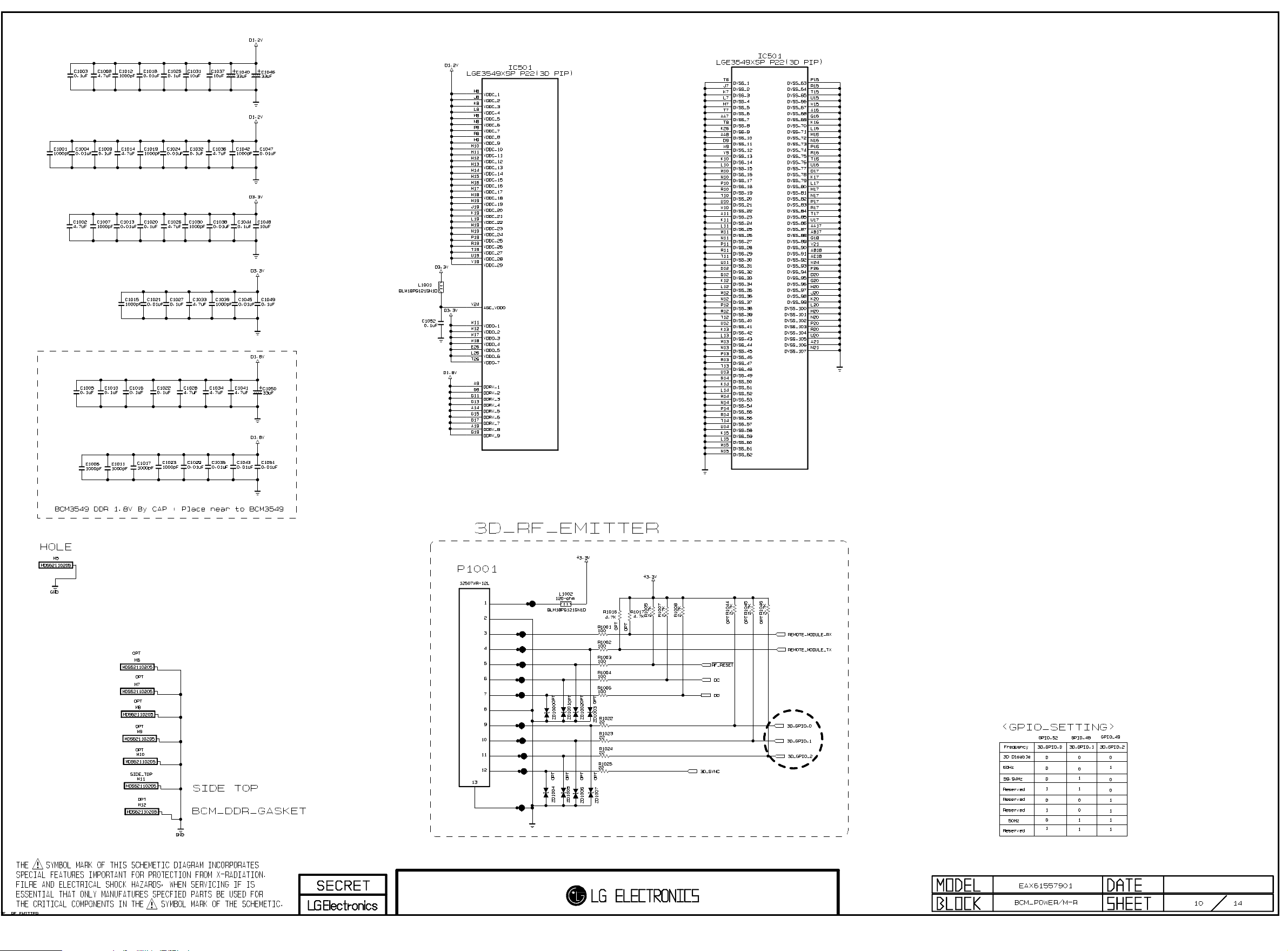

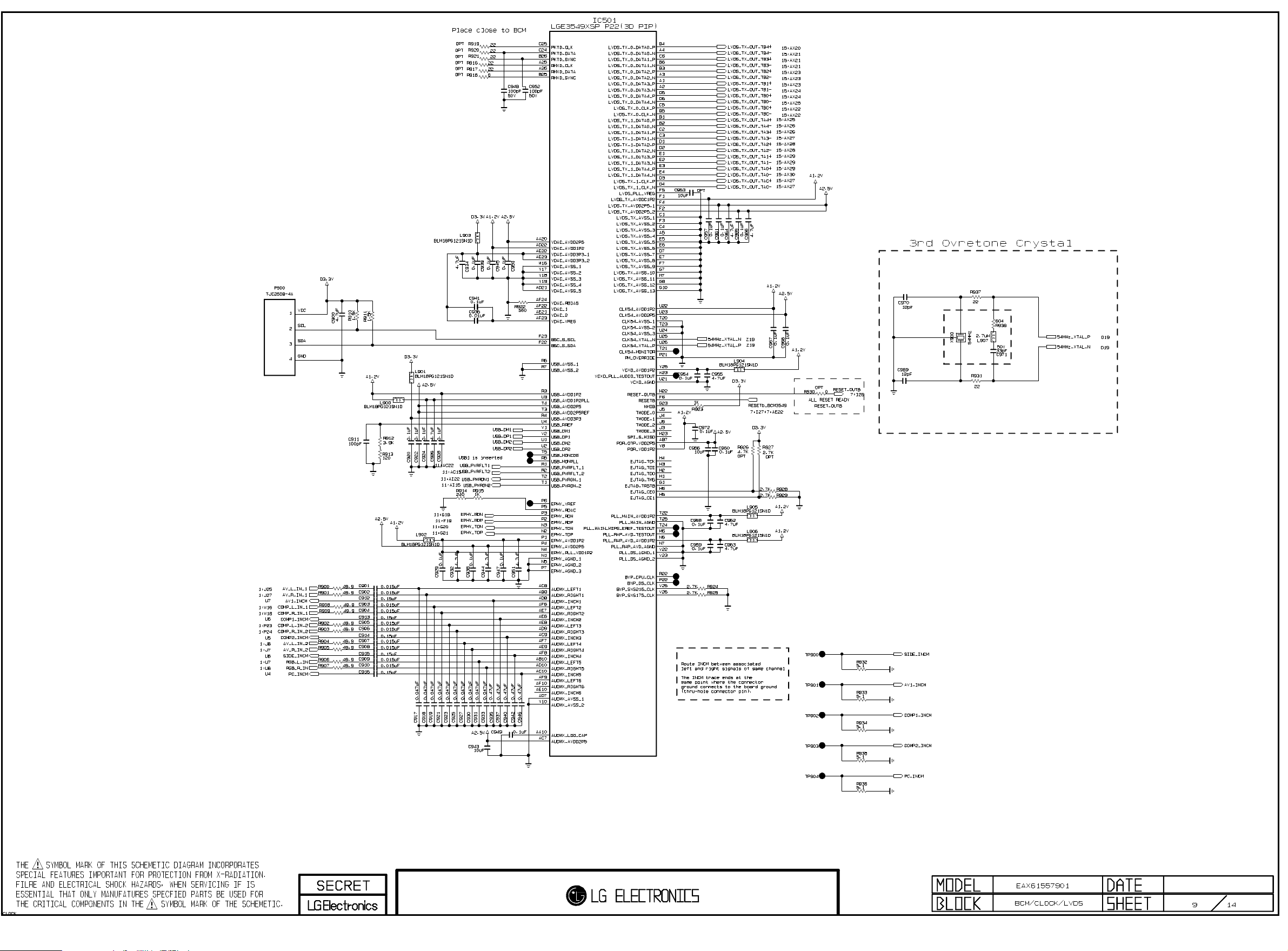

CIRCUIT DIAGRAM .....................................................................................................................

- 3 -

Only for training and service purposes

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K/10watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

Only for training and service purposes

SPECIFICATIONS

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application Range

(1) This spec sheet is applied all of PDP TV with PU13A chassis.

2. Specification

Each part is tested as below without special appointment.

(1) Temperature : 25 °C ± 5 °C (77 °F ± 9 °F), CST : 40 °C ± 5 °C (2) Relative Humidity : 65 % ± 10 % (3) Power Voltage : Standard input voltage (100 V - 240 V ~ 50 / 60 Hz)

* Standard Voltage of each product is marked by models

(4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with

BOM.

(5) The receiver must be operated for about 5 minutes prior to the adjustment.

3. Test Method

(1) Performance : LGE TV test method followed. (2) Demanded other specification

Safety : UL, CSA, IEC specification, CE EMC : FCC, ICES, IEC specification, CE

Model Name

50PZ550-UA

50PZ540-UB

Remark

Safety : UL1492, CSA C22.2.No.1

EMC : FCC Class B, IC Class B

Market

NORTH AMERICA

CANADA / MEXICO

Model Name

50PZ550-UA

50PZ540-UB

Brand

LG

Market

NORTH AMERICA

CANADA / MEXICO

- 5 -

Only for training and service purposes

4. General Specification

No Item Specification Remark

1. Receiving System 1) ATSC / NTSC-M

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) DTV : 02-69

4) CATV : 01~135

5) CADTV : 01~135

3. Input Voltage 1) AC 100 V - 240 V ~ 50 / 60 Hz N.America Mark : 110V, 60Hz

4. Market NORTH AMERICA, KOREA

5. Screen Size 127 cm (50 inch) Wide(1920 × 1080) 50PZ550/540

152 cm (60 inch) Wide(1920 × 1080) 60PZ550/540

6. Aspect Ratio 16:9

7. Tuning System FS

8. PDP Module PDP50R3#### (1920 × 1080) 50PZ550/540 PDP60R3#### (1920 × 1080) 60PZ550/540

9. Operating Environment 1) Temp : 0 deg ~ 40 deg

2) Humidity : ~ 80 %

10. Storage Environment 1) Temp : -20 deg ~ 60 deg

2) Humidity : ~ 85 %

- 6 -

Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to PU13A Chassis applied PDP TV all models manufactured in TV factory.

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 cC ± 5 cC of temperature and 65 % ± 10 % of relative

humidity if there is no specific designation. (4) The input voltage of the receiver must keep 100 V - 240 V,

50 / 60 Hz. (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15 cC

- In case of keeping module is in the circumstance of 0 cC, it should be placed in the circumstance of above 15 cC for 2 hours

- In case of keeping module is in the circumstance of below

-20 cC, it should be placed in the circumstance of above 15 cC for 3 hours.

O After RGB Full White in HEAT-RUN Mode, the receiver

must be operated prior to the adjustment.

O Enter into HEAT-RUN MODE

1) Press the POWER ON KEY on R/C for adjustment.

2) OSD display and screen display PATTERN MODE.

- Set is activated HEAT run without signal generator in this mode.

- Single color pattern ( WHITE ) of HEAT RUN MODE uses to check panel.

Caution) When still image is displayed for a period of 20 minutes

or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Adjustment items

3-1. Board-level adjustment

- Mac address and Idfile(ESN) Download (Except For Mexico/Canada Models)

- Adjust 480i Comp1 adj.

- Adjust 1080p Comp1 adj.

- Adjust 1920*1080 RGB adj.

- EDID/DDC download

Above adjustment items can be also performed in Final Assembly if needed. Both Board-level and Final assembly adjustment items can be check using In-Start Menu 1. Adjust Check.

3-2. Final assembly adjustment

- White Balance adjustment

- RS-232C functionality check

- Factory Option setting per destination

- Ship-out mode setting (In-Stop)

3-3. Etc.

- Ship-out mode

- Service Option Default

- USB Download(S/W Update, Option)

4. MAC Address and ESN Key Write

4-1. Equipment & Condition

- Play file: Serial.exe

- MAC Address edit

- Input Start / End MAC address

4-2. Download method

(1) Communication Prot connection

Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

(2) MAC Address Download

- Com 1,2,3,4 and 115200(Baudrate)

- Port connection button click(1)

- Load button click(2) for MAC Address write.

- Start MAC Address write button(3)

- Check the OK Or NG

(3) Input the ESN Key (Except For Mexico/Canada Models)

- download Model sending Key file

- input by 1 by SET so as not to be duplicated

5. LAN PORT + ESN INSPECTION

5-1. Equipment & Condition

- Each other connection to LAN Port of IP Hub and Jig

5-2. MAC Address & ESN Key confirmation

- Push “IN-START” Key in service remote controller.

5-3. LAN PORT INSPECTION(PING TEST)

- LAN Port connection with PCB

- Network setting at MENU Mode of TV

- setting automatic IP

- Setting state confirmation

-> If automatic setting is finished, you confirm IP and MAC Address.

- remove LAN CABLE

6. ADC adjustment

6-1. Overview

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation.

6-2. Equipment & Condition

(1) Jig (RS-232C protocol) (2). Internal pattern is used. No external signal is needed.

6-3. Adjustment

(1) Adj. protocol

(2) Check adjust device

Pattern Generator : (MSPG-925FA) Adjust 480i Comp1 (MSPG-925FA:model :209 , pattern :65) Adjust 1080p Comp1 (MSPG-925FA:model :225 , pattern :65) Adjust RGB (MSPG-925FA:model :225 , pattern :65) The PU02A have not ECHO.

7. EDID(The Extended Display Identification Data) / DDC(Display Data Channel) download

7-1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of °∞Plug and Play°±.

7-2. Equipment

- Adj. R/C

- Since embedded EDID data is used, EDID download jig, HDMI cable and D-sub cable are not need.

7-3. Download method

(1) Press Adj. key On the Adj. R/C, press Adj. key then select

EDID D/L. By pressing Enter key, EDID download will

begin. (2) If Download is successful, OK is displayed. (3) If Download is a failure, NG is displayed. (4) Re-try download

- 7 -

Only for training and service purposes

7-4. EDID DATA(PCM)

- Reference: Download is only possible in POWER ON MODE.

- HDMI

EDID Block 0, Bytes 0-127 [00H-7FH] Block Type: EDID 1.3

EDID Block 1, Bytes 128-255 [80H-FFH] Block Type: CEA EDID Timing Extension Version 3

RGB [C/S: 1C] EDID Block 0, Bytes 0-127 [00H-7FH] Block Type: EDID 1.3

7-5. EDID DATA(AC-3)

- Reference: Download is only possible in POWER ON MODE.

- HDMI

EDID Block 0, Bytes 0-127 [00H-7FH] Block Type: EDID 1.3

EDID Block 1, Bytes 128-255 [80H-FFH] Block Type: CEA EDID Timing Extension Version 3

RGB [C/S: 1C] EDID Block 0, Bytes 0-127 [00H-7FH] Block Type: EDID 1.3

- 8 -

Only for training and service purposes

Vender ID C/S1 C/S2

HDMI1 10 9C D2

HDMI2 20 9C C2

HDMI3 30 9C B2

HDMI4 40 9C A2

Vender ID C/S1 C/S2

HDMI1 10 9C 60

HDMI2 20 9C 50

HDMI3 30 9C 40

HDMI4 40 9C 30

8. White Balance adj.

8-1. Overview

(1) W/B adj.: Objective & How-it-works

1) Objective: To reduce each Panel’s W/B deviation

2) How-it-works: When R/G/B gain in the OSD is at 192, it means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

8-2. Equipment

(1) Color Analyzer : CA-210 (NCG: CH 9 / WCG: CH12 /PDP

Module:CH10)

(2) Adj. Computer

(During auto adj., RS-232C protocol is needed) (3) Adj. R/C (4) Video Signal Generator MSPG-925F 720p/216Gray

(Model:217, Pattern:78)

-> Only when internal pattern is not available

- Color Analyzer Matrix should be calibrated using CS-1000

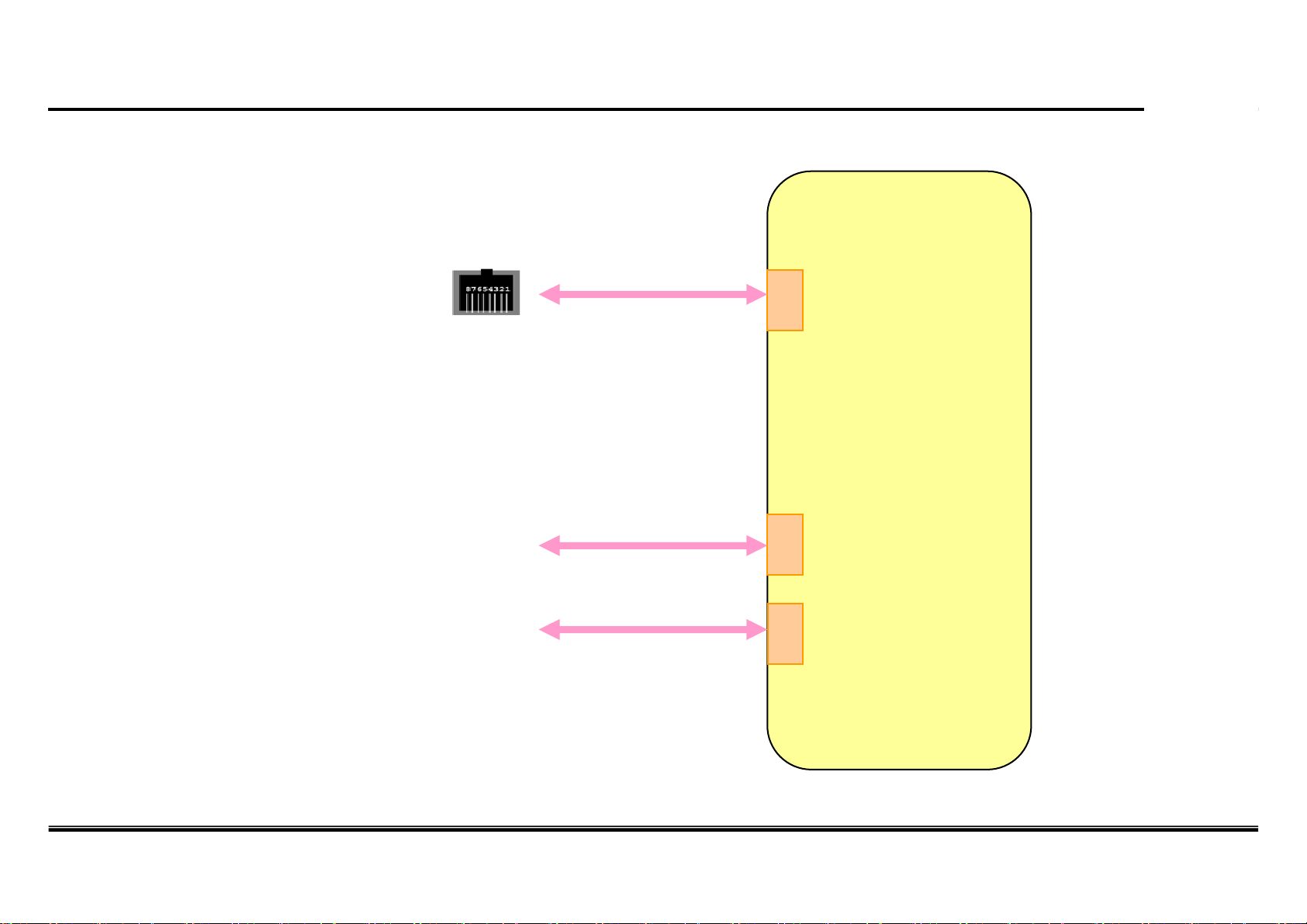

8-3. Equipment connection map

8-4. Adj. Command (Protocol)

O Protocol

- LEN: Number of Data Byte to be send

- CMD: Command

- VAL: FOS Data

- CS: Checksum of sent Data

- A: Acknowledge Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

O RS-232C Command used during auto-adj.

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj.

ja 00 ff -> Adj. data jb 00 c0 ... ... wb 00 1f -> Gain adj. complete *(wb 00 20(Start), wb 00 2f(End)) -> Off-set adj.

wb 00 ff -> End white balance auto-adj.

8-5. Auto Adj. method

(1) Set TV in adj. mode using POWER On Key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable(RS-232C) (4) Select mode in adj. Program and begin adj. (5) When adj. is complete (OK Sign), check adj. status per

mode

(Warm, Medium, Cool)

(6) Remove probe and RS-232C cable to complete adj.

- Adj. must begin w/ command “wb 00 00”, and end “wb 00 ff” and adj. offset if needed.

- Offset adjust limit value. Offset Min = 34 (Decimal) Offset Max = 94 (Decimal)

8-6. Manual adj. method

Dynamic contrast : off Dynamic color : off OPC : Off Energy saving mode : Off

(1) Set TV Picture Mode to Standard and in Advanced

Control, set Dynamic Contrast and Color ‘ Off ’ . (2) Set TV in adj. mode using POWER On Key (3) Press ADJ key -> EZ adjust using adj. R/C (4) Using CH + / - KEY, select 10.TEST PATTERN then press

Enter to place in HEAT RUN mode and wait for 30

minutes. (4) Zero calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10 cm of the surface. (5) Press ADJ key -> 7. White-Balance then press the cursor

to the right (KEY

G)

(When

G is pressed Full White internal pattern will be

displayed)

(6) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value. (7) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature (8) Off set Adjust in MEDIUM, WARM 2 modes of color

temperature ( Only THX Model )

V If internal pattern is not available, use HDMI input. In EZ

Adj. menu 7.White Balance, you can select one of 3 options: None, Inner, HDMI. Default is inner. By selecting HDMI, you can adjust using HDMI signal.

- 9 -

Only for training and service purposes

Model 100 Point WB mode WB Adj. Program

Non THX Model lists.

50PZ550-UA Only Adjust Medium Use Matrix

60PZ550-UA (Color Temperature) Adj. Program

50PZ540-UB mode RUN_Matrix_ADJ

60PZ540-UB ( Matrix Type )

V Adj. condition and cautionary items

(1) Lighting condition in surrounding area

Surrounding lighting should be lower than 10 lux. Try to isolate adj. area into dark surrounding.

(2) Probe location

- PDP : Color Analyzer (CA-100, CA-100+, CA210) probe should be firmly attached to the Module

- LCD : Color Analyzer (CA-210) probe should be within

10cm and perpendicular of the module surface (80°~ 100°)

- In case of LCD, B/L on should be checked using no

signal or Full white Pattern

8-7. Reference (White Balance adj.

coordinate and color temperature)

O Standard color coordinate and temperature using CS-1000 O Luminance: Full white 216 Gray

O Standard color coordinate and temperature using CA-210(CH

10)

- Gain color coordinate

O Pattern : Full white 216 Gray

9. 3D Function Test

9-1. 3D Pattern Inspection

(Pattern Generator MSHG-600 or MSPG-6100, HDMI mode

NO. 872 , pattern No. 83)

(1) Please input 3D test pattern like below

(2) When 3D entrance OSD is automatically displayed, Push

the OK key

(3) When took off 3D shutter glasses, Check whether viewing

the pattern like below picture)

9-2. 2D TO 3D CONVERT INSPECTION

(1) Input Combination Pattern like (Fig.1) in HDMI Input

(2) Enter the Swap Button(Yellow Color)

Check the separated line in the SET

* When you enter the swap button. Depth value is set to

Maximum value(20) automatically Worker has to enter the ETC Key Before using the swap button

9-3. RF Glasses , 3D RF Emitter Check

* Power Only Mode * MSHG-600 or MSPG-6100

- 10 -

Only for training and service purposes

(Fig.1)

* Test Scenario (1) Set TV in adj. mode using Power Only Key (2) HDMI 1.4 Frame Packing 3D images are input to the 3D

Video Player (3) Check the 3D Video Display. (4) If RF emitter signal is correctly received to RFreceiver, the

lamp of RF tester turn on

10. Option selection per country

10-1. Overview

O Option selection is only done for models in Non-USA North

America due to rating

O Applied model: PU13A Chassis applied USA Model(Not

Canada, Mexico)

10-2. Method

(1) Press ADJ key on the Adj. R/C, then select Country Group

Menu (2) Depending on destination, select KR or US, then on the

lower option, select US, CA, MX. Selection is done using

+, - KEY

10-3. Ship-out (Default) mode check

(Instop)

O After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode.

10-4. POWER Supply Unit PCB Ass'y Va/Vs

Voltage adjustment.

(1) Test equipment : D.M.M 1EA (2) Connection Diagram for Measuring : refer to (Fig.1)

(3) Vs adjustment (refer fig.1)

1) Connect + terminal of D.M.M. to Vs pin of P811, connect

-terminal to GND pin of P811

2) After turning VR901, voltage of D.M.M adjustment as same as Vs voltage which on label of panel left/top ( deviation ; ± 0.5V)

(4) Va adjustment (refer fig.1)

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D.M.M. to Va pin of P811, connect

-terminal to GND pin of P811

- After turning VR502,voltage of D.M.M adjustment as same as Va voltage which on label of panel left/top (deviation; ± 0.5V)

11. USB Download (S/W Update, *.epk File Download)

(1) Put the USB Stick to the USB socket

(2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low,

it didn’t work. But your downloaded version is High, USB data is automatically detecting

(3) Show the message “Copying files from memory”

(4) Updating is staring.

(5) Updating Completed, The TV will restart automatically.

(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have,

TV can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.

- 11 -

Only for training and service purposes

(Fig.1)

* After downloading, have to adjust TOOL OPTION again.

(1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.) (4) Completed selecting Tool option.

- 12 -

Only for training and service purposes

- 13 -

Only for training and service purposes

BLOCK DIAGRAM

- 14 -

LGE Internal Use Only

EXPLODED VIEW

200

580

300

400

910

120

209

240

590

201

501

520

601

206

205

204

203

202

602

304

302

303

301

305

207

560

570

900

208

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

A10

A9

LV1

A12

A4

A2

LGE Internal Use Only

Great Company Great People

GP2R_BCM (PU13A) Training manual

Contents

-Block Diagram

- Power Flow Diagram

2010.12.03

Great Company Great People

- Trouble Shooting Guide

PDP ATSC Gr. LEE SANG WON

Trouble Shooting Guide for LG Service Man

PU13A Model Lists

-50PZ550-UA , 60PZ550-UA

-50PZ540-UB , 60PZ540-UB

Great Company Great People

5/37

Block Diagram – Over view

ATSC/ NTSC

LGIT

TDVJ-H101F

IF

CVBS1/ SIF_LIVE

CVBS1,2

LR1,2

COMP_LR1,2

RGB_LR

EXT_IN

HDMI

SIF_LIVE

DDR2

NAND

4Gbit

BCM3549XSP_3D_PIP

IF

DDR2

512MB

533MHz

(400MHz)

X-TAL

54MHz

LVDS

GPIO24

SPDIF

Ethernet

1080P

L/R Indicator

BCM_SPDIF

LAN

BCM_I2S

USB2

USB1

(External Input/Output)

CVBS1/LR CVBS2/LR

COMP1_LR

COMP2_LR

RGB_LR

4:1 Switch

NXP19997

HDMI

HDMI 1.3 x 4

Great Company Great People

COMP1/2

RGB

BCM_SPDIF

EXT_IN

(3DF_Block)

L/R Indicator

1080P

3D_Sync_Out

6/37

Serial Flash

2Mbit

LG8300_3DF_ASIC

RF_Tx

DDR2

256Mb

400MHz

1080P(L)

1080P(R)

(Etc)

BCM_I2S

NEC Micom

Interface

Audio_AMP

uPD

Wireless

Interface

Audio_AMP

TAS5709

CEC Control

Block Diagram – USB , Ethernet

LAN

BCM3549XSP_3D_PIP

EPHY TX/RX

Ethernet

USB1 DP/DN

USB_1_DP/DM2

Great Company Great People

USB2 DP/DN

USB_2_DP/DM2

6/37

Block Diagram – 3DF Block Diagram

RF_Shutter_Glasses

BCM3549_XSP

(3D_PIP)

RF_Tx

3D_GPIO

3

I2C

L/R DETECT

3DF_ASIC RESET

LVDS 2Ch

1920x1080/60Hz

(S/S, T/B, C/B, F/S)

1920x1080/48Hz

(F/S)

3D_SYNC_OUT

3D :

DDR2

(256Mbit)

3D_SYNC

EMITTER_PULSE

I2C

I2C_M

GPIO[2]

PO_RST_N

X-tal

(25MHz)

3DF_ASIC

LG8300

Serial_Flash

(2Mbit)

LVDS 2Ch

Left (2D):

1920x1080/60Hz

LVDS 2Ch

Right :

1920x1080/60Hz

PDP

LVDS ( 80Pin )

1920x1080

60Hz

Great Company Great People

■ Processing

 LVDS-Rx , Dual Link 10 bit (25~85MHz)  LVDS-Tx , Quad Link 10 bit (25~85MHz)  DDR2-PHY : 333MHz (Max.350MHz)

(DDR2 x16 1ea, 512Mb/256Mb)

 GPIO#32

6/37

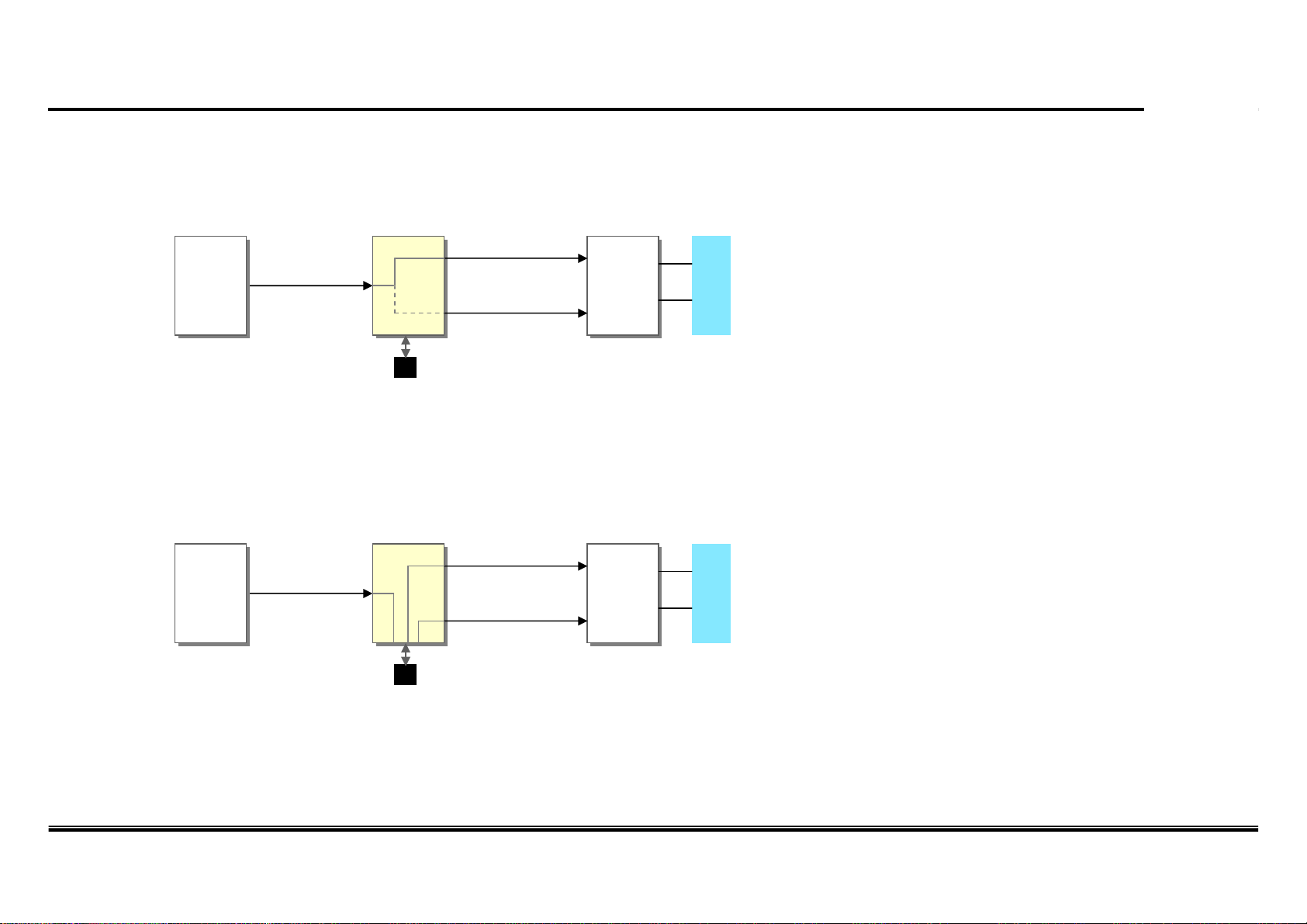

3D Block Operation , FHD Display

 2D Mode

- Direct Bypass

DTV SoC

 3D Mode

- Scaling & Formatting

DTV SoC

LVDS 2Ch

2D :

1920x1080/60Hz

LVDS 2Ch

3D :

1920x1080/60Hz

(S/S, T/B, C/B, F/S)

1920x1080/48Hz

(F/S)

LG8300

LVDS 2Ch

2D : 1920x1080/60Hz

LVDS 2Ch

Left :

1920x1080/60Hz

LVDS 2Ch

Right :

1920x1080/60Hz

PDP

Controller

PDP

Controller

PDP

1920x1080

60Hz

1920x1080

60Hz

Great Company Great People

6/37

I2C MAP

CH1

CH2

BCM3549

CH3

Tuner

0xC2

Micom

uPD78F0513

0x52

EEPROM

24M01

0xA0

EyeQ Green

R:0x20-22

G:0x70-72

B:0x90-92

HDMI S/W

TDA9997

0xC0

Audio AMP

TAS5709

0x36

CH4

Great Company Great People

Wireless

0x20

3DF_ASIC

LG8300

0x3C

Level Shift

6/37

PDP_Module

50R3

0x1C

Power Rail

IC704

(RS-232C SW

P

O

w

E

R

B O A

L402

L405

+5V

+5V_ST

L415

L414

L416

IC103

(RGB EEPROM)

IC400

(AP2121)

IC405

(TPS54418)

IC401

(TPS54319)

IC402

(AOZ1024)

IC1101

(USB OCP IC)

IC1102

(USB OCP IC)

L407

IC702

(RS-232C Rec.)

+3.3V_ST +3.3V_NEC_ST

D1.2V

D1.8V

D3.3V

IC502(LDO)Q801

L201

L302 L303

L801

L413

+1.8V_HDMI

IC200

HDMI S/W

+3.3V_AU_AVDD +3.3V_DVDD

+3.3V_HDMI

IC701

NEC MICOM

IC700

NEC MICOM EEPROM

IC602

(BD35331)

IC500(NAND Flash)

IC705(NVRAM)

TU600(TUNER)

IC300

AUDIO AMP

IC200(HDMI S/W)

DDR_VREF

L420

3V3

IC1703(LDO)

A1.2V D1.2V

D1.8V

IC603,604,605,606

(DDR3)

+3.3V

L411

D3.3V

A2.5V

IC1502(Serial_Flash)

1V8

0.29A

3.08A

0.28A

0.23A

IC100

BCM3549

0.97A

R D

P_17V

L403

L1500

L1300

L419

Great Company Great People

IC1700

(AOZ1072)

IC404

(TPS54231)

Wireless

IC300

AUDIO AMP

+7V_TU

IC406(LDO)

6/37

+5V_TU

TU1400(TUNER)

1V0

IC1500

LG8300

Power-Up Boot Fail Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

Encoder

BCM3549XS

HD/SD

Video

Audio

DSP

RX/TX

UART

USB 2.0

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

8/37

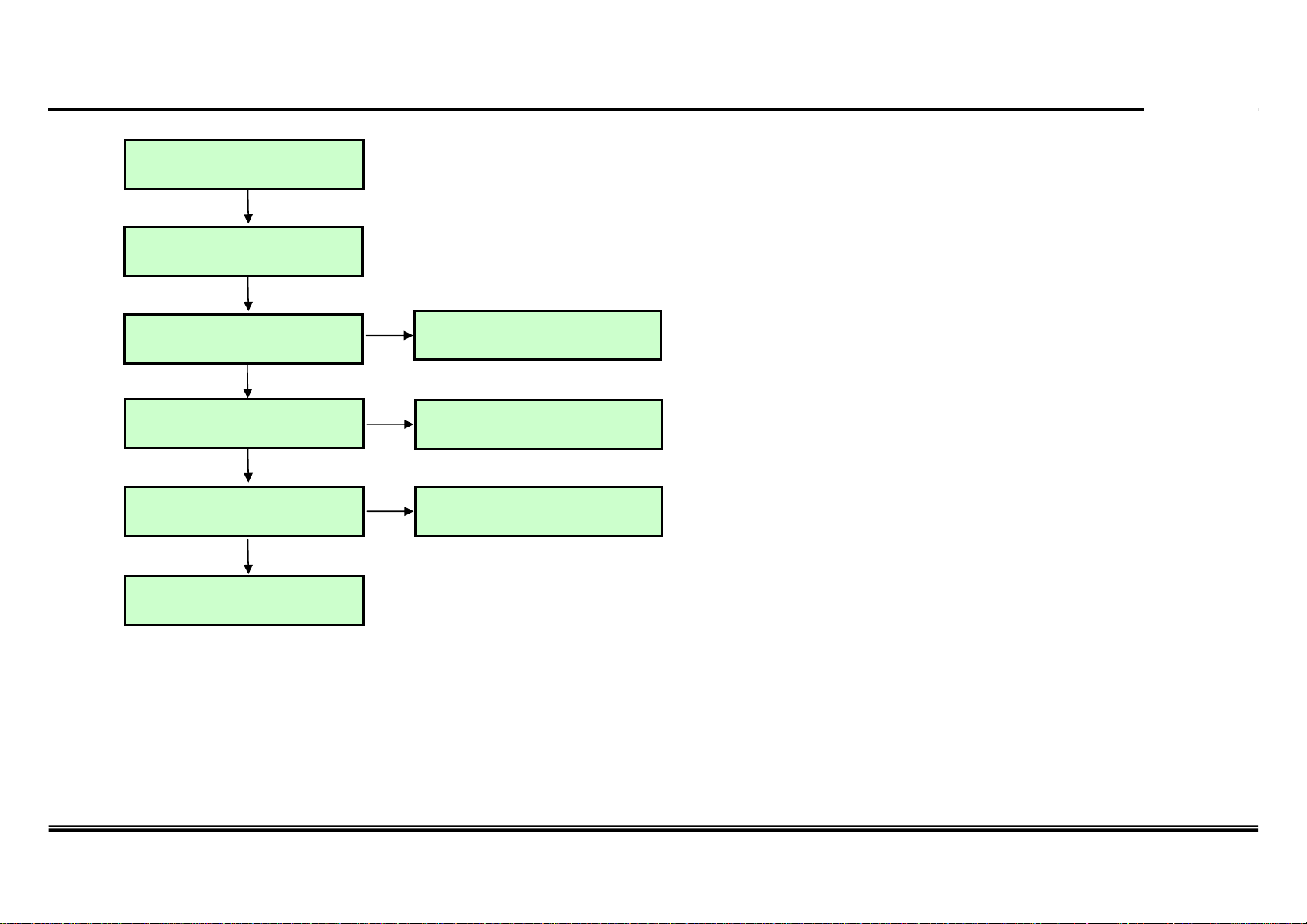

Power-Up Boot Fail Trouble Shooting

Check P400 All

Voltage Level (ST_5V)

Y

Check L402 (pin3) Output

Voltage Level (ST_5V)

Y

Check L412

Voltage Level 1.2V

Y

Check IC403 (pin2)

Voltage Level 2.5V

Y

Check L411

Voltage Level 3.3V

Y

Replace IC501

NY

N

Check Power connector

OK ?

Replace L402

Replace IC405

Replace IC403

Replace IC402

Replace Power board

Great Company Great People

7/37

No OSD Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

Encoder

BCM3549XS

HD/SD

Video

Audio

DSP

RX/TX

UART

USB 2.0

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

8/37

No OSD Trouble Shooting

Check P400

5V_ON

Y

Check SMPS Vs,Va, 5V,17V

Y

Check P1500

#33(TXAC-) , #32(TXAC+) ,

#17(TXBC-) , #16(TXBC+)

Y

Check LVDS Cable for damage or

open conductors.

N

Check PDP Module

Control board

Refer to Module CAS

N

Y

Check CAS

Check GPIO Path of IC701

Replace Power Board

Maybe BCM has problems

Replace IC501

Replace Cable

Electrical Specifications Power Supply Sequence Input Signal Timing Specification Control Signal Register

Great Company Great People

It should satisfy the Pixel Clock on CAS.

9/37

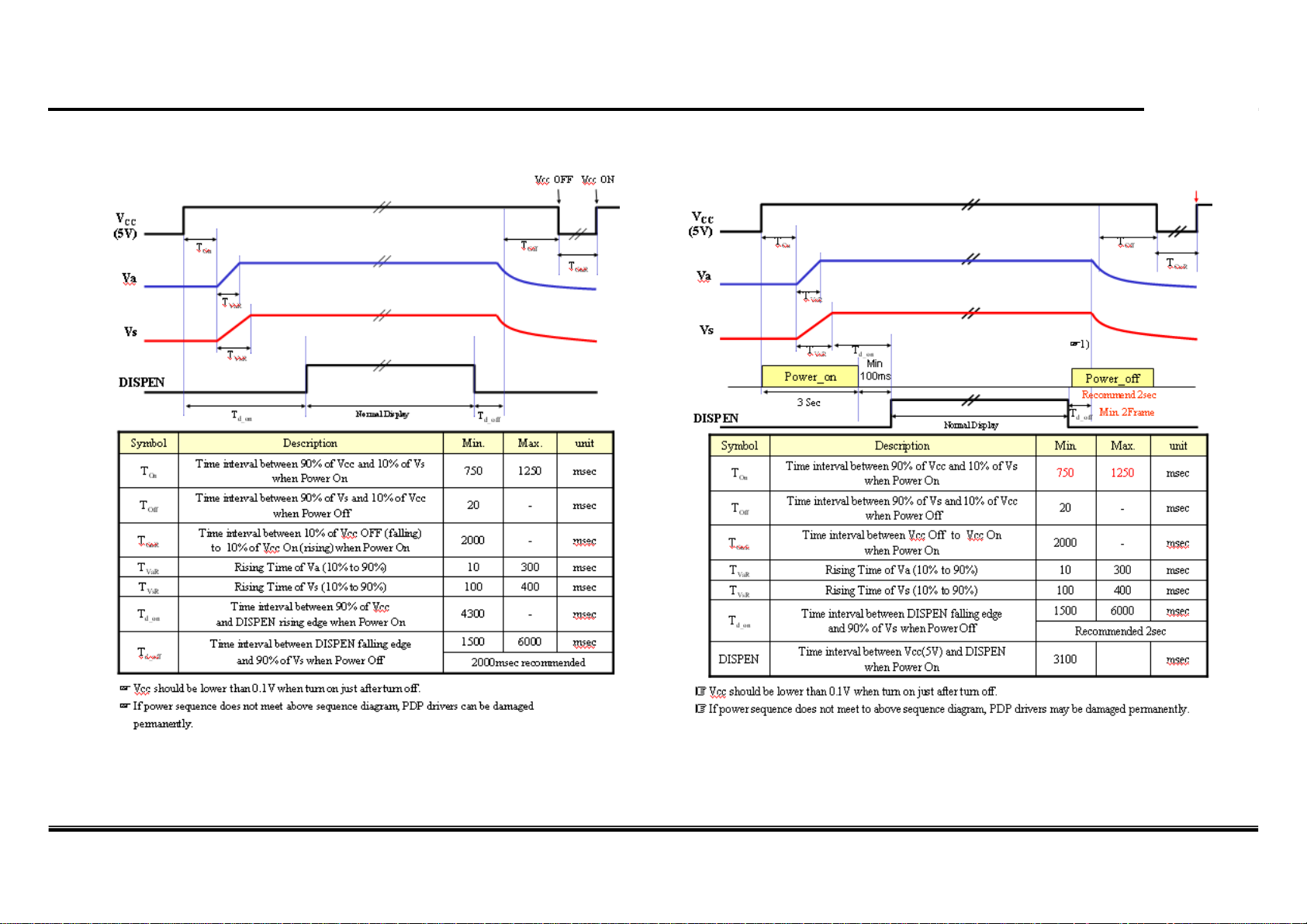

No OSD Trouble Shooting (Module Power Sequence)

< 50R3 >

Great Company Great People

< 60R3 >

10/37

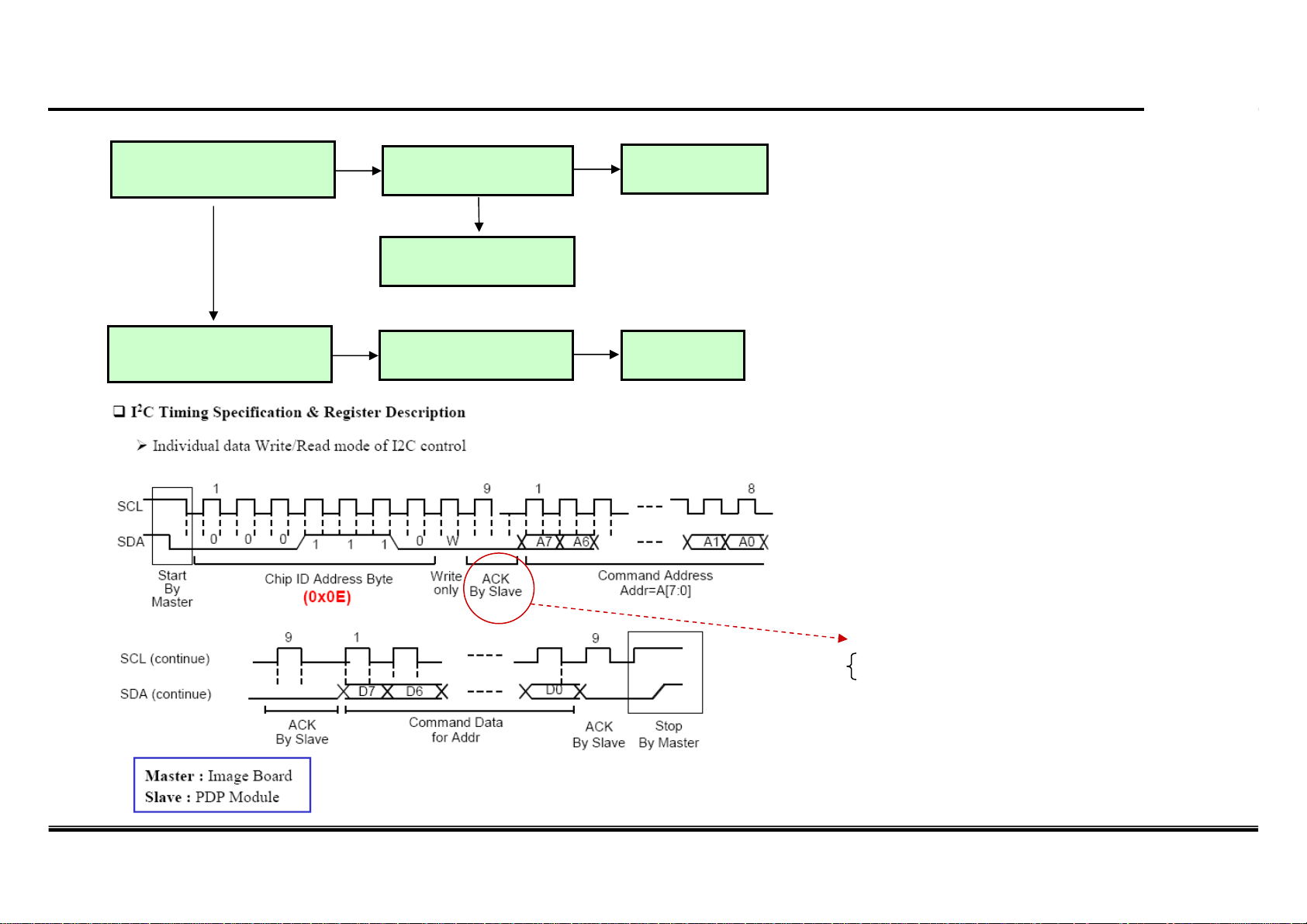

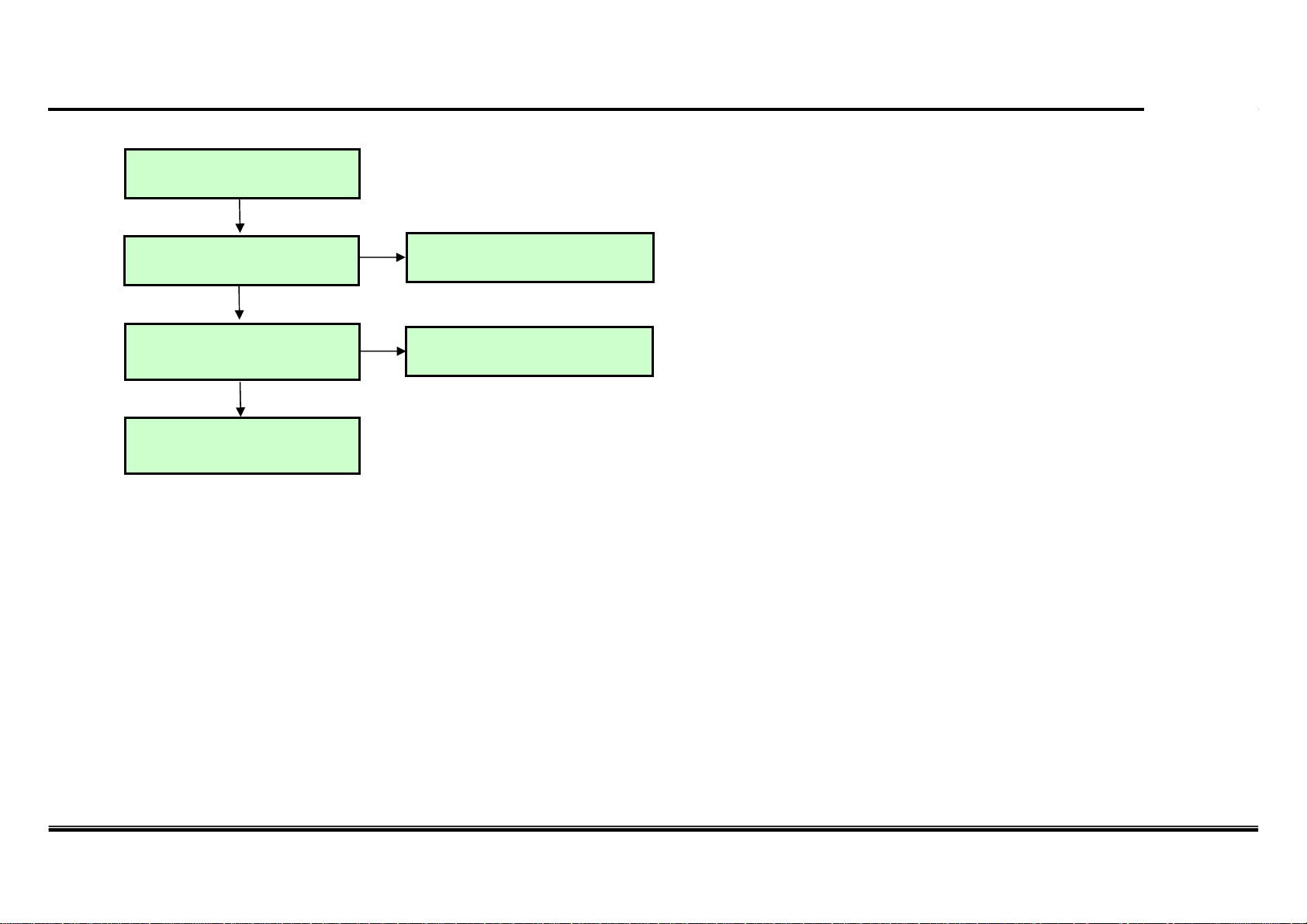

Module Control Trouble Shooting

“TILT” on Adjust Remocon

: PDP internal pattern displays?

Y

PDP Module is OK.

Check P1500 SCL,SDA line SCL,SD

A line #75 , #77

N

PDP Module Power is OK?

N

Check SMPS & cable

SCL

Y

Replace PDP Module

SDA

N

Check Signal : X900 output

N

Replace X900

< Sample Signal on R2717, R2703 >

Great Company Great People

ACK signal Check

Low : OK High : Error

11/37

Digital TV Video Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

12/37

Digital TV Video Trouble Shooting

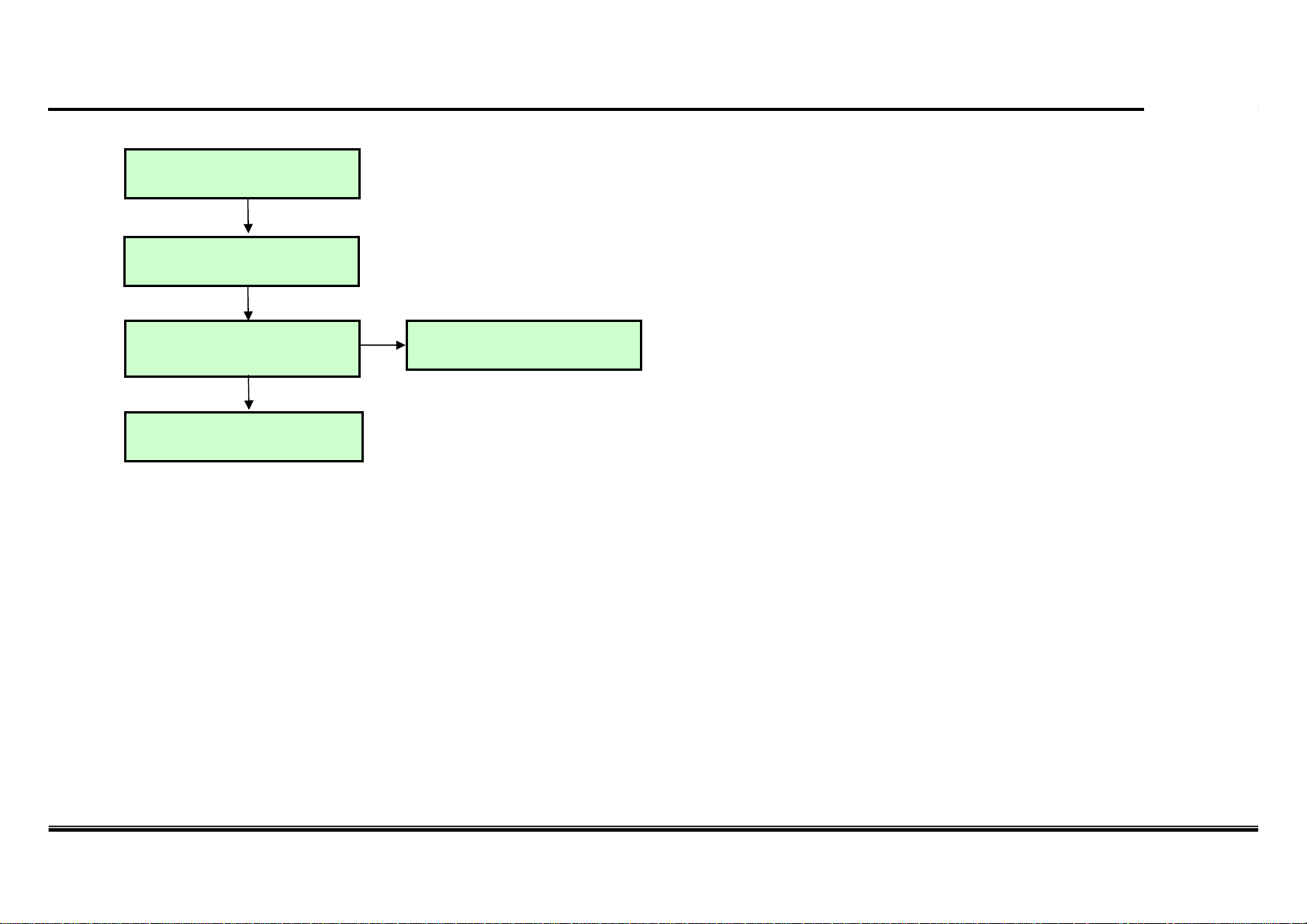

Check RF Cable

Y

Check Tuner 5V,7V Power

IC404(7V),IC406(5V)

Y

Check IF_P,IF_N

R1412, R1413

Y

Check 1500

#33(TXAC-) , #32(TXAC+) ,

#17(TXBC-) , #16(TXBC+)

Y

Check PDP Module

Control board

Refer to Module CAS

N

Replace IC404 or IC406

Maybe Tuner has problems

: Replace Tuner

Maybe BCM has problems

Replace IC501

Great Company Great People

13/37

Analog TV Video Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

14/37

Analog TV Video Trouble Shooting

Check RF Cable

Y

Check Tuner 5V,7V Power

IC404(7V),IC406(5V)

Y

Check CVBS signal

TU1400 #11 Pin

Y

Replace BCM3549XS(IC501)

N

Replace IC404 or IC406

Replace Tuner(TU1400)

< CVBS waveform – sample >

- Defend on the input signal.

Great Company Great People

15/37

Component Video Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

16/37

Component Video Trouble Shooting

Check input signal format

Is it supported?

Y

Check Component Cable

Y

Check signal

L100~L105

Y

Replace BCM3549XS(IC501)

N

Check the damage of JK100

And Replace Connector

※ Measured signals depend on the input signal.

Great Company Great People

17/37

RGB Video Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

18/37

RGB Video Trouble Shooting

Check input signal format

Is it supported?

Y

Check RGB Cable conductors for

damage

Y

Check P100

Y

Check signal, Hsync, Vsync

R135, R136

Y

Check signal

R137~R139

Y

Replace BCM3549XS(IC501)

N

Replace connector (P100).

Replace R135, R136.

Replace R137~R139

※ Measured signals depend on the input signal.

Great Company Great People

19/37

AV Video Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

20/37

AV Video Trouble Shooting

Check input signal format

Is it supported?

Y

Check AV Cable / S-Video Cable for damage or

open conductors

Y

Check AV port of JK100 (Rear)

Check JK101 (Side)

Y

Check signal

R105(Rear AV), R106 (Side AV)

Y

Replace BCM3549XS(IC501)

N

Replace or reseat connector

Replace Resistor

※ Measured signals depend on the input signal.

Great Company Great People

21/37

HDMI Video Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

IF waveform

X-tal

(54MHz)

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

22/37

HDMI Video Trouble Shooting

Check input signal format

Is it supported?

Y

Check HDMI Cable for damage or open

conductors

Y

Check JK200~JK203 for proper

connection or damage

Y

Check EDID

SVC REMOTCONTROL

Y

Check HDMI SW(IC200)

Power(L200/1) & I2C Signal(R270/1)

Y

Replace BCM3549XS(IC501)

N

Replace connector

EDID D/L

Replace IC200

Great Company Great People

23/37

All Source Audio Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

24/37

All Source Audio Trouble Shooting

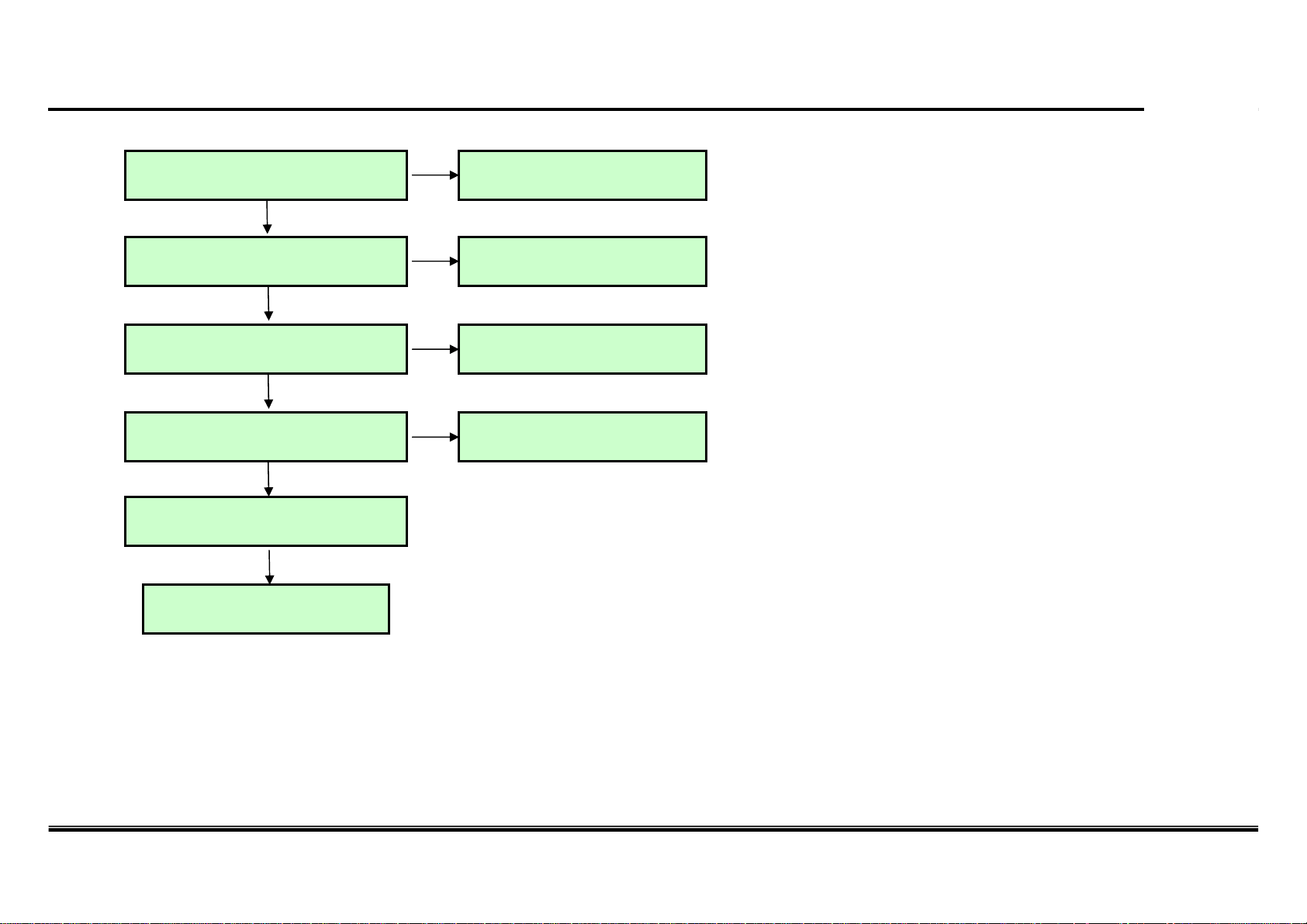

Make sure you can’t hear any audio

Y

Check BCM I2S Output

R305~R307

Y

Check Power

16V(C325), 3.3V(L302)

Y

Check IC300 Status

/PDN(#19), /Reset(#25) is High?

Y

Check Signal (PWM)

L300 L301

Y

Check Connector

P300

Y

Check speaker for damage.

N

Replace IC501.

Check 16V(C325), 3.3V(L302)

Replace IC300

Replace L300 L301

Replace P300

Replace the Speaker

Great Company Great People

25/37

Digital TV Audio Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

26/37

Digital TV Audio Trouble Shooting

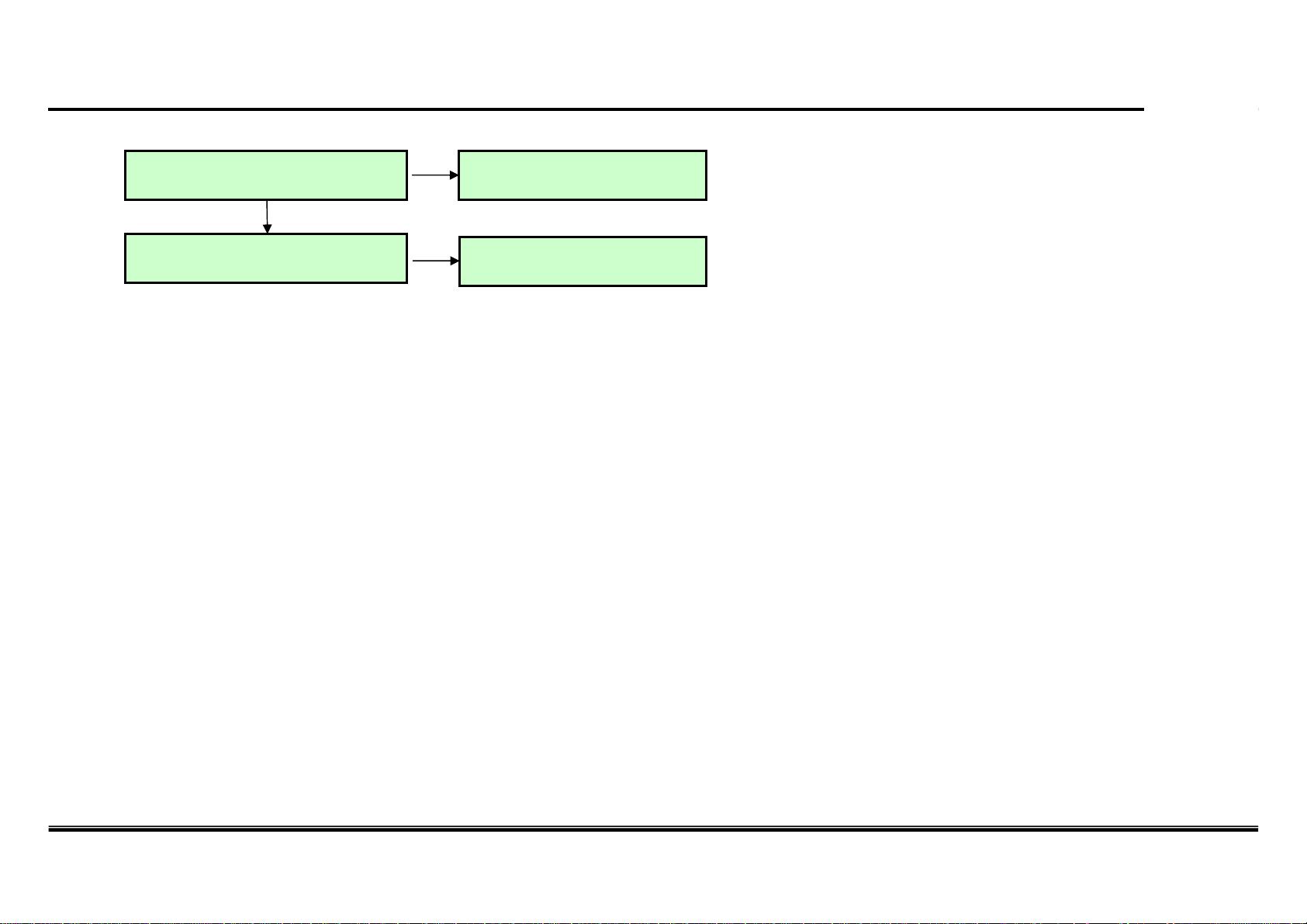

Check video output

Y

Follow procedure All source audio trouble

shooting (on page 25)

N

Follow procedure digital TV video

trouble shooting (on page 13)

Replace BCM3549XS (IC501)

Great Company Great People

27/37

Analog TV Audio Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

28/37

Analog TV Audio Trouble Shooting

Check video output

Y

Check TU1400 (pin3) for 5V Replace IC404 or IC406

Y

Check SIF signal (TU1400 #9) Replace Tuner

Y

Check SIF signal (R1439) Check SIF line

Y

Follow procedure All source audio trouble

shooting (on page 25)

Y

Replace BCM3549XS (IC501)

N

Follow procedure analog TV video

trouble shooting (on page 15)

< SIF waveform – sample >

- Defend on the input signal.

Great Company Great People

29/37

Component / RGB / AV Audio Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

30/37

Component / RGB / AV Audio Trouble Shooting

Check Connector and cables

JK100 (Component, AV Rear)

P100 (RGB)

JK101 (AV Side)

Y

Check signal R126 / R127 (Component1) R117 / R118 (Component2)

R149 / R150 (RGB) R109 / R110 (AV Rear) R111 / R112 (AV Side)

Y

Follow procedure All source audio

trouble shooting (on page 25)

Replace connector or cable if

N

found damaged

Replace the Resistor

Great Company Great People

31/37

HDMI Audio Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

IF waveform

X-tal

(54MHz)

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

32/37

HDMI Audio Trouble Shooting

Check EDID

Y

Follow procedure All source audio trouble

shooting (on page 25)

N

Re-download EDID data.

Great Company Great People

33/37

OPTIC Audio Out Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

34/37

OPTIC Audio Out Trouble Shooting

Check SPDIF signal (R140)

Y

Check Signal (JK104 #3)

Y

Replace JK104

N

Replace BCM3549XS (IC501)

< SPDIF waveform – sample >

- Defend on the input signal.

Great Company Great People

35/37

USB Trouble Shooting

NTSC/ATSC

TUNER

TDVJ-H001F

X-tal

(54MHz)

IF waveform

NAND Flash

(2GB)

DDR2 (512MB)

CVBS waveform

COMP1 COMP2

RGB-PC

Rear AV

Side AV

AV1,2 L/R

COMP 1,2 L/R

RGB-PC Audio In

Rear HDMI 1/2/3

Side HDMI 1

SIF

Buffer

CVBS

Buffer

24C01

HDMI SW

TDA19997

SIF

TMDS/DDC

MAIN IF

CVBS(ATV)

Y/Cb/Cr Y/Cb/Cr

R/G/B

DDC

CVBS CVBS

L/R L/R

SIF

Video

Front

End

Audio

Front

End

HDMI

RX

HD/SD

Encoder

BCM3549XS

USB 2.0

Video

Audio

DSP

RX/TX

UART

RMII

Digital out

Full HD(1080P)

SPDIF Out

KIA7427AF

Reset

UART

DP/DM

MCLK

I2S

I2C

RS-232C

TAS5709

(Digital AMP)

NEC

Micom

IR

LAN

HDMI CEC

24C16

Local

KEY

Great Company Great People

36/37

USB Trouble Shooting

Check USB 2.0 Cable for damage or open

conductors

Y

Check P1101/2

Y

Check IC1101/2 voltage level 5V

Y

Replace BCM3549XS (IC501)

N

Replace P601

Replace IC1101/2

• Exception

- USB power could be disabled by inrushing current

- In this case, remove the device and try to reboot the TV (AC power off/on)

Great Company Great People

37/37
