LG 50PY2DR, 50PY2DR-UA, 50PX4DR-UA, 50PX4DR User Manual

Please read this manual carefully and completely before
operating your TV.
Retain this manual for future reference.
Record model number and serial number of the TV in the
spaces provided below.
See the label attached on the back cover and relate this
information to your dealer if you require service.

Model Number :
Serial Number :

MODELS: 50PY2DR/60PY2DR/50PX4DR

50PY2DR-UA/60PY2DR-UA/

50PX4DR-UA

LG Electronics U.S.A., Inc.

TM

R

TruSurround XT

PLASMA TV

OWNER’S MANUAL

2 Plasma TV

Warning/Caution

WARNING/CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli­ance.

WARNING/CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC NOTICE

• A Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

• Any changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod­ification could void the user’s authority to operate this product

WARNING

RISK OF ELECTRIC SHOCK
DO NOT OPEN

/CAUTION

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

W

W

arning/Caution

arning/Caution

Owner’s Manual 3

TV Guide On Screen Notices for U.S.A.

TV Guide On Screen Notices for U.S.A.

Digital Cable Compatibility

Digital Cable Compatibility

This digital television is capable of receiving basic analog, digital basic and digital premium cable television programming by

direct connection to a cable system providing such programming. A security card provided by your cable operator is required

to view encrypted digital programming. Cable operator enhanced program (For example, electronic program guide provided

by the cable operator), and data enhanced television service may require the use of a set top box. For more information con-

tact your local cable operator.

Use of the CableCARD

TM

TradeMark.

“CableCARD

TM

is a trademark of Cable Television Laboratories, Inc.”

Trademark Notice

Aux Etats Unis TV GUIDE et d’autres marques relatives sont des marques déposées de Gemstar-TV Guide International, Inc.

et/ou d’une de ses sociétés affiliées. Au Canada TV GUIDE est une marque déposée de Transcontinental Inc., utilisée sous

licence de Gemstar-TV Guide International, Inc.

Le système TV Guide On Screen est fabriqués sous licence de Gemstar-TV Guide International, Inc. et/ou d’une de ses sociétés

affiliées.

Le système TV Guide On Screen est protégés par un ou plusieurs brevets émis aux Etats Unis, comme le 6,498,895,

6,418,556, 6,331,877; 6,239,794; 6,154,203; 5,940,073; 4,908,713; 4,751,578; 4,706,121.

License Notice

Patent Notice

4 Plasma TV

Warning/Caution

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet

or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appa­ratus.

This information shall be given in a language acceptable to the country where the apparatus is intended to be used.

The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be

included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by

adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that

illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers)that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Safety Instructions

Safety Instructions

PORTABLE CART WARNING

Owner’s Manual 5

Safety Instructions

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION concerning the Power Cord :

Most appliances recommend they be placed upon a dedicated circuit; that

is, a single outlet circuit which powers only that appliance and has no

additional outlets or branch circuits. Check the specification page of

this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of these conditions could

result in electric shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and the point where the

cord exits the appliance.

16. Outdoor Use Marking :

WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.

17. Wet Location Marking :

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall

be placed on the apparatus.

6 Plasma TV

Contents

After reading this manual, keep it handy for future reference.

Warning/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Digital Cable Compatibility . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4~5

Introduction

Controls/Connection Options . . . . . . . . . . . . .8~11

Remote Control Key Functions . . . . . . . . . . 12~13

Installation

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Installation Instructions

Joining the TV assembly to the wall to protect the set tum-

bling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Install the RING SPACER with the bolts on the set

as shown . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Remove or Attache the Plate Cover . . . . . . . . . . .17

Swivel function . . . . . . . . . . . . . . . . . . . . . . . . .18

Arrangement wires . . . . . . . . . . . . . . . . . . . . . .18

External Equipment Connections . . . . . . . . . .19~25

Antenna or Cable Connection . . . . . . . . . . .19~20

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .20

External A/V Source Setup . . . . . . . . . . . . . . . .21

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

CableCARD

TM

Setup . . . . . . . . . . . . . . . . . . . . .22

HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . .22

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .23~24

Monitor Out Setup . . . . . . . . . . . . . . . . . . . . . .25

Digital Audio Output . . . . . . . . . . . . . . . . . . . . .25

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26~28

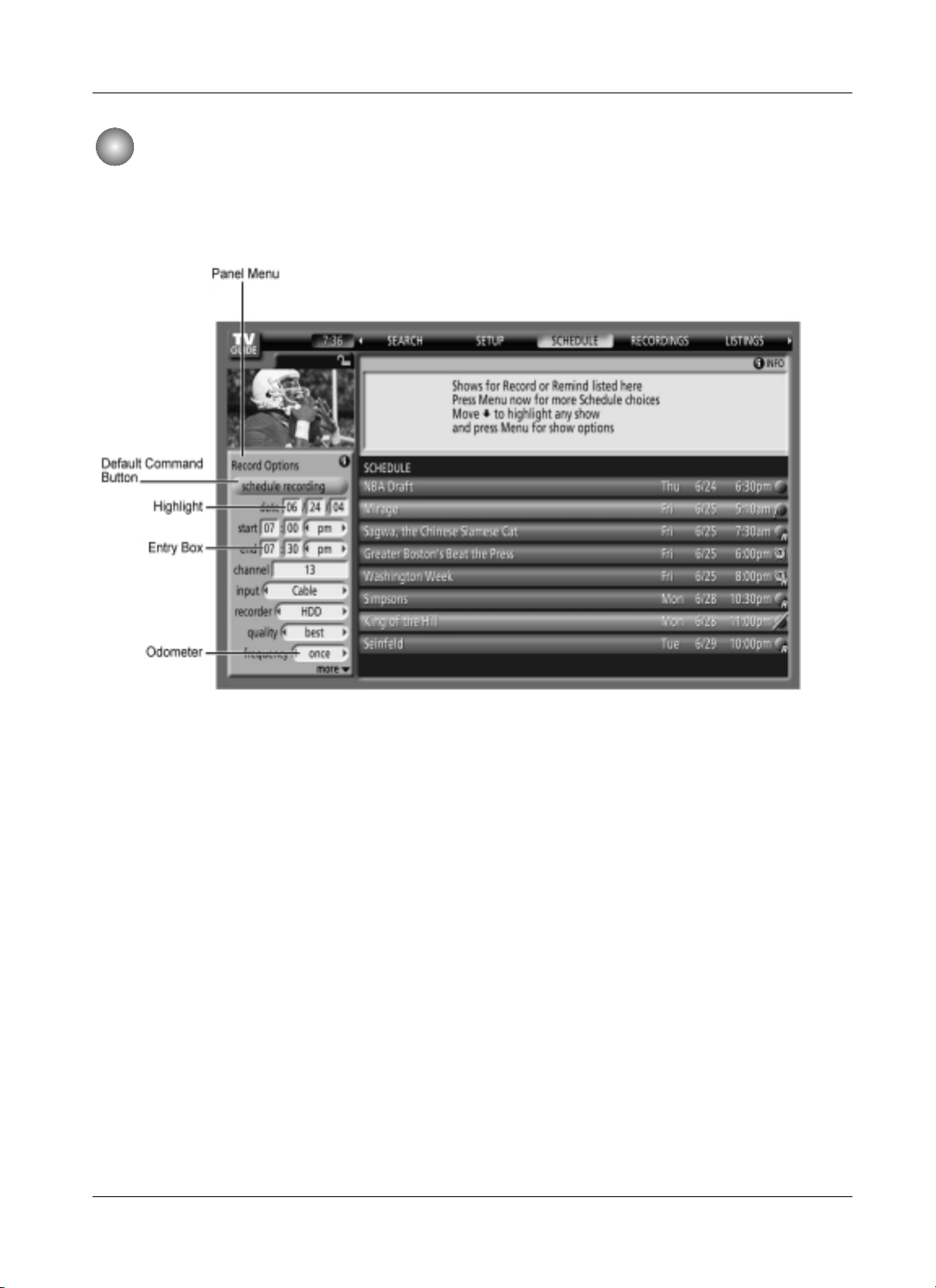

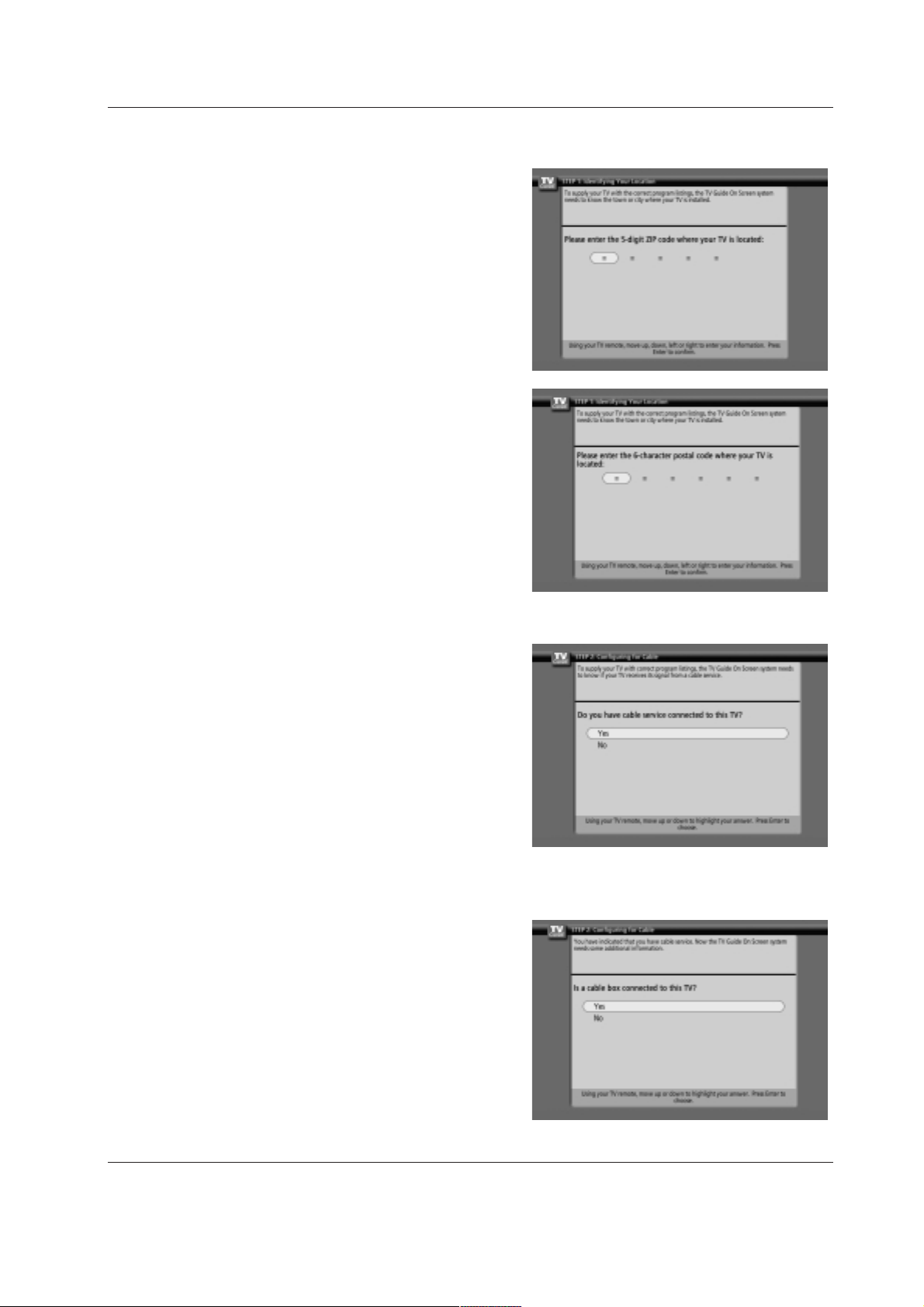

TV Guide On Screen Setup . . . . . . . . . . . . . .29~35

Operation

Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .36

HOME Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

TV Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .38~56

On-screen Menus Language Selection . . . . . . .38

Setup Menu Options

EZ Scan (Channel Search) . . . . . . . . . . . . . . . .39

Manual Scan . . . . . . . . . . . . . . . . . . . . . . . . . .39

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .40

DTV Signal Strength . . . . . . . . . . . . . . . . . . . . .40

Channel Label Setup . . . . . . . . . . . . . . . . . . . .41

Main Picture Source Selection . . . . . . . . . . . . .41

Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Video Menu Options

EZ Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Manual Picture Control (Custom Option) . . . . . .42

Color Temperature Control . . . . . . . . . . . . . . . .42

Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Audio Menu Options

Audio Language . . . . . . . . . . . . . . . . . . . . . . . .43

EZ SoundRite / EZ Sound . . . . . . . . . . . . . . . . .43

Manual Sound Control (custom Option) . . . . . . .44

Front Surround . . . . . . . . . . . . . . . . . . . . . . . . .44

TV Speakers On/Off Setup . . . . . . . . . . . . . . . .45

Stereo/SAP Broadcasts Setup . . . . . . . . . . . . .45

BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Time Menu Options

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .46

Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .46

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .46

Sleep Timer / Auto Off . . . . . . . . . . . . . . . . . . . .47

Option Menu Features

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Cinema 3:2 Mode Setup . . . . . . . . . . . . . . . .48

Low Power . . . . . . . . . . . . . . . . . . . . . . . . . .48

LG Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .50

Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Caption / Text . . . . . . . . . . . . . . . . . . . . . . . . . .51

Caption Option . . . . . . . . . . . . . . . . . . . . . . . .52

ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Front Display . . . . . . . . . . . . . . . . . . . . . . . . . .53

Auto Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Lock Menu Options

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .56

CableCARDTMFunction

Cable menu options . . . . . . . . . . . . . . . . . . . . .57

Scrambled channel . . . . . . . . . . . . . . . . . . . . . .57

Cable Channel List . . . . . . . . . . . . . . . . . . . . . .58

Emergency Alert Message . . . . . . . . . . . . . . . .58

Recorded TV . . . . . . . . . . . . . . . . . . . . . . .59~63

Notes on Memory Card . . . . . . . . . . . . . . . .64~67

Photo List . . . . . . . . . . . . . . . . . . . . . . . . . .68~69

Music List . . . . . . . . . . . . . . . . . . . . . . . . . .70~72

Timeshift . . . . . . . . . . . . . . . . . . . . . . . . . . .73~74

Recording . . . . . . . . . . . . . . . . . . . . . . . . . .75~77

TV Guide On ScreenTMSystem . . . . . . . . . . .78~98

IEEE 1394 . . . . . . . . . . . . . . . . . . . . . . . . . .99~110

Remote Control

PIP (Picture-in-Picture)/POP/Twin Picture

Watching PIP/POP/Twin Picture . . . . . . . . . . ..111

Selecting an Input Signal Source for PIP/Twin Picture

.111

Swapping PIP/Twin Picture . . . . . . . . . . . . . . .111

TV Program Selection for PIP . . . . . . . . . . . . .111

Moving the PIP sub picture . . . . . . . . . . . . . . .112

Adjusting Main and Sub Picture Sizes for Twin Picture .112
POP (Picture-out-of-Picture: Channel Scan) . .112

APM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Bried Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

EZ Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Screen Setup for PC mode . . . . . . . . . . . . . . .116

External Control Device Setup . . . . . . . . . . . . . .117~122

IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123~124

Programming the Remote . . . . . . . . . . . . . . . . . . . . .125

Programming Codes . . . . . . . . . . . . . . . . . . . . .126~127

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . .128

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . .130

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131~132

Contents

Contents

Owner’s Manual 7

Introduction

Introduction

Introduction

What is a Plasma Display Panel (PDP)?

A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality
and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also
be viewed as a series of fluorescent lamps.

How does it work?

PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.
Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos­phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over
16 million different colors. All of these mean that you get perfect images that are easily viewable in a display that is less than 5
inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room who can see the screen.

Wide Screen

The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.

Multimedia

Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not
fit.

The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen

The PDP (Plasma Display Panel), which is the display device of this product, is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be
acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defec­tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology mini­mizes these cell defects during the manufacture and operation of this product.

Cooling Fan Noise

In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with
cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operat­ing and cooling the PDP.
The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the
operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not suffi­cient cause for the PDP to be exchanged or returned.

8 Plasma TV

Introduction

W

W This is a front panel of 50PY2DR, 60PY2DR series TVs.

- This is a simplified representation of a front panel.
Here shown may be somewhat different from your TV.

- This manual explains the features available on the 50PY2DR, 60PY2DR series TVs.

Front Panel Controls

Front Panel Controls

MENU Button

TV/VIDEO Button

POWER Button

VOLUME Buttons

CHANNEL
Buttons

INDEX

Switches
LED Display
on or off.

TV GUIDE Button

Remote Control

Sensor

Power Standby Indicator

Illuminates orange in standby mode.

When the TV is turned on,

the indicator will blink green for 3-4

seconds before the picture is seen.

Controls

Controls

Memory Card
Slots 1,2

Program
Display

RGB-PC(or RGB-DTV) mode

IEEE1394 mode

HDMI1/DVI or HDMI2 mode

Component1 or 2 mode

Antenna or Cable mode

Video or Front Video mode

On recording

On playing

On operating the TimeShift

State of setting the reserve record

On operating the mode

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO INPUT

COMPONENT
2

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

AUDIO INPUT

RGB INPUT

VIDEO INPUT

I

E

E

E

1

3

9

4

HDMI 2

HDMI /DVI

COMPONENT
1

MONITOR
OUTPUT

A/V
INPUT1

VIDEO

R

L

AUDIO

(MONO)

V

I

D

E

O

S

R

E

M

O

T

E

C

O

N

T

R

O

L

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

R

S-VIDEO VIDEO

L / MONO

AUDIO

FRONT
A/V INPUT

R

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

AUDIO
INPUT

RGB INPUT

VIDEO

HDMI 2

HDMI /DVI

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

IEEE-1394

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT 1

VIDEO

AUDIO

S-VIDEO

REMOTE
CONTROL

Cable

Owner’s Manual 9

Introduction

Back Connection Panel

Back Connection Panel

Antenna Input

Connect over-the­air signals to this
jack.

RGB/AUDIO
INPUT

Connect the moni­tor output from a
PC to the appropri­ate input port.

Digital Audio (DVI:
Digital Visual
Interface/Compon
ent2) Input/
Digital Audio
Output

Connect digital
audio from various
types of equipment.

Note: In standby
mode,
these ports will not
work.

DVD/DTV Input
(Component 1-2)

Connect a com­ponent
video/audio
device to these
jacks.

Monitor Output

Connect a second
TV or Monitor.

Remote Control Port

Connect your wired
remote control here.

S-Video
Input

Connect S­Video out from
an S-VIDEO
device.

CABLE Input

Connect cable signals to this

jack, either directly or through a

cable box.

RS-232C INPUT
(CONTROL/SER­VICE) PORT

Connect to the RS­232C port on a PC.

HDMI1/DVI(VIDE
O), HDMI 2

Connect a HDMI
signal to
HDMI1/DVI or
HDMI2. Or
DVI(VIDEO) sig­nal to HDMI1/DVI
port with DVI to
HDMI cable.

VIDEO Input

Connects the video signal from a
video device.

AUDIO Input

Connections are available for listen­ing stereo sound from an external
device.

Audio/Video Input

Connect audio/video
output from an exter­nal device to these
jacks.

Power Cord Socket

This TV operates on an AC power. The voltage is

indicated on the Specifications page. Never attempt

to operate the TV on DC power.

CableCARD™

Used for
CableCARD™
received Cable
Service
Provider.

G-LINK

Connect an
IR controller
to this jack.

IEEE1394

Connect
DVHS or
MicroMV to
IEEE1394
Connector.

Connection Options

Connection Options

Note:

- After removing the cover, you can insert the CableCARD™ or connect to the G-LINK jack.

W

W

This is a back panel of 50PY2DR, 60PY2DR series TVs.

S-VIDEO Input

A connection is available to provide
better picture quality than the video
input.

10 Plasma TV

Introduction

TV GUIDE

TV GUIDE

MENU Button

TV/VIDEO Button

VOLUME (F,G) Buttons

CHANNEL (E, D) Buttons

INDEX

Switches
LED
Display on
or off.

TV GUIDE Button

Remote Control

Sensor

Power Standby Indicator

Illuminates orange in standby

mode.

When the TV is turned on,

the indicator will blink green for

3-4 seconds before the picture is

seen.

POWER Button

Front Panel Controls

Front Panel Controls

W

W

This is a front panel of 50PX4DR series TVs.

- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.

Controls

Controls

Owner’s Manual 11

Introduction

Connection Options

Connection Options

W

W

This is a back panel of 50PX4DR series TVs.

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

AUDIO
INPUT

RGB INPUT

VIDEO

HDMI 2

HDMI1/DVI

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

IEEE-1394

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

S-VIDEO

REMOTE
CONTROL

S-VIDEO

FRONT
A/V INPUT

VIDEO

L / MONO

AUDIO

R

Cable

S-VIDEO Input

A connection is available to provide
better picture quality than the video
input.

Memory Card Slots

G-LINK

TM

Connect an IR
controller to this
jack.

CableCARD™

Used for
CableCARD™
received from Cable
Service Provider.

VIDEO Input

Connects the video signal from a
video device.

AUDIO Input

Connections are available for listening
stereo sound from an external device.

Antenna Input

Connect over-the­air signals to this
jack.

RGB/AUDIO INPUT

Connect the monitor output
connector from a PC to the
appropriate input port.

Digital Audio (DVI: Digital
Visual
Interface/Component2)
Input/
Digital Audio Output

Connect digital audio from
various types of equipment.

Note: In standby mode,
these ports will not work.

DVD/DTV Input
(Component 1-2)

Connect a component

video/audio device to

these jacks.

Monitor Output

Connect a second
TV or Monitor.

Remote Control Port

Connect your wired
remote control here.

S-Video Input

Connect S­Video out from
an S-VIDEO
device to the S­VIDEO input.

CABLE Input

Connect cable signals to this

jack, either directly or through

a cable box.

RS-232C INPUT (CON-

TROL/SERVICE) PORT

Connect to the RS-232C
port on a PC.

HDMI1/DVI, HDMI 2

Connect a HDMI sig­nal to HDMI1/DVI or
HDMI2. Or connect a
DVI(Video) signal to
HDMI1/DVI.

Audio/Video Input

Connect audio/video
output from an
external device to
these jacks.

Power Cord Socket

This TV operates on an AC power. The voltage

is indicated on the Specifications page. Never

attempt to operate the TV on DC power.

IEEE1394

Connect DVHS or
MicroMV to IEEE1394
Connector.

Back Connection Panel

Back Connection Panel

12 Plasma TV

Introduction

- When using the remote control, aim it at the remote control sensor on the TV.

MODE

DAY -

DAY +

FLASHBK

APM

CC

AUTO DEMO

M/C EJECT

TV INPUT

TV/VIDEO

LIGHT

Illuminates the remote control

buttons of selected

mode.

DAY+/DAY-

Moves the Listings Grid forward or
backward in 24 hour increments.

NUMBER buttons

/VCR/DVD control buttons

• Use for DVR record or trick play. • •

• (Refer to p.61, 74)

• Use for Photo mode or Music mode

• of . (Refer to p.69, 72)

• Controls the DVHS or Camcorder in

• IEEE 1394 mode.

• Controls some video cassette • • • •

• recorders or DVD players when you

• have already selected DVD or VCR

• mode button.

RATIO

Changes the aspect ratio.

POWER

Turns your TV or any other programmed

equipment on or off, depending on mode.

CC

Select a closed caption:

Off, CC1~4, Text1~4.

THUMBSTICK (Up/Down/Left/Right/ENTER)

Allows you to navigate the on-screen menus

and adjust the system settings to your pref-

erence.

CHANNEL UP/DOWN

Selects available channels found dur­ing Manual scan.

PAGE UP/PAGE DOWN

Moves from one full set of screen
information to the next one.

SAP

Selects MTS sound: Mono, Stereo, and SAP
in Analog mode. Change the audio language

in DTV mode.

EZ SOUND

Selects the sound appropriate for the
program's character.

Bring up the HOME menu to the screen.

APM (Adaptive Picture Mode)

Concurrently, compare with the
Daylight, Normal, Night Time and
Custom on the screen.
(Refer to p.113)

VOLUME UP/DOWN

Increases/decreases the sound level.

REC LIST

Appear the thumbnail recorded list.

M/C EJECT

Remove the Memory Card.

Remote Control Key Functions

Remote Control Key Functions

FLASHBK

Tunes to the last channel viewed.

Owner’s Manual 13

Introduction

MODE

DAY -

DAY +

FLASHBK

APM

CC

AUTO DEMO

M/C EJECT

TV INPUT

TV/VIDEO

TV INPUT

• Rotates the input mode between Antenna
and Cable.

• Video, Front Video, Component 1-2, RGB­DTV (or RGB-PC), HDMI1/DVI, HDMI2

and IEEE1394 input sources, screen

returns to the last TV.

MUTE

Switches the sound on or off.

(Refer to p.115)

MODE

Selects the remote operating mode: TV,

DVD, VCR, AUDIO, CABLE or STB. Select

other operating modes, for the remote to

operate external devices.

EXIT

Clears all on-screen displays and returns to

TV viewing from any menu.

TIMER

Lets you select the amount of time before

your TV turns itself off automatically.

MENU

Brings up the main menu to the screen.

Enters or exits a Panel Menu in the TV Guide

On Screen system.

PIP

Switches to PIP, POP (Picture-out-of­Picture) and Twin picture modes in regu­lar sequence.
Switches the video window locking or
unlocking in the Listings Grid.

PIPCH-/PIPCH+

Changes to the next higher/lower PIP
channel.

PIP INPUT

Selects the input source for the sub pic­ture in PIP/Twin picture mode.

SWAP

Exchanges the main/sub images in
PIP/Twin picture mode.

EZ PIC

Adjusts the factory preset picture

depending on the viewing environment.

ADJUST

Adjusts screen position, size, and phase in

PC mode.

AUTO DEMO

Starts the demonstration to explain the main

features of this TV.

TV/VIDEO

External input modes rotate in regular
sequence: Antenna, Cable, Video, Front
Video, Component 1-2, RGB-DTV (or
RGB-PC), HDMI1/DVI and HDMI2 input
sources.
(Video, Front Video, Component 1-2 input
sources are linked automatically, only if
these are connected )

INFO

When you watch the TV, information dis­plays on top of the screen. Not available
in Component 1-2, RGB, HDMI1/DVI and
HDMI2 mode.(Refer to p.114)

FAV

Scrolls the Favorite channels.

TV GUIDE

Brings up the TV Guide On Screen sys­tem to the screen.

Mark

Selects the wanted functions.

• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.

Close cover.

Installing Batteries

Installing Batteries

14 Plasma TV

Installation

Installation

Installation

Owner’s Manual

1.5V

1.5V

Batteries

Power Cord

D

AY

-

D

A

Y

+

F

L

A

S

CC

A

75Ω Round Cable

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.

Remote Control

Installation Instructions

Installation Instructions

Accessories

Accessories

- Secure the TV assembly by joining it to a wall by using the TV/Wall brackets.

- Here shown may be somewhat different from your TV.

Joining the

Joining the

TV assembly to the wall to protect the set tumbling

TV assembly to the wall to protect the set tumbling

D-sub 15 pin Cable

2-Wall brackets(60”)

2-TV brackets(60”)

G-LINK Cable

6-RING SPACER

(Only 60PY2DR series )

6- bolts

(Only 60PY2DR series )

2-Wall brackets(50”)

2-eye-bolts(50”)

50PY2DR

• If the set will be mounted on a desk top, insert
the 2 eye-bolts and tighten them securely in the upper
holes as shown.
Install the wall brackets on the wall with 2 bolts*, (not
supplied with the product), as shown.
Match the height of the eye-bolts and the wall brack­ets.
Check to be sure the eye-bolts and the brackets are
tightened securely.

Owner’s Manual 15

Installation

• Secure the TV assembly to the wall with strong
strings or wire cables, (not supplied with the prod­uct), as shown.

• If the set will be mounted on a desk top, install the 2 ring spac-

er on the TV.

And then install the TV brackets on the ring spacer as shown.

Insert the 2 bolts and tighten securely, in the upper holes on
the brackets.
Install the wall brackets on the wall with 2 bolts*, (not sup­plied with the product).
Match the height of the TV brackets and the wall brackets.
Check to be sure the brackets are tightened securely.

Note: Bolts and RING SPACER commonly use for fixing the

TV bracket or connecting the wall mounting bracket.

60PY2DR

50PX4DR

2. When you connect the
wall mounting bracket
to the set, connect to it
by using the 6-bolts,
(supplied with the
product), as shown.

Install the RING SP

Install the RING SP

ACER with the bolts on the set as shown.

ACER with the bolts on the set as shown.(Only 60PY2DR series )

• If the set will be mounted on a desk top, insert
the 2 eye-bolts and tighten them securely in the upper
holes as shown.
Install the wall brackets on the wall with 2 bolts*, (not
supplied with the product), as shown.
Match the height of the eye-bolts and the wall brack­ets.
Check to be sure the eye-bolts and the brackets are
tightened securely.

1. Put the RING SPACER
in the holes of the bolts
before connecting to
the wall mounting
bracket.

Note: Bolts and RING SPACER commonly use for fixing the TV bracket or connecting the wall mounting bracket.

16 Plasma TV

Installation

Installation Instructions

Installation Instructions

GROUNDING

Ensure that you connect the earth ground wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.

Power

Supply

Short-circuit

Breaker

WWall Mount: Horizontal installation

all Mount: Horizontal installation

For proper ventilation, allow a clearance of 4” on each
side and 2” from the wall. Detailed installation instruc­tions are available from your dealer, see the optional
Wall Mounting Bracket Installation.

Desktop Pedestal Installation

Desktop Pedestal Installation

For proper ventilation, allow a clearance of 4” on each
side and the top, 2.36” on the bottom, and 2” from the
wall. Detailed installation instructions are included in
the optional Desktop Stand Installation.

• The TV can be installed in various ways such as on a wall, or on a desktop etc.

• The TV is designed to be mounted horizontally.

- This manual explains the features available on the 50PY2DR, 60PY2DR series TVs.

- Here shown may be somewhat different from your TV.

4 inches

4 inches

2 inches

4 inches4 inches

4 inches

4 inches

2 inches

4 inches

2.36 inches

Owner’s Manual 17

Installation

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO INPUT

COMPONENT
2

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

AUDIO INPUT

RGB INPUT

VIDEO INPUT

I

E

E

E

1

3

9

4

HDMI 2

HDMI /DVI

COMPONENT
1

MONITOR
OUTPUT

A/V
INPUT1

VIDEO

R

L

AUDIO

(MONO)

V

I

D

E

O

S

R

E

M

O

T

E

C

O

N

T

R

O

L

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

Remove or

Remove or

Attache the Plate Cover

Attache the Plate Cover (Only 50/60PY2DR series )

2. Connect the power cord on the TV’s back.

- This function explains the features available on the 50PY2DR, 60PY2DR series TVs.

• When moving or connecting the power cord, be used the these methods.

• And after removing the plate cover, you must install the wall brackets on the wall.

1. With hands, push the lower left/right of plate cover and
then pull out to the front.

3. In attaching the plate cover, align the guide to the bush­ings and press the cover in place with your hand.

18 Plasma TV

Installation

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO INPUT

COMPONENT
2

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

AUDIO INPUT

RGB INPUT

VIDEO INPUT

I

E

E

E

1

3

9

4

HDMI 2

HDMI /DVI

COMPONENT
1

MONITOR
OUTPUT

A/V
INPUT1

VIDEO

R

L

AUDIO

(MONO)

V

I

D

E

O

S

R

E

M

O

T

E

C

O

N

T

R

O

L

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

Swivel function

Swivel function

- This function explains the features available on the 50PY2DR, 60PY2DR series TVs.

• After installing the TV, you can adjust the the TV set manually turning it to the left or right direction by 20 degrees to suit your
viewing position.

Arrangement wires

Arrangement wires

(Only 50/60PY2DR series )

- This function explains the features available on the 50PY2DR, 60PY2DR series TVs.

• Run the accessory device wires inside the JACK MANAGEMENT pole as shown.

Note: Before adjusting the angle, you must loosen (to the left) the shaft bolt on the middle of stand’s back.

And when you acheve the desired position, you must close the shaft bolt to set the hole.(As shown below)

20°

Installation Instructions

Installation Instructions

50/60PY2DR

50PX4DR

20°

Owner’s Manual 19

Installation

Antenna or Cable Connection

Antenna or Cable Connection

- Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

1. Analog and Digital TV signals provided on antenna

2. Analog and Digital TV signals provided on cable

Multi-family Dwellings/Apartments
(Connect to wall antenna socket)

Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)

Outdoor
Antenna

Wall Antenna
Socket

VHF Antenna

UHF Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Bronze Wire

Be careful not to bend the bronze wire when
connecting the antenna.

Bronze Wire

Cable TV Wall
Jack

RF Coaxial Wire (75 ohm)

CABLE

ANTENNA

AC INPUT

External Equipment Connections

External Equipment Connections

Turn clockwise to tighten.

CABLE

ANTENNA

AC INPUT

20 Plasma TV

Installation

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV

- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of
time. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

Connection Option 1

Set VCR output switch to 3 or 4 and then tune

TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the

VCR's output jacks to the TV input jacks, as

shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR
to the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.

2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)

3. Select the input source with using the
TV/VIDEO button on the remote control. (If
connected to A/V INPUT , select Video input
source)

Do not connect to both Video and
S-Video at the same time.

VCR Setup

VCR Setup

AUDIO

R

L

RGB INPUT

VIDEO

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

AUDIO
INPUT

S-VIDEO

REMOTE
CONTROL

S-VIDEO

OUT

IN

(R) AUDIO (L) VIDEO

34

OUTPUT
SWITCH

ANT OUT

ANT IN

VCR Rear

1

Note: The TV will let you know when the analog, cable, and digital channel scans are complete.

• To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.

• If the antenna needs to be split for two TV’s, install a “2­Way Signal Splitter” in the connections.

• If the antenna is not installed properly, contact your deal­er for assistance.

ANTENNA

3. Analog and Digital TV signals provided on cable and antenna

Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Cable TV Wall
Jack

RF Coaxial Wire (75 ohm)

CABLE

ANTENNA

AC INPUT

2

Bronze Wire

Signal

Amplifier

Owner’s Manual 21

Installation

• Component Input ports

To get better picture quality, connect a DVD player to the compo­nent input ports as shown below.

How to connect

Connect the audio and video cables from the external equip­ment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).

How to use

1. Select the input source with using the TV/VIDEO button on

the remote control. Note that this TV finds the connected
input sources automatically for Video 1-2 and Component 1-

2. It is presumed that RGB, HDMI1/DVI and HDMI2 sources
are connected.

2. Operate the corresponding external equipment. For connec­tion instructions to operate the TV Guide On Screen system,
see page 29.

Component ports

on the TV

Y

PB

PR

Video output ports
on DVD player

Y
Y
Y
Y

Pb

B-Y

Cb

P

B

Pr

R-Y

Cr

P

R

How to connect

1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the TV and connect the DVD
audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs
to the AUDIO INPUT jacks on the TV, as shown in the figure.

Note: If your DVD player does not provide component video output, use S-Video output.

How to use

1. Turn on the DVD player and then insert a DVD.

2. Use the TV/VIDEO button on the remote control to select Component 1 or Component 2. (If connected to S-VIDEO, select
the Video or Front Video external input source.)

3. Refer to the DVD player's manual for operating instructions.

External

External

A/V Source Setup

A/V Source Setup

DVD Setup

DVD Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI
INPUT

COMPONENT2
INPUT

OUTPUT

RGB INPUT

VIDEO

COMPONENT INPUT 1

R

L

(MONO)

V
I
D
E
O

S

R
E
M
O
T
E

C
O
N
T
R
O
L

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

RL

AUDIO VIDEO

AUDIO
INPUT

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

RGB INPUT

VIDEO

HDMI 2

HDMI1 /DVI

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

IEEE-1394

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

B

R

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

(R) AUDIO (L)

S-VIDEO

AUDIO
INPUT

S-VIDEO

REMOTE
CONTROL

Cable

DVD

or

Camcorder

Video Game Set

Notes:

• Digital Audio will not work for Component 1 input source.

• Digital Audio operation has priority if Digital Audio and AUDIO L/R
are connected at the same time.

or

22 Plasma TV

Installation

- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.

- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).

How to connect

Use the TV’s COMPONENT (Y, PB, PR) INPUT, RGB, HDMI1/DVI
or HDMI2 jack for video connections, depending on your set-top
box connector. Then, make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s manual for
the digital set-top box.)

2. Use TV/VIDEO on the remote control to select Component 1,
Component 2, RGB-DTV, HDMI1/DVI or HDMI2 source.

HDSTB Setup

HDSTB Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

RGB INPUT

VIDEO

HDMI 2

HDMI1 /DVI

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

IEEE-1394

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

(R) AUDIO (L)

RGB-DTV OUTPUT

B

R

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

(R) AUDIO (L)

DVI-DTV OUTPUT

DIGITAL AUDIO

OPTICAL

HDMI-DTV OUTPUT

AUDIO
INPUT

S-VIDEO

REMOTE
CONTROL

Digital Set-top Box

or

or

Signal
480i
480p
720p
1080i

Component 1/2

Yes
Yes
Yes
Yes

RGB-DTV,HDMI1/DVI,HDMI2

No
Yes
Yes
Yes

CableCARD

CableCARD

TM

TM

Setup

Setup

RS-232C INPUT

(CONTROL/SERVICE)

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

RGB I

HDMI 2

HDMI1 /DVI

IEEE-1394

Cable

How to use

Insert the CableCARD

TM

TM

received from the cable service provider to the

CableCARD

TM

TM

slot of TV back panel.
If the pairing information about this TV and the CableCARD is automati­cally displayed on the screen, contact with the cable service provider.

Note :

• CableCARD

TM

TM

have the types of Motorola, Scientific Atlanta, SCM etc..

These 3 types of CableCARD

TM

TM

can be used for this PLASMA TV.

Caution: When removing the CableCARD

TM

TM

, do not
drop it as this may cause damage to the
CableCARD

TM

TM

.

Owner’s Manual 23

Installation

<When the PC supports DVI>

How to connect

1. Connect the PC to HDMI1/DVI port of this TV with an HDMI-to-DVI cable(not supplied with this product).

If you do not need to connect audio, HDMI2 port is also available for the DVI video connection.

2. If the PC(or the sound card of the PC) has a fiber optic digital audio output connector, connect the PC's audio output to DIGI-

TAL AUDIO(OPTICAL) port for DVI INPUT.

3. If the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT

port located on the right side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz.

2. Select HDMI1/DVI input source in main input option of SETUP menu.(Refer to P.41)

TV/VIDEO button is also available for this purpose.

3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC

mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the

brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be

changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

<When the PC supports RGB>

How to connect

1. Connect the PC to RGB INPUT port of this TV with a RGB cable.

2. If the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT

port located on the right side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60 Hz.

2. Select RGB-PC input source in main input option of SETUP menu.(Refer to P.41)

Once you select RGB-PC in main input option of SETUP menu, TV/VIDEO button is also available for this purpose.

3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC

mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the

brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be

changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

PC Setup

PC Setup

- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic
card accordingly.

24 Plasma TV

Installation

Resolution

720x400

640x480

800x600

Horizontal

Frequency(KHz)

31.469

37.927

31.469

37.861

37.500

43.269

70.08

85.03

59.94

72.80

75.00

85.00

35.156

37.879

48.077

46.875

53.674

48.363

56.476

60.023

56.25

60.31

72.18

75.00

85.06

60.00

70.06

75.02

Vertical

Frequency(Hz)

Resolution

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

1024x768

Monitor Display Specifications (RGB-PC )

Resolution

720x480

1280x720

1920x1080

Horizontal

Frequency(KHz)

31.47

31.50

45.00

44.96

33.75

33.72

59.94

60

60.00

59.94

60.00

59.94

Vertical

Frequency(Hz)

Monitor Display Specifications (RGB-DTV )

Resolution

640x480

800x600

Horizontal

Frequency(KHz)

31.469

37.861

37.500

43.269

35.156

37.879

48.077

46.875

53.674

59.94

72.80

75.00

85.00

56.25

60.31

72.18

75.00

85.06

48.363

56.476

60.023

60.00

70.06

75.02

Vertical

Frequency(Hz)

Resolution

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

1024x768

Monitor Display Specifications (HDMI-PC)

Resolution

720x480

1280x720

1920x1080

Horizontal

Frequency(KHz)

31.500

31.469

45.00

44.96

33.75

33.72

60

59.94

60.00

59.94

60.00

59.94

Vertical

Frequency(Hz)

Monitor Display Specifications (HDMI-DTV)

Owner’s Manual 25

Installation

Send the TV’s audio to external audio equipment via the Digital Audio
Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.

2. Connect the other end of the optical cable to the digital audio (opti­cal) input on the audio equipment.

3. Set the “ TV Speaker option - Off” in the AUDIO menu. Refer to
page 45.
See the external audio equipment instruction manual for operation.

Note: When connecting with external audio equipments, such as

amplifers or speakers, please turn the TV speakers off.(Refer to
p.45)

Caution: Do not look into the optical output port.

Looking at the laser beam may damage
your vision.

Digital

Digital

Audio Output

Audio Output

RS-232C INPUT

(CONTROL/SERVICE)

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

RGB INPUT

HDMI 2

HDMI1 /DVI

DVD
/DTV
INPUT

IEEE-1394

AUDIO
INPUT

Cable

The TV has a special signal output capability which allows you to
hook up the second TV or monitor.

Connect the second TV or monitor to the TV’s MONITOR OUT­PUT. See the Operating Manual of the second TV or monitor for
further details regarding the device’s input settings.

Note

• Component, RGB-PC/RGB-DTV, HDMI1/DVI,HDMI2, DTV input
sources cannot be used for Monitor out.

• When connecting with external audio equipments, such as
amplifers or speakers, please turn the TV speakers off.(Refer to
p.45)

AUDIO

R

L

AUDIO INPUT

VIDEO

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

S-VIDEO

IN

(L) AUDIO (R)

VIDEO

S-VIDEO

REMOTE
CONTROL

Monitor Out Setup

Monitor Out Setup

26 Plasma TV

Installation

- HDMITM, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing."

- This TV can receive the High-Definition Multimedia Interface(HDMI) or the Digital Visual Interface(DVI).

- This TV supports HDCP(High-bandwidth Digital Contents Protection) Protocol for 720x480p, 1280x720p, and 1920x1080i reso-

lution.

- When you connect this TV with a source device(DVD player, Set Top Box or PC) supporting Auto HDMI/DVI function, the output

resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto HDMI1/DVI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the DVD Player or Set Top Box's output resolution to 1280x720p, and the PC graphics card's

output resolution to 1024x768, 60Hz.

- If the source device has an HDMI output, no other audio connection is necessary because HDMI-to-HDMI connection includes

both video and audio.

- If the source device has a DVI output and no HDMI output, a separated audio connection is necessary.

<When the source device (DVD player or Set Top Box) supports HDMI>

How To Connect

1. Connect the source device to HDMI1/DVI or HDMI2 port of this TV with an HDMI cable(not supplied with this product).

2. No separated audio connection is necessary.

How To Use

- If the source device supports Auto HDMI function, the output resolution of the source device will be automatically set to

1280x720p.

- If the source device does not support Auto HDMI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI1/DVI or HDMI2 input source in main input option of SETUP menu.(Refer to P.41)

TV/VIDEO button is also available for this purpose.

<When the source device(DVD player or Set Top Box) supports DVI>

How To Connect

1. Connect the source device to HDMI1/DVI port of this TV with a HDMI-to-DVI cable(not supplied with this product).

Do not use HDMI2 port for DVI connection if you want to connect audio.

2. A separated audio connection is necessary.

3. If the source device has a fiber optic digital audio output, connect the audio output to DIGITAL AUDIO(OPTICAL) port for DVI

INPUT.

4. If the source device has an analog audio output connector, connect the PC's audio output to AUDIO INPUT port located on the

right side of RGB INPUT port.

How To Use

- If the source device supports Auto DVI function, the output resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto DVI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI1/DVI input source in main input option on the SETUP menu. (Refer to P.41)

TV/VIDEO button is also available for this purpose.

HDMI

HDMI

Owner’s Manual 27

Installation

Cable sample

HDMI Cable
(not supplied with the product)

HDMI to DVI Cable
(not supplied with the product)

Fiber Optic Digital Audio Cable
(not supplied with the product)

Analog Audio Cable(RCA type)
(not supplied with the product)

Analog Audio Cable(Stereo to RCA type)
(not supplied with the product)

Reference

Reference

28 Plasma TV

Installation

How to use

1. Connect the HDMI1/DVI Source Devices(DVD Player or Set Top Box or PC) and the TV SET.

2. Turn on the display by pressing the POWER button on the TV SET and HDMI1/DVI Source Devices remote control.

3. Select HDMI1/DVI Input source in Main Input option on the SETUP menu.(Refer to P.41)

4. Check the image on your TV SET. There may be noise associated with the resolution, vertical pattern, contrast or brightness in
HDMI1/DVI Source Devices. If noise is present, change the HDMI1/DVI Source Devices to another resolution, change the
refresh rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphics
card can not changed, change the PC graphics card or consult the manufacturer of the PC graphics card.

Notes:

- Depending on the graphics card, DOS mode may not work if a HDMI1 to DVI Cable is in use.

- Avoid keeping a fixed image on the screen for a long period of time. The fixed image may become permanently imprinted on the
screen. Use the Orbiter feature on the ISM Method menu.

- When Source Devices connected with HDMI1/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position and Size may not fit
to Screen. As shown the picture below, press the ADJUST button to adjust the screen Position of TV SET and contact an PC
graphics card service center.

- When Source Devices connected with HDMI1/DVI Input, output TV SET Resolution(480p, 720p, 1080i) and TV SET Display fit
EIA/CEA-861-B Specification to Screen. If not, refer to the Manual of HDMI1/DVI Source Devices or contact your service cen­ter.

- In case HDMI1/DVI Source Devices is not connected Cable or poor cable connection, "NO SIGNAL" OSD display in HDMI1/DVI
Input. In case that Video Resolution is not supported TV SET output in HDMI1/DVI Source Devices, "INVALID FORMAT" OSD
display. Refer to the Manual of HDMI1/DVI Source Devices or contact your service center.

In This Mode, the Supported TV SET Resolution Specification

- 1920 x 1080 I @ 59.94Hz / 60Hz, 16:9

- 1280 x 720 P @ 59.94Hz / 60Hz, 16:9(preferred format)

- 720 x 480 P @ 59.94Hz / 60Hz, 16:9

- 720 x 480 P @ 59.94Hz / 60Hz, 4:3

In This Mode, the Supported PC Resolution Specification

- 640 x 480 @ 59.94Hz

- 640 x 480 @ 72.80Hz

- 640 x 480 @ 75Hz

- 640 x 480 @ 85Hz

- 800 x 600 @ 56.25Hz

- 800 x 600 @ 60.31Hz

- 800 x 600 @ 72.18Hz

- 800 x 600 @ 75Hz

- 800 x 600 @ 85.06Hz

- 1024 x 768 @ 60Hz(preferred format)

- 1024 x 768 @ 70.06Hz

- 1024 x 768 @ 75.02Hz

HDMI

HDMI

PC mode

Owner’s Manual 29

Installation

AUDIO

R

L

VIDEO

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT 1

VIDEO

AUDIO

TV SET

TV

VCR

Cable IN

(R) AUDIO (L) VIDEO

34

OUTPUT
SWITCH

S-VIDEO

REMOTE
CONTROL

Cable

Cable Box Rear

Cable Box Front

or

Cable Service with a Cable Box

Cable Service with a Cable Box

- The TV Guide On Screen system uses Setup information to provide you with show listings and lineups in your area—which are

updated several times a day.

- Once you set up the TV according to manufacturer’s instructions, you are ready to set up the TV Guide On Screen system.

- To download program listings the TV Guide On Screen system needs to be able to change channels on your cable box when

the TV is not in use. Please connect the supplied G-LINK cable to the G-LINK jack of the TV. After you connect the G-LINK
cable you will be able to control your cable box using the TV’s remote.

Notes:

• The TV Guide On Screen system provides listings for cable-ready, cable box, and digital cable services as well as over-the-air

broadcast. It does not provide listings for satellite services.

• You may use to connect directly without Cable Box.

How to connect Cable Box

TV Guide On Screen Setup

TV Guide On Screen Setup

30 Plasma TV

Installation

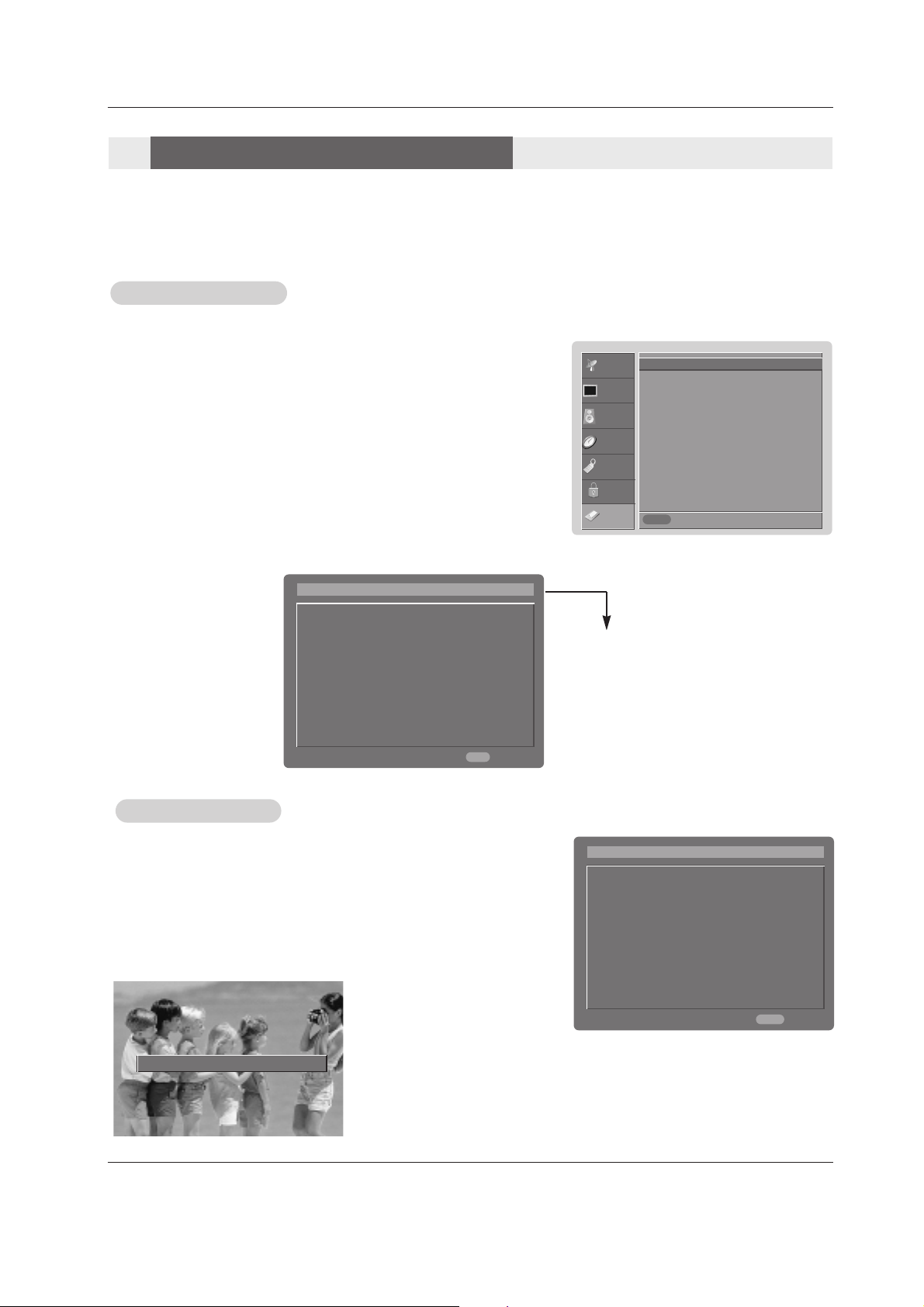

The TV Guide On Screen system's Welcome Screen appears:

-- by pressing the TV Guide key

-- when you power On your TV if you previously skipped "Set up TV
Guide On Screen now" on the Reminder Screen.

The Welcome Screen highlights features of the TV Guide On Screen

system.

Press ENTER to begin Setup.

How to use

1. Screen 1: Country

• This screen asks you the location of your TV.

• Use the

D/ E

button to highlight a country.

• Press ENTER to display Screen 2.

The TV Guide On Screen system's Reminder Screen appears:

-- after initial TV set up

-- if you power Off the TV and then power it back On

To make a selection, use the

D / E

button to highlight an option,

and press ENTER.

• "Set up TV Guide On Screen now," displays the Welcome Screen.
Press ENTER to begin Setup.

• "Remind me to set up later" returns you to watching TV.

• "Don't remind me again" returns you to watching TV and stops the

reminder screen from appearing upon power On.

Note:

• The G-LINKTMcable is necessary for the TV Guide On Screen system to work with your Cable Box. See Page
29 for G-LINKTMconnection instructions.

2.Reminder Screen

1.Welcome Screen

TV Guide On Screen Setup

TV Guide On Screen Setup
