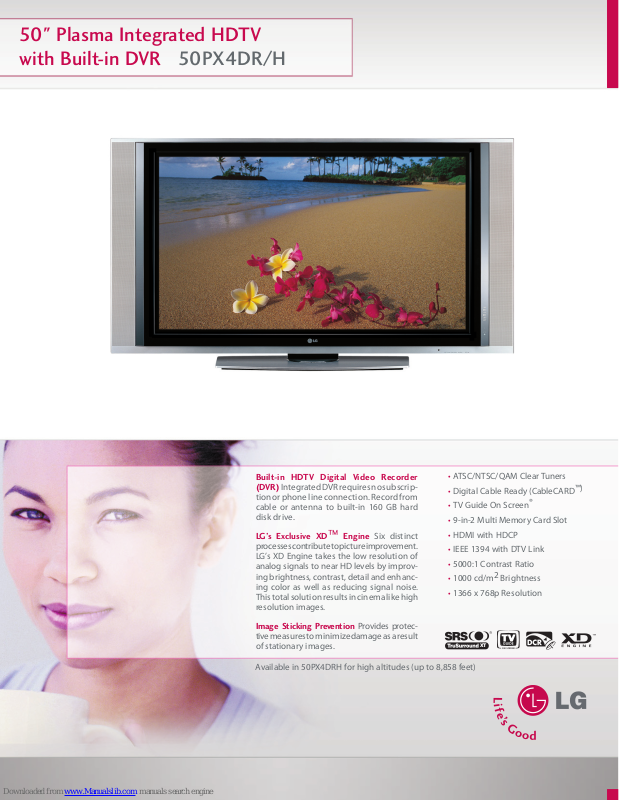

Page 1
50" Plasma Integrated HDTV
XT
with Built-in DVR 50PX4DR/H
Built-in HDTV Digital Video Recorder
(DVR) Integrated DVR requires no subscrip-
tion or phone line connection. Record from
cable or antenna to built-in 160 GB hard
disk drive.
LG’s Exclusive XD™ Engine Six distinct
processes contribute to picture improvement.
LG’s XD Engine takes the low resolution of
analog signals to near HD levels by improving brightness, contrast, detail and enhancing color as well as reducing signal noise.
This total solution results in cinema like high
resolution images.
Image Sticking Prevention Provides protec-
tive measures to minimize damage as a result
of stationary images.
Available in 50PX4DRH for high altitudes (up to 8,858 feet)
• ATSC/NTSC/QAM Clear Tuners
• Digital Cable Ready (CableCARD
• TV Guide On Screen
• 9-in-2 Multi Memory Card Slot
• HDMI with HDCP
• IEEE 1394 with DTV Link
• 5000:1 Contrast Ratio
• 1000 cd/m2 Brightness
• 1366 x 768p Resolution
™)
®
Page 2
50" Plasma Integrated HDTV
PC AUDIO
INPUT
RS-232c INPUT
DIGITAL AUDIO
(OPTICAL)
OUTPUT
COMPONENT 2
INPUT
DVI INPUT
IEEE 1394
CABLE CARD
HDMI 2
HDMI 1/DVI
AUDIO
(R)(L)
AUDIO
(R)(L)
A/V
OUTPUT
A/V
INPUT
AUDIO
(R)(L)PrPbY
AUDIO
(R)(L)PrPbY
COMPONENT 1
(480i, 480p, 720p, 1080i)
COMPONENT 2
(480i, 480p, 720p, 1080i)
CABLE IN
+75 |
ANT IN
+75 |
AC INPUT
S-VIDEO
REMOTE IN
RGB IN
(PC/DTV INPUT)
9-in-2 MEMORY CARD
(R) - AUDIO - (L)
VIDEO
S-VIDEO
G-LINK
with Built-in DVR 50PX4DR/H
Video
Native Display Resolution 1366 x 768p
Contrast Ratio 5000:1
Brightness 1000 cd/m
Lifetime 60,000 hours
Viewing Angle 160º
3D Y/C Comb Filter •
Color Temperature Adjustment 3 Modes
Aspect Ratio Adjustment 7 Modes
3:2 Pull-down Cinema Correction 480i
EZ Video/Picture Selection Mode 6 Modes
High Contrast Screen w/Non-glare Coating Glass Filter
XD Engine •
Enhanced Noise Reduction •
Black Stretcher •
Colors 1.07 Billion
DTV Signal Strength •
APM (Adaptive Picture Mode) •
Audio
Audio Output Power 15W x 2
Surround System Type SRS TruSurround XT
Bass/Treble/Balance •
EZ SoundRite (Volume Leveler) •
EZ Sound/Sound Selection Mode 5 Modes
Speaker System Details 2 Way 4 Speaker
BBE •
3D EchoSound System •
Mono/Stereo/SAP •
Cabinet/Accessories
Cabinet Style Table Top
Cabinet Color Silver/Black
Table Stand Included •
Speakers Included (Not Detachable) •
Front Lighted Display (LED) Index
Core Features
Tuner(s) ATSC/NTSC/QAM
Digital Cable Ready (DCR) •
2
Digital Video Recorder (DVR) (160 GB)
Memory Card Reader (9 in 2)
- 1st slot: CF Type I/II
- 2nd slot: MS, MS PRO, SD, MMC, SMC, XD
Special Features
Custom Channel Labels •
Custom Input Labels •
PIP •
POP •
Split Screen •
PIP Exchange/Move •
Dual Tuner PIP/POP/Split Screen •
Discrete IR Codes •
Favorite Channel Selection/Surf •
Tri-lingual Menus English, Spanish, French
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •
Flashback (Previous Channel) •
Parental Control With V-Chip •
Image Sticking Prevention •
EZ Menus (High Performance Interface) •
EZ Scan (Auto Programming) •
Intelligent Fan Control •
Program Guide Gemstar
DVR Built-in (160 GB)
- Time Shift Recording •
- Slow Motion Rewind and Forward •
- Instant Replay •
- HD Record Time Indicator •
- SD Record Time Indicator •
IEEE 1394 Software Capability Full AVC
Decoder Formats MPEG 2
Closed Caption •
Child Lock •
Screen Adjust •
AV Input Navigation •
Audio/Video Inputs/Outputs
TV Rear
- RF Inputs 2
- S-Video In 1
- Composite Video & Audio L/R In 1
- Composite Video & Audio L/R Out 1
- Component DVD/DTV
(480i, 480p, 720p, 1080i) & Audio L/R In 2
- RGB In (PC/DTV Input) 1
- PC Sound (1/8" mini stereo) 1
- HDMI with HDCP 2
- Digital Audio (Optical ) Out 1
- Digital Audio (Optical) In 2
- RS-232c (Software Upgrade Interface & Control) 1
- Remote Control In (IR) 1
- Digital Cable Card Slot 1
- Gemstar Out (G-Link) 1
- IEEE 1394/DTCP 2
TV Left Side
- S-Video In 1
- Composite Video & Audio L/R In 1
TV Right Side
- EPF Slot 2
Dimensions
Cabinet Dimensions without Stand
- Width x Height x Depth 57.5” x 30.7” x 4.0
- Weight Out of Package 110.6 lbs.
Cabinet Dimensions with Stand
- Width x Height x Depth 57.5” x 32.9” x 13.0”
- Weight Out of Package 133.1 lbs.
Dimensions with Packaging
- Width x Height x Depth
62.0” x 38.0” x 18.1”
- Weight In Package 155.2 lbs.
Power Consumption 550W
UPC (50PX4DR) 719192168909
UPC (50PX4DRH) 719192169180
Warranty 2 year parts/labor
Remote Control
Standard IR •
Wired Option •
Universal •
Backlit •
TV Rear
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue
Englewood Cliffs, NJ 07632
www.LGusa.com
Design and specifications subject to change without notice. 07/11/05
© 2005 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. LG Design and Life’s Good are trademarks of LG Electronics, Inc. All other trademarks are the property of their respective owners.
