OWNER’S MANUAL

PLASMA TV

Please read this manual carefully before operating
your set and retain it for future reference.

PH47**
PH67**

P/NO : MFL67684605 (1302-REV00)
Printed in Korea

www.lg.com

2

TABLE OF CONTENTS

ENGLISH

ENG

TABLE OF CONTENTS

3 SAFETY INSTRUCTIONS

8 - Viewing 3D Imaging (Only 3D models)

10 INSTALLATION PROCEDURE

10 ASSEMBLING AND PREPARING

10 Unpacking
14 Separate purchase
15 Parts and buttons
16 Lifting and moving the TV
17 Setting up the TV

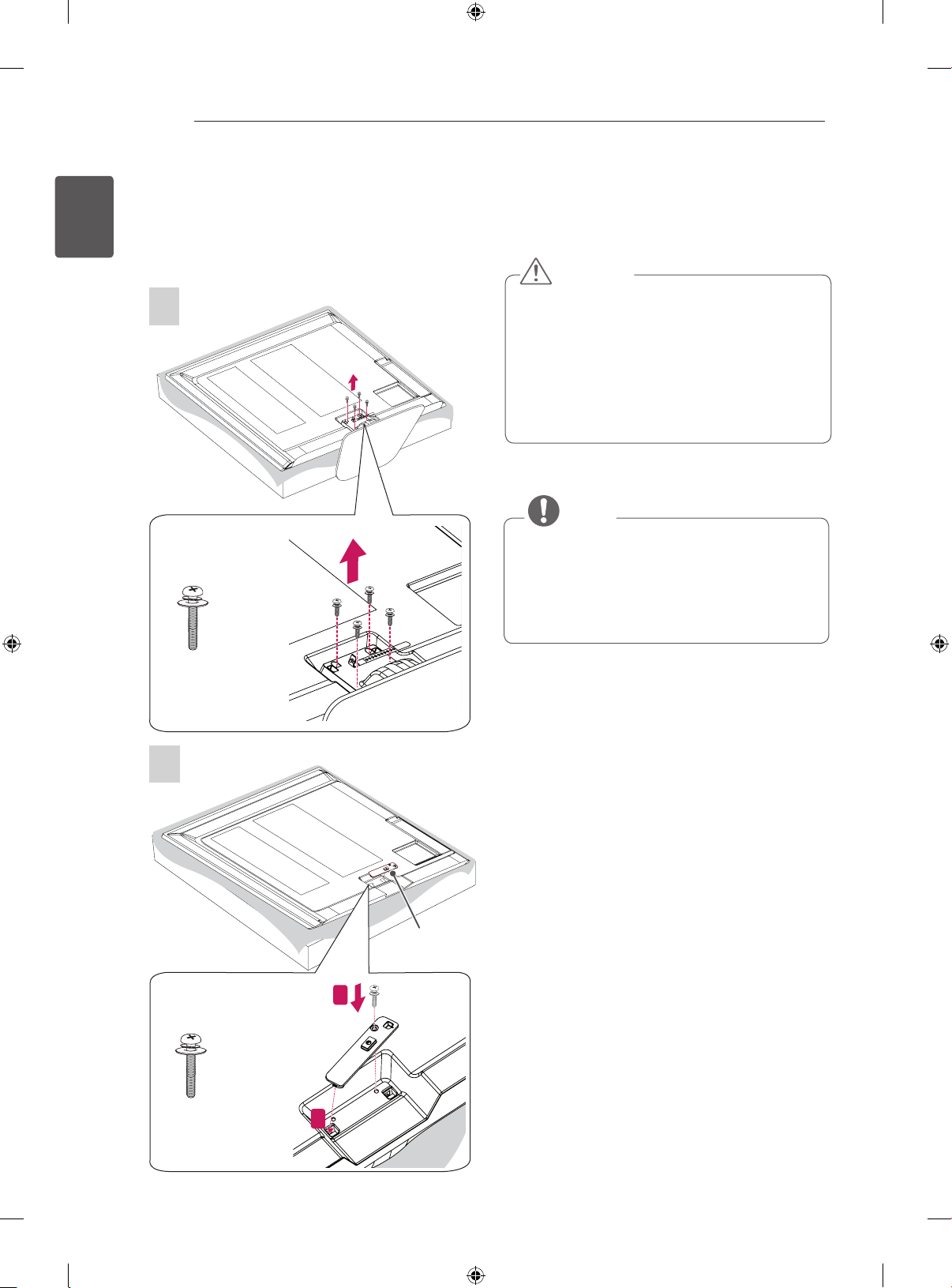

17 - Attaching the stand

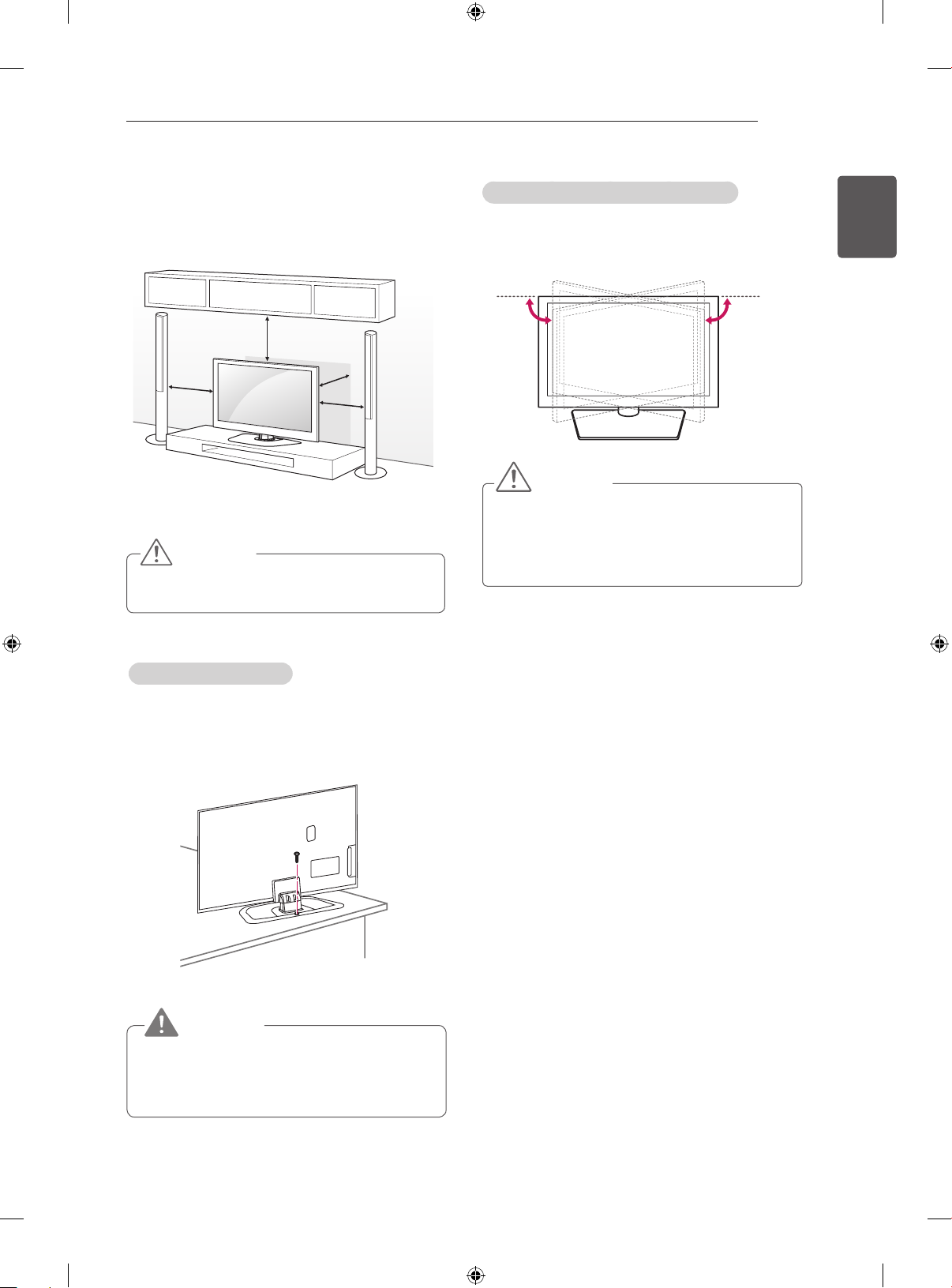

19 Mounting on a table

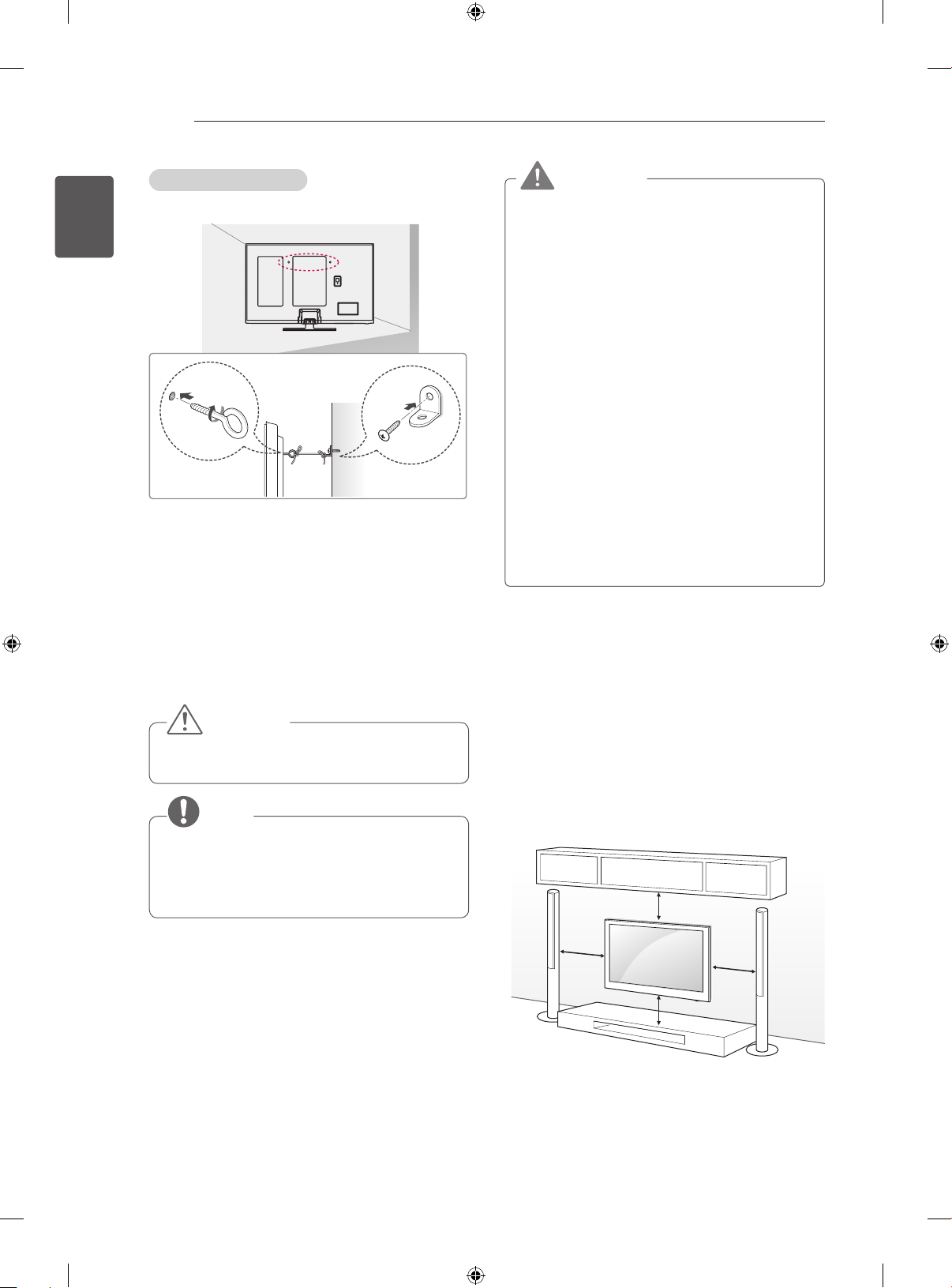

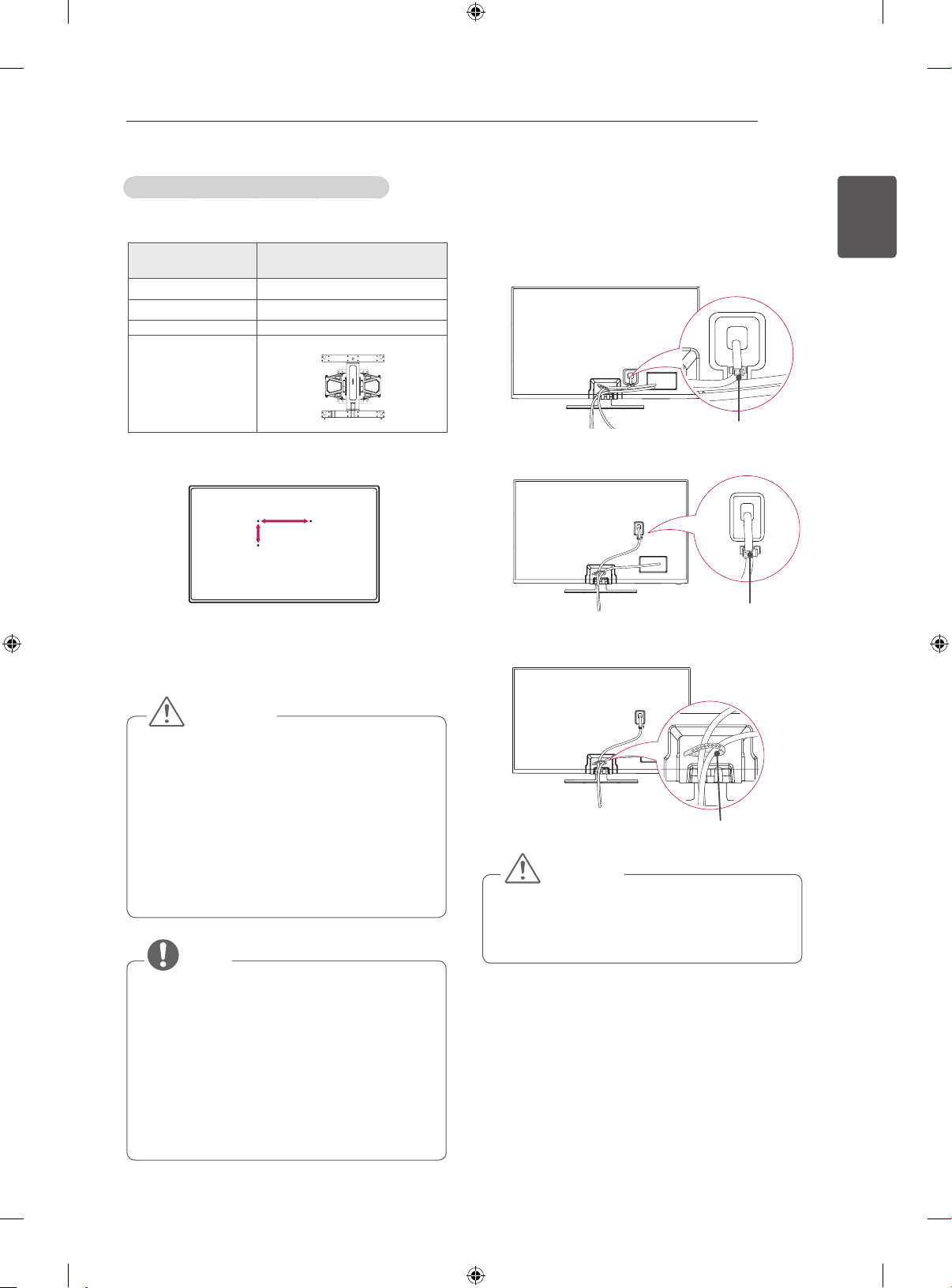

20 Mounting on a wall
21 Tidying cables

22 MAKING CONNECTIONS

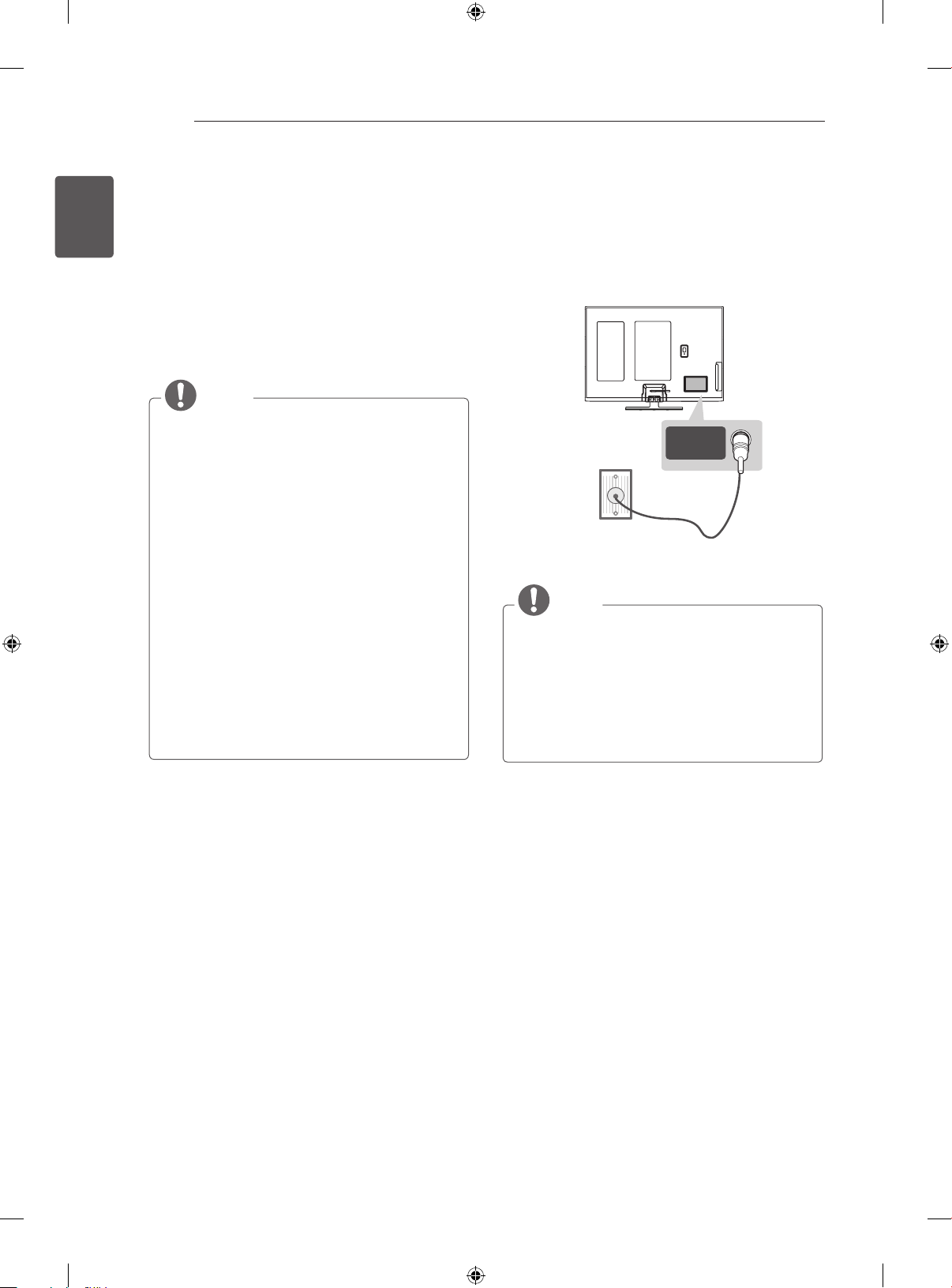

22 Antenna Connection

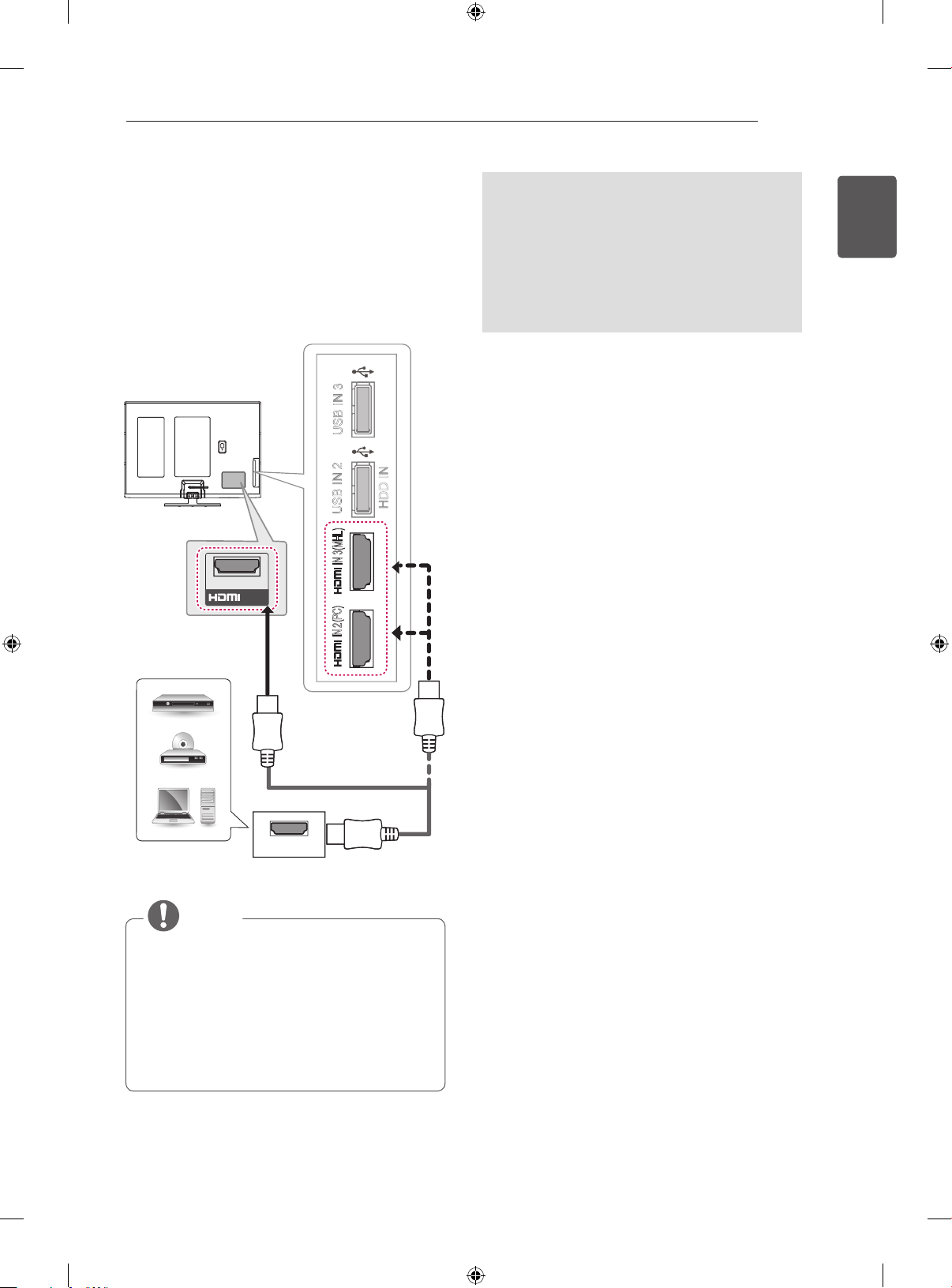

23 HDMI Connection

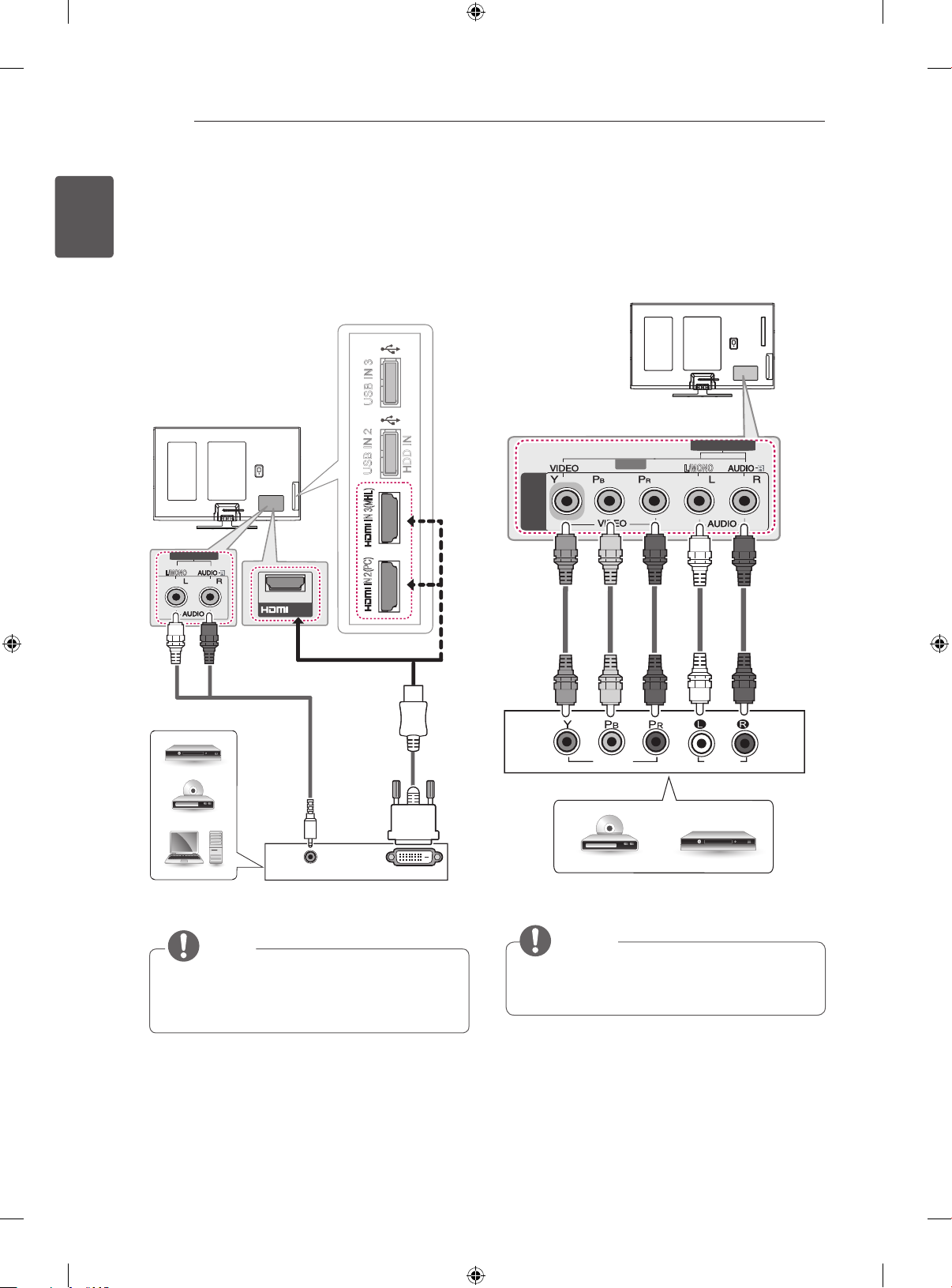

24 DVI to HDMI connection
24 Component Connection

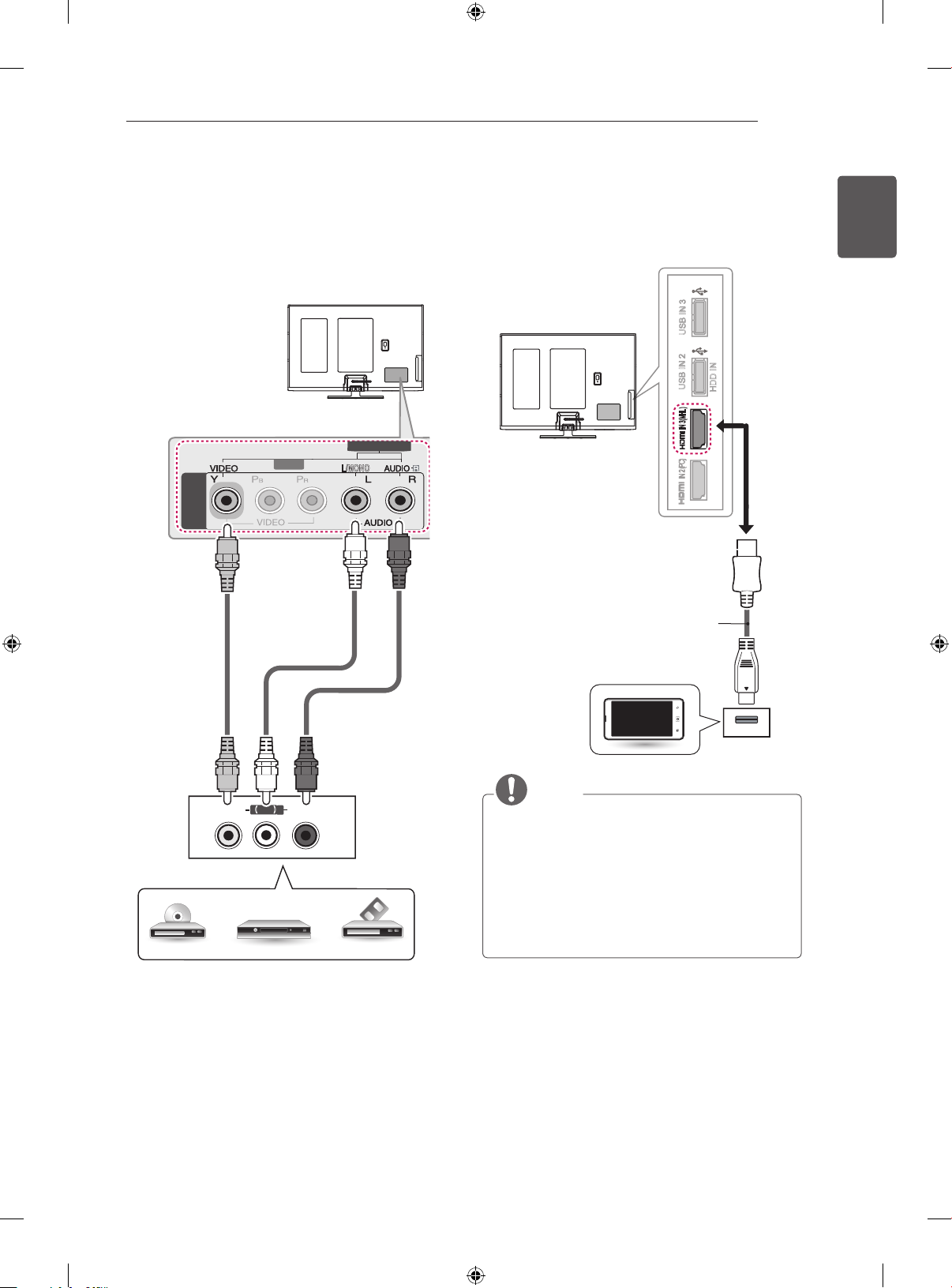

25 Composite Connection
25 MHL Connection
26 Audio Connection

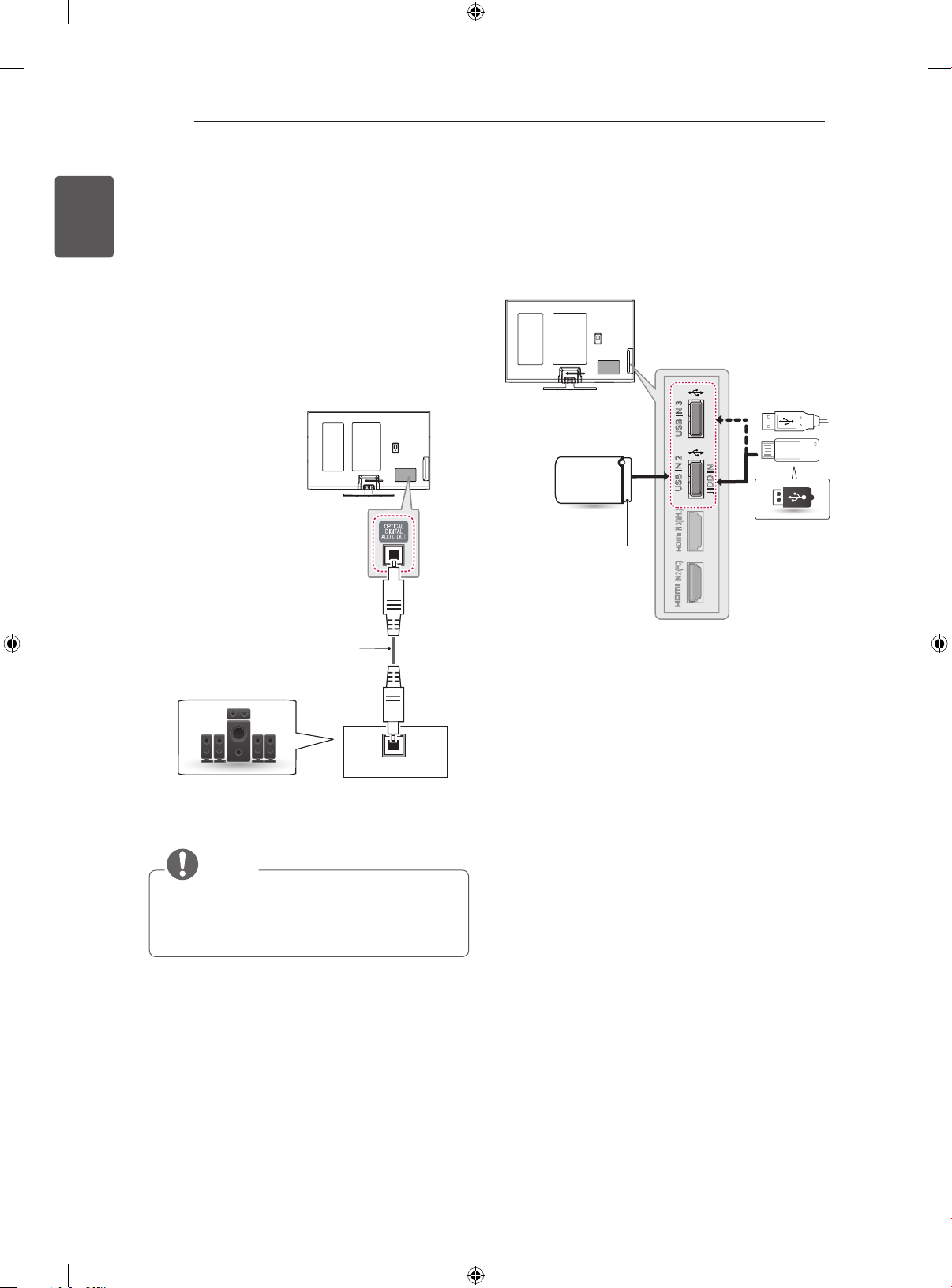

26 - Digital optical audio connection
26 USB Connection

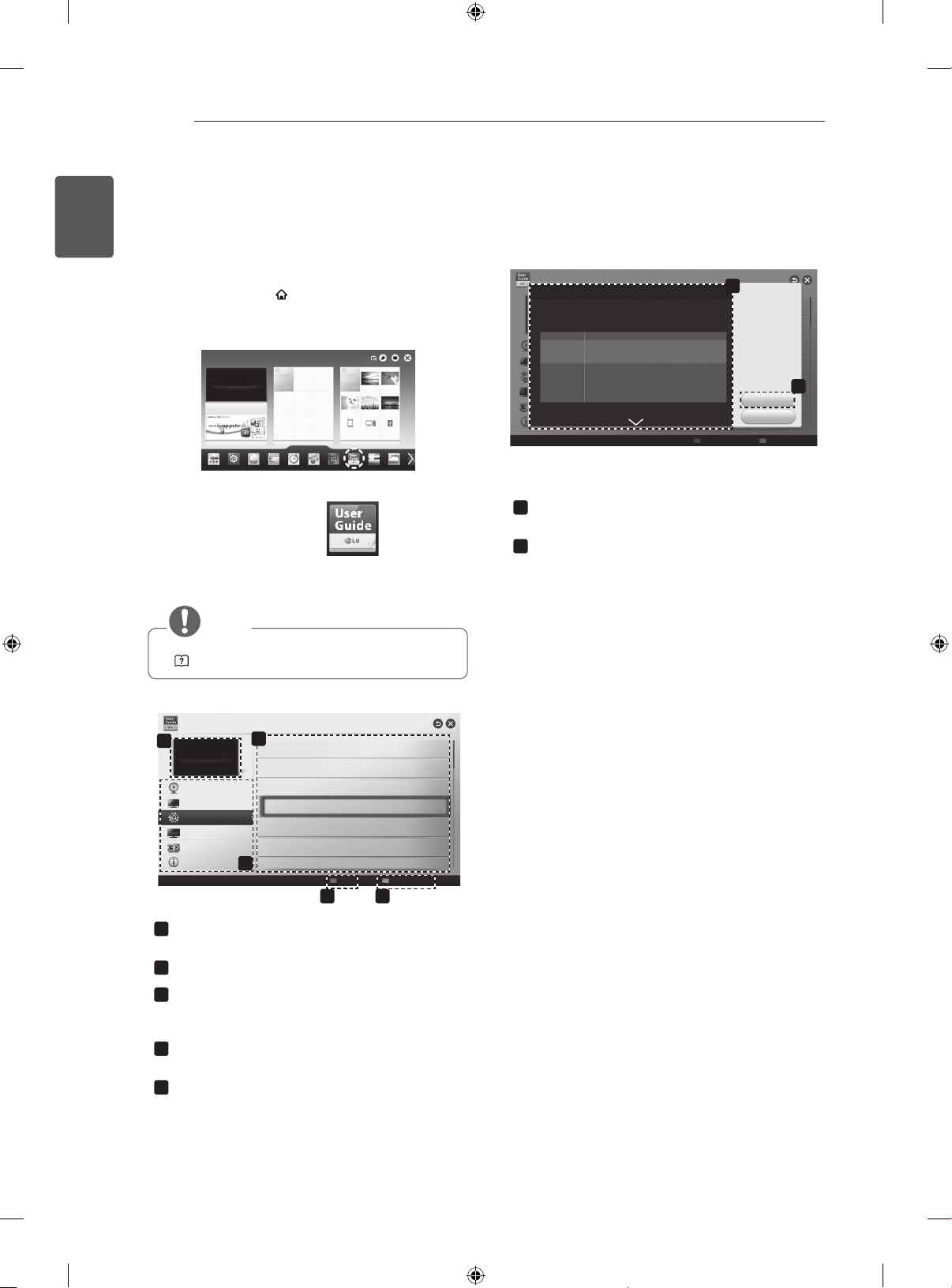

34 USING THE USER GUIDE

35 MAINTENANCE

35 Cleaning your TV
35 - Screen, frame, cabinet and stand
35 - Power cord

35 TROUBLESHOOTING

36 SPECIFICATIONS

41 LICENSES

41 OPEN SOURCE SOFTWARE NOTICE

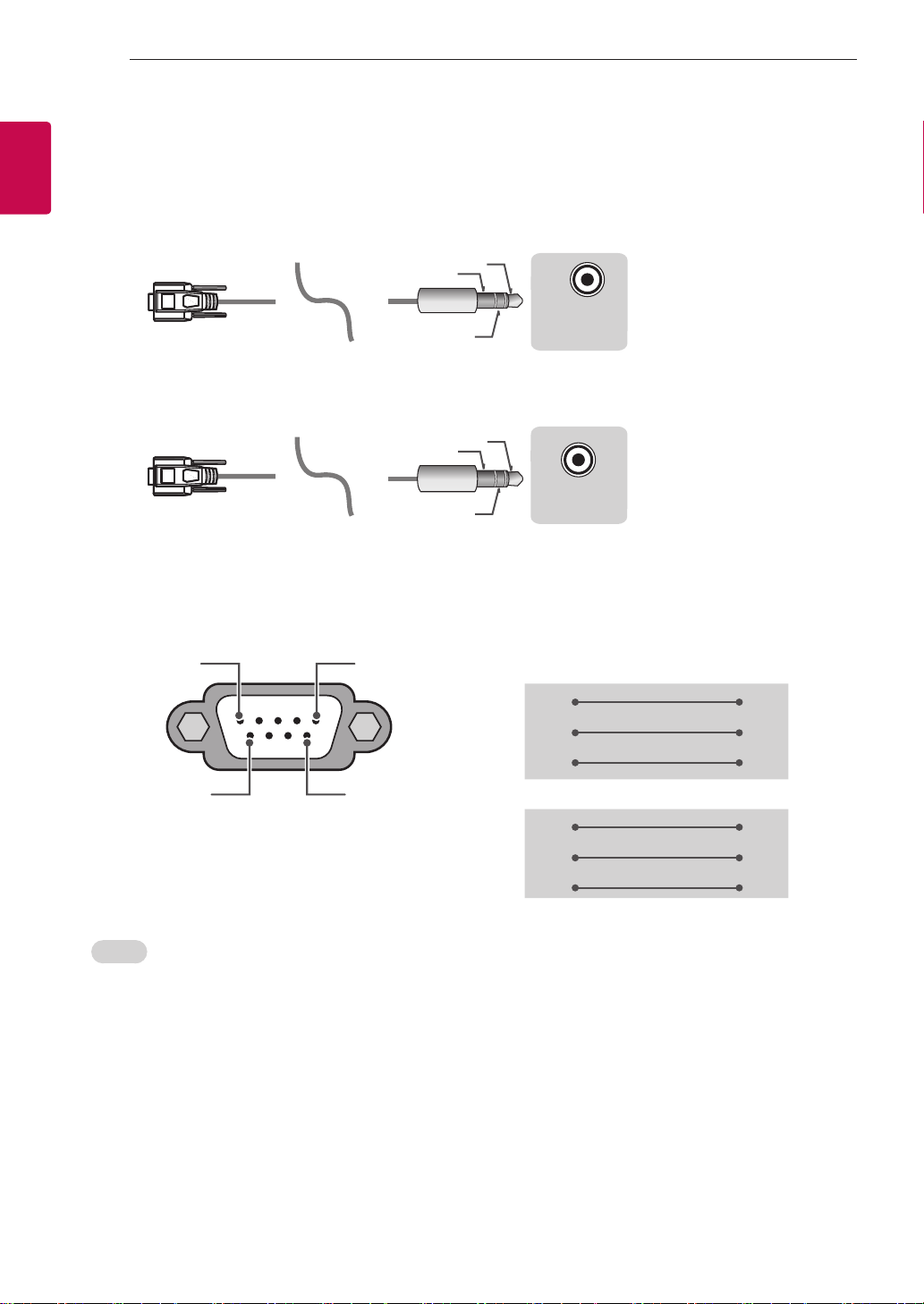

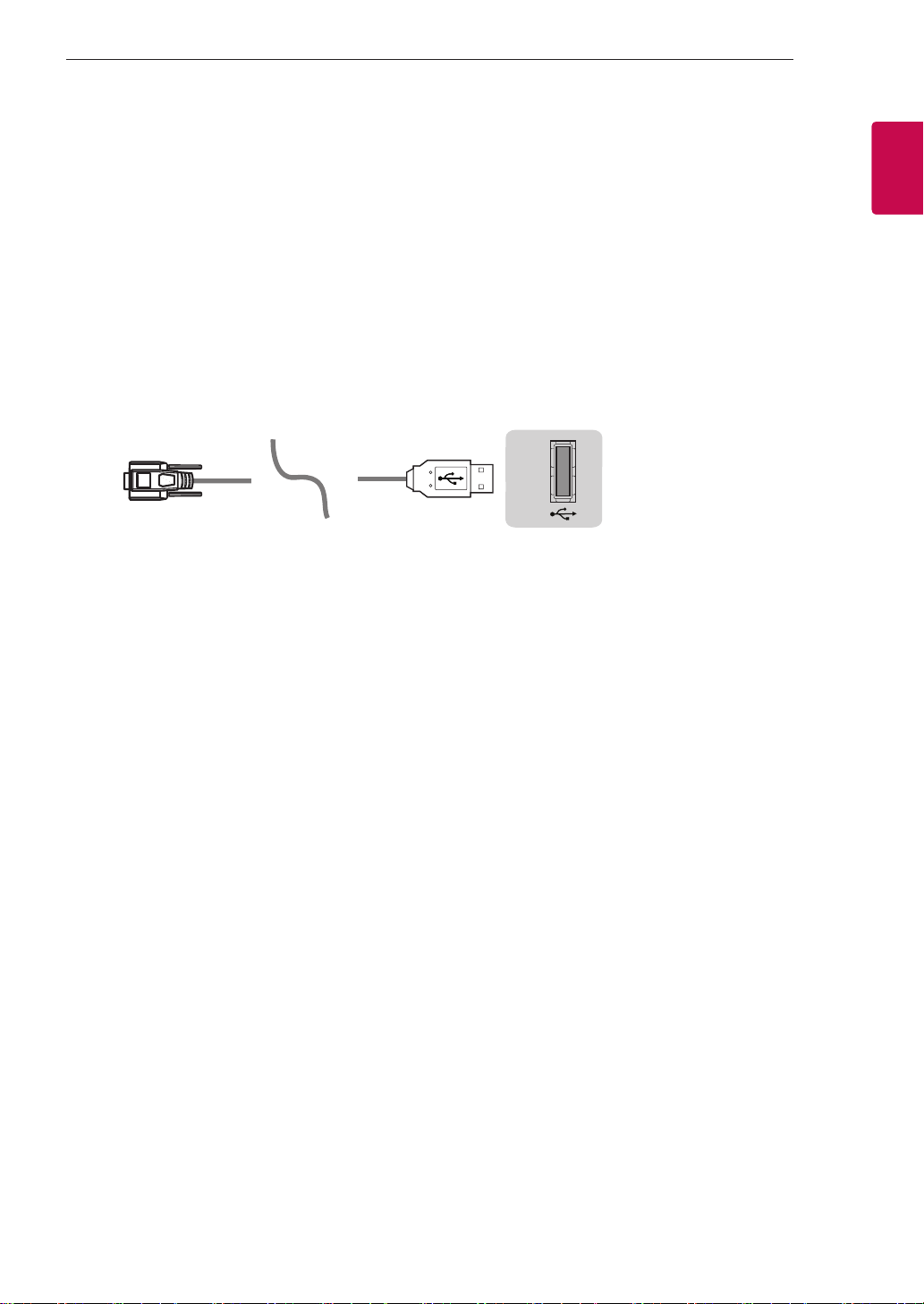

41 EXTERNAL CONTROL DEVICE

SETUP

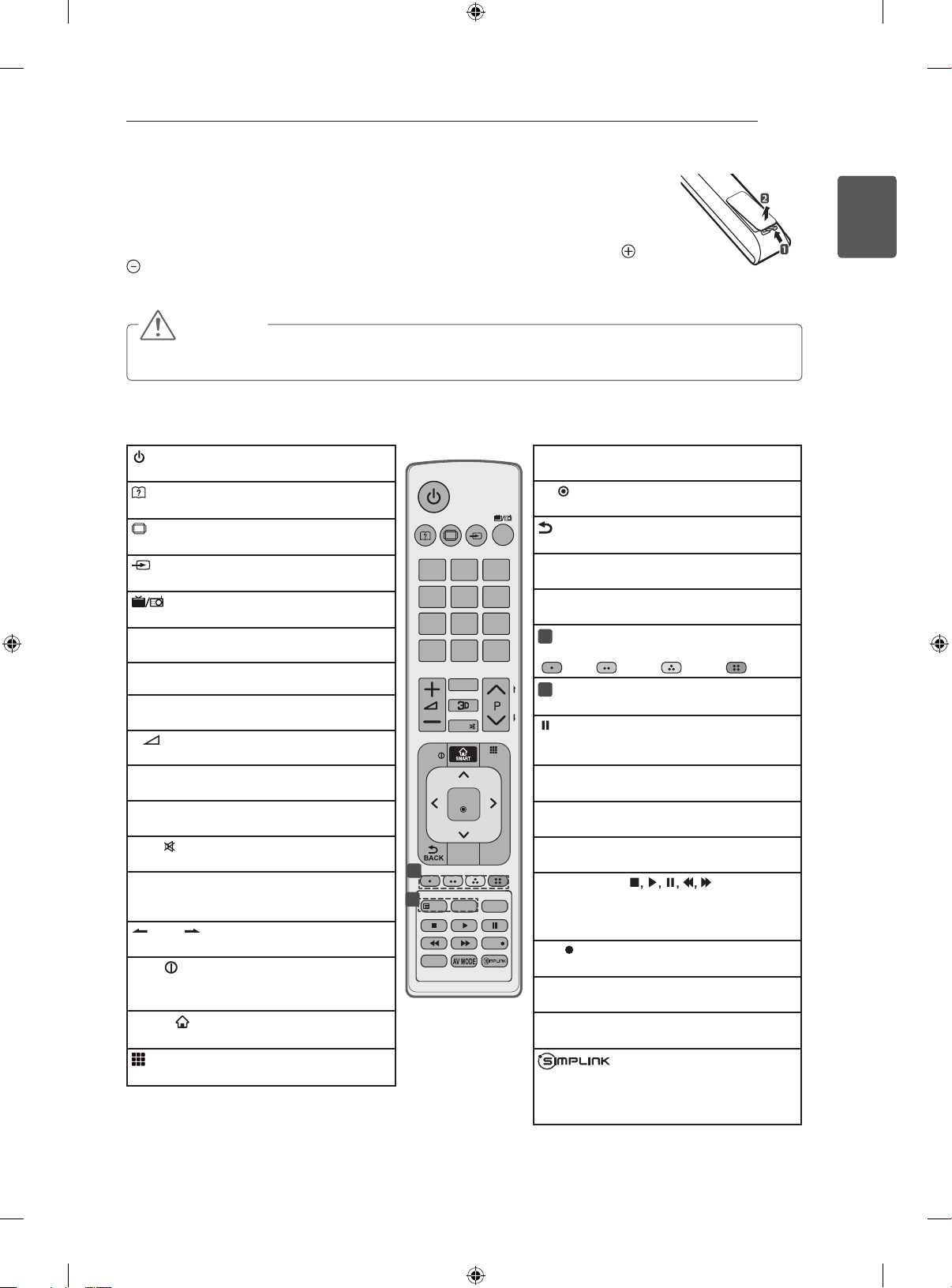

27 REMOTE CONTROL

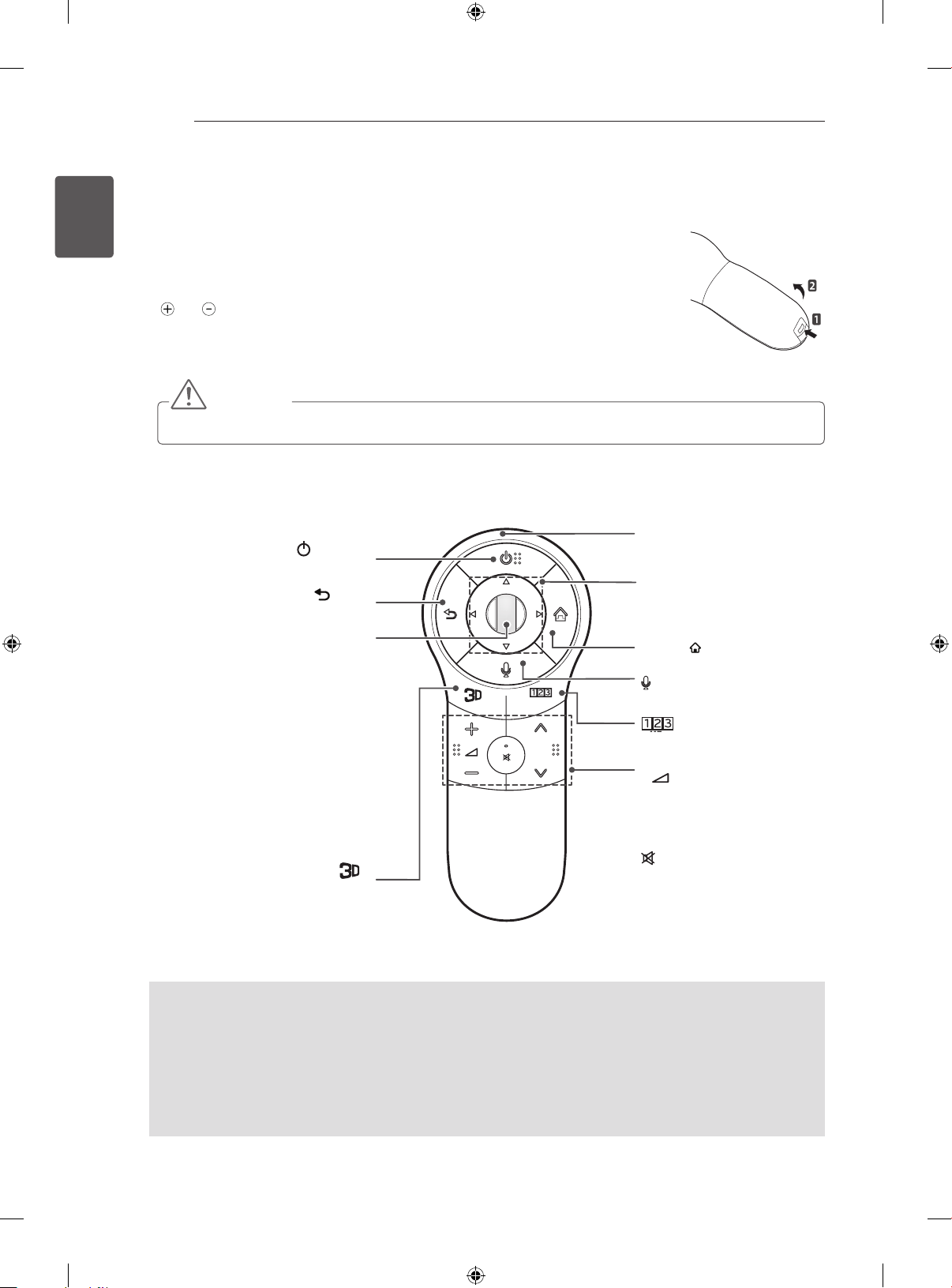

28 MAGIC REMOTE CONTROL

FUNCTIONS

29 Registering Magic Remote Control
29 How to use Magic Remote Control

29 Precautions to Take when Using the Magic

Remote Control

30 PENTOUCH

30 Pentouch Functions and part names
30 - What is the Pentouch Function?

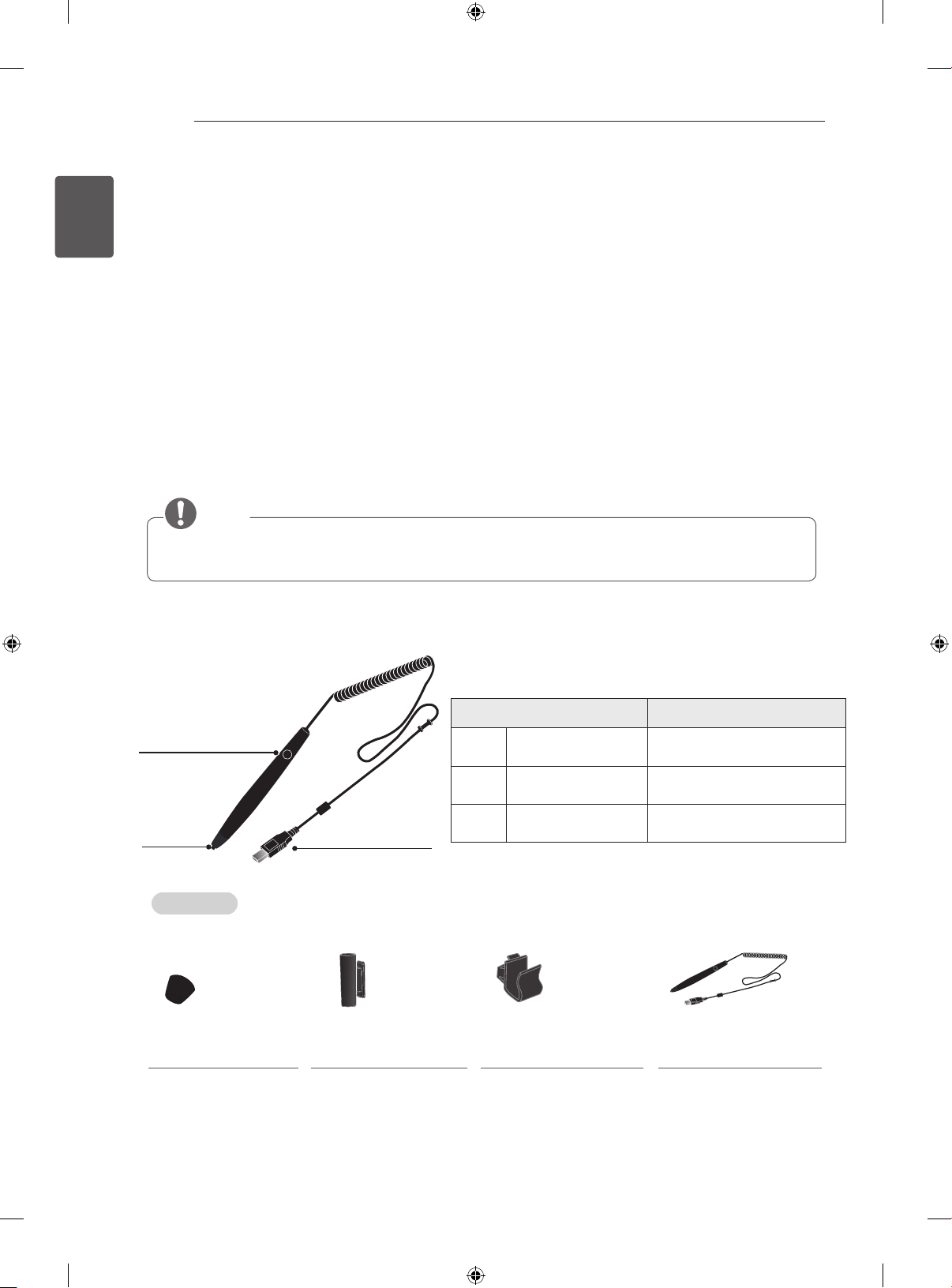

30 - Wired Touch Pen Part Names and

Components

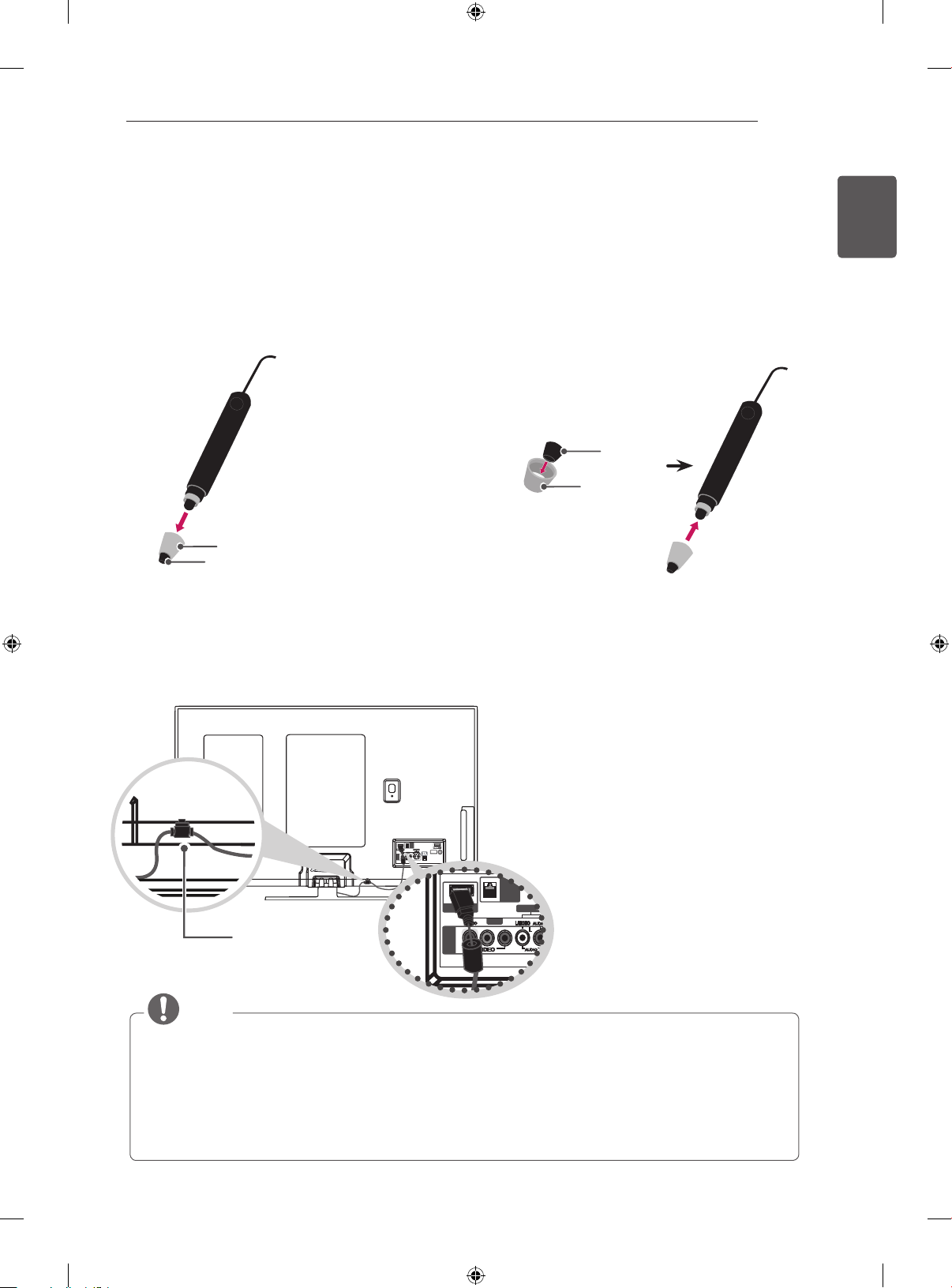

31 To Use the Wired Touch Pen
31 - Replacing the Tip
31 - Connecting the Wired Touch Pen

32 To Start the Pentouch Program
32 - Starting the Pentouch Program

32 Cautions When Using the Pentouch

Functions

WARNING

yIf you ignore the warning message, you may

be seriously injured or there is a possibility of
accident or death.

CAUTION

yIf you ignore the caution message, you may be

slightly injured or the product may be damaged.

NOTE

yThe note helps you understand and use the

product safely. Please read the note carefully
before using the product.

SAFETY INSTRUCTIONS

3

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and

y

remote control in the following
environments:

- A location exposed to
direct sunlight

- An area with high humidity
such as a bathroom

- Near any heat source
such as stoves and other
devices that produce heat

- Near kitchen counters or
humidifiers where they can
easily be exposed to steam
or oil

- An area exposed to rain or
wind

- Near containers of water
such as vases

Otherwise, this may result in

fire, electric shock, malfunction

or product deformation.

Do not place the product

y

where it might be exposed to
dust.
This may cause a fire hazard.

Mains Plug is the TV

y

connecting/disconnecting
device to AC mains electric
supply. This plug must remain
readily attached and operable
when TV is in use.

Do not touch the power plug

y

with wet hands. Additionally, if
the cord pin is wet or covered
with dust, dry the power plug
completely or wipe dust off.
You may be electrocuted due
to excess moisture.

Make sure to connect Mains

y

cable to compliant AC mains
socket with Grounded earth
pin. (Except for devices which
are not grounded on earth.)
Otherwise possibility you
may be electrocuted or
injured.

Insert power cable plug

y

completely into wall socket
otherwise if not secured
completely into socket, fire
ignition may break out.

Ensure the power cord does

y

not come into contact with
hot objects such as a heater.
This may cause a fire or an
electric shock hazard.

Do not place a heavy object,

y

or the product itself, on power
cables.
Otherwise, this may result in
fire or electric shock.

Bend antenna cable between

y

inside and outside building to
prevent rain from flowing in.
This may cause water
damaged inside the Product
and could give an electric
shock.

When mounting TV onto wall

y

make sure to neatly install
and isolate cabling from
rear of TV as to not create
possibility of electric shock /
fire hazard.

Do not plug too many

y

electrical devices into a single
multiple electrical outlet.
Otherwise, this may result in
fire due to over-heating.

Do not drop the product or let

y

it fall over when connecting
external devices.
Otherwise, this may result
in injury or damage to the
product.

ENGENGLISH

4

SAFETY INSTRUCTIONS

ENGLISH

ENG

Keep the packing anti-

y

moisture material or vinyl
packing out of the reach of
children.
Anti-moisture material is
harmful if swallowed. If
swallowed by mistake, force
the patient to vomit and
visit the nearest hospital.
Additionally, vinyl packing can
cause suffocation. Keep it out
of the reach of children.

Do not let your children climb

y

or cling onto the TV.
Otherwise, the TV may
fall over, which may cause
serious injury.

Dispose of used batteries

y

carefully to protect a child
from eating them.
Please seek Doctor- Medical
Attention immediately if child
consumes batteries.

Do not insert any metal

y

objects/conductors (like
a metal chopstick/cutlery/
screwdriver) between power
cable plug and input Wall
Socket while it is connected
to the input terminal on the
wall. Additionally, do not
touch the power cable right
after plugging into the wall
input terminal.
You may be electrocuted.
(Depending on model)

Do not put or store

y

inflammable substances
near the product. There is
a danger of combustion/
explosion or fire due to
careless handling of the
inflammable substances.

Do not drop metallic objects

y

such as coins, hair pins,
chopsticks or wire into the
product, or inflammable
objects such as paper and
matches. Children must pay
particular attention.
Electrical shock, fire or injury
can occur. If a foreign object
is dropped into the product,
unplug the power cord and
contact the service centre.

Do not spray water on the

y

product or scrub with an
inflammable substance
(thinner or benzene). Fire or
electric shock accident can
occur.

Do not allow any impact,

y

shock or any objects to fall
into the unit, and do not drop
anything onto the screen. You
may be injured or the product
can be damaged.

Never touch this product or

y

antenna during a thunder or
lighting storm.
You may be electrocuted.

Never touch the wall outlet

y

when there is leakage of
gas, open the windows and
ventilate.
It may cause a fire or a burn
by a spark.

Do not disassemble, repair

y

or modify the product at your
own discretion.
Fire or electric shock accident
can occur.
Contact the service centre for
check, calibration or repair.

If any of the following

y

occur, unplug the product
immediately and contact your
local service centre.

- The product has been
impacted by shock

- The product has been
damaged

- Foreign objects have
entered the product

- The product produced
smoke or a strange smell

This may result in fire or

electric shock.

SAFETY INSTRUCTIONS

5

Unplug the TV from AC

y

mains wall socket if you do
not intend to use the TV
for a long period of time.
Accumulated dust can cause
fire hazard and insulation
deterioration can cause
electric leakage/shock/fire.

Apparatus shall not be

y

exposed to dripping or
splashing and no objects
filled with liquids, such as
vases, shall be placed on the
apparatus.

CAUTION

Install the product where no

y

radio wave occurs.

There should be enough

y

distance between an outside
antenna and power lines
to keep the former from
touching the latter even when
the antenna falls.
This may cause an electric
shock.

Do not install the product

y

on places such as unstable
shelves or inclined surfaces.
Also avoid places where
there is vibration or where
the product cannot be fully
supported.
Otherwise, the product may
fall or flip over, which may
cause injury or damage to the
product.

If you install the TV on a

y

stand, you need to take
actions to prevent the product
from overturning. Otherwise,
the product may fall over,
which may cause injury.

If you intend to mount the product to a wall, attach

y

VESA standard mounting interface (optional parts)
to the back of the product. When you install the set
to use the wall mounting bracket (optional parts),
fix it carefully so as not to drop.

Only use the attachments / accessories specified

y

by the manufacturer.

When installing the antenna,

y

consult with a qualified
service technician. If not
installed by a qualified
technician, this may create
a fire hazard or an electric
shock hazard.

We recommend that you

y

maintain a distance of at least
2 to 7 times the diagonal
screen size when watching
TV.
If you watch TV for a long
period of time, this may
cause blurred vision.

Only use the specified type of

y

battery.
This could cause damage to
the remote control.

Do not mix new batteries with

y

old batteries.
This may cause the batteries
to overheat and leak.

Batteries should not be exposed to excessive heat.

y

eg keep away from direct Sunlight , open fireplace
and electric heaters .

Do not place non-rechargeable batteries in

y

charging device.

Make sure there are no

y

objects between the remote
control and its sensor.

Signal from Remote Control

y

can be interrupted due to
external/internal lighting eg
Sunlight, fluorescent lighting.
If this occurs turn off lighting
or darken viewing area.

When connecting external

y

devices such as video game
consoles, make sure the
connecting cables are long
enough.
Otherwise, the product may
fall over, which may cause
injury or damage the product.

Do not turn the product

y

On/Off by plugging-in or
unplugging the power plug to
the wall outlet. (Do not use
the power plug for switch.)
It may cause mechanical
failure or could give an
electric shock.

ENGENGLISH

6

SAFETY INSTRUCTIONS

ENGLISH

ENG

Please follow the installation

y

instructions below to prevent
the product from overheating.

- The distance between the
product and the wall should
be more than 10 cm.

- Do not install the product in
a place with no ventilation
(e.g., on a bookshelf or in
a cupboard).

- Do not install the product
on a carpet or cushion.

- Make sure the air vent is
not blocked by a tablecloth
or curtain.

Otherwise, this may result in

fire.

Take care not to touch the

y

ventilation openings when
watching the TV for long
periods as the ventilation
openings may become hot.
This does not affect the
operation or performance of
the product.

Periodically examine the cord of your appliance,

y

and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized servicer.

Prevent dust collecting on the

y

power plug pins or outlet.
This may cause a fire hazard.

Protect the power cord from

y

physical or mechanical
abuse, such as being twisted,
kinked, pinched, closed in a
door, or walked upon. Pay
particular attention to plugs,
wall outlets, and the point
where the cord exits the
appliance.

Do not press strongly upon

y

the panel with a hand or
sharp object such as nail,
pencil or pen, or make a
scratch on it, as it may
cause damage to screen.

Avoid touching the screen or

y

holding your finger(s) against
it for long periods of time.
Doing so may produce some
temporary or permanent
distortion/damage to screen.

When cleaning the product

y

and its components, unplug
the power first and wipe it
with a soft cloth. Applying
excessive force may cause
scratches or discolouration.
Do not spray with water or
wipe with a wet cloth. Never
use glass cleaner, car or
industrial shiner, abrasives
or wax, benzene, alcohol
etc., which can damage the
product and its panel.
Otherwise, this may result in
fire, electric shock or product
damage (deformation,
corrosion or breakage).

As long as this unit is connected to the AC wall

y

outlet, it is not disconnected from the AC power
source even if you turn off this unit by SWITCH.

When unplugging the cable,

y

grab the plug and unplug it,
by pulling at the plug. Don’t
pull at the cord to unplug the
power cord from the power
board, as this could be
hazardous.

When moving the product,

y

make sure you turn the power
off first. Then, unplug the
power cables, antenna cables
and all connecting cables.
The TV set or power cord
may be damaged, which may
create a fire hazard or cause
electric shock.

When moving or unpacking

y

the product, work in pairs
because the product is heavy.
Otherwise, this may result in
injury.

Contact the service centre

y

once a year to clean the
internal parts of the product.

Refer all servicing to

y

qualified service personnel.
Servicing is required when
the apparatus has been
damaged in any way, such
as power supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed
to rain or moisture, does not
operate normally, or has been
dropped.

If the product feels cold to the

y

touch, there may be a small
“flicker” when it is turned
on. This is normal, there is
nothing wrong with product.

The panel is a high

y

technology display product
with resolution of two million
to six million pixels. You
may see tiny black dots and/
or brightly coloured dots
(red, blue or green) at a
size of 1 ppm on the panel.
This does not indicate a
malfunction and does not
affect the performance and
reliability of the product.
This phenomenon also occurs
in third-party products and is
not subject to exchange or
refund.

You may find different

y

brightness and colour of the
panel depending on your
viewing position(left/right/top/
down).
This phenomenon occurs due
to the characteristic of the
panel. It is not related with
the product performance, and
it is not malfunction.

SAFETY INSTRUCTIONS

Displaying a still image (e.g., broadcasting

y

channel logo, on-screen menu, scene from a
video game) for a prolonged time may cause
damage to the screen, resulting in retention of
the image, which is known as image sticking. The
warranty does not cover the product for image
sticking.
Avoid displaying a fixed image on your
television’s screen for a prolonged period (2
or more hours for LCD, 1 or more hours for
Plasma).
Also, if you watch the TV at a ratio of 4:3 for
a long time, image sticking may occur on the
borders of the panel.
This phenomenon also occurs in third-party
products and is not subject to exchange or
refund.

Generated Sound

y

“Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is generated
by plastic thermal contraction due to tempera­ture and humidity. This noise is common for
products where thermal deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-speed
switching circuit, which supplies a large amount
of current to operate a product. It varies depend­ing on the product.
This generated sound does not affect the
performance and reliability of the product.

7

ENGENGLISH

8

SAFETY INSTRUCTIONS

ENGLISH

ENG

Viewing 3D Imaging (Only 3D models)

WARNING

Viewing Environment

yViewing Time

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long
period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

ySome users may experience a seizure or other abnormal symptoms when they are exposed to a

ashing light or particular pattern from 3D contents.

yDo not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy,

cardiac disorder, or blood pressure disease, etc.

y3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double

images or discomfort in viewing may be experienced.

yIf you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble

sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than
the average adult.

yIf your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D

contents.

Symptoms which require discontinuation or refraining from watching 3D contents

yDo not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
yWhen these symptoms are experienced, stop using/watching 3D contents and get enough rest until the

symptom subsides.

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,
dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

SAFETY INSTRUCTIONS

9

CAUTION

Viewing Environment

Viewing Distance

y

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you
feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Position

y

- Face the center of the screen at eye level with the head looking straight ahead. Otherwise, you may
not be able to view 3D contents properly.

Viewing Age

yInfants/Children

- Usage/ Viewing 3D contents for children under the age of 5 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring
and extra attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance
between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.

yTeenagers

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D
contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

yElderly

- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the
recommended distance.

Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

y

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

y

Using modied 3D glasses may cause eye strain or image distortion.

y

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

y

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping

y

the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with
chemicals.

yWhen watching 3D videos under uorescent lights or with three wave length lamps, you may experience

the screen blinking. When this occurs, turn the light off or turn it down.

yOther electronic or communication devices should be turned off or put away from the TV because it can

cause interference and prevent the 3D function from working properly.

yWhen you watch TV lying down, 3D images may look darker or invisible.

ENGENGLISH

10

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

ENGLISH

ENG

NOTE

yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you are using.
yNew features may be added to this TV in the future.
yThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned

off if it will not be watched for some time, as this will reduce energy consumption.

yThe energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced,

and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available. You can use the TV network functions only when the

network connection is made.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

yDo not use any unapproved items to ensure the safety and product life span.
yAny damag or injuries caused by using unapproved items are not covered by the manufacturer’s warranty.
ySome models have a thin film attached on to the screen and this must not be removed.

WARNING

yYou need to enable easy access for connecting and disconnecting electric cables fed from the mains.

AV MODE

INPUT

ENERGY

TV

SAVING

1 2 3

4 5 6

7 809

FLASHBK

LIST

MARK

FAV

P
A
G

3D

CHVOL

E

MUTE

INFO

MENU

Q.MENU

ENTER

EXIT

BACK

L/R SELECT

FREEZE

RATIO

Remote control, batter­ies (AAA)

(See p. 27)

BACK SMART

/Q.MENU

P

Magic Remote Control,
Batteries (AA)

(Only PH67**)
(See p. 28)

Owner’s manual Ferrite core

(Depending on model)
(See p. 12)

ASSEMBLING AND PREPARING

11

ENGENGLISH

Power Cord

(Depending on model)

Screw for assembly

7 EA, M4 x 14
(Only

42PH47**

(See p. 17)

)

Power Cord Holder

(See p. 21)

Screw for assembly

7 EA, M5 x 16
(Only

50PH47**,
50/60PH67**
(See p. 17)

)

Protection Cover

(Only 50PH47**,
50PH67**)
(See p. 18)

Stand Body / Stand
Base

(See p. 17)

Desk-mount Screw

(Only 42PH47**)
(See p. 19)

or

Isolator

(Depending on model)
(See p. 13)

3D Glasses

(Depending on model)

Tip

PH671*

(Only
(See p.30)

)

Wired touch pen

PH671*

PH671*

)

)

(Only
(See p.30)

Eye-bolt & Wall bracket

(Only
(See p.20)

Wired touch pen holder

(Only

PH671*

(See p.30)

)

Wired touch pen stand

(Only

PH671*

(See p.30)

)

12

ASSEMBLING AND PREPARING

ENGLISH

ENG

NOTE

The items supplied with your product may vary depending on the model.

y

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product

y

functions.

How to use the ferrite core

1 Use the ferrite core to reduce the electromagnetic interference in the power cable.

Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.

[to a wall plug]

[Figure 1]

2 Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L,
R cable & AV cable.

Place the ferrite core close to the TV.

Wind the

component Y, Pb, Pr, L, R cable & AV cable

[to an External device]

10 mm(+ / - 5 mm)

[Figure 2-1]

[to the TV]

on the ferrite core once.

[to the TV]

(Black)

[Cross Section of

Ferrite Core]

(Black)

[Cross Section of

Ferrite Core]

Wind the PC audio cable on the ferrite core once.

[to an External device]

10 mm(+ / - 5 mm)

[to the TV]

[Figure 2-2]

3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable.
Wind the LAN cable thrice on the ferrite core. Place the ferrite core close to the TV and an External device.

A (Gray) B (Gray)

[to the TV]

[to an External

device]

B A A

[Figure 3]

[Cross Section of

Ferrite Core]

- If there are six ferrite cores, follow as shown in Figures 1 and 2&3.

y For an optimal connection, HDMI cables and USB devices

should have bezels less than 10 mm thick and 18 mm width.
Use an extension cable that supports USB 2.0 if the USB ca­ble or USB memory stick does not fit into your TV’s USB port.

*A 10 mm
*B 18 mm

ASSEMBLING AND PREPARING

NOTE

y Antenna Isolator Installation Guide

- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be

heated and excessive heat might cause an accident.

- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recom-

mended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnect­ing the antenna Isolator after installation.

- Before starting, be sure that the TV antenna is connected.

1. Connect to TV.

Wall

ANTENNA/

CABLE IN

or

13

ENGENGLISH

Cable / Antenna

Isolator

2. Connect to Set-Top box.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

“Equipment connected to the protective earthing of the building installation through the mains connection or through
other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may

in some circumstances create a re hazard. Connection to a cable distribution system has therefore to be provided

through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

14

ASSEMBLING AND PREPARING

ENGLISH

ENG

Separate purchase

Separate purchase items can be changed or modied for quality improvement without any notication.

Contact your dealer to buy these items.
These devices only work with certain models.

BACK SMART

/Q.MENU

P

AG-S3**

3D Glasses

Touch

Home

AN-TP300

Touch Pen, Cradle

AN-WF100

Wi-Fi Dongle

AN-TD200

Touch Pen Dongle

AN-MR400

Magic Remote

AN-VC***

Video call camera

LG Audio Device

NOTE

• With the Touch Pen, you can use the TV as a touch monitor with or without connectiong it to your PC.

• You need to purchase the Touch Pen (including the cradle) together with the dongle.

Compatibility

AG-S3**

3D Glasses

AN-WF100

Wireless LAN

AN-MR400

Magic Remote

AN-TP300

Touch Pen, Cradle

AN-TD200

Touch Pen Dongle

AN-VC***

Video call camera

LG Audio Device • •

PH47** PH67**

• •

•

• •

• •

•

• •

•

The model name or design may be changed depending on the upgrade of product functions, manufacturer’s
circumstances or policies.

ASSEMBLING AND PREPARING

AV IN 2

L/MONO

AV IN 1

LAN

ANTENNA/

CABLE IN

COMPONENT

IN

AUDIO IN (PC)

IN 2

15

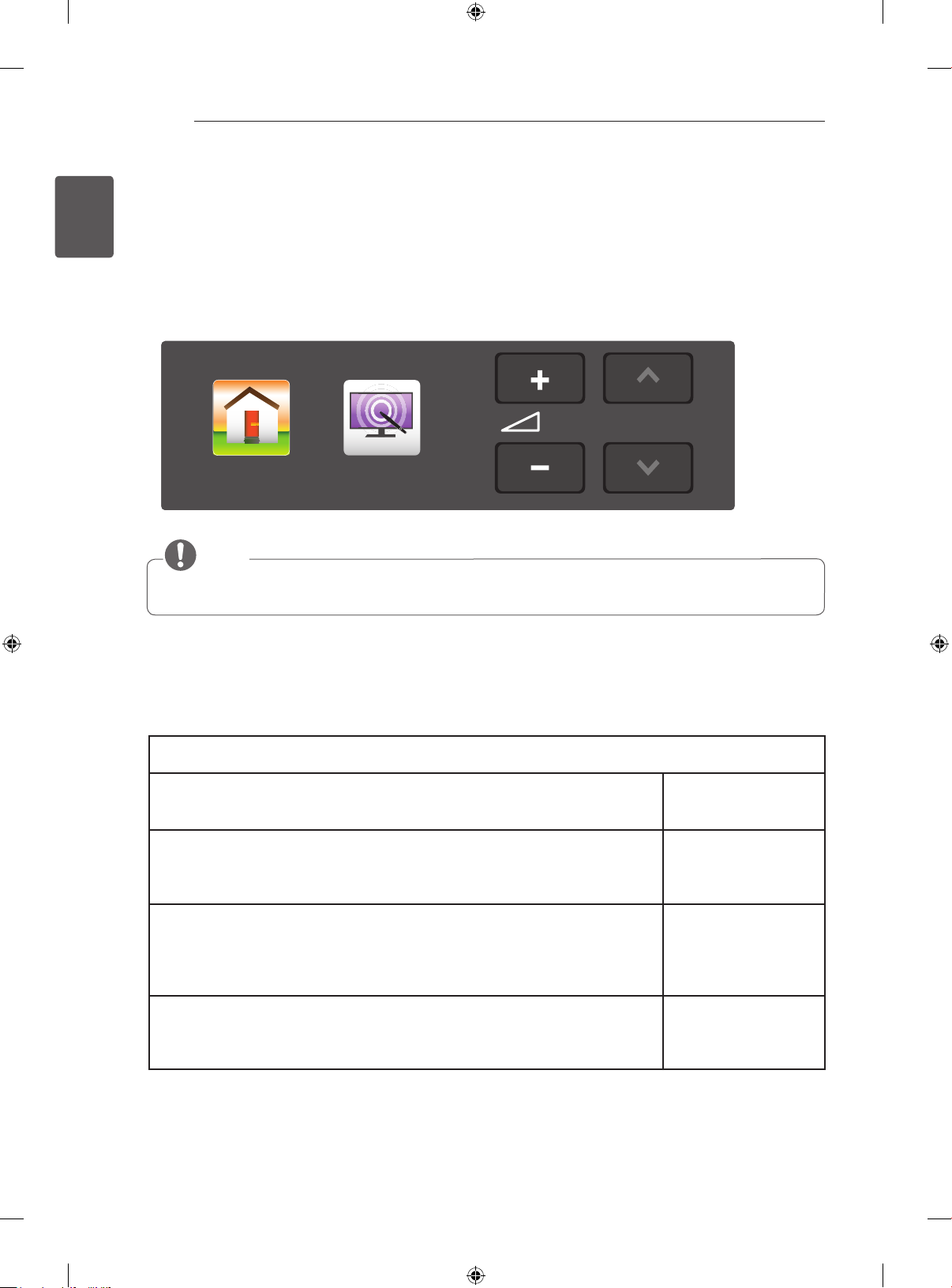

Parts and buttons

Buttons

ENGENGLISH

Screen

Speakers

Remote control sensor

Power indicator

Button Description

Turns the power on or off.

Selects the highlighted menu option or confirms an input

S

Accesses the main menus, or saves your input and exits the menus.

Changes the input source

Adjusts the volume level.

Scrolls through the saved programmes.

16

Stand Body

ASSEMBLING AND PREPARING

ENGLISH

ENG

Lifting and moving the TV

Please note the following advice to prevent the TV from
being scratched or damaged and for safe transportation
regardless of its type and size.

CAUTION

yAvoid touching the screen at all times, as this may

result in damage to the screen.

yIt is recommended to move the TV in the box

or packing material that the TV originally came
in.

yBefore moving or lifting the TV, disconnect the

power cord and all cables.

yWhen holding the TV, the screen should face

away from you to avoid damage.

yWhen transporting a large TV, there should be

at least 2 people.

yWhen transporting the TV by hand, hold the

TV as shown in the following illustration.

yWhen transporting the TV, do not expose the

TV to jolts or excessive vibration.

yWhen transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the
left or right.

yDo not apply excessive pressure to cause

exing /bending of frame chassis as it may

damage screen.

yHold the top and bottom of the TV frame rmly.

Make sure not to hold the transparent part,
speaker, or speaker grill area.

ASSEMBLING AND PREPARING

17

Setting up the TV

Image shown may differ from your TV.

Attaching the stand

Only 50PH47**, 50/60PH67**

1

Only 42PH47**

Stand Body

3 EA

M5 x 16

3 EA

M4 x 14

Front

ENGENGLISH

3

Only 50PH47**,
50/60PH67**

4 EA

M5 x 16

Only 42PH47**

Stand Base

4 EA

M4 x 14

2

ENGLISH

1

2

ENG

18

ASSEMBLING AND PREPARING

To detach the stand

(Only 50PH47**, 50PH67**)

1

CAUTION

yWhen attaching the stand to the TV set, place

the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.

yMake sure that the screws are inserted correctly

and fastened securely. If they are not fastened
securely enough, the TV may tilt forward after
being installed. Do not use too much force and
over tighten the screws; otherwise screw may be
damaged and not tighten correctly.

NOTE

yRemove the stand before installing the TV on a

wall mount by performing the stand attachment in
reverse.

yWhen installing the wall mounting bracket, use the

4 EA

M5 x 16

Protection cover.

yThis will protect the opening from accumulating dust

and dirt.

2

Protection

cover

1 EA

M5 x 16

ASSEMBLING AND PREPARING

19

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall
for proper ventilation.

10 cm

2 Connect the power cord to a wall outlet.

CAUTION

yDo not place the TV near or on sources of heat,

as this may result in fire or other damage.

10 cm

10 cm

10 cm

Adjusting the angle of the TV to suit view

(This feature is not available for all models.)
Swivel 20 degrees to the left or right and adjust the angle
of the TV to suit your view.

20

20

˚

˚

CAUTION

yWhen adjusting the angle of the product, watch

out for your fingers.

- Personal injury may occur if hands or fingers are
pinched. If the product is tilted too much, it may
fall, causing damage or injury.

ENGENGLISH

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and tighten the
supplied screw on the rear of the stand.

(Only 42PH47**)

WARNING

yTo prevent TV from falling over, the TV should be

securely attached to the floor/wall per installation
instructions. Tipping, shaking, or rocking the TV
may cause injury.

20

ASSEMBLING AND PREPARING

ENGLISH

ENG

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and

bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts
position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye­bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a

sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.

CAUTION

yMake sure that children do not climb on or hang

on the TV.

NOTE

yUse a platform or cabinet that is strong and large

enough to support the TV securely.

yBrackets, bolts and ropes are not provided. You

can obtain additional accessories from your local
dealer.

WARNING

yIf a television is not positioned in a sufficiently

stable location, it can be potentially hazardous
due to falling. Many injuries, particularly to
children, can be avoided by taking simple
precautions such as:

»Using cabinets or stands recommended

by the manufacturer of the television.

»Only using furniture that can safely

support the television.

»Ensuring the television is not overhanging

the edge of the supporting furniture.

»Not placing the television on tall furniture

(for example, cupboards or bookcases)
without anchoring both the furniture and
the television to a suitable support.

»Not standing the televisions on cloth

or other materials placed between the
television and supporting furniture.

»Educating children about the dangers

of climbing on furniture to reach the
television or its controls.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the
TV carefully and install the wall mount bracket on a solid

wall perpendicular to the oor. When you attach the
TV to other building materials, please contact qualied

personnel.
LG recommends that wall mounting be performed by a

qualied professional installer.

10 cm

10 cm

10 cm

10 cm

Make sure to use screws and wall mount bracket that
meet the VESA standard. Standard dimensions for the
wall mount kits are described in the following table.

ASSEMBLING AND PREPARING

A

B

21

Separate purchase(Wall Mounting Bracket)

Model

VESA (A x B) 400 x 400

Standard screw M6
Number of screws 4
Wall mount bracket PSW420BX

42/50PH47**
50/60PH67**

Tidying cables

1 Install the Power Cord Holder and Power Cord. It will

help prevent the power cable from being removed by
accident.

(Only 42PH47**)

Power cord holder

(Only 50PH47**, 50/60PH67**)

2 Gather and bind the cables with the Cable Holder.

Power cord holder

ENGENGLISH

CAUTION

yDisconnect the power first, and then move or

install the TV. Otherwise electric shock may occur.

yIf you install the TV on a ceiling or slanted wall, it

may fall and result in severe injury.
Use an authorised LG wall mount and contact the
local dealer or qualified personnel.

yDo not over tighten the screws as this may cause

damage to the TV and void your warranty.

yUse the screws and wall mounts that meet the

VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the manufacturer’s warranty.

NOTE

yUse the screws that are listed on the VESA

standard screw specifications.

yThe wall mount kit includes an installation manual

and necessary parts.

yThe wall mount bracket is not provided. You can

obtain additional accessories from your local
dealer.

yThe length of screws may differ depending on the

wall mount. Make sure to use the proper length.

yFor more information, refer to the manual supplied

with the wall mount.

Cable holder

CAUTION

yDo not move the TV by holding the cable holder

and power cord holder, as the cable holders may
break, and injuries and damage to the TV may
occur.

22

ANTENNA/

CABLE IN

MAKING CONNECTIONS

ENGLISH

ENG

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses
diagrams for the PH67** models.
Connect various external devices to the TV and switch
input modes to select an external device. For more
information of external device’s connection, refer to the
manual provided with each device.
Available external devices are: HD receivers, DVD play­ers, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.

NOTE

yThe external device connection may differ from

the model.

yConnect external devices to the TV regardless of

the order of the TV port.

yIf you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information of recording, refer to the
manual provided with the connected device.

yRefer to the external equipment’s manual for

operating instructions.

yIf you connect a gaming device to the TV, use the

cable supplied with the gaming device.

yIn PC mode, there may be noise associated

with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture is
clear.

yIn PC mode, some resolution settings may not

work properly depending on the graphics card.

Antenna Connection

Connect the TV to a wall antenna socket with an RF
cable (75 Ω).

Wall Antenna

Socket

NOTE

yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplifier

properly to improve the image quality.

yIf the image quality is poor with an antenna

connected, try to realign the antenna in the correct

direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio: MPEG, Dolby Digital,

Dolby Digital Plus, HE-AAC

MAKING CONNECTIONS

1

IN (ARC)

IN 2(PC)

IN 3(MHL)

USB IN 2

USB IN 3

HDMI

23

HDMI Connection

Transmits the digital video and audio signals from an
external device to the TV. Connect the external device
and the TV with the HDMI cable as shown.

Choose any HDMI input port to connect. It does not mat­ter which port you use.

ARC (Audio Return Channel)

An external audio device that supports

y

SIMPLINK and ARC must be connected using
HDMI IN (ARC) 1 port.
When connected with a high-speed HDMI

y

cable, the external audio device that supports
ARC outputs optical SPDIF without additional
optical audio cable and supports the SIMPLINK
function.

ENGENGLISH

DVD / Blu-Ray / PC
HD Cable Box / HD STB

(*Not Provided)

NOTE

yIt is recommended to use the TV with the HDMI

connection for the best image quality.

yUse the latest High Speed HDMI™ Cable with

CEC (Customer Electronics Control) function.

yHigh Speed HDMI™ Cables are tested to carry an

HD signal up to 1080p and higher.

ySupported HDMI Audio format : Dolby Digital,

DTS, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96
k/176k/192k)

24

MAKING CONNECTIONS

ENGLISH

ENG

DVI to HDMI connection

Transmits the digital video signal from an external device
to the TV. Connect the external device and the TV with
the DVI-HDMI cable as shown. To transmit an audio
signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.

USB IN 3

USB IN 2

IN 3(MHL)

AUDIO IN (PC)

L/MONO

WHITE

RED

1

IN (ARC)

IN 2(PC)

Component Connection

Transmits analog video and audio signals from an exter­nal device to the TV. Connect the external device and the
TV with a component cable as shown.

AUDIO IN (PC)

IN

COMPONENT

GREEN

GREEN

AV IN

BLUE

BLUE

RED

RED

L/MONO

WHITE

(*Not Provided)

WHITE

RED RED

(*Not Provided)

(*Not Provided)

AUDIO OUT

DVD / Blu-Ray /
HD Cable Box / PC

NOTE

yDepending on the graphics card, DOS mode may

not work if a HDMI to DVI Cable is in use.

yWhen using the HDMI/DVI cable, Single link is

only supported

DVI OUT

VIDEO

AUDIO

DVD / Blu-Ray / HD Cable Box

NOTE

yIf cables are not installed correctly, it could cause

this image to display in black and white or with

distorted colours.

MAKING CONNECTIONS

25

Composite Connection

Transmits analog video and audio signals from an exter­nal device to the TV. Connect the external device and the
TV with th e composite cable as shown.

AUDIO IN (PC)

AV IN

IN

COMPONENT

YELLOW

(*Not Provided)

L/MONO

WHITE

RED

MHL Connection

Mobile High-definition Link (MHL) is an interface for
transmitting digital audiovisual signals from mobile
phones to television sets.

IN 3(MHL)

MHL passive cable

(*Not Provided)

ENGENGLISH

YELLOW

WHITE

RED

( )

MONO

VIDEO

VCR / DVD / Blu-Ray / HD Cable Box

R

AUDIO

L

Mobile phone

NOTE

Connect the mobile phone to the HDMI IN 3

y

(MHL) port to view the phone screen on the TV.
The MHL passive cable is needed to connect the

y

TV and a mobile phone.
This only works for the MHL-enabled phone.

y

Some applications can be operated by the

y

remote control.
For some mobile phones supporting MHL, you

y

can control with the remote control.

26

USB IN 2

USB IN 3

HDD IN

MAKING CONNECTIONS

ENGLISH

ENG

Audio Connection

You may use an optional external audio system instead
of the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an exter­nal device. Connect the external device and the TV with
the optical audio cable as shown.

USB Connection

Connect a USB storage device such as a USB ash

memory, external hard drive, or a USB memory card
reader to the TV and access the Smart Share menu to

use various multimedia les.

(*Not Provided)

HDD

USB

(*Not Provided)

(*Not Provided)

OPTICAL

AUDIO IN

Digital Audio System

NOTE

yDo not look into the optical output port. Looking at

the laser beam may damage your vision.

yAudio with ACP (Audio Copy Protection) function

may block digital audio output.

REMOTE CONTROL

INFO

1 2 3

4

5 6

7 809

P
A
G
E

TV/
RAD

RATIO INPUT

FAV

MUTE

LIST

Q.VIEW

EXIT

OK

GUIDE

SETTINGS

MY APPS

LIVE TV

REC

TEXT

T.OPT

SUBTITLE

Q.MENU

INFO

27

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and

ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

yDo not mix old and new batteries, as this may damage the remote control.
yIn Analogue TV and some countries, some remote control buttons may not work.

Make sure to point the remote control toward the remote control sensor on the TV.

POWER

Turns the TV on or off.

(User Guide)

Sees user-guide.

RATIO

Resizes an image.

INPUT

Changes the input source.

TV/RAD

Selects Radio, TV and DTV programme.

Number buttons

Enters numbers.

LIST

Accesses the saved programme list.

Q.VIEW

Returns to the previously viewed programme.

+ -

Adjusts the volume level.

FAV

Accesses your favourite programme list.

3D

Used for viewing 3D video.

MUTE

Mutes all sounds.

ꕌPꕍ

Scrolls through the saved programmes or
channels.

PAGE

Moves to the previous or next screen.

Views the information of the current
programme and screen.

SMART

Accesses the Smart Home menus.

MY APPS

Shows the list of Apps.

1

2

Navigation buttons (up/down/left/right)

Scrolls through menus or options.

OK

Selects menus or options and confirms your input.

BACK

Returns to the previous level.

GUIDE

Shows programme guide.

EXIT

Clears on-screen displays and return to TV viewing.

Colour buttons

1

These access special functions in some menus.
(

: Red, : Green, : Yellow, : Blue)

TELETEXT BUTTONS

2

These buttons are used for teletext.

(FREEZE)
Freezes the current frame while using the
TV, AV, Component, or HDMI input source.

Q. MENU

Accesses the quick menus.

SUBTITLE

Recalls your preferred subtitle in digital mode.

LIVE TV

Return to LIVE TV.

Control buttons (
Controls the Premium contents, Time Machine or
Smart Share menus or the SIMPLINK compatible
devices (USB or SIMPLINK or Time Machine).

REC

Uses to adjust Time Machine menu.

SETTINGS

Accesses the main menus.

AV MODE

Selects an AV mode.

Accesses the AV devices connected with the HDMI

cable through HDMI-CEC.

Opens the SIMPLINK menu.

ENGENGLISH

)

ENGLISH

ENG

28

MAGIC REMOTE CONTROL FUNCTIONS

MAGIC REMOTE CONTROL FUNCTIONS

This item is not included for all models.

When the message “Magic Remote Control battery is low. Change the battery.” is displayed,
replace the battery.
To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching

and ends to the label inside the compartment, and close the battery cover. Be sure to
point the remote control toward the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.

CAUTION

yDo not mix old and new batteries, as this may damage the remote control.

(Only PH67**)

(POWER)

Turns the TV on or off.

BACK

Returns to the previous level.

Wheel(OK)

Selects menus or options and

confirms your input.

Scrolls through the saved

programmes.

If you press the navigation button

while moving the pointer on the

screen, the pointer disappears,

and the Magic Remote Control

works as a regular remote control.

To display the pointer again, shake

the Magic Remote Control from

side to side.

Used for viewing 3D video.

BACK SMART

/Q.MENU

P

Pointer (RF transmitter)

Navigation buttons

(up/down/left/right)
Scrolls through menus or options.

SMART

Accesses the Smart Home menu.

Voice recognition

(Depending on model)

/ Q.MENU

Accesses the quick menus.
Accesses the Universal Control.

+ -

Adjusts the volume level.

ꕌPꕍ

Scrolls through the saved pro­grammes or channels.

MUTE

Mutes all sounds.

Voice recognition (Depending on model)
Network connection is required to use the voice recognition function.
The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation and speed)

and the environment (noise and TV volume).

1. Press the Voice recognition button.

2. Speak when the voice display window appears on the left of the TV screen.

• The voice recognition may fail when you speak too fast or too slow.

• Use the Magic remote control no further than 10 cm from your face.

MAGIC REMOTE CONTROL FUNCTIONS

HOME

29

Registering Magic Remote Con­trol

It is necessary to ‘pair’ (register) the magic remote con­trol to your TV before it will work.

How to register the Magic Remote Control

1 To register automatically,

turn the TV on and press the
Wheel(OK) button. When
registration is completed, the
completion message appears
on the screen.

2 If registration fails, turn the TV

off and back on, then press
the Wheel(OK) button to
complete registration.

How to re-register the Magic Remote Control

1 Press and hold the BACK

BACK

and SMART

buttons

together for 5 seconds to

SMART

reset, then register it by
following “How to register the
Magic Remote Control” above.

2 To re-register the Magic Re

mote Control, press and hold
the BACK

button for 5
seconds toward the TV. When
registration is completed, the
completion message appears
on the screen.

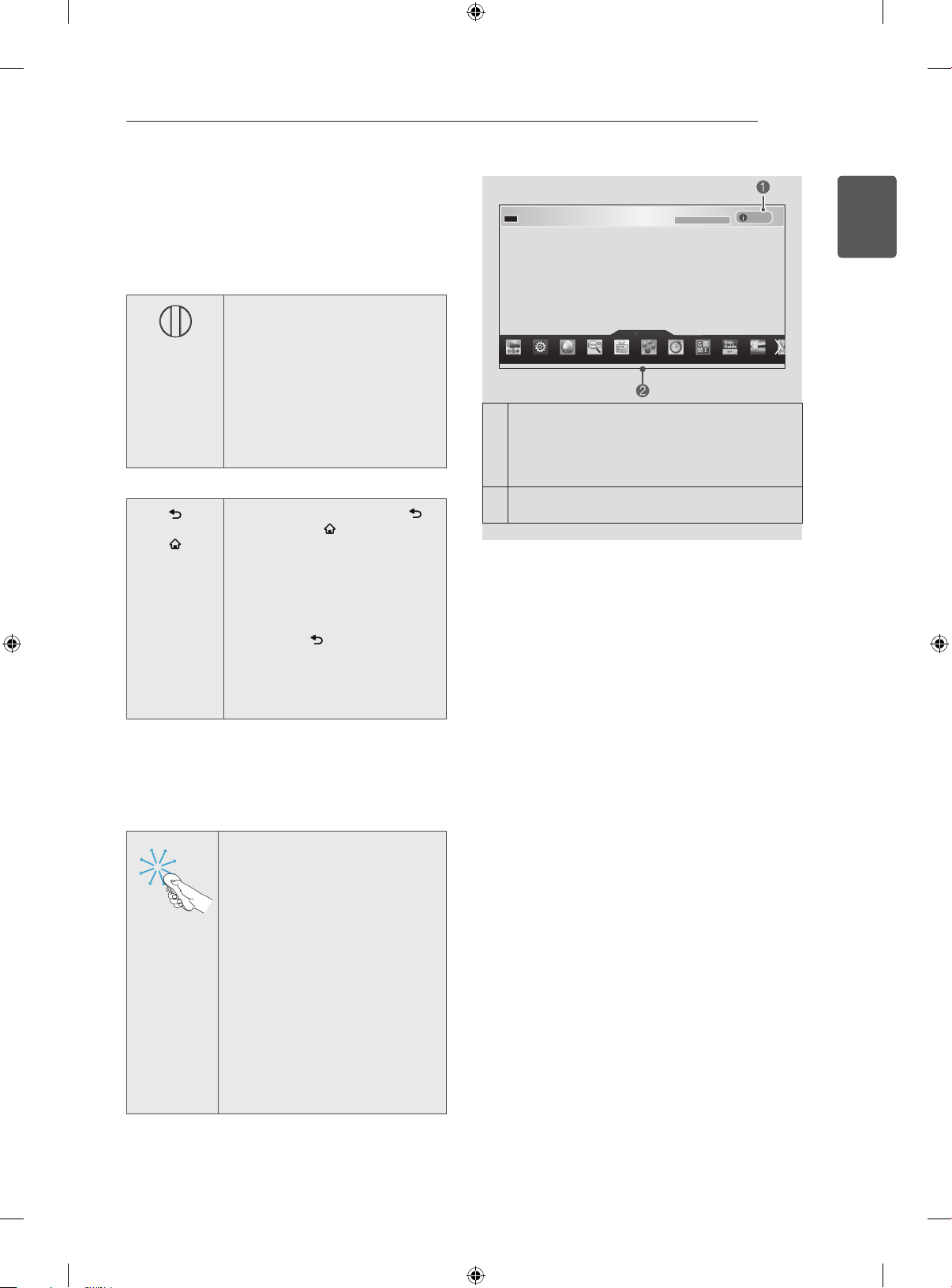

How to use Magic Remote Con­trol

1 If the pointer disappears, move

the remote control slightly
to left or right. Then, it will
automatically appear on the
screen.

»

If the pointer has not been
used for a certain period of
time, it will disappear.

2 You can move the pointer by

aiming the Pointer Receiver of
the remote control at your TV
then move it left, right, up or
down.

»

If the pointer does not work
properly, leave the remote
control for 10 seconds then
use it again.

11-1 Brief Info Title Test...

More

If you press Wheel(OK) on the Magic Remote
Control, the following screen appears.

1

Shows information about the current programme
and screen.

You can select My Apps Menu.

2

Info.

Precautions to Take when Using
the Magic Remote Control

Use the Magic Remote Control within the maximum

y

communication distance (10 m). Using the Magic
Remote Control beyond this distance, or with an
object obstructing it, may cause a communication
failure.
A communication failure may occur due to nearby

y

devices. Electrical devices such as a microwave
oven or wireless LAN product may cause
interference, as these use the same bandwidth (2.4
GHz) as the Magic Remote Control.
The Magic Remote Control may be damaged

y

or may malfunction if it is dropped or receives a
heavy impact.
Take care not to bump into nearby furniture or

y

other people when using the Magic Remote
Control.
Manufacturer and installer cannot provide service

y

related to human safety as the applicable wireless
device has possibility of electric wave interference.
It is recommended that an Access Point (AP) be

y

located more than 1 m away from the TV. If the
AP is installed closer than 1 m, the Magic Remote
Control may not perform as expected due to
frequency interference.

ENGENGLISH

30

ꔈThe wired touch pen must be connected to the designated USB port on the back of the TV (‘USB input (wired

pen)’).

ꔈYou can press the Power button on the wired touch pen to turn it on. If you press and hold the button for more

than three seconds, the wired touch pen will be turned off.

ꔈThe wired touch pen will be turned off automatically if it is not used for eight minutes.

ꔈThe wired touch pen stand provided can be mounted anywhere.

PENTOUCH

ENGLISH

PENTOUCH

ENG

Pentouch Functions and part names

(Only PH671*)

What is the Pentouch Function?

You can use various functions that work with the pen on the TV.

Follow the instructions below to use the Pentouch functions.

1 Connect the wired touch pen to the TV.
2 Start the Pentouch program on the TV.
3 For details about the Pentouch functions, refer to the owner’s manual installed on the TV.

NOTE

• If you purchase the wireless touch pen, you can enjoy the Pentouch functions more conveniently.

• Wireless touch pen and cradle are sold separately. You can purchase them from LG Electronics shops.

Wired Touch Pen Part Names and Components

Name Description

❶

❷

Components

Tip Wired touch pen stand Wired touch pen holder Wired touch pen

❸

❶

❷

❸

Power button

Tip

Connection cable

for wired touch pen

Turns the wired touch pen on
and off.
Write letters and draw pictures
by pressing the tip.
Connects the wired touch pen
to the TV.

PENTOUCH

ODQ

⤶

P

B

P

R

Y

4

XVE#Ɐᴏ+Ⰺ☊㢆,

IN (ARC)

1

4

#Ɐᴏ+SF,

IN (ARC)

COMPONENT

IN

L/MONO

AV IN 2

AUDIO IN (PC)

ANTENNA/
CABLE IN

ODQ

PBP

R

Y

DY#LQ#

DXGLR#LQ+SF,

USB IN

4

#LQ+DUF,

L/MONO

COMPONENT

IN

ANTENNA/
CABLE IN

ODQ

PB PR

Y

DY#LQ#

DXGLR#LQ+SF,

USB IN

4

#LQ+DUF,

L/MONO

COMPONENT

IN

ANTENNA/

CABLE IN

31

To Use the Wired Touch Pen

Replacing the Tip

1 Remove the tip holder and tip from the touch pen.

Tip Holder

Tip

Connecting the Wired Touch Pen

ENGENGLISH

2 Replace the tip with a new one and attach the tip holder with

the new tip to the wired touch pen.

Tip

Tip Holder

Follow the instructions below to connect the wired touch pen to
the TV.

1 Connect the wired touch pen to the ‘USB IN1 input (wired

pen)’ port on the TV.

2 Once the wired touch pen is connected, hold the remaining

wire in place using the wired touch pen holder.

ODQ

1

IN (ARC)

IN (ARC)

AUDIO IN (PC)

ANTENNA/
CABLE IN

L/MONO

AV IN 2

Y

PBP

R

IN

COMPONENT

Wired touch pen

holder

NOTE

ꔈThe wired touch pen must be connected to the designated USB port on the back of the TV (‘USB input (wired

pen)’).

ꔈYou can press the Power button on the wired touch pen to turn it on. If you press and hold the button for more

than three seconds, the wired touch pen will be turned off.

ꔈThe wired touch pen will be turned off automatically if it is not used for eight minutes.

ꔈThe wired touch pen stand provided can be mounted anywhere.

32

6PDUW+RPH 7RXFK+RPH



3

PENTOUCH

ENGLISH

ENG

To Start the Pentouch Program

Starting the Pentouch Program

1 Connect the wired touch pen (see page 31).
2 Press the Power button to turn the wired touch pen on.
3 Touch the screen with the wired touch pen.
4 Select the Touch Home icon at the bottom of the screen.

NOTE

• If the TV screen is too bright due to other lighting devices, the wired touch pen may not work properly.

• Some TV menus cannot be selected using the wired touch pen. Please use the TV remote control for those menus.

Cautions When Using the Pentouch Functions

Check before Use

Do not drop or throw the wired touch pen.
Do not hold the wired touch pen cable and swing it around when it is connected
to the TV.

Do not keep the wired touch pen in an unstable place or within the reach of
children.
Do not allow children or pets to bite or suck the wired touch pen.

Do not use the wired touch pen with wet hands.
Do not allow foreign substances, such as drinks or water, to get into the wired
touch pen. If any foreign substances get into the wired touch pen, do not use it.
Do not touch the light reception part of the wired touch pen with metallic or
sharp objects.

Do not keep the wired touch pen in direct light, near re or hot objects, such as

heaters, or in a dusty or very humid place.

Doing so may damage
the wired touch pen or
cause personal injury.

If the wired touch pen
is treated as a toy
or swallowed, it may
cause severe injury.

Doing so may cause
product malfunction,
electric shock or dam­age to the product.

Doing so may cause
product deformation,
malfunction, damage

or re.

PENTOUCH

33

Check before Use

This may cause the

product to malfunc­Do not use the wired touch pen in extreme temperatures.
Do not use the wired touch pen immediately after moving it from a cold location
outside to a warm location inside.
* Water droplets can form inside the wired touch pen.

If there is a strange sound, smoke or a smell, disconnect the cable immediately,
stop using the product and contact an authorised service centre.

Do not disassemble or modify the product.
* The product warranty does not cover damage or injury caused by unauthor­ised disassembly.

CAUTION

ꔈ Do not leave the screen displaying fixed characters and pictures for a long time.

This can cause image sticking.

ꔈ Do not pull the cable when removing it.

Doing so may cause damage to the charging port and the PC.

ꔈ Do not use the wired touch pen with excessive force.

Doing so may cause the product to malfunction.

ꔈ Do not leave the wired touch pen on the floor.

If you step on or fall over the wired touch pen, it may damage the product or cause personal injury.
Please use the pen stand provided with the product.

ꔈ If several people are using the wired touch pen at once, ensure that there is sufficient space.

Otherwise, people may bump against each other, causing personal injury or damage to the wired touch
pen.

ꔈ Be careful when disposing of the product.

The wired touch pen is made of metal and plastic.
Do not burn the product when disposing of it as this is very dangerous.
Please follow local regulations when disposing of the product.

ꔈ Do not pull the wired touch pen cable with excessive force.

Doing so may lengthen the cable.

ꔈ Fix the wired touch pen cable using the wired touch pen holder when using the pen.

If the cable is not fixed on the wired touch pen holder, it may damage the USB port.

ꔈ Do not use the wired touch pen by connecting it to a USB extension cable or USB hub.

The wired touch pen may not work properly.

tion..

Turn off the wired

touch pen and wait for

a few hours until any

water droplets have

completely dried out.

There may be a re or

product malfunction.

This may cause elec-

tric shock or product

malfunction.

ENGENGLISH

34

USING THE USER GUIDE

ENGLISH

ENG

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press the SMART button to access the Smart

Home menu.

2 Select User Guide and press Wheel(OK).

Input List Settings Internet

TV Guide

Smart Sh..

DVR

Universal ...

Pr. List

User Guide



User Guide

Recent List

NOTE

yYou can also access the User Guide by pressing

(User Guide) in the remote control.

OPTION > To set language

SMART  Settings  OPTION  Language
Selects Menu Language and Audio Language displayed on the screen.

Shows the description of the selected menu.

1

You can use ꕌ/ꕍto move between pages.

Moves to the selected menu directly from the User

2

Guide.

Menu Language

Selects a language for the display text.
[In Digital Mode Only]

Audio Language

When watching a digital broadcast containing several audio
languages, you can select the language you want.

[In Digital mode Only]
Use the Subtitle function when two or more subtitle

Subtitle

languages are broadcast.

Language

✎ If subtitle data in a selected language is not broadcast,

the default language subtitle will be displayed.

Index

1

2

Try Now

Close

Online User Guide

User Guide

1

PROGRAMME Setting

PICTURE, SOUND Setting

OPTION

LG SMART Function

Advanced Function

Information

Shows the current watching programme or input

1

source screen.

Allows to select the category you want.

2

Allows to select the item you want.

3

You can use ꕌ/ꕍto move between pages.

Allows to browse the description of the function

4

you want from the index.

Provides the detailed information on the functions

5

of LG Smart TV when the Internet is connected.

3

To use input device

To set time options

To set TV lock options

To set language

To set country

Disabled Assisstance

To set Magic remote control

2

Index

4

5

(It may not be available depending on the country/
language.)

Online User Guide

MAINTENANCE / TROUBLESHOOTING

35

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

yMake sure to turn the power off and disconnect the power cord and all other cables first.
yWhen the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to

prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

yTo remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
yTo remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then

wipe immediately with a dry cloth.

CAUTION

yAvoid touching the screen at all times, as this may result in damage to the screen.
yDo not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches

and image distortions.
yDo not use any chemicals as this may damage the product.
yDo not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

ENGENGLISH

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution

Cannot control the
TV with the remote
control.

No image display and
no sound is produced.

The TV turns off
suddenly.

When connecting to
the PC (HDMI DVI),
‘No signal’ or ‘Invalid
Format’ is displayed.

yCheck the remote control sensor on the product and try again.
yCheck if there is any obstacle between the product and the remote control.
yCheck if the batteries are still working and properly installed (

yCheck if the product is turned on.
yCheck if the power cord is connected to a wall outlet.
yCheck if there is a problem in the wall outlet by connecting other products.

yCheck the power control settings. The power supply may be interrupted.
yCheck if the Auto sleep feature is activated in the Time settings.
yIf there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of

inactivity.

yTurn the TV off/on using the remote control.
yReconnect the HDMI cable.
yRestart the PC with the TV on.

to , to ).

36

SPECIFICATIONS

ENGLISH

ENG

SPECIFICATIONS

(Only 50/60PH67**)

Wireless LAN module(TWFM-B006D) specification

Standard IEEE802.11a/b/g/n

2400 to 2483.5 MHz

Frequency Range

Output Power

(Max.)

Bluetooth module (BM-LDS401) specification

Standard Bluetooth Version 3.0

Frequency Range 2400 ~ 2483.5 MHz

Output Power (Max.) 10 dBm or lower

Because band channel used by the country could be different, the user can not change or adjust the

y

operating frequency and this product is set for the regional frequency table.

5150 to 5250 MHz

5725 to 5850 MHz (for Non EU)

802.11a: 11 dBm

802.11b: 14 dBm

802.11g: 10.5 dBm

802.11n - 2.4GHz: 11 dBm

802.11n - 5GHz: 12.5 dBm

(Only 42/50PH47**)

Bluetooth module (BM-LDS401) specification

Standard Bluetooth Version 3.0

Frequency Range 2400 ~ 2483.5 MHz

Output Power (Max.) 10 dBm or lower

Product specications may be changed without prior notice due to upgrade of product functions.

For the power supply and power consumption, refer to the label attached to the product.

MODELS

Dimensions
(W x H x D)

Weight

Power requirement

Dimensions
(W x H x D)

Weight

Power requirement

With stand (mm)

Without stand (mm)

With stand (kg)

Without stand (kg)

MODELS

With stand (mm)

Without stand (mm)

With stand (kg)

Without stand (kg)

42PH47** 50PH47**

42PH4700-TD 50PH4700-TD

983.6

x

650.3

x

250.0 1168.0 x 755.4 x 292.7

983.6

x

595.6

x

57.0 1168.0 x 698.6 x 57.0

19.6 25.4

18.4 24.0

AC100-240V~ 50/60Hz AC100-240V~ 50/60Hz

50PH67** 60PH67**

50PH6700-TD
50PH6710-TD

1168.0 x 755.4 x 292.7 1386.8 x 874.0 x 340.0

1168.0 x 698.6 x 57.0 1386.8 x 821.7 x 57.0

26.1 37.7

24.7 34.5

AC100-240V~ 50/60Hz AC100-240V~ 50/60Hz

SPECIFICATIONS

60PH6700-TD
60PH6710-TD

37

ENGENGLISH

Environment
condition

Operating Temperature 0 °C to 40 °C

Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C

Storage Humidity Less than 85 %

38

SPECIFICATIONS

ENGLISH

ENG

New Zealand,
Singapore

Australia

Indonesia, Israel,
Myanmar, Sri
Lanka

Vietnam, Malaysia

Iran, Algeria,
Tunisia, Digital
model

Analogue model,
India, Thailand,
South Africa, --

Digital TV Analogue TV

Television System DVB-T PAL/SECAM-B/G/D/K

BG : VHF/UHF 1 to 69, CATV 01 to 47

Programme Coverage UHF 21 to 69

Television System DVB-T PAL B/B

Programme Coverage

Television System DVB-T PAL/SECAM-B/G/D/K

Programme Coverage UHF 21 to 69

Television System DVB-T PAL/SECAM-B/G/D/K

Programme Coverage

Television System DVB-T PAL/SECAM-B/G/D/K

Programme Coverage

Television System - PAL/SECAM-B/G/D/K

Programme Coverage -

External Antenna
Impedance

VHF 06 to 12,

UHF 27 to 69

VHF 6 to 12,

UHF 21 to 69

VHF 5 to 12,

UHF 21 to 69

75 Ω 75 Ω

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

B/B : VHF/UHF 0 to 75, CATV : 2 to 44

, PAL-I, NTSC-M

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

, PAL-I, NTSC-M

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

, PAL-I, NTSC-M

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

, PAL-I, NTSC-M

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

, PAL-I

SPECIFICATIONS

39

HDMI/DVI-DTV supported mode

Resolution

Horizontal

Frequency (kHz)

Frequency (Hz)

720x480 31.469

31.5

720x576 31.25 50

1280x720 37.5

44.96
45

1920x1080 33.72

33.75

28.125

26.97
27

33.716

33.75

56.25

67.43

67.5

HDMI/DVI-PC supported mode

Horizontal

Resolution

Frequency

(kHz)

640x350 31.468 70.09

720x400 31.469 70.08

640x480 31.469 59.94

800x600 37.879 60.31

1024x768 48.363 60.00

1360x768 47.712 60.01

1280x1024 63.981 60.02

1920x1080 67.5 60.02

Vertical

59.94
60

50

59.94
60

59.94
60
50

23.97
24

29.976

30.00
50

59.94
60

Vertical

Frequency

(Hz)

Component port connecting information

Component ports on the

TV

Y P

Y P

Video output ports

on DVD player

Y B-Y R-Y

Y Cb Cr

Y Pb Pr

Signal Component

480i/576i O

480p/576p O

720p/1080i O

1080p

(50 Hz / 60 Hz only)

ENGENGLISH

P

B

B

R

P

R

O

(Only 50PH67**, 60PH67**)

40

SPECIFICATIONS

ENGLISH

ENG

3D supported mode

y Media contents and a player need to support HDMI 3D Frame Packing, HDMI 3D Side by Side, HDMI 3D Top & Bottom

to play in 3D.

y Video, which is input as HDMI,USB,DLNA, is switched into the 3D screen automatically. (This function does not support

all of the 3D video format. The specific 3D video format is not switched into the 3D screen automatically. )

y 2D->3D mode is available to watch for all signals.

Input Signal Resolution

640X480

480p

576p 720X576

720p 1280X720

HDMI-DTV

1080i 1920X1080

1080p 1920X1080

HDMI-PC

720p 1280X720

Component

1080i 1920X1080

USB 1080p 1920X1080 33.75 30

DLNA 1080p 1920X1080 33.75 30

720X480
640X480
720X480

1024X768 48.363 60.004
1360X768 60.015 60.015

1920X1080 67.50 60.00

Horizontal

Frequency (kHz)

62.938 / 63

31.469 / 31.5

62.5

31.25

75 50

89.91/90 59.94 / 60

37.5 50

44.96 / 45 59.94 / 60

67.432 / 67.5 59.94 / 60

56.25

62.5

33.72 / 33.75 59.94 / 60

28.125 50

53.946 / 54 23.97 / 24

67.432/67.5 29.97 / 30

26.973 / 27 23.976 / 24

33.716 / 33.75 29.97 / 30.00

56.250 50

67.43 / 67.5 59.94 / 60

37.5 50
45 60

28.125 50

33.75 60

Vertical

Frequency (Hz)

59.94/ 60

50

50

Playable 3D video format

Frame packing, Line alternative

Side-by-side(Full), Top-and-Bottom,

Side-by-side(Half)

Frame packing, Line alternative

Side-by-side(Full), Top-and-Bottom,

Side-by-side(Half)

Frame packing, Line alternative

Side-by-side(Full), Top-and-Bottom

Side-by-side(Half), Single Frame Sequential

Frame packing, Field alternative

Field alternative

Frame packing

Side-by-side(Full), Top-and-Bottom,

Side-by-side(Half)

Frame packing, Line alternative

Side-by-side(Full), Top-and-Bottom,

Side-by-side(Half), Checkerboard

Top-and-Bottom, Side-by-side(Half),

Checkerboard, Single Frame Sequential,

Row Interleaving, Column Interleaving

Side by Side(Half), Top & Bottom
Side by Side(Half), Top & Bottom
Side by Side(Half), Top & Bottom

Checkerboard, Single Frame Sequential

Row Interleaving, Column Interleaving

Side by Side, Top & Bottom

Side by Side, Top & Bottom,

Checker Board, Single Frame Sequential,

Row Interleaving, Column Interleaving,

MPO(Photo), JPS(Photo)

(Photo : Side by Side(Half), Top & Bottom)

Side by Side, Top & Bottom,

Checker Board, Single Frame Sequential,

Row Interleaving, Column Interleaving,

MPO(Photo), JPS(Photo)

(Photo : Side by Side(Half), Top & Bottom)

Signal Playable 3D video format

DTV 720p, 1080i

Side by Side, Top & Bottom

LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP

41

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi

Corporation. This is an ofcial DivX Certied® device that plays DivX video. Visit divx.com for
more information and software tools to convert your les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to

play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on
how to complete your registration.

“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or its sub-

sidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol
together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.

ENGENGLISH

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping and handling) upon email request to [email protected]. This offer is
valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com

Record the model number and serial number of
the TV.
Refer to the label on the back cover and quote
this information to your dealer when requiring any
service.

MODEL

SERIAL

(Only DTV)

OWNER’S MANUAL

EXTERNAL CONTROL
DEVICE SETUP

Please read this manual carefully before operating the set and retain it for
future reference.

www.lg.com

KEY CODES

2

2

ENGLISH

ENG

KEY CODES

• This feature is not available for all models.

Code

(Hexa)

00

CH +, PR + R/C Button

01 CH -, PR -

02 Volume +

03 Volume -

06 >

07 <

08 Power

09 Mute

0B Input

0E SLEEP

0F TV, TV/RAD

10 - 19 * Number Key 0 - 9

Function Note

(Arrow Key / Right Key)

(Arrow Key / Left Key)

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

Code

(Hexa)

45 Q.Menu

4C List, - (ATSC Only)

53 List

5B Exit

61 Blue R/C Button

63 Yellow

71 Green

72 Red

79 Ratio / Aspect Ratio

91 AD (Audio Description)

7A User Guide

7C Smart/ Home

Function Note

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

1A Q.View / Flashback

1E

FAV

(Favorite Channel)

20 Text (Teletext)

21 T. Opt (Teletext Option)

28 Return (BACK)

30 AV (Audio/ Video) Mode

39 Caption/Subtitle

Λ

40

41

42 My Apps

43

44 OK / Enter

* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.

(For South Korea, Japan, North America, Latin America except Colombia models)

(Arrow Key/ Cursor Up)

V

(Arrow Key/ Cursor Down)

Menu / Settings

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

7E Simplink

8E

►►(Forward) R/C Button

8F

◄◄(Rewind) R/C Button

AA Info

AB Program Guide

B0 ►(Play)

ꕗ

B1

BA

BD

DC 3D

9F App/ *

(Stop/ Live TV)

ꕘ

(

Freeze/Slow Play/Pause)

(REC)

●

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

EXTERNAL CONTROL DEVICE SETUP

3

3

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.

Note: There are several ways to connect TV based on model’s support port.

* Please be advised that not all models support these connectivity.

* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

(PC)

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter

which is not made nor provided by LG.

• It can be purchased from computer stores that carry accessories for IT support professionals.

USB IN

(TV)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(PC

SERVICE ONLY

1

3

2

4

4

ENGLISH

ENG

RS-232C with RS-232C Cable (Legacy)

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and

the TV, which is specified in the manual.

* For other models, connect to the USB port.

1

3

(PC)

2

- This connection can only be used for the following models: 55/47/39LN5450-UA, 55/50/47/42LN5400­UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.

1

3

SERVICE ONLY

)

RS-232C IN

2

- This connection can only be used for the following models: 60PN6550-UA, 50/60PN6500-UA,
50/60PN5300-UF, and 42/50PN4500-UA.

(CONTROL & SERVICE)

(TV)

(TV)

Customer Computer RS-232C configurations

3-Wire Configurations(Not standard)

1

6

RS-232C

(Serial port)

Set ID

For Set ID number, see "Real Data Mapping" on p. 6

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to OPTION and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

5

RXD 2 2 TXD

TXD 3 1 RXD

GND 5 3 GND

9

RXD 3 2 TXD

TXD 2 1 RXD

GND 5 3 GND

PC TV

OR

D-Sub 9 Phone

EXTERNAL CONTROL DEVICE SETUP

5

5

Communication Parameters

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

• Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1 COMMAND2

01. Power
off

02. Aspect
Ratio

03. Screen
Mute

04. Volume
Mute

05. Volume
Control

06. Contrast k g 00 to 64

07.
Brightness

08. Color/
Colour

09. Tint k j 00 to 64

10.
Sharpness

11. OSD
Select

12. Remote
Control
Lock Mode

k a 00 13. Balance k t 00 to 64

k c (See p.7)

k d (See p.7)

k e 00 to 01

k f 00 to 64

k h 00 to 64 19. Key m c

k i 00 to 64

k k 00 to 32

k l 00 to 01

k m 00 to 01

DATA

(Hexadecimal)

14. Color
(Colour)
Temperature

15. ISM
Method (Only
Plasma TV)

16. Energy
Saving

17. Tune
Command

18. Channel
(Programme)
Add/Del(Skip)

20. Control
Back Light,
Control

Panel

Light

21. Input
select (Main)

22. 3D
(Only 3D
models)

23. Extended
3D (Only 3D
models)

COMMAND1 COMMAND2

x u 00 to 64

j p (See p.9)

j q 00 to 05

m a (See p.9)

m b 00 to 01

m g 00 to 64

x b (See p.11)

x t (See p.12)

x v (See p.12)

* Note: During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are

not executed and treated as NG.

DATA

(Hexadecimal)

Key
Codes

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

6

6

ENGLISH

ENG

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on

transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,

if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-

viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal b Decimal)

* When you enter the [data] in hexadecimal, refer to following conversion table.

* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255

... ... ...

0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256

... ... ...

0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999

... ... ...

EXTERNAL CONTROL DEVICE SETUP

* Commands may work differently depending on model and signal.

7

7

01. Power (Command: k a)

► To control Power Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

► To Show Power On. (Works TV is On Only)

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK][01][x]

* Similarly, if other functions transmit ‘FF’ data

based on this format, Acknowledgement feedback
presents status about each function.

02. Aspect Ratio (Command: k c)
(Main Picture Size)

► To adjust the screen format. (Main picture format)

You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen

(4:3)

02 : Wide screen

(16:9)
04 : Zoom
05 : Zoom 2
(Latin America

except Colombia
Only)
06 : Set by Program/

Original

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

07 : 14:9
(Europe, Colombia, Mid-East,
Asia except South Korea and
Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, Mid­East, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1

to 16

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI/Component mode (high-definition),

Just Scan is available.

* Full wide mode may work differently based on

model and is supported for DTV fully, and ATV,
AV partially.

03. Screen Mute (Command: k d)

► To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)

Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

04. Volume Mute (Command: k e)

► To control volume mute on/off.

You can also adjust mute using the MUTE button
on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume.

You can also adjust volume with the volume
buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

► To adjust screen contrast.

You can also adjust contrast in the PICTURE
menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

► To adjust screen brightness.

You can also adjust brightness in the PICTURE
menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

08. Color/Colour (Command: k i)

► To adjust the screen Color(Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

ENGENGLISH

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.

EXTERNAL CONTROL DEVICE SETUP

8

8

ENGLISH

ENG

09. Tint (Command: k j)

► To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

► To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE
menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when

controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 01 : OSD off 01 : OSD on

Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and

remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 01 : Lock off 01 : Lock on

14. Color(Colour) Temperature (Command: x u)

► To adjust colour temperature. You can also adjust

Color(Colour) Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

15. ISM Method (Command: j p) (Only Plasma TV)

► To control the ISM method. You can also adjust

ISM Method in OPTION menu.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data Min : 02: Orbiter

08: Normal
20: Color(Colour) Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

16. Energy Saving (Command: j q)

► To reduce the power consumption of the TV. You

can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto
05 : Screen off

* (Depending on model)

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this

mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.

* In the standby mode (DC off by off timer or ‘ka’,

‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.

13. Balance (Command: k t)

► To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

17. Tune Command (Command: m a)

* This command may work differently depending on

model and signal.

• For Europe, Mid-East, Colombia, Asia except

South Korea and Japan Model

► Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data 00][ ][Data 01]

[ ][Data 02][Cr]

* Analogue Terrestrial/Cable

[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data

- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)

Data 02 : Input Source (Analogue)

- 00 : Terrestrial TV (ATV)

- 80 : Cable TV (CATV)

EXTERNAL CONTROL DEVICE SETUP

9

9

* Digital Terrestrial/Cable/Satellite

[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data

- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)

Data 02 : Input Source (Digital)

- 10 : Terrestrial TV (DTV)

- 20 : Terrestrial Radio (Radio)

- 40 : Satellite TV (SDTV)

- 50 : Satellite Radio (S-Radio)

- 90 : Cable TV (CADTV)

- a0 : Cable Radio (CA-Radio)

* Tune Command Examples:

1. Tune to the analogue terrestrial (PAL) Channel 10.

Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analogue Terrestrial TV = 00
Result = ma 00 00 0a 00

2. Tune to the digital terrestrial (DVB-T) Channel 01.

Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Terrestrial TV = 10
Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][x]

[a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except

Colombia Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.

* Analogue Terrestrial/Cable

Data 00 : Physical Channel Number

- Terrestrial (ATV) : 02~45 (Decimal: 2 ~ 69)

- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)

[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)

Data 05: Input Source (Analogue)

- 00 : Terrestrial TV (ATV)

- 01 : Cable TV (CATV)

* Digital Terrestrial/Cable

Data 00 : xx (Don't care)

[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data

Data 05 : Input Source (Digital)

- 02 : Terrestrial TV (DTV) – Use Physical Channel
Number

- 06 : Cable TV (CADTV) – Use Physical Channel
Number

- 22 : Terrestrial TV (DTV) – Don’t Use Physical
Channel Number

- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number

- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)

Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).

* Tune Command Examples:

1. Tune to the analogue cable (NTSC) channel 35.

Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analogue Cable TV = 01
Total = ma 00 23 00 00 00 00 01

2. Tune to the digital terrestrial (ATSC) channel 30-3.

Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Terrestrial TV = 22
Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

• For Japan Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

* Digital Terrestrial/Satellite

Data 00: xx (Don't care)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

10

10

ENGLISH

ENG

[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number

(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data

Data 05 : Input Source (Digital/Satellite for Japan)

- 02 : Terrestrial TV (DTV)

- 07 : BS (Broadcasting Satellite)

- 08 : CS1 (Communication Satellite 1)

- 09 : CS2 (Communication Satellite 2)

* Tune Command Examples:
1

Tune to the digital terrestrial (ISDB-T) channel 17-1
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Terrestrial TV = 02
Total = ma 00 00 00 11 00 01 02

2. Tune to the BS (ISDB-BS) channel 30.

Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

20. Control Back Light (Command: m g)

• For LCD TV / LED TV

► To control the back light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

Control Panel Light (Command: m g)

• For Plasma TV

► To control the panel light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

.

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

21. Input select (Command: x b)
(Main Picture Input)

► To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data
00 : DTV
02 : Satellite DTV

ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV

20 : AV or AV1 21 : AV2

01 : CADTV
10 : ATV

18. Channel(Programme) Add/Del(Skip)
(Command: m b)

► To skip current channel(programme) for next time.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/

skip(DVB) or add.

19. Key (Command: m c)

► To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - See p.2.

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

40 : Component1 41 : Component2

90 : HDMI1
92 : HDMI3

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* This function depends on model and signal.

91 : HDMI2
93 : HDMI4

EXTERNAL CONTROL DEVICE SETUP

11

11

22. 3D(Command: x t) (only 3D models)

(Depending on model)

► To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]

[ ][Data 02][ ][Data 03][Cr]

Data Structure
[Data 00] 00 : 3D On

01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D

[Data 01] 00 : Top and Bottom

01 : Side by Side
02 : Checker Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving

[Data 02] 00 : Right to Left

01 : Left to Right

[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14

(*transmit by Hexadecimal code)

* If [Data 00] is 00 (3D On), [Data 03] has no

meaning.

* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data

01], [Data 02] and [Data 03] have no meaning.

* If [Data 00] is 03(2D to 3D), [Data 01] and [Data 02]

have no meaning.

* If [Data 00] is 03(2D to 3D), [Data 03] works when

3D Mode (Genre) is manual only.

* All 3D pattern options ([Data 01]) may not be

available according to broadcasting/video signal.

07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)

[Data 01] It has own range for each 3D option

determined by [Data 00].

1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal

code)

Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)

3) When [Data 00] is 06, 07, 08
00 : Off
01 : On

4) When [Data 00] is 09

00 : Standard
02 : Cinema
04 : Manual

Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]

[v][ ][Set ID][ ][NG][Data00][x]

01 : Sport
03 : Extreme

ENGENGLISH

[Data 00] [Data 01] [Data 02] [Data 03]

00 O O X

01 X X X

02 X X X

03 X X O

X : don’t care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x]

[t][ ][Set ID][ ][NG][Data00][x]

23. Extended 3D(Command: x v) (only 3D models)
(Depending on model)

► To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
