LG 50LB5600-SB, 50LB5610-SC Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LJ43B

MODEL : 50LB5600/5610

50LB5600-SB/5610-SC

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67981605 (1401-REV01)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION .............................................................. 10

BLOCK DIAGRAM .................................................................................. 17

EXPLODED VIEW .................................................................................. 18

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of th e cir cuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exp ose d metallic par t. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten­tial shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri­cally shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied all of the 32”, 39”, 42”, 47”, 50”,
55”, 60" LED TV with LJ43B chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC, CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage
Standard input voltage (100~240V@ 50/60Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

ea ch drawing and s pe cificatio n b y p art number in
accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE, IEC

4. General Specification

No Item Specication Measurement Result Remark

1. Receiving System 1) SBTVD / NTSC / PAL-M / PAL-N

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) CATV : 01~135

3. Input Voltage 1) AC 100 ~ 240V 50/60Hz

4. Market Central and South AMERICA

5. Screen Size 32 inch Wide (1366 × 768) 32LB550B-SD
32LB561B-SC
32LB560B-SA
32LB620B-SD
32LB560B-SE

32 inch Wide (1920 × 1080) 32LB5600-SB

39 inch Wide (1920 × 1080) 39LB5610-SC

39LB5600-SB
39LB5610-SC

42 inch Wide (1920 × 1080) 42LB5500-SD

42LB5600-SB
42LB5610-SC
42LB6200-SD
42LB6200-SE

47 inch Wide (1920 × 1080) 47LB5600-SB

47LB5610-SC

49 inch Wide (1920 × 1080) 49LB5500-SD

49LB6200-SD
49LB6200-SE

50 inch Wide (1920 × 1080) 50LB5600-SB

50LB5610-SC

55 inch Wide (1920 × 1080) 55LB5600-SB

55LB5610-SC
55LB6200-SD
55LB6200-SE

60 inch Wide (1920 × 1080) 60LB5610-SC

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

No Item Specication Measurement Result Remark

6. Aspect Ratio 16:9

7. Tuning System FS

8. Module LC320DXE-FGA6 HD, 60Hz LGD 32LB550B-SF

LC420DUE-FGA6 FHD, 60Hz LGD 42LB5500-SF

LC490DUE-FGA6 FHD, 60Hz LGD 49LB5500-SF

HC320DXN-ABHS1 HD, 60Hz BOE 32LB561B-SC

LC320DXE-FGA3 LGD

NC320DXN-VSBP1 SHARP

LC320DXE-FGA4 HD, 60Hz LGD 32LB560B-SA

LC320DUE-FGA4 FHD, 60Hz LGD 32LB5600-SB

NC390DUN-VXBP1 FHD, 60Hz INX 39LB5600-SB

39LB5610-SC

LC420DUE-FGA4 FHD, 60Hz LGD 42LB5600-SB

LC420DUE-FGA3 FHD, 60Hz LGD 42LB5610-SC

T420HVF07.0 FHD, 60Hz AUO 42LB5610-SC

LC470DUE-FGA4 FHD, 60Hz LGD 47LB5600-SB

LC470DUE-FGA3 FHD, 60Hz LGD 47LB5610-SC

NC500DUN-SXBP1 FHD, 60Hz INX

LC500DUE-FGA4 FHD, 60Hz LGD

LC550DUE-FGA4 FHD, 60Hz LGD 55LB5600-SB

LC550DUE-FGA3 FHD, 60Hz LGD 55LB5610-SC

T550HVF04.1 FHD, 60Hz AUO 55LB5610-SC

HC600DUF-VHHS1 FHD, 60Hz 60LB5610-SC

LC320DXE-FGP2 FHD, 60Hz LGD 32LB620B-SD

LC420DUE-FGP2 FHD, 60Hz LGD 42LB6200-SD

LC490DUE-FGP2 FHD, 60Hz LGD 49LB6200-SD

9. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

10. Storage Environment 1) Temp : -20 ~ 60 deg

2) Humidity : ~ 85 %

50LB5600-SB
50LB5610-SC

32LB620B-SF

42LB6200-SE

49LB6200-SF

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. External Input Support Format

5.1. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*576 15.625 50.000 13.5 SDTV 576I

2. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

3. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

4. 720*480 31.50 60 27.027 SDTV 480P

5. 720*480 31.47 59.94 27.0 SDTV 480P

6. 720*576 31.250 50.000 27.000 SDTV 576P

7. 1280*720 37.500 50.000 74.25 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 44.96 59.94 74.176 HDTV 720P

10. 1920*1080 28.125 50.00 74.250 HDTV 1080I

11. 1920*1080 33.75 60.00 74.25 HDTV 1080I

12. 1920*1080 33.72 59.94 74.176 HDTV 1080I

13. 1920*1080 56.250 50.00 148.50 HDTV 1080P

14. 1920*1080 67.500 60.00 148.50 HDTV 1080P

15. 1920*1080 67.432 59.939 148.352 HDTV 1080P

16. 1920*1080 27.000 24.000 74.25 HDTV 1080P

17. 1920*1080 26.97 23.976 74.176 HDTV 1080P

18. 1920*1080 33.75 30.000 74.25 HDTV 1080P

19. 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.2. HDMI Input (PC/DTV)

*HDMI PC support only Rear HDMI Input
*If use DVI to HDMI cable for PC, you have to use external SPK for PC audio sound.

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1152*864 54.348 60.053 80.00 VESA O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024(FHD Only) 63.981 60.02 108.00 VESA (SXGA) O

9. 1920*1080(FHD Only) 67.5 60 148.5 HDTV 1080P O

DTV

1. 720*480 31.469 59.940 27.000 SDTV 480P

2. 720*480 31.500 60.000 27.027 SDTV 480P

3. 720*576 31.250 50.000 27.000 SDTV 576P

4. 1280*720 37.500 50.000 74.25 HDTV 720P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 28.125 50.000 74.25 HDTV 1080I

8. 1920*1080 33.75 60.00 74.25 HDTV 1080I

9. 1920*1080 33.72 59.94 74.176 HDTV 1080I

10. 1920*1080 56.250 50.000 148.50 HDTV 1080P

11. 1920*1080 67.500 60.00 148.50 HDTV 1080P

12. 1920*1080 67.432 59.94 148.352 HDTV 1080P

13. 1920*1080 27.000 24.000 74.25 HDTV 1080P

14. 1920*1080 26.97 23.976 74.176 HDTV 1080P

15. 1920*1080 33.75 30.00 74.25 HDTV 1080P

16. 1920*1080 33.71 29.97 74.176 HDTV 1080P

※ HDMI Monitor Range Limits
Min Vertical Freq - 58 Hz
Max Vertical Freq - 62 Hz
Min Horiz. Freq - 30 kHz
Max Horiz. Freq - 83 kHz
Pixel Clock - 160 MHz

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application

This spec sheet is applied all of the LED TV with LJ43B,
chassis.

2. Designation

(1) Th e adju stment is ac cordi ng to the order which is

designated and which must be followed, according to the

plan whic al Unit: Product Specification Standard.
(2) Power adjustment : Free Voltage.
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard.
(5) Reserve after operation: Above 5 Minutes (Heat Run).
Temperature : at 25 ºC±5
Relative humidity : 65 ± 10%
Input voltage : 100~220V, 50/60Hz
(6) Adjustment equipments : Color Analyzer (CA-210 or

CA-110), SVC remote controller
(7) Push The “IN STOP KEY” – For memory initialization.

Case1 : Software version up

1) After downloading S/W by USB , TV set will reboot
automatically

2) Push “In-stop” key

3) Push “Power on” key

4) Function inspection

5) After function inspection, Push “In-stop” key.

ºC

3. Main PCB check process

* APC – After Manual-Insert, executing APC
* Boot file Download

(1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

(2) Set as below, and then click “Auto Detect” and check “OK”

message.

If “Error ” i s d is pl ayed, Check co nn ection betwe en

computer, jig, and set.

(3) Click “Read” tab, and then load download file (XXXX.bin)

by clicking “Read”

(1)

filexxx.bin

(4) Click “Connect” tab. If “Can’t ” is displaye d, Check

connection between computer, jig, and set.

(2)

(3)

Case2 : Function check at the assembly line

1) When TV set is entering on the assembly line, Push

“In-stop” key at first.

2) Push “Power on” key for turning it on.

=> If you push “Power on” key, TV set will recover channel

information by itself.

3).After function inspection, Push “In-stop” key.

Please Check the Speed

To use speed between

from 200KHz to 400KHz

(5) Click “Auto” tab and set as below.
(6) Click “Run”.
(7) After downloading, check “OK” message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

* USB DOWNLOAD(*.epk file download)

(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low,
it didn't work. But your downloaded version is High, USB
data is automatically detecting

(3) Show the message "Copying files from memory"

(4) Updating is staring.

* After downloading, have to adjust Tool

Option again.

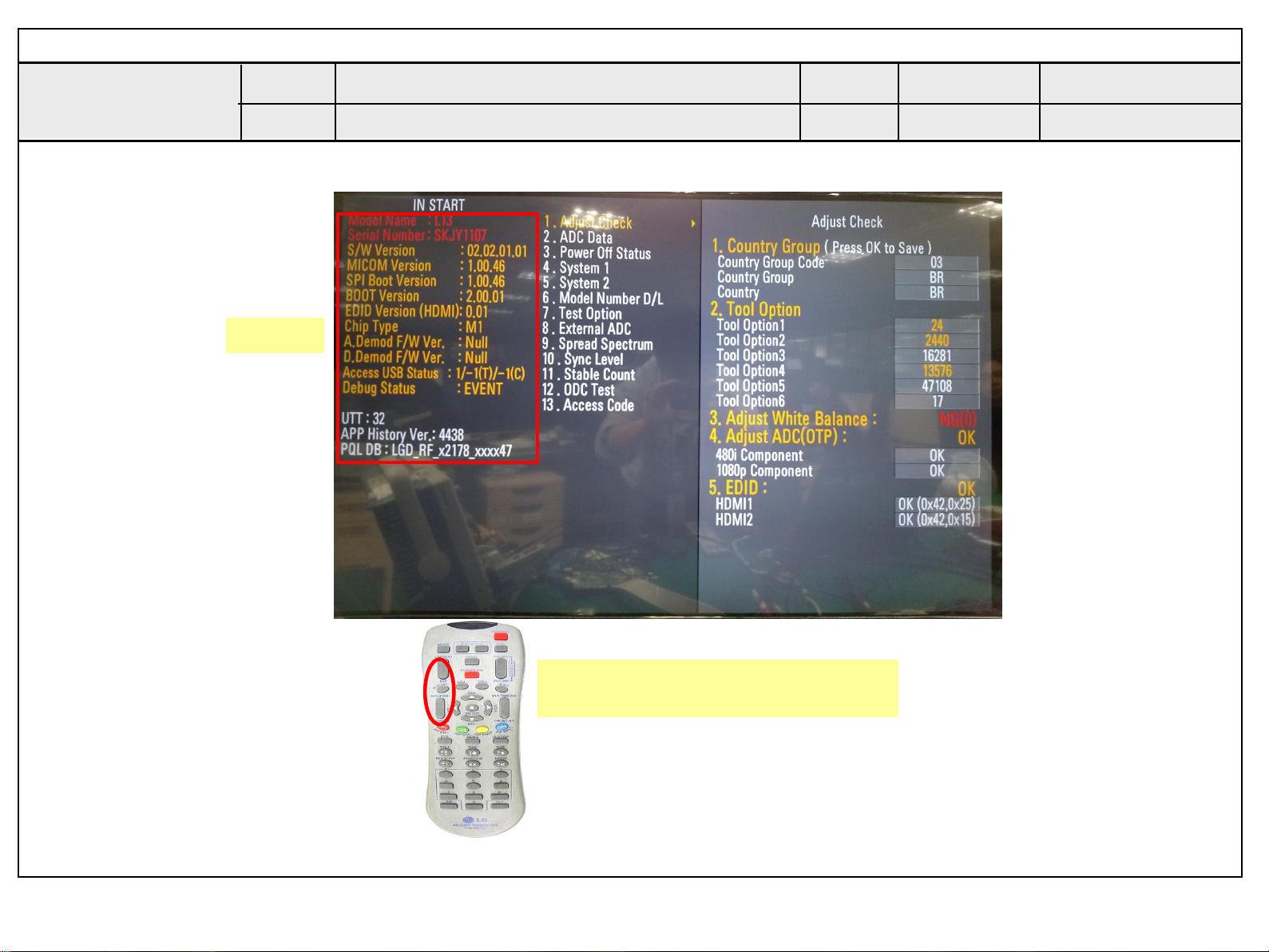

(1) Push "IN-START" key in service remote controller.
(2) Select "Tool Option 1" and Push "OK" button.
(3) Punch in the number. (Each model has their number.)
(4) Completed selecting Tool option.

Tool

Tool

Tool

Tool

Tool

Model Module

32LB550B-SF LGD /

42LB5500-SF LGD 23 2440 16129 14184 55298 273

49LB5500-SF LGD 2440 16129 14184 55298 273

32LB560B-SA
32LB561B-SC

32LB5600-SA LGD 4 2440 16129 14184 55298 273

39LB5600-

SA/SB

39LB5610-SC

42LB5600-SB
42LB5610-SC

47LB5600-SB
47LB5610-SC

50LB5600-SB
50LB5610-SC

55LB5600-SB
55LB5610-SC

32LB620B-SD LGD

32LB620B-SF

42LB6200-SD
42LB6200-SE

49LB6200-SD
49LB6200-SF

SHARP

CSOT /

option1

option2

option3

option4

option5

20 /

2440 16129 14184

6164

LGD /

Sharp

INX 2054 2440 16129 14184 51210 273

LGD /

AUO

LGD 8 2440 16129 14184 55298 273

INX /
LGD

LGD /

AUO

LGD 23 2440 32513 46952 55298 273

LGD

4 /

14340 /

6148

7 /

4103

2057 /

9

10 /

4106

2440 16129 14184

2440 16129 14184

2440 16129 14184

2440 16129 14184

55298 /

51202

55298 /
51202 /

51202

55298 /

51202

51210 /

55298

55298 /

51202

Tool

option6

273

273

273

273

273

(5) After updating is complete, The TV will restart automatically.
(6) If TV turns on, check your updated version and Tool option.

(refer to the next page about tool option)

* If downloading version is higher than your TV have, TV

can lost all channel data. In thi s case, you have to
channel recover. If all channel data is cleared, you didn't
have a DTV/ATV test on production line.

Only for training and service purposes

* RS-232C Connection Method
Connection : PCBA (USB Port) -> USB to Se ri al Ada pter

(UC-232A) -> RS-232C cable -> PC(RS-232C port)

▪ Product name of USB to Serial Adapter is UC-232A.

※ Caution: LJ43* chassis support only UC-232A driver. (only use

this one. )

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4. Total Assembly line process

4.1. Adjustment Preparation

■ W/B Equipment condition

CA210 : CH14, Test signal : Inner pattern (80IRE) – in case of

LED back light

■ Above 5 minutes H/run in the inner pattern. (“power on” key of

adjust remote control)

► The spec of color temperature and coordinate

Model Mode Color Temp Color coordinate Remark

Cool (C50) 13,000k

Medium (0) 9,300k

All

Warm (W50) 6,500k

► CA210 : CH 14, Test signal : Inner pattern (80IRE)

- Standard color coordinate and temperature using CA-1000 (by
H/R time)

▪ L14 LGD, INX Module

March to December & Global
Normal line (LB5500, LB5600)

H/R Time(Min)

271 270 285 293 313 329

1 0-2 281 285 295 308 323 344

2 3-5 280 284 294 307 322 343

3 6-9 279 282 293 305 321 341

4 10-19 277 279 291 302 319 338

5 20-35 275 275 289 298 317 334

6 36-49 273 273 287 296 315 332

7 50-79 272 272 286 295 314 331

8 80-119 271 270 285 293 313 329

9 Over 120 271 270 285 293 313 329

▪ Aging chamber line (LB5500, LB5600)

H/R Time(Min)

271 270 285 293 313 329

1 0-5 280 285 294 308 319 340

2 6-10 276 280 290 303 315 335

3 11-20 272 275 286 298 311 330

4 21-30 269 272 283 295 308 327

5 31-40 267 268 281 291 306 323

6 41-50 266 265 280 288 305 320

7 51-80 265 263 279 286 304 318

8 81-119 264 261 278 284 303 316

9 Over 120 264 260 278 283 303 315

x = 0.271 (±0.002)
y = 0.270 (±0.002)

x = 0.286 (±0.002)
y = 0.289 (±0.002)

x = 0.313 (±0.002)
y = 0.329 (±0.002)

Cool Medium Warm

x y x x y x

Cool Medium Warm

x y x x y x

※ Test signal

- Inner pattern for W/B adjust

- External white pattern
(80IRE, 204gray)

※ Connecting picture of the measuring instrument
(On Automatic control)

Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER-ON -> Enter
the mode of White-Balance, the pattern will come out.

● Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (Illumination is less than 10ux).

(2) Adhere closely the Color Analyzer ( CA210 ) to the module

less than 10cm distance, keep it with the surface of the
Module and Color Analyzer’s Prove vertically.(80~100°).

(3) Aging time

- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check
the back light on.

● Auto adjustment Map(RS-232C)

RS-232C COMMAND
[ CMD ID DATA ]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

MIN

CENTER

(DEFAULT)

MAX

Only for training and service purposes

- 12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

*Manual W/B process using adjusts Remote control.(TBD)

■ Color analy zer(C A100+, CA210 ) sh ould be use d in the

calibrated ch by CS-1000

■ Operate the zero-calibration of the CA100+ or CA-210, then

stick sensor to the module when adjusting.

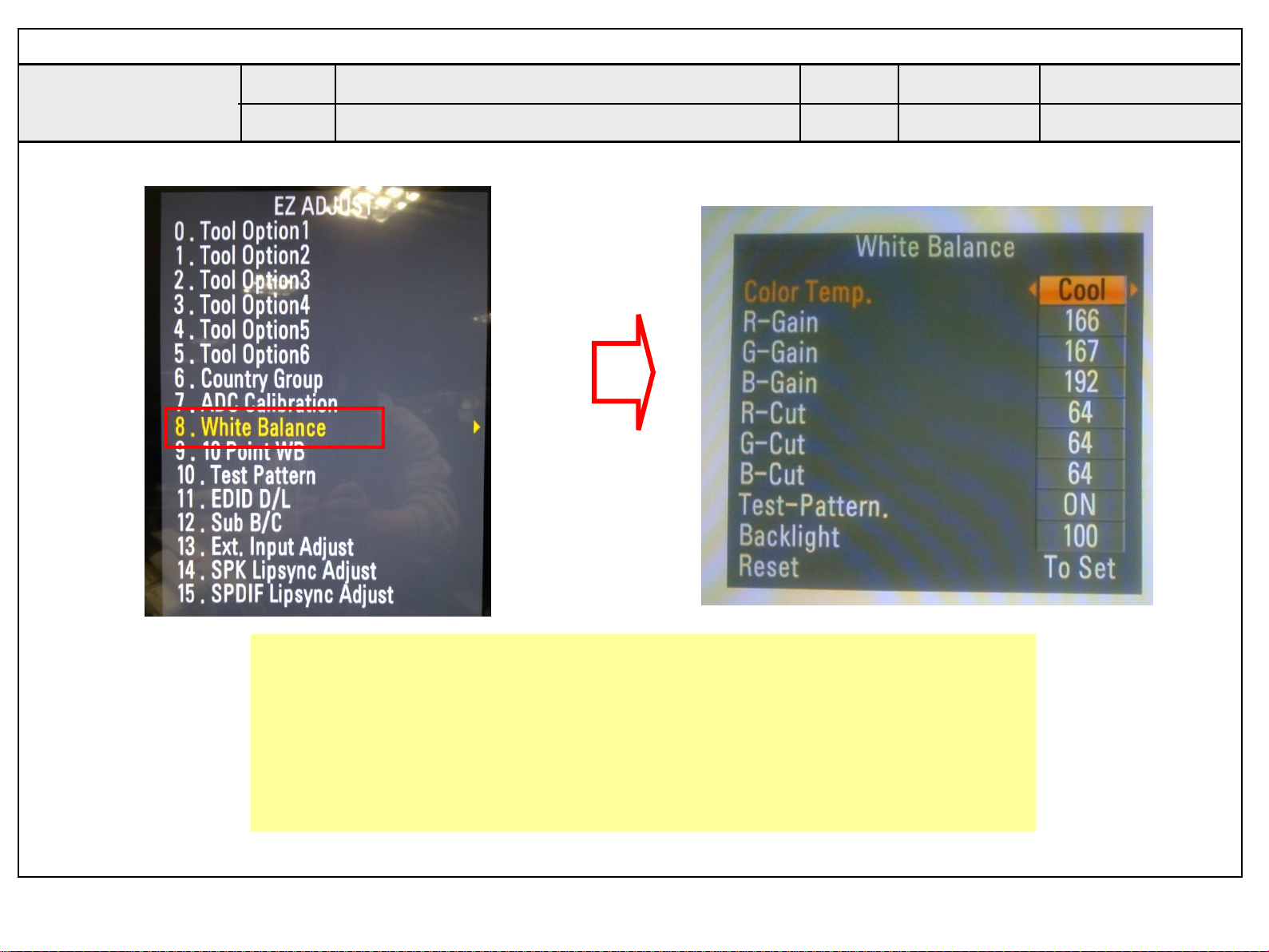

■ After enter Service Mode by pushing “ADJ” key,

■Enter White Balance by pushing “►” key at “8. White Balance”.

■ For manual adjustment, it is also possible by the following

sequence.
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface

(3) Press ADJ key -> EZ adjust using adj. R/C -> 8. White-

Balance then press the cursor to the right (KEY►). When
KEY(►) is pressed 206 Gray internal pattern will be displayed.

(4) Adjust Cool modes
(i). Fix the one of R/G/B gain to 192 (default data) and decrease

the others

(If G gain is adjusted over 172 and R and B gain less than

192, increase G gain to 192 and increase R gain and B gain

same amount of increasing G gain.)
(ii). If G gain is less than 172,
Increase G gain by up to 172, and then increase R gain and

G gain same amount of increasing G gain.
(iii). If R gain or B gain is over 255,
Readjust G gain less than 172, Conform to R gain is 255 or B

gain is 255
(5) Adjust two modes (Medium / Warm) Fix the one of R/G/B gain

to 192 (default data) and decrease the others.

(6) Adj. is completed, Exit adjust mode using “EXIT” key on

Remote controller.

※ CASE Cool
First adjust the coordinate far away from the target value(x, y).
(1) x, y > target
i) Decrease the R, G.
(2) x, y < target
i) First decrease the B gain,
ii) Decrease the one of the others.
(3) x > target , y< target
i) First decrease B, so make y a little more than the target.
ii) Adjust x value by decreasing the R
(4) x < target , y >target
i) First decrease B, so make x a little more than the target.
ii) Adjust x value by decreasing the G

How to adjust
(1) If G gain is adjusted over 172 and R gain and B gain less

than 192 , Adjust is O.K.

(2) If G gain is less than 172 , increase G gain by up to 172,

and then increase R gain and B gain same amount of
increasing G gain.

(3) If R gain or B gain is over 255 , Readjust G gain less than

172, Conform to R gain is 255 or B gain is 255

※ CASE Medium / Warm
First adjust the coordinate far away from the target value(x, y).
(1) x, y > target
i) Decrease the R, G.
(2) x, y < target
i) First decrease the B gain,
ii) Decrease the one of the others.
(3) x > target , y< target
i) First decrease B, so make y a little more than the target.
ii) Adjust x value by decreasing the R
(4) x < target , y >target
i) First decrease B, so make x a little more than the target.
ii) Adjust x value by decreasing the G

▪ After You finish all adjustments, Press “In-start” button and

compare Tool option and Area option value with its BOM, if it is
correctly same then unplug the AC cable. If it is not same, then
correct it same with BOM and unplug AC cable. For correct it to
the model’s module from factory JIG model.

▪ Push the “IN STO P KE Y” after completing the func tion

inspection.

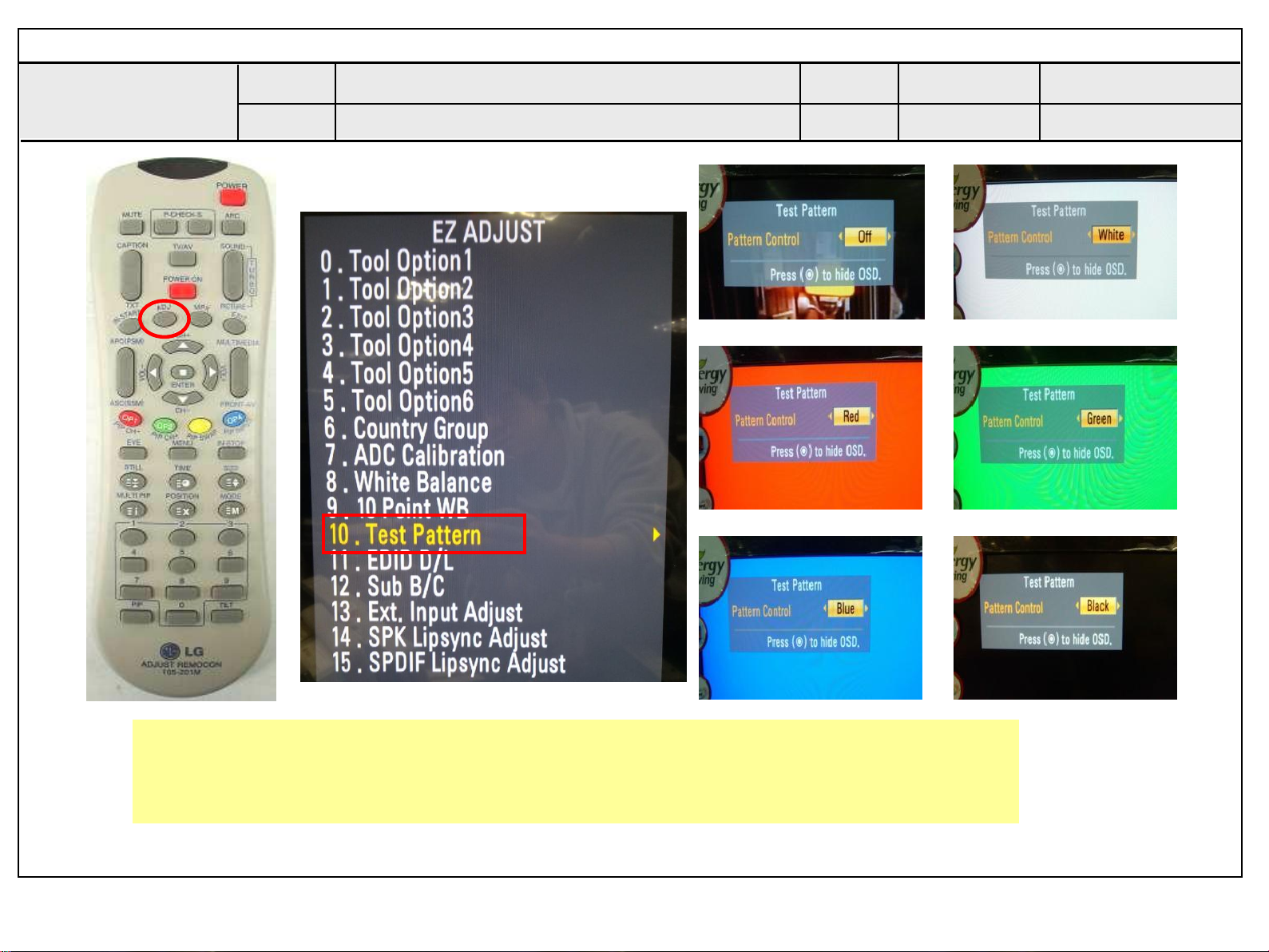

▪ If internal pattern is not available, use RF input. In EZ Adj. menu

8. White Balance, you can select one of 2 Test-pattern: ON,
OFF. Default is inner (ON). By selecting OFF, you can adjust
using RF signal in 206 Gray pattern.

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.2. DPM operation confirmation
(Only Apply for MNT Model)

Check if Power LED Color and Power Consumption operate
as standard.

■ Set Input to RGB and connect D-sub cable to set

■ Measurement Condition: (100~240V@ 50/60Hz)

■ Confirm DPM operation at the state of screen without Signal

4.3. DDC EDID Write (HDMI 256Byte)

■ Connect HDMI Signal Cable to HDMI Jack.

■ Write EDID DATA to EEPROM(24C02) by using DDC2B

protocol.

■ Check whether written EDID data is correct or not.

* For SVC Ass’y, EDID have to be downloaded.

4.4. EDID DATA

1) All Data : HEXA Value

2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum

- Auto Download

■ After enter Service Mode by pushing “ADJ” key,

■ Enter EDID D/L mode.

■ Enter “START” by pushing “OK” key.

※ Caution

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

=> Caution

- Never connect HDMI & D-sub Cable at the same time.

- Use the proper cables below for EDID Writing.

- Download HDMI1, HDMI2 separately because HDMI1 is
different from HDMI2.

For Analog EDID For HDMI EDID

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

No. Item Condition Hex Data

1 Manufacturer ID GSM 1E6D

2 Version Digital : 1 01

3 Revision Digital : 3 03

● EDID DATA

(1) HD 2D EDID Data (32LB550B/560B) => TBD

Before S/W version 3.03.02

CheckSum(0xFF) Physical Address (0x1E)

HDMI 1 10

HDMI 2 20

※ Edid data and Model option download (RS232C)

NO Item CMD 1 CMD 2 Data 0

Enter
download
MODE

Edid data
and Model
option
download

Download
‘Mode In’

Download A E 00 10

A A 0 0

HDMI1 (128/256)

When transfer
the ‘Mode In’,
Carry the com­mand

Automatically
download
(The use of a
internal Data)

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

HDMI1 (128(same)/256)

(2) FHD 2D EDID Data (S/W 1.01.20) (LB5500, LB5600 except

32LB550B/LB560B)

CheckSum(0xFF) Physical Address (0x1E)

HDMI 1 41 / 25 10

HDMI 2 41 / 15 20

HDMI1 (128/256)

HDMI1 (128(same)/256)

4.5. Outgoing condition Configuration

■ When pressing IN-STOP key by SVC remocon, Red LED

are blinked alternatively. And then automatically turn off.

(Must not AC power OFF during blinking)

4.6. GND & Hi-pot test

4.6.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

4.6.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).

(Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next

process automatically.

4.6.3. Checkpoint

(1) Test voltage
① 3 Poles

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA
② 2 Poles

- SIGNAL: 3KV/min at 100mA
(2) TEST time: 1 second
(3) TEST POINT
① 3 Poles

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi- po t Test = POWER COR D GND a nd L IV E &

NEUTRAL.

② 2 Poles

- Hi-pot Test = Accessible Metal and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5mArms

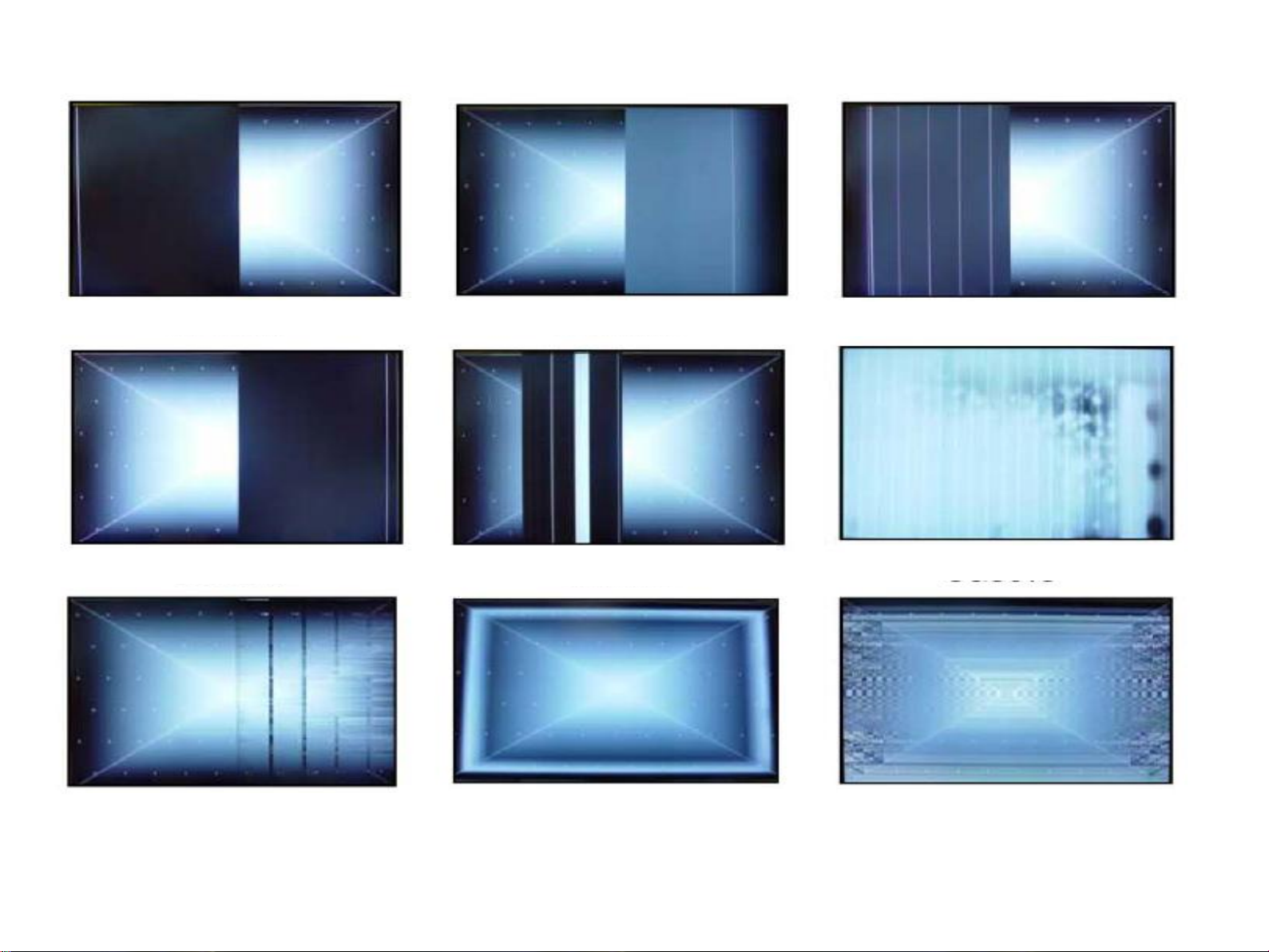

5. Local Dimming Function Check

(Not require)

Step1) Turn on TV.
Step2) Press “P-only” key, enter to power only mode and

escape the “P-only” Mode by pressing “Exit” key
Step3) Press “Tilt” key, entrance to Local Dimming mode.
Step4) At the Local Dimming mode, module Edge Backlight

moving Top to bottom Back light of module moving
Step5) confirm the Local Dimming mode
Step6) Press “Exit” key

Only for training and service purposes

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. 3D Function Test (Only LB620)

(Pattern Genera tor MSHG-600, MSPG-6100 [SUPPORT
HDMI1.4])
* HDMI mode NO. 872 , pattern No.83

1) Please input 3D test pattern like below (HDMI mode NO.
872 , pattern No.83)

2) When 3D OSD appear automatically , then select OK
button.

3) Don’t wear a 3D Glasses, Check the picture like below

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

BLOCK DIAGRAM

(P1101)

30P HD LVDS wafer

51P FHD LVDS wafer

(P1100)

SIDE

USB

(JK700)

HDM I2(MHL)

(JK801)

SIDE_U SB_DM/D P

USB1_OC D/CTL

OCP IC : T PS65282

(IC400)

+5V_USB

COMP2_L /R_IN

COMP2_Y+/ AV_CVB S_IN, COM P2_Pb+/Pr+

AV2_L/R_I N

AV2_CVBS_IN

CK+/ -, D0+/-, D1+/-, D2+/-_H DMI2

DDC _SCL/SDA_2, HD MI_CEC

Serial Flash

(8Mbit)

IC1300

SPI_SCK /SDI/SD O/CS

System EEPROM

(256Kbit)

IC104

I2C_SC L/SDA

NAND FLASH

(1Gbit)

IC102

PCM_A[0-7],…

DDR3 SDRAM

(2Gbit)

IC1201

A-MDQL[0-7], A-MDQU[0-7], …

RXA0+/-~RXA4+/-, RXACK+/-

RXB0+/ -~RXB4+/-, RXB CK+/-

SPK_R

SPK_L

AMP_SCL/ SDA

AUD_MASTER _CLK,

AUD_LR CH,

AUD_LR CK, AUD_SCK

TAS5733

(IC5600)

Main SOC

M1A(LGE2131)

(IC101)

With internal 128M DDR

Connector

(P4600)

Joystick & IR

REAR

HDM I1

(JK800)

TU_SC L / SDA

IF

TDJK -T101F

HALF NI M

AV2

Comp 1 & AV1

(JK1701)

SPDIF _OUT

SPDIF (Optic)

(JK1001)

MHL _OCP_DET

AVDD5V_MH L

MHL _CD_SENSE

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

400

410

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essenti al that these special safet y parts shoul d be replac ed with the same compo nents as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

900

521

310

500

540

501

121

530

LV1

820

120

A10

Set + Stand

A2

200

Only for training and service purposes

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

TP for NON-EU models(except EU and China)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

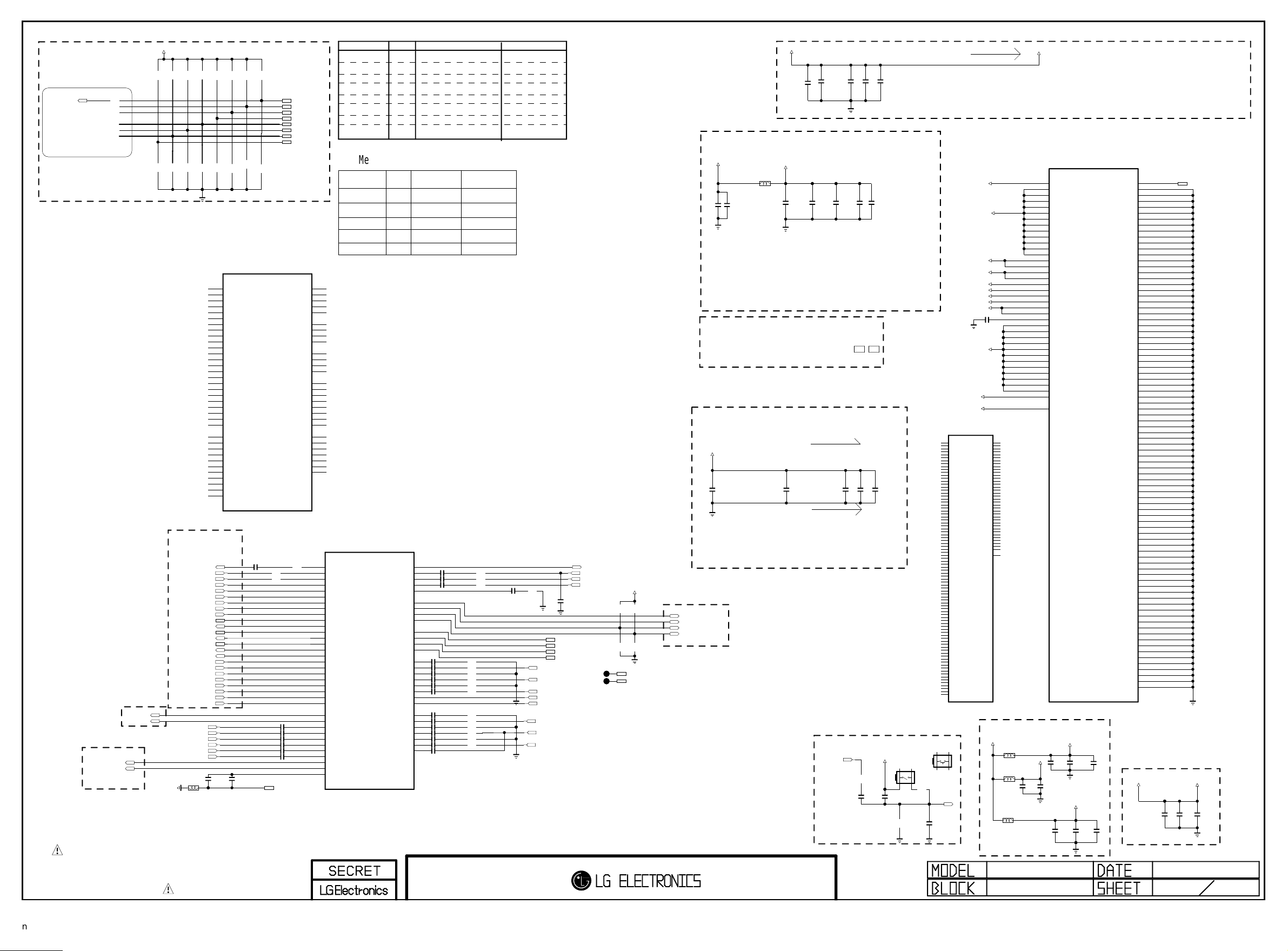

TP for CI slot

/PCM_REG

/PCM_OE

/PCM_WE

/PCM_IORD PCM_A[11]

/PCM_IOWR CI_TS_DATA[1]

/PCM_CE

/PCM_IRQA

/PCM_CD

/PCM_WAIT

PCM_RST

PCM_5V_CTL

/CI_DET

TP for S2

PCM_D[0]

PCM_D[2]

PCM_D[3]

PCM_D[4]

PCM_D[5]

PCM_D[6]

PCM_D[7]

PCM_A[8]

PCM_A[9]

PCM_A[10]

PCM_A[12]

PCM_A[13]

PCM_A[14]

TP for FE_TS_DATA

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0]

CI_TS_DATA[2]

CI_TS_DATA[3]

CI_TS_DATA[4]

CI_TS_DATA[5]

CI_TS_DATA[6]

CI_TS_DATA[7]

TP for SCART

SCART1_MUTE

SC1_IDPCM_D[1]

SC1_FB

DTV/MNT_VOUT

SCART1_Lout

SCART1_Rout

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

SC1/COMP1_DET

SC1/COMP1_L_IN

SC1/COMP1_R_IN

TP for Headphone

HP_LOUT

HP_ROUT

SIDE_HP_MUTE

HP_DET

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_L14

TP_NON_EN

2013.05.09
3

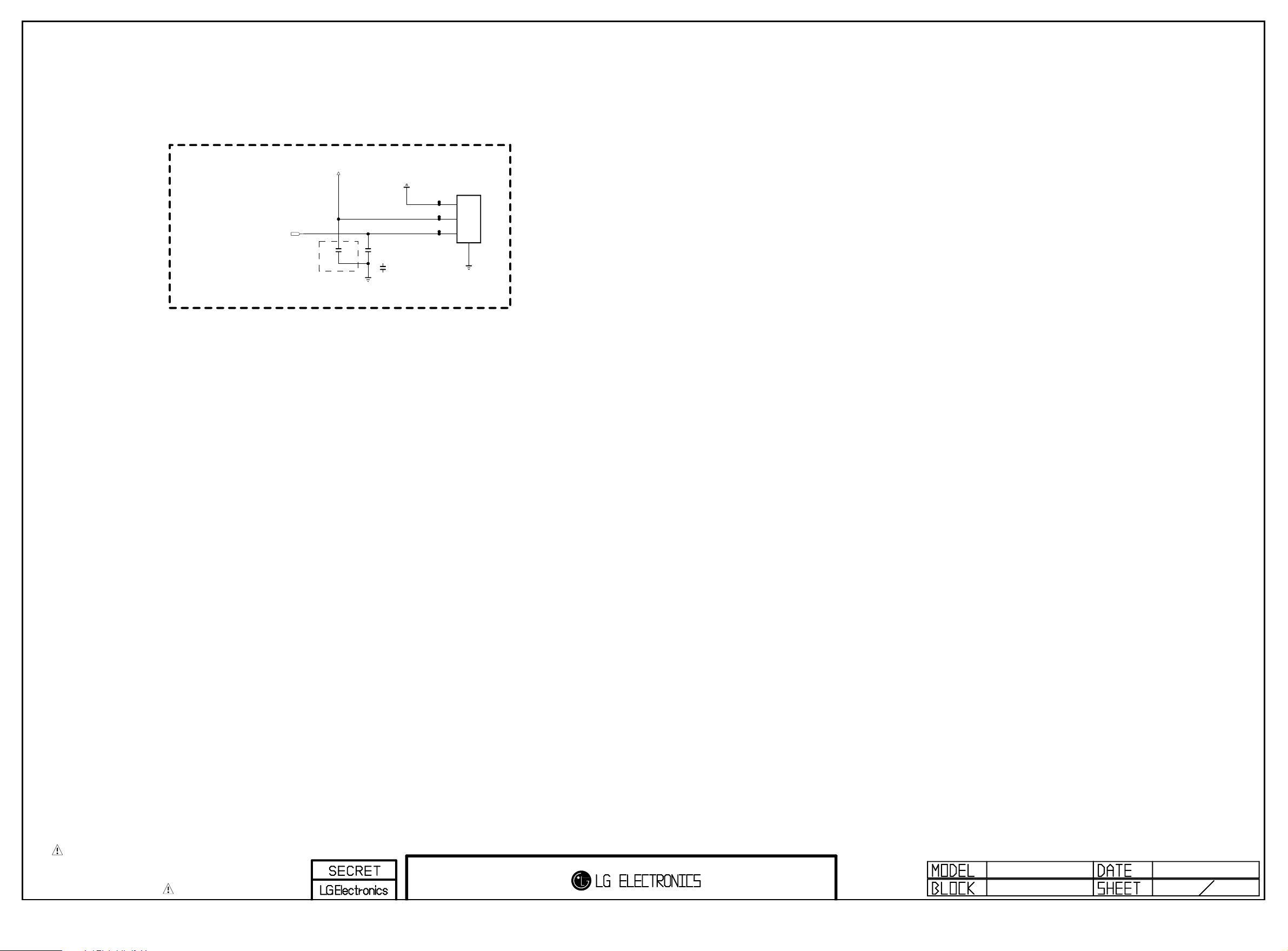

L14 POWER BLOCK (POWER DETECT 2)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

FROM LIPS or POWER B/D

+3.5V_ST

OPT

R400

10K

R402

R401

10K

C407
10uF

2012

10V

10K

+3.5V_POWER_DET

L400

CB2012PK501T

C400

+24V_CAP

C432

4.7uF

3216

+12V_CAP

C433

4.7uF

3216

RL_ON

+3.5V_ST

+24V

+12V

1005

16V

1uF
10V

OPT

50V

B

+3.5V_ST

R406
10K

R404

4.7K

C

Q400
MMBT3904(NXP)

E

R456

ZD400

5V

MLB-201209-0120P-N2

C401

0.1uF
50V

MLB-201209-0120P-N2

C402

0.1uF
16V

MMBT3906(NXP)

1

OPT

0

L401

CB2012PK501T

L402

L403

Q401

2

R455

3

0

ZD404

+1.5V_DDR

+3.3V_Normal

L409

BLM18PG121SN1D

C426

10uF

AZ1117EH-ADJTRG1

10V

1.3A

OPT

R412

33K

+3.3V_Normal

R420

1K

5V

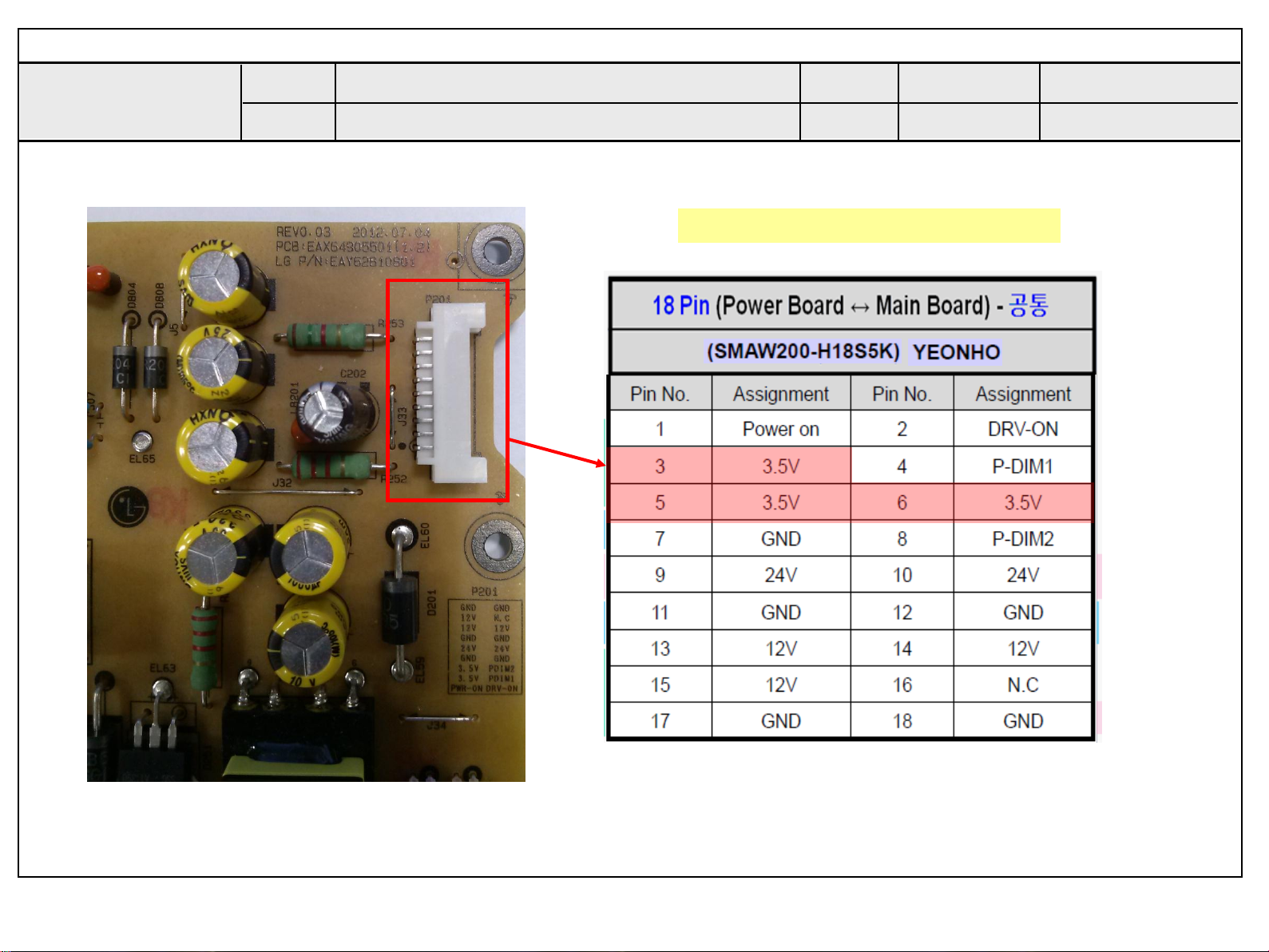

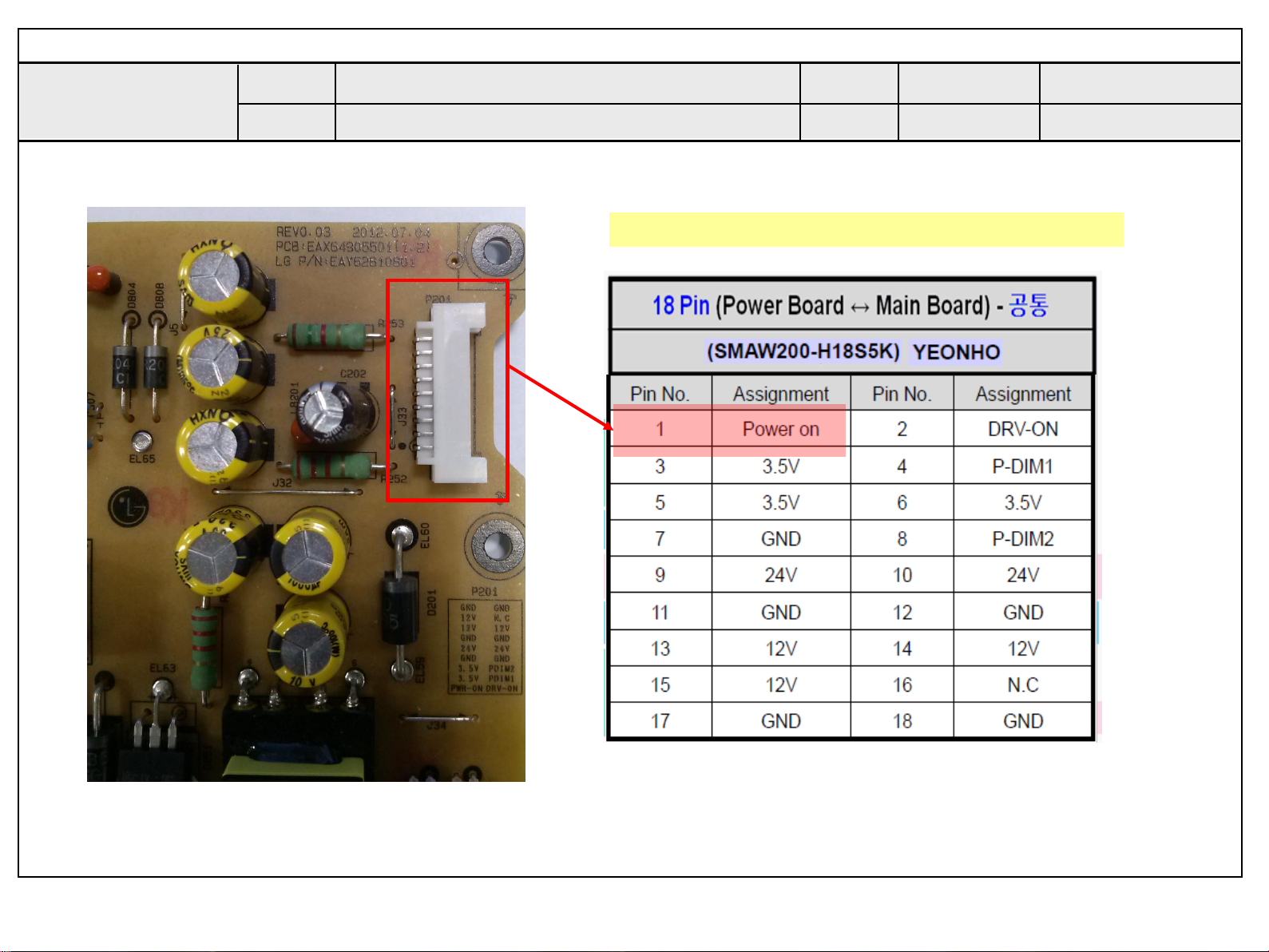

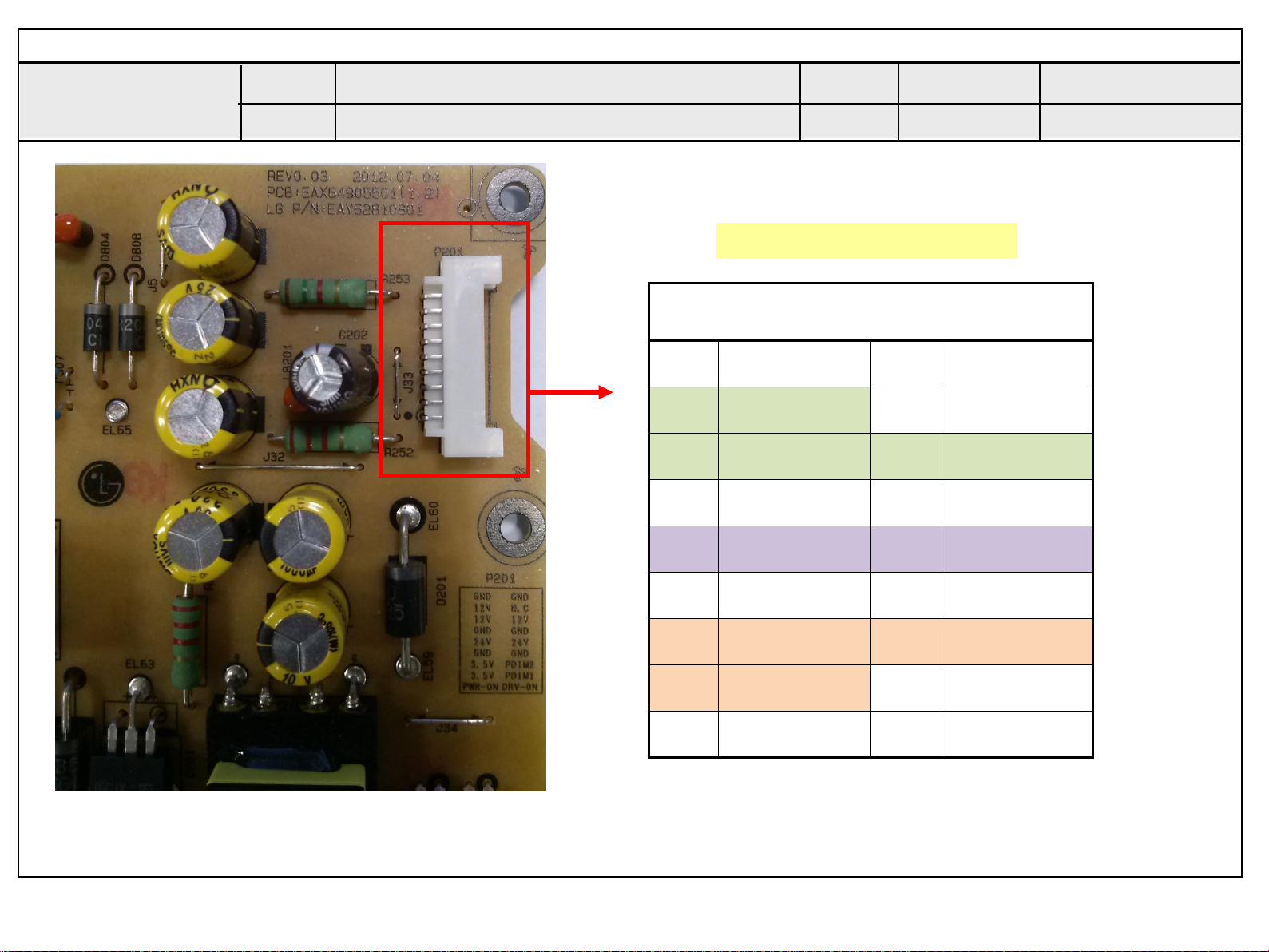

PWR ON

3.5V

3.5V
GND
24V
GND
12V
12V
GND

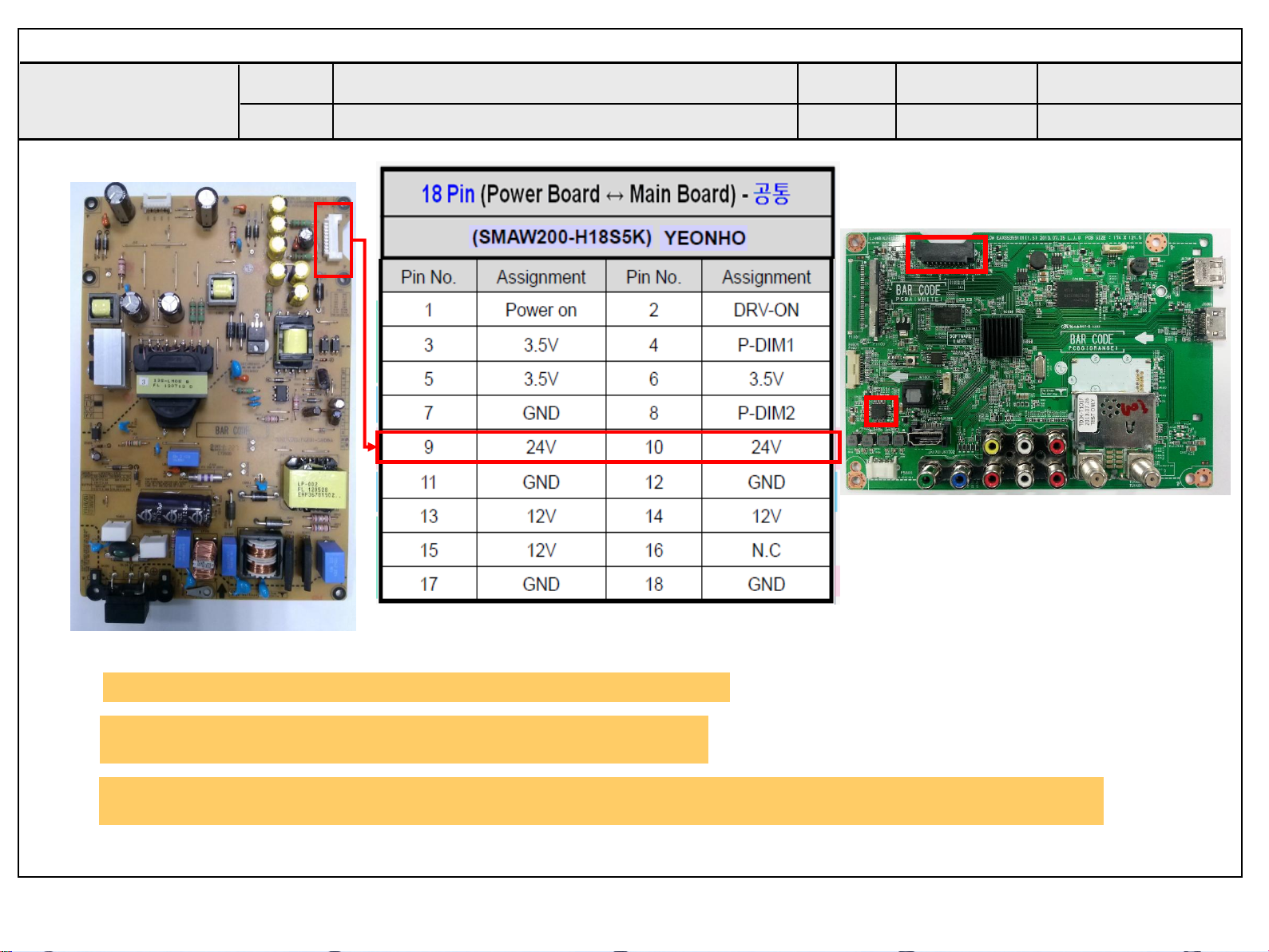

P401

SMAW200-H18S5

1
3
5
7

10

9
11

12

13

14

15

16

17

18

19

.

DRV ON

2

PDIM#1

4

3.5V

6

PDMI#2

8

24V
GND
12V
NC
GND

R419
100

PWM_DIM_PULL_DOWN

Vout=1.25*(1+R2/R1)+Iadj*R2

+1.5V_DDR

IC404

ADJ/GND

OUTIN

R449
1K
1/16W
1%

R450
200
1/16W
1%

R1

R2

L411

CB2012PK501T

R453

0

C431
10uF

10V

ZD403

2.5V

C

B

E

Q402

MMBT3904(NXP)

R424

3.9K

+3.5V_ST

R426

10K

R425
10K

PWM2_2CH_POWER

R423

100

OPT
R467
1K

INV_CTL

PWM_DIM

PWM1

C415

0.1uF

C413

0.1uF

OPT

R457

8.2K

16V

OPT

16V

+24V

1%

R427

R428

5.1K

R430

2.7K

R431

1.2K

OPT

27K

1%

OPT

+12V

1%

1%

+24V

1%

+3.5V_POWER_DET

OPT

R432

0

5%

+3.5V_POWER_DET

OPT

R458

0

5%

Ready - Dual Power Det

* Notice

- Applying all inch models for LCD L14

- Dual Power Det is used
for detecting two kinds of voltage

+1.10V_VDDC

+1.10V_VDDC

ZD401

2.5V

+3.5V_ST

OPT

C424

0.1uF
16V

C437

0.1uF

CB2012PK501T

OPT
C436
10uF

10V

16V

C420

C421

22uF

22uF

10V

10V

VCC

VCC

APX803D29

3

APX803D29

3

L406

C423

50V

270pF

GND

GND

R435
100K

IC401

OPT

R436

100K

OPT

IC402

C414
10uF

10V

2

1

2

1

0.1uF

R43 9

20K

1%

R44 0

47K

1%

PD_+3.5V

R454-*1
300

5%

PD_+12V

R454

RESET

RESET

100 5%

POWER_DET_RESET

OPT

R437

100 5%

Detect Valtage

Power Detect +3.5V

Power Detect +12V

Power Detect +24V

C435

16V

C417

L407

0.1uF

3.6uH
16V

R1

R2

+3.5V_ST

OPT

R438

4.7K

C422

0.1uF

Power_DET

POWER_DET

Power Detect activity

Now is

Use Circuit Designator

R432, R454-*1, R438

O R430, R431, R454

R457, R454

IC403

TPS5432DDAR

BOOT

VIN

PH

GND

1

2

3

4

3A

9

THERMAL

8

7

6

5

[EP]GND

SS

EN

COMP

VSENSE

C418

0.01uF

R433

2.7K

C419

0.039uF
50V

1%

Vout=0.808*(1+R1/R2)

C434

390pF

50V

+3.3V_Normal

R429

10K

C416

0.33uF
16V

PANEL_VCC

PANEL_CTL

+3.3V_Normal

POWER_ON/OFF_1

L408

UBW2012-121F

120OHM

OPT

C425

0.1uF
25V

R441

10K

+3.5V_ST

R443

10K

R444
10K

+12V

B

R447
22K

R448

2.2K

R442

10K

C

Q404
MMBT3904(NXP)

E

C428

2.2uF
10V

R445

R446
12K

B

33K

C427
10uF

16V

C

Q403
MMBT3904(NXP)

E

FET_2.5V_DIODE

Q406-*1
DMP2130L

S

FET_2.5V_AOS

Q406

AO3435

S

PANEL_VCC

Q405

DMP2130L

D

S

R451

R452

5.6K

L410

C430
22uF
10V

5.6K

+3.3V_Normal

ZD402

5V

G

D

G

BLM18PG121SN1D

D

C429

G

0.1uF
16V

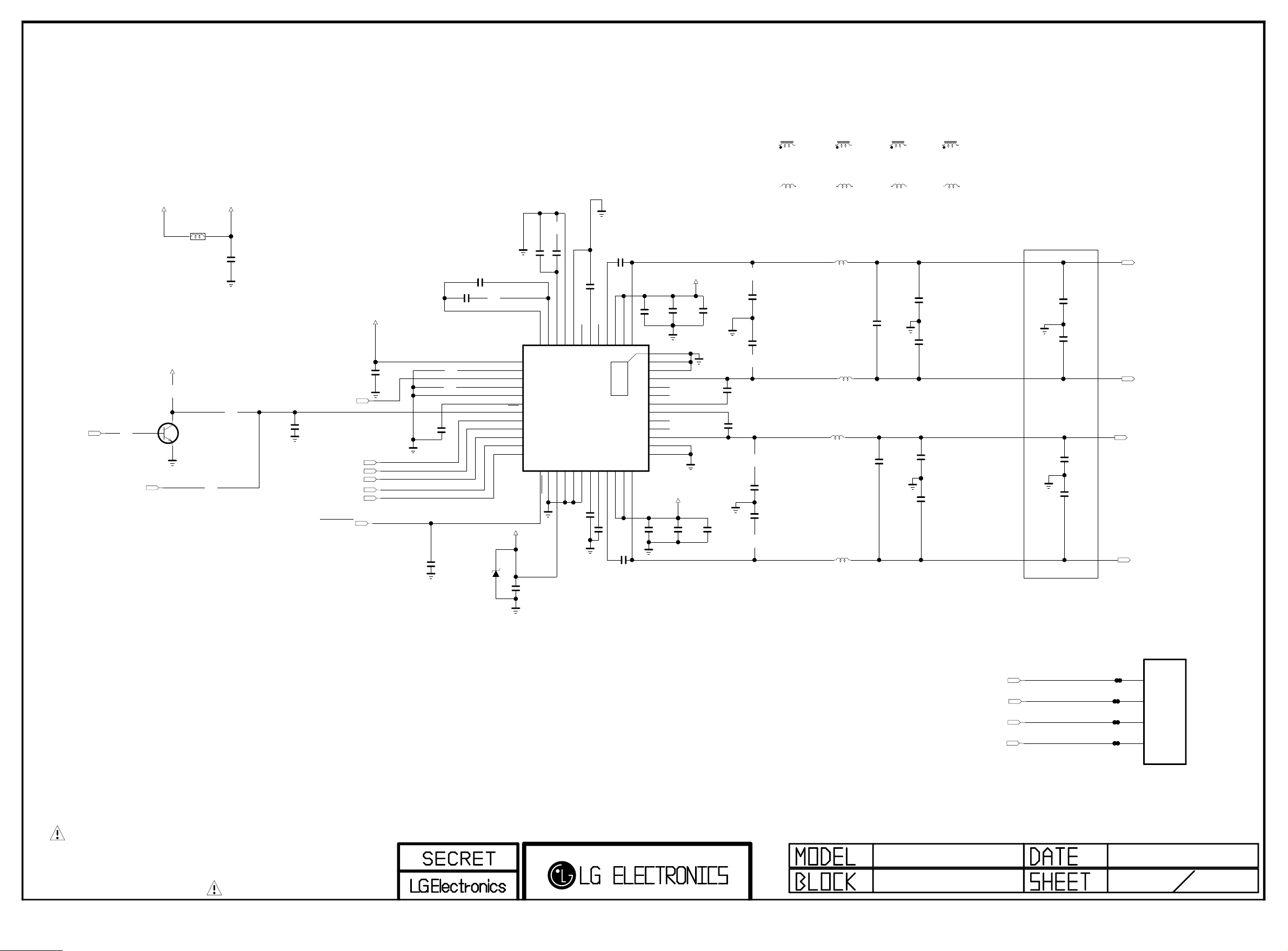

+5V_Normal & +5V_USB with OCP

C403

100pF

R408

OPT
R405

4.7K

4.7K

/VBUS_EN

(Active Low)

MHL_OCP_EN

(Active High)

+3.3V_Normal

MHL_SW_TR

MHL_SW_TR

R461
10K

MHL_SW_TR

MHL_SW_TR

R462
10K

Q407

R463

2.7K

B

C

MHL_SW_TR

E

MHL_SW_TR

Q409

MHL_SW_TR
R464
10K

MHL_SW_TR

Q408

E

B

R465

10K

B

+3.3V_Normal

OPT
R403

4.7K

MHL_5V_EN

USB1_CTL

C

MHL_5V_EN

R466
20K

C

E

R410

OPT

100K

50V

C404

4700pF

50V

OPT

R459

0

+3.3V_Normal

R407

10K

R409

10K

COMP

ROSC

EN_SW2

EN_SW1

[EP]GND

V7V

EN

1

2

SS

3

4

TPS65282REGR

5

6

FAULT2

+12V

C405
10uF

PGOOD

23

24

THERMAL

25

IC400

4A

7

8

FAULT1

SW_OUT2

USB1_OCD

/MHL_OCP_DET

VIN_122VIN_2

9

RLIM11AGND

C406
10uF
16V

21

10

R415
15K

5%

OPT
R416
100K

PGND_1

PGND_2

19

20

12

SW_OUT1

MBR230LSFT1G

C411
82pF
50V

+5V_Normal

C412
22uF
16V

C409

L405

0.047uF

4.7uH

25V

BST

18

LX_2

17

LX_1

16

FB

15

SW_IN_2

14

SW_IN_1

13

+5V_USB

5V_HDMI_4

D401
30V

C408
10uF

10V

C410
10uF

10V

AVDD5V_MHL

R418

10

R422

3.3K

R421

18K

R1
R2

1%

1%

Vout=0.8*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_M1A

Power_PD2

2013.10.28
4

USB (SIDE)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

JK700

1234

USB DOWN STR EAM

3AU 04S-3 05-Z C-(LG )

5

OPT
C701

5pF
50V

OPT
C702

5pF
50V

ZD700

SD05

5V

OPT

+5V_USB

C700
22uF
10V

OPT
D700
RCLAMP0502BA

C703
22uF
10V

USB_HDD_CAP

SIDE_USB1_DM

SIDE_USB1_DP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_M1A

USB_S1

13/04/30

7

HDMI (REAR 1 / SIDE 1 MHL)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

HDMI_1

SHIELD

20

19

18

17

16

15

14

13

12

11

CK+

10

EAG59023302

JK800

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R803

1K

R802

1.8K

VA800

ESD_HDMI1_VARISTOR

5V_DET_HDMI_2

ESD_HDMI1

R805

3.3K

VA801

ESD_HDMI1_VARISTOR

VA800-*1
1uF
10V

ESD_HDMI1_CAP

VA801-*1
1uF
10V

ESD_HDMI1_CAP

VA802

MMBT3904(NXP)

Q800

C

E

VA803

ESD_HDMI1

R808

10K

B

R809

10K

R810 100

R811 100

VA804

ESD_HDMI1

D803

1
2
3
4
5

ESD_HDMI1_IP4294

IP4294CZ10-TBR

D804

1
2
3
4
5

ESD_HDMI1_IP4294

IP4294CZ10-TBR

10
9
8
7
6

10
9
8
7
6

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC
HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI_2 MHL

VA805

ESD_HDMI2

GND

20

HP_DET

19

5V

18

GND

17

DDC_DATA

16

DDC_CLK

15

NC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

BODY_SHIELD

20

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

JK801-*1
DAADR019A

HDMI-2_EMI_FOOSUNG

EAG62611204

JK801

HDMI-2

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R812

1.8K

HDMI-2

5V_DET_HDMI_4

ESD_HDMI2

VA806

R813

3.3K
HDMI-2

VA807

5.6V
OPT

ESD_HDMI2
VA808

ESD_HDMI2

VA809

HDMI-2

R814

33

HDMI-2

R815 100

R816 100

HDMI-2

VA810

ESD_HDMI2

VA811

ESD_HDMI2

1
2
3
4
5

ESD_HDMI2_IP4294

IP4294CZ10-TBR

1
2
3
4
5

ESD_HDMI2_IP4294

IP4294CZ10-TBR

C800

0.047uF
25V

HDMI-2

D805

D806

10
9
8
7
6

10
9
8
7
6

R817
300K

MHL Spec

HDMI-2

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

MHL_CD_SENSE

CEC

R804

A2CA1

MMBD6100
D800

100

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE_S7

5V_HDMI_4

R806

2.7K

+5V_Normal

A2CA1

MMBD6100
D801

R807

2.7K

+3.5V_ST

DDC_SDA_4

DDC_SCL_4

A2CA1

MMBD6100
D802

HDMI_CEC

5V_HDMI_2

R800

2.7K

+5V_Normal

R801

2.7K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

D803-*1

TMDS_CH1-

1

2

GND_1

3

4

5

D803-*2

1
2
3
4
5

10

9

8

7

6

10
9
8
7
6

TMDS_CH1+

TMDS_CH2-

TMDS_CH2+

ESD_HDMI1_IP4283

IP4283CZ10-TBA

ESD_HDMI1_SEMTECH

RCLAMP0524PA

NC_4

NC_3

GND_2

NC_2

NC_1

D804-*1

TMDS_CH1-

1

2

GND_1

3

4

5

D804-*2

1
2
3
4
5

10

10
9
8
7
6

TMDS_CH1+

TMDS_CH2-

TMDS_CH2+

ESD_HDMI1_IP4283

IP4283CZ10-TBA

ESD_HDMI1_SEMTECH

RCLAMP0524PA

D805-*1

NC_4

NC_3

9

GND_2

8

NC_2

7

NC_1

6

TMDS_CH1-

1

2

GND_1

3

4

5

D805-*2

1
2
3
4
5

10

10
9
8
7
6

TMDS_CH1+

TMDS_CH2-

TMDS_CH2+

ESD_HDMI2_IP4283

IP4283CZ10-TBA

ESD_HDMI2_SEMTECH

RCLAMP0524PA

NC_4

NC_3

9

GND_2

8

NC_2

7

NC_1

6

D806-*1

TMDS_CH1-

1

TMDS_CH1+

2

GND_1

3

TMDS_CH2-

4

TMDS_CH2+

5

ESD_HDMI2_IP4283

IP4283CZ10-TBA

D806-*2

1
2
3
4
5

ESD_HDMI2_SEMTECH

RCLAMP0524PA

L14_M1A

NC_4

10

NC_3

9

GND_2

8

NC_2

7

NC_1

6

10
9
8
7
6

2013/08/15

HDMI_R1_S1 8

SPDIF

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

+3.3V_Normal

C1001

1uF

OPT

10V

ESD Ready

SPDIF_CAP_47pF
C1002
47pF
50V

SPDIF_CAP_18pF
C1002-*1
18pF
50V

VINPUT

SPDIF_OPTIC
JST1223-001

GND

VCC

JK1001

1

2

3

Fiber Optic

4

FIX_POLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_L14

SPDIF

2013/10/29

10

LVDS (NON EU)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[51Pin LVDS Connector]
(For FHD 60Hz)

MO_FHD

P1100

FI-RE51S-HF-J-R1500

.

1

.

2

.

3

.

4

.

5

.

6

.

7

.

8

.

9

.

10

.

11

RXA0-

12

RXA0+

13

RXA1-

14

RXA1+

15

RXA2-

16

RXA2+

17

.

18

RXACK-

19

RXACK+

20

.

21

RXA3-

22

RXA3+

23

RXA4-

24

RXA4+

25

.

26

.

27

RXB0-

28

RXB0+

29

RXB1-

30

RXB1+

31

RXB2-

32

RXB2+

33

.

34

RXBCK-

35

RXBCK-

36

.

37

RXB3-

38

RXB3+

39

RXB4-

40

RXB4+

41

.

42

.

43

.

44

.

45

.

46

.

47

.

48

.

49

.

50

.

51

52

.

VCOM_SDA

VCOM_SCL

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

R1100 0

MO_FHD

MO_FHD

R1101 0

R1102 0

MO_FHD

LVDS_SEL

+3.3V_Normal

OPT
R1103

3.3K

OPT
R1104

10K

PANEL_VCC

MO_FHD

L1100
120OHM
UBW2012-121F

MO_FHD

C1100

0.1uF
16V

FOR FHD REVERSE(10bit)
Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2- RXBCK-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit)
Change in S7LR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

MIRROR

Pol-change

RXA4+

RXA4-

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

Shift

RXA4-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2- RXACK-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[30Pin LVDS Connector]
(For HD 60Hz_Normal)

MO_HD
P1101

10031HR-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

VCOM_SCL

VCOM_SDA

LVDS_SEL

+3.3V_Normal

OPT
R1109

3.3K

OPT
R1110
10K

EU pin assign is different from NON EU.
Because of position of HD wafer.

V-COM I2C

+3.3V_Normal

VCOM_I2C_PULL_UP

R1115
2K

URSA/VCOM_SCL

URSA/VCOM_SDA

VCOM_SCL

VCOM_SDA

VCOM_I2C_PULL_UP

R1114

VCOM_I2C

R1105

0

R1106

0

VCOM_I2C

2K

PANEL_VCC

120OHM

MO_HD

MO_HD
L1101

UBW2012-121F

C1101

0.1uF
16V

URSA/VCOM_SCL

URSA/VCOM_SDA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_S7LR(M1A)

LVDS_NON_EU

2013/05/22

11

R12011K1%

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

DDR_EXT

DDR_EXT

R1202 1K1%

DDR_EXT

C1201 0.1uF

DDR_EXT

C1202 1000pF

A-MVREFDQ

+1.5V_DDR+1.5V_DDR

DDR_EXT

R1204 1K1%

DDR_EXT

R1205 1K1%

DDR_EXT

C1213 0.1uF

1000pF

DDR_EXT

C1214

A-MVREFCA

Option : Ripple Check !!!

+1.5V_DDR

C1217

C1216

10uF 10V

OPT

OPT

0.1uF

C1218

OPT

0.1uF

C1219

OPT

+1.5V_DDR

1uF

1uF

1uF

1uF

C1222

OPT

C1223

OPT

1uF

0.1uF

C1224

OPT

C1220

OPT

C1221

OPT

CLose to DDR3

DDR_1600_1G_SS

IC1201-*1

K4B1G1646G-BCK0

EAN61836301

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

CLose to Saturn7M IC

DDR_1600_1G_HYNIX

IC1201

DDR_1600_2G_HYNIX_OLD

IC1201-*2

H5TQ2G63DFR-PBC

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

EAN61829203

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

DDR_1600_2G_HYNIX_NEW

IC1201-*3

H5TQ2G63FFR-PBC

EAN61829204

N3

VREFCA

A0

P7

A1

P3

A2

N2

A3

VREFDQ

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

VDD_1

A10/AP

VDD_2

A11

VDD_3

A12/BC

VDD_4
VDD_5

A13

VDD_6
VDD_7

NC_5

VDD_8
VDD_9

BA0
BA1
BA2

VDDQ_1
VDDQ_2

CK

VDDQ_3

CK

VDDQ_4

CKE

VDDQ_5
VDDQ_6

CS

VDDQ_7

ODT

VDDQ_8

RAS

VDDQ_9

CAS
WE

NC_1
NC_2

RESET

NC_3
NC_4
NC_6

DQSL
DQSL

VSS_1

DQSU

VSS_2

DQSU

VSS_3
VSS_4

DML

VSS_5

DMU

VSS_6
VSS_7

DQL0

VSS_8

DQL1

VSS_9

DQL2

VSS_10

DQL3

VSS_11

DQL4

VSS_12

DQL5
DQL6
DQL7

VSSQ_1
VSSQ_2

DQU0

VSSQ_3

DQU1

VSSQ_4

DQU2

VSSQ_5

DQU3

VSSQ_6

DQU4

VSSQ_7

DQU5

VSSQ_8

DQU6

VSSQ_9

DQU7

DDR_1600_2G_SS

IC1201-*4

K4B2G1646Q-BCK0

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

EAN61848803

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_EXT
DDR_EXT
DDR_EXT
DDR_EXT
DDR_EXT
DDR_EXT
DDR_EXT
DDR_EXT
DDR_EXT
DDR_EXT

+1.5V_DDR

10V

A-MVREFCA

A-MVREFDQ

DDR_EXT

C1203 10uF
C1204 0.1uF
C1205 0.1uF
C1206 0.1uF
C1207 0.1uF
C1208 0.1uF
C1209 0.1uF
C1210 0.1uF
C1211 0.1uF
C1212 0.1uF

R1203

240

1%

A-MA14

H5TQ1G63EFR-PBC

EAN61829003

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

NC_7

NC_5

RESET

DQSL
DQSL

DQSU
DQSU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7
R7

A11

N7
T3

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3
G3

C7
B7

E7

DML

D3

DMU

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13

A-MBA0
A-MBA1
A-MBA2

A-MCKE

A/B_DDR3_CS

A-MODT
A-MRASB
A-MCASB
A-MWEB

A-MRESETB

A-MDQSL
A-MDQSLB

A-MDQSU
A-MDQSUB

A-MDML
A-MDMU

A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

R1207

DDR_EXT

R1208

DDR_EXT

DDR_EXT

R1206
10K

DDR_EXT

56 1%

C1215

0.01uF
50V

56 1%

+1.5V_DDR

A-MCK

A-MCKB

A-MDQSUB

A-MDQSLB

A-MDQSU

A-MDQSL

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8

A-MA9
A-MA10
A-MA11
A-MA12
A-MA13
A-MA14

A-MBA0
A-MBA1
A-MBA2

A-MCK
A-MCKB
A-MCKE

A-MODT

A-MRASB
A-MCASB

A-MWEB

A-MRESETB

A/B_DDR3_CS

A-MDML
A-MDMU

A-MDQL0

A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7
A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

R1209

240

1%

M1A_256M

IC101

LGE2132(M1A_256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

M1A_128M
IC101-*1

LGE2131(M1A_128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_S7LR(M1A)

1_DDR

2013/05/20

12

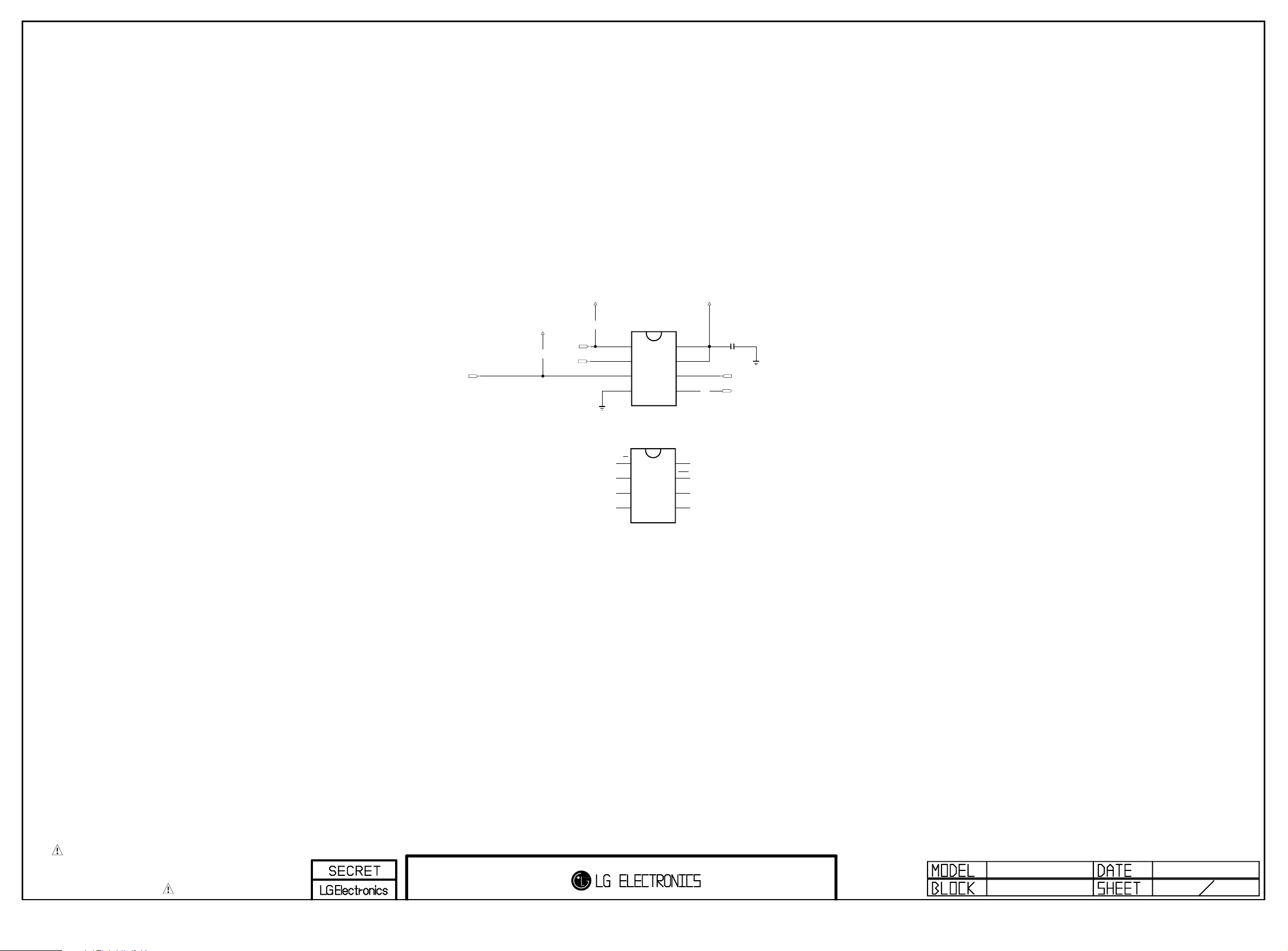

Serial Flash for SPI boot

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

/FLASH_WP

OPT
R1300
10K

+3.5V_ST

/SPI_CS

SPI_SDO

OPT
R1301

4.7K

SPI_FLASH_MACRONIX

IC1300

MX25L8006EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND

4

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

+3.5V_ST+3.5V_ST

R1302

33

C1300

0.1uF

SPI_SCK

SPI_SDI

SPI_FLASH_WINBOND

IC1300-*1

W25Q80BVSSIG

CS

1

DO[IO1]

2

%WP[IO2]

3

GND

4

8

7

6

5

VCC

HOLD[IO3]

CLK

DI[IO0]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_S7LR(M1A)

S_FLASH

2013/04/29

13

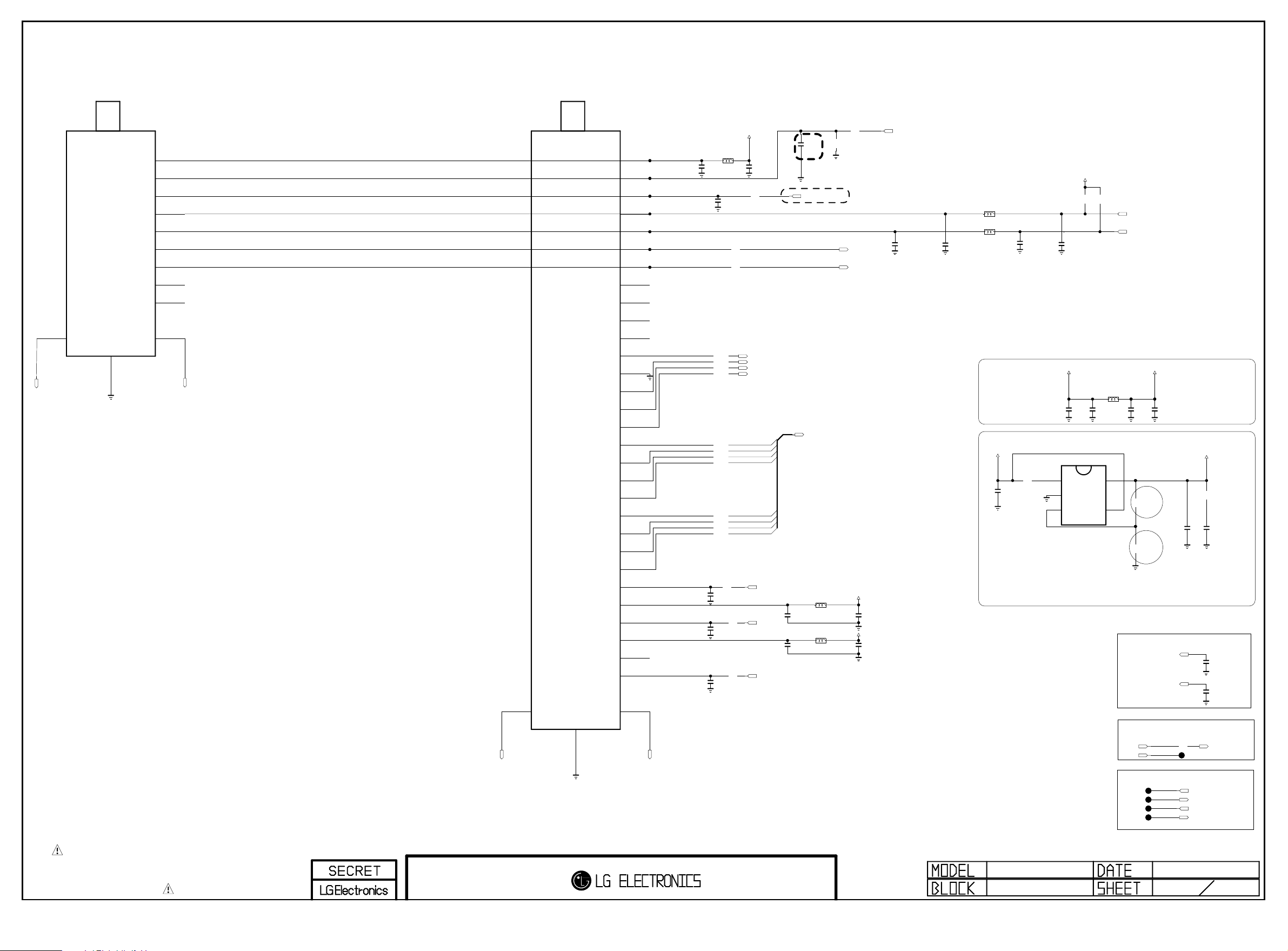

Central and South Americatuner block

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A1

TU_GND_A

NON_DVB_T2

A1

47

SHIELD

TU1400
TDJK-T101F

B1[+3.3V]

1

RF_S/W_CTL

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_1

8

NC_2

9

B1

B1

TU_GND_B

A1

A1

DVB_T2

47

TU1401
TDJM-K101F

B1[+3.3V]

1

RF_SW_CTL

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

NC_1

8

NC_2

9

NC_3

10

NC_4

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

B2[+3.3V]

26

SCL_DEMOD

27

B3[+1.1V]

28

NC_5

29

SDA_DEMOD

30

B1

B1

SHIELD

DVB_T2

C1402

0.1uF
16V

DVB_T2

DVB_T2

UBW2012-121F

C1406
100pF
50V

DVB_T2

AR1400 47

DVB_T2

AR1401 47

DVB_T2

AR1402 47

C1403
20pF
50V

C1404
20pF
50V

+3.3V_TU

L1401

C1405

0.1uF
16V

R1403

10

R1404

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]

FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

DVB_T2

R1400

10

DVB_T2

R1401

DVB_T2

R1402

10

22

22

C1407

0.1uF

16V

should be guarded by ground

R1405

100

FE_TS_ERR
FE_TS_CLK
FE_TS_SYNC
FE_TS_VAL

DEMOD_RESET

DEMOD_SCL

DEMOD_SDA

C1411

0.1uF
16V

Close to TUNER

IF_AGC_MAIN

FE_TS_DATA[0-7]

DVB_T2
L1402

UBW2012-121F

DVB_T2

C1409
100pF
50V

DVB_T2

L1403

UBW2012-121F

C1410
100pF
50V
DVB_T2

R1407

1K

R1409
20K

IF_P_MSTAR

IF_N_MSTAR

+3.3V_TU

DVB_T2

C1413

0.1uF
16V

+1.2V_DEMOD

DVB_T2
C1414

0.1uF
16V

RF_SWITCH_CTL

TU_I2C_NON_FILTER

C1424
18pF
50V

TU_I2C_NON_FILTER

L1404-*1

TU_I2C_NON_FILTER

L1405-*1

TU_I2C_FILTER

L1404

MLG1005SR27JT

TU_I2C_FILTER

L1405

MLG1005SR27JT

TU_I2C_NON_FILTER
C1425
18pF
50V

+3.3V_TU

33

33

TU_I2C_FILTER

C1416
20pF
50V

DVB_T2
R1412

3.3K

C1417
1uF
10V
DVB_T2

GND

ADJ/NC

+3.3V_TU

R1410

TU_I2C_FILTER

C1415
20pF
50V

+3.3V_TU

AP7361-Y-13

EN

1

2

3

1K

C1418
22uF
10V

IC1400

DVB_T2

R1411

1K

L1400

UBW2012-121F

C1419

0.1uF
16V

OUT

5

IN

4

TU_SCL

TU_SDA

+3.3V_Normal

C1420
22uF
10V

DVB_T2
R1413

12K
1%

R1

DVB_T2
R1414
22K
1%

R2

C1422

0.1uF
16V

DVB_T2

C1421

0.1uF

+1.2V_DEMOD

16V

DVB_T2
R1416
1

DVB_T2_10uF_X5R
C1423
10uF
10V

Vo=0.8*(1+R1/R2)=1.2364

TU Isolated GND Noise Filter

TU_GND_A

TU_GND_B

C1426
1000pF
630V

C1427
1000pF
630V

ERROR & VALID PIN

DVB_T2

FE_TS_VAL

FE_TS_ERR

R1415

0

FE_TS_VAL_ERR

GPIO must be added.

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TU_GND_A

TU_GND_B

L14_S7LR(M1A)

TUNER_CSA

NOT USED TP

IF_AGC_SEL

TU_SIF

TUNER_RESET

TU_CVBS

2013.05.06
14

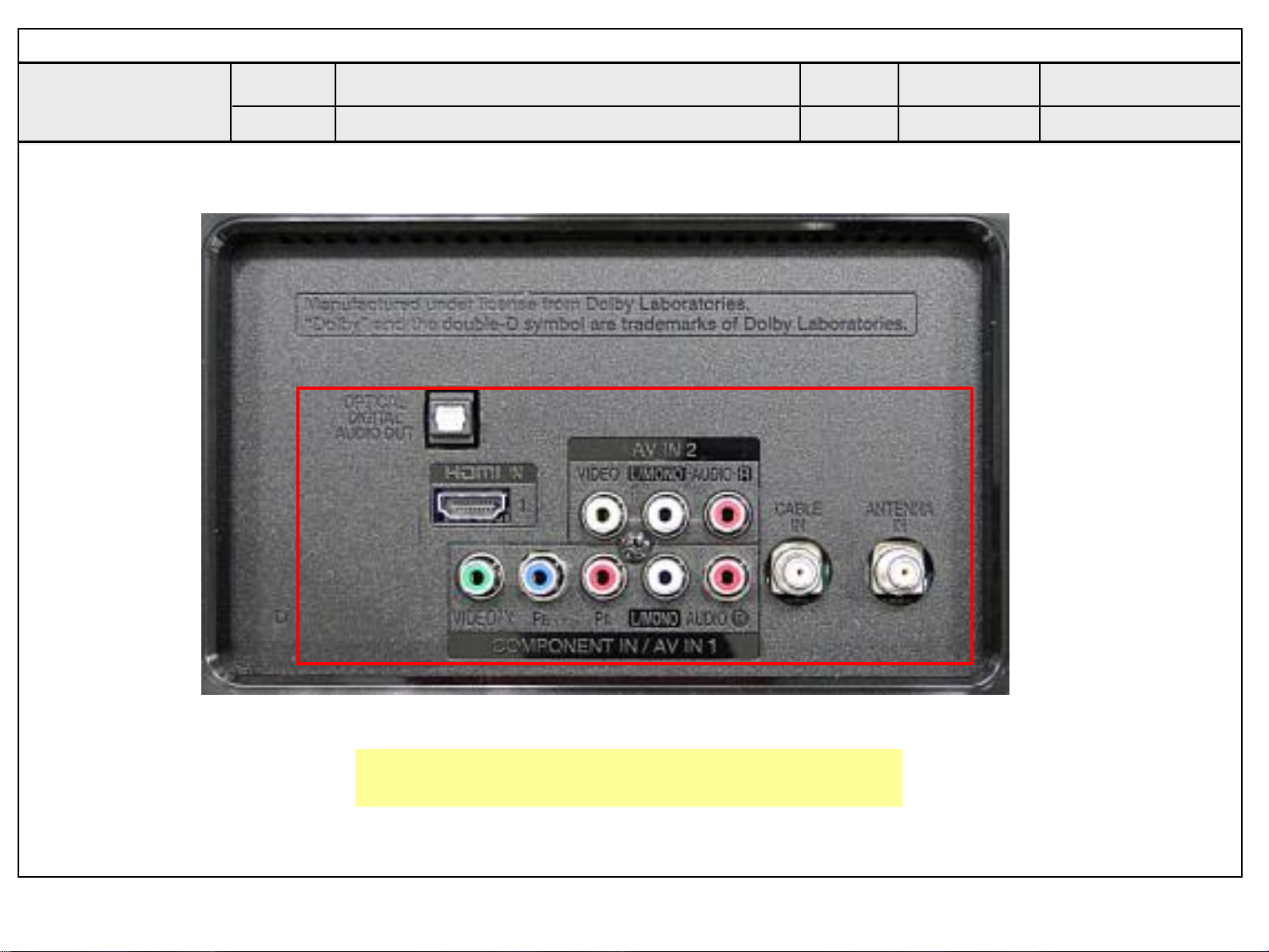

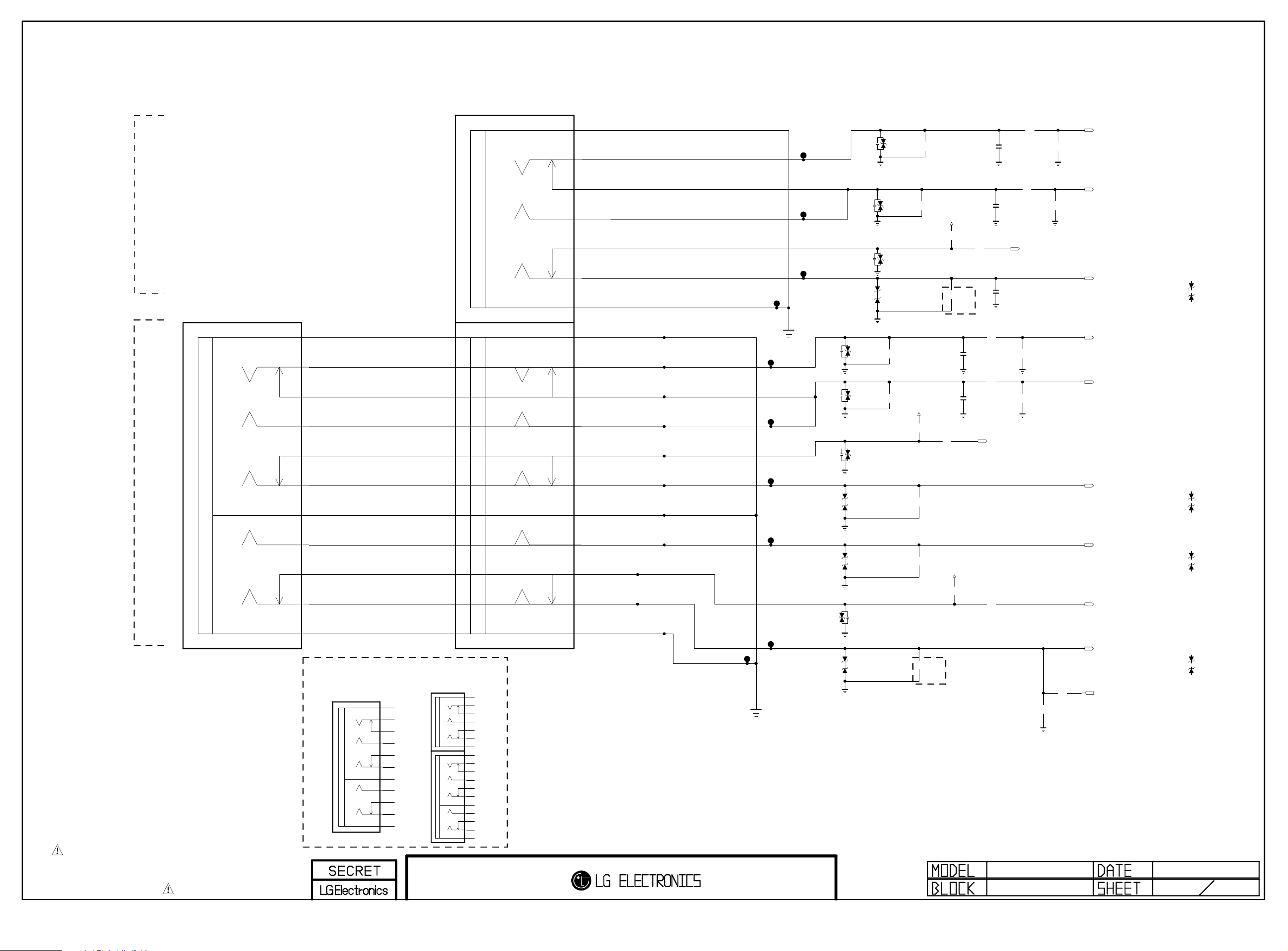

COMPONENT & AV1(COMMON), AV2

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

COMP_AV1/2_YG

JK1701

PPJ248-21

[RD3]E-LUG

6C

[RD3]O-SPRING

5C

VA1706

5.6V
AV2_LR_ZENER

R1700
470K
AV2

C1701
1000pF
50V
OPT

R1716
10K

AV2

R1718
12K
AV2

AV2_R_IN

AV2

COMPONENT
&
AV1

COMP_AV1_YG

JK1702

PPJ245N2-01

[RD2]E-LUG

6E

[RD2]O-SPRING

5E

[RD2]CONTACT

4E

[WH]O-SPRING

5D

[RD1]CONTACT

4C

[RD1]O-SPRING

5C

[RD1]E-LUG-S

7C

[RD3]CONTACT

4C

[WH2]O-SPRING

5B

[YL]CONTACT

4A

[YL]O-SPRING

5A

[YL]E-LUG

6A

[RD2]E-LUG

6H

[RD2]O-SPRING

5H

[RD2]CONTACT

4H

[WH1]O-SPRING

5G

[RD1]CONTACT

4F

[RD1]O-SPRING

5F

[RD1]E-LUG-S

7F

AV2_CVBS_ZENER_ROHM

COMP_Pr_ZENER_ROHM

ZD1701

VA1704

5.6V
AV2_LR_ZENER

VA1705

5.6V
OPT

ZD1706
AV2_CVBS_ZENER_ROHM

ZD1707

VA1700

5.6V
COMP_LR_ZENER

VA1701

5.6V
COMP_LR_ZENER

VA1702

5.6V
OPT

ZD1700

COMP_Pr_ZENER_ROHM

R1703

470K

R1704
470K

+3.3V_Normal

R1709
10K

R1705
75

R1701
470K
AV2

+3.3V_Normal

R1708
10K
AV2

R1711 1K

AV2
R1702

75

1608

1%

Size Check !!!

R1712

1K

AV2

C1704
1000pF
50V
OPT

C1705
1000pF
50V
OPT

R1714
10K

R1715
10K

COMP2_DET

C1702
1000pF
50V
OPT

C1703
47pF
50V

AV2

R1717
10K

AV2

AV2_CVBS_DET

R1720
12K

R1721
12K

R1719
12K
AV2

AV2_L_IN

SC1/AV2_CVBS_IN

COMP2_R_IN

COMP2_L_IN

COMP2_Pr+

ZD1707-*1

AV2_CVBS_ZENER_KEC

ZD1701-*1

COMP_Pr_ZENER_KEC

ZD1706-*1

AV2_CVBS_ZENER_KEC

ZD1700-*1

COMP_Pr_ZENER_KEC

[BL]O-SPRING

5B

[GN/YL]CONTACT

4A

[GN/YL]O-SPRING

5A

[GN/YL]E-LUG

6A

* One Ton Color Jack - Yellow/Green

JK1702-*1

PPJ245-01

COMP_AV1_G

[RD2]E-LUG

7E

[RD2]C-SPRING

6E

[RD2]CONTACT

4E

[WH]C-SPRING

5D

[RD1]CONTACT

4C

[RD1]C-SPRING

6C

[RD1]E-LUG-S

8C

[BL]C-SPRING

5B

[GN]CONTACT

4A

[GN]C-SPRING

6A

7A

[GN]E-LUG

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JK1701-*1

PPJ248-01
COMP_AV1/2_G

7C

6C

4C

5B

4A

6A

7A

7H

6H

4H

5G

4F

6F

8F

5E

4D

6D

7D

[RD3]E-LUG

[RD3]C-SPRING

[RD3]CONTACT

[WH2]C-SPRING

[YL]CONTACT

[YL]C-SPRING

[YL]E-LUG

[RD2]E-LUG

[RD2]C-SPRING

[RD2]CONTACT

[WH1]C-SPRING

[RD1]CONTACT

[RD1]C-SPRING

[RD1]E-LUG-S

[BL]C-SPRING

[GN]CONTACT

[GN]C-SPRING

[GN]E-LUG

[BL]O-SPRING

5E

[YL/GN]CONTACT

4D

[YL/GN]O-SPRING

5D

[YL/GN]E-LUG

6D

ZD1703

COMP_Pb_ZENER_ROHM

ZD1705

COMP_Y_ZENER_ROHM

ZD1702

COMP_Pb_ZENER_ROHM

VA1703

5.6V
OPT

ZD1704
COMP_Y_ZENER_ROHM

R1706

75

+3.3V_Normal

R1707
75

1608

1%

Size Check !!!

R1710
10K

R1713

1K

REAR_JACK_NON_EU

CVBS_OUT_TEST

R1724
0

R1723

75

CVBS_OUT_TEST

COMP2_Pb+

AV_CVBS_DET

COMP2_Y+/AV_CVBS_IN

DTV/MNT_VOUT

ZD1703-*1

COMP_Pb_ZENER_KEC

ZD1705-*1

COMP_Y_ZENER_KEC

2013.08.15L14_S7LR(M1A)
17

ZD1702-*1

COMP_Pb_ZENER_KEC

ZD1704-*1
COMP_Y_ZENER_KEC

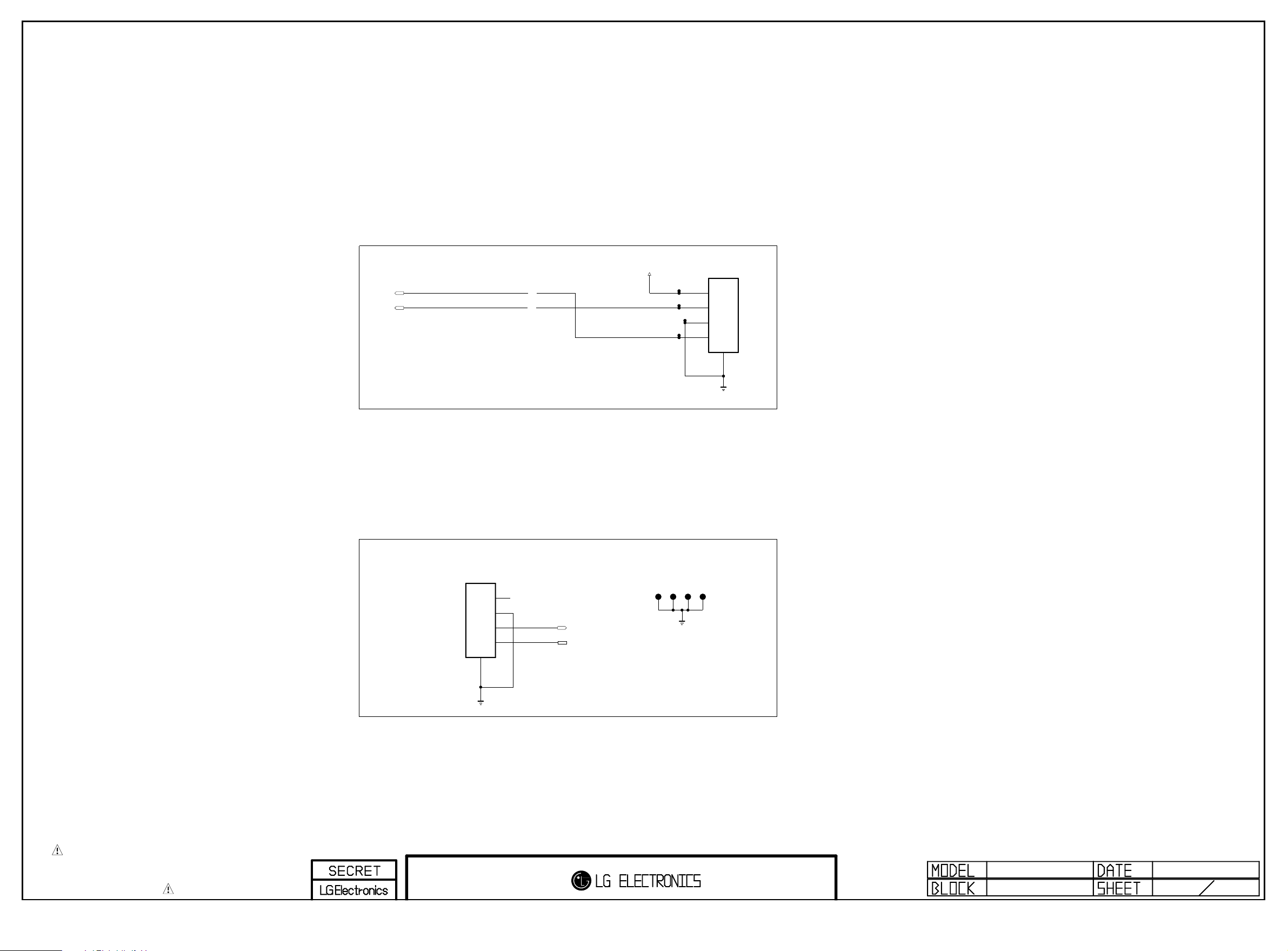

RS-232C 4PIN & MSTAR DEBUG 4PIN

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

RS-232C 4PIN

PM_TXD

PM_RXD

MSTAR DEBUG 4PIN

MSTAR_DEBUG_4P

12505WS-04A00

P4001

JP_GND2

VCC

PM_RXD

GND

RM_TXD

JP_GND3

RS232C_DEBUG_4P

P4000

12507WS-04L

1

2

3

4

5

GND

JP_GND4

+3.5V_ST

R4001
100

R4000
100

1

2

3

4

5

RGB_DDC_SCL

RGB_DDC_SDA

JP_GND1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_S7LR(M1A)

RS232C_MSTAR_DEBUG_4P

2013/04/30

40

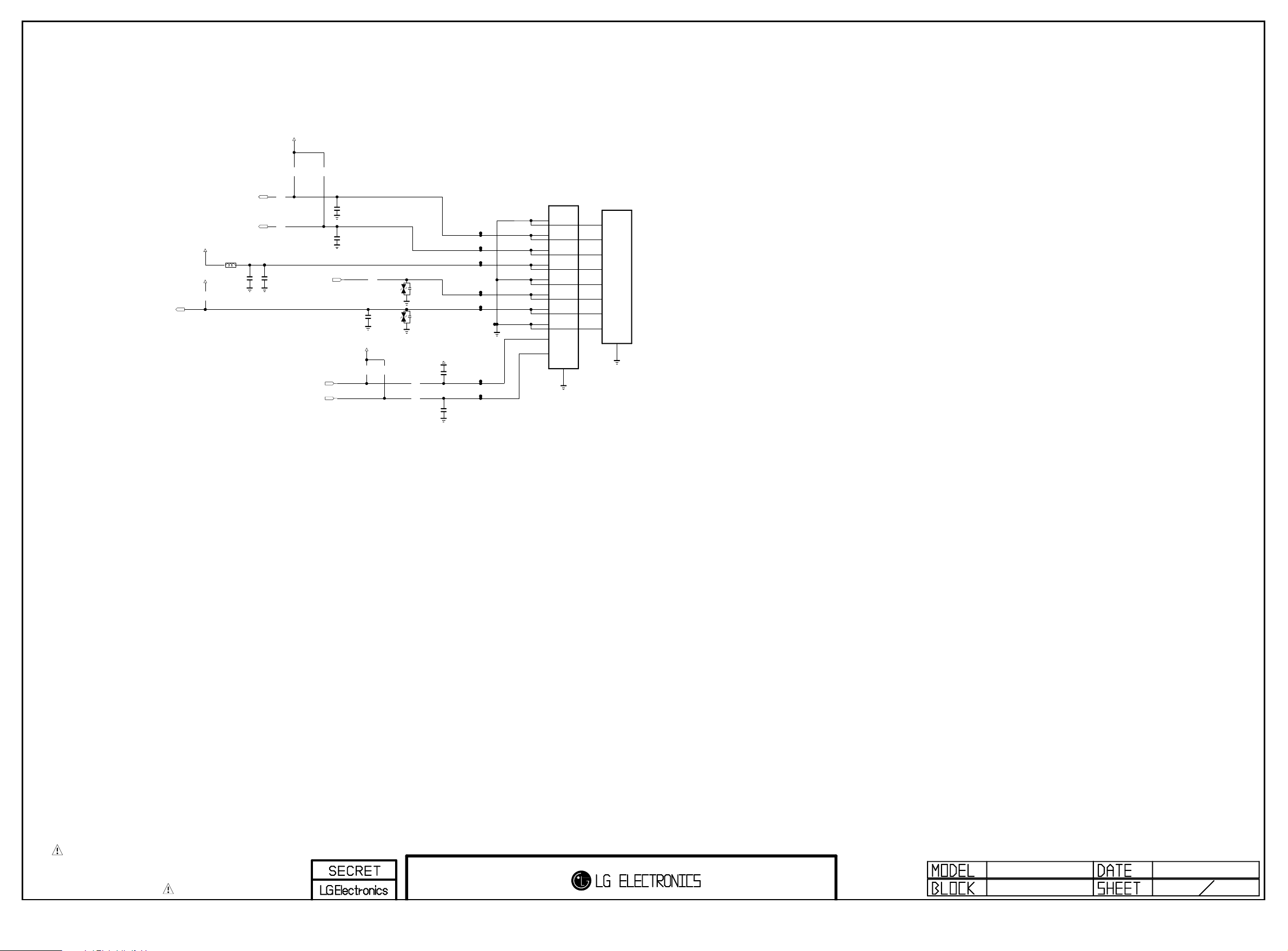

IR/LED + Digital Eye + Control

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

R4604

R4603

10K

R4601
100

KEY1

R4602
100

KEY2

+3.5V_ST

L4600

BLM18PG121SN1D

+3.5V_ST

R4600

3.3K

IR

C4600

0.1uF

C4601
1000pF
50V

16V

1%

10K
1%

LED_R/BUZZ

SENSOR_SCL

SENSOR_SDA

OPT
C4602

0.1uF
16V

OPT
C4603

0.1uF
16V

C4604
100pF

+3.3V_Normal

Digital Eye

R4605

50V

1K

R4606

1.8K

LED_R_Zener

IR_Zener

VA4600

VA4601

Digital Eye

R4607
1K

R4608 100
Digital Eye

R4609 100
Digital Eye

Digital Eye

C4605
18pF
50V

Digital Eye

C4606
18pF
50V

P4600

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

OPT

P4601

12507WR-08L

1

2

3

4

5

6

7

8

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_M1A

IR_EYE_SENSOR

2013/09/03

46

/F_RB

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

/PF_OE

/PF_CE0

/PF_CE1

PF_ALE
/PF_WE
/PF_WP

DIMMING

NAND FLASH MEMORY

AR103

22

AR104

22

NAND_FLASH_2G_HYNIX_OLD

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

NAND_FLASH_2G_HYNIX_NEW

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

PWM_DIM

EEPROM

NVRAM_ST

IC104

M24256-BRMN6TP

E0

1

E1

2

A0’h

E2

3

VSS

4

EAN61548301

EAN60708702

IC102-*1

H27U2G8F2CTR

EAN60708703

IC102-*2

H27U2G8F2DTR-BD

+3.3V_Normal

R101

3.3K

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

0.1uF

VCC

8

WC

7

SCL

6

SDA

5

R103

R102

R143

C105

OPT
R104
1K

R105
1K

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

100

10K

10K

+3.3V_Normal

C106

C104

8pF

8pF

OPT

OPT

R106

1K

OPT

R107

C101

1K

0.1uF

NAND_FLASH_1G_TOSHIBA

TC58NVG0S3HTA00

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

R108 22

R109 22

+3.3V_Normal

R110

3.9K

EAN61508002

IC102-*3

PWM2

PWM0

PWM3

I2C_SCL

I2C_SDA

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

IC102

H27U1G8F2CTR-BC

1

NAND_FLASH_1G_HYNIX

EAN35669103

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

I2C

NVRAM_RENESAS

IC104-*1

R1EX24256BSAS0A

A0

1

A1

2

A2

3

VSS

4

EAN62389501

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

R1111KR112

VCC

8

WP

7

SCL

6

SDA

5

+3.3V_Normal

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

C103

0.1uF

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NAND_FLASH_2G_TOSHIBA

EAN60991002

IC102-*4

TC58NVG1S3HTA00

+3.3V_Normal

R113

1K

R114

2.2K

2.2K

NVRAM_ATMEL

IC104-*2

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

EAN61133501

C102
10uF

22

AR101

10V

AR102

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

8

7

6

5

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

VCC

WP

SCL

SDA

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

AMP_SDA
AMP_SCL

I2C_SDA

I2C_SCL

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

NVRAM_ROHM

IC104-*3

BR24G256FJ-3

A0

1

A1

2

A2

3

GND

4

EAN62389502

PCM_A[0-7]

NAND_FLASH_1G_SS

K9F1G08U0D-SCB0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

EAN61857001

IC102-*5

PM MODEL OPTION

VCC

8

WP

7

SCL

6

SDA

5

<CHIP Config>
(SPI_SDI, PM_LED, PWM_PM)

LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI
LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI

+3.5V_ST

OPT

C112
100pF
50V

R123

56

R115 4.7K

AUD_MASTER_CLK

OPT

OPT

R117 4.7K

R121 2.7KR122 2.7K

LED_R/BUZZ

PM_LED

SPI_SDI

OPT

R118 4.7K

R116 4.7K

NAND_FLASH_4G_HYNIX

EAN61950603

IC102-*6

H27U4G8F2ETR-BC

NC_1

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

+3.5V_ST

R119
10K
LCD

R120
10K
PDP

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

R/B

RE

CE

CLE

ALE

WE

WP

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PM_MODEL_OPT_0

PM_MODEL_OPT_0

- HIGH : LCD

- LOW :: PDP

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

AUD_MASTER_CLK_0

AA19
AA20

AA18

DEMOD_SCL
DEMOD_SDA

LGE2131(M1A_128M)

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113
PCMADR[9]/GPIO115
PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124
PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

DEMOD_SCL
DEMOD_SDA

AMP_SCL
AMP_SDA

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

/CI_DET

IC101-*1

M1A_128M

TS0CLK/GPIO92
TS0DATA[0]/GPIO82
TS0DATA[1]/GPIO83
TS0DATA[2]/GPIO84
TS0DATA[3]/GPIO85
TS0DATA[4]/GPIO86
TS0DATA[5]/GPIO87
TS0DATA[6]/GPIO88
TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103
TS1DATA[0]/GPIO93
TS1DATA[1]/GPIO94
TS1DATA[2]/GPIO95
TS1DATA[3]/GPIO96
TS1DATA[4]/GPIO97
TS1DATA[5]/GPIO98
TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2
PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

DDCA_CK/UART0_RX
DDCA_DA/UART0_TX

NF_ALE/GPIO146

NF_CEZ/GPIO142

NF_CLE/GPIO141

NF_RBZ/GPIO147

NF_REZ/GPIO144

NF_WEZ/GPIO145

NF_WPZ/GPIO199

IRIN/GPIO5

PWM0/GPIO71
PWM1/GPIO72
PWM2/GPIO73
PWM3/GPIO74
PWM4/GPIO75

HWRESET

IF_AGC

SENSOR_SCL
SENSOR_SDA

AV2_CVBS_DET

V10
T14
T13
U13
V15
U12
V13
U14
T11
T12
V12
Y14
Y16
AA15
Y13
AA16
W12
AA13
W14
W13
Y15
W15

B3
A3
A4
C3
A2

B1

RP

C2

TN

C1

TP

B2

RN

D2
D1

D8
E5
G4
G5

J18
K18
K16
L18
L17

T8
T9
U9
U11
V9
U10
T10

W2
W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

R126 22 DVB_T2

R127 22 DVB_T2

DEMOD_RESET

FRC_RESET

/CI_CD1
/CI_CD2

PCM_A[0-14]

/PCM_CD
/PCM_CE

PCM_D[0-7]

RXA4+
RXA4­RXA3+

RXA3­RXACK+
RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+
RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

EEPROM
(IC104)

TUNER_RESET

5V_DET_HDMI_4

I2C_SCL

I2C_SDA
URSA/VCOM_SDA
URSA/VCOM_SCL

SENSOR_SCL
SENSOR_SDA

TU_SCL
TU_SDA

AV_CVBS_DET

AV2_CVBS_DET

COMP2_DET

DEMOD_RESET

MODEL_OPT_0
MODEL_OPT_1

MODEL_OPT_2
/MHL_OCP_DET

FRC_RESET

HP_DET

SC1/COMP1_DET

MHL_OCP_EN

AMP_RESET

RF_SWITCH_CTL

/CI_CD1
/CI_CD2

USB1_CTL

USB1_OCD

/PCM_IORD
/PCM_IOWR
/PCM_IRQA

/PCM_OE

/PCM_REG

PCM_RST

/PCM_WAIT

/PCM_WE

R129 22

R128 22

R12533

R12433

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]

PCM_A[13]
PCM_A[14]

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]

PCM_D[6]
PCM_D[7]

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

IC101

LGE2132(M1A_256M)

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

IC101

LGE2132(M1A_256M)

M1A_256M

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

M1A_256M

TS0CLK/GPIO92
TS0DATA[0]/GPIO82
TS0DATA[1]/GPIO83
TS0DATA[2]/GPIO84
TS0DATA[3]/GPIO85
TS0DATA[4]/GPIO86
TS0DATA[5]/GPIO87
TS0DATA[6]/GPIO88
TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103
TS1DATA[0]/GPIO93
TS1DATA[1]/GPIO94
TS1DATA[2]/GPIO95
TS1DATA[3]/GPIO96
TS1DATA[4]/GPIO97
TS1DATA[5]/GPIO98
TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2
PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

IRIN/GPIO5
DDCA_CK/UART0_RX
DDCA_DA/UART0_TX

PWM0/GPIO71
PWM1/GPIO72
PWM2/GPIO73
PWM3/GPIO74
PWM4/GPIO75

NF_ALE/GPIO146
NF_CEZ/GPIO142
NF_CLE/GPIO141
NF_RBZ/GPIO147
NF_REZ/GPIO144
NF_WEZ/GPIO145
NF_WPZ/GPIO199

SAR0/GPIO35
SAR1/GPIO36
SAR2/GPIO37
SAR3/GPIO38
SAR4/GPIO39

GPIO_PM[13]/GPIO20
GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11
GPIO_PM[7]/GPIO14
GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

V10
T14
T13
U13
V15
U12
V13
U14
T11
T12
V12
Y14
Y16
AA15
Y13
AA16
W12
AA13
W14
W13
Y15
W15

B3
A3

R134 33
A4
C3
A2

for SERIAL FLASH

B1

RP

C2

TN

C1

TP

B2

RN

D2
D1

R132 100

SPDIF_OPTIC

D8

HWRESET

E5
G4
G5

J18
K18
K16
L18
L17

T8
T9
U9
U11
V9
U10
T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

D5
F8
E7
E6
D6

W10
Y10
P3
Y3
Y5
W11
D3
AA3
W5
D4
L15
Y11

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

R133 33

R135

R136

KEY1
KEY2

PM_MODEL_OPT_0
PANEL_CTL
SCART1_MUTE

MHL_CD_SENSE
/VBUS_EN
PM_LED
POWER_DET
AMP_MUTE
INV_CTL
POWER_ON/OFF_1

RL_ON
/FLASH_WP
LED_R/BUZZ
PM_TXD
PM_RXD

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

33

1M

CI_TS_CLK
CI_TS_DATA[0-7]

CI_TS_SYNC
CI_TS_VAL

from CI SLOT

5V_DET_HDMI_2
SPDIF_OUT

SOC_RESET
IR

PWM0
PWM1
PWM2
PWM3
PCM_5V_CTL

PF_ALE
/PF_CE0
/PF_CE1

/F_RB

/PF_OE

HALF_NIM/EU_NON_T2

R137

/PF_WE

10K

/PF_WP

Close to MSTAR

HALF_NIM/EU_NON_T2

0

R138

HALF_NIM/EU_NON_T2

0

R139

XTAL_LOAD_15pF

C113

X101
24MHz

C114 15pF

XTAL_LOAD_15pF

FE_TS_CLK
FE_TS_DATA[0-7]

FE_TS_SYNC
FE_TS_VAL_ERR

Internal demod out

FE_TS_DATA[0]

/SPI_CS
SPI_SCK
SIDE_HP_MUTE

SPI_SDO

EPHY_RP
EPHY_TN
EPHY_TP
EPHY_RN

RGB_DDC_SCL
RGB_DDC_SDA

+3.3V_Normal

BLM18PG121SN1D

HALF_NIM/EU_NON_T2

R140

0

HALF_NIM/EU_NON_T2

C115 0.1uF
C116 0.1uF

ANALOG SIF
Close to MSTAR

R141 47
R142 47

HALF_NIM/EU_NON_T2

0.1uF
C117

HALF_NIM/EU_NON_T2

0.1uF
C118

15pF

XTAL_LOAD_18pF

C113-*118pF

XTAL_LOAD_18pF

C114-*1

IC101-*1

LGE2131(M1A_128M)

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

FE_TS_DATA[0]

SPDIF_OUT

5V_DET_HDMI_2

L101

HALF_NIM/EU_NON_T2

C119

0.1uF

C120

0.047uF
25V
HALF_NIM/EU_NON_T2

C121

OPT

100pF

XTAL_LOAD_22pF

C113-*2 22pF

XTAL_LOAD_22pF

18pF

C114-*2 22pF

M1A_128M

SAR0/GPIO35
SAR1/GPIO36
SAR2/GPIO37
SAR3/GPIO38
SAR4/GPIO39

GPIO_PM[13]/GPIO20
GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11
GPIO_PM[7]/GPIO14
GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

SPI_SDI

EPHY_RP
EPHY_TN
EPHY_TP
EPHY_RN

IF_AGC_MAIN

C123
1000pF
OPT

TU_SIF

IF_FILTER_AJ/CSA
C122
33pF

XTAL_LOAD_27pF

XTAL_LOAD_30pF

XTAL_LOAD_30pF

D5
F8
E7
E6
D6

W10
Y10
P3
Y3
Y5
W11
D3
AA3
W5
D4
L15
Y11

IF_N_MSTAR

DTV_IF

IF_P_MSTAR

IF_FILTER_AJ/CSA

C124
33pF

XTAL_LOAD_27pF

27pF

C113-*3

27pF

C114-*3

C113-*4

30pF

C114-*4

30pF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_L14

2013/09/16

MAIN1_NON_EU 51

MODEL OPTION

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

IF_AGC_SEL

OPT

R205 100

OPT

100

R206

OPT

100

R207

OPT

R201 100

OPT

R202 100

OPT

R203 100

AUDIO OUT

SCART1_Lout
SCART1_Rout

H/P OUT

HP_LOUT
HP_ROUT

+3.3V_Normal

1K

MO_DUALSTREAM

R210

1K

R209

MO_DUALSTREAM_NON

SC1/COMP1_L_IN

SC1/COMP1_R_IN

DDR_EXT:256

MO_S/W_EU/AJ

R212 1K

R216 1K

R214 1K

MO_S/W_TW

R211 1K

R213 1K

R215 1K

DDR_EXT:128 or NON

HDMI_ARC
D0-_HDMI4
D0+_HDMI4
D1-_HDMI4
D1+_HDMI4
D2-_HDMI4
D2+_HDMI4
CK-_HDMI4
CK+_HDMI4

CEC_REMOTE_S7

DDC_SCL_2

DDC_SDA_2

DDC_SCL_4

DDC_SDA_4
HPD2
HPD4
D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

CK-_HDMI2
CK+_HDMI2

AV2_L_IN

COMP2_L_IN

AV2_R_IN

COMP2_R_IN

BLM18PG121SN1D

L201

MO_M120

DDR_EXT:128

R219 1K

R218 1K

R221 1K

MO_DVB_T2/C/S2

MO_DVB_T/C

R222 1K

MO_M120_NON

R217 1K

R220 1K

DDR_EXT:256 or NON

IC101-*1

LGE2131(M1A_128M)

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

HDMI

HDMI1_ARC
1uF

1uF

4.7uF

C203

C204

MO_HD

MO_S/W_AJ

R224 1K

MO_FHD

MO_S/W_NON_AJ

R223 1K

M1A_128M

I2S_OUT_BCK/GPIO165
I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166
I2S_OUT_WS/GPIO164

C205

HDMI1_ARC

R22510
R22610

C2082.2uF

2.2uF
C2092.2uF

2.2uF
C210

C2072.2uF

C2112.2uF

AUVRM

MODEL OPTION ("MO")

PIN NAME
MODEL_OPT_0
MODEL_OPT_1

MODEL_OPT_2
MODEL_OPT_3

MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2

AUD_LRCH
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6

AUD_LRCK

MODEL_OPT_4
MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

* Dual Stream is only Korea 3D spec

Memory OPTION

Memory
INT+EXT

128M Only

256M Only

128M+256M

256M+256M 1 0 1

T6

CVBSOUT1

V5

CVBS0

U5

CVBS1

T5

CVBS2

V4

VCOM

E4
F4
F7
F5

C4

USB0_DM

Y12

USB1_DM

B4

USB0_DP

AA12

USB1_DP

J2

BIN0M

J3

BIN0P

K3

GIN0M

J1

GIN0P

K2

RIN0M

K1

RIN0P

M6

HSYNC0

L6

VSYNC0

L2

BIN1M

L3

BIN1P

M1

GIN1M

M2

GIN1P

N1

RIN1M

N3

RIN1P

M3

SOGIN1

M1A_256M

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

IC101

I2S_OUT_BCK/GPIO165
I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166
I2S_OUT_WS/GPIO164

LGE2132(M1A_256M)

0

R227

C206

AV2

AV2

PIN NO.

J5

H19
G20
G19

U6
K5
K4

L5

Auto
Det

0

1

0

0

CVBSOUT1

CVBS0
CVBS1
CVBS2

VCOM

USB0_DM
USB1_DM
USB0_DP
USB1_DP

BIN0M
BIN0P
GIN0M
GIN0P
RIN0M

RIN0P
HSYNC0
VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P
SOGIN1

LOW

MO_FHD

MO_S/W_NON_AJ
MO_DVB_T/C

MO_M120_NON

DDR_EXT:256 or NON

MO_S/W_TW
DDR_EXT:128 or NON

MO_DUALSTREAM_NON

MODEL_OPT_4

0

0

1

0

T6

C2250.047uF

V5

C2260.047uF

U5

C2270.047uF

T5
V4

E4
F4
F7
F5

C4
Y12
B4
AA12

J2

0.047uF

J3

C212

0.047uF

K3

C213

0.047uF

J1

C214

68

0.047uF

K2
K1
M6
L6

L2
L3
M1
M2
N1
N3
M3

C215
C216
C217

C218
C219
C220
C221
C222
C223
C224

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF
1000pF

33

68
33

MODEL_OPT_6

0

0

0128M+128M

1

R24033
R24133
R24233

R22868
R22933
R230
R231
R23268
R23333

R23468
R23533
R236
R237
R23868
R23933

HIGH

MO_HD
MO_S/W_AJ
MO_DVB_T2/C/S2
MO_M120

DDR_EXT : 128
MO_S/W_EU/AJ
DDR_EXT : 256

MO_DUALSTREAM

R243

C2280.047uF

68

SC1_B+/COMP1_Pb+

SC1_G+/COMP1_Y+

SC1_R+/COMP1_Pr+
SC1_ID
SC1_FB

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

COMP2_Pr+

Close to MSTAR

C229

1000pF

50V

OPT

WIFI_DM
SIDE_USB1_DM
WIFI_DP
SIDE_USB1_DP

DTV/MNT_VOUT
TU_CVBS
SC1/AV2_CVBS_IN

COMP2_Y+/AV_CVBS_IN

10K

R244

10K

R245

+3.3V_Normal

R246

10K

OPT

R247

10K

OPT

WIFI_DM
WIFI_DP

+1.10V_VDDC

VDDC 1.05V

+1.10V_VDDC

VDDC : 2026mA

C237

C235

10uF 10V

10uF 10V

Normal Power 3.3V

+3.3V_Normal

0.1uF

C231

C232 0.1uF

VDD33

L204

BLM18PG121SN1D

10uF

C233

10V

10V

10uF

C236

C238 0.1uF

Normal 2.5V

฀

M1A 2.5V embedded

DDR3 1.5V

C234

10uF 10V

AVDD_DDR0:55mA

AVDD_DDR1:55mA

SOC_RESET

POWER_DET_RESET

PD_+3.5V

PD_+3.5V

C239

4.7uF

+1.5V_DDR

C230

0.1uF

I2S_I/F

OPT

OPT

AUD_SCK
AUD_MASTER_CLK_0
AUD_LRCH
AUD_LRCK

C240 1uF

R248
470

C243

10V

0.1uF

C241 0.1uF

C242

C244 1uF

C245 0.1uF



0.1uF

+3.5V_ST

PD_+12V

C248

4.7uF

C246

10V

C247 0.1uF



1uF

SWITCH_NAMAE

SW200

JTP-1127WEM

1 2

R249

470K

43

SWITCH

R250
100

C249

0.1uF

LGE2131(M1A_128M)

U3

A6
A13
A15
A18
B12
B14
B16
B17
B19
B20

C9
C10
C21

D9
E20

F9
F11
F13
F15
F17
F19
F21

G8

G9
G10
G11
G12
G13
G14
G15
G16
G17
G18

H7

H8

H9
H10
H11
H12
H13
H14
H15
H16
H17
H18

J7

J8

J9
J10
J11
J12
J13
J14

K8
K10
K11
L10

M5

M7

M8

M9
M10

N4

N5

N6

N7

N8

N9
N10

P4

P5

P6

P7

P9
P10
P15
P16
P17
P18
R10
R11
R12
R13
R14

K7

SWITCH_POSTEC

SW200-*1

TMSV153BRA

43

1 2

SOC_RESET

AVDD_AU33

AVDD_NODIE

AVDD_NODIE

AVDD_DMPLL

+1.10V_VDDC

+1.10V_VDDC

+1.10V_VDDC

AVDD5V_MHL

M1A_128M

IC101-*1

AUVRM
GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_EFUSE

+1.5V_DDR

VDD33

VDD33

C2501uF

VDD33

AVDD_AU33
AVDD_DDR0_CLK
AVDD_DDR1_CLK
AVDD_DDR0_CMD
AVDD_DDR1_CMD
AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3

AVDD_DRAM_1

AVDD_DRAM_2
AVDD_DVI_USB_MPLL_1
AVDD_DVI_USB_MPLL_2

AVDD_MOD_1
AVDD_MOD_2
AVDD_NODIE

AVDD_PLL

AVDD3P3_DMPLL

AVDDL_MOD
DVDD_DDR_1
DVDD_DDR_2
DVDD_NODIE

DVDD_RX_1_1
DVDD_RX_1_2
DVDD_RX_2_1
DVDD_RX_2_2

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8

VDDP

AVDD5V_MHL

STby 3.5V

+3.5V_ST

R4
L11
L13
M11
K13
C5
K12
L12
C6
K14
L14
B5
B6
R8
R9
L7
L8
P8
K9
R5
P11
C7
M13
R6
A7
M12
B7
M14
N11
N12
N13
N14
N15
P12
P13
P14
L9

AA10

L206

BLM18PG121SN1D

L207

BLM18PG121SN1D

L205

BLM18PG121SN1D

L11
L13
M11
K13

K12
L12

K14
L14

P11

M13

M12

M14
N11
N12
N13
N14
N15
P12
P13
P14

AA10

AVDD_DMPLL

C251
10uF

R4

C5

C6

B5
B6
R8
R9
L7
L8
P8
K9
R5

C7

R6
A7

B7

L9

C252

0.1uF

M1A_256M

IC101

LGE2132(M1A_256M)

AVDD_AU33
AVDD_DDR0_CLK
AVDD_DDR1_CLK
AVDD_DDR0_CMD
AVDD_DDR1_CMD
AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3
AVDD_DRAM_1
AVDD_DRAM_2
AVDD_DVI_USB_MPLL_1
AVDD_DVI_USB_MPLL_2
AVDD_MOD_1
AVDD_MOD_2
AVDD_NODIE
AVDD_PLL
AVDD3P3_DMPLL
AVDDL_MOD
DVDD_DDR_1
DVDD_DDR_2
DVDD_NODIE
DVDD_RX_1_1
DVDD_RX_1_2
DVDD_RX_2_1
DVDD_RX_2_2
VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDP

AVDD5V_MHL

AVDD_NODIE

C257

C255

C253
10uF

AVDD_AU33

C256

10uF

0.1uF

C254

0.1uF

0.1uF

C258

0.1uF

AUVRM
GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8

GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84

GND_EFUSE

U3
A6
A13
A15
A18
B12
B14
B16
B17
B19
B20
C9
C10
C21
D9
E20
F9
F11
F13
F15
F17
F19
F21
G8
G9
G10
G11
G12
G13
G14
G15
G16
G17
G18
H7
H8
H9
H10
H11
H12
H13
H14
H15
H16
H17
H18
J7
J8
J9
J10
J11
J12
J13
J14
K8
K10
K11
L10
M5
M7
M8
M9
M10
N4
N5
N6
N7
N8
N9
N10
P4
P5
P6
P7
P9
P10
P15
P16
P17
P18
R10
R11
R12
R13
R14
K7

+1.10V_VDDC

10uF

10V

C259

AUVRM

+1.10V_VDDC

C260

0.1uF

C261

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_L14

MAIN2_NON_EU

2013.08.15

52

AUDIO AMP(TI)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

AMP_MUTE

OPT

R5600

10K

POWER_DET

+24V

+3.5V_ST

B

L5600

UBW2012-121F

R5601

10K

C

OPT

Q5600

MMBT3904(NXP)

E

OPT

R3405

+24V_AMP

R5603

0

100

C5601

0.1uF
50V

C5602

1000pF

50V

AUD_MASTER_CLK

AUD_LRCK

AUD_SCK

AUD_LRCH
AMP_SDA

AMP_SCL

AMP_RESET

+3.3V_Normal

C5604

0.1uF
16V

This parts are Located
on AVSS area.

4700pF

PDN

SDA
SCL

13
14
15
16
17
18
19
20
21
22
23
24

C5610

0.1uF
16V

C5611

0.047uF

R5608 2K

18K

R5607

C5607

0.1uF

C5606

0.1uF
16V

C5609

C5608

1%

4700pF

R5609

470

AVDD

A_SEL_FAULT

MCLK

OSC_RES

DVSSO

VR_DIG

LRCLK

SCLK
SDIN

+3.3V_Normal

5V

ZD5600

OPT

R5610

470

C5612

PLL_FLTP

VR_ANA

11

12

25

RESET26STEST

0.047uF

PBTL

AVSS

PLL_FLTM

8

9

10

27

29

GND

DVDD28DVSS

C5614

0.1uF

50V

C5613 2200pF

SSTIMER

NC_2

5

6

7

TAS5733

30

32

AGND31VREG

25V

C5617

50V

C5616

0.033uF

PVDD_AB_2

BST_A

NC_1

3

4

THERMA L

49

IC5600

33

34

BST_D

GVDD_OUT

PVDD_CD_1

1uF

C5615

C5618

0.1uF
50V

OUT_A

PVDD_AB_1

1

2

48
47
46
45
44
43
42
41
40
39
38
37

35

36

OUT_D

PVDD_CD_2

0.033uF
50V

C5620
10uF
35V

[EP]
PGND_AB_2
PGND_AB_1
OUT_B
NC_6
NC_5
BST_B
BST_C
NC_4
NC_3
OUT_C
PGND_CD_2
PGND_CD_1

+24V_AMP

C5619

0.1uF
50V

+24V_AMP

C5621
10uF
35V

OPT

C5640

4.7uF
50V

3216

OPT

C5641

4.7uF
50V

3216

50V

0.033uF

C5624

50V

0.033uF
C5625

R5613181/16W

R5614181/16W

AMP_COIL_GET

L5603-*1

10.0uH

AMP_COIL_TAIYO

L5603-*2

10.0uH

R5611
18

C5626
330pF
50V

C5627
330pF
50V

R5612
18

C5628
330pF
50V

C5629
330pF
50V

AMP_COIL_GET

L5604-*1

10.0uH

AMP_COIL_TAIYO

L5604-*2

10.0uH

AMP_COIL_ABCO

L5605

10uH

L5606

10uH

AMP_COIL_ABCO

AMP_COIL_ABCO

L5604

10uH

L5603

10uH

AMP_COIL_ABCO

AMP_COIL_GET

L5605-*1

10.0uH

AMP_COIL_TAIYO

L5605-*2

10.0uH

C5630

0.47uF
50V

C5631

0.47uF
50V

AMP_COIL_GET

L5606-*1

10.0uH

AMP_COIL_TAIYO

L5606-*2

10.0uH

C5632

0.1uF
50V

C5633

0.1uF
50V

C5634

0.1uF
50V

C5635

0.1uF
50V

Close to Speaker

OPT
C5636
2200pF

50V

OPT
C5637
2200pF

50V

OPT

C5638
2200pF
50V

OPT
C5639
2200pF

50V

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14

AUDIO[TI]

SPK_L+

SPK_L-

SPK_R+

SPK_R-

WAFER-ANGLE

4

3

2

1

P5600

2013.10.06

56

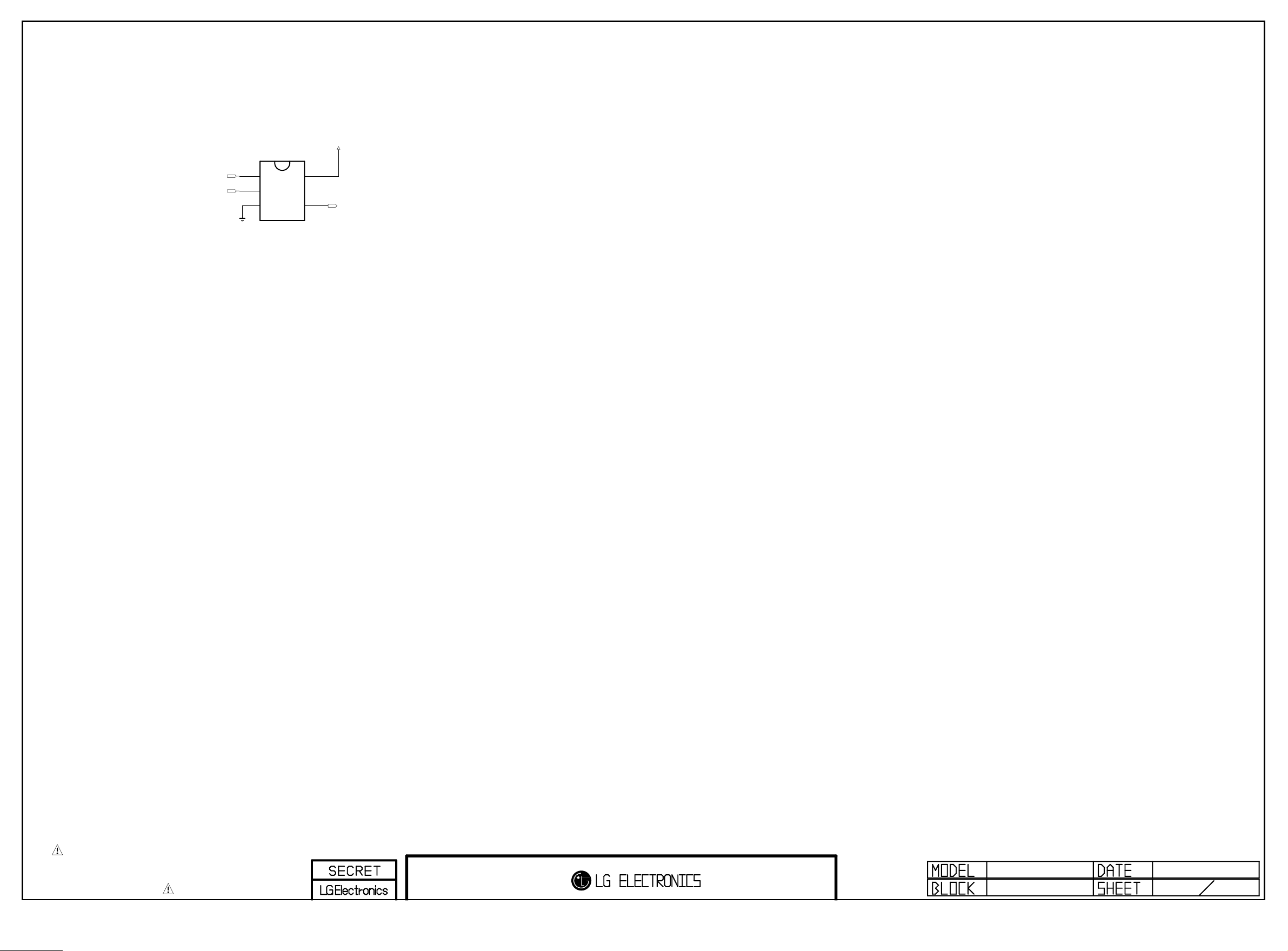

L14 MHL SW AND GATE

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

MHL_CD_SENSE

MHL_OCP_EN

MHL_SW_AND_GATE

74LVC1G08GW

B

1

A

2

GND

3

IC5801

+3.3V_Normal

VCC

5

Y

4

MHL_5V_EN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MHL_SW_AND

2013.09.01L14_M1A
58

1 / 97

Contents of LCD TV Standard Repair Process

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

A. Video error

No video/Normal audio 1

2 No video/No audio 2

3 Tuning fail, Picture broken/ Freezing 3, 4

4 Color error 5

5

Vertical/Horizontal bar, residual image, light
spot, external device color error

6

6

B. Power error

No power 7

7

Off when on, off while viewing, power auto
on/off

8

8

C. Audio error

No audio/Normal video 9

9 Wrecked audio/discontinuation/noise 10

10

D. Function error

Remote control & Local switch checking 11

11 External device recognition error 12

12 E. Noise Circuit noise, mechanical noise 13

13 F. Exterior error Exterior defect 14

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

2 / 97

Normal

audio

Y

N

Move to No
video/No audio

No video
Normal audio

Check Back Light
On with naked eye

On

Y N Check Power Board

12v,3.5v etc.

Normal

voltage

Y

N

Replace T-con Board
or module

Repair Power Board
or parts

Check Power Board 24v output

Normal
voltage

Y

Replace Inverter
or module

N

Repair Power
Board or parts

End

Always check & record S/W Version and White
Balance value before replacing the Main Board

Replace Main Board

Re-enter White Balance value

※Precaution

Established

date

Standard Repair Process

Revised date

1/14

LCD TV

Error

symptom

A. Video error

No video/ Normal audio

☞A4 ☞A1

☞A2

☞A6 & A3

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

3 / 97

Normal

voltage?

Check various voltages
of Power Board
( 3.5V,12V,20V or 24V…)

No Video/
No audio

Check and
replace
MAIN B/D

Y

Replace Power
Board and repair
parts

N

End

Standard Repair Process

A. Video error

No video/ No audio

☞A4

Established

date

Revised date

2/14

LCD TV

Error

symptom

2012 . 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

4 / 97

A. Video error

Picture broken/ Freezing

Y

N

☞ A5

N

Check RF Signal level

Normal

Signal?

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Check

S/W Version

S/W Upgrade

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

SVC

Bulletin?

Replace

Main B/D

Check

Tuner soldering

Normal
Picture?

Y

N

Y

Close

Normal
Picture?

Y

Close

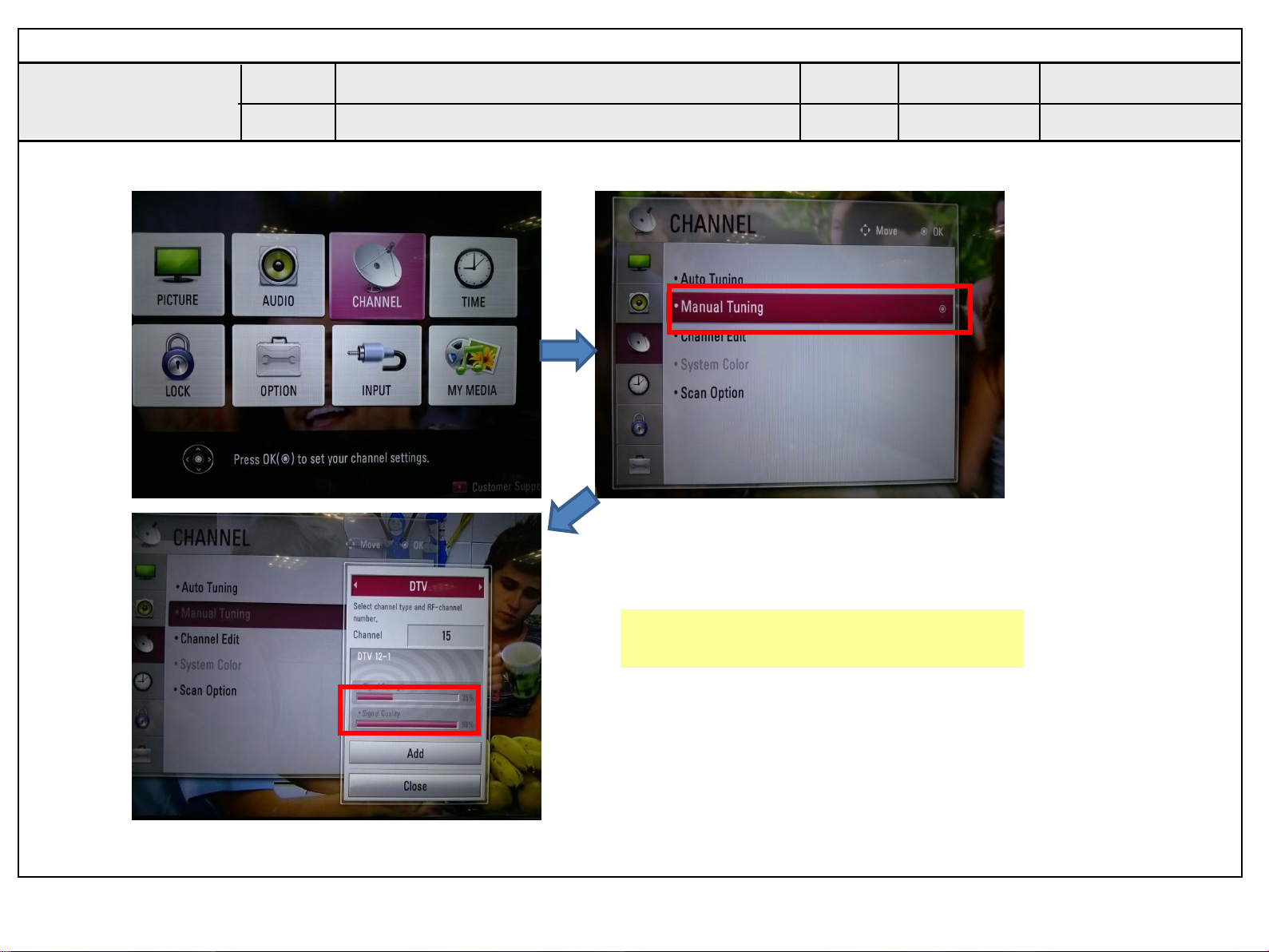

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Menu→ Set up→ Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Normal
Picture?

Y

Contact with signal distributor

or broadcaster (Cable or Air)

N

N

Normal

Picture?

Y

Close

N

☞ A6

Standard Repair Process

Established

date

Revised date

3/14

LCD TV

Error

symptom

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

5 / 97

A. Video error

Tuning fail, Picture broken/ Freezing

Y

N

☞ A5

Check RF Signal level

Normal

Signal?

Check

S/W Version

S/W Upgrade

SVC

Bulletin?

Normal

Picture?

Y

N

Y

Close

Check RF signal cable
Check whether other equipments have problem or not.
(By connecting RF Cable at other equipment)
→ Set-Top-Box, Different maker TV etc

☞ A6

Standard Repair Process

Established

date

Revised date

4/14

LCD TV

Error

symptom

2012. 01 .14

Contact with

signal distributor

or broadcaster

(Cable or Air)

Close

N

Check

Tuner soldering

Replace

Main B/D

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

6 / 97

Color

error?

Y

N

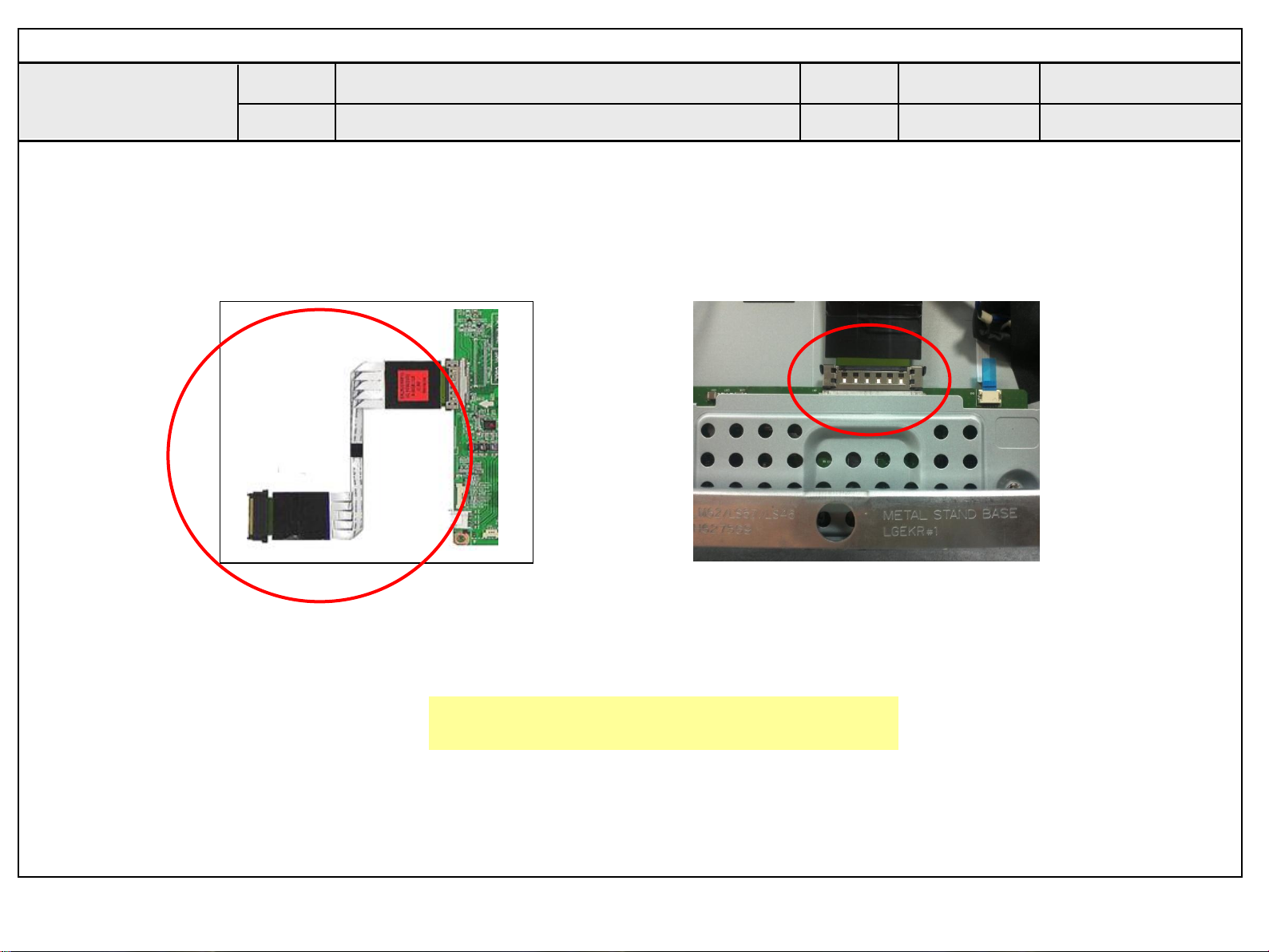

※ Check and

replace Link
Cable
(LVDS) and
contact
condition

Y

N

Replace Main B/D

Color

error?

Check error
color input
mode

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

Y

External device

/Cable

normal

External Input/

Component

error

Check
external
device and
cable

Y

External device

/Cable

normal

RGB/

HDMI/DVI

error

Check external

device and
cable

Replace Main B/D

Replace Main B/D

N

N

A. Video error

Color error

☞A7

N

Y

End

Replace module

Request repair

for external

device/cable

Color

error?

Check Test pattern

☞A10

☞ A8/ A9

Standard Repair Process

Established

date

Revised date

5/14

LCD TV

Error

symptom

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

7 / 97

Screen

normal?

N

Y

Check external

device
connection
condition

Y

N

Check and
replace Link
Cable

Normal?

Y

Screen

normal?

Replace
module

Check color condition by input

-External Input

-Component

-RGB

-HDMI/DVI

End

Vertical/Horizontal bar, residual image, light spot

Request repair

for external
device

A. Video error

Vertical / Horizontal bar, residual image,

light spot, external device color error

☞A10

External device screen error-Color error

External

Input

error

Connect other external
device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

N

Y

Replace
Main B/D

Screen

normal?

Check screen
condition by input

-External Input

-Component

-RGB

-HDMI/DVI

Request repair for
external device

Component

error

RGB

error

HDMI/

DVI

Connect other external
device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern

Generator ,Set-top Box etc.

Replace
Main B/D

Screen

normal?

N

Y

Check S/W Version

Y

N

Check

version

S/W Upgrade

Y

N

Normal
screen?

End

Y

N

Replace Main B/D

Replace
Module

Screen

normal?

End

Established

date

Revised date

6/14

LCD TV

Error

symptom

Standard Repair Process

☞A7

☞ A8/ A9

Check Test pattern

2012. 01 .14

N

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

8 / 97

B. Power error

No power

Power LED

On?

Y

N

DC Power on
by pressing Power Key
On Remote control

Y

N

Normal

operation?

Check Power
On ‘”High”

Check Power cord
was inserted properly

Check
Power LED

Replace

Power
B/D

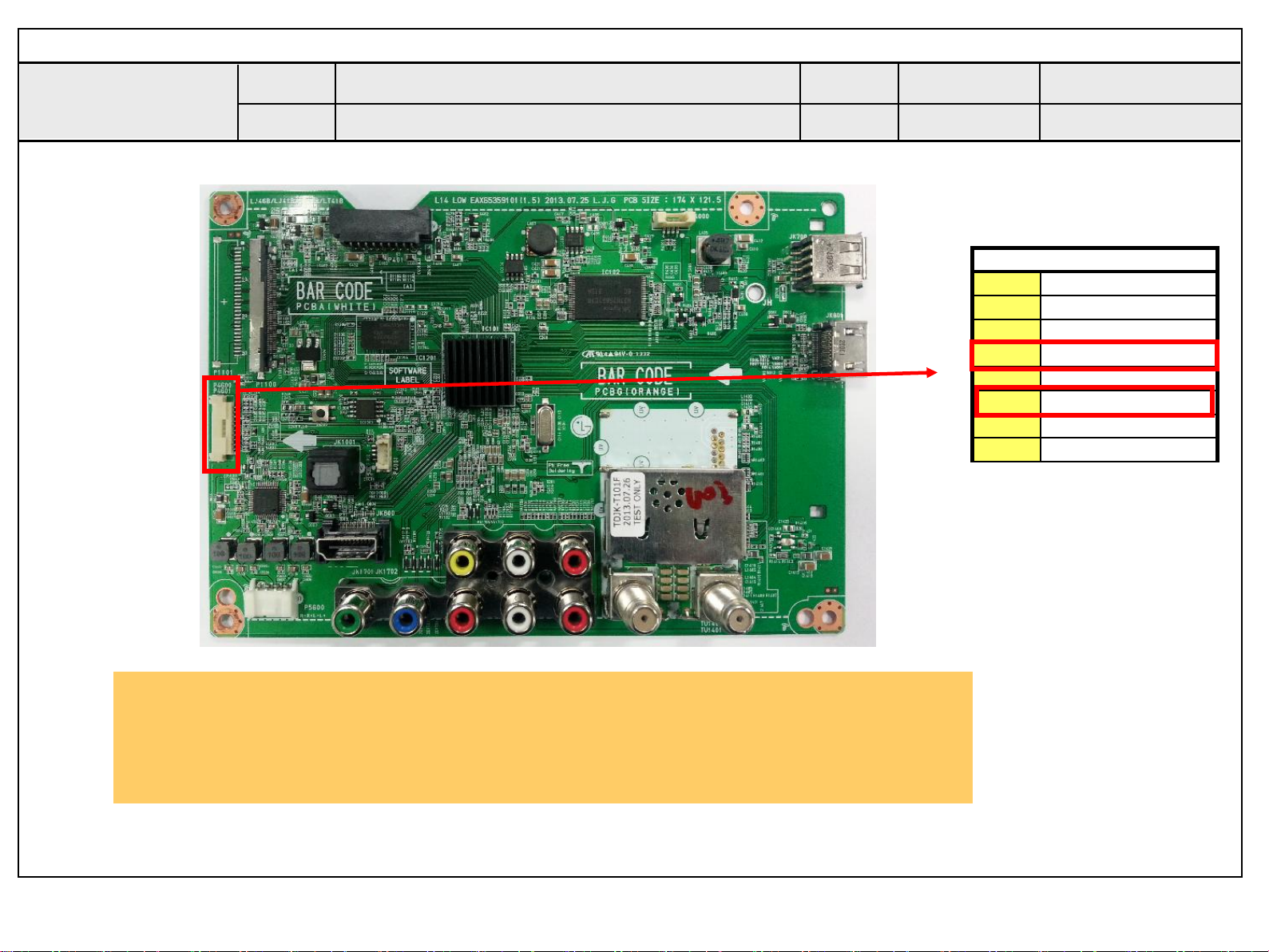

Measure voltage of each output of Power B/D

N

Y

Normal

voltage?

Replace Main B/D

Y

OK?

Replace Main B/D

N

Y

Normal?

Check ST-BY 3.5V

Replace Power B/D

N

Y

Normal

voltage?

Replace Power
B/D

Y

☞A11

☞A12

☞A13

☞A4

Standard Repair Process

Established

date

Revised date

7/14

LCD TV

Error

symptom

. Stand-By: Red

※

Close

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

9 / 97

B. Power error

Off when on, off while viewing, power auto on/off

Error?

N

Y

Check Power Off
Mode

Fix A/C cord & Outlet
and check each 3
phase out

Check A/C cord

Check for all 3- phase
power out

Check outlet

Replace Main B/D

CPU

Abnormal

(If Power Off mode
is not displayed)
Check Power B/D
voltage

Y

N

Replace Main B/D

Normal

voltage?

Replace Power B/D

Replace Power B/D

N

Y

Normal?

End

※ Caution
Check and fix exterior
of Power B/D Part

☞A14

☞A13

Established

date

Revised date

8/14

LCD TV

Error

symptom

Standard Repair Process

Status Power off List Explanation

Normal

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL

"POWEROFF_OFFTIMER" Power off by OFF TIMER

"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download

"POWEROFF_UNKNOWN" Power off by unknown status except listed case

Abnormal

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

* Please refer to the all cases which
can be displayed on power off mode.

Abnormal

1

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

10 / 97

No audio
Screen normal

Check user
menu >
Speaker off

Off

N

Y

Cancel OFF

Check audio B+ 24V
of Power Board

Normal
voltage

Y

N

Replace Power Board and repair parts

Check Speaker
disconnection

N

Y

Replace Speaker

Replace MAIN Board

End

C. Audio error

No audio/ Normal video

☞A15 ☞A16

Disconnection

Established

date

Revised date

9/14

LCD TV

Error

symptom

Standard Repair Process

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

11 / 97

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

C. Audio error

Wrecked audio/ discontinuation/noise

Wrecked audio/

Discontinuation/

Noise for

all audio

Check and replace
speaker and
connector

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Connect and check
other external device

N

Y

Normal

audio?

Check and fix external device

Replace Power B/D

N

Y

Normal

voltage?

Check input
signal

-RF

-External Input

signal

Signal

normal?

(When RF signal is not
received)

Request repair to external

cable/ANT provider

Y

Check audio
B+ Voltage (24V)

Replace Main B/D

(In case of External
Input signal error)
Check and fix
external device

Replace Main B/D

N

End

Established

date

Revised date

10/14

LCD TV

Error

symptom

Standard Repair Process

☞A16

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

12 / 97

D. Function error

Remote control & Local switch checking

Y

N

1. Remote control(R/C) operating error

Check R/C itself

Operation

Normal

operating?

Normal

operating?

Y

Close

Replace R/C

If R/C operate,

Explain the customer

cause is interference

from light in room.

Check R/C Operating

When turn off light

in room

Check & Replace

Baterry of R/C

Check & Repair
Cable connection
Connector solder

Normal

operating?

Check B+ 3.5V

On Main B/D

☞A17

Normal

Voltage?

Close

N

N

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

☞A4

Check IR

Output signal

Normal

Signal?

N

Y

Repair/Replace

IR B/D

N

☞A17

Replace

Main B/D

Y

☞A17

Standard Repair Process

Established

date

Revised date

11/14

LCD TV

Error

symptom

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

13 / 97

Check technical
information

- Fix information

- S/W Version

N

Y

Technical

information?

Check
input

signal

Signal
input?

Y

N

External Input and

Component

Recognition error

Check and fix
external device/cable

RGB,HDMI/

DVI, Optical

Recognition error

Replace Main B/D

Replace Main B/D

Fix in

accordance

with technical

information

D. Function error

External device recognition error

Established

date

Revised date

12/14

LCD TV

Error

symptom

Standard Repair Process

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

14 / 97

Check
location of
noise

Identify
nose type

Circuit

noise

Replace PSU(with LED driver)

Replace LED driver

Mechanical

noise

Check location of
noise

OR

※ When the nose is severe, replace the module
(For models with fix information, upgrade the S/W
or provide the description)

OR

※ If there is a “Tak Tak” noise from the cabinet,

refer to the KMS fix information and then
proceed as shown in the solution manual
(For models without any fix information, provide
the description)

OR

※ Mechanical noise is a natural

phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.

※ Describe the basis of the description in
“Part related to nose” in the Owner’s

Manual.

E. Noise

Circuit noise, mechanical noise

Established

date

Revised date

13/14

LCD TV

Error

symptom

Standard Repair Process

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

15 / 97

Replace module

Zoom part with
exterior damage

Module

damage

Cabinet

damage

Replace cabinet

Replace remote controller

Remote

controller

damage

Stand

dent

Replace stand

F. Exterior defect

Exterior defect

Established

date

Revised date

14/14

LCD TV

Error

symptom

Standard Repair Process

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

16 / 97

Contents of LCD TV Standard Repair Process Detail Technical Manual

No. Error symptom Content Page Remarks

1

A. Video error_ No video/Normal audio

Check LCD back light with naked eye A1

2 LED driver B+ 24V measuring method A2

3 Check White Balance value A3

4 Power Board voltage measuring method A4

6

A. Video error_ No video/Video lag/stop

TUNER input signal strength checking method A5

7 LCD-TV Version checking method A6

9

A. Video error_Color error

LCD TV connection diagram A7

10

11 Check Link Cable (LVDS) reconnection condition

A8
A9

12 Adjustment Test pattern - ADJ Key A10

13

A. Video error_Vertical/Horizontal bar,
residual image, light spot

LCD TV connection diagram A8

14 Check Link Cable (LVDS) reconnection condition

A8
A9

15 Adjustment Test pattern - ADJ Key A10

16

<Appendix>

Defected Type caused by T-Con/ Inverter/

Module

Exchange T-Con Board (1) A-1/5

17 Exchange T-Con Board (2) A-2/5

18 Exchange LED driver Board (PSU) A-3/5

55” : driver board

Other : PSU

19 Exchange Module itself (1) A-4/5

20 Exchange Module itself (2) A-5/5

Continue to the next page

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

17 / 97

Contents of LCD TV Standard Repair Process Detail Technical Manual

No. Error symptom Content Page Remarks

21

B. Power error_No power

Check front display LED A11

22 Check power input Voltage & ST-BY 3.5V A12

23 Checking method when power is ON A13

24 POWER BOARD voltage measuring method A4

25

26

B. Power error_Off when on, off while
viewing

POWER OFF MODE checking method A14

28

C. Audio error_No audio/Normal video

Checking method in menu when there is no
audio

A15

29

Voltage and speaker checking method when

there is no audio

A16

30

C. Audio error_Wrecked
audio/discontinuation

Voltage and speaker checking method in case
of audio error

A16

31

D. Function error_ No response in
remote controller, key error

Remote controller operation checking method A17

Continued from previous page

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

18 / 97

Standard Repair Process Detail Technical Manual

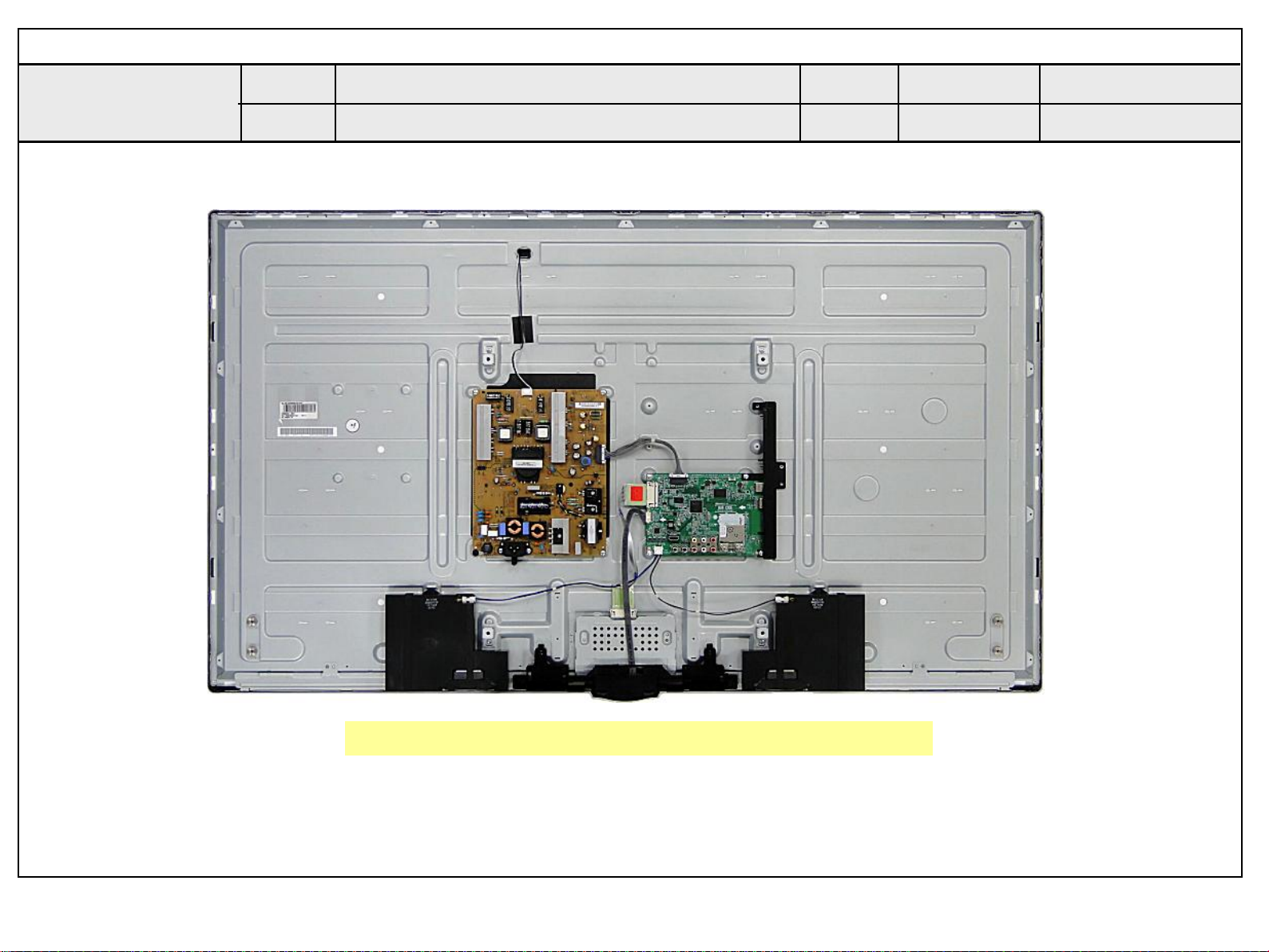

Check Back Light On with naked eye

A. Video error_No video/Normal audio

<ALL MODELS>

A1

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 01.14

Power On -> disjoint back case -> check lighting at any point

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

19 / 97

Standard Repair Process Detail Technical Manual

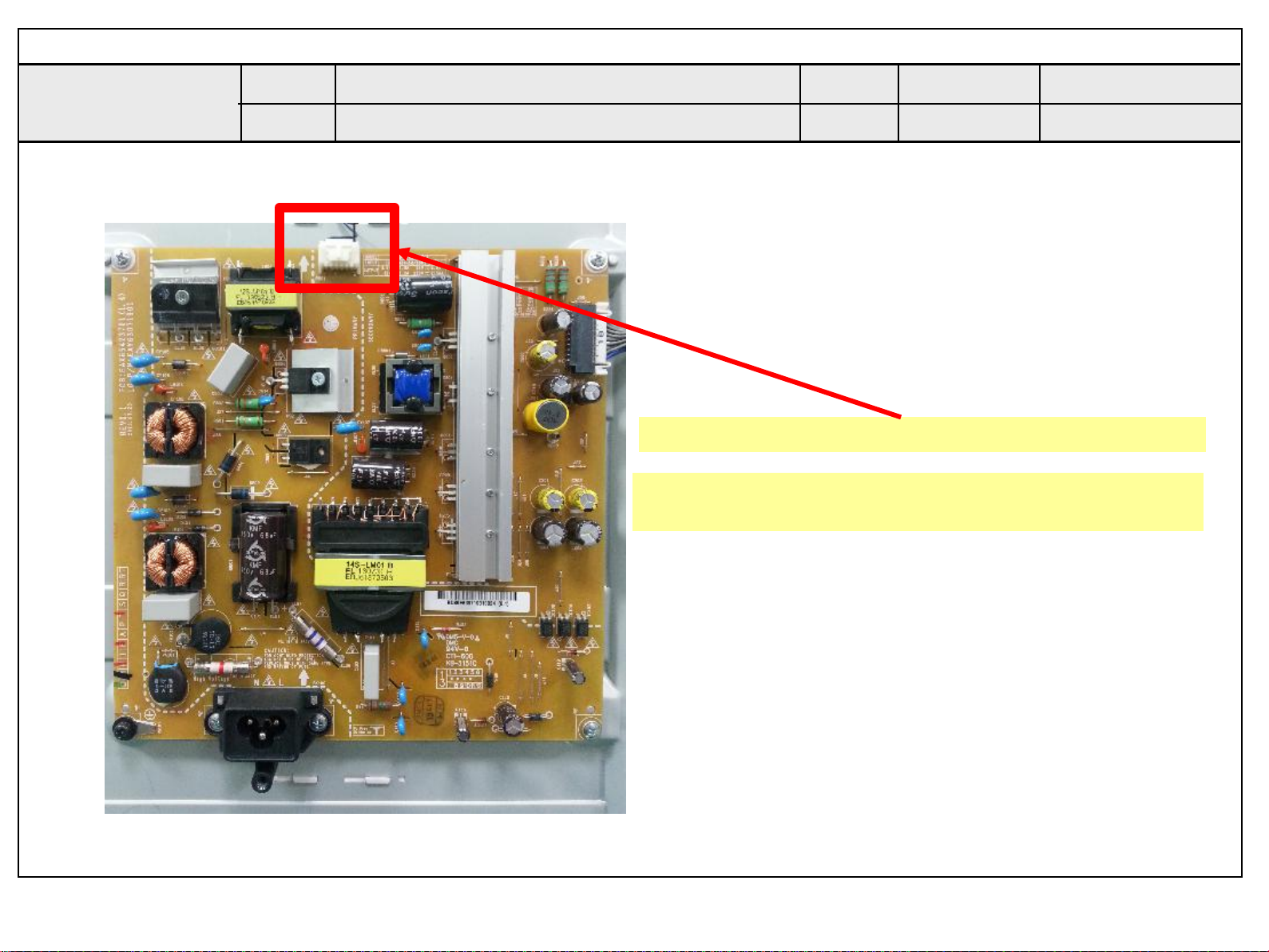

Inverter B+ 24V measuring method

A. Video error_No video/Normal audio

A2

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 11 .17

Measure LED+ applying to LED Back Light from Power Board.

Output LED+ from Power Board -> supply to LED B/L.
Check Pin contacting statement and connection statement.

<LPB MODELS>

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

20 / 97

Standard Repair Process Detail Technical Manual

Check White Balance value

A. Video error_No video/Normal audio

<ALL MODELS>

A3

Established

date

Revised

date

Error

symptom

Content

LCD TV

Entry method

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 8.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm),
re-enter the value after replacing the MAIN BOARD.

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

21 / 97

Standard Repair Process Detail Technical Manual

Power Board voltage measuring method

A. Video error_No video/ Audio

A4

Established

date

Revised

date

Error

symptom

Content

LCD TV

Check the DC 24V, 12V, 3.5V.

2012. 11 .17

Power Board <-> Main Board

1

PWR_ON

2

DRV_ON

3

3.5V

4

PDIM1

5

3.5V

6

3.5V

7

GND

8

PDIM2

9

24V

10

24V

11

GND

12

GND

13

12V

14

12V

15

12V

16

NC

17

GND

18

GND

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

22 / 97

MENU => CHANNEL => Manual Tuning
=> Check Signal Strength & Signal Quality

Standard Repair Process Detail Technical Manual

TUNER input signal strength checking method

A. Video error_Video error, video lag/stop

<ALL MODELS>

A5

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

23 / 97

Standard Repair Process Detail Technical Manual

LCD-TV Version checking method

A. Video error_Video error, video lag/stop

1. Checking method for remote controller for adjustment

Press the IN-START with the remote
controller for adjustment

Version

<ALL MODELS>

A6

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

24 / 97

Standard Repair Process Detail Technical Manual

LCD TV connection diagram (1)

A. Video error _Vertical/Horizontal bar,

residual image, light spot

As the part connecting to the external input, check the

screen condition by signal

A7

Established

date

Revised

date

Error

symptom

Content

LCD TV

<ALL MODELS>

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

25 / 97

1. Check and replace LVDS Cable

2. Check LVDS connection condition

Standard Repair Process Detail Technical Manual

Check and replace Link Cable(LVDS) and contact condition

A. Video error_Color error

<ALL MODELS>

A8/A9

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

26 / 97

Standard Repair Process Detail Technical Manual

Adjustment Test pattern - ADJ Key

A. Video error_Color error

You can view 6 types of patterns using the ADJ Key

Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A10

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

27 / 97

Solder defect, CNT Broken

T-Con Defect, CNT Broken

T-Con Defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Solder defect, CNT Broken

Solder defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

Appendix : Exchange T-Con Board (1)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

28 / 97

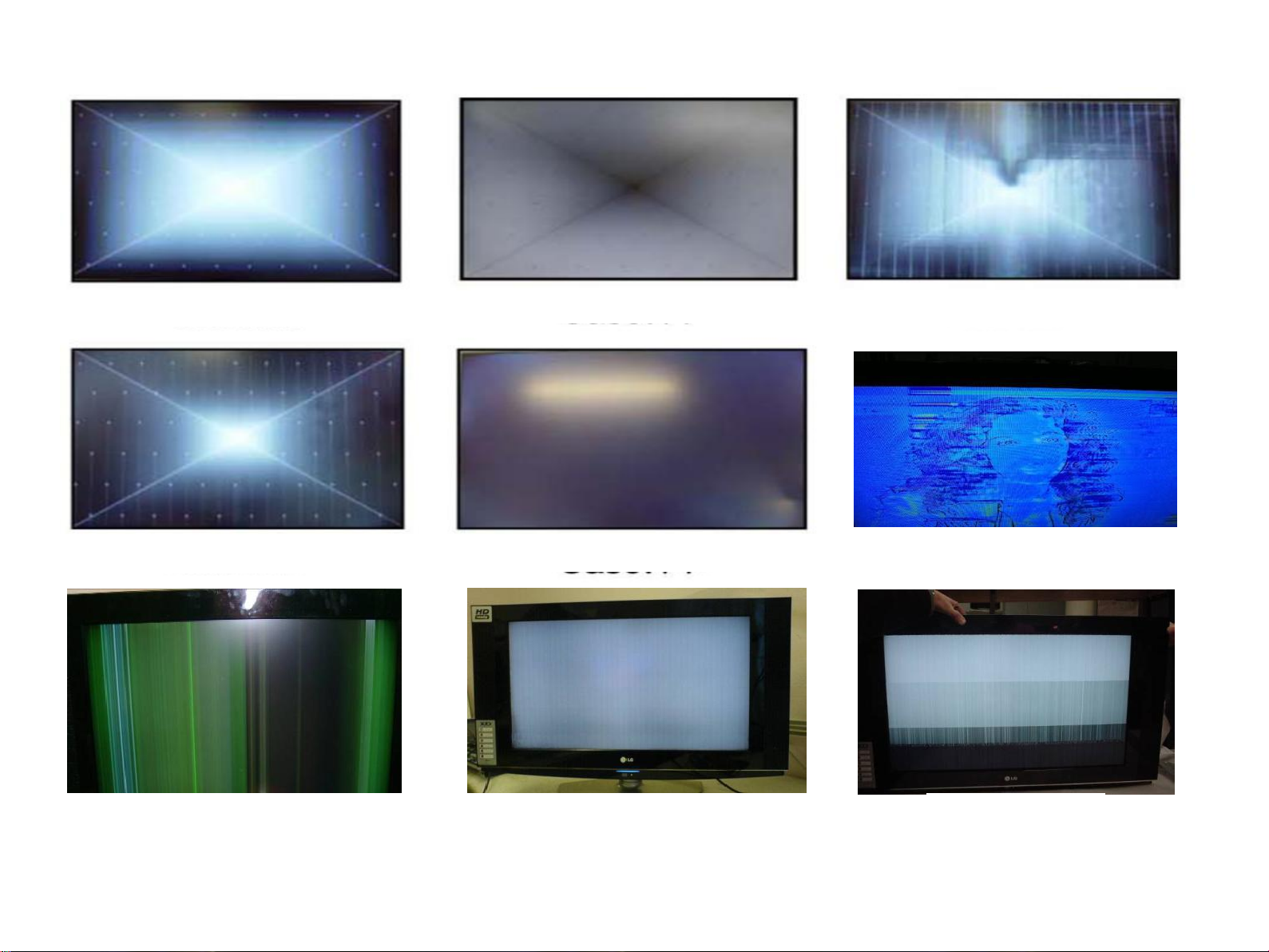

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Solder defect, Short/Crack

Fuse Open, Abnormal power section

Noise

GRADATION

GRADATION

Abnormal Display

Appendix : Exchange T-Con Board (2)

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

29 / 97

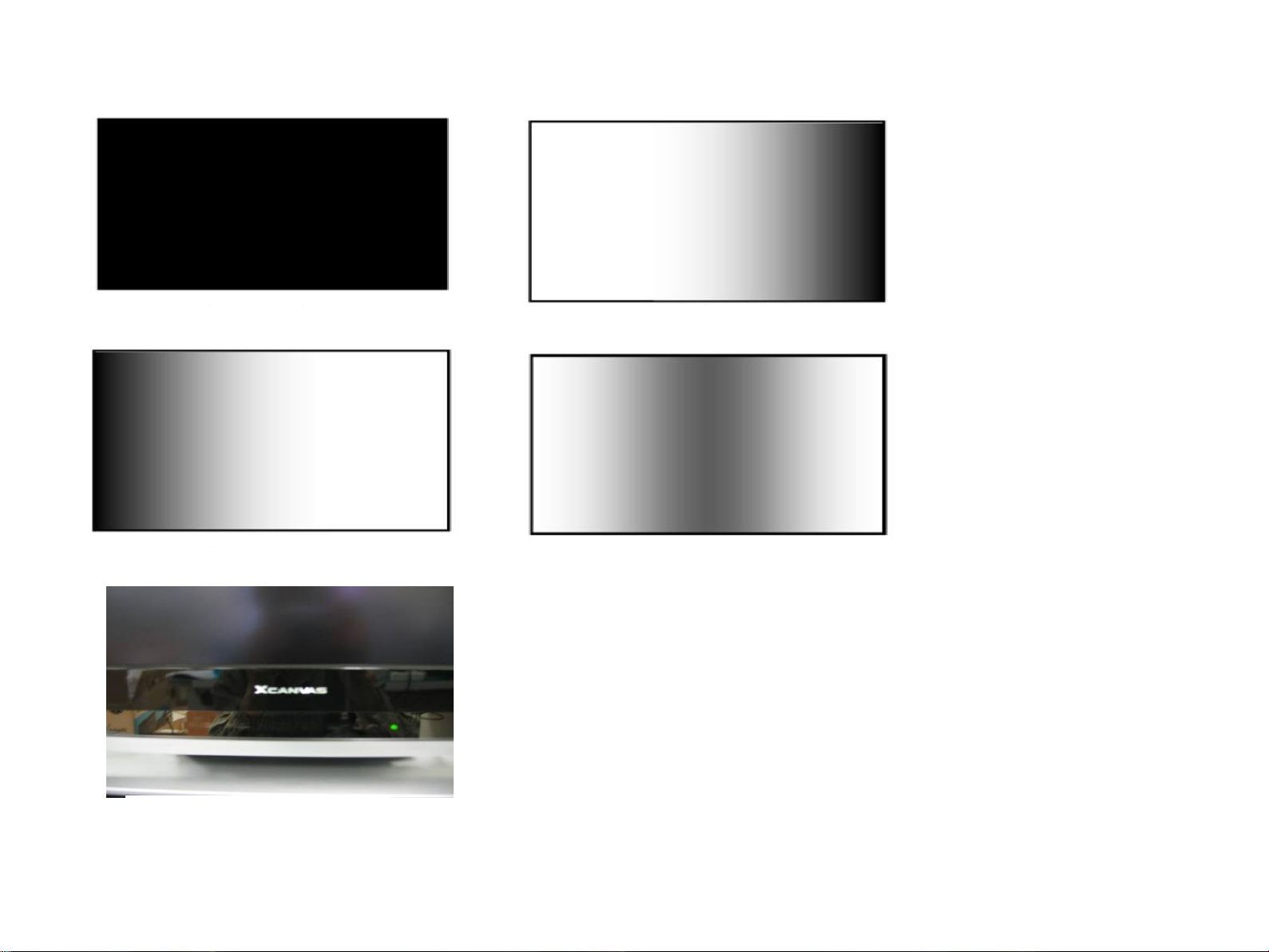

Appendix : Exchange PSU(LED driver)

No Light

Dim Light

Dim Light

Dim Light

No picture/Sound Ok

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

30 / 97

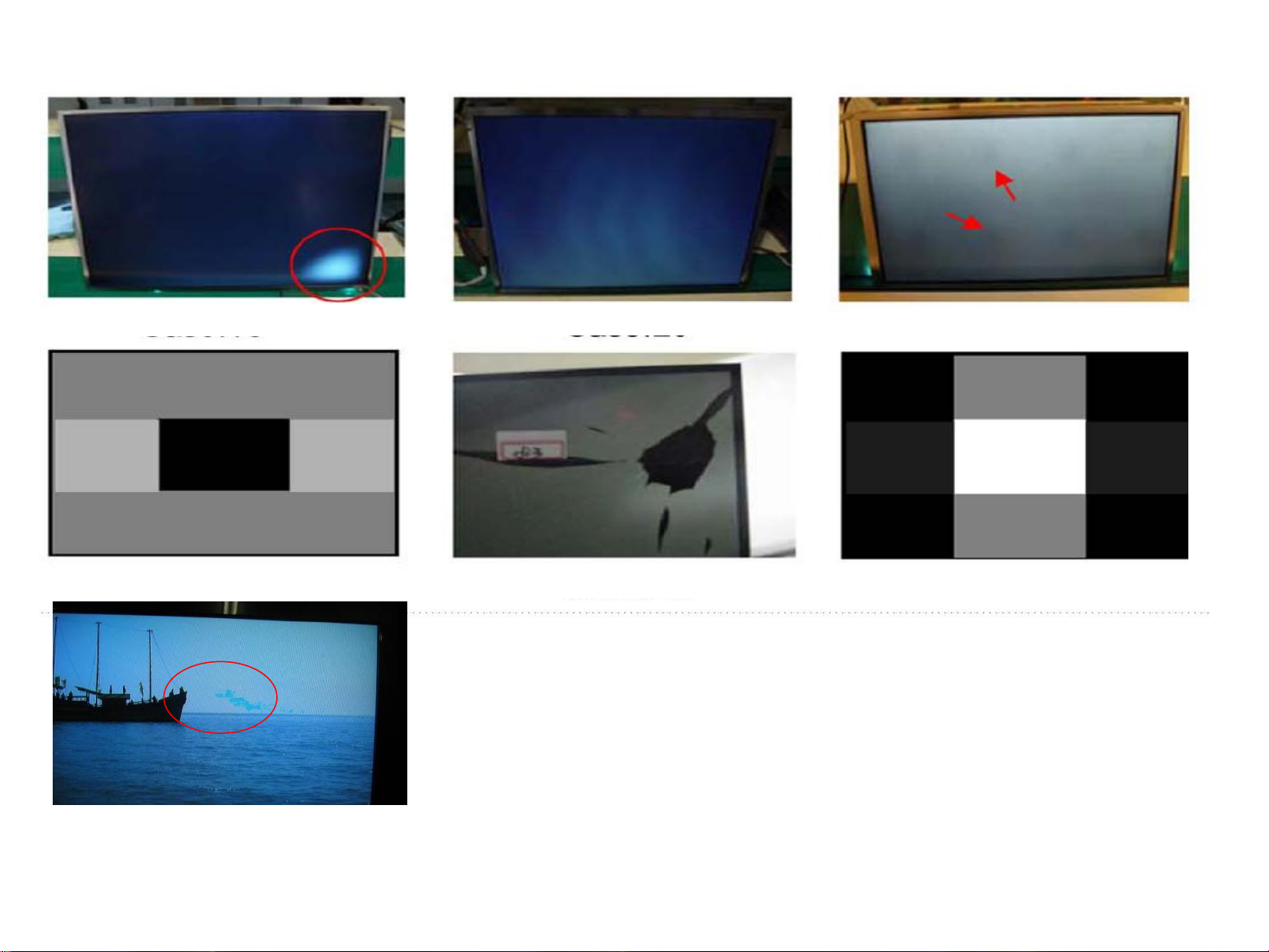

Appendix : Exchange the Module (1)

Panel Mura, Light leakage

Press damage

Crosstalk

Crosstalk

Press damage

Panel Mura, Light leakage

Press damage

Un-repairable Cases
In this case please exchange the module.

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

31 / 97

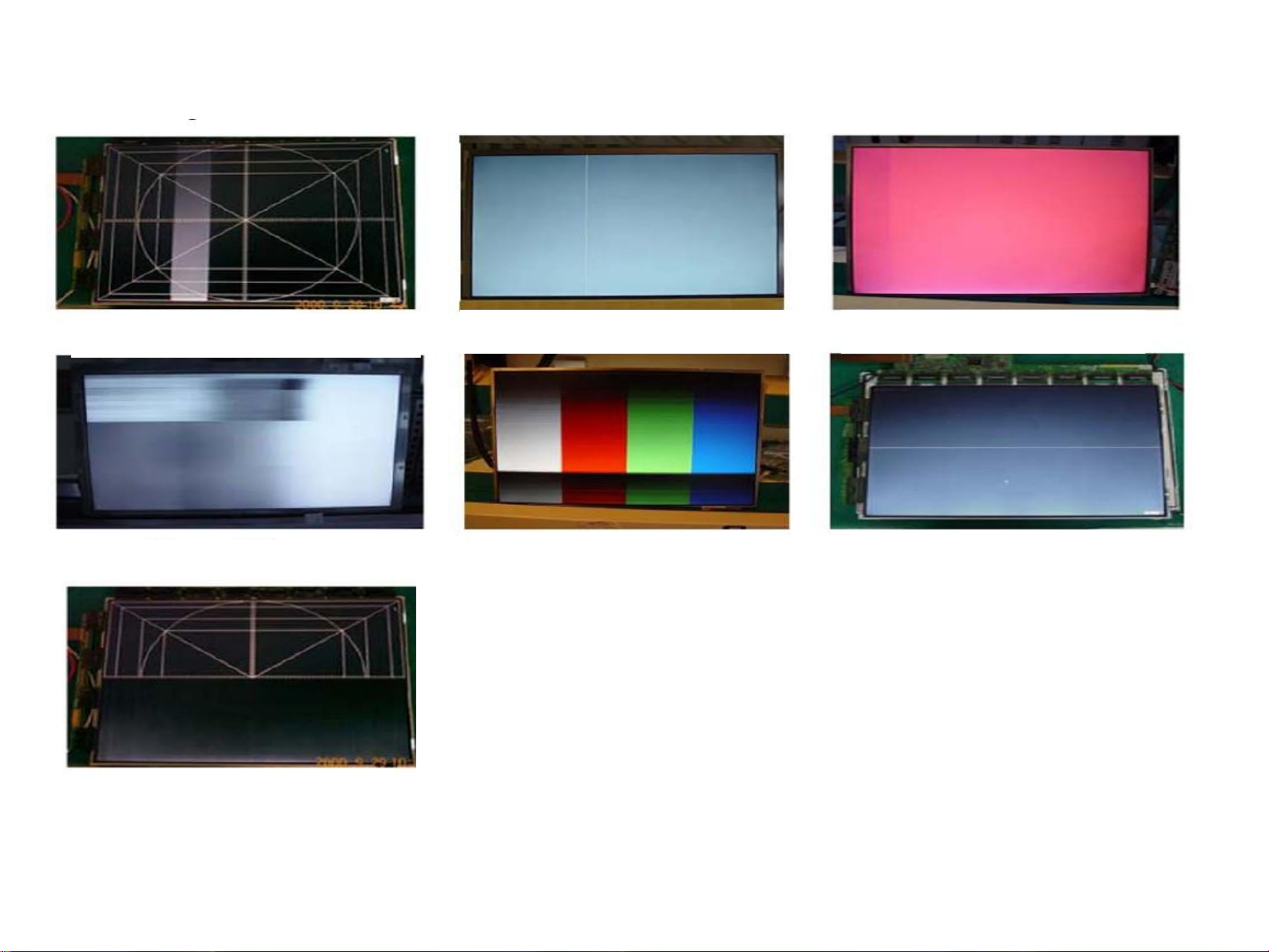

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Horizontal line

Gate TAB IC Defect

Gate TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Appendix : Exchange the Module (2)

Un-repairable Cases
In this case please exchange the module.

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

32 / 97

Standard Repair Process Detail Technical Manual

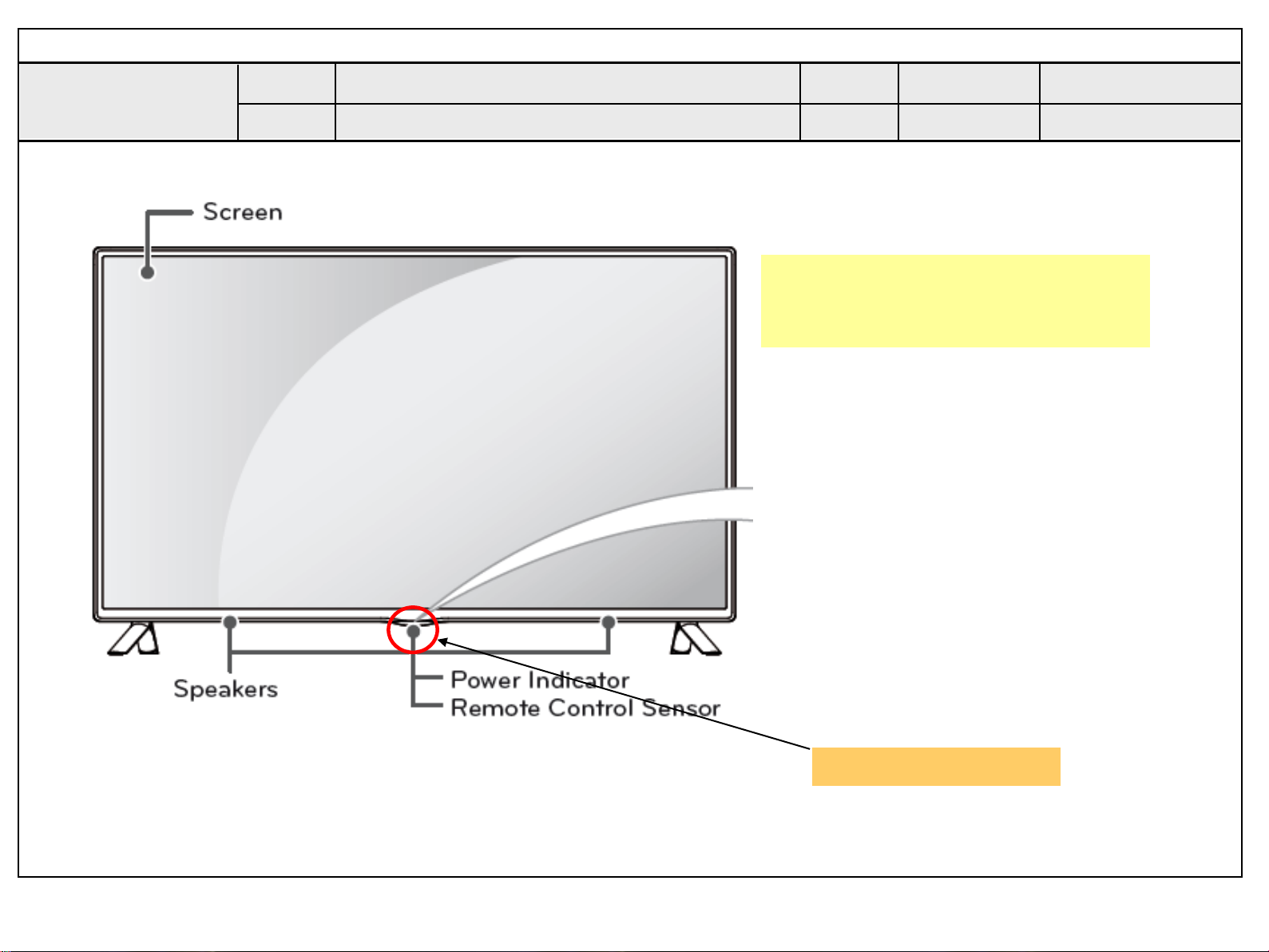

Check front display LED

B. Power error _No power

A11

Established

date

Revised

date

Error

symptom

Content

LCD TV

ST-BY condition: Red

Front LED control :
Menu  Option  Power Indicator
 Standby light ON

2012. 11.17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

33 / 97

Standard Repair Process Detail Technical Manual

Check power input voltage and ST-BY 3.5V

B. Power error _No power

A12

Established

date

Revised

date

Error

symptom

Content

LCD TV

Check the DC 20V/24V, 12V, 3.5V.

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

34 / 97

Standard Repair Process Detail Technical Manual

Checking method when power is ON

B. Power error _No power

A13

Established

date

Revised

date

Error

symptom

Content

LCD TV

Check “power on(Pin 1)” pin is high(about 3.3V)

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

35 / 97

Entry method

1. Press the IN-START button of the remote

controller for adjustment

2. Check the entry into adjustment item 3

Standard Repair Process Detail Technical Manual

POWER OFF MODE checking method

B. Power error _Off when on, off whiling viewing

< Low models >

A14

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

36 / 97

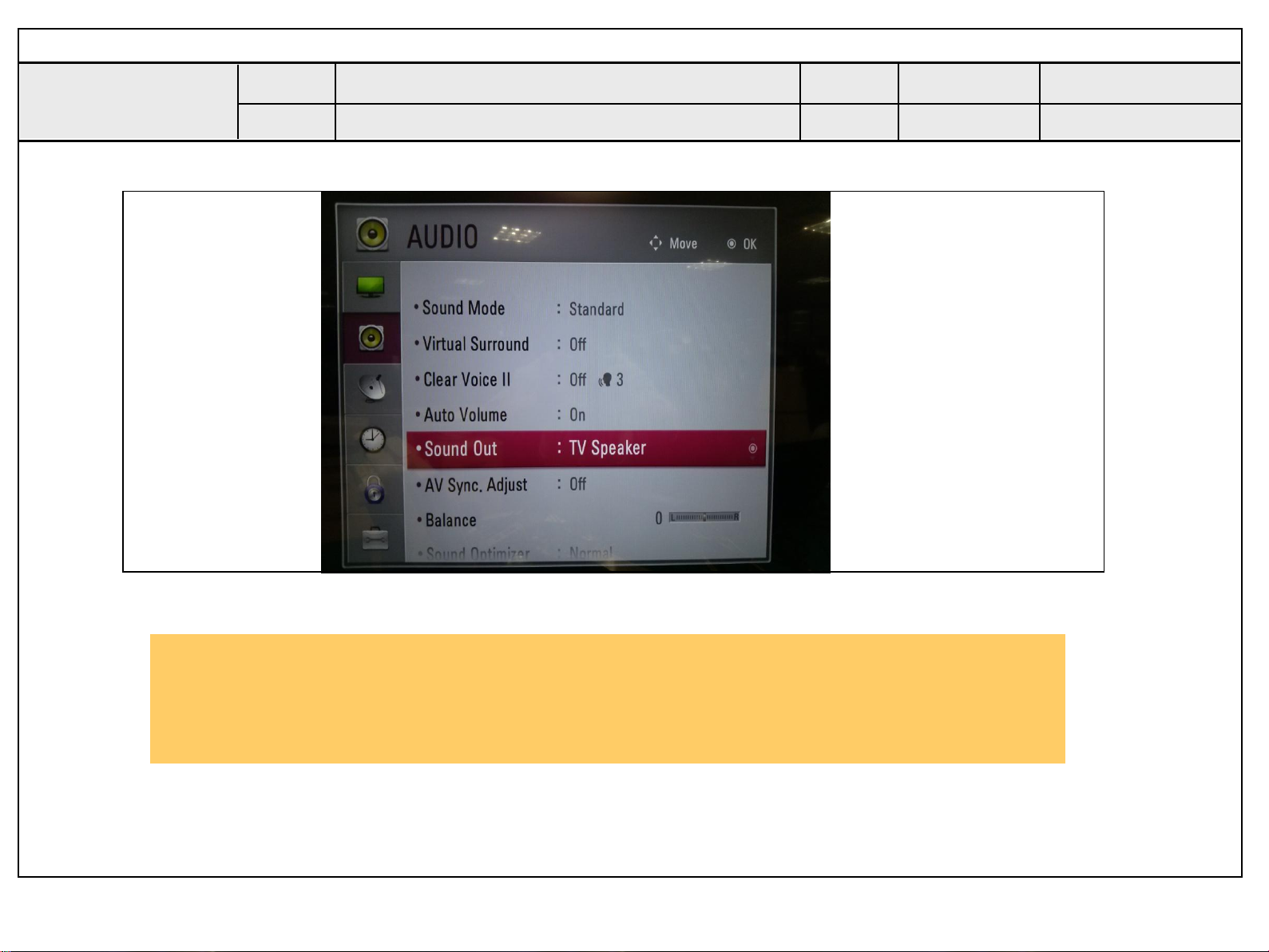

Checking method

1. Press the MENU button on the remote controller

2. Select the AUDIO function of the Menu

3. Select TV Speaker from Off to On

Standard Repair Process Detail Technical Manual

Checking method in menu when there is no audio

C. Audio error_No audio/Normal video

<LA613x>

A15

Established

date

Revised

date

Error

symptom

Content

LCD TV

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

37 / 97

Checking order when there is no audio

① Check the contact condition of or 24V connector of Main Board

② Measure the 24V input voltage supplied from Power Board

(If there is no input voltage, remove and check the connector)

③ Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.

Standard Repair Process Detail Technical Manual

Voltage and speaker checking method
when there is no audio

C. Audio error_No audio/Normal video

<Low models>

A16

Established

date

Revised

date

Error

symptom

Content

LCD TV

①

③

②

2012. 11 .17

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

38 / 97

Checking order

1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.5V on the terminal 4.

4. When checking the Pre-Amp when the power is in ON condition, it is normal when the
Analog Tester needle moves slowly, and defective when it does not move at all.

Standard Repair Process Detail Technical Manual

Remote controller operation checking method

D. Function error_ No response in remote controller,

key error

< Low models >

A17

Established

date

Revised

date

Error

symptom

Content

LCD TV

P600

1

GND

2

KEY1

3

KEY2

4

St 3.5V

5

GND

6 RED_LED

7 IR

8 GND

②

③

④

2012. 01 .14

Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only
