LG 49UF7700 Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED TV

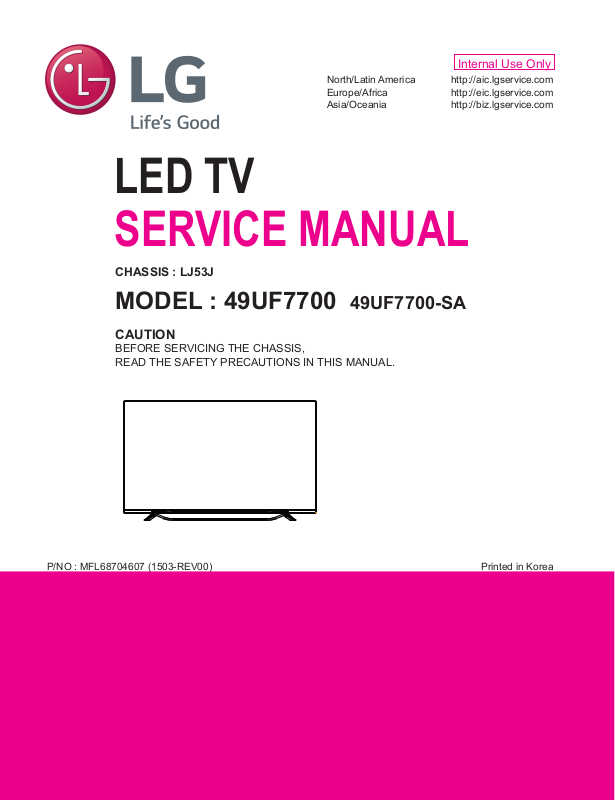

SERVICE MANUAL

CHASSIS : LJ53J

MODEL : 49UF7700 49UF7700-SA

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68704607 (1503-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 15

EXPLODED VIEW .................................................................................. 26

SCHEMATIC CIRCUIT DIAGRAM ............................................APPENDIX

TROUBLESHOOTING ...............................................................APPENDIX

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten­tial shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri­cally shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied to the LED TV used LJ53H chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC(77±9ºF), CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage
Standard input voltage (100~240V@ 50/60Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE, IEC

.

4. Model Specification

No Item Specication Remark

1. Market Central and South AMERICA

2. Broadcasting system Digital : SBTVD /

3. Available Channel BAND NTSC

4. Receiving system Digital : SBTVD /

5. Input Voltage AC 100 ~ 240V 50/60Hz

Analog : NTSC / PAL-M / PAL-N

VHF
UHF
DTV

CATV

Analog : NTSC / PAL-M / PAL-N

2 ~ 13

14 ~ 69

2 ~ 69

1 ~ 135

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. External input format

5.1. CVBS input

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remarks

1. 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I) NTSC-M

2. 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I) NTSC-M

3. 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz PAL-BDGHI

5.2. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I)

2. 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I)

3. 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

4. 720*480p 31.47 59.94 27.00 SDTV 480P

5. 720*480p 31.50 60.00 27.03 SDTV 480P

6. 720*576p 31.25 50.00 27.00 SDTV 576P 50Hz

7. 1280*720 44.96 59.94 74.18 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 45.00 50.00 74.25 HDTV 720P 50Hz

10. 1920*1080 28.13 50.00 74.25 HDTV 1080I 50Hz,

11. 1920*1080 33.72 59.94 74.18 HDTV 1080I

12. 1920*1080 33.75 60.00 74.25 HDTV 1080I

13. 1920*1080 56.25 50.00 148.50 HDTV 1080P

14. 1920*1080 67.50 60.00 148.50 HDTV 1080P

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.3. HDMI Input (DTV)

No Resolution H-freq(kHz) V-freq.(Hz)

1 640*480 31.46 59.94 25.13 SDTV 480P

2 640*480 31.50 60.00 25.13 SDTV 480P

3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I) Spec. out but display

4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)

5 720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

6 720*480 31.47 59.94 27.00 SDTV 480P

7 720*480 31.50 60.00 27.03 SDTV 480P

8 720*576 31.25 50.00 27.00 SDTV 576P

9 1280*720 44.96 59.94 74.18 HDTV 720P

10 1280*720 45.00 60.00 74.25 HDTV 720P

11 1280*720 37.50 50.00 74.25 HDTV 720P

12 1920*1080 28.12 50.00 74.25 HDTV 1080I

13 1920*1080 33.72 59.94 74.18 HDTV 1080I

14 1920*1080 33.75 60.00 74.25 HDTV 1080I

15 1920*1080 26.97 23.97 63.30 HDTV 1080P

16 1920*1080 27.00 24.00 63.36 HDTV 1080P

17 1920*1080 33.71 29.97 79.12 HDTV 1080P

18 1920*1080 33.75 30.00 79.20 HDTV 1080P

19 1920*1080 56.25 50.00 148.50 HDTV 1080P

20 1920*1080 67.43 59.94 148.35 HDTV 1080P

21 1920*1080 67.50 60.00 148.50 HDTV 1080P

22 3840*2160 53.95 23.98 297.00 UDTV 2160P UHD only

23 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only

24 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only

25 3840*2160 61.43 29.97 297.00 UDTV 2160P UHD only

26 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only

27 3840*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHDonly(Port1,2)-LM15U Only

28 3840*2160 135.00 59.94 593.41 UDTV 2160P UHDonly(Port1,2)-LM15U Only

29 3840*2160 135.00 60.00 594.00 UDTV 2160P UHDonly(Port1,2)-LM15U Only

30 4096*2160 53.95 23.98 297.00 UDTV 2160P UHD only

31 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only

32 4096*2160 56.25 25.00 297.00 UDTV 2160P UHD only

33 4096*2160 61.43 29.97 297.00 UDTV 2160P UHD only

34 4096*2160 67.50 30.00 297.00 UDTV 2160P UHD only

35 4096*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHDonly(Port1,2)-LM15U Only

36 4096*2160 135.00 59.94 593.41 UDTV 2160P UHDonly(Port1,2)-LM15U Only

37 4096*2160 135.00 60.00 594.00 UDTV 2160P UHDonly(Port1,2)-LM15U Only

Pixel

clock(MHz)

Proposed Remark

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.4. HDMI Input (PC)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remarks

1 640*350 31.46 70.09 25.17 EGA

2 720*400 31.46 70.08 28.32 DOS

3 640*480 31.46 59.94 25.17 VESA(VGA)

4 800*600 37.87 60.31 40.00 VESA(SVGA)

5 1024*768 48.36 60.00 65.00 VESA(XGA)

6 1152*864 54.34 60.05 80.00 VESA

7 1280*1024 63.98 60.02 109.00 VESA(SXGA) FHD only

8 1360*768 47.71 60.01 85.00 VESA(WXGA)

9 1920*1080 67.50 60.00 158.40 WUXGA(CEA 861D) FHD only

10 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only

11 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only

12 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only

13 4096*2160 53.95 23.97 296.703 UDTV 2160P UHD only

14 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. 3D mode(3D MODEL Only)

6.1. RF Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.50 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.13 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

6.2. HDMI Input

6.2.1. RF Input (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 720*480 31.50 60.00 27.03 SDTV 480P 2D to 3D, Side by Side(Half), Top & Bottom,

2 720*576 31.25 50.00 27.00 SDTV 576P

3 1280*720 45.00 60.00 74.25 HDTV 720P

37.50 50.00 74.25 HDTV 720P

4 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half), Top & Bottom

28.13 50.00 74.25 HDTV 1080I

5 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half), Top & Bottom,

28.12 25.00 74.25 HDTV 1080P

33.75 30.00 74.25 HDTV 1080P

67.50 60.00 148.50 HDTV 1080P 2D to 3D, Side by Side(Half), Top & Bottom,

56.25 50.00 148.50 HDTV 1080P

6 3840*2160

4096*2160

53.95 23.98 297.00 HDTV 2160P 2D to 3D,

54.00 24.00 296.70

56.25 25.00 297.00

61.43 29.97 297.00

67.50 30.00 296.70

112.50 50.00 594.00 HDTV 2160P 2D to 3D,

135.00 60.00 594.00

Checker Board, Frame Sequential,
Row Interleaving, Column Interleaving

Checker Board, Row Interleaving,
Column Interleaving

Checker Board, Single Frame Sequential,
Row Interleaving, Column Interleaving

Top & Bottom(half), Side by Side(half),

Top & Bottom(half), Side by Side(half)
(8 bit, YCbCr 4:2:0)

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.2.2. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 640*480 31.47 / 31.50 59.94/ 60.00 25.13/25.20 1 Top-and-Bottom

31.47 / 31.50 59.94/ 60.00 50.35/50.40 1 Side-by-side(Full) (SDTV 480P)

62.94 / 63.00 59.94/ 60.00 50.35/50.40 1 Frame packing

2 720*480 31.47 / 31.50 59.94 / 60.00 27.00/27.03 2,3 Top-and-Bottom

31.47 / 31.50 59.94 / 60.00 54.00/54.06 2,3 Side-by-side(Full) (SDTV 480P)

62.94 /63.00 59.94 / 60.00 54.00/54.06 2,3 Frame packing

3 720*576 31.25 50.00 27.00 17,18 Top-and-Bottom

31.25 50.00 54.00 17,18 Side-by-side(Full) (SDTV 576P)

62.50 50.00 54.00 17,18 Frame packing

4 720*576 15.63 50.00 27.00 21 Frame packing

5 1280*720 37.50 50.00 74.25 19 Top-and-Bottom

37.50 50.00 148.50 19 Side-by-side(Full) (HDTV 720P)

44.96 / 45.00 59.94 / 60.00 74.17/74.25 4 Top-and-Bottom

44.96 / 45.00 59.94 / 60.00 148.35/148.50 4 Side-by-side(Full) (HDTV 720P)

75.00 50.00 148.50 19 Frame packing

89.91/90.00 59.94 / 60.00 148.35/148.50 4 Frame packing

6 1920*1080 28.13 50.00 74.25 20 Top-and-Bottom

28.13 50.00 148.50 20 Side-by-side(Full) (HDTV 1080I)

33.72 / 33.75 59.94 / 60.00 74.17/74.25 5 Top-and-Bottom

33.72 / 33.75 59.94 / 60.00 148.35/148.50 5 Side-by-side(Full) (HDTV 1080I)

56.25 50.00 148.50 20 Frame packing Primary(HDTV 1080I)

67.43/67.50 59.94 / 60.00 148.35/148.50 5 Frame packing Primary(HDTV 1080I)

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(Full)
Top-and-Bottom
Side-by-side(half)

Side-by-side(half)

Side-by-side(half)

Line alternative

Line alternative

Side-by-side(half)

Side-by-side(half)

Proposed

Secondary(SDTV 480P)
Secondary(SDTV 480P)

Secondary(SDTV 480P)
(SDTV 480P)

Secondary(SDTV 480P)
Secondary(SDTV 480P)

Secondary(SDTV 480P)
(SDTV 480P)

Secondary(SDTV 576P)
Secondary(SDTV 576P)

Secondary(SDTV 576P)
(SDTV 576P)

Secondary(SDTV 576I)
(SDTV 576I
(SDTV 576I
Secondary(SDTV 576I)
Secondary(SDTV 576I)

Primary(HDTV 720P)
Primary(HDTV 720P)

Primary(HDTV 720P)
Primary(HDTV 720P)

Primary(HDTV 720P)
(HDTV 720P)

Primary(HDTV 720P)
(HDTV 720P)

Secondary(HDTV 1080I)
Primary(HDTV 1080I)

Secondary(HDTV 1080I)
Primary(HDTV 1080I)

(HDTV 1080I)

(HDTV 1080I)

Only for training and service purposes

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

7 1920*1080 26.97 / 27.00 23.97 / 24.00 74.17 / 74.25 32 Top-and-Bottom

26.97 / 27.00 23.97 / 24.00 148.35 /

148.50

28.12 25.00 74.25 33 Top-and-Bottom

28.12 25.00 148.50 33 Side-by-side(Full) (HDTV 1080P)

33.72 / 33.75 29.98 / 30.00 74.18/74.25 34 Top-and-Bottom

33.72 / 33.75 29.98 / 30.00 148.35/148.50 34 Side-by-side(Full) (HDTV 1080P)

43.94/54.00 23.97 / 24.00 148.35/148.50 32 Frame packing

56.25 25.00 148.50 33 Frame packing

67.43 / 67.5 29.98 / 30.00 148.35/148.50 34 Frame packing

56.25 50.00 148.50 31 Top-and-Bottom

67.43 / 67.50 59.94 / 60.00 148.35/148.50 16 Top-and-Bottom

VIC 3D input proposed

mode

Side-by-side(half)

32 Side-by-side(Full) (HDTV 1080P)

Side-by-side(half)

Side-by-side(half)

Line alternative

Line alternative

Line alternative

Side-by-side(half)

Side-by-side(half)

Proposed

Primary(HDTV 1080P)
Primary(HDTV 1080P)

Secondary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
(HDTV 1080P)

Secondary(HDTV 1080P)
(HDTV 1080P)

Primary(HDTV 1080P)
(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

6.2.3. HDMI-PC 3D Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1024*768 48.36 60.00 65.00 2D to 3D,

2 1920*1080 67.50 60.00 148.50 2D to 3D,

3 3840*2160 54.00 24.00 296.70 2D to 3D,

56.25 25.00 297.00

67.50 30.00 296.70

4 4096*2160 54 24.00 297.00 2D to 3D,

5 Others - - - 2D to 3D,

Side by Side(half), Top & Bottom

Side by Side(half), Top & Bottom,
Checker Board,
Single Frame Sequential,
Row Interleaving,
Column Interleaving

Side by Side(half), Top & Bottom

Side by Side(half), Top & Bottom

Side by Side(half), Top & Bottom

HDTV 768P

HDTV 1080P

HDTV 2160P

HDTV 2160P

640*350
720*400
640*480
800*600

1152*864

Only for training and service purposes

- 12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.2.4. Component 3D Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1280*720 37.50 50.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

2 1280*720 45.00 60.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

3 1280*720 44.96 59.94 74.18 2D to 3D,

Side by Side(half), Top & Bottom

4 1920*1080 33.75 60.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

5 1920*1080 33.72 59.94 74.18 2D to 3D,

Side by Side(half), Top & Bottom

6 1920*1080 28.12 50.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

7 1920*1080 67.50 60.00 148.50 2D to 3D,

Side by Side(half), Top & Bottom

8 1920*1080 67.43 59.94 148.35 2D to 3D,

Side by Side(half), Top & Bottom

9 1920*1080 27.00 24.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

10 1920*1080 28.12 25.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

11 1920*1080 56.25 50.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

12 1920*1080 26.97 23.98 74.18 2D to 3D,

Side by Side(half), Top & Bottom

13 1920*1080 33.75 30.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

14 1920*1080 33.71 29.97 74.18 2D to 3D,

Side by Side(half), Top & Bottom

HDTV 720P

HDTV 720P

HDTV 720P

HDTV 1080I

HDTV 1080I

HDTV 1080I

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.2.5. USB – Movie (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

2 Over 704x480

Under 1080P

interlaced

3 Over 704x480

Under 1080P

progressive

4 - others - 2D to 3D, Side by Side(Half), Top & Bottom,

5 Over 2160P - 24/25/30 - 2D to 3D, Side by Side(Half), Top & Bottom

- - - 2D to 3D, Side by Side(Half), Top & Bottom

- 50 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom,
Checker Board, Row Interleaving, Column Interleaving,
Frame Sequential

Checker Board, Row Interleaving, Column Interleaving

6.2.6. USB, DLNA -Photo (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 320x240 - - - 2D to 3D

2 Over 320x240 - - - 2D to 3D, Side by Side(Half), Top & Bottom

6.2.7. USB, DLNA (3D) (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080p 33.75 30.00 74.25 Side by Side(Half), Top & Bottom, Checker Board,

2 2160p 67.50 30.00 297.00

MPO(Photo), JPS(Photo)

6.2.8. Miracast, Widi (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1024*768p - 30/60 - 2D to 3D, Side by Side(Half), Top & Bottom

2 1280*720p - 30/60 -

3 1920*1080p - 30/60 -

4 Others - - - 2D to 3D

**Remark: 3D Input mode

No. Side by Side Top & Bottom Checker-

board

1

Single Frame

Sequential

Frame Pack-

ing

Line

Interleaving

Column

Interleaving

2D to 3D

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to LJ53H/J Chassis applied LED TV
all models manufactured in TV factory

2. Specification.

1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument

2) Adjustment must be done in the correct order.

3) The adjustment must be performed in the circumstance of
25 ±5ºC of temperature and 65±10% of relative humidity if
there is no specific designation

4) The input voltage of the receiver must keep 100~240V,
50/60Hz

5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15ºC

▪ In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2
hours

▪ In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C
for 3 hours

* Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is
strong. Digital pattern 13ch and/or Cross hatch
pattern 09ch), there can some afterimage in the
black level area.

4. Automatic Adjustment

4.1. ADC Adjustment

1) Enter the ADC Calibration in ADJ Menu

2) Check the ‘Internal’ at ADC Type and push Start button.

3) Check ‘ OK ‘

4.1.1. Equipment & Condition

1) USB to RS-232C Jig

2) MSPG-925 Series Pattern Generator(MSPG-925FA, pattern

-65)

- Resolution : 480i Comp1
1080P Comp1

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

3. Adjustment items

3.1. Main PCB check process

▪ MAC Address Download
▪ ADC adjustment : 480i Comp1, 1920*1080 Comp1
▪ EDID/DDC download

Above adjustment items can be also performed in Final
Assembly if needed. Both Board-level and Final assembly
adjustment items can be check using In-Start Menu 1.ADJUST
CHECK.

3.2. Final assembly adjustment

▪ White Balance adjustment
▪ RS-232C functionality check
▪ PING Test
▪ Factory Option setting per destination
▪ Ship-out mode setting (In-Stop)

3.3. Etc.

▪ Ship-out mode
▪ Service Option Default
▪ USB Download(S/W Update, Option, Service only)
▪ ISP Download (Option)

4.1.2. Adjustment method

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 04

xb 00 06

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

Read adj. data (main)

ad 00 20

(sub )
ad 00 21

Conrm adj. ad 00 99 NG 03 00x (Fail)

End adj. ad 00 90 a 00 OK90x

Ref.) ADC Adj. RS232C Protocol_Ver1.0

Adj. order

▪ aa 00 00 [Enter ADC adj. mode]
▪ xb 00 04 [Change input source to Component1(480i&1080p)]
▪ ad 00 10 [Adjust 480i&1080p Comp1]
▪ xb 00 06 [Change input source to RGB(1024*768)]
▪ ad 00 10 [Adjust 1920*1080 RGB]
▪ aa 00 90 End adj.

b 00 OK04x (Adjust 480i, 1080p Comp1 )
b 00 OK06x (Adjust 1920*1080 RGB)

NGx (Case of Fail)

(main)
000000000000000000000000007c007b­006dx

(Sub)
000000070000000000000000007c0083
0077x

NG 03 01x (Fail)
NG 03 02x (Fail)
OK 03 03x (Success)

Only for training and service purposes

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.2. MAC address, ESN, Widevine, HDCP2.0
key D/L

4.2.1. Equipment & Condition

1) Play file: keydownload.exe

4.2.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)

2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

1) Select the download items.

2) Mode check: Online Only

3) Check the test process : DETECT -> MAC -> Widevine

4) Play: START

5) Check of result: Ready, Test, OK or NG

4.2.4. Communication Port connection

1) ) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C
Port

4.3. LAN Inspection

4.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

4.3.2. LAN inspection solution

▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC
Address.

4.2.5. Download

1) TW/CO Models (15Y LCD TV + MAC + Widevine + ESN +
HDCP2.0)

4.3.3. LAN PORT INSPECTION (PING TEST)

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test
Program.
*IP Number : 12.12.2.2.

4.3.4. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.4. Model name & Serial number Download

4.4.1. Model name & Serial number D/L

▪ Press “Power on” key of service remocon.(Baud rate :

115200 bps)

▪ Connect RS-232C Signal to USB Cable to USB.
▪ Write Serial number by use USB port.
▪ Must check the serial number at Instart menu.

■ Method & Notice

A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory
by D-book 4.0

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service man,
sometimes model name or serial number is initialized. ( not
always)
It is impossible to download by bar code scan, so It need
Manual download.

a. Press the ‘INSTART’ key of ADJ remote controller.
b. Go to the menu ‘7. Model Number D/L’ like below photo.
c. Input the Factory model name or Serial number like below

photo.

5. Manual Adjustment

5.1. ADC adjustment is not needed because of
OTP (Auto ADC adjustment)

5.2. EDID

(The Extended Display Identification Data)
/ DDC (Display Data Channel) download

5.2.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity of
user input. It is a realization of “Plug and Play”.

5.2.2. Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon

5.2.3. Download method

1) Press Adj. key on the Adjust remocon, then select “12.EDID
D/L”.

By pressing Enter key, enter EDID D/L menu

d. Check the model name INSTART menu -> Factory name

displayed

e. Check the Diagnostics (DTV country only) -> Buyer model

displayed

4.5. WIFI MAC ADDRESS CHECK

4.5.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

■ Check the menu on in-start

Only for training and service purposes

- 17 -

2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2

/ HDMI3 / HDMI4 are Writing and display OK or NG.

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

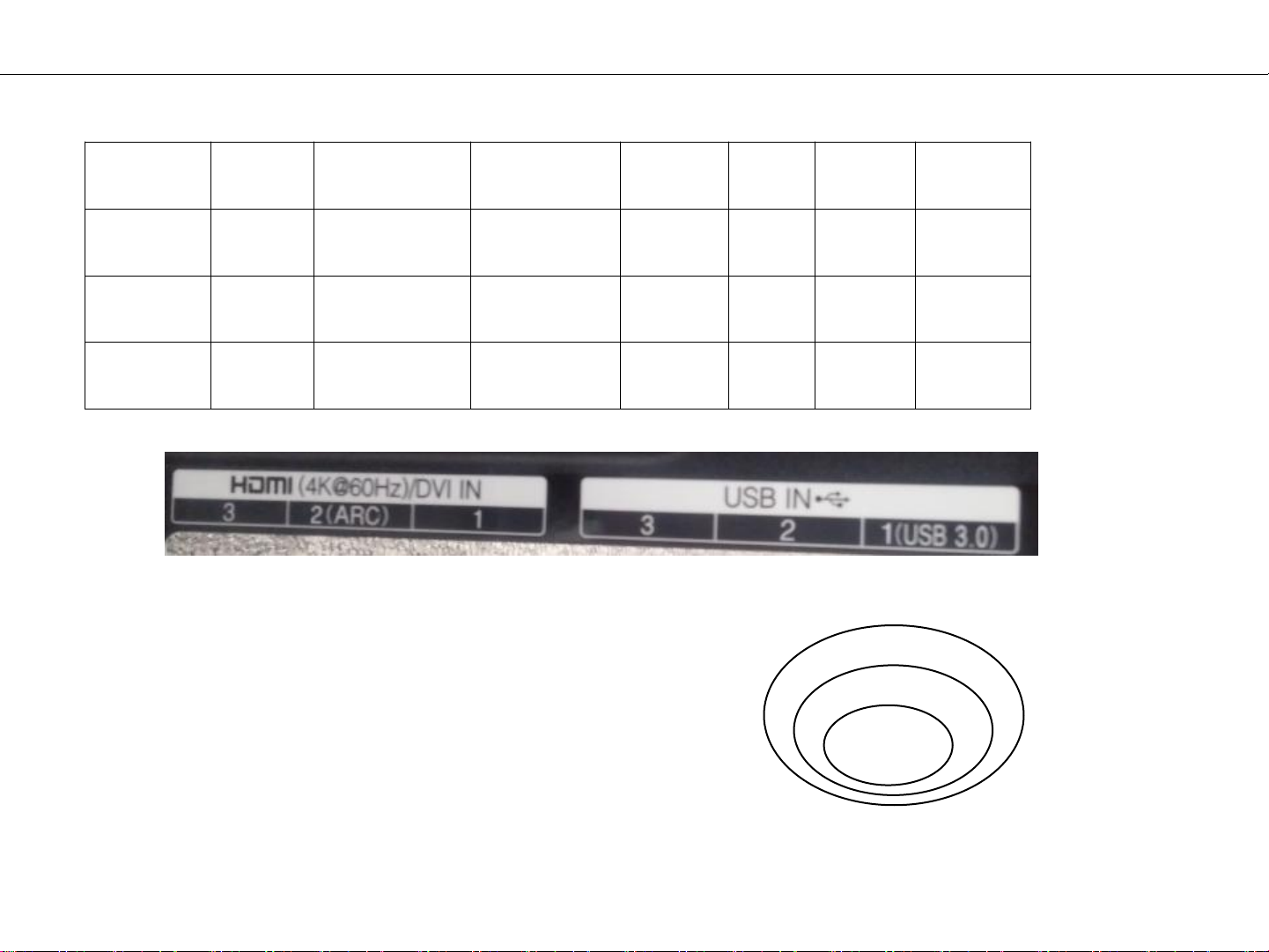

5.2.4. EDID DATA

▪ Reference

- HDMI1 ~ HDMI3

- HDMI1 ~ HDMI4

- In the data of EDID, bellows may be different by Input mode

# HDMI 1(C/S : A0 9E) – 6G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’
Year : ‘2015’ -> ‘19

ⓓ Model Name(Hex): LGTV
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)

5.2.4.1. EDID for 3D Model olny
# HDMI 1(C/S : E6 F4) – 3G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : E6 E4) -3G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

Only for training and service purposes

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

# HDMI 2(C/S : A0 8E) – 6G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : E6 D4 ) -3G/6G

5.2.4.2. EDID for Non 3D Model (UF77,UF69,UF68)
# HDMI 1(C/S : E6 1D) – 3G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

* Checksum(HDMI 1/2/3)

Input FFh (Checksum)

3G

HDMI1 E6 F4 A0 9E

HDMI2 E6 E4 A0 8E

HDMI3 E6 D4 E6 D4

FFh (Checksum)

6G(HDMI Deep Color)

# HDMI 1(C/S : A0 C7) – 6G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : E6 0D) -3G/6G

EDID Block 0, Bytes 0-127 [00H-7FH]

Only for training and service purposes

- 19 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : E6 0D) -3G/6G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

5.3. Green Eye Inspection Guide

Step 1. Turn on the TV set.
Step 2. Press “EYE” button on the Adjustment remote controller.

Step 3. Block the Intelligent Sensor module on the front C/A about

6 seconds. When the “Sensor Data” is lower than 20, you
can see the “OK” message

=> If it doesn’t show “OK” message, the Sensor Module is

defected one. You have to replace that with a good
one.

* Checksum(HDMI 1/2/3)

Input FFh (Checksum)

3G

HDMI1 E6 1D A0 C7

HDMI2 E6 0D E6 0D

HDMI3 E6 FD E6 FD

FFh (Checksum)

6G(HDMI Deep Color)

Step 4. After check the “OK” message come out, take out your
hand from the Sensor module.
=> Check “Backlight” value change from “0” to “100” or

not. If it doesn’t change the value, the sensor is also
defected one. You have to replace it.

Only for training and service purposes

- 20 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.4. Camera Function Inspection (TBD)

1) Objective : To check how it connects between Camera and
PCBA normally, and their Function

2) Test Method : This Inspection is available only Power-Only
Status.

i) Push Camera Up
ii) Camera’s Preview picture appears on TV Set
iii) Push Camera Down

3) RS-232C Command

RS-232C COMMAND

CMD DATA ID

Ai 00 23 Camera Function Start.

Ai 00 24 Camera Function End.

Explanation

5.5. V-COM Adjust

(*) ONLY FOR GP2 2010year model. GP3 LW Series

[2011year] spec out !

5.6. Adjustment White balance

5.6.1. Overview

▪ W/B adj. Objective & How-it-works

1) Objective: To reduce each Panel’s W/B deviation

2) How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.

[ Test condition ]

Temperature : 20 ± 5ºC
Heat run mode : Vivid
Measurement mode : Adjust > White Balance mode
Measurement Point : center
Measurement Device : CA-210 / CA-310
Heat run time : continue 24 hours(for new-born module)
2 hours(for module UTT is over 24 hrs)

[ Spec]

- Color coordinate x, y ± 0.015 (after 24 hours aging)

- Color coordinate x ± 0.020, y ± 0.030 (within 24 hours aging)

5.6.2. Equipment

1) Color Analyzer: CA-210 (LED Module : CH 14)

2) Adj. Computer (During auto adj., RS-232C protocol is
needed)

3) Adjust Remocon

4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model:217, Pattern:78)

-> Only when internal pattern is not available

※ Color Analyzer Matrix should be calibrated using CS-1000

5.6.3. Equipment connection MAP

5.6.4. Adj. Command (Protocol)

<Command Format>
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS
A STOP

- LEN: Number of Data Byte to be sent

- CMD : Command

- VAL : FOS Data value

- CS : Checksum of sent data

- A : Acknowledge

Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD DATA ID

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

Ex) wb 00 00 -> Begin white balance auto-adj.
wb 00 10 -> Gain adj.
ja 00 ff -> Adj. data
jb 00 c0
...
...
wb 00 1f -> Gain adj. complete
*(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj.
wb 00 ff -> End white balance auto adj.

2) Adjustment Map
(Applied Model : LJ53H Chassis ALL MODELS)

Adj. item Command

(lower caseASCII)

CMD1 CMD2 MIN MAX

Cool R Gain j g 00 C0

G Gain j h 00 C0

B Gain j i 00 C0

Medium R Gain j a 00 C0

G Gain j b 00 C0

B Gain j c 00 C0

Warm R Gain j d 00 C0

G Gain j e 00 C0

B Gain j f 00 C0

Explanation

Data Range
(Hex.)

Only for training and service purposes

- 21 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.6.5. Adjustment method

5.6.5.1. Auto WB calibration
(1) Set TV in adj. mode using POWER ONNY key
(2) Zero calibrate probe then place it on the center of the

Display
(3) Connect Cable (RS-232C to USB)
(4) Select mode in adj. Program and begin adj.
(5) When adj. is complete (OK Sign), check adj. status pre

mode(Warm, Medium, Cool)
(6) Remove probe and RS-232C to USB cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

5.6.6. Reference (White Balance Adj. coordinate and
color temperature)

▪ Luminance: 206 Gray
▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13000K 0.0000

Medium 0.286 0.289 9300K 0.0000

Warm 0.313 0.329 6500K 0.0000

Coordinate

X Y

Temp △uv

5.6.5.2. Manual adj. method

1) Set TV in Adj. mode using POWER ON

2) Zero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface..

3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 216 Gray internal pattern will be

displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192, and
the rest will be lowered to meet the desired value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature.

** G-fix adjustment
Adjust modes (Cool), Fix the G gain to 172 (default data) and
change the others (G/B Gain).
Adjust two modes(Medium / Warm), Fix the one of R/G/B gain
to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

1) Lighting condition in surrounding area

Surrounding lighting should be lower 10 lux. Try to isolate

adj. area into dark surrounding.

2) Probe location

- PDP : Color Analyzer (CA-100, CA-100+, CA210) probe

should be firmly attached to the Module

- LCD : Color Analyzer (CA-210) probe should be within 10cm

and perpendicular of the module surface (90+/-2.5°)

3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

▪ Standard color coordinate and temperature using CA-210

(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Coordinate

X Y

Temp △uv

5.6.7. EDGE & IOL LED White balance table(TBD)

▪ Edge & ALEF LED module change color coordinate because

of aging time

▪ apply under the color coordinate table, for compensated

aging time

(Normal line) Edge & ALEF LED White balance table

-gumi & Global
Model : (normal line) - UF85,UF77,UF69, UF68, UF64

webOS

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

Only for training and service purposes

- 22 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

(*) AUO, INX, Sharp, CSOT, BOE(Cool 1300K)

Cool Medium Warm

webOS

Target 278 280 293 299 320 339

Model : 79UF95, UG87 only(LJ53V)

webOS

1 0-2 285 296 300 315 327 355

2 3-5 284 294 299 313 326 353

3 6-9 283 293 298 312 325 352

4 10-19 283 292 298 311 325 351

5 20-35 281 288 296 307 323 347

6 36-49 279 286 294 305 321 345

7 50-79 278 284 293 303 320 343

8 80-119 277 282 292 301 319 341

9 Over 120 271 270 286 289 313 329

*) AUO, INX, Sharp, CSOT, BOE(Cool 1300K)

webOS

Target 278 280 293 299 320 339

x y x y x y

271 270 285 293 313 329

Aging time

(Min)

Cool Medium Warm

x y x y x y

271 270 285 293 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

5.8. Magic Motion Remocon test

5.8.1. Automatically Test Using Golden remocon(for
line inspection)

1) Place the Golden remocon in the line inspection step.

2) check instart menu “ Wi-Fi/Magic Search : OK/OK “

5.8.2. Manually test

- Equipment : RF Remocon for test, IR-KEY-Code Remocon
for test

- You must confirm the battery power of RF-Remocon before
test

(recommend that change the battery per every lot)

- Sequence (test)

a) if you select the ‘start key(OK)’ on the controller, you can

pairing with the TV SET.

b) You can check the cursor on the TV Screen, when select

the ‘OK Key’ on the controller

c) You must remove the pairing with the TV Set by select

‘Mute + OK Key’ on the controller

5.9. 3D function test (3D model Olny)

(Pattern Generator MSHG-600, MSPG-6100 [SUPPORT
HDMI1.4])

* HDMI mode NO. 872 , pattern No.83

1) Please input 3D test pattern like below (HDMI mode NO. 872 ,
pattern No.83)

5.7. Local Dimming Function Check

Step 1) Turn on TV
Step 2) At the Local Dimming mode, module Edge Backlight

moving right to left
Back light of IOP module moving
Step 3) confirm the Local Dimming mode
Step 4) Press “exit” Key

2) When 3D OSD appear automatically , then select green button

3) Don’t wear a 3D Glasses, Check the picture like below

Only for training and service purposes

- 23 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.10. Option selection per country

5.10.1. Overview

▪ Option selection is only done for models in AJ/JA/IL

5.10.2. Method

1) Press ADJ key on the Adj. R/C, then select Country Group
Meun

2) Depending on destination, select Country Group Code or
Country Group then on the lower Country option, select US,

CA, MX. Selection is done using +, - or ►◄ KEY

5.11. HDMI ARC Function Inspection

5.11.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.11.2. Test method

1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

6. GND and Internal Pressure check

6.1. Method

1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose,
re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive
to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the
pallet to move on to next process.

6.2. Checkpoint

1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

2) TEST time: 1 second

3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.

(4) LEAKAGE CURRENT: At 0.5mArms

2) Check the sound from the TV Set

3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)

5.12. Ship-out mode check (In-stop)

▪ After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode.

7. AUDIO output check

No Item Min Ty p Max Unit Remark

1 Audio practi-

cal max
Output, L/R
(Distor­tion=10%
max Output)

2

Speaker
(8Ω Imped­ance)

*Measurement condition:

1) RF input: Mono, 1KHz sine wave signal, 100% Modulation

2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)

3) RGB PC: 1KHz sine wave signal (0.7Vrms)

10.0

12.0

8.10

10.8WVrms

10 12 W EQ On

EQ Off
AVL Off
Clear Voice Off

AVL On
Clear Voice On

Only for training and service purposes

- 24 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

8. USB S/W Download
(optional, Service only)

(1) Put the USB Stick to the USB socket
(2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower
than that of TV set, it didn’t work. Otherwise USB data is
automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring

(5) Updating Completed, The TV will restart automatically

(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. If all channel data is cleared, you didn’t have a DTV/
ATV test on production line.

* After downloading, TOOL OPTION setting is needed again.
(1) Push "IN-START" key in service remote controller.
(2) Select "Tool Option 1" and Push “OK” button.
(3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 25 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

400

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

800

120

910

521

121

900

540

350

LV1

530

A10

A22

Stand screw

820

200

Only for training and service purposes

- 26 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

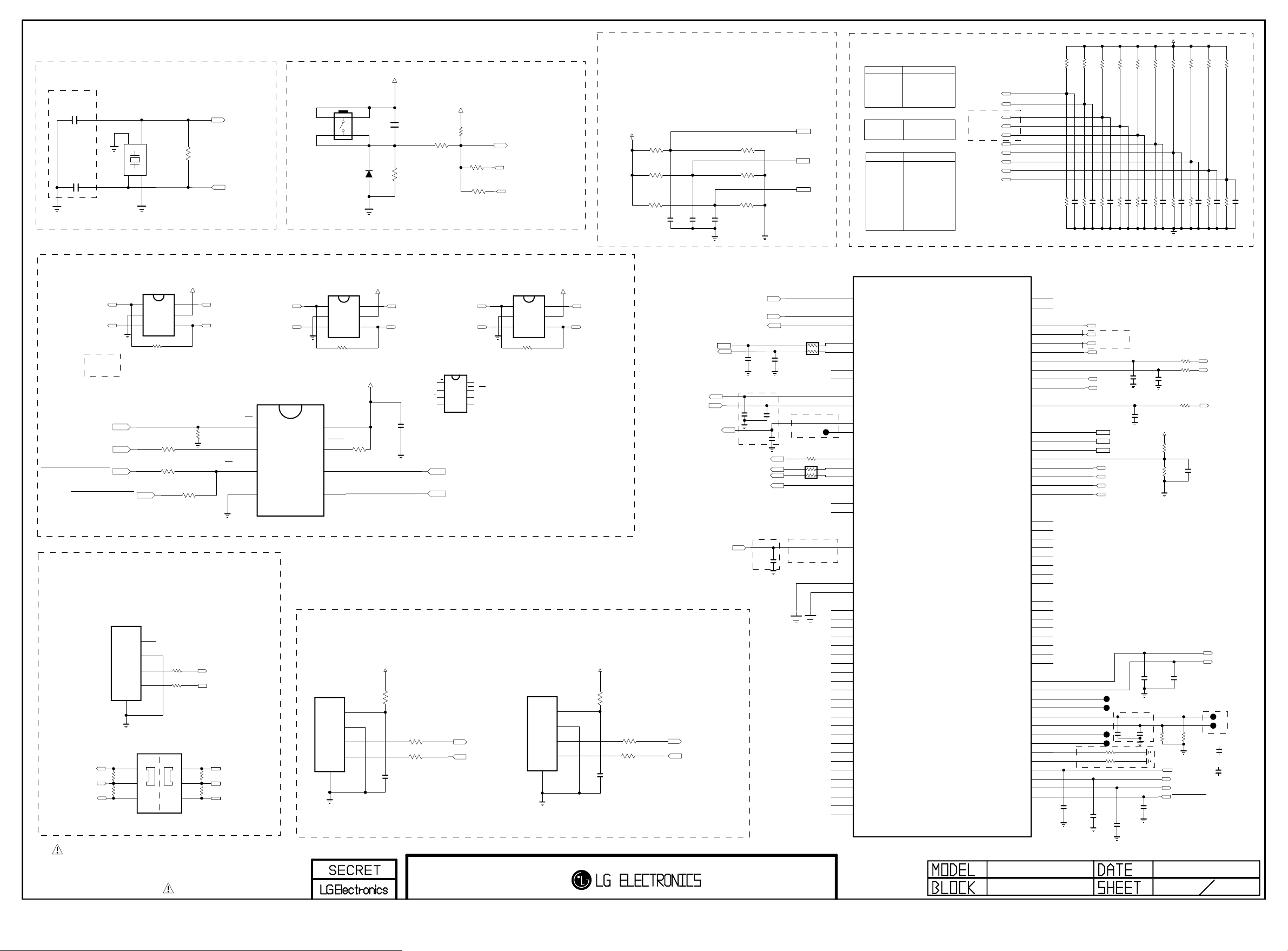

NVRAM

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Atmel_NVRAM

IC102

AT24C256C-SSHL-T

EAN61133501

A0

1

A1

2

A2

A0’h

3

GND

4

SPI_CK_SOC
SPI_DI_SOC
SPI_DO_SOC

/SPI_CS

FRC_FLASH_SEL

FRC_FLASH_WP

TXOSD_3P
TXOSD_3N
TXOSD_2P
TXOSD_2N
TXOSD_1P
TXOSD_1N
TXOSD_0P
TXOSD_0N

COMPENSATION_DONE

FAN_ON

LM15U HW Option

BIT0
BIT1

BIT2

BIT3

BIT4

BIT5

BIT6

BIT7

BIT8

BIT9

BIT10

BIT11

BIT12

BIT13

20140701 version

BIT(0/1)

BIT4

BIT5
BIT6

TW/COL

00

CN/HK

01

10

11

Display

Resolution

Model

VCC

8

WP

7

SCL

6

SDA

5

URSA9_CONNECT

L/D_VSYNC_SOC

L/D_CLK_SOC

URSA_RESET_SoC

DVB

EU

AJJA

C103

0.1uF

LOCKAn_OSD

L/D_DI_SOC

BIT0_1

R104 10K

BIT0_0

R103 10K

ATSC

US

KR

BR/PH

Sri Lanka

Low

FHD

LM15U only

+3.3V_NORMAL

Write Protection

- Low : Normal Operation

- High : Write Protection

AR100
33

1

A1

2

A2

3

GND

4

8

7

6

5

Rohm_NVRAM

I2C_SCL1
I2C_SDA1

VCC

WP

SCL

SDA

CHIP CONFIG

IC102-*1

BR24G256FJ-3

A0

LM15U+URSA9

CHIP_CONFIG[3:0]
{LED1, SPI_DI,LED0, PWM_PM}

Value Mode Description
4’b1000 SB51_ExtSPI 51 boot from SPI
4’b1001 HEMCU_ExtSPI ARM boot from SPI
4’b1010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC
4’b1011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND
4’b1100 DBUS for test only
4’b0000 SB51_ExtSPI + Authentication 51 boot from SPI with ARM authentication
4’b0001 SB51_ExtSPI + Authentication HEMCU_ExtSPI + Authentication
4’b0011 HEMCU_ROM_NAND + Authentication ARM boot from ROM with authentication;

OLED LM15U_ONLY

DATA_FORMAT_1_SOC

DATA_FORMAT_0_SOC

+3.3V_NORMAL

10K

BIT1_1

R108

10K

BIT1_0

R107

BIT2_1

R110 10K

BIT2_0

R109 10K

JP

JP

High

OLEDLCD

UHD

LM15U+URSA

BIT3_1

R112 10K

BIT3_0

R111 10K

BIT4_1

R116 10K

BIT4_0

R115 10K

R118 10K

OPT

R117 10K

BIT(7/8)

00

01

10

11

BIT6_1

R120 10K

BIT6_0

R119 10K

BIT7_1

R122 10K

BIT7_0

R121 10K

B/E(FRC)

NONE

URSA9

URSA11-P

URSA11

BIT8_1

R124 10K

R181 10K

NON_HDMI_EXT_EDID

BIT8_0

R123 10K

R159 10K

HDMI_EXT_EDID

OPT

R183 10K

R182 10K

+3.3V_NORMAL

OPT

OPT

R157 4.7K

R161 4.7K

R163 4.7K

R165 4.7K

OPT

OPT

R158 4.7K

R164 4.7K

R162 4.7K

R166 4.7K

+3.3V_NORMAL

OPT
R155

FRC_FLASH_SEL

OPT

OPT

R185 10K

R156 10K

R188 10K

OPT

R184 10K

R186 10K

R189 10K

EU/CIS

00

T2/C/S2 PIP

01

T2/C/S2

10

11

T/C

4.7K

FRC_FLASH_WP

AJJA

T2/C PIP

T2/C/S2

T2

LED1
SPI_DI_SOC
LED0
PWM_PM

M_RFModule_RESET

FRC_FLASH_SEL

R167

0

+3.3V_NORMAL

R126

10K

OPT

R179

10K

U_SPI_WP_f_SoC

WOL_WAKE_UP

TW/COL

T2/C PIP

T2/C

T/C

T ATSC

WOL_WAKE_UP

CN/HKBIT(2/3)

Default

URSA_RESET_SoC

COMPENSATION_DONE

AVDD_3P3

ATSC NIM+T2

ATSC+T2

ATSC PIP

PWM_DIM

PWM_DIM2

FAN_ON

AMP_RESET_N

PWM_PM

/USB_OCD2

USB_CTL2

SPI_CK_SOC
SPI_DI_SOC
SPI_DO_SOC

/SPI_CS

DDCA_CK
DDCA_DA

SOC_TX
SOC_RX

/TU_RESET2

I2C_SCL6
I2C_SDA6

DDTS_TX
DDTS_RX

/TU_RESET1

BIT0
BIT1
BIT2
BIT3

BIT4
BIT12
BIT13

I2C_SCL3
I2C_SDA3

I2C_SCL1
I2C_SDA1

CPU_VID0

CORE_VID0

LED0

R131
10K

LED1

KR

R168

WOL_WAKE_UP

North.AM

A16

PWM0/GPIO157

C15

PWM1/GPIO158

A15

PWM2/GPIO159

B15

PWM3/GPIO160

C14

PWM4/GPIO161

E4

PWM_PM/GPIO10

H6

SAR0/GPIO50

J6

SAR1/GPIO51

G5

SAR2/GPIO52

J5

SAR3/GPIO53

D1

SAR5

D2

SPI_CK/GPIO1

D3

SPI_DI/GPIO2

E2

SPI_DO/GPIO3

F1

R1870

E3
F2

N5
P5

C9

A10

E9

F9
F10
G10

D9

M7

P6

N6

A12
A13
C12

B12
C11
B10
C10
B11

F6

F5

K6

L7
C16
B16

D5

D4

H4

H5

L5

BR

ISDB PIPDefault

ISDB EXT

ISDB INT

SPI_CZ0/GPIO0
SPI_CZ1/GPIO_PM6/GPIO19
SPI_CZ2/GPIO_PM10/GPIO23

DDCA_CK/UART0_RX/GPIO11
DDCA_DA/UART0_TX/GPIO12

GPIO67/TX1
GPIO68/RX1
GPIO69/TX2
GPIO70/RX2
GPIO71/TX3
GPIO72/RX3
GPIO76/TX4
GPIO77/RX4
GPIO94/TX5
GPIO95/RX5

GPIO62
GPIO63
GPIO64

GPIO65
GPIO66
GPIO73
GPIO74
GPIO75
GPIO81/TX2
GPIO82/RX2

GPIO88/SCK0
GPIO89/SDA0
DDCR_CK/GPIO59
DDCR_DA/GPIO58

VID0/GPIO55
VID1/GPIO56
LED0/GPIO32
LED1/GPIO33
WOL/GPIO57

Default

0

OPT

IC100

LGE5331(LM15U)

JP

LVSYNC/VBY0M
LHSYNC/VBY0P

A0M/VBY_OSD_0M
A0P/VBY_OSD_0P
A1M/VBY_OSD_1M
A1P/VBY_OSD_1P
A2M/VBY_OSD_2M

A2P/VBY_OSD_2P
ACKM/VBY_OSD_3M
ACKP/VBY_OSD_3P

A4M/OSD_LOCKN
A4P/OSD_HTPDN

GPIO_PM0/GPIO13
GPIO_PM2/GPIO15
GPIO_PM3/GPIO16
GPIO_PM4/GPIO17
GPIO_PM7/GPIO20
GPIO_PM8/GPIO21
GPIO_PM9/GPIO22

GPIO_PM13/GPIO26
GPIO_PM17/GPIO30
GPIO_PM18/GPIO31

GPIO_PM1/GPIO14
GPIO_PM5/GPIO18

GPIO_PM11/GPIO24
GPIO_PM12/GPIO25

AV_LNK/GPIO9

GPIO112/SPI1_DI
GPIO111/SPI1_CK
GPIO114/SPI2_DI
GPIO113/SPI2_CK

GPIO110/VSYNC_LIKE

GPIO115/DIM0
GPIO116/DIM1
GPIO117/DIM2
GPIO118/DIM3

EXTERNAL EDID

BIT9

FOR HDMI2.0

BIT10

BIT11

BIT12

Reserved

BIT13

LDE/VBY1M
LCK/VBY1P

B0M/VBY2M
B0P/VBY2P
B1M/VBY3M
B1P/VBY3P
B2M/VBY4M

B2P/VBY4P
BCKM/VBY5M
BCKP/VBY5P

B3M/VBY6M

B3P/VBY6P

B4M/VBY7M

B4M/VBY7P

A3M/LOCKN

A3P/HTPDN

TEST

Support

Division

CI+

VID

V-BY-ONE

AB36
AB35
AC36
AC37

AD37
AD36
AD35
AE36
AF36
AF37
AF35
AG37
AG35
AH36
AH35
AJ36

AJ35
AK37
AK36
AK35
AL35
AM36
AM37
AM35
AJ33
AJ34
AJ32
AJ31

R172

10K

AD5
AD6
AE2
AE3
AF4
AG5
AG6
AH6
AJ5
AJ4

K5
L6
M5
M6

L4
J15

A18
B18
C17
B17
C18
D18
E18
F18
E17

Low

EXTERNAL

NON_Division

VID Enable VID Disable

TXVBY1_0N
TXVBY1_0P
TXVBY1_1N
TXVBY1_1P

TXVBY1_2N
TXVBY1_2P
TXVBY1_3N
TXVBY1_3P
TXVBY1_4N
TXVBY1_4P
TXVBY1_5N
TXVBY1_5P
TXVBY1_6N
TXVBY1_6P
TXVBY1_7N
TXVBY1_7P

TXOSD_0N
TXOSD_0P
TXOSD_1N
TXOSD_1P
TXOSD_2N
TXOSD_2P
TXOSD_3N
TXOSD_3P

R173

10K

HTPDAn_OSD_Pull_down

HTPDAn_Video_Pull_down

HTPDAn_Video
HTPDAn_OSD

OPT

COMP1_DET

R1800

3D_EN

AV2_CVBS_DET

PCM_5V_CTL

5V_DET_HDMI_1
5V_DET_HDMI_2
5V_DET_HDMI_3

BIT7
BIT8

/USB_OCD3

USB_CTL3
DATA_FORMAT_0_SOC
DATA_FORMAT_1_SOC

BIT5
BIT6

L/D_DI_SOC

L/D_CLK_SOC
L/D_VSYNC_SOC
BIT11
AV1_CVBS_DET
HP_DET
SC_DET

High

NON_EXTERNAL

4_Division

New CI PathOld CI Path

EB_DATA[0-7]

EB_ADDR[0-14]

C
NXP_VBY1_LOCK_LED_TR

Q100-*1

B

MMBT3906(NXP)

E

LOCKAn_Video
HTPDAn_Video
LOCKAn_OSD
HTPDAn_OSD

+3.3V_NORMAL

LD1 00

VBY1_LOCK_LED

3.3K
R195

19- 21/R 6C-F R1S1 L/3T

VBY1_LOCK_LED

E

Q100
2N3906S-RTK

B

KEC_VBY1_LOCK_LED_TR

C

EMMC_DATA[0-7]

R175
22

R176

1K

+3.3V_NORMAL

URSA9_CONNECT

CAM_IREQ_N

CAM_CD1_N
PCM_RESET
CAM_REG_N

CAM_WAIT_N

TCON_I2C_EN

R177

10K

OPT

R178

10K
OPT

L_DIM_EN

BIT9

BIT10

EB_OE_N
EB_BE_N1
/PCM_CE1

EB_WE_N

EB_BE_N0

EMMC_CMD

EMMC_CLK

EMMC_RST

EMMC_STRB

RF_SWITCH_CTL

EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]
EB_DATA[4]
EB_DATA[5]

EB_DATA[6]
EB_DATA[7]

EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]
EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]
EB_ADDR[8]
EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]
EB_ADDR[12]

EB_ADDR[13]
EB_ADDR[14]

EMMC_DATA[6]
EMMC_DATA[7]
EMMC_DATA[2]
EMMC_DATA[1]
EMMC_DATA[0]

EMMC_DATA[3]

EMMC_DATA[4]
EMMC_DATA[5]

R174 0

OPT

R1910

AT13

PCMDATA[0]/GPIO152

AT9

PCMDATA[1]/GPIO153

AR13

PCMDATA[2]/GPIO154

AT17

PCMDATA[3]/GPIO124

AR16

PCMDATA[4]/GPIO125

AT16

PCMDATA[5]/GPIO126

AR21

PCMDATA[6]/GPIO127

AT18

PCMDATA[7]/GPIO128

AU10

PCMADR[0]/GPIO151

AT14

PCMADR[1]/GPIO150

AR10

PCMADR[2]/GPIO148

AT19

PCMADR[3]/GPIO147

AR18

PCMADR[4]/GPIO146

AU19

PCMADR[5]/GPIO144

AT11

PCMADR[6]/GPIO143

AT12

PCMADR[7]/GPIO142

AT20

PCMADR[8]/GPIO136

AU14

PCMADR[9]/GPIO134

AU16

PCMADR[10]/GPIO130

AR20

PCMADR[11]/GPIO132

AR12

PCMADR[12]/GPIO141

AU13

PCMADR[13]/GPIO137

AR19

PCMADR[14]/GPIO138

AU20

PCMIRQA/GPIO140

AT21

PCMOEN/GPIO131

AR15

PCMIORD/GPIO133

AU17

PCMCEN/GPIO129

AR11

PCMWEN/GPIO139

AR17

PCMCD/GPIO156

AU11

PCMRST/GPIO155

AR14

PCMREG/GPIO149

AT15

PCMIOWR/GPIO135

AT10

PCMWAIT/GPIO145

D7

NAND_ALE/GPIO194

F7

NAND_WPZ/GPIO193

G7

NAND_CEZ/EMMC_CMD/GPIO188

E6

NAND_CLE/GPIO190

F8

NAND_REZ/EMMC_CLK/GPIO191

E7

NAND_WEZ/GPIO192

E8

NAND_RBZ/EMMC_RSTN/GPIO195

D6

NAND_CEZ1/GPIO189

D8

NAND_DQS/GPIO196

A6

NAND_AD0/EMMC_D6/GPIO226

C6

NAND_AD1/EMMC_D7/GPIO225

A7

NAND_AD2/EMMC_D2/GPIO224

B7

NAND_AD3/EMMC_D1/GPIO223

C7

NAND_AD4/EMMC_D0/GPIO199

B8

NAND_AD5/EMMC_D3/GPIO198

C8

NAND_AD6/EMMC_D4/GPIO197

B9

NAND_AD7/EMMC_D5/GPIO227

AM4

PCM2_CD/GPIO123

AP4

PCM2_CE/GPIO119

AL5

PCM2_IRQA/GPIO120

AN4

PCM2_WAIT/GPIO121

AL4

PCM2_RESET/GPIO122

IC100

LGE5331(LM15U)

TS2DATA_[7]/VSENSE/GPIO210

TS1DATA_[0]/GPIO187
TS1DATA_[1]/GPIO186
TS1DATA_[2]/GPIO185
TS1DATA_[3]/GPIO184
TS1DATA_[4]/GPIO183
TS1DATA_[5]/GPIO182
TS1DATA_[6]/GPIO181
TS1DATA_[7]/GPIO180

TS1CLK/GPIO177

TS1VALID/GPIO179

TS1SYNC/GPIO178

TS0DATA_[0]/GPIO166
TS0DATA_[1]/GPIO167
TS0DATA_[2]/GPIO168
TS0DATA_[3]/GPIO169
TS0DATA_[4]/GPIO170
TS0DATA_[5]/GPIO171
TS0DATA_[6]/GPIO172
TS0DATA_[7]/GPIO173

TS0CLK/GPIO176

TS0VALID/GPIO174

TS0SYNC/GPIO175

TS2DATA_[0]/GPIO200
TS2DATA_[1]/GPIO204
TS2DATA_[2]/GPIO205
TS2DATA_[3]/GPIO206
TS2DATA_[4]/GPIO207
TS2DATA_[5]/GPIO208
TS2DATA_[6]/GPIO209

TS2CLK/GPIO203

TS2VALID/GPIO201

TS2SYNC/GPIO202

TS3DATA_[0]/GPIO211
TS3DATA_[1]/GPIO212
TS3DATA_[2]/GPIO213
TS3DATA_[3]/GPIO214
TS3DATA_[4]/GPIO215
TS3DATA_[5]/GPIO216
TS3DATA_[6]/GPIO217
TS3DATA_[7]/GPIO218

TS3CLK/GPIO221

TS3VALID/GPIO219

TS3SYNC/GPIO220

VIFP
VIFM

SIFP
SIFM

IF_AGC

TGPIO0/GPIO162
TGPIO1/GPIO163
TGPIO2/GPIO164
TGPIO3/GPIO165

AL6
AM6
AP8
AN7
AM5
AM7
AN5
AN6
AL7
AP5
AP6

AP10
AN10
AM8
AM10
AM11
AM12
AN8
AM9
AN11
AN9
AP9

AM14
AP15
AN12
AN15
AN14
AM16
AN13
AM15
AP13
AP12
AM13

AM18
AP16
AM19
AN18
AP19
AN20
AP18
AN19
AN17
AM17
AN16

AP1
AP2

AN2
AN1

AP3

AR2
AM2
AK5
AK6

/USB_OCD1
USB_CTL1

I2C_SCL7
I2C_SDA7

TPO_DATA[0]
TPO_DATA[1]
TPO_DATA[2]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[7]

TPO_CLK
TPO_VAL
TPO_SOP

TPI_CLK
TPI_VAL
TPI_SOP

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_VAL
FE_DEMOD1_TS_SYNC

FE_DEMOD3_TS_DATA

FE_DEMOD3_TS_CLK
FE_DEMOD3_TS_VAL
FE_DEMOD3_TS_SYNC

TPI_DATA[0-7]

TPI_DATA[0]

TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

TPI_DATA[0-7]

Close to MSTAR

R140 100 C118 0.1uF

R141 100

C120 0.1uF
C121 0.1uF

ANALOG SIF

Close to MSTAR

R142
10K

TPO_DATA[0-7]

FE_DEMOD1_TS_DATA[0-7]

C119 0.1uF

R144 47

R145 47

PZ1608U121-2R0TF

R143

0

C124
1000pF
OPT

OPT
C122

100pF

R146
300

OPT

+3.3V_NORMAL

L100

C125

0.1uF

C127

0.047uF
25V

OPT
C123
33pF

DTV_IF

IF_P

IF_N

OPT
C126
33pF

TU_SIF

IF_AGC

Mstart Debug

MSTAR_DEBUG_OLD

MSTAR_DEBUG_NEW

P101

12507WS-04L

1

2

DDCA_CK

3

DDCA_DA

4

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

P103

12505WS-04A00

1

2

3

4

5

RS232C_Debug

UART_4PIN_WAFER

P102

12507WS-04L

5

+3.5V_ST

1

2

3

4

OPT

R100 10K

R147

1.8K

R148

1.8K

+3.3V_LNA_TU

+3.3V_NORMAL

R128

1.8K

R129

1.8K

R127

1.8K

I2C_SDA_MICOM
I2C_SCL_MICOM

R130

1.8K

+3.3V_TU

SOC_RX

OPT

R101 10K

SOC_TX

I2C PULL UP

R133

1.8K

R134

1.8K

R135

1.8K

AR101
33

R136

1.8K

R106

1.8K

R125

1.8K

I2C_SDA3
I2C_SCL3

R132

1.8K

R139

1.8K

I2C_SDA7
I2C_SCL7

I2C_SDA6
I2C_SCL6
I2C_SDA1
I2C_SCL1
I2C_SDA3
I2C_SCL3

I2C_SDA4
I2C_SCL4

I2C_SDA5
I2C_SCL5

I2C_SDA2
I2C_SCL2

I2C for URSA9 (URSA9 Only)

I2C for LCD Module

I2C for NAVRAM

I2C for Micom

I2C for Main Amp / Woofer AMP

I2C for tuner

I2C for tuner&LNB

GPIO PULL UP

+3.3V_NORMAL

OPT

R171 10K

R149 10K

R153 10K

R151 10K

R152 10K

R150 10K

OPT

R160 10K

R169 10K

R154 10K

R170 10K

/TU_RESET1
RF_SWITCH_CTL
AMP_RESET_N

TCON_I2C_EN

/USB_OCD1

USB_CTL1

/USB_OCD2

USB_CTL2

M_RFModule_RESET

PCM_5V_CTL

DDTS_Debug

DDTS_Debug

P100

12507WS-04L

5

+3.3V_NORMAL

1

2

3

4

OPT

R102 10K

DDTS_RX

OPT

R105 10K

DDTS_TX

2014-12-17LM15U

MAIN1_SYSTEM

1

DVDD_NODIE

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

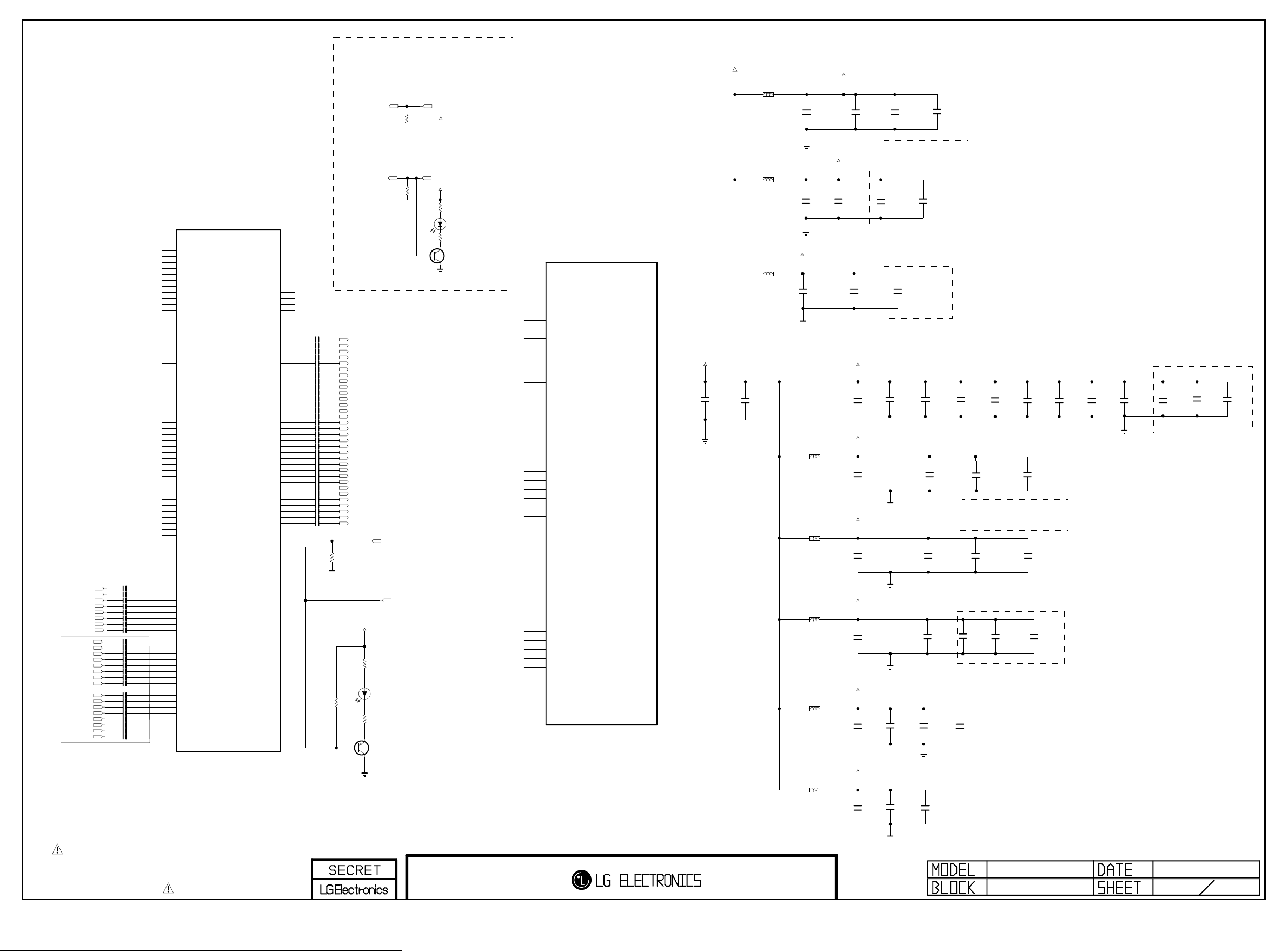

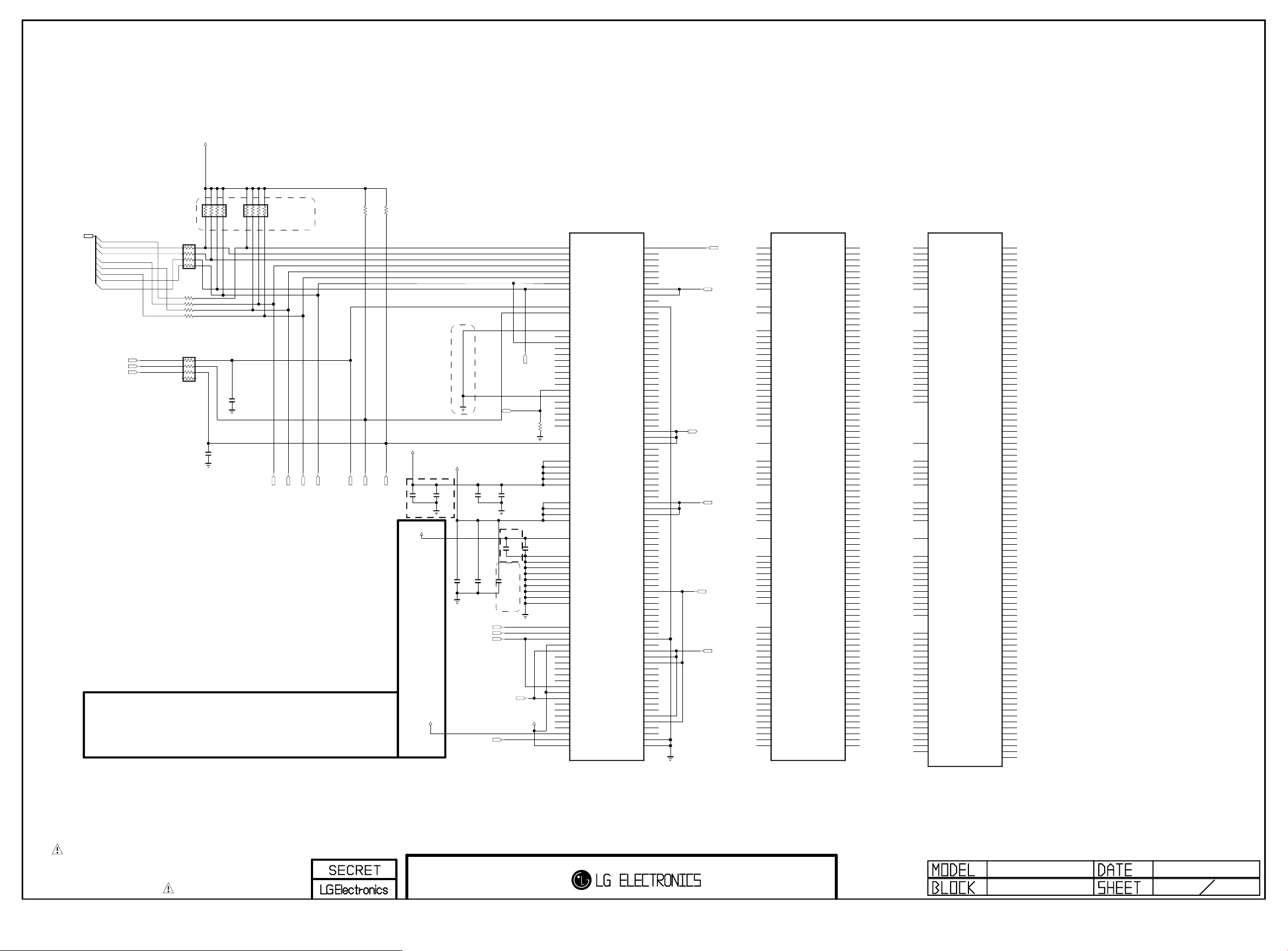

C200

1uF
25V

VDDC15_M0

DVDD_DDR11

+1.1V_VDDC_CPU

+1.1V_VDDC

AVDDL_MOD11

DVDD_DDR11

AF18
AF19
AF20
AG18
AG19
AG20
AG21
AG22
AH18
AH19
AH20
AH21
AH22

AF14
AF15

AA21
AA27
AA28
AA29
AB21
AB22
AB23
AB24
AB25
AB26
AB27
AB28
AB29
AC21
AC22
AC23
AC24
AC25
AC26
AC27
AC28
AC29
AC30
AD27
AD28
AD29
AD30

AF24

AF25

L10
L11
L12
L13
L14
M10
M11
M12
M13
M14
N10
N11
N12
N13
V12
V13
V14
W12
W13
W14
Y12
Y13
Y14

W23
Y23
W24
Y24
Y25
Y26

N14

R22
R24

P22
T24

LGE5331(LM15U)

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23
VDDC_24
VDDC_25
VDDC_26
VDDC_27
VDDC_28
VDDC_29
VDDC_30
VDDC_31
VDDC_32
VDDC_33
VDDC_34
VDDC_35
VDDC_36

AVDDL_PREDRV_1
AVDDL_PREDRV_2
AVDDL_MOD_1
AVDDL_MOD_2
AVDD15_MOD_1
AVDD15_MOD_2

AVDDL_USB3_1
AVDDL_USB3_2

VDDC_CPU_1
VDDC_CPU_2
VDDC_CPU_3
VDDC_CPU_4
VDDC_CPU_5
VDDC_CPU_6
VDDC_CPU_7
VDDC_CPU_8
VDDC_CPU_9
VDDC_CPU_10
VDDC_CPU_11
VDDC_CPU_12
VDDC_CPU_13
VDDC_CPU_14
VDDC_CPU_15
VDDC_CPU_16
VDDC_CPU_17
VDDC_CPU_18
VDDC_CPU_19
VDDC_CPU_20
VDDC_CPU_21
VDDC_CPU_22
VDDC_CPU_23
VDDC_CPU_24
VDDC_CPU_25
VDDC_CPU_26
VDDC_CPU_27

DVDD_NODIE

DVDD_DDR_1
DVDD_DDR_2
DVDD_DDR_C
DVDD_DDR_RX_A
DVDD_DDR_RX_B
DVDD_DDR_RX_C

IC100

AVDD_NODIE

AVDDL_MHL3_1

AVDDL_MHL3_2
AVDD3P3_MHL3_1
AVDD3P3_MHL3_2

AVDD3P3_ETH
AVDD3P3_DADC_1
AVDD3P3_DADC_2

AVDD3P3_ADC_1
AVDD3P3_ADC_2
AVDD3P3_USB_1

AVDD3P3_USB_2
AVDD3P3_USB3_1
AVDD3P3_USB3_2

AVDD_AU33

AVDD_EAR33

AVDD3P3_DMPLL

VDDP_1
VDDP_2

AVDD_MOD_1

AVDD_MOD_2
AVDD_LPLL_1
AVDD_LPLL_2

AVDD_PLL_A

AVDD_PLL_B

AVDD_PLL_C

VDDP_3318_A_CAP
VDDP_3318_C_CAP

VDDP_3318_A
VDDP_3318_C

AVDD_DDR_A_CMD_1
AVDD_DDR_A_CMD_2

AVDD_DDR_A_MCK
AVDD_DDR_A_DAT_1
AVDD_DDR_A_DAT_2
AVDD_DDR_A_DAT_3
AVDD_DDR_A_DAT_4
AVDD_DDR_B_CMD_1
AVDD_DDR_B_CMD_2

AVDD_DDR_B_MCK
AVDD_DDR_B_DAT_1
AVDD_DDR_B_DAT_3
AVDD_DDR_B_DAT_4
AVDD_DDR_B_DAT_2
AVDD_DDR_C_CMD_1
AVDD_DDR_C_CMD_2

AVDD_DDR_C_MCK
AVDD_DDR_C_DAT_1
AVDD_DDR_C_DAT_2
AVDD_DDR_C_DAT_3
AVDD_DDR_C_DAT_4

AVDD_DDR_LDO_A

AVDD_DDR_LDO_B

AVDD_DDR_LDO_C

AVDD_HDMI_5V_PA
AVDD_HDMI_5V_PC

GND_EFUSE

AVDD_DDR_VBP_A_1
AVDD_DDR_VBP_A_2

AVDD_DDR_VBN_A_1
AVDD_DDR_VBN_A_2

AVDD_DDR_VBP_B_1
AVDD_DDR_VBP_B_2

AVDD_DDR_VBN_B_1
AVDD_DDR_VBN_B_2

AVDD_DDR_VBP_C_1
AVDD_DDR_VBP_C_2

AVDD_DDR_VBN_C_1
AVDD_DDR_VBN_C_2

V7

T13
T14
L8
M8

W7
AD7
AD8
Y7
Y8
AL10
AL11
AH14
AH15
AH7
AG7
AL12
AK15
AL15

W26
Y27
Y28
Y29

U18
U19
AL18

L17
L15
G8
H7

M20
M21
N21
M22
N22
N23
N24
N25
N26
P25
R25
T25
U25
R26
AE25
AE26
AF26
AE22
AE23
AE24
AF22

N20
P24
AD25

U7
P7

P8

L20
L21

M24
M25

U27
V27

U26
V26

AD21
AD22

AD23
AD24

AVDDL_HDMI11

AVDD33

VDDC15_M0

VDDC15_M1

AVDD_PLL33

AVDD5V_MHL

C2270.47uF

C2290.47uF

C2300.47uF

C2310.47uF

C2340.47uF

C2400.47uF

AVDD33

AVDD_AU33

VDDP_NAND

VDDC15_M1

VDDC15_M0

VDDC15_M0

VDDC15_M1

AVDD_3P3

C216

4.7uF

C219

0.1uF

C220

4.7uF

C221

0.1uF

WOL POWER ENABLE CONTROL

+3.5V_ST

PZ1608U121-2R0TF

L204

+3.3V_NORMAL

C239

0.1uF

WOL_CTL

+3.5V_WOL

R201
1K
OPT

R2020

1st layer

0.1uF

C205

0.1uF
16V

IC200

AP2151WG-7

IN

5

EN

4

C250

Close to chip side

IC201

AP2121N-3.3TRE1

VIN

3

1

GND

1

2

3

AVDD_3P3

C249

VOUT

2

OUT

GND

FLG

4th layer

0.1uF

AVDD_3P3

C206
1uF
10V

+3.5V_WOL

5V_HDMI_3

R203
10K

OPT

R200

10

AVDD5V_MHL

+1.1V_Bypass Cap(CLOSE TO CHIP SIDE)

+1.1V_VDDC

L226

PZ1608U121-2R0TF

2A

L202

PZ1608U121-2R0TF

2A

AVDDL_MOD11

C264
10uF
10V

+1.1V_VDDC

+1.1V_VDDC_CPU

C228

0.1uF

10uF
10V

C232

C235

C261

0.1uF

10uF
10V

C277

C275

1st layer

C263

0.1uF

10uF
10V

C276

C278

Close to chip side

0.1uF

0.1uF

0.1uF

+3.3V_Bypass Cap

+3.3V_NORMAL

C222
10uF
10V

C285

C271
10uF
10V

0.1uF

C265

DVDD_DDR11

0.1uF

C306

C310

0.1uF

PZ1608U121-2R0TF

L215

2A

0.1uF
OPT

Close to chip side

Close to chip side

AVDD_PLL33

C256
10uF
10V

0.1uF

C324

4th layer

OPT

4th layer

10uF
10V

Close to chip side

0.1uF

C320

C323

C322

10uF
10V

1st layer

0.1uF

0.1uF

C274

C286

4th layer

L205

PZ1608U121-2R0TF

2A

AVDDL_HDMI11

C210

4th layer

0.47uF

C311

C241

0.47uF

0.47uF

+1.5V_DDR

PZ1608U121-2R0TF

PZ1608U121-2R0TF

PZ1608U121-2R0TF

+1.5V_Bypass Cap

VDDC15_M0

L227

L200

C207

2A

10uF
10V

C209 0.1uF

VDDC15_M1

L201

C208

2A

10uF
10V

C218 0.1uF

1st layer

C201
10uF
10V

Close to chip side

1st layer

C202
10uF
10V

Close to chip side

C203 0.1uF C224 0.1uF

C225 0.1uF

C204 0.1uF

C226 0.1uF

Close to chip side

C287 0.1uF

4th layer

OPT

OPT

C316
10uF

C314

10V

0.47uF

4th layer

LM15U_DDR_EMI

OPT

C317
10uF

C315

10V

0.47uF

Close to chip side

C223
10uF
10V

LM15U_DDR_EMI

C212
20pF
50V

LM15U_DDR_EMI

C213

C214

20pF

20pF

50V

50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

11/05/31

+3.3V_NORMAL

+1.8V

GND JIG POINT

OPT

L222

PZ1608U121-2R0TF

2A

L223

PZ1608U121-2R0TF

2A

JP202

JP204

JP203

JP205

VDDP_NAND

C302
10uF
10V

C304

0.1uF

L203

PZ1608U121-2R0TF

2A

L212

PZ1608U121-2R0TF

2A

LM15U POWER

Close to chip side

AVDD33

C217
10uF
10V

C238 0.1uF

C244 0.1uF

AVDD_AU33

0.1uF

C236
10uF
10V

C243

LM15U

0.1uF

C252

Close to chip side

4th layer

0.1uF

C251

C211

Close to chip side

4th layer

0.1uF

OPT

C253

Close to chip side

0.47uF

2014-08-26

02

IC100

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

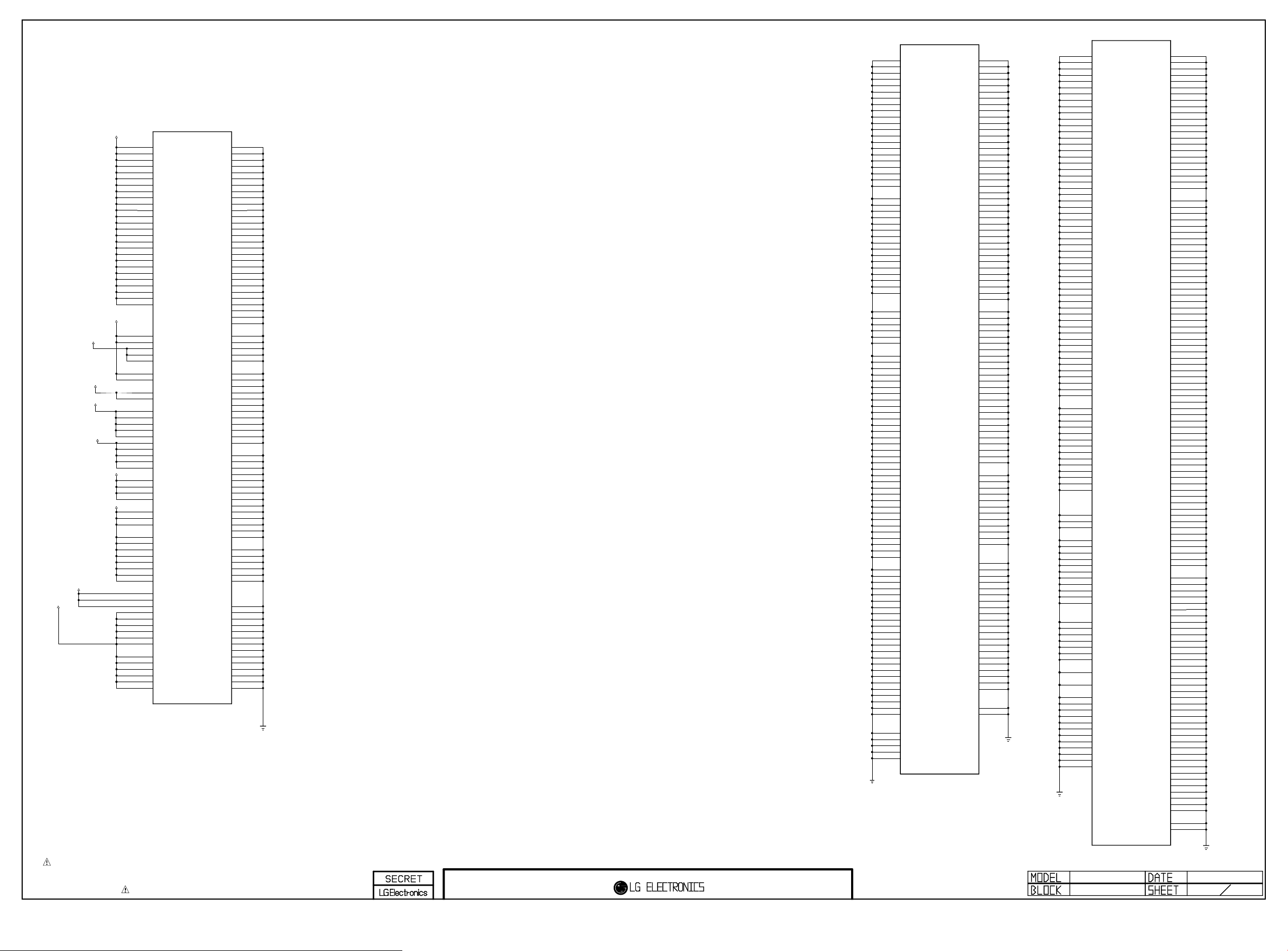

LGE5331(LM15U)

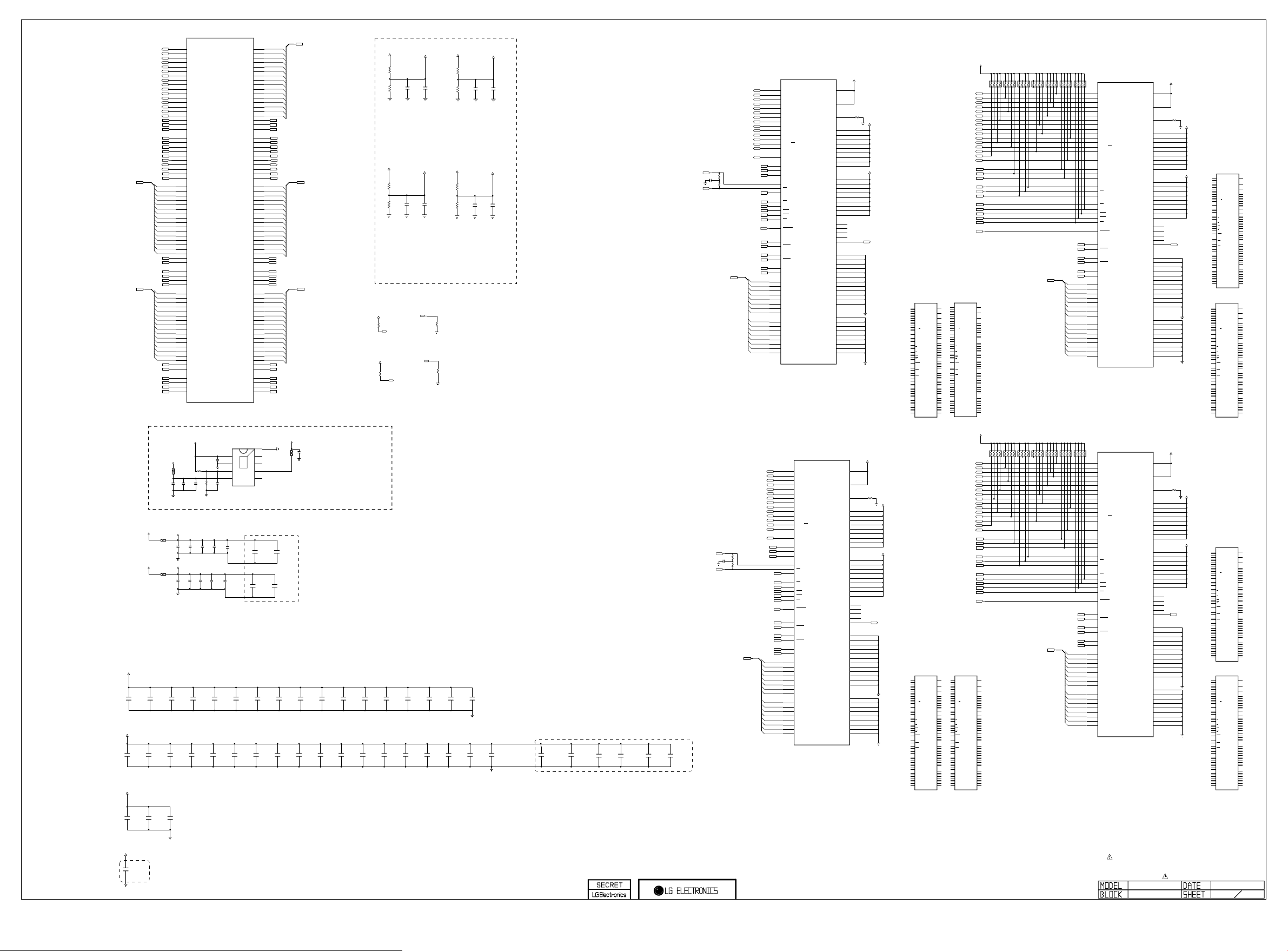

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1

M0_DDR_BA2
M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN
M0_DDR_ODT

M0_DDR_CKE

M0_DDR_RESET_N_1

M0_D_CLK

M0_D_CLKN

M0_DDR_CS1
M0_DDR_CS2

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DM0

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQ8

M0_DDR_DQ9
M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

M0_DDR_DM1
M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DM2
M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

M0_DDR_DM3
M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_RESET_N_1

F21

A_A0

C21

A_A1

E21

A_A2

F22

A_A3

B22

A_A4

E22

A_A5

A21

A_A6

D21

A_A7

C20

A_A8

E20

A_A9

B23

A_A10

B21

A_A11

D24

A_A12

F20

A_A13

B20

A_A14

E24

A_A15

E23

A_BA0

C22

A_BA1

F23

A_BA2

G26

A_RASZ

F25

A_CASZ

E25

A_WEZ

F24

A_ODT

C23

A_CKE

F19

A_RST

A24

A_MCLK

B24

A_MCLKZ

E19

A_CSB1

D19

A_CSB2

C27

A_DQ[0]

B26

A_DQ[1]

B28

A_DQ[2]

C25

A_DQ[3]

B29

A_DQ[4]

C24

A_DQ[5]

C28

A_DQ[6]

B25

A_DQ[7]

C26

A_DQM[0]

A27

A_DQS[0]

B27

A_DQSB[0]

D27

A_DQ[8]/DQU0

D30

A_DQ[9]/DQU1

E26

A_DQ[10]/DQU2

D31

A_DQ[11]/DQU3

F27

A_DQ[12]/DQU4

E30

A_DQ[13]/DQU5

D26

A_DQ[14]/DQU6

E29

A_DQ[15]/DQU7

E28

A_DQM[1]

D28

A_DQS[1]

E27

A_DQSB[1]

C32

A_DQ[16]/DQL0

C30

A_DQ[17]/DQL1

B33

A_DQ[18]/DQL2

A30

A_DQ[19]/DQL3

C33

A_DQ[20]/DQL4

C29

A_DQ[21]/DQL5

A33

A_DQ[22]/DQL6

B30

A_DQ[23]/DQL7

B31

A_DQM[2]

B32

A_DQS[2]

C31

A_DQSB[2]

E33

A_DQ[24]/DQU0

C35

A_DQ[25]/DQU1

E31

A_DQ[26]/DQU2

D35

A_DQ[27]/DQU3

D33

A_DQ[28]/DQU4

D34

A_DQ[29]/DQU5

E32

A_DQ[30]/DQU6

C34

A_DQ[31]/DQU7

B35

A_DQM[3]

A35

A_DQS[3]

B34

A_DQSB[3]

OPT

R4400

M0_DDR_RESET_N

C

R434

NXP_DDR_RES0_TR

1K

Q400

B

MMBT3904(NXP)

B

M1_DDR_RESET_N_1

C

KEC_DDR_RES0_TR
Q400-*1
2N3904S

E

E

R435

10K

M2_DDR_RESET_N_1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

B_A10
B_A11
B_A12
B_A13
B_A14
B_A15
B_BA0
B_BA1

B_BA2
B_RASZ
B_CASZ

B_WEZ

B_ODT

B_CKE

B_RST
B_MCLK

B_MCLKZ

B_CSB1
B_CSB2

B_DQ[0]
B_DQ[1]
B_DQ[2]
B_DQ[3]
B_DQ[4]
B_DQ[5]
B_DQ[6]

B_DQ[7]
B_DQM[0]
B_DQS[0]

B_DQSB[0]

B_DQ[8]/DQU0

B_DQ[9]/DQU1
B_DQ[10]/DQU2
B_DQ[11]/DQU3
B_DQ[12]/DQU4
B_DQ[13]/DQU5
B_DQ[14]/DQU6
B_DQ[15]/DQU7

B_DQM[1]
B_DQS[1]

B_DQSB[1]

B_DQ[16]/DQL0
B_DQ[17]/DQL1
B_DQ[18]/DQL2
B_DQ[19]/DQL3
B_DQ[20]/DQL4
B_DQ[21]/DQL5
B_DQ[22]/DQL6
B_DQ[23]/DQL7

B_DQM[2]
B_DQS[2]

B_DQSB[2]

B_DQ[24]/DQU0
B_DQ[25]/DQU1
B_DQ[26]/DQU2
B_DQ[27]/DQU3
B_DQ[28]/DQU4
B_DQ[29]/DQU5
B_DQ[30]/DQU6
B_DQ[31]/DQU7

B_DQM[3]
B_DQS[3]

B_DQSB[3]

C_A10
C_A11
C_A12
C_A13
C_A14
C_A15
C_BA0
C_BA1

C_BA2
C_RASZ
C_CASZ

C_WEZ

C_ODT

C_CKE

C_RST
C_MCLK

C_MCLKZ

C_CSB1
C_CSB2

C_DQ[0]
C_DQ[1]
C_DQ[2]
C_DQ[3]
C_DQ[4]
C_DQ[5]
C_DQ[6]

C_DQ[7]
C_DQM[0]
C_DQS[0]

C_DQSB[0]

C_DQ[8]/DQU0

C_DQ[9]/DQU1
C_DQ[10]/DQU2
C_DQ[11]/DQU3
C_DQ[12]/DQU4
C_DQ[13]/DQU5
C_DQ[14]/DQU6
C_DQ[15]/DQU7

C_DQM[1]
C_DQS[1]

C_DQSB[1]

C_DQ[16]/DQL0
C_DQ[17]/DQL1
C_DQ[18]/DQL2
C_DQ[19]/DQL3
C_DQ[20]/DQL4
C_DQ[21]/DQL5
C_DQ[22]/DQL6
C_DQ[23]/DQL7

C_DQM[2]
C_DQS[2]

C_DQSB[2]

C_DQ[24]/DQU0
C_DQ[25]/DQU1
C_DQ[26]/DQU2
C_DQ[27]/DQU3
C_DQ[28]/DQU4
C_DQ[29]/DQU5
C_DQ[30]/DQU6
C_DQ[31]/DQU7

C_DQM[3]
C_DQS[3]

C_DQSB[3]

G33

B_A0

J36

B_A1

H34

B_A2

J32

B_A3

J35

B_A4

H33

B_A5

J37

B_A6

G36

B_A7

H37

B_A8

F35

B_A9

K35
H35
K34
F36
H36
L33
K33
K36
J33
M33
M32
K32
L32
L36
F37
M37
L35
F34
E37

R36
N35
R35
N36
T35
M36
T36
M35
P36
R37
P35

N32
T34
N33
T32
P33
U33
N34
T33
R33
R32
P32

Y36
V36
Y35
V37
AA36
U36
AA37
U35
V35
W35
W36

W33
AA32
U32
AA34
V33
AA33
V32
Y32
W32
Y33
W34

AM34

C_A0

AR35

C_A1

AP34

C_A2

AM33

C_A3

AT34

C_A4

AN33

C_A5

AU35

C_A6

AR36

C_A7

AU36

C_A8

AR37

C_A9

AT33
AT35
AP31
AP35
AT37
AN31
AN32
AR34
AM32
AM29
AM30
AN30
AM31
AR33
AP37
AU32
AT32
AN34
AP36

AR29
AT30
AT28
AR31
AT27
AR32
AR28
AT31
AR30
AU29
AT29

AN27
AP25
AN29
AN24
AN28
AN25
AP28
AN26
AM26
AM27
AM28

AR24
AR26
AT23
AU26
AR23
AR27
AU23
AT26
AT25
AT24
AR25

AN23
AN21
AM25
AM21
AM23
AM22
AM24
AT22
AR22
AP21
AP22

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15
M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN
M1_DDR_ODT
M1_DDR_CKE
M1_DDR_RESET_N_1
M1_D_CLK
M1_D_CLKN
M1_DDR_CS1
M1_DDR_CS2

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DM0
M1_DDR_DQS0
M1_DDR_DQS_N0

M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DM1
M1_DDR_DQS1
M1_DDR_DQS_N1

M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DM2
M1_DDR_DQS2
M1_DDR_DQS_N2

M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31
M1_DDR_DM3
M1_DDR_DQS3
M1_DDR_DQS_N3

M2_DDR_A0
M2_DDR_A1
M2_DDR_A2
M2_DDR_A3
M2_DDR_A4
M2_DDR_A5
M2_DDR_A6
M2_DDR_A7
M2_DDR_A8
M2_DDR_A9
M2_DDR_A10
M2_DDR_A11
M2_DDR_A12
M2_DDR_A13
M2_DDR_A14
M2_DDR_A15
M2_DDR_BA0
M2_DDR_BA1
M2_DDR_BA2
M2_DDR_RASN
M2_DDR_CASN
M2_DDR_WEN
M2_DDR_ODT
M2_DDR_CKE
M2_DDR_RESET_N_1
M2_D_CLK
M2_D_CLKN
M2_DDR_CS1
M2_DDR_CS2

M2_DDR_DQ0
M2_DDR_DQ1
M2_DDR_DQ2
M2_DDR_DQ3
M2_DDR_DQ4
M2_DDR_DQ5
M2_DDR_DQ6
M2_DDR_DQ7
M2_DDR_DM0
M2_DDR_DQS0
M2_DDR_DQS_N0

M2_DDR_DQ8
M2_DDR_DQ9
M2_DDR_DQ10
M2_DDR_DQ11
M2_DDR_DQ12
M2_DDR_DQ13
M2_DDR_DQ14
M2_DDR_DQ15
M2_DDR_DM1
M2_DDR_DQS1
M2_DDR_DQS_N1

M2_DDR_DQ16
M2_DDR_DQ17
M2_DDR_DQ18
M2_DDR_DQ19
M2_DDR_DQ20
M2_DDR_DQ21
M2_DDR_DQ22
M2_DDR_DQ23
M2_DDR_DM2
M2_DDR_DQS2
M2_DDR_DQS_N2

M2_DDR_DQ24
M2_DDR_DQ25
M2_DDR_DQ26
M2_DDR_DQ27
M2_DDR_DQ28
M2_DDR_DQ29
M2_DDR_DQ30
M2_DDR_DQ31
M2_DDR_DM3
M2_DDR_DQS3
M2_DDR_DQS_N3

OPT

R4410

M1_DDR_RESET_N

C

R436

NXP_DDR_RES1_TR

1K

Q401

B

MMBT3904(NXP)

E

R437

10K

OPT

R4420

M2_DDR_RESET_N

C

R438

NXP_DDR_RES2_TR

1K

B

Q402
MMBT3904(NXP)

E

R439

10K

B

B

C

KEC_DDR_RES1_TR
Q401-*1
2N3904S

E

C

KEC_DDR_RES2_TR
Q402-*1
2N3904S

E

M0_DDR_RESET_N

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DM0
M0_DDR_DM1

M2_DDR_RESET_N

M2_DDR_DQS0

M2_DDR_DQS_N0

M2_DDR_DQS1

M2_DDR_DQS_N1

M2_DDR_DM0
M2_DDR_DM1

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

M2_DDR_A10
M2_DDR_A11
M2_DDR_A12
M2_DDR_A13
M2_DDR_A14
M2_DDR_A15

M2_DDR_BA0
M2_DDR_BA1
M2_DDR_BA2

M2_DDR_CKE

M2_DDR_CS1

M2_DDR_ODT
M2_DDR_RASN
M2_DDR_CASN

M2_DDR_WEN

M2_DDR_DQ0

M2_DDR_DQ1

M2_DDR_DQ2

M2_DDR_DQ3

M2_DDR_DQ4

M2_DDR_DQ5

M2_DDR_DQ6

M2_DDR_DQ7

M2_DDR_DQ8

M2_DDR_DQ9
M2_DDR_DQ10
M2_DDR_DQ11
M2_DDR_DQ12
M2_DDR_DQ13
M2_DDR_DQ14
M2_DDR_DQ15

Hynix_DDR3_4Gb_29n

H5TQ4G63AFR-RDC

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_D_CLK

M0_D_CLKN
M0_DDR_CKE

M0_DDR_CS1
M0_DDR_ODT

M0_DDR_WEN

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7

M0_DDR_DQ8
M0_DDR_DQ9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

VDDC15_M0

C402 0.1uF

C400 0.1uF

C401 0.1uF

Hynix_DDR3_4Gb_29n

H5TQ4G63AFR-RDC

M2_DDR_A0

M2_DDR_A1

M2_DDR_A2

M2_DDR_A3

M2_DDR_A4

M2_DDR_A5

M2_DDR_A6

M2_DDR_A7

M2_DDR_A8

M2_DDR_A9

M2_D_CLK

M2_D_CLKN

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

VDDC15_M1

C493 0.1uF

C492 0.1uF

C482 0.1uF

IC400

EAN63053201

DDR3
4Gbit
(x16)

IC405

EAN63053201

DDR3
4Gbit
(x16)

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

M0_DDR_VREFDQ

M8

H1

L8

R400

ZQ

VDDC15_M0

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

240

C410

0.1uF

C411

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

IC400-*1

IC400-*2

K4B4G1646D-BCMA

H5TQ4G63CFR_RDC

M8

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

H1

N2

H1

VREFDQ

A3

VREFDQ

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

K2

N7

K2

A12/BC

VDD_4

VDD_4

K8

T3

K8

VDD_5

A13

VDD_5

T7

N1

N1

A14

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_D_CLK

M0_D_CLKN
M0_DDR_CKE

M0_DDR_CS2
M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DQ24

M0_DDR_DQ25

M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

VDDC15_M0

M2_DDR_VREFDQ

M8

H1

L8

R406

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

C502
C503

SS_DDR3_4Gb_25n

IC405-*1

K4B4G1646D-BCMA

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

240

0.1uF

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

Hynix_DDR3_4Gb_25n

SS_DDR3_2Gb

IC405-*2

IC405-*3

H5TQ4G63CFR_RDC

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

K4B2G1646Q-BCMA

M8

N3

N3

VREFCA

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

A0

P7

A1

P3

A2

H1

N2

VREFDQ

VREFDQ

A3

P8

A4

P2

A5

L8

R8

ZQ

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

VDD_1

L7

D9

A10/AP

VDD_2

VDD_2

R7

G7

A11

VDD_3

VDD_3

K2

N7

A12/BC

VDD_4

VDD_4

K8

T3

VDD_5

VDD_5

A13

N1

VDD_6

VDD_6

N9

M7

VDD_7

VDD_7

NC_5

R1

VDD_8

VDD_8

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

VDDQ_1

A8

J7

VDDQ_2

VDDQ_2

CK

C1

K7

VDDQ_3

VDDQ_3

CK

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

VDDQ_5

VDDQ_5

E9

L2

VDDQ_6

VDDQ_6

CS

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

NC_1

NC_1

J9

T2

NC_2

NC_2

RESET

L1

NC_3

NC_3

L9

NC_4

NC_4

F3

NC_6

DQSL

G3

DQSL

A9

C7

VSS_1

VSS_1

DQSU

B3

B7

VSS_2

VSS_2

DQSU

E1

VSS_3

VSS_3

G8

E7

VSS_4

VSS_4

DML

J2

D3

VSS_5

VSS_5

DMU

J8

VSS_6

VSS_6

M1

E3

VSS_7

VSS_7

DQL0

M9

F7

VSS_8

VSS_8

DQL1

P1

F2

VSS_9

VSS_9

DQL2

P9

F8

VSS_10

VSS_10

DQL3

T1

H3

VSS_11

VSS_11

DQL4

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

VSSQ_1

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

A3

VSSQ_9

VSSQ_9

DQU7

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

ZQ

VDDC15_M1

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

Hynix_DDR3_2Gb

H5TQ2G63FFR-RDC

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
A14
NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

IC405-*4

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M2_DDR_A0
M2_DDR_A1
M2_DDR_A2
M2_DDR_A3
M2_DDR_A4
M2_DDR_A5
M2_DDR_A6
M2_DDR_A7
M2_DDR_A8

M2_DDR_A9
M2_DDR_A10
M2_DDR_A11
M2_DDR_A12
M2_DDR_A13
M2_DDR_A14
M2_DDR_A15

M2_DDR_BA0
M2_DDR_BA1
M2_DDR_BA2

M2_D_CLK

M2_D_CLKN
M2_DDR_CKE

M2_DDR_CS2
M2_DDR_ODT

M2_DDR_RASN
M2_DDR_CASN

M2_DDR_WEN

M2_DDR_RESET_N

M2_DDR_DQS2

M2_DDR_DQS_N2

M2_DDR_DQS3

M2_DDR_DQS_N3

M2_DDR_DM2
M2_DDR_DM3

M2_DDR_DQ16
M2_DDR_DQ17
M2_DDR_DQ18
M2_DDR_DQ19
M2_DDR_DQ20
M2_DDR_DQ21
M2_DDR_DQ22
M2_DDR_DQ23

M2_DDR_DQ24
M2_DDR_DQ25
M2_DDR_DQ26
M2_DDR_DQ27
M2_DDR_DQ28
M2_DDR_DQ29
M2_DDR_DQ30
M2_DDR_DQ31

VDDC15_M1

Hynix_DDR3_4Gb_29n

IC401

H5TQ4G63AFR-RDC

EAN63053201

N3

DDR3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

C412 0.1uF

C413 0.1uF

C415 0.1uF

Hynix_DDR3_4Gb_29n

H5TQ4G63AFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

C506 0.1uF

C504 0.1uF

C505 0.1uF

4Gbit
(x16)

IC406

EAN63053201

DDR3
4Gbit
(x16)

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

M0_1_DDR_VREFDQ

M8

H1

L8

R403

ZQ

VDDC15_M0
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

240

C440

0.1uF

C441

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

IC401-*1

IC401-*2

K4B4G1646D-BCMA

H5TQ4G63CFR_RDC

M8

N3

VREFCA

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

N3

VREFCA

A0

P7

A1

P3

H1

A2

VREFDQ

N2

H1

A3

VREFDQ

P8

A4

P2

L8

A5

ZQ

R8

L8

A6

ZQ

R2

A7

T8

B2

A8

VDD_1

R3

B2

D9

A9

VDD_1

VDD_2

L7

D9

G7

A10/AP

VDD_2

VDD_3

R7

G7

K2

A11

VDD_3

VDD_4

N7

K2

K8

A12/BC

VDD_4

VDD_5

T3

K8

N1

A13

VDD_5

VDD_6

T7

N1

N9

A14

VDD_6

VDD_7

N9

M7

R1

VDD_7

NC_5

VDD_8

R1

R9

VDD_8

VDD_9

R9

M2

VDD_9

BA0

N8

BA1

M3

A1

BA2

VDDQ_1

A1

A8

VDDQ_1

VDDQ_2

A8

J7

C1

VDDQ_2

CK

VDDQ_3

C1

K7

C9

VDDQ_3

CK

VDDQ_4

C9

K9

D2

VDDQ_4

CKE

VDDQ_5

D2

E9

VDDQ_5

VDDQ_6

E9

L2

F1

VDDQ_6

CS

VDDQ_7

F1

K1

H2

VDDQ_7

ODT

VDDQ_8

H2

J3

H9

VDDQ_8

RAS

VDDQ_9

H9

K3

VDDQ_9

CAS

L3

J1

WE

NC_1

J1

J9

NC_1

NC_2

J9

T2

L1

NC_2

RESET

NC_3

L1

L9

NC_3

NC_4

L9

T7

NC_4

NC_6

F3

DQSL

G3

DQSL

A9

VSS_1

A9

C7

B3

VSS_1

DQSU

VSS_2

B3

B7

E1

VSS_2

DQSU

VSS_3

E1

G8

VSS_3

VSS_4

G8

E7

J2

VSS_4

DML

VSS_5

J2

D3

J8

VSS_5

DMU

VSS_6

J8

M1

VSS_6

VSS_7

M1

E3

M9

VSS_7

DQL0

VSS_8

M9

F7

P1

VSS_8

DQL1

VSS_9

P1

F2

P9

VSS_9

DQL2

VSS_10

P9

F8

T1

VSS_10

DQL3

VSS_11

T1

H3

T9

VSS_11

DQL4

VSS_12

T9

H8

VSS_12

DQL5

G2

DQL6

H7

B1

DQL7

VSSQ_1

B1

B9

VSSQ_1

VSSQ_2

B9

D7

D1

VSSQ_2

DQU0

VSSQ_3

D1

C3

D8

VSSQ_3

DQU1

VSSQ_4

D8

C8

E2

VSSQ_4

DQU2

VSSQ_5

E2

C2

E8

VSSQ_5

DQU3

VSSQ_6

E8

A7

F9

VSSQ_6

DQU4

VSSQ_7

F9

A2

G1

VSSQ_7

DQU5

VSSQ_8

G1

B8

G9

VSSQ_8

DQU6

VSSQ_9

G9

A3

VSSQ_9

DQU7

M1_DDR_RESET_N

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DM0
M1_DDR_DM1

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_D_CLK

M1_D_CLKN
M1_DDR_CKE

M1_DDR_CS1
M1_DDR_ODT

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7

M1_DDR_DQ8
M1_DDR_DQ9

M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15

Hynix_DDR3_4Gb_29n

IC403

H5TQ4G63AFR-RDC

EAN63053201

N3

DDR3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

4Gbit
(x16)

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

NC_1
NC_2
NC_3
NC_4

VDDC15_M0

C444 0.1uF

C445 0.1uF

C446 0.1uF

M2_1_DDR_VREFDQ

M8

H1

L8

R407

ZQ

VDDC15_M1
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

240

C514

0.1uF

C515

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

IC406-*1

IC406-*2

K4B4G1646D-BCMA

H5TQ4G63CFR_RDC

M8

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

K4B2G1646Q-BCMA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

SS_DDR3_2Gb

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

H1

N2

VREFDQ

A3

P8

A4

P2

A5

L8

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

L7

D9

D9

A10/AP

VDD_2

R7

G7

G7

A11

VDD_3

K2

K2

N7

A12/BC

VDD_4

K8

K8

T3

VDD_5

A13

T7

N1

N1

A14

VDD_6

N9

N9

M7

VDD_7

NC_5

R1

R1

VDD_8

R9

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

A8

A8

J7

VDDQ_2

CK

C1

C1

K7

VDDQ_3

CK

C9

C9

K9

VDDQ_4

CKE

D2

D2

VDDQ_5

E9

E9

L2

VDDQ_6

CS

F1

F1

K1

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

J9

J9

T2

NC_2

RESET

L1

L1

NC_3

L9

L9

NC_4

T7

F3

DQSL

G3

DQSL

A9

A9

C7

VSS_1

DQSU

B3

B3

B7

VSS_2

DQSU

E1

E1

VSS_3

G8

G8

E7

VSS_4

DML

J2

J2

D3

VSS_5

DMU

J8

J8

VSS_6

M1

M1

E3

VSS_7

DQL0

M9

M9

F7

VSS_8

DQL1

P1

P1

F2

VSS_9

DQL2

P9

P9

F8

VSS_10

DQL3

T1

T1

H3

VSS_11

DQL4

T9

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

B9

B9

D7

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

DQU7

Hynix_DDR3_2Gb

IC406-*3

IC406-*4

H5TQ2G63FFR-RDC

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

N2

VREFDQ

A3

P8

A4

P2

A5

L8

R8

ZQ

A6

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

K2

N7

A12/BC

VDD_4

K8

T3

VDD_5

A13

T7

N1

A14

VDD_6

N9

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_D_CLK

M1_D_CLKN
M1_DDR_CKE

M1_DDR_CS2
M1_DDR_ODT

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS2

M1_DDR_DQS_N2

M1_DDR_DQS3

M1_DDR_DQS_N3

M1_DDR_DM2
M1_DDR_DM3

M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23

M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

Hynix_DDR3_4Gb_29n

IC404

H5TQ4G63AFR-RDC

EAN63053201

N3

DDR3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

4Gbit
(x16)

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

NC_1
NC_2
NC_3
NC_4

VDDC15_M0

C475 0.1uF

C476 0.1uF

C480 0.1uF

M1_DDR_VREFDQ

DDR_VTT

AR400

M8

H1

L8

R404

ZQ

VDDC15_M0

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

240

C468

0.1uF

C469

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

IC403-*1

IC403-*2

K4B4G1646D-BCMA

H5TQ4G63CFR_RDC

M8

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

H1

N2

H1

VREFDQ

A3

VREFDQ

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

K2

N7

K2

A12/BC

VDD_4

VDD_4

K8

T3

K8

VDD_5

A13

VDD_5

T7

N1

N1

A14

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

M1_1_DDR_VREFDQ

M8

H1

L8

R419

ZQ

VDDC15_M0
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

240

C490

0.1uF

C491

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

IC404-*1

IC404-*2

K4B4G1646D-BCMA

H5TQ4G63CFR_RDC

M8

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

H1

N2

H1

VREFDQ

A3

VREFDQ

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

K2

N7

K2

A12/BC

VDD_4

VDD_4

K8

T3

K8

VDD_5

A13

VDD_5

T7

N1

N1

A14

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

* DDR_VTT

VDDC15_M0

DDR_VTT

R443
10K

1/16W
1%

L400

CIS2 1J121

C417

C414

C535

10uF

10uF

10uF

25V

25V

25V

C421
10uF
10V

1%

10K

R444

1/16W

M0_DDR_A14

M0_DDR_A8

M0_DDR_A11

M0_DDR_A6

M0_DDR_A1

M0_DDR_A4
M0_DDR_A12
M0_DDR_BA1

M0_DDR_A13

M0_DDR_A9

M0_DDR_A7

M0_DDR_A2

M0_DDR_A5

M0_DDR_A3

M0_DDR_A0

M0_DDR_BA0
M0_DDR_BA2
M0_DDR_A15
M0_DDR_A10

M0_DDR_WEN

M0_DDR_CASN

M0_DDR_ODT

M0_DDR_RASN

M0_DDR_CKE

M0_D_CLKN

M0_D_CLK

M2_DDR_A14

M2_DDR_A8

M2_DDR_A11

M2_DDR_A6

M2_DDR_A1

M2_DDR_A4

M2_DDR_A12
M2_DDR_BA1

M2_DDR_A13

M2_DDR_A9

M2_DDR_A7

M2_DDR_A2

M2_DDR_A5

M2_DDR_A3

M2_DDR_A0

M2_DDR_BA0
M2_DDR_BA2
M2_DDR_A15
M2_DDR_A10

M2_DDR_WEN

M2_DDR_CASN

M2_DDR_ODT

M2_DDR_RASN

M2_DDR_CKE

M2_D_CLKN

M2_D_CLK

AP2303MPTR-G1

VIN

GND

VREFEN

VOUT

C543

0.1uF
16V

56

AR414
56
1/16W

AR415
56
1/16W

AR416
56
1/16W

AR417
56
1/16W

AR418
56
1/16W

AR419
56
1/16W

AR420
56
1/16W

1/16W

AR401
56
1/16W

AR402
56
1/16W

AR403
56
1/16W

AR404
56
1/16W

AR405
56
1/16W

AR406
56
1/16W

DDR_VTT_1

C424 0.1uF

C425 0.1uF

C426 0.1uF

C427 0.1uF

C428 0.1uF

C429 0.1uF

C430 0.1uF

C431 0.1uF

C432 0.1uF

C433 0.1uF

C434 0.1uF

C435 0.1uF

C436 0.1uF

C437 0.1uF

C520 0.1uF

C521 0.1uF

C522 0.1uF

C523 0.1uF

C524 0.1uF

C525 0.1uF

C526 0.1uF

C527 0.1uF

C528 0.1uF

C529 0.1uF

C530 0.1uF

C531 0.1uF

C532 0.1uF

M1_DDR_A14

M1_DDR_A8

M1_DDR_A11

M1_DDR_A6

M1_DDR_A1

M1_DDR_A4
M1_DDR_A12
M1_DDR_BA1

M1_DDR_A13

M1_DDR_A9

M1_DDR_A7

M1_DDR_A2

M1_DDR_A5

M1_DDR_A3

M1_DDR_A0

M1_DDR_BA0
M1_DDR_BA2
M1_DDR_A15
M1_DDR_A10

M1_DDR_WEN

M1_DDR_CASN

M1_DDR_ODT

M1_DDR_RASN

M1_DDR_CKE

M1_D_CLKN

M1_D_CLK

VDDC15_M0

VDDC15_M0

VDDC15_M1

1K

R405

1K

R422

1K

R420

C533 0.1uF

+3.3V_NORMAL

VDDC15_M0

M0_1_DDR_VREFDQ

R416

1K 1%

C479

0.1uF
C483
1000pF
50V

R417

1K 1%

VDDC15_M0

M1_1_DDR_VREFDQ

R414

1K 1%

C518

0.1uF
C519

1000pF
50V

R415

1K 1%

VDDC15_M1

C544
10uF

L401

10V

DDR_VTT_1

CIS2 1J121

C536
10uF
25V

R446
10K

L402

1/16W
1%

CIS2 1J121

C541

C542

10uF

10uF

1%

25V

25V

10K

1/16W

VDDC15_M0

M0_DDR_VREFDQ

R410

1K 1%

C472

0.1uF
C474
1000pF

R411

50V

1K 1%

VDDC15_M0

M1_DDR_VREFDQ

R408

1K 1%

C516

0.1uF
C517
1000pF

R409

50V

1K 1%

IC402

[EP]

NC_3

1

8

NC_2

9

2

7

THERMAL

VCNTL

3

6

NC_1

4

5

LM15U

AR407
56
1/16W

AR408
56
1/16W

AR409
56
1/16W

AR410
56
1/16W

AR411
56
1/16W

AR412
56
1/16W

AR413
56
1/16W

M0_DDR_RESET_N

M1_DDR_RESET_N

M2_DDR_RESET_N

VDDC15_M1

C537
10uF
10V

C546

0.1uF

R445

16V

R425

1K 1%

R426

1K 1%

VIN

GND

VREFEN

VOUT

DDR_VTT

C453 0.1uF

C454 0.1uF

C455 0.1uF

C456 0.1uF

C457 0.1uF

C458 0.1uF

C459 0.1uF

C460 0.1uF

C461 0.1uF

C462 0.1uF

C463 0.1uF

C464 0.1uF

C465 0.1uF

C466 0.1uF

M0_DDR_CKE

R412
56
1%

R413
56
1%

M1_DDR_CKE

M2_DDR_CKE

M2_DDR_VREFDQ

C470

0.1uF
C471
1000pF
50V

IC407

AP2303MPTR-G1

1

9

2

THERMAL

3

4

C477

0.01uF
50V

R427
56
1%

R428
56
1%

R421
56
1%

R423
56
1%

[EP]

NC_3

8

NC_2

7

VCNTL

6

NC_1

5

1K

R418

M0_D_CLK

M0_D_CLKN

1K

R433

M1_D_CLK

C497

0.01uF
50V

M1_D_CLKN

1K

R424

M2_D_CLK

C534

0.01uF
50V

M2_D_CLKN

VDDC15_M1

R431

1K 1%

R432

1K 1%

+3.3V_NORMAL

2014-12-18

M2_1_DDR_VREFDQ

C473

0.1uF
C478

1000pF
50V

L403

CIS2 1J121

C545
10uF
10V

MAIN3_DDR 4

COMPENSATION_DONE_1

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

DPC_CTRL

12V_ON

OLED

TDI0

TDI0_1

R602
0

R603
0
OPT

+3.3V_NORMAL

Jtag I/F

JTAG

1K

R614

For Main

JTAG

1K

R616

TRST_N0
TDI0
TDO0
TMS0

TCK0

SOC_RESET

Clock for MSD808KWD

MAIN Clock(24Mhz)

5pF

C614

5pF

C615

System Clock for Analog block(24Mhz)

GND_1

2

3

X-TAL_2

X-TAL_1

1

4

GND_2

24MHz

X600

R635

1M

XIN_MAIN

XOUT_MAIN

C600

0.1uF

SW600

JS2235S

1

OPT

2

3

JTAG

6

5

4

R604
0

R605
0
OPT

TDO0

OPT

TDO0_1

JTAG

P600

12505WS-10A00

JTAG

11

1

2

3

4

5

6

7

8

9

10

JTAG

1K

R612

1K

JTAG

R609

MHL Port

TMS0

TDI0_1

D0-_HDMI3
D0+_HDMI3
D1-_HDMI3
D1+_HDMI3
D2-_HDMI3
D2+_HDMI3
CK-_HDMI3
CK+_HDMI3
DDC_SCL_3
DDC_SDA_3

HDMI_HPD_3

I2C_SCL5

D0-_HDMI2
D0+_HDMI2
D1-_HDMI2
D1+_HDMI2
D2-_HDMI2
D2+_HDMI2
CK-_HDMI2
CK+_HDMI2
DDC_SCL_2
DDC_SDA_2

HDMI_HPD_2

I2C_SDA5

I2C_SCL4
I2C_SDA4
CPU_VID1

CORE_VID1

D0-_HDMI1
D0+_HDMI1
D1-_HDMI1
D1+_HDMI1
D2-_HDMI1
D2+_HDMI1
CK-_HDMI1
CK+_HDMI1
DDC_SCL_1
DDC_SDA_1

HDMI_HPD_1

JTAG
R600

SPDIF_OUT

JTAG
R601

0

0

R636 0
R637 0

R607 0

R617 0

T2

RXA0N

T3

RXA0P

U2

RXA1N

U3

RXA1P

V2

RXA2N

V1

RXA2P

R3

RXACKN

T1

RXACKP

W1

DDCDA_CK/GPIO42

W2

DDCDA_DA/GPIO43

V3

HOTPLUGA/GPIO34

W3

CEC/GPIO5

N2

RXB0N

N3

RXB0P

P2

RXB1N

P3

RXB1P

R2

RXB2N

R1

RXB2P

M3

RXBCKN

N1

RXBCKP

V5

DDCDB_CK/GPIO44

V6

DDCDB_DA/GPIO45

U4

HOTPLUGB/GPIO35

W6

CEC_1/GPIO6

G2

RXC0N

G3

RXC0P

H2

RXC1N

H3

RXC1P

J2

RXC2N

J1

RXC2P

F3

RXCCKN

G1

RXCCKP

R5

DDCDC_CK/GPIO46

R6

DDCDC_DA/GPIO47

P4

HOTPLUGC/GPIO36

T6

CEC_2/GPIO7

K2

RXD0N

K3

RXD0P

L2

RXD1N

L3

RXD1P

M2

RXD2N

M1

RXD2P

J3

RXDCKN

K1

RXDCKP

T5

DDCDD_CK/GPIO48

T4

DDCDD_DA/GPIO49

U6

HOTPLUGD/GPIO37

U5

CEC_3/GPIO8

F14

SPDIF_IN/GPIO101

G14

SPDIF_OUT/GPIO102

IC100

LGE5331(LM15U)

I2S_OUT_BCK/GPIO105
I2S_OUT_MCK/GPIO104

I2S_OUT_WS/GPIO103

I2S_OUT_SD/GPIO106
I2S_OUT_SD1/GPIO107
I2S_OUT_SD2/GPIO108
I2S_OUT_SD3/GPIO109

LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R
LINE_IN_2L
LINE_IN_2R
LINE_IN_3L
LINE_IN_3R

LINE_OUT_0L
LINE_OUT_0R
LINE_OUT_2L
LINE_OUT_2R

EARPHONE_OUT_L
EARPHONE_OUT_R

ARC0

AUVAG
AUVRM

I2S_IN_BCK/GPIO99
I2S_IN_SD/GPIO100

I2S_IN_WS/GPIO98

GPIO_PM14/GPIO27
GPIO_PM15/GPIO28
GPIO_PM16/GPIO29

IC100

LGE5331(LM15U)

AG2
AG1
AG3
AH1
AH2
AH3
AJ2
AJ3

AK3
AL1
AL2
AL3

AF2
AF3

Y6

AK2
AK1

C13
B14
B13

F16
F15
E16
D16
E15
D15
E14

AJ6
AH5
AH4

0

JTAG

DPC_CTRL
12V_ON

R6440

MHL_DET_LM15
COMPENSATION_DONE_1
/MHL_OCP

R606

2.2uF

2.2uF

2.2uF

2.2uF

C605 1uF

HP_LOUT

HP_ROUT

TCK0

C601
C602
C603
C604

JTAG

R610
22

R611
22

1K

22pF

C607

COMP1/AV1/DVI_L_IN
COMP1/AV1/DVI_R_IN
SC_L_IN
SC_R_IN

SCART_Lout
SCART_Rout

HP_LOUT

HP_ROUT

HDMI_ARC

C606
10uF
10V

+3.3V_NORMAL

R608

C608
22pF

JTAG

R613
0

R639
100

OPT

R638
100

1uF

C609

R618
22

C635

0.01uF

C636

0.01uF

L60 0

PZ1 608U 121- 2R0T F

JTAG

C611
22pF

TDO0_1

OPT

R615

22K

22K

47K

R640

R641

AUD_SCK

AUD_LRCK
AUD_LRCH

HP_LOUT_MAIN

OPT

HP_ROUT_MAIN

OPT

TRST_N0

TU_CVBS

AV1_CVBS_IN

SC_CVBS_IN

DTV/MNT_V_OUT

SC_R

SC_G

SC_B

SC_ID
SC_FB

COMP1_Pr

COMP1_Y

COMP1_Pb

C612

1000pF

OPT

R623 68
R624 33

68

R625

33

R626
R627 68
R628 33

R629 68
R630 33

68

R631

33

R632
R633 68
R634 33

R619 68

C613 0.047uF

R620 33
R621 33
R622 33

50V

C619

0.047uF
C620

0.047uF

C621

0.047uF

C622

0.047uF

C623

0.047uF

C624

0.047uF

C625

1000pF

0.047uF

C626

0.047uF

C627

0.047uF
C628

0.047uF
C629

0.047uF

C630

0.047uF

C631

1000pF

C632

C616 0.047uF
C617 0.047uF
C618 0.047uF

AB2

RIN0M

AB1

RIN0P

AA3

GIN0M

AA1

GIN0P

Y3

BIN0M

Y2

BIN0P

AA2

SOGIN0

W5

HSYNC0

W4

VSYNC0

AE1

RIN1M

AD3

RIN1P

AD1

GIN1M

AD2

GIN1P

AC2

BIN1M

AB3

BIN1P

AC3

SOGIN1

Y5

HSYNC1

Y4

VSYNC1

AC5

RIN2M

AB4

RIN2P

AB5

GIN2M

AC6

GIN2P

AA6

BIN2M

AA5

BIN2P

AB6

SOGIN2

AC4

HSYNC2

AE4

VCOM

AE5

CVBS0

AF6

CVBS1

AE6

CVBS2

AF5

CVBSOUT1

GPIO80/LED[1]
GPIO79/LED[0]

USB_SSTXP_1

USB_SSTXN_1
USB_DM_PSS_1
USB_DP_PSS_1

USB_SSRXP_1

USB_SSRXN_1

USB_SSTXP_0

USB_SSTXN_0
USB_DM_PSS_0
USB_DP_PSS_0

USB_SSRXP_0

USB_SSRXN_0

HWRESET

XOUT

IRIN

USB0_DM
USB0_DP
USB1_DM
USB1_DP
USB2_DM
USB2_DP

B1

TN

C1

TP

A2

RN

B2

RP

E5
F4

G4

AU2

XIN

AT2

K4

C5
B5
C4
B4
A4
B3
AR4
AT4
AU4
AR5
AU5
AT5
AR7
AT7
AU7
AR8
AU8
AT8

AC-coupling CAP

C633 0.1uF
C634 0.1uF

Place near by MST

EPHY_TDN
EPHY_TDP
EPHY_RDN
EPHY_RDP

0

R642

I2C_SCL2
I2C_SDA2

R6430

SOC_RESET

XIN_MAIN
XOUT_MAIN

WIFI_DM
WIFI_DP
USB_DM2
USB_DP2
USB_DM1
USB_DP1

SSUSB_TXP
SSUSB_TXN
USB_DM3
USB_DP3
SSUSB_RXP
SSUSB_RXN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Close to Main soc

LM15U

MAIN4_EXT_IN/OUTPUT

2014-11-20

04

AF33

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

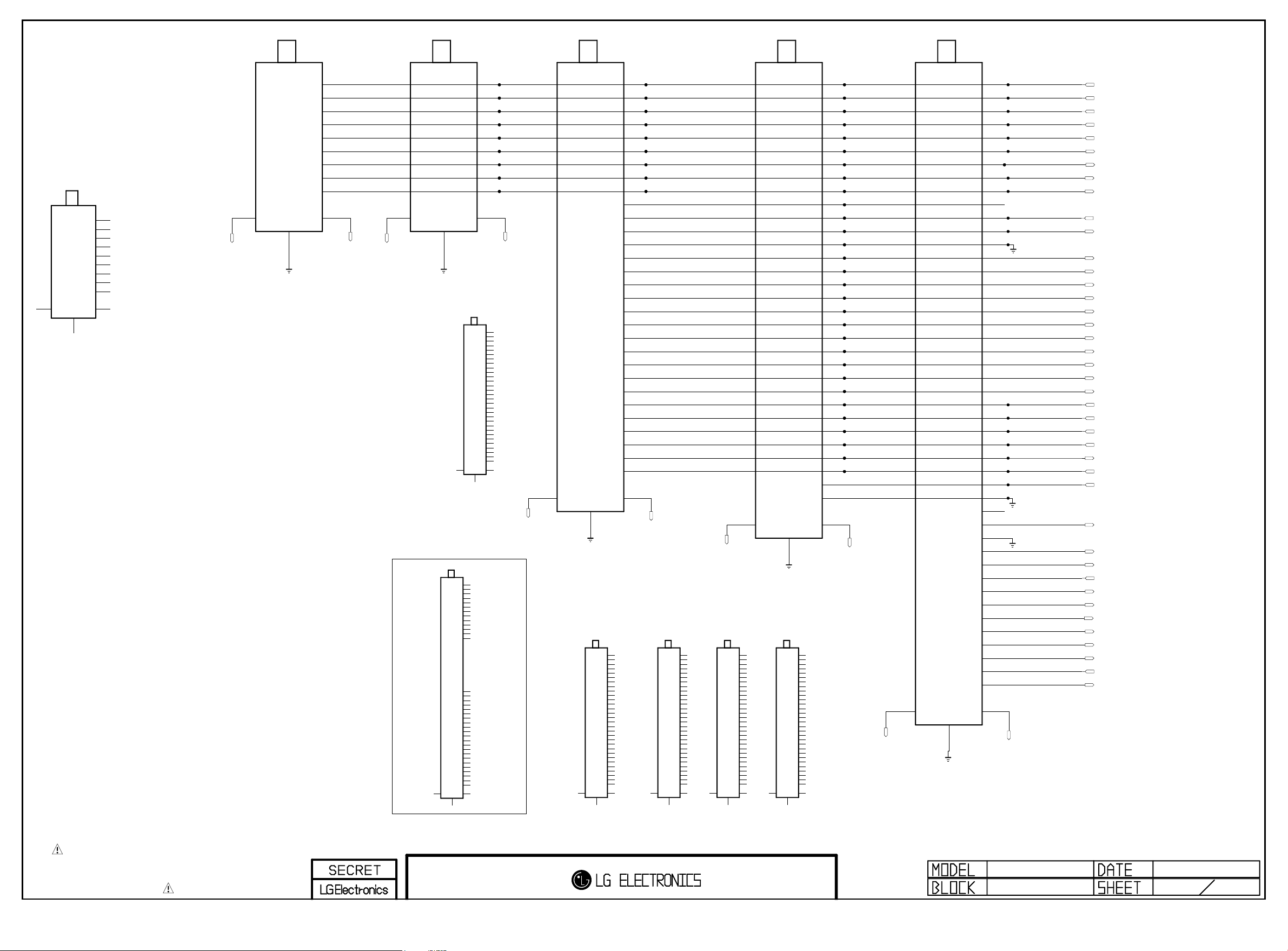

AF34

AG8

AG9

AG10

AG11

AG12

AG13

AG16

AG17

AG23

AG24

AG25

AG26

AG27

AG28

AG29

AG30

AG31

AG32

AG33

AG34

AG36

AH8

AH9

AH10

AH11

AH12

AH13

AH16

AH17

AH23

AH24

AH25

AH26

AH27

AH28

AH29

AH30

AH31

AH32

AH33

AH34

AJ7

AJ8

AJ9

AJ10

AJ11

AJ12

AJ13

AJ14

AJ15

AJ16

AJ17

AJ18

AJ19

AJ20

AJ21

AJ22

AJ23

AJ24

AJ25

AJ26

AJ27

AJ28

AJ29

AJ30

AJ37

AK7

AK8

AK9

AK10

AK11

AK12

AK13

AK14

AK16

AK17

AK18

AK19

AK20

AK21

AK22

AK23

AK24

AK25

AK26

AK27

AK28

AK29

AK30

AK31

AK32

AK33

AK34

AL8

AL9

AL13

AL14

AL16

AL17

AL19

AL20

AL21

AL22

AL23

AL24

AL25

AL26

AL27

AL28

AL29

AL30

AL31

AL32

AL33

AL34

AL36

AM3

AM20

AN3

AN22

AN35

AN36

AN37

AP7

AP24

AP27

AP30

AP33

AR1

AR3

AR6

AR9

AT1

AT3

AT6

AT36

AU22

AU25

AU28

AU31

AU34

GND_430

GND_431

GND_432

GND_433

GND_434

GND_435

GND_436

GND_437

GND_438

GND_439

GND_440

GND_441

GND_442

GND_443

GND_444

GND_445

GND_446

GND_447

GND_448

GND_449

GND_450

GND_451

GND_452

GND_453

GND_454

GND_455

GND_456

GND_457

GND_458

GND_459

GND_460

GND_461

GND_462

GND_463

GND_464

GND_465

GND_466

GND_467

GND_468

GND_469

GND_470

GND_471

GND_472

GND_473

GND_474

GND_475

GND_476

GND_477

GND_478

GND_479

GND_480

GND_481

GND_482

GND_483

GND_484

GND_485

GND_486

GND_487

GND_488

GND_489

GND_490

GND_491

GND_492

GND_493

GND_494

GND_495

GND_496

GND_497

GND_498

GND_499

GND_500

GND_501

GND_502

GND_503

GND_504

GND_505

GND_506

GND_507

GND_508

GND_509

GND_510

GND_511

GND_512

GND_513

GND_514

GND_515

GND_516

GND_517

GND_518

GND_519

GND_520

GND_521

GND_522

GND_523

GND_524

GND_525

GND_526

GND_527

GND_528

GND_529

GND_530

GND_531

GND_532

GND_533

GND_534

GND_535

GND_536

GND_537

GND_538

GND_539

GND_540

GND_541

GND_542

GND_543

GND_544

GND_545

GND_546

GND_547

GND_548

GND_549

GND_550

GND_551

GND_552

GND_553

GND_554

GND_555

GND_556

GND_557

GND_558

GND_559

GND_560

GND_561

GND_562

GND_563

GND_564

GND_565

GND_566

GND_567

GND_568

GND_569

GND_570

GND_571

V23

GND_279

V24

GND_280

GND_281

V25

GND_282

V28

V29

GND_283

V30

GND_284

GND_285

V31

GND_572

GND_286

W8

GND_287
GND_288
GND_289
GND_290
GND_291
GND_292
GND_293
GND_294
GND_295
GND_296
GND_297
GND_298
GND_299
GND_300
GND_301
GND_302
GND_303
GND_304
GND_305
GND_306
GND_307
GND_308
GND_309
GND_310
GND_311
GND_312
GND_313
GND_314
GND_315
GND_316
GND_317
GND_318
GND_319
GND_320
GND_321
GND_322
GND_323
GND_324
GND_325
GND_326
GND_327
GND_328
GND_329
GND_330
GND_331
GND_332
GND_333
GND_334
GND_335
GND_336
GND_337
GND_338
GND_339
GND_340
GND_341
GND_342
GND_343
GND_344
GND_345
GND_346
GND_347
GND_348
GND_349
GND_350
GND_351
GND_352
GND_353
GND_354
GND_355
GND_356
GND_357
GND_358
GND_359
GND_360
GND_361
GND_362
GND_363
GND_364
GND_365
GND_366
GND_367
GND_368
GND_369
GND_370
GND_371
GND_372
GND_373
GND_374
GND_375
GND_376
GND_377
GND_378
GND_379
GND_380
GND_381
GND_382
GND_383
GND_384
GND_385
GND_386
GND_387
GND_388
GND_389
GND_390
GND_391
GND_392
GND_393
GND_394
GND_395
GND_396
GND_397
GND_398
GND_399
GND_400
GND_401
GND_402
GND_403
GND_404
GND_405
GND_406
GND_407
GND_408
GND_409
GND_410
GND_411
GND_412
GND_413
GND_414
GND_415
GND_416
GND_417
GND_418
GND_419
GND_420
GND_421
GND_422
GND_423
GND_424
GND_425
GND_426
GND_427
GND_428
GND_429

W9
W10
W11
W15
W16
W17
W18
W19
W20
W21
W22
W27
W28
W29
W30
W31
Y9
Y10
Y11
Y15
Y16
Y17
Y18
Y19
Y20
Y21
Y22
Y30
Y31
Y34
Y37
AA7
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
AA16
AA17
AA18
AA19
AA20
AA22
AA23
AA24
AA25
AA26
AA30
AA31
AA35
AB7
AB8
AB9
AB10
AB11
AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB19
AB20
AB30
AB31
AB32
AB33
AB34
AC7
AC8
AC9
AC10
AC11
AC12
AC13
AC14
AC15
AC16
AC17
AC18
AC19
AC20
AC31
AC32
AC33
AC34
AC35
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD31
AD32
AD33
AD34
AE7
AE8
AE9
AE10
AE11
AE12
AE13
AE14
AE15
AE16
AE17
AE18
AE19
AE20
AE27
AE28
AE29
AE30
AE31
AE32
AE33
AE34
AE35
AF7
AF8
AF9
AF10
AF11
AF16
AF17
AF27
AF28
AF29
AF30
AF31
AF32

A3

GND_1

A9

GND_2

A19

GND_3

A22

GND_4

A25

GND_5

A28

GND_6

A31

GND_7

A34

GND_8

A36

GND_9

B6

GND_10

B19

GND_11

B36

GND_12

B37

GND_13

C2

GND_14

C3

GND_15

C19

GND_16

C36

GND_17

C37

GND_18

D10

GND_19

D11

GND_20

D12

GND_21

D13

GND_22

D14

GND_23

D22

GND_24

D25

GND_25

D29

GND_26

D32

GND_27

D36

GND_28

D37

GND_29

E10

GND_30

E11

GND_31

E12

GND_32

E13

GND_33

E34

GND_34

E35

GND_35

E36

GND_36

F11

GND_37

F12

GND_38

F13

GND_39

F17

GND_40

F26

GND_41

F28

GND_42

F29

GND_43

F30

GND_44

F31

GND_45

F32

GND_46

F33

GND_47

G6

GND_48

G9

GND_49

G11

GND_50

G12

GND_51

G13

GND_52

G15

GND_53

G16

GND_54

G17

GND_55

G18

GND_56

G19

GND_57

G20

GND_58

G21

GND_59

G22

GND_60

G23

GND_61

G24

GND_62

G25

GND_63

G27

GND_64

G28

GND_65

G29

GND_66

G30

GND_67

G31

GND_68

G32

GND_69

G35

GND_70

H8

GND_71

H9

GND_72

H10

GND_73

H11

GND_74

H12

GND_75

H13

GND_76

H14

GND_77

H15

GND_78

H16

GND_79

H17

GND_80

H18

GND_81

H19

GND_82

H20

GND_83

H21

GND_84

H22

GND_85

H23

GND_86

H24

GND_87

H25

GND_88

H26

GND_89

H27

GND_90

H28

GND_91

H29

GND_92

H30

GND_93

H31

GND_94

H32

GND_95

J7

GND_96

J8

GND_97

J9

GND_98

J10

GND_99

J11

GND_100

J12

GND_101

J13

GND_102

J14

GND_103

J16

GND_104

J17

GND_105

J18

GND_106

J19

GND_107

J20

GND_108

J21

GND_109

J22

GND_110

J23

GND_111

J24

GND_112

J25

GND_113

J26

GND_114

J27

GND_115

J28

GND_116

J29

GND_117

J30

GND_118

J31

GND_119

K7

GND_120

K8

GND_121

K9

GND_122

K10

GND_123

K11

GND_124

K12

GND_125

K13

GND_126

K14

GND_127

K15

GND_128

K16

GND_129

K17

GND_130

K18

GND_131

K19

GND_132

K20

GND_133

K21

GND_134

K22

GND_135

K23

GND_136

K24

GND_137

K25

GND_138

K26

GND_139

K27

GND_140

K28

GND_141

K29

GND_142

K30

GND_143

GND_144

GND_145L9GND_146

GND_147

GND_148

GND_149

GND_150

GND_151

GND_152

GND_153

GND_154

GND_155

GND_156

GND_157

GND_158

GND_159

GND_160

GND_161M9GND_162

GND_163

GND_164

GND_165

GND_166

K31

L16

L18

L19

L22

L23

L24

L25

L26

L27

L28

L29

L30

L31

L34

GND_167

L37

M15

M16

M17

M18

M19

M26

LGE5331(LM15U)

GND_168

GND_169

GND_170

GND_171

GND_172

GND_173N7GND_174N8GND_175N9GND_176

GND_177

GND_178

GND_179

GND_180

GND_181

GND_182

GND_183

GND_184

GND_185

GND_186P9GND_187

GND_188

GND_189

GND_190

GND_191

GND_192

GND_193

M27

M28

M29

M30

M31

N15

N16

N17

N18

N19

N27

N28

N29

N30

N31

GND_194

P10

P11

P12

P13

P14

P15

P16

P17

IC100

GND_195

GND_196

GND_197

GND_198

GND_199

GND_200

GND_201

GND_202

GND_203

GND_204

GND_205

P18

P19

P20

P21

P27

GND_206R7GND_207R8GND_208R9GND_209

P28

P29

P30

P31

P34

P37

GND_210

GND_211

GND_212

GND_213

GND_214

GND_215

GND_216

GND_217

GND_218

GND_219

GND_220

GND_221

GND_222

GND_223

GND_224

GND_225

GND_226T7GND_227T8GND_228T9GND_229

GND_230

GND_231

GND_232

GND_233

GND_234

GND_235

GND_236

GND_237

GND_238

GND_239

GND_240

GND_241

GND_242

GND_243

GND_244

GND_245

GND_246U8GND_247U9GND_248

GND_249

GND_250

GND_251

GND_252

GND_253

GND_254

GND_255

GND_256

GND_257

GND_258

GND_259

GND_260

GND_261

GND_262

GND_263

GND_264

GND_265

GND_266

GND_267V8GND_268V9GND_269

GND_270

GND_271

GND_272

GND_273

GND_274

GND_275

GND_276

GND_277

R10

R11

R12

R13

R14

R15

R16

R17

R18

R19

R20

R21

R27

R28

R29

R30

R31

T10

T11

T12

T15

T16

T17

T18

T19

T20

T21

T22

T23

T27

T28

T29

T30

T31

U10

U11

U12

U13

U14

U15

U16

U17

U20

U21

U22

U23

U24

U28

U29

U30

U31

U34

U37

V10

V11

GND_278

V15

V16

V17

V18

V19

V20

V21

V22

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

LM15U_GND

2014-1-21
05

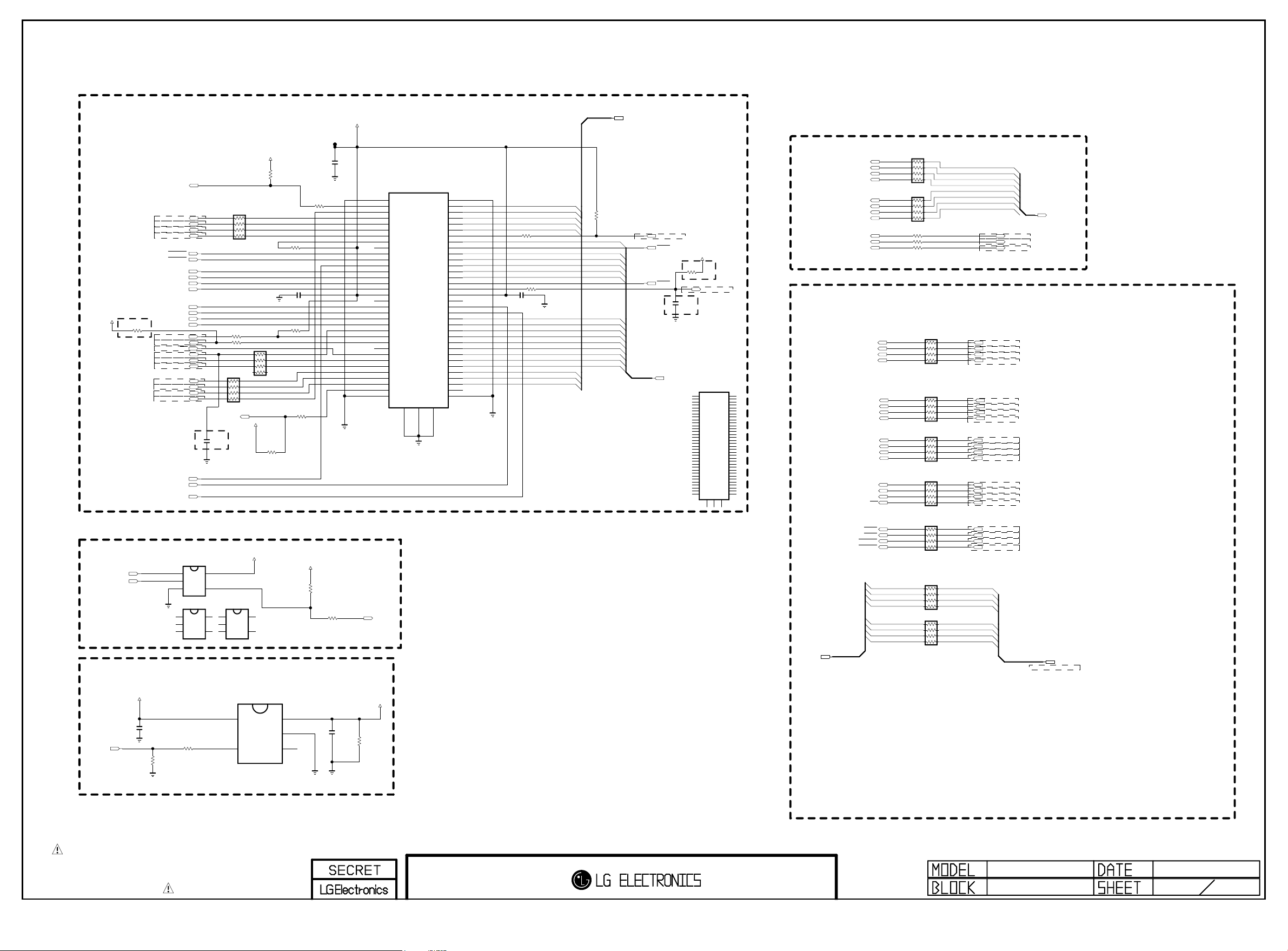

CI Region

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

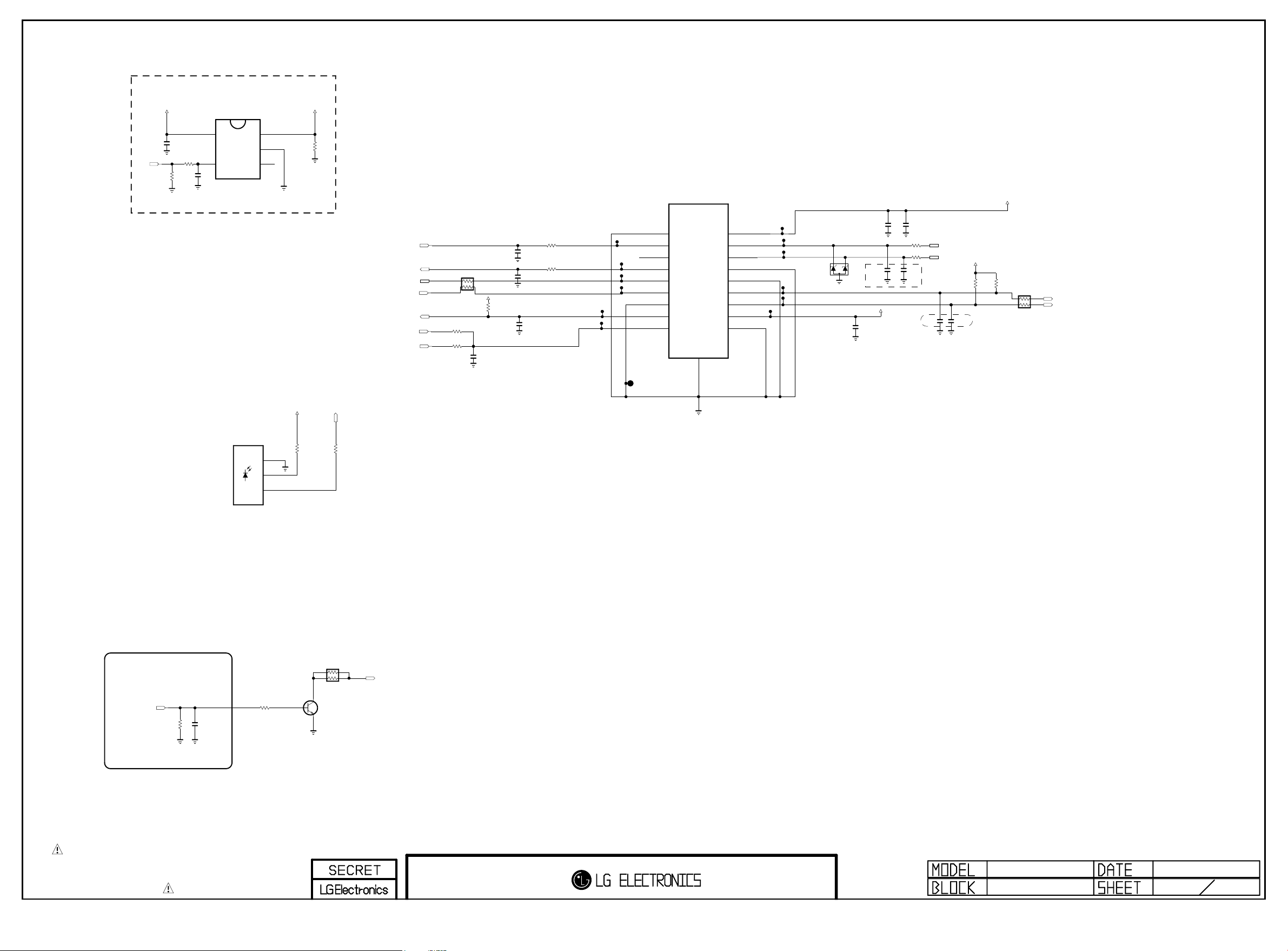

CI SLOT

+5V_CI_ON

CI_DATA[0-7]

* Option name of this page : CI_SLOT

(because of Hong Kong)

CI TS INPUT

+5V_NORMAL

R900
10K

CI_SLOT

CLOSE TO MSTAR

CI DETECT

/CI_CD2

/CI_CD1

/CI_CD1

TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

CI_IORD
CI_IOWR

CI_MDI[0]
CI_MDI[1]
CI_MDI[2]
CI_MDI[3]

CI_MDI[4]
CI_MDI[5]
CI_MDI[6]
CI_MDI[7]

PCM_RESET

CAM_WAIT_N

TPI_CLK
TPI_VAL

TPI_SOP

TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]

CLOSE TO MSTAR

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

REG

IC900

74LVC1G32GW

1B 5 VCC

3GND2A4 Y

OR_GATE_CI_TI

IC900-*1

SN74LVC1G32DCKR

1A5

B

2

GND

3

CI_SLOT

4

CI_SLOT

AR901

33

R901

47

R902

47

CI_SLOT

AR900

33

/CI_CD2

CI_SLOT

C900
2pF
50V

+3.3V_NORMAL

OR_GATE_CI_TOSHIBA

IC900-*2

TOSHIBA ELECTRONICS KOREA CORPORATION

VCC

IN_B

1

IN_A

2

Y

GND

3

+5V_NORMAL

CI_SLOT

R906

10K

CI_SLOT

CI_SLOT
CI_SLOT

+5V_NORMAL

VCC

5

OUT_Y

4

CI_SLOT

AR910 33

CI_SLOT

R907

10K

CI_SLOT

R908 10K

CI_SLOT

C901

GND

0.1uF

R909

+3.3V_NORMAL

10K

R910

100

CI_SLOT

R911

10K

CI_SLOT

C902

10uF

10V

CI_SLOT

R912

100

R913
47

CI_SLOT

REG

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]

CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

AR903 33

CI_SLOT

AR902

R918 33
R919 33
R920 100

CI_SLOT

AR908 33

AR909 33

AR913 33

CI_SLOT

AR904 33

CI_SLOT

AR905 33

33

CI_SLOT

CI_SLOT

AR906

33

CI_SLOT

AR907
33

CI_SLOT

CI_SLOT

CI_SLOT

CI_SLOT

TPO_DATA[7]
TPO_DATA[6]
TPO_DATA[5]

TPO_DATA[4]

TPO_DATA[3]

TPO_DATA[2]

TPO_DATA[1]

TPO_DATA[0]

EB_ADDR[8]
EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]

EB_ADDR[12]
EB_ADDR[13]
EB_ADDR[14]
CAM_REG_N

EB_OE_N
EB_WE_N

EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]

EB_DATA[4]
EB_DATA[5]
EB_DATA[6]
EB_DATA[7]

EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]

EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]

EB_BE_N1
EB_BE_N0

TPO_SOP
TPO_VAL
TPO_CLK

EB_DATA[0-7]

TPO_DATA[0-7]

CI_MDI[7]
CI_MDI[6]

CI_SLOT

JK900

10125901-115LF

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

65
66
67
68

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2660
2761
2862
2963
3064
31
32
33
34

G1G2

69

R914

R915

C903

0.1uF

CI_SLOT

47

CI_SLOT

CI_SLOT

100

GND

GND

GND

GND

CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]

CI_DATA[0-7]

R916

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

10K

/PCM_CE1

CI_OE

+5V_NORMAL

R917
10K

CI_SLOT

CI_WE

GND

CI_ADDR[0-14]

CAM_IREQ_N

C904

0.1uF

CI_SLOT

CLOSE TO MSTAR

OLED_CI_SLOT

JK900-*1

10125901-015LF

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

65
66
67
68

69

CI HOST I/F

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2660
2761
2862
2963
3064
31
32
33
34

G1G2

CI_MDI[5]
CI_MDI[4]

CI_MDI[3]
CI_MDI[2]
CI_MDI[1]
CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3]

CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]

CI_ADDR[8]

CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]

CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

CI_IORD
CI_IOWR

CI_OE
CI_WE

CAM_CD1_N

CI_DATA[0-7]

CI POWER ENABLE CONTROL

+5V_NORMAL

C905

0.1uF
50V

CI_SLOT

R922

PCM_5V_CTL

CI_SLOT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R921
10K

100

IN

EN

AP2151WG-7

5

CI_SLOT

4

IC901

CI_DATA[0-7]

EB_DATA[0-7]

+5V_CI_ON

OUT

1

GND

2

FLG

3

C906
1uF
25V

CI_SLOT

R923
10K

CI_SLOT

LM15U

PCMCI

2014-10-17

9

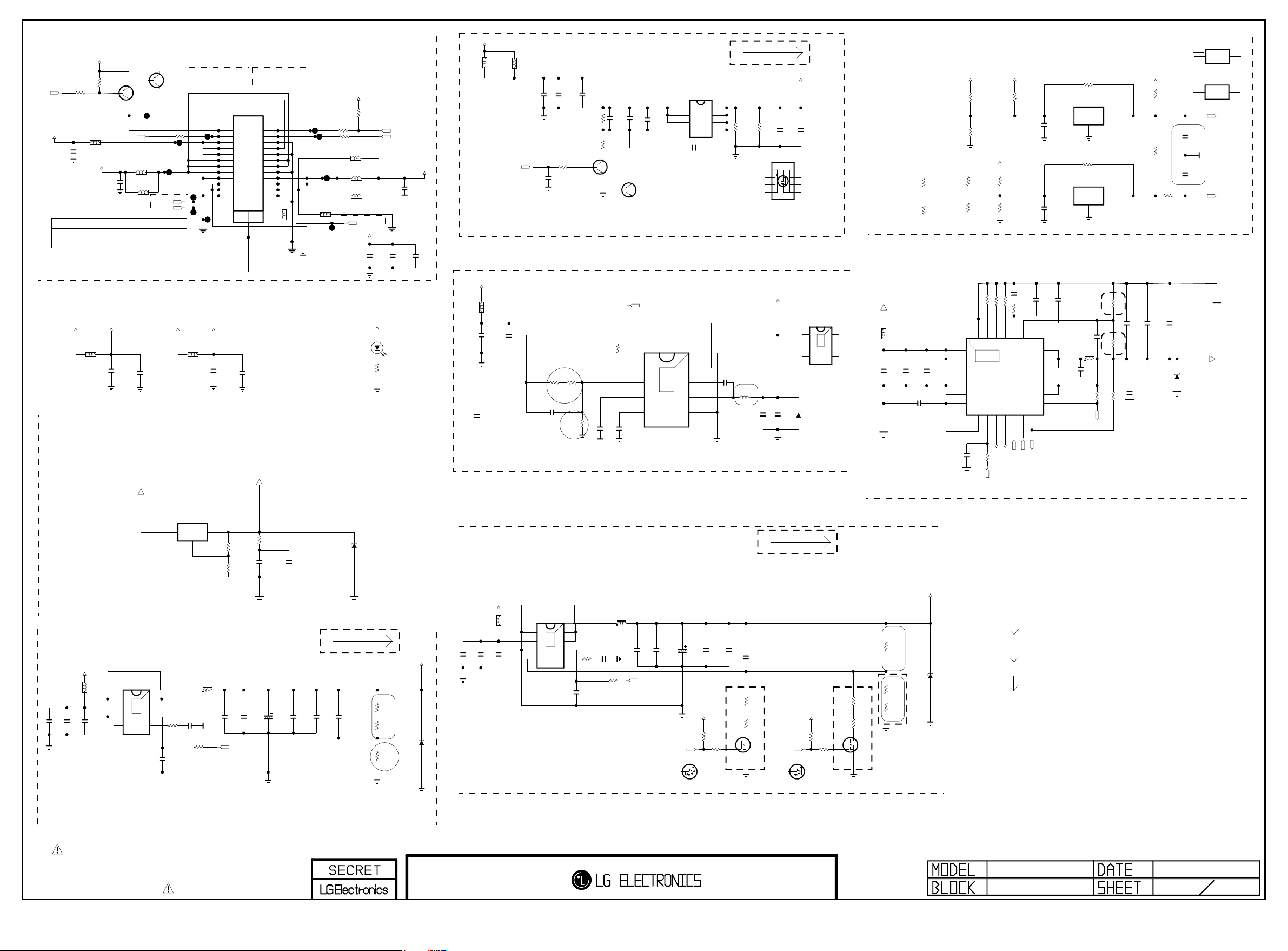

+3.5V_ST

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

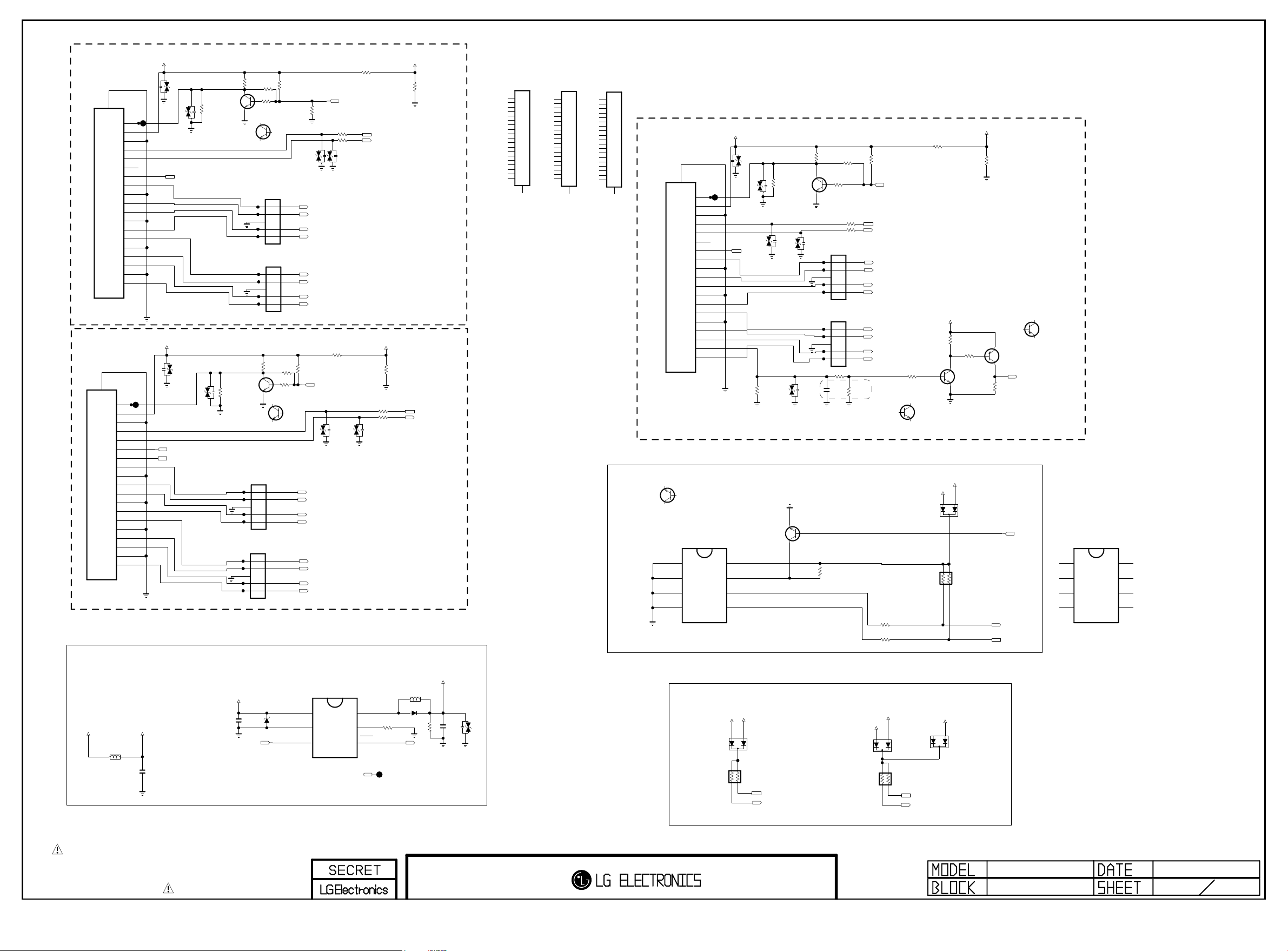

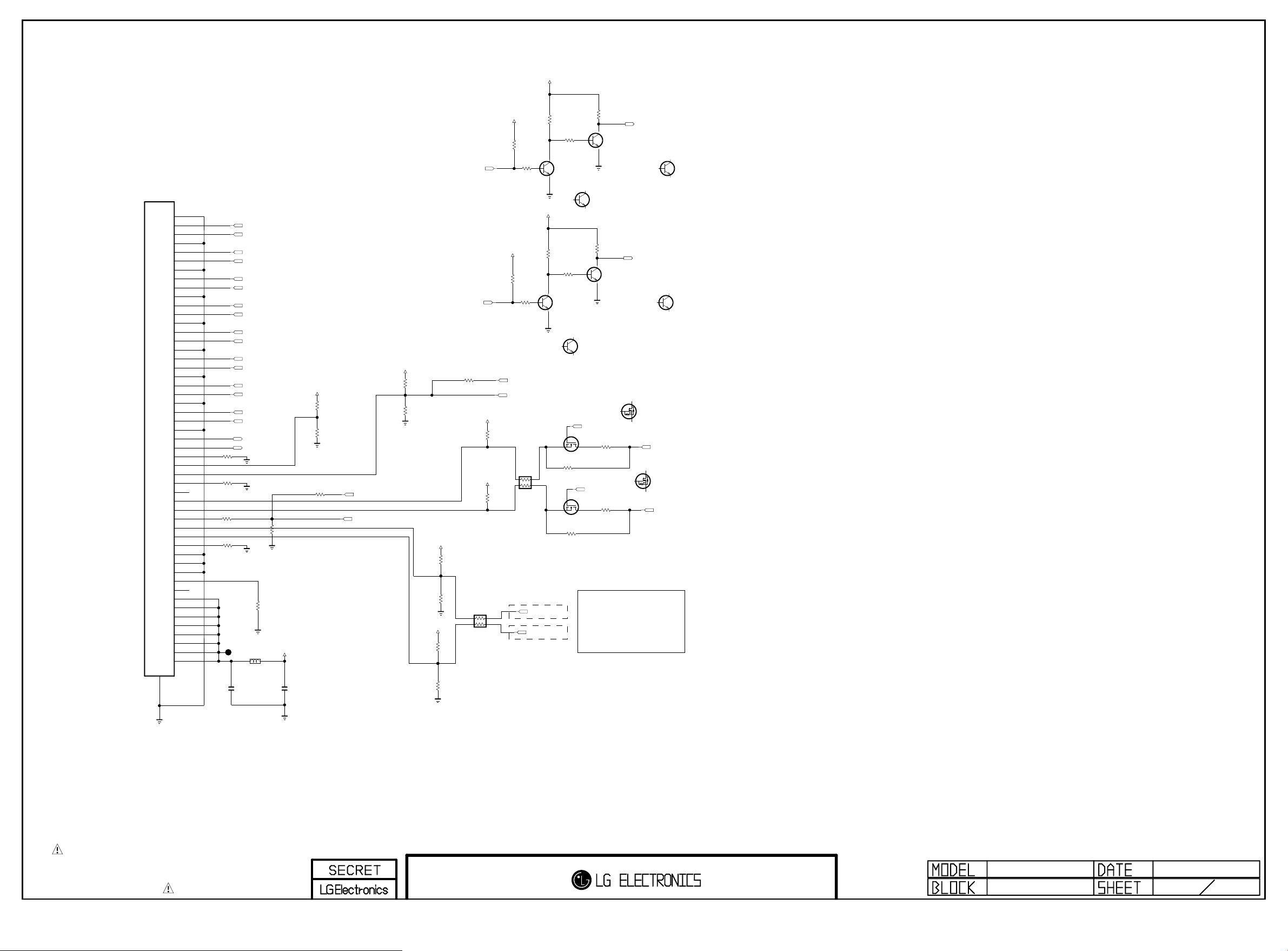

R2301

1

RL_ON

+3.5V_ST

Digital Power B/D

R2300
10K

L2301

UBW2012-121F

C2302

0.1uF
16V

O

+12V

10K

C2304

0.1uF
50V

40 ~ 65

70 ~ 79

2

3

PWM_DIM

UBW2012-121F

UBW2012-121F

2

Q2300 2N3906S-RTK

KEC_RL_ON_TR

L2302

L2303

24 PININCH

NC

GNDX

’15 UHD POWER

+3.3V - eMMC

+3.3V_NORMAL

3.3V_EMMC

L2304

PZ1608U121-2R0TF

C2308

C2309

0.1uF
22uF

16V

10V

+1.8V - LM15U, eMMC
& Vx1 pull-up

+3.3V_NORMAL

1

3

OS MODULE

L/D_CLK

L/D_DI

NXP_RL_ON_TR

Q2300-*1 MMBT3906(NXP)

100

R2304

22 PIN

GND

24V

+1.8V

PZ1608U121-2R0TF

L2305

OS MODULE

SMA W200 -H28 S5K[ MIRR OR]

P23 01

PWR _ON

1

1

PDI M#1

3

3

3.5 V
5

5

3.5 V
7

7

GND

9

9

12V

11

11

12V

13

13

12V

15

15

GND

17

17

24V

19

19

24V

21

21 22

GND

23

23 24

L/D _CLK

25

L/D _DI

27

DVDD18_EMMC

C2307

0.1uF
16V

LGE MODULE

SMA W200 -H24 S5[M IRRO R]

P23 00

INV _CTL

2

2

PDI M#2

4

4

GND

6

6

3.5 V

8

8

GND

10

10

12V

12

12

12V

14

14

GND

16

16

24V

18

18

24V

20

20

GND or 24V

22

NC or G ND

24

GND

26

L/D _VSY NC

28

25

29

.

C2312
22uF
10V

+1.8V

R2311 100
R2313

NON_DIGITAL_POWER_B/D

UBW2012-121F

UBW2012-121F

UBW2012-121F

DIGITAL_POWER_B/D

L2315

UBW2012-121F

L2316
UBW2012-121F
NON_DIGITAL_POWER_B/D

+3.3V_NORMAL

100

L2317

L2307

L2308

OS MODULE

L/D_VSYNC

+3.3V_NORMAL

R2314
1K

+12V

C2316
10uF
16V

LD2300

3.3V_LED

R23 15

3.3 K

3.3V_LED

INV_CTL

C2319

0.1uF

PWM_DIM2

50V

C2317
10uF
16V

+24V

C2318
10uF
16V

+12V

L2321

MLB-201209-0120P-N2

PANEL_CTL

+12V

L2309

PZ1608U121-2R0TF

C2324

C2322

0.1uF

10uF
16V

1.0V_DCDC_TI
C2332-*1

3300pF
50V

Switching freq: 700K

PANEL_POWER

L2322

MLB-201209-0120P-N2

R2328
10K

C2330

0.1uF
25V

C2331

0.01uF
50V

R2329

R2331

C23 27
10u F
25V
OPT

C2371
10uF
10V

DDR +1.5V

R2321

R2320

C2325
100pF

50V

4.7K

18K

1%

1%

R2322
22K

1%

R2

Vout=0.765*(1+R1/R2)=1.554V

R1

10K

1.8K

B

OPT

OPT

C2335

C2367

10uF

10uF

25V

25V

C

Q2321
2N3904S

KEC_PANEL_CTL_TR

E

C

B

E

ROHM_BD9D321_1.5V_DDR_DCDC

R2326
10K

VREG

C2328

C2332

1uF

2200pF

10V

50V

1.0V_DCDC_ROHM

OPT
C2315
1uF
25V

Q2321-*1
MMBT3904(NXP)

NXP_PANEL_CTL_TR

POWER_ON/OFF2_3

IC2303

BD9D321EFJ

EN

1

FB

2

THERMAL

3

SS

4

3A

9

AOS_PANEL_POWER_FET

IC2309

AO4447A

S_1

1

S_2

2

S_3

3

G

4

C2368

10uF
25V

OPT

[EP]

VIN

8

BOOT

7

SW

6

GND

5

8

7

6

5

D_4

D_3

D_2

D_1

0.1uF
C2336

R2359

2K

OPT

16V

L2312

2.2uH

PS064T-2R2MS

TYP 6000mA

R2360
2K

OPT

S_1

S_2

S_3

+1.5V_DDR

C2338

22uF

10V

C23 69
10u F
25V

OPT

ROHM_PANEL_POWER_FET

IC2309-*1

RRH140P03TB

1

2

3

4G5

C2339
22uF
10V

PANEL_VCC

D_4

8

D_3

7

D_2

6

D_1

VREG5

DCDC_DIODE

C2370

0.1uF
25V

TI_TPS54327_1.5V_DDR_DCDC

IC2303-*1

TPS54327DDAR

EN

1

VFB

9

2

THERMAL

3

SS

4

ZD2302

2.5V

RESET_IC_DIODES

IC2307-*1

Power_DET

+12V

PD_+12V

R2335

2.7K
1%

PD_+12V

R2336

1.2K
1%

PD_UHD_24V

R2340-*2

9.1K
1%

PD_UHD_24V
R2341-*2

1.6K
1%

PD_20V
R2340-*1

5.6K

1%

PD_20V

R2341-*1

1.3K
1%

+24V

+3.5V_ST

PD_24V
R2340

8.2K
1%

PD_24V
R2341

1.5K
1%

PD_+3.5V

R2343
0
5%

C2350

0.1uF
16V

C2351

0.1uF
16V

PD_20_24V

R2349
100K

RESET_IC_ROHM

IC2307

BD48K28G

VDD

3

PD_20_24V

R2348
100K

PD_20_24V_ROHM

IC2308

BD48K28G

VDD

3

+3.5V_ST

R2354
10K
OPT

VOUT

2

1

GND

R2355

0

PWR_DET_MERGE

R2356

VOUT

2

1

GND

0

PWR_DET_SEPARATE

ST_3.5V-->3.5V

APX803D29

RESET

2

1

PD_20_24V_DIODES

IC2308-*1
APX803D29

RESET

2

1

POWER_DET

C2364

0.1uF
16V

not to RESET
at 8kV ESD

C2365

0.1uF

PWR_DET_SEPARATE

16V

POWER_DET_1

24V-->3.48V
20V-->3.51V
12V-->3.58V

VCC

3

GND

VCC

3

GND

+5.0V normal & USB

C2347

OPT

2200pF

C2349

22SS23FB24

21

20

19

18

17

16

15

14

NFAULT2

/USB_OCD1

C2352

100pF

0.047uF

50V

25V

LX_3

LX_2

LX_1

BST

SW_IN2

SW_IN1

NFAULT1

Vout=0.6*(1+R1/R2)

5.1V:R1-51K, R2-6.8K

R23 39 1 6K 1 %

R23 4215 0K 1%

RSET2

27

IC2305

6A

9EN10

SW_OUT211SW_OUT1

+5V_USB_1

POWER_ON/OFF1

50V

R2344
10K

COMP25RLIM26RSET1

12

SW_EN213SW_EN1

USB_CTL1

+5V_USB_2

USB_CTL2

+24V

[EP]GND

VIN

8

VBST

7

SW

6

GND

5

L2314

120-ohm

C2340
10uF
35V
OPT

C2341
10uF
35V

VIN_1

VIN_2

VIN_3

C2344

0.1uF
50V

PGND_1

PGND_2

PGND_3

1uF

25V

C23 43

C2346

0.0068uF

R23 37 1 6K 1%

[EP]

AGND

28

1

THERMAL

2

29

3

4

SN1302001(TPS65286RHDR)

5

6

V7V

7

8

MODE/SYNC

50V

10K

R2338

C2357

82pF

5%

50V

L2313

4.7uH

C2355

0.047uF
25V

100K

R2350

R2

1%

R1

1%

1/16W

R2353

/USB_OCD2

1/16W

1/16W

1/16W

6.8K

51K

5%

R2351

R2352

100K

C2359
22uF
10V

C2360
1uF
10V

C2362
22uF
10V

C2363
10uF
10V

ZD2304

DCDC_DIODE

+5V_NORMAL

L2300

BLM18PG121SN1D

Placed on SMD-TOP

C2300

C2301

10uF

10uF

16V

16V

+12V

C2303

0.1uF
16V
OPT

IC2301

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

+3.3V_NORMAL

IC2302

BD86106EFJ

EAN62653301

PGND

VIN

AGND

[EP]

SW_2

1

8

SW_1

9

2

7

THERMAL

EN

3

6

FB

COMP

4

5

6A

R2302

C2305

0.1uF
16V

C2306

0.0068uF
50V

20K

R2303

10K

Vout=0.8*(1+R1/R2)

1%

1/16W

1%

1/16W

L2306

2uH

OPT

POWER_ON/OFF2_1

C2313
10uF
10V

75

33

R2307

R2308

C2314
10uF
10V

R2309
1

C2310
10uF
10V

C2342
100uF

C2311
10uF
10V

OPT

C2345
10uF
10V

MAX 2.7A

2.5V

ZD2303

DCDC_DIODE

+1.1V or +1.15V _CPU CORE

+1.1V_VDDC_CPU

+12V

L2310

PZ1608U121-2R0TF

MAX A

+3.3V_NORMAL

OPT

OPT

C2348
10uF

47pF
50V

10V

R2305

1.5K
1%C2358

R2306
30K
1%

R2310
10K
1%

R1

R2

ZD2300

DCDC_DIODE

Placed on SMD-TOP

C2323

C2321

C2320
10uF
16V

10uF
16V

0.1uF
16V
OPT

Vout=0.8*(1+R1/R2)

R1:15K/R2:56K, V=1.00V(CPU_VID0=L,CPU_VID1=L) Voltage drop 0.01V
R1:15K/R2:56K//240K, V=1.05V(CPU_VID0=H,CPU_VID1=L) Voltage drop 0.01V
R1:15K/R2:56K//240K, V=1.05V(CPU_VID0=L,CPU_VID1=H) Voltage drop 0.01V

R1:15K/R2:56K//240K//240K, V=1.10V(CPU_VID0=H,CPU_VID1=H) Voltage drop 0.01V

PGND

VIN

AGND

FB

IC2300

BD86106EFJ

EAN62653301

1

2

THERMAL

3

4

6A

L2311

C2329

0.0068uF
50V

R2325

10K

2uH

OPT

C2353

C2333

10uF

10uF

10V

10V

POWER_ON/OFF2_4

C2334
100uF

+3.3V_NORMAL

R2312

10K

CPU_VID0

D

Q2301-*1

G

2N7002K

S

DIODEDS_CPU_CORE_VID_FET

OPT

C2354
10uF
10V

R2316

0 5%

OPT

C2356
10uF
10V

R2-1.13V

R2317

20K
1%

R2318
200K
1%

G

C2337
47pF
50V

D

CPU_VID1

S

2N7002KA

Q2301

KEC_CPU_CORE_VID_FET

R2-1.13V

+3.3V_NORMAL

R2319
10K

R2323

0 5%

D

Q2302-*1

G

2N7002K

S

DIODEDS_CPU_CORE_VID_FET

R2327

20K
1%

R2330
200K
1%

G

D

R2-1.1V

S

2N7002KA

Q2302

KEC_CPU_CORE_VID_FET

R2332

15K

1%

R2333

13K

1%

R2334
43K

1%

R1

R2

5V

ZD2301

DCDC_DIODE

[EP]

SW_2

8

SW_1

9

7

EN

6

R2324

6.8K

COMP

5

C2326

0.1uF
16V

LM15 Power SEQUENCE

POWER_ON/OFF1(5V)

POWER_ON/OFF2_1(3.3V)

POWER_ON/OFF2_3(1.5V, 2.5V)

POWER_ON/OFF2_4(1.1V)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

LM15U_PWR_1_UHD

2014-00-01

07

CORE_VID1

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.3V_NORMAL

R2516

10K

R2517

0 5%

POWER_ON/OFF2_4

OPT

C2500

0.1uF
16V

R2-3

R25 18

120 K

1%

1/1 6W

D

G

S

D

G

S

+1.1V or +1.15V _CORE

R2507

1K

R1

1%

R2

1/1 6W

1%

30K

R25 19

CORE_VID0

2N7002KA

Q2501

KEC_CORE_DCDC_FET

Q2501-*1
2N7002K

DIODES_CORE_DCDC_FET

+3.3V_NORMAL

R2500

10K

R2501

0 5%

R2-2

R25 02

120 K

1%

1/1 6W

G

D

Q2500-*1

G

2N7002K

DIODES_CORE_DCDC_FET

S

1/1 6W

30K

D

S

1/1 6W

R2505

12K

12K

R25 06

1%

R25 03

2N7002KA

Q2500

KEC_CORE_DCDC_FET

13K

R25 04

1/16W

1%

1/1 6W

1%

C2501

1uF

10V

R2-1

C2502

0.033uF
50V

R2508
100K

1/16W
1%

R2510
100

1/16W

IC2501

MP8762HGLE-Z

EN

1

FREQ

2

FB

3

SS

4

AGND

5

10A

PG

6

VCC

7

BST

8

R2509
33

1/16W
5%

1%

16

15

14

13

12

11

10

9

C2503

0.1uF
16V

SW_2

SW_1

IN_2

PGND_4

PGND_3

PGND_2

PGND_1

IN_1

1%

1/16W

R2512
220K

1/10W
5%

430K

R2511

LPBN8050T-1R0N

L2500

1.0uH

C2504
10uF
25V

C2506

330pF

50V

C2505
10uF
25V

C2507
22uF
10V

C2508

22uF
10V

L2501

+1.1V_VDDC

C2509
22uF
10V

DCDC_DIODE

+12V

2.5V

ZD2500

Vout=0.611*(1+R1/R2)

R1:13K/R2:22K, V=0.95V(CORE_VID0=L,CORE_VID1=L) Voltage drop 0.02V
R1:13K/R2:22K//150K, V=1.00V(CORE_VID0=H,CORE_VID1=L) Voltage drop 0.02V
R1:13K/R2:22K//150K, V=1.00V(CORE_VID0=L,CORE_VID1=H) Voltage drop 0.02V

R1:13K/R2:22K//150K//150K, V=1.05V(CORE_VID0=H,CORE_VID1=H) Voltage drop 0.02V

MAX 7A

POWER_ON/OFF2_3

+3.3V_NORMAL

TU_JP

C2510

0.1uF
16V

+2.5V

TU_JP/EU_UF77_ESD

R2513

10K

TU_JP/EU_UF77_ESD

TU_JP

IC2502

TJ4220GDP-ADJ

C2512

0.1uF
NC_1

VIN3

1

2

EN2

3

4

NC4

9

THERMAL

2A

EAN62206201

8

7

6

5

Vout=0.6*(1+R1/R2)

[EP]GND

GND

ADJ/SENSE

VOUT

NC_2

TU_JP

R2514

R25 15

22K

R2

R1

TU_JP

47K

C2513
10uF
10V

+2.5V_Normal

TU_JP

OPT

5V

ZD2501

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

LM15U_PWR_2_ALL

2014-11-26

25

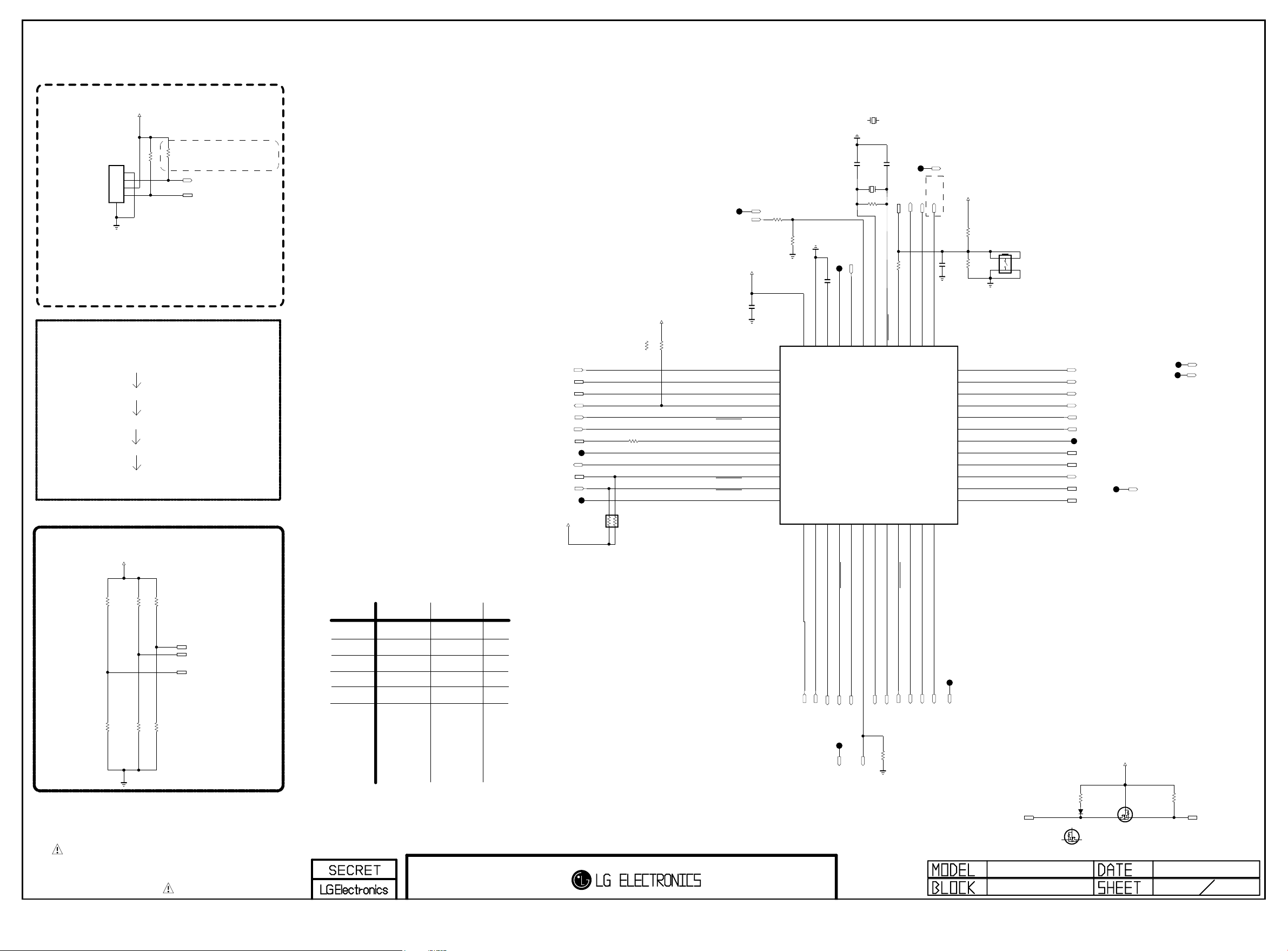

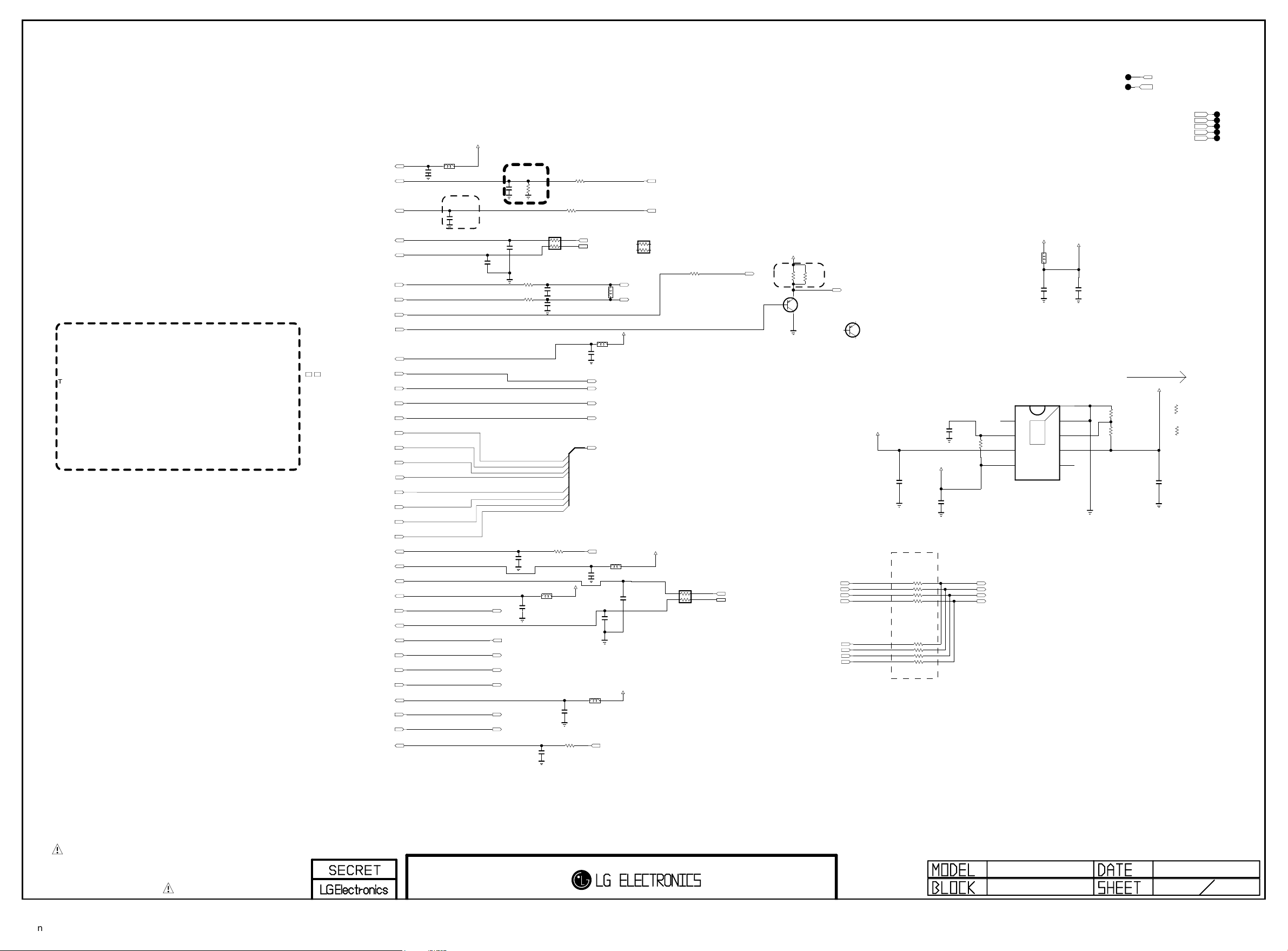

Renesas MICOM

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

For Debug

+3.5V_ST

X3000-*1

32.768KHz

EPSON_MICOM_CRYSTAL

MICOM_DEBUG

P3000

12507WS-04L

5

1

2

3

4

Don’t remove R3016,
not making float P40

R3016 1K

R3014 10K

MICOM_DEBUG

LM15 Power SEQUENCE

POWER_ON/OFF1(5V)

POWER_ON/OFF2_1(3.3V)

POWER_ON/OFF2_3(1.5V)

POWER_ON/OFF2_4(1.1V)

SOC_RESET

MICOM MODEL OPTION

+3.5V_ST

MICOM_DEBUG

MICOM_RESET

I2C_SCL_MICOM

I2C_SDA_MICOM

3D&L_DIM_EN

PANEL_CTL

WOL/WIFI_POWER_ON

HDMI_CEC_MICOM

POWER_ON/OFF2_3

EYE_SDA

EYE_SCL

+3.5V_ST

50V

50V

12pF

12pF

C3002

DAISHINKU_MICOM_CRYSTAL

HDMI_WAUP:HDMI_INIT

MHL_DET_LM15

+3.5V_ST

C3000

0.1uF

P62
P63

R30370

10K

GND

R3032

C3001 0.47uF

P121/X1

REGC

VSS

VDD

46

47

48

1
2
3
4
5
6

R5F100GEAFB#30
7
8
9
10
11
12

13

14

15

MHL_DET_LM15

+3.5V_ST

R3021

LCD

5%

10K

R3021-*1

1K

OLED

1/16W

P60/SCLA0
P61/SDAA0

P31/TI03/TO03/INTP4

IR

P75/KR5/INTP9/SCK01/SCL01

R3038

P74/KR4/INTP8/SI01/SDA01

100

P73/KR3/SO01
P72/KR2/SO21

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

AR3000

3.3K

EYE_Q

C3003

X3000

32.768KHz
R3028

4.7M

OPT

POWER_DET_1

P124/XT2/EXCLKS

P123/XT1

P137/INTP0

P122/X2/EXCLK

41

42

43

44

45

IC3000

16

17

18

19

20

MICOM_RESET

R3029 33

P40/TOOL0

RESET

40

21

LOGO_LIGHT

MICOM_DEBUG

LOGO_LIGHT

WIFI_EN

C3004

0.1uF
16V

P120/ANI19

P41/TI07/TO07

37

38

39

36
35
34
33
32
31
30
29
28
27
26
25

22

23

24

+3.5V_ST

10K

MICOM_RESET_SW

SW3000

R3030

JTP-1127WEM

1%

OPT

270K

R3031

1/1 6W

12

4 3

P140/PCLBUZ0/INTP6
P00/TI00/TXD1
P01/TO00/RXD1
P130
P20/ANI0/AVREFP
P21/ANI1/AVREFM
P22/ANI2
P23/ANI3
P24/ANI4
P25/ANI5
P26/ANI6
P27/ANI7

RL_ON

SCART_MUTE

POWER_ON/OFF2_4

POWER_ON/OFF2_1

KEY2

KEY1

MODEL1_OPT_3

MODEL1_OPT_0

SIDE_HP_MUTE

MHL_EN

MODEL1_OPT_1

SCART_MUTE

POWER_ON/OFF2_4

MHL_EN

P146

MICOM MODEL OPTION

OPT

R3006 10K

R3004 10K

R3008 10K

MICOM_OLED

MICOM_LCD

R3009 10K

R3013 10K

MICOM_LOGO

R3012 10K

MICOM_NON_LOGO

MODEL1_OPT_0
MODEL1_OPT_1

MODEL1_OPT_3

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_3 LM15U

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0

NON LOGO

LCD

P147/ANI18

P17/TI02/TO02

1

LOGO

OLED

H15

P51/INTP2/SO11

P50/INTP1/SI11/SDA11

P16/TI01/TO01/INTP5

POWER_DET

WOL_WAKE_UP

POWER_ON/OFF1

LM15U : Active high reset

P13/TXD2/SO20

P10/SCK00/SCL00

P14/RXD2/SI20/SDA20

P12/SO00/TXD0/TOOLTXD

P15/PCLBUZ1/SCK20/SCL20

P11/SI00/RXD0/TOOLRXD/SDA00

LED_R

LED_R

WOL_CTL

SOC_RESET

INV_CTL

R3015

10K

MICOM_LM15U

SOC_TX

SOC_RX

EDID_WP

AMP_MUTE

URSA_RESET_MICOM

URSA_RESET_MICOM

CEC_REMOTE

LM15U

MICOM

D3000

BAT54_SUZHO

S

For CEC

R3033
27K

G

Q3001-*1

SI1012CR-T1-GE3
D
VISHAY_CEC_FET

+3.5V_ST

G

D

S

Q3001
RUE003N02

ROHM_CEC_FET

R3034

120K

HDMI_CEC_MICOM

2014-12-30

30

BODY_SHIELD

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

FOOSUNG_HDMI_JACK

BODY_SHIELD

FOOSUNG_HDMI_JACK

MHL

+5V_NORMAL

20

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

DAADR019A

JK3301

20

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

DAADR019A

JK3300

L3300

PZ1608U121-2R0TF

MHL

5V_MHL

5V_HDMI_1

MHL

C3300

0.1uF
16V

VA3300

5V_HDMI_2

HDMI_ARC

CEC_REMOTE

ESD_HDMI

VA3302

ESD_HDMI

CEC_REMOTE

VA3301

ESD_HDMI

Q3300

2N3904S

R3300

100K

KEC_HDMI_HPD_3_TR

Q3300-*1

MMBT3904(NXP)

NXP_HDMI_HPD_3_TR

R3301

100K

MMBT3904(NXP)

VA3303

NXP_HDMI_HPD_2_TR

ESD_HDMI

5V_MHL

MHL

MHL_DET_LM15

R3302

R3337

1K

33

C

OPT

1K

B

R3303

E

C

E

D3302

RCLAMP7534P

OPT

1

5

2

4

3

D3303

RCLAMP7534P

OPT

1

5

2

4

3

R3304

1K

C

Q3301

2N3904S

E

KEC_HDMI_HPD_2_TR

C

Q3301-*1

E

D3301

RCLAMP7534P

OPT

1

5

2

4

3

D3300

RCLAMP7534P

OPT

1

5

2

4

3

C3301

ZD3300

0.1uF

5V
OPT

16V

R3305

4.7K

NON_HDMI_EXT_EDID

B

ESD_HDMI

OPT
R3338
33

R3306
1K

B

B

R3339

4.7K
HDMI_EXT_EDID

VA3304

CK-_HDMI1
CK+_HDMI1

D0-_HDMI1
D0+_HDMI1

D1-_HDMI1
D1+_HDMI1

D2-_HDMI1
D2+_HDMI1

R3308

1.8K

R3307

4.7K

HDMI_HPD_2

VA3305
ESD_HDMI

CK-_HDMI2
CK+_HDMI2

D0-_HDMI2
D0+_HDMI2

D1-_HDMI2
D1+_HDMI2

D2-_HDMI2
D2+_HDMI2

Current Limit

IC3300

TPS2553DBV

IN

1

MHL

GND

2

EN

3

/MHL_OCP

R3309

1.8K

HDMI_HPD_1

R3329

33

ESD_HDMI

R333033

VA3306

DDC_SDA_1
DDC_SCL_1

5V_DET_HDMI_2

R3310

3.3K

R333133
R333233

VA3307

ESD_HDMI

HDMI2 with ARC

OUT

6

5

4

ILIM

FAULT

MHL

R3311

1%

20K

5V_DET_HDMI_1

R3312

3.3K

HDMI3

DDC_SDA_2
DDC_SCL_2

MHL

L3301

BLM31PG500SN1

50-ohm

D3304

30V
OPT

R3313

100K

MHL

/MHL_OCP

5V_HDMI_3

MHL

C3302

10uF

10V

TMDS_DATA2_SHIELD

TMDS_DATA1_SHIELD

TMDS_DATA0_SHIELD

TMDS_CLK_SHIELD

HOT_PLUG_DETECT

VA3313

ESD_5V_HDMI_3

TMDS_DATA2+

TMDS_DATA2-

TMDS_DATA1+

TMDS_DATA1-

TMDS_DATA0+

TMDS_DATA0-

TMDS_CLK+

TMDS_CLK-

RESERVED

DDC/CEC_GND

VDD[+5V]

CNPLUS_HDMI_JACK

JK3300-*1
5501-56219

1

2

3

4

5

6

7

8

9

10

11

12

CEC

13

14

SCL

15

SDA

16

17

18

19

20

BODY_SHIELD

TMDS_DATA2+

TMDS_DATA2_SHIELD

TMDS_DATA2-

TMDS_DATA1+

TMDS_DATA1_SHIELD

TMDS_DATA1-

TMDS_DATA0+

TMDS_DATA0_SHIELD

TMDS_DATA0-

TMDS_CLK+

TMDS_CLK_SHIELD

TMDS_CLK-

RESERVED

DDC/CEC_GND

VDD[+5V]

HOT_PLUG_DETECT

CNPLUS_HDMI_JACK

JK3301-*1

5501-56219

1

2

3

4

5

6

7

8

9

10

11

12

CEC

13

14

SCL

15

SDA

16

17

18

19

20

BODY_SHIELD

TMDS_DATA2+

TMDS_DATA2_SHIELD

TMDS_DATA2-

TMDS_DATA1+

TMDS_DATA1_SHIELD

TMDS_DATA1-

TMDS_DATA0+

TMDS_DATA0_SHIELD

TMDS_DATA0-

TMDS_CLK+

TMDS_CLK_SHIELD

TMDS_CLK-

RESERVED

DDC/CEC_GND

VDD[+5V]

HOT_PLUG_DETECT

CNPLUS_HDMI_JACK

JK3302-*1

5501-56219

1

2

3

4

5

6

7

8

9

10

11

12

CEC

13

14

SCL

15

SDA

16

17

18

19

20

BODY_SHIELD

BODY_SHIELD

20

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

DAADR019A

JK3302

FOOSUNG_HDMI_JACK

EDID external EEPROM

MMBT3904(NXP)

E

Q3302-*1

C

NXP_HDMI_EXT_EDID_TR

A0

A1

A2

GND

B

ROHM_HDMI_EXT_EDID

IC3301

BR24G02FJ-3GTE2

1

2

3

4

8

7

6

5

DDC pull-up

5V_HDMI_2

AR3302

47K

1/16W

5V_HDMI_3

VA3308

ESD_HDMI

VA3312

ESD_HDMI

CEC_REMOTE

R3314

0

NON_MHL

KEC_HDMI_EXT_EDID_TR

2N3904S

VCC

WP

SCL

SDA

+5V_NORMAL

A2CA1
MMBD6100
D3305

DDC_SDA_2

DDC_SCL_2

R3315

100K

VA3309

ESD_HDMI

VA3310

5.6V

Q3302

5V_DET_HDMI_3

MHL
R3325
0

C

E

AR3 304

47K

R3324

1.8K

Q3303
2N3904S
KEC_MHL_TR

Q3303-*1
MMBT3904(NXP)

NXP_MHL_TR

5V_HDMI_1

+3.5V_ST

MHL

DDC_SDA_3

DDC_SCL_3

R3335

+3.5V_ST

MHL

R3326

10K

MHL
R3327
10K

B

C

B

E

R3328

NON_MHL

HDMI1 with MHL

+5V_NORMAL

A1

A2
MMBD6100
D3309

C

AR3305
1/16W
47K

A1

A2

MMBD6100
D3310

C

3.3K

10K

E

C

2N3906S-RTK
Q3304
KEC_MHL_TR

EDID_WP

DDC_SCL_1

DDC_SDA_1

C

Q3304-*1

B

MMBT3906(NXP)

NXP_MHL_TR

E

MHL_DET_LM15

ATMEL_HDMI_EXT_EDID

IC3301-*1

AT24C02C-SSHM-T

A0

1

A1

2

A2

3

GND

4

VCC

8

WP

7

SCL

6

SDA

5

OPT

R3316

R3336

1K

33

OPT

Q3305

2N3904S

C

E

VA3311
ESD_HDMI

R3318
1K

B

OPT

D3306

RCLAMP7534P

OPT

1

5

2

4

3

D3307

RCLAMP7534P

OPT

1

5

2

4

3

MHL
R3317

1K

C3303

0.1uF
16V

OPT

OPT

MHL

R333333
R333433

MHL
R3320
300K

MHL Spec

OPT

R3319

4.7K

HDMI_HPD_3

DDC_SDA_3

DDC_SCL_3

CK-_HDMI3
CK+_HDMI3

D0-_HDMI3
D0+_HDMI3

D1-_HDMI3
D1+_HDMI3

D2-_HDMI3
D2+_HDMI3

B

E

B

C

HDMI_EXT_EDID

R3323

4.7K

R3321
22

HDMI_EXT_EDID

R3322
22

HDMI_EXT_EDID

5V_HDMI_3

+5V_NORMAL

A2CA1

MMBD6100
D3308

1/1 6W

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

HDMI

2014-11-04

10

AV/COMPONENT REAR

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

VA3806

5.5V

Place JACK Side

C3822
150pF
OPT

MOLD_B/C_ESD

R3832-*1

3.3

1/10W
5%

1608 sizs For EMI/ESD

NON_MOLD_B/C_ESD

R3832

0

C3805
27pF
50V
OPT

C3806
100pF
50V
OPT

R3808751/4W

SIGN380008

C3811
47pF

1%

50V

R3830
0

R3831
0

AV1_CVBS_IN

COMP1_Y

SPDIF_OUT

SPDIF OUT

+3.3V_NORMAL

VA3807

C3800

5.5V

18pF
50V

OPT

C3818

0.1uF

R3801

+3.3V_NORMAL

R3807
10K

R3803
1K

VA3803

5.6V

470K

+3.3V_NORMAL

R3810
10K

VA3800

5.6V

AV1_CVBS_DET

R3802
1K

1608 sizs For EMI

R3805

0

C3801
560pF
50V
OPT

1608 sizs For EMI

R3806

0

C3802
560pF
50V
OPT

COMP1_DET

C3803
100pF
50V
OPT

C3804
100pF
50V

OPT

MOLD_B/C_ESD

R3811-*1

3.3

1/10W
5%

MOLD_B/C_ESD

R3809-*1

3.3

1/10W
5%

1608 sizs For EMI/ESD

1608 sizs For EMI/ESD

NON_MOLD_B/C_ESD

0

R3811

C3810
27pF
50V
OPT

NON_MOLD_B/C_ESD

1608 sizs For EMI/ESD

0

R3809

C3809
27pF
50V

FOR EMI

OPT

R3812
10K

C3807
1000pF
50V
OPT

R3813
10K

C3808
1000pF
50V
OPT

C3812
27pF
50V
OPT

C3813
27pF
50V
OPT

R3814
12K

R3815
12K

R3816
75

R3817
75

1%

1%

C3815
10pF
50V

C3814
10pF
50V

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

COMP1_Pb

COMP1_Pr

PPJ245N2-01

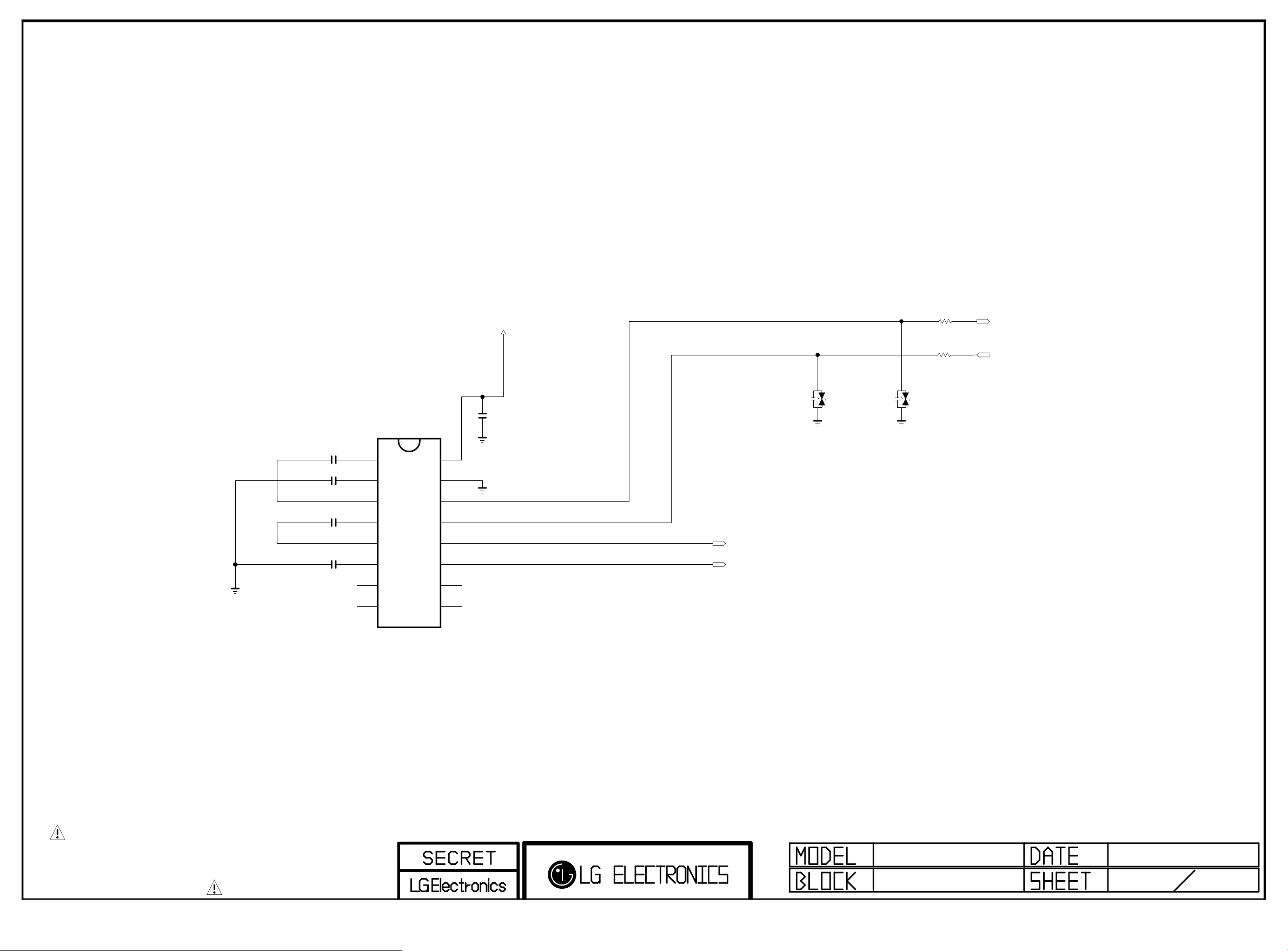

RS232C

JK3801

PEJ034-01

E_SPRING

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

3

4

5

7B

6B

TP3800

GND

Fiber Optic

1

VCC

2

VINPUT

16V

JK3800

JST1223-001

3

4

FIX_POLE

RIN1

DOUT1

DOUT1

TP3801

RIN1

JK3802

[GN/YL]E-LUG

6A

5A

[GN/YL]O-SPRING

4A

[GN/YL]CONTACT

5B

[BL]O-SPRING

7C

[RD1]E-LUG-S

5C

[RD1]O-SPRING

4C

[RD1]CONTACT

5D

[WH]O-SPRING

4E

[RD2]CONTACT

5E

[RD2]O-SPRING

6E

[RD2]E-LUG

VA3804

5.5V

VA3805

5.5V

VA3801

5.6V

R3800

470K

SIGN380006

VA3802

5.6V

HP OUT

PZ1608U121-2R0TF

HP_LOUT_AMP

PZ1608U121-2R0TF

HP_ROUT_AMP

L3800

L3801

C3816

0.22uF
25V

C3817

0.22uF
25V

R3818
150

1/10W
5%

R3819
150

1/10W
5%

HP_DET

R3822
100

1/16W
5%

+3.3V_NORMAL

R3823

10K

VA3808

5.6V

E_SPRING

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

PEJ034-01

3

4

5

7B

6B

JK3803

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

JACK_COMMON_H

2014-12-22

38

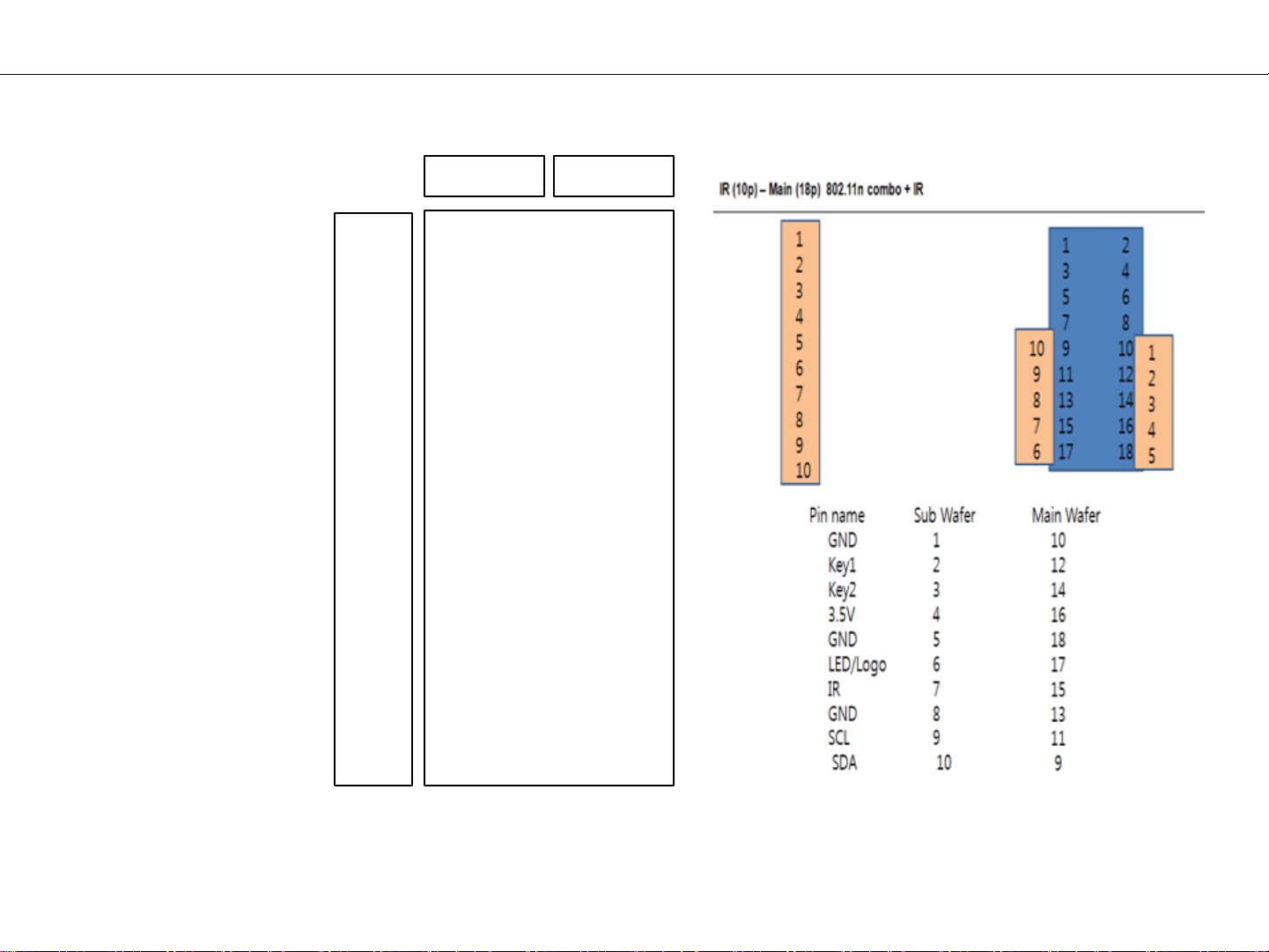

WIFI POWER ENABLE CONTROL

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

WIFI_EN

C4100

0.1uF

R4101 33

R4100
10K

OPT

C4113

0.1uF
16V

IN

EN

IC4100

AP2191WG-7

5

4

+3.5V_WIFI

OUT

1

GND

2

FLG

3

R4119
10K

OPT

P4100

+3.5V_ST

SMAW200-H18S5

C4110

+3.5V_ST

22uF

10V

R4113
0

R4114
0

C4109
5pF
50V

UG87_EMS

C4111

0.1uF

WIFI_DM

WIFI_DP

C4112

0.1uF

R4115

10K

UG87_EMS

C4108

GND

NC
WOL
SDA
SCL
GND

IR

1
3
5
7
9
11
13
15
17

19

R4111

R4112

100

100

M_RFModule_RESET

WOL/WIFI_POWER_ON

EYE_SDA

EYE_SCL

IR

LOGO_LIGHT_WAFER

LED_R

IR

AR4101

LOGO_LIGHT

R41080

LED_R

R4109

1.8K

OPT

C4102

0.1uF
16V

100

R4110

10K

5%

C4103

0.1uF

C4104

0.1uF

+3.5V_ST

C4105
100pF

50V

BT_RESET

LED_R

2
4
6

8
10
12
14
16
18

GND

+3.5V_WOL

USB_DM
USB_DP
GND
GND
KEY1
KEY2
+3.5V_ST
GND

D4100

RCLAMP0502BA

0.1uF

Place Near Wafer
C4107
5pF
50V

C4106
1000pF
50V

WIFI_EMI

+3.5V_ST

R4116

1%

For UG87 EMS RS

10K
1%

+3.5V_WIFI

AR4102

100

KEY1
KEY2

Place Near Micom

LOGO_LIGHT

R4102

10K

LOGO_LIGHT

C4101

0.1uF
16V

LOGO_LIGHT

IC4101

AO-R123C7G-LG

GND

G

VS

V

OUT

O

IR_PROTO

1K

R4104

LOGO_LIGHT

R4103

330

IR_PROTO

LOGO_LIGHT

B

Q4100
MMBT3904(NXP)

1/16W

5%

IR_PROTO

LOGO_LIGHT

C

E

R4105471/10W

AR4100
33
1/16W

5%

SMD bottom -> Page 135

LOGO_LIGHT_WAFER

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

IR/KEY

2014-12-25

41

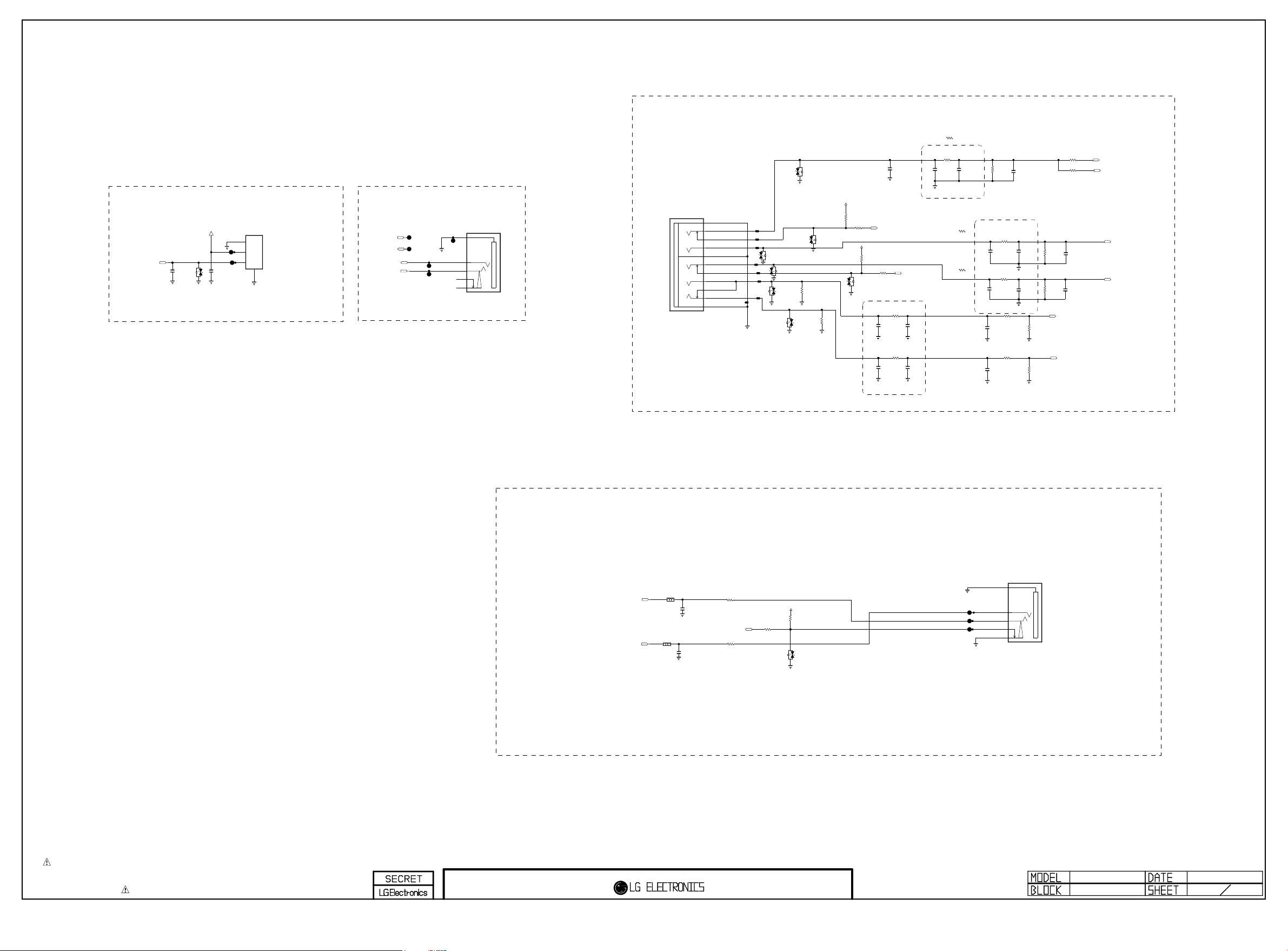

+5V_USB FOR USB3->USB1

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

/USB_OCD3

USB_CTL3

R4304

10K

+3.3V_NORMAL

R4305

4.7K

OCP USB3->USB1

+5V_NORMAL

C4300

0.1uF
16V

IC4300

BD2242G

VIN

1

GND

2

EN

3

+5V_USB_1

+5V_USB_3

USB_DM1

VOUT

6

ILIM

5

1%

OC

4

14K

R4306

USB_DP1

USB_DM2

USB_DP2

D4303

5V

D4301

+5V_USB_2

C4310

5V

10uF

C4322

10uF

10V

10V

USB1->USB3

USB_DM/DP_2.2ohm
R4300-*1

2.2
USB_DM/DP_2.2ohm

R4301-*1

2.2

USB_DM/DP_0ohm
R4300
0

USB_DM/DP_0ohm
R4301
0

C4323

22uF

10V

D4302

RCLAMP0502BA

USB_DM/DP_2.2ohm
R4302-*1

2.2
USB_DM/DP_2.2ohm

R4303-*1

2.2

USB_DM/DP_0ohm
R4302
0

USB_DM/DP_0ohm
R4303
0

C4311

22uF

10V

D4300

RCLAMP0502BA

MAX 1.0A

USB2

MAX 1.0A

1234

JK4302

USB DOWN STREAMUSB DOWN STREAM

3AU04S-305-ZC-(LG)

5

1234

JK4300

3AU04S-305-ZC-(LG)

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

USB_DM3

USB_DP3

SSUSB_RXP

SSUSB_RXN

SSUSB_TXP

SSUSB_TXN

USB3.0_TVS

D4304
RCLAMP0544T.TCT

6.5VTO11.0V

1 8
2 7
3 6
4 5

9

USB3.0_TVS

D4305
RCLAMP0544T.TCT

6.5VTO11.0V

1 8
2 7
3 6
4 5

9

C4312
22uF

10V

C4313
10uF
10V

ZD4302

5V

+5V_USB_3

USB3->USB1 (3.0)

MAX 1.2A

JK4301

SJ113262

VBUS

1

D-

2

D+

3

GND

4

STDA_SSRX-

STDA_SSRX+

STDA_SSTX-

STDA_SSTX+

GND_DRAIN

5

6

7

8

9

10

SHIELD

LM15U

USB3_HUB

2014-12-10

43

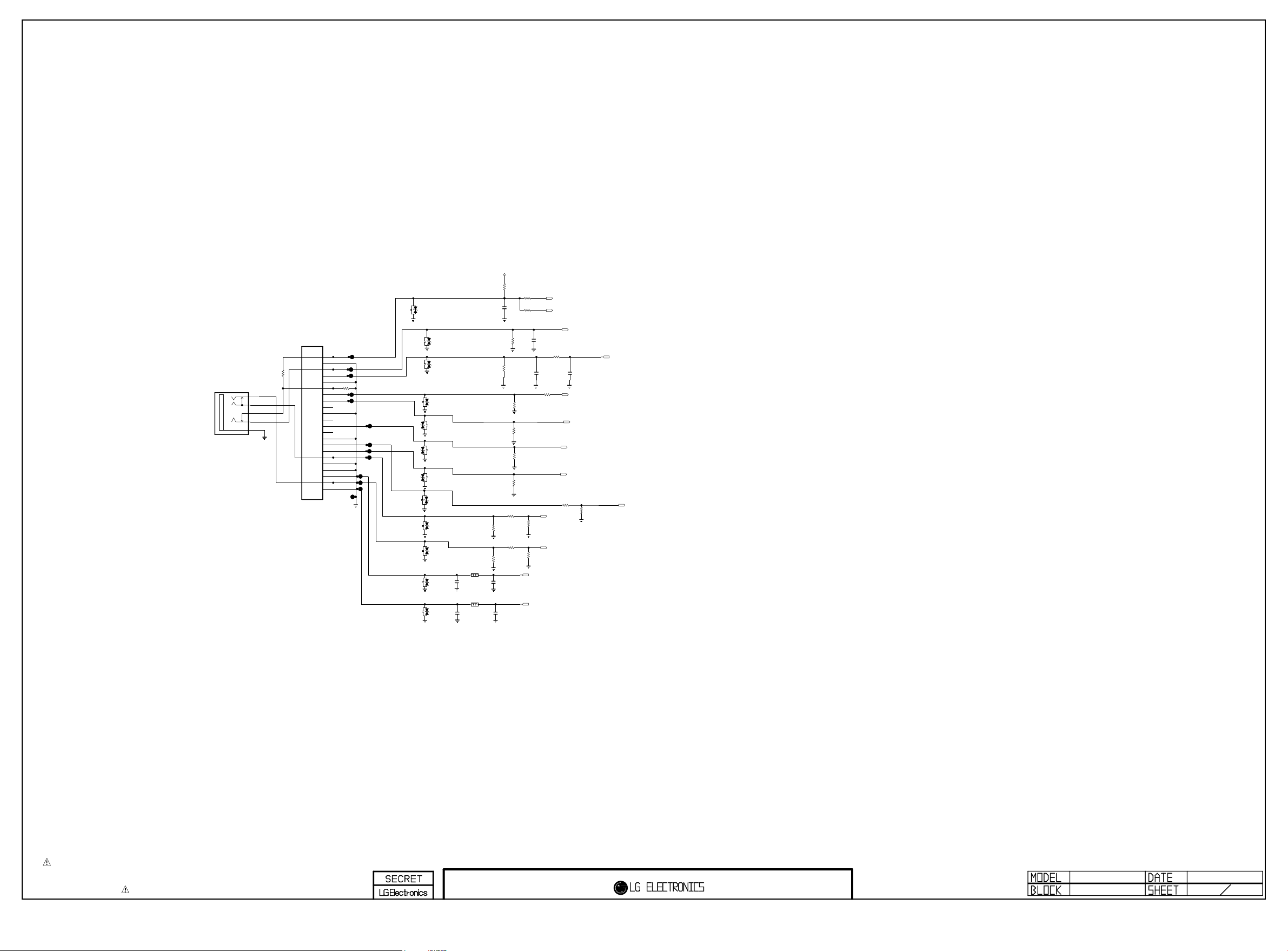

AV2

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

JK4601

PPJ231-01

4

5

7

8

6

Full Scart

EU

AV2

0

R4618

PSC008-01

JK4600

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

R4629
0

+3.3V_NORMAL

EU/AV2

CLOSE TO JUNCTION
R4601
10K

EU
R4602
100

SC_DET

AV2

EU/AV2

R4630

L4600

L4601

EU/AV2
R4600

470K

EU/AV2
R4603

470K

C4602
4700pF

C4603
4700pF

EU

C4604

0.1uF

1%

EU

75
R4604

SIGN460006

EU/AV2

R4605
10K

EU/AV2

R4606
10K

EU

100

AV2_CVBS_DET

C4605
47pF
50V

C4606
68pF
50V

SC_CVBS_IN

EU

R4615
0

EU

EU

R4614

22

EU

R4616

15K

SC_L_IN

SC_R_IN

DTV/MNT_V_OUT

OPT
C4607
68pF
50V

SC_FB

SC_R

SC_G

SC_B

R4617

3.9K

SC_ID

OPT

75

1/4W

EU/AV2

R460 7

EU
R4610
75

EU
R4608
75

EU
R4611
75

EU
R4609
75

R4612
12K
EU/AV2

R4613
12K

EU/AV2

DTV/MNT_L_OUT

DTV/MNT_R_OUT

VA4601

5.6V
EU/AV2

VA4609

5.5V

EU/AV2

VA4610

5.5V
EU

EU

VA4606

EU/AV2

VA4607

5.6V

5.6V
EU

VA4608

5.6V

VA4602

5.6V
EU

VA4603

5.5V
EU

VA4604

5.5V
EU

VA4605

5.5V
EU

VA4600
20V

EU

VA4611

5.6V
EU/AV2

EU

BLM18PG121SN1D

EU
C4600
1000pF
50V

EU

BLM18PG121SN1D

EU

EU

C4601
1000pF
50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SCART_JACK_H

LM15U

SCART JACK_H

2014-12-05

46

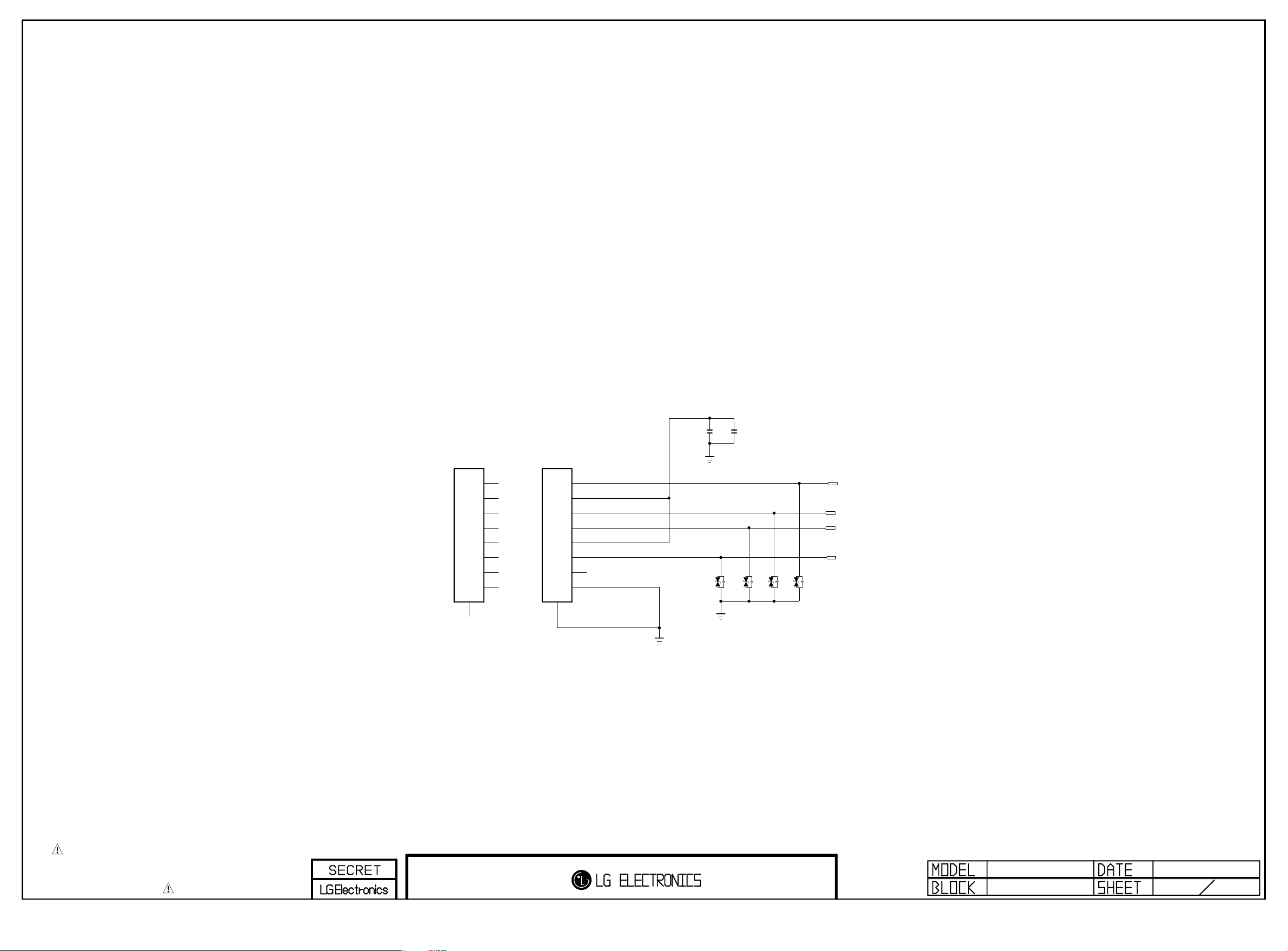

NEW_LAN_JACK_ESD

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

JK5000-*1

BS-RV30330

1

2

3

4

5

6

7

8

9

9

Ethernet Block

C5001

C5000

0.01uF

0.1uF
50V

16V

OLD_LAN_JACK

JK5000

RJ45VT-01SN002

1

2

3

4

5

6

7

8

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

VA5000

5.5V

VA5001

5.5V

VA5002

5.5V

VA5003

5.5V

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

LAN_H

2014-12-15

50

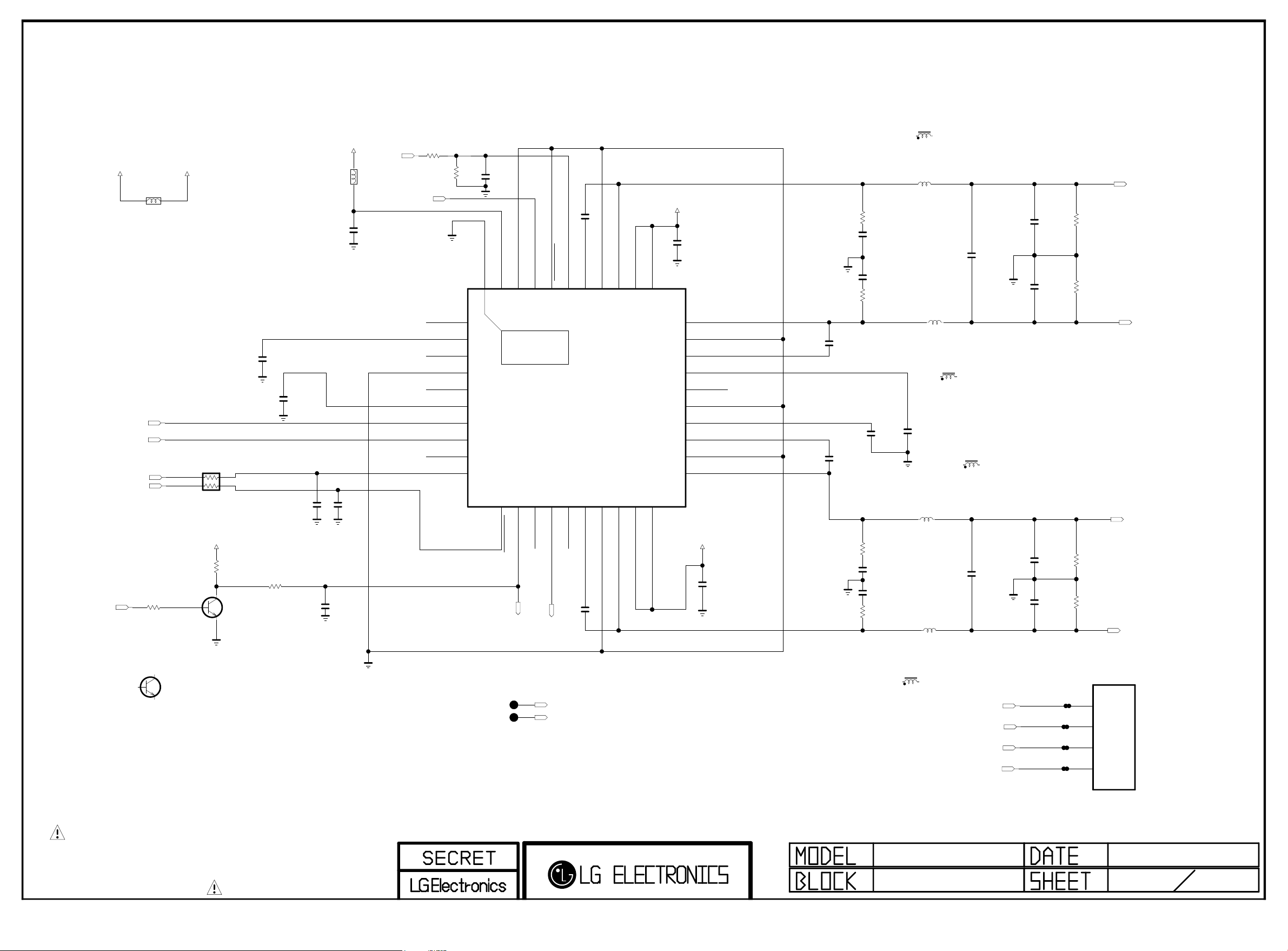

AUDIO AMP(NTP7515)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

L5800

R5800

10K

C

Q5800-*1

MMBT3904(NXP)

NXP_AMP_MUTE_TR

E

+24V_AMP

AR5800

100

+3.3V_NORMAL

R5801

10K

C

B

Q5800

2N3904S

KEC_AMP_MUTE_TR

E

PZ1608U121-2R0TF

C5800

1uF

10V

C5801
1uF
10V

C5802
33pF
50V

R5804

100

1000pF

AMP_MUTE

+24V

AUD_LRCH

AUD_LRCK

I2C_SDA4
I2C_SCL4

UBW2012-121F

B

C5803

50V

+3.3V_NORMAL

L5801

C5805

0.1uF
16V

C5804
33pF
50V

AMP_RESET_N

AUD_SCK

VDD_PLL

R5805
100

1/16W

NC_1

NC_2

GND
NC_3
DVDD

SDATA

WCK
NC_4

SDA

R5806

4.7K

[EP]GND

1
2
3
4
5
6
7
8
9
10

TP5801

TP5802

C5806
1000pF
50V

GND_IO

VDD_IO

39

40

THERMAL

11

12

SCL

FAULT

RESET

AD

CLK_I

37

38

41

IC5800

NTP7515

0x54

13

14

MONITOR_0

MONITOR_1

MONITOR_2

C5808

22000pF

I2S_AMP

WOOFER_MUTE

WOOFER_MUTE

I2S_AMP

C5807

BST1A

36

15

BST2B

50V

50V

22000pF

PGND1A

35

16

PGND2B

34

17

PVDD1A

OUT1A

32

33

18

19

OUT2B

PVDD2B

+24V_AMP

C5809
10uF
35V

PVDD1B

31

30
29
28
27
26
25
24
23
22
21

20

+24V_AMP

PVDD2A

OUT1B
PGND1B
BST1B
VDR1
NC_5
AGND
VDR2
BST2A
PGND2A
OUT2A

C5810
10uF
35V

C5811
22000pF
50V

C5812
22000pF
50V

R5807

3.3

R5808

3.3

R5809

3.3

R5810

3.3

1/10W

C5813
390pF

50V

C5814
390pF

50V

1/10W

1/10W

C5815
390pF
50V

C5816
390pF
50V

1/10W

5%

5%

C5817
1uF
10V

5%

5%

SM-6045-100

GET_AMP_COIL

L5802-*1

10.0uH

TAIYO_AMP_COIL

NRS6045T100MMGK

L5802

10.0uH

TAIYO_AMP_COIL

NRS6045T100MMGK

L5805

10.0uH

GET_AMP_COIL

C5818
1uF
10V

TAIYO_AMP_COIL

NRS6045T100MMGK

L5803

10.0uH

TAIYO_AMP_COIL

NRS6045T100MMGK

L5804

10.0uH

SM-6045-100

GET_AMP_COIL

L5804-*1

10.0uH

SM-6045-100

L5805-*1

10.0uH

SM-6045-100

GET_AMP_COIL

L5803-*1

10.0uH

C5819

0.47uF
50V

C5820

0.47uF

50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

C5821

0.1uF
50V

C5822

0.1uF
50V

C5823

0.1uF
50V

C5824

0.1uF

50V

SPK_L+

R5811

4.7K

R5812

4.7K

SPK_L-

SPK_R+

R5813

4.7K

R5814

4.7K

SPK_R-

4P Box type

WAFER-ANGLE

4

3

2

1

P5800

SPEAKER_L

SPEAKER_R

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

STM_AMP

2014-10-17

58

AMP - Woofer

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Woofer_AMP

L5900

UBW2012-121F

+24V_AMP_WOOFER

Woofer_AMP

AR5900
100
1/16W

Woofer_AMP
C5900
33pF
50V

+24V

AUD_LRCH

AUD_LRCK

I2C_SDA4

I2C_SCL4

Woofer_AMP

C5901
33pF
50V

WOOFER_MUTE

Woofer_AMP

C5902

Woofer_AMP

1uF

10V

Woofer_AMP

BLM18PG121SN1D

Woofer_AMP

C5903
1uF
10V

+3.3V_NORMAL

L5901

C5904

0.1uF
16V

AMP_RESET_N

AUD_SCK

VDD_PLL

Woofer_AMP

R5910
100

1/16W

Woofer_AMP

NC_1

NC_2

GND
NC_3
DVDD

SDATA

WCK
NC_4

SDA

Woofer_AMP

R5911

4.7K

[EP]GND

1
2
3
4
5
6
7
8
9
10

Woofer_AMP

C5923
1000pF
50V

GND_IO

VDD_IO

39

40

THERMAL

11

12

SCL

FAULT

+3.3V_NORMAL

R5912

4.7K

Woofer_AMP

RESET

AD

CLK_I

36

37

38

41

IC5900

NTP7515

0x56

Woofer_AMP

13

14

15

MONITOR_0

MONITOR_1

MONITOR_2

C5906

22000pF

50V

Woofer_AMP

50V

C5905

22000pF

PGND1A

BST1A

35

16

BST2B

PGND2B

34

17

OUT1A

33

18

OUT2B

+24V_AMP_WOOFER

PVDD1B

PVDD1A

31

32

30
29
28
27
26
25
24
23
22
21

19

PVDD2B20PVDD2A

Woofer_AMP
C5907

10uF
35V

OUT1B
PGND1B
BST1B
VDR1
NC_5
AGND
VDR2
BST2A
PGND2A
OUT2A

+24V_AMP_WOOFER

Woofer_AMP

C5908
10uF
35V

Woofer_AMP

Woofer_AMP

C5909
22000pF
50V

Woofer_AMP

C5910
22000pF
50V

Woofer_AMP
R5908

4.7K

Woofer_AMP

R5909

4.7K

C59 11
1uF
10V

Woofer_AMP

Woofer_AMP

Woofer_AMP

C5912
1uF
10V

Woofer_AMP

R5902

3.3
1/10W

C5913
390pF

50V

C5914
390pF

50V

R5903

3.3
1/10W

Woofer_AMP

SM-6045-100

Woofer_GET_AMP_COIL

L5902-*1

10.0uH

L5902

Woofer_TAIYO_AMP_COIL

10.0uH

NRS6045T100MMGK

L5905

10.0uH

NRS6045T100MMGK

SM-6045-100

Woofer_GET_AMP_COIL

L5905-*1

10.0uH

Woofer_TAIYO_AMP_COIL

Woofer_AMP

C5917

0.47uF
50V

Woofer_AMP

C5919

0.1uF
50V

Woofer_AMP
C5920

0.1uF
50V

R5906

4.7K

R5907

4.7K

SMAW250-04

Woofer_AMP

WAFER-ANGLE

SPK_L+_WF

Woofer_AMP

SPEAKER_L_WOOFER

Woofer_AMP

SPK_L-_WF

P5900

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

I2S_WOOF_OUT

I2S_WOOF_OUT

SPK_L+_WF

SPK_L-_WF

4

3

2

2

1

1

FW25001-02(SPK 2P)

P5901
OPT

WAFER-ANGLE

BSD-14Y-UD-059-HD

+12V

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

EU

L6000

AUD_OUT >> EU/CHINA_HOTEL_OPT

330pF
C6009

EU

C6000

10uF

DTV/MNT_L_OUT

SCART_Lout

CLOSE TO MSTAR

Near Place Scart AMP

EU

R6019

EU

0

10K

1/16W

5%

R60 03

EU

R6018

EU

0

1/16W

10K
R6001

5%

EU

EU

R6000

2.2K

C6002

6800pF

SCART_AMP_R_FB

SCART_AMP_L_FB

OPT

220K

R6005

EU

OPT

R6002

470K

SCART_AMP_L_FB

EU

R6006

5.6K

EU

R6004 33K

C6003 33pF

EU

EU
R6020

0

1/16W
5%

IC6000

AZ4580MTR-E1

EU

VCC

8

OUT2

7

IN2-

6

IN2+

5

OPT

OPT

OUT1

1

IN1-

2

IN1+

3

VEE

4

R6007

100K

1/16W

5%

OPT

R6009

100K

1/16W

5%

OPT

R6012

100K

R6015

100K

SIGN600013

1/16W

5%

1/16W

5%

EU

C6004

0.1uF
50V

EU

R6008 33K

C6005

EU

EU

R6021
0

1/16W
5%

33pF

R6016

EU

5.6K

OPT

R6010
470K

SCART_AMP_R_FB

EU

R6017

220K

OPT
C6007
6800pF

C6012
330pF

EU

EU

C6008

R6011

2.2K

EU

10uF

DTV/MNT_R_OUT

SCART_Rout

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

Q6000

MMBT3904(NXP)

DTV/MNT_R_OUT

Q6001

MMBT3904(NXP)

C

E

C

E

EU

R6013

1K

B

EU

EU

R6014

1K

B

EU

EU_SCART_MUTE_ISAHAYA

Q6002
RT1P141C-T112

E

C

B

EU_SCART_MUTE_NXP

SCART_MUTE

PDTA114ET

Q6002-*1

E

C

B

CLOSE TO MSTAR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF71/7500

SCART AMP

2014-05-19

17

EARPHONE AMP

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

CN_DRA

C6100-*1

2.2uF

HP_ROUT_MAIN

R6107

0

OPT

HP_ROUT_AMP

SIDE_HP_MUTE

10V

C6100
1uF
10V

NON_CN_DRA

R6100
10K

C6104

18pF

R6103

+3.3V_NORMAL

43K

4.7K

R6105

IC6100

TPA6138A2

+INR

1

R6106
43K

1%

1%

C6108
10pF
50V

C6102
1uF
10V

-INR

OUTR

GND_1

MUTE

VSS

2

3

4

5

6

CN

7

C6103
1uF

10V

+INL

14

C6106
10pF
50V

R6104
43K

1%

-INL

13

OUTL

12

UVP

11

GND_2

10

VDD

9

CP

8

C6109
18pF

1%

R6102

43K

+3.3V_NORMAL

C6105
1uF

16V

10V

C6107

0.1uF

R6101
10K

C6101-*1

2.2uF

CN_DRA

10V

C6101
1uF
10V

NON_CN_DRA

OPT

R6108

0

HP_LOUT_MAIN

HP_LOUT_AMP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

2015-01-22

HP_AMP 61

B-CAS (SMART CARD) INTERFACE

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

SMARTCARD_PWR_SEL

TPO_DATA[1]

R6300 33

JAPAN

+3.3V_NORMAL

2.7K

R6301

R6303

JAPAN

OPT

R6302

R6304

OPT

2.7K
JAPAN

R6305

R6306

CLKDIV1 CLKDIV2 : F_CRD_CLK

2.7K

----------------------------­ 1 0 CLKIN

JAPAN

+5V_NORMAL

OPT

BLM18PG121SN1D

JAPAN

L6300

SIGN630005

JAPAN

C6301

10uF
10V

C6302

0.1uF

INT CMDVCC : STATUS

+3.3V_NORMAL

IC6300

TDA8024TT

CLKDIV1

1

CLKDIV2

2

5V/3V

3

PGND

4

S2

5

VDDP

PRES

PRES

AUX2

AUX1

CGND

6

S1

7

VUP

I/O

JAPAN

8

9

10

11

12

13

14

JAPAN

C6303

0.1uF
16V

JAPAN

16V

AUX2UC

28

AUX1UC

27

I/OUC

26

XTAL2

25

XTAL1

24

OFF

23

GND

22

VDD

21

RSTIN

20

CMDVCC

19

PORADJ

18

VCC

17

RST

16

CLK

15

C6304

0.1uF

JAPAN

16V

R6307 33
R6308 33
R6309 33
R6310 33

JAPAN
JAPAN
JAPAN
JAPAN

JAPAN

R6311 33

Place CLK C3 far from C2,C7,C4 and C8

75 ohm in I/O is for short circuit Protection

OPT

JAPAN

R6317

1.2K

L6301

JAPAN

BLM18PG121SN1D

JAPAN

C6305

0.1uF
16V

JAPAN

JAPAN

R6318

1.2K

R6315

JAPAN

C6306

0.1uF

16V

+3.3V_NORMAL

10K

R6312

1.2K

JAPAN

R6313
75

OPT

R6319

1.2K

JAPAN

R6316

1.2K

+3.3V_NORMAL

JAPAN

C6307

0.33uF
16V

JAPAN

R6314
1K

ZD6300

5V

JAPAN

TPO_DATA[6]

TPO_DATA[5]

TPO_DATA[3]

TPO_DATA[4]

TPO_DATA[2]

10057542-1311FLF(B CAS Slot)

RESERVED_1

RESERVED

ZD6301
5V

JAPAN

VCC

RST

CLK

GND

VPP

I/O

SW1

SW2

SMARTCARD_DATA

SMARTCARD_CLK
SMARTCARD_DET
SMARTCARD_RST

SMARTCARD_VCC

B-CAS SLOT

P6300

C1

C2

C3

C4

C5

JAPAN

C6

C7

C8

S1

S2

--------------------------------­ HIGH HIGH CARD PRESENT
LOW HIGH CARD not PRESENT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JAPAN B-CAS

2011.04.17

63

FE_DEMOD1_TS_ERROR

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

FE_DEMOD2_TS_ERROR

Global F/E Option Name

1. TU

2. Tuner Name = TDJ’H’,TDj’M’...

3. Country Name = KR,US,BR,EU ...

Example of Option name
TU_ALL_IntDemod = All Tuner type for Internal demod
TU_M/W = apply TDSM&TDSW Type Tuner

14’ Tuner Type for Global
TDJ’H’-G101D : Half NIM for EU,AJJA
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW
TDJ’M’-C301D,F : FULL NIM for China
TDJ’M’-B101F : Brazil NIM with Isolater Type
TDJ’M’-K101F : colombia NIM
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM
TDJ’M’-H101F,H151F : Korea PIP tuner
TDJ’W’-A151D : AJJA T2 PIP

1

2

3

4

5

6

7

8

9

10

11





12

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

34

36

37

38

39

40

45

close to Tuner

L6500

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL5_TU

I2C_SDA5_TU

IF_P_TU

should be guarded by ground,Match GND VIA

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL2_TU

D_Demod_Core

LNB_TX

I2C_SDA2_TU

LNB_OUT

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK

+2.5V_DEMOD

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

/TU_RESET2_TU

PZ1608U121-2R0TF

C6501

0.1uF

TU_ALL_IntDemod

C6502

0.1uF
16V

+3.3V_TUNER

close to Tuner

close to TUNER

TU_K/M/W_TW/BR/CO

TU_K/M/W_TW/BR/CO

C6504

R6503

0.1uF

10K

C6505
47pF
50V

OPT

C6503
47pF
50V
OPT

R6504
10

TU_ALL_IntDemod

R6505
10

TU_ALL_IntDemod

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

TU_M/W

C6507

16V

0.1uF

PZ1608U121-2R0TF

TU_M/W

C6506

0.1uF

LNB_TX

LNB_OUT

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

R6507

TU_K/M/W_TW/BR/CO

R6506

1K

TU_ALL_IntDemod

TU_ALL

AR6500

33

C6519
33pF

TU_H/M_EU/BR/TW/CO/KR/US

C6520
33pF

TU_H/M_EU/BR/TW/CO/KR/US

TU_M_KR/EU // W_ALL

PZ1608U121-2R0TF

TU_M/W

R6501
100

TU_M_KR/EU // W_ALL

Demod_Core

BLM18PG121SN1D

C6509

0.1uF
TU_JP

R6527
100

TU_JP

close to Tuner

TU_M/W

L6505

C6514

16V

0.1uF

TU_JP

1K

I2C_SCL5

I2C_SDA5

L6502

OPT

L6501

C6510

0.1uF

FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0-7]

/TU_RESET1

TU_M/W

L6503

PZ1608U121-2R0TF

C6511

TU_M/W

0.1uF

OPT

C6512
18pF
50V

+2.5V_Normal

L6506

TU_JP

/TU_RESET2

TU_W_BR/TW

AR6500-*1
200
1/16W

IF_P

IF_N

+3.3V_TUNER

+3.3V_TUNER

OPT

C6513
18pF
50V

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils

RF_SWITCH_CTL

Ground Width >= 24mils

IF_AGC

TU_ALL_2178B
R6513 0

AR6501
33

TU_M/W

I2C_SCL2
I2C_SDA2

TU_SIF

+3.3V_TUNER

TU_ALL_2178B

R6516
200

B

1608 perallel
because of derating

TU_ALL_2178B

R6517

200

E

KEC_TU_ALL_2178B_TR
Q6502
2N3906S-RTK

C

FE_DEMOD1_TS_CLK_1

FE_DEMOD1_TS_SYNC_1

FE_DEMOD1_TS_VAL_1

FE_DEMOD1_TS_DATA0_1

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

TU_CVBS

E

NXP_TU_ALL_2178B_TR

B

Q6502-*1
MMBT3906(NXP)

C

+3.3V_NORMAL

TU_K/M/W_NON_JP
TU_K/M/W_NON_JP
TU_K/M/W_NON_JP
TU_K/M/W_NON_JP

Close to Tuner

TU_M/W

TU_JP
TU_JP
TU_JP
TU_JP

C6500

0.1uF
16V

R65020
R65110
R65120
R65140

R65150
R65180
R65200
R65220

+5V_NORMAL

TU_M/W

C6515
1uF
25V

+3.3V_NORMAL

C6517

22uF

10V

TU_M/W

IC6500

AP2132MP-2.5TRG1

R6500

10K

TU_M/W

VCTRL

PG

1

EN

2

VIN

3

2A

4

TU_M/W

C6516

0.1uF

Vout=0.6*(1+R1/R2)

FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL
FE_DEMOD1_TS_DATA[0]

L6504

PZ1608U121-2R0TF

[EP]

GND

8

ADJ

9

7

THERMAL

VOUT

6

NC

5

+3.3V_TUNER

C6508

0.1uF
16V

FE_DEMOD3_TS_CLK

FE_DEMOD3_TS_SYNC

FE_DEMOD3_TS_VAL

FE_DEMOD3_TS_ERROR

FE_DEMOD3_TS_DATA

T2 : Max 1.7A

else : Max 0.7A

Demod_Core

R6521-*1

TU_M/W
C6518
10uF
10V

18K

R6519-*1

TU_M/W_1.2V

10K

R65 21

R65 19

10. 5K

TU_M/W_1.2V

R2

R1

TU_M/W_1.1V

16K

TU_M/W_1.1V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

TU_CIRCUIT

2014-12-30

65

TU_H_US

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

TU6705
TDJH-H301F

TU_H_BR

TU6701
TDJK-T301F

TU_H_T2_KR

TU6704
TDJM-H401F

TU_M_EU

TU6702
TDJM-G301D

TU_W_JP

TU6703
TDJW-J202F

TDJH-G301D

TU6705-*1
TDJH-G301D

+3.3V

1

NC_1

2

IF_AGC

3

SCL_RF

4

SDA_RF

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

A1

A1

B1

B1

47

SHIELD

EMS Page --> Sheet : 135

A1

TU_GND_A

B1[+3.3V]

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

NC_5

8

NC_6

9

NC_7

10

B2[+3.3V]

11

NC_8

12

GND_1

13

M_RESET_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.2V]

28

NC_9

29

SDA_DEMOD

30

LNB

31

GND_2

32

NC_10

33

M_ERROR

34

GND_3

35

M_SYNC

36

M_MCLK

37

B5[+2.5V]

38

M_VALID

39

M_DATA

40

S_ERROR

41

S_SYNC

42

S_MCLK

43

S_VALID

44

S_RESET_DEMOD

45

S_DATA

46

B1

B1

TU_GND_B

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL5_TU

I2C_SDA5_TU

IF_P_TU

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK_1

FE_DEMOD1_TS_SYNC_1

FE_DEMOD1_TS_VAL_1

FE_DEMOD1_TS_DATA0_1

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL2_TU

D_Demod_Core

LNB_TX

I2C_SDA2_TU

LNB_OUT

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK

+2.5V_DEMOD

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

FE_DEMOD3_TS_ERROR

FE_DEMOD3_TS_SYNC

FE_DEMOD3_TS_CLK

FE_DEMOD3_TS_VAL

/TU_RESET2_TU

FE_DEMOD3_TS_DATA

1

2

3

4

5

6

7

8

9

10

11

12

13

14

16

17

18

19

20

21

22

23

24

25

26

27

30

31

32

33

34

35

36

40

41

42

43

44

45

46

47

48

49

B1

TU_H_T2_CO

A1

1

2

3

4

5

6

7

8

9

47

+3.3V

NC

DIF_AGC

SCL_RF

SDA_RF

DIF[P]

DIF[N]

SIF

CVBS

B1

TU6704-*1
TDJM-K301F

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1B1A1

SHIELD

TU_GND_B

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

A1

A1

B1

B1

+3.3V

1

NC_1

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

SIF

8

CVBS

9

NC_2

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VALID

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_3

29

SDA_DEMOD

30

LNB

31

GND

32

+3.3V

1

NC_1

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

A1

B1

B1

47

SHIELD

TU_GND_B

A1

TU_GND_A

A1

47

SHIELD

47

B1

B1

TU_GND_A

SHIELD

TU_GND_B

A1

A1

47

SHIELD

JAPAN TUNER (RDA5817)_Don’t USE_Just Ready

A1A1B1

47

TU_W_JP_RDA5817

TU6703-*1
TDJW-J301F

1

2

3

4

5

6

7

8

9

10

11

12

13

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

SHIELD

+3.3V_LNA

NC_1

NC_2

SCL_RF

SDA_RF

NC_3

NC_4

NC_5

NC_6

NC_7

+3.3V_RF

NC_8

GND_1

RESET_M_DEMOD

+3.3V_DEMOD

SCL_DEMOD

+1.2V_DEMOD

NC_9

SDA_DEMOD

LNB

GND_2

NC_10

M_ERROR

GND_3

M_SYNC

M_MCLK

+2.5V_DEMOD

M_VALID

M_DATA

S_ERROR

S_SYNC

S_MCLK

S_VALID

S_RESET_DEMOD

S_DATA

B1

TDJM-C401D

TU6702-*4
TDJM-C401D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

TDJM-B301F

TU6702-*3
TDJM-B301F

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

A1

TU_GND_A

TU_M_AJ

TU6702-*2
TDJM-G305D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1B1A1

47

SHIELD

TU_GND_B

TU_M_CN

TU6702-*1
TDJM-C301D

B1[+3.3V]

1

RF_SW_CTL

2

NC_1

3

SCL_RF

4

SDA_RF

5

NC_2

6

NC_3

7

SIF

8

CVBS

9

NC_4

10

NC_5

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

B2[+3.3V]

26

SCL_DEMOD

27

B3[+1.1V]

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

TU_GND_A

A1

A1

47

SHIELD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

TU_SYMBOL_H

2014-09-11

19

DVB-S2 LNB Part Allegro

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LNB_OUT

(Option:LNB)

C6900

0.1uF
LNB

Close to Tuner

Surge protectioin

C6901
33pF

LNB

D6900

LNB

R6900

2.2K
1W

LNB

LNB_TSC

SS23L
D6901-*1

LNB_TSC

D6901

MBR230LSFT1G

LNB_ONSEMI

C6902

0.22uF

LNB

25V

A_GND

2A

D6902-*1
SS23L

30V

30V

30V

D6902

LNB_ONSEMI

30V

C6903

0.01uF
50V

LNB

LNB

C6905
10uF
25V
LNB

close to Boost pin(#1)

C6904

0.1uF
50V

A_GND

C6906
10uF
25V

D6903
LNB_SMAB34

40V

D6903-*1
LNB_SX34

40V

LNB

A_GND

C6907
10uF
25V

LNB

NC_1

LNB

NC_2

TDI

TDO

[EP]

1

2

3

4

5

C6908 0.1uF

THERMAL

21

IC6900-*1

DT1803

LNB_DMBT

7

SCL9ADD

SDA6IRQ

8

D6904-*1

40V

LNB_SX34

D6904

40V

LNB_SMAB34

LNB_ALLEGRO

VCP

LNB

NC_1

TDI

TDO

PGND18NC_319NC_420BOOST

16LX17

VIN

15

GND

14

VREG

13

ISET

12

TCAP

11

10

TONECTRL

LPH6050T-150M-R

A_GND

NC_2

NC_3

BOOST

[EP]GND

18

19

20

1

THERMAL

2

21

3

IC6900

A8303SESTR-T

4

LNB_ALLEGRO

5

7

8

6

SCL9ADD

SDA

IRQ

GNDLX

16LX17

10

TONECTRL

+12V

LNB

L6900

3.5A

15uH

VIN

15

GND

14

VREG

13

ISET

12

TCAP

11

+3.3V_NORMAL

OPT

3.3K

R6907

LNB

R6906

0

3A

Max 1.3A

C6909
10uF
25V

LNB

A_GND

close to VIN pin(#15)

C6910

0.1uF
50V

LNB

C6912

LNB

0.1uF

LNB

C6911 0.22uF

Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A

LNB
R6903

39K

1/16W
1%

Caution!! need isolated GND

A_GND



R6904
0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LNB

R6901 33

I2C_SCL2

LNB

R6902 33

I2C_SDA2

R6905

LNB_Tx

LNB_TX

0

0

R6908

LNB_NON_Tx

LM15U

LNB

2014-08-25

20

+3.3V_NORMAL

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[51P Vx1
output wafer]

P7100

SP14-11592-01-51Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

Non_INX_Module

R7101 10K

R7102 10K

R7100 0

LGD_Module_3D_EN

Non_LGD_60Hz_Module

R7123 10K

TXDAP7_L

TXDAN7_L

TXDAP6_L

TXDAN6_L

TXDAP5_L

TXDAN5_L

TXDAP4_L

TXDAN4_L

TXDAP3_L

TXDAN3_L

TXDAP2_L

TXDAN2_L

TXDAP1_L

TXDAN1_L

TXDAP0_L

TXDAN0_L

LOCKAn_IN

HTPDAn_IN

OPT

Non_Sharp_Module

L7100

MLB-201209-0120P-N2

TCON_PWR_Vx1_Wafer

C7100
10uF
25V
TCON_PWR_Vx1_Wafer

+3.3V_NORMAL

LGD_Module

*Pin31(BIT_SEL)
HIGH or NC : 10Bit
LOW : 8Bit

LGD_Module_3D_EN

OPT
R7124
1K

R71030

PANEL_VCC

C7101
10uF
25V
TCON_PWR_Vx1_Wafer

R7104
10K
OPT

R71051K1/16W

R7108 0

LOCKAn_HTPDAn_3.3VPullup

+1.8V

LOCKAn_HTPDAn_3.3VPullup

LOCKAn_HTPDAn_3.3VPullup

LOCKAn_IN

LOCKAn_HTPDAn_3.3VPullup

LOCKAn_HTPDAn_3.3VPullup

HTPDAn_IN

+3.3V_NORMAL

LGD_Module
R7106
1K

OPT
R7107
1K

5%

3D&L_DIM_EN

*Pin35(PCID)

3D_EN

High:PCID enable
Low or NC : PCID diable

LGD_120Hz_Module

+3.3V_NORMAL

LGD_120Hz_Module

+3.3V_NORMAL

R7111
10K
OPT

R7112
10K

R7109
10K

OPT

R7110
10K

R7125 0

LGD_Module

+3.3V_NORMAL

+3.3V_NORMAL

LGD_120Hz_Module

AR7100
0
1/16W

R7115

4.7K
OPT

R7116

4.7K
OPT

LOCKAn_HTPDAn_3.3VPullup

R7128
10K

R7130
100

B

+3.3V_NORMAL

LOCKAn_HTPDAn_3.3VPullup

+1.8V

LOCKAn_HTPDAn_3.3VPullup

R7127
10K

R7129
100

B

3D&L_DIM_EN

L_DIM_EN

LGD_Module

AR7101
0
1/16W

Data_Format_1

Data_Format_0

LOCKAn_HTPDAn_3.3VPullup

R7132
10K

R7134

10K

C

Q7103
2N3904S

KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

R7131
10K

R7133

10K

C

Q7102
2N3904S

KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

B

S

Q7100

2N7002KA

R7119

33

S

Q7101

2N7002KA

R7120

33

R7136
10K

C

Q7105

B

2N3904S
KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

C

Q7103-*1

B

MMBT3904(NXP)

NXP_LOCKAn_HTPDAn_3.3VPullup_TR

E

LOCKAn_HTPDAn_3.3VPullup

R7135
10K

C

Q7104

B

2N3904S

KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

C

Q7102-*1
MMBT3904(NXP)

NXP_LOCKAn_HTPDAn_3.3VPullup_TR

E

TCON_I2C_EN

G

KEC_LGD_Module_TCON_I2C_EN_FET

R7121 0

D

LGD_Module

OPT

TCON_I2C_EN

KEC_LGD_Module_TCON_I2C_EN_FET

G

R7122 0

D

LGD_Module

OPT

Data Input Format[1:0]

*Mode 1 (NON Division)

- Data Format 0(Pin37) = Low
Data Format 1(Pin36) = Low

*Mode 3 (4 Division)

- Data Format 0(Pin37) = Low
Data Format 1(Pin36) = High

LOCKAn

C

B

E

HTPDAn

C

B

E

D

DIODES_LGD_Module_TCON_I2C_EN_FET

Q7100-*1

G

2N7002K

S

I2C_SCL6

D

DIODES_LGD_Module_TCON_I2C_EN_FET

Q7101-*1

G

2N7002K

S

I2C_SDA6

Q7105-*1
MMBT3904(NXP)

NXP_LOCKAn_HTPDAn_3.3VPullup_TR

Q7104-*1
MMBT3904(NXP)

NXP_LOCKAn_HTPDAn_3.3VPullup_TR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

Vx1 51P

2014-08-27

21

[41P Vx1

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

output wafer]

41Pin_Wafer

P7200

SP14-11592-01-41Pin

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

1

2

3

4

5

6

7

8

9

TXDBP7_L

TXDBN7_L

TXDBP6_L

TXDBN6_L

TXDBP5_L

TXDBN5_L

TXDBP4_L

TXDBN4_L

TXDBP3_L

TXDBN3_L

TXDBP2_L

TXDBN2_L

TXDBP1_L

TXDBN1_L

TXDBP0_L

TXDBN0_L

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF71/7500

Vx1 41P

14/07/19

22

eMMC I/F

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

DVDD18_EMMC

3.3v power delete, 131120

10K

1/16W

AR8104

EMMC_DATA[0-7]

EMMC_DATA[0]
EMMC_DATA[1]
EMMC_DATA[2]

EMMC_DATA[3]
EMMC_DATA[4]
EMMC_DATA[5]
EMMC_DATA[6]

EMMC_DATA[7]

EMMC_CLK
EMMC_CMD
EMMC_RST

AR8100
0
1/16W

R81040
R81050
R81060
R81070

AR8102
0 1/16W

C8107
10pF

OPT

50V

C8100

0.1uF

OPT

16V

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

10K

1/16W

DAT3

AR8103

DAT4

DAT5

DAT6

10K

R8117

EMMC_CLK_BALL

EMMC_CMD_BALL

10K

R8116

DVDD18_EMMC

EMMC_RESET_BALL

Bottom

OPT

C8108

0.1uF
16V

EMMC_VDDI

EMMC_VDDI

eMMC V5.0 GND

3.3V_EMMC

OPT

C8109

2.2uF
10V

C8102

0.1uF
16V

EMMC_STRB

C8105

0.1uF
16V

C8103

2.2uF
10V

DAT3
DAT4
DAT7

DAT5

Bottom

OPT

C8111

4.7uF
10V

DAT6

C8106

2.2uF
10V

OPT

C8101
1uF
10V

DVDD18_EMMC

DAT7

10K

R8103

pattern 0.2mm

C8104

2.2uF
10V

THGBMBG5D1KBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

VSS_1

A7

RFU_2

C5

NC_21

E5

RFU_4

E8

RFU_5

E9

VSF_1

E10

VSF_2

F10

VSF_3

G3

RFU_9

G10

RFU_10

H5

DS

J5

VSS_5

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

RFU_17

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_6

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

EMMC5.0_4G_TOSHIBA

DAT5

EMMC_STRB

EMMC_RESET_BALL

EMMC_CLK_BALL

EMMC_CMD_BALL

DAT6

THGBMBG6D1KBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

VSS_1

A7

RFU_2

C5

NC_21

E5

RFU_4

E8

RFU_5

E9

VSF_1

E10

VSF_2

F10

VSF_3

G3

RFU_9

G10

RFU_10

H5

DS

J5

VSS_5

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

RFU_17

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_6

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100-*1

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

EMMC5.0_8G_TOSHIBA

NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

A3
A4
A5
B2
B3
B4
B5
B6

M6
M5

A7
E5
G3
K6
K7
E8

E9
E10
F10
G10
K10
P10

H5

K5

C6

M4

N4

P3

P5

E6

F5
J10

K9

C2

C4

N2

N5

P4

P6

A6

E7

G5
H10

J5

K8

A1

A2

A8

A9
A10
A11
A12
A13
A14

B1

B7

B8

B9
B10
B11
B12
B13
B14

C1

C3

C5

IC8100-*2

H26M41103HPR

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

CLK
CMD

RFU_1
RFU_2
RFU_3
RFU_4
RFU_5
VSF_1
VSF_2
VSF_3
VSF_4
VSF_5
VSF_6
VSF_7
DS

RSTN

VCCQ_1
VCCQ_2
VCCQ_3
VCCQ_4
VCCQ_5

VCC_1
VCC_2
VCC_3
VCC_4

VDDI

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6

NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21

C7

NC_22

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108

M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P7
P8
P9
P11
P12
P13
P14

EMMC5.0_8G_HYNIX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

eMMC

2014-11-17

81

RS-232C Control INTERFACE

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

RS232C

R6820
100

RS232C

R6821
100

DOUT1

RIN1

RS232C

RS232C

RS232C

RS232C

C6808

0.1uF

C6809

0.1uF

C6810

0.1uF

C6811

0.1uF

C1+

C1-

C2+

C2-

DOUT2

RIN2

V+

V-

RS232C

IC6801

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

OPT
ZD6802

ADUC 20S 02 010L

RS232C

C6813

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

SOC_RX

SOC_TX

20V

OPT
ZD6803

ADUC 20S 02 010L
20V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF71/7500

RS232C

2014-05-19

22

URSA9 VIDEO/OSD LOCKn

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

R12902 10K

LOCKAn_Video

+3.3V_NORMAL

LOCKAn_Video

+3.3V_NORMAL

L2190

BLM18PG121SN1D

C2190
10uF
10V

VDDP

C2145

0.1uF
16V

4st Layer

C13314

0.1uF
16V

C13315
10uF
10V

AK10
AL10
AM10
AK11
AM11
AL11

AK12
AL12
AK13
AL13
AM13
AK14
AM14
AL14
AK15
AL15
AK16
AL16

AG2

RB0N

AG1

RB0P

AH3

RB1N

AH1

RB1P

AH2

RB2N

AJ3

RB2P

AJ2

RBCKN

AK2

RBCKP

AK1

RB3N

AL1

RB3P

AM2

RB4N

AL2

RB4P

AK3

RC0N

AL3

RC0P

AK4

RC1N

AL4

RC1P

AM4

RC2N

AK5

RC2P

AM5

RCCKN

AL5

RCCKP

AK6

RC3N

AL6

RC3P

AK7

RC4N

AL7

RC4P

AM7

RD0N

AK8

RD0P

AM8

RD1N

AL8

RD1P

AK9

RD2N

AL9

RD2P
RDCKN
RDCKP
RD3N
RD3P
RD4N
RD4P

RE0N
RE0P
RE1N
RE1P
RE2N
RE2P
RECKN
RECKP
RE3N
RE3P
RE4N
RE4P

IC2500

LGE7411(URSA9)

VX1_0­VX1_0+
VX1_1­VX1_1+
VX1_2­VX1_2+
VX1_3­VX1_3+
VX1_4­VX1_4+
VX1_5­VX1_5+
VX1_6­VX1_6+
VX1_7­VX1_7+
VX1_8­VX1_8+
VX1_9-

VX1_9+
VX1_10­VX1_10+
VX1_11­VX1_11+
VX1_12­VX1_12+
VX1_13­VX1_13+
VX1_14­VX1_14+
VX1_15­VX1_15+
VX1_16­VX1_16+
VX1_17­VX1_17+
VX1_18­VX1_18+
VX1_19­VX1_19+

VX1_HTDPN
VX1_LOCKN

AM17
AK17
AL18
AK18
AM19
AL19
AL20
AM20
AK22
AL21
AK23
AM22
AK24
AL23
AL25
AK25
AM26
AK26
AL27
AK27
AM28
AL28
AL29
AM29
AM31
AL30
AL32
AL31
AK31
AK32
AJ30
AJ31
AH30
AH32
AG30
AG31
AE31
AF30
AD32
AE30

AH29
AG29

C130080.1uF
C130090.1uF
C130100.1uF
C130110.1uF
C130120.1uF
C130130.1uF
C130140.1uF
C130150.1uF
C130160.1uF
C130170.1uF
C130180.1uF
C130190.1uF
C130200.1uF
C130210.1uF
C130220.1uF
C130230.1uF
C130240.1uF
C130250.1uF
C130260.1uF
C130270.1uF
C130280.1uF
C130290.1uF
C130300.1uF
C130310.1uF
C130640.1uF
C130650.1uF
C130660.1uF
C130670.1uF
C130680.1uF
C130690.1uF
C130700.1uF
C130710.1uF

R1938
10K

URSA_TX_HTPD_pulldown

LOCKAn_OSD

TXDBN7_L
TXDBP7_L
TXDBN6_L
TXDBP6_L
TXDBN5_L
TXDBP5_L
TXDBN4_L
TXDBP4_L
TXDBN3_L
TXDBP3_L
TXDBN2_L
TXDBP2_L
TXDBN1_L
TXDBP1_L
TXDBN0_L
TXDBP0_L
TXDAN7_L
TXDAP7_L
TXDAN6_L
TXDAP6_L
TXDAN5_L
TXDAP5_L
TXDAN4_L
TXDAP4_L
TXDAN3_L
TXDAP3_L
TXDAN2_L
TXDAP2_L
TXDAN1_L
TXDAP1_L
TXDAN0_L
TXDAP0_L

HTPDAn

10K

R12903

LOCKAn_OSD

+3.3V_NORMAL

22

R12904

VBY1_LOCK_LED

3.3 K

R12 905

E

Q12900

VBY1_LOCK_LED

B

C

LD1 2900

SML -512 UW

VBY1_LOCK_LED

MMBT3906(NXP)

VBY1_LOCK_LED

IC2500

LGE7411(URSA9)

D1

HDMI_RXCP_0

D3

HDMI_RXCN_0

E3

HDMI_RX0P_0

D2

HDMI_RX0N_0

F3

HDMI_RX1P_0

E2

HDMI_RX1N_0

F1

HDMI_RX2P_0

F2

HDMI_RX2N_0

G1

HDMI_RXCP_1

G3

HDMI_RXCN_1

H3

HDMI_RX0P_1

G2

HDMI_RX0N_1

J3

HDMI_RX1P_1

H2

HDMI_RX1N_1

J1

HDMI_RX2P_1

J2

HDMI_RX2N_1

+1.1V_U_VDDC

C2191
10uF
10V

L2101

BLM18PG121SN1D

AVDD_MOD

L2102

BLM18PG121SN1D

C2198
10uF
10V

AVDD_PLL

C2105
10uF
10V

C2193
10uF
10V

L2104
BLM18PG121SN1D

L2105
BLM18PG121SN1D

Close to Chip side

4st Layer

C2192

0.1uF
16V

C13302

0.1uF
16V

C2151
10uF
10V

Close to Chip side

4th Layer

C2142

0.1uF
16V

C13306

0.1uF
16V

Close to Chip side

+1.1V_U_VDDC

C2132
10uF
10V

C13311
10uF
10V

C13310
10uF
10V

AVDDL_MOD

AVDDL_DRV

C2194
10uF
10V

C2115

0.1uF
16V

C2116

0.1uF
16V

C2122
10uF
10V

C2137
1uF
10V

C2144

0.1uF
16V

4th Layer

C13305

0.1uF
16V

C2147

C2146

0.1uF

0.1uF
16V

16V

Close to Chip side

C2154
10uF
10V

Close to Chip side

4th Layer

C13304

0.1uF
16V

C2153
10uF
10V

C2148

0.1uF
16V

C2149

0.1uF
16V

4th Layer

C13307

0.1uF
16V

C2150
10uF
10V

C2196
10uF
10V

AE2
AE1
AD2
AE3
AC2
AD3
AC3
AC1

AB2
AB1
AA2
AB3

Y2

AA3

Y3
Y1

W2
W1
V2
W3
U2
V3
U3
U1

VBY1_RXM[0]
VBY1_RXP[0]
VBY1_RXM[1]
VBY1_RXP[1]
VBY1_RXM[2]
VBY1_RXP[2]
VBY1_RXM[3]
VBY1_RXP[3]

VBY1_RXM[4]
VBY1_RXP[4]
VBY1_RXM[5]
VBY1_RXP[5]
VBY1_RXM[6]
VBY1_RXP[6]
VBY1_RXM[7]
VBY1_RXP[7]

VBY1_RXM[8]
VBY1_RXP[8]
VBY1_RXM[9]
VBY1_RXP[9]
VBY1_RXM[10]
VBY1_RXP[10]
VBY1_RXM[11]
VBY1_RXP[11]

R1939
10K

Wafer_side_VBY1_LOCK_LED

LOCKAn

+3.3V_NORMAL

22

R1952

Wafer_side_VBY1_LOCK_LED

LD1 900

SML -512 UW

Wafer_side_VBY1_LOCK_LED

R19 43

3.3 K

E

Q1901
MMBT3906(NXP)

B

C

Wafer_side_VBY1_LOCK_LED

OSD

VIDEO

TXOSD_3N
TXOSD_3P
TXOSD_2N
TXOSD_2P
TXOSD_1N
TXOSD_1P
TXOSD_0N
TXOSD_0P

TXVBY1_7N
TXVBY1_7P
TXVBY1_6N
TXVBY1_6P
TXVBY1_5N
TXVBY1_5P
TXVBY1_4N
TXVBY1_4P

TXVBY1_3N
TXVBY1_3P
TXVBY1_2N
TXVBY1_2P
TXVBY1_1N
TXVBY1_1P
TXVBY1_0N
TXVBY1_0P

C129000.1uF
C129010.1uF
C129020.1uF
C129030.1uF
C129040.1uF
C129050.1uF
C129060.1uF
C129070.1uF

C129080.1uF
C129090.1uF
C129100.1uF
C129110.1uF
C129120.1uF
C129130.1uF
C129140.1uF
C129150.1uF

C129160.1uF
C129170.1uF
C129180.1uF
C129190.1uF
C129200.1uF
C129210.1uF
C129220.1uF
C129230.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

N4
M4
N1
P1
N3
N2
M3
M2
L1
L2

HDMITX_SCL
HDMITX_SDA
HDMI_TXCP
HDMI_TXCN
HDMI_TX0P
HDMI_TX0N
HDMI_TX1P
HDMI_TX1N
HDMI_TX2P
HDMI_TX2N

L2106
BLM18PG121SN1D

L2107
BLM18PG121SN1D

L13300

BLM18PG121SN1D

DVDD_DDR

C2117

0.1uF
16V

AVDDL_HDMI_TX_RX

C2118

0.1uF
16V

AVDDL_LVDSRX

C13300

0.1uF
16V

C2126

0.1uF
16V

C13301

0.1uF
16V

Close to Chip side

4th Layer

C13312

4.7uF
10V

C2152
10uF
10V

C13303

0.1uF
16V

Close to Chip side

C2131

0.1uF
16V

C13308
10uF
10V

C13309
10uF
10V

U_LVDS INPUT

C13313

4.7uF
10V

BSD-14Y-UD-128-02-HD

2013.12.17

A_DDR3_DQ[0-15]

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A_DDR3_DQ[16-31]

A_DDR3_A[0]
A_DDR3_A[1]
A_DDR3_A[2]
A_DDR3_A[3]
A_DDR3_A[4]
A_DDR3_A[5]
A_DDR3_A[6]
A_DDR3_A[7]
A_DDR3_A[8]

A_DDR3_A[9]
A_DDR3_A[10]
A_DDR3_A[11]
A_DDR3_A[12]
A_DDR3_A[13]
A_DDR3_A[14]
A_DDR3_A[15]

A_DDR3_BA[0]
A_DDR3_BA[1]
A_DDR3_BA[2]

A_DDR3_RASZ
A_DDR3_CASZ

A_DDR3_WEZ
A_DDR3_ODT
A_DDR3_CKE

A_DDR3_RESET

A_DDR3_MCLK
A_DDR3_MCLKZ

A_DDR3_CSB1
A_DDR3_CSB2

A_DDR3_DM0
A_DDR3_DM1

A_DDR3_DQS0

A_DDR3_DQS0B

A_DDR3_DQS1

A_DDR3_DQS1B

A_DDR3_DM2
A_DDR3_DM3

A_DDR3_DQS2

A_DDR3_DQS2B

A_DDR3_DQS3

A_DDR3_DQS3B

DDR_VTT_URSA

DDR_VTT_URSA

+1.5V_U_DDR

C13104

0.1uF
16V

+1.5V_U_DDR

C13102

0.1uF
16V

+1.5V_U_DDR

C13103

0.1uF
16V

F14
B13
E13
D13
C14
F13
C13
B10
A12
C10
A14
B12
F15
C11
C12
D17
E14
B14
E15

E17
C17
C16
F17
C15
B11
B16
A16

C9
A9

A_DDR3_DQ[0]

D23

A_DDR3_DQ[1]

A19

A_DDR3_DQ[2]

E22

A_DDR3_DQ[3]

B18

A_DDR3_DQ[4]

C23

A_DDR3_DQ[5]

C18

A_DDR3_DQ[6]

B22

A_DDR3_DQ[7]

A18

A_DDR3_DQ[8]

E19

A_DDR3_DQ[9]

B21

A_DDR3_DQ[10]

F18

A_DDR3_DQ[11]

C22

A_DDR3_DQ[12]

D20

A_DDR3_DQ[13]

F22

A_DDR3_DQ[14]

E18

A_DDR3_DQ[15]

D22
B19
E21

A21
B20
C20
C19

A_DDR3_DQ[16]

B27

A_DDR3_DQ[17]

A24

A_DDR3_DQ[18]

C27

A_DDR3_DQ[19]

C24

A_DDR3_DQ[20]

A28

A_DDR3_DQ[21]

E24

A_DDR3_DQ[22]

B28

A_DDR3_DQ[23]

B23

A_DDR3_DQ[24]

D25

A_DDR3_DQ[25]

E27

A_DDR3_DQ[26]

C25

A_DDR3_DQ[27]

D28

A_DDR3_DQ[28]

E26

A_DDR3_DQ[29]

E28

A_DDR3_DQ[30]

E25

A_DDR3_DQ[31]

C28
B24
B26

B25
A25
D26
C26

* DDR_VTT

DDR_VTT_URSA

L13100

CIS21J121

C13110
10uF

DDR_VTT_URSA_0

L13102

BLM18PG121SN1D

C13181
1uF
25V

DDR_VTT_URSA_1

L13103

BLM18PG121SN1D

C13112
1uF
25V

Decap removed

Close to DDR Power pin

C13109

C13117

0.1uF

0.1uF

16V

16V

Close to DDR Power pin

C13107

C13115

0.1uF

1uF

16V

25V

Close to DDR Power pin
Decap removed

C13116

C13108

0.1uF

0.1uF
16V

16V

IC2500

LGE7411(URSA9)

A_DDR3_A0
A_DDR3_A1
A_DDR3_A2
A_DDR3_A3
A_DDR3_A4
A_DDR3_A5
A_DDR3_A6
A_DDR3_A7
A_DDR3_A8
A_DDR3_A9
A_DDR3_A10
A_DDR3_A11
A_DDR3_A12
A_DDR3_A13
A_DDR3_A14
A_DDR3_A15
A_DDR3_BA0
A_DDR3_BA1
A_DDR3_BA2

A_DDR3_RASZ
A_DDR3_CASZ
A_DDR3_WEZ
A_DDR3_ODT
A_DDR3_CKE
A_DDR3_RESETB
A_DDR3_MCLK
A_DDR3_MCLKZ
A_DDR3_CSB1
A_DDR3_CSB2

A_DDR3_DQ0
A_DDR3_DQ1
A_DDR3_DQ2
A_DDR3_DQ3
A_DDR3_DQ4
A_DDR3_DQ5
A_DDR3_DQ6
A_DDR3_DQ7
A_DDR3_DQ8
A_DDR3_DQ9
A_DDR3_DQ10
A_DDR3_DQ11
A_DDR3_DQ12
A_DDR3_DQ13
A_DDR3_DQ14
A_DDR3_DQ15
A_DDR3_DM0
A_DDR3_DM1

A_DDR3_DQS0
A_DDR3_DQS0B
A_DDR3_DQS1
A_DDR3_DQS1B

A_DDR3_DQ16
A_DDR3_DQ17
A_DDR3_DQ18
A_DDR3_DQ19
A_DDR3_DQ20
A_DDR3_DQ21
A_DDR3_DQ22
A_DDR3_DQ23
A_DDR3_DQ24
A_DDR3_DQ25
A_DDR3_DQ26
A_DDR3_DQ27
A_DDR3_DQ28
A_DDR3_DQ29
A_DDR3_DQ30
A_DDR3_DQ31
A_DDR3_DM2
A_DDR3_DM3

A_DDR3_DQS2
A_DDR3_DQS2B
A_DDR3_DQS3
A_DDR3_DQS3B

+1.5V_U_DDR

10K

1%
R13100

C13113

C13111

10uF

10uF

10K
1%

R13101

C13189

C13179

0.1uF

0.1uF

16V

16V

C13132

C13158

0.1uF

0.1uF

16V

16V

C13128

0.1uF
16V

C13126

0.1uF
16V

C13151

0.1uF
16V

C13174

0.1uF
16V

C13135

0.1uF
16V

C13137

0.1uF
16V

B_DDR3_RASZ
B_DDR3_CASZ

B_DDR3_RESETB

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_CSB1
B_DDR3_CSB2

B_DDR3_DQ10
B_DDR3_DQ11
B_DDR3_DQ12
B_DDR3_DQ13
B_DDR3_DQ14
B_DDR3_DQ15

B_DDR3_DQS0

B_DDR3_DQS0B

B_DDR3_DQS1

B_DDR3_DQS1B

B_DDR3_DQ16
B_DDR3_DQ17
B_DDR3_DQ18
B_DDR3_DQ19
B_DDR3_DQ20
B_DDR3_DQ21
B_DDR3_DQ22
B_DDR3_DQ23
B_DDR3_DQ24
B_DDR3_DQ25
B_DDR3_DQ26
B_DDR3_DQ27
B_DDR3_DQ28
B_DDR3_DQ29
B_DDR3_DQ30
B_DDR3_DQ31

B_DDR3_DQS2

B_DDR3_DQS2B

B_DDR3_DQS3

B_DDR3_DQS3B

AP2303MPTR-G1

VIN

C13114
10uF

GND

10V

VREFEN

VOUT

C13118

0.1uF

C13105

0.1uF
16V

C13106

0.1uF
16V

B_DDR3_A0
B_DDR3_A1
B_DDR3_A2
B_DDR3_A3
B_DDR3_A4
B_DDR3_A5
B_DDR3_A6
B_DDR3_A7
B_DDR3_A8

B_DDR3_A9
B_DDR3_A10
B_DDR3_A11
B_DDR3_A12
B_DDR3_A13
B_DDR3_A14
B_DDR3_A15
B_DDR3_BA0
B_DDR3_BA1
B_DDR3_BA2

B_DDR3_WEZ
B_DDR3_ODT
B_DDR3_CKE

B_DDR3_DQ0
B_DDR3_DQ1
B_DDR3_DQ2
B_DDR3_DQ3
B_DDR3_DQ4
B_DDR3_DQ5
B_DDR3_DQ6
B_DDR3_DQ7
B_DDR3_DQ8
B_DDR3_DQ9

B_DDR3_DM0
B_DDR3_DM1

B_DDR3_DM2
B_DDR3_DM3

IC13100

1

2

3

4

C13146

0.1uF
16V

C13144

0.1uF
16V

H27
G31
G28
G29
H30
G27
G30
D31
F32
D30
H32
F31
J27
E30
F30
L29
H28
H31
J28

L28
L30
K30
L27
J30
E31
K31
K32
C30
C32

U29
N32
T28
M31
U30
M30
T31
M32
N28
R31
M27
T30
P29
T27
M28
T29
N31
R28

R32
P31
P30
N30

AA31
V32
AA30
V30
AB32
V28
AB31
U31
W29
AA28
W30
AB29
Y28
AB28
W28
AB30
V31
Y31

W31
W32
Y29
Y30

[EP]

NC_3

8

NC_2

9

7

THERMAL

VCNTL

6

NC_1

5

C13123
10uF
10V

C13122
10uF
10V

Close to DDR

C13154

0.1uF
16V

B_DDR3_A[0]

B_DDR3_A[1]

B_DDR3_A[2]

B_DDR3_A[3]

B_DDR3_A[4]

B_DDR3_A[5]

B_DDR3_A[6]

B_DDR3_A[7]

B_DDR3_A[8]

B_DDR3_A[9]

B_DDR3_A[10]

B_DDR3_A[11]

B_DDR3_A[12]

B_DDR3_A[13]

B_DDR3_A[14]

B_DDR3_A[15]

B_DDR3_DQ[0]

B_DDR3_DQ[1]

B_DDR3_DQ[2]

B_DDR3_DQ[3]

B_DDR3_DQ[4]

B_DDR3_DQ[5]

B_DDR3_DQ[6]

B_DDR3_DQ[7]

B_DDR3_DQ[8]

B_DDR3_DQ[9]

B_DDR3_DQ[10]

B_DDR3_DQ[11]

B_DDR3_DQ[12]

B_DDR3_DQ[13]

B_DDR3_DQ[14]

B_DDR3_DQ[15]

B_DDR3_DQ[16]

B_DDR3_DQ[17]

B_DDR3_DQ[18]

B_DDR3_DQ[19]

B_DDR3_DQ[20]

B_DDR3_DQ[21]

B_DDR3_DQ[22]

B_DDR3_DQ[23]

B_DDR3_DQ[24]

B_DDR3_DQ[25]

B_DDR3_DQ[26]

B_DDR3_DQ[27]

B_DDR3_DQ[28]

B_DDR3_DQ[29]

B_DDR3_DQ[30]

B_DDR3_DQ[31]

C13156

0.1uF
16V

B_DDR3_BA[0]
B_DDR3_BA[1]
B_DDR3_BA[2]

B_DDR3_RASZ
B_DDR3_CASZ
B_DDR3_WEZ
B_DDR3_ODT
B_DDR3_CKE
B_DDR3_RESET

B_DDR3_MCLK

B_DDR3_MCLKZ
B_DDR3_CSB1
B_DDR3_CSB2

B_DDR3_DM0
B_DDR3_DM1

B_DDR3_DQS0
B_DDR3_DQS0B
B_DDR3_DQS1
B_DDR3_DQS1B

B_DDR3_DM2
B_DDR3_DM3

B_DDR3_DQS2
B_DDR3_DQS2B
B_DDR3_DQS3
B_DDR3_DQS3B

+3.3V_NORMAL

L13101

CIS21J121

C13125

0.1uF
16V

C13124

0.1uF

16V

C13164

0.1uF
16V

C13162
10uF
10V

B_DDR3_A[0-15]

B_DDR3_DQ[0-15]

B_DDR3_DQ[16-31]

C13119
10uF
10V

C13172
1uF
25V

C13170

0.1uF
16V

C13178

0.1uF
16V

C13176

0.1uF
16V

C13186

0.1uF
16V

C13184

0.1uF
16V

DDR PHY VREF

+1.5V_U_DDR

+1.5V_U_DDR

R13102
1K

+1.5V_U_DDR

R13103
1K

C13194
10uF
10V

C13192

0.1uF
16V

R13110
1K
1%

R13111
1K
1%

+1.5V_U_DDR

R13108
1K
1%

R13109
1K
1%

A_DDR3_RESET

B_DDR3_RESET

C13198

0.1uF
16V

C13196

0.1uF
16V

U_MVREFCA_A0

C13131

0.1uF

U_MVREFCA_B0

C13138

0.1uF

A_DDR3_CKE

B_DDR3_CKE

C13133

0.1uF
16V

C13130

0.1uF
16V

C13136
1000pF

C13134

1000pF

C13139

0.1uF
16V

C13148
1uF
25V

+1.5V_U_DDR

U_MVREFCA_A1

R13120
1K
1%

R13121
1K
1%

C13143

0.1uF

C13147

1000pF

A_DDR3_A[0]
A_DDR3_A[1]
A_DDR3_A[2]
A_DDR3_A[3]
A_DDR3_A[4]
A_DDR3_A[5]
A_DDR3_A[6]
A_DDR3_A[7]
A_DDR3_A[8]

A_DDR3_A[9]
A_DDR3_A[10]
A_DDR3_A[11]
A_DDR3_A[12]
A_DDR3_A[13]

A_DDR3_A[15]

+1.5V_U_DDR

R13118
1K
1%

R13119
1K
1%

U_MVREFCA_B1

C13142

0.1uF

C13145

1000pF

A_DDR3_MCLK

A_DDR3_MCLKZ

A_DDR3_BA[0]
A_DDR3_BA[1]
A_DDR3_BA[2]

56

C13233

R13122

0.01uF
56

R13123

A_DDR3_CKE

A_DDR3_CSB1

A_DDR3_ODT
A_DDR3_RASZ
A_DDR3_CASZ

A_DDR3_WEZ

A_DDR3_RESET

A_DDR3_DQS0

A_DDR3_DQS0B

A_DDR3_DQS1

A_DDR3_DQS1B

A_DDR3_DM0

A_DDR3_DQ[0-15]

R13112
1K

R13113
1K

A_DDR3_DM1

A_DDR3_DQ[0]

A_DDR3_DQ[1]

A_DDR3_DQ[2]

A_DDR3_DQ[3]

A_DDR3_DQ[4]

A_DDR3_DQ[5]

A_DDR3_DQ[6]

A_DDR3_DQ[7]

A_DDR3_DQ[8]

A_DDR3_DQ[9]

A_DDR3_DQ[10]

A_DDR3_DQ[11]

A_DDR3_DQ[12]

A_DDR3_DQ[13]

A_DDR3_DQ[14]

A_DDR3_DQ[15]

B_DDR3_A[0]
B_DDR3_A[1]
B_DDR3_A[2]
B_DDR3_A[3]
B_DDR3_A[4]
B_DDR3_A[5]
B_DDR3_A[6]
B_DDR3_A[7]
B_DDR3_A[8]

B_DDR3_A[9]
B_DDR3_A[10]
B_DDR3_A[11]
B_DDR3_A[12]
B_DDR3_A[13]

B_DDR3_A[15]

B_DDR3_BA[0]

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_BA[1]
B_DDR3_BA[2]

56

C13234

R13124

0.01uF
56

R13125

B_DDR3_CKE

B_DDR3_CSB1

B_DDR3_ODT
B_DDR3_RASZ
B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

B_DDR3_DQS0

B_DDR3_DQS0B

B_DDR3_DQS1

B_DDR3_DQS1B

B_DDR3_DM0

B_DDR3_DM1

C13140

0.1uF
16V

C13149

0.1uF
16V

C13141
1uF
25V

C13150

0.1uF
16V

C13152

0.1uF
16V

C13100
10uF
10V

C13101
10uF
10V

C13120
10uF
10V

C13121

0.1uF
16V

C13127
10uF
10V

C13129

0.1uF
16V

B_DDR3_DQ[0-15]

4th layer

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

B_DDR3_DQ[0]

B_DDR3_DQ[1]

B_DDR3_DQ[2]

B_DDR3_DQ[3]

B_DDR3_DQ[4]

B_DDR3_DQ[5]

B_DDR3_DQ[6]

B_DDR3_DQ[7]

B_DDR3_DQ[8]

B_DDR3_DQ[9]

B_DDR3_DQ[10]

B_DDR3_DQ[11]

B_DDR3_DQ[12]

B_DDR3_DQ[13]

B_DDR3_DQ[14]

B_DDR3_DQ[15]

URSA_DDR_Hynix

IC2600

URSA_DDR_Hynix

IC2800

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

U_MVREFCA_A0

M8

H1

R13126 240

L8

ZQ

1%

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_U_DDR

+1.5V_U_DDR

A_DDR3_A[14]

NT5CB64M16FP-EK

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

URSA_DDR_Nanya

IC2600-*1

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

U_MVREFCA_B0

M8

VREFCA

H1

VREFDQ

R13127 240

L8

ZQ

1%

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_U_DDR

+1.5V_U_DDR

B_DDR3_A[14]

NT5CB64M16FP-EK

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

URSA_DDR_Nanya

IC2800-*1

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A_DDR3_A[0]
A_DDR3_A[1]
A_DDR3_A[2]
A_DDR3_A[3]
A_DDR3_A[4]
A_DDR3_A[5]
A_DDR3_A[6]
A_DDR3_A[7]
A_DDR3_A[8]

A_DDR3_A[9]
A_DDR3_A[10]
A_DDR3_A[11]
A_DDR3_A[12]
A_DDR3_A[13]
A_DDR3_A[14]
A_DDR3_A[15]

A_DDR3_BA[0]
A_DDR3_BA[1]
A_DDR3_BA[2]

A_DDR3_MCLK

A_DDR3_MCLKZ

A_DDR3_CKE

A_DDR3_CSB2

A_DDR3_ODT
A_DDR3_RASZ
A_DDR3_CASZ

A_DDR3_WEZ

A_DDR3_RESET

URSA_DDR_Samsung

IC2600-*2

K4B1G1646G-BCMA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

B_DDR3_A[0]
B_DDR3_A[1]
B_DDR3_A[2]
B_DDR3_A[3]
B_DDR3_A[4]
B_DDR3_A[5]
B_DDR3_A[6]
B_DDR3_A[7]
B_DDR3_A[8]

B_DDR3_A[9]
B_DDR3_A[10]
B_DDR3_A[11]
B_DDR3_A[12]
B_DDR3_A[13]

B_DDR3_A[14]

B_DDR3_A[15]

B_DDR3_BA[0]
B_DDR3_BA[1]
B_DDR3_BA[2]

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_CKE

B_DDR3_CSB2

B_DDR3_ODT
B_DDR3_RASZ
B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

URSA_DDR_Samsung

IC2800-*2

K4B1G1646G-BCMA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_VTT_URSA_1

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_VTT_URSA_0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

AR13100

AR13101

URSA_DDR_Hynix

AR13102

AR13106

AR13104

100

100

100

100

A_DDR3_DQ[16-31]

100

100

100

100

AR13107

AR13103

AR13105

B_DDR3_DQ[16-31]

AR13108
100

AR13109
100

AR13110
100

A_DDR3_DQS2

A_DDR3_DQS2B

A_DDR3_DQS3

A_DDR3_DQS3B

A_DDR3_DM2
A_DDR3_DM3

AR13111
100

B_DDR3_DQS2

B_DDR3_DQS2B

B_DDR3_DQS3

B_DDR3_DQS3B

B_DDR3_DM2
B_DDR3_DM3

AR13112
100

A_DDR3_DQ[16]

A_DDR3_DQ[17]

A_DDR3_DQ[18]

A_DDR3_DQ[19]

A_DDR3_DQ[20]

A_DDR3_DQ[21]

A_DDR3_DQ[22]

A_DDR3_DQ[23]

A_DDR3_DQ[24]

A_DDR3_DQ[25]

A_DDR3_DQ[26]

A_DDR3_DQ[27]

A_DDR3_DQ[28]

A_DDR3_DQ[29]

A_DDR3_DQ[30]

A_DDR3_DQ[31]

AR13113
100

B_DDR3_DQ[16]

B_DDR3_DQ[17]

B_DDR3_DQ[18]

B_DDR3_DQ[19]

B_DDR3_DQ[20]

B_DDR3_DQ[21]

B_DDR3_DQ[22]

B_DDR3_DQ[23]

B_DDR3_DQ[24]

B_DDR3_DQ[25]

B_DDR3_DQ[26]

B_DDR3_DQ[27]

B_DDR3_DQ[28]

B_DDR3_DQ[29]

B_DDR3_DQ[30]

B_DDR3_DQ[31]

IC2700

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

URSA_DDR_Hynix

IC2900

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDD_1

VDD_2

VDD_3

VDD_4

VDD_5

VDD_6

VDD_7

VDD_8

VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1

VSS_2

VSS_3

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

U_MVREFCA_A1

M8

H1

R13134 240

L8

ZQ

1%

+1.5V_U_DDR

B2
D9
G7
K2
K8
N1
N9
R1
R9

+1.5V_U_DDR

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A_DDR3_A[14]

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

K4B1G1646G-BCMA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC2700-*1

NT5CB64M16FP-EK

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

URSA_DDR_Samsung

IC2700-*2

URSA_DDR_Nanya

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

U_MVREFCA_B1

M8

H1

R13135 240

L8

ZQ

1%

+1.5V_U_DDR

B2
D9
G7
K2
K8
N1
N9
R1
R9

+1.5V_U_DDR

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

B_DDR3_A[14]

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

URSA_DDR_Samsung

IC2900-*2

K4B1G1646G-BCMA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC2900-*1

NT5CB64M16FP-EK

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

URSA_DDR_Nanya

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

+1.5V_U_DDR

C13195

0.1uF
16V

Close to DDR Power pin
Decap removed

4th layer

BSD-14Y-UD-131-HD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2013.12.17

URSA7_DDR

+3.3V_NORMAL

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Clock for URSA9

LM14_URSA9_crystalcap

C1992

5pF

50V

GND_1

2

3

C1993

5pF

50V

X-TAL_2

SPI Flash

SPI_DO_URSA9

SPI_DO_SOC

High : B1

Low : B0

B1

GND

B0

X-TAL_1

1

24MHz

4

GND_2

OPT

IC1900

NLASB3157DFT2G

1

2

3

R19000

R1925

1M

X1900

+3.3V_NORMAL

SELECT

6

VCC

5

A

4

XIN_URSA

XO_URSA

FRC_FLASH_SEL

SPI_DO

SPI_DI_URSA9

SPI_DI_SOC

SPI_4MB_MACRONIX

SW1901

JTP-1127WEM

1

OPT

IC1902

NLASB3157DFT2G

B1

1

GND

2

B0

3

+3.3V_NORMAL

2

43

D1900

1N4148W

+3.3V_NORMAL

SELECT

6

VCC

5

A

4

R19200

+3.3V_NORMAL

100V

OPT
C1996
22uF
10V

R1923

10K

FRC_FLASH_SEL

SPI_DI

IC1901

MX25L3235E

SPI_CZ_URSA9

SPI_DO

FLASH_WP_URSA

FRC_FLASH_WP

R1904

R1905

OPT

R1932

SO/SIO1

WP/SIO2

GND

CS

1

2

3

4

OPT

R1901

10K

33

1K

1K

VCC

8

HOLD/SIO3

7

SCLK

6

SI/SIO0

5

C1995

0.1uF
16V

R190310K

Debugging for URSA9

I2C_S Port

P1905

12507WS-04L

URSA_DEBUG_Wafer

I2C_SCL7

I2CS_SCL

SCL2_+3.3V_DB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R1958
0
URSA_MP

R1960
0

OPT

5

WAFER-STRAIGHT

1

2

3

4

SW1902

JS2235S

1

2

URSA_DEBUG_SW

3

R19 22

33

URSA_DEBUG_Wafer

R19 21

33

URSA_DEBUG_Wafer

6

5

4

SCL2_+3.3V_DB

SDA2_+3.3V_DB

I2C_SDA7

R1959
0
URSA_MP

I2CS_SDA

R1961
0
OPT

SDA2_+3.3V_DB

UART PQ/System Debug

+3.3V_NORMAL

URSA9_PQ_DEBUG

P1906

12507WS-04L

5

1

2

3

4

R13226
10K

URSA9_PQ_DEBUG

33

URSA9_PQ_DEBUG

33

URSA9_PQ_DEBUG

C1998

0.1uF
16V

URSA9_PQ_DEBUG

+3.3V_NORMAL

0

R1924

CS

DO[IO1]

WP[IO2]

GND

R13222

R13223

URSA Reset

OPT
R1919
10K

OPT

0

R1930

0

R13221

SPI_CK_URSA9

SPI_CK_SOC

SPI_4MB_Winbond

IC1901-*1

W25Q32FVSSIG

VCC

1

8

HOLD_OR_RESET[IO3]

7

2

CLK

6

3

DI[IO0]

4

5

SPI_CK

SPI_DI

URSA_UART2_RX

URSA_UART2_TX

URSA_RESET

URSA_RESET_SoC

URSA_RESET_MICOM

OPT

IC1903

NLASB3157DFT2G

B1

1

GND

2

B0

3

R19260

URSA9_SYS_DEBUG

12507WS-04L

+3.3V_NORMAL

SELECT

6

VCC

5

A

4

P1907

1

2

3

4

5

Chip Config

Debug/ISP ADDR
Slave (Debug Port:0XB4,ISP:0X98)
CHIP_CONF:{DIM2,DIM1,DIM0}
CHIP_CONF=3’d7:111:boot from SPI Flash

+3.3V_NORMAL

FRC_FLASH_SEL

SPI_CK

+3.3V_NORMAL

R13227

10K

URSA9_SYS_DEBUG

33

URSA9_SYS_DEBUG

33

URSA9_SYS_DEBUG

C1997

0.1uF
16V

URSA9_SYS_DEBUG

10K

R1902

10K

R1991

10K

R1990

URSA_UART2_TX
URSA_UART2_RX

R13224

R13225

URSA_EMI

URSA_EMI

C1900

0.01uF
25V

I2CS_SDA
I2CS_SCL

C1901

0.01uF
25V

URSA_UART1_TX

URSA_UART1_RX

URSA_UART1_RX

URSA_UART1_TX

10K

OPT

R1908

10K

OPT

R1907

OPT

URSA_EMI

C1902

0.01uF
25V

10K

R1906

URSA_RESET

XIN_URSA

XO_URSA

C1990
47pF
50V
OPT

Near URSA9 on forth layer

URSA_Noise_KR_US

C13000

0.01uF

C13002

0.01uF

URSA_Noise_KR_US

SPI_CZ_URSA9
SPI_CK_URSA9

SPI_DI_URSA9
SPI_DO_URSA9

C13003

0.01uF

URSA_Noise_KR_US

Near URSA9 on forth layer

AR13201

C1991
47pF
50V
OPT

URSA_Noise_KR_US

C13001

0.01uF

Change pin from A5 to C4

AR13200

33

URSA9 UART1_RX

33

R1927

DIM0

DIM1

DIM2

0

URSA9 Option

DIV_BIT [1/0]

0/0 NON DIVISION
0/1
1/0
1/1

URSA_OPT_4

BIT [2/1/0]

0/0/0
0/0/1
0/1/0
0/1/1
1/0/0

1/0/1

1/1/1

AF29

RESET

R3

XTALO

R4

XTALI

AJ24

I2CS_SDA

AH24

I2CS_SCL

AH26

I2CM_SDA

AG24

I2CM_SCL/VSYNC_LIKE1

B4

GPIO[0][UART2_TX]

A4

GPIO[1][UART2_RX]

B5

GPIO[2][UART1_TX]

A5

GPIO[3][UART1_RX]

AD28

SPI_CZ

AD30

SPI_CK

AC31

SPI_DI

AD29

SPI_DO

AE28

INT_R21/GPIO[41]

AE27

INT_R20/GPIO[42]

C4

IRE

AC27

GND_1

AD27

GND_2

A7

NC_1

B6

NC_2

B7

NC_3

C5

NC_4

C6

NC_5

C7

NC_6

D4

NC_7

D5

NC_8

D6

NC_9

D7

NC_10

E4

NC_11

E5

NC_12

E6

NC_13

E7

NC_14

F4

NC_15

F5

NC_16

M5

NC_17

M6

NC_18

M7

NC_19

N5

NC_20

R7

NC_21

P7

NC_22

N7

NC_23

N6

NC_24

MODULE DIVISION

2 DIVISION
4 DIVISION
8 DIVISION

HIGH:URSA_PRINT_OFF

LOW:URSA_PRINT_ON

Tx Lane

4K@120 (16lane)

4k@60 (8lane)

5k@120 (20lane)

OLED ULTRA HD

FHD@120 (4lane)

FHD@60 (2lane)

Reserved1/1/0

Reserved

IC2500

LGE7411(URSA9)

I2C_HSC_SDA/VSYNC_LIKE2
I2C_HSC_SCL/VSYNC_LIKE3

SPI1_CK/PWM2/GPIO58
SPI1_DI/PWM3/GPIO59
SPI2_CK/PWM0/GPIO56

SPI2_DI/PWM1/GPIO57
SPI3_CK/DIM10/GPIO54
SPI3_DI/DIM11/GPIO55

SPI4_CK/DIM8/GPIO52

SPI4_DI/DIM9/GPIO53

VSYNC_LIKE/PWM5/GPIO40

GPIO[10]/PWM_DIM_IN[0]
GPIO[11]/PWM_DIM_IN[1]

URSA_OPT_6

URSA_OPT_5

DIV_BIT0

DIV_BIT1

URSA_OPT_4
URSA_OPT_0

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

DIM0/GPIO[32]
DIM1/GPIO[33]
DIM2/GPIO[34]
DIM3/GPIO[35]
DIM4/GPIO[36]
DIM5/GPIO[37]
DIM6/GPIO[38]
DIM7/GPIO[39]

GPIO43/TCON0
GPIO44/TCON1
GPIO45/TCON2
GPIO46/TCON3
GPIO47/TCON4
GPIO48/TCON5
GPIO49/TCON6
GPIO50/TCON7

GPIO[18]/TCON8

GPIO[19]/TCON9
GPIO[20]/TCON10
GPIO[21]/TCON11
GPIO[22]/TCON12
GPIO[23]/TCON13

GPIO24/TCON14
GPIO25/TCON15

GPIO[4]
GPIO[5]
GPIO[6]
GPIO[7]
GPIO[8]
GPIO[9]

GPIO[12]
GPIO[13]
GPIO[14]
GPIO[15]
GPIO[16]
GPIO[17]

Division Type

Module Type

Rx Interface

Tx Lane

AG25
AH25

AH28
AJ27
AJ29
AF27
AG28
AH27
AG27
AG26

AF28

AG23
AG20
AH23
AH20
AG21
AH22
AG22
AH21

A3
B3
A2
C3
B2
B1
C2
C1

AG4
AG5
AH4
AH5
AH6
AJ4
AJ5
AJ6

AH16
AG16
Y5
Y4
AB4
AB5
AG17
AH17
AG18
AJ20
AH18
AG19
AH19
AJ21

OPT

OPT

R13210 10K

R13207 10K

R13211 10K

R13208 10K

C13200 0.01uF

C13201 0.01uF

URSA_EMI

URSA_EMI

URSA_Noise_KR_US

C1904

0.01uF
25V

URSA_EMI

URSA_Noise_KR_US

Div_BIT1_1

Div_BIT0_1

Div_BIT0_0

URSA_OPT_0

DIV_BIT0

DIV_BIT1

URSA_OPT_4

URSA_OPT_5

URSA_OPT_6

R13213 10K

R13202 10K

Div_BIT1_0

R13214 10K

R13212 10K

C1905 0.01uF

URSA_EMI

URSA_Noise_KR_US

URSA_Noise_KR_US

URSA_RELEASE

URSA_DEBUG

C1906 0.01uF

URSA_EMI

Module Division OPT

DIM0
DIM1
DIM2

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

Near URSA9 on forth layer

C13004

0.01uF

R1320110K

OPT

R13200

10K

OPT

C13202

0.01uF
25V

C13203

0.01uF
25V

URSA_Noise_KR_US

LGD_Module

URSA_RX_LVDS

R1909 10K

R13215 10K

OS_Module

R13216 10K

URSA_RX_VX1

R1910 10K

C1909 0.01uF

C1907 0.01uF

URSA_EMI

URSA_EMI

URSA_L/D_ctrl

URSA_L/D_ctrl

C13204

C13206

5pF

5pF

URSA_Noise_KR_US

50V

50V

URSA_L/D_ctrl

C13205
5pF
50V

+3.3V_NORMAL

OPT
R13204
10K

R13205
10K

URSA_EMI

URSA_EMI

C1908

0.01uF
25V

URSA_Noise_KR_US

C13005

R13206

0.01uF
100K

URSA9_Vx1_RX_HTPD_GPIO

C1903

0.01uF
25V

URSA_EMI

10K

R1911

R1913 10K

R1915 10K

URSA_BIT0_1

URSA_BIT1_1

10K

URSA_BIT1_0

URSA_BIT0_0

R1916 10K

C1911 0.01uF

C1913 0.01uF

R1914 10K

URSA_EMI

33

URSA_EMI

C1912

0.01uF
25V

R13209
100K

C1915 0.01uF

URSA_EMI

L/D_CLK

L/D_DI

L/D_VSYNC

Data_Format_1

Data_Format_0

R1912

R132001 33

R132002

R13203 33

C1910

0.01uF
25V

URSA9_CONNECT

LOCKAn_OSD

LOCKAn_Video

FLASH_WP_URSA

BSD-14Y-UD-132-HD

2013.12.17

R1917 10K

URSA_BIT2_1

URSA_BIT2_0

R1918 10K

C1916 0.01uF

URSA_EMI

URSA_EMI

For DFT JIG

R13201-*1

0.01uF
25V

URSA_Noise_KR_US

R13200-*1

0.01uF
25V

URSA_Noise_KR_US

+1.5V_U_DDR

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

AVDD_PLL

AVDDL_LVDSRX

DVDD_DDR

AVDDL_MOD

AVDDL_DRV

+1.1V_U_VDDC

AVDDL_HDMI_TX_RX

AVDD_MOD

VDDP

LGE7411(URSA9)

A6

VDDC_1

M9

VDDC_2

M10

VDDC_3

M11

VDDC_4

N9

VDDC_5

N10

VDDC_6

N11

VDDC_7

P9

VDDC_8

P10

VDDC_9

P11

VDDC_10

R9

VDDC_11

R10

VDDC_12

R11

VDDC_13

T9

VDDC_14

T10

VDDC_15

T11

VDDC_16

U9

VDDC_17

U10

VDDC_18

U11

VDDC_19

V9

VDDC_20

V10

VDDC_21

V11

VDDC_22

W9

VDDC_23

W10

VDDC_24

W11

VDDC_25

Y9

VDDC_26

L3

AVDDL_HDMITX_1

L4

AVDDL_HDMITX_2

AA9

AVDDL_RX_1

AA10

AVDDL_RX_2

AB9

AVDDL_RX_3

Y10

AVDDL_DVI_1

Y11

AVDDL_DVI_2

M14

DVDD_DDR_1

N14

DVDD_DDR_2

Y20

AVDDL_MOD_1

Y21

AVDDL_MOD_2

Y22

AVDDL_MOD_3

AA19

AVDDL_MOD_4

AA20

AVDDL_MOD_5

AA21

AVDDL_DRV_1

AA22

AVDDL_DRV_2

AB20

AVDDL_DRV_3

AB21

AVDDL_DRV_4

AB22

AVDDL_DRV_5

AC20

AVDD_MOD_1

AC21

AVDD_MOD_2

AD21

AVDD_MOD_3

AD20

AVDD_MOD_LDO

AC18

VDDP_1

AD17

VDDP_2

AD18

VDDP_3

AD11

AVDD_DVI_1

AD12

AVDD_DVI_2

AC12

AVDD_HDMITX_1

AC13

AVDD_HDMITX_2

AD15

AVDD_RX_1

AC16

AVDD_RX_2

AC17

AVDD_RX_3

AD16

AVDD_RX_4

AD14

AVDD_XTAL

AC14

AVDD_PLL_1

AC15

AVDD_PLL_2

M18

AVDD_DDR0_1

M19

AVDD_DDR0_2

M20

AVDD_DDR0_3

M21

AVDD_DDR0_4

M16

AVDD_DDR0_5

M17

AVDD_DDR0_6

P21

AVDD_DDR1_1

R21

AVDD_DDR1_2

P22

AVDD_DDR1_3

R22

AVDD_DDR1_4

N21

AVDD_DDR1_5

N22

AVDD_DDR1_6

IC2500

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29

VSS_30
VSS_31
VSS_32
VSS_33
VSS_34

VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46

VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60

VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66

VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80

IC2500

LGE7411(URSA9)

AA18
AB18
AE18
AF18
AJ18

AB19
AC19
AD19
AE19
AF19
AK19

AE20
AF20
AK20

AE21
AF21
AK21

AC22
AD22
AE22
AF22
AL22

AA23
AB23
AC23
AD23
AE23
AF23
AJ23
AM23

D18
G18
H18
J18
L18
N18
P18
R18
T18
U18
V18
W18
Y18

F19
G19
H19
J19
K19
L19
N19
P19
R19
T19
U19
V19
W19
Y19

A20
E20
F20
G20
H20
J20
L20
N20
P20
R20
T20
U20
V20
W20

D21
F21
G21
H21
J21
K21
L21
T21
U21
V21
W21

G22
H22
J22

L22
M22
T22
U22
V22
W22

A23
E23
F23
G23
H23
J23
K23

M23

P23

T23
V23
W23
Y23

A8

VSS_81

B8

VSS_82

C8

VSS_83

D8

VSS_84

E8

VSS_85

F8

VSS_86

G8

VSS_87

H8

VSS_88

J8

VSS_89

K8

VSS_90

L8

VSS_91

M8

VSS_92

N8

VSS_93

P8

AB10
AC10
AD10
AE10
AF10
AG10
AH10
AJ10

AA11
AB11
AC11
AE11
AF11
AG11
AH11
AJ11

AA12
AB12
AE12
AF12
AG12
AH12
AJ12

VSS_94

R8

VSS_95

T8

VSS_96

U8

VSS_97

V8

VSS_98

W8

VSS_99

Y8

VSS_100

AA8

VSS_101

AC8

VSS_102

AD8

VSS_103

AE8

VSS_104

AF8

VSS_105

AG8

VSS_106

AH8

VSS_107

AJ8

VSS_108

B9

VSS_109

D9

VSS_110

E9

VSS_111

F9

VSS_112

G9

VSS_113

H9

VSS_114

J9

VSS_115

K9

VSS_116

L9

VSS_117

AD9

VSS_118

AE9

VSS_119

AF9

VSS_120

AG9

VSS_121

AH9

VSS_122

AJ9

VSS_123

D10

VSS_124

E10

VSS_125

F10

VSS_126

G10

VSS_127

H10

VSS_128

J10

VSS_129

K10

VSS_130

L10

VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139

A11

VSS_140

D11

VSS_141

E11

VSS_142

F11

VSS_143

G11

VSS_144

H11

VSS_145

J11

VSS_146

K11

VSS_147

L11

VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156

D12

VSS_157

E12

VSS_158

F12

VSS_159

G12

VSS_160

H12

VSS_161

J12

VSS_162

K12

VSS_163

L12

VSS_164

M12

VSS_165

N12

VSS_166

P12

VSS_167

R12

VSS_168

T12

VSS_169

U12

VSS_170

V12

VSS_171

W12

VSS_172

Y12

VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180

G13

VSS_181

H13

VSS_182

J13

VSS_183

K13

VSS_184

L13

VSS_185

K1
T1
K2
P2
T2
AF2
K3
T3
AF3
AG3
G4
H4
J4
K4
P4
T4
U4
V4
W4
AA4
AC4
AD4
AE4
AF4
G5
H5
J5
K5
L5

P5
R5
T5
U5
V5

W5
AA5
AC5
AD5
AE5
AF5
F6
G6
H6
J6
K6
L6

P6
R6
T6
U6
V6
W6
Y6
AA6
AB6
AC6
AD6
AE6
AF6
AG6

F7
G7
H7
J7
K7
L7

T7
U7
V7
W7
Y7
AA7
AB7
AC7
AD7
AE7
AF7
AG7
AH7
AJ7

VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221
VSS_222
VSS_223
VSS_224

VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_234
VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
VSS_243
VSS_244
VSS_245
VSS_246
VSS_247
VSS_248
VSS_249

VSS_250
VSS_251
VSS_252
VSS_253
VSS_254
VSS_255
VSS_256
VSS_257
VSS_258
VSS_259
VSS_260
VSS_261

VSS_262
VSS_263
VSS_264
VSS_265
VSS_266
VSS_267
VSS_268
VSS_269
VSS_270
VSS_271
VSS_272
VSS_273
VSS_274
VSS_275
VSS_276
VSS_277
VSS_278
VSS_279
VSS_280
VSS_281
VSS_282

VSS_283
VSS_284

T13
R13
P13
N13
M13
U13
V13
W13
Y13
AA13
AB13
AD13
AE13
AF13
AG13
AH13
AJ13
G14
H14
J14
K14
L14
P14
R14
T14
U14
V14
W14
Y14
AA14
AB14
AE14
AF14
AG14
AH14
AJ14
A15
B15
D15

G15
H15
J15
K15
L15
M15
N15
P15
R15
T15
U15
V15
W15
Y15
AA15
AE15
AF15
AG15
AH15
AJ15
E16
F16
G16
H16
J16

L16
N16
P16
R16
T16
U16
V16
W16
Y16
AA16
AE16
AF16

AJ16
AM16
A17
B17
G17
H17
J17
K17
L17
N17
P17
R17
T17
U17
V17
W17
Y17
AA17
AB17
AE17
AF17

AJ17
AL17

IC2500

LGE7411(URSA9)

VSS_285
VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
VSS_294
VSS_295
VSS_296
VSS_297
VSS_298
VSS_299
VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315
VSS_316
VSS_317
VSS_318
VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325
VSS_326
VSS_327
VSS_328
VSS_329
VSS_330
VSS_331
VSS_332
VSS_333
VSS_334
VSS_335
VSS_336
VSS_337
VSS_338
VSS_339

VSS_340
VSS_341
VSS_342
VSS_343
VSS_344
VSS_345
VSS_346
VSS_347
VSS_348
VSS_349
VSS_350
VSS_351
VSS_352
VSS_353

VSS_354
VSS_355
VSS_356

VSS_357
VSS_358
VSS_359
VSS_360
VSS_361
VSS_362
VSS_363
VSS_364
VSS_365
VSS_366
VSS_367

VSS_368
VSS_369
VSS_370
VSS_371
VSS_372
VSS_373
VSS_374

VSS_375

VSS_376

VSS_377
VSS_378
VSS_379
VSS_380
VSS_381
VSS_382
VSS_383
VSS_384
VSS_385
VSS_386
VSS_387
VSS_388

VSS_389
VSS_390
VSS_391
VSS_392
VSS_393
VSS_394
VSS_395
VSS_396
VSS_397
VSS_398
VSS_399
VSS_400
VSS_401
VSS_402
VSS_403
VSS_404
VSS_405
VSS_406
VSS_407
VSS_408
VSS_409
VSS_410

VSS_411
VSS_412
VSS_413
VSS_414
VSS_415
VSS_416
VSS_417
VSS_418
VSS_419
VSS_420
VSS_421
VSS_422
VSS_423
VSS_424
VSS_425
VSS_426
VSS_427
VSS_428
VSS_429
VSS_430
VSS_431
VSS_432
VSS_433
VSS_434
VSS_435
VSS_436
VSS_437
VSS_438
VSS_439
VSS_440
VSS_441
VSS_442
VSS_443
VSS_444
VSS_445
VSS_446
VSS_447
VSS_448
VSS_449
VSS_450
VSS_451
VSS_452
VSS_453
VSS_454
VSS_455
VSS_456
VSS_457
VSS_458
VSS_459
VSS_460
VSS_461
VSS_462
VSS_463
VSS_464
VSS_465
VSS_466
VSS_467
VSS_468
VSS_469

VSS_470
VSS_471
VSS_472
VSS_473
VSS_474
VSS_475
VSS_476
VSS_477
VSS_478
VSS_479
VSS_480
VSS_481
VSS_482
VSS_483
VSS_484
VSS_485
VSS_486
VSS_487
VSS_488
VSS_489
VSS_490
VSS_491
VSS_492
VSS_493
VSS_494
VSS_495
VSS_496
VSS_497
VSS_498
VSS_499
VSS_500
VSS_501
VSS_502
VSS_503
VSS_504
VSS_505
VSS_506
VSS_507

VSS_508
VSS_509

D24
F24
G24
H24
J24
K24
L24
M24
N24
P24
R24
T24
U24
V24
W24
Y24
AA24
AB24
AC24
AD24
AE24
AF24

AL24
F25
G25
H25
J25
K25
L25
M25
N25
P25
R25
T25
U25
V25
W25
Y25
AA25
AB25
AC25
AD25
AE25
AF25
AM25
A26
F26
G26
H26
J26
K26
L26
M26
N26
P26
R26
T26
U26
V26
W26
Y26
AA26
AB26
AC26
AD26
AE26
AF26
AJ26
AL26
D27
F27
K27
N27
P27
R27
U27
V27
W27
Y27
AA27
AB27

F28
K28
P28
U28
AC28
AK28
A29
C29
D29
E29
F29
J29
M29
R29
V29
AA29
AC29
AK29
A30
B30
AC30
AK30
AM30
A31
B31
C31
J31
L31
AD31
AF31
AH31
B32
E32
J32
L32
P32
U32
Y32

AE32
AG32

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-133-HD

2013.12.17

U_Power

TCON_PWR_5pin_Wafer

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

P7203

20037WR-05A00

1

2

3

4

5

6

T-con power

TCON_PWR_5pin_Wafer

C7203

C7202

0.1uF

10uF

25V

25V

TCON_PWR_5pin_Wafer

TCON_PWR_5pin_Wafer

L7201

MLB-201209-0120P-N2

L7202

MLB-201209-0120P-N2

TCON_PWR_5pin_Wafer

C7204
10uF
25V

OPT

PANEL_VCC

C7205

0.1uF
25V

TCON_PWR_5pin_Wafer

+12V

L13411

BLM18PG121SN1D

C13443
10uF
16V

C13410

0.1uF

+1.5V URSA DDR

POWER_ON/OFF2_1

R13424

10K

EN

R1

C13444

330pF

R13421

18K
1%

50V

R13422

4.7K
1%

R13423
22K
1%

R2

Vout=0.765*(1+R1/R2)=1.516V

C13445
1uF
10V

C13446
2200pF
50V

FB

VREG

SS

R13425
390K

IC13403

BD9D321EFJ

1

9

2

THERMAL

3

4

3A

MAX 4.7A

+1.5V_U_DDR

[EP]

VIN

8

7

6

5

BOOT

SW

GND

0.1uF
C13447

16V

L13412

2.2uH

C13448

22uF

10V

C13449

22uF
10V

2.5V

DCDC_DIODE

+1.15V URSA9 Core

R13410
100

1/16W

IC13408

MP8762HGLE-Z

EN

1

2

FB

3

SS

4

10A

5

PG

6

VCC

7

BST

8

1%

C13411

POWER_ON/OFF2_3

OPT
C13400

0.1uF
16V

R13401

R13402

R13403

R13404

1K

FREQ

R1

18K

1/16W

1%

10K

1/16W

1%

R2

C13401

0.033uF
AGND

50V

10K

1/16W

1%

R13407
100K

C13405

1/16W

1uF

1%

10V

R13409
33

1/16W
5%

0.1uF
16V

R13413

C13417

220K

1/10W
5%

R13412

LPBN8050T-1R0N

L13415

1.0uH

C13414
10uF
25V

330pF

50V

C13416
10uF
25V

C13419
22uF

2.5V
10VZD13401

ZD13418

DCDC_DIODE

C13425

22uF
10V

L13420

+1.1V_U_VDDC

C13426
22uF
10V

+12V

1%

430K

1/16W

SW_2

16

SW_1

15

IN_2

14

PGND_4

13

PGND_3

12

PGND_2

11

PGND_1

10

IN_1

9

Vout=0.611*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-134-HD

2013.12.17

LM15U+URSA

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

CLIP Top Side for Covershield

OPT

M13500

EAG64250901

CLIP 1 - PUSH TYPE

M13502

EAG64250901

CLIP_EMI

M13507

EAG64250901

M13508

MDS62110209

CLIP_EMI

OPT

SMD Top Side for Covershield 8.5T

M13505

MDS62110209

SMD_EMI

M13509

MDS62110209

FOR TUNER ESD

EU_UF77_ESD

M13510

MDS62110221

OPT

M13511

MDS62110209

SMD_EMI

M13512

MDS62110209

70UF77_EMI

SMD Top for EMI 3.5T

M13514

MDS62110213

70UF77_EMI

M13515

MDS62110213

OPT

SMD bottom for ESD

SMD_BOT_3_10.5T

GASKET_8.0X6.0X10.5H

M4101

MDS62110225

SMD_BOT_3_8.5T

GASKET_8.0X6.0X8.5H

M4101-*1

MDS62110209

SMD_BOT_3_9.5T

GASKET_8.0X6.0X9.5H

M4101-*2

MDS62110214

SMD_BOT_11_10.5T

GASKET_8.0X6.0X10.5H

M4114

MDS62110225

SMD_BOT_11_12.5T

GASKET_8.0X6.0X12.5H

M4114-*1

MDS62110217

SMD_BOT_9_10.5T

GASKET_8.0X6.0X10.5H

M4107

MDS62110225

SMD_BOT_6_10.5T

GASKET_8.0X6.0X10.5H

M4104

MDS62110225

SMD_BOT_6_12.5T

GASKET_8.0X6.0X12.5H

M4104-*1

MDS62110217

SMD_BOT_6_9.5T

GASKET_8.0X6.0X9.5H

M4104-*2

MDS62110214

SMD_BOT_12_10.5T

GASKET_8.0X6.0X10.5H

M4117

MDS62110225

SMD_BOT_12_12.5T

GASKET_8.0X6.0X12.5H

M4117-*1

MDS62110217

SMD_BOT_2

GASKET_8.0X6.0X10.5H

M4112

MDS62110225

SMD_BOT_7_10.5T

GASKET_8.0X6.0X10.5H

MDS62110225

SMD_BOT_7_12.5T

GASKET_8.0X6.0X12.5H

MDS62110217

SMD_BOT_7_9.5T

GASKET_8.0X6.0X9.5H

MDS62110214

SMD_BOT_4_10.5T

GASKET_8.0X6.0X10.5H

SMD_BOT_8_10.5T

GASKET_8.0X6.0X10.5H

M4106

MDS62110225

M4105

M4105-*1

M4105-*2

M4102

MDS62110225

SMD_BOT_1_10.5T

GASKET_8.0X6.0X10.5H

M4109

MDS62110225

SMD_BOT_1_12.5T

GASKET_8.0X6.0X12.5H

M4109-*1

MDS62110217

SMD_BOT_5_10.5T

GASKET_8.0X6.0X10.5H

M4103

MDS62110225

SMD_BOT_5_8.5T

GASKET_8.0X6.0X8.5H

M4103-*1

MDS62110209

SMD_BOT_4_12.5T

GASKET_8.0X6.0X12.5H

M4102-*1

MDS62110217

SMD_BOT_10_10.5T

GASKET_8.0X6.0X10.5H

M4110

MDS62110225

HDMI1

HDMI1_BOT_SMD_10.5T

GASKET_8.0X6.0X10.5H

M4100

MDS62110225

HDMI1_BOT_SMD_8.5T

GASKET_8.0X6.0X8.5H

M4100-*1

MDS62110209

USB3

USB3_BOT_SMD_10.5T

GASKET_8.0X6.0X10.5H

M4111

MDS62110225

USB3_BOT_SMD_8.5T

GASKET_8.0X6.0X8.5H

M4111-*1

MDS62110209

SMD_BOT_13_10.5T

GASKET_8.0X6.0X10.5H

M4118

MDS62110225

HDMI3_BOT_SMD_11.5T

GASKET_8.0X6.0X11.5H

M4100-*3

MDS62110228

USB1_BOT_SMD_11.5T

GASKET_8.0X6.0X11.5H

M4111-*2

MDS62110228

SMD_BOT_14_10.5T

GASKET_8.0X6.0X10.5H

M4119

MDS62110225

HDMI2

HDMI2_BOT_SMD_10.5T

GASKET_8.0X6.0X10.5H

M4108

MDS62110225

HDMI2_BOT_SMD_8.5T

GASKET_8.0X6.0X8.5H

M4108-*1

MDS62110209

HDMI2_BOT_SMD_11.5T

GASKET_8.0X6.0X11.5H

M4108-*2

MDS62110228

USB2 USB1

USB2_BOT_SMD_10.5T

GASKET_8.0X6.0X10.5H

M4113

MDS62110225

USB2_BOT_SMD_8.5T

GASKET_8.0X6.0X8.5H

M4113-*1

MDS62110209

SMD_BOT_15_10.5T

GASKET_8.0X6.0X10.5H

M4120

MDS62110225

USB2_BOT_SMD_11.5T

GASKET_8.0X6.0X11.5H

M4113-*2

MDS62110228

SMD_BOT_16_10.5T

GASKET_8.0X6.0X10.5H

M4121

MDS62110225

HDMI3

HDMI3_BOT_SMD_8.5T

GASKET_8.0X6.0X8.5H

M4115

MDS62110209

USB1_BOT_SMD_8.5T

GASKET_8.0X6.0X8.5H

M4116

MDS62110209

USB1_BOT_SMD_10.5T

GASKET_8.0X6.0X10.5H

M4116-*1

MDS62110225

SMD_BOT_17_10.5T

GASKET_8.0X6.0X10.5H

M4122

MDS62110225

HDMI3_BOT_SMD_10.5T

GASKET_8.0X6.0X10.5H

M4115-*1

MDS62110225

HDMI3_BOT_SMD_9T

GASKET_8.0X6.0X9.0H

M4115-*2

MDS62110226

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

14.06.10

CLIP TYPE

LM15U ONLY, LM15U+URSA

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

TUNER EMS GND SEPERATION

TU_GND_A1_0ohm

TU_GND_A1_1nF

R6701-*1
1000pF

TU_GND_A

GND A_1

GND A_2

GND A_3

GND A_4

GND A_5

TU_GND_A

TU_GND_A4_22nF

C6700

0.022uF

TU_GND_A5_22ohm

630V

R6703

22

TU_GND_A4_1nF

C6700-*1
1000pF

TU_GND_B2_22ohm

630V

R6701

630V

0

TU_GND_A2_1nF

C6706
1000pF

630V

TU_GND_A2_22nF

C6706-*1

0.022uF
630V

TU_GND_A3_0ohm

R6700

0

TU_GND_A3_22nF

R6700-*1

0.022uF
630V

GND_A GND_B

0 ohm

X

X 22 nF

0 ohm

X

0 ohm

X

X

X

X

22 nF

X

22 nF

22 ohm

0 ohm

0 ohm

TU_GND_B

TU_GND_B1_22nF
C6703

0.022uF
630V

R6704
22

TU_GND_B2_0ohm

0

R6704-*1

X

X

X

22 nF

22 nFX

22 ohm

X

TU_GND_B3_1nF

C6707
1000pF
630V

TU_GND_B3_22nF

C6707-*1

0.022uF
630V

JPAJJA TW/COLEU/CIS North.AMCN/HK KR BR BRKR JPNorth.AMTU_GND_B AJJA TW/COL CN/HKEU/CIS

0 ohm

1 nF

TU_GND_B4_1nF

C6708
1000pF
630V

TU_GND_B4_22nF

C6708-*1

0.022uF
630V

GND B_1

GND B_2

0 ohm

1 nF

22 ohm

GND B_3

GND B_4

X

X X

1 nF

1 nF

X

1 nF

1 nF

22 nF 22 nF

22 ohm 22 ohm

22 nF

22 nF

X

X

1 nF

1 nF

22 nF

22 nF

X

X

1 nF

1 nF

TU_BOT_SMD1_10.5T

GASKET_8.0X6.0X10.5H

M13700

MDS62110225

TU_BOT_SMD1_9.5T

GASKET_8.0X6.0X9.5H

M13700-*1

MDS62110214

TU_BOT_SMD2

GASKET_8.0X6.0X10.5H

M13701

MDS62110225

TU_BOT_SMD3

GASKET_8.0X6.0X10.5H

M13702

MDS62110225

TU_BOT_SMD

SMD1

SMD2

SMD3

AJJA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

CN/HK North.AMEU/CIS

BR

JPKRTW/COL

LM15U

2014-11-11

Tuner_GND 137

Overview for `15 ULTRA HD Model

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

(Hardware)

`15 ULTRA HD New Feature 1. HDMI

HDMI1.4

HDMI2.0 3Gbps

HDMI2.0 6Gbps

4K@60Hz

4:2:2 10bit

HDCP2.2

ARC

MHL2.1

HDMI1.4

Legacy

O

O

x

O

X X X

O

O

O

(Only UF85↑)

O

O X O

O O O

O

X

X

O

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

구 분

HDMI 3

HDMI 2

HDMI 1

It is different form each HDMI port spec.
We offer a HDMI cable for HDMI 1.4 legacy issue.

HDMI2.0
HDMI1.4

DVI

`15 ULTRA HD New Feature 2. Sub Assy (Joy stick button, lum. sensor)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Joystick Button, Luminance Sensor

1. Using the Joystick Button

- Joystick button is located below the screen of TV

- You can operate the TV by pressing the button or moving
the joystick left, right, up, or down

2. Luminance Sensor

Adjusts the image quality and brightness based on the
surrounding environment.
2015 model : Luminance sensor

`14 ULTRA HD New Feature 3. Sub Assy (WiFi)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

BT WiFi

802.11n

UF77~UF94

16:9

(BT Combo)

14” Carry over

LCD TV Repair Guide

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

`15 years New Models

< Applicable Model >

UF77/85 series

Main PCB

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

All UF77/85 series

< 60” ↑> < 55”↓>

Connect T-Con

(only 60”↑)

From PSU

Cover shield

Vx1 Cable

60” ↑

All models

PCB SIZE: 300X183(All model)

4

1

2

3

Phone jack

(UART serial)

5

Woofer cable

(only 79”)

Main processor_(LM15U)

1

DDR Memory
eMMC Memory

2

Micom for Key/IR sensing

Audio AMP

3

Image processor(URSA9)

4

DDR Memory
Sub Woofer wafer

5

(only 79”)

Audio

B/T Wifi

Local Key+IR

0. System Overview (Main External)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

<14 year UHD model> <15 year UHD model>

1. LM15U Circuit Block Diagram

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

R
E
A
R

Air/

Cable

DVB-S

T2/C/S2 W/O AD

TUNER

(T2/C/A)

TUNER

(S2)

DEMOD

LNB

(JAPAN)

(S2)

B-CAS

SMARTCARD_I/F

USB1 (3.0)

USB2 (2.0)
USB3 (2.0)

HDMI1

HDMI2(ARC)

HDMI3

H/P

AV/COMP

SCART

(IN/OUT)

CI Slot

P_TS

IF (+/-)

P_TS

CVBS

OCP

OCP

P_TS

X_TAL

24MHz

T/C Demod
Analog Demod

P_TS

B-CAS

USB

HDMI

CVBS/YPbPr

CVBS/RGB

DDR3 1866 X 32

(512MB X 2EA)

A

Mstar

LM15U

USB_WIFI

B

I2C 1

Vx1

I2C 6

I2S Out
I2C 4

DDR3 1866 X 32

(512MB X 2EA)

C

51P

DDR3 1866 X 32

(256MB X 2EA)

EEPROM(NVRA

M)

(256Kb)

Chip Config

4b’1010

eMMC

(4GB)

MAIN Audio AMP

(NTP7514)

WIFI/BT Combo

SUB

ASSY

IR / KEY

LOGO LIGHT(Ready

OPTIC

LAN

SPDIF OUT

ETHERNET

I2C 3

(HW Port)

Sub Micom

(RENESAS

R5F100GEAFB)

X_TAL

32.768KHz

1-1.LM15U (+ URSA9) Circuit Block Diagram

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

R
E
A
R

Air/

Cable

DVB-S

T2/C/S2 W/O AD

TUNER

(T2/C/A)

TUNER

(S2)

DEMOD

LNB

(JAPAN)

(S2)

B-CAS

USB1 (3.0)

USB2 (2.0)
USB3 (2.0)

HDMI1

HDMI2 (ARC)

HDMI3

RS232C

AV/COMP

SCART

(IN/OUT)

SMARTCARD_I/F

H/P

CI Slot

P_TS

IF (+/-)

P_TS

CVBS

OCP

OCP

P_TS

X_TAL

24MHz

T/C Demod
Analog Demod

P_TS

B-CAS

USB

HDMI

CVBS/YPbPr

CVBS/RGB

DDR3 1866 X 32

(512MB X 2EA)

A

Mstar

LM15U

USB_WIFI

B

I2C 1

I2S Out
I2C 4

DDR3 1866 X 32

(512MB X 2EA)

C

DDR3 1866 X 32

(256MB X 2EA)

EEPROM(NVRA

M)

(256Kb)

eMMC

(4GB)

Vx1

URSA

LOGO LIGHT(Ready)

51P/41P

9

DDR3 1866 X 32

(1Gb X 4EA)

MAIN Audio AMP

(NTP7515)

WIFI/BT Combo

IR / KEY

Chip Config

4b’1010

SUB

ASSY

OPTIC

LAN

SPDIF OUT

ETHERNET

I2C 3

(HW Port)

Sub Micom

(RENESAS

R5F100GEAFB)

X_TAL

32.768KH

z

2. LM15U Block Diagram (Internal)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

3. LM15U( + URSA9) I2C Block Diagram

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.3V_NORMAL

1.8KΩ

MSTAR

LM15U

IC5600

NTP7515(Main AMP)

IC3000

RENESAS

MICOM

P7201

LCD Panel

100Ω

0Ω

+URSA model Only

IC2500

URSA9

33Ω

+3.3V_NORMAL

1.8KΩ

33Ω

+3.3V_NORMAL

1.8KΩ

+3.3V_NORMAL

1.8KΩ

I2C_SDA4
I2C_SCL4

I2C_SCL3 (HW)
I2C_SDA3 (HW)

I2C_SDA6

I2C_SCL6

I2C_SDA7 (HW)

I2C_SCL7 (HW)

I2C_SCL1(HW)

I2C_SDA2(HW)
I2C_SCL2(HW)

I2C_SDA1(H

W)

I2C_SDA5(H

W)

I2C_SCL5(HW)

+3.3V_TU

1.8KΩ

+3.3V_NORMAL

1.8KΩ

+3.3V_LNA_TU

1.8KΩ

33Ω

33Ω

33Ω

33Ω

IC6900

LNB

TU6704
TUNER

IC102

NVRAM

TU6704
TUNER

4. URSA9 Block Diagram

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Power +12V

DC-DC Converter

(BD9D320EFJ _3A)

DC-DC Converter

(TPS53513RVER _8A)

LM15U

+1.5V_U_DDR

(URSA DDR)

+1.15V

(URSA)

UART2_R
X

UART2_T
X

UART1_T
X

IRE

URSA9
PQ

UART

URSA9

SYS

UART

I2C_SCL7

URSA

DEBUG

Switch

SCL2_+3.3V_DB

SDA2_+3.3V_DB

Vx1 VIDEO 8Lane

Vx1 OSD 4Lane

LOCKAn_OSD / LOCKAN_Video

I2C_SDA7
I2CS_SCL

I2CS_SDA

I2C_S Port

4 Pin

Jig Download

HTPDn_IN

LOCKn_IN

V x1

8 lane

51P

URSA9_CONNECT

I2C_SDA6

I2C_SCL6

Data_Format_1

PANEL_VCC

(+12V)

Data_Format_0

URSA9

X-Tal
(24Mhz)

XIN_URSA

XO_URSA

LOCK
n

HTPD

Data_Format_1

n

Data_Format_2

3D_EN

L_DIM_EN

SPI_DI

SPI_DO/CK/CS

IRE

UART1_TX
UART2_RX

UART2_TX

I2CS_SCL

I2CS_SDA

V x1

8 lane

41P

SPI FLASH

(4MB)

T-CON POWER

5 Pin

PANEL_VCC

A_DDR3_A[15:0]/

BA[2:0]/CLK/CKE

DDR3 SDRAM

- 1Gbit (x16)

DDR3 SDRAM

- 1866

- 1Gbit (x16)

- 1866

A_DDR3_DQ[31:0]

B_DDR3_A[15:0]/

BA[2:0]/CLK/CKE

DDR3 SDRAM

- 1Gbit (x16)

DDR3 SDRAM

- 1866

- 1Gbit (x16)

- 1866

B_DDR3_DQ[31:0]

5. LM15U + URSA9 Power Block Diagram

MICOM

IR Ass’y

DDR3*6EA

eMMC

Tuner

USB1

USB2/3

PANEL VCC

LNB

LM15U

LM15U

LM15U

DDR_VTT

NTP7514

CI SLOT

H/P AMP

NTP7515

WIFI

Combo

NVRAM

DDR_VTT

LM15U

URSA9

DDR3*4EA

URSA9

LM15U

URSA

DDR_VTT

URSA9

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

3.5V

12V

3.3V
IC201

AVDD

3.3V NORMAL /
5A
IC2302

1.5V DDR / 3A
IC2303

1.1V Core / 10A
IC2501

1.1V CPU Core /
6A
IC2300

1.15V URSA Core /

10A
IC13408

1.5V_U_DDR / 3A
IC13403

※ DCDC 효율 80% 적용

1.5V

IC402
DDR_VTT

1.5V

IC407
DDR_VTT

1.8V
eMMC
1A

IC2301

D.Demod_
Core 2A
IC6500

1.5V
IC13100

URSA
DDR_VTT

LDO DCDC

24V

LNB option

5V NORMAL / 6A
IC2305

6. Tuner/CI Block Diagram

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

TDJM-G301D

[+3.3V_LNA_TU] 1
[+3.3V_TUNER] 11

[3.3V_Demod_TU] 26

[+2.5V_DEMOD] 38

[1,1V_D_Demod_Core] 28

[LNB_TX] 29

[LNB_OUT] 31

[I2C_SCL2_TU] 27

[I2C_SDA2_TU] 30

[I2C_SCL5_TU] 4

[I2C_SDA5_TU] 5

[FE_DEMOD1_TS_ERROR_TU] 12

[FE_DEMOD1_1_TS_CLK] 14

[FE_DEMOD1_TS_SYNC] 15

[FE_DEMOD1_TS_VAL] 16

FE_DEMOD1_TS_DATA[0] 17
FE_DEMOD1_TS_DATA[1] 18
FE_DEMOD1_TS_DATA[2] 19
FE_DEMOD1_TS_DATA[3] 20
FE_DEMOD1_TS_DATA[4] 21
FE_DEMOD1_TS_DATA[5] 22
FE_DEMOD1_TS_DATA[6] 23
FE_DEMOD1_TS_DATA[7] 24

[RF_SWITCH_CTL] 2

[/TU_RESET1_TU] 25

[IF_P] 6
[IF_N] 7

[TU_SIF_TU] 8

[TU_CVBS_TU] 9

[IF_AGC_TU] 3

+3.3V_NORMAL

+1.1V_Demod_Core

+2.5V_NORMAL

+3.3V_NORMAL

1.8KΩ

LNB_TX

LNB_OUT
I2C_SCL2

I2C_SDA2

I2C_SCL5

I2C_SDA5

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA [0-

7]

RF_SWITCH_CTL

/TU_RESET1

IF_P

IF_N

FILTER

TUNER_SIF

TU_CVBS

IF_AGC

33Ω

33 Ω

33 Ω

ADC_I_INP
ADC_I_INN

10 [TONECTRL]
2 [LNB]
7 [SCL]

A8303SESTR-TB

8 [SDA]

F5[SCK2]
F6 [SDA2]

F10[SCK5]
G10[SDA5]

AN11[TS0CLK]
AP9(TS0SYNC]
AN9[TS0VALID]

AP10~AM9
[TS0DATA[0-7]

A15 [GPIO159]
A12 [GPIO62]

AP1 [VIFP]
AP2 [VIFM]
AN2[SIFP]

AE5[CVBS0]
AP3[IF_AGC]

LM15U

LNB

IC6900

AE3[GPIO_PM4]

AR17[PCMCD]

AP13[TS2CLK]
AP12[TS2VALID]
AM13[TS2SYNC]

AM13[PCMCEN]

AT15[PCMIOWR]

AR15PCMIORD]

AU10-AR19

AT13-AT18

AU11[PCMRST]

AT10[PCMWAIT]

AR14[PCMREG]

AU20[PCMIRQA]

AT21[PCMOEN]

AR11[[PCMWEN]

AN17[TS1CLK]

AM17[TS1VALID]

AN16[TS1SYNC]

AN16~AP19
[TPI_DATA[0-7]]

AM14~AM15
[TPO_DATA[0-7]]

FE_DEMOD1_TS_DATA [0-7]

PCM_5V_CTL

CI 5V

Power detect

+5V_CI_ON

CAM_CD1_N

OR

GATE

10K Ω

/CI_CD1
/CI_CD2

/PCM_CE1

EB_BE_NO
EB_BE_N1

EB_ADDR[0-14] CI_ADDR[0-14]
EB_DATA[0-7] CI_DATA[0-7]

PCM_RESET

CAM_WAIT_N

CAM_REG_N

CAM_IREQ_N

/EB_OE_N
/EB_WE_N

TPI_CLK
TPI_VAL

TPI_SOP

TPI_DATA[0-7]

33Ω

TPI_DATA[0-7]

33Ω

+5V_CI_ON

CI_TS_CLK
CI_TS_VAL

CI_TS_SYNC

CI_MDI[0-7]

CI Slot

VCC

CI_CD1

CI_CD2
CI_MISTRT

CI_MIVA_ERR
CI_MCLKI
PCM_CE1

CI_IOWR
CI_IORD

CI_ADDR[0-14]

EB_DATA[0-7]

PCM_RESET
CAM_WAIT_N

REG

CAM_IREQ_N
CI_OE

CI_WE

TS_OUT_CLK
TS_OUT_VAL
TS_OUT_SYNC

TS_OUT[0-7]

TS_IN[0-7]

7. Video/Audio In Block Diagram

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

JK3802

SCART

Jack Side

SoC
Side

COMP1_Y

COMP1_Pb

COMP1_Pr

AV1_CVBS_IN AV1_CVBS_IN

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

SC_CVBS_IN

SC_FB/ID

SC_R/G/B

SC_L/R_IN

DTV/MNT_V_OUT1

DTV/MNT_L/R_OUT

COMP1_Y

COMP1_Pb

COMP1_Pr

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

SC_CVBS_IN

SC_FB/ID

SC_R/G/B

SC_L/R_IN

DTV/MNT_V_OUT

DTV/MNT_L/R_OUT

[GIN1P]

[BIN1P]

[RIN1P]

[CVBS1]

[LINE_IN_0L]

[LINE_IN_0R]

[CVBS2]

[VSYNC0,HSYNC0]

[RIN0P,GIN0P,BIN0P]

[LINE_IN_1L,LINE_IN_1R]

[CVBSOUT1]

[LINE_IN_0L,LINE_IN_0R]

LM15U

JK4600

Tuner

TU_CVBS_TU

TUNER_SIF, IF_P/N_TU

FE_DEMOD1/2_TS_ERROR,CLK,SYNC,VAL

TU_CVBS

TUNER_SIF, IF_P/N

FE_DEMOD1/2_TS_ERROR,CLK,SYNC,VAL

[CVBS0]

[SIFP,VIFP/VIFM]

[TS0CLK,TS0SYNC,TS0VALID]

8. Audio Out Block Diagram

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

SCART

JK3802

SCART

JK4600

Tuner

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

SC_L_IN / SC_R_IN

DVB only

TR BUF

TUNER_SIF

[LINE_IN_0L]

[LINE_IN_0R]

[LINE_IN_1L]

[LINE_IN_1R]

LM15U

[SIFP]

[LINE_OUT_2L]

[LINE_OUT_2R]

[I2S_OUT_WS]

[I2S_OUT_SD]

[I2S_OUT_BCK]

[DDCDC_DA/GPIO47]

[DDCDC_CK/GPIO46]

[GPIO160]

SCART_L/Rout

AUD_LRCK
AUD_LRCH

AUD_SCK

I2C_SDA4
I2C_SCL4

AMP_RESET_N

IC6000

AZ4580MTR

OP AMP

Mute CTRL

(TR)

SCART_MUTE

LPF

IC1200

Audio AMP

NTP7515

AMP_MUTE

IC3000

MICOM

DTV/MNT_L/R_OUT

LPF

LPF

JK4600

DVB only

4P WAFER

SPEAKER_L

SPEAKER_R

SPDIF_OUT

JK3401

[SPDIF_OUT]

[EARPHONE_OUT_L]

[ EARPHONE_OUT_R]

HP_LOUT / HP_ROUT

SIDE_HP_MUTE

HEAD PHONE

LPF

JK3403

9. HDMI

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LM15U

DDC_SCL_1

DDC_SDA_1

TMDS Link 8bits

HDMI1&ARC

DDC_SCL_2

DDC_SDA_2

TMDS Link 8bits

HDMI_AR

C

HDMI& ARC

CEC_REMOTE

DDC_SCL_3

DDC_SDA_3

TMDS Link 8bits

MHL_DET_LM15

* TMDS Link 8bits = TMDS DATA 6bits(DATA0,1,2)+ TMDS CLK 2bits

X-Tal(X3000)

32.768kHz

RENESAS

MICOM(IC3000)

HDMI3

Q3001

HDMI_CEC_MICO
M

10. USB / WIFI / M-REMOTE / UART

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LM15U

[USB_DM]

[USB_DP]

[GPIO162]
[GPIO163]

[USB2_DM]

[USB2_DP]

[GPIO50]
[GPIO51]

[USB0_DM]

[USB0_DP]

[USB_SSRX]

[USB_SSTX]

[GPIO14]
[GPIO18]

[USB1_DM]
[USB1_DP]

[GPIO57]

USB_DM1
USB_DP

1

/USB_OCD1
USB_CTL

1
USB_DM2

USB_DP
2

/USB_OCD2
USB_CTL

2

USB_DM3
USB_DP

3

SSUSB_RXP/SSUSB_RXN
SSUSB_TXP/SSUSB_TXN

/USB_OCD3

USB_CTL
3

WIFI_DM
WIFI_DP
M_RFModule_RESET

USB1

USB2

USB3

+5V_USB_1

+5V_USB_2

+5V_USB_3

6A

DCDC

IC2305

OCP

IC4500

USB2.

0

USB3.

0

WIFI Combo

[TX1]

[RX1]

SOC_TX
SOC_RX

RS232C_Debug(4P wafer)

RENESAS MICOM(IC3000)

Interconnection – sub PCB UF85 series)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

49/55UF85

[PCBs]

1

Main PCB

7

3

1 2

6

5

4

BT/Wifi Combo ASSY IR Jog Key ASSY

2

PSU

3

T - CON

4

IR Jog Key ASSY

5

BT/Wifi Combo ASSY

6

To Main

Contents of Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

No video/Normal audio 1

2 No video/No audio 2

3 Picture broken/ Freezing 3

A. Video error

4 Color error 4

5

6

B. Power error

7

8

Vertical/Horizontal bar, residual image,
light spot, external device color error

No power 6

Off when on, off while viewing, power
auto on/off

No audio/Normal video 8

C. Audio error

9 Wrecked audio/discontinuation/noise 9

10

11

Remote control & Local switch checking

MR15 operating checking 11

5

7

10

12

D. Function error

13 Camera operating checking 13

14 External device recognition error 14

15 E. Noise Circuit noise, mechanical noise 15

16 F. Exterior error Exterior defect 16

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Wifi operating checking 12

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

A. Video error

No video/ Normal audio

Established

date

Revised date

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

☞A18 ☞A1

N

Y

Check Back Light
On with naked eye

☞A18

Check Power Board 24V output

On

Normal
voltage

N

Repair Power
Board or parts

Y N Check Power

Board
24V, 12V,3.5V etc.

Replace Inverter

Y

or module

Normal

voltage

N

Repair Power
Board or parts

End

Replace T-con/Main

Y

Board or module
And Adjust VCOM

No video
Normal audio

Normal

audio

Move to No
video/No audio

1/16

※Precaution

Always check & record S/W Version and White
Balance value before replacing the Main Board

☞A4 & A2

Replace Main Board

1

Re-enter White Balance value

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

No Video/
No audio

☞A18

Check various
voltages of Power
Board ( 3.5V,12V,
24V…)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power
Board and repair
parts

Y

N

Check and
replace
MAIN B/D

Established

date

Revised date

End

2/16

2

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞ A3

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Close

Y

N

A. Video error

Picture broken/ Freezing

Established

date

Revised date

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Advanced→ Channels→ Channel Tuning→ Manual Tuning → Check the Signal )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A4

Normal
Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

S/W Version

N

Check

SVC

Bulletin?

S/W Upgrade

Normal

Picture?

Y

N

Tuner soldering

Y

N

Check

N

Replace

Main B/D

3/16

Y

Close

Close

3

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞A6

Check color by input

-External Input

-COMPONENT

-AV

-HDMI

☞A8

Check Test pattern

Color

error?

N

Check error
color input
mode

A. Video error

☞ A7

※ Check and

replace Link

Y

Cable
(V by one)
and contact
condition

External Input/

Component

error

Color error

Check
external
device and
cable

Color

error?

N

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

4/16

Y

Replace module

N

Replace Main/T-con B/D

HDMI

error

Check external

device and
cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main/T-con B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Vertical / Horizontal bar, residual image,

A. Video error

light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A6

Check color condition by input

-External Input

-Component

-HDMI

☞A8

Check Test pattern

Screen

normal?

N

Replace
module

Check external

Y

device
connection
condition

Normal?

N

Request repair
for external
device

External device screen error-Color error

Check screen
condition by input

Check S/W Version

Check

version

Y

S/W Upgrade

N

-External Input

-Component

-HDMI/DVI

Component

☞ A7

Check and

Y

replace Link
Cable

External

Input

error

error

Established

date

Revised date

Y

N

Replace Main/T-con B/D
(adjust VCOM)

For LGD panel

Replace Main B/D

Screen

normal?

End

For other panel

Connect other external

device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

Screen

N

normal?

Y

Request repair for
external device

5/16

Replace

Module

N

Screen

normal?

Y

End

Replace
Main/T-con
B/D

Normal

screen?

End

N

Y

5

HDMI/

DVI

Connect other external
device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

Y

Screen

normal?

N

Replace
Main /T-con

B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞A17

Check
Logo LED

. Stand-By: Red or Turn On
. Operating: Turn Off

Power LED

Check Power cord
was inserted properly

On?

N

Normal?

Y

Close

Y

N

※

Check ST-BY 3.5V

☞A18

B. Power error

No power

DC Power on
by pressing Power Key
On Remote control

Normal

voltage?

Y

Y

N

Established

date

Revised date

☞A18

Y

N

Check Power
On ‘”High”

Replace Main B/D

Normal

operation?

☞A18

Measure voltage of each output of Power B/D

N

Y

Replace Main B/D

Normal

voltage?

Replace Power B/D

OK?

Y

6/16

Replace

Power
B/D

Replace Power
B/D

6

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Check outlet

Check A/C cord

Check for all 3- phase
power out

Off when on, off while viewing, power auto on/off

Error?

Y

Fix A/C cord & Outlet
and check each 3
phase out

N

B. Power error

☞A19

Check Power Off
Mode

☞A18

(If Power Off mode is
not displayed)
Check Power B/D
voltage

※ Caution
Check and fix exterior
of Power B/D Part

Established

date

Revised date

CPU

Abnormal

Abnormal

1

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

Y

Replace Main B/D

7/16

Normal?

Replace Power B/D

Y

N

End

* Please refer to the all cases which
can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL

"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording

"POWEROFF_SWDOWN" Power off by S/W Download

"POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

No audio
Screen normal

C. Audio error

No audio/ Normal video

☞A20 ☞A21+A18

Check user
menu >
Speaker off

Off

Y

Cancel OFF

Check audio B+

N

24V of Power
Board

Replace Power Board and repair parts

Established

date

Revised date

Normal
voltage

Y

N

8/16

Check
Speaker
disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board

End

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Check input
signal

-RF

-External Input

signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A21+A18

Check audio
B+ Voltage (24V)

Y

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

N

Y

Signal

normal?

N

Y

(When RF signal is not
received)

Request repair to external

cable/ANT provider

(In case of

External Input

signal error)
Check and fix
external device

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace
speaker and
connector

Replace Main B/D

Connect and check
other external
device

Normal

audio?

9/16

End

Check and fix external device

9

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

D. Function error

Remote control & Local switch checking

1. Remote control(R/C) operating error

☞A22

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

Normal

operating?

N

Check & Replace

Baterry of R/C

operating?

Replace R/C

Y

Normal

Check & Repair
Cable connection
Connector solder

Y

N

Close

Normal

operating?

Y

Close

☞A22

N

Check B+ 3.5V

On Main B/D

Established

date

Revised date

☞A22

Normal

Voltage?

Y

Output signal

N

☞A18

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

Check IR

10/16

Replace

Main B/D

Normal
Signal?

N

Repair/Replace

IR B/D

Y

10

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

D. Function error

2. MR15(Magic Remocon) operating error

☞A4

Check the

INSTART menu

RF Receiver ver

is “00.00”?

☞A23

Check & Repair

Y

RF assy

connection

☞A4

RF Receiver ver

is “00.00”?

Y

N

Check MR15

itself Operation

N

Close

MR13 operating checking

Normal

operating?

Check & Replace

Battery of MR15

Normal

operating?

Replace

MR13

Y

N

Y

N

Press the

wheel

Close

Established

date

Revised date

Is show ok

message?

Y

Close

Is show ok

message?

Close

Y

Turn off/on the set

N

and press the

wheel

N

Press the back key

11/16

about 5sec

Down load the Firmware

* INSTART MENU14.RF

Remocon Test3. Firmware

download

* If you conduct the loop at 3times, change the M4.

11

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

3.Wifi operating error

☞A4

Check the

INSTART menu

Wi-Fi Mac value

is “NG”?

☞A24

Check & Repair

Wifi cable

connection

☞A4

Wi-Fi Mac value

is “NG”?

D. Function error

Wifi operating checking

☞A24

N

Y

N

Check the Wifi wafer

Close

1pin

Established

date

Revised date

Normal

Voltage?

Y

Close

N

12/16

Replace

Main B/D

Change the Wifi

Y

assy

12

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

4.Camera operating error

☞A4

Check the

INSTART menu

D. Function error

Camera Ver.

is “NULL”?

Y

Change the

Camera module

Camera operating checking

☞A25

N

Reconnect the

Camera module

Established

Revised date

Normal

operation?

Y

Close

date

N

13/16

Replace

Main B/D

13

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Check
input
signal

Y

Signal

input?

N

Check and fix

external device/cable

D. Function error

External device recognition error

Check technical
information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Y

External Input and

N

Component

Recognition error

HDMI/

DVI, Optical

Recognition error

Established

date

Revised date

14/16

Replace Main B/D

Replace Main B/D

14

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Identify
nose
type

E. Noise

Circuit noise, mechanical noise

Circuit

noise

Mechanical

noise

※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description
in “Part related to nose” in the Owner’s
Manual.

Check
location of
noise

Check location of
noise

Replace PSU

OR

OR

Established

date

Revised date

※ When the nose is severe, replace the module
(For models with fix information, upgrade the
S/W or provide the description)

※ If there is a “Tak Tak” noise from the
cabinet, refer to the KMS fix information and
then proceed as shown in the solution manual
(For models without any fix information,
provide the description)

15/16

15

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Zoom part with
exterior damage

Module

damage

Cabinet

damage

Remote

controller

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

16/16

Stand

dent

Replace stand

16

Contents of Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

A. Video error_ No video/Normal
audio

2 Check White Balance value A2

4

A. Video error_ video error /Video
lag/stop

5 TV Version checking method A4

6 Tuner Checking Part A5

A. Video error _Vertical/Horizontal bar,

7

residual image, light spot

8

A. Video error_ Color error

9 Adjustment Test pattern - ADJ Key A8

10

11 Exchange Main Board (2) A-2/5

<Appendix>

12 Exchange Power Board (PSU) A-3/5

Defected Type caused by T-Con/
Inverter/ Module

13 Exchange Module (1) A-4/5

Check LCD back light with naked eye A1

TUNER input signal strength checking
method

TV connection diagram A6

Check Link Cable (EPI) reconnection
condition

Exchange Main Board (1) A-1/5

A3

A7

14 Exchange Module (2) A-5/5

Continue to the next page

Contents of Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

16

B. Power error_ No power

17 Check power input Voltage & ST-BY 3.5V A18

18

19

20

21

22

23 Wifi operation checking method A24

24 Camera operation checking method A25 Not Used

25 E. Etc Tool option changing method A26

B. Power error_Off when on, off
while viewing

C. Audio error_ No audio/Normal
video

D. Function error

Check front display LED A17

POWER OFF MODE checking method A19

Checking method in menu when there is
no audio

Voltage and speaker checking method

when there is no audio

Remote controller operation checking
method

Motion Remote operation checking
method

A20

A21

A22

A23

Continued from previous page

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

A. Video error_No video/Normal audio

Check LCD back light with naked eye

Established

date

Revised

date

A1

After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from locations.

A1
