LG 49UB8500-SA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LJ41V

MODEL : 49UB8500 49UB8500-SA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68065803 (1404-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 16

EXPLODED VIEW .................................................................................. 26

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of th e cir cuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exp ose d metallic par t. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied to the LED TV used LJ41V, LJ41U chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC(77±9ºF), CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage Standard input voltage (100~240V@ 50/60Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

ea ch drawing and s pe cificatio n b y p art number in accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE, IEC

Only for training and service purposes

- 6 -

4. General Specification

No Item Specication Remark

1. Display Screen Device 84” wide Color Display Module Resolution: 3840*2160

79” wide Color Display Module

55” wide Color Display Module

49” wide Color Display Module

2. Aspect Ratio 16:9 All

3. LCD Module 79" QWUXGA TFT LCD LC790EQF-FGF1

84” TFT WUXGA LCD LC840EQD-SGF1

55" QWUXGA TFT LCD LC550EQE-PGF2

49" QWUXGA TFT LCD LC490EQE-XGF2

4. Operating Environment TFT Temp. : 0 ~ 50 deg

5. Storage Environment TFT Temp. : -20 ~ 60 deg

6. Input Voltage AC100 ~ 240V, 50/60Hz

7. Power Consumption(Typ) T240 Advance Cinema

T120 Advance Cinema

8. LCD Module Size Maker Inch (H)mm × (V)mm × (D)mm

LGD 79” 1759.4 x 1002.4 x13.9

Pixel Pitch Maker Inch mm x mm

LGD 79” 0.453 x 0.453

Back Light LGD 49”/55”/

Display Colors 1.06 Billion Colors @ 10bit(D)

Coating Hard coating(2H), Anti-glare treatment

Humidity : 10 ~ 90%

Temp. : -20 ~ 60 deg Humidity : 5 ~ 90%RH

79” 165.6 W

84” 402 W

55” 111.5 W

49” 97.1 W

84” 1904.0 x 1096.0 x 15.5

49” 1086.3 x 623.8 x 10.6

55” 1226.0 x 702.1 x 9.2

84” 0.4845x0.4845

49” 0.27963 x 0.27963

55” 0.315 x 0.315

ULTRA HD

79”/84”

LGE SPEC

Only 84” , LGD SPEC

LGE SPEC

Only for training and service purposes

- 7 -

5. External Input Support Format

5.1. Component (Y, PB, PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I)

2. 720*480i 15.73 60.00 13.514 SDTV, DVD 480I(525I)

3. 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz

4. 720*480p 31.47 59.94 27.000 SDTV 480P

5. 720*480p 31.50 60.00 27.027 SDTV 480P

6. 720*576p 31.25 50.00 27.000 SDTV 576P 50Hz

7. 1280*720 44.96 59.94 74.176 HDTV 720P

8. 1280*720 45.00 60.00 74.250 HDTV 720P

9. 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz

10. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,

11. 1920*1080 33.72 59.94 74.176 HDTV 1080I

12. 1920*1080 33.75 60.00 74.25 HDTV 1080I

13. 1920*1080 26.97 23.976 63.296 HDTV 1080P

14. 1920*1080 27.00 24.000 63.36 HDTV 1080P

15. 1920*1080 33.71 29.97 79.120 HDTV 1080P

16. 1920*1080 33.75 30.00 79.20 HDTV 1080P

17. 1920*1080 56.25 50 148.5 HDTV 1080P

18. 1920*1080 67.432 59.94 148.350 HDTV 1080P

19. 1920*1080 67.5 60.00 148.5 HDTV 1080P

Only for training and service purposes

- 8 -

5.2. HDMI : EDID DATA : Refer to adjust specification

5.2.1. DTV mode

No Resolution H-freq(kHz) V-freq.(Hz)

1 640*480 31.469 59.94 25.125 SDTV 480P

2 640*480 31.5 60 25.125 SDTV 480P

3 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I) Spec. out but display

4 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)

5 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz

6 720*480 31.47 59.94 27 SDTV 480P

7 720*480 31.5 60.00 27.027 SDTV 480P

8 720*576 31.25 50.00 27 SDTV 576P

9 1280*720 44.96 59.94 74.176 HDTV 720P

10 1280*720 45 60.00 74.25 HDTV 720P

11 1280*720 37.5 50.00 74.25 HDTV 720P

12 1920*1080 28.125 50.00 74.25 HDTV 1080I

13 1920*1080 33.72 59.94 74.176 HDTV 1080I

14 1920*1080 33.75 60.00 74.25 HDTV 1080I

15 1920*1080 26.97 23.976 63.296 HDTV 1080P

16 1920*1080 27.00 24.000 63.36 HDTV 1080P

17 1920*1080 28.125 25 74.25 HDTV 1080P

18 1920*1080 33.71 29.97 79.120 HDTV 1080P

19 1920*1080 33.75 30.00 79.20 HDTV 1080P

20 1920*1080 56.25 50.00 148.5 HDTV 1080P

21 1920*1080 67.432 59.94 148.350 HDTV 1080P

22 1920*1080 67.5 60 148.50 HDTV 1080P

23 3840*2160 53.95 23.98 297.00 UDTV 2160P Only UD Model

24 3840*2160 54 24.00 297.00 UDTV 2160P Only UD Model

25 3840*2160 56.25 25.00 297.00 UDTV 2160P Only UD Model

26 3840*2160 61.43 29.97 297.00 UDTV 2160P Only UD Model

27 3840*2160 67.5 30.00 297.00 UDTV 2160P Only UD Model

28 3840*2160 112.5 50 594 UDTV 2160P Only UD Model, Port3

29 3840*2160 135 60 594 UDTV 2160P Only UD Model, Port3

30 3840*2160 135 59.94 594 UDTV 2160P Only UD Model, Port3

31 4096*2160 53.95 23.98 297 UDTV 2160P Only UD Model

32 4096*2160 54 24.00 297 UDTV 2160P Only UD Model

33 4096*2160 56.25 25.00 297 UDTV 2160P Only UD Model

34 4096*2160 61.43 29.97 297 UDTV 2160P Only UD Model

35 4096*2160 67.5 30.00 297 UDTV 2160P Only UD Model

36 4096*2160 112.5 50.00 594 UDTV 2160P Only UD Model, Port3

37 4096*2160 135 60.00 594 UDTV 2160P Only UD Model, Port3

38 4096*2160 135 59.94 594 UDTV 2160P Only UD Model, Port3

Pixel

clock(MHz)

Proposed Remark

Only for training and service purposes

- 9 -

5.2.2. PC mode

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remarks

1 640*350 @70Hz 31.468 70.09 25.17 EGA

2 720*400@70Hz 31.469 70.08 28.32 DOS

3 640*480@60Hz 31.469 59.94 25.17 VESA(VGA)

4 800*600 @60Hz 37.879 60.31 40 VESA(SVGA)

5 1024*768 @60Hz 48.363 60.00 65 VESA(XGA)

6 1152*864@60Hz 54.348 60.053 80 VESA

7 1280*1024 @60Hz 63.981 60.020 109.00 VESA(SXGA) Support to HDMI-PC

8 1360*768 @60Hz 47.712 60.015 85.5 VESA(WXGA)

9 1920*1080@60Hz 67.5 60 158.40 WUXGA(CEA 861D)

10 3840*2160@30Hz 67.5 30.00 297.00 UDTV 2160P Only UHD Model

11 3840*2160@25Hz 56.25 25.00 297.00 UDTV 2160P Only UHD Model

12 3840*2160@24Hz 54.0 24.00 297.00 UDTV 2160P Only UHD Model

13 4096*2160@30Hz 61.43 29.97 297.00 UDTV 2160P Only UHD Model

14 4096*2160@30Hz 67.5 30.00 297.00 UDTV 2160P Only UHD Model

15 4096*2160@25Hz 56.25 25.00 297.00 UDTV 2160P Only UHD Model

16 4096*2160@24Hz 53.95 23.97 297.00 UDTV 2160P Only UD Model, Port3

17 4096*2160@24Hz 54 24.00 297.00 UDTV 2160P Only UD Model, Port3

Only for training and service purposes

- 10 -

6. 3D mode-DTV/HDMI/USB

6.1. RF Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

6.2. HDMI Input

6.2.1. RF Input (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 720*480 31.5 60 27.03 SDTV 480P 2D to 3D, Side by Side(Half),

2 720*576 31.25 50 27 SDTV 576P

3 1280*720 45.00 60.00 74.25 HDTV 720P

37.500 50 74.25 HDTV 720P

4 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half), Top & Bottom

28.125 50.00 74.25 HDTV 1080I

5 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half), Top & Bottom,

28.12 25 74.25 HDTV 1080P

33.75 30.00 74.25 HDTV 1080P

67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half),

56.250 50 148.5 HDTV 1080P

6 3840*2160 53.95 23.976 297.00 HDTV 2160P 2D to 3D,

54 24.00 296.703

56.25 25.00 297.00

61.43 29.970 297.00

67.5 30.00 296.703

Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving

Checker Board, Row Interleaving, Column Interleaving

Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom(half), Side by Side(half),

Only for training and service purposes

- 11 -

6.2.2. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 640*480 31.469 / 31.5 59.94/ 60 25.125/25.2 1 Top-and-Bottom

31.469 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)

62.938/63 59.94/ 60 50.35/50.4 1 Frame packing

2 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom

31.469 / 31.5 59.94 / 60 54/54.06 2,3 Side-by-side(Full) (SDTV 480P)

62.938/63 59.94 / 60 54/54.06 2,3 Frame packing

3 720*576 31.25 50 27 17,18 Top-and-Bottom

31.25 50 54 17,18 Side-by-side(Full) (SDTV 576P)

62.5 50 54 17,18 Frame packing

4 720*576 15.625 50 27 21 Frame packing

5 1280*720 37.500 50 74.25 19 Top-and-Bottom

37.500 50 148.5 19 Side-by-side(Full) (HDTV 720P)

44.96 / 45 59.94 / 60 74.17/74.25 4 Top-and-Bottom

44.96 / 45 59.94 / 60 148.35/148.5 4 Side-by-side(Full) (HDTV 720P)

75 50 148.5 19 Frame packing

89.91/90 59.94 / 60 148.35/148.5 4 Frame packing

6 1920*1080 28.125 50.00 74.25 20 Top-and-Bottom

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Field alternative Side-by-side(Full) Top-and-Bottom Side-by-side(half)

Side-by-side(half)

Line alternative

Side-by-side(half)

Proposed

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 576P) Secondary(SDTV 576P)

Secondary(SDTV 576P) (SDTV 576P)

Secondary(SDTV 576I) (SDTV 576I (SDTV 576I Secondary(SDTV 576I) Secondary(SDTV 576I)

Primary(HDTV 720P) Primary(HDTV 720P)

Primary(HDTV 720P) (HDTV 720P)

Secondary(HDTV 1080I) Primary(HDTV 1080I)

28.125 50.00 148.5 20 Side-by-side(Full) (HDTV 1080I)

33.72 / 33.75 59.94 / 60 74.17/74.25 5 Top-and-Bottom

33.72 / 33.75 59.94 / 60 148.35/148.5 5 Side-by-side(Full) (HDTV 1080I)

56.25 50.00 148.5 20 Frame packing

67.432/67.50 59.94 / 60 148.35/148.5 5 Frame packing

Only for training and service purposes

- 12 -

Side-by-side(half)

Field alternative

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080I) (HDTV 1080I)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

7 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 32 Top-and-Bottom

26.97 / 27 23.97 / 24 148.35/148.5 32 Side-by-side(Full) (HDTV 1080P)

28.125 25 74.25 33 Top-and-Bottom

28.125 25 148.5 33 Side-by-side(Full) (HDTV 1080P)

33.716 / 33.75 29.976 / 30.00 74.18/74.25 34 Top-and-Bottom

33.716 / 33.75 29.976 / 30.00 148.35/148.5 34 Side-by-side(Full) (HDTV 1080P)

43.94/54 23.97 / 24 148.35/148.5 32 Frame packing

56.25 25 148.5 33 Frame packing

67.432 / 67.5 29.976 / 30.00 148.35/148.5 34 Frame packing

56.250 50 148.5 31 Top-and-Bottom

67.432 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom

VIC 3D input proposed

Side-by-side(half)

Line alternative

Side-by-side(half)

6.2.3. HDMI-PC 3D Input (3D supported mode manually)

mode

Proposed

Primary(HDTV 1080P) Primary(HDTV 1080P)

Secondary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Secondary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1024*768 48.36 60 65 2D to 3D,

2 1360*768 47.71 60 85.5 2D to 3D,

3 1920*1080 67.500 60 148.50 2D to 3D, Side by Side(half),

4 3840*2160 54 24.00 296.703 2D to 3D,

56.25 25.00 297

67.5 30.00 296.703

5 3840*2160 135 60 594 2D to 3D,

6 4096*2160 135 60 594 2D to 3D,

7 Others - - - 2D to 3D,

Side by Side(half), Top & Bottom

Top & Bottom,Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom(half), Side by Side(half)

Top & Bottom(half), Side by Side(half), Port 3 Only

Side by Side(half), Top & Bottom

HDTV 768P

HDTV 1080P

HDTV 2160P

640*350 720*400 640*480 800*600

1152*864

Only for training and service purposes

- 13 -

6.2.4. Component 3D Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1280*720 37.5 50 74.25 2D to 3D,

Side by Side(half), Top & Bottom

2 1280*720 45.00 60.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

3 1280*720 44.96 59.94 74.176 2D to 3D,

Side by Side(half), Top & Bottom

4 1920*1080 33.75 60.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

5 1920*1080 33.72 59.94 74.176 2D to 3D,

Side by Side(half), Top & Bottom

6 1920*1080 28.12 50 74.25 2D to 3D,

Side by Side(half), Top & Bottom

7 1920*1080 67.500 60 148.50 2D to 3D,

Side by Side(half), Top & Bottom

8 1920*1080 67.432 59.94 148.352 2D to 3D,

Side by Side(half), Top & Bottom

9 1920*1080 27.000 24.000 74.25 2D to 3D,

Side by Side(half), Top & Bottom

10 1920*1080 28.12 25 74.25 2D to 3D,

Side by Side(half), Top & Bottom

11 1920*1080 56.25 50 74.25 2D to 3D,

Side by Side(half), Top & Bottom

12 1920*1080 26.97 23.976 74.176 2D to 3D,

Side by Side(half), Top & Bottom

13 1920*1080 33.75 30.000 74.25 2D to 3D,

Side by Side(half), Top & Bottom

14 1920*1080 33.71 29.97 74.176 2D to 3D,

Side by Side(half), Top & Bottom

HDTV 720P

HDTV 1080I

HDTV 1080P

Only for training and service purposes

- 14 -

6.2.5. USB, DLNA – Movie (3D) (3D supported mode manually)

R

L

R

L

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

2 Over 704x480

interlaced

3 Over 704x480

progressive

4 - others - 2D to 3D, Side by Side(Half), Top & Bottom,

- - - 2D to 3D, Side by Side(Half), Top & Bottom

- 50 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving, Frame Sequential

Checker Board, Row Interleaving, Column Interleaving

6.2.6. USB, DLNA -Photo (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 320x240 - - - 2D to 3D

2 Over 320x240 - - - 2D to 3D, Side by Side(Half), Top & Bottom

6.2.7. USB, DLNA (3D) (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080p 33.75 30 74.25 Side by Side(Half), Top & Bottom, Checker Board,

MPO(Photo), JPS(Photo)

6.2.8. Miracast, Widi (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1024*768p - 30/60 - 2D to 3D, Side by Side(Half), Top & Bottom

2 1280*720p - 30/60 -

3 1920*1080p - 30/60 -

4 Others - - - 2D to 3D

**Remark: 3D Input mode

No. Side by Side Top & Bottom Checkerboard Single Frame

Sequential

1

Frame Packing Line

Interleaving

Column

Interleaving

Only for training and service purposes

- 15 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to LJ41U/LJ41V Chassis applied LED TV all models manufactured in TV factory

2. Specification.

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15ºC

▪ In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2 hours

▪ In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C for 3 hours

* Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Adjustment items

3.1. Main PCB check process

▪ MAC Address Download ▪ ADC adjustment : 480i Comp1, 1920*1080 Comp1 ▪ EDID/DDC download

Above adjustment items can be also performed in Final Assembly if needed. Both Board-level and Final assembly adjustment items can be check using In-Start Menu 1.ADJUST CHECK.

3.2. Final assembly adjustment

▪ White Balance adjustment ▪ RS-232C functionality check ▪ PING Test ▪ Factory Option setting per destination ▪ Ship-out mode setting (In-Stop)

3.3. Etc.

▪ Ship-out mode ▪ Service Option Default ▪ USB Download(S/W Update, Option, Service only) ▪ ISP Download (Option)

4. Automatic Adjustment

4.1. ADC Adjustment

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB

deviation.

4.1.1. Equipment & Condition

(1) USB to RS-232C Jig (2) MSPG -925 Series Patt ern Gener ator(MSPG-925FA,

pattern -65)

- Resolution : 480i Comp1 1080P Comp1

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

4.1.2. Adjustment method

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40

xb 00 60

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

Read adj. data (main)

ad 00 20

(sub ) ad 00 21

Conrm adj. ad 00 99 NG 03 00x (Fail)

End adj. ad 00 90 a 00 OK90x

Ref.) ADC Adj. RS232C Protocol_Ver1.0

Adj. order

▪ aa 00 00 [Enter ADC adj. mode] ▪ xb 00 04 [Change input source to Component1(480i&1080p)] ▪ ad 00 10 [Adjust 480i&1080p Comp1] ▪ xb 00 06 [Change input source to RGB(1024*768)] ▪ ad 00 10 [Adjust 1920*1080 RGB] ▪ aa 00 90 End adj.

b 00 OK04x (Adjust 480i, 1080p Comp1 ) b 00 OK06x (Adjust 1920*1080 RGB)

NGx (Case of Fail)

(main) 000000000000000000000000007c007b006dx

(Sub) 000000070000000000000000007c0083 0077x

NG 03 01x (Fail) NG 03 02x (Fail) OK 03 03x (Success)

Only for training and service purposes

- 16 -

4.2. MAC address, ESN, Widevine, HDCP2.0 key D/L

4.2.1. Equipment & Condition

1) Play file: keydownload.exe

4.2.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)

2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

1) Select the download items.

2) Mode check: Online Only

3) Check the test process : DETECT -> MAC -> Widevine

4) Play: START

5) Check of result: Ready, Test, OK or NG

4.2.4. Communication Port connection

1) ) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C Port

4.3. LAN Inspection

4.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

4.3.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ Setting automatic IP ▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC Address.

4.2.5. Download

1) BR Models (14Y LCD TV + MAC + Widevine + ESN + HDCP2.0)

4.3.3. LAN PORT INSPECTION (PING TEST)

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program. *IP Number : 12.12.2.2.

Only for training and service purposes

- 17 -

4.3.4. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service ma n, sometimes model name or serial number is initialized. ( not always) It is impossible to download by bar code scan, so It need Manual download.

a. Press the ‘INSTART’ key of ADJ remote controller. b. Go to the menu ‘7. Model Number D/L’ like below photo. c. Input the Factory model name or Serial number like below

photo.

4.4. Model name & Serial number Download

4.4.1. Model name & Serial number D/L

▪ Pr ess “Power on” key of service re mocon.(Bau d rate :

115200 bps)

▪ Connect RS-232C Signal to USB Cable to USB. ▪ Write Serial number by use USB port. ▪ Must check the serial number at Instart menu.

■ Method & Notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

d. Check the model name INSTART menu -> Factory name

displayed

e. Check the Diagnostics (DTV country only) -> Buyer model

displayed

4.5. WIFI MAC ADDRESS CHECK

4.5.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

■ Check the menu on in-start

Only for training and service purposes

- 18 -

5. Manual Adjustment

5.1. ADC adjustment is not needed because of OTP (Auto ADC adjustment)

5.2. EDID

(The Extended Display Identification Data) / DDC (Display Data Channel) download

5.2.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

5.2.2. Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon

5.2.3. Download method

1) Press Adj. key on the Adjust remocon, then select “12.EDID D/L”.

By pressing Enter key, enter EDID D/L menu

5.2.4. EDID DATA

▪ Reference

- HDMI1 ~ HDMI3

- HDMI1 ~ HDMI4

- In the data of EDID, bellows may be different by Input mode

ⓐ Product ID ⓑ Serial No: Controlled on production line. ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’ Year : ‘2014’ -> ‘18

ⓓ Model Name(Hex): LGTV ⓔ Checksum(LG TV): Changeable by total EDID data. ⓕ Vendor Specific(HDMI)

2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2

/ HDMI3 / HDMI4 are Writing and display OK or NG.

5.2.4.1. EDID # HDMI1 (C/S: 0xE7, 0x04) EDID Block 0, Bytes 0-127

EDID Block 1, Bytes 128-255

Only for training and service purposes

- 19 -

# HDMI2 (C/S: 0xE7, 0xF4) EDID Block 0, Bytes 0-127

# HDMI4 (C/S: 0xE7, 0xD4) EDID Block 0, Bytes 0-127

EDID Block 1, Bytes 128-255

# HDMI3 (C/S: 0xA1, 0x3A) EDID Block 0, Bytes 0-127

EDID Block 1, Bytes 128-255

* Checksum (HDMI 1/2/3/4)

Input FFh (Checksum)

HDMI1 E7 04

HDMI2 E7 F4

HDMI3 A1 3A

HDMI4 E7 D4

5.3. Camera Port Inspection(For UB98, UC9)

(1) Objective : To check how it connects between Camera and

PCBA normally, and their Function

(2) Test Method : This Inspection is available only Power-Only

Status. i) Push Camera Up ii) Camera’s Preview picture appears on TV Set iii) Push Camera Down

Only for training and service purposes

(3) RS-232C Command

RS-232C COMMAND

CMD DATA ID

Ai 00 23 Camera Function Start.

Ai 00 24 Camera Function End.

- 20 -

Explanation

5.4. V-COM Adjust

(*) ONLY FO R G P2 20 10 ye ar mo del. GP3 LW Se ries

[2011year] spec out !

5.5. Adjustment White balance

5.5.1. Overview

▪ W/B adj. Objective & How-it-works

(1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 °C

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

5.5.2. Equipment

(1) Color Analyzer: CA-210 (LED Module : CH 14) (2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Vi deo Sig nal Generator MSP G-925F 720p/216 -Gray

(Model:217, Pattern:78)

-> Only when internal pattern is not available

※ Color Analyzer Matrix should be calibrated using CS-1000

5.5.3. Equipment connection MAP

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD DATA ID

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

Ex) wb 00 00 -> Begin white balance auto-adj. wb 00 10 -> Gain adj. ja 00 ff -> Adj. data jb 00 c0 ... ... wb 00 1f -> Gain adj. complete *(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj. wb 00 ff -> End white balance auto adj.

(2) Adjustment Map (Applied Model : LB41U Chassis ALL MODELS)

Adj. item Command

(lower caseASCII)

CMD1 CMD2 MIN MAX

Cool R Gain j g 00 C0

G Gain j h 00 C0

B Gain j i 00 C0

Medium R Gain j a 00 C0

G Gain j b 00 C0

B Gain j c 00 C0

Warm R Gain j d 00 C0

G Gain j e 00 C0

B Gain j f 00 C0

Explanation

Data Range (Hex.)

5.5.4. Adj. Command (Protocol)

<Command Format> START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP

- LEN: Number of Data Byte to be sent

- CMD : Command

- VAL : FOS Data value

- CS : Checksum of sent data

- A : Acknowledge

Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

Only for training and service purposes

- 21 -

5.5.5. Adjustment method

5.5.5.1. Auto WB calibration (1) Set TV in adj. mode using POWER ONNY key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable (RS-232C to USB) (4) Select mode in adj. Program and begin adj. (5) When adj. is complete (OK Sign), check adj. status pre

mode(Warm, Medium, Cool) (6) Remove probe and RS-232C to USB cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

5.5.6. Reference (White Balance Adj. coordinate and color temperature)

▪ Luminance: 206 Gray ▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13,000K 0.0000

Medium 0.286 0.289 9,300K -3

Warm 0.313 0.329 6,500K 0.0000

Coordinate

X Y

Temp △uv

5.5.5.2. Manual adj. method

1) Set TV in Adj. mode using POWER ON

2) Zero Calibrate the probe of Color Analyzer, then place it on the center of LCD module within 10cm of the surface..

3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 216 Gray internal pattern will be

displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192, and the rest will be lowered to meet the desired value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of color temperature.

** R-fix adjustment Adjust modes (Cool), Fix the R gain to 210 (default data) and change the others (G/B Gain ).

- Adjust the R gain more than 210 ( If G gain or B gain is less

than 0 , R gain can adjust more than 210 ) and change the others ( G/B Gain ). Adjust two modes (Medium / Warm), Fix the one of R/G/B gain to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

1) Lighting condition in surrounding area

Surrounding lighting should be lower 10 lux. Try to isolate

adj. area into dark surrounding.

2) Probe location

- PDP : Color Analyzer (CA-100, CA-100+, CA210) probe

should be firmly attached to the Module

- LCD : Color Analyzer (CA-210) probe should be within 10cm

and perpendicular of the module surface (80°~ 100°)

3) Aging time

- After Aging Start, Keep the Po wer ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

▪ Standard color coordinate and temperature using CA-210

(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K -3

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Coordinate

X Y

Temp △uv

5.5.7. EDGE & IOL LED White balance table

▪ Edge & ALEF LED module change color coordinate because

of aging time

▪ apply under the color coordinate table, for compensated

aging time

(Normal line) Edge & ALEF LED White balance table

- gumi(Mar~Dec) & Global Model : (normal line)LGD, CMI

webOS

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

Only for training and service purposes

- 22 -

- gumi Winter table(Jan, Fab) – Gumi producing model use only Model : (normal line) LGD

webOS

(*) AUO, INX, Sharp, CSOT, BOE(Cool 1300K)

webOS

Target 278 280 293 299 320 339

Aging time

(Min)

1 0-2 286 295 301 314 328 354

2 3-5 284 290 299 309 326 349

3 6-9 282 287 297 306 324 346

4 10-19 279 283 294 302 321 342

5 20-35 276 278 291 297 318 337

6 36-49 274 275 289 294 316 334

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

x y x y x y

271 270 285 293 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

5.6. Local Dimming Function Check

Step 1) Turn on TV Step 2) At the Local Dimming mode, module Edge Backlight

moving right to left Back light of IOP module moving Step 3) confirm the Local Dimming mode Step 4) Press “exit” Key

5.7. Magic Motion Remocon test

- Equipment : RF Remocon for test, IR-KEY-Code Remocon for test

- You must confirm the battery power of RF-Remocon before

test

(recommend that change the battery per every lot)

- Sequence (test)

a) if you select the ‘start key(OK)’ on the controller, you can

pairing with the TV SET.

b) You can check the cursor on the TV Screen, when select

the ‘OK Key’ on the controller

c) You must remove the pairing with the TV Set by select

‘Mute + OK Key’ on the controller

5.8. 3D function test

(P at te rn Ge ne ra to r M SH G- 60 0, MS PG -6 10 0 [ SU PP ORT HDMI1.4])

* HDMI mode NO. 872 , pattern No.83

1) Please input 3D test pattern like below (HDMI mode NO. 872 , pattern No.83)

2) When 3D OSD appear automatically , then select green button

Only for training and service purposes

3) Don’t wear a 3D Glasses, Check the picture like below

- 23 -

5.9. Option selection per country

5.9.1. Overview

▪ Option selection is only done for models in AJ/JA/IL

5.9.2. Method

1) Press ADJ key on the Adj. R/C, then select Country Group Meun

2) Depending on destination, select Country Group Code or Country Group then on the lower Country option, select US,

CA, MX. Selection is done using +, - or ►◄ KEY

5.10. HDMI ARC Function Inspection

5.10.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.10.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

7. GND and Internal Pressure check

7.1. Method

1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

7.2. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

(2) TEST time: 1 second (3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.

(4) LEAKAGE CURRENT: At 0.5mArms

(2) Check the sound from the TV Set

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

8. AUDIO output check

No Item Min Typ Max Unit Remark

1 Audio practi-

cal max Output, L/R (Distortion=10% max Output)

2

Speaker (8Ω Impedance)

*Measurement condition: (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms)

10.0

12.0

8.10

10.8WVrms

10 12 W EQ On

EQ Off AVL Off Clear Voice Off

AVL On Clear Voice On

Only for training and service purposes

- 24 -

9. USB S/W Download (optional, Service only)

(1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower than that of TV set, it didn’t work. Otherwise USB data is automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring

(5) Updating Completed, The TV will restart automatically

(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

* After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 25 -

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essenti al that these special safet y parts shoul d be replac ed with the same compo nents as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

400

570

910

900

410

503

522

521

500

501

540

504

530

121

LV1

502

CAM1

120

820

AT1

AG1

200

Only for training and service purposes

- 26 -

A10

Set + Stand

A22

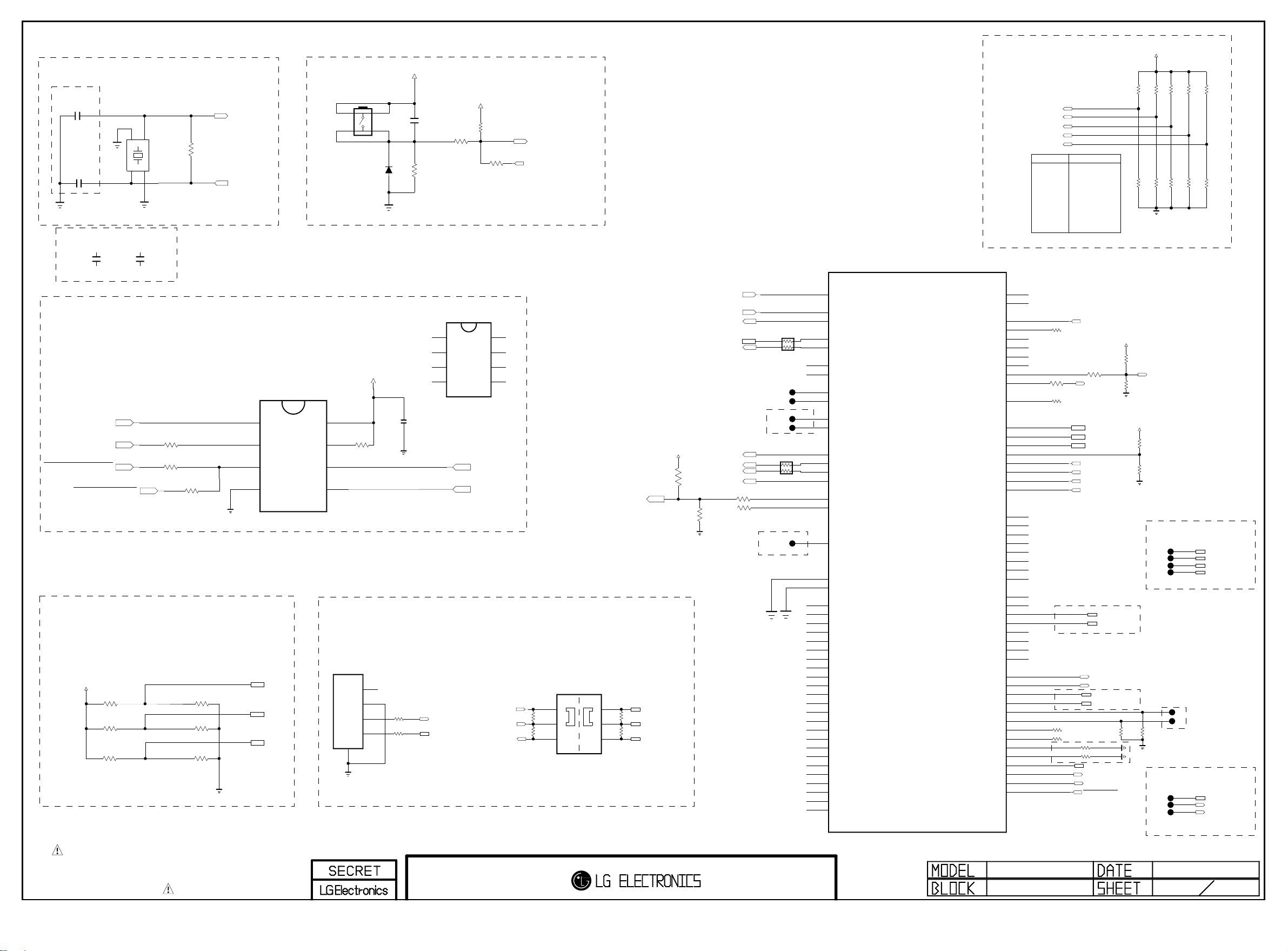

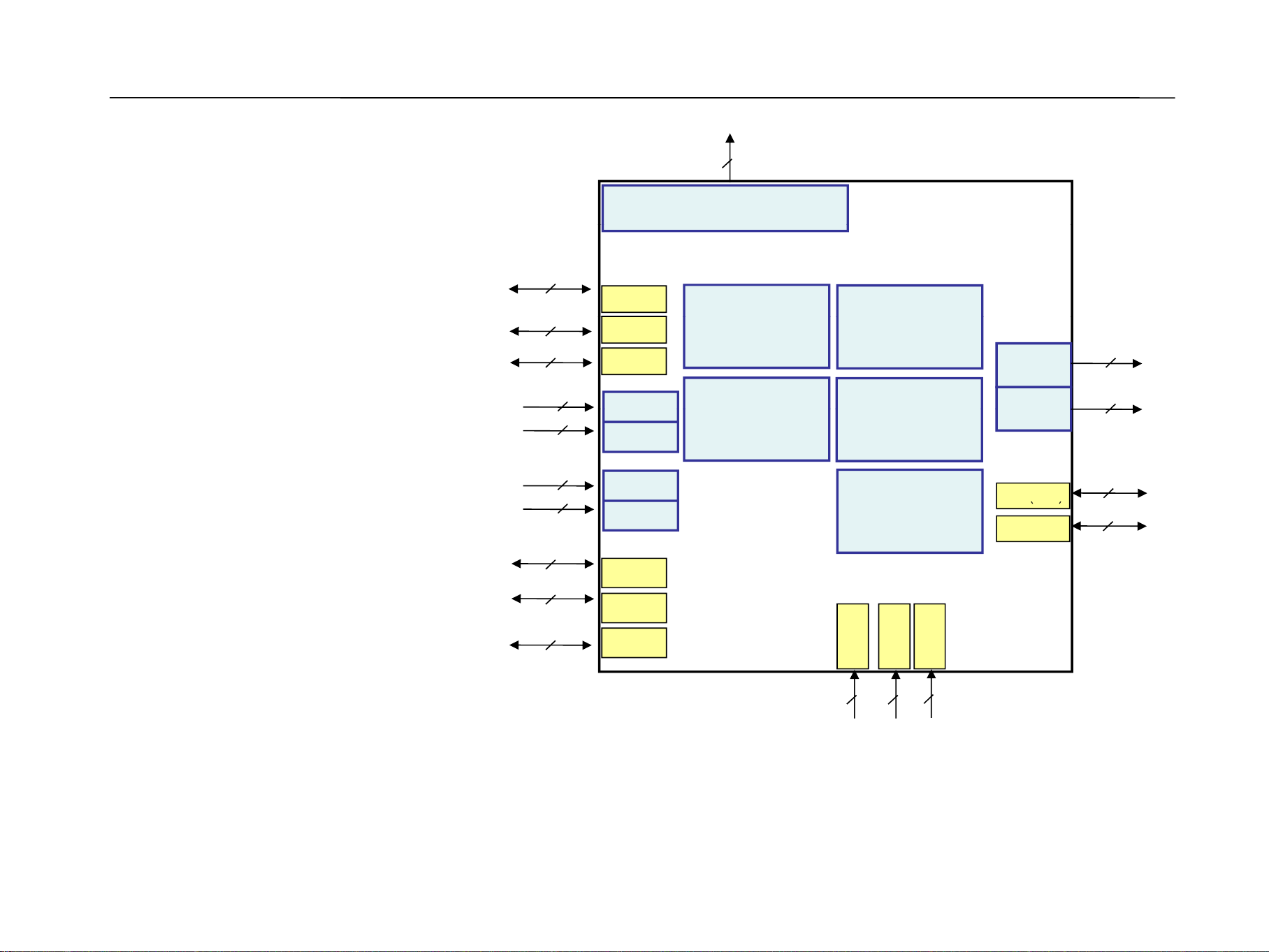

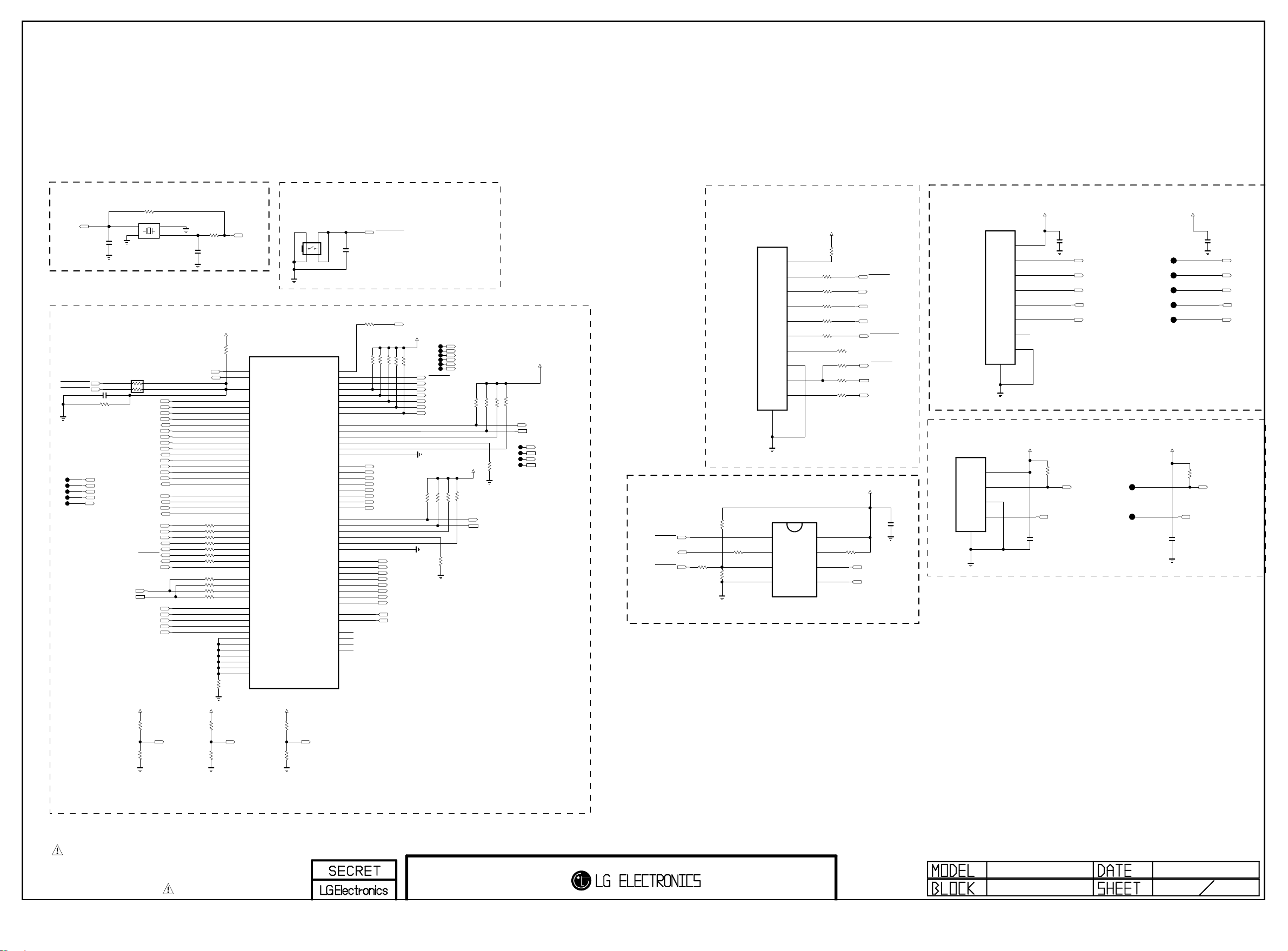

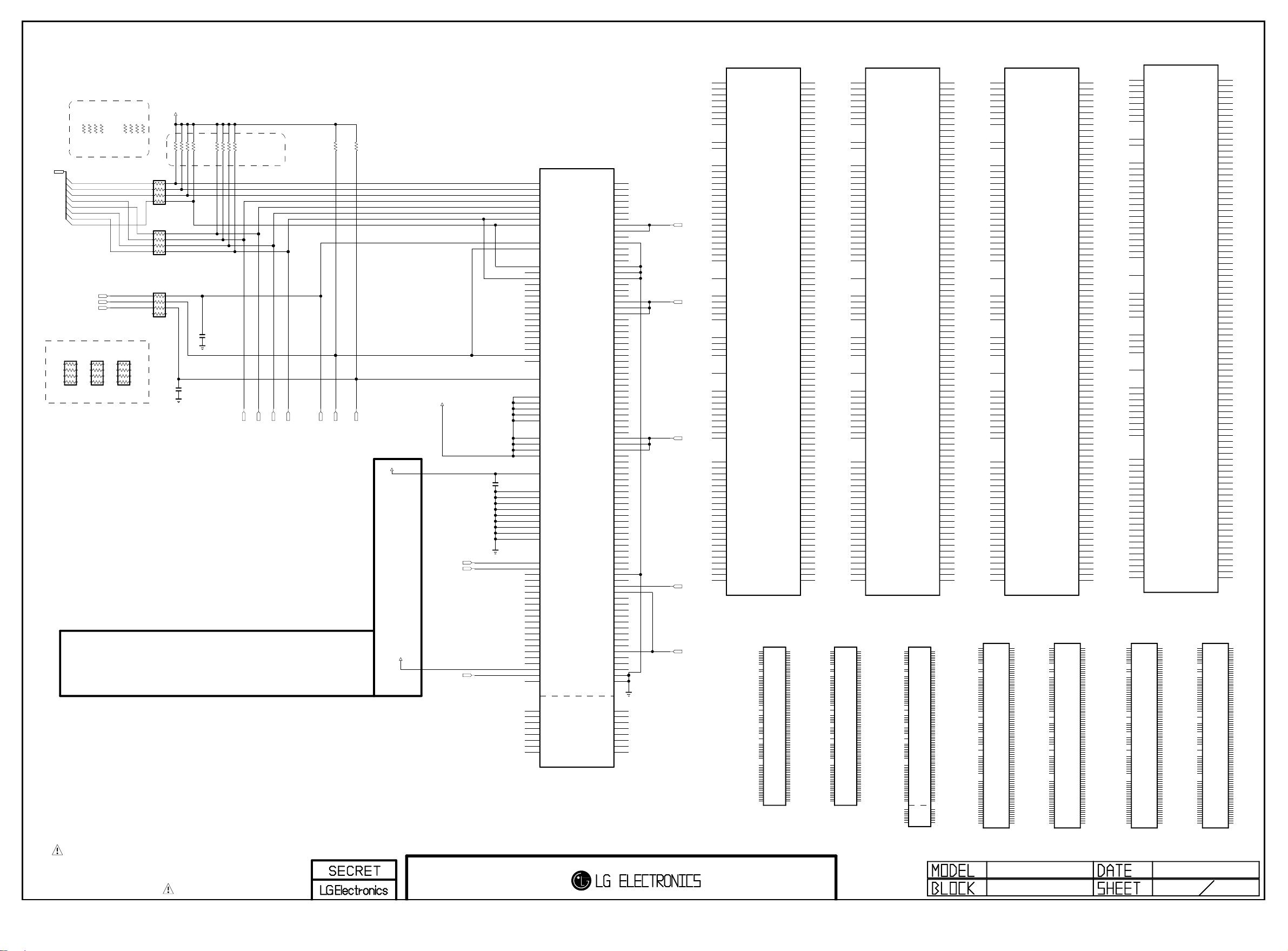

System Configuration

Clock for LG1154D

MAIN Clock(24Mhz)

8pF

C100

8pF

C101

System Clock for Analog block(24Mhz)

OPT

R100 33

R101 33

OPT

T32

0.1uF

P100

12505WS-10A00

T32

1

2

3

4

5

6

7

8

9

10

11

WebOS UHD HW Option

BIT0 BIT1

BIT2

BIT3

BIT4

BIT5

BIT6

BIT7

BIT8

BIT9

BIT10

20131016 version

00

01

10

11

00

01

10

11

DVB

TW/COL

CN/HK

EU

AJJA

Resolution

Support U14

D9 Model

URSA7/URSA9

EU/CIS

T/C

T2/C/S2/ATV_EXT

T2/C

T2/C/S2/AT

Display

Reserved

BIT(0/1)

BIT2

BIT3

BIT4

BIT(6/7)

BIT8

BIT9

BIT10 Reserved

X-TAL_1

GND_1

1

2

4

3

GND_2

X-TAL_2

PLLSET1

PLLSET0

+3.3V_NORMAL

OPT

R160 10K

ATSC

North.AM.

KR

BR

High

FHD

U14

D9

URSA9

AJJA

T/C

T2/C_PIP

T2/C

T2/C/S2

High

OLED

XIN_MAIN

1M

R108

X100

24MHz

XO_MAIN

PLL SET[1:0] : internal pull up "00" : CPU(1200Mhz),M0 / M1 DDR(792,792 Mhz) "01" : CPU(1056Mhz),M0 / M1 DDR(672,672 Mhz) "10" : CPU(1056Mhz),M0 / M1 DDR(792,792 Mhz) "11" : CPU( 960Mhz),M0 / M1 DDR(792,792 Mhz)

Jtag I/F For Main

OPT

R167 33

TRST_N0 TDI0 TDO0 TMS0 TCK0 SOC_RESET

OPT

R163 10K

R166 10K

R168 10K

+3.3V_NORMAL

URSA7/URSA9PBIT5

BIT0_1

R110 10K

BIT0_0

R109 10K

JP

Low

UHD

Non_U14

Non_D9

TW/COL

T2/C_PIP

Low

LCD

T/C

T2/C

10K

BIT1_1

R112

10K

BIT1_0

R111

FHD

R114 10K

UHD

R113 10K

CN/HK

Default

U14

R116 10K

NON_U14

R115 10K

D9

NOT_D9

ATSC_PIP

ATV_SOC

ATV_EXT

R120 10K

R119 10K

KR

URSA9

BIT6_1

R124 10K

R122 10K

BIT6_0

R123 10K

R121 10K

URSA7/URSA9P

North.AM

ATSC_PIP

ATV_SOC

ATV_EXT

OP MODE[1:0] "00" : Normal Mode "01/10/11" : Internal Test mode

+3.3V_NORMAL

OLED

BIT7_1

R126 10K

R128 10K

R129 10K

OPT

LCD

BIT7_0

R130 10K

R127 10K

R125 10K

BR

ISDB_PIP

ISDB

NVRAM

EEPROM_RENESAS

IC102

R1EX24256BSAS0A

A0

1

A1

2

A2

A0’h

3

VSS

4

OPT

R133 33

R134 33

OPT

R131 10K

OPT

R132 10K

JP

Default

VCC

8

WP

7

SCL

6

SDA

5

OPM1

OPM0

+3.3V_LNA_TU

C103

0.1uF

D13_INT

EPHY_INT

R135

1.8K

KR_PIP_NOT

1.5K

KR_PIP

R135-*1

+3.3V_NORMAL

Write Protection

- Low : Normal Operation

- High : Write Protection

AR102

+3.3V_NORMAL

OPT

INSTANT_MODE0

+3.3V_NORMAL

R137

1.8K

R136

1.8K

R138

1.8K

KR_PIP_NOT

1.5K

KR_PIP

R136-*1

33

INSTANT boot MODE "1 : Instant boot "0 : normal

3.3K

R150

(internal pull down)

R164331/16W

5%

+3.3V_TUNER

R142

1.8K

R141

1.8K

I2C_SCL5

I2C_SDA5

INSTANT_BOOT

SOC_RESET

R149

10K

H13_CONNECT

+3.3V_NORMAL

R144

1.8K

R143

1.8K

EEPROM_ST

M24256-BRMN6TP

E0

1

E1

2

E2

3

VSS

4

EEPROM_ATMEL

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

BOOT_MODE0

R151

I2C_SCL_MICOM_SOC I2C_SDA_MICOM_SOC

I2C PULL UP

R146

1.8K

R147

1.8K

R145

1.8K I2C_CH1_pullup_1.8K

IC102-*1

VCC

8

WC

7

SCL

6

SDA

5

IC102-*2

VCC

8

WP

7

SCL

6

SDA

5

+3.3V_NORMAL

BOOT MODE "0 : EMMC "1 : TEST MODE

3.3K

R117

OPT



3.3K

R118

XIN_MAIN

XO_MAIN

C108

0.1uF

H13A_SCL H13A_SDA

TRST_N0

PLLSET1 PLLSET0

BOOT_MODE

CAM_TRIGGER_DET

SOC_RX

10K

SOC_TX M_REMOTE_RX M_REMOTE_TX

M_REMOTE_RTS

M_REMOTE_CTS

SOC_SPI1_CS

SOC_SPI1_MOSI SOC_SPI1_MISO

U14 SPI

SOC_SPI1_SCLK

SOC_SPI0_CS0 SOC_SPI0_MOSI SOC_SPI0_MISO

D13 SPI

SOC_SPI0_SCLK

I2C_SCL1 I2C_SDA1

I2C_SCL2_SOC

I2C_SDA2_SOC

I2C_SCL4 I2C_SDA4 I2C_SCL5 I2C_SDA5 I2C_SCL6 I2C_SDA6

I2C_SDA_MICOM I2C_SCL_MICOM

I2C_SDA2 I2C_SCL2

I2C_CH1_pullup_1.8K

R148

1.8K I2C_SDA1 I2C_SCL1 I2C_SDA_MICOM_SOC

I2C_SCL_MICOM_SOC I2C_SDA2_SOC

I2C_SCL2_SOC I2C_SDA4 I2C_SCL4

I2C_SDA5 I2C_SCL5

I2C_SDA6 I2C_SCL6

OPM1

TMS0 TCK0 TDI0 TDO0

BOOT_MODE

H13D_XTAL_560ohm

H13D_XTAL_100ohm

R152-*1

AR100

0

I2C for tuner

560

R152

100

33

R1020 R104

I2C_CH1_pullup_3.3K

I2C_SDA_MICOM_SOC I2C_SCL_MICOM_SOC

I2C_SDA2_SOC

I2C_SCL2_SOC

R147-*1

3.3K

R148-*1

3.3K

A26

XIN

B26

XOUT

B27

XTAL_BYPASS

AT37

H13DA_XTAL

AU16

PORES_N

AD34

OPM1

AD33

OPM0

AT26

H13DA_SCL

AU26

H13DA_SDA

AP9

TRST_N0

AN9

TMS0

AP11

TCK0

AN11

TDI0

AN10

TDO0

AM10

TRST_N1

AM9

TMS1

AM11

TCK1

AM12

TDI1

AL11

TDO1

AL9

PLLSET1

AL10

PLLSET0

AE34

BOOT_MODE

Y33

EXT_INTR3/GPIO70

W32

EXT_INTR2/GPIO69

W33

EXT_INTR1/GPIO68

W34

EXT_INTR0/GPIO67

AU12

UART0_RXD

AT12

UART0_TXD

AU13

UART1_RXD

AT13

UART1_TXD

AP12

UART1_RTS

AR12

UART1_CTS

AE35

SPI_CS0/GPIO36

AE36

SPI_DO0/GPIO38

AF36

SPI_DI0/GPIO39

AF35

SPI_SCLK0/GPIO37

AG34

SPI_CS1

AF33

SPI_DO1

AG33

SPI_DI1

AG32

SPI_SCLK1

AR15

SCL0/GPIO66

AP15

SDA0/GPIO65

AR16

SCL1/GPIO64

AP16

SDA1/GPIO79

AP17

SCL2/GPIO78

AR17

SDA2/GPIO77

AP6

SCL3

AR6

SDA3

AH32

SCL4

AJ33

SDA4

AH34

SCL5

AH33

SDA5

+3.3V_NORMAL

CAM_CE1_N

CAM_CE2_N

CAM_CD1_N/GPIO76

F33

F34

D32

E32

/PCM_CE1

/PCM_CE2

CAM_CD1_N

CI

USB_CTL3

/USB_OCD3

/USB_OCD2

USB_CTL2

K35

K36

K37

L35

EB_CS3/GPIO93

EB_CS2/GPIO92

EB_CS1/GPIO91

EB_CS0/GPIO90

EB_BE_N1

EB_WE_N

EB_OE_N

H35

H36

J35

J36

H37

EB_WE_N/GPIO95

EB_WAIT/GPIO94

EB_OE_N/GPIO82

EB_BE_N1/GPIO81

EB_ADDR[0-14]

EB_BE_N0

EB_ADDR[14]

EB_ADDR[13]

EB_ADDR[12]

G37

G36

G35

F36

EB_BE_N0/GPIO80

EB_ADDR15/GPIO89

EB_ADDR14/GPIO88

EB_ADDR13/GPIO103

EB_ADDR12/GPIO102

EB_ADDR[6]

EB_ADDR[9]

EB_ADDR[8]

EB_ADDR[7]

EB_ADDR[10]

EB_ADDR[11]

F35

E36

E37

E35

D37

EB_ADDR9/GPIO99

EB_ADDR8/GPIO98

EB_ADDR7/GPIO97

EB_ADDR11/GPIO101

EB_ADDR10/GPIO100

EB_ADDR[3]

EB_ADDR[4]

EB_ADDR[5]

D36

D35

C36

C35

EB_ADDR6/GPIO96

EB_ADDR5/GPIO111

EB_ADDR4/GPIO110

EB_DATA[0-7]

EB_ADDR[2]

EB_ADDR[0]

EB_DATA[6]

EB_DATA[7]

EB_ADDR[1]

B37

B36

B35

C32

B33

EB_ADDR3/GPIO109

EB_ADDR2/GPIO108

EB_ADDR1/GPIO107

EB_ADDR0/GPIO106

EB_DATA7/GPIO105

EB_DATA[5]

A33

EB_DATA6/GPIO104

EB_DATA5/GPIO119

IC100

LG1154D_H13D

CAM_CD2_N/GPIO75

CAM_VS1_N/GPIO86

CAM_VS2_N/GPIO85

CAM_IREQ_N/GPIO73

CAM_RESET

CAM_INPACK/GPIO74

CAM_VCCEN_N/GPIO87

CAM_WAIT_N/GPIO84

CAM_REG_N/GPIO72

CAM_IOIS16_N/GPIO83

SC_CLK/GPIO130

SC_DETECT/GPIO133

SC_VCCEN/GPIO129

SC_VCC_SEL/GPIO128

SC_RST/GPIO131

SC_DATA/GPIO132

SD_CLK/GPIO125

SD_CMD/GPIO124

SD_CD_N/GPIO123

SD_WP_N/GPIO122

SD_DATA3/GPIO121

SD_DATA2/GPIO120

SD_DATA1/GPIO135

SD_DATA0/GPIO134

USB2_2_DP0

USB2_2_DM0

USB2_2_TXRTUNE

G32

G33

F32

G34

D33

H32

E33

D34

H33

T33

U33

T32

V32

V33

V34

A25

C25

B25

E25

D25

E24

D24

C24

L37

L36

K34

1%

200

R157

CAMERA_DP

CAM_CD2_N

R153

10K

PCM_RESET

CAM_IREQ_N

CI

R154

10K

CAM_REG_N

CAM_WAIT_N

PCM_5V_CTL

R155

10K

CI

SMARTCARD_CLK/SD_EMMC_DATA[0]

SMARTCARD_DET/SD_EMMC_DATA[3]

interface

Only SMART CARD

SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]

SMARTCARD_VCC/SD_EMMC_CMD

SMARTCARD_DATA/SD_EMMC_CLK

SMARTCARD_RST/SD_EMMC_DATA[2]

CAMERA_DM

EB_DATA[0]

EB_DATA[2]

EB_DATA[1]

EB_DATA[3]

EB_DATA[4]

C33

A34

B34

C34

A36

EB_DATA4/GPIO118

EB_DATA3/GPIO117

EB_DATA2/GPIO116

EB_DATA1/GPIO115

USB2_1_DP0

USB2_1_DM0

USB2_1_TXRTUNE

M37

M36

K33

AU7

1%

200

HUB_DP

HUB_DM

R159

EMMC_DATA[0-7]

EMMC_CMD

EMMC_CLK

EMMC_RST

EMMC_DATA[7]

Y37

Y36

W35

T36

W36

EMMC_CLK

EMMC_CMD

EMMC_DATA7

EMMC_RESETN

EB_DATA0/GPIO114

USB2_0_DP

USB2_0_DM

USB2_0_TXRTUNE

USB3_DP0

USB3_DM0

AT7

AP7

P37

P36

N36

WIFI_DM

WIFI_DP

R161 200 1%

USB3_DM

USB3_DP

EMMC_DATA[3]

EMMC_DATA[4]

EMMC_DATA[6]

EMMC_DATA[5]

V35

V37

V36

U35

EMMC_DATA6

EMMC_DATA5

EMMC_DATA4

EMMC_DATA3

USB3_RX0P

USB3_RX0M

USB3_TX0P

USB3_TX0M

N37

R36

R37

N34

1%

200

R162

C105 0.1uF

C104 0.1uF

USB3_TX0P

USB3_RX0P

USB3_RX0M

USB3_TX0M

EPHY_MDIO

EPHY_REFCLK

EPHY_CRS_DV

EMMC_DATA[1]

EMMC_DATA[2]

EMMC_DATA[0]

U36

U37

AU11

AU8

AT8

EMMC_DATA2

USB3_RESREF

P33

RMII_MDIO

EMMC_DATA1

EMMC_DATA0

RMII_CRS_DV

RMII_REF_CLK

USB3_REFPADCLKM

USB3_REFPADCLKP

NC_1

NC_2

NC_3

P32

L32

L33

M31

AC-coupling CAP

Place near by LG1154D

EPHY_MDC

AR8

AR10

RMII_MDC

NC_4

AJ31

EPHY_EN

AT10

RMII_TXEN

J32

EPHY_TXD1

EPHY_RXD0

EPHY_TXD0

EPHY_RXD1

AU10

AT11

AR11

RMII_TXD1

RMII_TXD0

RMII_RXD1

RMII_RXD0

GPIO23/UART2_TX GPIO22/UART2_RX

PHY0_ARC_OUT_0

HUB_PORT_OVER0

HUB_VBUS_CTRL0

GPIO136

GPIO137

GPIO138

GPIO139

J33

K32

J34

DPC_CTL

SIL9617_INT

R9531_RESET

R9531_FLASH_WP

GPIO31 GPIO30 GPIO29 GPIO28 GPIO27 GPIO26 GPIO25 GPIO24

GPIO21 GPIO20 GPIO19 GPIO18 GPIO17 GPIO16 GPIO15 GPIO14 GPIO13 GPIO12 GPIO11 GPIO10

GPIO9 GPIO8 GPIO7 GPIO6 GPIO5 GPIO4 GPIO3 GPIO2 GPIO1 GPIO0

DDCD0_CK DDCD0_DA

HPD0

PHY0_RX0N_0 PHY0_RX0P_0 PHY0_RX1N_0 PHY0_RX1P_0 PHY0_RX2N_0 PHY0_RX2P_0 PHY0_RXCN_0 PHY0_RXCP_0

AL34 AM33 AM32 AF30 AN34 AK34 AL33 AL32 AR9 AM5 AM6 AM7 AL6 AK7 AK6 AK5 AJ5 AJ6 AJ7 AH6 AG7 AG6 AG5 AF5 AH30 AG30 AN33 AK33 AE30 AD30 AN32 AK32

AC32 AC33 AB33

AE37 AC36 AC37 AB36 AB37 AA36 AA37 AD36 AD37

R32

R33

RF_SWITCH_CTL

R107 100

CAM_SLIDE_DET

Compensation_Done

/RST_PHY

HDMI_HPD_3 HDMI_HPD_2

For connecting SIC debug tool

INSTANT_BOOTOPM0

SC_DET AV1_CVBS_DET AMP_RESET_N COMP1_DET M_RFModule_RESET HP_DET

SIL9617_RESET

/TU_RESET1

U14_RESET D14_HWRESET FRC_FLASH_WP

/RST_HUB

/TU_RESET2

MN864778_RESET

AMP_RESET_N_1

AR101

3.3K

SPDIF_OUT_ARC

HDMI_RX0-

HDMI_RX0+

HDMI_RX1-

HDMI_RX1+

HDMI_RX2HDMI_RX2+

HDMI_CLK-

HDMI_CLK+

/USB_OCD1

USB_CTL1

+3.3V_NORMAL

R175

3.3K HDMI_MUX_SEL

To surround amp

AUD_LRCH2

local dimming

I2C port

+3.3V_NORMAL

Not Used Net (UB85/95/UC89)

CAM_TRIGGER_DET H13_CONNECT SOC_SPI1_CS SOC_SPI1_MOSI SOC_SPI1_MISO SOC_SPI1_SCLK

CAM_SLIDE_DET AUD_LRCH2 AMP_RESET_N_1

U14_RESET

/RST_HUB

AMP_RESET_N_1 M_REMOTE_RX M_REMOTE_TX M_REMOTE_RTS M_REMOTE_CTS

Not Used Net (Only OLED)

DPC_CTL

Not Used Net (Only OLED 77EC98)

AMP_RESET_N

+3.3V_NORMAL

For ISP

R103

3.3K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-001-HD

2013-12-17

H13 D CHIP

LG1154A

LG1154D

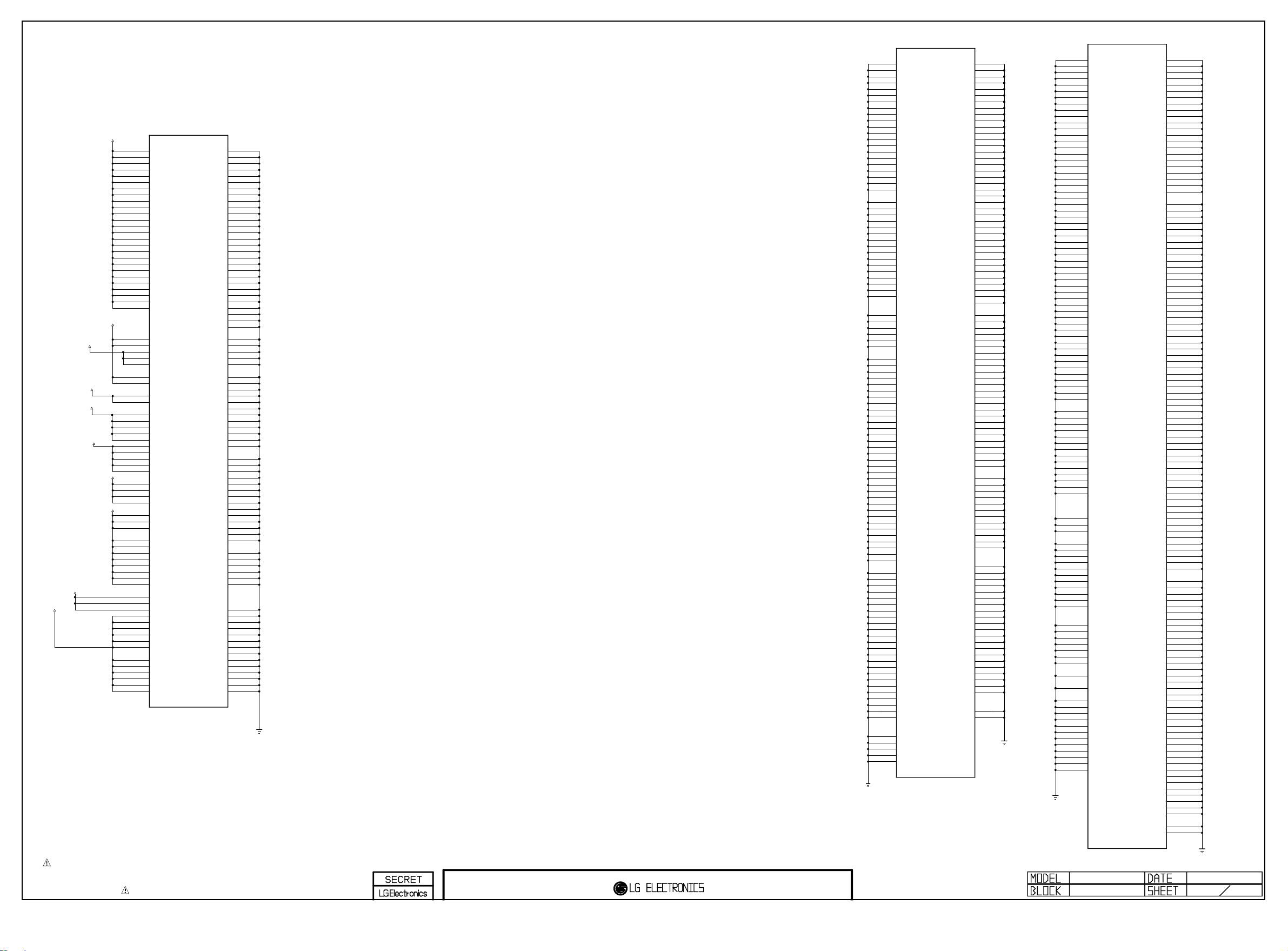

AVDD25

VDD25_LTX

VDDC10

AVDD33_CVBS

VDD25_REF

VDD25_LTX

VDD25_AUD

VDD10_XTAL

VSS25_REF

AVDD33_XTAL

LG1154A

H13A_NON_BRAZIL

E11

F5 F6

F11

G5 H13 J13 P12 P13

R5

R6 N16 T13 T14

N10 N11 N12 N13

U5

N7

N8

N9 F14

M6

N6 M13 F15 F16 H15 J15 J16 K15 K16

R18

G7

G8

G9

H7 H12

J7 J12

K7 K12

L7 L12

M7 M12 T17 T18

M8 G10 G11 G12

V5

C3

D3

D4 D17

E4

F4

F7

F8

F9 F10 F12 F13 F17 F18

G4

G6 G13 G14 G15 G16 G17 G18

H4

H5

H6

H8

H9 H10 H11

VDD33_1 VDD33_2 VDD33_3 VDD33_4 VDD33_5 VDD33_6 VDD33_7 VDD33_8 VDD33_9 VDD33_10 VDD33_11 VDD33_XTAL AVDD33_CVBS_1 AVDD33_CVBS_2

VDD25_CVBS_1 VDD25_CVBS_2 VDD25_VSB_1 VDD25_VSB_2 VDD25_REF VDD25_COMP_1 VDD25_COMP_2 VDD25_COMP_3 VDD25_APLL VDD25_AUD_1 VDD25_AUD_2 VDD25_AAD LTX_LVDD_1 LTX_LVDD_2 SDRAM_VDDQ_1 SDRAM_VDDQ_2 SDRAM_VDDQ_3 SDRAM_VDDQ_4 SDRAM_VDDQ_5

VDD10_XTAL VDDC10_1 VDDC10_2 VDDC10_3 VDDC10_4 VDDC10_5 VDDC10_6 VDDC10_7 VDDC10_8 VDDC10_9 VDDC10_10 VDDC10_11 VDDC10_12 VDDC10_13 AVDD10_CVBS AVDD10_VSB AVDD10_LLPLL DVDD10_APLL_1 DVDD10_APLL_2 LTX_VDD

VSS25_REF GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8 GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29

LG1154AN_H13A

AVDD33

IC101

GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84 GND_85 GND_86 GND_87 GND_88 GND_89 GND_90 GND_91 GND_92 GND_93 GND_94 GND_95 GND_96 GND_97 GND_98

GND_99 GND_100 GND_101 GND_102 GND_103 GND_104 GND_105 GND_106 GND_107 GND_108 GND_109 GND_110 GND_111 GND_112 GND_113 GND_114 GND_115 GND_116

IC100

LG1154D_H13D

A24

M0_DDR_VREF1

A4

M0_DDR_VREF2

A2

M1_DDR_VREF1

Y1

M1_DDR_VREF2

P26

XTAL_VDD

N26

XTAL_VDDP

M21

VDD33_1

Y30

VDD33_2

AA30

VDD33_3

AE8

VDD33_4

AF8

VDD33_5

AK13

VDD33_6

AK24

VDD33_7

AK25

VDD33_8

M22

AVDD33_USB_1

M23

AVDD33_USB_2

AK11

AVDD33_BT_USB_1

AK12

AVDD33_BT_USB_2

AF25

AVDD33_HDMI_1

AF26

AVDD33_HDMI_2

R31

SP_VQPS

AE23

VDD25_LVRX_1

AF23

VDD25_LVRX_2

AE14

VTXPHY_VDD25_1

AF14

VTXPHY_VDD25_2

N25

VDD25_DR3PLL

AD26

GPLL_AVDD25

H10

VDD15_M0_1

H11

VDD15_M0_2

H12

VDD15_M0_3

H13

VDD15_M0_4

H14

VDD15_M0_5

H15

VDD15_M0_6

H16

VDD15_M0_7

H17

VDD15_M0_8

H18

VDD15_M0_9

H19

VDD15_M0_10

H20

VDD15_M0_11

H21

VDD15_M0_12

H22

VDD15_M0_13

H23

VDD15_M0_14

H24

VDD15_M0_15

H25

VDD15_M0_16

H7

VDD15_M1_1

H8

VDD15_M1_2

J8

VDD15_M1_3

K8

VDD15_M1_4

L7

VDD15_M1_5

L8

VDD15_M1_6

M8

VDD15_M1_7

N7

VDD15_M1_8

N8

VDD15_M1_9

P8

VDD15_M1_10

R7

VDD15_M1_11

R8

VDD15_M1_12

T8

VDD15_M1_13

U8

VDD15_M1_14

V8

VDD15_M1_15

W8

VDD15_M1_16

LG1154AN_H13A_ISDB-T (LG1154AN-IT)

P17 P18 J17

N18 D18 M18 M17

U13 V14 V15 V13

U15 U14

U10 V12

V10 U11 V11 U12

E3

K3 K2

A8 B8

U7 V6 V7

T5 T6 U8 V8 V9 U9

H13A_BRAZIL

XIN_SUB XO_SUB VSB_AUX_XIN

XTAL_BYPASS CLK_24M XTAL_SEL0 XTAL_SEL1

PORES_N

OPM0 OPM1

H13A_SCL H13A_SDA

CVBS_IN3 CVBS_IN2 CVBS_IN1 CVBS_VCM

BUF_OUT1 BUF_OUT2

REFT REFB ADC1_COM ADC2_COM ADC3_COM SC1_SID SC1_FB PB1_IN Y1_IN SOY1_IN PR1_IN PB2_IN Y2_IN SOY2_IN PR2_IN

VTXPHY_VDD11_1 VTXPHY_VDD11_2 VTXPHY_VDD11_3

AVDD11_DR3PLL

IC101-*1

AAD_ADC_SIF

AAD_ADC_SIFM

AUDA_VBG_EXT

AUDA_OUTL

AUDA_OUTR AUD_SCART_OUTL AUD_SCART_OUTR

AUAD_L_CH4_IN AUAD_R_CH4_IN AUAD_L_CH3_IN AUAD_R_CH3_IN AUAD_L_CH2_IN AUAD_R_CH2_IN AUAD_L_CH1_IN AUAD_R_CH1_IN

AUAD_R_REF AUAD_M_REF AUAD_L_REF

AUAD_REF_PO

ADC_I_INCOM

ADC_I_INP

ADC_I_INN

VDDC11_1 VDDC11_2 VDDC11_3 VDDC11_4 VDDC11_5 VDDC11_6 VDDC11_7 VDDC11_8

VDDC11_9 VDDC11_10 VDDC11_11 VDDC11_12 VDDC11_13 VDDC11_14 VDDC11_15 VDDC11_16 VDDC11_17 VDDC11_18 VDDC11_19 VDDC11_20 VDDC11_21 VDDC11_22 VDDC11_23 VDDC11_24 VDDC11_25 VDDC11_26 VDDC11_27 VDDC11_28 VDDC11_29 VDDC11_30 VDDC11_31 VDDC11_32 VDDC11_33 VDDC11_34 VDDC11_35

AVDD11_DCO GPLL_VDD11

H18 H17

P2 N1 N2 N3 P1

P3 R1 R2 T1 U2 U3 V2 V3 U1 T3 T2 R3

K17

ANTCON

K18

RFAGC

J18

IFAGC

U16 U17 V17

F3

GPIO0

F2

GPIO1

F1

GPIO2

G3

GPIO3

G2

GPIO4

G1

GPIO5

H3

GPIO6

H2

GPIO7

H1

GPIO8

J3

GPIO9

E18

GPIO10

E17

GPIO11

H16

GPIO12

J2

GPIO13

J1

GPIO14

K1

GPIO15

N21 N22 N23 P15 P16 P17 P18 R15 T15 T22 T23 T24 U15 U22 U23 U24 V15 V22 V23 V24 W22 W23 W24 AB15 AB24 AC15 AC24 AD15 AD16 AD17 AD18 AD21 AD22 AD23 AD24

AB14 AC14 AD14

P25 AA15 AC26

+1.1V

+1.2V_VDD

VDD12_VTXPHY

VDDC12_XTAL

+1.2V_VDD

(4)

C381 0.1uF

C217 0.1uF

+0.75V

+3.3V

+2.5V

+1.5V

VREF_M1_1

VDDC12_XTAL

VDD25_XTAL

VDD33

VDD25_LVDS

VDD25_XTAL

VREF_M0_1

VREF_M1_0

VDDC15_M0

VDDC15_M1

VREF_M0_0

+3.3V_Bypass Cap

+3.3V_NORMAL

H14 J4 J5 J6 J8 J9 J10 J11 J14 K4 K5 K6 K8 K9 K10 K11 K13 K14 L1 L2 L3 L4 L5 L6 L8 L9 L10 L11 L13 L14 L15 L16 L17 L18 M1 M2 M3 M4 M5 M9 M10 M11 M14 M15 M16 N4 N5 N14 N15 N17 P4 P5 P6 P7 P8 P9 P10 P11 P14 P15 P16 R4 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17 T4 T7 T8 T9 T10 T11 T12 T15 T16 U4 U6 U18 V4 V16

+2.5V_Bypass Cap

+1.0V_Bypass Cap

L209

BLM18PG121SN1D

+2.5V_Normal

+1.0V_VDD

BLM18PG121SN1D

+1.0V_VDD

BLM18PG121SN1D

AVDD33

L211

L206

(2)

4.7uFC241

C218 0.1uF

L220

BLM18PG121SN1D

L207

BLM18PG121SN1D

4.7uFC211

VDD25_LTX

4.7uFC275

+3.3V_NORMAL

AVDD25

4.7uFC242

Bottom side of chip

4.7uFC216

C223 0.1uF

VDD10_XTAL

4.7uFC239

VDDC10

4.7uFC214

AVDD33_XTAL

(1)

L216

BLM18PG121SN1D

4.7uFC255

AFE 3CH Power

4.7uFC222

4.7uFC270

C274 0.1uF

+2.5V_Normal

C246 0.1uF

C259 0.1uF

BLM15BD121SN1

1uFC224

L200

BLM18PG121SN1D

C251 0.1uF

+3.3V_NORMAL

VDD25_REF

L225

L226

BLM15BD121SN1

1005 size bead Bottom side of chip

VDD25_AUD

4.7uF

C200

AVDD33_CVBS

L222

BLM18PG121SN1D

0.1uF

C288

VSS25_REF

4.7uF

C202

C204 0.1uF

4.7uFC279

(2)

C283 0.1uF

+1.24V_Bypass Cap

+1.2V_VDD

4.7uFC297

4.7uFC351

C208 0.1uF

C209 0.1uF

Place at the bottom side

+1.2V_VDD

C300 0.1uF

+1.2V_VDD

L227

BLM18PG121SN1D

L201

BLM18PG121SN1D

VDDC12_XTAL

VDD12_VTXPHY

+3.3V_Bypass Cap

+3.3V_NORMAL

L203

BLM18PG121SN1D

+2.5V_Bypass Cap

+2.5V_Normal

L234

BLM18PG121SN1D

4.7uFC298

4.7uFC205

C210 0.1uF

C301 0.1uF

C206 0.1uF

C213 0.1uF

C219 0.1uF

OPT

C207 0.1uF

VDD33

4.7uFC201

C203 0.1uF

C212 0.1uF

C215 0.1uF

Place at the bottom side

VDD25_XTAL

4.7uFC364

C368 0.1uF

+2.5V_Normal

(1)

L238

BLM18PG121SN1D

VDD25_LVDS

4.7uFC378

Place at the bottom side

A27

B5

C5 C26 C27

D5 D26

E5

E6

E7

E8 E22 E23 E26

F7

F8 F22 F23 F24 F25 F26 F27 F31

G7

G8

G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 G19 G20 G21 G22 G23 G24 G25 G26 G27 G28 G29 G30 G31

H9 H26 H27 H28 H29 H30 H31

J7 J30 J31

K7 K30 K31 L30 L31

M7 M12 M13 M14 M15 M16 M17 M18 M19 M20 M24 M25 M26 M30 M32 M33 M34 N12 N13 N14 N15 N16 N17 N18 N19 N20 N24 N30 N31 N32 N33

P7 P12 P13 P14 P19 P20 P21 P22 P23 P24 P30 P31 R12 R13 R14 R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R30 R34

T7 T12 T13 T14 T16 T17 T18 T19 T20 T21 T25 T26 T30 T31 T34

U7 U12 U13 U14 U16 U17 U18 U19 U20 U21 U25 U26 U30 U31

V7 V12 V13 V14 V16 V17 V18 V19 V20 V21 V25 V26 V30 V31

W5

W6

W7 W12 W13 W14 W15 W16 W17 W18 W19 W20 W21 W25 W26 W30 W31

Y3

Y4

LG1154D_H13D

GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8 GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84 GND_85 GND_86 GND_87 GND_88 GND_89 GND_90 GND_91 GND_92 GND_93 GND_94 GND_95 GND_96 GND_97 GND_98 GND_99 GND_100 GND_101 GND_102 GND_103 GND_104 GND_105 GND_106 GND_107 GND_108 GND_109 GND_110 GND_111 GND_112 GND_113 GND_114 GND_115 GND_116 GND_117 GND_118 GND_119 GND_120 GND_121 GND_122 GND_123 GND_124 GND_125 GND_126 GND_127 GND_128 GND_129 GND_130 GND_131 GND_132 GND_133 GND_134 GND_135 GND_136 GND_137 GND_138 GND_139 GND_140 GND_141 GND_142 GND_143 GND_144 GND_145 GND_146 GND_147 GND_148 GND_149 GND_150 GND_151 GND_152 GND_153 GND_154 GND_155 GND_156 GND_157 GND_158 GND_159 GND_160 GND_161 GND_162 GND_163 GND_164 GND_165 GND_166 GND_167 GND_168 GND_169 GND_170 GND_171 GND_172 GND_173 GND_174 GND_175 GND_176 GND_177 GND_178 GND_179 GND_180 GND_181 GND_182 GND_183 GND_184

IC100

GND_185 GND_186 GND_187 GND_188 GND_189 GND_190 GND_191 GND_192 GND_193 GND_194 GND_195 GND_196 GND_197 GND_198 GND_199 GND_200 GND_201 GND_202 GND_203 GND_204 GND_205 GND_206 GND_207 GND_208 GND_209 GND_210 GND_211 GND_212 GND_213 GND_214 GND_215 GND_216 GND_217 GND_218 GND_219 GND_220 GND_221 GND_222 GND_223 GND_224 GND_225 GND_226 GND_227 GND_228 GND_229 GND_230 GND_231 GND_232 GND_233 GND_234 GND_235 GND_236 GND_237 GND_238 GND_239 GND_240 GND_241 GND_242 GND_243 GND_244 GND_245 GND_246 GND_247 GND_248 GND_249 GND_250 GND_251 GND_252 GND_253 GND_254 GND_255 GND_256 GND_257 GND_258 GND_259 GND_260 GND_261 GND_262 GND_263 GND_264 GND_265 GND_266 GND_267 GND_268 GND_269 GND_270 GND_271 GND_272 GND_273 GND_274 GND_275 GND_276 GND_277 GND_278 GND_279 GND_280 GND_281 GND_282 GND_283 GND_284 GND_285 GND_286 GND_287 GND_288 GND_289 GND_290 GND_291 GND_292 GND_293 GND_294 GND_295 GND_296 GND_297 GND_298 GND_299 GND_300 GND_301 GND_302 GND_303 GND_304 GND_305 GND_306 GND_307 GND_308 GND_309 GND_310 GND_311 GND_312 GND_313 GND_314 GND_315 GND_316 GND_317 GND_318 GND_319 GND_320 GND_321 GND_322 GND_323 GND_324 GND_325 GND_326 GND_327 GND_328 GND_329 GND_330 GND_331 GND_332 GND_333 GND_334 GND_335 GND_336 GND_337 GND_338 GND_339 GND_340 GND_341 GND_342 GND_343 GND_344 GND_345 GND_346 GND_347 GND_348 GND_349 GND_350 GND_351 GND_352 GND_353 GND_354 GND_355 GND_356 GND_357 GND_358 GND_359 GND_360 GND_361 GND_362 GND_363 GND_364 GND_365 GND_366 GND_367 GND_368

Y5

Y8 Y12 Y13 Y14 Y15 Y16 Y17 Y18 Y19 Y20 Y21 Y22 Y23 Y24 Y25 Y26 Y31 Y35 AA8 AA12 AA13 AA14 AA16 AA17 AA18 AA19 AA20 AA21 AA22 AA23 AA24 AA25 AA26 AA31 AB6 AB8 AB12 AB13 AB16 AB17 AB18 AB19 AB20 AB21 AB22 AB23 AB25 AB26 AB30 AB31 AC8 AC12 AC13 AC16 AC17 AC18 AC19 AC20 AC21 AC22 AC23 AC25 AC30 AC31 AD8 AD12 AD13 AD19 AD20 AD25 AD31 AE12 AE13 AE15 AE16 AE17 AE18 AE19 AE20 AE21 AE22 AE24 AE25 AE26 AE31 AF12 AF13 AF15 AF16 AF17 AF18 AF19 AF20 AF21 AF22 AF24 AF31 AG8 AG31 AH8 AH31 AJ8 AJ30 AK8 AK9 AK10 AK14 AK15 AK16 AK17 AK18 AK19 AK20 AK21 AK22 AK23 AK26 AK27 AK28 AK29 AK30 AK31 AL8 AL12 AL13 AL14 AL15 AL16 AL17 AL18 AL19 AL20 AL21 AL22 AL23 AL24 AL25 AL26 AL27 AL28 AL29 AL30 AL31 AM8 AM13 AM14 AM15 AM16 AM17 AM18 AM19 AM20 AM21 AM22 AM23 AM24 AM25 AM26 AM27 AM28 AM29 AM30 AM31 AN6 AN12 AN13 AN15 AN16 AN17 AN18 AN19 AN20 AN21 AN22 AN23 AN24 AN25 AN26 AN27 AN28 AN29 AN30 AN31

GND JIG POINT

JP203

JP204

JP202

JP205

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

11/05/31

SMD TOP for EMI

SMD_GASKET_8.5T

GASKET_8.0X6.0X8.5H

M200

MDS62110209

SMD_GASKET_12.5T

GASKET_8.0X6.0X12.5H

M200-*1

MDS62110217

+1.5V_DDR

L230

BLM18PG121SN1D

22uF

C303

C302

0.1uF

C306

0.1uF

C308

0.1uF

OPT

C305

0.1uF

C309

VDDC15_M1

+1.5V_Bypass Cap

VDDC15_M0

R200

OPT

0.1uF

C311

C312

OPT

0.1uF

C313

OPT

0.1uF

C314

C350

0.1uF

C352

0.1uF

C353

0.1uF

C354

0.1uF

C355

0.1uF

C356

0.1uF

C357

0.1uF

C358

0.1uF

C359

0.1uF

C360

0.1uF

C361

0.1uF

C362

0.1uF

C363

0.1uF

C365

0.1uF

C366

0.1uF

C367

0.1uF

C369

0.1uF

C370

0.1uF

C371

0.1uF

C372

0.1uF R201

VREF_M0_0

1K 1%

C296

OPT

0.1uF

VDDC15_M0

R202

R203

1K 1%

VREF_M0_1

1K 1%

OPT

C344

0.1uF

+1.5V_DDR

L228

BLM18PG121SN1D

22uFC299

C307

0.1uF

VDDC15_M1

R300

R301

VREF_M1_0

1K 1%

C304

OPT

0.1uF

VDDC15_M1VDDC15_M0

VREF_M1_1

R302

1K 1%

OPT

0.1uF

R303

1K 1%

C310

BSD-14Y-UD-003-HD

2013-12-17

MAIN POWER

Place JACK Side

AV1_CVBS_IN

5.5V

D404

SC_CVBS_IN

TU_CVBS

SCART_FB_DIRECT

SC_FB

SC_ID

NON_EU

R422-*1

SC_CVBS_IN_SOY

COMP1_Pb

COMP1_Y

COMP1_Pr

SC_L_IN

SC_R_IN

SCART_Lout

SCART_Rout

HP_LOUT_MAIN

HP_ROUT_MAIN

R423 100

R435

R422

75

0

SCART_FB_DIRECT

SC_B SC_G

SC_R

C472

D406

D403

D401

5.5V

Near Place Scart AMP

EU

1uF25V

C6006

EU

10K

1uF 25V

R6005

C6001

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

+12V

EU

R403

100K

EU

R404

100K

R430

22K

OPT

R445

22K

OPT

C405 150pF 50V

C408 150pF 50V

EU

10K

10pF

C473

50V

OPT

EU

10K

R60 06 EU

R408

100K

2.2uF

R409

100K

R6450

C400

0.01uF OPT

C401

0.01uF OPT

10V

C402 150pF 50V

EU

C403

EU

L408

OPT

EU

10pF

50V

OPT

EU

100

R6451

L409

EU

C430

100

1uH

EU

R436

2.7K

10pF

C474

50V

OPT

10pF

C431

50V

SCART_AMP_R_FB

SCART_AMP_L_FB

EU

C406

2.2uF 10V

+3.3V_NORMAL

C410 150pF

C462 150pF

EU

1%

EU

10pF

C470

50V

R4641K1/16W

1%

R465

390

1/16W

1%

DAC_START_PULLDOWN

R466821/16W

R410 75 1%

3216

R411 75 1%

3216

NON_EU

R436-*1

0

75

EU

75

1%

R416

R414

R412

75

10pF

1%

50V

R413

SCART_Lout_SOC

SCART_Rout_SOC

AUDA_OUTL

AUDA_OUTR

C404

0.01uF 50V

EU

75 1%

R415

CLK_54M_VTT

1%

75

1%

R417

FOR EMI

R400 R405

R427

R424 R425

1%

R418 27K

1%

R419 27K

1%

R420 27K

1%

R421 27K

SC_FB

Clock for H13A

MAIN Clock(24Mhz)

12pF D13_STPO_SOP

C426

12pF

C427

Place SOC Side

R434

C424 0.047uF

100

R433

C425 0.047uF

100

SC_CVBS_IN_SOY

R432

C423 0.047uF

100

C417 0.047uF

33

C418 0.047uF

33

C428 1000pF C419 0.047uF

33

C420 0.047uF

33

C421 0.047uF

33

C429 1000pF C422 0.047uF

33

R431

AUDIO IN

C432 4.7uF

R437 10K 1%

C433 4.7uF

R438 10K 1%

C434 4.7uF

R439 10K 1%

C435 4.7uF

R440 10K 1%

+3.3V_NORMAL

R446

4.7K

R401 470

1/16W 5%

R4061K

SCART_FB_BUFFER

C

B

E

1/16W

1%

SCART_FB_BUFFER

X-TAL_1

GND_1

1

2

4

3

GND_2

X-TAL_2

AV1_CVBS_IN_SOC

SC_CVBS_IN_SOC

TU_CVBS_SOC

SC_FB_SOC

SC_ID_SOC

COMP1_PB_IN_SOC COMP1_Y_IN_SOC

COMP1_Y_IN_SOC_SOY

COMP1_PR_IN_SOC

COMP2_PB_IN_SOC COMP2_Y_IN_SOC

COMP2_Y_IN_SOC_SOY

COMP2_PR_IN_SOC

SC_FB_BUF

MMBT3904(NXP)

Q400 SCART_FB_BUFFER

R441

X400

24MHz

SOC_RESET

AUAD_L_CH3_IN

AUAD_R_CH3_IN

AUAD_L_CH2_IN

AUAD_R_CH2_IN

Tuner IF Filter

1M

COMP1_Y_IN_SOC_SOY

COMP2_Y_IN_SOC_SOY

HP_LOUT_AMP

XIN_SUB

XOUT_SUB

XIN_SUB

XOUT_SUB

XTAL_SEL[0] XTAL_SEL[1]

C415

OPM[0]

0.1uF OPM[1]

H13A_SCL

H13A_SDA

AV1_CVBS_IN_SOC

SC_CVBS_IN_SOC

TU_CVBS_SOC

DTV/MNT_V_OUT_SOC

OPT

Placed as close as possible to SOC

REFT REFB

R447 68 R448 68 R449 68

SC_ID_SOC SC_FB_SOC

COMP1_PB_IN_SOC

COMP1_Y_IN_SOC

COMP1_PR_IN_SOC COMP2_PB_IN_SOC

COMP2_Y_IN_SOC

COMP2_PR_IN_SOC

+3.3V_NORMAL

POWER_SAVE

HP_OUT L400

To ADC

VOUT

VSAG

NON_TU_W_BR/TW

HP_OUT

C407

0.22uF 10V

DTV/MNT_V_OUT

ADC_I_INN

ADC_I_INP

BLM18PG121SN1D

Place at JACK SIDE

P17

6

5

4

TU_W_BR/TW

R443-*1

220

0.01uF

BLM18PG121SN1D

HP_ROUT_AMP

V+

GND

VIN

C437

C438

P18 J17

N18 D18 M18 M17

E3

K3 K2

A8 B8

U13 V14 V15 V13

U15 U14

U7 V6

V7 U10 V12

T5

T6

U8

V8

V9

U9 V10 U11 V11 U12

L406

OPT

HP_OUT L401

R453 330

C443 0.047uF

68

R450

C439 100pF 50V

C440 0.047uF C441 0.047uF C442 0.047uF

IC400

NJM2561BF1

1

EU

2

3

R443

51

C436 22pF

R444

51

Placed as close as possible to IC100

HP_LOUT

OP MODE Setting & Select XTAL Input

OP MODE[0:1] : SW[2:1] 00 => Normal Operaiton Mode /T32 Debug Mode 01 => Internal Test Purpose 10 => Internal Test Purpose 11 => Internal Test Purpose

XTAL SEL[1:0] : SW[4:3] 00 => Xtal Input 01 => CLK 24M from H13D 10 => XTAL Bypass from H13D

IC101

LG1154AN_H13A

XIN_SUB XO_SUB VSB_AUX_XIN

XTAL_BYPASS CLK_24M XTAL_SEL0 XTAL_SEL1

PORES_N

OPM0 OPM1

H13A_SCL H13A_SDA

CVBS_IN3 CVBS_IN2 CVBS_IN1 CVBS_VCM

BUF_OUT1 BUF_OUT2

REFT REFB ADC1_COM ADC2_COM ADC3_COM SC1_SID SC1_FB PB1_IN Y1_IN SOY1_IN PR1_IN PB2_IN Y2_IN SOY2_IN PR2_IN

H13A_NON_BRAZIL

AAD_ADC_SIF

AAD_ADC_SIFM

AUDA_VBG_EXT

AUDA_OUTL

AUDA_OUTR AUD_SCART_OUTL AUD_SCART_OUTR

AUAD_L_CH4_IN AUAD_R_CH4_IN AUAD_L_CH3_IN AUAD_R_CH3_IN AUAD_L_CH2_IN AUAD_R_CH2_IN AUAD_L_CH1_IN AUAD_R_CH1_IN

AUAD_R_REF AUAD_M_REF AUAD_L_REF

AUAD_REF_PO

ANTCON

RFAGC IFAGC

ADC_I_INCOM

ADC_I_INP

ADC_I_INN

GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8

GPIO9 GPIO10 GPIO11 GPIO12 GPIO13 GPIO14 GPIO15

H18 H17

P2 N1 N2 N3 P1

P3 R1 R2 T1 U2 U3 V2 V3 U1 T3 T2 R3

K17 K18 J18

U16 U17 V17

F3 F2 F1 G3 G2 G1 H3 H2 H1 J3 E18 E17 H16 J2 J1 K1

Placed as close as possible to IC4300

AUAD_REF_PO

AUAD_L_REF

EU

C412

0.1uF

C414

0.1uF

EU

DTV/MNT_V_OUT_SOC

TU_W_BR/TW

R444-*1

220

TU_W_BR/TW

C436-*1 100pF

IF_N

AUAD_R_REF

AUAD_M_REF

AFE 3CH REF Setting

IF_P

HP_ROUT

HP_OUT C409

0.22uF 10V

PWM_DIM

PWM_DIM2

+3.3V_NORMAL

10K

OPT

R482

R481

R484

C447

OPT

1uF 25V

R479100 R480100

ADC_I_INP ADC_I_INN

BIT0 BIT1 BIT2 BIT3 BIT4 BIT5 BIT6 BIT7 BIT8 BIT9 BIT10

SC_FB_BUF

OPT

R45421/10W

C446

0.1uF

NON_OLED

AR402 33 1/16W

R483

R426

22K

EU

1%

R45 5

51K

R45 647K 1 %

5%

C448

OPT

4.7uF 10V

REFT

Must be used

REFB

C457

1000pF

R442 EU

C4494.7uF

100

R459

100

R460

100

R461

100

R462

C450 0.1uF C451 0.1uF

10uFC452

C453 2.2uF

AUDA_OUTL AUDA_OUTR

EU

AUAD_L_CH3_IN AUAD_R_CH3_IN AUAD_L_CH2_IN AUAD_R_CH2_IN

AUAD_R_REF AUAD_M_REF AUAD_L_REF AUAD_REF_PO

C454 0.1uF

Placed as close as possible to IC4300

C444

0.1uF

C445

0.1uF

DIMMING

OPM[0] OPM[1] XTAL_SEL[0] XTAL_SEL[1]

TU_SIF

OPT

SCART_Lout_SOC

SCART_Rout_SOC

22K

EU

C458 0.01uF

C460 0.01uF

Close to IC4300

NON_TU_W_BR/TW/CO

R487

0

IF_AGC

C459

0.1uF

TU_W_BR/TW/CO

R487-*1

10K

+2.5V_Normal

L407

C455

10uF

1%

R45 7

51K

1%

C456

R45 8

4.7uF

47K

10V

PWM2

PWM1

LG1154AN_H13A

L/DIM0_VS

L/DIM0_SCLK L/DIM0_MOSI

LG1154A

IC101

INTR_GBB

INTR_AFE3CH

INTR_AGPIO

AUD_FS20CLK AUD_FS21CLK AUD_FS23CLK AUD_FS24CLK AUD_FS25CLK

AUDCLK_OUT_SUB

AUD_HDMI_MCLK

AUD_DAC1_LRCK

AUD_DAC1_SCK AUD_DAC1_LRCH AUD_DAC0_LRCK

AUD_DAC0_SCK AUD_DAC0_LRCH

AUD_ADC_LRCK

AUD_ADC_SCK

AUD_ADC_LRCH

BB_SCL

BB_SDA BB_TP_CLK BB_TP_ERR BB_TP_SOP BB_TP_VAL

BB_TP_DATA7 BB_TP_DATA6 BB_TP_DATA5 BB_TP_DATA4 BB_TP_DATA3 BB_TP_DATA2 BB_TP_DATA1 BB_TP_DATA0

CLK_F54M CVBS_GC2 CVBS_GC1 CVBS_GC0

CVBS_UP CVBS_DN

FS00CLK

AUDCLK_OUT

DAC_START DAC_DATA4 DAC_DATA3 DAC_DATA2 DAC_DATA1 DAC_DATA0

AAD_GC4 AAD_GC3 AAD_GC2 AAD_GC1 AAD_GC0

AAD_DATA9 AAD_DATA8 AAD_DATA7 AAD_DATA6 AAD_DATA5 AAD_DATA4 AAD_DATA3 AAD_DATA2 AAD_DATA1 AAD_DATA0

AAD_DATAEN

ADCO_OUT_CLK

HSR_AP0 HSR_AM0 HSR_BP0 HSR_BM0 HSR_CP0

HSR_CM0 HSR_CLKP0 HSR_CLKM0

HSR_DP0

HSR_DM0

HSR_EP0

HSR_EM0

R402 33

AR404

33

L/DIM0_VS L/DIM0_SCLK L/DIM0_MOSI BPL_IN

H13A_NON_BRAZIL

E1 E2 D1

A6 B6 A5 B5 A4 C4

C18

A2 B2 B1 C2 C1 D2 B4 A3 B3

A7 B7 E8 D8 C8 E7 D7 C7 E6 D6 C6 E5 D5 C5

CLK_54M_VTT

1/16W1%

B10 C9 B9 A9 D9 E9

Close to LG1154A

B11

R492 330

A11

R407 330

D11 C11 E10 D10 C10 A10

R451 330

D13 C13 E12 D12 C12

C17 E16 D16 C16 E15 D15 C15 E14 D14 C14 E13

B18

A12 B12 A13 B13 A14 B14 A15 B15 A16 B16 A17 B17

PWM1 PWM2

BPL_IN

R467 82

DAC_START_PULLDOWN

AT16

INTR_GBB

AU17

INTR_AFE3CH

AT17

INTR_AGPIO

AT24

AUD_FS20CLK

AU24

AUD_FS21CLK

AT23

AUD_FS23CLK

AU23

AUD_FS24CLK

AT22

AUD_FS25CLK

AU36

AUD_HDMI_MCLK

AT20

AUD_DAC1_LRCK

AU20

AUD_DAC1_SCK

AT19

AUD_DAC1_LRCH

AU19

AUD_DAC0_LRCK

AT18

AUD_DAC0_SCK

AU18

AUD_DAC0_LRCH

AU22

AUD_ADC_LRCK

AT21

AUD_ADC_SCK

AU21

AUD_ADC_LRCH

AT25

BB_SCL

AU25

BB_SDA

AP23

BB_TPI_CLK

AR23

BB_TPI_ERR

AP22

BB_TPI_SOP

AR22

BB_TPI_VAL

AP21

BB_TPI_DATA7

AR21

BB_TPI_DATA6

AP20

BB_TPI_DATA5

AR20

BB_TPI_DATA4

AP19

BB_TPI_DATA3

AR19

BB_TPI_DATA2

AP18

BB_TPI_DATA1

AR18

BB_TPI_DATA0

AU28

CLK_54M

AR24

CVBS_GC2

AU27

CVBS_GC1

AT27

CVBS_GC0

AP24

CVBS_UP

AR25

CVBS_DN

AU29

FS00CLK

AT29

H13A_AUDCLK_OUT

AP27

DAC_START

AR27

DAC_DATA4

AP26

DAC_DATA3

AR26

DAC_DATA2

AP25

DAC_DATA1

AT28

DAC_DATA0

AR30

AAD_GC4

AP29

AAD_GC3

AR29

AAD_GC2

AP28

AAD_GC1

AR28

AAD_GC0

AP35

AAD_DATA9

AR35

AAD_DATA8

AP34

AAD_DATA7

AR34

AAD_DATA6

AP33

AAD_DATA5

AR33

AAD_DATA4

AP32

AAD_DATA3

AR32

AAD_DATA2

AP31

AAD_DATA1

AR31

AAD_DATA0

AP30

AAD_DATAEN

AT36

ADCO_OUT_CLK

AT30

HSR_AP

AU30

HSR_AM

AT31

HSR_BP

AU31

HSR_BM

AT32

HSR_CP

AU32

HSR_CM

AT33

HSR_CLKP

AU33

HSR_CLKM

AT34

HSR_DP

AU34

HSR_DM

AT35

HSR_EP

AU35

HSR_EM

AT14

AUD_HPDRV_LRCH

AT15

AUD_HPDRV_LRCK

AU15

NC

AUD_HPDRV_SCK

AC7

FRC_LR_O_SYNC_FLAG

AN5

L_VSOUT_LD

AR14

DIM0_SCLK

AP14

DIM0_MOSI

AN14

DIM1_SCLK

AP13

DIM1_MOSI

AF6

PWM0

AF7

PWM1

AD7

PWM2

AE6

PWM_IN

AP5

EPI_EO

AN8

EPI_VST

AP8

EPI_DPM

AR7

EPI_MCLK

AN7

EPI_GCLK

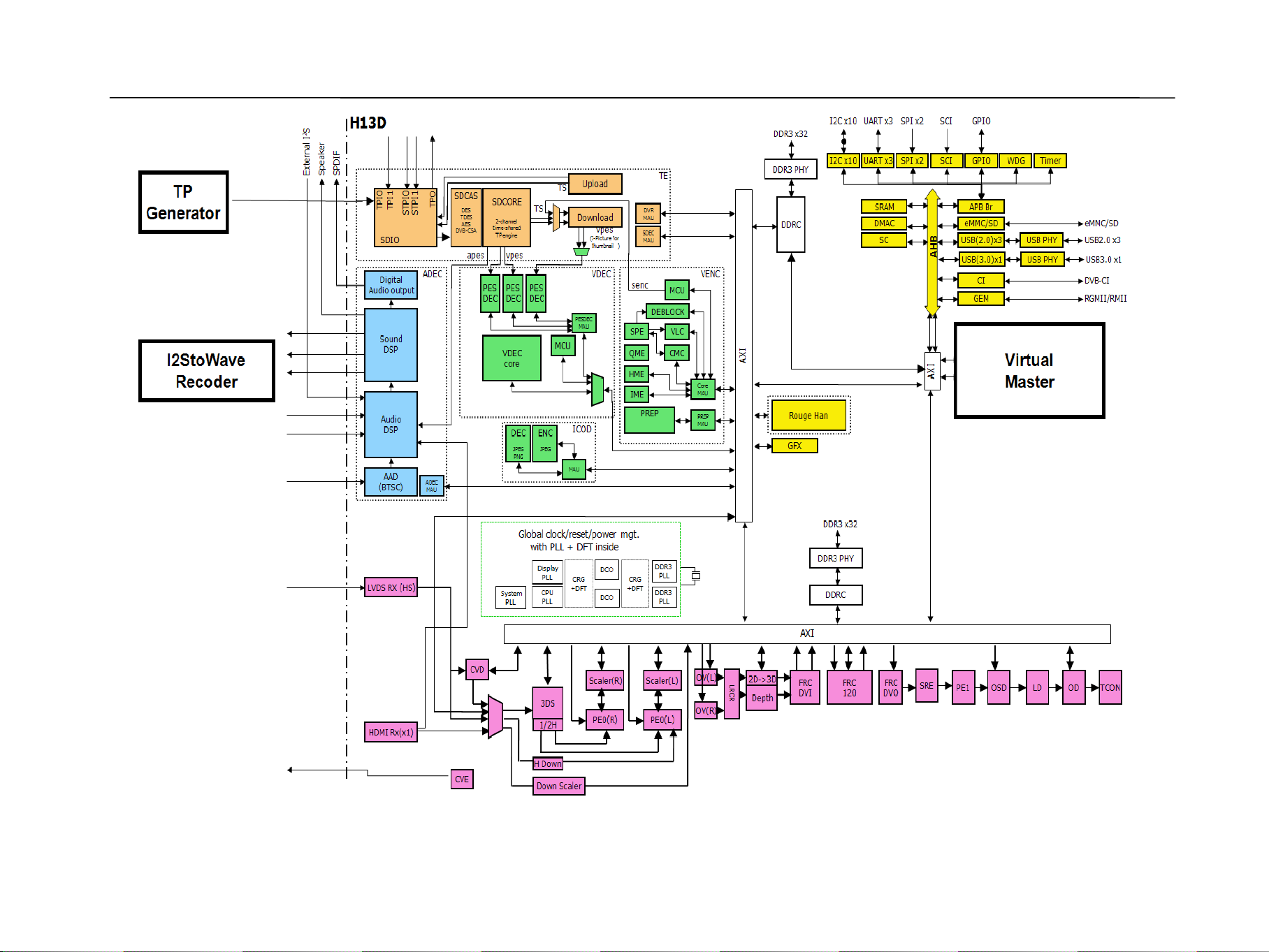

LG1154D

IC100

LG1154D_H13D

STPI0_CLK/GPIO47 STPI0_SOP/GPIO46 STPI0_VAL/GPIO45 STPI0_ERR/GPIO44

STPI0_DATA/GPIO43

STPI1_CLK/GPIO42 STPI1_SOP/GPIO41 STPI1_VAL/GPIO40 STPI1_ERR/GPIO55

STPI1_DATA/GPIO54

TPIO_DATA0/GPIO58 TPIO_DATA1/GPIO59 TPIO_DATA2/GPIO60 TPIO_DATA3/GPIO61 TPIO_DATA4/GPIO62 TPIO_DATA5/GPIO63 TPIO_DATA6/GPIO48 TPIO_DATA7/GPIO49

DACSLRCH/GPIO127 PCMI3SCK/GPIO112

PCMI3LRCK/GPIO113

DACCLFCH/GPIO126

TP_DVB_CLK TP_DVB_SOP TP_DVB_VAL

TP_DVB_ERR TP_DVB_DATA0 TP_DVB_DATA1 TP_DVB_DATA2 TP_DVB_DATA3 TP_DVB_DATA4 TP_DVB_DATA5 TP_DVB_DATA6 TP_DVB_DATA7

TPI_CLK TPI_SOP TPI_VAL

TPI_ERR TPI_DATA0 TPI_DATA1 TPI_DATA2 TPI_DATA3 TPI_DATA4 TPI_DATA5 TPI_DATA6 TPI_DATA7

TPIO_CLK/GPIO53 TPIO_SOP/GPIO52 TPIO_VAL/GPIO51 TPIO_ERR/GPIO50

AUDCLK_OUT

DACLRCH

DACSCK

DACLRCK

PCMI3LRCH

IEC958OUT

DACSUBMCLK DACSUBLRCH

DACSUBSCK

DACSUBLRCK

TEST1 TEST2

TX0N TX0P TX1N TX1P TX2N TX2P TX3N TX3P TX4N TX4P TX5N TX5P TX6N TX6P TX7N TX7P TX8N TX8P TX9N

TX9P TX10N TX10P TX11N TX11P TX12N TX12P

TX13N TX13P TX14N TX14P TX15N TX15P TX16N TX16P TX17N TX17P TX18N TX18P TX19N TX19P TX20N TX20P TX21N TX21P TX22N TX22P TX23N TX23P

TX_LOCKN

AK35 AK36 AK37 AJ35 AJ36 AH35 AH37 AH36 AG35 AG36

AM36 AL36 AL35 AL37 AM35 AN36 AN37 AN35 AP37 AP36 AR37 AR36

A28 B29 B28 C28 B32 C31 B31 A31 C30 A30 B30 C29

D30 D31 F30 E31 E30 F29 E29 F28 E28 D28 E27 D27

AD5 AD6 Y6 Y7 AC6 AC5 AA6 AB7 AB5 AU14 AA32 AA34 AA33 AB34 AE32 AE33

AT6 AU6 AT5 AU5 AT4 AU4 AU3 AU2 AT2 AT1 AR4 AR3 AP1 AP2 AP4 AP3 AN4 AN3 AM4 AM3 AL4 AL3 AK1 AK2 AK4 AK3

AJ4 AJ3 AH4 AH3 AG4 AG3 AF1 AF2 AF4 AF3 AE4 AE3 AD4 AD3 AC4 AC3 AB1 AB2 AB4 AB3 AA4 AA3

AR5

FE_DEMOD2_TS_CLK FE_DEMOD2_TS_SYNC FE_DEMOD2_TS_VAL FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_DATA

D13_STPO_CLK

D13_STPO_VAL D13_STPO_ERR D13_STPO_DATA

FE_DEMOD1_TS_CLK FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_VAL FE_DEMOD1_TS_ERROR FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[3] FE_DEMOD1_TS_DATA[4] FE_DEMOD1_TS_DATA[5] FE_DEMOD1_TS_DATA[6] FE_DEMOD1_TS_DATA[7]

TPI_CLK TPI_SOP TPI_VAL TPI_ERR

TPI_DATA[0] TPI_DATA[1] TPI_DATA[2] TPI_DATA[3] TPI_DATA[4] TPI_DATA[5] TPI_DATA[6] TPI_DATA[7]

TPO_CLK TPO_SOP TPO_VAL

TPO_ERR TPO_DATA[0] TPO_DATA[1] TPO_DATA[2] TPO_DATA[3] TPO_DATA[4] TPO_DATA[5] TPO_DATA[6] TPO_DATA[7]

R495 100 R496 100 R452 100

R497 100 R498 100

URSA_RESET_SoC

AR403 33 1/16W

TXB0P/TX5P TXB0N/TX5N TXB1P/TX4P TXB1N/TX4N TXB2P/TX3P TXB2N/TX3N TXBCLKP/TX2P TXBCLKN/TX2N TXB3P/TX1P TXB3N/TX1N TXB4P/TX0P TXB4N/TX0N

TXA0P/TX11P TXA0N/TX11N TXA1P/TX10P TXA1N/TX10N TXA2P/TX9P TXA2N/TX9N TXACLKP/TX8P TXACLKN/TX8N TXA3P/TX7P TXA3N/TX7N TXA4P/TX6P TXA4N/TX6N

TXD0P/TX17P TXD0N/TX17N

TXD1P/TX16P TXD1N/TX16N TXD2P/TX15P TXD2N/TX15N TXDCLKP/TX14P TXDCLKN/TX14N TXD3P/TX13P TXD3N/TX13N TXD4P/TX12P TXD4N/TX12N

TXC0P/TX23P TXC0N/TX23N TXC1P/TX22P

TXC1N/TX22N

TXC2P/TX21P TXC2N/TX21N

TXCCLKP/TX20P

TXCCLKN/TX20N TXC3P/TX19P TXC3N/TX19N TXC4P/TX18P

TXC4N/TX18N

TP402

C411 10pF 50V OPT

FE_DEMOD1_TS_DATA[1-7]

TPI_ERR

TPI_DATA[0-7]

TP400

AUD_MASTER_CLK AUD_LRCH AUD_LRCH1

To height amp FOR UB98/UB9

AUD_SCK AUD_LRCK

SPDIF_OUT

+3.3V_NORMAL

Not Used Net (UB85/95/UC89)

TPO_ERR

TPO_DATA[0-7]

I2S_I/F

To front, woofer, center amp FOR UB98/UB9

AUD_LRCH1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-004-HD

2013-12-17

MAIN AUDIO/VIDEO

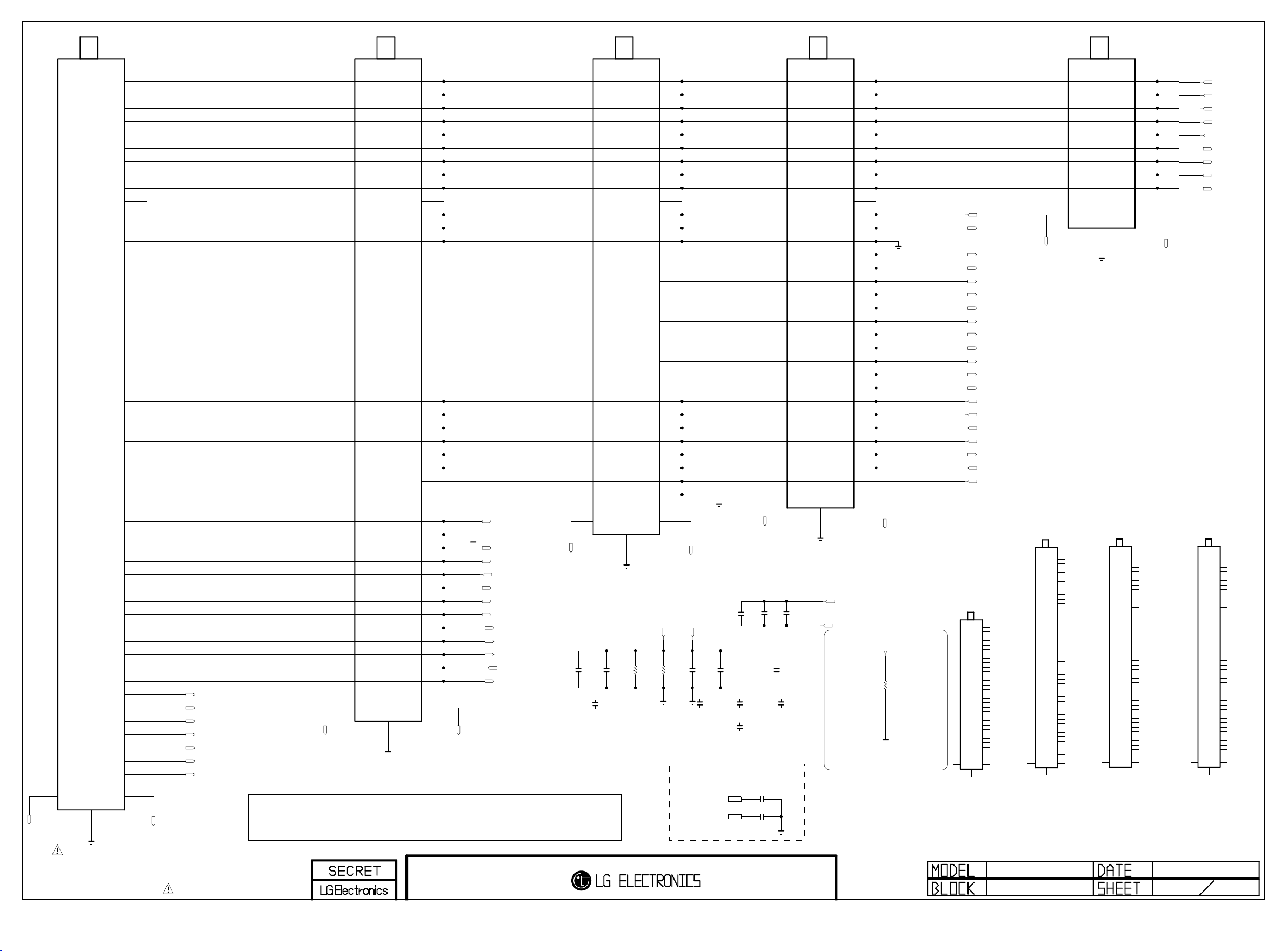

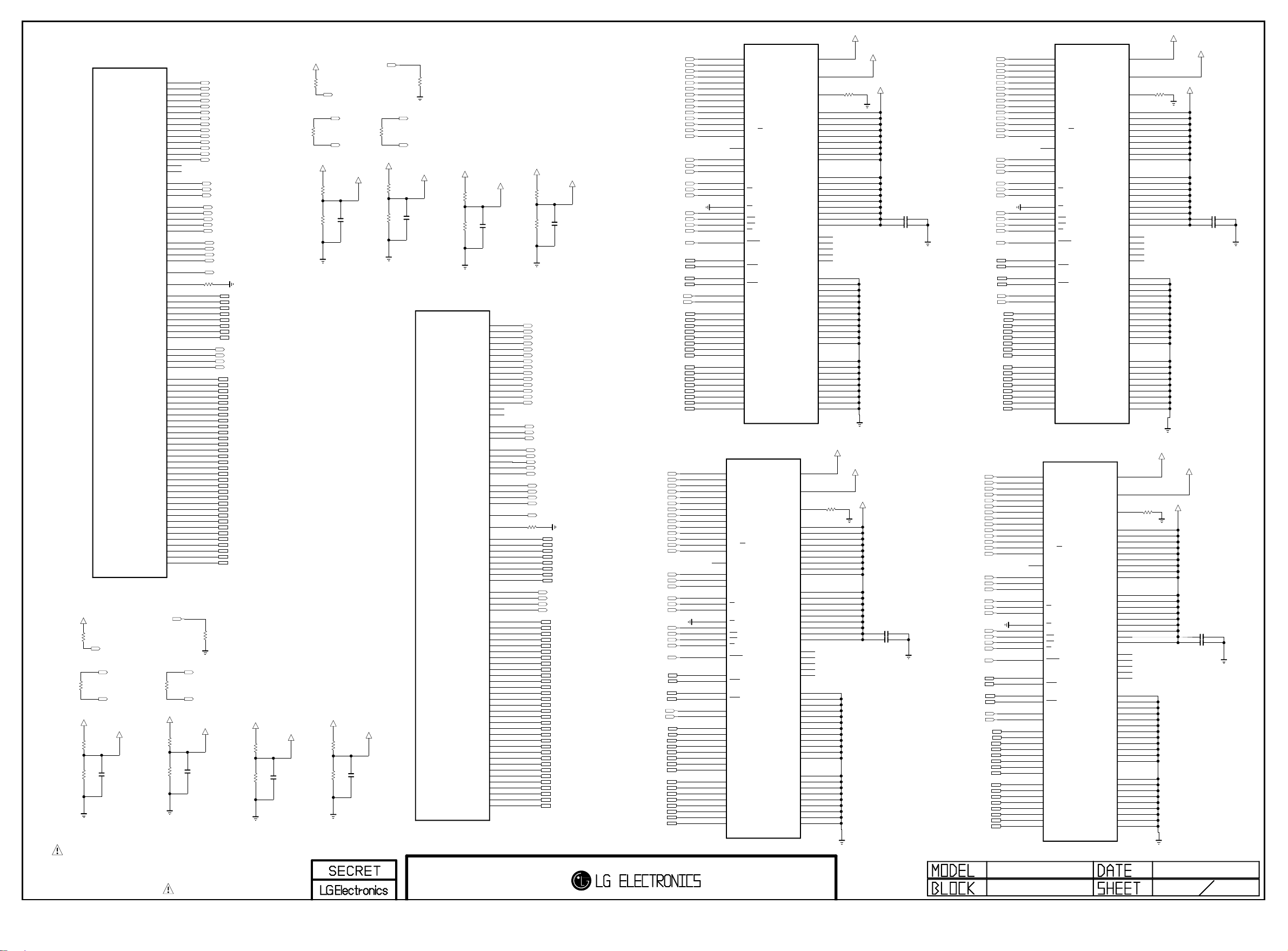

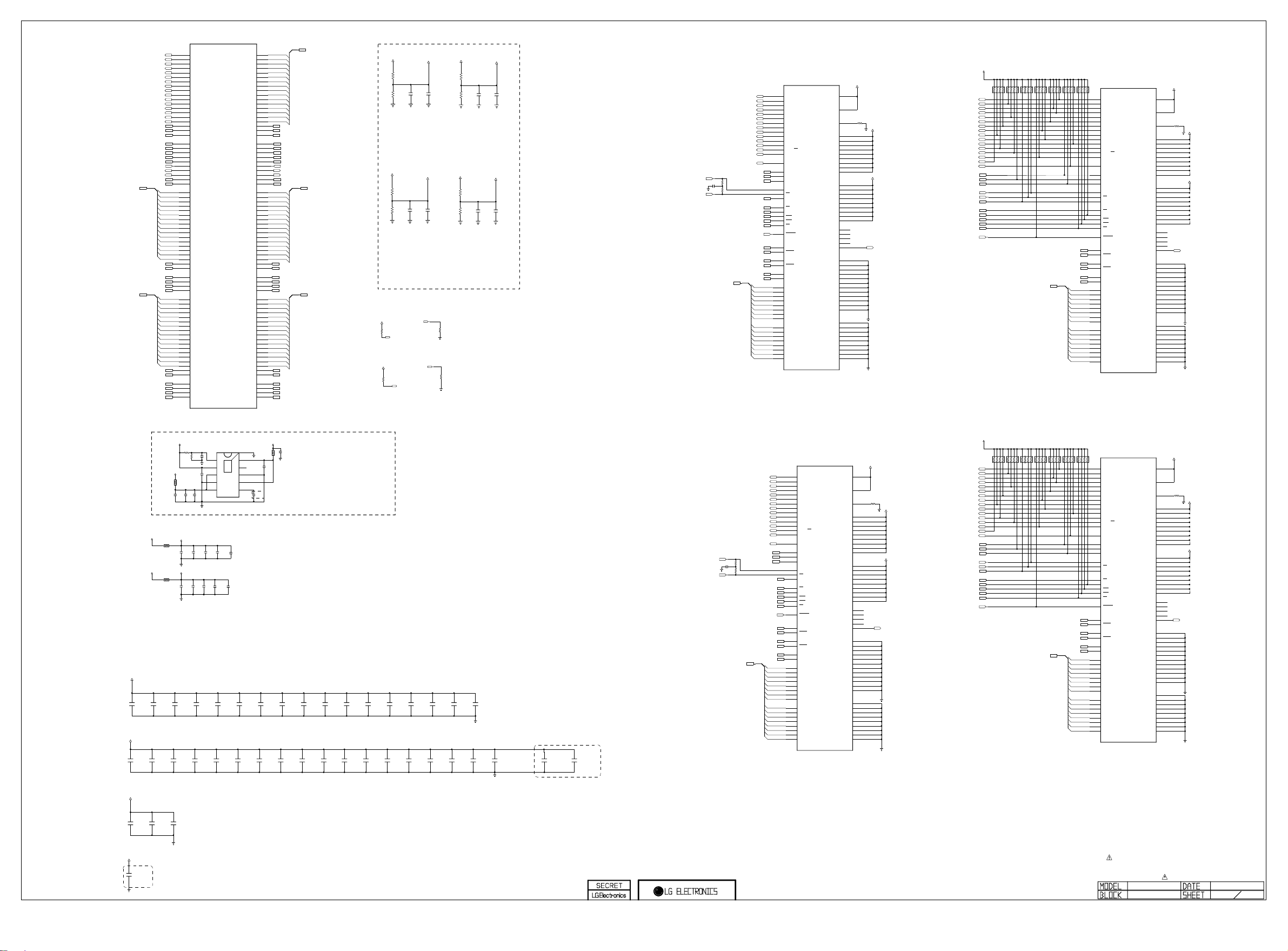

IC100

LG1154D_H13D

M0_DDR_A[10] M0_DDR_A[11] M0_DDR_A[12] M0_DDR_A[13] M0_DDR_A[14] M0_DDR_A[15]

M0_DDR_BA[0] M0_DDR_BA[1] M0_DDR_BA[2]

M0_DDR_U_CLK

M0_DDR_U_CLKN

M0_DDR_D_CLK

M0_DDR_D_CLKN

M0_DDR_RESET_N

M0_DDR_ZQCAL

M0_DDR_DQS[0]

M0_DDR_DQS_N[0]

M0_DDR_DQS[1]

M0_DDR_DQS_N[1]

M0_DDR_DQS[2]

M0_DDR_DQS_N[2]

M0_DDR_DQS[3]

M0_DDR_DQS_N[3]

M0_DDR_DM[0] M0_DDR_DM[1] M0_DDR_DM[2] M0_DDR_DM[3]

M0_DDR_DQ[0] M0_DDR_DQ[1] M0_DDR_DQ[2] M0_DDR_DQ[3] M0_DDR_DQ[4] M0_DDR_DQ[5] M0_DDR_DQ[6] M0_DDR_DQ[7] M0_DDR_DQ[8]

M0_DDR_DQ[9] M0_DDR_DQ[10] M0_DDR_DQ[11] M0_DDR_DQ[12] M0_DDR_DQ[13] M0_DDR_DQ[14] M0_DDR_DQ[15] M0_DDR_DQ[16] M0_DDR_DQ[17] M0_DDR_DQ[18] M0_DDR_DQ[19] M0_DDR_DQ[20] M0_DDR_DQ[21] M0_DDR_DQ[22] M0_DDR_DQ[23] M0_DDR_DQ[24] M0_DDR_DQ[25] M0_DDR_DQ[26] M0_DDR_DQ[27] M0_DDR_DQ[28] M0_DDR_DQ[29] M0_DDR_DQ[30] M0_DDR_DQ[31]

IC100

LG1154D_H13D

M1_DDR_U_CLKN

M1_DDR_D_CLKN

M1_DDR_RESET_N

M1_DDR_DQS[0]

M1_DDR_DQS_N[0]

M1_DDR_DQS[1]

M1_DDR_DQS_N[1]

M1_DDR_DQS[2]

M1_DDR_DQS_N[2]

M1_DDR_DQS[3]

M1_DDR_DQS_N[3]

M1_DDR_DQ[10] M1_DDR_DQ[11] M1_DDR_DQ[12] M1_DDR_DQ[13] M1_DDR_DQ[14] M1_DDR_DQ[15] M1_DDR_DQ[16] M1_DDR_DQ[17] M1_DDR_DQ[18] M1_DDR_DQ[19] M1_DDR_DQ[20] M1_DDR_DQ[21] M1_DDR_DQ[22] M1_DDR_DQ[23] M1_DDR_DQ[24] M1_DDR_DQ[25] M1_DDR_DQ[26] M1_DDR_DQ[27] M1_DDR_DQ[28] M1_DDR_DQ[29] M1_DDR_DQ[30] M1_DDR_DQ[31]

M0_DDR_A[0] M0_DDR_A[1] M0_DDR_A[2] M0_DDR_A[3] M0_DDR_A[4] M0_DDR_A[5] M0_DDR_A[6] M0_DDR_A[7] M0_DDR_A[8] M0_DDR_A[9]

M0_DDR_CKE

M0_DDR_ODT M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

M1_DDR_A[0] M1_DDR_A[1] M1_DDR_A[2] M1_DDR_A[3] M1_DDR_A[4] M1_DDR_A[5] M1_DDR_A[6] M1_DDR_A[7] M1_DDR_A[8]

M1_DDR_A[9] M1_DDR_A[10] M1_DDR_A[11] M1_DDR_A[12] M1_DDR_A[13] M1_DDR_A[14] M1_DDR_A[15]

M1_DDR_BA[0] M1_DDR_BA[1] M1_DDR_BA[2]

M1_DDR_U_CLK

M1_DDR_D_CLK

M1_DDR_CKE

M1_DDR_ODT M1_DDR_RASN M1_DDR_CASN

M1_DDR_WEN

M1_DDR_ZQCAL

M1_DDR_DM[0] M1_DDR_DM[1] M1_DDR_DM[2] M1_DDR_DM[3]

M1_DDR_DQ[0] M1_DDR_DQ[1] M1_DDR_DQ[2] M1_DDR_DQ[3] M1_DDR_DQ[4] M1_DDR_DQ[5] M1_DDR_DQ[6] M1_DDR_DQ[7] M1_DDR_DQ[8] M1_DDR_DQ[9]

DDR_VTT

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

ZQ

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

M0_DDR_VREFCA_T

M0_DDR_VREFDQ_T

J8

E1

VDDC15_M0

R559

H8

240

1% A2 A9 D7 G2 G8 K1 K9 M1 M9

B9 C1 E2 E9

C568 C569

M0_DDR_RESET_N

A1 A8 B1 D8 F2 F8 J1 J9 L1 L9 N1 N9

B2 B8 C9 D1 D9

M1_DDR_VREFCA

M1_DDR_VREFDQ

M8

H1

L8

ZQ

NC_1 NC_2 NC_3 NC_4

R543

VDDC15_M1

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2

C529

H9

J1 J9 L1 L9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

0.1uF

C530

0.1uF

AR7 56

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14 M0_DDR_A15

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

0.1uF

M0_DDR_CKE

M0_DDR_ODT

M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

DDR_HYNIX

IC501-*1

H5TQ4G63AFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

240

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR3 1.5V bypass Cap - Place these caps near Memory

AR8 56

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

AR9

AR10

56

M0_U_CLK

M0_U_CLKN

Real USE : 1Gbit

H5TQ1G63DFR-PBC(x16)

1Gbit : T7(NC_6) 4Gbit : T7(A14)

AR11 56

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM3

M0_DDR_DQ24 M0_DDR_DQ25 M0_DDR_DQ26 M0_DDR_DQ27 M0_DDR_DQ28 M0_DDR_DQ29 M0_DDR_DQ30 M0_DDR_DQ31

M1_DDR_A0 M1_DDR_A1 M1_DDR_A2 M1_DDR_A3 M1_DDR_A4 M1_DDR_A5 M1_DDR_A6 M1_DDR_A7 M1_DDR_A8

M1_DDR_A9 M1_DDR_A10 M1_DDR_A11 M1_DDR_A12 M1_DDR_A13 M1_DDR_A14 M1_DDR_A15

M1_DDR_BA0 M1_DDR_BA1 M1_DDR_BA2

M1_U_CLKN M1_DDR_CKE

M1_DDR_ODT

M1_DDR_RASN M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS2

M1_DDR_DQS_N2

M1_DDR_DQS3

M1_DDR_DQS_N3

M1_DDR_DM2 M1_DDR_DM3

M1_DDR_DQ16

M1_DDR_DQ17 M1_DDR_DQ18 M1_DDR_DQ19 M1_DDR_DQ20

M1_DDR_DQ21 M1_DDR_DQ22 M1_DDR_DQ23

M1_DDR_DQ24 M1_DDR_DQ25 M1_DDR_DQ26

M1_DDR_DQ27 M1_DDR_DQ28 M1_DDR_DQ29

M1_DDR_DQ30

M1_DDR_DQ31

M1_U_CLK

AR12 56

R3104 56

H5TQ4G83AFR-PBC

K3

A0

L7

A1

L3

A2

K2

A3

L8

A4

L2

A5

M8

A6

M2

A7

N8

A8

M3

A9

H7

A10/AP

M7

A11

K7

A12/BC

N3

A13

N7

A14

J7

A15

J2

BA0

K8

BA1

J3

BA2

F7

CK

G7

CK

G9

CKE

H2

CS

G1

ODT

F3

RAS

G3

CAS

H3

WE

N2

RESET

C3

DQS

D3

DQS

B7

DM/TDQS

A7

NF/TDQS

B3

DQ0

C7

DQ1

C2

DQ2

C8

DQ3

E3

DQ4

E8

DQ5

D2

DQ6

E7

DQ7

A3

NC_1

F1

NC_2

F9

NC_3

H1

NC_4

H9

NC_5

DDR_SAMSUNG

IC503

K4B4G1646B-HCK0

N3

DDR3

A0

P7

4Gbit

A1

P3

(x16)

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC505

DDR3 4Gbit

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

NC_1 NC_2 NC_3 NC_4

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

ZQ

J8

E1

H8

ZQ

A2 A9 D7 G2 G8 K1 K9 M1 M9

B9 C1 E2 E9

A1 A8 B1 D8 F2 F8 J1 J9 L1 L9 N1 N9

B2 B8 C9 D1 D9

M1_1_DDR_VREFCA

M8

H1

L8

VDDC15_M1 B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M0_1_DDR_VREFCA_T

M0_1_DDR_VREFDQ_T

R561

240 1%

M1_1_DDR_VREFDQ

R545

C561

0.1uF

C562

0.1uF

VDDC15_M0

0.1uF

C572

0.1uF

C577

DDR_HYNIX

IC503-*1

H5TQ4G63AFR-PBC

M8

N3

VREFCA

A0

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

T7

N1

A14

VDD_6

N9

M7

VDD_7

A15

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

K7

C1

VDDQ_3

CK

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

240

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

F3

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

DDR3 1.5V bypass Cap - Place these caps near Memory

* DDR_VTT

VDDC15_M0

DDR_VTT

R546 10K

R549

10K

L500

UBW2012-121F

C503 10uF

REFIN

VLDOIN

VOSNS

IC506

TPS51200DRCR

1

10

11

2

9

THERMAL

VO

3

PGND

8

4

7

5

6

1%

C510

1000pF

1%

C511 22uF 10V

C507

C506

10uF

[EP]

VIN

PGOOD

GND

EN

REFOUT

+3.3V_NORMAL

L501

UBW2012-121F

C514

0.1uF

C515 4700pF

DDR_VTT

C519

0.1uF 16V

C520

0.1uF 16V

C521

0.1uF 16V

C522

0.1uF 16V

F15

M0_DDR_A0

F13

M0_DDR_A1

F17

M0_DDR_A2

F19

M0_DDR_A3

E10

M0_DDR_A4

E18

M0_DDR_A5

E11

M0_DDR_A6

F18

M0_DDR_A7

F11

M0_DDR_A8

F16

M0_DDR_A9

E9

M0_DDR_A10

E12

M0_DDR_A11

E13

M0_DDR_A12

E16

M0_DDR_A13

F12

M0_DDR_A14

F14

M0_DDR_A15

E19

M0_DDR_BA0

F10

M0_DDR_BA1

E15

M0_DDR_BA2

B10

M0_U_CLK

A10

M0_U_CLKN

A19

M0_D_CLK

B19

M0_D_CLKN

E14

M0_DDR_CKE

F21

M0_DDR_ODT

E21

M0_DDR_RASN

E20

M0_DDR_CASN

F20

M0_DDR_WEN

E17

M0_DDR_RESET_N

F9

B20 A20 C19 D19 A11 B11 C10 D10

D18 C20 D9 C11

D22 C15 C23 D16 B24 B15 D23 A15 C16 D21 D17 C22 C18 C21 C17 D20 C13 D7 D13 C6 D14 D6 C14 A5 C7 D12 D8 B13 C9 C12 C8 D11

R500

240

1%

M0_DDR_DQS0 M0_DDR_DQS_N0 M0_DDR_DQS1 M0_DDR_DQS_N1 M0_DDR_DQS2 M0_DDR_DQS_N2 M0_DDR_DQS3 M0_DDR_DQS_N3

M0_DDR_DM0 M0_DDR_DM1 M0_DDR_DM2 M0_DDR_DM3

M0_DDR_DQ0

M0_DDR_DQ1 M0_DDR_DQ2 M0_DDR_DQ3 M0_DDR_DQ4

M0_DDR_DQ5

M0_DDR_DQ6 M0_DDR_DQ7 M0_DDR_DQ8 M0_DDR_DQ9 M0_DDR_DQ10 M0_DDR_DQ11

M0_DDR_DQ12 M0_DDR_DQ13 M0_DDR_DQ14 M0_DDR_DQ15 M0_DDR_DQ16 M0_DDR_DQ17 M0_DDR_DQ18 M0_DDR_DQ19 M0_DDR_DQ20 M0_DDR_DQ21 M0_DDR_DQ22

M0_DDR_DQ23 M0_DDR_DQ24 M0_DDR_DQ25

M0_DDR_DQ26 M0_DDR_DQ27 M0_DDR_DQ28 M0_DDR_DQ29 M0_DDR_DQ30 M0_DDR_DQ31

N6

M1_DDR_A0

R6

M1_DDR_A1

L6

M1_DDR_A2

J6

M1_DDR_A3

U5

M1_DDR_A4

J5

M1_DDR_A5

T5

M1_DDR_A6

K6

M1_DDR_A7

U6

M1_DDR_A8

M6

M1_DDR_A9

V5

M1_DDR_A10

R5

M1_DDR_A11

P5

M1_DDR_A12

L5

M1_DDR_A13

T6

M1_DDR_A14

P6

M1_DDR_A15

H5

M1_DDR_BA0

V6

M1_DDR_BA1

M5

M1_DDR_BA2

R2 R1 F1 F2 N5

G6 F5 G5 H6

K5

F6

E2 E1 F3 F4 P1 P2 R3 R4

G4 E3 T4 P3

C4 K3 B3 J4 A3 K2 B4 K1 J3 D4 H4 C3 G3 D3 H3 E4 M3 V4 M4 W3 L4 W4 L3 Y2 V3 N4 U4 M2 T3 N3 U3 P4

240

M1_U_CLK

M1_U_CLKN M1_D_CLK M1_D_CLKN M1_DDR_CKE

M1_DDR_ODT

M1_DDR_RASN M1_DDR_CASN M1_DDR_WEN

M1_DDR_RESET_N

R501

1%

M1_DDR_DQS0 M1_DDR_DQS_N0 M1_DDR_DQS1 M1_DDR_DQS_N1 M1_DDR_DQS2 M1_DDR_DQS_N2 M1_DDR_DQS3 M1_DDR_DQS_N3

M1_DDR_DM0

M1_DDR_DM1 M1_DDR_DM2 M1_DDR_DM3

M1_DDR_DQ0 M1_DDR_DQ1 M1_DDR_DQ2 M1_DDR_DQ3 M1_DDR_DQ4 M1_DDR_DQ5 M1_DDR_DQ6 M1_DDR_DQ7 M1_DDR_DQ8 M1_DDR_DQ9 M1_DDR_DQ10 M1_DDR_DQ11 M1_DDR_DQ12 M1_DDR_DQ13 M1_DDR_DQ14 M1_DDR_DQ15 M1_DDR_DQ16 M1_DDR_DQ17 M1_DDR_DQ18 M1_DDR_DQ19 M1_DDR_DQ20 M1_DDR_DQ21 M1_DDR_DQ22 M1_DDR_DQ23 M1_DDR_DQ24 M1_DDR_DQ25 M1_DDR_DQ26 M1_DDR_DQ27 M1_DDR_DQ28 M1_DDR_DQ29 M1_DDR_DQ30 M1_DDR_DQ31

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14 M0_DDR_A15

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_D_CLK

M0_D_CLKN M0_DDR_CKE

M0_DDR_ODT

M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DM0

M0_DDR_DQ0 M0_DDR_DQ1 M0_DDR_DQ2 M0_DDR_DQ3 M0_DDR_DQ4 M0_DDR_DQ5 M0_DDR_DQ6 M0_DDR_DQ7

VDDC15_M0

R520 10K

200

R519

200

R580

VDDC15_M0

R514

1K 1%

R515

1K 1%

VDDC15_M0

R516

1K 1%

R517

1K 1%

M0_DDR_RESET_N

M0_D_CLKN

M0_D_CLK

M0_D_CLKN

M0_DDR_VREFCA

0.1uF

C504

M0_DDR_VREFDQ

0.1uF

C505

M0_DDR_CKE

M0_D_CLK

IC500

H5TQ4G83AFR-PBC

DDR3

K3

A0

4Gbit

L7

A1

L3

A2

K2

A3

L8

A4

L2

A5

M8

A6

M2

A7

N8

A8

M3

A9

H7

A10/AP

M7

A11

K7

A12/BC

N3

A13

N7

A14

J7

A15

J2

BA0

K8

BA1

J3

BA2

F7

CK

G7

CK

G9

CKE

H2

CS

G1

ODT

F3

RAS

G3

CAS

H3

WE

N2

RESET

C3

DQS

D3

DQS

B7

DM/TDQS

A7

NF/TDQS

B3

DQ0

C7

DQ1

C2

DQ2

C8

DQ3

E3

DQ4

E8

DQ5

D2

DQ6

E7

DQ7

A3

NC_1

F1

NC_2

F9

NC_3

H1

NC_4

H9

NC_5

M0_U_CLK

200

R535

M0_U_CLKN

M0_U_CLK

200

R581

M0_U_CLKN

VDDC15_M0

M0_1_DDR_VREFCA

R536

1K 1%

R537

1K 1%

C512

VDDC15_M0

M0_1_DDR_VREFDQ

R538

1K 1%

R539

1K 1%

C513

0.1uF

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

R541 10K

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

M0_DDR_VREFCA

M0_DDR_VREFDQ

J8

E1

VDDC15_M0

R558

H8

ZQ

240

1% A2 A9 D7 G2 G8 K1 K9 M1 M9

B9 C1 E2 E9

A1 A8 B1 D8 F2 F8 J1 J9 L1 L9 N1 N9

B2 B8 C9 D1 D9

VDDC15_M0

R550

R551

1K 1%

R552

R553

1K 1%

C559 C560

M0_DDR_VREFCA_T

1K 1%

C550

M0_DDR_VREFDQ_T

1K 1%

C551

0.1uF

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14 M0_DDR_A15

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_D_CLK

M0_D_CLKN M0_DDR_CKE

M0_DDR_ODT

M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DM1

M0_DDR_DQ8

M0_DDR_DQ9 M0_DDR_DQ10 M0_DDR_DQ11 M0_DDR_DQ12 M0_DDR_DQ13 M0_DDR_DQ14 M0_DDR_DQ15

VDDC15_M0

R554

1K 1%

R555

1K 1%

VDDC15_M0

R556

1K 1%

R557

1K 1%

M0_1_DDR_VREFCA_T

0.1uF

C552

M0_1_DDR_VREFDQ_T

0.1uF

C553

IC502

H5TQ4G83AFR-PBC

DDR3

K3

A0

4Gbit

L7

A1

L3

A2

K2

A3

L8

A4

L2

A5

M8

A6

M2

A7

N8

A8

M3

A9

H7

A10/AP

M7

A11

K7

A12/BC

N3

A13

N7

A14

J7

A15

J2

BA0

K8

BA1

J3

BA2

F7

CK

G7

CK

G9

CKE

H2

CS

G1

ODT

F3

RAS

G3

CAS

H3

WE

N2

RESET

C3

DQS

D3

DQS

B7

DM/TDQS

A7

NF/TDQS

B3

DQ0

C7

DQ1

C2

DQ2

C8

DQ3

E3

DQ4

E8

DQ5

D2

DQ6

E7

DQ7

A3

NC_1

F1

NC_2

F9

NC_3

H1

NC_4

H9

NC_5

VDDC15_M1

R521 10K

M1_D_CLK

100

R518

M1_D_CLKN

VDDC15_M1

M1_DDR_VREFCA

R510

1K 1%

R511

1K 1%

C500

VDDC15_M1

M1_DDR_VREFDQ

R512

1K 1%

R513

1K 1%

C501

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

M1_DDR_RESET_N

0.1uF

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

J8

E1

H8

ZQ

A2 A9 D7 G2 G8 K1 K9 M1 M9

B9 C1 E2 E9

A1 A8 B1 D8 F2 F8 J1 J9 L1 L9 N1 N9

B2 B8 C9 D1 D9

M1_DDR_CKE

M0_1_DDR_VREFCA

R560

240

1%

100

R530

M1_U_CLK

M1_U_CLKN

VDDC15_M1

R531

R532

VDDC15_M1

R533

R534

M0_1_DDR_VREFDQ

R540 10K

M1_1_DDR_VREFCA

1K 1%

0.1uF

1K 1%

C508

M1_1_DDR_VREFDQ

1K 1%

0.1uF

1K 1%

C509

VDDC15_M0

0.1uF

C583

0.1uF

C574

M0_DDR_RESET_N

M0_DDR_DQS_N2

Place at the bottom side

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14 M0_DDR_A15

M0_DDR_BA0

M0_DDR_BA1

M0_DDR_BA2

M0_U_CLK

M0_U_CLKN

M0_DDR_CKE

M0_DDR_ODT M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

M0_DDR_DQS2

M0_DDR_DM2

M0_DDR_DQ16 M0_DDR_DQ17 M0_DDR_DQ18 M0_DDR_DQ19 M0_DDR_DQ20 M0_DDR_DQ21 M0_DDR_DQ22 M0_DDR_DQ23

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DM0 M1_DDR_DM1

VDDC15_M1

M1_DDR_RASN M1_DDR_CASN

M1_DDR_RESET_N

M1_DDR_DQ10 M1_DDR_DQ11 M1_DDR_DQ12 M1_DDR_DQ13 M1_DDR_DQ14 M1_DDR_DQ15

1uF

C502

M1_DDR_A0 M1_DDR_A1 M1_DDR_A2 M1_DDR_A3 M1_DDR_A4 M1_DDR_A5 M1_DDR_A6 M1_DDR_A7 M1_DDR_A8

M1_DDR_A9 M1_DDR_A10 M1_DDR_A11 M1_DDR_A12 M1_DDR_A13 M1_DDR_A14 M1_DDR_A15

M1_DDR_BA0 M1_DDR_BA1 M1_DDR_BA2

M1_D_CLK

M1_D_CLKN M1_DDR_CKE

M1_DDR_ODT

M1_DDR_WEN

M1_DDR_DQ0 M1_DDR_DQ1 M1_DDR_DQ2 M1_DDR_DQ3 M1_DDR_DQ4 M1_DDR_DQ5 M1_DDR_DQ6 M1_DDR_DQ7

M1_DDR_DQ8 M1_DDR_DQ9

1uF

C516

IC504

H5TQ4G83AFR-PBC

DDR3

K3

4Gbit

A0

L7

A1

L3

A2

K2

A3

L8

A4

L2

A5

M8

A6

M2

A7

N8

A8

M3

A9

H7

A10/AP

M7

A11

K7

A12/BC

N3

A13

N7

A14

J7

A15

J2

BA0

K8

BA1

J3

BA2

F7

CK

G7

CK

G9

CKE

H2

CS

G1

ODT

F3

RAS

G3

CAS

H3

WE

N2

RESET

C3

DQS

D3

DQS

B7

DM/TDQS

A7

NF/TDQS

B3

DQ0

C7

DQ1

C2

DQ2

C8

DQ3

E3

DQ4

E8

DQ5

D2

DQ6

E7

DQ7

A3

NC_1

F1

NC_2

F9

NC_3

H1

NC_4

H9

NC_5

DDR_SAMSUNG

K4B4G1646B-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC501

DDR3 4Gbit (x16)

Close to REFOUT pin

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-005-HD

2013-12-17

MAIN DDR

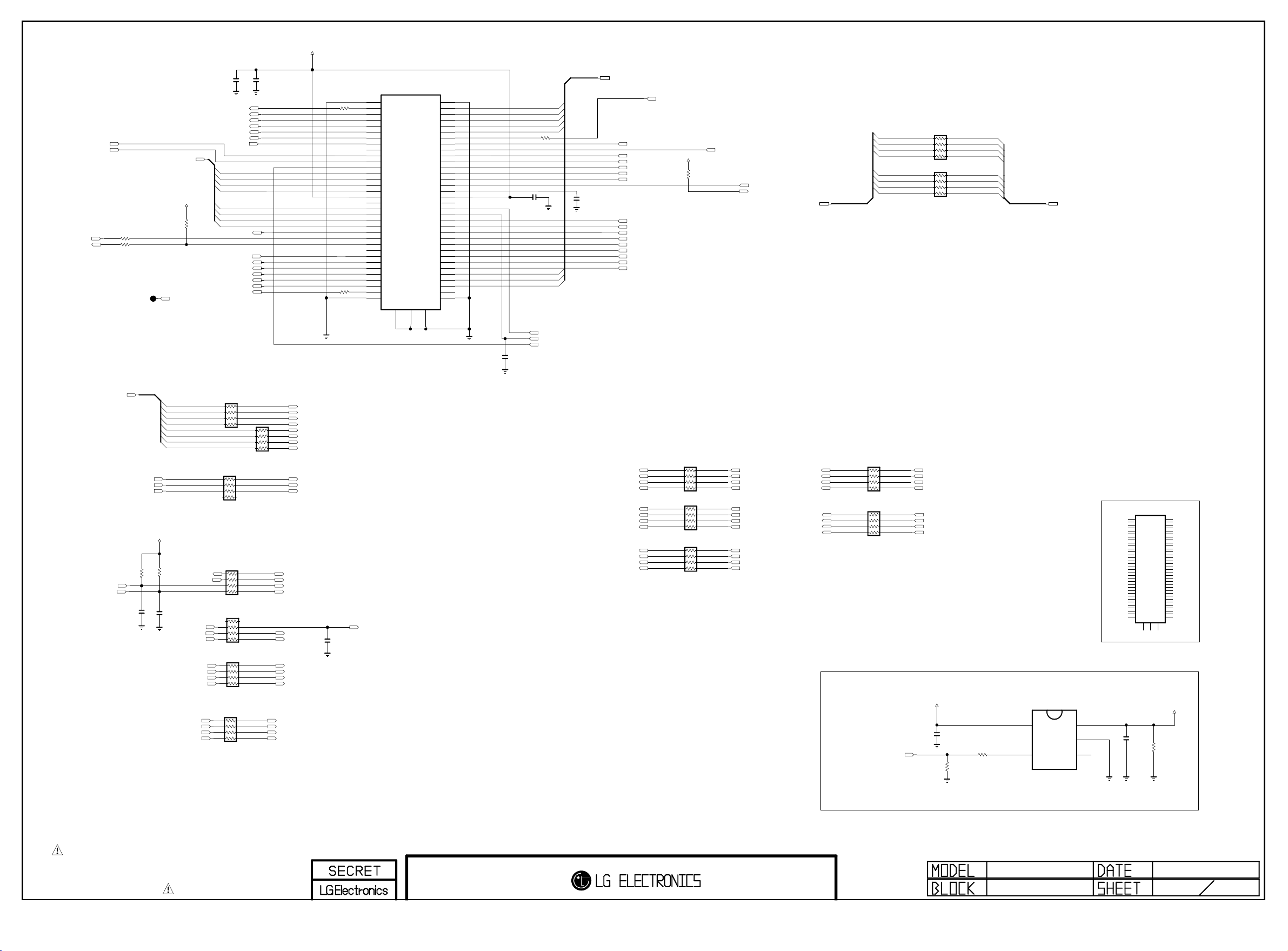

PCM_RESET

/PCM_WAIT

/PCM_IORD /PCM_IOWR

R701 R702

CI_IN_TS_DATA[0-7]

CI

33

CI

33

+5V_CI_ON

/PCM_CE2

10K

R709

CI

0.1uF CI

/CI_CD1

CI_TS_DATA[3]

CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

/PCM_CE2

CI_IN_TS_DATA[0] CI_IN_TS_DATA[1] CI_IN_TS_DATA[2] CI_IN_TS_DATA[3]

CI_IN_TS_DATA[4] CI_IN_TS_DATA[5] CI_IN_TS_DATA[6] CI_IN_TS_DATA[7]

CI_TS_CLK

/PCM_REG

CI_TS_VAL

CI_TS_SYNC CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2]

/CI_CD2

C702

C703

4.7uF 10V

CI

+5V_CI_ON

R716

CI

R717 100

CI_ADDR[11] CI_ADDR[9]

CI_ADDR[13]

C707

0.1uF 16V

CI_ADDR[12]

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2] CI_ADDR[1] CI_ADDR[0]

CI_DATA[0-7]

CI_ADDR[10]

CI_ADDR[11] CI_ADDR[9] CI_ADDR[8] CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12] CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4] CI_ADDR[3] CI_ADDR[2] CI_ADDR[1] CI_ADDR[0]

/PCM_CE1

+5V_CI_ON

10K

R723

CI

/PCM_OE

/PCM_WE /PCM_IRQA

CI_DATA[0-7]

CI_DATA[0] CI_DATA[1] CI_DATA[2] CI_DATA[3]

CI_DATA[0-7]

CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI

AR712

33

CI

AR713

33

EB_DATA[0]

EB_DATA[1] EB_DATA[2] EB_DATA[3]

EB_DATA[4] EB_DATA[5] EB_DATA[6] EB_DATA[7]

@netLa

EB_DATA[0-7]

CI_UB85/95

JK700

10125901-015LF

100

CI

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

G1G2

69

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI

C706 0.1uF

C705 12pF 50V OPT

R721 33

CI

CI_DATA[0] CI_DATA[1] CI_DATA[2]

CI_IN_TS_VAL CI_IN_TS_CLK

CI_IN_TS_SYNC

CI_ADDR[10]

CI_ADDR[8]

CI_ADDR[14]

CI

TPO_DATA[0-7]

/CI_CD2

/CI_CD1

TPO_CLK TPO_SOP TPO_VAL

R703

+5V_NORMAL

10K

R705

CI C700

0.1uF 16V

TPO_DATA[0] TPO_DATA[1] TPO_DATA[2] TPO_DATA[3] TPO_DATA[4] TPO_DATA[5] TPO_DATA[6] TPO_DATA[7]

10K

/PCM_WAIT /PCM_IRQA

CI C701

0.1uF 16V

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[7] CI_TS_DATA[6] CI_TS_DATA[5] CI_TS_DATA[4]

CI_TS_DATA[3] CI_TS_DATA[2] CI_TS_DATA[1] CI_TS_DATA[0]

CI

AR701

33

AR706

CI

AR705

33

AR702

100

AR703

CI

100

AR704

CI

100

CI

AR700

100

CI 33

CAM_WAIT_N CAM_IREQ_N

CAM_CD2_N CAM_CD1_N

TPI_VAL TPI_SOP

TPI_DATA[7] TPI_DATA[6] TPI_DATA[5] TPI_DATA[4]

TPI_DATA[3] TPI_DATA[2] TPI_DATA[1] TPI_DATA[0]

CI_IN_TS_DATA[0] CI_IN_TS_DATA[1] CI_IN_TS_DATA[2] CI_IN_TS_DATA[3] CI_IN_TS_DATA[4] CI_IN_TS_DATA[5] CI_IN_TS_DATA[6] CI_IN_TS_DATA[7]

CI_IN_TS_CLK CI_IN_TS_SYNC CI_IN_TS_VAL

C704 12pF 50V OPT

TPI_CLK

CI_ADDR[3] CI_ADDR[0] CI_ADDR[2] CI_ADDR[1]

CI_ADDR[4] CI_ADDR[5] CI_ADDR[6] CI_ADDR[7]

CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11]

CI

AR707

33

CI

AR708

33

CI

AR709

33

EB_ADDR[3] EB_ADDR[0] EB_ADDR[2] EB_ADDR[1]

EB_ADDR[4] EB_ADDR[5] EB_ADDR[6] EB_ADDR[7]

EB_ADDR[8] EB_ADDR[9] EB_ADDR[10] EB_ADDR[11]

CI_ADDR[12] CI_ADDR[13] CI_ADDR[14]

/PCM_REG

/PCM_OE /PCM_WE

/PCM_IORD /PCM_IOWR

CI

AR711

33

CI

AR710

33

EB_ADDR[12] EB_ADDR[13] EB_ADDR[14] CAM_REG_N

EB_OE_N EB_WE_N EB_BE_N1 EB_BE_N0

JK700-*1

10125901-115LF

CI_UB98/D9

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 60 27 61 28 62 29 63 30 64 31 32 33 34

69

G1

CI slot body (33mm) for UB98 / D9

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

G2

CI POWER ENABLE CONTROL

IN

EN

IC700

AP2151WG-7

5

4

+5V_CI_ON

OUT

1

CI

GND

2

FLG

3

C708 1uF 25V

R706

10K

CI

PCM_5V_CTL

+5V_NORMAL

C709

0.1uF

CI

50V

R700 10K

CI

R704 100

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-007-HD

2013-12-17

PCMCIA

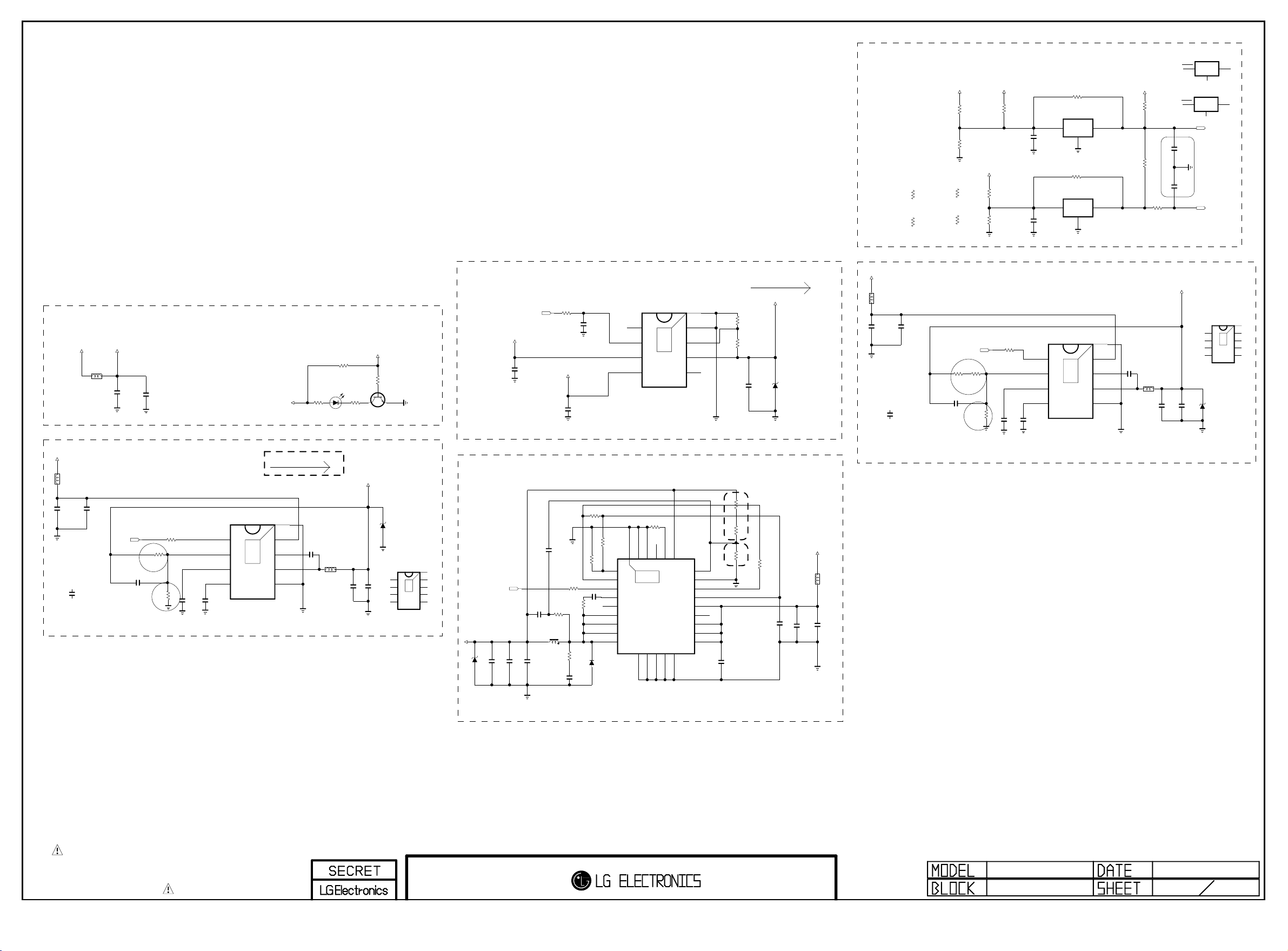

Power_DET

+12V

PD_+12V R2325

2.7K 1%

PD_+12V R2326

1.2K 1%

PD_UHD_24V

R2327-*2

9.1K 1%

PD_UHD_24V R2328-*2

1.6K 1%

PD_20V R2327-*1

5.6K

1%

PD_20V R2328-*1

1.3K 1%

+24V

+3.5V_ST

PD_24V R2327

8.2K 1%

PD_24V R2328

1.5K 1%

PD_+3.5V R2330 0 5%

C2355

0.1uF 16V

C2356

0.1uF 16V

PD_20_24V

R2337 100K

RESET_IC_ROHM

IC2307

BD48K28G

VDD

3

PD_20_24V

R2336 100K

PD_20_24V_ROHM

IC2308

BD48K28G

VDD

3

RESET_IC_DIODES

IC2307-*1 APX803D29

RESET

+3.5V_ST

C2365

0.1uF 16V

R2316 0

24V-->3.48V 20V-->3.51V 12V-->3.58V

ST_3.5V-->3.5V

RESET

POWER_DET

C2362

0.1uF 16V

POWER_DET_1

R2338 10K OPT

VOUT

2

1

GND

R2315

0

PWR_DET_MERGE

VOUT

2

1

GND

PWR_DET_SEPARATE

3

2

1

GND

PD_20_24V_DIODES

IC2308-*1 APX803D29

3

2

1

GND

not to RESET at 8kV ESD

PWR_DET_SEPARATE

VCC

eMMC POWER

+3.3V_NORMAL

+12V

L2300

BLM18PG121SN1D

C2301 10uF 16V

1.0V_DCDC_TI C2312-*1

3300pF 50V

3.3V_EMMC

L2302 BLM18PG121SN1D

C2359

0.1uF

C2305

C2300

0.1uF 22uF

16V

10V

+1.0V_VDD

R2304

1%

R2302

R2306

R2

10K

11K

33K

1%

POWER_ON/OFF2_3

R1

C2308 100pF

50V

DCDC_ROHM

IC2300

BD9D320EFJ

EN

C2310 1uF 10V

1

FB

2

VREG

3

SS

4

C2312 2200pF 50V

1.0V_DCDC_ROHM

3A

9

THERMAL

8

7

6

5

Vout=0.765*(1+R1/R2)

[EP]FIN

VIN

BOOT

SW

GND

+3.5V_ST

LG1154A

0.1uF C2314

R2333

16V

22

LD2300

NR5040T2R2N L2307

2.2uH

10K

C2340

22uF

R2341

10V

+3.3V_NORMAL

1.5K

R2342

+1.0V_VDD

11K

R2346

C

Q2303

2SC3052

C2348

22uF 10V

+2.5V

POWER_ON/OFF2_2

+3.3V_NORMAL

C2327

0.1uF 16V

B

E

R2312

10K

+5V_NORMAL

C2337 1uF

C2341

0.1uF

IC2302

AP2132MP-2.5TRG1

1

PG

2

EN

THERMAL

3

VIN

4

2A

VCTRL

EAN61387601

[EP]

8

GND

9

7

ADJ

6

VOUT

5

NC

T2 : Max 1.7A

else : Max 0.7A

+2.5V_Normal

1.2K

R2

R2321

R1

3.9 K

R23 22

C2342 10uF 10V

5V

OPT

ZD2302

Vout=0.6*(1+R1/R2)

+12V

L2301

BLM18PG121SN1D

C2302 10uF 16V

1.0V_DCDC_TI C2315-*1

3300pF 50V

C2360

0.1uF

Main +1.5V

POWER_ON/OFF2_3

R2303

R1

18K 1%

C2303 100pF

50V

R2305

R2

3.6K 1%

R2307 22K 1%

R2313

10K

C2313 1uF 10V

BD9D320EFJ

EN

1

FB

2

VREG

3

SS

4

C2315 2200pF 50V

1.0V_DCDC_ROHM

DCDC_ROHM

IC2303

THERMAL

3A

+1.5V_DDR

DCDC_TI

IC2303-*1

TPS54327DDAR

[EP]GND

VIN

EN

8

1

VBST

VFB

9

7

C2321 22uF 10V

VREG5

OPT

2

3

SS

4

ZD2303

2.5V

THERMAL

SW

6

GND

5

[EP]FIN

VIN

8

9

7

6

5

BOOT

SW

GND

16V

0.1uF C2318

NR5040T2R2N

L2308

2.2uH

C2320 22uF 10V

Vout=0.765*(1+R1/R2)=1.516V

+1.2V_CORE

R2368

100

1/16W

R2363

R2364

C2373 2200pF 50V

5.1K

4.87K

1%

1/16W

1%

1/16W

1%

1/16W

20K

R2365

C2374 1uF 10V

L2322

C2375 10uF 16V

+12V

C2376 10uF 16V

R2359 10K

2.5V

ZD2300

OPT

DCDC_TI

IC2300-*1

TPS54327DDAR

[EP]GND

VIN

EN

8

1

VBST

VFB

9

7

2

THERMAL

SW

VREG5

6

3

GND

SS

5

4

POWER_ON/OFF2_4

+1.2V_VDD

OPT

2.5V

ZD2304

C2361

22uF

C2353

22uF

C2369

0.1uF 16V

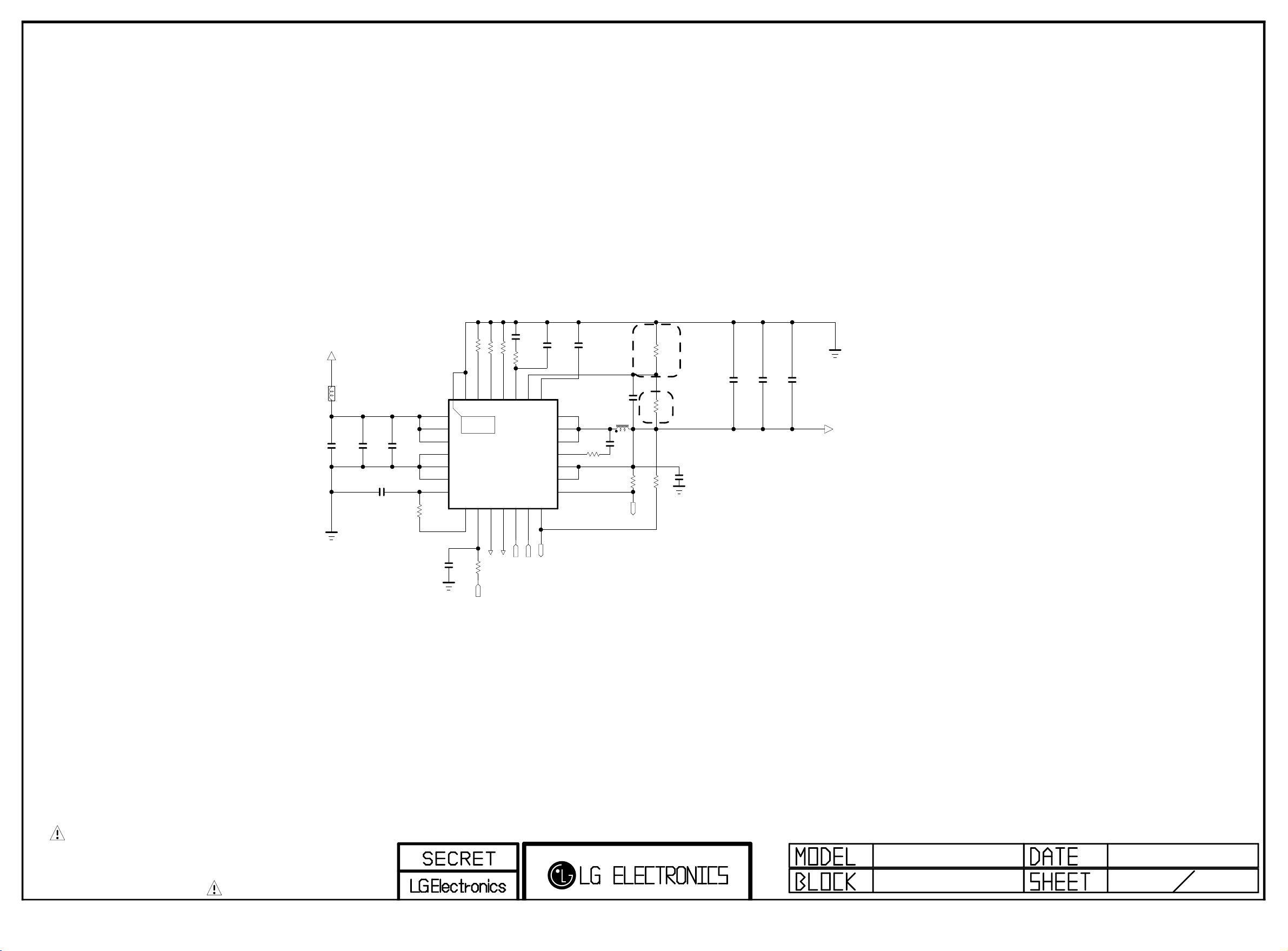

C2366 22uF

C2370 1000pF 50V

R2356 1K

R2355 2K

1/16W 5%

L2321

1uH

R2357

1%

91K

1/1 6W

R23 61

1%

27K

1/1 6W

RF

R23 60

PGOOD

EN

16V

0.1uF VBST

C2372

NC_1

4.7

R2358

SW_1

SW_2

SW_3

SW_4

3.3

1/10W

5%

30V

D2301 C2371 470pF 50V

[EP]

1

THERMAL

2

29

3

IC2309

4

TPS53513RVER

5

6

7

8

8A

9

10

PGND_111PGND_212PGND_313PGND_414PGND_5

R2362 39K

1/16W 5%

TRIP26NC_327GND128GND2

24VO25

R1

R2

FB

23

GND

22

MODE

21

VREG

20

VDD

19

NC_2

18

VIN_3

17

VIN_2

16

VIN_1

15

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Vout=0.6*(1+R1/R2)

POWER UP SEQUENCE

5V/3.3V->2.5V->1.5V/1.1V->1.0V LG1154D : 3.3V->2.5V->1.5V->1.1V LG1154AN : 3.3V->2.5V->1.0V

BSD-14Y-UD-023-HD

2013-12-17

POWER

+5.0V normal & USB for UB model

+24V

120-ohm

C2309 10uF 35V

OPT

L2310

C2311 10uF 35V

C2338

OPT

2200pF

C2343

50V

100pF

22SS23FB24

14

NFAULT2

USB_CTL3

USB_CTL2

50V

LX_3

21

LX_2

20

LX_1

19

18

17

16

15

R2350

BST

SW_IN2

SW_IN1

NFAULT1

Vout=0.6*(1+R1/R2)=5.1V

/USB_OCD2

R2349 10K

R2347 16 K 1%

R23481 50K 1%

R2344 16 K 1%

COMP

RLIM

RSET1

RSET2

AGND

[EP]

25

26

27

VIN_1

VIN_2

VIN_3

C2329

0.1uF 50V

PGND_1

PGND_2

PGND_3

V7V

5%

1/16W

C2335

0.0068uF

0

R2343

50V

1uF

25V

C2324

28

1

THERMAL

2

29

3

4

SN1302001(TPS65286RHDR)

5

6

7

IC2304

6A

9EN10

8

MODE/SYNC

10K

R2345

POWER_ON/OFF1

12

SW_EN213SW_EN1

SW_OUT211SW_OUT1

+5V_USB_2

+5V_USB_3

C2344

0.047uF 25V

0

C2347

82pF

50V

L2311

4.7uH

5%

R2

C2346

0.047uF 25V

100K

R2351

1/16W

/USB_OCD3

1%

R1

1%

R2354

1/16W

6.8K R2352

51K

R2353

5%

100K

C2349 1uF 10V

C2351 22uF 10V

C2350

C2358

10uF

22uF 10V

+5V_NORMAL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.5V_ST

RL_ON

L2304

UBW2012-121F

C2307

0.1uF 16V

+12V

C2306

0.1uF 50V

R2300 10K

PWM_DIM

UBW2012-121F

+3.5V_ST

L2303

L2312

10K

R2301

2

1

Q2300 MMBT3906(NXP)

3

PWR ON PDIM#1

3.5V

3.5V GND 12V 12V 12V GND 24V 24V GND

P13002 SMAW200-H24S5

2

1

4

3

6

5

8

7 9

10 12

11

14

13

16

15

18

17 19

20

21

22

23

24

25

INV CTL PDIM#2 GND

3.5V GND 12V 12V GND 24V 24V 24V GND

R2309 100

PWM_DIM2

L2306

UBW2012-121F

L2315

UBW2012-121F

+12V

+3.3V_NORMAL

R2310 1K

INV_CTL

C2316

0.1uF 50V

+24V

+12V

L2313

MLB-201209-0120P-N2

PANEL_CTL

PANEL_POWER

L2314

MLB-201209-0120P-N2

C2317 10uF 25V OPT

R2317 10K

OPT

R2314

0

C2322

0.1uF 25V

C2330

0.01uF 50V

R2318

R2324

1.8K

B

10K

C

Q2301 2SC3052

E

C2331 10uF

25V

C2333 10uF

25V

S1

S2

S3

G

Q2302 AO4423

1

AO4423

2

3

4

C2334

10uF 25V

OPT

TYP 6000mA

PANEL_VCC

D4

8

D3

7

D2

6

D1

5

R2329

2K

OPT

R2332

2K

OPT

C2336

C2339

10uF

0.1uF

25V

OPT

Q2302-*1

AO4447A

S_1

S_2

S_3

G

D_4

1

8

AO4447

D_3

2

7

D_2

3

6

D_1

4

5

C2352 10uF 16V

’14 UHD POWER

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C2354 10uF 16V

C2357 10uF 16V

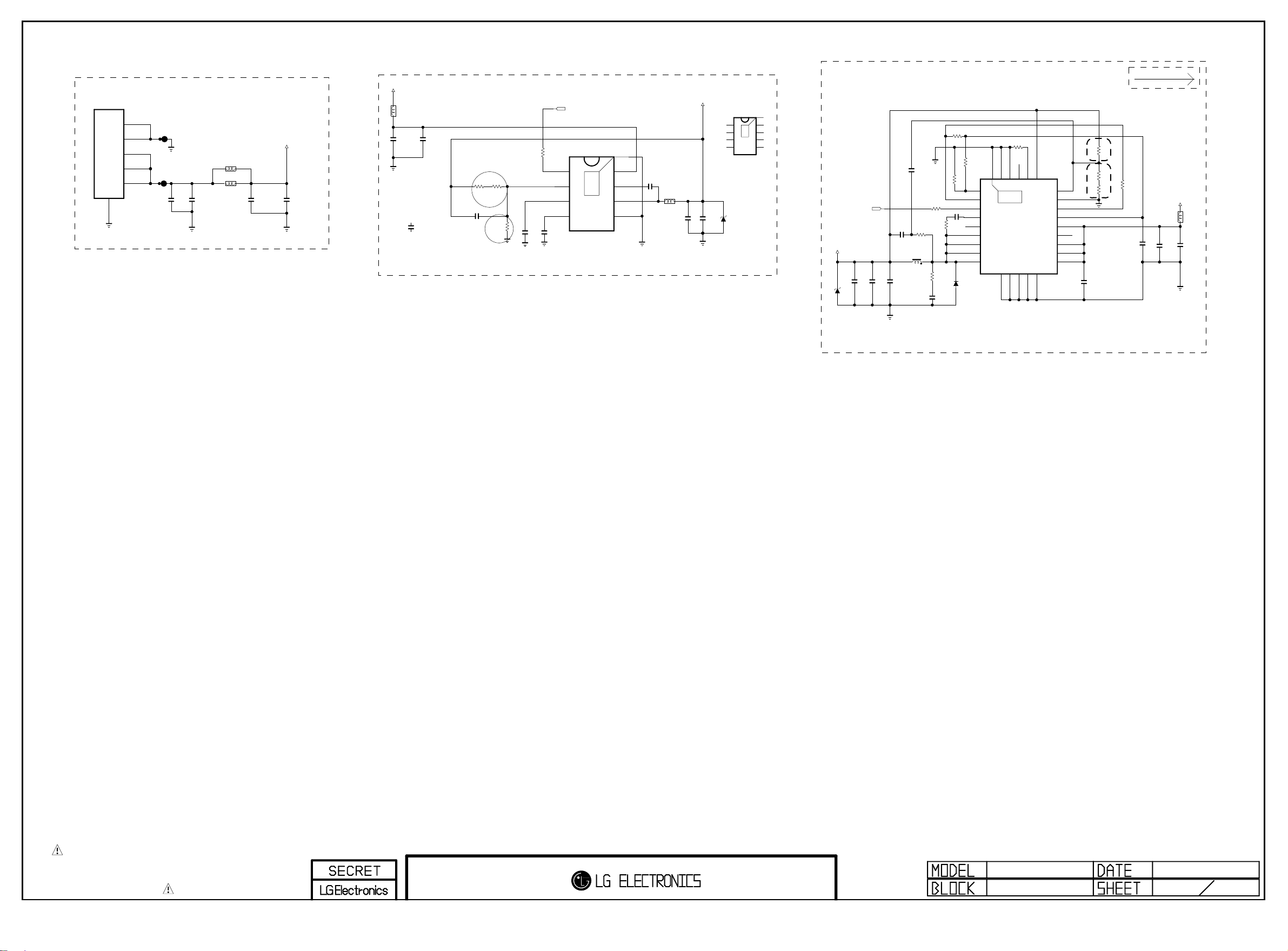

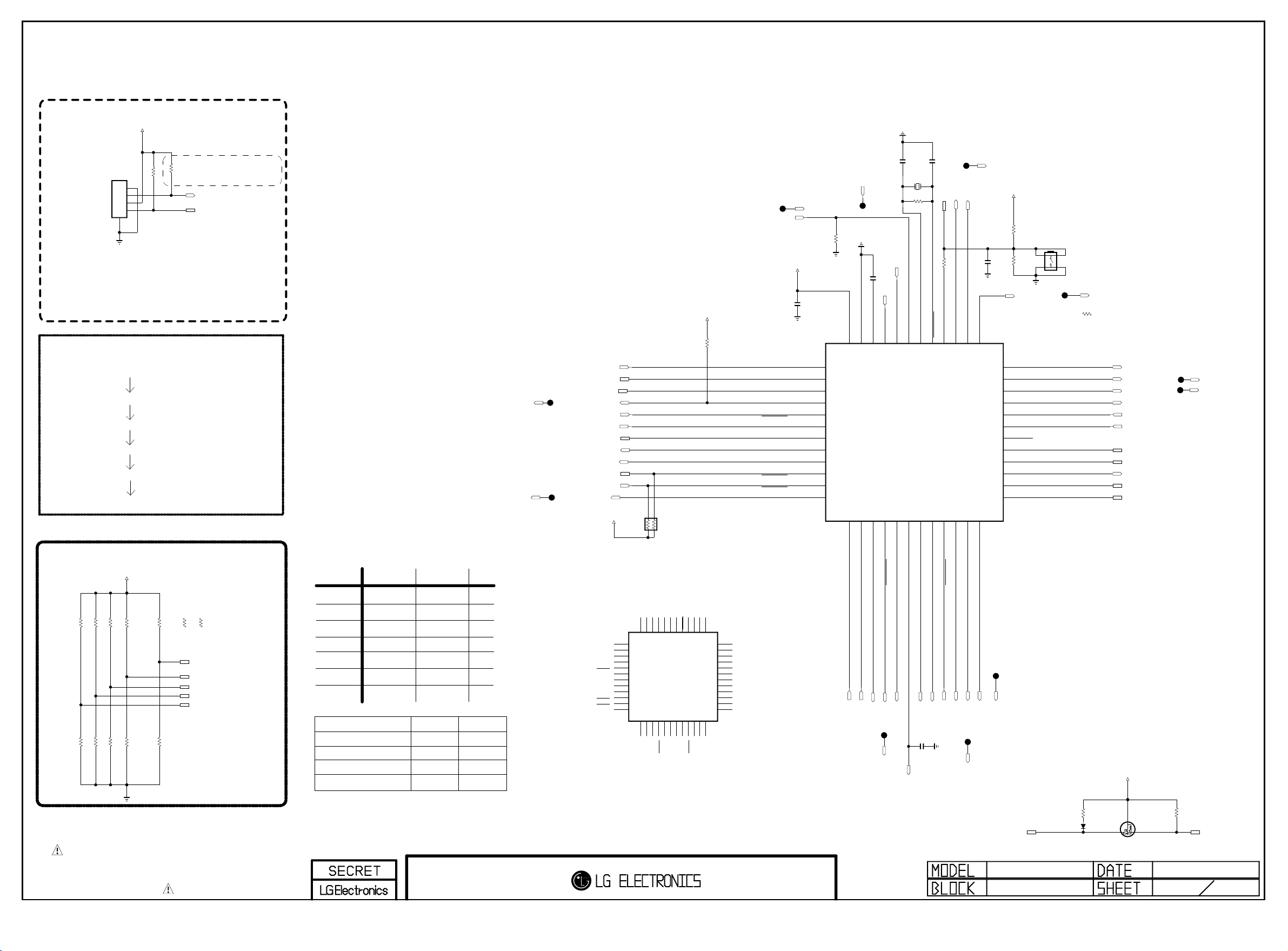

Renesas MICOM

For Debug

+3.5V_ST

MICOM_DEBUG

P3000

12507WS-04L

5

1

2

3

4

Don’t remove R3014, not making float P40

R3013 1K

R3010 10K

MICOM_DEBUG

MICOM_RESET

GP4 High/MID Power SEQUENCE

POWER_ON/OFF!

POWER_ON/OFF2_1

POWER_ON/OFF2_2

POWER_ON/OFF2_3

POWER_ON/OFF2_4

SOC_RESET

MICOM MODEL OPTION

+3.5V_ST

MODEL_OPT_0

MODEL_OPT_1

MICOM_GED

R3000 10K

MICOM_H13/H14

R3002 10K

MICOM_EPI

R3004 10K

R3006 10K

MICOM_OLED

R3011 10K

MICOM_OLED_MAIN

R3006-*1 56K

MICOM_LOGO_LIGHT

MICOM_OLED_FRC

R3006-*2 22K

MODEL1_OPT_0

MODEL1_OPT_1

MODEL1_OPT_2

MODEL1_OPT_3

MODEL1_OPT_4

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

M14 FHD LCD

MICOM_M14

R3003 10K

R3001 10K

MICOM_NON_GED

R3007 10K

R3005 10K

MICOM_LCD/UHD

MICOM_NON_EPI

R3012 10K

MICOM_NON_LOGO_LIGHT

M14 FHD OLED

H13/H14 UHD OLED

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0

NON LOGO

LCD / UHD

NON_EPI

M14

NON_GED

MODEL_OPT_1

1

LOGO

OLED

EPI

H13 / H14

GED

MODEL_OPT_3

0 0

1

0

1

PANEL_CTL

CAM_SLEEP

For LOGO LIGHT

Need to Assign ADC port

0

1H13/H14 UHD LCD

1

I2C_SCL_MICOM

I2C_SDA_MICOM

MODEL1_OPT_4

PANEL_CTL

WOL/WIFI_POWER_ON

IR

HDMI_CEC

POWER_ON/OFF2_2

POWER_ON/OFF2_3

EYE_SDA

EYE_SCL

CAM_SLEEP

TP3002

+3.5V_ST

P60/SCLA0 P61/SDAA0

P31/TI03/TO03/INTP4

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P73/KR3/SO01 P72/KR2/SO21

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

1 2

P62

3

P63

4 5 6 7 8 9 10 11 12

P50/INTP1/SI11/SDA11

+3.5V_ST

R3018

10K

P31/TI03/TO03/INTP4

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

3.3K

AR3000

EYE_Q_10P

P120/ANI19

P41/TI07/TO07

P40/TOOL0

RESET41P124/XT2/EXCLKS

P123/XT1

P137/INTP0

P122/X2/EXCLK

P121/X1

REGC47VSS48VDD

37

38

39

40

42

43

44

45

46

IC3000-*1

R5F100GEAFB#30

MICOM_LEAD_Cu

13

14

15

16

17

18

19

20

P17/TI02/TO02

P13/TXD2/SO20

P51/INTP2/SO11

P16/TI01/TO01/INTP5

P14/RXD2/SI20/SDA20

P12/SO00/TXD0/TOOLTXD

P15/PCLBUZ1/SCK20/SCL20

21

P11/SI00/RXD0/TOOLRXD/SDA00

P140/PCLBUZ0/INTP6

36

P00/TI00/TXD1

35

P01/TO00/RXD1

34

P130

33

P20/ANI0/AVREFP

32

P21/ANI1/AVREFM

31

P22/ANI2

30

P23/ANI3

29

P24/ANI4

28

P25/ANI5

27

P26/ANI6

26

P27/ANI7

25

22

23

24

P146

P147/ANI18

P10/SCK00/SCL00

HDMI_WAUP:HDMI_INIT

MHL_DET

+3.5V_ST

C3000

0.1uF

P60/SCLA0 P61/SDAA0

P62 P63

P73/KR3/SO01 P72/KR2/SO21

8pF

C3002

X3000

32.768KHz

POWER_DET_1

CAM_PWR_ON_CMD

P137/INTP0

P122/X2/EXCLK

P121/X1

43

44

45

R3019

1

10K

VDD

48

TP3009

GND

VSS

47

CAM_PWR_ON_CMD

C3001 0.47uF

REGC

46

2 3 4 5 6 7 8

IC3000

R5F100GEAFB

MICOM_LEAD_Au

9 10 11 12

13

14

15

16

17

18

P17/TI02/TO02

P51/INTP2/SO11

P16/TI01/TO01/INTP5

P50/INTP1/SI11/SDA11

P14/RXD2/SI20/SDA20

P15/PCLBUZ1/SCK20/SCL20

LED_R

POWER_DET

WOL/ETH_POWER_ON

WOL_CTL

POWER_ON/OFF1

LED_R

SOC_RESET

C3003 8pF

R3020

4.7M

MICOM_RESET

OPT

R3021 22

MICOM_RESET_22OHM

P40/TOOL0

RESET

P124/XT2/EXCLKS

P123/XT1

40

41

42

19

20

21

LOGO_LIGHT

MICOM_DEBUG

LOGO_LIGHT

C3004

0.1uF 16V

P120/ANI19

P41/TI07/TO07

37

38

39

36 35 34 33 32 31 30 29 28 27 26 25

22

23

24

+3.5V_ST

10K

R3022

R3023

P140/PCLBUZ0/INTP6 P00/TI00/TXD1 P01/TO00/RXD1 P130 P20/ANI0/AVREFP P21/ANI1/AVREFM P22/ANI2 P23/ANI3 P24/ANI4 P25/ANI5 P26/ANI6 P27/ANI7

P146

P147/ANI18

P13/TXD2/SO20

P10/SCK00/SCL00

P12/SO00/TXD0/TOOLTXD

P11/SI00/RXD0/TOOLRXD/SDA00

INV_CTL

0.1uF

C3005

SOC_TX

SOC_RX

EDID_WP

AMP_MUTE

EDID_WP

CAM_CTL

CEC_REMOTE

MICOM_RESET_SW

OPT

270K

CAM_RESET

MICOM

SW3000

JTP-1127WEM

4 3

BAT54_SUZHO

12

MICOM_RESET_33OHM

R3021-*1 33

R3024 27K

D3000

CAM_RESET

RL_ON

SCART_MUTE

POWER_ON/OFF2_4

POWER_ON/OFF2_1

KEY2

KEY1

MODEL1_OPT_3

MODEL1_OPT_0

SIDE_HP_MUTE

MODEL1_OPT_2

MODEL1_OPT_1

For CEC

+3.5V_ST

G

D

S

Q3000 RUE003N02

SCART_MUTE

POWER_ON/OFF2_4

R3025 120K

HDMI_CEC

BSD-14Y-UD-030-HD

2014.03.11

30

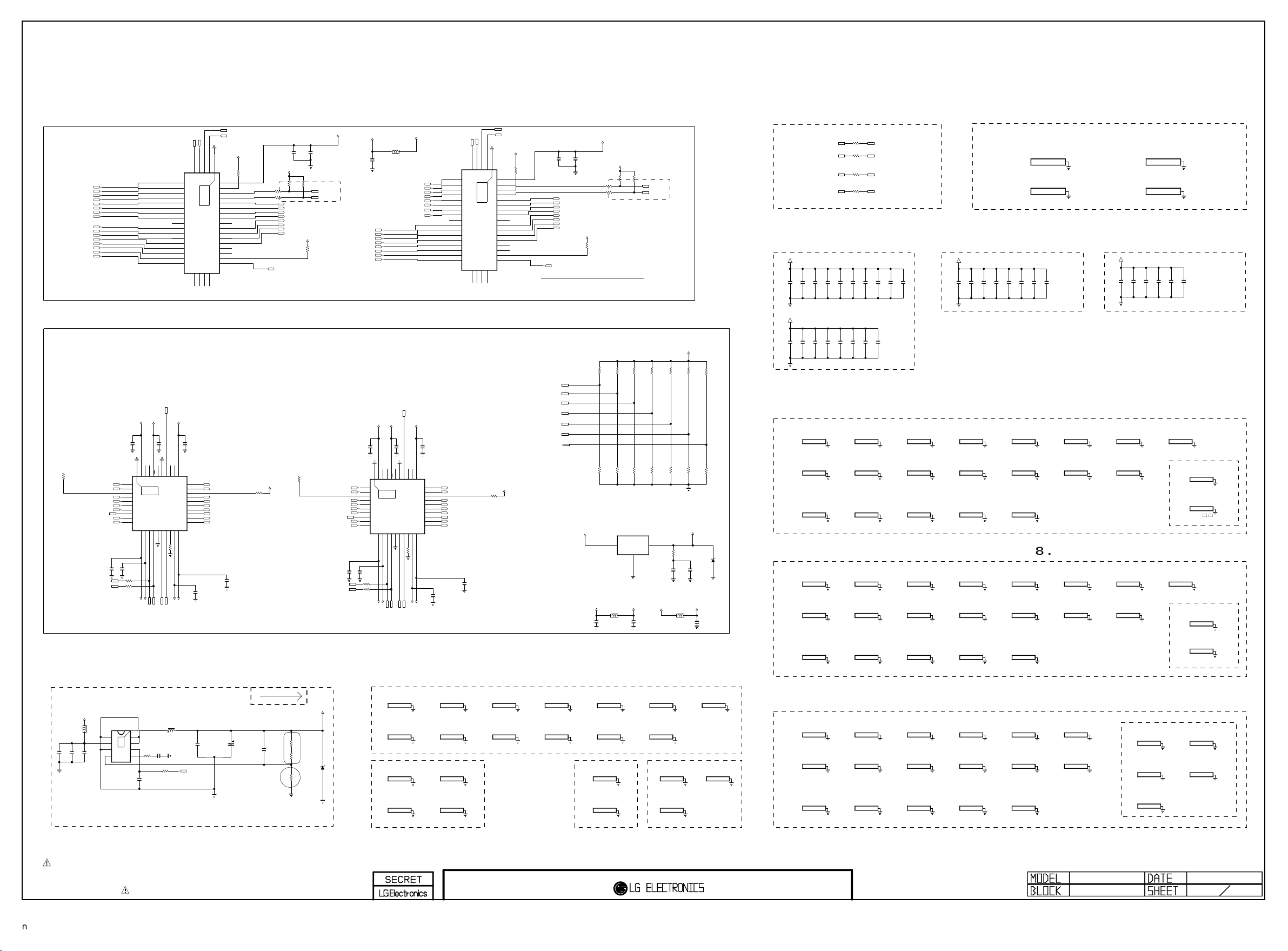

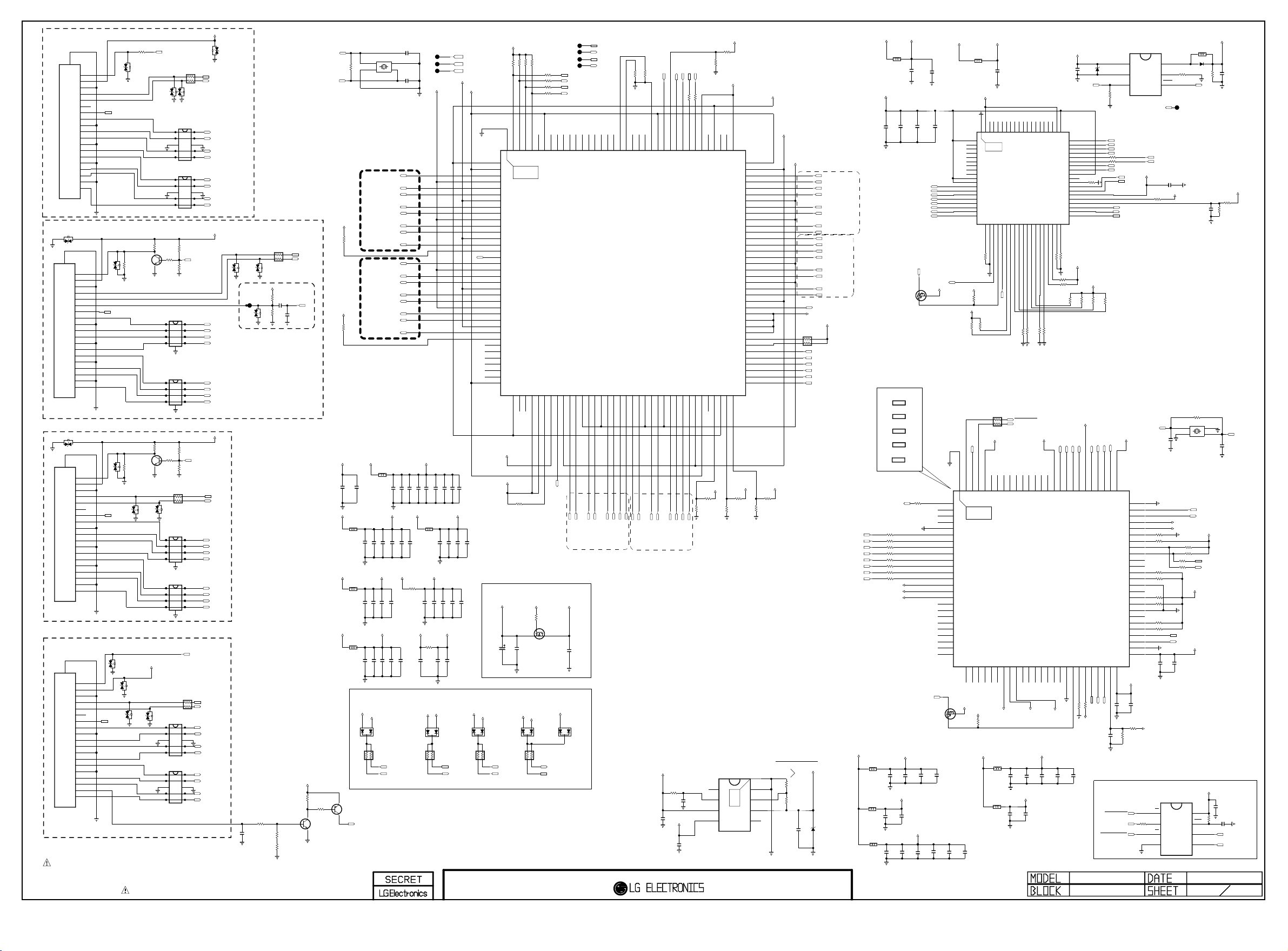

5V_HDMI_1

R3298

33

VA3212

Q3200

Q3201

VA3210 ESD_HDMI

5V_HDMI_4

HDMI_HPD_1

VA3204

ESD_HDMI

R3205 1K

C

R3233 1K

B

E

D3204 RCLAMP0544T.TCT

6.5VTO11.0V

1 8 2 7 3 6 4 5

D3205 RCLAMP0544T.TCT

6.5VTO11.0V

1 8 2 7 3 6 4 5

R3219 1K

C

R3245 1K

B

E

VA3213 ESD_HDMI

D3206 RCLAMP0544T.TCT

6.5VTO11.0V

1 8 2 7 3 6 4 5

D3207 RCLAMP0544T.TCT

6.5VTO11.0V

1 8 2 7 3 6 4 5

D3200

VA3215 ESD_HDMI

IP4294CZ10-TBR

1 2 3 4 5

D3201 IP4294CZ10-TBR

1 2 3 4 5

33 1/16W

VA3207

ESD_HDMI

D3202 IP4294CZ10-TBR

1 2 3

OPT

4 5

D3203 IP4294CZ10-TBR

1 2 3

OPT

4 5

R3218

4.7K HDMI_INT_EDID

R3247

4.7K

HDMI_EXT_EDID

9

R3220

4.7K

HDMI_INT_EDID

R3248

4.7K

HDMI_EXT_EDID

AR3205 33 1/16W

9

AR3206 33 1/16W

10 9 8

OPT

7 6

10 9 8

OPT

7 6

BODY_SHIELD

20

05008WR-H19C.

JK3203

VA3205

ESD_HDMI

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

05008WR-H19C.

JK3200

VA3202

ESD_HDMI

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

05008WR-H19C.

JK3201

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

05008WR-H19C.

JK3202

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

CEC_REMOTE

VA3201

ESD_HDMI

CEC_REMOTE

VA3206

ESD_HDMI

CEC_REMOTE

OPT

VA3200

ADLC 5S 02 015

VA3211

ADLC 5S 02 015

CEC_REMOTE

VA3203

ESD_HDMI

MMBT3904(NXP) R3202 100K

MMBT3904(NXP)

R3203

100K

OPT

ESD_HDMI

HDMI4 with MHL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

10 9 8 7 6

HDMI_HPD_2

OPT

HDMI_HPD_3

OPT

HDMI3

HDMI_HPD_4_MHL

DDC_SDA_MHL

DDC_SCL_MHL

CK-_HDMI4_JACK

CK+_HDMI4_JACK

D0-_HDMI4_JACK

D0+_HDMI4_JACK

D1-_HDMI4_JACK

D1+_HDMI4_JACK

D2-_HDMI4_JACK

D2+_HDMI4_JACK

VA3216

ESD_HDMI

DDC_SDA_1_R9531

DDC_SCL_1_R9531

CK-_HDMI1_R9531

CK+_HDMI1_R9531

D0-_HDMI1_R9531

D0+_HDMI1_R9531

D1-_HDMI1_R9531

D1+_HDMI1_R9531

D2-_HDMI1_R9531

D2+_HDMI1_R9531

HDMI1

5V_HDMI_2

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

5V_HDMI_3

DDC_SDA_3

DDC_SCL_3

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

AR3204 33 1/16W

VA3214

VA3209

ESD_HDMI

5V_HDMI_2

R3206

1K

C3200

OPT

1uF

VA3208

ESD_HDMI

10V

R3207

3.9K

OPT

HDMI2 with ARC

R3260 1K

1/16W

Q3205

5%

C3234

0.1uF 16V

OPT

R3232

R3259

180K

120K

MMBT3904(NXP)

SPDIF_OUT_ARC

OPT

C3201

0.1uF 16V

B

DDC_SDA_2 DDC_SCL_2

ARC

+3.5V_ST

R3261

10K

P_XOUT

P_XIN

+1.1V_VDD_D14

X-TAL_1

GND_13X-TAL_2

R3241

2.2M

P_AVDD33

HDMI_3.3V HDMI_3.3V

510

R3225

510

R3228

+1.1V_VDD_D14

C3202

C3272

0.33uF

22uF 10V

L3200 BLM18PG121SN1D

L3201 BLM18PG121SN1D

L3204 BLM18PG121SN1D

HDMI TX port 1HDMI TX port 0

OPT

C3204 1000pF

C3205 0.33uF

C3221 0.33uF

DDC pull-up

+5V_NORMAL

5V_HDMI_1

AR3201

47K

1/16W

E

MMBT3906(NXP)

R3262

Q3206

10K

B

C

E

MHL_DET

(CD_SENCE)

X3200 27MHz

1

2

HDMI_1_RX2+

HDMI_1_RX2-

HDMI_1_RX1+

HDMI_1_RX1-

HDMI_1_RX0+

HDMI_1_RX0-

HDMI_1_CLK+

HDMI_1_CLK-

HDMI_0_RX2+

HDMI_0_RX2-

HDMI_0_RX1+

HDMI_0_RX1-

HDMI_0_RX0+

HDMI_0_RX0-

HDMI_0_CLK+

HDMI_0_CLK-

L3205 BLM18PG121SN1D

OPT

C3228 1000pF

C3229 1000pF

P_VDD33

C3206 0.1uF

C3207 0.1uF

P_AVDDH33

C3223 0.1uF

C3225 0.1uF

A2CA1

MMBD6100 D3218

C3233

20pF

GND_2

4

C3214

20pF

1000pF

C3224

C3222

OPT

P_VDD11

+1.1V_VDD_D14

1000pF

OPT

C3248

C3208 1000pF

C3216 4.7uF

C3261 0.33uF

C3260 4.7uF

DDC_SDA_1_R9531

DDC_SCL_1_R9531

C3226 1000pF

OPT

C3263

4.7uF 10V

R3214 0

5V_HDMI_2

P_AVDDH11

1000pF

C3227

C3253 1000pF

OPT

L3203

BLM18PG121SN1D

C3212 0.33uF

C3230 0.33uF

AR3200

47K

1/16W

P_AVDD33

OPT

P_AVDD33

R3221 0

1000pF

C3254

OPT

1000pF

C3250

C3215 0.33uF

P_PVDD33

C3231 0.33uF

+5V_NORMAL

A2CA1 MMBD6100 D3208

Test3_ANA_MON3

C3255 1000pF

OPT

P_AVDD11

1000pF

OPT

C3251

C3217 0.33uF

0.1uF

C3232

DDC_SDA_2

Test1_ANA_MON1 Test2_ANA_MON2 Test3_ANA_MON3

P_AVDD11

P_VDD11

NC[ANA_MON3]

1000pF

C3264

4.7uF 10V

C3256

OPT

C3252 1000pF

C3259 4.7uF

C3258 0.33uF

C3265 4.7uF

+5V_NORMAL

DDC_SCL_2

VDD33_1 VDD11_1

P1TX2P

AVDD33_1

P1TX2M P1TX1P

AVDD11_1

P1TX1M P1TX0P

AVDD33_2

P1TX0M P1TXCP

AVDD11_2

P1TXCM

P1EXT_SWING

P0TX2P

AVDD33_3

P0TX2M P0TX1P

AVDD11_3

P0TX1M P0TX0P

AVDD33_4

P0TX0M P0TXCP

AVDD11_4

P0TXCM

P0EXT_SWING

CH0ABCLK

CH0ALRCLK

CH0ASD3 CH0ASD2 CH0ASD1 CH0ASD0 VDD11_2

3.3V Power Separation

+3.3V_NORMAL

5V_HDMI_3

A2CA1

MMBD6100

D3219

AR3202

47K

1/16W

+5V_NORMAL

[EP]

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

P_PVDD33

P_VDD33

C3268

6.3V

DDC_SDA_3

DDC_SCL_3

R326 5

1.8K

TX0SDA

144

37

VDD33_2

100uF

+3.5V_ST

R326 8

1.8K

R326 6

1.8K

R326 7

1.8K

R3269 0

R3270 0

R3271 0

R3272 0

VDD11_6

NC_11

TX1SCL

TX1SDA

TX0SCL

139

140

141

142

143

THERMAL

145

38

42

NTEST

NIRQA039NIRQA140TX1HPD41TX0HPD

R3231 10K

+5V_NORMAL HDMI_3.3V

R3208

10K

G

S AO3438 Q3204

C3269 22uF 10V

5V_HDMI_4

A2CA1 MMBD6100 D3209

AR3203

47K

1/16W

TX0SDA

TX0SCL

TX1SDA

TX1SCL

NC_6

NC_7

NC_8

NC_9

NC_10

CH0AMCLK

133

134

135

136

137

138

MN864778P

43

44

45

46

48

PVDD33

P3RXCM47P3RXCP

AVDD11_5

AVDDH33_1

NC[ANA_MON2]

Test2_ANA_MON2

CK+_HDMI1

CK-_HDMI1

D

C3235 10uF 10V

+5V_NORMAL

A2CA1

MMBD6100 D3210

DDC_SCL_MHL

DDC_SDA_MHL

TX0SDA

TX0SCL

TX1SDA

TX1SCLAR3207

LPSA0

NC_1

NC_2

NC_3

NC_4

NC_5

127

128

129

130

131

132

IC3200

49

51

52

P3RX0M50P3RX0P

P3RX1M53P3RX1P54P3RX2M55P3RX2P56P2RXCM57P2RXCP

AVDD11_6

D0-_HDMI1

D1+_HDMI1

D0+_HDMI1

D2-_HDMI1

D1-_HDMI1

MN864778_RESET

10K

R3244

R3243

NC/XO

RX3P5V

NRESET

VDD11_5

VSS

CH1ASD0

CH1ALRCLK

CH1ABCLK

LPSA1

118

119

120

121

122

123

124

125

126

58

59

61

62

P2RX0M60P2RX0P

P2RX1M63P2RX1P64P2RX2M65P2RX2P

AVDD11_7

AVDD11_8

D2+_HDMI1

CK-_HDMI2

D0+_HDMI2

CK+_HDMI2

D1-_HDMI2

D0-_HDMI2

HDMI1

R9531 +1.0V

+3.3V_NORMAL

R3279

10K

C3240

0.1uF +5V_NORMAL

16V

5V_HDMI_1

R3234 0

R3235

I2C_SCL5

I2C_SDA5

R3258 0

R3230 0

HSCL0

HSDA0

115

116

66

AVDDH33_2

D2+_HDMI2

HDMI2

C3243

0.1uF

CEC1

VDD11_3

5V_HDMI_2

R3237 47K

47K

P_VDD33

TX1ARCIN

TX0ARCIN

VDD33_4

NIRQ1

110

111

112

113

114

67

68

69

70

71

RX2P5V

RX1P5V72RX0P5V

VDD33_3

NC[VDDQ]

R3236 0

IC3204

AP2132MP-2.5TRG1

1

PG

2

EN

3

VIN

4

VCTRL

EAN61387601

CEC5

R3239

47K

2A

109

5V_HDMI_3

P_XOUT

P_XIN

SYSCLK/XI

117

D2-_HDMI2

D1+_HDMI2

C3241 1uF

Vout=0.6*(1+R1/R2)

108 107 106 105 104 103 102 101 100

99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73

R3238 0

THERMAL

9

P_VDD33

VDD11_4 AVDDH33_4 P0RX2P P0RX2M P0RX1P P0RX1M AVDD11_12 P0RX0P P0RX0M AVDD11_11 P0RXCP P0RXCM P1RX2P P1RX2M P1RX1P P1RX1M AVDD11_10 P1RX0P P1RX0M AVDD11_9 P1RXCP P1RXCM AVDDH33_3 NC[ANA_MON1] CEC0 CEC2 CEC3 CEC4 RX0SCL RX0SDA RX1SCL RX1SDA RX2SCL RX2SDA RX3SCL RX3SDA

5V_HDMI_4

R3240 0

R3242 47K

[EP]

8

GND

7

ADJ

6

VOUT

5

NC

P_AVDDH33

P_AVDDH11

else : Max 0.7A

1.8K

R2

R3280

R1

1.2K

R328 1

D2+_HDMI4_MHL

D2-_HDMI4_MHL

D1+_HDMI4_MHL

D1-_HDMI4_MHL

D0+_HDMI4_MHL

D0-_HDMI4_MHL

CK+_HDMI4_MHL

CK-_HDMI4_MHL

D2+_HDMI3

D2-_HDMI3

D1+_HDMI3

D1-_HDMI3

D0+_HDMI3

D0-_HDMI3

CK+_HDMI3

CK-_HDMI3

Test1_ANA_MON1

P_AVDDH33

+5V_NORMAL

AR3209 47K 1/16W

DDC_SCL_3

DDC_SDA_3

DDC_SCL_2

DDC_SDA_2

DDC_SCL_1

DDC_SDA_1

Solder Preform Attach at R9531 thermal pad

CK-_HDMI1_R9531

CK+_HDMI1_R9531

D0-_HDMI1_R9531

D0+_HDMI1_R9531

D1-_HDMI1_R9531

D1+_HDMI1_R9531

D2-_HDMI1_R9531

D2+_HDMI1_R9531

+1.0V_R9531

C3262

ZD3202

10uF

2.5V

10V

OPT

HDMI4

HDMI3

+1.0V_R9531

L3210

BLM18PG121SN1D

L3207

BLM18PG121SN1D

L3211

BLM18PG121SN1D

HDMI_3.3V

C3203

10uF

10V

SI1012CR-T1-GE3

RAC33437501

SPI_CK_R9531

R3257

R3263 5.1

R3264

R3273 5.1

R3274

R3276 5.1

R3277

R3299 5.1

CVDD10_R9531

DVDD10_R9531

AVDD33_R9531

C3244 10uF 10V

C3257 10uF 10V

3.3V_Sil9617

L3202

BLM18PG121SN1D

C3209

0.1uF 16V

D2+_HDMI4_MHL D2-_HDMI4_MHL D1+_HDMI4_MHL D1-_HDMI4_MHL D0+_HDMI4_MHL D0-_HDMI4_MHL CK+_HDMI4_MHL CK-_HDMI4_MHL

Q3203

S3200

S3201

S3202

S3203

S3204

SD0_IN_SPDIF0_IN

5.1

R9531_RESET

CVDD10_R9531

C3279

C3246

10uF

10V

APLL10_R9531

C3282

0.1uF 16V

DVDD10_R9531

C3278

2.2uF 10V

C3218

0.1uF 16V

C3210

0.1uF 16V

SIL9617_RESET

SIL9617_INT

+3.3V_NORMAL

S

G

D

R3204 33

SCLK_GPIO9

RSVDL_1

CVDD10_1 AVDD10_1 AVDD33_1 RSVDNC_1 RSVDNC_2 RSVDNC_3 RSVDNC_4 RSVDNC_5 RSVDNC_6 RSVDNC_7 RSVDNC_8 RSVDNC_9

SI1012CR-T1-GE3

C3284

0.1uF 16V

C3280

0.1uF 16V

C3219 22uF 10V

C3211

0.1uF 16V

GPIO5

GPIO6

R0XCR0XC+ R0X0R0X0+ R0X1R0X1+ R0X2R0X2+

Q3202

C3288

0.1uF 16V

C3289

0.1uF 16V

+5V_NORMAL

S

D

C3245

0.1uF 16V

+3.3V_NORMAL

5V_MHL

L3208

BLM18PG121SN1D

3.3V_Sil9617

AVDD10_1

1

RSVD_1

2

THERMAL

RSVD_2

3

77

RSVD_3

4

RSVD_4

5

RSVD_5

6

RSVD_6

7

RSVD_7

8

RSVD_8

9

VDD10_1

10

TAVDD10

11

TX2P

12

TX2N

13

TX1P

14

TX1N

15

TX0P

16

TX0N

17

TXCP

18

TXCN

19

20

21

22

INT

RSVDL_1

TPWR_CI2CA

4.7K

R3210

PWRMUX_OUT_SIL9617

10K

R3201

+3.3V_NORMAL

R3200

47K

R3209

47K

AR3208

33

AVDD33_R9531

SPI_DI_R9531

RSVDNC_35

RSVDNC_36

IOVCC33

SDO_GPIO10

SDI_GPIO11

SS_GPIO8

[EP]

96

97

98

99

100

1 2

THERMAL

3

101 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

26

RSVDNC_1027RSVDNC_1128RSVDNC_1229RSVDNC_1330RSVDNC_1431RSVDNC_15

PWRMUX_OUT

R3252

C3266

0.1uF 16V

10K

HDMI_3.3V

CVDD10_R9531

L3215

BLM18PG121SN1D

L3213

BLM18PG121SN1D

G

C3236

0.1uF 16V

IC3206

SIL9617

23

24

25

27

RESET_N

RSVDH_128RSVDH_229RSVDL_230RSVDL_331RSVDH_332RSVDH_433RSVDL_434RSVDL_5

CD_SENSE

DSDA4[VGA]26DSCL4[VGA]

MHL_DET

5.1KR3212

R3211 47K

SPI_CS_R9531 SPI_DO_R9531

CVDD10_R9531

RSVDNC_29

RSVDNC_30

RSVDNC_31

RSVDNC_32

RSVDNC_33

RSVDNC_34

90

91

92

93

94

95

IC3202

R9531AN

32

35

CVDD10_233AVDD10_234AVDD33_2

RSVDNC_1636RSVDNC_1737RSVDNC_1838RSVDNC_1939RSVDNC_2040RSVDNC_2141RSVDNC_2242RSVDNC_23

DVDD10_R9531

AVDD33_R9531

C3292

C3294

10uF

10V

XTAL_VCC33_R9531

C3293

C3290

0.1uF

10uF

16V

10V

5.1KR3215

R3213 47K

RSVDNC_28

88

89

AVDD33_R9531

C3298

0.1uF 16V

35

37

DSDA136DSCL1

CBUS_HPD1

5.1KR3217

5.1KR3216

R3222 R3223

ARCRX_TX

87

AVDD10_259VDD33_160R1XCN61R1XCP62R1X0N63R1X0P64R1X1N65R1X1P66R1X2N67R1X2P68RSVD_969RSVD_1070RSVD_1171RSVD_1272RSVD_1373RSVD_1474RSVD_1575RSVD_1676VDD33_277[EP]GND

58

57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39

38

R1PWR5V

+3.3V_NORMAL

47K

D0-_HDMI1

C3299

0.1uF 16V

5V_MHL

MHL_DET

R0X2P R0X2N R0X1P R0X1N R0X0P R0X0N R0XCP R0XCN VDD10_2 ARC SPDIF_IN CSCL CSDA PWRMUX_OUT SBVCC5 R0PWR5V CBUS_HPD0 DSCL0 DSDA0

47K

R3224 47K

DVDD10_R9531

D0+_HDMI1

D1-_HDMI1

43

RESET_N

C3271

0.1uF 16V

C3249

0.1uF 16V

R3227

10K

+5V_NORMAL

R3229

R3226

47K

D1+_HDMI1

D2-_HDMI1

T0X1-83T0X1+84T0X2-85T0X2+86CVDD10_3

82

44

45

46

INT

DSDA047DSCL0

CI2CA_TPWR

10K

R3283 4.7K

R3282

DDC_SDA_1_R9531

AVDD33_R9531

Current Limit

IN

ZD3200

5V

GND

OPT

EN

R3294

10K

D2+_HDMI4_JACK D2-_HDMI4_JACK D1+_HDMI4_JACK D1-_HDMI4_JACK

R3255

5.1

R3256 5.1

CK+_HDMI4_JACK CK-_HDMI4_JACK

PWRMUX_OUT_SIL9617 I2C_SCL2 I2C_SDA2

HDMI_HPD_4_MHL DDC_SCL_MHL DDC_SDA_MHL

R3246 47K

DVDD10_R9531

CK-_HDMI1

CK+_HDMI1

D2+_HDMI1

TPVDD10

T0XC-78T0XC+79T0X0-80T0X0+81TDVDD10

76

77

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

48

49

50

PWRMUX_OUT

R0PWR5V

CBUS_HPD0

VCC33_OUT

C3276 10uF 10V

HDMI_HPD_1

R3254 10

DDC_SCL_1_R9531

R3253

C3275

5.1K

1uF

SPI FLASH (2MBit)

SPI_CS_R9531

SPI_DO_R9531

R9531_FLASH_WP

IC3207

TPS2553DBV

1

2

3

#MHL_OCP

R9531_XTAL_IN

XTALGND XTALIN XTALOUT XTALVCC33 APLL10 RSVD_9 TX_HPD0 TX_DSCL0 TX_DSDA0 RSVDNC_27 RSVDNC_26 RSVD_8 RSVD_7 RSVD_6 RSVDNC_25 RSVD_5 RSVD_4 RSVD_3 RSVDNC_24 RSVD_2 RSVD_1 CSDA CSCL RSVDL_2 SBVCC5V

C3277

0.1uF 16V

5V_HDMI_1

R3275

DO[IO1]

33

6

5

4

D0+_HDMI4_JACK D0-_HDMI4_JACK

R3249 10

4.7K

W25X20CLSNIG

CS

WP

GND

OUT

ILIM

FAULT

C3213

10uF

+5V_NORMAL

C3267 18pF 50V

R3284

R3285

R3286

R3287

R3288

R3290

R3291

R3292

C3273 10uF 10V

1

2

3

4

IC3203

R3914

BLM31PG500SN1

50-ohm

D3211

1%

20K

R3295

#MHL_OCP

TP3203

R3297 120K

X3201 27MHz

X-TAL_1

1

GND_13X-TAL_2

2

R9531_XTAL_IN

R9531_XTAL_OUT

XTAL_VCC33_R9531

APLL10_R9531

R32931.8K

R32961.8K

R3912 0

R3913 0

AVDD33_R9531

I2C_SDA2

I2C_SCL2

+5V_NORMAL

C3274

0.1uF 16V

+3.3V_NORMAL

VCC

8

HOLD

7

CLK

6

DIO[IO0]

5

5V_HDMI_4

30V

C3242

OPT

R3289

10uF

100K

10V

5V_HDMI_4

R3251 10

C3220

R3250

5.1K

1uF 10V

GND_2

4

C3270 18pF 50V

+5V_NORMAL

DDC_SDA_1

DDC_SCL_1

C3239

0.1uF

C3281

R3278

10K

0.1uF

SPI_CK_R9531

SPI_DI_R9531

BSD-14Y-UD-032-HD

2013.12.17

32HDMI

R9531_XTAL_OUT

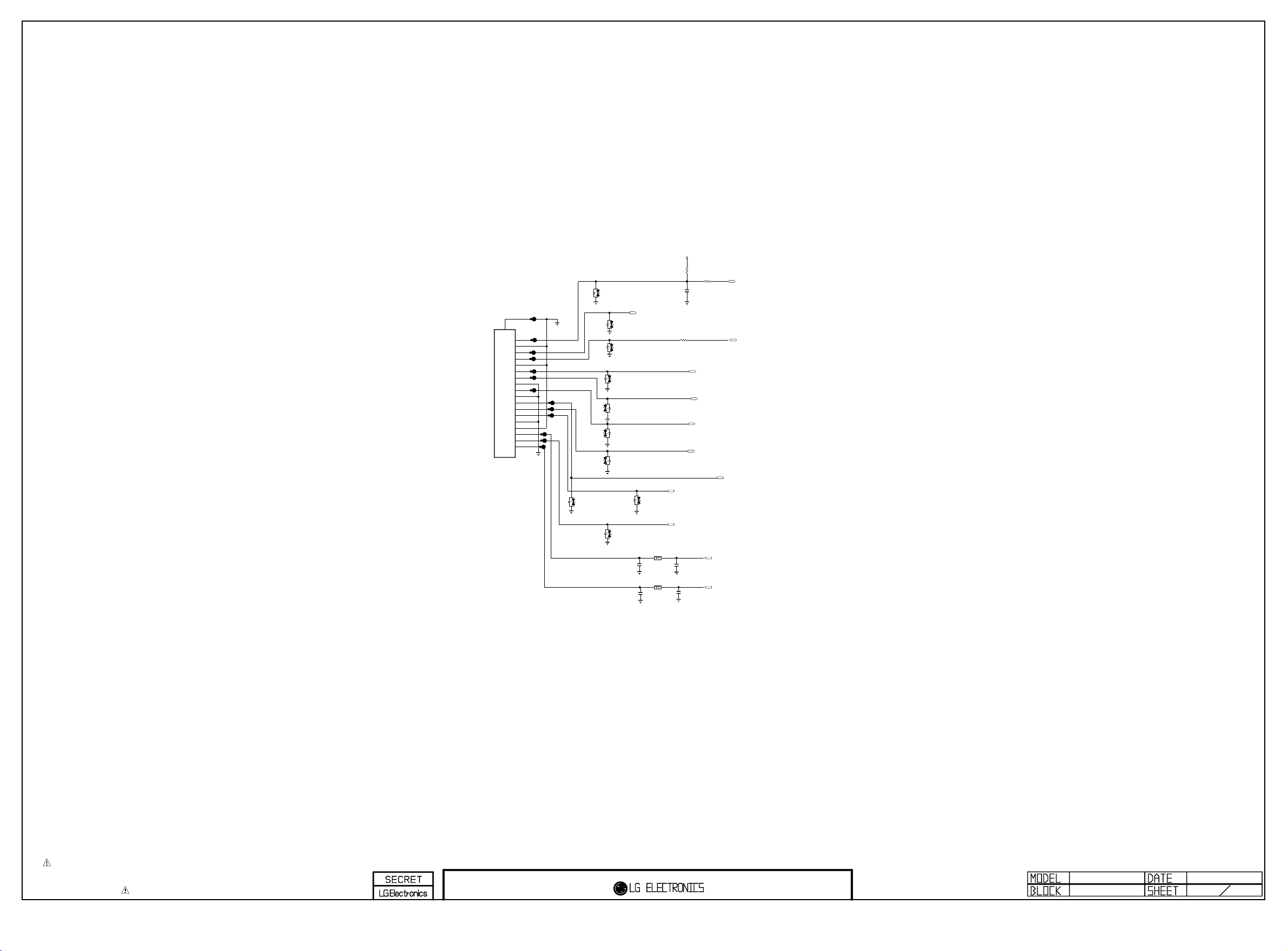

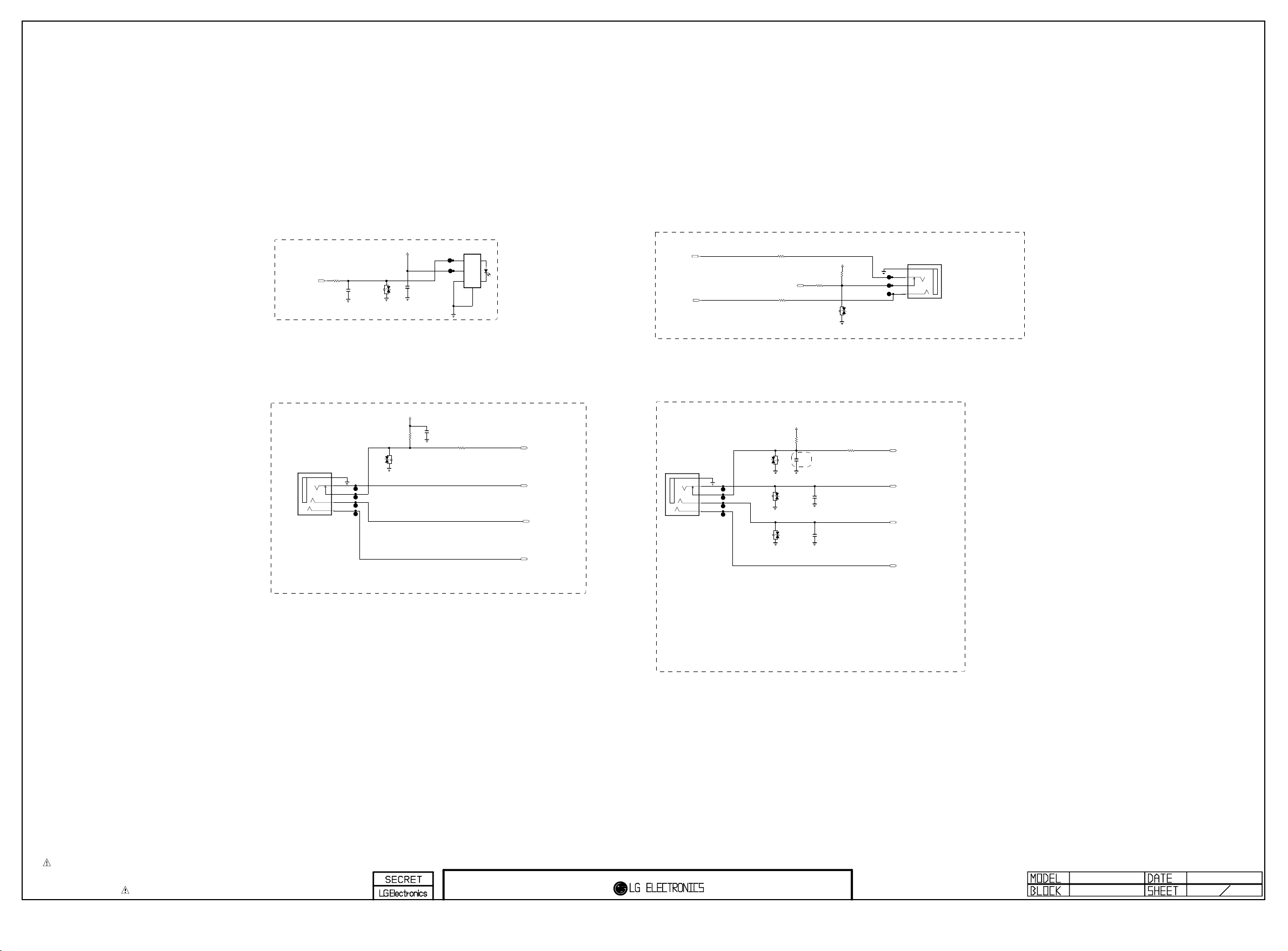

SPDIF OUT

SPDIF_OUT

R3400

+3.3V_NORMAL

33

C3402 47pF 50V

VA3400

5.5V

OPT

ADUC 5S 02 0R5L

C3400

0.1uF 16V

JK3401

JSTIB15

VIN

A

VCC

B

GND

C

Fiber Optic

4

SHIELD

HP_LOUT

HP_ROUT

R3404 150

1/10W 5%

R3405 150

1/10W 5%

HP_DET

HP_OUT

R3409 100

1/16W 5%

+3.3V_NORMAL

R3406

10K

HP_OUT

VA3405

5.6V

JK3403

PEJ038-3B61

5GND

4L

3DETECT

1R

EAG61030015

COMPONENT 1 PHONE JACK

JK3400

PEJ038-3B6111

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

EAG61030017

VA3401

5.6V

+3.3V_NORMAL

R3402 10K

OPT

C3401 18pF

R3407 100

1/16W 5%

COMP1_DET

COMP1_Y

COMP1_Pb

COMP1_Pr

CVBS 1 PHONE JACK

JK3402

PEJ038-3B611

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

EAG61030016

VA3402

5.6V

VA3403

5.6V

VA3404

5.6V

+3.3V_NORMAL

R3403 330K

C3403

0.1uF 16V

for audio Hum noise (L)

C3405

0.01uF 25V

C3404

0.01uF 25V

R3408 100

1/16W 5%

AV1_CVBS_DET

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

AV1_CVBS_IN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JACK HIGH/MID

BSD-14Y-UD-034-HD

2013.12.17

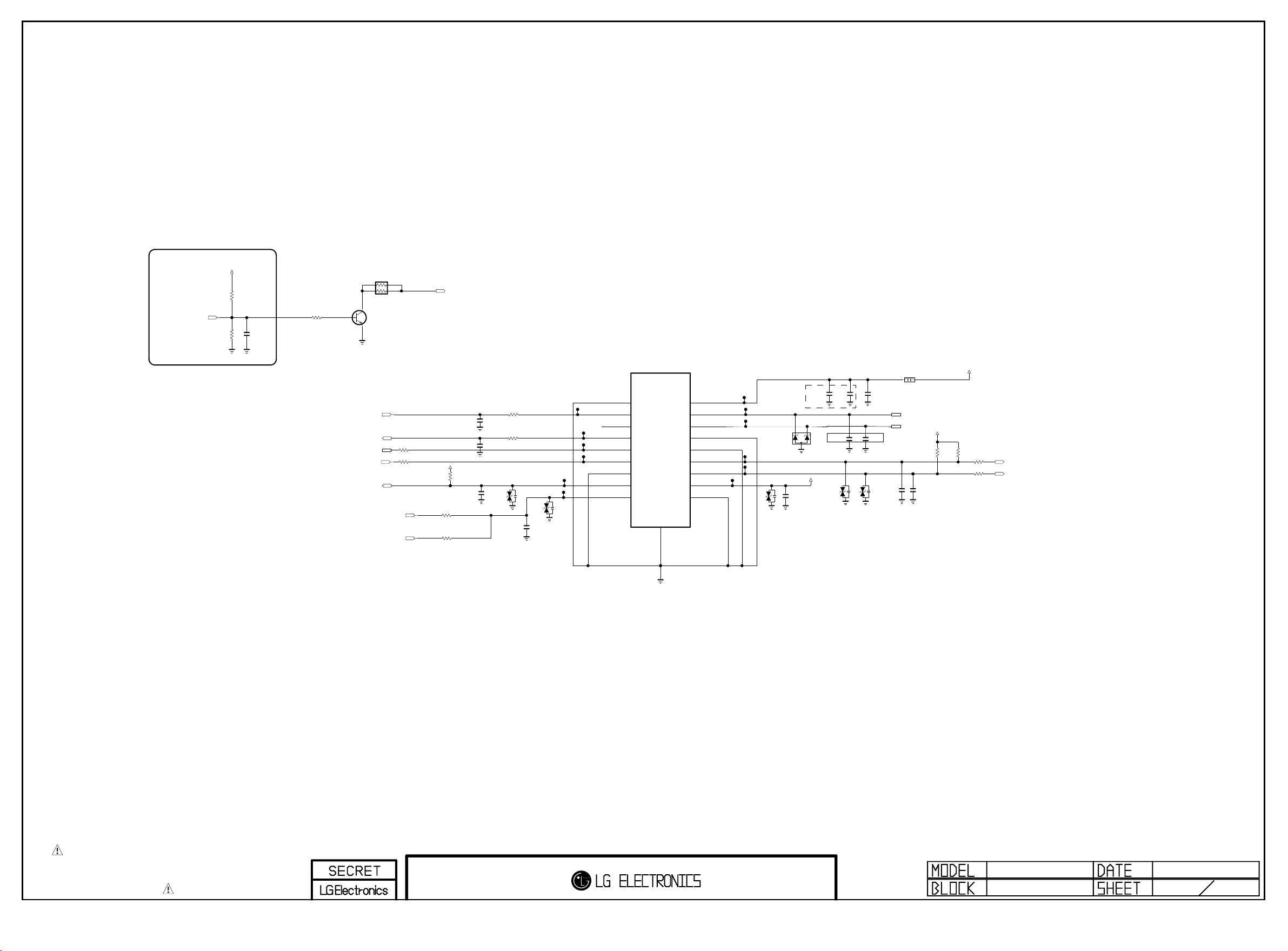

UB85/95/UC97 only

HDMI0_DDC_DA

TI 2:1 Mux

HDMI0_TX2P HDMI0_TX2N HDMI0_TX1P HDMI0_TX1N HDMI0_TX0P

From D13

HDMI0_TX0N

HDMI0_TXCP

HDMI0_TXCN

HDMI_0_RX2+ HDMI_0_RX2HDMI_0_RX1+ HDMI_0_RX1HDMI_0_RX0+ HDMI_0_RX0-

HDMI_0_CLK+

HDMI_0_CLK-

From MN864778

IC3302

TS3DV642A0RUAR

D0+A D0-A D1+A D1-A D2+A D2-A D3+A D3-A NC_2 D0+B D0-B B1+B B1-B D2+B D2-B D3+B D3-B

TX0SDA

38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22

TX0SCL

SDA_B40SCL_B41SDA_A42SCL_A43[EP]GND

39

VCC

1

EN

THERMAL

2

SCL

3

SDA

4

D0+

5

D0-

6

D1+

7

D1-

8

NC_1

9

D2+

10

D2-

11

D3+

12

D3-

13

HPD

14

CEC

15

SEL1

16

SEL2

17

18

HDMI0_DDC_CK

+3.3V_MUX

CEC_A19HPD_A20CEC_B21HPD_B

Jitter Cleaning Repeater

PS8407_URSA9_0

ISET

+3.3V_PS8401

1K

OPT

R3354

HDMI_RX2+_URSA9_0_RP HDMI_RX2-_URSA9_0_RP

HDMI_RX1+_URSA9_0_RP HDMI_RX1-_URSA9_0_RP HDMI_RX0+_URSA9_0_RP HDMI_RX0-_URSA9_0_RP

HDMI_CLK+_URSA9_0_RP HDMI_CLK-_URSA9_0_RP

I2C_CTL_EN

C3315

0.1uF

I2C_SCL2 I2C_SDA2

+1.2V_PS8401

C3317

0.1uF 16V

[EP]GND

IN_D2P

1

IN_D2N

2

THERMAL

HPD_SRC

3

41

IN_D1P

4

IN_D1N

5

IN_D0P

6

IN_D0N

7

I2C_CTL_EN

8

IN_CKP

9

IN_CKN

10

11

VDD33_112VDDRX_1

C3316

0.1uF

16V

R3300 22

OPT

R3336 22 OPT

+1.2V_PS8401

+3.3V_PS8401

C3318

0.1uF 16V

IC3301

PS8401A

13

14

15

16

17

PRE

GND_1

EQ/I2C_ADDR0

DDCBUF/SDA_CTL

DCIN_EN/SCL_CTL

PRE

DDCBUF

DCIN_EN

+1.2V_PS8401

VDDTX_232SCL_SNK33SDA_SNK34ISET35GND_236PD37VDD33_238SCL_SRC39SDA_SRC40VDDRX_2

31

18

19

20

REXT

VDDRA

VDDTX_1

R3335

4.99K 1%

+1.2V_PS8401

EQ/I2CADDR_0

C3319

0.1uF 16V

30 29 28 27 26 25 24 23 22 21

C3320

0.1uF 16V

OUT_D2P OUT_D2N HPD_SNK OUT_D1P OUT_D1N OUT_D0P OUT_D0N CFG/I2C_ADDR1 OUT_CKP OUT_CKN

HDMI_RX2+_URSA9_0 HDMI_RX2-_URSA9_0

HDMI_RX1+_URSA9_0 HDMI_RX1-_URSA9_0 HDMI_RX0+_URSA9_0 HDMI_RX0-_URSA9_0

CFG/I2C_ADDR1

HDMI_CLK+_URSA9_0 HDMI_CLK-_URSA9_0

C3322

0.1uF 16V

Separation of +3.3_NORMAL(For CST)

+3.3V_NORMAL

R3318

3.3K

OPT

R3500 33

OPT

R3501 33

HDMI_MUX_SEL

+5V_NORMAL

R3353

1K

HDMI OUTPUT to URSA9_0

C3300

C3301

10uF

0.1uF 10V

16V

OPT R3502 10K

HDMI_RX2+_URSA9_0_RP

HDMI_RX2-_URSA9_0_RP HDMI_RX1+_URSA9_0_RP HDMI_RX1-_URSA9_0_RP HDMI_RX0+_URSA9_0_RP HDMI_RX0-_URSA9_0_RP HDMI_CLK+_URSA9_0_RP HDMI_CLK-_URSA9_0_RP

+3.3V_NORMAL

R3319

1K

+3.3V_MUX

+3.3V_NORMAL

OPT

R3503 10K

RXBSCL_URSA9 RXBSDA_URSA9

HDMI OUTPUT_0 DDC to URSA9

HDMI OUTPUT to Splitter

HDMI_1_RX2+ HDMI_1_RX2HDMI_1_RX1+ HDMI_1_RX1-

10K

HDMI_1_RX0+ HDMI_1_RX0HDMI_1_CLK+ HDMI_1_CLK-

PS8407_URSA9_1

0.1uF

OPT

R3322

HDMI_RX2+_URSA9_1_RP HDMI_RX2-_URSA9_1_RP

HDMI_RX1+_URSA9_1_RP HDMI_RX1-_URSA9_1_RP HDMI_RX0+_URSA9_1_RP HDMI_RX0-_URSA9_1_RP

HDMI_CLK+_URSA9_1_RP HDMI_CLK-_URSA9_1_RP

I2C_CTL_EN

C3307

0.1uF

I2C_SCL2 I2C_SDA2

16V

IN_D2P IN_D2N

HPD_SRC

IN_D1P IN_D1N IN_D0P IN_D0N

I2C_CTL_EN

IN_CKP IN_CKN

C3327

16V

C3308

0.1uF 16V

R3332 22 OPT

R3331 22

OPT

C3314 22uF 10V

[EP]GND

1 2 3 4 5 6 7 8 9 10

11

VDD33_112VDDRX_1

+1.2V_PS8401

+3.3V_PS8401

L13413

BLM18PG121SN1D

+3.3V_PS8401

THERMAL

41

IC3303

PS8401A

13

14

15

GND_1

DDCBUF/SDA_CTL

DCIN_EN/SCL_CTL

DDCBUF

DCIN_EN

+1.2V_PS8401

+3.3V_MUX

HDMI1_TX2P HDMI1_TX2N HDMI1_TX1P HDMI1_TX1N HDMI1_TX0P HDMI1_TX0N

HDMI1_TXCP

HDMI1_TXCN

ISET

C3328

0.1uF 16V

16

17

PRE

REXT

EQ/I2C_ADDR0

PRE

EQ/I2CADDR_0

18

TS3DV642A0RUAR

+1.2V_PS8401

C3329

0.1uF 16V

VDDTX_232SCL_SNK33SDA_SNK34ISET35GND_236PD37VDD33_238SCL_SRC39SDA_SRC40VDDRX_2

31

OUT_D2P

30

OUT_D2N

29

HPD_SNK

28

OUT_D1P

27

OUT_D1N

26

OUT_D0P

25

OUT_D0N

24

CFG/I2C_ADDR1

23

OUT_CKP

22

OUT_CKN

21

19

20

VDDRA

VDDTX_1

R3333

4.99K 1%

C3330

0.1uF 16V

+1.2V_PS8401

IC3501

D0+A

38

D0-A

37

D1+A

36

D1-A

35

D2+A

34

D2-A

33

D3+A

32

D3-A

31

NC_2

30

D0+B

29

D0-B

28

B1+B

27

B1-B

26

D2+B

25

D2-B

24

D3+B

23

D3-B

22

HDMI_RX2+_URSA9_1 HDMI_RX2-_URSA9_1

HDMI_RX1+_URSA9_1 HDMI_RX1-_URSA9_1 HDMI_RX0+_URSA9_1 HDMI_RX0-_URSA9_1

CFG/I2C_ADDR1

HDMI_CLK+_URSA9_1 HDMI_CLK-_URSA9_1

TX1SDA

TX1SCL

SDA_B40SCL_B41SDA_A42SCL_A43[EP]GND

39

THERMAL

R3334

HDMI OUTPUT to URSA9_1

C3332

0.1uF 16V

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17

18

CEC_A19HPD_A20CEC_B21HPD_B

1K

HDMI1_DDC_DA HDMI1_DDC_CK

+3.3V_MUX

VCC EN SCL SDA D0+ D0D1+ D1NC_1 D2+ D2D3+ D3HPD CEC SEL1 SEL2

+5V_NORMAL

C3503

C3502

10uF

0.1uF 10V

16V

R3505

3.3K

HDMI_RX2+_URSA9_1_RP HDMI_RX2-_URSA9_1_RP HDMI_RX1+_URSA9_1_RP HDMI_RX1-_URSA9_1_RP HDMI_RX0+_URSA9_1_RP HDMI_RX0-_URSA9_1_RP HDMI_CLK+_URSA9_1_RP HDMI_CLK-_URSA9_1_RP

+3.3V_NORMAL

HDMI_MUX_SEL

SEL2(GPIO30) Function

Low CH A (HEVC decoder) enable High CH B (HDMI S/W) enable

I2C_CTL_EN

DDCBUF

DCIN_EN

EQ/I2CADDR_0

PRE

ISET

CFG/I2C_ADDR1

+3.3V_NORMAL

R3509

10K

+3.3V_NORMAL

C3302

10uF

10V

+3.3V_MUX

OPT

R3504 33

OPT

R3506 33

R3323

4.7K

R3324

4.7K

+3.3V_NORMAL

HDMI OUTPUT_1 DDC to URSA9

OPT

R3507

R3508

10K

HDMI OUTPUT to URSA9_1

R3325

R3327

4.7K

OPT

R3328

R3326

4.7K

4.7K OPT

IC3304

AZ1117EH-1.2TRG1

IN

L3301

120-ohm

3

+3.3V_PS8401

1

ADJ/GND

C3323

0.1uF

2

10.5T/6T/5.5TSMD bottom for ESD_UC97

RXASCL_URSA9 RXASDA_URSA9

R3329

4.7K OPT

R3330

4.7K

OUT

+1.2V

+3.3V_PS8401

R3346

4.7K OPT

R3347

4.7K

R3352 1

C3325 10uF 10V

L3302

120-ohm

R3348

4.7K OPT

R3349

4.7K

+1.2V

C3326 10uF 10V

+1.2V_PS8401

C3324

0.1uF

R3350

4.7K

R3351

4.7K

USB NET Change: UB85/95/UC97

R4419

0

330pF

C3342

C3343

R4418

R4421

R4420

USB_DP2

0

USB_DP3

0

USB_DM3

4Layer

330pF

C3352

330pF

C3353

330pF

C3346

C3347

C3349

330pF

C3350

HUB_DP

HUB_DM USB_DM2

CAMERA_DP

CAMERA_DM

VDDC15_M0

C3303

VDDC15_M1

C3304

OPT

H13 DDR VDD Decap (For EMI)

330pF

C3334

C3313

C3309

330pF

C3310

C3335

C3321

330pF

C3338

330pF

C3339

EMI Shield for H13D / URSA9

H13D

EMI shield for H13D_Korea domestic

MGJ63912901

EMI shield for H13D_C/SKD

M2322-*1

MGJ63912902

VDDC15_D14

C3305

D14 DDR VDD Decap (For EMI)

330pF

OPT

C3331

C3311

C3336

330pF

OPT

C3340

C3348

C3344

M2322

C3351

4Layer

330pF

OPT

URSA9

EMI shield for URSA9_Korea domestic

+1.5V_U_DDR

C3306

M2323

MGJ64103501

EMI shield for URSA9_C/SKD

M2323-*1

MGJ64103502

URSA9 DDR VDD Decap (For EMI)

330pF

C3337

C3341

330pF

C3345

330pF

C3312

330pF

C3333

330pF

4Layer

10.5TSMD bottom for ESD_UB85

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2300

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2301

MDS62110225

OPT

GASKET_8.0X6.0X10.5H

M2304

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2302

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2303

MDS62110225

OPT

GASKET_8.0X6.0X10.5H

M2309

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2305

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2306

MDS62110225

OPT

GASKET_8.0X6.0X10.5H

M2310

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2308

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2311

MDS62110225

OPT

GASKET_8.0X6.0X10.5H

M2317

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2312

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2313

MDS62110225

OPT

GASKET_8.0X6.0X10.5H

M2320

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2315

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2316

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2318

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2319

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X10.5H

M2321

MDS62110225

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X9.5H

MDS62110214

SMD_GASKET_for_ESD_UB85

GASKET_8.0X6.0X9.5H

MDS62110214

9.5T Center of B/D

M2307

M2314



8.5TSMD bottom for ESD_65UB95

2.5V

ZD3300

OPT

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2300-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2301-*1

MDS62110216

GASKET_8.0X6.0X8.5H

M2304-*1

MDS62110216

OPT

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2302-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2303-*1

MDS62110216

GASKET_8.0X6.0X8.5H

M2309-*1

MDS62110216

OPT

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2306-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2307-*1

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2310-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2308-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2311-*1

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2317-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2312-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2313-*1

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2320-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2314-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2315-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2318-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2319-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2321-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2305-*1

MDS62110216

SMD_GASKET_for_ESD_65UB95

GASKET_8.0X6.0X8.5H

M2316-*1

MDS62110216

8.5T Center of B/D

+3.3V_NORMAL

L2305

BLM18PG121SN1D

Placed on SMD-TOP

C2304 10uF 16V

C2325 10uF 16V

+12V

C2326

0.1uF 16V OPT

PGND

AGND

VIN

FB

IC2301

BD86106EFJ

1

2

3

4

6A

[EP]

SW_2

8

SW_1

9

7

THERMAL

EN

6

COMP

5

Vout=0.8*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R2308

6.8K

C2328

0.1uF 16V

C2332

0.0068uF 50V

R2311

10K

L2309

2uH

POWER_ON/OFF2_1

C2319 10uF 10V

C2323 100uF

6.3V

MAX A

C2345 47pF 50V OPT

R2320

R2323

R2319

30K

10K

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2300-*3

+3.3V_NORMAL

1%

1.5K

R1

1/16W

1%

5V

ZD2301

OPT

R2

1%

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2305-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

GASKET_8.0X6.0X10.5H

M2301-*3

MDS62110225

SMD_GASKET_for_ESD_UC97

GASKET_8.0X6.0X10.5H

M2302-*3

MDS62110225

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2306-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2307-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

GASKET_8.0X6.0X10.5H

M2303-*3

MDS62110225

SMD_GASKET_for_ESD_UC97

GASKET_8.0X6.0X10.5H

M2312-*3

MDS62110225

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2308-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2311-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2313-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2314-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2315-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2316-*3

MDS62110206

OPT

GASKET_8.0X6.0X5.5H

M2304-*3

MDS62110204

OPT

GASKET_8.0X6.0X5.5H

M2317-*3

MDS62110204

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2318-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2319-*3

MDS62110206

OPT

SMR-T-6-6.5-8

M2309-*3

MDS62110206

OPT

SMR-T-6-6.5-8

M2310-*3

MDS62110206

SMD_GASKET_for_ESD_UC97

SMR-T-6-6.5-8

M2321-*3

MDS62110206

6T

OPT

SMR-T-6-6.5-8

M2320-*3

MDS62110206

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2300-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2301-*2

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2304-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2302-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2303-*2

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2309-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2305-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2308-*2

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2310-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2311-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2312-*2

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2317-*2

MDS62110216

8.5T/7.5TSMD bottom for ESD_55UB95

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2315-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2316-*2

MDS62110216

OPT

GASKET_8.0X6.0X8.5H

M2320-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2318-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X8.5H

M2319-*2

MDS62110216

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X7.5H

M2306-*2

MDS62110205

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X7.5H

M2307-*2

MDS62110205

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X7.5H

M2313-*2

MDS62110205

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X7.5H

M2314-*2

MDS62110205

SMD_GASKET_for_ESD_55UB95

GASKET_8.0X6.0X7.5H

M2321-*2

MDS62110205

7.5T

10.5T 5.5T OPT 6T OPT

BSD-14Y-UD-033_02-HD

2013.12.17

HDMI

UB85/95/UC97 only

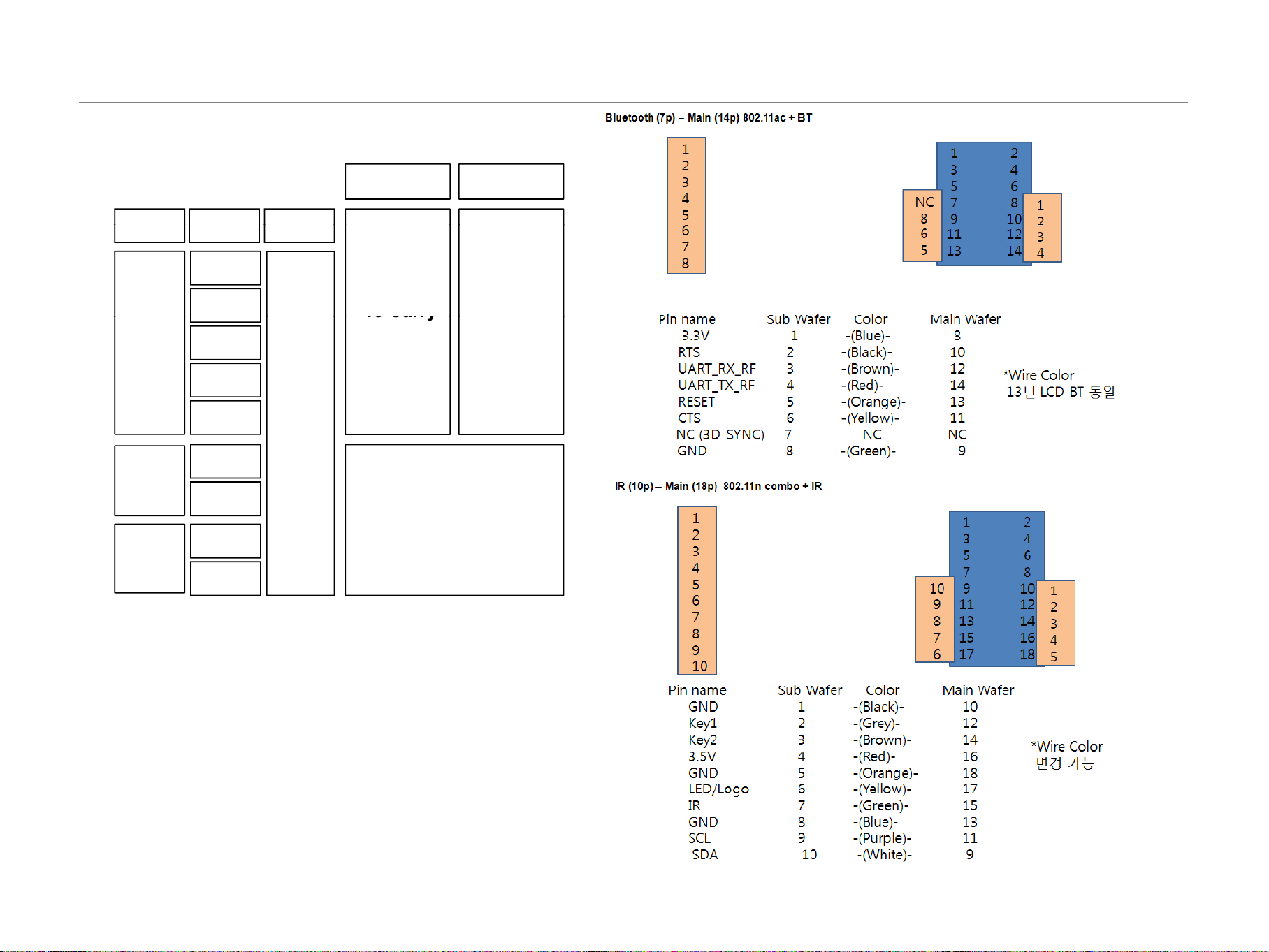

Place Near Micom

LOGO_LIGHT

+3.5V_ST

10K

R4003

10K

LOGO_LIGHT

OPT

R4000

C4000

0.1uF 16V

LOGO_LIGHT

1K

R4004

LOGO_LIGHT

C

B

E

M_RFModule_RESET

WOL/WIFI_POWER_ON

EYE_SDA

EYE_SCL

LOGO_LIGHT_WAFER

LOGO_LIGHT

AR4000 33 1/16W

Q4000 MMBT3904(NXP) LOGO_LIGHT

IR

LED_R

R4010 100

R4011 100

LOGO_LIGHT_WAFER

+3.5V_ST

R4005

10K 5%

NON_LOGO_LIGHT

R4015

1.8K

LOGO_LIGHT

R4012

0

C4003

0.1uF

C4004

0.1uF

C4007 100pF

P4000

+3.5V_ST

5%

R4009

10K

5%

+3.5V_WOL

R4006

R4007

100

KEY1

100

KEY2

SMAW200-H18S5

C4010

C4005

3300pF

OPT

+3.5V_ST

0.1uF

Place Near Wafer C4016 5pF 50V

D4004

5.5V

OPT

GND

NC WOL SDA SCL GND

IR

1 3 5 7 9 11 13 15 17

19

R4001

100

R4002

100 C4015

50V

5.5V

OPT

C4009

0.1uF 16V

D4001

5.5V

OPT

BT_RESET

LED_R

D4002

2 4 6

8 10 12 14 16 18

GND

+3.5V_WOL

USB_DM USB_DP GND GND KEY1 KEY2 +3.5V_ST GND

5.5V

OPT

D4000

RCLAMP0502BA

C4008 1000pF 50V

D4003

OPT

BLM18PG121SN1D

C4006

22uF

10V

5pF 50V

C4001

0.1uF

D4005

OPT

L4000

WIFI_DM

WIFI_DP

C4002

0.1uF OPT

120-ohm

R4008

10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

IR / KEY

BSD-14Y-UD-040_02-HD

2013.12.17

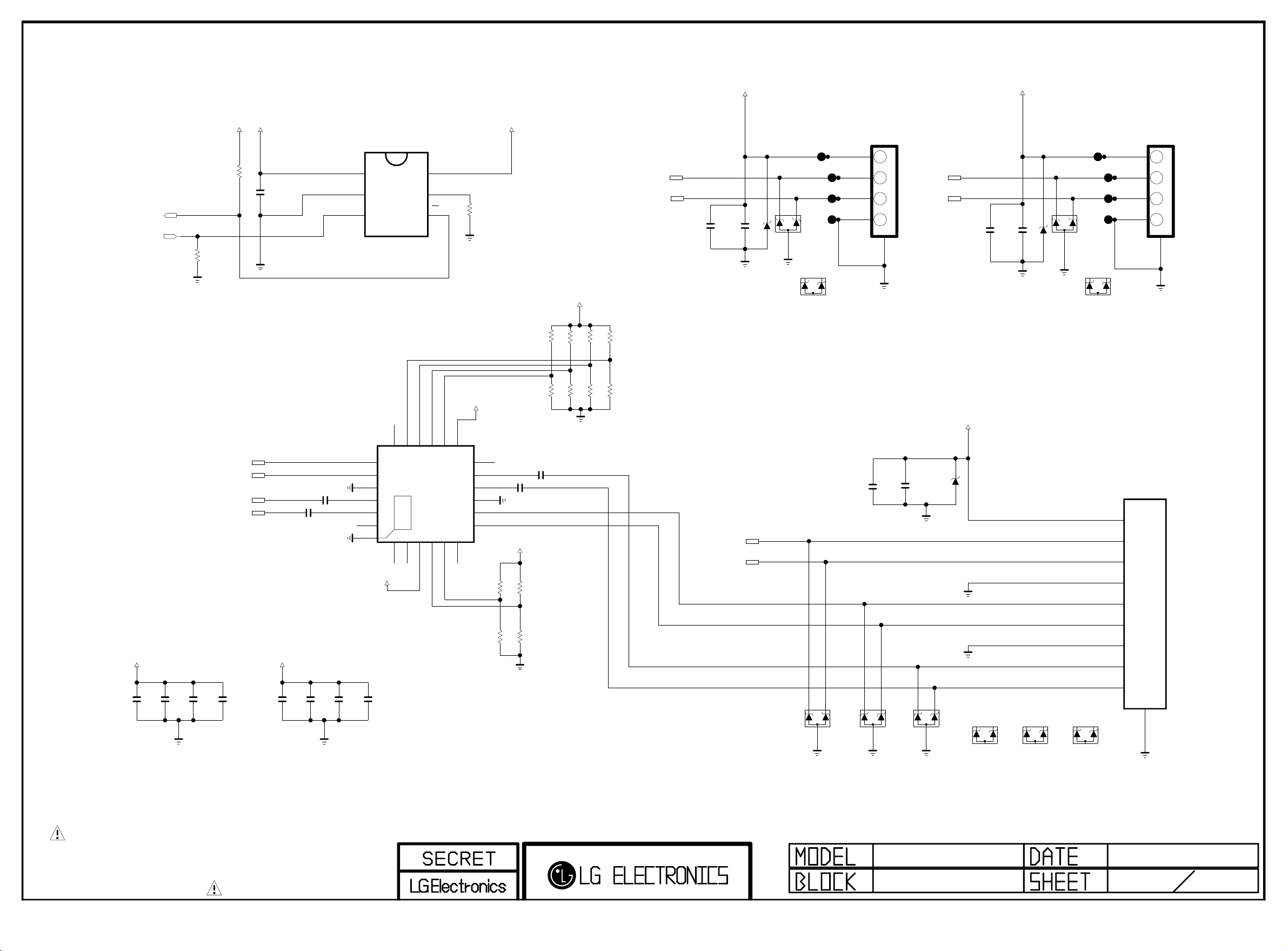

/USB_OCD1

USB_CTL1

R4400

10K

+3.3V_NORMAL

R4401

4.7K

OCP USB1

+5V_NORMAL

C4401

0.1uF 16V

VIN

GND

C4416

22uF

10V

+5V_USB_3

C4310

10uF

10V

ZD4302

5V

USB2 (2.0)

MAX 1.0A

D4300

RCLAMP0502BA

OPT

RCLAMP0502BA

D4300-*1

RCLAMP0582B

3AU04S -38 5-ZC-(LG).

JK4300

1234

USB DOWN STREAM

5

+5V_USB_2

+5V_USB_1

IC4400

BD2242G

1

2

EN

3

VOUT

6

ILIM

5

OC

4

1%

14K

R4402

+3.3V_NORMAL

R4410

4.7K

OPT

R4412

4.7K

OPT

R4414

4.7K

OPT

R4416

4.7K

OPT

USB_DM2

USB_DP2

C4414

22uF

10V

C4322

10uF

10V

USB3 (2.0)

MAX 1.0A

ZD4300

5V

RCLAMP0502BA

D4302-*1

RCLAMP0582B

D4302

OPT

3AU04S -38 5-ZC-(LG).

RCLAMP0582B

JK4302

1234

USB DOWN STREAM

5

USB_DM3

USB_DP3

+3.3V_NORMAL

C4400 1uF

USB3.0 redriver IC EQ setting

-> EQ2: Low / DE1: Low

USB3_TX0P

USB3_TX0M

USB3_RX0P

C4403 1uF

C4404

0.1uF

USB3_RX0M

C4405

0.01uF

+3.3V_NORMAL

C4406 1uF

C4407

0.1uF

C4408 1uF

C4409

0.1uF

HOST_RX1-

HOST_RX1+

GND_2

HOST_TX2-

HOST_TX2+

NC_6

[EP]GND

C4410

0.1uF

EN_RXD

NC_5

18

19

20

21

22

23

THERMAL

24

1

NC_1

NC_2

+3.3V_NORMAL

C4411

0.01uF

17

25

2

DE1

OS1

16

IC4402

3

DE2

VCC_1

+3.3V_NORMAL

VCC_2

EQ1

13

14

15

12

NC_4

11

DEVICE_TX1-

10

DEVICE_TX1+

9

GND_1

8

5

6

NC_3

DEVICE_RX2-

7

DEVICE_RX2+

SN65LVPE502A

4

EQ2

+3.3V_NORMAL

OPT

R4406

R4404

4.7K

R4407

R4405

4.7K

OPT

4.7K

0.1uF C4412

OPT

R4411

4.7K

C4413

0.1uF

R4413

4.7K

OPT

R4415

4.7K

OPT

R4417

4.7K

OPT

USB3_DM

USB3_DP

D4400

RCLAMP0502BA

C4415 22uF

10V

OPT

D4401

RCLAMP0502BA

ZD4301 C4402 10uF 10V

D4402

RCLAMP0502BA

5V

+5V_USB_1

OPT

D4400-*1

RCLAMP0582B

USB1 (3.0)

MAX 1.2A

STDA_SSRX-

STDA_SSRX+

GND_DRAIN

STDA_SSTX-

STDA_SSTX+

D4401-*1

RCLAMP0582B

D4402-*1

RCLAMP0582B

PC2R009NJA1.

VBUS

D-

D+

GND

SHIELD

JK4400

1

2

3

4

5

6

7

8

9

10

Place under DUT Near SN65LVPE502CP PIN VCC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-044-HD

2013-12-17

USB JACK

Full Scart(18 Pin Gender)

VA4801

5.6V EU

VA4807

VA4800 20V EU

5.5V EU

VA4808

5.5V

OPT

VA4802

5.6V

VA4803

5.5V EU

VA4804

5.5V EU

VA4805

5.5V EU

19

DA1R018H91E

JK4800

EU

SHIELD

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND

RGB_IO

R_OUT

R_GND

G_OUT

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

+3.3V_NORMAL

EU

R4801

CLOSE TO JUNCTION

10K

EU R4802

100

1/16W

EU

5%

C4804

0.1uF

SC_CVBS_IN

R480075

EU

VA4809

5.6V EU

SC_FB

SC_R

SC_G

SC_B

SC_L_IN

SC_DET

DTV/MNT_V_OUT

SC_ID

VA4806

5.6V EU

BLM18PG121SN1D

EU

EU C4800 1000pF 50V

BLM18PG121SN1D

EU

EU C4801 1000pF 50V

L4800

L4801

C4802 4700pF

EU

C4803 4700pF

EU

SC_R_IN

DTV/MNT_L_OUT

DTV/MNT_R_OUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-048-HD

2013.12.17

SCART GENDER

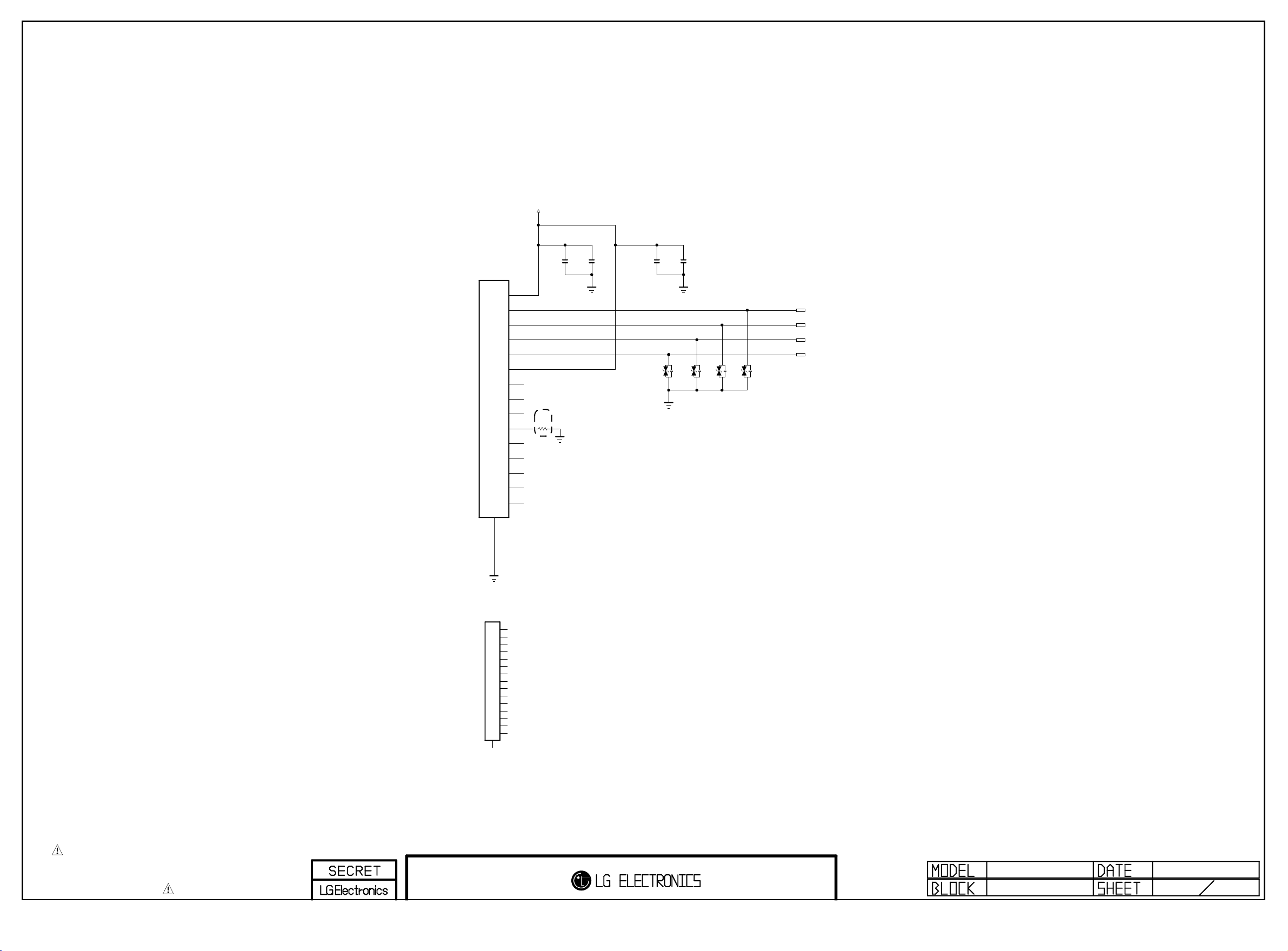

Ethernet Block

LAN_JACK_POWER

JK5100

BS-R570098

LAN_UDE

12

SHIELD

10

11

D1

D2

D3

D4

1

2

3

4

5

6

7

8

9

P1[CT]

P2[TD+]

P3[TD-]

P4[RD+]

P5[RD-]

P6[CT]

P7

P8

9

P10[GND]

P11

YL_C

YL_A

GN_C

GN_A

R5100 0

C5100

C5101

0.1uF

0.01uF

16V

50V

VA5100

5.5V

EMI

C5102

0.1uF 16V

VA5101

5.5V

C5103

0.01uF 50V

VA5102

5.5V

VA5103

5.5V

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JK5100-*1 TLA-6T764

LAN_TDK

R1

1

R2

2

R3

3

R4

4

R5

5

R6

6

R7

7

R8

8

R9

9

R10[GND]

10

R11

11

YL_C

D1

YL_A

D2

GN_C

D3

GN_A

D4

12

SHIELD

BSD-14Y-UD-051-HD

LAN_VERTICAL

2012.12.17

51

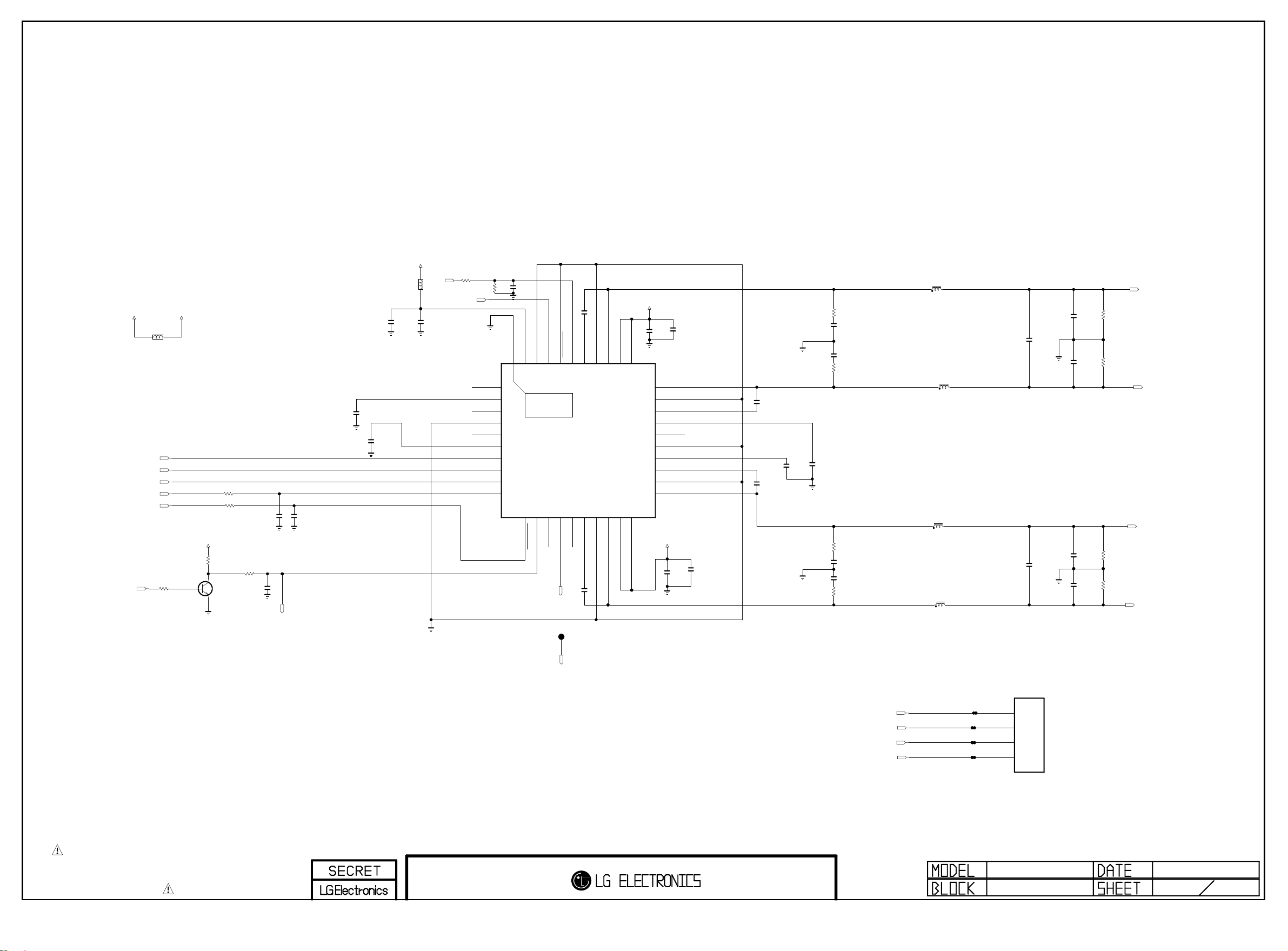

Ethernet Block

+3.5V_WOL

3.3K

+3.5V_WOL

C5200

4.7uF

5V

10V

ZD5201

OPT

Place 0.1uF close to each power pins

C5201

0.1uF 16V

EPHY_RDP

EPHY_RDN

EPHY_TDP

EPHY_TDN

LAN_JACK_POWER

C5203

0.1uF 16V

Route Single 50 Ohm, Differential 100 Ohm

ET_COL/SNI

Place this cap. near IC

C5205

Place this Res. near IC

0.1uF 16V

+3.5V_WOL

R5203

3.3K

C5206 8pF 50V

R5204

2.49K 1%

GND_1

1

2

4

3

XTAL_2

C5207 8pF

50V

AVDD10OUT

+3.5V_WOL

XTAL_1

X5200

25MHz

GND_2

RSET

MDI+[0]

MDI-[0]

MDI+[1]

MDI-[1]

AVDD33_1

RXDV

3.3K

R5200

R52021M

OPT

[EP]

1

2

3

4

5

6

7

8

Place this cap. near IC

C5208

0.1uF 16V

+3.5V_WOL

R5218

0

DVDD10OUT

AVDD33_2

CKXTAL1

CKXTAL2

29

30

31

32

THERMAL

33

IC5200

RTL8201F-VB-CG

9

11

12

13

RXD[2]/INTB

AR5200

33

R5201 33

EPHY_INT

EPHY_RXD1

EPHY_RXD0

RXC

RXD[3]/CLK_CTL

OPT

3.3K

R5208

RXD[0]10RXD[1]

ET_RXER

ET_COL/SNI

COL28RXER/FXEN

27

14

DVDD33

C5209

33pF

EPHY_CRS_DV

EPHY_ACTIVITY

R521033

LED1/PHYAD[1]

CRS/CRS_DV

25

26

15

16

TXC

TXD[0]

R5209

51

C5202

Place near IC

5pF

LED0/PHYAD[0]/PMEB

24

MDIO

23

MDC

22

PHYRSTB

21

TXEN

20

TXD[3]

19

TXD[2]

18

TXD[1]

17

+3.5V_WOL

C5211

0.1uF 16V

EPHY_TXD0

R5215

3.3K

R5217

EPHY_EN

EPHY_TXD1

R5205

+3.5V_WOL

3.3K

R5212

1.5K

1/16W

EPHY_ACTIVITY

ET_RXER

1%

R5219

10K

1/16W

C5212

0.1uF OPT

5%

WOL/ETH_POWER_ON

EPHY_MDIO

EPHY_MDC

/RST_PHY

(from SOC)

WOL POWER ENABLE CONTROL

+3.5V_ST

C5204

0.1uF

WOL_CTL

R5211 33

R5213 10K

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

IN

EN

AP2191WG-7

5

4

IC5201

+3.5V_WOL

OUT

1

GND

2

FLG

3

EPHY_REFCLK

BSD-14Y-UD-052-HD

2013-12-17

ETHERNET

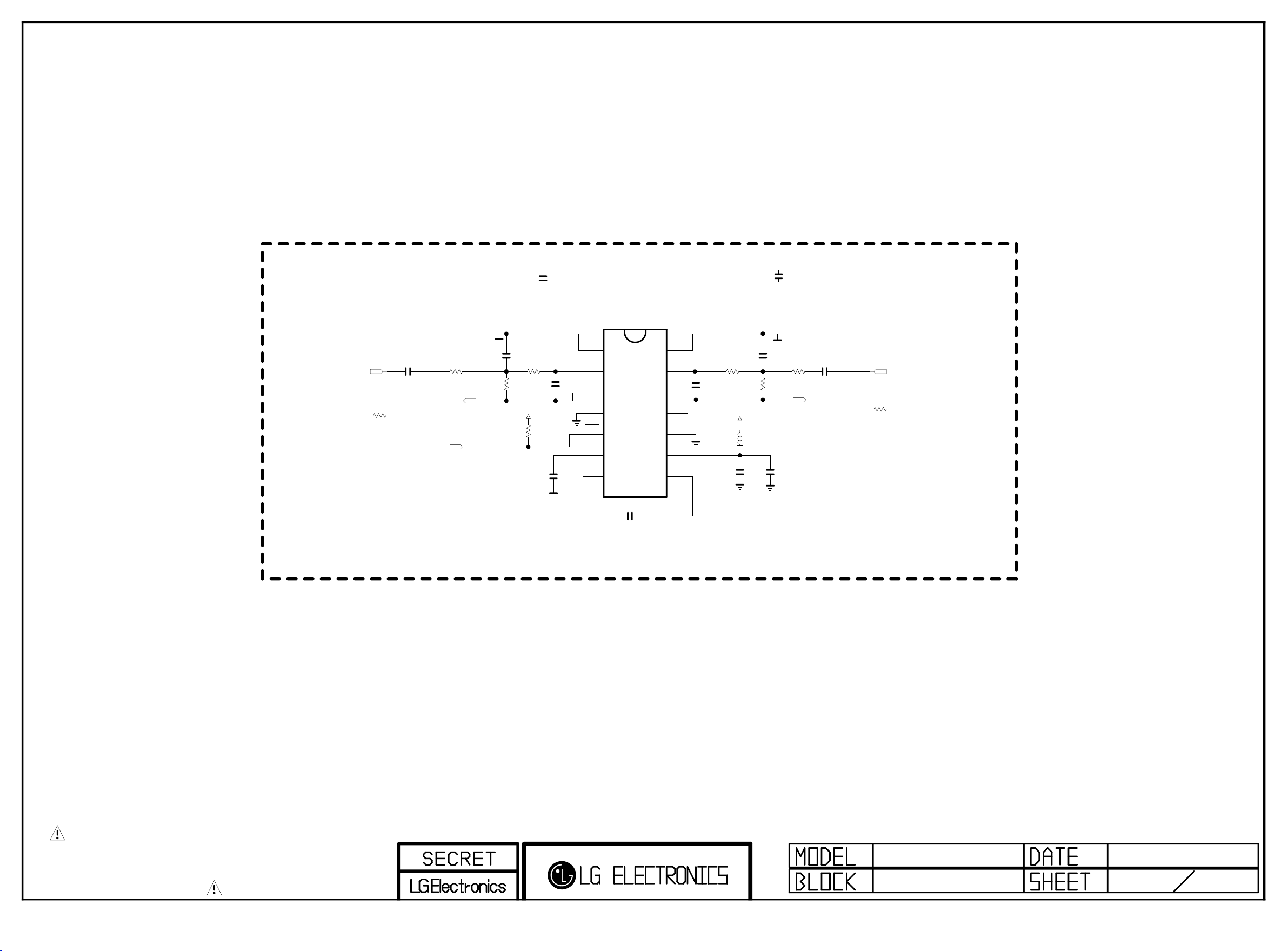

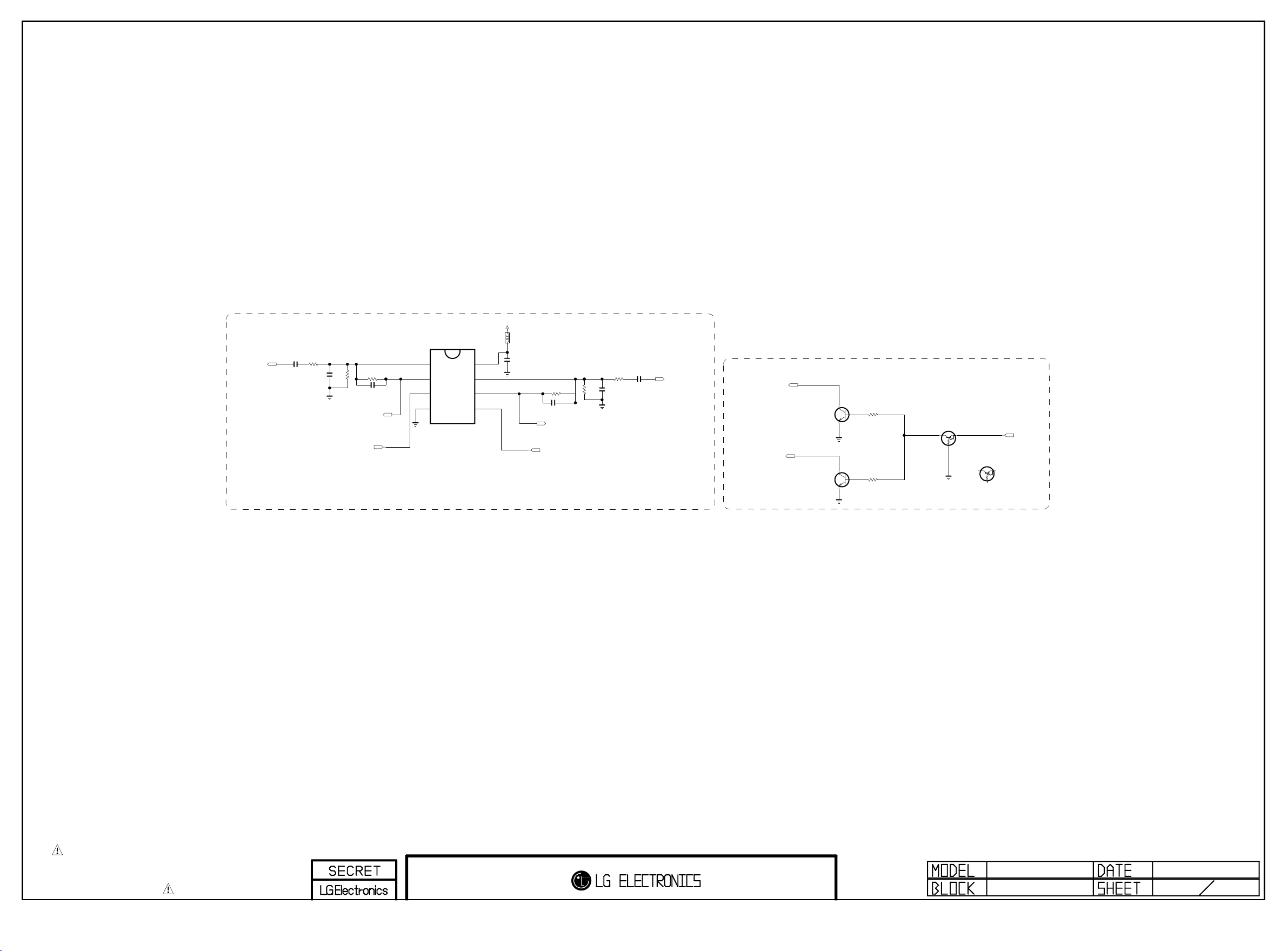

AUD_OUT >> EU/CHINA_HOTEL_OPT

DTV/MNT_L_OUT

1uF 25V

EU

C6000

OPT C6002 6800pF

EU

R60002.2K

R6002

OPT

470K

SCART_AMP_L_FB

SCART_Lout

33pF

+12V

EU

IC6000

AZ4580MTR-E1

EU

VCC

8

OUT2

7

IN2-

6

IN2+

5

OUT1

EU

R600433K

C6003

EU

IN1-

IN1+

VEE

1

2

3

4

L6000

EU

C6004

0.1uF 50V

SIGN60000003

EU

R6008 33K

C6005

EU

33pF

SCART_AMP_R_FB

SCART_Rout

OPT

R6010 470K

R6011

OPT C6007 6800pF

2.2K

EU

C6008

1uF 25V

EU

DTV/MNT_R_OUT

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

Q6000

MMBT3904(NXP)

DTV/MNT_R_OUT

Q6001

MMBT3904(NXP)

C

E

C

E

EU

R6013

1K

B

EU

R6014

1K

B

EU

EU_SCART_MUTE_ISAHAYA

Q6002 RT1P141C-T112

E

C

B

SCART_MUTE

PDTA114ET

Q6002-*1

E

C

B

EU_SCART_MUTE_NXP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SCART AUDIO AMP

BSD-14Y-UD-060-HD

2012.12.17

60

EARPHONE AMP

HP_OUT_H13

C6104-*1

18pF

IC6100

TPA6138A2

HP_OUT_H13

C6109-*1 18pF

HP_ROUT_MAIN

HP_OUT_H13

R6103-*1 43K

1%

C6100 1uF 10V

HP_OUT

HP_ROUT_AMP

SIDE_HP_MUTE

HP_OUT

R6100 10K

C6104

180pF

R6103

33K

HP_OUT_MTK

HP_OUT

R6106 43K

+3.3V_NORMAL

4.7K

R6105

HP_OUT

+INR

1

C6108 10pF 50V

C6102 1uF 10V

-INR

OUTR

GND_1

MUTE

VSS

2

3

4

5

6

CN

7

HP_OUT

1%

HP_OUT

C6103 1uF

10V

+INL

14

-INL

13

12

11

10

HP_OUT

OUTL

UVP

GND_2

VDD

9

CP

8

C6106 10pF 50V

HP_OUT_MTK

HP_OUT

R6104 43K

1%

+3.3V_NORMAL

HP_OUT

C6109 180pF

R6102

33K

HP_OUT_MTK

L6100

120-ohm

BLM18P G12 1SN1D

HP_OUT

C6105

1uF

10V

C6107

0.1uF

16V

HP_OUT R6101 10K

C6101 1uF 10V

HP_OUT

HP_LOUT_AMP

HP_LOUT_MAIN

HP_OUT_H13

R6102-*1 43K

1%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HEADPHONE AMP

BSD-14Y-UD-061-HD

2013.12.17

61

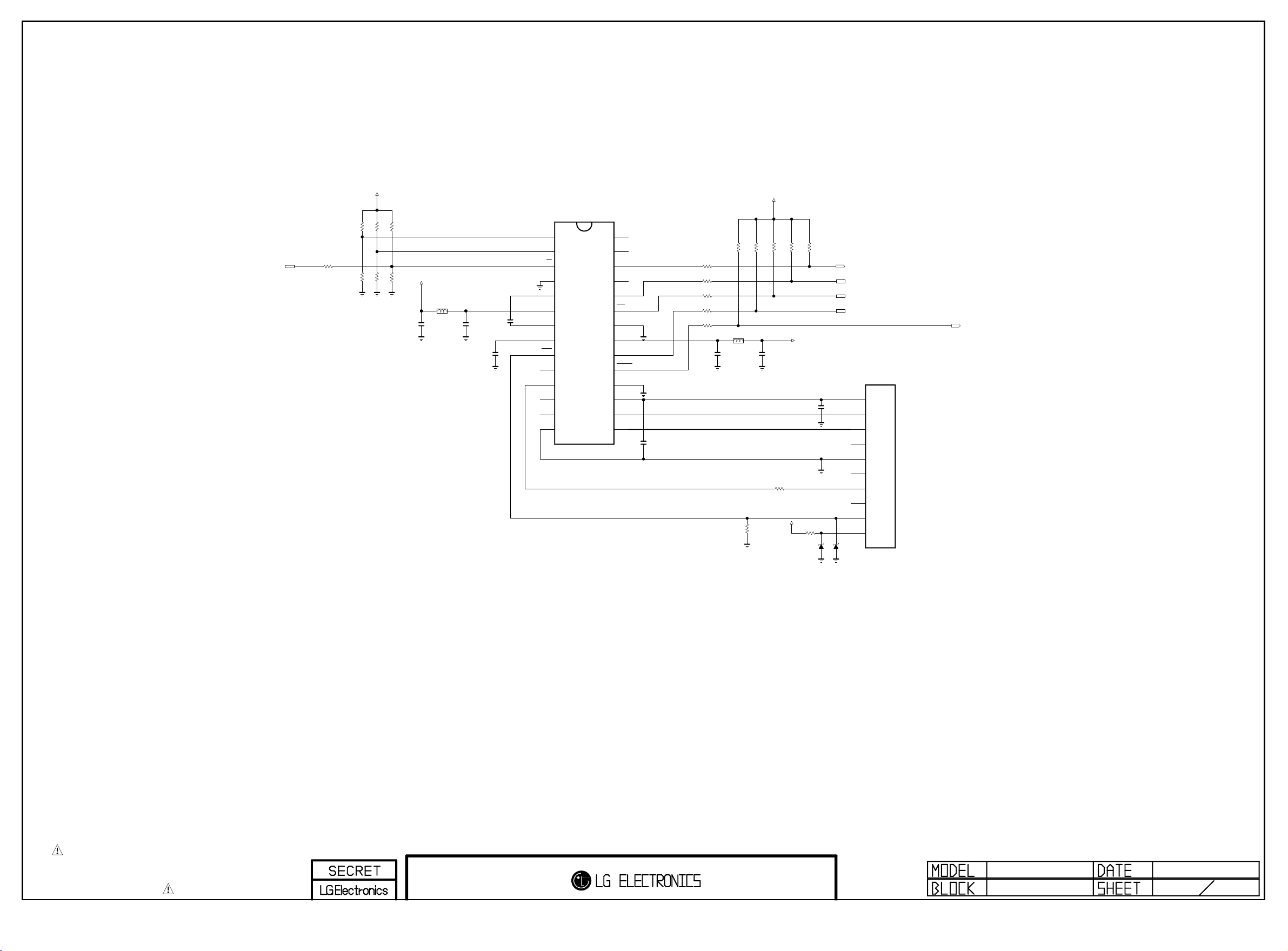

B-CAS (SMART CARD) INTERFACE

SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]

JAPAN

R6300 22

+3.3V_NORMAL

2.7K R6303

R6301

JAPAN

OPT

R6304

R6302

OPT

2.7K JAPAN

R6305

R6306

CLKDIV1 CLKDIV2 : F_CRD_CLK

2.7K

---------------------------- 1 0 CLKIN

JAPAN

+5V_NORMAL

OPT

BLM18PG121SN1D

JAPAN

C6300

0.1uF 16V

JAPAN

L6300

SIGN63000018

JAPAN

C6301

10uF 10V

C6302

0.1uF

INT CMDVCC : STATUS

+3.3V_NORMAL

IC6300

TDA8024TT

CLKDIV1

1

CLKDIV2

2

5V/3V

3

PGND

4

S2

5

VDDP

PRES

AUX2

AUX1

CGND

6

S1

7

VUP

I/O

JAPAN

8

9

10

11

12

13

14

JAPAN

C6303

0.1uF 16V

JAPAN

16V

AUX2UC

28

AUX1UC

27

I/OUC

26

XTAL2

25

XTAL1

24

OFF

23

GND

22

VDD

21

RSTIN

20

CMDVCC

19

PORADJ

18

VCC

17

RST

16

CLK

15

C6304

0.1uF

JAPAN

16V

JAPAN

R6307 22

JAPAN

R6308 22

JAPAN

R6309 22

JAPAN

R6310 22

JAPAN

R6311 22

Place CLK C3 far from C2,C7,C4 and C8

75 ohm in I/O is for short circuit Protection

OPT

JAPAN

R6317

1.2K

L6301

JAPAN

BLM18PG121SN1D

JAPAN C6305

0.1uF 16V

JAPAN

R6318

1.2K

R6315

JAPAN

C6306

0.1uF

16V

+3.3V_NORMAL

10K

R6312

1.2K

JAPAN

R6313 75

OPT

R6319

1.2K

JAPAN

R6316

1.2K

+3.3V_NORMAL

JAPAN

C6307

0.33uF 16V

JAPAN

R6314 1K

ZD6300

5V

JAPAN

SMARTCARD_DATA/SD_EMMC_CLK

SMARTCARD_CLK/SD_EMMC_DATA[0]

SMARTCARD_DET/SD_EMMC_DATA[3]

SMARTCARD_RST/SD_EMMC_DATA[2]

B-CAS SLOT

P6300

10057542-1311FLF(B CAS Slot)

VCC

C1

RST

C2

CLK

C3

RESERVED_1

C4

GND

C5

JAPAN

VPP

C6

I/O

C7

RESERVED

C8

SW1

S1

SW2

S2

ZD6301 5V

JAPAN

-------------------------------- HIGH HIGH CARD PRESENT LOW HIGH CARD not PRESENT

SMARTCARD_VCC/SD_EMMC_CMD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JAPAN_BCAS

BSD-14Y-UD-063-HD

2012.12.17

63

1

2

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

L6500

BLM18PG121SN1D

C6519

0.1uF TU_M/W_TW/BR/CO/CN

+3.3V_TU

close to TUNER

TU_M/W_TW/BR/CO/CN

R6502

C6502

10K

0.1uF

1K

R6504

TU_M/W_TW/BR/CO/CN

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils Signal to Signal Width = 12mils

RF_SWITCH_CTL

Ground Width >= 24mils

FE_DEMOD1_2_TS_DATA[0]

FE_DEMOD1_TS_DATA[7]

Global F/E Option Name

1. TU

2. Tuner Name = TDS’S’,TDS’Q’...

3. Country Name = T,T2,S2,KR,US,BR ...

Example of Option name TU_Q_T2 = apply TDSQ type tuner and T2 country TU_M/W = apply TDSM&TDSW Type Tuner

13’ Tuner Type for Global TDS’S’-G501D : T/C Half NIM Horizontal Type TDS’Q’-G501D : T/C/S2 Combo Horizontal type TDS’Q’-G601D : T2/C/S2 Combo Horizontal Type TDS’Q’-G651D : T2/C/S2 Combo Vertical Type TDS’M’-C601D : China NIM with Isolater Type TDS’W’-J551F : Japan Dual NIM TDS’W’-B651F : Brazil 2Tuner TDS’W’-A651F : Taiwan 2Tuner TDS’W’-K651F : Colombia DVB-T2 2Tuner

FE_DEMOD1_2_TS_CLK

R6511 0

TU_W_AJ

R6521 0

TU_W_Non_AJ

3

4

5

6

7

8

9

11

FE_DEMOD1_TS_ERROR

12

FE_DEMOD1_1_TS_CLK

14

FE_DEMOD1_TS_SYNC

15

FE_DEMOD1_TS_VAL

16

FE_DEMOD1_1_TS_DATA[0]

17

FE_DEMOD1_TS_DATA[1]

18

FE_DEMOD1_TS_DATA[2]

19

FE_DEMOD1_TS_DATA[3]

20

FE_DEMOD1_TS_DATA[4]

21

FE_DEMOD1_TS_DATA[5]

22

FE_DEMOD1_TS_DATA[6]

23

FE_DEMOD1_TS_DATA[7]

24

25

26

/TU_RESET1_TU

+3.3V_DEMOD_TU

27

28

D_Demod_Core

29

30

31

FE_DEMOD2_TS_ERROR

34

FE_DEMOD2_TS_SYNC

36

FE_DEMOD2_TS_CLK_TU

37

38

FE_DEMOD2_TS_VAL

39

FE_DEMOD2_TS_DATA

40

45

/TU_RESET2_TU

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P_TU

IF_N_TU

TU_CVBS_TU

TU_SIF_TU

+3.3V_TUNER

I2C_SCL4_TU

LNB_TX

I2C_SDA4_TU

LNB_OUT

+2.5V_DEMOD

TU_ALL_IntDemod

TU_M

R6514 0

R6512 0

TU_W

R6513 0

TU_M // W_AJ

TU_ALL_IntDemod

C6500

close to Tuner

0.1uF

16V

C6501 15pF 50V

R6516 10

R6517 10

R6522 0

OPT

should be guarded by ground,Match GND VIA

TU_Non_BR/TW

C6503 15pF

TU_Non_BR/TW

50V

OPT

TU_ALL_2178B

R6518 0

FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4] FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6] FE_DEMOD1_TS_DATA[7]

C6504

0.1uF

LNB_TX

TU_M/W

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

R6503

TU_ALL_IntDemod

R6515 33

R6510 33

R6518-*1

150 TU_H/M_KR/US/TW/BR/EU

L6505

BLM18PG121SN1D

TU_M/W

C6507 16V

0.1uF TU_W

100

TU_SIF

BLM18PG121SN1D

C6518

0.1uF TU_JP

R6501 100

TU_W

I2C_SCL6

I2C_SDA6

IF_P

IF_N

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1-7]

Demod_Core

C6520

C6521

0.1uF

18pF

LNB

+2.5V_Normal

L6506

TU_JP

/TU_RESET2

IF_AGC

R6515-*1 200

TU_H/W/W_KR/US/BR/TW R6510-*1

200 TU_H/W/W_KR/US/BR/TW

R6515-*2 300

TU_W_AJ R6510-*2

300 TU_W_AJ

C6509

0.1uF

TU_M/W

R6520 33

C6512

I2C_SCL4

15pF 50V OPT

LNB_OUT

TU_M/W

L6501

BLM18PG121SN1D

C6510

0.1uF TU_M/W

TU_M/W R6519 33

C6511 15pF

I2C_SDA4

50V

OPT

TU_ALL_2178B

+3.3V_TU

L6503

TU_M/W

C6516

0.1uF 16V

TU_ALL_2178B

+3.3V_TU

L6504

TU_ALL_2178B

BLM18PG121SN1D

R6505

200

E

B

MMBT3906(NXP)

C

TU_M/W_NonBr

C6505

16V

0.1uF TU_M/W_NonBr

R6506

200

TU_ALL_2178B

Q6500

R6500 100

1608 perallel because of derating

TU_ALL_2178B

TU_CVBS

/TU_RESET1

+3.3V_NORMAL

TU_M/W

C6517

0.1uF 16V

+5V_NORMAL

TU_M/W C6508 1uF

TU_M/W

C6513

0.1uF

+3.3V_NORMAL

L6502

C6506

22uF

10V

85C

AP2132MP-2.5TRG1

PG

TU_M/W

EN

R6507 10K

VIN

VCTRL

BLM18PG121SN1D

C6515

0.1uF 16V

TU_M/W

IC6500

1

9

2

THERMAL

3

4

2A

EAN61387601

+3.3V_TU

8

7

6

5

Vout=0.6*(1+R1/R2)

[EP]

GND

ADJ

VOUT

NC

T2 : Max 1.7A

else : Max 0.7A

R6508

10K

1/16W

1%

R2

TU_M/W_1.2V

R1

R6509

10K

1/16W

1%

TU_M/W_1.2V

Demod_Core

R6508-*1

18K

TU_M/W_1.1V

R6509-*1

16K

TU_M/W_1.1V

TU_M/W C6514 10uF 10V

1/16W

1%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TUNER

BSD-14Y-UD-065-HD

2013.12.17

65

TDJW_A152D

TU6800 TDJW-A152D

TDJW-J251F

TU6700 TDJW-J251F

TDJM_G251D

TU6707 TDJM-G251D

TDJM_H151F

TU6701 TDJM-H151F

TDJH_H251F

TU6703 TDJH-H251F

B1[+3.3V]

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

M_SIF

8

M_CVBS

9

NC_5

10

B2[+3.3V]

11

NC_6

12

GROUND_1

13

M_RESET_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.2V]

28

NC_7

29

SDA_DEMOD

30

1

2

3

4

5

6

7

8

9

10

11

12

13

25

26

27

28

29

30

31

32

NC_8

33

M_ERROR

34

GROUND_2

35

M_SYNC

36

M_MCLK

37

NC_9

38

M_VALID

39

M_DATA

40

S_ERROR

41

S_SYNC

42

S_MCLK

43

S_VALID

44

S_RESET_DEMOD

45

S_DATA_7

46

S_DATA_0

47

S_DATA_1

48

S_DATA_2

49

S_DATA_3

50

S_DATA_4

51

S_DATA_5

52

S_DATA_6

53

A1

B1

FE_DEMOD1_1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

TU_GND_A

A1

33

34

35

36

37

38

39

40

41

42

43

44

45

46

B1

47

SHIELD

54

SHIELD

TU_GND_A

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

TU_GND_B

Temporary Page: For EU S4

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

B1[+3.3V]

NC_1

NC_2

SCL_RF

SDA_RF

NC_3

NC_4

NC_5

NC_6

NC_7

B2[+3.3V]

NC_8

GND_1

M_RESET_DEMOD

B3[+3.3V]

SCL_DEMOD

B4[+1.2V]

NC_9

SDA_DEMOD

LNB

GND_2

NC_10

M_ERROR

GND_3

M_SYNC

M_MCLK

B5[+2.5V]

M_VALID

M_DATA

S_ERROR

S_SYNC

S_MCLK

S_VALID

S_RESET_DEMOD

S_DATA

B1

TU_GND_B

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK_TU

+2.5V_DEMOD

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_SYNC

FE_DEMOD1_2_TS_CLK

FE_DEMOD1_TS_VAL

/TU_RESET2_TU

FE_DEMOD1_2_TS_DATA[0]

C6702

1000pF

630V

TU_M_EU

A1

TU_GND_A

C6700

1000pF

630V

C6700-*1

3300pF

630V

TU_M/W_CN/HK/TW/BR_3300pF

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

B1

47

SHIELD

R6703 0TU_H/M_KR/US/JP/EU

R6702 0TU_H/M_KR/US/JP/EU

TU_M/W_CN/HK/TW/BR_1000pF

B1[+3.3V]

NC_1

NC_2

SCL_RF

SDA_RF

NC_3

NC_4

SIF

CVBS

NC_5

B2[+3.3V]

ERROR

GND_1

MCLK

SYNC

VAILD

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

B3[+3.3V]

SCL_DEMOD

B4[+1.1V]

F22_OUTPUT

SDA_DEMOD

LNB

GND_2

B1

TU_GND_B

TU_GND_A

TU_GND_B

C6701 1000pF 630V

TU_ALL_1000pF

C6701-*1 3300pF 630V

TU_ALL_3300pF

URSA9 I2C cap. Ready

I2CS_SDA

I2CS_SCL

C6703 1000pF 630V

TU_NON_AJ

TU_GND_A

TU_M/W_EU/AJ_3300pF

C6709

C6708

3300pF

630V

C6703-*1 3300pF 630V

TU_W_AJ_3300pF

C6703-*2 3300pF 630V

TU_W_AJ_2.2nF

C15001

OPT

20pF

C15002

OPT

20pF

A1

TU_M/W_EU/AJ_3300pF

C6710 3300pF 630V

C6707 1000pF 630V

TU_W_AJ_1000pF

C6707-*1 3300pF 630V

TU_W_AJ_3300pF

B1[+3.3V]

1

NC_1

2

M_DIF_AGC

3

SCL_RF

4

SDA_RF

5

M_DIF[P]

6

M_DIF[N]

7

S_SIF

8

S_CVBS

9

NC_2

10

B2[+3.3V]

11

S_ERROR

12

GND_1

13

S_MCLK

14

S_SYNC

15

S_VAILD

16

S_DATA

17

NC_3

18

NC_4

19

NC_5

20

NC_6

21

NC_7

22

NC_8

23

NC_9

24

S_RESET_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.1V]

28

NC_10

29

SDA_DEMOD

30

B1

47

SHIELD

TU_GND_B

TU_GND_A

for tuner EMS (S4) testing

TU_GND_B

EMS_S4_GND_Connection

R6701

0

GND_3

+3.3V_TUNER

FE_DEMOD1_TS_ERROR

FE_DEMOD1_1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL4_TU

D_Demod_Core

LNB_TX

I2C_SDA4_TU

LNB_OUT

TU6701-*1 TDJM-C351D

TDJM_C351D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

A1

B1B1A1

47

SHIELD

B1[+3.3V]

RF_SW_CTL

NC_1

SCL_RF

SDA_RF

NC_2

NC_3

SIF

CVBS

NC_4

NC_5

ERROR

GND_1

MCLK

SYNC

VAILD

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

B2[+3.3V]

SCL_DEMOD

B3[+1.1V]

NC_6

SDA_DEMOD

TU_GND_A

TDJW_K152F

A1

47

TU_SYMBOL_EU

SHIELD

A1

TU6800-*1 TDJW-K152F

B1[+3.3V]

1

SWITCH_CTR

2

NC_1

3

SCL_RF

4

SDA_RF

5

NC_2

6

NC_3

7

S_SIF

8

S_CVBS

9

NC_4

10

B2[+3.3V]

11

NC_5

12

GND_1

13

M_RESET_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.2V]

28

NC_6

29

SDA_DEMOD

30

NC_7

33

M_ERROR

34

GND_2

35

M_SYNC

36

M_MCLK

37

NC_8

38

M_VALID

39

M_DATA

40

S_ERROR

41

S_SYNC

42

S_MCLK

43

S_VALID

44

S_RESET_DEMOD

45

S_DATA

46

B1B1A1

B1[+3.3V]

1

NC

2

DIF_AGC

3

SCL

4

SDA

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

A1

B1

47

SHIELD

TU6800-*2 TDJW-H151F

DEV_KR_T2

B1[+3.3V]

1

NC_1

2

M_DIF_AGC

3

SCL_RF

4

SDA_RF

5

M_DIF[P]

6

M_DIF[N]

7

S_SIF

8

S_CVBS

9

NC_2

10

B2[+3.3V]

11

NC_3

12

GND_1

13

RESET1_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.1V]

28

NC_4

29

SDA_DEMOD

30

NC_5

33

NC_6

34

GND_2

35

NC_7

36

NC_8

37

NC_9

38

NC_10

39

NC_11

40

ERROR

41

SYNC

42

MCLK

43

VALID

44

RESET2_DEMOD

45

DATA

46

A1

B1B1A1

47

SHIELD

BSD-14Y-UD-067_02-HD

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P_TU

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

TU_GND_B

TDJW-B251F

A1

47

SHIELD

2014.03.12

TU6800-*3 TDJW-B251F

B1[+3.3V]

1

RF_S/W_CTL

2

NC_1

3

SCL_RF

4

SDA_RF

5

NC_2

6

NC_3

7

M_SIF

8

M_CVBS

9

NC_4

10

B2[+3.3V]

11

NC_5

12

GND_1

13

M_RESET_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.1V]

28

NC_6

29

SDA_DEMOD

30

NC_7

33

M_ERROR

34

GND_2

35

M_SYNC

36

M_MCLK

37

NC_8

38

M_VALID

39

M_DATA

40

S_ERROR

41

S_SYNC

42

S_MCLK

43

S_VALID

44

S_RESET_DEMOD

45

S_DATA

46

B1B1A1

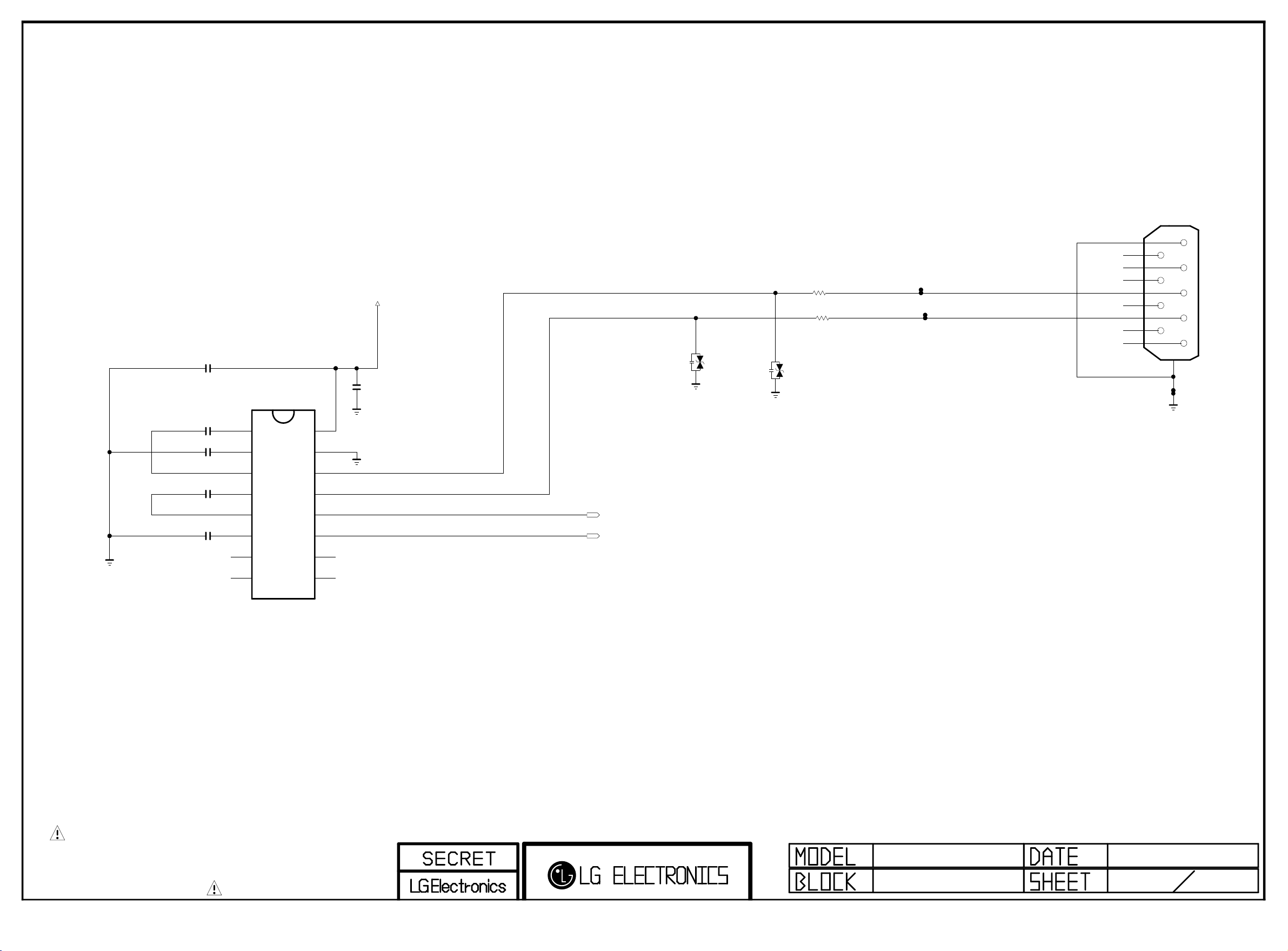

RS-232C Control INTERFACE

+3.5V_ST

C6812

0.33uF

OPT

IC6801 MAX3232CDR

C6813

0.1uF

OPT ZD6802

ADUC 20S 02 010L 20V

R6820 100

R6821 100

OPT ZD6803

ADUC 20S 02 010L 20V

JK6801

SPG14-DC-0101

5

9

4

8

3

7

2

6

1

10

C6808

0.1uF

C6809

0.1uF

C6810

0.1uF

C6811

0.1uF

C1+

C1-

C2+

C2-

DOUT2

RIN2

V+

V-

1

2

3

4

5

6

7

8

EAN41348201

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

SOC_RX

SOC_TX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-068-HD

2013.12.17

RS232C 68

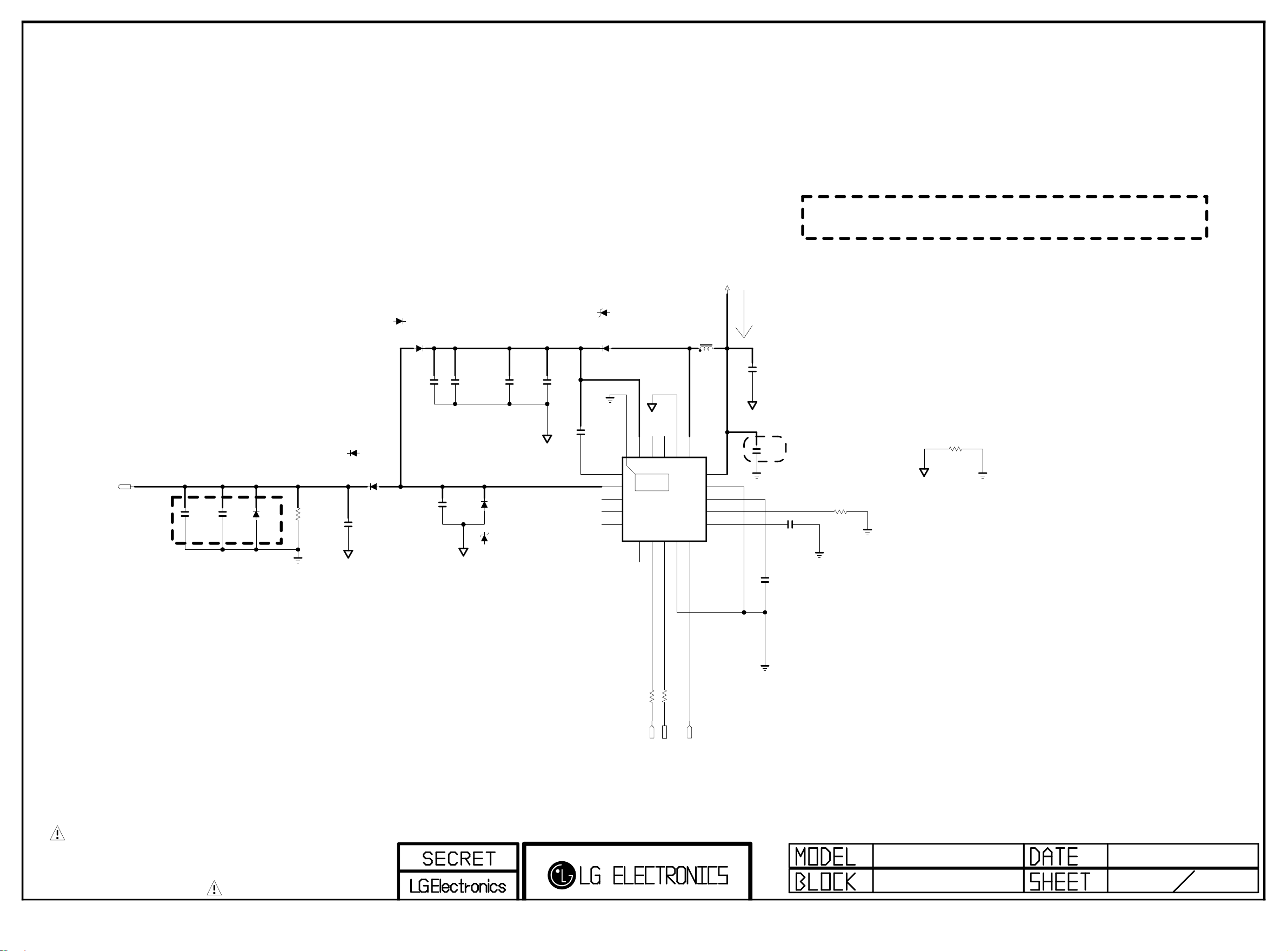

DVB-S2 LNB Part Allegro

LNB_OUT

(Option:LNB)

C6900 18pF

LNB

Close to Tuner

Surge protectioin

C6901 33pF

LNB

D6900

LNB

R6900

2.2K 1W

LNB

D6901-*1

SS23L

30V

LNB_DIODE_TSC

D6901

MBR230LSFT1G

LNB_DIODE_ONSEMI

C6902

0.22uF

LNB

25V

A_GND

2A

D6902-*1

LNB_DIODE_TSC

30V

LNB_DIODE_ONSEMI

30V

D6902

30V

C6903

0.01uF 50V LNB

C6905 10uF 25V

LNB

close to Boost pin(#1)

C6904

0.1uF 50V

LNB

A_GND

C6906 10uF 25V

D6903 LNB_SMAB34

40V

D6903-*1 LNB_SX34

40V

LNB

A_GND

C6907 10uF 25V

LNB

D6904-*1

LNB_SX34

LNB_SMAB34

LNB

C6908 0.1uF

40V

D6904

40V

[EP]GND

VCP

LNB

NC_1

TDI

A8303SESTR-T

TDO

1

2

3

4

5

A_GND

NC_3

BOOST

19

20

THERMAL

21

IC6900

7

6

SCL9ADD

IRQ

LNB

NC_2

18

8

SDA

GNDLX

3.5A

SP-7850_15

16LX17

15

14

13

12

11

10

TONECTRL

15uH

L6900

VIN

GND

VREG

ISET

TCAP

+12V

LNB

3A

Max 1.3A

C6909 10uF 25V

LNB

A_GND

close to VIN pin(#15)

C6910

0.1uF 50V

LNB

C6912

LNB

0.1uF

LNB

C6911 0.22uF

Input trace widths should be sized to conduct at least 3A Ouput trace widths should be sized to conduct at least 2A

LNB R6903

39K

1/16W 1%

Caution!! need isolated GND

A_GND



R6904 0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LNB

R6901 33

LNB

R6902 33

I2C_SCL4

I2C_SDA4

LNB_TX

LNB

BSD-14Y-UD-069-HD

2013.12.17

69

eMMC I/F

R8107-*1 47K

R8106-*1 47K

AR8100 22 1/16W

EMMC_SERIAL_22

AR8101 22 1/16W

EMMC_SERIAL_22

AR8102 22

3.3V_EMMC

R8100 10K

OPT

R8101 10K

R8102 10K

C8100

0.1uF 16V

R8103 10K

C8107 10pF

OPT

50V

EMMC DATA LINE 47K PULL/UP

R8103-*1 47K

R8100-*1 47K

EMMC_DATA[0-7]

EMMC_DATA[0] EMMC_DATA[1] EMMC_DATA[2]

EMMC_DATA[3]

EMMC_DATA[4] EMMC_DATA[5] EMMC_DATA[6] EMMC_DATA[7]

EMMC_CLK EMMC_CMD EMMC_RST

R8101-*1 47K

R8102-*1 47K

R8105-*1 47K

R8104-*1 47K

EMMC_SERIAL_22

eMMC serial 100 ohm option

AR8100-*1 100 1/16W

EMMC_SERIAL_100

100

1/16W

EMMC_SERIAL_100

AR8102-*1

AR8101-*1

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

R8104 10K

R8105 10K

R8107 10K

R8106 10K

EMMC DATA LINE 10K PULL/UP FOR M13

DAT4

DAT3

DAT5

DAT6

10K

R8117

EMMC_CLK_BALL

EMMC_CMD_BALL

10K

R8116

EMMC_RESET_BALL

EMMC_VDDI

3.3V_EMMC

DAT3 DAT4

DAT5

C8104 1uF 10V

A3 A4 A5 B2 B3 B4 B5 B6

M6 M5

A6 A7 C5 E5 E8

E9 E10 F10

G3 G10

H5

J5

K6

K7 K10

P7 P10

K5

C6

M4

N4

P3

P5

E6

F5 J10

K9

C2

E7

G5 H10

K8

C4

N2

N5

P4

P6

A1

A2

A8

A9 A10 A11 A12 A13 A14

B1

B7

B8

B9 B10 B11 B12 B13 B14

C1

C3

C7

DU1 DU2 DU3 DU4 DU5 DU6 DU7 DU8

H26M31002GPR

DAT0 DAT1 DAT2 DAT3 DAT4 DAT5 DAT6 DAT7

CLK CMD

NC_3 NC_4 NC_23 NC_42 NC_43 NC_44 NC_45 NC_52 NC_58 NC_59 NC_66 NC_73 NC_80 NC_81 NC_82 NC_116 NC_119

RESET

VCCQ_1 VCCQ_2 VCCQ_3 VCCQ_4 VCCQ_5

VCC_1 VCC_2 VCC_3 VCC_4

VDDI

VSS_1 VSS_2 VSS_3 VSS_4 VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

NC_1 NC_2 NC_5 NC_6 NC_7 NC_8 NC_9 NC_10 NC_11 NC_12 NC_13 NC_14 NC_15 NC_16 NC_17 NC_18 NC_19 NC_20 NC_21 NC_22 NC_24

DUMMY_1 DUMMY_2 DUMMY_3 DUMMY_4 DUMMY_5 DUMMY_6 DUMMY_7 DUMMY_8

IC8100

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92

HYNIX_EMMC_4GB

NC_93 NC_94 NC_95 NC_96 NC_97 NC_98

NC_99 NC_100 NC_101 NC_102 NC_103 NC_104 NC_105 NC_106 NC_107 NC_108 NC_109 NC_110 NC_111 NC_112 NC_113 NC_114 NC_115 NC_117 NC_118 NC_120 NC_121 NC_122 NC_123

DUMMY_9 DUMMY_10 DUMMY_11 DUMMY_12 DUMMY_13 DUMMY_14 DUMMY_15 DUMMY_16

M2 M3 M7 M8 M9 M10 M11 M12 M13 M14 N1 N3 N6 N7 N8 N9 N10 N11 N12 N13 N14 P1 P2 P8 P9 P11 P12 P13 P14

DU9 DU10 DU11 DU12 DU13 DU14 DU15 DU16

DAT5

DAT6

EMMC_RESET_BALL

EMMC_CMD_BALL

EMMC_CLK_BALL

THGBM5G5A1JBAIR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100-*1

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

TOSHIBA_EMMC_4GB

IC8100-*5

KLM4G1FE3B-B001

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44

E10

NC_45

F10

NC_52

G3

NC_58

G10

NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81

K10

NC_82

P7

NC_116

P10

NC_119

K5

RSTN

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2

J10

VDDF_3

K9

VDDF_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_5

C4

VSS_1

N2

VSS_6

N5

VSS_7

P4

VSS_8

P6

VSS_9

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6

A10

NC_7

A11

NC_8

A12

NC_9

A13

NC_10

A14

NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15

B10

NC_16

B11

NC_17

B12

NC_18

B13

NC_19

B14

NC_20

C1

NC_21

C3

NC_22

C7

NC_24

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92

M2

NC_93

M3

NC_94

M7

NC_95

M8

NC_96

M9

NC_97

M10

NC_98

M11

NC_99

M12

NC_100

M13

NC_101

M14

NC_102

N1

NC_103

N3

NC_104

N6

NC_105

N7

NC_106

SAMSUNG_EMMC_4GB

N8

NC_107

N9

NC_108

N10

NC_109

N11

NC_110

N12

NC_111

N13

NC_112

N14

NC_113

P1

NC_114

P2

NC_115

P8

NC_117

P9

NC_118

P11

NC_120

P12

NC_121

P13

NC_122

P14

NC_123

IC8100-*2

H26M21001ECR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44

E10

NC_45

F10

NC_52

G3

NC_58

G10

NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81

K10

NC_82

P7

NC_116

P10

NC_119

K5

RESET

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6

A10

NC_7

A11

NC_8

A12

NC_9

A13

NC_10

A14

NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15

B10

NC_16

B11

NC_17

B12

NC_18

B13

NC_19

B14

NC_20

C1

NC_21

C3

NC_22

C7

NC_24

IC8100-*6

THGBM5G6A2JBAIR

A3

C8

DAT0

NC_23

A4

C9

DAT1

NC_24

A5

C10

DAT2

NC_25

B2

C11

DAT3

NC_26

B3

C12

DAT4

NC_27

B4

C13

DAT5

NC_28

B5

C14

DAT6

NC_29

B6

D1

DAT7

NC_30

D2

NC_31

D3

NC_32

M6

D4

CLK

NC_33

M5

D12

CMD

NC_34

D13

NC_35

D14

NC_36

A6

E1

RFU_1

NC_37

A7

E2

RFU_2

NC_38

C5

E3

NC_21

NC_39

E5

E12

RFU_3

NC_40

E8

E13

RFU_4

NC_41

E9

E14

RFU_5

NC_42

E10

F1

RFU_6

NC_43

F10

F2

RFU_7

NC_44

G3

F3

RFU_8

NC_45

G10

F12

RFU_9

NC_46

H5

F13

RFU_10

NC_47

J5

F14

RFU_11

NC_48

K6

G1

RFU_12

NC_49

K7

G2

RFU_13

NC_50

K10

G12

RFU_14

NC_51

P7

G13

RFU_15

NC_52

P10

G14

RFU_16

NC_53

H1

NC_54

H2

NC_55

K5

H3

RSTN

NC_56

H12

NC_57

H13

NC_58

C6

H14

VCCQ_1

NC_59

M4

J1

VCCQ_2

NC_60

N4

J2

VCCQ_3

NC_61

P3

J3

VCCQ_4

NC_62

P5

J12

VCCQ_5

NC_63

J13

NC_64

J14

NC_65

E6

K1

VCC_1

NC_66

F5

K2

VCC_2

NC_67

J10

K3

VCC_3

NC_68

K9

K12

VCC_4

NC_69

K13

NC_70

K14

NC_71

C2

L1

VDDI

NC_72

L2

NC_73

L3

NC_74

E7

L12

VSS_1

NC_75

G5

L13

VSS_2

NC_76

H10

L14

VSS_3

NC_77

K8

M1

VSS_4

NC_78

C4

M2

VSSQ_1

NC_79

N2

M3

VSSQ_2

NC_80

N5

M7

VSSQ_3

NC_81

P4

M8

VSSQ_4

NC_82

P6

M9

VSSQ_5

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

TOSHIBA_EMMC_8GB

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

B14

P11

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C7

P14

NC_22

NC_107

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92

HYNIX_EMMC_2GB

KLMAG2GE4A-A001

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

RFU_3

E5

RFU_4

E8

RFU_5

E9

RFU_6

E10

NC_39

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

NC_104

K5

RESET

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2

J10

VDDF_3

K9

VDDF_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_9

C4

VSS_1

N2

VSS_5

N5

VSS_6

P4

VSS_7

P6

VSS_8

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_21

DU1

DUMMY_1

DU2

DUMMY_2

DU3

DUMMY_3

DU4

DUMMY_4

DU5

DUMMY_5

DU6

DUMMY_6

DU7

DUMMY_7

DU8

DUMMY_8

M2

NC_93

M3

NC_94

M7

NC_95

M8

NC_96

M9

NC_97

M10

NC_98

M11

NC_99

M12

NC_100

M13

NC_101

M14

NC_102

N1

NC_103

N3

NC_104

N6

NC_105

N7

NC_106

N8

NC_107

N9

NC_108

N10

NC_109

N11

NC_110

N12

NC_111

N13

NC_112

N14

NC_113

P1

NC_114

P2

NC_115

P8

NC_117

P9

NC_118

P11

NC_120

P12

NC_121

P13

NC_122

P14

NC_123

IC8100-*7

C8

NC_22

C9

NC_23

C10

NC_24

C11

NC_25

C12

NC_26

C13

NC_27

C14

NC_28

D1

NC_29

D2

NC_30

D3

NC_31

D4

NC_32

D12

NC_33

D13

NC_34

D14

NC_35

E1

NC_36

E2

NC_37

E3

NC_38

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

SAMSUNG_EMMC_16G

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

RFU_16

P12

NC_105

P13

NC_106

P14

NC_107

DU9

DUMMY_9

DU10

DUMMY_10

DU11

DUMMY_11

DU12

DUMMY_12

DU13

DUMMY_13

DU14

DUMMY_14

DU15

DUMMY_15

DU16

DUMMY_16

A3 A4 A5 B2 B3 B4 B5 B6

M6 M5

A6 A7 C5 E5 E8

E9 E10 F10

G3 G10

H5

J5

K6

K7 K10

P7 P10

K5

C6

M4

N4

P3

P5

E6

F5 J10

K9

C2

C4

E7

G5 H10

K8

N2

N5

P4

P6

A1

A2

A8

A9 A10 A11 A12 A13 A14

B1

B7

B8

B9 B10 B11 B12 B13 B14

C1

C3

C7

IC8100-*8

H26M42002GMR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44

E10

NC_45

F10

NC_52

G3

NC_58

G10

NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81

K10

NC_82

P7

NC_116

P10

NC_119

K5

RESET

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6

A10

NC_7

A11

NC_8

A12

NC_9

A13

NC_10

A14

NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15

B10

NC_16

B11

NC_17

B12

NC_18

B13

NC_19

B14

NC_20

C1

NC_21

C3

NC_22

C7

NC_24

IC8100-*3

KLM2G1HE3F-B001

DAT0 DAT1 DAT2 DAT3 DAT4 DAT5 DAT6 DAT7

CLK CMD

NC_3 NC_4 NC_23 NC_42 NC_43 NC_44 NC_45 NC_52 NC_58 NC_59 NC_66 NC_73 NC_80 NC_81 NC_82 NC_116 NC_119

RSTN

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5

VDDF_1 VDDF_2 VDDF_3 VDDF_4

VDDI

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

NC_1 NC_2 NC_5 NC_6 NC_7 NC_8 NC_9 NC_10 NC_11 NC_12 NC_13 NC_14 NC_15 NC_16 NC_17 NC_18 NC_19 NC_20 NC_21 NC_22 NC_24

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

HYNIX_EMMC_8GB

L14

NC_91

M1

NC_92

M2

NC_93

M3

NC_94

M7

NC_95

M8

NC_96

M9

NC_97

M10

NC_98

M11

NC_99

M12

NC_100

M13

NC_101

M14

NC_102

N1

NC_103

N3

NC_104

N6

NC_105

N7

NC_106

N8

NC_107

N9

NC_108

N10

NC_109

N11

NC_110

N12

NC_111

N13

NC_112

N14

NC_113

P1

NC_114

P2

NC_115

P8

NC_117

P9

NC_118

P11

NC_120

P12

NC_121

P13

NC_122

P14

NC_123

SAMSUNG_EMMC_2GB

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92

M2

NC_93

M3

NC_94

M7

NC_95

M8

NC_96

M9

NC_97

M10

NC_98

M11

NC_99

M12

NC_100

M13

NC_101

M14

NC_102

N1

NC_103

N3

NC_104

N6

NC_105

N7

NC_106

N8

NC_107

N9

NC_108

N10

NC_109

N11

NC_110

N12

NC_111

N13

NC_112

N14

NC_113

P1

NC_114

P2

NC_115

P8

NC_117

P9

NC_118

P11

NC_120

P12

NC_121

P13

NC_122

P14

NC_123

IC8100-*9

THGBMAG5A1JBAIR

A3

C8

DAT0

NC_23

A4

C9

DAT1

NC_24

A5

C10

DAT2

NC_25

B2

C11

DAT3

NC_26

B3

C12

DAT4

NC_27

B4

C13

DAT5

NC_28

B5

C14

DAT6

NC_29

B6

D1

DAT7

NC_30

D2

NC_31

D3

NC_32

M6

D4

CLK

NC_33

M5

D12

CMD

NC_34

D13

NC_35

D14

NC_36

A6

E1

RFU_1

NC_37

A7

E2

RFU_2

NC_38

C5

E3

NC_21

NC_39

E5

E12

RFU_3

NC_40

E8

E13

RFU_4

NC_41

E9

E14

RFU_5

NC_42

E10

F1

RFU_6

NC_43

F10

F2

RFU_7

NC_44

G3

F3

RFU_8

NC_45

G10

F12

RFU_9

NC_46

H5

F13

RFU_10

NC_47

J5

F14

RFU_11

NC_48

K6

G1

RFU_12

NC_49

K7

G2

RFU_13

NC_50

K10

G12

RFU_14

NC_51

P7

G13

RFU_15

NC_52

P10

G14

RFU_16

NC_53

H1

NC_54

H2

NC_55

K5

H3

RST_N

NC_56

H12

NC_57

H13

NC_58

C6

H14

VCCQ_1

NC_59

M4

J1

VCCQ_2

NC_60

N4

J2

VCCQ_3

NC_61

P3

J3

VCCQ_4

NC_62

P5

J12

VCCQ_5

NC_63

J13

NC_64

J14

NC_65

E6

K1

VCC_1

NC_66

F5

K2

VCC_2

NC_67

J10

K3

VCC_3

NC_68

K9

K12

VCC_4

NC_69

K13

NC_70

K14

NC_71

C2

L1

VDDI

NC_72

L2

NC_73

L3

NC_74

E7

L12

VSS_1

NC_75

G5

L13

VSS_2

NC_76

H10

L14

VSS_3

NC_77

K8

M1

VSS_4

NC_78

C4

M2

VSSQ_1

NC_79

N2

M3

VSSQ_2

NC_80

N5

M7

VSSQ_3

NC_81

P4

M8

VSSQ_4

NC_82

P6

M9

VSSQ_5

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

TOSHIBA_EMMC_4GB_V4.5

B14

P11

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C7

P14

NC_22

NC_107

IC8100-*4

THGBM5G7A2JBAIR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100-*10

THGBMAG6A2JBAIR

A3

DAT0

NC_23

A4

DAT1

NC_24

A5

DAT2

NC_25

B2

DAT3

NC_26

B3

DAT4

NC_27

B4

DAT5

NC_28

B5

DAT6

NC_29

B6

DAT7

NC_30 NC_31 NC_32

M6

CLK

NC_33

M5

CMD

NC_34 NC_35 NC_36

A6

RFU_1

NC_37

A7

RFU_2

NC_38

C5

NC_21

NC_39

E5

RFU_3

NC_40

E8

RFU_4

NC_41

E9

RFU_5

NC_42

E10

RFU_6

NC_43

F10

RFU_7

NC_44

G3

RFU_8

NC_45

G10

RFU_9

NC_46

H5

RFU_10

NC_47

J5

RFU_11

NC_48

K6

RFU_12

NC_49

K7

RFU_13

NC_50

K10

RFU_14

NC_51

P7

RFU_15

NC_52

P10

RFU_16

NC_53 NC_54 NC_55

K5

RST_N

NC_56 NC_57 NC_58

C6

VCCQ_1

NC_59

M4

VCCQ_2

NC_60

N4

VCCQ_3

NC_61

P3

VCCQ_4

NC_62

P5

VCCQ_5

NC_63 NC_64 NC_65

E6

VCC_1

NC_66

F5

VCC_2

NC_67

J10

VCC_3

NC_68

K9

VCC_4

NC_69 NC_70 NC_71

C2

VDDI

NC_72 NC_73 NC_74

E7

VSS_1

NC_75

G5

VSS_2

NC_76

H10

VSS_3

NC_77

K8

VSS_4

NC_78

C4

VSSQ_1

NC_79

N2

VSSQ_2

NC_80

N5

VSSQ_3

NC_81

P4

VSSQ_4

NC_82

P6

VSSQ_5

NC_83 NC_84 NC_85 NC_86

A1

NC_1

NC_87

A2

NC_2

NC_88

A8

NC_3

NC_89

A9

NC_4

NC_90

A10

NC_5

NC_91

A11

NC_6

NC_92

A12

NC_7

NC_93

A13

NC_8

NC_94

A14

NC_9

NC_95

B1

NC_10

NC_96

B7

NC_11

NC_97

B8

NC_12

NC_98

B9

NC_13

NC_99

B10

NC_14

NC_100

B11

NC_15

NC_101

B12

NC_16

NC_102

B13

NC_17

NC_103

TOSHIBA_EMMC_8GB_V4.5

B14

NC_18

NC_104

C1

NC_19

NC_105

C3

NC_20

NC_106

C7

NC_22

NC_107

TOSHIBA_EMMC_16GB

C8 C9 C10 C11 C12 C13 C14 D1 D2 D3 D4 D12 D13 D14 E1 E2 E3 E12 E13 E14 F1 F2 F3 F12 F13 F14 G1 G2 G12 G13 G14 H1 H2 H3 H12 H13 H14 J1 J2 J3 J12 J13 J14 K1 K2 K3 K12 K13 K14 L1 L2 L3 L12 L13 L14 M1 M2 M3 M7 M8 M9 M10 M11 M12 M13 M14 N1 N3 N6 N7 N8 N9 N10 N11 N12 N13 N14 P1 P2 P8 P9 P11 P12 P13 P14

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

IC8100-*11

THGBMAG7A2JBAIR

A3

C8

DAT0

NC_23

A4

C9

DAT1

NC_24

A5

C10

DAT2

NC_25

B2

C11

DAT3

NC_26

B3

C12

DAT4

NC_27

B4

C13

DAT5

NC_28

B5

C14

DAT6

NC_29

B6

D1

DAT7

NC_30

D2

NC_31

D3

NC_32

M6

D4

CLK

NC_33

M5

D12

CMD

NC_34

D13

NC_35

D14

NC_36

A6

E1

RFU_1

NC_37

A7

E2

RFU_2

NC_38

C5

E3

NC_21

NC_39

E5

E12

RFU_3

NC_40

E8

E13

RFU_4

NC_41

E9

E14

RFU_5

NC_42

E10

F1

RFU_6

NC_43

F10

F2

RFU_7

NC_44

G3

F3

RFU_8

NC_45

G10

F12

RFU_9

NC_46

H5

F13

RFU_10

NC_47

J5

F14

RFU_11

NC_48

K6

G1

RFU_12

NC_49

K7

G2

RFU_13

NC_50

K10

G12

RFU_14

NC_51

P7

G13

RFU_15

NC_52

P10

G14

RFU_16

NC_53

H1

NC_54

H2

NC_55

K5

H3

RST_N

NC_56

H12

NC_57

H13

NC_58

C6

H14

VCCQ_1

NC_59

M4

J1

VCCQ_2

NC_60

N4

J2

VCCQ_3

NC_61

P3

J3

VCCQ_4

NC_62

P5

J12

VCCQ_5

NC_63

J13

NC_64

J14

NC_65

E6

K1

VCC_1

NC_66

F5

K2

VCC_2

NC_67

J10

K3

VCC_3

NC_68

K9

K12

VCC_4

NC_69

K13

NC_70

K14

NC_71

C2

L1

VDDI

NC_72

L2

NC_73

L3

NC_74

E7

L12

VSS_1

NC_75

G5

L13

VSS_2

NC_76

H10

L14

VSS_3

NC_77

K8

M1

VSS_4

NC_78

C4

M2

VSSQ_1

NC_79

N2

M3

VSSQ_2

NC_80

N5

M7

VSSQ_3

NC_81

P4

M8

VSSQ_4

NC_82

P6

M9

VSSQ_5

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

B14

P11

TOSHIBA_EMMC_16GB_V4.5

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C7

P14

NC_22

NC_107

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

eMMC

BSD-14Y-UD-081-HD

2013.12.17

81

XTAL(24.75MHz)

XTAL_IN

D14_HWRESET SPI_DL_MODE

C12000 24pF 50V

TRST_N_0 TMS_0 TCK_0 TDI_0 TDO_0

AR12000

C120020.1uF

R1200010K

I2C_SCL2 I2C_SDA2

24.75MHz

X-TAL_1

GND_1

33

TRST_N_0

TRST_N_1

TRST_N_2

UART_RX_0 UART_TX_0 UART_RX_1 UART_TX_1

SOC_SPI0_SCLK

SOC_SPI0_CS0 SOC_SPI0_MOSI SOC_SPI0_MISO

SPI_SCLK_M

SPI_CS_M SPI_MOSI_M SPI_MISO_M

D13_STPO_CLK D13_STPO_SOP D13_STPO_VAL D13_STPO_ERR

D13_STPO_DATA

+3.3V_NORMAL

R12001

1K

OPT

R12002

1K

R12004 1M

X12000

GND_2

4

1

X-TAL_2

2

3

TMS_0 TCK_0 TDI_0 TDO_0

TMS_1 TCK_1 TDI_1 TDO_1

TMS_2 TCK_2 TDI_2 TDO_2

SMODE[0]

SMODE[1:0]

- 00 : Normal Mode

- Other : Test Mode



R12022 330

C12001 24pF 50V

+3.3V_NORMAL

XTAL_IN

XTAL_OUT

R12010 33

R12011 33 R12012 33 R12013 33

R12014 33

R12015 33

R12016 33

R12018 33 R12019 33 R12020 33 R12021 33

OPT

+3.3V_NORMAL

R12005

1K

OPT

R12006

1K

R12050

0

R12023

3.3K

OPT

XTAL_OUT

B3 A3

A6

B6 B7 C6 C7

A8 H21 K22 H20 J21 J20 P19 M19 L19 N19 K19

T22 R21 T20 T21

N20 P22 P20 P21 M22 M21 N21 M20

L20 L21 K20 K21

D22 C20 D20 D21 E21 E20 F22 F21 F20 G21 G20 H22

SMODE[1]

IC12000 LG1512D

XTALI XTALO

PORES_N

TRST_0 TMS_0 TCK_0 TDI_0 TDO_0 TRST_1 TMS_1 TCK_1 TDI_1 TDO_1 TRST_2 TMS_2 TCK_2 TDI_2 TDO_2

UART_RXD0 UART_TXD0 UART_RXD1 UART_TXD1

SPI_SCLK_S SPI_CS_S SPI_MOSI_S SPI_MISO_S SPI_SCK_M SPI_CS_M SPI_MOSI_M SPI_MISO_M

SCL_S SDA_S SCL_M SDA_M

STPI_CLK STPI_SOP STPI_VAL STPI_ERR STPI_DATA[0] STPI_DATA[1] STPI_DATA[2] STPI_DATA[3] STPI_DATA[4] STPI_DATA[5] STPI_DATA[6] STPI_DATA[7]

+3.3V_NORMAL

R12024

R12025

OPT

GPIO[5]

- 1 : Serial Flash Boot

- 0 : Live Boot



1K

SW12000

JTP-1127WEM

12

HDMI0_DDC_CK HDMI0_DDC_DA

HDMI0_HPD

HDMI0_REXT

HDMI0_CEC

HDMI0_DDC_CEC

HDMI0_TX0N HDMI0_TX0P HDMI0_TX1N HDMI0_TX1P HDMI0_TX2N HDMI0_TX2P HDMI0_TXCN HDMI0_TXCP

HDMI1_DDC_CK HDMI1_DDC_DA

HDMI1_HPD

HDMI1_REXT

HDMI1_CEC

HDMI1_DDC_CEC

HDMI1_TX0N HDMI1_TX0P HDMI1_TX1N HDMI1_TX1P HDMI1_TX2N HDMI1_TX2P HDMI1_TXCN HDMI1_TXCP

GPIO[5]

4 3

GPIO[7] GPIO[6] GPIO[5] GPIO[4] GPIO[3] GPIO[2] GPIO[1] GPIO[0]

SMODE[0] SMODE[1]

TMODE[0] TMODE[1] TMODE[2] TMODE[3]

P12007

12507WS-04L

5

JTAG1 for HEVC

P12006

12507WS-08L

D14_DEBUG

1

2

3

4

5

6

7

8

9

+3.3V_NORMAL

1

2

3

4

+3.3V_NORMAL +3.3V_NORMAL

C12010

0.1uF 16V

TDI_2

TMS_2

TCK_2

TDO_2

TRST_N_2

UART1 For HEVC

R12103

4.7K

UART_RX_0

UART_TX_0

C12011

0.1uF 16V

SPI/I2C For Aardvak Interface

D14_HWRESET

C12003

0.1uF 16V

R12027 10

Y22 W20 W21 V20 V21 V22 U20 U21

C18 A18 B18 C17 B19 C19

B15 C15 B16 C16 B17 A17 B14 C14

C12 A12 B12 C11 B13 C13

B9 C9 B10 C10 B11 A11 B8 C8

A21 A20

C21 B20 B21 B22

+3.3V_NORMAL

15K

R12038 15K

R12096

R12095 15K

HDMI0_TX0N HDMI0_TX0P HDMI0_TX1N HDMI0_TX1P HDMI0_TX2N HDMI0_TX2P HDMI0_TXCN

HDMI0_TXCP

HDMI1_TX0N HDMI1_TX0P HDMI1_TX1N HDMI1_TX1P HDMI1_TX2N

HDMI1_TX2P

HDMI1_TXCN

HDMI1_TXCP

SMODE[0] SMODE[1]

15K

R12097

D13_INT

R12098 15K

GPIO[5]

- 1 : Serial Flash Boot

- 0 : Live Boot



GPIO[5]

GPIO[4] GPIO[3] GPIO[2] GPIO[1] GPIO[0]

FLASH_WP

GPIO[5]

GPIO[4] GPIO[3]

GPIO[2]

GPIO[1] GPIO[0]

+3.3V_NORMAL

R12 037 2K

R12 036 2K

R12041 1K

R12042 27K

R12045

1.6K 1%

Closed to D13

R12032 1K

R12099 2K

R12003 2K

R12044

1.6K 1%

Closed to D13

HDMI1_DDC_CK HDMI1_DDC_DA

+3.3V_NORMAL

R12039 27K

HDMI0_DDC_CK HDMI0_DDC_DA

HDMI0_DDC_CK HDMI0_DDC_DA HDMI1_DDC_CK HDMI1_DDC_DA

SPI_CS_M

SPI_MISO_M

FLASH_WP

SPI FLASH(4MByte)

R12060 10K

R12062

R12054 0

R12061 10K

OPT

SO/SIO1

33

P12001

12507WS-10L

D14_DEBUG

1

2

3

4

5

6

7

8

9

10

11

IC12002

MX25L3206EM2I-12G

CS#

1

2

WP#

3

GND

4

Serial Flash Boot Test

+3.3V_NORMAL

R12068

1K

R12063 0

R12064 0

R12065 0

R12066 0

R12067 0

R12069 0

R12070 0

R12071 0

R12072 0

VCC

8

HOLD#

7

SCLK

6

SI/SIO0

5

OPT

R12073

3.3K

SPI_CS_M

SPI_MOSI_M

SPI_SCLK_M

SPI_MISO_M

SPI_DL_MODE

FLASH_WP

I2C_SDA2

I2C_SCL2

+3.3V_NORMAL

SPI_SCLK_M

SPI_MOSI_M

C12005

0.1uF

UART0 For system

JTAG2 for HEVC

+3.3V_NORMAL

R12089

4.7K

C12009

0.1uF 16V

UART_TX_1

C12008

0.1uF 16V

TDI_1

TMS_1

TCK_1

TDO_1

TRST_N_1

UART_RX_1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-119-HD

2013.12.17

VDDC15_D14

R12101 10K

100

VDDC15_D14

R12102

R12130

1K 1%

IC12000 LG1512D

M1_DDR_RESET_N_D14

M1_D_CLK_D14

R12 100

M1_D_CLKN_D14

M1_DDR_VREFCA_D14

1K 1%

0.1uF

C12100

OPT

DDR0_A[0] DDR0_A[1] DDR0_A[2] DDR0_A[3] DDR0_A[4] DDR0_A[5] DDR0_A[6] DDR0_A[7] DDR0_A[8]

DDR0_A[9] DDR0_A[10] DDR0_A[11] DDR0_A[12] DDR0_A[13] DDR0_A[14] DDR0_A[15]

DDR0_BA[0] DDR0_BA[1] DDR0_BA[2]

DDR0_U_CK

DDR0_U_CK_N

DDR0_D_CK

DDR0_D_CK_N

DDR0_CKE

DDR0_ODT DDR0_RAS_N DDR0_CAS_N

DDR0_WE_N

DDR0_RST_N

DDR0_ZQ_CALIB

DDR0_DQS[0]

DDR0_DQS_N[0]

DDR0_DQS[1]

DDR0_DQS_N[1]

DDR0_DQS[2]

DDR0_DQS_N[2]

DDR0_DQS[3]

DDR0_DQS_N[3]

DDR0_DM[0] DDR0_DM[1] DDR0_DM[2] DDR0_DM[3]

DDR0_DQ[0] DDR0_DQ[1] DDR0_DQ[2] DDR0_DQ[3] DDR0_DQ[4] DDR0_DQ[5] DDR0_DQ[6] DDR0_DQ[7] DDR0_DQ[8] DDR0_DQ[9]

DDR0_DQ[10] DDR0_DQ[11] DDR0_DQ[12] DDR0_DQ[13] DDR0_DQ[14] DDR0_DQ[15] DDR0_DQ[16] DDR0_DQ[17] DDR0_DQ[18] DDR0_DQ[19] DDR0_DQ[20] DDR0_DQ[21] DDR0_DQ[22] DDR0_DQ[23] DDR0_DQ[24] DDR0_DQ[25] DDR0_DQ[26] DDR0_DQ[27] DDR0_DQ[28] DDR0_DQ[29] DDR0_DQ[30] DDR0_DQ[31]

M1_DDR_CKE_D14

V13 V15 V11 V9 W17 W9 W16 V10 V17 V12 W18 W15 W14 W11 V16 V14

W8 V18 W12

Y17 AA17 Y8 AA8 W13

V7 W6 W7 V8

W10

V6

AA7 Y7 AA9 AB9 AA16 Y16 AA18 AB18

AB10 AB7 AB19 AB16

AA5 AA12 Y4 Y11 AB4 AB12 AA4 Y12 AA11 AA6 Y10 Y5 Y9 AB6 AA10 Y6 AA14 Y20 Y13 AA21 AB13 AB21 AA13 Y21 AA20 AA15 Y19 Y14 Y18 AB15 AA19 Y15

100

VDDC15_D14

R12105

1K 1%

R12106

1K 1%

R12 104

M0_DDR_A0_D14 M0_DDR_A1_D14 M0_DDR_A2_D14 M0_DDR_A3_D14 M0_DDR_A4_D14 M0_DDR_A5_D14 M0_DDR_A6_D14 M0_DDR_A7_D14 M0_DDR_A8_D14 M0_DDR_A9_D14 M0_DDR_A10_D14 M0_DDR_A11_D14 M0_DDR_A12_D14 M0_DDR_A13_D14

M0_DDR_BA0_D14 M0_DDR_BA1_D14 M0_DDR_BA2_D14

M0_U_CLK_D14 M0_U_CLKN_D14 M0_D_CLK_D14 M0_D_CLKN_D14 M0_DDR_CKE_D14

M0_DDR_ODT_D14 M0_DDR_RASN_D14 M0_DDR_CASN_D14 M0_DDR_WEN_D14

M0_DDR_RESET_N_D14

R12108

240

1%

R12107 10K

M1_U_CLK_D14

M1_U_CLKN_D14

M1_1_DDR_VREFCA_D14

0.1uF

C12101

OPT

M0_DDR_DQS0_D14 M0_DDR_DQS_N0_D14 M0_DDR_DQS1_D14 M0_DDR_DQS_N1_D14 M0_DDR_DQS2_D14 M0_DDR_DQS_N2_D14 M0_DDR_DQS3_D14 M0_DDR_DQS_N3_D14

M0_DDR_DM0_D14 M0_DDR_DM1_D14 M0_DDR_DM2_D14

M0_DDR_DM3_D14

M0_DDR_DQ0_D14 M0_DDR_DQ1_D14 M0_DDR_DQ2_D14 M0_DDR_DQ3_D14 M0_DDR_DQ4_D14 M0_DDR_DQ5_D14 M0_DDR_DQ6_D14 M0_DDR_DQ7_D14 M0_DDR_DQ8_D14

M0_DDR_DQ9_D14 M0_DDR_DQ10_D14 M0_DDR_DQ11_D14 M0_DDR_DQ12_D14 M0_DDR_DQ13_D14 M0_DDR_DQ14_D14 M0_DDR_DQ15_D14 M0_DDR_DQ16_D14 M0_DDR_DQ17_D14 M0_DDR_DQ18_D14 M0_DDR_DQ19_D14 M0_DDR_DQ20_D14 M0_DDR_DQ21_D14 M0_DDR_DQ22_D14 M0_DDR_DQ23_D14 M0_DDR_DQ24_D14 M0_DDR_DQ25_D14 M0_DDR_DQ26_D14 M0_DDR_DQ27_D14 M0_DDR_DQ28_D14 M0_DDR_DQ29_D14 M0_DDR_DQ30_D14 M0_DDR_DQ31_D14

VDDC15_D14

R12109

R12110

M1_DDR_VREFDQ_D14

1K 1%

0.1uF

1K 1%

OPT

C12102

VDDC15_D14

R12112 10K

100

R12 111

VDDC15_D14

R12113

R12114

VDDC15_D14

M0_DDR_CKE_D14

M0_DDR_RESET_N_D14

M0_D_CLK_D14

M0_D_CLKN_D14

M0_DDR_VREFCA_D14

1K 1%

0.1uF

1K 1%

OPT

C12103

M1_1_DDR_VREFDQ_D14

R12115

1K 1%

0.1uF

R12116

1K 1%

OPT

C12104

100

R12 117

VDDC15_D14

R12118

1K 1%

R12119

1K 1%

R12120 10K

M0_U_CLK_D14

M0_U_CLKN_D14

M0_1_DDR_VREFCA_D14

0.1uF

OPT

C12105

IC12000 LG1512D

VDDC15_D14

R12121

1K 1%

R12122

1K 1%

DDR1_A[0] DDR1_A[1] DDR1_A[2] DDR1_A[3] DDR1_A[4] DDR1_A[5] DDR1_A[6] DDR1_A[7] DDR1_A[8]

DDR1_A[9] DDR1_A[10] DDR1_A[11] DDR1_A[12] DDR1_A[13] DDR1_A[14] DDR1_A[15]

DDR1_BA[0] DDR1_BA[1] DDR1_BA[2]

DDR1_U_CK

DDR1_U_CK_N

DDR1_D_CK

DDR1_D_CK_N

DDR1_CKE

DDR1_ODT DDR1_RAS_N DDR1_CAS_N

DDR1_WE_N

DDR1_RST_N

DDR1_ZQ_CALIB

DDR1_DQS[0]

DDR1_DQS_N[0]

DDR1_DQS[1]

DDR1_DQS_N[1]

DDR1_DQS[2]

DDR1_DQS_N[2]

DDR1_DQS[3]

DDR1_DQS_N[3]

DDR1_DM[0] DDR1_DM[1] DDR1_DM[2] DDR1_DM[3]

DDR1_DQ[0] DDR1_DQ[1] DDR1_DQ[2] DDR1_DQ[3] DDR1_DQ[4] DDR1_DQ[5] DDR1_DQ[6] DDR1_DQ[7] DDR1_DQ[8] DDR1_DQ[9]

DDR1_DQ[10] DDR1_DQ[11] DDR1_DQ[12] DDR1_DQ[13] DDR1_DQ[14] DDR1_DQ[15] DDR1_DQ[16] DDR1_DQ[17] DDR1_DQ[18] DDR1_DQ[19] DDR1_DQ[20] DDR1_DQ[21] DDR1_DQ[22] DDR1_DQ[23] DDR1_DQ[24] DDR1_DQ[25] DDR1_DQ[26] DDR1_DQ[27] DDR1_DQ[28] DDR1_DQ[29] DDR1_DQ[30] DDR1_DQ[31]

M0_DDR_VREFDQ_D14

0.1uF

OPT

C12106

L5 N5 J5 G5 T4 H4 R4 H5 R5 K5 U4 P4 N4 K4 P5 M5

G4 T5 L4

T3 T2 G3 G2 M4

E5 E4 F4 F5

J4

U5

F2 F3 H2 H1 R2 R3 U2 U1

J1 F1 V1 R1

D2 L2 C3 K3 C1 L1 C2 L3 K2 E2 J3 D3 H3 E1 J2 E3 N2 W3 M3 Y2 M1 Y1 M2 Y3 W2 P2 V3 N3 U3 P1 V2 P3

240

VDDC15_D14

1%

M0_1_DDR_VREFDQ_D14

R12124

1K 1%

0.1uF

R12125

1K 1%

OPT

C12107

M1_DDR_A0_D14 M1_DDR_A1_D14 M1_DDR_A2_D14 M1_DDR_A3_D14 M1_DDR_A4_D14 M1_DDR_A5_D14 M1_DDR_A6_D14 M1_DDR_A7_D14 M1_DDR_A8_D14 M1_DDR_A9_D14 M1_DDR_A10_D14 M1_DDR_A11_D14 M1_DDR_A12_D14 M1_DDR_A13_D14

M1_DDR_BA0_D14 M1_DDR_BA1_D14 M1_DDR_BA2_D14

M1_U_CLK_D14 M1_U_CLKN_D14 M1_D_CLK_D14 M1_D_CLKN_D14 M1_DDR_CKE_D14

M1_DDR_ODT_D14 M1_DDR_RASN_D14 M1_DDR_CASN_D14 M1_DDR_WEN_D14

M1_DDR_RESET_N_D14

R12123

M1_DDR_DQS0_D14 M1_DDR_DQS_N0_D14 M1_DDR_DQS1_D14 M1_DDR_DQS_N1_D14 M1_DDR_DQS2_D14 M1_DDR_DQS_N2_D14 M1_DDR_DQS3_D14 M1_DDR_DQS_N3_D14

M1_DDR_DM0_D14 M1_DDR_DM1_D14 M1_DDR_DM2_D14 M1_DDR_DM3_D14

M1_DDR_DQ0_D14 M1_DDR_DQ1_D14 M1_DDR_DQ2_D14 M1_DDR_DQ3_D14 M1_DDR_DQ4_D14 M1_DDR_DQ5_D14 M1_DDR_DQ6_D14 M1_DDR_DQ7_D14 M1_DDR_DQ8_D14 M1_DDR_DQ9_D14 M1_DDR_DQ10_D14 M1_DDR_DQ11_D14 M1_DDR_DQ12_D14 M1_DDR_DQ13_D14 M1_DDR_DQ14_D14 M1_DDR_DQ15_D14 M1_DDR_DQ16_D14 M1_DDR_DQ17_D14 M1_DDR_DQ18_D14 M1_DDR_DQ19_D14 M1_DDR_DQ20_D14 M1_DDR_DQ21_D14 M1_DDR_DQ22_D14 M1_DDR_DQ23_D14 M1_DDR_DQ24_D14 M1_DDR_DQ25_D14 M1_DDR_DQ26_D14 M1_DDR_DQ27_D14 M1_DDR_DQ28_D14 M1_DDR_DQ29_D14 M1_DDR_DQ30_D14 M1_DDR_DQ31_D14

M0_DDR_A0_D14 M0_DDR_A1_D14 M0_DDR_A2_D14 M0_DDR_A3_D14 M0_DDR_A4_D14 M0_DDR_A5_D14 M0_DDR_A6_D14 M0_DDR_A7_D14 M0_DDR_A8_D14

M0_DDR_A9_D14 M0_DDR_A10_D14 M0_DDR_A11_D14 M0_DDR_A12_D14 M0_DDR_A13_D14

M0_DDR_BA0_D14

M0_DDR_BA1_D14 M0_DDR_BA2_D14

M0_D_CLK_D14

M0_D_CLKN_D14 M0_DDR_CKE_D14

M0_DDR_ODT_D14 M0_DDR_RASN_D14 M0_DDR_CASN_D14

M0_DDR_WEN_D14

M0_DDR_RESET_N_D14

M0_DDR_DQS0_D14

M0_DDR_DQS_N0_D14

M0_DDR_DQS1_D14

M0_DDR_DQS_N1_D14

M0_DDR_DM0_D14 M0_DDR_DM1_D14

M0_DDR_DQ0_D14

M0_DDR_DQ1_D14 M0_DDR_DQ2_D14 M0_DDR_DQ3_D14 M0_DDR_DQ4_D14 M0_DDR_DQ5_D14 M0_DDR_DQ6_D14 M0_DDR_DQ7_D14

M0_DDR_DQ8_D14 M0_DDR_DQ9_D14

M0_DDR_DQ10_D14 M0_DDR_DQ11_D14 M0_DDR_DQ12_D14 M0_DDR_DQ13_D14 M0_DDR_DQ14_D14 M0_DDR_DQ15_D14

M1_DDR_A0_D14 M1_DDR_A1_D14 M1_DDR_A2_D14 M1_DDR_A3_D14 M1_DDR_A4_D14 M1_DDR_A5_D14 M1_DDR_A6_D14 M1_DDR_A7_D14 M1_DDR_A8_D14

M1_DDR_A9_D14 M1_DDR_A10_D14 M1_DDR_A11_D14 M1_DDR_A12_D14 M1_DDR_A13_D14

M1_DDR_BA0_D14 M1_DDR_BA1_D14 M1_DDR_BA2_D14

M1_D_CLK_D14

M1_D_CLKN_D14 M1_DDR_CKE_D14

M1_DDR_ODT_D14

M1_DDR_RASN_D14 M1_DDR_CASN_D14

M1_DDR_WEN_D14

M1_DDR_RESET_N_D14

M1_DDR_DQS0_D14

M1_DDR_DQS_N0_D14

M1_DDR_DQS1_D14

M1_DDR_DQS_N1_D14

M1_DDR_DM0_D14 M1_DDR_DM1_D14

M1_DDR_DQ0_D14 M1_DDR_DQ1_D14

M1_DDR_DQ2_D14 M1_DDR_DQ3_D14 M1_DDR_DQ4_D14 M1_DDR_DQ5_D14 M1_DDR_DQ6_D14 M1_DDR_DQ7_D14

M1_DDR_DQ8_D14

M1_DDR_DQ9_D14 M1_DDR_DQ10_D14 M1_DDR_DQ11_D14 M1_DDR_DQ12_D14 M1_DDR_DQ13_D14 M1_DDR_DQ14_D14 M1_DDR_DQ15_D14

H5TQ1G63EFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC12100

H5TQ1G63EFR-PBC

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC NC_7

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

DDR3 1Gbit (x16)

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

IC12101

DDR3 1Gbit (x16)

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M0_DDR_VREFCA_D14

M8

H1

R12127

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M1_DDR_VREFCA_D14

M1_DDR_VREFDQ_D14

R12126

240

1%

M0_DDR_VREFDQ_D14

VDDC15_D14

240 1%

VDDC15_D14

C12108 C12109

C12110 C12111

0.1uF

M0_DDR_A0_D14 M0_DDR_A1_D14 M0_DDR_A2_D14 M0_DDR_A3_D14 M0_DDR_A4_D14 M0_DDR_A5_D14 M0_DDR_A6_D14 M0_DDR_A7_D14 M0_DDR_A8_D14

M0_DDR_A9_D14 M0_DDR_A10_D14 M0_DDR_A11_D14 M0_DDR_A12_D14 M0_DDR_A13_D14

M0_DDR_BA0_D14 M0_DDR_BA1_D14 M0_DDR_BA2_D14

M0_U_CLK_D14

M0_U_CLKN_D14 M0_DDR_CKE_D14

M0_DDR_ODT_D14

M0_DDR_RASN_D14 M0_DDR_CASN_D14

M0_DDR_WEN_D14

M0_DDR_RESET_N_D14

M0_DDR_DQS2_D14

M0_DDR_DQS_N2_D14

M0_DDR_DQS3_D14

M0_DDR_DQS_N3_D14

M0_DDR_DM2_D14 M0_DDR_DM3_D14

M0_DDR_DQ16_D14

M0_DDR_DQ17_D14 M0_DDR_DQ18_D14 M0_DDR_DQ19_D14 M0_DDR_DQ20_D14 M0_DDR_DQ21_D14 M0_DDR_DQ22_D14 M0_DDR_DQ23_D14

M0_DDR_DQ24_D14 M0_DDR_DQ25_D14 M0_DDR_DQ26_D14 M0_DDR_DQ27_D14 M0_DDR_DQ28_D14 M0_DDR_DQ29_D14 M0_DDR_DQ30_D14 M0_DDR_DQ31_D14

M1_DDR_A0_D14 M1_DDR_A1_D14 M1_DDR_A2_D14 M1_DDR_A3_D14 M1_DDR_A4_D14 M1_DDR_A5_D14 M1_DDR_A6_D14 M1_DDR_A7_D14 M1_DDR_A8_D14

M1_DDR_A9_D14 M1_DDR_A10_D14 M1_DDR_A11_D14 M1_DDR_A12_D14 M1_DDR_A13_D14

M1_DDR_BA0_D14 M1_DDR_BA1_D14 M1_DDR_BA2_D14

M1_U_CLK_D14

M1_U_CLKN_D14 M1_DDR_CKE_D14

M1_DDR_ODT_D14

M1_DDR_RASN_D14 M1_DDR_CASN_D14

M1_DDR_WEN_D14

M1_DDR_RESET_N_D14

M1_DDR_DQS2_D14

M1_DDR_DQS_N2_D14

M1_DDR_DQS3_D14

M1_DDR_DQS_N3_D14

M1_DDR_DM2_D14 M1_DDR_DM3_D14

M1_DDR_DQ16_D14 M1_DDR_DQ17_D14 M1_DDR_DQ18_D14 M1_DDR_DQ19_D14 M1_DDR_DQ20_D14 M1_DDR_DQ21_D14 M1_DDR_DQ22_D14 M1_DDR_DQ23_D14

M1_DDR_DQ24_D14 M1_DDR_DQ25_D14 M1_DDR_DQ26_D14 M1_DDR_DQ27_D14 M1_DDR_DQ28_D14 M1_DDR_DQ29_D14 M1_DDR_DQ30_D14 M1_DDR_DQ31_D14

IC12103

H5TQ1G63EFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC12102

H5TQ1G63EFR-PBC

DDR3

N3

A0

1Gbit

P7

A1

(x16)

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR3 1Gbit (x16)

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

NC_1 NC_2 NC_3 NC_4 NC_6

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M1_1_DDR_VREFCA_D14

R12128

240

1%

M0_1_DDR_VREFCA_D14

M0_1_DDR_VREFDQ_D14

R12129

VDDC15_D14

240 1%

M1_1_DDR_VREFDQ_D14

VDDC15_D14

C12112 C12113

C12114 C12115

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-121-HD

2013.12.17

D14_DDR

+1.1V_VDD_D14

+12V

L12213

BLM18PG121SN1D

C12277 10uF 16V

1.0V_DCDC_TI

POWER_ON/OFF2_4

C12203

22uF

OPT

2.5V

ZD12200

C12204

0.1uF

C12280-*1 3300pF 50V

C12213

0.1uF 16V

C12212

C12205

22uF

+1.5V

R12218

18K

R1

1%

C12278

100pF

50V

+1.1V_VDD

R12204 10K

1%

0.1uF

4.7

R12203

5%

R12221

C12279 1uF 10V

1%

1/1 6W

16V

C12217

30V

10K

91K

1/1 6W

R12 206

27K

RF

R12 205

PGOOD

EN

VBST

NC_1

SW_1

SW_2

SW_3

SW_4

D12200

EN

FB

VREG

SS

C12280 2200pF 50V

1.0V_DCDC_ROHM

C12214 1000pF 50V

R12201 1K

R12200 2K

1/16W 5%

L12200

1uH

R12219

3.6K 1%

R12220 22K 1%

R2

R12202

3.3

1/10W

C12215 470pF 50V

Vout=0.765*(1+R1/R2)=1.516V

[EP]

1

THERMAL

2

29

3

IC12200

4

TPS53513RVER

5

6

7

8

8A

9

10

PGND_111PGND_212PGND_313PGND_414PGND_5

POWER_ON/OFF2_3

DCDC_ROHM

IC12201

BD9D320EFJ

1

2

THERMAL

3

4

3A

R12207 39K

1/16W 5%

9

TRIP26NC_327GND128GND2

8

7

6

5

24VO25

[EP]FIN

VIN

BOOT

SW

GND

23

22

21

20

19

18

17

16

15

FB

GND

MODE

VREG

VDD

NC_2

VIN_3

VIN_2

VIN_1

16V

0.1uF C12281

NR5040T2R2N

R1

R2

L12214

2.2uH

R12216

R12217

C12220 2200pF 50V

C12282

22uF

4.87K

4.99K

10V

1/16W

1%

1/16W

1%

VDDC15_D14

1/16W

20K

R12222

C12283

22uF 10V

C12221 1uF 10V

EN

VFB

VREG5

SS

ZD12201

OPT

IC12201-*1

TPS54327DDAR

1

2

3

4

2.5V

L12201

DCDC_TI

THERMAL

C12222 10uF 16V

9

+12V

+1.1V_Bypass Cap

+1.1V_VDD_D14

C12223 10uF 16V

0.1uFC12210

C12209 4.7uF

C12207 10uF

C12236 0.1uF

C12239 0.1uF

C12211 10uF

C12200 0.1uF

4th layer

C12230 10uF

C12227 22uF

C12225 0.1uF C12224 10uF

C12228 0.1uF

C12233 1uF

C12206 10uF

4th layer

C12226 22uF

VDDC11_XTAL_D14

L12203

BLM18PG121SN1D

1uFC12216

[EP]GND

VIN

8

VBST

7

SW

6

GND

5

+3.3V_Bypass Cap

+3.3V_NORMAL

VDD33_D14

L12205

BLM18PG121SN1D

22uF

C12218

VDD33_XTAL_D14

L12206

BLM18PG121SN1D

4.7uFC12219

+1.5V_Bypass Cap

VDDC15_D14

22uFC12250

VREF_M0_0_D14

R12208

1K 1%

VREF_M0_1_D14

R12209

1K 1%

+2.5V_Bypass Cap

+2.5V_Normal

L12210

BLM18PG121SN1D

22uF

C12253

VDD25_XTAL_D14

L12209

BLM18PG121SN1D

4.7uFC12254

0.1uF

C12258

C12255

C12251

0.1uF

OPT

C12252

0.1uF

OPT

VDD25_D14

C12259 0.1uF

C12256 10uF

C12257 0.1uF

C12201 10uF

4th layer

R12210

1K 1%

R12211

1K 1%

4th layer

C12208 10uF

VDDC15_D14

22uFC12264

0.1uF

C12267

VREF_M1_0_D14

R12212

1K 1%

VREF_M1_1_D14

R12213

1K 1%

0.1uF

C12268

R12214

1K 1%

C12265

0.1uF OPT

R12215

1K 1%

C12266

0.1uF OPT

C12202 10uF

4th layer

VREF_M0_1_D14

VREF_M1_0_D14

VREF_M1_1_D14

VDDC11_XTAL_D14

VDDC15_D14

VDD25_D14

VDD25_XTAL_D14

VDD33_XTAL_D14

VREF_M0_0_D14

+1.1V_VDD_D14

VDD33_D14

AA22

J13 J14 J11 J12

H9 J9

J15

K9

K15

L9

L15

M9 M15 N15

P9 P10 P11 P12 P13 P15

B4

A4

T9 T10 T11 T12 T13 T14 T15 T16 T17

G7

H7

J7

K7

L7

M7

N7

P7

R7

H13 H14 H11 H12 H15

B5

F8 F12 F13 H10 H16 J16 K16 L16 M16 N16 P16

T8

A5

AB3

B1 AA1

A2 A14

B2

C4

C5

D4

D5

D6

D7

D8

D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19

E6

E7

E8

E9

IC12000 LG1512D

AVDD11_HDMI0_1 AVDD11_HDMI0_2 AVDD11_HDMI1_1 AVDD11_HDMI1_2 DVDD11_1 DVDD11_2 DVDD11_3 DVDD11_4 DVDD11_5 DVDD11_6 DVDD11_7 DVDD11_8 DVDD11_9 DVDD11_10 DVDD11_11 DVDD11_12 DVDD11_13 DVDD11_14 DVDD11_15 DVDD11_16 DVDD11_PLL DVDD11_XTAL

DVDD15_DDR0_1 DVDD15_DDR0_2 DVDD15_DDR0_3 DVDD15_DDR0_4 DVDD15_DDR0_5 DVDD15_DDR0_6 DVDD15_DDR0_7 DVDD15_DDR0_8 DVDD15_DDR0_9 DVDD15_DDR1_1 DVDD15_DDR1_2 DVDD15_DDR1_3 DVDD15_DDR1_4 DVDD15_DDR1_5 DVDD15_DDR1_6 DVDD15_DDR1_7 DVDD15_DDR1_8 DVDD15_DDR1_9

AVDD25_HDMI0_1 AVDD25_HDMI0_2 AVDD25_HDMI1_1 AVDD25_HDMI1_2 DVDD25_OTP DVDD25_PLL

DVDD33_1 DVDD33_2 DVDD33_3 DVDD33_4 DVDD33_5 DVDD33_6 DVDD33_7 DVDD33_8 DVDD33_9 DVDD33_10 DVDD33_11 DVDD33_12 DVDD33_XTAL

VREF0_DDR0 VREF1_DDR0 VREF0_DDR1 VREF1_DDR1

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11 VSS_12 VSS_13 VSS_14 VSS_15 VSS_16 VSS_17 VSS_18 VSS_19 VSS_20 VSS_21 VSS_22 VSS_23 VSS_24 VSS_25

VSS_26 VSS_27 VSS_28 VSS_29 VSS_30 VSS_31 VSS_32 VSS_33 VSS_34 VSS_35 VSS_36 VSS_37 VSS_38 VSS_39 VSS_40 VSS_41 VSS_42 VSS_43 VSS_44 VSS_45 VSS_46 VSS_47 VSS_48 VSS_49 VSS_50 VSS_51 VSS_52 VSS_53 VSS_54 VSS_55 VSS_56 VSS_57 VSS_58 VSS_59 VSS_60 VSS_61 VSS_62 VSS_63 VSS_64 VSS_65 VSS_66 VSS_67 VSS_68 VSS_69 VSS_70 VSS_71 VSS_72 VSS_73 VSS_74 VSS_75 VSS_76 VSS_77 VSS_78 VSS_79 VSS_80 VSS_81 VSS_82 VSS_83 VSS_84 VSS_85 VSS_86 VSS_87 VSS_88 VSS_89 VSS_90 VSS_91 VSS_92 VSS_93 VSS_94 VSS_95 VSS_96 VSS_97 VSS_98

VSS_99 VSS_100 VSS_101 VSS_102 VSS_103 VSS_104 VSS_105 VSS_106 VSS_107 VSS_108 VSS_109 VSS_110 VSS_111 VSS_112 VSS_113 VSS_114 VSS_115 VSS_116 VSS_117 VSS_118 VSS_119

E10 E11 E12 E13 E14 E15 E16 E17 E18 E19 F6 F7 F9 F10 F11 F14 F15 F16 F17 F18 F19 G6 G18 G19 H6 H18 H19 J6 J10 J18 J19 K6 K10 K11 K12 K13 K14 K18 L6 L10 L11 L12 L13 L14 L18 M6 M10 M11 M12 M13 M14 M18 N6 N9 N10 N11 N12 N13 N14 N18 P6 P14 P18 R6 R18 R19 R20 T6 T7 T18 T19 U6 U7 U8 U9 U10 U11 U12 U13 U14 U15 U16 U17 U18 U19 V4 V5 V19 W4 W5 W19 AA2 AA3 AB2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-122-HD

2013.12.17

UB85/95/UC89 only

+3.3V_NORMAL

L2100

BLM18PG121SN1D

C2106 10uF 10V

VDDP

C2111 10uF 10V

C2120 10uF 10V

C2128 1uF 10V

C2134

0.1uF 16V

C2139

0.1uF 16V

C2143

0.1uF 16V

C2145

0.1uF 16V

4st Layer

C13314

0.1uF 16V

C13315 10uF 10V

TXB0N/TX5N

TXB0P/TX5P

TXB1N/TX4N

TXB1P/TX4P TXB2N/TX3N TXB2P/TX3P

TXBCLKN/TX2N TXBCLKP/TX2P

TXB3N/TX1N TXB3P/TX1P TXB4N/TX0N TXB4P/TX0P

TXA0N/TX11N

TXA0P/TX11P

TXA1N/TX10N TXA1P/TX10P

TXA2N/TX9N TXA2P/TX9P

TXACLKN/TX8N

TXACLKP/TX8P

TXA3N/TX7N

TXA3P/TX7P

TXA4N/TX6N

TXA4P/TX6P

TXD0N/TX17N TXD0P/TX17P TXD1N/TX16N TXD1P/TX16P

TXD2N/TX15N

TXD2P/TX15P TXDCLKN/TX14N TXDCLKP/TX14P

TXD3N/TX13N

TXD3P/TX13P

TXD4N/TX12N

TXD4P/TX12P

TXC0N/TX23N TXC0P/TX23P TXC1N/TX22N

TXC1P/TX22P TXC2N/TX21N TXC2P/TX21P

TXCCLKN/TX20N

TXCCLKP/TX20P

TXC3N/TX19N

TXC3P/TX19P TXC4N/TX18N TXC4P/TX18P

AK10 AL10 AM10 AK11 AM11 AL11

AK12 AL12 AK13 AL13 AM13 AK14 AM14 AL14 AK15 AL15 AK16 AL16

AG2

RB0N

AG1

RB0P

AH3

RB1N

AH1

RB1P

AH2

RB2N

AJ3

RB2P

AJ2

RBCKN

AK2

RBCKP

AK1

RB3N

AL1

RB3P

AM2

RB4N

AL2

RB4P

AK3

RC0N

AL3

RC0P

AK4

RC1N

AL4

RC1P

AM4

RC2N

AK5

RC2P

AM5

RCCKN

AL5

RCCKP

AK6

RC3N

AL6

RC3P

AK7

RC4N

AL7

RC4P

AM7

RD0N

AK8

RD0P

AM8

RD1N

AL8

RD1P

AK9

RD2N

AL9

RD2P RDCKN RDCKP RD3N RD3P RD4N RD4P

RE0N RE0P RE1N RE1P RE2N RE2P RECKN RECKP RE3N RE3P RE4N RE4P

IC2500

LGE7411(URSA9)

VX1_0VX1_0+ VX1_1VX1_1+ VX1_2VX1_2+ VX1_3VX1_3+ VX1_4VX1_4+ VX1_5VX1_5+ VX1_6VX1_6+ VX1_7VX1_7+ VX1_8VX1_8+ VX1_9-

VX1_9+ VX1_10VX1_10+ VX1_11VX1_11+ VX1_12VX1_12+ VX1_13VX1_13+ VX1_14VX1_14+ VX1_15VX1_15+ VX1_16VX1_16+ VX1_17VX1_17+ VX1_18VX1_18+ VX1_19VX1_19+

VX1_HTDPN VX1_LOCKN

AM17 AK17 AL18 AK18 AM19 AL19 AL20 AM20 AK22 AL21 AK23 AM22 AK24 AL23 AL25 AK25 AM26 AK26 AL27 AK27 AM28 AL28 AL29 AM29 AM31 AL30 AL32 AL31 AK31 AK32 AJ30 AJ31 AH30 AH32 AG30 AG31 AE31 AF30 AD32 AE30

AH29 AG29

C130080.1uF C130090.1uF C130100.1uF C130110.1uF C130120.1uF C130130.1uF C130140.1uF C130150.1uF C130160.1uF C130170.1uF C130180.1uF C130190.1uF C130200.1uF

C130220.1uF C130230.1uF C130240.1uF C130250.1uF C130260.1uF C130270.1uF C130280.1uF C130290.1uF C130300.1uF C130310.1uF C130640.1uF C130650.1uF C130660.1uF C130670.1uF C130680.1uF C130690.1uF C130700.1uF C130710.1uF

R1938 10K

URSA_TX_HTPD_pulldown

TXDBN7_L TXDBP7_L TXDBN6_L TXDBP6_L TXDBN5_L TXDBP5_L TXDBN4_L TXDBP4_L TXDBN3_L TXDBP3_L TXDBN2_L TXDBP2_L TXDBN1_L TXDBP1_LC130210.1uF TXDBN0_L TXDBP0_L TXDAN7_L TXDAP7_L TXDAN6_L TXDAP6_L TXDAN5_L TXDAP5_L TXDAN4_L TXDAP4_L TXDAN3_L TXDAP3_L TXDAN2_L TXDAP2_L TXDAN1_L TXDAP1_L TXDAN0_L TXDAP0_L

HTPDAn

HDMI_CLK+_URSA9_0

HDMI_CLK-_URSA9_0

HDMI_RX0+_URSA9_0

HDMI_RX0-_URSA9_0

HDMI_RX1+_URSA9_0

HDMI_RX1-_URSA9_0

HDMI_RX2+_URSA9_0

HDMI_RX2-_URSA9_0

HDMI_CLK+_URSA9_1

HDMI_CLK-_URSA9_1

HDMI_RX0+_URSA9_1

HDMI_RX0-_URSA9_1

HDMI_RX1+_URSA9_1

HDMI_RX1-_URSA9_1

HDMI_RX2+_URSA9_1

HDMI_RX2-_URSA9_1

IC2500

LGE7411(URSA9)

D1

HDMI_RXCP_0

D3

HDMI_RXCN_0

E3

HDMI_RX0P_0

D2

HDMI_RX0N_0

F3

HDMI_RX1P_0

E2

HDMI_RX1N_0

F1

HDMI_RX2P_0

F2

HDMI_RX2N_0

G1

HDMI_RXCP_1

G3

HDMI_RXCN_1

H3

HDMI_RX0P_1

G2

HDMI_RX0N_1

J3

HDMI_RX1P_1

H2

HDMI_RX1N_1

J1

HDMI_RX2P_1

J2

HDMI_RX2N_1

VDDC

C2100 10uF 10V

L2101

BLM18PG121SN1D

AVDD_MOD

L2102

BLM18PG121SN1D

C2101 10uF 10V

AVDD_PLL

C2105 10uF 10V

C2104 10uF 10V

L2104

BLM18PG121SN1D

L2105 BLM18PG121SN1D

4st Layer

C2109

0.1uF 16V

C13302

0.1uF 16V

C2151 10uF 10V

Close to Chip side

C2110 10uF 10V

VDDC

AVDDL_MOD

AVDDL_DRV

C2114 10uF 10V

C2115

0.1uF 16V

C2116

0.1uF 16V

C2119 10uF 10V

C2122 10uF 10V

C2123

0.1uF 16V

C2124

0.1uF 16V

C2127

0.1uF 16V

C2132 10uF 10V

C13311 10uF 10V

C13310 10uF 10V

Close to Chip side

4th Layer

C2133

0.1uF 16V

C2138

0.1uF 16V

C2142

0.1uF 16V

Close to Chip side

C2137 1uF 10V

C2144

0.1uF 16V

4th Layer

C13305

0.1uF 16V

C2146

0.1uF 16V

Close to Chip side

C2154 10uF 10V

Close to Chip side

4th Layer

C13304

0.1uF 16V

C2153 10uF 10V

C13306

0.1uF 16V

C2147

0.1uF 16V

C2148

0.1uF 16V

C2149

0.1uF 16V

4th Layer

C13307

0.1uF 16V

C2150 10uF 10V

C2107 10uF 10V

AE2

VBY1_RXM[0]

AE1

VBY1_RXP[0]

AD2 AE3 AC2 AD3 AC3 AC1

AB2 AB1 AA2 AB3

Y2

AA3

Y3 Y1

W2 W1 V2 W3 U2 V3 U3 U1

VBY1_RXM[1] VBY1_RXP[1] VBY1_RXM[2] VBY1_RXP[2] VBY1_RXM[3] VBY1_RXP[3]

VBY1_RXM[4] VBY1_RXP[4] VBY1_RXM[5] VBY1_RXP[5] VBY1_RXM[6] VBY1_RXP[6] VBY1_RXM[7] VBY1_RXP[7]

VBY1_RXM[8] VBY1_RXP[8] VBY1_RXM[9] VBY1_RXP[9] VBY1_RXM[10] VBY1_RXP[10] VBY1_RXM[11] VBY1_RXP[11]

+3.3V_NORMAL

R1939 10K

B

22

R1952

LD1 900

SML -512U W

R1943

220

E

Q1901 MMBT3906(NXP)

C

LOCKAn

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI_TX_DDC_CLK

HDMI_TX_DDC_SDA

HDMI_TX_DDC_CLK

HDMI_TX_DDC_SDA

HDMI_CLK+

HDMI_CLK-

HDMI_RX0+

HDMI_RX0-

HDMI_RX1+

HDMI_RX1-

HDMI_RX2+

HDMI_RX2-

HDMI OUTPUT to H13

R1996

22

N4

R1997

22

M4 N1 P1 N3 N2 M3 M2 L1 L2

HDMITX_SCL HDMITX_SDA HDMI_TXCP HDMI_TXCN HDMI_TX0P HDMI_TX0N HDMI_TX1P HDMI_TX1N HDMI_TX2P HDMI_TX2N

GND Connection at Vx1 41pin wafer

GND_Vx1_2

(pin 8)

GND_Vx1

(pin 5,11,14)

R12900

Non_LGD_Module

R12901

Non_UB95

DVDD_DDR

L2106 BLM18PG121SN1D

C2125

C2117

0.1uF

0.1uF 16V

16V

AVDDL_HDMI_TX_RX

L2107 BLM18PG121SN1D

C2126

C2118

0.1uF

0.1uF 16V

16V

0

L13300

BLM18PG121SN1D

AVDDL_LVDSRX

C13300

0.1uF

16V

C13301

0.1uF 16V

C13312

4.7uF 10V

C2131

0.1uF 16V

C13308 10uF 10V

Close to Chip side

4th Layer

C2152 10uF 10V

C13303

0.1uF 16V

C13313

4.7uF 10V

Close to Chip side

C13309 10uF 10V

BSD-14Y-UD-128-02-HD

2013.12.17

U_LVDS INPUT

[51P Vx1

output wafer]

51pin_Wafer

P13000

FI-RE51S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

R13011 10K

Non_INX_Module

R13033 10K

R13006 0

3D_EN_LGD_120Hz

TXDAP7_L

TXDAN7_L

TXDAP6_L

TXDAN6_L

TXDAP5_L

TXDAN5_L

TXDAP4_L

TXDAN4_L

TXDAP3_L

TXDAN3_L

TXDAP2_L

TXDAN2_L

TXDAP1_L

TXDAN1_L

TXDAP0_L

TXDAN0_L

LOCKn_IN

HTPDn_IN

OPT

R13005 0

Non_LGD_60Hz

MLB-201209-0120P-N2

51pin_12V

C13032 10uF 25V

51pin_12V

+3.3V_NORMAL

*Pin31(BIT_SEL) HIGH or NC : 10Bit LOW : 8Bit

*Pin35(PCID) High:PCID enable

3D_EN

Low or NC : PCID diable

*Pin38 Non_LGD_60Hz: T120 module(UB85)

R13001 0

OLED

R13002 0

R13009 0

Non_OLED & Non_AUO_Module

L13000

PANEL_VCC

C13033 10uF 25V 51pin_12V

OLED

R13010 0

R13003 10K OPT

R13004 10K

LGD_Module

EL_VDD_DETECT_22V

INV_CTL

Compensation_Done

LOCKn_IN

HTPDn_IN

+3.3V_NORMAL

R13034 10K OPT

R13037 0

Non_AUO_Module

R13007

10K

Non_AUO_Module

L13001 BLM18PG121SN1D OLED

+3.3V_NORMAL

+1.8V

R1505

4.7K

URSA_TX_HTPD_Pullup

+3.3V_NORMAL

R13044 10K

OPT R13016 0

LGD_Module

R13045 10K

LGD_Module

R13040 10K

OPT R13015 0 LGD_Module

R13041

10K

LGD_Module

R1504

1.5K

Q1404

G

AO3438

LOCKAn

D

S

+1.8V

R209

4.7K

URSA_TX_HTPD_Pullup

R221 0

L_DIM_EN

+3.3V_NORMAL

URSA_TX_HTPD_Pullup

L/D_EN(Pin30)

- T-Con L/D Function HIGH : Enable LOW or NC : Disable *LGD_120Hz: T240 module (UB98/95,D9)

R13018

4.7K

OPT

R13013 0

NON_D9_I2C

R13019

4.7K

OPT

R13012 0

NON_D9_I2C

Data_Format_1

Data_Format_0

EL_VDD_DETECT_22V

Vx1 LOCKAn/HTPDn

+3.3V_NORMAL

R211

1.5K

G

URSA_TX_HTPD_Pullup

S

Q203 AO3438

R220 0 OPT

R13014 0

0

R13017

R222 10K

URSA_TX_HTPD_Pullup

D

D9_I2C_SCL

TCON_I2C_EN

D9_I2C

G

S

D

Q13004 2N7002A

R13055

OPT

33

D9_I2C_SDA

G

D9_I2C

S

D

Non_AUO_Module

Q13005 2N7002A

R13059

OPT

33

Data Input Format[1:0]

R13061 0

Non_AUO_Module

TCON_I2C_EN

R13062 0

*Mode 3 (4 Division)

- Data Format 0(Pin37) = Low Data Format 1(Pin36) = High

*Mode 2 (2 Division)

- Data Format 0(Pin37) = High Data Format 1(Pin36) = Low

HTPDAn

I2C_SCL1

I2C_SDA1

[41P Vx1 output wafer]

41pin_Wafer

P13001

FI-RE41S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

D9_I2C_SCL

D9_I2C_SDA

TXDBP11_L

TXDBN11_L

TXDBP10_L

TXDBN10_L

TXDBP9_L

TXDBN9_L

TXDBP8_L

TXDBN8_L

TXDBP7_L

TXDBN7_L

TXDBP6_L

TXDBN6_L

TXDBP5_L

TXDBN5_L

TXDBP4_L

TXDBN4_L

TXDBP3_L

TXDBN3_L

TXDBP2_L

TXDBN2_L

TXDBP1_L

TXDBN1_L

TXDBP0_L

TXDBN0_L

GND_Vx1

GND_Vx1_2

+3.3V_NORMAL

IC13000

AZ1117EH-ADJTRG1

ADJ/GND

Not Used Net (UB85/95/UC89)

TXDBP11_L

TXDBN11_L

TXDBP10_L

TXDBN10_L

TXDBP9_L

TXDBN9_L

TXDBP8_L

TXDBN8_L

GND_Vx1

GND_Vx1_2

+1.8V

OUTIN

75

33

R13036

R13042

R13035 1

C13034 10uF 10V

C13035 10uF 10V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-130-HD

2013.12.17

Output_wafer

A_DDR3_DQ[0-15]

A_DDR3_DQ[16-31]

A_DDR3_A[0] A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8]

A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13] A_DDR3_A[14] A_DDR3_A[15]

A_DDR3_BA[0] A_DDR3_BA[1] A_DDR3_BA[2]

A_DDR3_RASZ A_DDR3_CASZ

A_DDR3_WEZ A_DDR3_ODT A_DDR3_CKE

A_DDR3_RESET

A_DDR3_MCLK A_DDR3_MCLKZ

A_DDR3_CSB1 A_DDR3_CSB2

A_DDR3_DM0 A_DDR3_DM1

A_DDR3_DQS0

A_DDR3_DQS0B

A_DDR3_DQS1

A_DDR3_DQS1B

A_DDR3_DM2 A_DDR3_DM3

A_DDR3_DQS2

A_DDR3_DQS2B

A_DDR3_DQS3

A_DDR3_DQS3B

A_DDR3_DQ[0]

A_DDR3_DQ[1]

A_DDR3_DQ[2]

A_DDR3_DQ[3]

A_DDR3_DQ[4]

A_DDR3_DQ[5]

A_DDR3_DQ[6]

A_DDR3_DQ[7]

A_DDR3_DQ[8]

A_DDR3_DQ[9]

A_DDR3_DQ[10]

A_DDR3_DQ[11]

A_DDR3_DQ[12]

A_DDR3_DQ[13]

A_DDR3_DQ[14]

A_DDR3_DQ[15]

A_DDR3_DQ[16]

A_DDR3_DQ[17]

A_DDR3_DQ[18]

A_DDR3_DQ[19]

A_DDR3_DQ[21]

A_DDR3_DQ[22]

A_DDR3_DQ[23]

A_DDR3_DQ[24]

A_DDR3_DQ[25]

A_DDR3_DQ[26]

A_DDR3_DQ[27]

A_DDR3_DQ[28]

A_DDR3_DQ[29]

A_DDR3_DQ[30]

A_DDR3_DQ[31]

LGE7411(URSA9)

F14

A_DDR3_A0

B13

A_DDR3_A1

E13

A_DDR3_A2

D13

A_DDR3_A3

C14

A_DDR3_A4

F13

A_DDR3_A5

C13

A_DDR3_A6

B10

A_DDR3_A7

A12

A_DDR3_A8

C10

A_DDR3_A9

A14

A_DDR3_A10

B12

A_DDR3_A11

F15

A_DDR3_A12

C11

A_DDR3_A13

C12

A_DDR3_A14

D17

A_DDR3_A15

E14

A_DDR3_BA0

B14

A_DDR3_BA1

E15

A_DDR3_BA2

E17

A_DDR3_RASZ

C17

A_DDR3_CASZ

C16

A_DDR3_WEZ

F17

A_DDR3_ODT

C15

A_DDR3_CKE

B11

A_DDR3_RESETB

B16

A_DDR3_MCLK

A16

A_DDR3_MCLKZ

C9

A_DDR3_CSB1

A9

A_DDR3_CSB2

D23

A_DDR3_DQ0

A19

A_DDR3_DQ1

E22

A_DDR3_DQ2

B18

A_DDR3_DQ3

C23

A_DDR3_DQ4

C18

A_DDR3_DQ5

B22

A_DDR3_DQ6

A18

A_DDR3_DQ7

E19

A_DDR3_DQ8

B21

A_DDR3_DQ9

F18

A_DDR3_DQ10

C22

A_DDR3_DQ11

D20

A_DDR3_DQ12

F22

A_DDR3_DQ13

E18

A_DDR3_DQ14

D22

A_DDR3_DQ15

B19

A_DDR3_DM0

E21

A_DDR3_DM1

A21

A_DDR3_DQS0

B20

A_DDR3_DQS0B

C20

A_DDR3_DQS1

C19

A_DDR3_DQS1B

B27

A_DDR3_DQ16

A24

A_DDR3_DQ17

C27

A_DDR3_DQ18

C24

A_DDR3_DQ19

A28

A_DDR3_DQ20

E24

A_DDR3_DQ21

B28

A_DDR3_DQ22

B23

A_DDR3_DQ23

D25

A_DDR3_DQ24

E27

A_DDR3_DQ25

C25

A_DDR3_DQ26

D28

A_DDR3_DQ27

E26

A_DDR3_DQ28

E28

A_DDR3_DQ29

E25

A_DDR3_DQ30

C28

A_DDR3_DQ31

B24

A_DDR3_DM2

B26

A_DDR3_DM3

B25

A_DDR3_DQS2

A25

A_DDR3_DQS2B

D26

A_DDR3_DQS3

C26

A_DDR3_DQS3B

IC2500

B_DDR3_A0 B_DDR3_A1 B_DDR3_A2 B_DDR3_A3 B_DDR3_A4 B_DDR3_A5 B_DDR3_A6 B_DDR3_A7 B_DDR3_A8

B_DDR3_A9 B_DDR3_A10 B_DDR3_A11 B_DDR3_A12 B_DDR3_A13 B_DDR3_A14 B_DDR3_A15 B_DDR3_BA0 B_DDR3_BA1 B_DDR3_BA2

B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ B_DDR3_ODT B_DDR3_CKE

B_DDR3_RESETB

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_CSB1 B_DDR3_CSB2

B_DDR3_DQ0 B_DDR3_DQ1 B_DDR3_DQ2 B_DDR3_DQ3 B_DDR3_DQ4 B_DDR3_DQ5 B_DDR3_DQ6 B_DDR3_DQ7 B_DDR3_DQ8 B_DDR3_DQ9

B_DDR3_DQ10 B_DDR3_DQ11 B_DDR3_DQ12 B_DDR3_DQ13 B_DDR3_DQ14 B_DDR3_DQ15

B_DDR3_DM0 B_DDR3_DM1

B_DDR3_DQS0

B_DDR3_DQS0B

B_DDR3_DQS1

B_DDR3_DQS1B

B_DDR3_DQ16 B_DDR3_DQ17 B_DDR3_DQ18 B_DDR3_DQ19 B_DDR3_DQ20 B_DDR3_DQ21 B_DDR3_DQ22 B_DDR3_DQ23 B_DDR3_DQ24 B_DDR3_DQ25 B_DDR3_DQ26 B_DDR3_DQ27 B_DDR3_DQ28 B_DDR3_DQ29 B_DDR3_DQ30 B_DDR3_DQ31

B_DDR3_DM2 B_DDR3_DM3

B_DDR3_DQS2

B_DDR3_DQS2B

B_DDR3_DQS3

B_DDR3_DQS3B

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_RASZ B_DDR3_CASZ B_DDR3_WEZ B_DDR3_ODT B_DDR3_CKE B_DDR3_RESET

B_DDR3_MCLK

B_DDR3_MCLKZ B_DDR3_CSB1 B_DDR3_CSB2

B_DDR3_DM0 B_DDR3_DM1

B_DDR3_DQS0 B_DDR3_DQS0B B_DDR3_DQS1 B_DDR3_DQS1B

B_DDR3_DM2 B_DDR3_DM3

B_DDR3_DQS2 B_DDR3_DQS2B B_DDR3_DQS3 B_DDR3_DQS3B

B_DDR3_A[0-15]

B_DDR3_DQ[0-15]

B_DDR3_DQ[16-31]

B_DDR3_A[0]

H27

B_DDR3_A[1]

G31

B_DDR3_A[2]

G28

B_DDR3_A[3]

G29

B_DDR3_A[4]

H30

B_DDR3_A[5]

G27

B_DDR3_A[6]

G30

B_DDR3_A[7]

D31

B_DDR3_A[8]

F32

B_DDR3_A[9]

D30

B_DDR3_A[10]

H32

B_DDR3_A[11]

F31

B_DDR3_A[12]

J27

B_DDR3_A[13]

E30

B_DDR3_A[14]

F30

B_DDR3_A[15]

L29 H28 H31 J28

L28 L30 K30 L27 J30 E31 K31 K32 C30 C32

B_DDR3_DQ[0]

U29

B_DDR3_DQ[1]

N32

B_DDR3_DQ[2]

T28

B_DDR3_DQ[3]

M31

B_DDR3_DQ[4]

U30

B_DDR3_DQ[5]

M30

B_DDR3_DQ[6]

T31

B_DDR3_DQ[7]

M32

B_DDR3_DQ[8]

N28

B_DDR3_DQ[9]

R31

B_DDR3_DQ[10]

M27

B_DDR3_DQ[11]

T30

B_DDR3_DQ[12]

P29

B_DDR3_DQ[13]

T27

B_DDR3_DQ[14]

M28

B_DDR3_DQ[15]

T29 N31 R28

R32 P31 P30 N30

B_DDR3_DQ[16]

AA31

B_DDR3_DQ[17]

V32

B_DDR3_DQ[18]

AA30

B_DDR3_DQ[19]

V30

B_DDR3_DQ[20]

AB32

B_DDR3_DQ[21]

V28

B_DDR3_DQ[22]

AB31

B_DDR3_DQ[23]

U31

B_DDR3_DQ[24]

W29

B_DDR3_DQ[25]

AA28

B_DDR3_DQ[26]

W30

B_DDR3_DQ[27]

AB29

B_DDR3_DQ[28]

Y28

B_DDR3_DQ[29]

AB28

B_DDR3_DQ[30]

W28

B_DDR3_DQ[31]

AB30 V31 Y31

W31 W32 Y29 Y30

DDR PHY VREF

+1.5V_U_DDR

U_MVREFCA_A0

R13110 1K 1%

C13202

R13111 1K

0.1uF

1%

+1.5V_U_DDR

U_MVREFCA_B0

R13108 1K 1%

R13109

C13201

1K

0.1uF

1%

A_DDR3_CKE

+1.5V_U_DDR

R13102 1K

A_DDR3_RESET

B_DDR3_CKE

+1.5V_U_DDR

R13103 1K

B_DDR3_RESET

C13210

1000pF

C13209

1000pF

+1.5V_U_DDR

U_MVREFCA_A1

R13120 1K 1%

C13222

0.1uF

C13230 1000pF

A_DDR3_A[0] A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8]

A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13]

R13121 1K 1%

A_DDR3_A[15]

+1.5V_U_DDR

R13118 1K 1%

R13119 1K 1%

U_MVREFCA_B1

C13221

0.1uF

C13229

1000pF

A_DDR3_MCLK

A_DDR3_MCLKZ

A_DDR3_BA[0] A_DDR3_BA[1] A_DDR3_BA[2]

56

C13233

R13122

0.01uF 56

R13123

A_DDR3_CKE

A_DDR3_CSB1

A_DDR3_ODT A_DDR3_RASZ A_DDR3_CASZ

A_DDR3_WEZ

A_DDR3_RESET

A_DDR3_DQS0

A_DDR3_DQS0B

A_DDR3_DQS1

A_DDR3_DQS1B

A_DDR3_DM0

A_DDR3_DQ[0-15]

R13112 1K

R13113 1K

A_DDR3_DM1

A_DDR3_DQ[0]

A_DDR3_DQ[1]

A_DDR3_DQ[2]

A_DDR3_DQ[3]

A_DDR3_DQ[4]

A_DDR3_DQ[5]

A_DDR3_DQ[6]

A_DDR3_DQ[7]

A_DDR3_DQ[8]

A_DDR3_DQ[9]

A_DDR3_DQ[10]

A_DDR3_DQ[11]

A_DDR3_DQ[12]

A_DDR3_DQ[13]

A_DDR3_DQ[14]

A_DDR3_DQ[15]

IC2600

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

U_MVREFCA_A0

M8

H1

R13126 240

L8

ZQ

1%

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_U_DDR

A_DDR3_A[14]

A_DDR3_A[0] A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8]

A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13] A_DDR3_A[14] A_DDR3_A[15]

A_DDR3_BA[0] A_DDR3_BA[1] A_DDR3_BA[2]

A_DDR3_MCLK

A_DDR3_MCLKZ

A_DDR3_CKE

A_DDR3_CSB2

A_DDR3_ODT A_DDR3_RASZ A_DDR3_CASZ

A_DDR3_WEZ

A_DDR3_RESET

DDR_VTT_URSA_1

AR13100

AR13102

AR13104

AR13106

100

A_DDR3_DQ[16-31]

AR13108 100

AR13110 100

A_DDR3_DQS2

A_DDR3_DQS2B

A_DDR3_DQS3

A_DDR3_DQS3B

A_DDR3_DM2 A_DDR3_DM3

AR13112 100

A_DDR3_DQ[16]

A_DDR3_DQ[17]

A_DDR3_DQ[18]

A_DDR3_DQ[19]

A_DDR3_DQ[20]

A_DDR3_DQ[21]

A_DDR3_DQ[22]A_DDR3_DQ[20]

A_DDR3_DQ[23]

A_DDR3_DQ[24]

A_DDR3_DQ[25]

A_DDR3_DQ[26]

A_DDR3_DQ[27]

A_DDR3_DQ[28]

A_DDR3_DQ[29]

A_DDR3_DQ[30]

A_DDR3_DQ[31]

IC2700

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

U_MVREFCA_A1

M8

H1

R13134 240

L8

ZQ

1%

+1.5V_U_DDR

B2 D9 G7 K2 K8 N1 N9 R1 R9

+1.5V_U_DDR

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A_DDR3_A[14]

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_VTT_URSA

+1.5V_U_DDR

C13104

0.1uF 16V

+1.5V_U_DDR

C13102

0.1uF 16V

* DDR_VTT

+1.5V_U_DDR

R13100 10K

R13101

DDR_VTT_URSA

L13100

CIS21J121

C13110 10uF

DDR_VTT_URSA_0

L13102

BLM18PG121SN1D

C13181 1uF 25V

DDR_VTT_URSA_1

L13103

BLM18PG121SN1D

C13112 1uF 25V

Decap removed

Close to DDR Power pin

C13117

C13109

0.1uF

0.1uF 16V

16V

Close to DDR Power pin

C13107

C13115

0.1uF

1uF

16V

25V

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8]

B_DDR3_A[9] B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13] B_DDR3_A[14] B_DDR3_A[15]

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_CKE

B_DDR3_CSB2

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

DDR_VTT_URSA_0

AR13101

AR13103

AR13105

AR13107

AR13111

AR13109

100

B_DDR3_DQ[16-31]

100

B_DDR3_DQS2

B_DDR3_DQS2B

B_DDR3_DQS3

B_DDR3_DQS3B

B_DDR3_DM2 B_DDR3_DM3

AR13113 100

B_DDR3_DQ[16]

B_DDR3_DQ[17]

B_DDR3_DQ[18]

B_DDR3_DQ[19]

B_DDR3_DQ[20]

B_DDR3_DQ[21]

B_DDR3_DQ[22]

B_DDR3_DQ[23]

B_DDR3_DQ[24]

B_DDR3_DQ[25]

B_DDR3_DQ[26]

B_DDR3_DQ[27]

B_DDR3_DQ[28]

B_DDR3_DQ[29]

B_DDR3_DQ[30]

B_DDR3_DQ[31]

IC2900

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

U_MVREFCA_B1

M8

H1

R13135 240

L8

ZQ

1%

+1.5V_U_DDR

B2 D9 G7 K2 K8 N1 N9 R1 R9

+1.5V_U_DDR

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

B_DDR3_A[14]

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

C13105

0.1uF 16V

10

9

8

7

6

[EP]

VIN

PGOOD

GND

EN

REFOUT

Close to REFOUT pin

C13146

0.1uF 16V

C13144

0.1uF 16V

+3.3V_NORMAL

C13199

L13101

10uF

CIS21J121

10V

C13150

4700pF

C13147

0.1uF

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8]

B_DDR3_A[9] B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13]

B_DDR3_A[15]

B_DDR3_BA[0]

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_BA[1] B_DDR3_BA[2]

56

C13234

R13124

0.01uF 56

R13125

B_DDR3_CKE

B_DDR3_CSB1

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

B_DDR3_DQS0

B_DDR3_DQS0B

B_DDR3_DQS1

B_DDR3_DQS1B

B_DDR3_DM0

B_DDR3_DM1

B_DDR3_DQ[0]

B_DDR3_DQ[1]

B_DDR3_DQ[2]

B_DDR3_DQ[3]

B_DDR3_DQ[4]

B_DDR3_DQ[5]

B_DDR3_DQ[6]

B_DDR3_DQ[7]

B_DDR3_DQ[8]

B_DDR3_DQ[9]

B_DDR3_DQ[10]

B_DDR3_DQ[11]

B_DDR3_DQ[12]

B_DDR3_DQ[13]

B_DDR3_DQ[14]

B_DDR3_DQ[15]

C13156

0.1uF 16V

C13154

0.1uF 16V

C13164

0.1uF 16V

C13162 10uF 10V

C13172 1uF 25V

C13170

0.1uF 16V

C13178

0.1uF 16V

C13176

0.1uF 16V

C13186

0.1uF 16V

C13184

0.1uF 16V

C13194 10uF 10V

C13192

0.1uF 16V

C13198

0.1uF 16V

C13196

0.1uF 16V

C13206

0.1uF 16V

C13204

0.1uF 16V

C13214

0.1uF 16V

C13212 1uF 25V

C13218

0.1uF 16V

C13216

0.1uF 16V

C13226 1uF 25V

C13224

0.1uF 16V

C13232

0.1uF 16V

C13100 10uF 10V

C13101 10uF 10V

4th layer

B_DDR3_DQ[0-15]

IC2800

H5TQ1G63EFR-RDC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

U_MVREFCA_B0

M8

H1

R13127 240

L8

ZQ

1%

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_U_DDR

B_DDR3_A[14]

C13122

1000pF

C13123 22uF

10V

C13179

0.1uF 16V

C13132

0.1uF 16V

C13113 10uF

C13128

0.1uF 16V

C13126

0.1uF 16V

IC13100

TPS51200DRCR

REFIN

1

VLDOIN

11

2

THERMAL

VO

3

PGND

4

VOSNS

5

C13151

C13189

0.1uF

0.1uF 16V

16V

C13158

C13174

C13106

0.1uF

16V

C13137

0.1uF 16V

C13135

0.1uF 16V

1%

10K 1%

C13111 10uF

+1.5V_U_DDR

C13103

0.1uF 16V

+1.5V_U_DDR

C13195

0.1uF 16V

4th layer

Close to DDR Power pin Decap removed

C13116

C13108

0.1uF

0.1uF 16V

16V

Close to DDR Power pin Decap removed

BSD-14Y-UD-131-HD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2013.12.17

URSA7_DDR

Clock for URSA9

Option Name UB98/UC9_URSA9_crystalcap

C1903

5pF

50V

GND_1

1

2

3

C1904

5pF

50V

Option Name UB85/95/UC97_URSA9_crystalcap

C1904-*1 8pF 50V

4

X-TAL_2

C1903-*1 8pF 50V

X-TAL_1

X1900

24MHz

GND_2

R1925

1M

XIN_URSA

XO_URSA

SW1901

JTP-1127WEM

1

D1900

+3.3V_NORMAL

2

43

100V

1N4148W

R1923

10K

OPT

C1902 22uF 10V

+3.3V_NORMAL

0

R1924

URSA Reset

R1919 10K

URSA9_RST_PULLUP

URSA_RESET

URSA_RESET_SoC

0

R1930

IC2500

LGE7411(URSA9)

URSA Option

URSA_OPT_0

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

BIT [2/1/0]

0/0/0 0/0/1 0/1/0 0/1/1 1/0/0

1/0/1

1/1/0

1/1/1

4K@120 (16lane)

5k@120 (20lane)

FHD@120 (4lane)

FHD@60 (2lane)

Rx Interface

Module Type

Tx Lane

4k@60 (8lane)

OLED ULTRA HD

Reserved

+3.3V_NORMAL

LGD_Module

URSA_RX_LVDS

R1909 10K

OS_Module

URSA_RX_VX1

R1910 10K

10K

R1911

10K

R1912

R1913 10K

URSA_BIT0_1

URSA_BIT1_1

URSA_BIT1_0

URSA_BIT0_0

R1914 10K

R1915 10K

R1916 10K

R1917 10K

URSA_BIT2_1

URSA_BIT2_0

R1918 10K

SPI Flash

SPI_CZ

SPI_DO

FLASH_WP_URSA

R1904

R1905 U_SPI_WP_f_URSA

FRC_FLASH_WP

Chip Config

Debug/ISP ADDR Slave (Debug Port:0XB4,ISP:0X98) CHIP_CONF:{DIM2,DIM1,DIM0} CHIP_CONF=3’d7:111:boot from SPI Flash

+3.3V_NORMAL

10K

R1902

10K

R1901

10K

R1900

33

1K

R1932

1K

U_SPI_WP_f_SoC

OPT

R1908

OPT

R1907

OPT

10K

R1906

10K

MX25L3206EM2I-12G

IC1901

CS#

1

SPI_4MB_MACRONIX

SO/SIO1

WP#

GND

2

3

4

DIM0

DIM1

DIM2

/CS

DO[IO1]

/WP[IO2]

8

7

6

5

+3.3V_NORMAL

VCC

HOLD#

R190310K

SCLK

SI/SIO0

C1901

0.1uF 16V

GND

Debugging for URSA9

I2C_S Port

P1905

12507WS-04L

URSA_DEBUG

5

WAFER-STRAIGHT

1

2

3

4

R19 22

URSA_DEBUG

R19 21

URSA_DEBUG

33

SCL2_+3.3V_DB

33

SDA2_+3.3V_DB

IC1901-*1

W25Q32BVSSIG

1

2

3

4

SPI_4MB_Winbond

SPI_CK

SPI_DI

VCC

8

/HOLD[IO3]

7

CLK

6

DI[IO0]

5

I2C_SCL1

I2CS_SCL

SCL2_+3.3V_DB

R1958 0

URSA_MP

R1960 0 OPT

SW1902

JS2235S

1

2

URSA_DEBUG_SW

3

TCON_I2C_EN

6

R1959 0 URSA_MP

5

R1961 0

OPT

4

+3.3V_NORMAL

1K

R1954

I2C_SDA1

I2CS_SDA

SDA2_+3.3V_DB

URSA_RESET

OPT

10K R1955

XIN_URSA

XO_URSA

I2CS_SDA

I2CS_SCL

SPI_CZ SPI_CK

SPI_DI SPI_DO

33

OPT

AR13201

33

Change pin from A5 to C4

AR13200

33

R198133

R1933

URSA9 UART1_RX

AF29

RESET

R3

XTALO

R4

XTALI

AJ24

I2CS_SDA

AH24

I2CS_SCL

AH26

I2CM_SDA

AG24

I2CM_SCL/VSYNC_LIKE1

B4

GPIO[0][UART2_TX]

A4

GPIO[1][UART2_RX]

B5

GPIO[2][UART1_TX]

A5

GPIO[3][UART1_RX]

AD28

SPI_CZ

AD30

SPI_CK

AC31

SPI_DI

AD29

SPI_DO

AE28

INT_R21/GPIO[41]

AE27

INT_R20/GPIO[42]

C4

IRE

AC27

GND_1

AD27

GND_2

A7

NC_1

B6

NC_2

B7

NC_3

C5

NC_4

C6

NC_5

C7

NC_6

D4

NC_7

D5

NC_8

D6

NC_9

D7

NC_10

E4

NC_11

E5

NC_12

E6

NC_13

E7

NC_14

F4

NC_15

F5

NC_16

M5

NC_17

M6

NC_18

M7

NC_19

N5

NC_20

R7

NC_21

P7

NC_22

N7

NC_23

N6

NC_24

I2C_HSC_SDA/VSYNC_LIKE2 I2C_HSC_SCL/VSYNC_LIKE3

SPI1_CK/PWM2/GPIO58 SPI1_DI/PWM3/GPIO59 SPI2_CK/PWM0/GPIO56

SPI2_DI/PWM1/GPIO57 SPI3_CK/DIM10/GPIO54 SPI3_DI/DIM11/GPIO55

SPI4_CK/DIM8/GPIO52

SPI4_DI/DIM9/GPIO53

VSYNC_LIKE/PWM5/GPIO40

DIM0/GPIO[32] DIM1/GPIO[33] DIM2/GPIO[34] DIM3/GPIO[35] DIM4/GPIO[36] DIM5/GPIO[37] DIM6/GPIO[38] DIM7/GPIO[39]

GPIO43/TCON0 GPIO44/TCON1 GPIO45/TCON2 GPIO46/TCON3 GPIO47/TCON4 GPIO48/TCON5 GPIO49/TCON6 GPIO50/TCON7

GPIO[18]/TCON8

GPIO[19]/TCON9 GPIO[20]/TCON10 GPIO[21]/TCON11 GPIO[22]/TCON12 GPIO[23]/TCON13

GPIO24/TCON14 GPIO25/TCON15

GPIO[4] GPIO[5] GPIO[6] GPIO[7] GPIO[8]

GPIO[9] GPIO[10]/PWM_DIM_IN[0] GPIO[11]/PWM_DIM_IN[1]

GPIO[12] GPIO[13] GPIO[14] GPIO[15] GPIO[16] GPIO[17]

AG25 AH25

AH28 AJ27 AJ29 AF27 AG28 AH27 AG27 AG26

AF28

AG23 AG20 AH23 AH20 AG21 AH22 AG22 AH21

A3 B3 A2 C3 B2 B1 C2 C1

AG4 AG5 AH4 AH5 AH6 AJ4 AJ5 AJ6

AH16 AG16 Y5 Y4 AB4 AB5 AG17 AH17 AG18 AJ20 AH18 AG19 AH19 AJ21

OPT

R13202 33

R1934

OPT

R13203 33

OPT

R13207 33

OPT

R13208 33

URSA_OPT_0

R1935

33

L_DIM_EN

DIM0 DIM1 DIM2

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

Data_Format_1

Data_Format_0

RXBSCL_URSA9

RXBSDA_URSA9

R1320110K

URSA_RX_Vx1_HTPDn

R13200

10K

URSA_RX_Vx1_HTPDn

URSA9_CONNECT

URSA_LOCK_O

URSA_LOCK_V

FLASH_WP_URSA

+3.3V_NORMAL

33

RXASCL_URSA9 RXASDA_URSA9

OPT

R1936 10K

3D_EN

R1937 10K

+3.3V_NORMAL

OPT R13204 10K

R13205 10K

HDMI OUTPUT_1 DDC to URSA9

HDMI OUTPUT_0 DDC to URSA9

R13209

R13206

100K

URSA9_Vx1_RX_HTPD_GPIO

Not Used Net (UB85/95/UC89)

Not Used Net (UB98/D9)

RXASCL_URSA9 RXASDA_URSA9

RXBSCL_URSA9 RXBSDA_URSA9

For DFT JIG

URSA9_CONNECT URSA_LOCK_O URSA_LOCK_V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-132-HD

2013.12.17

+1.5V_U_DDR

AVDD_PLL

AVDDL_LVDSRX

DVDD_DDR

AVDDL_MOD

AVDDL_DRV

VDDC

AVDDL_HDMI_TX_RX

AVDD_MOD

VDDP

LGE7411(URSA9)

A6

VDDC_1

M9

VDDC_2

M10

VDDC_3

M11

VDDC_4

N9

VDDC_5

N10

VDDC_6

N11

VDDC_7

P9

VDDC_8

P10

VDDC_9

P11

VDDC_10

R9

VDDC_11

R10

VDDC_12

R11

VDDC_13

T9

VDDC_14

T10

VDDC_15

T11

VDDC_16

U9

VDDC_17

U10

VDDC_18

U11

VDDC_19

V9

VDDC_20

V10

VDDC_21

V11

VDDC_22

W9

VDDC_23

W10

VDDC_24

W11

VDDC_25

Y9

VDDC_26

L3

AVDDL_HDMITX_1

L4

AVDDL_HDMITX_2

AA9

AVDDL_RX_1

AA10

AVDDL_RX_2

AB9

AVDDL_RX_3

Y10

AVDDL_DVI_1

Y11

AVDDL_DVI_2

M14

DVDD_DDR_1

N14

DVDD_DDR_2

Y20

AVDDL_MOD_1

Y21

AVDDL_MOD_2

Y22

AVDDL_MOD_3

AA19

AVDDL_MOD_4

AA20

AVDDL_MOD_5

AA21

AVDDL_DRV_1

AA22

AVDDL_DRV_2

AB20

AVDDL_DRV_3

AB21

AVDDL_DRV_4

AB22

AVDDL_DRV_5

AC20

AVDD_MOD_1

AC21

AVDD_MOD_2

AD21

AVDD_MOD_3

AD20

AVDD_MOD_LDO

AC18

VDDP_1

AD17

VDDP_2

AD18

VDDP_3

AD11

AVDD_DVI_1

AD12

AVDD_DVI_2

AC12

AVDD_HDMITX_1

AC13

AVDD_HDMITX_2

AD15

AVDD_RX_1

AC16

AVDD_RX_2

AC17

AVDD_RX_3

AD16

AVDD_RX_4

AD14

AVDD_XTAL

AC14

AVDD_PLL_1

AC15

AVDD_PLL_2

M18

AVDD_DDR0_1

M19

AVDD_DDR0_2

M20

AVDD_DDR0_3

M21

AVDD_DDR0_4

M16

AVDD_DDR0_5

M17

AVDD_DDR0_6

P21

AVDD_DDR1_1

R21

AVDD_DDR1_2

P22

AVDD_DDR1_3

R22

AVDD_DDR1_4

N21

AVDD_DDR1_5

N22

AVDD_DDR1_6

IC2500

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12 VSS_13 VSS_14 VSS_15 VSS_16 VSS_17 VSS_18 VSS_19 VSS_20 VSS_21 VSS_22 VSS_23 VSS_24 VSS_25 VSS_26 VSS_27 VSS_28 VSS_29

VSS_30 VSS_31 VSS_32 VSS_33 VSS_34

VSS_35 VSS_36 VSS_37 VSS_38 VSS_39 VSS_40 VSS_41 VSS_42 VSS_43 VSS_44 VSS_45 VSS_46

VSS_47 VSS_48 VSS_49 VSS_50 VSS_51 VSS_52 VSS_53 VSS_54 VSS_55 VSS_56 VSS_57 VSS_58 VSS_59 VSS_60

VSS_61 VSS_62 VSS_63 VSS_64 VSS_65 VSS_66

VSS_67 VSS_68 VSS_69 VSS_70 VSS_71 VSS_72 VSS_73 VSS_74 VSS_75 VSS_76 VSS_77 VSS_78 VSS_79 VSS_80

IC2500

LGE7411(URSA9)

AA18 AB18 AE18 AF18 AJ18

AB19 AC19 AD19 AE19 AF19 AK19

AE20 AF20 AK20

AE21 AF21 AK21

AC22 AD22 AE22 AF22 AL22

AA23 AB23 AC23 AD23 AE23 AF23 AJ23 AM23

D18 G18 H18 J18 L18 N18 P18 R18 T18 U18 V18 W18 Y18

F19 G19 H19 J19 K19 L19 N19 P19 R19 T19 U19 V19 W19 Y19

A20 E20 F20 G20 H20 J20 L20 N20 P20 R20 T20 U20 V20 W20

D21 F21 G21 H21 J21 K21 L21 T21 U21 V21 W21

G22 H22 J22

L22 M22 T22 U22 V22 W22

A23 E23 F23 G23 H23 J23 K23

M23

P23

T23 V23 W23 Y23

A8

VSS_81

B8

VSS_82

C8

VSS_83

D8

VSS_84

E8

VSS_85

F8

VSS_86

G8

VSS_87

H8

VSS_88

J8

VSS_89

K8

VSS_90

L8

VSS_91

M8

VSS_92

N8

VSS_93

P8

AB10 AC10 AD10 AE10 AF10 AG10 AH10 AJ10

AA11 AB11 AC11 AE11 AF11 AG11 AH11 AJ11

AA12 AB12 AE12 AF12 AG12 AH12 AJ12

VSS_94

R8

VSS_95

T8

VSS_96

U8

VSS_97

V8

VSS_98

W8

VSS_99

Y8

VSS_100

AA8

VSS_101

AC8

VSS_102

AD8

VSS_103

AE8

VSS_104

AF8

VSS_105

AG8

VSS_106

AH8

VSS_107

AJ8

VSS_108

B9

VSS_109

D9

VSS_110

E9

VSS_111

F9

VSS_112

G9

VSS_113

H9

VSS_114

J9

VSS_115

K9

VSS_116

L9

VSS_117

AD9

VSS_118

AE9

VSS_119

AF9

VSS_120

AG9

VSS_121

AH9

VSS_122

AJ9

VSS_123

D10

VSS_124

E10

VSS_125

F10

VSS_126

G10

VSS_127

H10

VSS_128

J10

VSS_129

K10

VSS_130

L10

VSS_131 VSS_132 VSS_133 VSS_134 VSS_135 VSS_136 VSS_137 VSS_138 VSS_139

A11

VSS_140

D11

VSS_141

E11

VSS_142

F11

VSS_143

G11

VSS_144

H11

VSS_145

J11

VSS_146

K11

VSS_147

L11

VSS_148 VSS_149 VSS_150 VSS_151 VSS_152 VSS_153 VSS_154 VSS_155 VSS_156

D12

VSS_157

E12

VSS_158

F12

VSS_159

G12

VSS_160

H12

VSS_161

J12

VSS_162

K12

VSS_163

L12

VSS_164

M12

VSS_165

N12

VSS_166

P12

VSS_167

R12

VSS_168

T12

VSS_169

U12

VSS_170

V12

VSS_171

W12

VSS_172

Y12

VSS_173 VSS_174 VSS_175 VSS_176 VSS_177 VSS_178 VSS_179 VSS_180

G13

VSS_181

H13

VSS_182

J13

VSS_183

K13

VSS_184

L13

VSS_185

K1 T1 K2 P2 T2 AF2 K3 T3 AF3 AG3 G4 H4 J4 K4 P4 T4 U4 V4 W4 AA4 AC4 AD4 AE4 AF4 G5 H5 J5 K5 L5

P5 R5 T5 U5 V5

W5 AA5 AC5 AD5 AE5 AF5 F6 G6 H6 J6 K6 L6

P6 R6 T6 U6 V6 W6 Y6 AA6 AB6 AC6 AD6 AE6 AF6 AG6

F7 G7 H7 J7 K7 L7

T7 U7 V7 W7 Y7 AA7 AB7 AC7 AD7 AE7 AF7 AG7 AH7 AJ7

VSS_186 VSS_187 VSS_188 VSS_189 VSS_190 VSS_191 VSS_192 VSS_193 VSS_194 VSS_195 VSS_196 VSS_197 VSS_198 VSS_199 VSS_200 VSS_201 VSS_202 VSS_203 VSS_204 VSS_205 VSS_206 VSS_207 VSS_208 VSS_209 VSS_210 VSS_211 VSS_212 VSS_213 VSS_214 VSS_215 VSS_216 VSS_217 VSS_218 VSS_219 VSS_220 VSS_221 VSS_222 VSS_223 VSS_224

VSS_225 VSS_226 VSS_227 VSS_228 VSS_229 VSS_230 VSS_231 VSS_232 VSS_233 VSS_234 VSS_235 VSS_236 VSS_237 VSS_238 VSS_239 VSS_240 VSS_241 VSS_242 VSS_243 VSS_244 VSS_245 VSS_246 VSS_247 VSS_248 VSS_249

VSS_250 VSS_251 VSS_252 VSS_253 VSS_254 VSS_255 VSS_256 VSS_257 VSS_258 VSS_259 VSS_260 VSS_261

VSS_262 VSS_263 VSS_264 VSS_265 VSS_266 VSS_267 VSS_268 VSS_269 VSS_270 VSS_271 VSS_272 VSS_273 VSS_274 VSS_275 VSS_276 VSS_277 VSS_278 VSS_279 VSS_280 VSS_281 VSS_282

VSS_283 VSS_284

T13 R13 P13 N13 M13 U13 V13 W13 Y13 AA13 AB13 AD13 AE13 AF13 AG13 AH13 AJ13 G14 H14 J14 K14 L14 P14 R14 T14 U14 V14 W14 Y14 AA14 AB14 AE14 AF14 AG14 AH14 AJ14 A15 B15 D15

G15 H15 J15 K15 L15 M15 N15 P15 R15 T15 U15 V15 W15 Y15 AA15 AE15 AF15 AG15 AH15 AJ15 E16 F16 G16 H16 J16

L16 N16 P16 R16 T16 U16 V16 W16 Y16 AA16 AE16 AF16

AJ16 AM16 A17 B17 G17 H17 J17 K17 L17 N17 P17 R17 T17 U17 V17 W17 Y17 AA17 AB17 AE17 AF17

AJ17 AL17

IC2500

LGE7411(URSA9)

VSS_285 VSS_286 VSS_287 VSS_288 VSS_289 VSS_290 VSS_291 VSS_292 VSS_293 VSS_294 VSS_295 VSS_296 VSS_297 VSS_298 VSS_299 VSS_300 VSS_301 VSS_302 VSS_303 VSS_304 VSS_305 VSS_306 VSS_307 VSS_308 VSS_309 VSS_310 VSS_311 VSS_312 VSS_313 VSS_314 VSS_315 VSS_316 VSS_317 VSS_318 VSS_319 VSS_320 VSS_321 VSS_322 VSS_323 VSS_324 VSS_325 VSS_326 VSS_327 VSS_328 VSS_329 VSS_330 VSS_331 VSS_332 VSS_333 VSS_334 VSS_335 VSS_336 VSS_337 VSS_338 VSS_339

VSS_340 VSS_341 VSS_342 VSS_343 VSS_344 VSS_345 VSS_346 VSS_347 VSS_348 VSS_349 VSS_350 VSS_351 VSS_352 VSS_353

VSS_354 VSS_355 VSS_356

VSS_357 VSS_358 VSS_359 VSS_360 VSS_361 VSS_362 VSS_363 VSS_364 VSS_365 VSS_366 VSS_367

VSS_368 VSS_369 VSS_370 VSS_371 VSS_372 VSS_373 VSS_374

VSS_375

VSS_376

VSS_377 VSS_378 VSS_379 VSS_380 VSS_381 VSS_382 VSS_383 VSS_384 VSS_385 VSS_386 VSS_387 VSS_388

VSS_389 VSS_390 VSS_391 VSS_392 VSS_393 VSS_394 VSS_395 VSS_396 VSS_397 VSS_398 VSS_399 VSS_400 VSS_401 VSS_402 VSS_403 VSS_404 VSS_405 VSS_406 VSS_407 VSS_408 VSS_409 VSS_410

VSS_411 VSS_412 VSS_413 VSS_414 VSS_415 VSS_416 VSS_417 VSS_418 VSS_419 VSS_420 VSS_421 VSS_422 VSS_423 VSS_424 VSS_425 VSS_426 VSS_427 VSS_428 VSS_429 VSS_430 VSS_431 VSS_432 VSS_433 VSS_434 VSS_435 VSS_436 VSS_437 VSS_438 VSS_439 VSS_440 VSS_441 VSS_442 VSS_443 VSS_444 VSS_445 VSS_446 VSS_447 VSS_448 VSS_449 VSS_450 VSS_451 VSS_452 VSS_453 VSS_454 VSS_455 VSS_456 VSS_457 VSS_458 VSS_459 VSS_460 VSS_461 VSS_462 VSS_463 VSS_464 VSS_465 VSS_466 VSS_467 VSS_468 VSS_469

VSS_470 VSS_471 VSS_472 VSS_473 VSS_474 VSS_475 VSS_476 VSS_477 VSS_478 VSS_479 VSS_480 VSS_481 VSS_482 VSS_483 VSS_484 VSS_485 VSS_486 VSS_487 VSS_488 VSS_489 VSS_490 VSS_491 VSS_492 VSS_493 VSS_494 VSS_495 VSS_496 VSS_497 VSS_498 VSS_499 VSS_500 VSS_501 VSS_502 VSS_503 VSS_504 VSS_505 VSS_506 VSS_507

VSS_508 VSS_509

D24 F24 G24 H24 J24 K24 L24 M24 N24 P24 R24 T24 U24 V24 W24 Y24 AA24 AB24 AC24 AD24 AE24 AF24

AL24 F25 G25 H25 J25 K25 L25 M25 N25 P25 R25 T25 U25 V25 W25 Y25 AA25 AB25 AC25 AD25 AE25 AF25 AM25 A26 F26 G26 H26 J26 K26 L26 M26 N26 P26 R26 T26 U26 V26 W26 Y26 AA26 AB26 AC26 AD26 AE26 AF26 AJ26 AL26 D27 F27 K27 N27 P27 R27 U27 V27 W27 Y27 AA27 AB27

F28 K28 P28 U28 AC28 AK28 A29 C29 D29 E29 F29 J29 M29 R29 V29 AA29 AC29 AK29 A30 B30 AC30 AK30 AM30 A31 B31 C31 J31 L31 AD31 AF31 AH31 B32 E32 J32 L32 P32 U32 Y32

AE32 AG32

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-133-HD

2013.12.17

U_Power

TCON_PWR_5pin_Wafer

P13401

20037WR-05A00

1

2

3

4

5

6

T-con power

L13409

MLB-201209-0120P-N2

L13410 C13434 10uF 25V

MLB-201209-0120P-N2

C13435

0.1uF 25V

C13440 10uF 25V

OPT

PANEL_VCC

C13442

0.1uF 25V

+12V

L13411

BLM18PG121SN1D

C13443 10uF 16V

1.0V_DCDC_TI

C13410

0.1uF

C13446-*1 3300pF 50V

+1.5V URSA DDR

POWER_ON/OFF2_1

R13424

10K

EN

R13422

R13421

3.6K

18K

R1

C13444

100pF

50V

1%

R2

R13423 22K 1%

C13445 1uF 10V

Vout=0.765*(1+R1/R2)=1.516V

FB

VREG

SS

C13446 2200pF 50V

1.0V_DCDC_ROHM

DCDC_ROHM

IC13403

BD9D320EFJ

1

2

THERMAL

3

4

3A

MAX 4.7A

+1.5V_U_DDR

[EP]FIN

VIN

8

9

7

6

5

BOOT

SW

GND

16V

0.1uF C13447

NR5040T2R2N

L13412

2.2uH

C13448

22uF

10V

C13449

22uF 10V

EN

VFB

VREG5

SS

ZD13401

OPT

IC13403-*1

TPS54327DDAR

1

2

3

4

2.5V

DCDC_TI

THERMAL

[EP]GND

VIN

8

VBST

9

7

SW

6

GND

5

POWER_ON/OFF2_3

VDDC

OPT

ZD13400

+1.15V URSA9 Core

R13404 10K

R13402

3.3

R13403

1/10W

5%

C13404 470pF 50V

1%

0.1uF

C13405

4.7

1%

1/1 6W

27K

1/1 6W

R13 405

PGOOD

16V

30V

D13400

2.5V

C13400

22uF

C13401

22uF

C13402

0.1uF 16V

C13411 22uF

C13403 1000pF 50V

R13401 1K

R13400 2K

1/16W 5%

L13403

1uH

VBST

NC_1

SW_1

SW_2

SW_3

SW_4

91K

R13 406

RF

EN

[EP]

1

THERMAL

2

29

3

IC13402

4

TPS53513RVER

5

6

7

8

8A

9

10

PGND_111PGND_212PGND_313PGND_414PGND_5

R13407 39K

1/16W 5%

R1

R13408

4.87K

1/16W

1%

TRIP26NC_327GND128GND2

24VO25

R2

R13409

5.1K

1/16W

1%

FB

23

GND

22

MODE

21

VREG

20

VDD

19

NC_2

18

VIN_3

17

VIN_2

16

VIN_1

15

R13411

C13406 2200pF 50V

100

1/16W

1%

1/16W

20K

R13410

C13407 1uF 10V

L13402

C13408 10uF 16V

+12V

C13409 10uF 16V

Vout=0.6*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-14Y-UD-134-HD

2013.12.17

UB85/95/UC97 only

Front speaker

+3.3V_NORMAL

R5613

AMP_RESET_N

100

1/16W

AUD_MASTER_CLK

NC_1

VDD_PLL

NC_2

GND NC_3 DVDD

SDATA

WCK

BCK

SDA

R5614

4.7K

1 2 3 4 5 6 7 8 9 10

C5627 1000pF 50V

[EP]GND

GND_IO

VDD_IO

40

THERMAL

11

SCL

FAULT

From DACLRCH

AMP_MUTE

+24V

AUD_LRCH

AUD_LRCK

I2C_SDA2

I2C_SCL2

L5600

UBW2012-121F

AUD_SCK

R5600

10K

+24V_AMP

+3.3V_NORMAL

R5601

10K

C

B

Q5600

MMBT3904(NXP)

E

R5602 100

R5603 100

R5604

100

C5600

1000pF

L5601

BLM18PG121SN1D

C5626

C5603

1uF

10V

C5601 33pF 50V

50V

C5602 33pF 50V

10uF 10V

C5604 1uF 10V

C5605

0.1uF 16V

AD

CLK_I

37

38

39

41

IC5600

NTP7514

12

13

14

MONITOR_0

MONITOR_1

22000pF

I2S_AMP

50V

C5606

22000pF

PGND1A

BST1A

RESET

34

35

36

0x54

15

16

17

BST2B

PGND2B

MONITOR_2

C5607

50V

PVDD1A

OUT1A

32

33

18

19

OUT2B

PVDD2B20PVDD2A

+24V_AMP

PVDD1B

31

30 29 28 27 26 25 24 23 22 21

+24V_AMP

C5608 10uF 35V

OUT1B PGND1B BST1B VDR1 NC_4 AGND VDR2 BST2A PGND2A OUT2A

C5609 10uF 35V

C5624

0.1uF 50V

C5625

0.1uF 50V

C5610 22000pF 50V

C5611 22000pF 50V

C56 12 1uF 10V

C5613 1uF 10V

R5605

5.6 1/10W

C5614 390pF

50V

C5615 390pF

50V

R5606

5.6 1/10W

R5607

5.6

1/10W

C5616 390pF 50V

C5617 390pF 50V

R5608

5.6

1/10W

L5602

10uH

SP-7850_10

L5605

10uH

SP-7850_10

L5603

10uH

SP-7850_10

L5604

10uH

SP-7850_10

C5618

0.47uF 50V

C5619

0.47uF 50V

C5620

0.1uF 50V

C5621

0.1uF 50V

C5622

0.1uF 50V

C5623

0.1uF

50V

R5609

4.7K

R5610

4.7K

R5611

4.7K

R5612

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

WOOFER_MUTE

I2S_AMP

SPK_L+

SPK_L-

SPK_R+

SPK_R-

4P Boxtype

WAFER-ANGLE

4

3

2

1

P5400

BSD-14Y-UD-056-02-HD

2013.12.17

UB85/95/UC97 only

UB95 : Woofer Amp UC97 : Height Amp

OPTION Selection

-.Separation Of I2S

AUD_LRCH1

From DACLRCH

WOOFER_MUTE

+24V

L5700

UBW2012-121F

UB95 : Woofer Amp(LRCH) UC97 : Height Amp(LRCH1)

R5715 0

Height_Amp

R5716

AUD_LRCH

AUD_LRCK

AUD_SCK

I2C_SDA2

I2C_SCL2

0

Woofer_Amp

+24V_AMP_WOOFER_L

R5700 100

R5701 100

C5700 33pF 50V

C5701 33pF 50V

C5702

1uF

10V

C5703 1uF 10V

BLM18PG121SN1D

C5720

10uF 10V

+3.3V_NORMAL

L5701

C5704

0.1uF 16V

AMP_RESET_N

VDD_PLL

R5713 100

1/16W

AUD_MASTER_CLK

NC_1

NC_2

GND NC_3 DVDD

SDATA

WCK

BCK

SDA

R5714

4.7K

[EP]GND

1 2 3 4 5 6 7 8 9 10

C5725 1000pF 50V

GND_IO

VDD_IO

40

THERMAL

11

SCL

FAULT

+3.3V_NORMAL

R57 024. 7K

AD

CLK_I

37

38

39

41

IC5700

NTP7514

12

13

14

MONITOR_0

MONITOR_1

22000pF

50V

C5705

22000pF

PGND1A

BST1A

RESET

34

35

36

0x56

15

16

17

BST2B

PGND2B

MONITOR_2

C5706

50V

PVDD1A

OUT1A

32

33

18

19

OUT2B

PVDD2B20PVDD2A

+24V_AMP_WOOFER_L

C5707 10uF 35V

PVDD1B

31

30 29 28 27 26 25 24 23 22 21

+24V_AMP_WOOFER_L

C5718

0.1uF 50V

OUT1B PGND1B BST1B VDR1 NC_4 AGND VDR2 BST2A PGND2A OUT2A

C5708 10uF 35V

C5719

0.1uF 50V

C5709 22000pF 50V

C5710 22000pF 50V

R5707

4.7K

Woofer_Amp

R5708

4.7K

Woofer_Amp

C57 11 1uF 10V

UB95

UC97

R5703

5.6 1/10W

C5712 390pF

50V

C5713 390pF

50V

R5704

5.6 1/10W

R5709

3.3

1/10W

C5726 390pF 50V

C5721 390pF 50V

R5710

3.3

1/10W

Woofer/Height_Amp

C5714 1uF 10V

Height_Amp

L5702

10uH

SP-7850_10

L5703

10uH

SP-7850_10

L5704

10uH

Height_Amp

SP-7850_10

L5705

10uH

SP-7850_10 Height_Amp

Woofer_Amp

C5715

0.47uF 50V

Height_Amp

C5722

0.47uF 50V

C5716

0.1uF 50V

C5717

0.1uF 50V

Height_Amp

C5723

0.1uF 50V

Height_Amp

C5724

0.1uF

50V

R5705

4.7K

R5706

4.7K

R5711

4.7K

R5712

4.7K

Height_Amp

SPK_WOOFER_L+

Woofer/Height

SPK_WOOFER_L-

SPK_WOOFER_R+

Height_Amp

Height

Height_Amp

SPK_WOOFER_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

I2S_WOOFER

SPK_WOOFER_L+

SPK_WOOFER_L-

SPK_WOOFER_R+

SPK_WOOFER_R-

WAFER-ANGLE

4

3

2

1

P5700

Height_Amp

UC97

WAFER-ANGLE

2

1

FW25001-02(SPK 2P)

P5701

Woofer_Amp

UB95

BSD-14Y-UD-057-02-HD

2013.12.17

O

verview for

’14 ULTRA HD M

del

(

)

()

Hardware

o

`14 ULTRA HD New Feature 1. HDMI

We offer a HDMI cable for HDMI 1.4 legacy issue

구분

HDMI 4

HDMI 3

HDMI 2

HDMI 1

HDMI1.4 HDMI2.03G HDMI2.0 6G HDCP2.2 ARC MHL2.1

OX XXXOX

OO O XXX O

OO O XOX O

OO XOXX

It is different form each HDMI port spec.

HDMI1.4

Legacy

△

.

HDMI2.0

HDMI1.4

DVI

`14 ULTRA HD New Feature 2. Audio

Output

channel

(

)

()

•

Center

10+10W

/

,

Center

(79 )

•

Center

10+10W

•

Lf / Rf

•

Lf / Rf

65UB98

UC9

case #1case #2 case #3

84/98UB9800

WooferWoofer

79UB9800

Woofer

Height

Front

Height

Front

• Total W

• ch (inch)

• 150W

• 7.2ch

105”

• 120W •L

• 5.2ch

(97,84”)

• 90W

• 5.2ch

”

•L, R

•Ls, Rs

• Lh, Rh

• Woofer

• Lh, Rh

• Center

• Woofer

•L, R

• Lh, Rh

• Woofer

Output & Channel

Amp.

R 10+10W • Lf / Rf • Lf / Rf

Output (W)

15+15W 10+10W 10+10W

30+30W (PBTLx2EA)

10+10W 10+10W 30+30W (PBTLx2EA)

10+10W 10+10W

15+15W

Amp. Input

• Lf / Rf

•Ls / Rs

• Lh / Rh

•Lf

Rf

• Lf / Rf

• Lh / Rh

•Lf/ Rf

• Lf / Rf

• Lh / Rh

• Lf / Rf

Amp. Output

• Lf / Rf

•Ls / Rs

• Lh / Rh

•Lf/ Rf

• Lh / Rh

•Lf/ Rf

• Lf / Rf

•Lh/ Rh

• (Lf+Rf)/2 / (Lf+Rf)/2

Center

Woofer

: 내장 speaker (woofer/stereo)

Height

Front

• 70W

• 4.2ch

(65,55”)

•L, R

• Lh, Rh

• Woofer

10+10W 10+10W 15+15W

• Lf, Rf

• Lh, Rh

• Lf / Rf

• Lf, Rf

• Lh, Rh

•(Lf+Rf)/2 / (Lf+Rf)/2

`14 ULTRA HD New Feature 3. Sub Assy (Joy stick button, Color sensor)

1. Joy stick button

This button is located behind the TV screen. You can adjust the Menu items moving the joystick button.

You can see the UI.

2. Color sensor

Adjusts the image quality and brightness based on the

surrounding environment.

2014 model : Intelligent sensor + Color sensor

`14 ULTRA HD New Feature 3. Sub Assy (WiFi)

UC9

105”

21:9

13 Carry

802.11

55

BT WiFi

98”

UB98

UB95

UB85

84”

79”

65”

55”

65”

55”

49”

’

Over

ac

16:9

”

802.11n

(BT Combo)

A

Main PCB

Woofer

XXUB98

Camera

r

2

Main processor_analog(LG1152AN)

A

V

411

4

DDR Memory

T-CON B/D

udio

woofer/front/height

Camera

Powe

From PSU

Main to T-con

B/T Wifi

Local Key +IR

5

6

1

7

1

3

4

Main processor_Digital(LG1154D), DDR Memory eMMC Memory

Micom for Key/IR sensing

HDMI switch

2

5

6

7

udio AMP

Woofer AMP

ideo processor (LGE7 DDR Memory Flash Memory

:URSA9),

3

8

4K processor_Digital(LG1512),

eMMC Memory

`14Y ULTRA HD Block Diagram

g

표지

g

12.HDMI2.0 Block

16.GPIO (H13)

CONTENTS

0. System Overview (Main External)

1. H13 Block Diagram (External)

2. H13 Block Diagram (Internal)

3. H13 Data Path Dia

4. D14 Block Diagram (Internal)

5. D14 Block Diagram (External)

6. U14 Block Diagram (Internal)

7. U14 Block Diagram (External)

8. URSA9 Block Diagram

9. Tuner

10. Video & Audio IN/OUT

11. Audio OUT

13. USB / Wi-Fi / M-REMOTE / UART

14. I2C Map (H13)

15. I2C Map (MICOM)

ram

17. GPIO (MICOM)

`14Y ULTRA HD Main Board Assy

※ Main + Back

-

End Assy(Apply Back

-

End IC 1 chip

)

3

R

D

e

3

R

D

e

24.75

HDMI1. 4 (4K@30p) or

D14

D

3

R

3

R

D

D D

D

333

R 3

R

MEMC

3D

DDR3

DDR

DDR3

DDR

DD

D R3

3

HDMI2.0

4K@60p to HDMI 2.0SW X 3EA

4K@30p to HDMI 2.0 SW X 1 EA(HDMI4)

4K@60p TS

From H13

M

27M

4K

Decoder

D

DR3

R3

HDMI1.4 (4K@30p) or

1920X2160@60p + Audio

HDMI 2.0

SW(P)

HDMI1. 4 (4K@30p) or

1920X2160@60p

D

DR3

R3

HDMI1.4

1920X2160@60p

+ Audio

2:1 Mux

HDMI1. 4 (4K@30p) or

1920X2160@60p

+ Audio

Same output

1:2 Splitter

1920X2160@60p

+ Audio

1920X2160@60p

32bit(16bitX2)

H13

24M

HS-LVDS

4K@30p

DDR3DDR

1920X1080@60p

24.75M

U14

MMC

OSD

4K@60p

1080p

OSD

URSA 9

DDR

DD

3

24M

Vby1 16 Lane

4K@120Hz

DDR

DD

3

Only for Super Resolution

Super Resolution Ready (for UB83/85/95)

,

H13 Block Diagram (External)

COMP1/AV1/DVI_ L/R

AV1

(

)

()

gg

USB1(USB3.0)

)

2

S

()

Vx1 2Lane

Tuner

SCART

COMP1

Logo Light

IR/Joy key

Motion-R &

USB2(USB2.0)

USB3(USB2.0)

USB_CAM

HDMI1(HDCP2.2)

HDMI2(ARC

HDMI3

HDMI4(MHL)

Logo Light

LAN

USB_WI-Fi

LNB

SC_CVBS, RGB, Audio L/R

HDMI_CEC

HDCP2.

2

MHL

TS output

From H13D

DDR3

DIF(P/N)

CVBS

SIF

AUDA/D

BB_TP_DATA

CVBS

H13

DTV/MNT_LR/V_OUT

AV1_CVBS

Comp1 Y,Pb,Pr

WOL / WOW

PHY

USB redriver

USB HUB

HDMI output

HDMI

2.0

Switch

LG1154AN

RMII

USB 2.0 (WIFI11ac & BT)

USB 3.0

USB 2.0

2:1 Mux

1:2 Splitter

Jitter

cleaner

DAC_DATA

AAD_DATA

HSR_P/M

D14 U14

16x4

2:1 Mux

DDR3

16x2

-LVDS

FHD H

H13

LG1154D

-LVDS

OSD HS

Vx1 8Lane

OSD

SPDIF

H/P Audio L/R

I2S

DDR3

16x2

8x4

8

16x4

DDR3

Audio AMP

(4.2ch~7.2ch)

CI

eMMC

URSA9

H/P

AMP

4Gb×6

OPTIC

H/P

SPK

CI

RS-232C

1600

Vx1

1Gb x 4 (1600)

1Gb x 2(1600)

1Gb x 4 (1866)

H13 Block Diagram (Internal)

TS (P)

Global B

d

Multi-STD

g

I2Cx10

p@ p

Volume Control

WDT

CVBS DAC

(1-p

)

Tx

R

r D

R

Rx

D

C

E

1

D

O

E

(

p)

DDR3 Controller

Tuner

HDMI

DIF

SIF

Audio L/R(4-

SCART out

Line Out

CVBS(3ch)

CVBS-Out

Component(2ch)

Analog Chip Total Pin : 183w/o Power

H13A H13D

GBB AFE

1ch@30MHz

w/ PLL

BTSC AFE

10b@18.432MHz

w/ PLL

1ch L/R

ch)

Audio-ADC

SW

24b@48KHz

Audio DAC

SW

(48KHz )

Audio DAC (48KHz)

SWSW

CVBS AFE(2-ch)

12b@54MHz

3ch Video

AFE

10b@148.5MHz

w/ LLPLL

I2Cx1 I2Cx1

Capture

Block

(3CH)

GPIOIx16

SDRAM

(MCP)

aseban

V/Q, DVB-T/C ISDB-T

10x3ch

Mux

LVDS

Audio PLL

w/ DCO

AtoDPin : 79

AAD

(THAT)

I2S(External)

I2S

I2S(HPD)

Digital AMP

SPDIF

5x1ch (1ch)

Digital

Output

(1-Link)

3D, ARC, 4kx2k

DVB-CI/CI+

TS(P) TS(P)

System Demux

Audio

Mux

Clear Voice II

Audio

CVBS

Encoder

CVD

Y/C

CVBS

LVDS

HDMI

HDMI-Rx 1.4

ort PHY

TS(S)

Audio DSP

Multi-STD

Audio Decoder

LX4 HiFi EP

Sound DSP

Perceptual

Slim SPK

DivX

Bluetooth

Mux

Source

TS(S)

DE

MCU

TN

DDR3 PHY

lacer

Scaler

De-inte

Main/Sub

Digital Chip Total Pin : 491w/o Power

Video Decoder

HD Decoder

(Boda950)

Video Encoder

1080p@30fps

CPU

ARMCA9 Core

Dual 1.2GHz

32KBI$

32KBD$

1MB L2 $

SR

VC

FR

H3

BE

MCU

PE

GPU Rogue Han

JPG/PNG Decoder

JPG Encoder

TrustZone

Secure Engine

48KB ROM

64KB SRAM

rmatter

LE

OS

Output fo

DDR3 PHY

2D GFX

OTP

UART

Timer

N

TC

USB2.0x3

UARTx3

GPIOx136

EMAC

SCI

SPIx2

USB3.0 x1

eMMC

DMAC(8ch)

Timer

SRAM 16KB

(120Hz)

PI/LVDS Combo

Vx1/

DCO

CPLL

x2

SPLL DPLL

DDR

PLL

PHY

16

8

Data Path Diagram

D14 Block Diagram (Internal)

CPU B

(PL301)

HEVC1

PHY

Core1

TE

PDEC

FHD

Clock/R

DDR3

1600

1Gbit

DDR3

1600

1Gbit

Analog IP

2.5V

(AIP)

LDO

Serial/Parallel

TP Stream

3.3V (I/O)

LDO

1.1V

(Core)

SPI I2C

VD0

LDO

1.5V

(DDR3)

LDO

Boot

ROM

ADO

Serial Flash

SRAM ADO MCU0 MCU1 DMA

us Interface

VD1

VD2

H.264

HEVC2

CortexM3

H.264 Core2

SDRAM

H.264

(On2)

UART0

WDT

UART1

VD3

VDO VCP

GPIO

I2C

HDMI

Link

Added : D13Æ D14

Deleted : D13 Æ D14

MCURC

HDMI

PHY

1920x2160@60p

DDR3PLL

XTAL

(24.75MHz)

SSPLL

DCO

DISPLL

eset Gen

Memory Bus Interface (PL301)

Bus Architecture

lgm_top

DDR3 PHY (x32)

DDR3-1600

-

1Gbit

DDR3 PHY (x16)

DDR3-1600

lgm_top

x32x32

-

1Gbit

D14 Block Diagram (External)

1_D14(2bit)

M0_DDR_RESET_N_D14

SPI FLASH

FLASH_WP/

HDMI1_TX2P

M1_DDR_DM0

-

1_D14(2bit)

+3.3V

+2.5V

+1.5V

IC12101IC12101

DDR3

DDR3 1G bit

1G bit

IC12103

DDR3

DDR3 1G bit

1G bit

IC12100

DDR3

DDR3 1G bit

1G bit

IC12102IC12102

DDR3

DDR3 1G bit

1G bit

+1.15V

+3.3V

+2.5V

+1.5V

+1.15V

M0_DDR_DQ015_D14(16bit) M0_DDR_DQS0-

M0_D_CLK_D14 M0_DDR_DM0M0_D_CLKN_D14 1_D14(2bit)

M0_DDR_A0-13_D14(14bit) M0_DDR_BA0-2_D14(3bit) M0_DDR_CKE_D14 M0_DDR_ODT_D14 M0_DDR_RASN_D14 M0_DDR_CASN_D14 M0_DDR_WEN_D14

M0_DDR_DQ16-31_D14(16bit) M0_DDR_DQS2-3_D14(2bit) M0_DDR_DM2-3_D14(2bit)

M0_U_CLK_D14 M0_U_CLKN_D14

M1_DDR_DQ0-15_D14(16bit) M1_DDR_DQS0-1_D14(2bit) M1_DDR_DM0-1_D14(2bit)

M1_D_CLK_D14 M1_D_CLKN_D14

M1_DDR_A0-13_D14(14bit) M1_DDR_BA0-2_D14(3bit) M1_DDR_CKE_D14 M1_DDR_ODT_D14 M1_DDR_RASN_D14 M1_DDR_CASN_D14 M1_DDR_WEN_D14 M1_DDR_RESET_N_D14

M1_DDR_DQ0-15_D14(16bit) M1_DDR_DQS0-1_D14(2bit)

M1_U_CLK_D14 M1_U_CLKN_D14

IC12000

D14

D13_STPO_CLK D13_STPO_VAL D13_STPO_DATA D13_STPO_SOP D13_STPO_ERR SOC_SPI0_SCLK SOC_SPI0_CS0 SOC_SPI0_MOSI

SOC_SPI0_MISO

SPI_SCLK_M SPI_MOSI_M SPI_CS_M/

SPI_MISO_M

HDMI0_TX0N

HDMI0_TX0P

HDMI0_TX1N

HDMI0_TX1P

HDMI0_TX2N

HDMI0_TX2P HDMI0_TXCN HDMI0_TXCP

HDMI0_DDC_DA HDMI0_DDC_CK

HDMI1_TX0N

HDMI1_TX0P

HDMI1_TX1N

HDMI1_TX1P

HDMI1_TX2N

HDMI1_TXCN

HDMI1_TXCP

HDMI1_DDC_DA HDMI1_DDC_CK

1920x2160@60p

IC100

H13D

IC12002

4MByte

IC3302

DEV_HDMI_MUX0

IC3501

DEV_HDMI_MUX1

U14 Block Diagram (Internal)

R

y

108m@198MHz

Super

Resolution

4

Interface

Sharpness/Color/Contrast

)

HS LVDS 2

k

()

HDMI Switch

Serial Flash

•MCU

9 Tensilica’s 108mini

• Memor

9 Unified memory architecture 9 DDR3-1600MHz 32bit

•

9 Input

: HS-LVDS 4-link (2+2) : HDMI1.4 2-port

9 Output

: HS-LVDS 6-link (4+2) : Vx1 12-lane (8+4)

H13D

(GPIO)

H13D

3

DD

76

DDR I/F(32bitx1)

Digital die

800MHz

2

I2C(S)

SPI(S)

1

-

FHDÆ3840x2160

Reset

24

HS LVDS Rx

2-link

4K 2D-to-3D

HS LVDS Rx

2-link

Tensilica

ROM 8KB I$16KB D$8KB IRAM128KB DRAM128KB

4K@60P PQ

UGM/Local Dimming

Gamma/WB

Combo Tx

HS LVDS 4-link Vx1 8-lane

Combo Tx

Vx1 4-lane

-lin

48

24

• PKG

9 23X23 FcBGA

HDMI Switch

JTAG Ready

RS-232C

14

5

HDMI Rx

1.4b

HDMI Rx

1.4b

Separate OSD

I2C(M/S

2

8

GPIO

JTAG

4

SPI(M)

2

Boot Mode

TEST

CLK

UART

2

42

Crystal

U14 Block Diagram (External)

(H13D GPIO9)

Combo TX

OSD/VIDEO

에대한각

Lcok

신호를

받음

2

M

S

[GPIO[3]]

S

9

D14

HDMI

2.0

Switch

H13D

[EXT_INTR0/GPIO67]

HDMI_0_RX

U14_SPI_CS_M U14_SPI_MOSI_M U14_SPI_SCLK_M

1Gb (1600)

:1

UX

plitter

1:2

U14_FLASH_WP

SOC_SPI1_CS SOC_SPI1_MISO SOC_SPI1_MSIO SOC_SPI1_SCLK

DDR3

32bit

(16x2)

H13_CONNECT

HDMI_U14_2 RXASCL_U14 RXASDL_U14

HDMI_U14_1 RXBSCL_U14 RXBSDL_U14

Serial

Flash(4MB)

HS-LVDS 4K@30p_Video [RXA/RXB]

1080p@60p _OSD[RXC]

I2C_SCL2(M/S) I2C_SDA2(M/S)

HDMI_1_TX

HDMI_1_RX

HDMI_Splitter

2:1

MUX

SPI

HS-LVDS

[RXA] [RXB] [RXC] [RXD]

[GPIO[2]]

[I2CS_SCL_M] [I2CS_SDA_M]

U14

[Tx_U14_0N/P~7N/P}

[PORESN]

[SMODE[0]] [SMODE[1]]

[Tx_U14_0N/P~7N/P]

[Tx_U14_9N/P~11N/P

[GPIO[5/6]]

[GPIO[4]]

[GPIO[1]] [GPIO[0]]

UART

X-tal

U14_XTAL_IN

U14_XTAL_OUT

4K@60p Vx1 8 Lane Video

1080p / 2160p Vx1 4Lane OSD

Vx1_LOCKn_O/V

24.75MHz

U14_RESET

U14_SMODE[0]/[1]

URSA9_CONNECT

U14_FLASH_WP

FHD_D9_SET URSA7/9_SET

U14_UART_RX_1 U14_UART_TX_1

SMODE[0] SMODE[1]

Normal Mode 0 0

Test Mode Other

URSA9

OSD Resoultion GPIO[0] GPIO[1]

U

2560*1080@60p 0 0

R S

1920*1080@60p

A

01

HDMI_0_TX

HDMI to H13

URSA9 Block Diagram

SPI_D

FLASH_WP_URSA

Vx1 8Lane

51P

[GPIO[16]/[17]]

[LOCKN_D/Q]

LOCKn_IN/ HTPDn_IN

[VX1T_LOCKN]

BIT[2/1/0]

UD_V

수

U14

[GPIO[3]]

SPI_CZ

O SPI_CK

Serial

Flash(4MB)

DDR3

1Gb x 4 (1600)

4K@60p Vx1 8 Lane Video

1080p / 2160p Vx1 4 Lane OSD

URSA9_CONNECT

Vx1_LOCKn_O/V

I2CS_SDA/SCL

SPI_DI

16x4

(URSA Debug)

URSA9

LGE7410

GPIO[25]

[TXDBN0/P0~N7/P7_L]

[Tx_U14_0N/0P~7N/7P]

[Tx_U14_8N/8P~11N/11P]

[GPIO[15]]

[I2CS_SDA/SCL]

[TXDAN0/P0~N7/P7_L]

[SPI4_CK/DIM8/GPIO52]

[INT_R21/GPIO[41]]

[SPI4_DI/DIM9/GPIO53]

[VX1T_HTDPN]

[GPIO[4/5]]

[RESET]

XIN_URSA

XO_URSA

Data_Format_0/1

3D_EN TCON_I2C_EN

L_DIM_EN

URSA_RESET_SOC (H13D GPIO[26])

X-tal

24MHz

Vx1 8Lane(12Lane_5K) 41P

H1

3

Panel

3840x2160@120

p

I2C_SCL1/SDA1

[SPI4_DI/DIM9/GPIO53]

UART2_RX UART2_TX

GPIO[1]/[0]

DIM5/GPIO[37] DIM6/GPIO[38] DIM7/GPIO[39]

URSA_BIT0/1/2

x 1 Lane

0/0/0 4K@120P _16Lanes

0/0/1 4K@60P _ 8Lanes

0/1/0 5K@120P _ 20Lanes

Tuner

1.8K

Ω

3.3V TUNER

3.3V_TUN R

[FE_DEMOD1_TS_ERROR] 12

AE35 [FE_TP_CLK]

FE_DEMOD1_TS_ERROR

LG1154D

FE_DEMOD1_TS_DATA[4] 21

AG36 [FE_TP_DATA4]

FE_DEMOD2_TS_VAL

IF_AGC_TU

IF_AGC

TU6800

TDJW-A151D

[FE_DEMOD1_TS_CLK] 14

[FE_DEMOD1_TS_SYNC] 15

[FE_DEMOD1_TS_VAL] 16

FE_DEMOD1_TS_DATA[0] 17 FE_DEMOD1_TS_DATA[1] 18 FE_DEMOD1_TS_DATA[2] 19 FE_DEMOD1_TS_DATA[3] 20

FE_DEMOD1_TS_DATA[5] 22 FE_DEMOD1_TS_DATA[6] 23 FE_DEMOD1_TS_DATA[7] 24

[FE_DEMOD2_TS_ERROR] 34

[FE_DEMOD2_TS_SYNC] 36

[FE_DEMOD2_TS_CLK] 37

[FE_DEMOD2_TS_VAL] 39

[+3.3V_LNA_TU] 1

[+3.3V_TUNER] 11

[+3.3V_DEMOD] 26

[1.2V_DEMOD] 28

[+2.5V_DEMOD] 38

[LNB_TX] 29 [LNB_OUT] 31 [I2C_SCL4] 27

[I2C_SDA4] 30

[I2C_SCL6] 4 [I2C_SDA6] 5

+3.3V_TU

D_Demod_core

+

1.8K Ω

+2.5V_Normal

+3.3V_TUNER

LNB_TX

LNB_OUT

I2C_SCL4 I2C_SDA4

I2C_SCL6 I2C_SDA6

FE_DEMOD1_TS_CLK FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA [0-7]

FE_DEMOD2_TS_ERROR FE_DEMOD2_TS_SYNC FE_DEMOD2_TS_CLK

33 Ω

10 [TONECTRL] 2 [LNB] 7 [SCL] 8 [SDA]

AN8 [SCL3] AP8 [SDA3]

AF34 [SCL5] AF33 [SDA5]

AD36 [FE_TP_SOP] AE36 [FE_TP_VAL] AD35 [FE_TP_ERROR]

AF36 [FE_TP_DATA0] AF37 [FE_TP_DATA1] AF35 [FE_TP_DATA2] AG37 [FE_TP_DATA3]

AG35 [FE_TP_DATA5] AH36 [FE_TP_DATA6] AH35 [FE_TP_DATA7]

AP36 [STPI_ERR/GPIO 55] AR37[STPI_SOP/GPIO 41] AR36 [STPI_CLK/GPIO 42] AT37 [STPI_VAL/GPIO 40]

IC6900

A8303SESTR-TB

LNB

H13

FE_DEMOD2_TS_DATA 40

[RF_SWITCH_CTL] 2

[/TU_RESET2] 45

[IF_P] 6

[IF_N] 7

TU_SIF_TU 9

TU_CVBS_TU 8

FE_DEMOD2_TS_DATA

RF_SWITCH_CTL

/S2_RESET

IF_P

IF_N

FILTER

TUNER_SIF

TU_CVBS

ADC_I_INP

ADC_I_INN

AP37 [STPI_DATA/GPIO 54]

AL34 [GPIO26]

AJ33 [GPIO4]

U17 [ADC_I_INP]

V17 [ADC_I_INN]

H13

LG1154AN

Video & Audio IN/OUT

COMP1_PR_IN_SOC

[AUAD_L/R_CH3_IN]

Jack Side SOC Side

H13

CVBS 1

Phone JACK

COMP1/AV1/DVI_L/R_IN

FULL

SCART

(18P)

Component 1

Phone JACK

AV1_CVBS_IN

SC_CVBS_IN

SC_R/G/B /CVBS_IN_SOY

SC_L/R_IN

COMP1_Y/Pb/ Pr

(LG1154AN)

AV1_CVBS_IN_SOC

[CVBS_IN3]

AUAD_L/R_CH2_IN

[AUAD_L/R_CH2_IN]

SC_CVBS_IN_SOC

[CVBS_IN2]

[PR1/Y1/PB1/SOY1_IN]

COMP1_Y_IN_SOC COMP1_PB_IN_SOC COMP1_Y_IN_SOC_SOY

AUAD_L/R_CH3_IN

COMP2_PB_IN_SOC COMP2_Y_IN_SOC COMP2_Y_IN_SOC_SOY COMP2_PR_IN_SOC

[PB2/Y2/SOY2/PR2_IN]

SPDIF OUT

H/P JACK

SPDIF_OUT

HP_L/ROUT

[IEC958OUT]

[AUDA_OUTL/R]

Audio OUT

T

OP AMP

COMP1/AV1/DVI_L/R_IN

pi filter

[GPIO21]

[GPIO05]

AMP_RESET_N _1

NTP7514

SIDE_HP_MUTE

T

__

LPF

PBTL

LPF

PBTL

LPF

WOOFER_L

NTP7514

WOOFER_R

NTP7514

CENTER

SC_L/R_IN

AUD_SCK/LRCK/MCLK

I2C_SDA1/SCL 1

I2C_SDA5/SCL5

AMP_MUTE (Woofer_mute)

LRCH

[AUAD_L/R_CH1_IN] [AUAD_L/R_CH4_IN]

[AUAD_L/R_CH3_IN] [AUAD_L/R_CH2_IN]

[I2C_SDA2/SCL1]

LG1154

[AUD_SCART_OUTL/R]

[MCLK]

[LRCK]

[DACLRCH]

[I2C_SDA2/SCL2] [I2C_SDA5/SCL5]

[DACSLRCH]

H13

[GPIO31]

SCART_L/Rout_SOC

AUD_SCK/LRCK/MCLK

[SCK]

LRCH

I2C_SDA2/SCL2 I2C_SDA5/SCL5

LRCH1

AMP_RESET_N

LRCH2

AZ4580MTR

AMP_MUTE(Woofer_mute)

DTV/MNT_L/R_OUT

MICOM

FRONT

NTP7514

HEIGHT

NTP7514

SURROUND

Mute

CTRL

[TR]

E

SCART_MU

AUDIO L/R OUT

LPF

SCART

uner

TU_SIF

[AAD_ADC_SIF]

[HDMI_ARC]

[AUDA_OUTL]

[IEC958OUT]

HP_L/ROUT_MAI N

SPDIF_OUT

SPDIF_OUT_ARC

TPA6138A2 Headphone

AMP

LPF

H/P Jack

HP_L/ROU

HDMI2.0 Block

CEC

(

)

()()

DDC_I2C

TMDS Link

O

RXASCL/SDA_U1

MICOM

HDMI1(2.0)HDMI1(2.0)

_

REMOTE

HDMI2(2.0

HDMI2

CEC_

REMOTE

HDMI3(2.0)HDMI3(2.0)

CEC_

REMOTE

HDMI4(1.4b)HDMI4(1.4b)

CEC_

REMOTE

2.0

TMDS Link

DDC_I2C

HPD_1

TMDS Link

DDC_I2C

HPD_2

SPDIF_OUT_ARC

TMDS Link

HPD3

DDC_I2C

HPD4 / MHL_CBUS

MHL_VBUS

HDCP2.2

(R9531AN)

MHL2.1

(SIL9617)

HDMI 2.0 Switch

(MN864778)

I2C for control reset

SPDIF_OUT_ARC

HDMI Out 0

DDC_I2C 0

HDMI Out 1 DDC_I2C 1

D14

ut 0

C 0

HDMI

DDC_I2

HDMI Out 1

DDC_I2C 1

HDMI_MUX_SEL

2:1 MUX

HDMI_splitter

2:1 MU

HDMI_U14_2

X

4

H13

1:2 splitter

HS-LVDS

4K@30p

MI_U14_1 HD

RXBSCL/SDA_U1 4

U14

(R5F100GEAFB)

OCP

(TPS2553)

CEC_REMOT E

USB / WIFI / M-REMOTE / UART

IC3000

[EXT_INTR1/GPIO68]

_/

[USB3_DP0/DM0]

H13

HUB_DP / DM

USB2

M_REMOTE_RXD

RS-232C

WIFI/BT

[USB3_DP2 / DM2]

[USB2_0_DP/DM]

[USB3_RX0P/0M] [USB3_TX0P /0M]

LG1154

[USB2_1_DP0/DM0]

+3.5V_ST

CAMERA_DP / DM

CAM_SLIDE_DET, CAM_TRIGGER_DET

WIFI_DP / DM

USB3_DP / DM

USB3_RX0P USB3_RX0M USB3_TX0P USB3_TX0M

CAM Switch

AP2191

+3.5V_CAM

USB

redriver

USB HUB

IC4200

GL852G-31

CAM_CTL

USB_DP2 / DM2

USB_DP3 / DM3

USB_Camera

USB WIFI/BT

USB1(3.0)

USB3

CAM_PWR_ON_CMD

CAM_RESET/SLEEP

WOL/WIFI_POWER_ON

MICOM

R5F100GEAFB

[UART1_RXD] [UART1_TXD]

[UART1_RTS] [UART1_CTS] [UART0_RXD]

[UART0_TXD]

SOC_TX

MICOM

SOC_RX

SOC_TX

M_REMOTE_TXD M_REMOTE_RTS

M_REMOTE_CTS

SOC_RX

I2C Map (H13)

+3.3V_NOR

TAS5733

]

[SDA3]

33 Ω

[SDA_DEMOD

[SDA0/GPIO65]

k

k .3.

MICOM

2

[P61/SDAA

[SDA5]

33 Ω

[

]

IC5600

TAS5733

AMP MAIN

IC5700

AMP WOOFER

P7200

FI-RE51S-HF-J-R1500

51P LVDS OUTPUT

IC3000

R5F100GEAFB

RENESAS

24

[SCL

23

[SDA

24

[SCL

23

[SDA

]

5

4

]

[P60/SCLA

0]

33 Ω

3.3k Ω

+3.3V_NOR

Ω

3.3

3.3k Ω

I2C_SCL1

I2C_SDA1

I2C_SCL21

I2C_SDA2

AN17 [SCL0/GPIO66]

AM17

AN18 [SCL1/GPIO64

] AM18

[SDA1/GPIO7 9]

H13

LG1154D

AN 8

[SCL3]

AP 8

AF 32

[SCL5]

AG 33

I2C_SCL4

I2C_SDA4

I2C_SCL6

I2C_SDA6

+3.3V_NOR

3.3k Ω

+3.3V_NOR

3k Ω

3

33 Ω

[SCL]

[SDA]

[SCL_DEMOD

[SCL]

[SDA]

7

A8303SESTR-TB

8

27

]

30

]

TDJW-A151D

4

5

IC6900

LNB

TU6800

A11/A12

IC12000

LG1132-D13

D13

B11/B1

2

33 Ω

+3.3V_NOR

3.3k Ω

I2C_SCL3

I2C_SDA3

AP19 [SCL2/GPIO78

] AN19 [SDA2/GPIO7

7]

AF 34

[SCL5]

AF 33

[SDA5]

I2C_SCL5

I2C_SDA5

+3.3V_NOR

3.3k Ω

33 Ω

SCL

[SDA]

[CSCL]

[CSDA]

6

IC102

R1EX24256BSA50A

5

NVRAM

63

IC3201

SII9587CNUC

62

HDMI_SW

I2C Map (MICOM)

.3.

LG1154DLG1154D

I2C_SDA_MICO

01]

R5F100GEAFBR5F100GEAFB

LAN PHYLAN PHY

H13

I2C_SCL_MICO M

M

[P60/SCLA0]

[P61/SDAA0]

[P71/KR1/SI21/SDA2

[P70/KR0/SCK21/SCL

[P75/KR5/INTP9/SCK01/SCL

MICOM

(IC3000)

21]

+3.5V_ST

3k Ω

EYE_SDA

1]

EYE_SCL

IR

3

100 Ω

2

1

IR/Logo/KeyIR/Logo/Key

HDMI JackHDMI Jack

CameraCamera

HDMI_CEC

CAM_SLEEP

WOL/ETH_POWER_ON

[P74/KR4/INTP8/SI01/SD A01]

[P30/INTP3/RTC1HZ/SCK11/SCL1 1]

[P50/INTP1/SI11/SDA11]

16. GPIO (H13)

[GPIO6] AG30

[

/TU_RESET1

AG6 [GPIO10]

/RST_HUB

[

]

TPS65178RSLR

AK7 [GPIO18]

M_REMOTE_RTS

[SC_DETECT/GPIO133] U33

SMARTCARD_DET

AP17 [SCL2/GPIO78]

MICOM_RENESAS

SOC_TX

AMP RESETN

[

AMP WOOFER

AMP_RST_N

]

[]

/FRC_FLASH_W

P7200

PCM_5V_CTL

D33

[

]

TUNER

TU6503

TDSQ-G051D

EPI

IC7300

EPI

IC7301

TPS65178

COMPONENT1 PHONE JACK

JK3801

KJA-PH-1-0177-2

CVBS1 PHONE JACK

JK3800

KJA-PH-1-0177 - 1

HEAD PHONE JACK

JK3700

KJA-PH-0-0177

M_REMOTE 8P

P4800

12507WR-08L

I2C Map 참조

UART_4PIN_STRAIGHT

P3800

12507WS-04L

IC3000

R5F100GEAFB

AMP MAIN

IC5400

TAS5733

IC5500

TAS5733

CI SLOT

P6200

10067972-000LF

RF_SWITCH_CTL /S2_RESET

PMIC_RESET

GST_SOC MCLK_SOC GCLK_SOC

COMP1_DET

AV1_CVBS_DET

HP_DET

M_REMOTE_RX M_REMOTE_TX M_RFModule_RESET M_REMOTE_CTS

I2C_SCL/SDA1~6

SOC_RX

/PCM_CE1 /PCM_CE2 CAM_CD1_N CAM_CD2_N CAM_IREQ_N PCM_RESET CAM_INPACK_N

CAM_WAIT_N CAM_REG_N

AK34 [GPIO26] AG5 [GPIO9]

AH30 [GPIO7]

AN8 [NC_GST_SOC] AP8

[NC_MCLK_SOC] AN7

[NC_GCLK_SOC]

AJ6[GPIO14 ]

AK5 [GPIO16]

AH6[GPIO12]

AU13 [UART1_RXD]

AT13 [UART1_TXD]

AJ7 [GPIO13] AJ5 [GPIO 15] AR15 [SCL0/GPIO66]

AP15 [SDA0/GPIO65]

AR16 [SCL1/GPIO64] AP16

[SDA1/GPIO79]

AR17 [SDA2/GPIO77]

AP6 [SCL3] AR6 [SDA3] AH32 [SCL4] AJ33 [SDA4] AJ34 [SCL5] AH33 [SDA5]

AU12 [UART0_RXD] AT12 [UART0_TXD]

AM6[GPIO21

F33 [CAM_CE1_N] F34 [CAM_CE2_N] F32

[CAM_CD1_N/GPIO76] E32

[CAM_CD2_N/GPIO75] F32

[CAM_IREQ_N/GPIO73] G34 [CAM_RESET]

CAM_INPACK/GPIO74

H32 [CAM_VCCEN_N/GPIO87]

E33 [CAM_WAIT_N/GPIO84]

D34 [CAM_REG_N/GPIO72]

[SC_VCCEN/GPIO129] T32

[SC_VCC_SEL/GPIO128] V32

[SC_DATA/GPIO132] V34

H13

IC100

LG1154D

[EXT_INTR2/GPIO69] W32

[EXT_INTR3/GPIO70] Y33

[GPIO23/UART2_TX] AR9

[GPIO22/UART2_RX] AM5

[USB2_2_DP0] L37

[USB2_2_DM0] L36

[HUB_PORT_OVER1]

[HUB_VBUS_CTRL1]

HUB PORT OVER0]

__

[HUB_VBUS_CTRL0]

[USB3_DM0] P36

[USB3_DP0] P37

[USB3_RX0P] N36

[USB3_RX0M] N37

[USB3_TX0M] R37

[USB3_TX0P] R36

[USB2_1_DP0] M37

[USB2_1_DM0] M36

[USB2_0_DM] AT7

[USB2_0_DP] AU7

[SC_CLK/GPIO130] T33

[SC_RST/GPIO131] V33

T34

R34

R32

R33

[GPIO3] AE30

[GPIO0] AK32

[GPIO27] AN34

[GPIO17] AK6

[PWM0] AF6 [PWM1] AF7

[PWM2] AE6

[TRST_N0] AP9

[TMS0] AN9

[TCK0] TCK0

[TDI0] TDI0

[TDO0] AN10

GPIO11] AG7

[GPIO126] Y7

USB2_HUB_IC_IN_D

P

USB2_HUB_IC_IN_D

M

/USB_OCD1

USB_CTL1

/USB_OCD2

USB_CTL2

USB3_DM USB3_DP

USB3_RX0M

USB3_RX0P

USB3_TX0M

USB3_TX0P

USB2_DP2

USB2_DM2

WIFI_DM

WIFI_DP

SMART_CARD_CLK

SMARTCARD_VCC SMARTCARD_PWR_SEL SMARTCARD_RST SMARTCARD_DATA

HDMI_S/W_RESET

HDMI_INT

/RST_PHY

EPHY_INT

SC_DET

A_DIM

PWM_DIM2

PWM_DIM

ERROR_OUT

UART2_RX

UART2_TX

TRST_N0 TMS0 TCK0 TDI0 TDO0

FRC_RESET

P

USB HUB

IC4200

USB2512B-AEZG

OCP USB1

IC4301

TPS2554

OCP USB2/3

IC4302

TPS2062C

USB1

JK4300

3SAU009S-1P35-X-H1

USB2

P4303

3AU04S-306-ZC-(LG)

WIFI

P4301

12507WR-05L

B-CAS IC6300

TDA8024TT

HDMI SWITCH

IC3201

SII9587CNUC

ETHERNET PHY

IC5200

RTL8201F-VB-CG

Full Scart(18P)

JK4600

DA1R018H91E

24P POWER CONNECTOR

P2301

FW20020-24S

DEBUG

P101

12507WS-04L

Jtag I/F

P100

12505WS-10A00

51P LVDS Connector

FI-RE51S-HFK-A

GPIO (MICOM)

1 [P60/SCLA0]

I2C_SCL/SDA2

P3800

[

[/ / ]

16

[P27/ANI7] 25

OPT2 PDP / LCD/OLED

POWER_ON/OFF1

24V

5V DCDC

N

IC2301

N_[P120/ANI19] 37

[P15/PCLBUZ1/SCK20/SCL20]

24P POWER

[P13/TxD2/SO20]

USB Wi

FI

WOL/WOW_POWER_ON

H13

IC100

LG1154

GND

+12V TO PANEL_VCC

IR_10P

P4102

12507WR-10L

3.3V-2.5V LDO

AP7173-SPG-13 HF(DIODES)

+3.5V_ST TO +3.5V_WOL WOL_CTL

+3.5V_ST TO +3.5V_CAM CAM_CTL

IC2302

3.5V-1.5V DCDC IC2305

TPS54319TRE

12V-1.1V DCDC

IC2303

TPS54821RHL

12V-1.0V DCDC

IC2300

TPS54327DDAR

IC4300

RT8289GSP

12V-5V DCDC

IC2306

TPS54327DDAR

12V-3.3V DCDC

AOZ1038PI

RESET IC

IC2307

NCP803SN293

USB CAMERA

P4200

-

P4301

SOC_RESET

PANEL_CTL

LED_R

IR

EEPROM_SDA

EEPROM_SCL

KEY1/KEY2

POWER_ON/OFF2_1

POWER_ON/OFF2_2

POWER_ON/OFF2_3

POWER_ON/OFF2_4

POWER_DET

EDID_WP

CAM_DET

2 [P61/SDAA0]

18 [P14/RxD2/SI20/SDA20]

4 [P63]

[P16/TI01/TO01/INTP5]

6 [P75/KR5/INTP9/SCK01/SCL01 ]

10 [P71/KR1/SI21/SDA21]

11 [P70/KR0/SCK21/SCL21]

31 [P21/ANI1/AVREFM] 32 [P20/ANI0/AVREFP]

33 [P130]

8 [P73/KR3/SO01]

MICOM

9 [P72/KR2/SO21]

34 [P01/TO00/RXD1]

15 [P17/TI02/TO02]

14 [P51/INTP2/SO11]

5 [P31/TI03/TO03/INTP4]

24 [P147/ANI18]

[P30/INTP3/RTC1HZ/SCK11/SCL11]

13 [P50/INTP1/SI11/SDA11]

IC3000

R5F100GDAFB

RENESAS

17

[P12/SO00/TxD0/TOOLTxD] 20

[P11/SI00/RxD0/TOOLrxD/SDA00]

P10/SCK00/SCL00] 22

[P25/ANI5] 27

[P24/ANI4] 28 [P22/ANI2] 30

[P26/ANI6] 26 [P23/ANI3] 29

[P146] 23

[P62] 3

[P40/TOOL0] 39

[/RESET] 40

[P124/XT2/EXCLKS] 41

[P123/XT1] 42

[P137/INTP0] 43

[P74/KR4/INTP8/SI01/SDA0

[P00/TI00/TXD1] 35

[P41/TI07/TO07] 38

[P137/INTP0] 43

12

19

[P140/PCLBUZ0/INTP6] 36

1] 7

UART 4P

12507WS-04L

SOC_RX/TX

21

AMP_MUTE

SIDE_HP_MUTE

OPT0 LOGO_LIGHT / NON_LOGO_LIGHT OPT1 TOUCH_KEY / TACT_KEY

OPT3 GP4_10PIN / GP3_12, 15PIN OPT4 MHL / NON_MHL OPT5 GED / NON_GED OPT6 OPT / OPT

JK3202, JK3200, JK3201, JK3203

51U019S-312HFN-E-R-B-LG

MODEL1_OPT_0~6

MICOM_DEBUG

MICOM_RESET

MHL_DET

HDMI_CEC

SCART_MUTE

FC BUSY

LOGO_LIGHT

MHL_DET

INV_CTL

RL_ON

H13

IC100

LG1154

AMP MAIN

IC5400

TAS5733

HP AMP

IC6100

TPA6138A2PWR

12P MICOM DEBUG

P3000

12505WS-12L

MICOM X-TAL

X3000

32.768KHz

HDMI SW

IC3201

SIL9587CNUC

HDMI 1 / 2 / 3 /4

Full SCART

JK4600

DA1R018H91E

LOGO LIGHT

P8900

12507WR-03L

HDMI4

JK3203

HDMI SW

IC3201

SIL9587CNUC

POWER S/W

IC3202

TPS2554

P2301

FW20020-24S

Interconnection – sub PCB (XXUB98 series)

1

WIFI ASSY

BT MOTION ASSY

[PCBs]

1

2

3

4

7

3

6

4

5

6

Main PCB

PSU

T - CON

LOGO + IR Jog Key

BT MOTION ASSY

WIFI ASSY

7

To M ai n

Contents of LCD TV Standard Repair Process

Vertical/Horizontal bar, residual image

B. Power error

Off wh

hil

MR13 op

11

13

Camera operating checking

13

No. Error symptom (High category) Error symptom (Mid category) PageRemarks

1 No video/Normal audio 1

2 No video/No audio 2

3 Picture broken/ Freezing 3

4 Color error 4

5

6

7

8

9 Wrecked audio/discontinuation/noise 9

10

11

12

A. Video error

C. Audio error

D. Function error

,

light spot, external device color error

No power 6

en on, off w

auto on/off

No audio/Normal video 8

Remote control & Local switch checking

erating checking

Wifi operating checking 12

e viewing, power

5

7

10

14 External device recognition error 14

15 E. Noise Circuit noise, mechanical noise 15

16 F. Exterior error Exterior defect 16

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Standard Repair Process

Revised date

1/16

No video/ Normal audio

Always check & record S/W Version and White

Established

date

2013.01.31

LCD TV

Error

symptom

A. Video error

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

☞A18☞A1

No video Normal audio

Normal

audio

Move to No video/No audio

Y

N

Check Back Light On with naked eye

☞A18

Check Power Board 24V output

On

Normal voltage

Repair Power Board or parts

Y

Check Power Board 24V, 12V,3.5V etc.

N

Replace Inverter

Y

or module

N

Normal

voltage

Repair Power Board or parts

Y

N

End

Replace T-con/Main Board or module And Adjust VCOM

※Precaution

Balance value before replacing the Main Board

☞A4 & A2

Replace Main Board

Re-enter White Balance value

1

Standard Repair Process

No video/ No audio

Revised date

2/16

Check various

Check and

Y

LCD TV

symptom

No Video/ No audio

Error

☞A18

voltages of Power Board ( 3.5V,12V,20V or 24V…)

A. Video error

Normal

voltage?

N

Replace Power Board and repair parts

replace MAIN B/D

Established

date

2013.01.31

End

2

Standard Repair Process

Picture broken/ Freezing

Revised date

3/16

A3

using Digital signal level meter

DVD Player ,Set

Top

Box, Different maker TV etc

T

Close

Contact with signal distributor

Normal

LCD TV

☞

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Y

Established

date

2013.01.31

Error

symptom

A. Video error

. By . By using Diagnostics menu on OSD

( Setting→ Quick Setting → Programmes → Programme Tuning → Manual Tuning → Check the Signal )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

-

→

-

`

☞ A4

Normal

Picture?

N

Y

S/W Version

Check

SVC

Bulletin?

Y

N

Check

uner soldering

N

Y

N

Picture?

Y

Close

or broadcaster (Cable or Air)

S/W Upgrade

Normal

Picture?

Y

Close

N

Replace

Main B/D

3

Standard Repair Process

Color error

Revised date

4/16

r

Replace Main B/D

COMPONENT

Replace module

/Cabl

C

t

external

Repl

B/D

Check Test

External device

LCD TV

☞A6

Check color by input

-External Input

-

-AV

-HDMI

☞A8

pattern

Error

symptom

Colo

error?

N

Check error color input mode

A. Video error

☞ A7

※ Check

and replace

Y

Link Cable (V by one) and contact condition

External Input/

omponen

error

Colo

error?

N

Check

device and cable

Established

date

2013.01.31

Y

External device

e

normal

N

Colo

error?

End

Y

N

ace Main/T-con

HDMI error

Check external device and cable

4

Request repair

for external

device/cable

N

/Cable

normal

Y

Replace Main/T-con B/D

Standard Repair Process

Revised date

5/16

Module

Cable

(adjust VCOM)

HDMI

A8

r

Replace

Ext

Main /T

-

con

normal?

A. Video error

LCD TV

Error

symptom

Vertical / Horizontal bar, residual image, light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A6

Check color condition by input

-External Input

-Component

-

☞

Check Test pattern

Screen

normal?

N

Replace module

Check external

Y

device connection condition

Normal?

N

Request repair for external device

External device screen error-Color error

☞ A7

Check and

Y

replace Link

Established

date

Screen

normal?

Y

End

2013.01.31

N

Replace Main/T-con B/D

For LGD panel

Replace Main B/D

For other panel

Replace

N

Screen

normal?

Y

End

Check S/W Version

Check

version

S/W Upgrade

Normal

screen?

End

Check screen condition by input

N

Y

N

Y

-External Input

-Component

-HDMI/DVI

External

Input

erro

Component

error

HDMI/

DVI

Connect other external device and cable

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

Connect other external device and cable

(Check normal operation of

ernal Input, Component, RGB and HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

Screen

normal?

Request repair for external device

Screen

N

Y

N

Main/T-con B/D

Replace

B/D

5

Standard Repair Process

No power

Revised date

6/16

DC Power on

N

Repl

Check Power cord

Replace Main B/D

g

LCD TV

☞A17

Check Logo LED

. Stand-By: Red or Turn On . Operating: Turn Off

Power LED

was inserted properly

Error

symptom

On?

N

Normal?

Y

Close

Y

N

※

B. Power error

Check ST-BY 3.5V

☞A18

by pressing Power Key On Remote control

Y

Normal

Y

voltage?

N

Established

date

2013.01.31

☞A18

Normal

operation?

Y

Check Power On ‘”High”

☞A18

Measure voltage of each output of Power B/D

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

OK?

Y

ace Power B/D

Replace Power B/D

6

Standard Repair Process

Off when on, off while viewing, power auto on/off

Revised date

7/16

Check for all 3

-

phase

(If Power Off mode

Check

"POWEROFF_REMOTEKEY"

P

REMOTE CONTROL

N

l

"POWEROFF_ONTIMER"

P

TIMER

"POWEROFF_UNKNOWN"

P

LCD TV

Check outlet

Check A/C cord

power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet and check each 3 phase out

B. Power error

Established

date

2013.01.31

☞A19

N

Check Power Off Mode

CPU

Abnormal

1

Replace Main B/D

Normal?

Replace Power B/D

Y

End

N

☞A18

is not displayed) Check Power B/D voltage

※ Caution

and fix exterior

of Power B/D Part

Normal

voltage?

Replace Power B/D

Y

Replace Main B/D

N

* Please refer to the all cases which

can be displayed on power off mode.

Status Power off List Explanation

ower off by "POWEROFF_OFFTIMER" Power off by OFF TIMER "POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF

orma

Abnormal

"POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

ower off by ON

ower off by unknown status except listed case

7

Standard Repair Process

No audio/ Normal video

Revised date

8/16

Speaker off

Board

LCD TV

No audio Screen normal

Error

symptom

☞A20 ☞A21+A18

Check user menu >

C. Audio error

N

Off

Y

Cancel OFF

Check audio B+ 24V of Power

Replace Power Board and repair parts

Established

date

Normal voltage

N

2013.01.31

Y

Check Speaker disconnection

Y

Replace Speaker

8

N

Replace MAIN Board

EndDisconnection

Standard Repair Process

Wrecked audio/ discontinuation/noise

Revised date

9/16

☞

A21+A18

-

RF

received)

Connect and check

Normal

Check and fix external device

LCD TV

Check input signal

-External Input signal

Established

date

2013.01.31

Error

symptom

C. Audio error

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

Y

Signal

normal?

N

Y

(When RF signal is not

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Check and replace speaker and connector

Replace Main B/D

Check audio B+ Voltage (24V)

Normal

voltage?

N

Replace Power B/D

Request repair to external cable/ANT provider

(In case of External Input signal error) Check and fix external device

Wrecked audio/

Discontinuation/

Noise only

for External Input

9

other external device

Replace Main B/D

N

audio?

Y

End

Standard Repair Process

Remote control & Local switch checking

Revised date

10/16

A22

☞

A18

D. Function error

LCD TV

Error

symptom

1. Remote control(R/C) operating error

☞A22

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

Check & Replace

Y

N

Baterry of R/C

Normal

operating?

Check & Repair Cable connection Connector solder

Y

Close

N

Normal

operating?

Y

Close

☞A22

N

Check B+

On Main B/D

Established

date

3.5V

Check 3.5v on Power B/D

Replace Power B/D or

(Power B/D don’t have problem)

Normal

Voltage?

Replace Main B/D

Y

N

2013.01.31

☞

Check IR

Output signal

Replace

Main B/D

Normal

Signal?

N

Repair/Replace

IR B/D

Y

Replace R/C

10

LG 49UB8500-SA Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
