OWNER’S MANUAL

LG Digital Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it

for future reference.

32SE3B 43SE3B 49SE3B 55SE3B 65SE3B

32SE3KB 43SE3KB 49SE3KB 55SE3KB 65SE3KB

43SL5B 49SL5B 55SL5B

www.lg.com

TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

3 SAFETY PRECAUTIONS

3 Precautions in installing the product 4 Precautions to the AC adapter and

electrical power 5 Precautions in moving the product 5 Precautions in using the product 5 Mounting on a wall

6 LICENSES

7 ASSEMBLY AND PREPARATION

7 Accessories 8 Optional Accessories 10 Parts and Buttons 12 Connecting the Stand 13 Connecting the Speakers 14 Using the IR Receiver 15 Portrait Layout 16 Attaching and removing the LG Logo

Bracket 17 Installing on a Wall

19 REMOTE CONTROL

21 Displaying the Device Name

Connected to an Input Port 21 White Balance Adjust Menu 22 Using Picture ID

23 MAKING CONNECTIONS

23 Connecting to a PC 25 External Device Connection

28 USING THE MONITOR

28 Using the Input List 28 Adjusting Aspect Ratio

30 ENTERTAINMENT

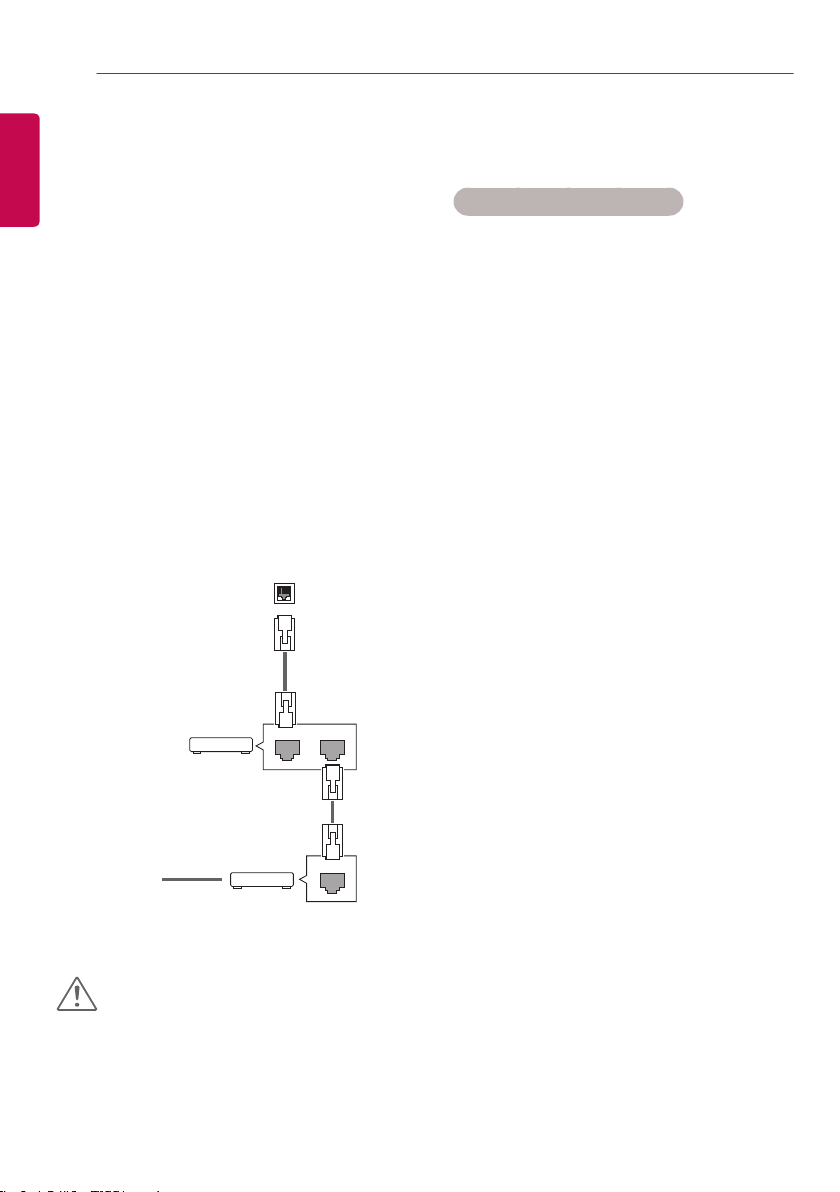

30 Using the Network 30 - Connecting to a Network

32 - Network Status 32 Using the My Media

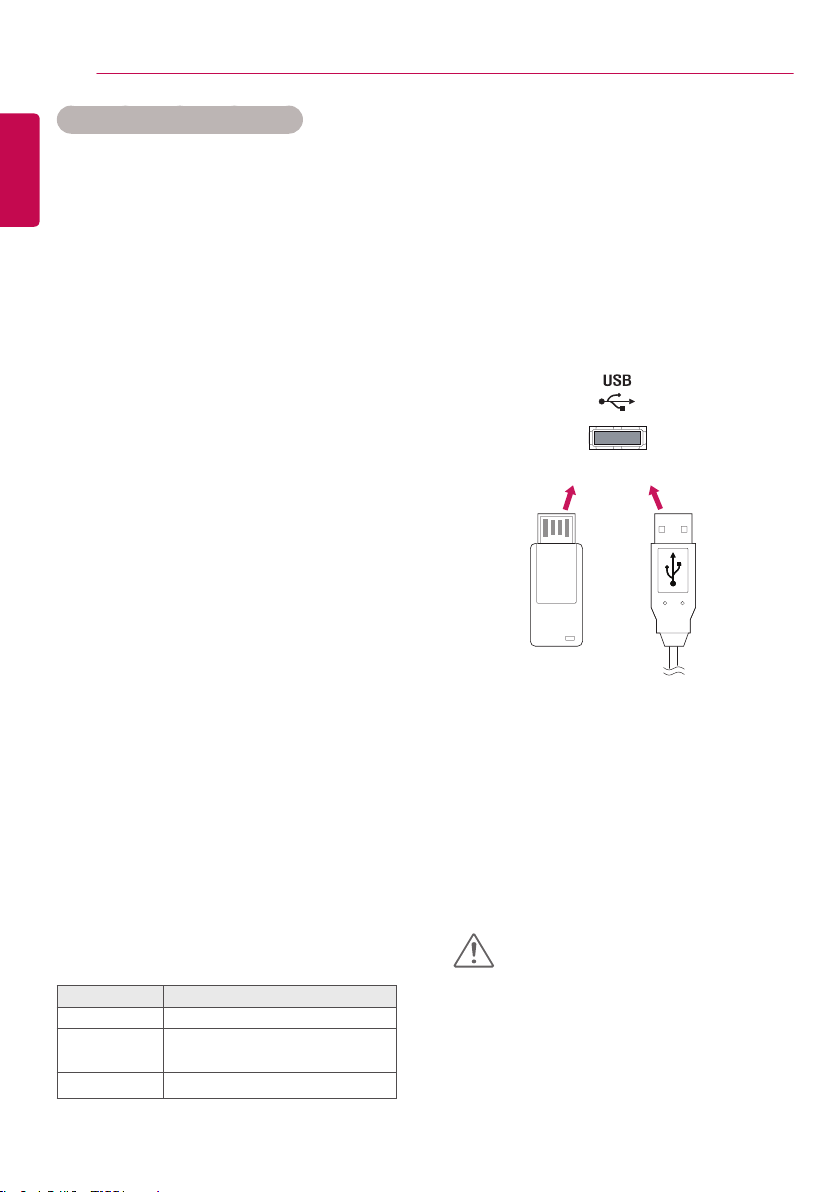

32 - Connecting USB storage devices 34 - Browsing Files 36 - Viewing Movies 39 - Viewing Photos 41 - Listening to Music 43 - Viewing the Contents List

44 CUSTOMIZING SETTINGS

44 Accessing Main Menus 45 - PICTURE Settings

48 - AUDIO Settings 49 - TIME Settings 50 - OPTION Settings 53 - NETWORK Settings

54 TROUBLESHOOTING

56 PRODUCT SPECIFICATIONS

68 IR CODES

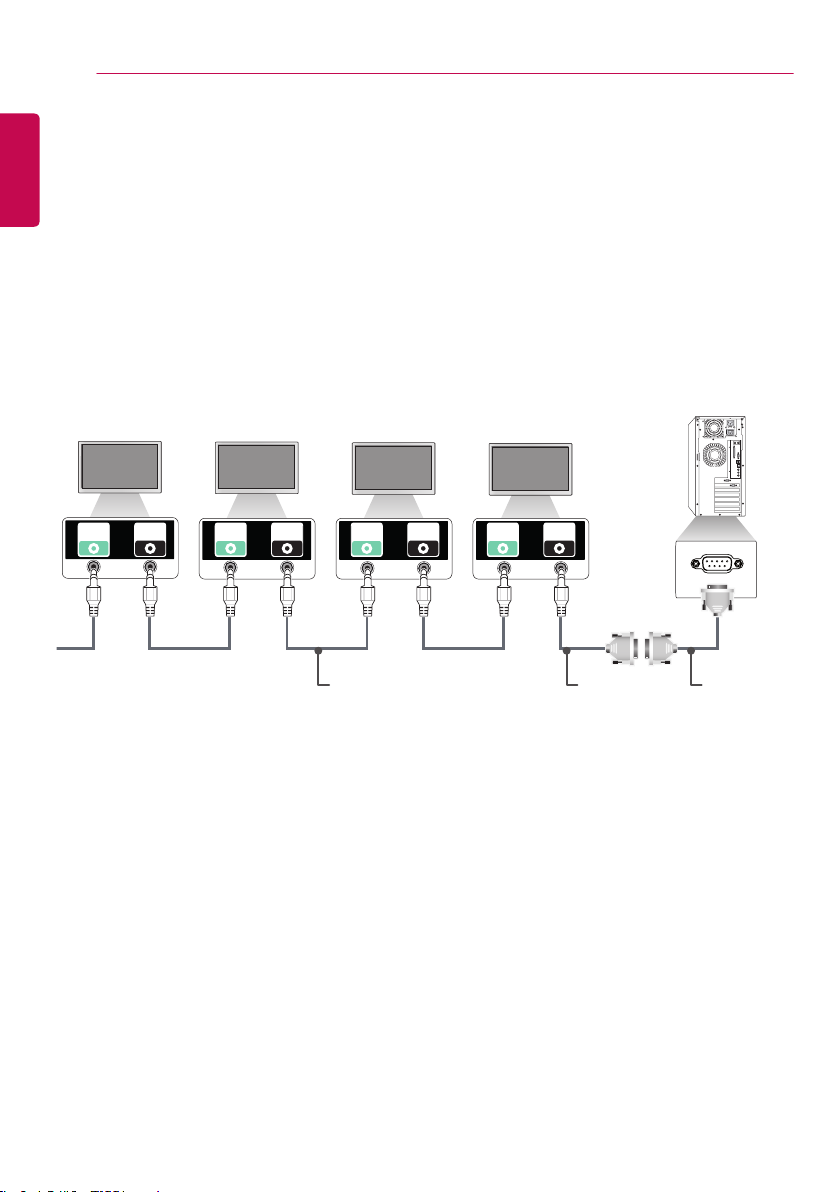

70 TO CONTROL MULTIPLE

PRODUCTS

70 Connecting the Cable 71 RS-232C Configurations 71 - 4P Cable

71 - RS-232C Cable 71 Communication Parameter

72 Command Reference List 74 Transmission / Receiving Protocol

SAFETY PRECAUTIONS

Safety precautions

Please read these safety precautions carefully before using the product.

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

WARNING

• Indoor Use Only.

Precautions in installing the product

WARNING

• Keep away from heat sources like electrical heaters.

►► Electrical shock, fire, malfunction or deformation may occur.

• Keep the packing anti-moisture material or vinyl packing out of

the reach of children.

►► Anti-moisture material is harmful if swallowed. If swallowed by

mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the

reach of children.

• Do not put heavy objects on the product or sit upon it.

►► If the product collapses or is dropped, you may be injured. Children

must pay particular attention.

• Do not leave the power or signal cable unattended on the

pathway.

►► The passerby can falter, which can cause electrical shock, fire, product

breakdown or injury.

• Install the product in a neat and dry place.

►► Dust or moisture can cause electrical shock, fire or product damage.

• If you can smell smoke or other odors or hear a strange sound

unplug the power cord and contact the service center.

►► If you continue to use without taking proper measures, electrical

shock or fire can occur.

• If you drop the product or the case is broken, turn off the product

and unplug the power cord.

►► If you continue to use without taking proper measures, electrical

shock or fire can occur. Contact the service center.

• Do not drop an object on or apply impact to the product. Do not

throw any toys or objects on the product screen.

►► It can cause injury to human, problem to product and damage the

display.

• Do not let the product fall or drop when connecting it with an

external device.

►► This may cause injury and/or damage to the product.

• When connecting it with a game device, keep a distance of four

times as long as the diagonal measurement of the screen from the device.

►► If the product falls because of the short cable, this may cause injury

and/or damage to the product.

• Leaving a fixed image on the screen for a long time may cause

damage to the screen and cause image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize the residual image prevention function on the product, and when the product is not used, turn off the power. Burn-in and related problems are not covered by the warranty on this product.

• Do NOT install this product on a wall where there is high risk of

exposure to oil fumes or mist.

►► This may damage product and cause is to fail.

CAUTION

• Make sure the product ventilation hole is not blocked. Install the

product in a suitably wide place (more than 10 cm from the wall)

►► If you install the product too close to the wall, it may be deformed or

fire can break out due to internal heat.

• Do not block the ventilation hole of the product by a tablecloth

or curtain.

►► The product can be deformed or fire can break out due to overheating

inside the product.

• Install the product on a flat and stable place that has no risk of

dropping the product.

►► If the product is dropped, you may be injured or the product may

be broken.

• Install the product where no EMI occurs.

• Keep the product away from direct sunlight.

►► The product can be damaged.

• If you install the product in a place that does not meet the

recommended conditions, this may cause serious damage to the product’s picture quality, life cycle and appearance. Please check with LG or a qualified installer before installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a long period of time (airport and train station), failure to do so will invalidate the warranty.

• Do not install the product in an area with poor ventilation (e.g.on

a bookshelf, in a closet) or outside and avoid placing on cushions or carpets.

• In addition, do not install it where there are heating objects such

as lighting equipment.i

ENGLISH

SAFETY PRECAUTIONS

Precautions to the AC adapter and

ENGLISH

electrical power

WARNING

• If water or any foreign substance goes inside the product (TV,

monitor, power cord, or AC adapter), disconnect the power cord immediately and contact the service center.

►► Otherwise, this may cause a fire or electric shock due to damage to

the product.

• Do not touch the power plug or AC adapter with wet hands. If the

pins of the plug are wet or dusty, wipe and dry them before use.

►► Otherwise, this may cause a fire or electric shock.

• Make sure to completely insert the power cord into the AC adapter.

►► If loosely connected, the poor connection may cause a fire or electric

shock.

• Be sure to use power cords and AC adapters provided or approved

by LG Electronics, Inc.

►► The use of non-approved products may cause a fire or electric shock.

• When unplugging the power cord, always pull it by the plug. Do

not bend the power cord with excessive force.

►► The power line can be damaged, which may cause electric shock

or fire.

• Be careful not to step or place heavy objects (electronic appliances,

clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects.

►► Damaged power cords may cause a fire or electric shock.

• Never disassemble, repair or modify the power cord or AC adapter.

►► This may cause a fire or electric shock.

• Make sure to connect the power cable to the grounded current.

►► You may be electrocuted or injured.

• Use the rated voltage only.

►► The product can be damaged, or you may be electrocuted.

• In the presence of thunder and lightning, never touch the power

cord and signal cable because it can be very dangerous.

►► It can cause electric shock.

• Do not connect several extension cords, electrical appliances

or electrical heaters to a single outlet. Use a power bar with a grounding terminal designed for exclusive use with the computer.

►► A fire can break out due to overheating.

• Do not touch the power plug with wet hands. Additionally, if

the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

►► You may be electrocuted due to excess moisture.

• If you don't intend to use the product for a long time, unplug the

power cable from the product.

►► Covering dust can cause a fire, or insulation deterioration can cause

electric leakage, electric shock or fire.

• Fix the power cable completely.

►► If the power cable is not fixed completely, a fire can break out.

• Do not insert a conduc tor (like a metal chopstick) into one end

of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.

►► You may be electrocuted.

• The appliance coupler is used as the disconnect device.

• Please make sure the device is installed near the wall outlet to

which it is connected and that the outlet is easily accessible.

• As long as this unit is connected to the AC wall outlet, it is not

disconnected from the AC power source even if the unit is turned off.

CAUTION

• Be sure to keep the outlet, AC adapter, and pins of the power plug

clean from dust and etc.

►► This may cause a fire.

• Do not unplug the power cord while the product is in use.

►► Electrical shock can damage the product.

• Use only the power cord supplied with the unit. If you use another

power cord, make sure that it is certified by the applicable national standards when not provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

SAFETY PRECAUTIONS

Precautions in moving the product

WARNING

• Make sure to turn off the product.

►► You may be electrocuted or the product can be damaged.

• Make sure to remove all cables before moving the product.

►► You may be electrocuted or the product can be damaged.

• Make sure the panel faces forward and hold it with both hands to

move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.

• Make sure the product is turned off, unplugged and all cables

have been removed. It may take 2 or more people to carry larger apparatus. Do not press against or put stress on the front panel of the apparatus.

CAUTION

• Do not shock the product when moving it.

►► You may be electrocuted or the product can be damaged.

• Do not dispose the product-packing box. Use it when you move.

Precautions in using the product

WARNING

• Do not disassemble, repair or modify the product at your own

discretion.

►► Fire or electric shock accident can occur. ►► Contact the service center for check, calibration or repair.

• When the display is to be left unattended for an extended period

of time, unplug it from the wall outlet.

• Keep the product away from water.

►► Fire or electric shock accident can occur.

• Do not shock or scratch the front and sides of the screen with

metallic objects.

►► Otherwise, it may cause damage to the screen.

• Avoid high temperatures and humidity.

CAUTION

• Do not put or store inflammable substances near the product.

►► There is a danger of explosion or fire due to careless handling of the

inflammable substances.

• When cleaning the product, unplug the power cord and scrub

gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)

• Take a rest from time to time to protect your vision.

• Keep the product clean at all times.

• Take a comfortable and natural position when working with a

product to relax the muscles.

• Take a regular break when working with a product for a long time.

• Do not press strongly upon the panel with a hand or sharp object

such as nail, pencil or pen, or make a scratch on it.

• Keep the proper distance from the product.

►► Your vision may be impaired if you look at the product too closely.

• Set the appropriate resolution and clock by referring to the User’s

Guide.

►► Your vision can be impaired.

• Use authorized detergent only when cleaning the product. (Do not

use benzene, thinner or alcohol.)

►► Product can be deformed.

• Do not expose to dripping or splashing and do not place objects

filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

• Batteries should not be exposed to excessive heat. For example,

keep away from direct sunlight, open fireplace and electric heaters.

• Do NOT place non-rechargeable batteries in charging device.

• Using headsets (earphones) for a long time or listening loudly can

cause damage to your hearing.

• Spray water onto a soft cloth 2 to 4 times, and use it to clean the

front frame; wipe in one direction only. Too much moisture may cause staining.

• Do not use products using high voltage around the Monitor.

(e.g., a bug zapper)

►► Monitor may have malfunction as its electrical shock.

Mounting on a wall

• Do NOT install this product by yourself as you may injure yourself

or cause damage to product. Please contact Service personnel authorised by Manufacturer.

ENGLISH

LICENSES

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by one or more of the following U.S. patents:

7,295,673; 7,460,668; 7,515,710; 7,519,274.

www.lg.com.

vod.divx.com

. Find your

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

ASSEMBLY AND PREPARATION

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

Remote Control,

Batteries (AAA) 2 EA

Power Cord

D-sub 15-pin Signal

Cable

ENGLISH

Card and the Letter of

Warranty

RS-232C Gender IR Receiver

CAUTION

• Always use genuine components to ensure safety and product performance.

• The product warranty will not cover damage or injury caused by the use of counterfeit components.

NOTE

• The accessories provided with your product may vary depending on the model or region.

• Product specifications or contents in this manual may be changed without prior notice due to upgrade of

product functions.

• SuperSign Software & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (

http://partner.lge.com

) and download the latest software for your model.

ASSEMBLY AND PREPARATION

Optional Accessories

ENGLISH

Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.

Stand

ST-322T 32SE3*

ST-432T 43SE3*/43SL5B

ST-492T

ST-652T 65SE3*

49SE3*/55SE3* 49SL5B/55SL5B

Speakers

SP-5000

32SE3* -

43SE3* 43SL5B

49SE3* 49SL5B

55SE3* 55SL5B

65SE3*

Stand kit

Cable holder/

Cable Tie

Stand

Spacers

2 EA

Diameter 4.0 mm x Pitch

0.7 mm x Length 8 mm (including spring washer)

Screws

Diameter 4.0 mm x Pitch 0.7 mm

Length

Model

32SE3* 10 mm 6 EA

43SE3* 43SL5B

49SE3* 49SL5B

55SE3* 55SL5B

65SE3* 16 mm 8 EA

Screws

(including

spring washer)

14 mm 8 EA

Screws

Diameter 4.0 mm x Pitch

1.6 mm x Length 10 mm

Quantity

Speaker kit

(Only for **SE3B/**SL5B model)

NOTE

• Cable holder/cable tie may not be available in some areas or for some models.

• Optional accessories are available for some models. If necessary, please purchase them separately.

ASSEMBLY AND PREPARATION

ENGLISH

Media Player

MP500/ MP700

( It may not be supported depending on the model.)

Screws

Media Player kit

AN-WF500

Wi-Fi Dongle kit

CD (Owner's Manual)/

Cards

NOTE

• Optional accessories are available for some models. If necessary, please purchase them separately.

ASSEMBLY AND PREPARATION

Parts and Buttons

ENGLISH

- The image may be different according to the model

32/43/49/55SE3B 32/43/49/55SE3KB

43/49/55SL5B

USB 2

USB 1

5 V 1.0 A

RGB IN

DVI-D IN LAN

SPEAKER

OUT

Buttons

(Only for

**SE3B/**SL5B

model)

Buttons Description

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

Adjust the up and down.

Moves left and right.

AUTO/SET Displays the current signal and mode.

/ I

Turns the power on or off.

RS-232CIN RS-232C

OUT

EXT IR

AUDIO

Connection

Panel

AUDIO

OUT

65SE3B 65SE3KB

ASSEMBLY AND PREPARATION

USB 2

5 V 1.0 A

USB 1

5 V 1.0 A

RGB IN

DVI-D IN LAN

ENGLISH

RS-232CIN RS-232C

SPEAKER

OUT

Buttons

(Only for **SE3B

model)

Buttons Description

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

Adjust the up and down.

Moves left and right.

AUTO/SET Displays the current signal and mode.

/ I

Turns the power on or off.

OUT

EXT IR

AUDIO

OUT

Connection

Panel

ASSEMBLY AND PREPARATION

Connecting the Stand

ENGLISH

- For certain models only.

- The image may be different according to the

model

32SE3*

1 Place a soft cloth on the table and place the

product with the screen facing downward.

2 Use the screws to secure the stand to the back

of the product as shown below.

43/49/55/65SE3* 43/49/55SL5B

1 Place a soft cloth on the table and place the

product with the screen facing downward.

2 Tighten stand spacers on the back of the

product as shown below.

3 Use the screws to secure the stand to the back

of the product as shown below.

ASSEMBLY AND PREPARATION

Connecting the Speakers

- For certain models only. (Only for **SE3B/**SL5B model)

- The image may be different according to the

model.

32SE3B

1 Connect an input signal cable before installing

the speakers.

2 Mount the speakers by using screws as

shown below. Make sure the power cable is

disconnected before making a connection.

43/49/55/65SE3B 43/49/55SL5B

1 Connect an input signal cable before installing

the speakers.

2 Mount the speakers by using screws as

shown below. Make sure the power cable is

disconnected before making a connection.

ENGLISH

3 Then connect the speaker cable. After installing

your speakers, use holders and cable ties to

organize the speaker cables.

3 Then connect the speaker cable. After installing

your speakers, use holders and cable ties to

organize the speaker cables.

ASSEMBLY AND PREPARATION

ENGLISH

NOTE

• Please turn off the power before removing the

cable. Connecting or removing the speaker cable while turned on may result in no sound.

Using the IR Receiver

- The image may be different according to the model.

This allows a remote control sensor to be placed in a custom location. Then that display can control other displays via an RS-232C cable. Install the IR receiver towards the front of the set.

IR Receiver cable

NOTE

• When you see from the back of the set, if the

IR receiver cable does not face front, the signal reception range may shorten.

• The IR receiver is made with a magnet.It is

detachable at the bottom (typical installation) or back (wall installation) of the set.

• Make sure that you unplug the power cord

before connecting or removing the IR Receiver.

ASSEMBLY AND PREPARATION

Portrait Layout

When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen).

Using Kensington Lock

(This is not available for all models.)

The Kensington security system connector is located at the back of the monitor. For more information on installation and use of this system, refer to the manual provided with the Kensington security system or visit

com

Connect the Kensington security system cable between the monitor and a table.

http://www.kensington.

NOTE

• The Kensington security system is optional. You

can obtain additional accessories from most electronics retail stores.

ENGLISH

ASSEMBLY AND PREPARATION

Attaching and removing the LG Logo Bracket

ENGLISH

- For certain models only.

- The image may be different according to the model.

Removing the LG Logo Attaching the LG Logo on the right side

1 Lay a clean cloth on the floor, and then put the

monitor on it with the screen face down. Using a screwdriver, remove the screw that secures the LG Logo Bracket to the bottom rear of the monitor.

LG Logo Bracket

After removing the screw, remove the LG Logo. When re-attaching the LG Logo, repeat the process in reverse order.

1 Lay a clean cloth on the floor, and then put the

monitor on it with the screen face down. Using a screwdriver, remove the screw that secures the LG Logo Bracket to the bottom rear of the monitor.

After removing the screw, remove the LG Logo. Attach the LG Logo Bracket with a screw, aligning it with the hole on the right side.

ASSEMBLY AND PREPARATION

Installing on a Wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.

Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

1 Use only screws and wall mounting brackets

that conform to VESA standards.

2 Screws which are longer than standard length

may damage the inside of the monitor.

3 A non-VESA standard screw may damage

the product and cause the monitor to fall. LG

Electronics is not liable for any accidents related

to the use of non-standard screws.

4 Please use VESA standard as below.

• 785 mm and above

* Fixing screws: Diameter 6.0 mm x Pitch

1.0 mm x Length 12 mm

10 cm

CAUTION

• Disconnect the power cord before moving or

installing the monitor to avoid risk of electric shock.

• If you install the monitor on a ceiling or slanted

wall, it may fall and result in injury. Use an authorized LG wall mount and contact your local dealer or qualified personnel to assist with the installation.

• Do not over tighten the screws as this may

damage the monitor and void your warranty.

• Use only screws and wall mounting brackets

that meet the VESA standard. Any damage or injuries caused by misuse or use of improper accessories are not covered by the warranty.

• To prevent injury, this apparatus must be

securely attached to the wall in accordance with the installation instructions. (This pertains only to Australia and New Zealand.)

NOTE

• The wall mount kit includes the installation

guide and all necessary parts.

• The wall mounting bracket is optional. You can

obtain additional accessories from your local dealer.

• The length of screws required may differ

depending on the wall mount. Be sure to use the correct length.

• For more information, please refer to the guide

provided with the wall mount.

• The warranty will not cover any damages

caused by using the product in an excessively dusty environment.

ENGLISH

785 mm

ASSEMBLY AND PREPARATION

ENGLISH

Securing the monitor to a wall (optional)

Procedure may differ depending on the model.

1 Insert and tighten the eyebolts, or brackets and

bolts on the back of the monitor.

- If there are already bolts inserted in the

eyebolts’ position, remove the other bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and the eyebolts on the rear of the monitor.

3 Connect the eyebolts and wall brackets tightly

with a sturdy cord. Make sure the securing cord is horizontal with the flat surface.

WARNING

• If the monitor is not positioned in a

sufficiently stable location, there is a danger that it will fall. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

►» Using cabinets or stands recommended

by the manufacturer.

►» Only using furniture that can safely

support the monitor.

►» Ensuring the monitor is not overhanging

the edge of the supporting furniture.

►» Not placing the monitor on tall furniture

(for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.

►» Not placing cloth or other materials

between the monitor and supporting furniture.

►» Educating children about the dangers

of climbing on furniture to reach the monitor or its controls.

CAUTION

• Make sure that children do not climb on or

hang from the monitor.

NOTE

• Use a platform or cabinet that is large and

strong enough to support the monitor securely.

• Brackets, bolts, and cords are sold separately.

You can obtain additional accessories from your local retail store.

• The illustration shows a general example of

installation and may look different from the actual product.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly.

To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and terminals to the labels inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual accessories.

CAUTION

• Do not mix old and new batteries, as this may

damage the remote control.

• Be sure to point the remote control toward the

remote control sensor on the monitor.

(POWER) Turns the monitor on or off.

MONITOR ON Turns the monitor on. MONITOR OFF Turns the monitor off. ENERGY SAVING( ) Adjusts the brightness of the picture to reduce

energy consumption.

INPUT Selects the input mode. 3D Used for viewing 3D videos. (This model does not support this.)

1/a/A Toggles between numerical and alphabet ical.

(Depending upon the model, this feature may not be supported.)

Number and Alphabet buttons

Enters numerical or alphabetical characters depending upon the setting. (Depending upon the model, this feature may not be supported.)

CLEAR Deletes the entered numerical or alphabetical character.

(Depending upon the model, this feature may not be supported.)

ENGLISH

Volume Up/Down Button Adjusts the volume. ARC Selects the Aspect Ratio mode. AUTO Automatically adjusts picture position and minimizes image

instability (available for RGB input only). (Depending upon the model, this feature may not be supported.)

MUTE Mutes all sounds. BRIGHTNESS Adjust the brightness by pressing the Up and Down

buttons on the remote control. In USB mode, the OSD menu has the Page function to move to the next file list. (Depending upon the model, this feature may not be supported.)

ENGLISH

REMOTE CONTROL

PSM Selects the Picture Mode. INFO Views the information of the currently program and the screen. W.BAL Enters the White Balance menu.

SETTINGS Accesses the main menus or saves your input and exit menus. S.MENU SuperSign menu key (Depending upon the model, this feature

may not be supported.)

Navigation Buttons Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Allows you to move back one step in the user interaction function. EXIT Quit all OSD tasks and applications.

Allows you to control various multimedia devices to enjoy

multimedia simply by using the remote control through the SimpLink menu. (Depending upon the model, this feature

may not be supported.)

TILE Selects the TILE Mode. PICTURE ID ON/OFF When the Picture ID number matches the Set ID

number, you can control whichever monitor you want in multi-display format.

USB Menu Control Buttons Controls media playback.

REMOTE CONTROL

Displaying the Device Name Connected to an Input Port

Display which devices are connected to which external input ports.

1 Access the Input list screen and press the red

(input label) button on the remote control.

2 You can assign an input label for every input

except USB.

NOTE

• External inputs supported : HDMI, DVI-D

• Labels available : PC, DTV

• The input labels are displayed on the Input Label

screen or at the top left of the screen when you change the external input setting.

• For DTV/PC-compatible signals, such as

1080p 60 Hz, the screen settings may change according to the input label. The Just Scan option is available if a PC is connected as an external device.

White Balance Adjust Menu

Press the W.BAL button on the remote control.

R-Gain : Adjusts the level of red. The higher

►y

the number, the redder the set. Decrease the number if the screen looks too red.

G-Gain : Adjusts the level of green. The

►y

higher the number, the greener the set. Decrease the number if the screen looks too green.

B-Gain : Adjusts the level of blue. The higher

►y

the number, the bluer the set. Decrease the number if the screen looks too blue.

Backlight : Adjusts the brightness. The

►y

higher the number, the brighter the set. This works in the same way as the backlight of the user menu.

Reset : Resets the white balance value to

►y

the factory settings.

ENGLISH

REMOTE CONTROL

AUDIO

(RGB/DVI)

REMOTE

CONTROL IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

ENGLISH

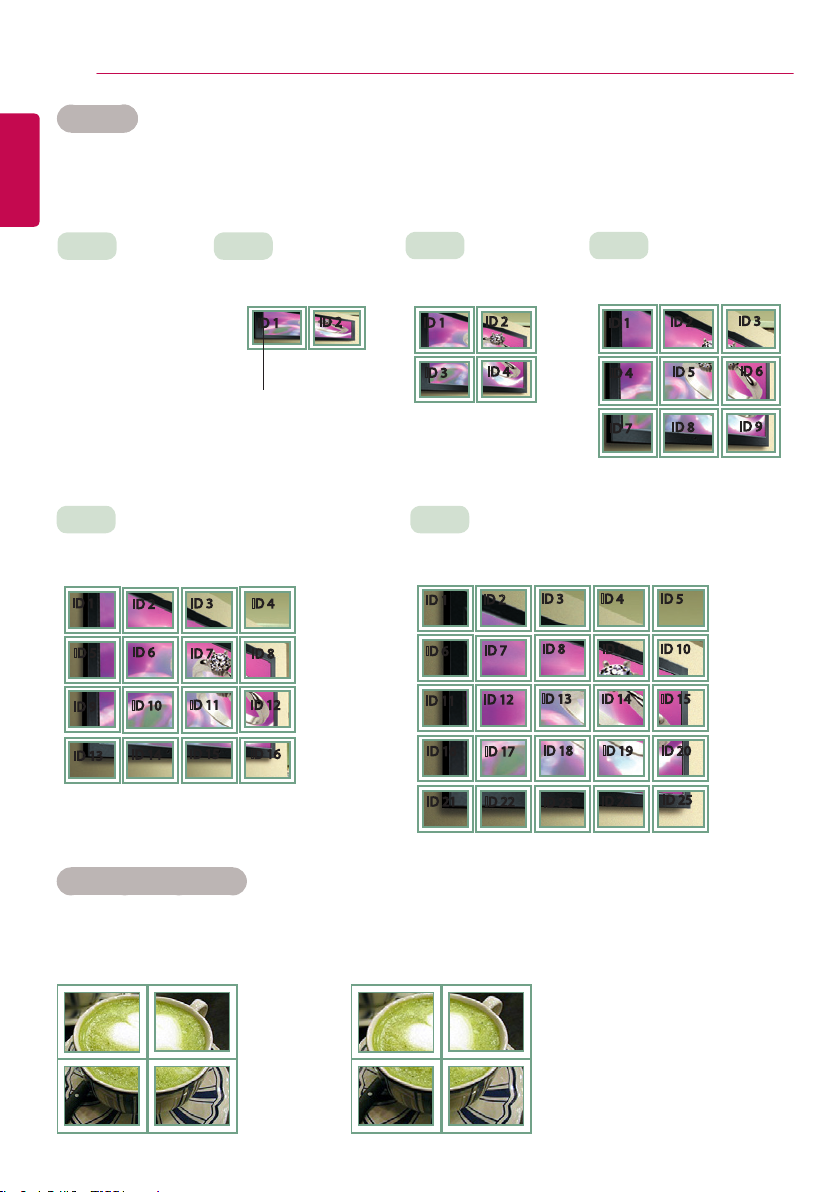

Using Picture ID

Picture ID is used to change the settings of a specific display using a single IR receiver for multi-vision. The set receiving the IR signal communicates with another set via an RS-232C connection. Each set is identified by a Set ID. If you assign the Picture ID using the remote control, only displays with the same Picture ID and Set ID can be controlled remotely.

IR Receiver

RS-232C

Picture ID

2X2 Multi-Vision

Set IDs are assigned as shown in the picture.

Off

NOTE

• For example, if the Picture ID is assigned to

2, the upper right display (Set ID: 2) can be controlled by IR signals.

• For each set, you can change the settings for

the PICTURE, AUDIO, TIME, NETWORK and MY MEDIA menus or the hot keys on the remote control.

• If you press the green OFF button for Picture IDs,

the Picture IDs for all sets are turned off. If you then press any button on the remote control, all sets will start working again.

• Picture ID will be disabled while using the MY

MEDIA menu.

1 Press the red ON button on the remote control

to assign the Picture ID.

2 To change the Picture ID, press the ON

button, or the left and right arrow buttons continuously. Assign the ID you want.

• If you assign the Set ID to each set with multi-

vision, and then assign the Picture ID using the red button on the remote control, the key command is displayed for the set with the same Set ID and Picture ID. A set with different Set IDs and Picture IDs cannot be controlled by IR signals.

MAKING CONNECTIONS

LAN

USB 1 USB 2

DVI-D IN LAN

USB 1 USB 2

RGB IN

MAKING CONNECTIONS

You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect.

For more information about external device connections, see the user manual provided with each device.

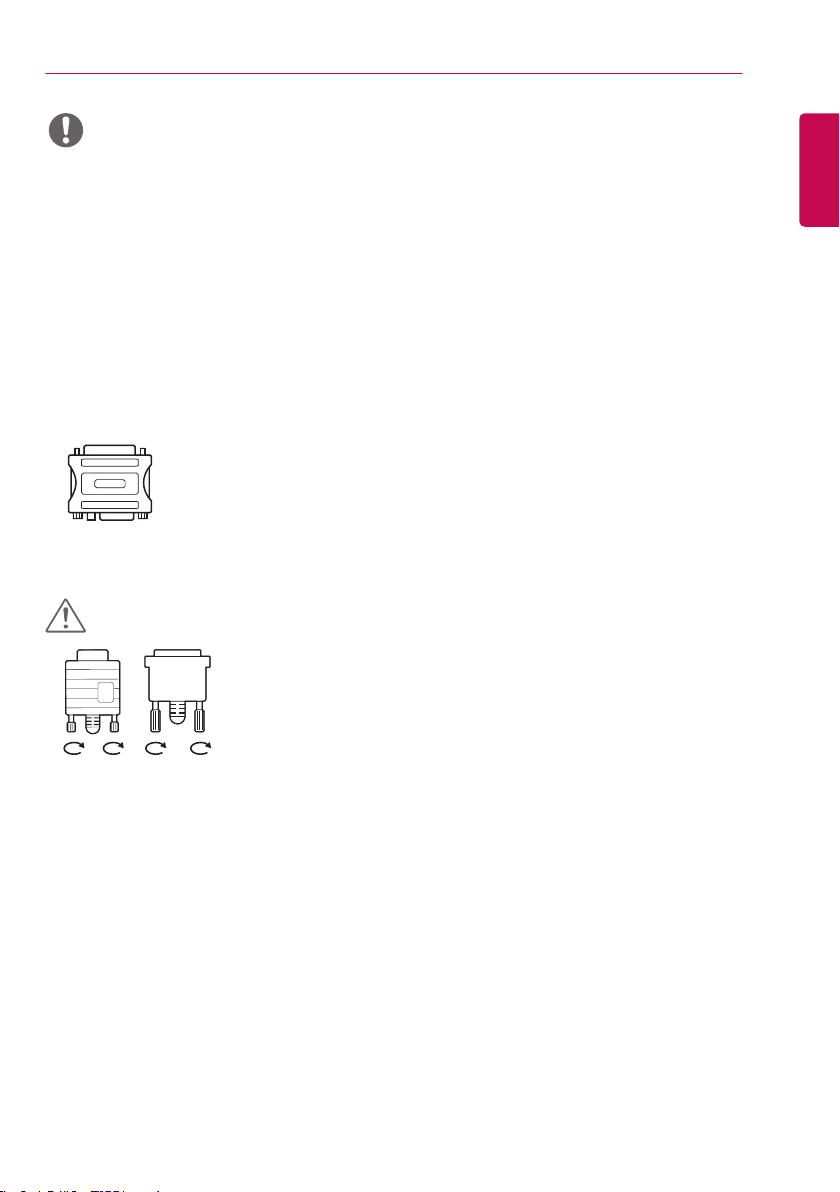

Connecting to a PC

The illustrations may differ from the actual accessories. Some of the cables are not provided.

This monitor supports the Plug & Play* feature.

* Plug & Play: a feature that enables a PC to recognize devices attached by the user without device configuration or user intervention when powering up.

32/43/49/55SE3*

Mac

AUDIO OUTRGB OUT

43/49/55SL5B

RGB IN

DVI-D IN

ENGLISH

SPEAKER

OUT

RS-232CIN RS-232C

(Only for **SE3B/ **SL5B model)

HDMI OUT

(not included)

OUT

(not included)

EXT IR

(not included)

AUDIO

OUT

(not included)

DVI OUTAUDIO OUT

HDMI OUT

DVI-D IN LAN

USB 1 USB 2

SPEAKER

OUT

RS-232CIN RS-232C

OUT

EXT IR

AUDIO

OUT

AUDIO

DVI OUT

AUDIO OUT

AUDIO OUTRGB OUT

RGB IN

DVI-D IN LAN

USB 1 USB 2

RGB IN

ENGLISH

MAKING CONNECTIONS

65SE3*

(Only for **SE3B model)

(not included)

Mac

(not included)

MAKING CONNECTIONS

External Device Connection

Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.

The illustrations may differ from the actual accessories. Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended.

32/43/49/55SE3*

HD Receiver/DVD/VCR

Camcorder/Camera/Gaming Device

43/49/55SL5B

HDMI OUT

USB 2

5 V 1.0 A

USB 1

5 V 1.0 A

RGB IN

(not included)

Direct Connection/

Using the Router/

Using the Internet

USB

ENGLISH

SPEAKER

OUT

RS-232CIN RS-232C

OUT

(Only for **SE3B/ **SL5B model)

(not included)

EXT IR

DVI-D IN LAN

AUDIO

OUT

(not included)

Network

AV Receiver

ENGLISH

MAKING CONNECTIONS

65SE3*

USB 2

5 V 1.0 A

(not included)

HDMI OUT

HD Receiver/DVD/VCR

Camcorder/Camera/Gaming Device

USB 1

5 V 1.0 A

RGB IN

DVI-D IN LAN

USB

(not included)

Network

Direct Connection/

Using the Router/

Using the Internet

OUT

RS-232CIN RS-232C

SPEAKER

(Only for **SE3B model)

OUT

AV Receiver

EXT IR

AUDIO

OUT

(not included)
