LG 49LU341H Quick Start Guide

AAA

LED TV

LU34*

X 2

X 2

a

c

X 6

(M4 X L20)
32LU34*

X 2

X 8

(M4 X L20)
43/49LU34*

b

: Depending on model / / В зависимост от модела / Závisí na modelu / Selon le modèle / Abhängig vom Modell / Ανάλογα με το μοντέλο

/ Típusfüggő / In base al modello / Zależnie od modelu / Dependendo do modelo / În funcţie de model / В зависимости от модели / U zavisnosti od
modela / Ovisno o modelu / Odvisno od modela / En función del modelo / Modele bağlı olarak değişkenlik gösterebilir / Залежно від моделі

www.lg.com

1

2

c

3-A

32LU34*

a

+

b

3-B

43/49LU34*

a

+

b

a

b

32LU34*

4-A 5 6

4-B

43/49LU34*

HDMI IN

USB IN

H/P OUT

ANTENNA/

CABLE IN

Satellite IN

H/P OUT

Satellite IN

OPTICAL DIGITAL

AUDIO OUT

PCMCIA CARD SLOT

VIDEO/YPBPRL/MONO AUDIO R

COMPONENT IN AV IN

VIDEO L/MONO AUDIO R

VIDEO AUDIO

VIDEO/YP

B

PRL/MONO AUDIO R

VIDEO L/MONO AUDIO R

VIDEO AUDIO

AUDIO OUT

DVI OUT

HDMI IN

VIDEO

/Y

B

L/MONO AUDIO R

HDMI-DVI IN

AUDIO OUT

RGB OUT

RGB IN

V

IDEO/Y

L/MON AUDIO R

RGB IN

1

2

43

1

2

0

A

E

D

B

G

F

A

32LU341H-ZA 739 495 241 441 84 6.05 4.85

43LU341H-ZA 977 630 303 575 80.8 11.2 8.0

49LU341H-ZA 1110 705 303 650 81.1 14.5 11.3

B C D E F

C

F

G

OWNER’S MANUAL

Safety and Reference

LED TV*
* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain
it for future reference.

*SAC35974154*

(1804-REV00)

www.lg.com

Copyright © 2018 LG Electronics Inc. All Rights Reserved.

ENGLISH

Warning! Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.

This symbol is intended to alert the user to the presence of

important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS

WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

• Do not place the TV and/or remote control in the following

environments:

- Keep the product away from direct sunlight.

- An area with high humidity such as a bathroom.

- Near any heat source such as stoves and other devices that produce

heat.

- Near kitchen counters or humidifiers where they can easily be

exposed to steam or oil.

- An area exposed to rain or wind.

- Do not expose to dripping or splashing and do not place objects

filled with liquids, such as vases, cups, etc. on or over the apparatus
(e.g., on shelves above the unit).

- Near flammable objects such as gasoline or candles, or expose the

TV to direct air conditioning.

- Do not install in excessively dusty places.

Otherwise, this may result in fire, electric shock, combustion/
explosion, malfunction or product deformation.

• Ventilation

- Install your TV where there is proper ventilation. Do not install in a

confined space such as a bookcase.

- Do not install the product on a carpet or cushion.

- Do not block or cover the product with cloth or other materials

while unit is plugged in.

• Take care not to touch the ventilation openings. When watching the

TV for a long period, the ventilation openings may become hot.

• Protect the power cord from physical or mechanical abuse, such as

being twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the device.

• Do not move the TV whilst the Power cord is plugged in.

• Do not use a damaged or loosely fitting power cord.

• Be sure do grasp the plug when unplugging the power cord. Do not

pull on the power cord to unplug the TV.

• Do not connect too many devices to the same AC power outlet as this

could result in fire or electric shock.

• Disconnecting the Device from the Main Power

- The power plug is the disconnecting device. In case of an

emergency, the power plug must remain readily accessible.

• Do not let your children climb or cling onto the TV. Otherwise, the TV

may fall over, which may cause serious injury.

• Outdoor Antenna Grounding (Can differ by country):

- If an outdoor antenna is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits as
death or serious injury can occur.

Be sure the antenna system is grounded to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in the U.S.A.
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes and
requirements for the grounding electrode.

Antenna grounding according to the National Electrical Code, ANSI/
NFPA 70

2

ENGLISH

• Grounding (Except for devices which are not grounded.)

- TV with a three-prong grounded AC plug must be connected to a

three-prong grounded AC outlet. Ensure that you connect the earth
ground wire to prevent possible electric shock.

• Never touch this apparatus or antenna during a lightning storm. You

may be electrocuted.

• Make sure the power cord is connected securely to the TV and wall

socket if not secured damage to the Plug and socket may occur and in
extreme cases a fire may break out.

• Do not insert metallic or inflammable objects into the product. If a

foreign object is dropped into the product, unplug the power cord
and contact the customer service.

• Do not touch the end of the power cord while it is plugged in. You

may be electrocuted.

• If any of the following occur, unplug the product immediately

and contact your local customer service.

- The product has been damaged.

- If water or another substance enters the product (like an AC

adapter, power cord, or TV).

- If you smell smoke or other odors coming from the TV.

- When lightning storms or when unused for long periods of time.

Even the TV is turned off by remote control or button, AC power
source is connected to the unit if not unplugged in.

• Do not use high voltage electrical equipment near the TV (e.g., a bug

zapper). This may result in product malfunction.

• Do not attempt to modify this product in any way without written

authorization from LG Electronics. Accidental fire or electric shock
can occur. Contact your local customer service for service or repair.
Unauthorized modification could void the user’s authority to operate
this product.

• Use only an authorized attachments / accessories approved by

LG Electronics. Otherwise, this may result in fire, electric shock,
malfunction, or product damage.

• Never disassemble the AC adapter or power cord. This may result in

fire or electric shock.

• Handle the adapter carefully to avoid dropping or striking it. An

impact could damage the adapter.

• To reduce the risk of fire or electrical shock, do not touch the TV with

wet hands. If the power cord prongs are wet or covered with dust, dry
the power plug completely or wipe dust off.

• Batteries

- Store the accessories (battery, etc.) in a safe location out of the

reach of children.

- Do not short circuit, disassemble, or allow the batteries to

overheat. Do not dispose of batteries in a fire. Batteries should not
be exposed to excessive heat.

• Moving

- When moving, make sure the product is turned off, unplugged, and

all cables have been removed. It may take 2 or more people to carry
larger TVs. Do not press or put stress on the front panel of the TV.
Otherwise, this may result in product damage, fire hazard or injury.

• Keep the packing anti-moisture material or vinyl packing out of the

reach of children.

• Do not allow an impact shock, any objects to fall into the product,

and do not drop anything onto the screen.

• Do not press strongly upon the panel with a hand or a sharp

object such as a nail, pencil, or pen, or make a scratch on it. It may
causedamage to screen.

• Cleaning

- When cleaning, unplug the power cord and wipe gently with a

soft/dry cloth. Do not spray water or other liquids directly on the
TV. Do not clean your TV with chemicals including glass cleaner, any
type of air freshener, insecticide, lubricants, wax (car, industrial),
abrasive, thinner, benzene, alcohol etc., which can damage the
product and/or its panel. Otherwise, this may result in electric
shock or product damage.

3

ENGLISH

Preparing

A

A

<

A

B

Separate Purchase

• If the TV is turned on for the first time after it was shipped from the

factory, initialization of the TV may take a few minutes.

• Image shown may differ from your TV.

• Your TV’s OSD (On Screen Display) may differ slightly from that shown

in this manual.

• The available menus and options may differ from the input source or

product model that you are using.

• New features may be added to this TV in the future.

• The device must be easily accessed to a location outlet near the

access. Some devices are not made by turning on / off button, turning
off the device and unplugging the power cord.

• The items supplied with your product may vary depending on the

model.

• Product specifications or contents of this manual may be changed

without prior notice due to upgrade of product functions.

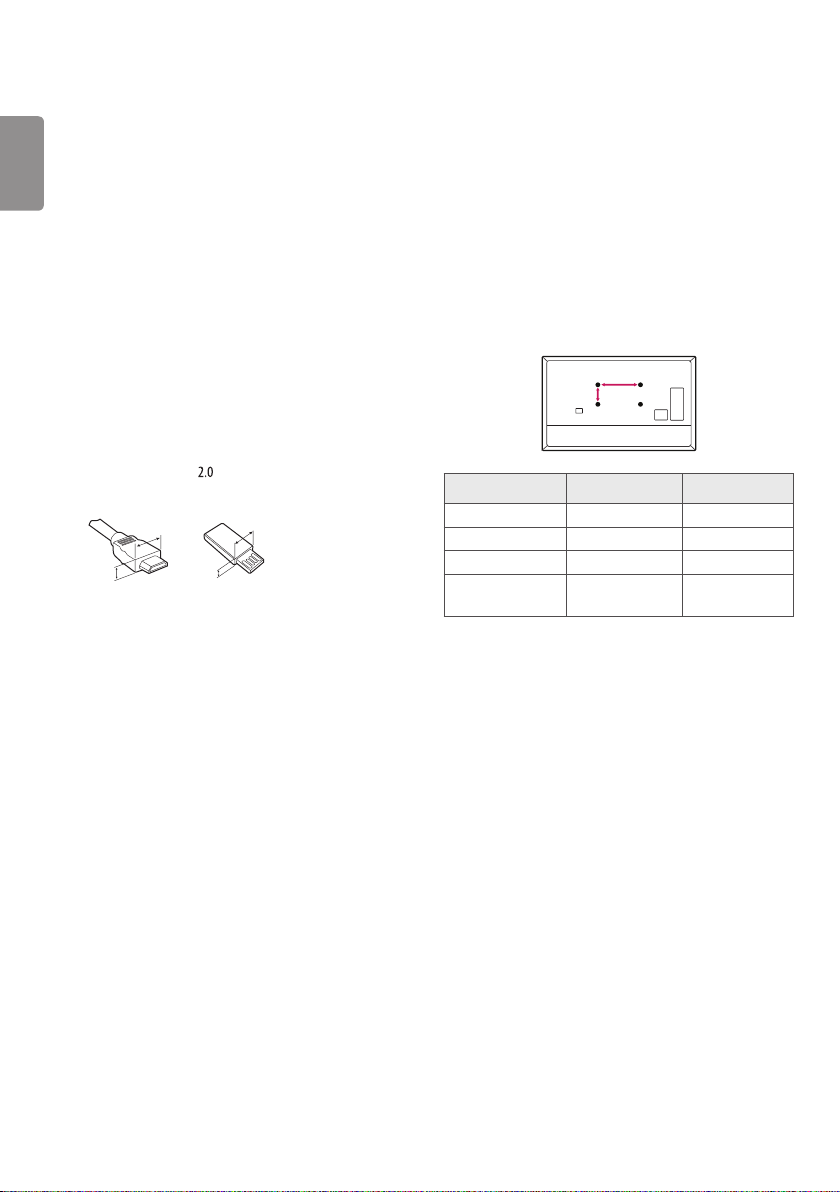

• For an optimal connection, HDMI cables and USB devices should have

bezels less than 10 mm thick and 18 mm width. Use an extension
cable that supports USB

if the USB cable or USB memory stick

does not fit into your TV’s USB port.

B

B

* A < 10 mm

* B

• Use a certified cable with the HDMI logo attached.

• If you do not use a certified HDMI cable, the screen may not display or

a connection error may occur. (Recommended HDMI Cable Types)

- High-Speed HDMI®/

TM

Cable (3 m or less)

- High-Speed HDMI®/TM Cable with Ethernet (3 m or less)

18 mm

Separate purchase items can be changed or modified for quality
improvement without any notification. Contact your dealer to buy these
items. These devices only work with certain models.

The model name or design may be changed depending on the upgrade
of product functions, manufacturer’s circumstances or policies.

Wall Mounting Bracket

Make sure to use screws and wall mount bracket that meet the VESA
standard. Standard dimensions for the wall mount kits are described in
the following table.

Model 32/43LU34* 49LU34*

VESA (A x B) (mm) 200 x 200 300 x 300
Standard screw M6 M6
Number of screws 4 4

Wall mount bracket

LSW240B
MSW240

OLW480B
MSW240

4

ENGLISH

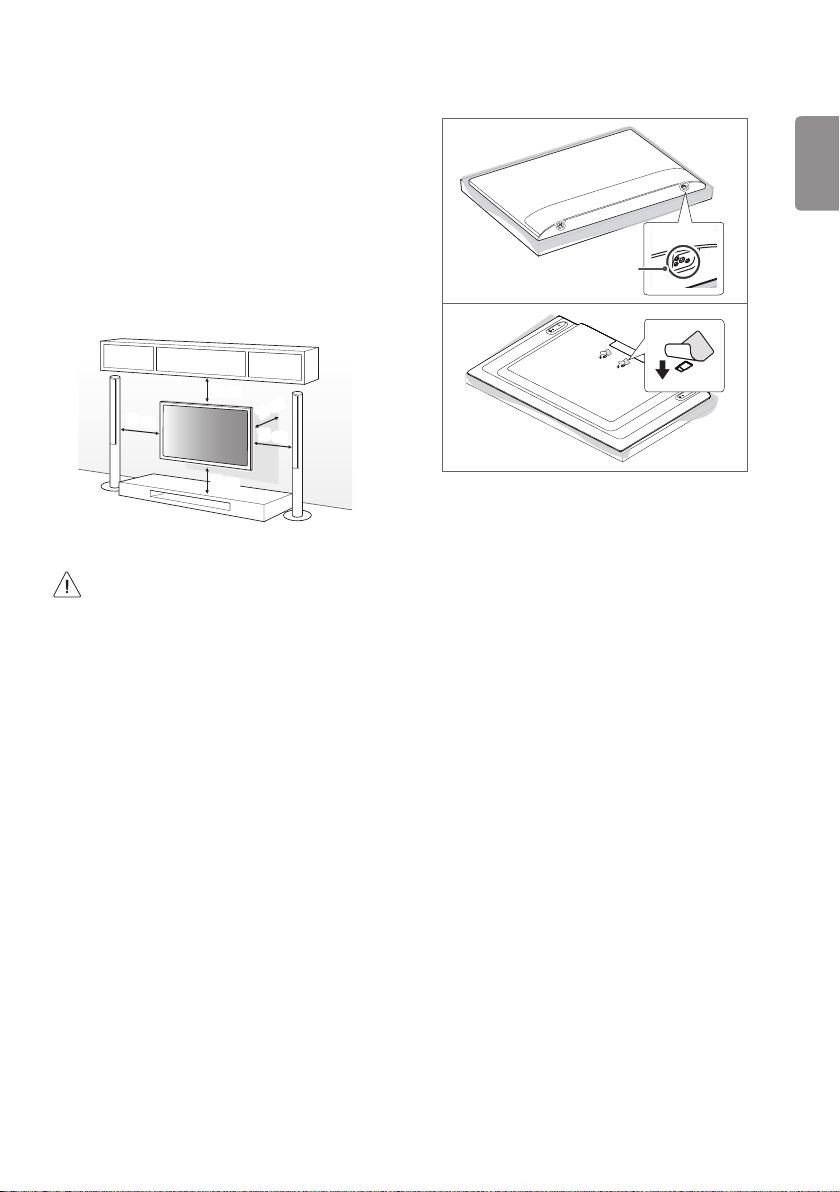

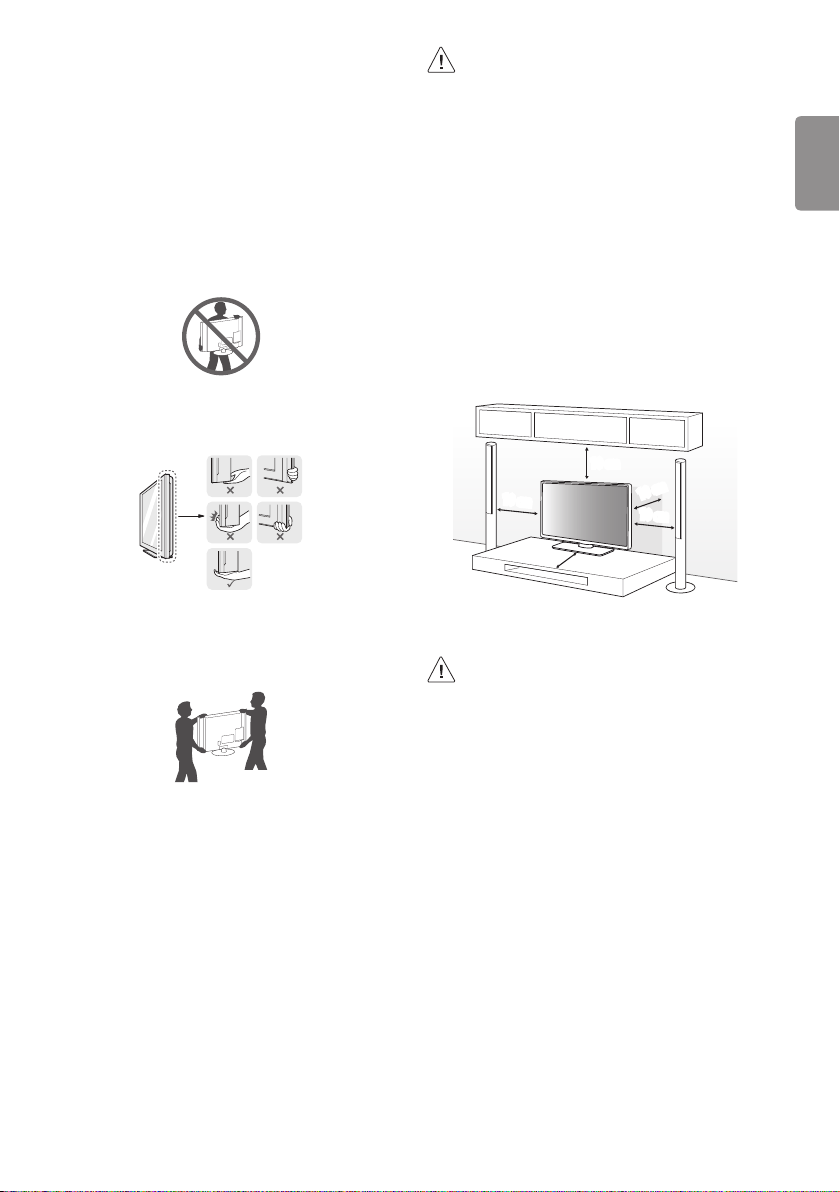

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched
or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that

the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all

cables.

• When holding the TV, the screen should face away from you to avoid

damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to

hold the transparent part, speaker, or speaker grill area.

• Avoid touching the screen at all times, as this may result in

damage to the screen.

• Do not move the TV by holding the cable holders, as the

cable holders may break, and injuries and damage to the TV
may occur.

• When attaching the stand to the TV set, place the screen

facing down on a cushioned table or flat surface to protect
the screen from scratches.

Mounting on a Table

1 Lift and tilt the TV into its upright position on a table.

• Leave a 10 cm (minimum) space from the wall for proper
ventilation.

10 cm

10 cm

10 cm

10 cm

10 cm

• When transporting a large TV, there should be at least 2 people.

• When transporting the TV by hand, hold the TV as shown in the

following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive

vibration.

• When transporting the TV, keep the TV upright, never turn the TV on

its side or tilt towards the left or right.

• Do not apply excessive pressure to cause flexing / bending of frame

chassis as it may damage screen.

• When handling the TV, be careful not to damage the protruding

buttons.

2 Connect the power cord to a wall outlet.

• Do not apply foreign substances (oils, lubricants, etc.) to the

screw parts when assembling the product.
(Doing so may damage the product.)

• If you install the TV on a stand, you need to take actions

to prevent the product from overturning. Otherwise, the
product may fall over, which may cause injury.

• Do not use any unapproved items to ensure the safety and

product life span.

• Any damage or injuries caused by using unapproved items

are not covered by the manufacturer’s warranty.

• Make sure that the screws are inserted correctly and fastened

securely. (If they are not fastened securely enough, the TV
may tilt forward after being installed.) Do not use too much
force and over tighten the screws; otherwise screw may be
damaged and not tighten correctly.

5

ENGLISH

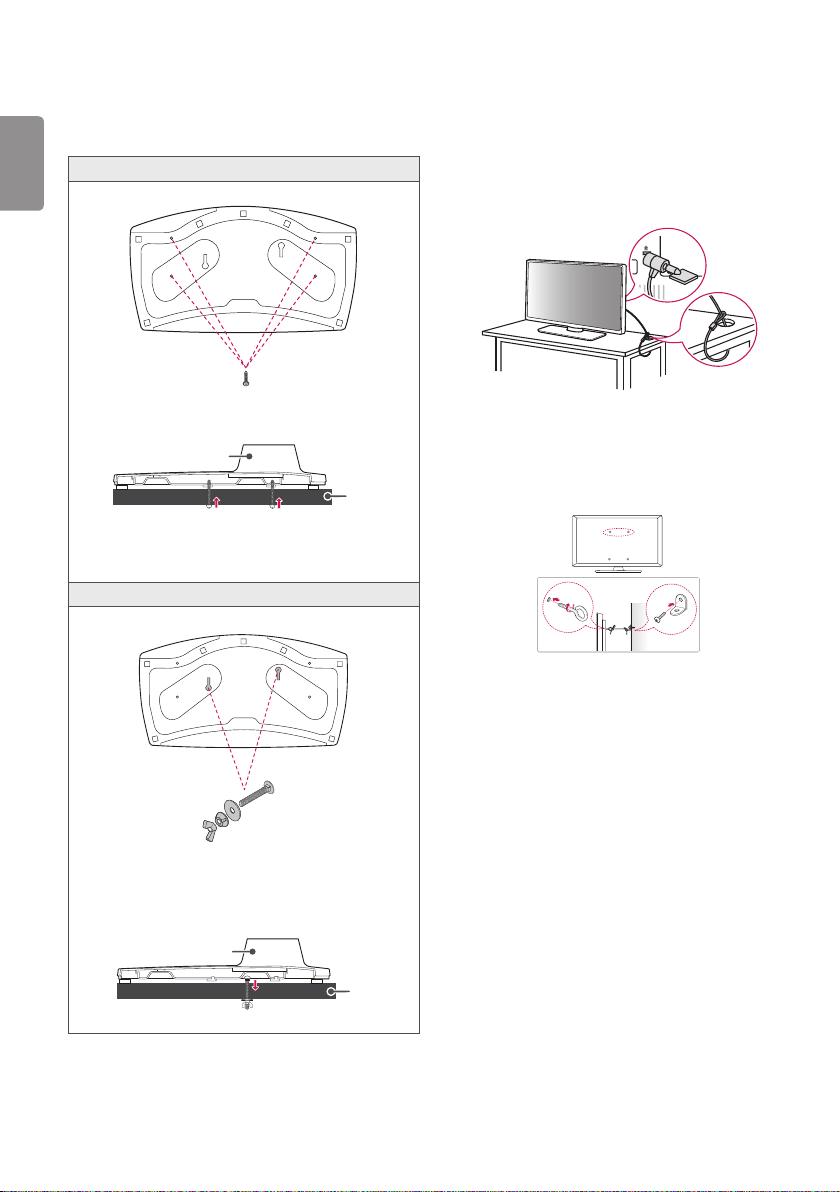

Attaching the TV to a Desk

(Depending on model)
The TV should be attached to a desk so it cannot be pulled in a forward/

backward direction, potentially causing injury or damaging the product.

A type

4-Screws

(Not supplied with TV)

Using the Kensington security
system

The Kensington security system connector is located at the rear of the
TV. For more information of installation and using, refer to the manual
provided with the Kensington security system or visit http://www.
kensington.com. Connect the Kensington security system cable between
the TV and a table.

(Depending on model)

Stand

• Screw : M5 x L (*L: Table depth + 8~10 mm)

ex) Table depth: 15 mm, Screw: M5 x L25

B type

2-Screws for Stand Fixing,

2-Washers for Stand Fixing,

2-Nuts for Stand Fixing

(Supplied with TV)

Stand

Desk

Desk

Securing the TV to a Wall

(Depending on model)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back

of the TV.

• If there are bolts inserted at the eye-bolts position, remove the
bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear
of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

• Use a platform or cabinet that is strong and large enough to support

the TV securely.

• Brackets, bolts and ropes are not provided. You can obtain additional

accessories from your local dealer.

6

ENGLISH

Mounting to the Wall

Attach an optional wall mount bracket at the rear of the TV carefully
and install the wall mount bracket on a solid wall perpendicular to
the floor. When you attach the TV to other building materials, please
contact qualified personnel. LG recommends that wall mounting be
performed by a qualified professional installer. We recommend the use
of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with
cables connected. When you do not use LG’s wall mount bracket, please
use a wall mount bracket where the device is adequately secured to the
wall with enough space to allow connectivity to external devices. It is
advised to connect all the cables before installing fixed wall mounts.

10 cm

10 cm

• Remove the stand before installing the TV on a wall mount

by performing the stand attachment in reverse.

• For more information of screws and wall mount bracket,

refer to the Separate purchase.

• If you intend to mount the product to a wall, attach VESA

standard mounting interface (optional parts) to the back
of the product. When you install the set to use the wall
mounting bracket (optional parts), fix it carefully so as not
to drop.

• When mounting a TV on the wall, make sure not to install

the TV by hanging the power and signal cables on the back
of the TV.

• Do not install this product on a wall if it could be exposed

to oil or oil mist. This may damage the product and cause
it to fall.

10 cm

10 cm

10 cm

• When installing the wall mounting bracket, it is recommended to

cover the stand hole using tape, in order to prevent the influx of dust
and insects. (Depending on model)

Stand hole

7

ENGLISH

Connections

Connect various external devices to the TV and switch input modes to
select an external device. For more information of external device’s
connection, refer to the manual provided with each device.

Antenna/Cable

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.

• If the image quality is poor, install a signal amplifier properly to

improve the image quality.

• If the image quality is poor with an antenna connected, try to realign

the antenna in the correct direction.

• An antenna cable and converter are not supplied.

Satellite dish

Connect the TV to a satellite dish to a satellite socket with a satellite RF
cable (75 Ω). (Depending on model)

CI module

View the encrypted (pay) services in digital TV mode. (Depending on
model)

• Check if the CI module is inserted into the PCMCIA card slot in the

right direction. If the module is not inserted properly, this can cause
damage to the TV and the PCMCIA card slot.

• If the TV does not display any video and audio when CI+ CAM is

connected, please contact to the Terrestrial/Cable/Satellite Service
Operator.

External Devices

Available external devices are: Blu-ray player, HD receivers, DVD players,
VCRs, audio systems, USB storage devices, PC, gaming devices, and
other external devices.

• The external device connection may differ from the model.

• Connect external devices to the TV regardless of the order of the TV

port.

• Refer to the external equipment’s manual for operating instructions.

• If you connect a gaming device to the TV, use the cable supplied with

the gaming device.

• In PC mode, there may be noise associated with the resolution,

vertical pattern, contrast or brightness. If noise is present, change the
PC output to another resolution, change the refresh rate to another
rate or adjust the brightness and contrast on the PICTURE menu until
the picture is clear.

• In PC mode, some resolution settings may not work properly

depending on the graphics card.

• When connecting via a wired LAN, it is recommended to use a CAT 7

cable. (Only when

port is provided.)

Other connections

Connect your TV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
Some separate cable is not provided.

HDMI

• Supported HDMI Audio format (Depending on model):

Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz),
PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)

8

ENGLISH

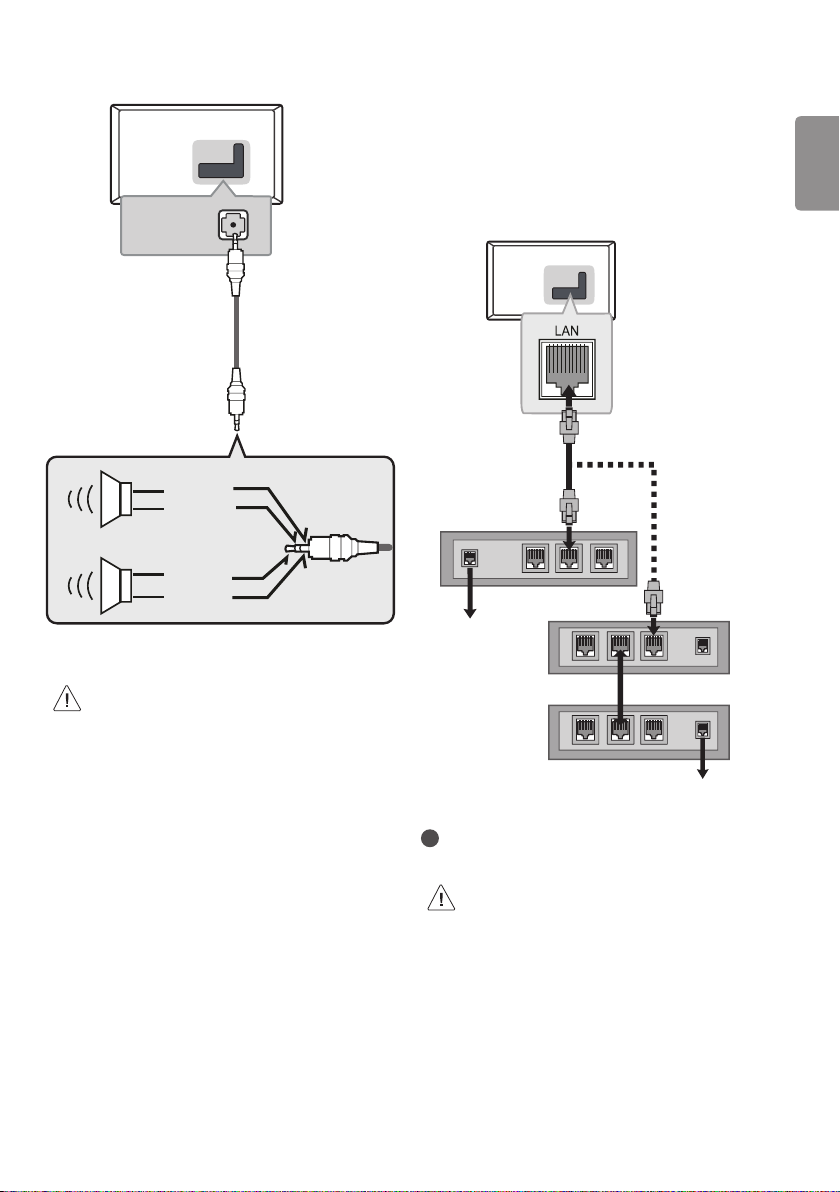

External Speakers

EXTERNAL

SPEAKER OUT

GND

RIGHT

Network

Wired network connection

This TV can be connected to a Pro:Centric server via the LAN port. After
making the physical connection, the TV needs to be set up for network
communication.

Connect the LAN port of the Modem or Router from Pro:Centric server
to the LAN port on the TV.

LEFT
GND

• Use only with the 3 Pole 3.5 mm Stereo Jack.

• Do not connect your headphones or earphones to the port

for connecting an external speaker.

Broadband Modem

Pro:Centric Server

1

Connect the LAN por t of the Modem or Router to the LAN port

on the TV.

• Do not connect a modular phone cable to the LAN port.

• Since there are various connection methods, please follow

the specifications of your telecommunication carrier or
internet service provider.

Router

Broadband Modem

Pro:Centric Server

9

ENGLISH

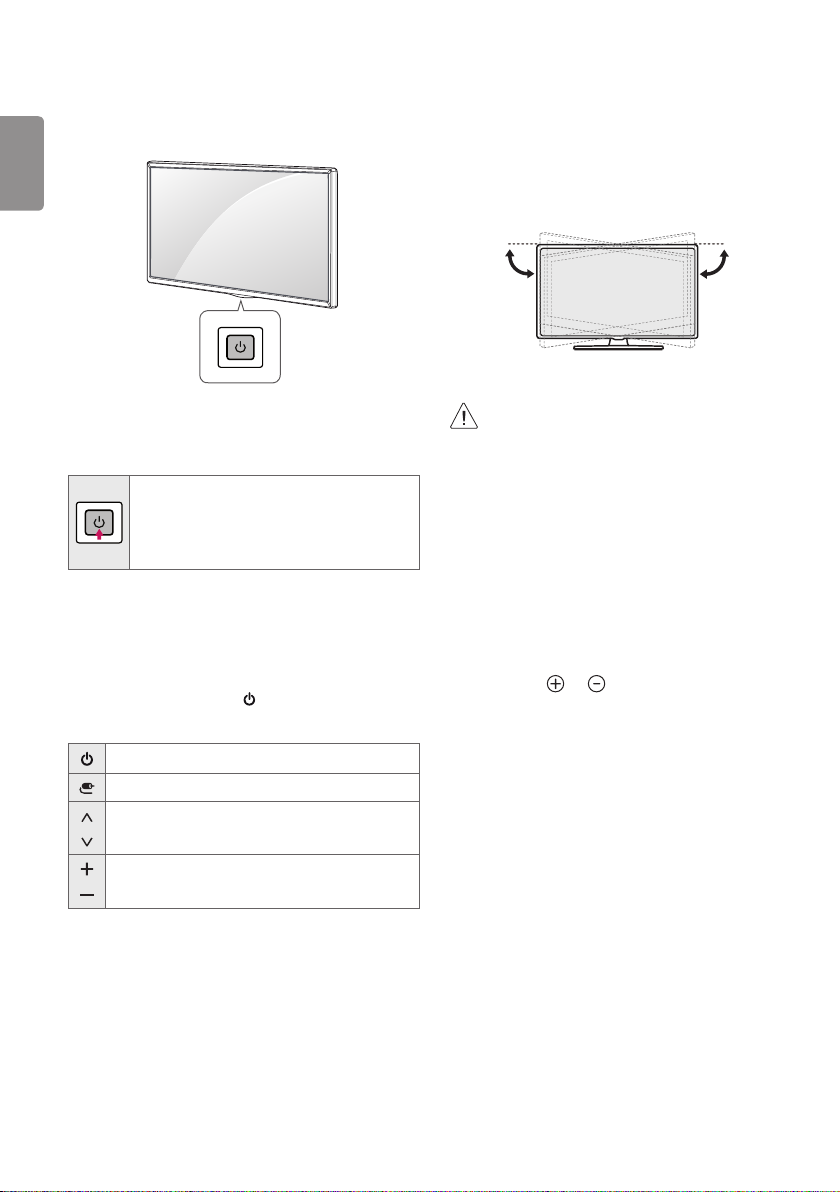

Using Button

You can simply operate the TV functions, using the button.

Adjusting the Angle of the
TV to suit view

Swivel 20 degrees to the left or right and adjust the angle of the TV to
suit your view.

Basic functions

Power On (Press)
Power Off (Press and Hold)
Menu Control (Press
Menu Selection (Press and Hold

1 You can access and adjust the menu by pressing the button when

TV is on.

2 You can use the function when you access menu control.

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust
the Menu items using the button.

Turns the power off.

Changes the input source.

Scrolls through the saved programmes.

1

)

2

)

20˚

• When adjusting the angle of the product, watch out for your

fingers.

- Personal injury may occur if hands or fingers are pinched.

If the product is tilted too much, it may fall, causing
damage or injury.

20˚

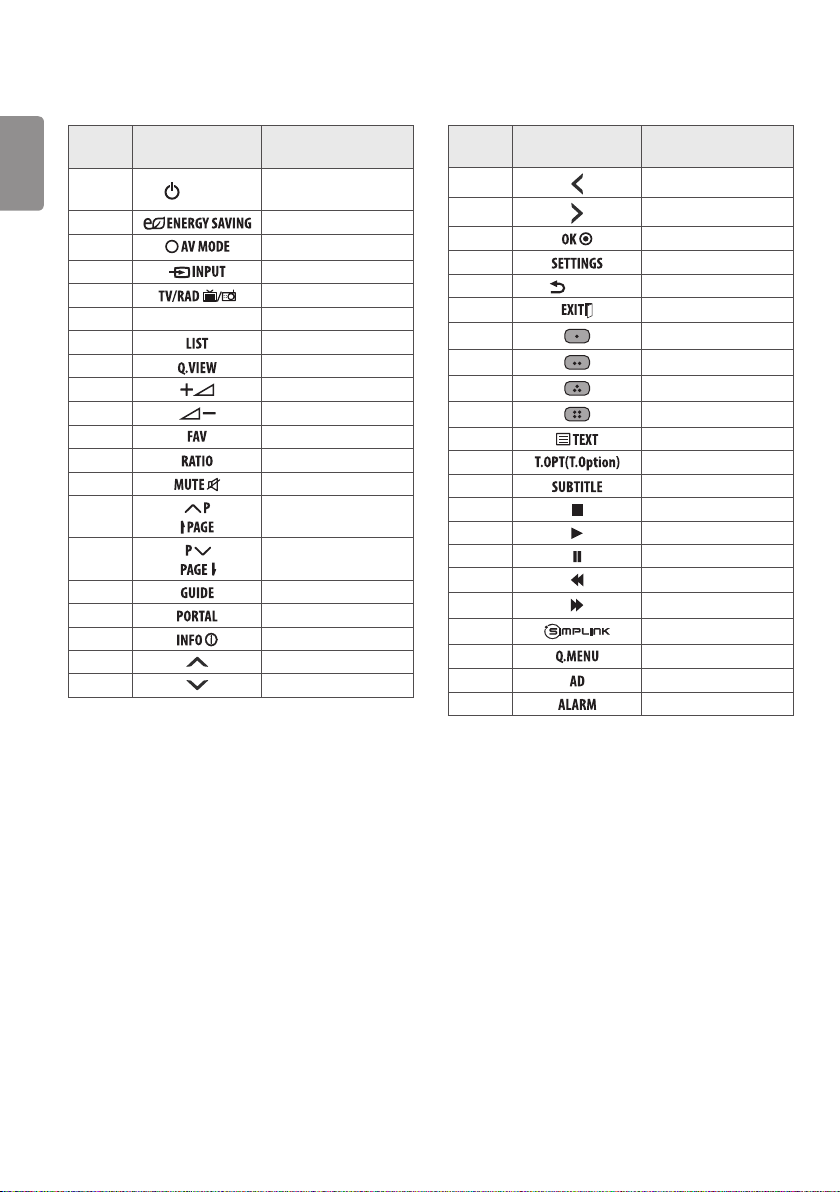

Using Remote Control

The descriptions in this manual are based on the buttons on the remote
control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5
V AAA) matching the
compartment, and close the battery cover. To remove the batteries,
perform the installation actions in reverse.

Make sure to point the remote control toward the remote control sensor
on the TV.

and ends to the label inside the

10

Adjusts the volume level.

ENGLISH

Selects R adio, TV and DTV programme.

Number buttons Enters numbers.

Accesses the saved programme list.

Returns to the previously viewed programme.

Adjusts the volume level.

Accesses your favourite programme list.

Resizes an image.

Mutes all sounds.

- Pressing and holding the

menu.

Scrolls through the saved programmes.

Moves to the previous or next screen.

Shows programme guide.

Displays and removes hotel interactive menu.

Views the information of the current programme and screen.

Navigation buttons (up/down/left/right) Scrolls through menus

or options.

Selects menus or options and confirms your input.

Accesses the main menus.

(BACK) Returns to the previous level.

Clears on-screen displays and return to TV viewing.

Teletext buttons ( ) These buttons are used for

teletext.

Recalls your preferred subtitle in digital mode.

Control buttons (

Accesses the AV devices connected with the HDMI

cable through HDMI-CEC. Opens the SIMPLINK menu.

Accesses the Quick menus.

Audio descriptions function will be enabled.

Not Functional.

button accesses the Accessibility

These access special functions in some menus.

) Controls media contents.

(Some buttons and services may not be provided depending on models
or regions.)

(POWER) Turns the TV on or off.

Adjusts the brightness of the screen to reduce

energy consumption.

Selects an AV mode.

Changes the input source.

• Do not mix new batteries with old batteries. This may cause

the batteries to overheat and leak.

• Failure to match the correct polarities of the battery may

cause the battery to burst or leak, resulting in fire, personal
injury, or ambient pollution.

• This apparatus uses batteries. In your community there

might be regulations that require you to dispose of these
batteries properly due to environmental considerations.
Please contact your local authorities for disposal or recycling
information.

• Batteries inside or inside the product shall not be exposed to

excessive heat such as sunshine, fire or the like.

11

ENGLISH

Troubleshooting

The software version can be updated for improvement in performance.
Customer needs to ensure the compatibility of customer’s equipment

with LGE software. If needed, please consult with LGE and upload
revised software version according to the guidance provided by LGE.

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.

• Check if there is any obstacle between the product and the remote

control.

• Check if the batteries are still working and properly installed (

, to ).

No image display and no sound is produced.

• Check if the product is turned on.

• Check if the power cord is connected to a wall outlet.

• Check if there is a problem in the wall outlet by connecting other

products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be

interrupted.

• Check if the auto-off function is activated on the settings related

time.

• If there is no signal while the TV is on, the TV will turn off

automatically after 15 minutes of inactivity.

When connecting to the PC (RGB/HDMI/DVI), no signal is detected.

• Turn the TV off/on using the remote control.

• Reconnect the RGB/HDMI cable.

• Restart the PC with the TV on.

Abnormal display

• If the product feels cold to the touch, there may be a small “flicker”

when it is turned on. This is normal, there is nothing wrong with
product.

• This panel is an advanced product that contains millions of pixels.

You may see tiny black dots and/or brightly coloured dots (red, blue
or green) at a size of 1ppm on the panel. This does not indicate a
malfunction and does not affect the performance and reliability of
the product. This phenomenon also occurs in third-party products
and is not subject to exchange or refund.

• You may find different brightness and color of the panel depending

on your viewing position(left/right/top/down).

to

This phenomenon occurs due to the characteristic of the panel. It is
not related with the product performance, and it is not malfunction.

• Displaying a still image for a prolonged period of time may cause

image sticking. Avoid displaying a fixed image on the TV screen for a
long period of time.

Generated sound

• “Cracking” noise: A cracking noise that occurs when watching or

turning off the TV is generated by plastic thermal contraction due to
temperature and humidity. This noise is common for products where
thermal deformation is required.

• Electrical circuit humming/panel buzzing: A low level noise is

generated from a high-speed switching circuit, which supplies a large
amount of current to operate a product. It varies depending on the
product. This generated sound does not affect the performance and
reliability of the product.

12

ENGLISH

Specifications

(Depending on country)

Broadcasting Specifications

Digital TV Analogue TV

1

DVB-S/S2

Television system

DVB-S/S2 DVB-C DVB-T/T2

Channel coverage

(Band)

Maximum number of

storable programmes

External antenna

impedance

CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm

1 Only DVB-T2/C/S2 support models.

Operating Temperature 0 °C to 40 °C

Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C

Storage Humidity Less than 85 %

950~2,150 MHz 46 ~ 890 MHz

6,000 2,000

Environment condition

DVB-T/T2

DVB-C

1

VHF III : 174 ~ 230 MHz
UHF IV : 470 ~ 606 MHz

UHF V : 606 ~ 862 MHz

S Band II : 230 ~ 300 MHz

S Band III : 300 ~ 470 MHz

75 Ω

PAL/SECAM B/G, D/K, I

SECAM L

46 ~ 862 MHz

13

ENGLISH

HDMI/DVI-DTV supported mode

Resolution

640 x 480

720 x 480

720 x 576 31.250 50.00

1280 x 720

1920 x 1080

Horizontal

Frequency (kHz)

31.46

31.50

31.469

31.50

37.50

45.00

44.96

28.125

33.75

33.72

56.250

67.50

67.432

27.00

26.973

33.75

33.716

Vertical

Frequency (Hz)

59.94

60.00

59.94

60.00

50.00

60.00

59.94

50.00

60.00

59.94

50.00

60.00

59.94

24.00

23.976

30.00

29.976

HDMI/DVI-PC supported Mode

• PC audio is not supported.

• Use HDMI IN 1 for PC mode. (Depending on model)

Resolution

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

640 x 350 31.468 70.09

720 x 400 31.469 70.08

640 x 480 31.469 59.94

800 x 600 37.879 60.31

1024 x 768 48.363 60.00

1152 x 864 54.348 60.053

1360 x 768 47.712 60.015

1280 x 1024

1920 x 1080

1

1

63.981 60.020

67.50 60.00

1 Only 43/49LU34*

Component port connecting
information

Component ports on the TV Y P

P

B

R

RGB-PC supported mode

1

1

Horizontal

Frequency (kHz)

63.981 60.020

66.587

67.50

Resolution

640 x 350 31.468 70.09

720 x 400 31.469 70.08

640 x 480 31.469 59.94

800 x 600 37.879 60.31

1024 x 768 48.363 60.00

1152 x 864 54.348 60.053

1360 x 768 47.712 60.015

1280 x 1024

1920 x 1080

1 Only 43/49LU34*

14

Vertical

Frequency (Hz)

59.934

60.00

Video output ports on DVD player

Signal Component

480i / 576i O
480p / 576p O
720p / 1080i O

1080p

Y P

B

Y B-Y R-Y

Y Cb Cr

Y Pb Pr

O

(Only 50 Hz / 60 Hz)

P

R

ENGLISH

Supported Photo Formats

Supported Audio Formats

Extension Item Resolution

Available File

Type

.jpeg, .jpg,

.jpe

Photo Size

.bmp Photo Size

Available File

Type

.png

Photo Size

• BMP and PNG format files may be slower to display than JPEG.

• Non-standard photo/image file may not be displayed.

SOF0 : Baseline
SOF1 : Extend Sequential
SOF2 : Progressive
Minimum: 64 (W) x 64 (H)
Maximum (Normal Type):

15360 (W) x 8640 (H)
Maximum (Progressive Type):

1920 (W) x 1440 (H)
Minimum: 64 (W) x 64 (H)
Maximum: 9600 (W) x 6400 (H)

Interlace, Non-Interlace

Minimum: 64 (W) x 64 (H)
Maximum (Interlace):

1200 (W) x 800 (H)
Maximum (Non-Interlace):

9600 (W) x 6400 (H)

File

type

mp3

AAC

M4A

WAV

WMA

WMA 10

Pro

OGG

Item Info

Bit rate 32 Kbps - 320 Kbps

Sample freq. 16 kHz - 48 kHz

Support MPEG-1, MPEG-2, Layer2, Layer3

Bit rate Free Format

Sample freq. 8 kHz - 48 kHz

Support ADIF, ADTS

Bit rate Free Format

Sample freq. 8 kHz - 48 kHz

Support MPEG-4

Bit rate 64 kbps ~ 1.5 Mbps

Sample freq. 8 kHz - 48 kHz

Support LPCM

Bitdepth 8 bit / 16 bit / 24 bit

Bit rate 128 Kbps ~ 320 Kbps

Sample freq. 8 kHz - 48 kHz

Support WMA7, WMA8, WMA9 Standard

Bit rate ~ 768 Kbps

M0: up to 2 Channel @ 48 kHz

Channel /

Sample freq.

Support WMA 10 Pro

Bit rate Free Format

Sample freq. 8 kHz - 48 kHz

Support OGG Vorbis

(Except LBR mode),

M1: up to 5.1 Channel @ 48 kHz,

M2: up to 5.1 Channel @ 96 kHz

15

ENGLISH

Supported Video Formats

• Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)

Extension Codec

MPEG-4 Part2, XViD, H.264/AVC,

Video

.asf

.wmv

.avi

.ts, .trp, .tp

.mts, .m2ts

.vob

.mp4, .m4v

.mov

.mkv

motion JPEG

.mpg, .mpeg

.mpe

.dat

.flv

.3gp

VC1(WMV3, WVC1), MP43
WMA Standard, WMA9(Pro), MP3,

Audio

AAC, AC3

Video MPEG-2, MPEG-4 Part2, XViD, H.264/AVC

HE-AAC, LPCM, ADPCM, MPEG-1 Layer I,

Audio

MPEG-1 Layer II, Dolby Digital, MPEG-1
Layer III (MP3)

Video H.264/AVC, MPEG-2, H.265/HEVC

MPEG-1 Layer I, MPEG-1 Layer II, MPEG-

Audio

1 Layer III (MP3), Dolby Digital, Dolby
Digital Plus, AAC, HE-AAC

Video MPEG-1, MPEG-2

Dolby Digital, MPEG-1 Layer I, MPEG-1

Audio

Layer II, DVD-LPCM
Video MPEG-2, MPEG-4 Part2, XVID, H.264/AVC
Audio AAC, MPEG-1 Layer III (MP3)
Video MPEG-2, MPEG-4 Part2, XViD, H.264/AVC

HE-AAC, Dolby Digital, MPEG-1 Layer III
Audio

(MP3), LPCM
Video MJPEG
Audio LPCM, ADPCM
Video MPEG-1, MPEG-2

MPEG-1 Layer I, MPEG-1 Layer II, Dolby
Audio

Digital, LPCM
Video MPEG-1, MPEG-2
Audio MP2
Video Sorenson H.263, H.264/AVC
Audio MP3, AAC, HE-AAC
Video H.264/AVC, MPEG-4 Part2
Audio AAC, AMR(NB/WB)

Open Source Software
Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source
licenses, that is contained in this product, please visit http://opensource.
lge.com.

In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
[e-mail].

This offer is valid for a period of three years after our last shipment of
this product. This offer is valid to anyone in receipt of this information.

Licenses

Supported licenses may differ by model.

The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby
Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.

(Depending on model)

16

OWNER’S MANUAL

RS-232C

Please read this manual carefully before operating your set and retain
it for future reference.

www.lg.com

ENGLISH

IR CODES

• This feature is not available for all models.

Code

(Hexa)

08

95
30
0B
F0 Remote control Button

10-19 Number Key 0-9 Remote control Button

53
1A
02
03
1E
79
09

00

01

AB
0C
AA
40
41

Function Note

(POWER)

Remote control Button

Remote control Button

Remote control Button
(Power On/Off)

Remote control Button
Remote control Button

Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button

Remote control Button

Remote control Button

Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button

Code

(Hexa)

07

06

44
43
28
5B

72

71
63
61
20

21
39
B1
B0
BA
8F
8E

7E
45
91
E8

Function Note

Remote control Button

Remote control Button

Remote control Button
Remote control Button

(BACK) Remote control Button

Remote control Button
Remote control Button

Remote control Button
Remote control Button
Remote control Button

Remote control Button

Remote control Button
Remote control Button

Remote control Button

Remote control Button
Remote control Button
Remote control Button
Remote control Button

Remote control Button
Remote control Button
Remote control Button
Remote control Button

2

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

USB IN

(TV)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(TV)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

1

3

2

4

1

3

2

4

RS-232C Setup

• Image shown may differ from your TV.

Connect the RS-232C (serial port) input jack to an external control
device (such as a computer or an A/V control system) to control the
product’s functions externally.
Connect the serial port of the control device to the RS-232C jack on the
product back panel.

• RS-232C connection cables are not supplied with the product.

Phone jack Type

(Depending on model)

• You need to purchase the phone-jack to RS-232C cable required for

the connection between the PC and the TV, which is specified in the

manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.

(PC)

(TV)

(CONTROL & SERVICE)

RS-232C IN

(*Not Provided)

Type of Connector : D-Sub 9-Pin Male

1

5

6

9

No. Pin name

3.5 V

1

RXD (Receive data)

2

TXD (Transmit data)

3

IR OUT from TV

4

GND

5

No Connection

6

No Connection (5 V available in some models)

7

No Connection

8
9 No Connection (12 V available in some models)

3

ENGLISH

RS-232C Configurations

PC TV

2

RXD

3

TXD

5

GND

4

DTR

6

DSR

7

RTS

8

CTS

D-Sub 9 D-Sub 9

PC TV

2

RXD

3

TXD

5

GND

4 6

DTR

6 4

DSR

7 8

RTS

8 7

CTS

D-Sub 9 D-Sub 9

Communication Parameters

• Baud rate: 9,600 bps (UART)

• Data length: 8 bits

• Parity : None

• Stop bit: 1 bit

• Communication code: ASCII code

• Use a crossed (reverse) cable.

7-Wire Configurations

(Standard RS-232C cable)

3-Wire Configurations

(Not standard)

Command Reference List

(Depending on model)

Command1 Command2

1 Powe r k a 00 to 01

3

TXD

2

RXD

5

GND

6

DSR

4

DTR

8

CTS

7

RTS

3

TXD

2

RXD

5

GND
DSR
DTR

RTS
CTS

2 Aspect Ratio k c (See p. 5)
3 Screen Mute k d (See p. 6)
4 Volume Mute k e 00 to 01

5 Volume Control k f 00 to 64

6 Contrast k g 00 to 64
7 Brightness k h 00 to 64
8 Colour k i 00 to 64
9 Tint k j 00 to 64
10

Sharpness k k 00 to 32

11

OSD Select k l 00 to 01

12

Remote
Control Lock
Mode

13

Balance k t 00 to 64

14

Colour
Temperature

15

Energy Saving j q (See p. 8)

16

Auto
Configuration

17

Equalizer j v (See p. 8)

18

Tune
Command

19

Programme
Skip/Add

20

Key m c (See p. 9)

21

Control
Backlight

22

Input select x b (See p. 9)

• During USB operations such as DivX or EMF, all commands except

Power(ka) and Key(mc) are not executed and treated as NG.

k m 00 to 01

x u 00 to 64

j u 01

m a (See p. 8)

m b 00 to 01

m g 00 to 64

Data

(Hexadecimal)

4

ENGLISH

Transmission / Receiving Protocol

(Depending on Model)

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command1] : First command to control the TV. (j, k, m or x)
[Command2] : Second command to control the TV.
[Set ID] : You can adjust the set ID to choose desired monitor ID
number in option menu. Adjustment range is 1 to 99. When selecting
Set ID ‘0’, every connected set is controlled. Set ID is indicated as
decimal (1 to 99) on menu and as Hexa decimal (0 x 0 to 0 x 63) on
transmission/receiving protocol.
[Data] : To transmit command data. Transmit ‘FF’ data to read status
of command.
[Cr] : Carriage Return
ASCII code ‘0 x 0D’
[ ] : ASCII code ‘space (0 x 20)’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format

when receiving normal data. At this time, if the data is data read
mode, it indicates present status data. If the data is data write
mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format

when receiving abnormal data from non-viable functions or
communication errors.

Data 00 : Illegal Code

1 Powe r (Command: k a)

►To control Power On/Off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Off
Data 01 : On

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

►To Show TV is Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

* Similarly, if other functions transmit ‘0 x FF’ data based on this

format, Acknowledgement data feed back presents status about

each function.
* OK Ack., Error Ack. and other message may display on the screen

when TV is power On.

2 Aspect Ratio (Command: k c) (Main Picture Size)

►To adjust the screen format. (Main picture format) You can also
adjust the screen format using the picture settings.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01 : 4:3 (Normal screen - Just Scan Off)
Data 02 : 16:9 (Wide screen - Just Scan Off)
Data 06 : Original (Just Scan Off )
Data 09 : Just Scan
* Please make sure that the model doesn't support both Vertical Zoom

and All-Direction Zoom mode.
Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.
* In DTV/HDMI (1080i 50 Hz / 60 Hz, 720p 50Hz / 60 Hz, 1080p 24 Hz

/ 30 Hz / 50 Hz / 60 Hz), Component( 720p, 1080i, 1080p 50 Hz / 60

Hz) mode, Just Scan is available.
* Full Wide is supported only for Digital, Analogue, AV.

5

ENGLISH

3 Screen Mute (Command: k d)

►To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on) / Video mute off
Data 01 : Screen mute on (Picture off)
Data 10 : Video mute on

Ack

[d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On Screen Display

(OSD). But, in case of Screen mute on, TV will not display OSD.

4 Volume Mute (Command: k e)

►To control volume mute on/off.

You can also adjust mute using the mute button on remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)
Data 01 : Volume mute off (Volume on)

Ack

[e][ ][Set ID][ ][OK/NG][Data][x]

5 Volume Control (Command: k f)

►To adjust volume.

You can also adjust volume with the volume buttons on remote
control.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to "Real data mapping".

Ack

[f][ ][Set ID][ ][OK/NG][Data][x]

6 Contrast (Command: k g)

►To adjust screen contrast.

You can also adjust contrast in the picture settings.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to "Real data mapping".

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

7 Brightness (Command: k h)

►To adjust screen brightness.

You can also adjust brightness in the picture settings.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to "Real data mapping".

Ack

[h][ ][Set ID][ ][OK/NG][Data][x]

8 Colour (Command: k i)

►To adjust the screen colour.

You can also adjust colour in the picture settings.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to "Real data mapping".

Ack

[i][ ][Set ID][ ][OK/NG][Data][x]

6

ENGLISH

9 Tint (Command: k j)

►To adjust the screen tint.
You can also adjust tint in the picture settings.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64
* Refer to "Real data mapping".

Ack

[j][ ][Set ID][ ][OK/NG][Data][x]

10

Sharpness (Command: k k)

►To adjust the screen sharpness.
You can also adjust sharpness in the picture settings.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32
* Refer to "Real data mapping".

Ack

[k][ ][Set ID][ ][OK/NG][Data][x]

11

OSD Select (Command: k l)

►To select OSD (On Screen Display) on/off when controlling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 00 : Off
Data 01 : On

Ack

[l][ ][Set ID][ ][OK/NG][Data][x]

12

Remote Control Lock Mode (Command: k m)

►To lock the front panel controls on the monitor and remote control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Off
Data 01 : On

Ack

[m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this mode. When main

power is on/off, external control lock is released.
* In the standby mode, if key lock is on, TV will not turn on by power

on key of IR & Local Key.

13

Balance (Command: k t)

►To adjust balance.
You can also adjust balance in the audio settings.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data L : 00 to R : 64
* Refer to "Real data mapping".

Ack

[t][ ][Set ID][ ][OK/NG][Data][x]

14

Colour Temperature (Command: x u)

►To adjust Colour Temperature. You can also adjust Colour
Temperature in the picture settings.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data Warm: 00 to Cool:64
* Refer to "Real data mapping".

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

7

ENGLISH

15

►To reduce the power consumption of the TV. You can also adjust

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Energy Saving (Command: j q)

Energy Saving in picture settings.

17

Equalizer (Command : j v)

►To adjust equalizer.

Transmission

[j][v][ ][Set ID][ ][Data][Cr]

Power Saving

Function

7 6 5 4 3 2 1 0

0 0 0 0

0 0 0 0

0 0 0 0

0 0 0 0

0 0 0 0

0 0 0 0

►‘Auto’ is available in TV that supports ‘Intelligent Sensor’.

Ack

[q][ ][Set ID][ ][OK/NG][Data][x]

16

Auto Configuration (Command: j u) (Only RGB support model)

►To adjust picture position and minimize image shaking

automatically. It works only in RGB (PC) mode.

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01 : To set
Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

Low

Power

Low

Power

Low

Power

Low

Power

Low

Power

Low

Power

Level

0 0 0 0 Off

0 0 0 1 Minimum

0 0 1 0 Medium

0 0 1 1 Maximum

0 1 0 1 Screen Off

0 1 0 0 Auto

Description

MSB LSB

0 0 0 0 0 0 0 0

Frequency

7 6 5 Frequency 4 3 2 1 0 Step

0 0 0 1st Band 0 0 0 0 0 0 (decimal)

0 0 1 2nd Band 0 0 0 0 1 1 (decimal)

0 1 0 3rd Band ... ... ... ... ... ...

0 1 1 4th Band 1 0 0 1 1 19 (decimal)

1 0 0 5th Band 1 0 1 0 0 20 (decimal)

Ack

[v][ ][Set ID][ ][OK/NG][Data][x]

18

Tune Command (Command: m a)

►Selec t channel to following physical number.

Transmission

[m][a][ ][Set ID][ ][Data 00][ ][Data 01][ ][Data 02][Cr]

Data 00 : High channel data
Data 01 : Low channel data
ex. No. 47
No. 394
DTV No. 0
Data 02 : [Antenna]
0 x 00 : Analogue Main
0 x 10 : DTV Main
0 x 20 : Radio
[Cable]
0 x 80 : Analogue Main
0 x 90 : DTV Main
0 x A0 : Radio
[Satellite]
0 x 40 : DTV Main
0 x 50 : Radio Main
Channel data range
Min : 00 Max : 270F (0 to 9999)

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

00 2F (2FH)

01 8A (18AH),

Don’t care

Data

8

ENGLISH

19

Programme Skip/Add (Command: m b)

►To set skip status for the current Programme.

Transmission

[m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Skip
Data 01 : Add

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

22

Input select (Command: x b) (Main Picture Input)

►To select input source for main picture.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data Structure

MSB LSB

0 0 0 0 0 0 0 0

20

Key (Command: m c)

►To send IR remote key code.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data IR CODES
Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

21

Control Backlight (Command: m g)

►To control the backlight.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

External Input Input Number

External Input Data

0 0 0 0 DTV

0 0 0 1 Analogue

0 0 1 0 AV

0 1 0 0 Component

0 1 1 0 RGB

0 1 1 1

1 0 0 0

1 0 0 1

1 0 1 0

Input Number Dat a

0 0 0 0 Input1

0 0 0 1 Input2

0 0 1 0 Input3

0 0 1 1 Input4

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

HDMI

9

ENGLISH

* Real data mapping

00 : Step 0

A : Step 10 (Set ID 10)

F : Step 15 (Set ID 15)

10 : Step 16 (Set ID 16)

64 : Step 100

6E : Step 110

73 : Step 115
74 : Step 116

CF : Step 199

FE : Step 254
FF : Step 255

10

Record the model number and serial number of the TV.
Refer to the label on the back cover and quote this

information to your dealer when requiring any service.

MODEL

SERIAL
