LG 49LF5100-ZA, 49LF510V-ZA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LD55C

MODEL : 49LF5100 49LF5100-ZA

49LF510V 49LF510V-ZA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68646117 (1507-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION ............................................................. 10

DISASSEMBLY ...................................................................................... 16

BLOCK DIAGRAM ................................................................................. 17

EXPLODED VIEW .................................................................................. 19

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

TROUBLE SHOOTING GUIDE ................................................ APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

Always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication

of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some sol-

der removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. Carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LD55C chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC specification

4. General Specification

No. Item Specication Remarks

1 Market EU(PAL Market-37Countries) DTV & Analog (Total 37 countries)

DTV (MPEG2/4, DVB-T) :37 countries UK/Italy/Germany/France/Spain/Sweden/Finland/Netherlands/ Belgium/Luxemburg/ Greece/Denmark/Czech/Austria /Hungary/ Swiss/Croatia/TurkeyNorway/Slovenia/Poland/Ukraine/Portugal/Ireland/Morocco/Latvia/Estonia/Lithania/Rumania/Bulgaria/ Russia/SlovakiaBosnia/Serbia/Albania/Kazakhstan/Belarus

DTV (MPEG2/4, DVB-T2): 8 countries

UK/Denmark/Sweden/Finland/Norway/Ireland/Ukraine/Kazakhstan

DTV (MPEG2/4, DVB-C): 37 countries

UK/Italy/Germany/France/Spain/Sweden/Finland/Netherlands/ Belgium/Luxemburg/ Greece/Denmark/Czech/Austria /Hungary/ Swiss/Croatia/TurkeyNorway/Slovenia/Poland /Ukraine/Portugal/Ireland/Morocco/Latvia/Estonia/Lithania/Rumania/Bulgaria/ Russia/SlovakiaBosnia/Serbia/Albania/Kazakhstan/Belarus

DTV (MPEG2/4,DVB-S): 29 countries

Italy/Germany/France/Spain/Netherlands/ Belgium/Luxemburg/ Greece/Czech/Austria /Hungary/Swiss/Croatia/Turkey/Slovenia/Poland/Portugal/ Morocco/Latvia/Estonia/Lithania/Rumania/ Bulgaria/Russia/Slovakia/Bosnia/Serbia/Albania/Belarus

Supported satellite : 22 satellites

HISPASAT 1C/1D, ATLANTIC BIRD 2, NILESAT 101/102, ATLANTIC BIRD 3, AMOS 2/3, THOR 5/6, IRIUS 4, EUTELSAT-W3A, EUROBIRD 9A, EUTELSAT-W2A, HOTBIRD 6/8/9, EUTELSAT-SESAT, ASTRA 1L/H/M/KR, ASTRA 3A/3B, BADR 4/6, ASTRA 2D, EUROBIRD 3, EUTELSAT-W7, HELLASSAT 2, EXPRESS AM1, TURKSAT 2A/3A, INTERSAT10

Only for training and service purposes

- 6 -

No. Item Specication Remarks

Analogue TV

1) PAL-B/G/D/K/I

2) SECAM-B/G/D/K/I, SECAM L/L’

Analogue TV : (RF) VHF: E2 to E12, UHF : E21 to E69 (CATV) S1 to S20, HYPER: S21 to S47

Digital TV

2 Broadcasting system

3 Receiving system

4 Scart Jack (1EA) PAL, SECAM Scart 1 Jack is Full scart and support RF-OUT(analog), EU only

Component & AV

5

Common port (1EA)

6 HDMI Input (1EA) HDMI-DTV Support HDCP

7 Audio Input (1EA) Component & AV Component & AV’s audio input is used by common port.

8 USB (1EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD

9 DVB

10 Ethernet (1EA) Wired, DMP only Only UK T2 Model : for MHEG

1) DVB-T

2) DVB-C

Satellite Digital TV

1) DVB-T/T2

2) DVB-C

3) DVB-S/S2

Analog : Upper Heterodyne Digital : COFDM, QAM

Video Input RCA(PAL, SECAM, NTSC) 4 System : PAL, SECAM, NTSC, PAL60

Component Input (Y/Cb/Cr, Y/Pb/Pr)

DVB-T

DVB-C

DVB-S CI + : Germany(Astra HD+)

Digital TV : VHF, UHF

Satellite TV : VHF, UHF, C-Band, Ku-Band

► DVB-T

- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

► DVB-T2

- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

- Modulation : Code Rate QPSK : 1/2, 2/5, 2/3, 3/4, 5/6 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

► DVB-C

- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s

- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM

► DVB-S/S2

- symbolrate DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s DVB-S (QPSK) : 2 ~ 45Msymbol/s

- viterbi DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

CI : UK, Finland, Denmark, Norway, Sweden, Russia, Spain,

Ireland, Luxemburg, Belgium, Netherland

CI+ : France(Canal+), Italy(DGTVi)

CI : Switzerland, Austria, Slovenia, Hungary, Bulgaria CI+ : Switzerland(UPC,Cablecom), Netherland(Ziggo),

Germany(KDG,CWB), Finland(labwise)

Only for training and service purposes

- 7 -

5. Video resolutions (2D)

5.1. Component Input (Y, CB/PB, CR/PR)

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed

720*576 15.625 50.00 13.5 SDTV ,DVD 576I

1

720*480 15.73 60.00 13.5135 SDTV ,DVD 480I

2

3 720*480 15.73 59.94 13.50 SDTV ,DVD 480I

4 720*576 31.25 50.00 27.00 SDTV 576P

5 720*480 31.50 60.00 27.027 SDTV 480P

6 720*480 31.47 59.94 27.00 SDTV 480P

7 1280*720 37.50 50.00 74.25 HDTV 720P

8 1280*720 45.00 60.00 74.25 HDTV 720P

9 1280*720 44.96 59.94 74.176 HDTV 720P

10 1920*1080 28.125 50.00 74.25 HDTV 1080I

11 1920*1080 33.75 60.00 74.25 HDTV 1080I

12 1920*1080 33.72 59.94 74.176 HDTV 1080I

13 1920*1080 56.25 50.00 148.50 HDTV 1080P

14 1920*1080 67.50 60.00 148.50 HDTV 1080P

15 1920*1080 67.432 59.94 148.352 HDTV 1080P

16 1920*1080 27.00 24.00 74.25 HDTV 1080P

17 1920*1080 26.97 23.94 74.176 HDTV 1080P

18 1920*1080 33.75 30.00 74.25 HDTV 1080P

19 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 8 -

5.2. HDMI Input(PC/DTV)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

PC(DVI) DDC

1 640*350 31.46 70.09 25.17 EGA X

2 720*400 31.46 70.08 28.32 DOS O

3 640*480 31.46 59.94 25.17 VESA(VGA) O

4 800*600 37.87 60.31 40.00 VESA(SVGA) O

5 1024*768 48.36 60.00 65.00 VESA(XGA) O

6 1152*864 54.34 60.05 80.00 VESA O

7 1360*768 47.71 60.01 85.50 VESA (WXGA) O

8 1280*1024 63.98 60.02 108.0 VESA (SXGA) O FHD only

9 1920*1080 67.50 60.00 148.5 HDTV 1080P O FHD only

DTV

1 640*480 31.46 59.94 25.125 SDTV 480P

2 640*480 31.50 60.00 25.125 SDTV 480P

3 720*480 15.73 59.94 13.500 SDTV 480I

4 720*480 15.75 60.00 13.514 SDTV 480I

5 720*576 15.62 50.00 13.500 SDTV 576I(DVB)

6 720*480 31.47 59.94 27.00 SDTV 480P

7 720*480 31.50 60.00 27.027 SDTV 480P

8 720*576 31.25 50.00 27.00 SDTV 576P(DVB)

9 1280*720 37.50 50.00 74.25 HDTV 720P(DVB)

10 1280*720 45.00 60.00 74.25 HDTV 720P

11 1280*720 44.96 59.94 74.176 HDTV 720P

12 1920*1080 28.12 50.00 74.25 HDTV 1080I(DVB)

13 1920*1080 33.75 60.00 74.25 HDTV 1080I

14 1920*1080 33.72 59.94 74.176 HDTV 1080I

15 1920*1080 56.25 50.00 148.50 HDTV 1080P(DVB)

16 1920*1080 67.50 60.00 148.50 HDTV 1080P

17 1920*1080 67.43 59.94 148.35 HDTV 1080P

18 1920*1080 27.00 24.00 74.25 HDTV 1080P

19 1920*1080 26.97 23.97 74.175 HDTV 1080P

20 1920*1080 33.75 30.00 74.25 HDTV 1080P

21 1920*1080 33.71 29.97 74.175 HDTV 1080P

Don’t insert in manual spec. out

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with LD55C chassis.

2. Designation

(1) The adjustment is according to the order which is designated

and which must be followed, according to the plan

can be changed only on agreeing. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation : Above 5 Minutes (Heat Run) Temperature : at 25 °C ± 5 °C Relative humidity : 65 ± 10 % Input voltage : 220 V, 60 Hz (6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),

DDC Adjustment Jig, Service remote control. (7) Push the "IN STOP" key - For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot automatically.

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push

“In-stop” key at rst.

2. Push “Power on” key for turning it on.

→ If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

which

3. Main PCB check process

▪ APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program "Mstar ISP Utility" and then click

"Config" tab.

(2) Set as below, and then click "Auto Detect" and check "OK"

message. If "Error" is displayed, check connection between computer, jig, and set.

(3) Click "Read" tab, and then load download file(XXXX.bin)

by clicking "Read".

(1)

filexxx.bin

(4) Click "Connect" tab. If "Can't" is displayed, check connection

between computer, jig, and set.

(2)

(3)

Please Check the Speed : To use speed between from 200KHz to 400KHz

(5) Click "Auto" tab and set as below. (6) Click "Run". (7) After downloading, check "OK" message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

* USB DOWNLOAD

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Old, it didn't work. But your downloaded version is New, USB data is automatically detecting.

(3) Show the message "Copying files from memory". (4) Updating is starting.

(5) Updating Completed, The TV will restart automatically in 5

seconds.

(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more new than your TV have, TV

can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

Only for training and service purposes

- 10 -

* After downloading, have to adjust Tool Option again.

(1) Push "IN-START" key in service remote control. (2) Select "Tool Option 1" and push "OK" key. (3) Punch in the number. (Each model has their number) (4) Completed selecting Tool option.

3.1. ADC Process(Optional)

* If ADC processes as OTP, There is no need to proceed

internal ADC.

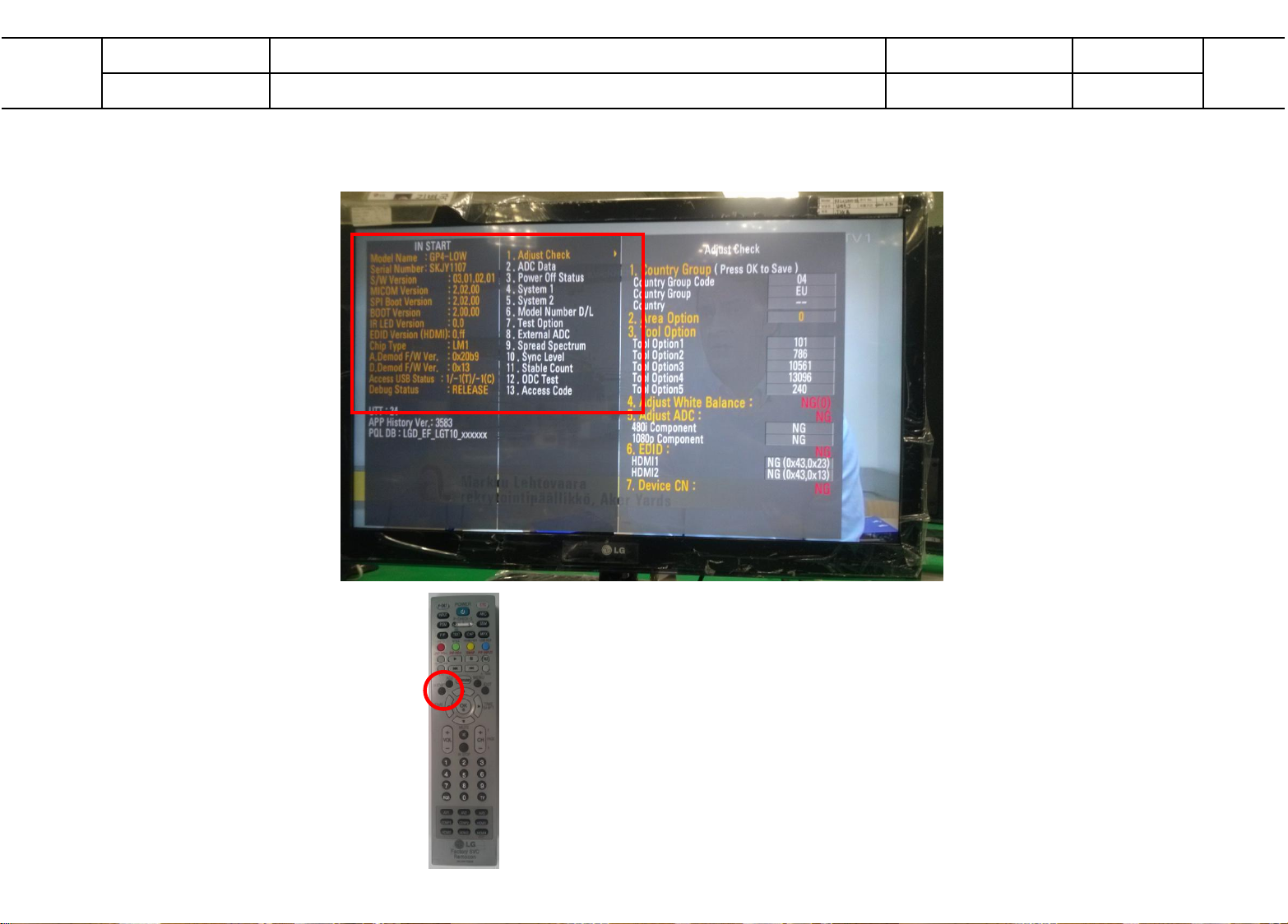

(1) Enter Service Mode by pushing "ADJ" key,

(2) Enter Internal ADC mode by pushing "►" key at "8. ADC

Calibration".

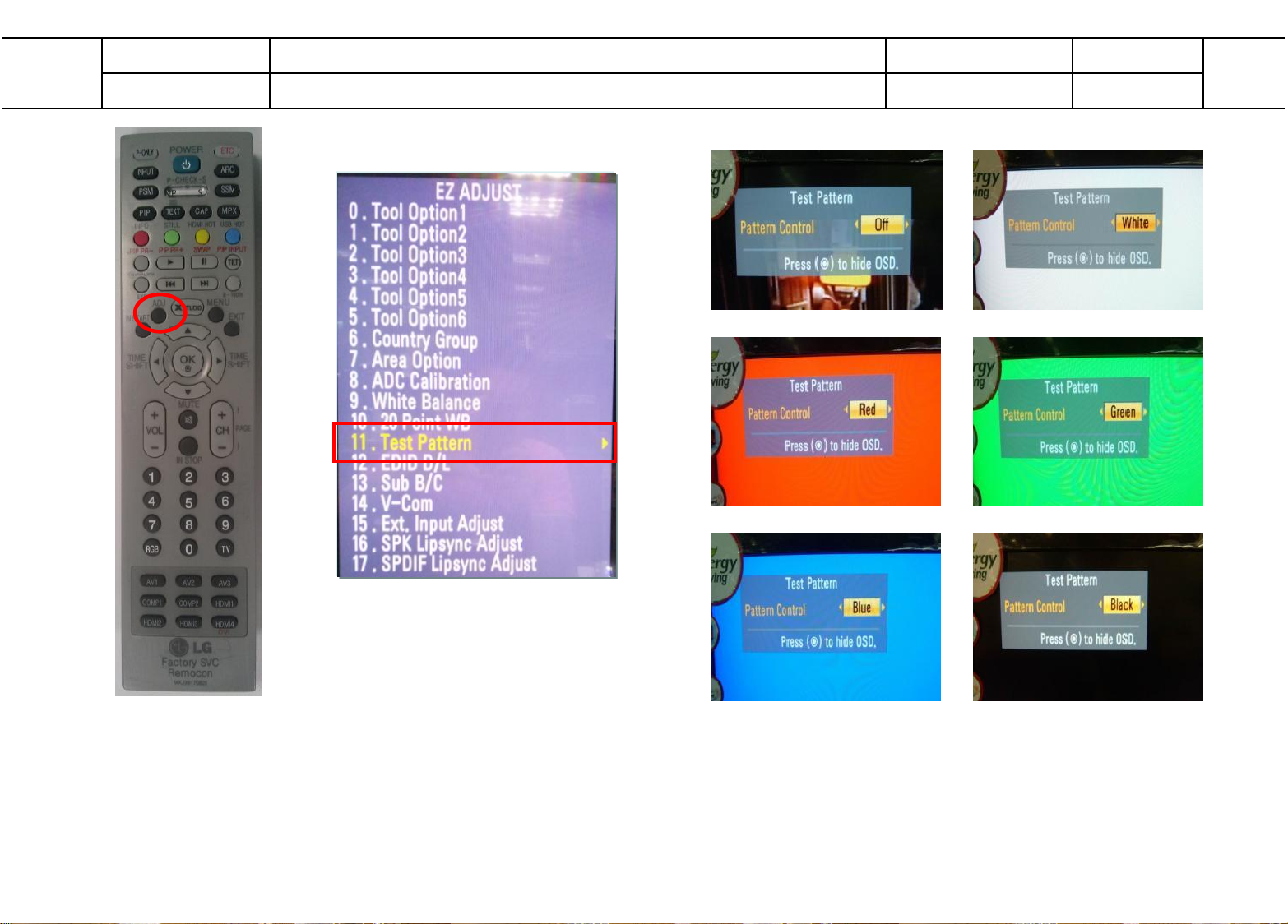

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8.ADC Calibration ►

9. White Balance

10. 10 Point WB

11. Test Pattern 12 EDID D/L

13. Sub B/C

14. Ext. Input Adjust

<Caution> Using "P-ONLY" key of the Adjustment remote

control, power on TV.

* ADC Calibration Protocol (RS232)

No. Item CMD 1 CMD 2 Data 0

Enter Adjust MODE

ADC adjust

Adjust ‘Mode In’

ADC Adjust

A A 0 0

A D 1 0

Adjust Sequence

▪ aa 00 00 [Enter Adjust Mode] ▪ xb 00 40 [Component Input] ▪ ad 00 10 [Adjust 480i & 1080p Comp] ▪ aa 00 90 End Adjust mode

* Required equipment : Adjustment remote control.

ADC Calibration

ADC Comp 480i ADC Comp 1080p

ADC Type ◄ ►

Start Reset

OK OK

OTP

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

3.3. EDID data

(1) 2D FHD Model HDMI EDID data

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 70 d 01 e 80 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21 90 22 15 01 26 15 07 50 09 57 07 f A0 f 01 1D 80 18 71 1C 16 20 58 2C 25 00 20 C2 B0 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 C0 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58 2C D0 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E 20 E0 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(2) Detail EDID Options are below

a. Product ID

MODEL NAME HEX EDID Table DDC Function

HD/FHD Model 0001 01 00 Analog/Digital

b. Serial No: Controlled on production line. c. Month, Year:

ex) Week : '01' -> '01'

Year : '2015' -> '19' fix

d. Model Name(Hex):

cf) TV set’s model name in EDID data is below.

LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)

e. Checksum: Changeable by total EDID data.

EDID C/S data

Check sum

(Hex)

MODEL NAME(HEX)

FHD

HDMI Block 0 40 Block 1 25 (HDMI)

3.2. EDID Download

▪ After enter Service Mode by pushing "ADJ" key. ▪ Enter EDID D/L menu. ▪ Enter "START" by pushing "OK" key.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern

12. EDID D/L ►

13. Sub B/C

14. Ext. Input Adjust

<Caution> Never connect HDMI cable when EDID downloaded.

Only for training and service purposes

EDID D/L

HDMI1 NG HDMI2 NG

Start Reset

f. Vendor Specific(HDMI)

INPUT Model name(HEX)

HDMI1 67 03 0C 00 10 00 80 1E

3.4. Function Check

- Check display and sound

■ Check Input and Signal items.

1) TV

2) AV (SCART / CVBS)

3) COMPONENT (480i)

4) HDMI * Display and Sound check is executed by Remote control.

<Caution> Not to push the INSTOP key after completion if the function inspection.

- 11 -

4. Total Assembly line process

4.1. White Balance adjustment

▪ W/B Equipment condition

CA210 : LED → CH14, Test signal: Inner pattern(80IRE)

▪ Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

▪ If it is executed W/B adjustment in 2~3 minutes H/run, it is

adjusted by Target data.

Mode Temp Coordinate spec Target

Cool 13,000 K

Medium 9,300 K

Warm 6,500 K

Luminance

(cd/m2)

X = 0.271 (± 0.002) Y = 0.270 (± 0.002)

X = 0.286 (± 0.002) Y = 0.289 (± 0.002)

X = 0.313 (± 0.002) Y = 0.329 (± 0.002)

Min 60 (LF51 Series Model)

▪ For LGD, BOE, AUO, CSOT.. Module.(In the case of , the

color temperature spec of cool mode is 13000K)

Cool Medium Warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

▪ W/B information

Model information W/B information

Model Module Panel Backlight Type Using W/B table

All All All Direct LED O

* Connecting picture of the measuring instrument

(On Automatic control) Inside PATTERN is used when W/B is controlled. Connect to

auto controller or push Adjustment R/C P-ONLY → Enter the

mode of White-Balance, the pattern will come out.

Full White Pattern

RS-232C Communication

* Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10 lux).

(2) Adhere closely the Color analyzer(CA210) to the module

less than 10 cm distance, keep it with the surface of the Module and Color analyzer's prove vertically.(90° ± 2.5°)

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using 'no signal' or 'POWER ONLY' or the others, check the back light on.

X = 0.278 Y = 0.280

X = 0.293 Y = 0.299

X = 0.320 Y = 0.339

CA-210

COLOR ANALYZER TYPE : CA-210

▪ Auto adjustment Map(using RS-232C to USB cable)

RS-232C COMMAND

[CMD ID DATA]

Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

MIN

CENTER

(DEFAULT)

MAX

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 254

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 254

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

Color Temperature : COOL, Medium, Warm. One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0.(When R/G/B Gain are all C0, it is the FULL Dynamic Range of Module)

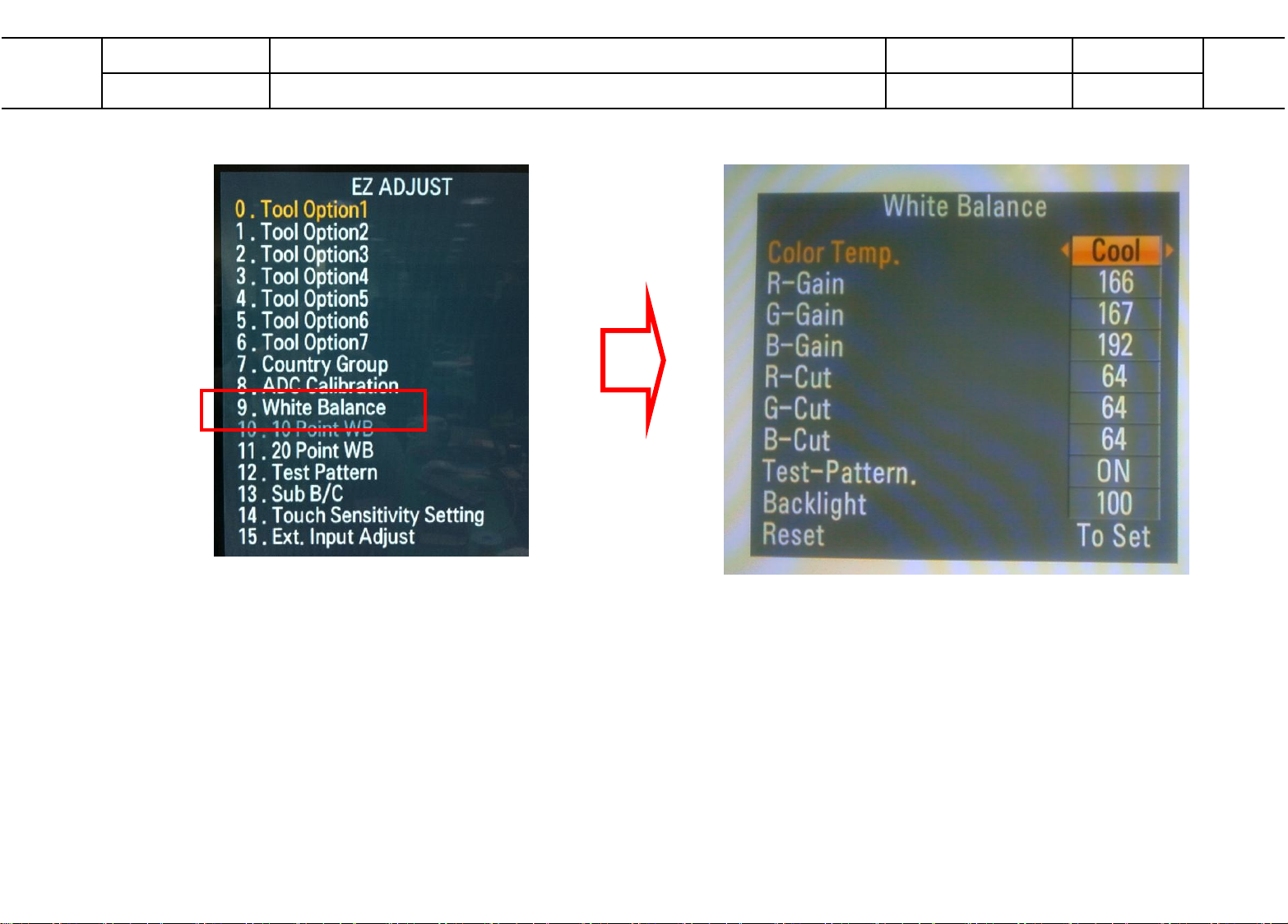

* Manual W/B process using adjust Remote control.

▪ After enter Service Mode by pushing "ADJ" key, ▪ Enter White Balance by pushing "►" key at "9. White

Balance".

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern 12 EDID D/L

13. Sub B/C

14. Ext. Input Adjust

* CASE Cool Mode

First adjust the coordinate far away from the target value(x, y).B.

1) x, y > target

2) x, y < target

3) x >target, y < target

4) x < target, y > target

- Every 4 case have to fit y value by adjusting B Gain and then fit x value by adjusting R-Gain.

- In this case, increasing/decreasing of B Gain and R Gain can be adjusted.

How to adjust

1) In case G gain more than 172

Adjust R Gain and B Gain less than 192

2) If the G gain value be adjusted down to 172

One of the R/B Gain is 254

3) If G Gain is 172 , More than one of R/B Gain is to be

between 192~254

Whit Balance

Color Temp. ◄ ► R-Gain G-Gain B-Gain R-Cut G-Cut B-Cut Test-Pattern Backlight Reset To Set

Cool

172 172 192

64 64

64 ON 100

Only for training and service purposes

- 12 -

* CASE Medium / Warm

First adjust the coordinate far away from the target value(x, y).

1) x, y > target i) Decrease the R, G.

2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others.

3) x > target, y < target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R

4) x < target, y > target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

5. GND and HI-POT Test

5.1. HI-POT auto-check preparation

- Check the POWER cable and SIGNAL cable insertion condition

5.2. HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

* After you finished all adjustments, Press "In-start" key and

compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable. If it is not same, then correct it same with BOM and unplug AC cable.

For correct it to the model's module from factory Jig model.

* Push the "IN STOP" key after completing the function

inspection. And Mechanical Power Switch must be set “ON”.

4.2. Outgoing condition Configuration

■ When pressing IN-STOP key by SVC remocon, Red LED

are blinked alternatively. And then automatically turn off.

(Must not AC power OFF during blinking)

5.3. Checkpoint

(1) Test voltage

- Touchable Metal : 3 KV / min at 100 mA

- SIGNAL : 3KV / min at 100 mA

(2) TEST time: 1 second. (case : mass production ) (3) TEST POINT

- Touchable Metal => LIVE & NEUTRAL : Touchable Metal.

- SIGNAL => LIVE & NEUTRAL : SIGNAL.

6. Model name & Serial number D/L

▪ Press "Power on" key of service remote control.

(Baud rate : 115200 bps)

▪ Connect RS232 Signal Cable to USB Jack. ▪ Write Serial number ▪ Must check the serial number at the Diagnostics of SET UP menu.

(Refer to below).

6.1. Signal Table

CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY

CMD : A0h LENGTH : 85~94h (1~16 bytes) ADH : EEPROM Sub Address high (00~1F) ADL : EEPROM Sub Address low (00~FF) Data : Write data CS : CMD + LENGTH + ADH + ADL + Data_1 +...+ Data_n Delay : 20ms

Only for training and service purposes

- 13 -

6.2. Command Set

Adjust mode CMD(hex) LENGTH(hex) Description

EEPROM WRITE A0h 84h+n n-bytes Write(n= 1~16)

* Description

FOS Default write : <7mode data> write Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0, Phase Data write : Model Name and Serial Number write in EEPROM,.

6.3. Method & notice

(1) Serial number D/L is using of scan equipment. (2) Setting of scan equipment operated by Manufacturing

Technology Group.

(3) Serial number D/L must be conformed when it is produced in

production line, because serial number D/L is mandatory by D-book 4.0.

* Manual Download(Model Name and Serial Number)

If the TV set is downloaded by OTA or Service man, sometimes model name or serial number is initialized.(Not always) There is impossible to download by bar code scan, so It need Manual download.

1) Press the "Instart" key of Adjustment remote control.

2) Go to the menu "6.Model Number D/L" like below photo.

3) Input the Factory model name or Serial number like photo.

7. MAC Address & CI+ key download

7.1. MAC Address

7.1.1. Equipment & Condition

▪ Play file : Serial.exe ▪ MAC Address edit ▪ Input Start / End MAC address

7.1.2. Download method

(1) Communication Prot connection

Connection: PCBA(USB Port) → USB to Serial Adapter(UC-

232A) → RS-232C cable → PC(RS-232C port)

* Caution: LJ21* chassis support only UC-232A driver. (only

use this one.)

(2) MAC Address & CI+ Key Download

▪ Set CI+ Key path Directory at Start Mac & CI+ Download

Programme

▪ Com 1,2,3,4 and 115200(Baudrate)

4) Check the model name Instart menu. → Factory name displayed. ex 47LF560V-ZA)

5) Check the Diagnostics.(DTV country only) → Buyer model

displayed.(ex

47LF560V-ZA

)

GP4_LOW

▪ Port connection button click(1) ▪ Push the (2) MAC Address write. ▪ At success Download, check the OK (3) ▪ Start CI+ Key Download, Push the (4) ▪ Check the OK or NG

Only for training and service purposes

- 14 -

7.2. LAN Inspection

7.2.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

7.2.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ Setting automatic IP ▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC

Address.

7.3. LAN PORT INSPECTION(PING TEST)

Connect SET -> LAN port == PC -> LAN Port

SET PC

7.3.1. Equipment setting

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

7.3.2. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program. (2) Connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) Remove LAN cable.

Only for training and service purposes

- 15 -

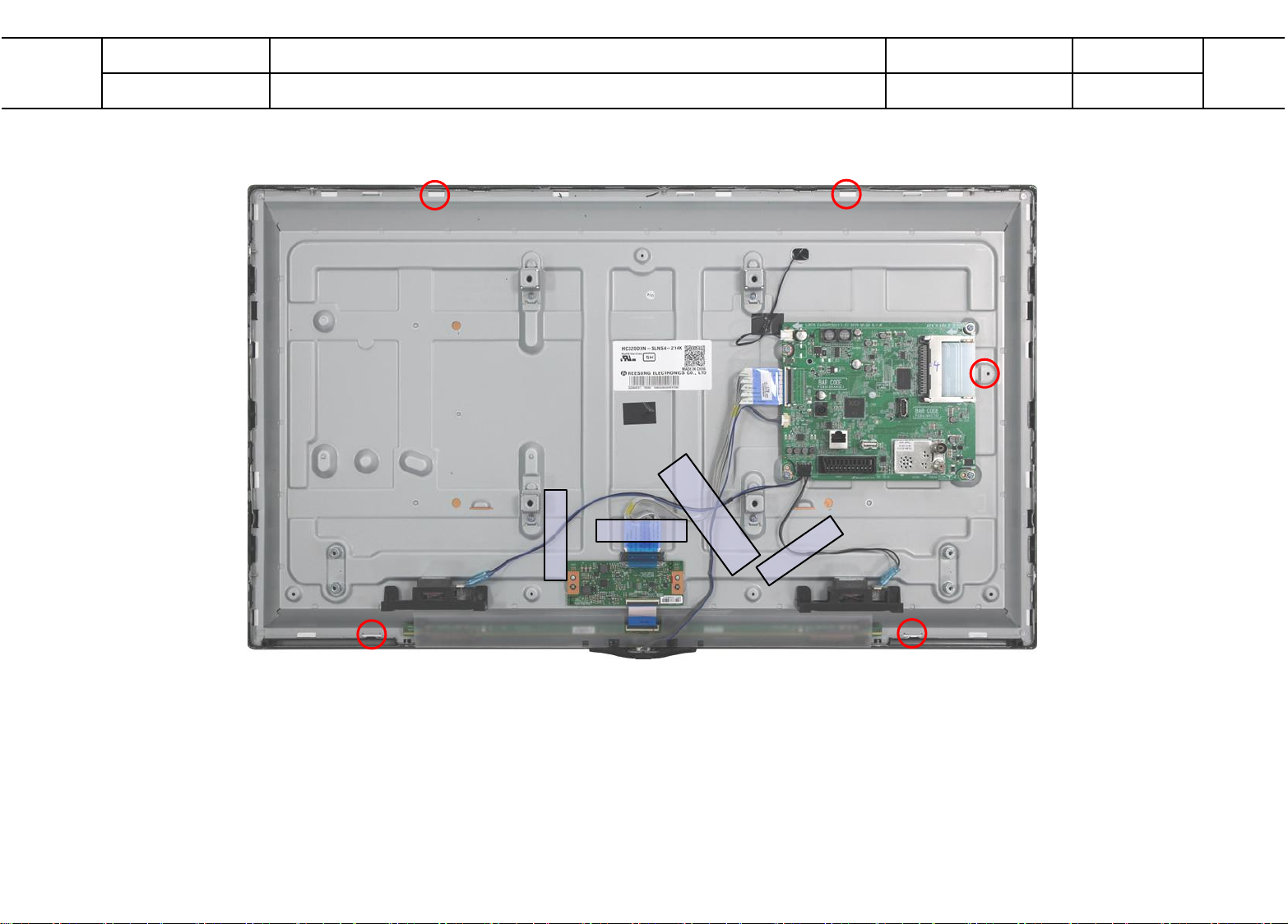

1. Disassembly of Back cover

DISASSEMBLY

(1) Unscrew bolts in the set.

(2) Check both right and left hole.

(4) Put ‘long nose’ into the hole.

(5) Open B/C with push/pulling long

nose to upper and lower sides.

(3) Attach tape to ‘Long nose pliers’.

* Scratch can be caused without tape.

Only for training and service purposes

- 16 -

(6) Disassemble Back cover.

* Disassemble it from left to right for top

side hook on Back cover

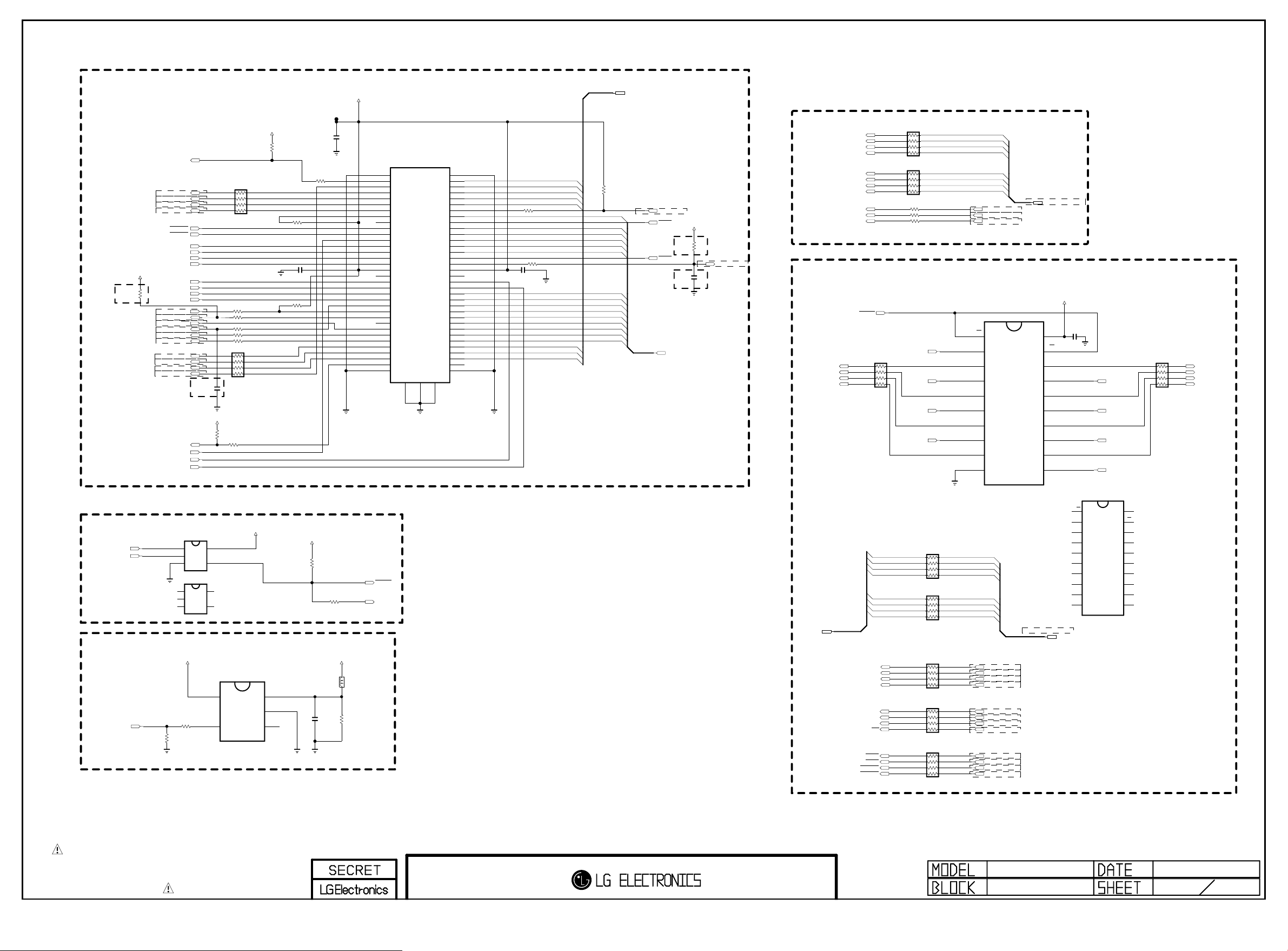

1. 49LF510V-ZA

BLOCK DIAGRAM

Serial Flash

(IC1300, 8Mbit)

SPI_SCK/SDI/SDO/CS

(IC104, 256Kbit)

System EEPROM

I2C_SCL/SDA

X-tal

SPK_L

SPK_R

30P HD LVDS wafer

(P1801)

24MHZ

(IC5600)

NTP7515

(P4601)

Connector

51P FHD LVDS wafer

(P1800)

AUD_LRCH,

AMP_SCL/SDA

AUD_MASTER_CLK,

AUD_LRCK, AUD_SCK

Jog KEY, LED_R, IR

RXA0+/-~RXA4+/-, RXACK+/-

RXB0+/-~RXB4+/-, RXBCK+/-

Main SOC

M1A-LGE2134

(IC101, DDR3 256MB)

Only for training and service purposes

USB1_OCP/CTL

PCM_A[0:7]

IF_N/P

LNB_TX

IC102 (1Gbit)

NAND FLASH

H27U1G8F2CTR-BC

PCM_A[8:14]

TS_DATA[0:7]

PCM_DATA[0:7]

T4LCX244FT Buffer

(P1900)

CI SLOT

LNB_OUT, DEMOD_RESET

FE_TS_DATA[0:7]

Tuner

IF_AGC

TU_SCL / SDA

DEMOD_SCL/SDA

DDC_SCL/SDA_2, HDMI_CEC

CK+/-, D0+/-, D1+/-, D2+/ -_HDMI2

HDMI1

F/NIM

(TU3700)

(JK801)

SIDE

- 17 -

OCP

DM/DP

SN1406035RGER

+5V_USB

USB

(JK700)

REAR

EPHY_TP/TN/RP/RN

LAN

SC1/AV2_CVBS_IN, SC1_R+/G+/B+

DTV/MNT_OUT, DTV/MNT_L/R_OUT

COMP2_Y+/Pb+/Pr+/L_R_IN or AV_CVBS_IN/L_R_IN

Only UK

(JK2100)

(JK2802)

(JK2800)

F-SCART

COMPONENT

2. 49LF5100-ZA

Serial Flash

(IC1300, 8Mbit)

SPI_SCK/SDI/SDO/CS

(IC104, 256Kbit)

System EEPROM

I2C_SCL/SDA

X-tal

SPK_L

SPK_R

30P HD LVDS wafer

(P1801)

24MHZ

(IC5600)

NTP7515

(P4601)

Connector

51P FHD LVDS wafer

(P1800)

AUD_LRCH,

AMP_SCL/SDA

AUD_MASTER_CLK,

AUD_LRCK, AUD_SCK

Jog KEY, LED_R, IR

RXA0+/-~RXA4+/-, RXACK+/-

RXB0+/-~RXB4+/-, RXBCK+/-

Main SOC

M1A-LGE2134

(IC101, DDR3 256MB)

NAND FLASH

Only for training and service purposes

USB1_OCP/CTL

PCM_A[0:7]

IF_N/P

IF_AGC

IC102 (1Gbit)

H27U1G8F2CTR-BC

PCM_A[8:14]

TS_DATA[0:7]

PCM_DATA[0:7]

T4LCX244FT Buffer

FE_TS_DATA[0:7]

(P1900)

CI SLOT

TU_SCL / SDA

DDC_SCL/SDA_2, HDMI_CEC

CK+/-, D0+/-, D1+/-, D2+/-_HDMI2

HDMI1

Tuner

H/NIM

(TU3701)

(JK801)

SIDE

- 18 -

OCP

DM/DP

USB

REAR

SN1406035RGER

+5V_USB

(JK700)

SC1/AV2_CVBS_IN, SC1_R+/G+/B+

F-SCART

DTV/MNT_OUT, DTV/MNT_L/R_OUT

COMP2_Y+/Pb+/Pr+/L_R_IN or AV_CVBS_IN/L_R_IN

(JK2800)

COMPONENT

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

400

900

LV1

200

540

800

500

120

701

700

A10

901

Set + Stand

Only for training and service purposes

- 19 -

A2

POWER

LGE Internal Use Only

FROM ADAPTOR 19V

JK400

KJA-DC-1-0032

4

2

Surge Protection

2

1

D471 20V

OPT

R493 120K

OPT R492 120K

OPT C492 10uF 25V

19V TO PANEL VCC(12V) DCDC CONVERTER

+19V

C472

C470 10uF

0.1uF

25V

R470 100K

OPT Q407 SSM3J332R

S

G

AAM

IN

SW

GND

+19V

D

MP2315GJ

1

2

3

4

OPT

C488

68uF 35V

IC403

NEW

3A

+19V to +3.5V_STANDBY

IC402

MP2315GJ

R471

AAM

C471 68uF 35V

8

7

6

5

C473 10uF

FB

VCC

EN/SYNC

BST

25V

39K

1/16W 1%

C474

0.1uF 25V

20130528 cJ.LIM

R475 68

C475

0.1uF 50V

GND

IN

SW

0.47uF

R476

47K

C477

OPT

1

2

NEW

3

3A

4

OPT R489 10K

OPT

16V

CYNTEC

L470-*1

10uH

C478

0.1uF 25V

FB

8

VCC

7

EN/SYNC

6

BST

5

+3.5V_ST

OPT

R490

10K

R480 10K

TDK L470

10uH

C480 10uF

16V

20130528 cJ.LIM

R477 68

C476

0.1uF 50V

RL_ON

POWER_ON/OFF_1

C481

C486

10uF

16V

R478 100K

R479 20K

C483

0.1uF 25V

R481 56K

R48 2

R48 3

3.3 K

R48 4

C479

0.1uF 25V

11K 1%

1%

1K

1%

CYNTEC

L471-*1

4.7uH

TDK

L471

4.7uH

C482

C484

10uF

10V

X5R => X7R

To improve CST Issue

2013.12.21 by GH.Song

+12V

OPT

ZD405

15V

C487 22uF 10V

R485 56K

C489 22uF 10V

C485

0.1uF 25V

R48 6

R48 7

1.2 K

R48 8

3.5V_ST POWER_DET

+3.5V_ST

R410

10K

+3.5V_ST

C400

0.1uF 16V

2K 1%

1%

1K 1%

5V

5.6B->5V READY->APPLY

2013.08.07

D470

+12V to PANEL_VCC

UBW2012-121F

PANEL_CTL

L408

120OHM

OPT

C425

0.1uF 25V

R441

OPT

C490 1uF 10V

+12V

R442

10K

B

R445

R446 120K

OPT

ZD408

33K

5V

C

E

POWER_DET

C427

0.22uF 25V

TR_NXP Q403 MMBT3904(NXP)

Q405

SSM3J332R

S

B

PANEL_VCC

D

R451

R452

5.6K

G

C

TR_KEC Q403-*1 2N3904S

E

+3.5V_ST to +3.3V_Normal

+3.5V_ST

POWER_ON/OFF_1

R443

4.7K

R444 10K

B

R447 22K

R448

2.2K

C428

2.2uF 10V

C

TR_NXP Q404 MMBT3904(NXP)

E

+3.5V_Normal to +1.5V_DDR

+3.3V_Normal

L409

BLM18PG121SN1D

C426 10uF

10V

1.3A

IC404

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

R449 1K 1/16W 1%

R450 200 1/16W 1%

BOOST_EN

R1

R2

FET_AOS Q406-*1

AO3435

S

G

FET_TOSHIBA

Q406 SSM3J332R

S

G

C

B

E

L411

CB2012PK501T

R453

0

C431 10uF

10V

D

C429

0.1uF 16V

TR_KEC

Q404-*1 2N3904S

+1.5V_DDR

L410

BLM18PG121SN1D

C430 22uF 10V

BRAZIL_ESD

ZD403

2.5V

+3.3V_Normal

TVS_SEMTECH

ZD402

5V

TVS_KEC ZD402-*1

Vout=1.25*(1+R2/R1)+Iadj*R2

+5V_Normal & +1.10V_VDDC

+3.3V_Normal

R403 10K

OPT

C403

4700pF

50V

USB1_CTL

Check the pull down when AC Power On with HDD

USB1_CTL_Pull_Down

USB1_OCD

OPT R473 30K

R472

3.3K

CB2012PK501T

+5V_Normal

R408 100K

L404

+12V

C405 10uF 25V

Vout=0.6(R1/R2)+0.6

TDK

L405

4.7uH

CYNTEC

R1

R411

4.7K 1%

R2

R413

5.1K 1%

50V

C420

3300pF

50V

CYNTEC

L406-*1

4.7uH

R41 4

OPT

C411

ZD407

82pF

5.1v

50V

C416

22pF

50V

C417

3300pF

50V

10K

R415

R416

5.1K

R417

100

1%

39K

1%

ZD401

2.5V

R1

R2

C412 10uF

6.3V

C418

47pF 50V

+5V_Normal

C423 22uF 16V

C410

0.047uF 25V

C406 10uF 25V

C408

OPT

2200pF

50V

C409

OPT

2200pF

50V

R409

91K

C407 1uF

10V

SS2

EN1

EN2

ROSC/SYNC

SW_EN

NFAULT

+5V_USB

VIN123V7V24SS1

[EP]

22

1

THERMAL

25

2

3

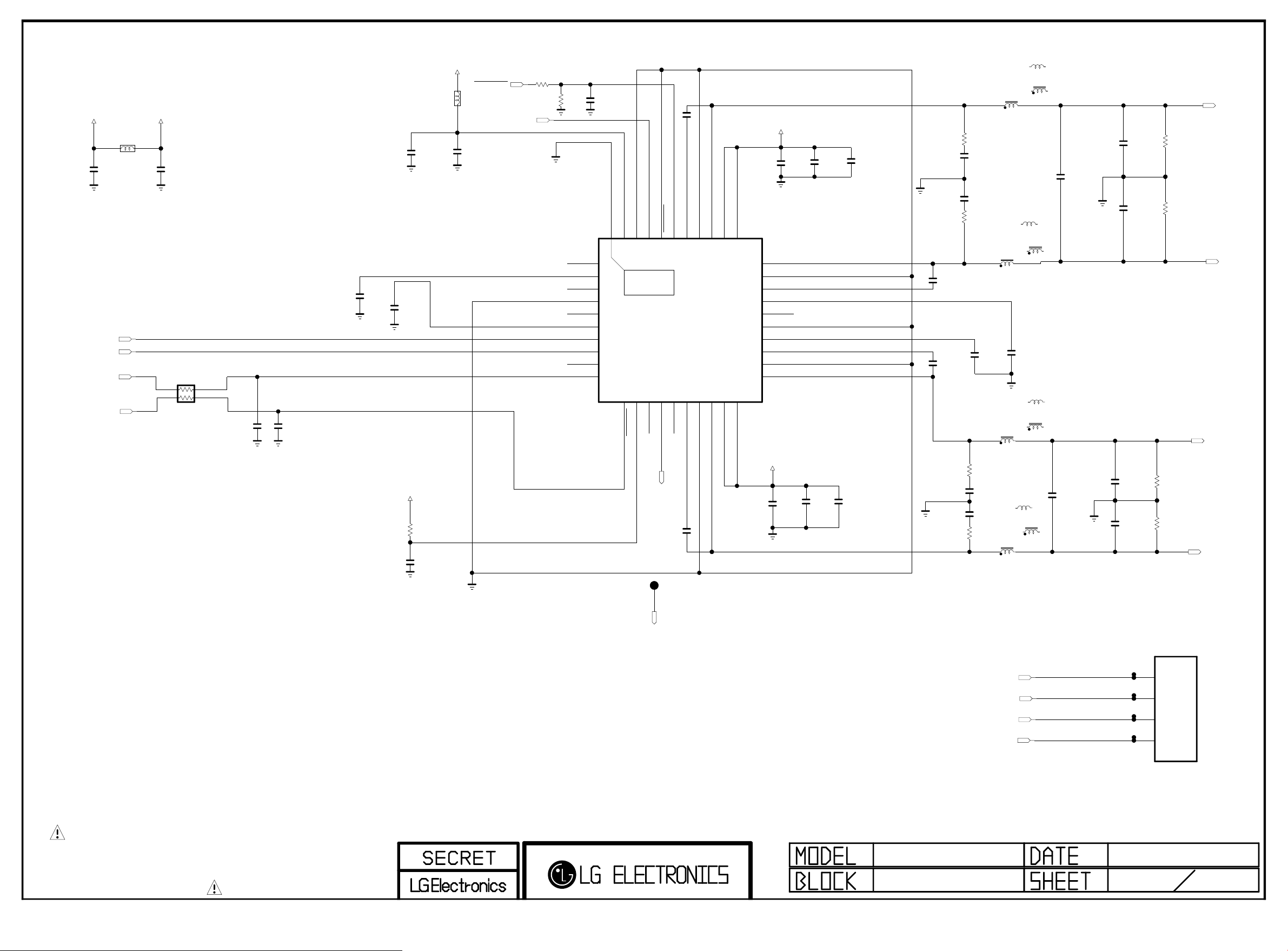

IC400

SN1406035RGER

4

5

6

7

9

8

VIN2

SW_IN

SW_OUT

10

PGND2

LX2

BST120LX121PGND1

19

COMP1

18

FB1

17

AGND

16

RSET

15

FB2

14

COMP2

13

11

12

BST2

+5V_Normal

C432

1uF 16V

L405-*1

4.7uH

R422 15K

C419 22pF

R41 8

20K

TDK

C421

0.047uF

L406

4.7uH

25V

C491 470pF 50V

R491

5.1

Vout=0.6(R1/R2)+0.6

C413 22uF

10V

C424 22uF 16V

+1.10V_VDDC

C414 22uF

10V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_ECI_M1A

POWER

150112

4

TOTAL LED DRIVER BLOCK

LGE Internal Use Only

L505

CIS21J121

32_43inch

+19V

BOOST_EN

EU_BR R553 0

R554 0

32_43inch_AJ_KR_CO

R555 0

OPT C516

0.1uF

OPT C517

0.1uF

OPT

L503

UBW2012-121F

OPT

L504

UBW2012-121F

C500 47uF 25V

49inch

R500 1K

C501 10uF 25V

C502

0.1uF 50V OPT

49inch

C503

0.033uF 50V

49inch

R501

18K 1%

49inch 470pF

49inch

R502 1K

1%

49inch

C504

50V

R503 10K

1/16W

49inch

C505 100pF

50V

0.22uF

49inch C506

16V

DIS/EN

COMP

RC

SS

FB

49inch

IC500

TPS40210DGQR

1

2

THERMAL

3

4

5

49inch

R504 180K

11

REDUCE INDUCTOR TEMP ISSUE

49inch

L507

49inch

L508

49inch

C531 100V 220pF

R511

R508

47

49inch

R509

49inch

3.3

OPT

D505

1N4148W-G

49inch

R510

3.9K

49inch

50V

R507

3.9K 1%

121211 1K -> 3.9K 220p -> 330p

D503

MBRD10U100CT

A1

C

A2

OPT C532 100V 220pF

47

R513

47

49inch

R582

2.2

1%

49inch

R558

47

OPT

R512

49inch

C511

33uF 100V

0.1

1W

REDUCE RIPPLE CURRENT

49inch

C513

C512

33uF

100V

D

49inch Q500

G

AOD478

OPT

S

R583 10K

R514

0.1

49inch

1W

49inch

C514 1uF 50V

49inch

C515 1uF 50V

49inch

32_43inch_AJ_KR_CO

R515

C537

100K

4.7uF

1/8W

50V

32_43inch_AJ_KR_CO

C538

49inch

4.7uF

R516

50V 100K 1/8W

R518

47K

49inch

R581

1K

49inch

R517 680 1/8W 1%

VOUT#1=50.5V

49inch

C537-*1 10uF 35V

49inch

C538-*1 10uF 35V

OPT

R519 10K

INV_CTL

PWM_DIM

R520

10K

B

49inch

R522-*1

32_43inch

150K

R522 120K

43inch R529-*1 13K 1%

R521 100

BLU_CURRENT_CTL

+3.3V_Normal

R523

3K

C

TR501 MMBT3904(NXP)

E

R525 270K

1/8W 1%

49inch R529-*2

8.2K 1%

R524

100K

49inch R532-*2

27K 1%

49inch

1%

R533-*2

3.3K

1/16W

R528 1K

1%

32inch

R529 30K 1%

C518

100pF

50V

43inch

R532-*1 12K

1%

43inch

R533-*1 10K 1%

OPT R530 100K

R531

100K

1%

10K

C521 1000pF 50V

32inch

R532

32inch

R533

15K

1%

3.6K

1%

C522 1000pF 50V

R534

49inch

L500 33uH

49inch

R505 180K

To Improve EMI Issue

49inch

C507

49inch

C530 100V 220pF

R506

47

49inch

C509

C508

0.1uF

1uF 25V

330pF

50V

VOUT = VREF*(1+48.8K/680) = 0.7 *(1+48.8K/680) = 50.5V

[EP]

VDD

10

BP

9

GDRV

8

ISNS

7

GND

6

L501 33uH

NC_1

PGND_1

PGND_2

PDIM

RISET

NC_2

EN

OVP

LS8

LS7

LS6

LS5

32inch

L506

CIS21J121

43_49inch

L502 33uH

R535 100

DT1641AS

1

2

3

4

5

6

7

8

9

10

11

12

R536 100

IC501

To Improve EMI Issue

C523 100V 220pF

C524 100V 220pF

R537

R538

R539

100

[EP]GND

VIN

24

C525 1uF

VREF

25

23

THERMAL

CS

22

NDRV

21

RSS

20

COMP

19

RT

18

LS1

17

LS2

16

LS3

15

LS4

14

LGND

13

R540 100

25V

220K

R545

R541 100

R542

R544

3.3

1/16W

39K 1%

R543

1.5K 1%

+19V

1%

R546

1.5K 1%

C526 100V 220pF

C527 100V 220pF

R547 100

C510 1uF 25V

R548

30K C528

4700pF

50V

1%

C529

0.1uF

R549 100

25V

UF3D(SUZHOU GRANDE)

32_43inch

R550 100

D

49inch Q502 SMN630LD

G

32_43inch

S

Q502-*1

G

AOD2922

R551

0.1

49inch

D502

D504 BR210

100V

D

S

P500

SMAW200-04

FIRST BOOST UP

1

2

3

VOUT#2

4

EXCEPT C500 C501

C533

33uF

49inch R579 0

C534

33uF

32_43inch

R580 0

32_43inch

R578 0

C535

4.7uF 50V

C536

4.7uF 50V

C539

4.7uF 50V

33V

ZD500

43_49inch

C519 1uF 100V

49inch

C520

1uF

100V

32inch

C519-*1

4.7uF 50V

32_43inch

C520-*1 0

1/4W 5%

49inch

C540 1uF 100V

49inch

C541

1uF

100V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LED_DRIVER

150112L15.5_ECI_M1A

5

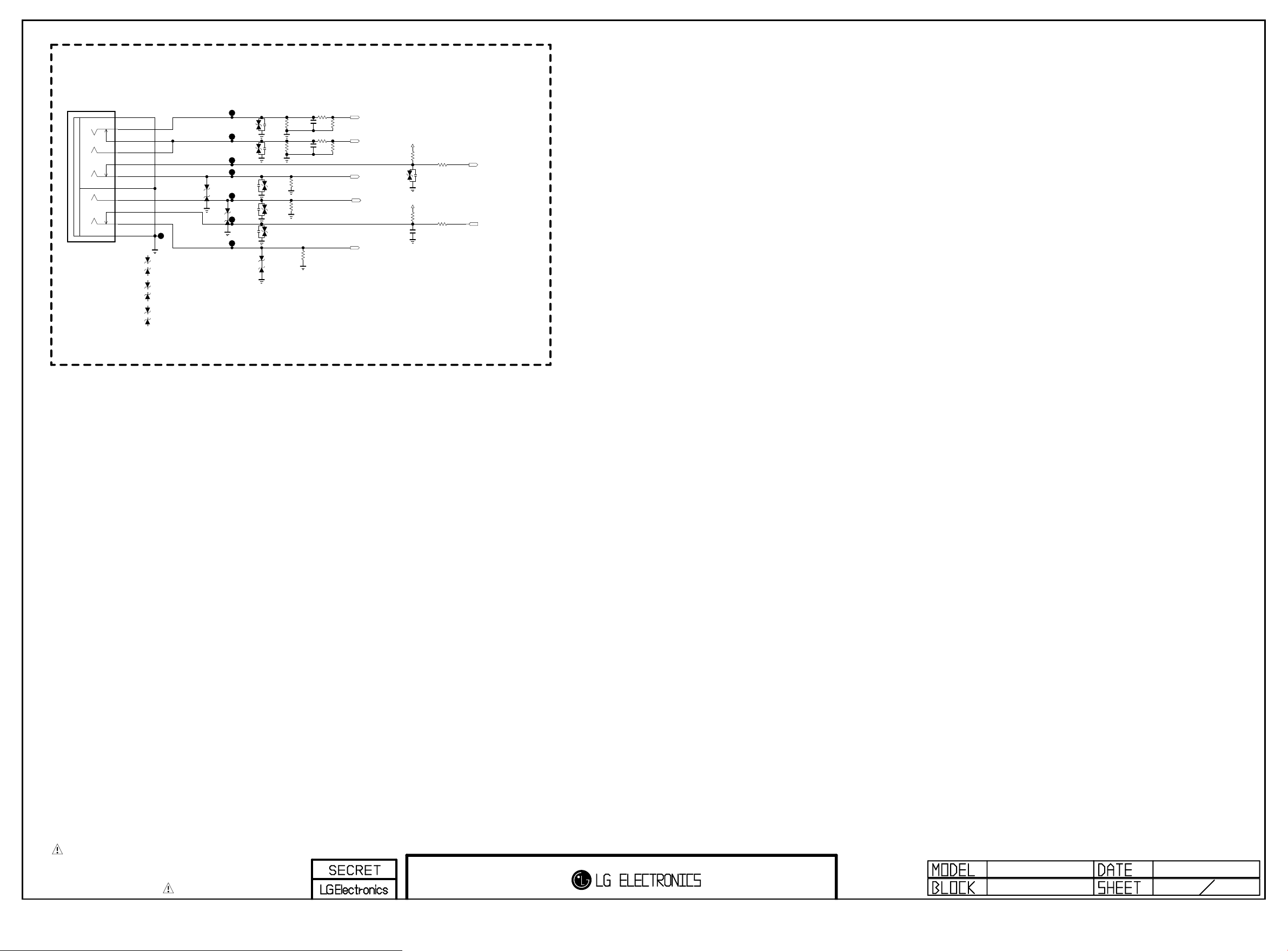

USB

LGE Internal Use Only

JK700

US-04A-VSD

5

OPT C704 22uF 10V

+5V_USB

SIDE_USB1_DM

SIDE_USB1_DP

USB_HDD_CAP1_10uF

C700-*1

USB_HDD_CAP1_22uF

OPT

ZD700

SD05

1

2

3

4

5V

OPT

C701

OPT

C702

5pF

50V

10uF

10V

C700 22uF 10V

USB_HDD_CAP2_10uF

C703-*1

10uF

10V

USB_HDD_CAP2_22uF

C703 22uF 10V

R700

2.2

R701

2.2

OPT D700 RCLAMP0502BA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_ECI_M1A

USB_S1

150112

7

HDMI (REAR 1)

LGE Internal Use Only

CEC

HDMI_CEC

R804 100

CEC_REMOTE_S7

HDMI_DIODE_SUZHOU

D801-*1

MMBD6100

A1

C

5V_HDMI_4

R806

2.7K

+5V_Normal

R807

2.7K

A2

HDMI_DIODE_KEC

A2CA1 KDS184 D801

DDC_SDA_4

DDC_SCL_4

HDMI_1

5V_HDMI_4

GND

20

HP_DET

19

5V

18

GND

17

DDC_DATA

16

DDC_CLK

15

NC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

EAG59023302

JK801

This GND Pattern should be very narrow HDMI jack burnt problem improvement

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_DET_HDMI_4

ESD_HDMI_VARISTAR

VA805

R812

1.8K

R813

3.3K

ESD_HDMI_VARISTAR

VA806

L802

DLP11SA900HL2L

4 3

DLP11SA900HL2L

ESD_HDMI_CAP

VA805-*1 1uF 10V

DLP11SA900HL2L

21

L804

4 3

L801

4 3

L803

DLP11SA900HL2L

4 3

21

HDMI_ARC

AR804

5.1

AR803

5.1

ESD_HDMI_CAP

VA806-*1 1uF 10V

ESD_HDMI

VA809

ESD_HDMI

VA808

ESD_HDMI

VA811

ESD_HDMI

VA810

R814

33

AR801 100

HPD4

DDC_SDA_4 DDC_SCL_4

HDMI_CEC

CK-_HDMI4 CK+_HDMI4 D0-_HDMI4 D0+_HDMI4

D1-_HDMI4 D1+_HDMI4 D2-_HDMI4 D2+_HDMI4





THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_ECI_M1A

HDMI_R1 9

150123

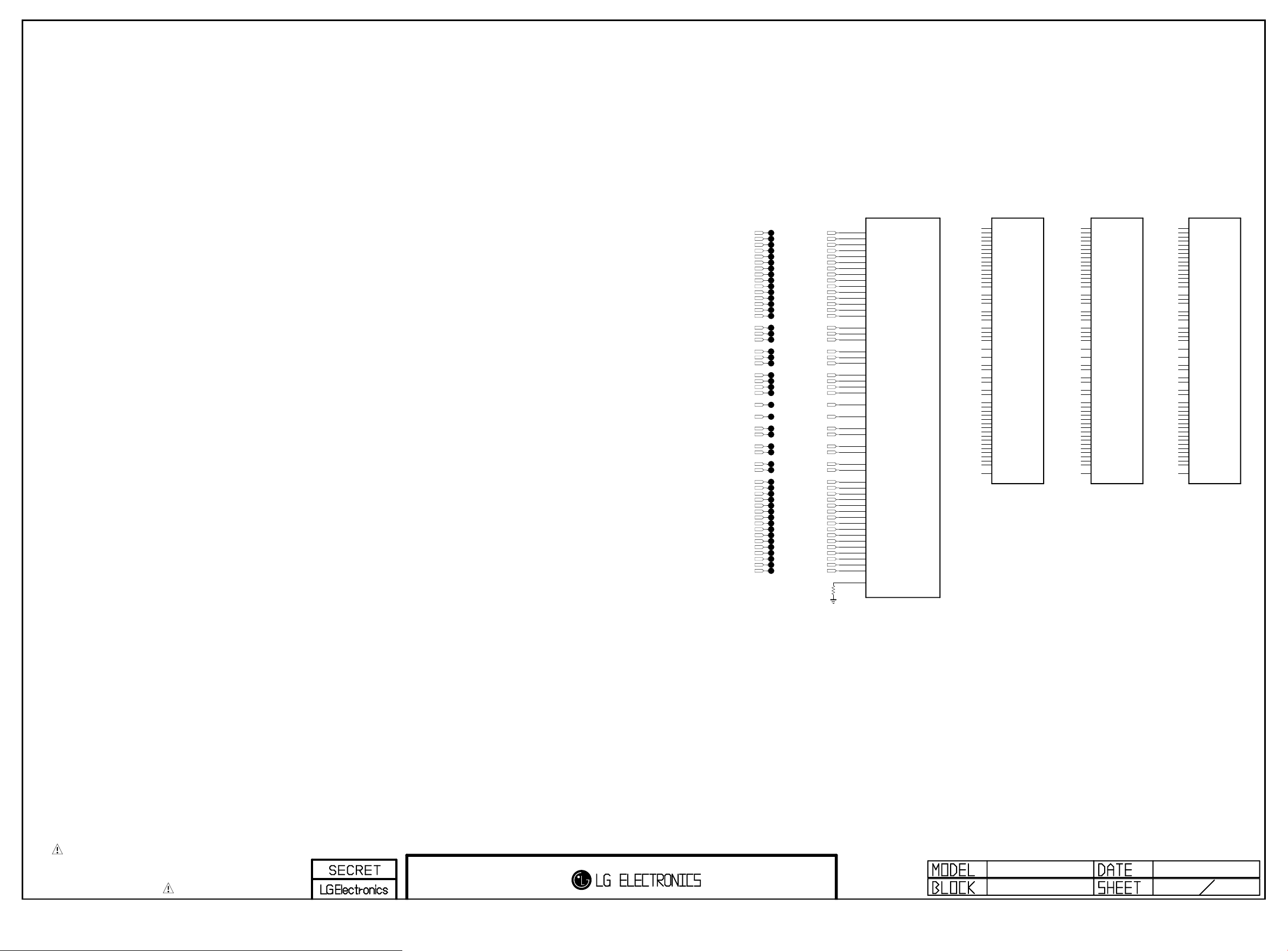

A-MA0

LGE Internal Use Only

A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13 A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A/B_DDR3_CS

A-MDQSL A-MDQSU

A-MDML A-MDMU

A-MDQSLB A-MDQSUB

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7 A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13 A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A/B_DDR3_CS

A-MDQSL A-MDQSU

A-MDML A-MDMU

A-MDQSLB A-MDQSUB

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7 A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1109

M1A_256M_UO4

IC101

LGE2134(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

240

1%

ZQ

E11 F12 D10 B10 E15 B11 F14 C11 D14 A12 F16 D13 D15 C12 E13

A9 D16 A10

C13 B13 E17

B8

C8

B9 D11

F10

D12

A19 B18

C16 D21

C18 C17

A20 A16 C19 C15 C20 C14 B21 B15 F18 D19 D17 E21 E19 D20 D18 F20

E9

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8] B_DDR3_A[9] B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13] B_DDR3_A[14]

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_MCLK B_DDR3_MCLKZ B_DDR3_MCLKE

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ B_DDR3_WEZ

B_RESET

B_DDR3_CS0

B_DDR3_DQSL B_DDR3_DQSU

B_DDR3_DQML B_DDR3_DQMU

B_DDR3_DQSBL B_DDR3_DQSBU

B_DDR3_DQL[0] B_DDR3_DQL[1] B_DDR3_DQL[2] B_DDR3_DQL[3] B_DDR3_DQL[4] B_DDR3_DQL[5] B_DDR3_DQL[6] B_DDR3_DQL[7] B_DDR3_DQU[0] B_DDR3_DQU[1] B_DDR3_DQU[2] B_DDR3_DQU[3] B_DDR3_DQU[4] B_DDR3_DQU[5] B_DDR3_DQU[6] B_DDR3_DQU[7]

ZQ

M1A_128M_UO4

IC101-*1

LGE2133(128M)

M1A_256M_AVS+

LGE2136(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*2

M1A_128M_AVS+

LGE2135(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

MAIN3_DDR

2014/06/13

12

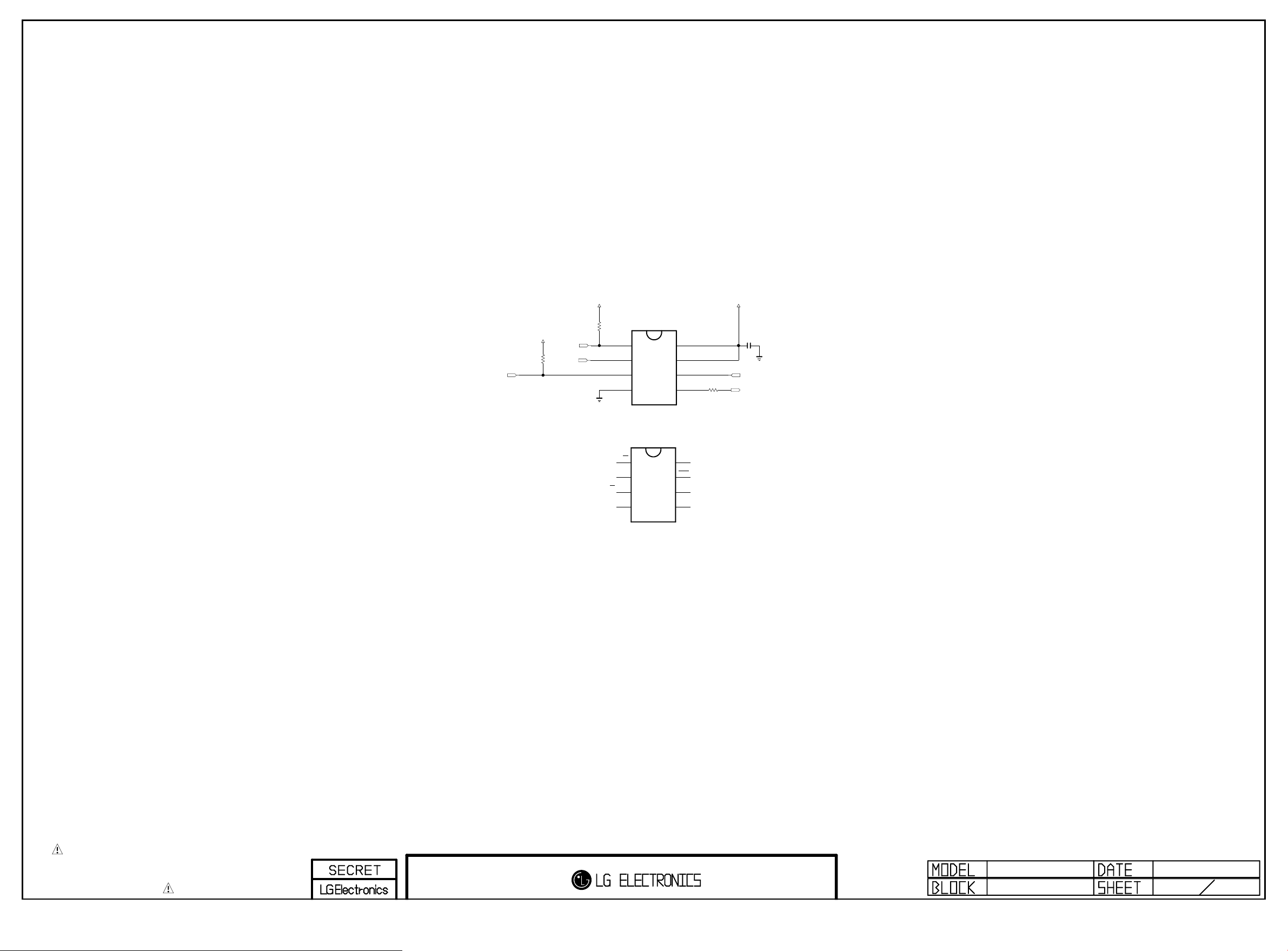

Serial Flash for SPI boot

LGE Internal Use Only

/FLASH_WP

OPT

R1300 10K

+3.5V_ST

/SPI_CS

SPI_SDO

R1301

4.7K

OPT

WP#/SIO2

DO[IO1]

WP[IO2]

SPI_FLASH_MACRONIX

IC1300

MX25L8035EM2I-10G

CS#

1

SO/SIO1

2

3

GND

4

SPI_FLASH_WINBOND

IC1300-*1

W25Q80DVSSIG

CS

1

2

3

GND

4

8

7

6

5

8

7

6

5

VCC

NC/SIO3

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

R1302

33

+3.5V_ST+3.5V_ST

C1300

0.1uF 16V

SPI_SCK

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_ECI_M1A

S_FLASH

140721

13

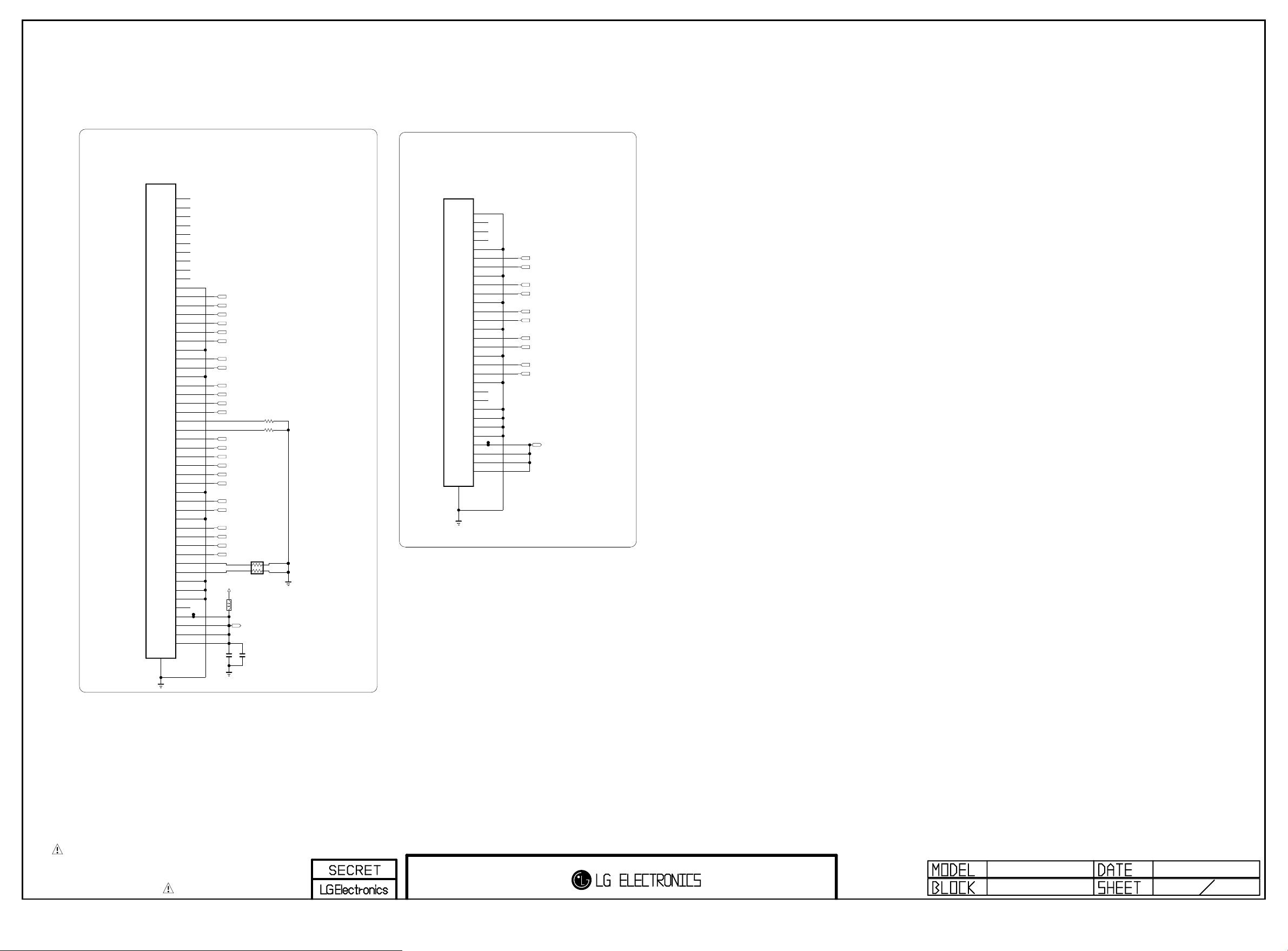

LVDS

LGE Internal Use Only

[51Pin LVDS Connector] (For FHD 60Hz)

MO_FHD

P1800

SP14-11592-01-51Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

PANEL_VCC

C1800

0.1uF 25V

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

OPT AR1800

0

1/16W

L1801

UBW2012-121F

PANEL_HD

C1801 10uF 25V

OPT

R1801

R1812

OPT

[30Pin LVDS Connector] (For HD 60Hz_Normal)

MO_HD P1801

10031HR-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

0

23

24

25

26

27

28

29

30

31

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

PANEL_HD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

LVDS

140613

18

CI Region

LGE Internal Use Only

* Option name of this page : CI_SLOT

(because of Hong Kong)

CI SLOT

/CI_CD1

CI_SLOT AR1900

33

R1903 R1904

R1905 100 R1906 R1907 33

AR1901

33

47 47

33

CI_SLOT

+5V_Normal

CI_SLOT

R1900

CLOSE TO SOC

CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

CI_IORD CI_IOWR

CI_MDI[0] CI_MDI[1] CI_MDI[2] CI_MDI[3]

CI_MDI[4] CI_MDI[5]

10K

CI_MDI[6] CI_MDI[7]

PCM_RST

/PCM_WAIT

CI_TS_CLK CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2] CI_TS_DATA[3]

REG

CI_SLOT

C1900

2pF 50V

CLOSE TO SOC

+5V_Normal

CI_SLOT

R1909

R1912

10K

4 OUT_Y

4

100

+3.3V_Normal

VCC

Y

CI DETECT

/CI_CD2

/CI_CD1

/CI_CD2

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

OR_GATE_CI_TOSHIBA

TOSHIBA ELECTRONICS KOREA CORPORATION

IC1900

1IN_B 5 VCC

2IN_A

3GND

OR_GATE_CI_NXP

IC1900-*1

74LVC1G32GW

1B5

A

2

GND

3

CI POWER ENABLE CONTROL

CI_SLOT

IC1901

AP2151WG-7

IN

5

CI_SLOT

R1902

EN

PCM_5V_CTL

CI_SLOT

R1901

10K

100

4

CI_SLOT

R1908

CI_SLOT

CI_SLOT CI_SLOT CI_SLOT

+5V_Normal

10K

GND

OUT

1

GND

2

FLG

3

CI_SLOT

R1910 10K

CI_SLOT

C1901

0.1uF

CI_SLOT R1911

+3.3V_Normal

CI_SLOT

R1913

10K

BLM18PG121SN1D

CI_ADDR[9] CI_ADDR[8]

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4] CI_ADDR[3] CI_ADDR[2] CI_ADDR[1] CI_ADDR[0]

CI_DATA[0-7]

/PCM_CE

+5V_Normal

CI_OE

R1920

10K

CI_WE

C1905

0.1uF

CLOSE TO SOC

CI_ADDR[0-14]

CI_SLOT

GND

CI_SLOT

/PCM_IRQA

CI TS INPUT

CI_MDI[7] CI_MDI[6] CI_MDI[5] CI_MDI[4]

CI_MDI[3] CI_MDI[2] CI_MDI[1] CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

CI HOST I/F

CI_DET

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4]

CI_DATA[0-7]

CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11]

CI_ADDR[13] CI_ADDR[14]

CI_IORD CI_IOWR

CI_SLOT

AR1902 100

CI_DATA[0] CI_DATA[1] CI_DATA[2] CI_DATA[3]

CI_DATA[0-7]

CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

REG

CI_OE CI_WE

CI_SLOT

AR1903

33

CI_SLOT

AR1904

33

R1921 33 R1922 33 R1923 100

PCM_A[0]

PCM_A[1]

PCM_A[2]

PCM_A[3]

CI_SLOT CI_SLOT CI_SLOT

CI_SLOT AR1905

33

CI_SLOT AR1906

33

CI_SLOT

AR1908

33

CI_SLOT

AR1909

33

CI_SLOT

AR1907

33

FE_TS_DATA[7] FE_TS_DATA[6] FE_TS_DATA[5] FE_TS_DATA[4]

FE_TS_DATA[3] FE_TS_DATA[2] FE_TS_DATA[1] FE_TS_DATA[0]

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_CLK

BUFFER_ORG

1OE

1

1A1

2

2Y4

3

1A2

4

2Y3

5

1A3

6

2Y2

7

1A4

8

2Y1

9

GND

10

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3]

PCM_D[4] PCM_D[5] PCM_D[6] PCM_D[7]

PCM_A[8] PCM_A[9]

PCM_A[10] PCM_A[11]

PCM_A[12]CI_ADDR[12] PCM_A[13] PCM_A[14] /PCM_REG

/PCM_OE /PCM_WE /PCM_IORD /PCM_IOWR

FE_TS_DATA[0-7]

IC1902

74LCX244FT

PCM_D[0-7]

FE_TS_DATA[0-7]

+3.3V_Normal

VCC

20

2OE

19

1Y1

18

2A4

17

1Y2

16

2A3

15

1Y3

14

2A2

13

1Y4

12

2A1

11

PCM_D[0-7]

C1906

0.1uF 16V

1OE

1A0

2Y0

1A1

2Y1

1A2

2Y2

1A3

2Y3

GND

BUFFER_NXP

IC1902-*1

74LVC244APW

1

2

3

4

5

6

7

8

9

10

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

20

19

18

17

16

15

14

13

12

11

CI_SLOT

AR1910 100

VCC

2OE

1Y0

2A0

1Y1

2A1

1Y2

2A2

1Y3

2A3

CI_ADDR[0] CI_ADDR[1] CI_ADDR[2] CI_ADDR[3]

+5V_CI_ON

CI_SLOT

C1903

10uF

10V

CI_SLOT

P1900

CI_DET

/PCM_CD

10067972-000LF

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

G1G2

69

GND

R1917

CI_SLOT

47

R1918

100

CI_SLOT

C1904

0.1uF

CI_SLOT

GND

CI_SLOT

R1914

100

10K

GND

CI_SLOT

R1915

47

+5V_CI_ON+5V_Normal

CI_SLOT

L1900

CI_SLOT

R1916

C1902

100K

1uF 10V

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI_DATA[0] CI_DATA[1] CI_DATA[2]

CI_DATA[0-7]

CI_SLOT

R1919

10K

CI_DATA[0-7]

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_ECI_M1A

PCMCI_EU

150112

19

SCART_COMPONENT

LGE Internal Use Only

COMPONENT

COMP

JK2601

PPJ245N2-01

[RD2]E-LUG

6E

[RD2]O-SPRING

5E

[RD2]CONTACT

4E

[WH]O-SPRING

5D

[RD1]CONTACT

4C

[RD1]O-SPRING

5C

[RD1]E-LUG-S

7C

[BL]O-SPRING

5B

[GN/YL]CONTACT

4A

[GN/YL]O-SPRING

5A

[GN/YL]E-LUG

6A

ESD_COMP_ZENER_ROHM

ZD2601-*1

ESD_COMP_ZENER_KEC

ZD2602-*1

ESD_COMP_ZENER_KEC

ZD2603-*1

ESD_COMP_ZENER_KEC

ZD2604-*1

ESD_COMP_ZENER_KEC

ZD2605-*1

ESD_COMP_ZENER_KEC

ZD2606-*1

ESD_COMP_ZENER_KEC

ZD2605

ZD2606

ZD2603

ZD2604

ESD_COMP_ZENER_ROHM

OPT

VA2601

5.6V

OPT

VA2602

5.6V

ESD_COMP

VA2603

5.5V

ESD_COMP

VA2604

5.5V

OPT

VA2605

5.6V

ZD2601

ZD2602

R2601

470K COMP

R2602 470K

COMP

COMP R2603

COMP R2604

COMP R2606 10K

COMP

ATV_330P

330pF C2601

COMP R2607 10K

ATV_330P

330pF C2602

75

COMP

R2605 75

3216

R2608 12K

COMP R2609 12K

COMP2_R_IN

COMP2_L_IN

COMP2_Pr+

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

+3.3V_Normal

COMP

R2611

10K

COMP R2610

10K

VA2606

5.6V

C2603

0.1uF

COMP R2612

1K

OPT

COMP

R2613

1K

OPT

16V

COMP2_DET

AV_CVBS_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_ECI

COMPONENT

2015/02/27

26

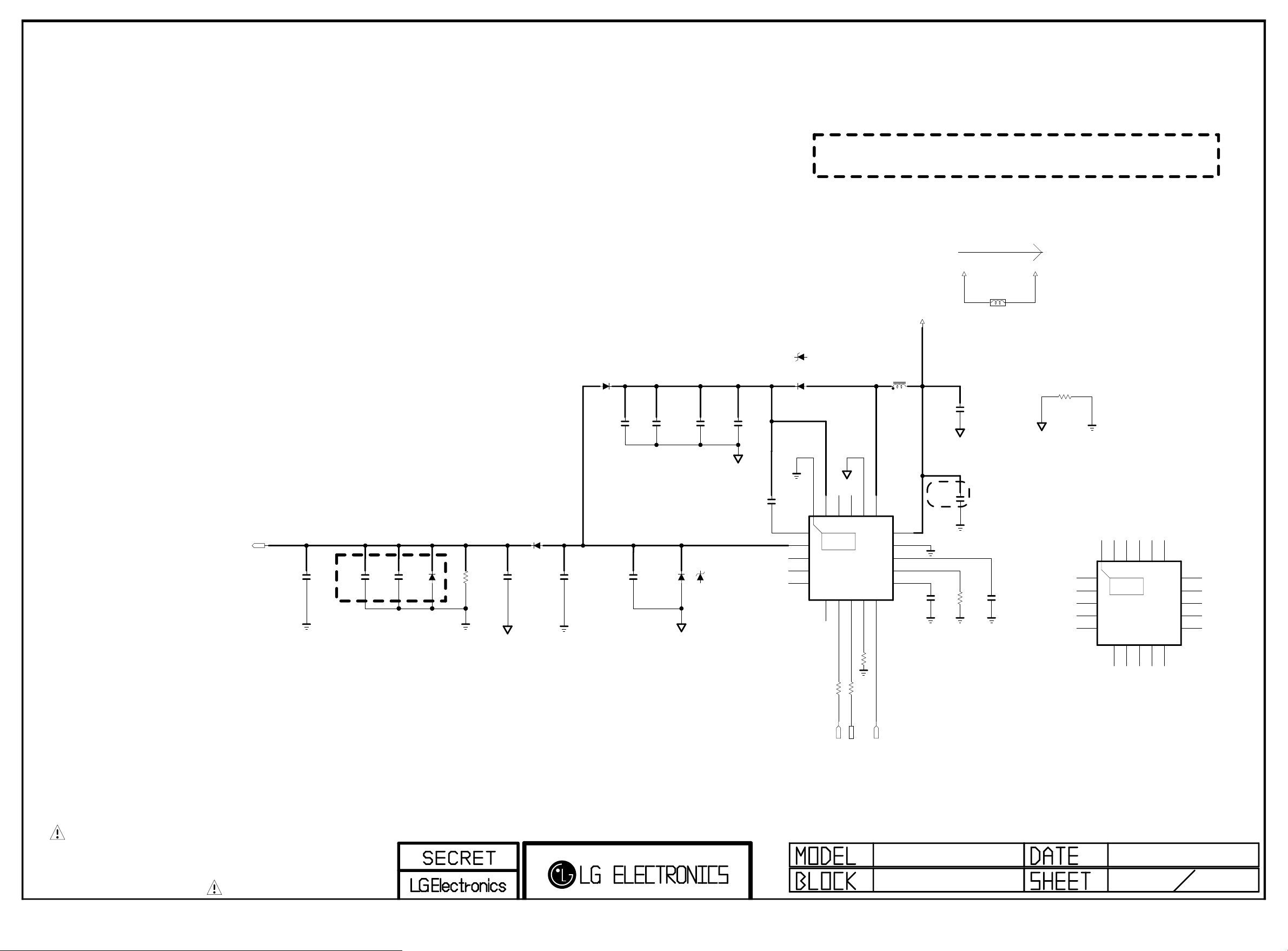

DVB-S2 LNB Part Allegro

LGE Internal Use Only

(Option:LNB)

Input trace widths should be sized to conduct at least 3A Ouput trace widths should be sized to conduct at least 2A

Max 1.3A

LNB_OUT

LNB C2714 18pF

50V

close to TUNER

LNB

C2701 18pF

LNB C2702 33pF

50V

Close to Tuner

Surge protectioin

LNB

D2701

LNB

R2702

2.2K 1W

A_GND

LNB C2713 2700pF 50V

LNB

D2702

+12V

3A

+12V_LNB

LNB_SX34 D2705-*1

40V

2A

LNB

D2703

30VSS23L

LNB

C2703

0.01uF 50V

30VSS23L

LNB C2715

0.22uF 25V

C2712

0.1uF

LNB

C2704

10uF

25V

close to Boost pin(#1)

LNB

LNB_SMAB34

50V

D2704

40V

C2705

10uF

A_GND

LNB

25V

LNB

C2706

10uF

25V

LNB_SX34 D2704-*1 40V

A_GND

LNB

C2707

0.1uF 50V

D2705

LNB_SMAB34

40V

[EP]

NC_1

1

LNB

2

NC_2

3

TDI

4

TDO

5

BOOST

20

THERMAL

6

IRQ

LNB

R2704

33

A_GND

NC_3

NC_4

18

19

21

LNB_DMB

IC2701

DT1803

7

8

SCL9ADD

SDA

R2705

LNB

L2702

LPH6050T-150M-R

15uH

3.5A

PGND

16LX17

VIN

15

GND

14

VREG

13

ISET

12

TCAP

11

10

C2710

0.1uF

TONECTRL

R2706 0

LNB

33

LNB

50V

LNB C2708 10uF 25V

LNB C2709

0.1uF 50V

R2703

1/16W

BLM18PG121SN1D

A_GND

close to VIN pin(#15)

LNB

C2711

36K

0.22uF 25V

1%

+12V_LNB

LNB

L2701

Caution!! need isolated GND

A_GND

R2701

0

[EP]GND

VCP

1

LNB

2

NC_1

3

TDI

A8303SESTR-T

4

TDO

5

NC_2

NC_3

BOOST

18

19

20

THERMAL

21

IC2701-*1

LNB_ALLEGRO

7

8

6

SCL9ADD

SDA

IRQ

GNDLX

16LX17

15

14

13

12

11

10

TONECTRL

VIN

GND

VREG

ISET

TCAP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DEMOD_SCL

DEMOD_SDA

LNB_TX

L15.5_ECI_M1A

LNB 27

150112

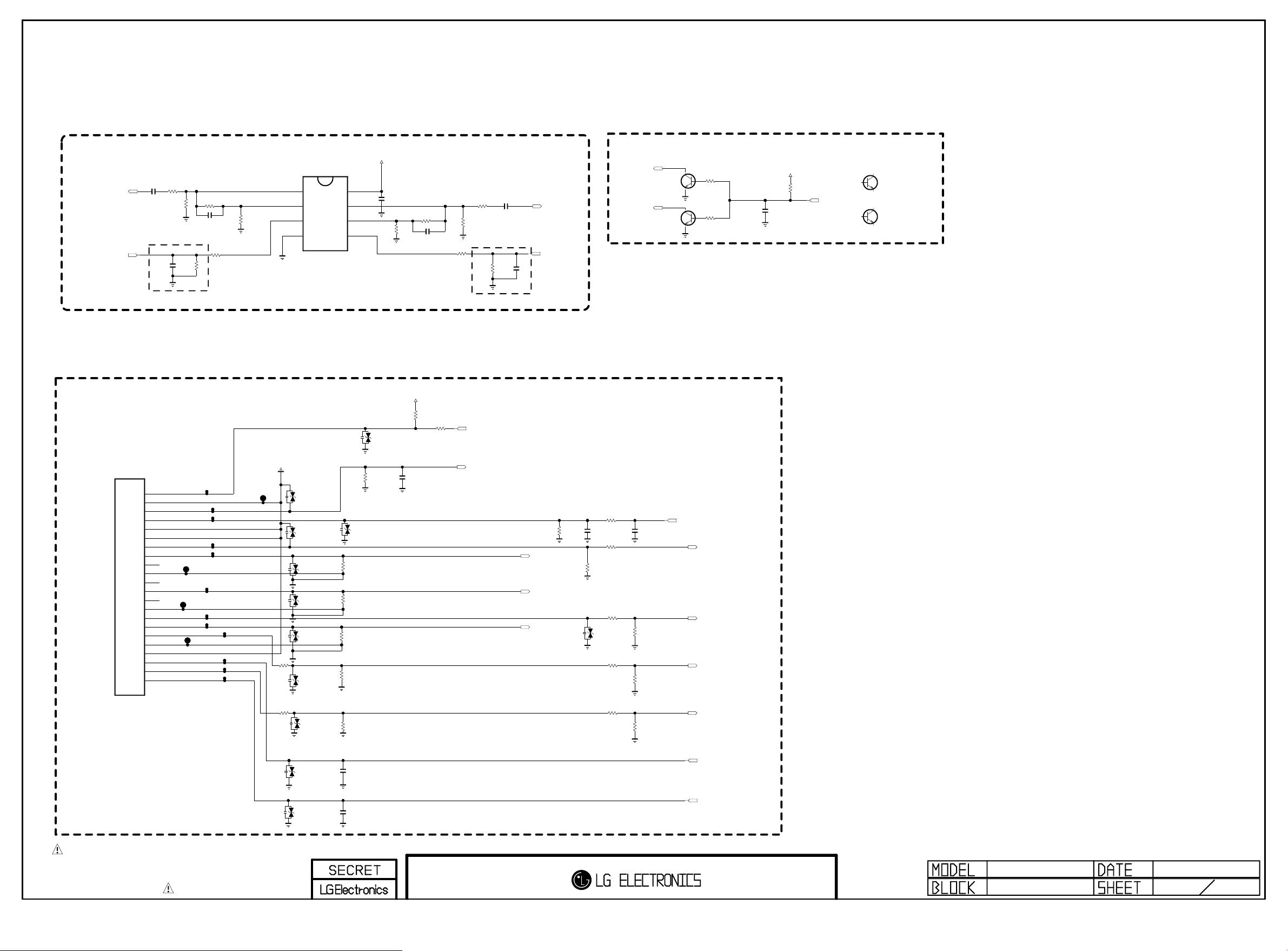

SCART AMP

LGE Internal Use Only

DTV/MNT_L_OUT

SCART1_Lout

SCART

C2804

10uF

16V

SCART C2806 330pF

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

DTV/MNT_R_OUT

SCART_MUTE_NXP

Q2802

MMBT3904(NXP)

SCART_MUTE_NXP

Q2803

MMBT3904(NXP)

SCART_MUTE

R2837

2K

SCART_MUTE

R2838

2K

SCART_MUTE

C2809

0.1uF 16V

+3.5V_ST

SCART_MUTE

R2845

10K

SCART1_MUTE

B

C

SCART_MUTE_KEC

Q2802-*1 2N3904S

E

C

SCART_MUTE_KEC

Q2803-*1 2N3904S

E

VCC

OUT2

IN2-

IN2+

+12V

SCART

R2839

10K

C2808

0.1uF 50V

SCART

R2841

33K

SCART

C2810

33pF

50V

R2843

470K

OPT

SCART R2840

5.6K

SCART R2844

2.2K

SCART

R2842

220K

SCART

C2812

10uF

16V

SCART

C2811 330pF

DTV/MNT_R_OUT

SCART1_Rout

50V

SCART

IC2801

SCART

R2831

2.2K

50V

OPT

R2832

470K

SCART

R2833

220K

SCART

R2834

SCART

C2807

33pF 50V

33K

SCART

R2835

5.6K

R2836

SCART

10K

AZ4580MTR-E1

OUT1

1

IN1-

2

IN1+

3

VEE

4

8

7

6

5

FULL SCART

SCART

JK2800

PSC008-01

CLOSE TO MSTAR

22

AV_DET

21

COM_GND

20

SYNC_IN

19

SYNC_OUT

18

SYNC_GND2

17

SYNC_GND1

16

RGB_IO

15

R_OUT

14

RGB_GND

13

R_GND

12

D2B_OUT

11

G_OUT

10

D2B_IN

9

G_GND

8

ID

7

B_OUT

6

AUDIO_L_IN

5

B_GND

4

AUDIO_GND

3

AUDIO_L_OUT

2

AUDIO_R_IN

1

AUDIO_R_OUT

SCART R2823

SCART R2858

CLOSE TO MSTAR

+3.3V_Normal

R2819

10K

C2801 47pF 50V

SCART

R2820

1K

SC1/COMP1_DET

OPT

SC1/AV2_CVBS_IN

SCART

R2821 75

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

OPT

C2815 68pF 50V

SCART

R2822

75

SCART R2861

10

SCART R2827

22

SCART R2824

15K

ESD_SCART VA2817 20V

SCART

R2826 10K

SCART R2825 10K

SCART

OPT C2816 68pF 50V

R2828

3.9K

R2829 12K

R2830 12K

DTV/MNT_VOUT

SC1_FB

SC1_ID

SC1/COMP1_L_IN

SC1/COMP1_R_IN

SCART

VA2815

5.6V OPT

SCART

R2813

SCART

EU

SCART

EU

SCART

R2807 75

R2808 75

R2805

75

R2806 470K

R2809

470K

VA2814

5.6V

75

ESD_SCART

VA2807

5.5V

ESD_SCART VA2808 20V

ESD_SCART VA2810 20V

ESD_SCART VA2811 20V

ESD_SCART VA2812 20V

0

ESD_SCART VA2813

5.6V

0

ESD_SCART VA2809

5.6V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

OPT VA2806

5.6V

OPT VA2805

5.6V

SCART

C2813 1000pF 50V

SCART

C2814 1000pF 50V

DTV/MNT_L_OUT

DTV/MNT_R_OUT

L15.5_ECI_M1A

SCART

150112

28

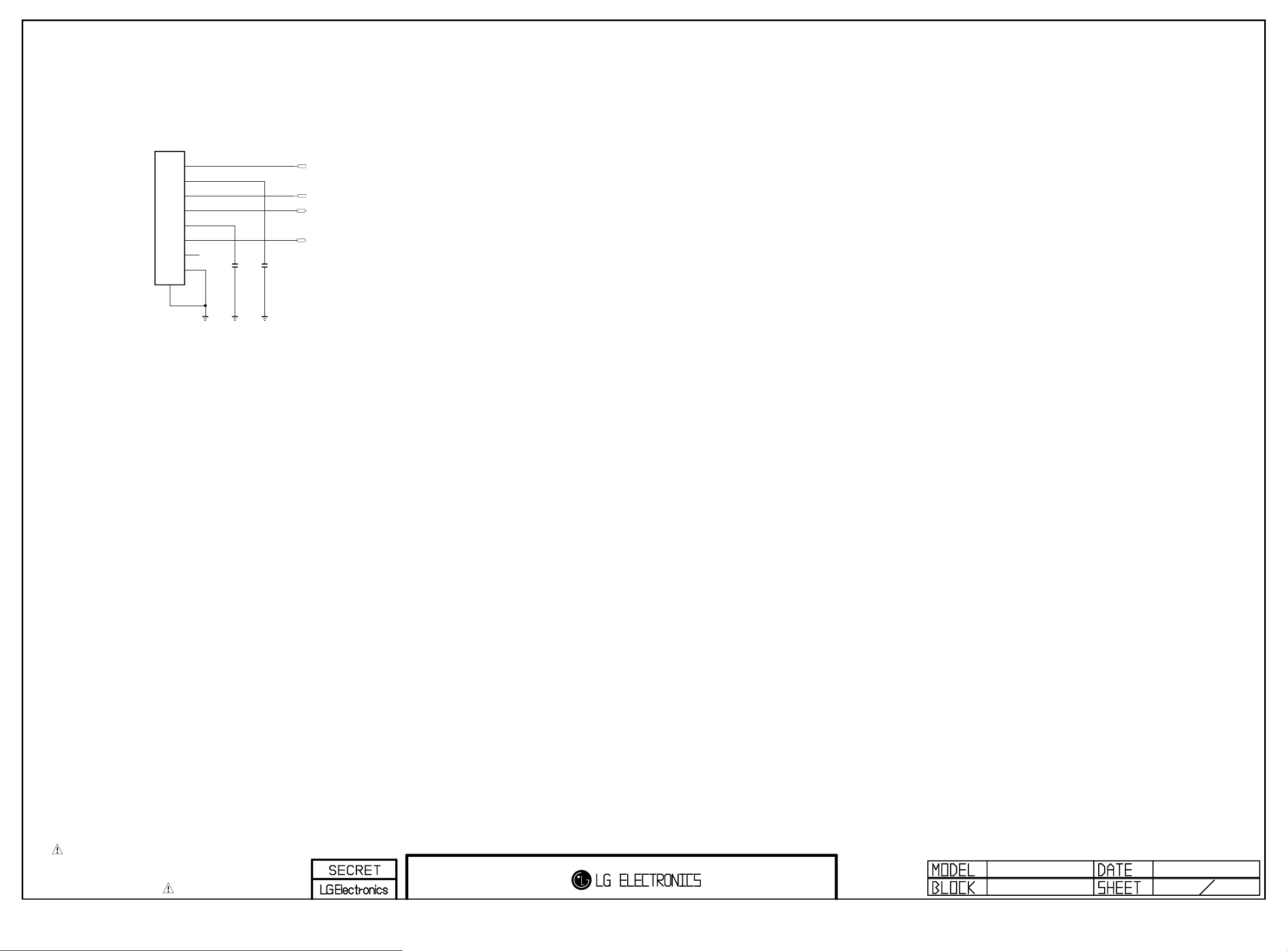

ETHERNET

LGE Internal Use Only

* H/W option : ETHERNET

ETHERNET

JK2100

RJ45VT-01SN002

1

2

3

4

5

6

7

8

9

ETHERNET

C2105

0.01uF 50V

ETHERNET

C2104

0.01uF 50V

EPHY_TP

EPHY_TN

EPHY_RP

EPHY_RN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

LAN 30

2014/05/22

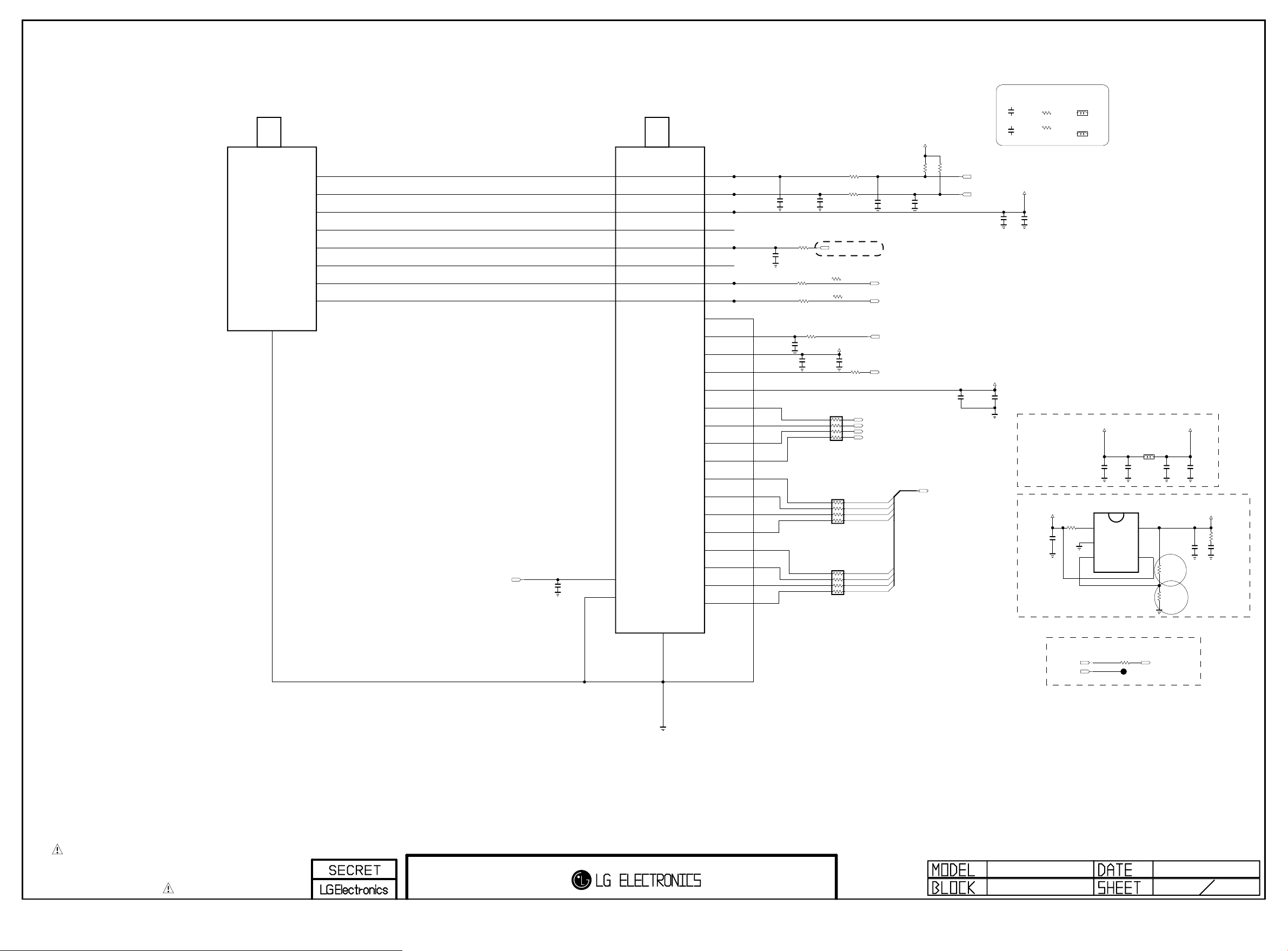

TUNER T/C_T2/C/S2 ISDB-T T2/C

LGE Internal Use Only

TUNER_T/C

TU3702 TDJS-G101D(A)

TUNER_T2/C/S2

TU3700 TDJN-G101D

+3.3V_TU

TU_I2C Multi option

TU_ATSC

C3705-*1 18pF

C3707-*1 18pF

TU_ATSC

R3716-*1

1.8K

TU_ATSC

R3717-*1

1.8K

TU_I2C_FILTER

R3738-*1

MLG1005SR27JT

TU_I2C_FILTER

R3739-*1

MLG1005SR27JT

9

SHIELD

1

2

3

4

5

6

7

8

SCL

SDA

B[+3.3V]

CVBS

IF_AGC

SIF

IF[N]

IF[P]

LNB_OUT

S2 C3709

0.1uF 50V

LNB

GND_2

26

27

28

SCL_RF

1

SDA_RF

2

B1[+3.3V]

3

CVBS

4

AIF_AGC

5

SIF

6

AIF[N]

7

AIF[P]

8

GND_1

9

RESET_DEMOD

10

B2[+3.3V]

11

F22_OUTPUT

12

B3[+1.2V]

13

ERROR

14

MCLK

15

SYNC

16

VALID

17

DATA0

18

DATA1

19

DATA2

20

DATA3

21

DATA4

22

DATA5

23

DATA6

24

DATA7

25

C3703

0.1uF

16V

TU_NON_ATSC

C3705 20pF

R3714

TU_NON_ATSC

R3710 10

TU_NON_ATSC R3709 10

T2

C3716

0.1uF 16V

T2 C3718 100pF

50V

TU_I2C_NON_FILTER

R3738

33

TU_I2C_NON_FILTER

R3739

33

TU_NON_ATSC C3707 20pF

should be guarded by ground

0

IF_AGC_MAIN

TU_ATSC R3710-*1 0

TU_ATSC

R3709-*1 0

T2

R3719

10

+3.3V_TU

T2

C3722

R3707

0.1uF 16V

T2

AR3700

0

1/16W

T2

AR3701

0

1/16W

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3]

T2

AR3702

0

1/16W

FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

T2 0

TU_NON_ATSC C3710 20pF

IF_N_MSTAR

IF_P_MSTAR

DEMOD_RESET

LNB_TX

FE_TS_ERR FE_TS_CLK FE_TS_SYNC FE_TS_VAL

TU_NON_ATSC

R3716

1K

TU_NON_ATSC C3711 20pF

FE_TS_DATA[0-7]

TU_NON_ATSC

R3717

1K

TU_SCL

TU_SDA

+1.2V_DEMOD

T2 C3713 100pF 50V

C3708 100pF

50V

T2

C3729

0.1uF 16V

C3714

0.1uF

+3.3V_TU

16V

+3.3V_TU

T2

C3725

1uF 10V

+3.3V_TU

C3730 22uF 10V

IC3701

AP7361-Y-13

T2

R3723

3.3K

EN

SIGN37000003

1

GND

2

ADJ/NC

3

Vo=0.8*(1+R1/R2)

T2

SIGN37000002

L3704

UBW2012-121F

C3731

0.1uF 16V

OUT

5

IN

4

+3.3V_Normal

C3733 22uF 10V

+1.2V_DEMOD

T2

C3732

0.1uF 16V

T2 R3733 12K 1%

R1

T2 R3734 22K 1%

R2

C3738

0.1uF

16V

T2 R3737 1

T2 C3737

10uF 10V

SIGN37000004

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SHIELD

ERROR & VALID PIN

FE_TS_VAL

FE_TS_ERR

T2

R3736

0

L14_CA_M1A

TUNER 37

FE_TS_VAL_ERR

GPIO must be added.

2014/05/22

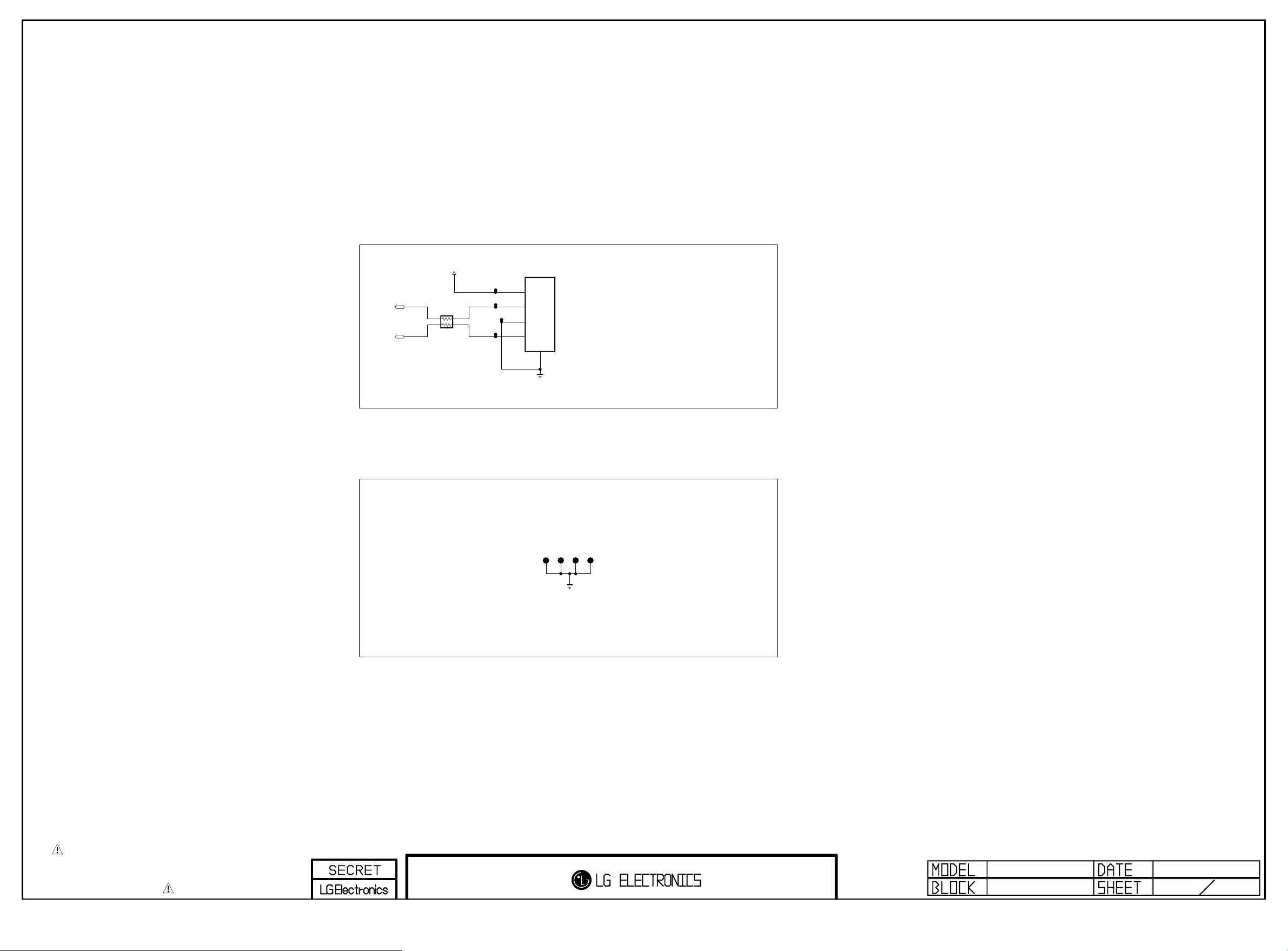

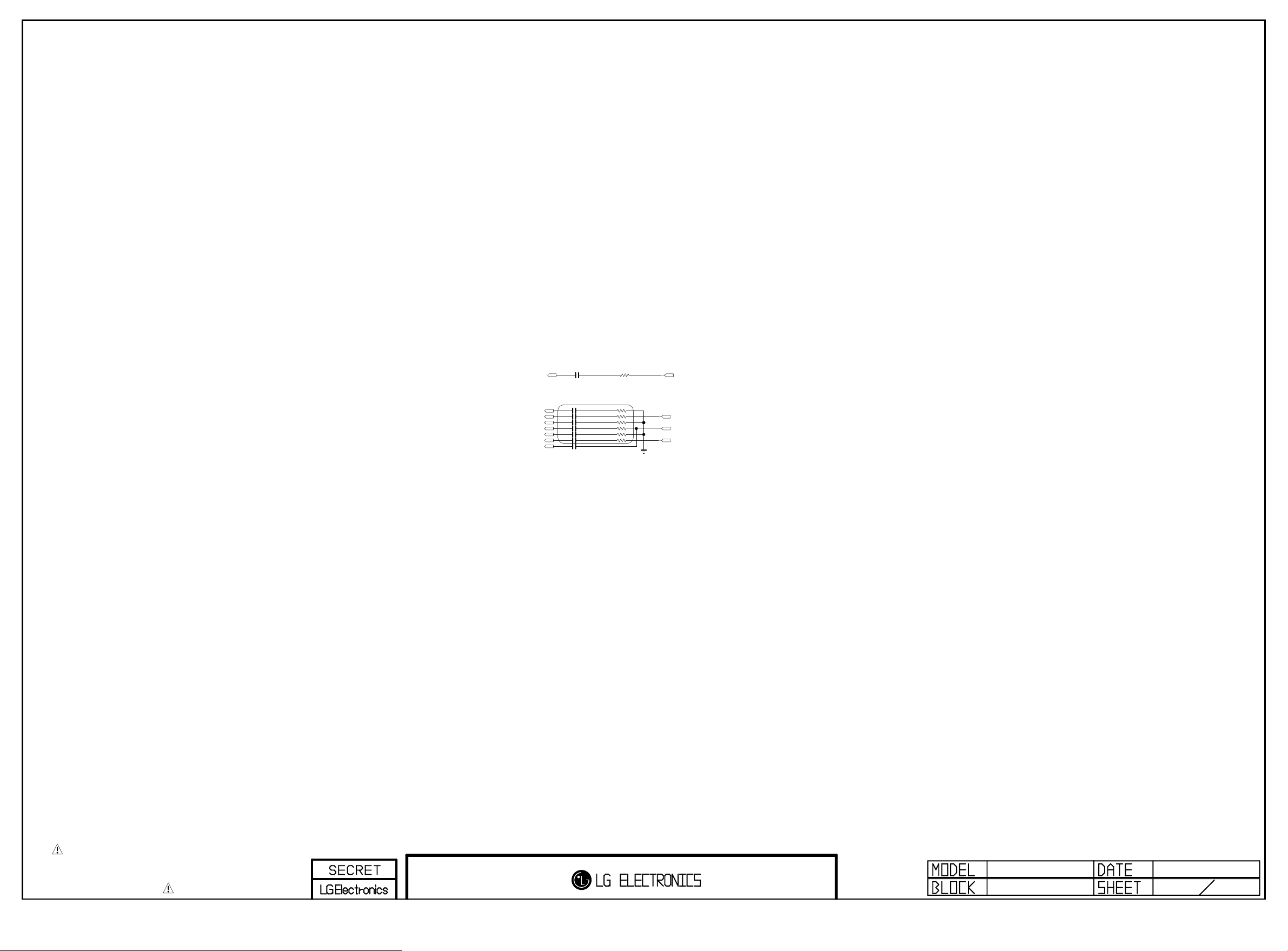

RS-232C 4PIN

LGE Internal Use Only

RS-232C 4PIN

+3.5V_ST

PM_RXD

PM_TXD

AR4000 100 1/16W

MSTAR DEBUG 4PIN

RS232C_DEBUG_4P

VCC

PM_RXD

GND

RM_TXD

P4000

12507WS-04L

1

2

3

4

5

GND

JP_GND1

JP_GND2

JP_GND3

JP_GND4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

RS232C_MSTAR_DEBUG_4P

2014/05/22

40

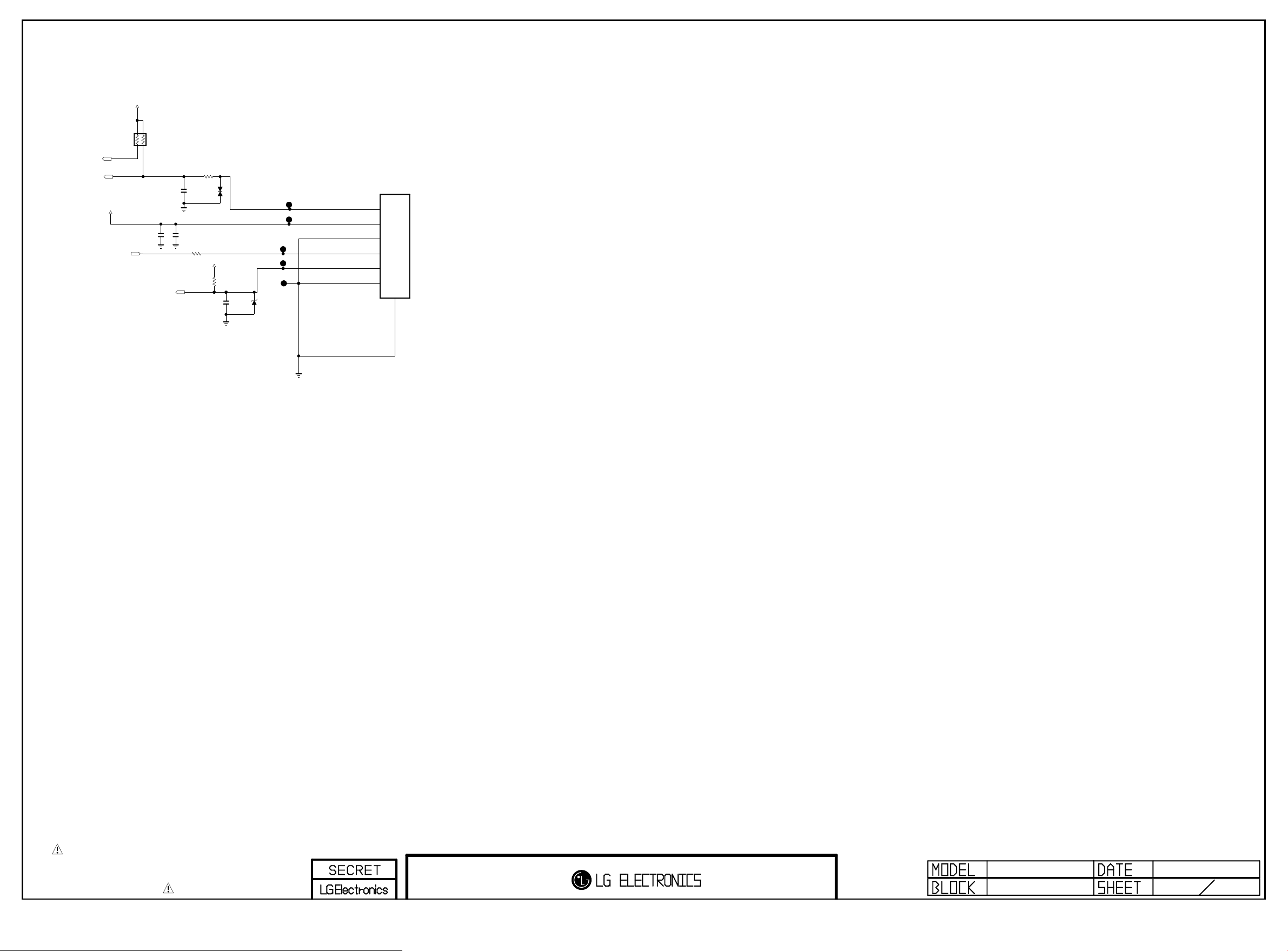

KEY1

LGE Internal Use Only

KEY2

IR

+3.5V_ST

LED_R/BUZZ

+3.5V_ST

AR4601

10K

1/16W

C4601

0.1uF

R4606

100

OPT

C4604

0.1uF 16V

OPT

C4602 1000pF 50V

16V

IR

R4601

1.8K

+3.5V_ST

R4602

3.3K

C4605 100pF

OPT VR4602

OPT

ZD4601

50V

5V

IR_6P P4602

12507WR-06L

1

2

3

4

5

6

7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_CI_M1A

IR

2015/01/12

47

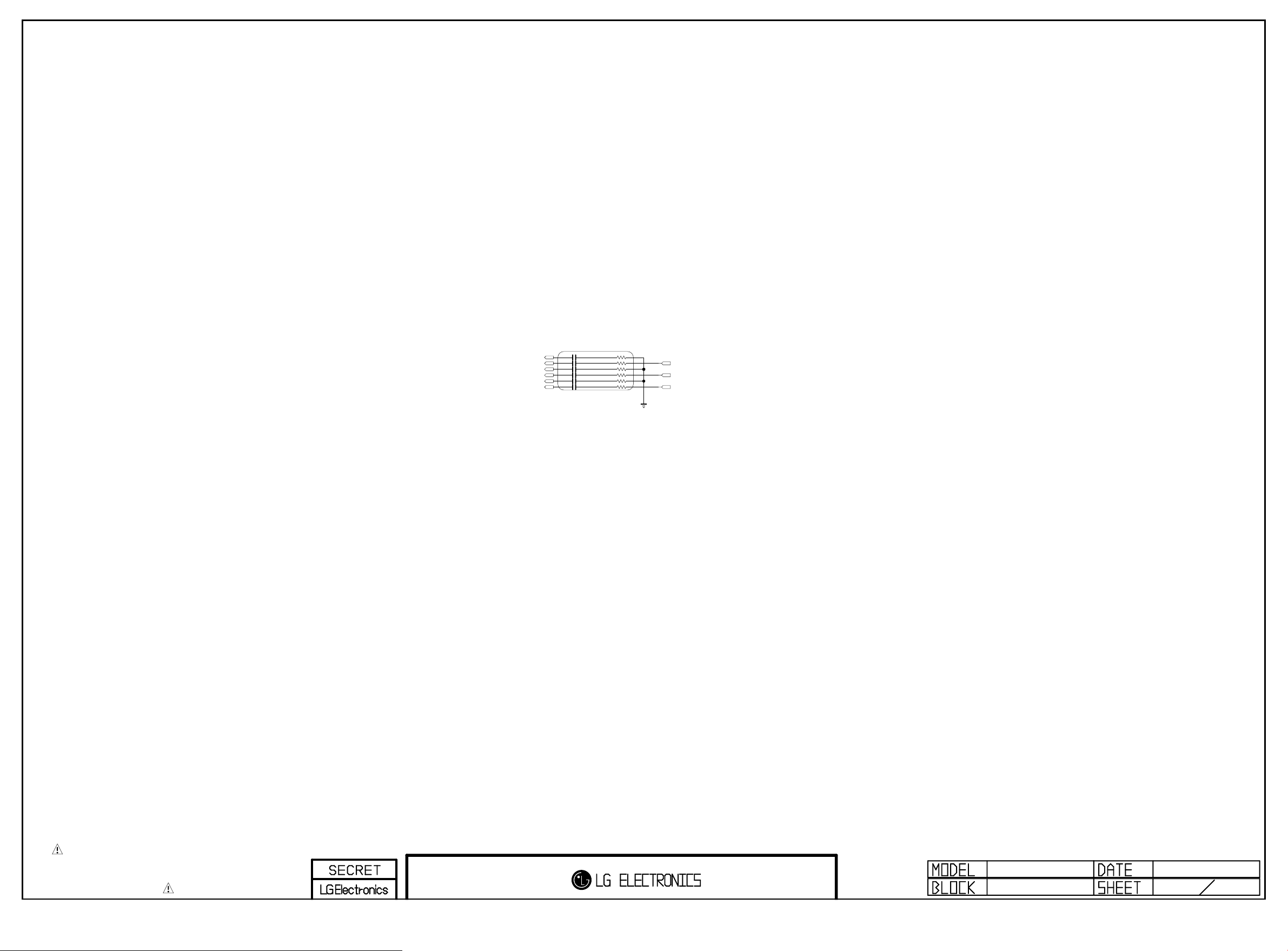

COMP2/AV_CVBS

LGE Internal Use Only

COMP

C49080.047uF

COMP

R490733

COMP2_Y+/AV_CVBS_IN

BIN1M BIN1P GIN1M GIN1P RIN1M RIN1P

SOGIN1

*CAPTION OPT:COMP C4901 0.047uF C4902 0.047uF

C4904 0.047uF C4905 0.047uF C4906 0.047uF C4907 1000pF

OPT

R4901 68 R4902 33 R4903 68C4903 0.047uF R4904 33 R4905 68 R4906 33

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

COMP2_Pr+

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_CI_M1A

MAIN2_DVB

2015/01/12

2

C5002 0.047uF

LGE Internal Use Only

BIN0M

C5003 0.047uF R5003 33

BIN0P

C5004 0.047uF

GIN0M

C5005 0.047uF

GIN0P RIN0M

C5007 0.047uF

RIN0P

Close to MSTAR

*CAPTION OPT:SCART

R5002 68

R5004 68 R5005 33 R5006 68C5006 0.047uF R5007 33

SC1_B+/COMP1_Pb+

SC1_G+/COMP1_Y+

SC1_R+/COMP1_Pr+

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_CI_M1A

EU

2015/02/27

50

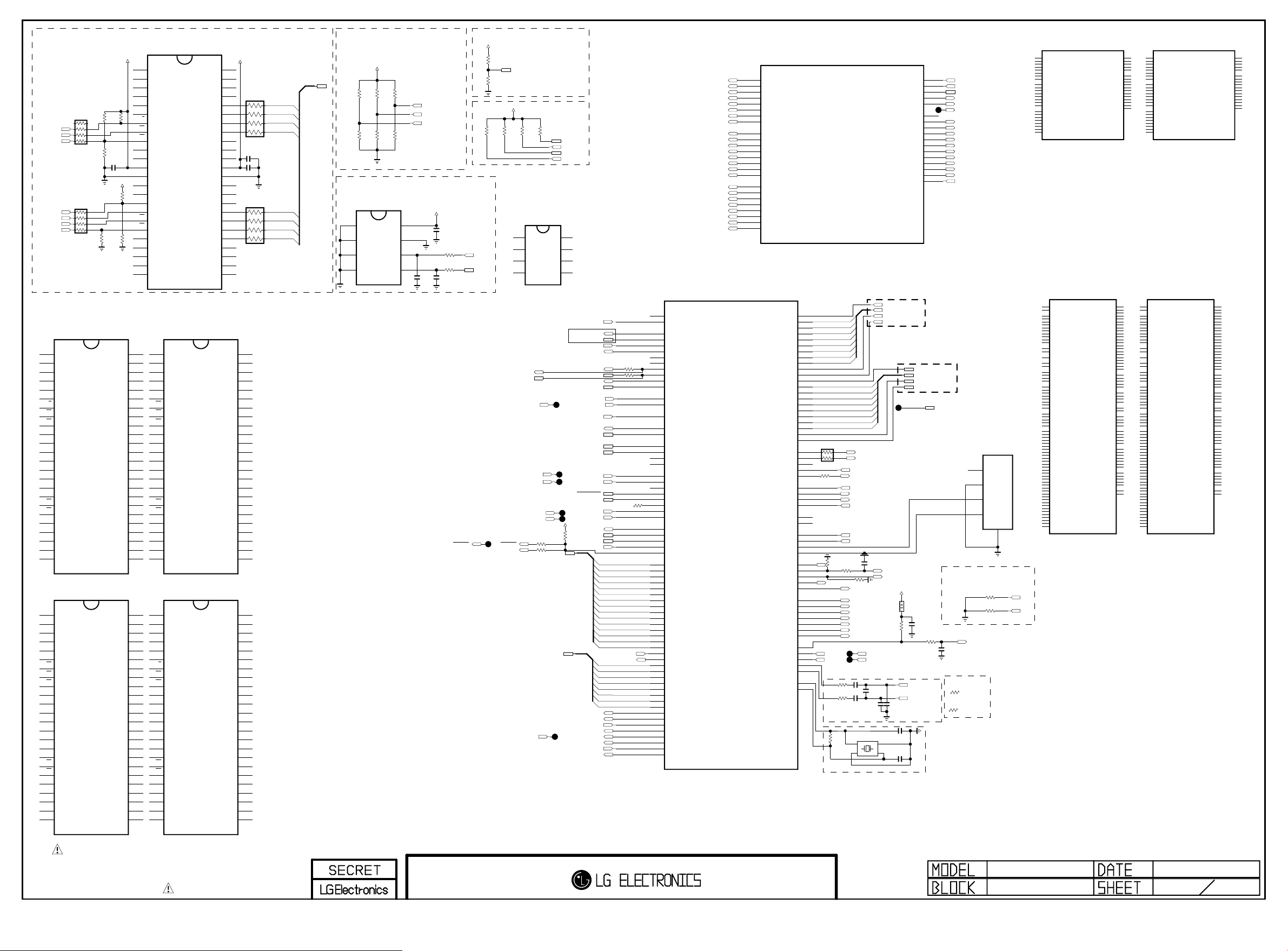

NAND FLASH MEMORY

LGE Internal Use Only

AR103

R107

22

/F_RB

/PF_OE

/PF_CE0

R108

+3.3V_Normal

AR104

NAND_FLASH_2G_HYNIX

EAN60708703

H27U2G8F2DTR-BD

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

NAND_FLASH_2G_TOSHIBA

TC58NVG1S3HTA00

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

22

R102

3.3K

IC102-*1

EAN60991002

IC102-*3

/PF_CE1

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

PF_ALE /PF_WE /PF_WP

1K

OPT

1K

+3.3V_Normal

R109

3.9K

C101

0.1uF

OPT

R105

1K

R106 1K

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

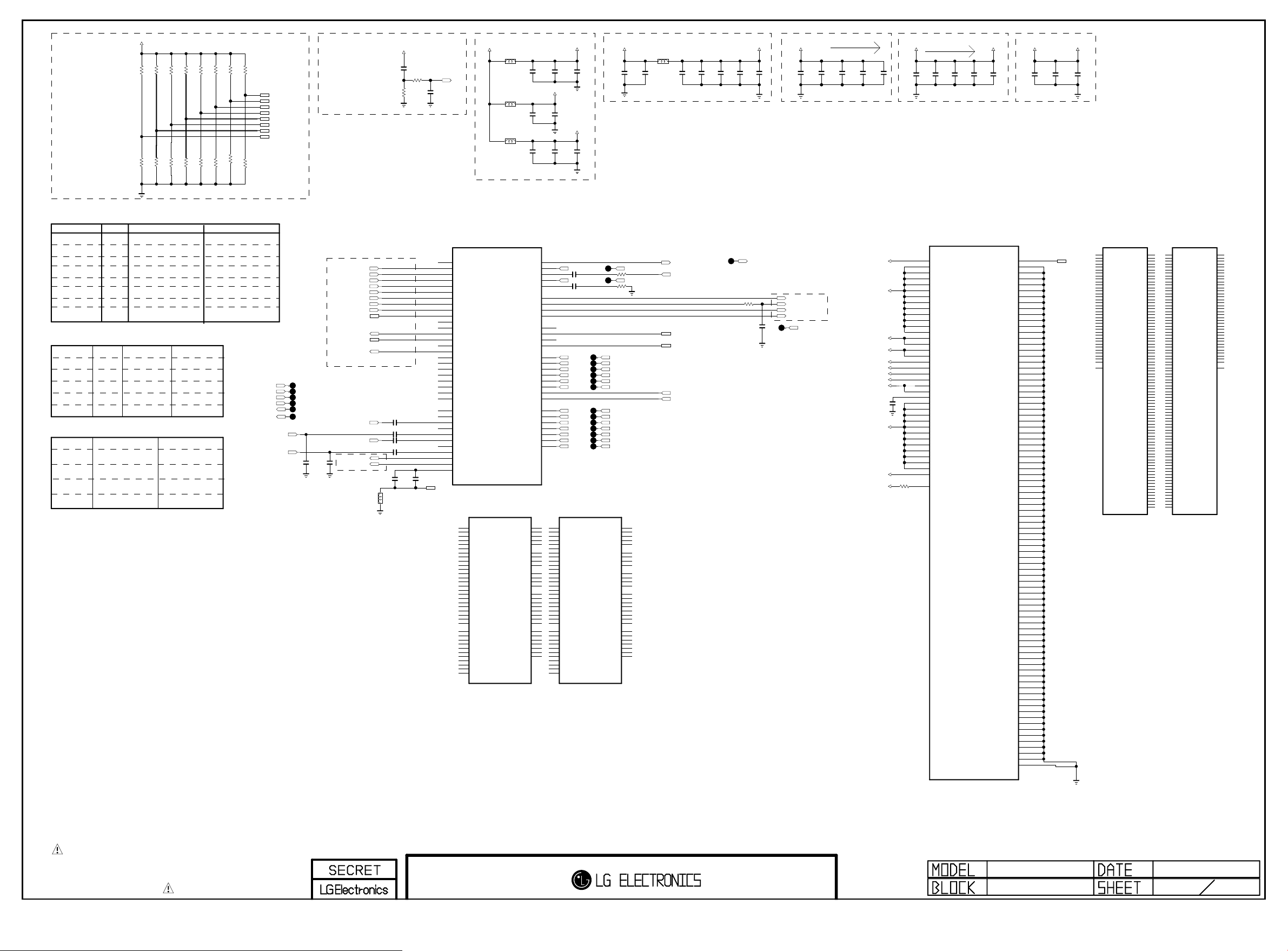

NAND_FLASH_1G_HYNIX

IC102

H27U1G8F2CTR-BC

EAN35669103

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NAND_FLASH_1G_TOSHIBA_24n

TC58NVG0S3HTA00

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

NAND_FLASH_1G_SS

EAN61857001

K9F1G08U0D-SCB0

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

EAN61508002

IC102-*2

IC102-*4

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

+3.3V_Normal

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

C103

VSS_2

0.1uF

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

AR101

C102 10uF

10V

AR102

22

R111

R112

22

CI_DET

PM MODEL OPTION

+3.5V_ST

LCD R177 10K

PDP R176 10K

I2C

R140 1K

PM_MODEL_OPT_0

- HIGH : LCD

- LOW :: PDP PM_MODEL_OPT_1

- Not Use (Ready)

PM_MODEL_OPT_0

+3.3V_Normal

R144

R141

2.2K

1K

NVRAM_ATMEL

AT24C256C-SSHL-T

A0

I2C_SCL

I2C_SDA

A1

A2

GND

EAN61133501

AMP_SCL AMP_SDA

SC1/COMP1_DET

CI_DET

/PCM_CD

/VBUS_EN

R145

2.2K

IC104-*1

1

2

3

4

HP_DET

/CI_CD1 /CI_CD2

+3.3V_Normal

EU

R197 0 R178 22

EU

PCM_A[0-14]

PCM_D[0-7]

R180

8

7

6

5

10K

EU

I2C_SDA I2C_SCL AMP_SDA AMP_SCL

VCC

WP

SCL

SDA

5V_DET_HDMI_4

I2C_SCL I2C_SDA

URSA/VCOM_SDA

URSA/VCOM_SCL

DEMOD_SCL DEMOD_SDA

TU_SCL TU_SDA

AV_CVBS_DET

AV2_CVBS_DETAV2_CVBS_DET

COMP2_DET

DEMOD_RESET

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2

HP_DET

SC1/COMP1_DET

AMP_RESET

MODEL_OPT_4

/CI_CD1 /CI_CD2

USB1_CTL MODEL_OPT_5 MODEL_OPT_6

USB1_OCD

/PCM_IORD /PCM_IOWR /PCM_IRQA

/PCM_OE

/PCM_REG

PCM_RST

/PCM_WAIT

/PCM_WE

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7] PCM_A[8] PCM_A[9] PCM_A[10] PCM_A[11] PCM_A[12] PCM_A[13] PCM_A[14]

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3] PCM_D[4] PCM_D[5]

PCM_D[6] PCM_D[7]

R113

22

R114

/PCM_CD /PCM_CE

M1A_128M_UO4

M1A_256M_UO4

IC101

LGE2134(256M)

RXA4+ RXA4RXA3+

RXA3RXACK+ RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+ RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

M1A_256M_UO4

LGE2134(256M)

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

22

OPT

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

R18133

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

IC101

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

IF_AGC

SIFM SIFP

XOUT

RP TN TP RN

IM IP

XIN

V10

CI_TS_DATA[0]

T14

CI_TS_DATA[1]

T13

CI_TS_DATA[2]

U13

CI_TS_DATA[3]

V15

CI_TS_DATA[4]

U12

CI_TS_DATA[5]

V13

CI_TS_DATA[6]

U14

CI_TS_DATA[7]

T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

AR180

33

B3 A3 A4 C3 A2

R190 33

B1 C2 C1 B2

D2 D1

D8 E5 G4 G5

J18 K18

PWM0 K16 L18 L17

PWM3

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2 V1

AA2 Y2

TUNER_IF_0_ohm

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

from CI SLOT

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

/SPI_CS SPI_SCK

SPI_SDI SPI_SDO

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

SOC_RESET IR

1K R130

SIFM SIFM SIFP

R194 0

R195 0

Close to MSTAR

R187

1M

OPT

2.2uF

10K

R131

1K

R132

PCM_5V_CTL

PF_ALE /PF_CE0 /PF_CE1

/F_RB

/PF_OE

/PF_WE

/PF_WP

IF

OPT

C117

C121

0.1uF

100pF

IF

C122

C118

33pF

0.1uF TU_IF_CAP

X101

24MHz

X-TAL_1

1

GND_13X-TAL_2

2

OPT C190

SIFP

4

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

PM_LED/GPIO4

PWM_PM/GPIO200

CI_TS_CLK CI_TS_DATA[0-7] CI_TS_SYNC CI_TS_VAL

Internal demod out

BLU_CURRENT_CTL PWM_DIM

+3.3V_Normal

R193

10K

TU_IF_CAP C124 33pF

C113

GND_2

Close to MSTAR

FE_TS_CLK FE_TS_DATA[0-7]

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_DATA[0]

L101 BLM18PG121SN1D

IF_N_MSTAR

IF_P_MSTAR

8pF

C114

8pF

C119

0.1uF

DTV_IF

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

FE_TS_DATA[0]

R196 0

KEY1 KEY2 PM_MODEL_OPT_0 PANEL_CTL SCART1_MUTE SCART1_MUTE

/VBUS_EN PM_LED

POWER_DET AMP_MUTE INV_CTL POWER_ON/OFF_1 RL_ON /FLASH_WP LED_R/BUZZ PM_TXD PM_RXD

VCC

GND

RX_CK

TX_DA

DIMMING

IF_AGC_MAIN

C120

0.047uF 25V

TUNER_IF_100_ohm

R194-*1

100 TUNER_IF_100_ohm

R195-*1

100

For KR/US models

MSTV_DEBUG

P101

12507WS-04L

1

2

3

4

5

GND

R156

10K

R103

10K

PWM0

PWM3

U19 T20 T21 T19 R21 R20 R19 P20

P19 N20 N21 N19 M21 M20 M19 L20

L19 K20 K21 K19 J21 J20 J19 H20

LGE2133(128M)

LVA4P/TTL_B[0]/HCONV/GPIO170 LVA4M/TTL_B[1]/E_O/GPIO171 LVA3P/TTL_B[2]/FB/GPIO172 LVA3M/TTL_B[3]/OPT_P/GPIO173 LVACKP/TTL_B[4]/MCLK/GPIO174 LVACKM/TTL_B[5]/GCLK/GPIO175 LVA2P/TTL_B[6]/GST/GPIO176 LVA2M/TTL_B[7]/POL/GPIO177

LVA1P/TTL_G[0]/EPI0+/GPIO178 LVA1M/TTL_G[1]/EPI0-/GPIO179 LVA0P/TTL_G[2]/EPI1+/GPIO180 LVA0M/TTL_G[3]/EPI1-/GPIO181 LVB4P/TTL_G[4]/EPI2+/GPIO182 LVB4M/TTL_G[5]/EPI2-/GPIO183 LVB3P/TTL_G[6]/EPI3+/GPIO184 LVB3M/TTL_G[7]/EPI3-/GPIO185

LVBCKP/TTL_R[0]/EPI4+/GPIO186 LVBCKM/TTL_R[1]/EPI4-/GPIO187 LVB2P/TTL_R[2]/EPI5+/GPIO188 LVB2M/TTL_R[3]/EPI5-/GPIO189 LVB1P/TTL_R[4]/EPI6+/GPIO190 LVB1M/TTL_R[5]/EPI6-/GPIO191 LVB0P/TTL_R[6]/EPI7+/GPIO192 LVB0M/TTL_R[7]/EPI7-/GPIO193

M1A_128M_UO4

LGE2133(128M)

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

IC101-*1

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

IC101-*1

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

DDCA_CK/UART0_RX DDCA_DA/UART0_TX

NF_ALE/GPIO146

NF_CEZ/GPIO142

NF_CLE/GPIO141

NF_RBZ/GPIO147

NF_REZ/GPIO144

NF_WEZ/GPIO145

NF_WPZ/GPIO199

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

PWM_PM/GPIO200

HWRESET

IRIN/GPIO5

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

IF_AGC

SIFM SIFP

XIN

XOUT

D5

U19

F8

T20

E7

T21

E6

T19

D6

R21 R20

W10

R19

Y10

P20 P3 Y3

P19 Y5

N20 W11

N21 D3

N19 AA3

M21 W5

M20 D4

M19 L15

L20 Y11

L19

K20

K21

K19

J21

J20

J19

H20

V10

Y1

GPIO78

T14

W4

GPIO79

T13 U13

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

V15

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U12

U8

SDAM2/GPIO55

V13

T7

SCKM2/GPIO56

U14

U7

SCKM0/GPIO58

T11

V7

SDAM0/GPIO59

T12

F6

I2S_IN_BCK/GPIO159

V12

G6

I2S_IN_SD/GPIO160

Y14

AA4

I2C_SCKM1/GPIO80

Y16

Y4

I2C_SDAM1/GPIO81

AA15 Y13

J6

ET_TXD[0]/GPIO62

AA16

K6

EXT_TX_CLK/GPIO64

W12 AA13

G7

I2S_IN_WS/GPIO158

W14 W13

J4

ET_COL/GPIO60

Y15

J5

ET_TXD[1]/GPIO61

W15

H19

LCK/GPIO194

B3

G20

LDE/GPIO195

A3

G19

LHSYNC/GPIO196

A4

G21

LVSYNC/GPIO197

C3 A2

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

B1

E8

RP TN TP RN

IM IP

UART3_TX/GPIO52

C2

D7

UART3_RX/GPIO53

C1

U6

GPIO46[CTS]

B2

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

D2

L16

UART1_RX/GPIO49

D1

H5

ET_TX_EN/GPIO63

D8

K5

ET_RXD[0]/GPIO65

E5

K4

ET_MDC/GPIO66

G4

H6

ET_MDIO/GPIO67

G5

L5

ET_RXD[1]/GPIO68

J18

U17

PCMADR[0]/NF_AD[0]/GPIO130

K18

R18

PCMADR[1]/NF_AD[1]/GPIO129

K16

V17

PCMADR[2]/NF_AD[2]/GPIO127

L18

R16

PCMADR[3]/NF_AD[3]/GPIO126

L17

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

T8

W18

PCMADR[6]/NF_AD[6]/GPIO107

T9

U20

PCMADR[7]/NF_AD[7]/GPIO108

U9

Y19

PCMADR[8]/GPIO113

U11

AA19

PCMADR[9]/GPIO115

V9

AA20

PCMADR[10]/GPIO119

U10

W21

PCMADR[11]/GPIO117

T10

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

W2

V18

PCMADR[14]/GPIO111

W1

V19

PCMCD_N/GPIO135

W3

W19

PCMCE_N/GPIO120

V2

U18

PCMDATA[0]/GPIO131

V1

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

AA2

Y20

PCMDATA[3]/GPIO125

Y2

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

LGE2136(256M)

LVA4P/TTL_B[0]/HCONV/GPIO170 LVA4M/TTL_B[1]/E_O/GPIO171 LVA3P/TTL_B[2]/FB/GPIO172 LVA3M/TTL_B[3]/OPT_P/GPIO173 LVACKP/TTL_B[4]/MCLK/GPIO174 LVACKM/TTL_B[5]/GCLK/GPIO175 LVA2P/TTL_B[6]/GST/GPIO176 LVA2M/TTL_B[7]/POL/GPIO177

LVA1P/TTL_G[0]/EPI0+/GPIO178 LVA1M/TTL_G[1]/EPI0-/GPIO179 LVA0P/TTL_G[2]/EPI1+/GPIO180 LVA0M/TTL_G[3]/EPI1-/GPIO181 LVB4P/TTL_G[4]/EPI2+/GPIO182 LVB4M/TTL_G[5]/EPI2-/GPIO183 LVB3P/TTL_G[6]/EPI3+/GPIO184 LVB3M/TTL_G[7]/EPI3-/GPIO185

LVBCKP/TTL_R[0]/EPI4+/GPIO186 LVBCKM/TTL_R[1]/EPI4-/GPIO187 LVB2P/TTL_R[2]/EPI5+/GPIO188 LVB2M/TTL_R[3]/EPI5-/GPIO189 LVB1P/TTL_R[4]/EPI6+/GPIO190 LVB1M/TTL_R[5]/EPI6-/GPIO191 LVB0P/TTL_R[6]/EPI7+/GPIO192 LVB0M/TTL_R[7]/EPI7-/GPIO193

M1A_256M_AVS+

IC101-*2

LGE2136(256M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

M1A_256M_AVS+

IC101-*2

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

IF_AGC

SIFM SIFP

XOUT

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2

IM

V1

IP

AA2

XIN

Y2

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

<CHIP Config> (SPI_SDI, PM_LED, PWM_PM)

LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI

+3.5V_ST

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

PCM_A[0-7]

OPT

R115

4.7K

R116

4.7K

EEPROM

BR24G256FJ-3

EAN62389502

A0

A1

A2

GND

OPT

R117

R165

4.7K

2.7K

R118

R121

4.7K

2.7K

NVRAM_RHOM

IC104

1

2

A0’h

3

4

LED_R/BUZZ

PM_LED

OPT

SPI_SDI

+3.3V_Normal

VCC

8

C105

0.1uF

WP

7

SCL

6

SDA

5

OPT C104 8pF

OPT C106 8pF

22

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_CI_M1A

MAIN1_DVB 1

2015/01/12

MODEL OPTION

LGE Internal Use Only

+3.3V_Normal

1K

MO_DUALSTREAM

R290

1K

R293

MO_DUALSTREAM_NON

DDR_EXT:256

MO_S/W_EU/AJ

R291 1K

R222 1K

R221 1K

MO_S/W_TW/CN

R294 1K

DDR_EXT:128 or NON

R224 1K

R223 1K

MO_M120

DDR_EXT:128

R206 1K

R208 1K

MO_DVB_T2/C/S2

MO_DVB_T/C

MO_M120_NON

DDR_EXT:256 or NON

R207 1K

R209 1K

MO_S/W_AJ

R226 1K

R211 1K

MO_FHD

MO_S/W_NON_AJ

R212 1K

R227 1K

MO_HD

MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2 AUD_LRCH MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6 AUD_LRCK

SOC_RESET

+3.5V_ST

C200

4.7uF 10V

R200 470K

R217

0.1uF

0

C201

STby 3.5V

+3.5V_ST

L206

BLM18PG121SN1D

C289

SOC_RESET

16V

10uF

10V

L207

BLM18PG121SN1D

C288 10uF

10V

L208

BLM18PG121SN1D

C240

0.1uF 16V

C286

0.1uF 16V

AVDD_DMPLL

C205

0.1uF 16V

C287 10uF

10V

AVDD_NODIE

C252

0.1uF 16V

AVDD_AU33

C241

0.1uF 16V

Normal Power 3.3V

L204

C259

0.1uF 16V

BLM18PG121SN1D

C255

0.1uF 16V

C284 10uF

10V

C204 10uF

VDD33

C235

C209

0.1uF 16V

10V

0.1uF 16V

C245

0.1uF 16V

DDR3 1.5V

+1.5V_DDR+3.3V_Normal

C278 C248

C266

10uF

0.1uF 10V

16V

AVDD_DDR1:55mA AVDD_DDR0:55mA

0.1uF

0.1uF 16V

C207

VDDC 1.05V

+1.10V_VDDC

+1.10V_VDDC+1.10V_VDDC

+1.10V_VDDC

VDDC : 2026mA

C254

C228

1uF

10uF

10V

16V

10V

C275 10uF

C277

1uF 10V

10V

C280

1uF 10V

C283

0.1uF

C210

0.1uF

C279

0.1uF 16V

16V

C296

16V

10uF

10V

MODEL OPTION

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

AUD_LRCH MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

AUD_LRCK

* Dual Stream is only Korea 3D spec

Memory OPTION

Memory

INT+EXT

128M Only

256M Only

128M+128M

PIN NO.

Auto Det

J5

MO_FHD MO_S/W_NON_AJ

H19

G20

MO_DVB_T/C

G19

MO_M120_NON DDR_EXT:256 or NON DDR_EXT : 128

U6 K5

MO_S/W_TW/CN

K4

L5

MODEL_OPT_4

LOW

0

1

0

0128M+256M

0

1

0

Country Option

MODEL_OPT_1

TW

EU

CN

0

1

MODEL_OPT_6

0

1

101256M+256M

MODEL_OPT_5

0

1

0

1AJ

HIGH

MO_HD MO_S/W_AJ

MO_DVB_T2/C/S2 MO_M120

MO_S/W_EU/AJ DDR_EXT : 256DDR_EXT:128 or NON

MO_DUALSTREAMMO_DUALSTREAM_NON

SC1/COMP1_L_IN SC1/COMP1_R_IN

COMP2_L_IN COMP2_R_IN

SCART1_Lout SCART1_Rout

COMP2_L_IN

COMP2_R_IN

ATV_1000P

C211

1000pF

50V

ATV_1000P

C215

1000pF

50V

HDMI

D0-_HDMI4 D0+_HDMI4 D1-_HDMI4 D1+_HDMI4 D2-_HDMI4 D2+_HDMI4 CK-_HDMI4 CK+_HDMI4

CEC_REMOTE_S7

DDC_SCL_4 DDC_SDA_4

HPD4

SC1/COMP1_L_IN

SC1/COMP1_R_IN

SCART1_Lout SCART1_Rout

AUDIO OUT

BLM18PG121SN1D

L214

C214 2.2uF

C216 2.2uF C217

2.2uF

C219 2.2uF

C213

C220

1uF

4.7uF

SCART

COMP SCART

COMP

AUVRM

M4 W7 Y8 W8 Y9

AA9

W9

AA7

Y7 N2 E3 E2 W6

AA6

L4 Y6 F1 G3 G1 G2 H3 H2 F3 F2

U4 T4 P2 R2 T1 R3 R1 T3 U2 V3 T2

M1A_256M_UO4

IC101

LGE2134(256M)

ARC0 RXC0N RXC0P RXC1N RXC1P RXC2N RXC2P

I2S_OUT_BCK/GPIO165

RXCCKN

I2S_OUT_MCK/GPIO163 RXCCKP CEC/GPIO6 DDCDA_CK/GPIO27 DDCDA_DA/GPIO28 DDCDC_CK/GPIO31 DDCDC_DA/GPIO32 HOTPLUGA/GPIO23 HOTPLUGC/GPIO25 RXA0N RXA0P RXA1N RXA1P RXA2N RXA2P RXACKN RXACKP

EAR_OUTL EAR_OUTR AUL1 AUL2 AUL3 AUR1 AUR2 AUR3 AUOUTL0 AUOUTR0 AUVAG

M4 W7 Y8 W8 Y9

AA9

W9

AA7

Y7 N2 E3 E2 W6

AA6

L4 Y6 F1 G3 G1 G2 H3 H2 F3 F2

U4 T4 P2 R2 T1 R3 R1 T3 U2 V3 T2

M1A_128M_UO4

IC101-*1

LGE2133(128M)

ARC0 RXC0N RXC0P RXC1N RXC1P RXC2N RXC2P RXCCKN RXCCKP CEC/GPIO6 DDCDA_CK/GPIO27 DDCDA_DA/GPIO28 DDCDC_CK/GPIO31 DDCDC_DA/GPIO32 HOTPLUGA/GPIO23 HOTPLUGC/GPIO25 RXA0N RXA0P RXA1N RXA1P RXA2N RXA2P RXACKN RXACKP

EAR_OUTL EAR_OUTR AUL1 AUL2 AUL3 AUR1 AUR2 AUR3 AUOUTL0 AUOUTR0 AUVAG

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

CVBSOUT1

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

USB0_DM USB1_DM USB0_DP USB1_DP

HSYNC0 VSYNC0

SOGIN1

CVBS0 CVBS1 CVBS2

VCOM

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

CVBS0 CVBS1 CVBS2

VCOM

BIN0M BIN0P GIN0M GIN0P RIN0M RIN0P

BIN1M BIN1P GIN1M GIN1P RIN1M RIN1P

M1A_256M_UO4

IC101

LGE2134(256M)

Close to MSTAR

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

TUNER_CVBS

C2360.047uF

SCART/AV2

COMP2/AV_CVBS

BIN0M

GIN0P RIN0M RIN0P

BIN1M BIN1P GIN1M GIN1P RIN1M RIN1P SOGIN1

BIN0M BIN0PBIN0P GIN0MGIN0M GIN0P RIN0M RIN0P

BIN1M BIN1P GIN1M GIN1P RIN1M RIN1P SOGIN1

TUNER_CVBS

R24633

SCART/AV2

COMP2/AV_CVBS

R24768C2390.047uF

DTV/MNT_VOUT

SC1/AV2_CVBS_IN

SIDE_USB1_DM

SIDE_USB1_DP

SC1_ID SC1_FB

R295 0

OPT

DTV/MNT_VOUT

OPT C208 15pF

50V

I2S_I/F

AUD_SCK AUD_MASTER_CLK AUD_LRCH AUD_LRCK

AUD_MASTER_CLK

AVDD_AU33

+1.5V_DDR

AVDD_NODIE

VDD33

AVDD_NODIE

VDD33

AVDD_DMPLL

+1.10V_VDDC

C260

1uF 10V

VDD33

5V_HDMI_4

M1A_256M_AVS+

IC101-*2

LGE2136(256M)

M4

T6

ARC0

W7

V5

RXC0N

Y8

U5

RXC0P

W8

T5

RXC1N

Y9

V4

RXC1P

AA9

RXC2N

W9

E4

RXC2P RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31 DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

AA7

F4 F7 F5

C4 Y12

AA6

B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

CVBSOUT1

USB0_DM USB1_DM USB0_DP USB1_DP

HSYNC0 VSYNC0

SOGIN1

CVBS0 CVBS1 CVBS2

BIN0M BIN0P GIN0M GIN0P RIN0M RIN0P

BIN1M BIN1P GIN1M GIN1P RIN1M RIN1P

T6 V5 U5 T5 V4

VCOM

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

R296 10

1/16W 5%

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

GND_EFUSE

U3 A6 A13 A15 A18 B12 B14 B16 B17 B19 B20 C9 C10 C21 D9 E20 F9 F11 F13 F15 F17 F19 F21 G8 G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 H7 H8 H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

AUVRM

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

M1A_128M_UO4

IC101-*1

LGE2133(128M)

GND_EFUSE

M1A_256M_AVS+

IC101-*2

LGE2136(256M)

U3

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8 GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

AUVRM

A6

GND_1

A13

GND_2

A15

GND_3

A18

GND_4

B12

GND_5

B14

GND_6

B16

GND_7

B17

GND_8

B19

GND_9

B20

GND_10

C9

GND_11

C10

GND_12

C21

GND_13

D9

GND_14

E20

GND_15

F9

GND_16

F11

GND_17

F13

GND_18

F15

GND_19

F17

GND_20

F19

GND_21

F21

GND_22

G8

GND_23

G9

GND_24

G10

GND_25

G11

GND_26

G12

GND_27

G13

GND_28

G14

GND_29

G15

GND_30

G16

GND_31

G17

GND_32

G18

GND_33

H7

GND_34

H8

GND_35

H9

GND_36

H10

GND_37

H11

GND_38

H12

GND_39

H13

GND_40

H14

GND_41

H15

GND_42

H16

GND_43

H17

GND_44

H18

GND_45

J7

GND_46

J8

GND_47

J9

GND_48

J10

GND_49

J11

GND_50

J12

GND_51

J13

GND_52

J14

GND_53

K8

GND_54

K10

GND_55

K11

GND_56

L10

GND_57

M5

GND_58

M7

GND_59

M8

GND_60

M9

GND_61

M10

GND_62

N4

GND_63

N5

GND_64

N6

GND_65

N7

GND_66

N8

GND_67

N9

GND_68

N10

GND_69

P4

GND_70

P5

GND_71

P6

GND_72

P7

GND_73

P9

GND_74

P10

GND_75

P15

GND_76

P16

GND_77

P17

GND_78

P18

GND_79

R10

GND_80

R11

GND_81

R12

GND_82

R13

GND_83

R14

GND_84

K7

GND_EFUSE

AVDD_AU33 AVDD_DDR0_CLK AVDD_DDR1_CLK AVDD_DDR0_CMD AVDD_DDR1_CMD AVDD_DDR0_D_1 AVDD_DDR0_D_2 AVDD_DDR0_D_3 AVDD_DDR1_D_1 AVDD_DDR1_D_2 AVDD_DDR1_D_3

AVDD_DRAM_1

AVDD_DRAM_2 AVDD_DVI_USB_MPLL_1 AVDD_DVI_USB_MPLL_2

AVDD_MOD_1 AVDD_MOD_2 AVDD_NODIE

AVDD_PLL

AVDD3P3_DMPLL

AVDDL_MOD DVDD_DDR_1 DVDD_DDR_2 DVDD_NODIE

DVDD_RX_1_1 DVDD_RX_1_2 DVDD_RX_2_1 DVDD_RX_2_2

AVDD5V_MHL

R4 L11 L13 M11 K13 C5 K12 L12 C6 K14 L14 B5 B6 R8 R9 L7 L8 P8 K9 R5 P11 C7 M13 R6 A7 M12 B7 M14 N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15.5_CI_M1A

MAIN2_DVB

2015/01/12

2

AUDIO AMP(NTP7515)

LGE Internal Use Only

+19V

UBW2012-121F

OPT

C5600

0.1uF 50V

AUD_LRCH

AUD_LRCK

AMP_SDA

AMP_SCL

L5600

+19V_AMP

C5601

0.1uF 50V

AR5601 100 1/16W

C5602 33pF 50V

C5603 33pF 50V

C5604

1uF

10V

BLM18PG121SN1D

C5607

10uF 10V

C5605 1uF 10V

+3.3V_Normal

OPT

C5606

1000pF

50V

R5603

10K

L5601

+3.3V_Normal

C5608

0.1uF 16V

AMP_RESET

AUD_SCK

R5606 100

1/16W

R5607

4.7K

NC_1

VDD_PLL

NC_2

GND NC_3 DVDD

SDATA

WCK NC_4

SDA

C5609 1000pF 50V

[EP]GND

1 2 3 4 5 6 7 8 9 10

GND_IO

VDD_IO

39

40

THERMAL

41

11

12

SCL

FAULT

50V

C5610

BST1A

RESET

AD

CLK_I

35

36

37

38

IC5600

NTP7515

13

14

15

16

BST2B

MONITOR_0

MONITOR_1

MONITOR_2

I2S_AMP

C5611

22000pF

50V

22000pF

OUT1A

PGND1A

33

34

17

18

OUT2B

PGND2B

PVDD1B

PVDD1A

31

32

30 29 28 27 26 25 24 23 22 21

19

PVDD2B20PVDD2A

+19V_AMP

C5613 10uF 25V

OUT1B PGND1B BST1B VDR1 NC_5 AGND VDR2 BST2A PGND2A OUT2A

C5612 10uF 25V

C5615

0.1uF 50V

C5614

0.1uF 50V

C5616

4.7uF 50V

3216

C5617

4.7uF 50V

3216

OPT

C5618 22000pF 50V

C5619 22000pF 50V

R5608

3.3

R5609

3.3

R5610

R5611

3.3

1/10W

5% C5620 390pF

50V

C5621 390pF

50V

1/10W

5%

C5624 1uF 10V

1/10W

C5622 390pF 50V

C5623 390pF 50V

1/10W

TAIYO L5603-*2

10.0uH

CYNTEC

L5603-*1

10uH

TDK

L5603

10uH

C5630

0.1uF 50V

C5627

0.47uF 50V

TAIYO

L5605-*2

10.0uH

CYNTEC

L5605-*1

TDK

10uH

L5605

10uH

C5625 1uF 10V

TAIYO

L5602-*2

10.0uH

CYNTEC

L5602-*1

10uH

TDK

L5602

10uH

5%

TAIYO L5604-*2

10.0uH

CYNTEC

L5604-*1

10uH

TDK

L5604

5%

10uH

C5626

0.47uF 50V

C5631

0.1uF

C5628

0.1uF 50V

C5629

0.1uF

50V

R5614

4.7K

R5615

4.7K

R5612

4.7K

R5613

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

I2S_AMP

L15.5_ECI_M1A

AMP_NTP

SPK_L+

SPK_L-

SPK_R+

SPK_R-

250A1-WR-H04M

WAFER-ANGLE

4

3

2

1

P5600

Box Type SPK Wafer

150112

56

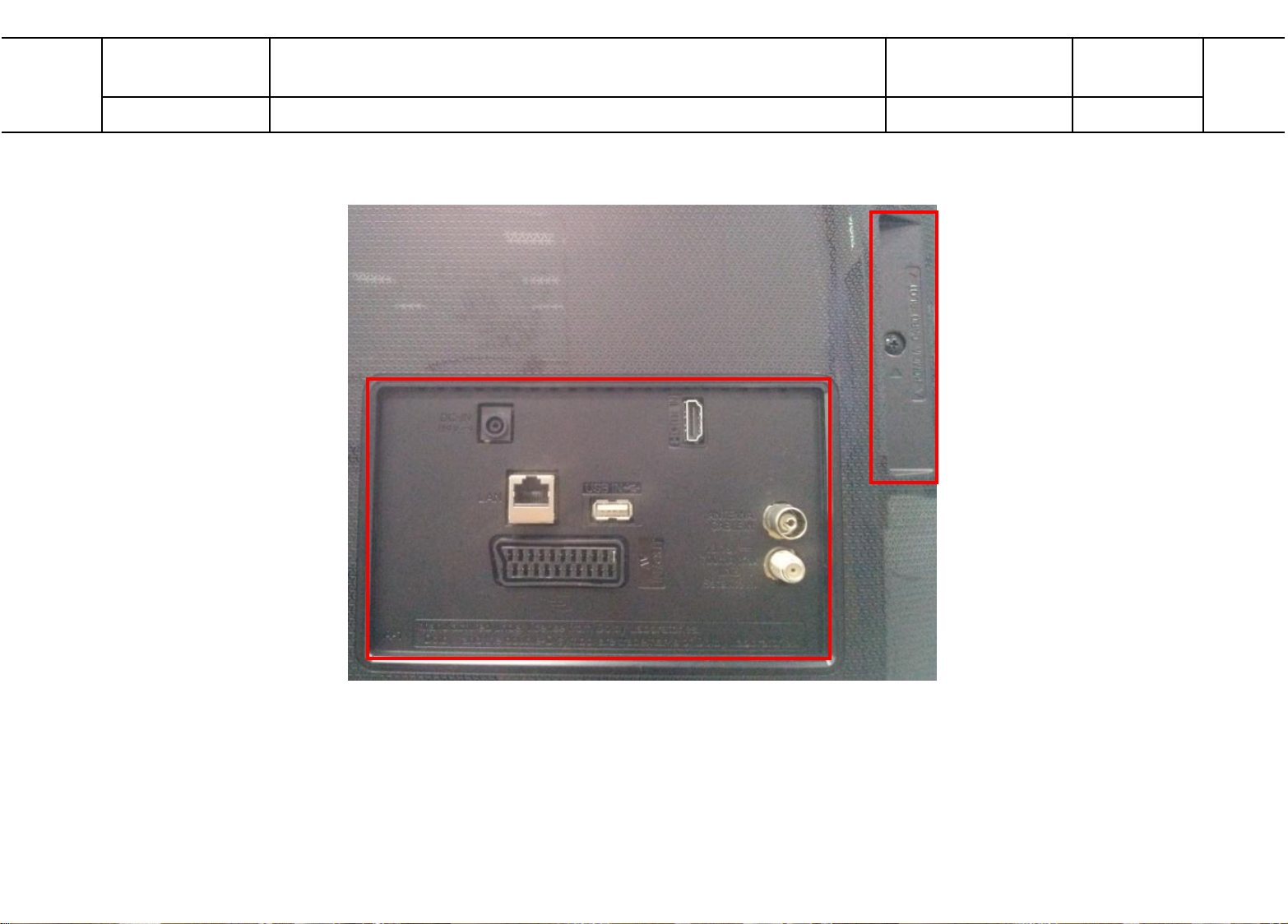

Trouble shooting guide

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

A. Video error

No video/Normal audio 1

2 No video/No audio 2

3 Tuning fail, Picture broken/ Freezing 3, 4

4 Color error 5

5

Vertical/Horizontal bar, residual image, light spot, external device color error

6

B. Power error

No power 7

7 Off when on, off while viewing, power auto on/off 8 8

C. Audio error

No audio/Normal video 9

9 Wrecked audio/discontinuation/noise 10

10

D. Function error

Remote control & Local switch checking 11 11 External device recognition error 12 12 E. Noise Circuit noise, mechanical noise 13 13 F. Exterior error Exterior defect 14

* First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Contents of Standard Repair Process

LGE Internal Use Only

Y

N

Move to

No video/No audio

No video

Normal audio

Check Back Light

On with naked eye

Check LVDS 12 V

of Main B/D

Replace T-con B/D

or Module

Replace Main

B/D or Repair parts

Check Main B/D to LED Back light Voltage

Replace Module

Replace Main

B/D or Repair parts

Always check & record S/W Version and White Balance value before replacing the Main Board

Replace Main Board Re-enter White Balance value

※Precaution

☞A4 ☞A1

☞A2

☞A3 & A6

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D ↔ Adaptor, LVDS Cable, Speaker Cable, IR B/D Cable…)

Normal

Audio

On

Y

N

Normal Voltage

Normal

Voltage

Y

N

Y

N

Error Symptom

A. Video Error

Established date

2015.04.17

1/14

Content

No video / Normal audio

Revised date

Standard Repair Process

LGE Internal Use Only

Check voltage 19V

of Adaptor

No video /

No audio

Replace Main

B/D or Repair parts

Replace Adaptor

Normal

Voltage

Y

N

Error Symptom

A. Video Error

Established date

2015.04.17

2/14

Content

No video / No audio

Revised date

Standard Repair Process

☞A13

LGE Internal Use Only

Y

N

☞ A5

N

Check RF Signal level

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Check

S/W Version

S/W Upgrade

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

Replace

Main B/D

Check

Tuner soldering

Y

N

Y

. By using Digital signal level meter

. By using Diagnostics menu on OSD ( Menu → Customer Support(red button on remote control) → Signal Test )

- Signal strength (Normal : over 50%)

- Signal quality (Normal : over 50%)

Y

Contact with signal distributor

or broadcaster (Cable or Air)

N

Y

N

☞ A6

End

Normal

Signal

Normal


Normal Picture

SVC

Bulletin

End

Normal Picture

Error Symptom

A. Video Error

Established date

2015.04.17

3/14

Content

Tuning fail, Picture broken/freezing

Revised date

Standard Repair Process

LGE Internal Use Only

Y

N

☞ A5

Check RF Signal level

Check

S/W Version

S/W Upgrade

Y

N

Y

Check RF signal cable (DVB satellite signal or not) Check whether other equipments have problem or not. (By connecting RF Cable at other equipment) → Set-Top-Box, Different maker TV etc

Y

Replace satellite setting

(match with installed ANT)

N

Y

N

☞ A6

Check satellite setting.

- Check LNB frequency

- Check satellite

- Check Satellite connection (DiSEqC, motor, etc…)

Contact with signal

distributor

or broadcaster

(Cable or Air)

N

Check

Tuner soldering

Replace

Main B/D

Normal


Normal


Normal

Setting

SVC

Bulletin

Normal

Signal

End

Error Symptom

A. Video Error

Established date

2015.04.17

4/14

Content

Tuning fail, Picture broken/freezing

Revised date

Standard Repair Process

LGE Internal Use Only

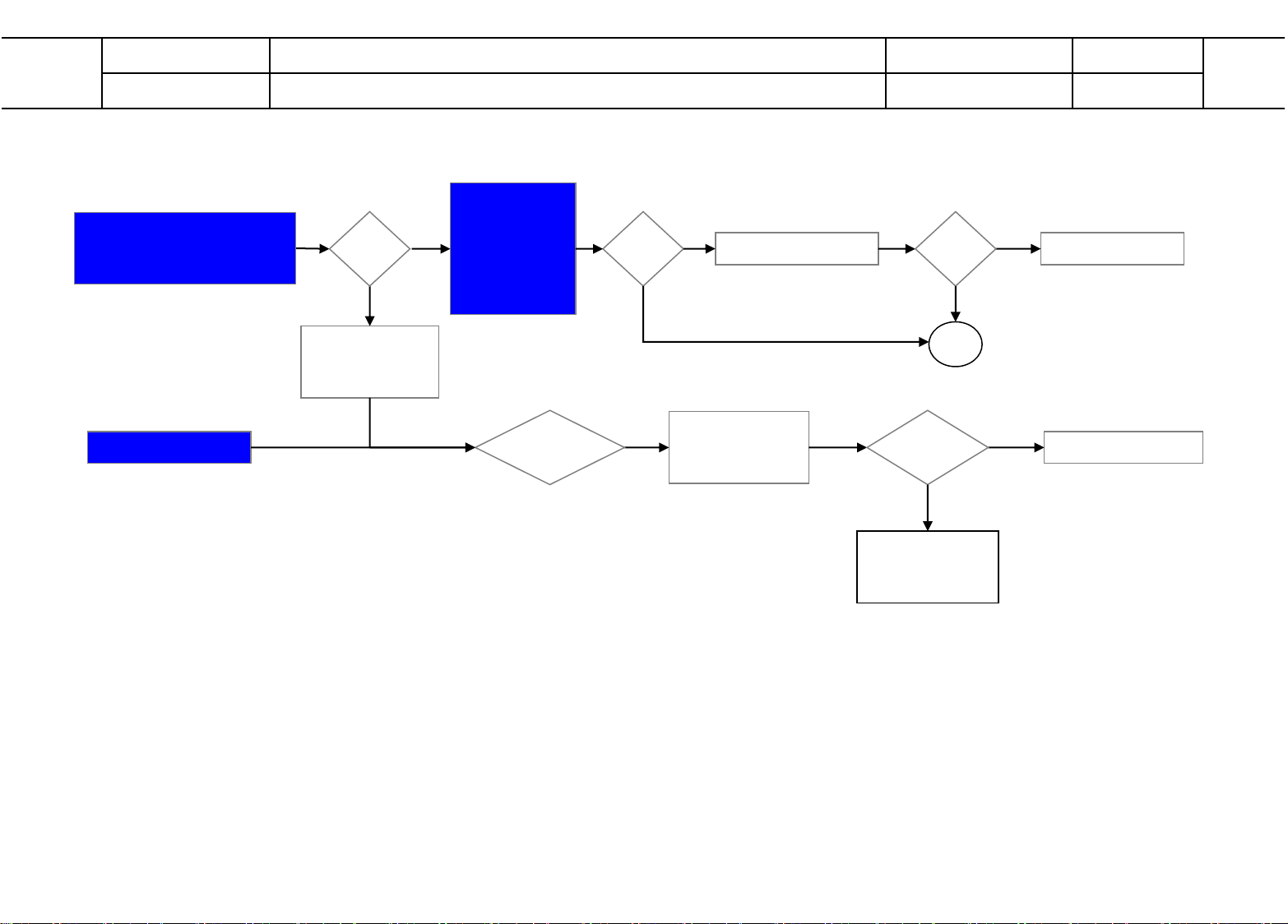

Color

error

Y

N

Check and replace Link

Cable

(LVDS) and contact condition

Y

N

Replace Main B/D

Check error

color input

mode

Check color by input

- External Input (COMPONENT/AV/HDMI)

Y

Check external

device and

cable

Replace Main B/D

N

☞A7

N

Y

Replace module

Request repair

for external

device/cable

Check Test pattern

☞A10

☞ A8 / A9

End

Color

error

Color

error

External

device/Cable

Normal

External

Input Component,

HDMI error

Error Symptom

A. Video Error

Established date

2015.04.17

5/14

Content

Color error

Revised date

Standard Repair Process

LGE Internal Use Only

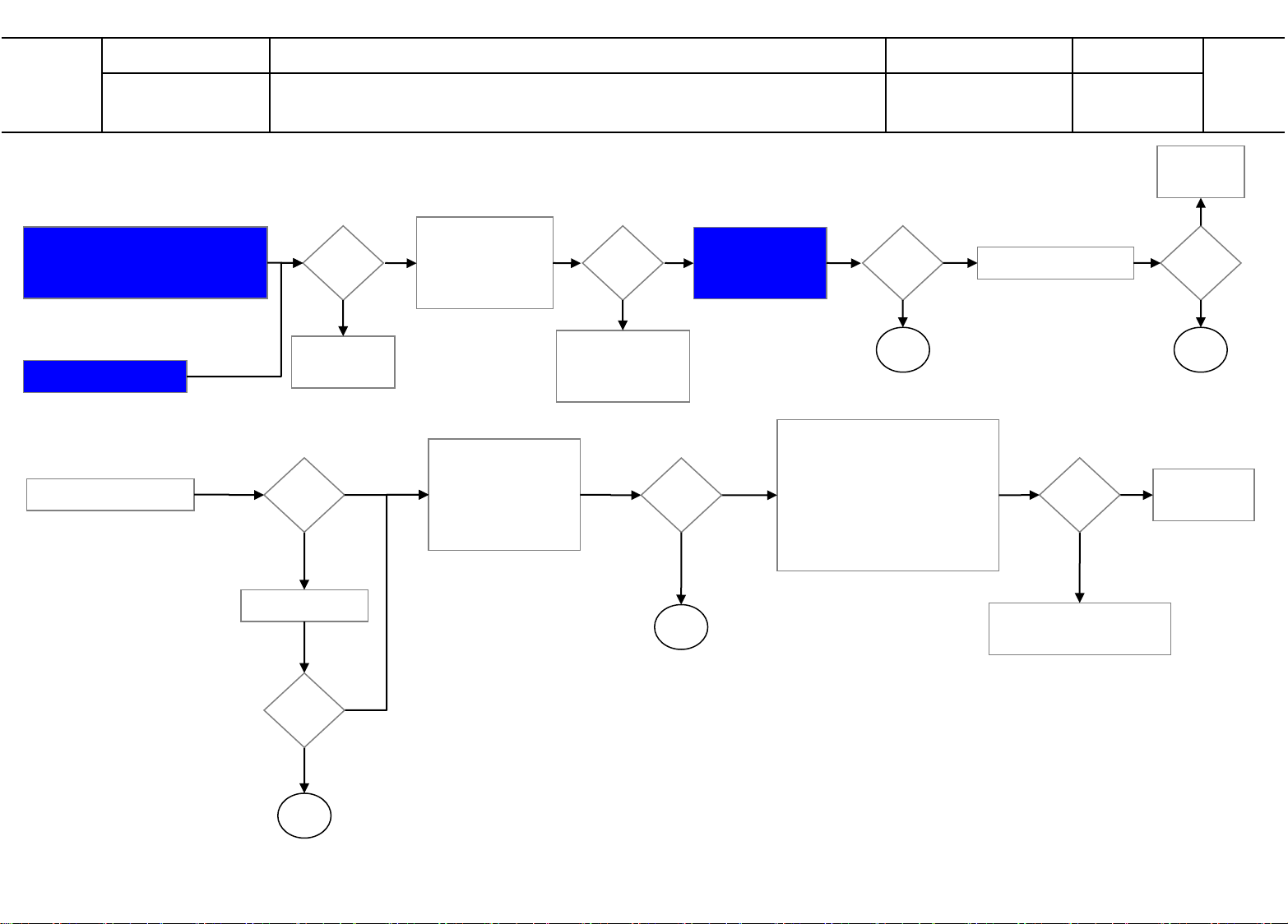

N

Y

Check external

device

connection

condition

Y

N

Check and

replace Link

Cable

Y

Replace

Module

Check color condition by input

- External Input (Component/AV/HDMI)

Vertical/Horizontal bar, residual image, light spot

Request repair

for external

device

☞A10

External device screen error-Color error

Connect other external

device and cable

(Check normal operation of

External Input, Component

and HDMI by connecting

Jig, pattern Generator,

Set-top Box etc.

N

Y

Replace

Main B/D

Check screen condition by input

-External Input (Component/AV/ HDMI)

Request repair for

external device

Check S/W Version

Y

N

S/W Upgrade

Y

N

Y

N

Replace Main B/D

Replace

Module

☞A7

☞ A8/ A9

Check Test pattern

N

End

Screen normal

Screen

normal

Screen

normal

Screen normal

Screen

normal

End

Check

Version

Normal

Screen

External

Input

error

Error Symptom

A. Video Error

Established date

2015.04.17 6/14

Content

Vertical/Horizontal bar, Residual Image,

Light spot, External device Color error

Revised date

Standard Repair Process

Y

N

End

LGE Internal Use Only

Power

LED On

Y

N

DC Power on

by pressing Power Key

On Remote control

Y

N

Check Adaptor/

Power cord

was inserted properly

Check

Power LED

Replace

Main B/D

N

Y

Check ST-BY 3.5V

N

Replace Adaptor or

Replace Main B/D

Y

☞A11

☞A16

Stand-By : Red

※

Power

LED On

Normal Voltage

Normal

Operation

Error Symptom

B. Power Error

Established date

2015.04.17

7/14

Content

No power

Revised date

Standard Repair Process

End

LGE Internal Use Only

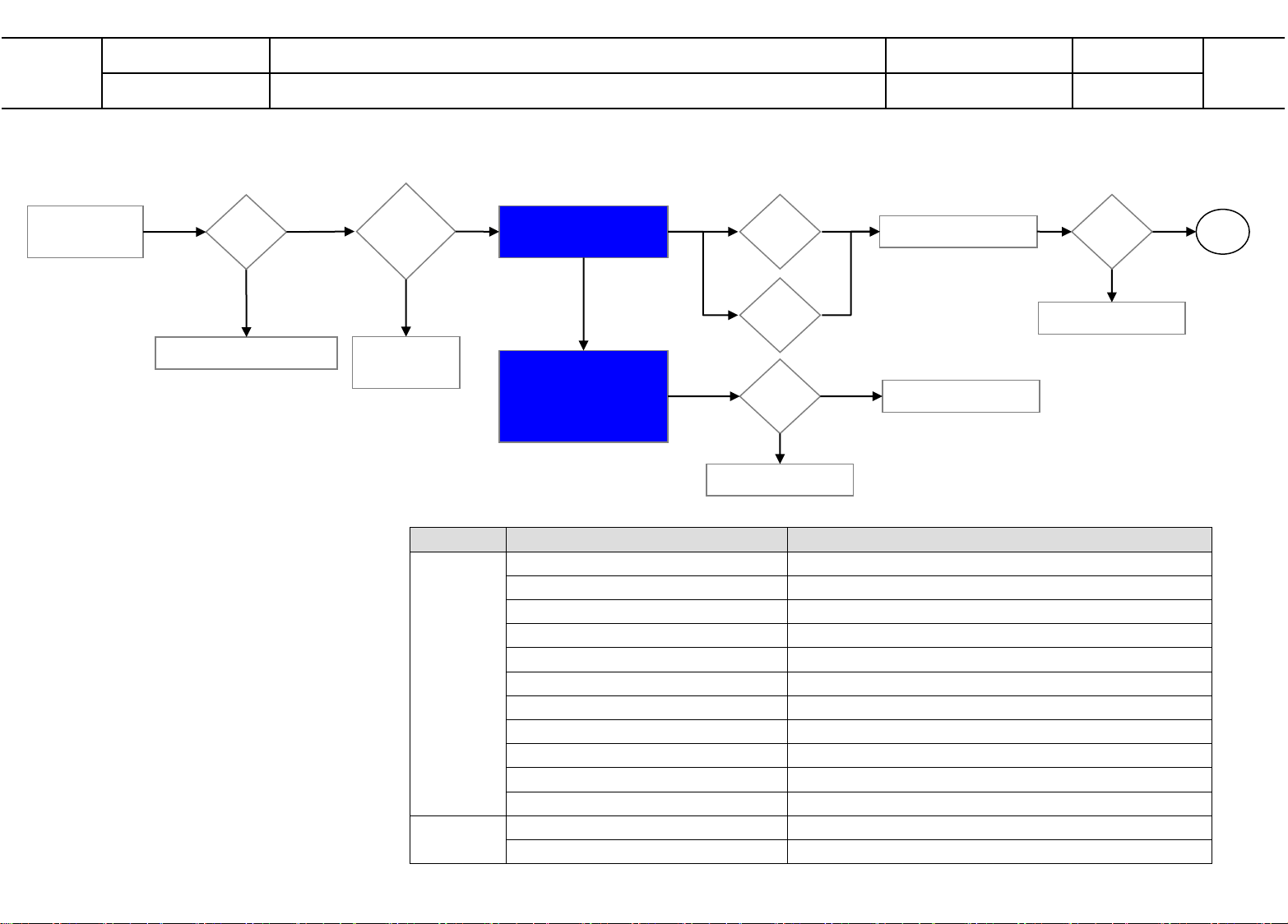

Normal

Voltage

N

Y

Check Power Off

Mode

Fix A/C cord & Outlet

Replace Main B/D

(If Power Off mode is not displayed) Check Adaptor voltage

Y

N

Replace Main B/D

Replace Adaptor

N

Y

☞A14

☞A13

Status Power off List Explanation

Normal

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL "POWEROFF_OFFTIMER" Power off by OFF TIMER "POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF "POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download "POWEROFF_UNKNOWN" Power off by unknown status except listed case

Abnormal

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

* Please refer to the all cases which

can be displayed on power off mode.

Adaptor

DC Out

CPU

Abnorm

al

Abnorm

al1

Normal End

Error Symptom

B. Power Error

Established date

2015.04.17

8/14

Content

Off when on/off while viewing, power auto on/off

Revised date

Standard Repair Process

Replace

Adaptor

Y

Error

N

Check outlet

or A/C cord

LGE Internal Use Only

No audio

Screen normal

Check user

Connection

from Main 

Speaker Cable

N

Y

Insert wafer SPK Cable

Replace Speaker

or Main B/D

Connec

tion

Error Symptom

C. Audio Error

Established date

2015.04.17

9/14

Content

No audio / Normal video

Revised date

Standard Repair Process

☞A15

Normal

Audio

End

Y

N

LGE Internal Use Only

Check and replace

speaker and

connector

Connect and check

other external

device

Y

Check and fix external device

Replace Adaptor

N

Y

Check input signal

-RF

-External Input

(When RF signal is not received) Request repair to external cable/ANT provider

Y

Check Voltage 19V

of Adaptor

(In case of External Input signal error) Check and fix external device

Replace Main B/D

N

☞A13

End

Signal

Normal

Normal Voltage

Normal

Audio

Wrecked Audio/

Discontinuation/Noise

for all audio

Wrecked Audio/

Discontinuation/Noise

only for D-TV

Wrecked Audio/

Discontinuation/Noise

only for Analog

Wrecked Audio/ Discontinuation/Noise only for External Input

N

Replace Main B/D

Error Symptom

C. Audio Error

Established date

2015.04.17

10/14

Content

Wrecked audio / Discontinuation / Noise

Revised date

Standard Repair Process

LGE Internal Use Only

Y

N

Check R/C itself

Operation

Y

Replace R/C

If R/C operate,

Explain the customer

cause is interference

from light in room.

Check R/C Operating

When turn off light

in room

Check & Replace

Baterry of R/C

Check & Repair

Cable connection

Connector solder

Check 3.5V

On Main B/D

☞A16

N

Check Voltage 19V of Adaptor

☞A13

Check IR

Output signal

N

Y

Replace

IR B/D

N

☞A16

Replace

Main B/D

Y

☞A16

End

Normal

Operating

Normal

Voltage

Normal

Signal

Normal

Operating

Normal

Operating

End

Y

Error Symptom

D. Function Error

Established date

2015.04.17

11/14

Content

Remote control & Local switch checking

Revised date

Standard Repair Process

LGE Internal Use Only

Check technical information

- Fix information

- S/W Version

N

Y

Check input

signal

Y

N

Check and fix

external device/cable

Replace Main B/D

Fix in

accordance

with technical

information

Signal

Input

Technical

information

External Input

and Component

Recognition error

HDMI

Recognition

error

Error Symptom

D. Function Error

Established date

2015.04.17

12/14

Content

External device recognition error

Revised date

Standard Repair Process

LGE Internal Use Only

Check location

of noise

Identify

nose type

Replace Main Board

Check location

of noise

※ When the nose is severe, replace the module (For models with fix information, upgrade the S/W or provide the description)

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual (For models without any fix information, provide the description)

or

※ Mechanical noise is a natural phenomenon and apply the 1st level description. When the customer does not agree, apply the process by stage.

※ Describe the basis of the description in

“Part related to nose” in the Owner’s Manual.

Circuit

noise

Mechanical

noise

LCD TV

Error Symptom

E. Noise

Established date

2015.04.17

13/14

Content

Circuit noise, Mechanical noise

Revised date

Standard Repair Process

LGE Internal Use Only

Replace module

Zoom part with exterior damage

Replace cabinet

Replace remote control

Replace stand

Standard Repair Process

Module

damage

Cabinet

damage

Remote

Control

damage

Stand

damage

Error Symptom

F. Exterior Defect

Established date

2015.04.17

14/14

Content

Exterior defect

Revised date

LGE Internal Use Only

Contents of Standard Repair Process Detail Technical Manual

No. Error symptom Content Page Remarks

1

A. Video error_ No video/Normal audio

Check LCD back light with naked eye A1 2 LED driver B+ measuring method A2 3 Check White Balance value A3 4 Power voltage measuring method A4 6

A. Video error_ No video/Video lag/stop

TUNER input signal strength checking method A5 7 TV Version checking method A6

9

A. Video error_Color error

Connection diagram A7

10

Check Link Cable (LVDS) reconnection condition

A8 A9

11

Adjustment Test pattern - ADJ Key A10

12 13

A. Video error_Vertical/Horizontal bar, residual image, light spot

Connection diagram A8

14 Check Link Cable (LVDS) reconnection condition

A8

A9 15 Adjustment Test pattern - ADJ Key A10 16

Defected Type caused by T-Con/ Inverter/ Module

Exchange T-Con Board (1) A-1/5

17 Exchange T-Con Board (2) A-2/5

18

Exchange LED driver Board (PSU) A-3/5

Exchange Module itself (1) A-4/5

19 20 Exchange Module itself (2) A-5/5

* First of all, Check whether there is SVC Bulletin in GCSC System for these model.

LGE Internal Use Only

No. Error symptom Content Page Remarks

21

B. Power error_No power

Check front display LED A11 22 Check power input Voltage & ST-BY 3.5V A12 23 Checking method when power is ON A13 24 Power voltage measuring method A4

26

B. Power error_Off when on, off while viewing

POWER OFF MODE checking method A14

28 C. Audio error_No audio/Normal video Checking method in menu when there is no audio A15

29

D. Function error_ No response in remote controller, key error

Remote control operation checking method A16

Contents of Standard Repair Process Detail Technical Manual

* First of all, Check whether there is SVC Bulletin in GCSC System for these model.

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Power On -> disjoint back case -> check lighting

Error Symptom

A. Video Error, No Video/Normal Audio

Established date

2015.04.17

A1

Content

Check Back Light On with Naked eye

Revised date

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Measure DC Voltage applying to LED backlight from Main B/D

Error Symptom

A. Video Error, No Video/Normal Audio

Established date

2015.04.17

A2

Content

Main Board to LED back light Voltage

Revised date

LGE Internal Use Only

1. Press the ADJ button on the remote controller for adjustment

2. Enter into White Balance of item 9

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD

Standard Repair Process Detail Technical Manual

Error Symptom

A. Video Error, No Video/Normal Audio

Established date

2015.04.17

A3

Content

Check White Balance value

Revised date

LGE Internal Use Only

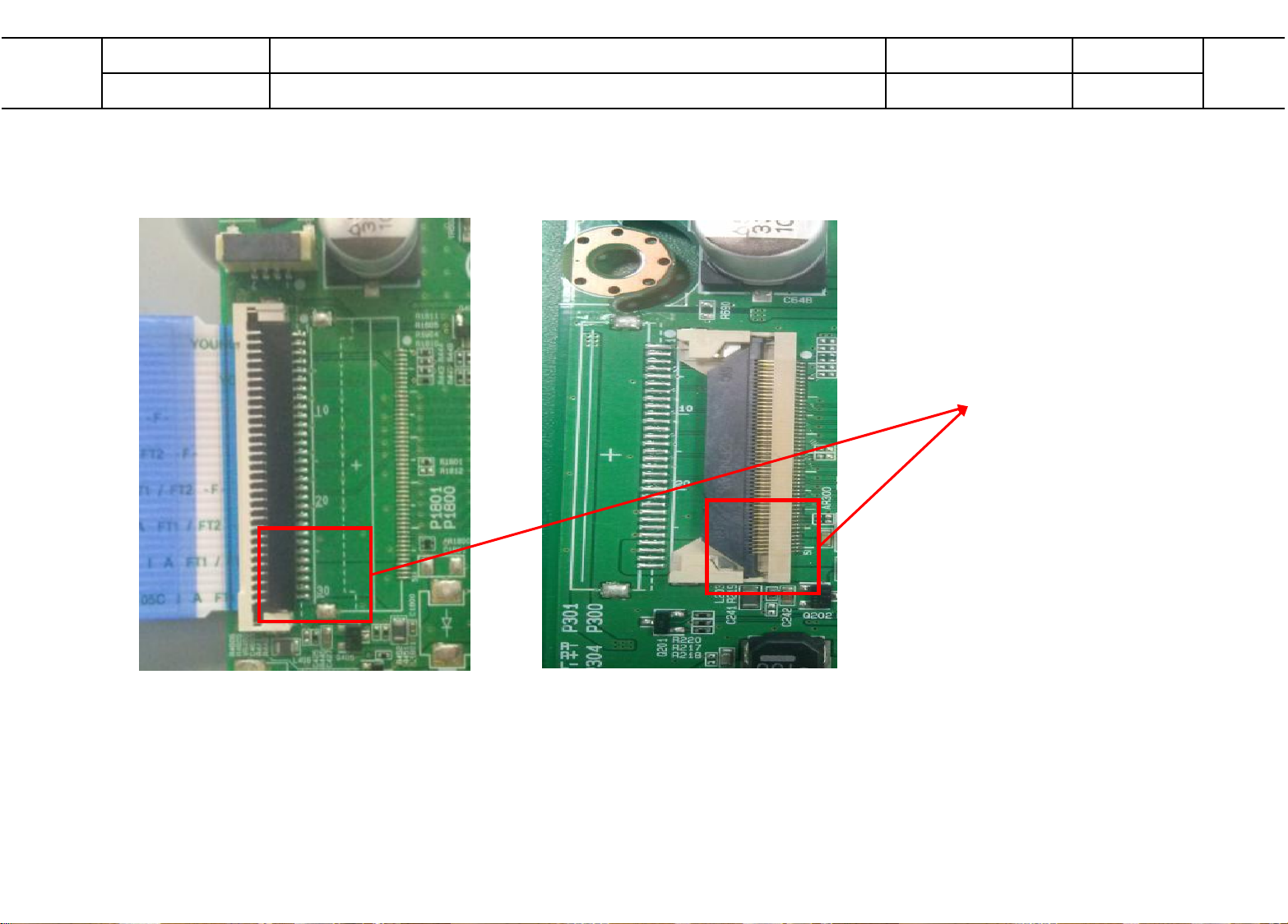

Standard Repair Process Detail Technical Manual

Check LVDS 12V

Error Symptom

A. Video Error, No Video/Normal Audio

Established date

2015.04.17

A4

Content

Power Voltage Measuring Method

Revised date

HD Model : 27 ~ 30 pin FHD Model : 48 ~ 51 pin

LGE Internal Use Only

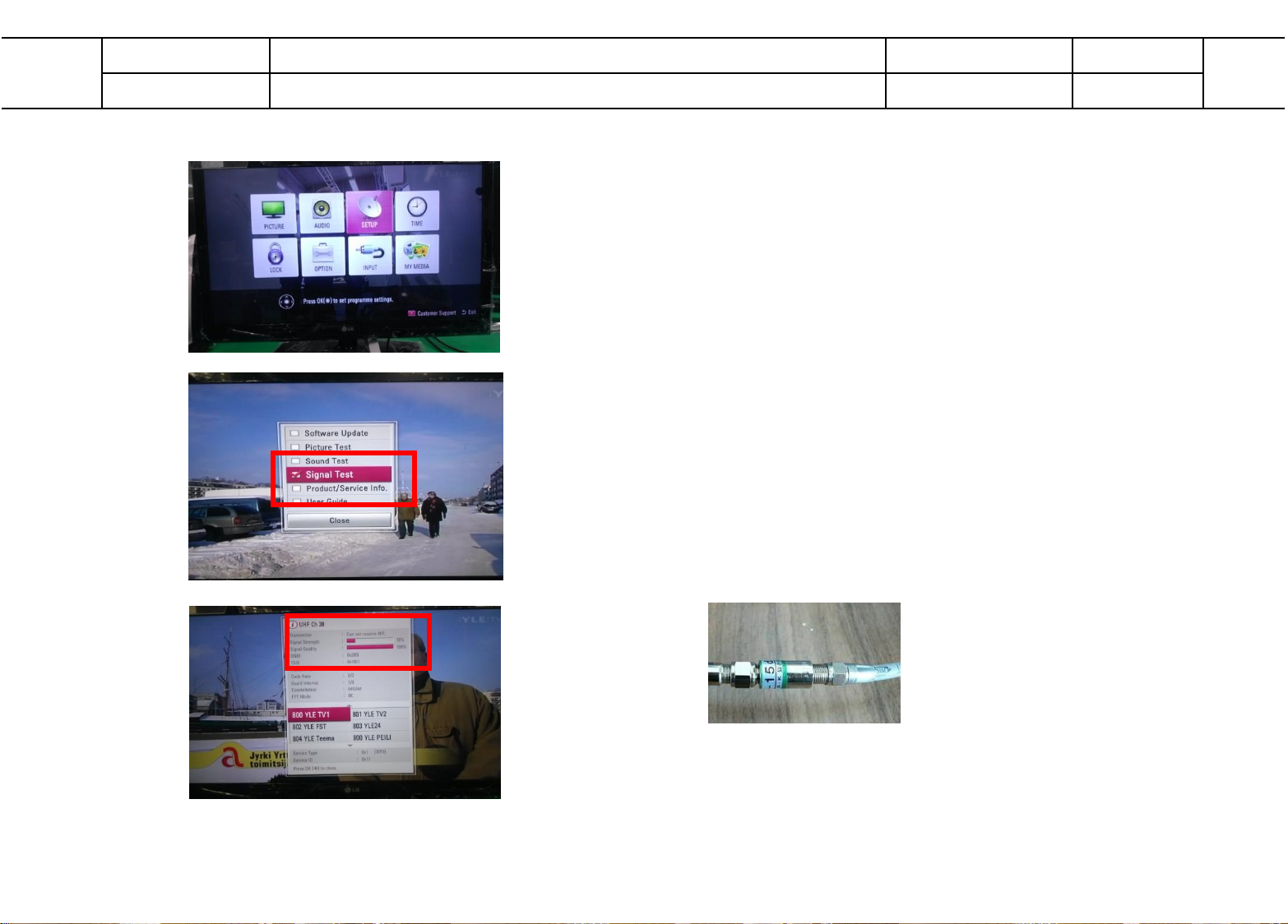

MENU  Press red key Remote controller  signal test  Select channel

When the signal is strong, use the attenuator (-10dB, -15dB, -20dB etc.)

Standard Repair Process Detail Technical Manual

Error Symptom

A. Video Error, Video lag/stop

Established date

2015.04.17

A5

Content

Tuner Input Signal Strength Checking Method

Revised date

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Checking SW version method for remote controller for adjustment

Press the IN-START with the remote control for adjustment

Error Symptom

A. Video Error, No Video/Normal Audio

Established date

2015.04.17

A6

Content

TV Version Checking Method

Revised date

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Error Symptom

A. Video Error, Vertical/Horizontal bar, Residual Image,

Light spot

Established date

2015.04.17

A7

Content

Connection diagram

Revised date

As the part connecting to the external input, check the screen condition by signal

* Jack spec. : depending on Model

LGE Internal Use Only

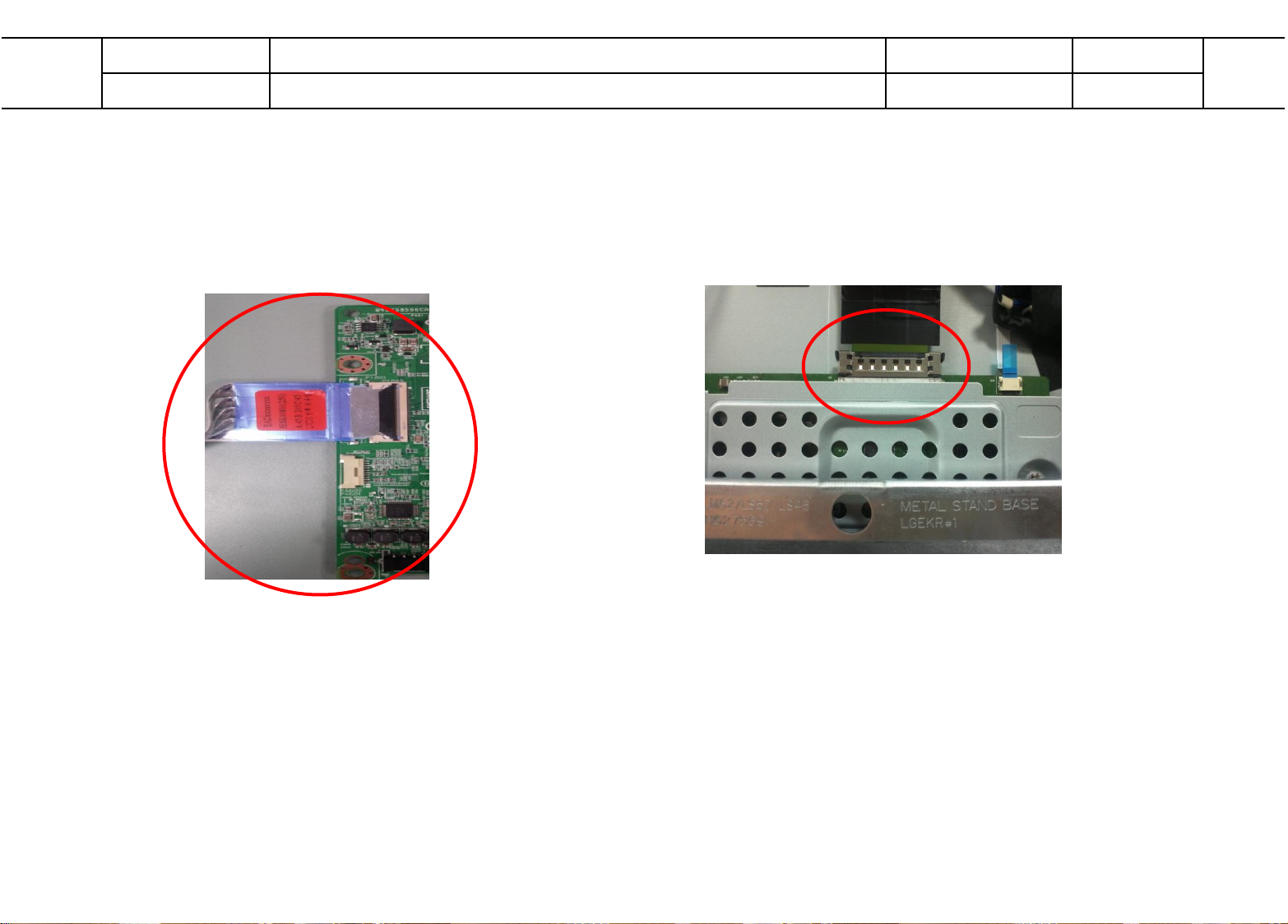

1. Check and replace LVDS Cable

2. Check LVDS connection condition

Standard Repair Process Detail Technical Manual

Error Symptom

A. Video Error, Color Error

Established date

2015.04.17

A8/

A9

Content

Check and replace Link Cable(LVDS) and contact condition

Revised date

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

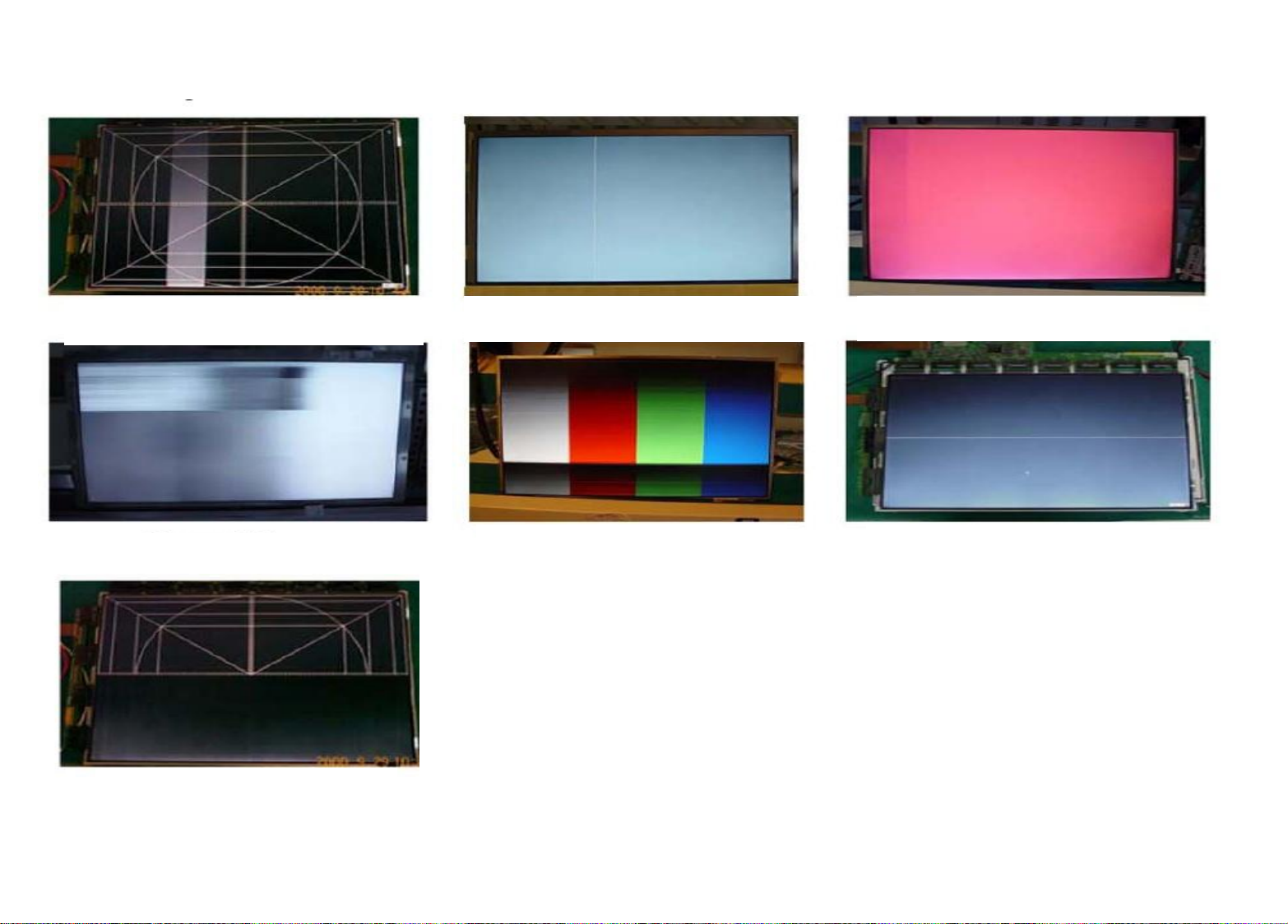

You can view 6 types of patterns using the ADJ Key

Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D)

Error Symptom

A. Video Error, Color Error

Established date

2015.04.17

A10

Content

Adjustment Test Pattern - ADJ Key

Revised date

LGE Internal Use Only

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

Appendix : Exchange T-Con Board (1)

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Solder defect, Short/Crack

Fuse Open, Abnormal power section

Noise

GRADATION

Abnormal Display

Appendix : Exchange T-Con Board (2)

LGE Internal Use Only

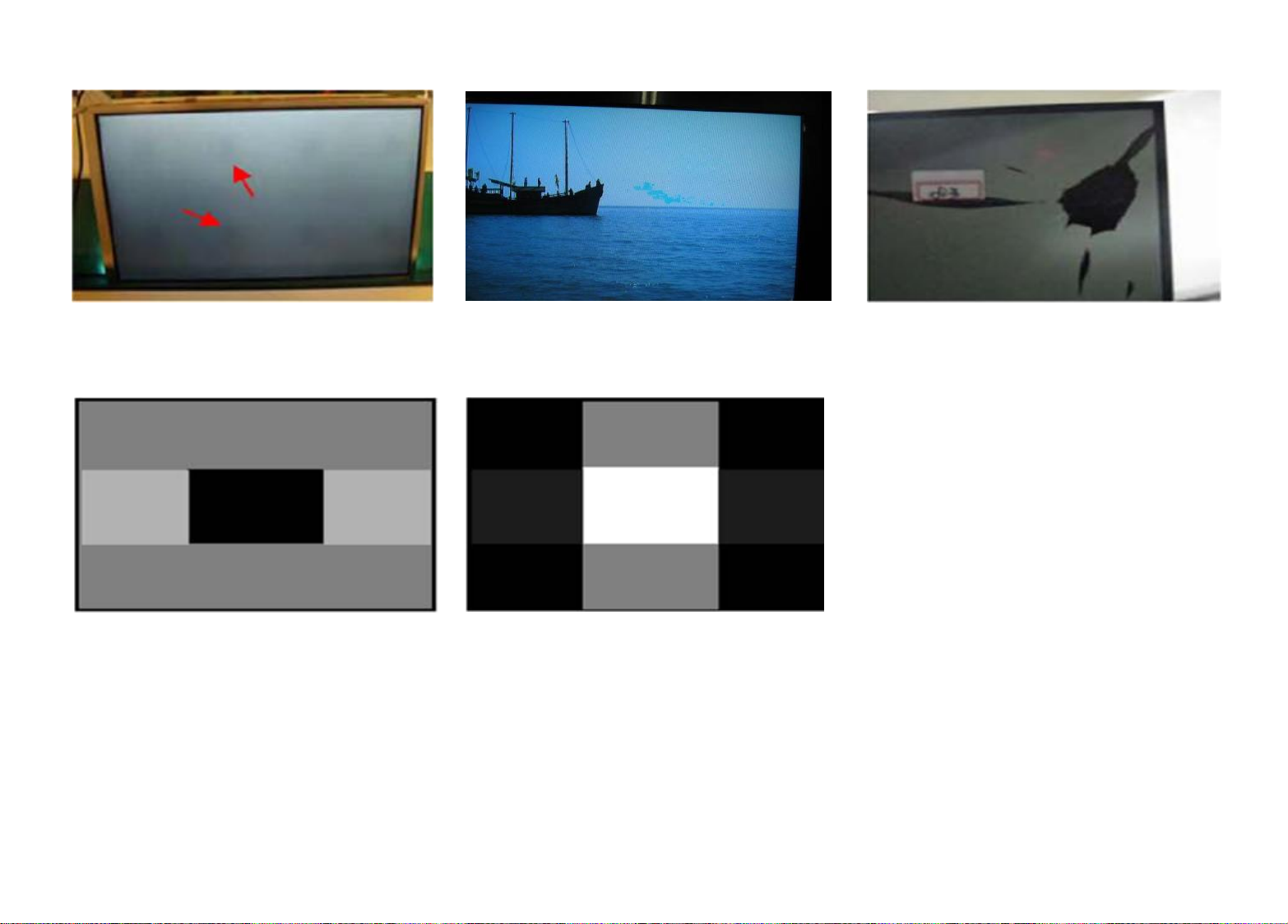

Appendix : Exchange the Module (1)

Crosstalk Crosstalk

Press damage Press damage

Un-repairable Cases In this case please exchange the module.

Press damage

LGE Internal Use Only

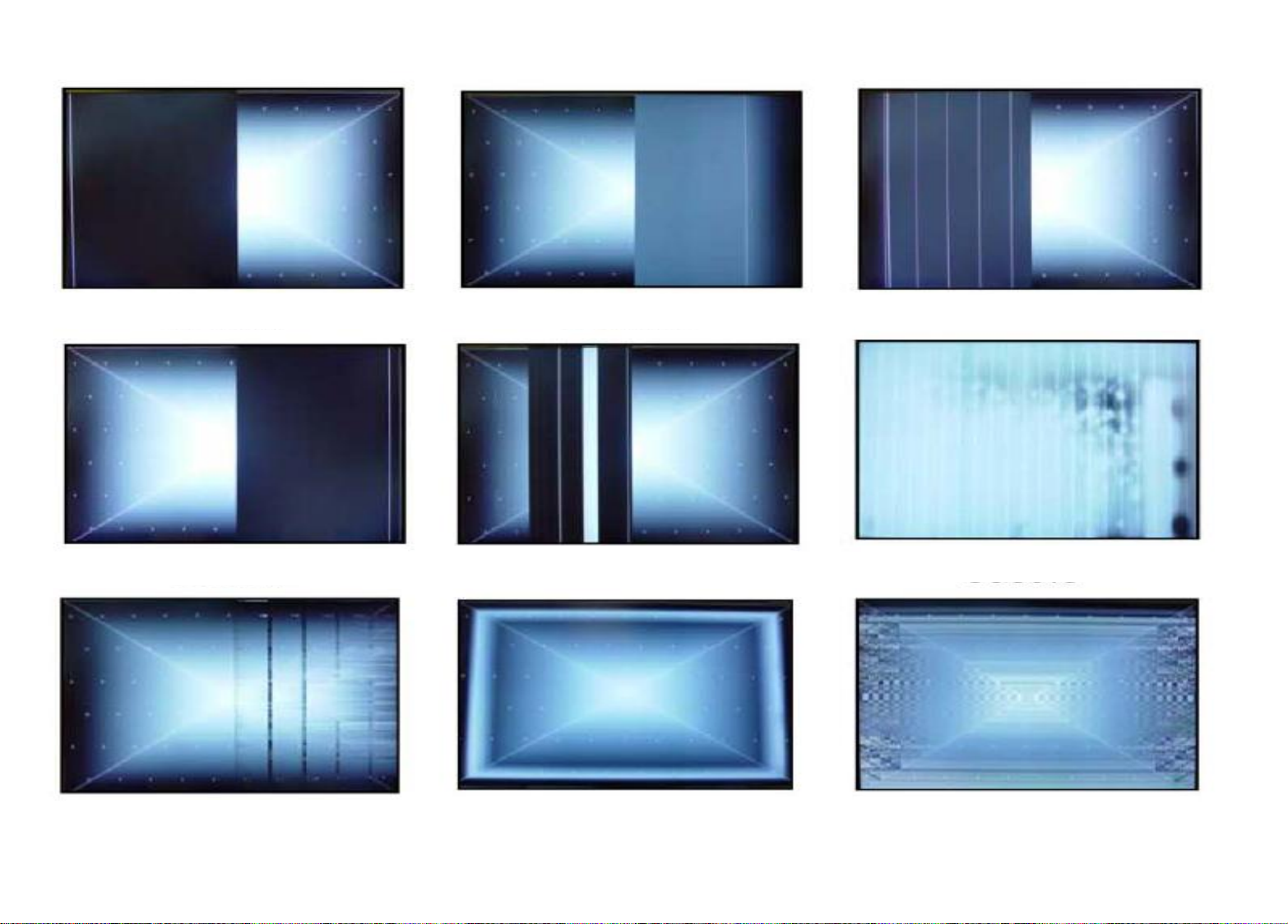

Vertical Block

Source TAB IC Defect

Horizontal Block Gate TAB IC Defect

Gate TAB IC Defect

Vertical Line Source TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal Block Gate TAB IC Defect

Horizontal line Gate TAB IC Defect

Gate TAB IC Defect

Horizontal Block Gate TAB IC Defect

Appendix : Exchange the Module (2)

Un-repairable Cases In this case please exchange the module.

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

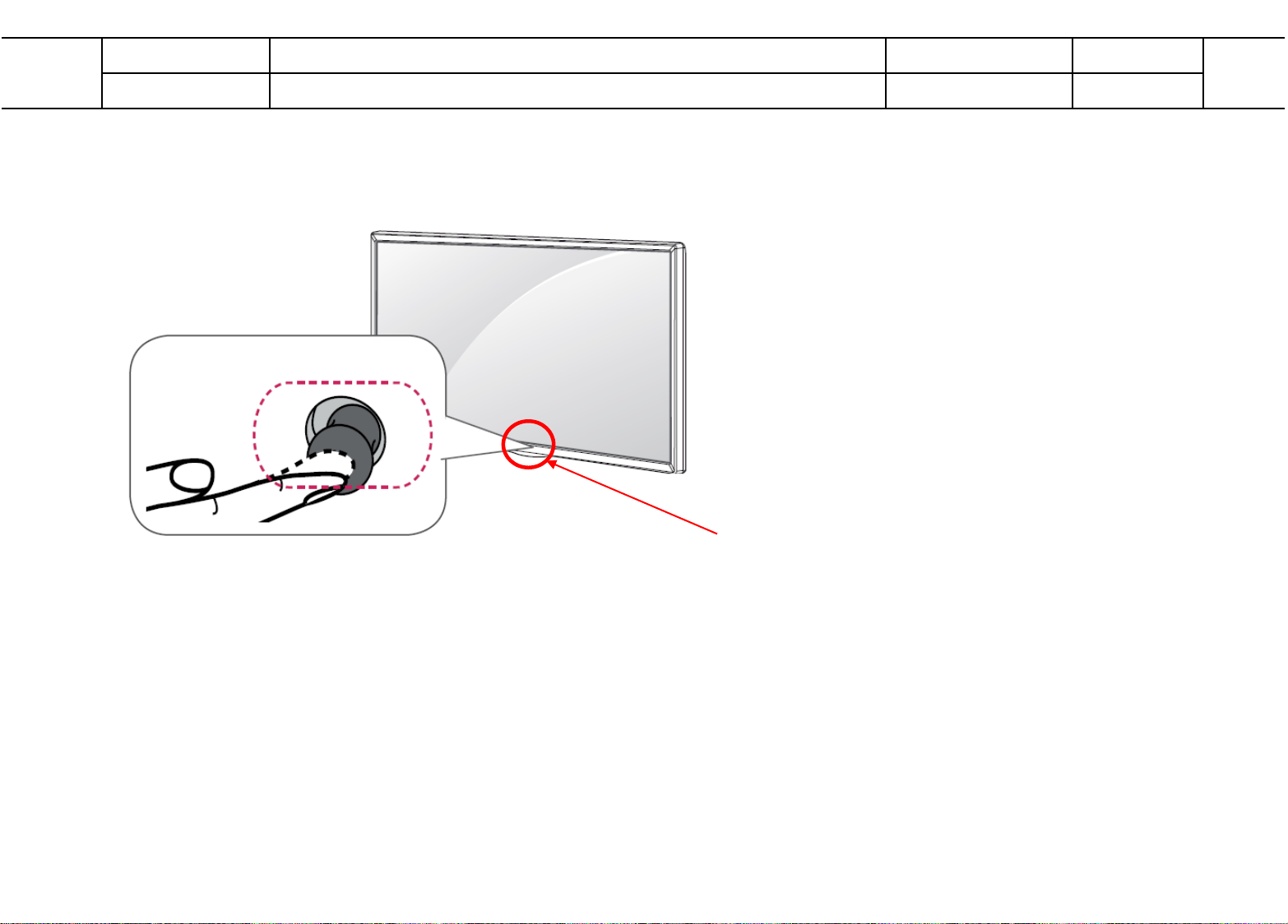

ST-BY condition: Red

Front LED control :

Menu  Option  Standby Light  On/Off

Error Symptom

B. Power Error, No Power

Established date

2015.04.17

A11

Content

Check front Display LED

Revised date

LGE Internal Use Only

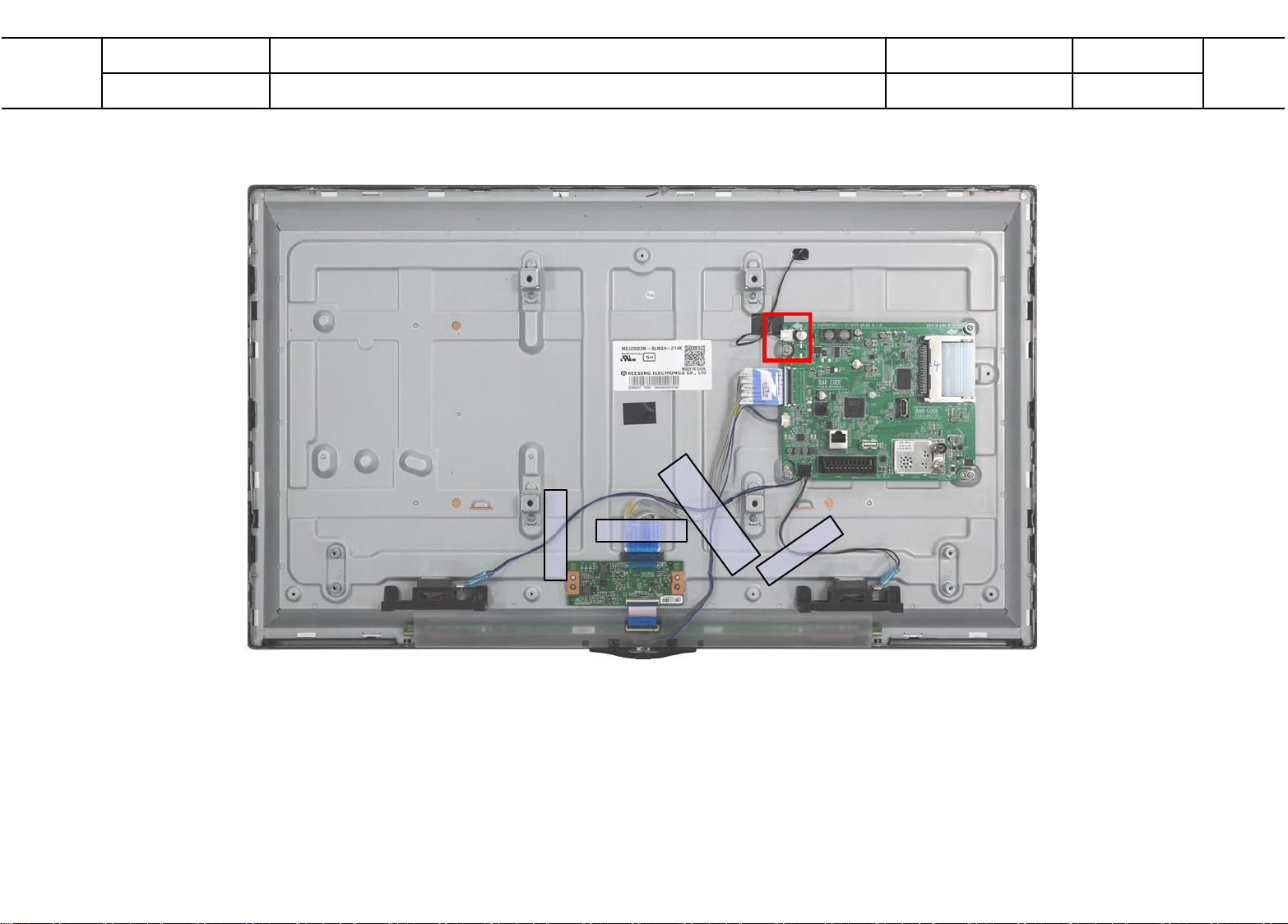

Standard Repair Process Detail Technical Manual

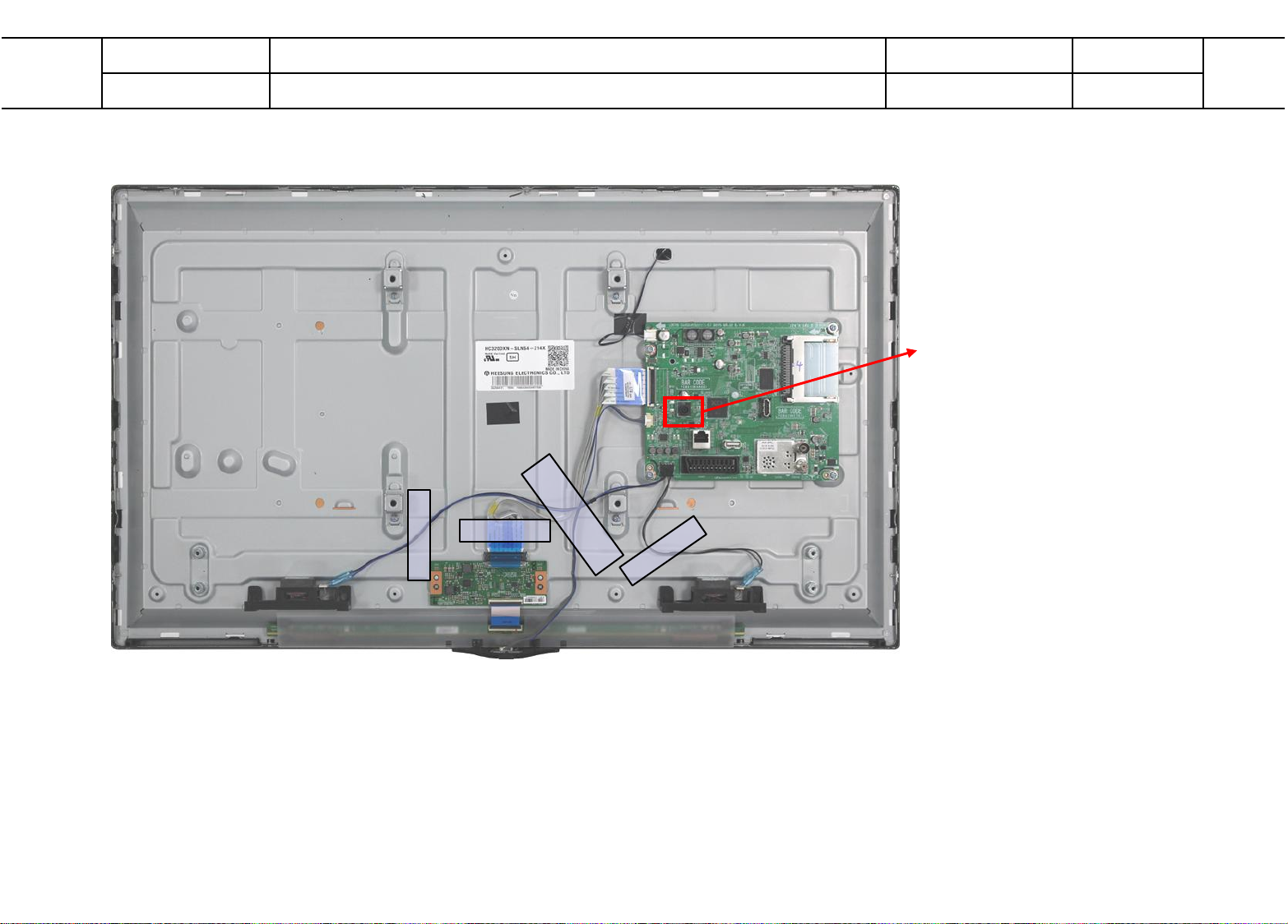

Check Voltage 19V of Adaptor Power

Error Symptom

B. Power Error, No Power

Established date

2015.04.17

A12/

A13

Content

Checking Method When Power is ON

Revised date

LGE Internal Use Only

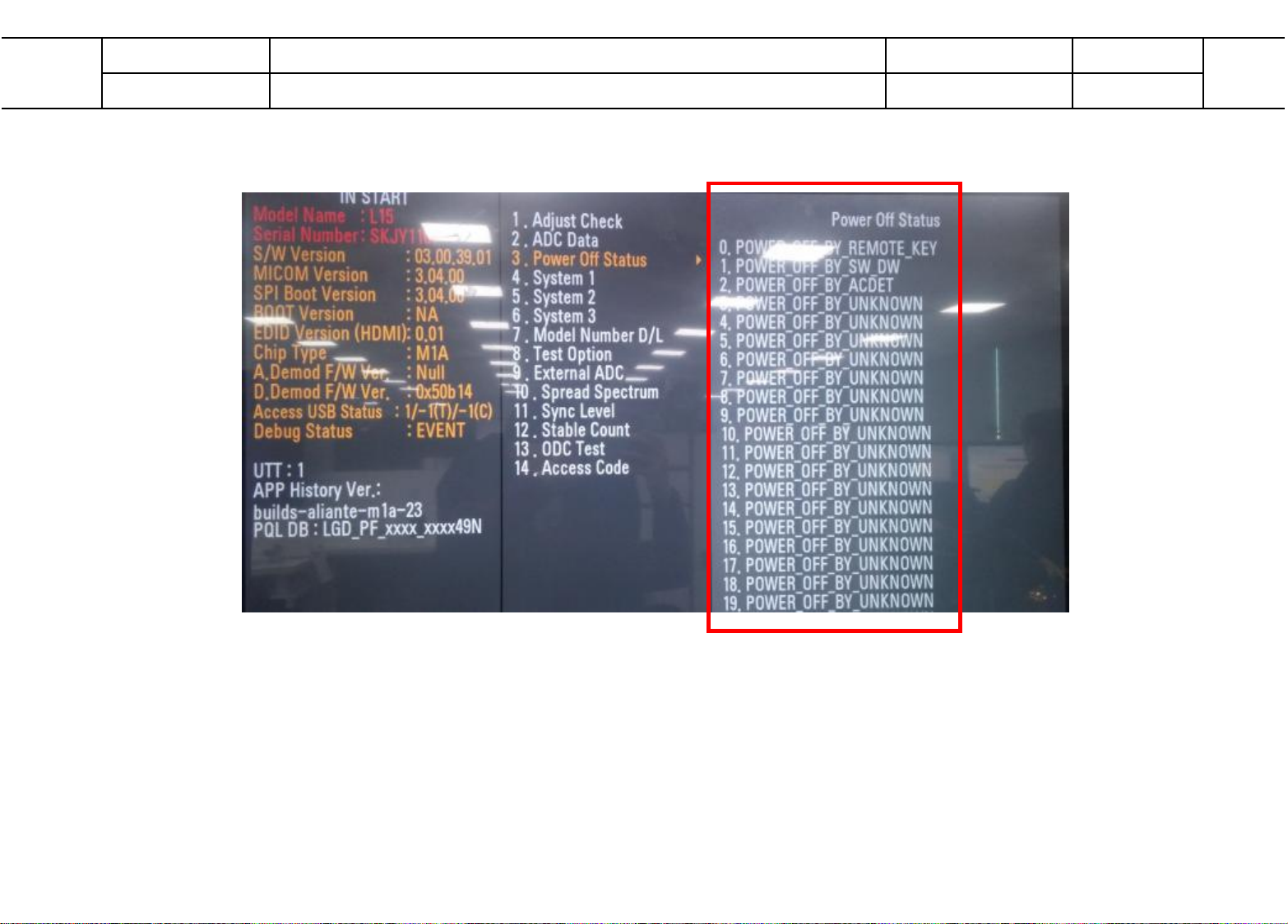

1. Press the IN-START button of the remote controller for adjustment

2. Check the entry into adjustment item 3

Standard Repair Process Detail Technical Manual

Error Symptom

B. Power Error, Off when on, off whiling viewing

Established date

2015.04.17

A14

Content

Power off Mode checking method

Revised date

LGE Internal Use Only

Check Connection from Main B/D to Speaker

Standard Repair Process Detail Technical Manual

Error Symptom

C. Audio Error, No Audio/Normal Video

Established date

2015.04.17

A15

Content

Checking method in menu when there is no audio

Revised date

LGE Internal Use Only

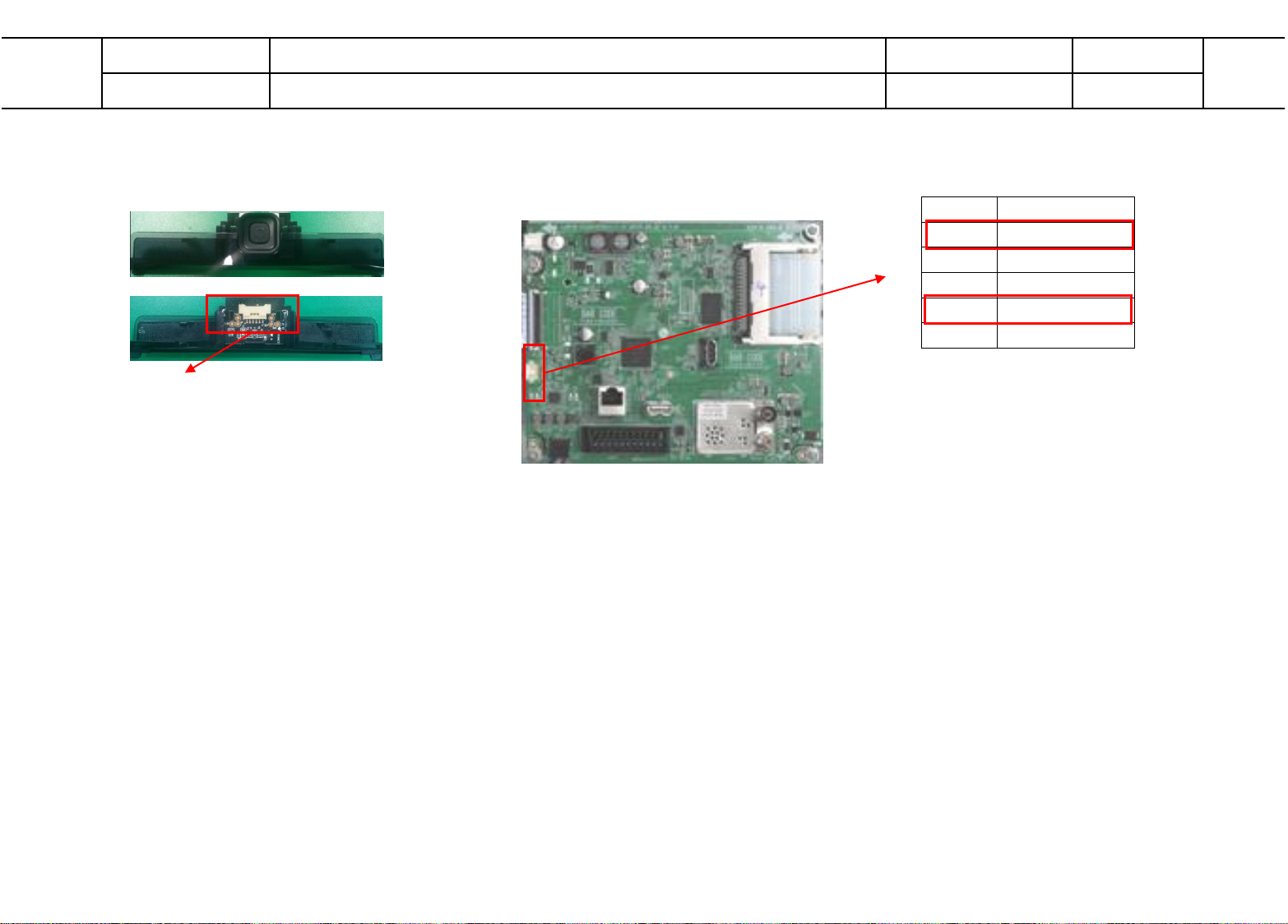

1

KEY2

2

3.5V_ST 3

GND

4

LED_R/BUZZ

5

IR

6

GND

1, 2. Check IR cable condition between IR & Main board

3. Check the ST-BY 3.5V on the terminal 4

4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog Tester needle moves slowly, and defective when it does not move at all.

Standard Repair Process Detail Technical Manual

①

②

③

④

P4600

< Sub Ass’y>

< Main Ass’y>

Error Symptom

D. Function Error, No Response in remote controller, Key error

Established date

2015.04.17

A16

Content

Remote controller operation checking method

Revised date

LGE Internal Use Only
