LED TV
SERVICE MANUAL
CHASSIS : LD4BC
MODEL : 47LY761H 47LY761H-ZA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
Printed in KoreaP/NO : MFL67988561 (1412-REV00)
Page 2
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 10
TROUBLE SHOOTING GUIDE ............................................................... 18
BLOCK DIAGRAM ................................................................................. 23
EXPLODED VIEW .................................................................................. 24
SCHEMATIC CIRCUIT DIAGRAM ..............................................................
Only for training and service purposes
- 2 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 3
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shor ts of the circuitr y tha t may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
Only for training and service purposes
- 3 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 4
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explosion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
Only for training and service purposes
- 4 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 5
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Only for training and service purposes
- 5 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 6
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This specification is applied to the LED TV used LD4BC
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
ea ch drawing and sp ec ification by pa rt number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
4. Model General Specification
No. Item Specication Remarks
1 Market EU(PAL Market-37Countries) DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countries
Germany, Netherland, Switzerland, Hungary, Austria,
Slovenia, Bulgaria, France, Spain, , Belgium, Luxemburg,
Greece, Czech, Turkey, Moroco, Ireland, Latvia, Estonia,
Lithuania, Poland, Portugal, Romania, Albania, Bosnia,
Slovakia, Beralus
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine,
Kazakhstan
Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Croatia, Turkey, Moroco, Ireland,
Latvia, Estonia, Lithuania, Poland, Portugal, Romania,
Albania, Bosnia, Serbia, Slovakia, Beralus, UK, Sweden,
Denmark, Finland, Norway, Ukraine, Kazakhstan
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria,
Slovenia, Bulgaria, France, Spain,Belgium, Luxemburg,
Greece, Czech, Turkey, Moroco, Ireland, Latvia, Estonia,
Lithuania, Poland, Portugal, Romania, Albania, Bosnia,
Slovakia, Beralus, UK(Ireland), Sweden, Denmark, Finland,
Norway, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Only for training and service purposes
- 6 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 7
No. Item Specication Remarks
1 Market EU(PAL Market-37Countries) Supported satellite : 35 satellites
ABS1 75.0E , AMOS 4.0W , ASIASAT3S 105.5E , ASTRA 19.2E , ASTRA 23.5E , ASTRA 28.2E , ASTRA 4.8E,
ATLANTIC BIRD2 8.0W , ATLANTIC BIRD3 5.0W , BADR
26.0E , DIRECTV-1R 56.0E , EUROBIRD 9A 9.0E , EUROBIRD3 33.0E , EUTELSAT 36 A/B 36.0E ,
EUTELSAT W2A 10.0E , EUTELSAT W3A 7.0E , EUTELSAT7WA 7.3W
EUTELSAT 16.0E , EXPRESS AM1 40.0E , EXPRESS
AM3 140.0E , EXPRESS AM33 96.5E , HELLASSAT 39.0E
, HISPASAT 1CDE 30.0W
HOTBIRD 13.0E , INTELSAT10&7 68.5E , INTELSAT15
85.2E , INTELSAT1R 50.0W, INTELSAT903 33.5W , INTELSAT904 60.0E
, NILESAT 7.0W , NSS12 57.0E , THOR 0.8W , TURKSAT
42.0E ,
YAMAL201 90.0E , OTHER
1) Digital TV
- DVB-T/T2
- DVB-C
2 Television system
3 Program coverage
4 Receiving system
- DVB-S/S2
2) Analogue TV
- PAL/SECAM B/G/I/D/K
- SECAM L/L’
1) Digital TV
- VHF, UHF
- C-Band, Ku-Band
2) Analogue TV
- VHF : E2 to E12
- UHF : E21 to E69
- CATV : S1 to S20
- HYPER : S21 to S47
Analog : Upper Heterodyne
Digital : COFDM, QAM
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate :
4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- Symbol rate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- Viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
Only for training and service purposes
- 7 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 8
No. Item Specication Remarks
5 Scart (1EA) PAL, SECAM Scart jack is Full scart and support
ATV/DTV-OUT
(not support DTV Auto AV)
6 Head phone out
7 HDMI Input (2EA)
8 Audio Input (1EA) AV L/R Input
9 SPDIF out (1EA) SPDIF out
10 USB (2EA) EMF, DivX HD, For SVC (download)
11 Ethernet Connect (2EA) Ethernet Connect LAN / AUX LAN
PCMCIA Card slot
12
(1EA)
External
13
Speaker Out(1EA)
External Speaker
14
Volume Control (1EA)
15 External Clock (1EA)
16 Control & Service (1EA) RS232 Jack
Antenna, AV, HDMI1, HDMI2, USB1,
USB2
HDMI1-DTV
HDMI2-DTV
PCMCIA slot
HDMI1: PC support(HDMI version 1.4)
Support HDCP
External Clock Support : LY76*, LW76* Model (DSUB
JACK)
Only for training and service purposes
- 8 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 9
5. HDMI input
5.1. DTV mode
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock Remarks
1. 720×480 31.47 59.94 480p
2. 720×480 31.50 60.00 480p
3. 720*576 31.25 / 15.625 50 / 50 SDTV 576P
4. 1280*720 37.500 50 HDTV 720P
5. 1280*720 44.96 / 45 59.94 / 60 HDTV 720P
6. 1920*1080 33.72 / 33.75 59.94 / 60 HDTV 1080I
7. 1920*1080 28.125 50.00 HDTV 1080I
8. 1920*1080 26.97 / 27 23.97 / 24 HDTV 1080P
9. 1920*1080 28.125 25 HDTV 1080P
10. 1920*1080 33.716 / 33.75 29.976 / 30.00 HDTV 1080P
11. 1920*1080 56.250 50 HDTV 1080P
12. 1920*1080 67.43 / 67.5 59.94 / 60 HDTV 1080P
5.2. PC mode
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock Remarks
1 640 x 350 @70Hz 31.468 70.09 EGA
2 720 x 400 @70Hz 31.469 70.08 DOS
3 640 x 480 @60Hz 31.469 59.94 VESA(VGA)
4 800 x 600 @60Hz 37.879 60.31 VESA(SVGA)
5 1024 x 768 @60Hz 48.363 60.00 VESA(XGA)
6 1152 x 864 @60Hz 54.348 60.053 VESA
7 1280 x 1024 @60Hz 63.981 60.020 VESA(SXGA)
8 1360 x 768 @60Hz 47.712 60.015 VESA(WXGA)
9 1920 x 1080 @60Hz 67.5 60.00 WUXGA(Reduced Blanking))
Only for training and service purposes
- 9 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 10
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED LCD TV
with LD4BC chassis.
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
(4) The input voltage of the receiver must keep AC 100-240
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
In case of keeping module is in the circumstance of below
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3.2. LAN Inspection
3.2.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
3.2.2. LAN inspection solution
▪ LAN Port connection with PCB
▪ Setting automatic IP
▪ If you want manual connection, enter Network connection at
MENU Mode of TV. Press Start connectio n key, th en
Network will be connected.
3. Automatic Adjustment
3.1. MAC address D/L , CI+ key D/L, Widevine
key D/L, ESN D/L, HDCP14/20 D/L
Connect: USB port
Communication Prot connection
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ Check the test process:
DETECT -> MAC -> ESN(Must download commercial-only
ESN KEY) -> -> Widevine -> CI -> HDCP14 -> HDCP20
▪ Play : Press Enter key
▪ Result : Ready, Test, OK or NG
▪ Printer Out (MAC Address Label)
3.2.3. WIDEVINE key Inspection
- Confirm key input data at the "IN START" MENU Mode.
Only for training and service purposes
- 10 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 11
3.3. LAN PORT INSPECTION(PING TEST)
Connect SET → LAN port == PC → LAN Port
SET PC
3.5. CI+ Key checking method
Check whether the key was downloaded or not at ‘In Start’
menu. (Refer to below).
3.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.3.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.
3.4. Model name & Serial number Download
3.4.1. Model name & Serial number D/L
▪ Press "Power on" key of service remote control.
(Baud rate : 115200 bps)
▪ Connect RS-232C Signal to USB Cable to USB.
▪ Write Serial number by use USB port.
▪ Must check the serial number at Instart menu.
3.4.2. Method & notice
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0.
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or service man, sometimes
model name or serial number is initialized.(Not always)
It is impossible to download by bar code scan, so It need
Manual download.
1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "7.Model Number D/L" like below photo.
3) Input the Factory model name(ex 42LY760H-ZA) or Serial
number like photo.
=> Check the Download to CI+ Key value in LGset.
3.5.1. Check the method of CI+ Key value
(1) Check the method on Instart menu
(2) Check the method of RS232C Command
1) Into the main ass’y mode(RS232: aa 00 00)
CMD 1 CMD 2 Data 0
A A 0 0
2) Check the key download for transmitted command
(RS232: ci 00 10)
CMD 1 CMD 2 Data 0
C I 1 0
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
3.5.2. Check the method of CI+ key value(RS232)
1) Into the main ass’y mode(RS232: aa 00 00)
CMD 1 CMD 2 Data 0
A A 0 0
2) Check the mothed of CI+ key by command
(RS232: ci 00 20)
CMD 1 CMD 2 Data 0
C I 2 0
3) Result value
i 01 OK 1d1852d21c1ed5dcx
CI+ Key Value
3.6. WIFI MAC ADDRESS CHECK
(1) Using RS232 Command
H-freq(kHz) V-freq.(Hz)
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]
(2) Check the menu on in-start
4) Check the model name Instart menu. → Factory name
displayed. (ex 42LY760H-ZA)
5) Ch eck the Diagnostics.(D TV country only) → Buyer
model displayed. (ex 42LY760H-ZA)
Only for training and service purposes
- 11 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 12
3.7. HDCP CHECK
(1) HDCP 1.4/2.0 KEY Download
(2) In-start -> Check the HDCP1.4, HDCP2.0 LIST(OK or NG)
4. Manual Adjustment
* ADC adjustment is not needed because of OTP(Auto ADC
adjustment)
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓔ1 ⓔ2 ⓔ3
HDMI1 43 15 X
HDMI2 43 05 X
ⓕ Vendor Specific(HDMI)
INPUT MODEL NAME(HEX)
HDMI1 67 03 0C 00 10 00 80 2D
HDMI2 67 03 0C 00 20 00 80 2D
4.2. White Balance Adjustment
4.2.1. Overview
▪ W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel's W/B deviation
(2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one
of R/G/B is fixed at 192, and the other two is lowered to
find the desired value.
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C
2) Warm-up time: About 5 Min
3) Surrounding Humidity : 20 % ~ 80 %
4.1. EDID DATA
4.1.1. 2D EDID
▪ Reference
- HDMI1 ~ HDMI2
- In the data of EDID, bellows may be different by S/W or
Input mode.
ⓐ Product ID
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’
Year : ‘2014’ → ‘18’
ⓓ Model Name(Hex): LGTV
Chassis MODEL NAME(HEX)
LD4BC 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
4.2.2. Equipment
(1) Color Analyzer: CA-210 (LED Module : CH 14)
(2) Adjustment Computer(During auto adj., RS-232C protocol
is needed)
(3) Adjustment Remote control
(4) Video Signal Generator MSPG-925F 720p/204-Gray
(Model: 217, Pattern: 49)
→ Only when internal pattern is not available
▪ Color Analyzer Matrix should be calibrated using CS-100.
4.2.3. Equipment connection MAP
Co lor Anal yze r
Pro be
RS -232 C
Patt ern Gen era to r
Sig nal Sou rce
* If TV internal pattern is used, not needed
RS- 232 C
Co mp uter
RS- 232 C
4.2.4. Adj. Command (Protocol)
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP
<Command Format>
- LEN: Number of Data Byte to be sent
- CMD: Command
- VAL: FOS Data value
- CS: Checksum of sent data
- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
Only for training and service purposes
- 12 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 13
▪ RS-232C Command used during auto-adjustment.
RS-232C COMMAND
[CMD ID DATA]
wb 00 00 Begin White Balance adjustment
wb 00 10 Gain adjustment(internal white pattern)
wb 00 1f Gain adjustment completed
wb 00 20 Offset adjustment(internal white pattern)
wb 00 2f Offset adjustment completed
wb 00 ff
End White Balance adjustment
(internal pattern disappears )
Explanation
Ex) wb 00 00 -> Begin white balance auto-adj.
wb 00 10 -> Gain adj.
ja 00 ff -> Adj. data
jb 00 c0
...
...
wb 00 1f → Gain adj. completed
*(wb 00 20(Start), wb 00 2f(end)) → Off-set adj.
wb 00 ff → End white balance auto-adj.
▪ Adj. Map
Cool
Medium
Warm
Adj. item
R Gain j g 00 C0
G Gain j h 00 C0
B Gain j i 00 C0
R Cut
G Cut
B Cut
R Gain j a 00 C0
G Gain j b 00 C0
B Gain j c 00 C0
R Cut
G Cut
B Cut
R Gain j d 00 C0
G Gain j e 00 C0
B Gain j f 00 C0
R Cut
G Cut
Command
(lower caseASCII)
CMD1 CMD2 MIN MAX
Data Range
(Hex.)
4.2.5. Adj. method
(1) Auto adj. method
1) Set TV in adj. mode using P-ONLY key(or POWER ON
key).
2) Zero calibrate probe then place it on the center of the
Display.
3) Connect Cable.(RS-232C to USB)
4) Select mode in adj. Program and begin adj.
5) When adj. is complete (OK Sign), check adj. status pre
mode. (Cool, Medium, Warm)
6) Remove probe and RS-232C cable to complete adj.
▪ W/B Adj. must begin as start command “wb 00 00” , and
finish as end command “wb 00 ff”, and Adj. offset if need.
Default
(Decimal)
(2) Manual adjustment. method
1) Set TV in Adj. mode using P-Only key.
2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10 cm of the surface.
3) Press ADJ key → EZ adjust using adj. R/C → 7. WhiteBalance then press the cursor to the right(key ►).
(When right key(►) is pressed 204 Gray internal pattern
will be displayed)
4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
5) Adjustment is performed in COOL, MEDIUM, WARM 3
modes of color temperature.
- If internal pattern is not available, use RF input. In EZ
Adj. menu 7.White Balance, you can select one of 2 Testpattern: ON, OFF. Default is inner(ON). By selecting
OFF, you can adjust using RF signal in 204 Gray pattern.
▪ Adjustment condition and cautionary items
1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to isolate
adj. area into dark surrounding.
2) Probe location
: Color Analyzer(CA-210) probe should be within 10 cm and
perpendicular of the module surface (80° ~ 100°)
4.2.6. Reference (White balance Adj. coordinate and
color temperature)
▪ Luminance : 204 Gray
▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
Mode
Cool 0.271 0.270 13,000 K 0.0000
Medium 0.286 0.289 9,300 K 0.0000
Warm 0.313 0.329 6,500 K 0.0000
▪ Standard color coordinate and temperature using CA-210
(CH 14)
Mode
Cool 0.271 ± 0.002 0.270 ± 0.002 13,000 K 0.0000
Medium 0.286 ± 0.002 0.289 ± 0.002 9,300 K 0.0000
Warm 0.313 ± 0.002 0.329 ± 0.002 6,500 K 0.0000
Coordinate
x y
Coordinate
x y
Temp ∆uv
Temp ∆uv
Only for training and service purposes
- 13 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 14
4.2.7. LED White balance table
▪ Edge LED module change color coordinate because of
aging time
▪ apply under the color coordinate table, for compensated
aging time
Only march to December.
(normal line) LGD Module
Aging
time(Min)
MTK
Target 271 270 286 289 313 329
1 0-2 282 289 297 308 324 348
2 3-5 281 287 296 306 323 346
3 6-9 279 284 294 303 321 343
4 10-19 277 280 292 299 319 339
5 20-35 275 277 290 296 317 336
6 36-49 274 274 289 293 316 333
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
Only January to Febuary.
(normal line) LGD Module
Aging
time(Min)
MTK
Target 271 270 286 289 313 329
1 0-2 286 295 301 314 328 354
2 3-5 284 290 299 309 326 349
3 6-9 282 287 297 306 324 346
4 10-19 279 283 294 302 321 342
5 20-35 276 278 291 297 318 337
6 36-49 274 275 289 294 316 334
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
Cool Medium Warm
X y x y x y
Cool Medium Warm
X y x y x y
4.3. Wi-Fi Test
Step 1) Turn on TV
Step 2) Select Wi-Fi Connection option in Network Menu.
Step 3) Click Off Button to On in Wi-Fi Connection.
Step 4) The system finds any AP like blow PIC. well.
Step 5) Select the AP you want to connect.
** O/S Module(INX, AUO, Sharp, CSOT, BOE)
(Cool Mode Spec : 13000K)
Cool Medium Warm
X y x y x y
spec 271 270 286 289 313 329
target 278 280 293 299 320 339
* W/B information
Model Module Backlight Type Using W/B table
47LY76*H-ZA LGD Direct LED O
Only for training and service purposes
- 14 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 15
4.4. HDMI ARC Function Inspection
4.4.1. Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
4.4.2. Test method
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI IN2)
(2) Check the sound from the TV Set.
(3) Check the Sound from the Speaker or using AV & Optic
TEST program. (It’s connected to MSHG-600)
4.5. EYE-Q Green Function Inspection
Step 1) Turn on the TV..
Step 2) Pres s 'EYE butto n' on t he adj ustment remot e-
controller.
Step 3) Cover 'Eye Q sensor' on the front of set with your
hands, hold it for 6 seconds.
Step 4) Check "the Sensor Data" on the screen, make certain
that Data is below 10. If Data isn’t below 10 in 6
seconds, Eye Q sensor would be bad. You should
change Eye Q sensor.
Step 5) Uncover your hands from Eye Q sensor, hold it for 6
seconds.
Step 6) Check "Back Light (xxx)" on the screen, check data
increase . You should change Eye Q sensor.
* Remark: Inspect in Power Only Mode and check SW version
in a master equipment
4.6. LNB voltage and 22KHz tone check
(only for DVB-S/S2 model)
4.6.1. Test method
(1) Set TV in Adj. mode using POWER ON.
(2) Connect cable between satellite ANT and test JIG.
(3) Press Yellow Key (ETC+SWAP) in Adj Remocon to make
LNB on.
(4) check LED light ‘ON’ at 18V menu.
(5) check LED light ‘ON’ at 22KHz tone menu.
(6) Press Blue Key (ETC+PIP INPUT) in Adj Remocon to
make LNB off.
(7) check LED light ‘OFF’ at 18V menu.
(8) check LED light ‘OFF’ at 22KHz tone menu.
4.6.2. Test result
(1) After press LNB On key, ‘18V LED’ and ‘22KHz tone LED’
should be ON.
(2) After press LNB OFF key, ‘18V LED’ and ‘22KHz tone
LED’ should be OFF.
4.7. Option selection per country
4.7.1 Overview
▪ Option selection is only done for models in Non-EU
4.7.2 Method
(1) Press ADJ key on the Adj. R/C, then select Country Group
Meun
(2) Select Country Group Code 04 or Country Group EU.
Only for training and service purposes
- 15 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 16
5. Tool option selection and Ship-out
mode and GND/Hi-pot check
5.1. Tool Option selection
▪ Method: Press Adj. key on the Adj. R/C, then select Tool
option.
MODEL 47LY76*H-ZA
SUFFIX W
MODULE LGD
Tool Option 1 163
Tool Option 2 2322
Tool Option 3 2187
Tool Option 4 64605
Tool Option 5 166
Tool Option 6 2378
Tool Option 7 47759
Commercial Tool Opton 183
5.2. Ship-out mode check (In-stop)
▪ After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.
5.3. GND and Hi-pot auto-check
5.3.1. Method
(1) GND & Hi-pot auto-check preparation
- Check that Power Cord is fully inserted to the SET. (If
loose, re-insert)
(2) Perform GND & Hi-pot auto-check
- Unit fully inserted Power cord, Antenna cable and A/V
arrive to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the
pallet to move on to next process.
6. Audio
No. Item Min Typ Max Unit Remark
Audio practical
max Output, L/R
1.
(Distortion=10%
max Output)
Speaker (8 Ω
2.
Impedance)
9 10 12 W
8.10 10.8 Vrms
9 10 12 W
EQ Off
AVL Off
Clear Voice Off
7. Check Commercial features
Mode info. Commercial Feature
Name
LY76*H-ZA O O O X O X
7.1. External SPK Out
7.1.1. Equipment & Condition
▪ Jig (Speaker out JIG) or Oscilloscope
7.1.2. Check the speaker out
(1) Connect external speaker to speaker out port with phone
(2) Check the Max. speaker output is 1W or not. Sine wave
(3) Press Vol. control button up/down in turns and check the
IR
Out
DC Power
Out (5V/ 12V)
Ext SPK
Out
RJP
(RJ-45 interface)
jack on TV side as below.
with 1KHz will be displayed.
waveform of Oscilloscope.
Button of Vol. control Waveform of Oscilloscope
UP(+)
Pro:Idiom b-LAN
5.3.2. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Hi-pot TEST = POWER CORD GND & LIVE & NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms
Only for training and service purposes
- 16 -
DOWN(-)
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 17
7.2. IR Out and DC Power Outlet (5V/12V)
7.2.1. Equipment & Condition
▪ Simple Jig (commercial check JIG)
▪ Power only mode
7.2.3. External Clock
< Equipment & Condition >
▪ Simple Jig (External Clock Assy)
▪ Power only mode
#1
(1) Connect each other RS232C port on the Commercial
Check JIG.
(2) Press any key on SVC Remote-control.
(3) Check the LED status of the Check JIG.
- IR LED(OK condition: blinking) (LED #1)
7.2.2. DC Power Outlet Equipment & Condition
▪ Simple Jig (commercial check JIG)
#1
(1) Connect JIG for inspection to RS-232C port on TV as
below.
(2) Enter the Configuration Setup mode in pressing Remote
control keys.
The meth od to enter Configuration Setup mode :
IN-START → MENU → Configuration Setup → OK
2-1) Select 5V DC Power Outlet and change the setting :
No → Yes. After that, check LED color in JIG.(LED #1)
2-2) After checking 5V DC Power Outlet, change the
setting : Yes → No.
2-3) Please ch eck 12V DC Pow er Outlet in the same
procedure.

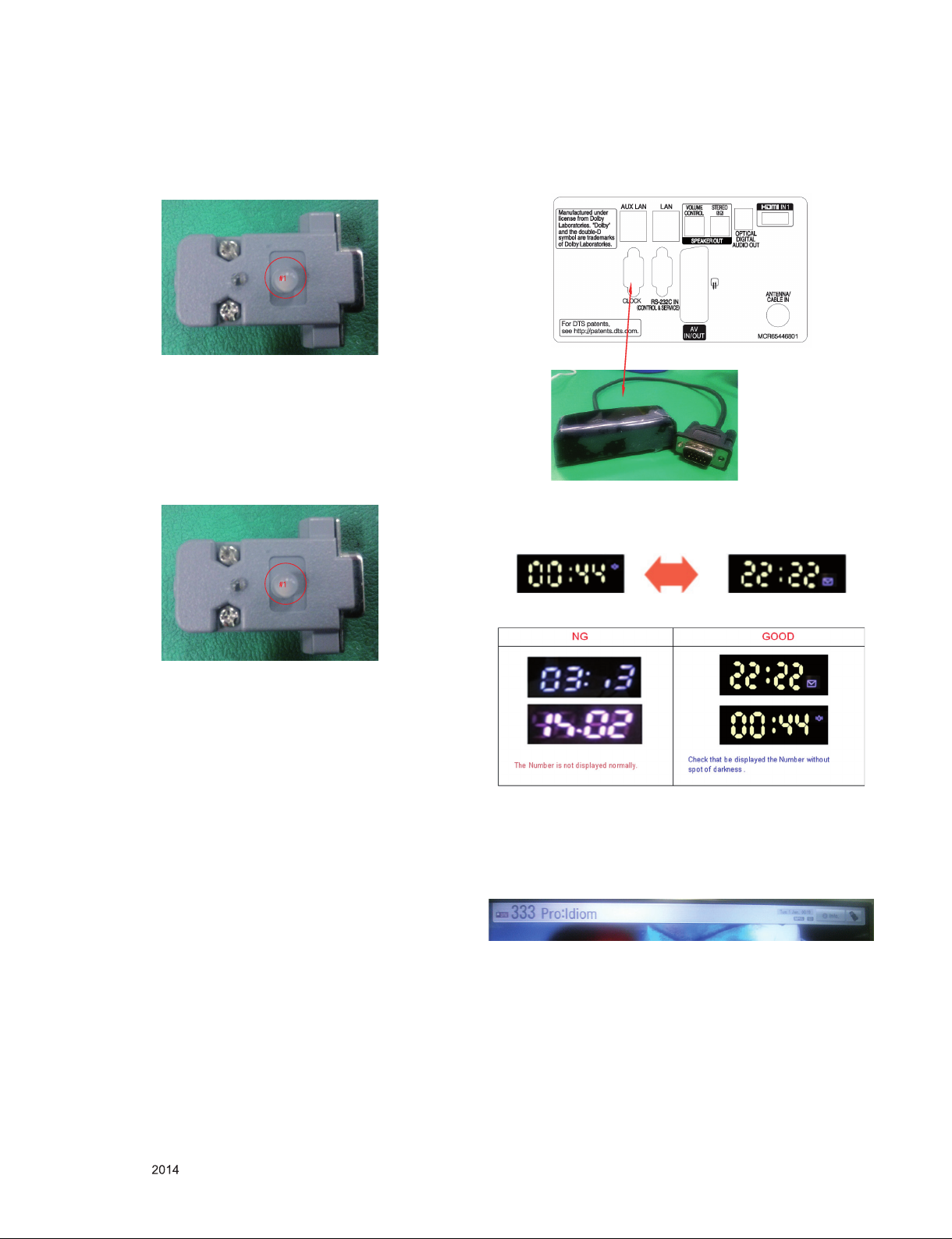

(1) Connect external Clock Assy to CLOCK INTERFACE .
(2) Check the LED CLOCK.
LED Clock
Check LED Clock in Power on mode.
7.2.4. Pro:Idiom Check
(1) Connect the RF Cable
(2) Turn to the Pro:Idiom channel (No. 333)
(3) Check the video & sound
** Only displayed at “POWER ONLY” mode
Only for training and service purposes
- 17 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 18
TROUBLE SHOOTING GUIDE
N
N
N
N
1. Power-Up Boot Fail Trouble Shooting guide
Check P2301 All
Voltage Level (3.5V, 12V, 24V)
Y
N
Check Q2302 output Voltage(12V)
Y
N
Check LVDS Cable
Y
Check LCD Module
Control board
Check power connector and
RL_ON signal OK ?
Check Q2302 application circuit
Or replace Q2302
2. No OSD Trouble Shooting guide
Check P2300 All
Voltage Level (3.5V, 12V, 24V)
Y
N
Check IC8700 RESET pin
Check power connector and
RL_ON signal OK ?
Check switch SW8700,
Replace Power Board
Y
Replace Cable
Replace Power Board
Y
Check X8701 Clock
10MHz
Y
Check IC8700 IIC
Commun ication status
Y
Check IR inpu t state of IC8700
13pin
Y
Re-down load NEC Micom
N
Check X8701 application circuit
or Replace X8701
N
Check IIC lin e or replace IC8700
N
Check IR board
Only for training and service purposes
- 18 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 19
3. Analog RF Video Trouble Shooting guide
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)
Check RF Cable
Connection
Y
Check tuner 3.3V power L6701
N
Reconnection
N
Check IC2300
N
Replace IC2300
Y
Check tuner 1.2V power IC6701
6pin : 1.2V
Y
Check LG1311 LVDS output Replace IC101
N
N
Replace IC6701
4. Digital RF Trouble Shooting guide
Check RF cable & signal
Y
Check tuner 3.3V power L6701
Y
N
Check IC2300
Y
N
Replace IC2300
Check IIC Sign al
TU6702 Pin #3,4
Y
Check IF Signal
TU6702 Pin #6,7
Y
Check X101
and application circuit
Replace IC101
Only for training and service purposes
N
N
N
Replace TU6702
Replace TU6702
Replace X101
- 19 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 20
5. AV Video Trouble Shooting guide
Check input sign al format.
Is it supported?
Y
Check AC cable for damage
For damage or open conductor
Y
Check JK4600
Can you see the normal waveform?
N
Replace JK4600
Y
Check the input of LG1311(IC101).
Measure waveform at C326 because it’s more easy to check.
Can you see the normal waveform?
Y
This board has big problem because Main chip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or n ot.
Only for training and service purposes
- 20 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 21
6. HDMI Video Trouble Shooting guide
Check input sign al format.
Is it supported?
Y
Check AC cable for damage
For damage or open con ductor
Y
Check JK3202/JK3203
Can you see the normal waveform?
Y
Check HDCP key on INSTART Menu
Y
Check the input of LG1311 (IC101).
Measure waveform at AR3200, AR3202 because it’s more easy to check.
Can you see the normal waveform?
Y
N
Replace JK3202, JK3203
N
Re-down load HDCP Key
This board has big problem because Main chip(LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or not.
7. Analog RF Audio Trouble Shooting guide
Check RF cable & sign al
N
Check TU6401 Pin 6, 7
Y
Check Audio AMP output
L5602,L5603,L5604,L5605
Y
Check IC5600
N
Replace L5602,L5603,L5604,L5605
N
Replace Tuner
Replace IC5600
Y
Replace IC101
Only for training and service purposes
- 21 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 22
8. AV Audio in Trouble Shooting guide
Check input sign al format.
Is it supported?
Y
Check AC cable for damage
For damage or open conductor
Y
Check JK4600
Can you see the normal waveform?
Y
Check the input of LG1311(IC101).
Measure waveform at C314, C319 because it’s more easy to check.
Can you see the normal waveform?
Y
Check Audio AMP output
L5602,L5603,L5604,L5605
Y
This board has big problem because Main chip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or not.
N
N
Replace JK4600
Replace L5602,L5603,L5604,L5605
9. HDMI Audio in Trouble Shooting guide
Check input sign al format.
Is it supported?
Y
Check AC cable for damage
For damage or open conductor
Y
Check JK3202/JK3203
Can you see the normal waveform?
N
Replace JK3202/JK3203
Y
Check Audio AMP output
L5602,L5603,L5604,L5605
N
Replace
L5602,L5603,L5604,L5605
Y
This board has big problem because Main chip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or n ot.
Only for training and service purposes
- 22 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 23

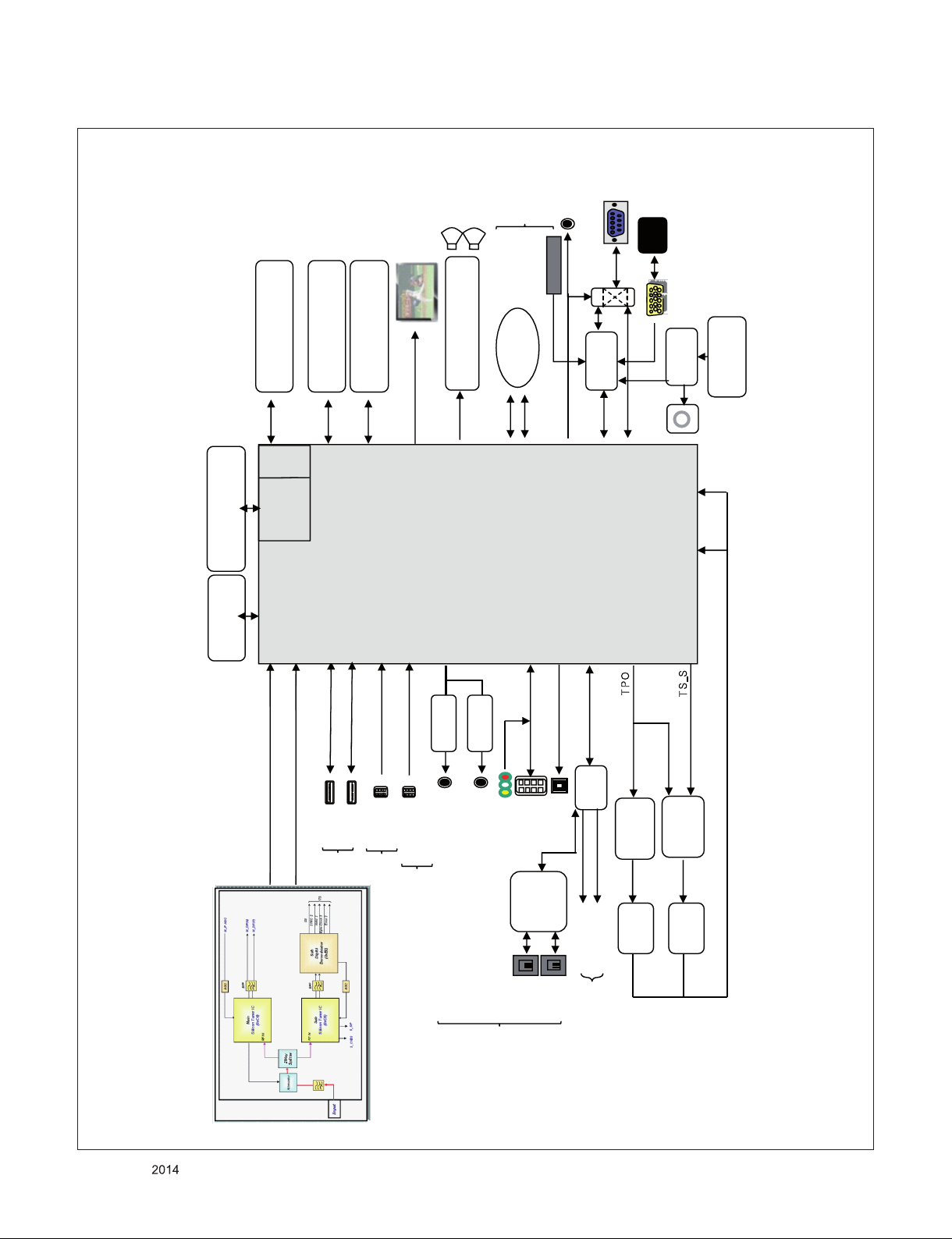

BLOCK DIAGRAM
SUB
(1Mb)
(4GB)
(128MB X 2EA)
DDR3 1600 X 16
A B
(256MB X 2EA)
DDR3 1600 X 16
X_TAL
24MHz
RF1 PARALLEL IN
Analo g Demod
eMMC FLASH
SYSTEM EEPROM
51P(FHD),30P(HD) Share
I2C 5
M14
IC101
USB
MUX
HDMI
Audio AMP
WIFI_BT
LVDS
I2C 1
I2S Out
USB_WIFI-BT
AUDA OUT L/R
Debug /
ASSY
IR/Key/Eye
GPIO
CVBS/RGB
SPDIF OUT
RS232
Ext. VOL Ctrl.
Disp lay
CLOC K
UART S/W
CLOCK
Interf ace
IC
X_TAL
MICOM
(Tx/Rx)
(Tx/Rx)
UART
ETHERNET
Battery
RF3 PARALLEL IN
RF2 PARALLEL OUT
IP1 SERIAL OUT
32.768KHz
IP2 SERIAL IN
wv
{
IF (+/-)
Parallal _TS
USB1
Tuner : I2C 6 (ATV)
D-Demod : I2C 4 (DTV)
SIDE
(ARC)
USB2
HDMI1
REAR
Ext. SPK
HDMI2
(MHL/IR_OUT)
SIDE
Ext. SPK L/R
AMP
AMP
Headphone
Headp hone
PHY
Chi p
OPTIC
SCART
AV(Non EU)
HUB IC
Ethernet
Magic WOL
LAN
AUX
LAN
CI Slo t
Realtek WOL
{ zz
Pro:i diom
S/W 1
S/W 2
MICOM
<DVB-S2/T2/C Full NIM>
REAR
Only for training and service purposes
- 23 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 24
200
400
410
540
521
530
820
501
500
120
800
310
910
900
121
LV1
570
A2
A9
* Set + Stand
A10
* Stand Top
+ Stand Base

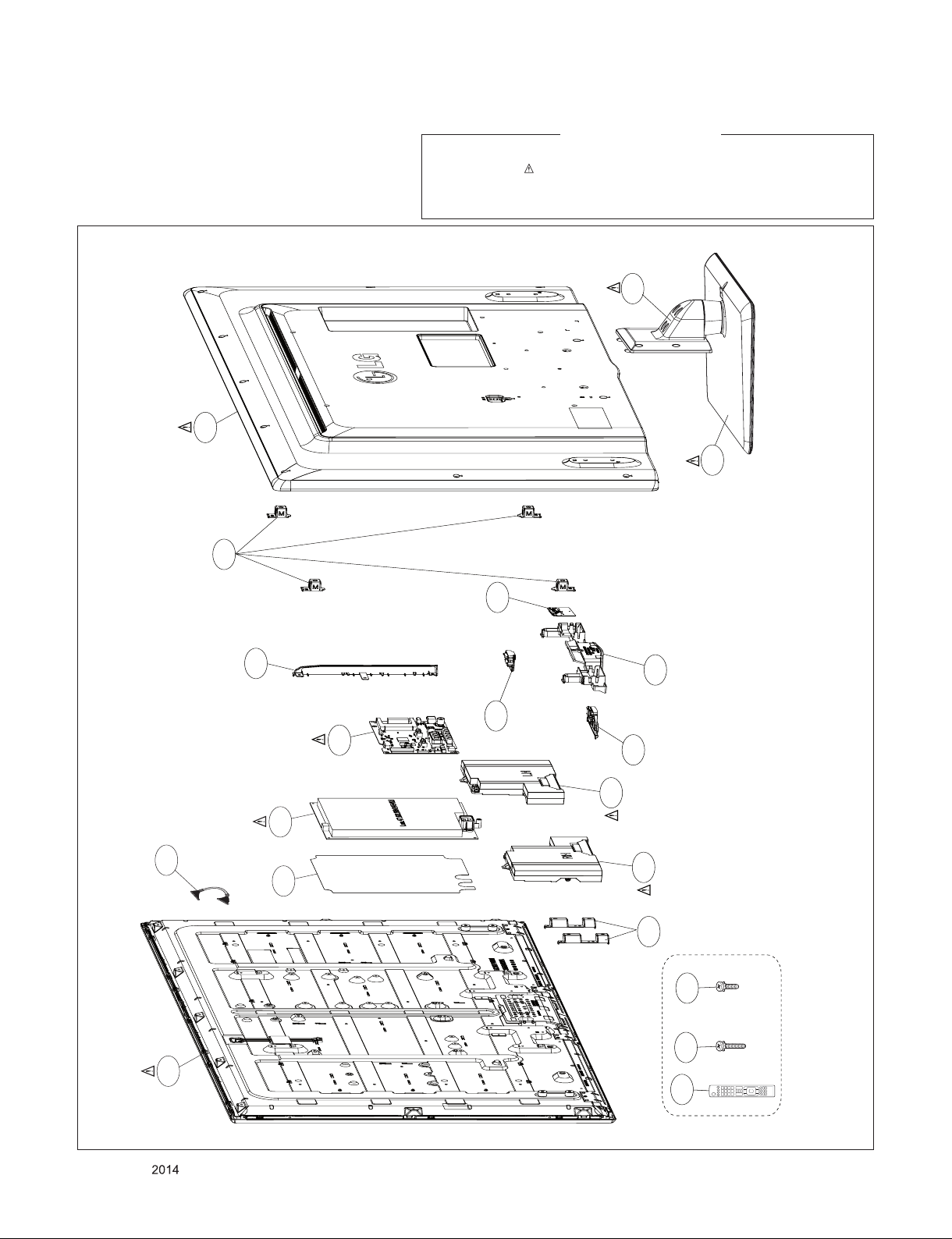

EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essenti al that these s pecial safe ty parts should be replaced w ith the same compone nts as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
Only for training and service purposes
- 24 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 25

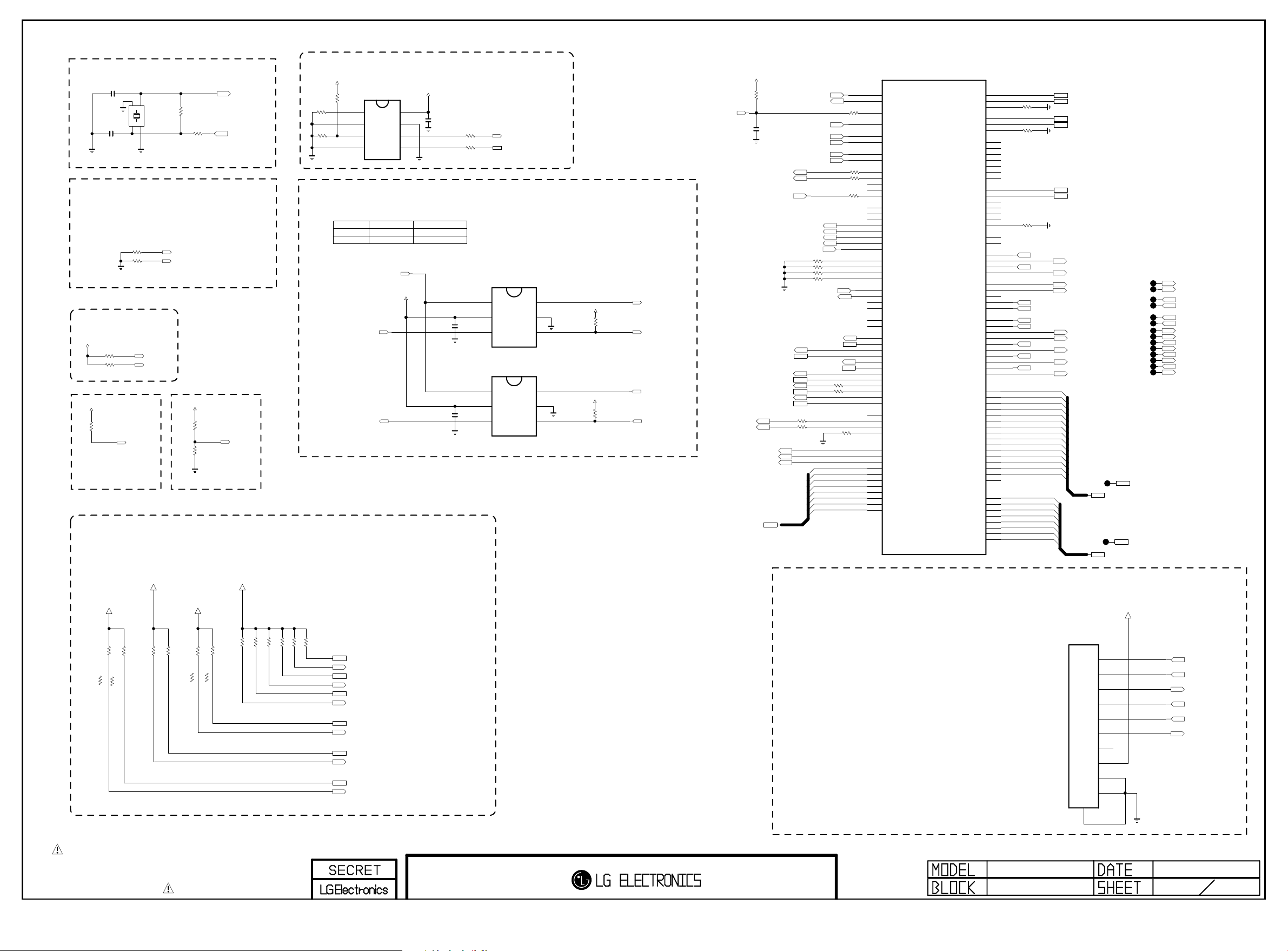

System Configuration
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Clock for M14
MAIN Clock(24Mhz)
10pF
C101
X-TAL_1
GND_1
1
2
X101
24MHz
4
3
10pF
C102
System Clock for Analog block(24Mhz)
SoC & DDR Speed
PLL SET[1:0] : internal pull up
"00" : CPU(1200Mhz),M0 / M1 DDR(792,792 Mhz)
"01" : CPU(1056Mhz),M0 / M1 DDR(672,672 Mhz)
"10" : CPU(1056Mhz),M0 / M1 DDR(792,792 Mhz)
"11" : CPU( 960Mhz),M0 / M1 DDR(792,792 Mhz)
OP MODE[1:0]
"00" : Normal Mode
"01/10/11" : Internal Test mode
+3.3V_NORMAL
OPT
R101 3.3K
R102 3.3K
OPT
Extenal test only
+3.3V_NORMAL
INSTANT boot MODE
"1 : Instant boot
"0 : normal
3.3K
OPT
R121
(internal pull down)
INSTANT_MODE0
+3.3V_TUNER
R146
3.3K
KR_PIP_NOT
1.5K
KR_PIP
R146-*1
GND_2
X-TAL_2
Extenal test only
OPT
R103 3.3K
R104 3.3K
OPT
OPM1
OPM0
INSTANT_BOOT
+3.3V_NORMAL
R148
3.3K
R149
3.3K
KR_PIP_NOT
1.5K
KR_PIP
R148-*1
PLLSET1
PLLSET0
+3.3V_TUNER
R150
3.3K
1M
R118
R180
560
+3.3V_NORMAL
OPT
R127
R128
BOOT_MODE0
R155
1.2K
KR_PIP_NOT
3.3K
KR_PIP
R155-*1
XTAL_IN
XTAL_OUT
BOOT MODE
"0 : EMMC
"1 : TEST MODE
3.3K
BOOT_MODE
3.3K
+3.3V_NORMAL
R157
R156
KR_PIP_NOT
3.3K
KR_PIP
R156-*1
3.3K
1.2K
I2C PULL UP
R159
3.3K
R158
3.3K
R160
NVRAM
+3.5V_ST
R110
4.7K
OPT
R109
OPT
R111
0
0
NC
E1
E2
VSS
NVRAM I2C SWITCH
EEPROM_SW
L B0 - A
H
SCL_NVRAM
I2C_1 : AMP
I2C_2 : T-CON,L/DIMING,EYE SENSOR
I2C_3 : Pro:Idiom
I2C_4 : S/Demod,T2/Demod, LNB
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)
R161
3.3K
R162
3.3K
3.3K
I2C_SDA1
I2C_SCL1
I2C_SDA3
I2C_SCL3
I2C_SDA2
I2C_SCL2
I2C_SDA4
I2C_SCL4
I2C_SDA5
I2C_SCL5
I2C_SDA6
I2C_SCL6
IC104
M24M01-HRMN6TP
1
2
A0
3
4
CONNECTION
EEPROM_SW
I2C
VCC
8
WP
7
SCL
6
SDA
5
+3.5V_ST
+3.5V_ST
C107
0.1uF
16V
NVRAM - NEC
NVRAM - M14B1 - A
Write Protection
- Low : Normal Operation
- High : Write Protection
R112 33
R113 33
C103
0.1uF
C104
0.1uF
SELECT
VCC
SELECT
VCC
SCL_NVRAM
SDA_NVRAM
IC105
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
A
4
EAN38256201
IC106
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
A
4
EAN38256201
PAGE 1
IC101
+3.3V_NORMAL
R123
10K
SOC_RESET
OPT
C108
0.1uF
16V
L/DIM0_VS
L/DIM0_SCLK
L/DIM0_MOSI
B1
1
GND
2
B0
3
B1
1
GND
2
B0
3
+3.5V_ST
+3.5V_ST
R114
2.7K
R115
2.7K
I2C_SCL5
NEC_EEPROM_SCL
I2C_SDA5
NEC_EEPROM_SDASDA_NVRAM
PWM_DIM2
PWM_DIM
EMMC_CLK
EMMC_CMD
EMMC_RST
I2C_SCL3
I2C_SDA3
I2C_SCL4
I2C_SDA4
I2C_SCL5
I2C_SDA5
I2C_SCL6
I2C_SDA6
XTAL_IN
XTAL_OUT
BOOT_MODE
PLLSET0
PLLSET1
TRST_N1
R182 10K
R183 10K
R184 10K
R185 10K
R107
R108
OPM0
OPM1
TMS1
TCK1
TDO1
TDI1
OPT
SOC_RX
SOC_TX
I2C_SCL1
I2C_SDA1
I2C_SCL2
I2C_SDA2
R119
R120 33
33
33
EMMC_DATA[7]
EMMC_DATA[6]
EMMC_DATA[5]
EMMC_DATA[4]
EMMC_DATA[3]
EMMC_DATA[2]
EMMC_DATA[1]
EMMC_DATA[0]
R176 33
R177 33
R178 33
33
R179
10K
1/16W
5%
R169
B23
A23
AG21
33
AJ18
AB8
AC8
AD8
AE8
Y7
Y6
W7
W6
W5
AG30
AG28
AG29
AH29
AJ27
AH27
AG26
AH26
AJ12
AJ13
AH12
AG12
AH23
AG22
AH7
AJ7
AG8
AH8
AH11
AG11
AH9
AG9
AG10
AJ9
AH22
AJ22
AH10
AJ10
AG23
AH24
AC6
AC7
AD7
AB7
G32
G33
G31
D31
F33
F32
E32
F31
D33
D32
E31
EMMC_DATA[0-7]
LG1311
XIN_MAIN
XO_MAIN
PORES_N
BOOT_MODE
PLLSET0
PLLSET1
OPM0
OPM1
L_VSOUT_LD/TRST0_N
DIM0_SCLK/TMS0
DIM1_SCLK/TCK0
DIM1_MOSI/TDI0
DIM0_MOSI/TDO0
SPI_CS0
SPI_SCLK0
SPI_DO0
SPI_DI0/TRST1_N
SPI_CS1/TMS1
SPI_SCLK1/TCK1
SPI_DO1/TDO1
SPI_DI1/TDI1
EXT_INTR0
EXT_INTR1
EXT_INTR2
EXT_INTR3
UART0_RXD
UART0_TXD
UART1_RXD
UART1_TXD
UART1_RTS_N
UART1_CTS_N
SCL0
SDA0
SCL1
SDA1
SCL2
SDA2
SCL3
SDA3
SCL4
SDA4
SCL5
SDA5
PWM0
PWM1
PWM2
PWM_IN
EMMC_CLK
EMMC_CMD
EMMC_RESETN
EMMC_DATA7
EMMC_DATA6
EMMC_DATA5
EMMC_DATA4
EMMC_DATA3
EMMC_DATA2
EMMC_DATA1
EMMC_DATA0
USB2_0_DP0
USB2_0_DM0
USB2_0_TXRTUNE
USB2_1_DP0
USB2_1_DM0
USB2_1_TXRTUNE
USB3_DP0
USB3_DM0
USB3_TXP0
USB3_TXM0
USB3_RXP0
USB3_RXM0
USB3_RESREF0
USB3_DP1
USB3_DM1
USB3_TXP1
USB3_TXM1
USB3_RXP1
USB3_RXM1
USB3_RESREF1
HUB_PORT_OVER0
HUB_VBUS_CTRL0
EB_CS3
EB_CS2
EB_CS1
EB_CS0
EB_WE_N
EB_OE_N
EB_WAIT
EB_BE_N1
EB_BE_N0
CAM_CD1_N
CAM_CD2_N
CAM_CE1_N
CAM_CE2_N
CAM_IREQ_N
CAM_RESET
CAM_INPACK_N
CAM_VCCEN_N
CAM_WAIT_N
CAM_REG_N
EB_ADDR0
EB_ADDR1
EB_ADDR2
EB_ADDR3
EB_ADDR4
EB_ADDR5
EB_ADDR6
EB_ADDR7
EB_ADDR8
EB_ADDR9
EB_ADDR10
EB_ADDR11
EB_ADDR12
EB_ADDR13
EB_ADDR14
EB_ADDR15
EB_DATA0
EB_DATA1
EB_DATA2
EB_DATA3
EB_DATA4
EB_DATA5
EB_DATA6
EB_DATA7
AN9
AM9
AN8
H32
J31
H33
N31
N32
P33
P32
M32
M33
P31
K33
K32
L32
L31
K31
J32
M31
W28
W29
H28
J30
J28
J29
G30
F30
H29
G29
G28
P28
P27
U28
R29
V27
T28
T29
R28
U27
N29
K30
E30
M30
N28
M28
M29
L29
K29
K28
L28
D30
F29
C32
C33
C31
B33
B32
A32
B31
A31
A30
B30
C30
C29
R1712001%
R1722001%
R1742001%
/USB_OCD2
/USB_OCD3
EB_BE_N1
EB_BE_N0
CAM_CD1_N
CAM_CD2_N
CAM_IREQ_N
CAM_INPACK_N
CAM_WAIT_N
EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]
EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]
EB_ADDR[8]
EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]
EB_ADDR[12]
EB_ADDR[13]
EB_ADDR[14]
EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]
EB_DATA[4]
EB_DATA[5]
EB_DATA[6]
EB_DATA[7]
WIFI_DP
WIFI_DM
USB_DP3
USB_DM3
USB_DP2
USB_DM2
USB_CTL2
USB_CTL3
EB_WE_N
EB_OE_N
/PCM_CE1
/PCM_CE2
PCM_RESET
PCM_5V_CTL
CAM_REG_N
TP102
TP103
P104
12505WS-10A00
OPT
10
11
TP104
TP105
TP106
TP107
TP108
TP109
TP110
TP111
TP112
TP113
TP114
TP115
TP116
TP117
EB_ADDR[0-14]
EB_ADDR[0-14]
EB_DATA[0-7]
EB_DATA[0-7]
Jtag-1 I/F
+3.3V_NORMAL
1
2
3
4
5
6
7
8
9
EB_WE_N
EB_OE_N
EB_BE_N1
EB_BE_N0
CAM_CD1_N
CAM_CD2_N
/PCM_CE1
/PCM_CE2
CAM_IREQ_N
PCM_RESET
CAM_INPACK_N
PCM_5V_CTL
CAM_WAIT_N
CAM_REG_N
TRST_N1
TDI1
TDO1
TMS1
TCK1
SOC_RESET
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
M14-Peripheral
xxLY760H-ZA
M14-Peripheral
2014.05.02
1
1.3
Page 26

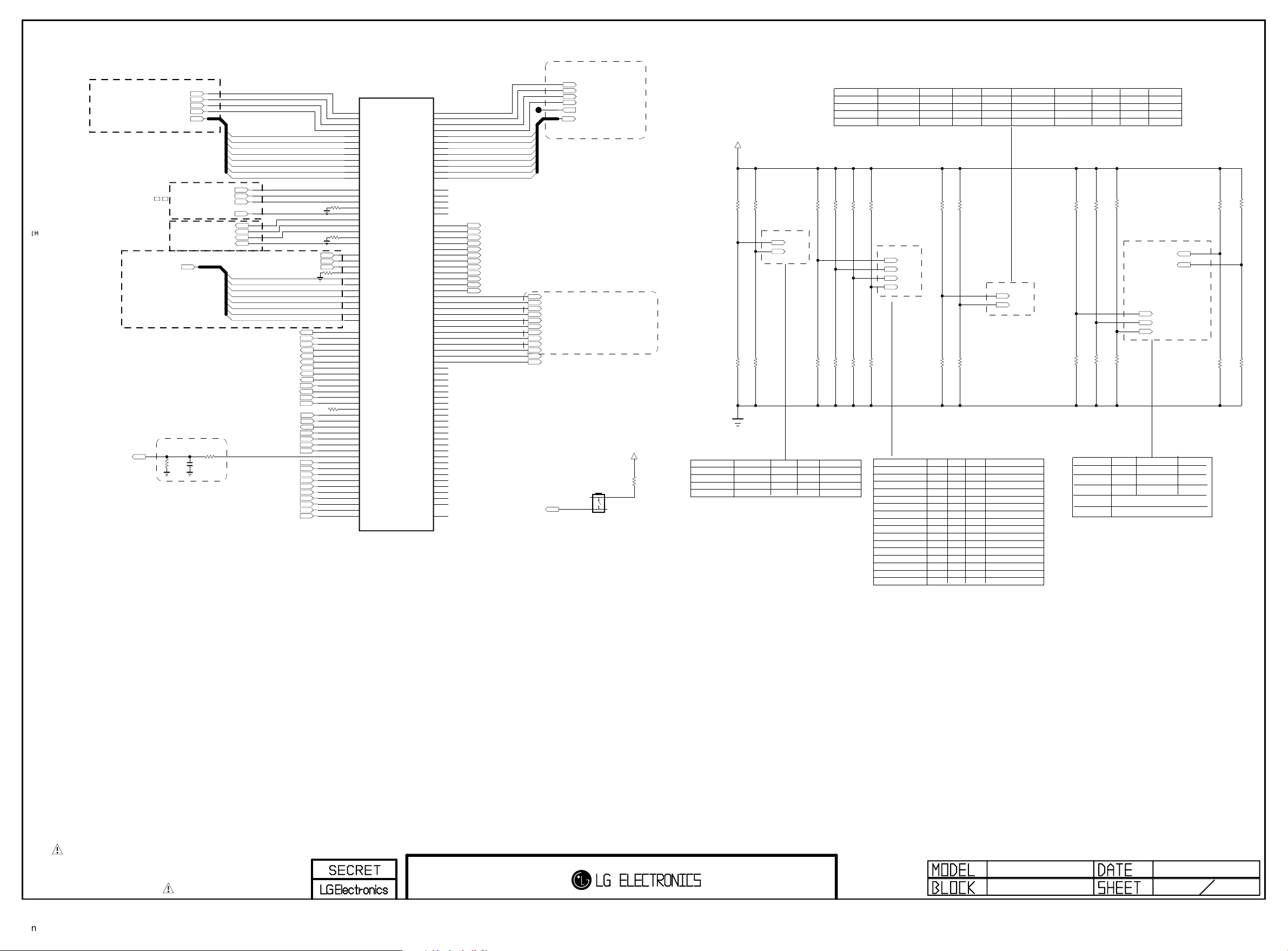

[RF Tuner -> M14] RF Parallel In
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL
FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_DATA[0-7]
[Pro:Idiom -> M14] IP Sereal In
[M14 -> Pro:Idiom] IP Serial Out
TPI_DATA[0-7]
[CI / Pro:Idiom -> M14] RF Parallel In
AMP_RESET_N
TPI_DATA[0]
TS_S_OUT_CLK
TS_S_OUT_SYNC
TS_S_OUT_VAL
TS_S_OUT_DATA
Near AMP
C200
1000pF
R231
4.7K
50V
TPI_CLK
TPI_SOP
TPI_VAL
R226 100
1/16W
5%
FE_DEMOD1_TS_DATA[7]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[0]
TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]
MODEL_OPT_11
SC_DET
HP_DET
2D/3D_CTL
RF_SWITCH_CTL
/TU_RESET1
TP_SWITCH
BT_RESET
SOC_NEC_TX
SOC_NEC_RX
OPC_EN
DEBUG
INSTANT_BOOT
WARM_MODE
EXT_SPK_DET
MODEL_OPT_12
BIT0
EXT_SPK_VOL+
EXT_SPK_VOL-
AV_CVBS_DET
BIT1
BIT2
BIT3
BIT4
BIT5
BIT6
BIT7
MODEL_OPT_8
MODEL_OPT_9
MODEL_OPT_10
TPI_CLK
TPI_SOP
TPI_VAL
R236 0
OPT
R234
OPT
R235 0
OPT
R225 100
OPT
0
AH30
AH32
AH31
AH33
AM33
AL32
AL33
AK32
AK33
AK31
AJ30
AJ31
AL31
AN32
AM32
AN31
AM31
AH28
AJ28
AK30
AJ29
AG27
AG13
AJ19
AG14
AG15
AJ15
AH19
AH18
AG19
AG24
AH16
AJ21
AH21
AG16
AJ24
AH17
AG17
AH13
AH15
AG18
AH14
AJ16
AH20
A28
B28
B29
C28
A27
B27
C27
B26
C26
B25
A25
C25
AH5
AJ5
AJ6
AH6
AG6
AG5
AF7
AG7
V29
V28
LG1311
TP_DVB_CLK
TP_DVB_SOP
TP_DVB_VAL
TP_DVB_ERR
TP_DVB_DATA7
TP_DVB_DATA6
TP_DVB_DATA5
TP_DVB_DATA4
TP_DVB_DATA3
TP_DVB_DATA2
TP_DVB_DATA1
TP_DVB_DATA0
STPI0_CLK
STPI0_SOP
STPI0_VAL
STPI0_ERR
STPI0_DATA
STPI1_CLK
STPI1_SOP
STPI1_VAL
STPI1_ERR
STPI1_DATA
TPI_CLK
TPI_SOP
TPI_VAL
TPI_ERR
TPI_DATA0
TPI_DATA1
TPI_DATA2
TPI_DATA3
TPI_DATA4
TPI_DATA5
TPI_DATA6
TPI_DATA7
GPIO31
GPIO30
GPIO29
GPIO28
GPIO27
GPIO26
GPIO25
GPIO24
GPIO23
GPIO22
GPIO21
GPIO20
GPIO19
GPIO18
GPIO17
GPIO16
GPIO15
GPIO14
GPIO13
GPIO12
GPIO11
GPIO10
GPIO9
GPIO8
GPIO7
GPIO6
GPIO5
GPIO4
GPIO3
GPIO2
GPIO1
GPIO0
IC101
TPIO_CLK
TPIO_SOP
TPIO_VAL
TPIO_ERR
TPIO_DATA0
TPIO_DATA1
TPIO_DATA2
TPIO_DATA3
TPIO_DATA4
TPIO_DATA5
TPIO_DATA6
TPIO_DATA7
EPI_SOE
EPI_MCLK
EPI_GCLK
EPI_EO
EPI_VST
TX_0N
TX_0P
TX_1N
TX_1P
TX_2N
TX_2P
TX_3N
TX_3P
TX_4N
TX_4P
TX_5N
TX_5P
TX_6N
TX_6P
TX_7N
TX_7P
TX_8N
TX_8P
TX_9N
TX_9P
TX_10N
TX_10P
TX_11N
TX_11P
TX_12N
TX_12P
TX_13N
TX_13P
TX_14N
TX_14P
TX_15N
TX_15P
TX_16N
TX_16P
TX_17N
TX_17P
TX_18N
TX_18P
TX_19N
TX_19P
TX_20N
TX_20P
TX_21N
TX_21P
TX_22N
TX_22P
TX_23N
TX_23P
TX_LOCKN
[M14 -> CI / Pro:Idiom] RF Parallel Out
TPO_CLK
TPO_SOP
TPO_VAL
D28
E29
E28
F28
D27
E27
F27
E26
F26
E25
D25
F25
AA5
AB5
AA7
AA6
AB6
AK8
AL8
AK7
AL7
AM6
AN6
AK6
AL6
AK5
AL5
AN4
AN3
AM2
AM1
AM4
AM3
AL4
AL3
AK2
AK1
AK4
AK3
AJ4
AJ3
AH2
AH1
AH4
AH3
AG4
AG3
AF2
AF1
AF4
AF3
AE4
AE3
AD2
AD1
AD4
AD3
AC4
AC3
AB2
AB1
AB4
AB3
AA4
AA3
AM8
TPO_DATA[0]
TPO_DATA[1]
TPO_DATA[2]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[7]
TXB4N/TX0N
TXB4P/TX0P
TXB3N/TX1N
TXB3P/TX1P
TXBCLKN/TX2N
TXBCLKP/TX2P
TXB2N/TX3N
TXB2P/TX3P
TXB1N/TX4N
TXB1P/TX4P
TXB0N/TX5N
TXB0P/TX5P
DEBUG
TXA4N/TX6N
TXA4P/TX6P
TXA3N/TX7N
TXA3P/TX7P
TXACLKN/TX8N
TXACLKP/TX8P
TXA2N/TX9N
TXA2P/TX9P
TXA1N/TX10N
TXA1P/TX10P
TXA0N/TX11N
TXA0P/TX11P
TPO_ERR
TPO_ERR
TPO_DATA[0-7]
HD LVDS
+3.3V_NORMAL
SW201
JTP-1127WEM
12
4 3
R223
3.3K
+3.3V_NORMAL
BIT0_1
BIT1_1
R201 10K
BIT0_0
BIT1_0
R202 10K
BIT [0/1]
0 / 0
0 / 1
<1 / 0>
1 / 1
TAIWAN/COLOM
CHINA/HONGKONG
EU/CIS
ASIA/AFRICA
Model Option
R203 10K
R204 10K
ATSC
N/AMERICA
S/AMERCIA
BIT2_1
BIT0
BIT1
BIT2_0
JPDVB
JAPANKOREA
For ISP
R205 10K
R206 10K
BIT [6/7]
0 / 0
0 / 1
1 / 0 ATV_EXT
<1 / 1>
BIT4_1
BIT3_1
R207 10K
R209 10K
T2/C/S2/ATV_EXT
T2/C/S2/ATV_SOC
BIT5_1
R211 10K
T/C
T2/C
BIT2
BIT3
BIT4
BIT5
BIT3_0
BIT4_0
BIT5_0
R210 10K
R208 10K
R212 10K
BIT[2/3/4/5]
0 / 0 / 0 / 0
0 / 0 / 0 / 1
0 / 0 / 1 / 0
0 / 0 / 1 / 1
0 / 1 / 0 / 0
0 / 1 / 0 / 1
<0 / 1 / 1 / 0>
0 / 1 / 1 / 1
1 / 0 / 0 / 0
1 / 0 / 0 / 1
1 / 0 / 1 / 0
1 / 0 / 1 / 1
1 / 1 / 0 / 0
1 / 1 / 0 / 1
1 / 1 / 1 / 0
1 / 1 / 1 / 1
BACK-END OPTIONAREA OPTION
AJJA NORTH AMERICA
TAIWAN/COL
T/C
T2/C PIP
T2/C
BIT7_1
R215 10K
CHINA/HONG
Default
T/C Default
T2/C/ATV_EXT
T2/C/ATV_SOC
T2/C/S2
BIT6_1
R213 10K
KOREA
ATSC PIP
ATV_SOC
ATSC PIP
ATV_SOC
ATV_EXT
DDR3_DDP
R217 10K
BRAZIL
ISDB PIP
ISDB
R219 10K
DDR3_1.5GB
BIT6
BIT7
BIT6_0
BIT7_0
R214 10K
R216 10K
FRC
FHD
TYPE
EPI FHD, 120Hz, V14 (8 lane)
EPI FHD, 120Hz, v14_32inch (6 lane)
EPI FHD, 120Hz, V13 (6 lane)
EPI FHD, 120Hz, V12 (6 lane)
EPI FHD, 60Hz, V14_32 inch (6lane)
LVDS FHD, 120Hz
LVDS FHD, 60Hz
LVDS HD, 60Hz
LVDS FHD, 60Hz, CP BOX
LVDS HD, 60Hz SMALL SMART
Vby1 FHD, 120Hz
LVDS 120Hz
FHD
PANEL TYPE
OLED
OLED
DDR3_2GB
R220 10K
R218 10K
DDR3_NON_DDP
MODEL_OPT_8
MODEL_OPT_9
MODEL_OPT_10 <NON_DDR3 3G>
MODEL_OPT_11
MODEL_OPT_12
PAGE 2
JAPANEU/CIS
DDR_3G
R221 10K
MODEL_OPT_11
MODEL_OPT_12
MODEL_OPT_8
MODEL_OPT_9
MODEL_OPT_10
R222 10K
NON_DDR_3G
LOW
DDR3
<NON_DDP>
DDR3 2GB
FOR UD
NOT GPIO! OLED ECO POWER CTL
HIGH
DDP
<1.5GB>
DDR3 3G
OPT
OPT
OPT
R229 10K
R227 10K
OPT
R230 10K
R228 10K
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
M14-Display In/Out
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
M14-Display In/Out
2014.05.02
2
1.3
Page 27

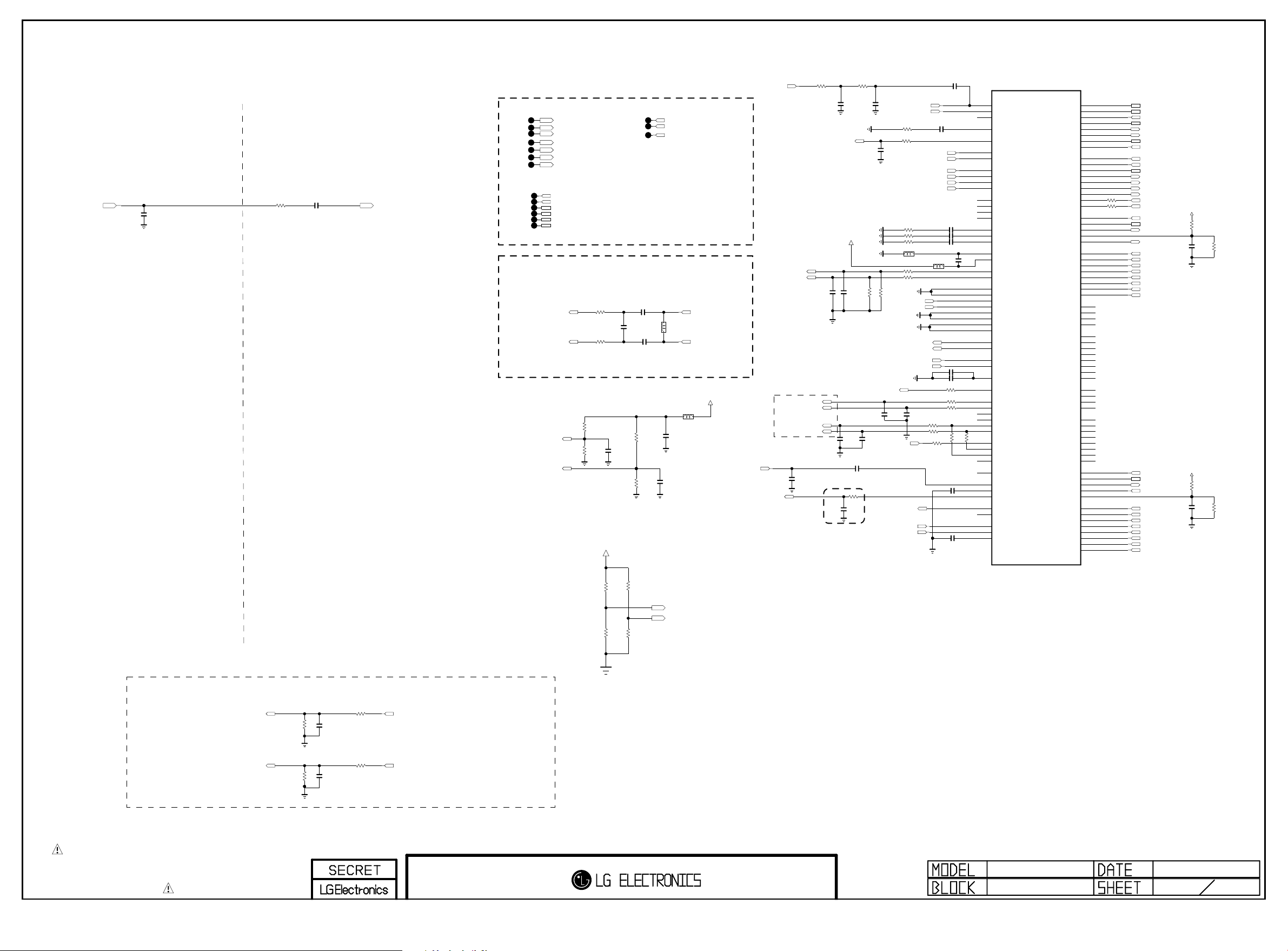

PLACE AT JACK SIDE
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
TU_CVBS
C303
150pF
50V
OPT
TU_ALL_2178B
R329 100
TU_ALL_2178B
0.047uF
C318
TU_CVBS_SOC
TP308
TP310
TP311
TP312
TP313
TP314
TP315
TP302
TP303
TP304
TP305
TP306
TP307
SC_CVBS_IN_SOC
SC_FB_SOC
SC_ID_SOC
COMP1_PB_IN_SOC
COMP1_Y_IN_SOC
COMP1_Y_IN_SOC_SOY
COMP1_PR_IN_SOC
SMARTCARD_DATA/SD_EMMC_CLK
SMARTCARD_VCC/SD_EMMC_CMD
SMARTCARD_DET/SD_EMMC_DATA[3]
SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
SMARTCARD_CLK/SD_EMMC_DATA[0]
TP318
TP319
TP320
Placed as close as possible to LG1311
Tuner IF Filter
TU_ALL_IntDemod
ADC_I_INN
To ADC
ADC_I_INP
C331 option
- TU_IntDemod_IF_22p -> EU/AJ All_IndDemod, US/KR/BR/TW/CO 2tuner All
- TU_IntDemod_IF_15p -> US/KR/BR/TW/CO 1tuner All
R344
51
TU_ALL_IntDemod
R345
51
TU_ALL_IntDemod
TU_ALL_IntDemod
C332
0.01uF
C331
15pF
50V
C333
0.01uF
TU_ALL_IntDemod
Placed as close as possible to IC101
R37 4
51K
AUAD_L_REF
1%
R37 8
47K
1%
C313
4.7uF
10V
R38 0
51K
1%
AUAD_R_REF
R38 1
47K
1%
DDR3 VENDOR OPTION
+3.3V_NORMAL
SCART_LOUT_SOC
SCART_ROUT_SOC
DTV/MNT_V_OUT_SOC
IF_N
L303
OPT
IF_P
AVDD25
L307
120-ohm
C354
10uF
10V
C353
4.7uF
10V
SOC_CVBS_OUT
TUNER_SIF
SCART_LOUT_SOC
SCART_ROUT_SOC
MAIN I2S_I/F
IF_AGC
INT_ADEMOD
DTV/MNT_V_OUT_SOC
AUD_MASTER_CLK
AUD_LRCH
AUD_SCK
AUD_LRCK
C309
1000pF
50V
OPT
R319
390
EU
C334
0.01uF
50V
C338
0.1uF
Close to IC101
INT_ADEMOD
R320
390
INT_ADEMOD
C11009
68pF
50V
AVDD25
EU
C336
0.01uF
50V
C335
22pF
OPT
C312
TU_ALL_2178B
TU_ALL_IntDemod
R350
470
OPT
INT_ADEMOD
C11010
68pF
50V
OPT
EU
R352 22K
R351 22K
SPDIF_OUT
C337
33pF
I2S_AMP
OPT
0.1uF
SOC_CVBS_OUT
ADC_I_INP
ADC_I_INN
TU_CVBS_SOC
SC_CVBS_IN_SOC
R356
EU
R353 0
C339
100pF
50V
COMP1_Y_IN_SOC_SOY
COMP1_Y_IN_SOC
COMP1_PB_IN_SOC
COMP1_PR_IN_SOC
R357 68
R358 68
R359 68
BLM15BD121SN1
L304
EU
R354 0
EU
R355 0
EU
AUAD_L_CH2_IN
AUAD_R_CH2_IN
AUDA_OUTL
AUDA_OUTR
AUAD_R_REF
AUAD_L_REF
C342
C340
22pF
22pF
OPT
OPT
68
C343 0.047uF
SC_ID_SOC
SC_FB_SOC
C344 0.047uF
C345 0.047uF
C346 0.047uF
L305
BLM15BD121SN1
R368 100
R369
R386
C11011 0.1uF 16V
INT_ADEMOD
C349
0.1uF
16V
10uF 10VC347
C348 2.2uF
10V
R360 33
R365 100
R366 100
100
R387
R388
OPT
OPT
OPT
0.1uF
C351
C352 0.1uF
AL27
AK26
AM27
AL26
AN27
AL25
AM25
AN23
AL22
AK21
AK22
AL24
AK23
AL23
AK24
AL21
AM23
AN25
AM21
AN21
AK16
AL16
AL19
AK19
AN19
AM19
AN17
AM17
AL17
AK17
AK20
AL20
AK18
AL18
AN15
AM15
AN11
AK11
AK10
AL10
AL11
AM11
AK29
AL29
AM29
AK27
AL30
AK28
AL28
AN29
AD5
AE5
AE7
AE6
AD6
IC101
LG1311
CVBS_IN1
CVBS_IN2
CVBS_IN3
CVBS_VCM
BUF_OUT1
SC1_SID
SC1_FB
SOY1_IN
Y1_IN
PB1_IN
PR1_IN
SOY2_IN
Y2_IN
PB2_IN
PR2_IN
ADC1_COM
ADC2_COM
ADC3_COM
AVSS25_COMP_REF
AVDD25_COMP_REF
AUDA_SCART_OUTL
AUDA_SCART_OUTR
AUAD_L_CH1_IN
AUAD_R_CH1_IN
AUAD_L_CH2_IN
AUAD_R_CH2_IN
AUAD_L_CH3_IN
AUAD_R_CH3_IN
AUAD_L_CH4_IN
AUAD_R_CH4_IN
AUDA_OUTL
AUDA_OUTR
AUAD_L_REF
AUAD_R_REF
AUD_VBG_EXT
IEC958OUT
AUDCLK_OUT
DAC_LRCH
DAC_SLRCH
DAC_CLFCH
DAC_SCK
DAC_LRCK
PCMI3LRCH
PCMI3LRCK
PCMI3SCK
AUDCLK_IN
FRC_LRSYNC
AAD_ADC_SIF
AAD_ADC_SIFM
IFAGC
DMD_DAC_OUT
DMD_SIF_OUT
DMD_ADC_INP
DMD_ADC_INN
DMD_ADC_INCOM
SD_CLK
SD_CMD
SD_CD_N
SD_WP_N
SD_DATA3
SD_DATA2
SD_DATA1
SD_DATA0
RMII_REF_CLK
RMII_CRS_DV
RMII_MDIO
RMII_MDC
RMII_TXEN
RMII_TXD1
RMII_TXD0
RMII_RXD1
RMII_RXD0
HDMI_1_SCL
HDMI_1_SDA
HDMI_1_HPD
HDMI_1_5V_DET
HDMI_1_ARC
HDMI_1_RX_0
HDMI_1_RX_0B
HDMI_1_RX_1
HDMI_1_RX_1B
HDMI_1_RX_2
HDMI_1_RX_2B
HDMI_1_RX_C
HDMI_1_RX_CB
HDMI_2_SCL
HDMI_2_SDA
HDMI_2_HPD
HDMI_2_5V_DET
HDMI_2_RX_0
HDMI_2_RX_0B
HDMI_2_RX_1
HDMI_2_RX_1B
HDMI_2_RX_2
HDMI_2_RX_2B
HDMI_2_RX_C
HDMI_2_RX_CB
HDMI_3_SCL
HDMI_3_SDA
HDMI_3_HPD
HDMI_3_5V_DET
HDMI_3_RX_0
HDMI_3_RX_0B
HDMI_3_RX_1
HDMI_3_RX_1B
HDMI_3_RX_2
HDMI_3_RX_2B
HDMI_3_RX_C
HDMI_3_RX_CB
HDMI_4_SCL
HDMI_4_SDA
HDMI_4_CBUS_HPD
HDMI_4_CD_SENSE
HDMI_4_5V_DET
HDMI_4_RX_0
HDMI_4_RX_0B
HDMI_4_RX_1
HDMI_4_RX_1B
HDMI_4_RX_2
HDMI_4_RX_2B
HDMI_4_RX_C
HDMI_4_RX_CB
E22
D22
F22
F24
D24
E24
F23
E23
AK14
AK12
AL12
AK13
AL13
AM13
AN13
AL14
AK15
AE27
AF28
AE29
AF27
AE28
AF33
AF32
AE31
AE30
AD31
AD30
AF31
AF30
AD28
AD29
AC27
AD27
AC31
AC30
AB33
AB32
AA31
AA30
AD32
AD33
AB28
AB27
AB29
AC28
Y32
Y33
W31
W30
V33
V32
Y31
Y30
Y27
AA28
Y28
AA29
AA27
T31
T30
T32
T33
R31
R30
U31
U30
R315 33
R316 33
PAGE 3
SMARTCARD_CLK/SD_EMMC_DATA[0]
SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_VCC/SD_EMMC_CMD
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
DDR3_OPT1
DDR3_OPT2
SMARTCARD_DET/SD_EMMC_DATA[3]
SMARTCARD_DATA/SD_EMMC_CLK
EPHY_REFCLK
EPHY_CRS_DV
EPHY_MDIO
EPHY_MDC
EPHY_EN
EPHY_TXD1
EPHY_TXD0
EPHY_RXD1
EPHY_RXD0
DDC_SCL_1
DDC_SDA_1
HDMI_HPD_1
SPDIF_OUT_ARC
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
CK+_HDMI1
CK-_HDMI1
DDC_SCL_4
DDC_SDA_4
HDMI_HPD_4
MHL_DET
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
CK+_HDMI4
CK-_HDMI4
5V_HDMI_1
R372
10
C356
1uF
10V
5V_HDMI_4
R375
10
C359
1uF
10V
R376
5.1K
R379
5.1K
AUDIO OUT
HP_LOUT/Ext_LOUT
HP_ROUT/Ext_ROUT
R303
R304
22K
22K
C305
0.01uF
50V
C306
0.01uF
50V
R311 0
R312 0
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
M14-AV In/Out
AUDA_OUTL
AUDA_OUTR
OPT
4.7K
R382
R383 4.7K
OPT
4.7K
R384
R385 4.7K
DDR3_OPT1
DDR3_OPT2
xxLY760H-ZA
M14-AV In/Out
2014.05.02
3
1.3
Page 28

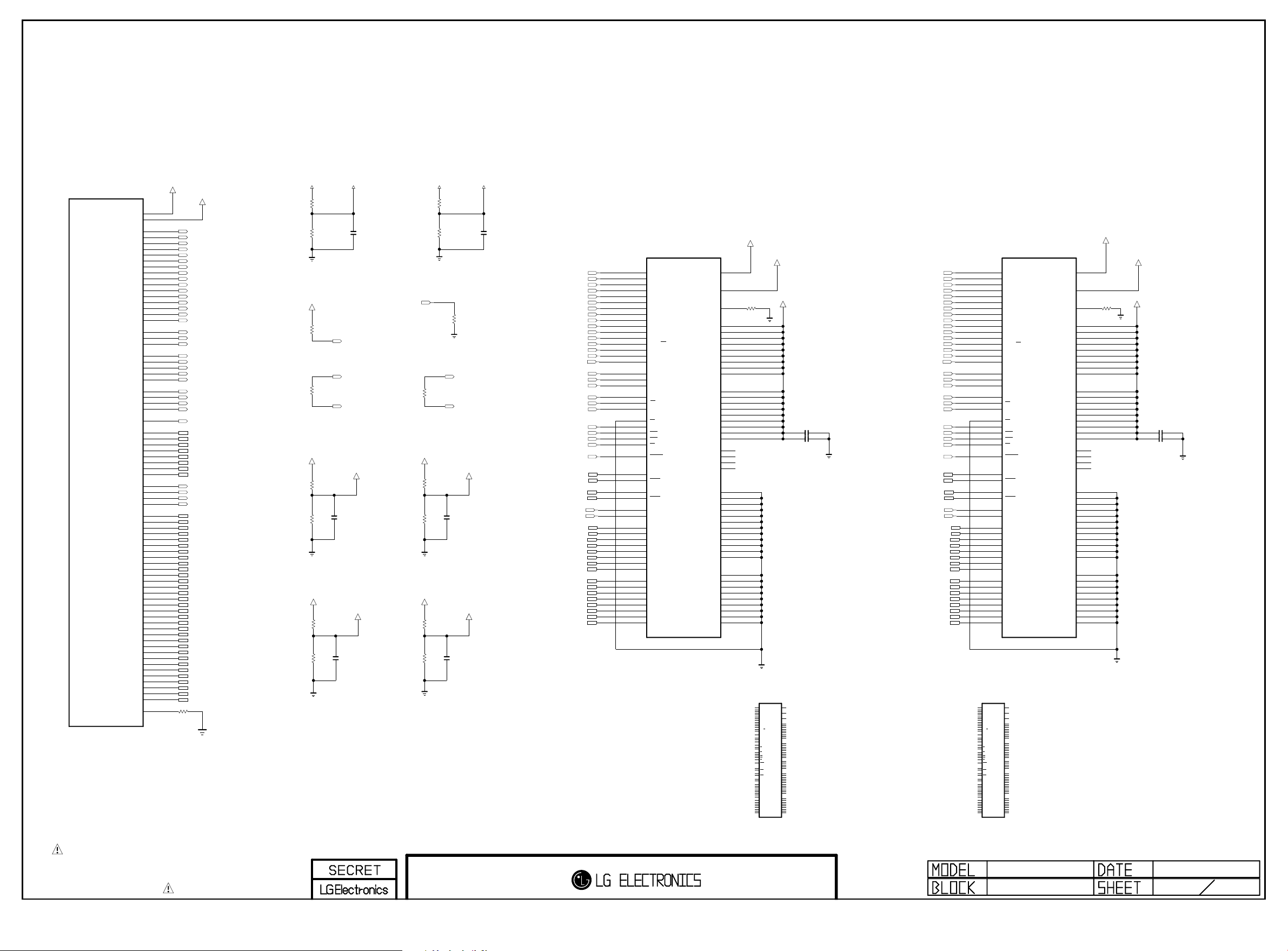

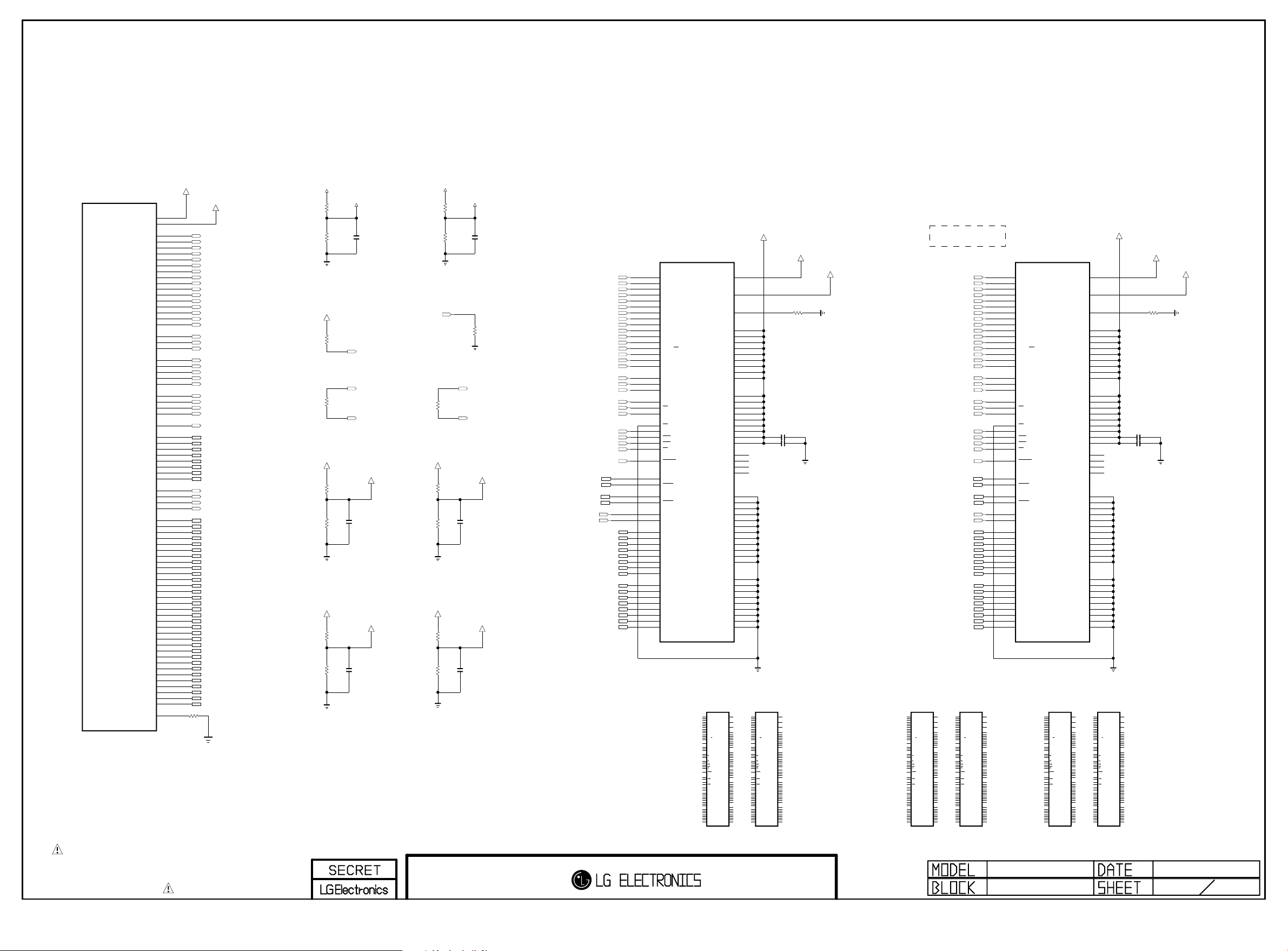

PAGE 4
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
IC101
LG1311
M0_DDR_VREF1
M0_DDR_VREF2
M0_DDR_U_CLKP
M0_DDR_U_CLKN
M0_DDR_D_CLKP
M0_DDR_D_CLKN
M0_DDR_RESET_N
M0_DDR_DQS_P0
M0_DDR_DQS_N0
M0_DDR_DQS_P1
M0_DDR_DQS_N1
M0_DDR_DQS_P2
M0_DDR_DQS_N2
M0_DDR_DQS_P3
M0_DDR_DQS_N3
M0_DDR_ZQCAL
M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8
M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15
M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2
M0_DDR_CKE
M0_DDR_ODT
M0_DDR_RASN
M0_DDR_CASN
M0_DDR_WEN
M0_DDR_DM0
M0_DDR_DM1
M0_DDR_DM2
M0_DDR_DM3
M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DQ8
M0_DDR_DQ9
M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15
M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23
M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31
VREF_M0_0
A22
A3
E13
E11
E15
E17
D8
D16
D9
E16
E9
E14
D7
D10
D11
D14
E10
E12
D17
E8
D13
C8
B8
C17
B17
D12
E19
D19
D18
E18
D15
B18
C18
B16
A16
B9
C9
B7
A7
A15
A18
A6
A9
B20
B13
C21
C14
A21
A13
B21
C13
B14
B19
C15
C20
C16
A19
B15
C19
B11
C5
C12
B4
A12
A4
B12
C4
B5
B10
C6
C11
C7
A10
B6
C10
E7
VREF_M0_1
R401 240
M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8
M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15
M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2
M0_U_CLK
M0_U_CLKN
M0_D_CLK
M0_D_CLKN
M0_DDR_CKE
M0_DDR_ODT
M0_DDR_RASN
M0_DDR_CASN
M0_DDR_WEN
M0_DDR_RESET_N
M0_DDR_DQS0
M0_DDR_DQS_N0
M0_DDR_DQS1
M0_DDR_DQS_N1
M0_DDR_DQS2
M0_DDR_DQS_N2
M0_DDR_DQS3
M0_DDR_DQS_N3
M0_DDR_DM0
M0_DDR_DM1
M0_DDR_DM2
M0_DDR_DM3
M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DQ8
M0_DDR_DQ9
M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15
M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23
M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31
1%
+1.5V_DDR
+1.5V_DDR
OPT
+1.5V_DDR
+1.5V_DDR
R402
1K
1%
R403
1K
1%
R404
10K
R405
100
M0_DDR_VREFCA
R406
1K
1%
R407
1K
1%
M0_DDR_VREFDQ
R408
1K
1%
R409
1K
1%
VREF_M0_0
C401
0.1uF
M0_DDR_RESET_N
M0_D_CLK
M0_D_CLKN
C402
0.1uF
C403
0.1uF
M0_DDR_CKE
+1.5V_DDR
R410
100
+1.5V_DDR
R411
1K
1%
R412
1K
1%
+1.5V_DDR
R413
1K
1%
R414
1K
1%
VREF_M0_1
R415
1K
1%
R416
1K
1%
R417
10K
M0_U_CLK
M0_U_CLKN
M0_1_DDR_VREFCA
C406
0.1uF
M0_1_DDR_VREFDQ
C407
0.1uF
C408
0.1uF
M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8
M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15
M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2
M0_D_CLK
M0_D_CLKN
M0_DDR_CKE
M0_DDR_ODT
M0_DDR_RASN
M0_DDR_CASN
M0_DDR_WEN
M0_DDR_RESET_N
M0_DDR_DQS0
M0_DDR_DQS_N0
M0_DDR_DQS1
M0_DDR_DQS_N1
M0_DDR_DM0
M0_DDR_DM1
M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DQ8
M0_DDR_DQ9
M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15
IC401
H5TQ4G63AFR-PBC
DDR3
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7
M2
N8
M3
J7
K7
K9
L2
K1
J3
K3
L3
T2
F3
G3
C7
B7
E7
D3
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
4Gbit
A0
(x16)
A1
DDR_512MB_HYNIX_1600_29n
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
A14
A15
BA0
BA1
BA2
CK
CK
CKE
CS
ODT
RAS
CAS
WE
RESET
DQSL
DQSL
DQSU
DQSU
DML
DMU
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
M0_DDR_VREFCA
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
M0_DDR_VREFDQ
+1.5V_DDR
R418
240
1%
IC401-*1
MT41K256M16HA-125:E
DDR_512MB_MICRON
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQ0
F7
DQ1
F2
DQ2
F8
DQ3
H3
DQ4
H8
DQ5
G2
DQ6
H7
DQ7
D7
DQ8
C3
DQ9
C8
DQ10
C2
DQ11
A7
DQ12
A2
DQ13
B8
DQ14
A3
DQ15
C413 1uF
C414 1uF
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
A14
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8
M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15
M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2
M0_U_CLK
M0_U_CLKN
M0_DDR_CKE
M0_DDR_ODT
M0_DDR_RASN
M0_DDR_CASN
M0_DDR_WEN
M0_DDR_RESET_N
M0_DDR_DQS2
M0_DDR_DQS_N2
M0_DDR_DQS3
M0_DDR_DQS_N3
M0_DDR_DM2
M0_DDR_DM3
M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23
M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31
H5TQ4G63AFR-PBC
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
IC402-*1
MT41K256M16HA-125:E
DDR_512MB_MICRON
N3
M8
A0
VREFCA
P7
A1
P3
A2
N2
H1
A3
VREFDQ
P8
A4
P2
A5
R8
L8
A6
ZQ
R2
A7
T8
A8
R3
B2
A9
VDD_1
L7
D9
A10/AP
VDD_2
R7
G7
A11
VDD_3
N7
K2
A12/BC
VDD_4
T3
K8
A13
VDD_5
N1
VDD_6
M7
N9
NC_5
VDD_7
R1
VDD_8
M2
R9
BA0
VDD_9
N8
BA1
M3
BA2
A1
VDDQ_1
J7
A8
CK
VDDQ_2
K7
C1
CK
VDDQ_3
K9
C9
CKE
VDDQ_4
D2
VDDQ_5
L2
E9
CS
VDDQ_6
K1
F1
ODT
VDDQ_7
J3
H2
RAS
VDDQ_8
K3
H9
CAS
VDDQ_9
L3
WE
J1
NC_1
T2
J9
RESET
NC_2
L1
NC_3
L9
NC_4
F3
T7
DQSL
A14
G3
DQSL
C7
A9
DQSU
VSS_1
B7
B3
DQSU
VSS_2
E1
VSS_3
E7
G8
DML
VSS_4
D3
J2
DMU
VSS_5
J8
VSS_6
E3
M1
DQ0
VSS_7
F7
M9
DQ1
VSS_8
F2
P1
DQ2
VSS_9
F8
P9
DQ3
VSS_10
H3
T1
DQ4
VSS_11
H8
T9
DQ5
VSS_12
G2
DQ6
H7
DQ7
B1
VSSQ_1
D7
B9
DQ8
VSSQ_2
C3
D1
DQ9
VSSQ_3
C8
D8
DQ10
VSSQ_4
C2
E2
DQ11
VSSQ_5
A7
E8
DQ12
VSSQ_6
A2
F9
DQ13
VSSQ_7
B8
G1
DQ14
VSSQ_8
A3
G9
DQ15
VSSQ_9
IC402
DDR3
4Gbit
(x16)
DDR_512MB_HYNIX_1600_29n
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
M0_1_DDR_VREFCA
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
M0_1_DDR_VREFDQ
+1.5V_DDR
R419
240
1%
C429 1uF
C430 1uF
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
M14-DDR3(MAIN)
2014.05.02
4
1.3
Page 29

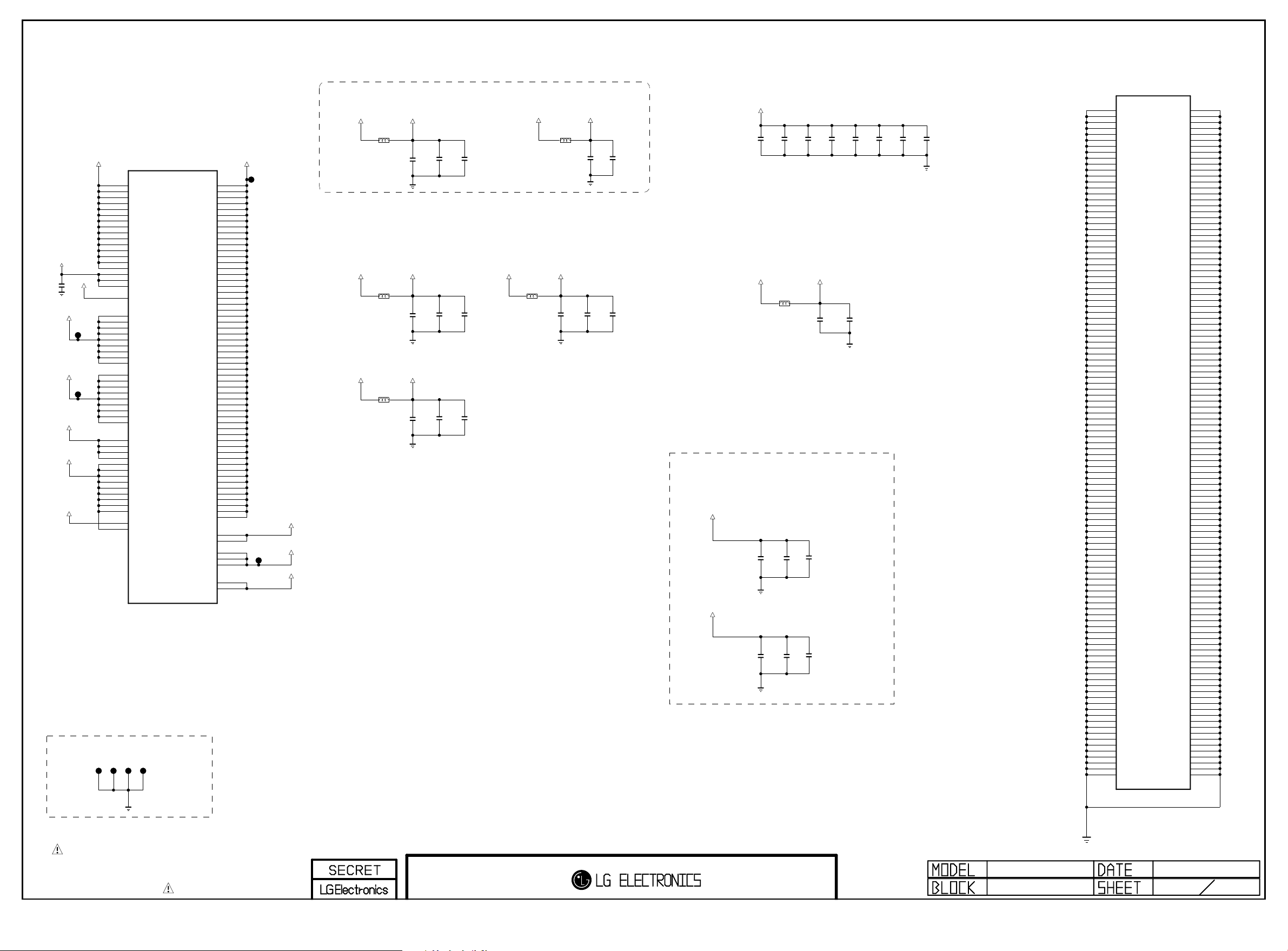

PAGE 5
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
IC101
LG1311
M1_DDR_U_CLKP
M1_DDR_U_CLKN
M1_DDR_D_CLKP
M1_DDR_D_CLKN
M1_DDR_RESET_N
M1_DDR_DQS_P0
M1_DDR_DQS_N0
M1_DDR_DQS_P1
M1_DDR_DQS_N1
M1_DDR_DQS_P2
M1_DDR_DQS_N2
M1_DDR_DQS_P3
M1_DDR_DQS_N3
M1_DDR_VREF1
M1_DDR_VREF2
M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15
M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2
M1_DDR_CKE
M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN
M1_DDR_DM0
M1_DDR_DM1
M1_DDR_DM2
M1_DDR_DM3
M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31
M1_DDR_ZQCAL
VREF_M1_0
A2
Y1
M5
N5
K5
H5
T4
H4
R4
J5
T5
L5
U4
P4
P5
K4
R5
N4
G4
U5
L4
R3
R2
F3
F2
M4
F5
E4
F4
G5
J4
E2
E3
G2
G1
P2
P3
T2
T1
H1
E1
U1
P1
C2
K2
B3
J3
B1
K1
B2
K3
J2
D2
H3
C3
G3
D1
H2
D3
M2
V3
L3
W2
L1
W1
L2
W3
V2
N2
U3
M3
T3
N1
U2
N3
E5
R501
VREF_M1_1
M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15
M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2
M1_U_CLK
M1_U_CLKN
M1_D_CLK
M1_D_CLKN
M1_DDR_CKE
M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN
M1_DDR_RESET_N
M1_DDR_DQS0
M1_DDR_DQS_N0
M1_DDR_DQS1
M1_DDR_DQS_N1
M1_DDR_DQS2
M1_DDR_DQS_N2
M1_DDR_DQS3
M1_DDR_DQS_N3
M1_DDR_DM0
M1_DDR_DM1
M1_DDR_DM2
M1_DDR_DM3
M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31
240
1%
+1.5V_DDR
+1.5V_DDR
OPT
+1.5V_DDR
+1.5V_DDR
1K
1%
1K
1%
1K
1%
R508
1K
1%
R509
R502
10K
R503
100
R504
R505
R506
1K
1%
R507
1K
1%
VREF_M1_0
C501
0.1uF
M1_DDR_RESET_N
M1_D_CLK
M1_D_CLKN
M1_DDR_VREFCA
C502
0.1uF
M1_DDR_VREFDQ
C503
0.1uF
+1.5V_DDR
M1_DDR_CKE
+1.5V_DDR
+1.5V_DDR
VREF_M1_1
R515
1K
1%
R516
1K
1%
R510
100
M1_1_DDR_VREFCA
R511
1K
1%
C507
R512
1K
0.1uF
1%
M1_1_DDR_VREFDQ
R513
1K
1%
C508
R514
1K
0.1uF
1%
C506
0.1uF
R517
10K
M1_U_CLK
M1_U_CLKN
+1.5V_DDR
IC501
H5TQ4G63AFR-PBC
N3
M1_DDR_A0
M1_DDR_A1 M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15
M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2
M1_D_CLK
M1_D_CLKN
M1_DDR_CKE
M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN
M1_DDR_RESET_N
M1_DDR_DQS0
M1_DDR_DQS_N0
M1_DDR_DQS1
M1_DDR_DQS_N1
M1_DDR_DM0
M1_DDR_DM1
M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13M1_DDR_DQ16
M1_DDR_DQ14
M1_DDR_DQ15
DDR3
A0
P7
4Gbit
A1
P3
DDR_512MB_HYNIX_1600_29n
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
MT41K256M16HA-125:E
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
M7
M2
N8
M3
J7
K7
K9
L2
K1
J3
K3
L3
T2
F3
G3
C7
B7
E7
D3
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
IC501-*1
DDR_512MB_MICRON
M8
A0
VREFCA
A1
A2
H1
A3
VREFDQ
A4
A5
L8
A6
ZQ
A7
A8
B2
A9
VDD_1
D9
A10/AP
VDD_2
G7
A11
VDD_3
K2
A12/BC
VDD_4
K8
A13
VDD_5
N1
VDD_6
N9
NC_5
VDD_7
R1
VDD_8
R9
BA0
VDD_9
BA1
BA2
A1
VDDQ_1
A8
CK
VDDQ_2
C1
CK
VDDQ_3
C9
CKE
VDDQ_4
D2
VDDQ_5
E9
CS
VDDQ_6
F1
ODT
VDDQ_7
H2
RAS
VDDQ_8
H9
CAS
VDDQ_9
WE
J1
NC_1
J9
RESET
NC_2
L1
NC_3
L9
NC_4
T7
DQSL
A14
DQSL
A9
DQSU
VSS_1
B3
DQSU
VSS_2
E1
VSS_3
G8
DML
VSS_4
J2
DMU
VSS_5
J8
VSS_6
M1
DQ0
VSS_7
M9
DQ1
VSS_8
P1
DQ2
VSS_9
P9
DQ3
VSS_10
T1
DQ4
VSS_11
T9
DQ5
VSS_12
DQ6
DQ7
B1
VSSQ_1
B9
DQ8
VSSQ_2
D1
DQ9
VSSQ_3
D8
DQ10
VSSQ_4
E2
DQ11
VSSQ_5
E8
DQ12
VSSQ_6
F9
DQ13
VSSQ_7
G1
DQ14
VSSQ_8
G9
DQ15
VSSQ_9
+1.5V_DDR
IC502-*1
MT41K256M16HA-125:E
DDR_512MB_MICRON
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQ0
F7
DQ1
F2
DQ2
F8
DQ3
H3
DQ4
H8
DQ5
G2
DQ6
H7
DQ7
D7
DQ8
C3
DQ9
C8
DQ10
C2
DQ11
A7
DQ12
A2
DQ13
B8
DQ14
A3
DQ15
M1_DDR_VREFCA
R518
1uF
C524
1uF
C525
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
A14
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
M1_DDR_VREFDQ
240
DDR3 1.5V bypass Cap
: Place these caps near Memory
H5TQ2G63FFR-PBC
DDR_256MB_HYNIX_1600_29n
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
IC501-*2
VREFCA
VREFDQ
ZQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
NC_6
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
1_2Gbit : T7(NC_6)
4Gbit : T7(A14)
M1_DDR_A0
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15
M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2
M1_U_CLK
M1_U_CLKN
M1_DDR_CKE
M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN
M1_DDR_RESET_N
M1_DDR_DQS2
M1_DDR_DQS_N2
M1_DDR_DQS3
M1_DDR_DQS_N3
M1_DDR_DM2
M1_DDR_DM3
M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31
IC502-*2
H5TQ2G63FFR-PBC
DDR_256MB_HYNIX_1600_29n
N3
M8
H1
L8
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
M8
A0
VREFCA
P7
A1
P3
A2
N2
H1
A3
VREFDQ
P8
A4
P2
A5
R8
L8
A6
ZQ
R2
A7
T8
A8
R3
B2
A9
VDD_1
L7
D9
A10/AP
VDD_2
R7
G7
A11
VDD_3
N7
K2
A12/BC
VDD_4
T3
K8
A13
VDD_5
N1
VDD_6
M7
N9
NC_5
VDD_7
R1
VDD_8
M2
R9
BA0
VDD_9
N8
BA1
M3
BA2
A1
VDDQ_1
J7
A8
CK
VDDQ_2
K7
C1
CK
VDDQ_3
K9
C9
CKE
VDDQ_4
D2
VDDQ_5
L2
E9
CS
VDDQ_6
K1
F1
ODT
VDDQ_7
J3
H2
RAS
VDDQ_8
K3
H9
CAS
VDDQ_9
L3
WE
J1
NC_1
T2
J9
RESET
NC_2
L1
NC_3
L9
NC_4
F3
T7
DQSL
NC_6
G3
DQSL
C7
A9
DQSU
VSS_1
B7
B3
DQSU
VSS_2
E1
VSS_3
E7
G8
DML
VSS_4
D3
J2
DMU
VSS_5
J8
VSS_6
E3
M1
DQL0
VSS_7
F7
M9
DQL1
VSS_8
F2
P1
DQL2
VSS_9
F8
P9
DQL3
VSS_10
H3
T1
DQL4
VSS_11
H8
T9
DQL5
VSS_12
G2
DQL6
H7
DQL7
B1
VSSQ_1
D7
B9
DQU0
VSSQ_2
C3
D1
DQU1
VSSQ_3
C8
D8
DQU2
VSSQ_4
C2
E2
DQU3
VSSQ_5
A7
E8
DQU4
VSSQ_6
A2
F9
DQU5
VSSQ_7
B8
G1
DQU6
VSSQ_8
A3
G9
DQU7
VSSQ_9
IC502
H5TQ4G63AFR-PBC
N3
DDR3
A0
P7
4Gbit
A1
P3
DDR_512MB_HYNIX_1600_29n
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
MT41K128M16JT-125:K
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQ0
F7
DQ1
F2
DQ2
F8
DQ3
H3
DQ4
H8
DQ5
G2
DQ6
H7
DQ7
D7
DQ8
C3
DQ9
C8
DQ10
C2
DQ11
A7
DQ12
A2
DQ13
B8
DQ14
A3
DQ15
IC501-*3
DDR_256MB_MICRON
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
ZQ
NC_1
NC_2
NC_3
NC_4
NC_6
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
M8
H1
L8
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
ZQ
+1.5V_DDR
M8
H1
L8
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
IC502-*3
MT41K128M16JT-125:K
DDR_256MB_MICRON
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQ0
F7
DQ1
F2
DQ2
F8
DQ3
H3
DQ4
H8
DQ5
G2
DQ6
H7
DQ7
D7
DQ8
C3
DQ9
C8
DQ10
C2
DQ11
A7
DQ12
A2
DQ13
B8
DQ14
A3
DQ15
M1_1_DDR_VREFCA
R519
+1.5V_DDR
C540
C541
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_6
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
M1_1_DDR_VREFDQ
240
1uF
1uF
DDR3 1.5V bypass Cap
: Place these caps near Memory
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA 2014.05.02
M14-DDR3(DE)
5
1.3
Page 30
PAGE 6
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
VDD3V3_HDMI
AVDD33
C637
0.1uF
16V
+1.5V_DDR
TP5207
+1.5V_DDR
TP5208
AVDD25_C4TX
AVDD25
AVDD25_AUD
GND JIG POINT
DVDD33 +1.1V_VDD
L18
L21
L22
L23
M23
T11
Y23
AA23
AC12
AC13
AC14
AC15
AC11
P23
R23
T23
U23
V23
AF22
F9
F10
F11
F12
F13
F14
F15
F16
F17
G6
H6
J6
K6
L6
M6
N6
P6
R6
V11
W11
Y11
AA11
AC18
AC19
AC20
AC21
AC22
AC23
G19
H19
H20
AC17
AB23
JP602
JP601
LG1311
DVDD33_1
DVDD33_2
DVDD33_3
DVDD33_4
DVDD33_5
DVDD33_6
DVDD33_7
DVDD33_8
DVDD33_9
DVDD33_10
DVDD33_11
DVDD33_12
AVDD33_BT_USB
AVDD33_USB_1
AVDD33_USB_2
AVDD33_HDMI_1
AVDD33_HDMI_2
AVDD33_HDMI_3
AVDD33_CVBS
DVDD15_M0_1
DVDD15_M0_2
DVDD15_M0_3
DVDD15_M0_4
DVDD15_M0_5
DVDD15_M0_6
DVDD15_M0_7
DVDD15_M0_8
DVDD15_M0_9
DVDD15_M1_1
DVDD15_M1_2
DVDD15_M1_3
DVDD15_M1_4
DVDD15_M1_5
DVDD15_M1_6
DVDD15_M1_7
DVDD15_M1_8
DVDD15_M1_9
AVDD25_C4TX_1
AVDD25_C4TX_2
AVDD25_C4TX_3
AVDD25_C4TX_4
AVDD25_COMP_1
AVDD25_COMP_2
AVDD25_CVBS_1
AVDD25_CVBS_2
AVDD25_DMD
AVDD25_AAD
DVDD25_XTAL
AVDD25_DR3PLL
SP_VQPS
AVDD25_AUD
AVDD25_APLL
JP604
JP603
IC101
AVDD11_COMP_LLPLL
DVDD11_1
DVDD11_2
DVDD11_3
DVDD11_4
DVDD11_5
DVDD11_6
DVDD11_7
DVDD11_8
DVDD11_9
DVDD11_10
DVDD11_11
DVDD11_12
DVDD11_13
DVDD11_14
DVDD11_15
DVDD11_16
DVDD11_17
DVDD11_18
DVDD11_19
DVDD11_20
DVDD11_21
DVDD11_22
DVDD11_23
DVDD11_24
DVDD11_25
DVDD11_26
DVDD11_27
DVDD11_28
DVDD11_29
DVDD11_30
DVDD11_31
DVDD11_32
DVDD11_33
DVDD11_34
DVDD11_35
DVDD11_36
DVDD11_37
DVDD11_38
DVDD11_39
DVDD11_40
DVDD11_41
DVDD11_42
DVDD11_43
DVDD11_44
DVDD11_45
DVDD11_46
DVDD11_47
DVDD11_48
DVDD11_49
DVDD11_50
DVDD11_51
AVDD11_APLL
AVDD11_C4TX_1
AVDD11_C4TX_2
AVDD11_C4TX_3
AVDD11_C4TX_4
DVDD11_XTAL
DVDD11_DR3PLL
DVDD11_CVBSPLL
AVDD11_DMD_1
AVDD11_DMD_2
DVDD18_EMMC_1
DVDD18_EMMC_2
M20
M21
N13
N14
N15
N16
N17
N18
P20
P21
R13
R14
R15
R16
R17
R18
R19
R20
R21
T13
T20
T21
U14
U15
U16
U17
U18
U19
U20
U21
V13
V20
V21
W13
W14
W15
W16
W17
W18
W19
Y13
Y20
Y21
AA13
AA14
AA15
AA17
AA18
AA19
AA20
AA21
AB21
AB19
V12
W12
Y12
AA12
G18
H18
AF23
AF24
AF25
L26
M26
TP5209
+1.1V_VDD
AVDD11_DMD
TP5210
DVDD18_EMMC
+3.3V_Bypass Cap
+3.3V_NORMAL
L601
BLM18PG121SN1D
C601
4.7uF
10V
+2.5V_Bypass Cap
+2.5V_NORMAL
L602
BLM18PG121SN1D
C602
4.7uF
10V
+2.5V_NORMAL
AVDD25_AUD
L603
BLM18PG121SN1D
C603
4.7uF
10V
DVDD33
AVDD25
C604
4.7uF
C605
4.7uF
C606
4.7uF
B22
B24
C22
C23
C24
D20
D21
E20
E21
F18
F19
F20
F21
G10
G11
G12
G13
G14
G15
G16
G17
G20
G21
G22
G23
G24
G25
G26
G27
H10
H11
H12
H13
H14
H15
H16
H17
H21
H22
H23
H24
H25
H26
H27
H31
J26
J27
K26
K27
L11
L12
L13
L14
L15
L16
L17
L19
L20
L27
M11
M12
M13
M14
M15
M16
M17
M18
M19
M22
M27
N11
N12
N19
N20
N21
N22
N23
N26
N27
N30
P11
P12
P13
P14
P15
P16
P17
P18
D4
D5
D6
E6
F6
F7
F8
G7
G8
G9
H7
H8
H9
J7
J8
K7
K8
L7
L8
M7
M8
N7
N8
P7
P8
IC101
LG1311
GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113
GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136
GND_137
GND_138
GND_139
GND_140
GND_141
GND_142
GND_143
GND_144
GND_145
GND_146
GND_147
GND_148
GND_149
GND_150
GND_151
GND_152
GND_153
GND_154
GND_155
GND_156
GND_157
GND_158
GND_159
GND_160
GND_161
GND_162
GND_163
GND_164
GND_165
GND_166
GND_167
GND_168
GND_169
GND_170
GND_171
GND_172
GND_173
GND_174
GND_175
GND_176
GND_177
GND_178
GND_179
GND_180
GND_181
GND_182
GND_183
GND_184
GND_185
GND_186
GND_187
GND_188
GND_189
GND_190
GND_191
GND_192
GND_193
GND_194
GND_195
GND_196
GND_197
GND_198
GND_199
GND_200
GND_201
GND_202
GND_203
GND_204
GND_205
GND_206
GND_207
GND_208
GND_209
GND_210
GND_211
GND_212
GND_213
GND_214
GND_215
GND_216
GND_217
GND_218
GND_219
GND_220
GND_221
GND_222
GND_223
GND_224
GND_225
GND_226
P19
P22
P26
P30
R7
R8
R11
R12
R22
R26
R27
T6
T7
T8
T12
T14
T15
T16
T17
T18
T19
T22
T26
T27
U6
U7
U8
U11
U12
U13
U22
U26
V4
V5
V6
V7
V8
V14
V15
V16
V17
V18
V19
V22
V26
V30
V31
W4
W8
W20
W21
W22
W23
W26
W27
Y2
Y3
Y4
Y8
Y14
Y15
Y16
Y17
Y18
Y19
Y22
Y26
AA8
AA16
AA22
AA26
AB11
AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB20
AB22
AB26
AB30
AB31
AC16
AC26
AD26
AE26
AF6
AF8
AF9
AF10
AF11
AF12
AF13
AF14
AF15
AF16
AF17
AF18
AF19
AF20
AF21
AF26
AG20
AG25
AG31
AH25
AJ25
AK9
AK25
AL9
AL15
+1.1V_Bypass Cap
+3.3V_NORMAL
C607
0.1uF
16V
10V
L606
BLM18PG121SN1D
C614
4.7uF
AVDD33
10V
C615
0.1uF
16V
AFE 3CH Power
+2.5V_NORMAL
C608
0.1uF
16V
10V
C609
0.1uF
16V
10V
AVDD25_C4TX
L604
BLM18PG121SN1D
C610
0.1uF
16V
C613
4.7uF
C616
0.1uF
16V
10V
+1.1V_VDD
C617
C618
4.7uF
4.7uF
10V
+1.1V_VDD
BLM18PG121SN1D
10V
L607
C619
4.7uF
10V
AVDD11_DMD
C622
4.7uF
10V
C620
4.7uF
10V
C625
0.1uF
C623
4.7uF
16V
C627
C626
0.1uF
10V
16V
0.1uF
C628
0.1uF
16V
16V
+1.5V_Bypass Cap
+1.5V_DDR
+1.5V_DDR
OPT
C629
22uF
10V
OPT
C630
22uF
10V
C631
0.1uF
16V
C632
0.1uF
16V
C633
0.1uF
16V
C634
0.1uF
16V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
11/05/31
xxLY760H-ZA 2014.05.02
M14-POWER
6
1.3

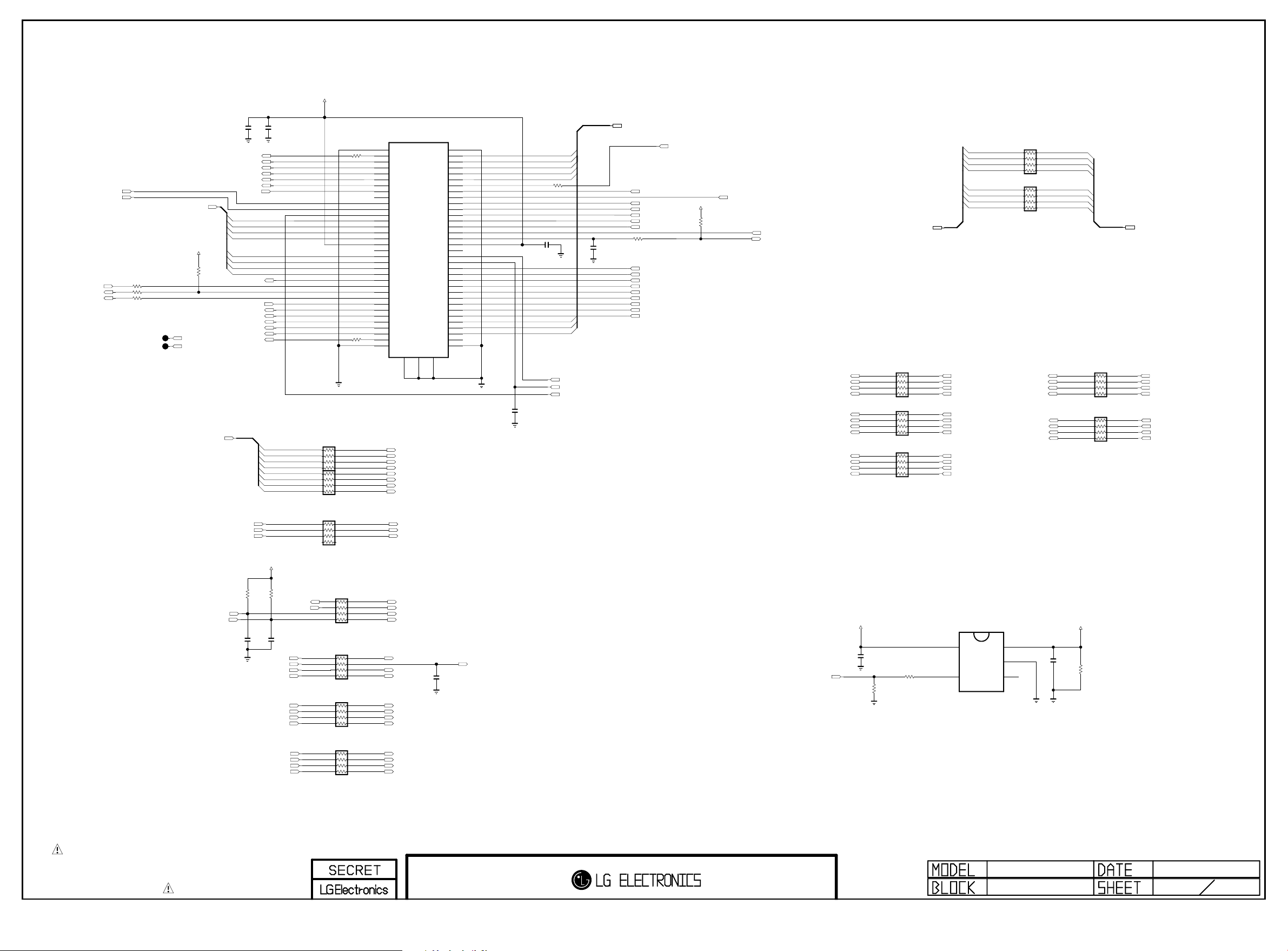

Page 31
PCM_RESET
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
/PCM_WAIT
PCM_INPACK
/PCM_IORD
/PCM_IOWR
R702
R703
R701
CI_IN_TS_DATA[0-7]
CI
33
CI
33
OPT
33
+5V_CI_ON
CI
PCM_INPACK
/PCM_CE2
TPO_DATA[0-7]
R707
10K
C701
0.1uF
16V
CI
/CI_CD1
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]
/PCM_CE2
CI_IN_TS_DATA[0]
CI_IN_TS_DATA[1]
CI_IN_TS_DATA[2]
CI_IN_TS_DATA[3]
CI_IN_TS_DATA[4]
CI_IN_TS_DATA[5]
CI_IN_TS_DATA[6]
CI_IN_TS_DATA[7]
CI_TS_CLK
/PCM_REG
CI_TS_VAL
CI_TS_SYNC
CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
/CI_CD2
C702
4.7uF
10V
CI
TPO_DATA[0]
TPO_DATA[1]
TPO_DATA[2]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[7]
+5V_CI_ON
CI
AR701 33
AR702 33
CI
R715 100
CI
R716
CI
PAGE 7
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[9]
CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]
C705
0.1uF
16V
CI
CI_ADDR[12]
CI_ADDR[7]
CI_ADDR[6]
CI_ADDR[5]
CI_ADDR[4]
CI_ADDR[3]
CI_ADDR[2]
CI_ADDR[1]
CI_ADDR[0]
CI_DATA[0-7]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[9]
CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]
R721 33
OPT
CI_ADDR[12]
CI_ADDR[7]
CI_ADDR[6]
CI_ADDR[5]
CI_ADDR[4]
CI_ADDR[3]
CI_ADDR[2]
CI_ADDR[1]
CI_ADDR[0]
/PCM_CE1
+5V_CI_ON
R722
10K
CI
/PCM_OE
/PCM_WE
/PCM_IRQA
CI
CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]
CI_DATA[0-7]
CI
CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3] CAM_REG_N
CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]
CI_ADDR[8]
CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
AR709 33
CI
AR710 33
CI
AR711 33
EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]
EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]
EB_ADDR[8]
EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]
AR713 33
CI
AR714 33
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14] EB_ADDR[14]
/PCM_REG
/PCM_OE
/PCM_WE
/PCM_IORD
/PCM_IOWR
EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]
EB_DATA[4]
EB_DATA[5]
EB_DATA[6]
EB_DATA[7]
AR712 33
EB_DATA[0-7]
CI
CI
AR708 33
EB_DATA[0-7]
EB_ADDR[12]
EB_ADDR[13]
EB_OE_N
EB_WE_N
EB_BE_N1
EB_BE_N0
JK701
10067972-000LF
CI
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
65
66
100
67
68
CI_IN_TS_DATA[0]
CI_IN_TS_DATA[1]
CI_IN_TS_DATA[2]
CI_IN_TS_DATA[3]
CI_IN_TS_DATA[4]
CI_IN_TS_DATA[5]
CI_IN_TS_DATA[6]
CI_IN_TS_DATA[7]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2660
2761
2862
2963
3064
31
32
33
34
G1G2
69
C703
12pF
50V
OPT
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]
R720 33
C704 0.1uF
CI
CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI
CI_IN_TS_VAL
CI_IN_TS_CLK
CI_IN_TS_SYNC
/CI_CD2
/CI_CD1
TPO_CLK
TPO_SOP
TPO_VAL
+5V_NORMAL
CI
R725
10K
C706
0.1uF
16V
CI
CI_TS_DATA[7]
CI_TS_DATA[6]
CI_TS_DATA[5]
CI_TS_DATA[4]
CI_TS_DATA[3]
CI_TS_DATA[2]
CI_TS_DATA[1]
CI_TS_DATA[0]
CI
R726
10K
C707
0.1uF
16V
CI
PCM_INPACK
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
/PCM_IRQA
CI
AR703 33
AR704 100
AR705 100
AR706 100
AR707 100
CI_IN_TS_CLK
CI_IN_TS_SYNC
CI_IN_TS_VAL
CI
CI
CI
CI
CAM_WAIT_N/PCM_WAIT
CAM_IREQ_N
CAM_CD2_N
CAM_CD1_N
CAM_INPACK_N
CI_OUT_VAL
CI_OUT_SOP
CI_OUT_DATA7
CI_OUT_DATA6
CI_OUT_DATA5
CI_OUT_DATA4
CI_OUT_DATA3
CI_OUT_DATA2
CI_OUT_DATA1
CI_OUT_DATA0
C708
12pF
50V
OPT
CI_OUT_CLK
PCM_5V_CTL
+5V_NORMAL
C709
0.1uF
50V
CI
R704
10K
CI
CI POWER ENABLE CONTROL
R705 100
CI
IN
EN
IC700
AP2151WG-7
5
4
+5V_CI_ON
OUT
1
CI
GND
2
FLG
3
C710
1uF
25V
CI
10K
CI
R706
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
CI SLOT
2014.05.02
7
1.3
Page 32

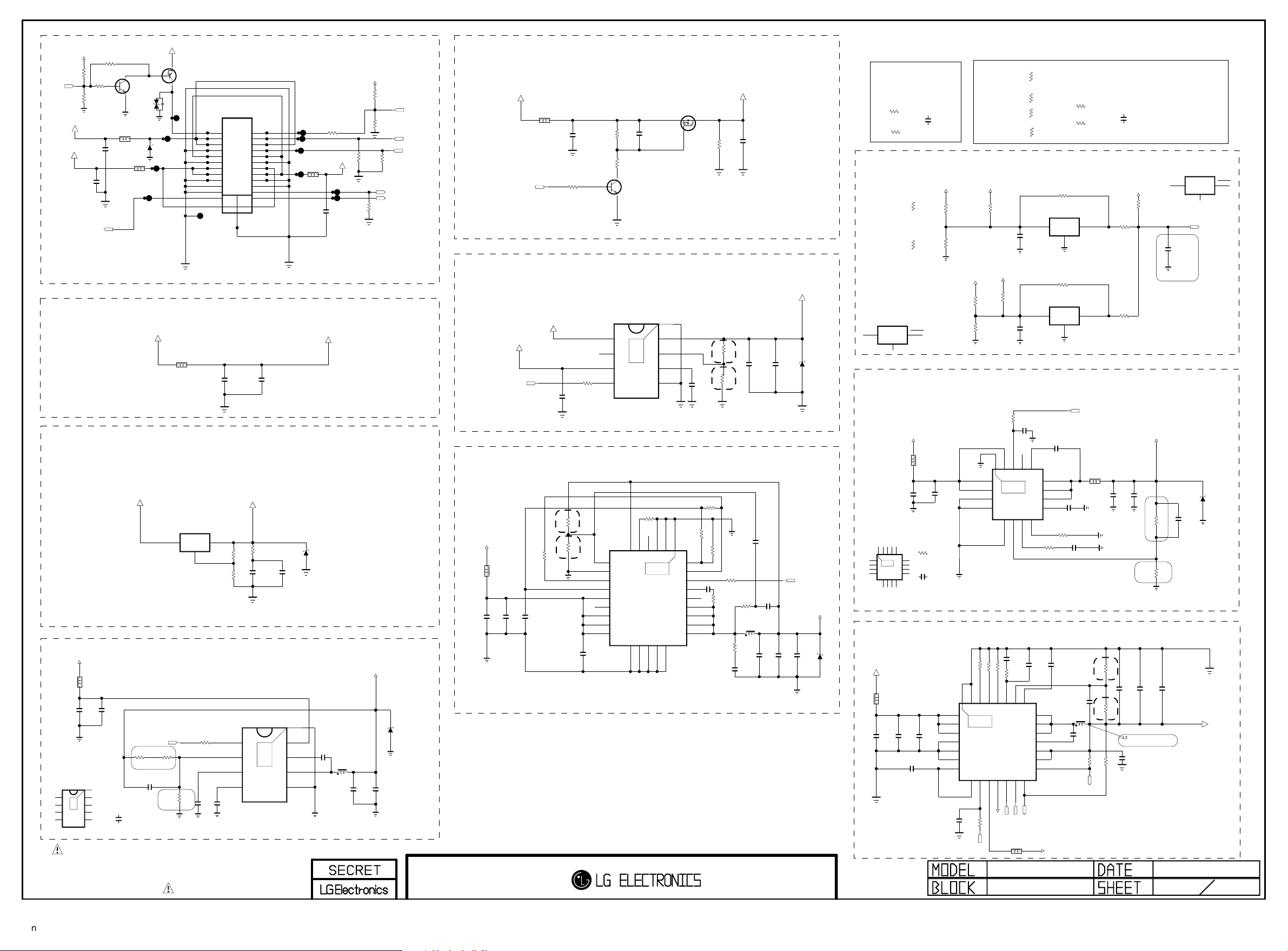

+3.5V_ST
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
RL_ON
+3.5V_ST
L/DIM0_MOSI
R2301
10K
OPT
R2361
10K
+12V
C2306
0.1uF
R2343
0
OPT
R2300
B
10K
UBW2012-121F
C2307
0.1uF
16V
50V
RT1P141C-T112
C
Q2300
MMBT3904(NXP)
E
VA23001
AMOTECH CO., LTD.
L2304
UBW2012-121F
L2303
5.6V
Q2303
B
5V
ZD2303
E
C
PWR ON
3.5V
3.5V
L/DIM0_MOSI
POWER_WAFER_18PIN
P2300
SMAW200-H18S5
1
1
3
3
5
5
GND
7
7
24V
9
9
GND
11
11
12V
13
13
12V
15
15
GND
17
17
GND
19
GND
21
19
23
25
.
SMAW200-H24S5
P2301
POWER_WAFER_24PIN
2
2
4
4
6
6
8
8
10
10
12
12
14
14
16
16
18
18
20
22
24
INV ON
PDIM#1
3.5V
PDIM#2
24V
GND
12V
24V
GND
GND
L/DIMO_VS
L/DIM0_SCLK
L2306
UBW2012-121F
C2316
0.1uF
50V
R2309
100
+24V
+3.3V_NORMAL
R2310
1K
OPT
10K
R2354
4.7K
OPT
R2356
1K
OPT
R2334
PWM_DIM
PWM_DIM2
R2355
4.7K
OPT
L/DIM0_VS
L/DIM0_SCLK
INV_CTL
+3.3V - eMMC 4.41
+3.5V_ST
+3.3V_NORMAL
L2302
BLM18PG121SN1D
C2305
0.1uF
16V
C2300
22uF
10V
3.3V_EMMC
+1.8V - eMMC 4.51
+3.3V_NORMAL
IC2306
AZ1117EH-ADJTRG1
ADJ/GND
+12V
+3.3V_NORMAL
L2300
BLM18PG121SN1D
C2302
C2303
10uF
0.1uF
16V
25V
R23 03
68K
1/1 6W
1%
R1
1/1 6W
1%
R2304 10K
R2
R23 05
22K
POWER_ON/OFF1
R2302
5.1K
1/16W
1%
EN
VFB
VREG5
SS
3.3V_DCDC_TI
IC2300-*1
TPS54327DDAR
1
2
3
4
THERMAL
[EP]GND
VIN
8
VBST
9
7
SW
6
GND
5
3.3V_DCDC_RHOM
3.3V_DCDCl_TI
C2312-*1
3300pF
50V
C2304 100pF 50V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
DVDD18_EMMC
OUTIN
C2310
1uF
10V
C2312
2200pF
50V
3.3V_DCDC_RHOM
1%
1/16W
1%
1/16W
EN
FB
VREG
SS
R2347
1
75
R2357
C2301
10uF
33
10V
R2358
IC2300
BD9D320EFJ
1
2
3
3.3V_DCDC_ROHM
4
3A
9
THERMAL
8
7
6
5
Vout=0.765*(1+R1/R2)
C2308
10uF
10V
[EP]FIN
VIN
BOOT
SW
GND
D2302
2.5V
C2313
0.1uF
16V
L2301
2uH
+3.3V_NORMAL
C2314
22uF
10V
C2315
22uF
10V
ZD2300
5V
PANEL_CTL
+3.3V_NORMAL
+5V_NORMAL
POWER_ON/OFF2_1
+12V
L2307
C2332
C2328
10uF
10uF
16V
16V
+12V
C2326
1uF
10V
PANEL_POWER
L2313
UBW2012-121F
R2314
10K
C2331
0.1uF
50V
R2317
R2318
5.1K
B
30K
C2333
10uF
16V
C
Q2301
MMBT3904(NXP)
E
+2.5V
AP7173-SPG-13 HF(DIODES)
R2312
10K
C2327
10uF
10V
IC2302
IN
1
PG
VCC
EN
2
3
1.5A
4
9
THERMAL
+1.1V_CORE
23
22
21
20
TPS53513RVER
19
18
17
16
15
R2316
1/16W
TRIP26NC_327GND128GND2
24VO25
IC2301
8A
13
14
PGND_4
PGND_5
R1
R2319
9.1K
1/16W
1%
R2
R2320
10.7K
1/16W
1%
5%
20K
R2323
1/16W
C2325
2200pF
FB
GND
MODE
VREG
VDD
NC_2
VIN_3
VIN_2
VIN_1
50V
Vout=0.6*(1+R1/R2)
POWER UP SEQUENCE
3.3V->5V->1.5V->1.1V->2.5V
8
7
6
5
39K
5%
THERMAL
12
PGND_3
PAGE 8
R2327-*1
P_DET_BOTH_12_24V
P_DET_BOTH_12_24V
P_DET_BOTH_12_24V
P_DET_BOTH_12_24V
+3.5V_ST
R2330
0
5%
P_DET_BOTH_24_3.5V
+3.5V_ST
+24V
R2327
8.2K
R2328
1.5K
1%
P_DET_BOTH_12_3.5V
[EP]
OUT
FB
SS
GND
Q2302
PMV48XP
S
G
D
C2337
2200pF
50V
PANEL_VCC
C2347
0.1uF
50V
R2346 3.3K
LVDS_DISCHARGE
1%
R1
4.3 K
1/1 6W
R23 22
R2
1%
R23 212K1/1 6W
+2.5V_NORMAL
C2346
C2357
10uF
0.1uF
16V
10V
R2349-*1
100
P_DET_BOTH_24_3.5V
R2336-*1
100K
P_DET_BOTH_24_3.5V
C2356-*1
0.1uF
50V
P_DET_BOTH_24_3.5V
Power_DET
+12V
P_DET_ONLY_12V
P_DET_BOTH_12_3.5V
P_DET_BOTH_12_3.5V
R2325-*1
2.7K
1%
R2326-*1
1.2K
1%
R2325
2.7K
1%
P_DET_ONLY_12V
R2326
1.2K
1%
On-semi
RESET
2
P_DET_BOTH_24_3.5V
P_DET_BOTH_24_3.5V
P_DET_BOTH_12_3.5V_DIODES
IC2308-*1
APX803D29
VCC
3
1
GND
5V
OPT
ZD2304
DDR MAIN 1.5V
Vout=0.8*(1+R1/R2)
+3.5V_ST
L2308
C2340
C2339
0.1uF
10uF
25V
17
IC2303-*1
BOOT14PWRGD15EN16VIN_3
13
7
8
COMP
RT/CLK6VSENSE
PH_3
12
PH_2
11
PH_1
10
SS/TR
9
1.5V_DCDC_TI
C2311
10uF
35V
10V
1.5V_DCDC_TI
R2329-*1
15K
1/16W
5%
C2344-*1
4700pF50V
C2329
0.1uF
50V
1uF
25V
C23 24
[EP]
VIN_1
VIN_2
VIN_3
PGND_1
SN1302001(TPS65286RHDR)
PGND_2
PGND_3
V7V
C2330
0.0068uF
50V
R2311
10K
R23 15
91K
1/1 6W
1%
[EP]
RF
1
PGOOD
2
29
11
PGND_2
10
PGND_1
EN
3
C2323
VBST
4
0.1uF
NC_1
16V
5
SW_1
6
SW_2
7
SW_3
8
SW_4
9
C2321
1000pF
R23 1327K
1/1 6W1%
50V
4.7
R2308
1/16W
C2322
470pF
R2351
3.3
5%
50V
R23071K
R2306
1/16W
2K
5%
L2305
1uH
C2319
22uF
C2320
0.1uF
16V
C2318
10V
22uF
10V
C2317
22uF
10V
POWER_ON/OFF2_3
+1.1V_VDD
ZD2301
2.5V
1.5V_DCDC_TI
EP[GND]
VIN_1
1
THERMAL
VIN_2
2
GND_1
3
TPS54319TRE
GND_2
4
5
AGND
+5.0V normal & USB
+24V
L2310
120-ohm
C2309
10uF
35V
OPT
[EP]FIN
PVIN_1
1
PVIN_2
2
PGND_1
3
PGND_2
4
1.5V_DCDC_ROHM
AGND8MODE
Vout=0.8*(1+R1/R2)
R23 35 16 K 1%
R23 41180 K 1%
R23 40 16 K 1%
RSET2
AGND
27
28
1
THERMAL
2
29
3
IC2304
4
5
6
6A
7
9EN10
8
SW_OUT211SW_OUT1
MODE/SYNC
10K
R2339
+5V_USB_3
CB3216PA501E
POWER_ON/OFF2_4
xxLY760H-ZA
MAIN POWER 1.3
8.2K
R2328-*1
1.5K
1%
R2325-*2
2.7K
1%
R2326-*2
1.2K
1%
VDD
C2355
0.1uF
16V
P_DET_BOTH_12_3.5V
P_DET_BOTH_12_3.5V_ROHM
R2348
0
VDD
C2356
0.1uF
50V
P_DET_BOTH_12_3.5V
10K
C2353
R2324
0.1uF
16V
1.5V_DCDC_TI
BOOT14PGD15EN16AVIN
13
12
THERMAL
11
17
IC2303
10
BD9A300MUV
5
6
FB
ITH
9
7
1.5V_DCDC_RHOM
3A
C2334
OPT
2200pF
C2335
50V
100pF
50V
R2342
10K
COMP25RLIM26RSET1
22SS23FB24
LX_3
21
LX_2
20
LX_1
19
BST
18
SW_IN2
17
SW_IN1
16
NFAULT1
15
12
14
SW_EN213SW_EN1
NFAULT2
/USB_OCD2
USB_CTL2
USB_CTL3
L2312
Non_Cruise
P_DET_BOTH_12_24V
R2336-*2
100K
R2349-*2
P_DET_BOTH_12_24V
R2337
100K
RESET IC_ROHM
IC2307
BD48K28G
3
1
R2336
100K
IC2308
BD48K28G
3
1
C2341
0.1uF
16V
SW_3
SW_2
SW_1
SS
0.01uF
R2331
330K1/16W
R2329
8.2K
1/16W1%
C2336
0.047uF
25V
100
2
GND
2
GND
C2342
50V
5%
C2344
50V
1.5V_DCDC_RHOM
C2343
82pF
50V
L2311
4.7uH
5%
100K
VOUT
VOUT
P_DET_BOTH_12_3.5V
POWER_ON/OFF2_2
NR5040T2R2N
L2309
2.2uH
C2345
22uF
10V
2700pF
R2
1%
R1
1%
C2338
0.047uF
25V
R2344
1/16W
R2353
/USB_OCD3
P_DET_BOTH_12_24V
C2349
22uF
10V
6.8K
1/16W
R2345
51K
1/16W
R2352
5%
100K
1/16W
Vout=0.6*(1+R1/R2)
5.1V:R1-51K, R2-6.8K
+5V_USB_2
C2356-*2
0.1uF
50V
+3.5V_ST
R2338
10K
OPT
R2350
100
not to RESET at 8kV ESD
R2349
100
+1.5V_DDR
1%
R1
1/1 6W
R2
1%
1/1 6W
C2348
C2351
22uF
22uF
10V
10V
L2311 Change, 131120
for Currnet UP
C2350
1uF
10V
RESET IC_DIODES
IC2307-*1
APX803D29
VCC
3
1
GND
POWER_DET
C2365
0.1uF
16V
24V-->3.48V
12V-->3.58V
ST_3.5V-->3.5V
2.5V
ZD2302
C2354
100pF
16K
50V
R23 32
1.5V_DCDC_TI
18K
R23 33
C2352
10uF
10V
+5V_NORMAL
2014.05.02
23
RESET
2
Page 33

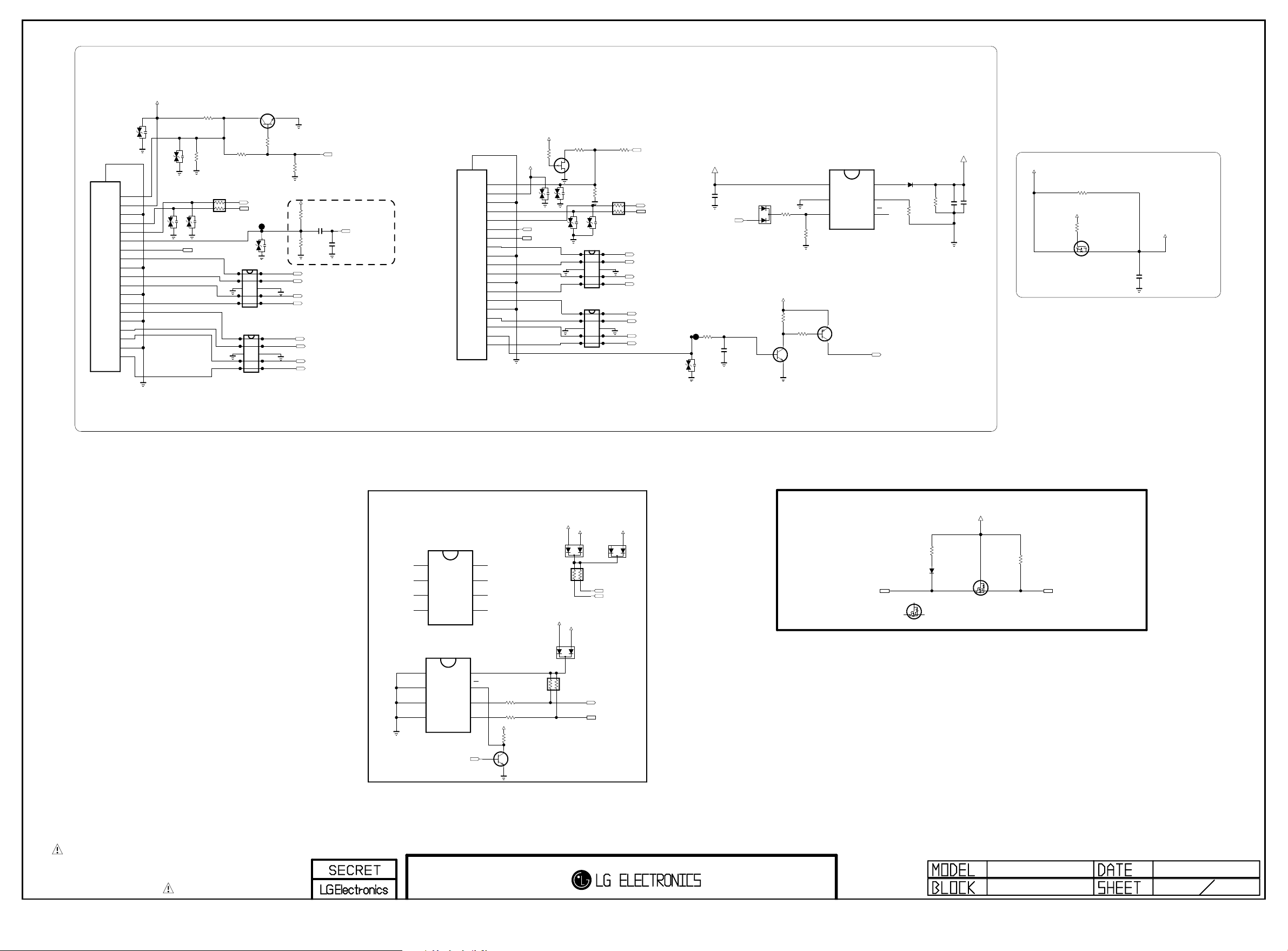

SHIELD
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
20
EAG59023302
JK3202
YKF45-7058V
HDMI_1(ARC)
5V_HDMI_1
VA3215
ESD_HDMI
HP_DET
19
5V
18
GND
17
DDC_DATA
16
DDC_CLK
15
NC
14
CE_REMOTE
13
CK-
12
CK_GND
11
CK+
10
D0-
9
D0_GND
8
D0+
7
D1-
6
D1_GND
5
D1+
4
D2-
3
D2_GND
2
D2+
1
VA3208
HDMI_EXT_EDID
R3265
ESD_HDMI
VA3206
ESD_HDMI
CEC_REMOTE
R3268
100K
VA3207
ESD_HDMI
1K
AR3200
33
1/16W
C
R3251
33
HDMI_INT_EDID
DDC_SCL_1
DDC_SDA_1
D3210
IP4294CZ10-TBR
1
10
2
9
8
3
7
4
6
5
ESD_HDMI_TMDS
D3211
IP4294CZ10-TBR
1
2
3
4
5
ESD_HDMI_TMDS
HDMI_EXT_EDID
Q3204
MMBT3904(NXP)
E
B
1K
R3269
VA3213
ESD_HDMI
10
9
8
7
6
HDMI_EXT_EDID
HDMI_EXT_EDID
R3270
4.7K
5V_HDMI_1
R3248
1K
OPT
C3202 1uF
R3249
3.9K
OPT
CK-_HDMI1
CK+_HDMI1
D0-_HDMI1
D0+_HDMI1
D1-_HDMI1
D1+_HDMI1
D2-_HDMI1
D2+_HDMI1
HDMI (REAR 1 ARC / SIDE 1 MHL)
HDMI_2(MHL/IR_OUT)
+12V
HDMI_HPD_1
ARC
C3226
0.1uF
16V
OPT
SPDIF_OUT_ARC
10V
BODY_SHIELD
GND
20
HP_DET
19
5V
18
GND
17
DDC_DATA
16
DDC_CLK
15
NC
14
CE_REMOTE
13
CK-
12
CK_GND
11
CK+
10
D0-
9
EAG62611204
D0_GND
8
D0+
7
D1-
6
D1_GND
5
D1+
4
D2-
3
D2_GND
2
D2+
1
JK3203
51U019S-312HFN-E-R-B-LG
5V_HDMI_4
VA3216
ESD_HDMI
IR_OUT_HDMI1
CEC_REMOTE
G
R3211
1K
820
R3212
D
Q3203
PMBFJ177
S
VA3212
ESD_HDMI
VA3210
ESD_HDMI
D3215
IP4294CZ10-TBR
1
2
3
4
5
ESD_HDMI_TMDS
D3214
IP4294CZ10-TBR
1
2
3
4
5
ESD_HDMI_TMDS
R3267
OPT
100K
VA3211
ESD_HDMI
10
9
8
7
6
10
9
8
7
6
AR3202
33
1/16W
R3261
0
HDMI_HPD_4
DDC_SCL_4
DDC_SDA_4
CK-_HDMI4
CK+_HDMI4
D0-_HDMI4
D0+_HDMI4
D1-_HDMI4
D1+_HDMI4
D2-_HDMI4
D2+_HDMI4
+5V_NORMAL
MHL_DET
R3243
1K
1/16W
5%
5.6V
VA3217
C3201
0.1uF
C3223
0.047uF
25V
D3201
A1
C
A2
B
Q3200
MMBT3904(NXP)
R3201
10K
+3.5V_ST
R3246
10K
C
E
R3247
10K
R3202
330K
B
VIN
GND
EN
E
C
IC3201
BD2242G
1
2
3
MMBT3906(NXP)
Q3201
6
5
4
ILIM
OC
MHL_DET
30V
C3203
R3204
10uF
100K
10V
1%
R3200 16K
D3202
MBR230LSFT1G
VOUT
HDMI2 With MHL
5V_HDMI_4
C3228
22uF
10V
OPT
PAGE 10
HDMI LEAKAGE Workaround in MTK A2(A0) (Default= with HDMI_LEAKAGE)
+3.3V_NORMAL
R3255
0
OPT
1/16W
5%
PANEL_VCC
R3254
10K
G
S
NTR4501NT1G
Q3202
D
VDD3V3_HDMI
C3227
0.1uF
16V
EDID
IC3203-*1
AT24C02C-SSHM-T
A0
1
A1
2
A2
3
GND
4
HDMI_EXT_EDID_ATMEL
IC3203
M24C02-RMN6T
E0
1
E1
2
E2
3
VSS
4
HDMI_EXT_EDID_ST
EDID_WP
For CEC
+5V_NORMAL
5V_HDMI_4
D3203
BAT54C
VCC
8
WP
7
SCL
6
SDA
5
VCC
8
WC
7
SCL
R3258
HDMI_EXT_EDID
R3259 33
HDMI_EXT_EDID
+3.5V_ST
R3253
4.7K
HDMI_EXT_EDID
C
Q3208
B
MMBT3904(NXP)
HDMI_EXT_EDID
E
33
6
SDA
5
AR3206
47K
5V_HDMI_1
1/16W
AR3205
47K
1/16W
+5V_NORMAL
A2CA1
D3216
MMBD6100
A2CA1
D3205
DDC_SCL_1
DDC_SDA_1
+3.5V_ST
DDC_SDA_4
DDC_SCL_4
A2CA1
From HDMI Connector
CEC_REMOTE HDMI_CEC
G
S
D
Q3207-*1
SI1012CR-T1-GE3
HDMI_CEC_FET_VISHAY
R3209
27K
D3208
BAT54_SUZHO
+3.5V_ST
G
D
Q3207
RUE003N02
HDMI_CEC_FET_ROHM
R3210
120K
To NEC MICOM
S
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
HDMI(MHL)
2014.05.02
32
1.3

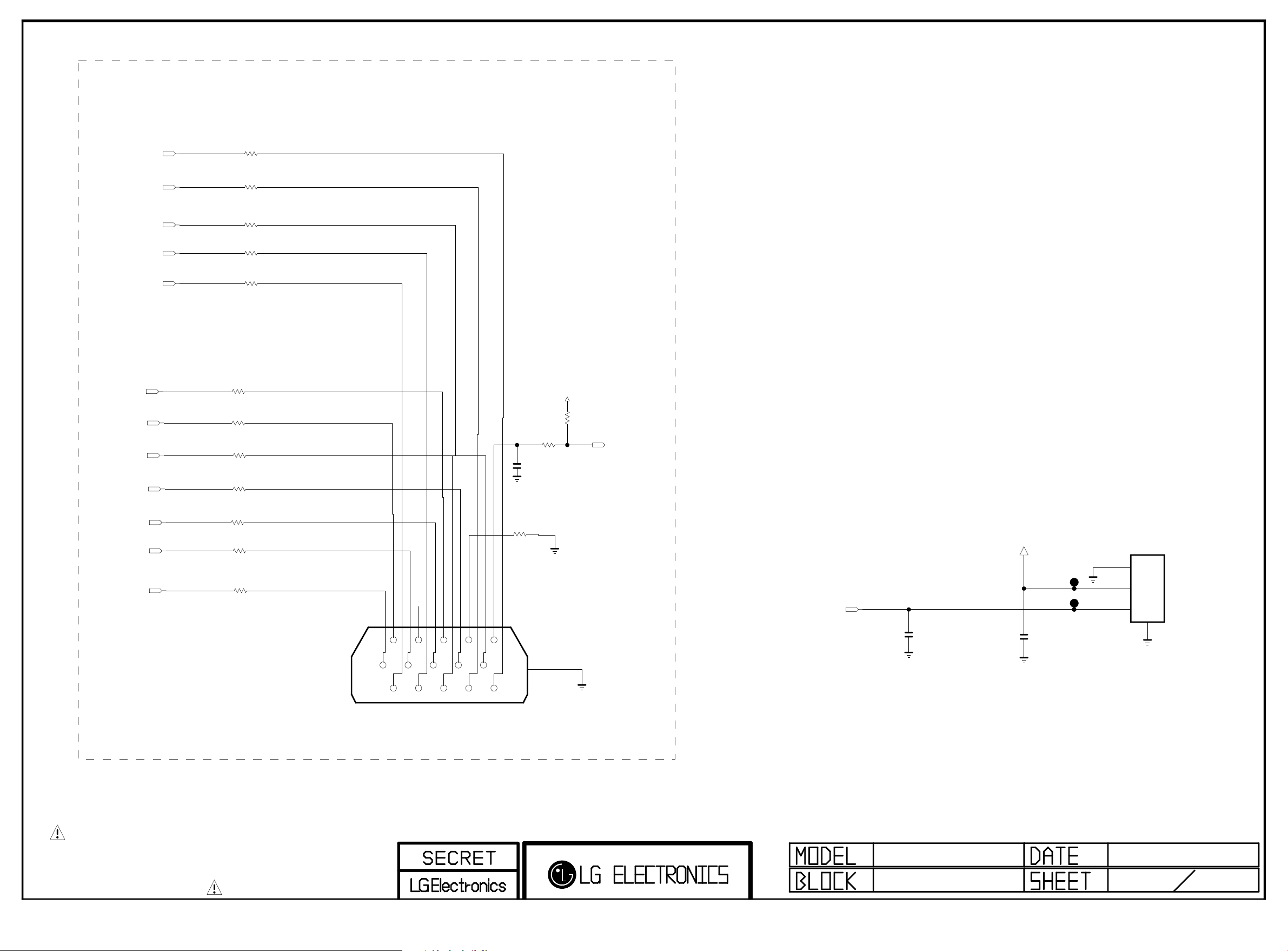

Page 34
EXTERNAL CLOCK
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
PAGE 11
CLK_COM5
CLK_COM4
CLK_COM3
CLK_COM2
CLK_COM1
CLK_DATA7
CLK_DATA6
CLK_DATA5
CLK_DATA4
CLOCK
R3401
CLOCK
R3402 0
CLOCK
R3403
CLOCK
R3404
CLOCK
R3405
CLOCK
R3422 470
CLOCK
R3421 470
CLOCK
R3420 470
CLOCK
R3419
470
0
0
0
0
+3.5V_ST
R3423
10K
CLOCK
CLOCK
C3415
0.1uF
CLOCK
R3425
0
CLOCK_DET
CLK_DATA3
CLK_DATA2
CLK_DATA1
CLOCK
R3418
470
CLOCK
R3417 470
CLOCK
R3416
470
CLOCK
JK3404
SPG09-DB-010
DATA1
DATA6
COM1
DATA2
NC
COM2
DATA3
DATA7
COM3
DATA4
GND
COM4
DATA5
DETECT
COM5
CLOCK
R3424
0
SHILED
SPDIF OUT
SPDIF_OUT
C3402
47pF
50V
+3.3V_NORMAL
C3400
0.1uF
16V
GND
VCC
VINPUT
JK3401
JST1223-001
Fiber Optic
1
2
3
4
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA 2014.05.02
1.3CLOCK/SPDIF 34
Page 35

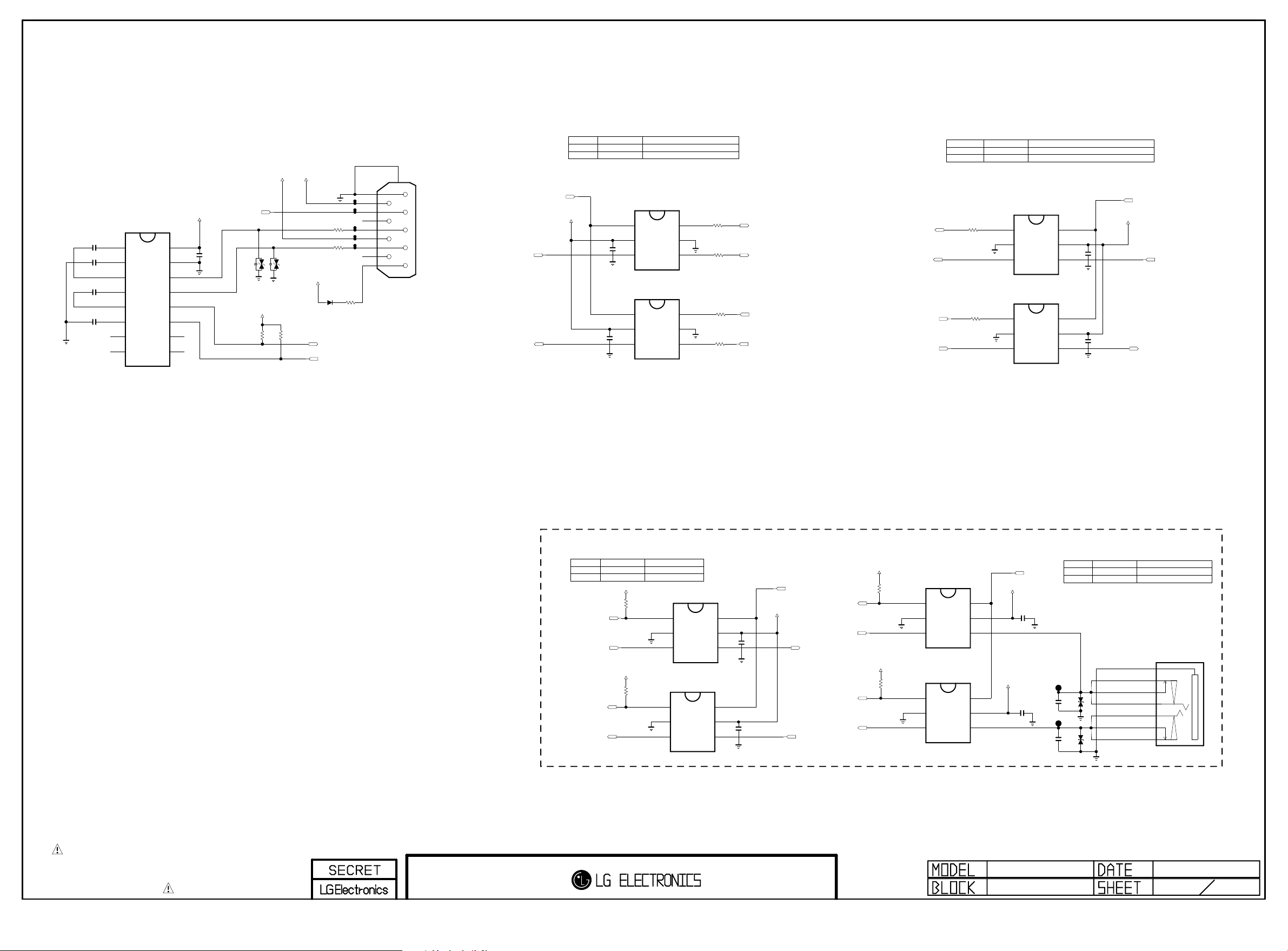

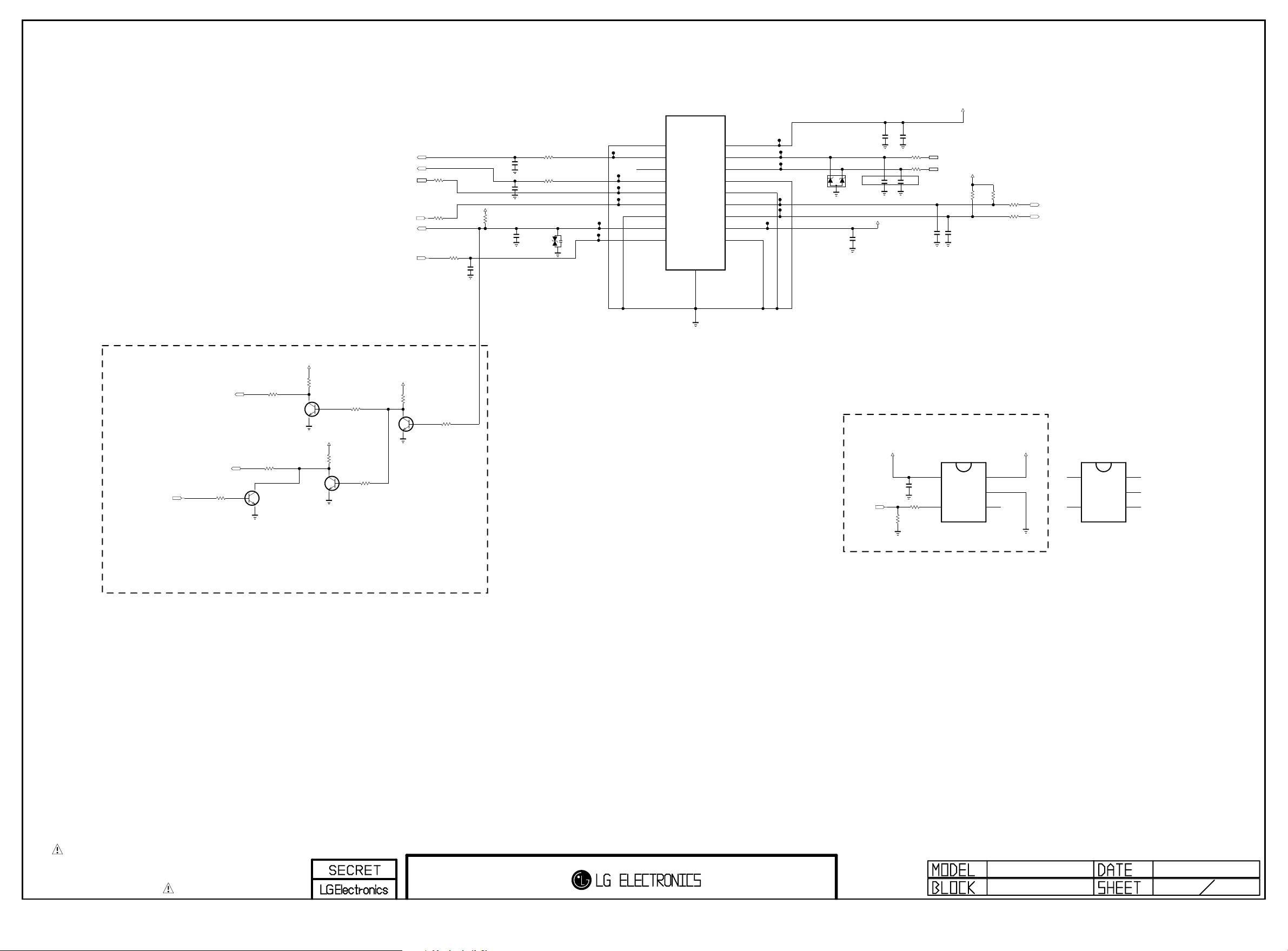

RS232C
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
C3800 0.1uF
C3801 0.1uF
C3802 0.1uF
C3803 0.1uF
C1+
V+
C1-
C2+
C2-
V-
DOUT2
RIN2
IC3800
MAX3232CDR
1
2
3
4
5
6
7
8
EAN41348201
EXT UART SWITCH
CONNECTION
1A@5V /1A@12V FOR COMMERCIAL(RS-232C POWER)
DBG_SW
EXT_12V
EXT_5V
10
5
9
8
7
6
SPG09-DB-009
JK3803
4
3
2
1
C3804
0.1uF
IR_OUT_RS232C
D3804
20V
OPT
+3.5V_ST
R3811
4.7K
D3805
20V
OPT
R3814
4.7K
+3.5V_ST
R3820 100
R3821 100
50V
BAP70-02
D3803
RS232_RX
RS232_TX
R3834
1K
+3.5V_ST
VCC
16
GND
15
DOUT1
14
RIN1
13
ROUT1
12
DIN1
11
DIN2
10
ROUT2
9
UART_SW1
+3.5V_ST
SOC_TX
SOC_RX
B0 - A
L
H
B1 - A
SELECT
VCC
C3822
0.1uF
SELECT
VCC
C3823
0.1uF
IC3811
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
A
4
EAN38256201
IC3812
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
A
4
EAN38256201
M14 ADJ.
M14 DEBUG
B1
1
GND
2
B0
3
B1
1
GND
2
B0
3
R3801
22 R3805
R3802
R3803
R3804
SOC_DBG_TX
22
RS232_TX
22
SOC_DBG_RX
22
RS232_RX
SOC_NEC_RX
RS232_TX
SOC_NEC_TX
RS232_RX
UART_SW2
L
22
R3806
22
CONNECTION
B0 - A
B1 - AH
B1
GND
B0
B1
GND
B0
IC3802
NLASB3157DFT2G
1
ON SEMICONDUCTOR
ANALOG SWITCH
2
3
EAN38256201
IC3804
NLASB3157DFT2G
1
ON SEMICONDUCTOR
ANALOG SWITCH
2
3
EAN38256201
INTERACTIVE
NEC USB D/L
SELECT
6
VCC
5
C3811
0.1uF
A
4
SELECT
6
VCC
5
C3813
0.1uF
A
4
UART_SW2
+3.5V_ST
NEC_TX
NEC_RX
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
UART DBG SWITCH
UART_DBG_SW
CONNECTION
L
H
SOC_DBG_TX
NEC_DBG_TXD
SOC_DBG_RX
NEC_DBG_RXD
B0 - A
B1 - A
+3.5V_ST
R3844
4.7K
+3.5V_ST
R3845
4.7K
OPT
Debug NEC
Debug M14
B1
GND
B0
B1
GND
B0
IC3805
NLASB3157DFT2G
1
ON SEMICONDUCTOR
ANALOG SWITCH
2
3
EAN38256201
IC3807
NLASB3157DFT2G
1
ON SEMICONDUCTOR
ANALOG SWITCH
2
3
EAN38256201
EXT_SPK_CONTROL & DBG OUT
DBG_SW
D3806
5.6V
D3807
5.6V
CONNECTION
L
B0 - A DEBUG_NEC/M14
H
OPT
OPT
EXT.SPK VOL Control
B1 - A
E_SPRING
T_TERMINAL1
B_TERMINAL1
R_SPRING
T_SPRING
B_TERMINAL2
T_TERMINAL2
PEJ027-04
3
6A
7A
4
5
7B
6B
JK3801
EXT_SPK
2014.05.02
38
1.3
+3.3V_NORMAL
IC3806
R3849
UART_DBG_SW
SELECT
6
VCC
5
C3814
0.1uF
A
4
SELECT
6
VCC
5
C3815
0.1uF
A
4
+3.5V_ST
EXT_SPK_VOL+
JK_DBG_TX
JK_DBG_TX
EXT_SPK_VOL-
JK_DBG_RX
JK_DBG_RX
3.6K
+3.3V_NORMAL
R3851
3.6K
NLASB3157DFT2G
B1
1
ON SEMICONDUCTOR
ANALOG SWITCH
GND
2
B0
3
EAN38256201
NLASB3157DFT2G
B1
1
ON SEMICONDUCTOR
ANALOG SWITCH
GND
2
B0
3
EAN38256201
IC3808
SELECT
6
VCC
5
A
4
SELECT
6
VCC
5
A
4
+3.5V_ST
+3.5V_ST
C3816
0.1uF
C3817
0.1uF
DBG_SW
C3818
1000pF
C3819
1000pF
OPT
50V
OPT
50V
JP3801
JP3802
xxLY760H-ZA
RS232/UART/VOL_CTL
Page 36
BT_RESET
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
WOL/WIFI_POWER_ON
I2C_SDA2
I2C_SCL2
LED_R
P4000
SMAW200-H18S5
C4006
+3.5V_ST
C4015
5pF
50V
OPT
22uF
10V
R4018
10
R4019
10
C4005
OPT
0.1uF
Place Near Wafer
C4016
5pF
50V
OPT
C4008
1000pF
50V
OPT
GND
NC
WOL
SDA
SCL
GND
IR
1
3
5
7
9
11
13
15
17
19
R4001
R4002
D4001
5.6V
100
100
C4003
R4005
10K
5%
0.1uF
C4004
0.1uF
+3.5V_ST
C4007
100pF
50V
R4012
100
R4013
100
IR
R4015
1.8K
OPT
C4009
0.1uF
16V
BT_RESET
LED_R
2
4
6
8
10
12
14
16
18
GND
+3.5V_WOL
USB_DM
USB_DP
GND
GND
KEY1
KEY2
+3.5V_ST
GND
D4000
RCLAMP0502BA
C4001
0.1uF
OPT
WIFI_DM
WIFI_DP
+3.5V_WOL
+3.5V_ST
R4008
10K
5%
C4002
0.1uF
OPT
R4009
10K
5%
R4006
R4007
100
KEY1
100
KEY2
IR OUT
IR_OUT_CTRL
IR_OUT_RS232C
IR_OUT_HDMI1
R4031 30K
R4023 22
R4028 22
Q4003
2SC3052
C
B
E
Q4001
2SC3052
+5V_ST
2SC3052
R4024
10K
C
E
B
Q4004
+5V_ST
R4025 10K
R4029
10K
C
B
E
R4030 10K
+3.5V_ST
R4026
47K
Q4002
2SC3052
C
B
E
R4027 47K
WOL POWER ENABLE CONTROL
+3.5V_ST
IN
C4010
0.1uF
WIFI_EN
R4022 33
R4021
10K
OPT
EN
IC4001
AP2151WG-7
5
WOL_SW_0.6A
4
+3.5V_WOL
OUT
1
GND
2
FLG
3
IC4001-*1
AP2191WG-7
IN
5
WOL_SW_1.6A
EN
4
WOL_SW Multi add, 131120
USE this after 131201
OUT
1
GND
2
FLG
3
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
IR / KEY
2014.05.02
40
1.3
Page 37
PAGE 13
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

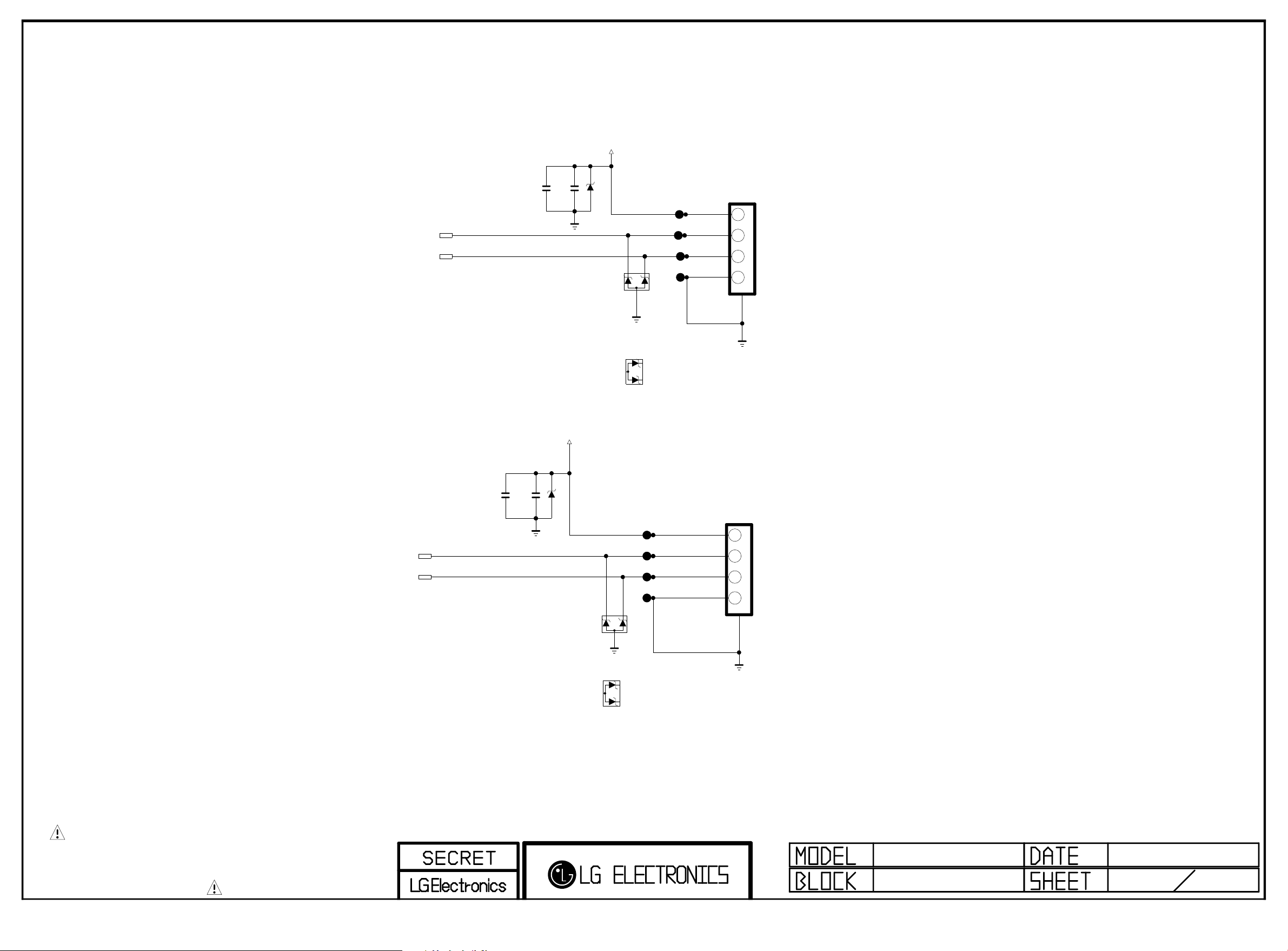

USB_DM3
USB_DP3
C4308
10uF
10V
C4306
22uF
10V
+5V_USB_2
+5V_USB_3
5V
D4302
USB_ESD_SD05
USB_ESD_0502BA
USB_ESD_0582B
D4301-*1
RCLAMP0502BA
USB2 Side(Side Up)
3AU04S -30 5-ZC-(LG)
JK4300
1234
USB DO WN STREAM
D4301
RCLAMP0582B
5
USB_DM2
USB_DP2
C4307
10uF
10V
C4304
22uF
10V
5V
D4303
USB_ESD_SD05
USB_ESD_0582B
USB_ESD_0502BA
D4300-*1
RCLAMP0502BA
USB1 SIDE(Side Down)
3AU04S -30 5-ZC-(LG)
JK4302
1234
USB DO WN STREAM
5
D4300
RCLAMP0582B
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
USB1/2
2014.05.02
43
1.3
Page 38

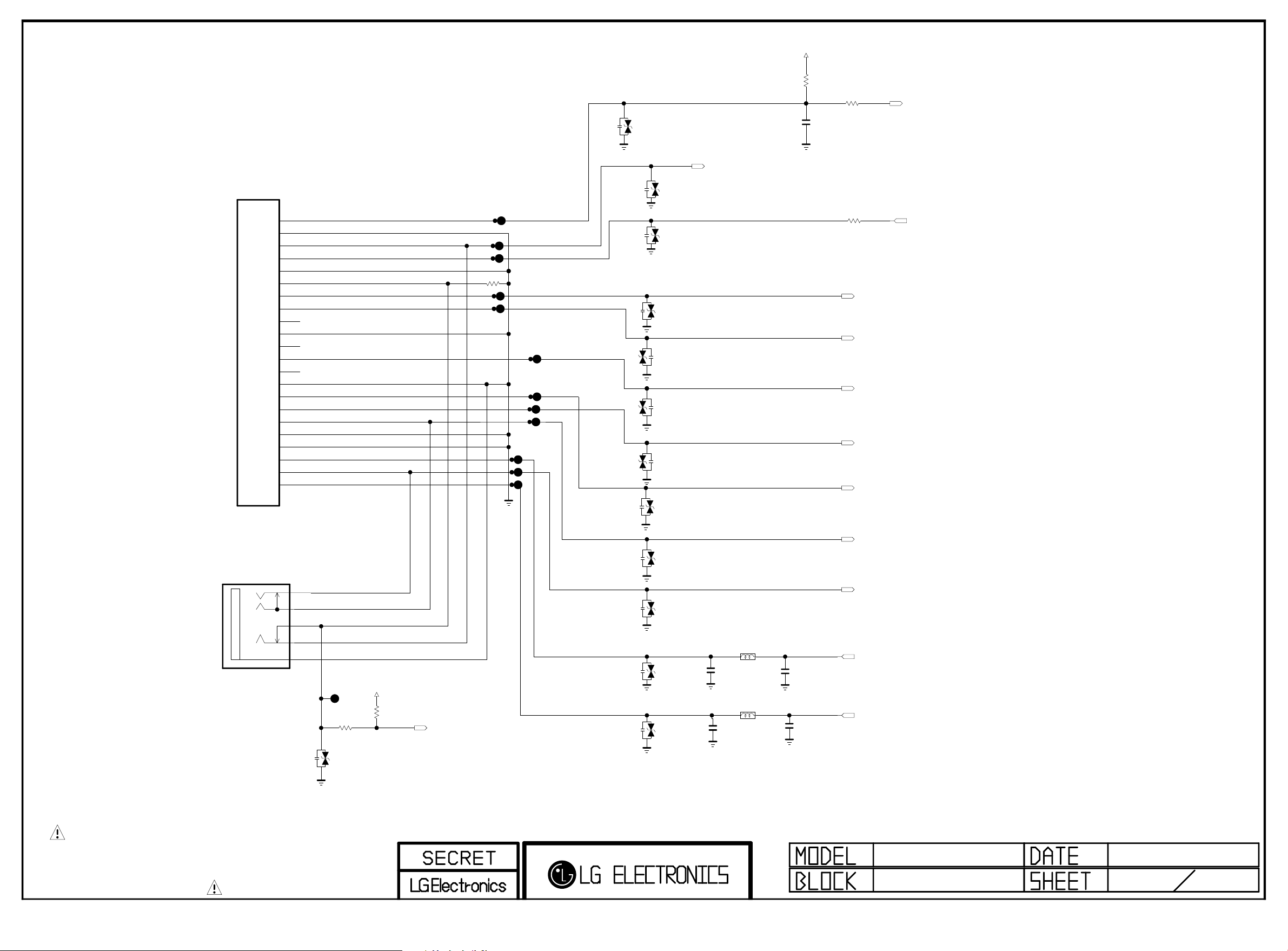

+3.3V_NORMAL
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Full Scart
EU
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
PSC008-01
JK4600
NON_EU
JK4601
PPJ231-01
AV_DET
COM_GND
SYNC_IN
SYNC_OUT
SYNC_GND2
SYNC_GND1
RGB_IO
R_OUT
RGB_GND
R_GND
D2B_OUT
G_OUT
D2B_IN
G_GND
ID
B_OUT
AUDIO_L_IN
B_GND
AUDIO_GND
AUDIO_L_OUT
AUDIO_R_IN
AUDIO_R_OUT
4
5
7
8
6
NON_EU
R4605
0
VA4612
5.6V
NON_EU
+3.3V_NORMAL
R4606
10K
NON_EU
AV_CVBS_DET
R4604
0
EU
VA4609
5.5V
VA4610
5.5V
VA4607
5.6V
EU
VA4608
5.6V
EU
VA4601
5.6V
EU
EU
VA4602
5.6V
VA4603
5.5V
VA4604
5.5V
VA4605
5.5V
VA4600
20V
VA4611
5.6V
VA4606
5.6V
EU
R4601
CLOSE TO JUNCTION
10K
EU
SC_CVBS_IN
EU
EU
EU
EU
EU
BLM18PG121SN1D
C4600
1000pF
50V
BLM18PG121SN1D
C4601
1000pF
50V
L4600
EU
EU
L4601
EU
EU
EU
C4602
4700pF
C4603
4700pF
EU
C4604
0.1uF
EU
R4602
100
EU
1/16W
75
R4603
SC_FB
SC_R
SC_G
SC_B
SC_ID
SC_L_IN
SC_R_IN
DTV/MNT_L_OUT
DTV/MNT_R_OUT
SC_DET
DTV/MNT_V_OUT
PAGE 15
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
2014.05.02
46
1.3SCART JACK
Page 39

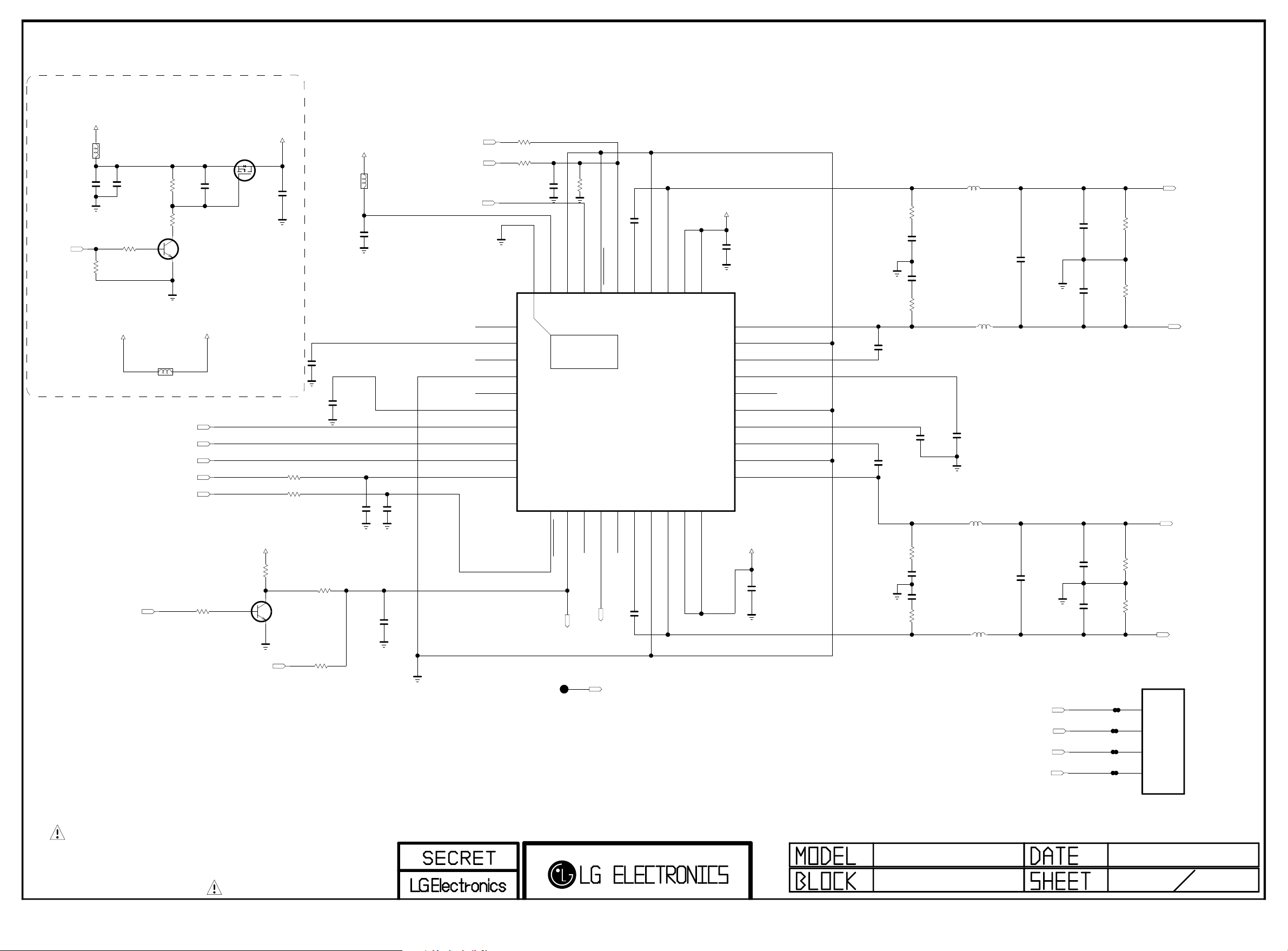

AUDIO AMP(NTP7514)
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Instant_Power_On
+24V
Q5602
C5631
4.7uF
50V
AO3407B
G
+3.3V_NORMAL
B
POWER_DET
AMP_PWR_EN
C5629
0.01uF
50V
L5607
UBW2012-121F
C5630
0.1uF
50V
R5614 10K
R5613
10K
+24V
AMP_MUTE
R5615
33K
R5616
47K
C
B
E
L5606
UBW2012-121F
OPT
AUD_LRCH
AUD_LRCK
AUD_SCK
I2C_SDA1
I2C_SCL1
R5600 10K
AMP_MUTE_MICOM
Q5600
MMBT3904(NXP)
+24V_AMP
+24V_AMP
DS
R5601
10K
AMP_MUTE_MICOM
C
Q5601
MMBT3904(NXP)
AMP_MUTE_MICOM
E
C5633
0.1uF
50V
C5601
1uF
10V
R5611
100
R5612
100
R5602 100
AMP_MUTE_MICOM
R5690 100
AMP_MUTE_PWR_DET
+3.3V_NORMAL
L5601
BLM18PG121SN1D
C5603
0.1uF
16V
C5602
1uF
10V
C5622
33pF
50V
C5600
1000pF
50V
MAIN_AMP_RESET
AUD_MASTER_CLK
C5623
33pF
50V
AMP_MUTE_MICOM
AMP_RESET_N
VDD_PLL
SDATA
NC_1
NC_2
GND
NC_3
DVDD
WCK
BCK
SDA
R5618 0
OPT
R5617 100
C5624
1000pF
[EP]GND
1
2
3
4
5
6
7
8
9
10
OPT
50V
VDD_IO
40
11
SCL
TP5601
OPT
R5619
4.7K
AD
CLK_I
GND_IO
37
38
39
THERMAL
41
NTP7514
12
13
14
FAULT
MONITOR_0
MONITOR_1
WOOFER_MUTE
50V
C5604
22000pF
BST1A
RESET
35
36
IC5600
0x54
15
16
BST2B
MONITOR_2
50V
C5605 22000pF
I2S_AMP
WOOFER_MUTE
PVDD1A
OUT1A
PGND1A
33
34
17
18
OUT2B
PGND2B
PVDD2B
PVDD1B
31
32
19
20
PVDD2A
+24V_AMP
30
29
28
27
26
25
24
23
22
21
C5606
10uF
35V
OUT1B
PGND1B
BST1B
VDR1
NC_4
AGND
VDR2
BST2A
PGND2A
OUT2A
+24V_AMP
C5607
10uF
35V
C5608
22000pF
50V
C5609
22000pF
50V
R5603
3.3
1/10W
C5611
390pF
50V
C5612
390pF
50V
R5604
3.3
1/10W
R5605
3.3
1/10W
C5613
390pF
50V
C5614
390pF
50V
R5606
3.3
1/10W
C5610
1uF
10V
L5604
10.0uH
NRS6045T100MMGK
L5605
10.0uH
NRS6045T100MMGK
C5615
1uF
10V
L5602
10.0uH
NRS6045T100MMGK
L5603
10.0uH
NRS6045T100MMGK
PAGE 18
C5616
0.47uF
50V
C5617
0.47uF
50V
C5618
0.1uF
50V
C5619
0.1uF
50V
C5620
0.1uF
50V
C5621
0.1uF
50V
R5607
4.7K
R5608
4.7K
R5609
4.7K
R5610
4.7K
SPK_L+
SPEAKER_L
SPK_L-
SPK_R+
SPEAKER_R
SPK_R-
WAFER-ANGLE
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
SPK_L+
SPK_L-
SPK_R+
SPK_R-
4
3
2
1
P5600
2014.05.02
56AUDIO AMP(MAIN)
1.3
Page 40

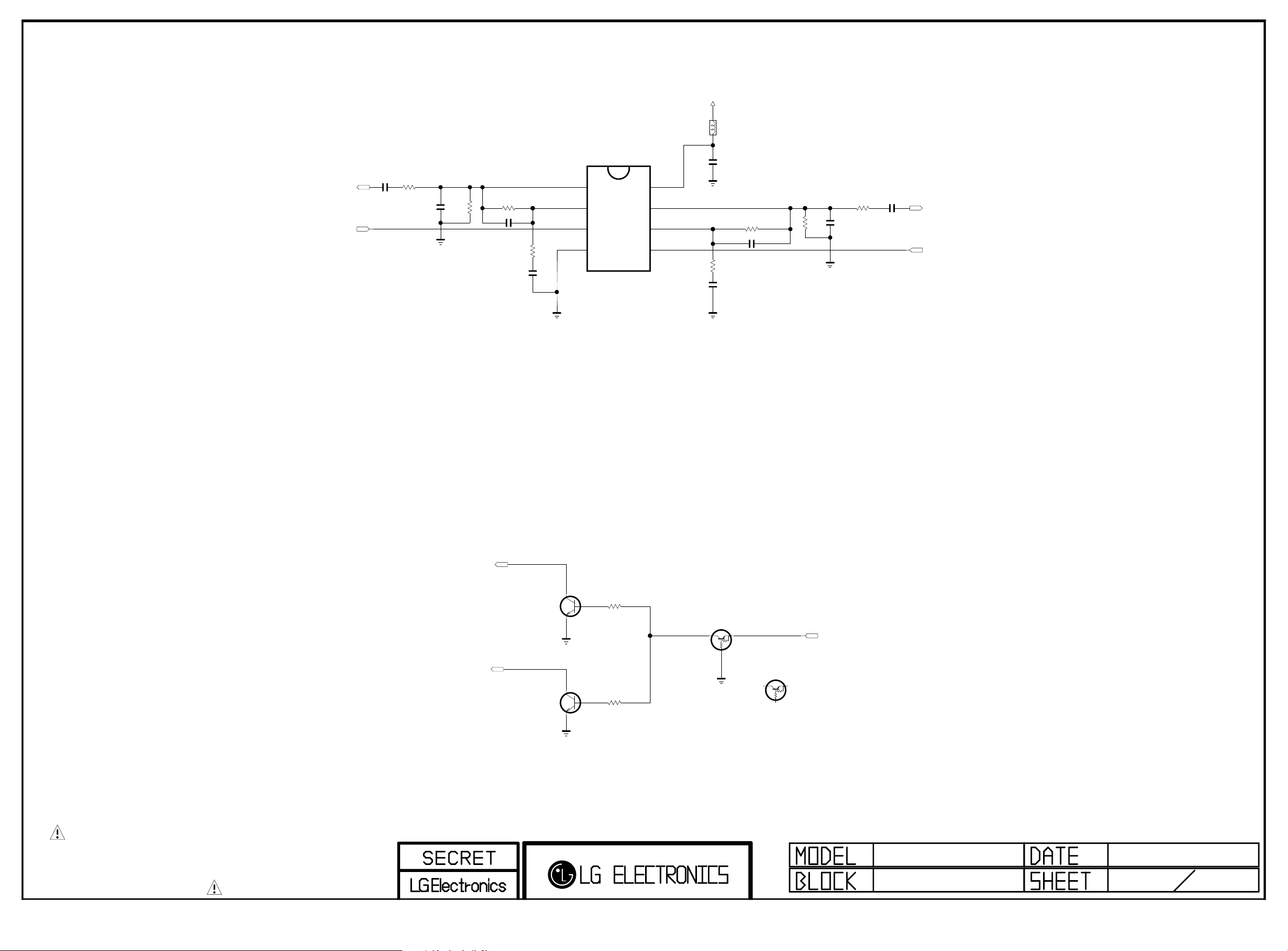

AUD_OUT >> EU/CHINA_HOTEL_OPT
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
EU
DTV/MNT_L_OUT
C6000
1uF
25V
SCART_LOUT
EU
R6000
2.2K
OPT
C6002
6800pF
OPT
R6002
470K
EU
R6004 33K
C6003 33pF
EU
R6001
10K
C6001
4.7uF
10V
PAGE 19
+12V
EU
C6006
10V
L6000
EU
C6004
0.1uF
50V
SIGN600002
10K
EU
EU
EU
R6008 33K
33pF
C6005
EU
R6003
OPT
R6010
470K
OPT
C6007
6800pF
EU
R6011
2.2K
EU
C6008
1uF
25V
DTV/MNT_R_OUT
SCART_ROUT
IC6000
AZ4580MTR-E1
OUT1
1
IN1-
2
IN1+
EU
EU
VEE
EU
3
4
VCC
8
OUT2
7
IN2-
6
IN2+
5
4.7uF
[SCART AUDIO MUTE]
DTV/MNT_L_OUT
C
Q6000
MMBT3904(NXP)
E
DTV/MNT_R_OUT
C
Q6001
MMBT3904(NXP)
E
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
EU
R6013
1K
B
EU
EU
R6014
1K
B
EU
EU_SCART_MUTE_ISAHAYA
Q6002
RT1P141C-T112
E
C
B
EU_SCART_MUTE_NXP
SCART_MUTE
PDTA114ET
Q6002-*1
E
C
B
xxLY760H-ZA
SCART AUDIO AMP/MUTE
2014.05.02
60
1.3
Page 41

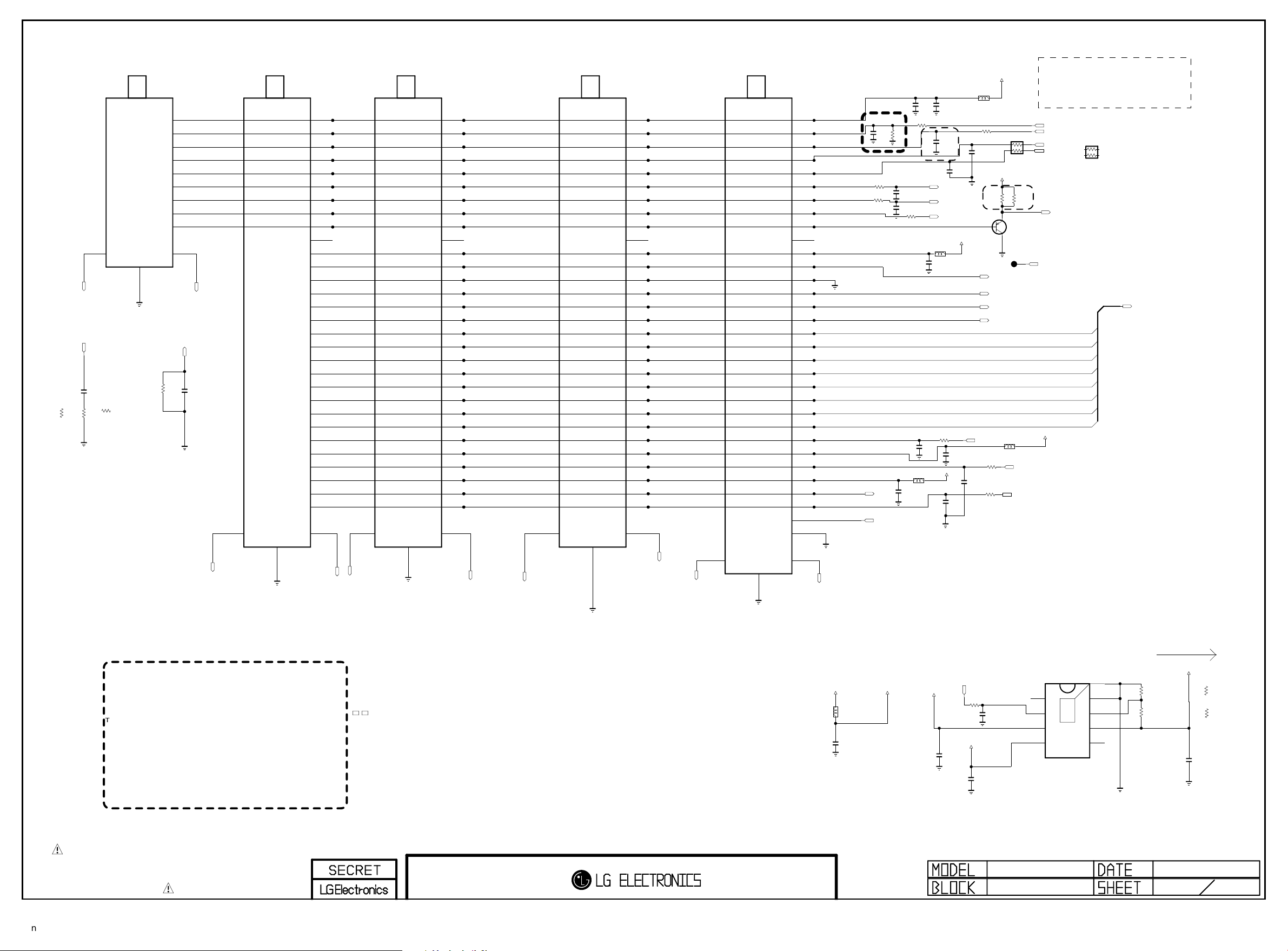

TU_H/M_EU/CN
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
C6701
1000pF
630V
22
R6716-*2
10
R6716
TU_H/M_EU_10
TU_H/M_EU_22
DVB-T GND
A1
TU_GND_A
TU_GND_B
TU_M_CN
R6716-*1
TU6701
TDJH-G101D
1
2
3
4
5
6
7
8
9
A1
B1
47
SHIELD
R6701
0
TU_H/M/W_EU/JP
DVB-S JACK GND
TU_H_EU
B1[+3.3V]
NC_1
IF_AGC
SCL
SDA
IF[P]
IF[N]
NC_2
NC_3
B1
TU_H/M_EU/CN
0
TU_GND_B
TU_GND_A
C6702
1000pF
630V
A1
TU_GND_A
C6704
0.1uF
C6706
0.1uF
16V
IF_P
IF_N
TUNER_SIF
R6709
100
C6713
0.1uF
TU_M/W
OPT
C6716
18pF
50V
close to Tuner
BLM18PG121SN1D
R6703
TU_ALL_IntDemod
TU_ALL_2178B
+3.3V_TUNER
/TU_RESET1
R6710 33
OPT
C6715
18pF
50V
R6711 33
+3.3V_TUNER
L6701
1K
C6707
47pF
50V
OPT
+3.3V_TUNER
R6707
200
B
FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL
BLM18PG121SN1D
TU_M/W
TU_M/W
AR6701
33
1/16W
TU_ALL
TU_ALL_2178B
R6708
200
E
TU_ALL_2178B
Q6701
MMBT3906(NXP)
C
TU_M/W
L6703
I2C_SCL4
I2C_SDA4
1. should be guarded by ground
2. No via on both of them
3. Signal Width >= 12mils
Signal to Signal Width = 12mils
RF_SWITCH_CTL
IF_AGC
I2C_SCL6
I2C_SDA6
1608 perallel
because of derating
TU_CVBS
FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]
+3.3V_TUNER
Ground Width >= 24mils
AR6701-*1
200
1/16W
TU_W_BR/TW
FE_DEMOD1_TS_DATA[0-7]
TU_M_CN
TU6705
TDJM-C301D
B1[+3.3V]
1
RF_SW_CTL
2
NC_1
3
SCL_RF
4
SDA_RF
5
NC_2
6
NC_3
7
SIF
8
CVBS
9
NC_4
10
NC_5
11
ERROR
12
GND_1
13
MCLK
14
SYNC
15
VAILD
16
D0
17
D1
18
D2
19
D3
20
D4
21
D5
22
D6
23
D7
24
RESET_DEMOD
25
B2[+3.3V]
26
SCL_DEMOD
27
B3[+1.1V]
28
NC_6
29
SDA_DEMOD
30
B1
A1
B1
47
SHIELD
A1
A1
TU_M_BR
TU6704
TDJM-B101F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
B1
47
SHIELD
B1[+3.3V]
RF_SW_CTL
AIF_AGC
SCL_RF
SDA_RF
AIF[P]
AIF[N]
NC_1
NC_2
NC_3
NC_4
ERROR
GND_1
MCLK
SYNC
VAILD
D0
D1
D2
D3
D4
D5
D6
D7
RESET_DEMOD
B2[+3.3V]
SCL_DEMOD
B3[+1.1V]
NC_5
SDA_DEMOD
B1
A1
A1
47
SHIELD
TU_M_AJ
TU6703
TDJM-G105D
B1[+3.3V]
1
NC_1
2
AIF_AGC
3
SCL_RF
4
SDA_RF
5
AIF[P]
6
should be guarded by ground,Match GND VIA
AIF[N]
7
NC_2
8
NC_3
9
NC_4
10
B2[+3.3V]
11
ERROR
12
GND_1
13
MCLK
14
SYNC
15
VAILD
16
D0
17
D1
18
D2
19
D3
20
D4
21
D5
22
D6
23
D7
24
RESET_DEMOD
25
B3[+3.3V]
26
SCL_DEMOD
27
B4[+1.1V]
28
F22_OUTPUT
29
SDA_DEMOD
30
B1
B1
A1
A1
TU_M_EU
TU6702
TDJM-G101D
B1[+3.3V]
1
NC_1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
B1
TU_K/M/W_TW/BR/CO/CN
AIF_AGC
SCL_RF
SDA_RF
AIF[P]
AIF[N]
NC_2
NC_3
NC_4
B2[+3.3V]
ERROR
GND_1
MCLK
SYNC
VALID
D0
D1
D2
D3
D4
D5
D6
D7
RESET_DEMOD
B3[+3.3V]
SCL_DEMOD
B4[+1.1V]
F22_OUTPUT
SDA_DEMOD
LNB
GND
B1
close to TUNER
C6705
0.1uF
TU_K/M/W_TW/BR/CO/CN
R6704
10
TU_ALL_IntDemod
R6705
10
TU_ALL_IntDemod
close to Tuner
LNB_TX
LNB_OUT
C6703
100pF
50V
TU_K/M/W_TW/BR/CO/CN
R6702 1K
R6715
10K
TU_ALL_IntDemod
C6709
33pF
TU_H/M_EU/BR/TW/CO
C6710
33pF
TU_H/M_EU/BR/TW/CO
R6706 0
TU_ALL_2178B
TU_M_KR/EU // W_ALL
BLM18PG121SN1D
TU_M/W
C6712
16V
0.1uF
TU_M/W
L6705
BLM18PG121SN1D
TU_M/W
C6714
0.1uF
C6708
47pF
50V
OPT
L6702
C6711
0.1uF
TU_M_KR/EU // W_ALL
TU_M/W
Demod_Core
47
TU_GND_B
TU_GND_A
TU_GND_B
TU_GND_A
TU_GND_B
TU_GND_A
47
TU_GND_B
Global F/E Option Name
1. TU
2. Tuner Name = TDJ’H’,TDj’M’...
3. Country Name = KR,US,BR,EU ...
Example of Option name
TU_ALL_IntDemod = All Tuner type for Internal demod
TU_M/W = apply TDSM&TDSW Type Tuner
14’ Tuner Type for Global
TDJ’H’-G101D : Half NIM for EU,AJJA
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW
TDJ’M’-C301D,F : FULL NIM for China
TDJ’M’-B101F : Brazil NIM with Isolater Type
TDJ’M’-K101F : colombia NIM
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM
TDJ’M’-H101F,H151F : Korea PIP tuner
TDJ’W’-A151D : AJJA T2 PIP
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
T2 : Max 1.7A
else : Max 0.7A
TU_M/W
IC6701
POWER_ON/OFF2_1
+3.3V_NORMAL
L6704
BLM18PG121SN1D
C6717
22uF
10V
85C
+3.3V_TUNER
+3.5V_ST
TU_M/W
C6718
10uF
10V
10K
R6712
TU_M/W
+5V_NORMAL
TU_M/W
C6720
1uF
10V
C6719
0.1uF
TU_M/W
AP2132MP-2.5TRG1
1
PG
2
EN
3
VIN
4
2A
VCTRL
EAN61387601
9
THERMAL
[EP]
8
GND
7
ADJ
6
VOUT
5
NC
1%
1/1 6W
1%
1/1 6W
10K
R67 13
TU_M/W_1.2V
R67 14
10. 5K
TU_M/W_1.2V
R2
R1
Demod_Core
R6713-*1
18K
TU_M/W_1.1V
R6714-*1
16K
TU_M/W_1.1V
TU_M/W
C6721
10uF
16V
1/16W
1/16W
1%
1%
Vout=0.6*(1+R1/R2)
xxLY760H-ZA
TUNER
2014.05.02
67
1.3
Page 42

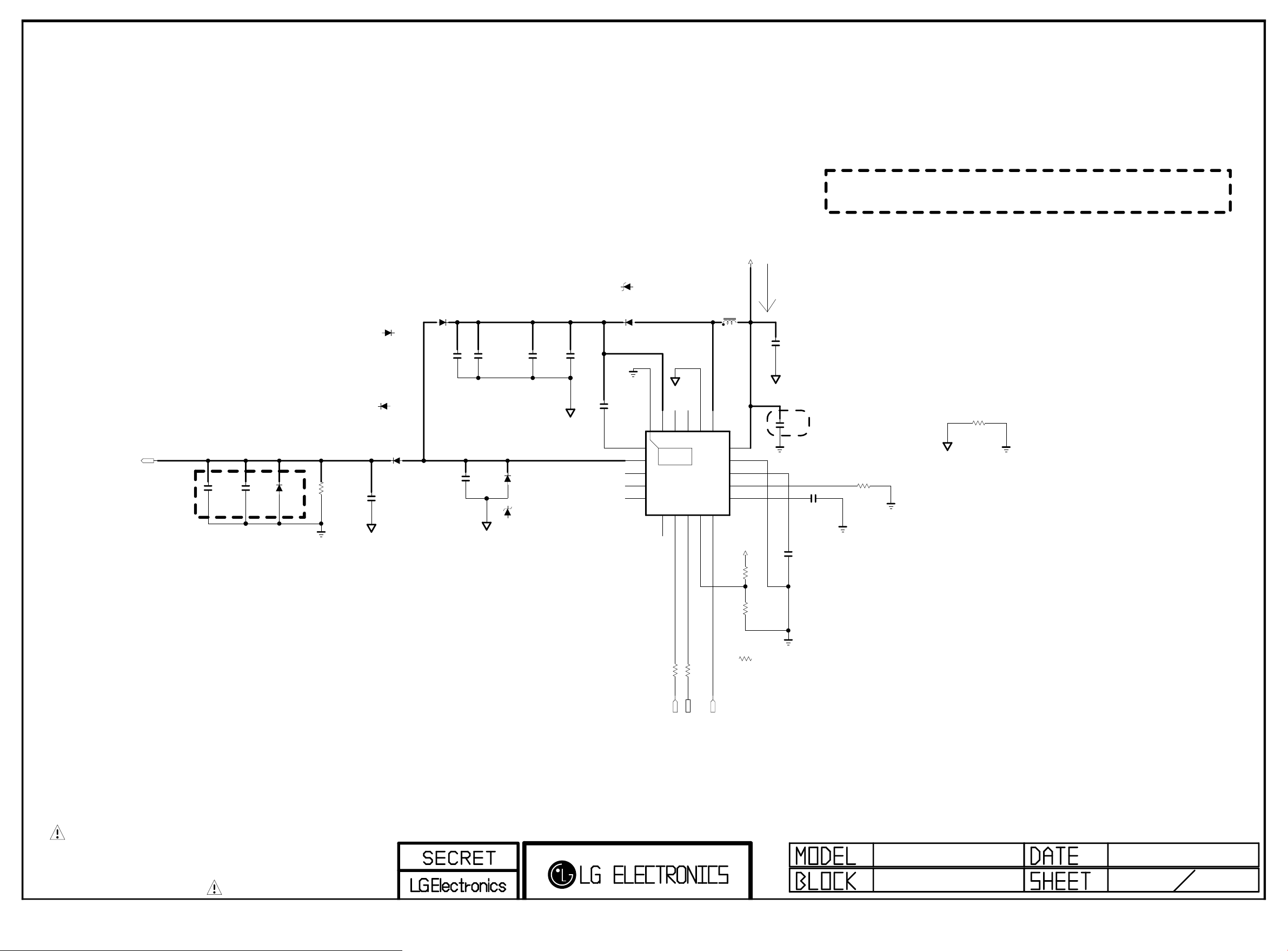

DVB-S2 LNB Part Allegro
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
PAGE 26
LNB_OUT
(Option:LNB)
C6900
0.1uF
LNB
Close to Tuner
Surge protectioin
C6901
33pF
LNB
D6900
LNB
R6900
2.2K
1W
LNB
LNB_TSC
D6902-*1
SS23L
30V
30V
SS23L
D6901-*1
LNB_TSC
MBR230LSFT1G
LNB_ONSEMI
C6902
0.22uF
LNB
25V
A_GND
D6901
30V
2A
D6902
LNB_ONSEMI
30V
C6903
0.01uF
50V
LNB
LNB
C6905
10uF
25V
LNB
close to Boost pin(#1)
C6904
0.1uF
50V
A_GND
D6903
LNB_SMAB34
40V
D6903-*1
LNB_SX34
40V
C6906
10uF
25V
LNB
A_GND
C6907
10uF
25V
LNB
D6904-*1
LNB_SX34
LNB_SMAB34
LNB
C6908 0.1uF
40V
D6904
40V
[EP]GND
VCP
1
LNB
2
NC_1
3
TDI
A8303SESTR-T
4
TDO
5
A_GND
NC_3
BOOST
19
20
THERMAL
21
IC6900
7
6
SCL9ADD
IRQ
LNB
NC_2
18
8
SDA
GNDLX
3.5A
15uH
SP-7850_15
16LX17
VIN
15
GND
14
VREG
13
ISET
12
TCAP
11
10
+3.3V_NORMAL
TONECTRL
+12V
LNB
L6900
LNB_DMB
3.3K
R6907
3A
Max 1.3A
C6909
10uF
25V
LNB
A_GND
close to VIN pin(#15)
C6910
0.1uF
50V
LNB
C6912
LNB
0.1uF
LNB
C6911 0.22uF
Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A
LNB
R6903
39K
1/16W
1%
Caution!! need isolated GND
A_GND
R6904
0
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
LNB
R6901 33
I2C_SCL4
LNB
R6902 33
I2C_SDA4
LNB_TX
10K
R6906
LNB_DMB
LNB_ALEGRO
R6906-*1
0
xxLY760H-ZA
LNB
2014.05.02
69
1.3
Page 43

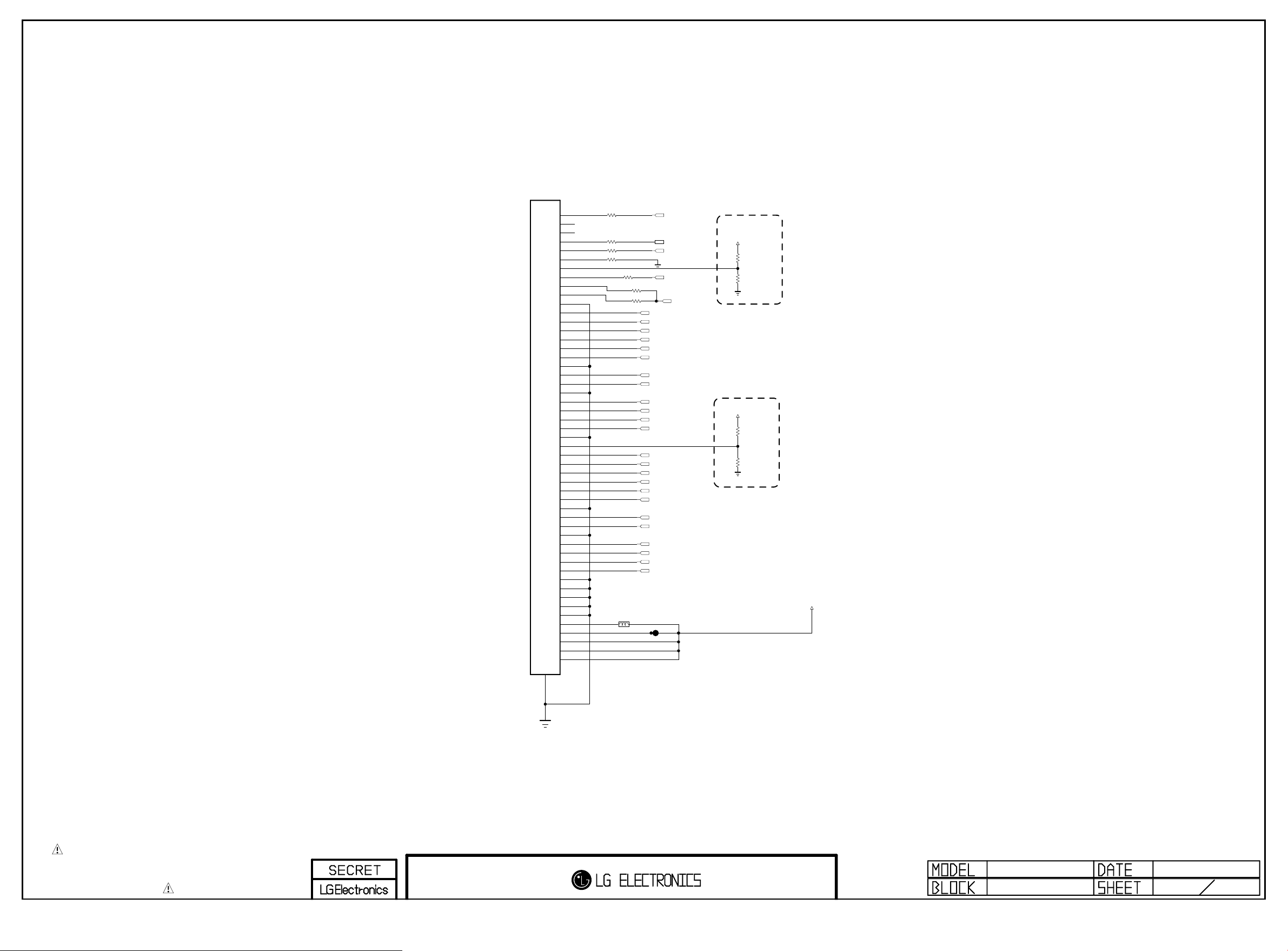

LVDS
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
[51Pin FHD LVDS Connector]
P7201
FI-RE51S-HF-J-R1500
33
R7210
0
R7200
R7201 0
0
R7204
R7218 33
LGD_T-Con_Scanning
R7220
R7219
L7200
UBW2012-121F
AUO_SHARP
2D/3D_CTL
AUO_L/D_EN
52
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
GND
NC
NC
NC
NC
CP_BOX
NC
CP_BOX
NC
OPT
LVDS_SEL
NC
NC
L/DIM_ENABLE
GND
RA0N
RA0P
RA1N
RA1P
RA2N
RA2P
GND
RACLKN
RACLKP
GND
RA3N
RA3P
RA4N
RA4P
GND
BIT_SEL
RB0N
RB0P
RB1N
RB1P
RB2N
RB2P
GND
RBCLKN
RBCLKP
GND
RB3N
RB3P
RB4N
RB4P
GND
GND
GND
GND
GND
NC
VLCD
VLCD
VLCD
VLCD
LGD_2D/3D_CTRL
OPC_EN
2D/3D_CTL
I2C_SDA1
I2C_SCL1
33
33
TXA0N/TX11N
TXA0P/TX11P
TXA1N/TX10N
TXA1P/TX10P
TXA2N/TX9N
TXA2P/TX9P
TXACLKN/TX8N
TXACLKP/TX8P
TXA3N/TX7N
TXA3P/TX7P
TXA4N/TX6N
TXA4P/TX6P
TXB0N/TX5N
TXB0P/TX5P
TXB1N/TX4N
TXB1P/TX4P
TXB2N/TX3N
TXB2P/TX3P
TXBCLKN/TX2N
TXBCLKP/TX2P
TXB3N/TX1N
TXB3P/TX1P
TXB4N/TX0N
TXB4P/TX0P
PWM_DIM
OPC_EN
LVDS_SEL
+3.3V_NORMAL
R7217
3.3K
LVDS_SEL_HIGH
R7215
10K
LVDS_SEL_LOW
H or FLOAT : 10-bit
<L : 8-bit>
BIT_SEL
+3.3V_NORMAL
R7213
3.3K
BIT_SEL_HIGH
R7214
10K
BIT_SEL_LOW
PAGE 27
PANEL_VCC
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
LVDS INTERFACE
2014.05.02
72 1.3
Page 44

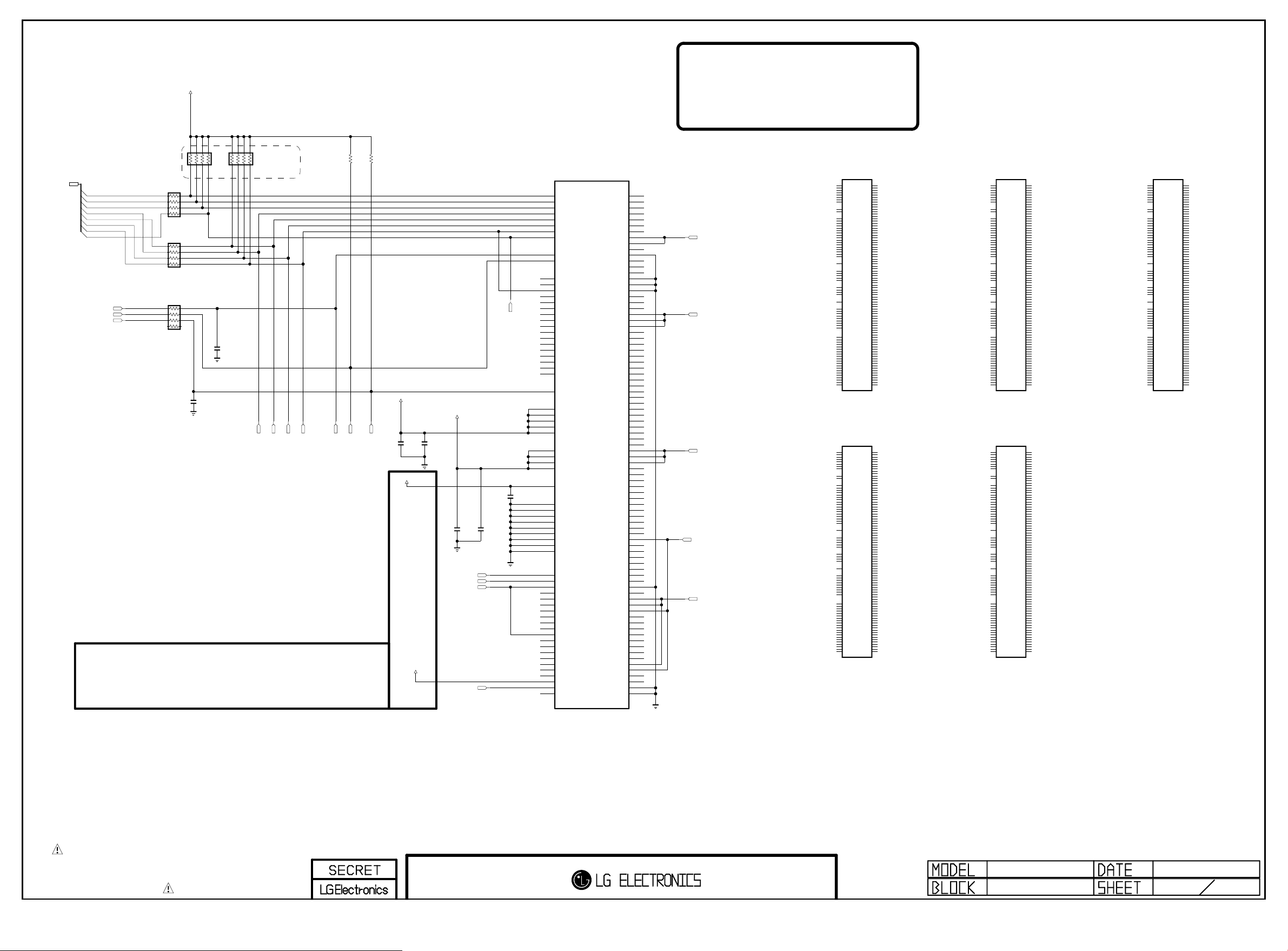

eMMC I/F
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
* A0 / A1 : Use EMMC_4.41
PAGE 30
DVDD18_EMMC
10K
1/16W
AR8104
EMMC_DATA[0-7]
EMMC_DATA[0]
EMMC_DATA[1]
EMMC_DATA[2]
EMMC_DATA[3]
EMMC_DATA[4]
EMMC_DATA[5]
EMMC_DATA[6]
EMMC_DATA[7]
EMMC_CLK
EMMC_CMD
EMMC_RST
AR8100
22
1/16W
AR8101
22
1/16W
AR8102
22
1/16W
C8107
10pF
OPT
50V
C8100
0.1uF
OPT
16V
Don’t Connect Power At VDDI
(Just Interal LDO Capacitor)
10K
1/16W
DAT3
AR8103
DAT4
DAT5
DAT6
10K
R8117
EMMC_CLK_BALL
EMMC_CMD_BALL
10K
R8116
DVDD18_EMMC
EMMC_RESET_BALL
C8105
0.1uF
16V
EMMC_VDDI
EMMC_VDDI
C8106
2.2uF
10V
3.3V_EMMC
C8102
0.1uF
16V
DAT3
DAT4
DAT7
DAT5
pattern 0.2mm
C8103
2.2uF
10V
DAT7
C8104
1uF
10V
THGBMAG6A2JBAIR
A3
DAT0
A4
DAT1
A5
DAT2
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
M6
CLK
M5
CMD
A6
RFU_1
A7
RFU_2
C5
NC_21
E5
RFU_3
E8
RFU_4
E9
RFU_5
E10
RFU_6
F10
RFU_7
G3
RFU_8
G10
RFU_9
H5
RFU_10
J5
RFU_11
K6
RFU_12
K7
RFU_13
K10
RFU_14
P7
RFU_15
P10
RFU_16
K5
RST_N
C6
VCCQ_1
M4
VCCQ_2
N4
VCCQ_3
P3
VCCQ_4
P5
VCCQ_5
E6
VCC_1
F5
VCC_2
J10
VCC_3
K9
VCC_4
C2
VDDI
E7
VSS_1
G5
VSS_2
H10
VSS_3
K8
VSS_4
C4
VSSQ_1
N2
VSSQ_2
N5
VSSQ_3
P4
VSSQ_4
P6
VSSQ_5
A1
NC_1
A2
NC_2
A8
NC_3
A9
NC_4
A10
NC_5
A11
NC_6
A12
NC_7
A13
NC_8
A14
NC_9
B1
NC_10
B7
NC_11
B8
NC_12
B9
NC_13
B10
NC_14
B11
NC_15
B12
NC_16
B13
NC_17
B14
NC_18
C1
NC_19
C3
NC_20
C7
NC_22
IC8100
C8
NC_23
C9
NC_24
C10
NC_25
C11
NC_26
C12
NC_27
C13
NC_28
C14
NC_29
D1
NC_30
D2
NC_31
D3
NC_32
D4
NC_33
D12
NC_34
D13
NC_35
D14
NC_36
E1
NC_37
E2
NC_38
E3
NC_39
E12
NC_40
E13
NC_41
E14
NC_42
F1
NC_43
F2
NC_44
F3
NC_45
F12
NC_46
F13
NC_47
F14
NC_48
G1
NC_49
G2
NC_50
G12
NC_51
G13
NC_52
G14
NC_53
H1
NC_54
H2
NC_55
H3
NC_56
H12
NC_57
H13
NC_58
H14
NC_59
J1
NC_60
J2
NC_61
J3
NC_62
J12
NC_63
J13
NC_64
J14
NC_65
K1
NC_66
K2
NC_67
K3
NC_68
K12
NC_69
K13
NC_70
K14
NC_71
L1
NC_72
L2
NC_73
L3
NC_74
L12
NC_75
L13
NC_76
L14
NC_77
M1
NC_78
M2
NC_79
M3
NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98
NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14
EMMC4.5_8G_TOSHIBA
* B0 : Use EMMC_4.5
DAT5
DAT6
EMMC_RESET_BALL
EMMC_CLK_BALL
EMMC_CMD_BALL
MTFC4GMCDM-1M WT
A3
DAT0
A4
DAT1
A5
DAT2
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
M6
CLK
M5
CMD
A6
RFU_1
A7
RFU_2
C5
NC_21
E5
RFU_3
E8
RFU_4
E9
RFU_5
E10
RFU_6
F10
RFU_7
G3
RFU_8
G10
RFU_9
H5
RFU_10
J5
RFU_11
K6
RFU_12
K7
RFU_13
K10
RFU_14
P7
RFU_15
P10
RFU_16
K5
RST_N
C6
VCCQ_1
M4
VCCQ_2
N4
VCCQ_3
P3
VCCQ_4
P5
VCCQ_5
E6
VCC_1
F5
VCC_2
J10
VCC_3
K9
VCC_4
C2
VDDI
E7
VSS_1
G5
VSS_2
H10
VSS_3
K8
VSS_4
C4
VSSQ_1
N2
VSSQ_2
N5
VSSQ_3
P4
VSSQ_4
P6
VSSQ_5
A1
NC_1
A2
NC_2
A8
NC_3
A9
NC_4
A10
NC_5
A11
NC_6
A12
NC_7
A13
NC_8
A14
NC_9
B1
NC_10
B7
NC_11
B8
NC_12
B9
NC_13
B10
NC_14
B11
NC_15
B12
NC_16
B13
NC_17
B14
NC_18
C1
NC_19
C3
NC_20
C7
NC_22
THGBMAG7A2JBAIR
A3
DAT0
A4
DAT1
A5
DAT2
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
M6
CLK
M5
CMD
A6
RFU_1
A7
RFU_2
C5
NC_21
E5
RFU_3
E8
RFU_4
E9
RFU_5
E10
RFU_6
F10
RFU_7
G3
RFU_8
G10
RFU_9
H5
RFU_10
J5
RFU_11
K6
RFU_12
K7
RFU_13
K10
RFU_14
P7
RFU_15
P10
RFU_16
K5
RST_N
C6
VCCQ_1
M4
VCCQ_2
N4
VCCQ_3
P3
VCCQ_4
P5
VCCQ_5
E6
VCC_1
F5
VCC_2
J10
VCC_3
K9
VCC_4
C2
VDDI
E7
VSS_1
G5
VSS_2
H10
VSS_3
K8
VSS_4
C4
VSSQ_1
N2
VSSQ_2
N5
VSSQ_3
P4
VSSQ_4
P6
VSSQ_5
A1
NC_1
A2
NC_2
A8
NC_3
A9
NC_4
A10
NC_5
A11
NC_6
A12
NC_7
A13
NC_8
A14
NC_9
B1
NC_10
B7
NC_11
B8
NC_12
B9
NC_13
B10
NC_14
B11
NC_15
B12
NC_16
B13
NC_17
B14
NC_18
C1
NC_19
C3
NC_20
C7
NC_22
IC8100-*1
IC8100-*3
C8
NC_23
C9
NC_24
C10
NC_25
C11
NC_26
C12
NC_27
C13
NC_28
C14
NC_29
D1
NC_30
D2
NC_31
D3
NC_32
D4
NC_33
D12
NC_34
D13
NC_35
D14
NC_36
E1
NC_37
E2
NC_38
E3
NC_39
E12
NC_40
E13
NC_41
E14
NC_42
F1
NC_43
F2
NC_44
F3
NC_45
F12
NC_46
F13
NC_47
F14
NC_48
G1
NC_49
G2
NC_50
G12
NC_51
G13
NC_52
G14
NC_53
H1
NC_54
H2
NC_55
H3
NC_56
H12
NC_57
H13
NC_58
H14
NC_59
J1
NC_60
J2
NC_61
J3
NC_62
J12
NC_63
J13
NC_64
J14
NC_65
K1
NC_66
K2
NC_67
K3
NC_68
K12
NC_69
K13
NC_70
K14
NC_71
L1
NC_72
L2
NC_73
L3
NC_74
L12
EMMC4.5_4G_MICRON
NC_75
L13
NC_76
L14
NC_77
M1
NC_78
M2
NC_79
M3
NC_80
M7
NC_81
M8
NC_82
M9
NC_83
M10
NC_84
M11
NC_85
M12
NC_86
M13
NC_87
M14
NC_88
N1
NC_89
N3
NC_90
N6
NC_91
N7
NC_92
N8
NC_93
N9
NC_94
N10
NC_95
N11
NC_96
N12
NC_97
N13
NC_98
N14
NC_99
P1
NC_100
P2
NC_101
P8
NC_102
P9
NC_103
P11
NC_104
P12
NC_105
P13
NC_106
P14
NC_107
C8
NC_23
C9
NC_24
C10
NC_25
C11
NC_26
C12
NC_27
C13
NC_28
C14
NC_29
D1
NC_30
D2
NC_31
D3
NC_32
D4
NC_33
D12
NC_34
D13
NC_35
D14
NC_36
E1
NC_37
E2
NC_38
E3
NC_39
E12
NC_40
E13
NC_41
E14
NC_42
F1
NC_43
F2
NC_44
F3
NC_45
F12
NC_46
F13
NC_47
F14
NC_48
G1
NC_49
G2
NC_50
G12
NC_51
G13
NC_52
G14
NC_53
H1
NC_54
H2
NC_55
H3
NC_56
H12
NC_57
H13
NC_58
H14
NC_59
J1
NC_60
J2
NC_61
J3
NC_62
J12
NC_63
J13
NC_64
J14
NC_65
K1
NC_66
K2
NC_67
K3
NC_68
K12
NC_69
EMMC4.5_16G_TOSHIBA
K13
NC_70
K14
NC_71
L1
NC_72
L2
NC_73
L3
NC_74
L12
NC_75
L13
NC_76
L14
NC_77
M1
NC_78
M2
NC_79
M3
NC_80
M7
NC_81
M8
NC_82
M9
NC_83
M10
NC_84
M11
NC_85
M12
NC_86
M13
NC_87
M14
NC_88
N1
NC_89
N3
NC_90
N6
NC_91
N7
NC_92
N8
NC_93
N9
NC_94
N10
NC_95
N11
NC_96
N12
NC_97
N13
NC_98
N14
NC_99
P1
NC_100
P2
NC_101
P8
NC_102
P9
NC_103
P11
NC_104
P12
NC_105
P13
NC_106
P14
NC_107
A3
DAT0
A4
DAT1
A5
DAT2
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
M6
CLK
M5
CMD
A6
RFU_1
A7
RFU_2
C5
NC_21
E5
RFU_3
E8
RFU_4
E9
RFU_5
E10
RFU_6
F10
RFU_7
G3
RFU_8
G10
RFU_9
H5
RFU_10
J5
RFU_11
K6
RFU_12
K7
RFU_13
K10
RFU_14
P7
RFU_15
P10
RFU_16
K5
RST_N
C6
VCCQ_1
M4
VCCQ_2
N4
VCCQ_3
P3
VCCQ_4
P5
VCCQ_5
E6
VCC_1
F5
VCC_2
J10
VCC_3
K9
VCC_4
C2
VDDI
E7
VSS_1
G5
VSS_2
H10
VSS_3
K8
VSS_4
C4
VSSQ_1
N2
VSSQ_2
N5
VSSQ_3
P4
VSSQ_4
P6
VSSQ_5
A1
NC_1
A2
NC_2
A8
NC_3
A9
NC_4
A10
NC_5
A11
NC_6
A12
NC_7
A13
NC_8
A14
NC_9
B1
NC_10
B7
NC_11
B8
NC_12
B9
NC_13
B10
NC_14
B11
NC_15
B12
NC_16
B13
NC_17
B14
NC_18
C1
NC_19
C3
NC_20
C7
NC_22
A3
DAT0
A4
DAT1
A5
DAT2
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
M6
CLK
M5
CMD
A6
RFU_1
A7
RFU_2
C5
NC_21
E5
RFU_3
E8
RFU_4
E9
RFU_5
E10
RFU_6
F10
RFU_7
G3
RFU_8
G10
RFU_9
H5
RFU_10
J5
RFU_11
K6
RFU_12
K7
RFU_13
K10
RFU_14
P7
RFU_15
P10
RFU_16
K5
RST_N
C6
VCCQ_1
M4
VCCQ_2
N4
VCCQ_3
P3
VCCQ_4
P5
VCCQ_5
E6
VCC_1
F5
VCC_2
J10
VCC_3
K9
VCC_4
C2
VDDI
E7
VSS_1
G5
VSS_2
H10
VSS_3
K8
VSS_4
C4
VSSQ_1
N2
VSSQ_2
N5
VSSQ_3
P4
VSSQ_4
P6
VSSQ_5
A1
NC_1
A2
NC_2
A8
NC_3
A9
NC_4
A10
NC_5
A11
NC_6
A12
NC_7
A13
NC_8
A14
NC_9
B1
NC_10
B7
NC_11
B8
NC_12
B9
NC_13
B10
NC_14
B11
NC_15
B12
NC_16
B13
NC_17
B14
NC_18
C1
NC_19
C3
NC_20
C7
NC_22
MTFC8GLCDM-1M WT
THGBMAG5A1JBAIR
IC8100-*2
NC_23
NC_24
NC_25
NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_42
NC_43
NC_44
NC_45
NC_46
NC_47
NC_48
NC_49
NC_50
NC_51
NC_52
NC_53
NC_54
NC_55
NC_56
NC_57
NC_58
NC_59
NC_60
NC_61
NC_62
NC_63
NC_64
NC_65
NC_66
NC_67
NC_68
NC_69
NC_70
NC_71
NC_72
NC_73
NC_74
EMMC4.5_8G_MICRON
NC_75
NC_76
NC_77
NC_78
NC_79
NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98
NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
IC8100-*4
NC_23
NC_24
NC_25
NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_42
NC_43
NC_44
NC_45
NC_46
NC_47
NC_48
NC_49
NC_50
NC_51
NC_52
NC_53
NC_54
NC_55
NC_56
NC_57
NC_58
NC_59
NC_60
NC_61
NC_62
NC_63
NC_64
NC_65
NC_66
NC_67
NC_68
NC_69
EMMC4.5_4G_TOSHIBA
NC_70
NC_71
NC_72
NC_73
NC_74
NC_75
NC_76
NC_77
NC_78
NC_79
NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98
NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
IC8100-*5
H26M31003GMR
C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14
C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14
A3
DAT0
A4
DAT1
A5
DAT2
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
M6
CLK
M5
CMD
A6
RFU_1
A7
RFU_2
C5
NC_21
E5
RFU_3
E8
RFU_4
E9
RFU_5
E10
RFU_6
F10
RFU_7
G3
RFU_8
G10
RFU_9
H5
RFU_10
J5
RFU_11
K6
RFU_12
K7
RFU_13
K10
RFU_14
P7
RFU_15
P10
RFU_16
K5
RST_N
C6
VCCQ_1
M4
VCCQ_2
N4
VCCQ_3
P3
VCCQ_4
P5
VCCQ_5
E6
VCC_1
F5
VCC_2
J10
VCC_3
K9
VCC_4
C2
VDDI
E7
VSS_1
G5
VSS_2
H10
VSS_3
K8
VSS_4
C4
VSSQ_1
N2
VSSQ_2
N5
VSSQ_3
P4
VSSQ_4
P6
VSSQ_5
A1
NC_1
A2
NC_2
A8
NC_3
A9
NC_4
A10
NC_5
A11
NC_6
A12
NC_7
A13
NC_8
A14
NC_9
B1
NC_10
B7
NC_11
B8
NC_12
B9
NC_13
B10
NC_14
B11
NC_15
B12
NC_16
B13
NC_17
B14
NC_18
C1
NC_19
C3
NC_20
C7
NC_22
C8
NC_23
C9
NC_24
C10
NC_25
C11
NC_26
C12
NC_27
C13
NC_28
C14
NC_29
D1
NC_30
D2
NC_31
D3
NC_32
D4
NC_33
D12
NC_34
D13
NC_35
D14
NC_36
E1
NC_37
E2
NC_38
E3
NC_39
E12
NC_40
E13
NC_41
E14
NC_42
F1
NC_43
F2
NC_44
F3
NC_45
F12
NC_46
F13
NC_47
F14
NC_48
G1
NC_49
G2
NC_50
G12
NC_51
G13
NC_52
G14
NC_53
H1
NC_54
H2
NC_55
H3
NC_56
H12
NC_57
H13
NC_58
H14
NC_59
J1
NC_60
J2
NC_61
J3
NC_62
J12
NC_63
J13
NC_64
J14
NC_65
K1
NC_66
K2
NC_67
K3
NC_68
K12
NC_69
K13
NC_70
K14
NC_71
L1
NC_72
L2
NC_73
L3
NC_74
L12
EMMC4.5_4G_SKHynix
NC_75
L13
NC_76
L14
NC_77
M1
NC_78
M2
NC_79
M3
NC_80
M7
NC_81
M8
NC_82
M9
NC_83
M10
NC_84
M11
NC_85
M12
NC_86
M13
NC_87
M14
NC_88
N1
NC_89
N3
NC_90
N6
NC_91
N7
NC_92
N8
NC_93
N9
NC_94
N10
NC_95
N11
NC_96
N12
NC_97
N13
NC_98
N14
NC_99
P1
NC_100
P2
NC_101
P8
NC_102
P9
NC_103
P11
NC_104
P12
NC_105
P13
NC_106
P14
NC_107
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
eMMC
2014.05.02
81
1.3
Page 45

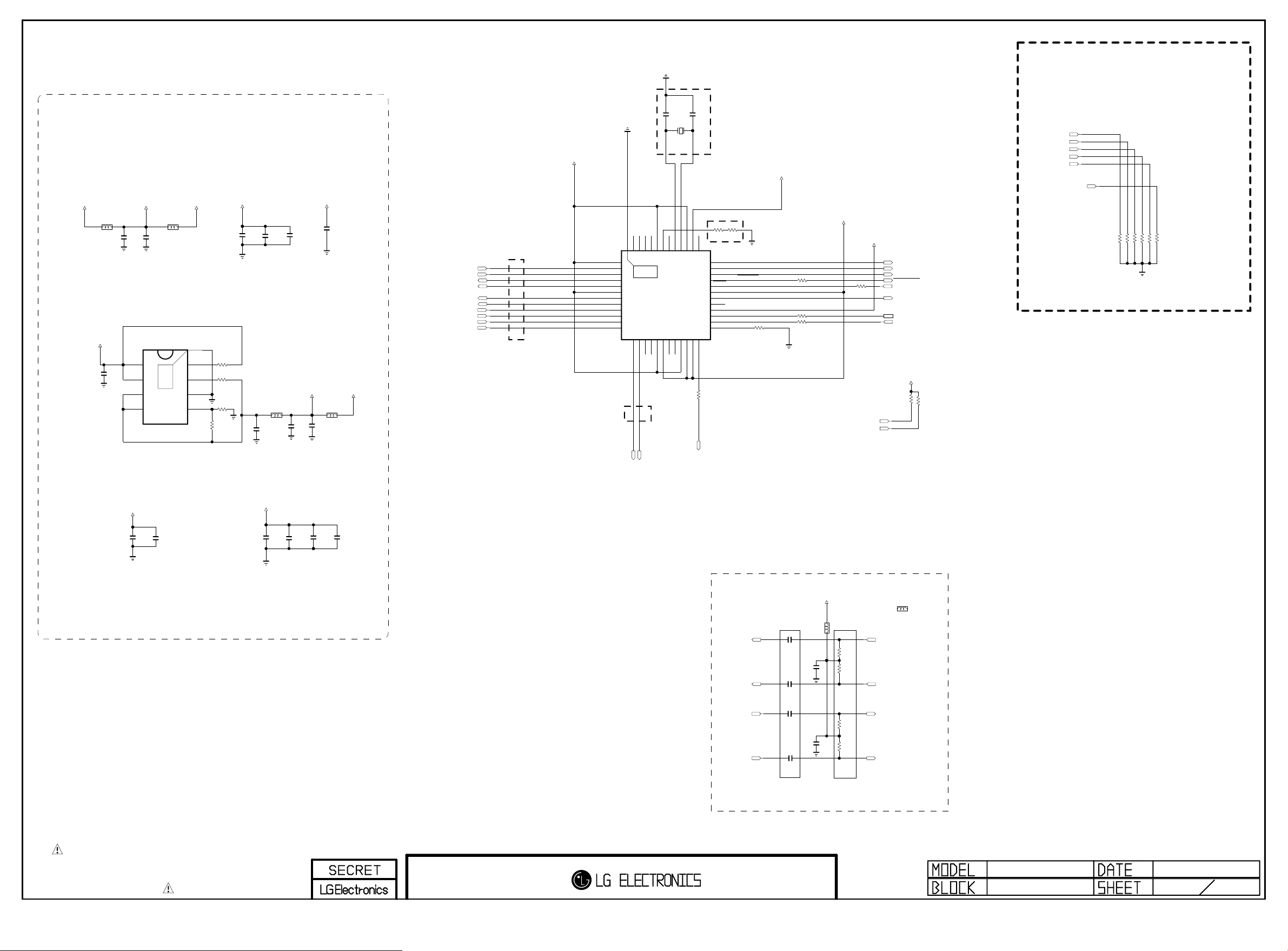

Ethernet HUB(RTL8305N-CG)
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Ethernet Power
L8403
C8400
2.2uF
25V
ETNHUB_DVDD33
C8425
C8419
0.1uF
22uF
16V
10V
MP20045DQ-LF-Z
VIN_1
1
VIN_2
2
VOUT_1
3
VOUT_2
4
Vout=1.5*(1+R1/R2)
L8401
BLM18PG121SN1D
IC8400
9
THERMAL
8
7
6
5
EP[GND]
EN
PG
GND
FB
C8422
0.1uF
16V
R8407
10K
R8408
100K
R8409
10K 1%
Vout
R2
R8406
R1
2K
1%
C8430
2.2uF
25V
+3.5V_ST_LAN
BLM18PG121SN1D
ETNHUB_AVDD33
C8429
C8426
0.1uF
0.1uF
16V
16V
L8406
BLM18PG121SN1D
ETNHUB_AVDD33ETNHUB_DVDD33ETNHUB_AVDD33
ETNHUB_DVDD18
BLM18PG121SN1D
C8435
22uF
0.1uF
16V
10V
OPT
C8405
0.1uF
16V
ETNHUB_AVDD18
L8407
LAN1
TO PHY Chip
LAN2
ETNHUB_EPHY_RXIN1
ETNHUB_EPHY_RXIP1
ETNHUB_EPHY_TXOP1
ETNHUB_EPHY_TXON1
ETNHUB_EPHY_TXON2
ETNHUB_EPHY_TXOP2
ETNHUB_EPHY_RXIP2
ETNHUB_EPHY_RXIN2
ETNHUB_EPHY_RXIP3
Differential 100 ohm
No Via
Close to
ETNHUB_AVDD18
AVDD18_1
TXON[1]
TXOP[1]
RXIP[1]
RXIN[1]
AVDD18_2
RXIN[2]
RXIP[2]
TXOP[2]
TXON[2]
TXON[3]
TXOP[3]
Place Close To RTL8305N
C8440
50V
12pF
25.0MHz
VCTRL43IBREF44AVDD18_6
RXIN[0]
RXIP[0]
TXOP[0]
TXON[0]
[EP]GND
45
46
47
48
1
2
THERMAL
3
49
4
IC8401
5
6
RTL8305N_REALTEK
7
8
9
10
11
12
13
17
19
RXIP[3]14RXIN[3]15TXOP[4]16TXON[4]
RXIP[4]20RXIN[4]
AVDD18_318DVDD18_1
X8400
40X141X242
21
AVDD18_422DVDD18_223DVDD18_3
C8441
50V
12pF
R8424
1.69K
1%
1.96K
OSCI38AVDD3339AVDD18_5
37
LED_ACT[0]/BCINDROP
36
LED_ACT[1]/GYSPD100
35
LED_ACT[2]/P4ANEG
34
P4FLCTRL/CPU_INTT
33
RESET
32
DVDD18_4
31
LED_ACT[3]/EN48PASS1
30
LED_ACT[4]
29
DVDD33
28
SDA_MDIO
27
SCL_MDC
26
ENEEPROM
25
24
LDIND/DISLD
22
Realtek WOL
R8427
ETNHUB_AVDD33
R8423
Place Close To RTL8305N
270
1%
R8436 1K
R8440 100
Realtek WOL
R8434 33
R8435 33
ETNHUB_DVDD18
R8452 22
EPHY_MDCC8438
EPHY_MDIO
ETNHUB_DVDD33
LAN_ACT2
ETNHUB_INT
/ETHERNET_RESET
LAN_ACT3
EPHY_MDIO
EPHY_MDCETNHUB_EPHY_RXIN3
ETNHUB_DVDD33
LAN_ACT0
GYSPD
R84 58
STRAPPING PIN CONFIG
LAN_ACT0
LAN_ACT2
LAN_ACT3
ETNHUB_ENDEFER
/ETHERNET_RESET
GYSPD
OPT
OPT
OPT
OPT
OPT
OPT
1K
R8451 1K
R8454 1K
R8448 1K
R8444 1K
R8446
R8450 1K
LED_ACT[2]/P4ANEG : Auto-negotiation Enable/Disable
All Strapping Pins are internal pull-up
1.5 K
R84 65
1.5 K
ETNHUB_DVDD18
C8406
0.1uF
C8410
0.1uF
ETNHUB_AVDD18
C8407
0.1uF
C8411
0.1uF
C8418
0.1uF
C8424
0.1uF
ETNHUB_EPHY_TXOP3
ETNHUB_EPHY_TXON3
LAN2
ETNHUB_ENDEFER
PHY TO RTL matching
TR0P
TR0N
TR1P
TR1N
Place to center position between two chips
L8408
MAG_NEW
C8442
0.1uF
C8446
0.1uF
C8443
0.1uF
C8444
0.1uF
C8447
0.1uF
C8445
0.1uF
Place close to chip
ETNHUB_AVDD18
R8416
49.9
R8417
49.9
R8418
49.9
R8419
49.9
L8408-*1
UBW2012-121F
SHENCHEN_NEW
ETNHUB_EPHY_TXOP2
ETNHUB_EPHY_TXON2
ETNHUB_EPHY_RXIP2
ETNHUB_EPHY_RXIN2
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
2014.05.02
84HUB
1.3
Page 46

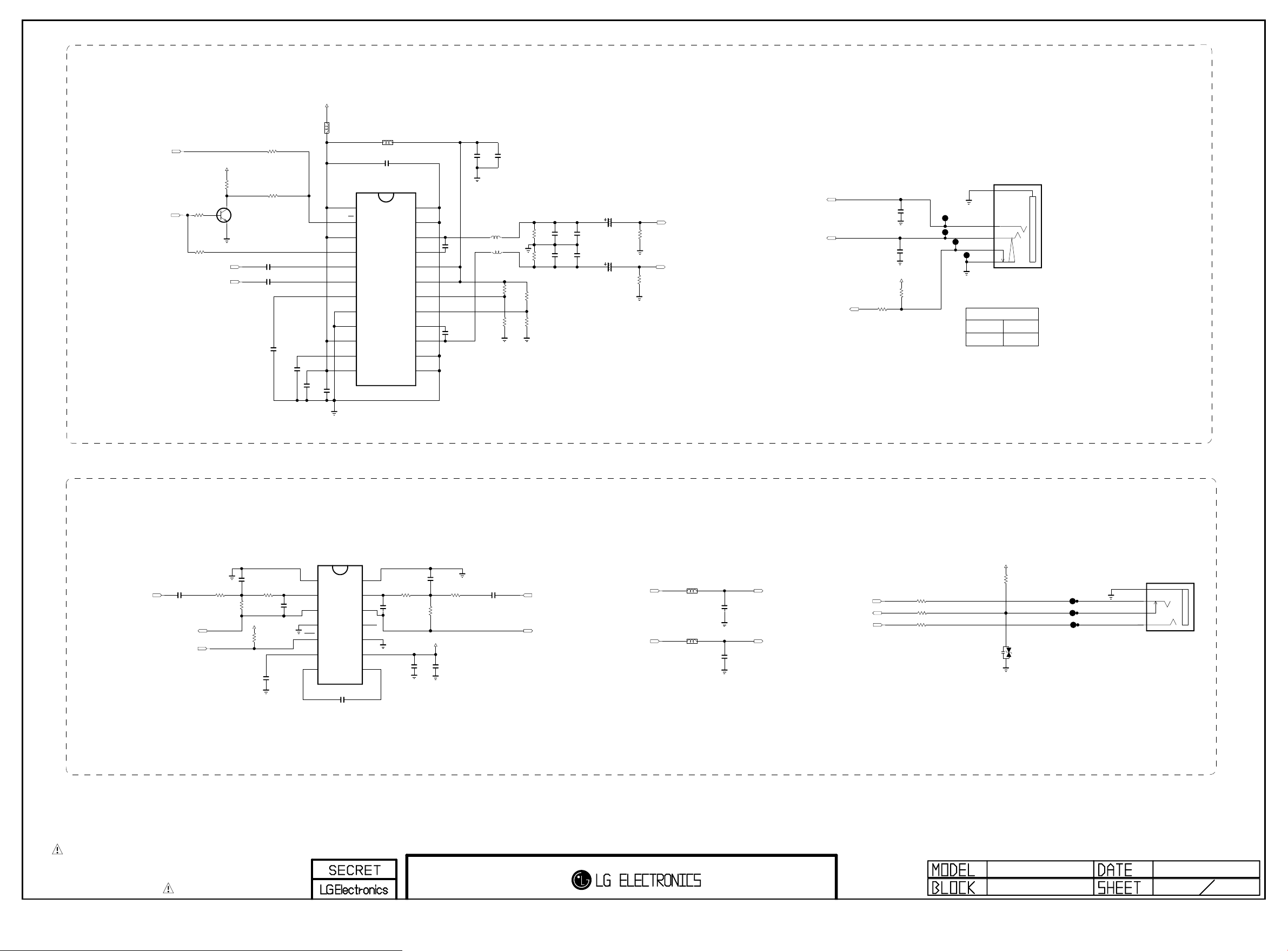

MAIN_AMP_RESET
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
EXT_SPK_MUTE
EXT_SPEAKER_AMP
+3.5V_ST
R8601
B
10K
OPT
R8613
10K
HP_LOUT/Ext_LOUT
HP_ROUT/Ext_ROUT
R8602
10K
OPT
C
Q8601
MMBT3904(NXP)
OPT
E
R8603
100
R8610 100
OPT
C8600
10V
1uF
EXT_SPK
EXT_SPK
C8601
10V
1uF
EXT_SPK
C8602
1uF
50V
EXT_SPK
C8603
1uF
50V
C8604
4.7uF
50V
EXT_SPK
C8605
0.1uF
50V
+24V_AMP
L8600
EXT_SPK
EXT_SPK
BLM18PG121SN1D
TPA3124D2PWPR
PVCCL_1
1
SD
2
PVCCL_2
3
MUTE
4
LIN
5
RIN
6
BYPASS
7
AGND_1
8
AGND_2
9
PVCCR_1
10
VCLAMP
11
PVCCR_2
12
EXT_SPK
L8604
BLM18PG121SN1D
EXT_SPK
C8611
0.1uF
50V
EXT_SPK
IC8600
EXT_SPK OUT(Single End)
EXT_SPK
EXT_SPK
C8609
C8610
0.1uF
4.7uF
50V
50V
PGNDL_2
24
PGNDL_1
23
LOUT
22
21
20
19
18
17
16
15
14
13
BSL
AVCC_2
AVCC_1
GAIN0
GAIN1
BSR
ROUT
PGNDR_2
PGNDR_1
C8607
0.22uF
50V
EXT_SPK
EXT_SPK
C8608
0.22uF
50V
EXT_SPK
L8602
22.0uH
L8603
22.0uH
EXT_SPK
R8604
10K
OPT
R8605
10K
EXT_SPK
EXT_SPK
R8608
4.7K
EXT_SPK
R8609
4.7K
R8606
10K
OPT
R8607
10K
EXT_SPK
EXT_SPK
C8612
1uF
50V
EXT_SPK
C8613
1uF
50V
EXT_SPK
C8614
0.47uF
50V
EXT_SPK
C8615
0.47uF
50V
47uF
C8616
47uF
C8617
25V
EXT_SPK
25V
EXT_SPK
EXT_SPK
R8616
10K
EXT_SPK
R8617
10K
EXT_OUT_L
EXT_OUT_R
EXT_OUT_R
EXT_OUT_L
EXT_SPK_DET
R8611
C8619
EXT_SPK
C8618
1uF
10V
OPT
1uF
10V
OPT
+3.5V_ST
100
EXT_SPK
R8612
15K
Connected
GND
DETECT
GND
High
EXT_SPK
JK8600
PEJ034-01
R
L
EXT_SPK_DET
Disconnected
Low
HEAD PHONE AMP
HP_ROUT/Ext_ROUT
C8620 1uF10V
HP_OUT
HP_ROUT_AMP
SIDE_HP_MUTE
R8618 10K
HP_OUT
C8621
18pF
50V
HP_OUT
R8619 43K
HP_OUT
R8620
43K
HP_OUT
+3.3V_NORMAL
R8621
4.7K
HP_OUT
C8623
1uF
10V
HP_OUT
HP_OUT
C8622
10pF
50V
+INR
-INR
OUTR
GND_1
MUTE
VSS
1
2
3
4
5
6
CN
7
HP_OUT
IC8601
TPA6138A2
14
13
12
11
10
C8624 1uF 10V
HP_OUT
HP OUT
+3.5V_ST
+INL
-INL
R8622 43K 1%
HP_OUT
C8629
10pF
OUTL
50V
HP_OUT
UVP
GND_2
VDD
9
CP
8
C8625
18pF
50V
R8624
43K 1%
HP_OUT
+3.3V_NORMAL
C8627
1uF
10V
HP_OUT
HP_OUT
R8623 10K
HP_OUT
C8628
0.1uF
16V
HP_OUT
C8626 1uF 10V
HP_OUT
HP_LOUT/Ext_LOUT
HP_LOUT_AMP
HP_LOUT_AMP
HP_ROUT_AMP
L8605
BLM18PG121SN1D
HP_OUT
L8606
BLM18PG121SN1D
HP_OUT
C8630
0.22uF
10V
HP_OUT
C8631
0.22uF
10V
HP_OUT
HP_LOUT
HP_ROUT
HP_LOUT
HP_DET
HP_ROUT
R8625 150
HP_OUT
R8626
HP_OUT
R8627 150
HP_OUT
100
R8628
10K
HP_OUT
VA8601
5.6V
HP_OUT
PEJ038-3B6
5GND
4L
3DETECT
1R
6Pie
HP_OUT
JK8601
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
2014.05.02
86EXT_SPK/HP
1.3
Page 47

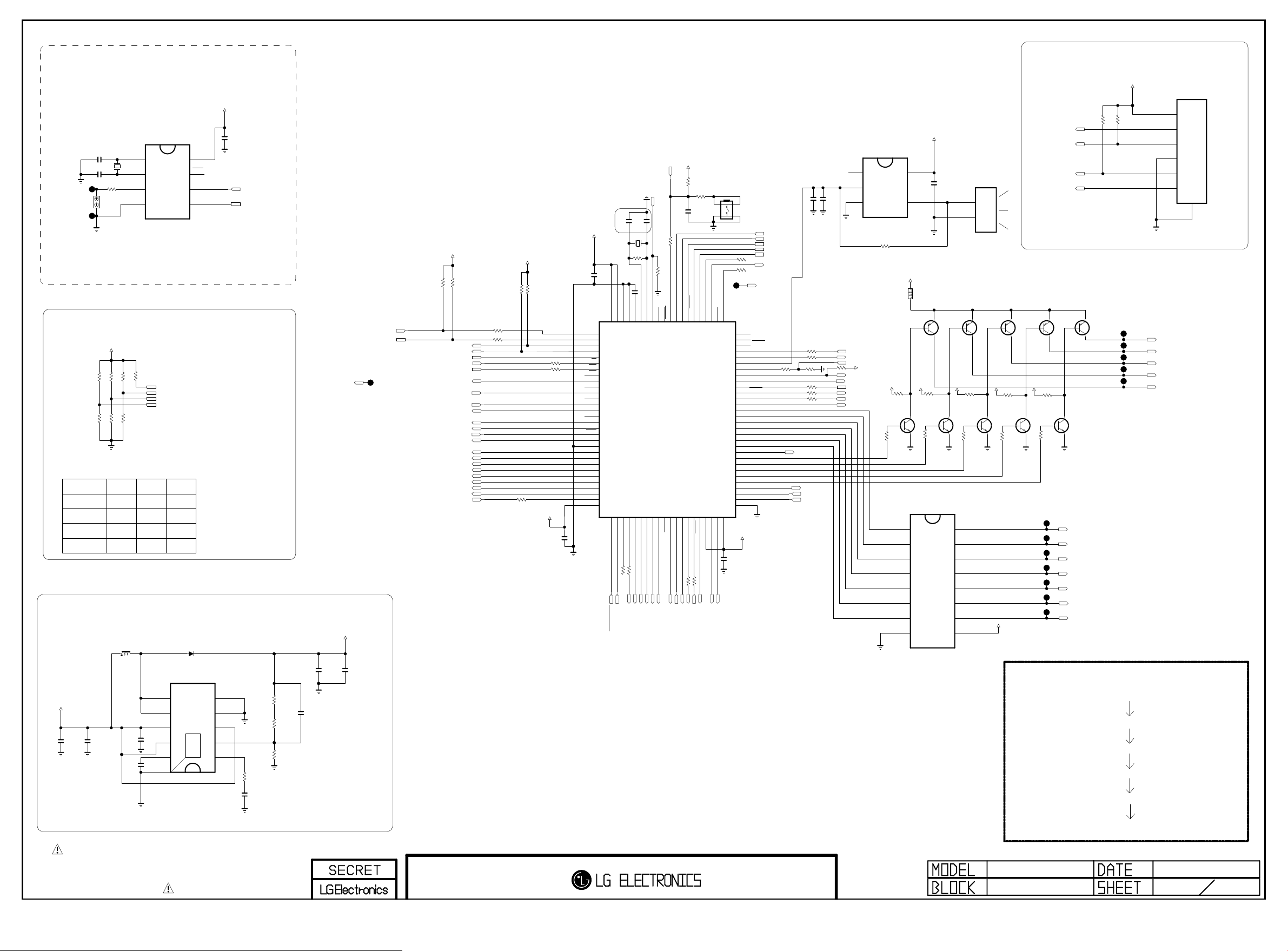

REAL TIME CLOCK(RTC)
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
+3.5V_ST
CLOCK
IC8702
OSCI
OSCO
X8702
32.768KHz
VBAT
VSS
PCF8523T
1
2
3
4
VDD
8
INT1/CLKOUT
7
SCL
6
SDA
5
CLOCK
BA8700
BATTERY
C8721
3.3pF
CLOCK
C8722
3.3pF
CLOCK
CLOCK
R8706
1K
12
CLOCK
MICOM MODEL OPTION
+3.5V_ST
OPT
CLOCK
NON_CLOCK
R8780 10K
CLOCK
R8781 10K
TOUCH KEY
R8779 10K
TACK KEY
R8782 10K
R8735 10K
R8701 10K
CLOCK_DET
MODEL1_OPT_0
R8736 10K
MODEL1_OPT_1
MODEL1_OPT_2
OPT
MODEL OPTION
PIN NAME HIGH
MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
CLOCK_DET
PIN NO.
87
86
85
18
TOUCH KEY
NON_CLOCK CLOCK
OPT
CLOCK
LOW
OPT
TACT KEY
OPT
Step Up regulator from 3.5V to 5V
+3.5V_ST
C8702
0.1uF
16V
L8701
3.6uH
OPT
C8704
10uF
10V
C8706
0.1uF
C8705
1uF
10V
16V
[EP]AGND
SW_1
SW_2
FREQ
IN
SS
D8701
SMAB34
40V
IC8701
TPS61087DRC
6
7
8
9
11
10
5
PGND
4
AGND
3
EN
THE RMAL
2
FB
1
COMP
C8707
2700pF
CLOCK
C8703
0.1uF
16V
50V
CLOCK_SCL
CLOCK_SDA
R8702
16K
NEC MICOM UPDATE
+3.5V_ST
R8709
TOOL0
TOOL1
FLMD0
CLOCK
B
Q8705
2SC3875S(ALY)
Q8710
C
CLOCK
E
CLK_DATA1
CLK_DATA2
CLK_DATA3
CLK_DATA4
CLK_DATA5
CLK_DATA6
CLK_DATA7
4.7K
2SA1504S
E
C
E
C
MICOM_RESET
CLOCK
E
B
Q8704
C
2SA1504S
R8791
10K
CLOCK
2SC3875S(ALY)
Q8709
C
CLOCK
B
E
CLOCK
R87005 4.7K
+3.5V_ST
OPT
IC8705
+3.5V_ST
MICOM_RESET
R8783
47K
SW8700
R8798
1K
C8715
2.2uF
4 3
10V
R8784 22
P47/INTP2
P46/INTP1/TI05/TO05
P45/SO01
P44/SI01
P43/SCK01
P42/TI04/TO04
P41/TOOL1
P40/TOOL0
RESET91P124/XT2
83
84
85
86
87
88
89
90
40
41
42
43
44
45
46
47
48
AVREF1
P14/EX28/RXD3
P15/EX29/RTCDIV/RTCCL
P16/EX30/TI01/TO01/INTP5
NEC_RX
EXT12V_CTRL
P110/ANO049P111/ANO1
P13/EX27/TXD3
P10/EX24/SCK00
P12/EX26/SO00/TXD0
P11/EX25/SI00/RXD0
22
R8724 22
R8725
NEC_TX
EEPROM_SW
SOC_NEC_TX
SOC_NEC_RX
/ETHERNET_RESET
12
R8793 22
R8792 22
P120/INTP0/EXLVI
81
82
P140/PCLBUZ0/INTP6
80
P141/PCLBUZ1/INTP7
79
P142/SCK20/SCL20
78
P143/SI20/RXD2/SDA20
77
P144/SO20/TXD2
76
P145/TI07/TO07
75
P00/TI00
74
P01/TO00
73
P02/SO10/TXD1
72
P03/SI10/RXD1/SDA10
71
P04/SCK10/SCL10
70
P131/TI06/TO06
69
P130
68
P20/ANI0
67
P21/ANI1
66
P22/ANI2
65
P23/ANI3
64
P24/ANI4
63
P25/ANI5
62
P26/ANI6
61
P27/ANI7
60
P150/ANI8
59
P151/ANI9
58
P152/ANI10
57
P153/ANI11
56
P154/ANI12
55
P155/ANI13
54
P156/ANI14
53
P157/ANI15
52
AVSS
51
50
+3.5V_ST
AVREF0
C8709
0.1uF
16V
IR_OUT_CTRL
TOOL0
TOOL1
MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
LOGO_LIGHT
LOGO_LIGHT
R8774
0
13pF
C8710
X8701
10MHz
R8786
1M
0.1uF
C8713
P121/X1
REGC97VSS98EVSS099VDD
96
33
R8723 22
EDID_WP
POWER_ON/OFF2_1
FLMD0
13pF
R8785 100K
P123/XT1
FLMD094P122/X2/EXCLK
92
93
95
IC8700
39
P17/EX31/TI02/TO02
EXT5V_CTRL
SCART_MUTE
SIDE_HP_MUTE
MAIN_AMP_RESET
Closed to Crystal
+3.5V_ST
+3.5V_ST
CLOCK
CLOCK
R8717 4.7K
R8716 4.7K
HDMI_CEC
EPHY_MDC
LED_R
UART_SW2
RL_ON
UART_SW1
DBG_SW
INV_CTL
R8720 22
R8721 22
IR
CLOCK_SCL
CLOCK_SDA
POWER_ON/OFF2_4
+5V_ST
OPT
C8717
1uF
16V
R8703
51K
OPT
1%
R8704
3.3K
1%
R8700
18K
1%
C8716
100pF
50V
R1
R2
C8718
22uF
16V
TP8705
POWER_ON/OFF2_3
POWER_ON/OFF2_4
EPHY_MDIO
WARM_MODE
/RTL8201_PMEB
CLOCK_DET
POWER_ON/OFF2_2
UART_DBG_SW
PANEL_CTL
POWER_ON/OFF1
SOC_RESET
ETNHUB_PWR_ON/OFF
POWER_DET
CLOCK
CLOCK
R8726
+3.5V_ST
R8714 10K
R8715 10K
P60/SCL0
P61/SDA0
P31/TI03/TO03/INTP4
R8727 33
R8728 33 +3.5V_ST
P77/EX23/KR7/INTP11
P76/EX22/KR6/INTP10
100
+3.5V_ST
C8708
0.1uF
P64/RD
P65/WR0
P66/WR1
P67/ASTB
P75/EX21/KR5/INTP9
P74/EX20/KR4/INTP8
P73/EX19/KR3
P72/EX18/KR2
P71/EX17/KR1
P70/EX16/KR0
P06/WAIT
P05/CLKOUT
EVSS1
P80/EX0
P81/EX1
P82/EX2
P83/EX3
P84/EX4
P85/EX5
P86/EX6
P87/EX7
P30/INTP3/RTC1HZ
EVDD1
C8711
C8712
0.1uF
16V
EVDD0
100
1
2
P62
3
P63
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
P50/EX832P51/EX9
P52/EX1034P53/EX1135P54/EX1236P55/EX1337P56/EX1438P57/EX15
R8722 22
ETNHUB_INT
/RTL8201_INT
OPT
C8719
0.1uF
16V
R8772 22
R8771 22
R8773
10K
R8767
R8766
R8765 100
OPT
AMP_PWR_EN
WIFI_EN
KEY1
KEY2
OPT
C8720
1uF
10V
R8776
EXT_SPK
22
22
74LVC1G14
NC
1
A
2
GND
3
R8713
CLOCK
NEC_DBG_RXD
NEC_DBG_TXD
MHL_DET
10K
EXT_SPK_MUTE
WOL/WIFI_POWER_ON
NEC_EEPROM_SDA
NEC_EEPROM_SCL
EXT_SPK_DET
AMP_MUTE
VCC
5
4
0
+5V_ST
+5V_ST +5V_ST +5V_ST +5V_ST +5V_ST
R8787
10K
CLOCK
B
CLOCK
R8797 4.7K
I1
I2
I3
I4
I5
I6
I7
GND
Y
L8700
BLM18PG121SN1D
CLOCK
CLOCK
B
Q8701
2SA1504S
R8788
10K
CLOCK
2SC3875S(ALY)
Q8706
C
CLOCK
E
CLOCK
R8799 4.7K
CLOCK
IC8703
KID65003AF
1
2
3
4
5
6
7
8
E
C
B
OPT
C8714
0.1uF
16V
16
15
14
13
12
11
10
PKLCS1212E4001-R1
CLOCK
B
Q8702
R8789
10K
CLOCK
2SC3875S(ALY)
Q8707
C
CLOCK
E
CLOCK
R87001 4.7K
O1
O2
O3
O4
O5
O6
O7
COMMON
9
CLOCK
BU8700
1
2
E
C
2SA1504S
B
CLOCK
B
Q8703
2SA1504S
R8790
10K
CLOCK
2SC3875S(ALY)
Q8708
C
CLOCK
E
CLOCK
R87003 4.7K
+3.5V_ST
B
GP4 High/MID Power SEQUENCE
R8710
4.7K
POWER_ON/OFF!
POWER_ON/OFF2_4
POWER_ON/OFF2_2
POWER_ON/OFF2_3
POWER_ON/OFF2_1
CLK_COM1
CLK_COM2
CLK_COM3
CLK_COM4
CLK_COM5
P8701
12507WS-06L
1
2
3
4
5
6
7
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
SOC_RESET
2014.05.02
87NEC MICOM
1.3
Page 48

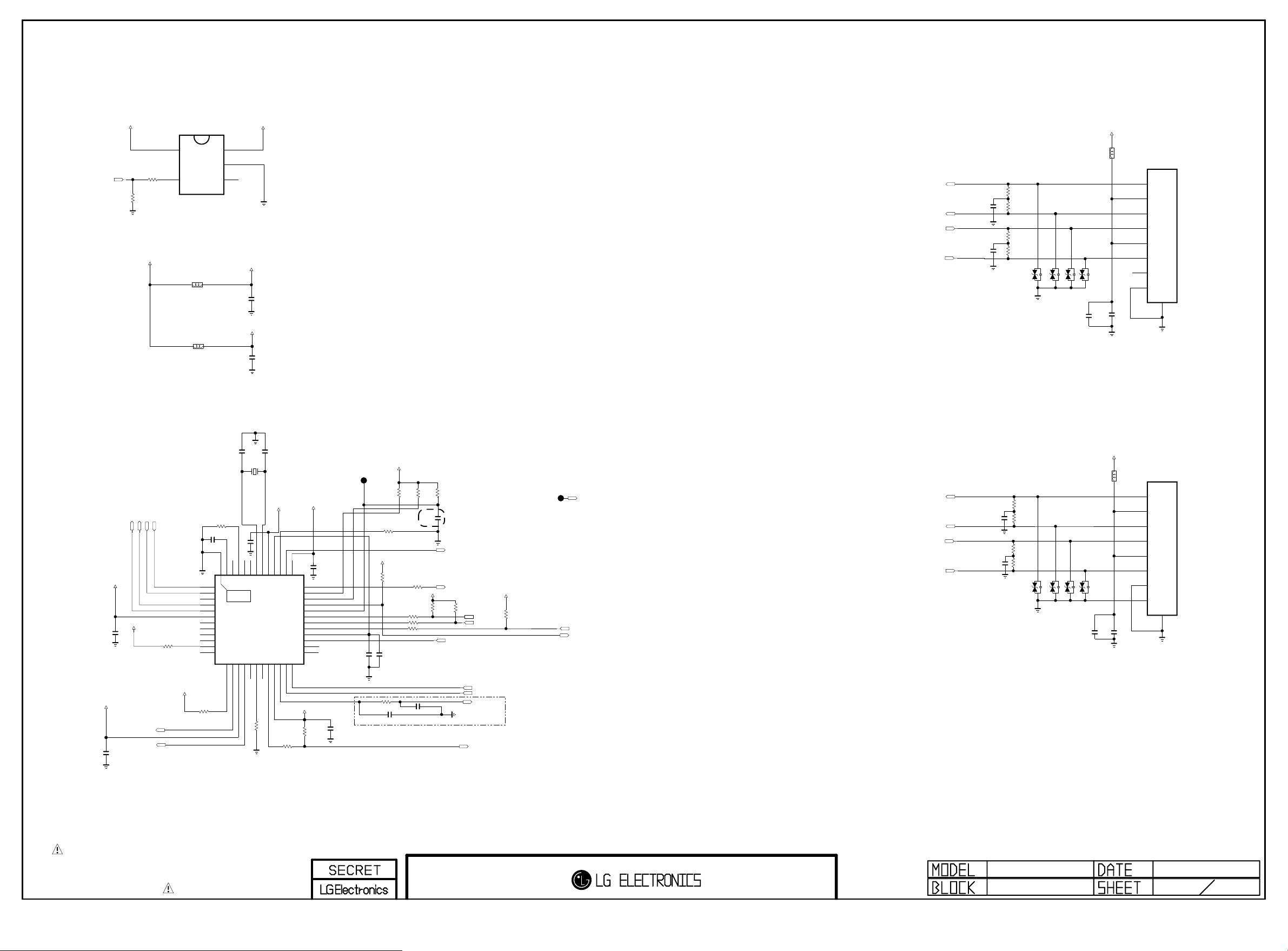

Ethernet PHY(RTL8201FN)/RJ45
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
ETNHUB_PWR_ON/OFF
+3.5V_ST
+3.5V_ST_LAN
R9002 33
R9007
10K
OPT
AP2191WG-7
IN
5
EN
4
L9000
BLM18PG121SN1D
L9001
BLM18PG121SN1D
IC9003
+3.5V_ST_LAN
LAN 1
OUT
1
GND
2
FLG
3
LAN_AVDD33
C9012
0.1uF
16V
LAN_DVDD33
C9013
0.1uF
16V
(AUX LAN)
ETNHUB_EPHY_TXOP1
ETNHUB_EPHY_TXON1
ETNHUB_EPHY_RXIP1
ETNHUB_EPHY_RXIN1
C9015
0.1uF
C9016
0.1uF
R9039
49.9
1%
R9040
49.9
1%
R9041
49.9
1%
R9042
49.9
1%
D9004
5.5V
LAN_ESD
D9006
5.5V
LAN_ESD
D9008
5.5V
LAN_ESD
D9010
5.5V
ETNHUB_AVDD18
L9002
BLM18PG121SN1D
LAN_ESD
C9017
0.01uF
50V
C9021
0.1uF
16V
JK9000
RJ45VT-01SN002
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
LAN_AVDD33
C9000
0.1uF
LAN_DVDD33
PHY ADDRESS CONFIG
CONFIG PHY_ADDRESS = 111
LAN_DVDD33
C9006
0.1uF
16V
C9010
0.1uF
16V
TP9000
R9014 3.3K
LAN_DVDD33
R9011
C9026 33pF
1
R9026
4.7K
R9025
4.7K
R9000 33
R9003 33
R9030 22
C9011
0.1uF
16V
51
0
R9027
4.7K
R9015 22
Place near IC
C9027 5pF
R9032
4.7K
C9014
0.1uF
16V
+3.5V_ST
2
Place Closed
ET_COL/SNI
EPHY_CRS_DV
R9005
1.5K
OPT
EPHY_EN
R9006
1.5K
OPT
EPHY_MDIO
EPHY_MDC
EPHY_TXD1
EPHY_TXD0
EPHY_REFCLK
/RTL8201_INT
LAN_DVDD33
R9038
4.7K
TO SOC / MCU
ET_COL/SNI
/ETHERNET_RESET
/RTL8201_PMEB
ETNHUB_EPHY_TXOP3
ETNHUB_EPHY_TXON3
ETNHUB_EPHY_RXIP3
ETNHUB_EPHY_RXIN3
TO MCU
C9004
0.1uF
16V
IC9000
15
16
RXD[1]17RXD[2]
X9000
NC_645NC_746RSET47NC_848AVDD10OUT
50V
12pF
C9005
25.0MHz
AVDD33_2
CKXTAL1
CKXTAL2
41
42
43
44
18
19
20
RXC
INTB
RXD[3]/CLK_CTL
R9067 3.3K
R9013 100
COL39RXER/FXEN
DVDD10OUT
38
40
21
22
23
TXC
TXD[0]24TXD[1]
DVDD33_2
LAN_DVDD33LAN_AVDD33
C9007
0.1uF
16V
DVDD33_3
37
36
35
34
33
32
31
30
29
28
27
26
25
LAN_DVDD33
CRS/CRS_DV
LED1/PHYAD[1]
LED0/PHYAD[0]
PMEB
LED2/PHYAD[2]
MDIO
MDC
PHYRSTB
DVDD10
TXEN
TXD[3]
TXD[2]
R9012
4.7K
50V
12pF
C9003
TR0P
TR0N
R9001 4.7K
Place this Res. near IC
LAN_DVDD33
MDI+[0]
MDI-[0]
NC_1
MDI+[1]
MDI-[1]
AVDD33_1
NC_2
NC_3
NC_4
NC_5
EN_LDO_OUT
TXER
R9004 4.7K
C9002
0.1uF
16V
R9009
2.49K
1%
[EP]GND
1
2
3
4
5
6
7
8
9
10
11
12
RXDV
THERMAL
49
RTL8201FN
13
14
RXD[0]
DVDD33_1
TR1N
TR1P
LAN_DVDD33
16V
EPHY_RXD0
EPHY_RXD1
C9001
0.1uF
16V
LAN 2
C9024
0.1uF
C9025
0.1uF
R9051
49.9
1%
R9052
49.9
1%
R9053
49.9
1%
R9054
49.9
1%
D9005
5.5V
LAN_ESD
D9007
5.5V
LAN_ESD
D9009
5.5V
LAN_ESD
D9011
5.5V
C9023
0.01uF
ETNHUB_AVDD18
L9003
BLM18PG121SN1D
LAN_ESD
C9022
0.1uF
16V
JK9001
RJ45VT-01SN002
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
PHY/RJ45
2014.05.02
90
1.3
Page 49
12V EXT.Power Out
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
R9100
18K
close to pin
D9100
MBRA340T3G
C9114
150pF
50V
R9107
150K
SW_1
SW_2
EN
COMP
FB
R9110
100K
C9113
50V
IC9102
MP4460DQ-LF-Z
1
2
3
$0.21
4
5
L9100
22UH
0.1uF
11
THERMAL
10
9
8
7
6
Switching noise reducing [MPS recommend]
R9117
200K
1/8W
1%
C9104
0.1uF
50V
R9111
22
R9114
20K
1/16W
1%
P_12V
R9118
270K
1/16W
1%
C9102
3.3uF
50V
EP_GND
BST
VIN_2
VIN_1
FREQ
GND
C9108
22uF
25V
+24V
R9106
10K
1/16W
1%
C9110
0.1uF
50V
P_12V
EXT12V_CTRL
P_12V
Vout=(1+R1/R2)*0.765=5.03V
Non_Cruise
R9104
43
IC9101
MP5000DQ
GND
DV/DT
I-LIMIT
NC
Non_Cruise
C9107
22uF
25V
1
Non_Cruise
2
3
4
5
10
9
8
7
6
11
VCC
Non_Cruise
L9103
CB3216PA501E
Non_Cruise
C9105
470pF
50V
R9101
1K
Non_Cruise
C9106
1uF
25V
Non_Cruise
ENABLE/FAULT
SOURCE_5
SOURCE_4
SOURCE_3
SOURCE_2
SOURCE_1
Non_Cruise
L9101
CB3216PA501E
C9109
0.1uF
50V
Non_Cruise
EXT_12V
EXT5V_CTRL
R9112
R9113
11K
56K
1%
1%
C9112
100pF
R9116
12K
L9105
CB3216PA501E
R9103
10K
VREG5
1%
C9117
1uF
10V
C9115
3300pF
50V
IC9103
TPS54327DDAR
EN
1
VFB
2
3
SS
4
9
THERMAL
8
7
6
5
[EP]GND
VIN
VBST
SW
GND
close IC1800
C9116
0.1uF
50V
NR8040T3R6N
C9111
10uF
25V
L9104
3.6uH
C9103
22uF
16V
C9101
22uF
16V
EXT_5V
L9102
Non_Cruise
CB3216PA501E
L9106
CB3216PA501E
Cruise
+5V_USB_2
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
2014.05.02
91EXT. Power(12V/5V)
1.3
Page 50
Pro:Idiom (XMARK)
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Power
+3.3V_NORMAL
PRO_IDIOM
L9401
MLB-201209-0120P-N2
27MHz(200ppm)
Q16
PROIDIOM_SYSCLK
XMARK_1.8V
+3.3V_PROIDIOM
L9400
PRO_IDIOM
MLB-201209-0120P-N2
C9400
22uF
16V
PRO_IDIOM
RESET
PROIDIOM_RESET
+3.3V_PROIDIOM
PRO_IDIOM
+3.3V_PROIDIOM
C9405
10uF
10V
+3.3V_PROIDIOM
C9404
C9403
0.1uF
10uF
10V
PRO_IDIOM
R9401
22
PRO_IDIOM
IC9401
AZ1117H-1.8TRE1(EH13A)
INPUT
PRO_IDIOM
3
2
OUTPUT
C9401
0.1uF
16V
PRO_IDIOM
C9440
1uF
25V
OPT
R9429
100
PRO_IDIOM
092:M16
R9428
4.7K
PRO_IDIOM
PRO_IDIOM
L9402
MLB-201209-0120P-N2
X9400
27MHz
+VCC
OUTPUT
4
3
PRO_IDIOM
ADJ/GND
1
APX809-26SAG-7
RESET
2
TRI
1
GND
2
PRO_IDIOM
IC9400
+3.3V_VCCINT
C9406
0.1uF
16V
PRO_IDIOM
+3.3V_PROIDIOM
VCC
3
1
GND
PRO_IDIOM
C9441
1uF
25V
XMARK_1.8V
PRO_IDIOM
C9408
22uF
16V
[M14 -> Pro:Idiom] IP Serial IN
TS_S_OUT_CLK
TS_S_OUT_VAL
TS_S_OUT_SYNC
TS_S_OUT_DATA
R9423
R9424
R9425
R9426
[M14 -> Pro:Idiom] RF Parallel IN
BLM18PG121SN1D
PRO_IDIOM
C9410
4.7uF
PRO_IDIOM
R9412 10K
AR9400 33
AR9401 33
AR9402 33
L9403
TPO_CLK
TPO_VAL
TPO_SOP
TPO_DATA[0-7]
PROIDIOM_RESET
TPO_DATA[0]
TPO_DATA[1]
TPO_DATA[2]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[7]
XMARK_1.8V
+3.3V_PROIDIOM
C9409
0.1uF
PRO_IDIOM
PRO_IDIOM
PRO_IDIOM
PRO_IDIOM
Close to IC
I2C_SCL3
I2C_SDA3
33
33
33
33
C19
PRO_IDIOM
PRO_IDIOM
PRO_IDIOM
PRO_IDIOM
PROIDIOM_SYSCLK
R9409 33
R9410 33
R9411 0
PRO_IDIOM
PRO_IDIOM
XMARK_1.8V
C9413
IO2_29/TP_SOP
IO2_21/TP_VALID
IO2_17/TP_ERR
IO2_41/TP_DATA[7]
IO2_36/TP_DATA[6]
IO2_31/TP_DATA[5]
IO2_25/TP_DATA[4]
IO2_23/TP_DATA[3]
IO2_18/TP_DATA[2]
IO2_14/TP_DATA[1]
IO2_8/TP_DATA[0]
IO2_48/RESET
IO3_37/I2C_SCK
IO3_34/I2C_SDA
IO1_22/ASDO
PRO_IDIOM
0.1uF
IO1_1/INIT_DONE
0.1uF
C9412
PRO_IDIOM
XMARK_1.8V
CLK1
IO1_29
IO1_2
IO1_3
IO1_4
IO1_5
IO1_6
IO1_7
IO1_8
IO1_9
IO1_10
IO1_11
IO1_12
CLK0
DCLK
CONF_DONE
NCONFIG
DATA0
IO1_21SO
NCEO
NSTATUS
MSEL0
MSEL1
IO1_13
IO1_14
IO1_15
IO1_16
IO1_17
IO1_18
IO1_19
IO1_20
IO1_23
IO1_24
IO1_25
IO1_26
IO1_27
IO1_28
IO1_30
IO1_31
IO1_32
IO1_33
IO1_34
IO1_35
H1
B8
B9
B10
C5
C6
C7
C8
C9
C10
C11
C12
M1
C3
C2
B1
G5
F4
D3
E4
F5
E3
D2
E2
G1
B2
D14
E14
K4
K13
H3
NCE
J4
H2
G4
K3
H4
J13
J3
J2
TCK
J14
TDO
H15
TMS
J15
TDI
H14
D4
D1
F3
G3
F2
E1
G2
F1
H5
J1
K2
L3
K1
L1
L2
N1
M2
N2
M3
L5
M4
PRO_IDIOM
VCCA_PLL2
IO2_35B5IO2_42
IO2_37
IO2_38E6IO2_39
IO2_40
B6
D6
D5
E5
N3
IO1_36K5IO1_37L4IO1_38R1IO1_39P2IO1_40P3IO1_41N4IO1_42
0.1uF
C9414
0.1uF
C9415
PRO_IDIOM
H11
GND_24
GND_25
GND_26
GNDA_PLL1
GNDG_PLL1
GNDA_PLL2
GNDG_PLL2
VCCA_PLL1
T5
J6
J5
H6
R2
IO4_1T2IO4_2R3IO4_3P4IO4_4R4IO4_5T4IO4_6R5IO4_7M5IO4_9
T12
T16
J11
J12
C9417
0.1uF
PRO_IDIOM
GND_13J7GND_14
GND_15K6GND_16K8GND_17
GND_18L6GND_19
GND_20L9GND_21
GND_22T1GND_23
J9
L8
L11
H10
K10
IC9403
LGDT1001
I2C : 0x47
M6
IO4_10N5IO4_11N6IO4_12R6IO4_14M7IO4_15T6IO4_16R7IO4_17N7IO4_19T8IO4_21M8IO4_22N8IO4_23
C9418
0.1uF
PRO_IDIOM
PRO_IDIOM
Cap close to IC
C9419
0.1uF
M10
IO4_25T9IO4_27N9IO4_29
PRO_IDIOM
GND_11H8GND_12
G11
C9420
0.1uF
GND_8G7GND_9G9GND_10
T11
IO4_31
IO4_32
F11
PRO_IDIOM
N10
N11
IO4_36
IO4_37M9IO4_38
N12
GND_2A5GND_3
GND_4F6GND_5F8GND_6F9GND_7
A12
M11
M12
IO4_39
IO4_40
IO4_42
C9421
0.1uF
PRO_IDIOM
A16
R12
C9422 0.1uF
VCCIO2_4
GND_1
A3
A1
T13
R13
IO4_43
IO4_44
PRO_IDIOM
PRO_IDIOM
C9423 0.1uF
VCCIO2_1
VCCIO2_2
VCCIO2_3
F7
A14
F10
R14
P13
T15
IO4_45
IO4_46
IO4_47
PRO_IDIOM
C9424 0.1uF
C9425
VCCIO3_1
VCCIO3_2
VCCIO3_3
K11
C16
R15
N13
IO3_1
IO3_2
IO4_48
1uF 10V
PRO_IDIOM
VCCIO4_4
T14
P16
P14
P15
IO3_3
PRO_IDIOM
C9426 0.1uF
C9427 0.1uF
VCCIO4_1
VCCIO4_2
VCCIO4_3
L7
L10
R16
N15
N16
IO3_4
IO3_5
IO3_6
C9428
0.1uF
PRO_IDIOM
PRO_IDIOM
C9429 0.1uF
VCCIO1_2
VCCIO1_3
P1
T3
K12
IO3_7
IO3_8
PRO_IDIOM
VCCIO1_1
C1
G6
K14
L12
IO3_9
IO3_10
PRO_IDIOM
C9431 0.1uF
C9430 0.1uF
VCCINT_10
VCCINT_11
VCCINT_12
K9
T7
T10
N14
M13
M14
IO3_11
IO3_12
PRO_IDIOM
PRO_IDIOM
C9432 0.1uF
VCCINT_7
VCCINT_8
VCCINT_9
K7
J10
L13
M15
IO3_13
IO3_14
IO3_15
PRO_IDIOM
PRO_IDIOM
PRO_IDIOM
C9433 0.1uF
C9434 0.1uF
VCCINT_4
VCCINT_5
VCCINT_6
H7
H9
J8
M16
L14
L15
IO3_16
IO3_17
IO3_18
R9416 4.7K
R9414 4.7K
R9415 4.7K
PRO_IDIOM
C9435 0.1uF
VCCINT_2
VCCINT_3
G8
A10
G10
L16
K16
K15
IO3_19
IO3_20
PRO_IDIOM
PRO_IDIOM
VCCINT_1
A7
IO4_34/CH_CLK
R11
IO4_20/CH_VALID
R8
IO4_26/CH_SOP
R9
IO4_30/CH_ERR
R10
IO4_8/CH_DATA[0]
P5
IO4_13/CH_DATA[1]
P6
IO4_18/CH_DATA[2]
P7
IO4_24/CH_DATA[3]
P8
IO4_28/CH-DATA[4]
P9
IO4_33/CH_DATA[5]
P10
IO4_35/CH_DATA[6]
P11
IO4_41/CH_DATA[7]
P12
IO2_34
E7
IO2_33
A6
IO2_32
B7
IO2_43
A4
IO2_30
D7
IO2_28
A8
IO2_27
E8
IO2_26
D8
IO2_44
B4
IO2_24
E10
IO2_45
C4
IO2_22
D9
IO2_20
A9
IO2_19
D10
IO2_16
A11
IO2_15
B11
IO2_46
B3
IO2_13
D11
IO2_12
D12
IO2_11
E9
IO2_10
E11
IO2_9
E12
IO2_47
A2
IO2_7
B12
IO2_6
A13
IO2_5
B13
IO2_4
C13
IO2_3
B14
IO2_2
A15
IO2_1
B15
IO3_43
D13
IO3_42
C14
IO3_41
C15
IO3_40
B16
IO3_39
G12
IO3_38
H13
IO3_36
E13
IO3_35
F12
IO3_33
D15
IO3_32
D16
IO3_31
E15
IO3_30
E16
IO3_29
F15
IO3_28
F13
IO3_27
F14
IO3_26
F16
IO3_25
G15
IO3_24
G13
IO3_23
G14
IO3_22
H12
CLK2
G16
CLK3
H16
J16
IO3_21
+3.3V_PROIDIOM
+3.3V_PROIDIOM
L9404
L9405
BLM18PG121SN1D
BLM18PG121SN1D
PRO_IDIOM
PRO_IDIOM
XMARK_1.8V
PRO_IDIOM
R9417 4.7K
R9418 4.7K
PRO_IDIOM
+3.3V_VCCINT
L9407
BLM18PG121SN1D
BLM18PG121SN1D
PRO_IDIOM
L9408
BLM18PG121SN1D
PRO_IDIOM
L9406
PRO_IDIOM
[Pro:Idiom -> M14] RF Parallel OUT
[Pro:Idiom -> M14] IP Serial OUT
C9437
0.1uF
PRO_IDIOM
C9438
0.1uF
PRO_IDIOM
C9439
0.1uF
PRO_IDIOM
PRO_IDIOM
C9436
0.1uF
+3.3V_PROIDIOM
P:I_OUT_CLK
P:I_OUT_VAL
P:I_OUT_SOP
P:I_OUT_DATA0
P:I_OUT_DATA1
P:I_OUT_DATA2
P:I_OUT_DATA3
P:I_OUT_DATA4
P:I_OUT_DATA5
P:I_OUT_DATA6
P:I_OUT_DATA7
Cap close to IC
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
2014.05.02
94Pro:IDIOM
1.3
Page 51
TPI_DATA[6]
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
TPI_DATA[7]
P:I_OUT_DATA7
P:I_OUT_DATA6
TPI_DATA[4]
TPI_DATA[5]
P:I_OUT_DATA5
P:I_OUT_DATA4
C9501
0.1uF
C9502
0.1uF
PRO_IDIOM
IC9501
SN74LVC16244AZQLR
1OE
A1
NC_1
A2
NC_2
A3
NC_3
A4
NC_4
A5
2OE
A6
1Y2
B1
1Y1
B2
GND_1
B3
GND_2
B4
1A1
B5
1A2
B6
1Y4
C1
1Y3
C2
VCC_1
C3
VCC_2
C4
1A3
C5
1A4
C6
2Y2
D1
2Y1
D2
GND_3
D3
GND_4
D4
2A1
D5
2A2
D6
2Y4
E1
2Y3
E2
2A3
E5
2A4
E6
+3.3V_NORMAL
L9501
BLM18PG121SN1D
+3.3V_NORMAL
10K
R9503
PRO_IDIOM
C
Q9501
MMBT3904(NXP)
PRO_IDIOM
E
3OE
K6
NC_8
K5
NC_7
K4
NC_6
K3
NC_5
K2
4OE
K1
4A3
J6
4A4
J5
GND_8
J4
GND_7
J3
4Y4
J2
4Y3
J1
4A1
H6
4A2
H5
H4
H3
H2
H1
G6
G5
G4
G3
G2
G1
F6
F5
F2
F1
VCC_4
VCC_3
4Y2
4Y1
3A3
3A4
GND_6
GND_5
3Y4
3Y3
3A1
3A2
3Y2
3Y1
C9503
0.1uF
C9504
0.1uF
R9502
B
PRO_IDIOM
P:I_OUT_VAL
P:I_OUT_SOP
TPI_SOP
TPI_VAL
P:I_OUT_CLK
TPI_CLK
P:I_OUT_DATA1
P:I_OUT_DATA0
TPI_DATA[0]
TPI_DATA[1]
P:I_OUT_DATA3
P:I_OUT_DATA2
TPI_DATA[2]
TPI_DATA[3]
10K
TP_SWITCH
CI_OUT_DATA7
CI_OUT_DATA6
CI_OUT_DATA5
CI_OUT_DATA4
C9505
0.1uF
C9506
0.1uF
IC9502
SN74LVC16244AZQLR
1OE
A1
NC_1
A2
NC_2
A3
NC_3
A4
NC_4
A5
2OE
A6
1Y2
B1
1Y1
B2
GND_1
B3
GND_2
B4
1A1
B5
1A2
B6
1Y4
C1
1Y3
C2
VCC_1
C3
VCC_2
C4
1A3
C5
1A4
C6
2Y2
D1
2Y1
D2
GND_3
D3
GND_4
D4
2A1
D5
2A2
D6
2Y4
E1
2Y3
E2
2A3
E5
2A4
E6
CI
3OE
K6
NC_8
K5
NC_7
K4
NC_6
K3
NC_5
K2
4OE
K1
4A3
J6
4A4
J5
GND_8
J4
GND_7
J3
4Y4
J2
4Y3
J1
4A1
H6
4A2
H5
H4
H3
H2
H1
G6
G5
G4
G3
G2
G1
F6
F5
F2
F1
VCC_4
VCC_3
4Y2
4Y1
3A3
3A4
GND_6
GND_5
3Y4
3Y3
3A1
3A2
3Y2
3Y1
C9507
0.1uF
C9508
0.1uF
CI
R9501
10K
TP_SWITCH
CI_OUT_VAL
CI_OUT_SOP
CI_OUT_CLK
CI_OUT_DATA1
CI_OUT_DATA0
CI_OUT_DATA3
CI_OUT_DATA2
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
xxLY760H-ZA
2014.05.02
95TP SWITCH
1.3
Page 52
PLACE AT JACK SIDE
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
PAGE 32
SCART SIGNAL
+3.3V_NORMAL
Place JACK Side
SC_CVBS_IN
SC_FB
SC_ID
SC_B
SC_G
SC_CVBS_IN_SOY
SC_R COMP1_PR_IN_SOC
C302
150pF
50V
EU
R305
R306 10K
R390
75
EU
10pF
C304
50V
OPT
NON_EU
R394 0
L302
1uH
EU
EU
EU
10pF
C308
C307
50V
OPT
100
10pF
50V
OPT
C311
150pF
EU
1005
75
1%
R313
EU
1005
R391
75
EU
R389
2.7K
75
1%
R317
EU
1005
75
1%
R392
Place SOC Side
IC300
NJM2561BF1
R328
R327 0
EU
100
C326 0.047uF
POWER_SAVE
DTV/MNT_V_OUT
SC_CVBS_IN_SOC
SC_CVBS_IN_SOY
VOUT
VSAG
1
EU
2
3
SC_FB_SOC
SC_ID_SOC
33
R330
EU
R331 33
EU
R332 33
EU
EU
EU
C319 0.047uF
EU
C320 0.047uF
EU
C327 1000pF
C321 0.047uF
EU
COMP1_PB_IN_SOC
COMP1_Y_IN_SOC
COMP1_Y_IN_SOC_SOY
+12V
V+
6
GND
5
VIN
4
EU
C362
0.1uF
EU
C364
0.1uF
DTV/MNT_V_OUT_SOC
AUDIO OUT
AUDIO IN
SC_L_IN
SC_R_IN
R307 27K
1%
R308 27K
1%
C314 4.7uF
R393 10K
1%
C315 4.7uF
R321 10K
1%
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
AUAD_L_CH2_IN
AUAD_R_CH2_IN
SCART_LOUT
SCART_ROUT
R337
100K
EU
R338
100K
EU
R339
100K
EU
EU
R336
100K
xxLY760H-ZA
SCART SIGNAL
2.2uF
C329
10V
EU
C330 2.2uF
10V
EU
SCART_LOUT_SOC
SCART_ROUT_SOC
2014.05.02
111
1.3
Page 53
Loading...
