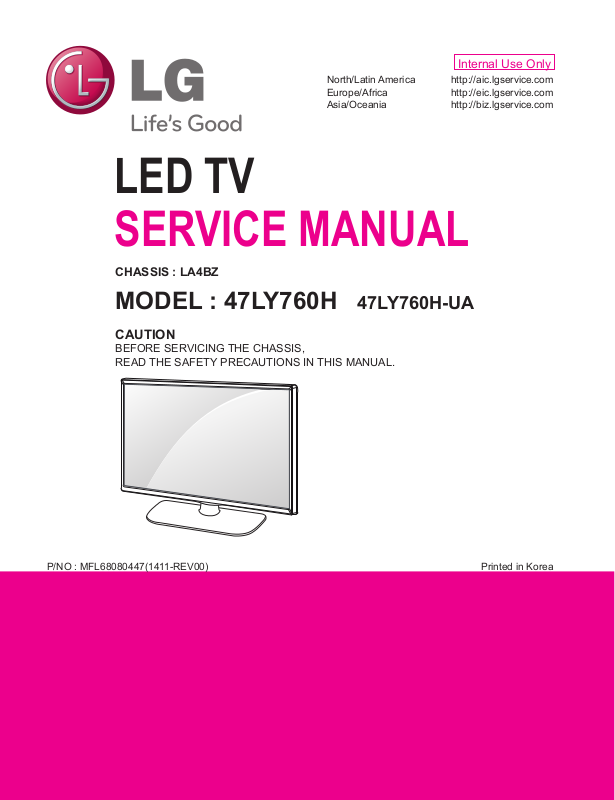

LED TV

SERVICE MANUAL

CHASSIS : LA4BZ

MODEL : 47LY760H 47LY760H-UA

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68080447(1411-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 8

TROUBLE SHOOTING ............................................................................ 17

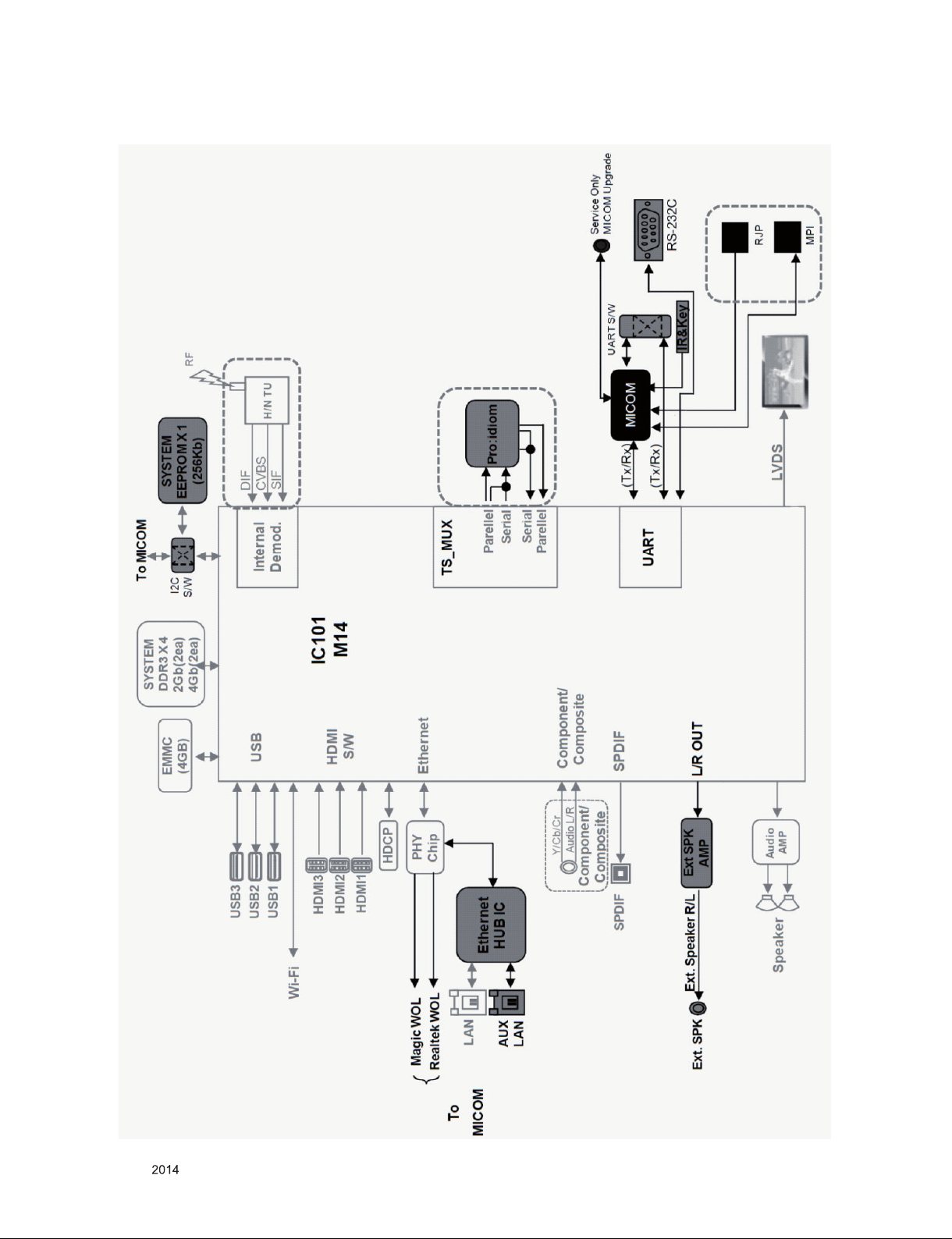

BLOCK DIAGRAM .................................................................................. 22

EXPLODED VIEW .................................................................................. 23

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shor ts of the circuitr y tha t may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten­tial shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri­cally shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied LED TV with LA4BZ chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage

Market Input voltage Frequency Remark

USA 110~240V 50/60Hz Standard Voltage of each

product is marked by
models

4) Specification and performance of each parts are followed
ea ch drawing and sp ec ification by pa rt number in
accordance with BOM

5) The receiver must be operated for about 20 minutes prior to
the adjustment

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

4. General Specification

No Item Specication Result Remark

1. Receiving System ATSC / NTSC-M / 64 & 256 QAM

2. Available Channel 1) VHF : 02~13

3. Input Voltage AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz (N.America)

4. Market NORTH AMERICA

5. Screen Size 32 inch Wide (1366 × 768) HD + 60Hz

6. Aspect Ratio 16:9

7. Tuning System FS

8. Module LC320DUE-FGA3 / LC320DUE-FGA7 LGD 32LY760H-UA(UZ)

9. Operating Environment 1) Temp : 0 ~ 40 deg

10. Storage Environment 1) Temp : -20 ~ 60 deg

2) UHF : 14~69

3) DTV : 02-69

4) CATV : 01~135

5) CADTV : 01~135

39, 42, 47, 55 inch Wide (1920 × 1080) FHD + 60Hz

NC390DUN-VXBP1 / HC390DUN-VCHS3

LC420DUE-FGA3 / LC420DUE-FGA7 LGD 42LY760H-UA(UZ)

LC470DUE-FGA3 / LC470DUE-FGA7 LGD 47LY760H-UA(UZ)

LC550DUE-FGA3 / LC550DUE-FGA7 LGD 55LY760H-UA(UZ)

2) Humidity : ~ 80 %

2) Humidity : ~ 85 %

INX / HEESUNG

39LY760H-UA(UZ)

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Supported video resolutions

5.1. Component 2D input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.50 60 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

5.2. HDMI Input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1152*864 54.348 60.053 80.002 VESA O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) X

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9. 1920*1080 67.5 60 148.5 HDTV 1080P O

DTV

1 640*480 31.469 59.94 25.175 SDTV 480P

2 640*480 31.5 60 25.200 SDTV 480P

3 720*480 31.50 60 27.027 SDTV 480P

4 720*480 31.469 59.94 27.00 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.500 60 148.50 HDTV 1080P

10 1920*1080 67.43 59.94 148.352 HDTV 1080P

11 1920*1080 27.000 24.000 74.25 HDTV 1080P

12 1920*1080 26.97 23.97 74.176 HDTV 1080P

13 1920*1080 33.75 30.000 74.25 HDTV 1080P

14 1920*1080 33.716 29.976 74.176 HDTV 1080P

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application

This spec. sheet applies to LA4BZ Chassis applied LED TV all
models manufactured in TV factory

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of

25 ±5°C of temperature and 65±10% of relative humidity if

there is no specific designation.
(4) The input voltage of the receiver must keep 100~240V,

50/60Hz.
(5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15.

In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2
hours

In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above
15°C for 3 hours.

※ Caution
When still image is displayed for a period of 20 minutes or
longer (especially where W/B scale is strong.
Digital pattern 13ch and/or Cross hatch pattern 09ch), there
can some afterimage in the black level area

4. MAIN PCBA Adjustments

4.1. ADC Calibration

- An ADC calibration is not necessary because MAIN SoC
(LGE35230) is already calibrated from IC Maker

- If it needs to adjust manually, refer to appendix.

4.2. MAC Address, ESN Key and Widevine
Key download

4.2.1. Equipment & Condition

1) Play file: keydownload.exe

4.2.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)

2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

1) Select the download items.

2) Mode check: Online Only

3) Check the test process

- US, C anada m odels : D ETECT - > M AC_WR IT E ->
WIDEVINE_WRITE

- Korea, Mexico m od els: DET EC T -> MA C_WRITE ->
WIDEVINE_WRITE

4) Play : START

5) Check of result: Ready, Test, OK or NG

4.2.4. Communication Port connection

1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

3. Adjustment items

3.1. Main PCBA Adjustments

(1) ADC adjustment: Component 480i, 1080p
(2) EDID downloads for HDMI

* Remark
Above adjustm ent items can be also performed in Final
Assembly if needed. Adjustment items in both PCBA and final
assembly stages can be checked by using the INSTART Menu

-> 1.ADJUST CHECK.

3.2. Final assembly adjustment

▪ White Balance adjustment
▪ RS-232C functionality check
▪ Factory Option setting per destination
▪ Ship-out mode setting (In-Stop)
▪ GND and HI-POT test

3.3. Appendix

▪ Tool option menu, USB Download (S/W Update, Option and

Service only)

▪ Manual adjustment for ADC calibration and White balance
▪ Shipment conditions, Channel pre-set

4.2.5. Download(**ESN Key : 14Y_CS_M14)

1) US, Canada models (14Y LCD TV + MAC + Widevine +

ESN Key + DTCP Key + HDCP1.4 and HDCP2.0)

4.2.6. Inspection

- In INSTART menu, check these keys.

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.3. LAN Inspection

4.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

4.3.2. LAN inspection solution

▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV (Installer Menu -> 119

-> 253 -> Menu)

▪ setting automatic IP
▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC
Address.

4.4. LAN PORT INSPECTION(PING TEST)

4.4.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test

Program.
*IP Number : 12.12.2.2.

4.4.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

4.5. Model name & Serial number Download

4.5.1. Model name & Serial number D/L

■ Press “Power on” key of service remocon.(Baud rate :

115200 bps)

■ Connect RS232 Signal Cable to RS-232 Jack.

■ Write Serial number by use RS-232.

■ Must check the serial number at Instart menu

4.5.2. Method & notice

A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment oper ated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory
by D-book 4.0

Only for training and service purposes

※ Manual Download (Model Name and Serial Number)
If the TV set is do wnloa ded By OTA or Servic e man,
Sometimes model name or serial number is initialized.( Not
always)
There is impossible to download by bar code scan, so It need
Manual download.
a. Press the ‘instart’ key of ADJ remote controller.
b. Go to the menu ‘16.Model Number D/L’ like below photo.
c. Input the Factory model name(ex 42LY760H-UA) or Serial

number.

d. Check the model name Instart menu -> Factory name

displayed (ex 42LY760H-UA)

e. Check the Diagnostics (DTV country only) -> Buyer model

displayed (ex 42LY760H-UA)

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.6. EDID Download

4.6.1. Overview

- It is a VESA regulation. A PC or a MNT will display an optimal

resolution through information sharing without any necessity
of user input. It is a realization of “Plug and Play”.

4.6.2. Equipment

(1) Since EDID data is embedded, EDID download JIG, HDMI

cable and D-sub cable are not need.

(2) Adjust by using remote controller.

4.6.3. EDID DATA

4.6.3.1. 2D PCM(US) _ XvYcc : 0n

4.6.3.2. 2D_10bit_PCM(US) _ xvYCC : off

HDMI EDID 2D_10bit_PCM(US)_xvYCC : off

HDMI EDID 2D_8bit_PCM(US)_xvYCC : off

▪Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by S/W or Input

mode.

ⓐ Product ID

HEX EDID Table DDC Function

0001 0100 Analog

0001 0100 Digital

ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’
Year : ‘2014’ -> ‘18’
ⓓ Model Name(Hex): LGTV

Chassis MODEL NAME(HEX)

LA4BZ 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

ⓔ Checksum(LG TV): Changeable by total EDID data.

ⓔ1 ⓔ2 ⓔ3

HDMI1 E7 E0 X

HDMI2 E7 D0 X

HDMI3 E7 C0 X

▪Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by S/W or Input
mode.

ⓐ Product ID

HEX EDID Table DDC Function

0001 0100 Analog

0001 0100 Digital

ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’
Year : ‘2014’ -> ‘18’
ⓓ Model Name(Hex): LGTV

Chassis MODEL NAME(HEX)

LA4BZ 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

ⓔ Checksum(LG TV): Changeable by total EDID data.

ⓔ1 ⓔ2 ⓔ3

HDMI1 E7 02 X

HDMI2 E7 F2 X

HDMI3 E7 E2 X

ⓕ Vendor Specific(HDMI)

INPUT MODEL NAME(HEX)

HDMI1 67 03 0C 00 10 00 B8 2D

HDMI2 67 03 0C 00 20 00 B8 2D

HDMI3 67 03 0C 00 30 00 B8 2D

ⓕ Vendor Specific(HDMI)

INPUT MODEL NAME(HEX)

HDMI1 67 03 0C 00 10 00 80 1E

HDMI2 67 03 0C 00 20 00 80 1E

HDMI3 67 03 0C 00 30 00 80 1E

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Final Assembly Adjustment

5.1. White Balance Adjustment

5.1.1. Overview

5.1.1.1. W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel’s W/B deviation
(2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 °C

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

- Before White balance adjustment, Keep power on status,
don’t power off

5.1.1.2. Adj. condition and cautionary items

(1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark
surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

5.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)
(2) Adj. Computer (During auto adj., RS-232C protocol is

needed)
(3) Adjust Remocon
(4) Vi deo Sig nal Gen erator MSPG-925 F 720p/ 204-Gray

(Model: 217, Pattern: 49)
※ Color Analyzer Matrix should be calibrated using CS-1000

5.1.3. Equipment connection

Co lor Ana ly ze r

Pro be

RS -23 2C

Patt er n G en erat or

Signal S ourc e

* If TV internal pattern is used, not needed

5.1.4. Adjustment Command (Protocol)

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD DATA ID

Wb 00 00 Begin White Balance adj.

Wb 00 ff End White Balance adj.

(internal pattern disappears )

Explanation

RS-23 2C

Co m pu ter

RS-23 2C

(2) Adjustment Map

Adj. item Command

(lower caseASCII)

CMD1 CMD2 MIN MAX

Cool R Gain j g 00 C0

G Gain j h 00 C0

B Gain j i 00 C0

Medium R Gain j a 00 C0

G Gain j b 00 C0

B Gain j c 00 C0

Warm R Gain j d 00 C0

G Gain j e 00 C0

B Gain j f 00 C0

Data Range
(Hex.)

5.1.5. Adjustment method

5.1.5.1. Auto WB calibration
(1) Set TV in ADJ mode using P-ONLY key (or POWER ON

key)

(2) Place optical probe on the center of the display

- It need to check probe condition of zero calibration before
adjustment.

(3) Connect RS-232C Cable
(4) Select mode in ADJ Program and begin a adjustment.
(5) When WB adjustment is completed with OK message,

check adjustment status of pre-set mode (Cool, Medium,
Warm)

(6) Remove probe and RS-232C cable.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

5.1.5.2. Manual adjustment.

■ Manual adj. method

1) Set TV in Adj. mode using POWER ON

2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

3) Press ADJ key -> EZ adjust using adj. R/C -> 9. White-

Balance then press the cursor to the right (KEY►). When
KEY(►) is pre sse d 206 Gray in ter nal patt ern will be

displayed.

4) Adjust Cool modes

(1) Fix the one of R/G/B gain to 192 (default data) and

decrease the others.

(If G gain is adjusted over 172 and R and B gain less

than 192 , Adjust is O.K.)

(2) If G gain is less than 172, Increase G gain by up to 172,

and then increase R gain and G gain same amount of
increasing G gain.

(3) If R gain or B gain is over 255, Readjust G gain less than

172, Conform to R gain is 255 or B gain is 255

5) Adjust two modes (Medium / Warm) Fix the one of R/G/B

gain to 192 (default data) and decrease the others.

6) Adj. is completed, Exit adjust mode using “EXIT” key on

Remote controller.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner (ON). By selecting OFF, you can
adjust using RF signal in 206 Gray pattern.

Only for training and service purposes

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.1.6. Reference (White Balance Adj. coordinate and
color temperature)

(1) Luminance: 204 Gray, 80IRE
(2) Standard color coordinate and temperature using CS-1000

(over 26 inch)

5.1.7. Reference (White Balance Adj. coordinate and
color temperature)

▪ Luminance: 204 Gray
▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13000K 0.0000

Medium 0.286 0.289 9300K 0.0000

Warm 0.313 0.329 6500K 0.0000

▪ S ta nda rd col or c oo rdi nate a nd t emp er atu re usi ng

CA-210(CH-14) – by aging time

(1) Normal line in Korea (From January to February)

1 0-2 286 295 301 314 328 354

2 3-5 284 290 299 309 326 349

3 6-9 282 287 297 306 324 346

4 10-19 279 283 294 302 321 342

5 20-35 276 278 291 297 318 337

6 36-49 274 275 289 294 316 334

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Coordinate

X Y

Aging time

(Min)

Temp △uv

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

(3) O/S Module(AUO, INX, Sharp, CSOT, BOE)

cool med warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

5.2. Magic Motion remote controller Check

5.2.1. Test equipment

- RF-remote controller for check, IR-KEY-CO DE remot e
controller.

- Check AA battery before test. A recommendation is that a
tester change battery every lots

5.2.2. Test

(1) Make pairing with TV set by pressing “Start key(Wheel

key)” on RCU.
(2) Check a cursor on screen by pressing ‘Wheel key” of RCU
(3) Stop paring with TV set by pressing “Back+ Home” key of

RCU

5.3. Wi-Fi MAC Address Check

5.3.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

5.3.2. Check the menu on in-start

▪ S ta nda rd col or c oo rdi nate a nd t emp er atu re usi ng

CA-210(CH-14) – by aging time

(2) Normal line in Korea (From March to December)

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Only for training and service purposes

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

- 12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.4. Wi-Fi Test

Step 1) Turn on TV
Step 2) Select Network Connection option in Network Menu.
Installer menu -> 119 -> 253 -> Menu

Step 3) Select Start Connection Button in Network Connection

-> Wireless.

6. Check Commercial features

Commercial Feature

IR Out DC

Power

Out

(12V)

O X O O O O X

6.1. External SPK Out

6.1.1. Equipment & Condition

▪ Jig (Speaker out JIG) or Oscilloscope
▪ Power only mode

Ext

SPK

Out

RJP

(RJ-45

interface)

Pro:Idiom Pro:Idiom b-LAN

Step 4) If the system finds any AP like blow PIC, it is working

well

6.1.2. Check the speaker out

1) Connect the External Speaker : check the sound
Connect oscilloscope, you can see this waveform

6.2. IR Out and DC Power Outlet (12V)

6.2.1. Equipment & Condition

▪ Jig (commercial check JIG)
▪ Special 232C Cable for commercial check Jig
▪ Power only mode
▪ PCB Mode (installer menu -> 118 -> 9 )

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.2.2. Check the power out & IR out – commercial
check jig

(1) Connect each other RS232c port on the Commercial Check

JIG

(2) Press RED Color Button on SVC Remote-controller in

power only mode (or PCB Mode)

(3) Check the LED of jig board

- +12V LED (OK condition: Turn On)

- IR LED (OK condition: blinking)

6.2.3. Check the power out & IR out – mini jig

(1) Connect mini jig on RS232c port
(2) Press RED Color Button on SVC Remote-controller in

power only mode (or PCB Mode)

(3) Check the LED of mini jig

6.3. RJP Check

6.3.1. Initial setting

(1) Select Power switch ( up ) as the picture
(2) Set the Switch No.5 to ON (up) as the picture
Others should be set to OFF (down)

6.3.2. Checking Guide

(1) Press the P-ONLY key of R/C
(2) Press the Exit key of R/C
(3) Connect with the TV through RJP cable (wait for the JIG

on)
(4) RJP Pin check is carried out automatically
(5) The result is shown as below
(6) If RJP Pin check finished or you check other function, must

remove the RJP cable from TV

6.2.4. Check the power out & IR out – New jig

(1) Of the DFT process performance tests showing Waite

Massage automatically scan pause

(2) Adjust the remote control Press any Key IR Out Make sure

that only Nomal LED blinks.
(3) ETC Key -> red Pressing the Info Key
i) 5V Out Output 3 seconds
ii) 5V output OFF
iii) 12V Out Output 3 seconds
iv) 12V output OFF(Given the ST output time adjustable)
(4) Nomal LED, 5V LED, 12V LED flicker worker using the

PASS.
(5) After the check is complete automatic test is initiated.

When checking the RJP(<-->)
be sure to use a direct cable.

S/W switch direction: RJP <-->
MAIN ASSY make sure that the
insertion direction is right.

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.4. Pro:Idiom Check

(1) Connect the RF Cable
(2) Turn to the Pro:Idiom channel (No. 96-1)
(3) Check the video & sound
** Only displayed at “POWER ONLY” mode

7. AUDIO output check

7.1. Audio input condition

(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation
(2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)
(3) RGB PC: 1KHz sine wave signal (0.7Vrms)

7.2. Specification

No Item Min Typ Max Unit Remark

1 Audio

practical
max Output,
L/R

9.0

8.5

10.0

8.9

12.0

9.9WVrms

(1) Measurement

condition

- EQ/AVL/Clear
Voice: Off

(2) Speaker (8Ω

Impedance)

8.3. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA
(2) TEST time: 1 second
(3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5mArms

9. USB S/W Download
(optional, Service only)

(1) Put the USB Stick to the USB socket
(2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower
than that of TV set, it didn’t work. Otherwise USB data is
automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring.

8. GND and HI-POT Test

8.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

8.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process

automatically.

(5) Updating Completed, The TV will restart automatically
(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. If all channel data is cleared, you didn’t have a DTV/
ATV test on production line.

* After downloading, TOOL OPTION setting is needed again.
(1) Push "IN-START" key in service remote controller.
(2) Select "Tool Option 1" and Push “OK” button.
(3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

10. Optional adjustments

10.1. Manual ADC Calibration

10.1.1. Equipment & Condition

(1) Adjustment Remocon
(2) 801GF (802B , 80 2F, 802R) or MSPG 925FA Pattern

Generator

- Resolution : 4 80 i Com p1 ( MSP G-9 25 FA : m ode l-2 09,

pattern-65)

- Resolution : 1080p Comp1 ( MS PG-925FA: mo de l- 225,

pattern-65)

- Resolution : 1 080 p RGB ( M SP G -92 5FA: mod el- 225 ,

pattern-65)

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

10.1.2. Adjust method

10.1.2.1 ADC 480i/1080p Comp1, RGB
(1) Check connected condition of Comp1/RGB cable to the

equipment
(2) Press OK in Comp 1080p menu
(3) Perform (6) and (7) in RGB-PC
(4) If ADC Comp is successful, “ADC Component Success” is

displayed. If ADC calibration is failure, “ADC Component

Fail” is displayed.
(5) If ADC calibration is failure, after rechecking ADC pattern or

condition, retry calibration
(6) If ADC RGB calibration is successful, “ADC RGB Success”

is displayed. If ADC calibration is failure, “ADC RGB Fail” is

displayed.
(7) If ADC calibration is failure, after recheck ADC pattern or

condition, retry calibration

10.2.3. Adjustment

(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface.

(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY►).

When KEY(►) is pressed 216 Gray internal pattern will be

displayed.

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF

10.2. Manual White balance Adjustment

10.2.1. Adj. condition and cautionary items

(1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark

surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time

▪ After Aging Start, Ke ep the Power ON st atus duri ng 5

Minutes.

▪ In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

10.2.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)
(2) Adj. Computer (During auto adj., RS-232C protocol is

needed)
(3) Adjust Remocon
(4) Vi deo Sig nal Gen erator MSPG-925 F 720p/ 216-Gray

(Model: 217, Pattern: 78)

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

TROUBLE SHOOTING

N

N

N

N

Power-Up Boot Fail Trouble Shooting guide

Check P2300 All

Voltage Level (3.5V, 12V, 24V)

Y

N

Check Q2302 output Voltage(12V)

Y

Check LVDS Cable

Y

Check LCD Module

Control board

N

No OSD Trouble Shooting guide

Check P2300 All

Voltage Level (3.5V, 12V, 24V)

Y

Check IC8701 RESET and

UPDATE pin

N

Check power connector and

RL_ON signal OK ?

Y

Check Q2302 application circuit

Or replace Q2302

Replace Cable

Check power connector and

RL_ON signal OK ?

Y

Check switch SW8700, SW8701

Replace Power Board

Replace Power Board

Y

Check X8700 Clock

32.768kHz

Y

Check IC8701 IIC

Commun ication status

Y

Check IR inpu t state of IC8701

57pin

Y

Re-down load PTC Micom

N

Check X8700 application circuit

or Replace X8700

N

Check IIC lin e or replace IC8701

N

Check IR board

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

Analog RF Video Trouble shooting guide

N

* First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

Check RF Cable

Connection

Y

Check tuner 3.3V power L6500

Y

Check CPU LVDS output

N

N

Digital RF Trouble Shooting guide

Check RF cable & signal

Y

Check tuner 3.3V power L6500

N

Reconnection

Check IC2300

Y

Replace IC101

Check IC2300

N

Replace IC2300

N

Replace IC2300

Y

Check IIC Sign al
TU6401 Pin#4, 5

Y

Check IF Signal

TU8900 Pin#6, 7

Y

Check X101

and application circuit

Y

Replace IC101

Y

N

N

N

Replace TU6401

Replace TU6401

Replace X101

Only for training and service purposes

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

Component Video Trouble Shooting guide

Check input sign al format.
Is it supported?

Y

Check AC cable for damage
For damage or open conductor

Y

Check JK3402
Can you see the normal waveform?

Y

Check the input of LG1311 (IC101).
Measure waveform at C3405 because it’s more easy to check.
Can you see the normal waveform?

Y

This board has big problem because Main chip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or not.

N

Replace JK3402

AV Video Trouble Shooting guide

Check input sign al format.
Is it supported?

Y

Check AC cable for damage
For damage or open conductor

Y

Check JK3402
Can you see the normal waveform?

Y

Check the input of LG1311 (IC101).
Measure waveform at C3404 because it’s more easy to check.
Can you see the normal waveform?

Y

This board has big problem because Main chip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or not.

N

Replace JK3402

- 19 -

Only for training and service purposes

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

HDMI Video Trouble shooting guide

Check input sign al format.
Is it supported?

Y

Check AC cable for damage
For damage or open conductor

Y

Check JK3200/JK3202/JK3203
Can you see the normal waveform?

Y

Check HDCP key on INSTART Menu

Y

Check the input of LG1311 (IC101).
Measure waveform at AR3200, AR3201, AR3202 because it’s more easy to check.
Can you see the normal waveform?

Y

This board has big problem because Main chip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or not.

N

Replace JK3200/JK3202/JK3203

N

Re-down load HDCP Key

Analog RF Audio Trouble Shooting guide

Check RF cable & signal

Check TU6401 Pin 6, 7

Y

Check Audio AMP output

L5602,L5603,L5604,L5605

Y

Check IC5600

Y

Replace IC101

Only for training and service purposes

N

Replace Tun er

N

Replace L5602,L5603,L5604,L5605

N

Replace IC5600

- 20 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

Component / AV Audio in Trouble Shooting guide

Check input sign al format.
Is it supported?

Y

Check AC cable for damage
For damage or open conductor

Y

Check JK3402
Can you see the normal waveform?

Y

Check the input of LG1311 (IC105).
Measure waveform at C316, C317 because it’s more easy to check.
Can you see the normal waveform?

Y

N

Replace JK3402

Check Audio AMP output

L5602,L5603,L5604,L5605

Y

This board has big problem because Main chip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or not.

N

Replace L5602,L5603,L5604,L5605

HDMI Audio in Trouble Shooting guide

Check input sign al format.
Is it supported?

Y

Check AC cable for damage
For damage or open conductor

Y

Check JK3200/JK3202/JK3203
Can you see the normal waveform?

Y

N

Replace JK3200/JK3202/JK3203

Check Audio AMP output

L5602,L5603,L5604,L5605

N

Replace L5602,L5603,L5604,L5605

Y

This board has big problem because Main ch ip (LG1311, IC101) have some troubles.
After checking thoroughly all path once again, You should decide to replace Main IC or not.

- 21 -

Only for training and service purposes

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

BLOCK DIAGRAM

Only for training and service purposes

- 22 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

400

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components a s
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

910

900

410

521

350

540

121

530

LV1

120

820

800

A10

Set + Stand

200

Only for training and service purposes

- 23 -

A2

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

EAX65424702 : LA4BZ

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

System Configuration

Clock for M14-A0

MAIN Clock(24Mhz)

LOADCAP_ATSC_PCB

10pF

C101

C102 10pF

LOADCAP_ATSC_PCB

System Clock for Analog block(24Mhz)

PLL SET[1:0] : internal pull up
"00" : CPU(1200Mhz),M0 / M1 DDR(792,792 Mhz)
"01" : CPU(1056Mhz),M0 / M1 DDR(672,672 Mhz)
"10" : CPU(1056Mhz),M0 / M1 DDR(792,792 Mhz)
"11" : CPU( 960Mhz),M0 / M1 DDR(792,792 Mhz)

OP MODE[1:0]

"00" : Normal Mode

"01/10/11" : Internal Test mode

+3.3V_NORMAL

OPT

R101 3.3K

R102 3.3K

OPT

Extenal test only

X-TAL_1

GND_1

1

2

X101

24MHz

4

3

GND_2

X-TAL_2

Extenal test only

R103 3.3K

OPT

R104 3.3K

OPT

OPM1

OPM0

R118

1M

PLLSET1

PLLSET0

R180
560

LOADCAP_DVB_PCB

C101-*1

6.8pF
50V

+3.3V_NORMAL

R121

OPT

INSTANT_MODE0

XTAL_IN

XTAL_OUT

LOADCAP_DVB_PCB

C102-*1

6.8pF
50V

INSTANT boot MODE
"1 : Instant boot
"0 : normal

3.3K
(internal pull down)

INSTANT_BOOT

NVRAM

+3.3V_NORMAL

BOOT MODE
"0 : EMMC
"1 : TEST MODE

3.3K

R127

OPT



3.3K

R128

BOOT_MODE0

AT24C256C-SSHL-T

A0

A1

A2

GND

BOOT_MODE

IC103

1

2

3

4

NVRAM_ATMEL

JTAG_SOC_RESET

SOC_RESET

IC103-*1

I2C_SCL5

I2C_SDA5

M24256-BRMN6TP

E0

1

E1

2

E2

3

VSS

4

NVRAM_ST

VCC

8

WC

7

SCL

6

SDA

5

Write Protection

- Low : Normal Operation

- High : Write Protection

+3.3V_NORMAL

VCC

8

WP

7

SCL

6

SDA

5

C107

0.1uF
16V

R122 10K

R125

OPT

FORCED_JTAG_0

+3.3V_NORMAL

R123
10K

R124 100

Q100

C

MMBT3904(NXP)

B

E

C108

0.1uF
16V

L/DIM0_SCLK

L/DIM0_MOSI

M_REMOTE_RX
M_REMOTE_TX

I2C_SCL_PROID
I2C_SDA_PROID

EYE_SCL
EYE_SDA

I2C_SCL6
I2C_SDA6

PWM_DIM2

PWM_DIM

EMMC_CLK
EMMC_CMD
EMMC_RST

XTAL_IN

XTAL_OUT

BOOT_MODE

PLLSET0
PLLSET1

L/DIM0_VS

TCK0

TRST_N1
IRB_SPI_SS/TMS1
IRB_SPI_CK/TCK1

IRB_SPI_MOSI/TDO1
IRB_SPI_MISO/TDI1

SOC_RX_RS232

SOC_TX_RS232

I2C_SCL1
I2C_SDA1

I2C_SCL2
I2C_SDA2

I2C_SCL5
I2C_SDA5

33

R107

33

R108

OPM0
OPM1

R178 33

R182
R183
R184 10K
R185 10K

EMMC_DATA[7]
EMMC_DATA[6]
EMMC_DATA[5]
EMMC_DATA[4]
EMMC_DATA[3]
EMMC_DATA[2]
EMMC_DATA[1]
EMMC_DATA[0]

33

OPT
10K

R179
10K

1/16W
5%

AR101

AG21

AJ18

AG30
AG28
AG29
AH29
AJ27
AH27
AG26
AH26

AJ12
AJ13
AH12
AG12

AH23
AG22

AH11
AG11

AG10

AH22
AJ22
AH10
AJ10
AG23
AH24

B23
A23

AB8
AC8

AD8
AE8

Y7
Y6
W7
W6
W5

AH7
AJ7

AG8
AH8

AH9
AG9

AJ9

AC6
AC7
AD7
AB7

G32
G33
G31
D31
F33
F32
E32
F31
D33
D32
E31

EMMC_DATA[0-7]

IC101

LG1311

XIN_MAIN
XO_MAIN

PORES_N

BOOT_MODE

PLLSET0
PLLSET1

OPM0
OPM1

L_VSOUT_LD/TRST0_N
DIM0_SCLK/TMS0
DIM1_SCLK/TCK0
DIM1_MOSI/TDI0
DIM0_MOSI/TDO0

SPI_CS0
SPI_SCLK0
SPI_DO0
SPI_DI0/TRST1_N
SPI_CS1/TMS1
SPI_SCLK1/TCK1
SPI_DO1/TDO1
SPI_DI1/TDI1

EXT_INTR0
EXT_INTR1
EXT_INTR2
EXT_INTR3

UART0_RXD
UART0_TXD
UART1_RXD
UART1_TXD

UART1_RTS_N
UART1_CTS_N

SCL0
SDA0
SCL1
SDA1
SCL2
SDA2
SCL3
SDA3
SCL4
SDA4
SCL5
SDA5

PWM0
PWM1
PWM2
PWM_IN

EMMC_CLK
EMMC_CMD
EMMC_RESETN
EMMC_DATA7
EMMC_DATA6
EMMC_DATA5
EMMC_DATA4
EMMC_DATA3
EMMC_DATA2
EMMC_DATA1
EMMC_DATA0

USB2_0_DP0
USB2_0_DM0

USB2_0_TXRTUNE

USB2_1_DP0
USB2_1_DM0

USB2_1_TXRTUNE

USB3_DP0

USB3_DM0
USB3_TXP0
USB3_TXM0
USB3_RXP0
USB3_RXM0

USB3_RESREF0

USB3_DP1

USB3_DM1
USB3_TXP1
USB3_TXM1
USB3_RXP1
USB3_RXM1

USB3_RESREF1

HUB_PORT_OVER0
HUB_VBUS_CTRL0

EB_CS3
EB_CS2
EB_CS1
EB_CS0

EB_WE_N
EB_OE_N

EB_WAIT
EB_BE_N1
EB_BE_N0

CAM_CD1_N
CAM_CD2_N
CAM_CE1_N
CAM_CE2_N

CAM_IREQ_N

CAM_RESET

CAM_INPACK_N

CAM_VCCEN_N

CAM_WAIT_N

CAM_REG_N

EB_ADDR0
EB_ADDR1
EB_ADDR2
EB_ADDR3
EB_ADDR4
EB_ADDR5
EB_ADDR6
EB_ADDR7
EB_ADDR8
EB_ADDR9

EB_ADDR10
EB_ADDR11
EB_ADDR12
EB_ADDR13
EB_ADDR14
EB_ADDR15

EB_DATA0
EB_DATA1
EB_DATA2
EB_DATA3
EB_DATA4
EB_DATA5
EB_DATA6
EB_DATA7

AN9
AM9
AN8

H32
J31
H33

N31
N32
P33
P32
M32
M33
P31

K33
K32
L32
L31
K31
J32
M31

W28
W29

H28
J30
J28
J29

G30
F30
H29
G29
G28

P28
P27
U28
R29
V27
T28
T29
R28
U27
N29

K30
E30
M30
N28
M28
M29
L29
K29
K28
L28
D30
F29
C32
C33
C31
B33

B32
A32
B31
A31
A30
B30
C30
C29

R1712001%

R1722001%

R1742001%

/USB_OCD2

/USB_OCD3

EB_BE_N1
EB_BE_N0

CAM_CD1_N
CAM_CD2_N

CAM_IREQ_N
CAM_INPACK_N
CAM_WAIT_N

EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]
EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]
EB_ADDR[8]

EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]
EB_ADDR[12]
EB_ADDR[13]
EB_ADDR[14]

EB_DATA[0]

EB_DATA[1]

EB_DATA[2]

EB_DATA[3]

EB_DATA[4]

EB_DATA[5]

EB_DATA[6]

EB_DATA[7]

WIFI_DP
WIFI_DM

USB_DP3
USB_DM3

USB_DP2TDI0
USB_DM2

USB_CTL2

USB_CTL3
EB_WE_N

EB_OE_N

/PCM_CE1
/PCM_CE2

PCM_RESET
PCM_5V_CTL
CAM_REG_N

TP102

TP104
TP105

TP106
TP107

TP108
TP109

TP110
TP111
TP112
TP113
TP114
TP115
TP116
TP117

EB_ADDR[0-14]

EB_ADDR[0-14]

EB_WE_N
EB_OE_N

EB_BE_N1
EB_BE_N0

CAM_CD1_N
CAM_CD2_N

/PCM_CE1
/PCM_CE2
CAM_IREQ_N
PCM_RESET
CAM_INPACK_N
PCM_5V_CTL
CAM_WAIT_N
CAM_REG_N

EB_DATA[0-7]

TP103

EB_DATA[0-7]

I2C

I2C_SDA1
I2C_SCL1

I2C_SDA2
I2C_SCL2

+3.3V_TUNER

KR_PIP_NOT

KR_PIP_NOT

R148 3.3K

R146 3.3K

1.5K

1.5K

KR_PIP

KR_PIP

R148-*1

R146-*1

+3.3V_NORMAL

R109

3.3K

R110

3.3K

3.3K

R113

3.3K

R114

R155

3.3K

I2C PULL UP

R157

3.3K

R156

3.3K

R158

3.3K

R161

3.3K

R162

3.3K

I2C_1 : AMP
I2C_2 : T-CON,L/DIMING
I2C_PROIDIOM : Pro:idiom
I2C_4 : RGB Sensor
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)

I2C_SDA_PROID
I2C_SCL_PROID

I2C_SDA5
I2C_SCL5

EYE_SDA
EYE_SCL

I2C_SDA6
I2C_SCL6

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M14-Peripheral

LOCAL DIMMING I2C CONTROL

+3.3V_NORMAL

R106

R105

3.3K

3.3K
OPT

OPT

LED_SCL
LED_SDA

P102

12507WS-04L

OPT

1

2

3

4

5

Jtag-0 I/F

P103

12505WS-10A00

JTAG_CPU

1

2

3

4

5

6

7

8

9

10

11

+3.3V_NORMAL

L/DIM0_VS

(TRST0_N)

TDI0

L/DIM0_MOSI

L/DIM0_SCLK

(TDO0)

(TMS0)

TCK0

JTAG_SOC_RESET

FORCED_JTAG_0

M14 Symbol A

R111
10K
OPT

LY760H-UA

P104

12505WS-10A00

OPT

10

11

Jtag-1 I/F

+3.3V_NORMAL

1

2

3

4

5

6

7

8

9

TRST_N1

IRB_SPI_MISO/TDI1

IRB_SPI_MOSI/TDO1

IRB_SPI_SS/TMS1

IRB_SPI_CK/TCK1

JTAG_SOC_RESET

2014.03.10
1

25

R112
10K
OPT

Parallel TP Input From External DEMOD

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_DATA[0-7]

Serial TP Input
From Pro:Idiom

Serial TP Output
To Pro:Idiom

TPI_ERR

TPI_DATA[0-7]

LED_SDA

INSTANT_BOOT

LED_SCL

AMP_RESET_N

TPI_CLK
TPI_SOP
TPI_VAL

TPI_DATA[0]

TS_S_OUT_CLK

TS_S_OUT_SYNC

TS_S_OUT_VAL

TS_S_OUT_DATA

R224 33

R225 33

Near AMP

R226 100

C200

R231

1000pF

4.7K
50V

FE_DEMOD1_TS_DATA[7]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[0]

TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

MODEL_OPT_11

INV_CTL

/RST_PHY

2D/3D_CTL

RESET_BY_CPU

/UPDATE_BY_CPU

BT_RESET
SOC_TX_PTC
SOC_RX_PTC

OPT

OPT

FE_DEMOD1_TS_SYNC

PTC_WOL

EXT_SPK_DET

MODEL_OPT_12

PANEL_CTL

COMP1_DET

AV1_CVBS_DET

MODEL_OPT_8
MODEL_OPT_9

MODEL_OPT_10

FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_VAL

TPI_DATA[0-7]

TPO_DATA[0-7]

R200

TPI_CLK
TPI_SOP
TPI_VAL
TPI_ERR

OPC_EN

DEBUG

BIT0

BIT1
BIT2
BIT3
BIT4
BIT5
BIT6
BIT7

TPI_CLK
TPI_SOP
TPI_VAL

TPO_CLK
TPO_SOP
TPO_VAL

10K

R234 33

R232 33

R233 33

OPT

TP247
TP248
TP249

TP212

TP213
TP214
TP215

TP221

TP218
TP219
TP220

AH30
AH32
AH31
AH33
AM33
AL32
AL33
AK32
AK33
AK31
AJ30
AJ31

AL31
AN32
AM32
AN31
AM31
AH28
AJ28
AK30
AJ29
AG27

AG13
AJ19
AG14
AG15
AJ15
AH19
AH18
AG19

AG24
AH16

AJ21
AH21

AG16
AJ24
AH17
AG17
AH13
AH15
AG18
AH14
AJ16
AH20

A28
B28
B29
C28
A27
B27
C27
B26
C26
B25
A25
C25

AH5
AJ5
AJ6
AH6
AG6
AG5
AF7
AG7

V29

V28

IC101

LG1311

TP_DVB_CLK
TP_DVB_SOP
TP_DVB_VAL
TP_DVB_ERR
TP_DVB_DATA7
TP_DVB_DATA6
TP_DVB_DATA5
TP_DVB_DATA4
TP_DVB_DATA3
TP_DVB_DATA2
TP_DVB_DATA1
TP_DVB_DATA0

STPI0_CLK
STPI0_SOP
STPI0_VAL
STPI0_ERR
STPI0_DATA
STPI1_CLK
STPI1_SOP
STPI1_VAL
STPI1_ERR
STPI1_DATA

TPI_CLK
TPI_SOP
TPI_VAL
TPI_ERR
TPI_DATA0
TPI_DATA1
TPI_DATA2
TPI_DATA3
TPI_DATA4
TPI_DATA5
TPI_DATA6
TPI_DATA7

GPIO31
GPIO30
GPIO29
GPIO28
GPIO27
GPIO26
GPIO25
GPIO24
GPIO23
GPIO22
GPIO21
GPIO20
GPIO19
GPIO18
GPIO17
GPIO16
GPIO15
GPIO14
GPIO13
GPIO12
GPIO11
GPIO10
GPIO9
GPIO8
GPIO7
GPIO6
GPIO5
GPIO4
GPIO3
GPIO2
GPIO1
GPIO0

TPIO_CLK
TPIO_SOP
TPIO_VAL

TPIO_ERR
TPIO_DATA0
TPIO_DATA1
TPIO_DATA2
TPIO_DATA3
TPIO_DATA4
TPIO_DATA5
TPIO_DATA6
TPIO_DATA7

EPI_SOE
EPI_MCLK
EPI_GCLK

EPI_EO

EPI_VST

TX_0N
TX_0P
TX_1N
TX_1P
TX_2N
TX_2P
TX_3N
TX_3P
TX_4N
TX_4P
TX_5N
TX_5P
TX_6N
TX_6P
TX_7N
TX_7P
TX_8N
TX_8P
TX_9N

TX_9P
TX_10N
TX_10P
TX_11N
TX_11P
TX_12N
TX_12P
TX_13N
TX_13P
TX_14N
TX_14P
TX_15N
TX_15P
TX_16N
TX_16P
TX_17N
TX_17P
TX_18N
TX_18P
TX_19N
TX_19P
TX_20N
TX_20P
TX_21N
TX_21P
TX_22N
TX_22P
TX_23N
TX_23P

TX_LOCKN

TPO_CLK
TPO_SOP
TPO_VAL

D28
E29
E28
F28
D27
E27
F27
E26
F26
E25
D25
F25

AA5
AB5
AA7
AA6
AB6

AK8
AL8
AK7
AL7
AM6
AN6
AK6
AL6
AK5
AL5
AN4
AN3
AM2
AM1
AM4
AM3
AL4
AL3
AK2
AK1
AK4
AK3
AJ4
AJ3
AH2
AH1
AH4
AH3
AG4
AG3
AF2
AF1
AF4
AF3
AE4
AE3
AD2
AD1
AD4
AD3
AC4
AC3
AB2
AB1
AB4
AB3
AA4
AA3

AM8

TPO_ERR

TPO_DATA[0]
TPO_DATA[1]
TPO_DATA[2]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[7]

EPI_SOE
MCLK_SOC
GCLK_SOC
EO_SOC
GST_SOC

TXB4N/TX0N
TXB4P/TX0P
TXB3N/TX1N
TXB3P/TX1P
TXBCLKN/TX2N
TXBCLKP/TX2P
TXB2N/TX3N
TXB2P/TX3P
TXB1N/TX4N
TXB1P/TX4P
TXB0N/TX5N
TXB0P/TX5P

TXD4N/TX12N
TXD4P/TX12P
TXD3N/TX13N
TXD3P/TX13P
TXDCLKN/TX14N
TXDCLKP/TX14P
TXD2N/TX15N
TXD2P/TX15P
TXD1N/TX16N
TXD1P/TX16P
TXD0N/TX17N
TXD0P/TX17P

EPI_LOCK8/6

TXA4N/TX6N
TXA4P/TX6P
TXA3N/TX7N
TXA3P/TX7P
TXACLKN/TX8N
TXACLKP/TX8P
TXA2N/TX9N
TXA2P/TX9P
TXA1N/TX10N
TXA1P/TX10P
TXA0N/TX11N
TXA0P/TX11P

TXC4N/TX18N
TXC4P/TX18P
TXC3N/TX19N
TXC3P/TX19P
TXCCLKN/TX20N
TXCCLKP/TX20P
TXC2N/TX21N
TXC2P/TX21P
TXC1N/TX22N
TXC1P/TX22P
TXC0N/TX23N
TXC0P/TX23P

+3.3V_NORMAL

SW201

JTP-1127WEM

12

3

DEBUG

4

For ISP

TPO_DATA[0-7]

3.3K

R223

TPO_ERR

EPI_SOE

+3.3V_NORMAL

BIT0_1

R201 10K

BIT0_0

R202 10K

BIT [0/1]

0 / 0
0 / 1
1 / 0
1 / 1

TP231

TP232

TP233

TP234

TP235

TP236

TP237

TP238

TP239

TP240

TP241

TP242

TP243

TP244

TP245

TP246

TAIWAN/COLOM

CHINA/HONGKONG

ASIA/AFRICA

TXD1N/TX16N
TXD1P/TX16P
TXD0N/TX17N
TXD0P/TX17P

TXC4N/TX18N
TXC4P/TX18P
TXC3N/TX19N
TXC3P/TX19P
TXCCLKN/TX20N
TXCCLKP/TX20P
TXC2N/TX21N
TXC2P/TX21P
TXC1N/TX22N
TXC1P/TX22P
TXC0N/TX23N
TXC0P/TX23P

DVB

EU/CIS

BIT1_1

R203 10K

BIT1_0

R204 10K

ATSC

N/AMERICA

KOREA

S/AMERCIA

Model Option

BIT3_1

BIT2_1

R207 10K

R205 10K

BIT0
BIT1

BIT3_0

BIT2_0

R208 10K

R206 10K

AREA OPTION

JP

JAPAN

BIT4_1

R209 10K

BIT4_0

R210 10K

BIT5_1

R211 10K

BIT5_0

R212 10K

BIT2
BIT3
BIT4
BIT5

BACK-END OPTION

BIT[2/3/4/5]
0 / 0 / 0 / 0
0 / 0 / 0 / 1
0 / 0 / 1 / 0
0 / 0 / 1 / 1
0 / 1 / 0 / 0
0 / 1 / 0 / 1
0 / 1 / 1 / 0
0 / 1 / 1 / 1
1 / 0 / 0 / 0
1 / 0 / 0 / 1
1 / 0 / 1 / 0
1 / 0 / 1 / 1
1 / 1 / 0 / 0
1 / 1 / 0 / 1
1 / 1 / 1 / 0
1 / 1 / 1 / 1

BIT6_1

R213 10K

BIT7_1

R215 10K

BIT [6/7]

0 / 0
0 / 1
1 / 0
1 / 1

EU/CIS

T/C

T2/C/S2/ATV_EXT

T2/C

T/C/S2/ATV_SOC

BIT6
BIT7

BIT7_0

BIT6_0

R216 10K

R214 10K

PANEL TYPE

TYPE

EPI FHD, 120Hz, V14 (8 lane)
EPI FHD, 120Hz, v14_32inch (6 lane)
EPI FHD, 120Hz, V13 (6 lane)
EPI FHD, 120Hz, V12 (6 lane)

EPI FHD, 60Hz, V14_32 inch (6lane)

LVDS FHD, 120Hz
LVDS FHD, 60Hz

LVDS HD, 60Hz

LVDS FHD, 60Hz, CP BOX
LVDS HD, 60Hz SMALL SMART

Vby1 FHD, 120Hz
LVDS FHD, 120Hz OLED

FRCFHD

OLED

AJJA

T/C

T2/C PIP

T2/C T2/C

T2/C/S2

DDR3_DDP

R217 10K

R219 10K

DDR3_1.5GB

DDR3_2GB

R218 10K

R220 10K

DDR3_NON_DDP

TAIWAN/COL

T/C

T2/C PIP

DDR_3G

R221 10K

R222 10K

NON_DDR_3G

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

MODEL_OPT_11

MODEL_OPT_12

CHINA/HONG

Default

MODEL_OPT_8
MODEL_OPT_9
MODEL_OPT_10

DDR3

NON_DDP

DDR3

FOR UD

NON_DDR3 3G

KOREA

ATSC PIP

ATV_SOC
ATV_EXT

LOW

2GB

OPT

OPT

R227 10K

R228 10K

NORTH AMERICA

ATSC PIP

ATV_SOC
ATV_EXT

OPT

R229 10K

OPT

R230 10K

HIGH

DDP

1.5GB

DDR3 3G

BRAZIL

ISDB PIP

ISDB

JAPAN

Default

MODEL_OPT_11

MODEL_OPT_12

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR

M14-Display In/Out

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

M14 Symbol B

2014.03.10
2

25

PLACE AT JACK SIDE

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Place JACK Side

AV1_CVBS/COMP1_Y Circuit was moved to 34Page

COMP1_Pb

COMP1_Pr

TU_CVBS

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

C303
150pF
50V

OPT

1005

75

1%

R318

1005

75
1%

R326

Place SOC Side

R333 33

R335 33

R329 100
TU_ALL_2178B

AUDIO IN

R309 27K

R310 27K

C316 4.7uF

1%

C317 4.7uF

1%

C322 0.047uF

C324 0.047uF

C318 0.047uF

TU_ALL_2178B

R322 10K

1%

R323 10K

1%

COMP2_PB_IN_SOC

COMP2_PR_IN_SOC

TU_CVBS_SOC

AUAD_L_CH3_IN

AUAD_R_CH3_IN

TP308
TP310

TP311

TP312
TP313
TP314
TP315

TP316
TP317

TP302
TP303
TP304
TP305
TP306
TP307

SC_CVBS_IN_SOC
SC_FB_SOC

SC_ID_SOC
COMP1_PB_IN_SOC

COMP1_Y_IN_SOC
COMP1_Y_IN_SOC_SOY
COMP1_PR_IN_SOC

AUAD_L_CH2_IN
AUAD_R_CH2_IN

SMARTCARD_DATA/SD_EMMC_CLK
SMARTCARD_VCC/SD_EMMC_CMD
SMARTCARD_DET/SD_EMMC_DATA[3]
SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
SMARTCARD_CLK/SD_EMMC_DATA[0]

TP320

Placed as close as possible to LG1311

Tuner IF Filter

C331
22pF

TU_ALL_IntDemod

C332

0.01uF

C333

0.01uF
TU_ALL_IntDemod

L303

OPT

TU_ALL_IntDemod

ADC_I_INN

To ADC

ADC_I_INP

C331 option

- TU_IntDemod_IF_22p -> EU/AJ All_IndDemod, US/KR/BR/TW/CO 2tuner All

- TU_IntDemod_IF_15p -> US/KR/BR/TW/CO 1tuner All

R344

R345

TU_ALL_IntDemod

51

TU_IntDemod_IF_22p

51

Placed as close as possible to IC101

R37 4
51K

AUAD_L_REF

1%

R37 8
47K
1%

C313

4.7uF
10V

R38 0

51K

1%

AUAD_R_REF

R38 1

47K
1%

DDR3 VENDOR OPTION

+3.3V_NORMAL

DTV/MNT_V_OUT_SOC

TU_IntDemod_IF_15p

C331-*1
15pF
50V

IF_N

IF_P

AVDD25

L307

120-ohm

C354
10uF

10V

C353

4.7uF
10V

SOC_CVBS_OUT

PILLOW_AUDIO_OUT

TUNER_SIF

MAIN I2S_I/F

IF_AGC

INT_ADEMOD

DTV/MNT_V_OUT_SOC

C300 1uF 10V

PILLOW

AUD_MASTER_CLK

AUD_LRCH

AUD_SCK

AUD_LRCK

C309
1000pF
50V
OPT

R319
390

C338

0.1uF
OPT

Close to IC101

INT_ADEMOD

R320
390

INT_ADEMOD

C11009
68pF
50V

AVDD25

PILLOW

25V

C336 0.01uF

R352 22K

C335
22pF

OPT

C312 0.1uF

TU_ALL_2178B

R350

470

INT_ADEMOD

C11010
68pF
50V

C339

OPT

100pF
50V

R357
R358 68
R359 68

R354 0
R355 0

PILLOW

AUAD_L_CH2_IN
AUAD_R_CH2_IN
AUAD_L_CH3_IN
AUAD_R_CH3_IN

SPDIF_OUT

C340
22pF
OPT

C337
33pF

I2S_AMP

OPT

SOC_CVBS_OUT

ADC_I_INP
ADC_I_INN

TU_CVBS_SOC

SC_CVBS_IN_SOC

AV1_CVBS_IN_SOC

68

R356

0

R353

EU

SC_ID_SOC
SC_FB_SOC

COMP1_Y_IN_SOC_SOY

COMP1_Y_IN_SOC
COMP1_PB_IN_SOC
COMP1_PR_IN_SOC

COMP2_Y_IN_SOC_SOY

COMP2_Y_IN_SOC
COMP2_PB_IN_SOC
COMP2_PR_IN_SOC

68

BLM15BD121SN1

L304

BLM15BD121SN1

PILLOW
PILLOW

AUDA_OUTL
AUDA_OUTR

AUAD_R_REF
AUAD_L_REF

C342
22pF
OPT

R368 100
R369

R386

C11011 0.1uF 16V

INT_ADEMOD

C343 0.047uF

C344 0.047uF
C345 0.047uF
C346 0.047uF

L305

10uF 10VC347

C348 2.2uF

10V

R360 33

R365 100
R366 100

100

R387

0

0

GOOGLE

GOOGLE

C351 0.1uF

C352 0.1uF

C349

0.1uF
16V

R388
0

GOOGLE

AL27
AK26
AM27

AL26

AN27

AL25
AM25

AN23
AL22
AK21
AK22

AL24
AK23
AL23
AK24

AL21
AM23
AN25

AM21
AN21

AK16
AL16

AL19
AK19
AN19
AM19
AN17
AM17
AL17
AK17

AK20
AL20

AK18
AL18

AN15

AM15

AN11
AK11
AK10
AL10
AL11
AM11

AK29
AL29
AM29

AK27
AL30

AK28
AL28
AN29

AD5
AE5
AE7
AE6

AD6

IC101

LG1311

CVBS_IN1
CVBS_IN2
CVBS_IN3

CVBS_VCM

BUF_OUT1

SC1_SID
SC1_FB

SOY1_IN
Y1_IN
PB1_IN
PR1_IN

SOY2_IN
Y2_IN
PB2_IN
PR2_IN

ADC1_COM
ADC2_COM
ADC3_COM

AVSS25_COMP_REF
AVDD25_COMP_REF

AUDA_SCART_OUTL
AUDA_SCART_OUTR

AUAD_L_CH1_IN
AUAD_R_CH1_IN
AUAD_L_CH2_IN
AUAD_R_CH2_IN
AUAD_L_CH3_IN
AUAD_R_CH3_IN
AUAD_L_CH4_IN
AUAD_R_CH4_IN

AUDA_OUTL
AUDA_OUTR

AUAD_L_REF
AUAD_R_REF

AUD_VBG_EXT

IEC958OUT

AUDCLK_OUT
DAC_LRCH
DAC_SLRCH
DAC_CLFCH
DAC_SCK
DAC_LRCK

PCMI3LRCH
PCMI3LRCK
PCMI3SCK
AUDCLK_IN

FRC_LRSYNC

AAD_ADC_SIF
AAD_ADC_SIFM
IFAGC

DMD_DAC_OUT
DMD_SIF_OUT

DMD_ADC_INP
DMD_ADC_INN
DMD_ADC_INCOM

SD_CLK

SD_CMD
SD_CD_N
SD_WP_N

SD_DATA3
SD_DATA2
SD_DATA1
SD_DATA0

RMII_REF_CLK

RMII_CRS_DV

RMII_MDIO

RMII_MDC
RMII_TXEN
RMII_TXD1
RMII_TXD0
RMII_RXD1
RMII_RXD0

HDMI_1_SCL
HDMI_1_SDA
HDMI_1_HPD

HDMI_1_5V_DET

HDMI_1_ARC

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_1

HDMI_1_RX_1B

HDMI_1_RX_2

HDMI_1_RX_2B

HDMI_1_RX_C

HDMI_1_RX_CB

HDMI_2_SCL
HDMI_2_SDA
HDMI_2_HPD

HDMI_2_5V_DET

HDMI_2_RX_0

HDMI_2_RX_0B

HDMI_2_RX_1

HDMI_2_RX_1B

HDMI_2_RX_2

HDMI_2_RX_2B

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_3_SCL
HDMI_3_SDA
HDMI_3_HPD

HDMI_3_5V_DET

HDMI_3_RX_0

HDMI_3_RX_0B

HDMI_3_RX_1

HDMI_3_RX_1B

HDMI_3_RX_2

HDMI_3_RX_2B

HDMI_3_RX_C

HDMI_3_RX_CB

HDMI_4_SCL

HDMI_4_SDA
HDMI_4_CBUS_HPD
HDMI_4_CD_SENSE

HDMI_4_5V_DET

HDMI_4_RX_0

HDMI_4_RX_0B

HDMI_4_RX_1

HDMI_4_RX_1B

HDMI_4_RX_2

HDMI_4_RX_2B

HDMI_4_RX_C

HDMI_4_RX_CB

E22
D22
F22
F24
D24
E24
F23
E23

AK14
AK12
AL12
AK13
AL13
AM13
AN13
AL14
AK15

AE27
AF28
AE29
AF27
AE28

AF33
AF32
AE31
AE30
AD31
AD30
AF31
AF30

AD28
AD29
AC27
AD27

AC31
AC30
AB33
AB32
AA31
AA30
AD32
AD33

AB28
AB27
AB29
AC28

Y32
Y33
W31
W30
V33
V32
Y31
Y30

Y27
AA28
Y28
AA29
AA27

T31
T30
T32
T33
R31
R30
U31
U30

R305 33
R306 33

R315 33
R316 33

R300 33

HPD_M14

R301 33

HPD_M14

R302 33

SMARTCARD_CLK/SD_EMMC_DATA[0]
SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_VCC/SD_EMMC_CMD
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
DDR3_OPT1
DDR3_OPT2
SMARTCARD_DET/SD_EMMC_DATA[3]
SMARTCARD_DATA/SD_EMMC_CLK

EPHY_REFCLK
EPHY_CRS_DV
EPHY_MDIO
EPHY_MDC
EPHY_EN
EPHY_TXD1
EPHY_TXD0
EPHY_RXD1
EPHY_RXD0

DDC_SCL_1
DDC_SDA_1

HDMI_HPD_1

SPDIF_OUT_ARC

D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
CK+_HDMI1
CK-_HDMI1

DDC_SCL_2
DDC_SDA_2

HDMI_HPD_2

D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
CK+_HDMI2
CK-_HDMI2

DDC_SCL_3
DDC_SDA_3

HDMI_HPD_3
5V_HDMI_3_SOC

D0+_HDMI3
D0-_HDMI3
D1+_HDMI3
D1-_HDMI3
D2+_HDMI3
D2-_HDMI3
CK+_HDMI3
CK-_HDMI3

DDC_SCL_4
DDC_SDA_4

HDMI_HPD_4
MHL_DET

D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
CK+_HDMI4
CK-_HDMI4

5V_HDMI_1

R372
10

C356
1uF
10V

5V_HDMI_2

R373
10

C357

1uF

10V

5V_HDMI_4

R375
10

C359
1uF
10V

R376

5.1K

R377

5.1K

R379

5.1K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M14-AV In/Out

EXT_SPK_LOUT_MAIN

EXT_SPK_ROUT_MAIN

4.7K

4.7K

R384

R382

OPT

OPT

R385 4.7K

R383 4.7K

AUDIO OUT

R303

22K

R304

22K

R311 0

C305

0.01uF
50V

R312 0

C306

0.01uF
50V

DDR3_OPT1
DDR3_OPT2

AUDA_OUTL

AUDA_OUTR

DDC_SCL_3
DDC_SDA_3

HDMI_HPD_3

5V_HDMI_3_SOC

D0+_HDMI3
D0-_HDMI3
D1+_HDMI3
D1-_HDMI3
D2+_HDMI3
D2-_HDMI3
CK+_HDMI3
CK-_HDMI3

LY760H-UA

M14 Symbol C

TP321
TP322
TP323
TP324

TP325
TP326
TP327
TP328
TP329
TP330
TP331
TP332

2014.03.10
3

25

IC101

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LG1311

M0_DDR_VREF1
M0_DDR_VREF2

M0_DDR_U_CLKP
M0_DDR_U_CLKN
M0_DDR_D_CLKP
M0_DDR_D_CLKN

M0_DDR_RESET_N

M0_DDR_DQS_P0
M0_DDR_DQS_N0
M0_DDR_DQS_P1
M0_DDR_DQS_N1
M0_DDR_DQS_P2
M0_DDR_DQS_N2
M0_DDR_DQS_P3
M0_DDR_DQS_N3

M0_DDR_ZQCAL

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_DDR_CKE

M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_DM0
M0_DDR_DM1
M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DQ8
M0_DDR_DQ9

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15
M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23
M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

VREF_M0_0

A22
A3

E13
E11
E15
E17
D8
D16
D9
E16
E9
E14
D7
D10
D11
D14
E10
E12

D17
E8
D13

C8
B8
C17
B17
D12

E19
D19
D18
E18

D15

B18
C18
B16
A16
B9
C9
B7
A7

A15
A18
A6
A9

B20
B13
C21
C14
A21
A13
B21
C13
B14
B19
C15
C20
C16
A19
B15
C19
B11
C5
C12
B4
A12
A4
B12
C4
B5
B10
C6
C11
C7
A10
B6
C10

E7

VREF_M0_1

R401 240

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8
M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1

M0_DDR_BA2

M0_U_CLK

M0_U_CLKN

M0_D_CLK

M0_D_CLKN

M0_DDR_CKE

M0_DDR_ODT

M0_DDR_RASN

M0_DDR_CASN
M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0
M0_DDR_DQS_N0
M0_DDR_DQS1
M0_DDR_DQS_N1

M0_DDR_DQS2
M0_DDR_DQS_N2
M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM0

M0_DDR_DM1
M0_DDR_DM2

M0_DDR_DM3

M0_DDR_DQ0

M0_DDR_DQ1
M0_DDR_DQ2

M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6

M0_DDR_DQ7

M0_DDR_DQ8

M0_DDR_DQ9

M0_DDR_DQ10

M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14

M0_DDR_DQ15

M0_DDR_DQ16

M0_DDR_DQ17

M0_DDR_DQ18

M0_DDR_DQ19
M0_DDR_DQ20

M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DQ24
M0_DDR_DQ25

M0_DDR_DQ26

M0_DDR_DQ27

M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

1%

+1.5V_DDR

+1.5V_DDR

+1.5V_DDR

+1.5V_DDR

1K
1%

R402
1K
1%

R403

R404
10K
OPT

R405
100

R406
1K
1%

R407
1K
1%

R408
1K
1%

R409
1K
1%

VREF_M0_0

C401

0.1uF

16V

M0_DDR_RESET_N

M0_D_CLK

M0_D_CLKN

M0_DDR_VREFCA

C402

0.1uF
16V

M0_DDR_VREFDQ

C403

0.1uF
16V

M0_DDR_CKE

+1.5V_DDR

R410

100

+1.5V_DDR

R411
1K
1%

R412

1K
1%

+1.5V_DDR

R413
1K
1%

R414
1K
1%

VREF_M0_1

R415
1K
1%

R416

1K
1%

R417
10K

M0_U_CLK

M0_U_CLKN

M0_1_DDR_VREFCA

C406

0.1uF
16V

M0_1_DDR_VREFDQ

C407

0.1uF
16V

C408

0.1uF

16V

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_D_CLK

M0_D_CLKN
M0_DDR_CKE

M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DM0
M0_DDR_DM1

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7

M0_DDR_DQ8
M0_DDR_DQ9

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

IC401

H5TQ4G63AFR-PBC

DDR3

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

4Gbit

A0

(x16)

A1

DDR_512MB_HYNIX_1600_29n

A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

A14

A15

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M0_DDR_VREFCA

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M0_DDR_VREFDQ

+1.5V_DDR

R418

240
1%

IC402

H5TQ4G63AFR-PBC

DDR3

N3

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_U_CLK

M0_U_CLKN
M0_DDR_CKE

C413 1uF 10V
C414 1uF 10V C430 1uF 10V

M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ16

M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

IC402-*1

IC401-*1

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

4Gbit

A0

P7

(x16)

A1

P3

DDR_512MB_HYNIX_1600_29n

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M0_1_DDR_VREFCA

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M0_1_DDR_VREFDQ

+1.5V_DDR

R419

240
1%

C429 1uF 10V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

M14 DDR3-M0

2014.03.10
4

25

IC101

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LG1311

M1_DDR_VREF1
M1_DDR_VREF2

M1_DDR_U_CLKP
M1_DDR_U_CLKN
M1_DDR_D_CLKP
M1_DDR_D_CLKN

M1_DDR_RESET_N

M1_DDR_DQS_P0
M1_DDR_DQS_N0
M1_DDR_DQS_P1
M1_DDR_DQS_N1
M1_DDR_DQS_P2
M1_DDR_DQS_N2
M1_DDR_DQS_P3
M1_DDR_DQS_N3

M1_DDR_ZQCAL

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_DDR_CKE

M1_DDR_ODT

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_DM0
M1_DDR_DM1
M1_DDR_DM2
M1_DDR_DM3

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DQ8
M1_DDR_DQ9

M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

VREF_M1_0

A2
Y1

M5
N5
K5
H5
T4
H4
R4
J5
T5
L5
U4
P4
P5
K4
R5
N4

G4
U5
L4

R3
R2
F3
F2
M4

F5
E4
F4
G5

J4

E2
E3
G2
G1
P2
P3
T2
T1

H1
E1
U1
P1

C2
K2
B3
J3
B1
K1
B2
K3
J2
D2
H3
C3
G3
D1
H2
D3
M2
V3
L3
W2
L1
W1
L2
W3
V2
N2
U3
M3
T3
N1
U2
N3

E5

R501

VREF_M1_1

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_U_CLK
M1_U_CLKN
M1_D_CLK
M1_D_CLKN
M1_DDR_CKE

M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS0
M1_DDR_DQS_N0
M1_DDR_DQS1
M1_DDR_DQS_N1
M1_DDR_DQS2
M1_DDR_DQS_N2
M1_DDR_DQS3
M1_DDR_DQS_N3

M1_DDR_DM0
M1_DDR_DM1
M1_DDR_DM2
M1_DDR_DM3

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15

M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

240
1%

+1.5V_DDR

+1.5V_DDR

+1.5V_DDR

+1.5V_DDR

VREF_M1_0

R508
1K
1%

R509

1K
1%

R502
10K
OPT

R503
100

M1_DDR_VREFCA

R504

1K
1%

R505

1K
1%

M1_DDR_VREFDQ

R506
1K
1%

R507
1K
1%

C501

0.1uF
16V

M1_DDR_RESET_N

M1_D_CLK

M1_D_CLKN

C502

0.1uF
16V

C503

0.1uF
16V

+1.5V_DDR

M1_DDR_CKE

+1.5V_DDR

+1.5V_DDR

VREF_M1_1

R515
1K
1%

R516
1K
1%

R510

100

M1_1_DDR_VREFCA

R511
1K
1%

C507

R512

0.1uF

1K

16V

1%

M1_1_DDR_VREFDQ

R513
1K
1%

C508

R514

0.1uF

1K

16V

1%

C506

0.1uF
16V

R517
10K

M1_U_CLK

M1_U_CLKN

+1.5V_DDR

IC501

H5TQ4G63AFR-PBC

N3

M1_DDR_A0
M1_DDR_A1 M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_D_CLK

M1_D_CLKN
M1_DDR_CKE

M1_DDR_ODT

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DM0
M1_DDR_DM1

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7

M1_DDR_DQ8
M1_DDR_DQ9

M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13M1_DDR_DQ16
M1_DDR_DQ14
M1_DDR_DQ15

DDR3

A0

P7

4Gbit

A1

P3

DDR_512MB_HYNIX_1600_29n

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC501-*1

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

B2

R3

VDD_1

A9

D9

L7

VDD_2

A10/AP

G7

R7

VDD_3

A11

N7

K2

VDD_4

A12/BC

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

A14

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQ0

VSS_7

F7

M9

DQ1

VSS_8

F2

P1

DQ2

VSS_9

F8

P9

DQ3

VSS_10

H3

T1

DQ4

VSS_11

H8

T9

DQ5

VSS_12

G2

DQ6

H7

DQ7

B1

VSSQ_1

D7

B9

DQ8

VSSQ_2

C3

D1

DQ9

VSSQ_3

C8

D8

DQ10

VSSQ_4

C2

E2

DQ11

VSSQ_5

A7

E8

DQ12

VSSQ_6

A2

F9

DQ13

VSSQ_7

B8

G1

DQ14

VSSQ_8

A3

G9

DQ15

VSSQ_9

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

IC502-*1

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M1_DDR_VREFCA

R518

+1.5V_DDR

C524

C525 1uF

1uF

10V

M1_DDR_VREFDQ

240

10V

DDR3 1.5V bypass Cap

: Place these caps near Memory

H5TQ2G63FFR-PBC

DDR_256MB_HYNIX_1600_29n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC501-*2

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

1_2Gbit : T7(NC_6)

4Gbit : T7(A14)

M1_DDR_A0

M1_DDR_A2

M1_DDR_A3

M1_DDR_A4
M1_DDR_A5

M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9

M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_U_CLK

M1_U_CLKN

M1_DDR_CKE

M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS2

M1_DDR_DQS_N2

M1_DDR_DQS3

M1_DDR_DQS_N3

M1_DDR_DM2

M1_DDR_DM3

M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23

M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

IC502-*2

H5TQ2G63FFR-PBC

DDR_256MB_HYNIX_1600_29n

N3

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

B2

R3

VDD_1

A9

D9

L7

VDD_2

A10/AP

G7

R7

VDD_3

A11

N7

K2

VDD_4

A12/BC

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

NC_6

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQL0

VSS_7

F7

M9

DQL1

VSS_8

F2

P1

DQL2

VSS_9

F8

P9

DQL3

VSS_10

H3

T1

DQL4

VSS_11

H8

T9

DQL5

VSS_12

G2

DQL6

H7

DQL7

B1

VSSQ_1

D7

B9

DQU0

VSSQ_2

C3

D1

DQU1

VSSQ_3

C8

D8

DQU2

VSSQ_4

C2

E2

DQU3

VSSQ_5

A7

E8

DQU4

VSSQ_6

A2

F9

DQU5

VSSQ_7

B8

G1

DQU6

VSSQ_8

A3

G9

DQU7

VSSQ_9

IC502

H5TQ4G63AFR-PBC

N3

DDR3

A0

P7

4Gbit

A1

P3

DDR_512MB_HYNIX_1600_29n

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC501-*3

MT41K128M16JT-125:K

DDR_256MB_MICRON

N3

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

B2

R3

VDD_1

A9

D9

L7

VDD_2

A10/AP

G7

R7

VDD_3

A11

N7

K2

VDD_4

A12/BC

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

NC_6

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQ0

VSS_7

F7

M9

DQ1

VSS_8

F2

P1

DQ2

VSS_9

F8

P9

DQ3

VSS_10

H3

T1

DQ4

VSS_11

H8

T9

DQ5

VSS_12

G2

DQ6

H7

DQ7

B1

VSSQ_1

D7

B9

DQ8

VSSQ_2

C3

D1

DQ9

VSSQ_3

C8

D8

DQ10

VSSQ_4

C2

E2

DQ11

VSSQ_5

A7

E8

DQ12

VSSQ_6

A2

F9

DQ13

VSSQ_7

B8

G1

DQ14

VSSQ_8

A3

G9

DQ15

VSSQ_9

IC502-*3

MT41K128M16JT-125:K

DDR_256MB_MICRON

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

+1.5V_DDR

M1_1_DDR_VREFCA

R519

M1_1_DDR_VREFDQ

240

10V

1uF

10V

DDR3 1.5V bypass Cap

: Place these caps near Memory

M8

H1

L8

ZQ

B2
D9
G7

+1.5V_DDR

K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

C540

C541 1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

M14 DDR3-M1

2014.03.10
5

25

VDD3V3_HDMI

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

AVDD33

C637

0.1uF
16V

+1.5V_DDR

TP5207

+1.5V_DDR

TP5208

AVDD25_C4TX

AVDD25

AVDD25_AUD

GND JIG POINT

DVDD33

JP601

L18
L21
L22
L23
M23
T11

Y23
AA23
AC12
AC13
AC14
AC15
AC11

P23

R23

T23

U23

V23

AF22

F10

F11

F12

F13

F14

F15

F16

F17

V11

W11

Y11
AA11
AC18
AC19
AC20
AC21
AC22
AC23

G19

H19

H20

AC17
AB23

F9

G6
H6
J6
K6
L6
M6
N6
P6
R6

JP602

IC101

LG1311

DVDD33_1
DVDD33_2
DVDD33_3
DVDD33_4
DVDD33_5
DVDD33_6
DVDD33_7
DVDD33_8
DVDD33_9
DVDD33_10
DVDD33_11
DVDD33_12
AVDD33_BT_USB
AVDD33_USB_1
AVDD33_USB_2
AVDD33_HDMI_1
AVDD33_HDMI_2
AVDD33_HDMI_3

AVDD33_CVBS

DVDD15_M0_1
DVDD15_M0_2
DVDD15_M0_3
DVDD15_M0_4
DVDD15_M0_5
DVDD15_M0_6
DVDD15_M0_7
DVDD15_M0_8
DVDD15_M0_9

DVDD15_M1_1
DVDD15_M1_2
DVDD15_M1_3
DVDD15_M1_4
DVDD15_M1_5
DVDD15_M1_6
DVDD15_M1_7
DVDD15_M1_8
DVDD15_M1_9

AVDD25_C4TX_1
AVDD25_C4TX_2
AVDD25_C4TX_3
AVDD25_C4TX_4
AVDD25_COMP_1
AVDD25_COMP_2
AVDD25_CVBS_1
AVDD25_CVBS_2
AVDD25_DMD
AVDD25_AAD
DVDD25_XTAL
AVDD25_DR3PLL
SP_VQPS

AVDD25_AUD
AVDD25_APLL

JP604

JP603

DVDD11_1
DVDD11_2
DVDD11_3
DVDD11_4
DVDD11_5
DVDD11_6
DVDD11_7
DVDD11_8

DVDD11_9
DVDD11_10
DVDD11_11
DVDD11_12
DVDD11_13
DVDD11_14
DVDD11_15
DVDD11_16
DVDD11_17
DVDD11_18
DVDD11_19
DVDD11_20
DVDD11_21
DVDD11_22
DVDD11_23
DVDD11_24
DVDD11_25
DVDD11_26
DVDD11_27
DVDD11_28
DVDD11_29
DVDD11_30
DVDD11_31
DVDD11_32
DVDD11_33
DVDD11_34
DVDD11_35
DVDD11_36
DVDD11_37
DVDD11_38
DVDD11_39

DVDD11_40
DVDD11_41
DVDD11_42
DVDD11_43
DVDD11_44
DVDD11_45
DVDD11_46
DVDD11_47
DVDD11_48
DVDD11_49
DVDD11_50
DVDD11_51

AVDD11_APLL

AVDD11_COMP_LLPLL

AVDD11_C4TX_1
AVDD11_C4TX_2
AVDD11_C4TX_3
AVDD11_C4TX_4

DVDD11_XTAL

DVDD11_DR3PLL

DVDD11_CVBSPLL

AVDD11_DMD_1
AVDD11_DMD_2

DVDD18_EMMC_1
DVDD18_EMMC_2

+1.1V_VDD

M20
M21
N13
N14
N15
N16
N17
N18
P20
P21
R13
R14
R15
R16
R17
R18
R19
R20
R21
T13
T20
T21
U14
U15
U16
U17
U18
U19
U20
U21
V13
V20
V21
W13
W14
W15
W16
W17
W18
W19
Y13
Y20
Y21
AA13
AA14
AA15
AA17
AA18
AA19
AA20
AA21
AB21
AB19
V12
W12
Y12
AA12

G18
H18

AF23
AF24
AF25

L26
M26

TP5209

+1.1V_VDD

AVDD11_DMD

TP5210

DVDD18_EMMC

+3.3V_Bypass Cap

+3.3V_NORMAL

L601

BLM18PG121SN1D

C601

4.7uF
10V

+2.5V_Bypass Cap

+2.5V_NORMAL

L602

BLM18PG121SN1D

C602

4.7uF
10V

+2.5V_NORMAL

AVDD25_AUD

L603

BLM18PG121SN1D

C603

4.7uF
10V

DVDD33

AVDD25

C604

4.7uF
10V

C605

4.7uF
10V

C606

4.7uF
10V

C607

0.1uF

C608

0.1uF

C609

0.1uF

B22
B24
C22
C23
C24

D20
D21

E20
E21

F18
F19
F20
F21

G10
G11
G12
G13
G14
G15
G16
G17
G20
G21
G22
G23
G24
G25
G26
G27

H10
H11
H12
H13
H14
H15
H16
H17
H21
H22
H23
H24
H25
H26
H27
H31

J26
J27

K26
K27

L11
L12
L13
L14
L15
L16
L17
L19
L20
L27

M11
M12
M13
M14
M15
M16
M17
M18
M19
M22
M27

N11
N12
N19
N20
N21
N22
N23
N26
N27
N30

P11
P12
P13
P14
P15
P16
P17
P18

D4
D5
D6

E6

F6
F7
F8

G7
G8
G9

H7
H8
H9

J7
J8

K7
K8

L7
L8

M7
M8

N7
N8

P7
P8

IC101

LG1311

GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113

GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136
GND_137
GND_138
GND_139
GND_140
GND_141
GND_142
GND_143
GND_144
GND_145
GND_146
GND_147
GND_148
GND_149
GND_150
GND_151
GND_152
GND_153
GND_154
GND_155
GND_156
GND_157
GND_158
GND_159
GND_160
GND_161
GND_162
GND_163
GND_164
GND_165
GND_166
GND_167
GND_168
GND_169
GND_170
GND_171
GND_172
GND_173
GND_174
GND_175
GND_176
GND_177
GND_178
GND_179
GND_180
GND_181
GND_182
GND_183
GND_184
GND_185
GND_186
GND_187
GND_188
GND_189
GND_190
GND_191
GND_192
GND_193
GND_194
GND_195
GND_196
GND_197
GND_198
GND_199
GND_200
GND_201
GND_202
GND_203
GND_204
GND_205
GND_206
GND_207
GND_208
GND_209
GND_210
GND_211
GND_212
GND_213
GND_214
GND_215
GND_216
GND_217
GND_218
GND_219
GND_220
GND_221
GND_222
GND_223
GND_224
GND_225
GND_226

P19
P22
P26
P30
R7
R8
R11
R12
R22
R26
R27
T6
T7
T8
T12
T14
T15
T16
T17
T18
T19
T22
T26
T27
U6
U7
U8
U11
U12
U13
U22
U26
V4
V5
V6
V7
V8
V14
V15
V16
V17
V18
V19
V22
V26
V30
V31
W4
W8
W20
W21
W22
W23
W26
W27
Y2
Y3
Y4
Y8
Y14
Y15
Y16
Y17
Y18
Y19
Y22
Y26
AA8
AA16
AA22
AA26
AB11
AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB20
AB22
AB26
AB30
AB31
AC16
AC26
AD26
AE26
AF6
AF8
AF9
AF10
AF11
AF12
AF13
AF14
AF15
AF16
AF17
AF18
AF19
AF20
AF21
AF26
AG20
AG25
AG31
AH25
AJ25
AK9
AK25
AL9
AL15

+1.1V_Bypass Cap

+3.3V_NORMAL

16V

L606

BLM18PG121SN1D

4.7uF

AVDD33

C614

10V

C615

0.1uF
16V

AFE 3CH Power

+2.5V_NORMAL

16V

16V

AVDD25_C4TX

L604

BLM18PG121SN1D

C610

0.1uF
16V

C613

4.7uF

C616

0.1uF
16V

10V

+1.1V_VDD

C617

4.7uF

4.7uF

10V

+1.1V_VDD

BLM18PG121SN1D

C618

10V

L607

C619

4.7uF
10V

AVDD11_DMD

C622

4.7uF
10V

C620

4.7uF
10V

C625

0.1uF

C623

4.7uF

16V

C626

C627

0.1uF
16V

C628

0.1uF
16V

0.1uF

10V

16V

+1.5V_Bypass Cap

+1.5V_DDR

C631

0.1uF
16V

C632

0.1uF
16V

C633

0.1uF
16V

C634

0.1uF
16V

+1.5V_DDR

C629

22uF
10V
OPT

C630
22uF
10V
OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

11/05/31

LY760H-UA
VCC & GND

2014.03.10
6

25

+3.5V_ST

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

RT1P141C-T112

C

E

L2303

Q2305

B

VA2300

ZD2303
5V

5.6V

E

C

PWR ON

3.5V

3.5V

L/DIM0_MOSI

POWER_WAFER_18PIN

P2300

SMAW200-H18S5

1

1
3

3
5

5

GND

7

7

24V

10

9

9

10

GND

11

12

12

11

12V

13

14

13

14

12V

15

16

16

15

GND

17

18

18

17

GND

20

19

GND

21

22

19

23

24

25

.

SMAW200-H24S5

P2301

POWER_WAFER_24PIN

INV ON

2

2

PDIM#1

4

4

3.5V

6

6

PDIM#2

8

8

24V
GND
12V
24V
GND
GND
L/DIMO_VS
L/DIM0_SCLK

R2309 100

L2306

UBW2012-121F

C2316

0.1uF
50V

+24V

+3.3V_NORMAL

R2310
1K
OPT

R2355

R2354

4.7K

4.7K
OPT

OPT

R2356
1K
OPT

INV_CTL
PWM_DIM

PWM_DIM2

L/DIM0_VS
L/DIM0_SCLK

RL_ON

+3.5V_ST

R2351
10K

+3.5V_ST

+12V

C2306

0.1uF
50V

L/DIM0_MOSI

R2364 10K

MMBT3904(NXP)

C2307

0.1uF
16V

B

Q2304

L2304

UBW2012-121F

UBW2012-121F

+3.3V - eMMC 4.41(LG1311-A0)

+3.3V_NORMAL

L2302

BLM18PG121SN1D

C2305

0.1uF
16V

C2300
22uF
10V

3.3V_EMMC

+1.8V - eMMC 4.51(LG1311-B0)

+3.3V_NORMAL

IC2306

AZ1117EH-ADJTRG1

IN

ADJ/GND

+12V

+3.3V_NORMAL

L2300
BLM18PG121SN1D

C2302

C2303

10uF

0.1uF

16V

16V

POWER_ON/OFF1

R2302

5.1K

1/16W
1% L2301

3.3V_DCDC_TI

EN

VFB

VREG5

SS

TPS54327DDAR

IC2300-*1

1

2

3

4

THERMAL

[EP]GND

VIN

8

VBST

9

7

SW

6

GND

5

3.3V_DCDC_RHOM

3.3V_DCDC_TI
C2312-*1
3300pF
50V

C2304 100pF 50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

100K_LY76

R2301-*1

100K

R23 03

68K

1/1 6W
1%

+3.5V_ST

R1

R2

1/1 6W

1%

10K_OLD

R2301

10K

R23 05

22K

R2304 10K

C2310
1uF
10V

DVDD18_EMMC

OUT

VREG

C2312
2200pF
50V

3.3V_DCDC_RHOM

BD9D320EFJ

EN

FB

SS

R2357
75
1%
1/16W

R2358
33
1%
1/16W

IC2300

1

9

2

THERMAL

3

3.3V_DCDC_ROHM

4

3A

R2347

1

C2301
10uF
10V

8

7

6

5

[EP]FIN

VIN

BOOT

SW

GND

C2308
10uF
10V

Vout=0.765*(1+R1/R2)

C2313

0.1uF
16V

D2302

2.5V
OPT

2uH

+3.3V_NORMAL

C2314
22uF
10V

C2315

22uF

10V

ZD2300
5V

PANEL_CTL

+5V_NORMAL

POWER_ON/OFF2_1

100K_LY76

R2360-*1

POWER_ON/OFF2_3

+1.1V_VDD

ZD2301

2.5V
OPT

+12V

UBW2012-121F

+3.3V_NORMAL

C2327
10uF
10V

100K_LY76

R2363-*1

100K

100K

C2320

0.1uF
16V

C2318

C2317
22uF

22uF

10V

10V

PANEL_POWER

L2313

C2333
10uF

16V

C

Q2301
MMBT3904(NXP)

E

R2314

10K

C2331

0.1uF
50V

R2317

R2318

5.1K

B

30K

+2.5V

IC2302

[EP]

IN

1

PG

2

VCC

1.5A

3

EN

4

9

THERMAL

OUT

8

FB

7

SS

6

GND

5

+3.5V_ST

10K_OLD

R2363

10K

R2312 10K

AP7173-SPG-13 HF(DIODES)

+1.1V_CORE

R2311

10K

C2321
1000pF
50V

+3.5V_ST

R2306 2K

1/16W

5%

L2305

1uH

C2319
22uF
10V

10K_OLD
R2360
10K

R2307 1K

R2308

3.3
1/10W

C2323

5%

C2322
470pF
50V

0.1uF

R2359

4.7

R2315
91K
1/16W
1%

R23 1327K

1/1 6W1 %

RF

PGOOD

EN

VBST

16V

NC_1

SW_1

SW_2

SW_3

SW_4

Vout=0.6*(1+R1/R2)

POWER UP SEQUENCE

3.3V->5V->1.5V->1.1V->2.5V

[EP]

1

THERMAL

2

29

3

IC2301

4

TPS53513RVER

5

6

7

8

9

10

PGND_111PGND_212PGND_313PGND_414PGND_5

R2316
39K

1/16W
5%

TRIP26NC_327GND128GND2

PANEL_VCC

Q2302

PMV48XP

D

S

G

R2346 3.3K

LVDS_DISCHARGE

1%

R1

4.3 K

1/1 6W

R23 22

C2337
2200pF
50V

R2

1%

R23 212K1/1 6W

Vout=0.8*(1+R1/R2)

R1

R2319

9.1K

1/16W

R2

R2320

10.7K

C2325
2200pF
50V

1/16W

24VO25

FB

23

GND

22

MODE

21

VREG

20

VDD

19

NC_2

18

VIN_3

17

VIN_2

16

VIN_1

15

C2347

0.1uF
50V

+2.5V_NORMAL

C2346
10uF
10V

1%

1%

1%

20K

R2323

1/16W

C2357

0.1uF
16V

C2326
1uF
10V

OPT

C2328
10uF
16V

5V

ZD2304

+12V

L2307

C2332
10uF
16V

P_DET_BOTH_12_24V

R2349-*1
100

P_DET_BOTH_24_3.5V

R2336-*1
100K

P_DET_BOTH_24_3.5V

C2356-*1

0.1uF
50V

P_DET_BOTH_24_3.5V

P_DET_BOTH_12_24V

P_DET_BOTH_12_24V

P_DET_BOTH_12_24V

Power_DET

P_DET_BOTH_12_3.5V

P_DET_BOTH_12_3.5V

R2325-*1

2.7K
1%

R2326-*1

1.2K
1%

+12V

P_DET_ONLY_12V
R2325

2.7K
1%

P_DET_ONLY_12V

R2326

1.2K
1%

+24V

+3.5V_ST

R2330
0
5%

P_DET_BOTH_24_3.5V

+3.5V_ST

On-semi

R2327

8.2K

R2328

1.5K
1%

100K_LY76

R2361-*1

100K

PVIN_1

PVIN_2

PGND_1

PGND_2

R2348 0

P_DET_BOTH_12_3.5V

+3.5V_ST

C2353 0.1uF

1.5V_DCDC_TI

[EP]FIN

1

THERMAL

2

17

IC2303

3

BD9A300MUV

4

1.5V_DCDC_ROHM
5

6

FB

AGND8MODE

3A

IC2308-*1
APX803D29

VCC

P_DET_BOTH_12_3.5V_DIODES

RESET

3

2

1

GND

P_DET_BOTH_24_3.5V

P_DET_BOTH_24_3.5V

DDR MAIN 1.5V

+3.5V_ST

L2308

C2340

C2339

0.1uF

10uF

16V

10V

THERMAL

17

IC2303-*1

TPS54319TRE

5

AGND

BOOT14PWRGD15EN16VIN_3

7

COMP

RT/CLK6VSENSE

13

PH_3

12

PH_2

11

PH_1

10

SS/TR

9

8

1.5V_DCDC_TI
R2329-*1
15K

1/16W
5%

C2344-*1

4700pF50V

1.5V_DCDC_TI

1.5V_DCDC_TI

EP[GND]

VIN_1

1

VIN_2

2

GND_1

3

GND_2

4

Vout=0.8*(1+R1/R2)

+5.0V normal & USB

C2334
2200pF

R23 40 16 K 1%

R23 41150 K 1 %

RSET2

27

IC2304

6A

9EN10

SW_OUT211SW_OUT1

+5V_USB_2

+5V_USB_3

LY760H-UA

50V
R2342

10K

COMP25RLIM26RSET1

12

SW_EN213SW_EN1

USB_CTL3

USB_CTL2

POWER

+24V

L2310

120-ohm

C2309
10uF
35V
OPT

100K_LY76

R2362-*1

100K

POWER_ON/OFF2_4

C2311
10uF
35V

C2330

0.0068uF
50V

R23 35 16 K 1%

AGND

[EP]

28

VIN_1

1

THERMAL

VIN_2

2

VIN_3

C2329

0.1uF
50V

PGND_1

PGND_2

PGND_3

1uF

25V

C23 24

+3.5V_ST

10K_OLD

R2362

10K

29

3

4

SN1302001(TPS65286RHDR)

5

6

V7V

7

8

MODE/SYNC

R2339 10K

R2327-*1

8.2K

R2328-*1

1.5K
1%

R2325-*2

2.7K
1%

R2326-*2

1.2K
1%

RESET IC_ROHM

VDD

C2355

0.1uF
16V

P_DET_BOTH_12_3.5V

P_DET_BOTH_12_3.5V_ROHM

VDD

C2356

0.1uF
50V
P_DET_BOTH_12_3.5V

10K_OLD
R2361
10K

R2324
10K

16V

C2341

BOOT14PGD15EN16AVIN

13

SW_3

12

SW_2

3A

11

SW_1

10

SS

9

7

ITH

R2329

8.2K
1/16W1%

1.5V_DCDC_RHOM

OPT
C2335
100pF
50V

22SS23FB24

LX_3

21

LX_2

20

LX_1

19

BST

18

SW_IN2

17

SW_IN1

16

NFAULT1

15

14

NFAULT2

/USB_OCD2

/USB_OCD3

P_DET_BOTH_12_24V

R2336-*2
100K

R2349-*2
100

P_DET_BOTH_12_24V

R2337
100K

IC2307

BD48K28G

2

3

1

GND

R2336 100K

IC2308

BD48K28G

2

3

1

GND

0.1uF

16V

C2342

0.01uF
50V

R2331

330K1/16W 5%

C2344

1.5V_DCDC_RHOM

C2336

0.047uF
25V

C2343

82pF

50V

L2311

4.7uH

C2338

0.047uF
25V

5%

100K

VOUT

VOUT

POWER_ON/OFF2_2

NR5040T2R2N
L2309

2.2uH

2700pF50V

R2

1%

R1

1%

R2344

1/16W

R2353

C2356-*2

0.1uF
50V

P_DET_BOTH_12_24V

+3.5V_ST

R2350
100

R2349
100

P_DET_BOTH_12_3.5V

C2345

C2349

22uF

22uF

10V

10V

6.8K

1/16W

R2345

C2348
22uF
10V

51K

1/16W

R2352





L2311 Change, 131120

for Current UP

C2350
1uF

5%

10V

100K

1/16W

R1

R2

Vout=0.6*(1+R1/R2)

5.1V:R1-51K, R2-6.8K

R2338
10K
OPT

C2365

0.1uF
16V

not to RESET at 8kV ESD

ST_3.5V-->3.5V

+1.5V_DDR

1%

16K

1/1 6W

R23 32

1%

18K

R23 33

1/1 6W

C2352

C2351

10uF

22uF

10V

10V

2014.03.10

RESET IC_DIODES

IC2307-*1
APX803D29

VCC

3

2

1

GND

POWER_DET

24V-->3.48V
12V-->3.58V

ZD2302

2.5V
OPT

C2354
100pF
50V

1.5V_DCDC_TI

+5V_NORMAL

7

RESET

25

VA3215

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

ESD_HDMI

BODY_SHIELD

20

HP_DET

19

5V

18

GND

17

DDC_DATA

16

DDC_CLK

15

ARC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

D0-

9

D0_GND

8

EAG62611204

51U019S-312HFN-E-R-B-LG

JK3202

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

VA3208
ESD_HDMI

CEC_REMOTE

R3207

100K

5V_HDMI_1

VA3206

ESD_HDMI

VA3207

ESD_HDMI

VA3213
ESD_HDMI

HDMI_EXT_EDID
R3206

1K

Q3209
MMBT3904(NXP)

C

HDMI_EXT_EDID

B

R3264

1K

E

HDMI_EXT_EDID

R3261 33
HDMI_INT_EDID

AR3200 33

5V_HDMI_1

R3248
1K
OPT

C3202 1uF

R3249

3.9K
OPT

D3210

IP4294CZ10-TBR

1

10

2

9
8

3

7

4

6

5

ESD_HDMI_TMDS

D3211

IP4294CZ10-TBR

1

10

2

9
8

3

7

4

6

5

ESD_HDMI_TMDS

HDMI_HPD_1

R3262

4.7K
HDMI_EXT_EDID

1/16W

DDC_SCL_1
DDC_SDA_1

ARC

C3226

0.1uF
16V

OPT

SPDIF_OUT_ARC

CK-_HDMI1
CK+_HDMI1

D0-_HDMI1
D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1
D2+_HDMI1

10V

HDMI2 with ARC

D3210-*1
IP4294CZ10-TBR
@volta

1
2
3
4
5

ESD_HDMI_TVS

D3211-*1
IP4294CZ10-TBR
@volta

1
2
3
4
5

ESD_HDMI_TVS

+12V

For CEC

5V_HDMI_4

BODY_SHIELD

GND

20

HP_DET

19

5V

18

GND

17

DDC_DATA

16

DDC_CLK

15

NC

14

CE_REMOTE

13

CK-

12

JK3203

CK_GND

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

10
9
8
7
6

10
9
8
7
6

EAG62611204

51U019S-312HFN-E-R-B-LG

VA3202
ESD_HDMI

CEC_REMOTE

VA3210

ESD_HDMI

R3211
1K

1/16W

AR3202 33

VA3211

D3215

ESD_HDMI

IP4294CZ10-TBR

1
2
3
4
5

ESD_HDMI_TMDS

D3214

IP4294CZ10-TBR

1
2
3
4
5

ESD_HDMI_TMDS

G

10
9
8
7
6

10
9
8
7
6

R3212 820

D

Q3203
PMBFJ177

S

DDC_SCL_4

DDC_SDA_4

VA3209

CK-_HDMI4
CK+_HDMI4

D0-_HDMI4
D0+_HDMI4

D1-_HDMI4
D1+_HDMI4

D2-_HDMI4
D2+_HDMI4

R3205
100K
OPT

ESD_HDMI

VA3217

R3213 0

R3243

1K

5.6V

HDMI_HPD_4

+5V_NORMAL

C3203

0.1uF
16V

D3215-*1
IP4294CZ10-TBR
@volta

1
2
3
4
5

ESD_HDMI_TVS

D3214-*1
IP4294CZ10-TBR
@volta

1
2
3
4
5

ESD_HDMI_TVS

C3223

0.047uF
25V

A1

A2

10
9
8
7
6

10
9
8
7
6

MHL_DET

D3201

R3202

C

10K

R3208
330K

B

Q3200

MMBT3904(NXP)

VIN

GND

EN

+3.5V_ST

R3246

10K

C

E

1

2

3

R3247

10K

IC3200

BD2242G

B

VOUT

6

ILIM

5

OC

4

Q3201

E

MMBT3906(NXP)

C

D3206 30V

MBR230LSFT1G

R3232

5V_HDMI_4

R3233

100K

16K
1%

MHL_DET

C3204
10uF
10V

C3221
22uF
10V

OPT

+3.5V_ST

R3209
27K

D3208
BAT54_SUZHO

CEC_REMOTE

HDMI LEAKAGE Workaround in MTK A2(A0) (Default= with HDMI_LEAKAGE)

+3.3V_NORMAL

R3255 0

OPT

PANEL_VCC

R3254

10K

G

D

S

NTR4501NT1G

Q3202

VDD3V3_HDMI

C3227

0.1uF
16V

D

G

Q3207
RUE003N02

S

R3210
120K

HDMI_CEC_PTC

HDMI3 With MHL

SHIELD

20

EAG59023302

JK3200

YKF45-7058V

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

VA3200
ESD_HDMI

VA3201
ESD_HDMI

VA3204

ESD_HDMI

R3218
100K

VA3203

ESD_HDMI

5V_HDMI_2

HDMI_EXT_EDID
R3220

1K

Q3210
MMBT3904(NXP)

C

HDMI_EXT_EDID

B

E

HDMI_EXT_EDID

R3260 33
HDMI_INT_EDID

CEC_REMOTE

D3212

IP4294CZ10-TBR

1
2
3
4
5

ESD_HDMI_TMDS

IP4294CZ10-TBR

1
2
3
4
5

ESD_HDMI_TMDS

R3265

1K

AR3201 33

10
9
8
7
6

D3213

5V_HDMI_1

+5V_NORMAL

+5V_NORMAL

R3258
22

HDMI_EXT_EDID

R3259
22

HDMI_EXT_EDID

S

Q3213
RUE003N02
EDID_PTC

5V_HDMI_2

AR3206

47K

1/16W

R3244
10K
EDID_PTC

A1

C

A2

MMBD6100
D3216

EEPROM_WP

DDC_SDA_2_PTC

DDC_SCL_2

DDC_SDA_2

M24C02-RMN6T

E0

1

E1

2

HDMI_EXT_EDID_ST

E2

3

VSS

4

IC3202-*1

AT24C02C-SSHM-T

A0

1

A1

2

A2

3

GND

4

HDMI_EXT_EDID_ATMEL

IC3204

VCC

8

WC

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

R3203 22

R3204

IC3203-*1

AT24C02C-SSHM-T

A0

1

A1

2

A2

3

GND

4

HDMI_EXT_EDID_ATMEL

OPT

22

OPT

8

7

6

5

AR3204

47K

1/16W

DDC_SDA_1_PTC

A2CA1
MMBD6100
D3200

DDC_SCL_1

DDC_SDA_1

E0

E1

E2

VSS

DDC_SDA_2

IC3203

M24C02-RMN6T

1

2

HDMI_EXT_EDID_ST

3

4

VCC

8

WC

7

SCL

6

SDA

5

+3.5V_ST

G

D

+3.5V_ST

IC3202

M24C02-RMN6T

E0

1

HDMI_HPD_2

R3263

4.7K
HDMI_EXT_EDID

1/16W

10
9
8
7
6

DDC_SCL_2
DDC_SDA_2

CK-_HDMI2
CK+_HDMI2

D0-_HDMI2
D0+_HDMI2

D1-_HDMI2
D1+_HDMI2

D2-_HDMI2
D2+_HDMI2

D3212-*1
IP4294CZ10-TBR
@volta

1
2
3
4
5

ESD_HDMI_TVS

D3213-*1
IP4294CZ10-TBR
@volta

1
2
3
4
5

ESD_HDMI_TVS

10
9
8
7
6

10
9
8
7
6

DDC_SDA_1

E1

2

HDMI_EXT_EDID_ST

E2

3

VSS

4

HDMI1

VCC

8

WC

7

SCL

6

SDA

5

Q3204

MMBT3904(NXP)

HDMI_EXT_EDID

+3.5V_ST

G

D

Q3211
RUE003N02
EDID_PTC

+3.5V_ST

+3.5V_ST

S

R3240

4.7K
HDMI_EXT_EDID

HDMI_EXT_EDID

HDMI_EXT_EDID

C

B

E

R3200
22

R3201
22

R3241
10K
EDID_PTC

EEPROM_WP

EDID_WP

5V_HDMI_4

VCC

WP

SCL

SDA

+3.5V_ST

A2CA1

MMBD6100
D3207

AR3205
47K
1/16W

DDC_SCL_4

DDC_SDA_4

EEPROM_WP

IC3204-*1

AT24C02C-SSHM-T

A0

1

A1

2

A2

3

GND

4

HDMI_EXT_EDID_ATMEL

VCC

8

WP

7

SCL

6

SDA

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R3242

G

DDC_SCL_1 DDC_SCL_1_PTC

D

S

Q3212
RUE003N02
EDID_PTC

10K
EDID_PTC

DDC_SCL_2

D

G

Q3214
RUE003N02
EDID_PTC

R3245
10K
EDID_PTC

S

DDC_SCL_2_PTC

LY760H-UA

HDMI

2014.03.10
8

25

SPDIF OUT

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

DDTS TEST ONLY

SPDIF_OUT

+3.3V_NORMAL

C3402
47pF
50V

C3400

0.1uF
16V

GND

VCC

VINPUT

1

2

3

4

Fiber Optic

FIX_POLE

AV/COMPONENT REAR

JK3401

JST1223-001

M_REMOTE_RX

M_REMOTE_TX

+3.5V_ST

R3405
10K

OPT

OPT

P3401

12507WS-04L

1

2

3

4

5

PPJ245N2-01

JK3402

[GN/YL]E-LUG

6A

5A

[GN/YL]O-SPRING

4A

[GN/YL]CONTACT

5B

[BL]O-SPRING

7C

[RD1]E-LUG-S

5C

[RD1]O-SPRING

4C

[RD1]CONTACT

5D

[WH]O-SPRING

4E

[RD2]CONTACT

5E

[RD2]O-SPRING

6E

[RD2]E-LUG

VA3404

5.5V

VA3405

5.5V

VA3406

5.5V

COMP1_Pb

COMP1_Pr

COMP1/AV1/DVI_L_IN

VA3401

5.6V

VA3402

5.6V

Place JACK Side

+3.3V_NORMAL

R3406

10K

R3801 1K

VA3403

5.6V

COMP1/AV1/DVI_R_IN

AV1_CVBS_DET

+3.3V_NORMAL

R3410
10K

VA3400

5.6V

R3409

C3403
150pF
OPT

1K

3216
R3400
75

COMP1_DET

100

R3402

R3403 33

Place SOC Side

C3404 0.047uF

C3405 0.047uF

C3406 1000pF

AV1_CVBS_IN_SOC

COMP2_Y_IN_SOC

COMP2_Y_IN_SOC_SOY

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

AV JACK

2014.03.10
9

25

IR OUT for RS232

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

IR_OUT_RS232

R3800 10K

B

R3803
10K

C

Q3802
2SC3052

E

R3802 22

IR_OUT

RS232C

C38000.1uF R3821 100

C3801

0.1uF

C38020.1uF

C3803

0.1uF

DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC3800

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

JK3803

SPG09-DB-009

EXT_12V

L3801

CB2012PK501T

D3803 50V

BAP70-02

R3814

4.7K
OPT

EXT_12V

C3809
220pF

CPU DEBUG

SOC_RX_RS232

SOC_TX_RS232

C3810
220pF

R3834

1K

1A@12V FOR COMMERCIAL(RS-232C POWER)
FOR COMMERCIAL

+3.5V_ST

VCC

16

15

14

13

12

11

10

9

GND

DOUT1

RIN1

ROUT1

DIN1

DIN2

ROUT2

C3804

0.1uF

IR_OUT

D3804
20V
OPT

R3812 100

R3813 100

D3805
20V

OPT

+3.5V_ST

R3820 100

+3.5V_ST

R3811

4.7K
OPT

10

5

9

4

8

3

7

2

6

1

Serial UART for Commercial

IC3801

MC14053BDR2G

UART3_TX

PTC_TX

RESET_BY_CPU

RESET_HIGH

Y1

1

Y0

2

Z1

3

Z

4

Z0

5

INH

6

VEE

7

VSS

8

VDD

16

Y

R3805 100

15

X

R3804 100

14

X1

R3806 100

13

X0

12

A

11

B

10

C

9

+3.5V_ST

C3805

0.1uF

SOC_RX_PTC

SOC_TX_PTC

UART3_RX

PTC_RX

+3.5V_ST

R3815
10K

C

E

MMBT3904
Q3801
MMBT3904(NXP)

B

C3806

0.47uF

OPT

C

E

B

RT1N141C
Q3801-*1
RT1N141C-T112-1

UART_SWB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

UART

2014.03.10
10

25

BT_RESET

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

WOL/WIFI_POWER_ON

EYE_SDA

EYE_SCL

LED_R

P4000

SMAW200-H18S5

2K

5%

C4003-*1

2K_resistor

C4003

0.1uF_cap

0.1uF
16V

C4004

0.1uF
16V

+3.5V_ST

R4005

IR

3.3K

C4007
100pF
50V

R4001 100

R4002 100

R4010 100

R4011 100

R4015 1.8K

C4009

0.1uF
16V
OPT

GND

BT_RESET

NC
WOL
SDA
SCL
GND

IR

LED_R

1
3
5
7
9
11
13
15
17

19

GND

+3.5V_WOL

2
4
6

8
10
12
14
16
18

USB_DM
USB_DP
GND
GND
KEY1
KEY2
+3.5V_ST
GND

L4000 Delete for voltage drop, 131120

C4006

C4005

22uF

0.1uF
16V

10V

Place Near Wafer
C4016
5pF

WIFI_DMDP_ESD

50V

OPT

+3.5V_ST

C4008
1000pF

50V

OPT

D4000

RCLAMP0502BA

C4015
5pF
50V
OPT

R4023 10

R4024 10

+3.5V_ST

10K

+3.5V_WOL

WIFI_DM

WIFI_DP

R4008

C4002

0.1uF
OPT

R4009

10K

C4001

0.1uF
OPT

R4006 100

R4007 100

KEY1

KEY2

WOL POWER ENABLE CONTROL

+3.5V_ST

WIFI_EN

R4021
10K

OPT

C4017

0.1uF

R4022 33

IN

EN

IC4001

AP2191WG-7

5

4

+3.5V_ST

IC4000

AO-R123C7G-LG

+3.5V_WOL

OUT

1

GND

2

FLG

3

IR_PROTO

GND

G

VS

V

OUT

O

R4019 330

IR_PROTO

IR

R4020 47

IR_PROTO

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

IR / KEY 25

2014.03.10
11

USB_DM2

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

USB_DP2

+5V_USB_2

C4322

10uF

5V

10V

ZD4301

USB_ESD_SD05

+5V_USB_3

C4323

22uF

10V

D4301

RCLAMP0582B

USB_ESD_0582B

USB_ESD_0502BA

D4301-*1
RCLAMP0502BA

USB2 Side

MAX 1.5A

3AU04S -30 5-ZC-(LG)

JK4302

1234

USB DO WN STREAM

5

USB_DM3

USB_DP3

C4310

10uF

5V

10V

ZD4300

USB_ESD_SD05

C4311

22uF

10V

D4300

RCLAMP0582B

USB_ESD_0582B

USB_ESD_0502BA

D4300-*1
RCLAMP0502BA

USB1 (2.0) Rear
MAX 1.5A

JK4300

KJA-UB-0-0037

1

2

3

4

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

USB

2014.03.10
12

25

AUDIO AMP(NTP7514)

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Instant_Power_On

+24V

AMP_EN

C5629

0.01uF
50V

L5607
MLB-201209-0120P-N2

C5630

0.1uF
50V

R5614 10K

R5613
10K

+24V

AMP_MUTE

B

L5606

UBW2012-121F

AUD_LRCH

AUD_LRCK

AUD_SCK

I2C_SDA1

I2C_SCL1

R5615
33K

R5616
47K

C

Q5600
MMBT3904(NXP)

E

+24V_AMP

OPT

R5600 10K

AMP_MUTE_MICOM

AO3407B

C5631

4.7uF
50V

+3.3V_NORMAL

B

POWER_DET

Q5602

DS

G

R5611 100

R5612 100

R5601
10K
AMP_MUTE_MICOM

C

Q5601
MMBT3904(NXP)
AMP_MUTE_MICOM

E

+24V_AMP

C5633

0.1uF
50V

C5601
1uF
10V

R5602 100

AMP_MUTE_MICOM

R5690 100

AMP_MUTE_PWR_DET

+3.3V_NORMAL

C5602
1uF
10V

C5622
33pF
50V

L5601
BLM18PG121SN1D

C5603

0.1uF
16V

C5623
33pF
50V

C5600
1000pF
50V

AMP_MUTE_MICOM

AMP_RESET_N

AUD_MASTER_CLK

VDD_PLL

NC_1

NC_2

GND
NC_3
DVDD

SDATA

WCK

BCK

SDA

VDD_IO

[EP]GND

40

1
2

THERMAL

3
4
5
6
7
8
9
10

11

SCL

AD

CLK_I

GND_IO

37

38

39

41

IC5600

NTP7514

12

13

14

FAULT

MONITOR_0

MONITOR_1

I2S_AMP

WOOFER_MUTE

50V

C5604 22000pF

OUT1A

PGND1A

BST1A

RESET

34

35

36

0x54

15

16

17

BST2B

MONITOR_2

C5605 22000pF

OUT2B

PGND2B

50V

PVDD1A

32

33

18

19

PVDD2B

+24V_AMP

C5606
10uF
35V

PVDD1B

31

30
29
28
27
26
25
24
23
22
21

20

+24V_AMP

PVDD2A

OUT1B
PGND1B
BST1B
VDR1
NC_4
AGND
VDR2
BST2A
PGND2A
OUT2A

C5607
10uF
35V

C5608
22000pF

50V

C5609
22000pF
50V

R5603

3.3
1/10W

C5611
390pF
50V

C5612
390pF
50V

R5604

3.3
1/10W

R5605

3.3
1/10W

C5613
390pF

50V

C5614
390pF
50V

R5606

3.3
1/10W

C5610
1uF
10V

L5604

10.0uH

NRS6045T100MMGK

L5605

10.0uH

NRS6045T100MMGK

C5615
1uF
10V

L5602

10.0uH

NRS6045T100MMGK

L5603

10.0uH

NRS6045T100MMGK

C5616

0.47uF
50V

C5617

0.47uF
50V

C5618

0.1uF
50V

C5619

0.1uF
50V

C5620

0.1uF
50V

C5621

0.1uF
50V

R5607

4.7K

R5608

4.7K

R5609

4.7K

R5610

4.7K

WAFER-ANGLE

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

P5600

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TP5601

WOOFER_MUTE

LY760H-UA
AUDIO[ST]

SPK_L+

SPK_L-

SPK_R+

SPK_R-

4

3

2

1

2014.03.10
13

25

TU6401

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

TDJH-H101F

B1[+3.3V]

1

NC_1

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_2

8

NC_3

9

+3.3V_LNA_TU

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P_TU

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

A1

A1

47

SHIELD

TU_GND_B

B1

B1

630V

C6402 1000pF

R6402 22

TU_H/M_KR/US/BR/CO/TW

TU_GND_B

TU_H/M_AJ

R6402-*1 0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

TUNER

2014.03.10
14

25

FE_DEMOD1_TS_ERROR

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Global F/E Option Name

1. TU

2. Tuner Name = TDJ’H’,TDj’M’...

3. Country Name = KR,US,BR,EU ...

Example of Option name
TU_ALL_IntDemod = All Tuner type for Internal demod
TU_M/W = apply TDSM&TDSW Type Tuner

14’ Tuner Type for Global
TDJ’H’-G101D : Half NIM for EU,AJJA
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW
TDJ’M’-C301D,F : FULL NIM for China
TDJ’M’-B101F : Brazil NIM with Isolater Type
TDJ’M’-K101F : colombia NIM
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM
TDJ’M’-H101F,H151F : Korea PIP tuner
TDJ’W’-A151D : AJJA T2 PIP

close to Tuner

+3.3V_TUNER

L6500

1

+3.3V_LNA_TU

2

close to Tuner

3

4

5

6

7

8

9

10





11

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P_TU

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

BLM18PG121SN1D

C6501

0.1uF

C6502

0.1uF
16V
TU_ALL_IntDemod

C6505

C6503

47pF

47pF

50V

50V

OPT

OPT

R6504 10

TU_ALL_IntDemod

R6505 10

TU_ALL_IntDemod

R6513 0

TU_ALL_2178B

R6506 1K

TU_ALL_IntDemod

AR6500

33 1/16W

C6519 33pF 50V

TU_H/M_EU/BR/TW/CO

C6520 33pF 50V

TU_H/M_EU/BR/TW/CO

should be guarded by ground,Match GND VIA

12

14

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils

Ground Width >= 24mils

IF_AGC

I2C_SCL6

I2C_SDA6

IF_P

IF_N

TUNER_SIF

+3.3V_TUNER

TU_ALL_2178B

R6516

B

200

TU_ALL_2178B

R6517
200

E

Q6502
MMBT3906(NXP)
TU_ALL_2178B

C

1608 perallel
because of derating

TU_CVBS

+3.3V_NORMAL

L6504

BLM18PG121SN1D

C6517

22uF

10V

+3.3V_TUNER

15

16

FE_DEMOD1_TS_DATA[0]

17

18

19

20

21

22

23

24

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

FE_DEMOD1_TS_DATA[0-7]

25

26

27

28

29

30

31

34

36

37

38

39

40

45

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

TUNER CIRCUIT

2014.03.10
15

25

LVDS

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

[51Pin LVDS OUTPUT Connector]

P7201

FI-RE51S-HF-J-R1500

LVDS

52

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

GND

NC

NC

NC

NC

CP_BOX

NC

CP_BOX

NC

LVDS_SEL

NC

NC

L/DIM_ENABLE

GND

RA0N

RA0P

RA1N

RA1P

RA2N

RA2P

GND

RACLKN

RACLKP

GND

RA3N

RA3P

RA4N

RA4P

GND

BIT_SEL

RB0N

RB0P

RB1N

RB1P

RB2N

RB2P

GND

RBCLKN

RBCLKP

GND

RB3N

RB3P

RB4N

RB4P

GND

GND

GND

GND

GND

NC

VLCD

VLCD

VLCD

VLCD

33

R7210

LGD_2D/3D_CTRL

0

R7200

R7201 0

0

R7204

OPT

R7218 33

LGD_T-Con_Scanning

R7220 33

AUO_L/D_EN

R7219 33

L7200 UBW2012-121F

AUO_SHARP

OPC_EN

TXA0N/TX11N
TXA0P/TX11P
TXA1N/TX10N
TXA1P/TX10P
TXA2N/TX9N
TXA2P/TX9P

TXACLKN/TX8N
TXACLKP/TX8P

TXA3N/TX7N
TXA3P/TX7P
TXA4N/TX6N
TXA4P/TX6P

TXB0N/TX5N
TXB0P/TX5P
TXB1N/TX4N
TXB1P/TX4P
TXB2N/TX3N
TXB2P/TX3P

TXBCLKN/TX2N
TXBCLKP/TX2P

TXB3N/TX1N
TXB3P/TX1P
TXB4N/TX0N
TXB4P/TX0P

2D/3D_CTL

I2C_SDA1
I2C_SCL1

PWM_DIM

OPC_EN

LVDS_SEL

+3.3V_NORMAL

R7217

3.3K
LVDS_SEL_HIGH

R7215
10K

LVDS_SEL_LOW

H or FLOAT : 10-bit
L : 8-bit

BIT_SEL

R7214
10K
BIT_SEL_LOW

EPI_CH4

EPI_CH3

EPI_CH2
EPI_CH1

PANEL_VCC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

LVDS

2014.03.10
2516

CLK6

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

CLK5

C7704
560pF
50V

EPI

C7707
560pF
50V

EPI

C7708
560pF
50V

EPI

C7709
560pF
50V

EPI

C7716
560pF
50V

EPI

C7721
560pF
50V

EPI

CLK4
CLK3
CLK2
CLK1

R7700

1/16W

VCC18

2K

REVERSE

PVINB1

GCLK
MCLK

GST
E/O
GND
VGL
SWN

CTRLN

RST
OUT1
SWB1
AGND

V14-LGD PANEL

EPI 8-Lane (LEFT)

P7702

FL11S050HA1

EPI_WAFER

51

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

EPI_V12_V13

R7715

NC

0

CLK1

CLK2

CLK3

CLK4

CLK5

CLK6

VGH

VGH_ODD

VGH_EVEN

VSS

VST

NC(GIP_RST)

VCOM_L_BOT

VCOM_FB(Z_OUT)

VCOM_L_TOP

GND

VDD

VDD

H_VDD

GND

EPI4-

EPI4+

GND

EPI3-

EPI3+

GND

EPI2-

EPI2+

GND

EPI1-

EPI1+

GND

VCC18

VCC12

LOCK_I

LOCK_O

GND

GMA18

NC

GMA15

GMA14

GMA12

GMA10

GMA9

GMA7

GMA5

GMA4

NC

GMA1

Z_OUT
CLK1
CLK2
CLK3
CLK4
CLK5

CLK6
VGH
VGH_ODD
VGH_EVEN

VGL
VST
GIP_RST

VCOM_L_BOT

VCOM_L_FB

VCOM_TOP

TXB2N/TX3N
TXB2P/TX3P

6-Lane case

TXBCLKN/TX2N
TXBCLKP/TX2P

TXB3N/TX1N
TXB3P/TX1P

TXB4N/TX0N
TXB4P/TX0P

EPI_LOCK4/3

GMA18

GMA15
GMA14
GMA12
GMA10
GMA9
GMA7
GMA5
GMA4

GMA1

VDD

(+16V)

VCORE

C7700

0.01uF
50V

EPI 8-Lane (RIGHT)

P7703

FL11S050HA1

EPI_WAFER

GMA1

1

NC

2

GMA4

3

GMA5

4

GMA7

5

GMA9

6

GMA10

7

GMA12

8

GMA14

9

GMA15

10

51

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

NC

GMA18

GND

LOCK_O

LOCK_I

VCC12

VCC18

GND

EPI8-

EPI8+

GND

EPI7-

EPI7+

GND

EPI6-

EPI6+

GND

EPI5-

EPI5+

GND

H_VDD

VDD

VDD

GND

VCOM_R_TOP

VCOM_FB(Z_OUT)

VCOM_R_BOT

NC(GIP_RST)

VST

VSS

VGH_EVEN

VGH_ODD

VGH

CLK6

CLK5

CLK4

CLK3

CLK2

CLK1

NC

H_VDD

(+8V)

VCC18

C7701

0.1uF
50V

R7723

0

EPI_V12_V13

<T-CON POWER BLOCK>

[EP]

1

THERMAL

2

57

3
4
5
6
7
8
9
10
11
12
13
14

15

16

17

AVIN

SWB318OUT3

PVINB3

C7710
10uF
10V

GMA1

GMA9
GMA10
GMA12

GMA15

GMA18

EPI_LOCK8/6_SOURCE

TXD2N/TX15N
TXD2P/TX15P

TXD3N/TX13N

VGH44VGH_E/O45RESET46VST47EVEN48ODD49NC50CLK651CLK552CLK453CLK354CLK255CLK156RE

43

SWP

42

CTRLP

41

VCOMFB

40

VCOMDAC

39

VCOM

38

GGND

22VL23

TCOMP

C7711
10uF
10V

24

PGND25SW_126SW_2

37

GMA_N6

36

GMA_N5

35

GMA_N4

34

GMA_P3

33

GMA_P2

32

GMA_P1

31

COMP

30

SS

29

27

SWI28SWO

C7712
1uF
10V

IC7703-*1

SW5084B

19

20

SCL21SDA

PGND3

GMA4
GMA5
GMA7

GMA14

EPI_LOCK4/3

6-Lane case

TXDCLKN/TX14N
TXDCLKP/TX14P

TXD3P/TX13P

TXD4N/TX12N
TXD4P/TX12P

VCOM_TOP

VCOM_R_FB
VCOM_R_BOT

GIP_RST
VST
VGL
VGH_EVEN
VGH_ODD
VGH

CLK6
CLK5
CLK4
CLK3
CLK2
CLK1
Z_OUT

L7702

22uH

D7700
SX34

40V

PANEL_VCC

VCORE

H_VDD

MCLK_SOC

GCLK_SOC

R7701

1/16W

C7713
10uF
25V

(+8V)

GST_SOC

FROM SOC

FROM SOC

FROM SOC

VCC18

10K

C7714
10uF
25V

VDD

(+16V)

FROM SOC

R7729

2.7K

REVERSE

GCLK
MCLK

VGL
SWN

CTRLN

For EMI

OPT

R7736

4.7

C7722
4700pF

OPT

50V
C7725
2200pF

OPT

50V

C7724
1uF

25V

H_VDD

VCC18

C7702

0.1uF
50V
EPI

R7703

R7704

R7705

R7706

GST

EO

R7737

4.7

OPT

C7715
10uF
16V

C7703

0.01uF
50V

EPI

EPI

EPI

EPI

EPI

47

47

47

47

I2C_SCL2
I2C_SDA2

EPI_CTL

C7717
15pF
50V
EPI

C7718
15pF
50V
EPI

C7719
15pF
50V
EPI

C7720
15pF
50V
EPI

REVERSE

GCLK
MCLK

GST
E/O
GND
VGL
SWN

CTRLN

RST

OUTB

SWB

AGND

PVINB

NR6020T6R8NC

PANEL_VCC

[EP]AGND

1
2
3
4
5
6
7
8
9
10
11
12
13
14

AR7700

EPI

L7703

6.8uH

C7723
10uF
25V

+1.1V_VDD

+3.3V_NORMAL

EOEO_SOC

GST

MCLK

GCLK

RE

THERMAL

15

AVIN

L7704
22uH

CLK1

16

PVINH

33

R7741
1K
EPI

57

17

SWH

C7730
1uF
10V

OPT

CLK2

18

OUTH

CLK6

CLK5

CLK4

CLK3

PMIC_TI

IC7703

TPS65175B

19

20

SCL21SDA

PGNDH

VL

C7742
1uF
10V

For EMI

AO3438
Q7702
EPI

S

VCOM_BOT

PVCOM

VGH_ODD

22VL23

TCOMP

TCOMP

G

VST

VGH_EVEN

R7724

24

25SW26

PGND

D

VDD

GIP_RST

0

RESET46VST47EVEN48ODD49NC_250CLK651CLK552CLK453CLK354CLK255CKL156RE

45

NC_1

R7713

2.2

1/16W

OPT

V14_32INCH OPTION

VGH

27

SWI28SWO

EPI_V14(32)_V12_V13

VGH44VGH_E/O

43

SWP

42

CTRLP

41

VCOMFB

40

VCOM

39

VCOM_DAC

38

VGND

37

GMA6

36

GMA5

35

GMA4

34

GMA3

33

GMA2

32

GMA1

31

COMP

30

SS

29

C7729

C7726

470pF

470pF

50V

50V

OPT

OPT

D7701
SX34

40V

VCORE

C7732

C7728

1uF

0.1uF

10V

50V
EPI

OPT

OPT

C7760

1uF

25V

OPT

R7771

0

1/16W

R7774

1K

SWP
CTRLP

VCOM_FB2
VCOM_TOP
PVCOM

GMA15_18
GMA14
GMA12_10
GMA7_9
GMA5
GMA4_1
COMP
SS

C7737

0.1uF
50V

C7734

0.1uF
50V

VCOM_L_FB

VCOM_R_FB

VCOM_FB_PANEL

VCOM_TOP

VCOM_FB_PANEL

VCOM_BOT

VCOM_BOT

R7772

RT9148GJ5

1VOUT 5 VS+

2VS-

3VIN+

CTRLN

VDD

C7705

R7718

68uF

9.1K

35V

C7706

68uF
35V

** 42/47/55INCH OPTION **

R7708

0

R7709

0

R7710

0

R7716

0

R7766

0

R7767

0

EPI_NON_32inch

EPI_NON_32inch

EPI

R7719

R7721

0

5%

IC7702

OPT

4 VIN-

SWN

SWP

CTRLP

VDD

EPI_NON_32inch

EPI_NON_32inch

OPT

EPI_NON_32inch

EPI_NON_32inch

OPT

0

0

R7759

0

1/16W

R7728 100K

1/16W 5%

1uF 10V

TH7700

47k-ohm

VCOM_FB1

VCOM_L_BOT

VCOM_R_BOT

R7770

0

R7760

0

1/16W

C7745

C7747

10V

1uF

C7746

1uF 25V

R7727 100K

1/16W 5%

VL

R7720
47K

R7722
120K
1%

VCOM_FB_PANEL

VCOM_FB2

VCOM_FB1

C7748

1uF 25V

TCOMP

REVERSE

< VCOM OPTION TABLE >

IC7702

INSTEAD OF AMCC0208

Q7700

MMBT3904(NXP)

EBC

INSTEAD OF AMCC0209

EBC

Q7701

MMBT3906(NXP)

VCC18

VCOMR_FB

EXT.OP AMP NOT USE

NC

R7716

NC

NC

0 ohm

0 ohm

0 ohm

0 ohm

NC

R7766

R7767

R7719

R7721

R7771

GMA15_18

GMA12_10

C7760

L7706

R7770

R7772

R7708

R7709

R7710

LY760H-UA

EPI

D7703

1N4148W

100V

D7705

1N4148W

100V

D7704

1N4148W

100V

D7706

1N4148W

100V

EPI_LOCK8/6_SOURCE

COMP

R7748
1K

R7749
1K

OPT

R7717-*1
68K

C7736-*1
820pF
50V

** 32INCH OPTION **

VCOM_R_BOT

Z_OUT

VCOM_R_BOT

VCOM_BOT

V14 42~55INCH

EXT.OP AMP USE

IC7702

0 ohm

0 ohm

NC

0 ohm

0 ohm

NC

EPI_V14(32)_V12_V13

USE

C7760

USE

L7706

USE

R7770

1Kohm

R7771

0 ohm

R7772

30Kohm

R7708

0 ohm

R7709

0 ohm

R7725

0

R7726

0

EPI_V14

EPI_V14(32)_V12_V13

R7730

0

R7731

0

EPI_V14

R7710

R7716

R7766

R7767

R7719

R7721

GMA12

GMA10

C7754

0.1uF
50V

R7717
22K

C7736
1000pF
50V

GMA15

GMA18

C7727

0.1uF
50V

R7707

R7702

0 ohm

0 ohm

0 ohm

0 ohm

R7711

R7712

R7714

NC

NC

VCC18

PMIC_SIW
C7740
68pF
50V

0

0

0

0

0

R7739

C7756

1.5K
1uF

1/16W
5%

10V

OPT

C7757

C7755

1uF

1uF

50V

50V

R7761
10K

R7755

33

SS

C7731

0.1uF
16V

EPI_32inch

VCOM_FB2

EPI_32inch

EPI_32inch

OPT

EXT.OP AMP NOT USE

IC7702

C7760

L7706

R7770

R7771

R7772

R7702

R7707

R7711

R7712

R7714

OPT

GMA7_9

GMA4_1

VCOM_L_FB

VCOM_R_FB

VCOM_FB1

VCOM_L_BOT

NC

NC

NC

NC

NC

NC

0 ohm

0 ohm

0 ohm

NC

NC

EPI_V14(32)_V12_V13

EPI_V14(32)_V12_V13

2014.03.10
17

C7733
10uF
10V

R7744
20K
1/10W

V14 32INCH

EXT.OP AMP USE

IC7702

C7760

L7706

R7770

R7771

R7772

R7702

R7707

R7711
R7712
R7714

R7733

0

R7732

0

EPI_V14

R7734

0

R7735

0

EPI_V14

VGL

VGH

R7750
20K
1/10W

EPI_LOCK8/6

R7751
30K
1/16W

VCOML_FB

USE

USE

USE

1kohm

0 ohm

30Kohm

0 ohm

0 ohm

0 ohm
0 ohm
0 ohm

25

RE

GMA7

GMA9

GMA4

GMA1

eMMC I/F

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

DVDD18_EMMC

3.3v power delete, 131120

* A0 / A1 : Use EMMC_4.41

* B0 : Use EMMC_4.5

(130923_Jihwan Hyun)

10K

1/16W

AR8104

EMMC_DATA[0-7]

EMMC_DATA[0]
EMMC_DATA[1]
EMMC_DATA[2]

EMMC_DATA[3]

EMMC_DATA[4]
EMMC_DATA[5]
EMMC_DATA[6]
EMMC_DATA[7]

EMMC_CLK
EMMC_CMD
EMMC_RST

AR8100
22
1/16W

AR8101
22
1/16W

AR8102 22

C8107
10pF

OPT

50V

C8100

0.1uF

OPT

16V

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

10K

1/16W

DAT3

AR8103

DAT4

DAT5

DAT6

10K

R8117

EMMC_CMD_BALL

EMMC_CLK_BALL

10K

R8116

DVDD18_EMMC

EMMC_RESET_BALL

C8105

0.1uF
16V

EMMC_VDDI

EMMC_VDDI

C8106

2.2uF
10V

3.3V_EMMC

C8102

0.1uF
16V

DAT3
DAT4
DAT7

DAT5

pattern 0.2mm

C8103

2.2uF
10V

DAT7

C8104
1uF
10V

THGBMAG6A2JBAIR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

EMMC4.5_8G_TOSHIBA

DAT5

DAT6

EMMC_RESET_BALL

EMMC_CLK_BALL

EMMC_CMD_BALL

MTFC4GMCDM-1M WT

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

THGBMAG7A2JBAIR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100-*1

IC8100-*3

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

EMMC4.5_4G_MICRON

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

EMMC4.5_16G_TOSHIBA

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

MTFC8GLCDM-1M WT

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

THGBMAG5A1JBAIR

IC8100-*2

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

EMMC4.5_8G_MICRON

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

IC8100-*4

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

EMMC4.5_4G_TOSHIBA

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

H26M31003GMR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100-*5

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

EMMC4.5_4G_SKHynix

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

eMMC

2014.03.10
18

25

Ethernet HUB(RTL8305N-CG)

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Ethernet Power

L8401

BLM18PG121SN1D

C8425
22uF
10V

ETNHUB_AVDD33

ETNHUB_AVDD33

+3.5V_ST_LAN

ETNHUB_DVDD33

C8422

0.1uF
16V

L8403

BLM18PG121SN1D

C8426

0.1uF
16V

ETNHUB_DVDD33

C8419

0.1uF
16V

C8429

0.1uF
16V

C8405

0.1uF
16V

LAN1

TO PHY Chip

LAN2

ETNHUB_EPHY_RXIN1
ETNHUB_EPHY_RXIP1
ETNHUB_EPHY_TXOP1
ETNHUB_EPHY_TXON1

ETNHUB_EPHY_TXON2
ETNHUB_EPHY_TXOP2
ETNHUB_EPHY_RXIP2
ETNHUB_EPHY_RXIN2
ETNHUB_EPHY_RXIN3
ETNHUB_EPHY_RXIP3

Differential 100 ohm
No Via
Close to

ETNHUB_AVDD18

AVDD18_1

TXON[1]
TXOP[1]
RXIP[1]
RXIN[1]

AVDD18_2

RXIN[2]
RXIP[2]
TXOP[2]
TXON[2]
TXON[3]
TXOP[3]

SOC

Place Close To RTL8305N

C8440
27pF
50V

X8400

VCTRL43IBREF44AVDD18_6

RXIN[0]

RXIP[0]

TXOP[0]

TXON[0]

[EP]GND

45

46

47

48

1
2

THERMAL

3

49

4

IC8401

5
6

RTL8305N_REALTEK

7
8
9
10
11
12

13

17

19

RXIP[3]14RXIN[3]15TXOP[4]16TXON[4]

RXIP[4]20RXIN[4]

AVDD18_318DVDD18_1

25MHz

AVDD18_5

39

40X141X242

21

AVDD18_422DVDD18_223DVDD18_3

C8441
27pF
50V

R8424

1.69K
1%

1.96K

OSCI38AVDD33

37

LED_ACT[0]/BCINDROP

36

LED_ACT[1]/GYSPD100

35

LED_ACT[2]/P4ANEG

34

P4FLCTRL/CPU_INTT

33

RESET

32

DVDD18_4

31

LED_ACT[3]/EN48PASS1

30

LED_ACT[4]

29

DVDD33

28

SDA_MDIO

27

SCL_MDC

26

ENEEPROM

25

24

LDIND/DISLD

ETNHUB_AVDD33

R8423

Place Close To RTL8305N

270

1%

R8436 1K

ETNHUB_DVDD18

R8440 100

Realtek WOL

R8434 33
R8435 33

ETNHUB_DVDD33

LAN_ACT0
GYSPD
LAN_ACT2
ETNHUB_INT

LAN_ACT3

EPHY_MDIO

EPHY_MDC

ETNHUB_DVDD33

R8452 22
RST_PHY_MICOM

R8449 22

RST_PHY_CPU

/ETHERNET_RESET

/RST_PHY

STRAPPING PIN CONFIG

LAN_ACT0
LAN_ACT2
LAN_ACT3

ETNHUB_ENDEFER

/ETHERNET_RESET

/RST_PHY

GYSPD

LED_ACT[2]/P4ANEG : Auto-negotiation Enable/Disable

All Strapping Pins are internal pull-up

R8466 22
RST_PHY_MICOM

R8467 22

RST_PHY_CPU

OPT

OPT

OPT

OPT

OPT

1K

R8450 1K

R8451 1K

R8448 1K

R8444 1K

R8446

OPT

R8454 1K

ETNHUB_AVDD33

C8400

2.2uF
25V

VIN_1

VIN_2

VOUT_1

VOUT_2

ETNHUB_DVDD18

C8406

0.1uF

IC8400

MP20045DQ-LF-Z

1

9

2

THERMAL

3

4

Vout=1.5*(1+R1/R2)

C8410

0.1uF

8

7

6

5

EP[GND]

EN

PG

GND

FB

R84 58

1.5 K

R84 65

22

Realtek WOL

R8427

R8407
10K

R8408
100K

ETNHUB_AVDD18

L8407

BLM18PG121SN1D

C8438
22uF
10V
OPT

C8424

C8418

0.1uF

0.1uF

R8409
10K 1%

Vout

R2

R8406

R1

2K
1%

C8430

2.2uF
25V

ETNHUB_AVDD18

L8406

BLM18PG121SN1D

C8407

C8411

0.1uF

0.1uF

ETNHUB_DVDD18

C8435

0.1uF
16V

ETNHUB_EPHY_TXOP3

ETNHUB_EPHY_TXON3

LAN2

ETNHUB_ENDEFER

PHY TO RTL matching

TR0P

TR0N

TR1P

TR1N

Place to center position between two chips

L8408

MAG_NEW

C8442

0.1uF

C8446

0.1uF

C8443

0.1uF

C8444

0.1uF

C8447

0.1uF

C8445

0.1uF

Place close to chip

ETNHUB_AVDD18

R8416

49.9

R8417

49.9

R8418

49.9

R8419

49.9

EPHY_MDIO

EPHY_MDC

L8408-*1

UBW2012-121F

SHENCHEN_NEW

ETNHUB_EPHY_TXOP2

ETNHUB_EPHY_TXON2

ETNHUB_EPHY_RXIP2

ETNHUB_EPHY_RXIN2

1.5 K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

ETHERNET HUB

2014.03.10
2519

EXT_SPK AMP

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+24V

EXT_SPK_MUTE

EXT_SPK_LOUT_MAIN

EXT_SPK_ROUT_MAIN

R8610 10K

Q8601

MMBT3904(NXP)

R8609 10K

4.7K

R8608

B

+3.5V_ST

C

E

C8610

1uF
10V

C8611

1uF

10V

R8607

L8601

BLM18PG121SN1D

100

PVCCL_1

R8606

C8671
1uF
50V

10K

OPT

R8601

10K

OPT

C8612
1uF
50V

C8613

0.1uF
50V

PVCCL_2

MUTE

LIN

RIN

BYPASS

AGND_1

AGND_2

PVCCR_1

VCLAMP

PVCCR_2

C8670

0.1uF
50V

IC8601

TPA3124D2PWPR

1

SD

2

3

4

5

6

7

8

9

10

11

12

PGNDL_2

24

PGNDL_1

23

LOUT

22

BSL

21

AVCC_2

20

AVCC_1

19

GAIN0

18

GAIN1

17

BSR

16

ROUT

15

PGNDR_2

14

PGNDR_1

13

C8615

0.22uF
50V

C8616

0.22uF
50V

C8608

0.1uF
50V

C8609

4.7uF
50V

L8603

22.0uH

22.0uH
L8604

R8604
10K
OPT

R8605
10K

R8611
10K

OPT

R8612
10K

R8602

4.7K

R8603

4.7K

C8657
1uF
50V

C8658
1uF
50V

C8659

0.47uF
50V

C8660

0.47uF
50V

47uF

C8661

47uF

C8662

25V

EXT_OUT_L

R8615

10K

25V

EXT_OUT_R

R8614

10K

EXT_SPK OUT(Single End)

JK8600

PEJ034-01

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

@area

ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR

14/08/04

@suppr

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

@compC
@refer
@partN

E_SPRING

3

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

C8672
1uF
10V

R8613

EXT_OUT_R

OPT

OPT

C8614

C8618
1uF

1uF

10V

1K

10V

EXT_OUT_L

+3.5V_ST

R8616
15K

Connected

EXT_SPK_DET

EXT_SPK_DET

High

Disconnected

Low

LY760H-UA

EXT. SPK

2014.03.10
2520

NEW RJP

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

P_12V

BLM18PG121SN1D

Apply 1608 size
because of derating

JK8700

KRJV9768-1001-024

POWER_12V

1

RGB/TxD

2

COMPOSITE/AUDIO

3

AUDIO/IR

4

HDMI

5

B+ Control

6

Reserved/RxD

7

GND

8

L8700

R8701
820
1/10W
1608

R8702
820
1/10W
1608

R8703 10K

+3.5V_ST

Q8700

MMBT3904(NXP)

B

R8704
10K

C

E

D8704 5.6V

R8708

47K

PILLOW

ZD8700 3.6V

R8771

4.7K

PTC_EEPROM_SEIKO

IC8702-*1

S-24C16DI-J8T1U5

NC_1

1

NC_2

2

NC_3

3

GND

4

PTC_EEPROM_SCL

PTC_EEPROM_SDA

VCC

8

WP

7

SCL

6

SDA

5

LY760H Power SEQUENCE

POWER_ON/OFF1

POWER_ON/OFF2_4

POWER_ON/OFF2_2

POWER_ON/OFF2_3

POWER_ON/OFF2_1

SOC_RESET

PTC MICOM EEPROM

Q8725

PMV48XP

D

S

C8702

R8705

2.2uF
16V

PILLOW

ZD8703 3.6V

ZD8704 3.6V

G

RJP

D8703 5.6V

10K

R8706
10K

C

Q8705

B

MMBT3904(NXP)

E

ZD8701 3.6V

ZD8702 3.6V

RJP

D8702 5.6V

RJP

PILLOW

R8712

10K

R8709 100

PILLOW

R8728 100

RJP

R8724 100
R8710 0
R8725 100
R8711 0
R8726 100

R8713 100

R8727 100

RJP

R8718 100

PILLOW

RJP
PILLOW
RJP
PILLOW

TXD_RJ45

RJP_CTRL0

RJP_CTRL1
PILLOW_AUDIO_OUT
RJP_CTRL2
MPI_IR
RJP_CTRL3

RJP_12V_CTRL

RJP_CTRL4

RXD_RJ45

RESET_HIGH

R8719 10K

Q8712

MMBT3904(NXP)

B

R8717

4.7K

+3.5V_ST

R8730
47K

R8722

4.7K

C

1 2

SW8700

SKHMPWE010

43

5

E

C8717
2200pF

PTC_EEPROM_MEDIATEK

IC8702

M24C16-R

NC_1

1

NC_2

2

NC_3

3

VSS

4

VCC

8

WC

7

SCL

6

SDA

5

+3.5V_ST

R8736 4.7K

OPT

R8737 22

R8738 22

+3.5V_ST

R8770

4.7K

C8700

0.1uF
Write Protection

16V

- Low : Normal Operation

- High : Write Protection

PILLOW BOX Interface for R45

TXD_RJ45

RXD_RJ45

HDMI CEC

CEC_OUT

R87000 220

C8703
220pF
PILLOW

C8704
220pF
PILLOW

PILLOW

R87003 10K

PILLOW

R8796 10K

Q8701
PILLOW
MMBT3904(NXP)

C

E

MMBT3904(NXP)

R87004
22K
PILLOW

+3.5V_ST

B

R8799

B

MMBT3904(NXP)

Q8703

PILLOW

B

R8797

10K

C

Q8727
MMBT3904(NXP)

E

OPT

+3.5V_ST

Q8702

PILLOW

R87005
10K
PILLOW

C

E

+3.5V_ST

C

E

R87001

10K

PILLOW

R87002 4.7K

B

+3.5V_ST

C

B

E

/UPDATE_BY_CPU

PILLOW

R87006
10K
PILLOW

Q8704
PILLOW
MMBT3904(NXP)

HDMI_CEC_PTC

R8715

4.7K

PILLOW_TXD

PILLOW_RXD

+3.5V_ST

R8714

4.7K

B

Q8711

MMBT3906(NXP)

PTC_RESET

PTC_UPDATE

SW8701

SKHMPWE010

E

C

1 2

43

5

POWER_ON/OFF1

POWER_ON/OFF2_1

DDC_SDA_4

DDC_SCL_4

UART3_TX

UART3_RX
RJP_CTRL0
RJP_CTRL1
RJP_CTRL2
RJP_CTRL3
RJP_CTRL4

/RTL8201_PMEB

KEY1
KEY2

RL_ON

R8733

4.7K

OPT

C8711

27pF

C8712

20pF
OPT

C8701

0.01uF
25V

R8716
47K

C8713

10uF

6.3V

C8714

0.1uF
16V

R8731

R8732

X8700

32.768KHz

R8780
R8787 33
R8788 33

R8723 100

MHL_DET

OPT
OPT

OPT

C8715

0.1uF
16V

+3.5V_ST

C8716

0.1uF
16V

C8718 1uF

WOL/WIFI_POWER_ON

R8786
10K

/PROIDIOM_RESET

EXT12V_CTRL

P5.0/A8/VREF+/VeREF+

25V

P5.1/A9/VREF./VeREF.

/RTL8201_INT

ETNHUB_INT

EXT_SPK_DET

EPI_CTL

POWER_DET

POWER_ON/OFF2_4

DDC_SDA_1_PTC

DDC_SCL_1_PTC

LED_R

P6.4/A4
P6.5/A5
P6.6/A6

P6.7/A7
P7.4/A12
P7.5/A13
P7.6/A14
P7.7/A15

P7.0/XIN

P7.1/XOUT

P1.0/TA0CLK/ACLK

P1.1/TA0.0
P1.2/TA0.1
P1.3/TA0.2
P1.4/TA0.3
P1.5/TA0.4
P1.6/SMCLK

P2.0/TA1CLK/MCLK

R8735 1K

R8792

R8720

R8784

R8789

R8729 100

R8739 100

PI_RESET_PTC

R8734

EXT_12V

1
2
3
4
5
6
7
8
9
10

AVCC

11

AVSS

12
13
14

DVSS1

15

DVCC1

16
17
18
19
20
21
22
23

P1.7

24
25

OPT

22

EPI

22
22

EDID_PTC

22

EDID_PTC

1K

RST/NMI/SBWTDIO

P6.0/A0

P6.1/A1

P6.2/A2

P6.3/A3

96

97

98

99

100

MSP430F5419A

26

29

30

P2.5

P2.1/TA1.027P2.2/TA1.128P2.3/TA1.2

P2.4/RTCCLK

R8740 4.7K
R8741 4.7K
R8742 4.7K
R8743 4.7K

P5.3/XT2OUT

TEST/SBWTCK

PJ.0/TDO

PJ.1/TDI/TCLK

PJ.2/TMS

PJ.3/TCK

90

91

92

93

94

95

IC8701

31

32

33

34

35

36

P2.6/ACLK

P2.7/ADC12CLK/DMAE0

P3.0/UCB0STE/UCA0CLK

P3.3/UCB0CLK/UCA0STE

P3.1/UCB0SIMO/UCB0SDA

P3.2/UCB0SOMI/UCB0SCL

OPT22

OPT22

R8794

R8793

P11.1/MCLK

P11.2/SMCLK

DVCC488DVSS489P5.2/XT2IN

85

86

87

37

39

40

41

42

DVSS338DVCC3

P3.6/UCB1STE/UCA1CLK

P3.4/UCA0TXD/UCA0SIMO

P3.5/UCA0RXD/UCA0SOMI

P3.7/UCB1SIMO/UCB1SDA

PTC_TX

PTC_RX

P10.4/UCA3TXD/UCA3SIMO

P10.5/UCA3RXDUCA3SOMI

P10.683P10.784P11.0/ACLK

80

81

82

43

P4.0/TB0.044P4.1/TB0.145P4.2/TB0.246P4.3/TB0.347P4.4/TB0.448P4.5/TB0.549P4.6/TB0.6

OPT

R8791

RJP_12V_CTRL

R8744 33
R8745
R8773 33
R8774 33
R8748 100
R8753 100

R8790 100

OPT

P10.0/UCB3STE/UCA3CLK

P10.1/UCB3SIMO/UCB3SDA

P10.2/UCB3SOMI/UCB3SCL

P10.3/UCB3CLK/UCA3STE

76

77

78

79

P9.7

75

P9.6

74

P9.5/UCA2RXDUCA2SOMI

73

P9.4/UCA2TXD/UCA2SIMO

72

P9.3/UCB2CLK/UCA2STE

71

P9.2/UCB2SOMI/UCB2SCL

70

P9.1/UCB2SIMO/UCB2SDA

69

P9.0/UCB2STE/UCA2CLK

68

P8.7

67

P8.6/TA1.1

66

P8.5/TA1.0

65

DVCC2

64

DVSS2

63

VCORE

62

P8.4/TA0.4

61

P8.3/TA0.3

60

P8.2/TA0.2

59

P8.1/TA0.1

58

P8.0/TA0.0

57

P7.3/TA1.2

56

P7.2/TB0OUTH/SVMOUT

55

P5.7/UCA1RXD/UCA1SOMI

54

P5.6/UCA1TXD/UCA1SIMO

53

P5.5/UCB1CLK/UCA1STE

52

P5.4/UCB1SOMI/UCB1SCL

51

50

PTC_HPD_1

P4.7/TB0CLK/SMCLK

PTC_HPD_2

PTC_HPD_4

470

R8749
R8750
R8798
R8751 22
R8752

SOC_RESET
AMP_MUTE

UART3_RX

UART3_TX
PTC_EEPROM_SCL
PTC_EEPROM_SDA
UART_SWB

+3.5V_ST

HPD_PTC
HPD_PTC

22

HPD_PTC

C8723 0.1uF

C8724 0.47uF

R8707

R8760 330
R8754 22
R8755 22
R8761 100
R8762

EDID_PTC

R8768

EDID_PTC

HDMI_HPD_1
HDMI_HPD_2
EDID_WP
EXT_SPK_MUTE
HDMI_HPD_4

WOL_MICOM

R8764
R8765

WOL_MICOM

R8778

R8779
R8757
R8766

R8756 100

22

PILLOW
PILLOW

22

22

MMBT3904

RT1N141C

R87008-*1

10K

22
22

OPT

OPT
22
22

R87009

10K

C8728
47pF
50V

OPT

EPHY_MDC
EPHY_MDIO

PTC_WOL
ETNHUB_PWR_ON/OFF

/ETHERNET_RESET

ETNHUB_ENDEFER

WIFI_EN

CEC_OUT
HDMI_CEC_PTC
IR
POWER_ON/OFF2_3
POWER_ON/OFF2_2
PILLOW_RXD
PILLOW_TXD
AMP_EN
DDC_SCL_2_PTC

DDC_SDA_2_PTC

UART3_RX

UART3_TX

RT1N141C
R87009-*1
1K

+3.5V_ST

R8767

10K

C

E

GND_JIG

BLAN CHECK

B

Q8717
MMBT3904(NXP)

IR

ZD8705 3.6V

MPI_DIN

R8772 4.7K

C8729
47pF
50V

OPT

R8775 68K

UART_SWB

R8758 100

R8759 100

ZD8706 3.6V

GND_JIG

BLAN CHECK

Q8718

MMBT3904(NXP)

B

R8776
33K

B

+3.5V_ST

R8781

10K

C

E

R87007 0

D8700

+3.5V_ST

R8785
10K

C

E

R8782 10K

5.6V
D8701

OPT

MPI_DOUT

Q8719
MMBT3904(NXP)

bLAN model : need to pull up
Non bLAN model : open collector

C

B

E

MMBT3904
R87008

100K

T_SPRING

R_SPRING

E_SPRING

IR_OUT_RS232

6B

7B

5

4

7A

6A

3

PEJ027-04

JK8701

+3.5V_ST

T_TERMINAL2

B_TERMINAL2

B_TERMINAL1

T_TERMINAL1

5.6V

OPT

MPI_IR

Q8721
MMBT3904(NXP)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

PTC / RJ45

2014.03.10
21

25

MPI_DIN

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

R8803

10K

Q8801

C

E

MPI

B

R8804
22K

R8805 10K

C8800
220pF

JK8800

MJ-623PT-6-S-SD

1

MPI_DOUT

C

Q8800

MPI_DOUT

B

E

MPI_IR

* 3.5V_ST -> 5V_ST Step-up Power

R8806 220

R8807 220

C8801
220pF

C8802
220pF

+5V_ST

R8808 10K

D8800 5.6V

OPT

D8801 5.6V

OPT

D8802 5.6V

OPT

D8803 5.6V

OPT

30V

D8804

2

3

4

5

6

CDS3C30GTH

MPI_DIN

MPI_SENSE

NC

GND

IR_OUT

7

OPT

C8808
1uF
16V

+5V_ST

C8804
22uF
16V

+3.5V_ST

C8809

0.1uF
16V

OPT

C8807
10uF
10V

L8800

3.6uH

C8803

0.1uF
16V

C8806
1uF
10V

[EP]AGND

SW_1

SW_2

FREQ

IN

SS

D8805

SMAB34

40V

6

7

8

THERMA L

9

11

10

TPS61087DRC

IC8800

+3.5V_ST

5

PGND

4

AGND

3

EN

2

FB

1

COMP

R8812

16K
C8810
2700pF
50V

R1

R2

R8809

51K

1/16W

R8811

3.3K
1%

R8810

18K

1%

1%

OPT
C8805
100pF
50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MPI

LY760H-UA

MPI

2014.03.10
22

25

Ethernet PHY(RTL8201FN)/RJ45

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

ETNHUB_PWR_ON/OFF

LAN_DVDD33

LAN_AVDD33

C9000

0.1uF
16V

C9001

0.1uF
16V

+3.5V_ST

R9002 33

R9007
10K
OPT

TR1N

LAN_DVDD33

EPHY_RXD0

EPHY_RXD1

TR1P

C9028

0.1uF

TR0N

TR0P

R9001 4.7K

IC9003

AP2191WG-7

IN

5

EN

4

C9003

Place this Res. near IC

LAN_DVDD33

MDI+[0]
MDI-[0]

NC_1
MDI+[1]
MDI-[1]

AVDD33_1

NC_2

NC_3

NC_4

NC_5

EN_LDO_OUT

TXER

R9004 4.7K

C9002

0.1uF
16V

R9009

2.49K

1%

[EP]GND

1
2
3
4
5
6
7
8
9
10
11
12

RXDV

OUT

1

GND

2

FLG

3

50V

12pF

X9000

C9004

0.1uF
16V

THERMAL

49

IC9000

RTL8201FN

13

14

15

16

RXD[0]

RXD[1]17RXD[2]

DVDD33_1

+3.5V_ST_LAN

25.0MHz

AVDD33_2

CKXTAL1

CKXTAL2

NC_645NC_746RSET47NC_848AVDD10OUT

41

42

43

44

18

19

20

RXC

INTB

RXD[3]/CLK_CTL

R9067 3.3K

R9013 100

50V
12pF
C9005

DVDD10OUT

40

21

22

TXC

DVDD33_2

C9007

0.1uF

DVDD33_3

COL39RXER/FXEN

37

38

36
35
34
33
32
31
30
29
28
27
26
25

23

TXD[0]24TXD[1]

LAN_DVDD33

LAN_DVDD33LAN_AVDD33

16V

CRS/CRS_DV
LED1/PHYAD[1]
LED0/PHYAD[0]
PMEB
LED2/PHYAD[2]
MDIO
MDC
PHYRSTB
DVDD10
TXEN
TXD[3]
TXD[2]

R9012

4.7K

+3.5V_ST_LAN

L9000

BLM18PG121SN1D

L9001

BLM18PG121SN1D

PHY ADDRESS CONFIG

CONFIG PHY_ADDRESS = 111

LAN_DVDD33

C9006

0.1uF
16V

C9010

0.1uF
16V

TP9000

R9014 3.3K

LAN_DVDD33

0.1uF

R9011

C9026 33pF

1

R9026

R9027

4.7K

4.7K

R9025

4.7K

R9015 22

R9000 22
R9003 22

C9011

16V

51

C9027 5pF

0

R9032

4.7K

C9014

0.1uF
16V

+3.5V_ST

Place near IC

2

Place Closed

ET_COL/SNI

R9005

1.5K
OPT

EPHY_EN

LAN_AVDD33

C9012

0.1uF
16V

LAN_DVDD33

C9013

0.1uF
16V

EPHY_CRS_DV

R9006

1.5K
OPT

EPHY_TXD1
EPHY_TXD0

EPHY_REFCLK

/RTL8201_INT

EPHY_MDIO

EPHY_MDC

LAN_DVDD33

R9038

4.7K

R9074 22

RST_PHY_CPU

R9075 22

RST_PHY_MICOM

TO SOC / MCU

ET_COL/SNI

/RST_PHY

/ETHERNET_RESET
/RTL8201_PMEB

TO MCU

(AUX LAN)

ETNHUB_EPHY_TXOP1

ETNHUB_EPHY_TXON1

ETNHUB_EPHY_RXIP1

ETNHUB_EPHY_RXIN1

ETNHUB_EPHY_TXOP3

ETNHUB_EPHY_TXON3

ETNHUB_EPHY_RXIP3

ETNHUB_EPHY_RXIN3

LAN 1

LAN 2

C9015

0.1uF

C9016

0.1uF

C9024

0.1uF

C9025

0.1uF

R9039

49.9
1%

R9040

49.9
1%

R9041

49.9
1%

R9042

49.9
1%

R9051

49.9
1%

R9052

49.9
1%

R9053

49.9
1%

R9054

49.9
1%

D9004 5.5V

5.5V

D9005

LAN_ESD

D9006 5.5V

5.5V

LAN_ESD

D9007

LAN_ESD

D9008 5.5V

5.5V

LAN_ESD

D9009

LAN_ESD

D9010 5.5V

5.5V

LAN_ESD

D9011

ETNHUB_AVDD18

L9002

LAN_ESD

ETNHUB_AVDD18

L9003

LAN_ESD

BLM18PG121SN1D

C9021

0.1uF
16V

BLM18PG121SN1D

C9022

0.1uF
16V

JK9000

RJ45VT-01SN002

1

2

3

4

5

6

7

8

9

9

JK9001

RJ45VT-01SN002

1

2

3

4

5

6

7

8

9

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

PHY / RJ45

2014.03.10

2523

12V EXT.Power Out

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

C9113

R9100

18K

close to pin

D9100

MBRA340T3G

C9114
150pF
50V

R9107
150K

SW_1

SW_2

COMP

EN

FB

L9100
22UH

R9110
100K

50V

IC9102

MP4460DQ-LF-Z

1

11

2

THERMAL

3

$0.21

4

5

0.1uF

10

Switching noise reducing [MPS recommend]

R9117
200K

1/8W
1%

C9104

0.1uF
50V

R9111
22

R9114
20K
1/16W

1%

R9118
270K

1/16W
1%

C9102

3.3uF
50V

EP_GND

9

8

7

6

C9108
22uF
25V

BST

VIN_2

VIN_1

FREQ

GND

+24V

R9106
10K

1/16W
1%

C9110

0.1uF
50V

P_12V

EXT12V_CTRL

P_12V

R9101 1K

L9103

CB3216PA501E

EXT_12V

EXT_12V

EXT_12V

C9105
470pF
50V

ENABLE/FAULT

EXT_12V

C9106
1uF
25V

GND

DV/DT

I-LIMIT

EXT_12V
C9107

22uF
25V

NC

EXT_12V

R9104 43

IC9101

MP5000DQ

1

EXT_12V

2

3

4

5

SOURCE_5

10

SOURCE_4

9

SOURCE_3

8

SOURCE_2

7

SOURCE_1

6

11

VCC

EXT_12V

CB3216PA501E

C9109

0.1uF
50V

EXT_12V

EXT_12V

L9101

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LY760H-UA

12 Power Out

2014.03.10
24

25

Power

Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Pro:Idiom (XMARK)

+3.3V_NORMAL

MLB-201209-0120P-N2

Q16

PROIDIOM_SYSCLK

XMARK_1.8V

+3.3V_PROIDIOM

RESET

/PROIDIOM_RESET

+3.3V_PROIDIOM

L9401

L9400

MLB-201209-0120P-N2

C9400

22uF

16V

092:M16

+3.3V_PROIDIOM

L9402

MLB-201209-0120P-N2

C9405
10uF
10V

+3.3V_PROIDIOM

X9400
27MHz

+VCC

4

OUTPUT

C9403
10uF
10V

R9401
22

C9404

0.1uF

3

IC9401

AZ1117H-1.8TRE1(EH13A)

INPUT

3

1

ADJ/GND

2

OUTPUT

C9401

0.1uF
16V

PI_RESET_IC

APX809-26SAG-7

RESET

2

R9428

4.7K

C9440

1uF
25V

OPT

R9429
100

PI_RESET_IC

+3.3V_VCCINT

TRI

1

GND

2

IC9400

1

GND

PI_RESET_IC

GND

C9406

0.1uF
16V

+3.3V_PROIDIOM

VCC

3

C9441
1uF
25V

XMARK_1.8V

C9408
22uF
16V

SOC -> Pro:Idiom Serial

33

XMARK_1.8V

L9403
BLM18PG121SN1D

C9410

4.7uF
10V

Close to IC

R9423

R9424
R9425
R9426

AR9400 33

AR9401 33

AR9402 33

PROIDIOM_SYSCLK

I2C_SCL_PROID
I2C_SDA_PROID

33
33
33

TS_S_OUT_CLK
TS_S_OUT_VAL
TS_S_OUT_SYNC
TS_S_OUT_DATA

TPO_CLK

TPO_VAL
TPO_SOP

TPO_DATA[0-7]

Case 1) IPTV Serial TP Output -> Set Parallel TP Output to GPIO Input Port
Case 2) RFTV Parallel TP Output -> Set Serial TP Output to GPIO Input Port

/PROIDIOM_RESET

TPO_DATA[0]
TPO_DATA[1]
TPO_DATA[2]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[7]

+3.3V_PROIDIOM

R9211
100K
OPT

C9409

0.1uF
16V

Close to IC

R9411 0

R9409 22
R9410 22

XMARK_1.8V

C9413

IO2_29/TP_SOP

IO2_21/TP_VALID

IO2_17/TP_ERR
IO2_41/TP_DATA[7]
IO2_36/TP_DATA[6]
IO2_31/TP_DATA[5]
IO2_25/TP_DATA[4]
IO2_23/TP_DATA[3]
IO2_18/TP_DATA[2]
IO2_14/TP_DATA[1]

IO2_8/TP_DATA[0]

IO2_48/RESET
IO3_37/I2C_SCK
IO3_34/I2C_SDA

IO1_22/ASDO

0.1uF

IO1_1/INIT_DONE

0.1uF

C9412

CLK1

IO1_29

IO1_2
IO1_3
IO1_4
IO1_5
IO1_6
IO1_7
IO1_8

IO1_9
IO1_10
IO1_11
IO1_12

CLK0

DCLK

CONF_DONE

NCONFIG

DATA0

IO1_21SO

NCEO

NSTATUS

MSEL0

MSEL1

IO1_13
IO1_14
IO1_15
IO1_16
IO1_17
IO1_18
IO1_19
IO1_20
IO1_23
IO1_24
IO1_25
IO1_26
IO1_27
IO1_28
IO1_30
IO1_31
IO1_32
IO1_33
IO1_34
IO1_35

+3.3V_PROIDIOM

+3.3V_VCCINT

1uF 10V

IO4_34/CH_CLK
IO4_20/CH_VALID

R8

IO4_26/CH_SOP

R9

IO4_30/CH_ERR
IO4_8/CH_DATA[0]

P5

IO4_13/CH_DATA[1]

P6

IO4_18/CH_DATA[2]

P7

IO4_24/CH_DATA[3]

P8

IO4_28/CH-DATA[4]

P9

IO4_33/CH_DATA[5]
IO4_35/CH_DATA[6]
IO4_41/CH_DATA[7]
IO2_34

E7

IO2_33

A6

IO2_32

B7

IO2_43

A4

IO2_30

D7

IO2_28

A8

IO2_27

E8

IO2_26

D8

IO2_44

B4

IO2_24
IO2_45

C4

IO2_22

D9

IO2_20

A9

IO2_19
IO2_16
IO2_15
IO2_46

B3

IO2_13
IO2_12
IO2_11

E9

IO2_10
IO2_9
IO2_47

A2

IO2_7
IO2_6
IO2_5
IO2_4
IO2_3
IO2_2
IO2_1
IO3_43
IO3_42
IO3_41
IO3_40
IO3_39
IO3_38
IO3_36
IO3_35
IO3_33
IO3_32
IO3_31
IO3_30
IO3_29
IO3_28
IO3_27
IO3_26
IO3_25
IO3_24
IO3_23
IO3_22
CLK2
CLK3

L9404

BLM18PG121SN1D

C9423 0.1uF

VCCIO2_1

VCCIO2_2

VCCIO2_3

F7

F10

R14

P13

C9424 0.1uF

VCCIO3_3

C16

A14

T15

R15

C9425

VCCIO4_4

VCCIO3_1

VCCIO3_2

P16

K11

N13

P14

C9426 0.1uF

VCCIO4_3

L10

T14

P15

R16

C9427 0.1uF

VCCIO1_3

VCCIO4_1

VCCIO4_2

T3

L7

N15

N16

C9429 0.1uF

VCCIO1_2

P1

K12

VCCIO1_1

C1

G6

K14

L12

C9431 0.1uF

C9430 0.1uF

VCCINT_10

VCCINT_11

VCCINT_12

K9

T7

T10

N14

M13

M14

C9432 0.1uF

VCCINT_8

VCCINT_9

K7

J10

L13

M15

C9422 0.1uF

VCCIO2_4

GND_1

GND_2A5GND_3

GND_4F6GND_5F8GND_6F9GND_7

GND_8G7GND_9G9GND_10

GND_11H8GND_12

GND_13J7GND_14

GND_15K6GND_16K8GND_17

GND_18L6GND_19

GND_20L9GND_21

GND_22T1GND_23T5GND_24

GND_25

GND_26

GNDA_PLL1

GNDG_PLL1

GNDA_PLL2

GNDG_PLL2

VCCA_PLL1

VCCA_PLL2

IO2_35

IO2_42D6IO2_37D5IO2_38

IO2_39

IO2_40

A3

J9

E5

H1
B8
B9
B10
C5
C6
C7
C8
C9
C10
C11
C12
M1
C3
C2
B1
G5
F4
D3
E4
F5
E3
D2
E2
G1
B2
D14
E14
K4
K13
H3

NCE

J4
H2
G4
K3
H4
J13
J3
J2

TCK

J14

TDO

H15

TMS

J15

TDI

H14
D4
D1
F3
G3
F2
E1
G2
F1
H5
J1
K2
L3
K1
L1
L2
N1
M2
N2
M3
L5
M4

N3

H11

T16

J11

J12

R2

J6

J5

H6

B6

B5

E6

L8

K10

L11

T12

F11

G11

H10

IC9403

LGDT1001

I2C : 0x47

M6

M10

T11

N10

N11

A1

A16

A12

N12

M11

M12

R12

T13

R13

C9433 0.1uF

VCCINT_6

VCCINT_7

H9

J8

M16

L14

C9434 0.1uF

VCCINT_3

VCCINT_4

VCCINT_5

H7

G10

L15

L16

C9435 0.1uF

VCCINT_2

G8

A10

K16

K15

VCCINT_1

A7

R11

R10

P10
P11
P12

E10

D10
A11
B11

D11
D12

E11
E12

B12
A13
B13
C13
B14
A15
B15
D13
C14
C15
B16
G12
H13
E13
F12
D15
D16
E15
E16
F15
F13
F14
F16
G15
G13
G14
H12
G16
H16

J16

L9406

L9405

BLM18PG121SN1D

BLM18PG121SN1D

XMARK_1.8V

C9437

0.1uF

C9438

0.1uF

C9439

0.1uF

C9436

0.1uF

+3.3V_PROIDIOM

R9417 4.7K
R9418 4.7K

L9407

L9408

BLM18PG121SN1D

BLM18PG121SN1D

IP : Serial TP

TS_S_IN_0_CLK
TS_S_IN_0_VAL
TS_S_IN_0_SYNC

TS_S_IN_0_DATA

TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

Cap close to IC

TPI_CLK
TPI_VAL
TPI_SOP
TPI_DATA[0-7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

XMARK_1.8V

IO1_36K5IO1_37L4IO1_38R1IO1_39P2IO1_40P3IO1_41N4IO1_42

0.1uF

0.1uF

C9414

C9415

IO4_1T2IO4_2R3IO4_3P4IO4_4R4IO4_5T4IO4_6R5IO4_7M5IO4_9

C9417

0.1uF

IO4_10N5IO4_11N6IO4_12R6IO4_14M7IO4_15T6IO4_16R7IO4_17N7IO4_19T8IO4_21M8IO4_22N8IO4_23

C9418

0.1uF

C9419

0.1uF

IO4_25T9IO4_27N9IO4_29

Cap close to IC

C9420

0.1uF

IO4_31

IO4_32

IO4_36

IO4_37M9IO4_38

IO4_39

IO4_40

C9421

0.1uF

IO4_42

IO4_43

IO4_44

IO4_45

IO4_46

IO4_47

IO3_1

IO4_48

IO3_2

IO3_3

IO3_4

IO3_5

C9428

0.1uF

IO3_6

IO3_7

IO3_8

IO3_9

IO3_10

IO3_11

IO3_12

IO3_13

IO3_14

IO3_15

IO3_16

IO3_17

IO3_18

IO3_19

R9416 4.7K
R9414 4.7K
R9415 4.7K

IO3_20

IO3_21

+3.3V_PROIDIOM

LY760H-UA
PRO:IDIOM

2014.03.10
25

25
