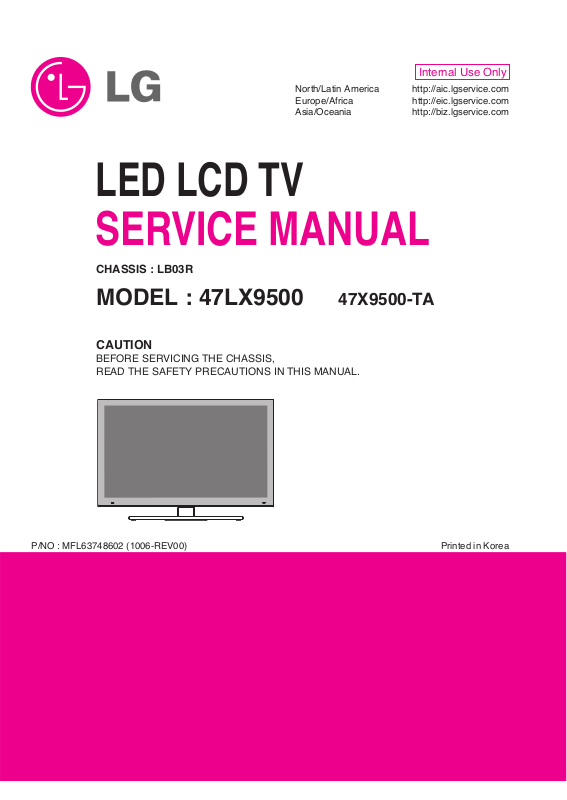

LG 47LX9500-TA Schematic

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LB03R

MODEL : 47LX9500 47X9500-TA

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL63748602 (1006-REV00)

- 2 -

Only for training and service purposes

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 9

EXPLODED VIEW .................................................................................. 16

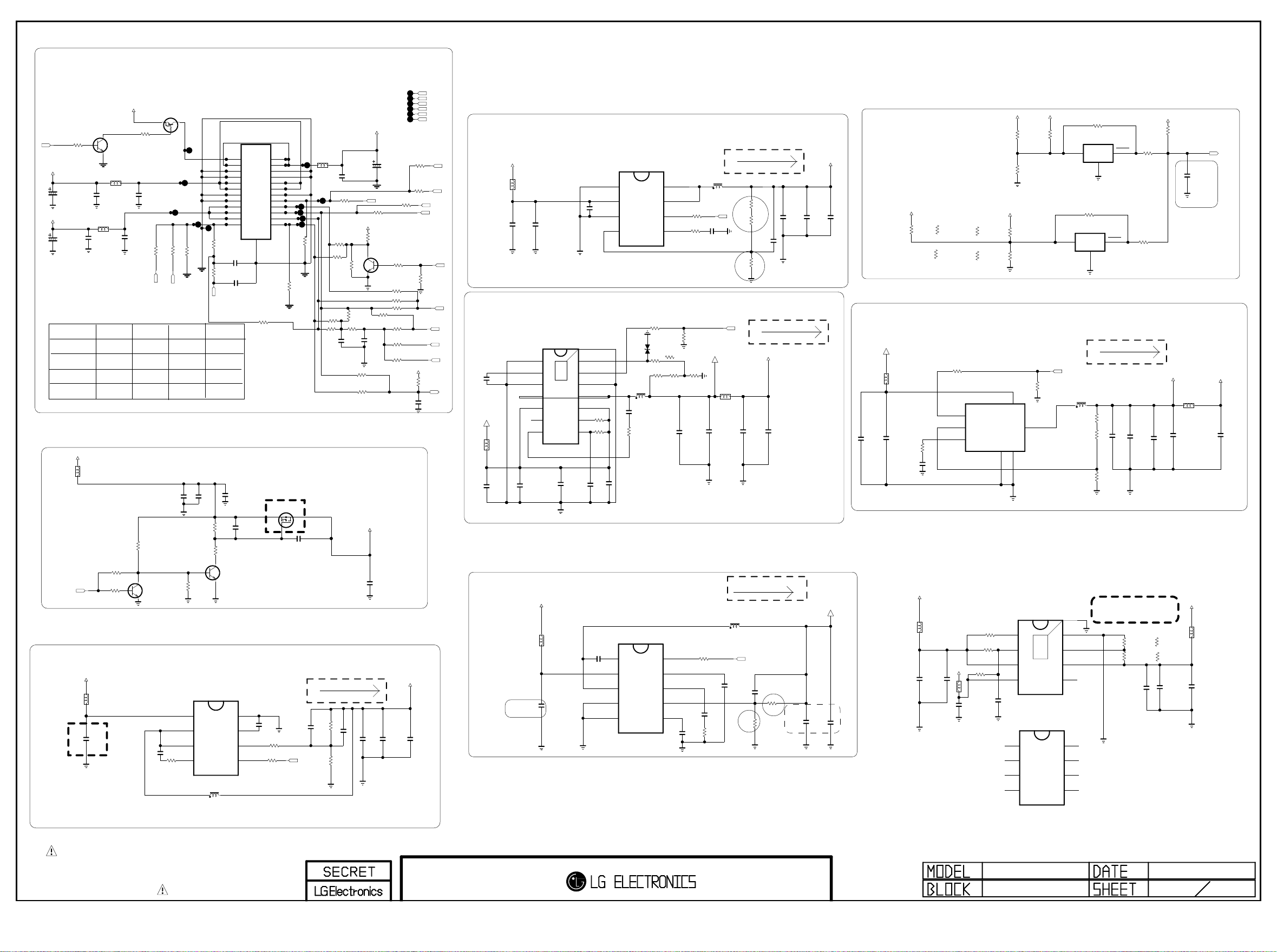

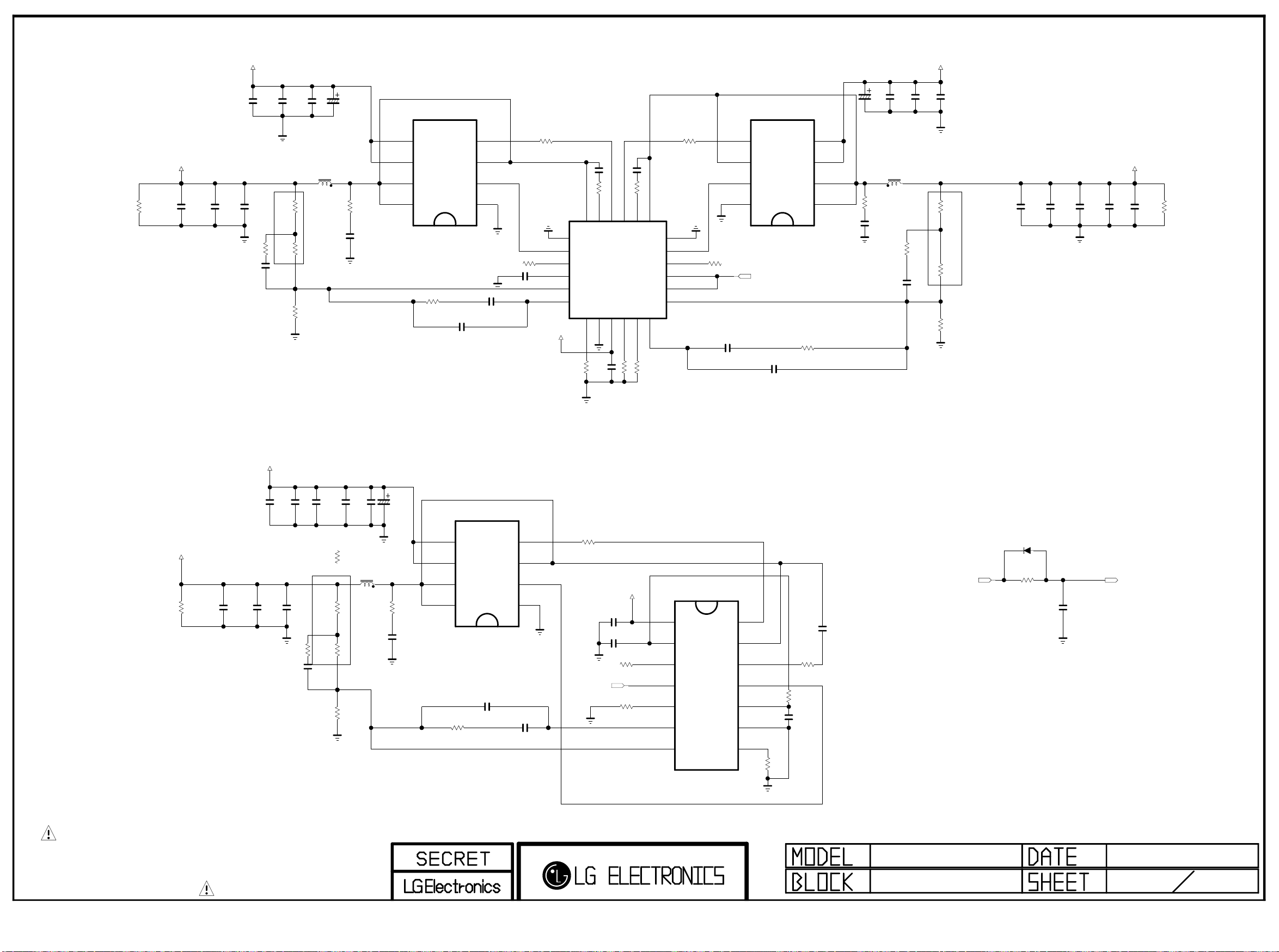

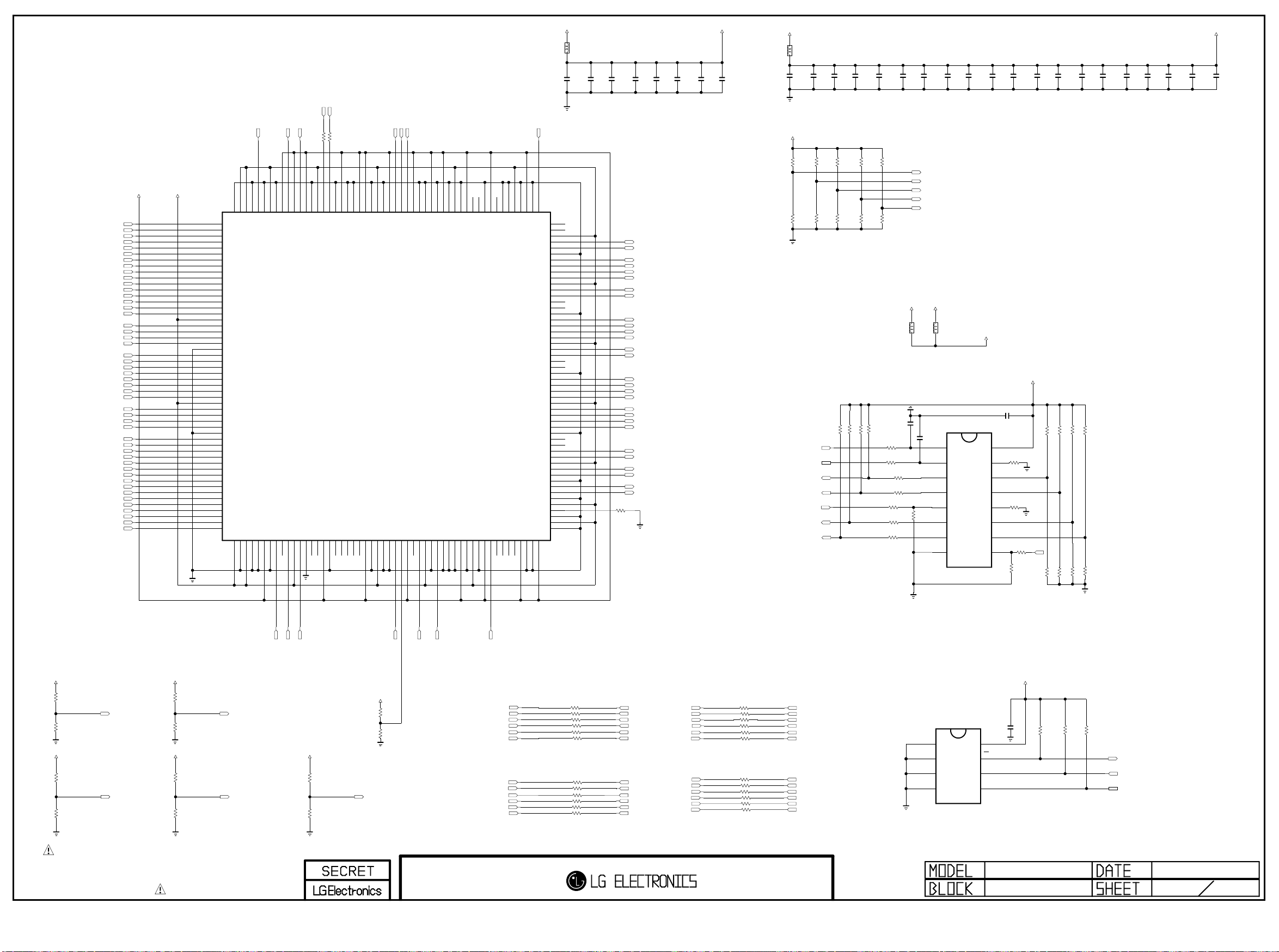

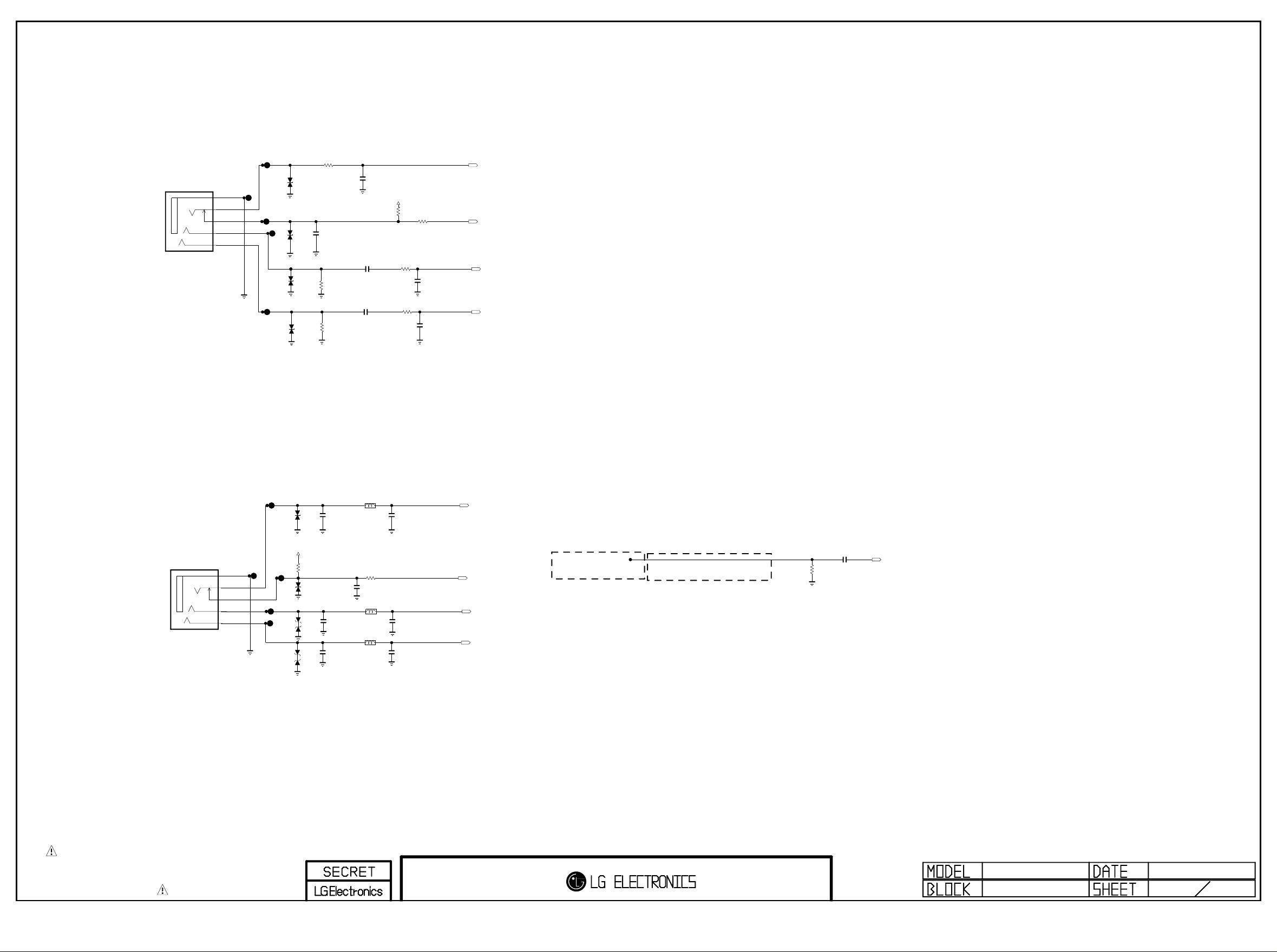

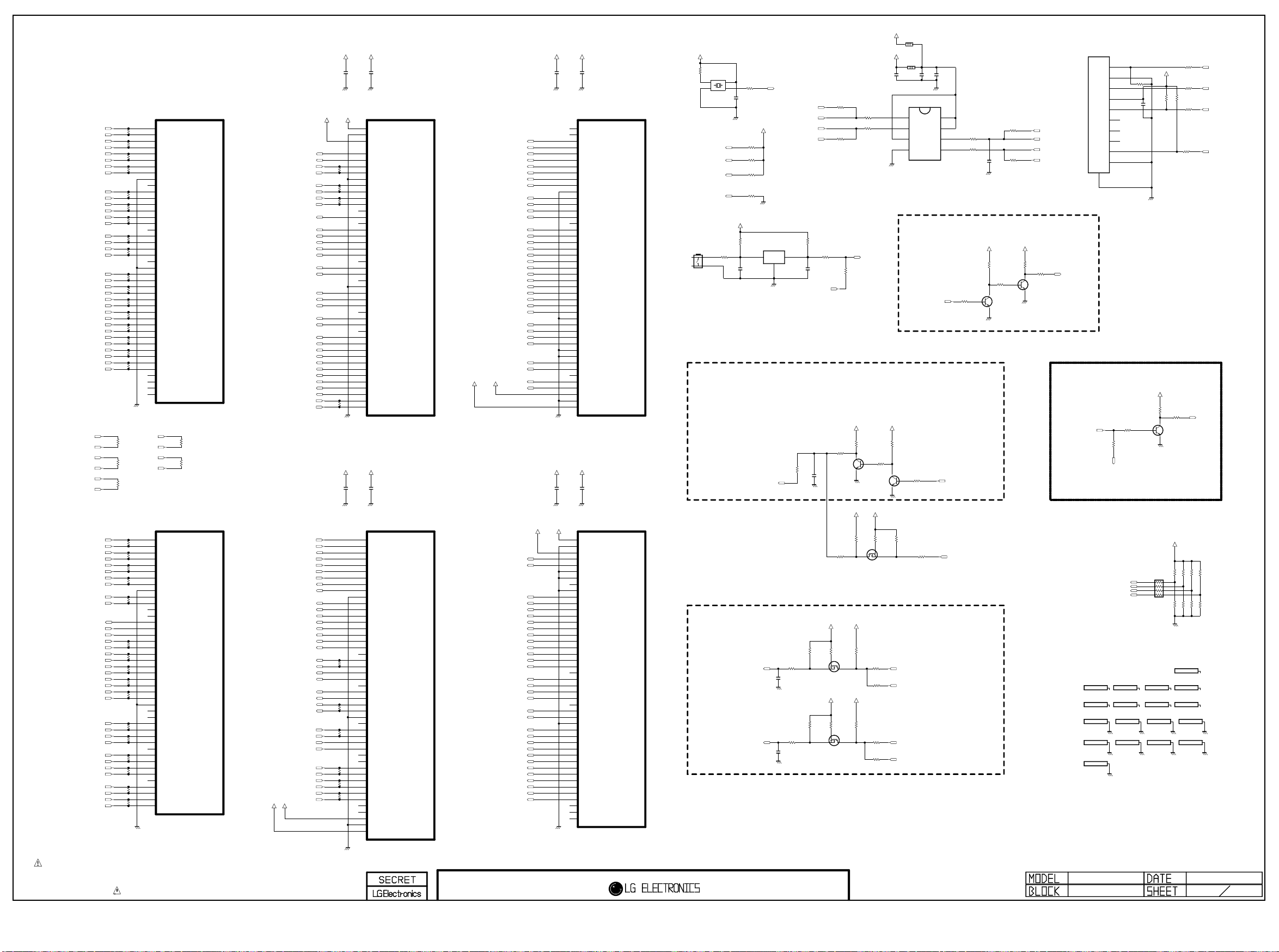

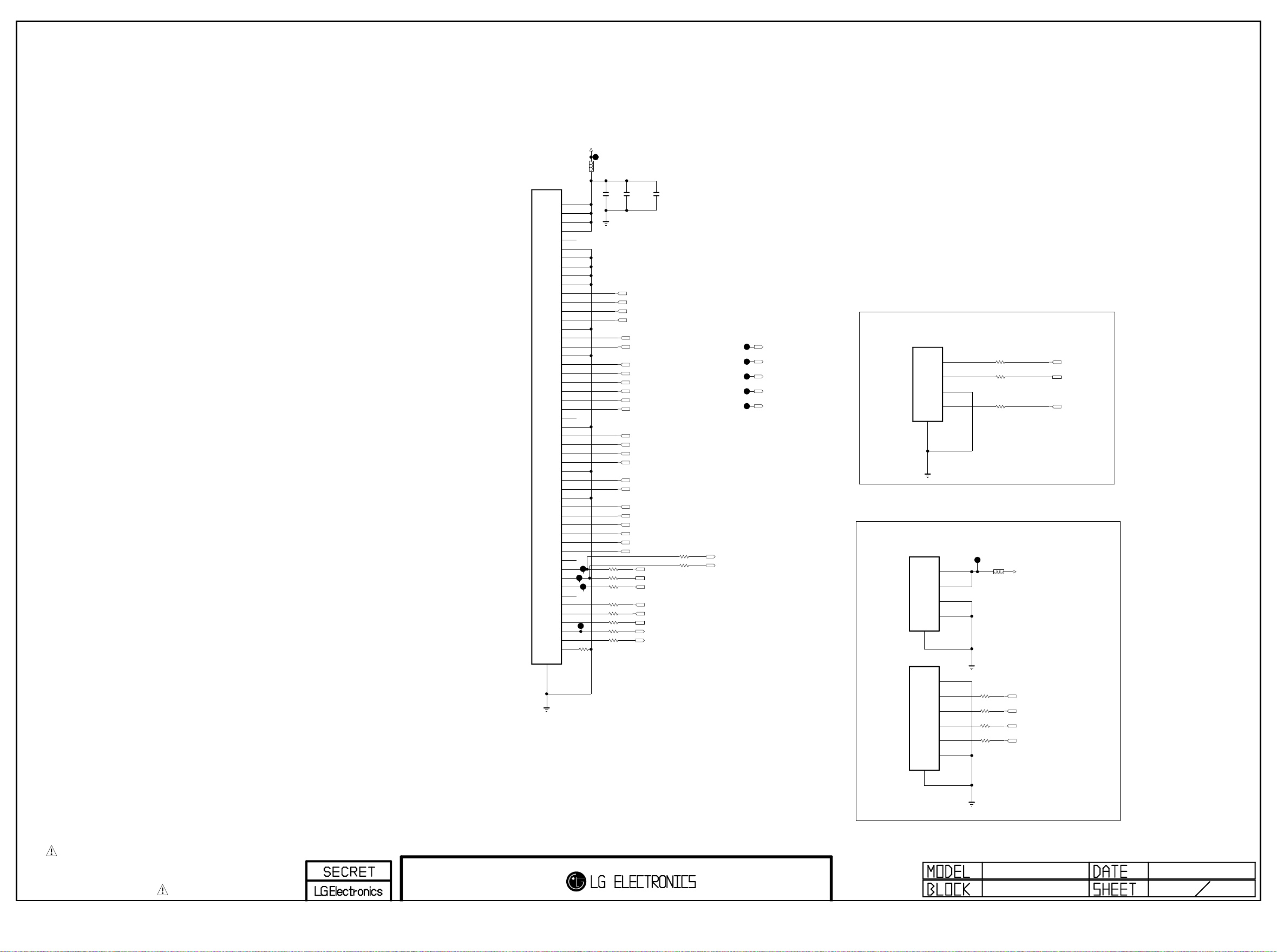

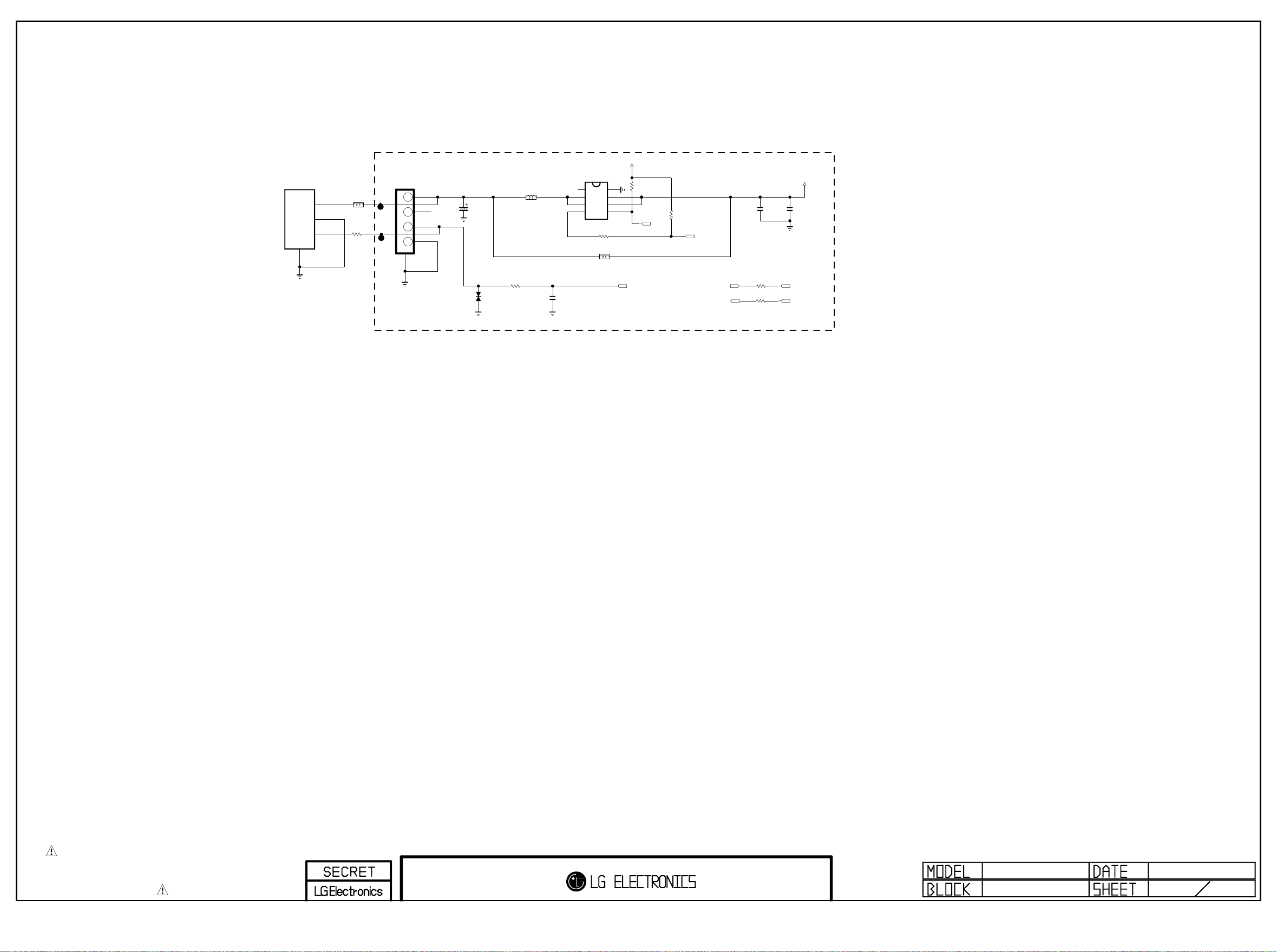

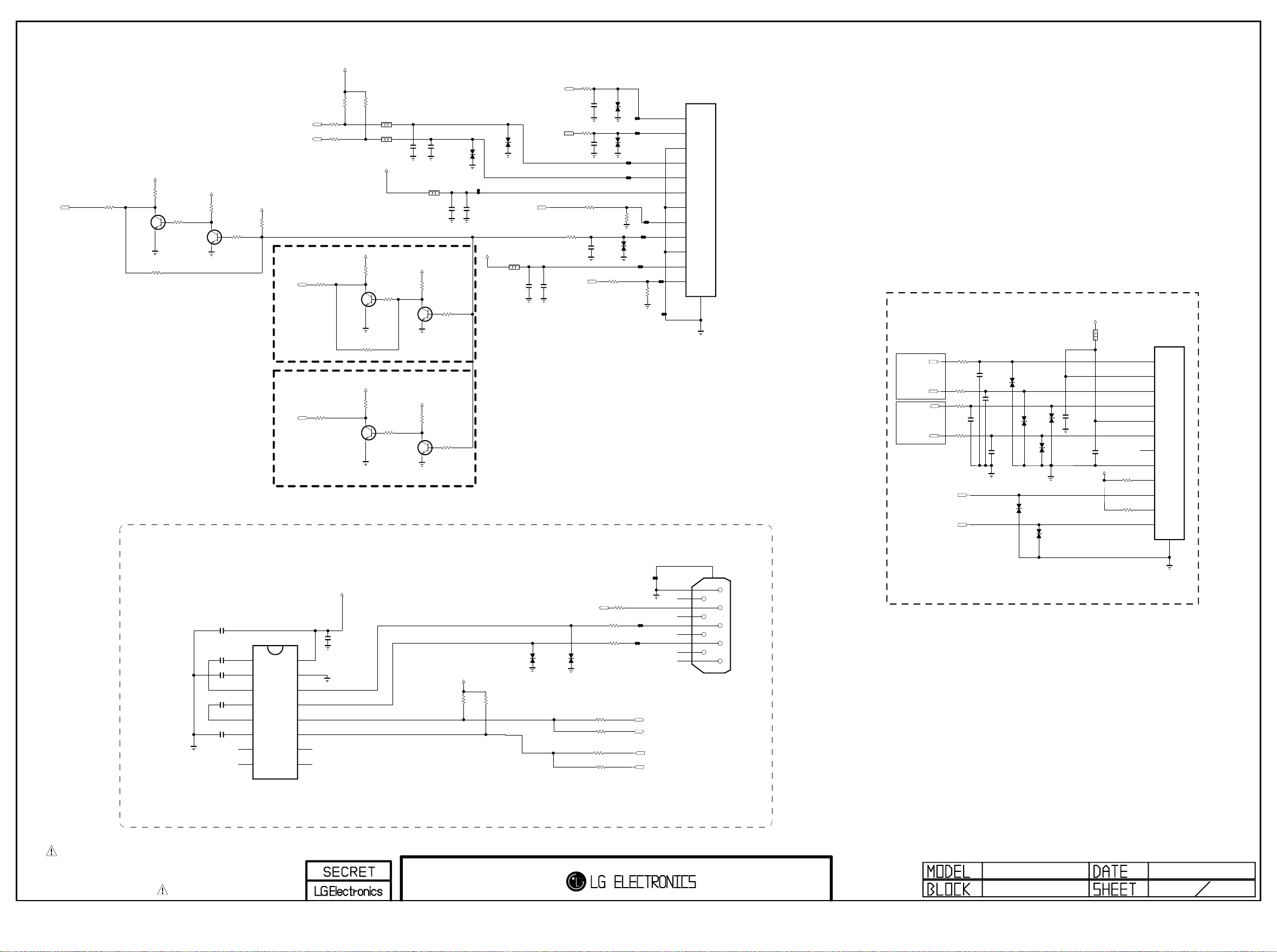

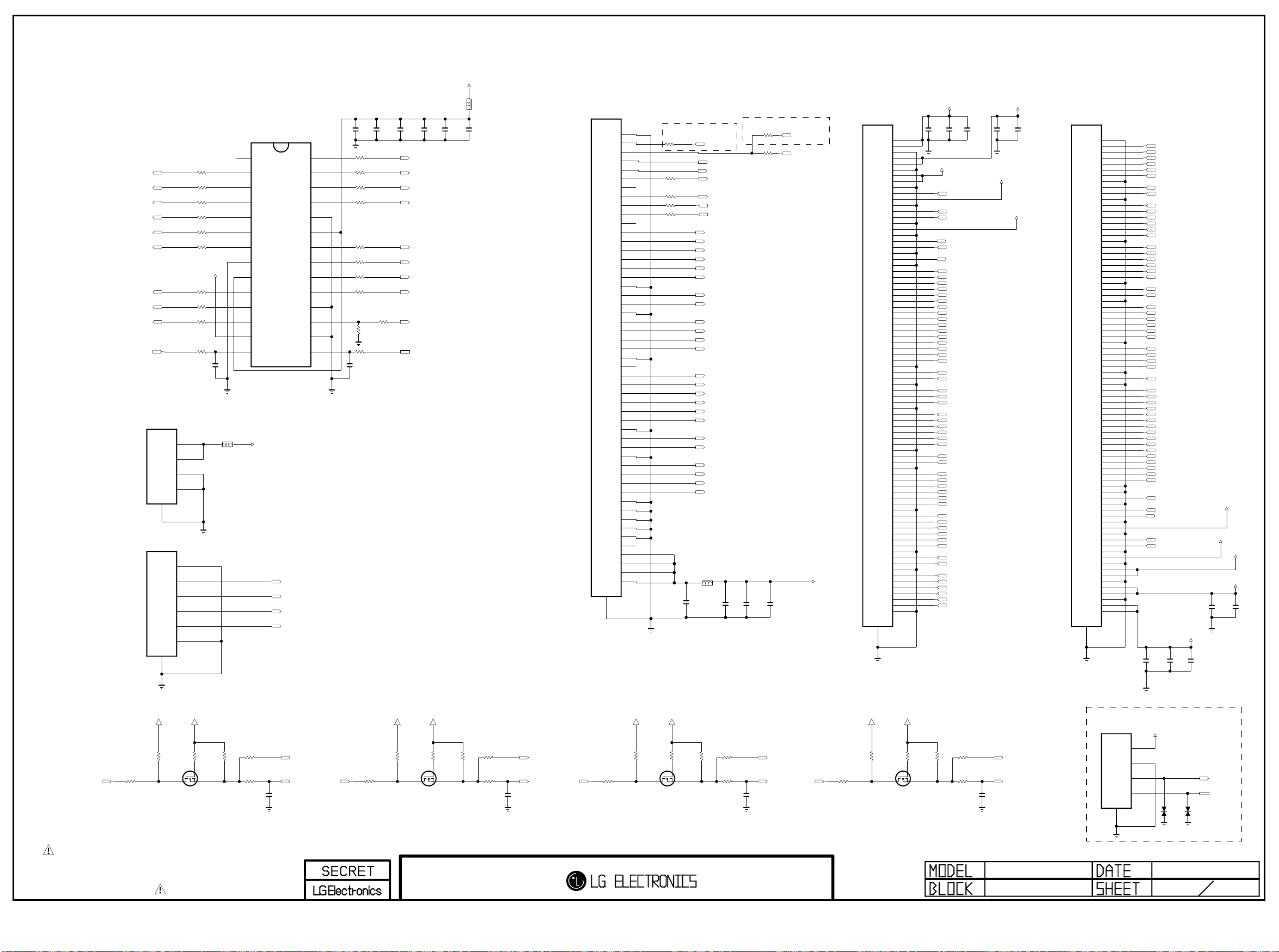

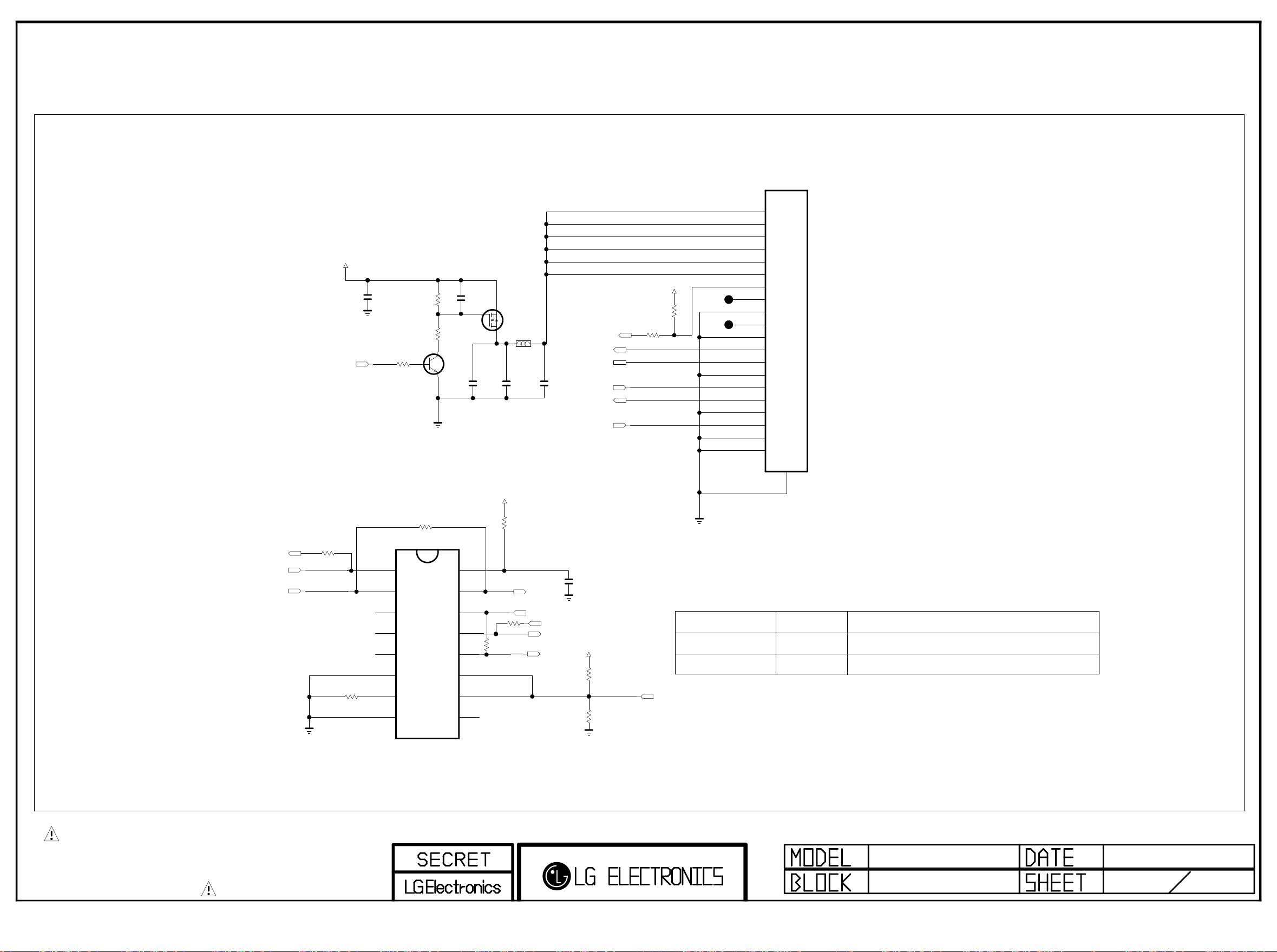

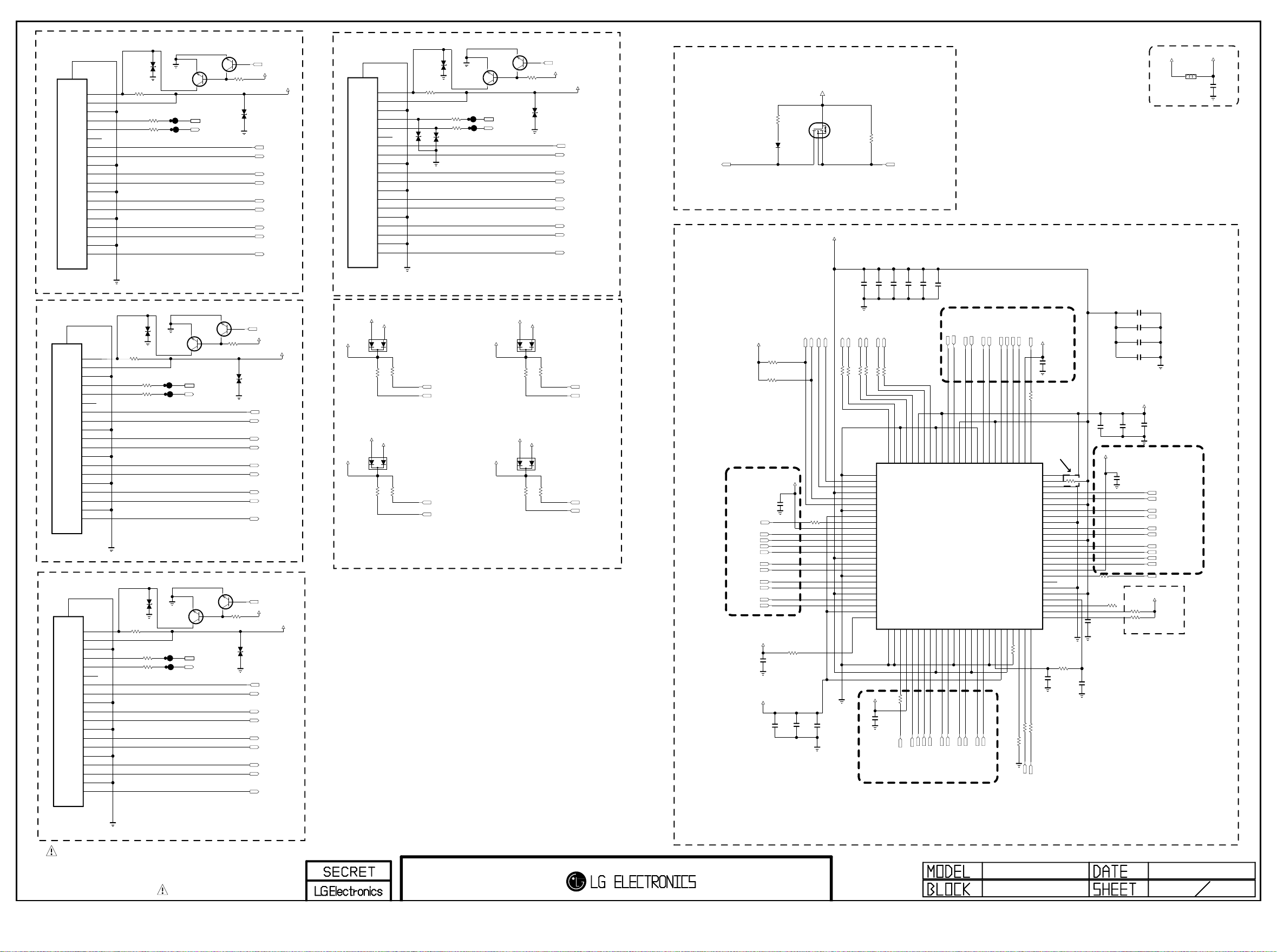

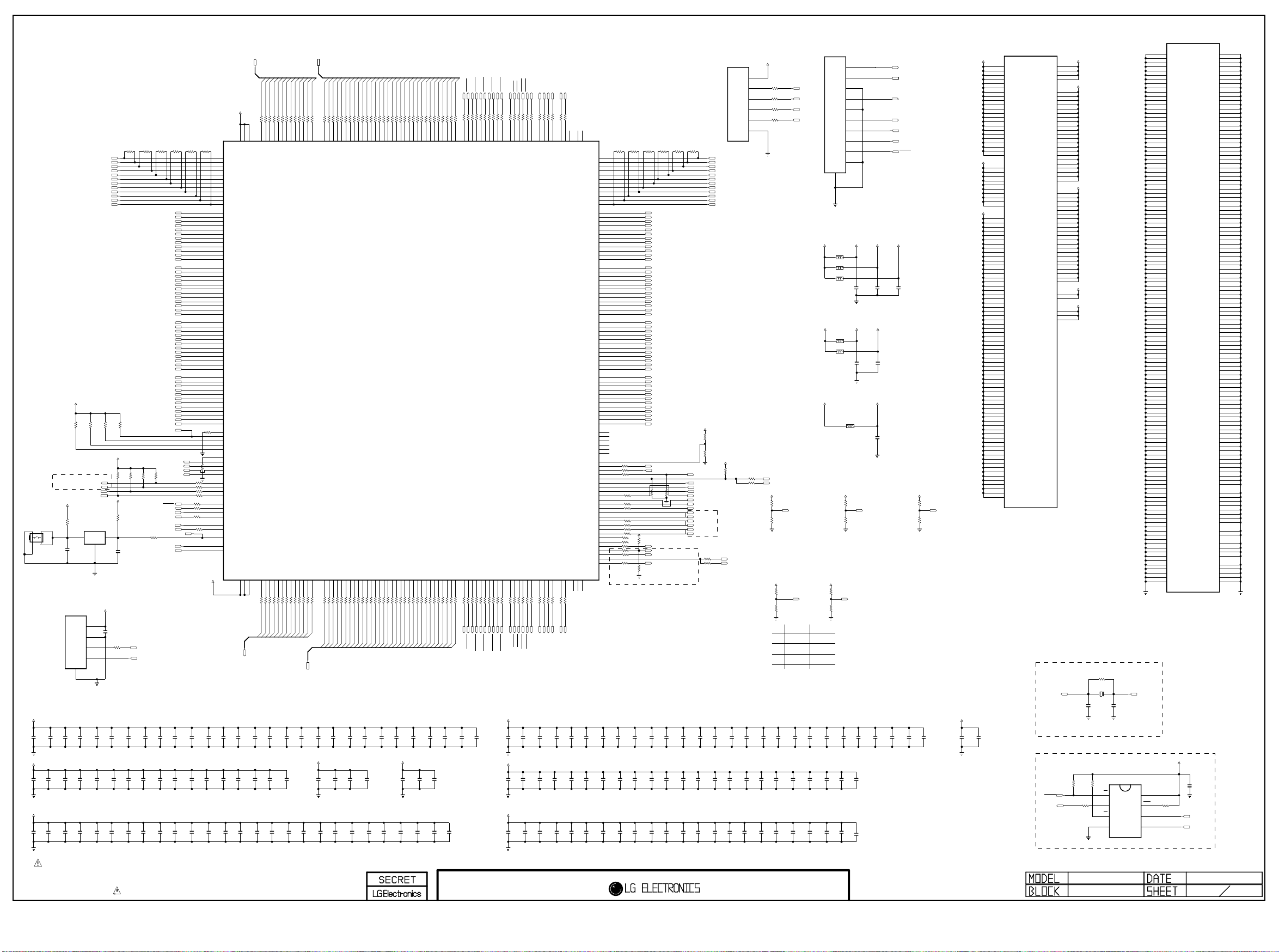

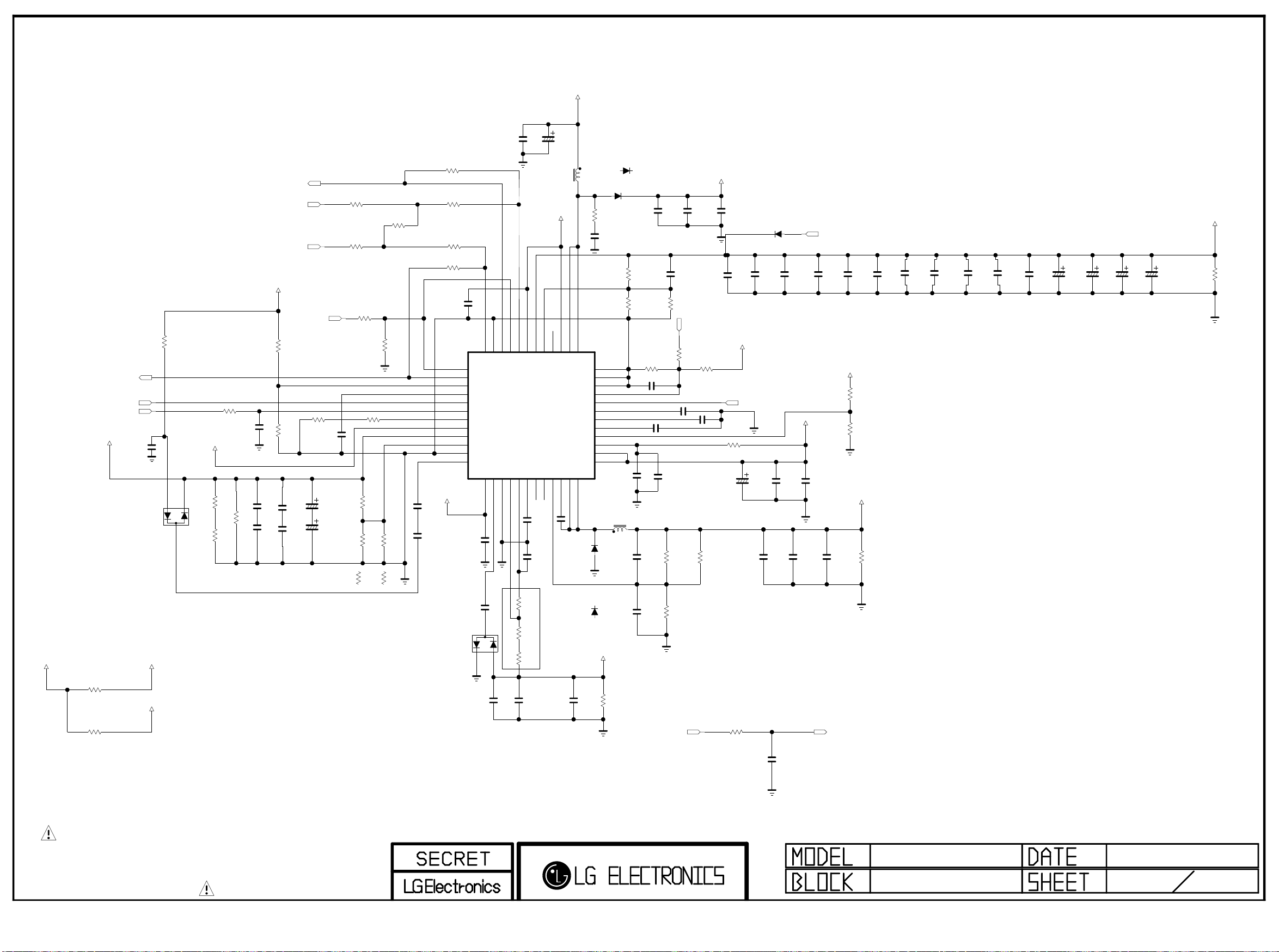

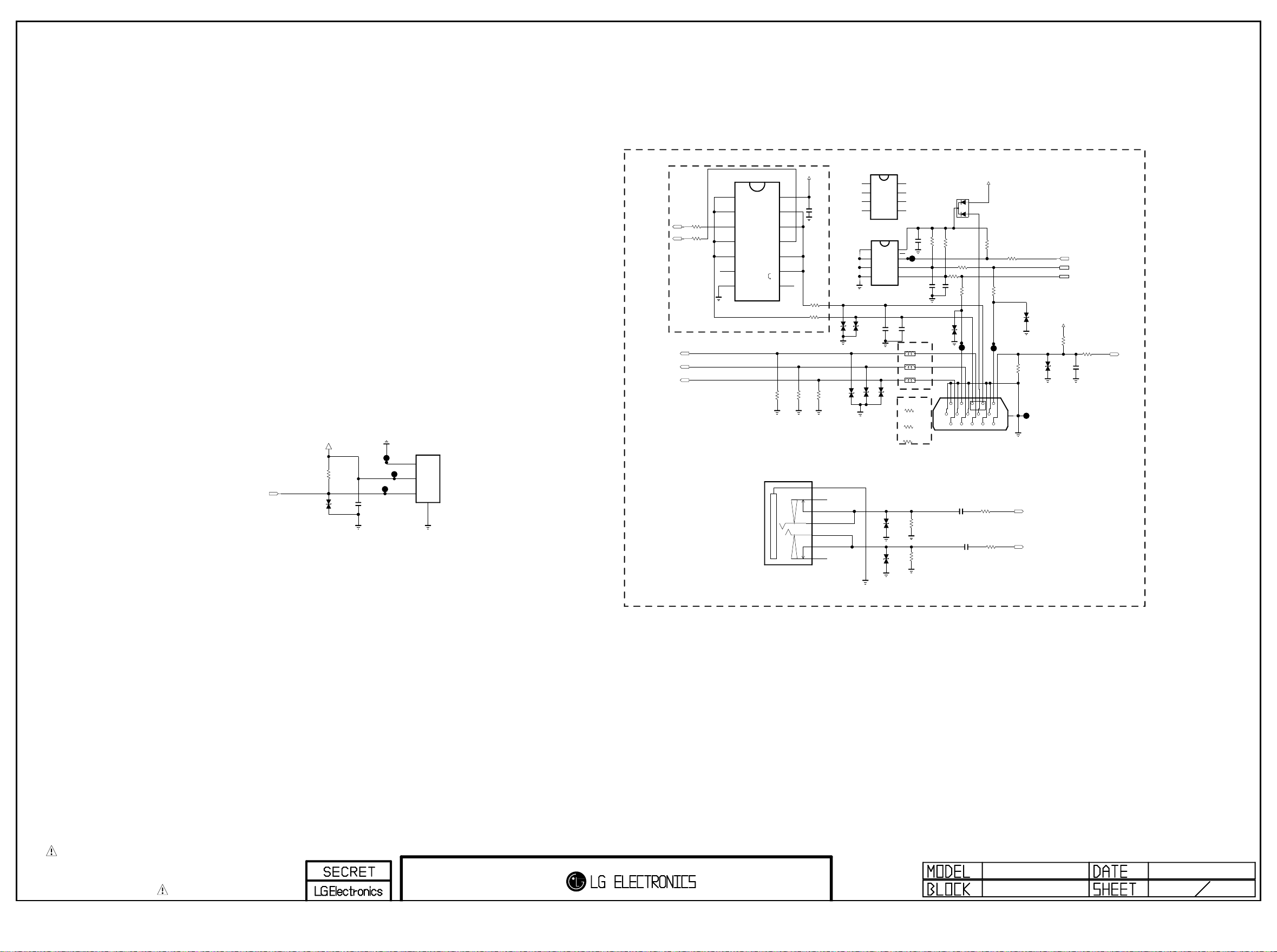

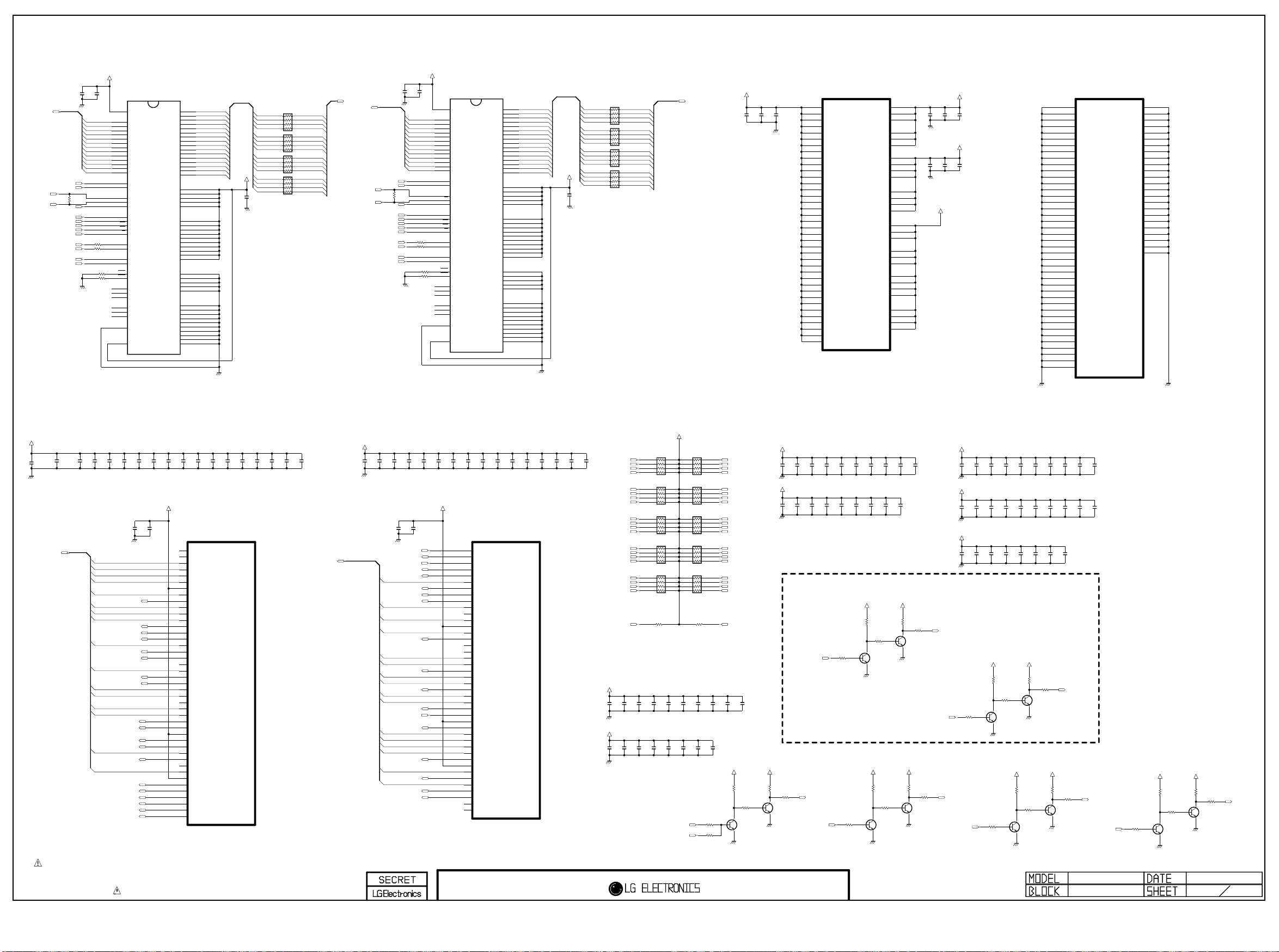

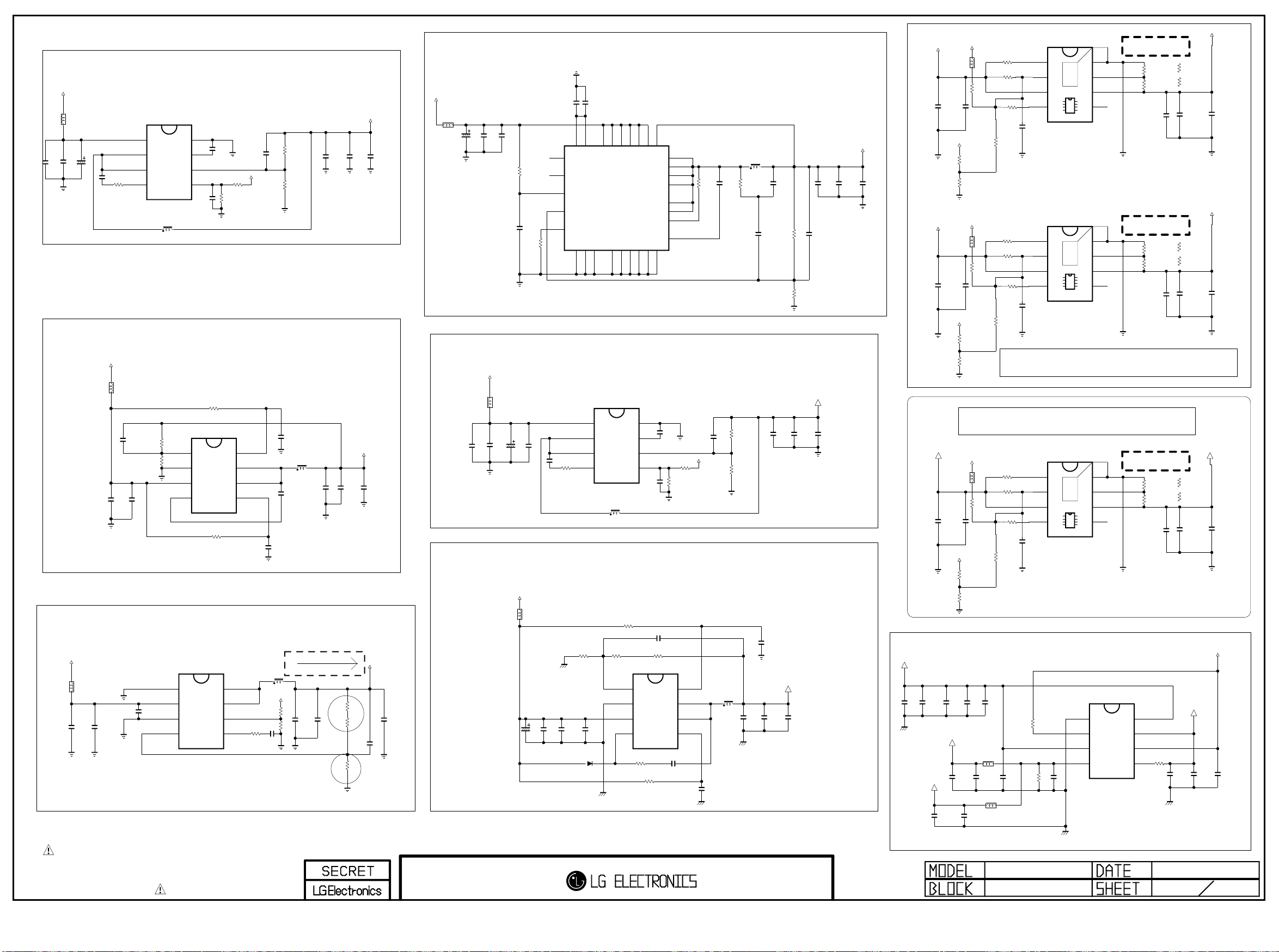

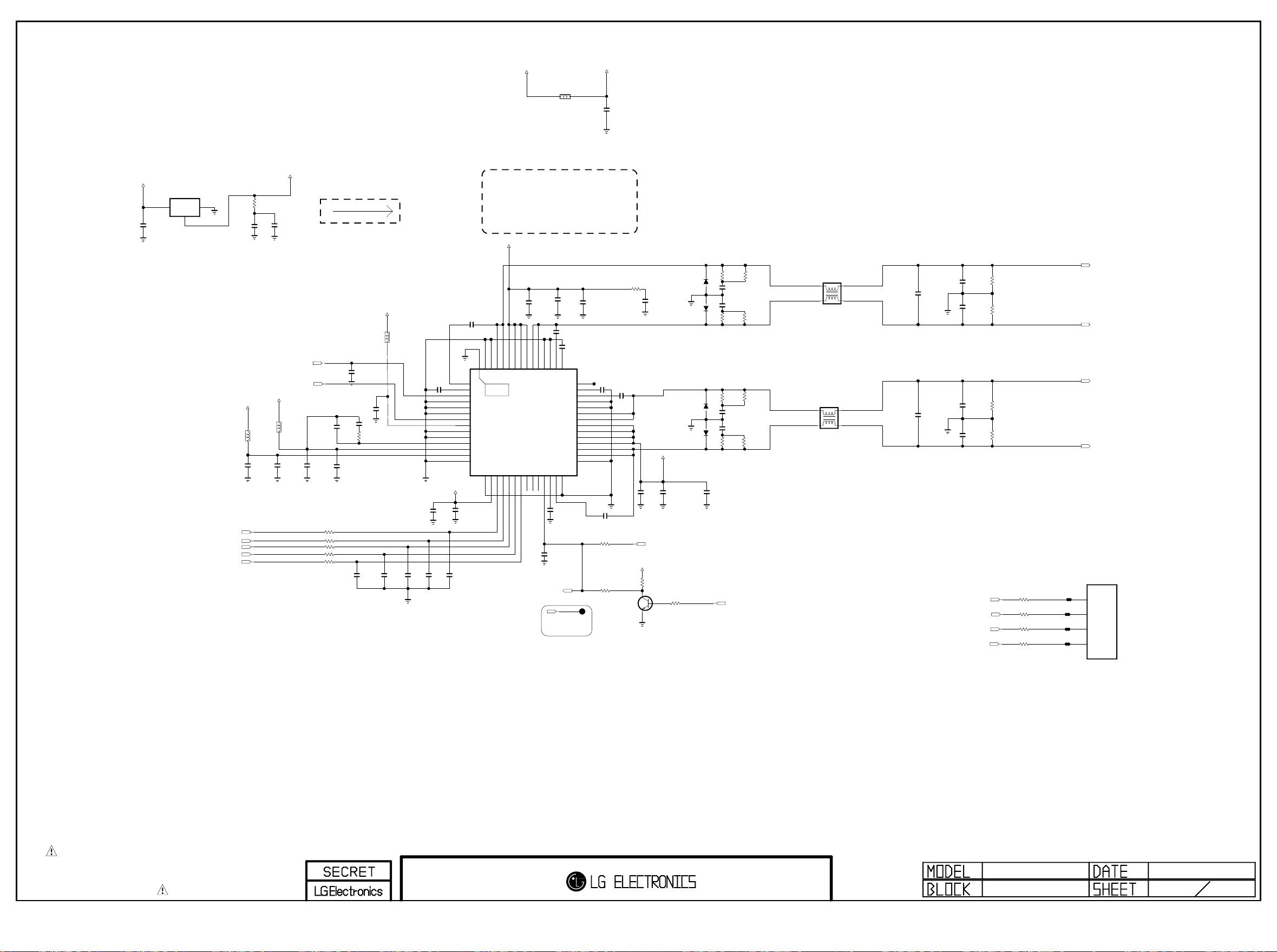

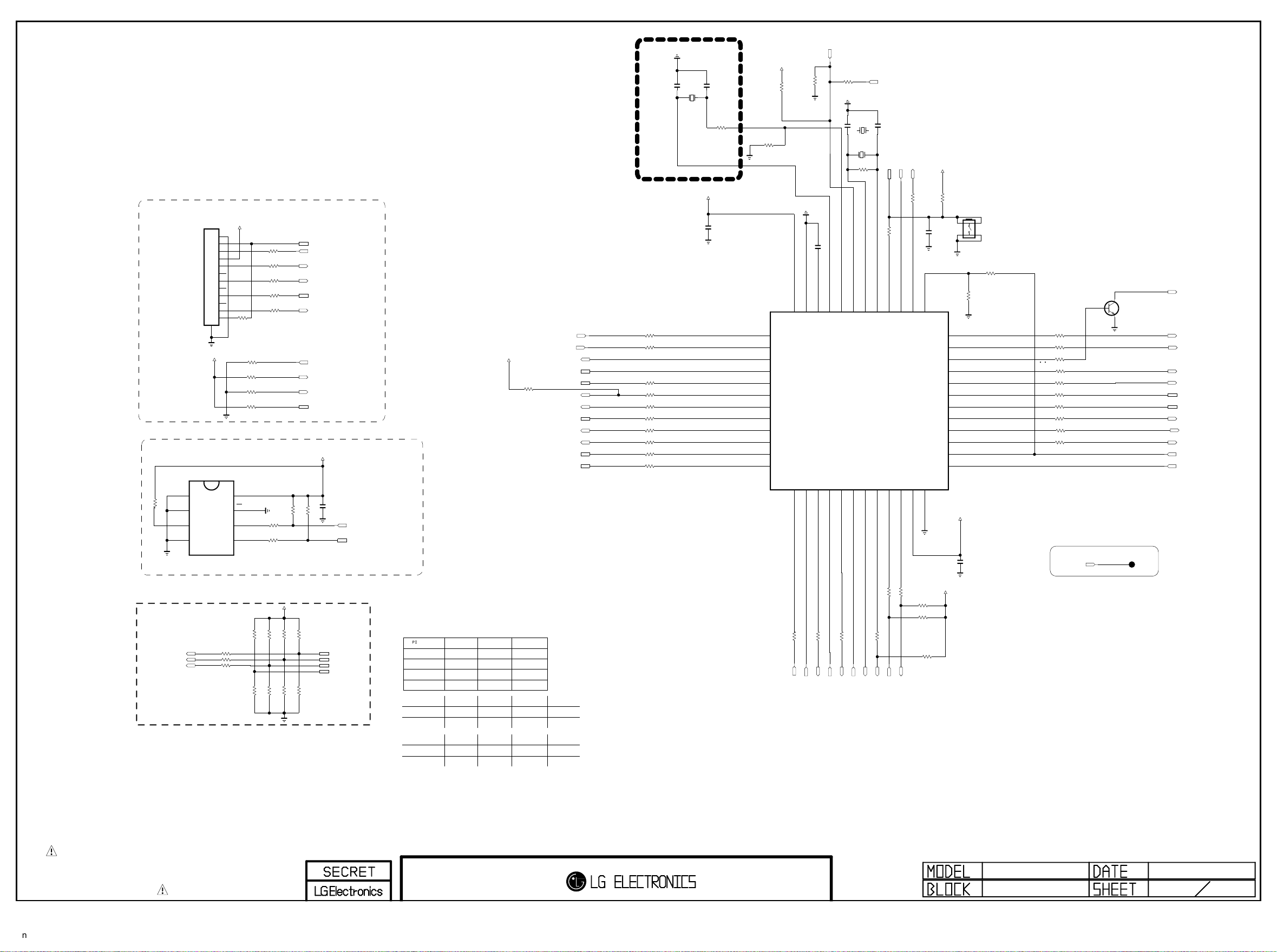

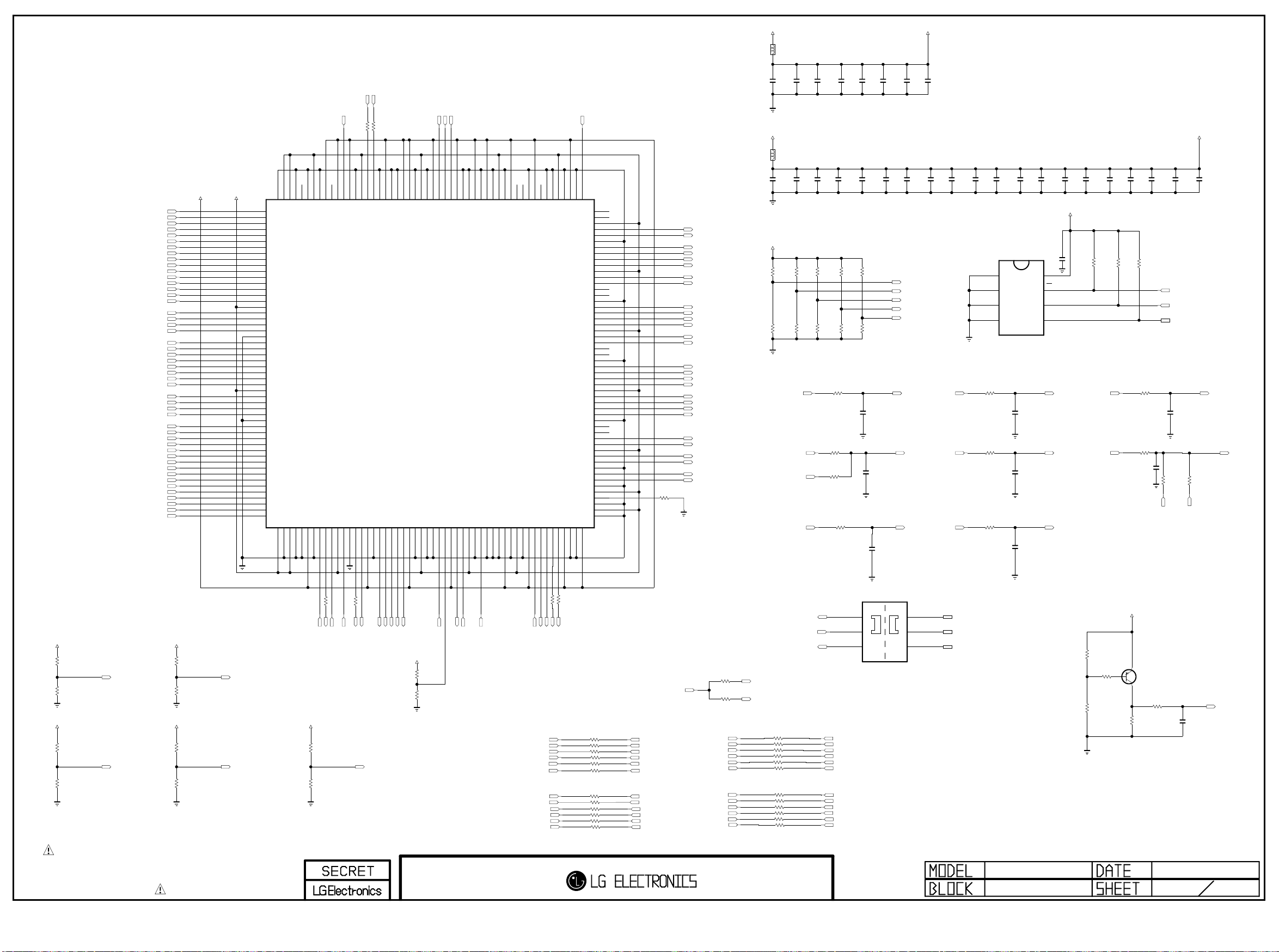

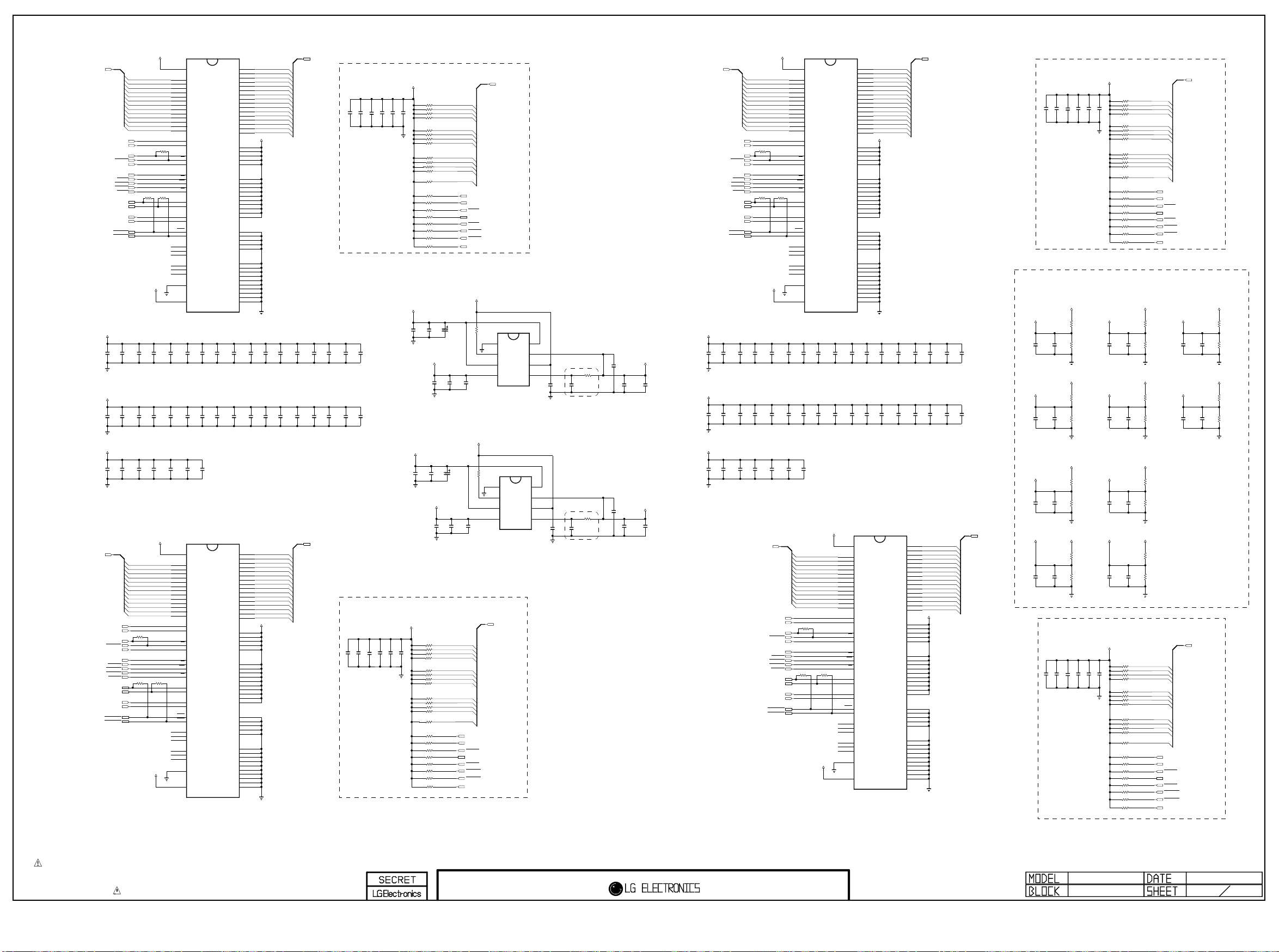

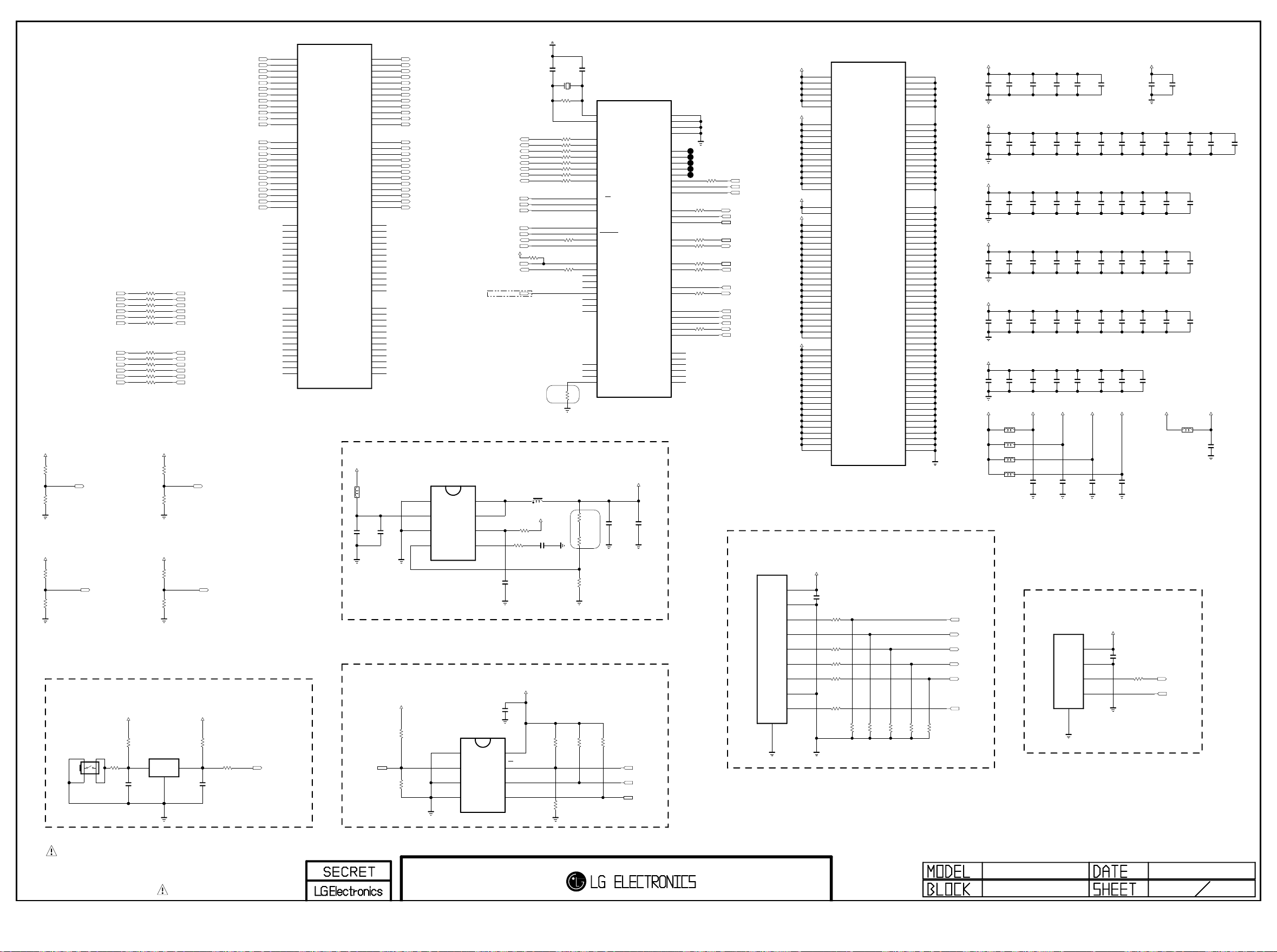

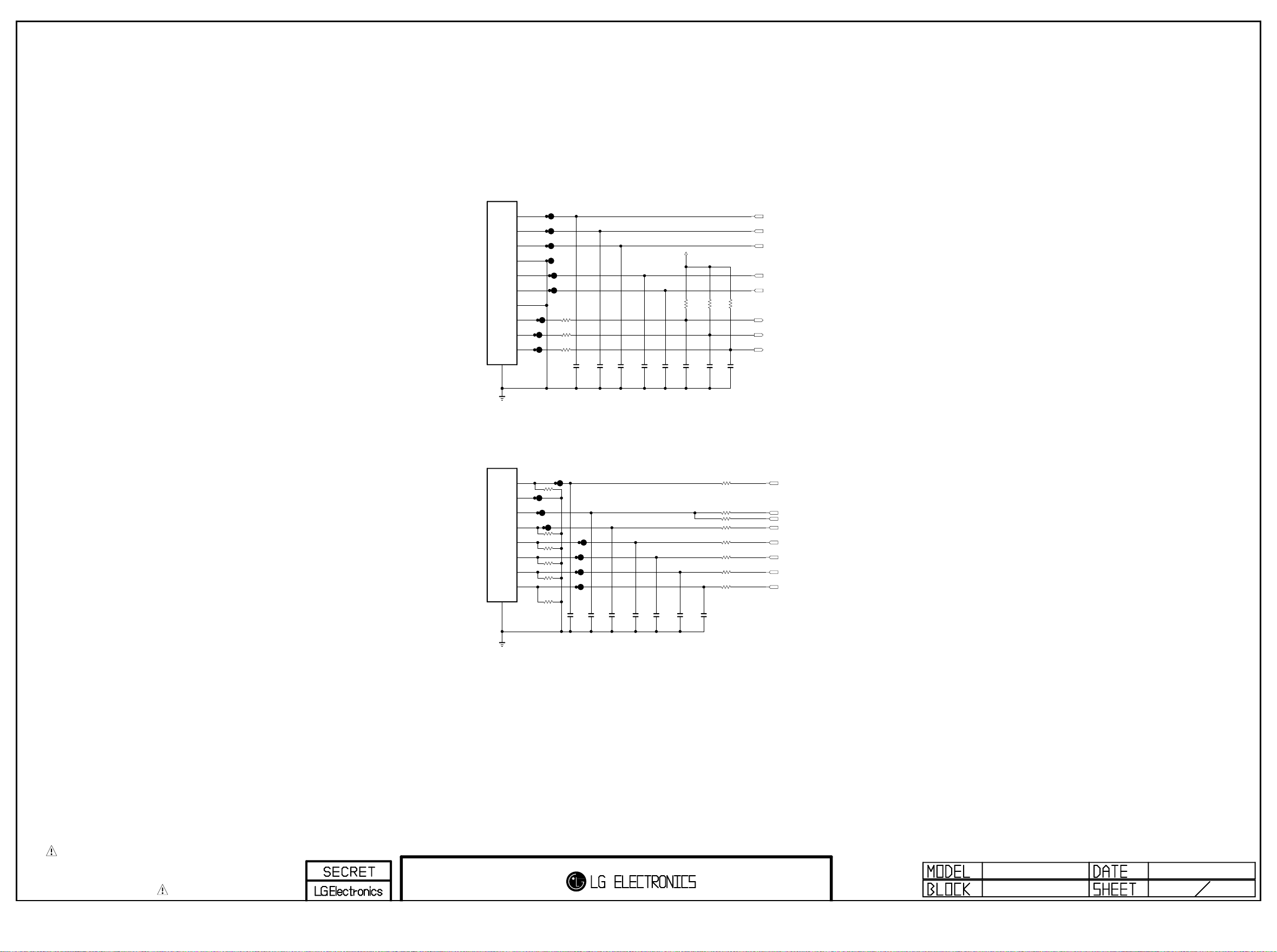

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 -

Only for training and service purposes

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

When 25A is impressed between Earth and 2nd Ground for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

IMPORTANT SAFETY NOTICE

0.15 uF

Ω

- 4 -

Only for training and service purposes

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

4. Module General Specification

1. Application range

This specification is applied to the LCD TV used LB03R chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC(77 ºF ± 9 ºF), CST: 40 ºC ± 5 ºC

2) Relative Humidity : 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~ 50 / 60 Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC :CE, IEC

No. Item Specification Remark

1 Display Screen Device 119 cm(47 inch) wide color display module

2 Aspect Ratio 16:9

3 LCD Module 119 cm(47 inch) TFT LCD FHD 240 Hz

4 Operating Environment Temp. : 0 deg ~ 50 deg

Humidity : 20 % ~ 90 %

5 Storage Environment Temp. : -20 deg ~ 60 deg

Humidity : 10 ~ 90 %

6 Input Voltage AC 100-240V~, 50 / 60Hz

7 Power Consumption Power on (White) 3DTV

LGD IOP LCD (Module) + Backlight(IOP LED)

8 Module Size 1054.5 (H) x 600.0 (V) x 1.8 (D) mm

8 Pixel Pitch 0.5415 (H) x 0.5415 (V)

9 Back Light LED(IOP)

10 Display Colors 1.06 B(true) colors

11 Coating 3H

- 5 -

Only for training and service purposes

5. Module optical specification

1) Standard Test Condition (The unit has been ‘ON’)

2) Stable for approximately 60 minutes in a dark environment at 25 ºC.

3) The values specified are at approximate distance 50 cm from the LCD surface.

No. Item Min. Typ. Max. Unit Remark

1 Max Luminance (Center 2D 350 440 cd/m

2

1-point/ Full White Pattern) 3D 48 61 cd/m

2

2 Color Coordinates RED X 0.640

(Default) Y 0.330

White X 0.300

Y Typ. 0.600 Typ.

Green X -0.05 0.150 +0.05

Y 0.060

Blue X 0.280

Y 0.290

3 Contrast ratio 1000 1400

4 3D Crosstalk 10 12 %

5 Luminance Uniformity (2D Only) 77 %

6 Response Time (Gray to Gray) 4 8 ms

Response Time (MPRT) 8 12 ms

Response Time (Uniformity & MPRT) 1

Response Time (Uniformity & G to G) 1

7 Dynamic CR 6000000 7000000

8 Color Temperature Cool Typ. 0.269 Typ. <Test Condition>

- 0.015 0.273 + 0.015 85% Full White pattern

Medium 0.285 ** The W/B Tolerance is ± 0.015

0.293 for Adjustment.

Warm 0.313 (In order to enhance the picture

0.329 qualit. According to DQA spec.)

Measurement condition

Cool/Medium Backlight : 100

Warm Backlight : 30

- 6 -

Only for training and service purposes

6. Component Video Input (Y, CB/PB, CR/PR)

No.

Specification

Remark

Resolution H-freq(kHz) V-freq(Hz)

1. 720x480 15.73 60.00 SDTV,DVD 480i

2. 720x480 15.63 59.94 SDTV,DVD 480i

3. 720x480 31.47 59.94 480p

4. 720x480 31.50 60.00 480p

5. 720x576 15.625 50.00 SDTV,DVD 625 Line

6. 720x576 31.25 50.00 HDTV 576p

7. 1280x720 45.00 50.00 HDTV 720p

8. 1280x720 44.96 59.94 HDTV 720p

9. 1280x720 45.00 60.00 HDTV 720p

10. 1920x1080 31.25 50.00 HDTV 1080i

11. 1920x1080 33.75 60.00 HDTV 1080i

12. 1920x1080 33.72 59.94 HDTV 1080i

13. 1920x1080 56.250 50 HDTV 1080p

14. 1920x1080 67.5 60 HDTV 1080p

No.

Specification

Proposed Remarks

Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz

-> 640*480 60 Hz Display

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1280*768 47.78 59.87 79.5 WXGA

6. 1360*768 47.72 59.8 84.75 WXGA

7. 1280*1024 63.595 60.0 108.875 SXGA FHD model

8. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

7. RGB (PC)

- 7 -

Only for training and service purposes

8. HDMI Input

(1) DTV Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3. 800*600 37.879 60.31 40.00 VESA HDCP

4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5. 1280*768 47.78 59.87 79.5 WXGA HDCP

6. 1360*768 47.72 59.8 84.75 WXGA HDCP

7. 1280*1024 63.595 60.0 108.875 SXGA HDCP/FHD model

8. 1920*1080 67.5 60.00 138.625 WUXGA HDCP/FHD model

(2) PC Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

- 8 -

Only for training and service purposes

9. 3D Mode - HDMI & USB

(1) HDMI Input (HDMI V1.4 with 3D)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 1920*1080 33.75 30.000 74.25 Side by Side HDTV 1080P

Top & Bottom

Checkerboard

No. Side by Side Top & Bottom Checkerboard Single Frame Sequential Frame Packing

1

(2) USB Input

(3) 3D Input mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 1280*720 45.00 60.00 74.25 Side by Side HDTV 720P

Top & Bottom

89.9/90 59.94/60 148.35 HDMI(V1.4 with 3D)

Frame Packing

2 1280*720 37.5 50 74.25 Side by Side HDTV 720P

Top & Bottom

75 50 148.5 HDMI(V1.4 with 3D)

Frame Packing

3 1920*1080 33.75 60 74.25 Side by Side HDTV 1080I

Top & Bottom

4 1920*1080 28.125 50 74.25 Side by Side HDTV 1080I

Top & Bottom

5 1920*1080 27 24 74.25 Side by Side HDTV 1080P

Top & Bottom

Checkerboard

53.95/54 23.98/24 148.35/148.5 HDMI(V1.4 with 3D)

Frame Packing

6 1920*1080 67.50 60 148.50 Side by Side HDTV 1080P

Top & Bottom

Checkerboard

Single Frame Sequential

7 1920*1080 56.250 50 148.5 Side by Side HDTV 1080P

Top & Bottom

Checkerboard

Single Frame Sequential

RL

L

- 9 -

Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LCD TV with LB03R chassis.

2. Designation

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ºC ± 5 ºC of temperature and 65 % ± 10 % of relative humidity if there is no specific designation.

(4) The input voltage of the receiver must keep AC 100-240

V~ 50 / 60Hz. (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15.

In case of keeping module is in the circumstance of 0 °C, it should be placed in the circumstance of above 15 °C for 2 hours

In case of keeping module is in the circumstance of below 20 °C, it should be placed in the circumstance of above 15 °C for 3 hours.

[Caution] When still image is displayed for a period of 20 minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Automatic Adjustment

3.1. ADC Adjustment

(1) Overview

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation.

(2) Equipment & Condition

1) Jig (RS-232C protocol)

2) MSPG-925 Series Pattern Generator(MSPG-925FA, pattern - 65)

- Resolution : 480i Comp1(MSPG-925FA, Model-209, pattern-65) 1080P Comp1(MSPG-925FA, Model-225, pattern-65) 1920*1080 RGB(MSPG-925FA, Model-225, pattern-65)

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

(3) Adjustment

1) Adjustment method

- Using RS-232, adjust items listed in 3.1 in the other shown in “3.1.(3).3)”

2) Adj. protocol

Ref.) ADC Adj. RS232C Protocol_Ver1.0

3) Adj. order

- aa 00 00 [Enter ADC adj. mode]

- xb 00 04 [Change input source to Component1 (480i& 1080p)]

- ad 00 10 [Adjust 480i Comp1]

- xb 00 06 [Change input source to RGB(1024*768)]

- ad 00 10 [Adjust 1024*768 RGB]

- ad 00 90 End adj.

3.2. MAC Address

(1) Equipment & Condition

- Play file: Serial.exe

- MAC Address edit

- Input Start / End MAC address

(2) Download method

1) Communication Prot connection

Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40 b 00 OK40x (Adjust 480i, 1080p Comp1 )

xb 00 60 b 00 OK60x (Adjust 1920*1080 RGB)

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

NGx (Case of Fail)

Read adj. data (main) (main)

ad 00 20 000000000000000000000000007c007b006dx

(sub) (Sub)

ad 00 21 000000070000000000000000007c00830077x

Confirm adj. ad 00 99 NG 03 00x (Fail)

NG 03 01x (Fail)

NG 03 02x (Fail)

OK 03 03x (Success)

End adj. aa 00 90 a 00 OK90x

PCBA

PC(RS-232C)

RS-232C Po rt

- 10 -

Only for training and service purposes

2) MAC Address Download

- Com 1,2,3,4 and 115200(Baud rate)

- Port connection button click(1)

- Load button click(2) for MAC Address write.

- Start MAC Address write button(3)

- Check the OK Or NG

3.3. LAN

(1) Equipment & Condition

A Each other connection to LAN Port of IP Hub and Jig

(2) LAN inspection solution

A LAN Port connection with PCB A Network setting at MENU Mode of TV A setting automatic IP A Setting state confirmation

-> If automatic setting is finished, you confirm IP and MAC Address.

3.4. LAN PORT INSPECTION(PING TEST)

Connect SET -> LAN port == PC -> LAN Port

(1) Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program. *IP Number : 12.12.2.2

(2) LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) Connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) Remove LAN CABLE

3.5. Model name & serial number download

(1) Model name & Serial number D/L

A Press “Power on” key of service remote control.(Baud

rate : 115200 bps)

A Connect RS232 Signal Cable to RS-232 Jack. A Write Serial number by use RS-232. A Must check the serial number at Instart menu.

(2) Method & notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing

Technology Group.

C.Serial number D/L must be conformed when it is

produced in production line, because serial number D/L is mandatory by D-book 4.0

SET PC

- 11 -

Only for training and service purposes

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded by OTA or service man, sometimes model name or serial number is initialized.(Not always) There is impossible to download by bar code scan, so It need Manual download. a. Press the ‘instart’ key of ADJ remote control. b. Go to the menu ‘5.Model Number D/L’ like below photo. c. Input the Factory model name(ex 42LX6500-TD) or Serial

number like photo.

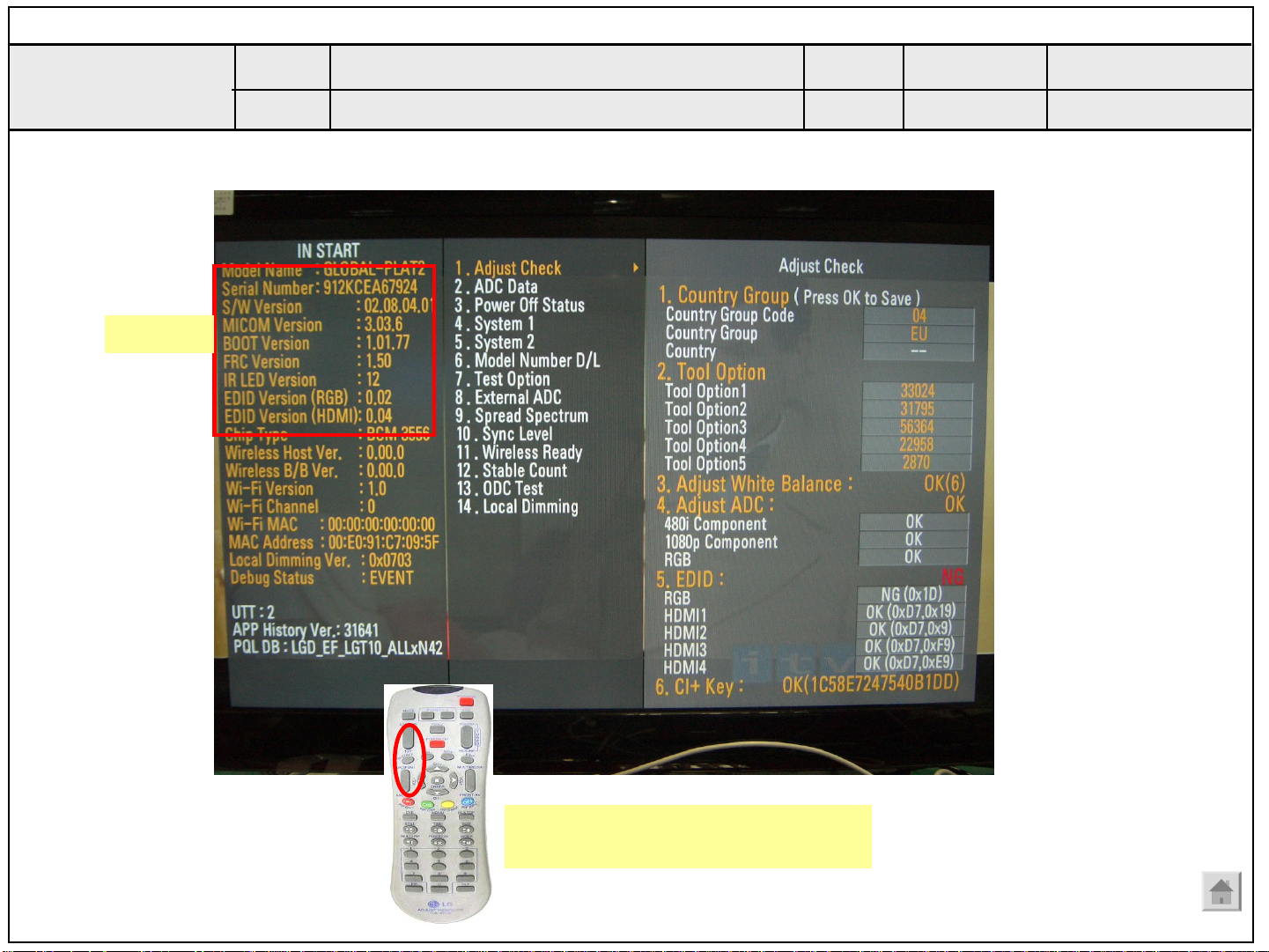

d. Check the model name Instart menu -> Factory name

displayed (ex 42LX6500-TD)

4. Manual Adjustment

4.1. ADC(GP2) Adjustment

4.1.1. Overview

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation.

4.1.2. Equipment & Condition

(1) Adjust Remote control (2) 801GF(802B, 802F, 802R) or MSPG925FA Pattern Generator

- Resolution : 480i,720*480(MSPG-925FA -> Model: 209, Pattern: 65) 480i 1080p, 1920*1080(MSPG-925FA -> Model: 225, Pattern:

65) - 1080p

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level: 0.7 ± 0.1 Vp-p

- Image

(3) Must use standard cable

4.1.3. Adjust method

(1) ADC 480i, 1080p Comp1

1) Check connected condition of Comp1 cable to the equipment.

2) Give a 480i, 1080p Mode, Horizontal 100% Color Bar Pattern to Comp1.

(MSPG-925FA -> Model: 209, Pattern: 65) - 480i (MSPG-925FA -> Model: 225, Pattern: 65) - 1080p

3) Change input mode as Component1 and picture mode as “Standard”

4) Press the In-start Key on the ADJ remote after at least 1 min of signal reception. Then, select 7. External ADC ->

1. COMP 1080p on the menu. Press enter key. The adjustment will start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is displayed.

If ADC calibration is failure, “ADC RGB Fail” is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or condition retry calibration Error message refer to 5).

(2) ADC 1920*1080 RGB

1) Check connected condition of Component & RGB cable to the equipment

2) Give a 1920*1080 Mode, 100 % Horizontal Color Bar Pattern to RGB port.

(MSPG-925 Series -> model: 225 , pattern: 65 )

3) Change input mode as RGB and picture mode as “Standard”.

4) Press the In-start Key on the ADJ remote after at least 1 min of signal reception. Then, select 7. External ADC ->

1. COMP 1080p on the menu. Press enter key. The adjustment will start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is displayed.

If ADC calibration is failure, “ADC RGB Fail” is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or condition retry calibration Error message refer to 5).

4.2. EDID(The Extended Display Identification Data)/DDC(Display Data Channel) download

(1) Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

(2) Equipment

- Adjust remote control

- Since embedded EDID data is used, EDID download JIG, HDMI cable and D-sub cable are not need.

(3)Download method

1) Press Adj. key on the Adj. R/C, then select “10.EDID

D/L”, By pressing Enter key, enter EDID D/L menu.

2) Select [Start] button by pressing Enter key, HDMI1 /

HDMI2 / HDMI3 / HDMI4 / RGB are Writing and display OK or NG.

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

- 12 -

Only for training and service purposes

(4) EDID DATA

A RGB

A HDMI

* Physical Add & Checksum(HDMI1/2/3/4)

4.3. White Balance Adjustment

4.3.1 Overview

(1) W/B adj. Objective & How-it-works (2) Objective: To reduce each Panel’s W/B deviation (3) How-it-works : When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(4) Adj. condition : normal temperature

1) Surrounding Temperature : 25 ºC ± 5 ºC

2) Warm-up time: About 5 Min

3) Surrounding Humidity : 20 % ~ 80 %

4.3.2 Equipment

1) Color Analyzer: CA-210 (LED Module : CH 14)

2) Adj. Computer(During auto adj., RS-232C protocol is needed)

3) Adjust Remote control

4) Video Signal Generator MSPG-925F 720p/216-Gray (Model:217, Pattern:78)

-> Only when internal pattern is not available

A Color Analyzer Matrix should be calibrated using CS-1000

4.3.3. Equipment connection MAP

4.3.4. Adj. Command (Protocol)

- LEN: Number of Data Byte to be sent

- CMD: Command

- VAL: FOS Data value

- CS: Checksum of sent data

- A: Acknowledge Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

A RS-232C Command used during auto-adj.

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj. ja 00 ff -> Adj. data jb 00 c0 ... ... wb 00 1f -> Gain adj. completed

*(wb 00 20(Start), wb 00 2f(completed)) -> Off-set adj.

wb 00 ff -> End white balance auto-adj.

A Adj. Map

0123456789ABCDEF

0 00FFFFFFFFFFFF001E6D01 00 010101 01

10 01 14 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 71 4F 81 80 01 01 01 01 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 D7

80 02 03 37 F1 4E 10 1F 84 13 05 14 0.3 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 XX XX

A0 B8 2D 20 C0 0E 01 40 0A 3C 08 20 18 20 98 20 58

B0 20 38 20 E3 05 03 01 01 1D 80 18 71 1C 16 20 58

C0 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A

D0 20 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71

E0 38 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 XX

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C0x0D 0x0E 0x0F

0 00FFFFFFFFFFFF001E6D01 00 010101 01

10 01 14 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 1D

INPURT 9Eh/9Fh(Physical Add) FFh(Checksum)

HDMI 1 10 00 7B

HDMI 2 20 00 6B

HDMI 3 30 00 5B

HDMI 4 40 00 4B

Color Analyzer

Comp uter

Pattern Generator

RS- 232C

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

LEN CMD VAL

CS

RS-232C COMMAND Explanation

[CMD ID DATA]

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.(Internal pattern disappears)

ITEM Command Data Range(Hex.) Default(Decimal)

Cmd 1 Cmd 2 Min Max

Cool R-Gain j g 00 C0

G-Gain j h 00 C0

B-Gain j i 00 C0

R-Cut

G-Cut

B-Cut

Medium R-Gain j a 00 C0

G-Gain j b 00 C0

B-Gain j c 00 C0

R-Cut

G-Cut

B-Cut

Warm R-Gain j d 00 C0

G-Gain j e 00 C0

B-Gain j f 00 C0

R-Cut

G-Cut

- 13 -

Only for training and service purposes

4.3.5. Adj. method

(1) Auto adj. method

1) Set TV in adj. mode using POWER ON key.

2) Zero calibrate probe then place it on the center of the Display.

3) Connect Cable (RS-232C)

4) Select mode in adj. Program and begin adjustment.

5) When adj. is complete (OK Sing), check adj. status pre mode. (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

A W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

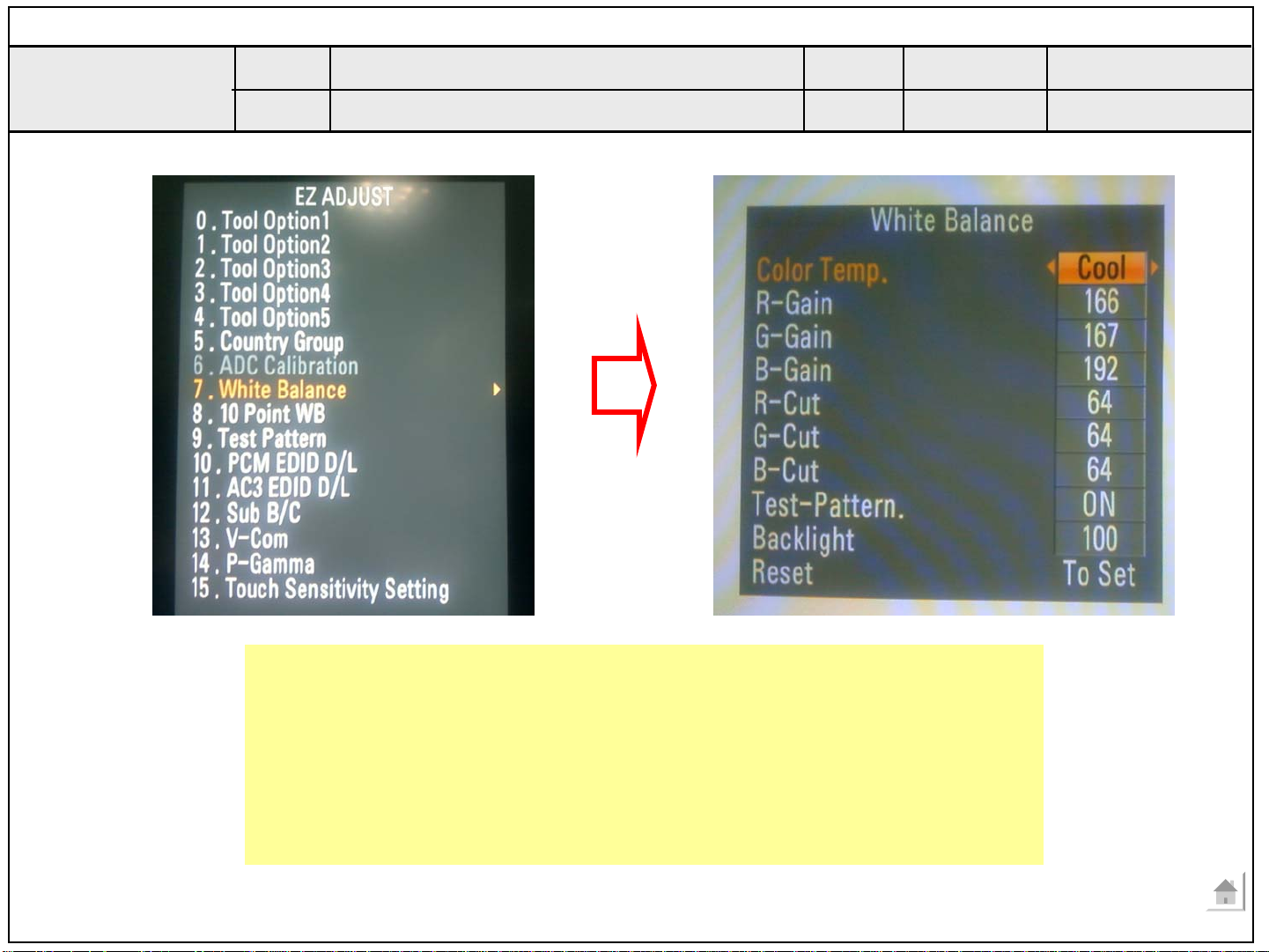

(2) Manual adj. method

1) Set TV in Adj. mode using POWER ON

2) Zero Calibrate the probe of Color Analyzer, then place it on the center of LCD module within 10cm of the surface.

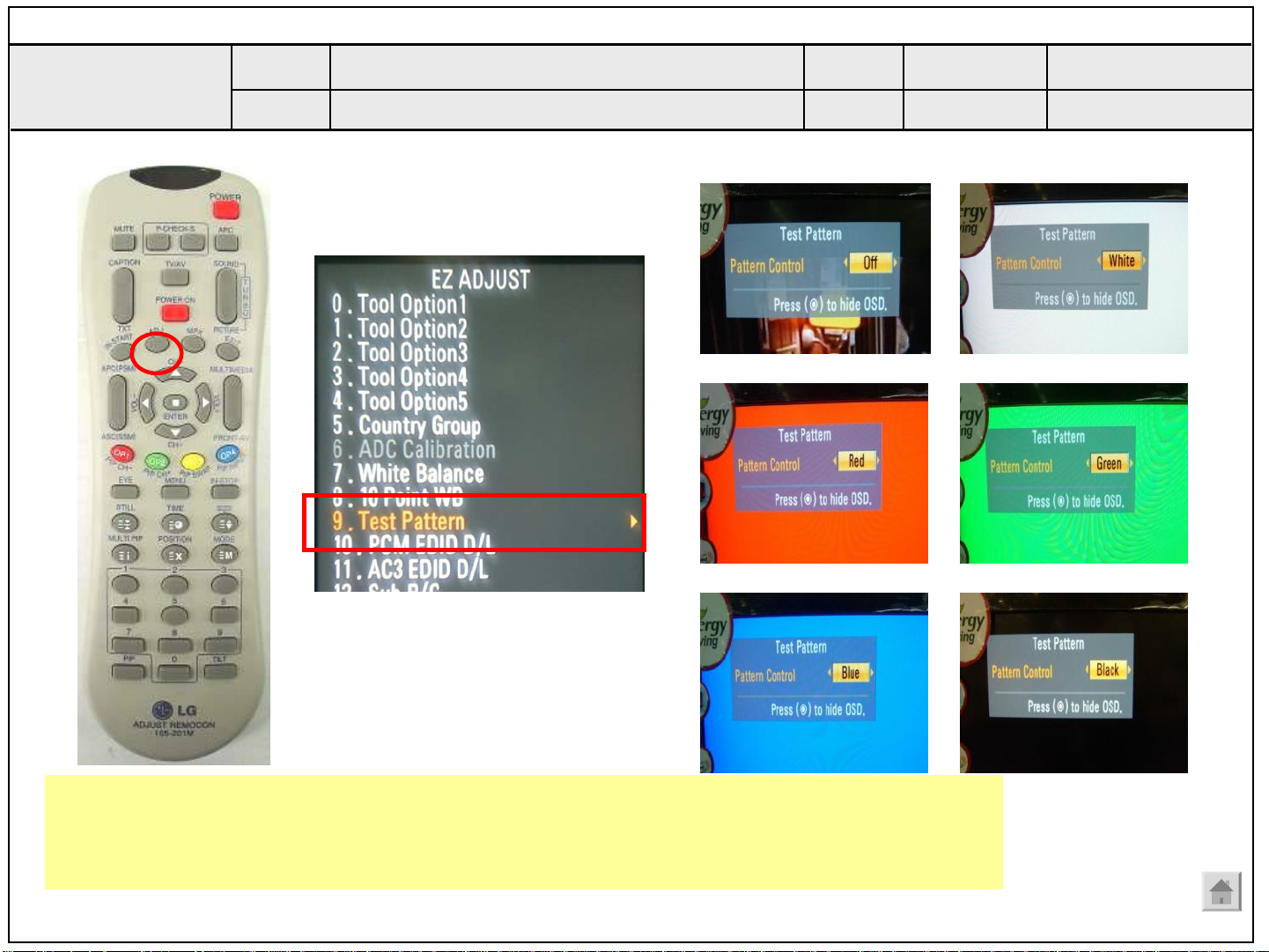

3) Press ADJ key -> EZ adjust using adj. R/C -> 7. WhiteBalance then press the cursor to the right (KEY G).

(When KEY(G) is pressed 216 Gray internal pattern will be displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192, and the rest will be lowered to meet the desired value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of color temperature.

A If internal pattern is not available, use RF input. In EZ

Adj. menu 7.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

A Adj. condition and cautionary items

1) Lighting condition in surrounding area Surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding.

2) Probe location : Color Analyzer (CA-210) probe should be within 10 cm and perpendicular of the module surface (80° ~ 100°)

3) Aging time

- After Aging Start, Keep the Power ON status during

5 Minutes.

- In case of LCD, Back-light on should be checked

using no signal or Full-white pattern.

4.3.6. Reference (White Balance Adj. coordinate and color temperature)

A Luminance : 216 Gray A Standard color coordinate and temperature using CS-1000

(over 26 inch)

A Standard color coordinate and temperature using CA-210

(CH 14)

A 10 Point White Balance

A Color coordinate Variation by Aging time.

4.4. EYE-Q function check

Step 1) Turn on TV Step 2) Press EYE key of Adj. R/C Step 3) Cover the Eye Q II sensor on the front of the using

your hand and wait for 6 seconds

Step 4) Confirm that R/G/B value is lower than 10 of the “Raw

Data (Sensor data, Back light)”. If after 6 seconds, R/G/B value is not lower than 10, replace Eye Q II sensor.

Step 5) Remove your hand from the Eye Q II sensor and wait

for 6 seconds.

Step 6) Confirm that “ok” pop up. If change is not seen,

replace Eye Q II sensor.

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 0.273 13000 K 0.0000

MEDIUM 0.285 0.293 9300 K 0.0000

WARM 0.313 0.329 6500 K 0.0000

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 ± 0.002 0.273 ± 0.002 13000 K 0.0000

MEDIUM 0.285 ± 0.002 0.293 ± 0.002 9300 K 0.0000

WARM 0.313 ± 0.002 0.329 ± 0.002 6500 K 0.0000

On / Off On / Off

Pattern Outer(default)

IRE 100

Luminance 130

Red(130.0 nit) 0

Green(130.0 nit) 0

Blue(130.0 nit) 0

GP2 Aging Time Cool Medium Warm

(Min.) X Y X Y X Y

269 273 285 293 313 329

1 0-2 287 301 303 321 326 351

2 3-5 286 299 302 319 325 349

3 6-9 285 297 301 317 324 347

4 10-19 283 295 299 315 322 345

5 20-35 281 291 297 311 320 341

6 36-49 277 285 293 305 316 335

7 50-79 273 281 289 301 312 331

8 80-149 271 277 287 297 310 327

9 OVER 150 269 273 285 293 308 323

- 14 -

Only for training and service purposes

4.5. Checking the function of Bluetooth

using adjusts Remote control

- Auto checking

• Auto checking is doing in “Power Only”.

• Checking the result of searched (check that is in list or not)

• Go out of checking mode pushing button “Exit”.

- Manual checking

• Push the button “Power Only” and “Exit”.

• Push the button hot key “Bluetooth”.

• Checking the result of searched (check that is in list or not)

• Go out of checking mode pushing button “Exit.

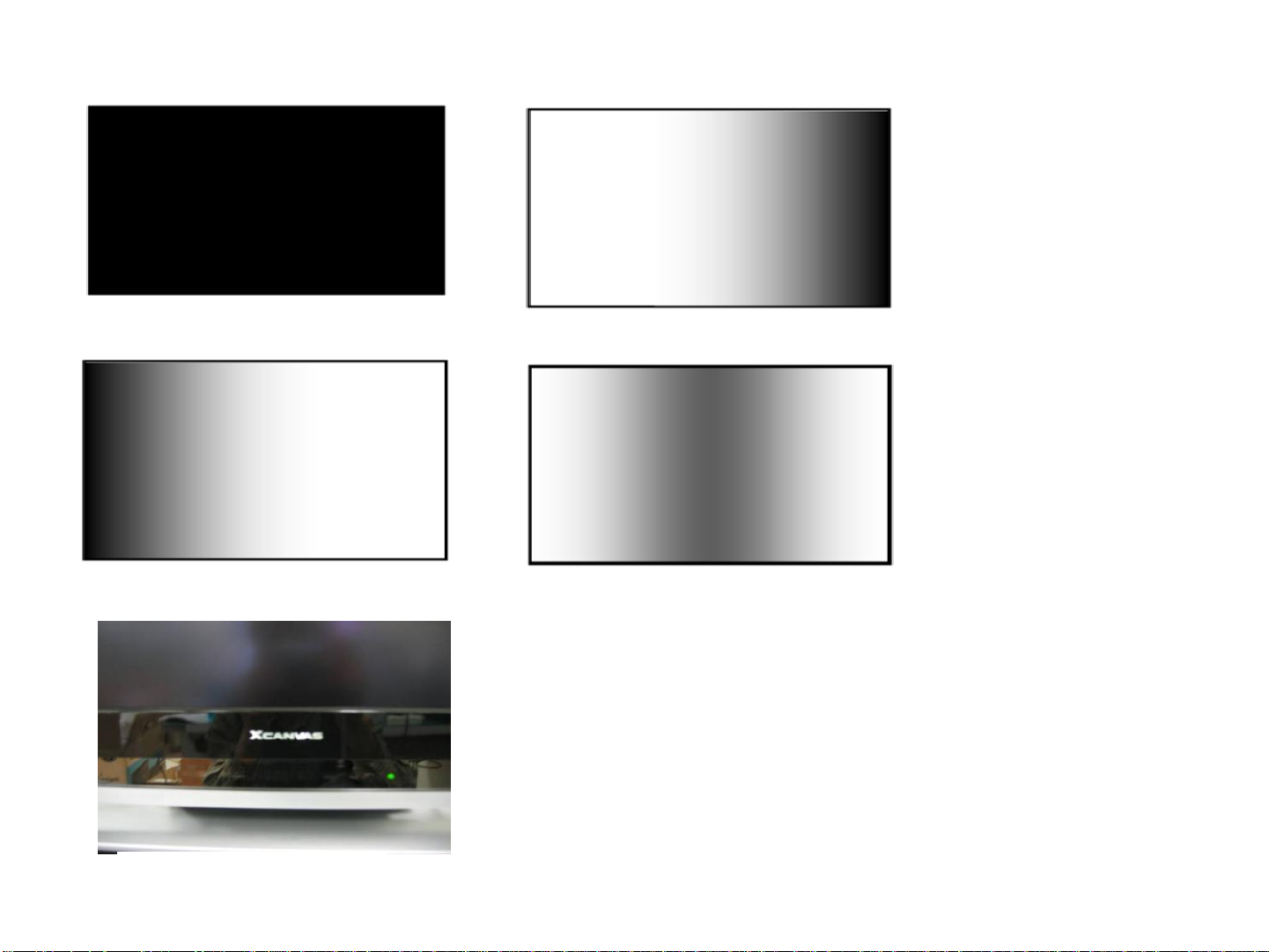

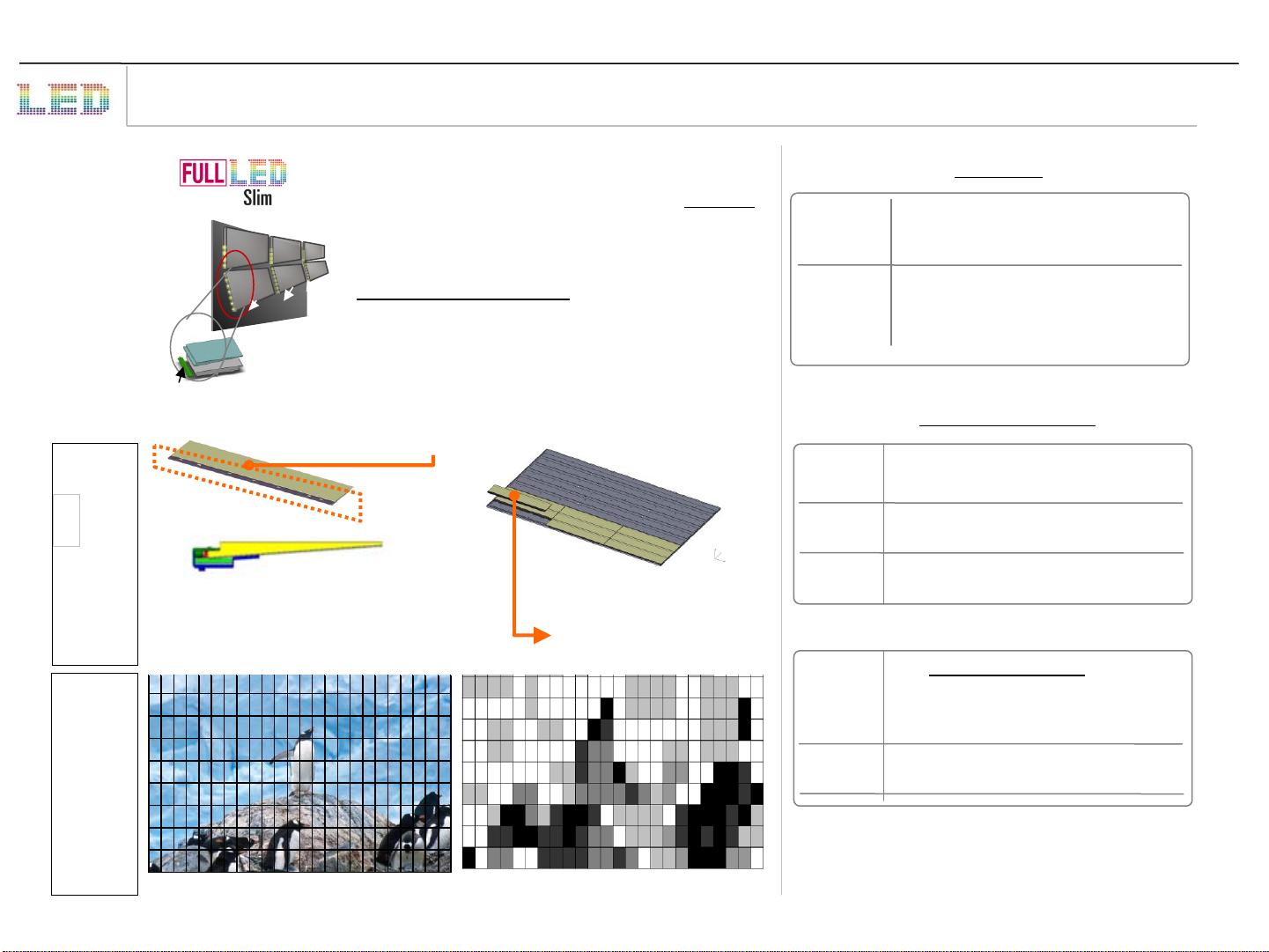

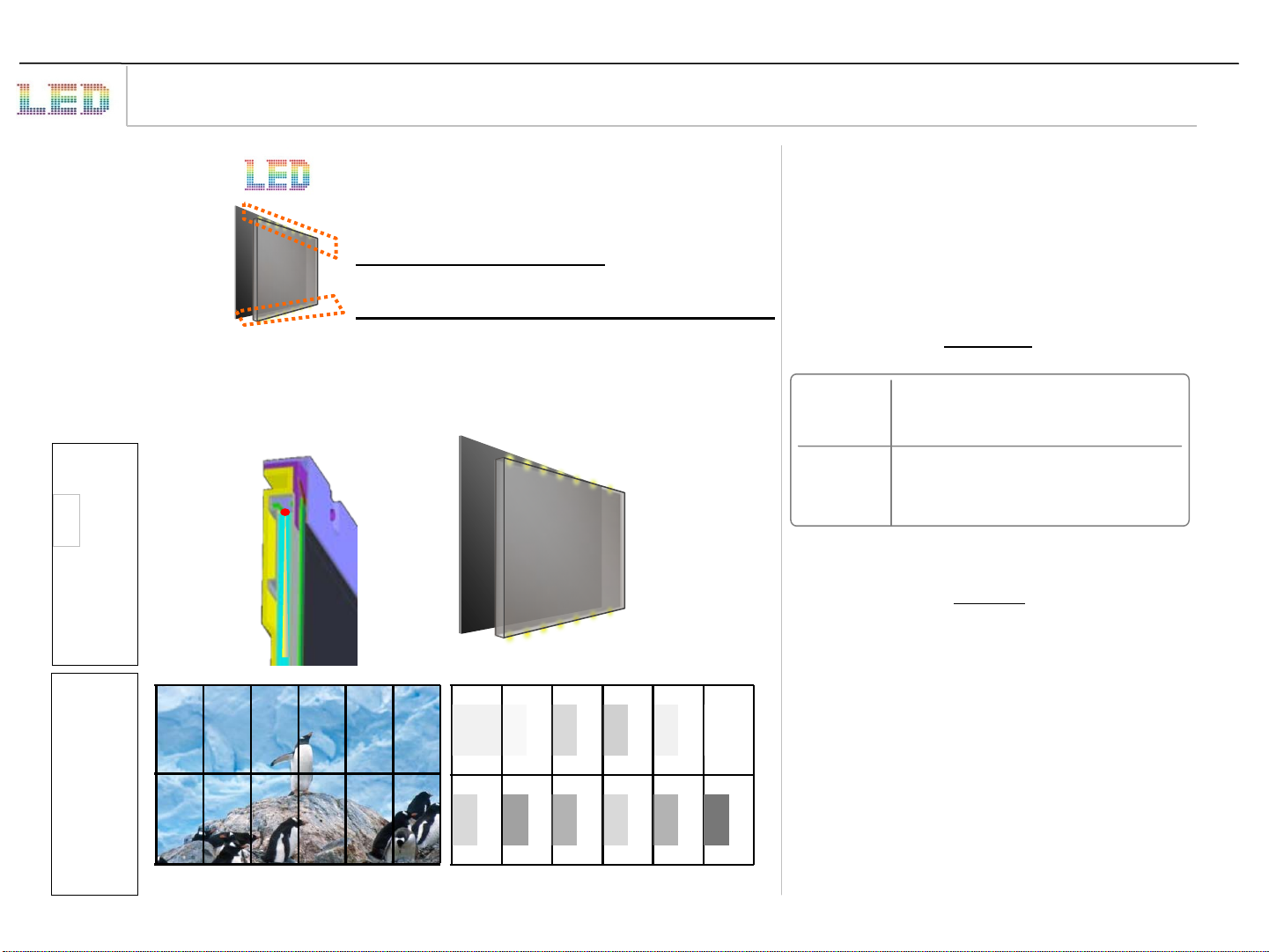

4.6. Check the function of Local Dimming

• Dimming checking is doing in “Power Only” using adjusts Remote control.

• Push the button “Tilt”.

• Checking the function of dimming refer to the picture at below.

• Push the button “Exit”.

* IOP LED models with local dimming

Press “TILT” key of the Adj. remote control and check moving patterns. The black bar patterns moves from top-left to Bottom-right. If local dimming function does not work. a whole screen shows full white.

5. GND and Internal Pressure check

5.1. Method

1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically. (Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

5.2. Checkpoint

• TEST voltage

- GND: 1.5 KV / min at 100 mA

- SIGNAL: 3 KV / min at 100 mA

• TEST time: 1 second

• TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE & NEUTRAL

• LEAKAGE CURRENT: At 0.5 mArms

6. Audio

Measurement condition:

1. RF input: Mono, 1 KHz sine wave signal, 100 % Modulation

2. CVBS, Component: 1 KHz sine wave signal 0.4 Vrms

3. RGB PC: 1 KHz sine wave signal 0.7 Vrms

Local Dimming Demo (Edge LED Model)

Local Dimming Demo (IOP Model)

No. Item Min. Typ. Max. Unit

1. Audio practical max 9.0 10.0 12.0 W EQ Off

Output, L/R AVL Off

(Distortion=10 % 8.5 8.9 9.8 Vrms Clear Voice Off

max Output)

2. Speaker (8 Ω 10.0 15.0 W EQ On

Impedance) AVL On

Clear Voice On

- 15 -

Only for training and service purposes

7. USB S/W Download (option, Service only)

1) Put the USB Stick to the USB socket

2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low, it didn’t work. But your downloaded version is High, USB data is automatically detecting

3) Show the message “Copying files from memory”

4) Updating is starting.

5) Updating Completed, The TV will restart automatically

6) If your TV is turned on, check your updated version and Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1) Push "IN-START" key in service remote control.

2) Select "Tool Option 1" and Push “OK” button.

3) Push in the number. (Each model has their number.)

8. 3D function test

(Pattern Generator MSPG-3233, HDMI mode No. 371, pattern No. 81)

1) Please input 3D test pattern like below

2) Enter 3D mode, then select side by side (If you don’t wear a 3D Glasses, you will see the picture like below)

3) Put on the 3D Glasses, And block the right side of Glasses (LEFT:OPEN[TEST], RIGHT:CLOSED) And check the middle sides of picture, RED -> normal, others -> abnormal

4) Put on the 3D Glasses, And block the right side of Glasses (LEFT:CLOSED, RIGHT:OPEN[TEST]) And check the middle sides of picture, BLUE -> normal, others -> abnormal

- 16 -

Only for training and service purposes

LV1

300

200

530

800

540

521

122

120

400

710

820

880

541

510

LV2

A2

A5

A9

A10

A13

301

810

910

900

320

570

500

310

501

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

SOC_RESET

LGE Internal Use Only

NVRAM

+3.3V_NORMAL

M24M01-HRMN6TP

4.7K

R1025

NC

R1032

E1

0

E2

VSS

Boot Strap

NAND_DATA[0-7]

NAND_ALE

NAND_CLE

RESET

+3.3V_NORMAL

R1027

10K

R1030 0

+3.3V_NORMAL

VCC

8

WP

7

SCL

6

SDA

5

C103

0.1uF

C171 8pF OPT

+3.3V_NORMAL

R1000

R1036

OPT

R1040

OPT

R1039

R1037

OPT

R1002

OPT

R1034

R1006

OPT

R158

OPT

R157

OPT

2.7K

IC102

1

2

A8’h

3

4

Default Res. of all NAND pin is Pull-down

NAND_DATA[0]

NAND_DATA[1]

NAND_DATA[2]

NAND_DATA[3]

NAND_DATA[4]

NAND_DATA[5]

NAND_DATA[6]

NAND_DATA[7]

NAND_IO[0] : Flash Select (1) 0 : Boot From Serial Flash 1 : Boot From NAND Flash

NAND_IO[1] : NAND Block 0 Write (DNS) 0 : Enable Block 0 Write 1 : Disable Block 0 Write

NAND_IO[3:2] : NAND ECC (1, DNS) 00 : No ECC 01 : 1 ECC Bit 10 : 4 ECC Bit 11 : 8 ECC Bit

NAND_IO[4] : CPU Endian (0) 0 : Little Endian 1 : Big Endian

NAND_IO[6:5] : Xtal Bias Control (1, DNS) 00 : 1.2mA (Fundmental Recommand) 01 : 1.8mA 10 : 2.4mA (3rd over tune Recommand) 11 : 3.0mA

NAND_IO[7] : MIPS Frequency (DNS) 0 : 405MHz 1 : 378MHz

NAND_ALE : I2C Level (DNS) 0 : 3.3V Switching 1 : 5V Switching

NAND_CLE 0 : Enable D2CDIFF AC (DNS) 1 : Disabe D2CDIFF AC

R1026 22

R1028 22

C167 8pF OPT

OPT

R1008

2.7K

R1005

2.7K

R169

2.7K

OPT

R1004

2.7K

R1003

2.7K

R1035

2.7K

OPT

R1007

2.7K

R1038

2.7K

R156

2.7K

R1001

2.7K

SYS_RESETb

SCL3_3.3V

SDA3_3.3V

SMD GASKET

6.5T_GAS

MDS62110206

5.5T_GAS

MDS62110204

7.5T_GAS MDS62110205

GAS1

GAS1-*1

GAS1-*2

7.5T_GAS

GAS2

6.5T_GAS MDS62110206

GAS2-*1

5.5T_GAS

MDS62110204

GAS2-*2

MDS62110205

GAS3

6.5T_GAS

MDS62110206

OPT

5.5T_GAS MDS62110204

7.5T_GAS MDS62110205

GAS4

6.5T_GAS

MDS62110206

GAS4-*1

5.5T_GAS MDS62110204

GAS4-*2

7.5T_GAS MDS62110205

GAS5

6.5T_GAS

MDS62110206

GAS5-*1

5.5T_GAS

GAS5-*2

7.5T_GAS

GAS6

6.5T_GAS

MDS62110206

GAS6-*1

5.5T_GAS

MDS62110204

GAS6-*2

7.5T_GAS

MDS62110205

GAS7

MDS62110206

GAS7-*1

MDS62110204

GAS7-*2

MDS62110205

GAS8

MDS62110206

OPT

MDS62110206

GAS9

From wireless_I2C to micom I2C

+3.3V_NORMAL

10K

OPT

R173

G

Q103

WIRELESS_SDA

WIRELESS_SCL

FDV301N

D

S

OPT

D

OPT

R123 0

WIRELESS_NON_AU

R124

WIRELESS_NON_AU

G

0

Q104 FDV301N S

R123-*1 33

WIRELESS_AU

R124-*1 33

WIRELESS_AU

SDA2_3.3V

SCL2_3.3V

* I2C MAP

* NAND FLASH MEMORY 4Gbit (512M for BB)

+3.3V_NORMAL

IC101

NAND04GW3B2DN6E

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VDD_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

FLASH_WP

NAND_RBb

NAND_REb

NAND_CEb

NAND_CLE

NAND_ALE

NAND_WEb

Open Drain

+3.3V_NORMAL

R136

4.7K

C

Q101

B

KRC103S

E

R134 2.7K

C114

0.1uF

R191 2.7K

C116

4700pF

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

VDD_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

1

NAND FLASH

2

3

4

5

6

RB

7

R

8

E

9

10

11

12

13

14

15

CL

16

AL

17

W

18

WP

19

20

21

22

23

24

NAND_CEb NAND_ALE NAND_REb NAND_CLE NAND_WEb NAND_RBb

* I2C_0 :

* I2C_1 :

* I2C_2 :

* I2C_3 :

NAND_DATA[7]

NAND_DATA[6]

NAND_DATA[5]

NAND_DATA[4]

+3.3V_NORMAL

C136 10uF

NAND_DATA[3]

NAND_DATA[2]

NAND_DATA[1]

NAND_DATA[0]

CI_A[0-13]

EBI_CS

/CI_WAIT

EBI_WE

NAND_DATA[0-7]

10V

C115

0.1uF

+3.3V_NORMAL

R1045

4.7K

EBI_RW EBI_CS

+3.3V_NORMAL

R194 4.7K

NAND_DATA[0-7]

CI_A[3] CI_A[4] CI_A[2] CI_A[1] CI_A[0] CI_A[5] CI_A[6] CI_A[8] CI_A[9] CI_A[13] CI_A[12] CI_A[11] CI_A[10]

CI_A[7] 22 22

R193 4.7K

NAND_DATA[0-7]

R116 R122

R117

R127

22 22

R140

NAND_DATA[0] NAND_DATA[1] NAND_DATA[2] NAND_DATA[3] NAND_DATA[4] NAND_DATA[5] NAND_DATA[6] NAND_DATA[7]

LNA2_CTL/BOSTER_CTL

43page : Bluetooth

NON_3DTV

EBI_ADDR3 EBI_ADDR4 EBI_ADDR2 EBI_ADDR1 EBI_ADDR0 EBI_ADDR5 EBI_ADDR6 EBI_ADDR8 EBI_ADDR9 EBI_ADDR13 EBI_ADDR12 EBI_ADDR11 EBI_ADDR10 EBI_ADDR7 EBI_TAB EBI_WE1B EBI_CLK_IN EBI_CLK_OUT EBI_RWB EBI_CS0B

NAND_DATA0 NAND_DATA1 NAND_DATA2 NAND_DATA3 NAND_DATA4 NAND_DATA5 NAND_DATA6 NAND_DATA7 NAND_CS0B NAND_ALE NAND_REB NAND_CLE NAND_WEB NAND_RBB

SF_MISO SF_MOSI SF_SCK SF_CSB

IC100

LGE3556C (C0 VERSION)

J23 J24 H25 H24 H23 J25 F26 H28 J26 H27 G26 J27 J28 F27 G24 H26 G27

33

G28 K23 G25

U24 T26 T27 U26 U27 V26 V27 V28 T24 R23 T23 T25 R24 U25

W24 U23 V23 V24

IF_AGC_SEL

RF_SWITCH_CTL

BT_ON/OFF BT_ON/OFF

R181 100

/CI_SEL

GPIO_00 GPIO_01 GPIO_02 GPIO_03 GPIO_04 GPIO_05 GPIO_06 GPIO_07 GPIO_08 GPIO_09 GPIO_10 GPIO_11 GPIO_12 GPIO_13 GPIO_14 GPIO_15 GPIO_16 GPIO_17 GPIO_18 GPIO_19 GPIO_20 GPIO_21 GPIO_22 GPIO_23 GPIO_24 GPIO_25 GPIO_26 GPIO_27 GPIO_28 GPIO_29 GPIO_30 GPIO_31 GPIO_32 GPIO_33 GPIO_34 GPIO_35 GPIO_36 GPIO_37 GPIO_38 GPIO_39 GPIO_40 GPIO_41 GPIO_42 GPIO_43 GPIO_44 GPIO_45 GPIO_46 GPIO_47 GPIO_48 GPIO_49 GPIO_50 GPIO_51 GPIO_52 GPIO_53 GPIO_54 GPIO_55 GPIO_56

GPIO_57 SGPIO_00 SGPIO_01 SGPIO_02 SGPIO_03 SGPIO_04 SGPIO_05 SGPIO_06 SGPIO_07

R1012 100 R1019 100 R1024 100

BCM BT MODULE

22

R130

N26 L26 N25 L25 K27 K28 K24 K26 K25 AA27 AA28 AA26 L1 L3 L2 Y25 Y26 M27 AA25 R25 N28 N27 AH18 P23 M23 AD19 AE19 M4 M5 L23 Y28 Y27 G2 G3 G5 G6 G4 L24 P25 L5 K4 K1 L27 M26 N23 R28 R27 R26 P28 P27 K6 K5 P26 M3 M2 M1 L4 L6 W27 W28 W26 W25 J2 J1 K3 K2

OLED

R118 1K

NON_OLED

R119 1K

R1033 R1046

GIP

NON_GIP

OPT

0

22

1K

R1029

22

R111

BT_MUTE

R199

1K

R106

100

R1048 R109 100 R110 100

OPT

R1054 0

OPT

R1055 0

R107 R108

R1044

0

22 22

R132

R1050

R161 100

R133

R103 0

R129

22

R160100

22

R102

22

R1049

22

R1051

LOCAL DIMMING

CI_MOD_RESET

CI_OUTCLK SC_RE1

/CI_CD2

/CI_IREQ

+3.3V_NORMAL

FHD

R1017 1K

R1013 1K

R1009 1K

EXTERNEL FRC/T_CON FRC

HD

R1021 1K

R1023 1K

R1010 1K

NO FRC/INTERNER FRC

R1047

R1920

R1141K

R113

R1042 22

1K

BCM_AVC_DEBUG_TX1 BCM_AVC_DEBUG_RX1

100 100

R1031

0M_REMOTE

22

100

SIDE_AV_DET

R1016

0 M_REMOTE

POWER_DET

ERROR_OUT

MODEL_OPT_4 MODEL_OPT_5

HDMI_HPD_4

DEMOD_RESET

PWM_DIM

HDMI_HPD_3

MODEL_OPT_1 DSUB_DET BT_RESET

/RST_HUB

SC_RE1

SC_RE2 CI_MOD_RESET

MODEL_OPT_0 DD

HDMI_HPD_2

HDMI_HPD_1

5V_HDMI_1

M_REMOTE_TX

M_REMOTE_RX

VREG_CTRL

TUNER_RESET

DTV_ATV_SELECT 5V_HDMI_2 AV_CVBS_DET

22

ALTERA DL GPIO

DDR_512MB

R1022 1K

R1060

R1011 1K

OPT

0

FRC

R1020 1K

ALTRA DL GPIO

0

ALTRA DL GPIO

0

MINI_LVDS/NO LOCAL_D

NO_FRC

DDR_256MB

LVDS/LOCAL_D

R1015 1K

R1014 1K

R1018 1K

INTERRUPT PIN INTERRUPT PIN

DC DC

INTERRUPT PIN

CI_5V_CTL

For CI

DEMOD_RESET

28page : ISDB Demod

BT_RESET

SC_RE1 ==> USB_PWRFLT3 SC_RE2 ==> USB_PWRON3

DD

IR_IN

EPHY_ACTIVITY EPHY_LINK

/CI_CD1

17page : Motion Remocon

R105 56

R104112K

BB Add.

For CI

EMI C180 100pF 50V

R1043 0

R115 1.8K

FE_TS_VAL_ERR 5V_HDMI_3 5V_HDMI_4 MODEL_OPT_2

SCART1_DET SIDE_COMP_DET

RF_SWITCH_CTL_CHB RF_SWITCH_CTL_CHB RGB_DDC_SCL FRC_RESET

RGB_DDC_SDA

COMP2_DET LG5111_RESET

HP_DET

R1056

R1057

R1058

R1059

MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3

MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

15page:CHB_RESET

R126 0

R125 0

External Demod.

+3.3V_NORMAL

R1052

4.7K

LG5111_RESET

E_TCK

E_TDO

E_TMS

E_TDI

15page:TW_9910_RESET

17page : Motion Remocon

+3.3V_NORMALR1053 2.7K

43page : Bluetooth

BCM_RX BCM_TX

69page : 3DIR

AUD_MASTER_CLK

A_DIM

C173 22uF 16V

M_REMOTE_TX M_REMOTE_RX

L/R_SYNC

VREG_CTRL

CI_OUTCLK

/CI_CD2

/CI_IREQ MODEL_OPT_6

MODEL_OPT_3

SIDE_COMP_DET

R184-*1

R187-*1

2.2K

2.2K NON_EU

NON_EU

1.2K

R187

R184

EU

MODEL OPTION

*MODEL_OPT_0 & MODEL_OPT_4 REFER TO THIS OPTION

17page:M_RFMODULE_RESET

/CI_CD1==> M_RFMODULE_RESET

17page : Motion Remocon

M_REMOTE_RX ==> L/R_SYNC

43page : Bluetooth

For CI

WIRELESS_DL_RX WIRELESS_DL_TX

15page : CHB_SUB_TUNER

1.2K

PIN NAME

R183

R180

1.2K

PIN NO.

MODEL_OPT_0

MODEL_OPT_1 AA26

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_4

MODEL_OPT_0

LOW

LOW HIGH

LOW

HIGH

LOW

HIGH

FOR ESD 12V Pattern

+12V

EXT IRQ GPIO_00, GPIO_01, GPIO_02, GPIO_11, GPIO_11, GPIO_39

IR_INT : GPIO_23 IR1_IN : GPIO_25 IR2_IN : GPIO_29 IR_OUT : GPIO_26

PWM0 : GPIO_24 PWM1 : GPIO_09

+3.3V_NORMAL

1.2K

R170

R176

R171

R177

HIGH

N28

URSA3

MAIN_MINI_LVDSHDMAIN_LVDS

R26

K1

L25

K27

K4

DDR-256M

FHD

FRC

GIP

OLED

NO FRC URSA3 Internal URSA3 External PWIZ Pannel T-con

with LG FRC

C178

C179

0.1uF

50V

3D

3DTV

IC100-*1

LGE3556CP (C0 3D PIP)

J23

GPIO_00

EBI_ADDR3

J24

GPIO_01

EBI_ADDR4

H25

GPIO_02

EBI_ADDR2

H24

GPIO_03

EBI_ADDR1

H23

GPIO_04

EBI_ADDR0

J25

GPIO_05

EBI_ADDR5

F26

GPIO_06

EBI_ADDR6

H28

GPIO_07

EBI_ADDR8

J26

GPIO_08

EBI_ADDR9

H27

GPIO_09

EBI_ADDR13

G26

GPIO_10

EBI_ADDR12

J27

GPIO_11

EBI_ADDR11

J28

GPIO_12

EBI_ADDR10

F27

GPIO_13

EBI_ADDR7

G24

GPIO_14

EBI_TAB

H26

GPIO_15

EBI_WE1B

G27

GPIO_16

EBI_CLK_IN

G28

GPIO_17

EBI_CLK_OUT

K23

GPIO_18

EBI_RWB

G25

GPIO_19

EBI_CS0B

GPIO_20 GPIO_21

U24

GPIO_22

NAND_DATA0

T26

GPIO_23

NAND_DATA1

T27

GPIO_24

NAND_DATA2

U26

GPIO_25

NAND_DATA3

U27

GPIO_26

NAND_DATA4

V26

GPIO_27

NAND_DATA5

V27

GPIO_28

NAND_DATA6

V28

GPIO_29

NAND_DATA7

T24

GPIO_30

NAND_CS0B

R23

GPIO_31

NAND_ALE

T23

GPIO_32

NAND_REB

T25

GPIO_33

NAND_CLE

R24

GPIO_34

NAND_WEB

U25

GPIO_35

NAND_RBB

GPIO_36 GPIO_37

W24

GPIO_38

SF_MISO

U23

GPIO_39

SF_MOSI

V23

GPIO_40

SF_SCK

V24

GPIO_41

SF_CSB

GPIO_42 GPIO_43 GPIO_44 GPIO_45 GPIO_46 GPIO_47 GPIO_48 GPIO_49 GPIO_50 GPIO_51 GPIO_52 GPIO_53 GPIO_54 GPIO_55 GPIO_56

GPIO_57 SGPIO_00 SGPIO_01 SGPIO_02 SGPIO_03 SGPIO_04 SGPIO_05 SGPIO_06 SGPIO_07

17page : Motion Remocon

SCL0_3.3V SDA0_3.3V SCL1_3.3V SDA1_3.3V SCL2_3.3V SDA2_3.3V SCL3_3.3V SDA3_3.3V

LOW

NON_URSA3

DDR-512M

NON_FRC

NON-GIP

NON_OLED

N26 L26 N25 L25 K27 K28 K24 K26 K25 AA27 AA28 AA26 L1 L3 L2 Y25 Y26 M27 AA25 R25 N28 N27 AH18 P23 M23 AD19 AE19 M4 M5 L23 Y28 Y27 G2 G3 G5 G6 G4 L24 P25 L5 K4 K1 L27 M26 N23 R28 R27 R26 P28 P27 K6 K5 P26 M3 M2 M1 L4 L6 W27 W28 W26 W25 J2 J1 K3 K2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM (EUROBBTV)

BCM3556 & NAND FLASH

2009.06.18

1

Route INCM between associated

LGE Internal Use Only

left and right signals of same channel

The INCM trace ends at the same point where the connector ground connects to the board ground (thru-hole connector pin).

Place test points, resistors near audio connector. Connect the other side of the resistor to GND as close as possible to the ground connection of the associated audio connector.

BROAD BAND STUDIO

1

2

3

4

+3.3V_NORMAL

C2028

BT_DM BT_DP

A2.5V A1.2V

041:B5 041:B5 002:J6

002:J6 041:B5 041:B5

002:J7 041:B5 041:B5 002:J6

009:I3

002:J7

P200

TJC2508-4A

43page : Bluetooth 43page : Bluetooth

R200

1.5K

R201

4.7uF

BLM18PG121SN1D

L212

REAR_AV_L_IN REAR_AV_R_IN

REAR_AV_LR_INCM

COMP2_L_IN COMP2_R_IN

COMP2_LR_INCM

SC1_L_IN SC1_R_IN

SC1_LR_INCM

SIDE_AV_L_IN

SIDE_AV_R_IN

SIDE_AV_LR_INCM

PC_L_IN

PC_R_IN

PC_LR_INCM

1.5K

FE_TS_DATA_CLK

CI_OUTDATA[0-7],CI_OUTSTART,CI_OUTVALID

BLM18PG121SN1D

DTV/MNT_V_OUT

A3.3V

A1.2V

L200

BLM18PG121SN1D

C2026

4.7uF

R204 51 R214 51

R215 51 R228 51

R229 51 R230 51

R231 51 R232 51

R233 51 R234 51

R209

3.9K

R210 120

C201 100pF

045:V14

A3.3V

L202

R220 : BCM recommened resistor 562 ohm

A2.5V

C20 2 0 .1u F

BLM18PG121SN1D

C244

L210

0.1uF 16V

C206 0.015uF C210 0.015uF

C211 0.015uF C232 0.015uF

C220 0.015uF C221 0.015uF

C224 0.015uF C225 0.015uF

C226 0.015uF C227 0.015uF

R264 0

R265

FE_TS_SERIAL

A1.2V

A2.5V

R2360R237

75

1%

R238

C20 9 0.1u F

C20 7 0.1u F

C208 4.7uF

C20 3 0 .1u F

L209

C2020

0.1uF

0

0.047uF

C277

C2027 0.047uF

FE_TS_SYNC

0

EPHY_RDN

EPHY_RDP EPHY_TDN

EPHY_TDP

C2021

4.7uF

C279 0.047uF

C296 0.047uF

4.7uF C212

D3.3V

C247

C298 0.047uF

C299 0.047uF

0.1uF

C215

0.1uF

C213

0.01uF

0.1uF

C252 0.047uF

0.1uF

C214

BT_DM

BT_DP SIDE_USB_DM SIDE_USB_DP

R266

R235

2.7K

R218 240

4.7uF

C2018

C253 0.047uF

C256 0.047uF

C254 0.047uF

TP4021 TP4022 TP4023

CI_A[14] CI_OUTDATA[0] CI_OUTDATA[1] CI_OUTDATA[2] CI_OUTDATA[3] CI_OUTDATA[4] CI_OUTDATA[5] CI_OUTDATA[6] CI_OUTDATA[7] CI_OUTSTART CI_OUTVALID

0.1uF

C219

C223

R220 560

1K

R219

C222

0.1uF

LGE3556C (C0 VERSION)

D23

PKT0_CLK

C24

PKT0_DATA

B26

PKT0_SYNC

A25

RMX0_CLK

B25

RMX0_DATA

A26

RMX0_SYNC

G23

POD2CHIP_MCLKI

D25

POD2CHIP_MDI0

D24

POD2CHIP_MDI1

C25

POD2CHIP_MDI2

E27

POD2CHIP_MDI3

E26

POD2CHIP_MDI4

D28

POD2CHIP_MDI5

D27

POD2CHIP_MDI6

D26

POD2CHIP_MDI7

E23

POD2CHIP_MISTRT

E24

POD2CHIP_MIVAL

F25

CHIP2POD_MCLKO

C27

CHIP2POD_MDO0

C26

CHIP2POD_MDO1

B28

CHIP2POD_MDO2

B27

CHIP2POD_MDO3

A27

CHIP2POD_MDO4

F24

CHIP2POD_MDO5

F23

CHIP2POD_MDO6

E25

CHIP2POD_MDO7

C28

CHIP2POD_MOSTRT

A28

CHIP2POD_MOVAL

AC18

VDAC_AVDD2P5

AF20

VDAC_AVDD1P2

AG20

VDAC_AVDD3P3_1

AG21

VDAC_AVDD3P3_2

AF19

VDAC_AVSS_1

AD20

VDAC_AVSS_2

AE20

VDAC_AVSS_3

AH22

VDAC_RBIAS

AH20

VDAC_1

AG19

VDAC_2

AH21

VDAC_VREG

M25

BSC_S_SCL

M24

BSC_S_SDA

R6

USB_AVSS_1

T6

USB_AVSS_2

R7

USB_AVSS_3

T7

USB_AVSS_4

T8

USB_AVSS_5

R3

USB_AVDD1P2

U3

USB_AVDD1P2PLL

T4

USB_AVDD2P5

T3

USB_AVDD2P5REF

R4

USB_AVDD3P3

U4

USB_RREF

V1

USB_DM1

V2

USB_DP1

U1

USB_DM2

U2

USB_DP2

T5

USB_MONCDR

R5

USB_MONPLL

R1

USB_PWRFLT_1

R2

USB_PWRFLT_2

T2

USB_PWRON_1

T1

USB_PWRON_2

P6

EPHY_VREF

P5

EPHY_RDAC

P3

EPHY_RDN

P2

EPHY_RDP

N3

EPHY_TDN

N2

EPHY_TDP

P1

EPHY_AVDD1P2

P4

EPHY_AVDD2P5

N4

EPHY_PLL_VDD1P2

N1

EPHY_AGND_1

N5

EPHY_AGND_2

P7

EPHY_AGND_3

AE6

AUDMX_LEFT1

AD7

AUDMX_RIGHT1

AF6

AUDMX_INCM1

AH4

AUDMX_LEFT2

AG5

AUDMX_RIGHT2

AG4

AUDMX_INCM2

AG6

AUDMX_LEFT3

AF7

AUDMX_RIGHT3

AE7

AUDMX_INCM3

AH5

AUDMX_LEFT4

AG7

AUDMX_RIGHT4

AH6

AUDMX_INCM4

AD8

AUDMX_LEFT5

AF8

AUDMX_RIGHT5

AE8

AUDMX_INCM5

AH7

AUDMX_LEFT6

AH8

AUDMX_RIGHT6

AG8

AUDMX_INCM6

AF5

AUDMX_AVSS_1

AB9

AUDMX_AVSS_2

AA10

AUDMX_AVSS_3

AB10

AUDMX_AVSS_4

AA11

AUDMX_AVSS_5

AB11

AUDMX_AVSS_6

AC8

AUDMX_LDO_CAP

AE5

AUDMX_AVDD2P5

IC100

NON_3DTV

VCXO_PLL_AUDIO_TESTOUT

PLL_MAIN_MIPS_EREF_TESTOUT

A2.5V

LVDS_TX_0_DATA0_P LVDS_TX_0_DATA0_N LVDS_TX_0_DATA1_P LVDS_TX_0_DATA1_N LVDS_TX_0_DATA2_P LVDS_TX_0_DATA2_N LVDS_TX_0_DATA3_P LVDS_TX_0_DATA3_N LVDS_TX_0_DATA4_P LVDS_TX_0_DATA4_N

LVDS_TX_0_CLK_P

LVDS_TX_0_CLK_N LVDS_TX_1_DATA0_P LVDS_TX_1_DATA0_N LVDS_TX_1_DATA1_P LVDS_TX_1_DATA1_N LVDS_TX_1_DATA2_P LVDS_TX_1_DATA2_N LVDS_TX_1_DATA3_P LVDS_TX_1_DATA3_N LVDS_TX_1_DATA4_P LVDS_TX_1_DATA4_N

LVDS_TX_1_CLK_P

LVDS_TX_1_CLK_N

LVDS_PLL_VREG

LVDS_TX_AVDDC1P2 LVDS_TX_AVDD2P5_1 LVDS_TX_AVDD2P5_2

LVDS_TX_AVSS_1 LVDS_TX_AVSS_2 LVDS_TX_AVSS_3 LVDS_TX_AVSS_4 LVDS_TX_AVSS_5 LVDS_TX_AVSS_6 LVDS_TX_AVSS_7 LVDS_TX_AVSS_8

LVDS_TX_AVSS_9 LVDS_TX_AVSS_10 LVDS_TX_AVSS_11

CLK54_AVDD1P2 CLK54_AVDD2P5

CLK54_AVSS CLK54_XTAL_N CLK54_XTAL_P

CLK54_MONITOR

PM_OVERRIDE

VCXO_AGND_1 VCXO_AGND_2 VCXO_AGND_3

VCXO_AVDD1P2

RESET_OUTB

RESETB

NMIB TMODE_0 TMODE_1 TMODE_2 TMODE_3

SPI_S_MISO

POR_OTP_VDD2P5

POR_VDD1P2

EJTAG_TCK EJTAG_TDI EJTAG_TDO EJTAG_TMS

EJTAG_TRSTB

EJTAG_CE0 EJTAG_CE1

PLL_MAIN_AVDD1P2

PLL_MAIN_AGND

PLL_RAP_AVD_TESTOUT PLL_RAP_AVD_AVDD1P2

PLL_RAP_AVD_AGND

BYP_CPU_CLK

BYP_DS_CLK BYP_SYS216_CLK BYP_SYS175_CLK

B4 A4 C6 B6 B3 A3 A1 A2 D5 D6 C5 B5 B1 B2 C2 C3 D1 D2 E1 E2 E3 E4 D3 D4 F5 F1 F4 F2 C1 F3 C4 A5 E5 E6 D7 E7 F7 G7 H7

AD27 AD28 AD26 AC26 AC27 AE25 Y23

AA23 AB24 AC24 AF25 AF24

P24 F6 N24 J5 J4 J6 J3 V25 AH3 AB8

H4 H3 H2 H1 G1 H6 H5

AB26 AC25 AB27 M6 N6 N7

AA24 Y24 AE24 AD25

OPT

C228

10uF

C233

0.1uF

4.7K

R221

L211

BLM18PG121SN1D

C231

10uF

R240

390 OPT

TP is Necessory

0.1 uF

C23 6

A1.2V

0.1 uF

C20 12

C235

4.7uF

+3.3V_NORMAL

A2.5V

1K

R249

C23 8

0.1 uF

R2221K R2621K

LVDS_TX_1_DATA4_N LVDS_TX_1_DATA4_P LVDS_TX_1_DATA3_N LVDS_TX_1_DATA3_P LVDS_TX_1_DATA2_N LVDS_TX_1_DATA2_P LVDS_TX_1_DATA1_N LVDS_TX_1_DATA1_P LVDS_TX_1_DATA0_N LVDS_TX_1_DATA0_P LVDS_TX_1_CLK_N LVDS_TX_1_CLK_P LVDS_TX_0_DATA4_N LVDS_TX_0_DATA4_P LVDS_TX_0_DATA3_N LVDS_TX_0_DATA3_P LVDS_TX_0_DATA2_N LVDS_TX_0_DATA2_P LVDS_TX_0_DATA1_N LVDS_TX_0_DATA1_P LVDS_TX_0_DATA0_N LVDS_TX_0_DATA0_P LVDS_TX_0_CLK_N LVDS_TX_0_CLK_P

0.1 uF

4.7uF C29 5

C242

C23 9

A2.5V

C25 1

0.1 uF

L203

BLM18PG121SN1D

C234

0.1uF

C241

4.7uF

C2013

A1.2V

BLM18PG121SN1D

C240

C23 7

0.1 uF

013:E7;035:AK20 013:E7;035:AK19 013:E7;035:AK19 013:E7;035:AK19 013:E7;035:AK17 013:E7;035:AK17 013:E7;035:AK17 013:E7;035:AK16 013:E7;035:AK16 013:E7;035:AK16 013:E7;035:AK18 013:E7;035:AK18 013:F7;035:AK15 013:F7;035:AK14 013:F7;035:AK14 013:F7;035:AK14 013:F7;035:AK12 013:F7;035:AK12 013:E7;035:AK12 013:E7;035:AK11 013:E7;035:AK11 013:E7;035:AK11 013:E7;035:AK13 013:E7;035:AK13

54MHz_XTAL_N 54MHz_XTAL_P

SYS_RESETb

R23121K

R23141K

R23131K

OPT

L204

L207

4.7uF

002:I1 002:I2

A1.2V

001:A6;001:B7

+3.3V_NORMAL

R23151K

OPT

A1.2V

E_TCK E_TDI E_TDO E_TMS

A1.2V

E_TCK E_TDI E_TDO E_TMS

+3.3V_NORMAL

OPT

R224

2.7K

R226

2.7K

A2.5V

R225

2.7K

R227

2.7K

54MHz X-TAL

54MHz_XTAL_N

54MHz_XTAL_P

When usding FUNDMENTAl then series R = 0 ohm and CL = 8 pF

When usding Dip-type X-tal then series R = 22 ohm and CL = 12 pF

C230 12pF

3

12pF

C229

33pF

C257

L208

1008LS-272XJLC

R243

604

R211

R212

22

21

X903

54MHz

22

VIDEO INCM

PLACE NEAR BCM CHIP

R248

34

R244

34

R245

34

R24634R247

34

C2011 0.1uF

R260

34

C2023 0.1uF

R261

34

C258 0.1uF

C2019 0.1uF

C261 0.1uF

R250

34

C262 0.1uF

C2015 0.1uF

C2016 0.1uF

C264 0.1uF

R251

34

Near Q1705

Near J1500

Near J1603

Near P1600

OPT

Near J1500

Near J1501

Run Along TUNER_CVBS_IF_P Trace

Run Along SC1_R,SC_G,SC_B Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN Trace

Run Along DSUB_R Trace

Run Along DSUB_G Trace

Run Along DSUB_B Trace

Run Along SC1_CVBS_IN Trace

Run Along SC2_CVBS_IN Trace

TU_CVBS_INCM

003:A3

SC1_RGB_INCM

003:A4

REAR_AV_CVBS_INCM

003:A3

COMP2_VID_INCM

R_VID_INCM 003:A5

G_VID_INCM

003:A5

B_VID_INCM

003:A5

SC1_CVBS_INCM

SIDE_AV_CVBS_INCM

003:A3

AUDIO INCM

PLACE NEAR Jacks

Near J1501

Near J1600

Near J1603

Near J1500

R256

R258

R259

R257

5.1

Route Between SC2_L_IN & SC2_R_IN

5.1

Route Between AV1_L_IN & AV1_R_IN

5.1

Route Between COMP1_L_IN & COMP1_R_IN

5.1

Route Between SC1_L_IN & SC1_R_IN

PLACE NEAR BCM CHIP

SIDE_AV_LR_INCM

0.15uF C2014

0.15uF C2024

0.15uF C265

0.15uF C2022

0.47uF C271

0.47uF C2017

C2025

0.47uF

0.47uF C270

002:C6

REAR_AV_LR_INCM

COMP2_LR_INCM

002:C6

SC1_LR_INCM

002:C6

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C217 10uF

Near J1602

Near Q1704

5.1

R252

BCM3556 AUD_IN/LVDS

Route Between PC_L_IN & PC_R_IN

Route Along With TUNER_SIF_IF_N

BCM (EUROBBTV)

0.15uF C269

0.47uF C2010

TU_SIF_INCM

2009.06.18

2

PC_LR_INCM 002:C6

003:A3

Place here for common circuit with ATSC

LGE Internal Use Only

+1.8V_HDMI+1.8V_AMP

L111

BLM18PG121SN1D

C2008

0.1uF 16V

L112

CIC21J501NE

C288 1000pF

D1.2V

C290

0.01uF

C245

4.7uF

C255 1000pF

C377

0.01uF

C375

0.1uF

C263

4.7uF

C373 1000pF

C267

0.01uF

D1.2V

A3.3V+3.3V_NORMAL

C2007

0.1uF 16V

C243

0.1uF

4.7uF

1000pF

C382

0.01uF

C381

0.1uF

C380

10uF

C379

10uF

C286 33uF

C287 100uF

FOR ESD

C383 1000pF

C246

0.01uFC250

C378

0.1uF

C376

4.7uFC249

C259 1000pF

C374

0.01uF

C366

0.1uF

C266

4.7uF

C289

0.1uF

D3.3V

C291

10uF

COMPONENT

COMP2_Y COMP2_Pr COMP2_Pb

COMP2_VID_INCM

SC1_RGB(EU)/COMPNENT1[NON_EU]

COMP1_Y ==> COMP1_Pr ==> COMP1_Pb ==>

SIDE COMPONENT

SC1_G

SC1_R SC1_B

SC1_RGB_INCM

SIDE_COMP_Y SIDE_COMP_Pr SIDE_COMP_Pb

SIDE_COMP_INCM

CVBS

TU_SIF

26page : TUNER(HALF NIM)

TU_IF_AGC_1 TU_IF_AGC_2

TU_IF_N_1 TU_IF_P_1

TU_IF_N_1

TU_IF_P_1

DSUB

R195 10

R138-*1

R138 10

TU_SIF_INCM

R_VID_INCM

G_VID_INCM

B_VID_INCM

1%

82

1%

R120

0

EU

NON_EU

75

1%

OPT

R13 5

TU_CVBS

REAR_AV_CVBS

SC1_CVBS_IN SIDE_AV_CVBS TU_CVBS_INCM

REAR_AV_CVBS_INCM

SC1_CVBS_INCM

SIDE_AV_CVBS_INCM

SC1_FB

DSUB_R

DSUB_G

DSUB_B

75

OPT

R312

C104

OPT

1%

R31 5 75

C105

NON_EU

R196 10

1%

SIDE_COMP_Y SIDE_COMP_Pr SIDE_COMP_Pb SIDE_COMP_INCM

R128

OPT

CONNECT NEAR BCM CHIP

1%

R31 3 75

NON_EU

0

120

75

R131

OPT

R3056

TU_IF_AGC_1

TU_IF_AGC_2

1%

R135-*1

1%

EU_CN R2112

181%

0.1uF C106

R3055 240

C4020

0.1uF

NON_EU

82 1%

R2113

12

47pF

C101

ONLY USE NON_EU FOR COMP 1

82

1%

R165

C177

R2114

0

A2.5V

R137

10K

R139 12K

R2117 0

OPT

A2.5V

A1.2V

C111

0.1uF

R2115

C169 47pF

75

R166

12

R4020 10K

12K

R4021

A1.2V

1%

R167

0

OPT

R2116

A2.5V

BLM18PG121SN1D

A2.5V

C112

0.1uF

47pF

C170

75

1%

R100

62

R142

OPT

R143

62

R141 1%

75

L102

C113

0.1uF

L103

BLM18PG121SN1D

C117 1000pF

NON_EU_CN

R2112-*1

125%

EU_CN

A1.2V

L106 BLM18PG121SN1D

C121

0.1uF

C172

4.7uF

C119

0.1uF

C120

L104

1000pF

L105

NON_EU_CN

R141-*1 5%

RGB_HSYNC

RGB_VSYNC

62

C118

0.01uF

C110 C124 C125 C100

C140

4.7uF

C144

0.1uF

C122

4.7uF

C123

0.01uF

C127

C128

C129

C130 C131 C132

C133 C134 C135

C174 C175

C176

SC1_ID

A1.2V

0.1uF

NON_3DTV

LGE3556C (C0 VERSION)

AG28

DS_AGCI_CTL

AH28

DS_AGCT_CTL

AA21

EDSAFE_AVSS_1

AB22

EDSAFE_AVSS_2

AF26

EDSAFE_AVSS_3

AF27

EDSAFE_AVSS_4

AF28

EDSAFE_AVSS_5

AG27

EDSAFE_AVDD2P5

AE26

EDSAFE_DVDD1P2

AE28

EDSAFE_IF_N

AE27

EDSAFE_IF_P

AD24

PLL_DS_AGND

AB19

PLL_DS_AVDD1P2

AB25

PLL_DS_TESTOUT

AB18

SD_V5_AVDD1P2

AC17

SD_V5_AVDD2P5

AB17

SD_V5_AVSS

AD14

SD_V1_AVDD1P2

AD16

SD_V1_AVDD2P5

AB15

SD_V1_AVSS_1

AC15

SD_V1_AVSS_2

AD13

SD_V2_AVDD1P2

AE13

SD_V2_AVDD2P5

AC13

SD_V2_AVSS_1

AB14

SD_V2_AVSS_2

AC14

SD_V2_AVSS_3

AC12

SD_V3_AVDD1P2

AD12

SD_V3_AVDD2P5

AB13

SD_V3_AVSS_1

AA14

SD_V3_AVSS_2

AC11

SD_V4_AVDD1P2

AD11

SD_V4_AVDD2P5

AB12

SD_V4_AVSS

AD10

SD_R

AC10

SD_INCM_R

AE9

SD_G

AF9

SD_INCM_G

AH9

SD_B

AG9

SD_INCM_B

AG15

SD_Y1

AE15

SD_PR1

AF15

SD_PB1

AH15

SD_INCM_COMP1

AG16

SD_Y2

AF16

SD_PR2

AH17

SD_PB2

AH16

SD_INCM_COMP2

AG14

SD_Y3

AE14

SD_PR3

AF14

SD_PB3

AH14

SD_INCM_COMP3

AH10

SD_L1

AG10

SD_C1

AE10

SD_INCM_LC1

AE11

SD_L2

AF11

SD_C2

AH11

SD_INCM_LC2

AH13

SD_L3

AE12

SD_C3

AF12

SD_INCM_LC3

AD9

SD_CVBS1

AG11

SD_CVBS2

AG12

SD_CVBS3

AF13

SD_CVBS4

AC9

SD_INCM_CVBS1

AF10

SD_INCM_CVBS2

AH12

SD_INCM_CVBS3

AG13

SD_INCM_CVBS4

AF17

SD_SIF1

AG17

SD_INCM_SIF1

AD15

SD_FB

AE16

SD_FS

AE17

SD_FS2

AB16

PLL_VAFE_AVDD1P2

AA15

PLL_VAFE_AVSS

AC16

PLL_VAFE_TESTOUT

AG3

RGB_HSYNC

AF4

RGB_VSYNC

IC100

HDMI_RX_0_CEC_DAT

HDMI_RX_0_HTPLG_IN

HDMI_RX_0_HTPLG_OUT

HDMI_RX_0_DDC_SCL HDMI_RX_0_DDC_SDA

HDMI_RX_0_RESREF

HDMI_RX_0_CLK_N

HDMI_RX_0_CLK_P HDMI_RX_0_DATA0_N HDMI_RX_0_DATA0_P HDMI_RX_0_DATA1_N HDMI_RX_0_DATA1_P HDMI_RX_0_DATA2_N HDMI_RX_0_DATA2_P

HDMI_RX_0_VDD3P3 HDMI_RX_0_VDD1P2 HDMI_RX_0_VDD2P5 HDMI_RX_0_AVSS_1 HDMI_RX_0_AVSS_2 HDMI_RX_0_AVSS_3 HDMI_RX_0_AVSS_4 HDMI_RX_0_AVSS_5 HDMI_RX_0_AVSS_6

HDMI_RX_0_PLL_AVSS

HDMI_RX_0_PLL_DVDD1P2

HDMI_RX_0_PLL_DVSS

HDMI_RX_1_CEC_DAT

HDMI_RX_1_HTPLG_IN HDMI_RX_1_HTPLG_OUT

HDMI_RX_1_DDC_SCL HDMI_RX_1_DDC_SDA

HDMI_RX_1_RESREF

HDMI_RX_1_CLK_N

HDMI_RX_1_CLK_P HDMI_RX_1_DATA0_N

HDMI_RX_1_DATA0_P HDMI_RX_1_DATA1_N

HDMI_RX_1_DATA1_P HDMI_RX_1_DATA2_N

HDMI_RX_1_DATA2_P

HDMI_RX_1_VDD3P3 HDMI_RX_1_VDD1P2 HDMI_RX_1_VDD2P5 HDMI_RX_1_AVSS_1 HDMI_RX_1_AVSS_2 HDMI_RX_1_AVSS_3 HDMI_RX_1_AVSS_4 HDMI_RX_1_AVSS_5 HDMI_RX_1_AVSS_6 HDMI_RX_1_AVSS_7 HDMI_RX_1_AVSS_8 HDMI_RX_1_AVSS_9

HDMI_RX_1_PLL_AVSS

HDMI_RX_1_PLL_DVDD1P2

HDMI_RX_1_PLL_DVSS

I2S_CLK_IN I2S_CLK_OUT I2S_DATA_IN

I2S_DATA_OUT

I2S_LR_IN

I2S_LR_OUT AUD_LEFT0_N AUD_LEFT0_P

AUD_AVDD2P5_0

AUD_AVSS_0_1 AUD_AVSS_0_2 AUD_AVSS_0_3 AUD_AVSS_0_4 AUD_AVSS_0_5 AUD_RIGHT0_N AUD_RIGHT0_P

AUD_LEFT1_N AUD_LEFT1_P

AUD_RIGHT1_N AUD_RIGHT1_P

AUD_AVDD2P5_1

AUD_AVSS_1_1 AUD_AVSS_1_2 AUD_AVSS_1_3

AUD_LEFT2_N AUD_LEFT2_P

AUD_RIGHT2_N AUD_RIGHT2_P

AUD_AVDD2P5_2

AUD_AVSS_2_1 AUD_AVSS_2_2

AUD_SPDIF

SPDIF_AVDD2P5

SPDIF_AVSS

SPDIF_IN_N

SPDIF_IN_P

AE18 AF18 AD17 AH19 AD18 AG18 AG26 AH26 AF23 AA20 AB21 AC22 AC23 AD23 AH25 AG25 AH23 AG23 AG24 AH24 AE22 AB20 AC21 AE23 AF21 AE21 AF22 AG22 AD21 AC20 AD22 AH2 AC6 AE4 AF3 AH1

AG1 AA6 AA5 AB3 Y6 AC4 AC1 AC2 AD1 AD2 AE1 AE2 AF1 AF2 AD3 AE3 AC3 AD4 AB5 AB6 AG2 AB4 AA7 Y8 AC5 W8

AA3 V4 U6 V5 V3 W4 W2 W3 Y1 Y2 AA2 AA1 AB2 AB1 Y3 Y4 W5 W1 U5 W6 U7 V7 W7 U8 V8 Y5 V6 AA4 Y7

BT_LOUT_N BT_LOUT_P BT_ROUT_N BT_ROUT_P

R2036 1K

R309

OPT

C150

0.1uF

10K

R152499

R2037

R153499

C145

4.7uF

OPT

10K

C158 1000pF

R310 10K

R2035

0

R2038 10K

SPDIF_OUT

+5V_NORMAL

R3070 R3080

C153

0.1uF

C151

0.01uF

10K

R2039

C146

4.7uF

C159 1000pF

C147

0.01uF

HP_ROUT_N HP_ROUT_P

C148

0.01uF

SCART1_Lout_N

SCART1_Lout_P SCART1_Rout_N SCART1_Rout_P

C149

0.01uF

HDMI_CLKHDMI_CLK+ HDMI_RX0HDMI_RX0+ HDMI_RX1-

HDMI_RX1+ HDMI_RX2HDMI_RX2+

C160

0.1uF

C165

10uF

D3.3V

C154

0.1uF

C152

0.01uF

AUD_SCK

AUD_LRCH

AUD_LRCK

HP_LOUT_N HP_LOUT_P

C155

0.1uF

C156

0.1uF

C157

0.1uF

BLM18PG121SN1D

L107

C161

0.1uF

BLM18PG121SN1D

L108

C166

10uF

C162

10uF

C163

10uF

C164

10uF

HDMI_SCL HDMI_SDA

A3.3V

BLM18PG121SN1D

L109

A1.2V

A3.3V

BLM18PG121SN1D

L110

A1.2V

FOR ESD

C384 33uF 10V

A2.5V

C3006

0.1uF 16V

A2.5V

C248 1000pF

C216

0.1uF

C281 1000pF

R205

C2003

0.1uF

C268 1000pF

A3.3V

20

C370

C371

0.1uF

0.01uF

C284

C283

C282 1000pF

D1.2V

1000pF

0.01uF

LGE3556C (C0 VERSION)

H8

VDDC_1

J8

VDDC_2

K8

VDDC_3

L8

VDDC_4

M8

VDDC_5

N8

VDDC_6

P8

VDDC_7

R8

VDDC_8

AA8

VDDC_9

H9

VDDC_10

H10

VDDC_11

H11

VDDC_12

H12

VDDC_13

H13

VDDC_14

H14

VDDC_15

H15

VDDC_16

H16

VDDC_17

H17

VDDC_18

H18

VDDC_19

H19

VDDC_20

H21

VDDC_21

J21

VDDC_22

K21

VDDC_23

L21

VDDC_24

M21

VDDC_25

N21

VDDC_26

P21

VDDC_27

R21

VDDC_28

T21

VDDC_29

U21

VDDC_30

V21

VDDC_31

W21

VDDC_32

Y21

VDDC_33

AH27

AA12 AA13 AA18 AA19

AB28

E28 L28 U28

G11 G13 A14 G15 G17 A19 G19

A9 G9

AGC_VDDO

VDDO_1 VDDO_2 VDDO_3 VDDO_4 VDDO_5 VDDO_6 VDDO_7 VDDO_8

DDRV_1 DDRV_2 DDRV_3 DDRV_4 DDRV_5 DDRV_6 DDRV_7 DDRV_8 DDRV_9

D3.3V

D1.8V

C369

4.7uF

NON_3DTV

IC100

C292 1000pF

C285

0.01uF

C293

0.01uF

C2005

0.01uF

D3.3V

D1.8V

C294

0.1uF

C2006

0.01uF

C365

0.1uF

D1.8V

C274

0.1uF

C272

0.1uF

C275

0.1uF

C276

0.1uF

C278

4.7uF

C280

4.7uF

C297

4.7uF

C2004 33uF

D1.8V

C357

C363

C364

0.1uF

0.1uF 16V

16V

LGE3556C (C0 VERSION)

AD5 AD6

J7 K7 L7

M7 AB7 AC7

G8

D9 AA9 G10 A11 L11 M11 N11 P11 R11 T11 U11 V11 D12 G12 L12 M12 N12 P12 R12 T12 U12 V12 L13 M13 N13 P13 R13 T13 U13 V13 G14 L14 M14 N14 P14 R14 T14 U14 V14 L15 M15 N15 P15 R15 T15 U15 V15 A16 G16 L16 M16 N16

10uF

10V

DVSS_1 DVSS_2 DVSS_3 DVSS_4 DVSS_5 DVSS_6 DVSS_7 DVSS_8 DVSS_9 DVSS_10 DVSS_11 DVSS_12 DVSS_13 DVSS_14 DVSS_15 DVSS_16 DVSS_17 DVSS_18 DVSS_19 DVSS_20 DVSS_21 DVSS_22 DVSS_23 DVSS_24 DVSS_25 DVSS_26 DVSS_27 DVSS_28 DVSS_29 DVSS_30 DVSS_31 DVSS_32 DVSS_33 DVSS_34 DVSS_35 DVSS_36 DVSS_37 DVSS_38 DVSS_39 DVSS_40 DVSS_41 DVSS_42 DVSS_43 DVSS_44 DVSS_45 DVSS_46 DVSS_47 DVSS_48 DVSS_49 DVSS_50 DVSS_51 DVSS_52 DVSS_53 DVSS_54 DVSS_55 DVSS_56 DVSS_57 DVSS_58 DVSS_59 DVSS_60 DVSS_61

C356

0.1uF 16V

NON_3DTV

IC100

C348

0.1uF 16V

DVSS_62 DVSS_63 DVSS_64 DVSS_65 DVSS_66 DVSS_67 DVSS_68 DVSS_69 DVSS_70 DVSS_71 DVSS_72 DVSS_73 DVSS_74 DVSS_75 DVSS_76 DVSS_77 DVSS_78 DVSS_79 DVSS_80 DVSS_81 DVSS_82 DVSS_83 DVSS_84 DVSS_85 DVSS_86 DVSS_87 DVSS_88 DVSS_89 DVSS_90 DVSS_91 DVSS_92 DVSS_93 DVSS_94 DVSS_95 DVSS_96 DVSS_97 DVSS_98

DVSS_99 DVSS_100 DVSS_101 DVSS_102 DVSS_103 DVSS_104 DVSS_105 DVSS_106 DVSS_107 DVSS_108 DVSS_109 DVSS_110 DVSS_111 DVSS_112 DVSS_113 DVSS_114 DVSS_115 DVSS_116 DVSS_117

C320

0.1uF

P16 R16 T16 U16 V16 AA16 D17 L17 M17 N17 P17 R17 T17 U17 V17 AA17 AC19 G18 L18 M18 N18 P18 R18 T18 U18 V18 D20 G20 H20 A21 E21 F21 G21 E22 F22 G22 H22 J22 K22 L22 M22 N22 P22 R22 T22 U22 V22 W22 Y22 AA22 W23 AB23 F28 M28 T28 AC28

C319

C318

0.1uF

C304

0.1uF

16V

0.1uF

16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EUROBBTV

BCM3556 VIDEO IN

2009.06.18

3

NON_3DTV

LGE Internal Use Only

LGE3556C (C0 VERSION)

IC100

DDR_VDDP1P8_1 DDR_VDDP1P8_2

DDR_BVDD0 DDR_BVDD1 DDR_BVSS0 DDR_BVSS1

DDR_PLL_TEST

DDR_PLL_LDO

DDR01_CKE

DDR_COMP

DDR01_ODT

DDR_EXT_CLK

DDR0_CLK

DDR0_CLKB

DDR1_CLK DDR1_CLKB DDR01_A00 DDR01_A01 DDR01_A02 DDR01_A03

DDR0_A04

DDR0_A05

DDR0_A06 DDR01_A07 DDR01_A08 DDR01_A09 DDR01_A10 DDR01_A11 DDR01_A12 DDR01_A13

DDR1_A04

DDR1_A05

DDR1_A06 DDR01_BA0 DDR01_BA1 DDR01_BA2

DDR01_CASB

DDR0_DQ00 DDR0_DQ01 DDR0_DQ02 DDR0_DQ03 DDR0_DQ04 DDR0_DQ05 DDR0_DQ06 DDR0_DQ07 DDR0_DQ08 DDR0_DQ09 DDR0_DQ10 DDR0_DQ11 DDR0_DQ12 DDR0_DQ13 DDR0_DQ14 DDR0_DQ15 DDR1_DQ00 DDR1_DQ01 DDR1_DQ02 DDR1_DQ03 DDR1_DQ04 DDR1_DQ05 DDR1_DQ06 DDR1_DQ07 DDR1_DQ08 DDR1_DQ09 DDR1_DQ10 DDR1_DQ11 DDR1_DQ12 DDR1_DQ13 DDR1_DQ14 DDR1_DQ15

DDR0_DM0

DDR0_DM1

DDR1_DM0

DDR1_DM1 DDR0_DQS0

DDR0_DQS0B

DDR0_DQS1

DDR0_DQS1B

DDR1_DQS0

DDR1_DQS0B

DDR1_DQS1

DDR1_DQS1B DDR01_RASB

DDR_VREF0 DDR_VREF1 DDR01_WEB

* DDR_VTT

C425

C426

22uF

10V

22uF

10V

C417 10uF

10V

DDR1_VREF0

DDR0_VREF0

C412

C411

0.1uF

0.1uF 16V

16V

DDR_VTT

R414 0

R415 0

A6 A24 B7 B24 F20 B23 B17 C22 E16 C23 B12 C12 A13 A12 B15 E14 A15 D15 E13 E12 F13 C14 F14 B14 D14 C13 D13 B13 F15 C15 D16 F16 B16 E15 A17 A8 B11 B8 D11 E11 C8 C11 C9 D8 E10 E9 F11 F12 E8 D10 F8 C18 C20 A18 B21 C21 B18 B20 D18 E18 D21 F18 E20 A22 F17 B22 E17 A10 C10 A20 F19 B10 B9 F10 F9 B19 C19 E19 D19 C16 A7 A23 C17 C7 D22

C406

0.1uF

C423

10uF

10V

C419 10uF 10V

D1.8V

A1.2V

R411 0

OPT

R412 240

DDR01_A[0] DDR01_A[1] DDR01_A[2] DDR01_A[3]

DDR0_A[4] DDR0_A[5]

DDR0_A[6] DDR01_A[7] DDR01_A[8] DDR01_A[9]

DDR01_A[10] DDR01_A[11] DDR01_A[12] DDR01_A[13]

DDR1_A[4]

DDR1_A[5]

DDR1_A[6]

DDR0_DQ[0] DDR0_DQ[1] DDR0_DQ[2] DDR0_DQ[3] DDR0_DQ[4] DDR0_DQ[5] DDR0_DQ[6] DDR0_DQ[7] DDR0_DQ[8] DDR0_DQ[9] DDR0_DQ[10] DDR0_DQ[11] DDR0_DQ[12] DDR0_DQ[13] DDR0_DQ[14] DDR0_DQ[15] DDR1_DQ[0] DDR1_DQ[1] DDR1_DQ[2] DDR1_DQ[3] DDR1_DQ[4] DDR1_DQ[5] DDR1_DQ[6] DDR1_DQ[7]

DDR1_DQ[8] DDR1_DQ[9]

DDR1_DQ[10] DDR1_DQ[11] DDR1_DQ[12] DDR1_DQ[13] DDR1_DQ[14] DDR1_DQ[15]

C415

0.1uF

C413

0.1uF 16V

C414

D1.8V

C4030.1uF C4040.1uF

DDR01_CKE

1%

OPT

C427

0.1uF 16V

R418

0.1uF 16V

OPT

C428

0.1uF 16V

BD35331F-E2

10K

GND

1

EN

2

VTTS

3

VREF

4

DDR01_ODT

DDR0_CLK

DDR0_CLKb

DDR1_CLK

DDR1_CLKb

DDR01_BA0 DDR01_BA1 DDR01_BA2

DDR01_CASb

DDR0_DM0 DDR0_DM1 DDR1_DM0 DDR1_DM1

DDR0_DQS0

DDR0_DQS0b

DDR0_DQS1

DDR0_DQS1b

DDR1_DQS0

DDR1_DQS0b

DDR1_DQS1

DDR1_DQS1b

DDR01_RASb

DDR01_WEb

IC404

004:C7;004:C4 004:C7;004:C4 004:F7;004:F4 004:F7;004:F4

004:E6 004:E3 004:H6 004:H3 004:E6 004:E6 004:E3 004:E3 004:H6 004:H6 004:H3 004:H3

C402

C405

1uF

0.1uF

OPT

VTT

8

VTT_IN

7

VCC

6

VDDQ

5

C408

0.1uF

OPT

C422

1uF

10V

C407

1uF

DDR01_A[0-3]

DDR0_A[4-6]

DDR01_A[7-13]

DDR1_A[4-6]

DDR0_DQ[8-15]

DDR1_DQ[8-15]

C400

C401

1uF

470pF

D3.3V

R417 220

DDR0_DQ[0-7]

DDR1_DQ[0-7]

DDR0_VREF0

C410

C409

1uF

470pF

C416 10uF 10V

004:A7;004:C4

004:A7;004:C7

004:A7;004:C7;004:F7;004:F4

DDR1_VREF0

D1.8V

C418

C420

1uF

0.1uF 10V

16V

DDR0_CLK

DDR0_CLKb DDR01_CKE

DDR01_RASb DDR01_CASb DDR01_WEb

DDR01_BA0 DDR01_BA1

DDR01_BA2

DDR01_A[0-3,7-13]

DDR0_A[4-6]

DDR01_ODT

DDR0_CLK

DDR0_CLKb DDR01_CKE

DDR01_RASb DDR01_CASb DDR01_WEb

DDR01_BA0 DDR01_BA1

DDR01_BA2

DDR01_A[0-3,7-13]

DDR0_A[4-6]

DDR01_ODT

R406

NT5TU128M8DE_BD

100

1%

DDR01_A[0] DDR01_A[1] DDR01_A[2] DDR01_A[3] DDR0_A[4] DDR0_A[5] DDR0_A[6] DDR01_A[7] DDR01_A[8] DDR01_A[9] DDR01_A[10] DDR01_A[11] DDR01_A[12] DDR01_A[13]

E8 F8 F2

F7 G7 F3 G8

G2 G3 G1

H8 H3 H7 J2 J8 J3 J7 K2 K8 K3 H2 K7 L2 L8

L3 L7

F9

CK CK CKE

RAS CAS WE CS

BA0 BA1 NC_1/BA2

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12 A13

NC_2/A14 NC_3/A15

ODT

NT5TU128M8DE_BD

E8

CK

F8

CK

F2

CKE

F7

RAS

G7

CAS

F3

WE

G8

CS

G2

BA0

G3

BA1

G1

NC_1/BA2

DDR01_A[0] DDR01_A[1] DDR01_A[2] DDR01_A[3] DDR0_A[4] DDR0_A[5] DDR0_A[6] DDR01_A[7] DDR01_A[8] DDR01_A[9] DDR01_A[10] DDR01_A[11] DDR01_A[12] DDR01_A[13]

H8 H3 H7 J2 J8 J3 J7 K2 K8 K3 H2 K7 L2 L8

L3 L7

F9

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12 A13

NC_2/A14 NC_3/A15

ODT

C440

470pF

IC400

IC401

C441

0.047uF

C442

0.1uF

DM/RDQS NU/RDQS

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

DM/RDQS NU/RDQS

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

VDD_1 VDD_2 VDD_3 VDD_4

VSS_1 VSS_2 VSS_3 VSS_4

VREF VDDL

VSSDL

VDD_1 VDD_2 VDD_3 VDD_4

VSS_1 VSS_2 VSS_3 VSS_4

VREF VDDL

VSSDL

C445

C446

C444

C443

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7

DQS DQS

10uF

C8 C2 D7 D3 D1 D9 B1 B9

B7 A8 B3 A2

A9 C1 C3 C7 C9 A1 L1 E9 H9

A7 B2 B8 D2 D8 A3 E3 J1 K9

E2 E1 E7

470pF

DDR0_DQ[0] DDR0_DQ[1] DDR0_DQ[2] DDR0_DQ[3] DDR0_DQ[4] DDR0_DQ[5] DDR0_DQ[6] DDR0_DQ[7]

0.047uF

0.1uF

D1.8V

DDR0_VREF0

C449

0.1uF

Close to IC

C8

DDR0_DQ[9]

DQ0

C2

DDR0_DQ[8]

DQ1

D7

DDR0_DQ[12]

DQ2

D3

DDR0_DQ[13]

DQ3

D1

DDR0_DQ[15]

DQ4

D9

DDR0_DQ[11]

DQ5

B1

DDR0_DQ[10]

DQ6

B9

DDR0_DQ[14]

DQ7

B7

DQS

A8

DQS

B3 A2

A9 C1 C3 C7 C9 A1 L1 E9 H9

A7 B2 B8 D2 D8 A3 E3 J1 K9

E2 E1 E7

D1.8V

DDR0_VREF0

C450

0.1uF

Close to IC

C447

10uF

DDR0_DQS0

DDR0_DQS0b

DDR0_DM0

C452

470pF

DDR0_DQS1

DDR0_DQS1b

DDR0_DM1

C453

470pF

C451

C448

10uF

22uF

DDR0_DQ[0-7]

004:B6;004:F3;004:I7

DDR0_DQ[8-15]

C456

C457

C455

C454

10uF

0.1uF

004:A7;004:F4

004:A4 004:A4 004:A4

004:A7;004:C5;004:C2;004:F2;004:I4;004:I6

004:A4 004:A4 004:A4

004:B6;004:F6;004:I7

C458

10uF

470pF

0.047uF

004:B6

DDR1_CLK

DDR1_CLKb DDR01_CKE

DDR01_RASb DDR01_CASb DDR01_WEb

DDR01_BA0 DDR01_BA1

DDR01_BA2

DDR01_A[0-3,7-13]

DDR1_A[4-6]

DDR01_ODT

DDR1_CLK

DDR1_CLKb DDR01_CKE

DDR01_RASb DDR01_CASb DDR01_WEb

DDR01_BA0 DDR01_BA1

DDR01_BA2

DDR01_A[0-3,7-13]

DDR1_A[4-6]

DDR01_ODT

C459

0.1uF

C460

R407

100

1%

0.047uF

C461

470pF

DDR01_A[0] DDR01_A[1] DDR01_A[2] DDR01_A[3] DDR1_A[4] DDR1_A[5] DDR1_A[6] DDR01_A[7] DDR01_A[8] DDR01_A[9] DDR01_A[10] DDR01_A[11] DDR01_A[12] DDR01_A[13]

DDR01_A[0] DDR01_A[1] DDR01_A[2] DDR01_A[3] DDR1_A[4] DDR1_A[5] DDR1_A[6] DDR01_A[7] DDR01_A[8] DDR01_A[9] DDR01_A[10]

DDR01_A[11]

DDR01_A[12] DDR01_A[13]

IC402

NT5TU128M8DE_BD

E8

CK

F8

CK

F2

CKE

F7

RAS

G7

CAS

F3

WE

G8

CS

G2

BA0

G3

BA1

G1

NC_1/BA2

H8

A0

H3

A1

H7

A2

J2

A3

J8

A4

J3

A5

J7

A6

K2

A7

K8

A8

K3

A9

H2

A10/AP

K7

A11

L2

A12

L8

A13

L3

NC_2/A14

L7

NC_3/A15

F9

ODT

IC403

NT5TU128M8DE_BD

E8

CK

F8

CK

F2

CKE

F7

RAS

G7

CAS

F3

WE

G8

CS

G2

BA0

G3

BA1

G1

NC_1/BA2

H8

A0

H3

A1

H7

A2

J2

A3

J8

A4

J3

A5

J7

A6

K2

A7

K8

A8

K3

A9

H2

A10/AP

K7

A11

L2

A12

L8

A13

L3

NC_2/A14

L7

NC_3/A15

F9

ODT

DM/RDQS NU/RDQS

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5

VDD_1 VDD_2 VDD_3 VDD_4

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

VSS_1 VSS_2 VSS_3 VSS_4

VREF VDDL

VSSDL

DM/RDQS NU/RDQS

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5

VDD_1 VDD_2 VDD_3 VDD_4

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5

VSS_1 VSS_2 VSS_3 VSS_4

VREF VDDL

VSSDL

C477

C471

C470

C472

C469

0.047uF

004:A4 004:A3 004:A4

C468

0.1uF

004:B5

10uF

470pF

DDR01_A[0-3,7-13]

DDR1_A[4-6]

DDR0_A[4-6]

C465

C462

470pF

DDR1_DQ[0-7]

C8

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7

DQS DQS

DDR1_DQ[0]

C2

DDR1_DQ[1]

D7

DDR1_DQ[5]

D3

DDR1_DQ[3]

D1

DDR1_DQ[4]

D9

DDR1_DQ[2]

B1

DDR1_DQ[6]

B9

DDR1_DQ[7]

B7 A8 B3 A2

A9 C1 C3 C7 C9 A1 L1 E9 H9

A7 B2 B8 D2 D8 A3 E3 J1 K9

E2 E1 E7

D1.8V

DDR1_VREF0

DDR1_DQS0

DDR1_DQS0b

DDR1_DM0

C463

470pF

C466

0.1uF

0.047uF

0.1uF

C473

10uF

C474

10uF

C475

22uF

DDR01_RASb

DDR01_CASb

DDR01_BA1 DDR01_BA0 DDR01_BA2 DDR01_WEb

DDR01_CKE

DDR01_ODT

DDR01_RASb

DDR01_BA1

Close to IC

DDR01_BA0 DDR01_BA2 DDR01_WEb

DDR01_CKE DDR01_ODT

DDR1_DQ[8-15]

004:B5

C8

DDR1_DQ[9]

DQ0

C2

DDR1_DQ[8]

DQ1

D7

DDR1_DQ[12]

DQ2

D3

DDR1_DQ[13]

DQ3

D1

DDR1_DQ[15]

DQ4

D9

DDR1_DQ[14]

DQ5

B1

DDR1_DQ[10]

DQ6

B9

DDR1_DQ[11]

DQ7

B7

DQS

A8

DQS

B3 A2

A9 C1 C3 C7 C9 A1 L1 E9 H9

A7 B2 B8 D2 D8 A3 E3 J1 K9

E2 E1 E7

D1.8V

DDR1_VREF0

DDR1_DQS1

DDR1_DQS1b

DDR1_DM1

C464

470pF

C467

0.1uF

004:A3 004:A3 004:A4

C476

10uF

DDR01_A[2] DDR01_A[0] DDR1_A[6]

DDR01_A[12] DDR01_A[9] DDR01_A[7] DDR1_A[5] DDR1_A[4] DDR01_A[11] DDR01_A[8] DDR01_A[13] DDR01_A[3] DDR01_A[1] DDR01_A[10]

DDR01_A[2] DDR01_A[0] DDR0_A[6] DDR01_A[3] DDR01_A[1] DDR01_A[10]

DDR01_A[12] DDR01_A[9] DDR01_A[7] DDR0_A[5] DDR0_A[4] DDR01_A[11] DDR01_A[8] DDR01_A[13]

0.1uF

C478

0.047uF

75

AR400

R408 75

R409 75

75

AR401

AR402

75

AR403

75

AR404

R410 75

75

AR405

75

AR406

75

AR407

75

AR408

75

AR409

R404 75

470pF

C479

C481

C480

10uF

DDR_VTT

75

DDR_VTT

0.1uF

SI

C482

SI

C421

0.1uF

C499

0.1uF

PI

0.047uF

C485

0.1uF

C486

0.1uF

C487

0.1uF

C488

0.1uF

C489

0.1uF

C490

0.1uF

C491

0.1uF

C483

0.1uF

C484

0.1uF

C492

0.1uF

C493

0.1uF

C494

0.1uF

C496

0.1uF

C497

0.1uF

C498

0.1uF

C495

470pF

Close to IC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HONG YEON HYUK

BCM (EUROBBTV) 2009.06.18

DDR Memory

4

COMPONENT1

LGE Internal Use Only

COMPONENT2 AV1

JK1100

PPJ237-01

[RD1]E-LUG

6C

[RD1]O-SPRING

5C

[RD1]CONTACT

4C

[WH1]O-SPRING

5B

[YL1]CONTACT

4A

[YL1]O-SPRING

5A

[YL1]E-LUG

6A

[RD2]E-LUG

6H

[RD2]O-SPRING_2

5H

[RD2]CONTACT

4H

[WH2]O-SPRING

5G

[RD2]O-SPRING_1

5F

[RD2]E-LUG-S

7F

[BL2]O-SPRING

5E

[BL2]E-LUG-S

7E

[GN2]CONTACT

4D

[GN2]O-SPRING

5D

[GN2]E-LUG

6D

[RD3]E-LUG

6N

[RD3]O-SPRING_2

5N

[RD3]CONTACT

4N

[WH3]O-SPRING

5M

[RD3]O-SPRING_1

5L

[RD3]E-LUG-S

7L

[BL3]O-SPRING

5K

[BL3]E-LUG-S

7K

[GN3]CONTACT

4J

[GN3]O-SPRING

5J

[GN3]E-LUG

6J

R1100

+3.3V_NORMAL

D1100

5.6V

D1101

5.6V

R1101 10K

C1100 100pF

50V

C11011uF

R1102 470K

25V

R1104

1K

R1105 0

C1103 100pF 50V

C11021uF

25V

R1106

R1103

0

R1107 0

C1104

100pF

50V

C1105 47pF 50V

D1102

470K

5.6V

D1103

5.1V

D1116

5.1V

OPT

0

AV

AV_CVBS_DET 9:G3

REAR_AV_R_IN 10:B5;AF24

REAR_AV_L_IN 10:B5;AF22

REAR_AV_CVBS 11:C4;AL18

COMPONENT1 <Practically COMP2>

D1105

5.6V

D1104

5.6V

D1106

5.5V

D1107

5.5V

D1108

5.1V

D1117

5.1V

+3.3V_NORMAL

R1112

10K

D1115

C1112

5.6V

100pF 50V

C1114 25V 1uF

R11 09 470 K

C1113 25V 1uF

R11 08 470 K

C1108 27pF 50V

C1106 27pF 50V

C1107 27pF 50V

L1102 270nH

L1100 270nH

L1101 270nH

R11 14 0

R11 13 0

1K

R1116

COMPONENT2 <Practically COMP1>

D1113

5.1V

D1109

5.6V

D1114

5.6V

D1110

5.6V

D1111

5.5V

D1112

5.5V

D1118

5.1V

+3.3V_NORMAL

R1115

10K

C1115 100pF 50V

C1117 25V 1uF

R11 11 470 K

C1116 25V 1uF

R11 10 470 K

L1103

270nH

C1109 27pF

50V

L1104

270nH

C1110 27pF 50V

L1105

270nH

C1111 27pF 50V

R11 18 0

R11 17 0

C1125 100pF

C1124 100pF

C1120 27pF 50V

C1118 27pF

50V

C1119 27pF 50V

C1121 27pF 50V

C1122

27pF 50V

C1123

27pF

50V

SCART1_DET

R1119

1K

C1127 100pF

C1126 100pF

==> COMP1_DET

SC1_R_IN

SC1_L_IN

SC1_R

SC1_B

SC1_G

COMP2_DET

COMP2_R_IN

COMP2_L_IN

COMP2_Pr

COMP2_Pb

COMP2_Y

==> COMP1_R_IN

==> COMP1_L_IN

==> COMP1_Pr

==> COMP1_Pb

==> COMP1_Y

HP_LOUT_N

HP_LOUT_P

HP_ROUT_N

HP_ROUT_P

NON_SCART

New Item Development

EARPHONE BLOCK

HP_LOUT

OPT

C1130 1000pF 50V

HP_ROUT

EARPHONE AMP

C1132 1uF 10V

C1133

1uF

10V

C1134 1uF

10V

C1135 1uF

10V

4.7K

R1120

OPT

R1126

OPT

C1131 1000pF 50V

OPT

R1128

R1121 1K

R1122

OPT

1K

R1127

INL-

INL+

INR+

INR-

4.7K

OPT

Q1100

MMBT3904-(F)

OPT

MMBT3904-(F)

Close to the IC

SGND

OUTL

15

16

1

2

3

4

EAN60724701

5

OUTR

TP1100

TP1101

TP1102

TP1103

TP1104

TP1105

TP1107

TP1108

TP1109

TP1110

TP1111

C

E

C

Q1101

E

+3.3V_NORMAL

L1106

10uH

C1136 1uF 10V

VDD

IC1100 TPA6132A2

6G07G18

B

13EN14

HPVSS

C1137 10uF 10V

12

11

10

9

C1138

2.2uF 10V

HPVDD

CPP

PGND

CPN

B

C1139

0.1uF

16V

C1140

2.2uF 10V

C1141

2.2uF 10V

E

OPT

MMBT3904-(F)

Q1103

C

E

OPT

MMBT3904-(F)

Q1102

C

DTV/MNT_V_OUT

SC1_FB

SC1_ID

DTV_ATV_SELECT

SCART1_Rout_P

SCART1_Rout_N

SC1_CVBS_IN

SC_RE1

SC_RE2

SCART1_Lout_N

SCART1_Lout_P

HP_DET

+3.5V_ST

R1129 100K OPT

+3.3V_NORMAL

R1125

10K

R1123 1K

R1124

OPT

10K

R1131 0

1/16W C1142

R1130 0

1/16W

SIDE_HP_MUTE

Q1104

2SC3052

L1107

BG2012B080TF

0.22uF 16V

+3.3V_NORMAL

R1132

4.7K

C

E

L1108

BG2012B080TF

C1143

0.22uF 16V

OPT R1133 0

R1134 1K

B

JK1101

KJA-PH-0-0177

5GND

4L

3DETECT

1R

HP_LOUT

HP_ROUT

SIDE_HP_MUTE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_BCM

HP/COMP/REAR AV(NON_EU_CN)

09/10/19

11

Motion Remote controller

LGE Internal Use Only

Motion Remocon Interface

L1700

120-ohm

BLM18PG121SN1D

R1700 100

R1701 100

R1702 100

R1703 100

R1704 100

+3.3V_NORMAL

M_REMOTE_RX 9:F3;9:G4

M_REMOTE_TX

9:F3;9:G4

P1700

12507WR-08L

1

2

3

4

5

6

7

8

9

ALL M_REMOTE OPTION

+3.3V_NORMAL

R1706

2.7K

R1707

2.7K

M_RFMODULE_RESET

9:F3;9:G4

DC

9:F3;9:G3

DD

9:F3;9:G3

M_RFMODULE_RESET

R1712 0

/CI_CD1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_BCM_ATSC

MOTION_REMOCON

09/10/xx

20 100

Sub AMP.

LGE Internal Use Only

+24V_AMP

AUD_LRCH

AUD_LRCK

AUD_SCK SDA2_3.3V SCL2_3.3V

+1.8V_AMP

L2100

BLM18PG121SN1D

3AMP OPT

C2100

10uF

10V

AMP_RESET_N

AUD_MASTER_CLK

+1.8V_AMP

L2102

BLM18PG121SN1D

C2102

0.1uF 16V

3AMP OPT

C2104

10uF

10V

R2101 100

R2102 100 R2103 100

R2104 100 R2105 100

1000pF

R2100

C2111

50V

56

C2106 100pF

0.1uF

50V

C2107

16V

C2110 100pF

C2118

0.1uF

C2115 1000pF

50V

R2157

3.3K

C2114 33pF 50V

+3.3V_NORMAL

L2104

BLM18PG121SN1D

R21 59 100

R2161

10K

C2120 33pF 50V

3AMP OPT

C2122 22pF 50V

C21 28

1uF 25V

3AMP OPT

C2125 10uF

10V

C2124 22pF 50V

3AMP OPT

C2134

22000pF

BST1A VDR1A

/RESET

DGND_1 GND_IO

CLK_I

VDD_IO DGND_PLL AGND_PLL

AVDD_PLL DVDD_PLL

+1.8V_AMP

C2130 22pF 50V

3AMP OPT

50V

GND

C2132

0.1uF 16V

D2100

3AMP OPT

R2121

3.3 3AMP OPT

C2152

22000pF

50V

C2155

0.01uF 50V

+24V_AMP

C2154

0.1uF 50V

POWER_DET

AMP_MUTE1

C2142 22000pF

50V

C2144 1uF 25V

VDR1B44BST1B45PGND1B_1

43

28

PGND2B_1

42 41 40 39 38 37 36 35 34 33 32 31 30 29

C2146 10uF 35V

NC VDR2A BST2A PGND2A_2 PGND2A_1 OUT2A_2 OUT2A_1 PVDD2A_2 PVDD2A_1 PVDD2B_2 PVDD2B_1 OUT2B_2 OUT2B_1 PGND2B_2

R2118 100

C21 48

1uF25V

R2162 0

3AMP OPT

C2149 22000pF

50V

C2136

0.1uF 50V

PGND1B_2

OUT1B_1

OUT1B_2

PVDD1B_1

PVDD1B_2

PVDD1A_1

PVDD1A_2

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

EP_PAD

46

47

48

49

50

51

52

53

54

55

56

1

THERMAL

2

57

3

AD

4 5 6

IC2100 7 8 9 10

LF

11 12 13 14

NTP-7000

15

16

DVDD

DGND_2

17

18

WCK19BCK20SDA21SCL

SDATA

DEV

EAN60969601

22

MONITOR023MONITOR124MONITOR2

C21 40 1uF 25V

25

VDR2B27BST2B

/FAULT

C2138 1000pF 50V

26

1N4148W

100V

3AMP OPT

D2101

1N4148W

3AMP OPT

D2102

1N4148W

100V

3AMP OPT

D2103

1N4148W

3AMP OPT

100V

C2157 10uF 35V

R2127

12

C2158 390pF

50V

C2159 390pF

50V

R2128

12

R2129

12

C2160 390pF

50V

C2161 390pF

50V

R2130

12

R2136

12

R2134

12

R2135

12

R2133

12

L2107

AD-9060

2S

1S 1F

15uH

L2106

AD-9060

2S

1S 1F

15uH

R2139

C2167

2F

C2164

0.47uF 50V

C2165

0.47uF 50V

0.1uF 50V

C2168

0.1uF 50V

C2169

0.1uF 50V

C2170

0.1uF

50V

4.7K

R2140

4.7K

R2141

4.7K

R2142

4.7K

C2173

0.01uF 50V

3AMP OPT

R2145

3.3

3AMP OPT

R2146

3.3 C2174

0.01uF 50V

3AMP OPT

C2175

0.01uF 50V

3AMP OPT

R2147

3.3

3AMP OPT

R2148

3.3 C2176

0.01uF 50V

3AMP OPT

SPK2_L+

SPK2_L-

SPK2_R+

SPK2_R-

SPEAKER2_L

SPK2_L+

SPK2_L-

SPK2_R+

SPK2_R-

SPEAKER2_R

R2151 0

R2152 0

R2153 0

R2154 0

WAFER-ANGLE

4

3

2

1

P2101

Woofer AMP.

+1.8V_AMP

L2101

BLM18PG121SN1D

3AMP OPT

10uF

AUD_LRCH

AUD_LRCK

AUD_SCK SDA2_3.3V SCL2_3.3V

C2101 10V

AMP_RESET_N

AUD_MASTER_CLK

+1.8V_AMP

L2103

BLM18PG121SN1D

C2103

0.1uF 16V

3AMP OPT

C2105

10uF

10V

R2106 100

R2107 100 R2108 100

R2109 100 R2110 100

C2112

1000pF

R2111

56

50V

C2108 100pF

50V

C2109

0.1uF 16V

C2113 100pF

C2116 33pF 50V

C2119

0.1uF

C2117 1000pF 50V

R2158

3.3K

+3.3V_NORMAL

L2105

BLM18PG121SN1D

R21 60 100

C2121 33pF 50V

3AMP OPT

C2123 22pF 50V

C21 29

1uF 25V

3AMP OPT

C2127 10uF

C2126 22pF 50V

3AMP OPT

DGND_PLL AGND_PLL

AVDD_PLL DVDD_PLL

+1.8V_AMP

10V

3AMP OPT

C2135

22000pF

50V

BST1A VDR1A

/RESET

DGND_1 GND_IO

CLK_I

VDD_IO

GND

C2133

0.1uF 16V

C2131 22pF 50V

+24V_AMP

3AMP OPT

R2122

3.3 3AMP OPT

C2153

22000pF

50V

R2124

4.7K

R2123

4.7K

C2156

0.01uF 50V

+24V_AMP

POWER_DET

AMP_MUTE1

C2143 22000pF

50V

C2145 1uF 25V

VDR1B44BST1B45PGND1B_1

43

28

PGND2B_1

42 41 40 39 38 37 36 35 34 33 32 31 30 29

C2147 10uF 35V

NC VDR2A BST2A PGND2A_2 PGND2A_1 OUT2A_2 OUT2A_1 PVDD2A_2 PVDD2A_1 PVDD2B_2 PVDD2B_1 OUT2B_2 OUT2B_1 PGND2B_2

R2120 100

C21 50

1uF25V

R2119 0

3AMP OPT

C2151 22000pF

50V

C2137

0.1uF 50V

PGND1B_2

OUT1B_1

OUT1B_2

PVDD1B_1

PVDD1B_2

PVDD1A_1

PVDD1A_2

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

EP_PAD

46

47

48

49

50

51

52

53

54

55

56

1

THERMAL

2

57

3

AD

4 5 6

IC2101 7 8 9 10

LF

11 12 13 14

NTP-7000

15

16

DVDD

DGND_2

17

18

WCK19BCK20SDA21SCL

SDATA

DEV

EAN60969601

22

MONITOR023MONITOR124MONITOR2

C21 41 1uF 25V

25

VDR2B27BST2B

/FAULT

C2139 1000pF 50V

26

R21 25 100

1N4148W

3AMP OPT

1N4148W

3AMP OPT

R21 26 100

D2104

100V

D2105

100V

3AMP OPT

R2131

12

C2162 390pF

50V

C2163 390pF

50V

R2132

12

R2138

12

R2137

12

L2108

AD-9060

2S

1S 1F

15uH

R2143

C2171

2F

C2166

0.47uF 50V

0.1uF 50V

C2172

0.1uF 50V

4.7K

R2144

4.7K

3AMP OPT

C2177

0.01uF 50V

3AMP OPT

R2149

3.3

3AMP OPT

R2150

3.3 3AMP OPT

C2178

0.01uF

50V

SPK_Woofer+

SPK_Woofer-

Woofer

SPK_Woofer-

SPK_Woofer+

R2156 0

R2155 0

1

2

FW25001-02(SPK 2P)

P2100

Development Item(Slim Depth)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_BCM_ATSC

AMP_SUB_NTP

09.10

21 100

LG LOGO FOR LE9500

LGE Internal Use Only

LED_B/LG_LOGO

100

R2200

+5V_NORMAL

1/10W 33

OPT

R2228

B

D2200

CDS3C05HDMI1

5.6V OPT

C

Q2200 2SC3052

E

+3.5V_ST

1/10W 0 R2229

P2200

12507WR-04L

1

2

3

4

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_BCM_ATSC

LG_LOGO_LE9500

09/10/xx

22 100

CAN H-NIM/NIM TUNER for TAIWAN

LGE Internal Use Only

Latin_Tuner_V

19

SHIELD

AU_Asia_Tuner_V

19

SHIELD

TU2600-*1 TDVJ-H031F

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

TU2600-*3 TDTJ-S031D

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

Latin_Tuner_H

19

SHIELD

AU_Asia_Tuner_H

19

SHIELD

TU2600-*2 TDVJ-H001F

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

TU2600-*4 TDTJ-S001D

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC[IF_TP]

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

Taiwan/Brazil_H

19

SHIELD

TU2600-*5 TDTR-T035F

RF_S/W_CTL

1

BST_CTL

2

+B1[5V]

3

NC_1[RF_AGC]

4

NC_2

5

SCLT

6

SDAT

7

NC_3

8

SIF

9

NC_4

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

IF/AGC

16

DIF_1[N]

17

DIF_2[P]

18

TU2600 TDTR-T055F

Taiwan/Brazil_V

19

SHIELD

ANT_PWR[OPT]

1

BST_CNTL

2

+B[5V]

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

IF_AGC_CNTL

16

DIF_1[N]

17

DIF_2[P]

18

close to TUNER

C2601

0.1uF 16V

R2600 0

C2602

0.1uF 16V

close to TUNER

R2602 0

close to TUNER

OPT

close to TUNER

+1.2V_TU

C2600

C2634

100pF

10uF

50V

10V

C2635 10uF 10V

R2601 0

C2636

22uF

10V

L2605

BLM18PG121SN1D

C2603

0.1uF 16V

RF_SWITCH_CTL

+5V_TU

C2604 100pF 50V

C2606

0.1uF 16V

INT_DEMOD

R2605 0

+3.3V_TU

C2605 100pF 50V

R2603 0

R2604 0

C2607

0.1uF 16V

C2608

0.1uF

16V

OPT

C2609 10uF 10V

C

Q2600

2SC3052

OPT

E

NON_TUNER_I2C_LPF

C2611-*1 18pF 50V

TU_IF_N_BCM

TU_IF_P_BCM

OPTION : RF AGC

OPT

R2608 10K

B

OPT

C2612-*1 18pF 50V

NON_TUNER_I2C_LPF

+3.3V_TU

R2606 100

TUNER_I2C_LPF

R2607 100K

TUNER_RESET

C2610

0.1uF

16V

IF_AGC_SEL

C2612

C2611

62pF

50V

TUNER_I2C_LPF

R2611 100

R2612 100

+5V_TU

L2600

BLM18PG121SN1D

R2615 0

C2613

0.01uF 25V

E

C

Q2601 ISA1530AC1

B

R2618

2.2K

Q2604

2SC3052

R2621 10K

C

R2623 10K

B

E

LNA2_CTL/BOSTER_CTL

+5V_TU

L2609

L2610

L2610-*1 33

TUNER_I2C_LPF270nH

TUNER_I2C_LPF

L2609-*1 33

NON_TUNER_I2C_LPF

C2638

C2639

20pF

50V

TUNER_I2C_LPF

R2613 0

SCL0_3.3V

SDA0_3.3V

R2643

OPT

R2614

OPT

1K

OPT

R2644 0

R2616 200

B

+5V_TU

E

C

R2619

200

Q2602

ISA1530AC1

R2622

4.7K

R2625

470

B

R2626 82

E

ISA1530AC1

Q2605

C

TU_CVBS

TU_SIF

IF_AGC

NIM

IF_N_EXT

IF_P_EXT

IF AGC FILTER

TU_IF_AGC_BCM

A3.3V

5%

1/16W

3.9K

R2624

R2632

0.01uF

C2627

R2633 2K

1/16W 5%

C2629

OPT

0.01uF

R2638 220

1/16W 5%

CAUTION : Closed BCM IC(IC100)

+5V_NORMAL

OPT

R2641 510

R2642 510

IF FILTER OPTION

TU_IF_N_BCM

TU_IF_P_BCM

C26310.01uF

C26320.01uF

TU_IF_N_1

TU_IF_P_1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TU_IF_AGC_1

TU_IF_AGC_2

+3.3V_TU

IC2600

AZ1117H-ADJTRE1(EH11A)

C2614

0.1uF 16V

INPUT

3

OUTPUT

1

2

ADJ/GND

R2627

1.2K

V_OUT=V_REF(1+R2/R1)

+3.3V_NORMAL

+3.3V_TU

C2621

0.1uF 16V

+5V_NORMAL

C2620

0.1uF 16V

L2604

CIC21J501NE

C2622

0.1uF 16V

L2603

BLM18PG121SN1D

C2625

C2637

0.1uF

22uF

60mA

C2633

0.1uF

10V

16V

For ESD

+5V_TU

200mA

C2624

22uF

C2626

22uF

10V

C2623

0.1uF

16V

R2628

+1.2V_TU

10

R2

GND

R1

R2629

1

C2616

0.1uF

C2615

16V

10uF 10V

GP2_BCM Ver. 1.0

Tuner (Half Nim)

28

PANASONIC (ISDB-T)

LGE Internal Use Only

MN884433

IF_N_EXT IF_P_EXT

ISDB_DEMOD

C2800 0.1uF C2801 0.1uF

ISDB_DEMOD

+1.2V_DE

C2802 0.1uF

ISDB_DEMOD

C2803 0.1uF ISDB_DEMOD

C2804 0.1uF

C2805 0.1uF

ISDB_DEMOD

R2800

1%

10K

C2806 0.1uF C2807 0.1uF C2808 0.1uF

IF_AGC_ISDB

+3.3V_DE

ISDB_DEMOD

ISDB_DEMOD ISDB_DEMOD

ISDB_DEMOD

R2801 2.2K R2802 2.2K

ISDB_DEMOD

R2804 2.2K

ISDB_DEMOD

R2805 2.2K

R2803

ISDB_DEMOD

C2809

0.1uF

VSS_1

AVDD_S

AII_S AIQ_S

AVSS_S

VRT_S

VRB_S TCPO_S VDDL_1 MSCL_S MSDA_S

VSS_2

VSSH PSEL ZSEL

VDDL_2

ACKI

TCPO_T

IR_T VRT_T VRB_T

AVDD_T

AIN_T AIP_T

AVSS_T

10K

AGC_S

100

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

26

VSS_3

MSCL_T28MSDA_T29VDDH_1

ISDB_DEMOD

C2811

0.1uF 16V

ISDB_DEMOD

ISDB_DEMOD C2810

0.1uF 16V

27

GPO1

ISDB_DEMOD

C2812

C2815

0.1uF

16V

SCKB94TEST095SDOB96PCKB97DENB98GPO299VDDH_5

93

MN884433

30

31

33

GPO0

AGCI_T32AGCR_T

ISDB_DEMOD

C2813

0.1uF 16V

C2814 15pF 50V

ISDB_DEMOD

C2819

C2816

0.1uF

0.1uF 16V

16V

VSS_1192VDDL_7

91

IC2800

ISDB_DEMOD

34

35

36XO37XI38

VSS_4

VDDL_3

VDDH_2

C2817

0.1uF 16V

ISDB_DEMOD

ISDB_OPT

R2806 1M

ISDB_DEMOD

X2800 25MHz

ISDB_DEMOD

C2821

0.1uF 16V

39

41

GPI140GPI0

TEST442SHVPP

C2820

0.1uF 16V

ISDB_DEMOD

C2818 15pF 50V

VSS_1085HDVPP86RON87NC_388HDVDDH89NC_490HDVDDL1

84

43

44

NC_1

SHVDDH

C2822

0.1uF 16V

ISDB_DEMOD

45

VSS_5

VDDL_4

46

47

TCK48TDI

ISDB_DEMOD C2823

0.1uF 16V

49

NRST

TEST177TEST278SCKA79GPI280SDOA81PCKA82DENA83VDDH_4

76

50

TEST3

ISDB_DEMOD

R2807 22

ISDB_DEMOD

R2808 22

ISDB_DEMOD

R2809 22

ISDB_DEMOD

R2810 22

VSS_9

75

INTB

74

INTA

73

SADR

72

VDDH_3

71

SCL

70

SDA

69

VSS_8

68

HDVDDL0

67

SADR_S

66

NC_2

65

SADR_T

64

VDDL_6

63

VSS_7

62

ERRB

61

SYNCB

60

ERRA

59

SYNCA

58

TDO

57

CSEL1

56

CSEL0

55

TMS

54

TRST

53

VDDL_5

52

VSS_6

51

ISDB_DEMOD

C2825 0.1uF

ISDB_DEMOD

C2826 0.1uF

ISDB_DEMOD

C2827 0.1uF

ISDB_DEMOD

C2824 0.1uF

FE_TS_VAL_ERR

FE_TS_SYNC

FE_TS_SERIAL

(FE_TS_SERIAL)

FE_TS_DATA_CLK

22

R2813 R2814 22

OPT

R2811

2.2K

+3.3V_DE

R2812

2.2K

OPT

AMP_I2C HAVE PULL-UP

SCL1_3.3V SDA1_3.3V

DEMOD_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M Ver. 1.0

ISDB-T Demodulator

28

Panasonic Demodulator Power(3.3V,1.2V)

LGE Internal Use Only

ISDB_BCD

+3.3V_NORMAL

ISDB_POWER

C2900

0.1uF

ISDB_POWER

L2900

BLM18PG121SN1D

+3.3V_DE

C2901

0.1uF

ISDB_POWER

+3.3V_DE

ISDB_POWER

C2902

0.1uF 16V

+5V_NORMAL

ISDB_BCD

L2901

ISDB_SEMTECH

ISDB_POWER C2903

10uF 10V

OPT C2907

0.1uF

ISDB_BCD

R2904 10K

R2905 10K

R2906 10K

ISDB_BCD

OPT C2906

0.1uF

IC2900

AP2132MP-2.5TRG1

PG

1

EN

2

VIN

3

VCTRL

4

IC2900-*1

SC4215ISTRT

NC_1

1

ISDB_SEMTECH

EN

2

VIN

3

NC_2

4

9

THERMAL

[EP]

GND

8

ADJ

7

VOUT

6

NC

5

GND

8

ADJ

7

VO

6

NC_3

5

ISDB_BCD

R2903-*1 10K

ISDB_SEMTECH

R2903

5.1K

10K

R2902

ISDB_POWER

+1.2V_DE

ISDB_POWER

C2904

0.1uF 16V

ISDB_POWER

C2905 22uF 16V

IF AGC SELECTION

R2900

0

IF_AGC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

ISDB_DEMOD

R2901

INT_DEMOD

0

IF_AGC_ISDB

TU_IF_AGC_BCM

TP2901

IF_AGC_SEL

GP2_Saturn7M Ver. 1.0

Demodulator

29

USB2 OPTION

LGE Internal Use Only

+3.3V_USB

C2201 1uF 10V

+3.3V_NORMAL

C2202

0.1uF

L2201

BLM18PG121SN1D

USB_DM1

USB_DP1

USB_DM2

USB_DP2

C2203

0.1uF

C2204

0.1uF

+3.3V_USB

C2205

0.1uF

USBDN1_DM

USBDN1_DP

USBDN2_DM

USBDN2_DP

VDDA33_1

NC_1

NC_2

NC_3

NC_4

VSS

1

2

3

4

5

6

7

8

9

C2206

1uF

C2207

R2201

12K

RBIAS

VDD33PLL

35

36

THERMAL

37

10

11

TEST

VDDA33_2

10V

0.1uF

C2208

15pF

C2210

15pF

R2202

1%

1M

X2201 24MHz

1/10W 1%

XTAL2

XTAL1/CLKIN

VDD18PLL

32

33

34

IC2201

USB2512A_AEZG

12

13

14

VDD18

OCS1_N

PRTPWR1

SIDE_USB_DP

SIDE_USB_DM

VDDA33_3

USBUP_DM

USBUP_DP

29

30

31

15

17

OCS2_N

VDD33CR16PRTPWR2

R2203

100K

SUSP_IND/LOCAL_PWR/NON_REM0

28

VBUS_DET

27

RESET_N

26

HS_IND/CFG_SEL1

25

SCL/SMBCLK/CFG_SEL0

24

VDD33

23

SDA/SMBDATA/NON_REM1

22

NC_8

21

NC_7

20

NC_6

19

18

R2204

NC_5

100K

C2212

0.1uF

R2205

100K

R2209 100K

R2210

100K

R2206

+3.3V_USB

OPT

100K

R2211 100K

R2213 100K

0

+3.3V_USB

C2215

0.1uF OPT

R2212 100K

R2207

OPT

R2208

OPT

R2214 0

OPT

+3.3V_USB

SCL2_3.3V

SDA2_3.3V

/RST_HUB

USB / DVR Ready

L2202

MLB-201209-0120P-N2

120-ohm C2218 100uF

KJA-UB-4-0004

JK2201

1234

USB DO WN STREAM

5

16V

D2201

CDS3C05HDMI1

5.6V

USB

L2203

MLB-201209-0120P-N2

120-ohm C2219 100uF

KJA-UB-4-0004

JK2202

1234

USB DO WN STREAM

16V

NC OUT_2 OUT_1

FLG

R2225 0

D2203

CDS3C05HDMI1

5.6V

IC2203

AP2191SG-13

NC

8

OUT_2

7

OUT_1

6

FLG

5

EAN60921001

R2227 0

IC2202

AP2191SG-13

8 7 6 5

EAN60921001

GND

1

IN_1

2

IN_2

3

EN

4

GND

1

IN_1

2

IN_2

3

EN

4

+3.3V_NORMAL

R2220

4.7K

OPT

USB_CTL1

+3.3V_NORMAL

R2221

4.7K OPT

USB_CTL2

USB_DM2

USB_DM1

USB_DP1

R2223

2.7K

R2226

2.7K

/USB_OCD1

C2221 10uF 10V

040:J6

C2220 10uF 10V

+5V_USB

/USB_OCD2

+5V_USB

C2223

0.1uF

C2222

0.1uF

C2213

0.1uF

USB_CTL1

/USB_OCD1

C2209

C2211

0.1uF

1uF

10V

USB_CTL2

/USB_OCD2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

USB

C2214

4.7uF

USB_DP2

D2202

5

CDS3C05HDMI1

5.6V

D2204

CDS3C05HDMI1

5.6V

40

BLUETOOTH FOR BCM

LGE Internal Use Only

11

10

9

8

7

6

5

4

3

2

1

D1899

CDS3C05HDMI1

5.6V

BCM BT MODULE

R1898 0

BCM BT MODULE

R1899 0

BCM BT MODULE

BT_ON/OFF

BCM BT MODULE

C1899

22uF 10V

D1898

CDS3C05HDMI1

5.6V

BCM BT MODULE

R1889

10

BCM BT MODULE

R1896 27

BCM BT MODULE

R1897 27

BCM BT MODULE

BT_RESET

VREG_CTRL

BLUETOOTH

G

S

D

Q1801

RTR030P02

BCM BT MODULE

R1887

BCM BT MODULE

R1888

4.7K

BCM BT MODULE

47K

C

B

2SC3052

Q1800

E

BCM BT MODULE

BT_DM

BT_DP

+3.3V_NORMAL

C1898

1uF

R1886

47K

BCM BT MODULE

OPT

L1899

500

12507WR-10L

P1895

BCM BT MODULE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Bluetooth

43

CI CONTROL BUFFER

LGE Internal Use Only

/CI_SEL

EBI_CS

EBI_WE

CI_A[0] CI_A[1] CI_A[2] CI_A[3]

CI POWER ENABLE CONTROL

CI_A[4] CI_A[5] CI_A[6] CI_A[7]

CI_A[8]

CI_A[9] CI_A[10] CI_A[11]

CI_A[12] CI_A[13]

CI_A[0-13]

CI_A[14]

007:E6

CI_5V_CTL

EBI_RW

[GP27]007:H7

/CI_IREQ

[GP39]

007:H5;016:AJ3

CI_OUTDATA[4] CI_OUTDATA[5] CI_OUTDATA[6] CI_OUTDATA[7]

CI_OUTCLK CI_OUTVALID CI_OUTSTART

CI_OUTDATA[0] CI_OUTDATA[1] CI_OUTDATA[2] CI_OUTDATA[3]

CI_MOD_RESET

/CI_WAIT

/CI_CD2

/CI_CD1

CI_OUTCLK,CI_OUTDATA[0-7],CI_OUTSTART,CI_OUTVALID

[GP49]

[GP38]

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_DATA_CLK

DVB-CI PULL-DOWN (Near CI Slot)

DVB-CI PULL-UP (Near CI Slot)

/CI_WAIT

CI_OUTCLK

/CI_CD1

/CI_CD2

CI_MOD_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

High_Common(BCM3556)

Non_CI

2009.10.19 46

Inner_Emitter

LGE Internal Use Only

P6900

12507WR-03L

4

3D IR

+3.3V_NORMAL

C6901

0.01uF 50V

OUT_2 OUT_1

IC6900

AP2191SG-13

NC

GND

8

1

OPT

IN_1

7

2

IN_2

6

3

FLG

EN

5

4

EAN60921001

R6901 0

OPT

L6901

MLB-201209-0120P-N2

120-ohm

3D_IR

R6902

4.7K OPT

USB_PWRON3

3D_SYNC_OUT

R6903

2.7K OPT

USB_PWRFLT3

USB_PWRON3

R6904 0

OPT

R6905 0

OPT

C6902 10uF 10V

3D_IR

+5V_NORMAL

C6903

0.1uF

3D_IR

SC_RE1

SC_RE2

Outer_Emitter

KJA-UB-4-0004

JK6900

1234

1

2

3

L6902

120-ohm

Inner_Emitter

R6906 0

Inner_Emitter

USB DO WN ST RE AM

5

C6900 100uF 16V

3D_IR

D6900

5.5V

3D_IR

L6900

MLB-201209-0120P-N2

120-ohm

OPT

R6900 0

3D_IR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3DIR

10.01

69 100

[51Pin LVDS Connector]

LGE Internal Use Only

(For FHD 60/120Hz)

P7800

TF05-51S

TM480Hz

52

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

PANEL_VCC

R7087 0

P7801

L7800 120-ohm TM480Hz

C7800 10uF 25V

OPT

R7084 0

OPT

R7085 0

OPT

R7086 0

3DTV

R7800 0

TM480Hz

R7801 0

TM480Hz

R7802 0

TM480Hz

R7803 0

TM480Hz

R7807 0

3DTV

C7801 1000pF 50V

TM480Hz

RRXB4+/RLV0P

RRXB4-/RLV0N

RRXB3+/RLV1P

RRXB3-/RLV1N

RRXBCK+/RLV2P

RRXBCK-/RLV2N

RRXB2+

RRXB2-

RRXB1+

RRXB1-

RRXB0+/RLCLKP

RRXB0-/RLCLKN

RRXA4+/RLV3P

RRXA4-/RLV3N

RRXA3+

RRXA3-

RRXACK+/RLV4P

RRXACK-/RLV4N

RRXA2+/RLV5P

RRXA2-/RLV5N

RRXA1+

RRXA1-

RRXA0+

RRXA0-

SCL2_3.3V

SDA2_3.3V

L/R_SYNC

FRC_RESET

SCL3_3.3V

SDA3_3.3V

V_SYNC

3D_SYNC_OUT

C7802

0.1uF 50V

TM480Hz

R7806 0

R7805 0

3D_DIM2

3D_DIM

GPIO31

3D_DIMMING_2

3D_DIMMING

SCAN_BLK1/OPC_OUT

OPC_OUT

OPC_EN

3D_SYNC_OUT

SCAN_BLK2

I2C_#3 Check(LG5111,LG1120,etc)

TM480Hz

P7802

12507WR-04L

R7812 0

TM480Hz

R7813 0

TM480Hz

R7814 0

TM480Hz

Formatter for 3DTV

L7801

120-ohm

PANEL_VCC

5

P7803

12507WR-04L

3DTV

5

R7804

12507WR-06L

1

2

3

4

1

2

3

4

SCL3_3.3V

SDA3_3.3V

V_SYNC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3DTV

1

2

3

4

5

6

7

R7808

R7809

R7810

R7811

0

E_TCK

0

E_TDO

0

E_TMS

0

E_TDI

35

[To MASTER LED DRIVER]

LGE Internal Use Only

P7900

12507WR-10L

IOP

11

1

2

3

4

5

6

7

8

9

10

R7904 22

IOP

R7905 22

IOP

R7906 22

IOP

C7901 100pF 50V

OPT

C7903 100pF 50V

OPT

C7905 100pF 50V

OPT

C7907 100pF 50V

OPT

+3.3V_NORMAL

R7907

3.3K Edge

C7909

C7911

100pF

50V

OPT

L_VS

M0_MOSI

M0_SCLK

M1_MOSI

R7909

3.3K Edge

C7914 100pF 50V

OPT

M1_SCLK

S_CS_N

S_MOSI

S_SCLK

R7908

3.3K Edge

C7913 100pF 50V

OPT

[To SLAVE LED DRIVER]

P7901

12507WR-08L

Except Edge(42/47")

1

2

3

4

5

6

7

8

9

Edge(55")

R7900 0

R7901 22

Edge(55")

R7902 22

IOP

R7916 22

Edge(55")

R7917 22

Edge(55")

R7903 22

IOP

C7900 100pF 50V

OPT

C7902 100pF 50V

OPT

C7904 100pF 50V

OPT

C7906 100pF 50V

OPT

C7908 100pF 50V

OPT

C7910 100pF 50V

R7910 22

R7911 22 R7912 22

R7913 22

R7914 22

R7918 22

R7919 22

R7915 22

C7912 100pF 50V

OPT

IOP

Edge(55")

IOP

Edge(55")

IOP

Edge(55")

R_VS

M2_MOSI M2_SCLK

M2_SCLK

M2_MOSI

M3_MOSI

M3_SCLK

R_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

Interface for LG5111

Ver. 1.0

72

FROM LIPS & POWER B/D

LGE Internal Use Only

+3.5V_ST

RT1P141C-T112

Q8002

R8004

Q8000 2SC3052

L8003

C8005

0.1uF 50V

4.7K

C8006

0.1uF 16V

400Hz_MD_MDSI

C8000 100uF

C8001 100uF

RL_ON

+3.5V_ST

16V

+12V

25V

R8000

10K

B

MLB-201209-0120P-N2

C8004

0.1uF 16V

L8002

MLB-201209-0120P-N2

C8003

0.1uF 50V

C

E

PANEL_CTL

1:AK10

PIN No

18

20

22

24

+12V

L8000

CIC21J501NE

+12V

L8001

C8002 10uF 25V

V4:VBR-A V5:NC

PWM_DIM

Err_out

LGD

INV_ON

OPT R8002 10K

R8001 47K

500

CMO(09)

B

A-DIM

NC

PWM_DIM

INV_ON

R8003 22K

C

Q8001 2SC3052

E

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3

1

2

GND/P.DIM2

0

R8085

0

R8076

R8005

R8007

NON_SCAN_LIPS

R80090SCAN

MO_MOSI

M2_MOSI

400Hz_MD_MDSI/42_47_LOCAL DIMMING

AUO

INV_ON

Err_out

A-DIM

SCAN_BLK2

SHARP

INV_ON

Err_out

PWM_DIM

R8008

22K

C8009

0.1uF 50V

R8010

B

10K

R8011

1.8K

C

E

C8008

0.01uF 25V

+5V_USB

IC8000

MP8706EN-C247-LF-Z

IN

1

SW_1

2

SW_2

3A

BST

3

4

L8004

3.6uH

NR8040T3R6N

C8007

0.1uF

R8006 22

PWR ON

24V GND GND

3.5V

3.5V GND GND 12V 12V 12V

SCAN_LIPS

GND

C8010 10uF 25V

Q8003 2SC3052

NORMAL_26~52

P8000 FW20020-24S

24V

1

2

1 3

3 5

5 7

7 9

9 11

11 13

13 15

15 17

17 19

19 21

21 22 23

23 24

SLIM_32~52

SMAW200-H24S2

OPT

C8011

0.1uF

16V

OPT

C8012

1uF

25V

OPT

C8013 10uF

25V

GND

8

VCC

7

FB

6

EN/SYNC

5

10

10 12

12 14

14 16

16 18

18 20

20 22 24

25

P8001

R8084 0

SCAN_PSU

C8014 1uF 50V

4

4 6

6 8

8

24V GND GND

3.5V

3.5V GND GND/V-sync INV ON A.DIM P.DIM1 Err OUT

Q8004

AO3407A

S

G

R8012 10K

POWER_ON/OFF2_1

R8013

10K

+5V_USB

MLB-201209-0120P-N2

LD

R8015

0

SHARP

R8014

D

OPT

C8015

1uF 25V

OPT

C8016

100pF

50V

Vout=(1+R1/R2)*0.8

L8005

C8018

0.1uF 50V

R8082 0

400Hz_VSYNC

NON_CMO

R8019 100

0

R8018 100

CMO

R8021

AUO

0

R8020

NON_SCAN_PSU

0

PANEL_POWER

MAX 1500mA

1%

R8016

33K

R1

1%

R8017

6.2K

R2

C8024

68uF 35V

V_SYNC

R8028 0

400Hz_MO_SCLK

C

R8023

6.8K OPT

E

0

R8022

R8083

SCAN_PSU

0

C8017

0.1uF OPT

OPT

R8024

0

AUO/SHARP

R8025

0

NON_LED_MODEL

PANEL_VCC

OPT C8019

C8020

100pF

22uF

50V

10V

+24V

400Hz_VSYNC/42_47_LOCAL DIMMING

400Hz_VSYNC

R8036 0

400Hz_MO_SCLK/42_47_LOCAL DIMMING

R8077 0

+3.3V_NORMAL

R8026 1K

R8032 10K

B

Q8005 2SC3052

R8029

CMO

0

R8030

AUO

0

R8031

0

LGD_IOP

A_DIM_LGD

R8027

0

PWM_NON_OPC

R8033

C8021

0 1uF 25V

C8022

0.1uF 50V

SCAN_BLK1/OPC_OUT

SCAN/FHD_OPC

R8034

0

HD_OPC R8035

+3.3V_NORMAL

0

NON_LED_MODEL

+5V_USB

C8023

0.1uF 16V

R8037

C8025

0.1uF 16V

R8078 0

4.7K

ERROR_OUT

C8069

0.1uF

L_VS R_VS MO_SCLK M2_SCLK MO_MOSI M2_MOSI

L_VS

R8039 10K OPT

PWM_DIM

OPC_OUT

R_VS

M2_SCLK MO_SCLK

INV_CTL

A_DIM

+12V

L8007

CIC21J501NE

C8028

C8030

10uF

25V

Vout=0.8*(1+R1/R2)

BCM core 1.2V volt

AGND

1

SS

15

2

PGND_1

3

IC8001

SW_1

4

IN_1

5

NC

6

BS

7

MP2208DL-LF-Z

C8032

0.1uF

THERMAL

+3.5V_ST

L8006

C8027

0.1uF

C8026

0.1uF

MLB-201209-0120P-N2

C8029 22uF 16V

BCM DDR 1.8V

+3.5V_ST

L8008

CIC21J501NE

Placed on SMD-TOP

C8031

C IN

22uF

10V

+5V_NORMAL

IC8003

AOZ1072AI

PGND

1

VIN

2

C8068

0.1uF AGND

16V

3

FB

4

ESD

D8000

5.6V

Vout=0.9*(1+R1/R2)

IC8002

MP2108DQ

25V

BST

1

VIN

2

3A

LX

3

PGND

4

SGND

5

14

13

12

11

10

9

8

C8033 1uF 10V

EP

FB

EN/SYNC

PGND_2

SW_2

IN_2

POK

VCC

R8040

100K

R8041

C8034

10

C8035 22uF

0.01uF

LX_2

2A

L8009

2uH

C8036

0.1uF

R8042 0

R8044

R8045

0

NON_ESD

R8043 470K

1%

8

LX_1

7

EN

6

COMP

5

10K

ESD R8045-*1 100K

R8046 30K 1%

R1 R2

C8037

22uF 10V

OPT

R8047

NR8040T3R6N

POWER_ON/OFF2_2

R8050

10K

12K

R8049

POWER_ON/OFF2_1

3.9K

D1.2V

R8048

910K 1%

C8041 22uF 10V

Vout=0.8*(1+R1/R2)

Replaced Part

10K

C8038

0.01uF 25V

R8052

RUN

10

VREF

9

COMP

8

FB

7

SS

6

L8010

3.6uH

2200pF

C8040

L8011

BLM18PG121SN1D

C8043

10uF 16V

L8012

3.6uH

NR8040T3R6N

C8042

0.01uF 25V

C8039 3300pF

50V

R8051

6.8K

MAX 350mA

1%

R8053

47K

R1

1%

5.6K

R8054

OPT

C8046

100pF

50V

1%

R2

R8055

10K

A1.2V

C8045

0.1uF 16V

Max 1100 mA

POWER_ON/OFF1

OPT 50V

100pF

C8044

R2

R8056 10K

1/10W

1%

MAX 3.1A

R1

R8057

10K

1%

C8047 22uF 10V

C8048 22uF

10V

+5V_NORMAL

C8049

C8066

0.1uF

10uF

16V

D1.8V

Placed on SMD-TOP

C8050

0.1uF

15V-->3.6V

20V-->3.5V

24V-->3.48V 12V-->3.58V

ST_3.5V-->3.5V

Power_DET

+3.5V_ST

R8058

20K

50V

+3.3V_NORMAL

500

POWER 18.5V

L8014

C8055

0.1uF

C8051

0.1uF

50V

OPT

R8080

14K 1%

+12V

L8013

CIC21J501NE

C8052 22uF 25V

C8053

10uF

16V

C8054 2200pF

+12V

+3.5V_ST

R8067

14K

1%

PD_+3.5V

R8061-*2 22K 1%

R8062-*2

4.7K 1%

POWER 24V R8061-*1 24K 1%

POWER 24V R8062-*1

4.3K 1%

R8063

12K

PD_+12V

R8064

5.1K

1/16W

NON_PD_+3.5V

+24V

POWER 20V R8061 24K 1%

POWER 20V R8062

5.1K 5%

1%

5%

+3.3V_NORMAL

R8060

10K

OPT

3.9K R8066

LX

7

COMP

VIN

3

AGND

2

1

PGND

EN

6

IC8005

FB

4

AOZ1024DI

5

A2.5V

IC8004

AP2132MP-2.5TRG1

PG

R8086 10K

BCD

R8059

10K

SEMTECH

+5V_NORMAL

R8087

10K

VCTRL

BCD

500

L8018

OPT

C8056

0.1uF

OPT

C8070

0.1uF

SEMTEK:Vout=0.8*(1+R1/R2)

BCD:Vout=0.6*(1+R1/R2)

BCM (EUROBBTV)

EN

VIN

SC4215ISTRT

NC_1

EN

VIN

NC_2

BCD

1

2

THERMAL

3

4

IC8004-*1

1

2

SEMTECH

3

4

POWER

8

9

7

6

5

8

7

6

5

R8068 100K

IC8007

NCP803SN293

VCC

3

GND

R8079 100K

IC8008

NCP803SN293

VCC

3

1

GND

POWER_ON/OFF2_2

L8015

3.6uH

R8069

R8070

R8071

[EP]

GND

ADJ

VOUT

NC

GND

ADJ

VO

NC_3

R8081 100

RESET

2

1

R8074 100

RESET

2

MAX 2.3A

1%

27K

4.7K

10K

1%

C8059

C8057 22uF

22uF

10V

1%

SEMTEK VOUT : 2.533V

BCD VOUT : 2.514V

R8073 18K

R2

1% R8072

39K

R1

1%

SEMTECH

C8058

10uF

16V

+3.5V_ST

R8075

10K

OPT

not to RESET at 8kV ESD

+3.3V_NORMAL

L8016

CIC21J501NE

C8063

C8067

0.1uF

10uF

16V

10V

A2.5V

R8073-*1

4.7K

BCD

1% R8072-*1

15K

BCD

1%

C8061 10uF

16V

15

POWER_DET

ESD C8065

0.1uF 16V

500

C8062

0.1uF

L8017

D3.3V

C8064

0.1uF 16V

12505WS-12A00

LGE Internal Use Only

+3.5V_ST

EEPROM for Micom

IC8100

M24C16-WMN6T

NC/E0

1

NC/E1

47K

R81 00

NC/E2

2

3

VSS

4

MICOM MODEL OPTION

AMP_RESET_N

PANEL_CTL

OPC_EN

P8100

1

2

3

4

5

6

7

8

9

10

11

12

R8104 10K

13

8

7

6

5

R8102 100 R8103 100

R8101 100

OPC

+3.5V_ST

R8108

R8105

R8106

R8107

VCC

WC

SCL

SDA

R81 13 22

R81 15 22

R81 16 22

R81 18 22

R81 19 22

10K

+3.5V_ST

PDP/3D

R8109 10K

LCD/OLED

R8110 10K

R8117

22

R8114

22

TOUCH_KEY

LOGO_BUZZ

R8111 10K

PWM_LED

TACT_KEY

R8112 10K

GND

+3.5V_ST

R8139 10K

OPT

47K

OPT

R8140

15pF

C8101

50V

15pF

C8102

10MHz X8100

0

R8138

10Mhz Crystal Ready

+3.5V_ST

for Debugger

C8103

0.1uF

MICOM_RESET

NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

+3.5V_ST

OPT

R8126

10K

POWER_ON/OFF2_1

SCL1_3.3V

SDA1_3.3V

NEC_EEPROM_SCL

NEC_EEPROM_SDA

HDMI_CEC

AMP_MUTE

MODEL1_OPT_0

SOC_RESET

INV_CTL

MODEL1_OPT_1

OCD1B

22

R8127

22

R8128

P33/TI51/TO51/INTP4

R8129 22

R8130 22

R8131 22

R8132 22

R8133 22

R8134 22

R8135 22

R8136 22

P32/INTP3/OCD1B

NON_M-REMOTE

P60/SCL0 P61/SDA0

P62/EXSCL0

P63

P75

P74 P73/KR3 P72/KR2 P71/KR1 P70/KR0

1 2 3 4 5 6 7 8 9 10 11 12

VDD

48

13

C8100

R8125 4.7K

0.1uF

NEC_EEPROM_SCL

NEC_EEPROM_SDA

R8122 4.7K

P31/INTP2/OCD1A

MODEL OPTION

OLED/3D

R8123 10K

R8120 10K

LCD/PDP

R8124 10K

R8121 10K

MODEL1_OPT_0 MODEL1_OPT_1 MODEL1_OPT_2 MODEL1_OPT_3

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_0

MODEL_OPT_3

MODEL_OPT_1

MODEL_OPT_2

PIN NO.

8

11

30

31

0

LOW

0

HIGH

OLED/3D

LOGO_BUZZ

TOUCH_KEY

PDP/3D

PDPLCD

0

1

LOW_SMALL

0

LOW

LCD/PDP

PWM_LED

TACT_KEY

LCD/OLED

OLED

1

0

TBD

10

01

3D

1

HIGH

1

NON_M-REMOTE

R81 42 22

OCD1A

FLMD0

0

R8146

R8143 10K

15p F

MICOM_EPSON

C81 05

X8101-*1

32.768KHz

MICOM_KDS

X8101

32.768KHz R8175

4.7M

MICOM_DOWNLOAD

15pF

C8106

GND

R8178 22

C8104 0.1uF

RESET

P124/XT2/EXCLKS

P123/XT1

FLMD0

P122/X2/EXCLK/OCD0B

P121/X1/OCD0A

REGC

VSS

40

41

42

43

44

45

46

47

IC8101

UPD78F0513AGA-GAM-AX

NEC_MICOM

14

15

16

17

18

19

20

P15/TOH0

P14/RXD6

P13/TXD6

LED_R/BUZZ

NEC_ISP_Rx

P12/SO10

P11/SL10/RXD0

22

R81 77

22

R81 76

NEC_ISP_Tx

POWER_ON/OFF2_2

P30/INTP1

P17/TI50/TO50

P16/TOH1/INTP5

22

TACT_KEY

R81 45

R81 44

IR

POWER_DET

LED_B/LG_LOGO

WIRELESS_PWR_EN

WIRELESS_DETECT

MICOM_RESET

47K

22

R8184

R8180

C8108

0.1uF

P120/INTP0/EXLVI

P41

P40

37

38

39

36 35 34 33 32 31 30 29 28 27 26 25

21

22

23

24

AVSS

AVREF

P10/SCK10/TXD0

22

R81 79

NEC_RXD

R8181 10K

R8182 10K

R8183 10K

NEC_TXD

+3.5V_ST

OPT

+3.5V_ST

SW8100

JTP-1127WEM

12

4 3

R8186 20K

1/16W 1%

R8185

20K

1/16W

1%

P140/PCL/INTP6 P00/TI000 P01/TI010/TO00 P130 P20/ANI0 ANI1/P21 ANI2/P22 ANI3/P23 ANI4/P24 ANI5/P25 ANI6/P26 ANI7/P27

+3.5V_ST

C8107 1uF

R8187 22

R8188 22

R8189 10K



R8192 22

R8194 22

R8195 22

R81 96 22

R8190 22

R8193 22

R8191 22

SCART1_MUTE

C

Q8100

B

2SC3052

E

FOR ATSC Assy

EDID_WP

RL_ON

SCART1_MUTE

WIRELESS_SW_CTRL

FLASH_WP

MODEL1_OPT_3

MODEL1_OPT_2

POWER_ON/OFF1

MICOM_DOWNLOAD

SIDE_HP_MUTE

KEY2

KEY1

TP8100

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

MICOM

Ver. 1.4

5

+3.5V_ST

LGE Internal Use Only

EYEQ R8225

50V

R8227 1.5K

R8224 100

C8212 100pF

LED_R/BUZZ

100

EYEQ

R8226 100

TACT_KEY

50V

IR & KEY

KEY1

KEY2

+3.5V_ST

R8204

Q8201

2SC3052

+3.5V_ST

47K

+3.5V_ST

R8206

3.3K

R8205

OPT

47K

C

B

E

COMMERCIAL

R8207

COMMERCIAL

22

IR_OUT

R8202

Q8200

2SC3052

47K

R8203

C

10K

B

E

R8201 0

OPT

R8200

IR

22

R8211

10K

1%

R8209 100

R8210 100

COMMERCIAL_EU

Q8202

2SC3052

COMMERCIAL_EU

R8213

10K 1%

BLM18PG121SN1D

+3.5V_ST

R8214

47K

C

B

E

COMMERCIAL_EU

R8212 0

COMMERCIAL_US

L8200

L8201

+3.5V_ST

R8216

10K

C8206

0.1uF

R8218

COMMERCIAL

Q8204

2SC3052

COMMERCIAL

C8207

0.1uF

L8202

BLM18PG121SN1D

C8208

0.1uF

+3.5V_ST

47K

C

B

COMMERCIAL

E

16V

R8220

47K

D8200

5.6V

AMOTECH

D8201

AMOTECH

C8209 1000pF 50V

+3.3V_NORMAL

5.6V

LED_B/LG_LOGO

L8203

BLM18PG121SN1D

C8210

0.1uF 16V

NEC_EEPROM_SCL

NEC_EEPROM_SDA

C8211 1000pF

Zener Diode is

WIRELESS

IR_PASS

R8208

WIRELESS

+3.5V_ST

R8215

47K

WIRELESS

22

R8217

C

Q8203

B

2SC3052

WIRELESS

E

+3.5V_ST

R8219

47K

WIRELESS

10K

Q8205

2SC3052

WIRELESS

R8221

47K

C

B

WIRELESS

E

close to wafer

C8213 1000pF 50V

OPT

C8214 1000pF 50V

OPT

R8287

LD650/LD750

D8206

5.6V

AMOTECH

R8276

1.5K

D8204

CDS3C05HDMI1

5.6V

D8205

CDS3C05HDMI1

5.6V

10K

OPT

R8280

10K

P8200

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

ETHERNET CONNECT

R8283

EPHY_LINK

0

R8284 0

R8285 0

OPT C8221 10pF

50V

R8286 0

OPT C8218 10pF

50V

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

EPHY_ACTIVITY

OPT C8220 10pF

50V

OPT C8222 10pF

50V

D8210

5.6V

D8208

D8207

5.6V

D8209

D8211

D8212

5.6V

C8216 1000pF 50V

1000pF

C8217

A2.5V

L8204

CIC21J501NE

D3.3V

R8281 510

R8282 510

JK8200

XRJV-01V-D12-180

1

2

3

4

5

6

7

8

D1

D2

D3

D4

9

RS232C

+3.5V_ST

C8200 0.33uF

C8201

0.1uF

C8202

0.1uF

C8203

0.1uF

C8204

0.1uF DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC8200

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

C8205

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.5V_ST

4.7K OPT

R8222

R8223

4.7K OPT

D8202 CDS3C30GTH 30V

IR_OUT

D8203 CDS3C30GTH 30V

R8273 0

R8274

R8272

R8275

R8277 100

R8278 100

0

OPT

R8279

Trace impedance : 100 ohm differenctial impedance to GND plane

10

5

9

JK8201

4

8

3

7

2

6

1

0

SPG09-DB-009

BCM_RXD1

NEC_RXD

BCM_TXD1

NEC_TXD

5 mils trace width with 7 mils air gap on P/N pair. Adjacent TX/RX differential pairs should be separated by more than 15 mils to each other

SHIELD

LGE Internal Use Only

20

JK8302

EAG59023302

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

R8302

D8302

5.5V

1K

* HDMI CEC

E

C

KRC104S

Q8307

B

DDC_SDA_4

DDC_SCL_4

E

C

B

R8321

4.7K

GND

D8311

5.5V ESD

HDMI_HPD_4

5V_HPD4

5V_HDMI_4

CEC_REMOTE

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

CEC_REMOTE

R8326

D8312

MMBD301LT1G

+3.5V_ST

22K

G

SBD

Q8308

BSS83

+3.3V_HDMI

100K

R8349

HDMI_CEC

+3.3V_NORMAL

E

KRC104S

Q8302

JP8304

JP8305

E

C

Q8305

B

DDC_SDA_1

DDC_SCL_1

C

GND

OPT

GND

R8307 0

R8308

0

R8311

4.7K

HDMI_HPD_1

B

5V_HPD1

5V_HDMI_1

D8305

5.5V OPT

GND

CEC_REMOTE

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

JACK_GND

GND

20

JK8303

EAG42463001

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

ESD

D8313

CDS3C05HDMI1

D8308

5.5V

ESD

R8316

1K

5.6V

D8314

CDS3C05HDMI1

GND

KRC104S

GND

Q8306

JP8306

R8317 0

R8318

JP8307

0

ESD

5.6V

+3.3V_HDMI

L8300

BLM18PG121SN1D

C8324

0.1uF

YKF45-7058V

SHIELD

20

JK8300

EAG59023302

HDMI_3

YKF45-7058V

SHIELD

20

JK8301

EAG59023302

YKF45-7058V

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

19

18

17

16

15

14

13

12

11 10

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

CK-

CK_GND

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_1

A1CA2

5V_HDMI_3

A1CA2

R8314 47K

R8315 47K

GND

C8308

DDC_SDA_1

DDC_SCL_1

DDC_SDA_3

DDC_SCL_3

SIDE_HDMI_PORT4

+5V_NORMAL

5V_HDMI_2

R8319

47K

HDMI_3

+5V_NORMAL

R8320

47K

A1CA2 HDMI_3

D8309

HDMI_3

5V_HDMI_4

A1CA2

R8322 47K

R8323 47K

5V_HPD2

5V_HPD4

D8310

EDID Pull-up

DDC_SDA_2

DDC_SCL_2

DDC_SDA_4

DDC_SCL_4

HDMI1

HDMI_HPD_1

DDC_SDA_1

DDC_SCL_1 CK-_HDMI1 CK+_HDMI1

D0-_HDMI1 D0+_HDMI1

D1-_HDMI1 D1+_HDMI1

D2-_HDMI1 D2+_HDMI1

+5V_NORMAL

+1.8V_HDMI

C8302

0.1uF

R8325

3.3K

R8324

3.3K

16V

C8300

0.1uF

5V_HDMI_1

R8327

C8301

0.1uF 16V

0.1uF

C8305

0.1uF

C8307

0.1uF

HDMI_CLK-

HDMI_CLK+

HDMI_SDA

HDMI_SCL

OPT

R8328

0

C8303

C8304

0.1uF

16V

HDMI_RX1-

HDMI_RX0+

HDMI_RX0-

33

R8330

R8329 33

R8331 33

VSS_1 OUT_C+ OUT_C-

VDDO[3V3] OUT_DDC_CLK OUT_DDC_DAT

VSS_2

VDDDC[1V8]_1

RXA_HPD

RXA_5V RXA_DDC_DAT RXA_DDC_CLK

RXA_C-

RXA_C+ VDDH[3V3]_1

RXA_D0RXA_D0+

VSS_3 RXA_D1RXA_D1+

VDDH[3V3]_2

RXA_D2RXA_D2+

VDDH[1V8]_1

AUX_5V

HDMI_RX1+

R8332 33

5V_HDMI_2

HDMI2

HDMI_RX2-

HDMI_RX2+

33

R8334 33

R8333

OUT_D0-

100

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

26

VSS_427TEST1

C8306

0.1uF 16V

R8335

0.1uF

OUT_D1+

OUT_D1-

VSS_1299OUT_D0+

97

98

28

29

RXB_5V

RXB_HPD

RXB_DDC_DAT

OPT

0

HDMI_HPD_2

C8310

0.1uF

C8309

0.1uF

OUT_D2-

VDDO[1V8]

94

95

96

TDA19997

30

31

32

RXB_C-33RXB_C+

RXB_DDC_CLK

DDC_SCL_2

DDC_SDA_2

CK-_HDMI2

CK+_HDMI2

C8311

D2-_HDMI4

D2+_HDMI4

VDDH[3V3]_8

RXD_D2-

RXD_D2+

VDDDC[1V8]_3

VSS_1193OUT_D2+

89

90

91

92

IC8300

34

35

37

VSS_5

RXB_D0-36RXB_D0+

RXB_D1-39RXB_D1+

VDDH[3V3]_3

D0+_HDMI2

D0-_HDMI2

D1+_HDMI4

RXD_D1+

87

88

38

VDDH[3V3]_4

D1+_HDMI2

D1-_HDMI2

D1-_HDMI4

D0+_HDMI4

RXD_D0+

VSS_1086RXD_D1-

84

85

40

41

RXB_D2-42RXB_D2+

D2-_HDMI2

D0-_HDMI4

RXD_D0-

83

43

44

45

VSS_6

CDEC_DDC

VDDDC[1V8]_2

D2+_HDMI2

CK+_HDMI4

CK-_HDMI4

DDC_SDA_4

DDC_SCL_4

RXD_DDC_DAT

RXD_DDC_CLK

RXD_C-81RXD_C+82VDDH[3V3]_7

78

79

80

46

47

48PD49

TEST2

R8336 0

VDDDC[1V8]_4

R8338

R8337

0

HDMI_HPD_4

5V_HDMI_4

0

OPT

R8339

Place close to TDA9996

RXD_HPD

RXD_5V

76

77

VDDH[1V8]_2

75

R12K

74

VSS_9

73

RXC_D2+

72

RXC_D2-

71

VDDH[3V3]_6

70

RXC_D1+

69

RXC_D1-

68

VSS_8

67

RXC_D0+

66

RXC_D0-

65

VDDH[3V3]_5

64

RXC_C+

63

RXC_C-

62

RXC_DDC_CLK

61

RXC_DDC_DAT

60

RXC_5V

59

RXC_HPD

58

CEC

57

VSS_7

56

VDDS[3V3]

55

CDEC_STBY

54

INT_N/MUTE

53

RXE_DDC_DAT

52

RXE_DDC_CLK

51

I2C_SDA50I2C_SCL

22

R8340

SDA2_3.3V

SCL2_3.3V

C8312

0.1uF 16V

HDMI4

C8313

0.1uF 16V

0

R8343

R8344 12K

OPT

C8314

0.1uF 16V

C8316

0.1uF 16V

5V_HDMI_3

R8345 0 OPT

R8346 0

C8315

0.1uF

C8319

0.1uF

C8320

0.1uF

C8321

0.1uF

C8322

0.1uF

+1.8V_HDMI

C8318

0.1uF 16V

C8317

0.1uF 16V

Ready for TDA19997

OPT R8347

4.7K

OPT

4.7K R8348

C8323

0.1uF 16V

D2+_HDMI3 D2-_HDMI3

D1+_HDMI3 D1-_HDMI3

D0+_HDMI3 D0-_HDMI3

CK+_HDMI3

CK-_HDMI3

DDC_SCL_3

DDC_SDA_3

HDMI_HPD_3

+3.3V_HDMI

HDMI3

KJA-ET-0-0032

GND

D8300

5.5V GND

OPT

HDMI_3 KRC104S

GND

HDMI_3

R8303 0

R8304

HDMI_3

OPT

0

GND

R8305 0

R8306 0

Q8300

JP8300

JP8301

GND

KRC104S

Q8301

JP8302

JP8303

HDMI_3

R8300

1K

GND

D8301

5.5V

R8301

1K

GND

UI_HW_PORT1

E

HDMI_3

KRC104S

Q8303

E

C

B

C

DDC_SDA_2

DDC_SCL_2

UI_HW_PORT3

E

KRC104S

Q8304

E

C

B

C

DDC_SDA_3

DDC_SCL_3

UI_HW_PORT2

R8309

4.7K

R8310

4.7K

+5V_NORMAL

HDMI_HPD_2

B

HDMI_3

5V_HPD2

5V_HDMI_2

D8303

5.5V OPT

GND

CEC_REMOTE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI_HPD_3

B

5V_HPD3

5V_HDMI_3

D8304

5.5V OPT

GND

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

5V_HPD1

5V_HPD3

D8306

R8312

47K

+5V_NORMAL

D8307

R8313 47K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LEE GI YOUNG

BCM (EUROBBTV)

HDMI

2009.06.18

8

SPDIF_OUT

LGE Internal Use Only

+3.3V_NORMAL

R8400

1K

D8400 30V OPT

C8400

0.1uF 16V

JP8401

JP8400

JP8402

VINPUT

JK8400

JST1223-001

GND

1

VCC

2

3

Fib er Op tic

4 FIX_POLE

RGB PC

RGB_HSYNC

RGB_VSYNC

BCM Reference

DSUB_B

DSUB_G

DSUB_R

R8401

22

R8402

22

D0A

D0B

D1A

D1B

GND

IC8401-*1

IC8400 74F08D

1

2

Q0

3

4

5

Q1

6

7

+5V_NORMAL

VCC

14

D3B

13

12

11

10

9

8

R8403 75

PEJ027-01

C8401

0.1uF

D3A

Q3

D2B

D2A

Q2

R8406

22

R8405

22

R8404 75

RGB AUDIO IN

JK8401

E_SPRING

3

T_TERMINAL1

6A

B_TERMINAL1

7A

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

R8407 75

R1EX24002ASAS0A

A0

1

A1

2

A2

3

DEV

VSS

4

RGB_EDID_RENESAS

IC8401

M24C02-RMN6T

E0

1

E1

2

E2

3

VSS

4

0IMMR00014A

RGB_EDID_ST

OPT

50V

22pF

30V

D8401

ADUC30S03010L_AMODIODE

C8402

30V

D8403

ADUC30S03010L_AMODIODE

D8402

D8404

D8405

30V

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WC

7

SCL

6

SDA

5

50V

22pF

C8403

L8408

RGB_BEAD

L8409

RGB_BEAD

L8410

RGB_BEAD

BCM Reference

RGB_0OHM

L8408-*1 0

RGB_0OHM

L8409-*1 0

RGB_0OHM

L8410-*1 0

D8406 AMOTECH

5.6V

D8407

AMOTECH

5.6V

OPT

0.1uF

C8404

R8411 470K

R8412 470K

16V

60-ohm

ENKMC2838-T112

R8414

2.7 K

R84 13

18pF 50V

C8405

C8406

OPT

D8408

CDS3C05HDMI1

5.6V

RED_G ND

6

+5V_NORMAL

D8409

A1

C

A2

2.7K

R8416

22

R8415

22

R8417

0

H_SYN C

NC10SYNC_ GND

DDC_D ATA

BLUE_ GND

GND_2

RED2GREEN3BLUE4GND_15DDC_G ND

GREEN _GND

13

12

11

9

8

7

1

SPG09 -DB- 010

JK840 2

C8407

1uF

25V

C8408

1uF

25V

V_SYN C

14

R8418 0

R8420

10K

R8421

R8419 0

R8422

100

0

OPT

D8410 CDS3C05HDMI1

5.6V

OPT

0 R8423

DDC_C LOCK

15

SHILE D

16

PC_R_IN

PC_L_IN

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_NORMAL

R8424 10K

OPT

D8411

5.6V

ADMC5M03200L_AMODIODE

RGB IN

1K

R8425

C8409 100pF 50V

DSUB_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

ETC SUB BOARD I/F

2009.06.18EUROBBTV

9

SIDE CVBS PHONE JACK

LGE Internal Use Only

(New Item Developmen)

JK8600

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

D8602

5.6V

D8600

5.5V

D8601

5.6V

D8603

5.6V

R8601

470K

R8603 0

C8600 100pF 50V

R8602 470K

C8607

25V

1uF

C8606

25V

1uF

ALL for SIDE_GENDER option

C8605 47pF 50V

+3.3V_NORMAL

R8605 10K

R8606 0

R8607 0

R8608

1K

C8611 100pF 50V

C8612 100pF 50V

SIDE_AV_CVBS

SIDE_AV_DET

SIDE_AV_L_IN

SIDE_AV_R_IN

SIDE COMPONENT PHONE JACK

(New Item Developmen)

D8604

5.5V

+3.3V_NORMAL

JK8601

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

R8600

10K

D8607

5.1V D8608

5.1V

D8605

5.1V D8609

5.1V

D8606

5.6V

C8601 27pF

50V

C8603 27pF 50V

C8602 27pF

50V

L8600 270nH

R8604 1K

C8604 100pF

50V

L8602 270nH

L8601 270nH

C8608

27pF 50V

C8610

27pF 50V

C8609

27pF 50V

SIDE_COMP_Y

SIDE_COMP_DET

SIDE_COMP_Pb

SIDE_COMP_Pr

Near J

Run Along SIDE_COMP_Y_IN,SIDE_COMP_Pr_IN,SIDE_COMP_Pb_IN Trace

C8613 0.1uF

R8609

36

SIDE_COMP_INCM

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SIDE_GENDER

11

WIRELESS READY MODEL

LGE Internal Use Only

JK8700

KJA-PH-3-0168

Wireless power

+24V

C8700

0.1uF 50V

R8702 10K

MC14053BDR2G

Y1

1

Y0

2

Z1

3

Z

4

Z0

5

INH

6

VEE

7

VSS

8

WIRELESS_DL_RX

WIRELESS_TX

BCM_TX

WIRELESS_PWR_EN

NON_3DTV

R8700

0

R8701

WIRELESS

0

R8705

2.2K

B

NON_WIRELESS

0

R8703

IC8700

WIRELESS

R8704 22K

C

Q8700

E

16

15

14

13

12

11

10

9

C8701

2.2uF S

G

Q8701

AO3407A

VDD

Y

X

X1

X0

A

B

C

D

MLB-201209-0120P-N2

C8702

0.01uF

50V

+3.5V_ST

WIRELESS

R8707

0

BCM_TXD1

BCM_RXD1

R8708

NON_3DTV

R8706 0

NON_WIRELESS

L8700

C8704 10uF 35V

0

WIRELESS_DETECT

WIRELESS_SCL

WIRELESS_SDA

C8705 10uF

WIRELESS_RX

35V

WIRELESS_TX

IR_PASS

C8703

0.1uF

WIRELESS_DL_TX WIRELESS_RX

+3.5V_ST

BCM_RX

OPT

4.7K R8711

47K

R8712

+3.3V_NORMAL

R8714

10K

R8713 1K

WIRELESS_SW_CTRL

VCC[24V/20V/17V]_1

VCC[24V/20V/17V]_2

VCC[24V/20V/17V]_3

VCC[24V/20V/17V]_4

VCC[24V/20V/17V]_5

VCC[24V/20V/17V]_6

INTERRUPT

TP8700

TP8701

I2C_SCL

I2C_SDA

UART_RX

UART_TX

DETECT

GND_1

RESET

GND_2

GND_3

GND_4

GND_5

GND_6

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

IR

18

19

20

21

SHIELD

RS232C & Wireless

WIRELESS_SW_CTRL

LOW

SELECT PIN

X1/Y1/Z1

STATUS

WIRELESS Dongle connect --> WIRELESS RS232HIGH

WIRELESS Dongle Dis_con --> S7 RS232X0/Y0/Z0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

WIRELESS

12

+24V

LGE Internal Use Only

L8803

MLB-201209-0120P-N2

+24V_AMP

C8827

0.1uF 50V

+3.3V_NORMAL

C8800

0.1uF 16V

IC8800

AP1117E18G-13

IN

Vd=1.4V

3

2

OUT

1

ADJ/GND

AUD_LRCH

AUD_LRCK

AUD_SCK SDA1_3.3V SCL1_3.3V

R8800

1

+1.8V_AMP

L8800

BLM18PG121SN1D

OPT C8801

10uF

10V

C8802 10uF 10V

+1.8V_AMP

C8803

0.1uF 16V

AMP_RESET_N

AUD_MASTER_CLK

L8801

BLM18PG121SN1D

C8804

0.1uF 16V

OPT

C8805

10uF

10V

R8801 100

R8802 100 R8803 100

R8804 100 R8805 100

C8808

1000pF

50V

C8806 100pF

0.1uF

50V

C8807

16V

120 mA

C8809 33pF 50V

C8811

0.1uF

C8810 1000pF

50V

R8806

3.3K

+3.3V_NORMAL

L8802

BLM18PG121SN1D

C8812 33pF 50V

C8813 47pF 50V

EMI

C88 16

1uF 25V

+1.8V_AMP

OPT C8815 10uF

10V

C8814 47pF 50V

EMI

C8819

22000pF

BST1A VDR1A

/RESET

DGND_1 GND_IO

CLK_I

VDD_IO DGND_PLL AGND_PLL

AVDD_PLL DVDD_PLL

C8818

0.1uF

C8817 47pF 50V

EMI

CCFL = 20V

Edge_LED 32~47 Inch = 20V

55 Inch & IOP Module = 24V

+24V_AMP

D8800

C8833

0.1uF 50V

R8811

10K

1N4148W

100V

OPT

D8801

1N4148W

100V

D8802

1N4148W

100V

OPT

D8803

1N4148W

100V

OPT

C8834 10uF 35V

EMI

R8809

3.3 EMI

C8830

22000pF

50V

R8810

10K

Q8800

2SC3052

C8831

0.1uF 50V

POWER_DET

+3.5V_ST

C

E

C8832

0.01uF 50V

+24V_AMP

B

C8820

0.1uF 50V

50V

PGND1B_2

OUT1B_1

OUT1B_2

PVDD1B_1

PVDD1B_2

PVDD1A_1

PVDD1A_2

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

EP_PAD

46

47

48

49

50

51

52

53

54

55

56

1

THERMAL

2

57

3

AD

4 5 6

IC8801 7 8

EAN60969601 9

10

LF

11

NTP-7000 12 13

GND

14

15

16

17

18

22

25

26

WCK19BCK20SDA21SCL

DVDD

SDATA

DGND_2

16V

VDR2B27BST2B

/FAULT

MONITOR023MONITOR124MONITOR2

C88 22 1uF 25V

C8821 1000pF 50V

AMP_MUTE1

For 3 AMP MODEL

AMP_MUTE1

0.1uF 50V

C8823 22000pF

50V

C8825 1uF 25V

VDR1B44BST1B45PGND1B_1

43

28

PGND2B_1

42 41 40 39 38 37 36 35 34 33 32 31 30 29

10uF 35V

NC VDR2A BST2A PGND2A_2 PGND2A_1 OUT2A_2 OUT2A_1 PVDD2A_2 PVDD2A_1 PVDD2B_2 PVDD2B_1 OUT2B_2 OUT2B_1 PGND2B_2

R8808 100

C88 28

R8807 0

OPT

1uF25V

C8829 22000pF

50V

C8826

C8824

R8812

12

C8835 390pF

50V

C8836 390pF

50V

R8813

12

R8814

12

C8837 390pF

50V

C8838 390pF

50V

R8815

12

AMP_MUTE

R8819

12

R8817

12

R8818

12

R8816

12

L8805

AD-9060

2S

1S 1F

15uH

L8804

AD-9060

2S

1S 1F

15uH

R8820

C8841

2F

C8839

0.47uF 50V

C8840

0.47uF 50V

0.1uF 50V

C8842

0.1uF 50V

C8843

0.1uF 50V

C8844

0.1uF

50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

4.7K

R8821

4.7K

R8822

4.7K

R8823

4.7K

R8824 0

R8825 0

R8826 0

R8827 0

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

WAFER-ANGLE

4

3

2

1

P8800

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

KIM JONG HYUN

BCM (EUROBBTV)

NTP7000

2009.06.18

38

Close to LG5111 LVDS Input PIN

LGE Internal Use Only

LVDS_TX_0_DATA0_P LVDS_TX_0_DATA1_P LVDS_TX_0_DATA2_P

LVDS_TX_0_CLK_P LVDS_TX_0_DATA3_P LVDS_TX_0_DATA4_P

LVDS_TX_1_DATA0_P LVDS_TX_1_DATA1_P LVDS_TX_1_DATA2_P

LVDS_TX_1_CLK_P LVDS_TX_1_DATA3_P LVDS_TX_1_DATA4_P

+3.3V_NORMAL

R9700

3.3K TM480Hz

R9701 10K

TM240Hz

TX Output Mode Selection

- High : LVDS(TM480Hz, LE9500)

- LOW : Mini-LVDS (TM240Hz, LE5500/7500/8500)

+3.3V_NORMAL

R9702

3.3K TM480Hz

R9703 10K

TM240Hz

Master/Slave Mode Selection

- High : Slave Mode(TM480Hz,LE9500)

- LOW : Master Mode (TM240Hz,LE5500/7500/8500)

/TCON_EN

VS_SLAVE_MODE

[RESET for LG5111]

SW9700

JTP-1127WEM

12 OPT

4 3

R9704 100 R9705 100 R9706 100 R9707 100 R9708 100 LVDS_TX_0_DATA3_N

R9710 100 R9711 100 R9712 100 R9713 100 R9714 100 R9715 100

+3.3V_NORMAL

R9729

3.3K TM480Hz

R9730 10K

TM240Hz

Dual/Quad-Link LVDS Input Selection

- High : Dual-Link LVDS(TM480Hz,LE9500)

- LOW : Quad-Link LVDS (TM240Hz, LE5500/7500/8500)

+3.3V_NORMAL

R9731

3.3K OPT

R9732 10K

External Serial EEPROM Avalibility

- High : Not Available

- LOW : Use EEPROM

+3.3V_NORMAL

OPT

R9728

OPT

1K

IC9700

OPT

C9700

0.1uF 16V

I

KIA7027AF

1

2

3

G

OPT R9777 330

LVDS_TX_0_DATA0_N LVDS_TX_0_DATA1_N LVDS_TX_0_DATA2_N LVDS_TX_0_CLK_N

LVDS_TX_0_DATA4_NR9709 100

LVDS_TX_1_DATA0_N LVDS_TX_1_DATA1_N LVDS_TX_1_DATA2_N LVDS_TX_1_CLK_N LVDS_TX_1_DATA3_N LVDS_TX_1_DATA4_N

DUAL_LVDS

EEPROM_NA

+3.3V_NORMAL

OPT

R9733 10K

O

R9734 22 OPT

C9701

4.7uF 10V

LVDS_TX_0_DATA0_P LVDS_TX_0_DATA0_N LVDS_TX_0_DATA1_P LVDS_TX_0_DATA1_N LVDS_TX_0_DATA2_P LVDS_TX_0_DATA2_N

LVDS_TX_0_CLK_P

LVDS_TX_0_CLK_N LVDS_TX_0_DATA3_P LVDS_TX_0_DATA3_N LVDS_TX_0_DATA4_P LVDS_TX_0_DATA4_N

LVDS_TX_1_DATA0_P LVDS_TX_1_DATA0_N LVDS_TX_1_DATA1_P LVDS_TX_1_DATA1_N LVDS_TX_1_DATA2_P LVDS_TX_1_DATA2_N

LVDS_TX_1_CLK_P

LVDS_TX_1_CLK_N LVDS_TX_1_DATA3_P LVDS_TX_1_DATA3_N

LVDS_TX_1_DATA4_N

OPT

LG5111_RESET

IC9701

LG5111

G3 H3 J3 K3 L3 M3

E4 C4

C5

D6

G7

H7

J7

K7

L7

M7 M8 M9

C6 C7 C8 C9

D7 D8 D9

G8 G9

OPT

RXVDD_18_1 RXVDD_18_2 RXVDD_18_3 RXVDD_18_4 RXVDD_18_5 RXVDD_18_6

TXVDD_18_1 TXVDD_18_2 TXVDD_18_3 TXVDD_18_4 TXVDD_18_5 TXVDD_18_6 TXVDD_18_7 TXVDD_18_8 TXVDD_18_9 TXVDD_18_10 TXVDD_18_11 TXVDD_18_12

PLL_AVDD PLL2_AVDD

VDD_18_1 VDD_18_2 VDD_18_3 VDD_18_4 VDD_18_5 VDD_18_6 VDD_18_7 VDD_18_8 VDD_18_9 VDD_18_10 VDD_18_11 VDD_18_12 VDD_18_13 VDD_18_14 VDD_18_15 VDD_18_16 VDD_18_17 VDD_18_18 VDD_18_19 VDD_18_20

VDD_33_1 VDD_33_2 VDD_33_3 VDD_33_4 VDD_33_5 VDD_33_6 VDD_33_7 VDD_33_8 VDD_33_9 VDD_33_10 VDD_33_11 VDD_33_12 VDD_33_13 VDD_33_14 VDD_33_15 VDD_33_16 VDD_33_17 VDD_33_18

R97 71

IC9701 LG5111

10K

R97 72

10K

RX_GND_1 RX_GND_2 RX_GND_3 RX_GND_4 RX_GND_5 RX_GND_6

TX_GND_1 TX_GND_2 TX_GND_3 TX_GND_4 TX_GND_5 TX_GND_6 TX_GND_7 TX_GND_8

TX_GND_9 TX_GND_10 TX_GND_11 TX_GND_12

GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42

R97 73

C9751

0.1uF 16V

C9752

0.1uF 16V

C9753

0.1uF 16V

C9754

0.1uF 16V

C9755

0.1uF 16V

+1.8V_VDD

C9756 10uF 10V

+1.8V_PLL

C9762

0.1uF 16V

C9757

0.1uF 16V

C9758

0.1uF 16V

C9759

0.1uF 16V

C9760

0.1uF 16V

C9761

0.1uF 16V

+3.3V_NORMAL

C9768

0.1uF 16V

C9769

C9764

0.1uF

0.1uF 16V

16V

C9770

C9765

0.1uF

0.1uF 16V

16V

C9771

C9766

0.1uF

0.1uF 16V

16V

C9772

C9767

0.1uF

0.1uF 16V

16V

+3.3V_VDD+1.8V_L/DIMMING

L9706 120-ohm

C9773

0.1uF 16V

C9774 10uF 10V

C9775

0.1uF 16V

+1.8V_RXVDD

G4 H4 J4 K4 L4 M4

F14 G14 H14 H15 J14 J15 K14 K15 L14 L15 M14 N14

C15 D4 D5 D14 D15 E5 E14 F4 F5 G5 H5 H8 H9 H10 H11 J5 J8 J9 J10 J11 K5 K8 K9 K10 K11 L5 L8 L9 L10 L11 M5 N4 N5 P5 P14 R15 T7 T9 T10 T12 T15 U15

C9712

0.1uF 16V

+1.8V_TXVDD

C9713

0.1uF 16V

+1.8V_VDD

C9714

0.1uF 16V

+1.8V_VDD

C9715

0.1uF 16V

+3.3V_VDD

C9716

0.1uF 16V

+3.3V_VDD

C9717

0.1uF 16V

L9702 120-ohm

L9703 120-ohm

L9704 120-ohm

L9705 120-ohm

C9718

0.1uF 16V

C9719

0.1uF 16V

C9720

0.1uF 16V

C9721

0.1uF 16V

C9722

0.1uF 16V

C9723

0.1uF 16V

+1.8V_RXVDD

C9724

0.1uF 16V

C9725

0.1uF 16V

C9726

0.1uF 16V

C9727

0.1uF 16V

C9728

0.1uF 16V

C9729

0.1uF 16V

C9730 10uF 10V

C9731

0.1uF 16V

C9732

0.1uF 16V

C9733

0.1uF 16V

C9734

0.1uF 16V

C9735

0.1uF 16V

C9736

0.1uF 16V

+1.8V_TXVDD

C9737 10uF 10V

C9738

0.1uF 16V

C9739

0.1uF 16V

C9740

0.1uF 16V

C9741

0.1uF 16V

C9742

0.1uF 16V

C9743

0.1uF 16V

+1.8V_PLL

C9744 10uF 10V

C9745

0.1uF 16V

C9746

0.1uF 16V

C9747

0.1uF 16V

C9748

0.1uF 16V

C9749

0.1uF 16V

C9750

0.1uF 16V

[UART for LG5111]

TDO

TDI

TCK

TMS

TRST_N

LG5111_RESET

R97 74

R9775

10K

1K

P9701

12505WS-04A00

5

.

+3.3V_NORMAL

+3.3V

1

2

3

4

C9763

0.1uF

GND

16V

RX

TX

R9776 22

UART_RXD

UART_TXD

A3

R1A1P

A2

R1A1M

A4

R1B1P

B3

R1B1M

B1

R1C1P

B2

R1C1M

C2

R1CLK1P

C1

R1CLK1M

C3

R1D1P

D3

R1D1M

D1

R1E1P

D2

R1E1M

E2

R1A2P

E1

R1A2M

E3

R1B2P

F3

R1B2M

F1

R1C2P

F2

R1C2M

G1

R1CLK2P

G2

R1CLK2M

H1

R1D2P

H2

R1D2M

J1

R1E2P

J2

R1E2M

K1

R2A1P

K2

R2A1M

L1

R2B1P

L2

R2B1M

M1

R2C1P

M2

R2C1M

N2

R2CLK1P

N1

R2CLK1M

N3

R2D1P

P3

R2D1M

P1

R2E1P

P2

R2E1M

R2

R2A2P

R1

R2A2M

R3

R2B2P

T3

R2B2M

T1

R2C2P

T2

R2C2M

U2

R2CLK2P

U1

R2CLK2M

U3

R2D2P

V4

R2D2M

V2

R2E2P

V3

R2E2M

T1C1P/RLV0N

T1C1N/RLV0P T1CLK1P/RLV1N T1CLK1N/RLV1P

T1E1P/RLV2N

T1E1N/RLV2P

T1A2P/RCLKN

T1A2N/RCLKP

T1CLK2P/RLV3N T1CLK2N/RLV3P

T1D2P/RLV4N

T1D2N/RLV4P

T1E2P/RLV5N

T1E2N/RLV5P

T2B1P/LLV0N

T2B1N/LLV0P

T2C1P/LLV1N

T2C1N/LLV1P T2CLK1P/LLV2N T2CLK1N/LLV2P

T2E1P/LCLKN

T2E1N/LCLKP

T2C2P/LLV3N

T2C2N/LLV3P T2CLK2P/LLV4N T2CLK2N/LLV4P

T2E2P/LLV5N

T2E2N/LLV5P

A17

T1A1P

A16

T1A1N

B16

T1B1P

A15

T1B1N

B17 B18 C18 C17 D16

T1D1P

C16

T1D1N

D17 D18

E18 E17 F16

T1B2P

E16

T1B2N

F17

T1C2P

F18

T1C2N

G18 G17 H18 H17 J18 J17

K18

T2A1P

K17

T2A1N

L18 L17 M18 M17 N18 N17 P16

T2D1P

N16

T2D1N

P17 P18

R18

T2A2P

R17

T2A2N

T16

T2B2P

R16

T2B2N

T17 T18 U18 U17 V15

T2D2P

U16

T2D2N

V16 V17

[+1.8V for LG5111]

+12V

L9700

120-ohm

C9703

10uF

25V

[EEPROM for LG5111]

+3.3V_NORMAL

R9735

3.3K

EEPROM_A1

R9736 10K

OPT

RRXA0+ RRXA0RRXA1+ RRXA1RRXA2+/RLV5P RRXA2-/RLV5N RRXACK+/RLV4P RRXACK-/RLV4N RRXA3+ RRXA3RRXA4+/RLV3P RRXA4-/RLV3N

RRXB0+/RLCLKP RRXB0-/RLCLKN RRXB1+ RRXB1RRXB2+ RRXB2RRXBCK+/RLV2P RRXBCK-/RLV2N RRXB3+/RLV1P RRXB3-/RLV1N RRXB4+/RLV0PLVDS_TX_1_DATA4_P RRXB4-/RLV0N

AOZ1072AI

PGND

1

VIN

2

AGND

3

FB

4

VS_SLAVE_MODE

LG5111_RESET

IC9702

LX_2

8

LX_1

7

EN

6

COMP

5

C9706

0.1uF 16V

IC9703

M24512-WMW6G(REV.B)

E0

1

E1

2

E2

3

VSS

4

LOCAL_DIMMING_EEPROM

M0_SCLK M0_MOSI M1_SCLK M1_MOSI M2_SCLK M2_MOSI M3_SCLK M3_MOSI

S_CS_N S_SCLK S_MOSI

/TCON_EN

R_VS

DUAL_LVDS

+3.3V_NORMAL

V_SYNC

L_VS

Mini-LVDS Signal Strength!!

+3.3V_NORMAL

R9740 10K

R9738

9.1K

C9705 1000pF 50V

+3.3V_NORMAL

VCC

8

WC

7

SCL

6

SDA

5

C9707

C9704

27pF

50V

X9700 25MHz

R9741

1M 1%

R9742 22 R9743 22 R9744 22 R9745 22 R9746 22 R9747 22 R9748 22 R9749 22

R9750 22

R9737

3.3K TM240Hz

R9751 22

R9739

A10 A11 A12 A13

B10 B11 B12

A14 B13 B14 B15

11K

Vout = 0.8*(1+R1/R2)

L9701

3.6uH

R1 R9754

10.5K 1%

R9755 2K

C9708 2200pF

1%

R9756 10K 1%

R2

I2C Slave Address : 0xA4

Write Protection Low : Normal Operation High : Write Protection

R9752

R9757

3.3K

2K

OPT

R9753 10K

A5

CLK25_XOUT

B5

CLK25_XIN

A7

M0_SCLK

B7

M0_MOSI

A6

M1_SCLK

B6

M1_MOSI

R6

M2_SCLK

T6

M2_MOSI

U6

M3_SCLK

V6

M3_MOSI

A8

S_CS

B8

S_SCLK

B9

S_MOSI

R5

VS_SLAVE_MODE

T5

TCON_EN

U5

R_VS

V5

DUAL_LVDS

A9

VS_IN L_VS H_CONV DPM SOE

B4

PORES_N OPT_N POL FLK

VDD_ODD[GSC] VDD_EVEN[GOE] VST[GSP] RMLVDS

IC9701 LG5111

+1.8V_L/DIMMING

C9709 22uF 10V

R9758

2K

TMODE3 TMODE2 TMODE1 TMODE0

EEPROM_WP EEPROM_NA EEPROM_A1

UARTRXD UARTTXD

TRST_N

GCLK1[GSP_R]

GCLK4[OPT_P]

C9710

0.1uF 16VC9702

EEPROM_WP

M_SCL

M_SDA

GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7

M_SDA M_SCL

S_SDA S_SCL

GCLK2 GCLK3

GCLK5 GCLK6

+1.8V_RXVDD

P4 R4 T4 U4

R7 R8 R9 R10 R11

VSYNC_GPIO

R12

R9716 0

R13 R14

T8

R9759 22

U8 V8

U7

R9760 22

V7

R9761 22

U9

R9762 22

V9

R9763 22

V10 U10

R9764 22

T11

TMS

U11

TCK

V12

TDI

U12

R9765 22

TDO

V11

V13 U13 T13 T14 V14 U14

V_SYNC 3D_DIMMING_2 3D_DIMMING

EEPROM_WP EEPROM_NA EEPROM_A1

M_SDA M_SCL

SDA3_3.3V SCL3_3.3V

UART_RXD UART_TXD

TMS TCK TDI TDO TRST_N

+1.8V_TXVDD

+1.8V_PLL

+1.8V_VDD

+3.3V_VDD

E15 F15 G15 G16 H16 J16 K16 L16 M15 M16 N15 P15

C14

D13

G12

H12

J12

K12

L12

M10 M11 M12

C10 C11 C12 C13

D10 D11 D12

G10 G11

[JTAG for LG5111]

P9700

12505WS-09A00

+3.3V_NORMAL

1

2

3

4

5

6

7

8

9

10

C9711

0.1uF 16V

R9766 22

R9767 22

R9768 22

R9769 22

R9770 22

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

COMMON_LD_400/480HZ

LG5111 (L.D.) from BCM 97

09/10/13

008:W20

LGE Internal Use Only

008:W20 008:W22 008:W23 008:W22 008:W22 008:W21 008:W21 008:W19 008:W20 008:W19 008:W19

+3.3VD

R102

3.3K

[TEST MODE SETTING]

- SMODE = 0 : Serial Flash Setting

- TMODE(All) = 1 : Normal Mode

For 3D Formatter I2C (Ready)

FPGA_SCL

C105

0.1uF 16V

+3.3VD

R101 1K

OPT

C112

0.1uF 50V OPT

P100

12505WR-04A00

OPT

5

.

C106

0.1uF 16V

C107

0.1uF 16V

C108

0.1uF 16V

I

FPGA_SDA

1

2

3

4

C109

0.1uF 16V

C110

0.1uF 16V

C111

0.1uF 16V

005:AB15;008:E19;008:W25;008:AN4;009:AP8 005:AB15;008:M19;008:W25;008:AN4;009:AP11

OPT

SW100

JTP-1127WEM

12

4 3

+3.3V_IO

C100

0.1uF 16V

+2.5LVDS_TX

C103

C101

0.1uF

0.1uF 16V

16V

+1.8V_DDR

C104

C102

0.1uF

0.1uF 16V

16V

LVRX1_CLKP LVRX1_CLKM

R103

3.3K

I2C_SCL I2C_SDA

IC100

KIA7029AF

2

+3.3V

GND

RX

TX

LVRX1_AP LVRX1_AM LVRX1_BP LVRX1_BM LVRX1_CP LVRX1_CM LVRX1_DP LVRX1_DM LVRX1_EP LVRX1_EM

G

C114

0.1uF 16V

C115

0.1uF 16V

C116

0.1uF 16V

IC102

P101

FRC_TDI

FRC_TMS

FRC_TCK

FRC_TDO

007:Q15;006:P14

004:AM14

INCH_2_HIGH

INCH_OPT_1

INCH_2_LOW

INCH_2

C1140

C1139

0.1uF

0.1uF 16V

16V

C1141

C1137

0.1uF

0.1uF 16V

16V

C1142

C1138

0.1uF

0.1uF 16V

16V

HIGHLOW

+2.5VQ

+3.3V

+1.0VDC

R1206

4.7K

R1207

4.7K

LOW

12505WR-10

11

120-ohm

+3.3VD+3.3VD

C1143

0.1uF 16V

C1144

0.1uF 16V

C1145

0.1uF 16V

R1189

R1198

10

L100

L101

L102

L103

L104

+3.3VD

4.7K OPT

4.7K

1

2

3

4

5

6

7

8

9

+2.5VPLL

+2.5LVDS_TX

+3.3VD

L105

120-ohm

Output LVDS Data Mapping Selection

- GPIO[6] = 1 : JEIDA

- GPIO[6] = 0 : VESA

INCH_OPT_2

C1148

0.1uF 16V

C1146 10uF 10V

C1147 10uF 10V

C1162 22uF 10V

C1149 10uF 10V

C1150 10uF 10V

C1165 22uF 10V

C1151 10uF 10V

+3.3V_IO

+1.0VPLL

C1152 22uF 10V

C1163 22uF 10V

C1167

0.1uF 16V

C1166 22uF 10V

+2.5LVDS_RX

C1153 22uF 10V

TCON_SCL

004:AA9

TCON_SDA

004:AE9

001:H22

TMODE[0]

SPI_DI

001:H18;001:AX5

SPI_SCLK

001:H19;001:BD4

SPI_DO

001:H18;001:BD4

SPI_CS

001:H19;001:AX5

C1164 22uF 10V

+3.3VD

R1199

4.7K

R1200

4.7K OPT

Video Output Selection

- GPIO[7] = 1 : Reverse(LED Model)

- GPIO[7] = 0 : Normal(LAMP Model)

C1155

C1154

22uF

10V

VIDEO_OUT

+1.0VPLL

C1157

0.1uF 16V

+3.3V_IO

+2.5LVDS_TX

+1.0VDC

C1158

0.1uF 16V

DDR_ADDR[0-12]

002:E39;002:W39;002:AH39;002:BD39

DDR_ADDR[0]

DDR_ADDR[1]

DDR_ADDR[2]

DDR_ADDR[3]

DDR_ADDR[4]

DDR_ADDR[5]

+0.9VREF

AF31

W31

R104

R108

R112

R113

R114

100

LVTX1_CLK+

009:E22

LVTX1_CLK-

009:E22

LVTX1_A+

009:O11

LVTX1_A-

009:O11

LVTX1_B+

009:O9

LVTX1_B-

009:O9

LVTX1_C+

009:O8

LVTX1_C-

009:O8

LVTX1_D+

009:O6

LVTX1_D-

009:O6

LVTX1_E+

009:O5

LVTX1_E-

009:O6

LVTX2_CLK+

009:E21

LVTX2_CLK-

009:E21

LVTX2_A+

009:E16

LVTX2_A-

009:E17

LVTX2_B+

009:O5

LVTX2_B-

009:O5

LVTX2_C+

009:E14

LVTX2_C-

009:E14

LVTX2_D+

009:E15

LVTX2_D-

009:E15

LVTX2_E+

009:E17

LVTX2_E-

009:E17

LVTX3_CLK+

009:E20

LVTX3_CLK-

009:E20

LVTX3_A+

009:E16

LVTX3_A-

009:E16

LVTX3_B+

009:E11

LVTX3_B-

009:E12

LVTX3_C+

009:E8

LVTX3_C-

009:E8

LVTX3_D+

009:E12

LVTX3_D-

009:E12

LVTX3_E+

009:E10

LVTX3_E-

009:E11

LVTX4_CLK+

009:E5

LVTX4_CLK-

009:E5

LVTX4_A+

009:E10

LVTX4_A-

009:E10

LVTX4_B+

009:E8

LVTX4_B-

009:E8

LVTX4_C+

009:E7

LVTX4_C-

009:E7

LVTX4_D+

009:E6

LVTX4_D-

009:E6

LVTX4_E+

009:E11

LVTX4_E-

009:E11

R105

R109

3.3K

+3.3VD

1K

+3.3VD

R106

10K OPT

3O1

C123

0.1uF 50V OPT

+3.3VD

C113

0.1uF 50V

R1186 33

C117

0.1uF 16V

C119

0.1uF 16V

C118

0.1uF 16V

R1181

R1101KR107

3.3K OPT

001:AP36;001:AX5 001:AP37;001:BD4 001:AP37;001:AX5 001:AP36;001:BD4

001:F12 001:F12 008:W24

OPT

001:AX10 001:BA10

UART_RX

UART_TX

C120

0.1uF 16V

C124

C121

0.1uF

0.1uF 16V

16V

C125

C122

0.1uF

0.1uF 16V

16V

C126

0.1uF 16V

TMODE[0]

FRC_TCK FRC_TMS FRC_TDI

R1182

FRC_TDO

3.3K OPT

SPI_CS

SPI_SCLK

SPI_DI SPI_DO

UART_RX UART_TX

FRC_RESET

R111

33

XTAL_IN XTAL_OUT

001:H18

C127

0.1uF 16V

C128

0.1uF 16V

C129

0.1uF 16V

100

001:AP38

C130

0.1uF 16V

C131

0.1uF 16V

C132

0.1uF 16V

100

R121

3.3K

R1183 0 R1184 0 R115 33 R116 33

R117 33 R118 33

R122 33

R123 33

C133

0.1uF 16V

C134

0.1uF 16V

C135

0.1uF 16V

R120 100

R11910K

OPT OPT

+0.9VREFS

C137

0.1uF 16V

C136

0.1uF 16V

C138

0.1uF 16V

AN18 AP18 AP15 AN15 AP16 AN16 AP17 AN17 AN19 AP19 AN20 AP20

AL12 AN10 AP10 AL11 AM11

AP31 AN31 AM31 AK31 AL31

AL10

AM10

AP11 AN11

K31

RCLK1P

DDR_VREF0

DDR_VREF1

DDR_VREF2 RCLK1M RA1P RA1M RB1P RB1M RC1P RC1M RD1P RD1M RE1P RE1M

A4

TCLK1P

B4

TCLK1N

A2

TA1P

B2

TA1N

C3

TB1P

C2

TB1N

B3

TC1P

A3

TC1N

C5

TD1P

C4

TD1N

B5

TE1P

A5

TE1N

A8

TCLK2P

B8

TCLK2N

A6

TA2P

B6

TA2N

C7

TB2P

C6

TB2N

B7

TC2P

A7

TC2N

C9

TD2P

C8

TD2N

B9

TE2P

A9

TE2N

A12

TCLK3P

B12

TCLK3N

A10

TA3P

B10

TA3N

C11

TB3P

C10

TB3N

B11

TC3P

A11

TC3N

C13

TD3P

C12

TD3N

B13

TE3P

A13

TE3N

A16

TCLK4P

B16

TCLK4N

A14

TA4P

B14

TA4N

C15

TB4P

C14

TB4N

B15

TC4P

A15

TC4N

C17

TD4P

C16

TD4N

B17

TE4P

A17

TE4N

SMODE TMODE[0] TMODE[1] TMODE[2] TMODE[3]

TRST_N TCK TMS TDI TDO

AN8

M_SCL

AM8

M_SDA

AL9

SCL

AP8

SDA

SPI_CS

AP9

SPI_SCLK

AN9

SPI_DI

AM9

SPI_DO

AL8

UART_RXD

AP7

UART_TXD

PORES_N

XTALI XTALO

DDRS_VREF0L4DDRS_VREF1V4DDRS_VREF2

AE4

DDRS_ADDR[0-12]

002:E16;002:W13;002:AK17;002:BD12

C139

C142

0.1uF

16V

C143

C140

0.1uF

16V

C141

C144

0.1uF

16V

DDR_ADDR[6]

R193 22

R194 22

R195 22

R196 22

R197 22

R198 22

U34

Y34

U33

Y33

AA34

Y32

AA33

DDR_A[0]

DDR_A[1]

DDR_A[2]

DDR_A[3]

DDR_A[4]

DDR_A[5]

DDRS_A[0]W1DDRS_A[1]T1DDRS_A[2]W2DDRS_A[3]T2DDRS_A[4]R1DDRS_A[5]T3DDRS_A[6]R2DDRS_A[7]Y2DDRS_A[8]U1DDRS_A[9]Y3DDRS_A[10]R3DDRS_A[11]U2DDRS_A[12]

R113 7 22

R114 2 22

R114 1 22

R114 0 22

R113 9 22

R113 8 22

DDRS_ADDR[0]

DDRS_ADDR[1]

DDRS_ADDR[2]

DDRS_ADDR[3]

DDRS_ADDR[4]

DDRS_ADDR[5]

C148

C145

0.1uF

0.1uF 16V

16V

C146

C149

0.1uF

10uF

16V

10V

C147

C150

0.1uF

16V

DDR_ADDR[7]

DDR_ADDR[8]

DDR_ADDR[9]

R199 22

R1100 22

R1101 22

R1102 22

T33

W34

T32

DDR_A[6]

DDR_A[7]

DDR_A[8]

R114 6 22

R114 5 22

R114 4 22

R114 3 22

DDRS_ADDR[6]

DDRS_ADDR[7]

DDRS_ADDR[8]

DDRS_ADDR[9]

C151

0.1uF 16V

C152 22uF 10V

C153

0.1uF 16V

DDR_DATA[0-31]

002:N40;002:AQ40

DDR_DATA[0]

DDR_DATA[1]

DDR_DATA[2]

DDR_DATA[3]

DDR_DATA[4]

DDR_DATA[5]

DDR_DATA[6]

DDR_ADDR[12]DDRS_ADDR[12]

DDR_ADDR[10]

DDR_ADDR[11]

R1103 22

R1104 22

AA32

W33

N34

DDR_A[9]

DDR_A[10]

DDR_A[11]

DDR_A[12]

AC1

R114 8 22

R114 7 22

DDRS_ADDR[10]

DDRS_ADDR[11]

DDRS_DATA[0-31]

002:N17;002:AT17

C154

0.1uF 16V

+2.5LVDS_RX

C155

0.1uF 16V

R124 22

22

R125

DDR_DATA[7]

R1105 22

R1106 22

R1107 22

R1108 22

R1109 22

R1110 22

R1111 22

R1112 22

AM33

AH32

AN34

AG32

AJ32

AN33

AK32

AM34

DDR_DQ[0]

DDR_DQ[1]

DDR_DQ[2]

DDR_DQ[3]

DDR_DQ[4]

DDR_DQ[5]

DDR_DQ[6]

DDRS_DQ[0]F3DDRS_DQ[1]H4DDRS_DQ[2]E1DDRS_DQ[3]J4DDRS_DQ[4]H3DDRS_DQ[5]E2DDRS_DQ[6]G4DDRS_DQ[7]F2DDRS_DQ[8]K3DDRS_DQ[9]N2DDRS_DQ[10]J1DDRS_DQ[11]M1DDRS_DQ[12]N1DDRS_DQ[13]J2DDRS_DQ[14]M2DDRS_DQ[15]K2DDRS_DQ[16]

R115 6 22

R115 5 22

R115 4 22

R115 3 22

R115 2 22

R115 1 22

R115 0 22

R114 9 22

DDRS_DATA[0]

DDRS_DATA[1]

DDRS_DATA[2]

DDRS_DATA[3]

DDRS_DATA[4]

DDRS_DATA[5]

DDRS_DATA[6]

DDRS_DATA[7]

C162

C159

C156

0.1uF

0.1uF 16V

16V

C160

C157

C163

0.1uF

16V

C161

C158

0.1uF

0.1uF 16V

16V

DDR_DATA[8]

DDR_DATA[9]

DDR_DATA[10]

R1113 22

R1114 22

AG33

AC33

DDR_DQ[7]

DDR_DQ[8]

DDR_DQ[9]

R115 8 22

R115 7 22

DDRS_DATA[8]

DDRS_DATA[9]

C164

0.1uF 16V

DDR_DATA[11]

DDR_DATA[12]

DDR_DATA[13]

DDR_DATA[14]

R1115 22

R1116 22

R1117 22

R1118 22

AH34

AD34

AC34

AJ33

DDR_DQ[10]

DDR_DQ[11]

DDR_DQ[12]

DDR_DQ[13]

LG1120

R116 2 22

R116 1 22

R116 0 22

R115 9 22

DDRS_DATA[10]

DDRS_DATA[11]

DDRS_DATA[12]

DDRS_DATA[13]

C165

0.1uF 16V

C166

0.1uF 16V

C167

0.1uF 16V

DDR_DATA[15]

DDR_DATA[16]

DDR_DATA[17]

DDR_DATA[18]

DDR_DATA[19]

R1119 22

R1120 22

R1121 22

R1122 22

R1123 22

AD33

AG34

G33

F34

H31

DDR_DQ[14]

DDR_DQ[15]

DDR_DQ[16]

DDR_DQ[17]

DDR_DQ[18]

IC102

DDRS_DQ[17]

DDRS_DQ[18]

AJ2

AM1

AH4

R116 7 22

R116 6 22

R116 5 22

R116 4 22

R116 3 22

DDRS_DATA[14]

DDRS_DATA[15]

DDRS_DATA[16]

DDRS_DATA[17]

DDRS_DATA[18]

C168

C170

0.1uF

16V

+2.5VPLL

C169

C171

10uF

22uF

10V

DDR_DATA[20]

DDR_DATA[21]

DDR_DATA[22]

R1124 22

R1125 22

R1126 22

R1127 22

E34

E33

H32

F33

DDR_DQ[19]

DDR_DQ[20]

DDR_DQ[21]

DDRS_DQ[19]

DDRS_DQ[20]

DDRS_DQ[21]

AN1

AM2

AH3

AL2

R117 1 22

R117 0 22

R116 9 22

R116 8 22

DDRS_DATA[19]

DDRS_DATA[20]

DDRS_DATA[21]

DDRS_DATA[22]

C173

0.1uF 16V

C172

0.1uF 16V

DDR_DATA[23]

DDR_DATA[24]

DDR_DATA[25]

R1128 22

R1129 22

R1130 22

G34

K33

H34

DDR_DQ[22]

DDR_DQ[23]

DDR_DQ[24]

DDRS_DQ[22]

DDRS_DQ[23]

DDRS_DQ[24]

AJ1

AE2

AH1

R117 4 22

R117 3 22

R117 2 22

DDRS_DATA[23]

DDRS_DATA[24]

DDRS_DATA[25]

C175

0.1uF 16V

C174 22uF 10V

DDR_DATA[26]

DDR_DATA[27]

DDR_DATA[28]

R1131 22

R1132 22

R1133 22

L34

J33

J34

DDR_DQ[25]

DDR_DQ[26]

DDR_DQ[27]

DDRS_DQ[25]

DDRS_DQ[26]

DDRS_DQ[27]

AD1

AG2

AG1

R117 7 22

R117 6 22

R117 5 22

DDRS_DATA[26]

DDRS_DATA[27]

DDRS_DATA[28]

C176

0.1uF 16V

C177

0.1uF 16V

C178 22uF 10V

DDR_DATA[29]

DDR_DATA[30]

DDR_DATA[31]

R1134 22

R1135 22

R1136 22

L33

H33

K34

DDR_DQ[28]

DDR_DQ[29]

DDR_DQ[30]

DDR_DQ[31]

DDRS_DQ[28]

DDRS_DQ[29]

DDRS_DQ[30]

DDRS_DQ[31]

AD2

AH2

AE1

R118 0 22

R117 9 22

R117 8 22

DDRS_DATA[29]

DDRS_DATA[30]

DDRS_DATA[31]

C179

0.1uF 16V

C180 22uF 10V

002:AI33

002:F33

002:F32

002:F33

002:F32

002:F35;002:AI35

DDR_CLK

DDR_DQS0

DDR_DQS1

DDR_DQS2

R126 22

R128 22

R130 22

R132 22

R134 22

R136 22

R138 22

R140 22

V34

V33

AL33

AL34

AF34

AF33

F32

F31

DDR_CK

DDR_CK_N

DDR_DQS[0]

DDR_DQS[1]

DDR_DQS[2]

DDR_DQS_N[0]

DDR_DQS_N[1]

DDRS_CKV1DDRS_CK_NV2DDRS_DQS[0]G2DDRS_DQS_N[0]G1DDRS_DQS[1]L1DDRS_DQS_N[1]L2DDRS_DQS[2]

AK3

AK4

R127 22

R129 22

R131 22

R133 22

R135 22

R137 22

R139 22

R141 22

DDRS_CLK

DDRS_DQS0

DDRS_DQS2

DDRS_DQS1

002:F9

002:F10

002:AK10

002:F12;002:AK12

002:F12;002:AK13

C182

C181

10uF

0.1uF 10V

16V

002:AI32

002:AI33

002:AI32

002:F34;002:U31;002:AI34;002:BB32

002:F34;002:U33;002:AI34;002:BB33

002:F34;002:U32;002:AI34;002:BB32

DDR_WE

DDR_RAS

DDR_DQS3

DDR_CKE

DDR_CS

R142 22

R144 22

R146 22

R148 22

R150 22

R152 22

J31

J32

T34

R34

N33

P33

DDR_CKE

DDR_CS_N

DDR_WE_N

DDR_RAS_N

DDR_DQS[3]

DDR_DQS_N[2]

DDR_DQS_N[3]

DDRS_DQS_N[2]

DDRS_DQS[3]

DDRS_DQS_N[3]

DDRS_CKEY1DDRS_CS_N

DDRS_WE_N

DDRS_RAS_N

AF4

AF3

AA1

AC2

AB2

R143 22

R145 22

R147 22

R149 22

R151 22

R153 22

DDRS_WE

DDRS_CS

DDRS_RAS

DDRS_CKE

DDRS_DQS2

DDRS_DQS3

002:AK9

002:AK10

002:F11;002:U7;002:AK12;002:BB6

002:F11;002:U6;002:AK11;002:BB5

002:F12;002:U7;002:AK12;002:BB6

+1.8V_DDRS

C186

C183

0.1uF

0.1uF 16V

16V

+1.0VDC

C187

C184

0.1uF

0.1uF 16V

16V

+1.0VDC

C185

0.1uF

16V

002:AI32

002:F32

002:F34;002:U32;002:AI34;002:BB32

DDR_CAS

R154 22

R33

DDR_CAS_N

DDRS_CAS_N

AA2

R155 22

DDRS_CAS

002:F11;002:U6;002:AK11;002:BB5

C188

0.1uF 16V

002:F36;002:U33;002:AI36;002:BB34

002:F36;002:U33;002:AI36;002:BB33

DDR_ODT

DDR_DM0

DDR_DM1

DDR_DM2

DDR_DM3

DDR_BA0

DDR_BA1

R156 22

R158 22

R160 22

R162 22

R164 22

R166 22

P34

AB1

R157 22

R168 22

AM32

AD32

G32

K32

V32

U32

AC32

DDR_ODT

DDR_DM[0]

DDR_DM[1]

DDR_DM[2]

DDR_DM[3]

DDR_BA[0]

DDR_BA[1]

DDR_TAOUT

DDRS_ODT

DDRS_DM[1]

DDRS_DM[0]F4DDRS_DM[2]

DDRS_DM[3]

DDRS_BA[0]V3DDRS_BA[1]W3DDRS_TAOUTN3DDRS_TDOUT[0]

M3

AJ3

AE3

R159 22

R161 22

R163 22

R165 22

R167 22

R169 22

DDRS_ODT

DDRS_DM0

DDRS_DM1

DDRS_DM2

DDRS_DM3

DDRS_BA0

DDRS_BA1

002:F9

002:AK10

002:F11;002:U5;002:AK12;002:BB4

002:F13;002:U8;002:AK13;002:BB7

002:F13;002:U7;002:AK13;002:BB6

C195

C193

C189

0.1uF

0.1uF 16V

16V

C196

C192

C190

0.1uF

0.1uF 16V

16V

C197

C194

C191

0.1uF

0.1uF 16V

16V

N32

AB3

P32

RCLK2P RCLK2M

DDR_TDOUT[0]

DDR_TDOUT[1]

RA2P RA2M RB2P RB2M RC2P RC2M RD2P RD2M RE2P RE2M

TCLK5P TCLK5N

TA5P TA5N TB5P TB5N TC5P TC5N TD5P TD5N TE5P TE5N

TCLK6P TCLK6N

TA6P TA6N TB6P TB6N TC6P TC6N TD6P TD6N TE6P TE6N

TCLK7P TCLK7N

TA7P TA7N TB7P TB7N TC7P TC7N TD7P TD7N TE7P TE7N

TCLK8P TCLK8N

TA8P TA8N TB8P TB8N TC8P TC8N TD8P TD8N TE8P TE8N

M_VS M_SCLK M_MOSI

S_VS S_SCLK S_MOSI

GPIO[0] GPIO[1] GPIO[2] GPIO[3] GPIO[4] GPIO[5] GPIO[6] GPIO[7] GPIO[8]

GPIO[9] GPIO[10] GPIO[11] GPIO[12] GPIO[13] GPIO[14] GPIO[15] GPIO[16] GPIO[17] GPIO[18] GPIO[19] GPIO[20] GPIO[21] GPIO[22] GPIO[23] GPIO[24]

DDRS_TDOUT[1]

AC3

C198

0.1uF 16V

C199

0.1uF 16V

C1100

0.1uF 16V

R170

R171

100

AN24 AP24 AN21 AP21 AN22 AP22 AN23 AP23 AN25 AP25 AN26 AP26

A20 B20 A18 B18 C19 C18 B19 A19 C21 C20 B21 A21

A24 B24 A22 B22 C23 C22 B23 A23 C25 C24 B25 A25

A28 B28 A26 B26 C27 C26 B27 A27 C29 C28 B29 A29

A32 B32 A30 B30 C31 C30 B31 A31 C33 C32 B33 A33

AL30 AM30 AN30 AP5 AN5 AM5

AL4 AM4

R1190 33

AN4

R1219 33 L/R_SYNC

AP4

R173 33 AL5 AL6 AM6 AN6 AP6

R180 33 AL7 AM7

R1220 33 AN7

R1214 0 AL27 AN28 AP29

R1215 33 AN29

R1216 33 AN27

R1217 33 AP27

R1218 33 AP30

R1192

33

AM27

R1193

33

AP28

R1194

33

AM28

R1195

33

AL28

R1196

33 AM29 AL29

R1221

33

OPT

C1104

C1101

0.1uF

0.1uF 16V

16V

C1105

C1102

0.1uF

16V

C1106

C1103

0.1uF

16V

C1107

0.1uF 16V

C1108

0.1uF 16V

C1109

0.1uF 16V

+3.3VD

R1222 10K

R1185 10K

R172 100

R174 100

LVTX5_CLK+ LVTX5_CLKLVTX5_A+ LVTX5_ALVTX5_B+ LVTX5_BLVTX5_C+ LVTX5_CLVTX5_D+ LVTX5_DLVTX5_E+ LVTX5_E-

LVTX6_CLK+ LVTX6_CLKLVTX6_A+ LVTX6_ALVTX6_B+ LVTX6_BLVTX6_C+ LVTX6_CLVTX6_D+ LVTX6_DLVTX6_E+ LVTX6_E-

LVTX7_CLK+ LVTX7_CLKLVTX7_A+ LVTX7_ALVTX7_B+ LVTX7_BLVTX7_C+ LVTX7_CLVTX7_D+ LVTX7_DLVTX7_E+ LVTX7_E-

LVTX8_CLK+ LVTX8_CLKLVTX8_A+ LVTX8_ALVTX8_B+ LVTX8_BLVTX8_C+ LVTX8_CLVTX8_D+ LVTX8_DLVTX8_E+ LVTX8_E-

WP_EEPROM_TCON

R1197

R175

10K

OPT

VSYNC

008:Z25 /FPGA_RESET 3D_FRAME_INFO

L/R_SYNC_FRC_OUT

For 3D Formatter

C1113

C1110

0.1uF

0.1uF 16V

16V

C1114

C1111

0.1uF

0.1uF 16V

16V

C1115

C1112

0.1uF

0.1uF 16V

16V

R176 100

009:E36 009:E37 009:E35 009:E35 009:E35 009:E35 009:E33 009:E34 009:E5 009:E5 009:E33 009:E33

009:H22 009:H22 009:E32 009:E32 009:E28 009:E29 009:E27 009:E27 009:E31 009:E31 009:E36 009:E36

009:H21 009:H21 009:E31 009:E32 009:E29 009:E30 009:E29 009:E29 009:E26 009:E27 009:E26 009:E26

009:O24 009:O23 009:E28 009:E28 009:O34 009:O34 009:E25 009:E26 009:O35 009:O35 009:O33 009:O33

004:AL21;005:AK5

009:AN29 010:AM12

010:AG3

C1116

0.1uF 16V

C1117

0.1uF 16V

C1118

0.1uF 16V

R179 100

+3.3VD

R178

4.7K

004:K10;005:J9

PWM_SEQ

LVDS_IN LVDS_OUT VIDEO_OUT M_TCON_EN

I2CEN

S_TCON_EN FPGA_D/L_CTRL INCH_OPT_1 INCH_OPT_2 TCON_SCL_M TCON_SDA_M TCON_SCL_S TCON_SDA_S

R1225 0

OPT

R1226 0

OPT

C1121

0.1uF 16V

C1119

0.1uF 16V

C1120

0.1uF 16V

P102

YFW254-06

OPT

LVRX2_CLKP LVRX2_CLKM LVRX2_AP LVRX2_AM LVRX2_BP LVRX2_BM LVRX2_CP LVRX2_CM LVRX2_DP LVRX2_DM LVRX2_EP LVRX2_EM

R177

4.7K Serial Flash Boot Mode

OPT

- GPIO[0]=1 : 50MHz Booting

- GPIO[0]=0 : 25MHz Booting

+3.3VD

R1227

4.7K

005:AB13

005:AH12

GAMMA_BKSEL DPM_CTRL1

C1122

C1127

0.1uF

16V

C1125

C1123

0.1uF

0.1uF 16V

16V

C1126

C1124

0.1uF

0.1uF 16V

16V

008:W15 008:W16 008:W17 008:W18 008:W17 008:W17 008:W16 008:W17 008:W14 008:W15 008:W14 008:W14

1

2

3

4

5

6

R1223

R1224

C1128

0.1uF 16V

0 0

OPT

008:M20

004:AM14

INCH_1_HIGH

INCH_1_LOW

C1129

0.1uF 16V

C1130

0.1uF 16V

R1187

R1188

+3.3VD

R1210 22

R1211 22

R1212 22

R1213 22

TCON_POWER_EN DPM_CTRL

+3.3VD

4.7K OPT

LVDS_IN LVDS_OUT

4.7K

Input LVDS Data Mapping Selection

- GPIO[5] = 1 : JEIDA

- GPIO[5] = 0 : VESA

R1204

4.7K

R1205

4.7K

INCH_1

42

LOW LOW

47

HIGH55

C1136

C1133

0.1uF

0.1uF 16V

16V

C1131

C1134

0.1uF

16V

C1135

C1132

0.1uF

0.1uF 16V

16V

IC102

LG1120

D3

VDD33_1

D4

VDD33_2

D5

VDD33_3

D6

VDD33_4

D7

VDD33_5

D28

VDD33_6

D29

VDD33_7 VDD33_8 VDD33_9 VDD33_10 VDD33_11 VDD33_12 VDD33_13 VDD33_14 VDD33_15 VDD33_16 VDD33_17 VDD33_18 VDD33_19 VDD33_20 VDD33_21 VDD33_22

LVTX_VDD_1 LVTX_VDD_2 LVTX_VDD_3 LVTX_VDD_4 LVTX_VDD_5 LVTX_VDD_6 LVTX_VDD_7 LVTX_VDD_8 PVCC1 PVCC2

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9 VDD_10 VDD_11 VDD_12 VDD_13 VDD_14 VDD_15 VDD_16 VDD_17 VDD_18 VDD_19 VDD_20 VDD_21 VDD_22 VDD_23 VDD_24 VDD_25 VDD_26 VDD_27 VDD_28 VDD_29 VDD_30 VDD_31 VDD_32 VDD_33 VDD_34 VDD_35 VDD_36 VDD_37 VDD_38 VDD_39 VDD_40 VDD_41 VDD_42 VDD_43 VDD_44 VDD_45 VDD_46 VDD_47 VDD_48 VDD_49 VDD_50 VDD_51 VDD_52 VDD_53 VDD_54 VDD_55 VDD_56 VDD_57 VDD_58 VDD_59 VDD_60 VDD_61 VDD_62 VDD_63 VDD_64 VDD_65 VDD_66 VDD_67

DDRS_VDDQ_1 DDRS_VDDQ_2 DDRS_VDDQ_3 DDRS_VDDQ_4 DDRS_VDDQ_5 DDRS_VDDQ_6 DDRS_VDDQ_7 DDRS_VDDQ_8

DDRS_VDDQ_9 DDRS_VDDQ_10 DDRS_VDDQ_11 DDRS_VDDQ_12 DDRS_VDDQ_13 DDRS_VDDQ_14 DDRS_VDDQ_15 DDRS_VDDQ_16 DDRS_VDDQ_17 DDRS_VDDQ_18 DDRS_VDDQ_19 DDRS_VDDQ_20 DDRS_VDDQ_21 DDRS_VDDQ_22

DDR_VDDQ_10

DDR_VDDQ_11

DDR_VDDQ_12

DDR_VDDQ_13

DDR_VDDQ_14

DDR_VDDQ_15

DDR_VDDQ_16

DDR_VDDQ_17

DDR_VDDQ_18

DDR_VDDQ_19

DDR_VDDQ_20

DDR_VDDQ_21

DDR_VDDQ_22

SS_DISP_DVDD

DDRPLL_DVDD

DDRPLL_AVDD

D30 D31 D32 AJ5 AK5 AK6 AK7 AK8

AK9 AK10 AJ30 AK27 AK28 AK29 AK30

D8 D10 D12 D14 D20 D22 D24 D26 D16 D18

E9 E11 E13 E15 E17 E19 E21 E23 E25 E27

G5

H5

J5

K5

L5

M5

N5

P5

R5

T5

U5

V5

W5

Y5 AA5 AB5 AC5 AD5 AE5 AG5 AF5 G30 H30 J30 K30 L30 M30 N30 P30 R30 T30 U30 V30 W30 Y30

AA30 AB30 AC30 AD30 AE30 AF30 AG30 AL14 AL15 AL16 AL17 AL18 AL19 AL20 AL21 AL22 AL23 AL24 AM15 AM16 AM25 AM26

LVRX_VDD1 LVRX_VDD2 LVRX_VDD3 LVRX_VDD4

DDR_VDDQ_1 DDR_VDDQ_2 DDR_VDDQ_3 DDR_VDDQ_4 DDR_VDDQ_5 DDR_VDDQ_6 DDR_VDDQ_7 DDR_VDDQ_8 DDR_VDDQ_9

SS_AVDD

DISP_AVDD

XTAL

001:H17

XTAL_IN

AM18 AM20 AM22 AM24

H1 K4 L3 M4 N4 P4 R4 T4 U3 U4 Y4 AA3 AA4 AB4 AC4 AD4 AF1 AG4 AJ4 AK1 P1 P3

L31 M31 M34 N31 P31 R31 R32 T31 U31 V31 Y31 AA31 AB31 AB34 AC31 AD31 AE31 AE32 AE34 AG31 AH31 AK34

AM14 AN12

AL13 AN13 AP14

+2.5LVDS_RX

+1.8V_DDRS

+1.8V_DDR

+1.0VPLL

+2.5VPLL

C1159 15pF 50V

25MHz

R191 1M

X100

C1160 15pF 50V

XTAL_OUT

001:H17

SPI FLASH(2Mbit)

R190 10K

W25X20AVSNIG

CS

1

DO

2

WP

3

GND

4

IC101

VCC

8

HOLD

7

CLK

6

DIO

5

SPI_CS

001:H19;001:AP36

SPI_DI

001:H18;001:AP37

R188

4.7K

R189

33

LG1120

B1

VSS_1

B34

VSS_2

C1

VSS_3

C34

VSS_4

D1

VSS_5

D2

VSS_6

D33

VSS_7

D34

VSS_8

E3

VSS_9

E4

VSS_10

E5

VSS_11

E6

VSS_12

E7

VSS_13

E8

VSS_14

E10

VSS_15

E12

VSS_16

E14

VSS_17

E16

VSS_18

E18

VSS_19

E20

VSS_20

E22

VSS_21

E24

VSS_22

E26

VSS_23

E28

VSS_24

E29

VSS_25

E30

VSS_26

E31

VSS_27

E32

VSS_28

F1

VSS_29

F5

VSS_30

F30

VSS_31

G3

VSS_32

G31

VSS_33

H2

VSS_34

J3

VSS_35

K1

VSS_36

L32

VSS_37

M12

VSS_38

M13

VSS_39

M14

VSS_40

M15

VSS_41

M16

VSS_42

M17

VSS_43

M18

VSS_44

M19

VSS_45

M20

VSS_46

M21

VSS_47

M22

VSS_48

M23

VSS_49

M32

VSS_50

M33

VSS_51

N12

VSS_52

N13

VSS_53

N14

VSS_54

N15

VSS_55

N16

VSS_56

N17

VSS_57

N18

VSS_58

N19

VSS_59

N20

VSS_60

N21

VSS_61

N22

VSS_62

N23

VSS_63

P2

VSS_64

P12

VSS_65

P13

VSS_66

P14

VSS_67

P15

VSS_68

P16

VSS_69

P17

VSS_70

P18

VSS_71

P19

VSS_72

P20

VSS_73

P21

VSS_74

P22

VSS_75

P23

VSS_76

R12

VSS_77

R13

VSS_78

R14

VSS_79

R15

VSS_80

R16

VSS_81

R17

VSS_82

R18

VSS_83

R19

VSS_84

R20

VSS_85

R21

VSS_86

R22

VSS_87

R23

VSS_88

T12

VSS_89

T13

VSS_90

T14

VSS_91

T15

VSS_92

T16

VSS_93

T17

VSS_94

T18

VSS_95

T19

VSS_96

T20

VSS_97

T21

VSS_98

T22

VSS_99

T23

VSS_100

U12

VSS_101

U13

VSS_102

U14

VSS_103

U15

VSS_104

U16

VSS_105

U17

VSS_106

U18

VSS_107

U19

VSS_108

U20

VSS_109

U21

VSS_110

U22

VSS_111

U23

VSS_112

V12

VSS_113

V13

VSS_114

V14

VSS_115

V15

VSS_116

V16

VSS_117

V17

VSS_118

V18

VSS_119

V19

VSS_120

V20

VSS_121

V21

VSS_122

V22

VSS_123

V23

VSS_124

W4

VSS_125

W12

VSS_126

+3.3VD

R192

3.3K

001:H19;001:AP37

001:H18;001:AP36

LVTX_VSS_1 LVTX_VSS_2 LVTX_VSS_3 LVTX_VSS_4 LVTX_VSS_5 LVTX_VSS_6 LVTX_VSS_7 LVTX_VSS_8

DDRPLL_DVSS

DDRPLL_AVSS

SS_DISP_DVSS

C1161

0.1uF

SPI_SCLK

SPI_DO

VSS_127 VSS_128 VSS_129 VSS_130 VSS_131 VSS_132 VSS_133 VSS_134 VSS_135 VSS_136 VSS_137 VSS_138 VSS_139 VSS_140 VSS_141 VSS_142 VSS_143 VSS_144 VSS_145 VSS_146 VSS_147 VSS_148 VSS_149 VSS_150 VSS_151 VSS_152 VSS_153 VSS_154 VSS_155 VSS_156 VSS_157 VSS_158 VSS_159 VSS_160 VSS_161 VSS_162 VSS_163 VSS_164 VSS_165 VSS_166 VSS_167 VSS_168 VSS_169 VSS_170 VSS_171 VSS_172 VSS_173 VSS_174 VSS_175 VSS_176 VSS_177 VSS_178 VSS_179 VSS_180 VSS_181 VSS_182 VSS_183 VSS_184 VSS_185 VSS_186 VSS_187 VSS_188 VSS_189 VSS_190 VSS_191 VSS_192 VSS_193 VSS_194 VSS_195 VSS_196 VSS_197 VSS_198 VSS_199 VSS_200 VSS_201 VSS_202 VSS_203 VSS_204 VSS_205 VSS_206 VSS_207 VSS_208 VSS_209 VSS_210 VSS_211 VSS_212 VSS_213 VSS_214 VSS_215 VSS_216 VSS_217 VSS_218 VSS_219 VSS_220 VSS_221 VSS_222 VSS_223 VSS_224 VSS_225 VSS_226 VSS_227 VSS_228 VSS_229

PGND1 PGND2

LVRX_VSS1 LVRX_VSS2 LVRX_VSS3 LVRX_VSS4

SS_AVSS

DISP_AVSS

W13 W14 W15 W16 W17 W18 W19 W20 W21 W22 W23 W32 Y12 Y13 Y14 Y15 Y16 Y17 Y18 Y19 Y20 Y21 Y22 Y23 AA12 AA13 AA14 AA15 AA16 AA17 AA18 AA19 AA20 AA21 AA22 AA23 AB12 AB13 AB14 AB15 AB16 AB17 AB18 AB19 AB20 AB21 AB22 AB23 AB32 AB33 AC12 AC13 AC14 AC15 AC16 AC17 AC18 AC19 AC20 AC21 AC22 AC23 AD3 AE33 AF2 AF32 AG3 AH5 AH30 AH33 AJ31 AJ34 AK2 AK11 AK12 AK13 AK14 AK15 AK16 AK17 AK18 AK19 AK20 AK21 AK22 AK23 AK24 AK25 AK26 AK33 AL1 AL3 AL25 AL26 AL32 AM3 AN2 AN3 AN32 AP2 AP3 AP32 AP33

D9 D11 D13 D15 D21 D23 D25 D27

D17 D19

AM17 AM19 AM21 AM23

AM12 AM13 AN14 AP12 AP13

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3D + 240 FRC + TCON BOARD 2009. 11. 13

฀

LG1120(FRC 240Hz Chip) 1

10

DDR_ADDR[0-12]

LGE Internal Use Only

001:L40;002:W39;002:AH39;002:BD39

001:Z38;002:U33;002:AI36;002:BB34

001:AA38;002:U33;002:AI36;002:BB33

001:X38;002:U32;002:AI35;002:BB33

001:Y38;002:U31;002:AI34;002:BB31 001:X38;002:U33;002:AI34;002:BB33 001:Y38;002:U31;002:AI34;002:BB32 001:Y38;002:U32;002:AI34;002:BB32 001:X38;002:U32;002:AI34;002:BB32

001:V38;002:AI35 001:V38;002:AI35

001:V38 001:W38

001:Y38 001:Z38

001:V38 001:W38

+1.8V_DDR

C200

0.1uF 16V

C201

0.1uF 16V

DDR_BA0 DDR_BA1

DDR_CLK DDR_CLK DDR_CKE

DDR_ODT

DDR_CS DDR_RAS DDR_CAS

DDR_WE

DDR_DQS0 DDR_DQS1

DDR_DM0 DDR_DM1

DDR_DQS0 DDR_DQS1

DDR_ADDR[0] DDR_ADDR[1] DDR_ADDR[2] DDR_ADDR[3] DDR_ADDR[4] DDR_ADDR[5] DDR_ADDR[6] DDR_ADDR[7] DDR_ADDR[8] DDR_ADDR[9] DDR_ADDR[10] DDR_ADDR[11] DDR_ADDR[12]

C203

0.1uF 16V

C204

0.1uF 16V

C206

0.1uF 16V

C207

0.1uF 16V

R202

100

OPT

+0.9VREF

+1.8V_DDR

C210

0.1uF 16V

C209

0.1uF 16V

R204

R205

200

100

OPT

H5PS5162FFR-S6C

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

L1

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

C212

C215

0.1uF

16V

C216

C213

0.1uF

0.1uF 16V

16V

IC200

C218

0.1uF 16V

C219

0.1uF 16V

C221

0.1uF 16V

C222

0.1uF 16V

H5PS5162FFR-S6C

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

L1

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

C290

C293

0.1uF

16V

C291

C294

0.1uF

16V

IC205

C296

0.1uF 16V

C297

0.1uF 16V

C298

0.1uF 16V

C299

0.1uF 16V

DDR_DATA[0-31]

C1210

0.1uF 16V

C1211

0.1uF 16V

001:O40;002:N40

C1212

0.1uF 16V

C1213

0.1uF 16V

C1214 10uF 10V

C1215 10uF 10V

C1226

C1220

0.1uF

0.9V DDR VREF POWER DIVIDER

- For Main Chip Side

+0.9VREF

C1216

C1222

0.1uF

0.01uF

16V

50V

+1.8V_DDRS

+0.9VREFS

C1217

C1223

0.1uF

0.01uF

16V

50V

C1228

0.1uF

+1.8V_DDR

C1230

0.1uF

R250

4.7K

OPT

R251

4.7K OPT

R252

4.7K

OPT

R253

4.7K OPT

DQ0

C1200

0.1uF 16V

C1201

0.1uF 16V

DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15

VDD5 VDD4 VDD3 VDD2 VDD1

VDDQ10 VDDQ9 VDDQ8 VDDQ7 VDDQ6 VDDQ5 VDDQ4 VDDQ3 VDDQ2 VDDQ1

VSS5 VSS4 VSS3 VSS2 VSS1

VSSQ10 VSSQ9 VSSQ8 VSSQ7 VSSQ6 VSSQ5 VSSQ4 VSSQ3 VSSQ2 VSSQ1

+1.8V_DDR

C1202

0.1uF 16V

C1203

0.1uF 16V

DDR_DATA[16] DDR_DATA[17] DDR_DATA[18] DDR_DATA[19] DDR_DATA[20] DDR_DATA[21] DDR_DATA[22] DDR_DATA[23] DDR_DATA[24] DDR_DATA[25] DDR_DATA[26] DDR_DATA[27] DDR_DATA[28] DDR_DATA[29] DDR_DATA[30] DDR_DATA[31]

C1204

0.1uF 16V

C1205

0.1uF 16V

C1206

0.1uF 16V

C1207

0.1uF 16V

C1208

0.1uF 16V

C1209

0.1uF 16V

G8 G2 H7 H3 H1 H9 F1 F9 C8 C2 D7 D3 D1 D9 B1 B9

A1 E1 J9 M9 R1

A9 C1 C3 C7 C9 E9 G1 G3 G7 G9

A3 E3 J3 N1 P9

B2 B8 A7 D2 D8 E7 F2 F8 H2 H8

C1232

0.1uF

C1234

+0.9VTT

0.1uF

+0.9VREF

+0.9VREFS

For Termination of DDR

R2212150

DDR_ADDR[0] DDR_ADDR[1]

R2213150 R2214150

DDR_ADDR[2]

R2215150

DDR_ADDR[3]

R2216150

DDR_ADDR[4]

R2217150

DDR_ADDR[5]

R2218150

DDR_ADDR[6]

R2219150

DDR_ADDR[7]

R2220150

DDR_ADDR[8]

R2221150

DDR_ADDR[9]

R2222150

DDR_ADDR[10]

R2223150

DDR_ADDR[11]

R258150

DDR_ADDR[12]

R259150

R260150

R261150

R262150

R263150

R264150

R265150

R266150

+1.8V_DDR

R276

4.7K

OPT

C1240

C1236

0.1uF 16V

C1237

0.1uF 16V

0.01uF

50V

+1.8V_DDRS

C1241

0.01uF

50V

R277

4.7K OPT

R278

4.7K

OPT

R279

4.7K OPT

DDR_ADDR[0-12]

001:L40;002:E39;002:W39;002:AH39

DDR_BA0

001:Z38;002:F36;002:U33;002:AI36

001:AA38;002:F36;002:U33;002:AI36

DDR_BA1

DDR_CS

001:X38;002:F34;002:U33;002:AI34

DDR_CKE

001:X38;002:F35;002:U32;002:AI35

001:X38;002:F34;002:U32;002:AI34

DDR_WE

001:Y38;002:F34;002:U32;002:AI34

DDR_CAS

DDR_RAS

001:Y38;002:F34;002:U31;002:AI34

DDR_ODT

001:Y38;002:F34;002:U31;002:AI34

+0.9VREF

C1244

0.1uF 16V

+0.9VREFS

C1245

0.1uF 16V

C1246

50V

C1247

50V

0.01uF

+1.8V_DDR

+1.8V_DDRS

R284

4.7K OPT

R285

4.7K OPT

R286

4.7K OPT

R287

4.7K OPT

DDR_ADDR[0] DDR_ADDR[1] DDR_ADDR[2] DDR_ADDR[3] DDR_ADDR[4] DDR_ADDR[5] DDR_ADDR[6] DDR_ADDR[7] DDR_ADDR[8] DDR_ADDR[9] DDR_ADDR[10] DDR_ADDR[11] DDR_ADDR[12]

C281

0.1uF 16V

C282

0.1uF 16V

R246

R247

C284

0.1uF 16V

C285

0.1uF 16V

200

100 OPT

+1.8V_DDR

+0.9VREF

R249

100

OPT

C287

0.1uF 16V

C288

0.1uF 16V

DDR_DATA[0-31]

C229

0.1uF 16V

C230

0.1uF 16V

001:O40;002:AQ40

C231

0.1uF 16V

C232

0.1uF 16V

C233

0.1uF 16V

C234

0.1uF 16V

C235

0.1uF 16V

C236

0.1uF 16V

For Termination of DDR

+0.9VTT

R288150

DDR_ADDR[0]

R289150

DDR_ADDR[1]

R290150

C255

4.7uF 10V

R291150

R292150

R294150 R295150

R215150

R217150

R218150

R219150

R220150

R221150

R222150

R223150

R293150

R296150 R297150 R298150 R299150

R216150

C263

0.01uF 50V

DDR_ADDR[2] DDR_ADDR[3]

DDR_ADDR[4] DDR_ADDR[5] DDR_ADDR[6] DDR_ADDR[7]

DDR_ADDR[8]

DDR_ADDR[9] DDR_ADDR[10] DDR_ADDR[11]

DDR_ADDR[12]

C253 68uF 10V

C261

0.1uF 16V

C240

C246

0.1uF

C237

C243

0.1uF

10uF

16V

10V

C244

C238

10uF

0.1uF 10V

16V

0.1uF

+0.9VTT

C259

0.1uF 16V

C248

C252

C250

C242

DDR_ADDR[0-12]

001:L40;002:E39;002:AH39;002:BD39

DDR_BA0

001:Z38;002:F36;002:AI36;002:BB34

001:AA38;002:F36;002:AI36;002:BB33

DDR_BA1

001:X38;002:F34;002:AI34;002:BB33

DDR_CS

DDR_CKE

001:X38;002:F35;002:AI35;002:BB33

001:X38;002:F34;002:AI34;002:BB32

DDR_WE

001:Y38;002:F34;002:AI34;002:BB32

DDR_CAS

DDR_RAS

001:Y38;002:F34;002:AI34;002:BB32

DDR_ODT

001:Y38;002:F34;002:AI34;002:BB31

+3.3VD

IC202

R224

BD35331F-E2

10K

GND

1

EN

2

VTTS

3

VREF

4

C257 10uF

6.3V

VTT

8

VTT_IN

7

VCC

6

VDDQ

5

RC FILTER

R236 220

C265

C269

1uF

2.2uF

10V

25V

+1.8V_DDR+0.9VREF

C267 10uF

6.3V

C273

C271

0.01uF

0.1uF

50V

16V

DDR_ADDR[0-12]

001:L40;002:E39;002:W39;002:BD39

001:Z38;002:F36;002:U33;002:BB34

001:AA38;002:F36;002:U33;002:BB33

001:X38;002:F35;002:U32;002:BB33

001:V38;002:F35 001:V38;002:F35

001:Y38;002:F34;002:U31;002:BB31 001:X38;002:F34;002:U33;002:BB33 001:Y38;002:F34;002:U31;002:BB32 001:Y38;002:F34;002:U32;002:BB32 001:X38;002:F34;002:U32;002:BB32

+1.8V_DDRS

001:W38 001:W38

001:W38 001:X38

C275

0.1uF 16V

C276

0.1uF 16V

001:Z38 001:Z38

C278

0.1uF 16V

C279

0.1uF 16V

DDR_BA0 DDR_BA1

DDR_CLK DDR_CLK DDR_CKE

DDR_ODT

DDR_CS DDR_RAS DDR_CAS

DDR_WE

DDR_DQS2 DDR_DQS3

DDR_DM2 DDR_DM3

DDR_DQS2 DDR_DQS3

DQ0

C223

0.1uF 16V

C224

0.1uF 16V

DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15

VDD5 VDD4 VDD3 VDD2 VDD1

VDDQ10 VDDQ9 VDDQ8 VDDQ7 VDDQ6 VDDQ5 VDDQ4 VDDQ3 VDDQ2 VDDQ1

VSS5 VSS4 VSS3 VSS2 VSS1

VSSQ10 VSSQ9 VSSQ8 VSSQ7 VSSQ6 VSSQ5 VSSQ4 VSSQ3 VSSQ2 VSSQ1

+1.8V_DDR

C225

0.1uF 16V

C226

0.1uF 16V

DDR_DATA[0] DDR_DATA[1] DDR_DATA[2] DDR_DATA[3] DDR_DATA[4] DDR_DATA[5] DDR_DATA[6] DDR_DATA[7] DDR_DATA[8]

DDR_DATA[9] DDR_DATA[10] DDR_DATA[11] DDR_DATA[12] DDR_DATA[13] DDR_DATA[14] DDR_DATA[15]

C227

0.1uF

16V

C228

0.1uF

16V

G8 G2 H7 H3 H1 H9 F1 F9 C8 C2 D7 D3 D1 D9 B1 B9

A1 E1 J9 M9 R1

A9 C1 C3 C7 C9 E9 G1 G3 G7 G9

A3 E3 J3 N1 P9

B2 B8 A7 D2 D8 E7 F2 F8 H2 H8

DDRS_ADDR[0-12]

001:K12;002:W13;002:AK17;002:BD12

001:Z13;002:U8;002:AK13;002:BB7

001:AA13;002:U7;002:AK13;002:BB6

001:V13;002:AK13 001:V13;002:AK12

001:X13;002:U7;002:AK12;002:BB6

001:Y13;002:U5;002:AK12;002:BB4 001:X13;002:U7;002:AK12;002:BB6 001:Y13;002:U6;002:AK11;002:BB5 001:Y13;002:U6;002:AK11;002:BB5 001:X13;002:U6;002:AK11;002:BB5

001:V13 001:W13

001:Y13 001:Z13

+0.9VREF

DDRS_DQS0 DDRS_DQS1

C202

0.1uF 16V

DDRS_BA0 DDRS_BA1

DDRS_CLK DDRS_CLK DDRS_CKE

DDRS_ODT

DDRS_CS DDRS_RAS DDRS_CAS

DDRS_WE

DDRS_DM0 DDRS_DM1

C205

0.1uF 16V

DDRS_ADDR[0] DDRS_ADDR[1] DDRS_ADDR[2] DDRS_ADDR[3] DDRS_ADDR[4] DDRS_ADDR[5] DDRS_ADDR[6] DDRS_ADDR[7] DDRS_ADDR[8] DDRS_ADDR[9] DDRS_ADDR[10] DDRS_ADDR[11] DDRS_ADDR[12]

R200

R201

200

100 OPT

C208

0.1uF 16V

+1.8V_DDRS

C211

0.1uF 16V

+0.9VREFS

R203

100 OPT

C214

C217

0.1uF

16V

H5PS5162FFR-S6C

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

L1

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

C220

0.1uF 16V

IC201

50V

C254 68uF 10V

C262

0.1uF 16V

DDRS_ADDR[0] DDRS_ADDR[1] DDRS_ADDR[2] DDRS_ADDR[3]

DDRS_ADDR[4] DDRS_ADDR[5] DDRS_ADDR[6] DDRS_ADDR[7]

DDRS_ADDR[8]

DDRS_ADDR[9] DDRS_ADDR[10] DDRS_ADDR[11]

DDRS_ADDR[12]

+3.3VD

R225

BD35331F-E2

10K

GND

EN

VTTS

VREF

C258 10uF

6.3V

DDRS_ADDR[0-12]

001:K12;002:E16;002:AK17;002:BD12

DDRS_BA0

001:Z13;002:F13;002:AK13;002:BB7

001:AA13;002:F13;002:AK13;002:BB6

DDRS_BA1

001:X13;002:F11;002:AK12;002:BB6

DDRS_CS

DDRS_CKE

001:X13;002:F12;002:AK12;002:BB6

001:X13;002:F11;002:AK11;002:BB5

DDRS_WE

001:Y13;002:F11;002:AK11;002:BB5

DDRS_CAS

DDRS_RAS

001:Y13;002:F11;002:AK11;002:BB5

001:Y13;002:F11;002:AK12;002:BB4

DDRS_ODT

IC203

VTT

1

8

VTT_IN

2

7

VCC

3

6

VDDQ

4

5

RC FILTER

R237 220

C266

C270

1uF

2.2uF

10V

25V

+1.8V_DDRS

C268 10uF

6.3V

C272

C274

0.1uF

0.01uF 16V

50V

+0.9VTTS

C256

C260

4.7uF

0.1uF 10V

16V

+0.9VREFS

C264

0.01uF

DQ0

DDRS_DATA[0]

G8

DQ1

DDRS_DATA[1]

G2

DQ2

DDRS_DATA[2]

H7

DQ3

DDRS_DATA[3]

H3

DQ4

DDRS_DATA[4]

H1

DQ5

DDRS_DATA[5]

H9

DQ6

DDRS_DATA[6]

F1

DQ7

DDRS_DATA[7]

F9

DQ8

DDRS_DATA[8]

C8

DQ9

DDRS_DATA[9]

C2

DQ10

DDRS_DATA[10]

D7

DQ11

DDRS_DATA[11]

D3

DQ12

DDRS_DATA[12]

D1

DQ13

DDRS_DATA[13]

D9

DQ14

DDRS_DATA[14]

B1

DQ15

DDRS_DATA[15]

B9

+1.8V_DDRS

VDD5

A1

VDD4

E1

VDD3

J9

VDD2

M9

VDD1

R1

VDDQ10

A9

VDDQ9

C1

VDDQ8

C3

VDDQ7

C7

VDDQ6

C9

VDDQ5

E9

VDDQ4

G1

VDDQ3

G3

VDDQ2

G7

VDDQ1

G9

VSS5

A3

VSS4

E3

VSS3

J3

VSS2

N1

VSS1

P9

VSSQ10

B2

VSSQ9

B8

VSSQ8

A7

VSSQ7

D2

VSSQ6

D8

VSSQ5

E7

VSSQ4

F2

VSSQ3

F8

VSSQ2

H2

VSSQ1

H8

DDRS_DATA[0-31]

001:N11;002:AT17

C239

C241

0.1uF

For Termination of DDR

+0.9VTTS

R2200150 R2201150

C247

C249

C251

C245

0.1uF

R2202150 R2203150

R2204150 R2205150 R2206150 R2207150

R2208150 R2209150

R2210150 R2211150

R206150

R207150

R208150

R209150

R210150

R211150

R212150

R213150

R214150

+0.9VREFS

C280

C277

0.1uF

0.1uF 16V

16V

001:K12;002:E16;002:W13;002:BD12

001:Z13;002:F13;002:U8;002:BB7 001:AA13;002:F13;002:U7;002:BB6

001:V13;002:F12 001:V13;002:F12

001:X13;002:F12;002:U7;002:BB6

001:Y13;002:F11;002:U5;002:BB4 001:X13;002:F11;002:U7;002:BB6 001:Y13;002:F11;002:U6;002:BB5 001:Y13;002:F11;002:U6;002:BB5 001:X13;002:F11;002:U6;002:BB5

C283

C286

0.1uF

16V

DDRS_ADDR[0-12]

001:W13 001:W13

001:Z13 001:Z13

001:W13 001:X13

C289

0.1uF 16V

DDRS_BA0 DDRS_BA1

DDRS_CLK DDRS_CLK DDRS_CKE

DDRS_ODT

DDRS_CS DDRS_RAS DDRS_CAS

DDRS_WE

DDRS_DQS2 DDRS_DQS3

DDRS_DM2 DDRS_DM3

DDRS_DQS2

DDRS_DQS3

C292

0.1uF 16V

DDRS_ADDR[0] DDRS_ADDR[1] DDRS_ADDR[2] DDRS_ADDR[3] DDRS_ADDR[4] DDRS_ADDR[5] DDRS_ADDR[6] DDRS_ADDR[7] DDRS_ADDR[8] DDRS_ADDR[9] DDRS_ADDR[10] DDRS_ADDR[11] DDRS_ADDR[12]

R245

200

R244

100

OPT

C295

0.1uF 16V

R248

100 OPT

+1.8V_DDRS

+0.9VREFS

H5PS5162FFR-S6C

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

L1

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

IC204

- For SDRAM Side

+1.8V_DDR

+0.9VREF

C1218

C1224

0.1uF

0.01uF

16V

50V

DDRS_DATA[0-31]

DQ0

DDRS_DATA[16]

G8

DQ1

DDRS_DATA[17]

G2

DQ2

DDRS_DATA[18]

H7

DQ3

DDRS_DATA[19]

H3

DQ4

DDRS_DATA[20]

H1

DQ5

DDRS_DATA[21]

H9

DQ6

DDRS_DATA[22]

F1

DQ7

DDRS_DATA[23]

F9

DQ8

DDRS_DATA[24]

C8

DQ9

DDRS_DATA[25]

C2

DQ10

DDRS_DATA[26]

D7

DQ11

DDRS_DATA[27]

D3

DQ12

DDRS_DATA[28]

D1

DQ13

DDRS_DATA[29]

D9

DQ14

DDRS_DATA[30]

B1

DQ15

DDRS_DATA[31]

B9

+1.8V_DDRS

VDD5

A1

VDD4

E1

VDD3

J9

VDD2

M9

VDD1

R1

VDDQ10

A9

VDDQ9

C1

VDDQ8

C3

VDDQ7

C7

VDDQ6

C9

VDDQ5

E9

VDDQ4

G1

VDDQ3

G3

VDDQ2

G7

VDDQ1

G9

VSS5

A3

VSS4

E3

VSS3

J3

VSS2

N1

VSS1

P9

VSSQ10

B2

VSSQ9

B8

VSSQ8

A7

VSSQ7

D2

VSSQ6

D8

VSSQ5

E7

VSSQ4

F2

VSSQ3

F8

VSSQ2

H2

VSSQ1

H8

001:N11;002:N17

+0.9VREFS

C1219

0.1uF 16V

C1221

0.1uF

C1227

0.1uF

+1.8V_DDRS

C1225

0.01uF

50V

C1229

0.1uF

+0.9VREF

R254

4.7K

OPT

R255

4.7K OPT

+0.9VREFS

R256

4.7K

OPT

R257

4.7K OPT

+0.9VTTS

C1231

C1235

C1233

0.1uF

+1.8V_DDR

R280

4.7K

OPT

C1238

C1242

0.01uF

50V

+1.8V_DDRS

C1243

0.01uF

50V

R281

4.7K OPT

R282

4.7K

OPT

R283

4.7K OPT

0.1uF 16V

C1239

0.1uF 16V

For Termination of DDR

R2224150

DDRS_ADDR[0]

R2225150

DDRS_ADDR[1]

R2226150

DDRS_ADDR[2]

R2227150

DDRS_ADDR[3]

R2228150

DDRS_ADDR[4]

R2229150

DDRS_ADDR[5]

R2230150

DDRS_ADDR[6]

R2231150

DDRS_ADDR[7]

R2232150

DDRS_ADDR[8]

R2233150

DDRS_ADDR[9]

R2234150

DDRS_ADDR[10]

R2235150

DDRS_ADDR[11]

R267150

DDRS_ADDR[12]

R268150

R269150

R270150

R271150

R272150

R273150

R274150

R275150

DDRS_ADDR[0-12]

001:K12;002:E16;002:W13;002:AK17

DDRS_BA0

001:Z13;002:F13;002:U8;002:AK13

001:AA13;002:F13;002:U7;002:AK13

DDRS_BA1

001:X13;002:F11;002:U7;002:AK12

DDRS_CS

DDRS_CKE

001:X13;002:F12;002:U7;002:AK12

001:X13;002:F11;002:U6;002:AK11

DDRS_WE

001:Y13;002:F11;002:U6;002:AK11

DDRS_CAS

DDRS_RAS

001:Y13;002:F11;002:U6;002:AK11

DDRS_ODT

001:Y13;002:F11;002:U5;002:AK12

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3D + 240 FRC + TCON BOARD 2009. 11. 13

DDR2 SDRAM 2 10

MAIN 3.3V & 3.3V IO POWER

LGE Internal Use Only

VLCD_POWER

L301

120-ohm

C384 10uF 25V

C301 10uF 25V

C378 47uF 25V

C302

0.1uF

R301

22

MP8706EN-C247-LF-Z

IN

1

SW_1

2

SW_2

3

BST

4

1.0V DIGITAL CORE POWER

+3.3V

L303

120-ohm

C304

R302

100pF

3K

1%

R1

C306 10uF

6.3V OPT

BCD_REGULATOR

C388

0.1uF

R303

9.1K 1%

R2

Vout= 0.8*(1+R1/R2)

C303

VLCD_POWER

(+12V)

L315 CIC21J501NE

BCD_REGULATOR

C386 10uF 25V

BCD_REGULATOR

10uF 25V

C387 10uF 25V

BCD_REGULATOR

Vout=0.8*(1+R1/R2)

IC301

L305

3.6uH

4.9A

PGND

AGND

VIN

FB

GND

8

VCC

7

FB

6

EN/SYNC

5

C309

0.47uF

MP2212DN

FB

1

GND

2

IN

3

BS

4

IC303

AOZ1072AI

1

2

2A

3

4

DEV

EAN60922901

50V

OPT

R305

100K

IC302

C308 1uF 50V

R306 39K

R304

10

1%

BCD_REGULATOR

8

7

6

5

C311 100pF

50V

OPT

VLCD_POWER

R307

100K

EN/SYNC

8

SW_2

7

SW_1

6

VCC

5

LX_2

LX_1

BCD_REGULATOR

EN

BCD_REGULATOR

COMP

R339

BCD_REGULATOR

Vout= 0.8*(1+R1/R2)

R308

R309

(+12V)

12.4K

NR8040T3R6N

VLCD_POWER

12K

C389 2200pF

BCD_REGULATOR

39K 1%

R1

1%

R2

C312 1uF

10V

L316

3.6uH

(+12V)

1%

1/16W

C314

0.01uF 50V

L306

3.6uH

NR8040T3R6N

C315

0.1uF 50V

MAX 350mA

BCD_REGULATOR

20K

C390

R340

22uF 10V

10K

BCD_REGULATOR

R341

C316 22uF

10V

C391 22uF 10V

C318 22uF

10V

C377 22uF 10V

C374 22uF 10V

+1.0VDC

C319

0.1uF 16V

+5V_NORMAL

BCD_REGULATOR

1%

R342

47K

BCD_REGULATOR

R1

1%

5.6K

R343

OPT

C392

100pF

50V

1%

R2

R344

10K

BCD_REGULATOR

+3.3V

C317 22uF 10V

BCD_REGULATOR

C393

0.1uF 16V

DDR2 SDRAM SOURCE POWER for FRC

VLCD_POWER

(+12V)

L304

120-ohm

C320

C380

10uF

47uF

25V

VLCD_POWER

L310

120-ohm

C321

C385

10uF

25V

1.2V FPGA CORE POWER

C330

C334

1uF

0.1uF

25V

50V

C381 1uF 25V

R310 100K

C325

0.1uF 16V

R318

100K

V5V2VLDO6VIN_15VIN_28VIN_39VIN_410VIN_511VIN_6P2VOUT

PGOOD

22

EN/PSV

25

ENL

28

SC424MLTRT

FB

1

TON

27

AGND_13AGND_226AGND_3P1PGND_113PGND_214PGND_316PGND_417PGND_518PGND_6

IC304

4

LX_1

15

LX_2

20

LX_3

21

LX_4

P3

LXBST

12

LXS

24

ILIM

23

BST

7

19

DDR2 SDRAM SOURCE POWER for FPGA

IC310

MP8706EN-C247-LF-Z

C382 22uF 35V

+3.3V

C379 1uF 25V

L308

120-ohm

C322 22uF 16V

SW_1

SW_2

C326

0.1uF

R311

22

Vout= 0.8*(1+R1/R2)

R312 10K

C323

C383

0.1uF

10uF

50V

25V

IN

1

2

3

BST

4

3.6uH

C324 10uF 25V

OPT D302 1N4148W_DIODES

100V

L314

4.9A

R313 0

R314 100K

GND

FB

IN

BS

GND

8

VCC

7

FB

6

EN/SYNC

5

C337

0.47uF

C327 100pF

IC305

MP2212DN

1

2

3

4

R315 10

R316 10

C335 1uF 50V

R321

R319 39K

50V

R317

5.1K

EN/SYNC

8

SW_2

7

SW_1

6

VCC

5

C328

0.1uF

C339

100pF

50V

OPT

VLCD_POWER

100K

R320

C338

8.2K

0.1uF 50V

Vout= 0.8*(1+R1/R2)

(+12V)

L309

3.6uH

C329 1uF 25V

R336 10K 1%

R1

R337

4.7K 1%

R2

OPT

R334 39K

L307

3.3uH

4.1A

C331 22uF 16V

C340 1000pF OPT

C332

0.47uF 50V

C333

0.1uF 50V

C368

0.01uF

OPT

C375 22uF 10V

C359 10uF 25V

R373-*1 12K 1%

SEMTECH

R2 R374-*1

15K 1%

SEMTECH

R1

C398 10uF

16V

R382-*1 12K 1%

SEMTECH

R2 R383-*1

15K 1%

SEMTECH

R1

C3005 10uF

16V

R390-*1 12K 1%

SEMTECH

R2 R391-*1

15K 1%

SEMTECH

R1

C3011 10uF

16V

1V8

+1.8V_DDR

+1.8V_DDRS

+3.3V

C363

2.2uF 10V

C399

0.1uF

C3006

0.1uF

C3012

0.1uF

C367

0.1uF 16V

IC307

+5V_NORMAL

+2.5VQ

R371

L319 120-ohm BCD_REGULATOR

C394

10uF

16V

+2.5VQ

C372

C371 22uF 10V

C369

R335

100pF

10K 1%

50V

R1

R338

4.3K 1%

R2

2V5

C370

C376

22uF

10V

1V2

C336

22uF 16V

OPT

22uF 10V

C373 22uF 10V

DDR_VTT

OPT

C310 22uF 10V

C3001

10uF

16V

C3007

10uF

16V

BCD_REGULATOR

C395

0.1uF

VLCD_POWER

(+12V)

1%

R367

6.8K

1/16W

1%

R368

5.1K

1/16W

+5V_NORMAL

+2.5VQ

L317 120-ohm BCD_REGULATOR

BCD_REGULATOR

C3002

0.1uF

VLCD_POWER

(+12V)

1%

R375

6.8K

1/16W

1%

R376

5.1K

1/16W

2V5 1V8

+5V_NORMAL

L318 120-ohm BCD_REGULATOR

BCD_REGULATOR

C3008

0.1uF

VLCD_POWER

(+12V)

1%

R384

6.8K

1/16W

OPT

1%

R385

5.1K

1/16W

OPT

1.8V FPGA DDR SDRAM VTT & VREF

C305

C307

22uF

10V

DDR_VREF0

BLM18PG121SN1D

C343

C342

0.1uF 16V

C345

0.1uF 16V

DDR_VREF1

10K

BCD R372 91K

SEMTECH

R369 1K

91K

R370

OPT

R379 10K

BCD R380 100K

SEMTECH

R377 1K

100K

R378

OPT

VOUT=0.6*(R1+R2)/R2

R387 10K

BCD R388 91K

SEMTECH

R386 0

91K

R392

OPT

C344

C347

10uF

0.1uF

16V

L311

C346

0.1uF 16V

L312

BLM18PG121SN1D

AP2132MP-2.5TRG1

PG

1

EN

2

VIN

3

VCTRL

R366

0

BCD

C396

2.2uF 16V

4

1.8V DDR SDRAM POWER

IC308

AP2132MP-2.5TRG1

PG

1

EN

2

VIN

3

VCTRL

R381

0

BCD

C3003

2.2uF 16V

4

VOUT=0.6*(R1+R2)/R2

IC306

AP2132MP-2.5TRG1

PG

1

EN

2

VIN

3

VCTRL

R389

BCD

OPT

C351

0.1uF 16V

0

4

C3009

0.22uF 50V

1.8V FPGA DDR SDRAM POWER

R325

10K

C358

0.1uF

OPT

R326

1M

16V

SEMTECH

IC307-*1

SC4215ISTRT

NC_1

1

EN

2

VIN

3

NC_2

4

BCD

SEMTECH

IC308-*1

SC4215ISTRT

NC_1

1

EN

2

VIN

3

NC_2

4

BCD

SEMTECH

IC306-*1

SC4215ISTRT

NC_1

1

EN

2

VIN

3

NC_2

4

BCD

9

THERMALTHERMALTHERMAL

GND

8

ADJ

7

VO

6

NC_3

5

9

GND

8

ADJ

7

VO

6

NC_3

5

9

GND

8

ADJ

7

VO

6

NC_3

5

VTTS

VREF

GND

EN

[EP]

GND

8

ADJ

7

VOUT

6

NC

5

[EP]

GND

8

ADJ

7

VOUT

6

NC

5

[EP]

GND

8

ADJ

7

VOUT

6

NC

5

IC309

BD35331F-E2

1

2

3

4

VOUT : 1.8

BCD R373 15K

R374 30K BCD

C397

10uF

16V

VOUT : 1.8

BCD R382 15K

R383 30K BCD

C3004

10uF

16V

VOUT : 1.8

BCD R390 15K

R391 30K BCD

C3010

10uF

16V

VTT

8

VTT_IN

7

VCC

6

VDDQ

5

R329 220

R2

R1

R2

R1

R2

R1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3D + 240 FRC + TCON BOARD

FRC & FPGA Power Block

2009. 11. 13

3

10

+1.8V_TCON

LGE Internal Use Only

120-ohm

+1.8V_TCON_M

L400

[T-CON LEFT => Master]

004:R6;009:O8

004:U6;009:O7 004:R5;009:O10 004:U5;009:O10 004:R5;009:O11 004:U5;009:O11 004:R5;009:O13 004:U5;009:O13 004:R5;009:O12 004:U5;009:O12 004:R5;009:O14 004:U5;009:O13 004:R4;009:O14 004:U4;009:O14 004:R3;009:O15 004:U3;009:O15

004:R3;009:Y6

004:U3;009:Y5

004:R3;009:Y5

004:U3;009:Y5

004:R3;009:Y8

004:U3;009:Y7

004:R3;009:Y7

004:U3;009:Y7

004:X6;009:Y6 004:AA6;009:Y6

004:X5;009:Y8 004:AA5;009:Y8

004:X5;009:Y9 004:AA5;009:Y9 004:X5;009:Y10

004:AA5;009:Y10

004:X5;009:Y12

004:AA5;009:Y12

004:X5;009:Y14

004:AA5;009:Y14

004:X4;009:Y13

004:AA4;009:Y12

004:X3;009:Y11

004:AA3;009:Y10

004:X3;009:Y11

004:AA3;009:Y11

004:X3;009:Y13

004:AA3;009:Y13

004:X3;009:Y14

004:AA3;009:Y14

004:X3;009:Y16

004:AA3;009:Y16

TA5TA5+ TB5TB5+ TC5-

TC5+ TCLK5TCLK5+

TD5-

TD5+

TE5-

TE5+

TA6-

TA6+

TB6-

TB6+

TC6-

TC6+ TCLK6TCLK6+

TD6-

TD6+

TE6-

TE6+

TA7-

TA7+

TB7-

TB7+

TC7-

TC7+ TCLK7TCLK7+

TD7-

TD7+

TE7-

TE7+

TA8-

TA8+

TB8-

TB8+

TC8-

TC8+ TCLK8TCLK8+

TD8-

TD8+

TE8-

TE8+

GOE_A

GSP_A

SOE_A

C402

0.1uF 16V

C403

0.1uF 16V

R417 2K

R418 2K

OPT

C404

0.1uF 16V

C405

0.1uF 16V

R422 2K

R423 2K

OPT

R419

R420

OPT

R421

33

R424

C409

0.1uF 16V

C407

0.1uF 16V

R425 2K

R426 2K

OPT

33

150

C400

004:C8

001:AF18;004:AE10;004:AL20;005:AB14

001:AF18;004:AA10;004:AL20;005:AB14

TCON_SCL_M

TCON_SDA_M

LVDS_SEL_M

+1.8V_TCON_M+3.3V_TCON_M

R1AN

1

R1AP

2

R1BN

3

R1BP

4

R1CN

5

R1CP

6

R1CLKN

7

R1CLKP

8

R1DN

9

R1DP

10

R1EN

11

R1EP

12

R2AN

13

R2AP

14

R2BN

15

R2BP

16

LVDD_1

17

R2CN

18

R2CP

19

R2CLKN

20

R2CLKP

21

LGND_1

22

R2DN

23

R2DP

24

R2EN

25

R2EP

26

R3AN

27

R3AP

28

R3BN

29

R3BP

30

LVDD_2

31

R3CN

32

R3CP

33

R3CLKN

34

R3CLKP

35

LGND_2

36

R3DN

37

R3DP

38

R3EN

39

R3EP

40

R4AN

41

R4AP

42

R4BN

43

R4BP

44

R4CN

45

R4CP

46

R4CLKN

47

R4CLKP

48

R4DN

49

R4DP

50

R4EN

51

R4EP

52

INT_SSC2

OGND_11

CVDD_11

LVDD_5

LGND_5

204

205

206

207

208

53

57

LVDD_354LGND_355LVDD_456LGND_4

EIVSS_158EIVDD_1

CGND_11

203

DISN

OVDD_9

INT_VCO2

EOVDD_7

EOVSS_6

CVDD_10

197

198

199

200

201

202

TL2425MC (GLORY)

59

60

61

62

63

64

RBF

RESET

CGND_1

CVDD_1

PWR_SEO65PAT_DET

INT_SSC1

EOVSS_5

EOVDD_6

195

196

66

INT_VCO1

33

R443

SCL

CVDD_9

194

67

FLK1

OVDD_169OGND_1

SDA

193

68

33

R444

EOVDD_5

EOVSS_4

191

192

70

DPN71GOE72GSC73GSP

OGND_10

190

CGND_10

189

EOVDD_4

OVDD_8

187

188

IC400

74

GSP_R

OVDD_276CGND_277CVDD_2

186

75

CVDD_8

EOVSS_3

184

185

OVDD_7

OGND_9

182

183

78

79

OGND_2

EIVSS_2

004:C5

004:G8

REVERSE_M

BIT_SEL_M

FRCON

C10S8

REVERSE

180

181

80

81

VCORES

N_S_SEL

EIVDD_2

004:K5

FRC_ON_M

OGND_8

EIVSS_4

EIVDD_4

176

177

178

179

82

83

H_CONV84I2C_EN85CVDD_386CGND_3

OGND_7

OVDD_6

175

VCO_SYNC

CGND_9

EOVDD_3

172

173

174

87

88

TESTA89TESTB90TESTC

SCLKO

EOVDD_2

EOVSS_2

CVDD_7

167NC168

169

170

171

91

OVDD_392OGND_393CVDD_494CGND_495OVDD_4

EOVDD_1

EOVSS_1

165

166

96

SSC_SYNC

SCLKI

164

97

POL98SOE

CGND_7

CGND_8

163

OPT_P

162

99

OGND_6

CVDD_6

161

100

FSEL

OPT_N

160

101

OGND_5

OVDD_5

159

102

OGND_4

EIVSS_3

004:AC20

TCON_AGP_M

TCON_AGP

157

158

156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105

103

104

EIVDD_3

RLV0+ RLV0NLVDD_6 RLV1+ RLV1NLVSS_6 RLV2+ RLV2RLV3+ RLV3NLVDD_5 RLV4+ RLV4RLV5+ RLV5NLVSS_5 RLV6+ RLV6RLV7+ RLV7NLVDD_4 RLV8+ RLV8LLV0+ LLV0NLVSS_4 LLV1+ LLV1LLV2+ LLV2NLVDD_3 LLV3+ LLV3LLV4+ LLV4NLVSS_3 LLV5+ LLV5LLV6+ LLV6NLVDD_2 LLV7+ LLV7NLVSS_2 LLV8+ LLV8NLVSS_1 NLVDD_1 RNLVDS CGND_6 CVDD_5 CGND_5

R414 18K

RRMV6N RRMV6P

RRMV5N RRMV5P RRMV4N RRMV4P

RRMVCLKN RRMVCLKP

RRMV2N RRMV2P RRMV1N RRMV1P

RRMV0N RRMV0P

RLMV6N RLMV6P RLMV5N RLMV5P

RLMV4N RLMV4P RLMVCLKN RLMVCLKP

RLMV2N RLMV2P

RLMV1N RLMV1P

RLMV0N RLMV0P

008:AE10 008:AE10

008:AE10 008:AE11 008:AE11 008:AE11

008:AE11 008:AE12

008:AE12 008:AE12 008:AE12 008:AE13

008:AE13 008:AE13

008:AE13 008:AE14 008:AE14 008:AE14

008:AE14 008:AE14 008:AE15 008:AE15

008:AE15 008:AE16

008:AE16 008:AE16

008:AE16

0.1uF 16V

+3.3V_TCON

120-ohm

C401

0.1uF 16V

+3.3V_TCON_M

R415 2K

R416 2K

OPT

L401

004:M10

GSP_R_A

004:M10

004:R10;004:AF13

C410

0.1uF 16V

C411

0.1uF 16V

R427 2K

R428 2K

OPT

008:AE23;008:AL12

C406

10pF

OPT

008:AE18;008:AL18

C408

10pF

OPT

C437

10pF 50V

OPT

C412

0.1uF 16V

C413

0.1uF 16V

008:AL18

C414 1uF 10V

C415

0.1uF 16V

MS_SEL_M

I2CEN_M

VCO_SYNC_M

SSC_SYNC_M

TCON_AGP_M

GOE

GSP

SOE_L

C416 1uF 10V

C417

0.1uF 16V

004:N10

004:O10;004:X8

004:P10

004:R10

004:S26

POL_A

004:R10

FLK_A

004:L10

SOE_A

004:R10;004:AA13

C418

C419

0.1uF 16V

C423

0.1uF

16V

IC401

M24C16-WMN6T

NC/E0

1

NC/E1

2

NC/E2

3

VSS

4

Write Protection Low/NC : Normal Operation High : Write Protection

I2C Slave Address : 0xA0

R436

100

R437

33

R438

220

C424

0.1uF 16V

8

7

6

5

008:AE18;008:AL18

C420

220pF

OPT

006:D12

C421

10pF 50V

008:AE17

C422

10pF 50V

C425

0.1uF 16V

C428

0.1uF

VCC

WC

SCL

SDA

+3.3V_TCON

16V

POL

FLK

SOE_R

C426

0.1uF 16V

C427

0.1uF 16V

004:M10

R44 8

3.3 K OPT

GSC_A

DPM_A 004:L10

C429

0.1uF 16V

R433

3.3K

C430 1uF 10V

R446

R447

C436

R434

3.3K

10pF

OPT

+3.3V_TCON_M

C433

C432

1uF

10V

WP_EEPROM_TCON

TCON_SCL_M

001:AF18;004:L27;004:AA10;005:AB14

TCON_SDA_M

001:AF18;004:L27;004:AE10;005:AB14

33

C431

10pF

R477

0

OPT

001:AJ20

DPM_CTRL

OPT

008:AE23;008:AL12

R480

DPM_CTRL1

C435 1uF 10V

001:AD21;005:AK5

GSC

007:W8;006:D12;006:Q5

OPT

001:AH16

DPM

0

+3.3V_TCON_M

R400

3.3K OPT

R401

LVDS Data mapping seletion

10K

L:VESA format H:JEIDA format

+3.3V_TCON_M

R402

3.3K

OPT

R403

10K

L : Normal operation H : Reverse operation

LVDS_SEL_M

REVERSE_M

004:K26

004:N26

+3.3V_TCON_M

R404

3.3K

R405

10bit or 8bit Seletion

10K

OPT

L:8bit H:10bit

+3.3V_TCON_M

R406

3.3K OPT

R407

When No Video input, Pattern SelectionReverse option Selection

10K

L:Black Pattern H:Rotate Pattern

BIT_SEL_M

RBF_M

004:O26

004:J10

+3.3V_TCON_M

R408

3.3K

FRC Funtion Seletion L:Disable(8Bit)

R409

H:Enable(10Bit(D))

10K

OPT

R4100R411

RBF_M

004:G5

PWM_SEQ

TCON_RST

INT_SSC1_M

005:H26

004:AN7;005:I9

001:AF20;005:J9

0

FLK_A

INT_VCO1_M

005:I26

004:AF15

FRC_ON_M

DPM_A

GOE_A

GSC_A

004:AK15

004:AA17

004:AK17

004:O26

GSP_A

GSP_R_A

+1.8V_TCON_M

004:AA15

004:AA14

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R412 1K

1%

R413 1K

1%

H_CONV

MS_SEL_M

004:AC21

008:AE17;008:AL18

I2CEN_M

VCO_SYNC_M

004:AC20

004:X8;004:AC21

TA5TB5TC5TCLK5TD5TE5-

TA6-

TB6-

TC6-

TCLK6-

TD6TE6-

R478

0

POL_A

SOE_A

OPT_P

OPT_N

SSC_SYNC_M

008:AE24

004:AF17

004:AC20

008:AE17;008:AL19

004:AA13;004:AF13

R479

0

SW400

TA7+TA7TB7+ TC7+ TCLK7+ TD7+ TE7+

TA8+ TB8+

TCLK8+ TD8+ TE8+

1

2

3

JS2235S

6

001:AF18;004:L27;004:AL20;005:AB14

5

4

001:AF17;005:K26;005:AB12;005:AK4

TCON_SDA_M

TCON_SDA

001:AP39

TCON_SDA_S

OPT

R451

R452 R453

R454

R455

R456

R457 R458 R459

R460 R461 R462

001:AF18;004:L27;004:AL20;005:AB14

001:AF18;005:J26;005:AB13;005:AK4

R475 33

I2CEN

100 100 100

100

100 100 100 100

100

TA5+

TB5+ TC5+ TCLK5+ TD5+ TE5+

TA6+

TB6+

TC6+

TCLK6+

TD6+

TE6+

TB7TC7-

TCLK7-

TD7TE7-

TA8TB8TC8- TC8+

TCLK8-

TD8TE8-

R476 33

I2CEN_M

I2CEN_S

R463 R464 R465 R466 R467

R468

R469

R473

R470 R471 R472

R474

TCON_SCL_M

TCON_SCL

001:AP39

TCON_SCL_S

100

100 100 100

100

100 100 100 100 100

100

3D + 240 FRC + TCON BOARD

240Hz T-Con (Master,Left)

[TCON Reset Block]

+3.3V_TCON

R440

6.8K

R441

R445 1K

20K

1%

R449

10K

Q400

2SA1530A-T112-1R

R450

10K

TCON_RST

004:K10;005:I9

C434

0.47uF 50V

2009. 11. 13

4 10

+1.8V_TCON

LGE Internal Use Only

120-ohm

L500

+1.8V_TCON_S

+3.3V_TCON

120-ohm

+3.3V_TCON_S

L501

[T-CON RIGHT => Slave]

+3.3V_TCON_S

005:Q7;009:Y26 005:T7;009:Y27 005:Q6;009:Y28 005:T6;009:Y28 005:Q6;009:Y27 005:T6;009:Y27 005:Q6;009:Y29 005:T6;009:Y29 005:Q6;009:Y30 005:T6;009:Y31 005:Q6;009:Y31 005:T6;009:Y31 005:Q4;009:Y29 005:T4;009:Y29 005:Q4;009:Y32 005:T4;009:Y33

005:Q4;009:Y24 005:T4;009:Y25 005:Q3;009:Y25 005:T3;009:Y26

005:Q3;009:Y33 005:T3;009:Y33 005:Q3;009:Y34

005:T3;009:Y34 005:W7;009:Y30 005:Z7;009:Y30 005:W6;009:Y32 005:Z6;009:Y32

005:W6;009:Y36 005:Z6;009:Y36 005:W6;009:Y35 005:Z6;009:Y35

005:W6;009:Y35 005:Z6;009:Y35 005:W6;009:O28 005:Z6;009:O29 005:W4;009:O32 005:Z4;009:O32 005:W4;009:O31 005:Z4;009:O31 005:W4;009:O26 005:Z4;009:O27 005:W4;009:O27 005:Z4;009:O28 005:W3;009:O35 005:Z3;009:O35 005:W3;009:O30 005:Z3;009:O30

TA3TA3+ TB3TB3+ TC3-

TC3+ TCLK3TCLK3+

TD3-

TD3+

TE3-

TE3+

TA4-

TA4+

TB4-

TB4+

TC4-

TC4+ TCLK4TCLK4+

TD4-

TD4+

TE4-

TE4+

TA1-

TA1+

TB1-

TB1+

TC1-

TC1+ TCLK1TCLK1+

TD1-

TD1+

TE1-

TE1+

TA2-

TA2+

TB2-

TB2+

TC2-

TC2+ TCLK2TCLK2+

TD2-

TD2+

TE2-

TE2+

+1.8V_TCON_S

R1AN R1AP R1BN R1BP R1CN

R1CP R1CLKN R1CLKP

R1DN

R1DP

R1EN

R1EP

R2AN

R2AP

R2BN

R2BP LVDD_1

R2CN

R2CP R2CLKN R2CLKP LGND_1

R2DN

R2DP

R2EN

R2EP

R3AN

R3AP

R3BN

R3BP LVDD_2

R3CN

R3CP R3CLKN R3CLKP LGND_2

R3DN

R3DP

R3EN

R3EP

R4AN

R4AP

R4BN

R4BP

R4CN

R4CP R4CLKN R4CLKP

R4DN

R4DP

R4EN

R4EP

LVDD_5

LGND_5

207

208

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

53

LVDD_354LGND_355LVDD_456LGND_4

OGND_11

CVDD_11

205

206

004:K10

INT_SSC1_M

CVDD_10

CGND_11

INT_SSC2

202

203

204

57

59

CGND_1

EIVSS_158EIVDD_1

004:L10

005:C6

TCON_SCL_S

TCON_SDA_S

001:AF18;004:AA9;005:AB13;005:AK4

001:AF17;004:AE9;005:AB12;005:AK4

33

R525 33

R524

OGND_10

EOVDD_5

EOVSS_4

SDA

SCL

CVDD_9

EOVSS_5

EOVDD_6

189

190

191

192

193

194

195

196

OVDD_8

CGND_10

187

188

EOVDD_7

EOVSS_6

200

201

INT_VCO1_M

DISN

OVDD_9

INT_VCO2

197

198

199

LVDS_SEL_S

IC500

TL2425MC (GLORY)

60

61

62

63

64

66

67

68

70

74

RBF

INT_SSC1

RESET

CVDD_1

PWR_SEO65PAT_DET

FLK1

OVDD_169OGND_1

INT_VCO1

DPN71GOE72GSC73GSP

GSP_R

OGND_9

CVDD_8

EOVSS_3

EOVDD_4

184

185

186

75

OVDD_276CGND_277CVDD_2

EIVSS_2

183

78

REVERSE

OVDD_7

181

182

79

80

OGND_2

N_S_SEL

005:G6

005:C4

005:K4

BIT_SEL_S

REVERSE_S

FRC_ON_S

EIVDD_4

FRCON

C10S8

179

180

81

82

VCORES

H_CONV84I2C_EN85CVDD_386CGND_3

EIVDD_2

EIVSS_4

178

83

177

OVDD_6

OGND_8

176

OGND_7

174

175

87

VCO_SYNC

CVDD_7

CGND_9

EOVDD_3

171

172

173

88

TESTA89TESTB90TESTC

EOVDD_1

EOVSS_1

SCLKO

EOVDD_2

EOVSS_2

165

166

167NC168

169

170

91

96

OVDD_392OGND_393CVDD_494CGND_495OVDD_4

SSC_SYNC

SCLKI

164

97

POL98SOE

CGND_7

CGND_8

163

OPT_P

162

99

OGND_6

CVDD_6

161

100

FSEL

OPT_N

160

101

OGND_5

OVDD_5

159

102

OGND_4

EIVSS_3

005:AD23

TCON_AGP_S

TCON_AGP

157

158

156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105

103

104

EIVDD_3

RLV0+ RLV0NLVDD_6 RLV1+ RLV1NLVSS_6 RLV2+ RLV2RLV3+ RLV3NLVDD_5 RLV4+ RLV4RLV5+ RLV5NLVSS_5 RLV6+ RLV6RLV7+ RLV7NLVDD_4 RLV8+ RLV8LLV0+ LLV0NLVSS_4 LLV1+ LLV1LLV2+ LLV2NLVDD_3 LLV3+ LLV3LLV4+ LLV4NLVSS_3 LLV5+ LLV5LLV6+ LLV6NLVDD_2 LLV7+ LLV7NLVSS_2 LLV8+ LLV8NLVSS_1 NLVDD_1 RNLVDS CGND_6 CVDD_5 CGND_5

C500

0.1uF 16V

C502

0.1uF 16V

C504

0.1uF 16V

R512 18K

C507

0.1uF 16V

LRMV6N LRMV6P

LRMV5N LRMV5P LRMV4N LRMV4P

LRMVCLKN LRMVCLKP

LRMV2N LRMV2P LRMV1N LRMV1P

LRMV0N LRMV0P

LLMV6N LLMV6P LLMV5N LLMV5P

LLMV4N LLMV4P LLMVCLKN LLMVCLKP

LLMV2N LLMV2P

LLMV1N LLMV1P

LLMV0N LLMV0P

C508

0.1uF 16V

008:AL19 008:AL19

008:AL19 008:AL20 008:AL20 008:AL20

008:AL20 008:AL21

008:AL21 008:AL21 008:AL21 008:AL22

008:AL22 008:AL22

008:AL22 008:AL23 008:AL23 008:AL23

008:AL23 008:AL23 008:AL24 008:AL24

008:AL24 008:AL25

008:AL25 008:AL25

C510

0.1uF 16V

C512 1uF 10V

C515 1uF 10V

C501

0.1uF 16V

+3.3V_TCON_S

R513 2K

OPT

R514 2K

001:E19;008:E19;008:W25;008:AN4;009:AP8

001:E19;008:M19;008:W25;008:AN4;009:AP11

I2C_SCL

I2C_SDA

TCON_SCL_M

TCON_SDA_M

M_TCON_EN

TCON_SCL_S

TCON_SDA_S

C503

0.1uF 16V

R515 2K

R516 2K

OPT

001:AF19

R595

3.3K OPT

C505

0.1uF 16V

R517 2K

R518 2K

OPT

R596

3.3K

C506

0.1uF 16V

R597

3.3K

OPT

R519 2K

R520 2K OPT

R598

3.3K OPT

R599 33

R1500 33

R1503 33

R1504 33

R1505 33

C509

0.1uF 16V

R521 2K

R522 2K

OPT

+3.3V_TCON

C533 10pF

OPT

R1501 33

R1502 33

C511

0.1uF 16V

MS_SEL_S

I2CEN_S

VCO_SYNC_S

SSC_SYNC_S

TCON_AGP_S

L502

120-ohm

OPT

C534 10pF

R1506 2K

C513

0.1uF 16V

OPT

+3.3V

SCL0

SDA0

SCL1

SDA1

SCL2

SDA2

004:X7;005:N9

L503

120-ohm

PA9516APW

1

2

3

4

EN1

5

6

7

GND

8

C516

0.1uF 16V

005:M9

005:N9

005:P9

005:R26

IC502

C517

0.1uF 16V

+3.3V_HUB

16

15

14

13

12

11

10

C523

0.1uF 16V

C524

0.1uF 16V

3.3K

R1514

OPT

0

C521

0.1uF 16V

R1518

3.3K

R1515

0

OPT

R1516

R1519

3.3K

0

OPT

C522

0.1uF 16V

R1520

C518

C519

2K

R1512

2K

R1511

0.1uF 16V

+3.3V_HUB

S_TCON_EN

R1508

33

R1507 2K

001:AF19

C520

0.1uF 16V

3.3K

R1513

0

OPT

R1517

0.1uF 16V

C535

0.1uF

VCC

EN4

SDA4

SCL4

EN3

SDA3

SCL3

EN2

9

C525 1uF 10V

C526 1uF 10V

C527 1uF 10V

C528 1uF 10V

RBF_S

PWM_SEQ

TCON_RST

+3.3V_TCON_S

R500

3.3K OPT

R501

LVDS Data mapping seletion

10K

L:VESA format H:JEIDA format

+3.3V_TCON_S

R502

3.3K

OPT

R503

Reverse option Selection

10K

L : Normal operation H : Reverse operation

LVDS_SEL_S

REVERSE_S

005:J26

005:M26

+3.3V_TCON_S

R504

3.3K

R505

10bit or 8bit Seletion

10K

L:8bit

OPT

H:10bit

+3.3V_TCON_S

R506

3.3K OPT

R507

When No Video input, Pattern Selection

10K

L:Black Pattern H:Rotate Pattern

BIT_SEL_S

RBF_S

005:M26

005:I9

005:G4

004:K10;004:AN7

+3.3V_TCON_S

R508

3.3K

R509 10K OPT

001:AF20;004:K10

FRC Funtion Seletion L:Disable(8Bit) H:Enable(10Bit(D))

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+1.8V_TCON_S

R510 1K

1%

R511 1K

1%

FRC_ON_S

MS_SEL_S

005:AD25

005:M26

I2CEN_S

VCO_SYNC_S

005:AD24

004:X7;005:AD24

TA3TB3-

TC3-

TCLK3-

TD3TE3-

TA4TB4TC4-

TCLK4-

TD4-

TE4-

SSC_SYNC_S

005:AD24

R527 R528

R529

R530

R531

R536 R537 R538

R532

R533 R534 R535

[TCON EEPROM(16Kbit)]

100 100 100

100 100

100

100 100 100

TA3+ TB3+ TC3+ TCLK3+ TD3+ TE3+

TA4+ TB4+ TC4+ TCLK4+ TD4+ TE4+

TA1TB1-

TC1-

TCLK1-

TD1TE1-

TB2TC2-

TCLK2-

TD2TE2-

R539

R540 R541 R542

R543

R544

R545

R546

R547

R548 R549

R550

100 100 100 100

100

100 100 100

TA1+

TB1+ TC1+ TCLK1+ TD1+ TE1+

TA2+TA2TB2+ TC2+ TCLK2+ TD2+ TE2+

IC501

M24C16-WMN6T

NC/E0

1

NC/E1

2

NC/E2

3

VSS

4

Write Protection Low/NC : Normal Operation High : Write Protection

8

7

6

5

+3.3V_TCON

C514

0.1uF 16V

VCC

WC

SCL

SDA

R52 6

3.3 K

R551

R552

3.3K

OPT

3.3K

WP_EEPROM_TCON

TCON_SCL_S

TCON_SDA_S

001:AD21;004:AL21

001:AF18;004:AA9;005:J26;005:AB13

001:AF17;004:AE9;005:K26;005:AB12

I2C Slave Address : 0xA0

3D + 240 FRC + TCON BOARD

2009. 11. 13

240Hz T-Con(Slave,Right) 5 10

[POWER-VDD/VCC/VGH/VGL]

LGE Internal Use Only

C611 10uF 25V

VLCD_POWER

(+12V)

C697

47uF

25V

R600 0

R601 0

OPT

VCOMLOUT

VGH_I

(+27V)

008:AL13

007:W8;004:AN15;006:Q5

(+24V)

004:AI15

VGH

R602

5%

1/10W

FLK DPM

C600

1uF 25V

D600

BAV99W_NXP

VGH_I

(+24V)

VGH_M

(+24V)

R615 1K

008:AE22

008:AL13

0

R603

0

C601

100pF

VGH_M

(+24V)

R604

4.7K

R645

4.7K

50V OPT

R606 OPT

OPT

R605

330K

1/8W

C699 10uF 35V

C698 10uF 35V

VCOMROUT

VCOMRFB

VCOMLFB

VDD_LCM

(+16V)

1%

R607 82K 5%

C602 10uF 35V

C688 10uF 35V

P_VCOM

008:M25

C691

35V OPT C696

35V OPT

R638 0

R639 0

C604 68pF

50V

R611

270K

10uF

1% 1/16W

10uF

R612

IOP_VGH_55

R612-*1

43K

IOP_VGH_47

27K 1%

R610 1.2KR608 0

R637 0

R609

0

R614

24K

1%

IOP_VGH_55

R614-*1

20K

IOP_VGH_47

OPT

R613 0

OPT

R616 1K

R618 1K

R617 1K

C606

1uF 25V

POS1 OUT1

VDD

VFLK VDPM

VGHM

VGH FBP GND

DRVP

VLCD_LCM_OUT

(+12V) C605 1uF 50V

C690 1uF 50V

0.47uF

D601

BAV99W_NXP

VLCD_LCM_OUT

(+16V)

SW_1

SW_2

SWI40NC_3

SWO43AVIN

NEG2

POS2

OUT2

OGND

NEG1

37

38

39

41FB42

44

45

46

47

48

1 2 3

CE

4 5 6

RE

7 8 9 10 11 12

C607

1uF 25V

C608

50V

C609 10uF

10V

IC600

TPS65162RGZR

13

14

16

18

SUP

FBN17REF

DRVN15AGND

VGL(-7V)

R621

C610 10uF

10V

DLY119NC_120NC_2

0.047uF

R619 33K 1%

R620 100K 1%

30K

1/16W

C612 50V

OPT

C613

0.22uF

16V

1%

21

22

FBB

CBOOT23SWB_124SWB_2

C616

0.1uF 50V

ONSEMI_DIODE

C614

10uF

10V

KEC_DIODE

L600 22uH

2.2A

36 35 34 33 32 31 30 29 28 27 26 25

D602

D602-*1

(-5V)

R622 1K 1%

D603-*1

ONSEMI_DIODE

D603 SMAB34

40V

KEC_DIODE

R623

5.6K

C617

22000pF

50V

R624

33K 1%

R625

20K

1%

PGND3 PGND2 PGND1 EN1 EN2 VC SS DLY2 FREQ VIN PVIN_2 PVIN_1

L601 22uH

2.2A

40V

SMAB34

VGL

C622 22uF 25V

C624

680pF

50V

R629

3.3K 1%

R626

5.6K

C642

OPT

C625 22000pF

C621 22000pF 50V

C618

C623

1uF

10uF

25V

C619 470pF 50V

C620 470pF 50V OPT

007:W8;004:AN15;006:D12

TCON_POWER_EN

0

OPT

R646

50V

R627

4.7K 1%

R628

1.3K 1%

DPM

C626 22uF 25V

VLCD_LCM_OUT

(+16V)

C629

0.1uF 50V

C630 10uF 25V

VLCD_POWER

R630 15K

R631

3.9K 1%

(+12V)

DPM_VDD

C627 22000pF 50V

R632 10

1/10W 1%

R640

33

001:AJ20;007:Q15

D604

C632 10uF 25V

006:S16;006:S5

C695 47uF 25V

C633 22uF 10V

C635 10uF 25V

VLCD_POWER

(+12V)

C634 10uF 25V

C636 22uF 10V

C643

10pF

OPT

DPM_VDD

006:Q12;006:S5

C638

C640

10uF

25V

VLCD_POWER

(+12V)

R633 0

1K

R634

C637 10uF 25V

006:Q12;006:S16

C639 22uF 10V

DPM_VDD

VCC_LCM (+3.3V)

OPT

R635

5.1K

C644 10uF 25V

C645 10uF 25V

C646 10uF 25V

C647 10uF 25V

C648 10uF 25V

C641

0.1uF 50V

C649 47uF 25V

C650 47uF 25V

C694

47uF 25V

C693 47uF 25V

VDD_LCM

(+16V)

R1521

7.5K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3D + 240 FRC + TCON BOARD

2009. 11. 13

Power Block (TCON) 6 10

R700

LGE Internal Use Only

5.1K

+3.3V_TCON

C700

0.1uF

C701 22uF

50V

10V

Vout = 0.6*(1+R1/R2)

VLCD_POWER

(+12V)

C704

0.1uF 50V

C703 22uF

10V

820pF

R704

510

C706

50V

C711 10uF

25V

R1

R705

1%

R706

30K

1%

R707

6.8K 1%

VLCD_POWER

(+12V)

C734

C730

C744

C747 10uF

25V

1K

R2

L700

10uH

3.1A

R713

2.2

C741 47uF 25V

C713

2200pF

50V

D2_1

D2_2

D1_1

D1_2

SI4804BDY

5

6

7

8

R716

10K

Q700

C716

47pF

50V

4

3

2

1

G2

S2

G1

S1

C717

2200pF

50V

R718 0

C720

10uF 25V

R719

10

PGND2

DL2

OPT

PGOOD2

VCC

FB2

COMP2

VLCD_POWER

(+12V)

C722

0.22uF 16V

R745

4.7

BST2

LX2

11

12

13

14

IC700

15

MAX15023ETG+T

16

17

18

19RT20

SGND

R722 27K

C723

1uF

50V

DH2

10

21IN22

R723 11K

C724

0.22uF 16V

R746

4.7

DH1

BST1

9

8

LIM223LIM1

R725 16K

LX1

7

6

5

4

3

2

1

24

COMP1

R728

PGND1

DL1

PGOOD1

EN2

EN1

FB1

Q702

SI4804BDY

10

R729

OPT

0

C727 2200pF

50V

4

G2

3

S2

2

G1

1

S1

TCON_POWER_EN

C728

47pF 50V

5

D2_1

6

D2_2

7

D1_1

8

D1_2

001:AJ20;006:P14

R731

10K

C742 47uF 25V

R734

9.1K

C729

2200pF 50V

L702 10uH

3.1A

10uF 25V

R735 510

C732 820pF 50V

10uF 25V

0.1uF 50V

+1.8V_TCON

R1

R736 1K

1%

R737 36K

Vout = 0.6*(1+R1/R2)

R738

R2

18K 1%

C708 22uF 10V

C733 22uF 10V

C735 22uF 10V

C737 22uF 10V

C738

0.1uF 50V

R742

5.1K

R703

5.1K

HVDD

(+8V)

C702

0.1uF 50V

VLCD_POWER

(+12V)

C709

C745

C707 22uF

10V

10uF

25V

R708

510

C710

820pF

50V

C746 10uF

25V

0.1uF 50V

C705 22uF

10V

Vout = 0.592*(1+R1/R2)

R710-*1

5.1K 1%

R710

9.1K

R711 120K

1%

R712

10K

1%

C712 10uF

25V

R1

1%

C714 10uF

25V

L701 10uH

IOP_HVDD_55

3.1A

IOP_HVDD_47

R2

R715

2.2

C743 47uF 25V

C715 2200pF

50V

D2_1

D2_2

D1_1

D1_2

R717 10K

5

6

7

8

Q701

SI4804BDY

C718

47pF

50V

4

G2

3

S2

2

G1

1

S1

C719

2200pF

50V

007:Z8

R721

10

DPM_HVDD

VLCD_POWER

(+12V)

C726

1uF

50V

C721 10uF

25V

R720

0

OPT

R726

11K

IN

VCC

PGOOD

EN

LIM

COMP

FB

IC701

MAX15026BETD+

1

2

3

4

5

6

7

D700

OPT

R701

DPM

004:AN15;006:D12;006:Q5

DH

14

LX

13

BST

12

DL

11

DRV

10

GND

9

RT

8

C740

2.2uF 25V

R724 27K

R748

2.2

R747

4.7

C725

0.22uF 16V

22K

C731

1uF

DPM_HVDD

007:O6

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3D + 240 FRC + TCON BOARD

2009. 11. 13

Power Block (TCON) 7 10

008:AE21;008:AL17

LGE Internal Use Only

008:AE21;008:AL17

008:AE20;008:AL16

001:E19;005:AB15;008:W25;008:AN4;009:AP8

V1

V2

V3

V4

V5

V6

V7

V9

V10

I2C_SCL

12507WR-04L

12507WR-06L

P803

P804

VDD_LCM

(+16V)

L800

120-ohm

C804

C801

IC801

BUF16821AIPWPR

VCOM2

1

OUT1

L802

OUT2

OUT3

OUT4

OUT5

OUT6

GNDA_1

VS_1

OUT7

OUT8

OUT9

VSD

SCL

2

3

4

5

6

7

8

9

10

11

12

13

14

VLCD_POWER

R805 0

R822 0

R823 0

R824 0

R825 0

R826 0

VCC_LCM (+3.3V)

R827 0

R806 0

R807 0

R808

33

C824

OPT

1

2

3

4

5

1

2

3

4

5

6

7

120-ohm

E_TCK

E_TDO

E_TMS

E_TDI

VCOM1

28

OUT16

27

OUT15

26

OUT14

25

GNDA_2

24

VS_2

23

OUT13

22

OUT12

21

OUT11

20

OUT10

19

GNDD

18

BKSEL

17

AO

16

SDA

15

0.1uF 50V

R809 0

R810 0

R828 0

R829 0

R830 0

R831 0

R832 0

R833 0

R835

1K

R811

C825

OPT

R834 0

33

10uF

0.1uF 25V

50V

P_VCOM

V18

V17

V16

V15

V14

V13

V12

GAMMA_BKSEL

OPT

I2C_SDA

001:E19;005:AB15;008:W25;008:AN4;009:AP11

C803

C802

C807

10uF

25V

OPT

006:H14

008:AE18;008:AL14

008:AE19;008:AL15

001:AH16

C808 10uF 25V

OPT

P802

FI-R51S-HF

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

For Shutter Glasses Sync

R801 0

R821 33

R813 0

R802 0

R803 0

OPT

For LED Sync from 3D Formatter

R804

C828 10uF 25V

0

R812

0

3D_SYNC_OUT 009:AK20

I2C_SDA

001:E19;005:AB15;008:M19;008:AN4;009:AP11

I2C_SCL

001:E19;005:AB15;008:E19;008:AN4;009:AP8

FRC_RESET 001:I17

L/R_SYNC

3D_DIMMING

010:AY5

3D_DIMMING_2

010:BF5

LVRX1_AM

001:E35

LVRX1_AP

001:E35

LVRX1_BM

001:E34

LVRX1_BP

001:E34

LVRX1_CM

001:E34

LVRX1_CP

001:E34

LVRX1_CLKM

001:E35

LVRX1_CLKP

001:E35

LVRX1_DM

001:E33

LVRX1_DP

001:E34

LVRX1_EM

001:E33

LVRX1_EP

001:E33

001:AG35

LVRX2_AM

001:AG35

LVRX2_AP

001:AG34

LVRX2_BM

001:AG34

LVRX2_BP

001:AG34

LVRX2_CM

001:AG34

LVRX2_CP

001:AG35

LVRX2_CLKM

001:AG35

LVRX2_CLKP

001:AG33

LVRX2_DM

001:AG34

LVRX2_DP

001:AG33

LVRX2_EM

001:AG33

LVRX2_EP

L801

120-ohm

C805 10uF 25V

C827 1uF 25V

OPT

C829 10uF 25V

010:AX10

001:AD17

[RIGHT FFC CONNECTOR]

FPGA_VSYNC

VSYNC

VLCD_POWER

P805

104060-8017

81

[LEFT FFC CONNECTOR]

006:H17 006:H18

008:AL14

004:V14 004:V14 004:V15 004:V15 004:V15 004:V16

004:V16 004:V17

004:V17 004:V17 004:V17 004:V18 004:V18 004:V18

004:V19 004:V19 004:V19 004:V20 004:V20 004:V20

004:V21 004:V21

004:V21 004:V22 004:V22 004:V22 004:V22 004:V23

VGL

(-5V)

C816

0.1uF 50V

VCC_LCM (+3.3V)

VGH

(+24V)

C817

0.01uF 50V

P806

104060-8017

81

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

LLMV0P LLMV0N LLMV1P LLMV1N LLMV2P LLMV2N

LLMVCLKP LLMVCLKN

LLMV4P LLMV4N LLMV5P LLMV5N LLMV6P LLMV6N

LRMV0P LRMV0N LRMV1P LRMV1N LRMV2P LRMV2N

LRMVCLKP LRMVCLKN

LRMV4P LRMV4N LRMV5P LRMV5N LRMV6P LRMV6N

OPT_N H_CONV GSP POL

SOE_L

V1 V2 V3 V4 V5 V6 V7 V9 V10 V12 V13 V14 V15 V16 V17 V18

Z_OUT

VCOMLOUT VCOMLFB

GSC

004:AN17;008:AE23

GOE

004:AC17;008:AE23

C819

0.1uF 50V

005:T14 005:T14 005:T14 005:T15 005:T15 005:T15

005:T16 005:T16

005:T16 005:T17 005:T17 005:T17 005:T17 005:T18

005:T18 005:T19 005:T19 005:T19 005:T19 005:T20

005:T20 005:T21

005:T21 005:T21 005:T21 005:T22 005:T22 005:T22

004:R10;008:AE17

004:O10;008:AE17 004:AD15;008:AE18 004:AI17;008:AE18

004:AD13

008:E25;008:AE21 008:E24;008:AE21 008:E24;008:AE21 008:E23;008:AE21 008:E23;008:AE20 008:E22;008:AE20 008:E21;008:AE20 008:E20;008:AE20 008:E20;008:AE20 008:M21;008:AE19 008:M21;008:AE19 008:M22;008:AE19 008:M22;008:AE19 008:M24;008:AE19 008:M24;008:AE18 008:M25;008:AE18

008:AE22

006:D13 006:H16

VDD_LCM

(+16V)

C809

C821

10uF

25V

OPT

VGL

(-5V)

C818

0.1uF 50V

VGH

(+24V)

VCC_LCM

HVDD

(+8V)

(+3.3V)

C820

0.01uF 50V

VDD_LCM

(+16V)

C814

0.1uF

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

50V

HVDD

(+8V)

C815 10uF 25V

OPT_P

GOE GSC

VCOMRFB VCOMROUT

Z_OUT

V1

008:E25;008:AL17

V2

008:E24;008:AL17

V3

008:E24;008:AL17

V4

008:E23;008:AL17

V5

008:E23;008:AL16

V6

008:E22;008:AL16

V7

008:E21;008:AL16

V9

008:E20;008:AL16

V10

008:E20;008:AL16

V12

008:M21;008:AL15

V13

008:M21;008:AL15

V14

008:M22;008:AL15

V15

008:M22;008:AL15

V16

008:M24;008:AL15

V17

008:M24;008:AL14

V18

008:M25;008:AL14

GSP

004:AD15;008:AL18

POL

004:AI17;008:AL18

SOE_R H_CONV OPT_N

RLMV0P RLMV0N RLMV1P RLMV1N RLMV2P RLMV2N

RLMVCLKP RLMVCLKN

RLMV4P RLMV4N RLMV5P RLMV5N RLMV6P RLMV6N

RRMV0P RRMV0N RRMV1P RRMV1N RRMV2P RRMV2N

RRMVCLKP RRMVCLKN

RRMV4P RRMV4N RRMV5P RRMV5N RRMV6P RRMV6N

C810 10uF 25V

004:R10

004:AC17;008:AL12

004:AN17;008:AL12

004:AI13 004:O10;008:AL18 004:R10;008:AL19

+3.3V 2V5

E_TCK

R814

0

R815

5.6K

OPT

D

FDV301N

Q801

R816

2K

G

S

4.7K

R817

22

OPT

R818

22

R849

C811 18pF

50V

TCK_FLASH TDO_FLASH

TCK

OPT

E_TDO

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R819

0

2V5

R850

R837

4.7K

R836

2K

R820

5.6K

OPT

D

FDV301N

Q802

G

S

22

OPT

R838

22

C812 18pF

50V

TDO

OPT

E_TMS

R839

0

+3.3V+3.3V

OPT

5.6K

R840

1

D

FDV301N

Q803

2V5

2K

G

S

22

OPT

R843

22

C813 18pF

50V

R851

R842

4.7K

R841

TMS_FLASH

E_TDI

TMS

OPT

R844

0

+3.3V2V5

R852

R847

R845

5.6K

OPT

D

FDV301N

Q804

G

4.7K

R846

2K

S

22

OPT

R848

22

C822 18pF

50V

TDI_FLASH

TDI

OPT

3D + 240 FRC + TCON BOARD

For P-Gamma Data Download

P807

12505WR-04A00

OPT

VDD_LCM

(+16V)

1

2

3

4

OPT

5

OPT

ZD800

TVS

5.5V

2009. 11. 13

ZD801

5.5V TVS

I2C_SCL

I2C_SDA

8Interface 10

LVTX1_CLK-

LGE Internal Use Only

LVTX1_CLK+

LVTX2_CLK-

LVTX2_CLK+

LVTX3_CLK-

LVTX3_CLK+

VS_STATUS2V5

LVTX5_CLK-

LVTX5_CLK+

LVTX6_E-

LVTX6_E+

LVTX5_A-

LVTX5_A+

LVTX5_B-

LVTX5_B+

LVTX5_C-

LVTX5_C+

LVTX5_E-

LVTX5_E+

LVTX6_A-

LVTX6_A+

LVTX7_A-

LVTX7_A+

LVTX6_D-

LVTX6_D+

LVTX7_B-

LVTX7_B+

LVTX7_C-

LVTX7_C+

LVTX6_B-

LVTX6_B+

LVTX8_A-

LVTX8_A+

LVTX6_C-

LVTX6_C+

LVTX7_D-

LVTX7_D+

LVTX7_E-

LVTX7_E+

LVTX8_C-

LVTX8_C+

LVTX2_E-

LVTX2_E+

LVTX2_A-

LVTX2_A+

LVTX3_A-

LVTX3_A+

LVTX2_D-

LVTX2_D+

LVTX2_C-

LVTX2_C+

SDA2V5

SCL2V5

LVTX3_D-

LVTX3_D+

LVTX3_B-

LVTX3_B+

LVTX4_E-

LVTX4_E+

LVTX3_E-

LVTX3_E+

LVTX4_A-

LVTX4_A+

LVTX4_B-

LVTX4_B+

LVTX3_C-

LVTX3_C+

LVTX4_C-

LVTX4_C+

LVTX4_D-

LVTX4_D+

LVTX5_D-

LVTX5_D+

LVTX4_CLK-

LVTX4_CLK+

R901 100

R916 100

R903 100

R904 100

R905 100

R907 100

R909 100

R912 100

R915 100

R914 100

R934 100

R908 100

R932 100

R911 100

R936 100

R935 100

R910 100

R1901 100

R1902 100

R1903 100

R926 100

R943 100

R925 100

R923 100

R921 100

R918 100

R920 100

R929 100

R924 100

R927 100

R928 100

R919 100

R930 100

R931 100

R906 100

R933 100

LVTX6_CLK-

LVTX6_CLK+

LVTX7_CLK-

LVTX7_CLK+

EP3C55F484C6N

A11

B11

D10

E10

A10

B10

A9

B9

C10

G11

A8

B8

A7

B7

A6

B6

E9

C8

C7

D8

E8

A5

B5

G10

F10

C6

D7

A4

B4

F8

G8

A3

B3

D6

E7

C3

C4

F7

G7

F9

E6

E5

G9

EP3C55F484C6N

F16

E16

F15

G16

G15

F14

C18

D18

D17

C19

D19

A20

B20

C17

B19

A19

A18

B18

D15

E15

G14

G13

A17

B17

A16

B16

C15

E14

F13

A15

B15

C13

D13

E13

A14

B14

A13

B13

E12

E11

F11

A12

B12

IC1000

B8_IO[0]

B8_IO[1]

B8_IO[2]

B8_IO[3]

B8_IO[4]

B8_IO[5]

B8_IO[6]

B8_IO[7]

B8_IO[8]

B8_IO[9]

B8_IO[10]

B8_IO[11]

B8_IO[12]

B8_IO[13]

B8_IO[14]

B8_IO[15]

B8_IO[16]

B8_IO[17]

B8_IO[18]

B8_IO[19]

B8_IO[20]

B8_IO[21]

B8_IO[22]

B8_IO[23]

B8_IO[24]

B8_IO[25]

B8_IO[26]

B8_IO[27]

B8_IO[28]

B8_IO[29]

B8_IO[30]

B8_IO[31]

B8_IO[32]

B8_IO[33]

B8_IO[34]

B8_IO[35]

B8_IO[36]

B8_IO[38]

B8_IO[39]

B8_IO[40]

B8_IO[41]

B8_IO[42]

B8_IO[43]

R1904 100

R1905 100

IC1000

B7_IO[0]

B7_IO[1]

B7_IO[2]

B7_IO[3]

B7_IO[4]

B7_IO[5]

B7_IO[6]

B7_IO[7]

B7_IO[8]

B7_IO[9]

B7_IO[10]

B7_IO[11]

B7_IO[12]

B7_IO[13]

B7_IO[14]

B7_IO[15]

B7_IO[16]

B7_IO[17]

B7_IO[18]

B7_IO[19]

B7_IO[20]

B7_IO[21]

B7_IO[22]

B7_IO[23]

B7_IO[24]

B7_IO[25]

B7_IO[26]

B7_IO[27]

B7_IO[28]

B7_IO[29]

B7_IO[30]

B7_IO[31]

B7_IO[32]

B7_IO[33]

B7_IO[34]

B7_IO[35]

B7_IO[36]

B7_IO[37]

B7_IO[38]

B7_IO[39]

B7_IO[40]

CLK8

CLK9

2V5

L901

BLM18PG121SN1D

+3.3V

10K

R1930

10K

Q907

2SC3052

R19232KR1924

G

S

0

OPT

0

OPT

+3.3V

BLM18PG121SN1D

C917 10uF 16V

DATA

R1931

C

E

I2C_SDA

FPGA_SDA

I2C_SCL

FPGA_SCL

OPT

L902

EPCS16SI8N_

NCS

VCC

GND

B

OPT

4.7K

C920

C919

100pF

0.1uF 50V

16V

IC904

VCC_2

1

8

VCC_1

2

7

DCLK

3

6

ASDI

4

5

FPGA Reset Level Shifter (3.3V to 2.5V)

OPT

R1906

VS_STATUS2V5

/3D_FPGA_RESET

R1932

10K

R1925

22

EJTAG_TO_FLASH

R947 0

R967 22

R968 22

C921 10pF

EJTAG_TO_FLASH

+3.3V

R1907

10K

R1908

10K

C

B

Q901 2SC3052

10K

E

TCK_FLASH

DCLK

ASDO

R956 0

TDO_FLASH

2V5

R1909

4.7K R1910 22

C

B

Q902 2SC3052

E

/RESET2V5

1V2

2V5

C905

0.1uF 16V

EP3C55F484C6N

T2

T1

L6

M6

M2

M1

M4

M3

N2

N1

M5

P2

P1

R2

R1

N5

P4

P3

U2

U1

V2

V1

P5

N6

R4

R3

W2

W1

Y2

Y1

T3

N7

P7

AA2

AA1

V4

V3

P6

R5

T4

T5

R6

T6

U5

U6

2V5 1V2

C906

0.1uF 16V

EP3C55F484C6N

1V2

V17

V18

U18

AA22

AA21

T17

T18

W20

W19

Y22

Y21

U20

U19

W22

W21

T20

T19

R17

P17

V22

V21

R20

U22

U21

R18

R19

N16

R22

R21

P20

P22

P21

N20

N19

N17

N18

N22

N21

M22

M21

M20

M19

M16

T22

T21

C907

0.1uF 16V

IC1000

CLK2

CLK3

B2_IO[0]

B2_IO[1]

B2_IO[2]

B2_IO[3]

B2_IO[4]

B2_IO[5]

B2_IO[6]

B2_IO[7]

B2_IO[8]

B2_IO[9]

B2_IO[10]

B2_IO[11]

B2_IO[12]

B2_IO[13]

B2_IO[14]

B2_IO[15]

B2_IO[16]

B2_IO[17]

B2_IO[18]

B2_IO[19]

B2_IO[20]

B2_IO[21]

B2_IO[22]

B2_IO[23]

B2_IO[24]

B2_IO[25]

B2_IO[26]

B2_IO[27]

B2_IO[28]

B2_IO[29]

B2_IO[30]

B2_IO[31]

B2_IO[32]

B2_IO[33]

B2_IO[34]

B2_IO[35]

B2_IO[36]

B2_IO[37]

B2_IO[38]

B2_IO[39]

VCCA1

GNDA1

VCCD_PLL1

C908

0.1uF 16V

IC1000

VCCD_PLL4

GNDA4

VCCA4

B5_IO[0]

B5_IO[1]

B5_IO[2]

B5_IO[3]

B5_IO[4]

B5_IO[5]

B5_IO[6]

B5_IO[7]

B5_IO[8]

B5_IO[9]

B5_IO[10]

B5_IO[11]

B5_IO[12]

B5_IO[13]

B5_IO[14]

B5_IO[15]

B5_IO[16]

B5_IO[17]

B5_IO[18]

B5_IO[19]

B5_IO[20]

B5_IO[21]

B5_IO[22]

B5_IO[23]

B5_IO[24]

B5_IO[25]

B5_IO[26]

B5_IO[27]

B5_IO[28]

B5_IO[29]

B5_IO[30]

B5_IO[31]

B5_IO[32]

B5_IO[33]

B5_IO[34]

B5_IO[35]

B5_IO[36]

B5_IO[37]

B5_IO[38]

B5_IO[39]

CLK7

CLK6

1V22V5

C901

C903

0.1uF

16V

IC1000

2V5 1V2

TD2+

TD2-

LVTX8_D+

R913 100

LVTX8_D-

LVTX8_B+

R902 100

LVTX8_B-

LVTX8_E+

R917 100

LVTX8_E-

ASDO

TA2+

TA2-

TB2+

TB2-

/CSO

TE2+

TE2-

/STATUS

TE1+

TE1-

TCLK2+

TCLK2-

TC2+

TC2-

DCLK

DATA0

/CONFIG

TDI

TCK

TMS

TDO

/CE

LVTX8_CLK+

LVTX8_CLK-

/RESET2V5

CONFIG_DONE

2V5

1V2

SYSCLK

MSEL[0]

MSEL[1]

MSEL[2]

MSEL[3]

TB6-

TB6+

TA6-

TA6+

TE5-

TE5+

TCLK5-

TCLK5+

TD5-

TD5+

LVTX1_A-

LVTX1_A+

TC5-

TC5+

TB5-

TB5+

LVTX1_B-

LVTX1_B+

LVTX1_C-

LVTX1_C+

TA5-

TA5+

LVTX1_D-

LVTX1_D+

LVTX1_E-

LVTX1_E+

LVTX2_B-

LVTX2_B+

R937 100

R938 100

R939 100

R940 100

R941 100

R942 100

R922 100

EP3C55F484C6N

F6

VCCD_PLL3

F5

GNDA3

G6

VCCA3

G4

B1_IO[0]

G3

B1_IO[1]

B2

B1_IO[2]

B1

B1_IO[3]

G5

B1_IO[4]

E4

B1_IO[5]

E3

B1_IO[6]

C2

B1_IO[7]

C1

B1_IO[8]

D2

B1_IO[9]

D1

B1_IO[10]

H7

B1_IO[11]

H6

B1_IO[12]

J6

B1_IO[13]

H4

B1_IO[14]

H3

B1_IO[15]

E2

B1_IO[16]

E1

B1_IO[17]

F2

B1_IO[18]

F1

B1_IO[19]

J5

B1_IO[20]

H5

B1_IO[21]

K6

nSTATUS

J7

B1_IO[22]

K7

B1_IO[23]

J4

B1_IO[24]

H2

B1_IO[25]

H1

B1_IO[26]

J3

B1_IO[27]

J2

B1_IO[28]

J1

B1_IO[29]

K2

DCLK

K1

B1_IO[30]

K5

nCONFIG

L5

TDI

L2

TCK

L1

TMS

L4

TDO

L3

nCE

G2

CLK0

G1

CLK1

1V2

2V5

C904

C902

0.1uF

0.1uF 16V

16V

IC1000

EP3C55F484C6N

G22

CLK5

G21

CLK4

M18

CONF_DONE

M17

MSEL0

L18

MSEL1

L17

MSEL2

K20

MSEL3

L22

B6_IO[0]

L21

B6_IO[1]

K19

B6_IO[2]

K22

B6_IO[3]

K21

B6_IO[4]

J22

B6_IO[5]

J21

B6_IO[6]

H22

B6_IO[7]

H21

B6_IO[8]

K17

B6_IO[9]

K18

B6_IO[10]

J18

B6_IO[11]

F22

B6_IO[12]

F21

B6_IO[13]

J20

B6_IO[14]

J19

B6_IO[15]

J17

B6_IO[16]

H20

B6_IO[17]

H19

B6_IO[18]

E22

B6_IO[19]

E21

B6_IO[20]

H18

B6_IO[21]

H16

B6_IO[22]

D22

B6_IO[23]

D21

B6_IO[24]

F20

B6_IO[25]

F19

B6_IO[26]

G18

B6_IO[27]

H17

B6_IO[28]

C22

B6_IO[29]

C21

B6_IO[30]

B22

B6_IO[31]

B21

B6_IO[32]

C20

B6_IO[33]

D20

B6_IO[34]

F17

B6_IO[35]

G17

B6_IO[36]

F18

VCCA2

E18

GNDA2

E17

VCCD_PLL2

TC1+

TC1-

TCLK1+

TCLK1-

TD1+

TD1-

TE4+

TE4-

TD4+

TD4-

TB4+

TB4-

TB1+

TB1-

TE3+

TE3-

TD3+

TD3-

TA1+

TA1-

TA4+

TA4-

TCLK3+

TCLK3-

TB3+

TB3-

TC3+

TC3-

TA3+

TA3-

TCLK4+

TCLK4-

2V51V2

TC4+

TC4-

TE8-

TE8+

TD8-

TD8+

TE7-

TE7+

TCLK8-

TCLK8+

TA8-

TA8+

TD7-

TD7+

TC8-

TC8+

TB8-

TB8+

TCLK7-

TCLK7+

TC7-

TC7+

TB7-

TB7+

TD6-

TD6+

TE6-

TE6+

TA7-

TA7+

TC6-

TC6+

TCLK6-

TCLK6+

2V5

R944

10K

TRISTATE/OPEN

OPT

SW901

JTP-1127WEM

1 2

X901

54.0000MHz VDD

4

1

GND3OUTPUT

2

CONFIG_DONE

/STATUS

/CONFIG

/CE

R948 330

OPT

43

R949 22

C911

0.1uF 16V

SYSCLK

TMS_FLASH

2V5

IC901

TDI_FLASH

OPT

3O1

2

G

R950 10K

R951 10K

R952 10K

R953 1K

OPT

KIA7029AF

I

OPT

/CSO

DATA0

R958

4.7K

/FPGA_RESET

C914

0.1uF 16V

EJTAG_TO_FLASH

R945 0

R964 22

R965 27

R946 0

EJTAG_TO_FLASH

R959 0

OPT

R963

0

/3D_FPGA_RESET

C909

0.1uF 16V

+3.3V

OPT

R954

1K

IR Emitter Vsync Level Shift (2.5V to 3.3V)

+3.3V

R1929

3.3K

R1928

22

C

B

Q906

2K

C915 18pF 50V

2V5 +3.3V

R1913

FDV301N

Q903

2V5 +3.3V

R1918

FDV301N

Q904

2SC3052

E

2V5+3.3V

R1922

5.6K

R1921

D

OPT

22

FDV301N

Q905

2K

R1914

5.6K

OPT

G

S

2K

G

S

R1915

D

R1927

R1919

5.6K

OPT

R1920

D

R1926 0

3D_SYNC_OUT

SDA2V5

SCL2V5

R955

0

OPT

FPGA I2C Level Shift (3.3V <-> 2.5V)

R1912

R1911

22 C910 18pF

OPT

50V

R1917

R1916

22 C913 18pF

OPT

50V

FPGA_D/L_CTRL

MDS62110201

MDS62110208

P901

12505WS-10A00

11

GAS1-*1

GAS1_4.5T

GAS6-*1

GAS6_4.5T

GAS1

GAS5

GAS9

R2239

10

1

2

3

4

5

6

7

8

9

0

/CONFIG

R2236

10K

MSEL[3] MSEL[2] MSEL[1] MSEL[0]

GAS2-*1

MDS62110201

GAS2_4.5T

GAS7-*1

MDS62110201

GAS7_4.5T

GAS2

MDS62110208

GAS2

GAS6

MDS62110208

GAS6

R991 1K

OPT

16V

C924

0.1uF

FPGA DOWNLOAD CONTROL

R2237

B

AR90 1

GAS3-*1

MDS62110201

GAS3_4.5T

GAS8-*1

MDS62110201

GAS8_4.5T

MDS62110208

GAS3

MDS62110208

GAS7

1/16 W

GAS3

GAS7

R995

22

2V5

R992

1K

R993

1K

R994

2V5

4.7K R2238

22

C

Q908 2SC3052

E

2V5

OPT

R982

0

R984

0

22

R9850R983

0

GAS5-*1

MDS62110201

GAS5_4.5T

GAS4-*1

MDS62110201

GAS4_4.5T

GAS9-*1

MDS62110201

GAS9_4.5T

MDS62110208

TCK

R996

22

TDO

R997

22

TMS

22

TDI

/CE

R9880R986

0

OPT

R987

0

R989

0

GAS4

GAS8

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3D + 240 FRC + TCON BOARD 2009. 11. 13

EP3C55_C6N (FPGA IC) 109

DDR_A[12-0]

LGE Internal Use Only

DDR2_CLK

/DDR2_CLK

DDR_BA[0] DDR_BA[1]

R1001

DDR2_CKE

DDR2_ODT /DDR_CS /DDR_RAS /DDR_CAS /DDR_WE

DDR_LDQS[0] DDR_UDQS[0]

DDR_LDM[0] DDR_UDM[0]

100

C1028

0.1uF 16V

DDR_A[0] DDR_A[1] DDR_A[2] DDR_A[3] DDR_A[4] DDR_A[5] DDR_A[6]

DDR_A[12-0]

DDR_A[7] DDR_A[8] DDR_A[9] DDR_A[10] DDR_A[11] DDR_A[12]

R1007 33

R1008 33

DDR_VREF1

C1031 470pF 50V

R1009 1K

R1010 1K

H5PS5162FFR-S6C

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

L1

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

IC1002

1V2

AR1005

SDDR_DQ[21] SDDR_DQ[18] SDDR_DQ[16] SDDR_DQ[23]

33

AR1006

SDDR_DQ[29] SDDR_DQ[26] SDDR_DQ[24] SDDR_DQ[31]

33

AR1007

SDDR_DQ[30] SDDR_DQ[25] SDDR_DQ[28] SDDR_DQ[27]

33

AR1008

SDDR_DQ[22] SDDR_DQ[17] SDDR_DQ[19] SDDR_DQ[20]

33

DDR_DQ[31-16]

1V8

C1042 100pF

50V

DDR_DQ[21] DDR_DQ[18] DDR_DQ[16] DDR_DQ[23]

DDR_DQ[29] DDR_DQ[26] DDR_DQ[24] DDR_DQ[31]

DDR_DQ[30] DDR_DQ[25] DDR_DQ[28] DDR_DQ[27]

DDR_DQ[22] DDR_DQ[17] DDR_DQ[19] DDR_DQ[20]

DDR_DQ[16]

DQ0

G8

DDR_DQ[17]

DQ1

G2

DDR_DQ[18]

DQ2

H7

DDR_DQ[19]

DQ3

H3

DDR_DQ[20]

DQ4

H1

DDR_DQ[21]

DQ5

H9

DDR_DQ[22]

DQ6

F1

DDR_DQ[23]

DQ7

F9

DDR_DQ[24]

DQ8

C8

DDR_DQ[25]

DQ9

C2

DDR_DQ[26]

DQ10

D7

DDR_DQ[27]

DQ11

D3

DDR_DQ[28]

DQ12

D1

DDR_DQ[29]

DQ13

D9

DDR_DQ[30]

DQ14

B1

DDR_DQ[31]

DQ15

B9

VDD5

A1

VDD4

E1

VDD3

J9

VDD2

M9

VDD1

R1

VDDQ10

A9

VDDQ9

C1

VDDQ8

C3

VDDQ7

C7

VDDQ6

C9

VDDQ5

E9

VDDQ4

G1

VDDQ3

G3

VDDQ2

G7

VDDQ1

G9

VSS5

A3

VSS4

E3

VSS3

J3

VSS2

N1

VSS1

P9

VSSQ10

B2

VSSQ9

B8

VSSQ8

A7

VSSQ7

D2

VSSQ6

D8

VSSQ5

E7

VSSQ4

F2

VSSQ3

F8

VSSQ2

H2

VSSQ1

H8

1V8

SDDR_DQ[31-16]

C1047 10uF 16V

C1050

0.1uF 16V

C1053 100pF 50V

EP3C55F484C6N

J11

J12

L14

M14

P11

P12

L9

M9

J13

J14

K14

J10

K9

N9

P9

P10

P13

P14

N14

J16

K15

L16

M15

R12

R10

R8

H9

G12

J8

M8

T7

T9

T13

P15

H15

H11

K8

L7

IC1000

VCCINT[0]

VCCINT[1]

VCCINT[2]

VCCINT[3]

VCCINT[4]

VCCINT[5]

VCCINT[6]

VCCINT[7]

VCCINT[8]

VCCINT[9]

VCCINT[10]

VCCINT[11]

VCCINT[12]

VCCINT[13]

VCCINT[14]

VCCINT[15]

VCCINT[16]

VCCINT[17]

VCCINT[18]

VCCINT[19]

VCCINT[20]

VCCINT[21]

VCCINT[22]

VCCINT[23]

VCCINT[24]

VCCINT[25]

VCCINT[26]

VCCINT[27]

VCCINT[28]

VCCINT[29]

VCCINT[30]

VCCINT[31]

VCCINT[32]

VCCINT[33]

VCCINT[34]

VCCINT[35]

VCCINT[36]

VCCINT[37]

VCCIO1[0]

VCCIO1[1]

VCCIO1[2]

VCCIO2[0]

VCCIO2[1]

VCCIO2[2]

VCCIO3[0]

VCCIO3[1]

VCCIO3[2]

VCCIO3[3]

VCCIO4[0]

VCCIO4[1]

VCCIO4[2]

VCCIO4[3]

VCCIO5[0]

VCCIO5[1]

VCCIO5[2]

VCCIO6[0]

VCCIO6[1]

VCCIO6[2]

VCCIO7[0]

VCCIO7[1]

VCCIO7[2]

VCCIO7[3]

VCCIO8[0]

VCCIO8[1]

VCCIO8[2]

VCCIO8[3]

2V5

D4

F4

C1066

C1068

C1070

100pF

0.1uF

C1067 100pF

10uF

50V

16V

1V8

C1069

C1071

0.1uF

10uF

16V

50V

2V5

K4

N4

U4

W4

AB2

W5

W9

W11

AB21

W12

W16

W18

P18

V19

Y19

E19

G19

L19

A21

D12

D14

D16

A2

D5

D9

D11

EP3C55F484C6N

L10

L11

M10

M11

L12

L13

M12

M13

N11

K11

N12

K12

K13

N13

N10

K10

J9

F12

H12

H13

J15

K16

L15

N15

R13

R11

R9

P8

H14

H10

H8

N8

R7

T8

T12

P16

L8

M7

A1

C5

C9

C11

IC1000

GND[0]

GND[1]

GND[2]

GND[3]

GND[4]

GND[5]

GND[6]

GND[7]

GND[8]

GND[9]

GND[10]

GND[11]

GND[12]

GND[13]

GND[14]

GND[15]

GND[16]

GND[17]

GND[18]

GND[19]

GND[20]

GND[21]

GND[22]

GND[23]

GND[24]

GND[25]

GND[26]

GND[27]

GND[28]

GND[29]

GND[30]

GND[31]

GND[32]

GND[33]

GND[34]

GND[35]

GND[36]

GND[37]

GND[38]

GND[39]

GND[40]

GND[41]

GND[42]

GND[43]

GND[44]

GND[45]

GND[46]

GND[47]

GND[48]

GND[49]

GND[50]

GND[51]

GND[52]

GND[53]

GND[54]

GND[55]

GND[56]

GND[57]

GND[58]

GND[59]

GND[60]

GND[61]

GND[62]

GND[63]

GND[64]

GND[65]

C12

C14

C16

A22

E20

G20

L20

P19

V20

Y20

AB22

Y18

Y16

Y12

Y11

Y9

Y5

AB1

N3

U3

W3

D3

F3

K3

DDR_VREF0

C1006

C1004

470pF

0.1uF 50V

16V

DDR_A[0] DDR_A[1] DDR_A[2] DDR_A[3] DDR_A[4] DDR_A[5] DDR_A[6]

DDR_A[12-0]

DDR_A[7] DDR_A[8] DDR_A[9] DDR_A[10] DDR_A[11] DDR_A[12]

100

R1002 33

R1003 33

R1004 1K

R1005 1K

H5PS5162FFR-S6C

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

L1

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

IC1001

SDDR_DQ[15-0]

G8 G2 H7 H3 H1 H9 F1 F9 C8 C2 D7 D3 D1 D9 B1 B9

A1 E1 J9 M9 R1

A9 C1 C3 C7 C9 E9 G1 G3 G7 G9

A3 E3 J3 N1 P9

B2 B8 A7 D2 D8 E7 F2 F8 H2 H8

DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15

VDD5 VDD4 VDD3 VDD2 VDD1

VDDQ10 VDDQ9 VDDQ8 VDDQ7 VDDQ6 VDDQ5 VDDQ4 VDDQ3 VDDQ2 VDDQ1

VSS5 VSS4 VSS3 VSS2 VSS1

VSSQ10 VSSQ9 VSSQ8 VSSQ7 VSSQ6 VSSQ5 VSSQ4 VSSQ3 VSSQ2 VSSQ1

DDR_DQ[1] DDR_DQ[2] DDR_DQ[3] DDR_DQ[4] DDR_DQ[5] DDR_DQ[6] DDR_DQ[7] DDR_DQ[8]

DDR_DQ[9] DDR_DQ[10] DDR_DQ[11] DDR_DQ[12] DDR_DQ[13] DDR_DQ[14] DDR_DQ[15]

1V8

DDR_DQ[15-0]

1V8

C1019 100pF

50V

DDR_DQ[5] DDR_DQ[2] DDR_DQ[0] DDR_DQ[7]

DDR_DQ[13] DDR_DQ[10] DDR_DQ[8] DDR_DQ[15]

DDR_DQ[14] DDR_DQ[9] DDR_DQ[12] DDR_DQ[11]

DDR_DQ[6] DDR_DQ[1] DDR_DQ[3] DDR_DQ[4]

AR1001

SDDR_DQ[5] SDDR_DQ[2] SDDR_DQ[0] SDDR_DQ[7]

33

AR1002

SDDR_DQ[13] SDDR_DQ[10]

SDDR_DQ[8]

SDDR_DQ[15]

33

AR1003

SDDR_DQ[14]

SDDR_DQ[9] SDDR_DQ[12] SDDR_DQ[11]

33

AR1004

SDDR_DQ[6]

SDDR_DQ[1]

SDDR_DQ[3]

SDDR_DQ[4]

33

DDR_DQ[0]

DQ0

DDR_A[12-0]

DDR2_CLK

/DDR2_CLK

DDR_BA[0] DDR_BA[1]

DDR2_CKE

DDR2_ODT /DDR_CS /DDR_RAS /DDR_CAS /DDR_WE

DDR_LDQS[1] DDR_UDQS[1]

DDR_LDM[1] DDR_UDM[1]

R1006

1V8

C1001 10uF 16V

SDDR_DQ[15-0]

C1002

0.1uF 16V

C1003

0.1uF 16V

C1005

0.1uF 16V

SDDR_DQ[14]

SDDR_DQ[9]

SDDR_DQ[8]

SDDR_DQ[15]

SDDR_DQ[12]

SDDR_DQ[13]

SDDR_DQ[10]

SDDR_DQ[11]

SDDR_DQ[4]

SDDR_DQ[1]

SDDR_DQ[3]

SDDR_DQ[6]

SDDR_DQ[7]

SDDR_DQ[2]

SDDR_DQ[0]

SDDR_DQ[5]

C1007

0.1uF 16V

DDR_UDQS[0]

/DDR_CAS

DDR_A[11]

DDR_LDM[0]

DDR_LDQS[0]

DDR_A[1]

DDR_A[9]

/DDR_RAS

DDR_A[0]

DDR_A[2]

DDR2_ODT

/DDR_CS

DDR_A[4]

DDR2_CLK

/DDR2_CLK

DDR_A[8]

DDR_A[6]

DDR_A[5]

FPGA_VSYNC_1V8

C1008

0.1uF 16V

C1009

0.1uF 16V

C1010

0.1uF 16V

C1011 470pF 50V

C1012

0.1uF 16V

DDR_VREF0

C1013

0.1uF 16V

AA12

AB12

AA13

AB13

AA14

AB14

V12

W13

Y13

AA15

AB15

U12

Y14

Y15

AA16

AB16

V13

W14

U13

V14

U14

U15

V15

W15

T14

T15

AB18

AA17

AB17

AA18

AA19

AB19

W17

Y17

AA20

AB20

V16

U16

U17

T16

R16

R14

R15

C1014

C1015

0.1uF

16V

IC1000

EP3C55F484C6N

CLK13

CLK12

B4_IO[0]

B4_IO[1]

B4_IO[2]

B4_IO[3]

B4_IO[4]

B4_IO[5]

B4_IO[6]

B4_IO[7]

B4_IO[8]

B4_IO[9]

B4_IO[10]

B4_IO[11]

B4_IO[12]

B4_IO[13]

B4_IO[14]

B4_IO[15]

B4_IO[16]

B4_IO[17]

B4_IO[18]

B4_IO[19]

B4_IO[20]

B4_IO[21]

B4_IO[22]

B4_IO[23]

B4_IO[24]

B4_IO[25]

B4_IO[26]

B4_IO[27]

B4_IO[28]

B4_IO[29]

B4_IO[30]

B4_IO[31]

B4_IO[32]

B4_IO[33]

B4_IO[34]

B4_IO[35]

B4_IO[36]

B4_IO[37]

B4_IO[38]

B4_IO[39]

B4_IO[40]

C1016

0.1uF 16V

C1017

0.1uF 16V

C1018

0.1uF 16V

C1020

0.1uF 16V

C1021

0.1uF 16V

C1022

0.1uF 16V

C1023

0.1uF

16V

SDDR_DQ[31-16]

C1051

0.1uF 16V

C1052

0.1uF 16V

DDR_VTT

56

AR1009

56

AR1010

56

AR1011

56

AR1012

56

AR1013

R1011 56

C1054

C1056

0.1uF

16V

C1055

C1057

0.1uF

16V

L/R_SYNC

L/R_SYNC_FRC_OUT

C1058

0.1uF 16V

C1059

0.1uF 16V

56 AR10 14

56 AR10 15

56 AR10 16

56 AR10 17

56 AR10 18

R1012

1V2

DDR2_ODT

/DDR_CS DDR_A[0] DDR_A[2]

DDR_A[4] DDR_A[6] DDR_A[8]

DDR_A[11]

/DDR_CAS /DDR_RAS

DDR_A[1] DDR_A[5]

DDR_A[9]

DDR_A[12]

DDR_A[7] DDR_A[3]

DDR_BA[0] DDR_BA[1]

DDR2_CKE

56

DDR_A[10]

C1064

C1060

0.1uF 16V

C1061

0.1uF 16V

R1023

R1028

OPT

10K

C1062

0.1uF 16V

C1063

0.1uF 16V

R1024

C1065

0.1uF

16V

+3.3V

10K

R1025

10K

C

Q1005

B

2SC3052

E

R1026

C1072

0.1uF 16V

1V2

C1073

0.1uF 16V

1V8

3.3K R1027 22

C

Q1006

B

2SC3052

E

C1077

0.1uF 16V

C1078

0.1uF 16V

3D_FRAME_INFO

L/R_SYNC_1V8

FPGA_D/L_CTRL

C1082

0.1uF 16V

C1083

0.1uF 16V

C1087

0.1uF 16V

C1088

0.1uF 16V

R1013

C1097

C1092

0.1uF

0.1uF 16V

16V

C1093

C1098

0.1uF

16V

+3.3V

R1014

10K

C

B

10K

E

+3.3V

R1030

OPT

R1029

B

10K

OPT

C2012

C2002

C2007

C2016

0.1uF

16V

C2008

C2003

C2013

0.1uF

16V

3D Frame Info Level Shift (3.3V to 1.8V)

FPGA V-SYNC Level Shift (1.8V to 3.3V)

1V8

R1016

3.3K R1017 22

C

R1015

Q1001 2SC3052

C

E

10K

Q1007 2SC3052

Q1002

B

2SC3052

E

FPGA_VSYNC_1V8

1V8

OPT

R1032

3.3K

OPT

R1033 22

C

OPT

R1031

OPT

Q1008

B

2SC3052

10K

OPT

E

FRAME_INFO_1V8

LVDS_STABLE_1V8

3D_DIMMING_1V8

2V5

C1074

C1079

0.1uF

16V

2V5

C1080

C1075

0.1uF

0.1uF 16V

16V

1V8

C1081

C1076

0.1uF

0.1uF 16V

16V

+3.3V

R1019

R1018

B

10K

R1034

C1094

C1084

0.1uF 16V

C1085

0.1uF 16V

C1086

0.1uF 16V

10K

R1020

10K

C

Q1003 2SC3052

E

R1035

10K

C1099

C1089

0.1uF

0.1uF 16V

16V

C1090

C1095

C2000

0.1uF

16V

C1096

C2001

C1091

0.1uF

0.1uF 16V

16V

+3.3V

R1021

1K

R1022 22

C

B

Q1004 2SC3052

E

+3.3V

B

10K

C

E

R1036

Q1009 2SC3052

+3.3V

R1037

B

10K

C2004

0.1uF 16V

C2005

0.1uF 16V

C2006

0.1uF 16V

1K

C

E

Q1010 2SC3052

C2009

0.1uF 16V

C2010

0.1uF 16V

C2011

0.1uF 16V

FPGA_VSYNC

R1038 22

C2014

C2017

0.1uF

16V

C2018

C2015

0.1uF

0.1uF 16V

16V

3D_DIMMING

3D_DIMMING_2_1V8

R1039

+3.3V

R1040

B

10K

C

E

10K

R1041

Q1011 2SC3052

+3.3V

R1042

1K

R1043 22

C

B

Q1012 2SC3052

10K

E

3D_DIMMING_2

1V8

C1024

0.1uF 16V

C1025

0.1uF 16V

LVDS_STABLE_1V8

L/R_SYNC_1V8

3D_DIMMING_1V8

SDDR_DQ[20]

SDDR_DQ[22]

SDDR_DQ[19]

SDDR_DQ[17]

SDDR_DQ[21]

SDDR_DQ[18]

SDDR_DQ[23]

SDDR_DQ[16]

SDDR_DQ[27]

SDDR_DQ[25]

3D_DIMMING_2_1V8

FRAME_INFO_1V8

SDDR_DQ[26]

SDDR_DQ[30]

SDDR_DQ[28]

SDDR_DQ[31]

SDDR_DQ[29]

SDDR_DQ[24]

C1026

0.1uF 16V

C1027

0.1uF 16V

DDR_LDM[1]

/DDR_WE

DDR_BA[0]

DDR2_CKE

DDR_BA[1]

DDR_A[10]

DDR_A[3]

DDR_UDM[1]

DDR_LDQS[1]

DDR_UDQS[1]

DDR_A[12]

DDR_UDM[0]

DDR_A[7]

C1029

0.1uF 16V

C1030 470pF 50V

C1032

0.1uF 16V

C1033

0.1uF 16V

DDR_VREF1

C1034

0.1uF 16V

V6

V5

U7

U8

Y4

Y3

Y6

AA3

AB3

W6

V7

AA4

AB4

AA5

AA6

AB6

AB5

W7

Y7

U9

V8

W8

AA7

AB7

Y8

T10

T11

V9

V10

U10

AA8

AB8

AA9

AB9

U11

V11

W10

Y10

AA10

AB10

AA11

AB11

C1035

C1036

0.1uF

16V

IC1000

EP3C55F484C6N

B3_IO[0]

B3_IO[1]

B3_IO[2]

B3_IO[3]

B3_IO[4]

B3_IO[5]

B3_IO[6]

B3_IO[7]

B3_IO[8]

B3_IO[9]

B3_IO[10]

B3_IO[11]

B3_IO[12]

B3_IO[13]

B3_IO[14]

B3_IO[15]

B3_IO[16]

B3_IO[17]

B3_IO[18]

B3_IO[19]

B3_IO[20]

B3_IO[21]

B3_IO[22]

B3_IO[23]

B3_IO[24]

B3_IO[25]

B3_IO[26]

B3_IO[27]

B3_IO[28]

B3_IO[29]

B3_IO[30]

B3_IO[31]

B3_IO[32]

B3_IO[33]

B3_IO[34]

B3_IO[35]

B3_IO[36]

B3_IO[37]

B3_IO[38]

B3_IO[39]

CLK15

CLK14

C1037

0.1uF 16V

C1038

0.1uF 16V

C1039

0.1uF 16V

C1040

0.1uF 16V

C1041

0.1uF 16V

C1043

0.1uF 16V

C1044

DDR2_ODT

0.1uF /DDR_CS

16V

DDR_A[0] DDR_A[2]

DDR_A[4] DDR_A[6] DDR_A[8] DDR_A[11]

/DDR_CAS /DDR_RAS

DDR_A[1] DDR_A[5]

DDR_A[9] DDR_A[12] DDR_A[7] DDR_A[3]

DDR_BA[0] DDR_BA[1] DDR2_CKE

/DDR_WE /DDR_WE

DDR_A[10]

DDR_VTT

C1048

C1045

0.1uF

0.1uF 16V

16V

DDR_VTT

C1049

C1046

0.1uF

0.1uF 16V

16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3D + 240 FRC + TCON BOARD

2009. 11. 13

10DDR2 10

Repair Guide for 3D BCM Chassis

Model : 42/47/55LX6500-TD, 47/55LX9500-TA

Contents

1. Tool Option Information

2. Area Option Information

3. Main PCB for BroadBand

4. Block Diagram

5. Inner Connection

6. Repair Process (Troubleshooting)

JUN. 1th, 2010

LG Electronics/ LCD TV

By M.R.VIJAYSHANKAR

LGE Internal Use Only

별첨 : 2 types of LED - IOP

Benefit: More Clear More Real

IOP Type

LED Chip

LED Package

Model

LE8500 LX9500

Slim

Full LED

Local

Dimming

inch

Feature

Not only Direct LED’s Picture quality, but Edge LED’s thin thickness

Local Dimming depicts more deep Black color

Local Dimming

Local Dimming Block quantity

Upper Metal Cover

BLU

Structure

LED Array

Lower Metal Cover

Module Bezel 폭: 47LE9500 7mm

14mm

LGP Reflector Sheet

47LE8500

Local

Dimming

216 Local Dimming Blocks

27 BLU A’ssy (864 LED Packages)

Full LED

47

55

inch

47

55

9 row * 24 = 216EA

10 row * 24 = 240EA

LED Package

LED package quantity

216 * 4 packages/block = 864EA

240 * 5 packages/block = 1200EA

LGE Internal Use Only

별첨 : 2 types of LED - Edge

Benefit: More Clear More Real

Edge Type w/ Local Dimming

Feature

LED Array

Upper Metal

BLU

structure

Local

Dimming

Cover

12 Local Dimming Blocks

LED Packages

- 47” 264

- 42” 228

LED Array is on the Top & Bottom of Module

Edge LED

Local

Dimming

Best picture quality + thin TV

Local dimming depicts more deep black.

Model

LE7500, LE5500

LX6500

LGE Internal Use Only

1. Tool Option Information

p

(

)

g

p.

y

g

Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Remark

42LX6500-TD 25568 32535 64556 25004 1842 LGD Edge 47LX6500-TD 33760 32535 64556 25004 1842 LGD Edge 55LX6500-TD 46048 32535 64556 25004 1842 LGD Edge 47LX9500-TA 33792 32535 56636 25004 1842 LGD IOP 55LX9500-TA 46080 32535 56636 25004 1842 LGD IOP

No Tool Option

Tool Option1

(pane l /tool)

Tool Option2

(Exte r n al In pu t)

Tool Option3

(Fu ncti on 1)

Tool Option4

(Fu ncti on 2)

Tool Option5

(Fu ncti on 3)

Inch Tool Make r Module Re v. HDMI Cou nt HDMI Switch IC HDMI Pos ition Com

onent Count

Com

Position AV Common

Com Com

Swa SCART Count RCA AV Count RCA AV Position RGB Count USB in EMF Divx Bluetooth Di HeadP hone e-Manual Audio Am Bac klight Type Wireless Read Boo t Logo DV R Re a d Ins tant Boot Local Dimmi n CIFS DLNA THX Digital Demod Analog Demod THX Media Director Picture Wizard ISF Ene rgy Star HDMISW_Orde r WiFi Skype Motion Remocon Chann e l Browser Set ID USB Hu b count Mirror Mode Orange Service NetCast Service PSU Power

ut

JPEG,MP3

ital Eye

LGE Internal Use Only

2. Area Option Information

GP2 LCD Area Option

Guam(??) KENYA

MALAYSIA

MAURITIUS

South AFRICA

West AFRICA SRI LANKA

SINGAPOR E

VIETNAM

NIGERIA

17409 17473 23553 23649 23554 23556 18209 25601 7169 22529 38913 6145

수

2 ENG ENG ENG ENG ENG ENG ENG ENG ENG ENG ENG ENG

2 ARAB ARAB ARAB ARAB ARAB ARAB ARAB ARAB ALL ARAB HEB ALL

3 W_EU W_EU ARA ARA ARA ARA W_EU FAR ARA ARA ARA ARA

1 ON ON ON ON ON ON ON ON ON OFF OFF OFF

1 OFF OFF OFF OFF OFF OFF

3 0

THAILAND

2 0 3 0 0 1 0 0 0 0 0

Area Option bit

Default Lang.

Wi-Fi Frequency (Wi-Fi 사용/

구분

Lang Gr. (OSD Language Gr.

선택

Teletext Lang Gr.

I II Save (User Mono 저장)

HDEV (Audio Overmodulation)

MONO (

무조건

Location (

특정지역

)

금지 대역

Mono

Opt 구분)

로처리

MARKET

0 : ENG 1 : POR 2 : SPA 3 : ---

1~6 3 1 1 1 1

0 : ALL 1 : ARAB 2 : HEB 3 : ---

0 : W-EU 1 : E-EU 2 :RUS 3 : ARA 4 : FAR 5 : OFF

0 : OFF 1 : ON

0 : OFF

)

1 : ON (0~7)

0: Basic 1: India 2: Thailand 3: BB OFF

ALGERI ALGERIA EGYPT JORDAN U.A.E IRAQ(MH/M E

_ARABIC)

SAUDI ARAB TUNISIE

SUDAN SYRIA

2010 Line-up

※

-DTV Only : Australia/New-zealand(AU), Indonesia( ID)

-DTV/ATV : Malaysia(MY), South Africa(ZA), Singapore(SG), Israel(IL), Ir an(IR)

-ATV Only : Etc.

-EU Model : Moroco, Turkey, Tunisie(DTV)

팔레스타인

KUWAIT PAKISTAN INDIA

2 4 1 1 1 1 1 1

IRAN IRAQ (MQ_FARSI)

ON OFF OFF OFF OFF OFF

(English Arab Hebrew

)

지원

LEBANON Libya

ISRAEL (H.Y.C, SAKAL)

ISRAEL (SBITANY)

LGE Internal Use Only

3. Main PCB for Broadband

Features

7

4

6

Main Board (LX6500 & LX9500)

1

2

3

1

8

4

5

6

7

5

8

Main processor, DDR Memory, Flash Memory

LG5111(Local Dimming Processor)

Voltage (+24V/12V/5V/3.3V/2.5V/1.8V/1.2V)

Micom for Key/IR sensing

HDMI switch (4:1)

Audio AMP (LX6500 & LX9500)

Audio AMP (Only LX9500 for 3 AMP)

USB switch (2:1)

LGE Internal Use Only

3. Main PCB for Broadband

G

H

I

J

Cables

7

4

6

A B C D E F

Main Board (LX6500 & LX9500)

A

B

2

3

1

8

C

D

E

F

G

H

5

I

J

To Formatter Board (LVDS Cable)

To Slave LED Driver Boa rd (Local Dimming Cable)

To Formatter Board (+12V Cable)

To Formatter Board (Formatter Upgrade Cable)

To PSU (Power Cable)

To Inner Emitter (Emitter Cable)

To Master LED Driver Board (Local Dimming Cable)

To Woofer Speaker (Speaker Cable)

To R Speaker [Only LX9500] (Speaker Cable)

To Bluetooth [Only LX6500] (Bluetooth Cable)

K L

M

K

L

M

To L Speaker (Speaker Cable)

To IR & Intellegent Sense & Key (IR Cable)

To LG LOGO [Only LX9500] (LOGO Cable)

LGE Internal Use Only

3. Main PCB for Broadband

LX9500

A B

3

Formatter Board

1

2

3

C

4

2

A

B

FRC, DDR Memory

FPGA

TCON, EEPROM

VOLTAGE

To Main Board (+12V Cable)

To Main Board (LVDS Cable)

D D

C

D

To Main Board (Formatter upgrade Cable)

To LCD Module (LVDS 240Hz Cable)

LGE Internal Use Only

3. Main PCB for Broadband

LX6500

A BC

Formatter Board

1

2

3

2

4

A

B

FRC, DDR Memory

FPGA

TCON, EEPROM

VOLTAGE

To Main Board (+12V Cable)

To Main Board (LVDS Cable)

D D

C

D

3

To Main Board (Formatter upgrade Cable)

To LCD Module (LVDS 240Hz Cable)

LGE Internal Use Only

4. Block Diagram

JACK PACK

at REAR

Main tuner

(TDTJ-S031D)

AV Component 1 Component 2

D-sub RGB

Audio L/R (for RGB)

HDMI

1

HDMI

2

HDMI

3

Digital Audio (Optic)

RS-232C (Ctrl./SVC)

Ethernet

IF +/TU_CVBS

SIF

CVBS, L/R Y Pb Pr, L/R Y Pb Pr, L/R

RGB/H/V

Audio L/R

HDMI Switch

TDA19997

EPHY

4x1

SPDIF

MAX3232

RX/TX

BCM3556

(DVB)

Local

LVDS

Dimming IC

(LG5111)

X-tal

25MHz

DDR_Data[0:15], DQS, DM … Addr.[ ], ctrl. data

Data[16:31]

Data [0 … 7] Addr[0…1], CS …

IR

IR module

3D Formatter

Board

(FHD, 60Hz)

DDR2 (1Gbit)

NAND Flash

(4GB)

IR

LGE Confidential

HDMI4

USB1

USB2 (DVR Ready)

JACK PACK

at SIDE

AV2

Component 3

Audio L/R (for RGB)

IR Emitter Jack

Audio L/R

DP/DM/ +5V

CVBS, L/R

Y Pb Pr, L/R

TPA6132

IR SYNC

L / R

IR

Wireless module

Wireless Dongle

I2S

SCL, SDA_3.3V

Digital AMP

(uPD78F0513)

RF

Digital AMP

NTP7000

NTP3100L

NVRAM

MICOM

Wireless

LGE Internal Use Only

4. Block Diagram

System 구성도

System flash

Memory 512Mbit

256M

System

NAND flash

data0[0:15] data1[0:15]

EEPROM

(24LC512)

0xA0

data[0:7]

CPU

(BCM_3556)

I2C Master

UART0 UART1

RS-232C RTx

RS-232 jack

CH1

CH2

CH3

CH4

Tuner

Micom

(uPD78F513)

IC8101

WIRELESS

JK8700

NVRAM

(M24M01)

IC102

Intelligent

Eye

P8200

LOGO P2200

Audio AMP

(NTP7000)

IC2201

L.D

(LG5111)

IC9701

Audio AMP

(NTP7000)

Audio AMP (NTP7000)

IC2100

FRC

(LG1120)

Formatter

IC102

IC8801

HDMI SW

(TDA19997)

IC8300

FPGA

(EP3C55F)

Formatter

IC1000

SCL0_3.3V

SCL1_3.3V

SCL2_3.3V

SCL3_3.3V

TCON

(TL2425MC)

Formatter

IC400 IC500

Peri. I2C ch2. I2C ch3.

I2C ch1.

LGE Internal Use Only

I2C ch4.

5. Interconnection - 1

3

8 9

[PCBs]

1

Main PCB Formatter PCB

2

42/47LX6500

[Cables]

1

Main / PSU cable Main - Formatter LVDS cable

2

3

LED driver / Module cable

1

10 10

567

2

1

4

2

5

4

6

7

8

10

PSU

3

Bluetooth PCB

4

LOGO PCB

5

Soft Touch Key PCB

6

IR/Sensor PCB

7

IR Emitter PCB

8

Main – Module cable

4

BT shield cable

7

IR Emitter cable

5

SPK cable

8

Formatter +12V cable

6

LOGO/Touch/IR cable

9

Formatter Upgrade cable

LGE Internal Use Only

5. Interconnection - 2

55LX6500

[PCBs]

7

3

1

2

3

4

2

5

4567

9 10

1

6

11

8

1

Main PCB Formatter PCB

2

PSU

3

4

Bluetooth PCB

LOGO PCB

5

Soft Touch Key PCB

6

IR/Sensor PCB

7

IR Emitter PCB

8

[Cables]

1

Main / PSU cable Main - Formatter LVDS cable

2

3

Power - LED driver cable

4

BT shield cable

5

SPK cable

6

LOGO/Touch/IR cable

7

LED Driver - Module

8

IR Emitter cable

9

Main – LED driver cable

10

Formatter +12V cable

11

Formatter Upgrade cable

LGE Internal Use Only

5. Interconnection –2 sub PCB

42/47/55LX6500

7 6

IR/Sensor Soft Touch Logo

SPK unit

6

LOGO/Touch/IR cable

To Main

5

LGE Internal Use Only

5. Interconnection - 3

47LX9500

9 connection cables for each BLU Ass’y

Col. 1 Col. 2 Col. 3

3 4

5

1

9

11 12

7

1

8910

7

11

3

6

4

1

Main / PSU cable Main - Formatter LVDS cable

2

8

6

2

13 13

5

Main – M.LED driver cable

6

Main – S.LED driver cable

10

[PCBs]

1

Main PCB Formatter PCB

2

PSU

3

4

IR/Sensor PCB

LOGO PCB

5

Control Key PCB

6

IR Emitter PCB

7

(Built-in) Master

8

LED Driver PCB (Built-in) Slave

9

LED Driver PCB

[Cables]

9

IR cable

10

Speaker cable

Formatter +12V cable

3

Power – M.LED driver cable

Power – S.LED driver cable

4

7

IR Emitter cable

8

Logo Cable

12

Formatter Upgrade cable

13

Formatter - Module cable

LGE Internal Use Only

5. Interconnection - 4

55LX9500

10 connection cables for each BLU Ass’y

Col. 1 Col. 2 Col. 3

6

3

4

8

3

10

2

5

6

2

1

9

11 12

1

[PCBs]

1

Main PCB Formatter PCB

2

PSU

3

4

IR/Sensor PCB

LOGO PCB

5

Control Key PCB

7

6

IR Emitter PCB

7

(Built-in) Master

8

LED Driver PCB (Built-in) Slave

9

LED Driver PCB

4

1

Main / PSU cable Main - Formatter LVDS cable

2

3

Power – M.LED driver cable

Power – S.LED driver cable

4

13 13

5

Main – M.LED driver cable

6

Main – S.LED driver cable

7

IR Emitter cable

8

Logo Cable

[Cables]

8

910

7

11

Formatter +12V cable

12

Formatter Upgrade cable

13

Formatter - Module cable

9

IR cable

10

Speaker cable

LGE Internal Use Only

Contents of LCD TV Standard Repair Process

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

No video/Normal audio 1 2 No video/No audio 2 3 Video error, video lag/stop 3

A. Video error

4 Color error 4

5

6

B. Power error

7

8

Vertical/Horizontal bar, residual image,

light spot, external device color error

No power 6

Off when on, off while viewing, power auto

on/off

No audio/Normal video 8

C. Audio error

9 Wrecked audio/discontinuation/noise 9

10

D. Function error

No response in remote controller, key error,

recording error, memory error

5

7

10

11 External device recognition error 11 12 E. Noise Circuit noise, mechanical noise 12 13 F. Exterior error Exterior defect 13

LGE Internal Use Only

Standard Repair Process

Established

date

Revised date

LCD TV

Error

symptom

A. Video error

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)

☞A4☞A1

No video Normal audio

Normal

audio

N

Move to No video/No audio

Y

Check Back Light On with naked eye

☞A2

Check Power Board 20V /12V or 24v output

On

Normal voltage

Repair Power Board or parts

Y

Check Power Board 12v,5v etc.

N

Replace Inverter

Y

or module

N

Normal

voltage

Repair Power Board or parts

N

End

Y

Replace T-con Board or module And Adjust VCOM

☞A28

1/13

※Precaution

Always check & record S/W Version and White Balance value before replacing the Main Board

☞A7 & A3

Replace Main Board

1

Re-enter White Balance value

LGE Internal Use Only

Standard Repair Process

LCD TV

symptom

No Video/ No audio

Error

☞A4

Check various voltages of Power Board ( 5V,12V,20V or 24V…)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power Board and repair parts

Y

N

Check and replace MAIN B/D

Established

date

Revised date

End

2/13

2

LGE Internal Use Only

Standard Repair Process

LCD TV

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

N

Error

symptom

A. Picture Problem

Picture broken/ Freezing

. By using Digital signal level meter . By using Diagnostics menu on OSD

( Menu→Red key→Signal test)

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

Normal

Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

N

Check

S/W Version

SVC

Bulletin?

Y

S/W Upgrade

Normal

Picture?

Established

date

Revised date

N

Tuner soldering

N

Check

Normal

Picture?

Y

Replace

Main B/D

3/13

Y

Close

Y

Close

3

LGE Internal Use Only

Standard Repair Process

LCD TV

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

Check Test pattern

Error

symptom

Color

error?

Check error color input mode

※ Check and replace

Y

Link Cable (LVDS) and

N

contact condition

External Input/

Component

error

A. Video error

Color error

Color

error?

Check external device and cable

Established

date

Revised date

Y

Replace Main B/D

N

External device

/Cable

normal

N

Color

error?

End

Y

Replace module

N

Replace Main B/D

4/13

RGB/

HDMI/DVI

error

Check external device and cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main B/D

LGE Internal Use Only

Standard Repair Process

A. Video error

LCD TV

Error

symptom

Vertical / Horizontal bar, residual image, light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

Check color condition by input

-External Input

-Component

-RGB

-HDMI/DVI

Check Test pattern

Screen

normal?

N

Replace module

Check external

Y

device connection condition

Normal?

N

Request repair for external device

External device screen error-Color error

Check screen condition by

Check S/W Version

Check

version

S/W Upgrade

Normal

screen?

End

N

Y

N

Y

input

-External Input

-Component

-RGB

-HDMI/DVI

Check and

Y

replace Link Cable

External

Input

error

Component

error

RGB error

HDMI/

DVI

5

Established

date

Revised date

Screen

normal?

End

N

Replace Main B/D (adjust VCOM)

Y

Connect other external device and cable

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

Connect other external device and cable

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

Screen

normal?

Request repair for external device

Screen

normal?

N

Y

N

LGE Internal Use Only

5/13

Replace Module

N

Screen

normal?

Y

End

Replace Main B/D

Standard Repair Process

LCD TV

☞A17

Check Power LED

. Stand-By: Red . Operating: white

Error

symptom

Power LED

On?

N

Check Power cord was inserted properly

N

Normal?

Y

※

Close

Y

Check ST-BY 5V

☞A18

B. Power error

No power

DC Power on by pressing Power Key On Remote control

Normal

voltage?

Established

date

Revised date

6/13

☞A19

Normal

operation?

Y

N

Check Power On ‘”High”

OK?

N

Replace Main B/D

Y

Replace Power B/D

☞A4

Measure voltage of each output of Power B/D

Y

N

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

Replace Power B/D

6

LGE Internal Use Only

Standard Repair Process

LCD TV

Check outlet

Check A/C cord

Check for all 3- phase

power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet and check each 3 phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A22

N

Check Power Off Mode

☞A19

(If Power Off mode is not displayed) Check Power B/D voltage

※ Caution

Check and fix exterior of Power B/D Part

Abnormal

Established

date

Revised date

CPU

1

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

7/13

Normal?

Replace Power B/D

Y

N

End

* Please refer to the all cases which

can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL "POWEROFF_OFFTIMER" Power off by OFF TIMER "POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download "POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Po wer off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

LGE Internal Use Only

Standard Repair Process

LCD TV

No audio Screen normal

Error

C. Audio error

symptom

No audio/ Normal video

☞A24 ☞A25

Check user menu > Speaker off

Off

Y

Cancel OFF

Check audio B+

N

20V or 24V of Power Board

Established

date

Revised date

Normal voltage

Replace Power Board and repair parts

Y

N

8/13

Check Speaker disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board End

LGE Internal Use Only

Standard Repair Process

LCD TV

Check input signal

-RF

-External Input signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/ discontinuation/noise is same after “Check input signal” compared to No audio

☞A25

Signal

normal?

Y

N

(When RF signal is not received) Request repair to external cable/ANT provider

(In case of External Input signal error) Check and fix external device

Wrecked audio/ Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace speaker and connector

Replace Main B/D

Connect and check other external device

Check audio B+ Voltage (20V or 24V)

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

Normal

audio?

Y

N

Y

9/13

End

Check and fix external device

9

LGE Internal Use Only

Standard Repair Process

D. General Function Problem

Remote control & Local switch checking

LCD TV

Error

symptom

1. Remote control(R/C) operating error

☞A27

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

Y

N

Check & Replace

Baterry of R/C

Normal

operating?

Replace R/C

Check & Repair Cable connection Connector solder

Close

N

Normal

operating?

Y

Close

☞A27

N

Check B+ 5V

On Main B/D

Established

date

Revised date

☞A27

Normal

Voltage?

N

Y

Check IR

Output signal

☞A4

Check 5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

10/13

Replace

Main B/D

Normal

Signal?

N

Repair/Replace

IR B/D

Y

10

LGE Internal Use Only

Standard Repair Process

LCD TV

Check input signal

Error

symptom

Y

Signal input?

N

Check and fix external device/cable

D. Function error

External device recognition error

Check technical information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Established

date

Revised date

External Input and

N

Y

Component

Recognition error

RGB,HDMI/ DVI, Optical

Recognition error

Replace Main B/D

11/13

11

LGE Internal Use Only

Standard Repair Process

LCD TV

Identify nose type

Error

symptom

Circuit

noise

Mechanical

noise

Circuit noise, mechanica l noise

Check location of noise

E. Noise

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

Replace PSU(with LED driver)

OR

Replace LED driver

※ When the nose is severe, replace the module (For models with fix information, upgrade the S/W or provide the description)

OR

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual

OR

(For models without any fix information, provide the description)

Established

date

Revised date

12/13

12

LGE Internal Use Only

Standard Repair Process

LCD TV

Error

symptom

Zoom part with exterior damage

Module

damage

Cabinet damage

Remote

controller

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

Adjust VCOM

☞A28

13/13

Stand

dent

Replace stand

13

LGE Internal Use Only

Contents of LCD TV Standard Repair Process Detail Technical Manual

No. Error symptom Content Page Remarks

1 2 LED driver B+ 24V measuring method A2

A. Video error_ No video/Normal audio

3 Check White Balance value A3 4 Power Board voltage measuring method A4 6

A. Video error_ No video/Video lag/stop

7 LCD-TV Version checking method A7 9

10 Tuner Checking Part A9

A. Video error_Color error

11

12 Adjustment Test pattern - ADJ Key A12 13

A. Video error_Vertical/Horizontal bar,

14

residual image, light spot

15 Adjustment Test pattern - ADJ Key A12

Check LCD back light with naked eye A1

TUNER input signal strength checking method A6

LCD TV connection diagram A8

Check Link Cable (LVDS) reconnection condition

LCD TV connection diagram A8 Check Link Cable (LVDS) reconnection

condition

A10 A11

A10 : 32/37/42/47/55 A11 : 32 AUO

16 17 Exchange T-Con Board (2) A-2/5

Defected Type caused by T-Con/

18 Exchange LED driver Board (PSU) A-3/5

Inverter/ Module

19 Exchange Module itself (1) A-4/5 20 Exchange Module itself (2) A-5/5

Exchange T-Con Board (1) A-1/5

55” : driver board Other : PSU

Continue to the next page

LGE Internal Use Only

Contents of LCD TV Standard Repair Process Detail Technical Manual

Continued from previous page

No. Error symptom Content Page Remarks

21 22 Check power input Voltage & ST-BY 5V A18 23 Checking method when power is ON A19 24 POWER BOARD voltage measuring method A4 25

26

27

28

29

30

31

B. Power error_No power

B. Power error_Off when on, off while viewing

C. Audio error_No audio/Normal video

C. Audio error_Wrecked audio/discontinuation

D. Function error_ No response in remote controller, key error

Check front display LED A17

POWER OFF MODE checking method A22

POWER BOARD PIN voltage checking method

Checking method in menu when there is no audio

Voltage and speaker checking method when there is no audio

Voltage and speaker checking method in case of audio error

Remote controller operation checking method

A19

A24

A25

A27

32 D. VCOM Adjustment Sequence of the Vcom adjustment A28

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error_No video/Normal audio

Check LCD back light with naked eye

Established

date

Revised

date

A1

After turning on the power and disassembling the case, check with the naked eye, whether you can see light from red box locations.

A1

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error_No video/Normal audio

LED driver B+ 24V measuring method

Check the DC 20V/24V, 12V, 3.5V and Inverter on

Established

date

Revised

date

A2

IOP 47”, Edge LED 55”

Edge LED 42/47”

P205

1~5 24V

6~10 GND

11 PWM Dim #1 12 Inverter ON

P204

1~5 24V

6~10 GND

11 PWM Dim #1

(Edge LED : NC)

12 Inverter ON 13 NC

(Edge LED:PWM Dim#1)

14 Error

* 14 : For LX95 GND

IOP 55”

A2

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

A4

Entry method

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 7.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A3

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

IOP 47”/Edge LED 55”

Edge LED 42/47”

A. Video error_No video/ Audio

Power Board voltage measuring method

Check the DC 20V/24V, 12V, 3.5V.

Established

date

Revised

date

Pin layout (24P)

24V

Power

1 3 24V 4 24V

5 GND 6 GND 7 GND 8 GND

9 3.5V 10 3.5V 11 3.5V 12 3.5V 13 GND 14 GND 15 GND 16 NC 17 12V 18 Inverter ON

19 12V 20

21 12V 22 23 NC 24 Error-out

on

2

(IOP & Edge 55”)

20V (

Edge 42/47

LE : NC IOP : PWM Dim #1 LE : PWM Dim #1 IOP : NC

A5

)

IOP 55”

A4

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Established

date

Revised

date

A6

MENU -Æ red key(customer support -Æ signal test

-Æ select channel

A6

When the signal is strong, use the attenuator (-10dB, -15dB, -20dB etc.)

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

LCD-TV Version checking method

Established

date

Revised

date

A7

Version

1. Checking method for remote controller for adjustment

Press the IN-START with the remote controller for adjustment

A7

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error _Vertical/Horizontal bar,

residual image, light spot

LCD TV connection diagram (1)

Established

date

Revised

date

A8

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

A9

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

A9

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

Check Link Cable (LVDS) reconnection condition

A. Video error_Color error

Established

date

Revised

date

A10

Check the contact condition of the Link Cable

A10

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

Check Link Cable (LVDS) reconnection condition

A. Video error_Color error

Established

date

Revised

date

A11

Check the contact condition of the Link Cable

A11

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

LCD TV

Error

symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

A12

You can view 6 types of patterns using the ADJ Key Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A12

LGE Internal Use Only

Appendix : Exchange T-Con Board (1)

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

A - 1/5

LGE Internal Use Only

Appendix : Exchange T-Con Board (2)

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

A - 2/5

GRADATION

LGE Internal Use Only

Appendix : Exchange PSU(LED driver)

No Light

Dim Light

No picture/Sound Ok

A - 3/5

LGE Internal Use Only

Appendix : Exchange the Module (1)

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Crosstalk

Un-repairable Cases In this case please exchange the module.

Press damage

A - 4/5

LGE Internal Use Only
