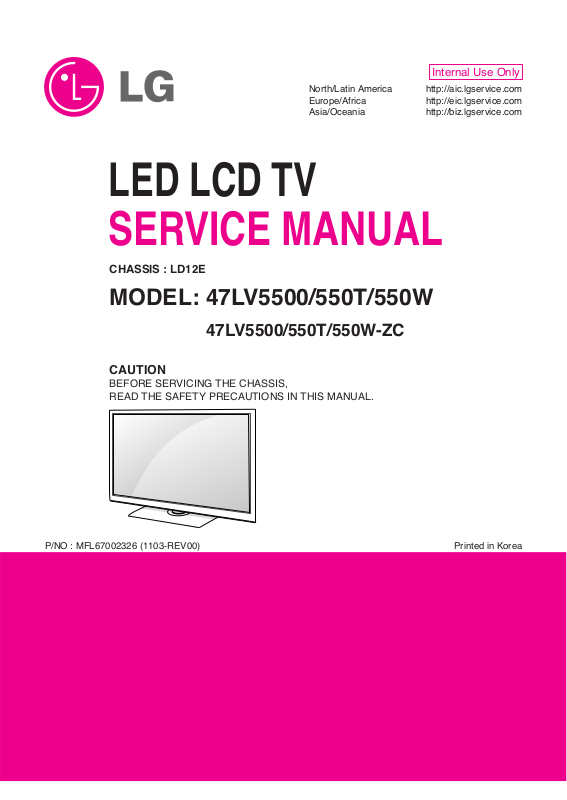

LG 47LV5500-ZC, 47LV550T-W-ZC Schematic

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LD12E

MODEL: 47LV5500/550T/550W

MODEL:

47LV5500/550T/550W-ZC

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL67002326 (1103-REV00)

- 2 -

Only for training and service purposes

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ...................................................................................... 4

ADJUSTMENT INSTRUCTION ............................................................. 10

DISASSEMBLY ...................................................................................... 19

BLOCK DIAGRAM ................................................................................. 21

EXPLODED VIEW .................................................................................. 22

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 -

Only for training and service purposes

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

When 25A is impressed between Earth and 2nd Ground for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

IMPORTANT SAFETY NOTICE

0.15 uF

Ω

- 4 -

Only for training and service purposes

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This specification is applied to the LED LCD TV used LD12E chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC(77 ºF ± 9 ºF), CST: 40 ºC ± 5 ºC

2) Relative Humidity : 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~ 50 / 60 Hz)

* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC :CE, IEC

4. Model General Specification

No. Item Specification Remarks

1 Market EU(PAL Market-36Countries) DTV & Analog (Total 36 countries)

DTV (MPEG2/4, DVB-T) : 31 countries

(England/Italy/Germany/France/Spain/Sweden/Finland/Netherlands/Belgium/Luxemburg/

Greece/Denmark/Czech/Austria/Hungary/Swiss/Croatia/Turkey/Norway/Slovenia/Poland/

Ukraine/Portugal/Ireland/Morocco/Latvia/Estonia/Lithuania/Rumania/Russia/Slovakia)

DTV (MPEG2/4, DVB-T2): 5 countries (England/Denmark/Sweden/Finland/Norway)

DTV (MPEG2/4, DVB-C): 10 countries

Sweden/Finland/Austria/Swiss/Germany/Netherlands/Hungary/Slovenia/Norway/Denmark

DTV (MPEG2/4,DVB-S): 31 countries

Albania/Austria/Belgium/Bosnia/Bulgaria/Croatia/Czech/Estonia/France/Germany/Greece/

Hungary/Ireland/Italy/Kazakhstan/Latvia/Lithuania/Luxembourg/Morocco/Netherlands/Poland/

Portugal/Romania/Russia/Serbia/Slovenia/Spain/Slovakia/Switzerland/Turkey/Ukraine

Analog Only - 5 countries (Bosnia/Serbia/Bulgaria/Albania/Kazakhstan)

Supported satellite : 22 satellites

HISPASAT 1C/1D, ATLANTIC BIRD 2, NILESAT 101/102, ATLANTIC BIRD 3, AMOS 2/3,

THOR 5/6, IRIUS 4, EUTELSAT-W3A, EUROBIRD 9A, EUTELSAT-W2A, HOTBIRD 6/8/9,

EUTELSAT-SESAT, ASTRA 1L/H/M/KR, ASTRA 3A/3B, BADR 4/6, ASTRA 2D, EUROBIRD

3, EUTELSAT-W7, HELLASSAT 2, EXPRESS AM1, TURKSAT 2A/3A, INTERSAT10

2 Broadcasting system 1) PAL-BG

2) PAL-DK

3) PAL-I/I’

4) SECAM L/L’, DK, BG, I

5) DVB-T

6) DVB-C

7) DVB-T2

8) DVB-S DVB-S :Satellite

- 5 -

Only for training and service purposes

No. Item Specification Remarks

3 Receiving system Analog : Upper Heterodyne

G DVB-T

Digital : COFDM , QAM - Guard Interval(Bitrate_Mbit/s)

1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate

QPSK : 1/2, 2/3, 3/4, 5/6, 7/8

16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

G DVB-T2

- Guard Interval(Bitrate_Mbit/s)

1/4,1/8,1/16,1/32,1/128,19/128,19/256,

- Modulation : Code Rate

QPSK : 1/2, 2/5, 2/3, 3/4, 5/6

16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

G DVB-C

- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s

- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM

G DVB-S

- Symbolrate

DVB-S2 (8PSK/ QPSK) : 2 ~ 45 Msymbol/s

DVB-S (QPSK) : 2~ 45 Msymbol/s

-viterbi

DVB-S mode :1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2 mode : 1/2, 23, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

Scart Gender Jack(1EA)

PAL, SECAM

Scart Jack is Full scart and support MNT/DTV-OUT, DTV Recording(not support DTV Auto AV)

5 Video Input RCA(2EA) PAL, SECAM, NTSC 4System : PAL, SECAM, NTSC, PAL60

Rear 1EA, AV gender jack 1EA

6 Head phone out Antenna, AV1, AV2, AV3,

Component, RGB, HDMI1, HDMI2,

HDMI3, HDMI4 USB

7 Component Input(1EA) Y/Cb/Cr, Y/Pb/Pr Component Gender 1EA

8 RGB Input RGB-PC Analog(D-SUB 15PIN)

9 HDMI Input (4EA) HDMI1-DTV/DVI PC(HDMI version 1.3)

HDMI2-DTV Support HDCP

HDMI3-DTV

HDMI4-DTV

10 Audio Input (4EA) RGB/DVI Audio, Component, AV1, 2 L/R Input

11 SDPIF out (1EA) SPDIF out

12 USB (2EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD

- USB current : max 500 mA

- USB voltage : 4.75 V - 5.25 V

13 Wireless jack (1EA) 24V power & control Voltage : 24 V, Power : max 8 W

- 6 -

Only for training and service purposes

5. Component Video Input (Y, CB/PB, CR/PR)

No.

Specification

Remark

Resolution H-freq(kHz) V-freq(Hz)

1. 720x480 15.73 60.00 SDTV,DVD 480i

2. 720x480 15.63 59.94 SDTV,DVD 480i

3. 720x480 31.47 59.94 480p

4. 720x480 31.50 60.00 480p

5. 720x576 15.625 50.00 SDTV,DVD 625 Line

6. 720x576 31.25 50.00 HDTV 576p

7. 1280x720 45.00 50.00 HDTV 720p

8. 1280x720 44.96 59.94 HDTV 720p

9. 1280x720 45.00 60.00 HDTV 720p

10. 1920x1080 31.25 50.00 HDTV 1080i

11. 1920x1080 33.75 60.00 HDTV 1080i

12. 1920x1080 33.72 59.94 HDTV 1080i

13. 1920x1080 56.250 50 HDTV 1080p

14. 1920x1080 67.5 60 HDTV 1080p

No.

Specification

Proposed Remarks

Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz

-> 640*480 60 Hz Display

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1360*768 47.72 59.8 84.75 WXGA

6. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

6. RGB (PC)

- 7 -

Only for training and service purposes

7. HDMI Input

(1) DTV Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3. 800*600 37.879 60.31 40.00 VESA HDCP

4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5. 1360*768 47.72 59.8 84.75 WXGA HDCP

6. 1280*1024 63.595 60.0 108.875 SXGA HDCP/FHD model

7. 1920*1080 67.5 60.00 138.625 WUXGA HDCP/FHD model

(2) PC Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

- 8 -

Only for training and service purposes

8. 3D Mode

(1) HDMI Input (1.4a)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1920*1080 53.95 / 54 23.98 / 24 148.35/148.5 HDTV 1080P Frame packing

2 1280*720 89.9 / 90 59.94/60 148.35/148.5 HDTV 720P Frame packing

3 1280*720 75 50 148.5 HDTV 720P Frame packing

4 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom

5 1920*1080 56.3 50 148.5 HDTV 1080P Side by Side(half), Top and bottom

6 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom

7 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom

8 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom

9 1920*1080 28.1 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom

10 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top and Bottom

11 1920*1080 33.7 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom

2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom

4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom

5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom,

Checkerboard

6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom,

Checkerboard

7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom,

Checkerboard, Single Frame Sequential

8 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side, Top & Bottom,

Checkerboard, Single Frame Sequential

(2) HDMI Input (1.3)

(3) RF 3D Input(DTV)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

2 1920*1080 28.125 50 74.25 HDTV 1080I Side by Side, Top & Bottom

(4) USB Input

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1920*1080 33.75 30.000 74.25 Side by Side HDTV 1080P

Top & Bottom

Checkerboard

- 9 -

Only for training and service purposes

(7) 3D Input mode

(5) RGB-PC Input

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side, Top & Bottom

(6) DLNA

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1920*1080 33.75 30 HDTV 1080P Side by Side, Top & Bottom,

Checkerboard

No. Side by Side Top & Bottom Checkerboard Single Frame Sequential Frame Packing

- 10 -

Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED LCD TV with LD12E chassis.

2. Designation

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ºC ± 5 ºC of temperature and 65 % ± 10 % of relative humidity if there is no specific designation.

(4) The input voltage of the receiver must keep AC 100-240

V~ 50 / 60Hz. (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15.

In case of keeping module is in the circumstance of 0 °C, it should be placed in the circumstance of above 15 °C for 2 hours

In case of keeping module is in the circumstance of below 20 °C, it should be placed in the circumstance of above 15 °C for 3 hours.

[Caution] When still image is displayed for a period of 20 minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Automatic Adjustment

3.1. ADC Adjustment

(1) Overview

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation. * If Adjust ADC is “OTP”, It doesn’t need ADC adjustment.

(GP3-BCM)

(2) Equipment & Condition

1) Jig (RS-232C protocol)

2) MSPG-925 Series Pattern Generator(MSPG-925FA, pattern - 65)

- Resolution : 480i Comp1 1080P Comp1 1920*1080 RGB

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

(3) Adjustment

1) Adjustment method

- Using RS-232, adjust items in the other shown in “3.1.(3).3)”

2) Adj. protocol

Ref.) ADC Adj. RS232C Protocol_Ver1.0

3) Adj. order

- aa 00 00 [Enter ADC adj. mode]

- xb 00 04 [Change input source to Component1(480i&1080p)]

- ad 00 10 [Adjust 480i Comp1]

- xb 00 06 [Change input source to RGB(1024*768)]

- ad 00 10 [Adjust 1024*768 RGB]

- ad 00 90 End adj.

3.2. MAC Address

(1) Equipment & Condition

- Play file: Serial.exe

- MAC Address edit

- Input Start / End MAC address

(2) Download method

1) Communication Prot connection

Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40 b 00 OK40x (Adjust 480i, 1080p Comp1 )

xb 00 60 b 00 OK60x (Adjust 1920*1080 RGB)

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

NGx (Case of Fail)

Read adj. data (main) (main)

ad 00 20 000000000000000000000000007c007b006dx

(sub) (Sub)

ad 00 21 000000070000000000000000007c00830077x

Confirm adj. ad 00 99 NG 03 00x (Fail)

NG 03 01x (Fail)

NG 03 02x (Fail)

OK 03 03x (Success)

End adj. aa 00 90 a 00 OK90x

PCBA

PC(RS-232C)

RS-232C Po rt

- 11 -

Only for training and service purposes

2) MAC Address Download

- Com 1,2,3,4 and 115200(Baud rate)

- Port connection button click(1)

- Load button click(2) for MAC Address write.

- Start MAC Address write button(3)

- Check the OK Or NG

3.3. LAN Inspection

(1) Equipment & Condition

A Each other connection to LAN Port of IP Hub and Jig

(2) LAN inspection solution

A LAN Port connection with PCB A Network setting at MENU Mode of TV A setting automatic IP A Setting state confirmation

-> If automatic setting is finished, you confirm IP and MAC Address.

3.4. LAN PORT INSPECTION(PING TEST)

Connect SET -> LAN port == PC -> LAN Port

(1) Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program. *IP Number : 12.12.2.2

(2) LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) Connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) Remove LAN CABLE

3.5. Model name & Serial number Download

(1) Model name & Serial number D/L

A Press “Power on” key of service remote control.(Baud

rate : 115200 bps)

A Connect RS232 Signal Cable to RS-232 Jack. A Write Serial number by use RS-232. A Must check the serial number at Instart menu.

(2) Method & notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing

Technology Group.

C.Serial number D/L must be conformed when it is

produced in production line, because serial number D/L is mandatory by D-book 4.0

SET PC

- 12 -

Only for training and service purposes

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded by OTA or service man, sometimes model name or serial number is initialized.(Not always) There is impossible to download by bar code scan, so It need Manual download. a. Press the ‘instart’ key of ADJ remote control. b. Go to the menu ‘5.Model Number D/L’ like below photo. c. Input the Factory model name(ex 42LW950-ZA) or Serial

number like photo.

d. Check the model name Instart menu -> Factory name

displayed (ex 42LW750S-ZA)

e. Check the Diagnostics (DTV country only) -> Buyer model

displayed (ex 42LW750S-ZA)

3.6. CI+ Key Download method

3.6.1. Download Procedure (1) Press "Power on" button of a Service Remote control.

(Baud rate : 115200 bps) (2) Connect RS232-C Signal Cable. (3) Write CI+ Key through RS-232-C. (4) Check whether the key was downloaded or not at ‘In Start’

menu. (Refer to below).

=> Check the Download to CI+ Key value in LGset.

3.6.2. Check the method of CI+ Key value (1) check the method on Instart menu (2) check the method of RS232C Command

1) into the main ass’y mode (RS232 : aa 00 00)

2) check the key download for transmitted command (RS232 : ci 00 10)

3) result value

- normally status for download : OKx

- abnormally status for download : NGx

3.6.3. Check the method of CI+ Key value (RS232)

1) into the main ass’y mode (RS232 : aa 00 00)

2) Check the method of CI+ key by command (RS232 : ci 00 20)

3) Result value

i 01 OK 1d1852d21c1ed5dcx

3.7. Widevine Key Download method

3.7.1. Widevine key Download (1) Press "Power on" button of a Service Remote control

(Baud rate : 115200 bps) (2) Connect RS232-C Signal Cable. (3) Write Widevine Key through RS-232-C. (4) Check whether the key was downloaded or not at ‘In Start’

menu. (Refer to below).

=> Check the Download to Widevine Key value in LGset.

3.7.2. check the method of Widevine Key value. (1) Check the method on Instart menu. (2) Check the method of RS232C Command.

1) into the main ass’y mode (RS232 : aa 00 00)

2) Check the key download for transmitted command (RS232 : ci 00 10)

3) result value

- normally status for download : OKx

- abnormally status for download : NGx

3.7.3 check the method of Widevine Key value (RS232)

1) into the main ass’y mode (RS232 : aa 00 00)

2) Check the method of Widevine key by command (RS232 : ci 00 20)

3) result value

i 01 OK 1d1852d21c1ed5dcx

CMD 1 CMD 2 Data 0

AA00

CMD 1 CMD 2 Data 0

CI10

CMD 1 CMD 2 Data 0

AA00

CMD 1 CMD 2 Data 0

CI20

CMD 1 CMD 2 Data 0

CI20

CI+ key Value

CMD 1 CMD 2 Data 0

AA00

CMD 1 CMD 2 Data 0

CI10

CMD 1 CMD 2 Data 0

AA00

Widevine key Value

- 13 -

Only for training and service purposes

3.8. Mac+Widevine+GP3 BCM CI+ download

3.8.1 Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

3.8.2 MAC Address, CI Plus key and Widevine Key write. 11Y LCD TV + MAC + Widevine + GP3_BCM CI Plus

(1) Equipment setting

- Play file: keydownload.exe

- select the download items.(MARLIN)

(2) Communication Prot connection

- Key Write :Com 1,2,3,4 and 115200(Baudrate)

- Barcode : Com 1,2,3,4 and 9600(Baudrate) (3) Mode check: Online Only (4) Check the test process: DETECT -> MAC -> CI ->

WIDEVINE (5) Play: START (6) Result: Ready, Test, OK or NG

3.9. LNB voltage and 22KHz tone check

- only for DVB-S/S2 model (1) Test method

1) Press "Power on" button of a service Remote control. (Baud rate : 115200 bps)

2) Connect cable between satellite ANT and test JIG.

3). Connect RS232-C Signal Cable.

4) Write LNB ON control command through RS-232-C.

5) check LED light ‘ON’ at 18V menu.

6) check LED light ‘ON’ at 22KHz tone menu.

7) Write LNB OFF control command through RS-232-C.

8) check LED light ‘OFF’ at 18V menu.

9) check LED light ‘OFF’ at 22KHz tone menu.

(2) RS-232 command for test LNB

(3) Test result

- After send LNB On command, ‘18V LED’ and ‘22KHz

tone LED’ should be ON.

- After send LNB OFF command, ‘18V LED’ and ‘22KHz

tone LED’ should be OFF.

4. Manual Adjustment

4.1. ADC(GP3) Adjustment

4.1.1. Overview

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation.

4.1.2. Equipment & Condition

(1) Adjust Remote control (2) 801GF(802B, 802F, 802R) or MSPG925FA Pattern Generator

- Resolution : 480i, 720*480(MSPG-925FA->Model:209, Pattern:65)-480i 1080p, 1920*1080(MSPG-925FA->Model:225, Pattern:65)-1080p

- Pattern : Horizontal 100 % Color Bar Pattern

- Pattern level: 0.7 ± 0.1 Vp-p

- Image

(3) Must use standard cable

4.1.3. Adjust method

* If Adjust ADC is “OTP”, It doesn’t need ADC adjustment.

(GP3-BM)

(1) ADC 480i, 1080p Comp1

1) Check connected condition of Component 1 cable to the

equipment.

2) Give a 480i, 1080p Mode, Horizontal 100% Color Bar

Pattern to Component 1.

(MSPG-925FA -> Model: 209, Pattern: 65) - 480i (MSPG-925FA -> Model: 225, Pattern: 65) - 1080p

3) Change input mode as Component 1 and picture mode

as “Standard”

4) Press the In-start Key on the ADJ remote after at least 1

min of signal reception. Then, select 7. External ADC ->

1. COMP 1080p on the menu. Press enter key. The adjustment will start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is

displayed.

If ADC calibration is failure, “ADC RGB Fail” is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or

condition retry calibration Error message refer to 5).

(2) ADC 1920*1080 RGB

1) Check connected condition of Component & RGB cable

to the equipment

2) Give a 1920*1080 Mode, 100 % Horizontal Color Bar

Pattern to RGB port.

(MSPG-925 Series -> model: 225 , pattern: 65 )

3) Change input mode as RGB and picture mode as “Standard”.

4) Press the In-start Key on the ADJ remote after at least 1

min of signal reception. Then, select 7. External ADC ->

1. COMP 1080p on the menu. Press enter key. The adjustment will start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is

displayed.

If ADC calibration is failure, “ADC RGB Fail” is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or

condition retry calibration Error message refer to 5).

PCBA Power ON Check

Result

Play

MARLIN Key : MAC + CI + WIDEVINE

Com Port Check

CI + Key Write

WIDEVINE Key Write

MAC Address Write

Command Set ACK

LNB On [A][I][ ][Set ID][ ][30][Cr] [O][K][x] or NG : [N][G][x]

LNB Off [A][I][ ][Set ID][ ][40][Cr] [O][K][x] or NG : [N][G][x]

- 14 -

Only for training and service purposes

4.2. EDID(The Extended Display Identification Data)/DDC(Display Data Channel) download

(1) Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

(2) Equipment

- Adjust remote control

- Since embedded EDID data is used, EDID download JIG, HDMI cable and D-sub cable are not need.

(3) Download method

1) Press Adj. key on the Adj. R/C, then select “10.EDID

D/L”, By pressing Enter key, enter EDID D/L menu.

2) Select [Start] button by pressing Enter key, HDMI1/

HDMI2/ HDMI3/ RGB are Writing and display OK or NG.

(4) EDID DATA_3D

A HDMI

A RGB

(5) EDID DATA_2D

A HDMI

A RGB

A Reference

- HDMI1 ~ HDMI4 / RGB

- In the data of EDID, bellows may be different by S/W or Input mode.

ⓐ Product ID

ⓑ Serial No. : Controlled on product line ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’

Year : ‘2010’ -> ‘14’

ⓓ Model Name(Hex):

ⓔ Checksum: Changeable by total EDID data._3D

ⓔ Checksum: Changeable by total EDID data._2D

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C0x0D 0x0E 0x0F

0x00 0 FF FF FF FF FF FF 0 1E 6D ⓐⓑ 0x01 ⓒ 1 3 8010 9 780AEE91A3544C9926

0x02 0F 50 54 A1 8 0 71 40 81 C0 81 0 81 80 95 0

0x03 90 40 A9 C0 B3 0 2 3A 80 18 71 38 2D 40 58 2C

0x04 45 0 A0 5A 0 0 0 1E 66 21 50 B0 51 0 1B 30

0x05 40 70 36 0 A0 5A 0 0 0 1E 0 0 0 FD 0 39 0x06 3F 1F 52 10 0 0A 20 20 20 20 20 20 ⓓ 0x07 ⓓ 1 ⓔ1

0x00 2 3 37 F1 4E 10 1F 84 13 5 14 3 2 12 20 21 0x01 22 15 1 26 15 7 50 9 57 7 ⓕ 0x02 ⓕ 0x03 ⓕ E3 5 3 1 1 1D 80 18 71 1C 16 20 58

0x04 2C 25 0 A0 5A 0 0 0 9E 1 1D 0 80 51 D0 1A

0x05 20 6E 88 55 0 A0 5A 0 0 0 1A 2 3A 80 18 71

0x06 38 2D 40 58 2C 45 0 A0 5A 0 0 0 1E 0 0 0 0x07 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ⓔ2

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C0x0D 0x0E 0x0F

0x00 0 FF FF FF FF FF FF 0 1E 6D ⓐⓑ 0x01 ⓒ 1 3 6810 9 780AEE91A3544C9926

0x02 0F 50 54 A1 8 0 71 40 81 C0 81 0 81 80 95 0

0x03 90 40 A9 C0 B3 0 2 3A 80 18 71 38 2D 40 58 2C

0x04 45 0 A0 5A 0 0 0 1E 66 21 50 B0 51 0 1B 30

0x05 40 70 36 0 A0 5A 0 0 0 1E 0 0 0 FD 0 3A 0x06 3E 1E 53 10 0 0A 20 20 20 20 20 20 ⓓ 0x07 ⓓ 0 ⓔ3

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C0x0D 0x0E 0x0F

0x00 0 FF FF FF FF FF FF 0 1E 6D ⓐⓑ 0x01 ⓒ 1 3 6810 9 780AEE91A3544C99 26

0x02 0F 50 54 A1 8 0 71 40 81 C0 81 0 81 80 95 0

0x03 90 40 A9 C0 B3 0 2 3A 80 18 71 38 2D 40 58 2C

0x04 45 0 A0 5A 0 0 0 1E 66 21 50 B0 51 0 1B 30

0x05 40 70 36 0 A0 5A 0 0 0 1E 0 0 0 FD 0 3A 0x06 3E 1E 53 10 0 0A 20 20 20 20 20 20 ⓓ 0x07 ⓓ 0 ⓔ3

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C0x0D 0x0E 0x0F

0x00 0 FF FF FF FF FF FF 0 1E 6D ⓐⓑ 0x01 ⓒ 1 3 8010 9 780AEE91A3544C99 26

0x02 0F 50 54 A1 8 0 71 40 81 C0 81 0 81 80 95 0

0x03 90 40 A9 C0 B3 0 2 3A 80 18 71 38 2D 40 58 2C

0x04 45 0 A0 5A 0 0 0 1E 66 21 50 B0 51 0 1B 30

0x05 40 70 36 0 A0 5A 0 0 0 1E 0 0 0 FD 0 39 0x06 3F 1F 52 10 0 0A 20 20 20 20 20 20 ⓓ 0x07 ⓓ 1 ⓔ1

0x00 2 3 26 F1 4E 10 1F 84 13 5 14 3 2 12 20 21 0x01 22 15 1 26 15 7 50 9 57 7 67 ⓕ 0x02 ⓕ E3 5 3 1 1 1D 80 18 71 1C 16 20 58 2C

0x03 25 0 A0 5A 0 0 0 9E 1 1D 0 80 51 D0 1A 20

0x04 6E 88 55 0 A0 5A 0 0 0 1A 2 3A 80 18 71 38

0x05 2D 40 58 2C 45 0 A0 5A 0 0 0 1E 66 21 50 B0

0x06 51 0 1B 30 40 70 36 0 A0 5A 0 0 0 1E 0 0 0x07 0 0 0 0 0 0 0 00000000ⓔ2

Model Name HEX EDID Table DDC Function

ALL 0001 0100 Analog

0001 0100 Digital

MODEL MODEL NAME(HEX)

all 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

INPUT 1 2 3

HDMI1 7F CB X

HDMI2 7F BB X

HDMI3 7F AB X

HDMI4 7F 9B X

RGB X X 98

INPUT 1 2 3

HDMI1 7F D9 X

HDMI2 7F C9 X

HDMI3 7F B9 X

HDMI4 7F A9 X

RGB X X 98

- 15 -

Only for training and service purposes

ⓕ Vendor Specific(HDMI)_3D

ⓕ Vendor Specific(HDMI)_2D

4.3. White Balance Adjustment

4.3.1 Overview

(1) W/B adj. Objective & How-it-works (2) Objective: To reduce each Panel’s W/B deviation (3) How-it-works : When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(4) Adj. condition : normal temperature

1) Surrounding Temperature : 25 ºC ± 5 ºC

2) Warm-up time: About 5 Min

3) Surrounding Humidity : 20 % ~ 80 %

* Before White balance adjustment, Keep power on status.

don’t power off.

* ALEF Header(Module with T-con) supplied as SKD has

White Balance data. (White balance data is stored in EEPROM of the T-con Board) It doesn’t need to adjust White balance if “3. Adjust White Balance” is OK as figure below.

4.3.2 Equipment

1) Color Analyzer: CA-210 (LED Module : CH 14)

2) Adj. Computer(During auto adj., RS-232C protocol is needed)

3) Adjust Remote control

4) Video Signal Generator MSPG-925F 720p/216-Gray (Model:204, Pattern:80IRE)

-> Only when internal pattern is not available

A Color Analyzer Matrix should be calibrated using CS-1000

4.3.3. Equipment connection MAP

4.3.4. Adj. Command (Protocol)

- LEN: Number of Data Byte to be sent

- CMD: Command

- VAL: FOS Data value

- CS: Checksum of sent data

- A: Acknowledge Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

A RS-232C Command used during auto-adj.

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj. ja 00 ff -> Adj. data jb 00 c0 ... ... wb 00 1f -> Gain adj. completed

*(wb 00 20(Start), wb 00 2f(completed)) -> Off-set adj.

wb 00 ff -> End white balance auto-adj.

A Adj. Map

Color Analyzer

Comp uter

Pattern Generator

RS- 232C

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

LEN CMD VAL

RS-232C COMMAND Explanation

[CMD ID DATA]

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.(Internal pattern disappears)

ITEM Command Data Range(Hex.) Default(Decimal)

Cmd 1 Cmd 2 Min Max

Cool R-Gain j g 00 C0

G-Gain j h 00 C0

B-Gain j i 00 C0

R-Cut

G-Cut

B-Cut

Medium R-Gain j a 00 C0

G-Gain j b 00 C0

B-Gain j c 00 C0

R-Cut

G-Cut

B-Cut

Warm R-Gain j d 00 C0

G-Gain j e 00 C0

B-Gain j f 00 C0

R-Cut

G-Cut

INPUT MODEL NAME(HEX)

HDMI1 78 03 0C 00 10 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10

HDMI2 78 03 0C 00 20 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10

HDMI3 78 03 0C 00 30 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10

HDMI4 78 03 0C 00 40 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10

INPUT MODEL NAME(HEX)

HDMI1 67 03 0C 00 10 00 B8 2D

HDMI2 67 03 0C 00 20 00 B8 2D

HDMI3 67 03 0C 00 30 00 B8 2D

HDMI4 67 03 0C 00 40 00 B8 2D

- 16 -

Only for training and service purposes

4.3.5. Adjustment method

(1) Auto adjustment method

1) Set TV in adj. mode using POWER ON key.

2) Zero calibrate probe then place it on the center of the Display.

3) Connect Cable (RS-232C)

4) Select mode in adj. Program and begin adjustment.

5) When adjustment is complete (OK Sign), check adjustment status pre mode. (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

A W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

(2) Manual adjustment method

1) Set TV in Adjustment mode using POWER ON

2) Zero Calibrate the probe of Color Analyzer, then place it on the center of LCD module within 10 cm of the surface.

3) Press ADJ key -> EZ adjust using adjustment R/C -> 7. White-Balance then press the cursor to the right key(G).

(When key(G) is pressed 216 Gray internal pattern will be displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192, and the rest will be lowered to meet the desired value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of color temperature.

A If internal pattern is not available, use RF input. In EZ

Adj. menu 7.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

A Adj. condition and cautionary items

1) Lighting condition in surrounding area Surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding.

2) Probe location : Color Analyzer(CA-210) probe should

be within 10 cm and perpendicular of the module surface (80° ~ 100°)

3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked

using no signal or Full-white pattern.

4.3.6. Reference(White Balance Adj. coordinate and temperature)

A Luminance : 204 Gray A Standard color coordinate and temperature using CS-1000

(over 26 inch)

A Standard color coordinate and temperature using CA-210

(CH 14)

4.3.7. White balance table

A Module change color coordinate because of aging time. A Apply under the color coordinate table, for compensated

aging time.

4.4. Wireless function check

Step 1) Connect set and Dongle of Wireless to Cable of HDMI

& TTA 20Pin Step 2) At OSD of SET, check the message like Fig.3 Step 3) Detach Cable of Wireless Dongle

Mode Color Coordination Temp ∆UV

COOL 0.269 0.273 13000 K 0.0000

MEDIUM 0.285 0.293 9300 K 0.0000

WARM 0.313 0.329 6500 K 0.0000

Mode Color Coordination Temp ∆UV

COOL 0.269 ± 0.002 0.273 ± 0.002 13000 K 0.0000

MEDIUM 0.285 ± 0.002 0.293 ± 0.002 9300 K 0.0000

WARM 0.313 ± 0.002 0.329 ± 0.002 6500 K 0.0000

GP2 Aging Time Cool Medium Warm

(Min.) X Y X Y X Y

269 273 285 293 313 329

1 0-2 279 288 295 308 319 338

2 3-5 278 286 294 306 318 336

3 6-9 277 285 293 305 317 335

4 10-19 276 283 292 303 316 333

5 20-35 274 280 290 300 314 330

6 36-49 272 277 288 297 312 327

7 50-79 271 275 287 295 311 325

8 80-149 270 274 286 294 310 324

9 Over 150 269 273 285 293 309 323

Fig. 1

Fig. 3 Connect the Dongle

(Dongle Connection Display)

Fig. 2

Connect

- 17 -

Only for training and service purposes

4.5. EYE-Q function check

Step 1) Turn on TV Step 2) Press EYE key of Adj. R/C Step 3) Cover the Eye Q II sensor on the front of the using

your hand and wait for 6 seconds

Step 4) Confirm that R/G/B value is lower than 10 of the “Raw

Data (Sensor data, Back light)”. If after 6 seconds, R/G/B value is not lower than 10, replace Eye Q II sensor.

Step 5) Remove your hand from the Eye Q II sensor and wait

for 6 seconds.

Step 6) Confirm that “ok” pop up. If change is not seen,

replace Eye Q II sensor.

4.6. Local Dimming Function Check

(1) Turn on TV. (2) At the Local Dimming mode, module Edge Backlight

moving Top to Bottom Back light of IOP module moving. (3) Confirm the Local Dimming mode. (4) Press “exit” key

4.7. Magic Motion Remote control test

- Equipment : RF Remote control for test, IR-KEY-Code

Remote control for test

- You must confirm the battery power of RF-Remote control

before test.(recommend that change the battery per every lot)

- Sequence (test)

1) if you select the ‘start key(Mute)’ on the controller, you can pairing with the TV SET.

2) You can check the cursor on the TV Screen, when select the ‘OK’ key on the controller.

3) You must remove the pairing with the TV Set by select ‘Vol+(STOP)’ key on the controller.

4.8. 3D function test

(Pattern Generator MSHG-600, MSPG-6100 [Support HDMI 1.4]) * HDMI mode No. 872, pattern No. 83)

1) Please input 3D test pattern like below

2) When 3D OSD appear automatically, then select OK key.

3) Don’t wear a 3D Glasses, Check the picture like below.

4.9. LNB voltage and 22 KHz tone check

(only for DVB-S/S2 model) (1) Test method

1) Set TV in Adj. mode using POWER ON.

2) Connect cable between satellite ANT and test JIG.

3) Press Yellow Key (ETC+SWAP) in Adj Remocon to make LNB on.

4) check LED light ‘ON’ at 18V menu.

5) check LED light ‘ON’ at 22KHz tone menu.

6) Press Blue Key (ETC+PIP INPUT) in Adj Remocon to make LNB off.

7) Check LED light ‘OFF’ at 18 V menu.

8) Check LED light ‘OFF’ at 22 KHz tone menu.

(2) Test result

- After press LNB On key, ‘18 V LED’ and ‘22 KHz tone

LED’ should be ON.

- After press LNB OFF key, ‘18 V LED’ and ‘22 KHz tone

LED’ should be OFF.

- 18 -

Only for training and service purposes

4.10. Option selection per country

(1) Overview

- Option selection is only done for models in Non-EU.

- Applied model: LD03D/03E Chassis applied EU model.

(2) Method

1) Press ADJ key on the Adj. Remote Control, then select Country Group Menu.

2) Depending on destination, select Country Group Code 04 or Country Group EU then on the lower Country option, select US, CA, MX. Selection is done using +, or

GF KEY.

4.11. Tool Option selection

- Method : Press Adj. key on the Adj. Remote Control, then select Tool option.

4.12. Ship-out mode check(In-stop)

After final inspection, press IN-STOP key of the Adj. R/C and check that the unit goes to Stand-by mode.

5. GND and Internal Pressure check

5.1. Method

1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically. (Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

5.2. Checkpoint

• TEST voltage

- GND: 1.5 KV/min at 100 mA

- SIGNAL: 3 KV/min at 100 mA

• TEST time: 1 second

• TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE & NEUTRAL

• LEAKAGE CURRENT: At 0.5 mArms

6. Audio

Measurement condition:

1. RF input: Mono, 1 KHz sine wave signal, 100 % Modulation

2. CVBS, Component: 1 KHz sine wave signal 0.4 Vrms

3. RGB PC: 1 KHz sine wave signal 0.7 Vrms

7. USB S/W Download (option, Service only)

1) Put the USB Stick to the USB socket

2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low, it didn’t work. But your downloaded version is High, USB data is automatically detecting

3) Show the message “Copying files from memory”

4) Updating is starting.

5) Updating Completed, The TV will restart automatically

6) If your TV is turned on, check your updated version and Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1) Push "IN-START" key in service remote control.

2) Select "Tool Option 1" and Push “OK” button.

3) Push in the number. (Each model has their number.)

No. Item Min. Typ. Max. Unit

1. Audio practical max 9 10 12 W EQ Off

Output, L/R AVL Off

(Distortion=10 % 0.5 Vrms Clear Voice Off

max Output)

2. Speaker (8 Ω 9 10.0 12.0 W EQ On

Impedance) AVL On

Clear Voice On

- 19 -

Only for training and service purposes

DISASSEMBLY

1 2

Loosen 4 screws that bind Stand Assembly and set. Disassemble 18 screws around the 4 edges of set after

separation Stand Assembly.

3 4

Disassemble 4 VESA screws. Disassemble 3 screws that fix Side AV bracket and Back

cover.

5 6

Disassemble 1 screw which bind Main Board and Back cover.

Detach Power cord Cover from the Back cover.

- 20 -

Only for training and service purposes

7 8

Push the latch to get Power cord out of the set. Remove the Back cover.

Push the Panel aside and bend Cabinet back. Take the Panel out of Cabinet by detaching latch.

Disconnect cables of Soft touch PCB, Motion PCB, Speaker from Main board.

- 21 -

Only for training and service purposes

BLOCK DIAGRAM

+ 49 hidden pages
