Page 1
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LD0AZ
MODEL : 47LV355H 47LV355H-ZA
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL67180605 (1111-REV00)
Page 2
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION ................................................................ 8
BLOCK DIAGRAM...................................................................................14
EXPLODED VIEW .................................................................................. 15

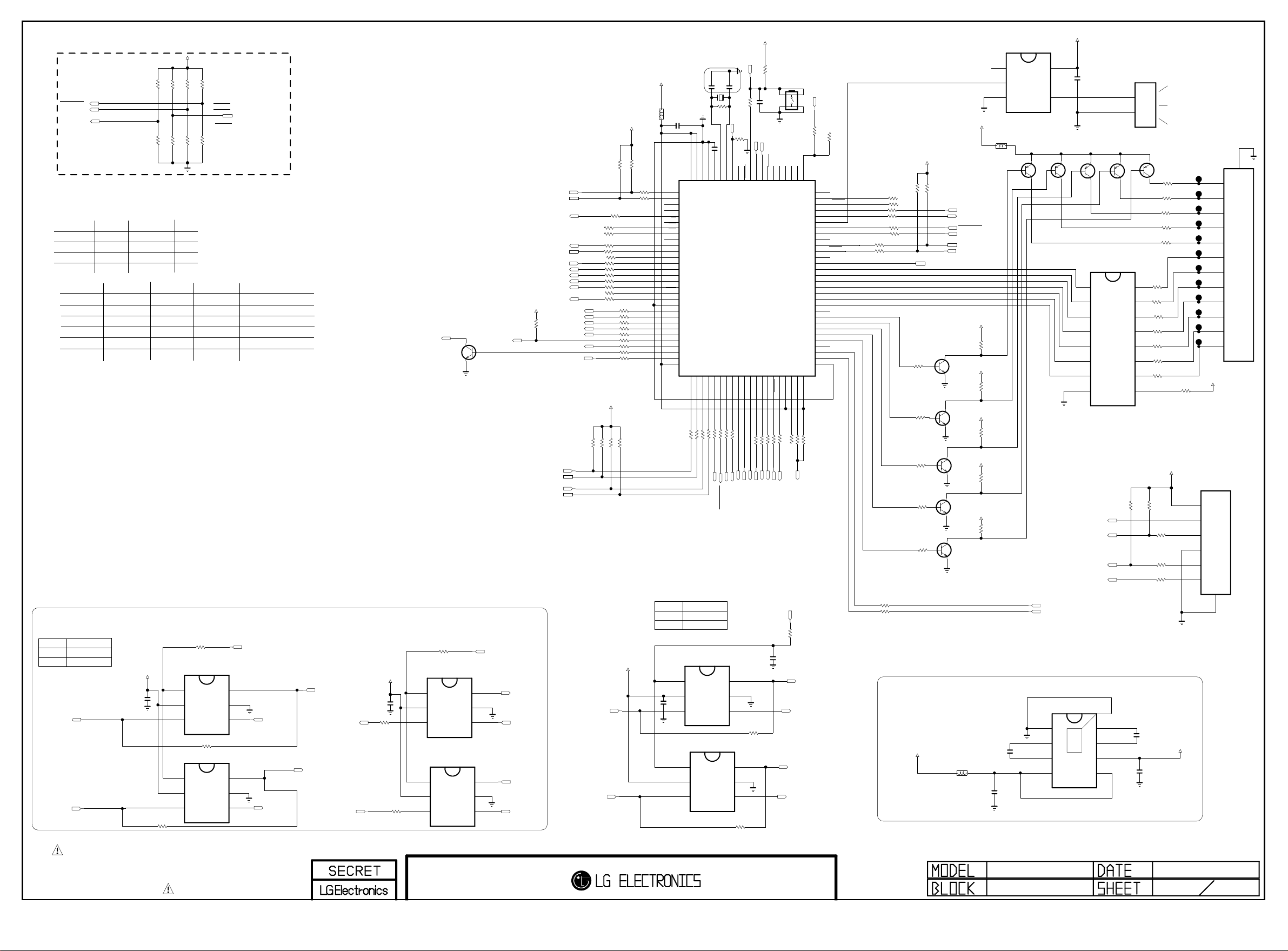

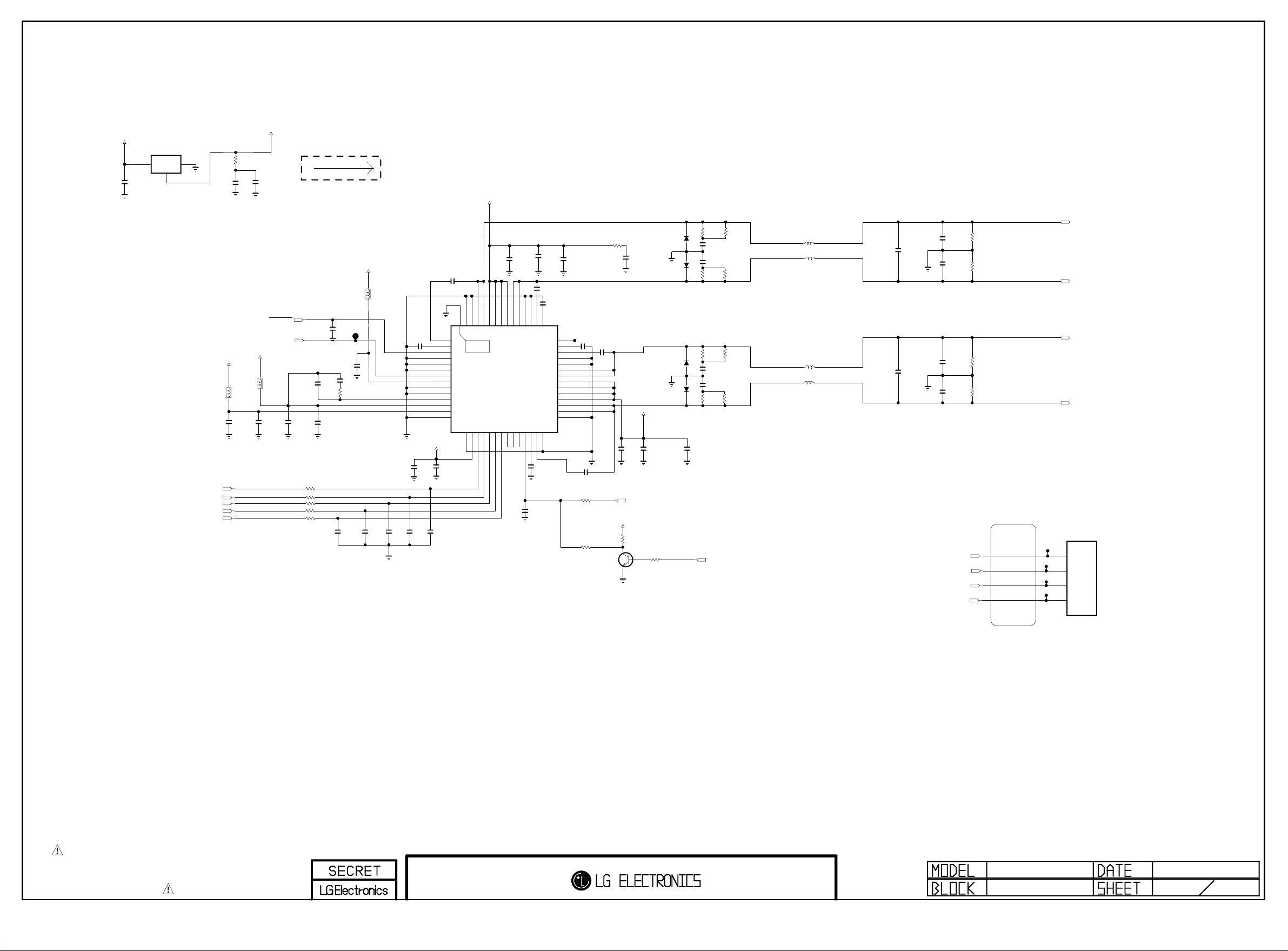

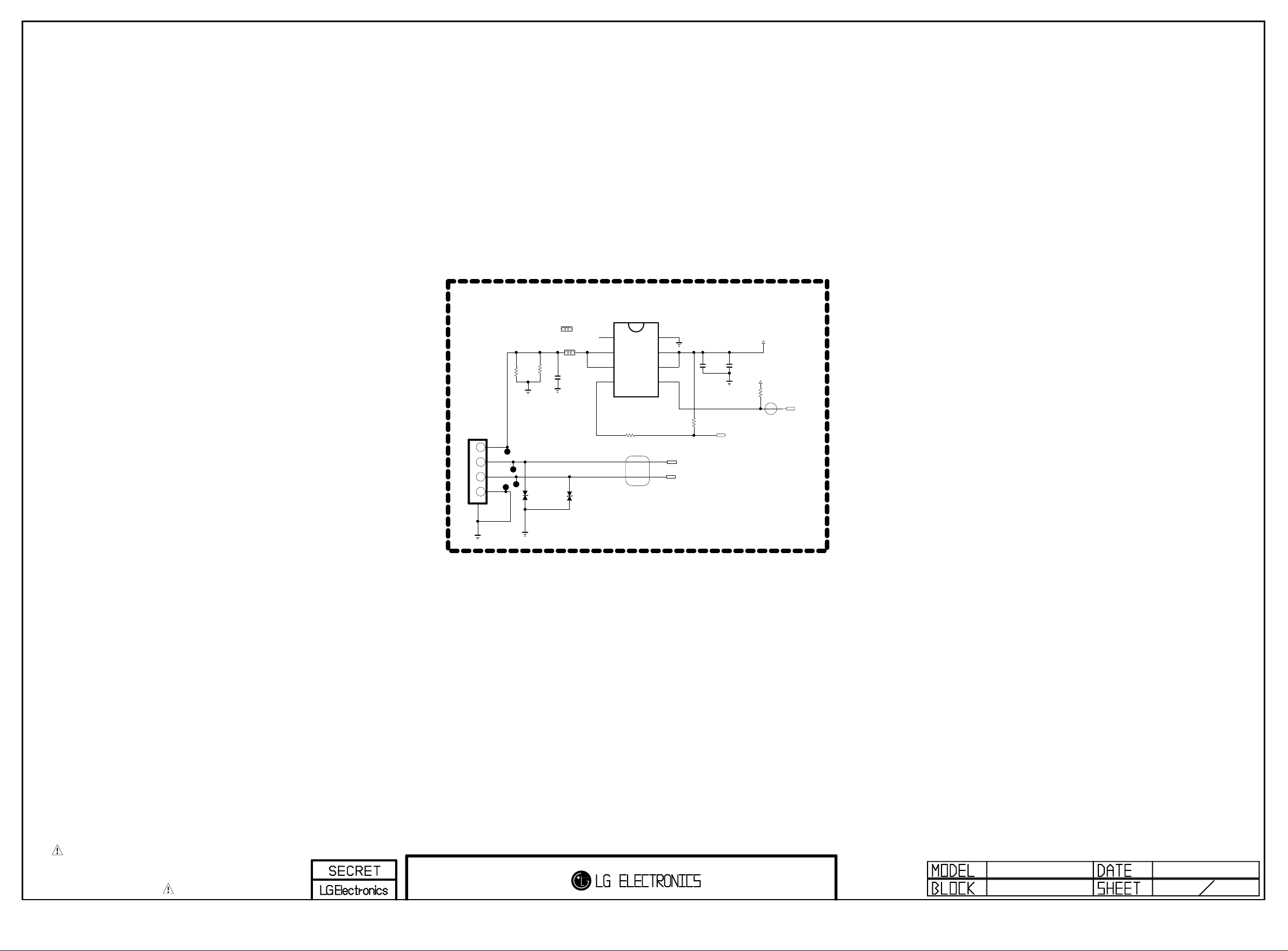

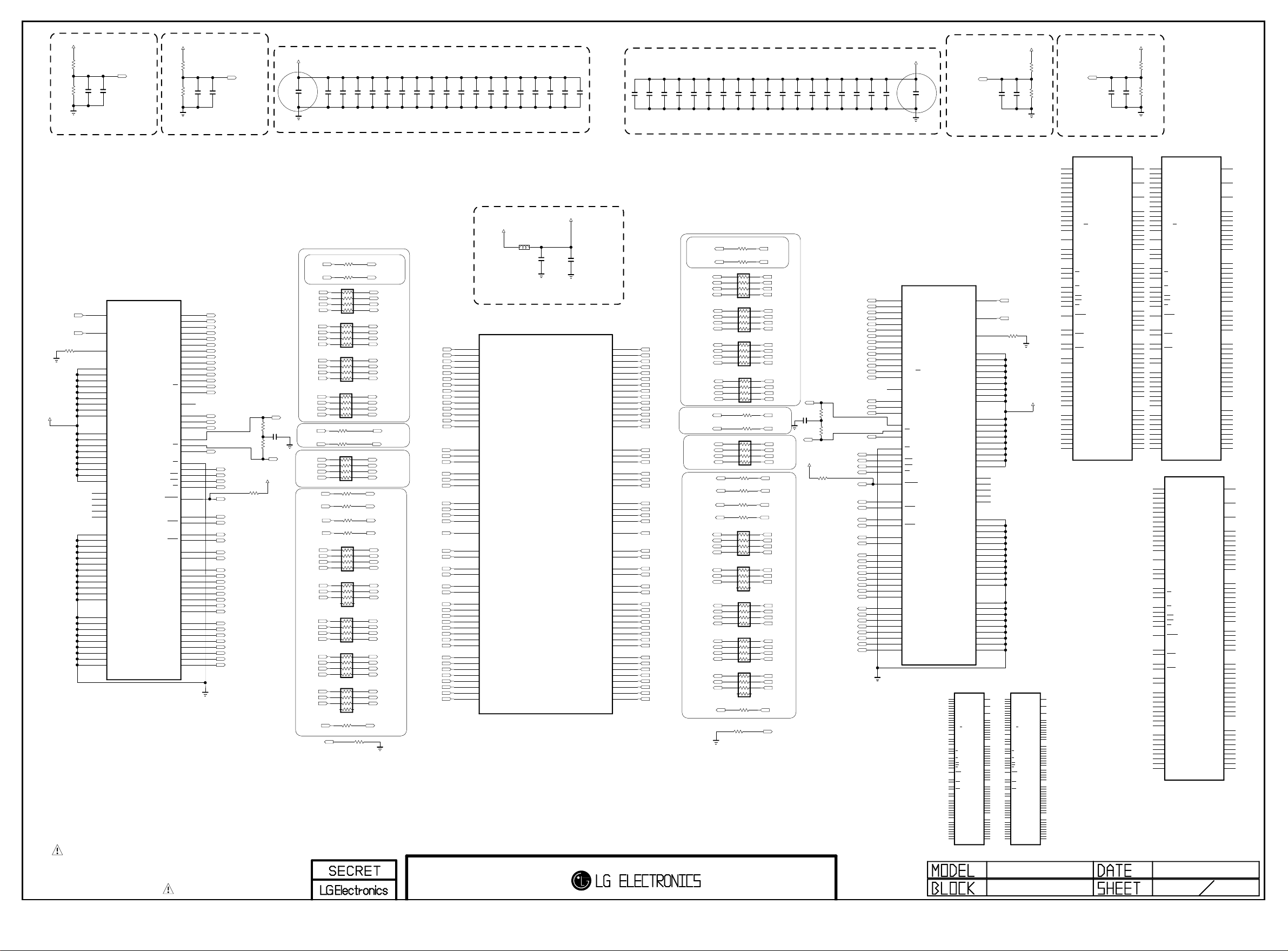

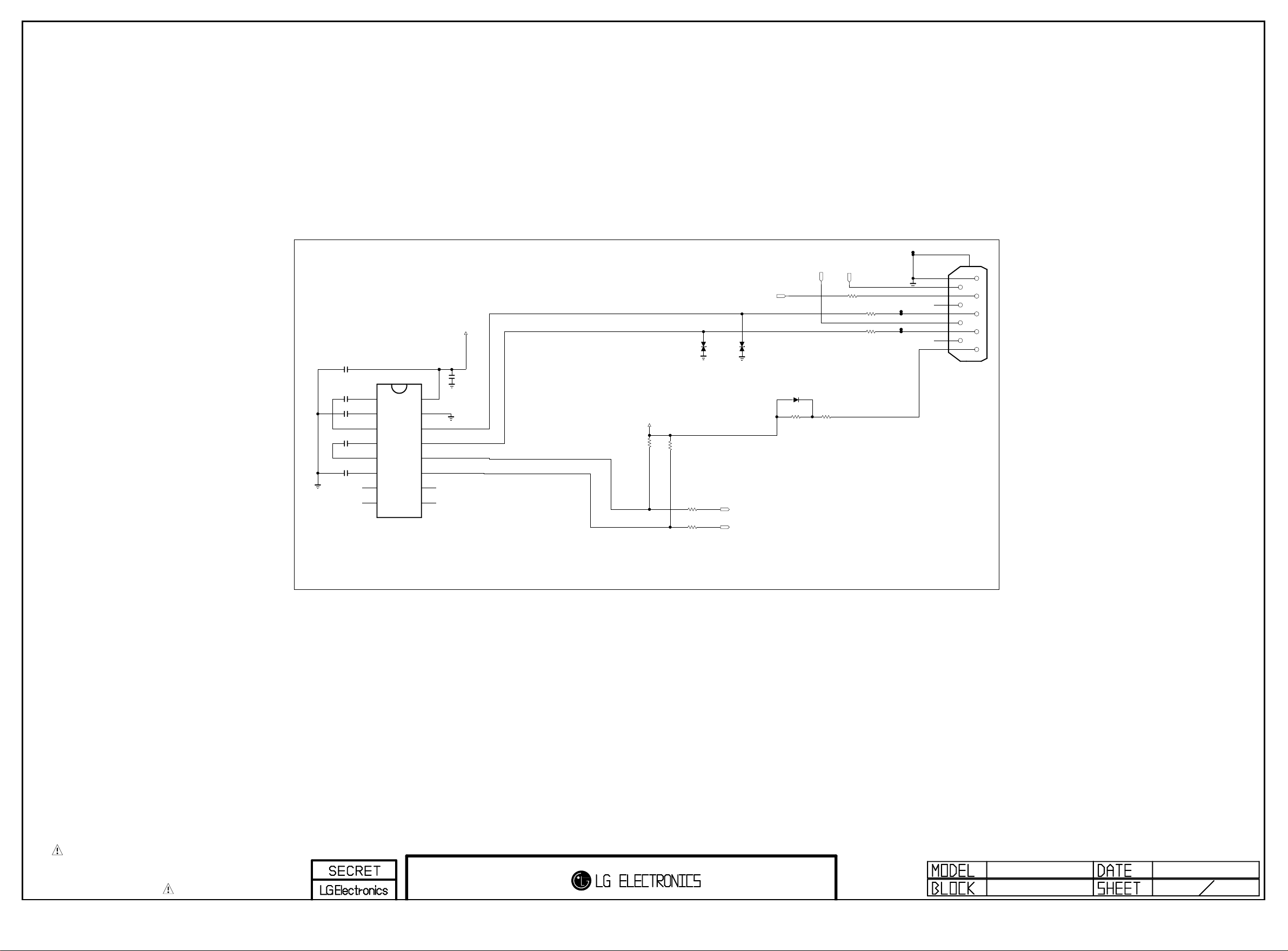

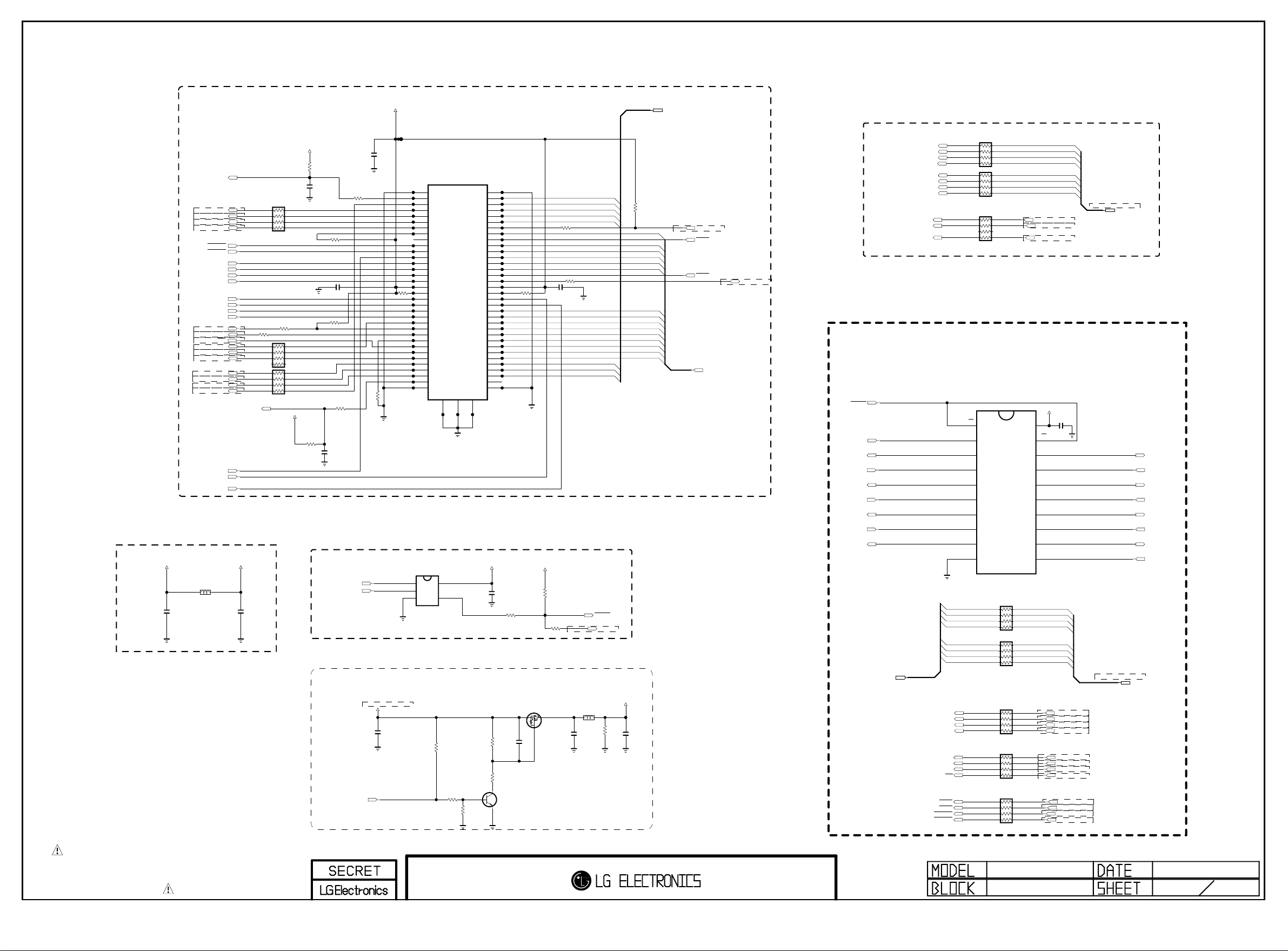

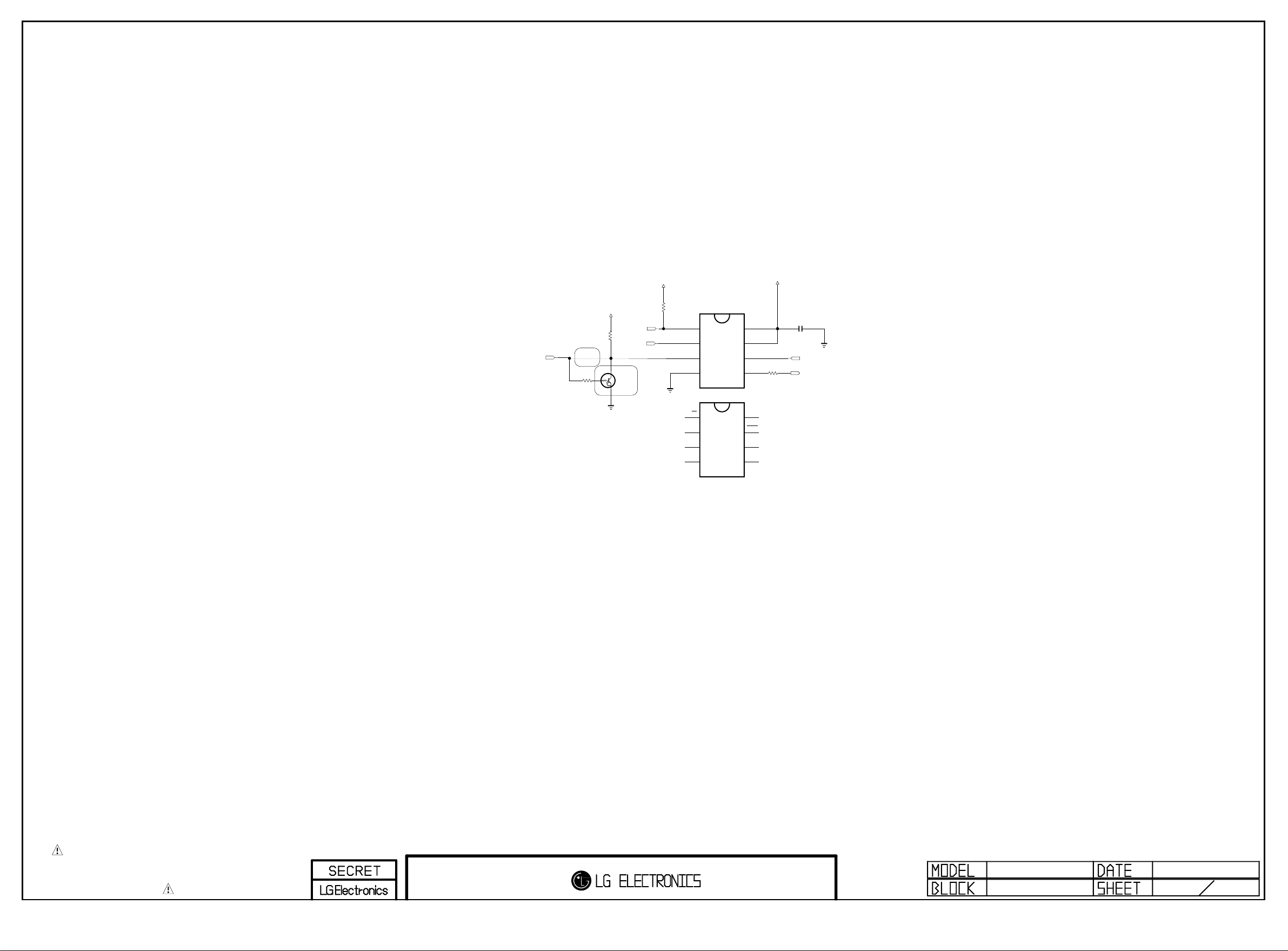

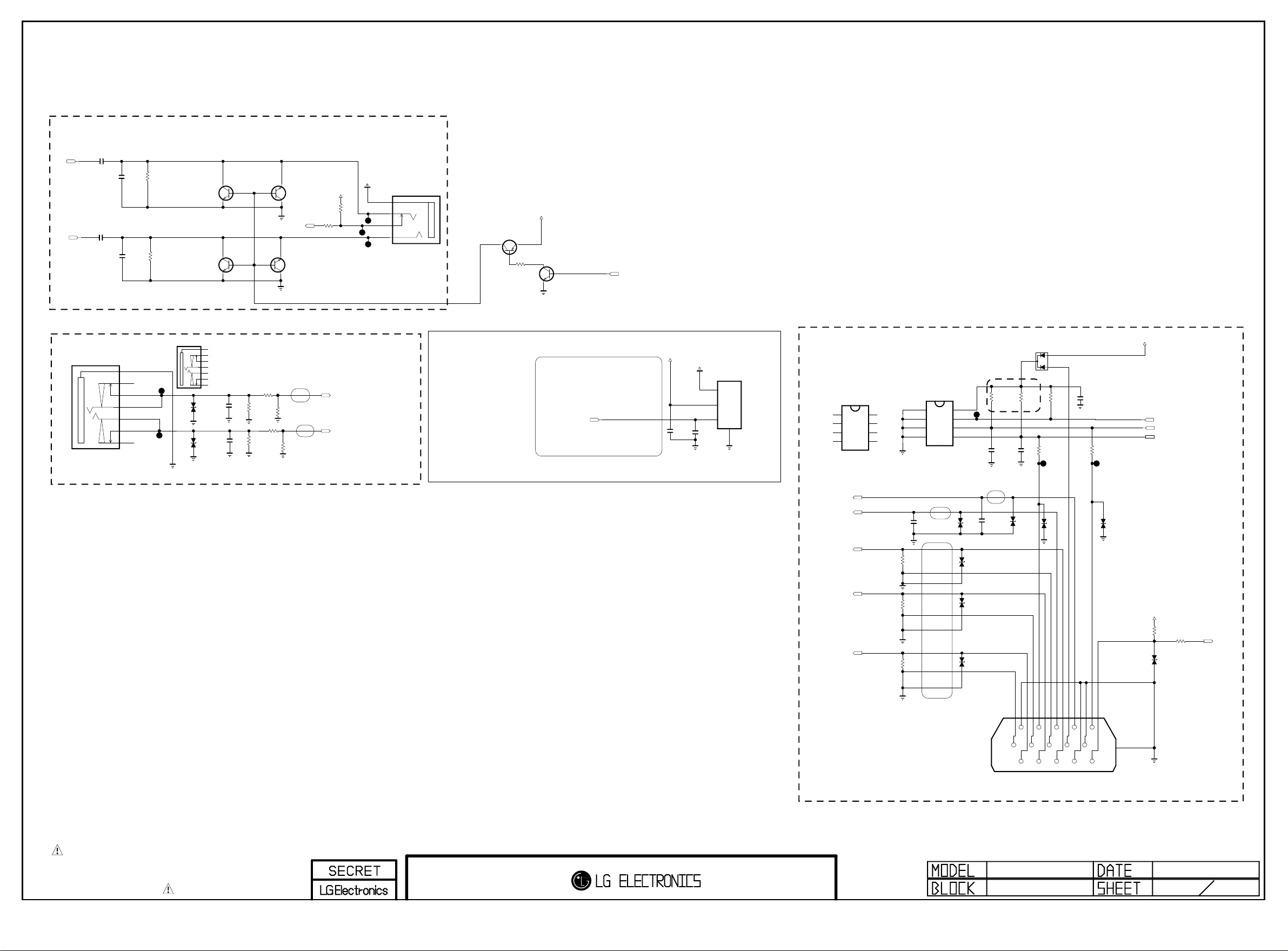

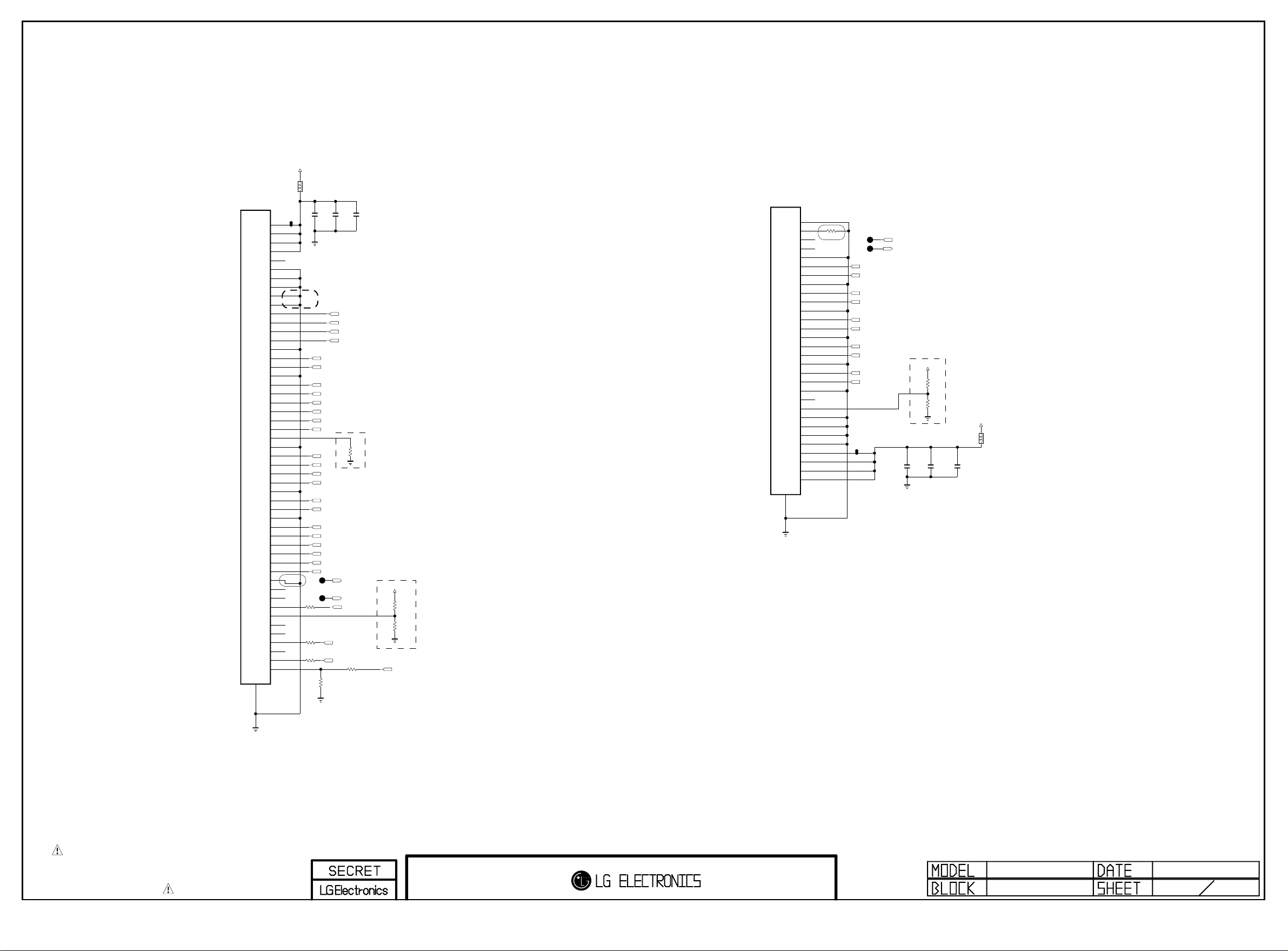

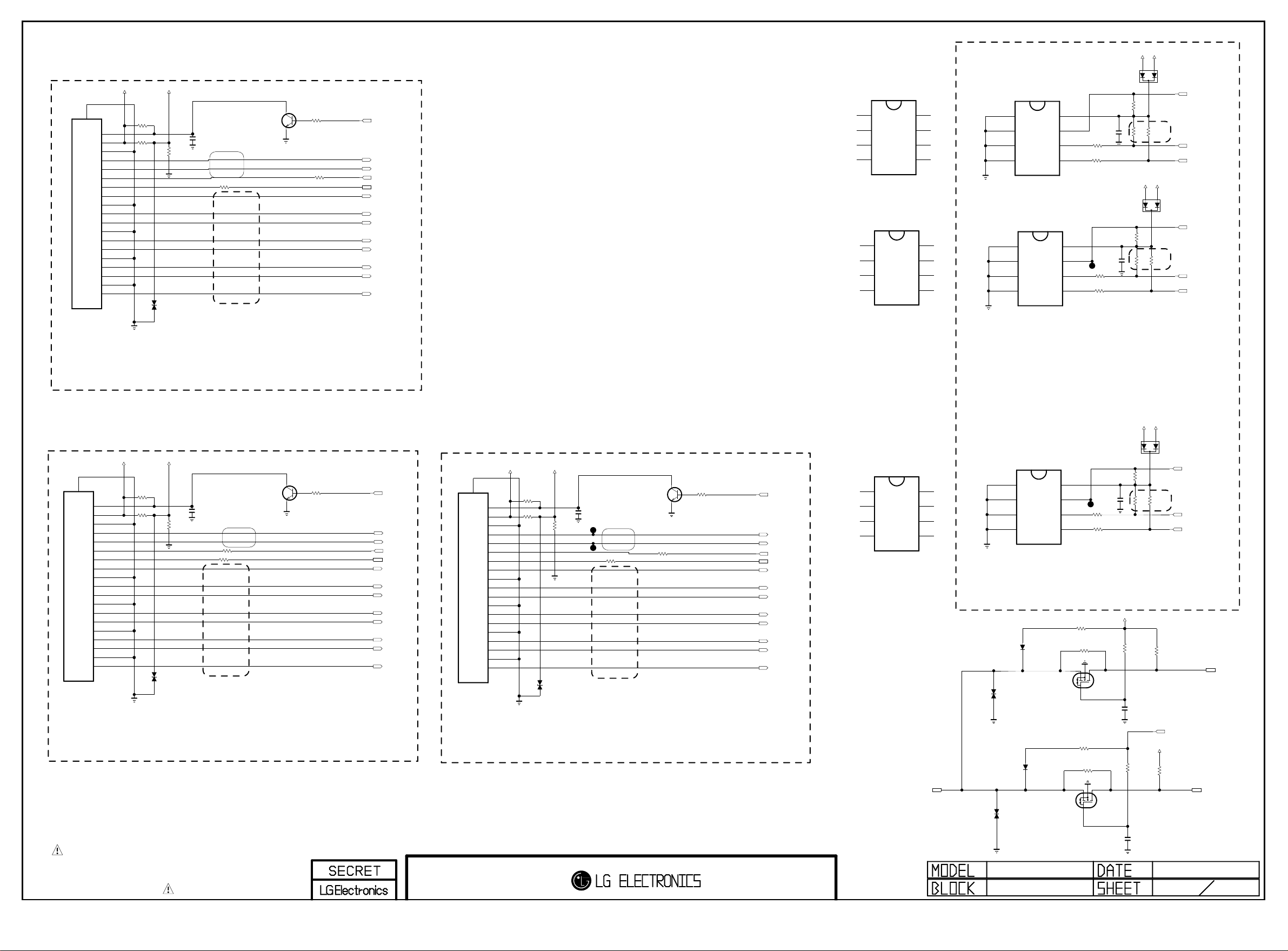

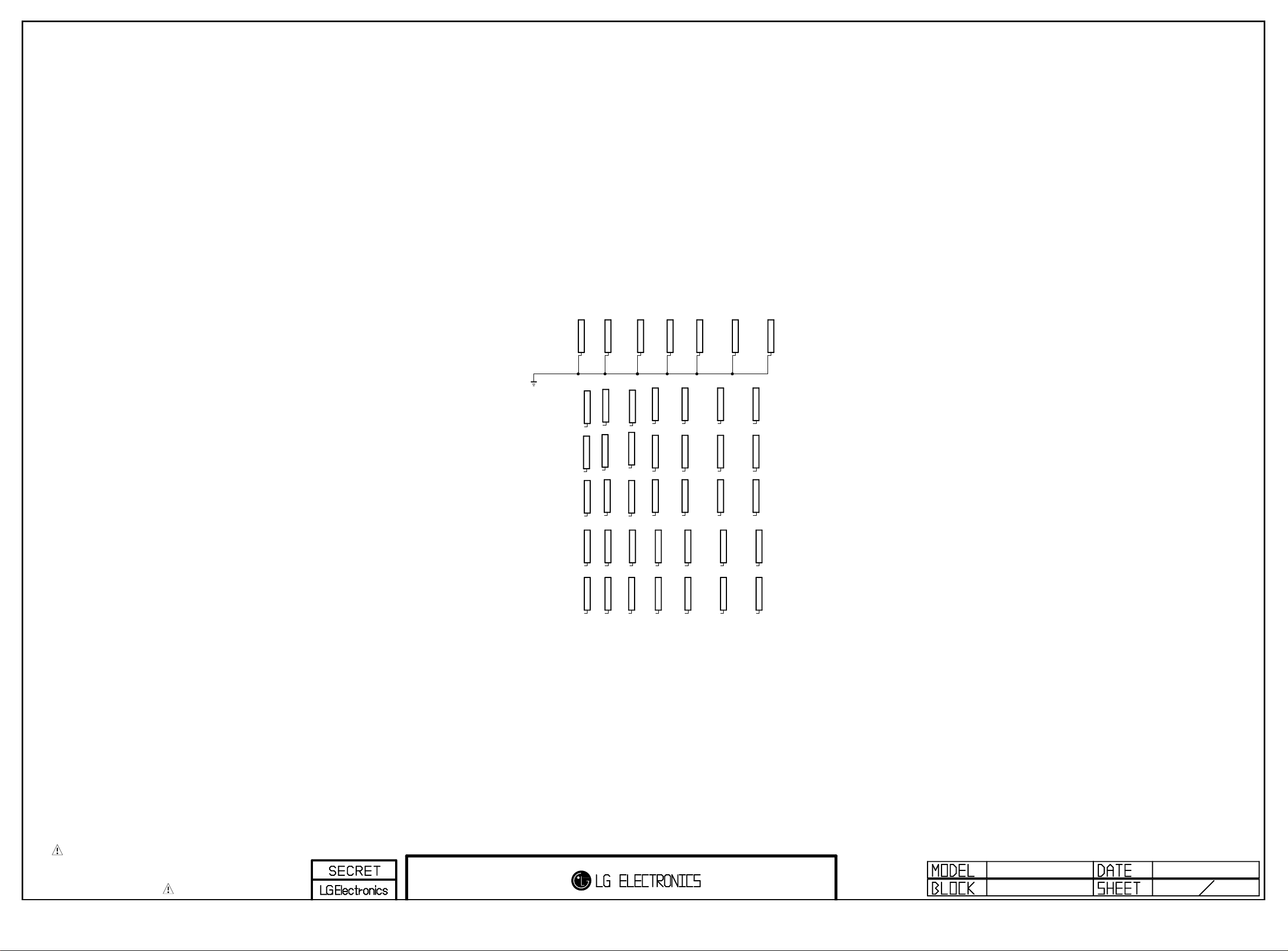

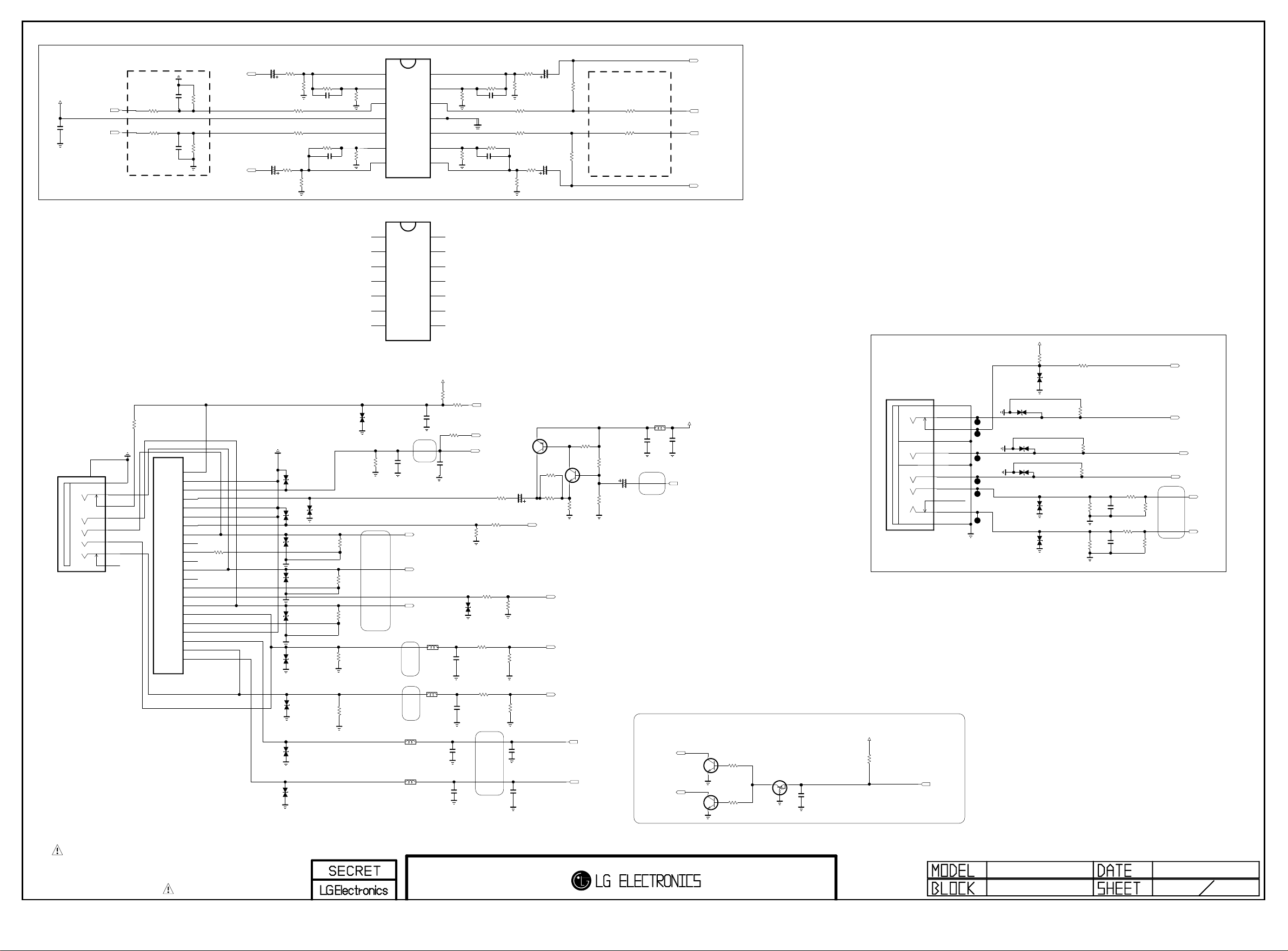

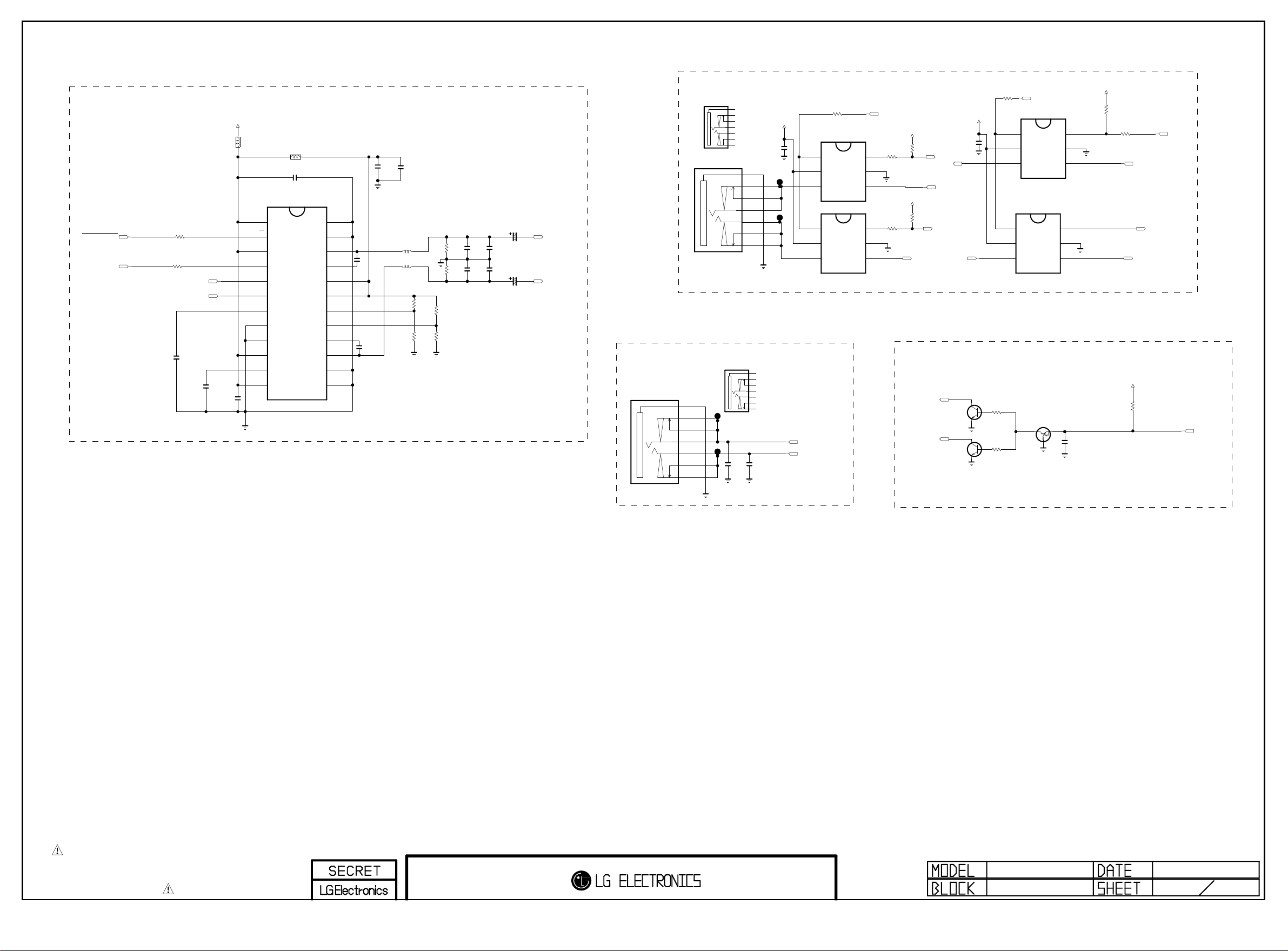

SCHEMATIC CIRCUIT DIAGRAM ..............................................................
Page 3
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1
*Base on Adjustment standard
IMPORTANT SAFETY NOTICE
0.15 uF
Ω
Page 4
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500
°F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500
°F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500
°F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS
Page 5
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.
Page 6
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This specification is applied to the LCD TV used LD0AZ
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 ºC ± 5 ºC(77 ºF ± 9 ºF), CST: 40 ºC ± 5 ºC
2) Relative Humidity : 65 % ± 10 %
3) Power Voltage
: Standard input voltage(AC 100-240 V~, 50 / 60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety: CE, IEC specification
- EMC:CE, IEC
4. Component Video Input (Y, PB, PR)
No.
Specification
Remark
Resolution H-freq(kHz) V-freq(Hz)
1. 720x480 15.73 60.00 SDTV,DVD 480i
2. 720x480 15.63 59.94 SDTV,DVD 480i
3. 720x480 31.47 59.94 480p
4. 720x480 31.50 60.00 480p
5. 720x576 15.625 50.00 SDTV,DVD 625 Line
6. 720x576 31.25 50.00 HDTV 576p
7. 1280x720 45.00 50.00 HDTV 720p
8. 1280x720 44.96 59.94 HDTV 720p
9. 1280x720 45.00 60.00 HDTV 720p
10. 1920x1080 31.25 50.00 HDTV 1080i
11. 1920x1080 33.75 60.00 HDTV 1080i
12. 1920x1080 33.72 59.94 HDTV 1080i
13. 1920x1080 56.250 50 HDTV 1080p
14. 1920x1080 67.5 60 HDTV 1080p
Page 7
- 7 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
No.
Specification
Proposed Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)
1. 720*400 31.468 70.08 28.321 For only DOS mode
2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz
-> 640*480 60 Hz Display
3. 800*600 37.879 60.31 40.00 VESA
4. 1024*768 48.363 60.00 65.00 VESA(XGA)
5. 1280*768 47.78 59.87 79.5 WXGA
6. 1360*768 47.72 59.8 84.75 WXGA HD Model
7. 1366*768 47.56 59.6 84.75 WXGA WXGA Model1
8. 1280*1024 63.981 60.02 108.875 SXGA FHD model
9. 1280*720 45 60 74.25 720p DTV Standard
10. 1920*1080 67.5 60 148.5 WUXGA FHD model
5. RGB Input (PC)
6. HDMI Input
(1) DTV Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*400 31.468 70.08 28.321 HDCP
2. 640*480 31.469 59.94 25.17 VESA HDCP
3. 800*600 37.879 60.31 40.00 VESA HDCP
4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP
5. 1280*768 47.78 59.87 79.5 WXGA HDCP
6. 1360*768 47.72 59.8 84.75 WXGA HDCP
7. 1280*720 45 60 74.25 HDCP
8. 1280*1024 63.981 60.2 108.875 SXGA HDCP / FHD model
9. 1920*1080 67.5 60 148.5 WUXGA HDCP / FHD model
(2) PC Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*480 31.469 / 31.5 59.94 / 60 27.00 / 27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 / 45 59.94 / 60 74.17 / 74.25 HDTV 720P
5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17 / 74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 / 27 23.97 / 24 74.17 / 74.25 HDTV 1080P
8. 1920*1080 33.716 / 33.75 29.976 / 30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35 / 148.50 HDTV 1080P
Page 8
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 8 -
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LCD TV with
LD0AZ chassis.
2. Designation
1) The adjustment is according to the order which is designated
and which must be followed, according to the plan which can
be changed only on agreeing.
2) Power Adjustment: Free Voltage
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specification Standard
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 ºC ± 5 ºC
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz
6) Adjustment equipments: Color analyzer(CA-210 or CA-110),
DDC Adjustment Jig equipment, Service remote control.
7) Push the “IN STOP” key - For memory initialization.
3. Main PCB check process
* APC - After Manual-Insult, executing APC
* Boot file Download
1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message.
If “Error” is displayed, Check connection between
computer, jig, and set.
3) Click “Read” tab, and then load download file(XXXX.bin) by
clicking “Read”.
4) Click “Connect” tab. If “Can’t” is displayed, check connection
between computer, jig, and set.
5) Click “Auto” tab and set as below.
6) Click “Run”.
7) After downloading, check “OK” message.
* USB DOWNLOAD
1) Put the USB Stick to the USB socket.
2) Automatically detecting update file in USB Stick.
- If your downloaded program version in USB Stick is Low,
it didn’t work. But your downloaded version is High, USB
data is automatically detecting.
3) Show the message “Copying files from memory”.
filexxx.bin
(4)
(7) .OK
(5)
(6)
(1)
fil exxx.bi n
(2)
(3)
Please Check the Speed :
To use speed between
from 200KHz to 400KHz
Case1 : Software version up
1. After downloading S/W by USB, TV set will reboot
automatically.
2. Push “In-stop” key.
3. Push “Power on” key.
4. Function inspection
5. After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at first.
2. Push “Power on” key for turning it on.
-> If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.
Page 9
4) Updating is starting.
5) Uploading completed, the TV will restart automatically.
6) If your TV is turned on, check your updated version and
Tool option.(explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
1) Push “IN-START” key in service remote control.
2) Select “Tool Option 1” and push “OK” key.
3) Punch in the number. (Each model hax their number)
3.1. ADC Process
(1) ADC
- Enter Service Mode by pushing “ADJ” key,
- Enter Internal ADC mode by pushing “
G
” key at “7. ADC
Calibration”.
<Caution> Using ‘power on’ key of the Adjustment remote
control, power on TV.
* ADC Calibration Protocol (RS232)
Adjust Sequence
• aa 00 00 [Enter Adjust Mode]
• xb 00 40 [Component1 Input (480i)]
• ad 00 10 [Adjust 480i Comp1]
• xb 00 60 [RGB Input (1024*768)]
• ad 00 10 [Adjust 1024*768 RGB]
• aa 00 90 End Adjust mode
* Required equipment : Adjustment remote control.
3.2. Function Check
* Check display and sound
- Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (SCART)
3) COMPONENT (480i)
4) RGB (PC : 1024 x 768 @ 60 Hz)
5) HDMI
6) PC Audio In
* Display and Sound check is executed by Remote control.
- 9 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
No Item CMD1 CMD2 Data0
Enter Adjust Adjust A A 0 0 When transfer the ‘Mode In’,
Mode ‘Mode In’ Carry the command.
ADC adjust ADC Adjust A D 1 0 Automatically adjustment
(The use of a internal pattern)
Page 10
4. Total Assembly line process
4.1. Adjustment Preparation
· W/B Equipment condition
CA210
- CCFL/EEFL -> CH 9, Test signal : Inner pattern(85 IRE)
- LED(AUO) -> CH 14, Test signal : Inner pattern(80 IRE)
· Above 5 minutes H/run in the inner pattern. (“power on” key
of adjustment remote control)
· Edge LED W/B Table in process of time(Only LGD module)
CA210 : CH14, Test signal : Inner patter (80 IRE)
* Connecting picture of the measuring instrument
(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment remote control POWER
ON -> Enter the mode of White-Balance, the pattern will
come out.
* Auto-control interface and directions
1) Adjust in the place where the influx of light like floodlight
around is blocked. (illumination is less than 10 lux.)
2) Adhere closely the Color Analyzer (CA210) to the module
less than 10 cm distance, keep it with the surface of the
Module and Color Analyzer’s prove vertically.(80° ~ 100°).
3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.
- Using ‘no signal’ or ‘full white pattern’ or the others,
check the back light on.
• Auto adjustment Map(RS-232C)
RS-232C COMMAND
[CMD ID DATA]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End
** Caution **
Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.
(when R/G/B Gain are all C0, it is the FULL Dynamic Range
of Module.)
* Manual W/B process using adjusts Remote control.
• After enter Service Mode by pushing “ADJ” key,
• Enter White Balance by pushing “
G
” key at “8. White
Balance”.
* After done all adjustments, Press “In-start” button and
compare Tool option and Area option value with its BOM, if
it is correctly same then unplug the AC cable. If it is not
same, then correct it same with BOM and unplug AC cable.
For correct it to the model’s module from factory Jig model.
* Push the “IN STOP” key after completing the function
inspection. And Mechanical Power Switch must be set “ON”.
4.2. DDC EDID Write (RGB 128Byte )
• Connect D-sub Signal Cable to D-sub Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For Service main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.3. DDC EDID Write (HDMI 256Byte)
• Connect HDMI Signal Cable to HDMI Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For Service main Assembly, EDID have to be downloaded to
Insert Process in advance.
- 10 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Cool 13,000 K X=0.269(±0.002)
Y=0.273(±0.002) <Test Signal>
Medium 9,300 K X=0.285(±0.002) Inner pattern
Y=0.293(±0.002) (216gray,85IRE)
Warm 6,500 K X=0.313(±0.002)
Y=0.329(±0.002)
Full White Pattern
COLOR
ANALYZER
TYPE: CA-210
RS-232C Communication
CA-210
RS-232C COMMAND MIN CENTER MAX
[CMD ID DATA] (DEFAULT)
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192
G Gain jh Jb je 00 172 192 192 192
B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128
Aging Time Cool Medium Warm
GP2 (Min.) X Y X Y X Y
269 273 285 293 313 329
1 0-2 279 288 295 308 319 338
2 3-5 278 286 294 306 318 336
3 6-9 277 285 293 305 317 335
4 10-19 276 283 292 303 316 333
5 20-35 274 280 290 300 314 330
6 36-49 272 277 288 297 312 327
7 50-79 271 275 287 295 311 325
8 80-149 270 274 286 294 310 324
9 Over 150 269 273 285 293 309 323
Page 11
4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***: Year : Controlled
****: Check sum
- Auto Download
• After enter Service Mode by pushing “ADJ” key,
• Enter EDID D/L mode.
• Enter “START” by pushing “OK” key.
<Caution> Never connect HDMI & D-sub cable when EDID
download
* Edid data and Model option download (RS232)
- Manual Download
* Caution
1) Use the proper signal cable for EDID Download.
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
2) Never connect HDMI & D-sub Cable at the same time.
3) Use the proper cables below for EDID Writing.
4) Download HDMI1, HDMI2, separately because HDMI1 is
different from HDMI2.
1) FHD RGB EDID data
2) FHD HDMI EDID data
* Detail EDID Options are below
ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘02’ -> ‘02’
Year : ‘2009’ -> ‘13’
ⓓ Model Name(Hex):
ⓔ Checksum: Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
- 11 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
NO Item CMD1 CMD2 Data0
Enter Download A A 0 0 When transfer the ‘Mode In’,
download Mode ‘Mode In’ Carry the command.
EDID data and Download A E 00 10 Automatically Download
Model option (The use of a internal pattern)
download
Item
Manufacturer ID
Version
Revision
Condition
GSM
Digital : 1
Digital : 3
Data(Hex)
1E6D
01
03
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
For HDMI EDIDFor Analog EDID
Model Name HEX EDID Table DDC Function
FHD Model 0001 01 00 Analog/Digital
MODEL MODEL NAME(HEX)
LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
INPUT MODEL NAME(HEX)
HDMI1 67030C001000B82D
HDMI2 67030C002000B82D
HDMI3 67030C003000B82D
012 3 4 5 67 8 9ABCD EF
00 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 00 e
80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
E0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
012 3 4 5 67 8 9ABCD EF
00 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 71 4F 81 80 01 01 01 01 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 1B 21 50 A0 51 00 1E 30
50 48 88 35 00 A0 5A 00 00 00 1C 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 01 e
80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 f
A0 f E3050301011D8018711C1620582C
B0 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20
C0 6E 28 55 00 A0 5A 00 00 00 1E 02 3A 80 18 71 38
D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 01 1D 00 BC
E0 52 D0 1E 20 B8 28 55 40 A0 5A 00 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e
EDID C/S data FHD HD
HDMI RGB HDMI RGB
Check sum Block 0 E2 1C B4 CD
(Hex) Block 1 99(HDMI1) 65(HDMI1)
89(HDMI2) 55(HDMI2)
79(HDMI3)
Page 12
- 12 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.5. V-COM Adjust(Only LGD(M+S) Module)
- Why need Vcom adjustment?
A The Vcom (Common Voltage) is a Reference Voltage of
Liquid Crystal Driving.
-> Liquid Crystal need for Polarity Change with every frame.
- Adjust sequence
· Press the PIP key of the Adjustment remote control.(This
PIP key is hot key to enter the VCOM adjusting mode.)
(Or After enter Service Mode by pushing “ADJ” key, then
Enter V-Com Adjust mode by pushing “
G” key at “10. V-
Com”)
· As pushing the right or the left key on the remote control,
and find the V-COM value which is no or minimized the
Flicker. (If there is no flicker at default value, Press the exit
key and finish the VCOM adjustment.)
· Push the “OK” key to store value. Then the message
“Saving OK” is pop.
· Press the exit key to finish VCOM adjustment.
(Visual Adjust and control the Voltage level)
4.6. Outgoing condition Configuration
- When pressing IN-STOP key by Service remote control, Red
LED are blinked alternatively. And then automatically turn off.
(Must not AC power OFF during blinking)
4.7. Hi-pot test
Confirm whether is normal or not when between power
board’s ac block and GND is impacted on 1.5 kV(dc) or 2.2
kV(dc) for one second.
5. Model name & Serial number D/L
• Press “Power on” key of service remote control.
(Baud rate : 115200 bps)
• Connect RS232 Signal Cable to RS-232 Jack.
• Write Serial number by use RS-232.
• Must check the serial number at the Diagnostics of SET UP
menu. (Refer to below.)
5.1. Signal TABLE
CMD : A0h
LENGTH : 85~94h (1~16 bytes)
ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD+LENGTH+ADH+ADL+Data_1+…+Data_n
Delay : 20ms
5.2. Command Set
* Description
FOS Default write : <7mode data> write
Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,
Phase
Data write: Model name and Serial number write in EEPROM,.
5.3. Method & notice
A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing
Technology Group.
C. Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0.
CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY
Row Li ne
Column Li ne
CLC
CST
Pane l
S
Y
S
T
E
M
Gat e Driv e IC
So urce D r iv e I C
Circuit Block
Tim i ng
Cont r o ll er
Po w er
Blo c k
V
COM
Gamma
Ref er ence V oltage
Gamm a Re ference
Volta ge
Data (R,G ,B) & C on tro l signal
Cont rol si gnal
Data (R,G,B ) &
Cont rol si gnal
In t er fa ce
TFT
Po w er I np u t
Power Input
Da ta I n pu t
Da ta I n pu t
V
COM
Liquid
Crys tal
V
COM
No. Adjust mode CMD(hex) LENGTH(hex) Description
1 EEPROM WRITE A0h 84h+n n-bytes Write(n=1~16)
Page 13
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or Service man, sometimes
model name or serial number is initialized.(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
1) Press the ‘Instart’ key of Adjustment remote control.
2) Go to the menu ‘5.Model Number D/L’ like below photo.
3) Input the Factory model name(ex 42LD450-ZA) or Serial
number like photo.
4) Check the model name Instart menu. -> Factory name
displayed. (ex 42LD450-ZA)
5) Check the Diagnostics. (DTV country only) -> Buyer model
displayed. (ex 42LD450)
6. CI+ Key Download method
(1) Download Procedure
1) Press “Power on” key of a service remote control.
(Baud rate : 115200 bps)
2) Connect RS232-C Signal Cable.
3) Write CI+ Key through RS-232-C.
4) Check whether the key was downloaded or not at ‘In
Start’ menu.(Refer to below).
=> Check the Download to CI+ Key value in LGset.
1. Check the method of CI+ Key value.
a. Check the method on Instart menu.
b. Check the method of RS232C Command.
1) Into the main assembly mode (RS232 : aa 00 00)
2) Check the key download for transmitted command.
(RS232 : ci 00 10)
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
2. Check the method of CI+ Key value. (RS232)
1) Into the main assembly mode (RS232 : aa 00 00)
2) Check the method of CI+ key by command.
(RS232 : ci 00 20)
3) Result value
i 01 OK 1d1852d21c1ed5dcx
- 13 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CMD 1 CMD 2 Data 0
AA00
CMD 1 CMD 2 Data 0
CI10
CMD 1 CMD 2 Data 0
AA00
CMD 1 CMD 2 Data 0
CI20
CI+ key Value
Page 14
- 14 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
BLOCK DIAGRAM
RGB
COMPONENT
F-SCART
IF_N/P_MSTAR
DDR3 (2GB)
IC1201
NAND Flash
HYNIX(2G)
IC102
USB
Digital amp
(NTP7100)
IC501
COMP_Y/Pb/pR
SC1_CVBS/R/G/B/FB_IN
I2S
DSUB_ R/G/B
Tuner
(TDTJ-
S001D)
TU3702
LED Panel
CI Slot
(P1902)
74LCX244
Buffer
IC1902
PCM_A[0:7]
TU_CVBS
PCM_A[0:7]
DDR3 (1GB)
IC1202
B_TMDQ[0:16]
Mstar S7
LGE101DC-R
(IC101)
AQZ1073ATL-3
USB Power
IC402
USB Power
SC1_L/R_IN, E_AM_AUDIO,AV_L/R_IN,
COMP_L/R_IN, PC_L/R_IN
TV/DTV_VOUT
A_TMDQ[0:16]
Head
Phone
RS-232C
MAX3232CDR
IC1100
SPDIF
SPDIF_OUT
DSUB_H/VSYNC
HP_L/ROUT
L/R
PI_TS_DATA[0:7]
FE_TS_DATA[0:7]
CI_ADDR[0:7]
NEC_TX/RX
HPD1/2, HDMI_CEC, 5V_HDMI 1/2
TMDS[0:7] ( Data, Clock (+/-))
EEPROM
M24M01-HRMN6
(IC104)
EEPROM
CAT24WC08W-T
(HDCP)IC103
I2C
LVDS (8bit or 10 bit)
Serial Flash
IC1401
For Boot
HDMI 1/2
MP2305
IC2201
DC/DC Conv.
(12V to 5V)
MP5000
IC2202
5V
12V
Power SW
(12V On/Off)
NEC Micom
uPD78F1164A
(IC1102)
LED Driver
I2C SW
I2C
I2C
I2C
MST_TX/RX
LED Clock
Speaker Out
Audio amp
(TPA3124D2)
L/R
Speaker Out
Control
Up/Down
TU_SIF
IF_AGC
74LVC16244
Buffer
IC1501
LGDT1129
FPGA
IC1503
FE_TS_DATA[0]
PKT_DATA[0]
CI_TS_DATA[0:7]
RS-232C
MAX3232CDR
USB_DM/DP
(IC104)
12V
IC5005/5006
I2C
I2C
I2C
IC1500
Page 15
- 15 -
LGE Internal Use OnlyCopyright LG Electronics. Inc. All rights reserved.
Only for training and service purposes
A2
A10
511
510
560
* Set + Stand
* Stand Base + Body
LV1
300
200
400
900
120
800
530
540
521
910
710
700
320
310
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
Page 16
IC102
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
VCC_1
VSS_1
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
IC103-*1
1
2
3
4
R/B
RE
CE
CLE
ALE
WE
WP
8
7
6
5
HY27UF082G2B-TPCB
1
2GBIT_HYNIX
EAN60708701
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
VCC
WP
SCL
SDA
EEPROM_SCL
EEPROM_SDA
NC_29
48
NC_28
47
NC_27
46
NC_26
45
I/O7
44
I/O6
43
I/O5
42
I/O4
41
NC_25
40
NC_24
39
NC_23
38
VCC_2
37
VSS_2
36
NC_22
35
NC_21
34
NC_20
33
I/O3
32
I/O2
31
I/O1
30
I/O0
29
NC_19
28
NC_18
27
NC_17
26
NC_16
25
VSS
+3.3V_Normal
C102
10uF
C103
0.1uF
EEPROM_1MBIT_ATMEL
IC104-*1
AT24C1024BN-SH-T
NC
1
A1
2
A2
3
GND
4
EEPROM
EEPROM_1MBIT_ST
IC104
M24M01-HRMN6TP
NC
1
E1
2
E2
A0’h
3
4
AR101
AR102
8
7
6
5
PCM_A[0-7]
PCM_A[7]
PCM_A[6]
PCM_A[5]
PCM_A[4]
22
PCM_A[3]
PCM_A[2]
PCM_A[1]
PCM_A[0]
22
VCC
8
WP
7
SCL
6
SDA
5
+3.5V_ST
C105
0.1uF
VCC
WP
SCL
SDA
C104
8pF
OPT
C106
8pF
OPT
/PF_WP
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
RB
R
E
NC_7
NC_8
VDD_1
VSS_1
NC_9
NC_10
CL
AL
W
WP
NC_11
NC_12
NC_13
NC_14
NC_15
HDCP EEPROM
HDCP_EEPROM_CATALYST_OLD
R113
4.7K
NAND FLASH MEMORY
/PF_CE0
H : Serial Flash
L : NAND Flash
/PF_CE1
H : 16 bit
L : 8 bit
/F_RB
/PF_OE
/PF_CE0
+3.3V_Normal
/PF_CE1
10K
OPT
R104
PF_ALE
/PF_WE
C
Q101
B
KRC103S
OPT
E
3.3K
R102
IC102-*1
NAND02GW3B2DN6E
1
2GBIT_NUMONYX
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
IC103
CAT24WC08W-T
A0
A1
A2
VSS
1
$0.199
2
3
4
8
7
6
5
VCC
WP
R127 4.7K
SCL
SDA
R105
1K
OPT
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
R106
NC_29
NC_28
NC_27
NC_26
I/O7
I/O6
I/O5
I/O4
NC_25
NC_24
NC_23
VDD_2
VSS_2
NC_22
NC_21
NC_20
I/O3
I/O2
I/O1
I/O0
NC_19
NC_18
NC_17
NC_16
+3.5V_ST
1K
R107
R1081K
1K
R128
R129 22
OPT
C107
0.1uF
22
+3.3V_Normal
R109 3.9K
C101
0.1uF
Addr:10101--
HDCP_EEPROM_ON_SEMI_NEW
CAT24C08WI-GT3-H-RECV(TV)
NC_1
NC_2
A2
VSS
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
R111 22
R112 22
<T3 CHIP Config(AUD_LRCH)>
Boot from SPI flash : 1’b0
Boot from NOR flash : 1’b1
<T3 CHIP Config>
(AUD_SCK, AUD_MASTER_CLK, PWM1, PWM0)
MIPS_no_EJ_NOR8 : 4’h3 (MIPS as host. No EJ PAD. Byte mode NAND flash.)
MIPS_EJ1_NOR8 : 4’h4 (MIPS as host. EJ use PAD1. Byte mode NAND flash.)
MIPS_EJ2_NOR8 : 4’h5 (MIPS as host. EJ use PAD2. Byte mode NAND flash.)
B51_Secure_no scramble : 4’hb (8051 as host. Internal SPI flash secure boot, no scramble)
B51_Sesure_scramble : 4’hc (8051 as host. Internal SPI flash secure boot with scarmble)
AUD_MASTER_CLK R148
56
C112
100pF
50V
R115
R116
R117
1K
OPT
R118
1K
+3.3V_Normal
R123
1K
1K
OPT
OPT
R121
R124
1K
1K
1K
R125
R126
1K
OPT
AUD_LRCH
AUD_SCK
AUD_MASTER_CLK_0
PWM1
PWM0
1K
PCM_D[0-7]
PCM_A[0-14]
+5V_Normal
R132
10K
R133
10K
AR104
/PF_CE0
/PF_CE1
/PF_OE
/PF_WE
PF_ALE
/PF_WP
/F_RB
for SYSTEM/HDCP
EEPROM&URSA3
S7R S7MR
S7R_BASIC
IC101-*1
LGE101C-R-1 [S7R BASIC]
AE1
NC_48
LVACLKP/LLV6P/BLUE[3]
AF16
NC_78
LVACLKN/LLV6N/BLUE[2]
AF1
NC_64
LVA0P/LLV3P/BLUE[9]
AE3
NC_50
LVA0N/LLV3N/BLUE[8]
AD14
NC_45
LVA1P/LLV4P/BLUE[7]
AD3
NC_34
LVA1N/LLV4N/BLUE[6]
AF15
NC_77
LVA2P/LLV5P/BLUE[5]
AF2
NC_65
LVA2N/LLV5N/BLUE[4]
AE15
NC_62
LVA3P/LLV7P/BLUE[1]
AD2
NC_33
LVA3N/LLV7N/BLUE[0]
AD16
NC_47
AD15
NC_46
AE16
NC_63
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
AF3
NC_66
LVB0N/RLV6N/RED[0]
AF14
NC_76
LVB1P/RLV7P/GREEN[9]
AD1
NC_32
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
AD13
NC_44
LVB2N/RLV8N/GREEN[6]
AE14
NC_61
LVB3P/LLV1P/GREEN[3]
AE13
NC_60
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
AE4
NC_51
AD5
NC_36
AF4
NC_67
AD4
NC_35
AE2
NC_49
AF8
NC_71
AD9
NC_40
AE9
NC_56
AF9
NC_72
AE11
NC_58
AF6
NC_69
TCON3/OE/GOE/GCLK2
AE6
NC_53
TCON15/SCAN_BLK1
AF11
NC_74
TCON18/CS7/GCLK5
AD6
NC_37
TCON19/CS8/GCLK6
AD12
NC_43
TCON11/CS5/HCON
AE5
NC_52
TCON10/CS4/OPT_N
AF12
NC_75
TCON9/CS3/OPT_P
AF5
NC_68
AE12
NC_59
TCON1/STV/GSP/VST
AE10
NC_57
AF7
NC_70
TCON14/SACN_BLK
AD11
NC_42
AD7
NC_38
AD10
NC_41
TCON21/CS10/VGH_ODD
AE7
NC_54
TCON20/CS9/VGH_EVEN
AF10
NC_73
AD8
NC_39
TCON17/CS6/GCLK4
AE8
NC_55
Y11
NC_12
Y19
GND_105
EEPROM_SCL
EEPROM_SDA
S7R_MS10
IC101-*2
LGE101C-R [S7R MS10]
AE1
W26
NC_48
LVACLKP/LLV6P/BLUE[3]
AF16
W25
NC_78
LVACLKN/LLV6N/BLUE[2]
AF1
U26
NC_64
LVA0P/LLV3P/BLUE[9]
AE3
U25
NC_50
LVA0N/LLV3N/BLUE[8]
AD14
U24
NC_45
LVA1P/LLV4P/BLUE[7]
AD3
V26
NC_34
LVA1N/LLV4N/BLUE[6]
AF15
V25
NC_77
LVA2P/LLV5P/BLUE[5]
AF2
V24
NC_65
LVA2N/LLV5N/BLUE[4]
AE15
W24
NC_62
LVA3P/LLV7P/BLUE[1]
AD2
Y26
NC_33
LVA3N/LLV7N/BLUE[0]
AD16
Y25
NC_47
LVA4P/LLV8P
AD15
Y24
NC_46
LVA4N/LLV8N
AE16
NC_63
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
RLV3P/RED[7]
AE23
RLV3N/RED[6]
AE26
RLV0P/LVSYNC
AE25
RLV0N/LHSYNC
AF26
RLV1N/LCK
AF25
RLV2P/RED[9]
AE24
RLV1P/LDE
AF24
RLV2N/RED[8]
AF23
RLV4P/RED[5]
AD22
RLV4N/RED[4]
AE22
RLV5P/RED[3]
AF22
RLV5N/RED[2]
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
TCON16/WPWM
AF19
TCON12/DPM
AD18
AE18
TCON5/TP/SOE
AF18
AB22
AB23
AC23
TCON13/LEDON
AC22
AB16
NC_26
AA14
NC_19
AC15
NC_30
Y16
NC_15
AC16
NC_31
AC14
NC_29
AA16
NC_21
AA15
NC_20
Y10
NC_11
AA11
NC_17
AB15
NC_25
AB14
NC_24
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
AF3
NC_66
LVB0N/RLV6N/RED[0]
AF14
NC_76
LVB1P/RLV7P/GREEN[9]
AD1
NC_32
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
AD13
NC_44
LVB2N/RLV8N/GREEN[6]
AE14
NC_61
LVB3P/LLV1P/GREEN[3]
AE13
NC_60
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
AE4
NC_51
AD5
NC_36
AF4
NC_67
AD4
NC_35
AE2
NC_49
AF8
NC_71
AD9
NC_40
AE9
NC_56
AF9
NC_72
AE11
NC_58
AF6
NC_69
TCON3/OE/GOE/GCLK2
AE6
NC_53
AF11
NC_74
AD6
NC_37
AD12
NC_43
AE5
NC_52
AF12
NC_75
AF5
NC_68
AE12
NC_59
AE10
NC_57
AF7
NC_70
AD11
NC_42
AD7
NC_38
AD10
NC_41
TCON21/CS10/VGH_ODD
AE7
NC_54
TCON20/CS9/VGH_EVEN
AF10
NC_73
AD8
NC_39
AE8
NC_55
Y11
NC_12
Y19
GND_105
S7R_DivX
LGE101DC-R-1 [S7R DIVX]
AE1
W26
NC_48
AF16
W25
NC_78
AF1
U26
NC_64
AE3
U25
NC_50
AD14
U24
NC_45
AD3
V26
NC_34
AF15
V25
NC_77
AF2
V24
NC_65
AE15
W24
NC_62
AD2
Y26
NC_33
AD16
Y25
NC_47
LVA4P/LLV8P
AD15
Y24
NC_46
LVA4N/LLV8N
AE16
NC_63
AC26
AC25
AA26
AF3
AA25
NC_66
AF14
AA24
NC_76
AD1
AB26
NC_32
AB25
AD13
AB24
NC_44
AE14
AC24
NC_61
AE13
AD26
NC_60
AD25
AD24
AE4
NC_51
AD5
NC_36
AF4
AD23
NC_67
RLV3P/RED[7]
AD4
AE23
NC_35
RLV3N/RED[6]
AE26
RLV0P/LVSYNC
AE2
AE25
NC_49
RLV0N/LHSYNC
AF26
RLV1N/LCK
AF25
RLV2P/RED[9]
AF8
AE24
NC_71
RLV1P/LDE
AD9
AF24
NC_40
RLV2N/RED[8]
AF23
RLV4P/RED[5]
AE9
AD22
NC_56
RLV4N/RED[4]
AF9
AE22
NC_72
RLV5P/RED[3]
AF22
RLV5N/RED[2]
AE11
NC_58
AF6
NC_69
AD19
AE6
AE19
NC_53
TCON15/SCAN_BLK1
AF11
AD21
NC_74
TCON18/CS7/GCLK5
AD6
AE21
NC_37
TCON19/CS8/GCLK6
AD12
AF21
NC_43
TCON11/CS5/HCON
AE5
AD20
NC_52
TCON10/CS4/OPT_N
AF12
AE20
NC_75
TCON9/CS3/OPT_P
AF5
AF20
NC_68
TCON16/WPWM
AE12
AF19
NC_59
TCON12/DPM
AD18
TCON1/STV/GSP/VST
AE10
AE18
NC_57
TCON5/TP/SOE
AF7
AF18
NC_70
TCON14/SACN_BLK
AD11
NC_42
AD7
NC_38
AD10
AB22
NC_41
AE7
AB23
NC_54
AF10
AC23
NC_73
TCON13/LEDON
AD8
AC22
NC_39
TCON17/CS6/GCLK4
AB16
NC_26
AA14
NC_19
AC15
NC_30
Y16
NC_15
AC16
NC_31
AE8
AC14
NC_55
NC_29
Y11
AA16
NC_12
NC_21
Y19
AA15
GND_105
NC_20
Y10
NC_11
AA11
NC_17
AB15
NC_25
AB14
NC_24
S7MR-PLUS
S7M-PLUS_BASIC
AE1
AF16
AF1
AE3
AD14
AD3
AF15
AF2
AE15
AD2
AD16
AD15
AE16
AF3
AF14
AD1
AD13
AE14
AE13
AE4
AD5
AF4
AD4
AE2
AF8
AD9
AE9
AF9
AE11
AF6
AE6
AF11
AD6
AD12
AE5
AF12
AF5
AE12
AE10
AF7
AD11
AD7
AD10
AE7
AF10
AD8
AE8
Y11
Y19
IC101-*3
LGE107C-RP-1 [S7M+ BASIC]
FRC_DDR3_A0/DDR2_NC
FRC_DDR3_A1/DDR2_A6
FRC_DDR3_A2/DDR2_A7
FRC_DDR3_A3/DDR2_A1
FRC_DDR3_A4/DDR2_CASZ
FRC_DDR3_A5/DDR2_A10
FRC_DDR3_A6/DDR2_A0
FRC_DDR3_A7/DDR2_A5
FRC_DDR3_A8/DDR2_A2
FRC_DDR3_A9/DDR2_A9
FRC_DDR3_A10/DDR2_A11
FRC_DDR3_A11/DDR2_A4
FRC_DDR3_A12/DDR2_A8
FRC_DDR3_BA0/DDR2_BA2
FRC_DDR3_BA1/DDR2_ODT
FRC_DDR3_BA2/DDR2_A12
FRC_DDR3_MCLK/DDR2_MCLK
FRC_DDR3_CKE/DDR2_RASZ
FRC_DDR3_MCLKZ/DDR2_MCLKZ
FRC_DDR3_ODT/DDR2_BA1
FRC_DDR3_RASZ/DDR2_WEZ
FRC_DDR3_CASZ/DDR2_CKE
FRC_DDR3_WEZ/DDR2_BA0
FRC_DDR3_RESETB/DDR2_A3
FRC_DDR3_DQSL/DDR2_DQS0
FRC_DDR3_DQSLB/DDR2_DQSB0
FRC_DDR3_DQSU/DDR2_DQS1
FRC_DDR3_DQSUB/DDR2_DQSB1
FRC_DDR3_DML/DDR2_DQ7
FRC_DDR3_DMU/DDR2_DQ11
FRC_DDR3_DQL0/DDR2_DQ6
FRC_DDR3_DQL1/DDR2_DQ0
FRC_DDR3_DQL2/DDR2_DQ1
FRC_DDR3_DQL3/DDR2_DQ2
FRC_DDR3_DQL4/DDR2_DQ4
FRC_DDR3_DQL5/DDR2_NC
FRC_DDR3_DQL6/DDR2_DQ3
FRC_DDR3_DQL7/DDR2_DQ5
FRC_DDR3_DQU0/DDR2_DQ8
FRC_DDR3_DQU1/DDR2_DQ14
FRC_DDR3_DQU2/DDR2_DQ13
FRC_DDR3_DQU3/DDR2_DQ12
FRC_DDR3_DQU4/DDR2_DQ15
FRC_DDR3_DQU5/DDR2_DQ9
FRC_DDR3_DQU6/DDR2_DQ10
FRC_DDR3_DQU7/DDR2_DQM1
FRC_DDR3_NC/DDR2_DQM0
FRC_VSYNC_LIKE
FRC_TESTPIN
LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]
LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
TCON3/OE/GOE/GCLK2
TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN
IC101-*11
LVA4P/LLV8P
LVA4N/LLV8N
RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC
RLV1N/LCK
RLV2P/RED[9]
RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]
TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P
TCON16/WPWM
TCON12/DPM
TCON1/STV/GSP/VST
TCON5/TP/SOE
TCON14/SACN_BLK
TCON13/LEDON
TCON17/CS6/GCLK4
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
NC_26
NC_19
NC_30
NC_15
NC_31
NC_29
NC_21
NC_20
NC_11
NC_17
NC_25
NC_24
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
CCKP/LLV3P
CCKM/LLV3N
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
FRC_SPI_CZ
FRC_GPIO1
FRC_SPI1_CK
FRC_GPIO8
FRC_SPI_DO
FRC_SPI1_DI
FRC_SPI_CK
FRC_SPI_DI
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
S7R_DivX_MS10
LGE101DC-R [S7R DIVX/MS10]
AE1
NC_48
AF16
NC_78
AF1
NC_64
AE3
NC_50
AD14
NC_45
AD3
NC_34
AF15
NC_77
AF2
NC_65
AE15
NC_62
AD2
NC_33
AD16
NC_47
AD15
NC_46
AE16
NC_63
AF3
NC_66
AF14
NC_76
AD1
NC_32
AD13
NC_44
AE14
NC_61
AE13
NC_60
AE4
NC_51
AD5
NC_36
AF4
NC_67
AD4
NC_35
AE2
NC_49
AF8
NC_71
AD9
NC_40
AE9
NC_56
AF9
NC_72
AE11
NC_58
AF6
NC_69
AE6
NC_53
AF11
NC_74
AD6
NC_37
AD12
NC_43
AE5
NC_52
AF12
NC_75
AF5
NC_68
AE12
NC_59
AE10
NC_57
AF7
NC_70
AD11
NC_42
AD7
NC_38
AD10
NC_41
AE7
NC_54
AF10
NC_73
AD8
NC_39
AE8
NC_55
Y11
NC_12
Y19
GND_105
S7M-PLUS_MS10
AE1
W26
FRC_DDR3_A0/DDR2_NC
AF16
W25
FRC_DDR3_A1/DDR2_A6
AF1
U26
FRC_DDR3_A2/DDR2_A7
AE3
U25
FRC_DDR3_A3/DDR2_A1
AD14
U24
FRC_DDR3_A4/DDR2_CASZ
AD3
V26
FRC_DDR3_A5/DDR2_A10
AF15
V25
FRC_DDR3_A6/DDR2_A0
AF2
V24
FRC_DDR3_A7/DDR2_A5
AE15
W24
FRC_DDR3_A8/DDR2_A2
AD2
Y26
FRC_DDR3_A9/DDR2_A9
AD16
Y25
FRC_DDR3_A10/DDR2_A11
AD15
Y24
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AC26
AC25
AA26
AF3
AA25
FRC_DDR3_BA0/DDR2_BA2
AF14
AA24
FRC_DDR3_BA1/DDR2_ODT
AD1
AB26
FRC_DDR3_BA2/DDR2_A12
AB25
AD13
AB24
FRC_DDR3_MCLK/DDR2_MCLK
AE14
AC24
FRC_DDR3_CKE/DDR2_RASZ
AE13
AD26
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AD25
AD24
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
AD23
FRC_DDR3_CASZ/DDR2_CKE
AD4
AE23
FRC_DDR3_WEZ/DDR2_BA0
AE26
AE2
AE25
FRC_DDR3_RESETB/DDR2_A3
AF26
AF25
AF8
AE24
FRC_DDR3_DQSL/DDR2_DQS0
AD9
AF24
FRC_DDR3_DQSLB/DDR2_DQSB0
AF23
AE9
AD22
FRC_DDR3_DQSU/DDR2_DQS1
AF9
AE22
FRC_DDR3_DQSUB/DDR2_DQSB1
AF22
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AD19
AE6
AE19
FRC_DDR3_DQL0/DDR2_DQ6
AF11
AD21
FRC_DDR3_DQL1/DDR2_DQ0
AD6
AE21
FRC_DDR3_DQL2/DDR2_DQ1
AD12
AF21
FRC_DDR3_DQL3/DDR2_DQ2
AE5
AD20
FRC_DDR3_DQL4/DDR2_DQ4
AF12
AE20
FRC_DDR3_DQL5/DDR2_NC
AF5
AF20
FRC_DDR3_DQL6/DDR2_DQ3
AE12
AF19
FRC_DDR3_DQL7/DDR2_DQ5
AD18
AE10
AE18
FRC_DDR3_DQU0/DDR2_DQ8
AF7
AF18
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
AB22
FRC_DDR3_DQU4/DDR2_DQ15
AE7
AB23
FRC_DDR3_DQU5/DDR2_DQ9
AF10
AC23
FRC_DDR3_DQU6/DDR2_DQ10
AD8
AC22
FRC_DDR3_DQU7/DDR2_DQM1
AB16
AA14
AC15
Y16
AC16
AE8
AC14
FRC_DDR3_NC/DDR2_DQM0
Y11
AA16
FRC_VSYNC_LIKE
Y19
AA15
FRC_TESTPIN
Y10
AA11
AB15
AB14
IC101-*4
LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]
LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
TCON3/OE/GOE/GCLK2
TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN
IC101-*12
LGE107C-RP [S7M+ MS10]
LVA4P/LLV8P
LVA4N/LLV8N
RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC
RLV1N/LCK
RLV2P/RED[9]
RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]
TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P
TCON16/WPWM
TCON12/DPM
TCON1/STV/GSP/VST
TCON5/TP/SOE
TCON14/SACN_BLK
TCON13/LEDON
TCON17/CS6/GCLK4
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
NC_26
NC_19
NC_30
NC_15
NC_31
NC_29
NC_21
NC_20
NC_11
NC_17
NC_25
NC_24
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
CCKP/LLV3P
CCKM/LLV3N
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
FRC_SPI_CZ
FRC_GPIO1
FRC_SPI1_CK
FRC_GPIO8
FRC_SPI_DO
FRC_SPI1_DI
FRC_SPI_CK
FRC_SPI_DI
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
AE1
NC_48
AF16
NC_78
AF1
NC_64
AE3
NC_50
AD14
NC_45
AD3
NC_34
AF15
NC_77
AF2
NC_65
AE15
NC_62
AD2
NC_33
AD16
NC_47
AD15
NC_46
AE16
NC_63
AF3
NC_66
AF14
NC_76
AD1
NC_32
AD13
NC_44
AE14
NC_61
AE13
NC_60
AE4
NC_51
AD5
NC_36
AF4
NC_67
AD4
NC_35
AE2
NC_49
AF8
NC_71
AD9
NC_40
AE9
NC_56
AF9
NC_72
AE11
NC_58
AF6
NC_69
AE6
NC_53
AF11
NC_74
AD6
NC_37
AD12
NC_43
AE5
NC_52
AF12
NC_75
AF5
NC_68
AE12
NC_59
AE10
NC_57
AF7
NC_70
AD11
NC_42
AD7
NC_38
AD10
NC_41
AE7
NC_54
AF10
NC_73
AD8
NC_39
AE8
NC_55
Y11
NC_12
Y19
GND_105
S7M-PLUS_DivX
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
S7R_RM
IC101-*5
LGE101RC-R [S7R RM]
LGE107DC-RP-1 [S7M+ DIVX]
AE1
FRC_DDR3_A0/DDR2_NC
AF16
FRC_DDR3_A1/DDR2_A6
AF1
FRC_DDR3_A2/DDR2_A7
AE3
FRC_DDR3_A3/DDR2_A1
AD14
FRC_DDR3_A4/DDR2_CASZ
AD3
FRC_DDR3_A5/DDR2_A10
AF15
FRC_DDR3_A6/DDR2_A0
AF2
FRC_DDR3_A7/DDR2_A5
AE15
FRC_DDR3_A8/DDR2_A2
AD2
FRC_DDR3_A9/DDR2_A9
AD16
FRC_DDR3_A10/DDR2_A11
AD15
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
FRC_DDR3_DQU4/DDR2_DQ15
AE7
FRC_DDR3_DQU5/DDR2_DQ9
AF10
FRC_DDR3_DQU6/DDR2_DQ10
AD8
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_VSYNC_LIKE
Y19
FRC_TESTPIN
LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]
LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
TCON3/OE/GOE/GCLK2
TCON1/STV/GSP/VST
TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN
IC101-*13
LVA4P/LLV8P
LVA4N/LLV8N
RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC
RLV1N/LCK
RLV2P/RED[9]
RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]
TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P
TCON16/WPWM
TCON12/DPM
TCON5/TP/SOE
TCON14/SACN_BLK
TCON13/LEDON
TCON17/CS6/GCLK4
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
S7_EEPROM_SDA
S7_EEPROM_SCL
RGB_DDC_SDA
RGB_DDC_SCL
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
NC_26
AA14
NC_19
AC15
NC_30
Y16
NC_15
AC16
NC_31
AC14
NC_29
AA16
NC_21
AA15
NC_20
Y10
NC_11
AA11
NC_17
AB15
NC_25
AB14
NC_24
W26
ACKP/RLV3P/RED[3]
W25
ACKM/RLV3N/RED[2]
U26
A0P/RLV0P/RED[9]
U25
A0M/RLV0N/RED[8]
U24
A1P/RLV1P/RED[7]
V26
A1M/RLV1N/RED[6]
V25
A2P/RLV2P/RED[5]
V24
A2M/RLV2N/RED[4]
W24
A3P/RLV4P/RED[1]
Y26
A3M/RLV4N/RED[0]
Y25
A4P/RLV5P/GREEN[9]
Y24
A4M/RLV5N/GREEN[8]
AC26
AC25
AA26
B0P/RLV6P/GREEN[7]
AA25
B0M/RLV6N/GREEN[6]
AA24
B1P/RLV7P/GREEN[5]
AB26
B1M/RLV7N/GREEN[4]
AB25
B2P/RLV8P/GREEN[3]
AB24
B2M/RLV8N/GREEN[2]
AC24
B3P/TCON11/BLUE[9]
AD26
B3M/TCON10/BLUE[8]
AD25
B4P/TCON9/BLUE[7]
AD24
B4M/TCON8/BLUE[6]
AD23
CCKP/LLV3P
AE23
CCKM/LLV3N
AE26
C0P/LLV0P/BLUE[5]
AE25
C0M/LLV0N/BLUE[4]
AF26
C1P/LLV1P/BLUE[3]
AF25
C1M/LLV1N/BLUE[2]
AE24
C2P/LLV2P/BLUE[1]
AF24
C2M/LLV2N/BLUE[0]
AF23
C3P/LLV4P
AD22
C3M/LLV4N
AE22
C4P/LLV5P
AF22
C4M/LLV5N
AD19
DCKP/TCON5
AE19
DCKM/TCON4
AD21
D0P/LLV6P
AE21
D0M/LLV6N
AF21
D1P/LLV7P
AD20
D1M/LLV7N
AE20
D2P/LLV8P
AF20
D2M/LLV8N
AF19
D3P/TCON3
AD18
D3M/TCON2
AE18
D4P/TCON1
AF18
D4M/TCON0
AB22
AB23
AC23
AC22
AB16
FRC_SPI_CZ
AA14
FRC_GPIO1
AC15
FRC_SPI1_CK
Y16
FRC_GPIO8
AC16
FRC_SPI_DO
AC14
FRC_SPI1_DI
AA16
FRC_SPI_CK
AA15
FRC_SPI_DI
Y10
FRC_I2CS_DA
AA11
FRC_I2CS_CK
AB15
FRC_PWM0
AB14
FRC_PWM1
S7_TXD
S7_RXD
AR103
22
S7M-PLUS_RM
LGE107RC-RP [S7M+ RM]
AE1
FRC_DDR3_A0/DDR2_NC
AF16
FRC_DDR3_A1/DDR2_A6
AF1
FRC_DDR3_A2/DDR2_A7
AE3
FRC_DDR3_A3/DDR2_A1
AD14
FRC_DDR3_A4/DDR2_CASZ
AD3
FRC_DDR3_A5/DDR2_A10
AF15
FRC_DDR3_A6/DDR2_A0
AF2
FRC_DDR3_A7/DDR2_A5
AE15
FRC_DDR3_A8/DDR2_A2
AD2
FRC_DDR3_A9/DDR2_A9
AD16
FRC_DDR3_A10/DDR2_A11
AD15
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
FRC_DDR3_DQU4/DDR2_DQ15
AE7
FRC_DDR3_DQU5/DDR2_DQ9
AF10
FRC_DDR3_DQU6/DDR2_DQ10
AD8
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_VSYNC_LIKE
Y19
FRC_TESTPIN
IC101-*14
AE1
AF16
AF1
AE3
AD14
AD3
AF15
AF2
AE15
AD2
AD16
AD15
AE16
AF3
AF14
AD1
AD13
AE14
AE13
AE4
AD5
AF4
AD4
AE2
AF8
AD9
AE9
AF9
AE11
AF6
AE6
AF11
AD6
AD12
AE5
AF12
AF5
AE12
AE10
AF7
AD11
AD7
AD10
AE7
AF10
AD8
AE8
Y11
Y19
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
S7MR_BASIC
LGE107C-R-1 [S7MR BASIC]
FRC_DDR3_A0/DDR2_NC
FRC_DDR3_A1/DDR2_A6
FRC_DDR3_A2/DDR2_A7
FRC_DDR3_A3/DDR2_A1
FRC_DDR3_A4/DDR2_CASZ
FRC_DDR3_A5/DDR2_A10
FRC_DDR3_A6/DDR2_A0
FRC_DDR3_A7/DDR2_A5
FRC_DDR3_A8/DDR2_A2
FRC_DDR3_A9/DDR2_A9
FRC_DDR3_A10/DDR2_A11
FRC_DDR3_A11/DDR2_A4
FRC_DDR3_A12/DDR2_A8
FRC_DDR3_BA0/DDR2_BA2
FRC_DDR3_BA1/DDR2_ODT
FRC_DDR3_BA2/DDR2_A12
FRC_DDR3_MCLK/DDR2_MCLK
FRC_DDR3_CKE/DDR2_RASZ
FRC_DDR3_MCLKZ/DDR2_MCLKZ
FRC_DDR3_ODT/DDR2_BA1
FRC_DDR3_RASZ/DDR2_WEZ
FRC_DDR3_CASZ/DDR2_CKE
FRC_DDR3_WEZ/DDR2_BA0
FRC_DDR3_RESETB/DDR2_A3
FRC_DDR3_DQSL/DDR2_DQS0
FRC_DDR3_DQSLB/DDR2_DQSB0
FRC_DDR3_DQSU/DDR2_DQS1
FRC_DDR3_DQSUB/DDR2_DQSB1
FRC_DDR3_DML/DDR2_DQ7
FRC_DDR3_DMU/DDR2_DQ11
FRC_DDR3_DQL0/DDR2_DQ6
FRC_DDR3_DQL1/DDR2_DQ0
FRC_DDR3_DQL2/DDR2_DQ1
FRC_DDR3_DQL3/DDR2_DQ2
FRC_DDR3_DQL4/DDR2_DQ4
FRC_DDR3_DQL5/DDR2_NC
FRC_DDR3_DQL6/DDR2_DQ3
FRC_DDR3_DQL7/DDR2_DQ5
FRC_DDR3_DQU0/DDR2_DQ8
FRC_DDR3_DQU1/DDR2_DQ14
FRC_DDR3_DQU2/DDR2_DQ13
FRC_DDR3_DQU3/DDR2_DQ12
FRC_DDR3_DQU4/DDR2_DQ15
FRC_DDR3_DQU5/DDR2_DQ9
FRC_DDR3_DQU6/DDR2_DQ10
FRC_DDR3_DQU7/DDR2_DQM1
FRC_DDR3_NC/DDR2_DQM0
FRC_REXT
FRC_TESTPIN
CCKP/LLV3P
CCKM/LLV3N
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
FRC_SPI_CZ
FRC_GPIO1
FRC_SPI1_CK
FRC_GPIO8
FRC_SPI_DO
FRC_SPI1_DI
FRC_SPI_CK
FRC_SPI_DI
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
/PCM_REG
/PCM_OE
/PCM_WE
/PCM_IORD
/PCM_IOWR
/PCM_CE
/PCM_IRQA
/PCM_CD
/PCM_WAIT
22
IC101-*6
GPIO1/TCON14/VSYNC/VDD_EVEN
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
PCM_RST
DSUB_DET
MODEL_OPT_3
PCM_5V_CTL
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
CCKP/LLV3P
CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
FRC_GPIO0/UART_RX
FRC_GPIO1
FRC_GPIO3
FRC_GPIO8
FRC_GPIO9/UART_TX
FRC_GPIO10
FRC_I2CM_DA
FRC_I2CM_CK
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
R134 22
R135 22
R136 22
R137 22
R138 22
R139 22
PWM0
PWM1
PWM2
AE1
W26
FRC_DDR3_A0/DDR2_NC
AF16
W25
FRC_DDR3_A1/DDR2_A6
AF1
U26
FRC_DDR3_A2/DDR2_A7
AE3
U25
FRC_DDR3_A3/DDR2_A1
AD14
U24
FRC_DDR3_A4/DDR2_CASZ
AD3
V26
FRC_DDR3_A5/DDR2_A10
AF15
V25
FRC_DDR3_A6/DDR2_A0
AF2
V24
FRC_DDR3_A7/DDR2_A5
AE15
W24
FRC_DDR3_A8/DDR2_A2
AD2
Y26
FRC_DDR3_A9/DDR2_A9
AD16
Y25
FRC_DDR3_A10/DDR2_A11
AD15
Y24
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AC26
AC25
AA26
AF3
AA25
FRC_DDR3_BA0/DDR2_BA2
AF14
AA24
FRC_DDR3_BA1/DDR2_ODT
AD1
AB26
FRC_DDR3_BA2/DDR2_A12
AB25
AD13
AB24
FRC_DDR3_MCLK/DDR2_MCLK
AE14
AC24
FRC_DDR3_CKE/DDR2_RASZ
AE13
AD26
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AD25
AD24
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
AD23
FRC_DDR3_CASZ/DDR2_CKE
AD4
AE23
FRC_DDR3_WEZ/DDR2_BA0
AE26
AE2
AE25
FRC_DDR3_RESETB/DDR2_A3
AF26
AF25
AF8
AE24
FRC_DDR3_DQSL/DDR2_DQS0
AD9
AF24
FRC_DDR3_DQSLB/DDR2_DQSB0
AF23
AE9
AD22
FRC_DDR3_DQSU/DDR2_DQS1
AF9
AE22
FRC_DDR3_DQSUB/DDR2_DQSB1
AF22
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AD19
AE6
AE19
FRC_DDR3_DQL0/DDR2_DQ6
AF11
AD21
FRC_DDR3_DQL1/DDR2_DQ0
AD6
AE21
FRC_DDR3_DQL2/DDR2_DQ1
AD12
AF21
FRC_DDR3_DQL3/DDR2_DQ2
AE5
AD20
FRC_DDR3_DQL4/DDR2_DQ4
AF12
AE20
FRC_DDR3_DQL5/DDR2_NC
AF5
AF20
FRC_DDR3_DQL6/DDR2_DQ3
AE12
AF19
FRC_DDR3_DQL7/DDR2_DQ5
AD18
AE10
AE18
FRC_DDR3_DQU0/DDR2_DQ8
AF7
AF18
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
AB22
FRC_DDR3_DQU4/DDR2_DQ15
AE7
AB23
FRC_DDR3_DQU5/DDR2_DQ9
AF10
AC23
FRC_DDR3_DQU6/DDR2_DQ10
AD8
AC22
FRC_DDR3_DQU7/DDR2_DQM1
AB16
AA14
AC15
Y16
AC16
AE8
AC14
FRC_DDR3_NC/DDR2_DQM0
Y11
AA16
FRC_REXT
Y19
AA15
FRC_TESTPIN
Y10
AA11
AB15
AB14
C108
0.1uF
OPT
S7MR_MS10
IC101-*7
LGE107C-R [S7MR MS10]
PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]
PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]
C109
R166
R167
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
CCKP/LLV3P
CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
FRC_GPIO0/UART_RX
FRC_GPIO1
FRC_GPIO3
FRC_GPIO8
FRC_GPIO9/UART_TX
FRC_GPIO10
FRC_I2CM_DA
FRC_I2CM_CK
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
R169
1K
0.1uF
100
100
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
I2C
R168
S7M-PLUS_DivX_MS10
LGE107DC-RP [S7M+ DIVX/MS10]
U22
PCM_D0
T21
PCM_D1
T22
PCM_D2
AB18
PCM_D3
AC18
PCM_D4
AC19
PCM_D5
AC20
PCM_D6
AC21
PCM_D7
U21
PCM_A0
V21
PCM_A1
Y22
PCM_A2
AA22
PCM_A3
R22
PCM_A4
R21
PCM_A5
T23
PCM_A6
T24
PCM_A7
AA23
PCM_A8
Y20
PCM_A9
AB17
PCM_A10
AA21
PCM_A11
U23
PCM_A12
Y23
PCM_A13
W23
PCM_A14
W22
PCM_REG_N
AA17
PCM_OE_N
V22
PCM_WE_N
W21
PCM_IORD_N
Y21
PCM_IOWR_N
AA20
PCM_CE_N
V23
PCM_IRQA_N
P23
PCM_CD_N
R23
PCM_WAIT_N
P22
PCM_RESET
AC17
PCM_PF_CE0Z
AB20
PCM_PF_CE1Z
AA18
PCM_PF_OEZ
AB21
PCM_PF_WEZ
AB19
PCM_PF_ALE
AD17
PCM_PF_AD[15]
AA19
PCM_PF_RBZ
M23
UART_TX2/GPIO65
N23
UART_RX2/GPIO64
M22
DDCR_DA/GPIO71
N22
DDCR_CK/GPIO72
A5
DDCA_DA/UART0_TX
B5
DDCA_CK/UART0_RX
K23
PWM0/GPIO66
K22
PWM1/GPIO67
G23
PWM2/GPIO68
G22
PWM3/GPIO69
G21
PWM4/GPIO70
C6
SAR0/GPIO31
B6
SAR1/GPIO32
C8
SAR2/GPIO33
C7
SAR3/GPIO34
A6
SAR4/GPIO35
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
FRC_GPIO0/UART_RX
FRC_GPIO9/UART_TX
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
CCKP/LLV3P
AE23
CCKM/LLV3N
AE26
AE25
AF26
AF25
AE24
AF24
AF23
C3P/LLV4P
AD22
C3M/LLV4N
AE22
C4P/LLV5P
AF22
C4M/LLV5N
AD19
DCKP/TCON5
AE19
DCKM/TCON4
AD21
D0P/LLV6P
AE21
D0M/LLV6N
AF21
D1P/LLV7P
AD20
D1M/LLV7N
AE20
D2P/LLV8P
AF20
D2M/LLV8N
AF19
D3P/TCON3
AD18
D3M/TCON2
AE18
D4P/TCON1
AF18
D4M/TCON0
AB22
AB23
AC23
AC22
AB16
AA14
FRC_GPIO1
AC15
FRC_GPIO3
Y16
FRC_GPIO8
AC16
AC14
FRC_GPIO10
AA16
FRC_I2CM_DA
AA15
FRC_I2CM_CK
Y10
FRC_I2CS_DA
AA11
FRC_I2CS_CK
AB15
FRC_PWM0
AB14
FRC_PWM1
+3.3V_Normal
R142
3.3K
S7MR_DivX_MS10
AE1
AF16
AF1
AE3
AD14
AD3
AF15
AF2
AE15
AD2
AD16
AD15
AE16
AF3
AF14
AD1
AD13
AE14
AE13
AE4
AD5
AF4
AD4
AE2
AF8
AD9
AE9
AF9
AE11
AF6
AE6
AF11
AD6
AD12
AE5
AF12
AF5
AE12
AE10
AF7
AD11
AD7
AD10
AE7
AF10
AD8
AE8
Y11
Y19
R143
3.3K
1K
S7MR_DivX
LGE107DC-R-1 [S7MR DIVX]
AE1
FRC_DDR3_A0/DDR2_NC
AF16
FRC_DDR3_A1/DDR2_A6
AF1
FRC_DDR3_A2/DDR2_A7
AE3
FRC_DDR3_A3/DDR2_A1
AD14
FRC_DDR3_A4/DDR2_CASZ
AD3
FRC_DDR3_A5/DDR2_A10
AF15
FRC_DDR3_A6/DDR2_A0
AF2
FRC_DDR3_A7/DDR2_A5
AE15
FRC_DDR3_A8/DDR2_A2
AD2
FRC_DDR3_A9/DDR2_A9
AD16
FRC_DDR3_A10/DDR2_A11
AD15
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
FRC_DDR3_DQU4/DDR2_DQ15
AE7
FRC_DDR3_DQU5/DDR2_DQ9
AF10
FRC_DDR3_DQU6/DDR2_DQ10
AD8
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_REXT
Y19
FRC_TESTPIN
R1401KR141
IC101-*8
1K
IC101
GPIO11/PM5/PM_UART_RX/INT1
PM_SPI_WP2/GPIO14/PM8/INT2
IC101-*9
LGE107DC-R [S7MR DIVX/MS10]
FRC_DDR3_A0/DDR2_NC
ACKP/RLV3P/RED[3]
FRC_DDR3_A1/DDR2_A6
ACKM/RLV3N/RED[2]
FRC_DDR3_A2/DDR2_A7
A0P/RLV0P/RED[9]
FRC_DDR3_A3/DDR2_A1
A0M/RLV0N/RED[8]
FRC_DDR3_A4/DDR2_CASZ
A1P/RLV1P/RED[7]
FRC_DDR3_A5/DDR2_A10
A1M/RLV1N/RED[6]
FRC_DDR3_A6/DDR2_A0
A2P/RLV2P/RED[5]
FRC_DDR3_A7/DDR2_A5
A2M/RLV2N/RED[4]
FRC_DDR3_A8/DDR2_A2
A3P/RLV4P/RED[1]
FRC_DDR3_A9/DDR2_A9
A3M/RLV4N/RED[0]
FRC_DDR3_A10/DDR2_A11
A4P/RLV5P/GREEN[9]
FRC_DDR3_A11/DDR2_A4
A4M/RLV5N/GREEN[8]
FRC_DDR3_A12/DDR2_A8
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
FRC_DDR3_BA0/DDR2_BA2
B0M/RLV6N/GREEN[6]
FRC_DDR3_BA1/DDR2_ODT
B1P/RLV7P/GREEN[5]
FRC_DDR3_BA2/DDR2_A12
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
FRC_DDR3_MCLK/DDR2_MCLK
B2M/RLV8N/GREEN[2]
FRC_DDR3_CKE/DDR2_RASZ
B3P/TCON11/BLUE[9]
FRC_DDR3_MCLKZ/DDR2_MCLKZ
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
FRC_DDR3_ODT/DDR2_BA1
FRC_DDR3_RASZ/DDR2_WEZ
FRC_DDR3_CASZ/DDR2_CKE
CCKP/LLV3P
FRC_DDR3_WEZ/DDR2_BA0
CCKM/LLV3N
C0P/LLV0P/BLUE[5]
FRC_DDR3_RESETB/DDR2_A3
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
FRC_DDR3_DQSL/DDR2_DQS0
C2P/LLV2P/BLUE[1]
FRC_DDR3_DQSLB/DDR2_DQSB0
C2M/LLV2N/BLUE[0]
C3P/LLV4P
FRC_DDR3_DQSU/DDR2_DQS1
C3M/LLV4N
FRC_DDR3_DQSUB/DDR2_DQSB1
C4P/LLV5P
C4M/LLV5N
FRC_DDR3_DML/DDR2_DQ7
FRC_DDR3_DMU/DDR2_DQ11
DCKP/TCON5
FRC_DDR3_DQL0/DDR2_DQ6
DCKM/TCON4
FRC_DDR3_DQL1/DDR2_DQ0
D0P/LLV6P
FRC_DDR3_DQL2/DDR2_DQ1
D0M/LLV6N
FRC_DDR3_DQL3/DDR2_DQ2
D1P/LLV7P
FRC_DDR3_DQL4/DDR2_DQ4
D1M/LLV7N
FRC_DDR3_DQL5/DDR2_NC
D2P/LLV8P
FRC_DDR3_DQL6/DDR2_DQ3
D2M/LLV8N
FRC_DDR3_DQL7/DDR2_DQ5
D3P/TCON3
D3M/TCON2
FRC_DDR3_DQU0/DDR2_DQ8
D4P/TCON1
FRC_DDR3_DQU1/DDR2_DQ14
D4M/TCON0
FRC_DDR3_DQU2/DDR2_DQ13
FRC_DDR3_DQU3/DDR2_DQ12
FRC_DDR3_DQU4/DDR2_DQ15
GPIO0/TCON15/HSYNC/VDD_ODD
FRC_DDR3_DQU5/DDR2_DQ9
GPIO1/TCON14/VSYNC/VDD_EVEN
FRC_DDR3_DQU6/DDR2_DQ10
GPIO2/TCON7/LDE/GCLK4
FRC_DDR3_DQU7/DDR2_DQM1
GPIO3/TCON6/LCK/GCLK2
FRC_GPIO0/UART_RX
FRC_GPIO1
FRC_GPIO3
FRC_GPIO8
FRC_GPIO9/UART_TX
FRC_DDR3_NC/DDR2_DQM0
FRC_GPIO10
FRC_REXT
FRC_I2CM_DA
FRC_TESTPIN
FRC_I2CM_CK
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
+3.5V_ST
R144
2.2K
R145
2.2K
GPIO143/TCON0
GPIO145/TCON2
GPIO147/TCON4
GPIO149/TCON6
GPIO151/TCON8
GPIO36/UART3_RX
GPIO37/UART3_TX
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO50/UART1_RX
GPIO51/UART1_TX
GPIO6/PM0/INT0
GPIO7/PM1/PM_UART_TX
GPIO8/PM2
GPIO9/PM3
GPIO10/PM4
PM_SPI_CS1/GPIO12/PM6
PM_SPI_WP1/GPIO13/PM7
GPIO15/PM9
PM_SPI_CS2/GPIO16/PM10
GPIO17/PM11/INT3
GPIO18/PM12/INT4
PM_SPI_CK/GPIO1
GPIO0/PM_SPI_CZ
PM_SPI_DI/GPIO2
PM_SPI_DO/GPIO3
TS0_CLK
TS0_VLD
TS0_SYNC
TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7
TS1_CLK
TS1_VLD
TS1_SYNC
TS1_D0
TS1_D1
TS1_D2
TS1_D3
TS1_D4
TS1_D5
TS1_D6
TS1_D7
MPIF_CLK
MPIF_CS_N
MPIF_BUSY
MPIF_D0
MPIF_D1
MPIF_D2
MPIF_D3
S7MR_RM
IC101-*10
LGE107RC-R [S7MR RM]
AE1
W26
FRC_DDR3_A0/DDR2_NC
ACKP/RLV3P/RED[3]
AF16
W25
FRC_DDR3_A1/DDR2_A6
ACKM/RLV3N/RED[2]
AF1
U26
FRC_DDR3_A2/DDR2_A7
A0P/RLV0P/RED[9]
AE3
U25
FRC_DDR3_A3/DDR2_A1
A0M/RLV0N/RED[8]
AD14
U24
FRC_DDR3_A4/DDR2_CASZ
A1P/RLV1P/RED[7]
AD3
V26
FRC_DDR3_A5/DDR2_A10
A1M/RLV1N/RED[6]
AF15
V25
FRC_DDR3_A6/DDR2_A0
A2P/RLV2P/RED[5]
AF2
V24
FRC_DDR3_A7/DDR2_A5
A2M/RLV2N/RED[4]
AE15
W24
FRC_DDR3_A8/DDR2_A2
A3P/RLV4P/RED[1]
AD2
Y26
FRC_DDR3_A9/DDR2_A9
A3M/RLV4N/RED[0]
AD16
Y25
FRC_DDR3_A10/DDR2_A11
A4P/RLV5P/GREEN[9]
AD15
Y24
FRC_DDR3_A11/DDR2_A4
A4M/RLV5N/GREEN[8]
AE16
FRC_DDR3_A12/DDR2_A8
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
FRC_DDR3_DQU4/DDR2_DQ15
AE7
FRC_DDR3_DQU5/DDR2_DQ9
AF10
FRC_DDR3_DQU6/DDR2_DQ10
AD8
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_REXT
Y19
FRC_TESTPIN
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
FRC_GPIO0/UART_RX
FRC_GPIO9/UART_TX
CCKP/LLV3P
CCKM/LLV3N
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
FRC_GPIO1
FRC_GPIO3
FRC_GPIO8
FRC_GPIO10
FRC_I2CM_DA
FRC_I2CM_CK
FRC_I2CS_DA
FRC_I2CS_CK
N21
M21
L22
L21
P21
K21
L23
K20
L20
M20
G20
G19
F20
F19
E7
D7
E11
G9
F9
C5
E8
E9
F7
F6
D8
G12
F10
D9
D11
E10
D10
AA9
AA5
AA10
AB5
AC4
Y6
AA6
W6
AA7
Y9
AA8
AC5
AC6
AB6
AC10
AB10
AC9
AB9
AC8
AB8
AC7
AB7
D12
D14
E14
E12
F12
D13
E13
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
FRC_PWM0
AB14
FRC_PWM1
R10022
R10122
R14633
R14733
CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]
FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]
Delete /PIF_SPI_CS
R160
1K
5V_DET_HDMI_1
5V_DET_HDMI_2
5V_DET_HDMI_4
R16322
EXT_VOL+
R16422
R15133
EXT_VOL-
SC1/COMP1_DET
ERROR_OUT
MODEL_OPT_0
MST_NEC_RX
MST_NEC_TX
USB1_OCD
USB1_CTL
HP_DET
CONTROL_ATTEN
MODEL_OPT_6
MODEL_OPT_1
/FLASH_WP
MODEL_OPT_2
TUNER_RESET
DEMOD_RESET
SPI_SCK
/SPI_CS
SPI_SDI
SPI_SDO
FE_TS_CLK
FE_TS_VAL_ERR
FE_TS_SYNC
FE_TS_DATA[0-7]
for SERIAL FLASH
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
CI_TS_DATA[0-7]
R10322
R11022
DIMMING
C111
2.2uF
R156
R157
EEPROM_SDA
EEPROM_SCL
NEC_SDA
NEC_SCL
AMP_SDA
AMP_SCL
PI_SDA
PI_SCL
A_DIM
PWM_DIM
GP3_Saturn7M Ver. 0.1
FLASH/EEPROM/GPIO
from CI SLOT
Internal demod out
/External demod in
10K
100
PWM0
PWM2
1
Page 17
LNA2_CTL
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
RF_SWITCH_CTL
OPT
R201 100
BOOSTER_OPT
R202
RF_SW_OPT
R203
R204 100
OPT
R210 100
OPT
R213
OPT
R216
OPT
CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1
CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2
CK+_HDMI4
HDMI
CK-_HDMI4
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
DDC_SDA_4
DDC_SCL_4
HPD4
PI_SDA
PI_SCL
CEC_REMOTE_S7
DSUB_HSYNC
DSUB_VSYNC
DSUB_R+
DSUB_G+
DSUB
DSUB_B+
SCART1_RGB/COMP1
SC1_ID
SC1_FB
SC1_R+/COMP1_Pr+
SC1_G+/COMP1_Y+
SC1_B+/COMP1_Pb+
SC1_SOG_IN
COMP2_Pr+
COMP2_Y+
COMP2
COMP2_Pb+
TU_CVBS
SC1_CVBS_IN
AV_CVBS_IN2
CVBS In/OUT
DTV/MNT_VOUT
AV_CVBS_IN2
OPT
OPT
100
100
0
0
OPT
R214 1K
R215 1K
R294 1K
R295 1K
100/120Hz LVDS
OPT
R293 1K
R297 1K
50/60Hz LVDS
R4026
Delete CHB_CVBS_IN
+3.3V_Normal
FHD
R206 1K
HD
R207 1K
10K
R4023
C203
1000pF
OPT
TP211
PHM_ON
DVB_T2
R211 1K
R208 1K
PHM_OFF
NON_DVB_T2
R212 1K
R209 1K
R4024
R4025
10K
Close to MSTAR
OPT
R226 1K
R227 1K
22
22
R228 33
R229 68
R230 33
R231 68
R232 33
R233 68
R253 33
R254 68
R255
R256
R257 33
R258 68
R236 0
OPT
R237 33
R238 68
R239
R240
R241 33
R242 68
R244 33
R245 33
R246 33
R4016 33
R248 33
R249 33
R250 33
R251 33
R252 68
MODEL OPTION
MODEL_OPT_0IF_AGC_SEL
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6
C204 0.047uF
C205 0.047uF
C206 0.047uF
C207 0.047uF
C208 0.047uF
C209 0.047uF
C210 1000pF
C211 0.047uF
C212 0.047uF
C213
33
0.047uF
C214
0.047uF
68
0.047uF
C215
0.047uF
C216
C217 1000pF
C218 0.047uF
C219 0.047uF
33
C220 0.047uF
68
C221 0.047uF
C222 0.047uF
C223 0.047uF
C224 1000pF
C248
0.047uF
C225 0.047uF
C226 0.047uF
C227 0.047uF
C4057 0.047uF
C229 0.047uF
C230 0.047uF
C231 0.047uF
C232 0.047uF
TP210
C233 0.047uF
PIN NAME
MODEL_OPT_0
MODEL_OPT_4
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_5
MODEL_OPT_6
LGE107DC-RP [S7M+ DIVX/MS10]
F1
A_RXCP
F2
A_RXCN
G2
A_RX0P
G3
A_RX0N
H3
A_RX1P
G1
A_RX1N
H1
A_RX2P
H2
A_RX2N
F5
DDCDA_DA/GPIO24
F4
DDCDA_CK/GPIO23
E6
HOTPLUGA/GPIO19
D3
B_RXCP
C1
B_RXCN
D1
B_RX0P
D2
B_RX0N
E2
B_RX1P
E3
B_RX1N
F3
B_RX2P
E1
B_RX2N
D4
DDCDB_DA/GPIO26
E4
DDCDB_CK/GPIO25
D5
HOTPLUGB/GPIO20
AA2
C_RXCP
AA1
C_RXCN
AB1
C_RX0P
AA3
C_RX0N
AB3
C_RX1P
AB2
C_RX1N
AC2
C_RX2P
AC1
C_RX2N
AB4
DDCDC_DA/GPIO28
AA4
DDCDC_CK/GPIO27
AC3
HOTPLUGC/GPIO21
A2
D_RXCP
A3
D_RXCN
B3
D_RX0P
A1
D_RX0N
B1
D_RX1P
B2
D_RX1N
C2
D_RX2P
C3
D_RX2N
B4
DDCDD_DA/GPIO30
C4
DDCDD_CK/GPIO29
E5
HOTPLUGD/GPIO22
D6
CEC/GPIO5
G5
HSYNC0
G6
VSYNC0
K1
RIN0P
L3
RIN0M
K3
GIN0P
K2
GIN0M
J3
BIN0P
J2
BIN0M
J1
SOGIN0
G4
HSYNC1
H6
VSYNC1
K5
RIN1P
K4
RIN1M
J4
GIN1P
K6
GIN1M
H4
BIN1P
J6
BIN1M
J5
SOGIN1
H5
HSYNC2
N3
RIN2P
N2
RIN2M
M2
GIN2P
M1
GIN2M
L2
BIN2P
L1
BIN2M
M3
SOGIN2
N4
CVBS0P
N6
CVBS1P
L4
CVBS2P
L5
CVBS3P
L6
CVBS4P
M4
CVBS5P
M5
CVBS6P
K7
CVBS7P
M6
CVBS_OUT1
M7
CVBS_OUT2
N5
VCOM0
MODEL OPTION
PIN NO.
G19
E18
C5
F7
B6
D18
F9
S7M-PLUS_DivX_MS10
IC101
SPDIF_IN/GPIO177
SPDIF_OUT/GPIO178
I2S_IN_BCK/GPIO175
I2S_IN_SD/GPIO176
I2S_IN_WS/GPIO174
I2S_OUT_BCK/GPIO181
I2S_OUT_MCK/GPIO179
I2S_OUT_SD/GPIO182
I2S_OUT_SD1/GPIO183
I2S_OUT_SD2/GPIO184
I2S_OUT_SD3/GPIO185
I2S_OUT_WS/GPIO180
LOW
NO FRC
50/60Hz LVDS
PHM_OFF
2D
HD
Ready
LCD
VIFP
VIFM
SSIF/SIFP
SSIF/SIFM
IFAGC
RF_TAGC
TGPIO0/UPGAIN
TGPIO1/DNGAIN
TGPIO2/I2C_CLK
TGPIO3/I2C_SDA
XTALIN
XTALOUT
DM_P0
DP_P0
DM_P1
DP_P1
LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R
LINE_IN_2L
LINE_IN_2R
LINE_IN_3L
LINE_IN_3R
LINE_IN_4L
LINE_IN_4R
LINE_IN_5L
LINE_IN_5R
LINE_OUT_0L
LINE_OUT_2L
LINE_OUT_3L
LINE_OUT_0R
LINE_OUT_2R
LINE_OUT_3R
MIC_DET_IN
MICCM
MICIN
AUCOM
HP_OUT_1L
HP_OUT_1R
ET_RXD0
ET_TXD0
ET_RXD1
ET_TXD1
ET_REFCLK
ET_TX_EN
ET_MDC
ET_MDIO
ET_CRS
AVLINK
IRINT
TESTPIN
RESET
U3_RESET
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
HIGH
FRC_HW_OPT
100/120Hz LVDS
PHM_ON
3D
FHD
default
OLED
W2
W1
V2
IP
V1
IM
Y2
Y1
U3
QP
V3
QM
Y5
Y4
U1
U2
R3
T3
T2
T1
G14
G13
B7
A7
AF17
AE17
F14
F13
F15
D20
E20
D19
F18
E18
D18
E19
N1
P3
P1
P2
P4
P5
R6
T6
U5
V5
U6
V6
U4
W3
W4
V4
Y3
W5
R4
T5
R5
T4
P7
VRM
R7
VAG
P6
VRP
R1
R2
E21
E22
D21
F21
E23
D22
F22
D23
F23
F8
G8
K8
A4
Y17
NO_FRC : LOW LOW
U3_INTERNAL : HIGH LOW
U5_EXTERNALBOOT :HIGH HIGH
reserved for FRC : LOW HIGH
--> This option is only applied in EU.
In case of NON_EU, default value set LOW.
-->In case of GP2, This port was used for GIP/NON_GIP
--> MODEL_OPT_5, MODEL_OPT_6
: Only 3D_SG GPIO OUTPUT CONTROL
TP201
TP202
TP203
TP204
TP205
FULL_NIM
R291 22
FULL_NIM
R292 22
1M
R287
R296 100
COMP2_DET
NEC_SCL
C236 2.2uF
C237
2.2uF
C238 2.2uF
C239
2.2uF
C4059 2.2uF
C4060
2.2uF
C242
2.2uF
C243 2.2uF
C244 2.2uF
C245 2.2uF
C246
2.2uF
TP207
TP208
TP209
2.2uF
2.2uF
TP206
5.6uH
OPT
2.2uF
OPT
C249
4.7uF
OPT
R298 100
C253
1uF
C256
0.1uF
C247
OPT
C234
C235
OPT
CM2012F5R6KT
L203
L205 5.6uH
CM2012F5R6KT
OPT_0
OPT_4
Close to MSTAR
R288 100
R289 100
C250 0.1uF
C251 0.1uF
ANALOG SIF
Close to MSTAR
+3.3V_Normal
AMP_SCL
AMP_SDA
C261 27pF
X201
24MHz
C262 27pF
NEC_SDA
MODEL_OPT_4
MODEL_OPT_5
C263
10uF
C257 0.1uF
C258 0.1uF
R4002 47
R4003 47
L227
BLM18PG121SN1D
C4064
0.1uF
TU/DEMOD_I2C
R200
22K
C200
0.01uF
L202
BLM18SG121TN1D
C268
10K
R4006
OPT
C264
R4019
1K
DEMOD_SCL
DEMOD_SDA
TU_SCL
TU_SDA
SC1/COMP1_L_IN
SC1/COMP1_R_IN
COMP2_L_IN
COMP2_R_IN
PC_L_IN
PC_R_IN
C201
0.01uF
R217
4.7uF
SOC_RESET
IF_P_MSTAR
IF_N_MSTAR
1000pF
Close to MSTAR
R4020
10K
C4065
0.022uF
16V
LED_DRIVER_D/L_SDA
SPDIF_OUT
B/T USB
SIDE_USB_DM
SIDE_USB_DP
SIDE USB
AUDIO IN
22K
C272
4.7uF
DTV_IF
TU_SIF
AUD_SCK
AUD_MASTER_CLK_0
AUD_LRCH
LED_DRIVER_D/L_SCL
AUD_LRCK
SCART1_Lout
EXT_L_AMP
SCART1_Rout
EXT_R_AMP
H/P OUT
HP_LOUT
HP_ROUT
IF_AGC_MAIN
I2S_I/F
+1.26V_VDDC
AUDIO OUT
10uFC276
10uFC275
10uFC228
+3.3V_Normal
L204
BLM18PG121SN1D
0.1uF
C4044 0.1uF
C4043
AVDD_MEMPLL:24mA
FRC_LPLL:13mA
VDD33
L206
BLM18PG121SN1D
+3.3V_Normal
L207
BLM18PG121SN1D
Normal 2.5V
+2.5V_Normal
+2.5V_Normal
+1.5V_DDR
RSDS Power OPT
+1.26V_VDDC
L228
BLM18SG700TN1D
L226
BLM18SG700TN1D
C280 0.1uF
C277 0.1uF
VDD33
10uFC284
OPT
FRC_LPLL
OPT
VDD33_DVI:163mA
VDD33_DVI
C287
10uF
L211
BLM18PG121SN1D
L212
BLM18PG121SN1D
AU25:10mA
L209
BLM18PG121SN1D
OPT
C278
C281
10uF
MIU1VDDC
C4063 10uF
OPT
OPT
C292 0.1uF
C283 0.1uF
C299 0.1uF
Normal Power 3.3V
VDD33_T/VDDP/U3_VD33_2:47mA
10uFC4001
10uFC293
OPT
OPT
C4007 0.1uF
VDD33
L215
BLM18PG121SN1D
C4016 0.1uF
C286 0.1uF
C294
0.1uF
C4008
C4002
0.1uF
OPT
AVDD2P5
C289 10uF
C295 0.1uF
AU25
C296 0.1uF
DDR3 1.5V
AVDD_DDR0:55mA
10uF
C4056 0.1uF
C290
AVDD_DDR0
C4046
0.1uF
0.1uF
C4003
C297
0.1uF
OPT
OPT
MIU0VDDC
C4066 10uF
VDDC 1.26V
OPT
C4011 0.1uF
C4006 0.1uF
C4013 0.1uF
OPT
C4020 0.1uF
C4014 0.1uF
C4012 0.1uF
AU33:31mA
AU33
C4015
0.1uF
OPT
FRC_MPLL:4mA
AVDD_DMPLL
L217
BLM18PG121SN1D
C288
0.1uF
AVDD2P5/ADC2P5:162mA
+2.5V_Normal
C4009
0.1uF
C4062 0.1uF
0.1uF
C4017
0.1uF
AVDD_DMPLL/AVDD_NODIE:7.362mA
AVDD2P5
L219
BLM18PG121SN1D
AVDD25_PGA:13mA
AVDD_DDR0
C4018
0.1uF
10uF
C4042
0.1uF
OPT
AVDD_DDR0
R40141K1/16W
R40151K1/16W
OPT
C4019 0.1uF
C4025 0.1uF
C4023 0.1uF
AVDD2P5
AVDD25_PGA
AVDD_DDR1:55mA
C4022
10uF
OPT
1%
1%
C241
C4024 0.1uF
C4028
0.1uF
C4031 0.1uF
C4026 0.1uF
C4027 0.1uF
0.1uF
MVREF
C4032
S7M-PLUS_DivX_MS10
IC101
VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
A_DVDD
B_DVDD
FRC_VDDC_0
FRC_VDDC_1
FRC_VDDC_2
FRC_VDDC_3
FRC_VDDC_4
FRC_VDDC_5
FRC_VDDC_6
FRC_VDDC_7
FRC_VDDC_8
U3_DVDD_DDR
AVDD1P2
DVDD_NODIE
AVDD2P5_ADC_1
AVDD2P5_ADC_2
AVDD25_REF
AVDD_AU25
PVDD_1
PVDD_2
AVDD25_PGA
AVDD_NODIE
AVDD_DVI_1
AVDD_DVI_2
AVDD3P3_CVBS
AVDD_DMPLL
AVDD_AU33
AVDD_EAR33
AVDD33_T
VDDP_1
VDDP_2
VDDP_3
FRC_VD33_2_1
FRC_VD33_2_2
FRC_AVDD_RSDS_1
FRC_AVDD_RSDS_2
FRC_AVDD_RSDS_3
FRC_AVDD
FRC_AVDD_LPLL
FRC_AVDD_MPLL
FRC_VDD33_DDR
AVDD_MEMPLL
FRC_AVDD_MEMPLL
AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR0_D_4
AVDD_DDR0_C
AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3
AVDD_DDR1_D_4
AVDD_DDR1_C
FRC_AVDD_DDR_D_1
FRC_AVDD_DDR_D_2
FRC_AVDD_DDR_D_3
FRC_AVDD_DDR_D_4
FRC_AVDD_DDR_C
MVREF
NC_1
NC_2
AVDD_DDR0
0.1uF
C4036
LGE107DC-RP [S7M+ DIVX/MS10]
+1.26V_VDDC
H11
H12
H13
H14
H15
J12
J13
J14
J15
J16
L18
AB11
AB12
AC11
AC12
AA12
H16
K19
L19
M18
M19
N18
N19
N20
P18
P19
P20
Y12
J11
L7
H7
J7
J8
L8
W15
Y15
U8
M8
N9
P9
N8
P8
T7
U7
T9
R8
R9
T8
V20
W20
U19
U20
V19
W19
U18
T20
Y14
R19
W14
D15
D16
E15
E16
E17
F16
F17
G16
G17
H17
G15
Y7
Y8
MIU0VDDC
MIU1VDDC
C4045 1uF
AVDD2P5
AU25
AVDD2P5
AVDD2P5
AVDD25_PGA
AVDD_DMPLL
VDD33_DVI
AVDD_DMPLL
AU33
VDD33
FRC_LPLL
VDD33
AVDD_DDR0
C4038
0.1uF
0.1uF
OPT
C285 0.1uF
AVDD_DDR0
MVREF
GP2R
MAIN2, HW OPT 2
VDDC : 2026mA
GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_FU
PGA_VCOM
+1.26V_VDDC
G18
H9
H10
H18
H19
J10
J17
J18
J19
K9
K10
K11
K12
K13
K14
K15
K16
K17
K18
L9
L10
L11
L12
L13
L14
L15
L16
L17
M9
M10
M11
M12
M13
M14
M15
M16
M17
N10
N11
N12
N13
N14
N15
N16
N17
P10
P11
P12
P13
P14
P15
P16
P17
R10
R11
R12
R13
R14
R15
R16
R17
R18
T10
T11
T12
T13
T14
T15
T16
T17
T18
T19
U10
U11
U12
U13
U14
U15
U16
U17
V7
V8
V9
V10
V11
V12
V13
V14
V15
V16
V17
V18
W7
W8
W9
W10
W11
W12
W13
W16
W17
W18
Y13
Y18
AA13
AB13
AC13
D17
H23
AF13
J9
L223
BLM18SG121TN1D
U9
20101023
Page 18
R300
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
820
S7M-R
R300-*1
4.7K
S7M-PLUS
S7M-PLUS_DivX_MS10
LGE107DC-RP [S7M+ DIVX/MS10]
AE1
FRC_DDR3_A0/DDR2_NC
AF16
FRC_DDR3_A1/DDR2_A6
AF1
FRC_DDR3_A2/DDR2_A7
AE3
FRC_DDR3_A3/DDR2_A1
AD14
FRC_DDR3_A4/DDR2_CASZ
AD3
FRC_DDR3_A5/DDR2_A10
AF15
FRC_DDR3_A6/DDR2_A0
AF2
FRC_DDR3_A7/DDR2_A5
AE15
FRC_DDR3_A8/DDR2_A2
AD2
FRC_DDR3_A9/DDR2_A9
AD16
FRC_DDR3_A10/DDR2_A11
AD15
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
FRC_DDR3_DQU4/DDR2_DQ15
AE7
FRC_DDR3_DQU5/DDR2_DQ9
AF10
FRC_DDR3_DQU6/DDR2_DQ10
AD8
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_VSYNC_LIKE
Y19
FRC_TESTPIN
IC101
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
CCKP/LLV3P
CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
FRC_SPI_CZ
FRC_GPIO1
FRC_SPI1_CK
FRC_GPIO8
FRC_SPI_DO
FRC_SPI1_DI
FRC_SPI_CK
FRC_SPI_DI
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
RXBCK+
RXBCKRXB0+
RXB0RXB1+
RXB1RXB2+
RXB2RXB3+
RXB3RXB4+
RXB4-
RXACK+
RXACKRXA0+
RXA0RXA1+
RXA1RXA2+
RXA2RXA3+
RXA3RXA4+
RXA4-
2D/3D_CTL
R301 33
R302
FRC_L/DIM
FRC_L/DIM
L/DIM_SCLK
33
L/DIM_MOSI
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
FRC_DDR
20101023
3
Page 19
FROM LIPS & POWER B/D
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
EXT12V_CTRL
EXT5V_CTRL
A1CA2
+3.5V_ST
C401
100uF
16V
+12V/+15V
C402
100uF
16V
RL_ON
D400
A1CA2
R401
10K
MLB-201209-0120P-N2
C404
0.1uF
16V
D401
C
B
E
MLB-201209-0120P-N2
C406
0.1uF
16V
L402
L402-*1
CIS21J121
Q401
2SC3052
L404
+3.5V_ST
L404-*1
CIS21J121
C407
0.1uF
16V
OPT
R406
4.7K
C408
0.1uF
16V
RT1P141C-T112
1
OPT
R476
Q402
3
2
0
POWER_23_GND
NORMAL_EXPEPT_32
P403
FW20020-24S
PWR ON
24V
GND
GND
3.5V
3.5V
GND
GND
12V
12V
12V
GND/P.DIM2
1
1
1
3
3
3
5
5
5
7
7
7
9
9
9
11
11
11
13
13
13
15
15
15
17
17
17
19
19
19
21
21 22
21 22
23
23 24
23 24
<MODULE PIN MAP>
CMO10"Lamp
(PSU)
AUO 10"Lamp
(PSU)
SHARP
(PSU)
GND
A-DIM
INV_ON
Err_out
NC
PWM_DIM
INV_ON
PWM_DIM
GND
32LE5300-TA
NC
INV_ON
err_out
NC
--> NC
CMO10"LED
NC
32LE4500-TA
AUO 10"LED
INV_ON
err_out
--> NC
NC
PWM_DIM
NC
PWM_DIM
NC
NC
GND
(PSU)
NC
NC
NC
INV_ON
52/60:ERROR
26/32HD:NC
26/32/52:PWM
26/32/52:GND
60:PWM
32LE5300-TA
LGD 10"LED
(PSU)
INV_ON
PWM_DIM
err_out
--> NC
GND
60:NC
GND
IPS-@
(PSU)
INV_ON
Err_out
PWM_DIM
GND
NC
NC
NC
16
18
20
24
23
22
LGD(PSU)
or LIPS
GND
INV_ON
VBR-A
PWM_DIM
Err_out
GND
PIN No
<LED MODULE PIN MAP -> latest update 20100618>
PIN No
LGD LPB/
OS LPB (PSU)
16
INV_ON
18
20
22
PWM_DIM
err_out
24
--> NC
23
LGD edge led error-out use or not? checking is necessary...
+5V_USB
+12V/+15V
L401
C405
C410
10uF
10uF
25V
25V
Vout=(1+R1/R2)*0.8
C489
0.1uF
16V
IC401
AOZ1073AIL-3
PGND
1
VIN
2
AGND
3
FB
4
3A
LX_2
8
LX_1
7
EN
6
COMP
5
NORMAL_32
P404
FM20020-24
2
2
2
4
4
4
6
6
6
8
8
8
10
10
10
12
12
12
14
14
14
16
16
16
18
18
18
20
20
20
22
24
25
25
SLIM_32~52
P401
SMAW200-H24S2
GNDGND
NC
NR8040T3R6N
POWER_ON/OFF2_1
R410
10K
12K
2200pF
R413
C413
L407-*1
CIS21J121
MLB-201209-0120P-N2
R412 0
POWER_16_GND
POWER_24_INV_CTL
R475
0
POWER_24_GND
POWER_24_PWM_DIM
POWER_22_PWM_DIM
L407
C418
0.1uF
50V
POWER_18_INV_CTL
R415
100
R425
100
POWER_20_PWM_DIM
0R472
0R471
C416
OPT
0.1uF
16V
POWER_20_ERROR_OUT
POWER_24_ERROR_OUT
R420
+3.3V_Normal
R419
1K
C
R418
6.8K
OPT
2SC3052
E
POWER_18_A_DIM
POWER_22_A_DIM
POWER_20_A_DIM
R484
0
PWM_PULL-DOWN_3.9K
R606
3.9K
100R437
100
TP5303
TP5304
TP5305
TP5306
24V
24V
GND
GND
3.5V
3.5V
GND
GND/V-sync
INV ON
A.DIM
P.DIM1
Err OUT
<Module Inv to Main Pin Connection>
INV <--> MAIN
#11 <--> #24
#12 <--> #18
#13 <--> #20
#14 <--> #22
2000 mA
L406
3.6uH
1%
R414
51K
OPT
R416
R423
1.5K
10K
C429
100pF
R1
1%
50V
1%
R2
C420
22uF
16V
+24V
C426
68uF
35V
B
Q405
R451
R485 0
R453
+3.5V_ST
R426
10K
R421
10K
0
0
+3.3V_Normal
V_SYNC
SCAN_BLK2
SCAN_BLK1/OPC_OUT
OPC_OUT
C424
0.1uF
16V
OPT
INV_CTL
R427
10K
OPT
A_DIM
PWM_DIM
R606-*1
1K
PWM_PULL-DOWN_1K
OPT
R486
4.7K
ERROR_OUT
+5V_USB
C428
0.1uF
16V
OPT
PANEL_CTL
1:AK10
+12V/+15V
L412
+3.5V_ST
+3.5V_ST
R430
10K
R429
47K
OPT
0.015uF
B
C409
0.015uF
50V
R431
22K
C
Q406
2SC3052
E
0.01uF
0.01uF
C436
25V
R435
C438
0.1uF
16V
R439
33K
R440
5.6K
C
Q407
B
2SC3052
E
22K
S7M DDR 1.5V
10K
R464
C475
0.1uF
16V
L420
C461
10uF
10V
C468
0.1uF
16V
VIN_1
VIN_2
GND_1
GND_2
EP[GND]
1
2
3
4
VIN_3
15EN16
THERMAL
17
IC407
TPS54319TRE
7
5
6
COMP
AGND
VSENSE
3A
BOOT14PWRGD
13
12
11
10
9
8
RT/CLK
1/16W 5%
$ 0.145
R455
15K
PH_3
PH_2
PH_1
SS/TR
Vout=0.827*(1+R1/R2)=1.521V
+3.3V_Normal
C432
0.1uF
16V
VIN
IC402
AZ2940D-2.5TRE1
1
Vd=550mV
2
GND
VOUT
3
1
R473
C403
C440
10uF
0.1uF
10V
16V
S7M core 1.26V volt
10K
R445
C447
0.1uF
16V
C441
0.1uF
7
COMP
BOOT14PWRGD15EN16VIN_3
13
12
11
10
9
8
RT/CLK
1/16W 5%
$ 0.165
R436
7.5K
16V
PH_3
PH_2
PH_1
SS
L413
C430
10uF
10V
C431
0.1uF
16V
VIN_1
VIN_2
GND_1
GND_2
EP[GND]
1
THERMAL
2
17
IC403
3
SN1007054RTER
4
5
AGND
VSENSE
6
4A
Vout=0.8*(1+R1/R2)=1.29V
C442
10uF
16V
OPT
C462
0.1uF
16V
R452
C443
10uF
25V
C465
0.01uF
50V
330K1/16W 5%
POWER_ON/OFF1
NR8040T3R6N
C467
4700pF
50V
L423
3.6uH
Q409
AO3407A
S
C472
22uF
10V
New item
D
G
0.1uF
50V
1608
OPT
C476
22uF
10V
+2.5V/+1.8V
+2.5V_Normal
POWER_ON/OFF2_1
L415
3.6uH
0.01uF
R432
330K1/16W 5%
C488
50V
C448
3300pF
NR8040T3R6N
50V
C453
22uF
10V
C456
22uF
10V
PANEL_POWER
PANEL_DISCHARGE_RES
PANEL_DISCHARGE_RES
1074 mA
R457
R1
47K 1%
R2
R449
56K
1/16W
1%
300 mA
R442
24K 1%
1%
R1
22K
R444
R2
R441
75K
1/8W
1%
C455
0.1uF
16V
50V
100pF
C439
R407-*2
3K
R405-*1
3K
+1.5V_DDR
C463
100pF
50V
+1.26V_VDDC
C444
0.1uF
16V
OPT
R405
2.2K
C470
0.1uF
16V
PANEL_VCC
OPT
R407
2.2K
ST_3.5V--> 3.375V --> 3.46V
20V-->3.51V --> 3.76V (3.59V)
24V-->3.78V --> 3.92V (3.79V)
12V -->3.58V --> 3.82V (3.68V)
18.5V-->3.5V --> 3.75V (3.59V)
C411
0.1uF
16V
+24VC451
C412
0.1uF
16V
PD_+12V
POWER_+24V
POWER_+24V
+12V/+15V
R482
R403
8.2K
1.5K
1%
1%
L416
C457
C459
10uF
10uF
25V
25V
Vout=(1+R1/R2)*0.8
+12V/+15V
L417
C458
C460
10uF
10uF
25V
25V
Vout=0.8*(1+R1/R2)
IC410
AP1117EG-13
OUTIN
ADJ/GND
C491
0.1uF
50V
C421,C422 Close to LDO
330
R411
+12V/+15V
R448
2.7K
R447
1.21K
1%
PD_+12V
1/10W
1%
PD_+12V
+3.5V_ST
R45005%
VCC
+3.5V_ST -> 3.375V
PD_+3.5V
VCC
R404
100K
IC409
APX803D29
3
1
GND
+3.3V_Normal
IC405
AOZ1073AIL-3
PGND
AGND
1
VIN
2
3A
3
FB
4
LX_2
8
LX_1
7
POWER_ON/OFF2_2
EN
6
R456
10K
COMP
5
12K
R454
+5V_Normal
IC406
AOZ1072AI-3
110
R417
C490
0.1uF
16V
PGND
1
VIN
2
AGND
3
FB
4
+5V_Normal
R422
1
5%
C414
0.1uF
16V
2A
C415
10uF
10V
LX_2
8
LX_1
7
EN
6
COMP
5
R488
100K
IC408
APX803D29
RESET
3
2
1
GND
PWR_DET_DIODES
PD_+12V
RESET
2
PD_+12V_PWR_DET_DIODES
L421
3.6uH
NR8040T3R6N
2200pF
C464
L422
3.6uH
NR8040T3R6N
POWER_ON/OFF2_2
R459
10K
12K
2200pF
R458
C466
AP1117EG-13
ADJ/GND
C422
0.1uF
50V
+3.5V_ST
R463
10K
OPT
R402
100
RESET
PD_+12V
R480
100
IC409-*1
NCP803SN293
PD_+12V_PWR_DET_ON_SEMI
RESET
2
Power_DET
1934 mA
1%
R460
R461
R462
IC411
27K
4.7K
10K
C423
100pF
R1
1%
OPT
50V
1%
R2
MAX 1A
R465
24K
51K
R466
C427
R467
10K
OUTIN
110
R408
330
R409
C469
22uF
16V
1%
R1
1%
OPT
100pF
50V
1%
R2
C473
0.1uF
16V
POWER_DET
C474
0.1uF
NCP803SN293
2
1
GND
CIC21J501NE
C471
22uF
16V
R424
1
5%
C417
0.1uF
16V
IC408-*1
PWR_DET_ON_SEMI
3
1
GND
VCC
3
+3.3V_Normal
L424
C477
0.1uF
16V
+5V_TUNER
C419
10uF
10V
VCC
C485
0.1uF
16V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
20101023
POWER_LARGE 4
Page 20
MICOM MODEL OPTION
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
AMP_RESET
PANEL_CTL
CEC_ON/OFF
MODEL OPTION
PIN NAME
MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_0
PIN NO.
8
11
30
31
MODEL_OPT_1
LOW
HIGH
HIGH
LOW
HIGH
UART SWITCH
SELECT
CONNECTION
B0 - A
L
B1 - A
H
S7_TXD
S7_RXD
+3.5V_ST
GP2
R5000 10K
GP3
R5001 10K
HIGH
B/L_LED
PWM_BUZZ/IIC_LED
TOUCH_KEY TACT_KEY
GP2
LOW
LOW
HIGH
HIGH
HIGH
HIGH
MODEL_OPT_2
+3.5V_ST
C5000
0.1uF
OPT
R5002
0
TOUCH_KEY
R5003 10K
PWM_BUZZ/IIC_LED
PWM_LED
TACT_KEY
R5004 10K
B/L_LAMP
PWM_LED
LOW
HIGH
HIGH
LOW
LOW
SELECT
VCC
A
SELECT
VCC
A
B/L_LED
R5008 10K
R5005 10K
B/L_LAMP
R5009 10K
R5006 10K
LOW
GP3
MODEL_OPT_3
LOW
LOW
LOW
LOW
LOW
HIGH
R5007
100
IC5000
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
4
EAN38256201
R5010
0
IC5001
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
4
EAN38256201
OPT
B1
1
GND
2
B0
3
B1
1
GND
2
B0
3
MODEL_OPT_0
MODEL_OPT_1
MODEL1_OPT_2
MODEL_OPT_3
LD350/450/550
19/22/26LE3300(5500)
32/37/42/47/55LE5300(10)
LD420
LE7300
TBD
UART_SW1
UART_TX
UART_RX
S7_DBG_TX
S7_DBG_RX
NEC_RX
NEC_TX
+3.5V_ST
C5001
0.1uF
R5011
100
R5012
100
EDID_WP
SELECT
VCC
A
SELECT
VCC
Q5000
2SC3052
R5013
100
IC5002
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
4
EAN38256201
IC5003
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
A
4
EAN38256201
C
E
1
2
3
1
2
3
POWER_ON/OFF1
B
UART_SW2
B1
GND
B0
B1
GND
B0
CEC_REMOTE_NEC
MODEL1_OPT_2
POWER_ON/OFF2_2
+3.5V_ST
MST_NEC_TX
UART_RX
MST_NEC_RX
UART_TX
CLOCK_SCL
CLOCK_SDA
CEC_ON/OFF
NEC_IR
UART_SW2
OPT
R5014
10K
EYEQ_SCL
EYEQ_SDA
S/T_SCL
S/T_SDA
LED_R
LED_B
RL_ON
UART_SW1
UART_DBG_SW
DBG_SW
INV_CTL
PANEL_CTL
SOC_RESET
POWER_DET
CLOCK_SDA
R5025 4.7K
OPT
R5026 4.7K
OPT
R5028 22
R5022 22
R5023 22
OPT
R5015 22
R5016 22
R5017 22
R5018 22
R5019 22
R5020 22
OPT
R5021 22
R5029 4.7K
EEPROM_SCL
EEPROM_SDA
CLOCK_SCL
R5031 22
R5033 22
R5034 22
R5035 22
R5036 22
R5037 22
R5038 22
R5039 22
R5040 10K
R5041 0
+3.5V_ST
R5024 4.7K
R5030 4.7K
+3.5V_ST
R5032 4.7K
R5042 4.7K
R5043
22
R5044 22
P31/TI03/TO03/INTP4
P77/EX23/KR7/INTP11
P76/EX22/KR6/INTP10
P75/EX21/KR5/INTP9
P74/EX20/KR4/INTP8
P30/INTP3/RTC1HZ
R5027 4.7K
+3.5V_ST
+3.5V_ST
+3.5V_ST
L5000
BLM18PG600SN1D
P60/SCL0
P61/SDA0
P64/RD
P65/WR0
P66/WR1
P67/ASTB
P73/EX19/KR3
P72/EX18/KR2
P71/EX17/KR1
P70/EX16/KR0
P06/WAIT
P05/CLKOUT
EVSS1
P80/EX0
P81/EX1
P82/EX2
P83/EX3
P84/EX4
P85/EX5
P86/EX6
P87/EX7
EVDD1
SELECT
SELECT
C5004
13pF
Closed to Crystal
X5000
10MHz
C5003
0.1uF
16V
1
2
P62
3
P63
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
R5051
16V
C5005 0.1uF
P121/X1
REGC97VSS98EVSS099VDD
EVDD0
95
96
100
UPD78F1164GF(S)
NEC_MICOM
31
33
P50/EX832P51/EX9
P52/EX1034P53/EX1135P54/EX1236P55/EX1337P56/EX1438P57/EX15
R5049 22
R5050 22
R5048 22
R5046 100
R5045 100
R5047 22
POWER_ON/OFF2_1
CONNECTION
B0 - A
L
H
B1 - A
IC5005
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
VCC
5
C5002
0.1uF
A
4
EAN38256201
IC5006
NLASB3157DFT2G
SELECT
6
ON SEMICONDUCTOR
ANALOG SWITCH
VCC
5
A
4
EAN38256201
+3.5V_ST
MICOM_RESET
C5006
13pF
1M
R5057 22
FLMD0
R5054
100K
P40/TOOL0
RESET91P124/XT2
P123/XT1
FLMD094P122/X2/EXCLK
89
90
92
93
IC5004
39
40
41
42
P14/EX28/RXD3
P17/EX31/TI02/TO02
P15/EX29/RTCDIV/RTCCL
P16/EX30/TI01/TO01/INTP5
R5052 22
R5053 22
R5058 22
EXT_PWR_DET
EXT5V_CTRL
AMP_RESET
SCART1_MUTE
EXT12V_CTRL
SIDE_HP_MUTE
B1
1
GND
2
B0
3
R5056
0
OPT
B1
1
GND
2
B0
3
R5055
0
OPT
47K
SW5000
R5060
JTP-1127WEM
C5007
2.2uF
4 3
10V
TOOL0
TOOL1
P45/SO01
P44/SI01
P43/SCK01
P42/TI04/TO04
P41/TOOL1
84
85
86
87
88
43
44
45
46
47
AVREF1
P13/EX27/TXD3
P10/EX24/SCK00
P12/EX26/SO00/TXD0
P11/EX25/SI00/RXD0
R5064 22
R5063 22
R5059 22
R5061 22
NEC_TX
NEC_RX
EEPROM_SW
MST_NEC_RX
MST_NEC_TX
C5008
1uF
50V
NEC_EEPROM_SDA
12
RTC_INT
22
OPT
OPT
R5069 22
R5070
P120/INTP0/EXLVI
P47/INTP2
P46/INTP1/TI05/TO05
81
82
83
P140/PCLBUZ0/INTP6
80
P141/PCLBUZ1/INTP7
79
P142/SCK20/SCL20
78
P143/SI20/RXD2/SDA20
77
P144/SO20/TXD2
76
P145/TI07/TO07
75
P00/TI00
74
P01/TO00
73
P02/SO10/TXD1
72
P03/SI10/RXD1/SDA10
71
P04/SCK10/SCL10
70
P131/TI06/TO06
69
P130
68
P20/ANI0
67
P21/ANI1
66
P22/ANI2
65
P23/ANI3
64
P24/ANI4
63
P25/ANI5
62
P26/ANI6
61
P27/ANI7
60
P150/ANI8
59
P151/ANI9
58
P152/ANI10
57
P153/ANI11
56
P154/ANI12
55
P155/ANI13
54
P156/ANI14
53
P157/ANI15
52
AVSS
51
48
50
AVREF0
P110/ANO049P111/ANO1
R5068
10K
OPT
R5066 22
R5067 22
IR_OUT_CTRL
EEPROM_SW
22
R5065
S7_EEPROM_SCL
NEC_EEPROM_SCL
S7_EEPROM_SDA
R5077 22
R5078 22
R5075 22
R5076 22
R5079 22
R5080 22
R5073 22
R5074 22
R5071
0
R5072
0
IC5007
74LX1G14CTR
NC
1
1A
2
GND
3
SIGN340048
+5V_ST
L5002
BLM18PG121SN1D
R5084
4.7K
OPT
OPT
+3.5V_ST
AMP_MUTE
R5087
4.7K
NEC_DBG_RX
NEC_DBG_TX
SUBAMP_SD
SUBAMP_MUTE
NEC_EEPROM_SDA
NEC_EEPROM_SCL
E
B
C
+5V_ST
R5088
10K
C
Q5001
4.7K
R5081
4.7K
R5082
4.7K
R5083
4.7K
R5085
4.7K
R5086
B
B
B
B
B
2SC3875S(ALY)
E
C
Q5002
2SC3875S(ALY)
E
C
Q5004
2SC3875S(ALY)
E
C
Q5003
2SC3875S(ALY)
E
C
Q5005
2SC3875S(ALY)
E
+5V_ST
R5089
10K
+5V_ST
R5090
10K
R5091
10K
R5092
10K
+5V_ST
+5V_ST
Step Up regulator 3.3V to 5V(MAX 250mA)
3.3V to 5V
3.3V to 5V
3.3V to 5V
C5009
22uF
25V
C5010
2.2uF
10V
+3.5V_ST
3.3V to 5V
BLM18PG600SN1D
L5001
5
4
Q5006
2SA1504S
B
KEY1
KEY2
GND
C1+
C1-
IN
+3.5V_ST
VCC
1Y
Q5007
E
2SA1504S
B
C
MICOM_RESET
IC5008
SC632ULTRT
1
2
THERMAL
3
4
C5011
0.1uF
16V
GND
9
I1
I2
I3
I4
I5
I6
I7
Q5008
E
2SA1504S
C
KID65003AF
1
2
3
4
5
6
7
8
TOOL0
TOOL1
FLMD0
[EP]GND
C2-
8
C2+
7
OUT
6
EN
5
B
IC5009
E
C
BU5000
PKLCS1212E4001-R1
1
2
Q5010
Q5009
E
2SA1504S
2SA1504S
B
C
R5096
O1
10
16
R5095
O2
10
15
R5101
O3
10
14
R5097
O4
10
13
R5098
O5
10
12
R5100
O6
10
11
R5099
O7
10
10
COMMON
9
+3.5V_ST
R5093
R5094
4.7K
4.7K
R5107
R5108
R5109
3.3V to 5V
C5012
2.2uF
10V
3.3V to 5V
C5013
22uF
25V
R5106
10
R5105
10
R5102
10
R5103
10
R5104
10
22
22
22
+5V_ST
R5110
0
+3.5V_ST
P5000
12507WS-06L
1
2
3
4
5
6
7
13
12
11
10
9
8
7
6
5
4
3
2
1
12507WR-12L
P5001
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
MICOM
20101023
5

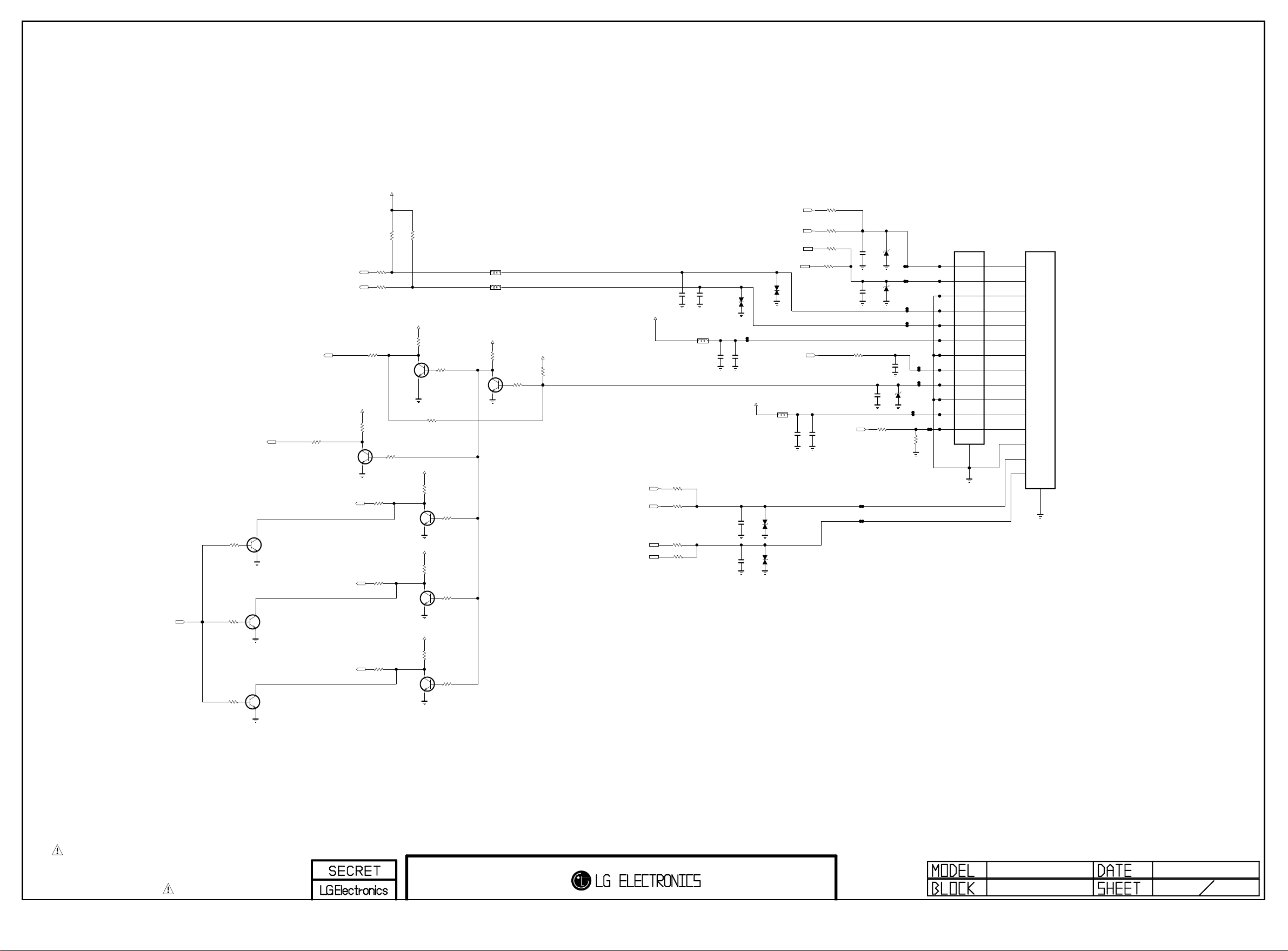

Page 21
CONTROL
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
IR & LED
IR_OUT_CTRL
IR_OUT_RS232C
R2424
30K
B
R2432
30K
B
C
E
C
E
Q2404
2SC3052
Q2402
2SC3052
NEC_IR
R2423
22
IR_OUT_HDMI1
IR_OUT_HDMI2
KEY1
KEY2
NEC_IR
Q2405
2SC3052
R2422
3.3K
+5V_ST
C
E
R2400
22
B
R2404
R2401
100
R2402
100
R2427
22
R2431
22
+3.5V_ST
10K
1%
R2429
10K
R2405
10K
1%
R2406
Q2400
2SC3052
2SC3052
2SC3052
OPT
OPT
R2428
Q2403
R2426
Q2406
+3.5V_ST
1K
C
E
+5V_ST
3.3K
+5V_ST
3.3K
+5V_ST
B
R2403
0
C
E
C
E
B
B
R2407
10K
OPT
R2425
R2430
OPT
R2421
EYEQ_SCL
S/T_SCL
S/T_SDA
L2401
BLM18PG121SN1D
L2402
BLM18PG121SN1D
+3.5V_ST
R2409
47K
R2410
3.3K
+3.5V_ST
OPT
NEC_EEPROM_SCL
S/T_SCL
S/T_SDA
NEC_EEPROM_SDA
R2408
47K
C
B
Q2401
E
2SC3052
10K
10K
+3.5V_ST
C2401
0.1uF
R2418
R2415
R2417
OPT
100
100
100
100
BLM18PG121SN1D
OPT
R2419
L2403
C2402
0.1uF
C2403
0.1uF
IR_IN
16V
D2401
5.6V
AMOTECH
C2404
1000pF
50V
+3.3V_Normal
C906
18pF
50V
OPT
C907
18pF
50V
OPT
AMOTECH
EYEQ_SDA
D2402
5.6V
L2404
BLM18PG121SN1D
NEW_SUB
D902
CDS3C05HDMI1
5.6V
NEW_SUB
D903
CDS3C05HDMI1
5.6V
C2405
0.1uF
LED_B
16V
100
EYEQ/TOUCH_KEY
R2411
100
EYEQ/TOUCH_KEY
100
R2412
OPT
100
R2420
C2406
1000pF
50V
R2413
LED_R
1.5K
C2407
100pF
50V
C2408
18pF
50V
OPT
C2409
18pF
50V
OPT
EYEQ/TOUCH_KEY
EYEQ/TOUCH_KEY
OPT
C2410
0.1uF
16V
D2405
5.6V
R2414
1.5K
5.6V
D2403
5.6V
D2404
OPT
R2416
10K
OLD_SUB
P2401
12507WR-12L
1
2
3
JP2407
JP2408
JP2409
JP2410
JP2411
4
5
6
7
8
9
10
11
12
13
NEW_SUB
P2402
12507WR-15L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
R2434
30K
R2435
Q2407
2SC3052
3.3K
R2433
C
10K
B
E
GP2R
IR/CONTROL-L
20101023
6
R2436
IR_OUT_SIDE_HDMI
C
Q2408
B
2SC3052
E
22
Page 22
USB_DIODES
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
R1458
2K
1/8W
1%
SIGN6409
1234
USB DOW N S TREA M
JK1 450
3AU 04S- 305 -ZC- (LG)
5
L1451-*1
CIS21J121
MLB-201209-0120P-N2
120-ohm
R1459
2K
1/8W
1%
D1451
CDS3C05HDMI1
5.6V
OPT
L1451
C1451
22uF
16V
OUT_2
OUT_1
D1452
CDS3C05HDMI1
5.6V
OPT
NC
FLG
EAN61849601
IC1450
AP2191DSG
8
$0.077
7
6
5
R1451 47
GND
1
IN_1
2
IN_2
3
EN
4
SIDE_USB_DM
SIDE_USB_DP
R1454
10K
C1452
10uF
10V
USB1_OCD
C1453
0.1uF
+5V_USB
+3.3V_Normal
R1455
4.7K
OPT
USB1_CTL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
20101023GP2R
USB_OCP_DIODE 7
Page 23
HDMI_1
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
SHIELD
HDMI_1
EAG59023302
JK802
HDMI EEPROM
5V_HDMI_1
+5V_Normal
A1CA2
ENKMC2838-T112
R874
10K
R884
2.7K
5V_HDMI_2
10K
R873
R885
2.7K
D821
R888
2.7K
+5V_Normal
A2
A1
ENKMC2838-T112
D822
C
R889
2.7K
EDID_WP
DDC_SCL_1
DDC_SDA_1
EDID_WP
DDC_SCL_2
DDC_SDA_2
5V_HDMI_1
20
19
18
17
16
15
14
13
12
11
CK+
10
D0-
9
D0_GND
8
D0+
7
D1-
6
D1_GND
5
D1+
4
D2-
3
D2_GND
2
D2+
1
R896
1K
R804
1.8K
OPT
D802
5V_DET_HDMI_1
3.3K
R802
C802
0.1uF
16V
R824
C
Q802
2SC3052
0
R830
B
10K
E
R805 0
HPD1
DDC_SDA_1
DDC_SCL_1
IR_OUT_HDMI1
HDMI_CEC
CK-_HDMI1
CK+_HDMI1
D0-_HDMI1
D0+_HDMI1
D1-_HDMI1
D1+_HDMI1
D2-_HDMI1
D2+_HDMI1
HDMI_1_RENESAS
IC801-*1
R1EX24002ASAS0A
A0
1
A1
2
A2
3
VSS
4
HDMI_2_RENESAS
IC802-*1
R1EX24002ASAS0A
A0
1
A1
2
A2
3
VSS
4
VCC
8
WP
7
SCL
6
SDA
5
VCC
8
WP
7
SCL
6
SDA
5
AT24C02BN-SH-T
A0
1
A1
2
A2
3
GND
4
A0
A1
A2
GND
HDMI_1_ATMEL
IC801
$0.055
HDMI_2_ATMEL
IC802
AT24C02BN-SH-T
1
$0.055
2
3
4
VCC
8
WP
7
SCL
6
SDA
5
VCC
8
WP
7
SCL
6
SDA
5
R876 22
R875 22
JP810
R878 22
R877 22
C806
0.1uF
0.1uF
C807
HDMI_2
SHIELD
20
HDMI_2
EAG59023302
JK801
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CK+
D0-
D0_GND
D0+
D1-
D1_GND
D1+
D2-
D2_GND
D2+
5V_HDMI_2
R895
1K
R803
1.8K
5V_DET_HDMI_2
C
R828
Q801
2SC3052
C801
0.1uF
16V
R801
3.3K
R800 0
R815 0
OPT
D801
10K
B
E
HPD2
DDC_SDA_2
DDC_SCL_2
IR_OUT_HDMI2
HDMI_CEC
CK-_HDMI2
CK+_HDMI2
D0-_HDMI2
D0+_HDMI2
D1-_HDMI2
D1+_HDMI2
D2-_HDMI2
D2+_HDMI2
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
SIDE_HDMI
BODY_SHIELD
20
19
18
17
16
15
14
13
12
11
10
EAG62611201
9
HDMI_SIDE
8
7
6
5
4
3
2
1
JK803
CK+
D0-
D0_GND
D0+
D1-
D1_GND
D1+
D2-
D2_GND
D2+
5V_HDMI_4
R897
1K
R837
1.8K
5V_HDMI_4
+5V_Normal
A1CA2
ENKMC2838-T112
A0
A1
A2
GND
OPT
AVRL161A1R1NT
GND
OPT
D826
AVRL161A1R1NT
GND
HDMI_SIDE_ATMEL
IC804
AT24C02BN-SH-T
1
$0.055
2
3
4
D804
D825
VCC
8
WP
7
SCL
6
SDA
5
68K
R854
R855
68K
R892
OPT
R883
0
SBD
G
0
OPT
SBD
G
JP812
R881 22
R882 22
Q806
BSS83
Q805
BSS83
C809
0.1uF
+3.3V_Normal
GND
R856
10K
C805
0.1uF
16V
GND
HDMI_SIDE_RENESAS
5V_DET_HDMI_4
C
Q803
2SC3052
C803
0.1uF
16V
3.3K
JP806
JP805
R841
R898 0
0
R835
OPT
D811
R862
B
10K
E
HPD4
DDC_SDA_4
DDC_SCL_4
IR_OUT_SIDE_HDMI
HDMI_CEC
CK-_HDMI4
CK+_HDMI4
D0-_HDMI4
D0+_HDMI4
D1-_HDMI4
D1+_HDMI4
D2-_HDMI4
D2+_HDMI4
IC804-*1
R1EX24002ASAS0A
A0
1
A1
2
A2
3
VSS
4
VCC
8
WP
7
SCL
6
SDA
5
For CEC
HDMI_CEC
D803
R871
R893
10K
C810
0.1uF
16V
R887
2.7K
10K
R891
2.7K
+3.5V_ST
D824
R857
68K
OPT
CEC_ON/OFF
R853
68K
EDID_WP
DDC_SCL_4
DDC_SDA_4
CEC_REMOTE_S7
CEC_REMOTE_NEC
20101023 GP2R
HDMI 8
Page 24
RGB/SPDIF/PC/HP
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
New Item Development
EARPHONE BLOCK
HP_LOUT
002:V7
HP_ROUT
002:V7
C1118
10uF
16V
C1119
10uF
16V
C1115
1000pF
50V
OPT
C1116
1000pF
50V
OPT
R1125
1K
R1128
1K
Q1101
MMBT3904-(F)
Q1102
MMBT3904-(F)
C
B
E
C
B
E
MMBT3904-(F)
B
MMBT3904-(F)
B
E
Q1104
C
E
Q1103
C
HP_DET
+3.3V_Normal
R1130
10K
R1155
1K
JK3301
KJA-PH-0-0177
5GND
4L
3DETECT
1R
C
Q1105
ISA1530AC1
E
B
R1129
3.3K
+3.5V_ST
C
E
B
Q1106
2SC3052
SIDE_HP_MUTE
PC AUDIO
JK1102
PEJ027-01
E_SPRING
3
T_TERMINAL1
6A
B_TERMINAL1
7A
R_SPRING
4
T_SPRING
5
B_TERMINAL2
7B
T_TERMINAL2
6B
New
JK1102-*1
PEJ027-04
E_SPRING
3
T_TERMINAL1
6A
B_TERMINAL1
7A
R_SPRING
OPT
4
T_SPRING
5
B_TERMINAL2
7B
T_TERMINAL2
6B
D1101
AMOTECH
5.6V
OPT
D1102
AMOTECH
5.6V
OPT
C1107
100pF
50V
C1108
100pF
50V
R1102
470K
R1103
470K
R1107
15K
R1108
15K
R1110
10K
R1111
10K
PC_R_IN
PC_L_IN
002:S12
002:S12
SPDIF OPTIC JACK
5.15 Mstar Circuit Application
SPDIF_OUT
002:T18
+3.3V_Normal
C1131
0.1uF
16V
VINPUT
C1121
100pF
50V
GND
Fiber Optic
1
VCC
2
JK1103
JST1223-001
3
4
FIX_POLE
RGB PC
RGB_EEMPROM_RENESAS
R1EX24002ASAS0A
A0
A1
A2
VSS
DSUB_VSYNC
DSUB_HSYNC
DSUB_B+
DSUB_G+
DSUB_R+
IC1105-*1
1
2
3
4
D1115
ENKMC2838-T112
A1
C
A2
RGB_EEMPROM_ATMEL
IC1105
AT24C02BN-SH-T
R1133
75
R1135
75
R1137
75
GND
C1122
68pF
50V
OPT
A0
A1
A2
VCC
8
WP
7
SCL
6
SDA
5
VCC
1
8
WP
2
7
SCL
3
6
SDA
4
5
D1109
30V
D1110
30V
D1111
30V
D1112
30V
C1127
18pF
50V
C1126
68pF
50V
OPT
R1139
2.2K
C1128
18pF
50V
D1113
30V
R1140
2.2K
R1141
22
D1114
5.6V
OPT
R1142
10K
C1129
0.1uF
16V
R1143
22
D1116
5.6V
OPT
+5V_Normal
EDID_WP
RGB_DDC_SCL
RGB_DDC_SDA
+3.3V_Normal
R1146
10K
D1117
5.6V
OPT
R1147
1K
DSUB_DET
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
RED2GREEN3BLUE4GND_15DDC_GND
RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND
GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK
JK1104
SPG09-DB-010
11
6
1
16
SHILED
RGB/SPDIF/HP 9
20101023GP2R
Page 25
RS232C
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
0.33uF
C1000
C1001
0.1uF
C1002
0.1uF
C1003
0.1uF
C1004
0.1uF
DOUT2
RIN2
C1+
C1-
C2+
C2-
V+
V-
IC1000
MAX3232CDR
1
2
3
4
5
6
7
8
EAN41348201
JP1002
EXT_5V
EXT_12V
IR_OUT_RS232C
+3.5V_ST
UART_RX
UART_TX
D1001
CDS3C30GTH
30V
OPT
D1002
BAP70-02
50V
R1004
47K
OPT
D1000
CDS3C30GTH
30V
OPT
C1005
0.1uF
VCC
16
GND
15
DOUT1
14
RIN1
13
ROUT1
12
DIN1
11
DIN2
10
ROUT2
9
+3.5V_ST
4.7K
R1000
4.7K
R1001
R1002
R1003
0
0
R1005
1K
R1006
0
R1007
100
R1008
100
JP1000
JP1001
10
9
8
7
6
SPG09-DB-009
P1000
5
4
3
2
1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
20101023GP2R
RS232C_9PIN 10
Page 26
[51Pin LVDS Connector]
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
(For FHD 60/120Hz)
P703
FI-RE51S-HF-J-R1500
WAFER_FHD
52
PANEL_VCC
L702
120-ohm
WAFER_FHD
C709
C700
10uF
16V
R703
LVDS_PWM_44
R701
3D_SG
R702
3D_SG
OPT
RXACK-
RXACK+
RXA2-
RXA2+
RXA1-
RXA1+
RXA0-
RXA0+
RXB4-
RXB4+
RXB3-
RXB3+
RXBCK-
RXBCK+
RXB2-
RXB2+
RXB1-
RXB1+
RXB0-
RXB0+
0
0
0
R707
0
LVDS_51PIN_GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
C710
1000pF
0.1uF
50V
16V
OPT
WAFER_FHD
RXA4-
RXA4+
RXA3-
RXA3+
BIT_SEL
R709
10K
BIT_SEL_LOW
SCAN_BLK2
SCAN_BLK1/OPC_OUT
PWM_DIM
LED_DRIVER_D/L_SDA
LED_DRIVER_D/L_SCL
100
LVDS_51PIN_GPIO
R706
LVDS_SEL
+3.3V_Normal
R705
3.3K
OPT
R710
10K
OPT
2D/3D_CTL
[30Pin LVDS Connector]
(For HD 60Hz_Normal)
P705
FF10001-30
HD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
OPT
R7130
TP721
TP722
RXA3-
RXA3+
RXACK-
RXACK+
RXA2-
RXA2+
RXA1-
RXA1+
RXA0-
RXA0+
PWM_DIM
OPC_OUT
LVDS_SEL
+3.3V_Normal
R712
3.3K
OPT
R711
10K
OPT
C701
10uF
16V
OPT
C702
1000pF
50V
PANEL_VCC
L701
120-ohm
HD
OPT
C703
0.1uF
16V
HD
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
20101023GP2R
LVDS_LARGE 11
Page 27
VCC_1.5V_DDR
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
R1201
1K 1%
R1202
1K 1%
C1201
0.1uF
A-MVREFDQ
1000pF
C1202
VCC_1.5V_DDR
R1204
1K 1%
R1205
1K 1%
C1203
0.1uF
C1204
1000pF
A-MVREFCA
VCC_1.5V_DDR
C1205
10uF
DDR3 1.5V By CAP - Place these Caps near Memory
C1206
0.1uF
C1207
0.1uF
C1208
0.1uF
C1210
0.1uF
C1211
0.1uF
C1212
0.1uF
C1213
Close to DDR Power Pin
CLose to Saturn7M IC
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13
A-MBA0
A-MBA1
A-MBA2
A-MCKE
A-MODT
A-MRASB
A-MCASB
A-MWEB
A-MRESETB
A-MDQSL
A-MDQSLB
A-MDQSU
A-MDQSUB
A-MDML
A-MDMU
A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7
A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7
1%
R1235
56
1%
R1236
56
VCC_1.5V_DDR
R1231
10K
C1209
0.01uF
25V
A-MCK
A-MCKB
A-MA11
A-MA1
A-MA8
A-MA6
A-MBA0
A-MA3
A-MA5
A-MA7
A-MA4
A-MA12
A-MBA1
A-MA10
A-MRESETB
A-MBA2
A-MA13
A-MA9
A-MCK
A-MCKB
A-MRASB
A-MCASB
A-MODT
A-MWEB
A-MDQSL
A-MDQSLB
A-MDQSU
A-MDQSUB
A-MDQL1
A-MDQL3
A-MDML
A-MDQU2
A-MCKE
A-MDQL7
A-MDQL5
A-MDQL0
A-MDQL2
A-MDQL6
A-MDQL4
A-MDQU7
A-MDQU3
A-MDQU5
A-MDMU
A-MDQU6
A-MDQU0
A-MDQU4
A-MDQU1
A-MCKE
A-MA0
A-MA2
R1213
1%
56
R1214
1%
56
AR1208
56
AR1203
56
AR1204
56
AR1201
56
R1206
22
R1207
22
AR1202
56
R1208
22
R1209
22
R1211
22
R1212
22
AR1209
22
AR1210
22
AR1205
22
AR1206
22
AR1207
22
R1210
22
R1233 10K
A-TMA0
A-TMA2
A-TMA11
A-TMA1
A-TMA8
A-TMA6
A-TMBA0
A-TMA3
A-TMA5
A-TMA7
A-TMA4
A-TMA12
A-TMBA1
A-TMA10
A-TMRESETB
A-TMBA2
A-TMA13
A-TMA9
A-TMCK
A-TMCKB
A-TMRASB
A-TMCASB
A-TMODT
A-TMWEB
A-TMDQSL
A-TMDQSLB
A-TMDQSU
A-TMDQSUB
A-TMDQL1
A-TMDQL3
A-TMDML
A-TMDQU2
A-TMCKE
A-TMDQL7
A-TMDQL5
A-TMDQL0
A-TMDQL2
A-TMDQL6
A-TMDQL4
A-TMDQU7
A-TMDQU3
A-TMDQU5
A-TMDMU
A-TMDQU6
A-TMDQU0
A-TMDQU4
A-TMDQU1
A-TMRESETB
A-MVREFCA
A-MVREFDQ
VCC_1.5V_DDR
R1203
240
1%
CLose to DDR3
H5TQ2G63BFR-H9C
2G_DDR_1333_HYNIX
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_6
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
EAN61570701
IC1201
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
0.1uF
C1214
A-TMA0
A-TMA1
A-TMA2
A-TMA3
A-TMA4
A-TMA5
A-TMA6
A-TMA7
A-TMA8
A-TMA9
A-TMA10
A-TMA11
A-TMA12
A-TMA13
A-TMBA0
A-TMBA1
A-TMBA2
A-TMCK
A-TMCKB
A-TMCKE
A-TMODT
A-TMRASB
A-TMCASB
A-TMWEB
A-TMDQSL
A-TMDQSLB
A-TMDQSU
A-TMDQSUB
A-TMDML
A-TMDMU
A-TMDQL0
A-TMDQL1
A-TMDQL2
A-TMDQL3
A-TMDQL4
A-TMDQL5
A-TMDQL6
A-TMDQL7
A-TMDQU0
A-TMDQU1
A-TMDQU2
A-TMDQU3
A-TMDQU4
A-TMDQU5
A-TMDQU6
A-TMDQU7
0.1uF
C1215
C1216
0.1uF
0.1uF
0.1uF
0.1uF
C1217
C1218
C1219
0.1uF
C1220
+1.5V_DDR
L1201
S7M-PLUS_DivX_MS10
LGE107DC-RP [S7M+ DIVX/MS10]
B8
A_DDR3_A0/DDR2_A13
B9
A_DDR3_A1/DDR2_A8
A8
A_DDR3_A2/DDR2_A9
C21
A_DDR3_A3/DDR2_A1
B10
A_DDR3_A4/DDR2_A2
A22
A_DDR3_A5/DDR2_A10
A10
A_DDR3_A6/DDR2_A4
B22
A_DDR3_A7/DDR2_A3
C9
A_DDR3_A8/DDR2_A6
C23
A_DDR3_A9/DDR2_A12
B11
A_DDR3_A10/DDR2_RASZ
A9
A_DDR3_A11/DDR2_A11
C10
A_DDR3_A12/DDR2_A0
B23
A_DDR3_A13/DDR2_A7
B21
A_DDR3_BA0/DDR2_BA2
A11
A_DDR3_BA1/DDR2_CASZ
A23
A_DDR3_BA2/DDR2_A5
A12
A_DDR3_MCLK/DDR2_MCLK
C11
A_DDR3_MCLKZ/DDR2_MCLKZ
B12
A_DDR3_CKE/DDR2_DQ5
C20
A_DDR3_ODT/DDR2_ODT
A20
A_DDR3_RASZ/DDR2_WEZ
B20
A_DDR3_CASZ/DDR2_BA1
A21
A_DDR3_WEZ/DDR2_BA0
C22
A_DDR3_RESETB
C16
A_DDR3_DQSL/DDR2_DQS0
B16
A_DDR3_DQSLB/DDR2_DQSB0
A16
A_DDR3_DQSU/DDR2_DQSB1
C15
A_DDR3_DQSUB/DDR2_DQS1
A14
A_DDR3_DML//DDR2_DQ13
B18
A_DDR3_DMU/DDR2_DQ6
C18
A_DDR3_DQL0/DDR2_DQ3
B13
A_DDR3_DQL1/DDR2_DQ7
A19
A_DDR3_DQL2/DDR2_DQ1
C13
A_DDR3_DQL3/DDR2_DQ10
C19
A_DDR3_DQL4/DDR2_DQ4
A13
A_DDR3_DQL5/DDR2_DQ0
B19
A_DDR3_DQL6/DDR2_CKE
C12
A_DDR3_DQL7/DDR2_DQ2
A15
A_DDR3_DQU0/DDR2_DQ15
A17
A_DDR3_DQU1/DDR2_DQ9
B14
A_DDR3_DQU2/DDR2_DQ8
C17
A_DDR3_DQU3/DDR2_DQ11
B15
A_DDR3_DQU4/DDR2_DQM1
A18
A_DDR3_DQU5/DDR2_DQ12
C14
A_DDR3_DQU6/DDR2_DQM0
B17
A_DDR3_DQU7/DDR2_DQ14
0.1uF
0.1uF
0.1uF
C1221
C1222
C1225
10uF
10V
IC101
B_DDR3_A10/DDR2_RASZ
B_DDR3_BA1/DDR2_CASZ
B_DDR3_MCLK/DDR2_MCLK
B_DDR3_MCLKZ/DDR2_MCLKZ
B_DDR3_RASZ/DDR2_WEZ
B_DDR3_CASZ/DDR2_BA1
B_DDR3_DQSL/DDR2_DQS0
B_DDR3_DQSLB/DDR2_DQSB0
B_DDR3_DQSU/DDR2_DQSB1
B_DDR3_DQSUB/DDR2_DQS1
B_DDR3_DML/DDR2_DQ13
B_DDR3_DQL0/DDR2_DQ3
B_DDR3_DQL1/DDR2_DQ7
B_DDR3_DQL2/DDR2_DQ1
B_DDR3_DQL3/DDR2_DQ10
B_DDR3_DQL4/DDR2_DQ4
B_DDR3_DQL5/DDR2_DQ0
B_DDR3_DQL6/DDR2_CKE
B_DDR3_DQL7/DDR2_DQ2
B_DDR3_DQU0/DDR2_DQ15
B_DDR3_DQU1/DDR2_DQ9
B_DDR3_DQU2/DDR2_DQ8
B_DDR3_DQU3/DDR2_DQ11
B_DDR3_DQU4/DDR2_DQM1
B_DDR3_DQU5/DDR2_DQ12
B_DDR3_DQU6/DDR2_DQM0
B_DDR3_DQU7/DDR2_DQ14
0.1uF
0.1uF
C1223
C1224
VCC_1.5V_DDR
C1226
0.1uF
16V
B_DDR3_A0/DDR2_A13
B_DDR3_A1/DDR2_A8
B_DDR3_A2/DDR2_A9
B_DDR3_A3/DDR2_A1
B_DDR3_A4/DDR2_A2
B_DDR3_A5/DDR2_A10
B_DDR3_A6/DDR2_A4
B_DDR3_A7/DDR2_A3
B_DDR3_A8/DDR2_A6
B_DDR3_A9/DDR2_A12
B_DDR3_A11/DDR2_A11
B_DDR3_A12/DDR2_A0
B_DDR3_A13/DDR2_A7
B_DDR3_BA0/DDR2_BA2
B_DDR3_BA2/DDR2_A5
B_DDR3_CKE/DDR2_DQ5
B_DDR3_ODT/DDR2_ODT
B_DDR3_WEZ/DDR2_BA0
B_DDR3_RESETB
B_DDR3_DMU/DDR2_DQ6
0.1uF
DDR3 1.5V By CAP - Place these Caps near Memory
C1227
0.1uF
C1228
0.1uF
C1229
0.1uF
C1230
0.1uF
C1231
0.1uF
C1232
0.1uF
C1233
0.1uF
C1234
0.1uF
C1235
0.1uF
C1236
0.1uF
C1237
0.1uF
C1238
0.1uF
C1239
0.1uF
C1241
0.1uF
C1242
0.1uF
C1243
0.1uF
C1244
0.1uF
VCC_1.5V_DDR
C1245
10uF
C1246
B-MVREFCA
1000pF
VCC_1.5V_DDR
0.1uF
C1247
C1248
R1224
1K 1%
B-MVREFDQ
R1225
1K 1%
1000pF
VCC_1.5V_DDR
0.1uF
C1249
C1250
R1227
1K 1%
R1228
1K 1%
Close to DDR Power Pin
CLose to Saturn7M IC
B-TMA0
B-TMA2
B-TMA11
B-TMA1
B-TMA8
B-TMA6
B-TMBA0
B-TMA3
B-TMA5
B-TMA7
A25
B24
A24
P25
C24
P26
B26
R24
B25
T26
D24
A26
C25
T25
P24
C26
R26
D26
D25
E24
N25
M26
N24
N26
R25
J25
J24
H26
H25
F26
L24
L25
F24
L26
F25
M25
E26
M24
E25
G26
J26
G24
K25
H24
K26
G25
K24
B-TMA0
B-TMA1
B-TMA2
B-TMA3
B-TMA4
B-TMA5
B-TMA6
B-TMA7
B-TMA8
B-TMA9
B-TMA10
B-TMA11
B-TMA12
B-TMA13
B-TMBA0
B-TMBA1
B-TMBA2
B-TMCK
B-TMCKB
B-TMCKE
B-TMODT
B-TMRASB
B-TMCASB
B-TMWEB
B-TMRESETB
B-TMDQSL
B-TMDQSLB
B-TMDQSU
B-TMDQSUB
B-TMDML
B-TMDMU
B-TMDQL0
B-TMDQL1
B-TMDQL2
B-TMDQL3
B-TMDQL4
B-TMDQL5
B-TMDQL6
B-TMDQL7
B-TMDQU0
B-TMDQU1
B-TMDQU2
B-TMDQU3
B-TMDQU4
B-TMDQU5
B-TMDQU6
B-TMDQU7
B-TMA4
B-TMA12
B-TMBA1
B-TMA10
B-TMRESETB
B-TMBA2
B-TMA13
B-TMA9
B-TMCK
B-TMCKB
B-TMRASB
B-TMCASB
B-TMODT
B-TMWEB
B-TMDQSL
B-TMDQSLB
B-TMDQSU
B-TMDQSUB
B-TMDQL1
B-TMDQL3
B-TMDML
B-TMDQU2
B-TMCKE
B-TMDQL7
B-TMDQL5
B-TMDQL0
B-TMDQL2
B-TMDQL6
B-TMDQL4
B-TMDQU7
B-TMDQU3
B-TMDQU5
B-TMDMU
B-TMDQU6
B-TMDQU0
B-TMDQU4
B-TMDQU1
R1215
56
R1216
56
AR1211
56
AR1214
AR1215
AR1219
R1222
R1223
AR1220
R1219
22
R1220
22
R1217
22
R1218
22
AR1212
22
AR1213
22
AR1216
AR1217
AR1218
R1221
22
B-MA0
1%
B-MA2
1%
B-MA11
B-MA1
B-MA8
B-MA6
B-MBA0
B-MA3
B-MA5
B-MA7
56
B-MA4
B-MA12
B-MBA1
B-MA10
56
B-MRESETB
B-MBA2
B-MA13
B-MA9
B-MCK
B-MCKB
B-MRASB
B-MCASB
B-MODT
B-MWEB
B-MDQSL
B-MCK
B-MCKB
VCC_1.5V_DDR
C1240
0.01uF
25V
R1232
1%
1%
10K
56
22
22
56
B-MDQSLB
B-MDQSU
B-MDQSUB
B-MDQL1
B-MDQL3
B-MDML
B-MDQU2
B-MCKE
B-MDQL7
B-MDQL5
B-MDQL0
B-MDQL2
B-MDQL6
B-MDQL4
22
B-MDQU7
B-MDQU3
B-MDQU5
B-MDMU
22
B-MDQU6
B-MDQU0
B-MDQU4
56
R1237
56
R1238
B-MRASB
B-MCASB
B-MRESETB
B-MDQSL
B-MDQSLB
B-MDQSU
B-MDQSUB
B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7
B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7
B-MODT
B-MWEB
B-MDML
B-MDMU
B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8
B-MA9
B-MA10
B-MA11
B-MA12
B-MA13
B-MBA0
B-MBA1
B-MBA2
B-MCKE
22
B-MDQU1
R123410K
B-MCKE
EAN61828901
IC1202
H5TQ1G63DFR-H9C
DDR_1333_HYNIX
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
M7
M2
N8
M3
J7
K7
K9
L2
K1
J3
K3
L3
T2
F3
G3
C7
B7
E7
D3
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
IC1201-*3
K4B2G1646C
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
NC_5
BA0
BA1
BA2
CK
CK
CKE
CS
ODT
RAS
CAS
WE
RESET
DQSL
DQSL
DQSU
DQSU
DML
DMU
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
NC_1
NC_2
NC_3
NC_4
NC_6
DDR_DVB_T2_2G
M8
B-MVREFCA
H1
B-MVREFDQ
R1226
L8
ZQ
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
240
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
NC_1
NC_2
NC_3
NC_4
NC_6
1%
VCC_1.5V_DDR
IC1202-*3
K4B2G1646C
DDR_DVB_T2_2G
N3
M8
P7
P3
N2
H1
P8
P2
R8
L8
ZQ
R2
T8
R3
B2
L7
D9
R7
G7
N7
K2
T3
K8
N1
M7
N9
R1
M2
R9
N8
M3
A1
J7
A8
K7
C1
K9
C9
D2
L2
E9
K1
F1
J3
H2
K3
H9
L3
J1
T2
J9
L1
L9
F3
T7
G3
C7
A9
B7
B3
E1
E7
G8
D3
J2
J8
E3
M1
F7
M9
F2
P1
F8
P9
H3
T1
H8
T9
G2
H7
B1
D7
B9
C3
D1
C8
D8
C2
E2
A7
E8
A2
F9
B8
G1
A3
G9
M8
A0
VREFCA
A1
A2
H1
A3
VREFDQ
A4
A5
L8
A6
ZQ
A7
A8
B2
A9
VDD_1
D9
A10/AP
VDD_2
G7
A11
VDD_3
K2
A12/BC
VDD_4
K8
A13
VDD_5
N1
VDD_6
N9
NC_5
VDD_7
R1
VDD_8
R9
BA0
VDD_9
BA1
BA2
A1
VDDQ_1
A8
CK
VDDQ_2
C1
CK
VDDQ_3
C9
CKE
VDDQ_4
D2
VDDQ_5
E9
CS
VDDQ_6
F1
ODT
VDDQ_7
H2
RAS
VDDQ_8
H9
CAS
VDDQ_9
WE
J1
NC_1
J9
RESET
NC_2
L1
NC_3
L9
NC_4
T7
DQSL
NC_6
DQSL
A9
DQSU
VSS_1
B3
DQSU
VSS_2
E1
VSS_3
G8
DML
VSS_4
J2
DMU
VSS_5
J8
VSS_6
M1
DQL0
VSS_7
M9
DQL1
VSS_8
P1
DQL2
VSS_9
P9
DQL3
VSS_10
T1
DQL4
VSS_11
T9
DQL5
VSS_12
DQL6
DQL7
B1
VSSQ_1
B9
DQU0
VSSQ_2
D1
DQU1
VSSQ_3
D8
DQU2
VSSQ_4
E2
DQU3
VSSQ_5
E8
DQU4
VSSQ_6
F9
DQU5
VSSQ_7
G1
DQU6
VSSQ_8
G9
DQU7
VSSQ_9
GP2R
DDR_256
CLose to DDR3
IC1201-*1
K4B2G1646C
2G_DDR_1333_SS_NEW
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
NC_6
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
IC1202-*1
K4B1G1646G-BCH9
DDR_1333_SS_NEW
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
IC1202-*2
NT5CB64M16DP-CF
DDR_1333_NANYA_NEW
N3
EAN61857201A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12
T3
NC_6
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
20101023
12
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
NC_6
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
VREFCA
VREFDQ
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
Page 28
/FLASH_WP
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
R1401
OPT
+3.3V_Normal
B
0
R1403
10K
C
E
/SPI_CS
SPI_SDO
Q1401
KRC103S
OPT
+3.3V_Normal
R1404
4.7K
S_FLASH_MAIN_MACRONIX
IC1401
MX25L8006EM2I-12G
CS#
1
SO/SIO1
2
WP#
3
GND
4
IC1401-*1
W25Q80BVSSIG
CS
1
DO[IO1]
2
%WP[IO2]
3
GND
4
S_FLASH_MAIN_WINBOND
8
7
6
5
8
7
6
5
+3.3V_Normal
VCC
HOLD#
SCLK
SI/SIO0
VCC
HOLD[IO3]
CLK
DI[IO0]
R1405
33
C1401
0.1uF
SPI_SCK
SPI_SDI
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
SFLASH_1MB
20101023
13

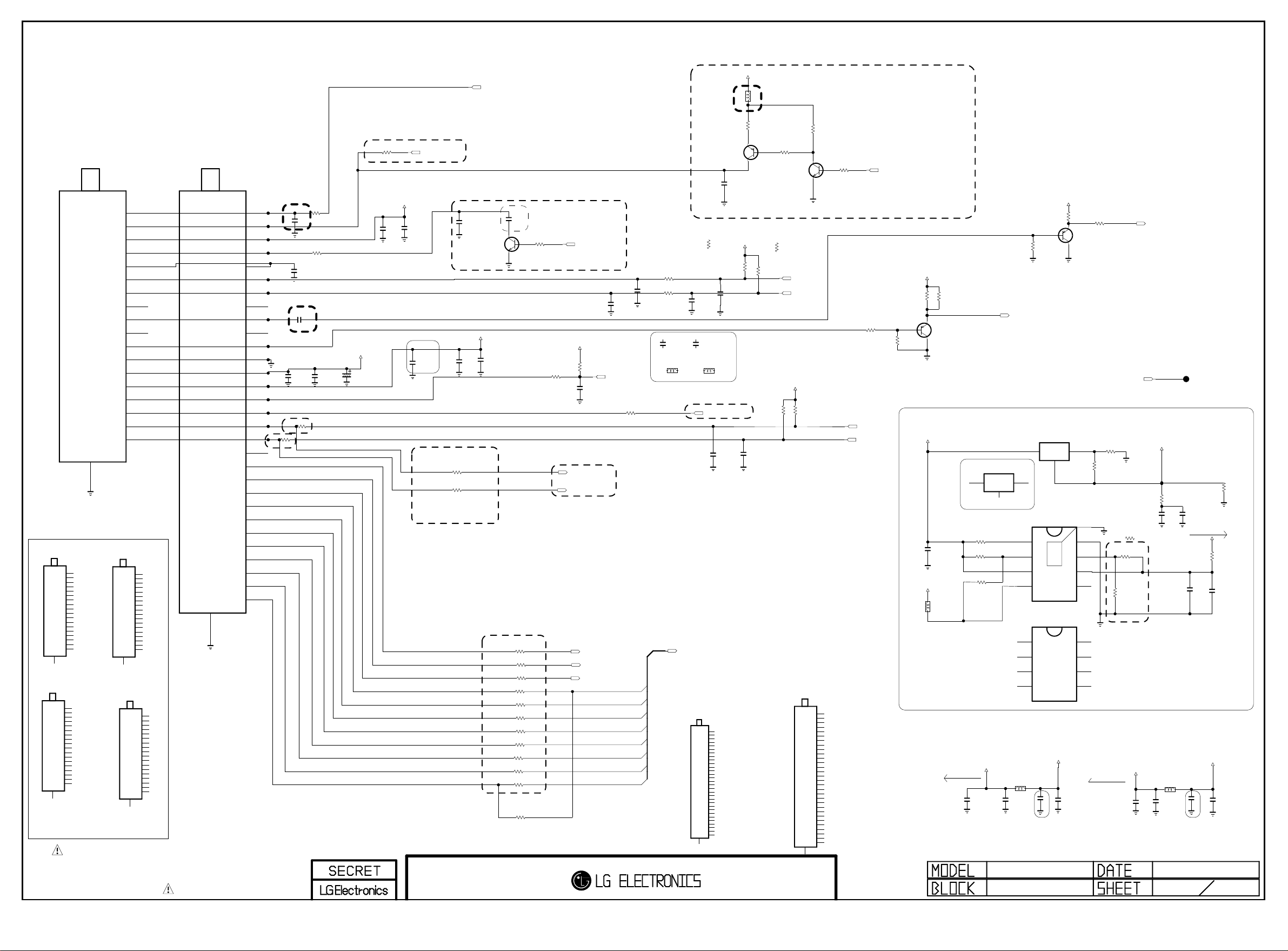

Page 29
GP2R_LARGE_TUNER
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
close to TUNER
OPT
R3762 0
CN_2INPUT_H_LG3911
TU3702
TDTJ-S001D
DVB_1INPUT_H_LGIT
TUNER MULTI-OPTION
TU3702-*1
TDVJ-H101F
ANT_PWR[OPT]
1
BST_CNTL
2
+B
3
NC[RF_AGC]
4
AS
5
SCL
6
SDA
7
NC(IF_TP)
8
SIF
9
NC
10
VIDEO
11
GND
12
1.2V
13
3.3V
14
RESET
15
IF_AGC_CNTL
16
DIF_1
17
DIF_2
18
19
SHIELD
GP3_ATSC_1INPUT_H_LGIT
RF_S/W_CTL
1
BST_CTL
2
+B1[5V]
3
NC_1[RF_AGC]
4
NC_2
5
SCLT
6
SDAT
7
NC_3
8
SIF
9
NC_4
10
VIDEO
11
GND
12
+B2[1.2V]
13
+B3[3.3V]
14
NTSC_2INPUT_H_LGIT
RESET
15
IF/AGC
16
DIF_1[N]
17
DIF_2[P]
18
19
SHIELD
TU3702-*2
TDTR-T036F
19
SHIELD
ANT_PWR[OPT]
1
BST_CNTL
2
+B
3
NC[RF_AGC]
4
AS
5
SCL
6
SDA
7
NC[IF_TP]
8
SIF
9
NC
10
VIDEO
11
GND
12
1.2V
13
3.3V
14
RESET
15
IF_AGC_CNTL
16
DIF_1
17
DIF_2
18
GP3_ATSC_1INPUT_H_SANYO
TU3702-*3
UDA55AL
NC_1
1
NC_2
2
+B[+5V]
3
NC[RF_AGC]
4
AS
5
SCL
6
SDA
7
NC(IF_TP)
8
SIF
9
NC_3
10
VIDEO
11
GND
12
+1.2V
13
+3.3V
14
RESET
15
IF_AGC_CNTL
16
DIF_1
17
DIF_2
18
19
SHIELD
GP2R_AU_1INPUT_H_LGIT
TU3702-*4
TDTJ-S101D
10
11
12
13
14
15
16
17
18
19
SHIELD
ANT_PWR
1
NC_1
2
+B1[5V]
3
RF_AGC
4
MOPLL_AS
5
SCL
6
SDA
7
NC_2
8
SIF
9
NC_3
VIDEO
GND
+B2[1.2V]
+B3[3.3V]
RESET
IF_AGC
DIF_1[N]
DIF_2[P]
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
31
SHIELD
TU3701
TDFR-C036D
close to TUNER
RF_S/W_CNTL
1
BST_CNTL
2
+B1[+5V]
3
NC[RF_AGC]
4
NC_1
5
SCLT
6
SDAT
7
NC_2
8
SIF
9
NC_3
10
VIDEO
11
GND
12
+B2[1.2V]
13
+B3[3.3V]
14
RESET
15
NC_4
16
SCL
17
SDA
ERR
SYNC
VALID
MCL
D0
D1
D2
D3
D4
D5
D6
D7
R3701 100
FULL_NIM
18
19
20
21
22
23
24
25
26
27
28
29
30
R3705 0
C3701
0.1uF
16V
R3707 0
C3706
0.1uF
16V
C3702
0.1uF 16V
C3737
100pF
50V
FULL_NIM
R3702 100
close to IF line
RF_SW_OPT
OPT
close to TUNER
+1.2V/+1.8V_TU
FULL_NIM
C3738
0.1uF
16V
C3705
100uF
16V
+5V_TU
C3704
C3703
0.1uF
100pF
16V
50V
close to the tuner pin, add,09029
CONTROL_ATTEN
CN
C3739
10uF
6.3V
Close to the tuner
Pull-up can’t be applied
because of MODEL_OPT_2
C3728
0.1uF
16V
OPT
+3.3V_TU
C3707
100pF
50V
HALF_NIM
R3760 0
R3761 0
HALF_NIM
FULL_NIM_CHINA
FULL_NIM_CHINA
RF_SWITCH_CTL
C3731
10uF
10V
OPT
C
Q3704
2SC3052
OPT
E
C3708
0.1uF
16V
R3724
FULL_NIM
FULL_NIM
FULL_NIM
R3725
FULL_NIM
FULL_NIM
FULL_NIM
FULL_NIM
FULL_NIM
FULL_NIM
R3727
R3728
R3729
R3726
R3721
R3722
R3723
Close to the CI Slot
R3706
FULL_NIM_BR
B
R3730
R3731
OPTION : RF AGC
R3754
10K
OPT
FE_AGC_SPEED_CTL
IF_AGC_SEL
TU_I2C_NON_FILTER
+3.3V_TU
R3733
R3732
100K
100
C3710
0.1uF
16V
IF_N_MSTAR
IF_P_MSTAR
1. should be guarded by ground
2. No via on both of them
3. Signal Width >= 12mils
Signal to Signal Width = 12mils
Ground Width >= 24mils
0
0
0
0
0
0
0
0
0
0
0
0
FE_TS_SYNC
FE_TS_VAL_ERR
FE_TS_CLK
TU_I2C_NON_FILTER
C3711
18pF
50V
TUNER_RESET
R3704
FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]
GPIO must be added.
33
TU_I2C_NON_FILTER
C3713
33
TU_I2C_NON_FILTER
18pF
50V
TU_I2C_FILTER
C3711-*1
20pF
50V
TU_I2C_FILTER
TU_I2C_FILTER
R3735-*1
COIL
0
HALF_NIM
BOOSTER_OPT
TU_IIC_NON_ATSC_SANYO
R3740-*1
1K
TU_IIC_ATSC_SANYO
R3735
R3736
C3742
20pF
TU_I2C_FILTER
50V
C3713-*1
20pF
50V
TU_I2C_FILTER
TU_I2C_FILTER
R3736-*1
C3743
20pF
50V
COIL
IF_AGC_MAIN
should be guarded by ground
C3712
22pF
50V
FULL_NIM
FE_TS_DATA[0-7]
FULL_NIM_BR
TU3701-*2
TDFR-B036F
RF_S/W_CNTL
1
BST_CNTL
2
+B1[5V]
3
NC_1[RF_AGC]
4
NC_2
5
SCLT
6
SDAT
7
NC_3
8
SIF
9
NC_4
10
VIDEO
11
GND
12
+B2[1.2V]
13
+B3[3.3V]
14
RESET
15
NC_5
16
SCL
17
SDA
18
ERR
19
SYNC
20
VALID
21
MCL
22
D0
23
D1
24
D2
25
D3
26
D4
27
D5
28
D6
29
D7
30
31
SHIELD
+5V_TU
C3709
0.01uF
25V
+3.3V_TU
R3740
1.2K
L3701
BLM18PG121SN1D
BOOSTER_OPT
R3734
0
Q3701
ISA1530AC1
E
B
C
BOOSTER_OPT
TU_IIC_ATSC_SANYO
R3741
1.2K
FULL_NIM
C3714
22pF
50V
FULL_NIM
BOOSTER_OPT
BOOSTER_OPT
R3737
2.2K
C
Q3702
2SC3052
E
TU_IIC_NON_ATSC_SANYO
R3741-*1
1K
TU_SCL
TU_SDA
+3.3V_TU
R3742
4.7K
R3744
4.7K
FULL_NIM
CN_2INPUT_H_ALTO
31
SHIELD
BOOSTER_OPT
R3743
10K
B
BOOSTER_OPT
TU3701-*4
TDFR-C236D
RF_S/W_CNTL
1
BST_CNTL
2
+B1[+5V]
3
NC[RF_AGC]
4
NC_1
5
SCLT
6
SDAT
7
NC_2
8
SIF
9
NC_3
10
VIDEO
11
GND
12
+B2[1.2V]
13
+B3[3.3V]
14
RESET
15
NC_4
16
SCL
17
SDA
18
ERR
19
SYNC
20
VALID
21
MCL
22
D0
23
D1
24
D2
25
D3
26
D4
27
D5
28
D6
29
D7
30
BOOSTER : CHINA OPT
BOOSTER_OPT
R3745
10K
The pull-up/down of LNA2_CTL
is depended on MODLE_OPT_1.
GPIO must be added for FE_BOOSTER_CTL
R3749 0
DEMOD_SCL
DEMOD_SDA
FE_BOOSTER_CTL
LNA2_CTL
R3750
1K
OPT
+5V_Normal
+5V_TU
R3751
220
B
+3.3V_TU
C3717
0.1uF
16V
R3752
220
E
Q3703
ISA1530AC1
C
Please, check multi Item! 10/12
FULL_NIM_SEMTEK
R3769 10K
L3704
FULL_NIM_BCD
200mA
IC3703-*1
AP1117EG-13
OUTIN
ADJ/GND
HALF_NIM_1.2V_DIODES
R3771 10K
FULL_NIM_BCD
R3770 10K
FULL_NIM_BCD
+5V_TU
MLB-201209-0120P-N2
C3719
22uF
10V
TUNER_L
R3753
4.7K
TU_CVBS
HALF_NIM_1.2V_BCD
AZ1117BH-ADJTRE1
INPUT
AP2132MP-2.5TRG1
PG
1
FULL_NIM_BCD
EN
2
VIN
3
VCTRL
4
IC3701-*1
SC4215ISTRT
NC_1
1
FULL_NIM_SEMTEK
EN
2
VIN
3
NC_2
4
L3702
C3724
0.1uF
16V
location movement,0929
GP2R
+5V_TU
R3755
IC3703
3
OUTPUT
IC3701
THERMAL
+5V_TUNER
C3722
22uF
16V
1
E
Q3705
C
ADJ/GND
HALF_NIM
R3768
1.2K
8
7
6
5
R3758
82
TU_SIF
ISA1530AC1
DEMOD_RESET
This was being applied to the only china demod,
so this has to be deleted in both main and ISDB sheet.
R2
HALF_NIM
R3767
+1.2V/+1.8V_TU
10
R1
HALF_NIM
R3766
1
1/10W
C3740
0.1uF
16V
[EP]
GND
ADJ
VOUT
NC
HALF_NIM
FULL_NIM_BCD
R3748-*1
10K
FULL_NIM_SEMTEK
R3748
5.1K
R1
R3747
9.1K
FULL_NIM
1005
R2
FULL_NIM
C3729
0.1uF
16V
C3741
10uF
10V
HALF_NIM
+1.2V/+1.8V_TU
R3764
0
1/10W
FULL_NIM
FULL_NIM
C3730
10uF
10V
R3703
150
OPT
380mA
470
B
2
9
Vo=0.8*(1+R1/R2)
GND
8
ADJ
7
VO
6
NC_3
5
+3.3V_Normal
C3726
0.1uF
16V
+3.3V_TU
60mA
Size changeSize change
L3703
MLB-201209-0120P-N2
C3725
C3723
0.1uF
22uF
16V
10V
C3715
22uF
10V
Add,0929
C3727
0.1uF
16V
20101023
14
Page 30
EXT_SPEAKER_AMP
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
R1501
SUBAMP_SD
SUBAMP_MUTE
100
R1500
100
EXT_L_AMP_IN
EXT_R_AMP_IN
C1500
1uF
50V
C1501
1uF
50V
C1502
0.1uF
50V
+24V
BLM18PG121SN1D
PVCCL_1
PVCCL_2
PVCCR_1
PVCCR_2
L1500
TPA3124D2PWPR
1
SD
2
3
MUTE
4
LIN
5
RIN
6
BYPASS
7
AGND_1
8
AGND_2
9
10
VCLAMP
11
12
L1501
BLM18PG121SN1D
C1503
0.1uF
50V
IC1500
+3.5V_ST
R1516
4.7K
B1
1
GND
2
B0
3
B1
GND
B0
C1518
0.1uF
R1518
10K
R1517
0
S7_DBG_TX
NEC_DBG_TX
S7_DBG_RX
NEC_DBG_RX
+3.5V_ST
SUBAMP_MUTE
R1513
2K
R1514
2K
R1515
100
SELECT
SELECT
VCC
UART_DBG_SW
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
VCC
5
A
4
EAN38256201
IC1503
NLASB3157DFT2G
6
ON SEMICONDUCTOR
ANALOG SWITCH
5
A
4
EAN38256201
RT1P141C-T112
Q1502
3
IC1504
1
2
3
1
2
EXT_SPK_CONTROL/DEBUG
New
JK1501-*1
PEJ027-04
E_SPRING
3
T_TERMINAL1
6A
B_TERMINAL1
7A
R_SPRING
4
T_SPRING
5
B_TERMINAL2
7B
T_TERMINAL2
6B
OPT
JK1501
E_SPRING
T_TERMINAL1
B_TERMINAL1
R_SPRING
T_SPRING
B_TERMINAL2
T_TERMINAL2
PEJ027-01
JK1500-*1
PEJ027-04
OPT
C1514
1uF
10V
C1506
C1507
0.1uF
4.7uF
50V
50V
PGNDL_2
24
PGNDL_1
23
LOUT
22
21
20
19
18
17
16
15
14
13
BSL
AVCC_2
AVCC_1
GAIN0
GAIN1
BSR
ROUT
PGNDR_2
PGNDR_1
C1504
0.22uF
50V
C1505
0.22uF
50V
L1502
22.0uH
22.0uH
L1503
R1502
10K
OPT
R1503
10K
R1504
10K
OPT
R1505
10K
R1506
4.7K
R1507
4.7K
C1508
1uF
50V
C1509
1uF
50V
C1510
0.47uF
50V
C1511
0.47uF
50V
47uF
C1512
47uF
C1513
25V
EXT_OUT_L
25V
EXT_OUT_R
EXT_SPEAKER
OPT
JK1500
PEJ027-01
3
6A
7A
4
5
7B
6B
3
E_SPRING
6A T_TERMINAL1
7A B_TERMINAL1
4 R_SPRING
5 T_SPRING
7B B_TERMINAL2
6B T_TERMINAL2
New
E_SPRING
3
T_TERMINAL1
6A
B_TERMINAL1
7A
R_SPRING
4
T_SPRING
5
B_TERMINAL2
7B
T_TERMINAL2
6B
OPT
C1515
1uF
10V
+3.5V_ST
C1516
0.1uF
EXT_OUT_R
SELECT
ON SEMICONDUCTOR
VCC
A
SELECT
ON SEMICONDUCTOR
VCC
A
EXT_OUT_L
R1508
100
IC1501
NLASB3157DFT2G
6
ANALOG SWITCH
5
4
EAN38256201
IC1502
NLASB3157DFT2G
6
ANALOG SWITCH
5
4
EAN38256201
DBG_SW
+3.5V_ST
+3.5V_ST
C1517
R1511
3.6K
R1509
B1
0
1
GND
2
B0
3
DBG_TX
0.1uF
EXT_VOL+
DBG_TX
+3.5V_ST
R1512
3.6K
R1510
B1
0
1
GND
2
B0
3
DBG_RX
EXT_VOL-
DBG_RX
EXT_SPEAKER_MUTE
EXT_OUT_L
Q1500
2SC3052
EXT_OUT_R
Q1501
2SC3052
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Page 31
+3.3V_Normal
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
C434
0.1uF
16V
IC404
AP1117E18G-13
IN
Vd=1.4V
3
2
OUT
1
ADJ/GND
R474
+1.8V_AMP
1
C446
C421
0.1uF
10uF
16V
10V
120 mA
+24V
AUD_LRCH
AUD_LRCK
AUD_SCK
AMP_SDA
AMP_SCL
+1.8V_AMP
L501
BLM18PG121SN1D
OPT
C501
10uF
10V
AUD_MASTER_CLK
+1.8V_AMP
L502
BLM18PG121SN1D
C502
0.1uF
16V
AMP_RESET
OPT
C503
10uF
10V
R503 100
R504 100
R505 100
R506 33
R507 33
C506
1000pF
50V
C504
100pF
0.1uF
50V
C505
16V
C509
0.1uF
C508
1000pF
50V
R508
3.3K
C507
18pF
50V
+3.3V_Normal
L504
BLM18PG121SN1D
TP502
C510
18pF
50V
C546
22pF
50V
OPT
C51 2
1uF 25V
+1.8V_AMP
OPT
C511
10uF
10V
C544
22pF
50V
OPT
C514
22000pF
BST1A
VDR1A
/RESET
DGND_1
GND_IO
CLK_I
VDD_IO
DGND_PLL
AGND_PLL
AVDD_PLL
DVDD_PLL
C545
22pF
50V
OPT
50V
AD
LF
GND
C513
0.1uF
16V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EP_PAD
OUT1A_2
PGND1A_1
PGND1A_2
54
55
56
THERMAL
57
IC501
EAN60969603
NTP-7100
15
16
17
DVDD
SDATA
DGND_2
PVDD1A_1
PVDD1A_2
OUT1A_1
51
52
53
18
WCK19BCK20SDA21SCL
C515
0.1uF
50V
OUT1B_1
OUT1B_2
PVDD1B_1
PVDD1B_2
48
49
50
22
MONITOR023MONITOR124MONITOR2
C51 7
1uF
25V
PGND1B_2
46
47
25
/FAULT
26
VDR2B27BST2B
C516
1000pF
50V
C519
0.1uF
50V
C518
22000pF
50V
C520
1uF
25V
VDR1B44BST1B45PGND1B_1
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
PGND2B_1
C521
10uF
35V
NC
VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2
R514
C52 2
R513
0
OPT
100
1uF25V
C524
22000pF
50V
C525
22000pF
50V
R515
10K
Q501
2SC3052
OPT
R535
3.3
+3.5V_ST
C
E
C526
0.1uF
50V
OPT
C547
0.01uF
50V
+24V
POWER_DET
B
C527
0.1uF
50V
R517
D501
1N4148W
100V
OPT
D502
1N4148W
100V
OPT
D503
1N4148W
100V
OPT
D504
1N4148W
100V
OPT
C528
10uF
35V
10K
R519
12
C529
390pF
50V
C530
390pF
50V
R520
12
R521
12
C531
390pF
50V
C532
390pF
50V
R522
12
AMP_MUTE
R524
R525
R523
R526
12
12
12
12
L506
10.0uH
NRS6045T100MMGK
10.0uH
L507
NRS6045T100MMGK
NRS6045T100MMGK
L508
10.0uH
L509
10.0uH
NRS6045T100MMGK
C534
0.47uF
50V
C535
0.47uF
50V
C536
0.1uF
50V
C537
0.1uF
50V
C538
0.1uF
50V
C539
0.1uF
50V
SPK_L+
SPK_L-
SPK_R+
SPK_R-
R527
4.7K
R528
4.7K
R529
4.7K
R530
4.7K
SPK_L+
SPEAKER_L
SPK_L-
SPK_R+
SPEAKER_R
SPK_R-
WAFER-ANGLE
4
3
2
1
P501
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
AMP_NTP
20101023
16
Page 32
[SCART/EXT AUDIO 1st AMP]
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
CLOSE TO MSTAR
C1601
+12V/+15V
C1600
0.1uF
50V
FIX-TER
PPJ-230-01
COMPONENT1
SCART1_Lout
SCART1_Rout
11
JK1601
10
9
8
7
6
5
4
13
[GN]GND
[GN]G
[GN]C_DET
[BL]B
[RD]R
[WH]L_IN
[RD]R_IN
[RD]MONO
0.01uF
R1600 100
R1601 100
0
R4223
COMPONENT1
PSC008-01
C1602
0.01uF
JK1602
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Full Scart/ Comp1
R1602
22K
R1603
22K
AV_DET
COM_GND
SYNC_IN
SYNC_OUT
SYNC_GND2
SYNC_GND1
RGB_IO
R_OUT
RGB_GND
R_GND
D2B_OUT
G_OUT
D2B_IN
G_GND
ID
B_OUT
AUDIO_L_IN
B_GND
AUDIO_GND
AUDIO_L_OUT
AUDIO_R_IN
AUDIO_R_OUT
DTV/MNT_L_OUT
DTV/MNT_R_OUT
R4221
0
C1603
10uF
16V
C1605
10uF
16V
R1611
2.2K
R1610
2.2K
OPT
R1638
470K
D1602
30V
OPT
D1603
30V
OPT
D1604
30V
D1605
30V
D1606
30V
D1607
5.6V
OPT
D1609
5.6V
D1608
5.6V
OPT
D1601
5.6V
OPT
R1622
5.6K
R1624
5.6K
OPT
OPT
R1637
470K
D1610
30V
OPT
R1643
33K
C1606
33pF
R1644
33K
C1613
33pF
R1608
75
R1604
75
R1605
75
R1606
470K
R1607
470K
OUT1
INV_IN1
R1645
NON_INV_IN1
10K
NON_INV_IN2
INV_IN2
R1646
10K
OUT2
OUT1
IN1-
IN1+
IN2+
IN2-
OUT2
D1611
5.6V
OPT
1
2
3
VCC
4
5
6
7
IC1600-*1
AS324MTR-E1
1
EU_OPT_BCD
2
3
VCC
4
5
6
7
R1609
75
IC1600
SN324
EU_OPT_AUK
C1604
47pF
50V
SC1_R+/COMP1_Pr+
SC1_G+/COMP1_Y+
SC1_B+/COMP1_Pb+
L1601
BLM18PG121SN1D
L1602
BLM18PG121SN1D
OUT4
14
INV_IN4
13
NON_INV_IN4
12
GND
11
NON_INV_IN3
10
INV_IN3
9
OUT3
8
OUT4
14
IN4-
13
IN4+
12
GND
11
IN3+
10
IN3-
9
OUT3
8
+3.3V_Normal
R1613
10K
C1607
0.1uF
16V
L1604
120-ohm
L1603
120-ohm
R1647
R1649
C1608
220pF
50V
OPT
10K
10K
R1614
R4210
0
1K
C1612
330pF
C1609
1000pF
50V
C1610
1000pF
50V
C1611
330pF
50V
50V
C1614
OPT
D1618
30V
33pF
R1617
10K
R1618
10K
C1615
R1616
75
SC1_CVBS_IN
R1651
33K
33pF
R1653
33K
R1656
470K
SC1/COMP1_DET
SC1_SOG_IN
ISA1530AC1
R1628
75
R1627
22
R1623
15K
OPT
R1657
5.6K
R1658
5.6K
C1620
100uF
16V
R1629
3.9K
R1630
12K
R1631
12K
C1618
4700pF
R1659
2.2K
OPT
R1655
470K
R1661
Q1601
C1619
4700pF
C1624
2.2K
C1622
10uF
E
C
Gain=1+Rf/Rg
SC1_FB
10uF
16V
R1635
390
16V
R4211
390
Rf
B
OPT
R1663 100
OPT
R1662 100
R1640
470
Q1602
2SC3052
C
B
E
Rg
R1639
180
SC1_ID
SC1/COMP1_L_IN
SC1/COMP1_R_IN
DTV/MNT_L_OUT
DTV/MNT_R_OUT
CLOSE TO MSTAR
R1641
47K
C1621
47uF
16V
R1642
15K
EXT_L_AMP_IN
R1665100
R1664100
L1606
C1623
0.1uF
50V
IN CASE OF SMALL= 15V
+12V/+15V
C1625
0.1uF
50V
DTV/MNT_VOUT
EXT_L_AMP
EXT_R_AMP
EXT_R_AMP_IN
[SCART AUDIO MUTE]
DTV/MNT_L_OUT
Q1607
DTV/MNT_R_OUT
2SC3052
Q1608
2SC3052
R1648
2K
R1650
2K
RT1P141C-T112
Q1610
3
1
2
C1636
0.1uF
R1652
10K
COMPONENT2
PPJ234-01
JK1603
REAR_COMP2
+3.5V_ST
[GN]E-LUG
6A
[GN]O-SPRING
5A
[GN]CONTACT
4A
[BL]E-LUG-S
7B
[BL]O-SPRING
5B
[RD]E-LUG-S
7C
[RD]O-SPRING_1
5C
[WH]O-SPRING
5D
[RD]CONTACT
4E
[RD]O-SPRING_2
5E
[RD]E-LUG
6E
SCART1_MUTE
D1612
30V
D1614 30V
D1615
+3.3V_Normal
OPT
30V
R1612
10K
D1616
5.6V
D1617
5.6V
D1613
5.6V
OPT
R1615
1K
R1619
75
R16 20
75
R16 21
75
R1633
10K
R1625
470K
R1626
OPT
470K
C1616
1000pF
50V
C1617
1000pF
50V
R1632
10K
R1636
12K
OPT
R1634
12K
OPT
COMP2_DET
COMP2_Y+
COMP2_Pb+
COMP2_Pr+
COMP2_L_IN
COMP2_R_IN
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
REAR_JACK
20101023
17
Page 33
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
SIDE_JACK
20101023
18
Page 34
CI Region
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
* Option name of this page : CI_SLOT
(because of Hong Kong)
CI SLOT
+3.3V_Normal
0.1uF
C1901
OPT
/CI_CD1
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]
CI_IORD
CI_IOWR
CI_MDI[0]
CI_MDI[1]
CI_MDI[2]
CI_MDI[3]
CI_MDI[4]
CI_MDI[5]
CI_MDI[6]
CI_MDI[7]
PCM_RST
/PCM_WAIT
REG
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_MISTRT
CI_MIVAL_ERR
CI_MCLKI
L1901
BLM18PG121SN1D
/CI_CD2
+3.3V_CI
0.1uF
R1901
C1902
AR1901
R1902
47
AR1902
AR1903
+5V_Normal
33
47
33
33
+5V_Normal
C1906
10uF
10K
R1903
C1903
0.1uF
16V
R1905
C1905
GND
R1906
R1907
R1904
10K C1904
0.1uF
16V
R1908 100
10K
0.1uF
10K
100
10V
R1909 0
GND
CI DETECT
/CI_CD2
/CI_CD1
CI POWER ENABLE CONTROL
+5V_Normal
C1907
PCM_5V_CTL
+5V_CI_ON
R1910
OPT
0.1uF
16V
OPT
0
CI_SLOT_OR_GATE_NXP
74LVC1G32GW
1B 5 VCC
3GND2A4 Y
EAG41860102
CI_SLOT_JACK_LV3400
10067972-000LF
10067972-050LF
CI_SLOT_JACK
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
65
65
66
66
67
67
68
68
2
GND
IC1901
R1912
10K
OPT
R1913
10K
P1901
P1902
69
69
R1924
10K
G1G2
G1G2
1
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
2660
2660
2761
2761
2862
2862
2963
2963
3064
3064
31
31
32
32
33
33
34
34
+3.3V_CI
C19 08
GND
B
R1914
22K
R1922
2.2K
C
Q1901
2SC3052
E
CI_DATA[0-7]
CI_DATA[0-7]
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
R1920
0.1uF
47
C1909
CI_DATA[7]
47
100
GND
CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DET
L1902
BLM18PG121SN1D
C1910
0.1uF
16V
R1919
0
R1916
OPT
GND
+3.3V_CI
10K
Q1902
RSR025P03
S
C1911
4.7uF
16V
OPT
R1917
R1918
D
G
16V
0.1 uF
OPT
R1915
47
/PCM_CD
CI_DATA[0-7]
+5V_CI_ON
R1923
10K
OPT
R1921
10K
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[9]
CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]
CI_ADDR[12]
CI_ADDR[7]
CI_ADDR[6]
CI_ADDR[5]
CI_ADDR[4]
CI_ADDR[3]
CI_ADDR[2]
CI_ADDR[1]
CI_ADDR[0]
C1912
0.1uF
16V
OPT
/PCM_CE
CI_OE
CI_WE
CI_ADDR[0-14]
/PCM_IRQA
CI HOST I/F
CI_ADDR[7]
CI_ADDR[6]
CI_ADDR[5]
CI_ADDR[4]
CI TS INPUT
AR1905
CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]
REG
CI_OE
CI_WE
33
AR1906
33
AR1904
33
IC1902
1OE
1
TOSHIBA
1A1
2
0ITO742440D
2Y4
3
1A2
4
2Y3
5
1A3
6
2Y2
1A4
2Y1
GND
TC74LCX244FT
7
8
9
10
AR1907
33
AR1908
33
AR1912
33
AR1913
33
AR1909
33
CI_MDI[7]
CI_MDI[6]
CI_MDI[5]
CI_MDI[4]
CI_MDI[3]
CI_MDI[2]
CI_MDI[1]
CI_MDI[0]
CI_MISTRT
CI_MIVAL_ERR
CI_MCLKI
CI_DET
PCM_A[0]
PCM_A[1] PCM_A[7]
PCM_A[2]
PCM_A[3]
CI_DATA[0-7]
CI_DATA[0-7]
CI_ADDR[8]
CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]
CI_IORD
CI_IOWR
FE_TS_DATA[7]
FE_TS_DATA[6]
FE_TS_DATA[5]
FE_TS_DATA[4]
FE_TS_DATA[3]
FE_TS_DATA[2]
FE_TS_DATA[1]
FE_TS_DATA[0]
FE_TS_SYNC
FE_TS_VAL_ERR
FE_TS_CLK
+3.3V_CI
VCC
20
2OE
19
1Y1
18
2A4
17
1Y2
16
2A3
15
1Y3
14
2A2
13
1Y4
12
2A1
11
C1913
0.1uF
16V
PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]
/PCM_REG
/PCM_OE
/PCM_WE
/PCM_IORD
/PCM_IOWR
@netLa
FE_TS_DATA[0-7]
CI_ADDR[0]
CI_ADDR[1]
PCM_A[6]
CI_ADDR[2]
PCM_A[5]
CI_ADDR[3]
PCM_A[4]
PCM_D[0-7]
PCM_D[0-7]
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
PCMCI
20101023
20
Page 35
SMD GASKET
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
GAS2
GAS1
6.5T_GAS
6.5T_GAS
MDS62110206
5.5T_GAS
7.5T_GAS
GAS1-*1
5.5T_GAS
MDS62110204
GAS1-*2
7.5T_GAS
MDS62110205
MDS62110206
GAS2-*1
MDS62110204
7.5T_GAS
GAS2-*2
MDS62110205
6.5T_GAS
5.5T_GAS
MDS62110204
MDS62110205
GAS3
MDS62110206
5.5T_GAS
GAS3-*1
MDS62110204
GAS3-*2
7.5T_GAS
MDS62110205
6.5T_GAS
MDS62110206
GAS4-*1
GAS4-*2
GAS4
5.5T_GAS
MDS62110204
7.5T_GAS
MDS62110205
6.5T_GAS
MDS62110206
GAS5-*1
GAS5-*2
GAS5
5.5T_GAS
MDS62110204
7.5T_GAS
MDS62110205
6.5T_GAS
MDS62110206
GAS6-*1
GAS6-*2
GAS6
5.5T_GAS
MDS62110204
7.5T_GAS
MDS62110205
6.5T_GAS
MDS62110206
GAS7-*1
GAS7-*2
GAS7
GAS1-*3
9.5T_GAS
MDS61887710
GAS1-*4
12.5T_GAS
MDS61887708
GAS1-*5
8.5T_GAS
MDS62110209
9.5T_GAS
MDS61887710
12.5T_GAS
MDS61887708
8.5T_GAS
MDS62110209
GAS2-*3
GAS2-*4
GAS2-*5
9.5T_GAS
MDS61887710
12.5T_GAS
MDS61887708
8.5T_GAS
MDS62110209
GAS3-*3
GAS3-*4
GAS3-*5
9.5T_GAS
MDS61887710
12.5T_GAS
MDS61887708
8.5T_GAS
MDS62110209
GAS4-*3
GAS4-*4
GAS4-*5
9.5T_GAS
MDS61887710
12.5T_GAS
MDS61887708
8.5T_GAS
MDS62110209
GAS5-*3
GAS5-*4
GAS5-*5
9.5T_GAS
MDS61887710
12.5T_GAS
MDS61887708
8.5T_GAS
MDS62110209
GAS6-*3
GAS6-*4
GAS6-*5
9.5T_GAS
MDS61887710
12.5T_GAS
MDS61887708
8.5T_GAS
MDS62110209
GAS7-*3
GAS7-*4
GAS7-*5
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
SMD_GAS
20101023
20
Page 36
L/DIM_LED/DRIVER
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
P2100
12507WR-08L
1
2
3
4
5
6
7
8
9
C2100
18pF
50V
OPT
+3.3V_Normal
R2102
10K
R2103
10K
FRC_L/DIM_REVERSE_SEL
C2101
18pF
50V
OPT
+3.3V_Normal
OPT
R2100
2.2K
R2101
2.2K
LED_DRIVER_D/L
LED_DRIVER_D/L_SCL
LED_DRIVER_D/L_SDA
L/DIM_SCLK
L/DIM_MOSI
V_SYNC
C2102
18pF
50V
OPT
C2103
18pF
50V
OPT
LED_DRIVER_D/L
R4029
22
R4028
22
LED_DRIVER_D/L
C2104
18pF
50V
OPT
LED_DRIVER_D/L
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2R
L/DIM_LED
20101023
21
Page 37
DC DC CONVERTER +12V
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
(For External power)
MBRA340T3G
close to pin
PSU
D2200
PSU
C2200
150pF
18K
PSU
R2200
50V
R2201
150K
PSU
SW_1
SW_2
EN
COMP
FB
PSU
R2202
100K
C2203
50V
IC2200
MP4460DQ-LF-Z
1
2
3
PSU
4
$0.21
5
L2201
22UH
PSU
11
THERMAL
PSU
0.1uF
10
EP_GND
BST
VIN_2
9
VIN_1
8
FREQ
7
GND
6
Switching noise reducing [MPS recommend]
PSU
C2207
0.1uF
50V
C2208
3.3uF
50V
+24V
R2210
20K
PSU
R2205
22
PSU
PSU
PSU
R2204
200K
1/8W
1%
PSU
C2204
22uF
25V
C2210
0.1uF
50V
1/16W
PSU
R2212
10K
1/16W
1%
+12V
PSU
PSU
R2211
270K
1/16W
1%
1%
5V/12V EXT PowerOut
+12V/+15V
CB3216PA501E
L2200
LIPS
C2201
0.47uF
+12V
R2203
100K
OPT
IC2201
MP2305DS
BS
C2202
0.01uF
50V
25V
1
IN
2
SW
3
GND
4
L2202
22UH
SS
8
EN
7
COMP
6
FB
5
C2205
2700pF
50V
C2206
0.1uF
50V
R2206
12.4K
R2207
56K
R2208
10K
R2209
1K
C2209
22uF
16V
EXT12V_CTRL
EXT5V_CTRL
L2203
CB3216PA501E
EXT_5V
EXT_PWR_DET
R2213
1K
C2211
470pF
50V
DV/DT
ENABLE/FAULT
I-LIMIT
2SC3875S(ALY)
GND
NC
+3.5V_ST
1
2
3
4
5
R2214
4.7K
Q2200
R2215
43
IC2202
MP5000DQ
11
C
E
VCC
C2212
1uF
16V
REAL TIME CLOCK
SOURCE_5
10
SOURCE_4
9
SOURCE_3
8
+3.5V_ST
R2217
4.7K
2SC3875S(ALY)
C2214
22uF
16V
C
Q2201
B
SOURCE_2
7
SOURCE_1
6
+12V
C2213
22uF
16V
R2216
1K
B
L2204
CB3216PA501E
C2215
0.1uF
50V
A1CA2
D2201
R2218
10K
E
EXT_12V
C2216
2pF
50V
C2217
2pF
50V
12
X2200
32.768KHz
M2200
BATTERY
R2221
1K
VBAT
VCC
8
IRQ/FT/OUT/SQW
7
SCL
6
SDA
5
+3.5V_ST
R2225
22
R2226
22
R2227
4.7K
C2219
0.1uF
16V
CLOCK_SCL
CLOCK_SDA
RTC_INT
IC2204
M41T81
XI
1
XO
2
3
VSS
4
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Page 38
Page 39
1. Trouble Shooting
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Contents of LCD TV Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1
2 No video/No audio 2
3 Video error, video lag/stop 3
4 Color error 4
5
6
7
8
9 Wrecked audio/discontinuation/noise 9
10
A. Video error
B. Power error
C. Audio error
D. Function error
No video/Normal audio 1
Vertical/Horizontal bar, residual image,
light spot, external device color error
No power 6
Off when on, off while viewing, power auto
on/off
No audio/Normal video 8
No response in remote controller, key error,
recording error, memory error
5
7
10
11 External device recognition error 11
12 E. Noise Circuit noise, mechanical noise 12
13 F. Exterior error Exterior defect 13
Page 40
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Established
date
Revised date
LCD TV
Error
symptom
A. Video error
No video/ Normal audio
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)
☞A4☞A1
No video
Normal audio
Normal
audio
N
Move to No
video/No audio
Y
Check Back Light
On with naked eye
☞A2
Check Power Board 24V,12V,3.5V output
On
Normal
voltage
Repair Power
Board or parts
Y
Check Main Board
3.5V,12V,3.3V,
1.26V, 1.5V etc.
N
Replace Inverter
Y
or module
N
Normal
voltage
Repair Power
Board or parts
N
End
Y
Replace T-con
Board or module
☞A28
1/13
※Precaution
Always check & record S/W Version and White
Balance value before replacing the Main Board
☞A7 & A3
Replace Main Board
1
Re-enter White Balance value
Page 41
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
symptom
No Video/
No audio
Error
☞A4
Check various
voltages of Power
Board
( 3.5V,12V,20V or
24V…)
A. Video error
No video/ No audio
Normal
voltage?
Replace Power
Board and repair
parts
Y
N
Check and
replace
MAIN B/D
Established
date
Revised date
End
2/13
2
Page 42
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Check RF Signal level
Normal
Signal?
N
Check RF Cable
Connection
1. Reconnection
Y
Error
symptom
A. Picture Problem
Picture broken/ Freezing
. By using Digital signal level meter
. By using Diagnostics menu on OSD
( Menu→Setup→Manual Tuning)
- Signal strength (Normal : over 30%)
- Signal Quality (Normal: over 30%)
Check whether other equipments have problem or not.
(By connecting RF Cable at other equipment)
→ DVD Player ,Set-Top-Box, Different maker TV etc`
Normal
Picture?
Y
Check
S/W Version
SVC
Bulletin?
Established
date
Revised date
N
Tuner soldering
Check
Normal
Picture?
3/13
Y
Close
Normal
Picture?
Y
Close
N
Contact with signal distributor
or broadcaster (Cable or Air)
N
S/W Upgrade
Y
Normal
Picture?
Y
Close
N
N
Replace
Main B/D
3
Page 43
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Check color by input
-External Input
-COMPONENT
-RGB
-HDMI/DVI
Check Test pattern
Error
symptom
Color
error?
N
Check error
color input
mode
A. Video error
※ Check
and replace
Y
Link Cable
(LVDS) and
contact
condition
External Input/
Component
error
Color error
Color
error?
N
Check
external
device and
cable
Y
Replace Main B/D
Established
date
Revised date
External device
/Cable
normal
N
Color
error?
End
Y
4/13
Y
Replace module
N
Replace Main B/D
RGB/
HDMI/DVI
error
Check external
device and
cable
4
Request repair
for external
device/cable
N
External device
/Cable
normal
Y
Replace Main B/D
Page 44
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
A. Video error
LCD TV
Error
symptom
Vertical / Horizontal bar, residual image,
light spot, external device color error
Vertical/Horizontal bar, residual image, light spot
Check color condition by input
-External Input
-Component
-RGB
-HDMI/DVI
Check Test pattern
Screen
normal?
N
Replace
module
Check external
Y
device
connection
condition
Normal?
N
Request repair
for external
device
External device screen error-Color error
Check screen
condition by
Check S/W Version
Check
version
Y
S/W Upgrade
Normal
screen?
Y
End
N
N
input
-External Input
-Component
-RGB
-HDMI/DVI
Check and
Y
replace Link
Cable
External
Input
error
Component
error
RGB
error
HDMI/
DVI
5
Established
date
Revised date
Screen
normal?
End
N
Replace Main B/D
Y
Connect other external
device and cable
(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.
Connect other external
device and cable
(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.
Screen
normal?
Request repair for
external device
Screen
normal?
N
Y
Y
N
5/13
Replace
Module
N
Screen
normal?
Y
End
Replace
Main B/D
Replace
Main B/D
Page 45
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
☞A17
Check
Power LED
. Stand-By: Red
. Operating: white
Error
symptom
Power LED
On?
N
Check Power cord
was inserted properly
N
Normal?
Y
※
Close
Y
Check ST-BY 3.5V
☞A18
B. Power error
No power
DC Power on
by pressing Power Key
On Remote control
Normal
voltage?
Established
date
Revised date
6/13
☞A19
Normal
operation?
Y
N
Check Power
On ‘”High”
OK?
N
Replace Main B/D
Y
Replace
Power
B/D
☞A4
Measure voltage of each output of Power B/D
Y
Y
N
Normal
voltage?
Replace Power B/D
Y
N
Replace Main B/D
Replace Power
B/D
6
Page 46
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Check outlet
Check A/C cord
Check for all 3- phase
power out
Error
symptom
Error?
Y
Fix A/C cord & Outlet
and check each 3
phase out
B. Power error
Off when on, off while viewing, power auto on/off
☞A22
N
Check Power Off
Starus(instart menu
(If Power Off mode
is not displayed)
Check Power B/D
voltage
※ Caution
Check and fix exterior
of Power B/D Part
Abnormal
Abnormal
☞A19
Established
date
Revised date
CPU
1
Normal
voltage?
Replace Power B/D
Y
N
Replace Main B/D
Replace Main B/D
7/13
Normal?
Replace Power B/D
Y
N
End
* Please refer to the all cases which
can be displayed on power off mode.
Status Power off List Explanation
"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal
Abnormal
"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
7
Page 47
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
No audio
Screen normal
Error
C. Audio error
symptom
No audio/ Normal video
☞A24 ☞A25
Check user
menu >
Speaker off
Off
Y
Cancel OFF
Check audio B+
N
20V or 24V of
Power Board
Established
date
Revised date
Normal
voltage
Replace Power Board and repair parts
Y
N
8/13
Check
Speaker
disconnection
Disconnection
Y
Replace Speaker
8
N
Replace MAIN Board End
Page 48
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Check input
signal
-RF
-External Input
signal
Error
symptom
C. Audio error
Wrecked audio/ discontinuation/noise
Established
date
Revised date
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
☞A25
Signal
normal?
N
Y
(When RF signal is not
received)
Request repair to external
cable/ANT provider
(In case of
External Input
signal error)
Check and fix
external device
Wrecked audio/
Discontinuation/
Noise for
all audio
Wrecked audio/
Discontinuation/
Noise only
for D-TV
Wrecked audio/
Discontinuation/
Noise only
for Analog
Wrecked audio/
Discontinuation/
Noise only
for External Input
Check and replace
speaker and
connector
Replace Main B/D
Connect and check
other external
device
Check audio
B+ Voltage (20V or 24V)
Normal
voltage?
N
Replace Power B/D
Replace Main B/D
Normal
audio?
Y
N
Y
9/13
End
Check and fix external device
9
Page 49
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
D. General Function Problem
Remote control & Local switch checking
LCD TV
Error
symptom
1. Remote control(R/C) operating error
☞A27
Check R/C itself
Operation
Check R/C Operating
When turn off light
in room
If R/C operate,
Explain the customer
cause is interference
from light in room.
operating?
Normal
Check & Replace
Y
N
Baterry of R/C
Normal
operating?
Replace R/C
Check & Repair
Cable connection
Connector solder
Close
N
Normal
operating?
Y
Close
☞A27
N
Check 3.5V
On Main B/D
Established
date
Revised date
☞A27
Normal
Voltage?
N
Y
Check IR
Output signal
☞A4
Check 3.5v on Power B/D
Replace Power B/D or
Replace Main B/D
(Power B/D don’t have problem)
10/13
Replace
Main B/D
Normal
Signal?
N
Repair/Replace
IR B/D
Y
10
Page 50
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Check
input
signal
Error
symptom
Y
Signal
input?
N
Check and fix
external device/cable
D. Function error
External device recognition error
Check technical
information
- Fix information
- S/W Version
Technical
information?
Fix in
accordance
with technical
information
Established
date
Revised date
External Input and
N
Y
Component
Recognition error
RGB,HDMI/
DVI, Optical
Recognition error
Replace Main B/D
Replace Main B/D
11/13
11
Page 51
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Identify
nose
type
Error
symptom
Circuit
noise
Mechanical
noise
Circuit noise, mechanica l noise
Check
location of
noise
Check location
of noise
E. Noise
※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description
in “Part related to nose” in the Owner’s
Manual.
Replace PSU(with LED driver)
OR
Replace LED driver
※ When the nose is severe, replace the module
(For models with fix information, upgrade the
S/W or provide the description)
OR
※ If there is a “Tak Tak” noise from the
cabinet, refer to the KMS fix information and
then proceed as shown in the solution manual
OR
(For models without any fix information,
provide the description)
Established
date
Revised date
12/13
12
Page 52
Standard Repair Process
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Error
symptom
Zoom part with
exterior damage
Module
damage
Cabinet
damage
Remote
controller
damage
F. Exterior defect
Exterior defect
Replace module
Replace cabinet
Replace remote controller
Established
date
Revised date
13/13
Stand
dent
Replace stand
13
Page 53
Standard Repair Process Detail Technical Manual
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
<ALL MODELS>
Error
symptom
Content
A. Video error_Video error, video lag/stop
TUNER input signal strength checking method
Established
date
Revised
date
A6
MENU -Æ red key(customer support -Æ signal test
-Æ select channel
When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)
A6
Page 54
Standard Repair Process Detail Technical Manual
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Error
symptom
Content
A. Video error_Video error, video lag/stop
LCD-TV Version checking method
Established
date
Revised
date
A7
<ALL MODELS>
Version
1. Checking method for remote controller for adjustment
Press the IN-START with the
remote controller for adjustment
A7
Page 55
Standard Repair Process Detail Technical Manual
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
Error
symptom
Content
A. Video error_Color error
Adjustment Test pattern - ADJ Key
Established
date
Revised
date
A12
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A12
Page 56
Appendix : Exchange T-Con Board (1)
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Solder defect, CNT Broken
Solder defect, CNT Broken
Solder defect, CNT Broken
T-Con Defect, CNT Broken
T-Con Defect, CNT Broken
Solder defect, CNT Broken
T-Con Defect, CNT Broken
Solder defect, CNT Broken
Abnormal Power Section
Solder defect, Short/Crack
Abnormal Power Section Solder defect, Short/Crack
A - 1/5
Page 57
Appendix : Exchange T-Con Board (2)
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Abnormal Power Section
Solder defect, Short/Crack
Abnormal Power Section
Fuse Open, Abnormal power section
Solder defect, Short/Crack
Abnormal Display
GRADATION
Noise
A - 2/5
GRADATION
Page 58
Appendix : Exchange PSU(LED driver)
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
No Light
Dim Light
Dim Light
Dim Light
No picture/Sound Ok
A - 3/5
Page 59
Appendix : Exchange the Module (1)
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Panel Mura, Light leakage
Crosstalk
Panel Mura, Light leakage
Press damage
Press damage
Crosstalk
Un-repairable Cases
In this case please exchange the module.
Press damage
A - 4/5
Page 60
Appendix : Exchange the Module (2)
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Vertical Block
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Vertical Line
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
Vertical Block
Source TAB IC Defect
Horizontal line
Gate TAB IC Defect
Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
A - 5/5
Page 61
Standard Repair Process Detail Technical Manual
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
<ALL MODELS>
Error
symptom
Content
B. Power error _Off when on, off whiling viewing
POWER OFF MODE checking method
Established
date
Revised
date
A22
Entry method
1. Press the IN-START button of the remote
controller for adjustment
2. Check the entry into adjustment item 3
A22
Page 62
Standard Repair Process Detail Technical Manual
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LCD TV
<ALL MODELS>
Error
symptom
Content
C. Audio error_No audio/Normal video
Checking method in menu when there is no audio
Established
date
Revised
date
A24
Checking method
1. Press the MENU button on the remote controller
2. Select the AUDIO function of the Menu
3. Select TV Speaker from Off to On
A24
Loading...
