LG 47LM6700-DA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED LCD TV

SERVICE MANUAL

CHASSIS : LT22E

MODEL : 47LM6700 47LM6700-DA

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67362713 (1204-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION .............................................................. 10

SCREW ASSEMBLY WORKING GUIDE ................................................21

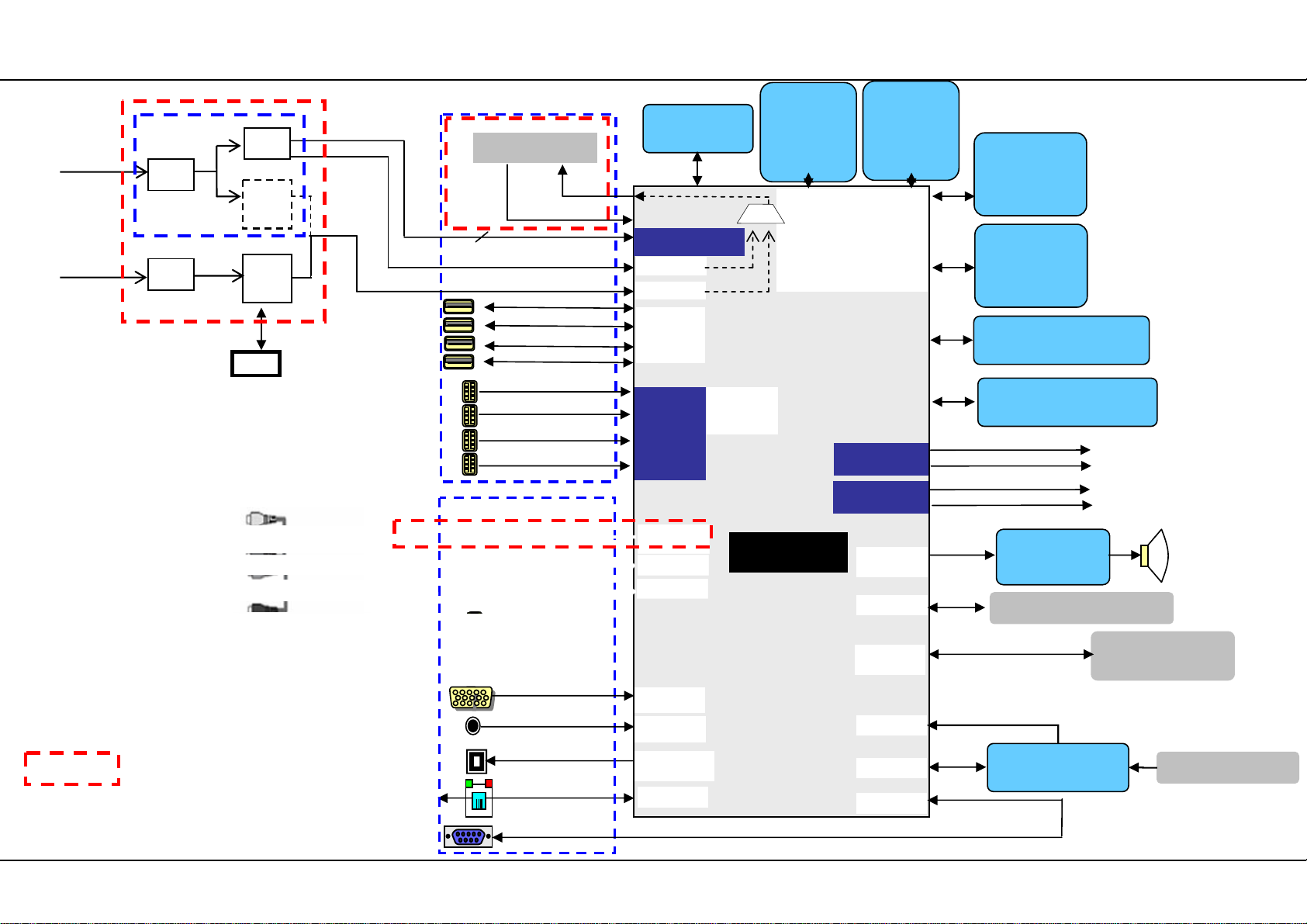

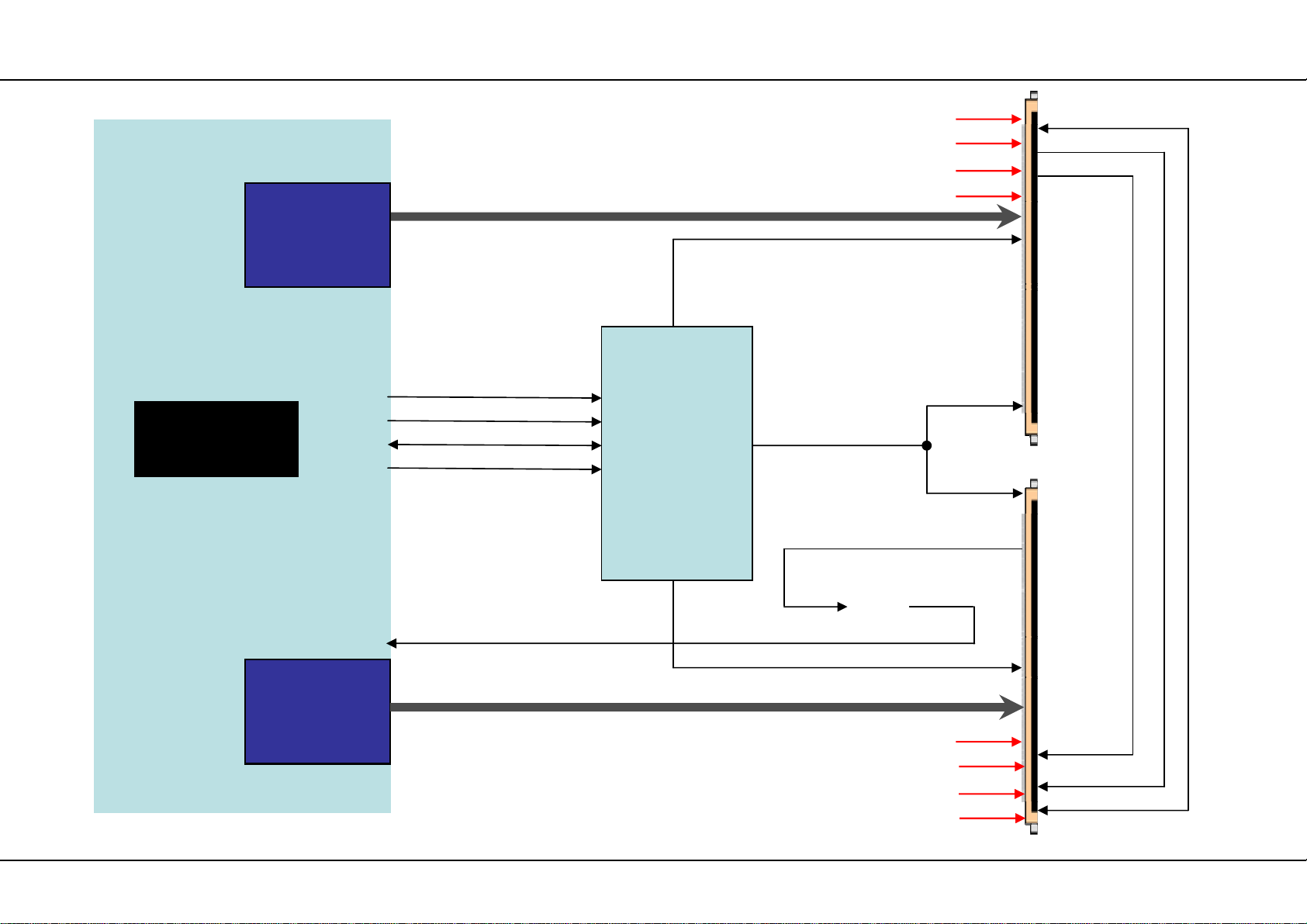

BLOCK DIAGRAM .................................................................................. 22

EXPLODED VIEW .................................................................................. 28

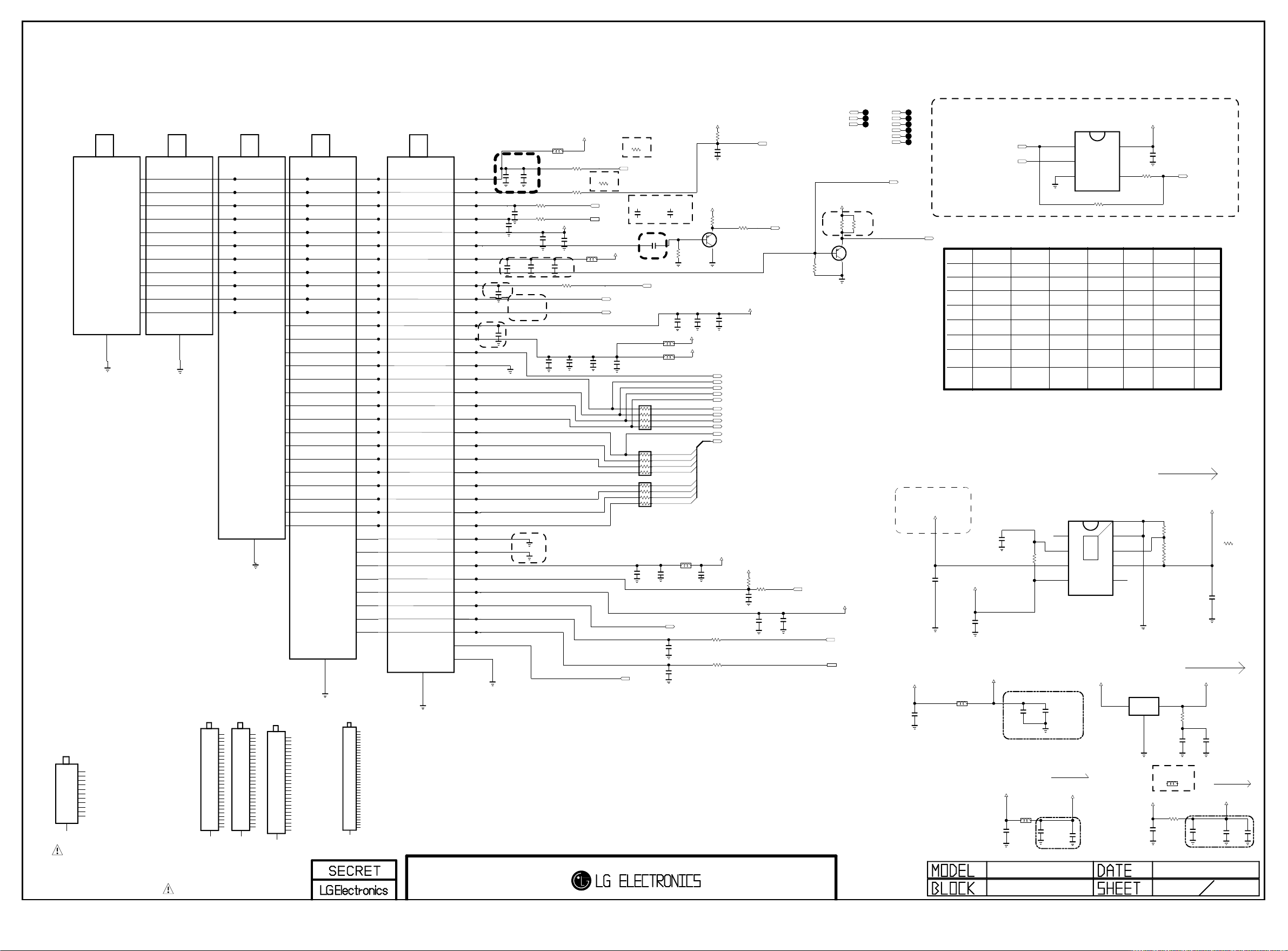

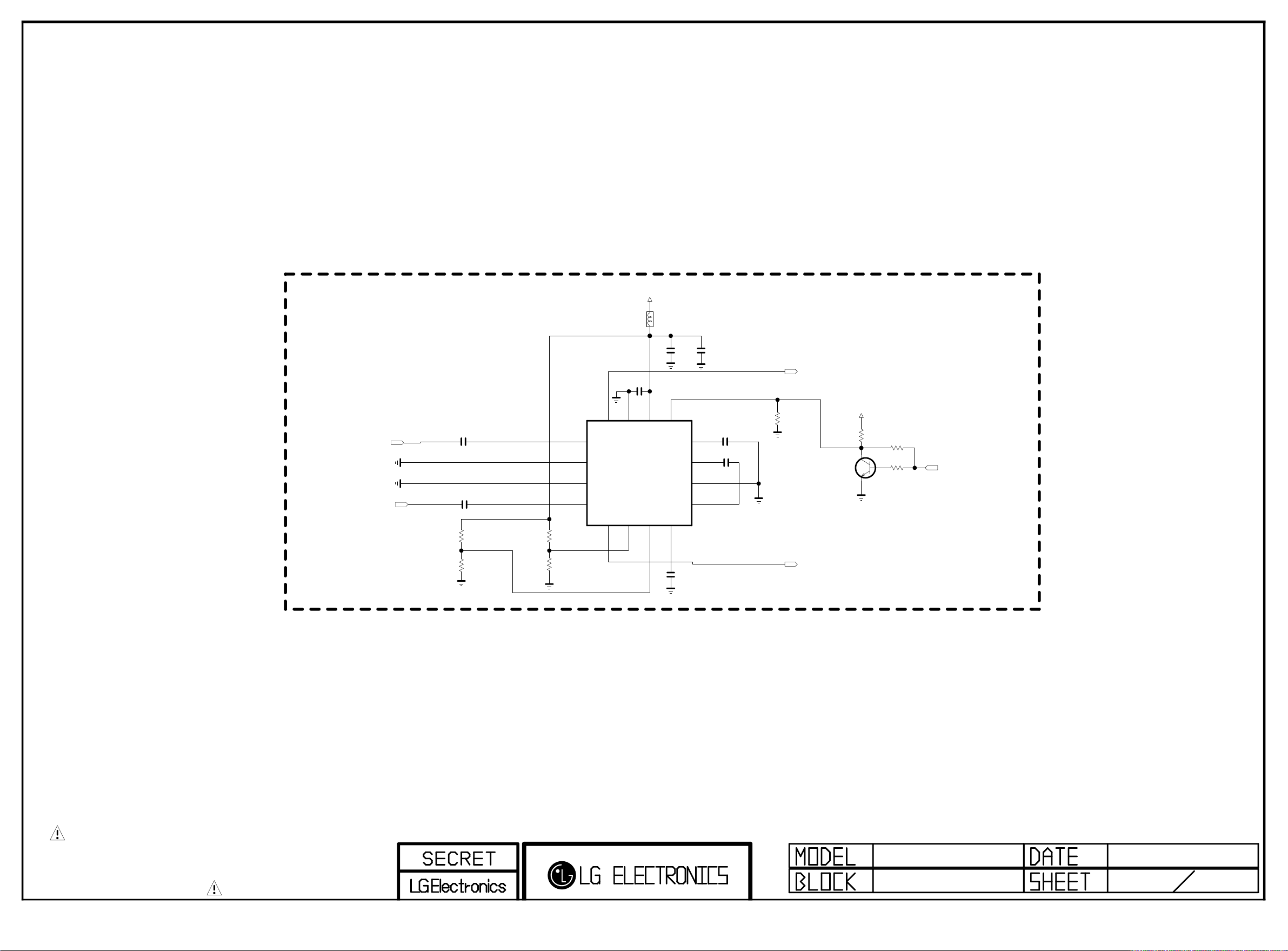

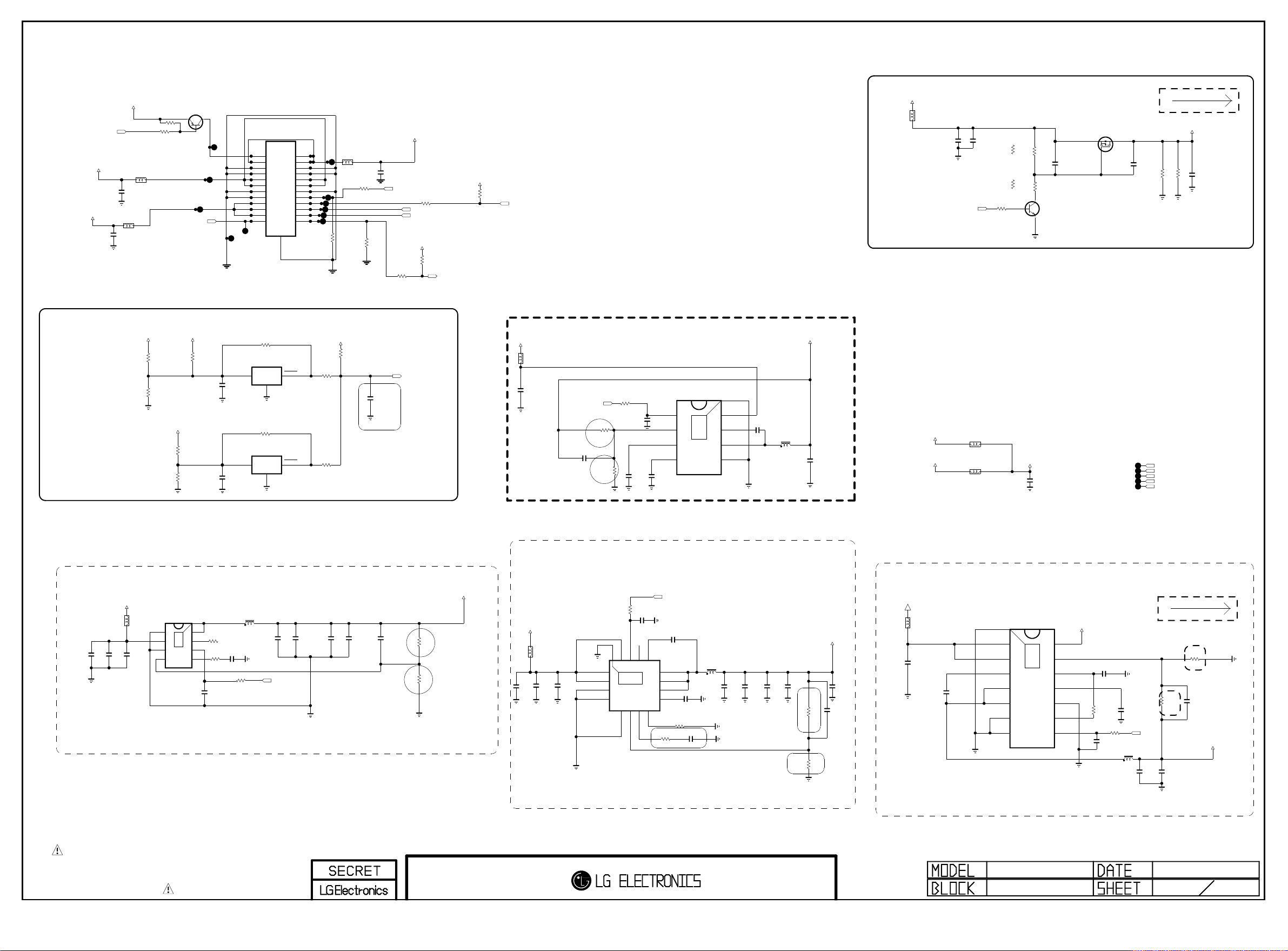

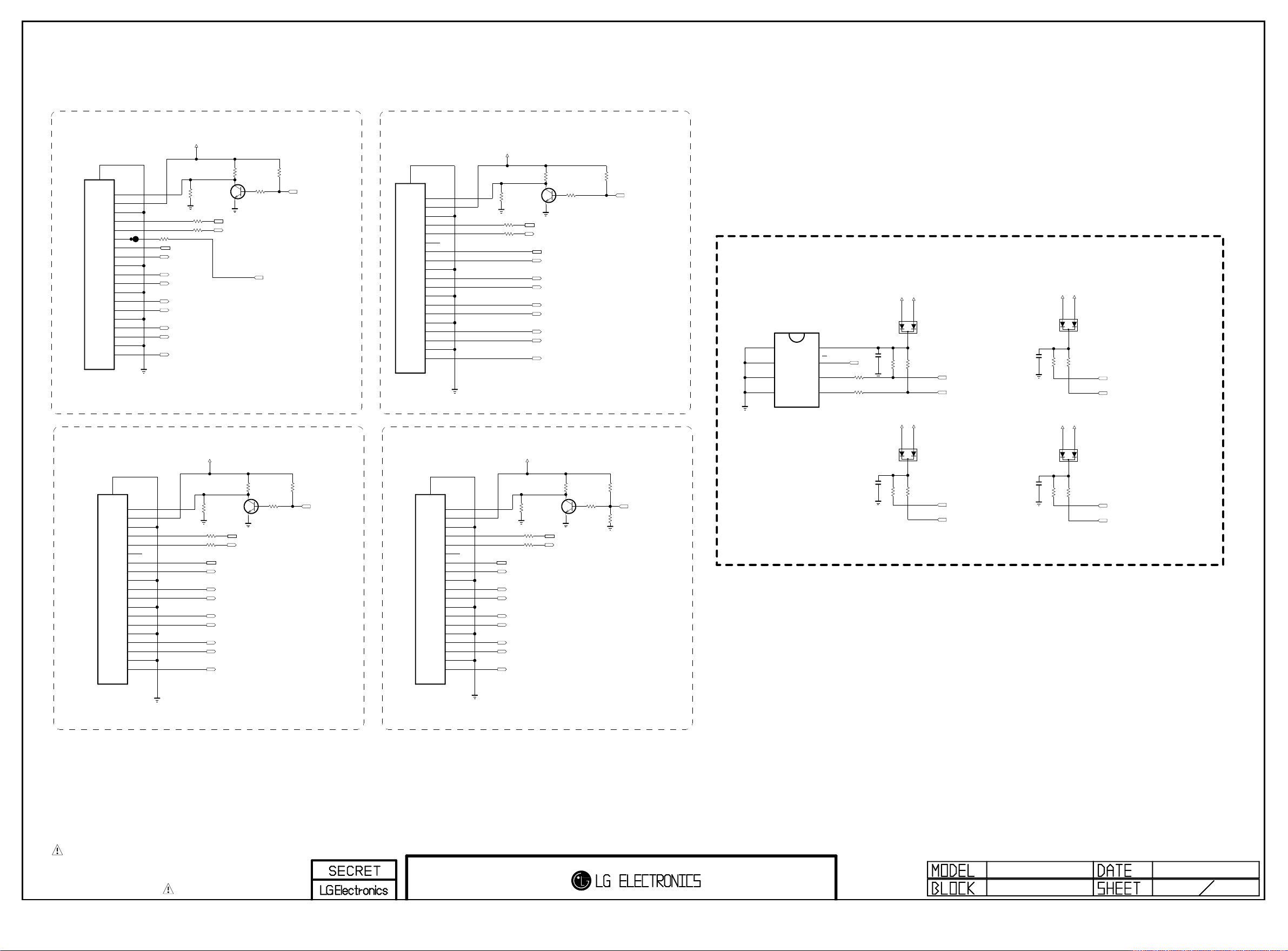

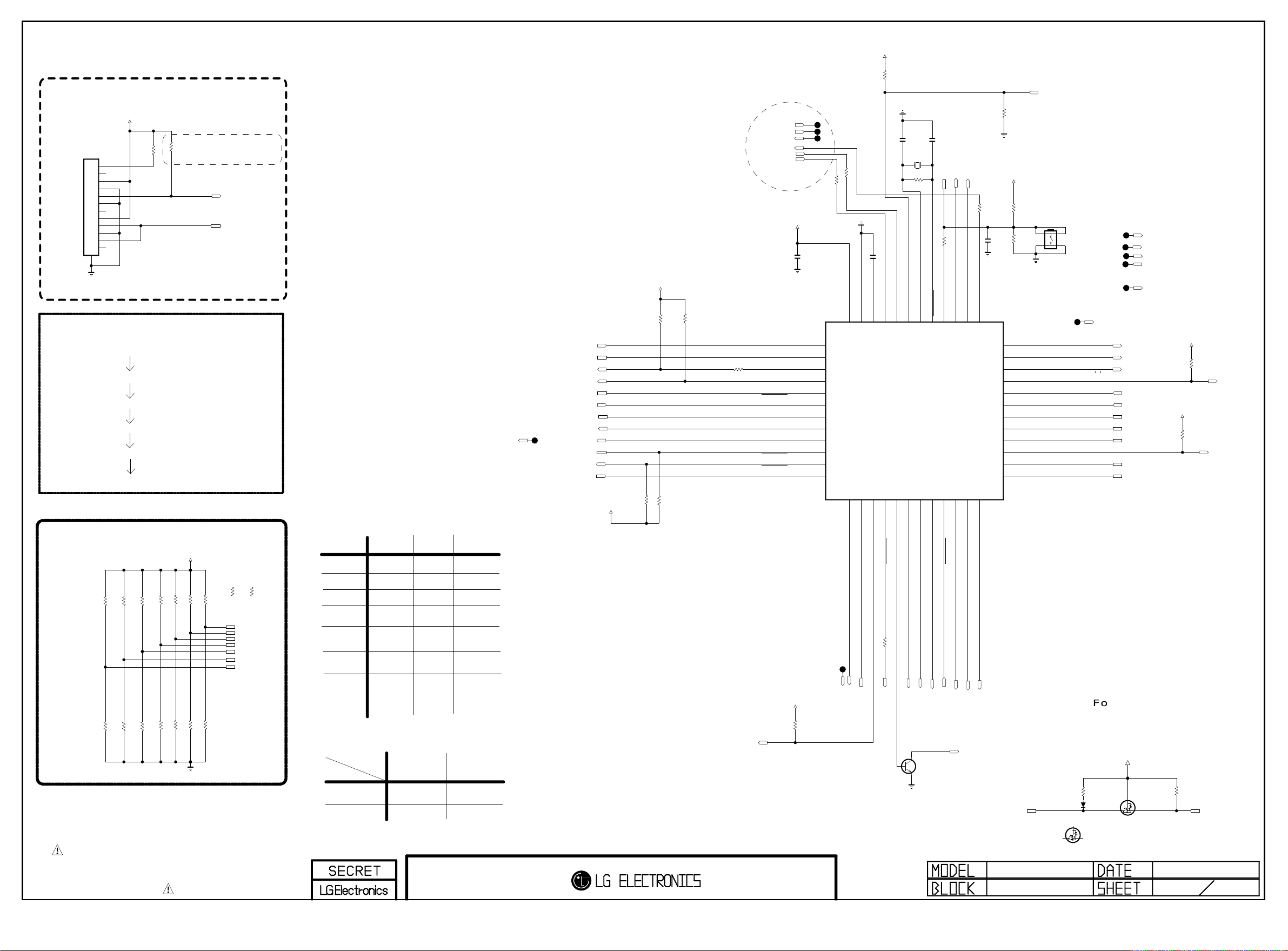

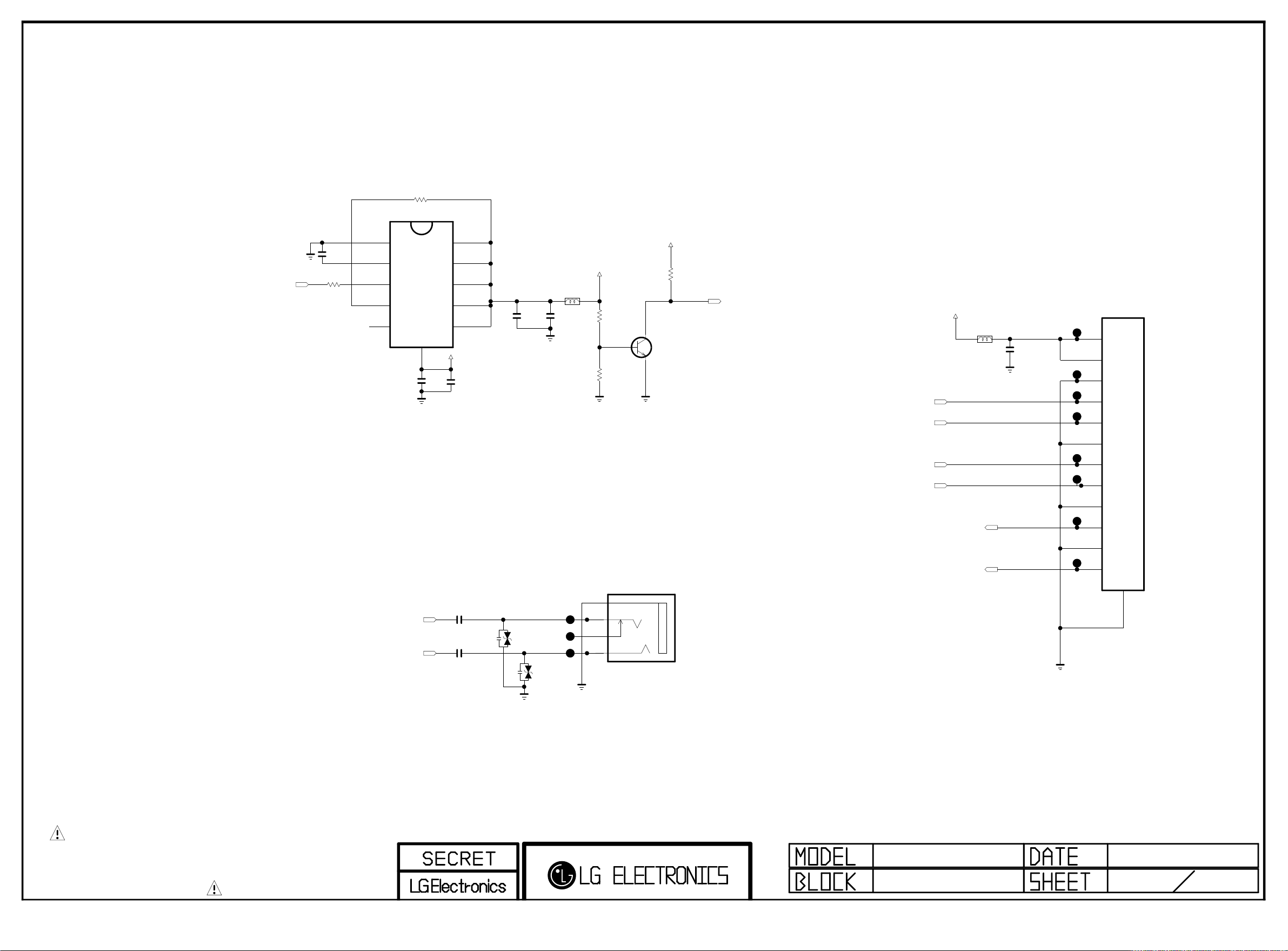

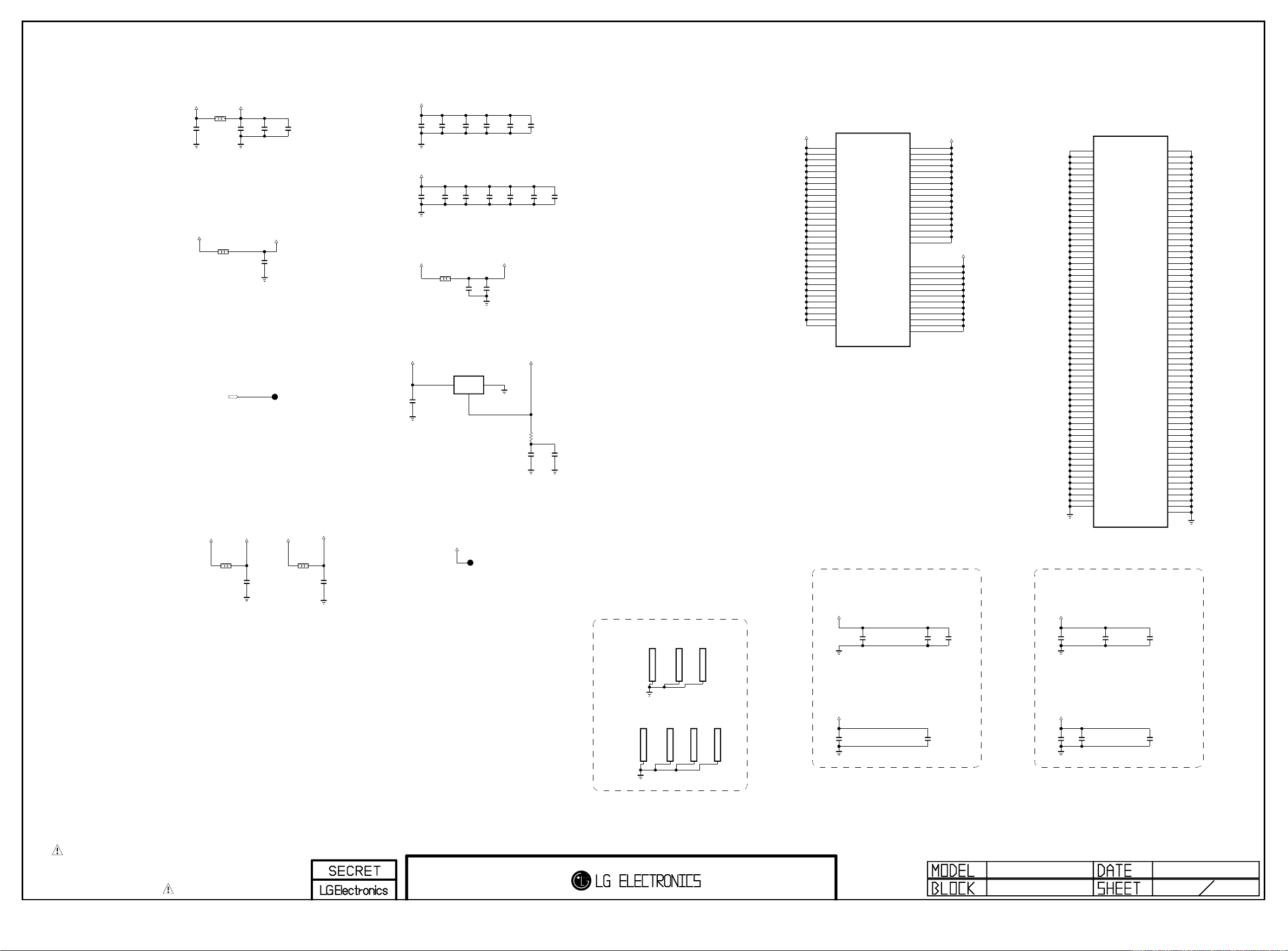

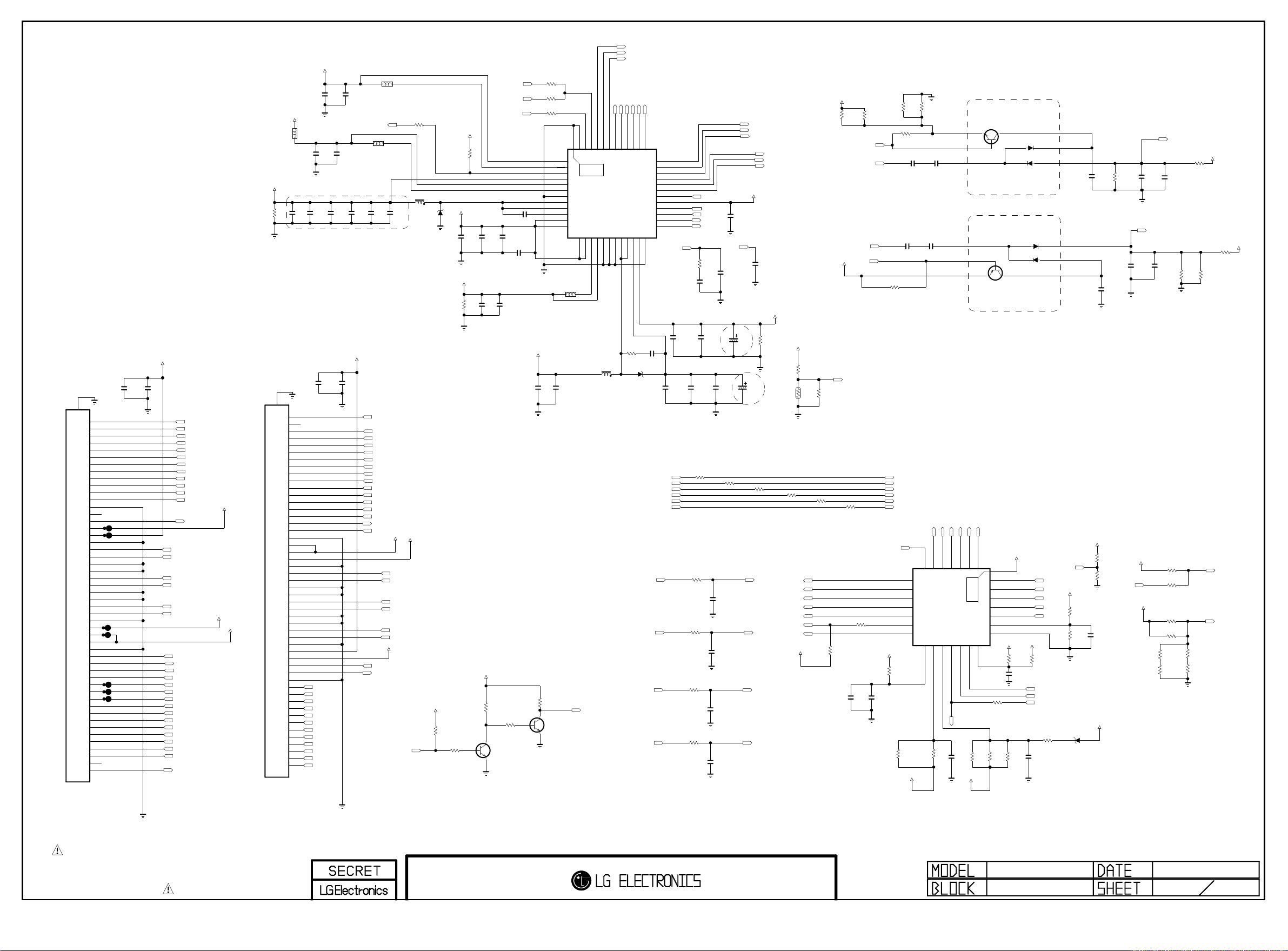

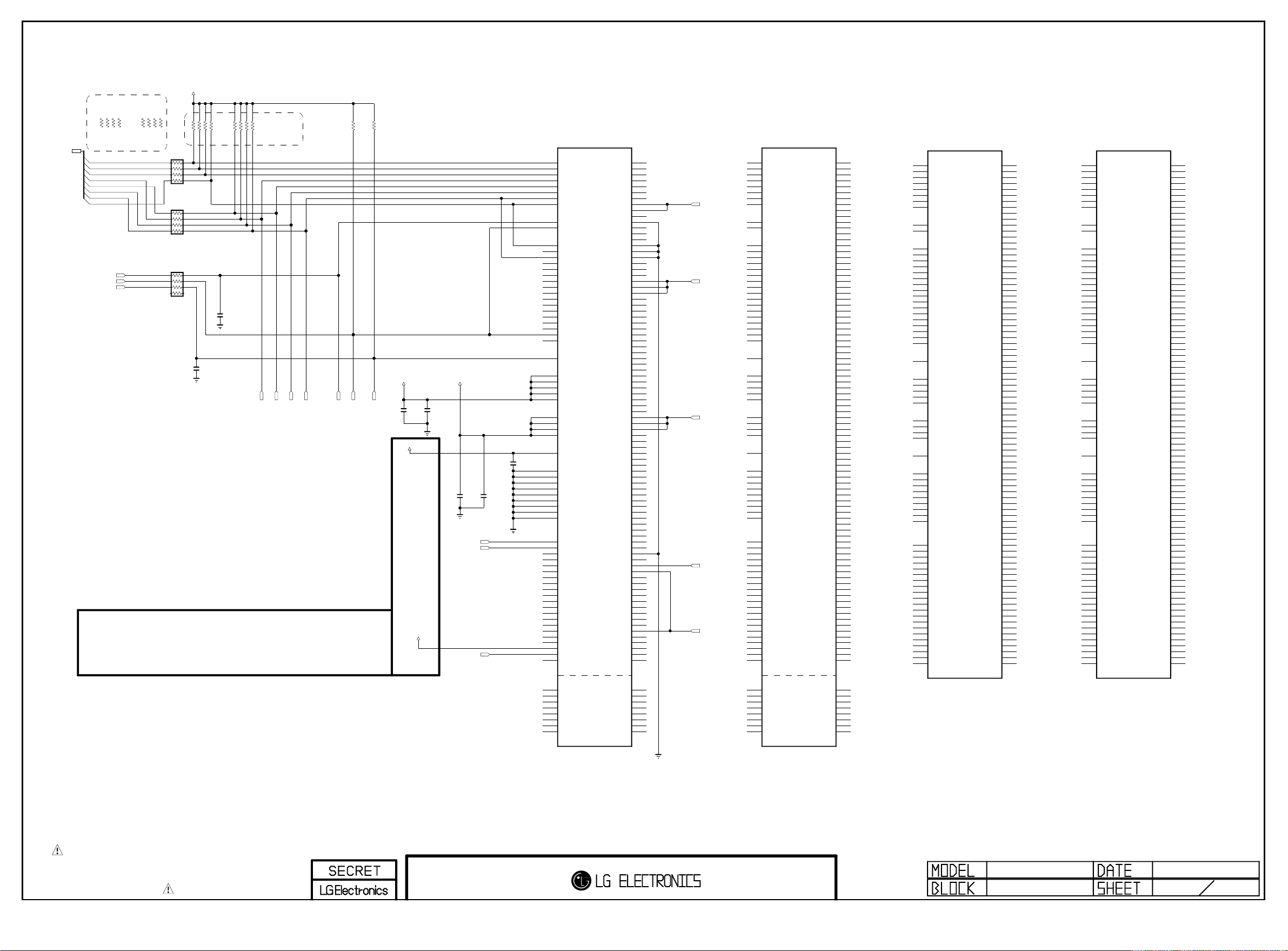

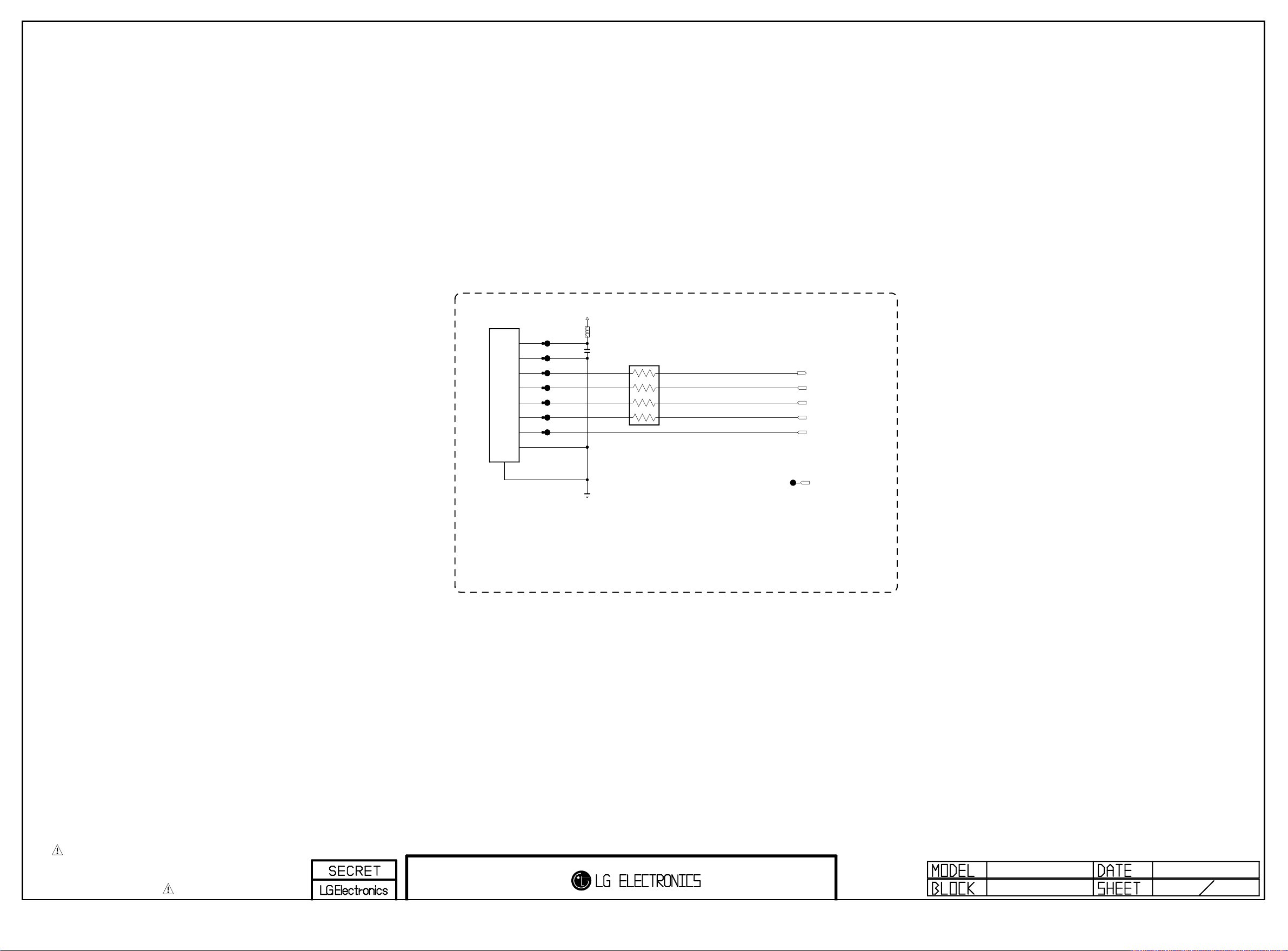

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of th e cir cuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exp ose d metallic par t. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied to the 32/42/47/55/60/65LCD TV
used LT22E chassis.

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage : S ta ndard i nput voltage (100~240V@
50/60Hz)

4) Specification and performance of each parts are followed

ea ch drawing and s pe cificatio n b y p art number in
accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC

.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4. General Specification

No Item Specication Remark

1. Display Screen Device 32” wide Color Display Module
37” wide Color Display Module
42” wide Color Display Module
47” wide Color Display Module
55” wide Color Display Module
60” wide Color Display Module
65” wide Color Display Module

2. Aspect Ratio 16:9 All

3. LCD Module 32” TFT WUXGA LCD
37” TFT WUXGA LCD
42” TFT WUXGA LCD
47” TFT WUXGA LCD
55” TFT WUXGA LCD
60” TFT WUXGA LCD
65” TFT WUXGA LCD

4. Operating Environment 1) Temp. : 0 ~ 40 deg LGE SPEC

2) Humidity : 0 ~ 85%

5. Storage Environment 1) Temp. : -20 ~ 60 deg

2) Humidity : 10 ~ 90%

6. Input Voltage AC100 ~ 240V, 50/60Hz

7. Power Consumption(Max) =

LCD(Module) + Backlight(LED)

FHD 60Hz
Edge LED

FHD
T120Hz
Edge LED

FHD
M120Hz
Edge LED

FHD
T240Hz
Edge LED

32” 50 W Normal : T320HVN01.0 [32LS5700-DA/B]

42” 70 W Normal : LC420EUE-SEM1 [42LS5700-DA/B]

47” 85 W Normal : LC470EUE-SEM1 [47LS5700-DA/B]

55” W Normal : LC550EUE-SEM1 [55LS5700-DA/B]

32” 45 W FPR : LC320EUN-SEF2 [32LM6200-DA]

50 W FPR : LC320EUA-KEF1 [32LM6400-DA]

37” 50 W FPR : LC370EUN-SEF2 [37LM6200-DA]

42” 60 W FPR : LC420EUE-SEF1 [42LM6200-DA]

60 W FPR : LC420EUG-KEF1 [42LM6600-DA]

47” 90 W FPR : LC470EUE-SEF1 [47LM6200-DA]

70 W FPR : LC470EUG-KEF1 [47LM6400-DA]

55” 115 W FPR : LC550EUE-SEF1 [55LM6200-DA]

70 W FPR : LC550EUG-KEF1 [55LM6400-DA]

65” 230 W FPR : T645HB01 V0 [65LM6200-DA]

42” 70 W FPR : LC420EUH-KEF1 [42LM7600-DA]

47” 90 W FPR : LC470EUH-KEF1[47LM7600-DA]

55” 120 W FPR : LC550EUH-KEF1[55LM7600-DA]

Resolution: 1920*1080
Resolution: 1920*1080
Resolution: 1920*1080
Resolution: 1920*1080
Resolution: 1920*1080
Resolution: 1920*1080
Resolution: 1920*1080

Normal : LC320EUN-SEM1 [32LS5700-DA/B]

FPR : LC420EUG-KEF1 [42LM6690-DA]
FPR : LC420EUG-KEF1 [42LM6700-DC]
FPR : LC420EUG-KEF1 [42LM6400-DA]

FPR : LC470EUG-KEF1 [47LM6690-DC]
FPR : LC470EUG-KEF1 [47LM6700-DA]

FPR : LC550EUG-KEF1 [55LM6700-DA]

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

8. LCD Module Size Maker Inch (H) × (V) × (D)

LGD 32” 727.4 x 429.0 x 22.7 LC320EUN-SEM2

727.4 x 429.0 x 20.0

698.40 x 392.85 x 10.8

37” 837.2 x 490.6 x 22.7 LC370EUN-SEF2 : Edge 3D_T120Hz

42” 960.4 x 560.4 x 17.4 LC420EUE-SEF1 : Edge 3D_T120Hz

LC420EUE-SEM1 : Edge Non-3D_60Hz

968.4 x 564 x 10.8

968.4 x 564 x 12.2

47” 1070.6 x 622.0 x 22.0 LC470EUE-SEF1 : Edge 3D_T120Hz

LC470EUE-SEM1 : Edge Non-3D_60Hz

1078.6 x 626.0 x 10.8

1078.6 x 626.0 x 12.2

1054.5 x 600.0 x 1.8

1054.5 x 600.0 x 1.8

55” 1244.6 x 720.9 x 22.0 LC550EUE-SEF1 : Edge 3D_T120Hz

1228.6 x 711.4 x 20.7 LC550EUG-KEF1 : Edge 3D_T120Hz
LC550EUH-KEF1 : Edge 3D_T240Hz

1220.8 x 693.8 x 1.8

1220.8 x 693.8 x 1.8

AUO 32” 727.4 x 429.0 x 20.0 T320HVN01.0 : Edge Non-3D_60Hz

65” 1508.0 x 878.0 x 12.8 T645HB01 V0 : Edge 3D_M120Hz

Pixel Pitch Maker Inch (H) × (V) × (D)

LGD 32” 0.36375 x 0.36375 LC320EUN-SEF2 : Edge 3D_T120Hz

37” 0.4209 x 0.4209 LC370EUN-SEF2 : Edge 3D_T120Hz

42” 0.4845 x 0.4845

47” 0.5415 x 0.5415 LC470EUE-SEF1 : Edge 3D_T120Hz

55” 0.630 x 0.630 LC550EUE-SEF1 : Edge 3D_T120Hz

AUO 32” 0.36375 x 0.36375 T320HVN01.0 : Edge Non-3D_60Hz

65” 0.744 x 0.744 T645HB01 V0 : Edge 3D_M120Hz

Back Light LGD 32” Edge-LED LC320EUN-SEF2

37” Edge-LED LC370EUN-SEF2

42” Edge-LED LC420EUE-SEF1

47” Edge-LED LC470EUE-SEF1

55” Edge-LED LC550EUE-SEF1

AUO 32” Edge-LED T320HVN01.0

65” Edge-LED T645HB01 V0

LC420EUE-SEF1 : Edge 3D_T120Hz
LC420EUE-SEM1 : Edge Non-3D_60Hz

LC470EUE-SEM1 : Edge Non-3D_60Hz

LC550EUG-KEF1 : Edge 3D_T120Hz
LC550EUH-KEF1 : Edge 3D_T240Hz

LC320EUA-KEF1

LC420EUG-KEF1
LC420EUE-SEM1
LC420EUH-KEF1

LC470EUG-KEF1
LC470EUE-SEM1
LC470EUH-KEF1

LC550EUG-KEF1
LC550EUH-KEF1

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. External Input Support Format

5.1. Component(Y, Pb, Pr)

No. Resolution H-freq(kHz) V-freq(Hz) Remark

1. 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I)

2 720*480i 15.73 60.00 13.514 SDTV, DVD 480I(525I)

3. 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz

4 720*480p 31.47 59.94 27.000 SDTV 480P

5 720*480p 31.50 60.00 27.027 SDTV 480P

6 720*576p 31.25 50.00 27.000 SDTV 576P 50Hz

7 1280*720 44.96 59.94 74.176 HDTV 720P

8 1280*720 45.00 60.00 74.250 HDTV 720P

9 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz

10 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,

11 1920*1080 33.72 59.94 74.176 HDTV 1080I

12 1920*1080 33.75 60.00 74.25 HDTV 1080I

13 1920*1080 26.97 23.976 63.296 HDTV 1080P

14 1920*1080 27.00 24.000 63.36 HDTV 1080P

15 1920*1080 33.71 29.97 79.120 HDTV 1080P

16 1920*1080 33.75 30.00 79.20 HDTV 1080P

17 1920*1080 56.25 50 148.5 HDTV 1080P

18 1920*1080 67.432 59.94 148.350 HDTV 1080P

19 1920*1080 67.5 60.00 148.5 HDTV 1080P

5.2. RGB Input (PC) : RGB-PC EDID DATA : Refer to adjust specification.

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock (MHz) Proposed Remark

1. 640*350 31.468 70.09 25.17 EGA

2 720*400 31.469 70.08 28.32 DOS

3. 640*480 31.469 59.94 25.17 VESA(VGA)

4 800*600 37.879 60.317 40 VESA(SVGA)

5 1024*768 48.363 60.004 65 VESA(XGA)

6 1360*768 47.712 60.015 84.75 VESA(WXGA)

7 1920*1080 67.5 60.00 138.50 WUXGA (CEA 861D) FHD Only

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.3. HDMI EDID DATA : Refer to adjust specification

5.3.1. PC mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks

1 640*350 31.468 70.09 25.17 EGA

2 720*400 31.469 70.09 28.32 DOS

3 640*480 31.469 59.94 25.17 VESA(VGA)

4 800*600 37.879 60.317 40 VESA(SVGA)

5 1024*768 48.363 60.004 65 VESA(XGA)

6 1152*864 54.348 60.053 80.002 VESA(VGA)

7 1360*768 47.712 60.015 84.75 VESA(WXGA)

8

1280*1024 63.981 60.02 109.00 SXGA

9

1920*1080 67.5 60 148.5

WUXGA
(Reduced Blanking)

5.3.2. DTV mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks

1 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I) Spec. out but display

2 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)

3 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz

4 720*480 31.47 59.94 27 SDTV 480P

5 720*480 31.5 60.00 27.027 SDTV 480P

6 720*576 31.25 50.00 27 SDTV 576P

7 1280*720 44.96 59.94 74.176 HDTV 720P

8 1280*720 45 60.00 74.25 HDTV 720P

9 1280*720 37.5 50.00 74.25 HDTV 720P

10 1920*1080 28.125 50.00 74.25 HDTV 1080I

11 1920*1080 33.72 59.94 74.176 HDTV 1080I

12 1920*1080 33.75 60.00 74.25 HDTV 1080I

13 1920*1080 26.97 23.976 63.296 HDTV 1080P

14 1920*1080 27.00 24.000 63.36 HDTV 1080P

15 1920*1080 33.71 29.97 79.120 HDTV 1080P

16 1920*1080 33.75 30.00 79.20 HDTV 1080P

17 1920*1080 56.25 50.00 148.5 HDTV 1080P

18 1920*1080 67.432 59.94 148.350 HDTV 1080P

19 1920*1080 67.5 60.00 148.5 HDTV 1080P

Only FHD Model
(Support to HDMI-PC)

Only FHD Model

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.3.3. 3D mode

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks

*** HDMI 1.4

1 1280*720 75 50 148.5 HDTV 720P Frame packing

2 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom

3. 1280*720 89.9 59.94 148.35 HDTV 720P Frame packing

90 60 148.5

4 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom

5 1920*1080 53.95 23.95 148.35 HDTV 1080P Frame packing

54 24 148.5

6 1920*1080 27 24 74.25 HDTV 108 0P Side by Side(half), Top and Bottom

7 1920*1080 33.7 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom

8 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom

9 1920*1080 56.25 50 148.5 HDTV 1080P Side by Side(half), Top and bottom,

10 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom

11 1920*1080 28.1 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom

*** HDMI 1.3

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom

2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom

4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom

5 1920*1080 27.00 24.00 74.25 HDTV 1080P

6 1920*1080 33.75 30.00 74.25 HDTV 1080P

7 1920*1080 67.50 60.00 148.5 HDTV 1080P

8 1920*1080 56.25 50 148.5 HDTV 1080P

Side by Side, Top & Bottom, Checkerboard

Side by Side, Top & Bottom, Checkerboard

Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet is applied all of the 32”/37”/42”/47”/55”/65”
LCD TV, LT22E chassis by manufacturing LG TV Plant all over
the world

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument..
(2) Adjustment must be done in the correct order
(3) The adjustment must be performed in the circumstance of

25 ºC ±5 ºC of temperature and 65±10% of relative

humidity if there is no specific designation.
(4) The input voltage of the receiver must keep 100~220V,

50/60Hz
(5) Before adjustment, execute Heat-Run for 5 minutes at RF

no signal.

3. Adjustment items

3.1. PCB assembly adjustment items

(1) MAC Address, ESN Key and Wide-vine Key D/L
(2) LAN Test( Ping-Test )
(3) Main S/W program download : Using USB Memory stick
(4) Input Tool - Option
(5) Download EDID : EDID data are automatically downloaded

when adjusting the Tool Option.
(6) ADC Calibration – RGB & Component
(7) Check SW Version

4. PCB assembly adjustment method

4.1. MAC Address, ESN Key and Wide-vine
Key Download

■ D/L Program : keydownload.exe

4.1.1. Equipment & Condition

1) Play file: keydownload.exe

2) Key Write: Com 1,2,3,4 and 115200 (Baudrate)

3) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.1.2. Process

1) Execute “keydownload.exe” on PC

2) Select the download items.

3) Mode check: Online only

4) Check the test process

- DETECT -> MAC_WRITE -> ESN_WRITE -> WIDEVINE_
WRITE

5) Play: START

6) Check of result: Ready, Test, OK or NG

3.2. SET assembly adjustment items

(1) Input Area option.
(2) Adjustment of White Balance : Auto
(3) Adjustment of White Balance : Manual

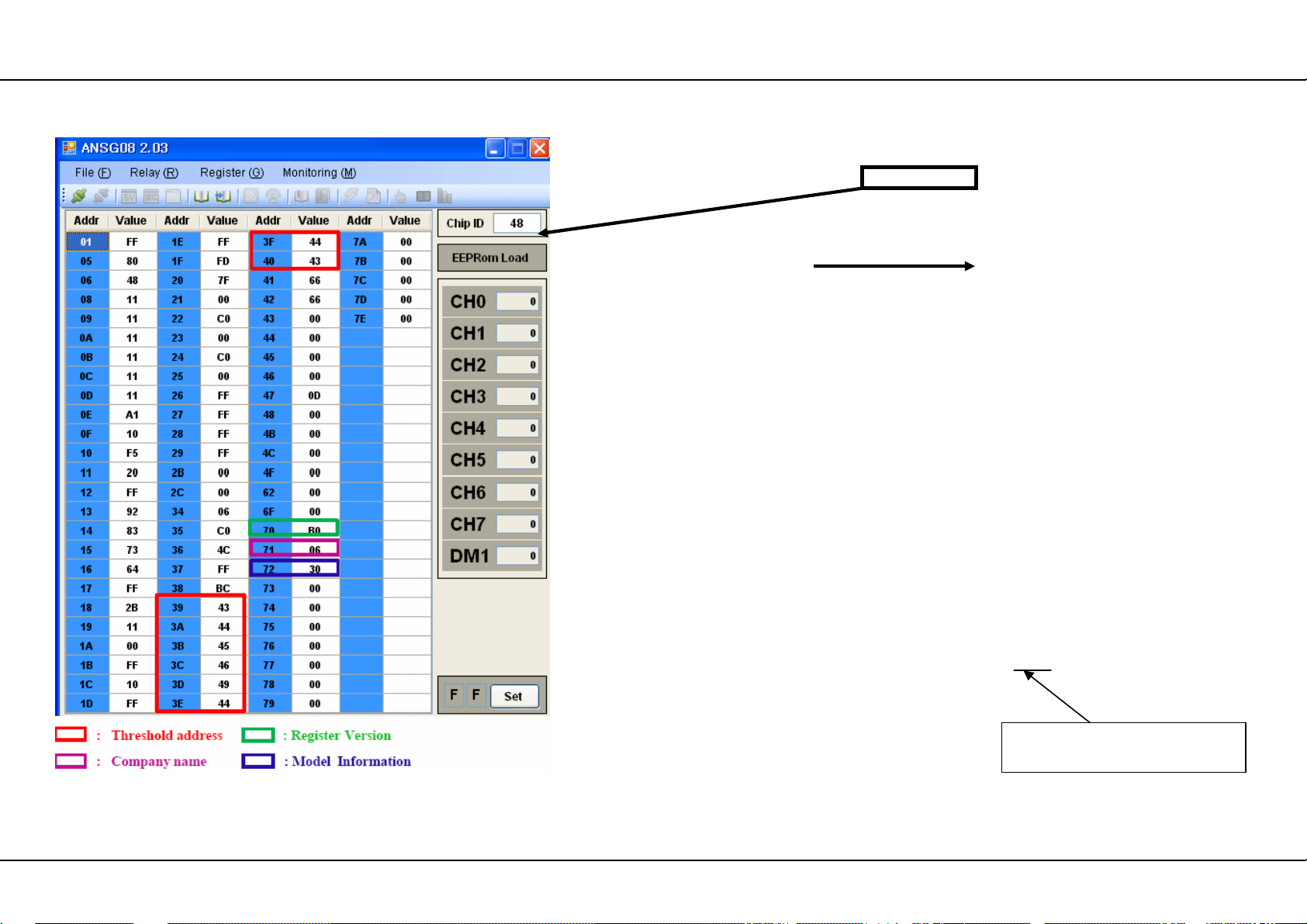

(4) Intelligent Sensor Inspection Guide
(5) LAN Inspection Guide
(6) Widevine Key Inspection Guide
(7) Model name & Serial number D/L

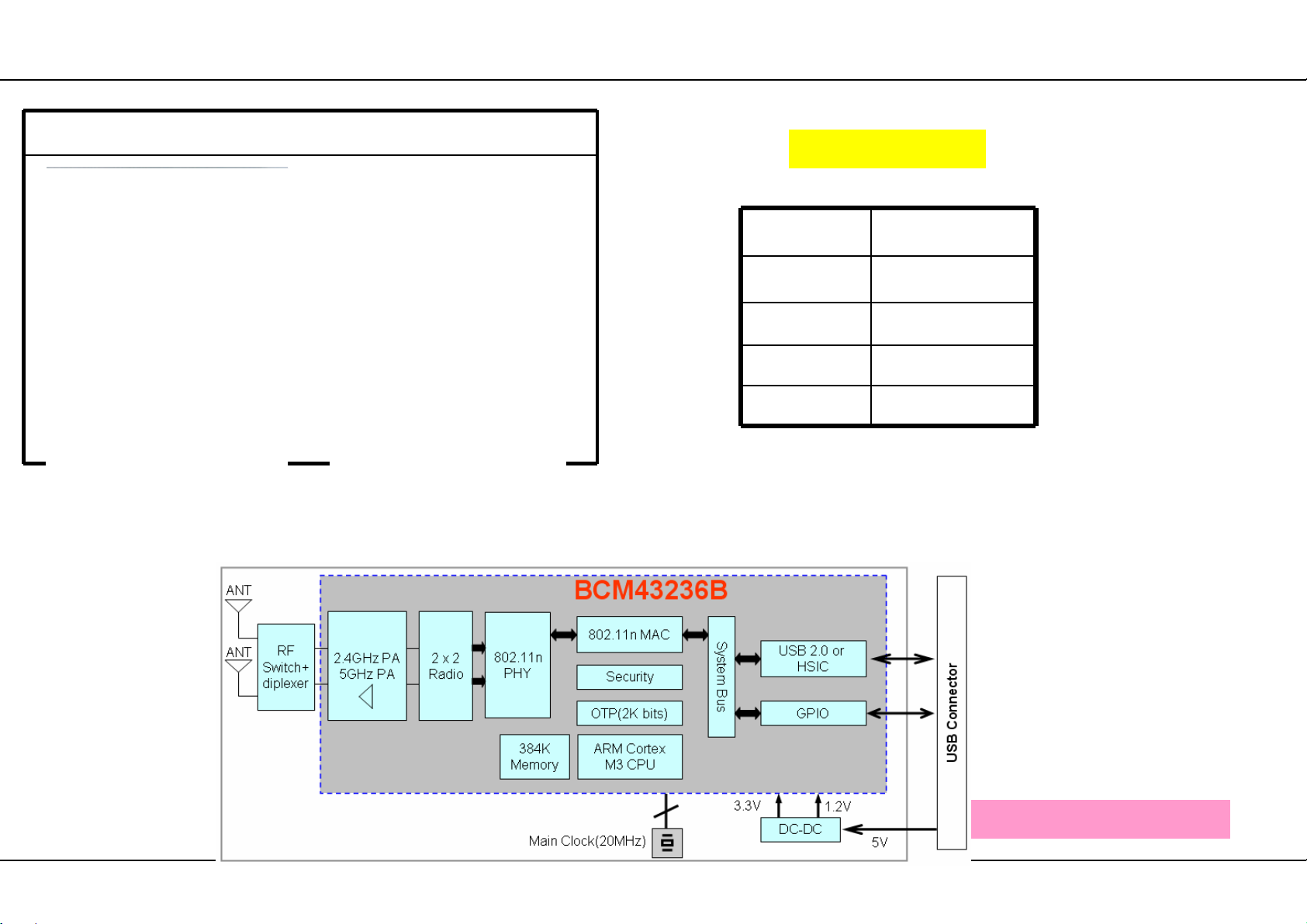

(8) Wi-Fi MAC Address Check
(9) Local Dimming Inspection Guide
(10) Preset CH information
(11) Internal Press Test
(12) Motion Remote controller Inspection
(13) 3D Function test

(14) Outgoing Condition Conguration

(15) Sound spec
(16) Factoring Option Data input.

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.2. PING Test(LAN Operating Test) Key

4.2.1. Check PCBA

1) Connect LAN to PCBA& Power On.

2) Push ADJ key on Adjust remote-controller.

3) Enter “13. ACAP PING TEST” & check Network

4.2.2. Check Set

1) Co nnect TV-Set & PC with Cross LAN cable.(PC IP :

12.12.2.3)

2) Execute “PINT Test program ”, Ch eck sett ing data of
program. (TV-Set IP : 12.12.2.2)

4.3. Main S/W program download

4.3.1. Using the Memory Stick

** USB DOWNLOAD : Service Mode

1) Insert the USB memory Stick to the USB port

2) Automatically detect the SW Version.

-> S/W download process is executed automatically.

3) Show the message “Copy the file from the Memory”

3) Push Power Only key on Adjust remote-controlle.

4) Click “RUN”, Check “OK” or “NG”

4) After Finished the Download, Automatically DC Off -> On

5) If the TV IS Turn On, Check the updated SW Version and
Tool Option.

Only for training and service purposes

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.4. Input tool option.

Adjust tool option refer to the BOM.

▪ Tool Option Input : PCBA Check Process
▪ Area Option Input : Set Assembly Process

*** Tool Option table

MODEL 32LS5700

Tool Option1 4452 356 358 359 361

Tool Option2 9557 9557 9557 9557 9557

Tool Option3 845 845 845 845 845

Tool Option4 12910 12910 12908 12908 12908

Tool Option5 4765 21021 21021 21021 21021

Tool Option6 1321 1321 1321 1321 1321

Tool Option7 4651 555 4907 4395 4395

MODEL 32LM6200 37LM6200 42LM6200 47LM6200 55LM6200 65LM6200

(AUO)

Tool Option1 116 117 118 119 121 36987

Tool Option2 9557 9557 9557 9557 9557 9557

Tool Option3 17229 17229 17229 17229 17229 17229

Tool Option4 12910 12910 12908 12908 12908 12910

Tool Option5 23069 23069 23069 23069 23069 6685

Tool Option6 1321 1321 1321 1321 1321 1321

Tool Option7 555 555 4907 4395 4395 12311

MODEL 32LM6400 42LM6400 47LM6400 55LM6400 42LM6600 42LM6690 47LM6690

Tool Option1 33156 33158 33159 33161 32934 32934 32935

Tool Option2 42325 42325 42325 42325 42325 42325 42325

Tool Option3 17229 17229 17229 17229 17229 17229 17229

Tool Option4 12911 12909 12909 12909 12909 12909 12909

Tool Option5 23191 23191 23191 23191 23191 23191 23191

Tool Option6 1321 1321 1321 1321 1321 1321 1321

Tool Option7 1963 6059 6059 6059 6059 6059 6059

MODEL 42LM6700 47LM6700 55LM6700 42LM7600 47LM7600 55LM7600 42LM7600

Tool Option1 32950 32951 32953 32966 32967 32969 32966

Tool Option2 42325 42325 42325 42325 42325 42325 42325

Tool Option3 17229 17229 17229 17229 17229 17229 17229

Tool Option4 12909 12909 12909 12909 12909 12909 12909

Tool Option5 23191 23191 23191 23191 23191 23191 23191

Tool Option6 1321 1321 1321 1321 1321 1321 1321

Tool Option7 6059 6059 6059 13355 13611 13611 13355

32LS5700 42LS5700 47LS5700 55LS5700

(AUO)

4.4.1. Profile

Must be changed the option value because being different with
some setting value depend on module maker, inch and market

4.4.2. Equipment

Adjustment remote control

4.4.3. Adjustment method

The input methods are same as other chassis.(Use ADJ Key
on the Adjust Remocon.)
(If not changed the option, the input menu can differ the model
spec.)
Re fe r to Job Expre ss ion of each main ch assis ass’ y
(EBTxxxxxxxx) for Option value
Caution : Don’t Press “IN-STOP” key after completing the

function inspection.

4.5. EDID D/L method

Recommend that don’t connect HDMI and RGB(D-SUB) cable
when downloading the EDID.
If not possible, recommend that connect the MSPG equipment.
There are two methods of downloading the edid data

4.5.1. 1st Method

EDID datas are automatically downloaded when adjusting the
Tool Options.
Automatically downloaded when pushing the enter key after
adjusting the tool option5.
It takes about 2seconds

4.5.2. 2nd Method

● Caution : Must be checked that the tool option is right or not.

If tool option is wrong, hdmi edid data could not be

downloaded well.

1) Press the ADJ key

2) Move to the 10. EDID D/L and Press the right direction

key(►)

3) Press the right direction key(►) at Start.

4) After about a few seconds, appear “Waiting..” => “OK”, then

compele.

4.5.3. RS-232C command Method

1) Command : AE 00 10

● Caution : Don’t connect HDMI and RGB(D-SUB) cable when

downloading the EDID.

If the cables are connected, Downloading of edid

could be failed

After Input Tool Option and AC off
Before PCBA check, you have to change the Tool option and
have to AC off/on (Plug out and in)
(If missing this process, set can operate abnormally)

Only for training and service purposes

- 12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.5.4. EDID data

4.5.4.1. Non-3D Full HD model (LS5700)

** Analog(RGB): 128bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 5C

** HDMI 1 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 26 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 10 00

A0 B8 2D E3 05 00 00 01 1D 80 18 71 1C 16 20 58 2C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A 20

C0 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71 38

D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0

E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 2 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 26 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 20 00

A0 B8 2D E3 05 00 00 01 1D 80 18 71 1C 16 20 58 2C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A 20

C0 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71 38

D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0

E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 3 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 26 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 30 00

A0 B8 2D E3 05 00 00 01 1D 80 18 71 1C 16 20 58 2C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A 20

C0 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71 38

D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0

E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 3 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 26 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

DD

90 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 40 00

A0 B8 2D E3 05 00 00 01 1D 80 18 71 1C 16 20 58 2C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A 20

C0 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71 38

D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0

E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

(Bold character)Checksum: Changeable by total EDID data.

EDID C/S data

8bit FHD

HDMI RGB

check sum (Hex) Block 0 0x43 RGB

Block 1 0xDD (HDMI1) 0x5C

0xCD (HDMI2)

0XBD (HDMI3)

0XAD (HDMI4)

CD

BD

AD

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.5.4.2. 3D model _ Non XvYcc model (60/T120)

** Analog(RGB): 128bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 5C

** HDMI 1 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 5C

80 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

90 01 16 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26

A0 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

B0 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

C0 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

D0 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

E0 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

F0 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00

** HDMI 2 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 45 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 20 00

A0 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16

B0 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58

C0 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16

D0 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51

E0 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 3 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 45 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 30 00

A0 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16

B0 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58

C0 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16

D0 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51

E0 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 3 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 45 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

5C

80 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 40 00

A0 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16

B0 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58

C0 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16

D0 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51

E0 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

(Bold character)Checksum: Changeable by total EDID data.

EDID C/S data

8bit FHD

HDMI RGB

check sum (Hex) Block 0 0x43 RGB

Block 1 0x15 (HDMI1) 0x5C

0x05 (HDMI2)

0xF5 (HDMI3)

0xE5 (HDMI4)

05

F5

E5

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.5.4.3. 3D model _XvYcc model (LM7600, 65LM6200)

** Analog(RGB): 128bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 5C

** HDMI 1 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 45 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 10 00

A0 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16

B0 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58

C0 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16

D0 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51

E0 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 2 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 45 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 20 00

A0 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16

B0 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58

C0 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16

D0 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51

E0 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 3 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 45 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

80 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 30 00

A0 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16

B0 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58

C0 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16

D0 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51

E0 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

** HDMI 3 : 256Bytes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01

10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 31 40 45 40 45 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43

11

80 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 40 00

A0 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16

B0 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58

C0 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16

D0 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51

E0 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

(Bold character)Checksum: Changeable by total EDID data.

EDID C/S data

8bit FHD

HDMI RGB

check sum (Hex) Block 0 0x43 RGB

Block 1 0x11 (HDMI1) 0x5C

0x01 (HDMI2)

0xF1 (HDMI3)

0xE1 (HDMI4)

01

F1

E1

Only for training and service purposes

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.5. ADC Calibration : Comp 480i/Comp 1080p/RGB

4.5.1. ADC Calibration : Internal Auto ADC

1) Press “ADJ” key on R/C for adjustment.

2) Enter Password number. Password is “0 0 0 0”.

4.6. Check SW Version

4.6.1. Method

1) Push In-star key on Adjust remote-controller.

2) SW Version check(ex. 47LW9800-DA)

3) Move to the “8. ADC Calibration” by using ▲/▼(CH +/-) and
press ENTER(►).

4) Move to the “ADC Type” by using ▲/▼(CH +/-)

5) Press the right direction key(►) to ADC Type “OTP”.

6) Press the right direction key(►) to Start.

7) After about a few seconds, appear “ADC Calibration

Completed”, then complete

4.5.2. ADC Calibration - Manual

※ Required Equipments

▪ Remote controller for adjustment
▪ MSPG-925F/MSPG-1025/MSPG-3233 Pattern Generator

4.5.2.1. Process

1) Change the Input to Component1 or 2 mode..

2) Input the Component 480i@60Hz 100% Color Bar YPbPr
signal into Component1 or 2.

(MSPG-925F 480i Model: 209 / Pattern: 65 )
(MSPG-925F 1080p Model: 225 / Pattern: 65 )

Model Name : 47LW9800-DA

Serial Number : 012PTED6N500 2.ADC Date 1. Co untry Group(Press OK to Save)

S/W Version : 3.02.06.01 3.Power Off Status Country Group Code 10

MICOM Version : 3.05.3 4.System1 Coun try Group TW

BOOT Version : 1.02.22 5.System2 Country TW/CB/PA

FRC Version : 1.50 6.Model Number D/L 2. Tool Option

IR LED Version : c8 7.Test Option Tool Option1 33112

EDID(RGB/HDMI) : 0.03/0.02 8.External ADC T ool Option2 5461

Chip Type : BCM35230 9.Spread Spectrum Tool Option3 3327

Wireless Host Ver. : 0.00.0 10.Sync Level Tool Option4 17593

Wireless B/B Ver. : 0.00.0 11.Wireless Ready Tool Option5 47695

Wi-Fi Version :1.0 12.Stable Count Tool Opt ion6 697

Wi-Fi Channel :0 13.ODC Tes t 3. Adj ust White Balance : OK

Wi-Fi MAC :00:00:00:00:00:00 14.Local Dimming 4. Adjust ADC : OTP

MAC Address :FF:FF:FF:FF:FF:FF 15.SDP Server Selection 480i Compon ent OK

Widevine :LGTV10L000011618 16. Network Error History 1080p Component OK

Local Dimming Ver. :0x0707 RGB OK

Formatter Version : 0.6c 5.EDID : OK

RF Receiver Version : RGB OK(0x98)

Debug Status : Release HDMI1 OK(0x7F,0xCB)

HDMI2 OK(0x7F,0xBB)

UTT : 40 HDMI3 OK(0x7F,0xAB)

APP History Ver. : 35190 HDMI4 OK(0x7F,0x9B)

PQL DB : LGD_AF_LGT10_xxxxxx

IN START

1.Adjust Check ▶

Adjust Check

5. SET assembly adjustment method

5.1. Input Area-Option

(1) Prole : Must be changed the Area option value because

being different of each Country’s Language and

signal Condition.
(2) Equipment : adjustment remote control.
(3) Adjustment method

[Fig. 2]

3) Press “ADJ” key on R/C for adjustment.

4) Enter Password number. Password is “0 0 0 0”.

5) Move to the “8. ADC Calibration” by using ▲/▼(CH +/-) and
press ENTER(►).

6) Move to the “ADC Type” by using ▲/▼(CH +/-)

7) Press the right direction key(►) to ADC Type “External”.

8) Press the right direction key(►) to Start.

9) After about a few seconds, appear “ADC Calibr ati on
Completed”, then complete.

10) Change input source component 1080p, Do 3)~9) steps.

11) Change input source RGB 1080p and Do 3)~9) steps.

- The input methods are same as other chassis.(Use IN-START
Key on the Adjust Remocon.)

Refer to Job Expression of each main chassis ass’y

(EBTxxxxxxxx) for Option value

5.2. Adjustment of White Balance

● In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2

hours

● In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C

for 3 hours.

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

▪ Purpose : Adjust the color temperature to reduce the deviation

of the module color temperature.

▪ Principle : To adjust the white balance without the saturation,

Fix the one of R/G/B gain to 192 (default data) and
decrease the others.

▪ Adjustment mode : Three modes – Cool / Medium / Warm

※ Required Equipment

▪ Remote controller for adjustment
▪ Color Analyzer : CA100+ or CA-210 or same product (should

be used in the calibrated ch by CS-1000)

- LCD TV : CH-9

- PDP TV : CH-10

- White LED TV : CH-14

- RGB LED(MNT) : CH-16

- Auto W/B adjustment instrument(only for Auto adjustment)

5.2.1. Adjustment of White Balance :
(For Automatic Adjustment)

Co nnectin g diagra m of eq uipment for meas uring (F or
Automatic Adjustment)

1) Set TV in adj. mode using POWER ON key

2) Zero calibrate probe then place it on the center of the
Display

3) Connect Cable(RS-232C)

4) Select mode in adj. Program and begin adj.

5) When adj. is complete (OK Sing), check adj. status pre
mode(Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

※ Luminance min value is 150cd in the Cool/Medium/Warm

mode( For LCD)

5.2.2. Adjustment of White Balance (for Manual adjustment)

▪ Co lor analyzer(CA100+, CA210) should be used in the

calibrated ch by CS-1000

▪ Operate the zero-calibration of the CA100+ or CA-210, then

stick sensor to the module when adjusting.

▪ For manual adjustment, it is also possible by the following

sequence.

1) Select white pattern of heat-run by pressing “POWER ON”
key on remote control for adjustment then operate heat run
longer than 15 minutes.

(If not executed this step, the condition for W/B may be

different.)

2) Push “Exit” key.

3) Change to the AV mode by remote control.

4) Input external pattern (80% white pattern)

5) Push the ADJ key => Enter “0000” (Password)

6) Select “3. W/B ADJUST”

7) Enter the W/B ADJUST Mode

8) Stick the sensor to the center of the screen and select each

items (Red/Green/Blue Gain and Offset) using ▲/▼(CH +/-)

key on R/C..

9) Adjust R/ G/ B Gain using ◄/►(VOL +/-) key on R/C.

10) Adjust three modes all (Cool / Medium / Warm) : Fix the

one of R/G/B gain and change the others

11) When adjustment is completed, Enter “COPY ALL”

12) Exit adjustment mode using EXIT key on R/C.

※ CASE
First adjust the coordinate far away from the target value(x, y).
(1) x, y >target
i) Decrease the R, G.
(2) x, y < target
i) First decrease the B gain,
ii) Decrease the one of the others.
(3) x >target , y< target
i) First decrease B, so make y a little more than the target.
ii) Adjust x value by decreasing the R
(4) x < target , y >target
i) First decrease B, so make x a little more than the target.
ii) Adjust x value by decreasing the G

● Standard color coordinate and temperature when using the

CA100+ or CA210 equipment

Mode

Cool

Color coordinate

Temp

X Y

0.269±0.002 0.273±0.002 13000K

△uv

0.0000

Only for training and service purposes

- 17 -

Medium 0.285±0.002 0.293±0.002 9,300 K 0.000

Warm 0.313±0.002 0.329±0.002 6,500K 0.003

Change reason : When vivid mode, more detail than other

company set.

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

● In case of Edge LED module, the color coordinates is

changing by aging, so you have to use the below table.

The Time Table of color coordinates by SET Aging Time

GP3 Aging

time

(Min)

1 0 ~ 2 279 288 295 308 319 338

2 3 ~ 5 278 286 294 306 318 336

3 6 ~ 9 277 285 293 305 317 335

4 10 ~19 276 283 292 303 316 333

5 20 ~ 35 274 280 290 300 314 330

6 36 ~ 49 272 277 288 297 312 327

7 50 ~ 79 271 275 287 295 311 325

8 80 ~ 149 270 274 286 294 310 324

9 Over 150 269 273 285 293 309 323

Cool Medium Warm

x y x y x y

269 273 285 293 313 329

■ In the SET applied LED module (LS5700/LM6200/LM6600/

LM7600 Series), cause of the physical characteristics of
LED Module, sets are taken a 120 minutes by aging time
to stabilize a color coordinates. So White Balance Control
equipments have to get the SET Aging Time from the SET
and then going to control the W/B by revise color coordinates
at each time

- To check the Coordinates of White Balance, you have to
measure at the below conditions.

Picture Mode : select Vivid and change
Dynamic Contrast : Off ,
Dynamic Colour : Off,
Clear White : Off

->Picture Mode change : Vidid -> Vivid(User)

(If you miss the upper condition, the coordinates of W/B can be
lower than the spec.)

5.3. Intelligent Sensor Inspection Guide

Step 1. Turn on the TV set.
Step 2. Press “EYE” button on the Adjustment remote controller.

Step 3. Block the Intelligent Sensor module on the front C/A
about 6 seconds.
When the “Sensor Data” is lower than 20, you can see the
“OK” message -> If it doesn’t show “OK” message, the Sensor
Module is defected one.
You have to replace that with a good one.

Green Eye-Check

Sensor Data : 492
BackLight : 100

OK

Step 4. After check the “OK” message come out, take out your
hand from the Sensor module.

-> Check “Sensor Data” value change from “0” to “300” or not.
If it doesn’t change the value, the sensor is also defected

one. You have to replace it.

5.4. LAN Inspection

1) LAN Port connection with PCB

2) Network setting at MENU Mode of TV

3) Setting automatic IP

4) Setting state conrmation

5) If automatic setting is nished, you conrm IP and MAC

Address

Only for training and service purposes

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.5. WIDEVINE Key Inspection

1) Conrm Key input Data at the “IN START” MENU Mode

5.6. Model name & Serial number D/L

5.6.1. Notice

1) Serial number D/L is using of scan equipment.

2) Setting of scan equipment operated by Manufacturing
Technology Group.

3) Serial number D/L must be conformed when it is produced in
production line, because serial number D/L is mandatory by
D-book 4.0

4) Check the model name In-start menu -> Factory name
displayed (ex 32LS5700-DA)

5) Check the Diagnostics (DTV country only) -> Buyer model
displayed (ex 32LS5700-DA)

5.7. Wi-Fi MAC ADDRESS CHECK

5.7.1. Notice

1) Using RS232

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

2) Check the menu on in-start

5.6.2. Method : Auto

1) Press “Power on” key of service remocon.(Baud rate : 115200
bps)

2) Connect RS232 Signal Cable to RS-232 Jack

3) Write Serial number by use RS-232.

4) Must check the serial number at Instart menu

5.6.3. Method : Manual

* If the TV set is downloaded By OTA or Service man, Sometimes
model name or serial number is initialized.
( Not always) It is impossible to download by bar code scan, so
It need Manual download.

1) Press the ‘instart’ key of ADJ remote controller.

2) Go to the menu ‘6.Model Number D/L’ like below photo.

3) Input the Factory model name or Serial number like photo.

5.8. Local Dimming Inspection

5.8.1. Edge LED models with local dimming

1) Press ‘TILT” key of the Adj. R/C and check moving pat­terns. The black bar patterns moves from left to right. If local
dimming function does not work, a whole screen shows full
white.

5.9. Internal press test

No Item Vallue Unit Remark

1. Dielectric
Voltage(AC<->FG)

2. Dielectric
Voltage(Without FG)

1.5 kV At 100mA for
1sec(Line)

1.5 At 100mA for
1min(OQC)

3 kV At 100mA for

1sec(Line)

3 At 100mA for

1min(OQC)

Only for training and service purposes

- 19 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.10. Motion Remote controller Inspection

5.10.1. Equipment

Motion remote controller for test, IR-KEY-CODE remote
controller for test
Check battery before test. (Recommend : Change battery for
every Lot.)

5.10.2. Process

1) Push “Mute” or “ START” key for pairing between TV-set and
motion remote controller.

2) Push “OK” or “Enter” key, you can see the Cursor on screen.

3) Push “Vol+” or “STOP” key, Disconnect Pairing.

5.11. 3D Function test (EXCEPT : LS5700)

5.11.1. Equipment

Pattern Generator MSPG-3233, HDMI mode 37, pattern No. 81

5.11.2. Equipment

1) Connect HDMI (HDMI mode 371, Pattern No. 81)

2) Insert 3D Mode, Select side by side mode.

3) Without 3D-glasses, Like below gure.

4) With 3D left-glass, Like below gure. (Center is RED)

5) With 3Dright-glass, Like below gure.(Center is Blue)

Only for training and service purposes

- 20 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SCREW ASSEMBLY WORKING GUIDE

• FAB31339402

(M3*L4.5, BK, Machine)

• 16EA

• FAB30013202

(M3*L8, White, Taptite)

• 4EA

• FAB30016122

(M4*L20, BK, Machine)

• 4EA

E

E

E

E

E

E

E

E

• FAB30016124

(M4*L14, BK, Machine)

• 4EA

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

B

B

C

C

C

C

C

C

C

• FAB30078812
(M6*L10, BK, Machine)
4EA

B

B

B

B

B

B

A

A

A

A

A

A

A

A

D

D

D

D

D

D

D

D

A

C

※

Warning

Check Screw Type When Screw is assembled

at Part. If Screw is used at the part

Module will get damaged

A

A

C

※

Warning

Check Screw Type When Screw is assembled

at Part. If Screw is used at the part

Module will get damaged

A

■

Screw specification

and

application

situation

Only for training and service purposes

- 21 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

BLOCK DIAGRAM

MTK Block Diagram (Taiwan/Colombia/Panama)

Power load

L/R In

SPDIF OUT

USB

Audio

AMP

(NTP7500

or STA380)

I2S Out

MTK

CI slot

CI slot

P_TS

CVBS

P_TS

T/C Demod

IF(+/-)

USB1

PC-RGB

PC-AUDIO

OPTIC

LAN

HDMI1

HDMI2

HDMI3

Side

Rear

RGB,H/V

Ethernet

CVBS

UART

SYSTEM EEPROM X 1

(256Kb)

HDMI

MUX

(HDCP

EEPROM)

M-Remote Module

Air/

Cable

TUNER

(T/C)

TUNER

(S2)

DIGITAL

DEMOD

(T/C)

DVB-

S

ANALOG

DEMOD

DIGITAL

DEMOD

(S2)

TS_S/P

LNB

USB2

USB3

HDMI4

LVDS

41P

51P

eMMC X 1

(4GB)

USB_WIFI

DDR

CONTROLER A/B

SPI

LOCAL DIMMING

I2C

Sub Micom

(RENESAS)

IR

Remote Control

UART

P_TS

EPI

50P

50P

X_TAL

27MHz

: Spec Out

SYSTEM

DDR3 X 1600

X 16

(2Gb)

SYSTEM

DDR3 X 1600

X 16

(2Gb)

SYSTEM

DDR3 X 1600

X 16

(2Gb)

SYSTEM

DDR3 X 1600

X 16

(2Gb)

Only for training and service purposes

- 22 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

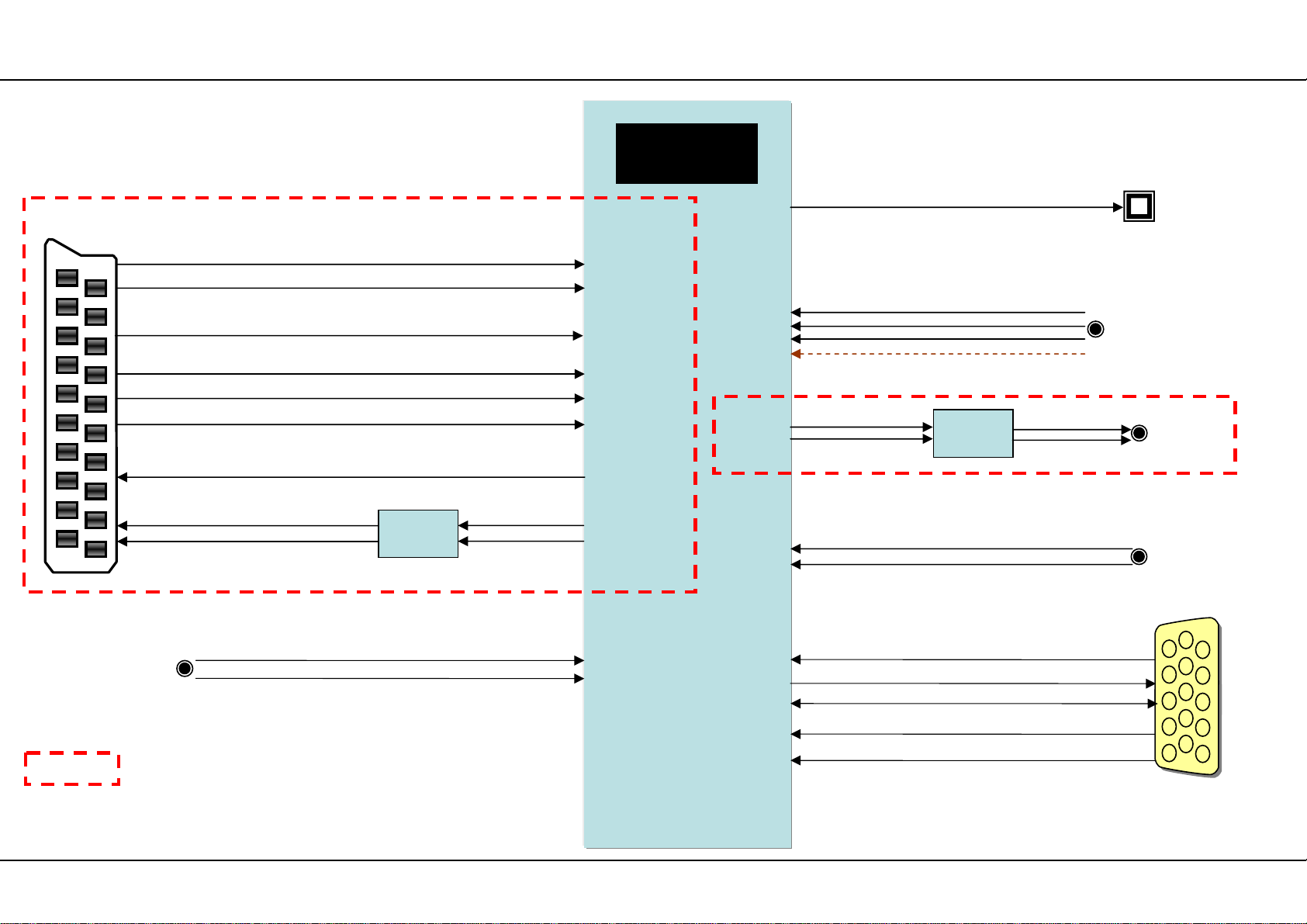

[SPDIF_OUT]

Main SoC

MTK

[Y1P],[PB1P],[PR1P]

[OPCTRL9]

[AL0_ADAC]

[AR0_ADAC]

[VGA_SCL]

[VGA_SDA]

[OPCTRL7]

[VSYNC], [HSYNC]

[RP],[GP],[BP]

SPDIF

SPDIF_OUT

[AIN2_L_AADC]

COMP 1 PHONE JACK

COMP1_Y/Pb/Pr

COMP1_DET

[AIN3_R_AADC]

[AIN3_L_AADC]

[CVBS0P]

[OPCTRL5]

CVBS 1 PHONE JACK

EARPHONE

JACK

HP_LOUT_MAIN

HP_ROUT_MAIN

RGB_PC

RGB_DDC_SCL

RGB_DDC_SDA

DSUB_DET

DSUB_VSYNC, DSUB_HSYNC

DSUB_R+, DSUB_G+, DSUB_B+

PC AUDIO

PC_L_IN

PC_R_IN

[AIN2_R_AADC]

Jack Interface

IC6100

TPA6132A2

HP_LOUT_AMP

HP_ROUT_AMP

AV1_L_IN

AV1_R_IN

AV1_CVBS_DET

AV1_CVBS_IN

Only for training and service purposes

- 23 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

HDMI

HDMI1

HDMI1

HDMI2

HDMI2

HDMI3

HDMI3

HDMI4

HDMI4

CEC_REMOTE

RENESAS

MICOM

HDMI_CEC

Main SoC

MTK

Q3001

DDC_SCL_1_SOC

DDC_SCL_2_JACK

DDC_SDA_2_JACK

DDC_SCL_3_JACK

DDC_SDA_3_JACK

DDC_SCL_4_JACK

DDC_SDA_4_JACK

CK+/-_HDMI4_JACK, D0+/-_HDMI4_JACK, D1+/-_HD MI4_JACK, D2+/-_HDMI4_JACK

CK+/-_HDMI3_JACK, D0+/-_HDMI3_JACK, D1+/-_HD MI3_JACK, D2+/-_HDMI3_JACK

CK+/-_HDMI2_JACK, D0+/-_HDMI2_JACK, D1+/-_HD MI2_JACK, D2+/-_HDMI2_JACK

CK+/-_HDMI1_SOC, D0+/-_HDMI1_SOC, D1+/-_HDMI1_SOC , D2+/-_HDMI1_SOC

HDMI_ARC

[ASPDIF1]

[HDMI_2_SCL]

[HDMI_2_SDA]

[HDMI_2_RX_C/CB],HDMI_2_RX_0/0B]

[HDMI_2_RX_1/1B],[HDMI_2_RX_2/2B]

DDC_SDA_1_SOC

[CEC]

[HDMI_0_RX_C/CB],HDMI_0_RX_0/0B]

[HDMI_0_RX_1/1B],[HDMI_0_RX_2/2B]

[HDMI_1_RX_C/CB],HDMI_1_RX_0/0B]

[HDMI_1_RX_1/1B],[HDMI_1_RX_2/2B]

[HDMI_3_RX_C/CB],HDMI_3_RX_0/0B]

[HDMI_3_RX_1/1B],[HDMI_3_RX_2/2B]

[HDMI_0_SCL]

[HDMI_0_SDA]

[HDMI_1_SCL]

[HDMI_1_SDA]

[HDMI_3_SCL]

[HDMI_3_SDA]

X-tal

32.768kHz

Only for training and service purposes

- 24 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

MTK

USB / WIFI / M-REMOTE

USB1

USB_DP1

USB_DM1

[USB_DP_P1]

[USB_DM_P2]

USB2

USB_DP2

USB_DM2

[GPIO43]

[GPIO46]

OCP

OCP

(+5V_USB_HDD)+0.3

(+5V_USB)+0.3

/SUB_OCD1

USB_CTL1

USB_CTL2

/USB_OCD2

USB_WIFI

WIFI_DM

WIFI_DP

BCM Solution M_REMOTE

BCM Solution M_REMOTE

M_REMOTE_RX

M_REMOTE_TX

M_RFModule_RESET

_M_REMOTE_ISP

[U1RX]

[U1TX]

[OPCTRL4]

[OPCTRL2]

[USB_DM_P2]

[USB_DP_P2]

USB_DP3

OCP

(+5V_USB)+0.3

USB_CTL3

/USB_OCD3

[USB_DM_P0]

[USB_DP_P0]

[GPIO42]

[GPIO45]

[USB_DM_P3]

[USB_DP_P3]

USB3

USB_DM3

[GPIO44]

[GPIO47]

Only for training and service purposes

- 25 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

LVDS Tx

Block

Main SoC

MTK

LVDS_SEL

BIT_SEL_LOW

51Pin

LVDS

Output

PANEL_VCC

(+12V)

PANEL_VCC

(+12V)

10-bit (R)

Dual-link LVDS Output

24

• LVDS_SEL : “H”=JEIDA, “L” or NC=VESA (LGD)

• BIT_SEL : “H” or NC = 10-bit, “L” = 8-bit

TUNER/LVDS Tx (FHD120Hz)/LOCAL DIMMING

L/DIMO_SCLK

L/DIMO_MOSI

I2C_SCL1

I2C_SDA1

L/DIMO_VS

[LDM_CK]

[LDM_VSYNC]

[STB_SCL]

[LDM_D0]

[STB_SDA]

T /C_

H/NIM

I2C_SCL6

I2C_SDA6

/TU_RESET

TUNER_SIF

SIF

TU_CVBS

CVBS

IF_AGC

IF_P/N

Only for training and service purposes

- 26 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

AUDIO

SPDIF_OUT

NTP7500

LPF

LPF

P

C_L_IN/PC_R_IN

AV1_L_IN/AV1_R_IN

[ASPDIF0]

Tuner

TR BUF

[SIFP]

SC_L_IN/SC_R_IN

AUD_LRCK

[AIN0_L_AADC]

[AIN0_R_AADC]

4P wafer

Main SoC

MTK

TUNER_SIF

[AOLRCK]

[AOSDATA0]

AUD_LRCH

AUD_SCK

[AOBCK]

[STB_SDA]

[STB_SCL]

I2C_SDA1

I2C_SCL1

IC3101

MICOM

AMP_MUTE

[AIN3_L_AADC]

[AIN3_R_AADC]

[AIN2_L_AADC]

[AIN2_R_AADC]

SPDIF

Only for training and service purposes

- 27 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essenti al that these special safet y parts shoul d be replac ed with the same compo nents as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

710

400

310

521

700

810

570

910

560

900

410

120

540

LV2

LV1

200

Only for training and service purposes

530

800

- 28 -

510

300

122

500

501

A10

A22

A2

AG1

* Set + Stand

* Stand Base + Body

A21

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

EAX6430790* : LD22* / LC22*

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

EAX6443420* : LT22* / LJ22* / LA22* / LB22*

Crystal Matching Test result
: 27pF -> 20pF -> 24pF

+3.3V_NORMAL

R103

4.7K

R104

4.7K
OPT

R105

4.7K
OPT

NVRAM

IC104

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

VCC

8

WP

7

SCL

6

SDA

5

NVRAM_ATMEL

HDCP EEPROM

HDCP_EEPROM_ST

IC100

M24C16-R

NC_1

NC_2

NC_3

VSS

VCC

8

1

WC

2

7

SCL

3

6

SDA

4

5

+3.3V_NORMAL

+3.3V_NORMAL

R181 4.7K

R191 22

R192 22

IC104-*1

M24256-BRMN6TP

E0

VCC

1

8

WC

E1

7

2

SCL

E2

6

3

SDA

VSS

5

4

NVRAM_ST

Write Protection

- Low : Normal Operation

- High : Write Protection

R136 33

R137 33

HDCP_EEPROM_MICRO

C101

0.1uF
16V

VSS

I2C_SCL1

I2C_SDA1

A0

A1

A2

I2C_SCL5

I2C_SDA5

IC100-*1

24LC16B

1

2

3

4

IC104-*2

R1EX24256BSAS0A

A0

1

A1

2

A2

3

VSS

4

NVRAM_RENESAS

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

JTAG

JTRST#

JTDI
JTMS
JTCLK

JTDO

AR100

R143 33

MTK_JTAG

+3.3V_NORMAL

R147
1K

OPT

R148
1K

I2C_1 : AMP, L/DIMMING,HDCP KEY
I2C_2 : T-CON
I2C_3 : MICOM
I2C_4 : S/Demod,T2/Demod, LNB
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)

R160

R186

R156

2.7K

4.7K

2.7K

R189

4.7K

MTK_EPI

R164

2.7K

MTK_DVB_C2_TUNER

R177

2.7K

MODEL_OPT_0

MODEL_OPT_1

I2C_SCL1
I2C_SDA1

I2C_SCL2
I2C_SDA2
I2C_SCL3
I2C_SDA3
I2C_SCL4
I2C_SDA4
I2C_SCL5
I2C_SDA5

I2C_SCL6
I2C_SDA6

STB_SCL
STB_SDA

OPCTRL_11_SCL
OPCTRL_10_SDA

OSCL1
OSDA1
OSCL2
OSDA2
OSCL0
OSDA0

OPCTRL_1_SCL

OPCTRL_0_SDA

+3.3V_NORMAL

I2C

R110 33
R111 33

R112 33
R113 33
R114 33
R115 33
R116 33
R117 33
R118 33
R121 33
R122 33
R123 33

R106

R101

4.7K

MTK_FRC3/URSA5

MTK_Int_FRC/URSA5

R128

R131

1.2K

1.2K

Model Option

R125

4.7K

R108

4.7K

4.7K
MTK_FHD

MTK_OPTIC_Tx_IC

R134

R139

2.7K

2.7K

R130

4.7K

MTK_3D_DEPTH_IC

R142

2.7K

R132

4.7K
MTK_CP_BOX

MTK_DDR_768MB

R135

R173

2.7K

4.7K

+3.3V_NORMAL

R188

R185

2.7K

2.7K

R140

4.7K

R175

4.7K

MTK_DVB_S_TUNER

MTK_DVB_T2_TUNER

MODEL_OPT_2

MODEL_OPT_3
/S2_RESET

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

R102

4.7K

R107

4.7K

MTK_NO_FRC/FRC3

MTK_NO_FRC/Int_FRC

R109

MTK_HD

4.7K

R129

4.7K

R127

4.7K

MTK_NON_OPTIC_Tx_IC

MTK_NON_3D_DEPTH_IC

R133

4.7K

R138

MTK_NON_CP_BOX

MTK_DDR_DEFAULT

R141

4.7K

4.7K

MTK_NON_DVB_T2_TUNER

R187

4.7K

R184

4.7K

MTK_NON_EPI

MTK_NON_DVB_S_TUNER

MTK_NON_DVB_C2_TUNER

R190

4.7K

M_RFModule_ISP

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

MODEL_OPT_7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

10K

R150
1K

R151
1K
OPT

+3.3V_NORMAL

R144
10K

MTK_JTAG

R153
1K
OPT

R154
1K

+3.3V_NORMAL

R145
10K

MTK_JTAG

LED_PWM0
LED_PWM1
OPCTRL3

R146
10K

MTK_JTAG

R149
10K

+3.3V_NORMAL

NO_FRC

MODEL_OPT_0

MODEL_OPT_1

0

0

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

3D DEPTH

DDR

CP BOX

T2 Tuner

S Tuner

Reserved

EPI

MODEL OPTION 8 is just for CP Box
It should not be appiled at MP

MTK_JTAG
R152

1K

12507WS-12L

MTK_JTAG

P100

1

2

3

4

5

6

7

8

9

10

11

12

13

Close to eMMC Flash
(IC8100)

EMMC_CLK

STRAPPING LED_PWM0 LED_PWM1 OPCTRL3

ICE mode + 27M + Serial boot 0 0 0

ICE mode + 27M + ROM to Nand boot 0 0 1

ICE mode + 27M + Rom to eMMC boot 0 1 0
from eMMC pins (share pins w/s NAND)

ICE mode + 27M + ROM to eMMC boot 0 1 1
from SDIO pins

MT5369_RM

IC105-*1

LGE2112-AL

SoC
internal
FRC

0

1

HIGH

FHD

OPTIC

3D_Depth_IC

DDR_768MB

Enable

Support

Support

Support

LG FRC2

1

0

LOW

HD

NON_OPTIC

NON_3D_Depth_IC

DDR_Default

Disable

Not Support

Not Support

Default

Not Support

Reserved

1

1

AC1
AC2

A3
A4
B4
C4
D4
B3

C3
AC3
AC4

G10

G9

G13
G21

F10

D9

C9

A20
A21

E18
F17
E17
E16
D14

B14

A13
G11
D16

F18

C15
A15
F13
C14
F11
E15
D13
B15
E14
F16
E13
B13
A14
F14
F15

HEAT SINK SMD GASKET

MTK_H/S_3.5T

MDS62110213

DDRV_44
DDRV_45
DDRV_1
DDRV_2
DDRV_5
DDRV_8
DDRV_10
DDRV_4
DDRV_7
DDRV_46
DDRV_47

MEMTP
MEMTN

RVREF_B
RVREF_A

ARCKE

ARCLK1
ARCLK1

ARCLK0
ARCLK0

ARODT
ARRAS
ARCAS
ARCS
ARWE

ARRESET

ARBA0
ARBA1
ARBA2

ARCSX

ARA14
ARA13
ARA12
ARA11
ARA10
ARA9
ARA8
ARA7
ARA6
ARA5
ARA4
ARA3
ARA2
ARA1
ARA0

M100

MTK_H/S_3.5T

ARDQM0
ARDQS0
ARDQS0

ARDQ0
ARDQ1
ARDQ2
ARDQ3
ARDQ4
ARDQ5
ARDQ6
ARDQ7

ARDQM1
ARDQS1
ARDQS1

ARDQ8

ARDQ9
ARDQ10
ARDQ11
ARDQ12
ARDQ13
ARDQ14
ARDQ15

ARDQM2
ARDQS2
ARDQS2
ARDQ16
ARDQ17
ARDQ18
ARDQ19
ARDQ20
ARDQ21
ARDQ22
ARDQ23

ARDQM3
ARDQS3
ARDQS3
ARDQ24
ARDQ25
ARDQ26
ARDQ27
ARDQ28
ARDQ29
ARDQ30
ARDQ31

AVDD33_MEMPLL
AVSS33_MEMPLL

DVSS_50
DVSS_48

M101

MDS62110213

C19
C21
B21
C23
B17
D23
C17
D24
C16
C24
D15

D21
B20
C20
A17
A23
D17
B23
D20
D22
D19
C22

A7
B9
A9
C12
D6
B12
C5
C13
A5
A12
B5

E10
C8
D8
C6
D10
D7
C11
C7
C10
B7
B10

N14
N15

R1
P21

MTK_H/S_3.5T

MDS62110213

M102

R174

10K

M103

MDS62110213

MTK_H/S_3.5T

MT5369_TS_OUT[0-7]

/USB_OCD2
/USB_OCD1
/USB_OCD3

USB_CTL2
USB_CTL1
USB_CTL3

M104

MDS61887710

MTK_H/S_9.5T

MT5369_MCLKI

MT5369_MIVAL_ERR

MT5369_MISTRT

SOC -> CI SLOT

CI_DATA[0-7]

SOC -> CI SLOT

C102

C100

0.1uF

0.1uF
OPT

OPT

CI_ADDR[0-14]

CI SLOT -> SOC

C103

C105

0.1uF

0.1uF

OPT

OPT

SC_ID_SOC

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

C104

C106

0.1uF

0.1uF
OPT

R193

R176
R162
R163

MODEL_OPT_4

AVDD_33SB

AVDD_33SB

VDD3V3

MT5369_TS_OUT[0]
MT5369_TS_OUT[1]
MT5369_TS_OUT[2]
MT5369_TS_OUT[3]
MT5369_TS_OUT[4]
MT5369_TS_OUT[5]
MT5369_TS_OUT[6]
MT5369_TS_OUT[7]

MT5369_TS_IN[0]
MT5369_TS_IN[1]
MT5369_TS_IN[2]
MT5369_TS_IN[3]

MT5369_TS_IN[4]
MT5369_TS_IN[5]
MT5369_TS_IN[6]
MT5369_TS_IN[7]

ERROR_OUT

OPT

MODEL_OPT_7

NON_EU

10K

10K
10K
10K

M_RFModule_RESET

JTCLK
JTDI
JTDO
JTMS

JTRST#

OSDA0
OSCL0

OSDA1
OSCL1

MT5369_XTAL_OUT

C116

0.1uF

C117

0.1uF

C118

0.1uF

OPC_EN
/TU_RESET
/S2_RESET

MT5369_XTAL_IN

C107

2.2uF
10V

CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]
CI_ADDR[8]
CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

EPI_LOCK6
MODEL_OPT_0
MODEL_OPT_1

MODEL_OPT_3

M_RFModule_ISP

MODEL_OPT_5
MODEL_OPT_6

X-TAL

C108

2.2uF
10V

AP14
AM14
AR14
AR15
AN14

AP12
AN12

AP15
AN15

AT34
AU34

AK27
AH26

AK18
AK17

AK23
AM27

AJ20

AN23
AN24
AP23
AR23
AU23
AT23
AM24
AM23

H32
F37
F36
G37
G36
G35
G34
H34
L34
L32
K33
K32
H33
L35
K36
J32
J34
K34
K35
K37
J36
J37
J35
J33
G33
H35
H31
F34
E36
N33
P32
M35
M37
M33
F35
E35
E37
N32
M34
M36
M32
L33
E33
E32
F32
A29
D31
C31
E30
E31
F31
E29
AP9
AT9
AR9
AU9

X100

27MHz

C113

24pF

MT5369_NON_RM

IC105

LGE2112

JTCK
JTDI
JTDO
JTMS
JTRST

OSDA0
OSCL0

OSDA1
OSCL1

XTALI
XTALO

AVDD33_XTAL_STB
AVSS33_XTAL_STB

AVDD33_VGA_STB
AVSS33_VGA_STB

AVDD33_PLLGP
AVSS33_PLLGP

AVDD10_LDO

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27
GPIO28
GPIO29
GPIO30
GPIO31
GPIO32
GPIO33
GPIO34
GPIO35
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO43
GPIO44
GPIO45
GPIO46
GPIO47
GPIO48
GPIO49
GPIO50
GPIO51
GPIO52
GPIO53
GPIO54
GPIO55

ADIN0_SRV
ADIN1_SRV
ADIN2_SRV
ADIN3_SRV
ADIN4_SRV
ADIN5_SRV
ADIN6_SRV
ADIN7_SRV

MID_MAIN_1

C115

24pF

U0TX
U0RX

U1RX
U1TX

POWE

POOE
POCE1
POCE0

PDD7

PDD6

PDD5

PDD4

PDD3

PDD2

PDD1

PDD0

PARB
PACLE
PAALE

EMMC_CLK

OPWRSB

ORESET

OIRI

FSRC_WR

STB_SCL
STB_SDA

DEMOD_RST

DEMOD_TSCLK
DEMOD_TSDATA0
DEMOD_TSDATA1
DEMOD_TSDATA2
DEMOD_TSDATA3
DEMOD_TSDATA4
DEMOD_TSDATA5
DEMOD_TSDATA6
DEMOD_TSDATA7

DEMOD_TSSYNC

DEMOD_TSVAL

CI_INT

CI_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_TSVAL

PVR_TSCLK
PVR_TSVAL

PVR_TSSYNC
PVR_TSDATA0
PVR_TSDATA1

SPI_CLK1

SPI_CLK

SPI_DATA

SPI_CLE

OPWM2
OPWM1
OPWM0

SD_D0
SD_D1
SD_D2

SD_D3
SD_CMD
SD_CLK

LDM_CS

LDM_CLK

LDM_VSYNC

LDM_DO
LDM_DI

LED_PWM1
LED_PWM0

OPCTRL11
OPCTRL10

OPCTRL9
OPCTRL8
OPCTRL7
OPCTRL6
OPCTRL5
OPCTRL4
OPCTRL3
OPCTRL2
OPCTRL1
OPCTRL0

IC
R119

MT5369_XTAL_OUTMT5369_XTAL_IN

0

+3.3V_NORMAL

AR18
AP18

AU16
AT16

A35
C33
B34
D33
D29
C30
D30
B31
A31
B32
A32
C32
D32
A34
C34
C29

AM20

SOC_TX
SOC_RX

EMMC_DATA[7]
EMMC_DATA[6]
EMMC_DATA[5]
EMMC_DATA[4]
EMMC_DATA[3]
EMMC_DATA[2]

EMMC_DATA[1]

R165

4.7K

EMMC_CMD

EMMC_DATA[0]
EMMC_CLK

R167

4.7K

M_REMOTE_RX
M_REMOTE_TX

+3.3V_NORMAL

+3.3V_NORMAL

EMMC_DATA[2-7]

AM22

AU21

D27

AT21
AR21

T34
T32
T36
U36
T33
T30
V33
V32
V31
V30
T35
T31

N36
T37
R35
R37
R36

R34
R32
R33
P33
P34

N37
P35
N34
N35

AU12
AT12
AR12

A37
C35
A36
B35
B36
B37

AT11
AU11
AR10
AM9
AP10

AN22
AP21

AU20
AT20
AN18
AP20
AM18
AN19
AP19
AR19
AN21
AM19
AN20
AR20

AMP_RESET_SOC AMP_RESET_N

OPT

R159 4.7K

STB_SCL
STB_SDA

PCM_RST
FE_TS_CLK

/CI_CD2
/CI_CD1
/PCM_IORD
/PCM_IOWR

SMARTCARD_CLK

SMARTCARD_PWR_SEL

SMARTCARD_RST
SMARTCARD_DET
SMARTCARD_VCC
SMARTCARD_DATA

AMP_RESET_BY_SOC

FOR JAPAN

R124

33

IR

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

FE_TS_SYNC
FE_TS_VAL

/PCM_REG

/PCM_CE1

MT5369_TS_SYNC

/PCM_WE
/PCM_OE

MT5369_TS_VAL

CI_A_VS1

MT5369_TS_CLK
/PCM_IRQA
/PCM_WAIT

+3.3V_NORMAL

R166

2.7K
OPT

R169 10K

OPT

L/DIM0_SCLK
L/DIM0_VS
L/DIM0_MOSI

LED_PWM1
LED_PWM0

5V Tolerance

OPCTRL_11_SCL

OPCTRL_10_SDA
COMP1_DET
SC_DET
DSUB_DET
HP_DET
AV1_CVBS_DET

AMP_RESET_SOC
OPCTRL3

RF_SWITCH_CTL
OPCTRL_1_SCL
OPCTRL_0_SDA

R100

10K

R172

22

CI SLOT -> SOC

CI SLOT -> SOC

CI SLOT -> SOC

R168

4.7K
OPT

R120
1K

PWM1_PULL_DOWN_1K

AMP_RESET_BY_SOC

33

R158

2011.12.13

8

R157

4.7K
OPT

R178

4.7K
OPT

R155
10K

OPT

SOC_RESET

C114

0.1uF
16V

FE_TS_DATA[0-7]

EXTERNAL DEMOD

-> SOC

R161

4.7K
OPT

R171

22

22

R170

R126
1K

PWM2_PULL_DOWN_1K

SMARTCARD_CLK

SMARTCARD_PWR_SEL

SMARTCARD_RST

SMARTCARD_DET

SMARTCARD_VCC

SMARTCARD_DATA

FOR JAPAN

C120

2.2uF
10V
OPT

PWM_DIM2
PWM_DIM1
A_DIM

PLACE AT JACK SIDE

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

DDC_SCL_2_JACK
DDC_SCL_3_JACK

DDC_SCL_1_SOC
DDC_SCL_4_JACK

DDC_SDA_2_JACK
DDC_SDA_3_JACK

DDC_SDA_1_SOC
DDC_SDA_4_JACK

5V_HDMI_2_JACK
5V_HDMI_3_JACK

5V_HDMI_1_SOC

5V_HDMI_4_JACK

HDMI_HPD_2_JACK
HDMI_HPD_3_JACK

HDMI_HPD_1_SOC
HDMI_HPD_4_JACK

+1.2V_MTK_AVDD

C303

0.1uF

VDD3V3

C304

0.1uF

Port was changed !!!!

VDD3V3

C308

0.1uF

C302

0.1uF

VDD3V3

C306

0.1uF

0.1uF

C307

R304
R305
R306
R307 1K

+1.2V_MTK_AVDD

C316

0.1uF

HP_LOUT_AMP

HP_ROUT_AMP

USB_DP3
USB_DM3

USB_DP2
USB_DM2

WIFI_DP
WIFI_DM

USB_DP1
USB_DM1

1K
1K
1K

PC_L_IN

PC_R_IN

AA32

AG33
AE33
AC33
AH32

AF33
AD33
AB33
AH33

AG31
AE31
AC31
AH31

AG32
AE32
AC32
AJ32

AA24

Y24
W24

AB24

AB29
AA29

Y29

AC29

AB30
AD30
AF31
AF32

C36
C37

D36
D37

AT13
AU13

AT14
AU14

D35

AP13

D34

AR13

W35
W34
Y34
Y35

U24
V24

W30

W36
W37

BLM18PG121SN1D

BLM18PG121SN1D

R300
470K

OPT

R301
470K

OPT

HDMI_CEC

HDMI_0_SCL
HDMI_1_SCL
HDMI_2_SCL
HDMI_3_SCL

HDMI_0_SDA
HDMI_1_SDA
HDMI_2_SDA
HDMI_3_SDA

HDMI_0_PWR5V
HDMI_1_PWR5V
HDMI_2_PWR5V
HDMI_3_PWR5V

HDMI_0_HPD
HDMI_1_HPD
HDMI_2_HPD
HDMI_3_HPD

AVDD12_HDMI_0_RX
AVDD12_HDMI_1_RX
AVDD12_HDMI_2_RX
AVDD12_HDMI_3_RX

AVDD33_HDMI_0_RX
AVDD33_HDMI_1_RX
AVDD33_HDMI_2_RX
AVDD33_HDMI_3_RX

AVSS33_HDMI_RX_1
AVSS33_HDMI_RX_2
AVSS33_HDMI_RX_3
AVSS33_HDMI_RX_4

USB_DP_P0
USB_DM_P0

USB_DP_P1
USB_DM_P1

USB_DP_P2
USB_DM_P2

USB_DP_P3
USB_DM_P3

AVDD33_USB_P0P1
AVDD33_USB_P2P3

AVSS33_USB_P1
AVSS33_USB_P2

PCIE11_TXP
PCIE11_TXN
PCIE11_RXN
PCIE11_RXP

AVDD12_PCIE11
AVDD33_PCIE11

AVSS12_PCIE11

PCIE11_REFCKN
PCIE11_REFCKP

HP_OUT
L303

HP_OUT
L302

Place at JACK SIDE

ARC

IC105

LGE2112

HP_OUT
C332

0.22uF
10V

HP_OUT
C331

0.22uF
10V

R302

180

HDMI_0_RX_0B

HDMI_0_RX_1B

HDMI_0_RX_2B

HDMI_0_RX_CB

HDMI_1_RX_0B

HDMI_1_RX_1B

HDMI_1_RX_2B

HDMI_1_RX_CB

HDMI_2_RX_0B

HDMI_2_RX_1B

HDMI_2_RX_2B

HDMI_2_RX_CB

HDMI_3_RX_0B

HDMI_3_RX_1B

HDMI_3_RX_2B

HDMI_3_RX_CB

HP_ROUT

1608 sizs For EMI

C300
560pF
50V
OPT

1608 sizs For EMI

C301
560pF
50V
OPT

R303

82

HDMI_0_RX_0

HDMI_0_RX_1

HDMI_0_RX_2

HDMI_0_RX_C

HDMI_1_RX_0

HDMI_1_RX_1

HDMI_1_RX_2

HDMI_1_RX_C

HDMI_2_RX_0

HDMI_2_RX_1

HDMI_2_RX_2

HDMI_2_RX_C

HDMI_3_RX_0

HDMI_3_RX_1

HDMI_3_RX_2

HDMI_3_RX_C

TXVP_0
TXVN_0

RXVN_1
RXVP_1

PHYLED1
PHYLED0

REXT

AVDD12_REC

AVDD33_COM

AVDD33_LD

AVSS33_LD
AVSS33_COM
AVSS12_REC

HP_LOUT

R314

0

R336

0

10V

C311 1uF

AG35
AG34
AG37
AG36
AF35
AF34
AH35
AH34

AE37
AE36
AD35
AD34
AC35
AC34
AE35
AE34

AB35
AB34
AA35
AA34
AA37
AA36
AC37
AC36

AK35
AK34
AJ35
AJ34
AJ37
AJ36
AJ33
AK33

AT18
AU18

AU17
AT17

AN16
AM16

AD15

AD14

AD16
AD17

AL16
AL15
AL14

C314
100pF
50V

OPT

C315
100pF
50V
OPT

+5V_NORMAL

R308

1.2K
OPT

R309
100K

+1.2V_MTK_AVDD

C323

0.1uF

C319
10uF
16V

C320
10uF
16V

HDMI_ARC

D0+_HDMI2_JACK
D0-_HDMI2_JACK
D1+_HDMI2_JACK
D1-_HDMI2_JACK
D2+_HDMI2_JACK
D2-_HDMI2_JACK
CK+_HDMI2_JACK
CK-_HDMI2_JACK

D0+_HDMI3_JACK
D0-_HDMI3_JACK
D1+_HDMI3_JACK
D1-_HDMI3_JACK
D2+_HDMI3_JACK
D2-_HDMI3_JACK
CK+_HDMI3_JACK
CK-_HDMI3_JACK

D0+_HDMI1_SOC
D0-_HDMI1_SOC
D1+_HDMI1_SOC
D1-_HDMI1_SOC
D2+_HDMI1_SOC
D2-_HDMI1_SOC
CK+_HDMI1_SOC
CK-_HDMI1_SOC

D0+_HDMI4_JACK
D0-_HDMI4_JACK
D1+_HDMI4_JACK
D1-_HDMI4_JACK
D2+_HDMI4_JACK
D2-_HDMI4_JACK
CK+_HDMI4_JACK
CK-_HDMI4_JACK

R31524K

VDD3V3

C328

0.1uF

PC_L_IN_SOC

PC_R_IN_SOC

EPHY_TDP
EPHY_TDN

EPHY_RDN
EPHY_RDP

IF_P

Close to Tuner

IF_N

DSUB_VSYNC

DSUB_HSYNC

T/C&AT&CHB
R346 0

R331 0

T/C&AT&CHB

1608 sizs For EMI

AOCLKN
AOCLKP

AECLKN
AECLKP

BOCLKN
BOCLKP

BECLKN
BECLKP

AR0_ADAC
AL0_ADAC

AR1_ADAC
AL1_ADAC

AR2_ADAC
AL2_ADAC

AR3_ADAC
AL3_ADAC

AVDD33_DAC

AVSS33_DAC

ASPDIF0
ASPDIF1

AOBCK
AOLRCK
AOMCLK

AOSDATA4
AOSDATA3
AOSDATA2
AOSDATA1
AOSDATA0

HSYNC

VSYNC

VGA_SDA
VGA_SCL

VDACX_OUT
VDACY_OUT

AVDD12_RGB

AVSS12_RGB

AO3N
AO3P
AO4N
AO4P

AO2N
AO2P
AO1N
AO1P
AO0N
AO0P

AE4N
AE4P
AE3N
AE3P

AE2N
AE2P
AE1N
AE1P
AE0N
AE0P

BO4N
BO4P
BO3N
BO3P

BO2N
BO2P
BO1N
BO1P
BO0N
BO0P

BE4N
BE4P
BE3N
BE3P

BE2N
BE2P
BE1N
BE1P
BE0N
BE0P

ALIN

COM
SOG

COM1
PB1P
PR1P

Y1P
SOY1
COM0
PB0P
PR0P

Y0P
SOY0

R328
470K

OPT

R329
470K
OPT

RP
GP
BP

R333

120-ohm
C344
27pF
50V
OPT

CHANGE SYMBOL

AG3
AG4
AG1
AG2
AF3
AF4
AE3
AE4
AE1
AE2
AD1
AD2

AL3
AL4
AL1
AL2
AK3
AK4
AJ3
AJ4
AJ1
AJ2
AH3
AH4

AT2
AU2
AT1
AU1
AR1
AR2
AP1
AP2
AN1
AN2
AM3
AM4

AT6
AU6
AP6
AR6
AP5
AR5
AT4
AU4
AP4
AR4
AP3
AR3

AN35
AN34

AM32
AM34

AM37
AM33

AM36
AM35

AG30
AF30

AK30
AE30

Y33
AR16
Y32
AR11
AP11
AM12
AM10
AM11
AN11
AN10
AN9

AN25
AM25
AR25
AR24
AU24
AP24
AT24
AR22
AP22

AT26
AR26
AP26
AU26
AP25
AU28
AT28
AR28
AP27
AR27

AU30
AP29

AD20
AD21

AD19

AJ22
AJ21
AL24

C348
100pF
50V

R3761.2K
R3771.2K

Don’t use as GPIO

C3660.01uF
C3670.01uF
C3680.01uF
C3690.01uF
C3701500pF

OPT

R3490
R3500

1608 sizs For EMI

R344

30K

C338
560pF
50V
OPT

1608 sizs For EMI

R345

30K

C339
560pF
50V
OPT

TXC4N
TXC4P
TXC3N
TXC3P
TXCCLKN
TXCCLKP
TXC2N
TXC2P
TXC1N
TXC1P
TXC0N
TXC0P

TXD4N
TXD4P
TXD3N
TXD3P
TXDCLKN
TXDCLKP
TXD2N
TXD2P
TXD1N
TXD1P
TXD0N
TXD0P

TXA4N

CH3

TXA4P
TXA3N
TXA3P
TXACLKN

CH2

TXACLKP
TXA2N
TXA2P
TXA1N

CH1

TXA1P
TXA0N
TXA0P

TXB4N
TXB4P
TXB3N
TXB3P
TXBCLKN
TXBCLKP
TXB2N

CH6

TXB2P
TXB1N

CH5

TXB1P
TXB0N

CH4

TXB0P

C397
1200pF

C365

C380

0.01uF

0.1uF

R366 100
R367 100
R368 100

RGB_DDC_SDA
RGB_DDC_SCL

C3710.01uF
C3720.01uF
C3730.01uF
C3740.01uF
C3751500pF

VDD3V3

+1.2V_MTK_AVDD

R330
75
1%

C342
100pF
50V

C343
100pF
50V

C398

1200pF

R371 100

R356100
R357100
R358100
R359100

R361100
R362100
R363100
R364100

DTV/MNT_V_OUT_SOC

C382

0.1uF

C340
47pF
50V

C345
10uF
16V

C346
10uF
16V

HP_OUT

HP_OUT

R3781.2K
R3791.2K

DAC_3V3

DSUB_HSYNC_SOC
DSUB_VSYNC_SOC

R3511.2K
R3521.2K

C399
1200pF

C387
22pF
OPT

For PCB Pattern

COMP1_Pb_SOC
COMP1_Pr_SOC
COMP1_Y_SOC

AV1_CVBS_IN_SOC

C377
1200pF

1200pF

HP_OUT

C400
1200pF

SPDIF_OUT

ARC

C389

C393

22pF

22pF

OPT

OPT

SC_COM_SOC
SC_G_SOC
SC_R_SOC
SC_B_SOC
SC_FB_SOC

AV1_L_IN_SOC

AV1_R_IN_SOC

C383

HP_OUT

C396
33pF
OPT

HP_OUT

HP_OUT

R3691.2K
R3701.2K

C390
1200pF

HP_OUT

AUD_SCK
AUD_LRCK
AUD_MASTER_CLK
AUD_LRCH

C395
1200pF
HP_OUT

1.0Vpp

COMP1_Y

COMP1_Pb

COMP1_Pr

For PCB Pattern

HP_ROUT_MAIN
HP_LOUT_MAIN

SCART_Rout_SOC
SCART_Lout_SOC

AUDIO_R_OUT_COMMERCIAL
AUDIO_L_OUT_COMMERCIAL

ZD302

5.48VTO5.76V

ZD303

5.48VTO5.76V

ZD304

5.48VTO5.76V
ZD305

5.48VTO5.76V

ZD306

5.48VTO5.76V
ZD307

5.48VTO5.76V

PLACE AT JACK SIDE

C333

R322

47pF

75

50V

C335

R321

47pF

75

50V

C334

R320

47pF

75

50V

L300

BLM15BD121SN1

D301
ADLC 5S 02 015

5.5V

L301

BLM15BD121SN1

D300
ADLC 5S 02 015

5.5V

L304

BLM15BD121SN1

D302
ADLC 5S 02 015

5.5V

1608 sizs For EMI

0

R374

C388
27pF
50V
OPT

1608 sizs For EMI

0

R373

C386
27pF
50V
OPT

1608 sizs For EMI

0

R372

C385
27pF
50V

FOR EMI

OPT

DSUB_R+

DSUB_G+

DSUB_B+

C394
27pF
50V
OPT

C391
27pF
50V
OPT

C392
27pF
50V
OPT

R355
75

1%

R354
75

1%

R353
75

1%

MT5369_TS_OUT[0-7]

CI_DATA[0-7]

C384
10pF
50V

C379
10pF
50V

C378
10pF
50V

MT5369_MCLKI

MT5369_MIVAL_ERR

MT5369_MISTRT

COMP1_Y_SOC

COMP1_Pb_SOC

COMP1_Pr_SOC

CI_ADDR[0-14]

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

MT5369_TS_OUT[0]
MT5369_TS_OUT[1]
MT5369_TS_OUT[2]
MT5369_TS_OUT[3]
MT5369_TS_OUT[4]
MT5369_TS_OUT[5]
MT5369_TS_OUT[6]
MT5369_TS_OUT[7]

MT5369_TS_IN[0]
MT5369_TS_IN[1]
MT5369_TS_IN[2]
MT5369_TS_IN[3]
MT5369_TS_IN[4]
MT5369_TS_IN[5]
MT5369_TS_IN[6]
MT5369_TS_IN[7]

SC_ID_SOC

/CI_CD2

/CI_CD1
/PCM_IORD
/PCM_IOWR

PCM_RST

/PCM_REG

/PCM_CE1

MT5369_TS_SYNC

/PCM_WE

/PCM_OE

MT5369_TS_VAL

CI_A_VS1

MT5369_TS_CLK

/PCM_IRQA

/PCM_WAIT
SC_R_IN_SOC
SC_L_IN_SOC

SC_CVBS_IN_SOC

SC_COM_SOC

SC_G_SOC
SC_R_SOC
SC_B_SOC

SC_FB_SOC

DTV/MNT_V_OUT_SOC

SCART_Rout_SOC
SCART_Lout_SOC

PCM_5V_CTL

SC_DET

CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]
CI_ADDR[8]
CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

TP307
TP308
TP309
TP310
TP311

TP312
TP313
TP314
TP315
TP316
TP317
TP318
TP319
TP320
TP321
TP322
TP323
TP324
TP325
TP326
TP327
TP328
TP329
TP330
TP331
TP332
TP333
TP334
TP335
TP336
TP337
TP338
TP339
TP340
TP341
TP342
TP343
TP344
TP345
TP346
TP347
TP348
TP349
TP350
TP351
TP352
TP353
TP354
TP355
TP356
TP357
TP358

TP359
TP360
TP361
TP362
TP363
TP364
TP365
TP366
TP367
TP368
TP369
TP370
TP371
TP372
TP373
TP374
TP375

TP377

TP378

AV1_CVBS_IN

2K

2K

+1.2V_MTK_AVDD

C350

0.1uF

For PCB Pattern

AV1_R_IN_SOC
AV1_L_IN_SOC

R334 51

T/C&AT&CHB

R335 51

T/C&AT&CHB

T/C&AT&CHB

R332 10K

Close to Tuner

C341

0.047uF
T/C&AT&CHB

For PCB Pattern

SC_R_IN_SOC
SC_L_IN_SOC

PC_R_IN_SOC
PC_L_IN_SOC

TUNER_SIF

DSUB_VSYNC_SOC

DSUB_HSYNC_SOC

C354

0.1uF

C347

0.1uF

R311 30K

SC_CVBS_IN_SOC

AV1_CVBS_IN_SOC

TU_CVBS

VDD3V3

MODEL_OPT_2

R310 30K

R339

2.2K
OPT

+1.2V_MTK_AVDD

MODEL_OPT_10

R338 0

C305

1uF
25V

C352 0.01uF

C351

0.1uF

Close to MT5369

R341 100
R340 100

MODEL_OPT_8
MODEL_OPT_9

GCLK_SOC
MCLK_SOC

GST_SOC

EO_SOC

VCOM_DYN

PMIC_RESET

2D/3D_CTL

PCM_5V_CTL

EMMC_RST

R337 0

C362

0.1uF

C358

0.01uF
50V

VDD3V3

T/C&AT&CHB

R342 10K
C355

0.047uF
T/C&AT&CHB

OSCL2
OSDA2

C360 0.047uF
C359 0.047uF

C361 1uF

VDD3V3

R343

VDD3V3

C363

24K
1%

1uF
25V

C364

0.1uF

TP300

C329

5pF
50V

OPT

C330

5pF
50V
OPT

C309

OPT

IF_AGC

R323

C336

10V

T/C&AT&CHB

C337 1uF

10V

T/C&AT&CHB

22

T/C&AT&CHB

1uF

T/C&AT&CHB

R325

OPT

R326

C312

33pF

Close to MT5369

C310

33pF

OPT

R324

22

F27
E27
F30
F29
B27
A27
B28
A28
C28
D28
E28
F28
B29

AG6
AJ6
AF6
AE6
AH7

AJ5
AG5
AF5
AE5
AH5

AG7

AU37
AU35
AT35
AT37
AU36
AP34
AT36
AR37
AR33
AP32
AR36
AP37
AR35
AP36

AL31
AJ28

AJ27

AN28

AU32
AT32

AD22

AL27

AM28
AJ26

U35
U34

AP31
AN30

V35
V34

AP28
AR29

AT30
AR30
AR31
AN29
AP30

AK24
AK25

AL25
AM26

ZD300

5.48VTO5.76V
ZD301

5.48VTO5.76V

AV1_L_IN

AV1_R_IN

LGE2112

TCON0
TCON1
TCON2
TCON3
TCON4
TCON5
TCON6
TCON7
TCON8
TCON9
TCON10
TCON11
TCON12

AVDD12_LVDS_1
AVDD12_LVDS_2
AVDD12_VPLL
AVDD33_LVDSB
AVDD33_LVDSA

AVSS12_LVDS_2
AVSS12_LVDS_1
AVSS12_VPLL
AVSS33_LVDSB
AVSS33_LVDSA

REXT_VPLL

AIN0_R_AADC
AIN0_L_AADC
AIN1_R_AADC
AIN1_L_AADC
AIN2_R_AADC
AIN2_L_AADC
AIN3_R_AADC
AIN3_L_AADC
AIN4_R_AADC
AIN4_L_AADC
AIN5_R_AADC
AIN5_L_AADC
AIN6_R_AADC
AIN6_L_AADC

AVDD33_AADC
AVSS33_AADC

VMID_AADC

MPXP

ADCINP_DEMOD
ADCINN_DEMOD

AVDD33_DEMOD

AVDD12_DEMOD

AVSS33_DEMOD
AVSS12_DEMOD

IF_AGC
RF_AGC

LOUTN
LOUTP

OSCL2
OSDA2

SC0
SY0

CVBS3P
CVBS2P
CVBS1P
CVBS0P
CVBS_COM

AVDD33_CVBS_1
AVDD33_CVBS_2

AVSS33_CVBS_1
AVSS33_CVBS_2

IC105

AVDD33_VDAC_BG

AVSS33_VDAC_BG

AVDD33_DAC1

AVSS33_DAC1

AVDD33_VDAC

AVSS33_VDAC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_MAIN_2

2011.12.19

9

+3.3V_NORMAL

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

BLM18PG121SN1D

C500
10uF

VDD3V3

L500

L501

BLM18PG121SN1D

POWER_ON/OFF1

VDD3V3

C503
10uF

60mA

C510

0.1uF

AVDD_33SB

C501

0.1uF

TP500

C504

2.2uF

+1.2V_MTK_CORE

+1.2V_MTK_CORE

+1.2V_MTK_CORE +1.2V_MTK_AVDD

+5V_NORMAL

C526
10uF
10V

C506

C524

10uF

10uF

C539

C543

10uF

0.1uF

L502

BLM18PG121SN1D

5600mA

C505
10uF

C546

0.1uF

C525
10uF

IC501

AP1117E33G-13

INADJ/GND

OUT

C529

0.1uF

C548

0.1uF

C502

0.1uF

C532

0.1uF

C550

0.1uF

DAC_3V3

C535

0.1uF

C552

0.1uF

R500
1

C540
10uF
10V

C553

0.1uF

C544

0.1uF
16V

+1.2V_MTK_CORE

AA14
AB14
AC14
AC19

AC15

AC16

AA23

IC105

LGE2112

AR7

VCCK_43

AT7

VCCK_45

AU7

VCCK_47

AP8

VCCK_42

AR8

VCCK_44

AT8

VCCK_46

AU8

VCCK_48

AM7

VCCK_37

AN7

VCCK_39

AP7

VCCK_41

AM8

VCCK_38

AN8

VCCK_40

P14

VCCK_1

R14

VCCK_9

T14

VCCK_11

U14

VCCK_13

V14

VCCK_14

W14

VCCK_16

Y14

VCCK_18
VCCK_20
VCCK_22
VCCK_23
VCCK_28

P15

VCCK_2
VCCK_24

P16

VCCK_3
VCCK_25

V23

VCCK_15

W23

VCCK_17

Y23

VCCK_19
VCCK_21

VCCK_31
VCCK_32
VCCK_36

VCCK_8
VCCK_10
VCCK_12
VCCK_33
VCCK_30

VCCK_7
VCCK_29

VCCK_6
VCCK_27

VCCK_5
VCCK_26

VCCK_4
VCCK_34
VCCK_35

VCC3IO_B_4
VCC3IO_B_2
VCC3IO_B_1
VCC3IO_B_3
VCC3IO_A_5
VCC3IO_A_7
VCC3IO_A_6
VCC3IO_A_8
VCC3IO_A_3
VCC3IO_A_4
VCC3IO_A_2
VCC3IO_A_1

AC22
AC23
AD24
P23
R24
T24
AC24
AC21
P20
AC20
P19
AC18
P18
AC17
P17
AD18
AD23

AL9
AK10
AK9
AK11
H29
J29
H30
J30
G31
G32
F33
E34

+1.2V_MTK_CORE

VDD3V3

AA15
AB15

AA16
AB16

AA17
AB17

R2
R3
J4
R4
Y4
F5
J5
R5
Y5
W5
L7
M7

R7
AA5
AB5

K7

U7

W7

E9

E8

F9
G14

J6
R15
T15
U15
V15
W15
Y15

H11
R16
T16
U16
V16
W16
Y16

R17
T17
U17
V17
Y17
T18
V18
Y18
T19
V19
Y19
W17

R18
AB6
H19
H22
J11
J12
J22

DVSS_51
DVSS_52
DVSS_37
DVSS_53
DVSS_107
DVSS_20
DVSS_38
DVSS_54
DVSS_108
DVSS_95
DVSS_44
DVSS_46
DVSS_56
DVSS_120
DVSS_130
DVSS_43
DVSS_77
DVSS_97
DVSS_13
DVSS_12
DVSS_22
DVSS_28
DVSS_39
DVSS_57
DVSS_68
DVSS_78
DVSS_87
DVSS_99
DVSS_112
DVSS_122
DVSS_132
DVSS_34
DVSS_58
DVSS_69
DVSS_79
DVSS_88
DVSS_100
DVSS_113
DVSS_123
DVSS_133
DVSS_59
DVSS_70
DVSS_80
DVSS_89
DVSS_114
DVSS_71
DVSS_90
DVSS_115
DVSS_72
DVSS_91
DVSS_116
DVSS_101
DVSS_124
DVSS_134
DVSS_60
DVSS_131
DVSS_35
DVSS_36
DVSS_40
DVSS_41
DVSS_42

IC105

LGE2112

DVSS_55
DVSS_62
DVSS_73
DVSS_83

DVSS_92
DVSS_104
DVSS_117
DVSS_127
DVSS_137

DVSS_29

DVSS_63

DVSS_74

DVSS_84

DVSS_93
DVSS_105
DVSS_118
DVSS_128
DVSS_138

DVSS_64

DVSS_75

DVSS_85

DVSS_94
DVSS_106
DVSS_119
DVSS_129
DVSS_139

DVSS_65

DVSS_76

DVSS_86
DVSS_140

DVSS_96

DVSS_30

DVSS_27
DVSS_109

DVSS_17

DVSS_25

DVSS_45

DVSS_66

DVSS_7

DVSS_14

DVSS_8
DVSS_18
DVSS_26
DVSS_33

DVSS_136
DVSS_126

DVSS_49

DVSS_103

DVSS_82
DVSS_61

DVSS_110
DVSS_135
DVSS_125
DVSS_102

DVSS_81

DVSS_121

DVSS_47
DVSS_67
DVSS_98

DVSS_111

DVSS_11
DVSS_21

R6
R20
T20
U20
V20
W20
Y20
AA20
AB20
G16
R21
T21
U21
V21
W21
Y21
AA21
AB21
R22
T22
U22
V22
W22
Y22
AA22
AB22
R23
T23
U23
AB23
W6
G17
F25
Y6
E21
F21
L8
T7
D11
E11
D12
E22
F22
G25
AB19
AA19
P22
W19
U19
R19
Y7
AB18
AA18
W18
U18
AA7
N22
T8
W8
Y8
E7
F8

+3.3V_NORMAL

3.3V_EMMC

L504

BLM18PG121SN1D

C512

0.1uF
16V

+3.3V_NORMAL

EMMC_VCCQ

L506
BLM18PG121SN1D

C522

0.1uF
16V

LAN_JACK_POWER

TP501

SMD Gaskit

LAN RGB COMP

M501

M500

SMD_GASKIT_8.5T_LAN

M503

MDS62110217

SMD_GASKIT_12.5T_HDMI2

MDS62110209

MDS62110209

SMD_GASKIT_8.5T_RGB

HDMI2~3HDMI1~2 USB1~2 USB3

M504

MDS62110217

SMD_GASKIT_12.5T_USB1

SMD_GASKIT_12.5T_USB3

M502

MDS62110209

SMD_GASKIT_8.5T_COMP

M506

M505

MDS62110217

MDS62110217

SMD_GASKIT_12.5T_HDMI1

DECAP FOR SOC (HIDDEN - UCC) DECAP FOR SOC (BOTTOM)

+1.2V_MTK_CORE

+1.5V_DDR

C508

0.1uF

C514

0.1uF

C520

0.1uF

C523

0.1uF

C527

0.1uF

+1.2V_MTK_CORE

C531

0.1uF

+1.5V_DDR

C533

0.1uF

C536

0.1uF

C537

0.1uF

C545

0.1uF

C547

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_MAIN_3

2011.12.09

10

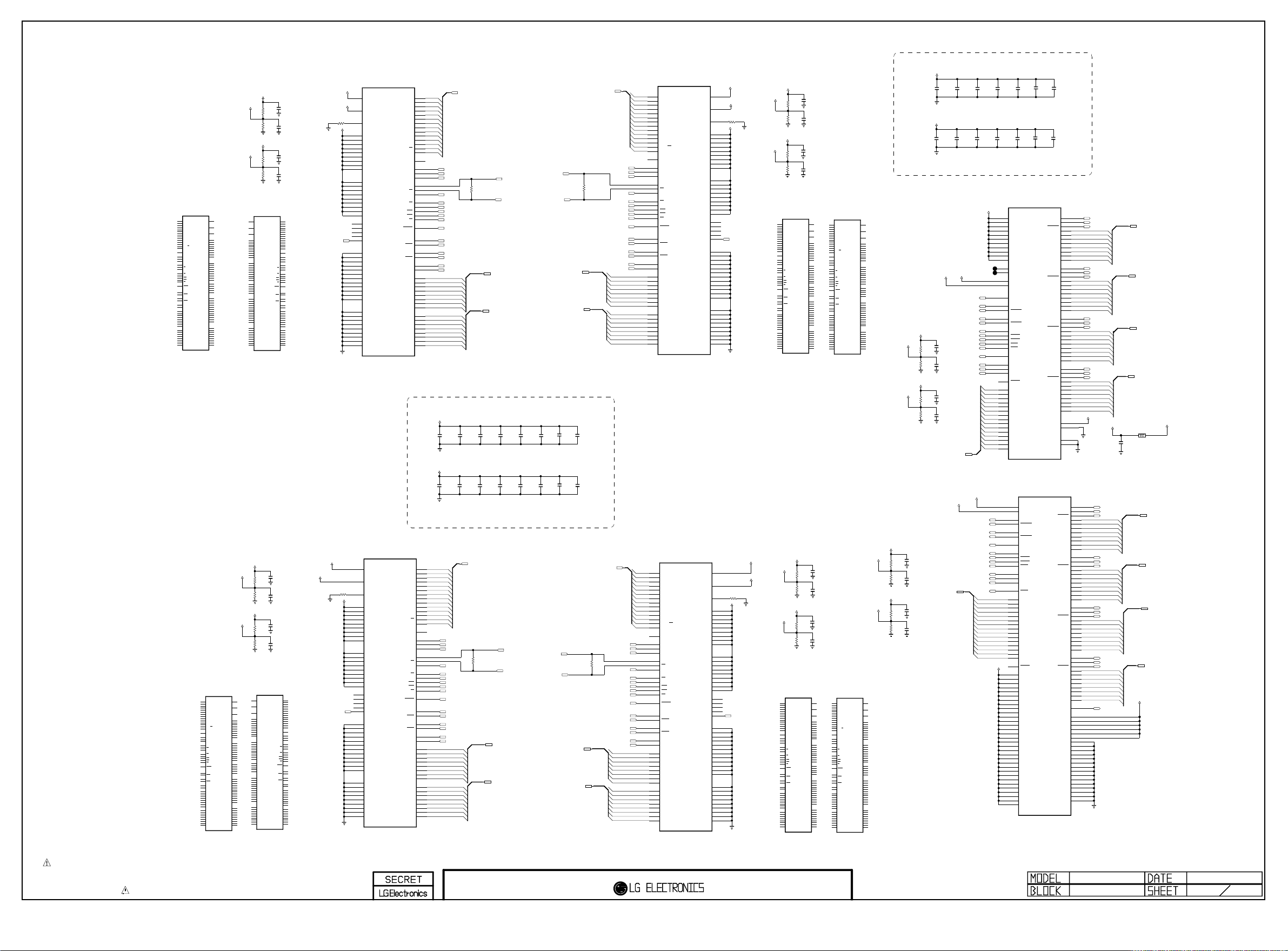

K4B2G1646C-HCK0

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC701-*2

DDR_SS

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

RVREF_A

RVREF_B

+1.5V_DDR

+1.5V_DDR

R730
1K
1%

R731
1K
1%

R732
1K
1%

R733
1K
1%

+1.5V_DDR

+1.5V_DDR

C750

0.1uF

C745

0.1uF

RVREF_A

C746

0.1uF

C747

0.1uF

C748

0.1uF

C749

0.1uF

RVREF_B

ARA[0-14]

C752

0.1uF

C751

0.1uF

ARCKE

ARCLK1

/ARCLK1

ARCLK0

/ARCLK0

ARODT
/ARRAS
/ARCAS

/ARCS

/ARWE

ARREST

ARBA0

ARBA1

ARBA2

C754

0.1uF

C753

0.1uF

+1.5V_DDR

TP700
TP701

ARA[14]
ARA[13]
ARA[12]
ARA[11]
ARA[10]
ARA[9]
ARA[8]
ARA[7]
ARA[6]
ARA[5]
ARA[4]
ARA[3]
ARA[2]
ARA[1]
ARA[0]

C756

0.1uF

C755

0.1uF

C758

0.1uF

C757

0.1uF

LGE2112

AC1

DDRV_44

AC2

DDRV_45

A3

DDRV_1

A4

DDRV_2

B4

DDRV_5

C4

DDRV_8

D4

DDRV_10

B3

DDRV_4

C3

DDRV_7

AC3

DDRV_46

AC4

DDRV_47

G10

MEMTP

G9

MEMTN

G13

RVREF_B

G21

RVREF_A

F10

ARCKE

D9

ARCLK1

C9

ARCLK1

A20

ARCLK0

A21

ARCLK0

E18

ARODT

F17

ARRAS

E17

ARCAS

E16

ARCS

D14

ARWE

B14

ARRESET

A13

ARBA0

G11

ARBA1

D16

ARBA2

F18

ARCSX

C15

ARA14

A15

ARA13

F13

ARA12

C14

ARA11

F11

ARA10

E15

ARA9

D13

ARA8

B15

ARA7

E14

ARA6

F16

ARA5

E13

ARA4

B13

ARA3

A14

ARA2

F14

ARA1

F15

ARA0

IC105

1uF

C702
1uF

ARDQM0
ARDQS0
ARDQS0

ARDQ0
ARDQ1
ARDQ2
ARDQ3
ARDQ4
ARDQ5
ARDQ6
ARDQ7

ARDQM1
ARDQS1
ARDQS1

ARDQ8

ARDQ9
ARDQ10
ARDQ11
ARDQ12
ARDQ13
ARDQ14
ARDQ15

ARDQM2
ARDQS2
ARDQS2
ARDQ16
ARDQ17
ARDQ18
ARDQ19
ARDQ20
ARDQ21
ARDQ22
ARDQ23

ARDQM3
ARDQS3
ARDQS3
ARDQ24
ARDQ25
ARDQ26
ARDQ27
ARDQ28
ARDQ29
ARDQ30
ARDQ31

AVDD33_MEMPLL
AVSS33_MEMPLL

DVSS_50
DVSS_48

10uF
10V

C704
10uF
10V

C19

ARDQM0

C21

ARDQS0

B21
C23
B17
D23
C17
D24
C16
C24
D15

D21
B20
C20
A17
A23
D17
B23
D20
D22
D19
C22

A7
B9
A9
C12
D6
B12
C5
C13
A5
A12
B5

E10
C8
D8
C6
D10
D7
C11
C7
C10
B7
B10

N14
N15

R1
P21

/ARDQS0

ARDQM1
ARDQS1
/ARDQS1

ARDQM2
ARDQS2
/ARDQS2

ARDQM3
ARDQS3
/ARDQS3

AVDD3V3_MEMPLL

AVDD3V3_MEMPLL

0.1uF

ARDQ[0-7]

ARDQ[8-15]

ARDQ[16-23]

ARDQ[24-31]

+3.3V_NORMAL

L700

BLM18PG121SN1D

C700

C701

C703

IC701

H5TQ2G63BFR-PBC

R710

ARA[14]

A_RVREF4

A_RVREF1

+1.5V_DDR

A10/AP

A12/BC

RESET

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

ARA[10]

L7

ARA[11]

R7

A11

ARA[12]

N7

ARA[13]

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

1%
240

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_HYNIX

+1.5V_DDR

A_RVREF1

C713

R706

0.1uF
1K
1%

R707
1K

C714

1%

0.1uF

+1.5V_DDR

A_RVREF4

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

IC701-*1

NT5CB128M16BP-DI

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

C715

R708

0.1uF
1K
1%

R709
1K

C716

1%

0.1uF

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_NANYA

ARA[0]
ARA[1]
ARA[2]
ARA[3]
ARA[4]
ARA[5]
ARA[6]
ARA[7]
ARA[8]
ARA[9]

ARBA0
ARBA1
ARBA2

ARCKE

/ARCS
ARODT
/ARRAS
/ARCAS
/ARWE

ARREST

ARDQS0
/ARDQS0

ARDQS1
/ARDQS1

ARDQM0
ARDQM1

ARA[0-13]

ARCLK0

R712
100
5%

/ARCLK0

ARDQ[0-7]

ARDQ[8-15]

ARCLK1

/ARCLK1

ARDQ[16-23]

ARDQ[24-31]

ARA[0-13]

R714
100
5%

/ARRAS
/ARCAS

ARREST

ARDQS2

/ARDQS2

ARDQS3

/ARDQS3

ARDQM2

ARDQM3
ARDQ[16]
ARDQ[17]
ARDQ[18]
ARDQ[19]
ARDQ[20]
ARDQ[21]
ARDQ[22]
ARDQ[23]

ARDQ[24]
ARDQ[25]
ARDQ[26]
ARDQ[27]
ARDQ[28]
ARDQ[29]
ARDQ[30]
ARDQ[31]

ARBA0
ARBA1
ARBA2

ARCKE

/ARCS
ARODT

/ARWE

ARA[0]
ARA[1]
ARA[2]
ARA[3]
ARA[4]
ARA[5]
ARA[6]
ARA[7]
ARA[8]
ARA[9]
ARA[10]
ARA[11]
ARA[12]
ARA[13]

IC703

H5TQ2G63BFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_HYNIX

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

A_RVREF2

M8

A_RVREF3

H1

1%

240

R716

L8

ZQ

+1.5V_DDR

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

ARA[14]

NC_6

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

A_RVREF2

A_RVREF3

+1.5V_DDR

+1.5V_DDR

IC703-*1

NT5CB128M16BP-DI

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_NANYA

C735

R720

0.1uF
1K
1%

R721
1K

C736

1%

0.1uF

C733

R718

0.1uF
1K
1%

R719
1K

C734

1%

0.1uF

IC703-*2

K4B2G1646C-HCK0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

N2

VREFDQ

A3

P8

A4

P2

A5

L8

R8

ZQ

A6

R2

A7

T8

A8

B2

R3

VDD_1

A9

D9

L7

VDD_2

A10/AP

G7

R7

VDD_3

A11

K2

N7

VDD_4

A12/BC

K8

T3

VDD_5

A13

N1

VDD_6

N9

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

C7

A9

DQSU

VSS_1

B3

B7

DQSU

VSS_2

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

DDR_SS

+1.5V_DDR

C707

C705

C718

0.1uF

C720

0.1uF

C722

0.1uF

C724

0.1uF

C726

0.1uF

C728

0.1uF

10uF

1uF

10V

+1.5V_DDR

C708

C727

0.1uF

BRCLK1

/BRCLK1

C706
1uF

BRDQ[16-23]

BRDQ[24-31]

10uF
10V

IC704

BRA[0-13]

R715

100

5%

/BRRAS
/BRCAS

BRREST

BRDQS2

/BRDQS2

BRDQS3

/BRDQS3

BRDQM2

BRDQM3
BRDQ[16]
BRDQ[17]
BRDQ[18]
BRDQ[19]
BRDQ[20]
BRDQ[21]
BRDQ[22]
BRDQ[23]

BRDQ[24]
BRDQ[25]
BRDQ[26]
BRDQ[27]
BRDQ[28]
BRDQ[29]
BRDQ[30]
BRDQ[31]

BRBA0
BRBA1
BRBA2

BRCKE

/BRCS
BRODT

/BRWE

BRA[0]
BRA[1]
BRA[2]
BRA[3]
BRA[4]
BRA[5]
BRA[6]
BRA[7]
BRA[8]
BRA[9]
BRA[10]
BRA[11]
BRA[12]
BRA[13]

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

H5TQ2G63BFR-PBC

B_RVREF8

M8

B_RVREF7

H1

1%

240

R717

L8

ZQ

+1.5V_DDR

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

BRA[14]

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

DDR_HYNIX

B_RVREF7

B_RVREF8

+1.5V_DDR

+1.5V_DDR

NT5CB128M16BP-DI

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_NANYA

IC704-*1

C739

R724

0.1uF
1K
1%

R725
1K

C740

1%

0.1uF

C737

R722

0.1uF
1K
1%

R723
1K

C738

1%

0.1uF

IC704-*2

K4B2G1646C-HCK0

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

N2

VREFDQ

A3

P8

A4

P2

A5

L8

R8

ZQ

A6

R2

A7

T8

A8

B2

R3

VDD_1

A9

D9

L7

VDD_2

A10/AP

G7

R7

VDD_3

A11

K2

N7

VDD_4

A12/BC

K8

T3

VDD_5

A13

N1

VDD_6

N9

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

T7

F3

NC_7

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

DDR_SS

+1.5V_DDR

RVREF_C

C741

R726

0.1uF
1K
1%

R727
1K

C742

1%

0.1uF

+1.5V_DDR

RVREF_D

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

C743

R728

0.1uF
1K
1%

R729
1K

C744

1%

0.1uF

BRA[0-14]

RVREF_D

RVREF_C

BRCLK0

/BRCLK0

BRCLK1

/BRCLK1

BRCKE

BRODT
/BRRAS
/BRCAS

/BRCS

BRBA0

BRBA1

BRBA2

/BRWE
BRA[14]
BRA[13]
BRA[12]
BRA[11]
BRA[10]
BRA[9]
BRA[8]
BRA[7]
BRA[6]
BRA[5]
BRA[4]
BRA[3]
BRA[2]
BRA[1]
BRA[0]

+1.5V_DDR

IC105

LGE2112

P13

RVREF_C

V7

RVREF_D

F4

BRCLK0

F3

BRCLK0

V4

BRCLK1

V3

BRCLK1

P6

BRCKE

H6

BRODT

H4

BRRAS

H5

BRCAS

K3

BRCS

N1

BRBA0

P5

BRBA1

K4

BRBA2

L4

BRWE

L5

BRA14

M4

BRA13

N5

BRA12

M5

BRA11

P4

BRA10

M3

BRA9

L6

BRA8

L3

BRA7

N4

BRA6

K5

BRA5

N6

BRA4

N2

BRA3

M1

BRA2

N3

BRA1

K6

BRA0

G5

BRCSX

D5

DDRV_11

E5

DDRV_13

T5

DDRV_38

V5

DDRV_42

U5

DDRV_40

E6

DDRV_14

F6

DDRV_18

G6

DDRV_23

U6

DDRV_41

T6

DDRV_39

AC5

DDRV_48

F7

DDRV_19

G7

DDRV_24

AC6

DDRV_49

N7

DDRV_36

P7

DDRV_37

V6

DDRV_43

J10

DDRV_35

H10

DDRV_32

H13

DDRV_33

E20

DDRV_15

F20

DDRV_20

G20

DDRV_27

G15

DDRV_25

G18

DDRV_26

D25

DDRV_12

C25

DDRV_9

B25

DDRV_6

A25

DDRV_3

H7

DDRV_30

H8

DDRV_31

J8

DDRV_34

BRDQM0
BRDQS0
BRDQS0

BRDQ0
BRDQ1
BRDQ2
BRDQ3
BRDQ4
BRDQ5
BRDQ6
BRDQ7

BRDQM1
BRDQS1
BRDQS1

BRDQ8

BRDQ9
BRDQ10
BRDQ11
BRDQ12
BRDQ13
BRDQ14
BRDQ15

BRDQM2
BRDQS2
BRDQS2
BRDQ16
BRDQ17
BRDQ18
BRDQ19
BRDQ20
BRDQ21
BRDQ22
BRDQ23

BRDQM3
BRDQS3
BRDQS3
BRDQ24
BRDQ25
BRDQ26
BRDQ27
BRDQ28
BRDQ29
BRDQ30
BRDQ31

BRRESET

DDRV_16
DDRV_22
DDRV_29
DDRV_21
DDRV_28
DDRV_17
DVSS_15
DVSS_23

DVSS_1
DVSS_3
DVSS_5
DVSS_9

DVSS_16
DVSS_24
DVSS_31
DVSS_32
DVSS_19

DVSS_2
DVSS_4
DVSS_6

DVSS_10

G2

BRDQM0

E4

BRDQS0

E3

/BRDQS0

A1
J1
B2
J2
C2
K1
A2
K2

D1

BRDQM1

F1

BRDQS1

F2

/BRDQS1

J3
B1
H3
D3
G3
C1
G4
D2

Y1

BRDQM2

V2

BRDQS2

V1

/BRDQS2

T4
AB4
P2
AB3
P3
AB1
P1
AB2

U1

BRDQM3

W3

BRDQS3

W4

/BRDQS3

AA3
U4
AA4
T3
Y3
U3
Y2
U2

M2

BRREST

E23
F24
G24
F23
G23
E24
E12
F12
A18
B18
C18
D18
E19
F19
G19
G22
E25
A26
B26
C26
D26

BRDQ[0-7]

BRDQ[8-15]

BRDQ[16-23]

BRDQ[24-31]

+1.5V_DDR

IC702-*2

C719

0.1uF

BRA[0-13]

R713
100
5%

C721

0.1uF

BRDQ[0-7]

BRDQ[8-15]

0.1uF

BRCLK0

/BRCLK0

C725

0.1uF

C717

0.1uF

IC702

+1.5V_DDR

M8

H1

1%
240

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

H5TQ2G63BFR-PBC

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

DDR_HYNIX

A10/AP

A12/BC

RESET

BRA[0]

N3

A0

BRA[1]

P7

A1

BRA[2]

P3

A2

BRA[3]

N2

A3

BRA[4]

P8

A4

BRA[5]

P2

A5

BRA[6]

R8

A6

BRA[7]

R2

A7

BRA[8]

T8

A8

BRA[9]

R3

A9

BRA[10]

L7

BRA[11]

R7

A11

BRA[12]

N7

BRA[13]

T3

A13

M7

A15

M2

BA0
BA1
BA2

CK
CK

CKE

CS
ODT
RAS
CAS

WE

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

BRBA0

N8

BRBA1

M3

BRBA2

J7
K7
K9

BRCKE

L2

/BRCS

K1

BRODT

J3

/BRRAS

K3

/BRCAS

L3

/BRWE

T2

BRREST

F3

BRDQS0

G3

/BRDQS0

C7

BRDQS1

B7

/BRDQS1

E7

BRDQM0

D3

BRDQM1

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

B_RVREF6

B_RVREF5

R711

B_RVREF5

+1.5V_DDR

C709

R702

0.1uF
1K
1%

R703
1K

C710

1%

0.1uF

+1.5V_DDR

B_RVREF6

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_SS

R704
1K
1%

R705
1K
1%

IC702-*1

NT5CB128M16BP-DI

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_NANYA

C711

0.1uF

C712

0.1uF

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

BRA[14]

C723

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2011.12.09

DDR ONE SIDE 12

FROM LIPS & POWER B/D

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

+12V

C2401

0.1uF

+3.5V_ST

RL_ON

L2402

CIS21J121

C2406

0.1uF
16V

L2401

CIS21J121

50V

#16/#20/#23
LD - GND OR USE
LE(N.L.D.) - OPEN
LE(L.D.) - USE

R2401

10K

R2408

10K

MMBT3906(NXP)

Q2401

3

1

2

PWM_DIM2

PWR ON

3.5V

3.5V

GND/P.DIM2

24V
GND
GND

GND
GND
12V
12V
12V

OPT
P2400
FW20020-24S

1

1
3

3
5

5
7

7
9

9
11

11
13

13
15

15
17

17
19

19
21

21 22
23

23 24

25

SMAW200-H24S2

P2401

2

2
4

4
6

6
8

8

10

10
12

12
14

14
16

16
18

18
20

20
22
24

24V
24V
GND
GND

3.5V

3.5V
GND
GND/V-sync
INV ON
A.DIM
P.DIM1
Err OUT

L2403

CIS21J121

R2420

0

POWER_16_GND

C2413

0.1uF

R2423 0

POWER_16_VSYNC

0

R2422

50V

L/DIM0_VS

POWER_24_GND

R2405

POWER_24_ERROR_OUT

+24V

+3.3V_NORMAL

22

R2425
100

A_DIM

PWM_DIM1

R2424

4.7K

OPT

ERROR_OUT

+3.3V_NORMAL

R2426
1K

INV_CTL

+12V

L2408

BLM18SG121TN1D

C2432

0.01uF
50V

PANEL_CTL

PANEL_POWER

C2433

0.1uF
50V

R2437
10K

33K

R2442-*1

5.6K

R2441-*1

10K

R2442

MTK_NON_EPI

1.8K

R2441

C

MTK_NON_EPI

B

E

MTK_EPI

C2435

4.7uF
50V

MTK_EPI

Q2406
MMBT3904(NXP)

Q2407

AO3407A

S

TYP 1450mA

PANEL_VCC

D

G

C2440

1uF
25V
OPT

R2451

PANEL_DISCHARGE_REG

C2443

2K

2K

0.1uF

1/8W

1/8W

R2452

50V

PANEL_DISCHARGE_REG

Power_DET

On-semi

+12V

L2400

BLM18PG121SN1D

Placed on SMD-TOP

C2400

C2402

10uF

10uF

16V

16V

C2403

0.1uF
16V
OPT

+12V

+3.5V_ST

OPT

+24V

IC2400

AOZ1038PI

1

2

3

4

THERMAL

R2412

8.2K
5%
OPT

R2411

1.5K
1%

OPT

9

R2413
0
5%

[EP]LX

*NOTE 17

NC_2

8

OPT

R24000

NC_1

7

EN

6

R2402

3.3K

COMP

5

C2404

0.1uF
16V

R2410

2.7K
1%

R2409

1.2K
1%

PGND

VIN

AGND

FB

Vout=0.8*(1+R1/R2)

C2411

0.1uF
16V

C2410

0.1uF
50V

OPT

C2405

4700pF

50V

R2403

VCC

VCC

L2404

10K

R2417
100K

IC2402

NCP803SN293

3

GND

OPT
R2416
100K

IC2401

NCP803SN293

3

GND

2uH

POWER_ON/OFF1

+3.5V_ST

R2421
10K
OPT

R2419

RESET

2

1

OPT

RESET

2

1

100

R2418
100

OPT

POWER_DET

C2412

0.1uF
16V

not to RESET at 8kV ESD

24V-->3.48V
12V-->3.58V

ST_3.5V-->3.5V

+12V

C2415
10uF
16V

L2407
BLM18PG121SN1D

+5V_Normal

POWER_ON/OFF2_3

1%

R1

R2415

56K

C2416
100pF

50V

R2439

10K

R2

1%

DEV_DCDC_TPS54327

IC2404

VREG5

C2428
3300pF
50V

VFB

TPS54327DDAR

EN

1

2

3

SS

4

3A

R2435

10K

C24001

0.1uF
16V

C2417
1uF
10V

9

THERMAL

8

7

6

5

[EP]GND

VIN

VBST

SW

GND

C2429

0.1uF
16V

L2409

3.6uH

NR8040T3R6N

+5V_NORMAL

C2430
22uF
10V

+3.3V_NORMAL

+3.5V_ST

L2413

BLM18PG121SN1D

CN

L2412

BLM18PG121SN1D

NON_CN

+3.3V_TU_IN

C2436

0.1uF
16V

POWER_ON/OFF1

POWER_ON/OFF2_1
POWER_ON/OFF2_2
POWER_ON/OFF2_3
POWER_ON/OFF2_4

DDR MAIN 1.5V

C2407
10uF
10V

C2408
10uF
10V

C2409
10uF
10V

C2414
10uF
10V

C2441
3300pF
50V
OPT

R2404

R2406

10K

1%

5.6K

1%

R1

R2

+1.2V_MTK_CORE

10K

R2430

+3.5V_ST

L2405

C2448
10uF
10V

BLM18PG121SN1D

C2418

C2419

10uF

0.1uF

10V

16V

VIN_1

VIN_2

GND_1

GND_2

VIN_3

EP[GND]

1

THERMAL

2

3

TPS54319TRE

4

3A

5

AGND

15EN16

17

IC2403

6

VSENSE

3A

Vout=0.827*(1+R1/R2)=1.521V

C2420

0.1uF
16V

7

COMP

BOOT14PWRGD

13

12

11

10

9

8

RT/CLK

1/16W 5%

$ 0.145

POWER_ON/OFF2_1

C2423

0.1uF

16V

PH_3

PH_2

PH_1

C2422

SS/TR

0.01uF
50V

R2432

330K1/16W 5%

C2421

R2431

4700pF

15K

L2406

3.6uH

NR8040T3R6N

50V

C2424
10uF
10V

C2425
10uF

10V

C2446
10uF

10V

C2447
10uF
10V

R2433
56K
1/16W
1%

R2434

R1

47K 1%

R2

+1.5V_DDR

C2426
100pF
50V

C2427

0.1uF
16V

+12V

L2410

BLM18PG121SN1D

C2431
10uF
16V

+3.3V_NORMAL

VIN2

VIN1

VBST

PGND2

PGND1

SW2

SW1

IC2405

TPS54425PWPR

14

13

12

4A

11

10

9

8

THERMAL

15

C2434

0.1uF
50V

[EP]PGND

1

2

3

4

5

6

7

+3.3V_NORMAL

VO

VFB

VREG5

SS

GND

PG

EN

R2407
100K

Vout=(0.763+0.0017*Vout.set)*(1+R1/R2)

C2438
1uF
10V

R2414 10K
C2437

0.1uF

R1

C2439
3300pF
50V

POWER_ON/OFF2_2

L2411

2uH

C2442
22uF
10V

MAX 3.4 A

R2

R2427
33K
1%

C2444
22uF
10V

R2428
10K

1%

C2445
22pF
50V

+3.3V_NORMAL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_POWER

2011.11.25

24

Renesas MICOM

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

For Debug

+3.5V_ST

MICOM_DEBUG

P3000

12507WS-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

GP4 High/MID Power SEQUENCE

POWER_ON/OFF!

POWER_ON/OFF2_1

POWER_ON/OFF2_2

POWER_ON/OFF2_3

POWER_ON/OFF2_4

SOC_RESET

MICOM MODEL OPTION

MICOM_MHL

MICOM_GED

R3016 10K

R3020 10K

MICOM_GP4_10PIN

R3030 10K

Don’t remove R3014,
not making float P40

R3014 1K

R3011 10K

MICOM_DEBUG

+3.5V_ST

MICOM_PDP

R3007 10K

R3005 10K

MICOM_JAPAN

MICOM_TOUCH_KEY

R3009 10K

R3012 10K

MICOM_DIIVA

MICOM_DEBUG

MICOM_RESET

R3005-*1

56K

R3005-*2

22K

MICOM_OLED_FRC

MICOM_OLED_MAIN

MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
MODEL1_OPT_3
MODEL1_OPT_4

MODEL1_OPT_5
MODEL1_OPT_6

MICOM MODEL OPTION

10

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

NON DIVA

NON JAPAN

TACT_KEY

LCD

/ OLED

IR Wafer
12/15Pin

(GP3_Soft touch)

NON_MHL

NON_GED

DIVA

JAPAN

TOUCH_KEY

PDP

IR Wafer

10Pin

(GP4_TOOL)

MHLMODEL_OPT_5

GEDMODEL_OPT_6

POWER_ON/OFF2_3

For China

For JAPAN

For Sample Set

GP4_HIGH

I2C_SCL3

I2C_SDA3

AMP_RESET_N

PANEL_CTL

MODEL1_OPT_5

HDMI_CEC

POWER_ON/OFF2_2

POWER_ON/OFF2_3

EEPROM_SDA

EEPROM_SCL

MODEL1_OPT_6

AMP_RESET_BY_MICOM

IR

+3.5V_ST

R3018

3.3K

+3.3V_NORMAL

R3032

10K

R3033

10K

R3003 22

AMP_RESET_BY_MICOM

P31/TI03/TO03/INTP4

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

R3019

3.3K

FLG_POD_DR

POD_WAKEUP_N

/RST_DIIVA

/RST_DIIVA

POD_WAKEUP_N

FLG_POD_DR

for DiiVA

+3.5V_ST

C3000

0.1uF

P60/SCLA0
P61/SDAA0

P62
P63

P73/KR3/SO01
P72/KR2/SO21

+3.3V_NORMAL

R3035

4.7K
OPT

8pF

C3002

X3000

32.768KHz

R3002 22

MICOM_DIIVA

R3001 22

MICOM_DIIVA

GND

C3001 0.47uF

P137/INTP0

P122/X2/EXCLK

P121/X1

REGC

VSS

VDD

43

44

45

46

47

48

1
2
3
4
5
6
7
8

IC3000

R5F100GEAFB

MICOM

9
10
11
12

13

14

15

16

17

18

P17/TI02/TO02

P51/INTP2/SO11

P16/TI01/TO01/INTP5

P50/INTP1/SI11/SDA11

P14/RXD2/SI20/SDA20

P15/PCLBUZ1/SCK20/SCL20

R30 22 10 K

10K

R3000

C3003 8pF

MICOM_DEBUG

R3023

4.7M
OPT

MICOM_RESET

R3024 22

P40/TOOL0

RESET

P124/XT2/EXCLKS

P123/XT1

39

40

41

42

19

20

21

22

COMMERCIAL_12V_CTL

P41/TI07/TO07

38

23

+3.5V_ST

10K

C3004

0.1uF
16V

R3026

R3027

R3025 22

MICOM_DIIVA

P120/ANI19

37

P140/PCLBUZ0/INTP6

36

P00/TI00/TXD1

35

P01/TO00/RXD1

34

P130

33

P20/ANI0/AVREFP

32

P21/ANI1/AVREFM

31

P22/ANI2

30

P23/ANI3

29

P24/ANI4

28

P25/ANI5

27

P26/ANI6

26

P27/ANI7

25

24

P146

P147/ANI18

P13/TXD2/SO20

P10/SCK00/SCL00

P12/SO00/TXD0/TOOLTXD

P11/SI00/RXD0/TOOLRXD/SDA00

12V_EXT_PWR_DET

HDMI_WAUP:HDMI_INIT

MICOM_RESET_SW

SW3000

JTP-1127WEM

12

4 3

270K

OPT

POWER_ON/OFF2_4

RL_ON





SCART_MUTE

POWER_ON/OFF2_4

KEY2

KEY1

MODEL1_OPT_2

MODEL1_OPT_1

MODEL1_OPT_0

MODEL1_OPT_4

MODEL1_OPT_3

For Japan:LNB_INIT

EXT_AMP_MUTE

EXT_AMP_RESET

COMMERCIAL_12V_CTL

12V_EXT_PWR_DET

SCART_MUTE

+3.3V_NORMAL

+3.3V_NORMAL

R3036

10K
OPT

R3037

10K

OPT

POWER_ON/OFF2_1

SIDE_HP_MUTE

R3006 10K

R3008 10K

R3010 10K

R3021 10K

R3017 10K

MICOM_NON_MHL

MICOM_NON_GED

R3031 10K

MICOM_LCD/OLED

MICOM_GP3_12/15PIN

MICOM_TACT_KEY

R3013 10K

MICOM_NON_JAPAN

MICOM_NON_DIIVA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Eye Sensor Option

MODEL_OPT_4

MODEL_OPT_2

0

1

0

N/A

CM3231_CAPELLA

(GP3 Soft touch) (GP4 Soft touch)

1

MC8101_ABOV

(TACT_KEY)

CM3231_CAPELLA

POWER_ON/OFF1

+3.3V_NORMAL

R3034

4.7K
OPT

LOGO_LIGHT

LOGO_LIGHT

POWER_DET

SOC_RESET

LED_B/GP4_LED_R

C

B

E

INV_CTL

SOC_TX

Q3000
MMBT3904(NXP)

EDID_WP

SOC_RX

AMP_MUTE

EXT_AMP_MUTE

EDID_WP

EXT_AMP_RESET

CEC_REMOTE

MICOM

D3000

BAT54_SUZHO

D

For CEC

R3028
27K

G

Q3001-*1
SI1012CR-T1-GE3

S

HDMI_CEC_FET_VISHAY

+3.5V_ST

G

D

Q3001
RUE003N02

HDMI_CEC_FET_ROHM

R3029
120K

S

HDMI_CEC

2011.12.12

30

BODY_SHIELD

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

GND

20

19

18

17

16

15

14

13

12

11
10

9

8

EAG62611201

7

6

5

4

3

2

1

RSD-105156-100

JK3301

HP_DET

5V

GND

DDC_DATA

DDC_CLK

ARC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

R33 00

0

CK-_HDMI4_JACK

CK+_HDMI4_JACK

D0-_HDMI4_JACK

D0+_HDMI4_JACK

D1-_HDMI4_JACK

D1+_HDMI4_JACK

D2-_HDMI4_JACK

D2+_HDMI4_JACK

5V_HDMI_4_JACK

R3308 100

R3309 100

CEC_REMOTE

Q3301

R3307
100K

MMBT3904(NXP)

R3310
1K

C

B

E

DDC_SDA_4_JACK

DDC_SCL_4_JACK

R3312

4.7K

R3311
1K

HDMI_ARC

UI : HDMI1

HDMI_HPD_4_JACK

BODY_SHIELD

20

EAG62611201

JK3303

RSD-105156-100

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_3_JACK

R3327

100K

MMBT3904(NXP)

R3328 100

R3329 100

C

Q3303

E

DDC_SDA_3_JACK

DDC_SCL_3_JACK

CEC_REMOTE

CK-_HDMI3_JACK

CK+_HDMI3_JACK

D0-_HDMI3_JACK

D0+_HDMI3_JACK

D1-_HDMI3_JACK

D1+_HDMI3_JACK

D2-_HDMI3_JACK

D2+_HDMI3_JACK

R3330

1K

R3331
1K

B

UI : HDMI3

R3336

4.7K

HDMI_HPD_3_JACK

E0

E1

E2

VSS

IC3300

M24C02-RMN6T

1

2

HDMI_EXT_EDID

3

4

5V_HDMI_1_SOC

VCC

8

WC

7

SCL

6

SDA

5

EDID_WP

R3319
22

HDMI_EXT_EDID

R3320
22

HDMI_EXT_EDID

C3300

0.1uF
16V

R3323
47K

+5V_NORMAL

A2CA1
MMBD6100
D3300

R3325
47K

DDC_SCL_1_SOC

DDC_SDA_1_SOC

5V_HDMI_3_JACK

C3302

0.1uF
16V

R3337
47K

+5V_NORMAL

A2CA1
MMBD6100
D3302

R3339
47K

DDC_SCL_3_JACK

DDC_SDA_3_JACK

BODY_SHIELD

20

EAG62611201

JK3302

RSD-105156-100

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2_JACK

R3313

MMBT3904(NXP)

100K

R3314 100

R3315 100

CEC_REMOTE

CK-_HDMI2_JACK

CK+_HDMI2_JACK

D0-_HDMI2_JACK

D0+_HDMI2_JACK

D1-_HDMI2_JACK

D1+_HDMI2_JACK

D2-_HDMI2_JACK

D2+_HDMI2_JACK

C

Q3302

E

DDC_SCL_2_JACK

R3316

1K

R3317
1K

B

UI : HDMI2

R3318

4.7K

HDMI_HPD_2_JACK

BODY_SHIELD

20

EAG62611201

JK3300

RSD-105156-100

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC
CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_1_SOC

R3301

MMBT3904(NXP)

100K

R3302 100

R3303 100

CEC_REMOTE

CK-_HDMI1_SOC

CK+_HDMI1_SOC

D0-_HDMI1_SOC

D0+_HDMI1_SOC

D1-_HDMI1_SOC

D1+_HDMI1_SOC

D2-_HDMI1_SOC

D2+_HDMI1_SOC

C

Q3300

E

DDC_SDA_1_SOCDDC_SDA_2_JACK

DDC_SCL_1_SOC

R3304

1K

R3306

4.7K
HDMI_INTERNAL_EDID

R3305
1K

B

R3321

4.7K
HDMI_EXT_EDID

UI : HDMI4

HDMI_HPD_1_SOC

5V_HDMI_2_JACK

C3301

0.1uF
16V

R3324
47K

+5V_NORMAL

A2CA1
MMBD6100
D3301

R3326
47K

DDC_SCL_2_JACK

DDC_SDA_2_JACK

5V_HDMI_4_JACK

C3303

0.1uF
16V

R3338
47K

+5V_NORMAL

A2CA1
MMBD6100
D3303

R3340
47K

DDC_SCL_4_JACK

DDC_SDA_4_JACK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI 4

2011.10.29

33

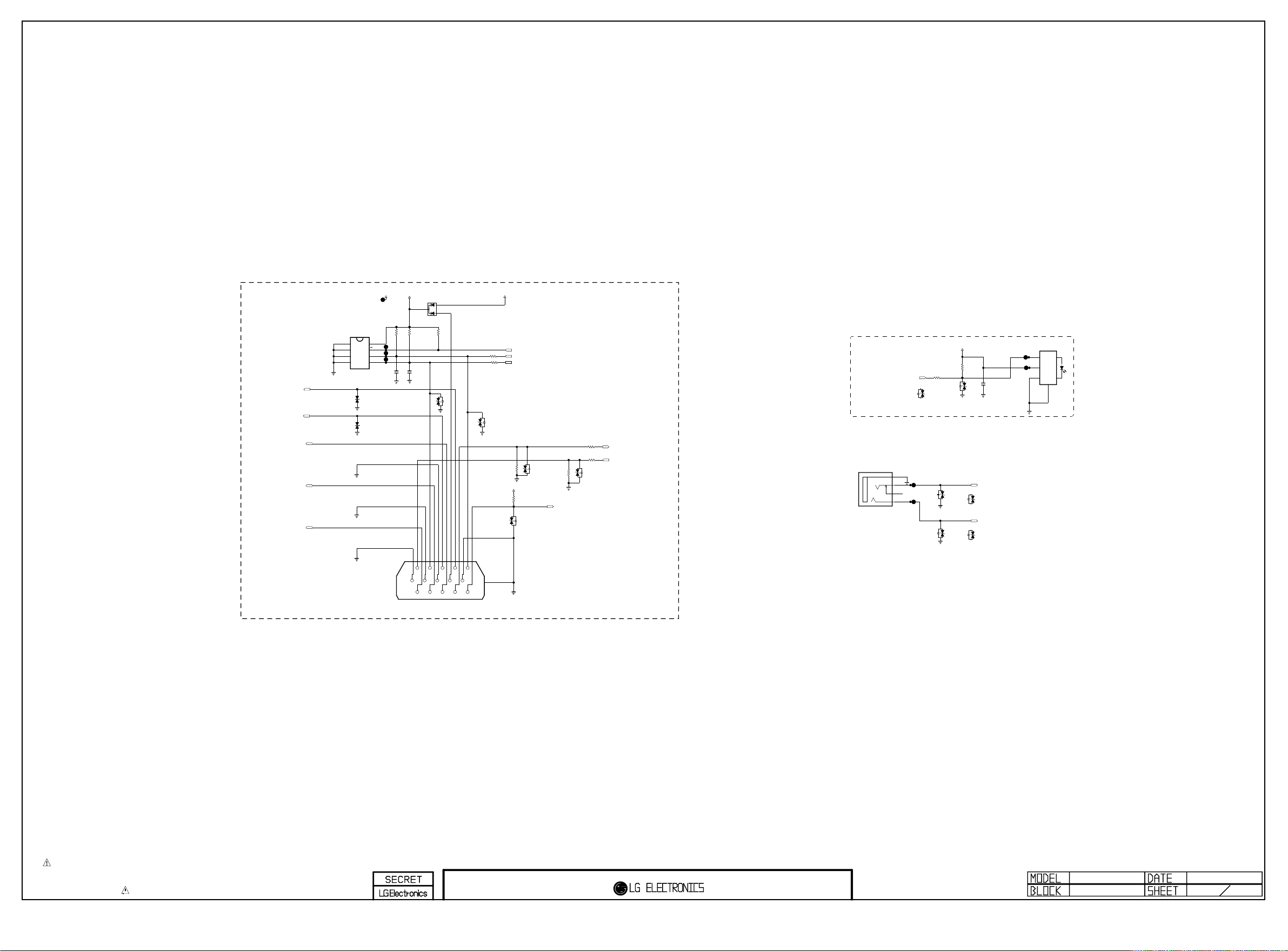

RGB/ PC AUDIO/ SPDIF

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

RGB PC

DSUB_VSYNC

DSUB_HSYNC

DSUB_R+

DSUB_B+

DSUB_G+

M24C02-RMN6T

E0

E1

E2

VSS

1

RGB_EDID

2

3

4

IC3600

D3615

D3616

30V
OPT

30V
OPT

RGB_5V

VCC

8

WC

7

SCL

6

SDA

5

Closed to JACK

C3633

18pF

RGB_5V

R3641

2.7K

C3634
18pF

50V

50V

A1

C

A2

MMBD6100

D3620

R3645

R3642

10K

2.7K

RGB_EDID

D3621
ADUC 5S 02 0R5L

5.5V
OPT

111112121313141415

6677889

112233445

JK3603

SLIM-15F-D-2

91010

+5V_NORMAL

JK3602

2F11TC1-EM52-4F

VIN

A

VCC

B

GND

C

Fiber Optic

4

SHIELD

R3620

2.7K

R3615

33

D3613

5.5V

ADUC 5S 02 0R5L

D3612-*1

OPT

OPT

D3611-*1

ESD_MTK

5.6V

ESD_MTK

5.6V

+3.3V_NORMAL

PC_L_IN

PC_R_IN

C3615

0.1uF
16V

EDID_WP

R3643 22

RGB_DDC_SCL

R3644 22

RGB_DDC_SDA

D3622
ADUC 5S 02 0R5L

5.5V
OPT

RGB_DEBUG

R3602
100

SOC_RX

RGB_DEBUG

R3647
100

R3600

D3600

0

20V

R3601

+3.3V_NORMAL

R3646
10K

D3623

5.6V
OPT

OPT

NON_RGB_DEBUG

DSUB_DET

0

NON_RGB_DEBUG

5

15

16

16

D3601

SOC_TX

20V
OPT

SPDIF OUT

PC AUDIO

JK3601

KJA-PH-0-0177

SPDIF_OUT

D3613-*1

ADUC 5S 02 0R5L

ESD_MTK

5 GND

4 L

3 DETECT

1 R

5.5V

D3611

5.6V
OPT

D3612

5.6V
OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JACK HIGH / MID

2011.11.21

36

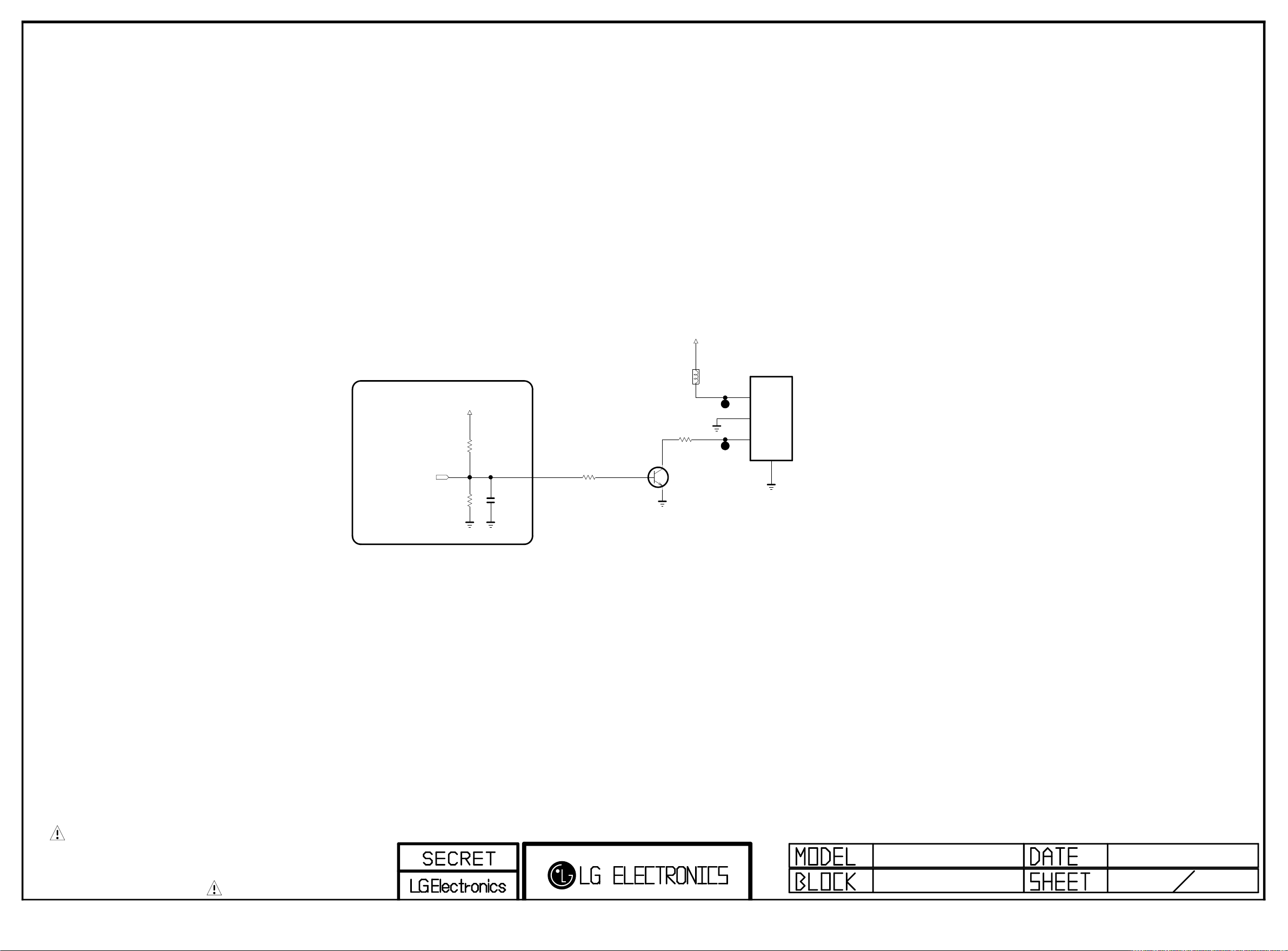

HP_LOUT

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

HP_ROUT

HP_DET

+3.3V_NORMAL

R3700

10K

HP_OUT

VA3700

5.6V

OPT

JK3700

KJA-PH-0-0177
5GND

4L

3DETECT

1R

EAG61030001

HP_OUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

ESD for MTK

VA3700-*1

5.6V

ESD_MTK_HP_OUT

ESD for LG1152

VA3700-*2

5.6V

ESD_LG1152_HP_OUT

JACK_COMMON

2011.11.21

37

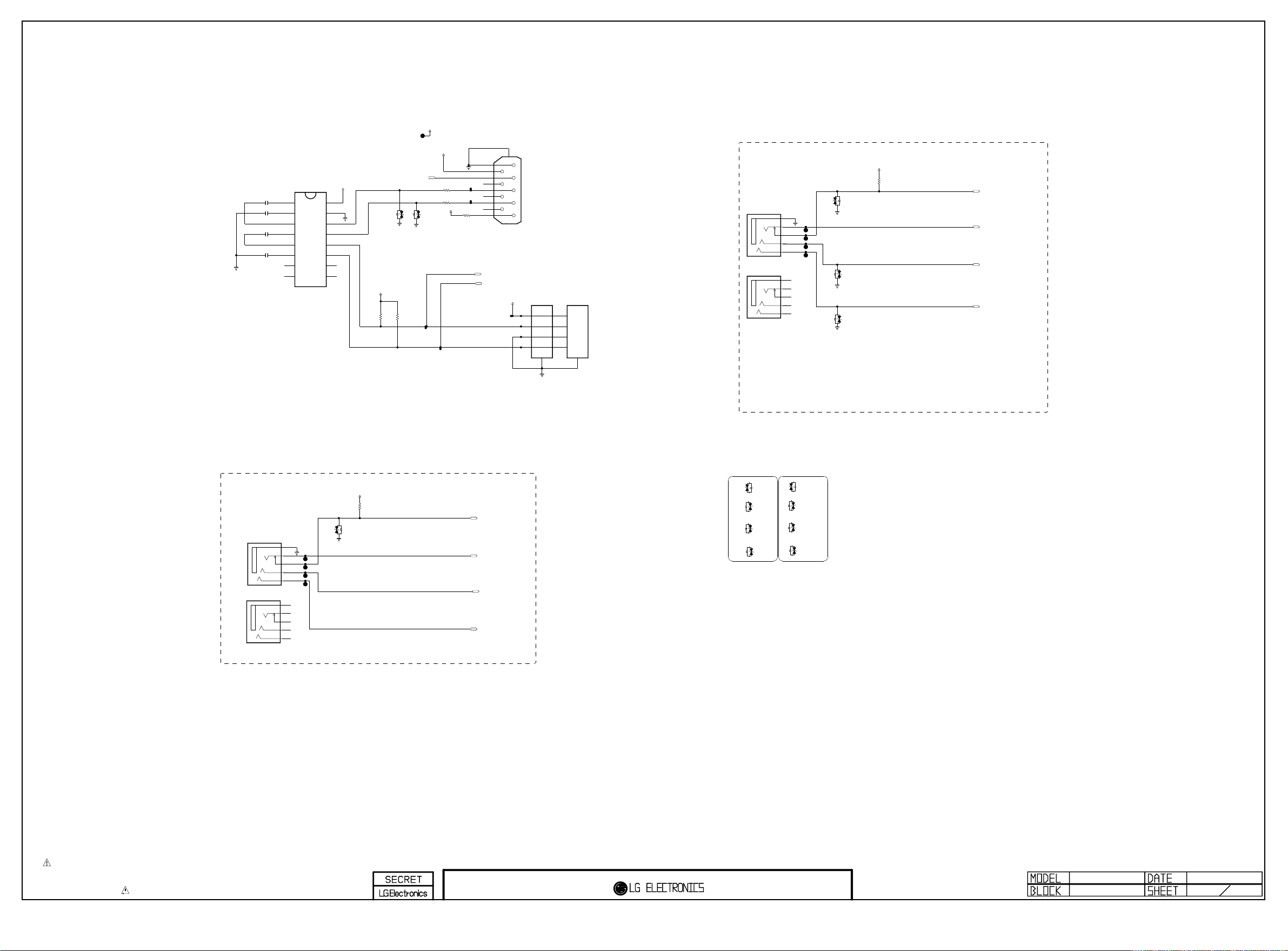

RS232C

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

0.1uF

0.1uF

RS232

RS232

RS232

RS232

C38000.1uF

C3801

C38020.1uF

C3803

DOUT2

12V_COMMERCIAL_OUT

12V 1A FOR COMMERCIAL(RS-232C POWER)

12V_COMMERCIAL_OUT

IC3800

+3.5V_ST

MAX3232CDR

C1+

V+

C1-

C2+

C2-

V-

RIN2

1

2

3

4

RS232

5

6

7

8

EAN41348201

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

+3.5V_ST

R3811

IR_OUT

RS232

100

R3820

RS232

100

R3821

+3.5V_ST

OPT_RS232

R3834

10K

FOR COMMERCIAL

R3814

D3805
20V
OPT

4.7K
OPT

D3804

20V

OPT

4.7K
OPT

SOC_RX

SOC_TX

9

8

7

6

RS232

SPG09-DB-009

JK3803

+3.5V_ST

10

5

4

3

2

1

UART_4PIN_STRAIGHT

P3800

12507WS-04L

1

2

3

4

5

UART_4PIN_ANGLE

P3801

12507WR-04L

1

2

3

4

5

CVBS 1 PHONE JACK

AV_JACK_BLACK

JK3800

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

AV_JACK_YELLOW

JK3800-*1

KJA-PH-1-0177-1

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

D3800

5.6V
OPT

D3801

5.6V

D3802

5.6V

+3.3V_NORMAL

R3810
10K

OPT

OPT

AV1_CVBS_DET

AV1_CVBS_IN

AV1_L_IN

AV1_R_IN

COMPONENT 1 PHONE JACK

COMP_JACK_BLACK

JK3801

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

COMP_JACK_GREEN

JK3801-*1

KJA-PH-1-0177-2

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

D3803

5.6V
OPT

+3.3V_NORMAL

R3806

10K

COMP1_DET

COMP1_Y

COMP1_Pb

COMP1_Pr

ESD For MTK ESD For LG1152

D3803-*1

5.6V

ESD_MTK

D3800-*1

5.6V

ESD_MTK

D3801-*1

5.6V

ESD_MTK

D3802-*1

5.6V

ESD_MTK

D3803-*2

5.6V
ESD_LG1152

D3800-*2
ESD_LG1152

D3801-*2

5.6V

ESD_LG1152

D3802-*2

5.6V

ESD_LG1152

5.6V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JACK_COMMON

2011.11.21

38

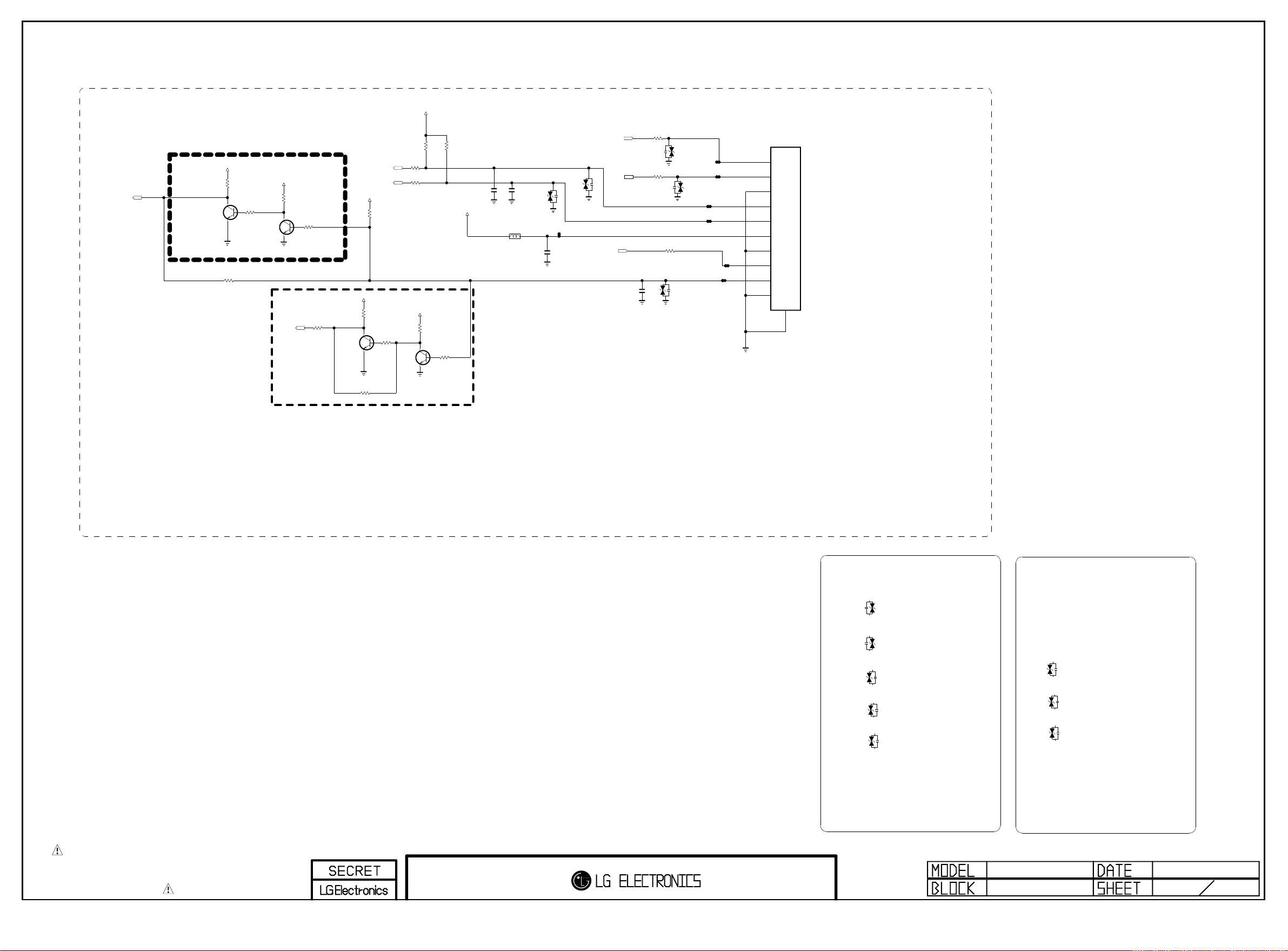

IR

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

IR & KEY

COMMERCIAL

MMBT3904(NXP)
COMMERCIAL_IR

Q4100

+3.5V_ST

R4101

1K

IR_BYPASS

COMMERCIAL_IR

C

B

E

COMMERCIAL_IR

COMMERCIAL_IR

R4100
0

COMMERCIAL_IR

R4102

10K

MMBT3904(NXP)

R4103

Q4101

+3.5V_ST

3.3K

IR_OUT

R4104

47K

C

B

E

COMMERCIAL_IR

COMMERCIAL_IR

COMMERCIAL

COMMERCIAL_IR_EU

R4105

22

MMBT3904(NXP)

COMMERCIAL_IR_EU

+3.5V_ST

IR_BYPASS

R4107

10K

+3.5V_ST

R4109

1K

COMMERCIAL_IR_EU

C

Q4102

B

E

R4108
0

COMMERCIAL_IR_US

KEY1

KEY2

COMMERCIAL_IR

R4111

10K

Q4104

MMBT3904(NXP)

COMMERCIAL_IR

R4115

3.3K

+3.5V_ST

R4117

10K

5%

R4113
100

R4114
100

+3.5V_ST

C

B

E

R4118

10K
5%

R4119

47K

COMMERCIAL_IR

+3.5V_ST

C4100

0.1uF

C4102

0.1uF

AMOTECH CO., LTD.

L4100

BLM18PG121SN1D

AMOTECH CO., LTD.

D4100

5.6V

OPT

C4104
1000pF
50V

Soft Touch Micom D/L

Zener Diode is

close to wafer

RGB Sensor

D4101

5.6V

OPT

LED_B/GP4_LED_R

EEPROM_SCL

EEPROM_SDA

C4107
100pF

50V

R4123
100

R4124
100

R4125 1.5K

D4104

5.6V

D4105
ADUC 20S 02 010L
20V

OPT

D4106
ADUC 20S 02 010L
20V
OPT

OPT

AMOTECH CO., LTD.

GP4_IR_10P

P4102

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

ESD for MTK

D4105-*1

ADUC 20S 02 010L

10pF

20V

ESD_MTK

D4106-*1
ADUC 20S 02 010L
20V

10pF

ESD_MTK

D4100-*1

200pF

5.6V
ADMC 5M 02 200L

ESD_MTK

D4101-*1

5.6V

200pF

ADMC 5M 02 200L

ESD_MTK

D4104-*1

200pF

5.6V
ADMC 5M 02 200L

ESD_MTK

ESD for LG1152

D4100-*2

200pF

5.6V
ADMC 5M 02 200L

ESD_LG1152

D4101-*2

5.6V

200pF

ADMC 5M 02 200L

ESD_LG1152

D4104-*2

200pF

5.6V
ADMC 5M 02 200L

ESD_LG1152

IR / KEY

2011.11.21

41

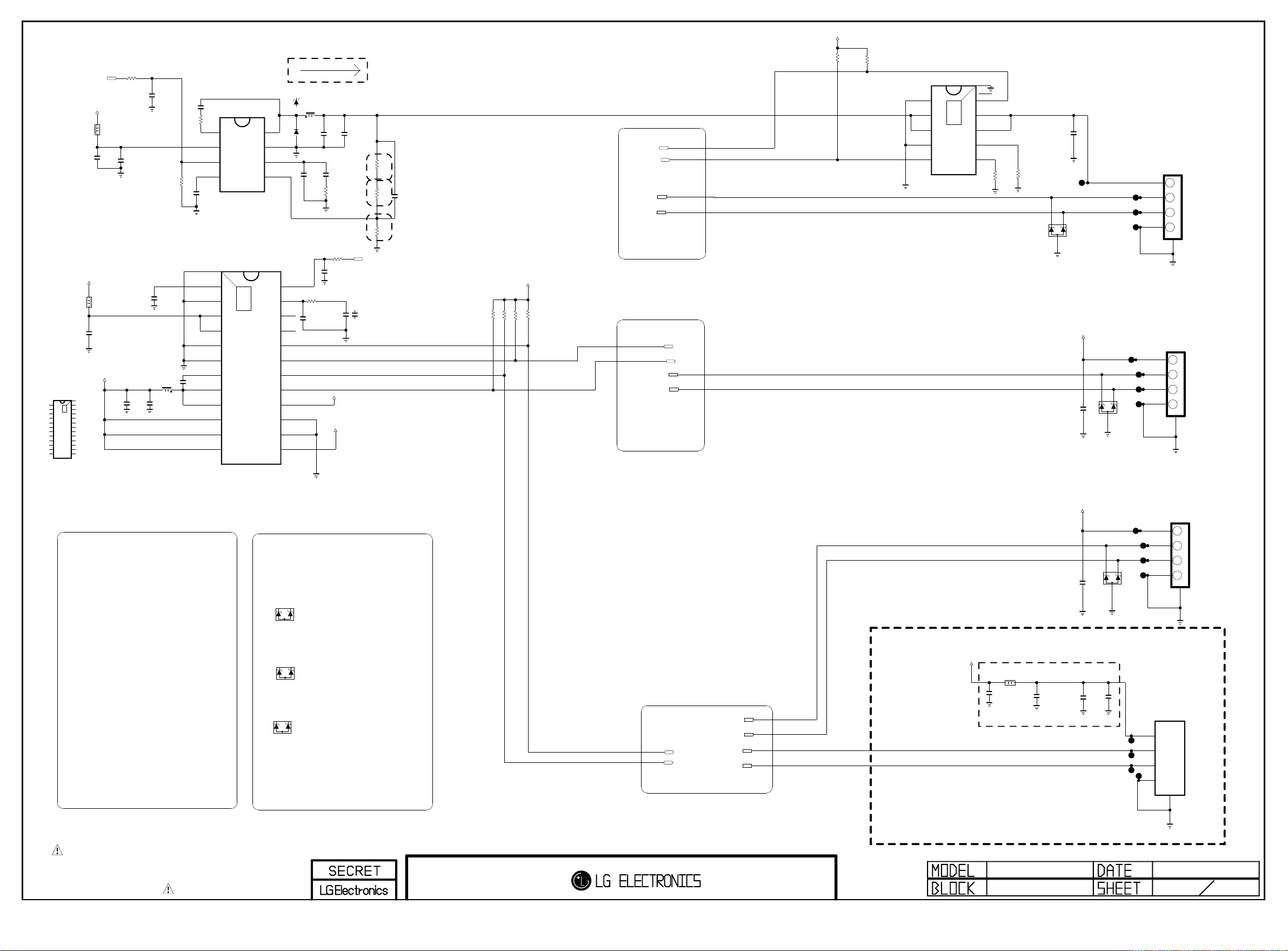

+5V_USB FOR USB1

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

POWER_ON/OFF2_4

+24V

L4305

BLM18PG121SN1D

C4324
10uF
35V

R4328

10K

C4327

0.1uF
16V

0.1uF

C4326

0.1uF
50V

OPT

Vout=0.8*(1+R1/R2)

16V

330K

R4329

C4329

SS/TR

C4328

0.01uF
50V

0

BOOT

VIN

R4330

EN

IC4305

TPS54331D

1

2

3

3A

4

+3.3V_NORMAL

R4327

R4323

10K

10K

MAX 2A

D4304-*1

40V

SX34

L4308

6.8uH

PH

8

D4304

SMAB34

GND

7

COMP

6

VSENSE

5

C4333

C4336
22uF
10V

C4334
4700pF
50V

R4336
20K

0.1uF

16V

/USB_OCD1

820

1%

R4343

R1

R2

OPT

C4338

1%

1000pF

R4338

10K

50V

1%

2K

R4339

USB_CTL1

USB_DM1

USB_DP1

40V

C4332
47pF
50V

OPT

IN_1

IN_2

ILIM_SEL

IC4303

TPS2554

GND

1

2

3

4

EN

5

11

THERMAL

[EP]

FAULT

10

OUT_2

9

1/10W

C4323

10uF

10V

OPT

OUT_1

8

ILIM0

7

ILIM1

6

R4300

27K

R4341

27K

1/10W

OPT

D4303

RCLAMP0502BA

USB1

DVR Ready
MAX 1.8A

3AU 04S-3 05-Z C-(LG )

JK4 303

1234

USB DOWN STR EAM

5

DEV_USB_DCDC_BD86180

IC4306-*1

BD86180MUV

EN

1

COMP

2

THERMAL

SS

3

RT

4

CTL2

5

CTL1

6

FLG2

7

FLG1

8

USB_OUT2

9

GND_1

10

GND_2

11

USB_OUT113USB_IN_1

12

+12V

L4306
BLM18PG121SN1D

C4325
10uF
16V

+5V_USB

[EP]GND

VREG

24

GND_3

25

23

VIN_2

22

VIN_1

21

PGND_2

20

PGND_1

19

BST

18

SW_2

17

SW_1

16

USB_IN_3

15

USB_IN_2

14

ESD for MTK

C4337

22uF

R4342

C4342
100pF
50V

R4332

10K

0.1uF
16V

10K

5%

C4340

4700pF

IC4306

SN1104041, DC-DC+2CH USB SW

[EP]GND C4300

V7V

24

C4341

4.7uF
10V

L4307

3.6uH

C4301

22uF

10V

10V

C4331

0.1uF
16V

AGND_3

VIN_2

VIN_1

PGND_2

PGND_1

BST

LX_2

LX_1

SW_IN_3

SW_IN_2

SW_IN_1

THERMAL

25

23

22

21

20

19

18

17

16

15

14

13

EN

1

COMP

2

SS

3

ROSC

4

USB_DCDC_SN1104041

EN_SW2

5

EN_SW1

6

NFAULT2

7

NFAULT1

8

SW_OUT2

9

AGND_1

10

USB_DCDC_SN1104041

AGND_2

11

SW_OUT1

12

USB_DCDC_SN1104041

C4340-*1

0.01uF

50V

50V

USB_DCDC_BD86180

+5V_USB_3

+5V_USB_2

POWER_ON/OFF2_4

10K

R4301

10K

R4302

+3.3V_NORMAL

10K

10K

OPT

R4304

R4303

OPT

USB_CTL2

/USB_OCD2

USB_DM2

USB_DP2

+5V_USB_2

C4322

10uF

10V

USB2

MAX 1.5A

3AU 04S-3 05-Z C-(LG )

OPT

D4302

RCLAMP0502BA

JK4 302

1234

USB DOWN STR EAM

5

USB3

+5V_USB_3

ESD for LG1152

MAX 1.5A

3AU 04S-3 05-Z C-(LG )

JK4 300

1234

D4300-*2

RCLAMP0502BA

ESD_LG1152

D4302-*1

RCLAMP0502BA

ESD_LG1152

D4303-*3

RCLAMP0502BA

ESD_LG1152

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

From SoC

USB_CTL3

/USB_OCD3

USB_DM3

USB_DP3

WIFI_DM

WIFI_DP

USB_WIFI

+5V_USB

L4302

WIFI120-ohm

BLM18PG121SN1D

C4319

0.1uF
16V

WIFI

For EMI

USB3_HUB_WiFi

C4320

0.1uF
16V

WIFI

C4310

10uF

C4321

10uF

WIFI

USB DOWN STR EAM

P4301

12507WR-04L

WIFI

1

2

3

4

5

.

5

OPT

D4300

10V

C4339

10uF

10V

10V

WIFI

RCLAMP0502BA

MAX 0.4A

VDD

DM

DP

GND

2011.10.26

43

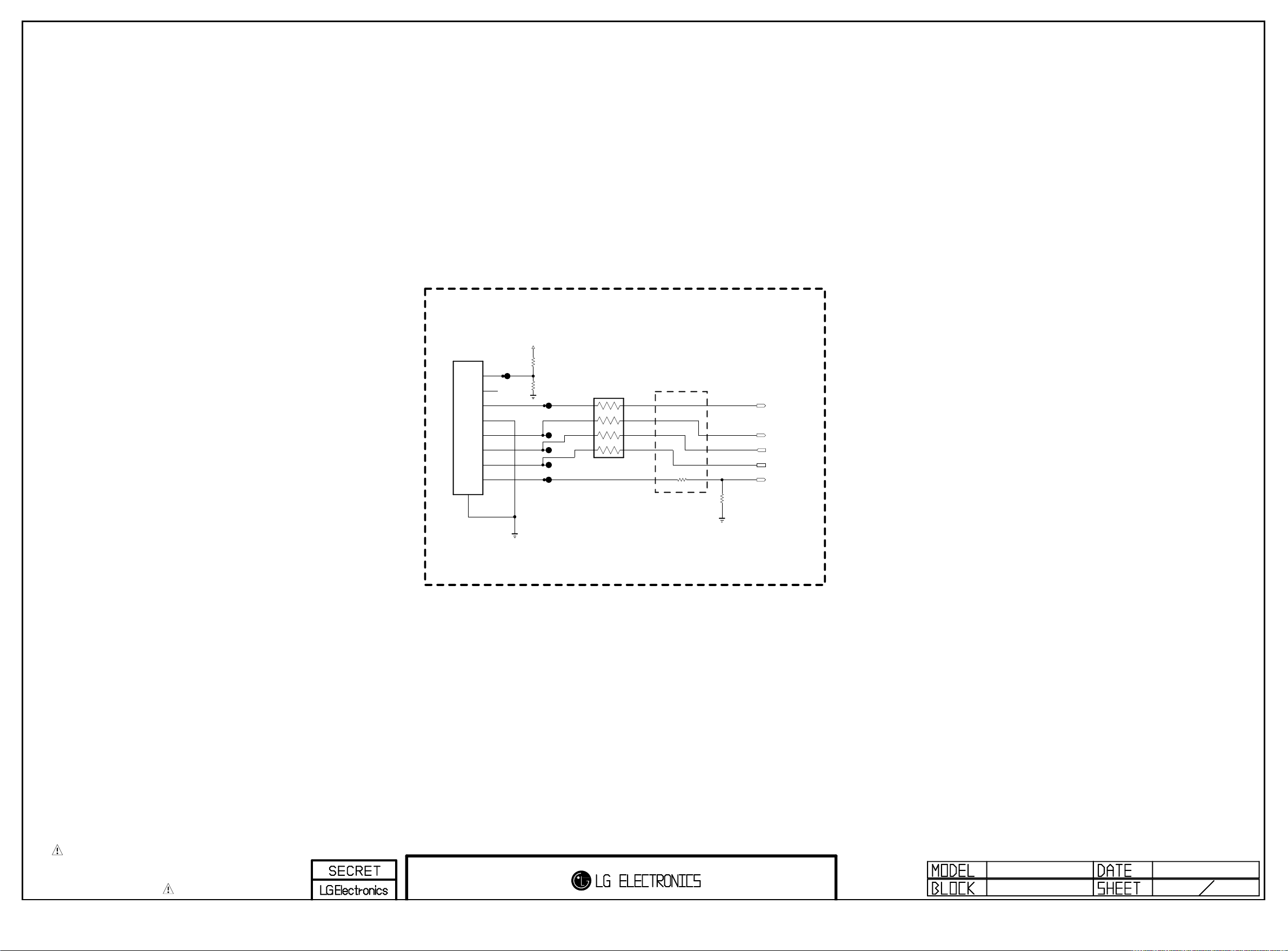

ZigBee_Radio Pulse M_REMOTE OPTION

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

P4800

12507WR-08L

M_REMOTE

9

+3.3V_NORMAL

L4800

120-ohm

3.3V

1

GND

2

RX

3

TX

4

RESET

5

DC

6

DD

7

GND

8

C4800

0.1uF

M_REMOTE

AR4800
100
1/16W

M_REMOTE

M_REMOTE_RX

M_REMOTE_TX

M_RFModule_RESET

M_RFModule_ISP

3D_SYNC_RF

3D_SYNC_RF

Only For PDP

ALL M_REMOTE OPTION

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MOTION REMOTE

2011.11.21

48

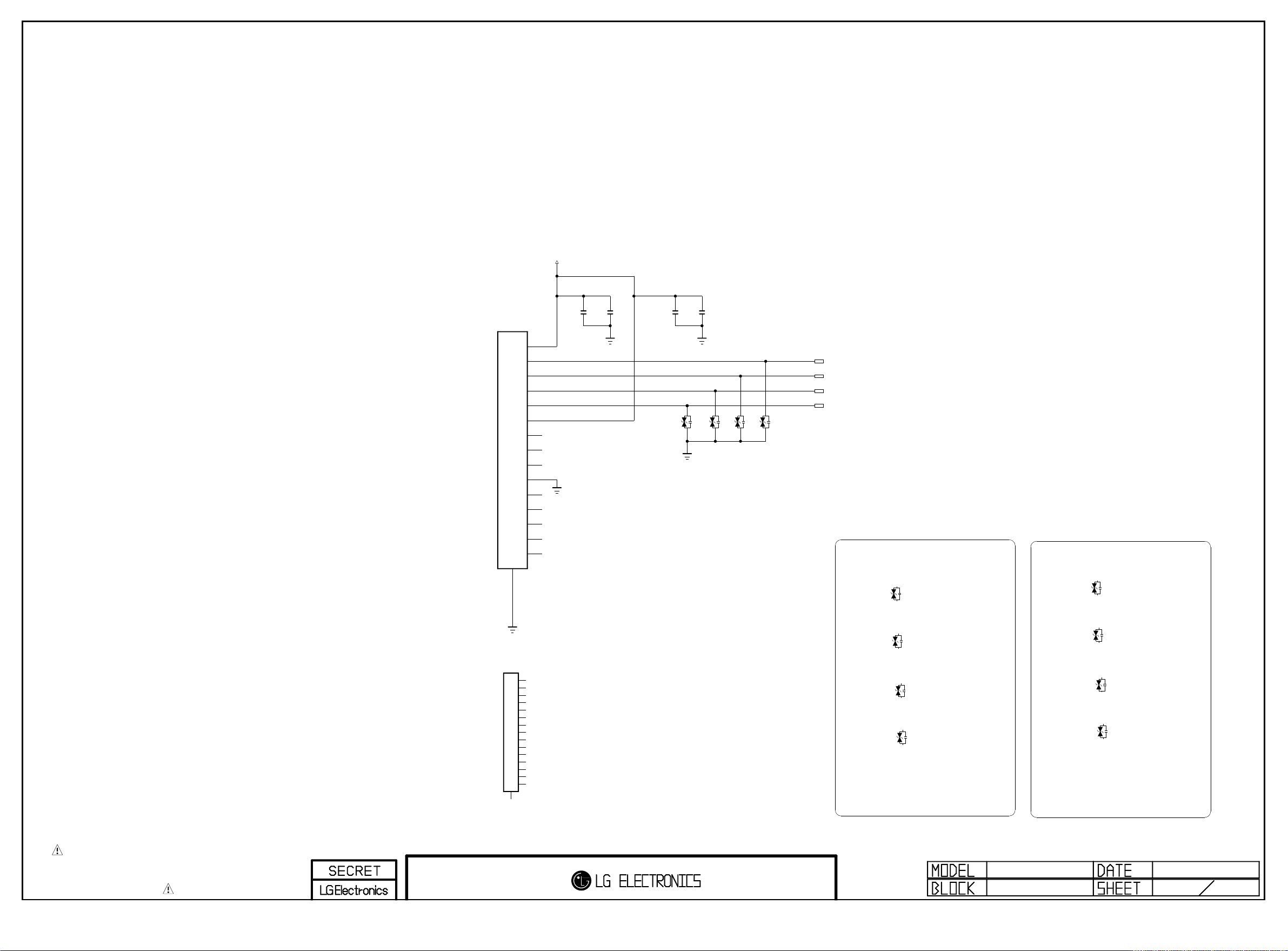

Ethernet Block

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LAN_JACK_POWER

JK5000

XRJH-01A-4-DA7-180-LG(B)

LAN_XML

P1[CT]

1

P2[TD+]

2

P3[TD-]

3

P4[RD+]

4

P5[RD-]

5

P6[CT]

6

P7

7

P8

8

P9

9

P10[GND]

10

P11

11

YL_C

D1

YL_A

D2

GN_C

D3

GN_A

D4

12

SHIELD

JK5000-*1
TLA-6T764

LAN_TDK

R1

1

R2

2

R3

3

R4

4

R5

5

R6

6

R7

7

R8

8

R9

9

R10[GND]

10

R11

11

YL_C

D1

YL_A

D2

GN_C

D3

GN_A

D4

12

SHIELD

C5000

0.1uF
16V

C5001

0.01uF
50V

D5000

5.5V
OPT

C5002

0.1uF
16V

D5001

5.5V
OPT

C5003

0.01uF
50V

D5002

5.5V

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

D5003

5.5V

OPT

OPT

ESD for MTK

D5000-*1

ESD_MTK

ADUC 5S 02 0R5L

D5001-*1

ESD_MTK

ADUC 5S 02 0R5L

D5002-*1
ESD_MTK
ADUC 5S 02 0R5L

D5003-*1

ESD_MTK

ADUC 5S 02 0R5L

ESD for LG1152

ESD_LG1152

D5000-*2

5.5V

ADUC 5S 02 0R5L

ESD_LG1152

D5001-*2

5.5V

ADUC 5S 02 0R5L

ESD_LG1152

D5002-*2

5.5V

ADUC 5S 02 0R5L

ESD_LG1152

D5003-*2

5.5V
ADUC 5S 02 0R5L

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LAN_VERTICAL

2011.12.09

50

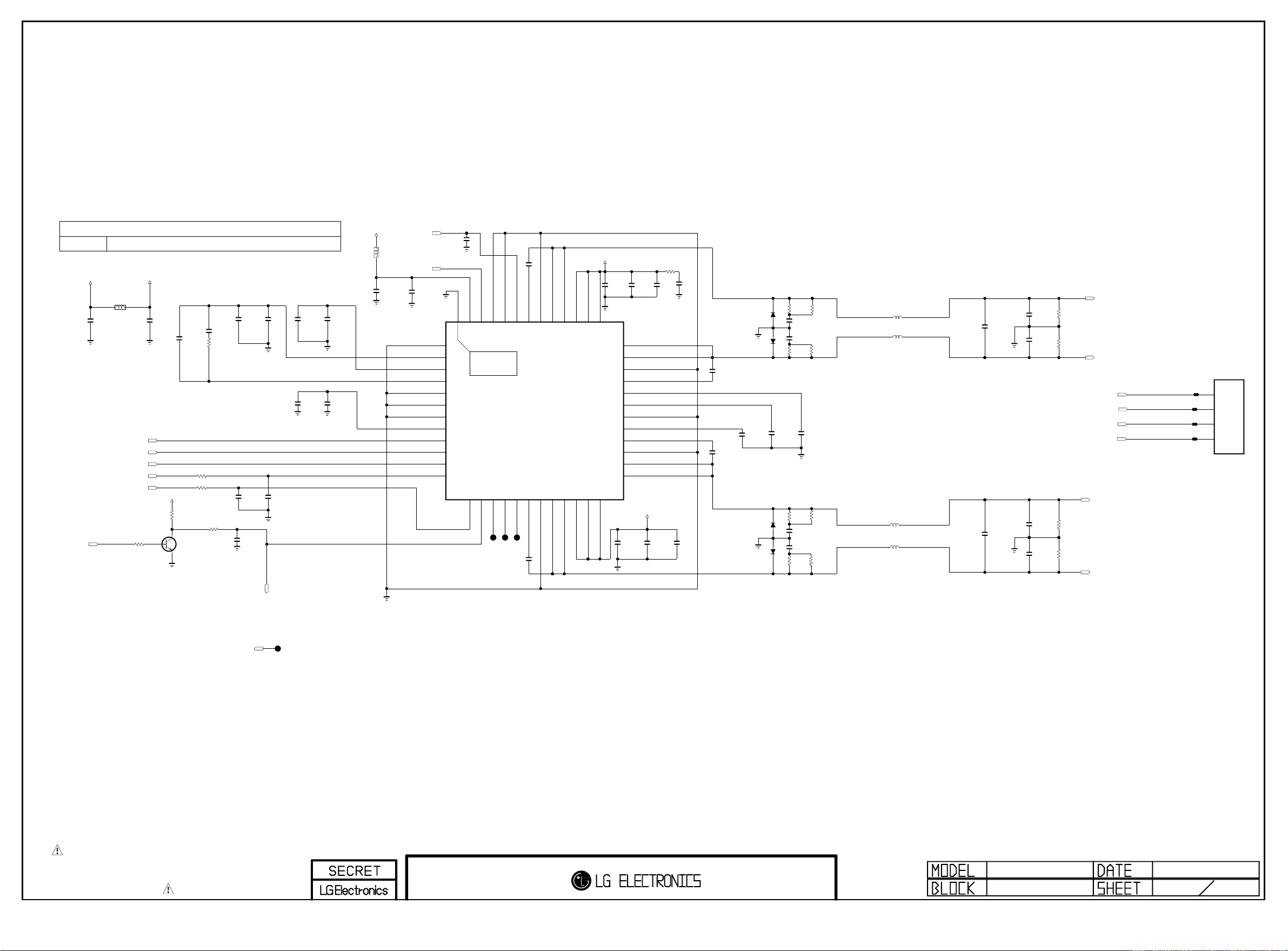

Q1801

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

AMP_MUTE

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

L5400

CIS21J121

+24V_AMP

AUD_LRCH

AUD_LRCK

AUD_SCK

I2C_SDA1

I2C_SCL1

R5400

10K

C5401

0.1uF
50V

+3.3V_NORMAL

B

+24V

C5400

0.1uF
50V

C5402
100pF

50V

R5402 100

R5403 100

R5401

10K

C

Q5400

MMBT3904(NXP)

E

R5405

100

C5403
1000pF
50V

R5404

3.3K

1000pF

C5404

+3.3V_NORMAL

L5401

BLM18PG121SN1D

C5413

0.1uF
16V

C5407

4.7uF
10V

C5408
33pF
50V

OPT
C5409

10uF

10V

C5410
10uF

C5411

0.1uF
16V

OPT

C5412

0.1uF

10V

16V

OPT

C5405

10uF

10V

C5406
33pF
50V

50V

AMP_RESET_N

AUD_MASTER_CLK

C5414
10uF
10V

AGND_PLL
AVDD_PLL
DVDD_PLL

LF

DGND_PLL

GND_1

DGND
DVDD

SDATA

WCK
BCK
SDA

C5415

1000pF

50V

[EP]

1
2
3
4
5
6
7
8
9
10
11
12

GND_IO

CLK_I

VDD_IO

46

47

48

THERMAL

49

NTP-7500L

13

14

15

SCL

/FAULT

MONITOR0

50V

C5416

BST1A

/RESET

AD

43

44

45

IC5400

0x54

16

17

18

BST2B

MONITOR1

MONITOR2

C5417

22000pF

50V

22000pF

OUT1A_2

PGND1A

41

42

19

20

PGND2B

OUT2B_1

PVDD1_2

PVDD1_3

OUT1A_1

38

39

40

21

22

23

OUT2B_2

PVDD2_1

PVDD2_2

+24V_AMP

C5418

0.1uF
50V

PVDD1_1

37

36
35
34
33
32
31
30
29
28
27
26
25

24

PVDD2_3

C5420

0.1uF
50V

OUT1B_2
OUT1B_1
PGND1B
BST1B
VDR1
VCC_5
AGND
VDR2
BST2A
PGND2A
OUT2A_2
OUT2A_1

+24V_AMP

C5419

0.1uF
50V

C5421

0.1uF
50V

R5406

3.3

C5422
10uF
35V

OPT

OPT

C5424

0.01uF
50V

C5423
10uF
35V

C5425
22000pF

50V

C5426
22000pF
50V

C54 27
1uF
25V

D5400

1N4148W

100V

OPT

D5401

1N4148W

100V

OPT

D5402

1N4148W

100V

OPT

D5403

1N4148W

100V

OPT

1uF
25V

C54 28

R5407

12

C5429
390pF

50V

C5430
390pF

50V

R5408

12

R5409

12

C5431
390pF

50V

C5432
390pF

50V

R5410

12

C5433
1uF
25V

R5414

12

R5412

12

R5413

12

R5411

12

L5404

10.0uH

NRS6045T100MMGK

L5405

10.0uH

NRS6045T100MMGK

L5402

10.0uH

NRS6045T100MMGK

L5403

10.0uH

NRS6045T100MMGK

C5434

0.47uF
50V

C5435

0.47uF

50V

C5436

0.1uF
50V

C5437

0.1uF
50V

C5438

0.1uF
50V

C5439

0.1uF

50V

R5415

5.1K

R5416

5.1K

R5417

5.1K

R5418

5.1K

SPK_L+

SPEAKER_L

SPK_L-

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPK_R+

SPEAKER_R

SPK_R-

WAFER-ANGLE

4

3

2

1

P5400

WOOFER_MUTE

WOOFER_MUTE

TP5403

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

AMP_NEO

2011.11.21

54

+3.3V_NORMAL

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

EARPHONE AMP

HP_LOUT_MAIN

HP_ROUT_MAIN

4.7K

R6100

OPT

R6101

C6100
1uF
10V

C6103
1uF

10V

R6102

4.7K

OPT

R6103

4.7K

Close to the IC

INL-

1

INL+

2

INR+

3

INR-

4

OUTL

16

EAN60724701

5

OUTR

L6100

120-ohm
BLM18P G12 1SN1D

C6104
1uF
10V

VDD

SGND

14

15

IC6100
TPA6132A2

6G07G18

EN

13

HPVSS

C6105
10uF
10V

12

11

10

9

C6106

2.2uF
10V

HPVDD

CPP

PGND

CPN

C6107

0.1uF

16V

C6108

2.2uF
10V

C6109

2.2uF
10V

R6104
100K

OPT

HP_LOUT_AMP

Q6100

MMBT3904(NXP)

HP_ROUT_AMP

+3.3V_NORMAL

R6105

4.7K

C

B

E

OPT
R6106
0

R6107
1K

SIDE_HP_MUTE

From Micom

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HEADPHONE AMP

2011.09.29

61

T/C/S & H/NIM & T2/C TUNER(EU & CHINA)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

TU6504
TDSH-T151F

TW_H/NIM

RF_S/W_CTL

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

IF_AGC

DIF[P]

DIF[N]

12

SHIELD

TDSS-G151D

1

2

3

4

5

6

7

8

9

10

11

TU6500

T/C_H/NIM_V

NC

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

IF_AGC

DIF[P]

DIF[N]

12

SHIELD

1

2

3

4

5

6

7

8

9

10

11

TU6501

TDSN-G351D

T2/C_F/NIM_DEV

NC_1

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

NC_2

NC_3

NC_4

+B3[3.3V]

+B4[1.23V]

NC_5

GND

ERROR

SYNC

VALID

MCLK

D0

D1

D2

D3

D4

D5

D6

D7

28

SHIELD

TDSQ-H051F

+5V[SPLITTER]

1

RESET

2

TU_SCL

3

TU_SDA

4

M_+3.3V

5

M_SIF

6

M_+1.8V

7

M_CVBS

8

M_IF_AGC

9

M_DIF[P]

10

M_DIF[N]

11

S_3.3V

12

S_1.8V

13

S_CVBS

14

GND_1

15

SD_ERROR

16

SD_SYNC

17

SD_VALID

18

SD_MCLK

19

SD_SERIAL_D0

20

N.C_1

21

N.C_2

22

N.C_3

23

N.C_4

24

N.C_5

25

N.C_6

26

N.C_7

27

GND_2

GND_3

SD_1.23V_DEMOD

SD_RESET

SD_3.3V_DEMOD

N.C_8

SD_SCL

SD_SDA

TU6502

CHB_V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

RF_SWITCH_CTL USE: T2/C,T/C,ATSC,DTMB.ISDB-T

TU6503

TDSQ-G051D

T/C/S2_V

N.C_1

RESET

SCL

SDA

+3.3V_TUNER

SIF

+1.8V_TUNER

CVBS

T/C_IF_AGC

T/C_DIF[P]

T/C_DIF[N]

N.C_2

N.C_3

N.C_4

GND_1

ERROR

SYNC

VALID

MCLK

D0

D1

D2

D3

D4

D5

D6

D7

GND_2

GND_3

+1.23V_S2_DEMOD

S2_RESET

+3.3V_S2_DEMOD

S2_F22_OUTPUT

S2_SCL

S2_SDA

LNB

GND_4

38

SHIELD

BR_F/NIM_V

CN_ATBM

TU6501-*1

TU6501-*2

TDSN-B051F

TDSN-C251D

RF_S/W_CTL

1

1

RESET

2

2

SCL

3

3

SDA

4

4

+B1[3.3V]

5

5

SIF

6

6

+B2[1.8V]

7

AT_H/NIM_V
TU6500-*1
TDSS-H151F

NC

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

SIF

6

+B2[1.8V]

7

CVBS

8

IF_AGC

9

DIF[P]

10

DIF[N]

11

12

SHIELD

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

SHIELD

7

CVBS

8

8

NC_1

9

9

NC_2

10

NC_3

11

+B3[3.3V]

12

+B4[1.23V]

13

NC_4

14

GND

15

ERROR

16

SYNC

17

VALID

18

MCLK

19

D0

20

D1

21

D2

22

D3

23

D4

24

D5

25

D6

26

D7

27

28

SHIELD

RF_S/W_CTL

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

NC_1

NC_2

NC_3

+B3[3.3V]

+B4[1.23V]

NC_4

GND

ERROR

SYNC

VALID

MCLK

D0

D1

D2

D3

D4

D5

D6

D7

TU6501-*3
TDSN-C051D

28

SHIELD

CN_LG3921

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

RF_S/W_CTL

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

SIF

6

+B2[1.8V]

7

CVBS

8

NC_1

9

NC_2

NC_3

+B3[3.3V]

+B4[1.23V]

NC_4

GND

ERROR

SYNC

VALID

MCLK

D0

D1

D2

D3

D4

D5

D6

D7

T2/C/S2

TU6503-*1
TDSQ-G351D

N.C_1

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

SIF

6

+B2[1.8V]

7

CVBS

8

N.C_2

9

N.C_3

10

N.C_4

11

+B3[3.3V]

12

+B4[1.23V]

13

N.C_5

14

GND_1

15

ERROR

16

SYNC

17

VALID

18

MCLK

19

D0

20

D1

21

D2

22

D3

23

D4

24

D5

25

D6

26

D7

27

GND_2

28

GND_3

29

+B5[1.23V]

30

S2_RESET

31

+B6[3.3V]

32

S2_F22_OUTPUT

33

S2_SCL

34

S2_SDA

35

LNB

36

GND_4

37

38

SHIELD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

SHIELD

1

2

3

4

5

6

7

8

9

close to TUNER

CHB

C6501
10uF
10V

OPT

OPT

C6551
100pF

50V

close to Tuner

C6500

L9 ATSC

0.1uF
16V

C6509

0.1uF
16V

CHB

close to TUNER

Seperate GND for CHB

CHB

+5V_TU

L6508

BLM18PG121SN1D

RF_SWITCH

C6503

0.1uF
16V

C6508
18pF

R6510

50V

C6506
18pF
50V

should be guarded by groumd

R6500 0

MTK/L9_DVB/ATSC/NTSC

R6509

33

33

+3.3V_TU

C6511
100pF
50V

C6550

C6505

0.1uF

0.1uF

16V

16V

R6506

C6507
100pF
50V

T2/C&CHB&CN&BR

RF_SWITCH

R6508
100

C6514

0.1uF
16V

BLM18PG121SN1D

100

C6510
1000pF
50V

BR_TW_CN_TUNER

R6508-*1

1K 5%

I2C_SCL6

I2C_SDA6

L6500

T/C&AT&CHB

C6513
4700pF

CN

CN

50V

BR_TW_CN_TUNER

R6500-*1

1K 5%

RF_SWITCH_CTL

BR_TW_CN_TUNER

C6508-*1
68pF
50V

close to TUNER

0.1uF 16V

+1.8V_TU

IF_P

IF_N

C6516

0.1uF
16V

T2/C&CHB&CN&BR

NOT_T/C&AT&CHB

AR6500 0

NOT_T/C&AT&CHB

AR6501
0

AR6502
0

NOT_T/C&AT&CHB

DVB_S&CHB

C6512
100pF

LNB_OUT

+3.3V_TU

MTK/L9_DVB/ATSC/NTSC

BR_TW_CN_TUNER

+5V_TU

C6506-*1
68pF

R6516

50V

470

C6522

IF_AGC

T2/C&CN&BR

L6502

BLM18PG121SN1D

CHB

L6507

BLM18PG121SN1D

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]

FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

OPT

OPT

B

R6515

4.7K

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils

CHB

OPT

C6523

C6525

100pF

0.1uF

50V

16V

+1.23V_TU

+1.8V_TU

DVB_S&CHB

BLM18PG121SN1D

C6515

0.1uF
DVB_S&CHB

C6517
18pF
50V

C6518
18pF
50V

L6501

LNB_TX

+1.23V_TU

C6519
10uF

10V

DVB_S&CHB

R6503 22

DVB_S&CHB

R6504 22

DVB_S&CHB

OPT

R6511
100K

C6520

0.1uF

16V

R6518
82

E

Q6500

C

MMBT3906(NXP)

Ground Width >= 24mils

+3.3V_D_Demod

OPT
C6528
10uF

6.3V

CHB_CVBS
CHB_ERR
CHB_SYNC
CHB_VAL
CHB_CLK

TU_TS_ERR
FE_TS_SYNC
TU_TS_VAL
FE_TS_CLK

CHB_DATA
FE_TS_DATA[0-7]

+3.3V_D_Demod

OPT

R6512

2.2K
R6513

10

C6521

DVB_S&CHB

0.1uF
OPT

OPT

C6524
100pF

/TU_RESET

TUNER_SIF

C6527

/S2_RESET

0.1uF
OPT

R6521

220

E

Q6501
MMBT3906(NXP)

C

+3.3V_D_Demod

I2C_SCL4

I2C_SDA4

CHB_CVBS

CHB_ERR

CHB_SYNC

CHB_VAL
CHB_CLK

CHB_DATA

ATV_OUT

2012 perallel
because of derating

+3.3V_TU

+3.3V_TU_IN

NOT_T/C&AT

C6533

10uF

16V

C6531

0.1uF

ERROR & VALID PIN

TU_CVBS

T/C_H/NIM

NOT_DVB_S

Not_L9_T2/C/S

NOT_T/C&AT

BLM18PG121SN1D

T/C/S2 T2/C_F/NIM T2/C/S2 CHB

DVB_S&CHB DVB_S&CHB DVB_S&CHB

NOT_T/C&AT

T/C&AT&CHB

Not_L9_T2/C/S

+5V_NORMAL

C6535
1uF
OPT

+3.3V_D_Demod

L6506

+3.3V_NORMAL

L9_T2/C/S

IC6500

74LVC1G08GW

TU_TS_VAL

TU_TS_ERR

DVB_S DVB_ST/C&AT&CHB T/C&AT&CHB

NOT_T/C&AT

T2/C

T2/C&CN

T2/C&CHB&CN

NOT_T/C&AT&CHBNOT_T/C&AT&CHB

NOT_DVB_S

Not_L9_T2/C/S Not_L9_T2/C/S

C6540

0.1uF

B

A

GND

NOT_T/C&AT

T2/C

T2/C&CN

T2/C&CHB&CN

NOT_T/C&AT&CHB

L9_T2/C/S

AP2132MP-2.5TRG1

PG

EN

R6523
10K

VIN

VCTRL

1

2

3

NOT_L9_T2/C/S

NOT_T/C&AT

IC6501

1

2

3

4

2A

EAN61387601

R6525
0

NOT_T/C&AT

T/C&AT&CHB

T2/C&CHB&CN

H/NIM&CHB

9

THERMAL

CHB

5

4

8

7

6

5

+3.3V_TU

VCC

L9_T2/C/S

Y

L9_T2/C/S

AT_H/NIM

NOT_DVB_S

Not_L9_T2/C/S

[EP]

GND

ADJ

VOUT

NC

C6544

Vout=0.6*(1+R1/R2)

NOT_T/C&AT
C6538

10uF

10V

Close to the tuner

L6503

BLM18PG121SN1D

C6529

C6526

0.1uF

22uF
10V

16V

NOT_T/C&AT
C6542

0.1uF

465mA(MAX)

+3.3V_TU

C6530

0.1uF
16V

Close to the tuner

TUNER

+3.3V_TU

IC6503

AZ1117BH-1.8TRE1

IN

3

+5V_NORMAL

C6532

0.1uF

0.1uF
16V

R6526
100

1/16W
5%

NOT_T/C&AT

RF_SWITCH

NOT_T/C&AT&CHB

NOT_DVB_S

Not_L9_T2/C/S

T2 : Max 1.7A

else : Max 0.7A

NOT_T/C&AT

R6527
20K
1%

NOT_T/C&AT

R6528
11K
1%
R6529
10K
1%

NOT_T/C&AT

OUT

2

1

ADJ/GND

BR_TW_CN_TUNER

R6532-*1

BLM18PG121SN1D

120-ohm

MTK/L9_DVB/ATSC/NTSC

R6532
0

16V

FE_TS_VAL

CN

CN

BR

+1.23V_TU

R2

R1

CHB : Max 480mA

else : Max 240mA

+1.8V_TU

R6531
1

C6546

C6548

10uF

0.1uF

10V

16V

C6534

C6536

22uF

10V

Close to the tuner

2011.11.21

CN

R6528-*1
12K

1/16W
1%

NOT_T/C&AT

C6549
10uF

16V

150mA(MAX)

+5V_TU

22uF

10V

C6539

0.1uF
16V

LNB_TX

LNB_OUT
ATV_OUT

+5V_TU

R6520

220

B

R6519

1K

OPT

65

FOR COMMERCIAL 12V OUT RS-232C 9 PIN

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

(OPT:COMMER_EXT_12V)

R7001
100

IC7000

MP5000DQ

COMMERCIAL_12V_CTL

FOR 12V CONTROL (FROM MICOM)

AUDIO OUT JACK
(OPT:COMMER_EXT_AMP)

C7000
470pF
50V

R7000
1K

DV/DT

ENABLE/FAULT

I-LIMIT

SPK_L_OUT_COMMERCIAL

SPK_R_OUT_COMMERCIAL

GND

C7001
1uF
25V

10

9

8

7

6

SOURCE_5

SOURCE_4

SOURCE_3

SOURCE_2

SOURCE_1

+12V

C7002
22uF
25V

C7006
10uF
16V

C7007
10uF
16V

D7000

5.6V

C7003
22uF
25V

D7001

5.6V

12V_COMMERCIAL_OUT

L7000

BLM18PG121SN1D

C7004

0.1uF
50V

R7004
100K

R7005
22K

COMMER_EXT_AMP_JACK

KJA-PH-0-0177
5GND

4L

3DETECT

1R

EAG61030001

1

2

3

4

NC

5

11

VCC

B

JK7000

+3.5V_ST

C

Q7001
MMBT3904(NXP)

E

R7006
10K

12V_EXT_PWR_DET

FOR COMMERCIAL AUDIO OUT
(OPT:COMMER_EXT_AMP)

+24V

L7001

BLM18PG121SN1D

C7005

0.1uF 50V

AUDIO_L_OUT_COMMERCIAL

AUDIO_R_OUT_COMMERCIAL

EXT_AMP_RESET

FOR AMP RESET (MAIN SOC)

EXT_AMP_MUTE

SPK_L_OUT_COMMERCIAL

PATTERN SHOULD BE CONSIDERED (MAX 3W)

SPK_R_OUT_COMMERCIAL

P7000

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

COMMERCIAL_OPTION

2011.11.21

70

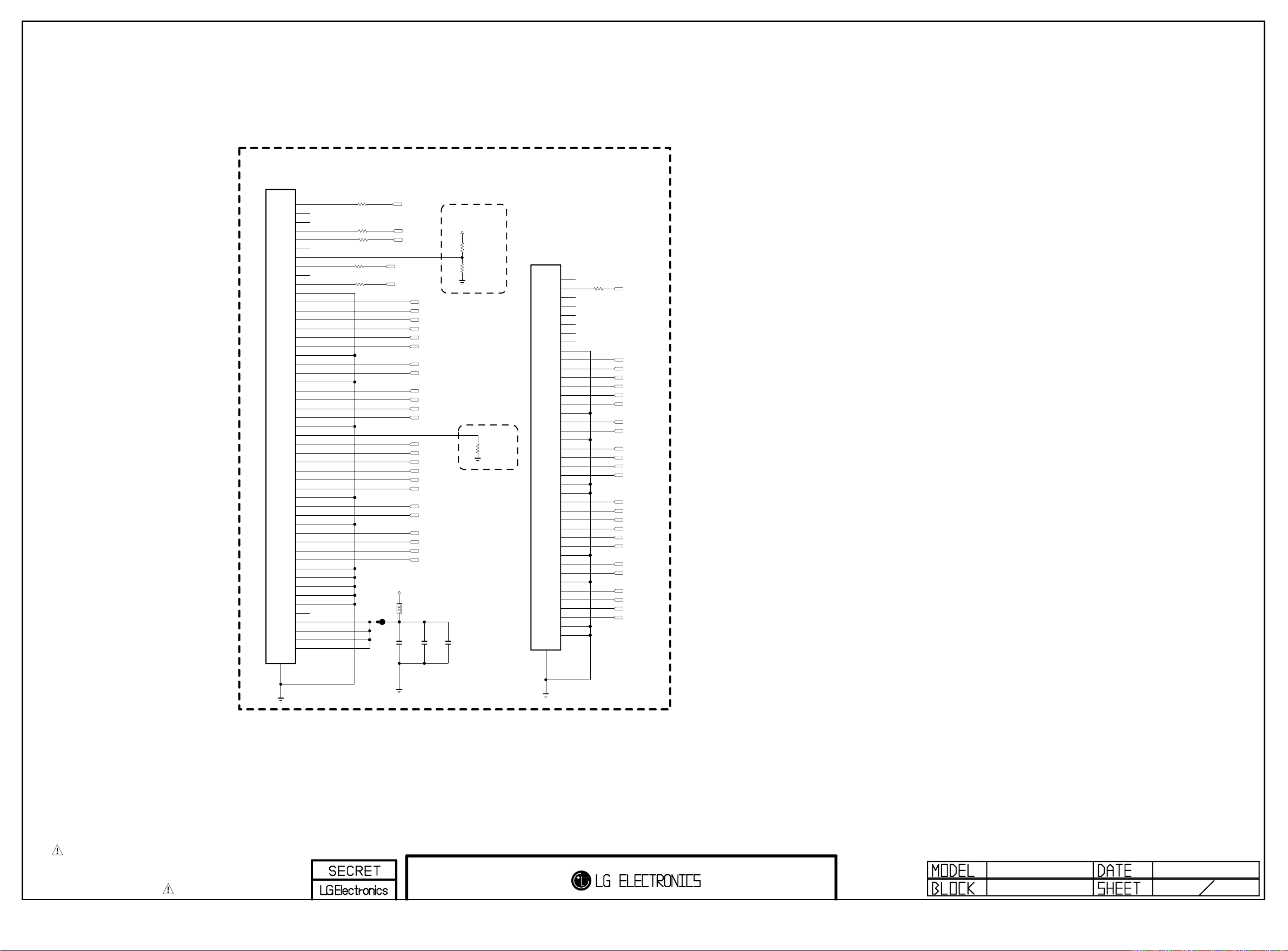

LVDS

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LVDS_51PIN

P7100

FI-RE51S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

GND

[51Pin LVDS OUTPUT Connector]

NC

NC

NC

NC

NC

AUO_65_MIRROR

LVDS_SEL

NC

NC

L/DIM_ENABLE

GND

RA0N

RA0P

RA1N

RA1P

RA2N

RA2P

GND

RACLKN

RACLKP

GND

RA3N

RA3P

RA4N

RA4P

GND

BIT_SEL

RB0N

RB0P

RB1N

RB1P

RB2N

RB2P

GND

RBCLKN

RBCLKP

GND

RB3N

RB3P

RB4N

RB4P

GND

GND

GND

GND

GND

NC

VLCD

VLCD

VLCD

VLCD

R7100 33
LGD_2D/3D_CTRL

R7105 33

CP_BOX

R7106 33

CP_BOX

R7107 33

LGD_32/37_LVDS_PWM

R7108

33

LGD_32/37_LVDS_OPC

2D/3D_CTL

PWM_DIM1

OPC_EN

PANEL_VCC

I2C_SDA1

I2C_SCL1

TXA0N

TXA0P

TXA1N

TXA1P

TXA2N

TXA2P

TXACLKN

TXACLKP

TXA3N

TXA3P

TXA4N

TXA4P

TXB0N

TXB0P

TXB1N

TXB1P

TXB2N

TXB2P

TXBCLKN

TXBCLKP

TXB3N

TXB3P

TXB4N

TXB4P

L7100
BLM18SG121TN1D
LVDS_51PIN

C7100

C7101

10uF

1000pF

16V

50V

OPT

OPT

LVDS_SEL

+3.3V_NORMAL

R7101

3.3K
LVDS_SEL_HIGH

R7102
10K

LVDS_SEL_LOW

BIT_SEL

C7102

0.1uF
50V

OPT

[41Pin LVDS OUTPUT Connector]

LVDS_41PIN

P7101

FI-RE41S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

R7103
10K

BIT_SEL_LOW

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

GND

NC

NC

NC

NC

NC

NC

NC

NC

GND

RC0N

RC0P

RC1N

RC1P

RC2N

RC2P

GND

RCCLKN

RCCLKP

GND

RC3N

RC3P

RC4N

RC4P

GND

GND

RD0N

RD0P

RD1N

RD1P

RD2N

RD2P

GND

RDCLKN

RDCLKP

GND

RD3N

RD3P

RD4N

RD4P

GND

GND

R7104 33

AUO_2D/3D_CTRL

2D/3D_CTL

TXC0N

TXC0P

TXC1N

TXC1P

TXC2N

TXC2P

TXCCLKN

TXCCLKP

TXC3N

TXC3P

TXC4N

TXC4P

TXD0N

TXD0P

TXD1N

TXD1P

TXD2N

TXD2P

TXDCLKN

TXDCLKP

TXD3N

TXD3P

TXD4N

TXD4P

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LVDS_HIGH_MID

2011.08.11

71

LOCAL DIMMING

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[To LED DRIVER]

P7600

12507WR-08L

L/DIM_OUT

1

2

3

4

5

6

7

8

9

+3.3V_NORMAL

R7600
10K

OPT

R7601
10K
L/DIM_OUT

AR7600

33

1/16W

L/DIM_OUT

R7606 33

L/DIM_OUT

R7607

4.7K
L/DIM_OUT

L/DIM0_SCLK

L/DIM0_MOSI

I2C_SCL1

I2C_SDA1

L/DIM0_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LOCAL DIMMING

2011.12.13

76

THIS IS REVERSE PATTERN !!!!

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[Left Source(51PIN LOCATION)]

VCC18

C7700

C7701

0.01uF

0.1uF
50V

50V

51

FL8S050HA1

P7702

DEV_50WAFER

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

TXB2P
TXB2N

TXB1P
TXB1N

TXB0P
TXB0N

VCOM

VCOMLFB
GIP_RST
VST
VGL_I
VGH_EVEN
VGH_ODD
VGH_F
VGH_R
CLK6
CLK5
CLK4
CLK3
CLK2
CLK1

Z_OUT

GMA1
GMA3
GMA4
GMA5
GMA7

GMA9
GMA10
GMA12
GMA14
GMA15
GMA16
GMA18

EPI_LOCK3

CH6

FROM SOC

CH5

FROM SOC

CH4

FROM SOC

Vcore

H_VDD

VDD

VCC18

C7708

C7705

10uF

10uF

10V

10V

OPT

Vcore

L7705
BLM18PG121SN1D

R7700

1/16W

OPT

VCC

C7704

0.1uF

2K

16V

C7707
10uF
10V
OPT

C7706
10uF
10V

C7710
10uF
10V

C7709
10uF
10V

C7711
10uF
10V

[Right Source(41PIN LOCATION)]

VCC18

C7702

C7703

0.01uF

0.1uF
50V

50V

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

GMA18

12

GMA16

11

GMA15

10

GMA14

9

GMA12

8

GMA10

7

GMA9

6

GMA7

5

GMA5

4

GMA4

3

GMA3

2

GMA1

1

FL8S050HA1

P7703

DEV_50WAFER

L7700

LQM2HPN2R2MG0L

2.2uH

PMIC_RESET

TO SOC

L7701

LQM2HPN2R2MG0L

2.2uH

C7728
10uF
10V
OPT

Z_OUT

CLK1
CLK2
CLK3
CLK4
CLK5
CLK6
VGH_R

VGH_F
VGH_ODD
VGH_EVEN
VGL_I
VST
GIP_RST
VCOMRFB
VCOM

Vcore

EPI_LOCK3
EPI_LOCK6_SOURCE

EPI_LOCK6_SOURCE

C7712
1uF
10V

VDD

TXA4P
TXA4N

TXACLKP
TXACLKN

TXA1P
TXA1N

R7725

H_VDD

1/16W

OPT

L7702

22uH

D7700
SX34

40V

FROM SOC

0

VCC18

R7761
10K

OPT

1/16W

PANEL_VCC

H_VDD

R7729

2.7K

1/16W

R7755

100

VCC

R7701
10K

C7713
10uF
25V

+3.3V_NORMAL

B

VCOMRFB

VCOM_DYN

C7714
10uF
25V

C7715
10uF
16V

R7756
10K

C

Q7702

MMBT3904(NXP)

E

VCOMLFB

FROM SOC

C7721 10uF

OPT

C7716
10uF
25V

OPT

C7724

1uF
25V

C7722
10uF
16V

R7757

10K

R7708

R7709 0

R7710 0

25V

PANEL_VCC

B

0

1/16W

1/16W

1/16W

OUT4
SWB4

RST
OUT1
OUT2
SWB2

PGND2
SWB1_1
SWB1_2

NC
PVINB1_1
PVINB1_2

NR6020T6R8NC

C7723

C7725

10uF

10uF

25V

25V

OPT

R7758
10K

C

MMBT3904(NXP)

Q7703

E

L7703

6.8uH

[EP]AGND

1
2
3
4
5
6
7
8
9
10
11
12

13

AVIN

THERMAL

EPI_LOCK6

GMA15

49

IC7700

TPS65178RSLR

EPI

14

15

17

18

SWB316OUT3

SW_121SW_2

PGND3

PVINB3

PGND_119PGND_2

L7704

22uH

VCOM_P
VCOM_N
VCOM_LOOP

GMA14

GMA12

20

R7713

2.2

1/16W

OPT

<POWER BLOCK>

GMA7

GMA4

GMA5

GMA138GMA239GMA340GMA441GMA542GMA643VCOM44NEG45POS46VCOMFB47DYN48PGND4

37

CTRLN

36

VGL

35

SWN

34

SWP

33

VGH

32

CTRLP

31

TCOMP

30

VL

29

SDA

28

SCL

27

COMP

26

SS

25

22

24

SWI23SWO

D7701
SX34

40V

GST_SOC

MCLK_SOC

FROM SOC

GCLK_SOC

FROM SOC

AGND

C7729
1000pF

50V

OPT

EO_SOC

FROM SOC

FROM SOC

CLK6_I
CLK5_I
CLK4_I
CLK3_I
CLK2_I
CLK1_I

COMP

C7737

0.1uF
50V

C7734

0.1uF
50V

R7703

R7704

R7705 47

R7706

1/16W

1/16W

1/16W

1/16W

C7738

0.1uF
50V

R7702

0

TCOMP

I2C_SDA2
I2C_SCL2
COMP
SS

R7717
33K
1/16W

C7736
1000pF
50V

C7739

0.1uF
50V

47

47

C7719
15pF
50V

47

C7720
15pF
50V

C7717
15pF
50V

C7718
15pF
50V

OPT

C7740
1000pF
50V

C7732

0.1uF
50V

R7707

C7742
1uF
25V

SS

C7730
68uF
35V

CTRLN
VGL_FB

C7735
68uF
35V

SWN

VL

C7731

0.1uF
16V

SWP

VGH_FB

CTRLP

VDD

R7718

9.1K
1/16W

TH7700

47k-ohm

NCP18WB473F10RB

VCC

R7730

R7737

OPT

OPT

1/16W

1/16W

SWP

VDD

CTRLP

VL

R7720
47K

1/16W

5%

R7722
100K
1/16W
1%

TCOMP

CTRLN

SWN

R7759

0

1/16W

R7728 100K

1/16W 5%

1uF 25V

R7727 100K

1/16W 5%

C7745

1uF 25V

C7746

R7760

0

1/16W

1uF 25V

C7748

1uF 25V

C7747

INSTEAD OF AMCC0208

Q7700

MMBT3904(NXP)

EBC

INSTEAD OF AMCC0209

EBC

Q7701

MMBT3906(NXP)

D7703

1N4148W

100V

D7705

1N4148W

100V

1N4148W

1N4148W

D7704

100V

D7706

100V

C7727

0.1uF
50V

C7754

0.1uF
50V

R7739

1.5K
1/16W
5%

C7755
1uF
50V

C7756
1uF
25V

VGH_FB

C7757
1uF
50V

VGL_FB

C7733
10uF
16V

R7745

R7744
20K
1/10W
5%

1/16W

VGL

0

R7746 0

R7750
20K
1/10W
5%

VGH

1/16W

<LEVEL SHIFTER BLOCK>

CLK6

C7743
1uF
25V

CLK5
CLK4
CLK3
CLK2
CLK1

CLK1_I

CLK2_I

CLK4_I

CLK6_I

CLK5_I

CLK3_I

RE

RE

7

VGH_R

8

VGH_F

9

ODD

10

EVEN

11

VST

12

RESET

13

DISCHG

14

R7723
0
1/16W

15

VGL

R7724

0

1/16W

OPT

VGH

VGL

R7721
0
1/16W

CLK3

CLK5

CLK64CLK42CLK2

3

5

6

TPS65198

IC7701

EPI

16

18

OUT19NEG20POS

VGH117VGH2

VCOM

C7744
1uF
50V

VGH

THE RMAL

29

R7731 0

R7726
0
1/16W

OPT

1
28

27

26

25

24

23

22

21

CLK1

AVDD

[EP]VGL

BI-SCAN

GCLK

MCLK

GST

EO

VSENSE

GND

1/16W

R7732
0
1/16W

OPT

VGL

REVERSE

REVERSE

GCLK

MCLK

GST

EO

PANEL_VCC

VDD

R7747

R7738

0

0

1/16W

1/16W

OPT

C7726
1uF
25V

VCOM_P
VCOM_N
VCOM_LOOP

0

R7734

1/16W

OPT

C7749

R7733

1uF

0
1/16W

50V

VCC

R7748
1K
1/16W

R7749
1K
1/16W

R7735
100
1/16W

R7736
3K
1/16W

D7702

40V

OPT

C7750
1uF
25V
OPT

VDD

OPT

VCC

DISCHG

VGL

VDD

R7740 0

1/16W

R7741 0

1/16W

OPT

R7742 3K

OPT

1/16W

R7743 0

OPT

1/16W

R7751
15K
1/16W

R7752
15K
1/16W

R7753
15K
1/16W
OPT

R7754
15K
1/16W
OPT

VGL_I

RE

R7711

0

GST

MCLK

GCLK

R7712

0

EO

VGH_R

VGH_F

VGH_ODD

VGH_EVEN

VST

GIP_RST

DISCHG

R7714

0

VGL

R7715

0

0

R7719 0

1/16W

R7716
0

1/16W

OPT

C7741
10uF
16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

T-Con

2011.12.01

77

eMMC I/F

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

EMMC_DATA[0-7]

EMMC_VCCQ

EMMC DATA LINE 47K PULL/UP

EMMC DATA LINE
10K PULL/UP

R8100 10K

R8101 10K

R8102 10K

R8103 10K

R8104 10K

R8105 10K

R8106 10K

C8107
10pF
50V

R8107 10K

DAT4

DAT3

R8100-*1 47K

R8102-*1 47K

R8101-*1 47K

EMMC_DATA[0]
EMMC_DATA[1]
EMMC_DATA[2]

EMMC_DATA[3]

EMMC_DATA[4]
EMMC_DATA[5]
EMMC_DATA[6]
EMMC_DATA[7]

EMMC_CLK
EMMC_CMD
EMMC_RST

R8103-*1 47K

R8104-*1 47K

R8105-*1 47K

R8106-*1 47K

R8107-*1 47K

AR8100
22
1/16W

AR8101
22
1/16W

AR8102 22

OPT

C8100

0.1uF

OPT

16V

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

DAT5

DAT6

10K

R8117

EMMC_CLK_BALL

EMMC_CMD_BALL

10K

R8116

EMMC_RESET_BALL

EMMC_VCCQ

EMMC_VDDI

EMMC_VDDI

C8105

0.1uF
16V

C8106

2.2uF
10V

3.3V_EMMC

C8102

0.1uF
16V

DAT3
DAT4

DAT5

C8103

2.2uF
10V

C8104

0.1uF
16V

SDIN5D2-4G-974L1

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44

E10

NC_45

F10

NC_52

G3

NC_58

G10

NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81

K10

NC_82

P7

NC_116

P10

NC_119

K5

RESET

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6

A10

NC_7

A11

NC_8

A12

NC_9

A13

NC_10

A14

NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15

B10

NC_16

B11

NC_17

B12

NC_18

B13

NC_19

B14

NC_20

C1

NC_21

C3

NC_22

C7

NC_24

IC8100

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108
NC_109
NC_110
NC_111
NC_112
NC_113
NC_114
NC_115
NC_117
NC_118
NC_120
NC_121
NC_122
NC_123

M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

GED_SANDISK_EMMC_4GB

DAT5

DAT6

EMMC_RESET_BALL

EMMC_CMD_BALL

EMMC_CLK_BALL

A3
A4
A5
B2
B3
B4
B5
B6

M6
M5

A6
A7
C5
E5
E8

E9
E10
F10

G3
G10

H5

J5

K6

K7
K10

P7
P10

K5

C6

M4

N4

P3

P5

E6

F5
J10

K9

C2

E7

G5
H10

K8

C4

N2

N5

P4

P6

A1

A2

A8

A9
A10
A11
A12
A13
A14

B1

B7

B8

B9
B10
B11
B12
B13
B14

C1

C3

C7

IC8100-*3

H26M31001EFR

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

CLK
CMD

NC_3
NC_4
NC_23
NC_42
NC_43
NC_44
NC_45
NC_52
NC_58
NC_59
NC_66
NC_73
NC_80
NC_81
NC_82
NC_116
NC_119

RESET

VCCQ_1
VCCQ_2
VCCQ_3
VCCQ_4
VCCQ_5

VCC_1
VCC_2
VCC_3
VCC_4

VDDI

VSS_1
VSS_2
VSS_3
VSS_4
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5

NC_1
NC_2
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21
NC_22
NC_24

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92

M2

NC_93

M3

NC_94

M7

NC_95

M8

NC_96

M9

NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108
NC_109
NC_110
NC_111
NC_112
NC_113
NC_114
NC_115
NC_117
NC_118
NC_120
NC_121
NC_122
NC_123

M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

DEV_GED_HYNIX_EMMC_4GB

A3
A4
A5
B2
B3
B4
B5
B6

M6
M5

A6
A7
C5
E5
E8

E9
E10
F10

G3
G10

H5

J5

K6

K7
K10

P7
P10

K5

C6

M4

N4

P3

P5

E6

F5
J10

K9

C2

E7

G5
H10

K8

C4

N2

N5

P4

P6

A1

A2

A8

A9
A10
A11
A12
A13
A14

B1

B7

B8

B9
B10
B11
B12
B13
B14

C1

C3

C7

IC8100-*1

H26M21001ECR

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

CLK
CMD

NC_3
NC_4
NC_23
NC_42
NC_43
NC_44
NC_45
NC_52
NC_58
NC_59
NC_66
NC_73
NC_80
NC_81
NC_82
NC_116
NC_119

RESET

VCCQ_1
VCCQ_2
VCCQ_3
VCCQ_4
VCCQ_5

VCC_1
VCC_2
VCC_3
VCC_4

VDDI

VSS_1
VSS_2
VSS_3
VSS_4
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5

NC_1
NC_2
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21
NC_22
NC_24

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108
NC_109
NC_110
NC_111
NC_112
NC_113
NC_114
NC_115
NC_117
NC_118
NC_120
NC_121
NC_122
NC_123

M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

HYNIX_EMMC_2GB

KLM2G1HE3F-B001

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44

E10

NC_45

F10

NC_52

G3

NC_58

G10

NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81

K10

NC_82

P7

NC_116

P10

NC_119

K5

RSTN

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2

J10

VDDF_3

K9

VDDF_4

C2

VDDI

C4

VSS_1

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_5

N2

VSS_6

N5

VSS_7

P4

VSS_8

P6

VSS_9

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6

A10

NC_7

A11

NC_8

A12

NC_9

A13

NC_10

A14

NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15

B10

NC_16

B11

NC_17

B12

NC_18

B13

NC_19

B14

NC_20

C1

NC_21

C3

NC_22

C7

NC_24

IC8100-*2

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

SAMSUNG_EMMC_2GB

NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108
NC_109
NC_110
NC_111
NC_112
NC_113
NC_114
NC_115
NC_117
NC_118
NC_120
NC_121
NC_122
NC_123

M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DU1

DUMMY_1

DU2

DUMMY_2

DU3

DUMMY_3

DU4

DUMMY_4

DU5

DUMMY_5

DU6

DUMMY_6

DU7

DUMMY_7

DU8

DUMMY_8

DUMMY_9
DUMMY_10
DUMMY_11
DUMMY_12
DUMMY_13
DUMMY_14
DUMMY_15
DUMMY_16

DU9
DU10
DU11
DU12
DU13
DU14
DU15
DU16

DU1

DUMMY_1

DU2

DUMMY_2

DU3

DUMMY_3

DU4

DUMMY_4

DU5

DUMMY_5

DU6

DUMMY_6

DU7

DUMMY_7

DU8

DUMMY_8

DUMMY_9
DUMMY_10
DUMMY_11
DUMMY_12
DUMMY_13
DUMMY_14
DUMMY_15
DUMMY_16

DU9
DU10
DU11
DU12
DU13
DU14
DU15
DU16

eMMC

11.09.29

81

Place Near Micom

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LOGO_LIGHT

+3.5V_ST

10K

R8902

R8901

10K

LOGO_LIGHT

OPT

C8900

0.1uF
16V

LOGO_LIGHT

1K

R8903

LOGO_LIGHT

LOGO_LIGHT

B

Q8900
MMBT3904(NXP)

+3.5V_ST

R8900

22

LOGO_LIGHT

C

E

12507WR-03L

L8900

LOGO_LIGHT

BLM18PG121SN1D

P8900

1

LOGO_LIGHT

2

3

4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2012 LED/LCD TV

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Engineering guide

< Applicable Model >
xxLS5700-Dx
xxLM6200-Dx
xxLM6400-Dx
xxLM6700-Dx
xxLM6690-Dx
xxLM7600-Dx

1/ 79

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features (widevine…)

8. Repair guide

9. The latest issue and concerning issue

2/ 79

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

3/ 79

Model naming and Tool option

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Standard of 2012y Model Name

Description of Tool Options

12Y model name

ToolOption

4/ 79

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

5/ 79

EPI Interface

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

EPI(Embedded Point-Point Interface)
Features

• Point-Point topology (support 2 Pair option)

• CDR (Clock Data Recovery)

• Bandwidth up to 1.85Gbps/pair at FHD 120Hz 10 bit application

• Lock signal cascading and feedback to T-Con

• Embedded Control Data

Merits

• Better reliability on common noise

• No data skew and better EMI margin

• Fewer lines than mini-LVDS

• Slim PCB design

VCC

TCON

LOCK

2

1

Figure1. Topology

6/ 79

EPI Interface (mini-LVDS vs. EPI)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Comparison

HF mini-LVDS

HF mini-

LVDS

No. of Signal 36 36 72

Connector

60Hz 120Hz 240Hz

60pin

(2ea)

-Difficult to upgrade bandwidth limit

-Multiple number of wires needed for higher bandwidth

EPI (Embedded clock P-to-P Interface)

EPI

No. of Signal 12 12 32

Connector -

60Hz 120Hz 240Hz

960ch 960ch 720ch

FHD (10bit)

60pin

(2ea)

FHD (10bit)

50 pin

(2ea)

80pin

(2ea)

70pin

(2ea)

What to change

LCM (T-con to S-Driver IC)

HF mini-LVDS

18

VCC

1

EPI

2

VCC

1

TCON

TCON

18

(FHD 120Hz)

LOCK

-Better reliability on common noise

-No data skew. Better EMI margin

-Lower cost ( Cable, Connector )

-Slim S-PCB design (14mm Æ 10mm) helps slimmer TV

(FHD 120Hz)

* Bandwidth Capability

- FHD 120Hz 10Bit : 594Mbps@36Lines → 1.65Gbps@12Lines

- FHD 240Hz 10Bit : 594Mbps@72Lines → 1.25Gbps@32Lines

7/ 79

EPI Interface (mini-LVDS vs. EPI)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

HF mini-LVDS EPI

Topology

Protocol

Features

@10bit, FHD120

Merit

TCON

• Multi Drop

• Data rate: 660Mbps

• External clock

•Simple structure

• Standardization

TCON

Lock

2

1

• Point to Point

• Data rate : 1.8Gbps

• Embedded clock, Control

• Fewer Lines : 12

• Embedded clock
: low EMI, Clock skew free

Demerit

• Too many lines : 36

• Clock skew

• EMI due to clock lines

• Bandwidth limit

• Easy to PCB design

• Transmission Overhead

: 4bit delimiter

8/ 79

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

9/ 79

Main PCB for Broadband

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

To module

WIFI

Soft touch +IR

Front Spk

To PSU

4

3

Chassis : LT22E

1

PCB P/No : EAX64434205

2

All model

1

2

2

2

1

1

Main processor, DDR Memory

eMMC Memory

Only for Dev

RF Assy

10 / 79

2

3

4

Micom for Key/IR sens ing

Audio AMP (10W+10W)

LVDS &EPI Wafer

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

11 / 79

MTK5369 Block Diagram( LT22E )

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Air/
Cable

DVB-S

TUNER

(T/C)

TUNER

(S2)

ANALOG

DEMOD

DIGITAL

DEMOD

DIGITAL

DEMOD

LNB

(T/C)

(S2)

USB1

USB2
USB3

USB_WIFI

HDMI1
HDMI2

HDMI3
HDMI4

IF(+/-)

CI slot

CI slot

P_TS

CVBS

P_TS

Side

P_TS

X_TAL

27MHz

T/C Demod

CVBS

TS_S/P

USB

HDMI

MUX

(HDCP

EEPROM)

MTK

SYSTEM

DDR3 X

1600 X

16

(2Gb)

DDR

CONTROLER A/B

SYSTEM

LVDS

EPI

I2S Out

DDR3 X

1600 X

16

(2Gb)

SYSTEM

DDR3 X

1600 X 16

(2Gb)

SYSTEM

DDR3 X

1600 X 16

(2Gb)

SYSTEM EEPROM X 1

(256Kb)

eMMC X 1

(4GB)

51P
41P

50P
50P

Audio

AMP

(NTP7500

or STA380)

: according to input spec

PC-RGB

PC-AUDIO

OPTIC

LAN

RS-232C
only Dev

Rear

RGB,H/V

L/R In

SPDIF OUT

Ethernet

12 / 79

SPI

UART

IR

I2C

UART

LOCAL DIMMING

Sub Micom

(RENESAS)

M-Remote

Module

Remote Control

Jack Interface

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Main SoC

MTK

Full Scart(18 Pin Gender)

SC_R/G/B +

SC_DET

SC_L/R_IN

SC_FB
SC_ID

SC_CVBS_IN

DTV/MNT_V_OUT

DTV/MNT_L_OUT
DTV/MNT_R_OUT

COMP 1 PHONE JACK

IC6000

AZ4580M

[SCART_LOUT]

[SCART_ROUT]

[PR0P],[PB0P],[Y0P]
[OPCTRL8]

[AIN0_L_ADDC]
[AIN0_R_AADC]

[SOY0]
[ADIN0_SRV]

[CVBS2P]

[VDACX_OUT]
[VDACY_OUT]

[AUOUTL0]
[AUOUTR0]

[SPDIF_OUT]

[ASPDIF0]

[CVBS0P]

[AIN3_L_AADC]

[AIN3_R_AADC]

[OPCTRL5]

[AL0_ADAC]

[AR0_ADAC

[AIN2_L_AADC]
[AIN2_R_AADC]

HP_LOUT_MAIN

HP_ROUT_MAIN

PC_L_IN
PC_R_IN

AV1_CVBS_IN

AV1_L_IN
AV1_R_IN

AV1_CVBS_DET

IC6100

TPA6132A2

SPDIF_OUT

HP_LOUT_AMP

HP_ROUT_AMP

SPDIF

CVBS 1 PHONE JACK

EARPHONE

JACK

PC AUDIO

RGB_PC

COMP1_Y/Pb/Pr

COMP1_DET

: according to input spec

[Y1P],[PB1P],[PR1P]

[OPCTRL9]

13 / 79

[OPCTRL7]
[VGA_SCL]

[VGA_SDA]

[RP],[GP],[BP]

[VSYNC], [HSYNC]

DSUB_DET

RGB_DDC_SCL

RGB_DDC_SDA

DSUB_R+, DSUB_G+, DSUB_B+

DSUB_VSYNC, DSUB_HSYNC

NetCast3.0 Backend block diagram (EPI & T-con)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

VCC

VDD

Main

SoC

MTK

[TCON6]

[TCON5]

[TCON4]

[TCON3]

EO_SOC

GST_SOC

MCLK_SOC

GCLK_SOC

CTRLN

CTRLP

VGH_FB

R

(47옴)

VGL_FB

EO

GST

MCLK

GCLK

SWN

SWP

IC7700

TPS65178

VCOM_P/N/LOOP

IC7701

TPS65198

VCOM, GIP_RST

DISCHG

VGH_ODD, VGH_EVEN

R(0옴)

OPT

VGH_R, VGH_F, VST

CLK1~6_I

VGL_I

VGL_I

R

(0옴)

50Pin

EPI LEFT

CLK1~6

50Pin

EPI RIGHT

14 / 79

NetCast3.0 Backend block diagram (EPI & T-Con)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

TXA1N/P, TXACLKN/P, TXA4N/P

EPI

CH1/2/3

VCOMLFB

VCC18

Vcore

H_VDD

VDD

50Pin

EPI LEFT

GMA[1][3][9][10][12][14][15][16][18]

Main SoC

MTK

CH4/5/6

[TCON7]

[TCON8]

[OPCTRL11]

[OPCTRL10]

EPI

VCOM_DYN

PMIC_RESET

I2C_SDA2

I2C_SCL2

IC7700

TPS65178

TXA0N/P, TXB1N/P, TXB2N/P

EPI_LOCK3

Z_OUT

GMA[4][5][7][12][15]

EPI_LOCK6_SOURCE

EPI_LOCK6

VCOMRFB

VCC18

Vcore

H_VDD

VDD

50Pin

EPI RIGHT

15 / 79

NetCast3.0 Backend block diagram (LVDS Tx & Local Dimming)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[LDM_VSYNC]

Main SoC

MTK

LVDS Tx

Block

[LDM_CK]

[LDM_D0]

[STB_SCL]

[STB_SDA]

L/DIMO_SCLK

L/DIMO_MOSI

I2C_SCL1

I2C_SDA1

L/DIMO_VS

Dual-link LVDS Output

24

10-bit (R)

BIT_SEL_LOW

PANEL_VCC

(+12V)

LVDS_SEL

51Pin

LVDS

Output

Dual-link LVDS Output

24

10-bit (R)

16 / 79

41Pin

LVDS

Output

• LVDS_SEL : “H”=JEIDA, “L” or NC=VESA (LGD)

• BIT_SEL : “H” or NC = 10-bit, “L” = 8-bit

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

17 / 79

Interconnection - 1

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

47LS5700-UA

[PCBs]

1

Main PCB

2

3

2

1

1

3

4

5

Power Board

IR+Soft touch PCB
RF Assy

WIFI Assy

[Cables]

2

1

Main / LPB 24Pin cable

4

T-con Driver

6

5

7

2

Main / Module LVDS Cable

3

LED driver / PSU

4

10Pin (IR+Key) Cable

3

5

SPK Cable

6

RF Assy Cable

7

4

5

WIFI Assy Cable

18 / 79

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

19 / 79

Introductions of 12Y Model Soft-touch Ass’y

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

목차

- Introductions of soft-touch

2011년 12월 13일

LCD TV 사업부

LCD TV 연구소 / BP그룹

20 / 79

2012Y IR + Soft touch PCB Pinmap

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Circuit Block Diagram

KEY1, KEY2 Voltage
(Tolerance of voltage ±0.2V)

Ass’y Picture

Pin Configuration

21 / 79

2012Y IR + Soft Touch LED Lighting Scenario

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Power LED Scenario

구분

Power

Indicator UI

- 12Y NetCast3.0 High(L9), NetCast3.0 Mid(MTK), NetCast3.0 Low(S7LR2)
Æ “ Power Light” UI Delete compared with 11Y(NetCast2.03 model)

- 11Y Carry Over Model : 12Y same Power LED scenario process
Æ “ Power Light “ UI Delete, The way of 11Y Soft Touch Ass’y is used. White LED Disable

Spec

내용

비고

-

NetCast3.0

(High/Mid/Low)

Power LED

시나리오

User

Condition

Factory

Condition

Power On

Power Off

Remote Key

input

Warm

Stand-by

3D mode - Red LED Off (Power On condition is identical)

Factory
Default

Mode

(In-Stop)

- Stand-By condition to Red LED On : After DC ON, Red LED light Blinks twice and then Red LED is Off

- Stand-By condition to Red LED Off : After DC ON, Red LED light Blinks three times and then Red LED is Off

- Without Blink, Red LED On immediately

But, If the mode of Power Indicator UI is Stand-By, keep staying Red LED Off status

- When you put the remote Control button, Red LED Blinks once -

- Red LED On stays and In the case of Set On, Red LED turns Off
Æ Including DVR Ready model, Japanese model

- 12Y LED Model : Stand-By On (Red LED On)

- 12Y CCFL Model : Stand-By On (Red LED On)

- 11Y Carry Over Model (CS5XX/CM5XX) : Stand-By On (Red LED On)

- After In-Stop, Red LED On is processed and after In-Stop, Red LED turns on within 3 sec

-

-

Same
as the

11Y

Same
as the

11Y

-

Power Only

Mode

- In the case of Power Only On, Red LED turns Off

- In the case of DC Off, Red LED turns On

22 / 79

-

Introductions of NetCast3.0 Sensor (Touch IC)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Manual of Touch Sensitivity

1. Verify the number of THR at first.

2. Once you correctly touch Touch button for more than 1 sec, you
can see a Touch data while you keep touching the button.

3. Keep in mind that you can only read the Touch data during touch
status.

4. It doesn’t matter that Touch data gets low value after taking off
your finger.

Touch Key Threshold Level (Ta = 25ºC )

23 / 79

Introductions of NetCast3.0 Sensor (Touch IC)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Touch EEPROM Register change with USB port

1. Write all of the address, value (Hex) as a below. capable of only
Touch.txt file based on the left picture

2. Make the file [ Filename :

‘Touch.txt’ ] and move it to USB (The

outermost area, Don’t move it to any
folder)

3. Connect USB to TV and press
button ‘ADJ menu’ and then choose
the ‘touch sensitivity setting’

4. Press button ‘SIMPLINK (Simply
Link key)’ and then you can see the
OK Pop up.

5. After that, you check it the IR LED
version on In-start menu and verify
it that the number of version is
changed to what you want.

24 / 79

Addr Value

Introductions of 12Y RF ass’y + Magic Remote control

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

목차

- Introductions of 12Y RF ass’y
+ Magic Remote control

2011년 12월 19일

LCD TV 사업부

LCD TV 연구소 / BP그룹

25 / 79

1. System

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

UART or USB

RF

Remote

 Pairing Information Transmission (Send to TV after Paired)

• Static Calibration Data (Bypass only)

• Remote FW ver. (Save also in Receiver)

• BD_ADDR (Save also in Receiver)

• Pairing Information Transmission Sequence

• When it is paired, the remote sends packets(pairing success, F/W version, BD_ADDR) to the receiver.

• The receiver sends the pairing success packet to TV directly.

• F/W version and BD_ADDR packets are just saved on the receiver.

• The receiver sends F/W version or BD_ADDR packet to TV when it is required.

 Motion Data Transmission

• Period : 7.5msec

• Motion Data : gyro, accelerometer

 Voice Data Transmission

RF Receiver

TV

• Period : 10msec

• Voice sampling : 16khz 16bit

Æ See “6-2. Packets” on page 8.

26 / 79

2. Remote Buttons (M3 vs. M4)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

power

mute

home

↑

ok

← →

↓

vol ch

voice

power

back home

↑

ok

← →

↓

mute

vol ch

3D star

Phsical

Buttons

BUTTON

POWER 0x08 0x08 Y IR only
BACK 0x28 0x8028 Y
HOME 0x7C 0x807C Y

←

→

↑

↓ 0x41 0x8041 Y

OK 0x75 0x8044 Y
CH + 0x00 0x8000 Y
CH - 0x01 0x8001 Y
VOL + 0x02 0x8002 Y
VOL - 0x03 0x8003 Y
MUTE 0x09 0x8009 Y .
3D_Mode 0xDC 0x80DC Y
MyAPPS 0x42 0x8042 Y

RF Unpaired

IR_CODE

0x07 0x8007 Y
0x06 0x8006 Y
0x40 0x8040 Y

RF Paired
RF_CODE

IR continuous

ETC.

repeat

M3 Remote M4 Remote

VOICE 0x800A Y = VOICE_START
AUTO_WAKEUP X 0x800C
VOICE_START X 0x800A

Logical

VOICE_STOP X 0x800D

Buttons

POINT_START X 0x803E
POINT_STOP X 0x803F

27 / 79

3. M4 Block Diagram

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

MPU-3050 (Gyro)
(Invensense)

LIS331DLH(Accel.)
(STMicro)

256Kbit

2

(E

PROM)

Key Button
( 4 x 5 )

I2C

I2C

SPI

BCM20733M

(BROADCOM)
Bluetooth 3.0

I2S

Antenna

X-tal
24 MHz

Voice

WM8950
(Wolfson)

MIC.
(Knowles)

M4 4-mode Only

Antenna

512Kbit
(Serial Flash)

X-tal
20 MHz

BCM20702M

(BROADCOM)
Bluetooth 4.0

SPI

UART

Power Management

AA x 2 Battery

DC-DC 2.8V LDO

Bluetooth Remocon

Connector

2.8V LDO

Bluetooth Receiver

28 / 79

4. Function list

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

주요 Item IC Manufacturer Function

Voice

Voice Codec WM8950 Wolfson 16KHz Sampling of Audio data

MEMS Mic. SPU0414HR5H Knowles Sensing Voice

Remocon

Motion

Gyro Sensor ITG3050 Invensense Sensing angular velocity of X, Y, Z-axis

Sensor

Accelerometer MMA8452 Stmicro Sensing device tilt (Pitch & Roll angle)

RF Antenna SDBTPTR3015 Partron

RF

+

X-tal 24MHz Partron

Wireless communication

Micom

RF + Micom BCM20733 Broadcom

DC-DC Converter TPS61097 TI Battery Boost up Regulator

LDO1 uPI7716 uPI RF, Gyro, Accelerometer Power Supply

LDO2 uPI7716 uPI Audio Codec, Mic. Power Supply

29 / 79

5. RF Pairing / Un-pairing Method

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Method Description

• When do pairing, the remote
should make pairing request IR
signal(0x29) to TV.

RF Pairing

RF Unpairing

 Method1

– If unpaired, just press "OK" button.
– If paired, press "OK" button after

unpairing.

 Method 2 (Repairing)

– Press “BACK" button for 5 sec.

Press “HOME" button and “BACK" button at
the same time for 5 sec.

• When TV receive the IR signal, it
should send "pairing request
packet" to the RF receiver.

• After pairing success, the remote
should blink LED for some time and
TV send "pairing success packet"
back to TV.

• When remote try to unpairing, it
doesn’t care about state of
receiver(stand alone).

• When remote try to unpairing, it
doesn’t care about state of
receiver(stand alone).

• After unpairing, all pairing
information should be erased.

• After unpairing, LED should be
blinked for 3sec.

• The remote just becomes to IR
mode.

30 / 79

Introductions of 12Y WIFI built in ass’y

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

목차

-Introductions of WIFI built in

ass’y

2011년 12월 21일

LCD TV 사업부

LCD TV 연구소 / BP팀

31 / 79

WIFI Built in ass’y feature(LGIT)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

WIFI built in feature

- Pin map

PIN USB interface

1 5V

2 DM

3 DP

4 GND

- Block diagram

32 / 79

WIFI Built in Block-diagram(Arcadyan)

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

33 / 79

WIFI Built in ass’y Specification

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

34 / 79

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

35 / 79

12Y Widevine & HDCP 2.0 & NETFLX

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Contents

표지

1. Widevine?

2. HDCP 2.0 & NETFLIX?

3. DTCP?

4. Changed BOM

2011년 12월 22일

LCD TV 사업부

LCD TV 연구소 / BP그룹

36 / 79

1. Widevine?

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[Widevine]

[Widevine]

Widevine is the Solution(Library) offering Adaptive Streaming and DRM.

Widevine is the Solution(Library) offering Adaptive Streaming and DRM.

In BBTV, when special CP do service, this module is required key.

In BBTV, when special CP do service, this module is required key.

Currently CP which is requested to widevine, is typically Australian Bigpond Live and

Currently CP which is requested to widevine, is typically Australian Bigpond Live and

North American CinemaNow.

North American CinemaNow.

Furthermore, because the future will be the spread of CP, widevine key download for the

Furthermore, because the future will be the spread of CP, widevine key download for the

global model should be applied to production.

global model should be applied to production.

(Because operation unique key should be downloaded for Widevine , Widevine key

(Because operation unique key should be downloaded for Widevine , Widevine key

dowmload by NSU is impossible.)

dowmload by NSU is impossible.)

[Widevine Key]

[Widevine Key]

Widevine Key is unique data stored TV for using Widevine.

Widevine Key is unique data stored TV for using Widevine.

37 / 79

2. HDCP 2.0 & NETFLIX?

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

 HDCP

9

High-bandwidth Digital Content Protection

9 Protect high-value digital motion pictures, television programs and audio

against unauthorized interception and copying between a digital set top box or
digital video recorder and a digital TV or PC.

9 Specification developed by Intel Corporation to protect digital entertainment

across the DVI/HDMI interface.

 Why HDCP2.0?

9 HDCP revision 2.0 supports a broader range of wired and wireless interfaces.

 Netflix
9 the services maintain a huge selection of movies and latest releases and offer

DVD rentals via mail & online streaming.

38 / 79

3. DTCP?

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[DTCP]

[DTCP]

The Digital Transmission Content Protection Specification defines a cryptogrphic

The Digital Transmission Content Protection Specification defines a cryptogrphic

protocol for protecting audio/video entertainment content from unauthorized copying,

protocol for protecting audio/video entertainment content from unauthorized copying,

intercepting, and tampering as it traverses digital transmission mechanisms such as a

intercepting, and tampering as it traverses digital transmission mechanisms such as a

high-performance serial bus that conforms to the IEEE 1394-1995 standard. Only

high-performance serial bus that conforms to the IEEE 1394-1995 standard. Only

legitimate entertainment content delivered to a source device via another approved copy

legitimate entertainment content delivered to a source device via another approved copy

protection system (such as the DVD Content Scrambling System) will be protected by

protection system (such as the DVD Content Scrambling System) will be protected by

this protection system.

this protection system.

[Three cryptographic Keys]

[Three cryptographic Keys]

• Authentication Key which is formed as a result of authentication and used to protect the

• Authentication Key which is formed as a result of authentication and used to protect the

exchange keys.

exchange keys.

•Exchage Key which is used to set up and protect content streams.

•Exchage Key which is used to set up and protect content streams.

•Content Key which is used to encrpt the content being exchanged.

•Content Key which is used to encrpt the content being exchanged.

39 / 79

4. Changed BOM

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

As-Was Current

Æ 추가

 Add Item

1.Marlin (Yes/No)

2.CNTV (Yes/No)

3.HDCP Tx (Yes/No)

4.DTCP Rx (Yes/No)

5.HDCP Rx (Yes/No)

주3) CNTV [Yes] : China Smart TV Only

40 / 79

4. Changed BOM

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

41 / 79

◈ CONTENT ◈

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. Model naming and tool option

2. New features

3. Main PCBs

4. Block Diagrams, IIC Map

5. Structure of TV set and connection of sub ass’ys

6. New sub ass’ys

- Instruction of new sub ass’ys

- How to use tool

- Download

7. Adjust way of new features

8. Repair guide

9. The latest issue and concerning issue

42 / 79

Contents of LCD TV Standard Repair Process

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

2 No video/No audio 2

3 Video error, video lag/stop, fail tunning 3, 4

4 Color error 5

5

6

7

8

9 Wrecked audio/discontinuation/noise 10

10

A. Video error

B. Power error

C. Audio error

D. Function error

No video/Normal audio 1

Vertical/Horizontal bar, residual image, light
spot, external device color error

No power 7

Off when on, off while viewing, power auto
on/off

No audio/Normal video 9

No response in remote controller, key error,
recording error, memory error

11

6

8

11 External device recognition error 12

12 E. Noise Circuit noise, mechanical noise 13

13 F. Exterior error Exterior defect 14

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

43 / 79

Contents of LCD TV Standard Repair Process Detail Technical Manual

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

Check LCD back light with naked eye A1

2 LED driver B+ 24V measuring method A2

A. Video error_ No video/Normal audio

3 Check White Balance value A3

4 Power Board voltage measuring method A4

6

TUNER input signal strength checking method A6

A. Video error_ No video/Video lag/stop

7 LCD-TV Version checking method A7

9

LCD TV connection diagram A8

10 Tuner Checking Part A9

11

A. Video error_Color error

Check Link Cable (LVDS) reconnection
condition

A10
A11

12 Adjustment Test pattern - ADJ Key A12

13

14

A. Video error_Vertical/Horizontal bar,
residual image, light spot

LCD TV connection diagram A8

Check Link Cable (LVDS) reconnection
condition

A10
A11

A10 : 32/37/42/47/55
A11 : 32 AUO

A10 : 32/37/42/47/55
A11 : 32 AUO

15 Adjustment Test pattern - ADJ Key A12

16

17 Exchange T-Con Board (2) A-2/5

<Appendix>

18 Exchange LED driver Board (PSU) A-3/5

Defected Type caused by T-Con/
Inverter/ Module

19 Exchange Module itself (1) A-4/5

20 Exchange Module itself (2) A-5/5

Exchange T-Con Board (1) A-1/5

55” : driver board

Other : PSU

44 / 79

Standard Repair Process

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Established

date

Revised date

LCD TV

Error

symptom

A. Video error

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)

☞A4☞A1

No video
Normal audio

Normal

audio

Move to No
video/No audio

Y

N

Check Back Light
On with naked eye

☞A2

Check Power Board 24v output

On

Normal
voltage

Repair Power
Board or parts

Y

Check Power Board
12v,3.5v etc.

N

Replace Inverter

Y

or module

N

Normal

voltage

N

Repair Power Board
or parts

End

2010. 12 .14
1/13

Y

Replace T-con Board
or module
And Adjust VCOM

☞A28

※Precaution

Always check & record S/W Version and White
Balance value before replacing the Main Board

☞A7 & A3

Replace Main Board

45 / 79

Re-enter White Balance value

Standard Repair Process

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

No Video/
No audio

Error

☞A4

Check various voltages
of Power Board
( 3.5V,12V,20V or
24V…)

A. Video error

No video/ No audio

Normal

voltage?

N

Replace Power
Board and repair
parts

Y

Check and
replace
MAIN B/D

Established

date

Revised date

End

2010. 12 .14
2/13

46 / 79

Standard Repair Process

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

☞ A6

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Y

Error

symptom

A. Picture Problem

Picture broken/ Freezing

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Menu→ Set up→ Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

Normal

Picture?

N

Y

☞ A7

Check

S/W Version

SVC

Bulletin?

Y

Established

date

Revised date

2010. 12 .14

■ Menu→Setup →Booster

N

Booster menu
On→Off: Check
Off→On: Check

Normal

Picture?

N

3/13

Y

Close

Normal

Picture?

Y

Close

N

Contact with signal distributor

or broadcaster (Cable or Air)

47 / 79

S/W Upgrade

Normal

Picture?

Y

Close

Check

Tuner soldering

N

Replace

Main B/D

Standard Repair Process

Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

☞ A6

Check RF Signal level

Normal

Signal?

N

Contact with

signal distributor

or broadcaster

(Cable or Air)

Y

Error

symptom

A. Picture Problem (DVB-S/S2)

Check RF signal cable (DVB satellite signal or not)

Check whether other equipments have problem or not.
(By connecting RF Cable at other equipment)

→ Set-Top-Box, Different maker TV etc

Check satellite setting.

- Check LNB frequency.

- Check satellite

- Check Satellite connection

(DiSEqC, motor, etc…)

Tuning fail, Picture broken/ Freezing

☞ A7

Normal

setting?

N

Change satellite setting

(match with installed ANT)

Y

S/W Version

Check

Established

date

Revised date

SVC

Bulletin?

Y

S/W Upgrade

Normal

Picture?

2011. 01 .24
3/13

N

N

Check

Tuner soldering

Replace

Main B/D

Close

Normal

Picture?

Y

Close

Y

N

Close

48 / 79
