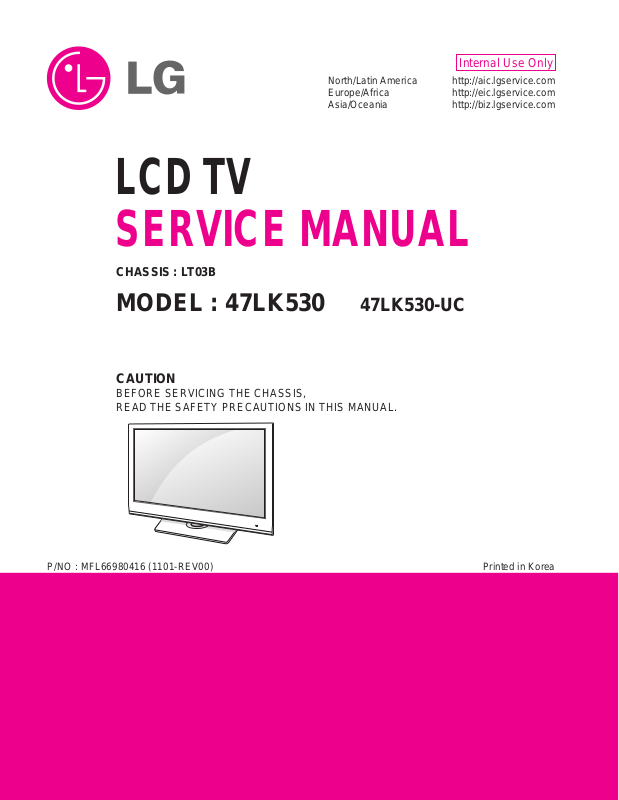

LG 47LK530-UC Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LT03B

MODEL : 47LK530 47LK530-UC

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL66980416 (1101-REV00)

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SPECIFICATION....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 10

EXPLODED VIEW .................................................................................. 19

SVC. SHEET ...............................................................................................

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Only for training and service purposes

1. Application range

This spec sheet is applied all of the 32”, 37”, 42” LCD TV with LA06A chassis and 26” LCD TV with LA06B chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC

2) Relative Humidity: 65 ± 10 %

3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz) * Standard Voltage of each product is marked by models

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement.

4. General Specification(TV)

No Item Specification Remark

1 Receivable System 1) ATSC / NTSC-M 2 Available Channel 1) VHF : 02 ~ 13

2) UHF : 14 ~ 69

3) DTV : 02 ~ 69

4) CATV : 01 ~ 135

5) CADTV : 01 ~ 135 3 Input Voltage 1) AC 100 - 240V~ 50/60Hz Mark : 110V, 60Hz (N.Ame 4 Market North America 5 Screen Size 42 inch Wide(1920x1080) FHD + 60Hz 42LV3700-UD

47 inch Wide(1920x1080) FHD + 60Hz 47LV3700-UD 42 inch Wide(1920x1080) FHD + 120Hz 42LK550-UA, 42LK530-UC 47 inch Wide(1920x1080) FHD + 120Hz 47LK550-UA, 47LK530-UC

55 inch Wide(1920x1080) FHD + 120Hz 55LV3700-UD, 55LK530-UC 6 Aspect Ratio 16:9 7 Tuning System FS 8 LCD Module T420HW08-V1 (Edge LED) AUO 42LV3700-UD

LC470EUE-SDV1 (Edge LED) LGD 47LV3700-UD

LC550EUF-SDA1 (Edge LED) LGD 55LV3700-UD

V420H2-LH5 (CCFL) CMI 42LK550-UA

LC420WUF-SCA2 (EEFL) LGD 42LK550-UA, 42LK530-UC

LC470WUF-SCA2 (EEFL) LGD 47LK550-UA, 47LK530-UC

LC550WUD-SCA2 (EEFL) LGD 55LK530-UC 9 Operating Environment Temp : 0 ~ 40 deg

Humidity : ~ 80 %

10 Storage Environment Temp : -20 ~ 60 deg

Humidity : -85 %

- 7 -

Only for training and service purposes

5. Chrominance & Luminance

No Item Min Typ

Max Unit

Remark

280

cd/m†

42LV3700-UD

230

cd/m†

47LV3700-UD

320 400

cd/m†

55LV3700-UD

360 450 cd/m† 42LK550-UA, 42LK530-UC

CU-035KL74 ,AU-055KL74 054 063

1

Max Luminance (Center 1-point / Full White Pattern)

360 450

cd/m†

55LK530-UC

1.3 All Modules(except 42LV3700-UD)

2 Luminance uniformity

1.33

42LV3700-UD

036.0 XRED

033.0 Y

023.0 XGREEN 0

26.0 Y

051.0 XBLUE

040.0 Y

082.0 X

Color coordinate (42 Edge LED)

WHITE

Y

Typ.

-0.03

0.290

Typ.

+0.03

42LV3700-UD

DB

T

X DER

DBT Y

DB

T X NEERG

DBT

Y

DB

T X EU

LB

DBT Y

972.0 X ET

IHW

Color coordinate (47 Edge LED)

Y

Typ.

-0.03

0.292

Typ.

+0.03

47LV3700-UD

DBT

X DER

DBT Y DBT X NEERG

3

Color coordinate (55 Edge LED)

Y

Typ.

-0.03

TBD

Typ.

+0.03

55LV3700-UD

DBT X

EU

LB

DBT Y

972.0 X ETIHW

292.0

Y

536.0 X

RED

323.0 Y

882.0 XGREEN

006.0 Y

841.0 XBLUE

050.0 Y

082.0 X

Color coordinate (42 CCFL)

WHITE

Y

Typ.

-0.03

0.290

Typ.

+0.03

42LK550-UA(CMI)

636.0 XRED 5

33.0 Y

192.0 XGREEN

3

06.0 Y 6

41.0

XBLUE

160.0 Y

972.0

X

Color coordinate (42 CCFL)

WHITE

Y

Typ.

-0.03

0.292

Typ.

+0.03

42LK550-UA(LGD)

42LK530-UC(LGD)

936.0 XRED

4

33.0

Y

0

92.0

XGREEN

606.0 Y

641.0

X

BLUE

850.0 Y

972.0 X

Color coordinate (47 CCFL)

WHITE

Y

Typ.

-0.03

0.292

Typ.

+0.03

47LK550-UA

47LK530-UC

- 8 -

Only for training and service purposes

7

36.0

X

RED

333.0 Y

Color coordinate (55 CCFL)

GREEN X

Typ.

-0.03

0.287

Typ.

+0.03

55LK530-UC

506.0 Y

541.0 XBLUE 4

60.0 Y

972.0 XWHITE

292.0 Y

A/

N

ytimrofinu etanidrooc roloC 4

3200:1 4000:1 42LV3700-UD 1000:1 1400:1 47LV3700-UD 1100:1 1600:1 55LV3700-UD 1100:1 3000:1 42LK550-UA(CMI) 1100:1 1500:1 42LK530-UC 1100:1 1450:1 47LK530-UC

Contrast ratio (Module)

1100:1 1450:1 55LK530-UC 40,000 50,000

42LV3700-UD

40,000 50,000

47LV3700-UD

40,000 50,000

55LV3700-UD

5

Contrast ratio (DCR)

40,000 50,000

42/47LK550-UA, 42/47/55LK530-UC

COOL 0.254

0.258

0.269

0.273

0.284

0.288

13000K

MEDIUM 0.270

0.278

0.285

0.293

0.300

0.308

9300K

6 Color

Temperature

WARM 0.298

0.314

0.313

0.329

0.324

0.344

6500K

** The W/B Tolerance is –0.015 for picture quality by DQA. (1) Video input: 204 Gray (85% of full white pattern) (1) Backlight UI setting

- Cool (100), Medium (100), Warm (30)

(2) Color temp UI setting

- Warm (W50), Medium (0), Cool (C50)

- 9 -

Only for training and service purposes

6. Component Video Input (Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.500 60 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

11. 1920*1080 27.000 24.000 74.25 HDTV 1080P

12. 1920*1080 26.97 23.976 74.176 HDTV 1080P

13. 1920*1080 33.75 30.000 74.25 HDTV 1080P

14. 1920*1080 33.71 29.97 740176 HDTV 1080P

7. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1360*768 47.712 60.015 85.50 VESA(WXGA) X

7. 1920*1080 66.587 59.934 138.50 WUXGA O

Only for training and service purposes

- 10 -

8. HDMI input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) X

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1280*768 47.776 59.870 79.5 CVT(WXGA) O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9. 1920*1080 67.500 60.000 148.50 HDTV 1080P O

DTV 1 720*480 31.47 60 27.027 SDTV 480P O 2 720*480 31.47 59.94 27.00 SDTV 480P O 3 1280*720 45.00 60.00 74.25 HDTV 720P O 4 1280*720 44.96 59.94 74.176 HDTV 720P O 5 1920*1080 33.75 60.00 74.25 HDTV 1080I O 6 1920*1080 33.72 59.94 74.176 HDTV 1080I O 7 1920*1080 67.500 60 148.50 HDTV 1080P O 8 1920*1080 67.432 59.939 148.352 HDTV 1080P O 9 1920*1080 27.000 24.000 74.25 HDTV 1080P O

10 1920*1080 26.97 23.976 74.176 HDTV 1080P O 11 1920*1080 33.75 30.000 74.25 HDTV 1080P O 12 1920*1080 33.71 29.97 74.176 HDTV 1080P O

Only for training and service purposes

- 11 -

ADJUSTMENT INSTRUCTION

1. Application range

This spec. sheet applies to LA12B Chassis applied LCD TV all models manufactured in TV factory

2. Specification

2.1 Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help protect test instrument.

2.2 Adjustment must be done in the correct order.

2.3 The adjustment must be performed in the

circumstance of 25±5°C of temperature and 65±10% of relative humidity

2.4 The input voltage of the receiver must keep 100~240V~, 50/60Hz.

2.5 The receiver must be operated for about 5 minutes

prior to the adjustment when module is in the circumstance of over 15.

In case of keeping module is in the circumstance of 0°C, it should be placed in the circumstance of above 15°C for 2 hours

In case of keeping module is in the circumstance of below -20°C, it should be placed in the circumstance of above 15°C for 3 hours.

Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Adjustment items

3.1 Main PCBA Adjustments

• EDID downloads for HDMI and RGB-PC

Remark

Above adjustment items can be also performed in Final Assembly if needed. Adjustment items in both PCBA and final assembly stages can be checked by using the INSTART

Menu 1.ADJUST CHECK.

3.2 Final assembly adjustment

• White Balance adjustment

• RS-232C functionality check

• Factory Option setting per destination

• Shipment mode setting (IN-STOP)

• GND and HI-POT test

3.3. Appendix

• Tool option menu, USB Download (S/W Update, Option and Service only)

• Manual adjustment for ADC calibration and White balance.

• Shipment conditions, Channel pre-set

Chassis Model Name

Module

type

Local

dimming

THX Remark

42/47/55LV3700-UA Edge LED

X X

1 point W/B adjustment

42/47LK550-UA,

42/47/55LK530-UA

Lamp

LA12B

- 12 -

Only for training and service purposes

4. MAIN PCBA Adjustments

4.1. MAC Address, ESN Key and Widevine Key download

4.1.1. Equipment & Condition

1) Play file: keydownload.exe

4.1.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200(Baudrate)

2) Barcode: Com 1,2,3,4 and 9600(Baudrate)

4.1.3. Download process

1) Select the download items

2) Mode check: Online Only

3) Check the test process

- US, Canada models: DETECT MAC_WRITE WIDEVINE_WRITE

- Korea, Mexico models: DETECT MAC_WRITE WIDEVINE_WRITE

4) Play: START

5) Check of result: Ready, Test, OK or NG

6) Printer out (MAC Address Label)

4.1.4. Communication Port connection

1) Connect: PCBA Jig RS-232C Port == PC RS-232C Port

4.1.5. Download

1) US, Canada models (11Y LCD TV + MAC + Widevine +

ESN Key)

2) Korea, Mexico models (11Y LCD TV + MAC + Widevine Only)

4.1.6. Inspection

- In INSTART menu, check these keys.

4.2. LAN port Inspection (Ping Test)

4.2.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program.

- IP number: 12.12.2.2

4.2.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

- 13 -

Only for training and service purposes

4.3 EDID Download

4.3.1 Overview

• It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

4.3.2 Equipment

(1) Since EDID data is embedded, EDID download JIG, HDMI

cable and D-sub cable are not need.

(2) Adjust by using remote controller.

4.3.3 Download method (1) Press Adj. key on the Adj. R/C, (2) Select 11. PCM EDID D/L menu. (3) By pressing Enter key, EDID download will begin (4) If Download is successful, OK is display, but If Download

is failure, NG is displayed.

(5) If Download is failure, Re-try downloads. * Caution) When EDID Download, must remove RGB/HDMI

Cable.

4.3.4 EDID DATA # HDMI 1(C/S : 7FC9) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : 7FB9) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : 7FA9) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# RGB(C/S : 89) EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07 10 | 07 67 03 0C 00 10 00 B8 2D E3 05 03 01 02 3A 80 20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01 30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25 70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 C9

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07 10 | 07 67 03 0C 00 20 00 B8 2D E3 05 03 01 02 3A 80 20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01 30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25 70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 B9

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07 10 | 07 67 03 0C 00 30 00 B8 2D E3 05 03 01 02 3A 80 20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01 30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25 70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 A9

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 4F 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 89

- 14 -

- AC3 EDID Data # HDMI 1(C/S : 7F58)

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : 7F48) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : 7F38) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# RGB(C/S : 98) EDID Block 0, Bytes 0-127 [00H-7FH]

Only for training and service purposes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 07 07 67 03 0C 00 10 00 B8 2D E3 05 03 01 20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 58

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 07 07 67 03 0C 00 20 00 B8 2D E3 05 03 01 20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 48

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 07 07 67 03 0C 00 30 00 B8 2D E3 05 03 01 20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 38

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 98

- 15 -

Only for training and service purposes

5. Final Assembly Adjustment

5.1. White Balance Adjustment

5.1.1. Overview

5.1.1.1. W/B adj. Objective & How-it-works

- Objective: To reduce each Panel’s W/B deviation

- How-it-works: When R/G/B gain in the OSD is at 192, it means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

- Adj. condition : normal temperature

1) Surrounding Temperature: 25±5ºC

2) Warm-up time: About 5 Min

3) Surrounding Humidity: 20% ~ 80%

4) Before White balance adjustment, Keep power on status, don’t power off

5.1.1.2. Adj. condition and cautionary items

• Lighting condition in surrounding area surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding.

• Probe location: Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°)

• Aging time

1) After Aging Start, Keep the Power ON status during 5 Minutes.

2) In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

5.1.2. Equipment

1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED : CH14)

2) Adj. Computer (During auto adj., RS-232C protocol is

needed)

3) Adjust Remocon

4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model:217, Pattern:78)

-> Only when internal pattern is not available

5.1.3. Equipment connection

5.1.4. Adjustment Command (Protocol) (1) RS-232C Command used during auto-adj.

2) Adjustment Map

5.1.5. Adjustment method

• Auto adj. method

1) Set TV in adj. mode using POWER ON key

2) Zero calibrate probe then place it on the center of the Display

3) Connect Cable(RS-232C)

4) Select mode in adj. Program and begin adj.

5) When adj. is complete (OK Sing), check adj. status pre mode (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

• W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

5.1.6 Reference (White Balance Adj. coordinate and color temperature)

• Luminance: 216 Gray

• Standard color coordinate and temperature using CS-

1000

• Standard color coordinate and temperature using CA-210 (CH 14)

Colo r Analyzer

Comp ut er

Pattern Ge n e r ator

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 0.273 13000K 0.0000

MEDIUM 0.285 0.293 9300K 0.0000

WARM 0.313 0.329 6500K 0.0000

Mode Color Coordination Temp ∆UV

xy

COOL 0.269±0.002 0.273±0.002 13000K 0.0000

MEDIUM 0.285±0.002 0.293±0.002 9300K 0.0000

WARM 0.313+0.002 0.329±0.002 6500K 0.0000

- 16 -

Only for training and service purposes

• Standard color coordinate and temperature using CA210(CH-14) – by aging time

Only for LGD Edge LED (47LV3700-UD / 55LV3700-UD)

- 42LV3700-UD : AUO Module , This model doesn’t use this table.

5.2 Tool Option setting & Inspection per countries

5.2.1. Overview

• Tool option selection is only done for models in Non-USA North America due to rating

• Applied model: LA12B Chassis applied to CANADA and

MEXICO

5.2.2. Country Group selection

• Press ADJ key on the Adj. R/C, and then select Country Group Menu

• Depending on destination, select KR or US, then on the

lower Country option, select US, CA, MX. Selection is done using +, - KEY

5.2.3. Tool Option Inspection

• Press Adj. key on the Adj. R/C, and then check Tool option.

5.3 Check the EYE-Q function

Step 1) Turn on the TV. Step 2) Press EYE button in adjust remote control. Step 3) Stay 6 seconds with Eye Q sensor hidden located on

the front of the set.

Step 4) Check the “Sensor Data” on the screen and check

whether the value is lower thanafter 6 seconds, the value does not go below 10, Eye Q sensor is not working properly. Then, change the sensor.

Step 5) Remove hand from the Eye Q II sensor and stay for 6

seconds.

Step 6) Check whether the “Back Light (xxx)” value has risen

on the screen. If after 6 seconds and the value still does not go high, the eye Q II sensor is not working

properly. Replace the sensor.

Cool Medium Warm

x y x y x y

GP3

Aging time

(Min)

269 273 285 293 313 329

1 0-2 279 288 295 308 319 338 2 3-5 278 286 294 306 318 336 3 6-9 277 285 293 305 317 335 4 10-19 276 283 292 303 316 333 5 20-35 274 280 290 300 314 330 6 36-49 272 277 288 297 312 327 7 50-79 271 275 287 295 311 325 8 80-149 270 274 286 294 310 324

Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 42LV3700-UD 4534 66 7295 21642 8917 667 47LV3700-UD 440 66 7295 21640 8789 667

55LV3700-UD 33211 66 7295 21640 8789 665 42LK550-UA(CMI)

34918 258 5258 5770 25173 5318

42LK550-UA(LGD)

32870 258 5256 5770 25173 7366 47LK550-UA 32872 258 5256 5770 25173 7366 42LK530-UC 32854 258 5256 5770 25173 7366 47LK530-UC 32856 258 5256 5770 25173 7366 55LK530-UC 32859 258 5258 5770 25173 5318

- 17 -

Only for training and service purposes

6. HDMI ARC Function Inspection

6.1 Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220

↑)

- HDMI Cable (for 1.4 version)

6.2 Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

(2) Check the sound from the TV Set

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

* Remark: Inspect in Power Only Mode and check SW version

in a master equipment

6.3 Ship-out mode check (In-stop)

• After final inspection, press In-Stop key of the Adj. R/C and check that the unit goes to Stand-by mode.

7. AUDIO output check

7.1 Audio input condition

(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms)

7.2 Specification

8. GND and Hi-pot Test

8.1. Method

8.1.1. GND & HI-POT auto-check preparation (1) Check the POWER CABLE and SIGNAL CABE

insertion condition

8.1.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test). (Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

8.2. Checkpoint

• TEST voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

• TEST time: 1 second

• TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE & NEUTRAL

• LEAKAGE CURRENT: At 0.5mArms

Item Min Typ Max Unit Remark

Audio practical max Output, L/R (Distortion=10% max Output)

9.0

8.5

10.0

8.9

12.0

9.9 W Vrms

(1) Measurement condition

- EQ/AVL/Clear Voice: Off

(2) Speaker (8ü Impedance)

- 18 -

Only for training and service purposes

9. USB S/W Download (Option, Service only)

1. Put the USB Stick to the USB socket

2. Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low, it didn’t work. But your downloaded version is High, USB data is automatically detecting

3. Show the message “Copying files from memory”

4. Updating is starting.

5. Updating Completed, The TV will restart automatically

6. If your TV is turned on, check your updated version and

Tool option. (Explain the Tool option, next stage)

* If downloading version is more high than your TV have, TV can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1. Push "IN-START" key in service remote controller.

2. Select "Tool Option 1" and Push “OK” button.

3. Punch in the number. (Each model has their number.)

10. Optional adjustments

10.1 Manual White balance Adjustment

10.1.1. Adj. condition and cautionary items (1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

1) After Aging Start, Keep the Power ON status during 5 Minutes.

2) In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

10.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)

(2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model: 217, Pattern: 78)

10.1.3. Adjustment (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface. (3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY

G

). When

KEY(

G

) is pressed 216 Gray internal pattern will be

displayed. (4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value. (5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

• If internal pattern is not available, use RF input. In EZ Adj.

menu 6.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

Only for training and service purposes

- 19 -

300

200

800

LV1

LV2

120

810

400

540

530

521

900

910

820

510

500

A2

A4

A21

A10

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

NAND FLASH MEMORY 8Gbit

+3.3V_Normal

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

5

6

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

NAND_RBb

NAND_REb

NAND_CEb

NAND_CEb2

NAND_CLE

NAND_ALE

Write Protection

- High : Normal Operation

- Low : Write Protection

NAND_WEb

FLASH_WP

R107 2.7K

R148

+3.3V_Normal

R103

4.7K

16Gbit

R149 0

16Gbit

0

C102 4700pF

C101

0.1uF

OPT

IC102

TC58DVG3S0ETA00

NAND_8Gbit

16Gbit

IC102-*1

TH58DVG4S0ETA20

NC_1

1

NC_28

48

NC_27

47

NC_26

46

NC_25

45

I/O8

44

NAND_DATA[7]

I/O7

43

NAND_DATA[6]

I/O6

42

NAND_DATA[5]

I/O5

41

NAND_DATA[4]

NC_24

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PSL

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

16Gbit

R151

+3.3V_Normal

C104 10uF

NAND_DATA[3]

NAND_DATA[2]

NAND_DATA[1]

NAND_DATA[0]

0

10V

C103

0.1uF

NAND_DATA[0-7]

RY/BY2

RY/BY1

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

CE1

CE2

CLE

ALE

RE

WE

WP

DEV_NAND_16Gbit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_26

48

NC_25

47

NC_24

46

NC_23

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_22

40

PSL

39

NC_21

38

VCC_2

37

VSS_2

36

NC_20

35

NC_19

34

NC_18

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_17

28

NC_16

27

NC_15

26

NC_14

25

Boot ROM Device Select - (FA4,FAD7,FAD2,FAD1)

+3.3V_Normal

R113 10K

R114 10K

OPT

R117 10K OPT

R118 10K

R122 10K

R123 10K

OPT

R127 10K OPT

R128 10K

0000: ST Micro M25P or compatible Serial Flash 0010: 8-bit 512Mbit 512B page SLC NAND Flash devices 0100: 8-bit 128, 256Mbit 512B page SLC NAND Flash devices 0110: 8-bit 1Gbit 2KB page SLC NAND Flash devices 1000: 8-bit 2Gbit, 4Gbit, 8Gbit 2KB page SLC NAND Flash devices 1010: 8-bit 16Gbit, 32Gbit 4KB page SLC NAND Flash devices (O)

CI_ADDR[4]

0001: 8-bit 8/16/32Gbit 2KB page MLC NAND Flash devices

NAND_DATA[7]

0011: 8-bit 16/32Gbit 4KB page MLC NAND Flash devices 0101: 8-bit 32Gbit 8KB page MLC NAND Flash devices

NAND_DATA[2]

0111: 3B dual IO Serial Flash

NAND_DATA[1]

1001: BB dual IO Serial Flash 1011: fast Serail Flash > 50Mhz 1100: OneNAND Flash (always 16-bit) 1110: Reserved 1101, 1111: Reserved

NAND ECC (FA3, FA2, FALE)

+3.3V_Normal

R119

R115

R111 10K

OPT

R112 10K

10K

R116 10K OPT

10K OPT

R120 10K

CI_ADDR[3] CI_ADDR[2] NAND_ALE

000 = ECC disabled 001 = ECC 1-bit repair 010 = ECC 4-bit BCH (O) 011 = ECC 8-bit BCH, 27 byte spare 100 = ECC 12-bit BCH, 27 byte spare 101 = ECC 8-bit BCH, 16 byte spare 110, 111 = Reservedd

DUAL COMPONENT

IC102 1ST : EAN60999801 2ND : T-TC58DVG3S0ETA00

IC102-*1

Strap Setting

+3.3V_Normal

R154

R157

10K

OPT

R155

R158

10K

NAND_DATA[0]: 0: System is LITTLE endian (O) 1: System is BIG endian

CI_ADDR[7]: 0: Disable EDID automatic Downloading from Flash (O) 1: Enable EDID automatic Downloading from Flash

NAND_DATA[6] : 0: Disable OSC clock output on chip Pin (O) 1: Enable OSC clock output on chip pin.

CI_ADDR[6]: 0: Host MIPS run at 500 MHz (O) 1: Host MIPS run at 250 MHz

NAND_CLE: 0: Differential Oscillators TVM not bypassed (O) 1: Differential Oscillators TVM bypassed

NAND_DATA[4]: 0: 27MHz TVM Crystal Frequency 1: 54MHz TVM Crystal Frequency (O)

R160 10K

OPT

R161 10K

R164 10K

OPT

R165 10K

R167 10K

OPT

R168 10K

R175 10K

OPT

R176 10K

R177 10K

R178 10K

OPT

R170 10K

R171 10K

OPT

CI_ADDR[9],CI_ADDR[11],CI_ADDR[12],CI_ADDR[13] TVM Crystal oscillator bias/gain control 0000: 210uA 0001: 390uA 0010: 570uA 0011: 730uA 0100: 890uA (O) 0111: 1290uA 1000: 1416uA 1111: 2196uA 0101, 0110, 1001, 1010, 1011, 1100, 1101, 1110: Reserved

CI_ADDR[8]: 0: RESETOUTb (in On/Off only) stay asserted until software releases them. 1: Fix amount of delay for de-assertion on RESETOUTb (in On/IOff only) at end of RESETb pulse (O)

NAND_DATA[3]: 0: MIPS will boot from external flash (O) 1: MIPS will boot from ROM

NAND_DATA[5]: 0: FLASH MODE (O) 1: BSC_SLAVE(BBS) MODE

R179 10K

OPT

R180 10K

R181 10K

OPT

R182 10K

R183 10K

R184 10K

OPT

R187 10K

OPT

R188 10K

R192 10K

OPT

R193 10K

NAND_DATA[0] CI_ADDR[7] NAND_DATA[6] CI_ADDR[6] NAND_CLE NAND_DATA[4] CI_ADDR[9] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[8] NAND_DATA[3] NAND_DATA[5]

+3.3V_Normal

R101

R105

4.7K

R104

4.7K

R195

4.7K

HDMI_CLKHDMI_CLK+

HDMI_RX0HDMI_RX0+

HDMI_RX1HDMI_RX1+

HDMI_RX2HDMI_RX2+

HDMI_ARC

LGE35230(BCM35230KFSBG)

B5 C5

A4 B4

A3 B3

A2 B2

W2

V4 W4

V3 V2

D13

E6

R106 3K

IC101

HDMI0_CLKN HDMI0_CLKP

HDMI0_D0N HDMI0_D0P

HDMI0_D1N HDMI0_D1P

HDMI0_D2N HDMI0_D2P

CEC

DDC0_SCL DDC0_SDA

HDMI0_HTPLG_IN HDMI0_HTPLG_OUT

HDMI0_ARC HDMI0_RESREF

LT0VCAL_MONITOR

TXOUT0_L0N TXOUT0_L0P TXOUT0_L1N TXOUT0_L1P TXOUT0_L2N TXOUT0_L2P

TXCLK_LN

TXCLK_LP TXOUT0_L3N TXOUT0_L3P TXOUT0_L4N TXOUT0_L4P

TXOUT0_U0N TXOUT0_U0P TXOUT0_U1N TXOUT0_U1P TXOUT0_U2N TXOUT0_U2P

TXCLK_UN

TXCLK_UP TXOUT0_U3N TXOUT0_U3P TXOUT0_U4N TXOUT0_U4P

TXOUT1_L0N TXOUT1_L0P TXOUT1_L1N TXOUT1_L1P TXOUT1_L2N TXOUT1_L2P

TXCLK1_LN

TXCLK1_LP TXOUT1_L3N TXOUT1_L3P TXOUT1_L4N TXOUT1_L4P

TXOUT1_U0N TXOUT1_U0P TXOUT1_U1N TXOUT1_U1P TXOUT1_U2N TXOUT1_U2P

TXCLK1_UN

TXCLK1_UP TXOUT1_U3N TXOUT1_U3P TXOUT1_U4N TXOUT1_U4P

GPIO_BL_ON

BL_PWM/GPIO

AE27 AE28 AF27 AF28 AG27 AG28 AE26 AF26 AH27 AG26 AF25 AE25

AH26 AG25 AE24 AD24 AH25 AF24 AE23 AD23 AG24 AF23 AC22 AD22

AG23 AH23 AE22 AE21 AF22 AH22 AG22 AF21 AG21 AF20 AD21 AC21

AG20 AH20 AD19 AE19 AF19 AH19 AE18 AD18 AG19 AF18 AG18 AF17

AC18 AH16 AG16

TXB4P TXB4N TXB3P TXB3N TXBCLKP TXBCLKN TXB2P TXB2N TXB1P TXB1N TXB0P TXB0N

TXA4P TXA4N TXA3P TXA3N TXACLKP TXACLKN TXA2P TXA2N TXA1P TXA1N TXA0P TXA0N

TXD4P TXD4N TXD3P TXD3N TXDCLKP TXDCLKN TXD2P TXD2N TXD1P TXD1N TXD0P TXD0N

TXC4P TXC4N TXC3P TXC3N TXCCLKP TXCCLKN TXC2P TXC2N TXC1P TXC1N TXC0P TXC0N

+3.3V_Normal

R194

2.7K

R108 10K

RGB_DDC_SDA

RGB_DDC_SCL

BBS CONNECT

P101

TJC2508-4A

1

2

3

4

C105

2.2uF 10V

Q101 BSS83

Q102 BSS83

+3.3V_Normal

VCC

SCL

SDA

GND

A_DIM

SBD

G

SBD

G

C106

4.7uF

+3.3V_Normal

R196 10K

C118

0.1uF 16V

+3.3V_Normal

R198 10K

C119

0.1uF 16V

SDA0_3.3V SCL0_3.3V

SCL2_3.3V

R110

R109

1.5K

SDA2_3.3V

1.5K R199 22 R197 22

DVB_S Option: apply EU Satellite model

FOR HDMI STANDARD APPLY ONLY WHEN CONNECT TO PULL-UP GPIO

+3.3V_Normal

R121

1.2K

C107 33pF 50V

DVB_S

+3.3V_Normal

R124 1K

OPT

R125 1K

R126

1.2K

C108 33pF 50V

DVB_S

R129

1.2K

C109 33pF 50V

5V_HDMI_3

R130

OPT

2K

R132 4.7K

+3.3V_Normal

C111 0.01uF C112 0.1uF

54MHz_XTAL_P

54MHz_XTAL_N

R131

1.2K

C110 33pF 50V

PCM_5V_CTL

5V_HDMI_1

5V_HDMI_2

5V_HDMI_4

JTAG_RESET SOC_RESET

LNB_INT

SC_ID

BCM_RX BCM_TX

R135 R136 33

+3.3V_Normal

R141 4.7K

R142 22 R143 22

R144 22 R145 22

R139 0

LGE35230(BCM35230KFSBG)

AG6

TVM_XTALIN

AF6

TVM_XTALOUT

V5

IRRXDA

AB4

FP_IN0

Y4

FP_IN1

AA4

SPARE_ADC1

Y5

SPARE_ADC2

AB2

FS_IN1

AB5

FS_IN2

U3

VGA_SDA

U2

VGA_SCL

Y2

RDA

Y1

TDA

33

AA3

BSCDATAA

AA2

BSCCLKA

H3

RDB/GPIO

H2

TDB/GPIO

H4

BSC_S_SCL

H5

BSC_S_SDA

F25

NMIB

W5

POWER_CTRL

U5

AON_HSYNC

U4

AON_VSYNC

W3

AON_GPIO_36

W1

AON_GPIO_37

AB6

AON_RESETOUTB

Y6

TVM_BYPASS

Y3

RESETB

G24

RESETOUTB

J6

TMODE

W6

TESTEN

F7

VDAC_VREG

E7

VDAC_RBIAS

BCM REFRENCE is 562ohm

R140 560 1%

OPT

OPT OPT

OPT

JTAG

IC101

FAD_7 FAD_6 FAD_5 FAD_4 FAD_3 FAD_2 FAD_1 FAD_0

FALE FCEB_0 FCEB_1 FCEB_2 FCEB_3

NFWPB

FRDYB

FA_0

FA_1

FA_2

FA_3

FA_4

FA_5

FA_6

FA_7

FA_8

FA_9

FA_10 FA_11 FA_12 FA_13 FA_14 FA_15

TRSTB

TDI/GPIO

TMS/GPIO TCK/GPIO

DINT/GPIO

AVS_VFB AVS_VSENSE AVS_RESETB

AVS_NDRIVE_1 AVS_PDRIVE_1

VDAC_1 VDAC_2

FWE FRD

TDO

AB1 AB3 AC1 AC2 AC3 AD2 AD3 AE2

AG1 AF1 AC5 AE6 AG5

AF3 AG2 AE3 AA5

AF2 AE1 AC4 AD5 AD4 AE4 AE5 AD6 AH3 AF4 AH4 AG4 AF5 AG3 AH2 AH5

R146 10K

AD15 AF14 AH14 AD14 AG14 AC16

AH7 AG7 AD7 AF7 AH8

C6 D7

NAND_DATA[7] NAND_DATA[6] NAND_DATA[5] NAND_DATA[4] NAND_DATA[3] NAND_DATA[2] NAND_DATA[1] NAND_DATA[0]

NAND_ALE NAND_CEb NAND_CEb2 /CI_CE1 /CI_CE2

FLASH_WP NAND_WEb NAND_REb /PCM_WAIT

NAND_CLE NAND_RBb

CI_ADDR[2] CI_ADDR[3] CI_ADDR[4] CI_ADDR[5] CI_ADDR[6] CI_ADDR[7] CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[14]

NAND_DATA[0-7]

R147 1K

JTAG

DTV/MNT_V_OUT

CI_ADDR[2-14]

+3.3V_Normal

R150 1K

JTAG

R153 1K

JTAG_RESET

R156 1K

JTAG

R159 1K

JTAG

R162 1K

JTAG

R163 1K

JTAG

R166 1K

JTAG

NVRAM

+3.3V_Normal

VCC

8

WP

7

SCL

6

SDA

5

Write Protection

- Low : Normal Operation

- High : Write Protection

R190 33

R191 33

SCL3_3.3V

SDA3_3.3V

R169 0

R173

R172

4.7K

OPT

R174

4.7K

IC103

M24M01-HRMN6TP

OPT

NC

1

E1

2

A8’h

E2

3

VSS

4

54MHz X-TAL

C113 10pF

3

X-TAL_2

4

GND_2

54MHz

X101

C114

CRYSTAL_BCM_Sunny

10pF

EAW58812611

SUNNY ELECTRONICS CORPORATION

X101-*2

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_Lihom

EAW60763703

LIHOM CO., LTD.

P102

12505WS-10A00

JTAG

/TRST

1

TDI

2

TDO

3

TMS

4

TCK

5

/RST

6

DINT

7

VIO

8

GND

9

GND

10

11

GND

2

1

4

3

GND_1

X-TAL_1

GND_2

X-TAL_2

R185 0

R186 0

R189 1M OPT

54MHz_XTAL_N

54MHz_XTAL_P

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN & NAND FLASH

2010.09.18

1

57

+3.3V_Normal

FHD

R252

1K

HD

R262

1K

FE_TS_DATA[0-7]

OLED

LCD

BCM internal FRC

00 11

1 100

HIGH

Support

CHBO_TS_CLK

CHBO_TS_SERIAL

CHBO_TS_SYNC

CHBO_TS_VAL_ERR

R251

1K

BCM_FRC/URSA5

R261

1K

NO_FRC/FRC2

R250

FRC2/URSA5

R260

NO_FRC/BCM_FRC

MODEL OPTION

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7 Enable Disable

NO_FRC

DDR speed

T2 Tuner

S Tuner

PHM

R253

R263

1K

R254

1K

OPT

R264

1K

LG FRC2

LOW

HDFHD

LCDOLED

16001333

Not Support

Not SupportSupport

R255

1K

T2_TUNER

R265

1K

NO_T2_TUNER

external URSA5

SIDE_USB_OCD1

SIDE_USB_OCD2

PCM_TS_DATA[0-7]

R201 0

F/NIM_EU_CN

PCM_MDI[0-7]

OPT

R202

0

R256

1K

S_TUNER

R266

1K

NO_S_TUNNER

+3.3V_Normal

R286 10K

WIFI

TU_TS_CLK

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

PHM

NO_PHM

R287 10K WIFI

R257

1K

R267

1K

R203 0 R204 0 R205 0 R206 0

R207 0 R208 0 R209 0

C201 100pF

OPT

F/NIM_EU_CN F/NIM_EU_CN

F/NIM_EU_CN

PCM_MDI[0] PCM_MDI[1] PCM_MDI[2] PCM_MDI[3] PCM_MDI[4] PCM_MDI[5] PCM_MDI[6] PCM_MDI[7]

R211

6.04K EPHY_TDP

EPHY_TDN EPHY_RDP EPHY_RDN

R210

4.87K 1%

SIDE_USB_DM SIDE_USB_DP

SIDE_USB_CTL1

WIFI_DM WIFI_DP

SIDE_USB_CTL2

PCM_TS_CLK

PCM_TS_DATA[0] PCM_TS_DATA[1] PCM_TS_DATA[2] PCM_TS_DATA[3] PCM_TS_DATA[4] PCM_TS_DATA[5] PCM_TS_DATA[6] PCM_TS_DATA[7]

PCM_TS_SYNC

PCM_TS_VAL

F/NIM_EU_CN

F/NIM_EU_CN F/NIM_EU_CN F/NIM_EU_CN

TU_TS_SYNC

TS_VAL_ERR

PCM_MCLKI

PCM_MISTRT

PCM_MIVAL_ERR

/PCM_IRQA

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3 MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6 MODEL_OPT_7

LGE35230(BCM35230KFSBG)

F26 D26

F27 F28 E27 E26

F5 E5

C2 D1

E1 D2

B1 C1

C3 C4

M4 L5 M5 L6 N3 N1 N2 M3 M2 L4 N4

K6 J4 K5 J2 J3 K2 K1 K3 L1 L3 L2

P4 T2 R3 R2 P3 P2 P1 R6 N5 T4 P5

R4 U1 T3 T1 T5

IC101

EPHY_VREF EPHY_RDAC

EPHY_TDP EPHY_TDN EPHY_RDP EPHY_RDN

USB_MONCDR USB_RREF

USB_PORT1DN USB_PORT1DP

USB_PWRFLT_1/GPIO USB_PWRON_1/GPIO

USB_PORT2DN USB_PORT2DP

USB_PWRFLT_2/GPIO USB_PWRON_2/GPIO

TCLKA/GPIO TDATA_0/GPIO TDATA_1/GPIO TDATA_2/GPIO TDATA_3/GPIO TDATA_4/GPIO TDATA_5/GPIO TDATA_6/GPIO TDATA_7/GPIO TSTRTA/GPIO TVLDA/GPIO

TCLKD/GPIO TDATD_0/GPIO TDATD_1/GPIO TDATD_2/GPIO TDATD_3/GPIO TDATD_4/GPIO TDATD_5/GPIO TDATD_6/GPIO TDATD_7/GPIO TSTRTD/GPIO TVLDD/GPIO

MPEG_CLK/GPIO MPEG_D_0/GPIO MPEG_D_1/GPIO MPEG_D_2/GPIO MPEG_D_3/GPIO MPEG_D_4/GPIO MPEG_D_5/GPIO MPEG_D_6/GPIO MPEG_D_7/GPIO MPEG_SYNC/GPIO MPEG_DATA_EN/GPIO

MCIF_RESET/GPIO MCIF_SCLK/GPIO MCIF_SCTL/GPIO MCIF_SDI/GPIO MCIF_SDO/GPIO

PCI_DEVSELB/GPIO

PCI_FRAMEB/GPIO

C225

0.22uF

6.3V

VI_IFP0 VI_IFM0

VDDR_AGC

AGC_SDM_2 AGC_SDM_1

GPIO_0 GPIO_1 GPIO_2 GPIO_3

PCI_VIO_0 PCI_VIO_1 PCI_VIO_2

GPIO_4 GPIO_5 GPIO_6

GPIO_7 GPIO_70 GPIO_71 GPIO_72 GPIO_73 GPIO_74 GPIO_75 GPIO_76 GPIO_77 GPIO_78 GPIO_79

PCI_AD05 PCI_AD06 PCI_AD07

PCI_AD08 PCI_AD09/GPIO PCI_AD10/GPIO PCI_AD11/GPIO PCI_AD12/GPIO PCI_AD13/GPIO PCI_AD14/GPIO PCI_AD15/GPIO PCI_AD16/GPIO PCI_AD17/GPIO PCI_AD18/GPIO PCI_AD19/GPIO PCI_AD20/GPIO PCI_AD21/GPIO

PCI_AD22

PCI_AD23

PCI_AD24

PCI_AD25

PCI_CBE00 PCI_CBE01/GPIO PCI_CBE02/GPIO

PCI_CBE03

PCI_IRDYB/GPIO

PCI_PAR/GPIO

PCI_PERRB/GPIO

PCI_REQ1B PCI_SERRB/GPIO PCI_STOPB/GPIO PCI_TRDYB/GPIO

+0.9V_CORE

C221

0.1uF

C17 B17 D15

B16 A16

A15 C16 G28 G26

+3.3V_Normal

W14 W15 W13

J5 R5 V6 H6 AE15 AF15 AG15 AF16 AD16 AE16 AG17 AH17 AE17 AD17

AB13 AC15 AB12 AB11 AE14 AG13 AH13 AF13 AE13 AD12 AF12 AG10 AF10 AE10 AD10 AE9 AE8 AC10 AC11 AC8 AB8

AC14 AG12 AH10 AB7

AG11 AD11 AE11 AD13 AE12 AC12 AC13 AH11 AF11

C223

0.01uF

C203 10uF 10V

close to soc

Non_CHB

R212 1K

closed to soc

R213 2K

C216 0.01uF

R280 22

R214 22

R215 22 R281 22 R282 22

R216 22

R218 22

R220 22

R221 22

R222 22

R283 22

R223 22

R284 22

R224 22

R235

R225 0

R226 22

R285 22

R227 22

C207

C205

4.7uF

10uF

10V

C217

16V

100

0.1uF R241

C218

100

0.1uF R242

16V

M_REMOTE_RX

CI_DET M_RFModule_RESET

EPHY_ACTIVITY EPHY_LINK

DTV_ATV_SELECT RF_SWITCH_CTL_2

INSTANT_MODE

BCM_L/DIM BCM_L/DIM

100

OPT

NFM18PS105R0J

C233

6.3V

GND

C232

4.7uF 10V

C209

4.7uF 10V

IF_P

IF_N

IF_AGC

3D_SYNC

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3

SC_DET/COMP2_DET

CHB_RESET

TW9910_RESET

AV2_CVBS_DET RF_BOOSTER_CTL DSUB_DET PCM_RST

MODEL_OPT_4 DC_MREMOTE DD_MREMOTE

COMP1_DET

MODEL_OPT_5

3D_GPIO_0 MODEL_OPT_6 MODEL_OPT_7

ERROR_OUT

RF_SWITCH_CTL

3D_GPIO_1

3D_GPIO_2

OUTIN

C234

0.1uF

C211

0.1uF

+3.3V_Normal

R228 22 R230 22

BCM_L/DIM

R231 100

L/DIM0_MOSI L/DIM0_SCLK

NFM18PS105R0J

C204

6.3V

OUTIN

GND

C236

0.1uF

C213

0.1uF

BLM18PG121SN1D

C229

0.1uF

R240

2.7K

+3.3V_Normal

R231-*1 0

FRC2_RESET

URSA_RESET

NFM18PS105R0J

C238

4.7uF 10V

C215

0.01uF

L201

NON_NTP

PWM_DIM L/DIM0_VS

4.7K

C244

6.3V

GND

C220

0.1uF

+3.3V_Normal

4.7K

R232

URSA_RESET

+0.9V_CORE

+3.3V_Normal

OUTIN

+1.5V_DDR

C222

0.01uF

R233

1.2K

C227 33pF 50V

R232-*1

FRC2_RESET

R234

1.2K

C231 33pF 50V

C247 22uF

C248 10uF

10V

NON_NTP

FRC_RESET

SDA1_3.3V SCL1_3.3V

POWER 2.5V

+2.5V_BCM35230

Place Cap Very close to R22 Ball

L202

BLM18PG121SN1D

C249 10uF 10V

L203

BLM18PG121SN1D

C251

0.1uF 16V

+2.5V_BCM35230

BLM18PG121SN1D

C250

4.7uF 10V

+1.5V_DDR

Place Cap

Very close to R22 Ball

C242

0.1uF

+3.3V_Normal

C253 10uF 10V

EPHY_VDD25

C252

4.7uF 10V

L204

C254

4.7uF

MLG1005S22NJT

C224

L220

1uF 25V OPT

+0.9V_CORE

AADC_AVDD25

C256

0.1uF

C255

0.1uF

VAFE3_VDD25

C257

0.1uF

+0.9V_CORE

C226

0.1uF 16V OPT

+3.3V_Normal

+2.5V_BCM35230

L205

BLM18PG121SN1D

C258

0.1uF

+2.5V_BCM35230

C260

C259

4.7uF

10uF 10V

+2.5V_BCM35230

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDC_9 VDDC_10 VDDC_11 VDDC_12 VDDC_13 VDDC_14 VDDC_15 VDDC_16 VDDC_17 VDDC_18 VDDC_19 VDDC_20 VDDC_21 VDDC_22 VDDC_23 VDDC_24 VDDC_25 VDDC_26 VDDC_27 VDDC_28 VDDC_29 VDDC_30 VDDC_31 VDDC_32 VDDC_33 VDDC_34 VDDC_35 VDDC_36 VDDC_37 VDDC_38 VDDC_39 VDDC_40 VDDC_41 VDDC_42

POR_VDD

VDDR1_1 VDDR1_2 VDDR1_3 VDDR1_4 VDDR1_5 VDDR1_6 VDDR1_7 VDDR1_8 VDDR1_9 VDDR1_10 VDDR1_11 VDDR1_12

DDR_LDO_VDDO

VDDR3_1 VDDR3_2 VDDR3_3 VDDR3_4 VDDR3_5 VDDR3_6 VDDR3_7 VDDR3_8 VDDR3_9 VDDR3_10 VDDR3_11

AON_VDDC_1 AON_VDDC_2 AON_POR_VDD

AON_VDDR3

AON_VDDR10_1 AON_VDDR10_2

IC101

LGE35230(BCM35230KFSBG)

V12

V7 M10 N10 P10 R10 T10 U10 V10 W10 V13 L11 M11 N11 P11 R11 T11 U11 V11 W11 V14 L18 M18 N18 P18 R18 T18 U18 V18 W18 V15 L19 M19 N19 P19 R19 T19 U19 V19 W19 V16 V17

L10

L22

AA28

V28 R28 M28 J28 K23 M22 T22 T23 U22 Y22

R22

G15 H22 G23 AB9

K7

AB15

L7

AB14

M7

N6

P6

AA6 AA7

Y7

U7

T7

T6

C261 10uF 10V

C262 10uF

L206

BLM18PG121SN1D

L207

BLM18PG121SN1D

K10

VSS_1

K11

VSS_2

K12

VSS_3

L12

VSS_4

M12

VSS_5

N12

VSS_6

P12

VSS_7

R12

VSS_8

T12

VSS_9

U12

VSS_10

W12

VSS_11

K13

VSS_12

L13

VSS_13

M13

VSS_14

N13

VSS_15

P13

VSS_16

R13

VSS_17

T13

VSS_18

U13

VSS_19

W16

VSS_20

K14

VSS_21

L14

VSS_22

M14

VSS_23

N14

VSS_24

P14

VSS_25

R14

VSS_26

T14

VSS_27

U14

VSS_28

K15

VSS_29

L15

VSS_30

M15

VSS_31

N15

VSS_32

P15

VSS_33

R15

VSS_34

T15

VSS_35

U15

VSS_36

K16

VSS_37

L16

VSS_38

M16

VSS_39

N16

VSS_40

P16

VSS_41

R16

VSS_42

T16

VSS_43

U16

VSS_44

K17

VSS_45

L17

VSS_46

M17

VSS_47

N17

VSS_48

P17

VSS_49

R17

VSS_50

T17

VSS_51

U17

VSS_52

W17

VSS_53

K18

VSS_54

K19

VSS_55

H7

VSS_56

G14

VSS_57

AB16

VSS_58

R7

VSS_59

M6

VSS_60

AB23

VSS_61

P7

VSS_62

W7

VSS_63

J7

VSS_64

N7

VSS_65

AB10

VSS_66

AC23

VSS_67

AC6

VSS_68

G19

VSS_69

AA22

VSS_70

J23

VSS_71

J22

VSS_72

K22

VSS_73

J25

VSS_74

N22

VSS_75

N23

VSS_76

M25

VSS_77

P22

VSS_78

R25

VSS_79

V22

VSS_80

W22

VSS_81

W23

VSS_82

V25

VSS_83

AA25

VSS_84

ADAC_AVDD25

C263

4.7uF

C265

4.7uF

PLL_VAFE_AVDD25

C264

4.7uF

C271

C267

0.01uF

0.1uF

C266

C270

0.1uF

C269

0.1uF

C268

0.1uF

C272

0.01uF

4.7uF C277

VAFE2_VDD25

CORE 0.9V

+0.9V_CORE

L209

BLM18PG121SN1D

C274 22uF

+0.9V_CORE

L210

BLM18PG121SN1D

+0.9V_CORE

L211

BLM18PG121SN1D

POWER 3.3V

+3.3V_Normal

Place as close as possible to the pad

use only for A0/B0 chip

C210-*1 220pF 50V

BCM_A0/B0

PLL_VAFE_AVDD25

+0.9V_CORE

Place as close as possible to the pad

C281

0.1uF

C282

0.1uF

L212

VAFE2_DVDD

VAFE3_DVDD

C208 390pF 50V

C206 390pF 50V

+0.9V_CORE

USB_AVDD33

C283

0.1uF

+3.3V_Normal

+2.5V_BCM35230

VDAC_AVDD33

BCM_C0

PLL_MIPS_AVDD

C273

0.1uF

BLM18PG121SN1D

C284 22uF

BLM18PG121SN1D

L213

BLM18PG121SN1D

ADAC_AVDD25

EPHY_VDD25

HDMI_AVDD33

C275

0.1uF OPT

USB_AVDD33

C212 390pF 50V

C210 390pF 50V

PLL_MAIN_AVDD

C276

0.01uF

OPT

HDMI_AVDD

C280

0.1uF

PLL_AUD_AVDD

4.7uF

PLL_VAFE_AVDD

C279

4.7uF

BLM18PG121SN1D

VAFE2_VDD25

VAFE3_VDD25

Place as close as possible to the pad

PLL_VAFE_AVDD

C202 390pF 50V

L214

C285

4.7uF

L215

+3.3V_Normal

AADC_AVDD25

HDMI_AVDD

USB_AVDD

C214 390pF 50V

PLL_AUD_AVDD

+3.3V_Normal

C288

0.1uF

C290

0.1uF

L216

BLM18PG121SN1D

C289

0.1uF

+0.9V_CORE

HDMI_AVDD33

C291

4.7uF

USB_AVDD

VAFE3_DVDD

C287

4.7uF

VDAC_AVDD33

C286

4.7uF

LGE35230(BCM35230KFSBG)

F19

AADC_AVDD25

D25

ADACA_AVDD25

D24

ADACC_AVDD25

E24

ADACD_AVDD25

F24

EPHY_BVDD25

E25

EPHY_AVDD25

D5

HDMI0_AVDD

D4

HDMI0_AVDD33

AE20

LT0VDD25_1

AD20

LT0VDD25_2

AC20

LT0VDD25_3

AB20

LT0VDD25_4

D14

SPDIF_IN_AVDD25

E4

USB_AVDD

D3

USB_AVDD33

D6

VDAC_AVDD33

D18

VAFE2_DVDD

E17

VAFE2_AVDD25_1

D16

VAFE2_AVDD25_2

D17

VAFE2_DVDD25

D9

VAFE3_DVDD

D8

VAFE3_AVDD25_1

E8

VAFE3_AVDD25_2

F9

VAFE3_AVDD25_3

E9

VAFE3_DVDD25

F8

POR_VDD25

G25

PLL_AUD_AVDD

K4

PLL_MAIN_AVDD

AD25

PLL_MIPS_AVDD

D11

PLL_VAFE_AVDD

D12

PLL_VAFE_AVDD25

AE7

TVM_OSC_AVDD

U6

AUX_AVDD33

C278

0.1uF

L219

BLM18PG121SN1D

C292 22uF

L217

BLM18PG121SN1D

L218

BLM18PG121SN1D

C293

0.1uF

IC101

AADC_AVSS

ADACA_AVSS ADACC_AVSS ADACD_AVSS

EPHY_AVSS

HDMI0_AVSS_1 HDMI0_AVSS_2

LT0VSS_1 LT0VSS_2 LT0VSS_3 LT0VSS_4 LT0VSS_5 LT0VSS_6 LT0VSS_7

SPDIF_IN_AVSS

USB_AVSS_1 USB_AVSS_2

VDAC_AVSS

VAFE2_VSS_1 VAFE2_VSS_2 VAFE2_VSS_3 VAFE2_VSS_4 VAFE2_VSS_5 VAFE2_VSS_6 VAFE2_VSS_7

VAFE3_VSS_1 VAFE3_VSS_2 VAFE3_VSS_3 VAFE3_VSS_4 VAFE3_VSS_5 VAFE3_VSS_6

PLL_MIPS_AVSS

TVM_OSC_AVSS

VAFE2_DVDD

C299

C296

0.1uF

4.7uF

PLL_MAIN_AVDD

C294

C297

4.7uF

0.1uF

PLL_MIPS_AVDD

C295

C298

4.7uF

0.1uF

F20

G22 G21 F22

F23

F6 G6

AB22 AB21 AB19 AC19 AB18 AB17 AC17

F15

G7 G8

G9

G20 E18 G18 G17 F18 G16 F16

G13 G12 F12 G11 G10 F10

AD26

AC7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN POWER

2

50

AV2_CVBS_IN

INCM_VID_AV2

INCM_VID_COMP1

C303 0.1uF C304 0.1uF R303

36

AV1_CVBS_IN

INCM_VID_AV1

TU_CVBS

TU_SIF

DSUB_R+

INCM_R

DSUB_B+

INCM_B

COMP1_Y COMP1_Pr COMP1_Pb

EU

R325-*1

10

C317 0.1uF C318 0.1uF R304

36

C320 0.1uF C321 0.1uF

R311 36

C322 0.1uF C323 0.1uF R312

36

R310 0

SC_R/COMP2_Pr

SC_G/COMP2_Y

SC_B/COMP2_Pb

INCM_VID_SC/COMP2

SC_CVBS_IN

INCM_VID_SC

NON_EU R325 0

INCM_TUNER

R306 75 1%

OPT

+2.5V_BCM35230

C319 0.1uF

R305 240

OPT

INCM_SIF

DSUB_G+

INCM_G

C325 0.1uF C326 0.1uF R316

36

R313 10K

+2.5V_BCM35230

R314 12K

C324 0.1uF R315

120

OPT

C327 0.1uF C328 0.1uF R317

36

DSUB_HSYNC DSUB_VSYNC

C329 0.1uF C330 0.1uF C331 0.1uF C332 0.1uF

C333 0.1uF C334 0.1uF C335 0.1uF C336 0.1uF

R318 0

SC_FB

R319 10K OPT

R320 12K OPT

LGE35230(BCM35230KFSBG)

B6 A6 C7 A7 B7 C8

C13 A13

C9 A9 B9 B8

C11 A10 B10 C10

D10 F13

A12 C12 B12 B11

E12 E14

E15 F17 E16 F14 E11

C18 B18 A18 C19 A19 B19 C20 B20

E19 D19 E10 F11

IC101

VI_R VI_INCM_R VI_G VI_INCM_G VI_B VI_INCM_B

HSYNC_IN VSYNC_IN

VI_Y1 VI_PR1 VI_PB1 VI_INCM_COMP1

VI_SC_R1 VI_SC_G1 VI_SC_B1 VI_INCM_SC1

VI_FB_1/GPIO VI_FS1

VI_SC_R2 VI_SC_G2 VI_SC_B2 VI_INCM_SC2

VI_FB_2/GPIO VI_FS2

VI_L1 VI_C1_1 VI_INCM_LC1_1 VI_C1_2 VI_INCM_LC1_2

VI_CVBS1 VI_INCM_CVBS1 VI_CVBS2 VI_INCM_CVBS2 VI_CVBS3 VI_INCM_CVBS3 VI_CVBS4 VI_INCM_CVBS4

VI_SIF1_1 VI_INCM_SIF1_1 VI_SIF1_2 VI_INCM_SIF1_2

Near

Near Near

P801

JK1101

JK1104

TU2101/2 TU2201/2/3

JK1102

JK1103 JK2501

VIDEO INCM

Run Along DSUB_R Trace

Run Along DSUB_G Trace

Run Along DSUB_B Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN Trace

Run Along AV2_CVBS Trace

Run Along TUNER_CVBS_IF_P Trace

Run Along AV1_CVBS Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN/SC R,G,B Trace

INCM_R

INCM_G

INCM_B

INCM_VID_COMP1

INCM_VID_AV2

INCM_TUNER

INCM_VID_AV1

INCM_VID_SC/COMP2

SCL3_3.3V SDA3_3.3V

+3.3V_Normal

R302

R301

1.2K

C301

C302 33pF

33pF

50V

PHONE JACK

INCM_AUD_SC/COMP2

M_REMOTE_TX

PC_L_IN PC_R_IN

AV1_L_IN AV1_R_IN

INCM_AUD_AV1

AV2_L_IN AV2_R_IN

INCM_AUD_AV2

SC/COMP2_L_IN SC/COMP2_R_IN

C305 1uF 10V C306 1uF 10V C307 1uF 10V

C308 1uF 10V C309 1uF 10V C310 1uF 10V

C311 1uF 10V C312 1uF 10V C313 1uF 10V

C314 1uF 10V C315 1uF 10V C316 1uF 10V

SPDIF_INC_P SPDIF_INC_N

SPDIF_IND_P SPDIF_IND_N

I2SSCK_IN/GPIO I2SWS_IN I2SSD_IN/GPIO

AADC_LINE_L1 AADC_LINE_R1 AADC_INCM1

AADC_LINE_L2 AADC_LINE_R2 AADC_INCM2

AADC_LINE_L3 AADC_LINE_R3 AADC_INCM3

AADC_LINE_L4 AADC_LINE_R4 AADC_INCM4

AADC_LINE_L5 AADC_LINE_R5 AADC_INCM5

AADC_LINE_L6 AADC_LINE_R6 AADC_INCM6

AADC_LINE_L7 AADC_LINE_R7 AADC_INCM7

IC101

I2SSCK_OUTA/GPIO

I2SWS_OUTA/GPIO

I2SSD_OUTA0/GPIO

I2SSOSCK_OUTA/GPIO

I2SSD_OUTA1/GPIO I2SSD_OUTA2/GPIO

I2SSCK_OUTC/GPIO

I2SWS_OUTC/GPIO I2SSD_OUTC/GPIO

I2SSOSCK_OUTC/GPIO

I2SSCK_OUTD/GPIO

I2SWS_OUTD/GPIO I2SSD_OUTD/GPIO

I2SSOSCK_OUTD/GPIO

SPDIF_OUTA/GPIO

LGE35230(BCM35230KFSBG)

B15 C15

C14 B14

G4 F4 G5

C25 B24 A24

E22 E23 D23

C24 C23 B23

E21 D21 D22

B22 C22 A22

F21 D20 E20

A21 C21 B21

AUDMUTE_0/GPIO

AUDMUTE_1

ADAC_AL_N ADAC_AL_P

ADAC_AR_N ADAC_AR_P

ADAC_CL_N ADAC_CL_P

ADAC_CR_N ADAC_CR_P

ADAC_DL_N ADAC_DL_P

ADAC_DR_N ADAC_DR_P

AF8 AF9 AG9 AC9 AD8 AD9

E2 F2 E3 F3

G2 G3 G1 H1

B13

AG8 E13

C28 C27

D28 D27

C26 A27

B27 B28

B25 A25

A26 B26

R326 100 R327 100 R328 100 R329 100

TU_RESET_SUB

HP_DET AV1_CVBS_DET TU_RESET

SC_RE1 SC_RE2INCM_AUD_PC /RST_HUB S2_RESET

SPDIF_OUT

HP_LOUT_N HP_LOUT_P

HP_ROUT_N HP_ROUT_P

SCART1_Lout_N SCART1_Lout_P

SCART1_Rout_N SCART1_Rout_P

C337 22pF

OPT

C338 22pF

OPT

C339 22pF OPT

C340 33pF

OPT

AUD_SCK AUD_LRCK AUD_LRCH AUD_MASTER_CLK

Near

JK1102

JK1103 JK2501

JK1104 JK801

TU2101/2 TU2201/2/3

R321 0

R322 0

R323 0

R324 0

AUDIO INCM

Route Between AV1_L_IN & AV1_R_IN Trace

Route Between SC/COMP2_L_IN & SC/COMP2_R_IN Trace

Route Between AV2_L_IN & AV2_R_IN Trace

Route Between PC_L_IN & PC_R_IN Trace

Route Along With TUNER_SIF_IF_N

INCM_AUD_AV1

INCM_AUD_SC/COMP2

INCM_AUD_AV2

INCM_AUD_PC

INCM_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN AUDIO/VIDEO

3

50

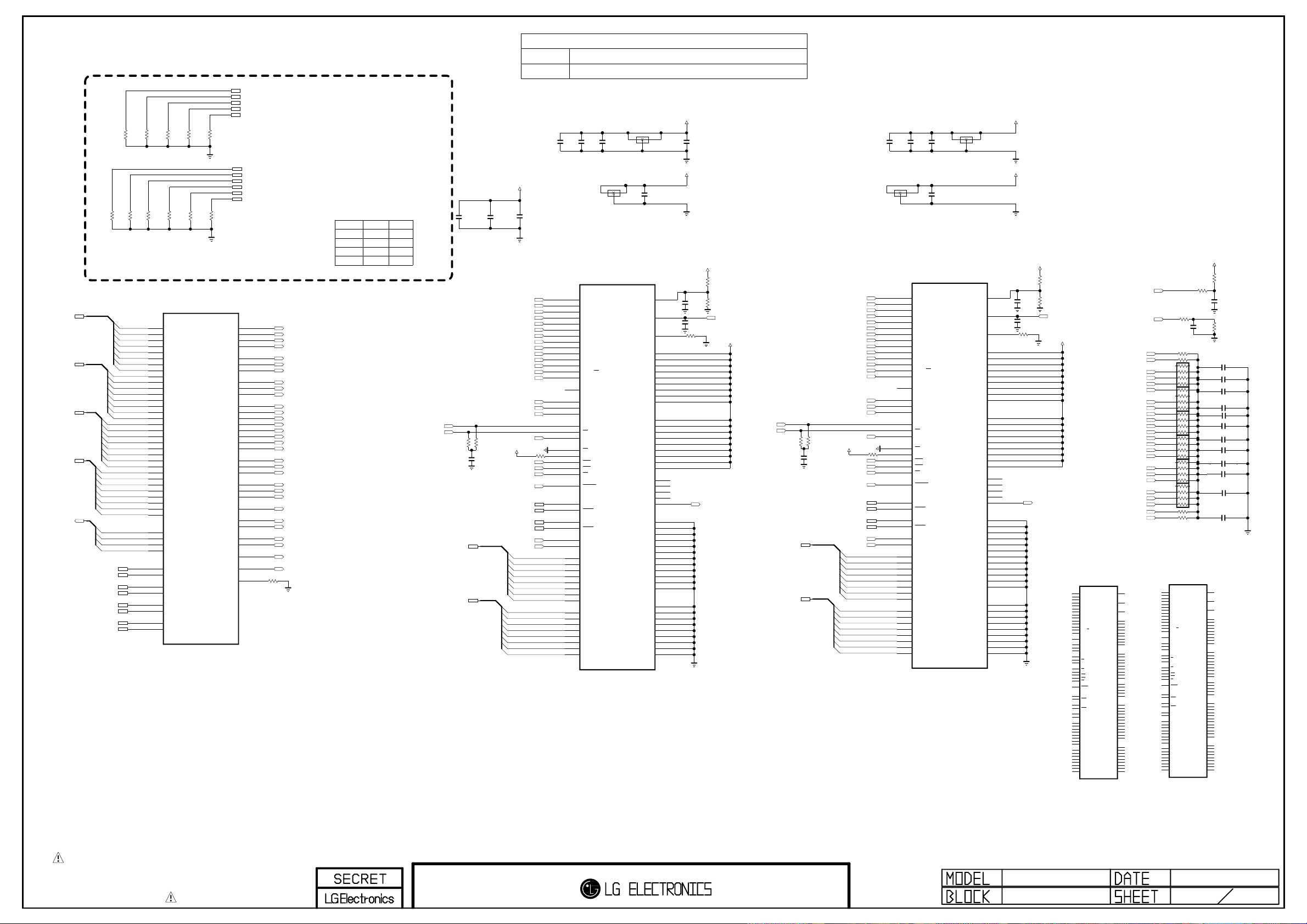

DDR STRAP

R401

4.7K

DDR_1333

R403

4.7K

R405

4.7K

DDR_1333

R407

4.7K

DDR_DQ[0] DDR_DQ[1] DDR_DQ[2] DDR_DQ[3] DDR_DQ[4]

JEDEC Types : DDR_DQ[0:4]

R409

00001 : DDR3-1333H (CasL=9)

4.7K OPT

10101 : DDR3-1600K (CasL=11) (O)

DUAL COMPONENT

IC401,IC402 1ST : EAN61667501, 2ND : EAN61570701

IC401-*1 IC402-*1

1ST : T-K4B2G1646B_HCK0, 2ND : T-H5TQ2G63BFR-PBC

+1.5V_DDR

OUTIN

GND

C403

2.2uF

C405 10uF

C407

2.2uF

NFM18PS105R0J

C410

6.3V

C417 470pF

C421

2.2uF

C423 10uF

C425 10uF

NFM18PS105R0J

C432

6.3V

OUTIN

GND

+1.5V_DDR

DDR_DQ[10] DDR_DQ[9] DDR_DQ[7] DDR_DQ[8] DDR_DQ[6] DDR_DQ[5]

R402

4.7K OPT

R432

4.7K

OPT

4.7K

4.7K OPT

R406

R404

HYNIX_DDR

LGE35230(BCM35230KFSBG)

R408

4.7K

IC101

R410

4.7K

C453

OPT

Bus Width : DDR_DQ[10] 0 - 16b 1 - 32b (O) Chip Width : DDR_DQ[8] 0 - 8b 1 - 16b (O) Chip Size : DDR_DQ[6:5] 00 - 4Gbit 01 - 2Gbit (O) 10 - 1Gbit 11 - 512Mbit

DDR_DQ[9] DDR_DQ[7] Maker

1 1 SS

01

Hynix

10

Reserve

00

Reserve

1uF

6.3V

DDR_DQ[0-7]

DDR_DQ[0] DDR_DQ[1] DDR_DQ[2] DDR_DQ[3] DDR_DQ[4] DDR_DQ[5]

DDR_DQ[24] DDR_DQ[25] DDR_DQ[26] DDR_DQ[27] DDR_DQ[28] DDR_DQ[29] DDR_DQ[30] DDR_DQ[31]

DDR_DM[0] DDR_DM[1] DDR_DM[2] DDR_DM[3]

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_QS2

DDR_QS2b

DDR_QS3

DDR_QS3b

DDR_DQ[6]

DDR_DQ[7] DDR_DQ[8] DDR_DQ[9] DDR_DQ[10] DDR_DQ[11] DDR_DQ[12] DDR_DQ[13] DDR_DQ[14] DDR_DQ[15]

DDR_DQ[16] DDR_DQ[17] DDR_DQ[18] DDR_DQ[19] DDR_DQ[20] DDR_DQ[21] DDR_DQ[22] DDR_DQ[23]

DDR_DQ[8-15]

DDR_DQ[16-23]

DDR_DQ[24-31]

DDR_DM[0-3] DDR_QS3

U26 R26 U27 R27 V27 P26 U25 P27 R24 N24 T25 M23 R23 N25 T24 N26 L26 H27 L27 J26 M27 G27 M26 H26 L23 H25 L24 J24 M24 H23 L25 H24

T26 P25 J27 K24

T27 T28

P24 P23

K27 K28

K25 K26

DDR_DQA_0 DDR_DQA_1 DDR_DQA_2 DDR_DQA_3 DDR_DQA_4 DDR_DQA_5 DDR_DQA_6 DDR_DQA_7 DDR_DQA_8 DDR_DQA_9 DDR_DQA_10 DDR_DQA_11 DDR_DQA_12 DDR_DQA_13 DDR_DQA_14 DDR_DQA_15 DDR_DQA_16 DDR_DQA_17 DDR_DQA_18 DDR_DQA_19 DDR_DQA_20 DDR_DQA_21 DDR_DQA_22 DDR_DQA_23 DDR_DQA_24 DDR_DQA_25 DDR_DQA_26 DDR_DQA_27 DDR_DQA_28 DDR_DQA_29 DDR_DQA_30 DDR_DQA_31

DDR_DMA_0 DDR_DMA_1 DDR_DMA_2 DDR_DMA_3

DDR_DQSA_P_0 DDR_DQSA_N_0

DDR_DQSA_P_1 DDR_DQSA_N_1

DDR_DQSA_P_2 DDR_DQSA_N_2

DDR_DQSA_P_3 DDR_DQSA_N_3

DDR_ADA_ALT_4 DDR_ADA_ALT_5 DDR_ADA_ALT_6

DDR_ADA_10 DDR_ADA_11 DDR_ADA_12 DDR_ADA_13 DDR_ADA_14

DDR_RASA_N DDR_CASA_N

DDR_CKA01_P DDR_CKA01_N

DDR_CKA23_P DDR_CKA23_N

DDR_ADA_0 DDR_ADA_1 DDR_ADA_2 DDR_ADA_3

DDR_ADA_4 DDR_ADA_5 DDR_ADA_6

DDR_ADA_7 DDR_ADA_8 DDR_ADA_9

DDR_BAA_0 DDR_BAA_1 DDR_BAA_2

DDR_WEA_N

DDR_CKEA

DDR_VREFA

DDR_RST_N

DDR_ZQ

V23 AB27 Y23 Y26

AB26 Y24 AC26

AB24 AC25 AC24

AB25 AD28 Y25 AA27 AC27 AA26 AA24 AD27

Y27 AB28 W24

V24 W25 V26

U24

W27 W28

N28 N27

U23

AA23

W26

R411 240

1%

DDR_AA0 DDR_AA1 DDR_AA2 DDR_AA3

DDR01_AA4 DDR01_AA5 DDR01_AA6

DDR23_AA4 DDR23_AA5 DDR23_AA6

DDR_AA7 DDR_AA8 DDR_AA9 DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13 DDR_AA14

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_RASb DDR_CASb DDR_WEb

DDR_CKE

DDR01_CLK DDR01_CLKb

DDR23_CLK DDR23_CLKb

DDR_VREFA

DDR_RESETb

DDR01_CLK

DDR01_CLKb

R412

DDR_DQ[0-7]

DDR_DQ[8-15]

56 1%

C401 1000pF

R413 56 1%

C454 1uF

6.3V

+1.5V_DDR

DDR_AA0 DDR_AA1 DDR_AA2

DDR_AA3 DDR01_AA4 DDR01_AA5 DDR01_AA6

DDR_AA7

DDR_AA8

DDR_AA9

DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_CKE

+1.5V_DDR

R414 10K

DDR_RASb DDR_CASb

DDR_WEb

DDR_RESETb

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_DM[0] DDR_DM[1]

DDR_DQ[0]

DDR_DQ[1]

DDR_DQ[2]

DDR_DQ[3]

DDR_DQ[4]

DDR_DQ[5]

DDR_DQ[6]

DDR_DQ[7]

DDR_DQ[8] DDR_DQ[14] DDR_DQ[13] DDR_DQ[12] DDR_DQ[9] DDR_DQ[10] DDR_DQ[15] DDR_DQ[11]

C455 1uF

6.3V

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

NFM18PS105R0J

K4B2G1646C

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

C402

6.3V

GND

IC401

DDR_1333

OUTIN

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

C412 1uF

ZQ

M8

H1

L8

R415 240

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_DDR

C415

0.01uF

C416

0.01uF

1%

+1.5V_DDR

DDR_AA14

R416

4.99K 1%

R417

4.99K 1%

DDR_VREFA

+1.5V_DDR

DDR23_CLK

DDR23_CLKb

DDR_DQ[16-23]

DDR_DQ[24-31]

R418

DDR23_AA4 DDR23_AA5 DDR23_AA6

DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13

DDR_BAA0 DDR_BAA1 DDR_BAA2

R419

56

1%

+1.5V_DDR

C419 1000pF

DDR_RASb DDR_CASb

DDR_RESETb

DDR_QS2b

DDR_QS3b

DDR_DM[2] DDR_DM[3]

DDR_DQ[16] DDR_DQ[17] DDR_DQ[18] DDR_DQ[19] DDR_DQ[20] DDR_DQ[21] DDR_DQ[22] DDR_DQ[23]

DDR_DQ[24] DDR_DQ[30] DDR_DQ[29] DDR_DQ[28] DDR_DQ[25] DDR_DQ[26] DDR_DQ[31] DDR_DQ[27]

DDR_AA0 DDR_AA1 DDR_AA2 DDR_AA3

DDR_AA7 DDR_AA8 DDR_AA9

DDR_CKE

R420 10K

DDR_WEb

DDR_QS2

NFM18PS105R0J

C433

6.3V

OUTIN

GND

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

K4B2G1646C

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

C426 1uF

IC402

DDR_1333

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

M8

H1

L8

R421 240

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_DDR

C435

0.01uF

C436

0.01uF

1%

+1.5V_DDR

R422

4.99K 1%

R423

4.99K 1%

DDR_AA14

DDR_VREFA

+1.5V_DDR

IC401-*1

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

NC_1 NC_2 NC_3 NC_4 NC_6

DDR_RESETb

DDR_AA13 DDR_AA14

DDR_AA2

DDR_AA11

DDR_AA3 DDR_AA7

DDR_AA9 DDR_AA8 DDR_AA0

DDR_AA1 DDR_BAA0 DDR_BAA2 DDR_BAA1 DDR_AA10 DDR_AA12

DDR_WEb

DDR23_AA6 DDR23_AA4 DDR23_AA5

DDR01_AA6 DDR01_AA4 DDR01_AA5

DDR_CASb DDR_RASb

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_CKE

R428 82

R424 56 R425 56

AR401 56

AR402 56

AR403 56

AR404 56

AR405 56

AR406 56

R426 56 R427 56

IC402-*1

K4B2G1646C-HCK0

DDR_1600

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_DDR

R429 82

C437 100pF

OPT

C438

C441 1uF

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

R430

4.7K OPT

C442 100pF

R431

4.7K OPT

1uF

0.1uF

C404

C406 0.1uF

C450

0.1uF

C408

0.1uF

C439

1uF

C409

0.1uF

C451

0.1uF

C411

C440

1uF

0.1uF

C452

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN DDR

4

50

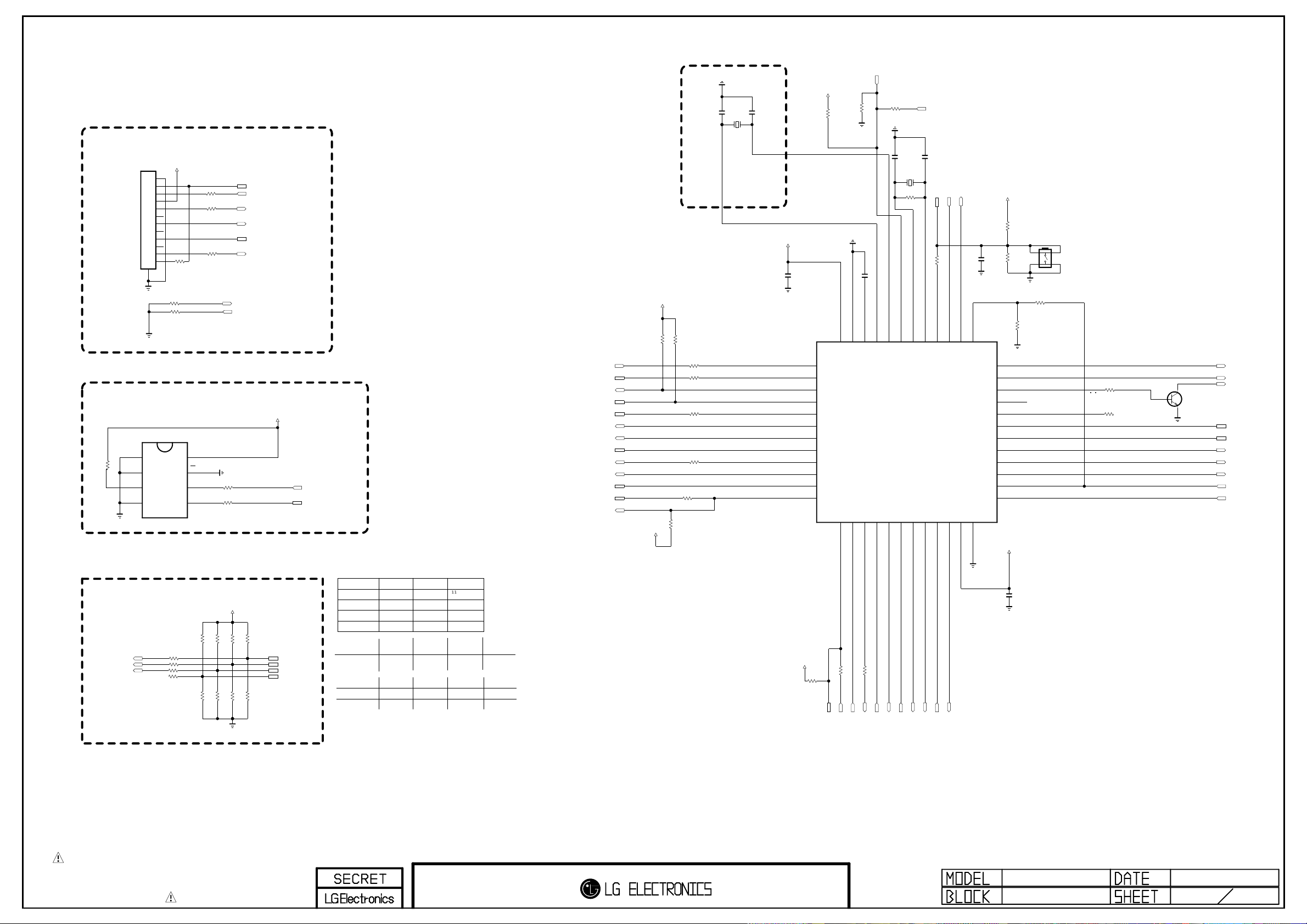

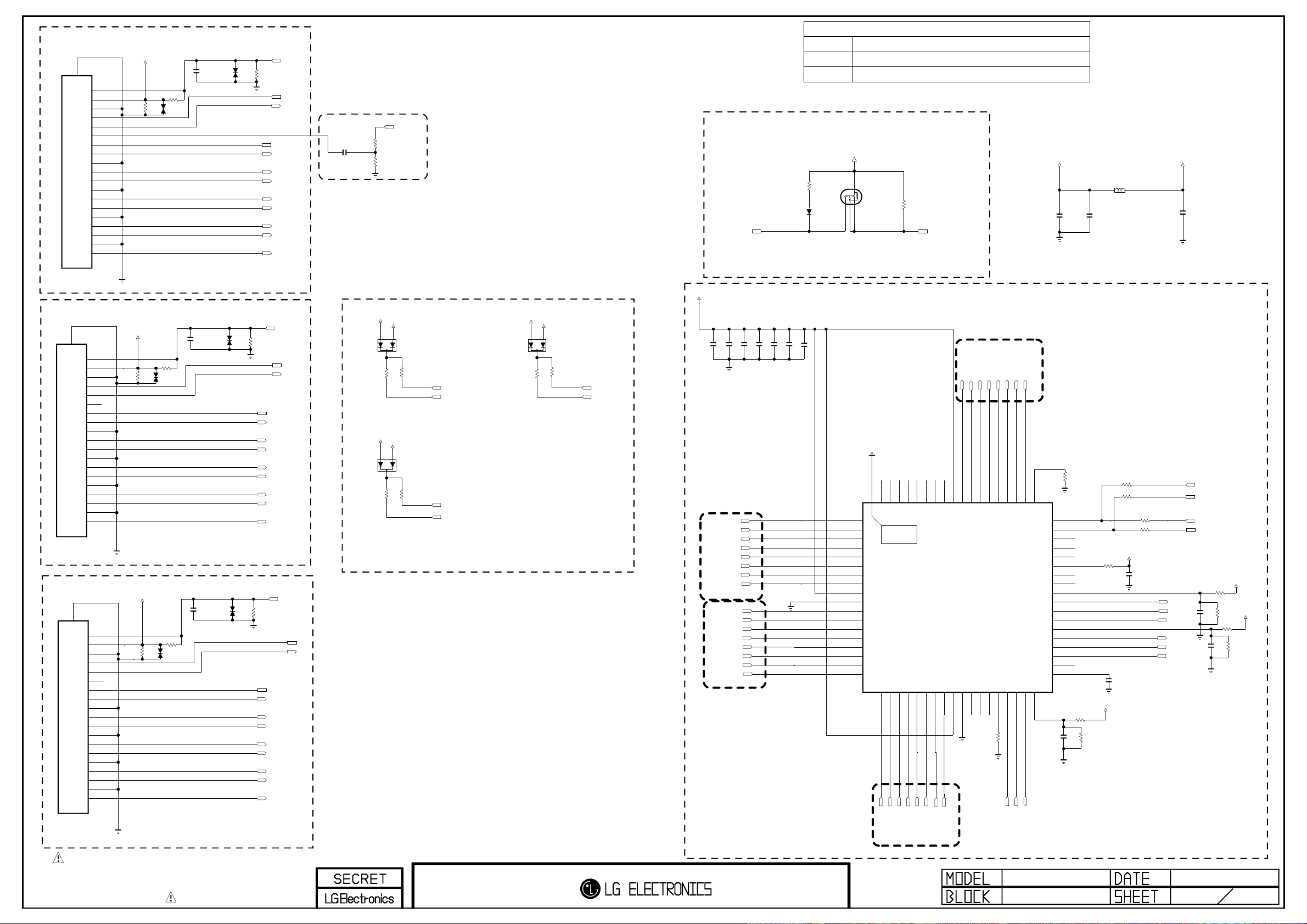

NEC MICOM

For Debug

P601

12505WS-12A00

+3.5V_ST

1

2

3

4

5

6

7

8

9

10

11

12

13

R607

R610

+3.5V_ST

R606 10K

10K

R61 5 22

R61 7 22

R62 1 22

EEPROM for Micom

IC601

M24C16-WMN6T

NC/E0

1

NC/E1

R60 1

47K

NC/E2

2

3

VSS

4

VCC

8

WC

7

SCL

6

SDA

5

MICOM MODEL OPTION

+3.5V_ST

PDP/3D

R613 10K

R611 10K

LCD/OLED

R612 10K

TOUCH_KEY

TACT_KEY

R614 10K

AMP_RESET_N

PANEL_CTL

INSTANT_MODE

R604 100

R605 100 R602 100 R603 100

R619

22

R616

22

I2C LED

R622 10K

PWM_LED

R623 10K

MICOM_RESET NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC_ISP_Rx

NEC_ISP_Tx

R624 10K

10YEAR_TOOL

R625 10K

11YEAR_TOOL

+3.5V_ST

MODEL1_OPT_0 MODEL1_OPT_1 MODEL1_OPT_2 MODEL1_OPT_3

EEPROM_SCL

EEPROM_SDA

PIN NAME

MODEL_OPT_0

MODEL_OPT_1 I2C_LED

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_1

MODEL_OPT_2

MODEL OPTION

PIN NO.

HIGH

10YEAR_TOOL

8

(10 SENSOR)

11

TOUCH_KEY

30

PDP/3D

31

LCD

PDP

0 0

LOW

1

0 10

10

LOW

11YEAR_TOOL (11 SENSOR)

PWM_LED

TACT_KEY

LCD/OLED

OLED 3D

TBD

0

GND

+3.5V_ST

C602

13pF

C603

50V

13pF

X601

10MHz

47K

OPT

R637

10Mhz Crystal

+3.5V_ST

C604

0.1uF

+3.5V_ST

VDD

R626 4.7K

SCL2_3.3V

SDA2_3.3V

EEPROM_SCL

EEPROM_SDA

HDMI_CEC

POWER_ON/OFF2_1

AMP_MUTE

MODEL1_OPT_0

SOC_RESET

INV_CTL

MODEL1_OPT_1

OCD1B

S/T_SCL

+3.5V_ST

R628 4.7K

R629

R630

R631 22

R632 22

R633 22

OPT

R627

4.7K

22

P60/SCL0 P61/SDA0

P62/EXSCL0

P33/TI51/TO51/INTP4

P73/KR3 P72/KR2 P71/KR1 P70/KR0

P32/INTP3/OCD1B

P63

P75 P74

1 2 3 4 5 6 7 8 9 10 11 12

48

13

P31/INTP2/OCD1A

OPT

1

HIGHLOW_SMALL

1

+3.5V_ST

4.7K

R636

R63 8 22

S/T_SDA

OCD1A

FLMD0

R641

R639 10K

GND

C605 0.1uF

P122/X2/EXCLK/OCD0B

P121/X1/OCD0A

REGC

VSS

44

45

46

47

IC602

uPD78F0514

NEC_MICOM

14

15

16

17

P30/INTP1

P15/TOH0

P17/TI50/TO50

P16/TOH1/INTP5

10K

R64 0

IR

POWER_DET

LED_R/BUZZ

LED_B/LG_LOGO

0

15pF

C606

MICOM_DOWNLOAD

C607 15pF

X602

32.768KHz R642

4.7M OPT

RESET

P124/XT2/EXCLKS

P123/XT1

FLMD0

41

42

43

18

19

20

P14/RXD6

P13/TXD6

P12/SO10

P11/SL10/RXD0

NEC_ISP_Tx

NEC_ISP_Rx

POWER_ON/OFF2_2

WIRELESS_PWR_EN

WIRELESS_DET

C608

0.1uF 16V

R643 22

P120/INTP0/EXLVI

P41

P40

37

38

39

40

36 35 34 33 32 31 30 29 28 27 26 25

21

22

23

24

AVSS

AVREF

P10/SCK10/TXD0

NEC_TXD

NEC_RXD MICOM_RESET

+3.5V_ST

47K

OPT

270K

R647 20K

R646

20K

JTP-1127WEM

4 3

1/16W 1%

1/16W

1%

SW1

12

R644

R645

P140/PCL/INTP6 P00/TI000 P01/TI010/TO00 P130 P20/ANI0 ANI1/P21 ANI2/P22 ANI3/P23 ANI4/P24 ANI5/P25 ANI6/P26 ANI7/P27

+3.5V_ST

C609 1uF

R648 10K



R649 0

OPT

RL_ON

SCART_MUTE

C

Q601

B

2SC3052

E

EDID_WP

MODEL1_OPT_3

MODEL1_OPT_2

POWER_ON/OFF1

MICOM_DOWNLOAD

SIDE_HP_MUTE

KEY2

KEY1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MICOM

6

50

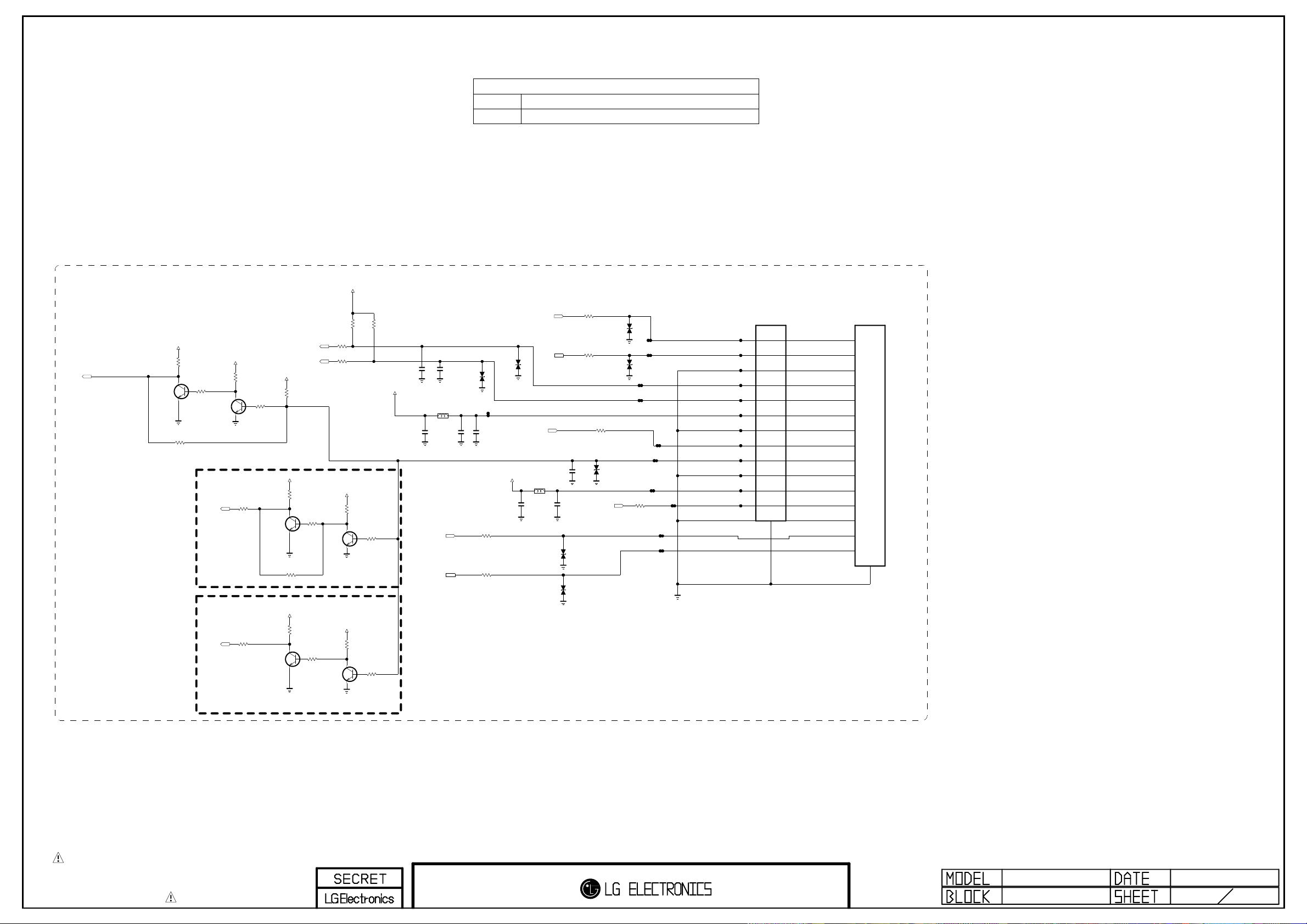

Q901,Q902,Q903 Q904,Q905,Q906

D903,D904 D905,D906

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EAH42720601, 2ND : EAH60994401

IR & KEY

IR

Q901

2SC3052

+3.5V_ST

R903

47K

R902 0

+3.5V_ST

KEY1

KEY2

3.5V

3.3V

S/T_SCL

ST_SDA

GND

IR

GND

IR_15P

P901

12507WR-15L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

.

IR_12P

P902

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

EEPROM_SCL

EEPROM_SDA

LED_B/LOGO

LED_R/BUZZ

C911

100pF

50V

R933 100

R934 100

R928 1.5K

D907

5.6V

AMOTECH

LED_R/BUZZ

D903

CDS3C05HDMI1

5.6V

D904 CDS3C05HDMI1

5.6V

D905

CDS3C05HDMI1

5.6V

D906

CDS3C05HDMI1

5.6V

R929

1.5K

LED_B/LG_LOGO

+3.3V_Normal

BLM18PG121SN1D

16V

EEPROM_SCL

EEPROM_SDA

L902

C913

0.1uF 16V

ESD_ATSC

R920

R919

10K

1%

R915 100

KEY1

R916

+3.5V_ST

R908

47K

COMMERCIAL_EU

Q903

2SC3052

COMMERCIAL_EU

WIRELESS

Q904

2SC3052

WIRELESS

+3.5V_ST

R909

3.3K OPT

+3.5V_ST

R911

47K

C

B

E

COMMERCIAL_EU

COMMERCIAL_US

R910 0

+3.5V_ST

R912

47K

C

B

E

R905

47K

R904

C

10K

B

E

OPT

Q902

2SC3052

C

B

E

COMMERCIAL

R906

COMMERCIAL

22

IR_OUT

WIRELESS

R907

WIRELESS

22

IR_PASS

KEY2

R913 10K

R914 10K

WIRELESS

R917

COMMERCIAL

Q905

2SC3052

COMMERCIAL

R918

WIRELESS

Q906

2SC3052

WIRELESS

100

+3.5V_ST

47K

+3.5V_ST

47K

C

E

C

E

B

COMMERCIAL

B

WIRELESS

47K

R921

R922

+3.5V_ST

C901

0.1uF

C902

0.1uF OPT

BLM18PG121SN1D

16V

L901

S/T_SCL

S/T_SDA

C903

0.1uF

C904

0.1uF

D901

5.6V

AMOTECH

16V

OPT

Zener Diode is

close to wafer

C905 1000pF 50V

R935 100

R936 100

D902

5.6V

AMOTECH

ESD_ATSC

C912

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

IR/KEY

9

50

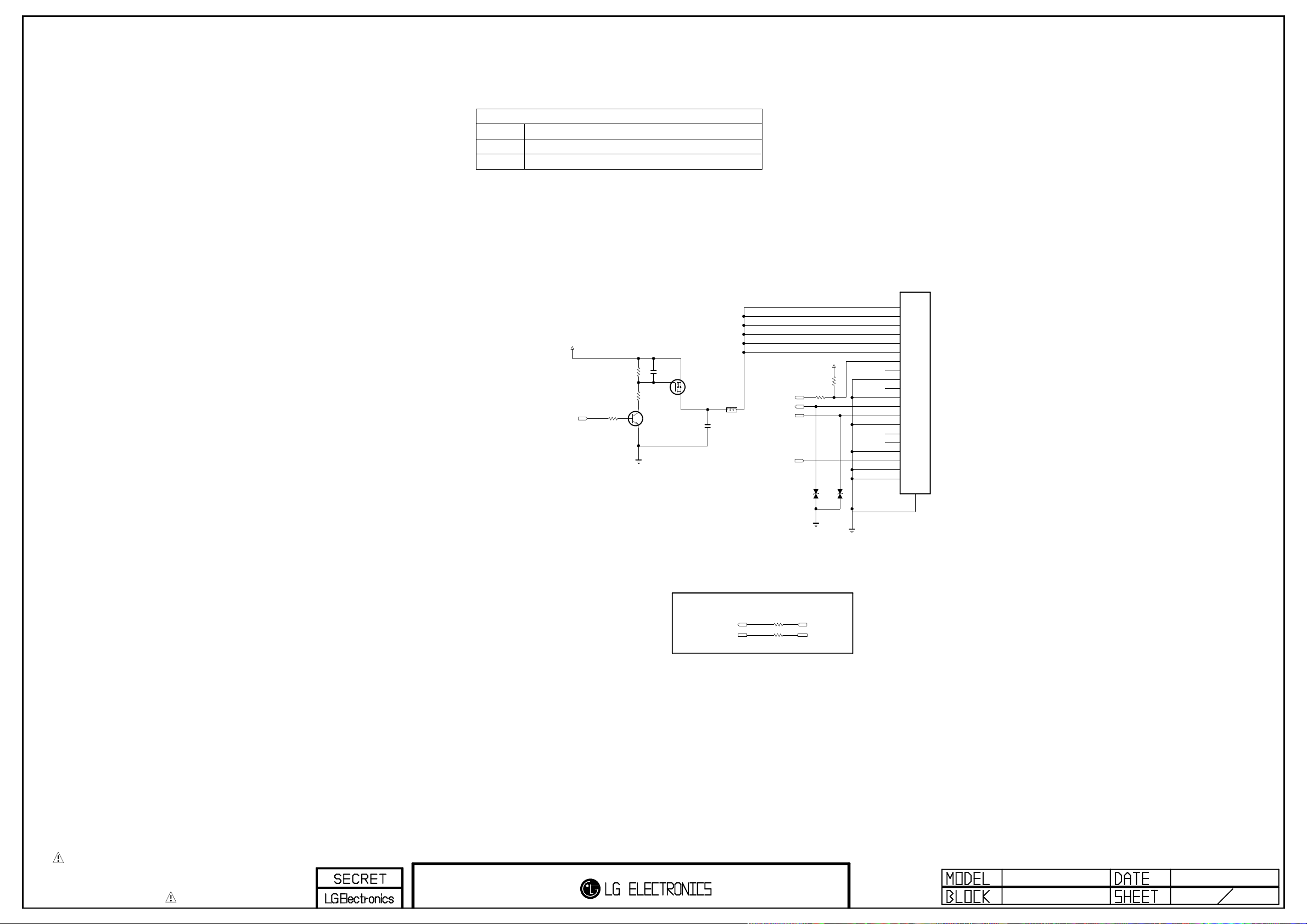

WIRELESS READY MODEL

D1001,D1002

Q1001

Q1002

DUAL COMPONENT

1ST : EAH42720601 2ND : EAH60994401

1ST : EBK61012601, 2ND : 0TRDI80002A

1ST : EBK60752501, 2ND : EBK61011501

Wireless power

+24V

R1002

22K

WIRELESS

R1003

2.2K

WIRELESS

WIRELESS_PWR_EN

R1001

10K

WIRELESS

B

C1002

2.2uF

WIRELESS

Q1002 AO3407A

WIRELESS

C

Q1001 MMBT3904(NXP)

WIRELESS

E

JK1001

KJA-PH-3-0168

DETECT

INTERRUPT

GND_1

RESET

GND_2

I2C_SCL

I2C_SDA

GND_3

UART_RX

UART_TX

GND_4

GND_5

IR

WIRELESS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20GND_6

21

SHIELD

VCC(24V/20V/17V)_1

VCC(24V/20V/17V)_2

VCC(24V/20V/17V)_3

VCC(24V/20V/17V)_4

VCC(24V/20V/17V)_1

+3.3V_Normal

S

G

D

L1001

MLB-201209-0120P-N2

WIRELESS

C1004 10uF 35V

WIRELESS

WIRELESS_DET

WIRELESS_SCL

WIRELESS_SDA

IR_PASS

R1008

WIRELESS

R1007 1K

WIRELESS

D1001

CDS3C05HDMI1

WIRELESS

10K

5.6V WIRELESS

D1002

5.6V

CDS3C05HDMI1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Wireless I2C connection with I2C_1

Address : 0X20

WIRELESS_SCL

WIRELESS_SDA

R1005 33

WIRELESS

R1006 33

WIRELESS

SCL2_3.3V

SDA2_3.3V

BCM35230

10

50WIRELESS

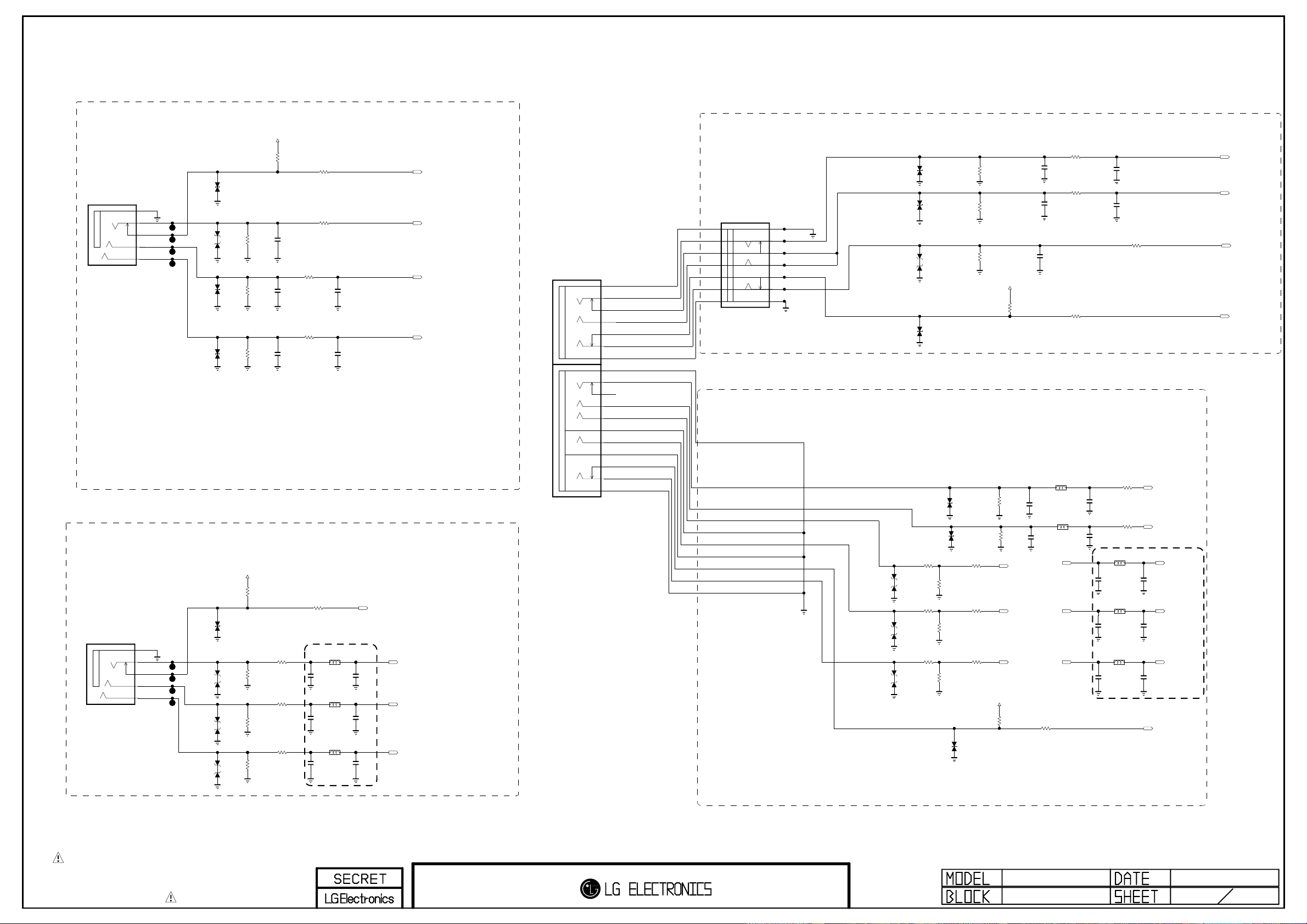

CVBS 1 PHONE JACK

D1105

D1107

5.6V

ZD1115

5.1V

ZD1116

5.1V

D1108

5.6V

R1110

JK1102

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

COMPONENT 1 PHONE JACK

D1101

JK1101

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

5.6V

ZD1117

5.1V

ZD1110

5.1V

ZD1111

5.1V

ZD1112

5.1V

ZD1113

5.1V

ZD1114

5.1V

R1109 75

1%

470K

R1111 470K

+3.3V_Normal

R1105

2.7K

R1106 75

1%

R1107 75

1%

R1108 75

1%

+3.3V_Normal

R1112

2.7K

C1106 47pF 50V

C1107 560pF 50V

C1108 560pF 50V

R1137 10

R1138 10

R1139 10

R1143 22

R1144 22

R1113 1K

R1136 10

R1114 1K

L1110

CM2012FR27KT

C1102 27pF 50V

L1111

CM2012FR27KT

C1103 27pF 50V

L1112

CM2012FR27KT

C1104 27pF 50V

FOR EMI

C1109 560pF 50V

C1110 560pF 50V

C1125 27pF 50V

C1126 27pF 50V

C1127 27pF 50V

COMP1_DET

COMP1_Y

COMP1_Pb

COMP1_Pr

AV1_CVBS_DET

AV1_CVBS_IN

AV1_L_IN

AV1_R_IN

JACK_PACK

JK1105

PPJ238-01

[RD1]E-LUG

6C

[RD1]O-SPRING

5C

[RD1]CONTACT

4C

[WH1]O-SPRING

5B

[YL1]CONTACT

4A

[YL1]O-SPRING

5A

[YL1]E-LUG

6A

[RD2]E-LUG

6H

[RD2]O-SPRING_2

5H

[RD2]CONTACT

4H

[WH2]O-SPRING

5G

[RD2]O-SPRING_1

5F

[RD2]E-LUG-S

7F

[BL2]O-SPRING

5E

[BL2]E-LUG-S

7E

[GN2]CONTACT

4D

[GN2]O-SPRING

5D

[GN2]E-LUG

6D

CVBS2 REAR JACK

JK1104

PPJ233-01

AV2_JACK

[RD]E-LUG

5C

[RD]O-SPRING

4C

[RD]CONTACT

3C

[WH]C-LUG

4B

[YL]CONTACT

3A

[YL]O-SPRING

4A

[YL]E-LUG

5A

COMP2 REAR JACK

COMP2

ZD1103

5.1V ZD1104

5.1V

ZD1105

5.1V ZD1106

5.1V

ZD1107

5.1V ZD1108

5.1V

AV2 R1141 22

D1109 AMOTECH

5.6V AV2

D1110 AMOTECH

5.6V AV2

ZD1101

AV2

5.1V ZD1102

AV2

5.1V

D1111

AV2

5.6V

COMP2

R1119 0

COMP2 R1124

75

COMP2

R1120 0

COMP2

R1125 75

COMP2

R1121 0

COMP2

R1126 75

D1112

5.6V COMP2

D1113

5.6V COMP2

COMP2

D1114

5.6V

AV2

10

AV2

COMP2

R1116 470K

R1117 470K

R1118 75

R1133

R1134

R1135

+3.3V_Normal

R1128

2.7K

AV2

COMP2 R1122 470K

COMP2

R1123

470K

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

R1127

2.7K

C1118 560pF 50V AV2

C1119 560pF 50V AV2

C1120 47pF 50V AV2

BLM18PG121SN1D

C1113 560pF 50V

COMP2

BLM18PG121SN1D

COMP2

C1114 560pF 50V

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

R11301K

COMP2

R1142 22

R1129

1K

AV2

L1103

L1104

C1123 560pF 50V

C1121 560pF 50V

COMP2

C1122 560pF 50V

CM2012FR27KT

C1115

27pF 50V

CM2012FR27KT

C1116

27pF 50V

CM2012FR27KT

C1117

27pF 50V

L1109

L1108

L1107

FOR EMI

AV2

C1124 560pF 50V

AV2

COMP2 R1131 22

COMP2 R1132 22

AV2 R1140 10

SC/COMP2_R_IN

SC/COMP2_L_IN

SC_R/COMP2_Pr

C1128

27pF 50V

SC_B/COMP2_Pb

C1129

27pF 50V

SC_G/COMP2_Y

C1130

27pF

50V

SC_DET/COMP2_DET

AV2

AV2_R_IN

AV2_L_IN

AV2_CVBS_IN

AV2_CVBS_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

COMP/AV 11

50

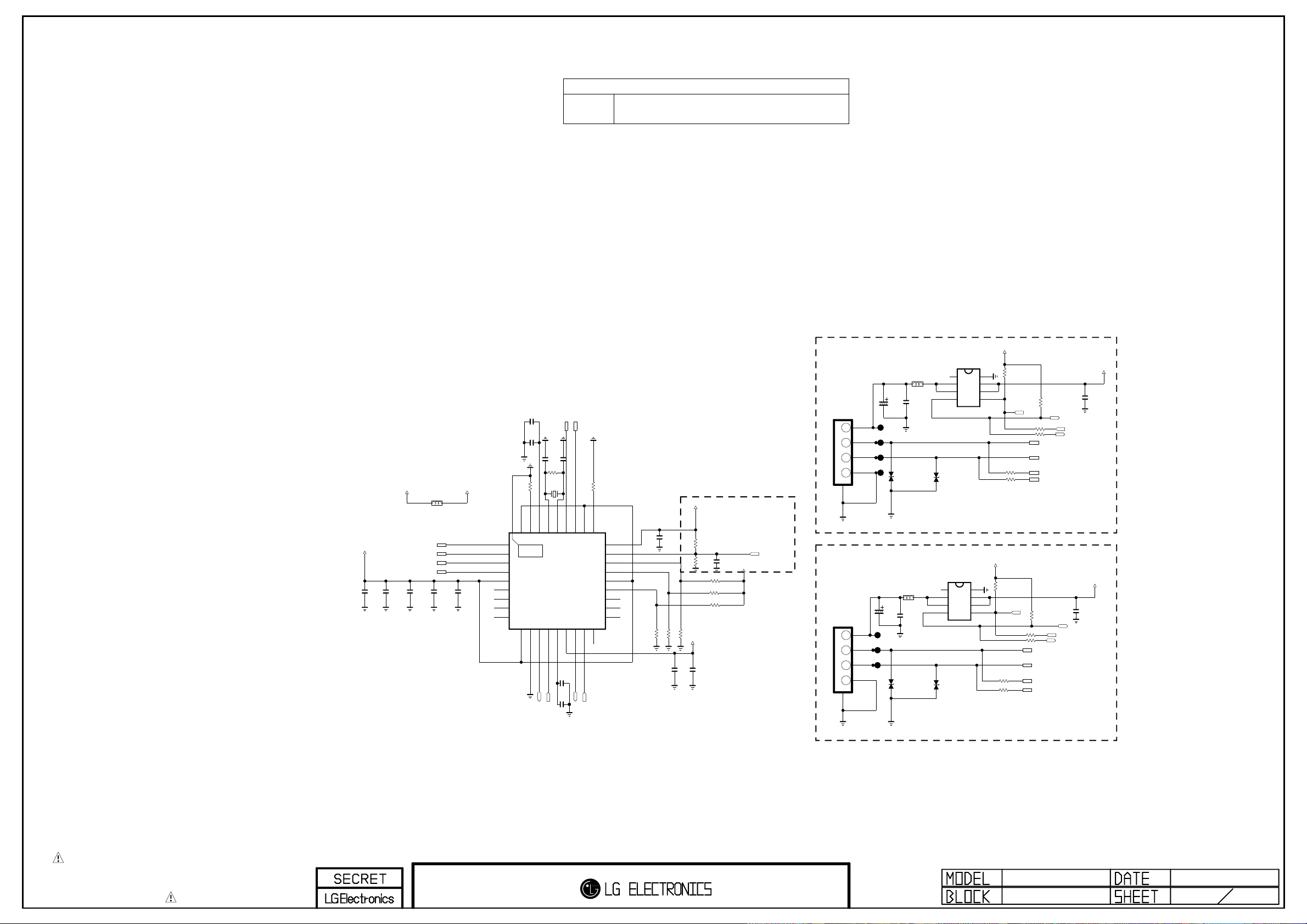

DUAL COMPONENT

D1201,D1202 D1203,D1204 D1205,D1206

1ST : EAH42720601 2ND : EAH60994401

ONLY FOR LV7_ATSC

+3.3V_USB

C1204 1uF 10V WIFI

+3.3V_Normal

C1205

0.1uF WIFI

L1203

BLM18PG121SN1D

WIFI

USB_DM1

USB_DP1

USB_DM2

USB_DP2

C1206

C1207

0.1uF

WIFI

+3.3V_USB

C1208

0.1uF WIFI

USBDM_DN[1]

USBDP_DN[1]

USBDM_DN[2]

USBDP_DN[2]

VDDA33_1

NC_1

NC_2

NC_3

NC_4

[EP]VSS

1

2

3

4

5

6

7

8

9

WIFI

THERMAL

10

VDDA33_2

WIFI

C1209

1uF

10V

WIFI

C1210

0.1uF

WIFI R1205 1M

WIFI X1201

24MHz

R1204

12K

1/16W 1%

XTALIN/CLKIN

PLLFILT

RBIAS36VDD33_3

33

34

35

37

IC1202

USB2512B-AEZG

11

12

13

TEST

OCS_N[1]

PRTPWR[1]/BC_EN[1]

USB_CTL1

/USB_OCD1

WIFI

C1211

15pF

XTALOUT

WIFI

CRFILT

C1212

WIFI

C1213

15pF

1%

32

14

WIFI

C1214

USBDP_UP

31

15

VDD33_1

0.1uF

1uF

WIFI

SIDE_USB_DM

SIDE_USB_DP

WIFI

R1206

100K

SUSP_IND/LOCAL_PWR/NON_REM[0]

VDDA33_3

USBDM_UP

28

29

30

16

PRTPWR[2]/BC_EN[2]

10V

17

OCS_N[2]

USB_CTL2

/USB_OCD2

18

NC_5

VBUS_DET

27

RESET_N

26

HS_IND/CFG_SEL[1]

25

SCL/SMBCLK/CFG_SEL[0]

24

VDD33_2

23

SDA/SMBDATA/NON_REM[1]

22

NC_8

21

NC_7

20

NC_6

19

WIFI

R1207

100K

WIFI C1216

0.1uF

C1215

0.1uF

WIFI

R1208

100K

WIFI

100K

R1209

R1212 100K

OPT

R1213

100K

OPT

+3.3V_USB

C1218

0.1uF OPT

R1215 100K

R1214 100K

R1216 100K

WIFI C1217

4.7uF

OPT

+3.3V_USB

/RST_HUB

USB / DVR Ready

L1205

MLB-201209-0120P-N2

120-ohm

C1220 10uF

C1231 100uF

10V

3AU04S-305-ZC-(LG)

JK1201

1234

USB DOW N S TREA M

5

16V

D1203

CDS3C05HDMI1

5.6V

USB

L1204

MLB-201209-0120P-N2

120-ohm

C1230

C1219

100uF

10uF

16V

3AU04S-305-ZC-(LG)

JK1202

1234

USB DOW N S TREA M

5

10V

D1204

CDS3C05HDMI1

5.6V

IC1204

NC OUT_2 OUT_1

FLG

D1205

CDS3C05HDMI1

5.6V

IC1203

AP2191DSG

NC

8

OUT_2

7

OUT_1

6

FLG

5

EAN61849601

D1206

CDS3C05HDMI1

5.6V

AP2191DSG

8 7 6 5

EAN61849601

GND

1

IN_1

2

IN_2

3

EN

4

GND

1

IN_1

2

IN_2

3

EN

4

R1224 0 R1225 0

+3.3V_Normal

NON_WIFI

R1226 0

R1227 0

NON_WIFI

+3.3V_Normal

R1221

4.7K

OPT

USB_CTL1

R1230 0 R1231 0

NON_WIFI

R1220

4.7K OPT

USB_CTL2

NON_WIFI R1228 0 R1229 0

NON_WIFI

R1222

2.7K

USB_DM2

USB_DP2

WIFI_DM

WIFI_DP

R1223

2.7K

USB_DM1

USB_DP1

SIDE_USB_DM SIDE_USB_DP

SIDE_USB_CTL2

SIDE_USB_OCD2

/USB_OCD1

SIDE_USB_CTL1

SIDE_USB_OCD1

+5V_USB

C1223

0.1uF

/USB_OCD2

+5V_USB

C1224

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

USB + WIFI

72

50

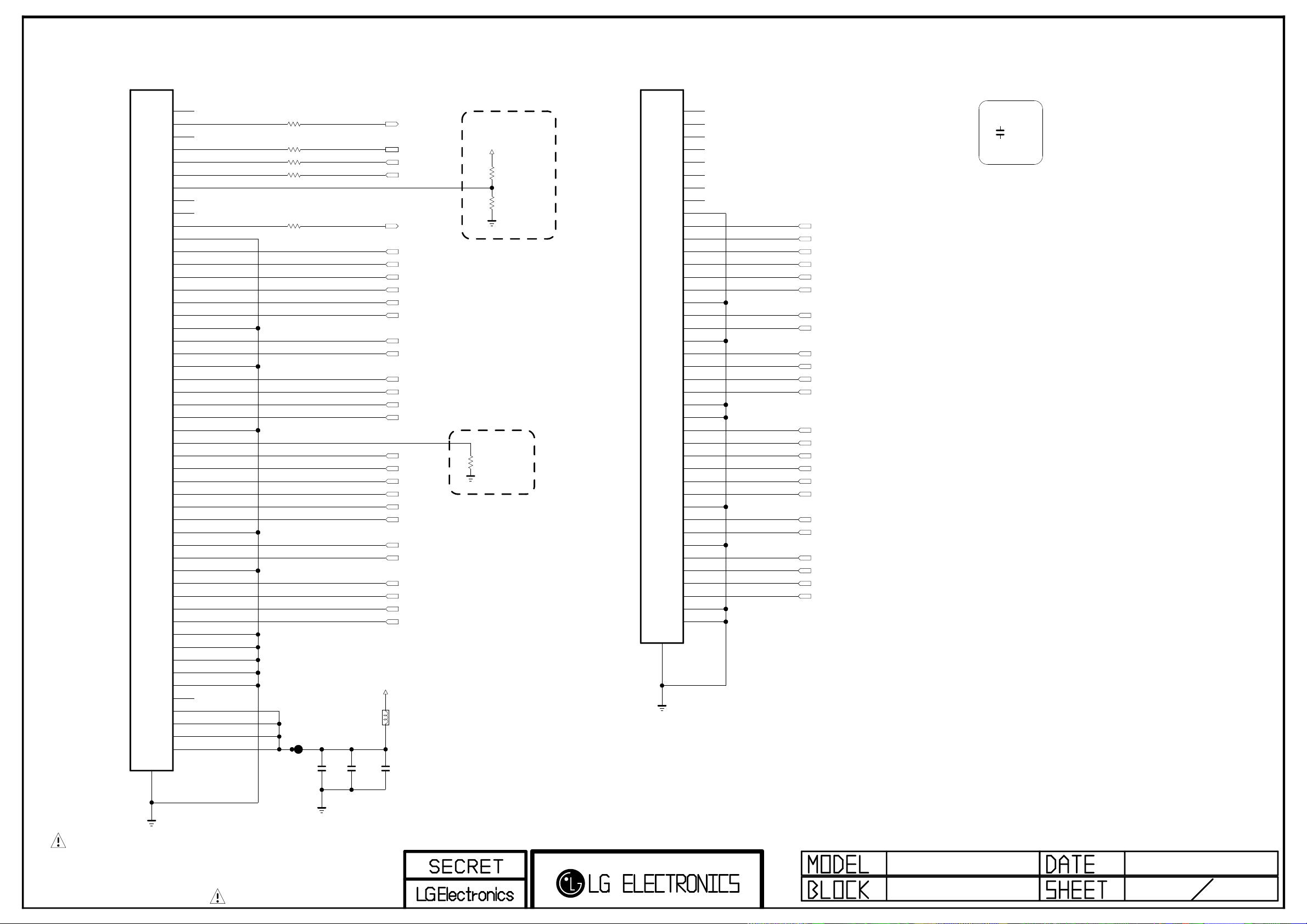

FHD120Hz LVDS output(51pin+41Pin)

P1501

FI-RE51S-HFK-A

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

R1504 33

R1506 33

R1507 33

R1508 33

R1516 33

FRC2

SHARP_60INCH

C1501 10uF 25V

OPT

PANEL_VCC

C1502 1000pF 50V

3D_SYNC_RF

SDA2_3.3V

SCL2_3.3V

FRC_RESET

PANEL_CTL

TXA0N

TXA0P

TXA1N

TXA1P

TXA2N

TXA2P

TXACLKN

TXACLKP

TXA3N

TXA3P

TXA4N

TXA4P

TXB0N

TXB0P

TXB1N

TXB1P

TXB2N

TXB2P

TXBCLKN

TXBCLKP

TXB3N

TXB3P

TXB4N

TXB4P

L1501

MLB-201209-0120P-N2

NON_SHARP_60INCH

C1503

0.1uF 16V

LVDS_SEL

+3.3V_Normal

R1513

3.3K LVDS_SEL_HIGH

R1514 10K

LVDS_SEL_LOW

BIT_SEL

R1512 10K

BIT_SEL_LOW

P1502

FI-RE41S-HFK-A

LVDS_41P

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

1

2

3

4

5

6

7

8

9

TXC0N

TXC0P

TXC1N

TXC1P

TXC2N

TXC2P

TXCCLKN

TXCCLKP

TXC3N

TXC3P

TXC4N

TXC4P

TXD0N

TXD0P

TXD1N

TXD1P

TXD2N

TXD2P

TXDCLKN

TXDCLKP

TXD3N

TXD3P

TXD4N

TXD4P

REVERSE MARK

LVDS_41P

C1504

2.2uF 50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

2010.11.03 5015LVDS

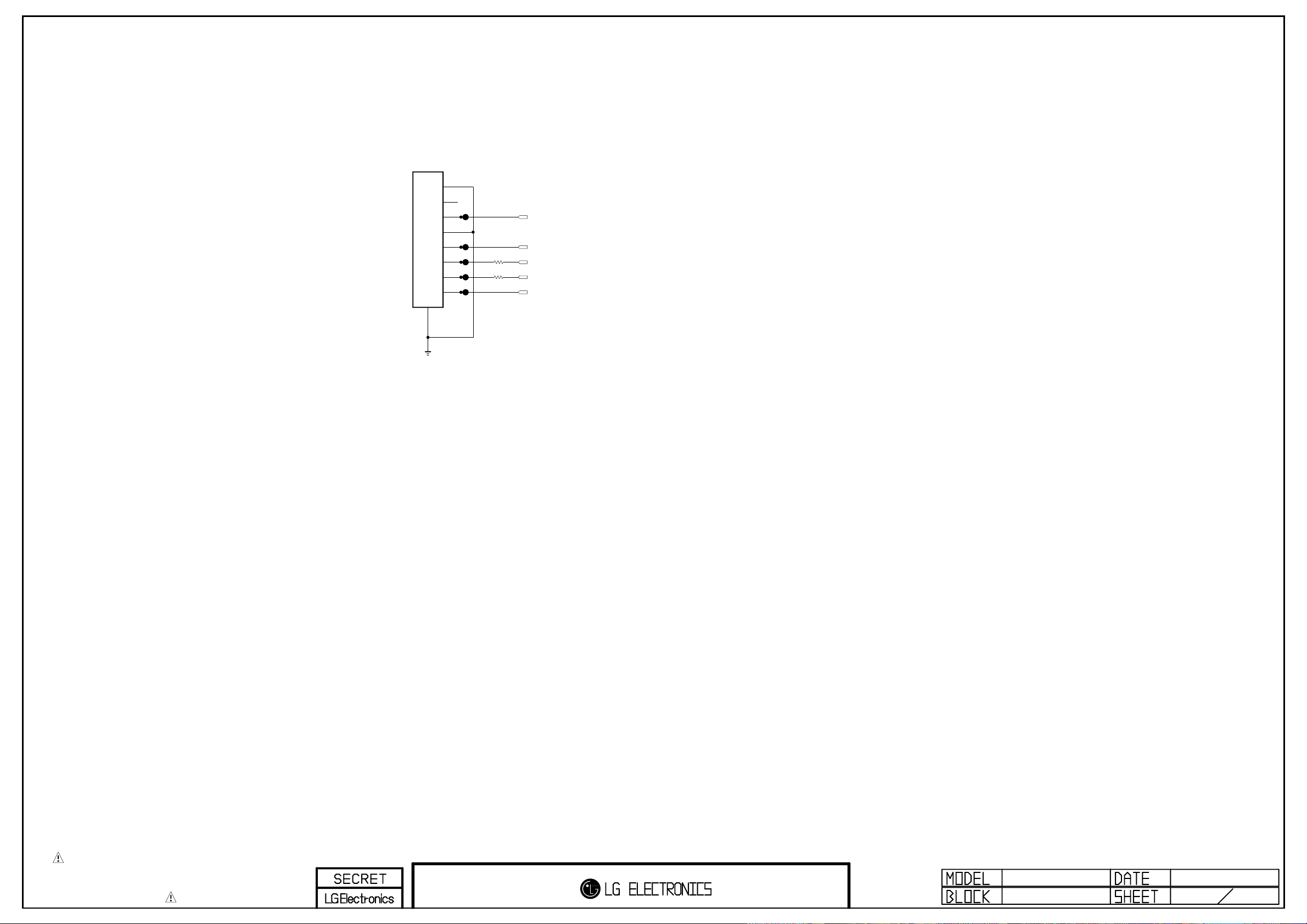

[Local Dimming Block]

P1601

12507WR-08L

1

2

3

4

5

6

7

8

9

R1601 33

R1602 33

L/DIM0_SCLK

L/DIM0_MOSI

SCL2_3.3V

SDA2_3.3V

L/DIM0_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

L_DIMMING

16

50

NON CI

PCM_MDI[0-7]

PCM_TS_DATA[0-7]

CI_ADDR[2-14]

PCM_MDI[0] PCM_MDI[1] PCM_MDI[2] PCM_MDI[3] PCM_MDI[4] PCM_MDI[5] PCM_MDI[6] PCM_MDI[7]

PCM_TS_DATA[0] PCM_TS_DATA[1] PCM_TS_DATA[2] PCM_TS_DATA[3]

PCM_TS_DATA[4] PCM_TS_DATA[5] PCM_TS_DATA[6] PCM_TS_DATA[7]

CI_ADDR[2] CI_ADDR[3] CI_ADDR[4] CI_ADDR[5] CI_ADDR[6] CI_ADDR[7] CI_ADDR[8] CI_ADDR[9] CI_ADDR[10] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[14]

PCM_MISTRT

PCM_MIVAL_ERR

PCM_MCLKI

PCM_TS_CLK

PCM_TS_VAL PCM_TS_SYNC

/CI_CE1

/CI_CE2

PCM_5V_CTL

/PCM_WAIT

CI_DET

/PCM_IRQA

PCM_RST

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

NON CI 50

20

LNB_INT

Non_DVB-S2 LNB Part_Allegro

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

NON LNB 50

24

3D_SYNC

L_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

NON URSA 50

36

DUAL COMPONENT

BODY_SHIELD

EAG62611201

BODY_SHIELD

EAG62611201

20

19

18

17

16

15

14

13

12

11

10

9

8

7

EAG62611201

6

5

4

3

2

1

RSD-105156-100

JK3703

20

HOT_PLUG_DETECT

19

VDD[+5V]

18

DDC/CEC_GND

17

SDA

16

SCL

15

RESERVED

14

CEC

13

TMDS_CLK-

12

TMDS_CLK_SHIELD

11

TMDS_CLK+

10

TMDS_DATA0-

9

TMDS_DATA0_SHIELD

8

TMDS_DATA0+

7

TMDS_DATA1-

6

TMDS_DATA1_SHIELD

5

TMDS_DATA1+

4

TMDS_DATA2-

3

TMDS_DATA2_SHIELD

2

TMDS_DATA2+

1

RSD-105156-100

JK3701

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

5V_HDMI_1

5V_HDMI_2

OPT

R3701

3.6K

5V_HDMI_3

OPT

OPT R3737

3.6K

R3704 0

R3705 0

R3702

3.6K

OPT

R3736 0

OPT

VR3702

10V

OPT

VR3703

10V

OPT

VR3704

10V

OPT

C3702

0.1uF 16V

OPT

C3703

0.1uF 16V

OPT

C3726

0.1uF 16V

VR3701

OPT

VR3705

10V

OPT

VR3706

HDMI_HPD_1

OPT

10V

OPT

R3706

GND

HDMI1

OPT

R3718

1K

GND

HDMI2

OPT

R3719

1K

GND

1K

CEC_REMOTE

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

CEC_REMOTE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

DDC_SDA_1

DDC_SCL_1

HDMI_HPD_2

DDC_SDA_2

DDC_SCL_2

HDMI_HPD_3

DDC_SDA_3

DDC_SCL_3

ARC

C3701

0.1uF

R37 08

63. 4

+5V_Normal

D3713

+5V_Normal

D3714

R3709

4.7K

R3710

4.7K

R3707

150

HDMI_ARC

5V_HDMI_1

A1CA2

5V_HDMI_3

A1CA2

R3711

4.7K

R3712

4.7K

DDC_SDA_1

DDC_SCL_1

DDC_SDA_3

DDC_SCL_3

+5V_Normal

5V_HDMI_2

R3713

4.7K

A1CA2

R3714

4.7K

D3715

EDID Pull-up

DDC_SDA_2

DDC_SCL_2

* HDMI CEC

+3.3V_HDMI

C3705

C3706

10uF

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

HDMI1

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI2

CEC_REMOTE HDMI_CEC

C3707

C3709

C3708

10uF

0.1uF

R3717

D3716

BAT54_SUZHO

C3710

0.1uF

27K

D3716

IC3702

C3711

0.1uF

1ST : T-BAT54_SUZHO, 2ND : 0DSON00138A

1ST : EAN60991801, 2ND : T-AZ1117BH_1.8, 3RD : EAN54428201

+3.5V_ST

G

SBD

Q3707

BSS83

120K

R3725

HDMI S/W OUTPUT

HDMI_RX0+

HDMI_CLK-

HDMI_RX0-

HDMI_CLK+

R1XCN R1XCP R1X0N R1X0P R1X1N R1X1P R1X2N R1X2P

VCC33_1

RSVD_1

R2XCN R2XCP R2X0N R2X0P R2X1N R2X1P R2X2N R2X2P

[EP]GND

R0X2P

72

1 2 3 4

R0X2N

71

THERMAL

R0X1N

R0X1P

70

73

69

R0X0N

R0X0P

67

68

5 6 7 8 9

SII9287B

10 11 12 13 14 15 16 17 18

19

R3XCN20R3XCP21R3X0N22R3X0P23R3X1N24R3X1P25R3X2N26R3X2P

VCC33_3

R0XCN

R0XCP

64

65

66

IC3701

27

VCC33_2

TXCP

TXCN

62

63

28

29

DSDA030DSCL0

RSVD_2

TX0P

TX0N

60

61

31

CBUS_HPD0

R3744

100K

HDMI_RX1+

HDMI_RX1-

TX2N

TX1P

TX1N

58

59

32

33

DSDA134DSCL1

R0PWR5V

+3.3V_Normal

HDMI_RX2+

HDMI_RX2-

TPWR_CI2CA

TX2P

55

56

57

54 53 52 51 50 49 48 47 46 45 44 43 42 41

DSCL2

40

DSDA2

39

SBVCC

38

MICOM_VCC33

37

35

36

R1PWR5V

CBUS_HPD1

C3727

0.1uF 16V

R3739

4.7K

CSCL CSDA INT CEC_D CEC_A R4PWR5V DSCL4 DSDA4 R3PWR5V CBUS_HPD3 DSCL3 DSDA3 R2PWR5V CBUS_HPD2

R3726 10

C3713

1uF

C3725 10uF

5V_HDMI_1

R3728

1K1%1/1 6W

L3701

BLM18PG121SN1D

OPT

R3740 33

OPT

R3741 33

R3742 33

R3743 33

+5V_Normal

R3729

0

C3714

1uF

C3715

1uF 10V

+3.3V_HDMI

HDMI_HPD_3

DDC_SCL_3

DDC_SDA_3

HDMI_HPD_2

DDC_SCL_2

DDC_SDA_2

C3728 10uF

SCL1_3.3V

SDA1_3.3V

SCL3_3.3V

SDA3_3.3V

C3712

1uF

R3738 10

C3716

1uF

5V_HDMI_3

R3727

1K1%1/1 6W

R3733 10

5V_HDMI_2

R3734

1K1%1/1 6W

RSD-105156-100

JK3702

HDMI3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

CK+_HDMI3

CK-_HDMI3

HDMI3

D0-_HDMI3

D0+_HDMI3

D1+_HDMI3

D1-_HDMI3

D2+_HDMI3

D2-_HDMI3

DDC_SCL_1

DDC_SDA_1

HDMI_HPD_1

BCM35230

5037LV7 HDMI

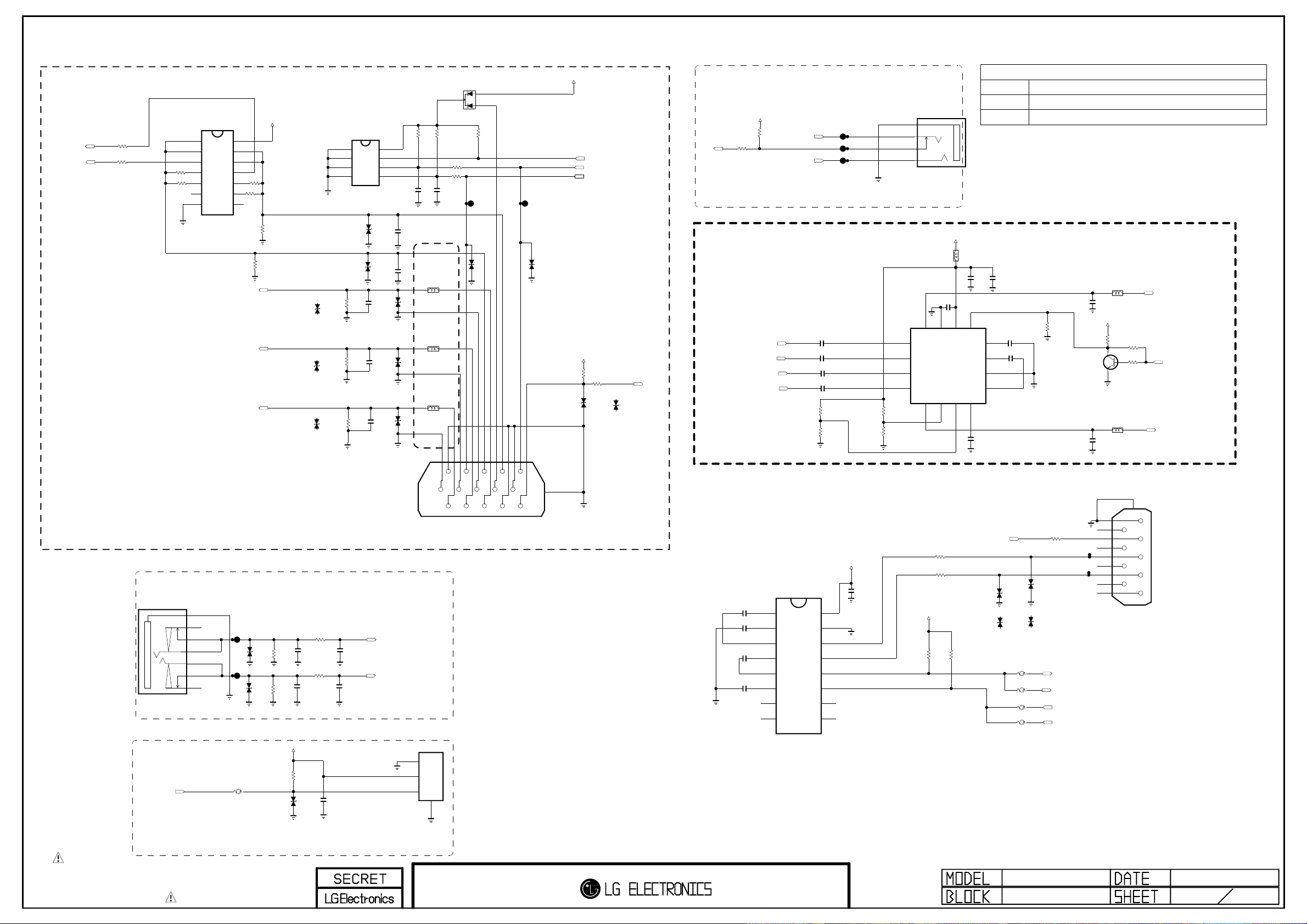

RGB/ PC AUDIO/ SPDIF/ EARPHONE/ RS232C

RGB PC

DSUB_VSYNC

DSUB_HSYNC

R3856 22

R3857 22

R3850 0

OPT

R3851 0

OPT

R3825 100K OPT

DUAL COMPONENT

L3804

BG2012B080TF

C3829

0.22uF 10V

+3.3V_Normal

R3826

4.7K

C

Q3801

2SC3052

E

L3805

BG2012B080TF

C3830

0.22uF 10V

HP_LOUT

OPT R3827 0

R3828 1K

B

SIDE_HP_MUTE

HP_ROUT

D3811

5.6V OPT

+5V_Normal

+3.3V_Normal

ESD_COMMON

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

R3814 10K

D3812

5.6V

D3804,D3805,D3806

HP_DET

+3.3V_Normal

R3858 1K

R3816

2.7K HP_LOUT

HP_ROUT

JK3803

KJA-PH-0-0177

5GND

4L

3DETECT

1R

D3807,D3808,D3813 D3814

D3810

Q3801

1ST : EAH39491601, 2ND : EAH33945901

1ST : 0DD184009AA, 2ND : 0DSIH00028A

1ST : 0TRIY80001A, 2ND : 0TR387500AA

EARPHON JACK

+3.3V_Normal

EARPHONE AMP

Close to the IC

4.7K

INL-

INL+

INR+

INR-

OUTL

16

1

2

3

4

5

OUTR

C3818 1uF

4.7K

R3817

OPT

R3818

10V

C3819

1uF

10V

C3820 1uF

10V

C3821 1uF

10V

OPT

R3820

R3819

HP_LOUT_N

HP_LOUT_P

HP_ROUT_N

HP_ROUT_P

EU_ESD

D3812-*1

5.6V

DSUB_DET

R38151K

SGND

15

IC3804 TPA6132A2

EAN60724701

6G07G18

L3803 BLM18PG121SN1D

C3824 10uF 10V

C3823 1uF 10V

EN14VDD

13

12

11

10

9

HPVSS

C3825

2.2uF 10V

HPVDD

CPP

PGND

CPN

C3826

0.1uF 16V

C3827

2.2uF 10V

C3828

2.2uF 10V

D3810

KDS184

A2

C

A1

IC3801 74F08D

D0A

1

D0B

2

Q0

3

D1A

4

D1B

5

Q1

6

GND

7

+5V_Normal

IC3802

VCC

14

D3B

13

D3A

12

Q3

11

D2B

R3852 0

10

OPT

D2A

R3853 0

9

OPT

Q2

8

OPT R3802 10K

OPT R3801 10K

DSUB_B+

DSUB_G+

DSUB_R+

EU_ESD

5.6V

D3808-*1

EU_ESD

5.6V

D3806-*1

EU_ESD

5.6V

D3807-*1

A0

A1

A2

GND

R3807 75

R3806 75

R3808 75

AT24C02BN-SH-T

1

2

3

4

8

7

6

5

D3804

30V

D3805

30V

C3807 47pF 50V

C3808 47pF 50V

C3809 47pF 50V

VCC

WP

SCL

SDA

C3812

18pF

50V

C3810 22pF 50V

Closed to JACK C3811 22pF 50V

BLM15BD121SN1

ESD_COMMON

D3808 30V

BLM15BD121SN1

ESD_COMMON

D3806 30V

BLM15BD121SN1

ESD_COMMON

D3807 30V

R3809

R3810

2.7K

C3813 18pF

50V

L3806

L3807

L3808

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

R3813

10K

22

R3812

R381122

D3809

5.6V OPT

RED2GREEN3BLUE4GND_15DDC_GND

P3801

SPG09-DB-010

PC AUDIO

JK3801

PEJ027-01

SPDIF OUT

SPDIF_OUT

E_SPRING

3

T_TERMINAL1

6A

B_TERMINAL1

7A

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

R3861 0

ESD_COMMON

D3802

AMOTECH

5.6V

ESD_COMMON

D3801 AMOTECH

5.6V

R3804 470K

R3803 470K

+3.3V_Normal

R3805

2.7K

C3803 560pF 50V

C3802 560pF 50V

D3803 30V OPT

R3854 22

R3855 22

C3804

0.1uF 16V

C3806 560pF 50V

C3805

560pF 50V

PC_R_IN

PC_L_IN

VINPUT

GND

1

VCC

2

3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

6

Fiber Optic

4

FIX_POLE

11

1

JK3802

JST1223-001

SHILED

16

0.1uF

RS232C

C1+

C38140.1uF

V+

C3815

C1-

C2+

C38160.1uF

C2-

V-

C38170.1uF

DOUT2

RIN2

IC3803 MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

10

5

IR_OUT

ESD_COMMON

D3814 30V

D3814-*1

EU_ESD

5.6V

R38290

BCM_RX

NEC_RXD

BCM_TX

NEC_TXD

4.7K OPT

D3813-*1

EU_ESD

5.6V

IR_OUT

ESD_COMMON

D3813 30V

R3821 0

R3822 0

R3823 0

R3824 0

R3860

+3.5V_ST

C3822

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

HIGH : SELECT X1, Y1, SELECT MAIN TX/RX LOW : SELECT X0, Y0, SELECT MICOM TX/RX

100

R3859 100

+3.5V_ST

R3830

4.7K OPT

R3831

JP3809

JP3808

9

8

7

6

SPG09-DB-009

P3802

4

3

2

1

BCM35230

LV7 COMM JACK

5038

Ethernet Block

JK3901

XRJV-01V-D12-180

+2.5V_BCM35230

L3901

CIC21J501NE

1

2

3

4

5

6

7

8

R3901 510

D1

D2

R3902

D3

D4

9

C3901

0.1uF

16V

D3902

ADLC 5S 03 015

C3902

0.1uF 16V

+3.3V_Normal

510

5.5V

D3901 ADLC 5S 03 015

5.5V

D3903

ADLC 5S 03 015

5.5V

D3904 ADLC 5S 03 015

5.5V

D3906

ADLC 5S 03 015

5.5V

D3905 ADLC 5S 03 015

5.5V

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

EPHY_LINK

EPHY_ACTIVITY

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

5039LV7 ETHERNET

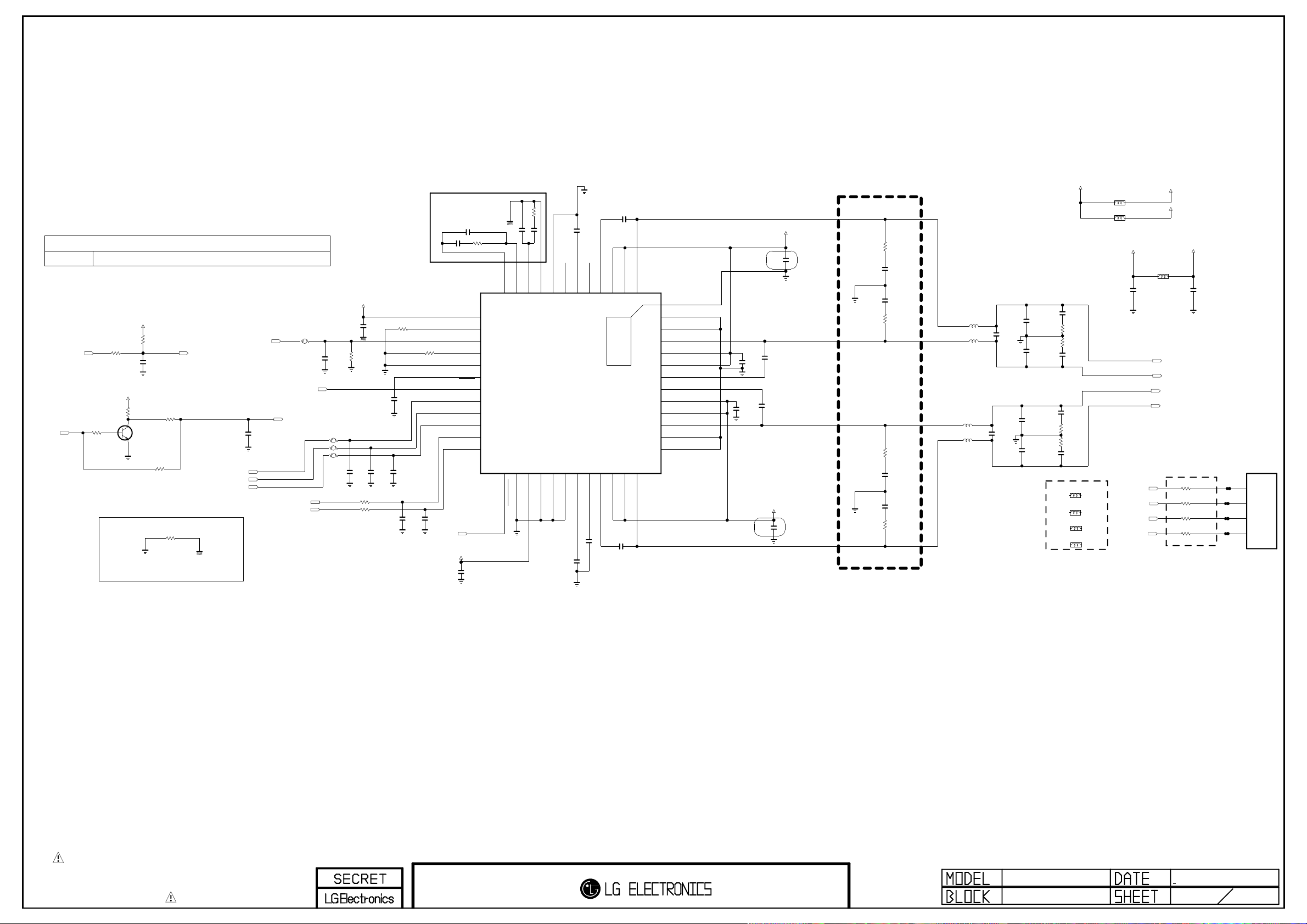

TAS5727

Q4901

AMP_RESET_N

AMP_MUTE

1ST : 0TRIY80001A 2ND : 0TR387500AA

+3.3V_DVDD

R4902

33

C4901

1000pF

OPT

+3.5V_ST

R4903

10K

R4901

10K

C

B

Q4901

2SC3052

E

Separate DGND AND AVSS

DUAL COMPONENT

OPT

R4904 2K

100

R4907

R4905

OPT

0

R4906 0

MAIN

AUD_MASTER_CLK

AMP_RESET

C4902 1000pF 50V

OPT

AUD_LRCK

AUD_SCK

AUD_LRCH

R4908 0

Amp_Mute_PDN

SDA3_3.3V SCL3_3.3V

C4903 33pF

OPT

R4909 0 R4910 0 R4911 0

+3.3V_AU_AVDD

R4912 10K

OPT

C4904 33pF OPT

R4913 33 R4914 33

C4905

0.1uF

C4906 33pF OPT

A_SEL_FAULT

R4915 15K

C4908

0.1uF

C4907 33pF OPT

C4909 33pF OPT

This parts are Located on AVSS area.

C4913

4700pF

C4911

R4917

470

0.047uF

AVDD

13 14

MCLK

PDN

SCLK SDIN

SDA SCL

C4912

0.1uF 16V

15 16 17 18 19 20 21 22 23 24

1%

OSC_RES

18K R4916

C4910 33pF OPT

DVSSO

VR_DIG

LRCLK

AMP_RESET

+3.3V_DVDD

R4918

470

4700pF

C4915

C4914

PLL_FLTP

VR_ANA

10

11

12

25

27

RESET26STEST

0.047uF

PBTL

AVSS

PLL_FLTM

7

8

9

29

30

GND

DVDD28DVSS

C4917

0.1uF

50V

C4916 2200pF

NC_1

SSTIMER

NC_2

5

6

TAS5727

32

AGND31VREG

GVDD_OUT_2

1uF

C49 18

25V

C4920

0.033uF 50V

PVDD_A_1

PVDD_A_2

BST_A

2

3

4

THERMAL

49

IC4901

33

34

35

BST_D

PVDD_D_1

PVDD_D_2

0.033uF

C4919

50V

OUT_A

1 48 47 46 45 44 43 42 41 40 39 38 37

36

OUT_D

[EP] PGND_AB_2 PGND_AB_1 OUT_B PVDD_B_2 PVDD_B_1 BST_B BST_C PVDD_C_2 PVDD_C_1 OUT_C PGND_CD_2 PGND_CD_1

C4922

0.01uF

C4921

0.01uF

+24V_AMP

C4925

10uF

35V

C4926

50V

0.033uF C4924

50V

0.033uF C4923

+24V_AMP

VERY CLOSE AMP IC

10uF

35V

VERY CLOSE AMP IC

Place at Bottom

R4919181/16W

C4927 100pF 50V

C4928 100pF 50V

R4920181/16W

R4921181/16W

C4929 100pF 50V

C4930 100pF 50V

R4922181/16W

L4903

10.0uH

NRS6045T100MMGK

L4904

10.0uH

NRS6045T100MMGK

L4901

10.0uH

NRS6045T100MMGK

L4902

10.0uH

NRS6045T100MMGK

C4932

0.33uF 50V

C4931

0.33uF 50V

C4935

0.33uF 50V

C4936

0.33uF 50V

C4933

0.33uF 50V

C4934

0.33uF 50V

+3.3V_Normal

C4939

0.01uF

R4925

3.3

R4926

3.3 C4940

0.01uF 50V

C4937

0.01uF

R4923

3.3

R4924

3.3 C4938

0.01uF 50V

SPK_OUTPUT_BEAD

R4927-*1

CIS21J121

R4928-*1

CIS21J121

R4929-*1

CIS21J121

R4930-*1

CIS21J121

L4905

120-ohm

L4906

120-ohm

+24V

L4907

MLB-201209-0120P-N2

C4941

0.1uF 50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPK_OUTPUT_RESISTER

SPK_L+

SPK_L-

SPK_R+

SPK_R-

+3.3V_AU_AVDD

+3.3V_DVDD

+24V_AMP

C4942

0.1uF 50V

SPEAKER_L

SPEAKER_R

R4927 0

R4928 0

R4929 0

R4930 0

WAFER-ANGLE

4

3

2

1

P4901

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

LV7 ATSC AMP 49 50

NON CHINA HOTELNON SCART

5V_HDMI_4

CHB_RESET

CHBO_TS_VAL_ERR

CHBO_TS_CLK

CHBO_TS_SERIAL

CHBO_TS_SYNC

TW9910_RESET

3D_SYNC

AV2_CVBS_DET

SDA3_3.3V

SCL3_3.3V

3D_SYNC_RF

3D_GPIO_2

3D_GPIO_1

3D_GPIO_0

SPK_R+_HOTEL

SPK_R-_HOTEL

TU_RESET_SUB

M_RFModule_RESET

M_REMOTE_RX

M_REMOTE_TX

DC_MREMOTE

DD_MREMOTE

SC_CVBS_IN

DTV_ATV_SELECT

DTV/MNT_V_OUT

SC_FB

SC_ID

SC_RE1

SC_RE2

SCART_MUTE

SCART1_Lout_N

SCART1_Lout_P

SCART1_Rout_N

SCART1_Rout_P

INCM_VID_SC

SPK_R+_HOTEL

SPK_R-_HOTEL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

LV7 ATSC 50 50

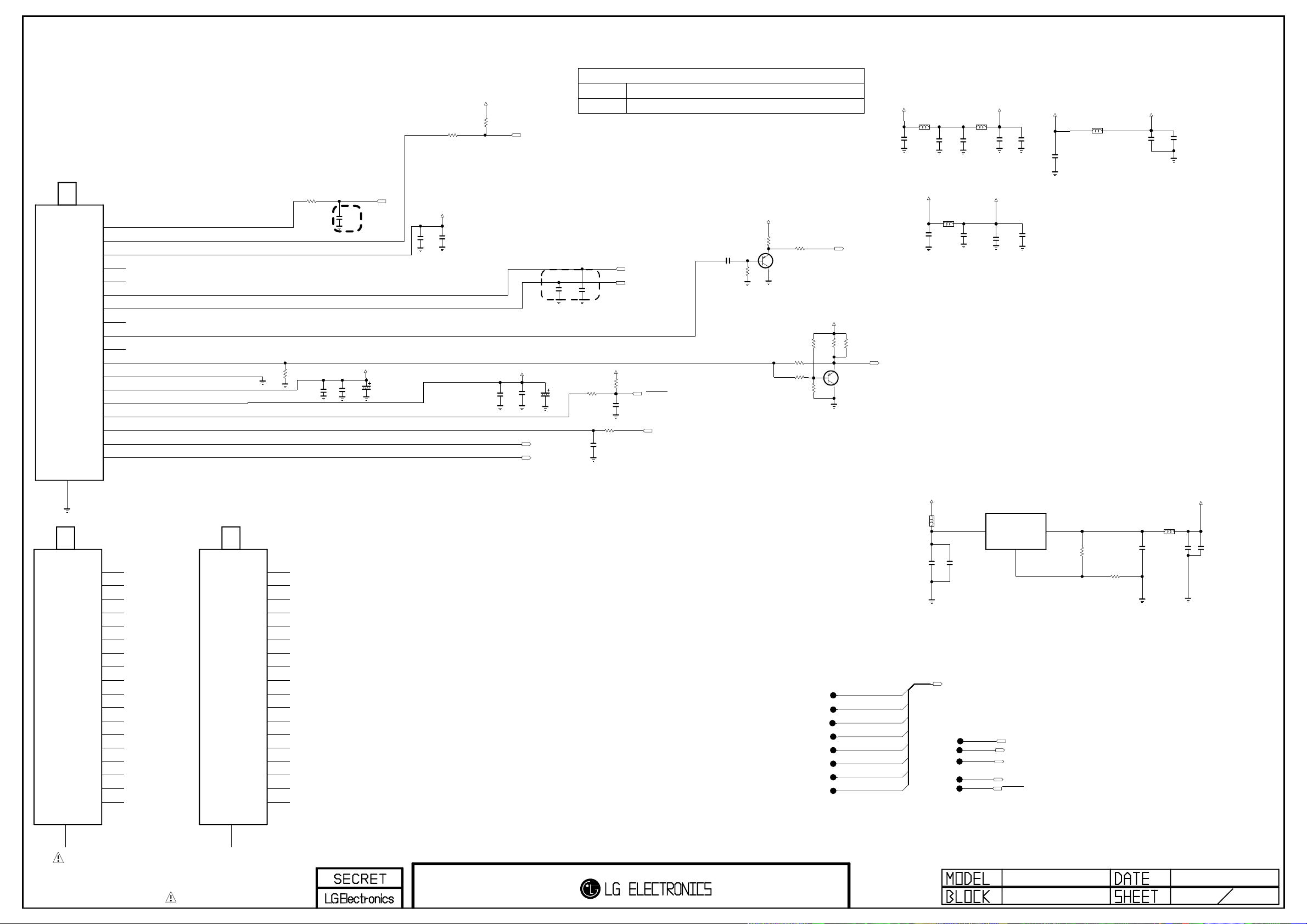

H/NIM (KOR/USA)

DUAL COMPONENT

NON_CHB_TUNER_V

TU5101 UDA55AL

10

11

12

13

14

15

16

17

18

19

SHIELD

NON_CHB_TUNER_H

TU5101-*1 UFA55AL

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

SHIELD

NC_1

1

NC_2

2

+B[+5V]

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC_3

VIDEO

GND

+1.2V

+3.3V

RESET

IF_AGC_CNTL

DIF_1

DIF_2

NC_1

NC_2

+B[+5V]

NC[RF_AGC]

AS

SCL

SDA

NC(IF_TP)

SIF

NC_3

VIDEO

GND

+1.2V

+3.3V

RESET

IF_AGC_CNTL

DIF_1

DIF_2

R5101

75

OPT

NON_CHB_TUNER_H_LGIT

TU5101-*2 TDVJ-H101F

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

19

SHIELD

close to TUNER

R5102 0

OPT

C5101 100pF 50V

C5102

0.1uF 16V

OPT

+1.26V_TU

C5103

0.1uF 16V

RF_SWITCH_CTL

C5104 100uF 16V

+5V_TU

C5105 100pF 50V

R5103 0

OPT

C5106

0.1uF 16V

+3.3V_S_TU

R5104

OPT

100K

+3.3V_DE

C5107 100pF 50V

RF_SWITCH_CTL_2

close to TUNER

C5109

C5110

0.1uF 100uF

16V

IF_N

IF_P

C5111 18pF 50V

IC5103

C5112 18pF 50V

R5105 100

+3.3V_TU

R5106

1K

C5113

0.1uF

1ST : EAN54428101, 2ND : 0IPMG00048A

SCL0_3.3V

SDA0_3.3V

OPT

R5107 100K

TU_RESET

C5114

0.1uF

16V

IF_AGC

C5115

100pF

+5V_Normal

L5103

BLM18PG121SN1D

C5116

0.1uF 16V

C5120

22uF

C5132

0.1uF 16V

16V

+3.3V_Normal

+5V_TU

R5109

470

B

R5108

50V

4.7K

E

Q5101

C

MMBT3906(NXP)

R5112 82

TU_SIF

MLB-201209-0120P-N2

C5117

0.1uF 16V

L5104

C5121

22uF

16V

+5V_TU

L5101

BLM18PG121SN1D

C5122

22uF

16V

+3.3V_TU

C5123

0.1uF 16V

C5124

0.1uF

C5125

0.1uF

+3.3V_TU

16V

MLB-201209-0120P-N2

C5126

0.1uF

L5105

+3.3V_DE

C5128 10uF

10V

C5129

0.1uF

+5V_TU

R5113

1K

R5115

R5116

OPT

R5110

R5111

220

OPT

0

1K

R5114

OPT

B

220

E

Q5102

MMBT3906(NXP)

C

TU_CVBS

+3.3V_TU

C5118

2.2uF 16V

L5102

120-ohm

C5119

2.2uF 16V

IC5103

AP1117EG-13

OUTIN

ADJ/GND

R5117

+1.26V_TU

L5106

BLM18PG121SN1D

C5127

R1

R2

R5118

4.7

22uF

220

C5130 22uF

C5131

0.1uF

10V

50V

VOUT = VREF *(1+R2/R1)

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

FE_TS_DATA[0-7]

RF_BOOSTER_CTL

TS_VAL_ERR

TU_TS_SYNC

TU_TS_CLK

S2_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

TUNER_NON CHB

51

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SMD GASKET

M1-*3

MDS62110206 GASKET_6.5T

M2-*3

MDS62110206 GASKET_6.5T

M3-*3

MDS62110206 GASKET_6.5T

M4-*3

MDS62110206 GASKET_6.5T

M5-*3

MDS62110206 GASKET_6.5T

M6-*3

MDS62110206 GASKET_6.5T

M7-*3

MDS62110206 GASKET_6.5T

M8-*3

MDS62110206 GASKET_6.5T

M9-*3

MDS62110206 GASKET_6.5T

M10-*3

MDS62110206 GASKET_6.5T

M11-*3

MDS62110206 GASKET_6.5T

M12-*3

MDS62110206 GASKET_6.5T

SMD GASKET 6.5T

MDS62110204 GASKET_5.5T

M1-*2

M2-*2

M3-*2

M4-*2

M5-*2

M6-*2

M7-*2

M8-*2

M9-*2

M10-*2

M11-*2

M12-*2

SMD GASKET 5.5T

M1-*1

MDS62110210

GASKET_5.0T

M2-*1

MDS62110210

GASKET_5.0T

M3-*1

MDS62110210

GASKET_5.0T

M4-*1

MDS62110210

GASKET_5.0T

M5-*1

MDS62110210

GASKET_5.0T

M6-*1

MDS62110210

GASKET_5.0T

M7-*1

MDS62110210

GASKET_5.0T

M8-*1

MDS62110210

GASKET_5.0T

M9-*1

MDS62110210

GASKET_5.0T

M10-*1

MDS62110210

GASKET_5.0T

M11-*1

MDS62110210

GASKET_5.0T

M12-*1

MDS62110210

GASKET_5.0T

SMD GASKET 5.0T

M1

MDS62110208

GASKET_4.5T

M2

MDS62110208 GASKET_4.5T

M3

MDS62110208 GASKET_4.5T

M4

MDS62110208 GASKET_4.5T

M5

MDS62110208 GASKET_4.5T

M6

MDS62110208 GASKET_4.5T

M7

MDS62110208 GASKET_4.5T

M8

MDS62110208 GASKET_4.5T

M9

MDS62110208 GASKET_4.5T

M10

MDS62110208 GASKET_4.5T

M11

MDS62110208 GASKET_4.5T

M12

MDS62110208 GASKET_4.5T

SMD GASKET 4.5T

SMD GASKET

BCM35230

GASKET3.5T_HEATSINK

MDS62110213

M20

GASKET3.5T_HEATSINK

MDS62110213

M21

GASKET3.5T_HEATSINK

MDS62110213

M22

GASKET3.5T_HEATSINK

MDS62110213

M23

M1-*6

MDS61887710

GASKET_9.5T

M2-*6

MDS61887710

GASKET_9.5T

M3-*6

MDS61887710

GASKET_9.5T

M4-*6

MDS61887710

GASKET_9.5T

M5-*6

MDS61887710

GASKET_9.5T

M6-*6

MDS61887710

GASKET_9.5T

M7-*6

MDS61887710

GASKET_9.5T

M8-*6

MDS61887710

GASKET_9.5T

M9-*6

MDS61887710

GASKET_9.5T

M10-*6

MDS61887710

GASKET_9.5T

M11-*6

MDS61887710

GASKET_9.5T

M12-*6

MDS61887710

GASKET_9.5T

SMD GASKET 9.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

M1-*5

M2-*5

M3-*5

M4-*5

M5-*5

M6-*5

M7-*5

M8-*5

M9-*5

M10-*5

M11-*5

M12-*5

SMD GASKET 8.5T

M1-*4

MDS62110205

GASKET_7.5T

M2-*4

MDS62110205

GASKET_7.5T

M3-*4

MDS62110205

GASKET_7.5T

M4-*4

MDS62110205

GASKET_7.5T

M5-*4

MDS62110205

GASKET_7.5T

M6-*4

MDS62110205

GASKET_7.5T

M7-*4

MDS62110205

GASKET_7.5T

M8-*4

MDS62110205

GASKET_7.5T

M9-*4

MDS62110205

GASKET_7.5T

M10-*4

MDS62110205

GASKET_7.5T

M11-*4

MDS62110205

GASKET_7.5T

M12-*4

MDS62110205

GASKET_7.5T

SMD GASKET 7.5T

2010. 09. 18

56

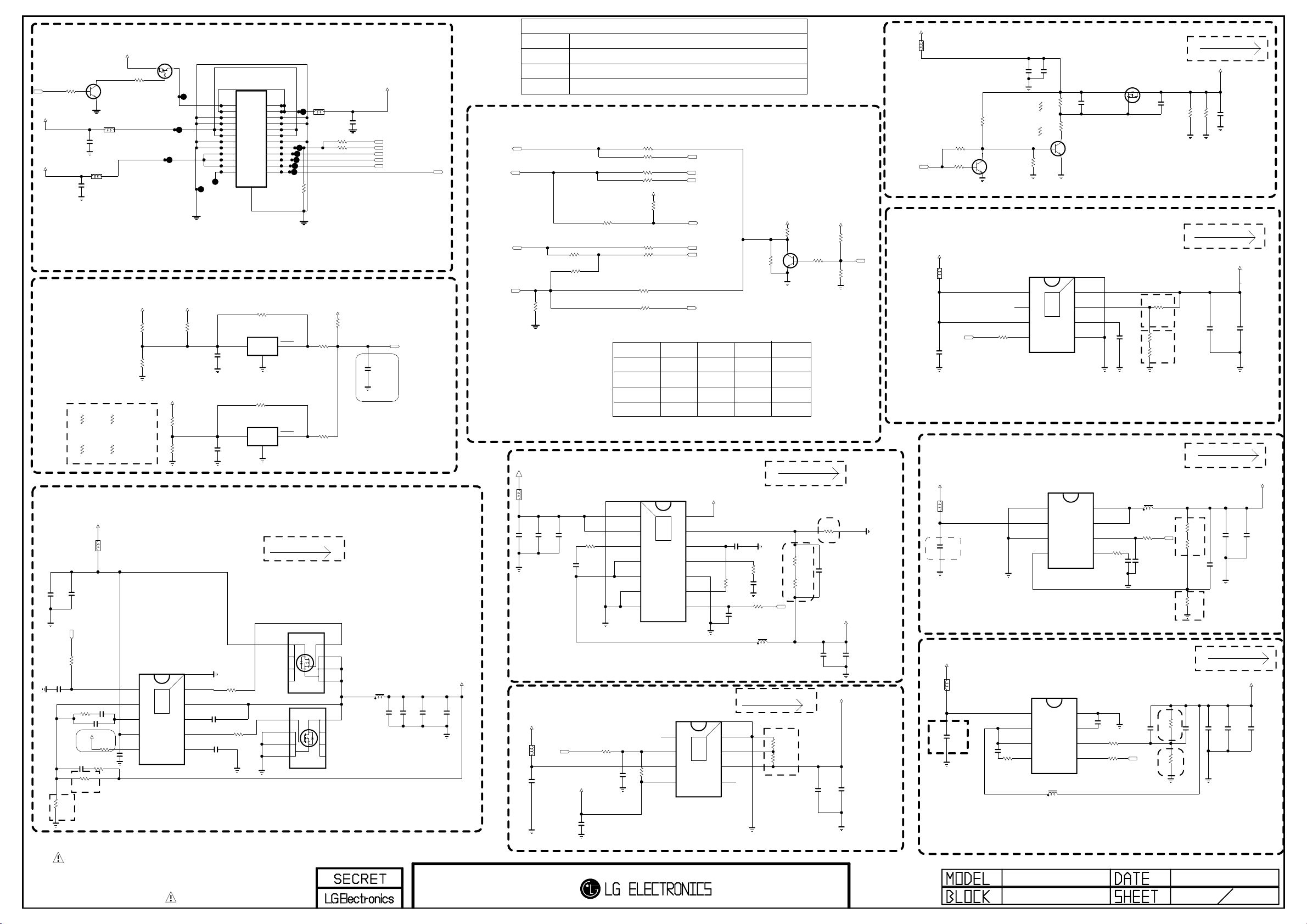

FROM LIPS & POWER B/D

+3.5V_ST

RT1P141C-T112

Q502

R502

RL_ON

10K

+3.5V_ST

+12V

MLB-201209-0120P-N2

C506

0.1uF 50V

#16/#20/#23 LD - GND OR USE LE(N.L.D.) - OPEN LE(L.D.) - USE

C

Q501

B

2SC3052

E

L503

MLB-201209-0120P-N2

C508

0.1uF 16V

L501

R508

4.7K

3

1

2

PWR ON

3.5V

GND/P.DIM2

NORMAL_26~55

1

24V

3

GND

5

GND

7

7 9

9 11

11

GND

13

GND

15

12V

17

12V

19

12V

21

21 22 23

23 24

SLIM_32~55

SMAW200-H24S2

P502 FW20020-24S

2

2 4

4 6

6 8

8

10

10 12

12 14

14 16

16 18

18 20

20 22 24

25

P501

24V 24V GND GND

3.5V

3.5V GND GND/V-sync INV ON A.DIM P.DIM1 Err OUT

L504

MLB-201209-0120P-N2

POWER_16_URSA_SCAN

R574 0 R573 0

POWER_16_BCM_SCAN

R518

0

POWER_16_GND

C519

0.1uF

+24V

50V

L_VS L/DIM0_VS INV_CTL_18

A_DIM_20 PWM_DIM_22

Power_DET

PD_+20V R510-*4

5.6K

1%

PD_+20V R511-*4

1.3K 1%

PD_+18.5V R510-*3

4.7K 1%

PD_+18.5V R511-*3

1.21K 1%

+12V

PD_+12V R512

2.7K 1%

NON_PD_+3.5V R513

1.21K 1%

+24V

+3.5V_ST

PD_24V

R510

8.2K 1%

PD_24V

R511

1.5K 1%

PD_+3.5V R515 0 5%

VCC

C580

0.1uF 16V

VCC

C581

0.1uF 16V NON_PD_+3.5V

R517 100K

IC503

APX803D29

3

1

GND

NON_PD_+3.5V

R516 100K

NON_PD_+3.5V

IC502

APX803D29

3

1

GND

+3.5V_ST

R522 10K OPT

R520

RESET

2

RESET

2

100

R519 100

NON_PD_+3.5V

POWER_DET

ESD C520

0.1uF 16V

not to RESET at 8kV ESD

15V-->3.6V 20V-->3.5V 24V-->3.48V 12V-->3.58V

ST_3.5V-->3.5V

+0.9V_CORE_BCM35230

+12V

L502

BLM18PG121SN1D

Placed on SMD-TOP

C505

C503

10uF

16V

POWER_ON/OFF2_2

R503

C504

100pF

50V

12K 1%

R501

R2

1K

R504 2K

C509

+3.3V_Normal

TEST

C507 1000pF

50V

R505

6.8K 1%

R1

10K

R506 330

50V

220pF

R507

C510

0.01uF 50V

OPT

ENABLE

COMP

VDD

PGD

C513

0.1uF 16V

FB

IC501

TPS40192DRCR

1

2

3

4

5

11

THERMAL

EP_GND

HDRV

10

9

8

7

6

SW

BOOT

LDRV

BP5

R577 4.7

C515

0.47uF

25V

R578 4.7

C516

4.7uF

Vout=0.591*(1+R1/R2)

10V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Max 7350 mA

AON7430

5D

4G

3S_3

2S_2

1S_1

AON7200

Q508

Q503

4 G

3 S_3

2 S_2

1 S_1

5 D

L505

1uH

C522 22uF 10V

Switching freq: 600K

OPT

C523

22uF

10V

ERROR_OUT_24

OPT C524 47uF 10V

+0.9V_CORE

C525 10uF 10V

Q501,Q504, Q505,Q506

Q502

Q507

IC502,IC503

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : 0TRIH80004A, 2ND : EBK61012501, 3RD : 0TR102009AM

1ST : EBK60752501, 2ND : EBK61011501

1ST : EAN61151001, 2ND : EAN60670101

OS Module OPT

INV_CTL_18

A_DIM_20

POWER_20_ERROR_OUT

PWM_DIM_22

ERROR_OUT_24

0

POWER_24_GND

R524

POWER_22_PWM_DIM

R526

0

0R527

POWER_24_PWM_DIM

+12V

L507

BLM18PG121SN1D

C502

10uF 16V OPT

C535

0.1uF 50V OPT

C511

0.1uF 50V

R562 0

1/10W 5%

C501

10uF 16V

Vout=0.8*(1+R1/R2)

+2.5V_BCM35230

+3.5V_ST

POWER_ON/OFF2_1

L506

120-ohm

C527

+5V_Normal

10uF

6.3V

C531 1uF

OPT

DUAL COMPONENT

R532

POWER_18_INV_CTL

100

POWER_18_A_DIM

R533

POWER_20_A_DIM

R531 0

POWER_20_PWM_DIM

+3.3V_Normal

0R529

POWER_22_A_DIM R535 0

NON_OPC/NON_IOP

POWER_24_INV_CTL

100

POWER_24_ERROR_OUT

0

0R538

ERROR_OUT_PULL_UP R523

4.7K

0R540

R537

0R541

A_DIM

PWM_DIM

ERROR_OUT

PWM_DIM

ERROR_OUT

PIN No

18

20

22

24

INV_ON

V4:VBR-A V5:NC

PWM_DIM

Err_out LED:GND

LGD

CMO(09)

A-DIM

PWM_DIM

INV_ON

CHECK PWR/MODULE PIN MAP

+3.3V_NORMAL

VIN2

VIN1

VBST

SW2

SW1

IC505

TPS54425PWPR

14

13

12

4A

11

10

9

8

15

[EP]PGND

PGND2

PGND1

AP2132MP-2.5TRG1

OPT R528 10K

R536

VIN

10K

VCTRL

C533

0.1uF OPT

Vout=0.6*(1+R1/R2)

THERMAL

PG

EN

VO

1

VFB

2

VREG5

3

SS

4

GND

5

PG

6

EN

7

IC504

1

2

3

4

2A

EAN61387601

+3.3V_Normal

9

THERMAL

A_DIM

+12V

L511

12V_PANEL

MLB-201209-0120P-N2

R555 22K

OPT R554 10K

C

R553

+3.5V_ST

47K

L517

BLM18PG121SN1D

C590

10uF

10V

PANEL_CTL

B

Q504

2SC3052

R547 10K

+3.5V_ST

R551 10K

R552

10K

OPT

INV_CTL

+3.3V_Normal

R546 1K

C

R543

6.8K OPT

E

AUO

INV_ON

Err_out

NC

A-DIM

PWM_DIM

SHARP

INV_ON

Err_out

PWM_DIM

GND

Q505

B

2SC3052

E

+1.5V_DDR

POWER_ON/OFF1

PANEL_POWER

C550

0.01uF 50V

AP7173-SPG-13 HF(DIODES)

R591 10K

C551

0.1uF 50V

R558

10K

R558-*1

22K

5V_PANEL

12V_PANEL

R559

1.8K

R559-*1

2.7K

5V_PANEL

R557

C

12V_PANEL

Q506

B

2SC3052

E

22K

IC508

IN

1

PG

2

VCC

3

EN

4

THERMAL

1.5A

8

9

7

6

5

Vout=0.8*(1+R1/R2)

+5V_Normal

[EP]

OUT

FB

SS

GND

C552 10uF

TYP 1450mA

PANEL_VCC

Q507

AO3407A

D

S

1uF

25V

G

25V

C560

OPT

R575

PANEL_DISCHARGE_REG

C563

2K

0.1uF

1/8W

R576

50V

PANEL_DISCHARGE_REG

Max 800mA

+1.5V_DDR

R1

R595

4.3K

C593 560pF 50V

1%

R593

3.9K 1%

R592 1K 1%

R2

C594 22uF 10V

C591

0.1uF 16V

MAX 1A

MAX 2.8A

C568 22uF 10V

MAX 1.9A

C534

0.1uF 16V

+5V_Normal

C570 22uF 16V

+5V_USB

C536

0.1uF 16V

+12V

L514

BLM18PG121SN1D

R534 10K

1%

C512 1uF 25V

R521 0

C514

R509

3300pF

100K

50V

R514 10K

C537

POWER_ON/OFF2_2

0.1uF

OPT

L508

2uH

Max 960 mA

[EP]

8

GND

7

ADJ

6

VOUT

5

NC

R544 18K 1%

R545 59K 1%

R2

R1

R530 33K 1%

R1

R525 330 1%

R2

C595 22pF 50V

+3.3V_Normal

C517 22uF 10V

+2.5V_BCM35230

C539

C538

10uF

47uF

10V

6.3V

C518

22uF 10V

Placed on SMD-TOP

C546 10uF 16V

Vout=0.8*(1+R1/R2)

+12V

L513

CIC21J501NE

C521 10uF 25V

+5V_USB+WIFI

C526

0.1uF

R539 22

MP8706EN-C247-LF-Z

IN

SW_1

SW_2

BST

AOZ1073AIL-3

PGND

1

VIN

2

AGND

3

FB

4

IC506

1

2

3A

3

4

EAN31346002

L509

3.6uH

NR8040T3R6N

IC507

3A

8

7

6

5

8

7

6

5

GND

VCC

FB

EN/SYNC

LX_2

LX_1

EN

COMP

C528 1uF 50V

R548

10K

R542 10K

NR8040T3R6N

R564 12K

C557

2200pF

OPT

C529

100pF

50V

POWER_ON/OFF2_1

L516

3.6uH

POWER_ON/OFF2_1

R566

10K

OPT C559

0.1uF 16V

R549

R550

33K

6.2K

1%

R570

51K

R1

1%

1.5K

R571

C565

100pF

50V

OPT

1%

R572

10K

R2

C530

1%

100pF 50V

R1

OPT

1%

R2

Switching freq: 500K

C532 22uF 10V

Vout=(1+R1/R2)*0.8

Vout=0.8*(1+R1/R2)

BCM35230

POWER

5

58

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SMD GASKET

M13-*3

MDS62110206 GASKET_6.5T

M14-*3

MDS62110206 GASKET_6.5T

M15-*3

MDS62110206 GASKET_6.5T

M16-*3

MDS62110206 GASKET_6.5T

SMD GASKET 6.5T

MDS62110204 GASKET_5.5T

M13-*2

M14-*2

M15-*2

M16-*2

SMD GASKET 5.5T

M13-*1

MDS62110210

GASKET_5.0T

M14-*1

MDS62110210

GASKET_5.0T

M15-*1

MDS62110210

GASKET_5.0T

M16-*1

MDS62110210

GASKET_5.0T

SMD GASKET 5.0T

M13

MDS62110208

GASKET_4.5T

M14

MDS62110208 GASKET_4.5T

M15

MDS62110208 GASKET_4.5T

M16

MDS62110208 GASKET_4.5T

SMD GASKET 4.5T

GASKET3.5T_HEATSINK_LKmodel

MDS62110213

M24

GASKET3.5T_HEATSINK_LKmodel

MDS62110213

M25

GASKET3.5T_HEATSINK_LKmodel

MDS62110213

M26

M13-*6

MDS61887710

GASKET_9.5T

M14-*6

MDS61887710

GASKET_9.5T

M15-*6

MDS61887710

GASKET_9.5T

M16-*6

MDS61887710

GASKET_9.5T

SMD GASKET 9.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

M13-*5

M14-*5

M15-*5

M16-*5

SMD GASKET 8.5T

M13-*4

MDS62110205

GASKET_7.5T

M14-*4

MDS62110205

GASKET_7.5T

M15-*4

MDS62110205

GASKET_7.5T

M16-*4

MDS62110205

GASKET_7.5T

SMD GASKET 7.5T

SMD GASKET

BCM35230

2010. 09. 18

56

GP3-BCM (ATSC) trouble shooting guide

LGE Internal Use Only

Applied chassis & models

Chassis: LA12B Models : 42/47LK550-UA

42/47/55LK530-UC

2010. 12. 27.

LCD TV Division

LCD TV Lab. / AT Gr.

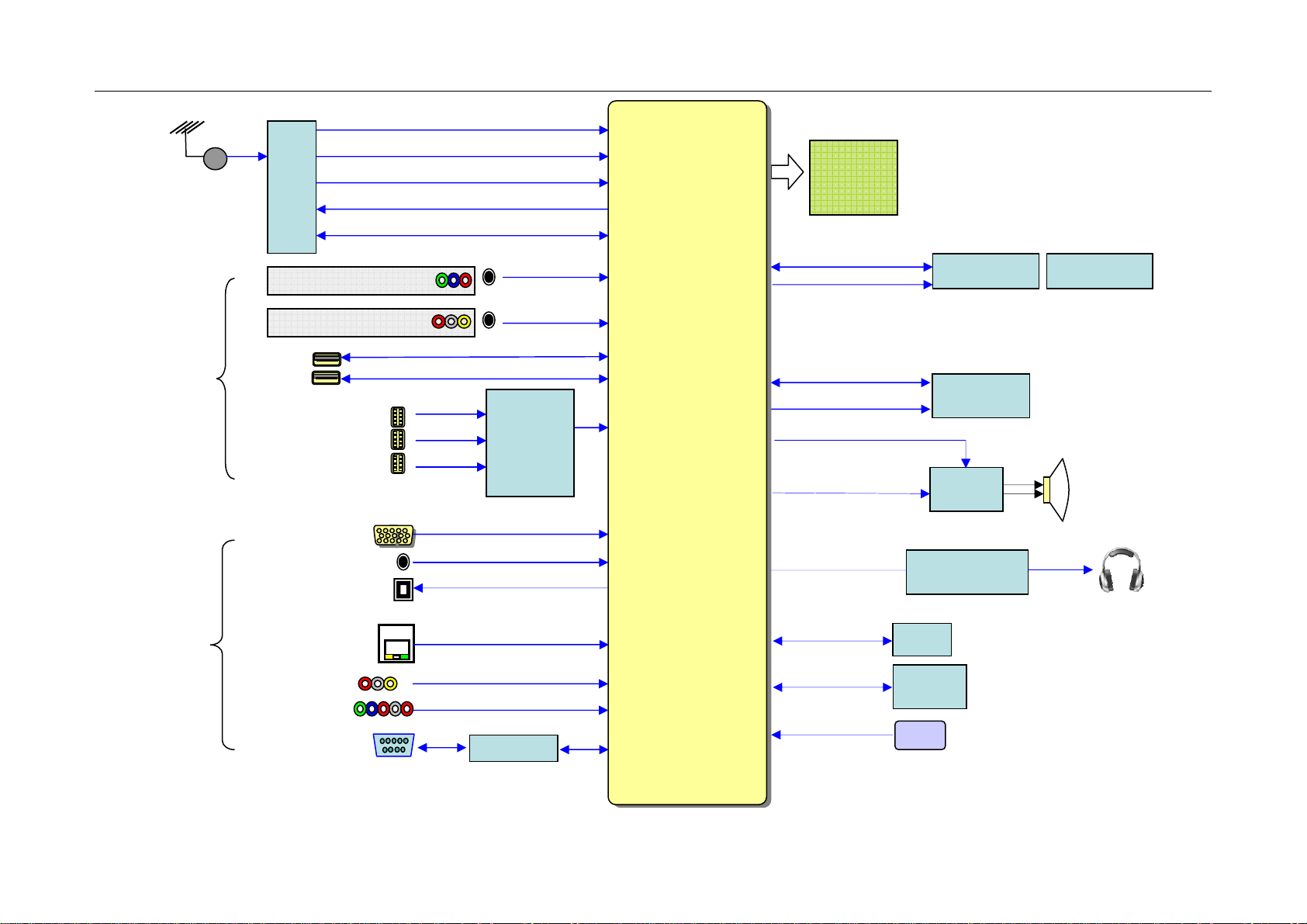

1. Overview for LGE35230 (ATSC) - US

LGE Internal Use Only

JACK PACK

at SIDE

RF

TDVJ

-H101F

Side Component Gender

USB1 USB2

HDMI 1 HDMI 2 HDMI 3

D-sub RGB

Audio L/R (for RGB)

Digital Audio (Optic)

IF +/TU_CVBS SIF

Side AV Gender

SDA/SCL_5V

Reset / IF_AGC …

DP/DM/ +5V DP/DM/ +5V

SIL9287B

HDMI Switch

RGB/H/V Audio L/R

SPDIF

Y Pb Pr

CVBS, L/R

3x1

LGE35230

(ATSC)

LVDS_120Hz

LCD Module

DDR_Data[0:15], DQS, DM …

Addr.[ ], ctrl. data

Data [0 … 7] Addr[0…1], CS …

MCLK

I2S

HP_L/R

EARPHONE AMP

DDR3 (2Gbit)

NAND Flash

(8Gbit)

Digital AMP

TAS5727

TPA6132

DDR3 (2Gbit)

JACK PACK

at REAR

AV2

Component 2

RS-232C (Ctrl./SVC)

Ethernet

CVBS, L/R Y Pb Pr, L/R

MAX3232CDR

RX/TX

SCL, SDA_3.3V

54MHz

NVRAM

MICOM

(NEC)

X-tal

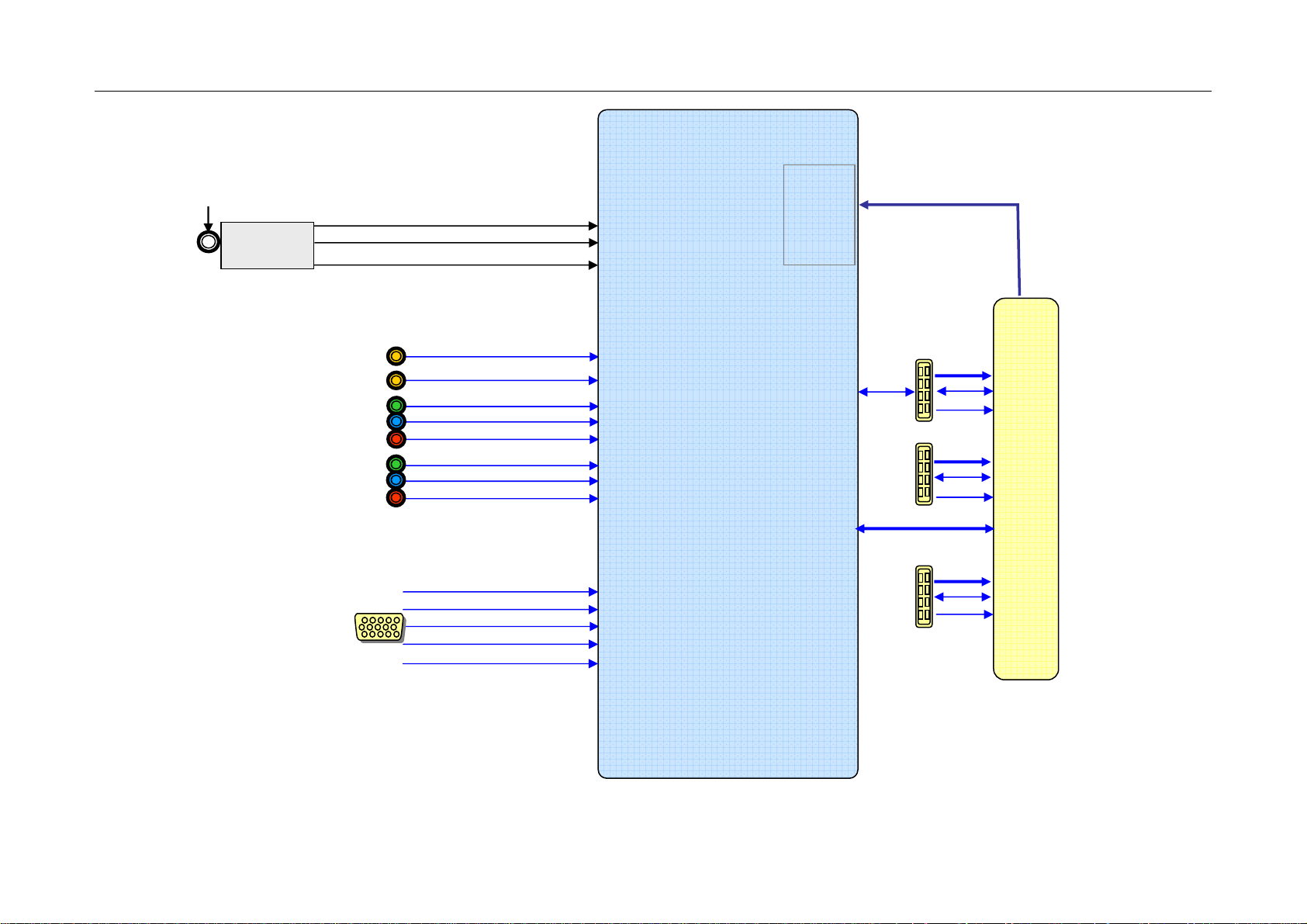

2. Video Signal block

LGE Internal Use Only

RF

TDVJ-H101F

Main tuner

IF + [MAIN] IF - [MAIN] CVBS [MAIN]

VI_IFP0 VI_IFM0

VI_CVBS3

LGE35230

HDMI0_CLKN HDMI0_CLKP HDMI0_D0N HDMI0_D0P HDMI0_D1N HDMI0_D1P HDMI0_D2N HDMI0_D2P

HDMI_CLK-/+,RX0-/+, RX1-/+, RX2 -/+

REAR AV

SIDE_CVBS Phone JACK

Component 1

SIDE_Component Phone Jack

D-sub RGB

CVBS(AV2_CVBS_IN) CVBS(AV1_CVBS_IN)

Y(SC_G/COMP2_Y)

Pb(SC_B/COMP2_Pb) Pr(SC_R/COMP2_Pr)

Y(COMP1-Y) Pb(COMP1_Pb)

Pr(COMP1-Pr)

R(DSUB_R+) G(DSUB_G+) B(DSUB_B+)

H_sync(DSUB_HSYNC) V_sync(DSUB_VSYNC)

VI_CVBS2

VI_CVBS4

VI_SC_G1 VI_SC_B1 VI_SC_R1

VI_Y1 VI_PB1 VI_PR1

VI_R VI_G VI_B HSYNC_IN VSYNC_IN

HDMI0_ARC

I2SWS_IN

I2SSD_IN/GPIO

HDMI 1

TMDS

ARC

DDC

HPD_1

HDMI 2

TMDS

DDC

HPD_2

SCL3_3.3V / SDA3_3.3V

HDMI 3

TMDS

DDC

HPD_3

HDMI

3x1

Switch

(SIL9287B)

* Each of analog audio signals shall be designed with “Common Mode (INCM) signal ”

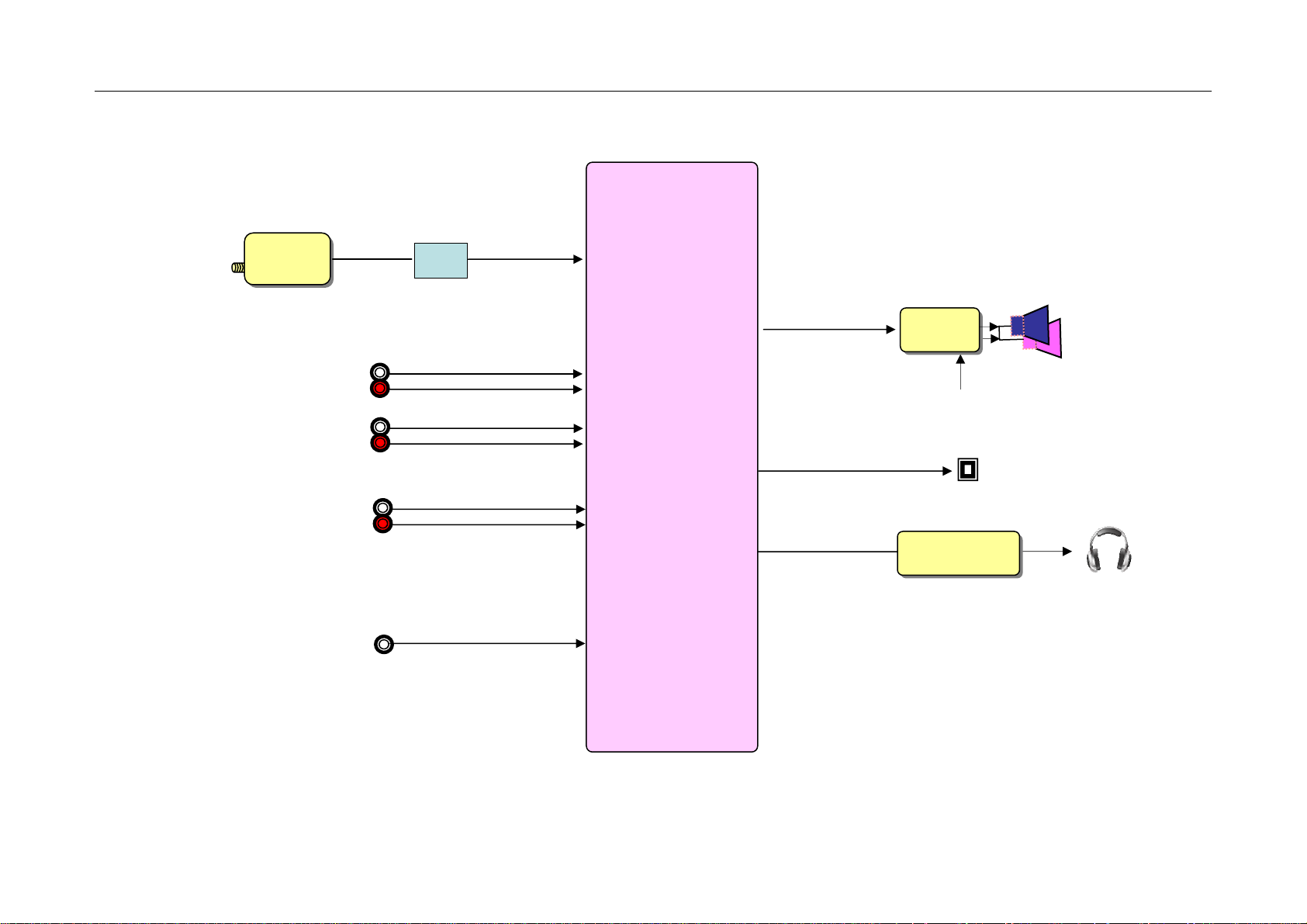

3. Audio Signal block

LGE Internal Use Only

LGE35230

BCM3549

ATSC/NTSC

TDVJ-H101F

AV2 Audio (Rear)

Comp2 Audio (Rear)

AV1 or Comp1 Audio (Used in common)

RGB-PC Audio

TR

Buffer

AV2_L_IN AV2_R_IN

SC/COMP2_L_IN SC/COMP2_R_IN

AV1_L_IN AV1_R_IN

PC_L_IN PC_R_IN

SIF

VI_SIF1_1,2

I2SSCK_OUTA/GPIO

I2SWS_OUTA/GPIO

I2SSD_OUTA0/GPIO

I2SSOSCK_OUTA/GPIO

AADC_LINE_L3 AADC_LINE_R3

AADC_LINE_L4 AADC_LINE_R4

AADC_LINE_L2 AADC_LINE_R2

AADC_LINE_L1 AADC_LINE_R1

SPDIF_OUT

ADAC_AL_N

ADAC_AL_P ADAC_AR_N ADAC_AR_P

I2S

HP_L/ROUT_N/P

TAS5727

MUTE From Micom

SPDIF_OUT

TPA6132A2

(EARPHONE AMP)

* Each of analog signals shall be designed with “Common Mode (INCM) signal ”

4. LVDS Tx (FHD120Hz)

LGE Internal Use Only

LGE35230

PANEL_VCC

(+12V)

LVDS Tx

Block

Dual-link LVDS Output

24

10-bit (R)

Dual-link LVDS Output

24

10-bit (R)

51Pin

LVDS

LVDS_SEL

BIT_SEL

Output

41Pin

LVDS

Output

• LVDS_SEL : “H”=JEIDA, “L” or NC=VESA (LGD)

• BIT_SEL : “H” or NC = 10-bit, “L” = 8-bit

5. HDMI block

LGE Internal Use Only

CEC

VDD[+5V]

HPD

IC602

MICOM

UPD78F05 14

HDMI_CEC

FET

CEC_REMOTE

5V_HDMI_1/2/3

HDMI_HPD_1/2/3

SIL9287B

HDMI 3x1 Switch

(IC3701)

HDMI_I2C

TMDS_OUT[8]

LGE35230

DDC_I2C_1/2/3

TMDS1/2/3[8]

EEPROM

ARC

(Audio Return Channel)

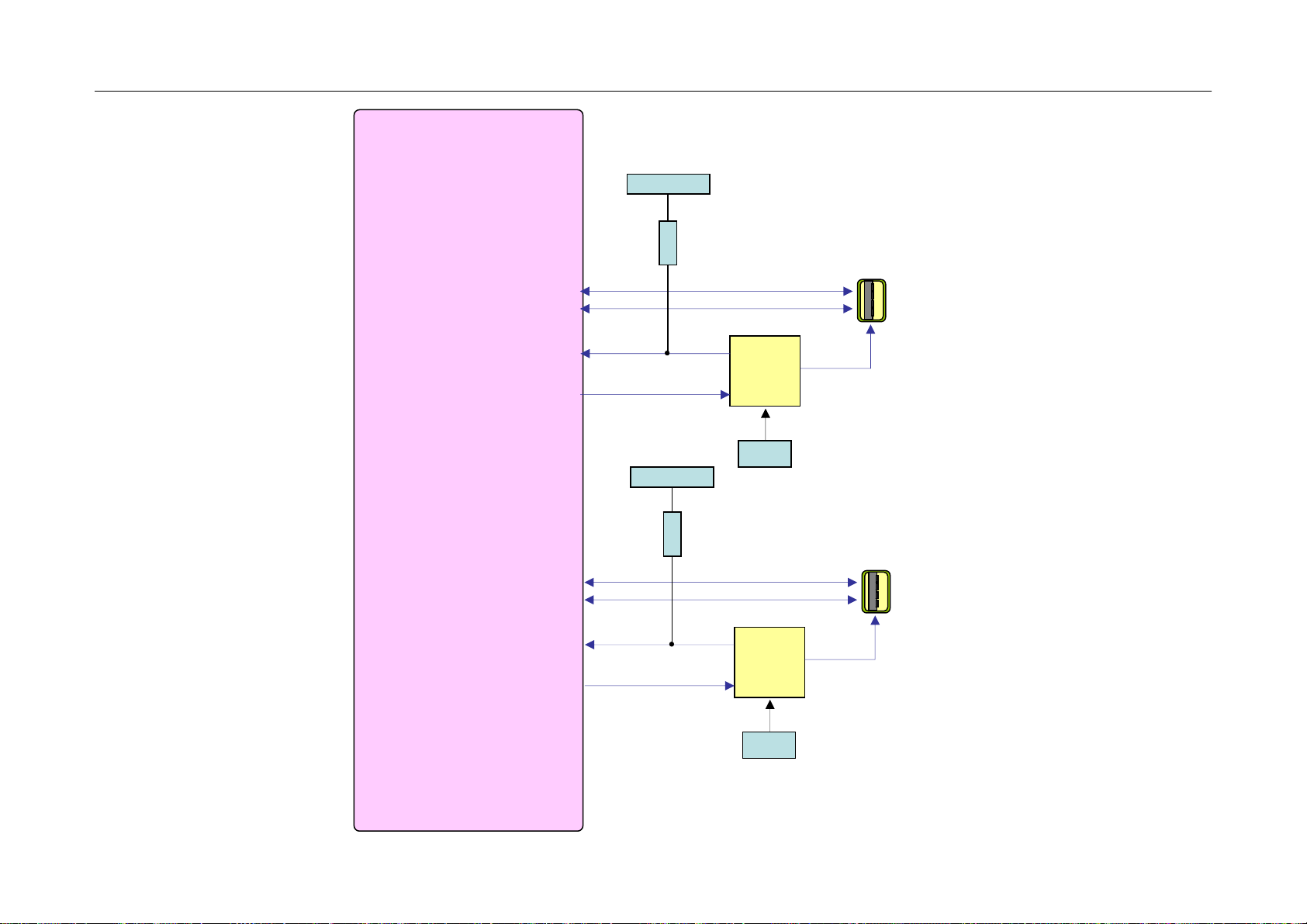

6. USB block

LGE Internal Use Only

LGE35230

+3.3V_Noraml

USB_PORT2DP USB_PORT2DN

USB_PWRFLT_2

USB_PWRON_2

USB_PORT1DP USB_PORT1DN

USB_PWRFLT_1

USB_PWRON_1

+3.3V_Noraml

WIFI_DP

WIFI_DM

USB PWR

Switch

(IC1203)

5V

SIDE_USB_DP

SIDE_USB_DM

USB PWR

Switch

(IC1204)

USB2

+5V_USB

USB1

+5V_USB

5V

7. I2C Connections

LGE Internal Use Only

CH0

CH1

LGE35230

CH2

CH3

ATSC

Tuner

0xC2

MICOM

UPD78F0514

0x52

NVRAM

M24M01

0xA8

HDMI Switch

SII9287B

0xB0

AMP

TAS5727

0x54

I2C0_3.3V

I2C2_3.3V

I2C3_3.3V

1. Trouble shooting - No power

LGE Internal Use Only

Check stand-by Voltage.

P501 9~12pin : +3.5V_ST

ok

Check Micom Voltage IC602 pin 48 : +3.5V

ok

Check X602 clock

32 KHz

ok

Check P501 PWR_ON.

1pin : 3.3V

ok

Check Multi Voltage

P501. 2 pin : *24V , 17 pin : 12V

ok

Check IC501/4/5/8 Output Voltage

IC501 : 0.9V, IC508 : 1.5V

IC504 : 2.5V ,IC505 : 3.3V

ok

Check X101 Clock

54 MHz

No

Check Power connector

Replace L503

Replace X602

Re-download Micom software.

Replace Power Board

Replace IC501/4/5/8

Replace X101

okNo

Main B/D 3.5V Line

No

Short Check

Replace Micom(IC602 ) or Main board

ok

Replace Power board.

ok

Check LVDS Power Voltage

Q507 : 12V

ok

Check Inverter Control

P501 18 pin : High

ok

Change Module

No

Replace Q507

Check Power Board or Module

2. Trouble shooting - No video (Digital TV video)

LGE Internal Use Only

Check RF Cable & Signal

ok

Check Tuner 5V Power

L5101, L5103

No

Check IC507

No

Replace IC507

ok

Check Tuner 3.3V Power

L5105

ok

Check Tuner 1.26V Power

IC5103 2pin : 1.26V

ok

Check IF_P/N Signal

TU5101 17/18 Pin

ok

Check BCM LVDS Output

No

ok

Replace L5101, L5104

Replace L5105

Replace IC5103.

Bad Tuner. Replace Tuner.

Replace or BCM( IC101) or Main Board.

3. Trouble shooting - No video (Analog TV video)

LGE Internal Use Only

Check RF Cable & Signal

ok

Check Tuner 5V Power

L5101, L5103

No

Check IC507

No

Replace IC507

ok

Check Tuner 3.3V Power

L5105

ok

Check Tuner 1.2V Power

IC5103 2 pin : 1.2V

ok

Check CVBS Signal

TU5101 11 Pin

ok

Check BCM LVDS Output

No

ok

Replace L5101, L5103

Replace L5105

Replace IC5103

Bad Tuner. Replace Tuner.

Replace BCM( IC101) or Main Board.

4. Trouble shooting - No video (AV)

LGE Internal Use Only

Check input signal format.

Is it supported?

ok

Check AV Cable for damage

for damage or open conductor

ok

Check JK1105 , JK1102 CVBS Signal Line

 Rear AV : R1140

 Side AV : R1136

ok

Check CVBS_DET Signal

• Rear AV Detect : R1129

• Side AV Detect : R1113

ok

Check BCM LVDS Output

No

Replace Jack

Replace R1129 or R1113

Replace LGE35230( IC101)

or Main Board.

5. Trouble shooting - No video (Component)

LGE Internal Use Only

Check input signal format.

Is it supported?

ok

Check Component Cable

for damage or open conductor.

ok

Check JK1105

Y/PB/PR signal Line

ok

Check COMP_DET Signal

ok

No

Replace Jack

Replace R1114 or R1130

Check BCM LVDS Output

No

Replace BCM( IC101) or Main Board.

6. Trouble shooting - No video (RGB-PC)

LGE Internal Use Only

Check input signal format.

Is it supported?

ok

Check RGB Cable conductors

for damage or open conductor

ok

IC3802 I2C Signal R3811, R3812(SDA,SCL)

Check EDID & EEPROM

ok

Check P3801

H/V_Sync/R/G/B Signal Line

L3806/7/8

ok

Check DSUB_DET

ok

Check BCM LVDS Output

No

Re-download EDID data or Replace th e d e f ective I C

Replace Jack

Replace R3815

Replace BCM( IC101).

7. Trouble shooting - No video (HDMI)

LGE Internal Use Only

Check input signal format.

Is it supported?

ok

Check HDMI Cable conductors for damage or open conductor.

ok

Check HDMI Switch

IC701 video Signal and I2C line

No

Check L2103(+3.3V)

No

Replace Coil

ok

Check JK70 1 / 2 / 3 / 4

ok

Check HDMI Signal output

of HDMI Switch (IC701)

ok

Check BCM LVDS Output

No

Replace Jack

Replace the defective IC.

Replace BCM( IC101) or Main Board.

OK

Replace the defective IC.

8. Trouble shooting - No Audio (all audio source)

LGE Internal Use Only

Check the TV Speaker Menu

(Menu -> Sound -> TV Speaker)

On

Check AMP IC(IC1702) Power

*24V, 3.3V

ok

Check AUDIO_MASTER_CLK

R1753

ok

Check AMP I2C Line

R1710,1711

ok

Check Mstar I2S Output

R1754,5,6

ok

Check Output Signal P1702

1, 2, 3, 4 pin.

Off

No

Toggle the Menu

Check Regulator L1709,L1710,L1711

Replace BCM( IC101) or Main Board.

Check signal line.

Or replace BCM( IC101)

Check signal line.

Or replace BCM( IC101)

Replace Audio AMP IC(IC1702)

ok

Check Connector & P1702

ok

Check speaker resistance

and connector damage.

No

Replace connector

if found to be damaged.

Replace speaker.

9. Trouble shooting - No audio (Digital TV audio)

LGE Internal Use Only

Check RF Cable & Signal

ok

Check Tuner 5V Power

L2101,L2104

No

Check IC507

No

Replace IC507

ok

Check Tuner 3.3V Power

L2103

ok

Check Tuner 1.26V Power

IC2103 2 pin : 1.26V

ok

Check IF_P/N Signal

TU2101 17,18 Pin

ok

Follow procedure

‘8. All source audio’

trouble shooting guide.

No

Replace L2103

Replace IC2103

Bad Tuner. Replace Tuner.

ok

Replace L2101,2104

10. Trouble shooting - No audio (Analog TV audio)

LGE Internal Use Only

Check RF Cable & Signal

ok

Check Tuner 5V Power

L2101,L2104

ok

Check Tuner 3.3V Power

L2103

ok

No

Check IC507

Replace L2103

No

ok

Replace IC507

Replace L2101,2104

Check Tuner 1.2V Power

IC2103 2 pin : 1.2V

ok

Check SIF Signal

TU2101 9th Pin

ok

Check TU_SIF path

Including Q2104 TR buffer to LGE35230

ok

Follow procedure

‘8. All source audio’

trouble shooting guide.

No

Replace IC2103.

Bad Tuner. Replace Tuner.

Replace component

11. Trouble shooting - No audio (AV)

LGE Internal Use Only

Check AV Cable for damage

or open conductor

ok

(Audio OSD active or inactive mode?)

Check Audio OSD

ok

Check JK1105

ok

Check Audio Master clock // AUD_LRCH

AUD_LRCK, AUD_SCK(AMP pin20,21,22)

ok

Check Audio AMP Mute (pin19)

ok

Check Audio AMP voltage

+3.3V,+24V_AMP

ok

Check output L1703,4,7,8

AMP output

No (Inactive)

No

Check R821 & R822, JK803

Replace JK1105

Replace LGE35230

Replace Audio AMP TAS5727

ok

Follow procedure & refer to Audio signal block

Diagram

12. Trouble shooting - No audio (Component)

LGE Internal Use Only

Check Component Cable

for damage or open conductor.

ok

Check JK1105 & Signal Line

ok

Follow procedure

‘8. All source audio’

trouble shooting guide.

No

Replace Jack

13. Trouble shooting - No audio (RGB-PC)

LGE Internal Use Only

Check Cable conductors

for damage or open conductor

ok

Check p3801 & Signal path

ok

Follow procedure

‘8. All source audio’

trouble shooting guide.

No

Replace Jack or components

14. Trouble shooting - No audio (SPDIF)

LGE Internal Use Only

Check SPDIF Cable

ok

Check JK3802

SPDIF_OUT Signal(5V)

ok

Replace IC101

No

Replace Jack

15. Trouble shooting - No audio (Head phone audio out)

LGE Internal Use Only

Check Head phone Cable

for damage or open conductor

ok

(Audio OSD active or inactive mode?)

Check Audio OSD

ok

Check Earphone AMP Mute

(Pin 13)

ok

Check Earphone output

(Pin 5, 16)

ok

Follow procedure & refer to Audio signal block

Diagram

No(active)

No

Check R3816 & R3858, JK3803

Replace IC3804 TPA6132A2

16. Trouble shooting - USB connection error

LGE Internal Use Only

Check USB 2.0 Cable

N Check USB device

If device is 2.5 inch HDD,

Check power adaptor

N

Check USB jack

(JK1201 or JK1202)

N

Check 5V voltage level at Bead or Jack

N

Maybe LGE35230(IC101) has problems. Replace It.

• Exception

- USB power could be disabled by inrushing current

- In this case, remove the device and try to reboot the TV (AC power off/on)

Y

IC1203 or IC1204 and then check

Replace Jack

Replace one of

17. Trouble shooting - Ethernet connection error

LGE Internal Use Only

Check LAN Cable

Y

Check MAC Address

Y

Check LAN Port Power

L3901

Y

Check LAN Port LED

N

Replace one of LAN Port

Recheck

LAN Cable

Replace

Main B/D

Replace one of L3901

& Recheck

N

Maybe LGE35230 LAN PHY block

has problems. Replace It

19. Trouble shooting - Tool option

LGE Internal Use Only

Push the ADJ ( with the Factory SVC Remocon)

Check the Tool Option 1

Y

Check the Tool Option 2

Y

Check the Tool Option 3

Y

Check the Tool Option 4

Y

Check the Tool Option 5

Y

Check the Tool Option 6

N

Correct the Tool Option1 ( using reference file ( GP3_BCM_ T OOL OPT I ON))

Correct the Tool Option2 ( using reference file ( GP3_BCM_ T OOL OPT I ON))

Correct the Tool Option3 ( using reference file ( GP3_BCM_ T OOL OPT I ON))

Correct the Tool Option4 ( using reference file ( GP3_BCM_ T OOL OPT I ON))

Correct the Tool Option5 ( using reference file ( GP3_BCM_ T OOL OPT I ON))

Reference file :

GP3_Tool option

20. Trouble shooting - Service Mode (INSTART)

LGE Internal Use Only

IN START

Model Name : 47LV5500-UA Serial Number : 011PTLC7M320 S/W Version : 02.05.00.01 MICOM Version : 3.01.7 BOOT Version : 1.01.62 FRC Version : N/A IR LED Version : 14.4 EDID Version (RGB/HDMI) : 0.02/0.02 Chip Type : BCM 35230 Wireless Host Ver. : 0.00.0 Wireless B/B Ver. : 0.00.0 Wi-Fi Version : 1.0

Wi-Fi Channel : 0 Wi-Fi Mac : 00:ED:91:C6:C7:92 MAC Address : FE:22:56:43:00:55

Widevine : LGTV10L000000929

1. Adjust Check ▶

2. ADC Data

3. Power Off Status

4. System 1

5. System 2

6. Model Number D/L

7. Test Option

8. External ADC

9. Spread Spectrum

10. Sync Level

11. Wireless Ready

12. Stable Count

13. ODC Test

14. Local Dimming

15.SDP Server Selection

16.Network Error History

ESN Num. : LGE-TEST==XXXX000001FD91 RF Receiver Version : VB091 Debug Status : EVENT

UTT : 5 APP History Ver.: 26524 PQL DB : LGE_EF_SANYO_XXXXXX

11. Wireless Ready : You can set RF Group, Media-box type and get some information about Wireless Diagnostics.

14. Local Dimming : You can check current Local Dimming binary file version. When you upgrade latest F/W, you can re-download with using this menu.

If TV system doesn’t support Local Dimming Function, you can’t see this menu.

• IN-ST ART mode displays various TV system information and supports useful functions for engineer.

• Each of menu has sub-menus for detail set-up

1. Adjust Check : Refer to next page.

2. ADC Data : This menu supports manual ADC adjustment for COMP 480i/COMP 1080P/RGB.

3. Power Off Status : You can check previous power-off history with this menu.

4 & 5 . System : There are various sub-menus for TV system setting.

6. Model Number D/L : You can change TV System’s model name & Serial Number manually.

7. Test Option

8. External ADC : You can adjust external Analog-to-Digital Converting Level when you have external devices as Master.

9. Spread Spectrum : To enable FRC spread spectrum function and set detail value as spreading percent, period.

10. Sync Level : You can control sync level of Component, HDMI input source. (Range is from 0 to 31)

21. Trouble shooting - Service Mode (INSTART – Adjust Check)

LGE Internal Use Only

Adjust Check

1. Country Group ( Press OK to Save )

Country Group Code Country Group Country

02 US US

2. Tool Option

Tool Option1 Tool Option2 Tool Option3 Tool Option4 Tool Option5

33000

4161

7295 21897 41549

665

Tool Option6

3. Adjust White Balance : OK(0)

4. Adjust ADC : OTP

480i Component 1080p Component RGB

OK OK OK

5. EDID(AC3) : OK

RGB HDMI1 HDMI2 HDMI3 HDMI 4

OK (0x89)

OK (0x7F,0xC9) OK (0x7F, 0xB9) OK (0x7F, 0xA9) OK (0x7F, 0x99)

1. Adjust Check : This menu displays Country Group, Tool Option and Adjust Result Information. This is very useful when you want to know about TV systems adjustment as White Balance, ADC.

1) Country Group

- You can change Country Group and Tool Optio n only. This change is saved

real-time.

2) Tool Option

- You can change Tool Option value. Move a cursor to dialog box and push

some numbers with remote-controller.

3) Adjust White Balance

- This dialog box shows the result of White Balance adjustment. OK/NG

4) Adjust ADC

- You need not control ADC

5) EDID

- This dialog box shows the status of EDID Download.

22. Trouble shooting - SW download

LGE Internal Use Only

The latest S/W put in the ‘LG DTV’ folder of USB Memory

USB connects to USB jack for service.

If SW update screen appears,

push the OK button.

The SW update is finished, please check new SW version by

in-start menu.
