LG 43LX310C-ZA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LD5CB

MODEL : 43LX310C 43LX310C-ZA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL69193612 (1507-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION ............................................................. 10

BLOCK DIAGRAM ................................................................................. 17

EXPLODED VIEW .................................................................................. 18

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

TROUBLE SHOOTING GUIDE ................................................. APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

Always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication

of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some sol-

der removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. Carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LD5CB chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC specification

4. Model General Specification

No. Item Specication Remarks

1 Market EU/CIS

(PAL Market-37 Countries)

DTV & Analog (Total 37 countries) DTV (MPEG2/4, DVB-T) :37 countries

UK/Italy/Germany/France/Spain/Sweden/Finland/Netherlands/ Belgium/Luxemburg/ Greece/Denmark/Czech/Austria /Hungary/Swiss/Croatia/TurkeyNorway/Slovenia/Poland/Ukraine/ Portugal/Ireland/Morocco/Latvia/Estonia/Lithania/Rumania/ Bulgaria/Russia/SlovakiaBosnia/Serbia/Albania/Kazakhstan/ Belarus

DTV (MPEG2/4, DVB-T2): 8 countries

UK/Denmark/Sweden/Finland/Norway/Ireland/Ukraine/Kazakhstan

DTV (MPEG2/4, DVB-C): 37 countries

UK/Italy/Germany/France/Spain/Sweden/Finland/Netherlands/ Belgium/Luxemburg/ Greece/Denmark/Czech/Austria /Hungary/Swiss/Croatia/TurkeyNorway/Slovenia/Poland /Ukraine/ Portugal/Ireland/Morocco/Latvia/Estonia/Lithania/Rumania/ Bulgaria/Russia/SlovakiaBosnia/Serbia/Albania/Kazakhstan/ Belarus

DTV (MPEG2/4,DVB-S): 29 countries

Italy/Germany/France/Spain/Netherlands/ Belgium/Luxemburg/ Greece/Czech/Austria /Hungary/Swiss/Croatia/Turkey/Slovenia/Poland/Portugal/ Morocco/Latvia/Estonia/Lithania/Rumania/ Bulgaria/Russia/Slovakia/Bosnia/Serbia/Albania/Belarus

Supported satellite : 22 satellites

HISPASAT 1C/1D, ATLANTIC BIRD 2, NILESAT 101/102, ATLANTIC BIRD 3, AMOS 2/3, THOR 5/6, IRIUS 4, EUTELSAT-W3A, EUROBIRD 9A, EUTELSAT-W2A, HOTBIRD 6/8/9, EUTELSAT-SESAT, ASTRA 1L/H/M/KR, ASTRA 3A/3B, BADR 4/6, ASTRA 2D, EUROBIRD 3, EUTELSAT-W7, HELLASSAT 2, EXPRESS AM1, TURKSAT 2A/3A, INTERSAT10

Only for training and service purposes

- 6 -

No. Item Specication Remarks

DTV & Analog DTV (MPEG2/4, DVB-T)

DTV (MPEG2/4, DVB-T2)

DTV (MPEG2/4, DVB-C)

Market MEA

2 Broadcasting system

Analogue TV

1) PAL-B/G/D/K/I

2) SECAM-B/G/D/K/I SECAM L/L’ Digital TV

1) DVB-T

2) DVB-C Satellite Digital TV

1) DVB-T/T2

2) DVB-C

3) DVB-S/S2

DTV (MPEG2/4,DVB-S) HISPASAT 1C/1D, ATLANTIC BIRD 2, NILESAT 101/102, ATLANTIC BIRD 3, AMOS 2/3, THOR 5/6, IRIUS 4, EUTELSAT-W3A, EUROBIRD 9A, EUTELSAT-W2A, HOTBIRD 6/8/9, EUTELSAT-SESAT, ASTRA 1L/H/M/KR, ASTRA 3A/3B, BADR 4/6, ASTRA 2D, EUROBIRD 3, EUTELSAT-W7, HELLASSAT 2, EXPRESS AM1, TURKSAT 2A/3A, INTERSAT10

Analogue TV : (RF) VHF: E2 to E12, UHF : E21 to E69 (CATV) S1 to S20, HYPER: S21 to S47

Digital TV : VHF, UHF

Satellite TV : VHF, UHF, C-Band, Ku-Band

► DVB-T

- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

► DVB-T2

- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

- Modulation : Code Rate

3 Receiving system

4 Scart Jack (1EA) PAL, SECAM Scart 1 Jack is Full scart and support RF-OUT(analog).

Component & AV

5

Common port (1EA)

6 HDMI Input (2 EA) HDMI1/2-DTV Support HDCP

7 Audio Input (1EA) Component & AV Component & AV’s audio input is used by common port.

8 SDPIF out (1EA) SPDIF out UF67/LF62/LF57/LF56/LF55 Series

9 Earphone out (1EA)

10 USB EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD

Analog : Upper Heterodyne Digital : COFDM, QAM

Video Input RCA (PAL, SECAM, NTSC) 4 System : PAL, SECAM, NTSC, PAL60

Component Input(Y/Cb/Cr, Y/Pb/Pr)

Antenna, AV1, AV2, Component, HDMI1, HDMI2, USB

QPSK : 1/2, 2/5, 2/3, 3/4, 5/6 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

► DVB-C

- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s

- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM

► DVB-S

- symbol rate DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s DVB-S (QPSK) : 2 ~ 45Msymbol/s

- viterbi DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

UF67/LF62/LF57/LF56 Series

Only for training and service purposes

- 7 -

DVB-T

11 DVB

DVB-C

DVB-S CI + : Germany(Astra HD+)

12 Ethernet (1EA) Wired, DMP only Only UK T2 Model (UF67/LF57/LF56/LF54) : for MHEG

CI : UK, Finland, Denmark, Norway, Sweden, Russia, Spain,

Ireland, Luxemburg, Belgium, Netherland

CI+ : France(Canal+), Italy(DGTVi)

CI : Switzerland, Austria, Slovenia, Hungary, Bulgaria CI+ : Switzerland(UPC,Cablecom), Netherland(Ziggo),

Germany(KDG,CWB), Finland(labwise)

5. Video resolutions (2D)

5.1. Component Input (Y, CB/PB, CR/PR)

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed

1 720*576 15.625 50.00 13.5 SDTV ,DVD 576I

720*480 15.73 60.00 13.5135 SDTV ,DVD 480I

2

3 720*480 15.73 59.94 13.50 SDTV ,DVD 480I

4 720*576 31.25 50.00 27.00 SDTV 576P

5 720*480 31.50 60.00 27.027 SDTV 480P

6 720*480 31.47 59.94 27.00 SDTV 480P

7 1280*720 37.50 50.00 74.25 HDTV 720P

8 1280*720 45.00 60.00 74.25 HDTV 720P

9 1280*720 44.96 59.94 74.176 HDTV 720P

10 1920*1080 28.125 50.00 74.25 HDTV 1080I

11 1920*1080 33.75 60.00 74.25 HDTV 1080I

12 1920*1080 33.72 59.94 74.176 HDTV 1080I

13 1920*1080 56.25 50.00 148.50 HDTV 1080P

14 1920*1080 67.50 60.00 148.50 HDTV 1080P

15 1920*1080 67.432 59.94 148.352 HDTV 1080P

16 1920*1080 27.00 24.00 74.25 HDTV 1080P

17 1920*1080 26.97 23.94 74.176 HDTV 1080P

18 1920*1080 33.75 30.00 74.25 HDTV 1080P

19 1920*1080 33.71 29.97 74.176 HDTV 1080P

5.2. HDMI Input(PC/DTV)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

PC(DVI) DDC

1 640*350 31.468 70.09 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 80.00 VESA O

7 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8 1280*1024 63.981 60.020 108.0 VESA (SXGA) O FHD only

9 1920*1080 67.50 60.00 148.5 HDTV 1080P O FHD only

DTV

1 720*480 31.469 59.94 27.00 SDTV 480P

2 720*480 31.50 60.00 27.027 SDTV 480P

3 720*576 31.250 50.00 27.00 SDTV 576P

4 1280*720 37.50 50.00 74.25 HDTV 720P

Only for training and service purposes

- 8 -

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 28.125 50.00 74.25 HDTV 1080I

8 1920*1080 33.75 60.00 74.25 HDTV 1080I

9 1920*1080 33.72 59.94 74.176 HDTV 1080I

10 1920*1080 56.250 50.00 148.50 HDTV 1080P

11 1920*1080 67.50 60.00 148.50 HDTV 1080P

12 1920*1080 67.432 59.94 148.35 HDTV 1080P

13 1920*1080 27.00 24.00 74.25 HDTV 1080P

14 1920*1080 26.973 23.976 74.175 HDTV 1080P

15 1920*1080 33.75 30.00 74.25 HDTV 1080P

16 1920*1080 33.716 29.976 74.175 HDTV 1080P

5.3. RGB Input (PC) – HD Model

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed DDC

640*350 31.468 70.09 25.17 EGA X

1

720*400 31.469 70.08 28.32 DOS O

2

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 80.00 VESA O

7 1360*768 47.712 60.015 85.50 VESA (WXGA) O

5.4. RGB Input (PC) – FHD Model

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed DDC Remark

640*350 31.468 70.09 25.17 EGA X

1

720*400 31.469 70.08 28.32 DOS O

2

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 80.00 VESA O

7 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8 1280*1024 63.981 60.020 108.0 VESA (SXGA) O FHD

9 1920*1080 66.587 59.934 138.5 HDTV 1080P O FHD

10 1920*1080 67.50 60.00 138.5 HDTV 1080P O FHD

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with LD5CB chassis.

2. Designation

(1) The adjustment is according to the order which is designated

and which must be followed, according to the plan

can be changed only on agreeing. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation : Above 5 Minutes (Heat Run) Temperature : at 25 °C ± 5 °C Relative humidity : 65 ± 10 % Input voltage : 220 V, 60 Hz (6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),

DDC Adjustment Jig, Service remote control.

(7) Push the "IN STOP" key - For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot automatically.

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push

“In-stop” key at rst.

2. Push “Power on” key for turning it on.

→ If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

which

3. Main PCB check process

▪ APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program "Mstar ISP Utility" and then click

"Config" tab.

(2) Set as below, and then click "Auto Detect" and check "OK"

message. If "Error" is displayed, check connection between computer, jig, and set.

(3) Click "Read" tab, and then load download file(XXXX.bin)

by clicking "Read".

(4) Click "Connect" tab. If "Can't" is displayed, check connection

between computer, jig, and set.

(2)

(3)

Please Check the Speed : To use speed between from 200KHz to 400KHz

(5) Click "Auto" tab and set as below. (6) Click "Run". (7) After downloading, check "OK" message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

* USB DOWNLOAD

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low, it didn't work. But your downloaded version is High, USB data is automatically detecting.

(3) Show the message "UPDATING".

(4) Updating is starting.

(1)

filexxx.bin

Only for training and service purposes

- 10 -

(5) Updating Completed, The TV will restart automatically in 5

seconds.

(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

* After downloading, have to adjust Tool Option again.

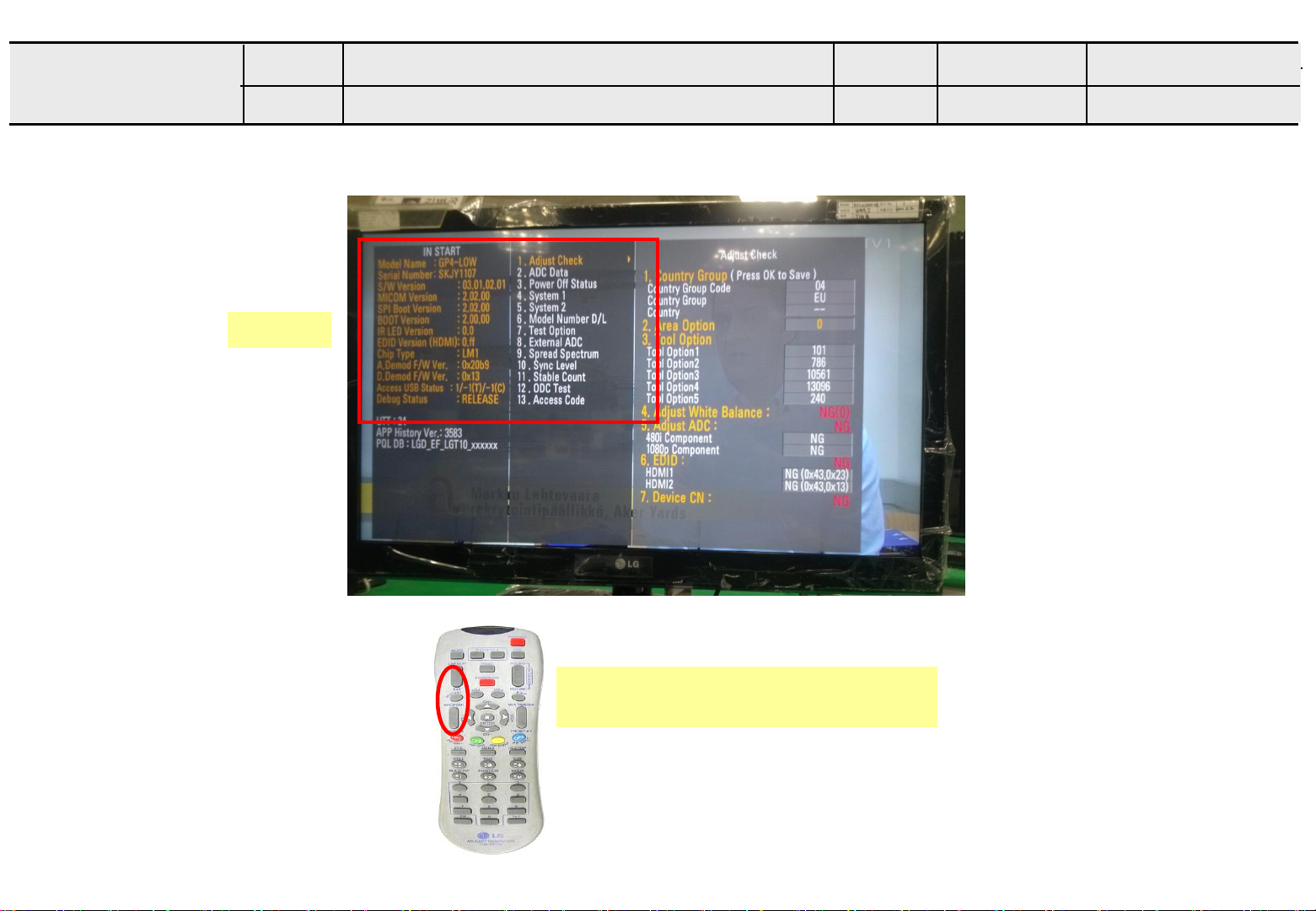

(1) Push "IN-START" key in service remote control. (2) Select "Adjust Check" and push "OK" key. (3) Punch in the number. (Each of model has their number) (4) Completed selecting Tool option.

3.1. ADC Process(Optional)

* If ADC processes as OTP, There is no need to proceed

internal ADC.

(1) Enter Service Mode by pushing "ADJ" key,

(2) Enter Internal ADC mode by pushing "►" key at "8. ADC

Calibration".

<Caution> Using "P-ONLY" key of the Adjustment remote

control, power on TV.

* ADC Calibration Protocol (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter Adjust MODE

ADC adjust

Adjust ‘Mode In’

ADC Adjust

A A 0 0

A D 1 0

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

Adjust Sequence

▪ aa 00 00 [Enter Adjust Mode] ▪ xb 00 40 [Component Input] ▪ ad 00 10 [Adjust 480i & 1080p Comp] ▪ aa 00 90 End Adjust mode

* Required equipment : Adjustment R/C.

3.2. EDID Download

▪ After enter Service Mode by pushing "ADJ" key. ▪ Enter EDID D/L menu. ▪ Enter "START" by pushing "OK" key.

<Caution> Never connect HDMI cable when EDID downloaded.

3.3. EDID data

(1) RGB

1) HD RGB EDID DATA

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 ff ff ff ff ff ff 00 1e 6d a b 10 c 01 03 68 a0 5a 78 0a ee 91 a3 54 4c 99 26 20 0f 50 54 a1 08 00 71 40 61 40 45 40 31 40 01 01 30 01 01 01 01 01 01 1b 21 50 a0 51 00 1e 30 48 88 40 35 00 40 84 00 00 00 1c 01 1d 00 72 51 d0 1e 20 50 6e 28 55 00 a0 5a 00 00 00 1e 00 00 00 fd 00 3a 60 3e 1e 53 10 00 0a 20 20 20 20 20 20 d 70 d 00 e

2) FHD RGB EDID DATA

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 ff ff ff ff ff ff 00 1e 6d a b 10 c 01 03 68 a0 5a 78 0a ee 91 a3 54 4c 99 26 20 0f 50 54 a1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3a 80 18 71 38 2d 40 58 2c 40 45 00 a0 5a 00 00 00 1e 66 21 50 B0 51 00 1B 30 50 40 70 36 00 a0 5a 00 00 00 1e 00 00 00 fd 00 3a 60 3e 1e 53 10 00 0a 20 20 20 20 20 20 d 70 d 00 e

(2) HDMI

1) HD HDMI EDID data (2D Model)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 40 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 50 18 88 36 00 40 84 63 00 00 18 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 70 d 01 e 80 02 03 22 F1 4E 10 1F 04 93 05 14 03 02 12 20 21 90 22 15 01 26 15 07 50 09 57 07 f A0 f 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 5A B0 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 C0 20 C2 31 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E D0 96 00 A0 5A 00 00 00 18 02 3A 80 18 71 38 2D 40 E0 58 2C 45 00 A0 5A 00 00 00 1E 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

2) FHD HDMI EDID data (2D Model)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 70 d 01 e 80 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21 90 22 15 01 26 15 07 50 09 57 07 f A0 f 01 1D 80 18 71 1C 16 20 58 2C 25 00 20 C2 5A B0 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 C0 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58 2C D0 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E 20 E0 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

Only for training and service purposes

- 11 -

- Detail EDID Options are below a. Product ID

MODEL NAME HEX EDID Table DDC Function

HD/FHD Model 0001 01 00 Analog/Digital

b. Serial No: Controlled on production line. c. Month, Year: Week : '01' -> '01', Year : '2015' -> '19' fix d. Model Name(Hex): Refer to the ASCII Code Table cf) TV set’s model name in EDID data is below.

Model name MODEL NAME(HEX)

LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)

e. Checksum: Changeable by total EDID data.

EDID C/S data

Check sum

(Hex)

Block 0

Block 1

HD FHD

RGB HDMI RGB HDMI

74

5B (HDMI1) 25 (HDMI1)

A2

4B (HDMI2) 15 (HDMI2)

59

Only 60"

EDID C/S data

Check sum

(Hex)

Block 0

Block 1

HD FHD

RGB HDMI RGB HDMI

-

- DE (HDMI1)

- CE (HDMI2)

59

f. Vendor Specific(HDMI)

- HD Model

INPUT Model name(HEX)_2D

HDMI1 67 03 0C 00 10 00 80 1E

HDMI2 67 03 0C 00 20 00 80 1E

- FHD Model

INPUT Model name(HEX)_2D

HDMI1 67 03 0C 00 10 00 80 1E

HDMI2 67 03 0C 00 20 00 80 1E

3.4. Function Check

- Check display and sound

■ Check Input and Signal items.(cf. work instructions)

1) TV

2) AV (SCART / CVBS)

3) COMPONENT (480i)

4) HDMI

5) RGB * Display and Sound check is executed by Remote control.

40

4. Total Assembly line process

4.1. White Balance adjustment

▪ W/B Equipment condition

CA210 : LED -> CH14, Test signal: Inner pattern(80IRE)

▪ Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

▪ If it is executed W/B adjustment in 2~3 minutes H/run, it is

adjusted by Target data.

Mode Temp Coordinate spec Target

Color Temperature

Cool 13,000K

Medium 9,300K

Warm 6,500K

X=0.276 (±0.04) Y=0.275 (±0.04)

X=0.290 (±0.04) Y=0.298 (±0.04)

X=0.318 (±0.04) Y=0.334 (±0.04)

X=0.278 Y=0.280

X=0.293 Y=0.299

X=0.320 Y=0.339

▪ Normal line(LGD/CMI, March ~ December for Gumi, Global)

NC5.0

Aging time

(Min)

1 0-2 282 289 297 308 324 348 2 3-5 281 287 296 306 323 346 3 6-9 279 284 294 303 321 343 4 10-19 277 280 292 299 319 339 5 20-35 275 277 290 296 317 336 6 36-49 274 274 289 293 316 333 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

Cool Medium Warm

x y x y x y

271 270 286 289 313 329

▪ Normal line(LGD/CMI, January ~ February for Gumi, Apply

not Cinema Screen)

NC5.0

8 80-119 272 271 287 290 314 330

Aging time

(Min)

1 0-2 286 295 301 314 328 354 2 3-5 284 290 299 309 326 349 3 6-9 282 287 297 306 324 346 4 10-19 279 283 294 302 321 342 5 20-35 276 278 291 297 318 337 6 36-49 274 275 289 294 316 334 7 50-79 273 272 288 291 315 331

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

x y x y x y

271 270 286 289 313 329

Chassis

or Model

ALL Model (LD5CB)

<Caution> Not to push the INSTOP key after completion if the function inspection.

Only for training and service purposes

- 12 -

▪ Aging chamber (LGD/CMI)

NC5.0

1 0-2 280 285 294 308 319 340 2 3-5 276 280 290 303 315 335 3 6-9 272 275 286 298 311 330 4 10-19 269 272 283 295 308 327 5 20-35 267 268 281 291 306 323 6 36-49 266 265 280 288 305 320 7 50-79 265 263 279 286 304 318

8 80-119 264 261 278 284 303 316

9 Over 120 264 260 278 283 303 315

Aging time

(Min)

Cool Medium Warm

x y x y x y

271 270 285 293 313 329

▪ Use only AUO/Sharp/CSOT (Cool temp Spec is 13000K)

Aging time

(Min)

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

Cool Medium Warm

x y x y x y

▪ W/B information

Model information W/B information

Chassis

or Model

Module Panel

Backlight

Type

Using W/B table

22/28LX** All All Edge LED X

60LX** Sharp Sharp Edge LED X

Direct LED

Ohters LGD LGD

or

O

Edge LED

▪ Auto adjustment Map(using RS-232C to USB cable)

RS-232C COMMAND

[CMD ID DATA]

Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 254

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 254

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

MIN

CENTER

(DEFAULT)

MAX

Color Temperature : COOL, Medium, Warm. One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0.(When R/G/B Gain are all C0, it is the FULL Dynamic Range of Module)

* Manual W/B process using adjust Remote control.

▪ After enter Service Mode by pushing "ADJ" key, ▪ Enter White Balance by pushing "►" key at "9. White

Balance".

* Connecting picture of the measuring instrument

(On Automatic control) Inside PATTERN is used when W/B is controlled. Connect to

auto controller or push Adjustment R/C P-ONLY → Enter the

mode of White-Balance, the pattern will come out.

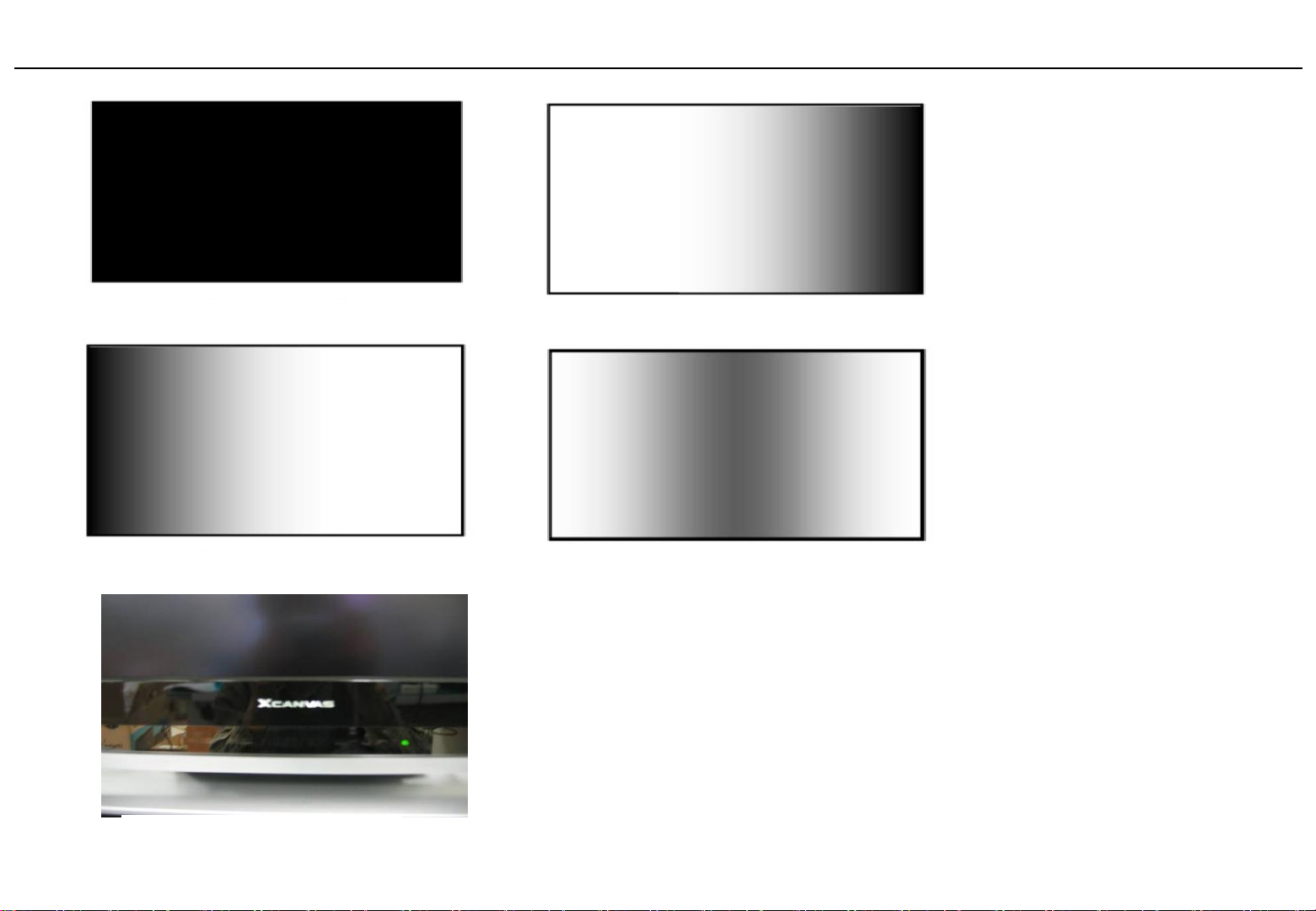

Full White Pattern

RS-232C Communication

CA-210

COLOR ANALYZER TYPE : CA-210

* Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10 lux).

(2) Adhere closely the Color analyzer(CA210) to the module

less than 10 cm distance, keep it with the surface of the Module and Color analyzer's prove vertically.(90° +/-

2.5°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using 'no signal' or 'POWER ONLY' or the others, check the back light on.

* CASE Cool Mode

First adjust the coordinate far away from the target value(x, y).B.

1) x, y > target

2) x, y < target

3) x >target, y < target

4) x < target, y > target

- Every 4 case have to fit y value by adjusting B Gain and then fit x value by adjusting R-Gain.

- In this case, increasing/decreasing of B Gain and R Gain can be adjusted.

How to adjust

1) In case G gain more than 172

Adjust R Gain and B Gain less than 192

2) If the G gain value be adjusted down to 172

One of the R/B Gain is 254

3) If G Gain is 172 , More than one of R/B Gain is to be

between 192~254

Only for training and service purposes

- 13 -

* CASE Medium / Warm

First adjust the coordinate far away from the target value(x, y).

1) x, y > target i) Decrease the R, G.

2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others.

3) x > target, y < target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R

4) x < target, y > target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

* After you finished all adjustments, Press "In-start" key and

compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable. If it is not same, then correct it same with BOM and unplug AC cable. For correct it to the model's module from factory Jig model.

* Push the "IN STOP" key after completing the function

inspection. And Mechanical Power Switch must be set “ON”.

4.2. IR emitter inspection

(1) Start 3D pattern inspection. (2) If IR emitter signal is correctly received to IR receiver, the lamp of IR tester turns on.

6. Model name & Serial number D/L

▪ Press "Power on" key of service remote control.

(Baud rate : 115200 bps)

▪ Connect RS232 Signal Cable to USB Jack. ▪ Write Serial number ▪ Must check the serial number at the Diagnostics of SET UP menu.

(Refer to below).

6.1. Signal Table

CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY

CMD : A0h LENGTH : 85~94h (1~16 bytes) ADH : EEPROM Sub Address high (00~1F) ADL : EEPROM Sub Address low (00~FF) Data : Write data CS : CMD + LENGTH + ADH + ADL + Data_1 +...+ Data_n Delay : 20ms

6.2. Command Set

No. Adjust mode CMD(hex) LENGTH(hex) Description

EEPROM

1

WRITE

* Description

FOS Default write : <7mode data> write Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0, Phase Data write : Model Name and Serial Number write in EEPROM,.

A0h 84h+n n-bytes Write (n = 1~16)

5. HI-POT Test

5.1. HI-POT auto-check preparation

- Check the POWER cable and SIGNAL cable insertion condition

5.2. HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

5.3. Checkpoint

(1) Test voltage

- Touchable Metal : 3 KV / min at 100 mA

- SIGNAL : 3KV / min at 100 mA

(2) TEST time: 1 second. (case : mass production ) (3) TEST POINT

- Touchable Metal => LIVE & NEUTRAL : Touchable Metal.

- SIGNAL => LIVE & NEUTRAL : SIGNAL.

Only for training and service purposes

6.3. Method & notice

(1) Serial number D/L is using of scan equipment. (2) Setting of scan equipment operated by Manufacturing

Technology Group.

(3) Serial number D/L must be conformed when it is produced in

production line, because serial number D/L is mandatory by D-book 4.0.

- 14 -

* Manual Download(Model Name and Serial Number)

If the TV set is downloaded by OTA or Service man, sometimes model name or serial number is initialized.(Not always) There is impossible to download by bar code scan, so It need Manual download.

1) Press the "Instart" key of Adjustment remote controller.

2) Go to the menu "6.Model Number D/L" like below photo.

3) Input the Factory model name or Serial number like photo.

4) Check the model name Instart menu. → Factory name

displayed.

5) Check the Diagnostics.(DTV country only) → Buyer model

displayed.

7. MAC Address & CI+ key download

7.1 MAC Address

7.1.1 Equipment & Condition

▪ Play file : Serial.exe ▪ MAC Address edit ▪ Input Start / End MAC address

7.1.2 Download method

(1) Communication Prot connection

Connection: PCBA(USB Port) → USB to Serial Adapter(UC-

232A) → RS-232C cable → PC(RS-232C port)

* Caution: LJ21* chassis support only UC-232A driver. (only

use this one.)

(2) MAC Address & CI+ Key Download

▪ Set CI+ Key path Directory at Start Mac & CI+ Download

Programme

▪ Com 1,2,3,4 and 115200(Baudrate)

GP4_LOW

▪ Port connection button click(1) ▪ Push the (2) MAC Address write. ▪ At success Download, check the OK (3) ▪ Start CI+ Key Download, Push the (4) ▪ Check the OK or NG

Only for training and service purposes

- 15 -

7.2. LAN Inspection

7.2.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

7.2.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ Setting automatic IP ▪ Setting state confirmation

-> If automatic setting is finished, you confirm IP and MAC Address.

7.3. LAN PORT INSPECTION(PING TEST)

Connect SET -> LAN port == PC -> LAN Port

SET PC

7.3.1. Equipment setting

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

7.3.2. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program. (2) Connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) Remove LAN cable.

Only for training and service purposes

- 16 -

BLOCK DIAGRAM

Only for training and service purposes

- 17 -

502

500

900

901

521

400

800

540

401

120

530

LV1

A2

A10

Set + Stand

200

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

Only for training and service purposes

- 18 -

POWER

LGE Internal Use Only

FROM POWER B/D 13.2V

+3.5V_ST

TR_NXP

MMBT3906(NXP)

R406

10K

R404

4.7K

TR_NXP

Q400 MMBT3904(NXP)

R419

100

TR_NXP

Q402 MMBT3904(NXP)

1

TVS_SEMTECH

RL_ON

INV_CTL

+3.5V_ST

R400

10K

R401

10K

OPT

+3.5V_ST

R426

10K

TR_KEC Q400-*1 2N3904S

B

R402

10K

+3.3V_Normal

R425

10K

TR_KEC Q402-*1 2N3904S

B

R420

C

E

C

E

C

E

1K

C

E

+13.2V to +3.5V_STANDBY

+13.2V

L412

BLM18PG121SN1D

C438

C439

10uF

0.1uF

25V

R1

R46 9

R468

68K

6.8K 1/1 6W

1/16W

1%

C440

100pF

50V

R2

R471

22K

1/16W

1%

C441 1uF 10V

C442

2200pF

Vout=0.765*(1+R1/R2)

Q401

ZD404

TVS_KEC ZD404-*1

R470 10K

OPT

50V

3

2

5V

TR_KEC Q401-*1

2N3906S-RTK

EBC

OPT

R412

33K

EN

R475 30K

FB

VREG

SS

PWR_ON

D13.2V A13.2V

DRV_ON

BD9D321EFJ

1

2

3

4

3A

P401

SMAW200-H12S5K(BK)(LTR)

PDIM#2

1

2

GND

IC405

9

THERMAL

D13.2V

4

3

D13.2V

5

6

A13.2V

7

8

GND

10

9

PDIM#1

11

12

13

[EP]

VIN

8

BOOT

7

SW

6

GND

5

C443

0.1uF 16V

R424

3.9K

L413

2uH

C444 22uF

PWM1_Pulldown_R

10V

PWM1_CAP

R467-*1 1000pF 50V

PWM1

R467 1K

L403

MLB-201209-0120P-N2

OPT

0.1 uF

L414

L415

MLB-201209-0120P-N2

PWM_DIM

+3.5V_ST

C445 22uF

10V

C40 2

25V

TVS_SEMTECH

TVS_KEC ZD405-*1

OPT C43 3

4.7 uF

C44 6

0.1 uF

ZD405

5V

50V

25V

+13.2V

+13.2V POWER_DET

R435 100K

RESET_IC_KEC

IC401

KIC7529M2

VCC

3

IC401-*1

RESET_IC_DIODES

APX803E29

VCC

3

A13.2V

C415

0.1uF

+13.2V

R430

14K

1%

R431

5.6K 1%

25V

+3.5V_Normal to +1.5V_DDR

+3.3V_Normal

L409

BLM18PG121SN1D

C426 10uF

10V

IC404

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

1.3A

Vout=1.25*(1+R2/R1)+Iadj*R2

+13.2V to PANEL_VCC +3.5V_ST to +3.3V_Normal

D

R451

5.6K

G

C

TR_KEC Q403-*1 2N3904S

E

+3.3V_Normal

C405 10uF 25V

PANEL_VCC

R452

5.6K

C406 10uF 25V

2200pF

C408

50V

C409

R409

+3.5V_ST

POWER_ON/OFF_1

R443

10K

R444 10K

B

R447 22K

R448

2.2K

C428

2.2uF

C

TR_NXP Q404 MMBT3904(NXP)

E

Vout=0.6(R1/R2)+0.6

L405

4.7uH

25V

0.047uF

10

PGND2

LX2

C410

BST120LX121PGND1

19

COMP1

18

FB1

17

AGND

16

RSET

15

FB2

14

COMP2

13

11

12

BST2

+5V_Normal

C421

0.047uF 25V

R422 15K

L406

4.7uH

C407 1uF

OPT

50V

91K

10V

ROSC/SYNC

SW_EN

NFAULT

[EP]

SS2

1

EN1

2

EN2

3

SN1406035RGER

4

5

6

SW_OUT

THERMAL

25

7

SW_IN

VIN123V7V24SS1

IC400

8

VIN2

22

9

+3.5V_ST

OPT R438

4.7K

R454

100

OUT

2

1

GND

RESET

2

1

GND

R449 1K 1/16W 1%

R450 200 1/16W 1%

CB2012PK501T

R1

R2

C431

10uF

R453

10V

0

C422

0.1uF 16V

+1.5V_DDR

L411

OPT

ZD403

2.5V

POWER_DET

POWER_DET_RESET

OPT ZD406

5.1v

PANEL_CTL

+13.2V

L408

UBW2012-121F

120OHM

OPT

C425

0.1uF 25V

R441

R445

33K

R446 120K

B

C

TR_NXP Q403 MMBT3904(NXP)

E

R442

10K

NON_60_SHARP

C427

0.22uF 25V

Q405

SSM3J332R

S

60_SHARP

C427-*1

0.1uF 50V

B

+5V_Normal & +1.10V_VDDC

+13.2V

L404

CB2012PK501T

+3.3V_Normal

OPT

C403

4700pF

50V

Check the pull down when AC Power On with HDD

+3.3V_Normal

R403 10K

OPT

R473

C404

30K

4700pF

50V

USB1_CTL

USB1_CTL_Pull_Down

USB1_OCD

R472

3.3K

R405

10K

OPT R474 30K

OPT

R407

4.7K

R408 100K

+5V_Normal

10V

R41 8

FET_AOS Q406-*1

AO3435

D

S

L410

ZD401

OPT

2.5V

C430 22uF 10V

R2

+3.3V_Normal

ZD402

5V

TVS_SEMTECH

TVS_KEC ZD402-*1

OPT C412 10uF

6.3V

C418

47pF 50V

+5V_Normal

C423 22uF 16V

C413 22uF

10V

C424 22uF 16V

+1.10V_VDDC

C414 22uF

10V

G

FET_TOSHIBA

Q406 SSM3J332R

BLM18PG121SN1D

D

S

C429

G

0.1uF 16V

C

TR_KEC

Q404-*1

B

2N3904S

E

R1

OPT

C411

R411

4.7K 1%

R2

R413

5.1K 1%

C419

22pF 50V

C420

3300pF

50V

20K

R41 4

ZD407

82pF

5.1v

50V

C416

22pF

50V

C417

3300pF

10K

50V

R415

0 5%

R416

5.1K 1%

R417

39K

1%

R1

+5V_USB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C432

1uF 16V

L14_CA

POWER

Vout=0.6(R1/R2)+0.6

2014/12/03

4

USB (SIDE)

LGE Internal Use Only

USB_HDD_CAP1_10uF

C700-*1

USB_HDD_CAP1_22uF

OPT

JK700

1234

USB DOW N ST REAM

3AU 04S- 305- ZC-( LG)

5

ZD700

SD05

C701

5V

OPT

C702

5pF

50V

10uF

10V

USB_HDD_CAP2_10uF

C703-*1

USB_HDD_CAP2_22uF C700 22uF 10V

OPT D700 RCLAMP0502BA

10uF

10V

C703 22uF 10V

R700

2.2

R701

2.2

+5V_USB

OPT

C704 22uF 10V

SIDE_USB1_DM

SIDE_USB1_DP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

USB_S1

2014/05/20

7

HDMI (REAR 1 / SIDE 1 MHL)

LGE Internal Use Only

HDMI_1

5V_HDMI_2

R802

1.8K

VA800

R803

1K

SHIELDGND

20

HP_DET

19

5V

18

GND

17

DDC_DATA

ESD_HDMI1_VARISTOR

16

DDC_CLK

15

NC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

EAG59023302

JK800

This GND Pattern should be very narrow

HDMI jack burnt problem improvement

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_DET_HDMI_2

R805

3.3K

ESD_HDMI1_VARISTOR VA801

ESD_HDMI1_CAP

VA800-*1 1uF 10V

ESD_HDMI1_CAP VA801-*1 1uF 10V

AR801

5.1

AR802

5.1

MMBT3904(NXP)

ESD_HDMI1 VA802

TR_NXP

Q800

C

E

TR_KEC Q800-*1 2N3904S

B

C

B

E

ESD_HDMI1

VA803

ESD_HDMI1_TMDS

IP4294CZ10-TBR

ESD_HDMI1_TMDS

IP4294CZ10-TBR

HDMI_2 MHL

5V_HDMI_4

R808

10K

R809

10K

R810 100

R811 100

ESD_HDMI1 VA804

D803

1 2 3 4 5

D804

10 9 8 7 6

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

BODY_SHIELD

20

JK801-*1 DAADR019A

HDMI-2_EMI_FOOSUNG

GND

20

HP_DET

19

5V

18

GND

17

DDC_DATA

16

DDC_CLK

15

NC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

EAG62611204

HDMI-2

JK801

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

This GND Pattern should be very narrow

15

SCL

HDMI jack burnt problem improvement

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HDMI-2

R812

1.8K

5V_DET_HDMI_4

ESD_HDMI2 VA805

HDMI-2

R813

3.3K

ESD_HDMI2 VA806

OPT

VA807

5.6V

AR804

AR803

HDMI-2_MHL_Non

R819

0





5.1

ESD_HDMI2

HDMI-2_MHL

R818

0

ESD_HDMI2

VA809

ESD_HDMI2

VA808

VA811

ESD_HDMI2 VA810

HDMI-2_MHL

HDMI-2

R814

33

HDMI-2

R815 100

R816 100

HDMI-2

D805

1 2 3 4 5

ESD_HDMI2_TMDS

IP4294CZ10-TBR

D806

1 2 3 4 5

ESD_HDMI2_TMDS

IP4294CZ10-TBR

HDMI-2_MHL

C800

R817

0.047uF 300K

25V

MHL Spec

HDMI-2_MHL_Non

R817-*1

3.3K

10 9 8 7 6

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

MHL_CD_SENSE

CEC

HDMI_CEC

HDMI_DIODE_SUZHOU

D800-*1

MMBD6100

A1

C

5V_HDMI_2

R800

2.7K

+5V_Normal

R801

2.7K

R804 100

A2

HDMI_DIODE_KEC

A2CA1

KDS184 D800

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE_S7

HDMI_DIODE_SUZHOU

D801-*1

MMBD6100

A1

C

R806

2.7K

+5V_Normal

R807

2.7K

5V_HDMI_4

HDMI_DIODE_SUZHOU

A2

HDMI_DIODE_KEC

A2CA1

KDS184 D801

D802-*1

MMBD6100

DDC_SDA_4

DDC_SCL_4

A2

A1

C

+3.5V_ST

A2CA1

HDMI_DIODE_KEC

KDS184 D802

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15_M1A

HDMI_R1S1 8

140813

SPDIF

LGE Internal Use Only

SPDIF_OUT

+3.3V_Normal

OPT

C1001

1uF 10V

ESD Ready

SPDIF_OPTIC C1002 18pF 50V

GND

VCC

VINPUT

SPDIF_OPTIC

JK1001

JST1223-001

1

2

3

4

FIX_POLE

Fiber Optic

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

SPDIF

2014/06/02

10

DDR_EXT

LGE Internal Use Only

R1201

DDR_EXT

R1202

1K 1%

DDR_EXT

1K 1%

CLose to DDR3

DDR_EXT

C1201

C1202

0.1uF

1000pF

A-MVREFDQ

+1.5V_DDR+1.5V_DDR

DDR_EXT

R1204

DDR_EXT

R1205

1K 1%

CLose to MAIN IC

DDR_EXT

C1213

C1214

0.1uF

1000pF

A-MVREFCA

+1.5V_DDR

Option : Ripple Check !!!

OPT

C1217

0.1uF

C1218

0.1uF

OPT

C1216

10uF

10V

C1219

+1.5V_DDR

OPT

C1221

OPT

C1222

1uF

C1220

1uF

C1223

OPT

C1224

0.1uF

1uF

DDR_1600_1G_NAN

IC1201-*1

NT5CB64M16FP-DH

EAN61859502

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_1G_SS

IC1201

K4B1G1646G-BCK0

EAN61836301

DDR_EXT

R1203

240 1%

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

+1.5V_DDR

A-MVREFCA

A-MVREFDQ

C1203 10uF 10V C1204 0.1uF C1205 0.1uF C1206 0.1uF C1207 0.1uF C1208 0.1uF C1209 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF

A-MA14

DDR_1600_2G_SS

IC1201-*2

K4B2G1646Q-BCK0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EAN61848803

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_1600_2G_SK

IC1201-*3

H5TQ2G63FFR-PBC

EAN61829204

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT

A10/AP

A12/BC

NC_5

RESET

DQSL DQSL

DQSU DQSU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7

A11

N7 T3

A13

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3 G3

C7 B7

E7

DML

D3

DMU

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A/B_DDR3_CS A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

DDR_EXT

R1207

DDR_EXT

R1208

56 1%

DDR_EXT

R1206

10K

DDR_EXT

C1215

0.01uF 50V

+1.5V_DDR

A-MCK

A-MCKB

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13 A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A/B_DDR3_CS

A-MDQSL A-MDQSU

A-MDML A-MDMU

A-MDQSLB A-MDQSUB

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7 A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1209

240

1%

M1A_256M_UO4

LGE2134(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101

LGE2133(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

M1A_128M_UO4

IC101-*1

M1A_256M_AVS+

LGE2136(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*2

M1A_128M_AVS+

LGE2135(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

DDR

2014/06/13

12

Serial Flash for SPI boot

LGE Internal Use Only

/FLASH_WP

OPT

R1300 10K

+3.5V_ST

/SPI_CS

SPI_SDO

R1301

4.7K

OPT

WP#/SIO2

SPI_FLASH_MACRONIX

IC1300

MX25L8035EM2I-10G

CS#

1

SO/SIO1

2

3

GND

4

SPI_FLASH_WINBOND

IC1300-*1

W25Q80DVSSIG

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

8

7

6

5

8

7

6

5

VCC

NC/SIO3

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

R1302

33

+3.5V_ST+3.5V_ST

C1300

0.1uF 16V

SPI_SCK

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

S_FLASH

140721

13

LVDS

LGE Internal Use Only

[51Pin LVDS Connector] (For FHD 60Hz)

MO_FHD

P1800

SP14-11592-01-51Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

PANEL_VCC

C1800

0.1uF 25V

VCOM_SDA

VCOM_SCL

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

MO_FHD_non_55CSOT

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

MO_FHD_non_55CSOT

RXB0-

MO_FHD_VCC_CAP C1801 10uF 25V

LVDS_SEL

+3.3V_Normal

Cell_CSOT_55inch R1806

1K

OPT

R1807

10K

R1801

0

R1812

Cell_INX_FHD

AR1800

0

1/16W

FOR FHD REVERSE(10bit) Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2- RXBCK-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit) Change in S7LR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

MIRROR

Pol-change

RXA4+

RXA4-

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

Shift

RXA4-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2- RXACK-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[30Pin LVDS Connector] (For HD 60Hz_Normal)

MO_HD P1801

10031HR-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

VCOM_SDA

VCOM_SCL

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

PANEL_VCC

LVDS_SEL

+3.3V_Normal

OPT

R1808

3.3K

OPT

R1809

10K

EU pin assign is different from NON EU. Because of position of HD wafer.

V-COM I2C

URSA/VCOM_SCL

URSA/VCOM_SDA

VCOM_SCL

VCOM_SDA

+3.3V_Normal

VCOM_I2C_PULL_UP

R1810

VCOM_I2C

R1804

0

VCOM_I2C

R1805

0

VCOM_I2C_PULL_UP

2K

R1811 2K

URSA/VCOM_SCL

URSA/VCOM_SDA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

LVDS

140613

18

CI Region

LGE Internal Use Only

* Option name of this page : CI_SLOT

CI SLOT

/CI_CD1

AR1900

33

R1903 R1904

R1905 100 R1906 R1907 33

AR1901

33

47 47

33

+5V_Normal

R1900

CLOSE TO SOC

CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

CI_IORD CI_IOWR

CI_MDI[0] CI_MDI[1] CI_MDI[2] CI_MDI[3]

CI_MDI[4] CI_MDI[5]

10K

CI_MDI[6] CI_MDI[7]

PCM_RST

/PCM_WAIT

CI_TS_CLK CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2] CI_TS_DATA[3]

REG

C1900

2pF 50V

CLOSE TO SOC

+5V_Normal

R1909

R1912

10K

4 OUT_Y

4

100

+3.3V_Normal

VCC

Y

CI DETECT

/CI_CD2

/CI_CD1

/CI_CD2

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

OR_GATE_CI_TOSHIBA

TOSHIBA ELECTRONICS KOREA CORPORATION

IC1900

1IN_B 5 VCC

2IN_A

3GND

OR_GATE_CI_NXP

74LVC1G32GW

1B5

A

2

GND

3

IC1900-*1

CI POWER ENABLE CONTROL

IC1901

AP2151WG-7

IN

5

R1902

EN

PCM_5V_CTL

R1901 10K

100

4

+5V_Normal

R1908

10K

OUT

1

GND

2

FLG

3

R1910 10K

C1901

GND

0.1uF

R1911

+3.3V_Normal

R1913

10K

CI_ADDR[9] CI_ADDR[8]

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4] CI_ADDR[3] CI_ADDR[2] CI_ADDR[1] CI_ADDR[0]

CI_DATA[0-7]

/PCM_CE

+5V_Normal

CI_OE

R1920

10K

CI_WE

C1905

0.1uF

CLOSE TO SOC

CI_ADDR[0-14]

CI TS INPUT

AR1903

/PCM_IRQA

CI_MDI[7] CI_MDI[6] CI_MDI[5] CI_MDI[4]

CI_MDI[3] CI_MDI[2] CI_MDI[1] CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

33

AR1904

33

R1921 33 R1922 33 R1923 100

FE_TS_DATA[7] FE_TS_DATA[6] FE_TS_DATA[5] FE_TS_DATA[4]

FE_TS_DATA[3] FE_TS_DATA[2] FE_TS_DATA[1] FE_TS_DATA[0]

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_CLK

FE_TS_DATA[0-7]

CI HOST I/F

GND

CI_DET

PCM_A[0]

AR1902

CI_DATA[0-7]

CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11]

CI_ADDR[13] CI_ADDR[14]

CI_OE

CI_WE CI_IORD CI_IOWR

100

CI_DATA[0] CI_DATA[1] CI_DATA[2] CI_DATA[3]

CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

REG

PCM_A[1]

PCM_A[2]

PCM_A[3]

AR1905

AR1906

AR1908

AR1909

AR1907

33

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4]

CI_DATA[0-7]

CI_BUFFER_TOSHIBA

IC1902

74LCX244FT

1OE

1

1A1

2

2Y4

3

1A2

4

2Y3

5

1A3

6

2Y2

7

1A4

8

2Y1

9

GND

10

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3]

PCM_D[4] PCM_D[5] PCM_D[6] PCM_D[7]

PCM_A[8] PCM_A[9]

PCM_A[10] PCM_A[11]

PCM_A[12]CI_ADDR[12] PCM_A[13] PCM_A[14] /PCM_REG

/PCM_OE /PCM_WE /PCM_IORD /PCM_IOWR

PCM_D[0-7]

+3.3V_Normal

VCC

20

2OE

19

1Y1

18

2A4

17

1Y2

16

2A3

15

1Y3

14

2A2

13

1Y4

12

2A1

11

PCM_D[0-7]

C1906

0.1uF 16V

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

AR1910 100

CI_BUFFER_NXP

IC1902-*1

74LVC244APW

1OE

1

1A0

2

2Y0

3

1A1

4

2Y1

5

1A2

6

2Y2

7

1A3

8

2Y3

9

GND

10

CI_ADDR[0] CI_ADDR[1] CI_ADDR[2] CI_ADDR[3]

VCC

20

2OE

19

1Y0

18

2A0

17

1Y1

16

2A1

15

1Y2

14

2A2

13

1Y3

12

2A3

11

+5V_CI_ON

C1903

10uF

10V

CI_SLOT_JACK

P1900

CI_DET

/PCM_CD

10067972-000LF

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

G1G2

69

GND

R1917

47

R1918

100

C1904

0.1uF GND

GND

R1914

100

10K

GND

R1924 0

R1915 47

+5V_CI_ON+5V_Normal

L1900

BLM18PG121SN1D

R1916

C1902

100K

1uF 10V

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI_DATA[0] CI_DATA[1] CI_DATA[2]

CI_DATA[0-7]

R1919

10K

CI_DATA[0-7]

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

PCMCI_EU

2015/01/10

19

ETHERNET

LGE Internal Use Only

* H/W option : ETHERNET

ETHERNET

JK2100

RJ45VT-01SN002

1

2

3

4

5

6

7

ETHERNET

8

9

C2105

0.01uF 50V

ETHERNET

C2104

0.01uF 50V

EPHY_TP

EPHY_TN

EPHY_RP

EPHY_RN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

LAN

2014/05/21

21

DVB-S2 LNB Part Allegro

LGE Internal Use Only

(Option:LNB)

Caution!! need isolated GND

R2701

0

A_GND

Max 1.3A

LNB

+13.2V_LNB

LNB

D2701

LNB

R2702

2.2K 1W

A_GND

LNB

C2713

0.22uF 25V

LNB_OUT

LNB

C2714 18pF

50V

M13.2V

L2701

BLM18PG121SN1D

close to TUNER

LNB C2701 18pF

LNB C2702 33pF

50V

Close to Tuner

Surge protectioin

LNB

D2702

Input trace widths should be sized to conduct at least 3A Ouput trace widths should be sized to conduct at least 2A

3A

+13.2V_LNB

2A

LNB

D2703

30VSS23L

LNB

C2703

0.01uF

30VSS23L

LNB

C2704

10uF

50V

25V

close to Boost pin(#1)

LNB

LNB_SMAB34

C2712

0.1uF 50V

D2704

40V

C2705

10uF

A_GND

LNB

25V

LNB

C2706

10uF

25V

LNB_SX34 D2704-*1

40V

A_GND

LNB

C2707

0.1uF 50V

LNB_SX34 D2705-*1

40V

D2705

LNB_SMAB34

40V

BOOST

[EP]GND

20

VCP

1

THERMAL

LNB

2

NC_1

TDI

TDO

21

3

IC2701

4

A8303SESTR-T(4M)

5

6

IRQ

LPH6050T-150M-R

A_GND

GNDLX

NC_2

NC_3

18

19

LNB

7

8

SCL9ADD

SDA

LNB

L2702

15uH

3.5A

16LX17

15

14

13

12

11

10

TONECTRL

VIN

GND

VREG

ISET

TCAP

LNB

C2710

0.1uF 50V

LNB C2708 10uF 25V

A_GND

close to VIN pin(#15)

LNB C2709

0.1uF 50V

LNB

36K

1%

LNB

C2711

0.22uF 25V

R2703

1/16W

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LNB

R2704

33

LNB

R2705

33

DEMOD_SCL

DEMOD_SDA

R2706 0

LNB_TX

L14_CA_M1A

LNB 27

2014/05/22

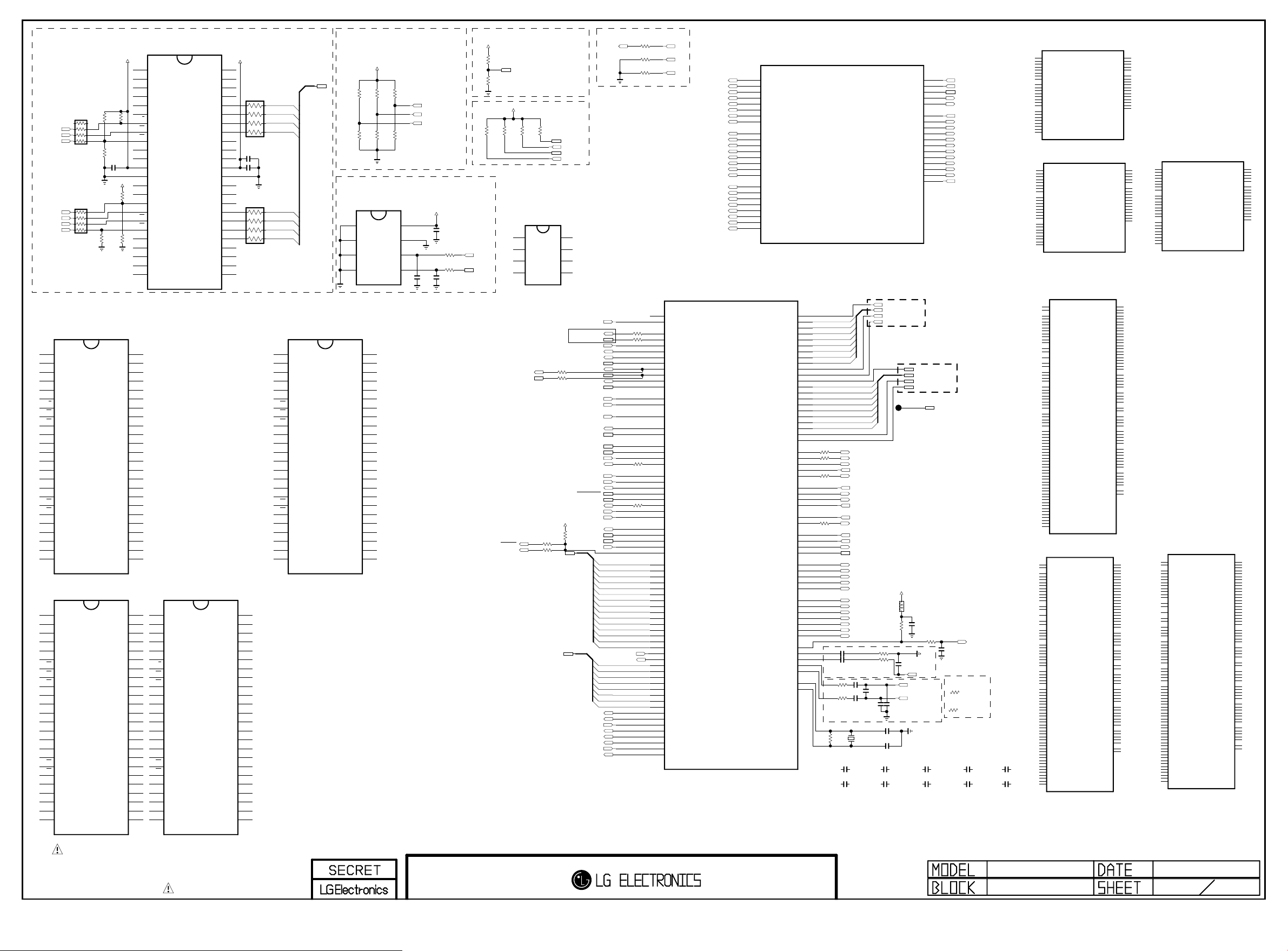

NET_COMMERCIAL

LGE Internal Use Only

LC Filter for EXT SPK & HP Scart(EU only)

HP_ROUT

HP_LOUT

15Y_HYNIX_2G

IC102-*10

H27U2G8F2DTR-BD

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

L2900

5.6uH

C2900

4.7uF 10V

L2901

5.6uH

C2901

4.7uF 10V

Close to the Main IC

15Y_HYNIX_4G

IC102-*11

H27U4G8F2ETR-BC

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

12

13

NC_9

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

HP_EXT_SPK_ROUT

HP_EXT_SPK_LOUT

SCART_MUTE

SC1_ID_COMM

RGB DSUB(Non EU)

DSUB/SC1_HSYNC

DSUB/SC1_VSYNC

DSUB_DET

R2900 0

EU_SCART

R2906 0

EU_SCART

R2901 33

NON_EU_RGB

R2902 33

NON_EU_RGB

R2903 0

NON_EU_RGB

SCART1_MUTE

SC1_ID_COMM

COMP2_DET

SCART_MUTE

SC1_ID

DSUB/SC1_HSYNC

SC1_FB

DSUB/SC1_VSYNC

AV2_CVBS_DET

DSUB_DET

MODEL OPTION 9

+3.3V_Normal

READY R2904

10K

READY R2905

10K

AUD_SCK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Commercial NET

NET_CONN 29

USB_2

LGE Internal Use Only

USB_2 for Wireless Dongle

+5V_USB

C3100

22uF

10V

OPT

WIFI_DM

* USB2_DM

WIFI_DP

* USB2_DP

USB2_HDD_CAP1_10UF

L3100

CB2012PK501T

USB2

USB2_HDD_CAP1_22UF

C3101

22uF

10V

R3103

USB2

2.2

R3104

USB2

2.2

C3101-*1 10uF 10V

USB2_HDD_CAP2_22UF

C3103

22uF

10V

OPT D3100 RCLAMP0502BA

USB2_HDD_CAP2_10UF

C3103-*2 10uF 10V

ZD3100

SD05

5V

OPT

C3102

C3104

5pF

50V

USB2

3AU04S-305- ZC- (LG)

JK3100

1234

USB DOWN STREAM

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RS232C

LGE Internal Use Only

RS232C

C3200 0.33uF

C1+

C3201

0.1uF

C3202

0.1uF

SIGN2147483647

C3203

0.1uF

C3204

0.1uF

C1-

C2+

C2-

DOUT2

RIN2

V+

V-

IC3200

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

EXT_5V EXT_12V

IR_OUT

+3.5V_ST

D3200 CDS3C30GTH 30V OPT

C3205

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

D3201 CDS3C30GTH 30V

OPT

+3.5V_ST

R3203

4.7K

EU_INT

EXT_5V EXT_12V

+3.5V_ST

R3204

4.7K EU_INT

R3200 100

R3201 100

D3202 BAP70-02

50V

NON_NEC_MICOM

R3205 0

NON_NEC_MICOM

R3206 0

NEC_MICOM

R3207 0

NEC_MICOM

R3208 0

R3202 1K

PM_RXD

PM_TXD

UART_RX

UART_TX

10

9

8

7

6

SPG09-DB-009

P3200

5

4

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

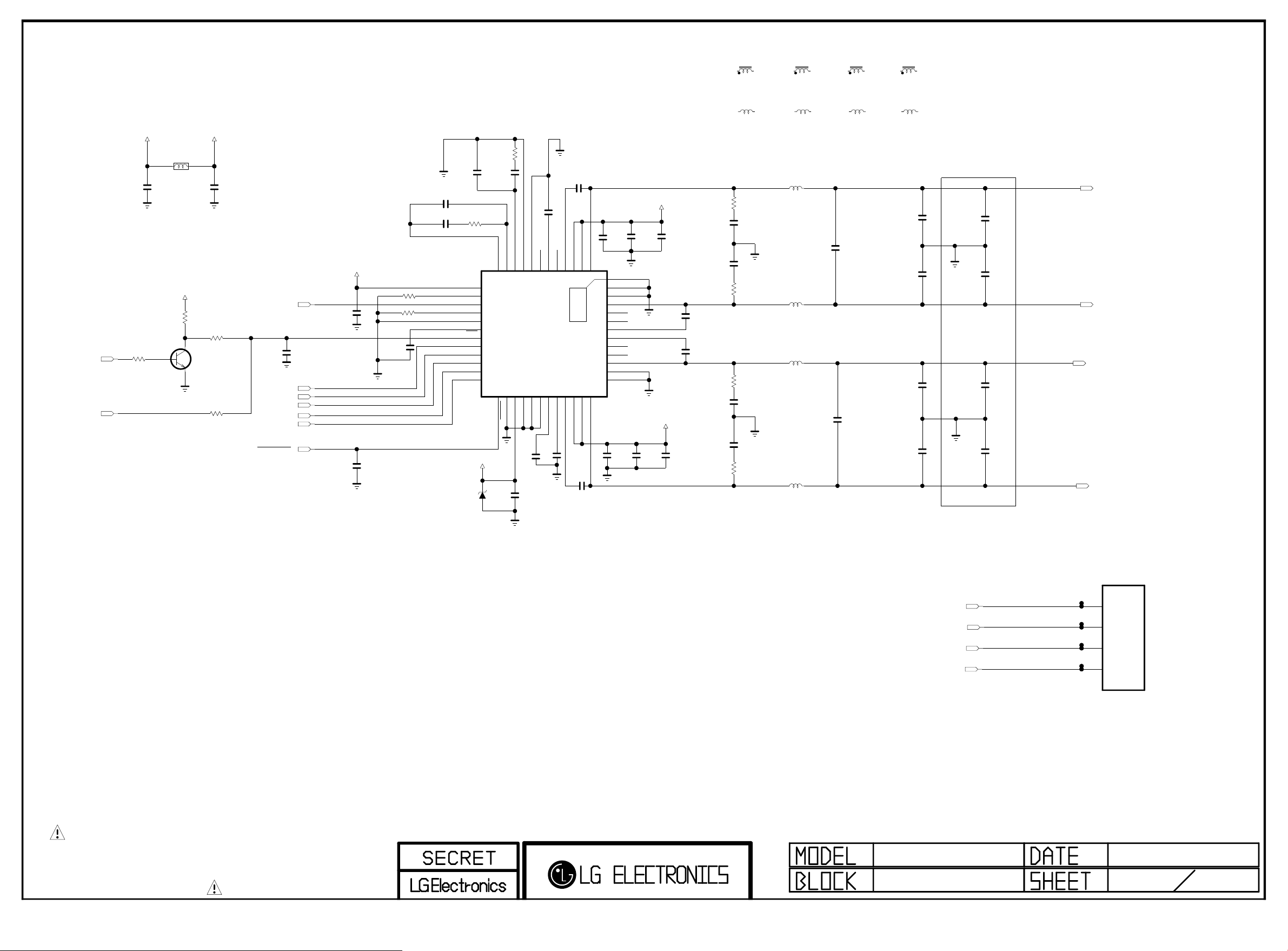

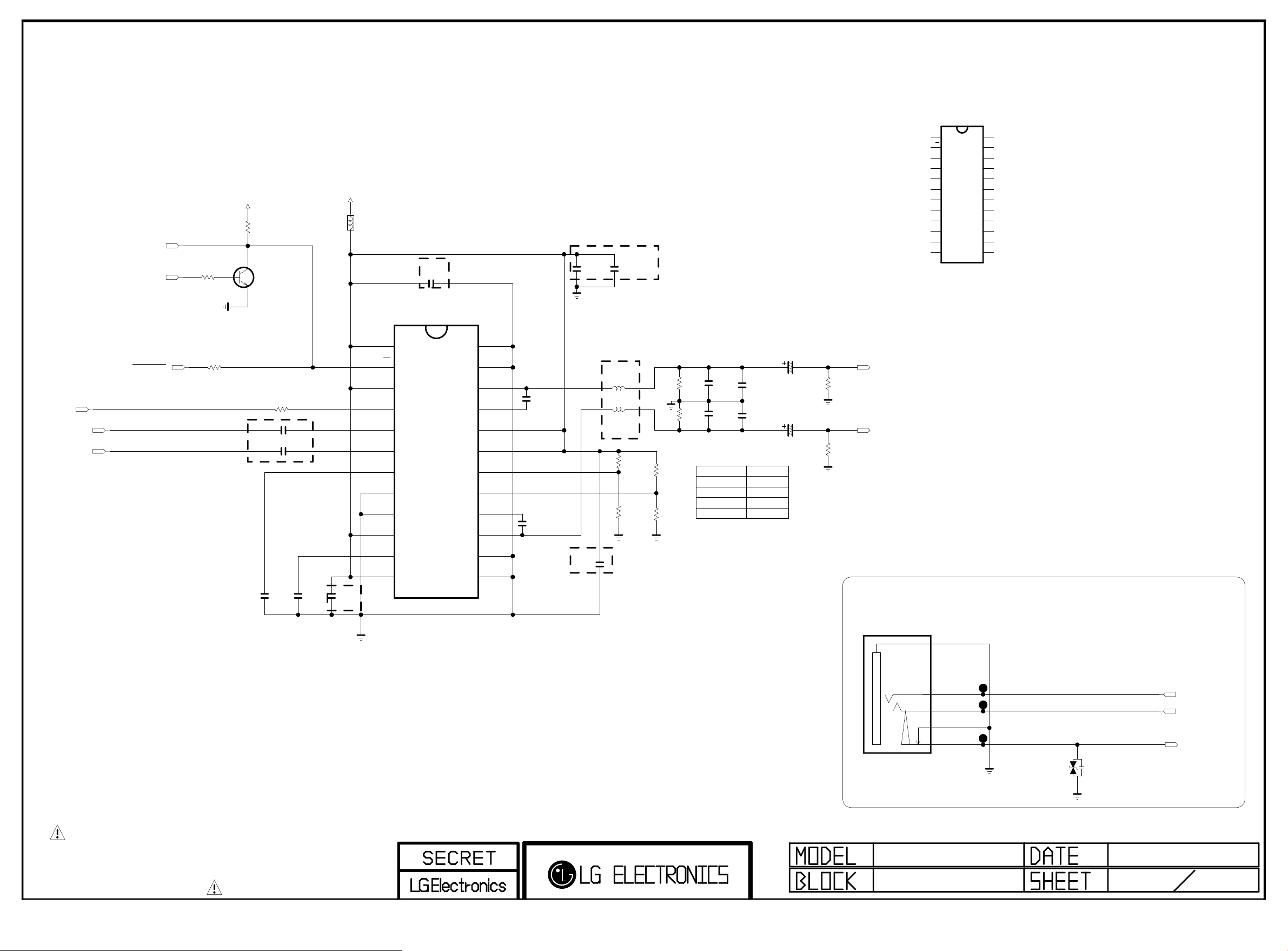

External Speaker

LGE Internal Use Only

EXT SPK AMP

EXT_SPK

L3400

A13.2V

EXT_SPK

C3405

0.1uF 50V

Close to Pin3

EXT_AMP_14Y

IC3400

TPA3124D2PWPR

EXT_SPK_DET

HP_DET

HEAD_PHONE

R3400 47K

+3.5V_ST

B

EXT_SPK

R3402

47K

C

Q3400 MMBT3904(NXP)

P

HEAD_PHONE

E

UBW2012-121F

EXT_SPK C3408

0.1uF 50V

Close to Pin1

EXT_SPK C3410 10uF 35V

PVCCL_1

SD

PVCCL_2

MUTE

LIN

RIN

BYPASS

AGND_1

AGND_2

PVCCR_1

VCLAMP

PVCCR_2

EXT_AMP_15Y_CI

IC3400-*1

PAM8124

1

2

3

4

5

6

7

8

9

10

11

12

PGNDL_2

24

PGNDL_1

23

LOUT

22

BSL

21

AVCC_2

20

AVCC_1

19

GAIN0

18

GAIN1

17

BSR

16

ROUT

15

PGNDR_2

14

PGNDR_1

13

SIDE_HP_MUTE

HP_EXT_SPK_LOUT

HP_EXT_SPK_ROUT

AMP_RESET

R3401

1K

EXT_SPK

R3403

10K

EXT_SPK

C3401 1uF

10V C3402

1uF 10V

Close to AMP IC

C3400 1uF 50V

EXT_SPK

C3403

1uF

50V

EXT_SPK

C3404

0.1uF 50V

EXT_SPK

PVCCL_1

PVCCL_2

PVCCR_1

PVCCR_2

MUTE

LIN

RIN

BYPASS

AGND_1

AGND_2

VCLAMP

1

SD

2

3

4

5

6

7

8

9

10

11

12

Close to Pin10

24

23

22

21

20

19

18

17

16

15

14

13

PGNDL_2

PGNDL_1

LOUT

BSL

AVCC_2

AVCC_1

GAIN0

GAIN1

BSR

ROUT

PGNDR_2

PGNDR_1

C3407

0.22uF 50V

EXT_SPK

C3406

0.22uF 50V

EXT_SPK

Close to AMP IC

EXT_SPK

22.0uH L3402

EXT_SPK

C3409

0.1uF 50V

EXT_SPK

Close to Pin19,20

L3401

22.0uH

R3404 10K

OPT

R3413 10K

EXT_SPK

R3406 10K EXT_SPK

R3407 10K

OPT

R3408

4.7K

EXT_SPK

R3409

4.7K

EXT_SPK

GAIN1

0 0 1

EXT_SPK

C3411

0.47uF 50V

EXT_SPK

C3412

0.47uF 50V

GAIN0

1 0 1

OPT

C3413

0.47uF 50V

OPT

C3414

0.47uF 50V

AMP GAIN

20dB0 26dB 32dB 36dB1

C3415 47uF 25V

EXT_SPK

C3416 47uF 25V

EXT_SPK

EXT_SPK 10K

R3410

EXT_OUT_L

EXT_OUT_R

EXT_SPK

10K

R3411

EXT SPK Jack

EXT_SPK

JK3400

PEJ034-01

3

E_SPRING

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

OPT

VA3400

5.6V

EXT_OUT_R

EXT_OUT_L

EXT_SPK_DET

IR + LED + Digital Eye + Control Key

LGE Internal Use Only

(With IR OUT)

IR OUT TO RS232C

+3.5V_ST

IR_OUT_EU

R3501

1K

IR_OUT

IR_OUT_EU

Q3500

2SC3052

IR_OUT_US

C

E

R3505

0

B

IR_OUT_EU

R3502

10K

IR_OUT

2SC3052

IR_OUT

R3503

Q3501

+3.5V_ST

1K

C

E

B

IR_OUT_EU

R3504

33K

IR_OUT_US

R3504-*1

10K

+3.5V_ST

R4603

R4604

10K

1%

R4601

KEY1

KEY2

BLM18PG121SN1D

C4600

0.1uF

LED_R/BUZZ

R4610

IR

22

IR_Eye_Sensor

SENSOR_SCL

SENSOR_SDA

+3.5V_ST

L4600

+3.5V_ST

R4600

3.3K

+3.3V_Normal

R4605

1K

1000pF

100

R4602 100

C4601

50V

C4604 100pF

IR_Eye_Sensor

R4607

IR_Eye_Sensor

1K

R4608

IR_Eye_Sensor

R4609

C4602

0.1uF 16V

For EMI

R4606

1.8K

50V

100

IR_Eye_Sensor

100

IR_Eye_Sensor

1%

SIGN5600026922222

C4603

0.1uF 16V

SIGN5600026822222

OPT

VA4600

5.6V

VA4601

20V

C4605

18pF

50V

C4606

18pF

50V

SIGN56000271222222

IR_10p

P4600

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

IR_8p P4601

12507WR-08L

1

2

3

4

5

6

7

8

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15_COMM

IE EYE SENSOR / IR OUT

2014.07.11 35

RGB/SCART Switch

LGE Internal Use Only

RGB PC

DSUB_VSYNC

DSUB_HSYNC

DSUB_B+

R3600

2.4K

R3601

10K

OPT

C3600 47pF 50V

OPT C3603 68pF 50V

RGB_PC

R3602 75

NON_CI_CAP_RGB_PC

OPT VA3600

20V

ADUC 20S 02 010L

RGB_VARISTOR

VA3601 20V

OPT

C3604 68pF 50V

NON_CI_CAP_RGB_PC

C3605

18pF

50V

OPT VA3604 20V

ADUC 20S 02 010L

NON_EMI_RGB

EMI_RGB

BLM15BD121SN1

RGB_PC

R3605

2.2K

C3606 18pF

50V

L3601-*1

0 L3601

RGB_PC

MMBD6100

C

RGB_PC R3606

2.2K

D3600

OPT VA3605

5.6V

DSUB/SCART Switch

IC3600

BA7657F

+5V_Normal

A2

A1

NON_CI_CAP_RGB_PC C3607

0.1uF 16V

RGB_DDC_SCL

RGB_DDC_SDA

OPT VA3606

5.6V

SC1_R+/COMP1_Pr+_1

SC1_G+/COMP1_Y+_1

SC1_B+/COMP1_Pb+_1

* SC1_R+

* SC1_G+

* SC1_B+

DSUB_R+

DSUB_G+

DSUB_B+

C3608

6.3V 22uF

C3609

0.01uF 25V

C3610

6.3V 22uF C3611

0.01uF 25V

C3612

6.3V 22uF

C3613

0.01uF 25V

C3614

6.3V 22uF

C3615

0.01uF 25V

C3616

0.01uF 25V

C3617

6.3V 22uF

C3618

0.01uF 25V

C3619

6.3V 22uF

C3620

470pF

HD_SYNC_SIGNAL_DETECTOR

50V

R3609 470K

SC1_FB_1

RED_1_INPUT

GREEN_1_INUT

GROUND1

BLUE_1_INPUT

GROUND2

RED_2_INPUT

GROUND3

GREEN_2_INPUT

GROUND4

BLUE_2_INPUT

VD_1_INPUT

1

2

3

4

5

6

7

8

9

10

11

12

24

23

22

21

20

19

18

17

16

15

14

13

+5V_Normal

HD_1_INPUT

HD_2_INPUT

HD_OUTPUT

RED_OUTPUT

VCC

GREEN_OUTPUT

COMPOSITE_VIDEO_INPUT

COMPOSITE_SYNC_OUTPUT

CONTROL

BLUE_OUTPUT

VD_OUTPUT

VD_2_INPUT

R3611 22

R361801/16W

R3613 75

R3612 68K

R3614 75

R3616

10K

C3621

0.1uF

* neets box issue

5%

C3622

0.01uF 25V

SCART RGB CAP

R3615 2K

C3623

0.01uF 25V

SCART RGB CAP

+3.5V_ST

OPT

C3625

C3624

22uF

10V

R3617 75

SCART RGB CAP

OPT

C3626

0.01uF 25V

DSUB/SC1_OUT_CTRL

SCART Low

RGB

DSUB_HSYNC

DSUB/SC1_HSYNC

SC1_R+/COMP1_Pr+

* DSUB/SC1_R+

SC1_G+/COMP1_Y+

* DSUB/SC1_G+

SC1_B+/COMP1_Pb+

* DSUB/SC1_B+

DSUB/SC1_VSYNC

DSUB_VSYNC

High

Noise Improvement

C3622-*1 0

1/16W 5%

SCART RGB 0ohm

C3626-*1 0

1/16W 5%

SCART RGB 0ohm

C3623-*1 0

1/16W 5%

DSUB_G+

DSUB_R+

OPT

C3602 47pF 50V

C3601 47pF 50V

OPT

RGB_PC

R3603 75

RGB_PC

R3604 75

ADUC 20S 02 010L

RGB_VARISTOR

VA3602 20V

ADUC 20S 02 010L

RGB_VARISTOR

VA3603 20V

NON_EMI_RGB

EMI_RGB

NON_EMI_RGB

EMI_RGB

BLM15BD121SN1

L3602-*1 0

L3602

BLM15BD121SN1

L3600-*1 0

L3600

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

11

6

1

P3600

SPG09-DB-010

RGB_PC

SHILED

16

+3.3V_Normal

RGB_PC

R3607 10K

OPT

VA3607

5.6V

ADMC 5M 02 200L

RGB_PC

R3608 1K

DSUB_DET

PWM3

* DSUB/SC1_OUT_CTRL

R3610

4.7K

Q3600

MMBT3904(NXP)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14 TUNER_EU T/C_T2/C/S2_CHINA

LGE Internal Use Only

A1

TUNER_T/C

TU3700 TDJH-G301D

47

SHIELD

TU3700-*1 TDJH-H101F

47

SHIELD

+3.3V

1

NC_1

2

IF_AGC

3

SCL_RF

4

SDA_RF

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

B1

TUNER_NTSC

B1[+3.3V]

1

NC_1

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_2

8

NC_3

9

B1

TU_GND_B

A1

TUNER_AJ_T2

TU3702 TDJM-G305D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

B1

47

SHIELD

+3.3V

NC_1

NC_2

SCL_RF

SDA_RF

NC_3

NC_4

SIF

CVBS

NC_5

+3.3V_RF

ERROR

GND_1

MCLK

SYNC

VAILD

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

+3.3V_DEMOD

SCL_DEMOD

+1.2V_DEMOD

NC_6

SDA_DEMOD

B1

TU_GND_B

A1

TUNER_CHINA

TU3703 TDJM-C401D

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

B1

47

SHIELD

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

+3.3V_RF

ERROR

GND_1

MCLK

SYNC

VAILD

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

+3.3V_DEMOD

SCL_DEMOD

+1.2V_DEMOD

NC_6

SDA_DEMOD

B1

TU_GND_B

A1

TUNER_T2/C/S2

TU3701 TDJM-G301D

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

B1

47

SHIELD

+3.3V

1

NC_1

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

SIF

8

CVBS

9

NC_2

+3.3V_RF

ERROR

GND_1

MCLK

SYNC

VALID

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

+3.3V_DEMOD

SCL_DEMOD

+1.2V_DEMOD

NC_3

SDA_DEMOD

LNB

GND

B1

T2_OR_CHINA

C3718 100pF

TU_GND_B

C3708 100pF

50V

IF_AGC

C3703

0.1uF

16V

TU_NON_ATSC_NON_CHINA

T2_OR_CHINA

50V

T2_OR_CHINA

C3716

0.1uF 16V

T2_OR_CHINA

C3702

20pF

50V

T2_OR_CHINA

C3704 20pF 50V

LNB

C3709

0.1uF 50V

+3.3V_LNA

C3714

0.1uF 16V

IF_AGC

should be guarded by ground

R3714

0

IF_AGC_MAIN

R3709

10

TU_ATSC

R3709-*1

0

R3710

10

TU_ATSC

R3710-*1

0

+3.3V_TU

C3722

0.1uF 16V

T2_OR_CHINA

R3719

10

T2_OR_CHINA

22

R3711

LNB

R3707

0

T2_OR_CHINA

R3712

22

T2

AR3700

0

1/16W

T2

AR3701

0

1/16W

T2

AR3702

0

1/16W

DEMOD_RESET

DEMOD_SCL

LNB_TX

DEMOD_SDA

LNB_OUT

RF_SW_OPT

C2603

0.1uF 16V

Close to TUNER

TU_NON_ATSC

C3705 20pF

FE_TS_ERR FE_TS_CLK FE_TS_SYNC FE_TS_VAL

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3]

FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

T2_OR_CHINA

C3721 100pF 50V

T2_OR_CHINA

C3713 100pF 50V

RF_SW_OPT

R2603

0

TU_I2C_NON_FILTER

TU_NON_ATSC C3707 20pF

+3.3V_DEMOD

T2_OR_CHINA

C3723

0.1uF 16V

+1.2V_DEMOD

T2_OR_CHINA C3729

0.1uF 16V

RF_SWITCH_CTL

R3738

33

R3739

33

CHINA

AR3700-*1 47

CHINA

AR3701-*1 47

CHINA

AR3702-*1 47

FE_TS_DATA[0-7]

TU_NON_ATSC

C3710 20pF

TU_I2C Multi option

TU_ATSC

+3.3V_TU

TU_NON_ATSC

R3716

R3717

1K

TU_NON_ATSC

C3711 20pF

CHINA C3726

0.1uF 16V

close to TUNER

+3.3V_LNA

C3739 22uF 10V

+3.3V_TU

T2_OR_CHINA

C3725

1uF 10V

GND seperation

TU_GND_B

+3.3V_TU

T2_OR_CHINA

C3724

0.1uF 16V

TU_ATSC

R3716-*1

C3705-*1

1.8K

18pF

TU_ATSC

R3717-*1

1.8K

C3707-*1 18pF

1K

TU_SCL

TU_SDA

IF_P_MSTAR

IF_N_MSTAR

+3.3V_TU

L3701

UBW2012-121F

C3706

0.1uF 16V

ADJ/NC

EN

GND

AP7361-Y-13

1

2

3

R3723

3.3K

Vo=0.8*(1+R1/R2)

TU_GND_B

C3701

1000pF

630V

TU_GND_B

R3740

0

T2_OR_CHINA

L3702

BLM18PG121SN1D

T2_OR_CHINA

C3734

10uF

10V

TU_I2C_FILTER

R3738-*1

MLG1005SR27JT

TU_I2C_FILTER

R3739-*1

MLG1005SR27JT

CHINA R3724

4.7K

C3730 22uF 10V

T2_OR_CHINA

IC3701

+3.3V_DEMOD

T2_OR_CHINA

C3727

0.1uF 16V

OPT

R3726

0

+3.3V_TU

CHINA

R3725

470

E

B

C

B

L3704

UBW2012-121F

C3731

0.1uF 16V

OUT

5

IN

4

CHINA R3728 82

CHINA_NXP

Q3700

MMBT3906(NXP)

C

CHINA_KEC Q3700-*1 2N3906S-RTK

E

+3.3V_Normal

C3733 22uF 10V

T2_OR_CHINA

T2_OR_CHINA R3733 12K 1%

R1

T2_OR_CHINA R3734 22K 1%

R2

TU_SIF

C3738

0.1uF 16V

+1.2V_DEMOD

C3732

0.1uF 16V

+3.3V_TU

CHINA R3732

220

E

B

R3731

C

B

E

CHINA R3735 220

CHINA_NXP

Q3701 MMBT3906(NXP)

C

OPT

0

CHINA_KEC Q3701-*1 2N3906S-RTK

T2_OR_CHINA R3737 1 T2_OR_CHINA C3737 10uF 10V

TU_CVBS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

ERROR & VALID PIN

FE_TS_VAL

FE_TS_ERR

L14_CA_M1A

T2_OR_CHINA

R3736

0

FE_TS_VAL_ERR

GPIO must be added.

2014/05/22

TUNER_T2CS2 37

RTC BLOCK

LGE Internal Use Only

+3.5V_ST

RTC

C3800

3.3pF

C3801

3.3pF

RTC

M3800

BATTERY

RTC

X3800

32.768KHz R3800

1K

1

2

RTC

OSCI

OSCO

VBAT

VSS

RTC

IC3800

PCF8523T

1

2

3

4

VDD

8

INT1/CLKOUT

7

SCL

6

SDA

5

C3802

0.1uF

C3804 8pF OPT

RTC

OPT

C3803 10uF 10V

C3805 8pF OPT

R3805

RTC_NEC_MICOM

22

R3806

RTC_NEC_MICOM

22

R3803

RTC_NON_NEC_MICOM

22

R3804

22

RTC_NON_NEC_MICOM

CLOCK_SCL

CLOCK_SDA

I2C_SCL

I2C_SDA

CLOCK_SCL

CLOCK_SDA

I2C_SCL

I2C_SDA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15 Commercial

RTC

38

TP for EU

LGE Internal Use Only

RF_SWITCH_CTL

IF_AGC_SEL

SPDIF_OUT

AV2_CVBS_DET

5V_DET_HDMI_2

HDMI_ARC CK+_HDMI2 CK-_HDMI2 D0+_HDMI2 D0-_HDMI2 D1+_HDMI2 D1-_HDMI2 D2+_HDMI2 D2-_HDMI2 DDC_SDA_2 DDC_SCL_2 HPD2

HP_ROUT HP_LOUT

SIDE_HP_MUTE

HP_DET

CI_DET /CI_CD1 /CI_CD2

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

SENSOR_SCL SENSOR_SDA

FRC_RESET

DEMOD_RESET

UART_RX UART_TX

/VBUS_EN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

TP_EU 41

2014/05/22

SCART_COMPONENT

LGE Internal Use Only

REAR COMPONENT PHONE JACK(EAX65149705)

COMPONENT JK4301

PEJ029-02

G_SPRING

8

E_SPRING

3

R_SPRING

4

T_SPRING

5

B_TERMINAL

7

T_TERMINAL

6

ZD4300-*1

ESD_COMP_ZENER_KEC

ZD4301-*1

ESD_COMP_ZENER_KEC

ESD_COMP_ZENER_ROHM

ZD4301

VA4309

5.6V OPT

VA4310

5.5V

ESD_COMP

VA4311

5.5V

ESD_COMP

ZD4300

R43 06

75

R43 07

75

R4308

75

+3.3V_Normal

R4300

10K

OPT

C4300

0.1uF 16V

R4310

1K

COMP2_Pr+

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

* COMP2_Y+

AV_CVBS_DET

* Rear_COMP_DET

SCART AMP

DTV/MNT_L_OUT

SCART1_Lout

EU

R4323

2.2K

EU

C4306

OPT

10uF

R4324

16V

470K

330pF C4307

EU

CLOSE TO MSTAR

220K

R4326

EU

R4327 33K

C4308 33pF

EU

R4328

5.6K

M13.2V

EU

C4309

VCC

OUT2

IN2-

IN2+

0.1uF 50V

EU

R4330

EU

R4337

R4334

470K

C4311

330pF

2.2K

EU

OPT

EU

C4313

10uF

16V

SCART1_Rout

EU

R4332

33K

10K

EU

C4310

33pF

EU

R4331

5.6K

EU

R4333

220K

DTV/MNT_R_OUT

IC4300

AZ4580MTR-E1

OUT1

1

IN1-

2

EU R4329 10K

EU

IN1+

3

VEE

4

8

EU

7

6

5

CLOSE TO MSTAR

FULL SCART

EU

JK4300

PSC008-03

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

VA4302

5.5V

ESD_SCART

VA4303 20V ESD_SCART

ESD_SCART VA4305

20V

VA4306 20V ESD_SCART

VA4307 20V ESD_SCART

VA4308

5.6V ESD_SCART

VA4304

5.6V ESD_SCART

VA4301

5.6V OPT

VA4300

5.6V OPT

VA4313

5.6V OPT

VA4312

R4303 75

R4304 75

R4301

75

R4302

470K

R4305 470K

EU C4301 1000pF 50V

EU C4302 1000pF 50V

5.6V

R4309 75

C4315

0.1uF 25V

TR_NXP Q4303 MMBT3904(NXP)

SCART_MUTE

C4314

0.1uF

R4341

470K

R4342 470K

FET_AOS

Q4304-*1

AO3435

S

G

FET_TOSHIBA

SSM3J332R

R4343 10K

R4344 10K

D

Q4304

S

G

TR_KEC

Q4303-*1 2N3904S

SCART_MUTE

R4347

10K

R4345

12K

R4346

12K

D

C4316 10uF

25V

OPT

B

+3.5V_ST

C

E

B

COMP2_R_IN

COMP2_L_IN

C

SCART_MUTE_KEC

Q4301-*1 2N3904S

E

SCART_MUTE

C

SCART_MUTE_KEC

Q4302-*1 2N3904S

E

+3.3V_Normal

R4311

10K

R4312 1K

EU

C4303 47pF 50V

OPT

SIGN56000286

EU

SC1/COMP1_DET

SC1/AV2_CVBS_IN

* SC1/AV_CVBS_IN

EU R4313 75

R4314 10

EU

C4304 68pF 50V

SC1_R+/COMP1_Pr+_1 * SC1_R+

SC1_G+/COMP1_Y+_1 * SC1_Y+

SC1_B+/COMP1_Pb+_1 * SC1_B+

EU

C4305 68pF 50V

R4315 75

EU

R4316

15K

VA4314 20V ESD_SCART

R4318 10K

EU

R4317 10K

DTV/MNT_VOUT

EU

R4319

22

EU

R4320

3.9K

EU

R4321 12K

R4322 12K

EU_SC_Lite

R4348

0

R4349

0

EU_SC_Int

+3.3V_Normal

EU_SC_Lite

R4325

10K

SC1_ID_COMM * SC1_ID

SC1/COMP1_L_IN

SC1/COMP1_R_IN

DTV/MNT_L_OUT

DTV/MNT_R_OUT

EU_SC_Lite

Q4300

MMBT3904(NXP)

SC1_FB

SC1_FB_Int

SC1_FB_1

SC1_FB_Int

+3.3V_Normal

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

SCART_MUTE_NXP

Q4301

MMBT3904(NXP)

DTV/MNT_R_OUT

SCART_MUTE_NXP

Q4302

MMBT3904(NXP)

PC/COMPONENT AUDIO

JK4302

PEJ027-04

6A

7A

7B

6B

+13.2V M13.2V

L4300

UBW2012-121F

120OHM

SIGN56000276

VA4315

VA4316

R4339

33K

R4340

12K

B

5.6V OPT

SIGN56000274

C

E

E_SPRING

3

T_TERMINAL1

B_TERMINAL1

R_SPRING

4

T_SPRING

5

B_TERMINAL2

T_TERMINAL2

C4312

0.1uF 25V

SCART_MUTE

R4335

2K

SCART_MUTE

R4336

2K

SIGN56000273

R4338

10K

M13.2V FET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

@Entit

SCART_COMPONENT_EU

14/06/23

@pageL

NAND FLASH MEMORY

LGE Internal Use Only

AR103

R107

22

/F_RB

/PF_OE

/PF_CE0

R108

+3.3V_Normal

AR104

NAND_FLASH_2G_HYNIX

EAN60708703

H27U2G8F2DTR-BD

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

NAND_FLASH_2G_TOSHIBA

TC58NVG1S3HTA00

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

22

R102

3.3K

IC102-*1

EAN60991002

IC102-*3

/PF_CE1

PF_ALE /PF_WE /PF_WP

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

1K

OPT

1K

+3.3V_Normal

R109

3.9K

C101

0.1uF

OPT

R105

1K

R106 1K

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

NAND_FLASH_1G_HYNIX

IC102

H27U1G8F2CTR-BC

EAN35669103

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NAND_FLASH_1G_SS

EAN61857001

IC102-*4

K9F1G08U0D-SCB0

+3.3V_Normal

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

0.1uF

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

AR101

C102 10uF

10V

C103

AR102

22

R111

R112

22

PM MODEL OPTION

+3.5V_ST

LCD R177 10K

PDP R176 10K

I2C

R140 1K

PM_MODEL_OPT_0

- HIGH : LCD

- LOW :: PDP PM_MODEL_OPT_1

- Not Use (Ready)

PM_MODEL_OPT_0

+3.3V_Normal

R144

R141

2.2K

1K

AT24C256C-SSHL-T

A0

CI_DET

/PCM_CD

A1

A2

GND

DEMOD_SCL DEMOD_SDA

I2C_SCL

I2C_SDA

R145

2.2K

NVRAM_ATMEL

IC104-*1

1

2

3

4

EAN61133501

R113 22 R114 22

+3.3V_Normal

R197 0 R178 22

PCM_A[0-14]

PCM_D[0-7]

I2C_SDA I2C_SCL AMP_SDA AMP_SCL

VCC

8

WP

7

SCL

6

SDA

5

5V_DET_HDMI_4

T2_OR_CHINA

SC1/COMP1_DET

RF_SWITCH_CTL

R180

10K

I2C_SCL I2C_SDA

URSA/VCOM_SDA

URSA/VCOM_SCL

SENSOR_SCL SENSOR_SDA

AMP_SCL AMP_SDA

TU_SCL TU_SDA

AV_CVBS_DET

AV2_CVBS_DET

COMP2_DET

DEMOD_RESET

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2

/MHL_OCP_DET

FRC_RESET

HP_DET

MHL_OCP_EN

AMP_RESET

MODEL_OPT_4

/CI_CD1 /CI_CD2

USB1_CTL MODEL_OPT_5 MODEL_OPT_6

USB1_OCD

/PCM_IORD /PCM_IOWR /PCM_IRQA

/PCM_OE

/PCM_REG

PCM_RST

/PCM_WAIT

/PCM_WE

DIMMING

PWM_DIM

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7] PCM_A[8] PCM_A[9] PCM_A[10] PCM_A[11] PCM_A[12] PCM_A[13] PCM_A[14]

/PCM_CD /PCM_CE

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3] PCM_D[4] PCM_D[5]

PCM_D[6] PCM_D[7]

R157 100

R156

10K

R103

10K

R184 22 R183 22

R18233

R18133

PWM2

PWM0

PWM3

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

RXA4+ RXA4RXA3+

RXA3RXACK+ RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+ RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

M1A_256M_UO4

IC101

LGE2134(256M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

RP TN TP RN

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

IF_AGC

SIFM SIFP

IM IP

XIN

XOUT

M1A_256M_UO4

IC101

LGE2134(256M)

V10

CI_TS_DATA[0]

T14

CI_TS_DATA[1]

T13

CI_TS_DATA[2]

U13

CI_TS_DATA[3]

V15

CI_TS_DATA[4]

U12

CI_TS_DATA[5]

V13

CI_TS_DATA[6]

U14

CI_TS_DATA[7]

T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1 C2 C1 B2

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2 V1

AA2 Y2

R189 33 R188 33

R190 33

R192 100

SPDIF_OPTIC

C115 0.1uF C116 0.1uF

ANALOG SIF Close to MSTAR

R194 0

TUNER_IF_0_ohm

R195 0

TUNER_IF_0_ohm

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

TU_SIF

Close to MSTAR

R187

1M

XTAL_LOAD_30pF

C113-*1

XTAL_LOAD_30pF

C114-*1

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

PWM_PM/GPIO200

from CI SLOT

CI_TS_CLK CI_TS_DATA[0-7] CI_TS_SYNC CI_TS_VAL

Internal demod out

FE_TS_DATA[0]

/SPI_CS SPI_SCK SIDE_HP_MUTE SPI_SDI SPI_SDO

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

5V_DET_HDMI_2 SPDIF_OUT

SOC_RESET

IR RGB_DDC_SCL RGB_DDC_SDA

PWM0

PWM1

PWM2

PWM3

PCM_5V_CTL

PF_ALE

/PF_CE0

/PF_CE1

/F_RB

/PF_OE

/PF_WE

/PF_WP

IF

C117

0.1uF

IF

C118

0.1uF

30pF

R198 47 R199 47

OPT C121

100pF

C122 33pF

TU_IF_CAP

XTAL_LOAD_22pF

X101

C113 22pF

24MHz

C114 22pF

XTAL_LOAD_22pF

XTAL_LOAD_27pF

C113-*2

XTAL_LOAD_27pF

C114-*2

IF_AGC

TU_SIF

+3.3V_Normal

IF_AGC

L101 BLM18PG121SN1D

R193

10K

TU_SIF C123 1000pF

TU_IF_CAP C124 33pF

XTAL_LOAD_18pF

27pF

XTAL_LOAD_18pF

27pF

IF_N_MSTAR

IF_P_MSTAR

C113-*3 18pF

C114-*3

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

FE_TS_CLK FE_TS_DATA[0-7]

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_DATA[0]

IF_AGC C119

0.1uF

IF_AGC R196 0

TU_SIF

DTV_IF

18pF

KEY1 KEY2 PM_MODEL_OPT_0 PANEL_CTL SCART1_MUTE

MHL_CD_SENSE /VBUS_EN

PM_LED

POWER_DET AMP_MUTE INV_CTL POWER_ON/OFF_1 RL_ON /FLASH_WP LED_R/BUZZ PM_TXD PM_RXD

IF_AGC_MAIN

IF_AGC

C120

0.047uF 25V

TUNER_IF_100_ohm

R194-*1

100 TUNER_IF_100_ohm

R195-*1

100

For KR/US models

XTAL_LOAD_20pF

C113-*4 20pF

XTAL_LOAD_20pF

C114-*4 20pF

XTAL_LOAD_24pF

C113-*5 24pF

XTAL_LOAD_24pF

C114-*5 24pF

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

M1A_128M_UO4

IC101-*1

LGE2133(128M)

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

M1A_256M_AVS+

IC101-*2

LGE2136(256M)

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_RX/GPIO_PM[5]/GPIO12

M1A_128M_UO4

IC101-*1

LGE2133(128M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

M1A_256M_AVS+

IC101-*2

LGE2136(256M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

PM_UART_TX/GPIO_PM[1]/GPIO8

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

RP TN TP RN

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

IF_AGC

SIFM SIFP

IM IP

XIN

XOUT

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

RP TN TP RN

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

IF_AGC

SIFM SIFP

IM IP

XIN

XOUT

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

M1A_128M_AVS+

IC101-*3

LGE2135(128M)

U19

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1 C2 C1 B2

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2 V1

AA2 Y2

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1 C2 C1 B2

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2 V1

AA2 Y2

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_RX/GPIO_PM[5]/GPIO12

M1A_128M_AVS+

IC101-*3

LGE2135(128M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PM_UART_TX/GPIO_PM[1]/GPIO8

TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

DDCA_CK/UART0_RX DDCA_DA/UART0_TX

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

TS0CLK/GPIO92

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103

TS1SYNC/GPIO102

HWRESET

IRIN/GPIO5

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

PM_LED/GPIO4

RP TN TP RN

IF_AGC

SIFM SIFP

IM IP

XIN

XOUT

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1 C2 C1 B2

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2 V1

AA2 Y2

<CHIP Config> (SPI_SDI, PM_LED, PWM_PM)

LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI

+3.5V_ST

22

PCM_A[0-7]

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

NAND_FLASH_1G_TOSHIBA_24n

TC58NVG0S3HTA00

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

EAN61508002

IC102-*2

OPT

R115

4.7K

R116

4.7K

EEPROM

BR24G256FJ-3

EAN62389502

A0

A1

A2

GND

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

OPT

R117

R165

4.7K

2.7K

R118

R121

4.7K

2.7K

NVRAM_RHOM

IC104

1

2

A0’h

3

4

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

LED_R/BUZZ

PM_LED

OPT

SPI_SDI

+3.3V_Normal

VCC

8

C105

0.1uF

WP

7

SCL

6

SDA

5

OPT C104 8pF

OPT C106 8pF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

MAIN1_EU 1

2014/05/20

MODEL OPTION

LGE Internal Use Only

IF_AGC_SEL

R201

OPT

R202

OPT

R203

OPT OPT

R204 100

OPT

R225 100

OPT

R228 100

OPT

R230 100

OPT

R229 100

+3.3V_Normal

1K

MO_DUALSTREAM

R290 100 100 100

1K

R293

MO_DUALSTREAM_NON

DDR_EXT:256

MO_S/W_EU/AJ

R291 1K

R222 1K

R221 1K

MO_S/W_TW/CN

R294 1K

DDR_EXT:128 or NON

R224 1K

R223 1K

MO_M120

DDR_EXT:128

R206 1K

R208 1K

MO_DVB_T2/C/S2

MO_DVB_T/C

MO_M120_NON

DDR_EXT:256 or NON

R207 1K

R209 1K

MO_S/W_AJ

R226 1K

R211 1K

MO_S/W_NON_AJ

R212 1K

R227 1K

MO_HD

MO_FHD

MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2 AUD_LRCH MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6 AUD_LRCK

SOC_RESET

POWER_DET_RESET

R266

470

STby 3.5V

+3.5V_ST

OPT

C200

C202

OPT

4.7uF

4.7uF 10V

10V

R200 470K

R217

0.1uF

0

C201

SOC_RESET

16V

+3.5V_ST

BLM18PG121SN1D

L206

L207

L208

C289 10uF

10V

C288 10uF

10V

C240

0.1uF 16V

C286

0.1uF 16V

AVDD_DMPLL

C205

0.1uF 16V

C287 10uF

10V

AVDD_NODIE

C252

0.1uF 16V

AVDD_AU33

C241

0.1uF 16V

Normal Power 3.3V

L204

BLM18PG121SN1D

C255

C259

0.1uF

16V

C284 10uF

10V

C204 10uF

10V

C209

0.1uF 16V

C235

0.1uF 16V

C245

0.1uF 16V

VDD33

DDR3 1.5V

+1.5V_DDR+3.3V_Normal

C278 C248

C266

10uF

0.1uF 10V

16V

AVDD_DDR1:55mA AVDD_DDR0:55mA

0.1uF

0.1uF 16V

C207

VDDC 1.05V

+1.10V_VDDC

+1.10V_VDDC+1.10V_VDDC

+1.10V_VDDC

VDDC : 2026mA

C254

C228

1uF

10uF

10V

16V

10V

C275 10uF

C277

1uF 10V

10V

C280

C283

0.1uF

1uF

16V

10V

C296 10uF

10V

C210

0.1uF

C279

0.1uF 16V

16V

MODEL OPTION

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

AUD_LRCH MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

AUD_LRCK

* Dual Stream is only Korea 3D spec

Memory OPTION

Memory

INT+EXT

128M Only

256M Only

128M+128M

PIN NO.

Auto Det

J5

MO_FHD MO_S/W_NON_AJ

H19

G20

MO_DVB_T/C

G19

MO_M120_NON DDR_EXT:256 or NON DDR_EXT : 128

U6 K5

MO_S/W_TW/CN

K4

L5

MODEL_OPT_4

LOW

0

1

0

0128M+256M

0

1

0

Country Option

MODEL_OPT_1

TW

EU

CN

0

1

MODEL_OPT_6

0

1

101256M+256M

MODEL_OPT_5

0

1

0

1AJ

HIGH

MO_HD MO_S/W_AJ

MO_DVB_T2/C/S2 MO_M120

MO_S/W_EU/AJ DDR_EXT : 256DDR_EXT:128 or NON

MO_DUALSTREAMMO_DUALSTREAM_NON

COMP2_L_IN

COMP2_R_IN

ATV_1000P

C211

1000pF

50V

H/P OUT

ATV_1000P

C215

1000pF

50V

HDMI

HDMI_ARC D0-_HDMI4 D0+_HDMI4 D1-_HDMI4 D1+_HDMI4 D2-_HDMI4 D2+_HDMI4 CK-_HDMI4 CK+_HDMI4

CEC_REMOTE_S7

DDC_SCL_2 DDC_SDA_2 DDC_SCL_4 DDC_SDA_4 HPD2 HPD4 D0-_HDMI2 D0+_HDMI2 D1-_HDMI2 D1+_HDMI2 D2-_HDMI2 D2+_HDMI2 CK-_HDMI2 CK+_HDMI2

HP_LOUT HP_ROUT

SC1/COMP1_L_IN

AV2_L_IN

SC1/COMP1_R_IN

AV2_R_IN

SCART1_Lout SCART1_Rout

AUDIO OUT

BLM18PG121SN1D

L214

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

HDMI1_ARC C212 1uF

C214 2.2uF C203 2.2uF C216 2.2uF C217 2.2uF C206 2.2uF C219 2.2uF

C213

C220

1uF

4.7uF

M1A_128M_UO4

IC101-*1

LGE2133(128M)

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

HDMI1_ARC

R231 0 R214 10 R215 10

SCART_JACK

AV2

SCART_JACK

AV2

CVBSOUT1

CVBS0 CVBS1 CVBS2

VCOM

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

AA9

AA7

AA6

AUVRM

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

LGE2134(256M)

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P RXC2N

W9

RXC2P RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31 DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

M1A_256M_UO4

IC101

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

M1A_256M_AVS+

IC101-*2

LGE2136(256M)

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31 DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

AA7

AA6

CVBSOUT1

CVBS0 CVBS1 CVBS2

VCOM

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

CVBSOUT1

USB0_DM USB1_DM USB0_DP USB1_DP

HSYNC0 VSYNC0

SOGIN1

Close to MSTAR

CVBS0 CVBS1 CVBS2

BIN0M BIN0P GIN0M GIN0P RIN0M RIN0P

BIN1M BIN1P GIN1M GIN1P RIN1M RIN1P

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

T6 V5 U5 T5 V4

VCOM

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

C2360.047uF C2370.047uF C2380.047uF

*CAPTION OPT:SCART_JACK/COMM_RGB

C221 0.047uF C222 0.047uF R233 33 C223 0.047uF C224 0.047uF

C226 0.047uF

C227 0.047uF C229 0.047uF C230 0.047uF C231 0.047uF C232 0.047uF C233 0.047uF R243 33 C234 1000pF

OPT

M4 W7 Y8 W8 Y9

AA9

W9

AA7

Y7 N2 E3 E2 W6

AA6

L4 Y6 F1 G3 G1 G2 H3 H2 F3 F2

U4 T4 P2 R2 T1 R3 R1 T3 U2 V3 T2

TU_CVBS

SCART/AV2

M1A_128M_AVS+

LGE2135(128M)

ARC0 RXC0N RXC0P RXC1N RXC1P RXC2N RXC2P RXCCKN RXCCKP CEC/GPIO6 DDCDA_CK/GPIO27 DDCDA_DA/GPIO28 DDCDC_CK/GPIO31 DDCDC_DA/GPIO32 HOTPLUGA/GPIO23 HOTPLUGC/GPIO25 RXA0N RXA0P RXA1N RXA1P RXA2N RXA2P RXACKN RXACKP

EAR_OUTL EAR_OUTR AUL1 AUL2 AUL3 AUR1 AUR2 AUR3 AUOUTL0 AUOUTR0 AUVAG

R232 68

R234 68 R235 33 R236 68C225 0.047uF R237 33

R238 68 R239 33 R240 68 R241 33 R242 68

IC101-*3

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

R24433 R24533 R24633 R24768C2390.047uF

TU_CVBS

SCART/AV2

CVBSOUT1

CVBS0 CVBS1 CVBS2

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

M1A_256M_UO4

IC101

LGE2134(256M)

AVDD_AU33

+1.5V_DDR

AVDD_NODIE

VDD33

AVDD_NODIE

VDD33

AVDD_DMPLL

+1.10V_VDDC

C260

1uF 10V

OPT C242 1000pF 50V

DTV/MNT_VOUT

TU_CVBS SC1/AV2_CVBS_IN COMP2_Y+/AV_CVBS_IN

OPT

R213

10K

WIFI_DM SIDE_USB1_DM WIFI_DP SIDE_USB1_DP

SC1_B+/COMP1_Pb+

SC1_G+/COMP1_Y+

SC1_R+/COMP1_Pr+ SC1_ID SC1_FB

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

+3.3V_Normal

OPT

R210

10K

R295 0

OPT

R218

R216

10K

OPT C208 15pF

50V

WIFI_DM WIFI_DP

I2S_I/F

AUD_SCK AUD_MASTER_CLK AUD_LRCH

AUD_LRCK

COMP2_Pr+

VDD33

AVDD5V_MHL

T6 V5 U5 T5 V4

VCOM

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

GND_EFUSE

U3 A6 A13 A15 A18 B12 B14 B16 B17 B19 B20 C9 C10 C21 D9 E20 F9 F11 F13 F15 F17 F19 F21 G8 G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 H7 H8 H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

AUVRM

R4 L11 L13 M11 K13

C5 K12 L12

C6 K14 L14

B5

B6

R8

R9

L7

L8

P8

K9

R5 P11

C7 M13

R6

A7 M12

B7 M14 N11 N12 N13 N14 N15 P12 P13 P14

L9

AA10

R4 L11 L13 M11 K13

C5 K12 L12

C6 K14 L14

B5

B6

R8

R9

L7

L8

P8

K9

R5 P11

C7 M13

R6

A7 M12

B7 M14 N11 N12 N13 N14 N15 P12 P13 P14

L9

AA10

M1A_128M_UO4

IC101-*1

LGE2133(128M)

AVDD_AU33 AVDD_DDR0_CLK AVDD_DDR1_CLK AVDD_DDR0_CMD AVDD_DDR1_CMD AVDD_DDR0_D_1 AVDD_DDR0_D_2 AVDD_DDR0_D_3 AVDD_DDR1_D_1 AVDD_DDR1_D_2 AVDD_DDR1_D_3 AVDD_DRAM_1 AVDD_DRAM_2 AVDD_DVI_USB_MPLL_1 AVDD_DVI_USB_MPLL_2 AVDD_MOD_1 AVDD_MOD_2 AVDD_NODIE AVDD_PLL AVDD3P3_DMPLL AVDDL_MOD DVDD_DDR_1 DVDD_DDR_2 DVDD_NODIE DVDD_RX_1_1 DVDD_RX_1_2 DVDD_RX_2_1 DVDD_RX_2_2 VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDP

AVDD5V_MHL

M1A_256M_AVS+

IC101-*2

LGE2136(256M)

AVDD_AU33 AVDD_DDR0_CLK AVDD_DDR1_CLK AVDD_DDR0_CMD AVDD_DDR1_CMD AVDD_DDR0_D_1 AVDD_DDR0_D_2 AVDD_DDR0_D_3 AVDD_DDR1_D_1 AVDD_DDR1_D_2 AVDD_DDR1_D_3 AVDD_DRAM_1 AVDD_DRAM_2 AVDD_DVI_USB_MPLL_1 AVDD_DVI_USB_MPLL_2 AVDD_MOD_1 AVDD_MOD_2 AVDD_NODIE AVDD_PLL AVDD3P3_DMPLL AVDDL_MOD DVDD_DDR_1 DVDD_DDR_2 DVDD_NODIE DVDD_RX_1_1 DVDD_RX_1_2 DVDD_RX_2_1 DVDD_RX_2_2 VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDP

AVDD5V_MHL

GND_EFUSE

U3

AUVRM

A6

GND_1

A13

GND_2

A15

GND_3

A18

GND_4

B12

GND_5

B14

GND_6

B16

GND_7

B17

GND_8

B19

GND_9

B20

GND_10

C9

GND_11

C10

GND_12

C21

GND_13

D9

GND_14

E20

GND_15

F9

GND_16

F11

GND_17

F13

GND_18

F15

GND_19

F17

GND_20

F19

GND_21

F21

GND_22

G8

GND_23

G9

GND_24

G10

GND_25

G11

GND_26

G12

GND_27

G13

GND_28

G14

GND_29

G15

GND_30

G16

GND_31

G17

GND_32

G18

GND_33

H7

GND_34

H8

GND_35

H9

GND_36

H10

GND_37

H11

GND_38

H12

GND_39

H13

GND_40

H14

GND_41

H15

GND_42

H16

GND_43

H17

GND_44

H18

GND_45

J7

GND_46

J8

GND_47

J9

GND_48

J10

GND_49

J11

GND_50

J12

GND_51

J13

GND_52

J14

GND_53

K8

GND_54

K10

GND_55

K11

GND_56

L10

GND_57

M5

GND_58

M7

GND_59

M8

GND_60

M9

GND_61

M10

GND_62

N4

GND_63

N5

GND_64

N6

GND_65

N7

GND_66

N8

GND_67

N9

GND_68

N10

GND_69

P4

GND_70

P5

GND_71

P6

GND_72

P7

GND_73

P9

GND_74

P10

GND_75

P15

GND_76

P16

GND_77

P17

GND_78

P18

GND_79

R10

GND_80

R11

GND_81

R12

GND_82

R13

GND_83

R14

GND_84

K7

M1A_128M_AVS+

IC101-*3

LGE2135(128M)

U3

AUVRM

A6

GND_1

A13

GND_2

A15

GND_3

A18

GND_4

B12

GND_5

B14

GND_6

B16

GND_7

B17

GND_8

B19

GND_9

B20

GND_10

C9

GND_11

C10

GND_12

C21

GND_13

D9

GND_14

E20

GND_15

F9

GND_16

F11

GND_17

F13

GND_18

F15

GND_19

F17

GND_20

F19

GND_21

F21

GND_22

G8

GND_23

G9

GND_24

G10

GND_25

G11

GND_26

G12

GND_27

G13

GND_28

G14

GND_29

G15

GND_30

G16

GND_31

G17

GND_32

G18

GND_33

H7

GND_34

H8

GND_35

H9

GND_36

H10

GND_37

H11

GND_38

H12

GND_39

H13

GND_40

H14

GND_41

H15

GND_42

H16

GND_43

H17

GND_44

H18

GND_45

J7

GND_46

J8

GND_47

J9

GND_48

J10

GND_49

J11

GND_50

J12

GND_51

J13

GND_52

J14

GND_53

K8

GND_54

K10

GND_55

K11

GND_56

L10

GND_57

M5

GND_58

M7

GND_59

M8

GND_60

M9

GND_61

M10

GND_62

N4

GND_63

N5

GND_64

N6

GND_65

N7

GND_66

N8

GND_67

N9

GND_68

N10

GND_69

P4

GND_70

P5

GND_71

P6

GND_72

P7

GND_73

P9

GND_74

P10

GND_75

P15

GND_76

P16

GND_77

P17

GND_78

P18

GND_79

R10

GND_80

R11

GND_81

R12

GND_82

R13

GND_83

R14

GND_84

K7

R4 L11 L13 M11 K13

C5 K12 L12

C6 K14 L14

B5

B6

R8

R9

L7

L8

P8

K9

R5 P11

C7 M13

R6

A7 M12

B7 M14 N11 N12 N13 N14 N15 P12 P13 P14

L9

AA10

AVDD_AU33 AVDD_DDR0_CLK AVDD_DDR1_CLK AVDD_DDR0_CMD AVDD_DDR1_CMD AVDD_DDR0_D_1 AVDD_DDR0_D_2 AVDD_DDR0_D_3 AVDD_DDR1_D_1 AVDD_DDR1_D_2 AVDD_DDR1_D_3 AVDD_DRAM_1 AVDD_DRAM_2 AVDD_DVI_USB_MPLL_1 AVDD_DVI_USB_MPLL_2 AVDD_MOD_1 AVDD_MOD_2 AVDD_NODIE AVDD_PLL AVDD3P3_DMPLL AVDDL_MOD DVDD_DDR_1 DVDD_DDR_2 DVDD_NODIE DVDD_RX_1_1 DVDD_RX_1_2 DVDD_RX_2_1 DVDD_RX_2_2 VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDP

AVDD5V_MHL

GND_EFUSE

U3

AUVRM

A6

GND_1

A13

GND_2

A15

GND_3

A18

GND_4

B12

GND_5

B14

GND_6

B16

GND_7

B17

GND_8

B19

GND_9

B20

GND_10

C9

GND_11

C10

GND_12

C21

GND_13

D9

GND_14

E20

GND_15

F9

GND_16

F11

GND_17

F13

GND_18

F15

GND_19

F17

GND_20

F19

GND_21

F21

GND_22

G8

GND_23

G9

GND_24

G10

GND_25

G11

GND_26

G12

GND_27

G13

GND_28

G14

GND_29

G15

GND_30

G16

GND_31

G17

GND_32

G18

GND_33

H7

GND_34

H8

GND_35

H9

GND_36

H10

GND_37

H11

GND_38

H12

GND_39

H13

GND_40

H14

GND_41

H15

GND_42

H16

GND_43

H17

GND_44

H18

GND_45

J7

GND_46

J8

GND_47

J9

GND_48

J10

GND_49

J11

GND_50

J12

GND_51

J13

GND_52

J14

GND_53

K8

GND_54

K10

GND_55

K11

GND_56

L10

GND_57

M5

GND_58

M7

GND_59

M8

GND_60

M9

GND_61

M10

GND_62

N4

GND_63

N5

GND_64

N6

GND_65

N7

GND_66

N8

GND_67

N9

GND_68

N10

GND_69

P4

GND_70

P5

GND_71

P6

GND_72

P7

GND_73

P9

GND_74

P10

GND_75

P15

GND_76

P16

GND_77

P17

GND_78

P18

GND_79

R10

GND_80

R11

GND_81

R12

GND_82

R13

GND_83

R14

GND_84

K7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

MAIN2_EU

2014/11/18

2

AUDIO AMP(TI)

LGE Internal Use Only

AMP_COIL_GET

L5603-*1

10.0uH

AMP_COIL_GET

L5604-*1

10.0uH

AMP_COIL_GET

L5605-*1

10.0uH

AMP_COIL_GET

L5606-*1

10.0uH

AMP_MUTE

POWER_DET

A13.2V

OPT

R5600

10K

UBW2012-121F

A13.2V

OPT

C5600

0.1uF 50V

R5601

L5600

+3.5V_ST

10K

B

+13.2V_AMP

C5601

0.1uF 50V

R5603

100

C

OPT Q5600 MMBT3904(NXP)

E

OPT

R3405

0

AUD_MASTER_CLK

C5602

1000pF

50V

AUD_LRCK

AUD_SCK

AUD_LRCH

AMP_SDA AMP_SCL

AMP_RESET

+3.3V_Normal

C5604

0.1uF 16V

C5606

0.1uF 16V

This parts are Located on AVSS area.

R5610

R5608 2K

R5607 18K 1%

C5607

0.1uF 16V

C5611

4700pF

C5609

4700pF

50V

C5608

0.047uF 25V

A_SEL_FAULT

OSC_RES

VR_DIG

ZD5600

C5612

0.047uF

R5609

470

AVDD

13 14

MCLK

15 16

DVSSO

17 18

PDN

19

LRCLK

20

SCLK

21

SDIN

22

SDA

23

SCL

24

+3.3V_Normal

OPT

C5610

0.1uF

5V

470

25V

VR_ANA

12

25

RESET26STEST

16V

PLL_FLTM

PLL_FLTP

9

10

11

TAS5733

IC5600

27

DVDD28DVSS

C5614

0.1uF 16V

C5613

AVSS

8

29

2200pF 50V

NC_2

PBTL

7

30

GND

AGND31VREG

C5615

1uF 25V

C5616

0.033uF

NC_1

SSTIMER

4

5

6

32

33

GVDD_OUT

0.033uF

50V

PVDD_AB_1

PVDD_AB_2

BST_A

2

3

THERMAL

49

34

35

BST_D

PVDD_CD_1

PVDD_CD_2

C5617

50V

OUT_A

1 48 47 46 45 44 43 42 41 40 39 38 37

36

OUT_D

C5618

0.1uF 50V

[EP] PGND_AB_2 PGND_AB_1 OUT_B NC_6 NC_5 BST_B BST_C NC_4 NC_3 OUT_C PGND_CD_2 PGND_CD_1

C5619

0.1uF 50V

+13.2V_AMP

C5620 10uF 25V

0.033uF

+13.2V_AMP

C5621 10uF 25V

C5640

4.7uF 50V

3216

C5624

50V

C5625

50V

OPT

C5641

4.7uF 50V

3216

AMP_COIL_TAIYO

L5603-*2

10.0uH

R5611

18 1%

C5626 330pF

50V

C5627 330pF

50V

R5612

18 1%

R5613

18 1%

C5628 330pF

50V

C5629 330pF

50V

R5614

18 1%

AMP_COIL_TAIYO

L5604-*2

10.0uH

AMP_COIL_ABCO

L5605

10uH

C5630

0.33uF

AMP_COIL_ABCO

L5606

10uH

AMP_COIL_ABCO

L5604

10uH

0.33uF

AMP_COIL_ABCO

L5603

10uH

AMP_COIL_TAIYO

50V

C5631

50V

L5605-*2

10.0uH

AMP_COIL_TAIYO

L5606-*2

10.0uH

Close to Speaker

C5632

0.1uF 50V

C5633

0.1uF 50V

C5634

0.1uF

50V

C5635

0.1uF

50V

OPT

C5636

2200pF

50V

OPT

C5637

2200pF

50V

OPT

C5638

2200pF

50V

OPT

C5639

2200pF

50V

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SPK_L+

SPK_L-

SPK_R+

SPK_R-

L14_CA_AMP

1AMP_TAS

250A1-WR-H04M

WAFER-ANGLE

4

3

2

1

P5600

Box Type SPK Wafer

56

140818

MHL SW AND GATE

LGE Internal Use Only

MHL_CD_SENSE

MHL_OCP_EN

MHL_AND_GATE_TOSHIBA

IC5801

TC7SZ08FU_TOSHIBA

IN_B

1

IN_A

2

GND

3

MHL_AND_GATE_NXP

IC5801-*1

74LVC1G08GW

1 5

2

3

+3.3V_Normal

VCC

5

OUT_Y

4

OPT

R5801

MHL OCP

AVDD5V_MHL

MHL_5V_EN

10K

/MHL_OCP_DET

R5802

10

5V_HDMI_4

MHL_OCP

C5801

10uF

10V

+3.3V_Normal

MHL_OCP

R5803 0

MHL_SUZHOU

D5801

40V

SS2040LL-LG

OPT

R5805

100K

MHL_OCP R5804 10K

MHL_ONSEMI

D5801-*1

MBR230LSFT1G

30V

OUT_3

OUT_2

OUT_1

OC

MHL_OCP IC5802

BD82020FVJ

8

7

6

5

+5V_Normal

GND

1

IN_1

2

IN_2

3

EN

4

MHL_OCP

R5806

MHL_OCP

C5802

0.1uF

MHL_5V_EN

10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MHL_SW_AND

140815L14_CA_M1A

58

Headphone

LGE Internal Use Only

*Option : HEAD_PHONE_NEW

HEAD_PHONE

C3000 10uF

HP_EXT_SPK_ROUT

HP_EXT_SPK_LOUT

16V

HEAD_PHONE

C3001 10uF 16V

OPT C3002 1000pF 50V

OPT C3003 1000pF 50V

HEAD_PHONE R3002

1K

HEAD_PHONE R3003 1K

HP_DET

+3.3V_Normal

HEAD_PHONE

R3005

10K

HEAD_PHONE

R3004

1K

JK3000

PJ-3596T

HEAD_PHONE

33

22

44

11

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15_COMM

HP_NEW_COMM

20140710

184

AV2_L_IN

LGE Internal Use Only

AV2_R_IN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

USB_S1

2014/05/20

7

Contents of Standard Repair Process

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

No video/Normal audio 1

2 No video/No audio 2

3 Tuning fail, Picture broken/ Freezing 3, 4

A. Video error

4 Color error 5

5

6

B. Power error

7

8

Vertical/Horizontal bar, residual image, light spot, external device color error

6

No power 7

Off when on, off while viewing, power auto on/off

8

No audio/Normal video 9

C. Audio error

9 Wrecked audio/discontinuation/noise 10

10

Remote control & Local switch checking 11

D. Function error

11 External device recognition error 12

12 E. Noise Circuit noise, mechanical noise 13

13 F. Exterior error Exterior defect 14

* First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Contents of Standard Repair Process Detail Technical Manual

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

Check LCD back light with naked eye A1

2 LED driver B+ 24V measuring method A2

A. Video error_ No video/Normal audio

3 Check White Balance value A3

4 Power Board voltage measuring method A4

6

TUNER input signal strength checking method A5

A. Video error_ No video/Video lag/stop

7 Version checking method A6

9

connection diagram A7

10

11

A. Video error_Color error

Check Link Cable (LVDS) reconnection condition

A8 A9

12 Adjustment Test pattern - ADJ Key A10

13

14

A. Video error_Vertical/Horizontal bar, residual image, light spot

connection diagram A8

Check Link Cable (LVDS) reconnection condition

A8 A9

15 Adjustment Test pattern - ADJ Key A10

16

17 Exchange T-Con Board (2) A-2/5

18 Exchange LED driver Board (PSU) A-3/5

Defected Type caused by T-Con/ Inverter/ Module

19 Exchange Module itself (1) A-4/5

20 Exchange Module itself (2) A-5/5

Exchange T-Con Board (1) A-1/5

55” : driver board Other : PSU

Standard Repair Process

LGE Internal Use Only

Error symptom

A. Video error

No video/ Normal audio

Established date

Revised date

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

☞A4 ☞A1

No video Normal audio

Normal

Audio

N

Move to No video/No audio

Y

Check Back Light On with naked eye

On

☞A2

Check Power Board 24V output

Normal

Voltage

N

Y

Check Power Board

3.5V, 12V, 24V etc.

Y

Replace Inverter

or module

Normal

Voltage

N

Repair Power Board or parts

End

Y

Replace T-con Board or module

1/14

※Precaution

Always check & record S/W Version and White Balance value before replacing the Main Board

☞A6 & A3

Repair Power Board or parts

Replace Main Board Re-enter White Balance value

Standard Repair Process

LGE Internal Use Only

No Video/ No audio

Error symptom

☞A4

Check various voltages of Power Board ( 3.5V,12V, 24V)

A. Video error

No video/ No audio

Normal

Voltage

N

Replace Power Board and repair parts

Y

Check and replace MAIN B/D

Established date

Revised date

End

2/14

Standard Repair Process

LGE Internal Use Only

☞ A5

Check RF Signal level

Normal

Y

Signal

N

Check RF Cable Connection

1. Reconnection

2. Install Booster

Error

A. Video error

symptom

Picture broken/ Freezing

. By using Digital signal level meter

. By using Diagnostics menu on OSD ( Menu→ Set up→ Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not. (By connecting RF Cable at other equipment) → DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A6

N

Y

Check S/W Version

Normal Picture

SVC

Bulletin

Y

Established

date

Revised date

N

Check Tuner soldering

Normal


N

Y

3/14

End

Normal Picture

End

Y

N

Contact with signal distributor or broadcaster (Cable or Air)

S/W Upgrade

Normal Picture

Y

End

Replace Main B/D

N

Standard Repair Process

LGE Internal Use Only

☞ A5

Check RF Signal level

Normal

Signal

Contact with signal

distributor

or broadcaster (Cable or Air)

Y

N

Error symptom

Check RF signal cable (DVB satellite signal or not) Check whether other equipments have problem or not. (By connecting RF Cable at other equipment) → Set-Top-Box, Different maker TV etc

Check satellite setting.

- Check LNB frequency.

- Check satellite

- Check Satellite connection (DiSEqC, motor, etc…)

A. Video error

Tuning fail, Picture broken/ Freezing

Change satellite setting (match with installed ANT)

Normal

Setting

N

Y

☞ A6

Check S/W Version

Established

date

Revised date

SVC

Bulletin

Y

S/W Upgrade

N

Check Tuner soldering

4/14

Replace Main B/D

End

Normal Picture

Y

End

N

Normal Picture

Y

End

N

Standard Repair Process

LGE Internal Use Only

Error symptom

☞A7

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

☞A10

Check Test pattern

Color

error

N

Check error color input mode

Y

External

Input/Co

mponent

A. Video error

Color error

☞ A8/ A9

※ Check and

replace Link Cable (LVDS) and contact condition

error

Color

error

N

Check external device and cable

Y

Replace Main B/D

Established

date

Revised date

External

device/

Y

Cable

Normal

N

Color

error

End

5/14

Y

Replace module

N

Replace Main B/D

HDMI

error

Check external device and cable

Request repair for external device/cable

N

External

device/

Cable

Normal

Y

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

Error symptom

Vertical / Horizontal bar, residual image,

light spot, external device color error

A. Video error

Vertical/Horizontal bar, residual image, light spot

☞A7

Check color condition by input

-External Input

-Component/AV

-HDMI

☞A10

Check Test pattern

External device screen error-Color error

Check S/W Version

S/W Upgrade

Replace module

Check

Version

Screen

normal

N

Y

Check external

Y

device connection condition

Check screen condition by input

-External Input

-Component

-RGB

-HDMI/DVI

Screen normal

Request repair

Y

N

for external

device

External

☞ A8/ A9

Check and replace Link Cable

Input error

Compo

nent

error

Established

date

Revised date

Screen normal

N

Replace Main B/D

Y

End

Connect other external device and cable (Check normal operation of External Input, Component and HDMI by connecting

Jig, pattern Generator,

Set-top Box etc.

Screen normal

Request repair for

external device

6/14

Replace Module

N

Screen normal

Y

End

N Y Replace

Main B/D

Normal

Screen

Y

End

N

HDMI

error

Connect other external device and cable (Check normal operation of External Input, Component, HDMI by connecting Jig, pattern Generator ,Set-top Box etc.

Y

Screen normal

N

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

☞A11

Check Power LED

Stand-By : Red

Error symptom

Power

Y

LED On

N

Check Power cord was inserted properly

N

Normal

※

Y

B. Power error

☞A12

Check ST-BY 3.5V

No power

DC Power on by pressing Power Key

On Remote control

☞A4

Measure voltage of each output of Power B/D

Y

Normal Voltage

Established

date

Revised date

Normal Operati

on

Y

Normal

Voltage

N

Y

☞A13

Check Power On ‘”High”

Replace Main B/D

OK

Y

Replace Main B/D

7/14

Replace Power

B/D

End

N

Replace Power B/D

N

Replace Power B/D

Standard Repair Process

LGE Internal Use Only

Check outlet

Check A/C cord

Check for all 3- phase power out

* Please refer to the all cases which can be displayed on power off mode.

Error symptom

Fix A/C cord & Outlet and check each 3 phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A14

Error

N

Y

Check Power Off Mode

☞A13

(If Power Off mode is not displayed) Check Power B/D voltage

※ Caution Check and fix exterior

Replace Power B/D

of Power B/D Part

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL "POWEROFF_OFFTIMER" "POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

"POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download "POWEROFF_UNKNOWN" Power off by unknown status except listed case

Abnormal

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

CPU

Abnorm

al

Abnorm

al1

Normal Voltage

N

Established

date

Revised date

Replace Main B/D

Y

Replace Main B/D

Power off by OFF TIMER

Normal

Y

N

Replace Power B/D

8/14

End

Standard Repair Process

LGE Internal Use Only

No audio Screen normal

Error symptom

C. Audio error

No audio/ Normal video

☞A15 ☞A16

Check user menu  Speaker off

Off

Y

Cancel OFF

Check Speaker disconnection

N

Check audio B+ 24V of Power Board

Disconn

ection

Established

date

Revised date

Normal

Y

Voltage

N

Replace Power Board and repair parts

N

Replace MAIN Board

9/14

End

Y

Replace Speaker

Standard Repair Process

LGE Internal Use Only

Check input signal

-RF

-External Input signal

Error symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A16

Signal

Normal

N

Y

(When RF signal is not received) Request repair to external cable/ANT provider

(In case of External Input signal error) Check and fix external device

Wrecked Audio/ Discontinuation/ Noise for all audio

Wrecked Audio/ Discontinuation/ Noise only for D-TV

Wrecked Audio/ Discontinuation/

Noise only for Analog

Wrecked Audio/ Discontinuation/ Noise only for External Input

Check and replace speaker and connector

Replace Main B/D

Connect and check other external device

Check and fix external device

Check audio B+ Voltage (24V)

Normal

Y

Voltage

N

Replace Power B/D

Replace Main B/D

Normal

N

Audio

Y

10/14

End

Standard Repair Process

LGE Internal Use Only

Error symptom

Remote control & Local switch checking

1. Remote control(R/C) operating error

☞A17

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate, Explain the customer cause is interference from light in room.

Normal

Operating

Y

N

Check & Replace

Baterry of R/C

Normal

Operating

Check & Repair Cable connection Connector solder

Y

End

N

D. Function error

Normal

Operating

End

N

Y

☞A17

Check B+ 3.5V On Main B/D

☞A4

Check 3.5v on Power B/D Replace Power B/D or Replace Main B/D (Power B/D don’t have problem)

Established

date

Revised date

Normal Voltage

N

☞A17

Y

Check IR Output signal

11/14

Replace Main B/D

Y

Normal

Signal

N

Repair/Replace

IR B/D

Replace R/C

Standard Repair Process

LGE Internal Use Only

Check input signal

Error symptom

Signal

Input

N

Check and fix external device/cable

Y

D. Function error

External device recognition error

Check technical

information

- Fix information

- S/W Version

Technical

information

Fix in accordance

with technical

information

Y

N

Established

date

Revised date

External Input and

Component

Recognition error

HDMI, Optical

Recognition error

12/14

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

Identify nose type

Error symptom

Mechanical

noise

E. Noise

Circuit noise, mechanical noise

Circuit

noise

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

Check location of noise

OR

Established

date

Revised date

Replace PSU(with LED driver)

Replace LED driver

※ When the nose is severe, replace the module (For models with fix information, upgrade the S/W or provide the description)

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual

(For models without any fix information, provide

the description)

13/14

Standard Repair Process

LGE Internal Use Only

Error symptom

Zoom part with exterior damage

F. Exterior defect

Exterior defect

Module

damage

Cabinet damage

Remote

Controller

damage

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

14/14

Stand

damage

Replace stand

Contents of Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Continued from previous page

No. Error symptom Content Page Remarks

21

22 Check power input Voltage & ST-BY 3.5V A12

23 Checking method when power is ON A13

24 POWER BOARD voltage measuring method A4

25

26

28

29

30

31

B. Power error_No power

B. Power error_Off when on, off while viewing

C. Audio error_No audio/Normal video

C. Audio error_Wrecked audio/discontinuation

D. Function error_ No response in

remote controller, key error

Check front display LED A11

POWER OFF MODE checking method A14

Checking method in menu when there is no audio

Voltage and speaker checking method when there is no audio

Voltage and speaker checking method in case of audio error

Remote controller operation checking method A17

A15

A16

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_No video/Normal audio

Check Back Light On with naked eye

Established date

Revised date

A1

Power On -> disjoint back case -> check lighting at 2 points.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_No video/Normal audio

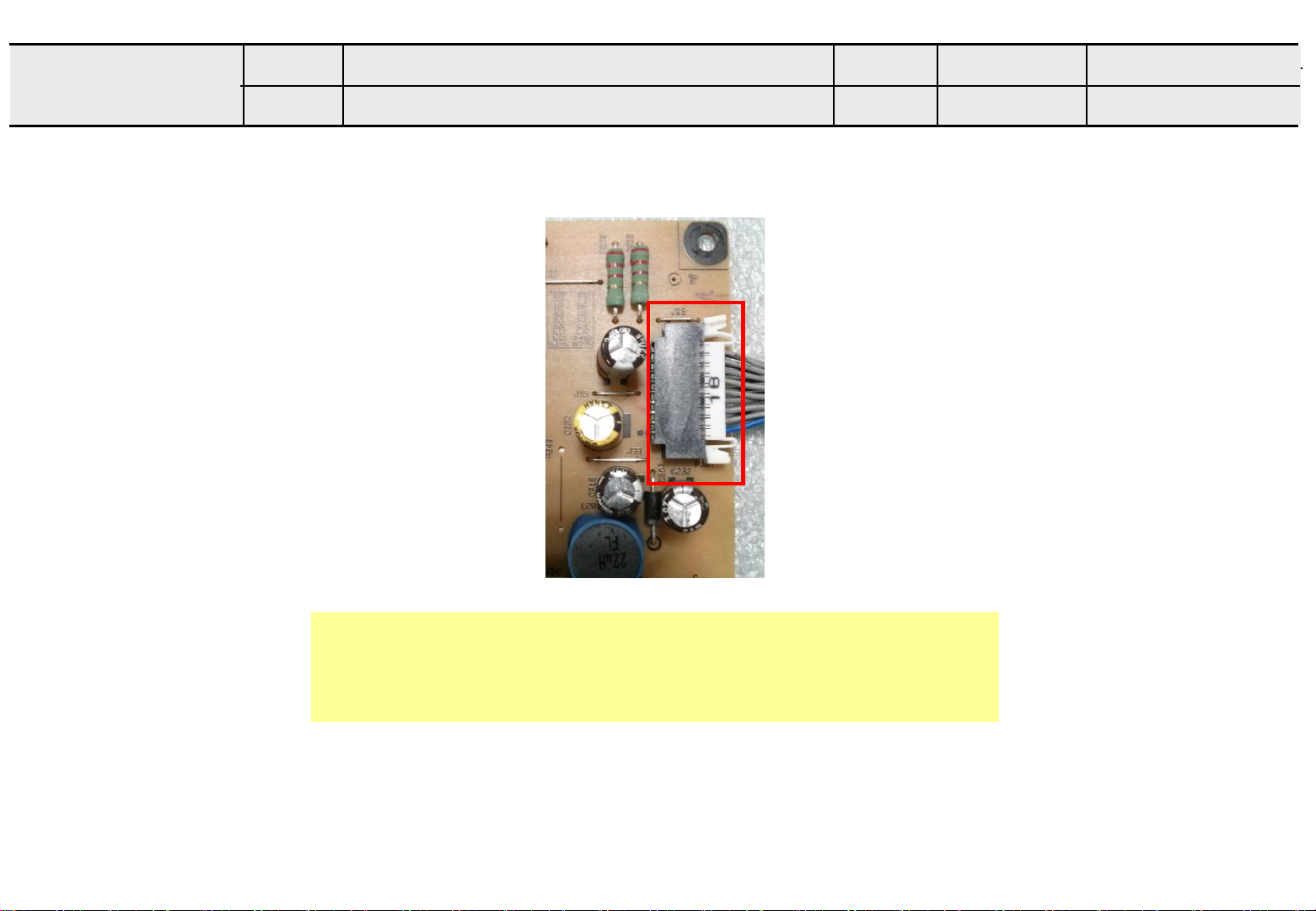

Inverter B+ 24V measuring method

Established date

Revised date

A2

1. Measure DC 24V applying to inverter PCB from Power Board.

2. Output 24V from Power Board -> supply to inverter PCB. Check Pin contacting statement and connection statement.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established date

Revised date

A3

Entry method

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 7.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), reenter the value after replacing the MAIN BOARD.

enter the value after replacing the MAIN BOARD.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_No video/ Audio

Power Board voltage measuring method

Established date

Revised date

Check DC 3.5V, 12V, 24V

18 Pin (Power Board ↔ Main Board)

SMAW200-H18S5

A4

1

3

5

7

9

11

13 12V 14

15 12V 16

17 GND 18

Power on

3.5V

GND

24V

GND

2

4

6

8

10

12

DRV ON

PDIM#1

3.5V

PDIM#2

24V

GND

12V

NC

GND

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

MENU => Press red key Remote controller=>signal test => Select channel

Established date

Revised date

A5

When the signal is strong, use the attenuator (-10dB, -15dB, -20dB etc.)

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

Version

A. Video error_Video error, video lag/stop

Version checking method

1. Checking method for remote controller for adjustment

Established date

Revised date

A6

Press the IN-START with the remote controller for adjustment

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error _Vertical/Horizontal bar, residual

image, light spot

connection diagram (1)

Established date

Revised date

A7

As the part connecting to the external input, check the screen condition by signal

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Color error

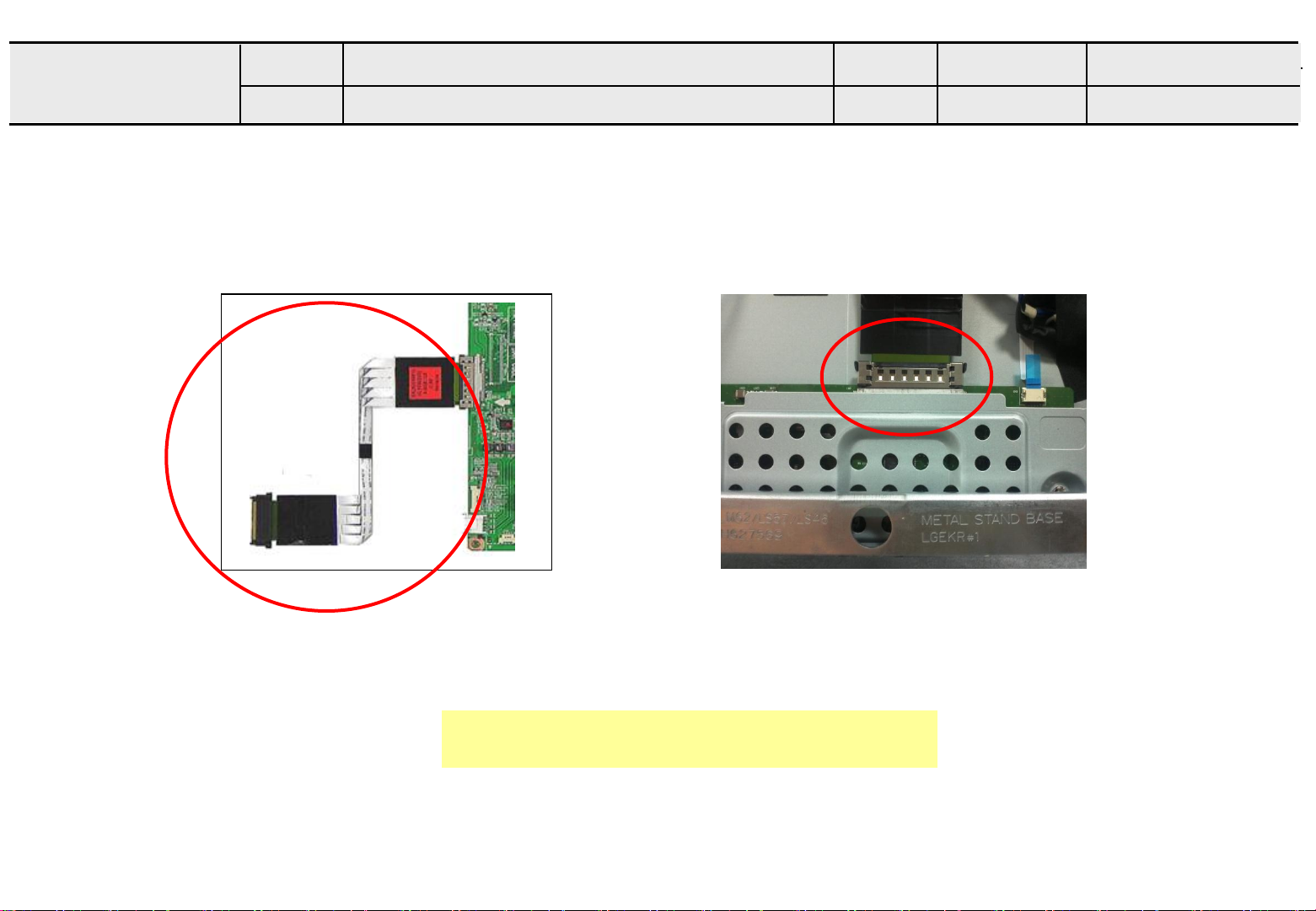

Check and replace Link Cable(LVDS) and contact condition

Established date

Revised date

A8/A9

1. Check and replace LVDS Cable

2. Check LVDS connection condition

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established date

Revised date

A10

You can view 6 types of patterns using the ADJ Key Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

Appendix : Exchange T-Con Board (1)

LGE Internal Use Only

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

Appendix : Exchange T-Con Board (2)

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

GRADATION

Appendix : Exchange PSU(LED driver)

LGE Internal Use Only

No Light

Dim Light

No picture/Sound Ok

Appendix : Exchange the Module (1)

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Crosstalk

Un-repairable Cases In this case please exchange the module.

Press damage

Appendix : Exchange the Module (2)

LGE Internal Use Only

Vertical Block

Source TAB IC Defect

Horizontal Block Gate TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Line Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect

Un-repairable Cases In this case please exchange the module.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

B. Power error _No power

Check front display LED

Established date

Revised date

A11

ST-BY condition: Red

Front LED control :

Menu  Option  Standby Light  On/Off

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

B. Power error _No power

Check power input voltage and ST-BY 5V

Established date

Revised date

Check DC 3.5V, 12V, 24V

18 Pin (Power Board ↔ Main Board)

SMAW200-H18S5

A12

1

3

5

7

9

11

13 12V 14

15 12V 16

17 GND 18

Power on

3.5V

GND

24V

GND

2

4

6

8

10

12

DRV ON

PDIM#1

3.5V

PDIM#2

24V

GND

12V

NC

GND

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

B. Power error _No power

Checking method when power is ON

Established date

Revised date

A13

Check “power on(Pin 1)” pin is high(about 3.3V)

18 Pin (Power Board ↔ Main Board)

SMAW200-H18S5

1

3

5

7

9

11

13 12V 14

15 12V 16

17 GND 18

Power on

3.5V

GND

24V

GND

2

4

6

8

10

12

DRV ON

PDIM#1

3.5V

PDIM#2

24V

GND

12V

NC

GND

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established date

Revised date

A14

Checking order

1. Press the IN-START button of the remote controller for adjustment

2. Check the entry into adjustment item 3.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

C. Audio error_No audio/Normal video

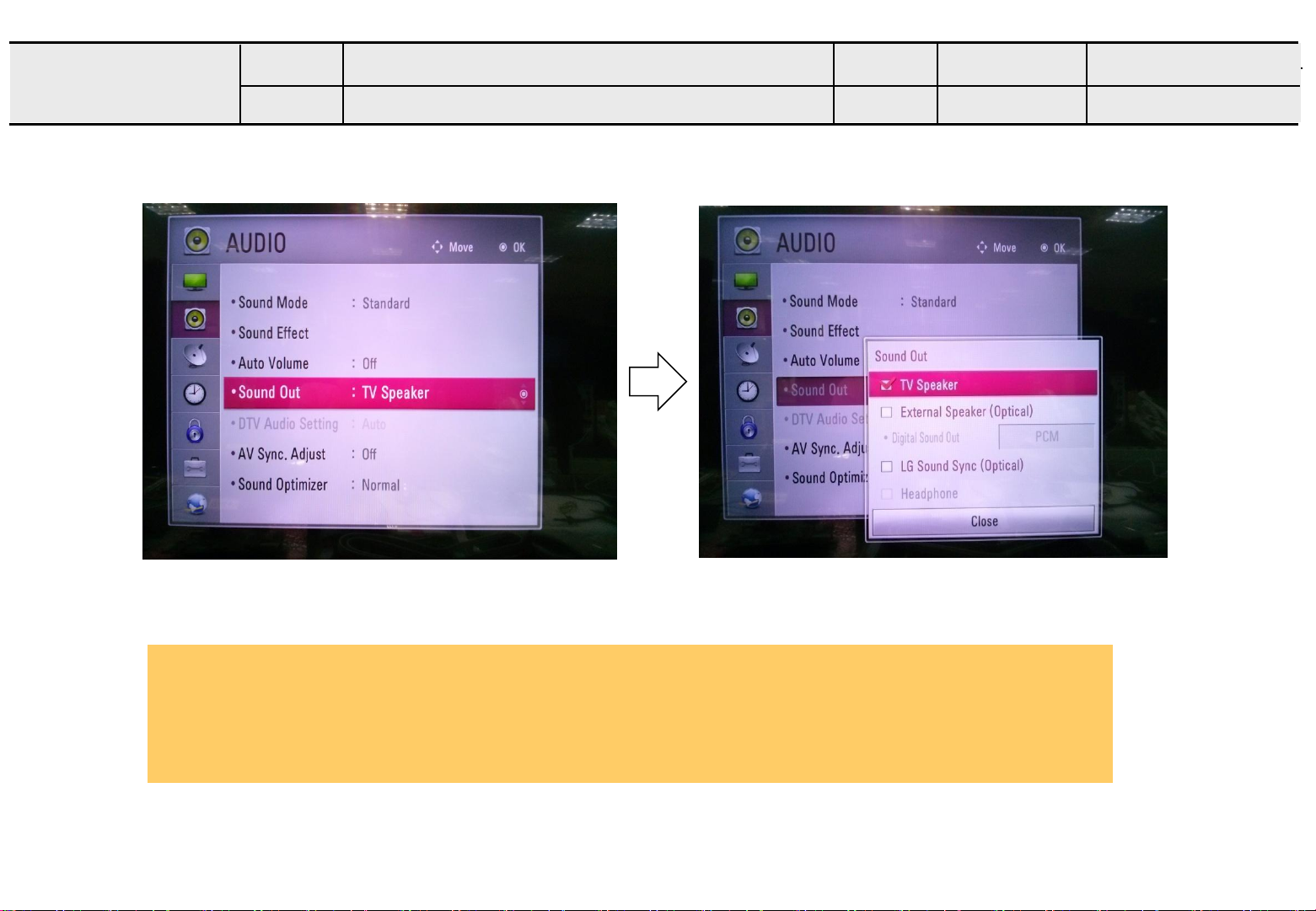

Checking method in menu when there is no audio

Established date

Revised date

A15

Checking order

1. Press the MENU button on the remote controller

2. Select the AUDIO function of the Menu

3. Select TV Speaker Check

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

C. Audio error_No audio/Normal video

Voltage and speaker checking method when there is no audio

18 Pin (Power Board ↔ Main Board)

Established date

Revised date

A16

②

1

3

5

7

9

11

13 12V 14

15 12V 16

17 GND 18

Power on

SMAW200-H18S5

3.5V

GND

24V

GND

2

4

6

8

10

12

DRV ON

PDIM#1

3.5V

PDIM#2

24V

GND

12V

NC

GND

Checking order

1. Check the contact condition of or 24V connector of Main Board

2. Measure the 24V input voltage supplied from Power Board (If there is no input voltage, remove and check the connector)

3. Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the GND and output terminal, the speaker is normal.

①

③

< Main Ass’y>

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

< Sub Ass’y>

①

Content

D. Function error_ No response in remote controller,

key error

Remote controller operation checking method

②

Established date

Revised date

③

④

A17

P4600

1 GND 2 KEY1 3 KEY2

4 3.5V_ST

5 GND 6 LED_R 7 IR 8 GND 9 SCL

10 SDA

Checking order 1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.3V on the terminal 4.

4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog Tester needle moves slowly, and defective when it does not move at all.

< Main Ass’y>

LG 43LX310C-ZA Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
