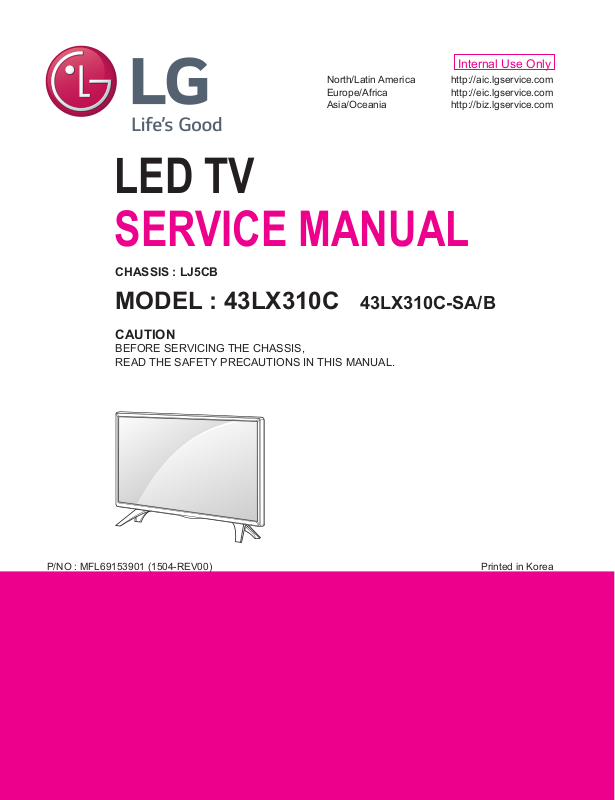

LG 43LX310C, 43LX310C-SA-B Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LJ5CB

MODEL : 43LX310C 43LX310C-SA/B

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL69153901 (1504-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

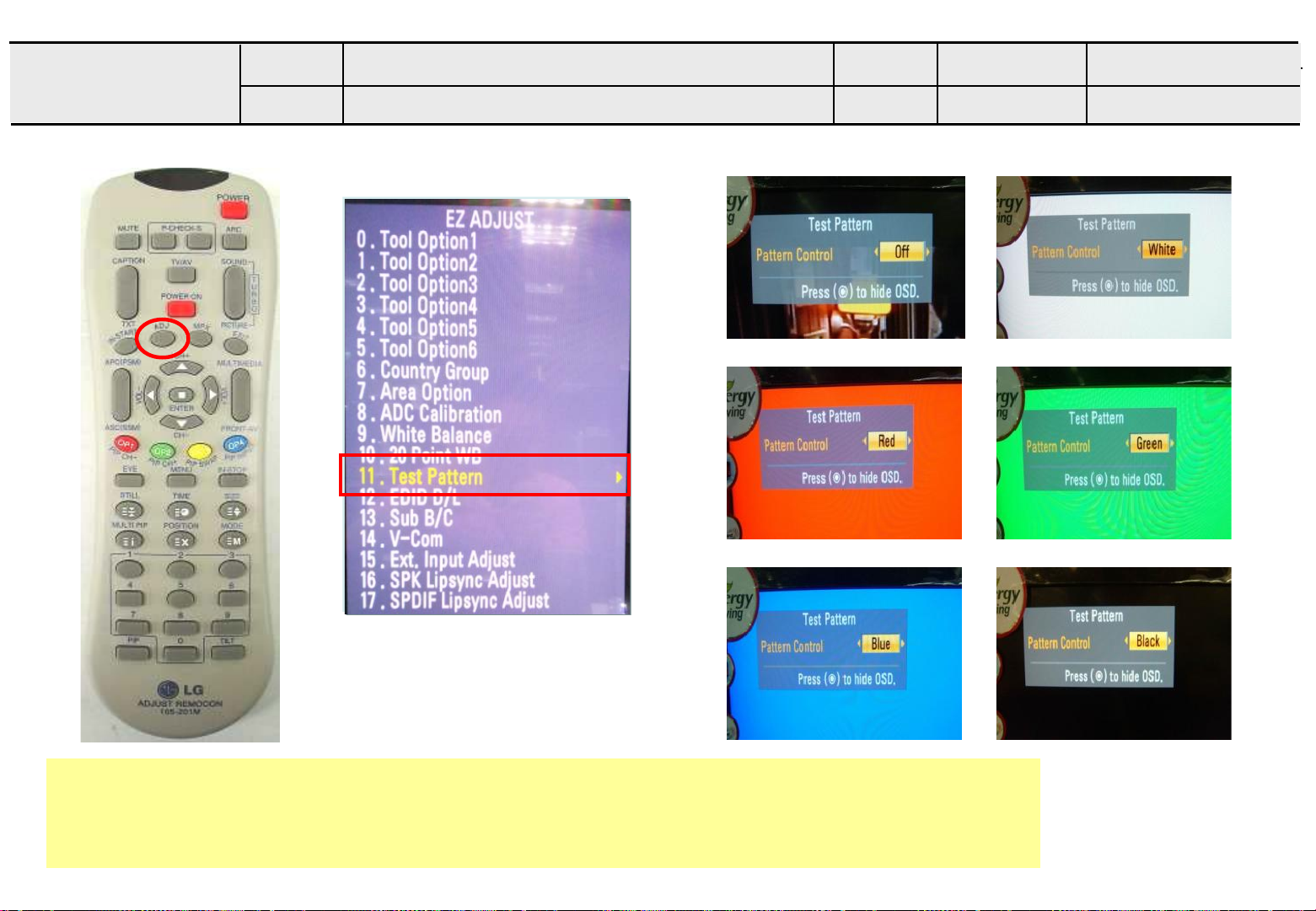

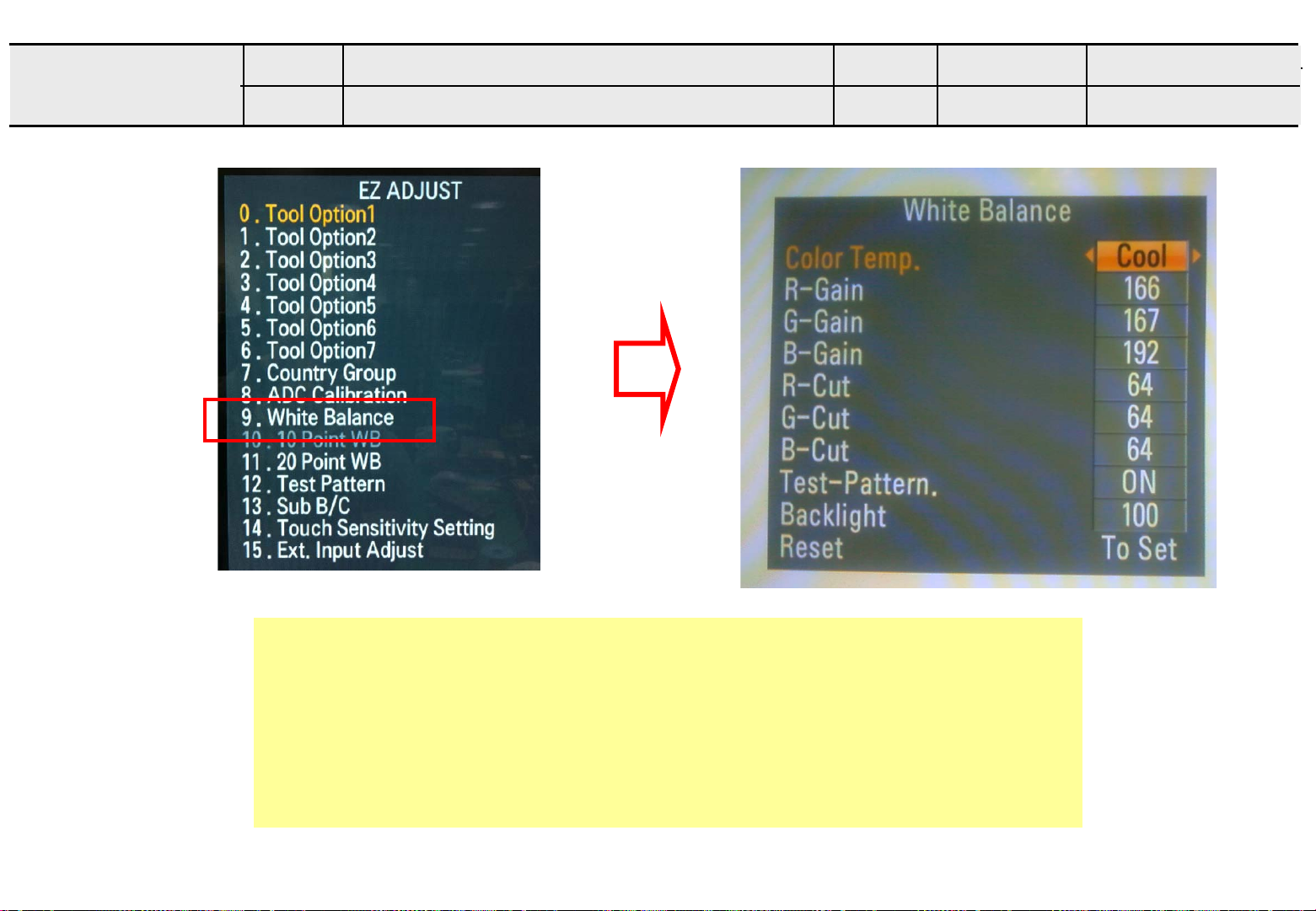

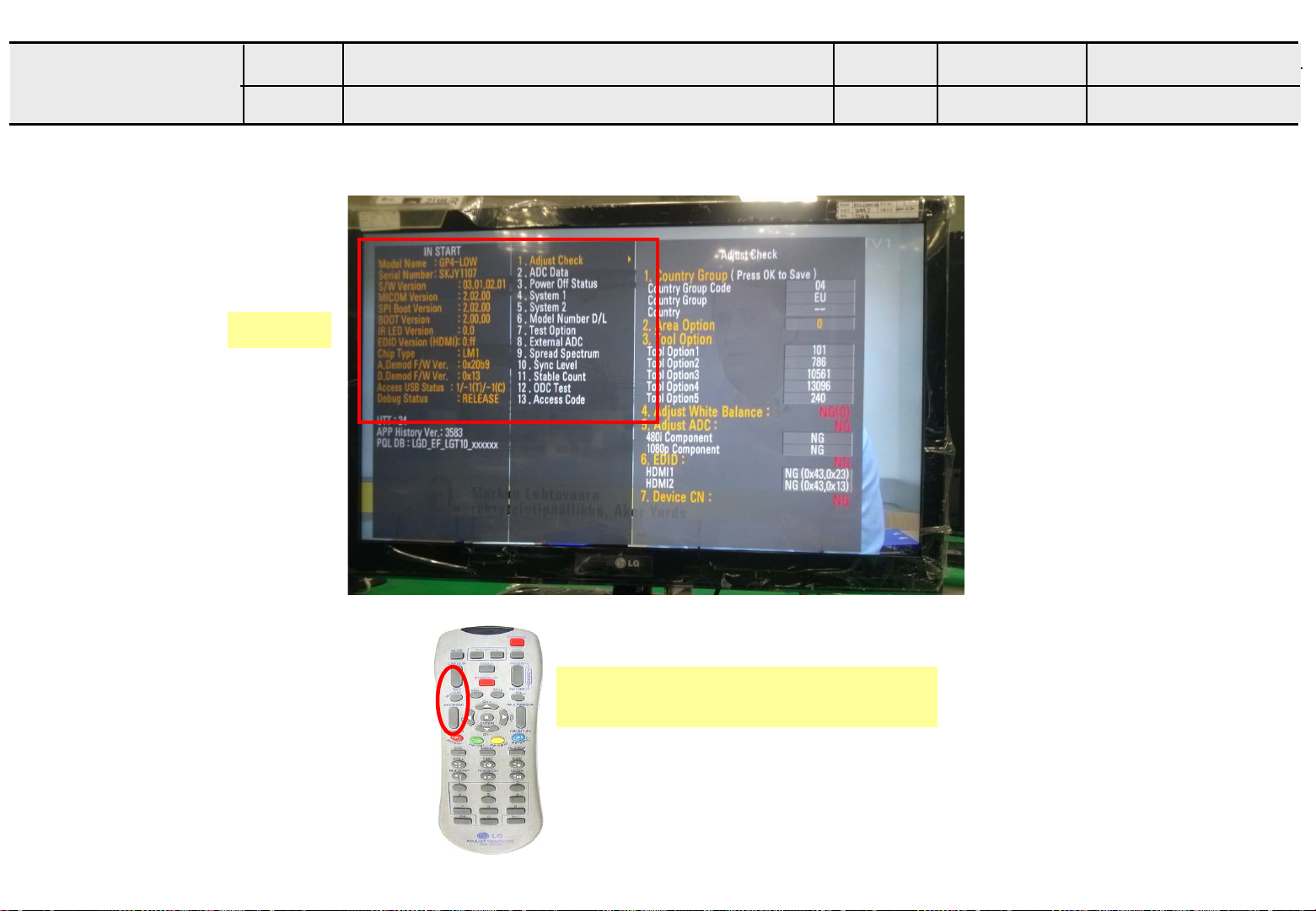

ADJUSTMENT INSTRUCTION ............................................................. 10

BLOCK DIAGRAM ................................................................................. 15

EXPLODED VIEW .................................................................................. 16

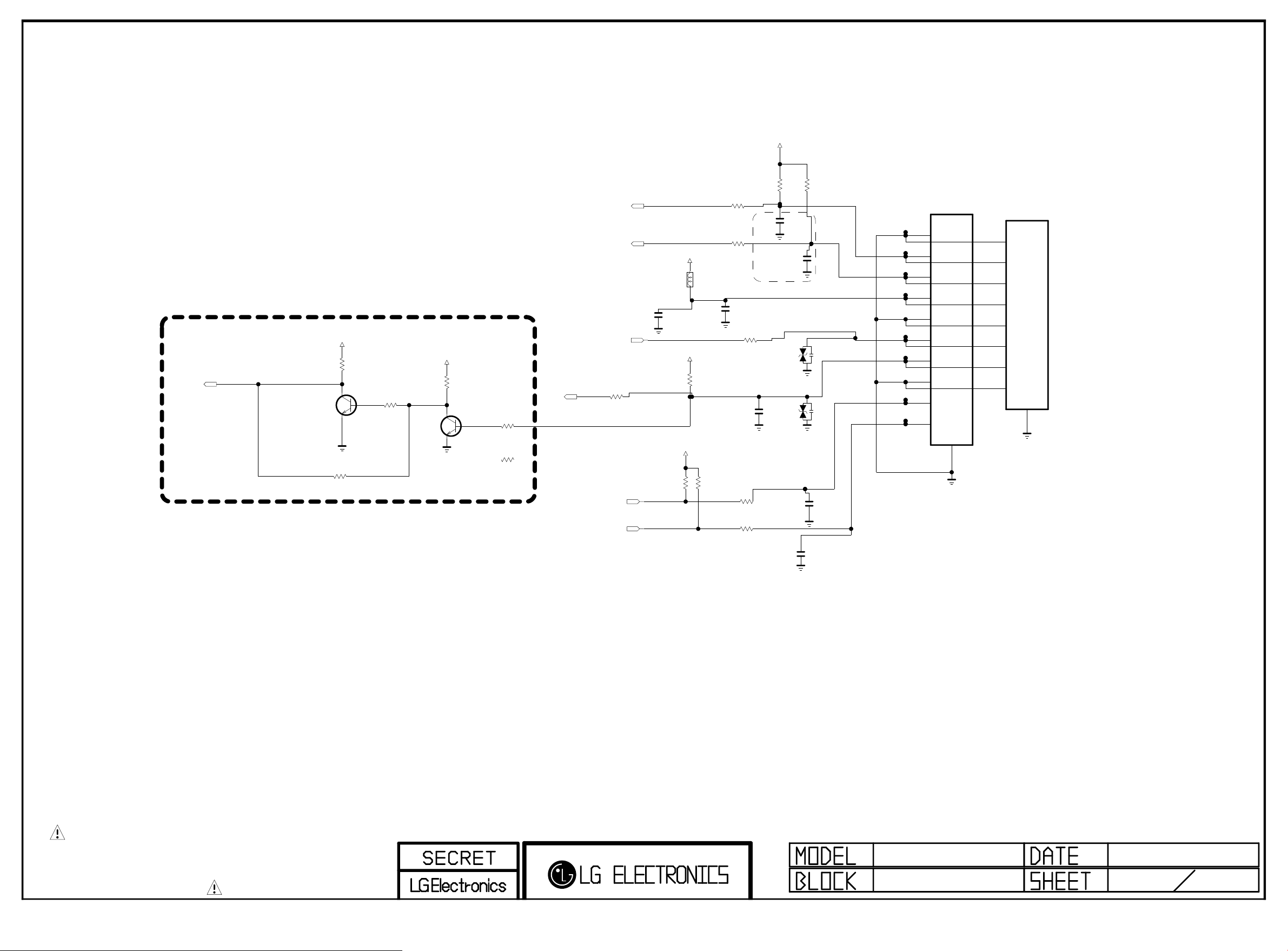

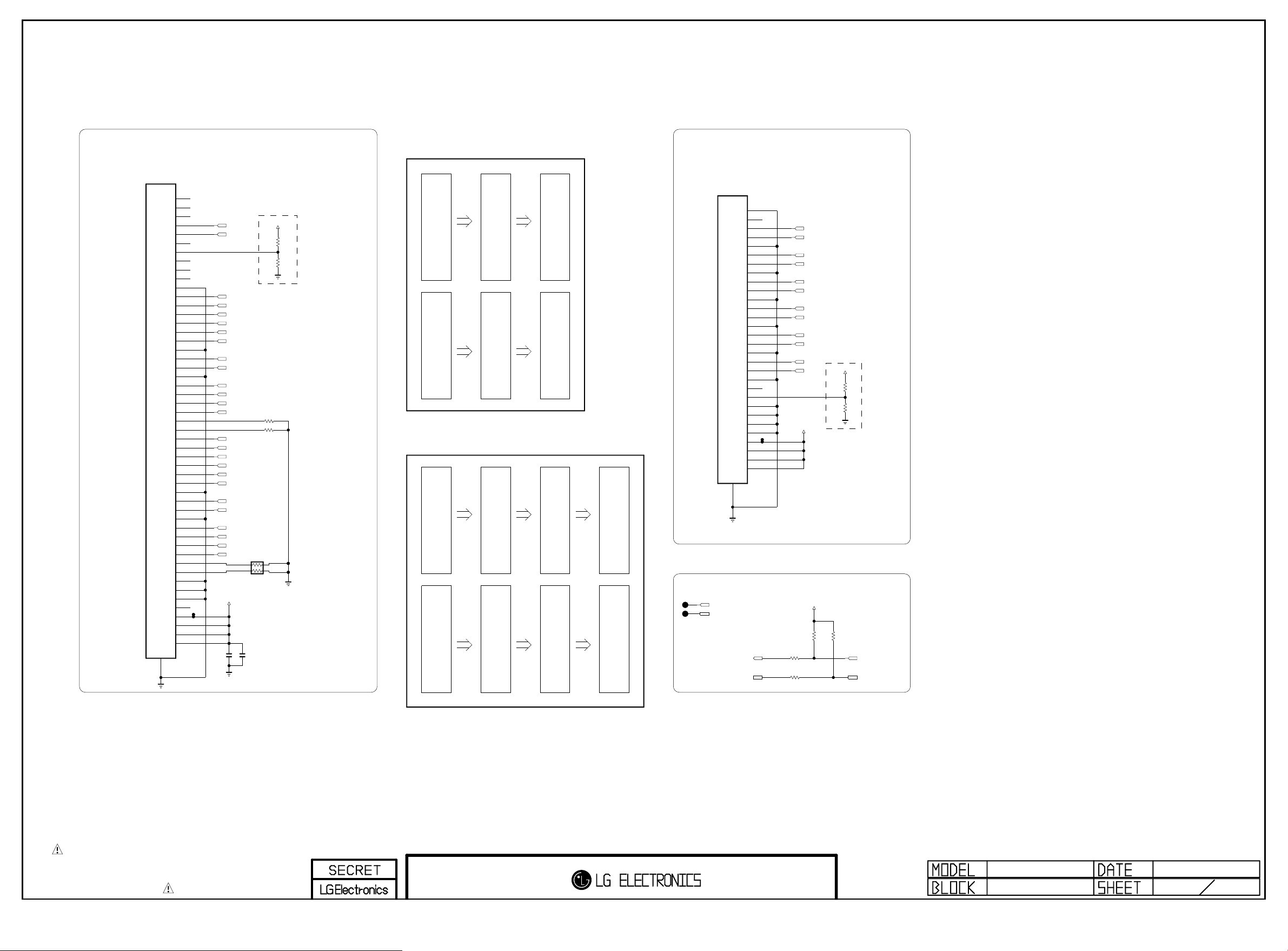

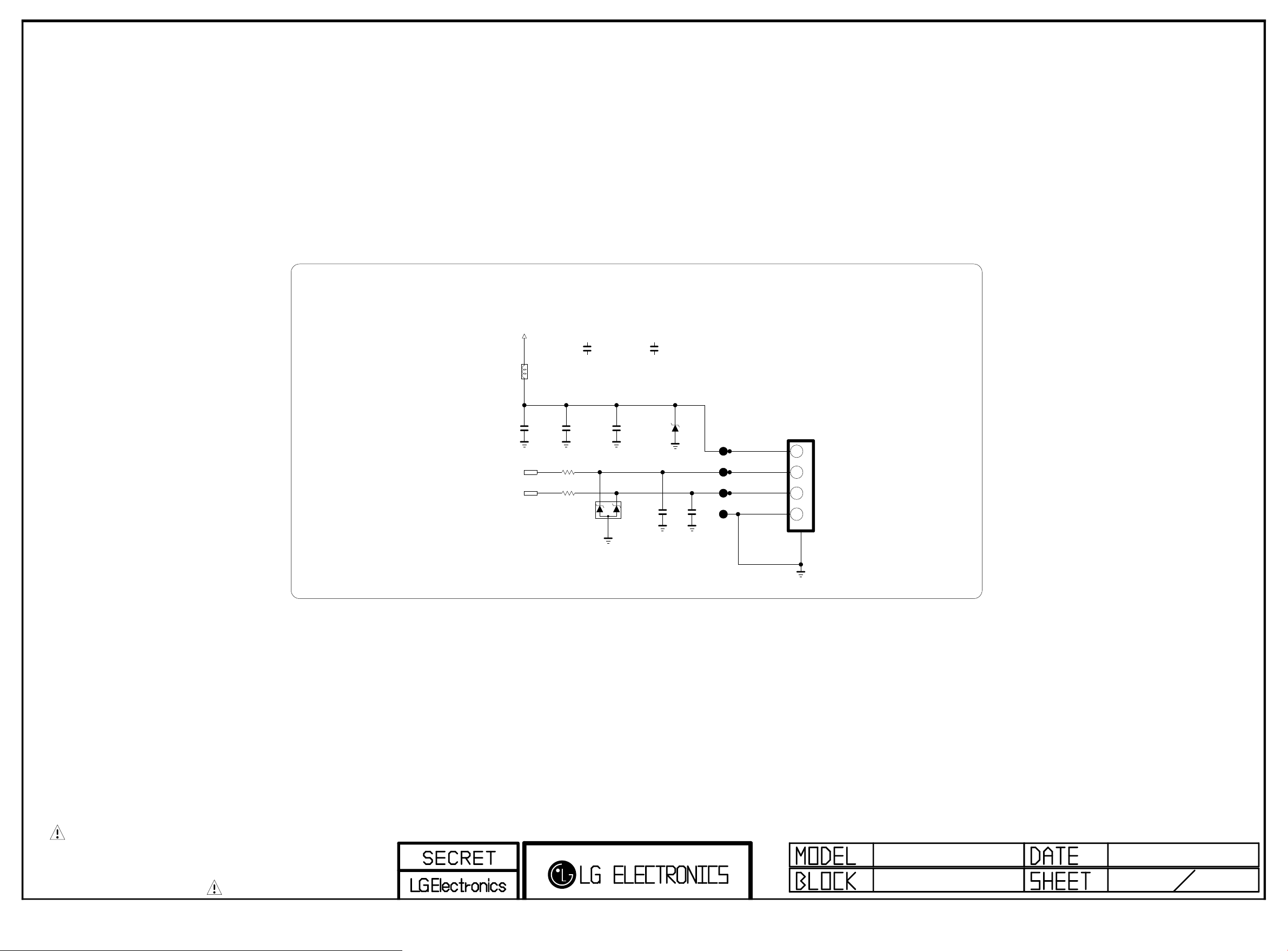

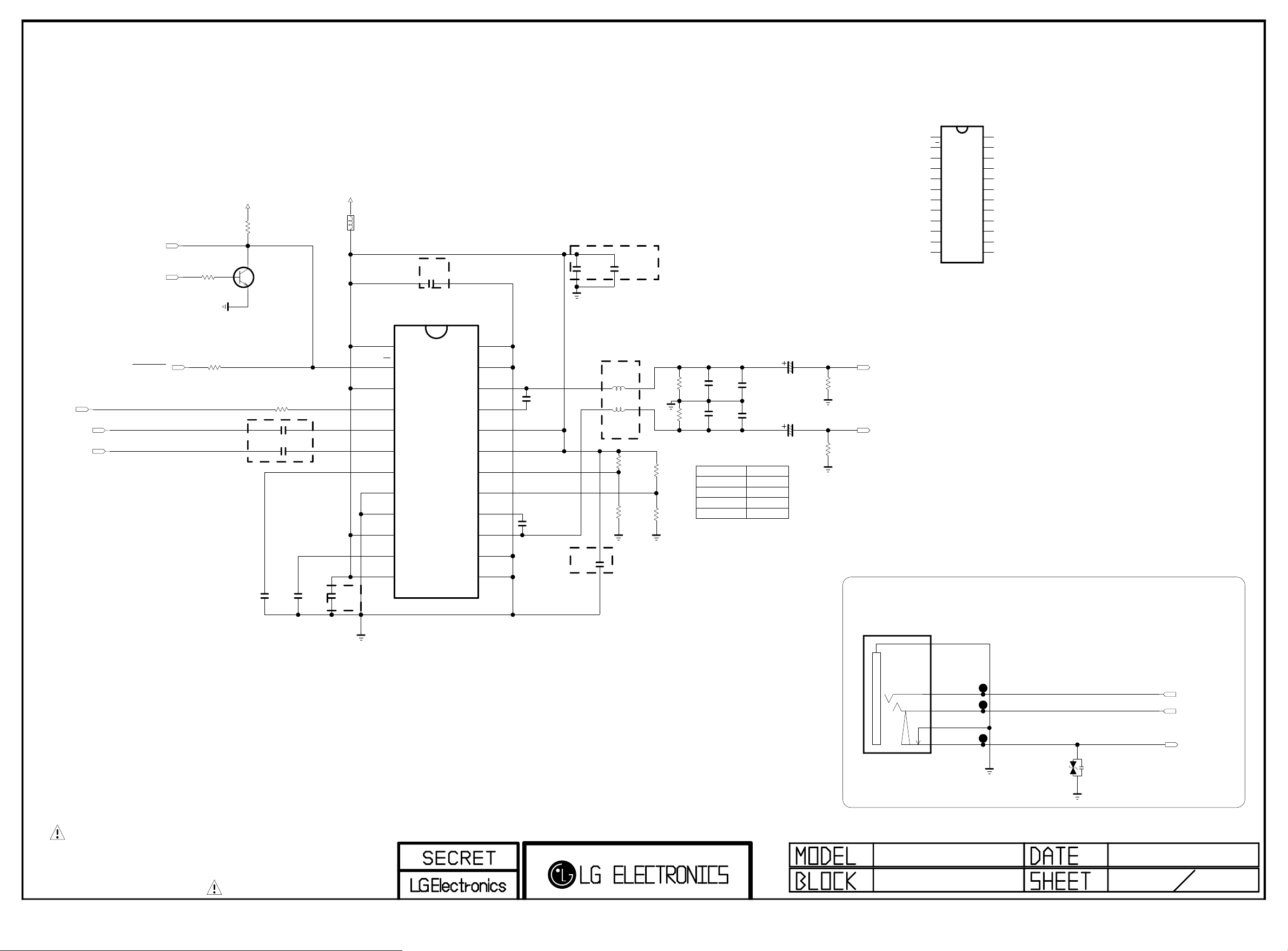

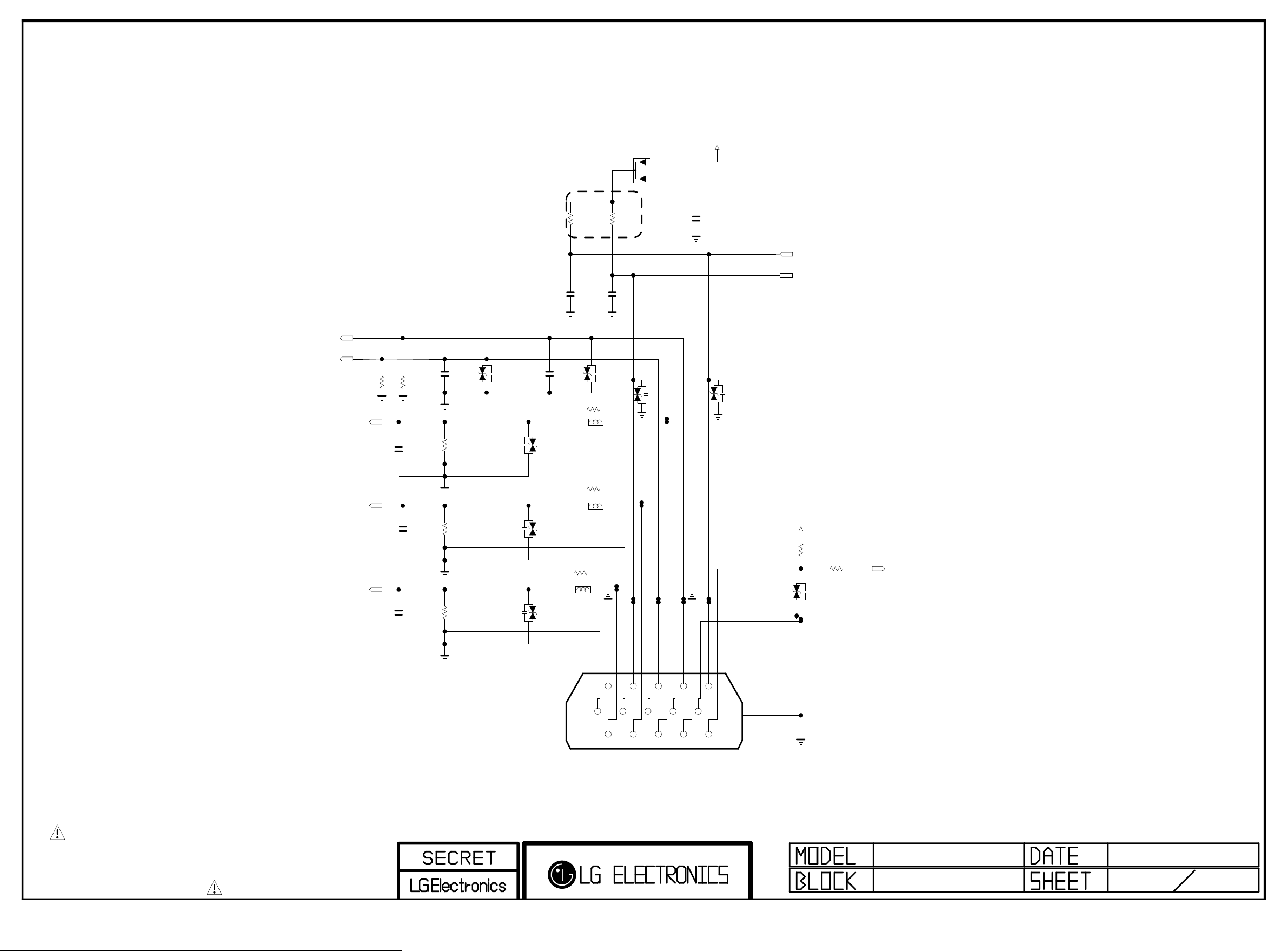

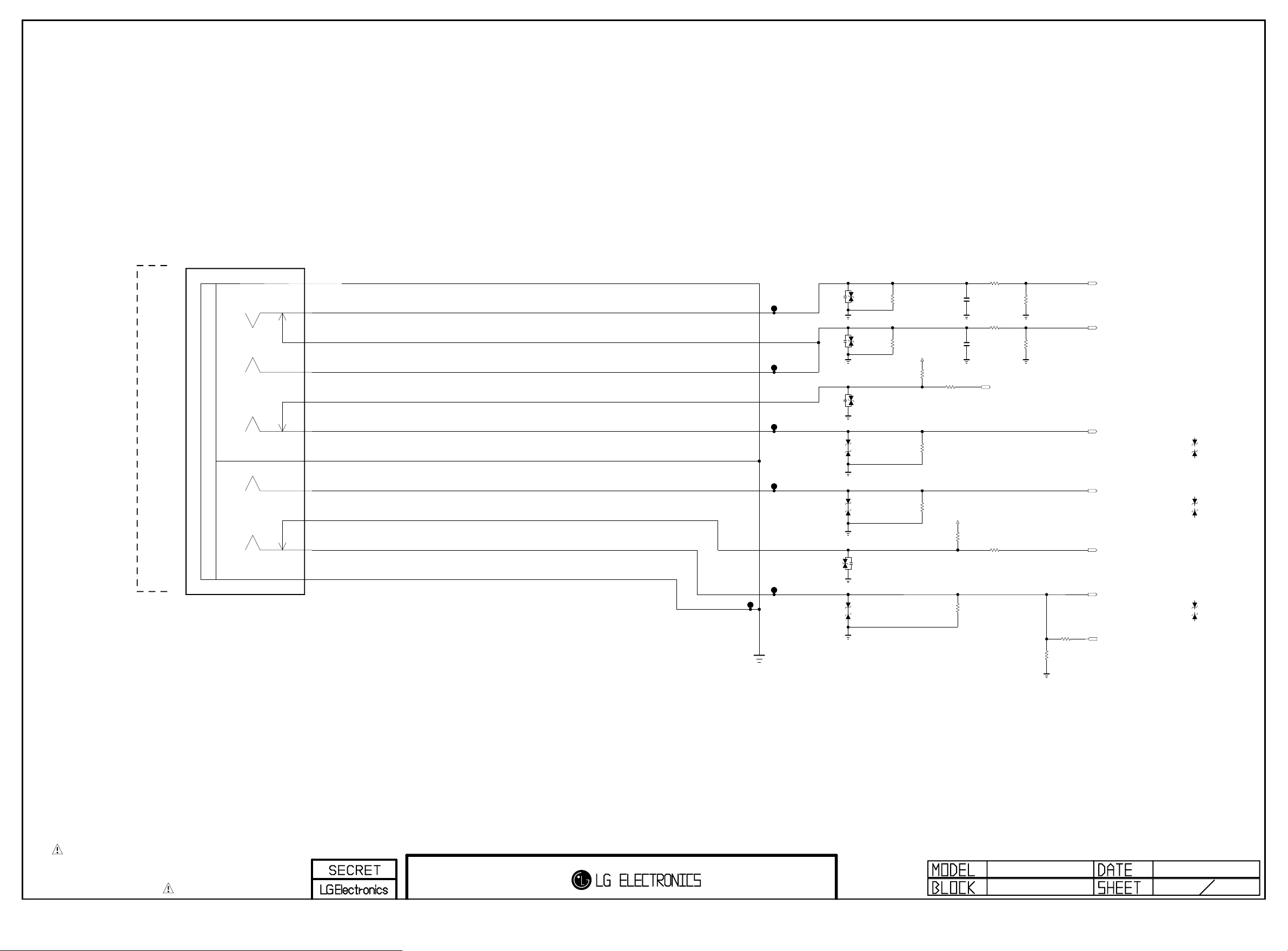

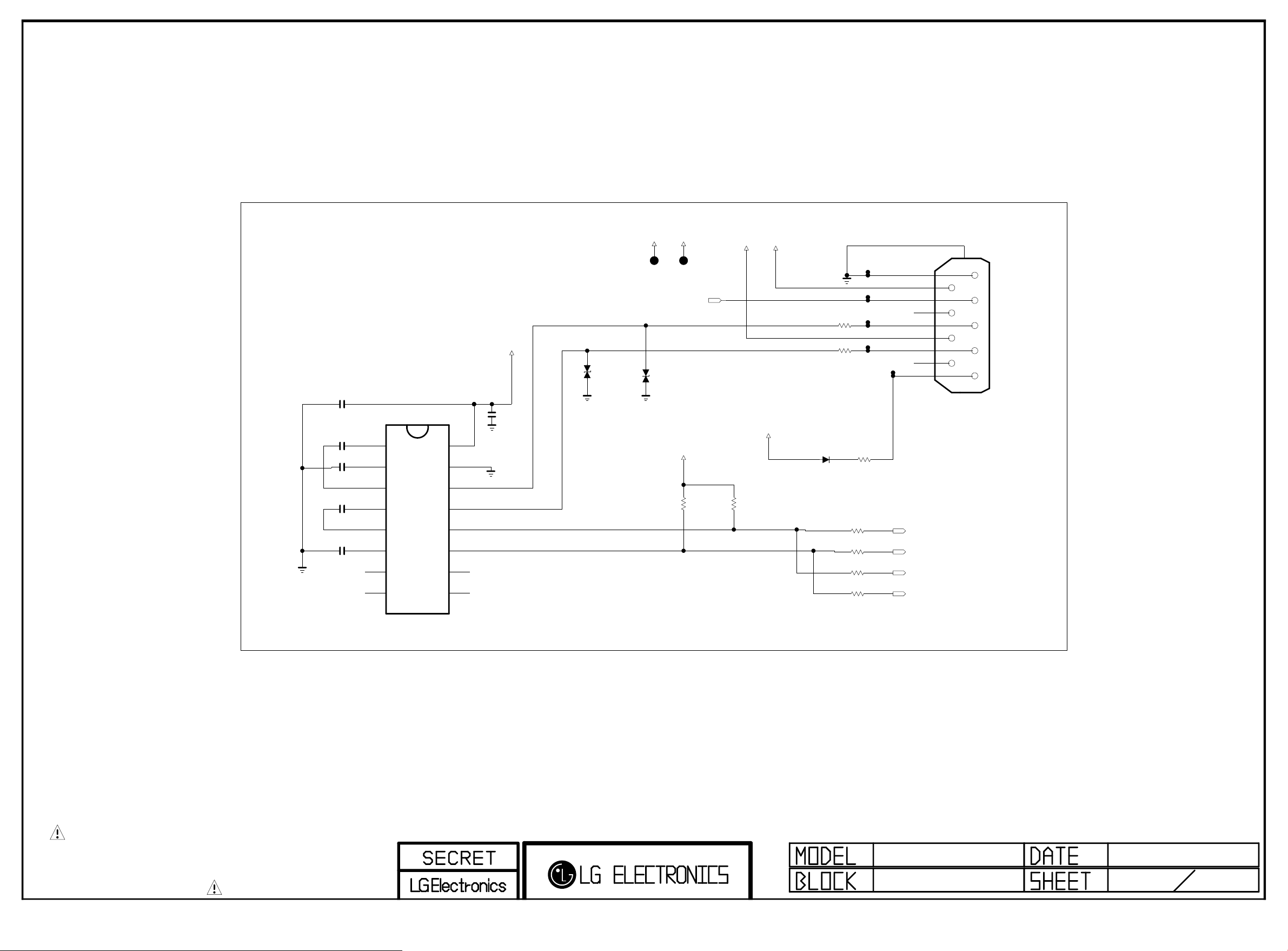

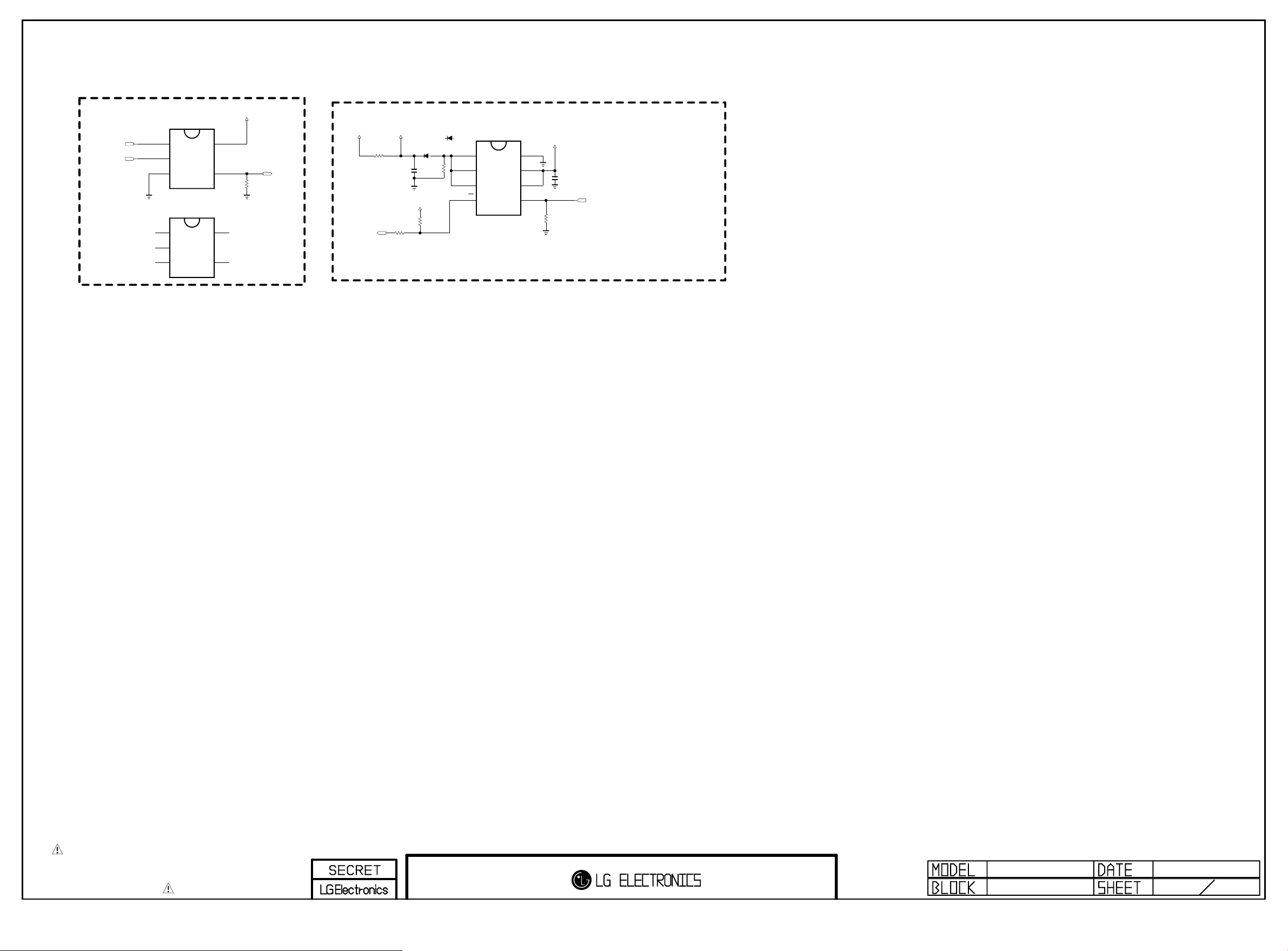

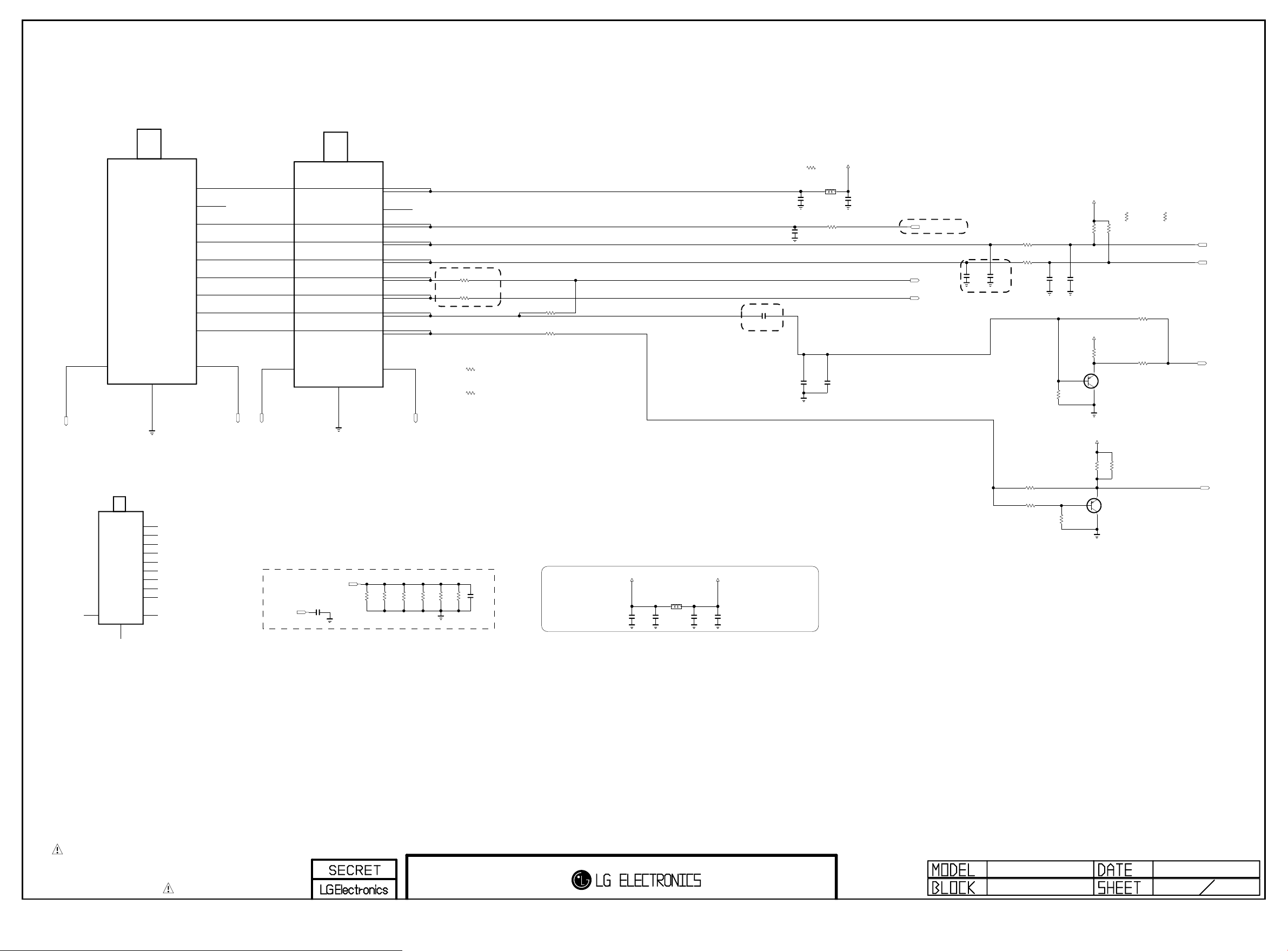

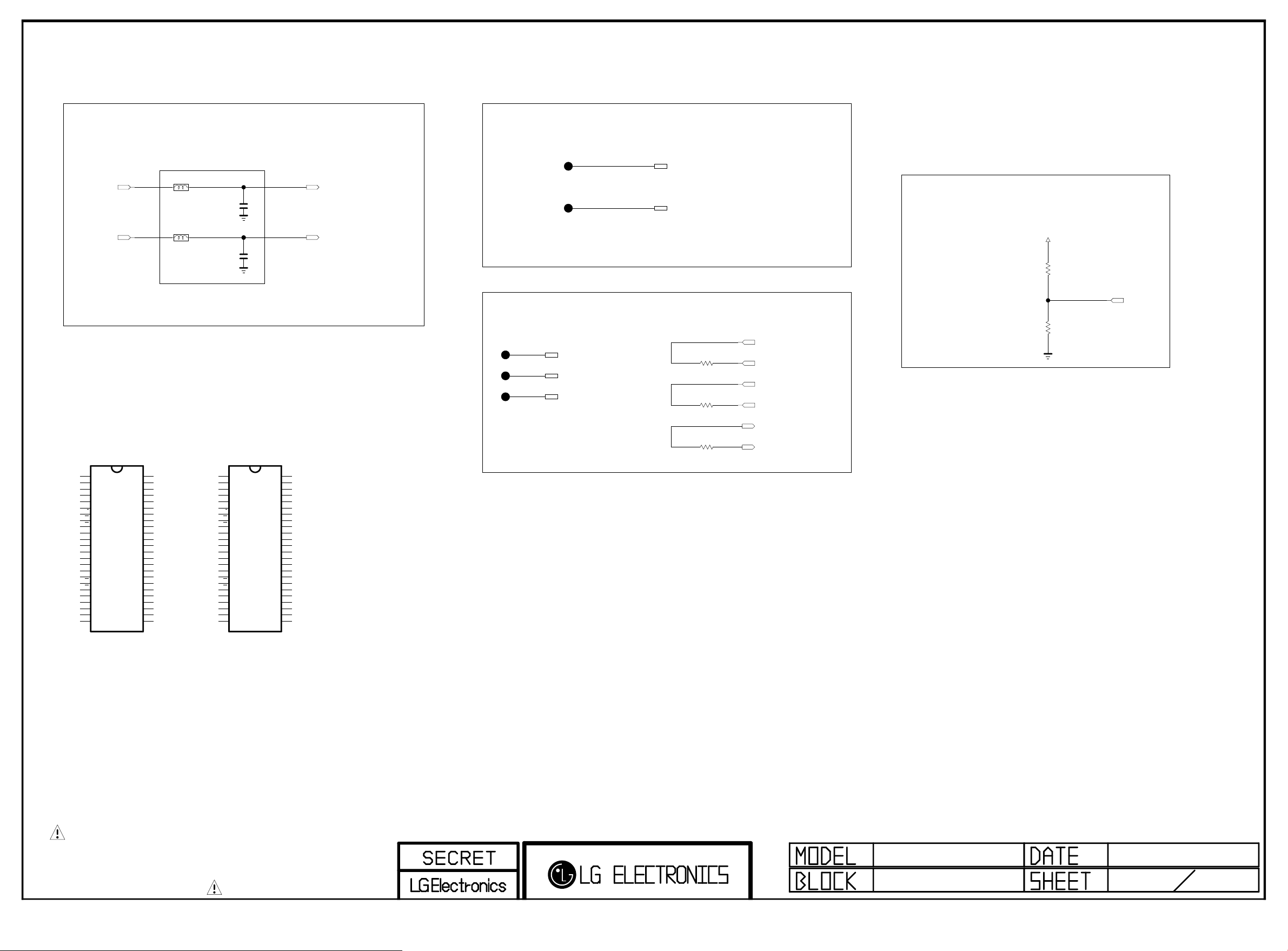

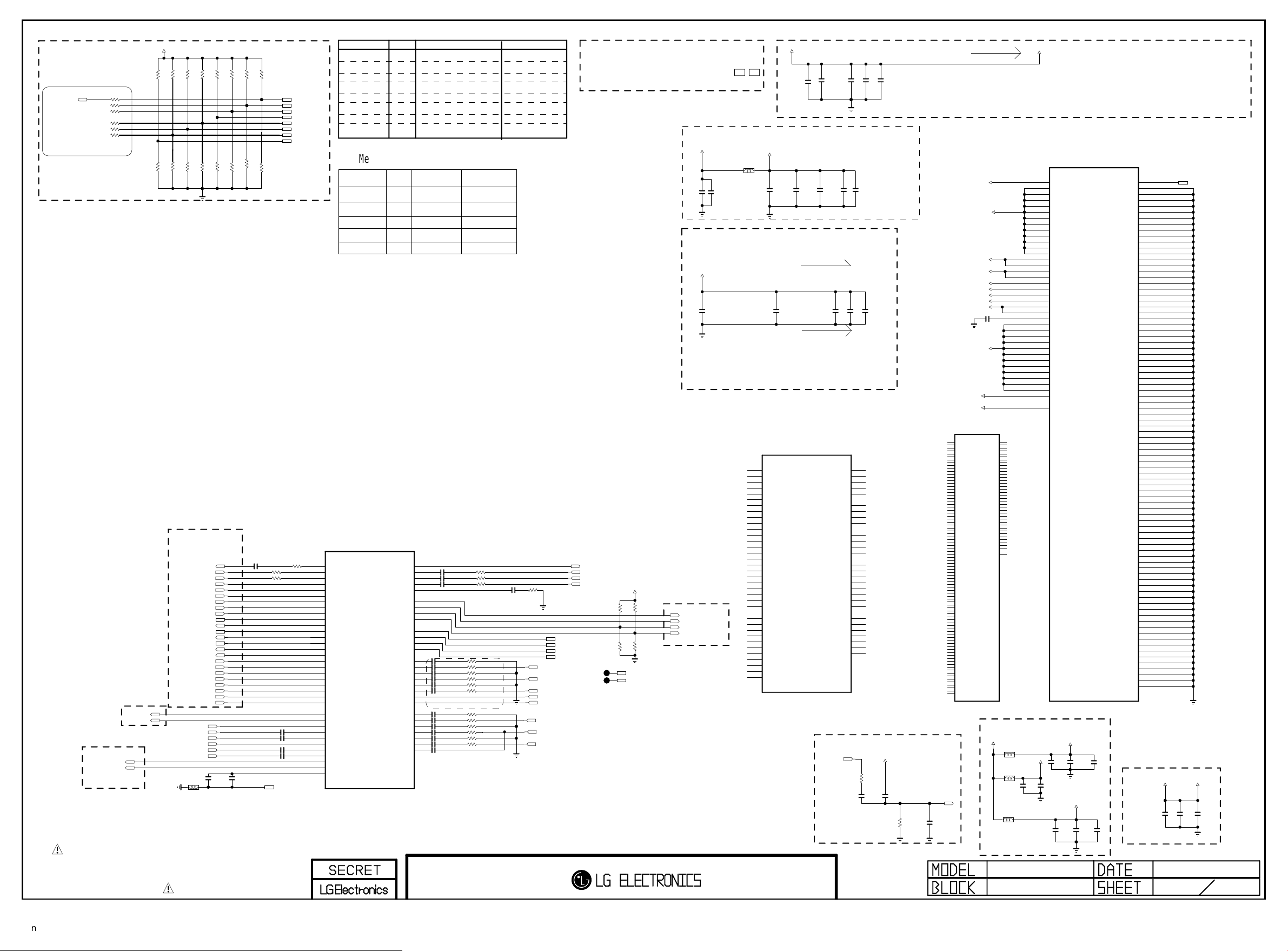

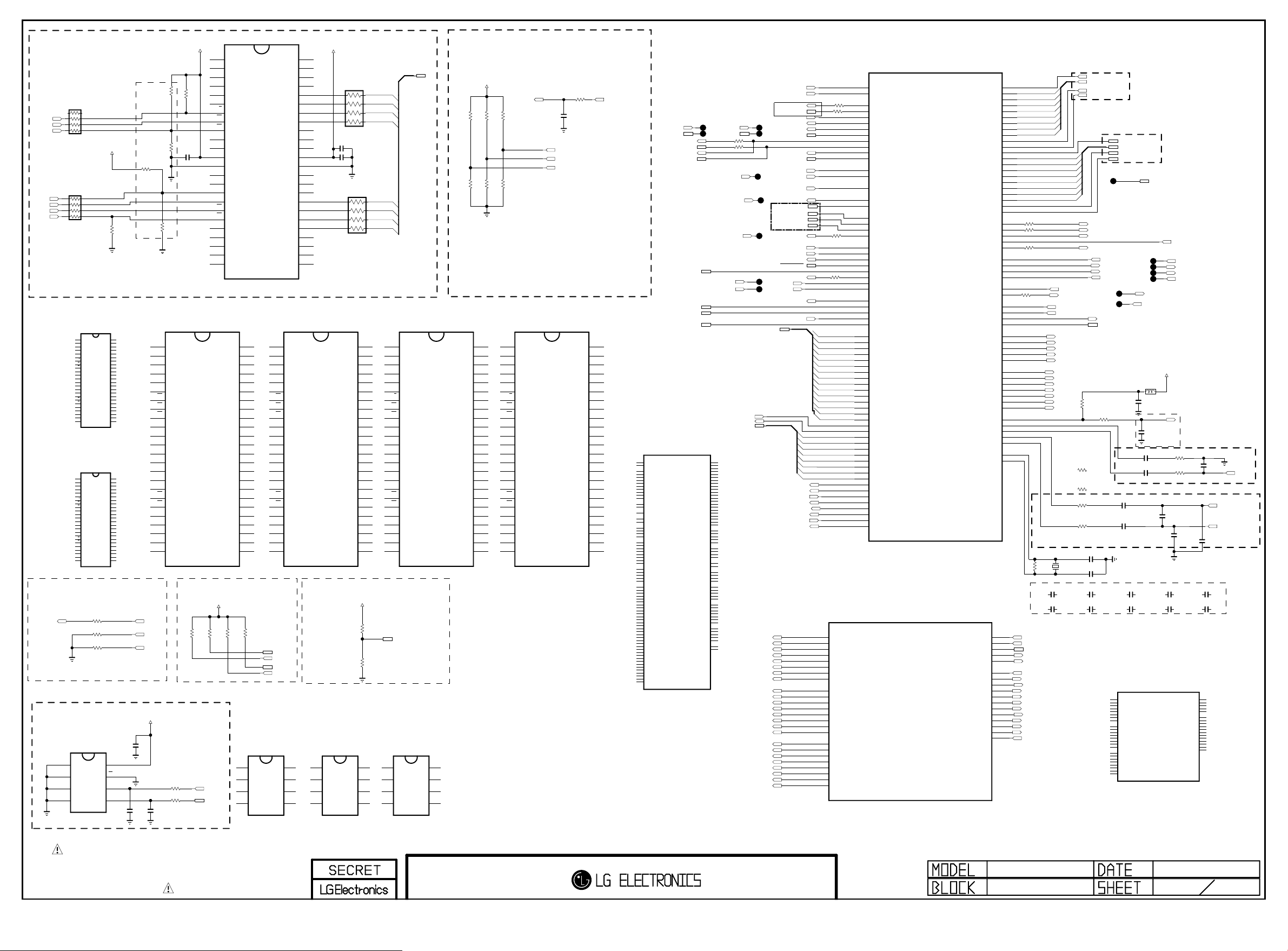

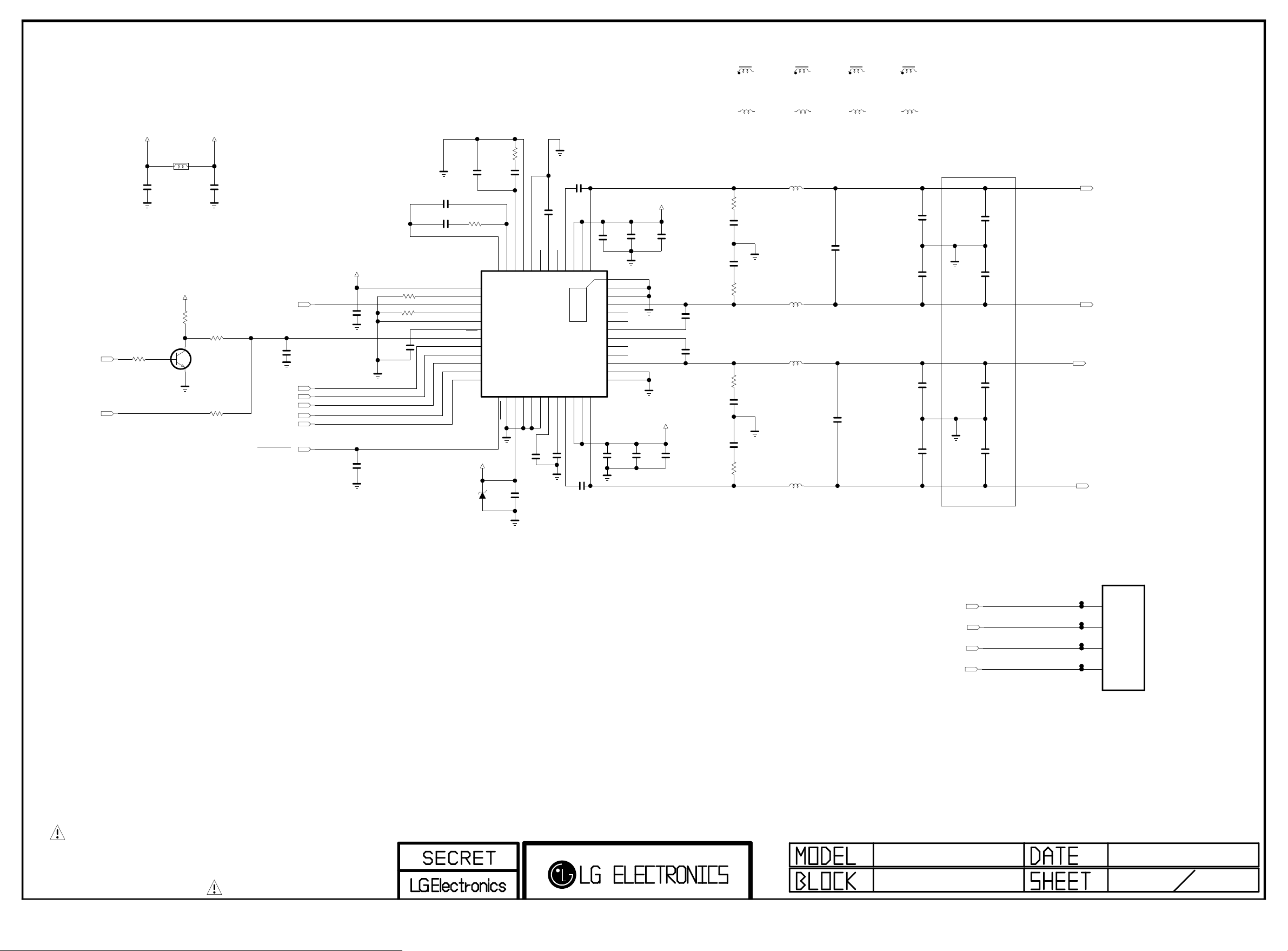

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

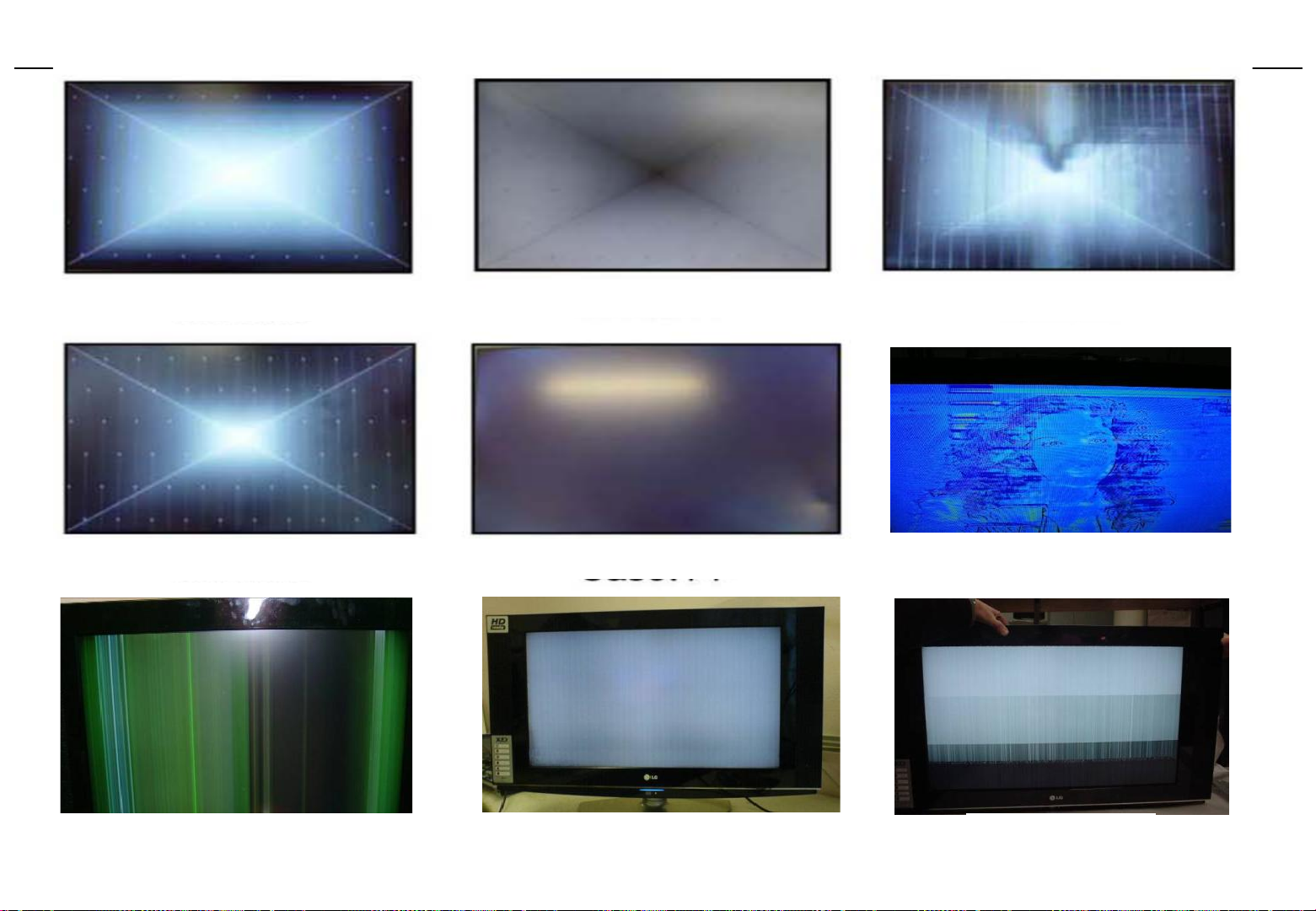

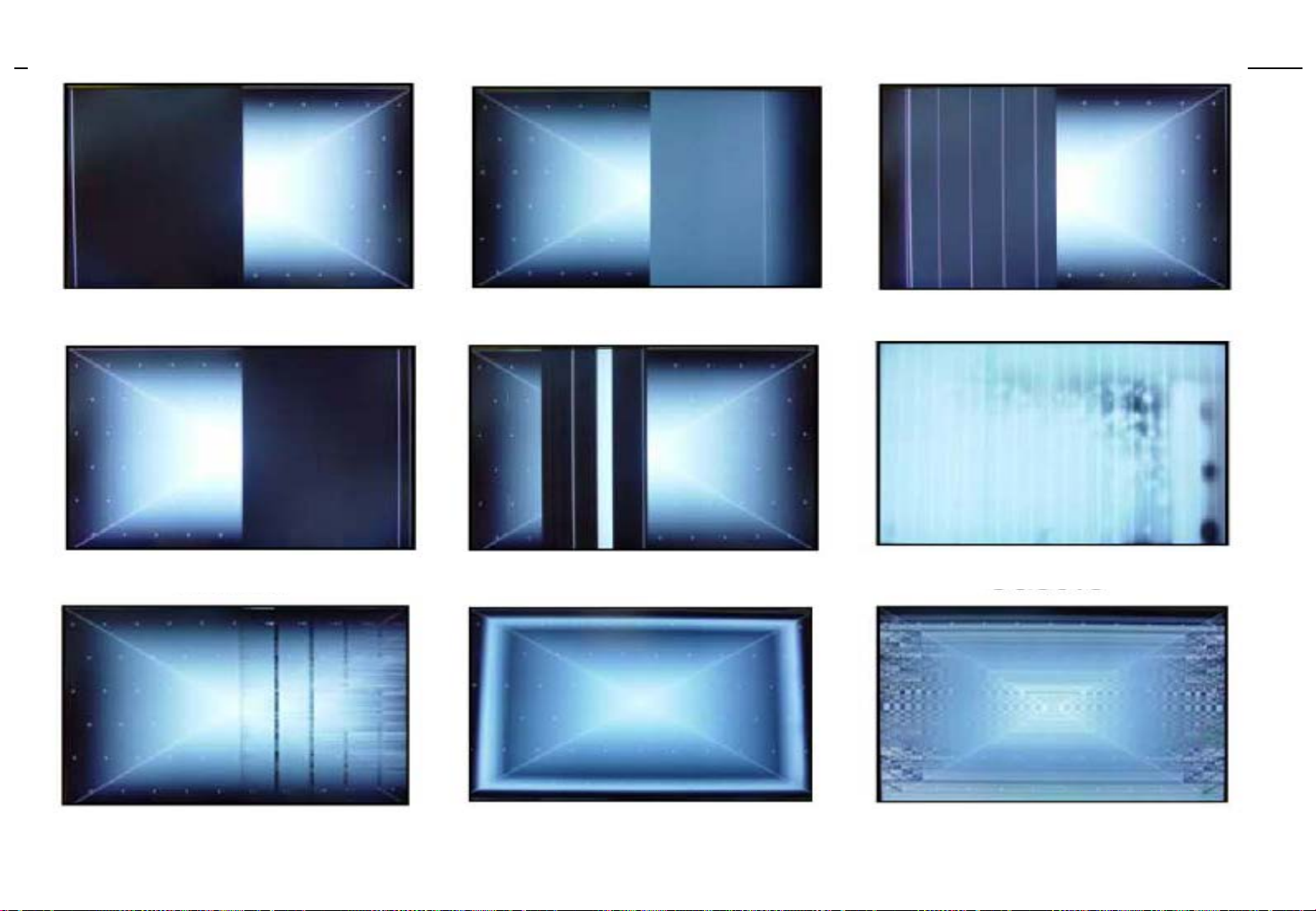

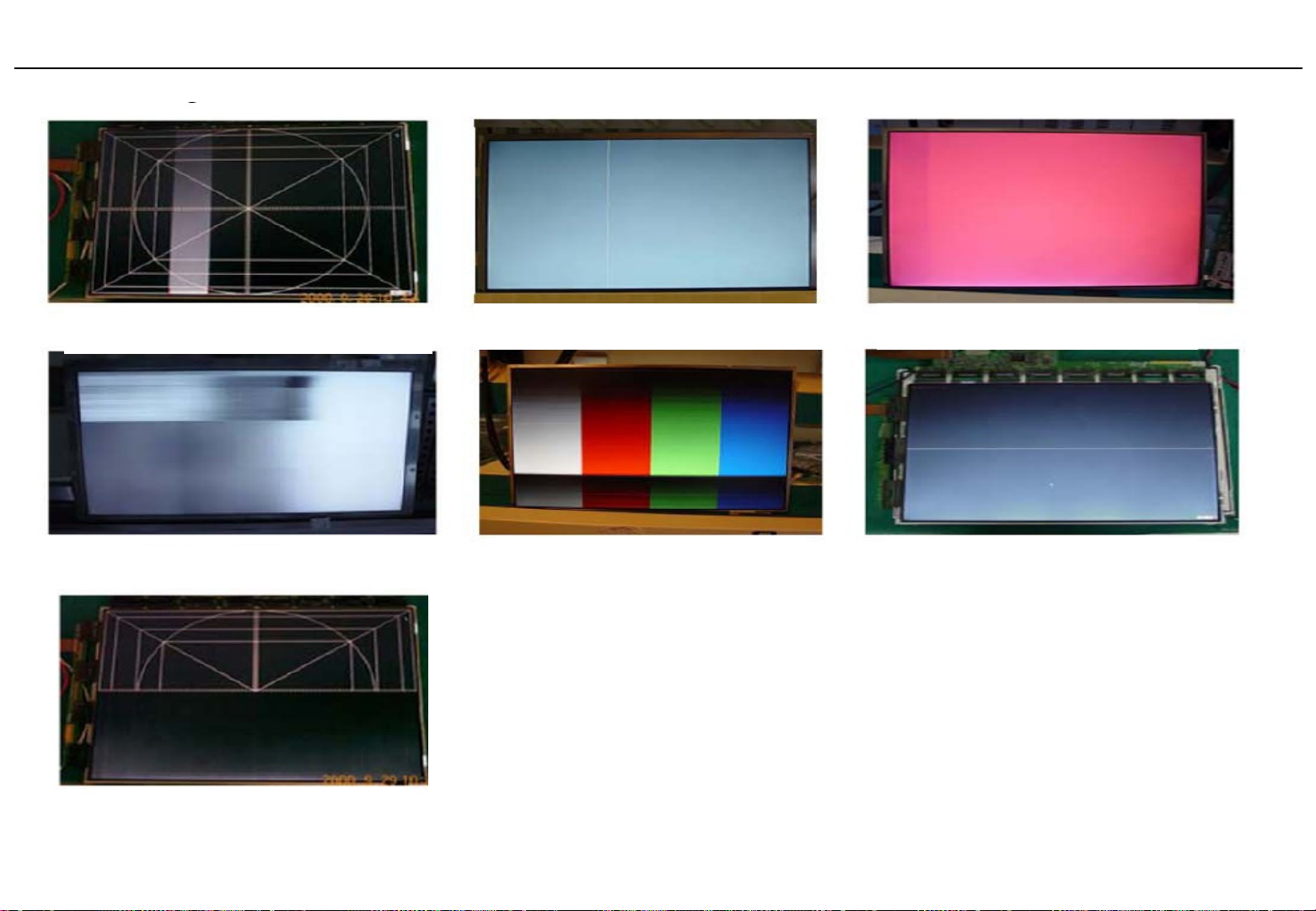

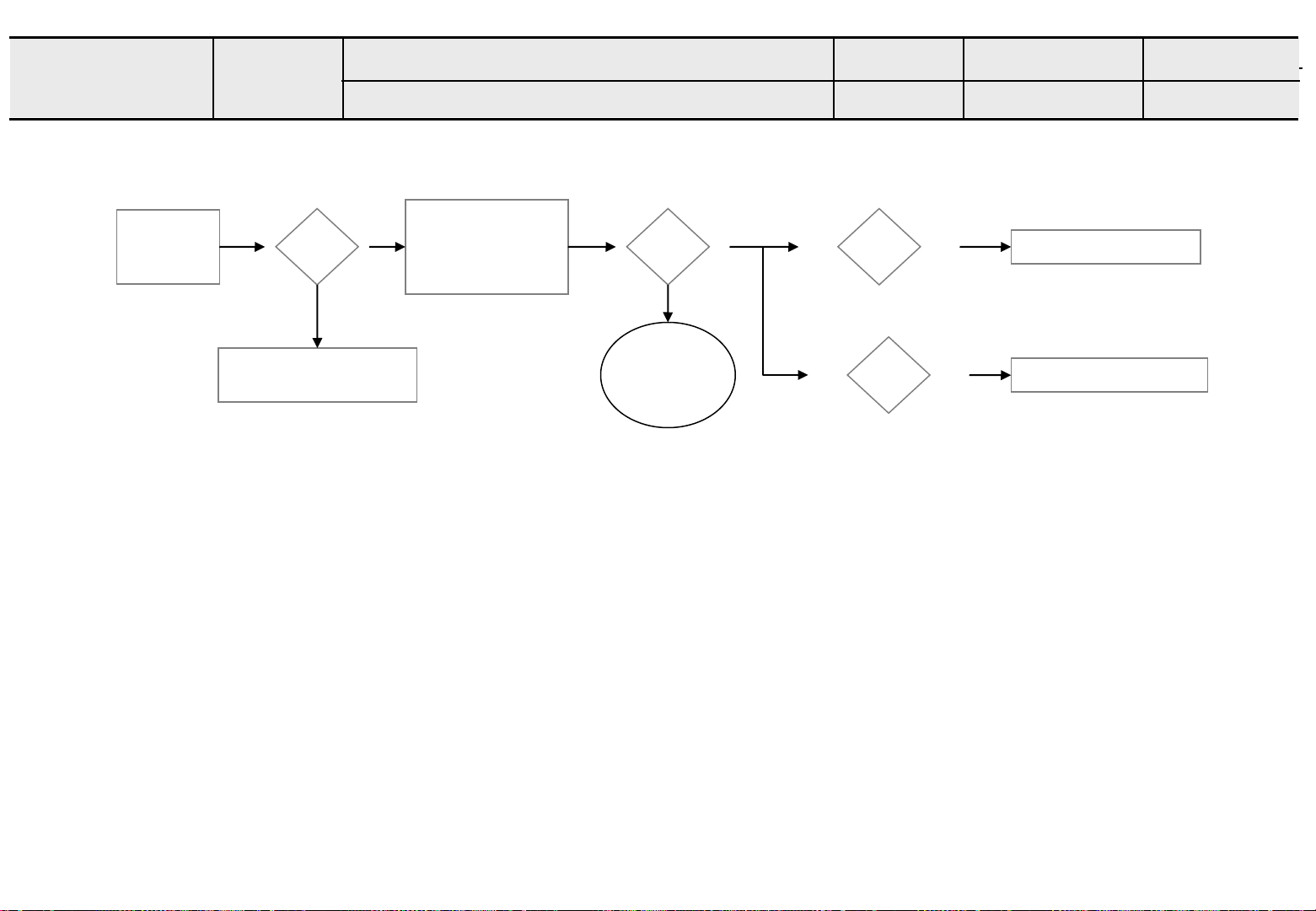

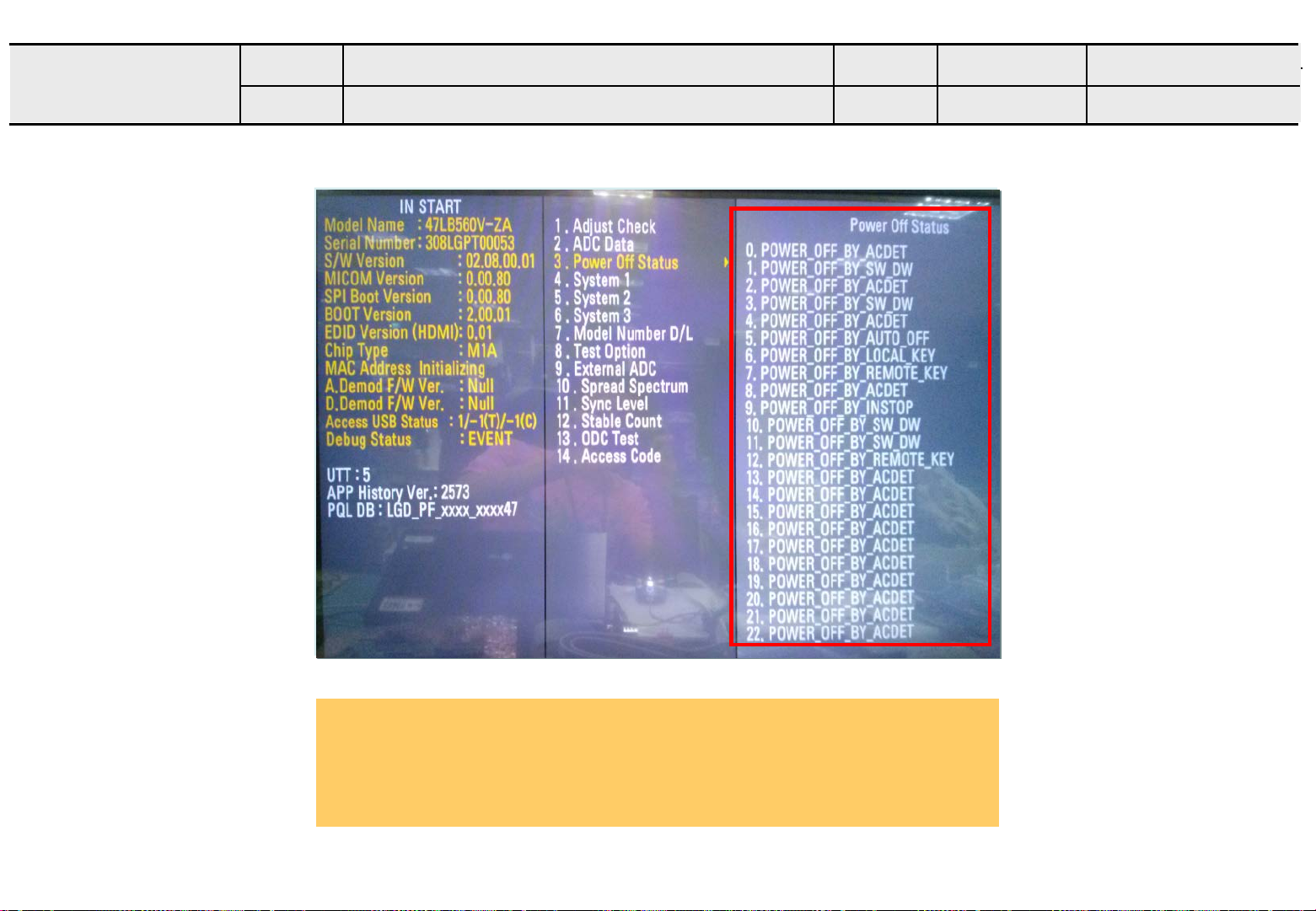

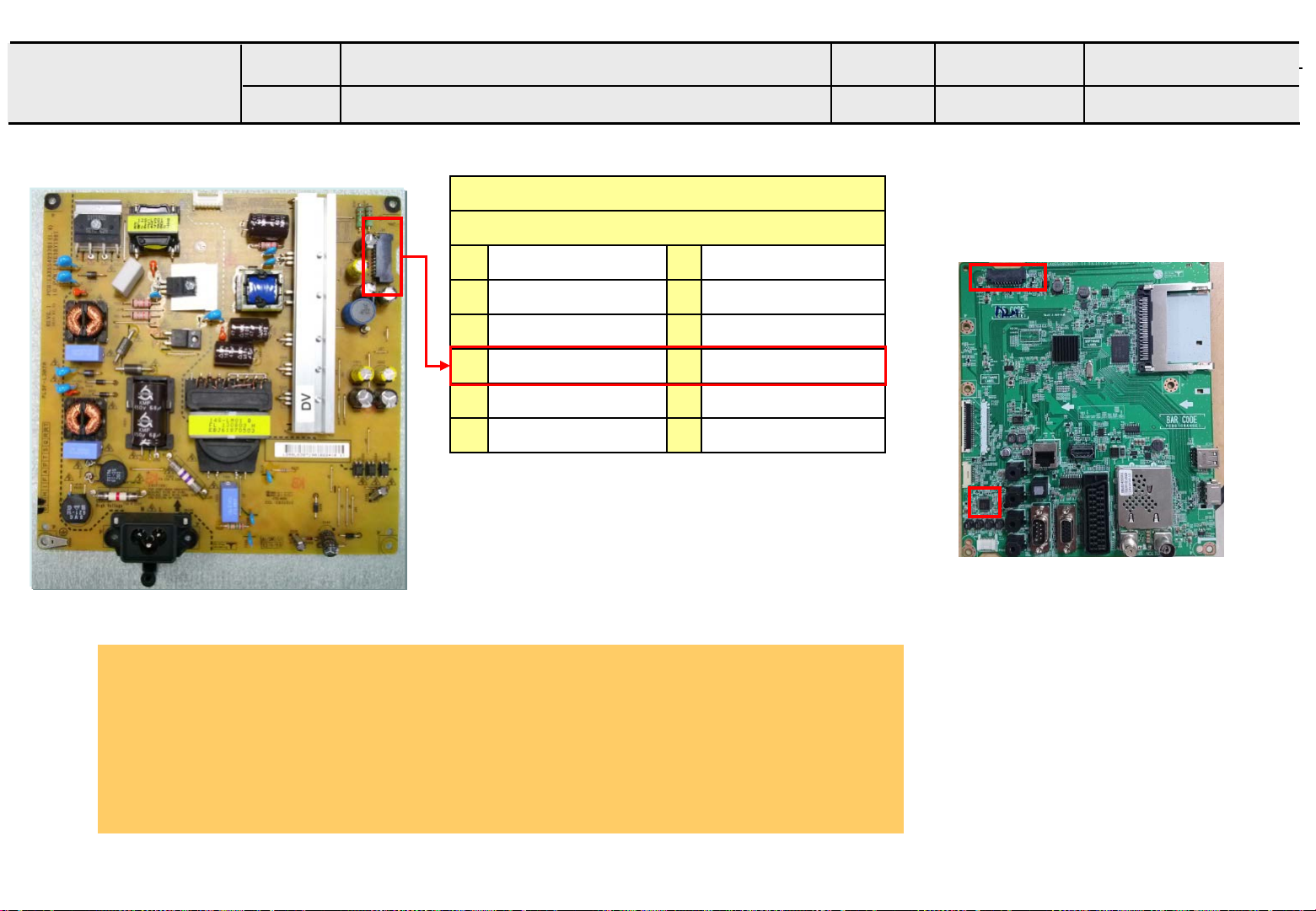

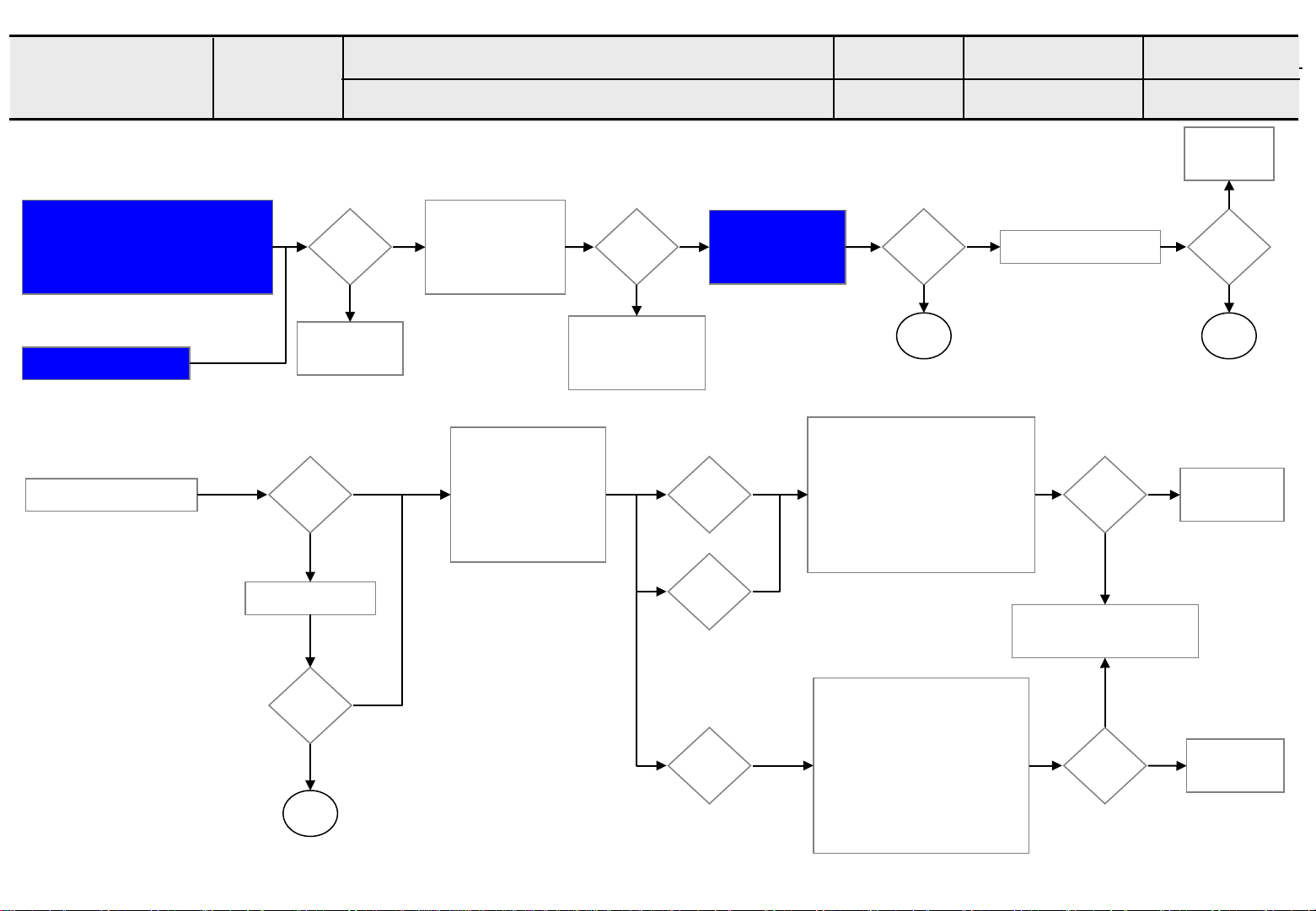

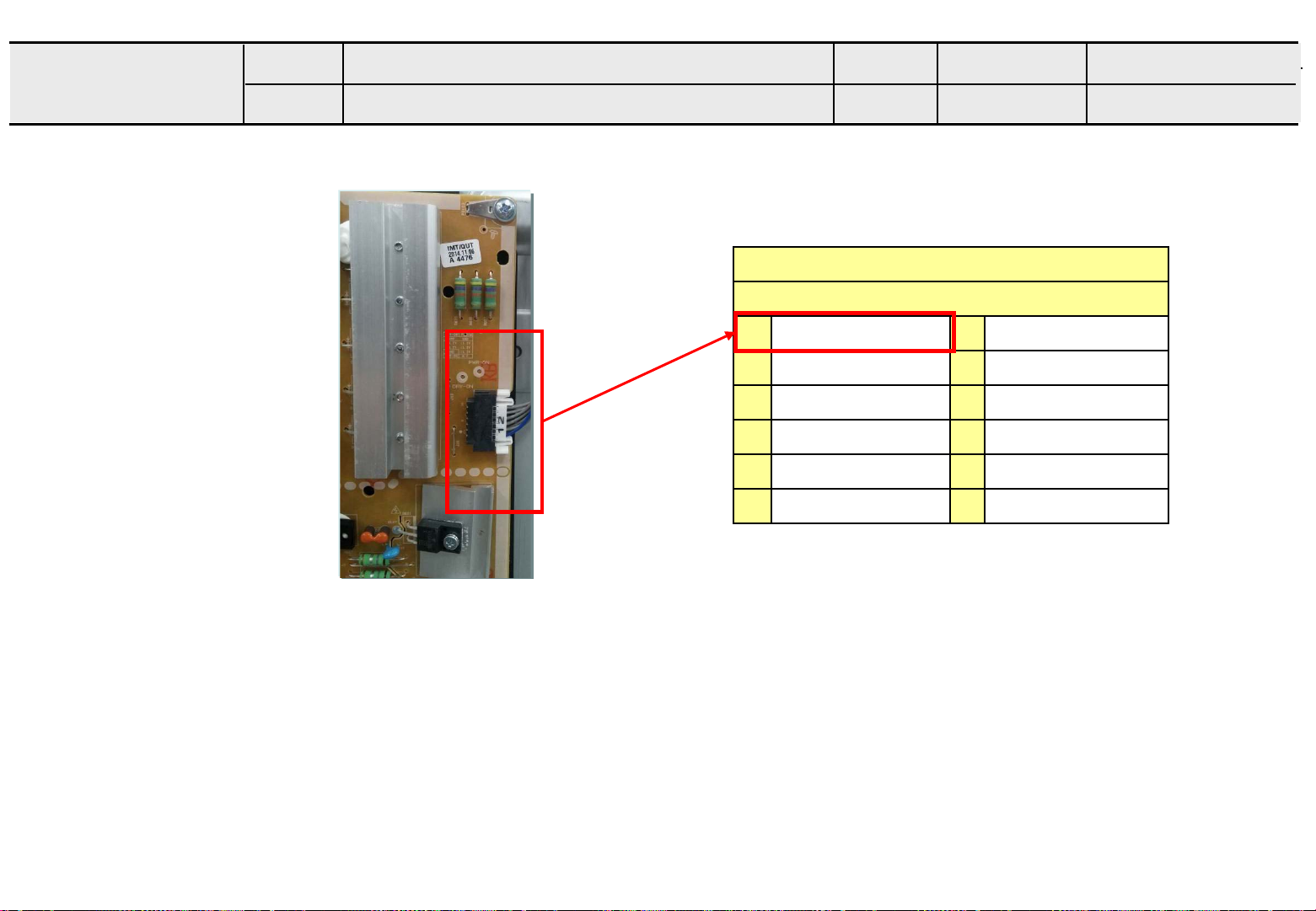

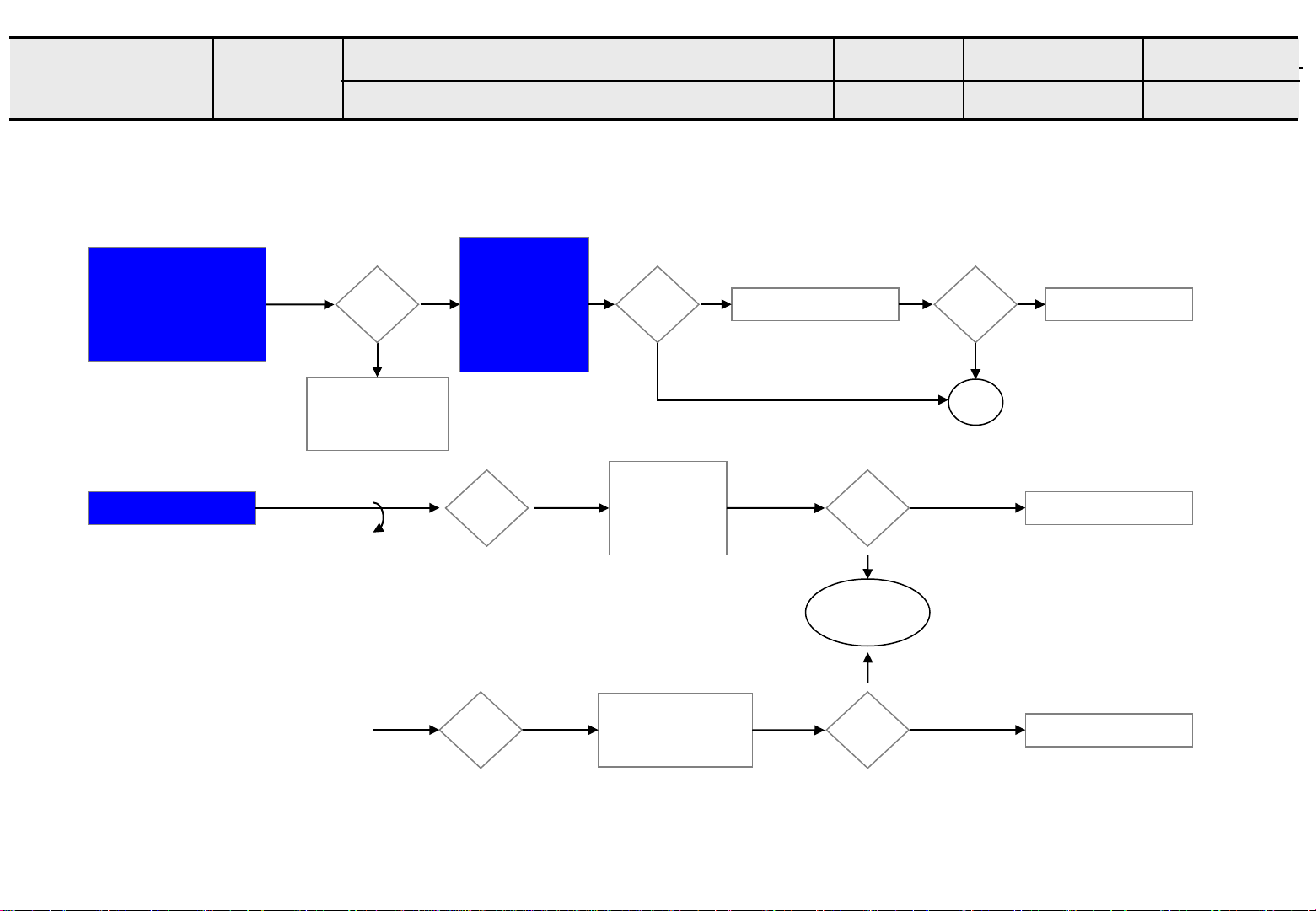

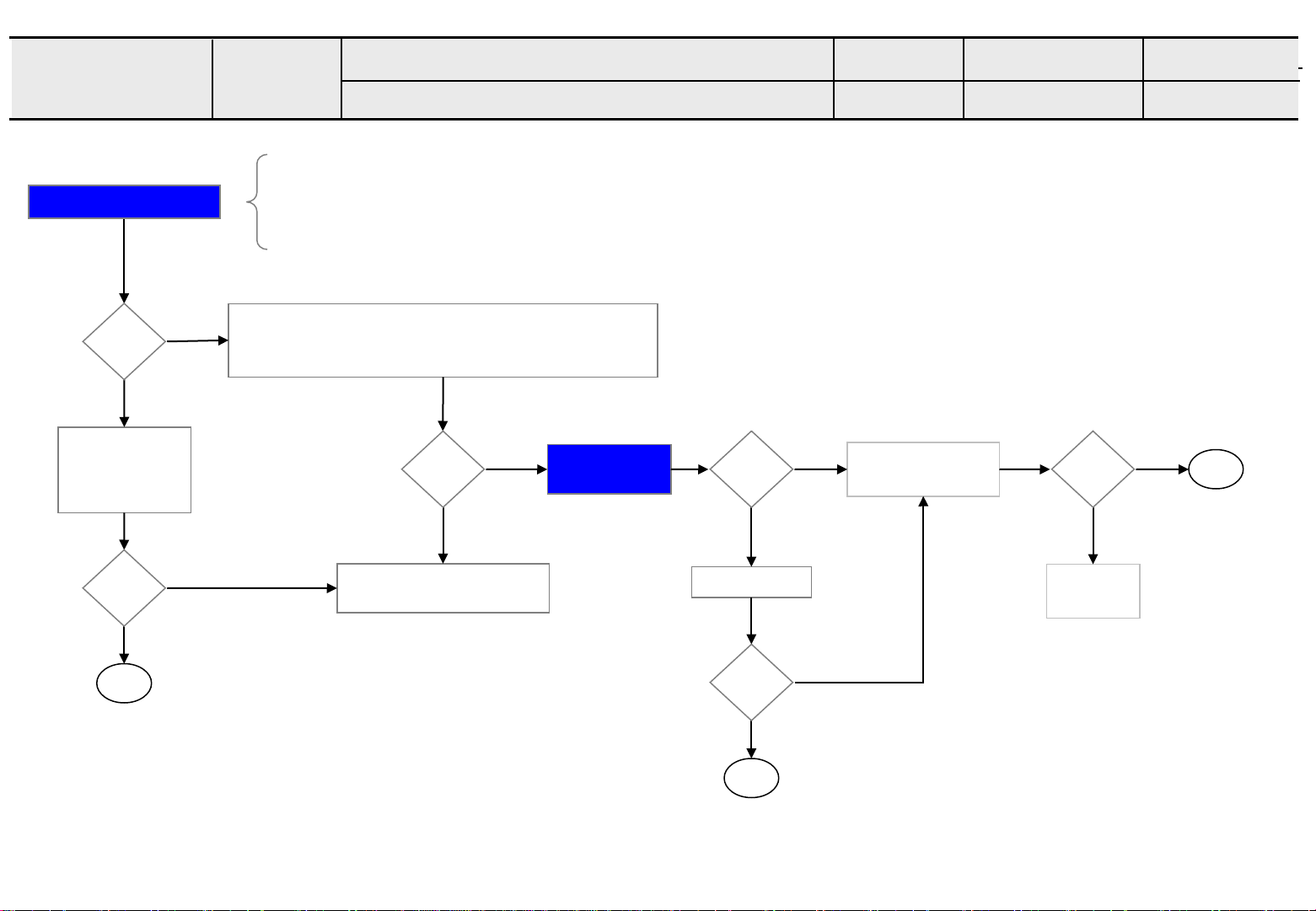

TROUBLESHOOTING GUIDE .................................................. APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication

of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some sol-

der removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LJ5CB chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC specification

Only for training and service purposes

- 6 -

4. Model General Specification

No. Item Specication Remarks

1 Receiving System SBTVD / NTSC / PAL-M / PAL-N

1) VHF : 02~13

2 Available Channel

3 Input Voltage AC 100 ~ 240V@ 50/60Hz

4 Market Central and South AMERICA

5 Screen Size

6 Aspect Ratio 16:9

7 Tuning System FS

Module

*J : Titan

8

*A : Titan *D : Silver *E : Gold

9 Operating Environment

10 Storage Environment

2) UHF : 14~69

3) CATV : 01~135

32LX330C-S*

32 inch Wide (1366 × 768)

42 inch Wide (1920 × 1080)

43 inch Wide (1920 × 1080) 43LX310C-S*

49 inch Wide (1920 × 1080)

55 inch Wide (1920 × 1080)

LC320DXE-MGA3 LC320DXE-MGA4

LC320DUE-MGA3 LC320DUE-MGA4

LC420DUE-MGA3 LC420DUE-MGA4 FHD, 60Hz LGD

NC430EUN-AACR1 FHD, 60Hz New Optics 43LX310C-S*

NC490EUN-AACR1 FHD, 60Hz New Optics 49LX310C-S*

LC490EUE-FHM3 FHD, 60Hz LGD 49LX341C-S*

LC550EUE-FHM3 FHD, 60Hz LGD 55LX341C-S*

LC550DUE-MGA4 FHD, 60Hz LGD 55LX530S-S*

1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

1) Temp. : -20 ~ 60 deg

2) Humidity : ~ 85%

HD, 60Hz LGD

FHD, 60Hz LGD 32LX535S-S*

32LX330H-S* 32LX530H-S* 32LX535S-S*

42LX330C-S* 42LX330H-S* 42LX530H-S* 42LX530S-S*

49LX341C-S* 49LX341C-S*

55LX341C-S* 55LX530S-S*

32LX330C-S* 32LX330H-S* 32LX530H-S*

42LX330C-S* 42LX330H-S* 42LX530H-S* 42LX530S-S*

Only for training and service purposes

- 7 -

5. External Input Support Format

5.1. Component input(Y, CB, PR, CR, PR)

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock Proposed

1 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

2 720*480 15.73 60 13.5135 SDTV ,DVD 480I

3 720*480 31.47 59.94 27.0 SDTV 480P

4 720*480 31.50 60 27.027 SDTV 480P

5 1280*720 44.96 59.94 74.176 HDTV 720P

6 1280*720 45.00 60.00 74.25 HDTV 720P

7 1920*1080 28.12 50.00 74.250 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 33.75 60.00 74.25 HDTV 1080I

10 1920*1080 26.97 23.976 74.176 HDTV 1080P

11 1920*1080 27.00 24.000 74.25 HDTV 1080P

12 1920*1080 33.71 29.97 74.176 HDTV 1080P

13 1920*1080 33.75 30.000 74.25 HDTV 1080P

14 1920*1080 56.25 50.00 148.50 HDTV 1080P

15 1920*1080 67.43 59.939 148.352 HDTV 1080P

16 1920*1080 67.50 60.00 148.50 HDTV 1080P

5.2. RGB Input(PC)

- HD Model

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 640*350 31.468 70.09 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 80.00 VESA O

7 1360*768 47.712 60.015 85.50 VESA (WXGA) O

- FHD Model

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed DDC Remark

1 640*350 31.468 70.09 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 80.00 VESA O

7 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8 1280*1024 63.981 60.020 108.0 VESA (SXGA) O FHD

9 1920*1080 66.587 59.934 138.5 HDTV 1080P O FHD

10 1920*1080 67.50 60.00 138.5 HDTV 1080P O FHD

Only for training and service purposes

- 8 -

5.3. HDMI Input(PC/DTV)

* HDMI PC support only Rear HDMI Input * If use DVI to HDMI cable for PC, you have to use external SPK for PC audio sound.

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

PC(DVI) DDC

1 640*350 31.46 70.09 25.17 EGA X

2 720*400 31.46 70.08 28.32 DOS O

3 640*480 31.46 59.94 25.17 VESA(VGA) O

4 800*600 37.87 60.31 40.00 VESA(SVGA) O

5 1024*768 48.36 60.00 65.00 VESA(XGA) O

6 1152*864 54.34 60.053 80.00 VESA O

7 1360*768 47.71 60.015 85.50 VESA (WXGA) O

8 1280*1024 63.98 60.02 108.00 VESA (SXGA) O (FHD Only)

9 1920*1080 67.5 60 148.5 HDTV 1080P O (FHD Only)

DTV

1 720*480 31.47 59.94 27.000 SDTV 480P

2 720*480 31.50 60.00 27.027 SDTV 480P

3 1280*720 37.50 50.00 74.25 HDTV 720P

4 1280*720 44.96 59.94 74.176 HDTV 720P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1920*1080 28.12 50.00 74.25 HDTV 1080I

7 1920*1080 33.72 59.94 74.176 HDTV 1080I

8 1920*1080 33.75 60.00 74.25 HDTV 1080I

9 1920*1080 26.97 23.97 74.176 HDTV 1080P

10 1920*1080 27.00 24.00 74.25 HDTV 1080P

11 1920*1080 33.71 29.97 74.176 HDTV 1080P

12 1920*1080 33.75 30.00 74.25 HDTV 1080P

13 1920*1080 56.25 50.00 148.50 HDTV 1080P

14 1920*1080 67.43 59.94 148.352 HDTV 1080P

15 1920*1080 67.5 60.00 148.50 HDTV 1080P

16 1920*1080 67.50 60.00 148.50 HDTV 1080P

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION





1. Application Range

This specification sheet is applied to all of the LED TV with LJ5CB chassis.

2. Designation

(1) The adjustment is according to the order which is designated

and which must be followed, according to the plan

which

can be changed only on agreeing. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation : Above 5 Minutes (Heat Run) Temperature : at 25 °C ± 5 °C Relative humidity : 65 ± 10 % Input voltage : 220 V, 60 Hz (6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),

DDC Adjustment Jig, Service remote control. (7) Push the "IN STOP" key - For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot automatically.

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push

“In-stop” key at rst.

2. Push “Power on” key for turning it on.

→ If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

3. Main PCB check process

▪ APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program "Mstar ISP Utility" and then click

"Config" tab.

(2) Set as below, and then click "Auto Detect" and check "OK"

message. If "Error" is displayed, check connection between computer, jig, and set.

(3) Click "Read" tab, and then load download file(XXXX.bin)

by clicking "Read"

(4) Click "Connect" tab. If "Can't" is displayed, check connection

between computer, jig, and set.

(2)

(3)

Please Check the Speed : To use speed between from 200KHz to 400KHz

(5) Click "Auto" tab and set as below. (6) Click "Run". (7) After downloading, check "OK" message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

* USB DOWNLOAD

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If version of update file in USB Stick is lower, it will not work.

- But your downloaded version is High, USB data is automatically detecting

(3) Show the message “Copying files from memory”

(4) Updating is starting.

(1)

filexxx.bin

Only for training and service purposes

(5) Updating Completed, The TV will restart automatically. (6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have,

TV can lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ATV test on production line.

- 10 -

* After downloading, have to check and adjust TOOL OPTION

again.

(1) Push "IN-START" key in service remote control. (2) Select "Tool Option 1" and push "OK" key. (3) Punch in the number. (Each model has their number) (4)Completed selecting Tool option.

Model HD/

43LX310C-S* LGD EDGE 748 17425 2624 3616 5634 4369

49LX310C-S* LGD EDGE 750 17425 2624 3616 5634 4368

32LX330C-S* LGD POLA 295 19473 2752 3616 5634 4369

42LX330C-S* LGD POLA 299 19473 2752 3616 5634 4369

32LX330H-S* LGD POLA 295 19473 2752 3616 5634 4369

42LX330H-S* LGD POLA 299 19473 2752 3616 5634 4369

49LX341C-S* LGD EDGE 686 19473 2624 3616 5634 4369

55LX341C-S* LGD EDGE 688 19473 2624 3616 5634 4369

32LX530H-S* LGD POLA 295 19473 2752 3616 5634 4369

42LX530H-S* LGD POLA 299 19473 2752 3616 5634 4369

Commercial Tool Option : 128

Module Tool option

FHD

1 2 3 4 5 6

* RS-232C Connection Method. Connection : PCBA (USB Port) -> USB to Serial Adapter

(UC-232A) -> RS-232C cable -> PC(RS-232C port)

- Product name of USB to Serial Adapter is UC-232A.

* Caution : LJ5CB* chassis support only UC-232A driver. (

only use this one. )

L14 LGD, INX Module

▪ Normal line (LGD/CMI, March ~ December, Global)

NC

5.0

Aging

time

(Min)

Cool Medium Warm

x y x y x y

271 270 286 289 313 329 1 0-2 282 289 297 308 324 348 2 3-5 281 287 296 306 323 346 3 6-9 279 284 294 303 321 343 4 10-19 277 280 292 299 319 339 5 20-35 275 277 290 296 317 336 6 36-49 274 274 289 293 316 333 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

▪ Aging chanber

NC

5.0

Aging

time

(Min)

Cool Medium Warm

x y x y x y

271 270 285 293 313 329 1 0-2 280 285 294 308 319 340 2 3-5 276 280 290 303 315 335 3 6-9 272 275 286 298 311 330 4 10-19 269 272 283 295 308 327 5 20-35 267 268 281 291 306 323 6 36-49 266 265 280 288 305 320 7 50-79 265 263 279 286 304 318 8 80-119 264 261 278 284 303 316 9 Over 120 264 260 278 283 303 315

4. Total Assembly line process

4.1. Adjustment Preparation

- W/B Equipment condition ca210 : LED -> CH14, Test signal: Inner pattern(80IRE)

- Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

▪ The spec of color temperature and coordinate.

Mode Temp Coordinate spec

Cool(C50) 13,000 k

Medium(0) 9,300 k

Warm(W50) 6,500 k

X=0.271 (± 0.002) Y=0.270 (± 0.002)

X=0.286 (± 0.002) Y=0.289 (± 0.002)

X=0.313 (± 0.002) Y=0.329 (± 0.002)

▪ CA210 : CH 14, Test signal : Inner pattern (80IRE)

- Standard color coordinate and temperature using CA-1000 (by H/R time)

<Test Signal> Inner pattern (204gray, 80IRE) * W/B luminance Spec

Min 60↑

▪ Normal line ( LGD/CMI, January ~ February for Gumi, Apply

not Cinema Screen)

NC

5.0

Aging

time

(Min)

Cool Medium Warm

x y x y x y

271 270 286 289 313 329 1 0-2 286 295 301 314 328 354 2 3-5 284 290 299 309 326 349 3 6-9 282 287 297 306 324 346 4 10-19 279 283 294 302 321 342 5 20-35 276 278 291 297 318 337 6 36-49 274 275 289 294 316 334 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

* Use only AUO/Sharp/CSOT (Cool temp Spec is 13000K)

Cool Medium Warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

Only for training and service purposes

- 11 -

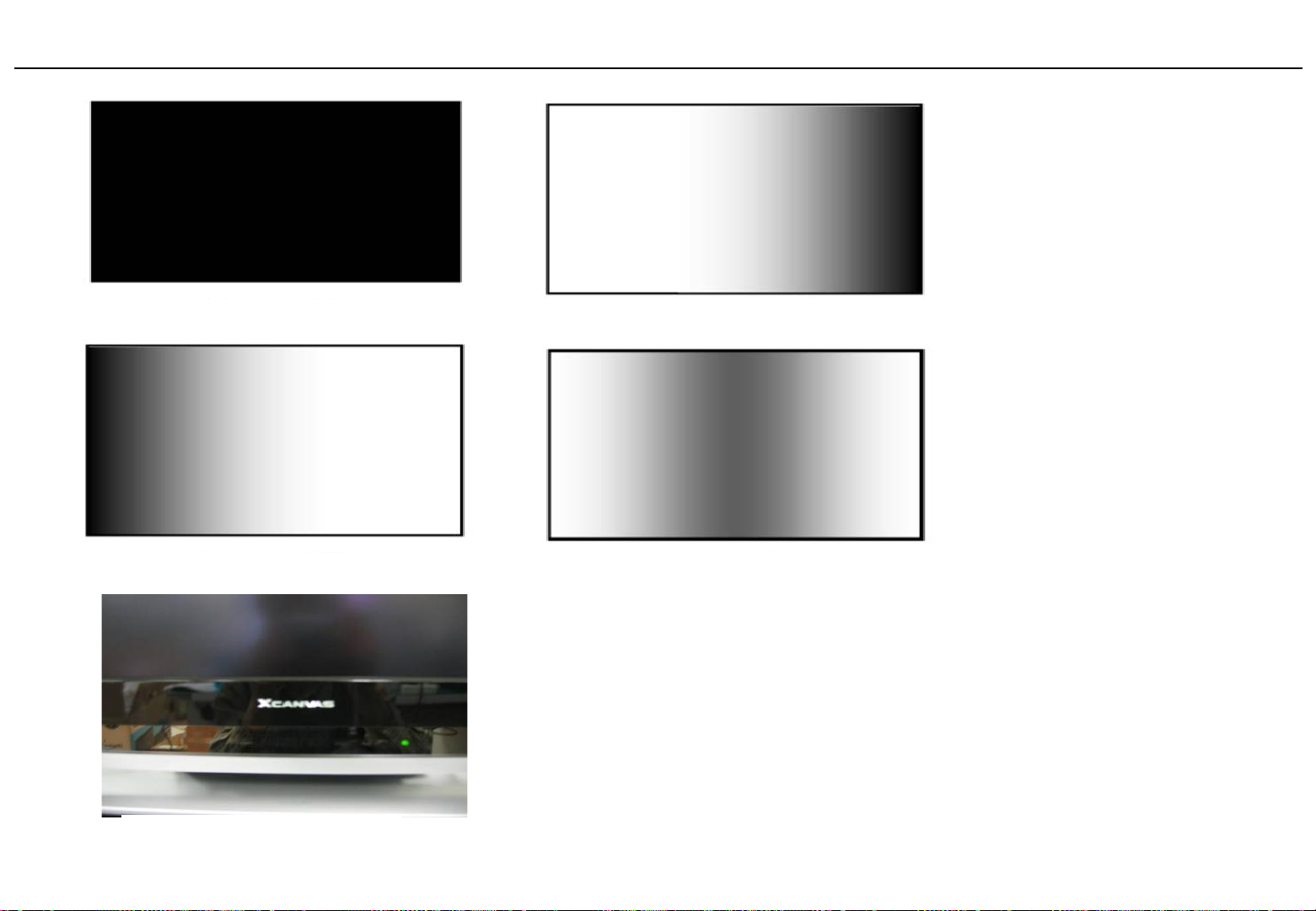

* Connecting picture of the measuring instrument



(On Automatic control) Inside PATTERN is used when W/B is controlled. Connect to

auto controller or push Adjustment R/C P-ONLY → Enter the

mode of White-Balance, the pattern will come out.

Full White Pattern

RS-232C Communication

CA-210

COLOR ANALYZER TYPE : CA-210

* Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10 lux).

(2) Adhere closely the Color analyzer(CA210) to the module

less than 10 cm distance, keep it with the surface of the Module and Color analyzer's prove vertically.(80° ~ 100°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using 'no signal' or 'POWER ONLY' or the others, check the back light on.

▪ Auto adjustment Map(RS-232C)

RS-232C COMMAND [CMD ID DATA] Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND [CMD ID DATA]

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

MIN

Color Temperature : COOL, Medium, Warm. One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0.(When R/G/B Gain are all C0, it is the FULL Dynamic Range of Module)

CENTER

(DEFAULT)

MAX

* Manual W/B process using djust Remote control.

▪ Color analyzer(CA100+, CA210) should be used in the

calibrated ch by CS-1000

▪ Operate the zero-calibration of the CA100+ or CA-210,

then stick sensor to the module when adjusting.

▪ After enter Service Mode by pushing “ADJ” key, ▪ Enter White Balance by pushing “►” key at “9. White

Balance”.



▪ For manual adjustment, it is also possible by the following

sequence. (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C -> 8. White-

Balance then press the cursor to the right (KEY▶).

When KEY(▶) is pressed 206 Gray internal pattern will be displayed.

(4) Adjust Cool modes

1) Fix the one of R/G/B gain to 192 (default data) and decrease the others.

( If G gain is adjusted over 172 and R and B gain less

than 192 , increase G gain to 192 and increase R gain and B gain same amount of increasing G gain.)

2) If G gain is less than 172, Increase G gain by up to 172, and then increase R gain and G gain same amount of increasing G gain.

3) If R gain or B gain is over 255, Readjust G gain less than 172, Conform to R gain is 255 or B gain is 255

(5) Adjust two modes (Medium / Warm) Fix the one of R/G/B

gain to 192 (default data) and decrease the others.

(6) Adj. is completed, Exit adjust mode using “EXIT” key on

Remote controller.

▪ I f internal pattern is not available, use RF input. In EZ Adj.

menu

(7) White Balance, you can select one of 2 Test-pattern: ON,

OFF. Default is inner (ON). By selecting OFF, you can adjust using RF signal in 206 Gray pattern.

Only for training and service purposes

- 12 -

* CASE Cool Mode



First adjust the coordinate far away from the target value(x, y). (1) x, y > target

1) Decrease the R, G.

(2) x, y < target

1) First decrease the B gain,

2) Decrease the one of the others.

(3) x > target, y < target

1) First decrease B, so make y a little more than the target.

2) Adjust x value by decreasing the R

(4) x < target, y > target

1) First decrease B, so make x a little more than the target.

2) Adjust x value by decreasing the G

■ How to adjust

(1) If G gain is adjusted over 172 and R gain and B gain less

than 192 , increase G gain to 192 and increase R gain and B gain same amount of increasing G gain.

(2) If G gain is less than 172 , increase G gain by up to 172,

and then increase R gain and B gain same amount of increasing G gain.

(3) If R gain or B gain is over 255 , Readjust G gain less than

172, Conform to R gain is 255 or B gain is 255

4.2. DPM operation confirmation

Check if Power LED Color and Power Consumption operate as standard.

■ Set Input to RGB and connect D-sub cable to set

■ Measurement Condition: (100~240V@ 50/60Hz)

■ Confirm DPM operation at the state of screen without Signal

4.3. EDID DATA

(1) All Data : HEXA Value (2) Changeable Data :

1) Serial No : Controlled / Data:01

2) Month : Controlled / Data:00

3) Year : Controlled

4) Check sum

(3) Auto Download

■ After enter Service Mode by pushing “ADJ” key,

■ Enter EDID D/L mode.

■ Enter “START” by pushing “OK” key.

* ADC Calibration Protocol (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter Adjust MODE

ADC adjust

Adjust ‘Mode In’

ADC Adjust

A A 0 0

A D 1 0

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

■ Use the proper signal cable for EDID Check

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

For Analog For HDMI EDID

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

No. Item Condition Hex Data

1 Manufacturer ID GSM 1E6D

2 Version Digital : 1 01

3 Revision Digital : 3 03

(4) EDID DATA

- RGB 2D EDID Data

1) HD RGB EDID DATA

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 ff ff ff ff ff ff 00 1e 6d a b 10 c 01 03 68 a0 5a 78 0a ee 91 a3 54 4c 99 26 20 0f 50 54 a1 08 00 71 40 61 40 45 40 31 40 01 01 30 01 01 01 01 01 01 1b 21 50 a0 51 00 1e 30 48 88 40 35 00 40 84 00 00 00 1c 01 1d 00 72 51 d0 1e 20 50 6e 28 55 00 a0 5a 00 00 00 1e 00 00 00 fd 00 3a 60 3e 1e 53 10 00 0a 20 20 20 20 20 20 d 70 d 00 e

2) FHD RGB EDID DATA

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 ff ff ff ff ff ff 00 1e 6d a b 10 c 01 03 68 a0 5a 78 0a ee 91 a3 54 4c 99 26 20 0f 50 54 a1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3a 80 18 71 38 2d 40 58 2c 40 45 00 a0 5a 00 00 00 1e 66 21 50 B0 51 00 1B 30 50 40 70 36 00 a0 5a 00 00 00 1e 00 00 00 fd 00 3a 60 3e 1e 53 10 00 0a 20 20 20 20 20 20 d 70 d 00 e

- HDMI

1) 2D HD Model HDMI EDID data

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 70 d 01 e 80 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21 90 22 15 01 26 15 07 50 09 57 07 f A0 f 01 1D 80 18 71 1C 16 20 58 2C 25 00 20 C2 5A B0 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 C0 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58 2C D0 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E 20 E0 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

Only for training and service purposes

- 13 -

(5) Detail EDID Options are below

a. Product ID

MODEL NAME HEX EDID Table DDC Function

HD/FHD Model 0001 01 00 Analog/Digital

4.5. GND and HI-POT Test

4.5.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition.

b. Serial No: Controlled on production line. c. Month, Year: Controlled on production line:

ex) Week : '01' -> '01'

Year : '2015' -> '19' fix

d. Model Name(Hex):

cf) TV set’s model name in EDID data is below.

Model name MODEL NAME(HEX)

LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)

e. Checksum: Changeable by total EDID data.

- 2D Model

EDID C/S data

Block 0

Check

sum

Block 1

(Hex)

f. Vendor Specific(HDMI)

- 2D Model

Input

HDMI1 67 03 0C 00 10 00 80 1E 67 03 0C 00 10 00 80 1E HDMI2 67 03 0C 00 20 00 80 1E 67 03 0C 00 20 00 80 1E

5B (HDMI1) 25 (HDMI1) 4B (HDMI2) 15 (HDMI2)

HD FHD

HDMI RGB HDMI RGB

74

A2

MODEL NAME(HEX)

HD FHD

40

4.4. Outgoing condition Configuration

■ When pressing IN-STOP key by Service remote control,

Red LED are blinked alternatively. And then automatically turn off. (Must not AC power OFF during blinking)

59

4.5.2. GND & HI-POT auto-check

(1) Pallet moves in the station.(POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process(Hi-pot test). (Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

4.5.3. Checkpoint

(1) Test voltage

1) 3 Poles

- GND: 1.5 KV/min at 100 mA

- SIGNAL: 3 KV/min at 100 mA

2) 2 Poles

- SIGNAL: 3 KV/min at 100 mA (2) TEST time: 1 second (3) TEST POINT

1) 3 Poles

- GND Test = POWER CORD GND and SIGNAL

CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.

2) 2 Poles

- Hi-pot Test = Accessible Metal and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5 mArms

Only for training and service purposes

5. Local Dimming Function Check

(Not require)

(Step1) Turn on TV. (Step2) Press “P-only” key, enter to power only mode and

escape the “P-only” Mode by pressing “Exit” key (Step3) Press “Tilt” key, entrance to Local Dimming mode. (Step4) At the Local Dimming mode, module Edge Backlight

moving Top to bottom Back light of module moving (Step5) confirm the Local Dimming mode (Step6) Press “Exit” key

- 14 -

BLOCK DIAGRAM

Only for training and service purposes

- 15 -

400

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

900

350

901

800

LV1

521

A10

Set + Stand

540

A2

120

200

530

Only for training and service purposes

- 16 -

TP for NON-EU models(except EU and China)

LGE Internal Use Only

TP for CI slot

/PCM_REG

/PCM_OE

/PCM_WE

/PCM_IORD PCM_A[11]

/PCM_IOWR CI_TS_DATA[1]

/PCM_CE

/PCM_IRQA

/PCM_CD

/PCM_WAIT

PCM_RST

PCM_5V_CTL

/CI_DET

TP for S2

PCM_D[0]

PCM_D[2]

PCM_D[3]

PCM_D[4]

PCM_D[5]

PCM_D[6]

PCM_D[7]

PCM_A[8]

PCM_A[9]

PCM_A[10]

PCM_A[12]

PCM_A[13]

PCM_A[14]

TP for FE_TS_DATA

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0]

CI_TS_DATA[2]

CI_TS_DATA[3]

CI_TS_DATA[4]

CI_TS_DATA[5]

CI_TS_DATA[6]

CI_TS_DATA[7]

TP for SCART

SCART1_MUTE

SC1_IDPCM_D[1]

SC1_FB

DTV/MNT_VOUT

SCART1_Lout

SCART1_Rout

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

SC1/COMP1_DET

SC1/COMP1_L_IN

SC1/COMP1_R_IN

TP for Headphone

HP_LOUT

HP_ROUT

SIDE_HP_MUTE

HP_DET

TP for L15

/VBUS_EN

RGB_DDC_SCL

RGB_DDC_SDA

TU_GND_A

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15_M1A

TP_NON_EU 3

140702

POWER

LGE Internal Use Only

FROM POWER B/D 13.2V

+3.5V_ST

MMBT3906(NXP)

R406

10K

R404

4.7K

TR_NXP

Q400 MMBT3904(NXP)

R419

100

TR_NXP

Q402 MMBT3904(NXP)

1

TVS_SEMTECH

RL_ON

INV_CTL

+3.5V_ST

R400

10K

R401

10K

OPT

+3.5V_ST

R426

10K

TR_KEC Q400-*1 2N3904S

B

R402

10K

+3.3V_Normal

R425

10K

TR_KEC Q402-*1 2N3904S

B

R420

C

E

C

E

C

E

1K

C

E

+13.2V to +3.5V_STANDBY

+13.2V

L412

BLM18PG121SN1D

C438

C439

10uF

0.1uF

25V

R1

R46 9

R468

68K

6.8K 1/1 6W

1/16W

1%

C440

100pF

50V

R2

R471

C441

22K

1/16W

1%

2200pF

1uF 10V

Vout=0.765*(1+R1/R2)

TR_NXP

Q401

ZD404

TVS_KEC ZD404-*1

R470 10K

OPT

C442

50V

3

2

5V

TR_KEC Q401-*1

2N3906S-RTK

EBC

OPT

R412

33K

EN

R475 30K

FB

VREG

SS

PWR_ON

D13.2V A13.2V

DRV_ON

BD9D321EFJ

1

2

3

4

3A

P401

SMAW200-H12S5K(BK)(LTR)

PDIM#2

1

2

GND

IC405

9

THERMAL

D13.2V

4

3

D13.2V

5

6

A13.2V

7

8

GND

10

9

PDIM#1

11

12

13

[EP]

VIN

8

BOOT

7

SW

6

GND

5

C443

0.1uF 16V

R424

3.9K

L413

2uH

C444 22uF

PWM1_Pulldown_R

10V

PWM1_CAP

R467-*1 1000pF 50V

PWM1

R467 1K

L403

MLB-201209-0120P-N2

OPT

L414

L415

MLB-201209-0120P-N2

PWM_DIM

+3.5V_ST

C445 22uF

10V

C40 2

0.1 uF 25V

TVS_SEMTECH

TVS_KEC ZD405-*1

4.7 uF

0.1 uF

ZD405

5V

OPT C43 3

50V

C44 6

25V

+13.2V

+13.2V POWER_DET

R435 100K

RESET_IC_KEC

IC401

KIC7529M2

VCC

3

IC401-*1

RESET_IC_DIODES

APX803E29

VCC

3

A13.2V

C415

0.1uF

+13.2V

R430

14K

1%

R431

5.6K 1%

25V

+3.5V_Normal to +1.5V_DDR

+3.3V_Normal

L409

BLM18PG121SN1D

C426 10uF

10V

IC404

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

1.3A

Vout=1.25*(1+R2/R1)+Iadj*R2

+13.2V to PANEL_VCC +3.5V_ST to +3.3V_Normal

D

R451

5.6K

G

C

TR_KEC Q403-*1 2N3904S

E

+3.3V_Normal

C405 10uF 25V

PANEL_VCC

R452

5.6K

C406 10uF 25V

2200pF

C408

50V

C409

R409

+3.5V_ST

POWER_ON/OFF_1

R443

10K

R444 10K

B

R447 22K

R448

2.2K

C428

2.2uF

C

TR_NXP Q404 MMBT3904(NXP)

E

Vout=0.6(R1/R2)+0.6

L405

4.7uH

25V

0.047uF

10

PGND2

LX2

C410

BST120LX121PGND1

19

COMP1

18

FB1

17

AGND

16

RSET

15

FB2

14

COMP2

13

11

12

BST2

+5V_Normal

C421

0.047uF 25V

R422 15K

L406

4.7uH

C407 1uF

OPT

50V

91K

10V

ROSC/SYNC

SW_EN

NFAULT

[EP]

SS2

1

EN1

2

EN2

3

SN1406035RGER

4

5

6

SW_OUT

THERMAL

25

7

SW_IN

VIN123V7V24SS1

IC400

8

VIN2

22

9

+3.5V_ST

OPT R438

4.7K

R454

100

OUT

2

1

GND

RESET

2

1

GND

R449

1K 1/16W 1%

R450 200 1/16W 1%

R1

R2

C422

0.1uF 16V

L411

CB2012PK501T

R453

0

C431 10uF

10V

+1.5V_DDR

ZD403

2.5V

POWER_DET

POWER_DET_RESET

OPT ZD406

5.1v

PANEL_CTL

+13.2V

L408

UBW2012-121F

120OHM

OPT

C425

0.1uF 25V

R441

R445

33K

R446 120K

B

C

TR_NXP Q403 MMBT3904(NXP)

E

R442

10K

NON_60_SHARP

C427

0.22uF 25V

Q405

SSM3J332R

S

60_SHARP

C427-*1

0.1uF 50V

B

+5V_Normal & +1.10V_VDDC

+13.2V

L404

CB2012PK501T

+3.3V_Normal

OPT

C403

4700pF

50V

Check the pull down when AC Power On with HDD

+3.3V_Normal

R403 10K

OPT

R473

C404

30K

4700pF

50V

USB1_CTL

USB1_CTL_Pull_Down

USB1_OCD

R472

3.3K

R405

10K

OPT R474 30K

OPT

R407

4.7K

R408 100K

+5V_Normal

10V

R41 8

FET_AOS Q406-*1

AO3435

D

S

L410

ZD401

2.5V

C430 22uF 10V

R2

+3.3V_Normal

ZD402

5V

TVS_SEMTECH

TVS_KEC ZD402-*1

OPT C412 10uF

6.3V

C418

47pF 50V

+5V_Normal

C423 22uF 16V

C413 22uF

10V

C424 22uF 16V

+1.10V_VDDC

C414 22uF

10V

G

FET_TOSHIBA

Q406 SSM3J332R

BLM18PG121SN1D

D

S

C429

G

0.1uF 16V

C

TR_KEC

Q404-*1

B

2N3904S

E

R1

OPT

C411

R411

4.7K 1%

R2

R413

5.1K 1%

C419

22pF 50V

C420

3300pF

50V

20K

R41 4

ZD407

82pF

5.1v

50V

C416

22pF

50V

C417

3300pF

10K

50V

R415

0 5%

R416

5.1K 1%

R417

39K

1%

R1

+5V_USB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C432

1uF 16V

L14_CA

POWER

Vout=0.6(R1/R2)+0.6

2014/12/03

4

USB (SIDE)

LGE Internal Use Only

USB_HDD_CAP1_10uF

C700-*1

USB_HDD_CAP1_22uF

OPT

JK700

1234

USB DOW N ST REAM

3AU 04S- 305- ZC-( LG)

5

ZD700

SD05

C701

5V

OPT

C702

5pF

50V

10uF

10V

USB_HDD_CAP2_10uF

C703-*1

USB_HDD_CAP2_22uF C700 22uF

10V

10uF

10V

C703 22uF 10V

R700

2.2

R701

2.2

OPT D700 RCLAMP0502BA

+5V_USB

OPT

C704 22uF 10V

SIDE_USB1_DM

SIDE_USB1_DP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

USB_S1

2014/05/20

7

HDMI (REAR 1 / SIDE 1 MHL)

LGE Internal Use Only

HDMI_1

5V_HDMI_2

R802

1.8K

VA800

R803

1K

SHIELDGND

20

HP_DET

19

5V

18

GND

17

DDC_DATA

ESD_HDMI1_VARISTOR

16

DDC_CLK

15

NC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

EAG59023302

JK800

This GND Pattern should be very narrow

HDMI jack burnt problem improvement

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_DET_HDMI_2

R805

3.3K

ESD_HDMI1_VARISTOR VA801

ESD_HDMI1_CAP

VA800-*1 1uF 10V

ESD_HDMI1_CAP VA801-*1 1uF 10V

AR801

5.1

AR802

5.1

MMBT3904(NXP)

ESD_HDMI1 VA802

TR_NXP

Q800

HDMI_2 MHL

5V_HDMI_4

R808

10K

C TR_KEC Q800-*1

C

2N3904S

B

E

ESD_HDMI1

B

R809

E

VA803

10K

D803

1 2 3 4 5

ESD_HDMI1_TMDS

IP4294CZ10-TBR

D804

1 2 3 4 5

ESD_HDMI1_TMDS

IP4294CZ10-TBR

R810 100

R811 100

ESD_HDMI1 VA804

10 9 8 7 6

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

BODY_SHIELD

20

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

This GND Pattern should be very narrow

15

SCL

HDMI jack burnt problem improvement

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

JK801-*1 DAADR019A

HDMI-2_EMI_FOOSUNG

GND

20

19

18

17

16

15

14

13

12

11

10

EAG62611204

9

8

7

6

5

4

3

2

1

HDMI-2

JK801

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HDMI-2

R812

1.8K

5V_DET_HDMI_4

ESD_HDMI2 VA805

HDMI-2

R813

3.3K

ESD_HDMI2 VA806

OPT

VA807

5.6V

AR804

AR803

HDMI-2_MHL_Non

R819

0





5.1

ESD_HDMI2

HDMI-2_MHL

R818

0

ESD_HDMI2

VA809

ESD_HDMI2

VA808

VA811

ESD_HDMI2 VA810

HDMI-2_MHL

HDMI-2

R814

33

HDMI-2

R815 100

R816 100

HDMI-2

D805

1 2 3 4 5

ESD_HDMI2_TMDS

IP4294CZ10-TBR

D806

1 2 3 4 5

ESD_HDMI2_TMDS

IP4294CZ10-TBR

HDMI-2_MHL

C800

R817

0.047uF 300K

25V

MHL Spec

HDMI-2_MHL_Non

R817-*1

3.3K

10 9 8 7 6

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

MHL_CD_SENSE

CEC

HDMI_CEC

HDMI_DIODE_SUZHOU

D800-*1

MMBD6100

A1

C

5V_HDMI_2

R800

2.7K

+5V_Normal

R801

2.7K

R804 100

A2

HDMI_DIODE_KEC

A2CA1

KDS184 D800

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE_S7

HDMI_DIODE_SUZHOU

D801-*1

MMBD6100

A1

C

R806

2.7K

+5V_Normal

R807

2.7K

5V_HDMI_4

HDMI_DIODE_SUZHOU

A2

HDMI_DIODE_KEC

A2CA1

KDS184 D801

D802-*1

MMBD6100

DDC_SDA_4

DDC_SCL_4

A2

A1

C

+3.5V_ST

A2CA1

HDMI_DIODE_KEC

KDS184 D802

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15_M1A

HDMI_R1S1 8

140813

SPDIF

LGE Internal Use Only

SPDIF_OUT

+3.3V_Normal

OPT

C1001

1uF 10V

ESD Ready

SPDIF_OPTIC C1002 18pF 50V

VINPUT

SPDIF_OPTIC

JK1001

JST1223-001

1

GND

2

VCC

3

Fiber Optic

4

FIX_POLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

SPDIF

2014/06/02

10

DDR_EXT

LGE Internal Use Only

R1201

DDR_EXT

R1202

1K 1%

DDR_EXT

1K 1%

CLose to DDR3

DDR_EXT

C1201

C1202

0.1uF

1000pF

A-MVREFDQ

+1.5V_DDR+1.5V_DDR

DDR_EXT

R1204

DDR_EXT

R1205

1K 1%

CLose to MAIN IC

DDR_EXT

C1213

C1214

0.1uF

1000pF

A-MVREFCA

+1.5V_DDR

Option : Ripple Check !!!

OPT

C1217

0.1uF

C1218

0.1uF

OPT

C1216

10uF

10V

OPT

C1219

+1.5V_DDR

OPT

C1221

OPT

C1222

1uF

C1220

1uF

C1223

OPT

C1224

0.1uF

1uF

DDR_1600_1G_NAN

IC1201-*1

NT5CB64M16FP-DH

EAN61859502

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_1G_SS

IC1201

K4B1G1646G-BCK0

EAN61836301

DDR_EXT

R1203

240 1%

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

+1.5V_DDR

A-MVREFCA

A-MVREFDQ

C1203 10uF 10V C1204 0.1uF C1205 0.1uF C1206 0.1uF C1207 0.1uF C1208 0.1uF C1209 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF

A-MA14

DDR_1600_2G_SS

IC1201-*2

K4B2G1646Q-BCK0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EAN61848803

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_1600_2G_SK

IC1201-*3

H5TQ2G63FFR-PBC

EAN61829204

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT

A10/AP

A12/BC

NC_5

RESET

DQSL DQSL

DQSU DQSU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7

A11

N7 T3

A13

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3 G3

C7 B7

E7

DML

D3

DMU

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A/B_DDR3_CS A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

DDR_EXT

R1207

DDR_EXT

R1208

56 1%

DDR_EXT

R1206

10K

DDR_EXT

C1215

0.01uF 50V

+1.5V_DDR

A-MCK

A-MCKB

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13 A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A/B_DDR3_CS

A-MDQSL A-MDQSU

A-MDML A-MDMU

A-MDQSLB A-MDQSUB

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7 A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1209

240

1%

M1A_256M_UO4

LGE2134(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101

M1A_128M_UO4

LGE2133(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*1

M1A_256M_AVS+

LGE2136(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*2

M1A_128M_AVS+

LGE2135(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

DDR

2014/06/13

12

Serial Flash for SPI boot

LGE Internal Use Only

/FLASH_WP

OPT

R1300 10K

+3.5V_ST

/SPI_CS

SPI_SDO

R1301

4.7K

OPT

WP#/SIO2

SPI_FLASH_MACRONIX

IC1300

MX25L8035EM2I-10G

CS#

1

SO/SIO1

2

3

GND

4

SPI_FLASH_WINBOND

IC1300-*1

W25Q80DVSSIG

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

8

7

6

5

8

7

6

5

VCC

NC/SIO3

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

R1302

33

+3.5V_ST+3.5V_ST

C1300

0.1uF 16V

SPI_SCK

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

S_FLASH

140721

13

SCA , USA , KOREA LITE MODEL TUNER

LGE Internal Use Only

A1

TU_ATSC

47

SHIELD

TU9101 TDJH-H301F

+3.3V

1

NC_1

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

B1

A1

NON_DVB_T2

A1

TU9100 TDJK-T301F

B1

47

SHIELD

1

2

3

4

5

6

7

8

9

+3.3V

NC

DIF_AGC

SCL_RF

SDA_RF

DIF[P]

DIF[N]

SIF

CVBS

B1

HALF_NIM/EU_NON_T2

R9104

10

HALF_NIM/EU_NON_T2

R9105

10

Close to the tuner

HALF_NIM/IF_NON_FILTER_KR

R9104-*1 0

HALF_NIM/IF_NON_FILTER_KR

R9105-*1 0

OPT R9108 0

TU_BUFFER

R9109 0

Close to Tuner

C9106

0.1uF 16V TU_BUFFER

TU_3.3V_NON_FILTER

L9101-*1 0

1/8W 5%

TU_3.3V_FILTER

UBW2012-121F

C9108 100pF 50V

HALF_NIM/EU_NON_T2

C9107

0.1uF

16V

HALF_NIM/EU_NON_T2

OPT C9109 5pF 50V

+3.3V_TU

L9101

R9110

100

OPT C9110 5pF 50V

C9111

0.1uF

16V

should be guarded by ground

IF_AGC_MAIN

Close to Tuner

IF_P_MSTAR

IF_N_MSTAR

C9112 18pF 50V

C9113 18pF 50V

R9111

R9112

33

TU_BUFFER

+3.3V_TU

OPT C9114 20pF 50V

OPT C9115 20pF 50V

R9114

TU_IIC_NON_ATSC_1K

+3.3V_TU

R9113

4.7K

B

+3.3V_TU

1K

TU_IIC_ATSC_1.8K

R9116

1K

TU_IIC_NON_ATSC_1K

TU_BUFFER R9115 470

E

Q9100

MMBT3906(NXP)

TU_BUFFER

C

R9114-*1

1.8K

OPT R9117 0

TU_BUFFER

R9118

82

TU_IIC_ATSC_1.8K

R9116-*1

1.8K

TU_SCL

TU_SDA

TU_SIF

TU_GND_A

TU_GND_B

TU9101-*1 TDJH-G301D

TU_AJ_T/C

A1

47

SHIELD

+3.3V

1

NC_1

2

IF_AGC

3

SCL_RF

4

SDA_RF

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

B1

GND seperation

TU_GND_B

C9100

1000pF

630V

TU_GND_A

0

R9100

TU_GNA_A

0

R9101

TU_GNA_A

0

R9102

TU_GNA_A

TU_GND_B

0

R9103

TU_GNA_A

0

R9106

TU_GNA_A

0

R9107

TU_GNA_A

C9101 1000pF 630V OPT

+3.3V_TU

C9102 22uF 10V

L9100

UBW2012-121F

C9103

0.1uF 16V

+3.3V_Normal

C9105

C9104

0.1uF

22uF

16V

10V

OPT R9900 0

TU_BUFFER

R9901 0

R9902

OPT

1K

TU_BUFFER

R9903

B

220

TU_BUFFER

R9904 220

E

Q9900 MMBT3906(NXP)

TU_BUFFER

C

TU_CVBS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_S7LR(M1A)

TUNER_CSA_US

2014.07.22 14

LVDS

LGE Internal Use Only

[51Pin LVDS Connector] (For FHD 60Hz)

MO_FHD

P1800

SP14-11592-01-51Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

PANEL_VCC

C1800

0.1uF 25V

VCOM_SDA

VCOM_SCL

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

MO_FHD_non_55CSOT

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

MO_FHD_non_55CSOT

RXB0-

MO_FHD_VCC_CAP C1801 10uF 25V

LVDS_SEL

+3.3V_Normal

Cell_CSOT_55inch R1806

1K

OPT

R1807

10K

R1801

0

R1812

Cell_INX_FHD

AR1800

0

1/16W

FOR FHD REVERSE(10bit) Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2- RXBCK-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit) Change in S7LR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

MIRROR

Pol-change

RXA4+

RXA4-

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

Shift

RXA4-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2- RXACK-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[30Pin LVDS Connector] (For HD 60Hz_Normal)

MO_HD P1801

10031HR-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

VCOM_SDA

VCOM_SCL

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

PANEL_VCC

LVDS_SEL

+3.3V_Normal

OPT

R1808

3.3K

OPT

R1809

10K

EU pin assign is different from NON EU. Because of position of HD wafer.

V-COM I2C

URSA/VCOM_SCL

URSA/VCOM_SDA

VCOM_SCL

VCOM_SDA

+3.3V_Normal

VCOM_I2C_PULL_UP

R1810

VCOM_I2C

R1804

0

VCOM_I2C

R1805

0

VCOM_I2C_PULL_UP

2K

R1811 2K

URSA/VCOM_SCL

URSA/VCOM_SDA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

LVDS

140613

18

USB_2

LGE Internal Use Only

USB_2 for Wireless Dongle

+5V_USB

C3100

22uF

10V

OPT

WIFI_DM

* USB2_DM

WIFI_DP

* USB2_DP

USB2_HDD_CAP1_10UF

L3100

CB2012PK501T

USB2

USB2_HDD_CAP1_22UF

C3101

22uF

10V

R3103

USB2

2.2

R3104

USB2

2.2

C3101-*1 10uF 10V

USB2_HDD_CAP2_22UF

C3103

22uF

10V

OPT D3100 RCLAMP0502BA

USB2_HDD_CAP2_10UF

C3103-*2 10uF 10V

ZD3100

SD05

5V

OPT

C3102

C3104

5pF

50V

USB2

3AU04S-305- ZC- (LG)

JK3100

1234

USB DOWN STREAM

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RS232C

LGE Internal Use Only

RS232C

C3200 0.33uF

C1+

C3201

0.1uF

C3202

0.1uF

C1-

C2+

C2-

DOUT2

RIN2

SIGN2147483647

C3203

C3204

V+

V-

IC3200

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

EXT_5V EXT_12V

IR_OUT

+3.5V_ST

D3200 CDS3C30GTH 30V OPT

C3205

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

D3201 CDS3C30GTH 30V

OPT

+3.5V_ST

R3203

4.7K

EU_INT

EXT_5V EXT_12V

+3.5V_ST

R3204

4.7K EU_INT

R3200 100

R3201 100

D3202 BAP70-02

50V

NON_NEC_MICOM

R3205 0

NON_NEC_MICOM

R3206 0

NEC_MICOM

R3207 0

NEC_MICOM

R3208 0

R3202 1K

PM_RXD

PM_TXD

UART_RX

UART_TX

10

9

8

7

6

SPG09-DB-009

P3200

5

4

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RGB PC

LGE Internal Use Only

DSUB/SC1_VSYNC

* DSUB_VSYNC

DSUB/SC1_HSYNC

* DSUB_HSYNC

SC1_B+/COMP1_Pb+

* DSUB_B+

R3300

2.4K

R3301

10K

OPT

C3300 47pF 50V

OPT C3303 68pF 50V

R3302 75

OPT VA3300

20V

ADUC 20S 02 010L

RGB_VARISTOR

VA3301 20V

OPT

C3304 68pF 50V

R3305

C3305

18pF

50V

OPT VA3304 20V

ADUC 20S 02 010L

NON_EMI_RGB

EMI_RGB

BLM15BD121SN1

2.2K

L3301-*1 0

L3301

C3306 18pF

50V

MMBD6100

R3306

2.2K

D3300

C

A2

A1

OPT VA3305

5.6V

+5V_Normal

C3307

0.1uF 16V

OPT VA3306

5.6V

RGB_DDC_SCL

RGB_DDC_SDA

SC1_G+/COMP1_Y+

* DSUB_G+

SC1_R+/COMP1_Pr+

* DSUB_R+

OPT

C3302 47pF 50V

C3301 47pF 50V

OPT

R3303 75

R3304 75

ADUC 20S 02 010L

RGB_VARISTOR

VA3302 20V

ADUC 20S 02 010L

RGB_VARISTOR

VA3303 20V

NON_EMI_RGB

EMI_RGB

NON_EMI_RGB

EMI_RGB

BLM15BD121SN1

L3302-*1 0

L3302

BLM15BD121SN1

L3300-*1 0

L3300

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

11

6

1

P3300

SPG09-DB-010

SHILED

16

+3.3V_Normal

R3307 10K

OPT

VA3307

5.6V

ADMC 5M 02 200L

R3308 1K

DSUB_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

External Speaker

LGE Internal Use Only

EXT SPK AMP

EXT_SPK

L3400

A13.2V

EXT_SPK

C3405

0.1uF 50V

Close to Pin3

EXT_AMP_14Y

IC3400

TPA3124D2PWPR

EXT_SPK_DET

HP_DET

HEAD_PHONE

R3400 47K

+3.5V_ST

B

EXT_SPK

R3402

47K

C

Q3400 MMBT3904(NXP)

P

HEAD_PHONE

E

UBW2012-121F

EXT_SPK C3408

0.1uF 50V

Close to Pin1

EXT_SPK C3410 10uF 35V

PVCCL_1

SD

PVCCL_2

MUTE

LIN

RIN

BYPASS

AGND_1

AGND_2

PVCCR_1

VCLAMP

PVCCR_2

EXT_AMP_15Y_CI

IC3400-*1

PAM8124

1

2

3

4

5

6

7

8

9

10

11

12

PGNDL_2

24

PGNDL_1

23

LOUT

22

BSL

21

AVCC_2

20

AVCC_1

19

GAIN0

18

GAIN1

17

BSR

16

ROUT

15

PGNDR_2

14

PGNDR_1

13

SIDE_HP_MUTE

HP_EXT_SPK_LOUT

HP_EXT_SPK_ROUT

AMP_RESET

R3401

1K

EXT_SPK

R3403

10K

EXT_SPK

C3401 1uF

10V C3402

1uF 10V

Close to AMP IC

C3400 1uF 50V

EXT_SPK

C3403

1uF

50V

EXT_SPK

C3404

0.1uF

50V

EXT_SPK

PVCCL_1

PVCCL_2

PVCCR_1

PVCCR_2

MUTE

LIN

RIN

BYPASS

AGND_1

AGND_2

VCLAMP

1

SD

2

3

4

5

6

7

8

9

10

11

12

Close to Pin10

24

23

22

21

20

19

18

17

16

15

14

13

PGNDL_2

PGNDL_1

LOUT

BSL

AVCC_2

AVCC_1

GAIN0

GAIN1

BSR

ROUT

PGNDR_2

PGNDR_1

C3407

0.22uF 50V

EXT_SPK

C3406

0.22uF 50V EXT_SPK

Close to AMP IC

EXT_SPK

22.0uH L3402

EXT_SPK

C3409

0.1uF 50V

EXT_SPK

Close to Pin19,20

L3401

22.0uH

R3404 10K

OPT

R3413 10K

EXT_SPK

R3406 10K EXT_SPK

R3407 10K

OPT

R3408

4.7K

EXT_SPK

R3409

4.7K

EXT_SPK

GAIN1

0 0 1

EXT_SPK

C3411

0.47uF 50V

EXT_SPK

C3412

0.47uF 50V

GAIN0

1 0 1

OPT

C3413

0.47uF 50V

OPT

C3414

0.47uF 50V

AMP GAIN

20dB0 26dB 32dB 36dB1

C3415 47uF 25V

EXT_SPK

C3416 47uF 25V

EXT_SPK

EXT_SPK 10K

R3410

EXT_OUT_L

EXT_OUT_R

EXT_SPK

10K

R3411

EXT SPK Jack

EXT_SPK

JK3400

PEJ034-01

3

E_SPRING

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

OPT

VA3400

5.6V

EXT_OUT_R

EXT_OUT_L

EXT_SPK_DET

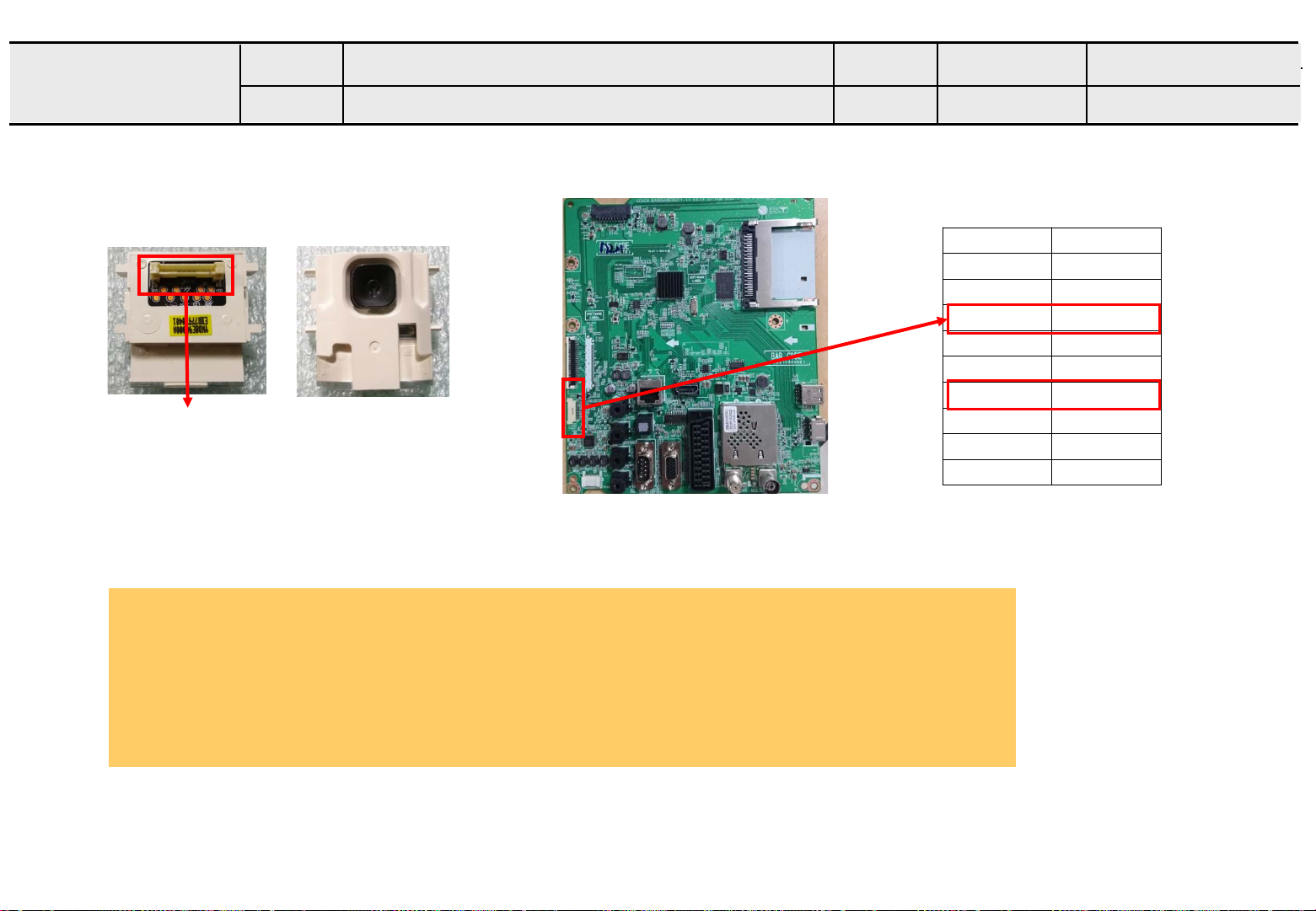

IR + LED + Digital Eye + Control Key

LGE Internal Use Only

(With IR OUT)

IR OUT TO RS232C

+3.5V_ST

IR_OUT_EU

R3501

1K

IR_OUT

IR_OUT_EU

Q3500

2SC3052

IR_OUT_US

C

E

R3505

IR_OUT_EU

R3502

10K

B

IR_OUT

2SC3052

0

IR_OUT

R3503

Q3501

+3.5V_ST

1K

C

E

B

IR_OUT_EU

R3504

33K

IR_OUT_US

R3504-*1

10K

+3.5V_ST

R4603

R4604

10K

1%

R4601

KEY1

KEY2

BLM18PG121SN1D

C4600

0.1uF

LED_R/BUZZ

R4610

IR

22

IR_Eye_Sensor

SENSOR_SCL

SENSOR_SDA

+3.5V_ST

L4600

+3.5V_ST

R4600

3.3K

+3.3V_Normal

R4605

1K

1000pF

100

R4602 100

C4601

50V

C4604 100pF

IR_Eye_Sensor

R4607

IR_Eye_Sensor

1K

R4608

IR_Eye_Sensor

R4609

C4602

0.1uF 16V

For EMI

R4606

1.8K

50V

100

IR_Eye_Sensor

100

IR_Eye_Sensor

1%

SIGN5600026922222

C4603

0.1uF 16V

SIGN5600026822222

OPT

VA4600

5.6V

VA4601

20V

C4605

18pF

50V

C4606

18pF

50V

SIGN56000271222222

IR_10p

P4600

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

IR_8p P4601

12507WR-08L

1

2

3

4

5

6

7

8

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15_COMM

IE EYE SENSOR / IR OUT

2014.07.11 35

COMPONENT & AV

LGE Internal Use Only

JK4400

PPJ245N2-01

6E

5E

4E

5D

4C

[RD2]E-LUG

[RD2]O-SPRING

[RD2]CONTACT

[WH]O-SPRING

[RD1]CONTACT

VA4400

5.6V COMP_LR_ZENER

VA4401

5.6V COMP_LR_ZENER

VA4402

5.6V ESD_COMP

R4400 470K

R4401

470K

+3.3V_Normal

R4402 10K

R4405

1K

R4408 10K

C4400 330pF 50V ATV_330pF

R4409 10K

C4401 330pF 50V ATV_330pF

SC1/COMP1_DET

COMP2_DET --> SC1/COMP1_DET

R4411 12K

R4412 12K

COMP2_R_IN

COMP2_L_IN

COMPONENT & AV

[RD1]O-SPRING

5C

[RD1]E-LUG-S

7C

[BL]O-SPRING

5B

[GN/YL]CONTACT

4A

[GN/YL]O-SPRING

5A

[GN/YL]E-LUG

6A

COMP_Pr_ZENER_ROHM

ZD4401

ZD4403

COMP_Pb_ZENER_ROHM

ZD4405

COMP_Y_ZENER_ROHM

ZD4400

COMP_Pr_ZENER_ROHM

ZD4402

COMP_Pb_ZENER_ROHM

VA4403

5.6V ESD_COMP

ZD4404 COMP_Y_ZENER_ROHM

R4403 75

R4404

75

+3.3V_Normal

R4406 10K

R4407

75 3216 1% 1/4W

R4410

1K

CVBS_OUT_TEST

R4414 0

CVBS_OUT_TEST R4413

75

COMP2_Pr+

COMP2_Pb+

AV_CVBS_DET

COMP2_Y+/AV_CVBS_IN

DTV/MNT_VOUT

ZD4401-*1

COMP_Pr_ZENER_KEC

ZD4403-*1

COMP_Pb_ZENER_KEC

ZD4405-*1

COMP_Y_ZENER_KEC

ZD4400-*1

COMP_Pr_ZENER_KEC

ZD4402-*1

COMP_Pb_ZENER_KEC

ZD4404-*1 COMP_Y_ZENER_KEC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

@Entit

COMPONENT

14/06/26

@pageL

/F_RB

LGE Internal Use Only

/PF_OE

/PF_CE0

/PF_CE1

PF_ALE /PF_WE /PF_WP

DIMMING

PWM_DIM

NAND FLASH MEMORY

AR103

22

AR104

22

NAND_FLASH_2G_HYNIX_OLD

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

NAND_FLASH_2G_HYNIX_NEW

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

EEPROM

NVRAM_ST

IC104

M24256-BRMN6TP

E0

1

E1

2

A0’h

E2

3

VSS

4

EAN61548301

EAN60708702

IC102-*1

H27U2G8F2CTR

EAN60708703

IC102-*2

H27U2G8F2DTR-BD

R103

100

R102

10K

R143

10K

+3.3V_Normal

R101

3.3K

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

VCC

8

WC

7

SCL

6

SDA

5

C105

0.1uF

OPT R104 1K

R105 1K

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

PWM2

PWM0

PWM3

+3.3V_Normal

C104 8pF

OPT

R106

1K

OPT

R107

1K

NAND_FLASH_1G_TOSHIBA

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

R1111KR112

R108 22

R109 22

C106 8pF

+3.3V_Normal

NC_1

NC_2

NC_3

NC_4

NC_5

R110

3.9K NC_6

R/B

NC_7

NC_8

C101

0.1uF

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

EAN61508002

IC102-*3

TC58NVG0S3HTA00

I2C

+3.3V_Normal

1K

I2C_SCL

I2C_SDA

1

NAND_FLASH_1G_HYNIX

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

R113

R114

2.2K

IC102

H27U1G8F2CTR-BC

EAN35669103

NC_29

NC_1

NC_28

NC_2

NC_27

NC_3

NC_26

NC_4

I/O8

NC_5

I/O7

NC_6

I/O6

RY/BY

I/O5

NC_25

NC_7

NC_24

NC_8

NC_23

VCC_1

VCC_2

VSS_1

VSS_2

NC_9

NC_22

NC_10

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_11

NC_19

NC_12

NC_18

NC_13

NC_17

NC_14

NC_16

NC_15

NVRAM_RENESAS

IC104-*1

R1EX24256BSAS0A

A0

1

A1

2

A2

3

VSS

4

EAN62389501

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NAND_FLASH_2G_TOSHIBA

TC58NVG1S3HTA00

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

AMP_SDA AMP_SCL

I2C_SDA I2C_SCL

VCC

8

WP

7

SCL

6

SDA

5

+3.3V_Normal

NC_29

NC_28

NC_27

NC_26

I/O7

AR101

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

C102 10uF

10V

C103

0.1uF

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

EAN60991002

IC102-*4

PM MODEL OPTION

NVRAM_ATMEL

IC104-*2

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

EAN61133501

22

AR102

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

+3.5V_ST

LCD R119 10K

PDP R120 10K

8

7

6

5

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_1

VCC_2

VSS_1

VSS_2

NC_22

NC_10

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_11

NC_19

NC_12

NC_18

NC_13

NC_17

NC_14

NC_15

NC_16

PM_MODEL_OPT_0

- HIGH : LCD

- LOW :: PDP

VCC

WP

SCL

GND

SDA

PCM_A[0-7]

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

12

13

NC_9

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

PM_MODEL_OPT_0

NVRAM_ROHM

IC104-*3

BR24G256FJ-3

A0

1

A1

2

A2

3

4

EAN62389502

NAND_FLASH_1G_SS

EAN61857001

IC102-*5

K9F1G08U0D-SCB0

VCC

8

WP

7

SCL

6

SDA

5

<CHIP Config> (SPI_SDI, PM_LED, PWM_PM)

LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI

+3.5V_ST

R123

R115

4.7K

AUD_MASTER_CLK

OPT

R121

R117

2.7K

4.7K

OPT

C112

100pF

56

50V

LED_R/BUZZ

PM_LED

SPI_SDI

OPT

R118

R116

4.7K

R122

4.7K

2.7K

NAND_FLASH_4G_HYNIX

EAN61950603

IC102-*6

H27U4G8F2ETR-BC

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

1

2

3

4

5

6

R/B

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

AUD_MASTER_CLK_0

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

DEMOD_SCL DEMOD_SDA

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

DEMOD_SCL DEMOD_SDA

AMP_SCL AMP_SDA

MODEL_OPT_4

MODEL_OPT_5 MODEL_OPT_6

M1A_128M IC101-*1

LGE2133(128M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

/CI_DET

TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

DDCA_CK/UART0_RX DDCA_DA/UART0_TX

NF_ALE/GPIO146

NF_CEZ/GPIO142

NF_CLE/GPIO141

NF_RBZ/GPIO147

NF_REZ/GPIO144

NF_WEZ/GPIO145

NF_WPZ/GPIO199

TS0CLK/GPIO92

HWRESET

IRIN/GPIO5

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

AV2_CVBS_DET

RP TN TP RN

IF_AGC

SIFM SIFP

IM IP

XIN

XOUT

SENSOR_SCL SENSOR_SDA

R126 22 DVB_T2 R127

DEMOD_RESET

FRC_RESET

/CI_CD1 /CI_CD2

/PCM_CD /PCM_CE

PCM_D[0-7]

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1 C2 C1 B2

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2 V1

AA2 Y2

22 DVB_T2

PCM_A[0-14]

RXA4+ RXA4RXA3+

RXA3RXACK+ RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+ RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

EEPROM (IC104)

TUNER_RESET

5V_DET_HDMI_4

I2C_SCL

I2C_SDA URSA/VCOM_SDA URSA/VCOM_SCL

SENSOR_SCL SENSOR_SDA

TU_SCL TU_SDA

AV_CVBS_DET

AV2_CVBS_DET

COMP2_DET

DEMOD_RESET

MODEL_OPT_0 MODEL_OPT_1

MODEL_OPT_2 /MHL_OCP_DET

FRC_RESET

HP_DET

SC1/COMP1_DET

MHL_OCP_EN

AMP_RESET

RF_SWITCH_CTL

/CI_CD1 /CI_CD2

USB1_CTL

USB1_OCD

/PCM_IORD /PCM_IOWR /PCM_IRQA

/PCM_OE

/PCM_REG

PCM_RST

/PCM_WAIT

/PCM_WE

R129 22

R128 22

R12533

R12433

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7] PCM_A[8] PCM_A[9] PCM_A[10] PCM_A[11] PCM_A[12]

PCM_A[13] PCM_A[14]

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3] PCM_D[4] PCM_D[5]

PCM_D[6] PCM_D[7]

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

LGE2134(256M)

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

M1A_256M

IC101

LGE2134(256M)

M1A_256M

IC101

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3

R134 33 A4 C3 A2

for SERIAL FLASH

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

R132 100

SPDIF_OPTIC

D8

HWRESET

E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2] CI_TS_DATA[3] CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

R133 33

R135

R136

XTAL_LOAD_18pF

KEY1 KEY2

PM_MODEL_OPT_0 PANEL_CTL SCART1_MUTE

MHL_CD_SENSE /VBUS_EN

PM_LED POWER_DET AMP_MUTE INV_CTL POWER_ON/OFF_1

RL_ON /FLASH_WP LED_R/BUZZ PM_TXD PM_RXD

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

33

5V_DET_HDMI_2 SPDIF_OUT

SOC_RESET

IR

PWM0

PWM1

PWM2 PWM3 PCM_5V_CTL

PF_ALE /PF_CE0 /PF_CE1

/F_RB

/PF_OE

/PF_WE

/PF_WP

X101 24MHz

1M

XTAL_LOAD_18pF

C113-*118pF

18pF

C114-*1

CI_TS_CLK CI_TS_DATA[0-7]

CI_TS_SYNC CI_TS_VAL

from CI SLOT

/SPI_CS SPI_SCK SIDE_HP_MUTE

SPI_SDO

RGB_DDC_SCL RGB_DDC_SDA

HALF_NIM/EU_NON_T2

R137 10K

HALF_NIM/EU_NON_T2

TUNER_IF_100_ohm

R138-*1 100

TUNER_IF_100_ohm

R139-*1 100

Close to MSTAR

TUNER_IF_0_ohm

0

R138

TUNER_IF_0_ohm

0

R139

XTAL_LOAD_15pF

C113 15pF

C114 15pF

XTAL_LOAD_15pF XTAL_LOAD_22pF

C113-*2 22pF

XTAL_LOAD_22pF C114-*2 22pF

FE_TS_CLK FE_TS_DATA[0-7]

FE_TS_SYNC FE_TS_VAL_ERR

Internal demod out

FE_TS_DATA[0]

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

SPDIF_OUT

5V_DET_HDMI_2

+3.3V_Normal

L101

BLM18PG121SN1D

HALF_NIM/EU_NON_T2

C119

0.1uF

R140

0

HALF_NIM/EU_NON_T2

XTAL_LOAD_24pF

U19 T20 T21 T19 R21 R20 R19 P20

P19 N20 N21 N19 M21 M20 M19 L20

L19 K20 K21 K19 J21 J20 J19 H20

TU_BUFFER

0.1uF C117

0.1uF C118

C113-*5

24pF

C114-*5

24pF

LVA4P/TTL_B[0]/HCONV/GPIO170 LVA4M/TTL_B[1]/E_O/GPIO171 LVA3P/TTL_B[2]/FB/GPIO172 LVA3M/TTL_B[3]/OPT_P/GPIO173 LVACKP/TTL_B[4]/MCLK/GPIO174 LVACKM/TTL_B[5]/GCLK/GPIO175 LVA2P/TTL_B[6]/GST/GPIO176 LVA2M/TTL_B[7]/POL/GPIO177

LVA1P/TTL_G[0]/EPI0+/GPIO178 LVA1M/TTL_G[1]/EPI0-/GPIO179 LVA0P/TTL_G[2]/EPI1+/GPIO180 LVA0M/TTL_G[3]/EPI1-/GPIO181 LVB4P/TTL_G[4]/EPI2+/GPIO182 LVB4M/TTL_G[5]/EPI2-/GPIO183 LVB3P/TTL_G[6]/EPI3+/GPIO184 LVB3M/TTL_G[7]/EPI3-/GPIO185

LVBCKP/TTL_R[0]/EPI4+/GPIO186 LVBCKM/TTL_R[1]/EPI4-/GPIO187 LVB2P/TTL_R[2]/EPI5+/GPIO188 LVB2M/TTL_R[3]/EPI5-/GPIO189 LVB1P/TTL_R[4]/EPI6+/GPIO190 LVB1M/TTL_R[5]/EPI6-/GPIO191 LVB0P/TTL_R[6]/EPI7+/GPIO192 LVB0M/TTL_R[7]/EPI7-/GPIO193

C120

0.047uF 25V HALF_NIM/EU_NON_T2

C125

0.1uF

C126

0.1uF

XTAL_LOAD_27pF

C113-*3

XTAL_LOAD_27pF

C114-*3

IC101-*1

LGE2133(128M)

M1A_128M

SPI_SDI

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

IF_AGC_MAIN

TU_BUFFER

R144

47

TU_BUFFER

R145

47

C121

OPT

100pF

IF_FILTER_AJ/CSA C122 33pF

XTAL_LOAD_30pF

27pF

XTAL_LOAD_30pF

27pF

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

Analog SIF Close to MSTAR

OPT

C127

1000pF

IF_FILTER_AJ/CSA

C124 33pF

C113-*4

30pF

C114-*4

30pF

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

TU_SIF

IF_N_MSTAR

DTV_IF

IF_P_MSTAR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

2014/05/29

MAIN1_NON_EU 51

MODEL OPTION

LGE Internal Use Only

IF_AGC_SEL

OPT

R205 100

OPT

100

R206

OPT

100

R207

OPT

R201 100

OPT

R202 100

OPT

R203 100

AUDIO OUT

SCART1_Lout SCART1_Rout

H/P OUT

HP_LOUT HP_ROUT

+3.3V_Normal

1K

MO_DUALSTREAM

R210

1K

R209

MO_DUALSTREAM_NON

SC1/COMP1_L_IN

SC1/COMP1_R_IN

DDR_EXT:256

MO_S/W_EU/AJ

R212 1K

R216 1K

R214 1K

MO_S/W_TW

R211 1K

R213 1K

R215 1K

DDR_EXT:128 or NON

HDMI

HDMI_ARC D0-_HDMI4 D0+_HDMI4 D1-_HDMI4 D1+_HDMI4 D2-_HDMI4 D2+_HDMI4 CK-_HDMI4 CK+_HDMI4

CEC_REMOTE_S7

DDC_SCL_2 DDC_SDA_2 DDC_SCL_4 DDC_SDA_4 HPD2 HPD4 D0-_HDMI2 D0+_HDMI2 D1-_HDMI2 D1+_HDMI2 D2-_HDMI2 D2+_HDMI2 CK-_HDMI2 CK+_HDMI2

AV2_L_IN

COMP2_L_IN

AV2_R_IN

COMP2_R_IN

BLM18PG121SN1D

L201

MO_M120

DDR_EXT:128

R219 1K

R218 1K

R221 1K

MO_DVB_T2/C/S2

MO_DVB_T/C

R222 1K

MO_M120_NON

R217 1K

R220 1K

DDR_EXT:256 or NON

HDMI1_ARC

1uF

4.7uF

1uF

C204

C203

MO_HD

MO_S/W_AJ

R224 1K

MO_FHD

MO_S/W_NON_AJ

R223 1K

C205

R22510 R22610

2.2uF

AUVRM

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2

AUD_LRCH MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6

AUD_LRCK

LGE2134(256M)

C206

M4

ARC0

0

W7

R227

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

AV2

T1

AUL3

R3

AUR1

R1

AV2

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

HDMI1_ARC

C2092.2uF

C2072.2uF

C2112.2uF

MODEL OPTION ("MO")

PIN NAME MODEL_OPT_0 MODEL_OPT_1

MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

PIN NO.

J5

H19

G20 G19

U6 K5 K4

L5

LOW

MO_FHD

MO_S/W_NON_AJ MO_DVB_T/C

MO_M120_NON

DDR_EXT:256 or NON

MO_S/W_TW

DDR_EXT:128 or NON

MO_DUALSTREAM_NON

* Dual Stream is only Korea 3D spec

Memory OPTION

Memory INT+EXT

128M Only

256M Only

128M+256M

256M+256M 1 0 1

M1A_256M

IC101

Auto Det

0

1

0

CVBSOUT1

CVBS0 CVBS1 CVBS2

VCOM

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

MODEL_OPT_4

0

1

0

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2

C212 0.047uF

J3

C213 0.047uF

K3

C214 0.047uF

J1

C215 0.047uF

K2

C216 0.047uF

K1

C217 0.047uF

M6

Scart_EU_or_COMM_RGB

L6

SCART Option 12ea

L2

C218 0.047uF

L3

C219 0.047uF

M1

C220 0.047uF

M2

C221 0.047uF

N1

C222 0.047uF

N3

C223 0.047uF

M3

C224 1000pF

MODEL_OPT_6

TU_BUFFER

C2620.047uF AV2_OR_SCART C2260.047uF

C2270.047uF

0

0128M+128M

1

TU_BUFFER R25133 R24133 R24233

R228 68 R229 33 R230 68 R231 33 R232 68 R233 33

R234 68 R235 33 R236 68 R237 33 R238 68 R239 33

HIGH

MO_HD

MO_S/W_AJ

MO_DVB_T2/C/S2

MO_M120

DDR_EXT : 128 MO_S/W_EU/AJ DDR_EXT : 256

MO_DUALSTREAM

AV2_OR_SCART

C2280.047uF

R243

68

SC1_B+/COMP1_Pb+

SC1_G+/COMP1_Y+

SC1_R+/COMP1_Pr+ SC1_ID SC1_FB

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

COMP2_Pr+

Normal 2.5V

฀

M1A 2.5V embedded

DTV/MNT_VOUT

TU_CVBS SC1/AV2_CVBS_IN COMP2_Y+/AV_CVBS_IN

Close to MSTAR

10K

R244

WIFI_DM SIDE_USB1_DM WIFI_DP SIDE_USB1_DP

10K

R245

+3.3V_Normal

R246

10K

OPT

R247

10K

OPT

WIFI_DM WIFI_DP

+1.10V_VDDC

VDDC 1.05V

+1.10V_VDDC

VDDC : 2026mA



C237

C235

10uF 10V

Normal Power 3.3V

+3.3V_Normal

0.1uF

C231

C232 0.1uF

VDD33

L204 BLM18PG121SN1D

10uF

C233

10V

10uF

C236

C238 0.1uF

C241 0.1uF

DDR3 1.5V

+1.5V_DDR

C230

0.1uF

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

I2S_I/F

OPT

AUD_SCK AUD_MASTER_CLK_0 AUD_LRCH AUD_LRCK

F3 F2

U4 T4 P2 R2 T1 R3 R1 T3 U2 V3 T2

RXA2P RXACKN RXACKP

EAR_OUTL EAR_OUTR AUL1 AUL2 AUL3 AUR1 AUR2 AUR3 AUOUTL0 AUOUTR0 AUVAG

AVDD_DDR0:55mA

10uF 10V

C234

AVDD_DDR1:55mA

IC101-*1

LGE2133(128M)

M1A_128M

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

C239

0.1uF

CVBSOUT1

CVBS0 CVBS1 CVBS2

VCOM

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

SOC_RESET

POWER_DET_RESET

OPT

4.7uF

C240 1uF

C242

R248 470

C243

10V

C245 0.1uF

0.1uF

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

C244 1uF

C246

+3.5V_ST

1uF

C248

4.7uF 10V

C247 0.1uF

R249 470K

C249

0.1uF

A13 A15 A18 B12 B14 B16 B17 B19 B20

C10 C21

E20

F11 F13 F15 F17 F19 F21

G10 G11 G12 G13 G14 G15 G16 G17 G18

H10 H11 H12 H13 H14 H15 H16 H17 H18

J10 J11 J12 J13 J14

K10 K11 L10

M10

N10

P10 P15 P16 P17 P18 R10 R11 R12 R13 R14

SOC_RESET

AVDD_AU33

AVDD_NODIE

AVDD_DMPLL

+1.10V_VDDC

AVDD5V_MHL

LGE2133(128M)

M1A_128M

U3

AUVRM

A6

GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8 GND_9 GND_10

C9

GND_11 GND_12 GND_13

D9

GND_14 GND_15

F9

GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22

G8

GND_23

G9

GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33

H7

GND_34

H8

GND_35

H9

GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45

J7

GND_46

J8

GND_47

J9

GND_48 GND_49 GND_50 GND_51 GND_52 GND_53

K8

GND_54 GND_55 GND_56 GND_57

M5

GND_58

M7

GND_59

M8

GND_60

M9

GND_61 GND_62

N4

GND_63

N5

GND_64

N6

GND_65

N7

GND_66

N8

GND_67

N9

GND_68 GND_69

P4

GND_70

P5

GND_71

P6

GND_72

P7

GND_73

P9

GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

K7

GND_EFUSE

+1.5V_DDR

VDD33

C2501uF

VDD33

IC101-*1

AVDD_AU33 AVDD_DDR0_CLK AVDD_DDR1_CLK AVDD_DDR0_CMD AVDD_DDR1_CMD AVDD_DDR0_D_1 AVDD_DDR0_D_2 AVDD_DDR0_D_3 AVDD_DDR1_D_1 AVDD_DDR1_D_2 AVDD_DDR1_D_3

AVDD_DRAM_1

AVDD_DRAM_2 AVDD_DVI_USB_MPLL_1 AVDD_DVI_USB_MPLL_2

AVDD_MOD_1 AVDD_MOD_2 AVDD_NODIE

AVDD_PLL

AVDD3P3_DMPLL

AVDDL_MOD DVDD_DDR_1 DVDD_DDR_2 DVDD_NODIE

DVDD_RX_1_1 DVDD_RX_1_2 DVDD_RX_2_1 DVDD_RX_2_2

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8

VDDP

AVDD5V_MHL

STby 3.5V

+3.5V_ST

R4 L11 L13 M11 K13 C5 K12 L12 C6 K14 L14 B5 B6 R8 R9 L7 L8 P8 K9 R5 P11 C7 M13 R6 A7 M12 B7 M14 N11 N12 N13 N14 N15 P12 P13 P14 L9

AA10

L206

BLM18PG121SN1D

AVDD_DMPLL

L207

BLM18PG121SN1D

C251 10uF

L205

BLM18PG121SN1D

M1A_256M

LGE2134(256M)

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

AVDD_NODIE

C253 10uF

C252

0.1uF

AVDD_AU33

C256

10uF

IC101

C255

0.1uF

C254

0.1uF

C257

0.1uF

C258

0.1uF

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

GND_EFUSE

U3 A6 A13 A15 A18 B12 B14 B16 B17 B19 B20 C9 C10 C21 D9 E20 F9 F11 F13 F15 F17 F19 F21 G8 G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 H7 H8 H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

+1.10V_VDDC

C259

10uF

10V

AUVRM

+1.10V_VDDC

C260

0.1uF

C261

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_CA_M1A

MAIN2_NON_EU

140903

52

AUDIO AMP(TI)

LGE Internal Use Only

AMP_COIL_GET

L5603-*1

10.0uH

AMP_COIL_GET

L5604-*1

10.0uH

AMP_COIL_GET

L5605-*1

10.0uH

AMP_COIL_GET

L5606-*1

10.0uH

AMP_MUTE

POWER_DET

A13.2V

OPT

R5600

10K

UBW2012-121F

A13.2V

OPT

C5600

0.1uF 50V

R5601

L5600

+3.5V_ST

10K

B

+13.2V_AMP

C5601

0.1uF 50V

R5603

100

C

OPT Q5600 MMBT3904(NXP)

E

OPT

R3405

0

AUD_MASTER_CLK

C5602

1000pF

50V

AUD_LRCK

AUD_SCK

AUD_LRCH

AMP_SDA AMP_SCL

AMP_RESET

+3.3V_Normal

C5604

0.1uF 16V

C5606

0.1uF 16V

This parts are Located on AVSS area.

R5610

R5608 2K

R5607 18K 1%

C5607

0.1uF 16V

C5611

4700pF

C5609

4700pF

50V

C5608

0.047uF 25V

A_SEL_FAULT

OSC_RES

VR_DIG

ZD5600

C5612

0.047uF

R5609

470

AVDD

13 14

MCLK

15 16

DVSSO

17 18

PDN

19

LRCLK

20

SCLK

21

SDIN

22

SDA

23

SCL

24

+3.3V_Normal

OPT

C5610

0.1uF

5V

470

25V

VR_ANA

12

25

RESET26STEST

16V

PLL_FLTM

PLL_FLTP

9

10

11

TAS5733

IC5600

27

DVDD28DVSS

C5614

0.1uF 16V

C5613

AVSS

8

29

2200pF 50V

NC_2

PBTL

7

30

GND

AGND31VREG

C5615

1uF 25V

C5616

0.033uF

NC_1

SSTIMER

5

6

32

GVDD_OUT

0.033uF

50V

PVDD_AB_2

BST_A

3

4

THERMAL

49

33

34

BST_D

PVDD_CD_1

C5617

50V

C5618

0.1uF 50V

OUT_A

PVDD_AB_1

1

2

48 47 46 45 44 43 42 41 40 39 38 37

35

36

OUT_D

PVDD_CD_2

[EP] PGND_AB_2 PGND_AB_1 OUT_B NC_6 NC_5 BST_B BST_C NC_4 NC_3 OUT_C PGND_CD_2 PGND_CD_1

C5619

0.1uF 50V

+13.2V_AMP

C5620 10uF 25V

0.033uF

+13.2V_AMP

C5621 10uF 25V

C5640

4.7uF 50V

3216

C5624

50V

C5625

50V

OPT

C5641

4.7uF 50V

3216

AMP_COIL_TAIYO

L5603-*2

10.0uH

R5611

18 1%

C5626 330pF

50V

C5627 330pF

50V

R5612

18 1%

R5613

18 1%

C5628 330pF

50V

C5629 330pF

50V

R5614

18 1%

AMP_COIL_TAIYO

L5604-*2

10.0uH

AMP_COIL_ABCO

L5605

10uH

C5630

0.33uF

AMP_COIL_ABCO

L5606

10uH

AMP_COIL_ABCO

L5604

10uH

0.33uF

AMP_COIL_ABCO

L5603

10uH

AMP_COIL_TAIYO

50V

C5631

50V

L5605-*2

10.0uH

AMP_COIL_TAIYO

L5606-*2

10.0uH

Close to Speaker

C5632

0.1uF 50V

C5633

0.1uF 50V

C5634

0.1uF 50V

C5635

0.1uF 50V

OPT

C5636

2200pF

50V

OPT

C5637

2200pF

50V

OPT

C5638

2200pF

50V

OPT

C5639

2200pF

50V

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SPK_L+

SPK_L-

SPK_R+

SPK_R-

L14_CA_AMP

1AMP_TAS

250A1-WR-H04M

WAFER-ANGLE

4

3

2

1

P5600

Box Type SPK Wafer

56

140818

MHL SW AND GATE

LGE Internal Use Only

MHL_CD_SENSE

MHL_OCP_EN

MHL_AND_GATE_TOSHIBA

IC5801

TC7SZ08FU_TOSHIBA

IN_B

1

IN_A

2

GND

3

MHL_AND_GATE_NXP

IC5801-*1

74LVC1G08GW

1 5

2

3

+3.3V_Normal

VCC

5

OUT_Y

4

OPT

R5801

MHL OCP

AVDD5V_MHL

MHL_5V_EN

10K

/MHL_OCP_DET

R5802

10

5V_HDMI_4

MHL_OCP

C5801

10uF

10V

+3.3V_Normal

MHL_OCP

R5803 0

MHL_SUZHOU

D5801

40V

SS2040LL-LG

OPT

R5805

100K

MHL_OCP R5804 10K

MHL_ONSEMI

D5801-*1

MBR230LSFT1G

30V

OUT_3

OUT_2

OUT_1

OC

MHL_OCP IC5802

BD82020FVJ

8

7

6

5

+5V_Normal

GND

1

IN_1

2

IN_2

3

EN

4

MHL_OCP

R5806

10K

MHL_OCP

C5802

0.1uF

MHL_5V_EN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MHL_SW_AND

140815L14_CA_M1A

58

TP For US Commercial Model

LGE Internal Use Only

AV2_L_IN

AV2_R_IN

SC1/AV2_CVBS_IN

FE_TS_VAL_ERR

RF_SWITCH_CTL

FE_TS_CLK

FE_TS_SYNC

IF_AGC_SEL

TUNER_RESET

TU_CVBS

UART_RX

UART_TX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L15_US_COMM

TP_US_COMM

2014.08.19

190

NET_COMMERCIAL_NON_EU

LGE Internal Use Only

LC Filter for EXT SPK & HP Scart(EU only)

HP_ROUT

HP_LOUT

15Y_HYNIX_2G

IC102-*10

H27U2G8F2DTR-BD

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

L2900

5.6uH

C2900

4.7uF 10V

L2901

5.6uH

C2901

4.7uF 10V

Close to the Main IC

15Y_HYNIX_4G

IC102-*11

H27U4G8F2ETR-BC

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

12

13

NC_9

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

HP_EXT_SPK_ROUT

HP_EXT_SPK_LOUT

RGB DSUB(Non EU)

DSUB/SC1_HSYNC

DSUB/SC1_VSYNC

DSUB_DET

SCART1_MUTE

COMP2_DET

R2901 33

NON_EU_RGB

R2902 33

NON_EU_RGB

R2903 0

NON_EU_RGB

SC1_ID

DSUB/SC1_HSYNC

SC1_FB

DSUB/SC1_VSYNC

AV2_CVBS_DET

DSUB_DET

MODEL OPTION 9 (B2B ONLY)

+3.3V_Normal

READY R2904

10K

R2905

10K

AUD_SCK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Commercial NET

NET_CONN_NON_EU

189

Contents of LCD TV Standard Repair Process

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

No video/Normal audio 1

2 No video/No audio 2

3 Tuning fail, Picture broken/ Freezing 3, 4

A. Video error

4 Color error 5

5

6

B. Power error

7

8

Vertical/Horizontal bar, residual image, light spot, external device color error

6

No power 7

Off when on, off while viewing, power auto on/off

8

No audio/Normal video 9

C. Audio error

9 Wrecked audio/discontinuation/noise 10

10

Remote control & Local switch checking 11

D. Function error

11 External device recognition error 12

12 E. Noise Circuit noise, mechanical noise 13

13 F. Exterior error Exterior defect 14

* First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Contents of LCD TV Standard Repair Process Detail Technical Manual

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

Check LCD back light with naked eye A1

2 LED driver B+ 13.2V measuring method A2

A. Video error_ No video/Normal audio

3 Check White Balance value A3

4 Power Board voltage measuring method A4

6

TUNER input signal strength checking method A5

A. Video error_ No video/Video lag/stop

7 LCD-TV Version checking method A6

9

LCD TV connection diagram A7

10

11

A. Video error_Color error

Check Link Cable (LVDS) reconnection condition

A8 A9

12 Adjustment Test pattern - ADJ Key A10

13

14

A. Video error_Vertical/Horizontal bar, residual image, light spot

LCD TV connection diagram A8

Check Link Cable (LVDS) reconnection condition

A8 A9

15 Adjustment Test pattern - ADJ Key A10

16

17 Exchange T-Con Board (2) A-2/5

18 Exchange LED driver Board (PSU) A-3/5

Defected Type caused by T-Con/ Inverter/ Module

19 Exchange Module itself (1) A-4/5

20 Exchange Module itself (2) A-5/5

Exchange T-Con Board (1) A-1/5

55” : driver board

Other : PSU

Standard Repair Process

LGE Internal Use Only

Established date

Revised date

LCD TV

Error symptom

A. Video erro r

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

☞A4 ☞A1

N

Y

Check Power Board

3.5V, 13.2V etc.

Y

Replace Inverter or module

Normal

Voltage

N

Repair Power Board or parts

End

No video Normal audio

Normal

Audio

N

Move to No video/No audio

Y

Check Back Light On with naked eye

On

☞A2

Check Power Board 13.2V output

Normal

Voltage

Y

Replace T-con Board or module

1/14

※Precaution

Always check & record S/W Version and White Balance value before replacing the Main Board

☞A6 & A3

Repair Power Board or parts

Replace Main Board Re-enter White Balance value

Standard Repair Process

LGE Internal Use Only

LCD TV

No Video/ No audio

Error symptom

☞A4

Check various voltages of Power Board ( 3.5V,13.2V)

A. Video erro r

No video/ No audio

Normal Voltage

N

Replace Power Board and repair parts

Y

Check and replace MAIN B/D

Established date

Revised date

End

2/14

Standard Repair Process

LGE Internal Use Only

LCD TV

☞ A5

Check RF Signal level

Normal

Signal

Check RF Cable Connection

1. Reconnection

2. Install Booster

Y

N

Error symptom

A. Video erro r

Picture broken/ Freezi ng

. By using Digital signal level meter . By using Diagnostics menu on OSD ( Menu→ Set up→ Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not. (By connecting RF Cable at other equipment) → DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A6

N

Y

Check S/W Version

Normal


SVC

Bulletin

Y

Established date

Revised date

N

Check Tuner soldering

Normal


N

Y

3/14

End

Normal


End

Y

N

Contact with signal distributor or broadcaster (Cable or Air)

S/W Upgrade

Normal Picture

Y

End

Replace Main B/D

N

Standard Repair Process

LGE Internal Use Only

LCD TV

☞ A5

Check RF Signal level

Normal

Signal

Contact with signal distributor or broadcaster (Cable or Air)

Y

N

Error symptom

Check RF signal cable (DVB satellite signal or not) Check whether other equipments have problem or not. (By connecting RF Cable at other equipment) → Set-Top-Box, Different maker TV etc

Check satellite setting.

heck LNB frequency.

- C heck satellite

- C heck Satellite connection

- C

(DiSEqC, motor, etc…)

A. Video erro r

Tuning fail, Picture broken/ Freezing

Change satellite setting (match with installed ANT)

Normal

Setting

N

Y

☞ A6

Check S/W Version

Established date

Revised date

SVC

Bulletin

Y

S/W Upgrade

N

Check Tuner soldering

4/14

Replace Main B/D

End

Normal


Y

End

N

Normal


Y

End

N

Standard Repair Process

LGE Internal Use Only

LCD TV

☞A7

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

☞A10

Check Test pattern

Error symptom

Color

error

N

Check error color input mode

Y

External Input/Co mponent

A. Video erro r

Color error

☞ A8/ A9

※ Check and

replace Link Cable (LVDS) and contact condition

error

Color

error

N

Check external device and cable

Y

Replace Main B/D

Established date

Revised date

External

device/

Cable

Normal

Y

N

Color

error

End

5/14

Y

Replace module

N

Replace Main B/D

HDMI

error

Check external device and cable

Request repair for external device/cable

N

External

device/

Cable

Normal

Y

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

A. Video erro r

LCD TV

Error symptom

Vertical / Horizontal bar, residual image, light spot, external device c olor error

Vertical/Horizontal bar, residual image, light spot

☞A7

Check color condition by input

-External Input

-Component/AV

-HDMI

☞A10

Check Test pattern

External device screen error-Color error

Check S/W Version

S/W Upgrade

Replace module

Check

Version

Screen normal

N

Y

Check external

Y

device connection condition

Check screen condition by input

-External Input

-Component

-RGB

-HDMI/DVI

Screen

normal

Request repair for external device

Y

N

External

☞ A8/ A9

Check and replace Link Cable

Input error

Compo

nent

error

Established date

Revised date

Screen normal

End

Connect other external device and cable (Check normal operation of External Input, Component and HDMI by connecting Jig, pattern Generator, Set-top Box etc.

N

Replace Main B/D

Y

Screen normal

Y

Request repair for external device

N

6/14

Replace Module

N

Screen normal

Y

End

Replace Main B/D

Normal

Screen

Y

End

N

HDMI

error

Connect other external device and cable (Check normal operation of External Input, Component, HDMI by connecting Jig, pattern Generator ,Set-top Box etc.

Y

Screen normal

N

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

LCD TV

☞A11

Check Power LED

Stand-By : Red

Error symptom

Power

LED On

N

Check Power cord was inserted properly

Normal

Y

N

※

Y

B. Power error

☞A12

Check ST-BY 3.5V

No power

DC Power on by pressing Power Key On Remote control

☞A4

Measure voltage of each output of Power B/D

Y

Normal Voltage

Established date

Revised date

Normal

Operati

on

Y

Normal

Voltage

N

Y

☞A13

Check Power On ‘”High”

Replace Main B/D

OK

Replace Main B/D

Y

7/14

Replace Power B/D

End

N

Replace Power B/D

N

Replace Power B/D

Standard Repair Process

LGE Internal Use Only

LCD TV

Check outlet

Check A/C cord

Check for all 3- phase power out

* Please refer to the all cases which can be displayed on power off mode.

Error symptom

Error

Fix A/C cord & Outlet and check each 3 phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A14

N

Y

Check Power Off Mode

☞A13

(If Power Off mode is not displayed) Check Power B/D voltage

※ Caution Check and fix exterior of Power B/D Part

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL "POWEROFF_OFFTIMER" "POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download "POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

Abnorm

Replace Power B/D

CPU

al

al1

Normal Voltage

N

Established date

Revised date

Replace Main B/D

Y

Replace Main B/D

Power off by OFF TIMER

Normal

Replace Power B/D

Y

N

8/14

End

Standard Repair Process

LGE Internal Use Only

LCD TV

No audio Screen normal

Error symptom

C. Audio error

No audio/ Normal video

☞A15 ☞A16

Check user menu  Speaker off

Off

Y

Cancel OFF

Check Speaker disconnection

N

Check audio B+

13.2V of Power Board

Disconn

ection

Established date

Revised date

Normal

Voltage

Replace Power Board and repair parts

N

Replace MAIN Board

Y

N

9/14

End

Y

Replace Speaker

Standard Repair Process

LGE Internal Use Only

LCD TV

Check input signal

-RF

-External Input signal

Error symptom

C. Audio error

Wrecked audio/ disconti nuation /nois e

Established date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A16

Signal

Normal

N

Y

(When RF signal is not received) Request repair to external cable/ANT provider

(In case of External Input signal error) Check and fix external device

Wrecked Audio/ Discontinuation/ Noise for all audio

Wrecked Audio/ Discontinuation/ Noise only for D-TV

Wrecked Audio/ Discontinuation/ Noise only for Analog

Wrecked Audio/ Discontinuation/ Noise only for External Input

Check and replace speaker and connector

Replace Main B/D

Connect and check other external device

Check and fix external device

Check audio B+ Voltage (13.2V)

Normal Voltage

Replace Power B/D

Normal

Audio

N

Y

N

Replace Main B/D

10/14

End

Standard Repair Process

LGE Internal Use Only

LCD TV

Error symptom

Remote control & Local switch checking

1. Remote control(R/C) operating error

☞A17

Check R/C itself Operation

Check R/C Operating When turn off light in room

If R/C operate, Explain the customer cause is interference from light in room.

Normal

Operating

Y

N

Check & Replace Baterry of R/C

Normal

Operating

Check & Repair Cable connection Connector solder

Y

End

N

D. Function error

Normal

Operating

End

N

Y

☞A17

Check B+ 3.5V On Main B/D

☞A4

Check 3.5v on Power B/D Replace Power B/D or Replace Main B/D (Power B/D don’t have problem)

Established date

Revised date

Normal

Voltage

N

☞A17

Y

Check IR Output signal

11/14

Replace Main B/D

Y

Normal

Signal

N

Repair/Replace IR B/D

Replace R/C

Standard Repair Process

LGE Internal Use Only

LCD TV

Check input signal

Error symptom

Signal

Input

N

Check and fix external device/cable

Check technical

Y

information

- Fix information

- S/W Version

D. Function error

External device recogni tion error

Technical

information

Y

Fix in accordance with technical information

N

Established date

Revised date

External Input and

Component

Recognition error

HDMI, Optical

Recognition error

12/14

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

LCD TV

Identify nose type

Error symptom

Mechanical

noise

E. Noise

Circuit noise, mechanical noise

Circuit

noise

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

Check location of noise

OR

Established date

Revised date

Replace PSU(with LED driver)

Replace LED driver

※ When the nose is severe, replace the module (For models with fix information, upgrade the S/W or provide the description)

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual (For models without any fix information, provide the description)

13/14

Standard Repair Process

LGE Internal Use Only

LCD TV

Error symptom

Zoom part with exterior damage

F. Exterior defect

Exterior defect

Module

damage

Cabinet

damage

Remote

Controller

damage

Replace module

Replace cabinet

Replace remote controller

Established date

Revised date

14/14

Stand

damage

Replace stand

Contents of LCD TV Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Continued from previous page

No. Error symptom Content Page Remarks

21

22 Check power input Voltage & ST-BY 3.5V A12

23 Checking method when power is ON A13

24 POWER BOARD voltage measuring method A4

25

26

28

29

30

31

B. Power error_No power

B. Power error_Off when on, off while viewing

C. Audio error_No audio/Normal video

C. Audio error_Wrecked audio/discontinuation

D. Function error_ No response in remote controller, key error

Check front display LED A11

POWER OFF MODE checking method A14

Checking method in menu when there is no audio

Voltage and speaker checking method when there is no audio

Voltage and speaker checking method in case of audio error

Remote controller operation checking method A17

A15

A16

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error_No video/Normal audio

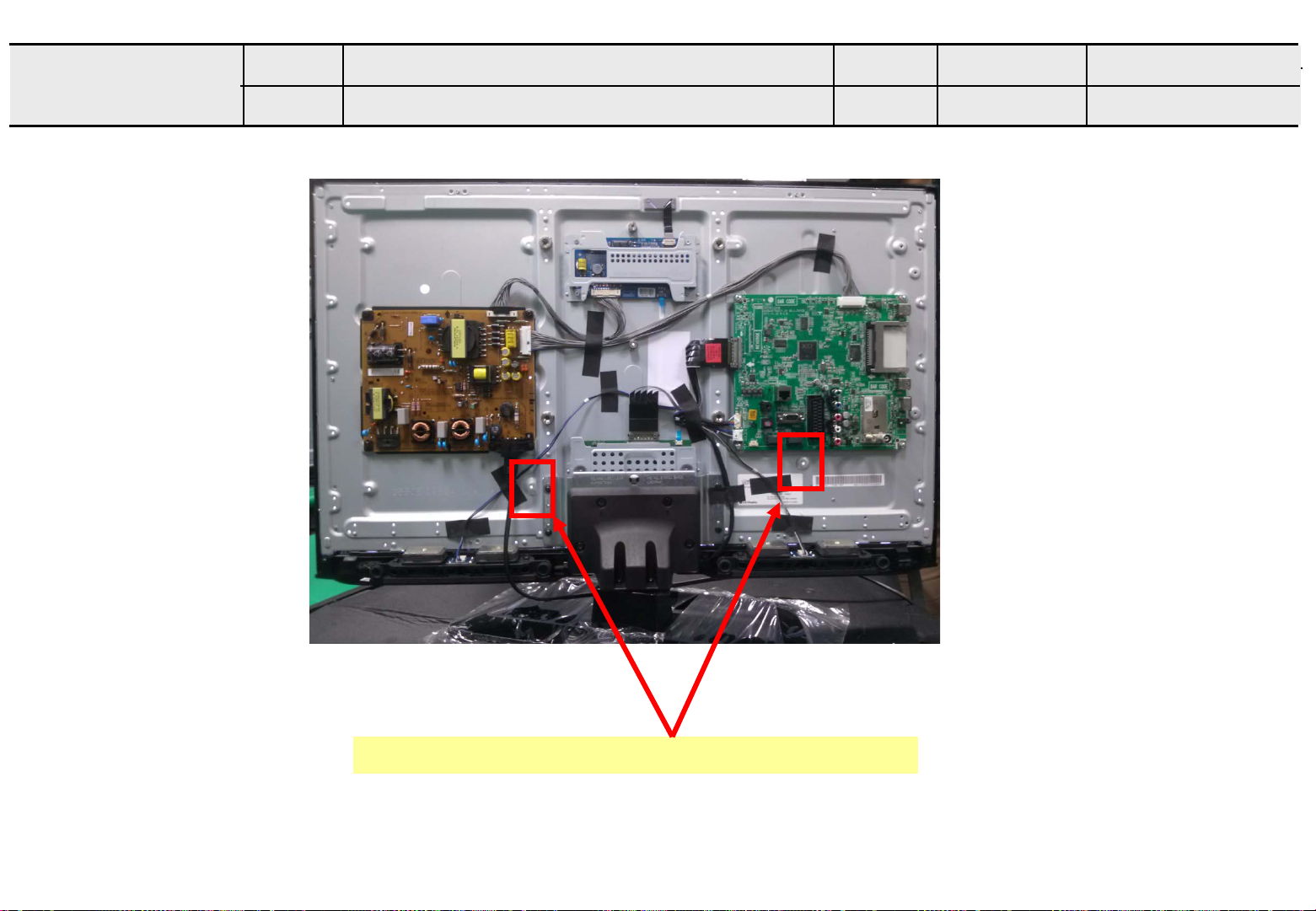

Check Back Light On with naked eye

Established date

Revised date

A1

Power On -> disjoint back case -> check lighting at 2 points.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error_No video/Normal audio

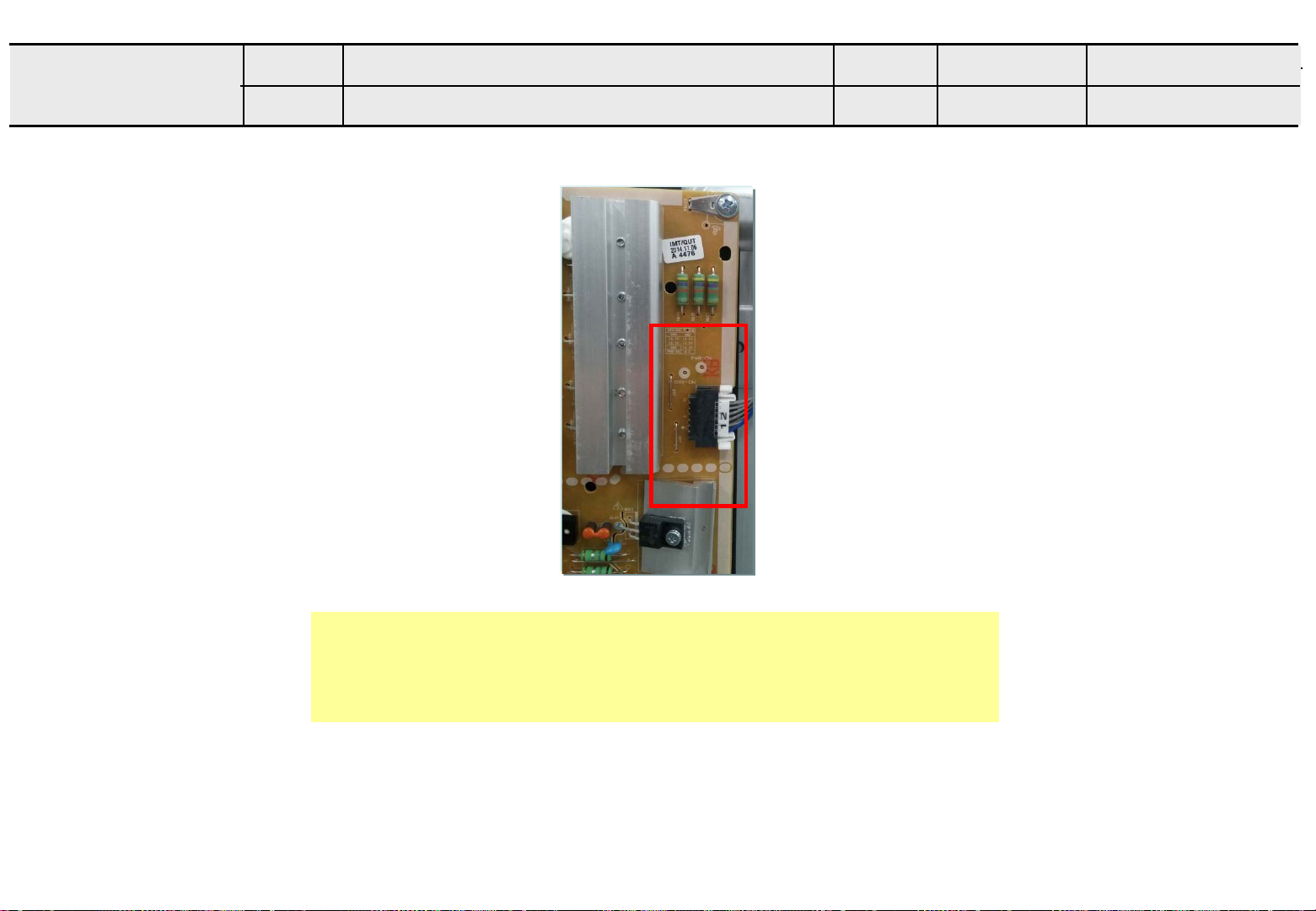

Inverter B+ 13.2V measuring method

Established date

Revised date

A2

1. Measure DC 13.2V applying to inverter PCB from Power Board.

2. Output 13.2V from Power Board -> supply to inverter PCB. Check Pin contacting statement and connection s tatement.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established date

Revised date

A3

Entry method

1. Press the AD J button on the remote controll er for adjustment.

2. Enter into White Balanc e of item 6.

2. Enter into White Balanc e of item 7.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), reenter the value after r epl aci ng the MAIN BOARD.

enter the value after r epl aci ng the MAIN BOARD.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error_No video/ Audio

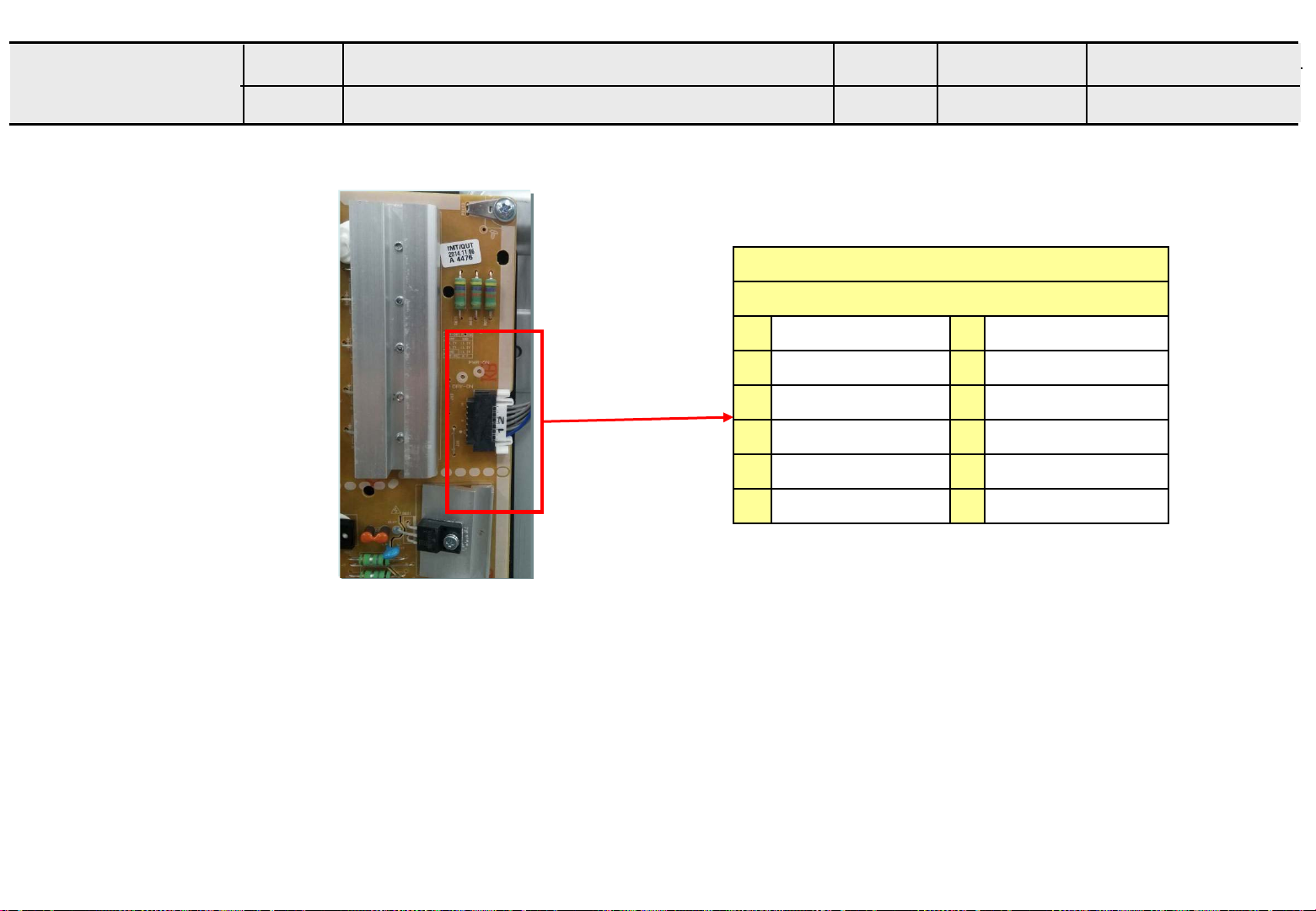

Power Board voltage measuring method

Established date

Revised date

Check DC 3.5V, 13.2V

12 Pin (Power Board ↔ Main Board)

SMAW200-H12S5K

A4

1

3

5

7

9

11

PWR_ON

GND

D13.2V

A13.2V

GND

DRV_ON

2

4

6

8

10

12

PDIM#2

D13.2V

A13.2V

GND

PDIM#1

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error_Video error, video lag/stop

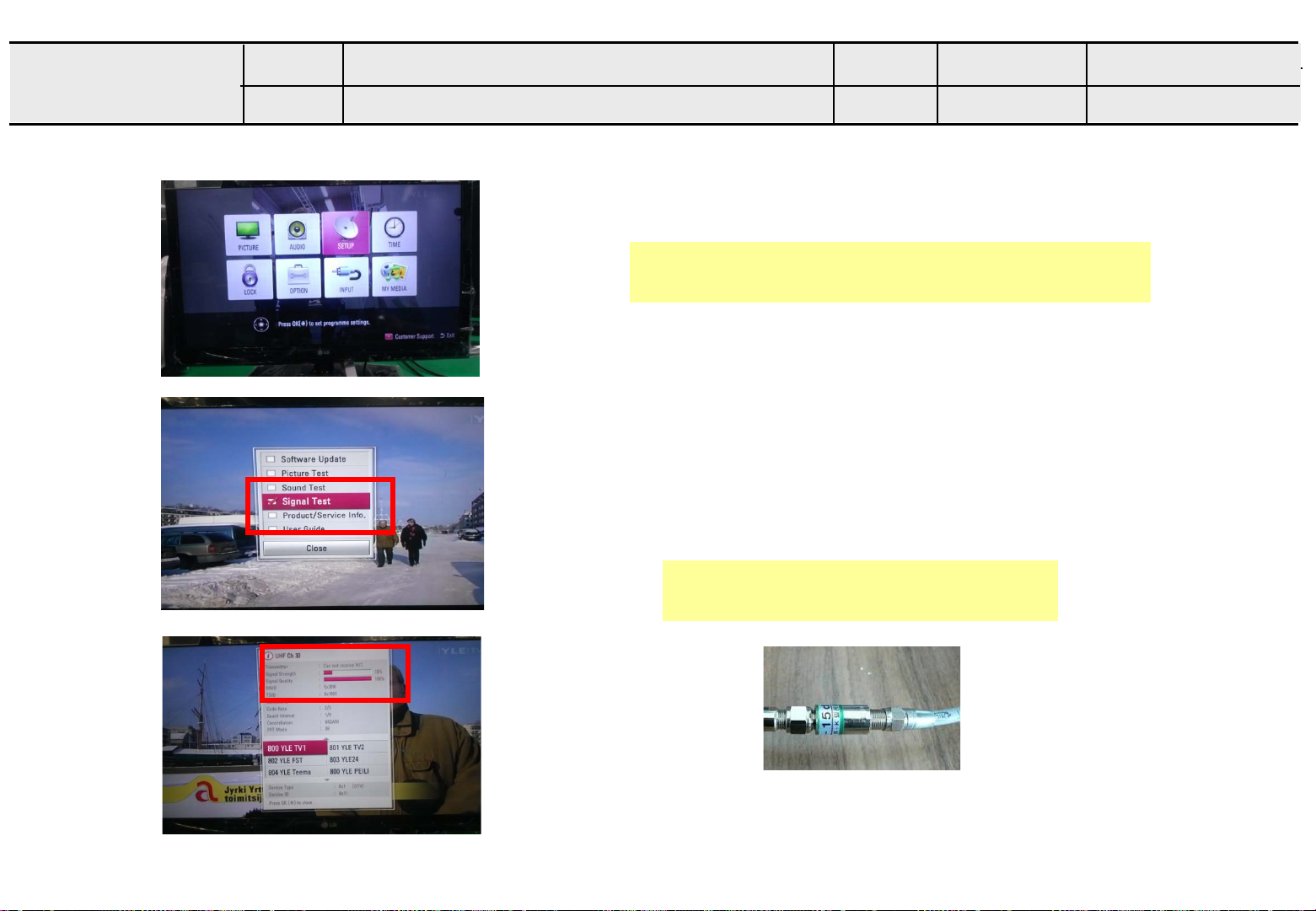

TUNER input signal streng th checking method

MENU => Press red key Remote controller=>sig nal test => Select channel

Established date

Revised date

A5

When the signal is strong , use the attenuator (-10dB, -15dB, -20dB etc.)

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

Version

A. Video error_Video error, video lag/stop

LCD-TV Version checking method

1. Checking method for remote controller for adjustment

Established date

Revised date

A6

Press the IN-START w ith the remote controller for adjustment

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error _Vertical/Horizontal bar, residual

image, light spot

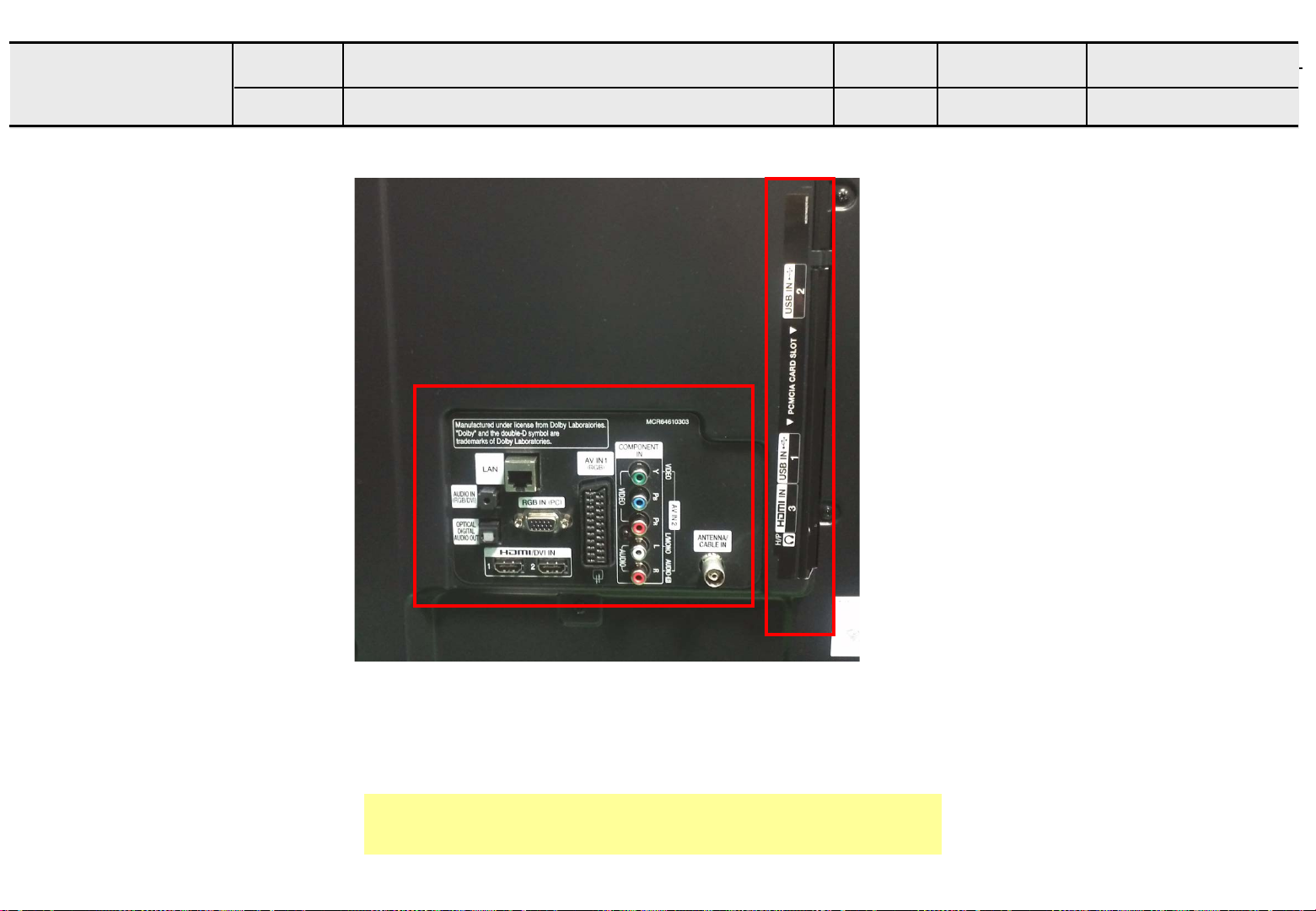

LCD TV connection diagram (1)

Established date

Revised date

A7

As the part connecting to the external input, check the screen condition by signal

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error_Color error

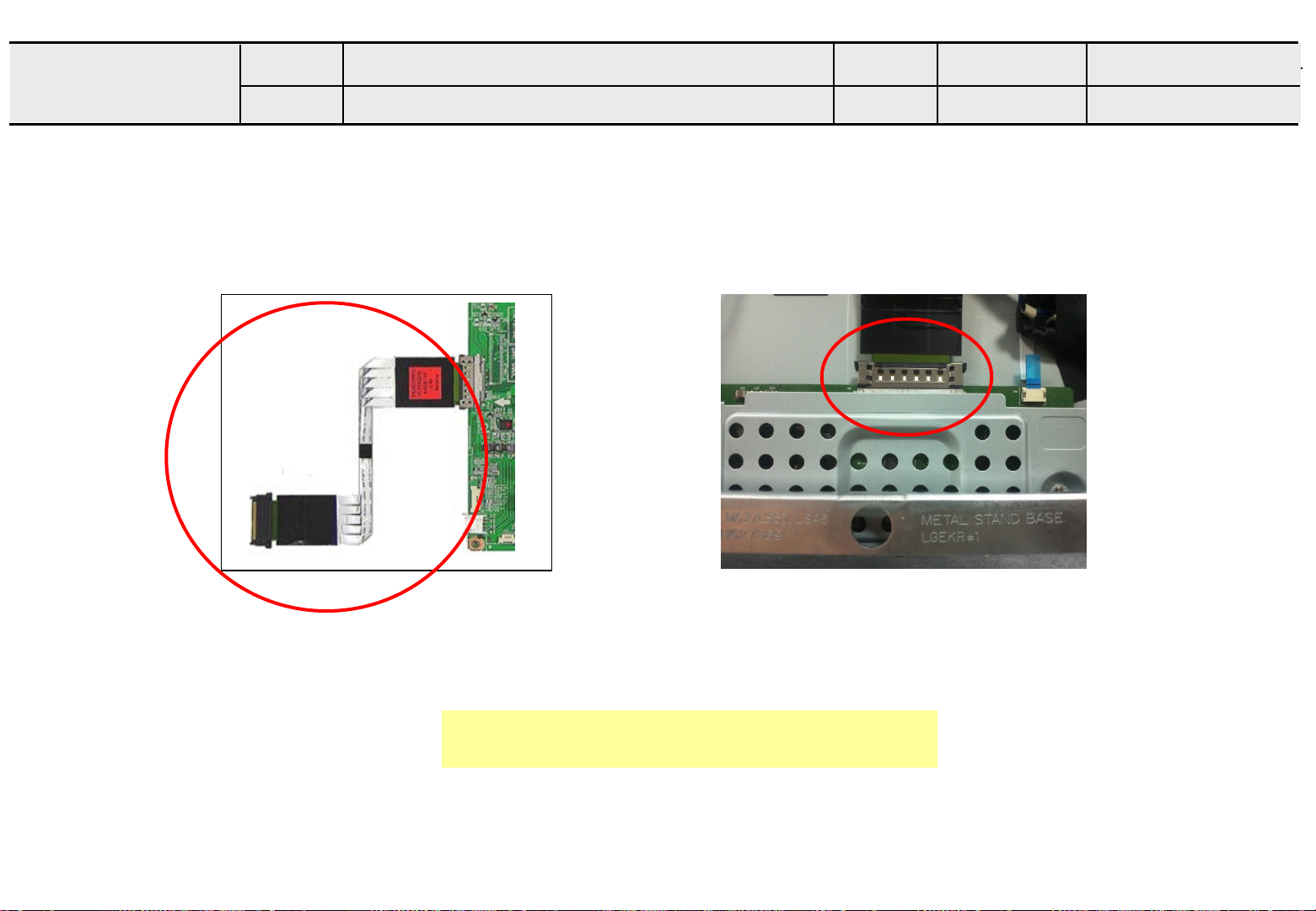

Check and replace Link Cable(LVDS) and contact condition

Established date

Revised date

A8/A9

1. Check and replace LVDS Cable

2. Check LVDS connection condition

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established date

Revised date

A10

You can view 6 types of patterns using the ADJ Key Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR ,SCAN BAR ..)

4.Video error (Classification of MODULE or Main-B/D!)

Appendix : Exchange T-Con Board (1)

LGE Internal Use Only

Solder defect, CNT Broken

T-Con D efect, CNT Broken

Solder defect, CNT Broken

T-Con D efect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

Appendix : Exchange T-Con Board (2)

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

GRADATION

Appendix : Exchange PSU(LED driver)

LGE Internal Use Only

No Light

Dim Light

No picture/Sound Ok

Appe ndix : Exchange the Module (1)

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Crosstalk

Un-repairable Cases In this case please exchan ge the module.

Press damage

Appe ndix : Exchange the Module (2)

LGE Internal Use Only

Vertical Block Source T AB IC Defect

Horizontal Block Gate T AB IC Defect

Horizontal Block

Gate T AB IC Defect

Ver tical Line Source T AB IC Defect

Horizontal Block

Gate T AB IC Defect

Vertical Block Source T AB IC Defect

Horizontal line

Gate T AB IC Defect Gate T AB IC Defect

Un-repairable Cases In this case please exchan ge the module.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

B. Power error _No power

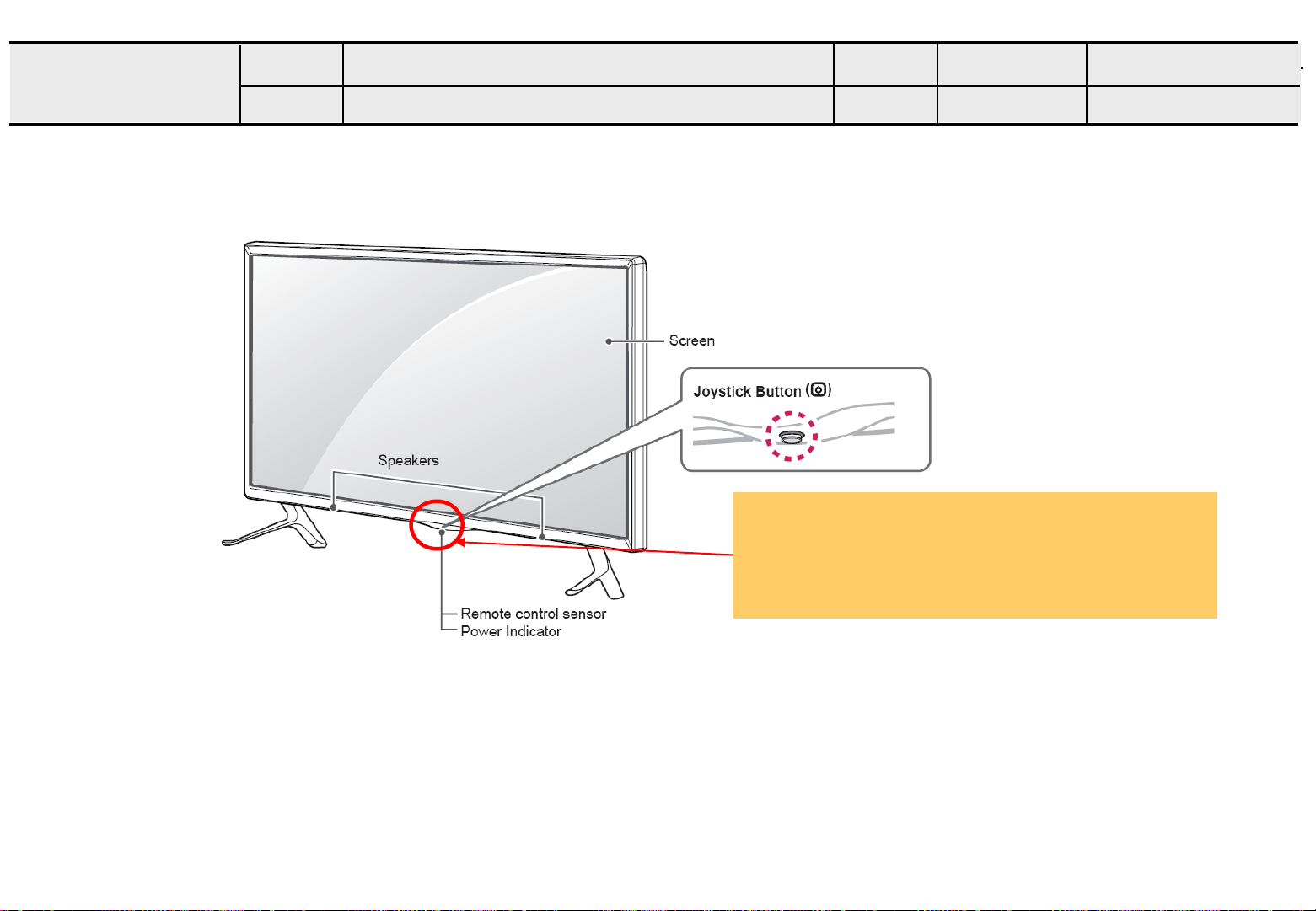

Check front display LED

Established date

Revised date

A11

ST-BY condition: Red Front LED control :

Menu  Option  Standby Light  On/Off

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

B. Power error _No power

Check power input voltage and ST-BY 5V

Established date

Revised date

Check DC 3.5V, 13.2V

12 Pin (Power Board ↔ Main Board)

SMAW200-H12S5K

A12

1

3

5

7

9

11

PWR_ON

GND

D13.2V

A13.2V

GND

DRV_ON

2

4

6

8

10

12

PDIM#2

D13.2V

A13.2V

GND

PDIM#1

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

B. Power error _No power

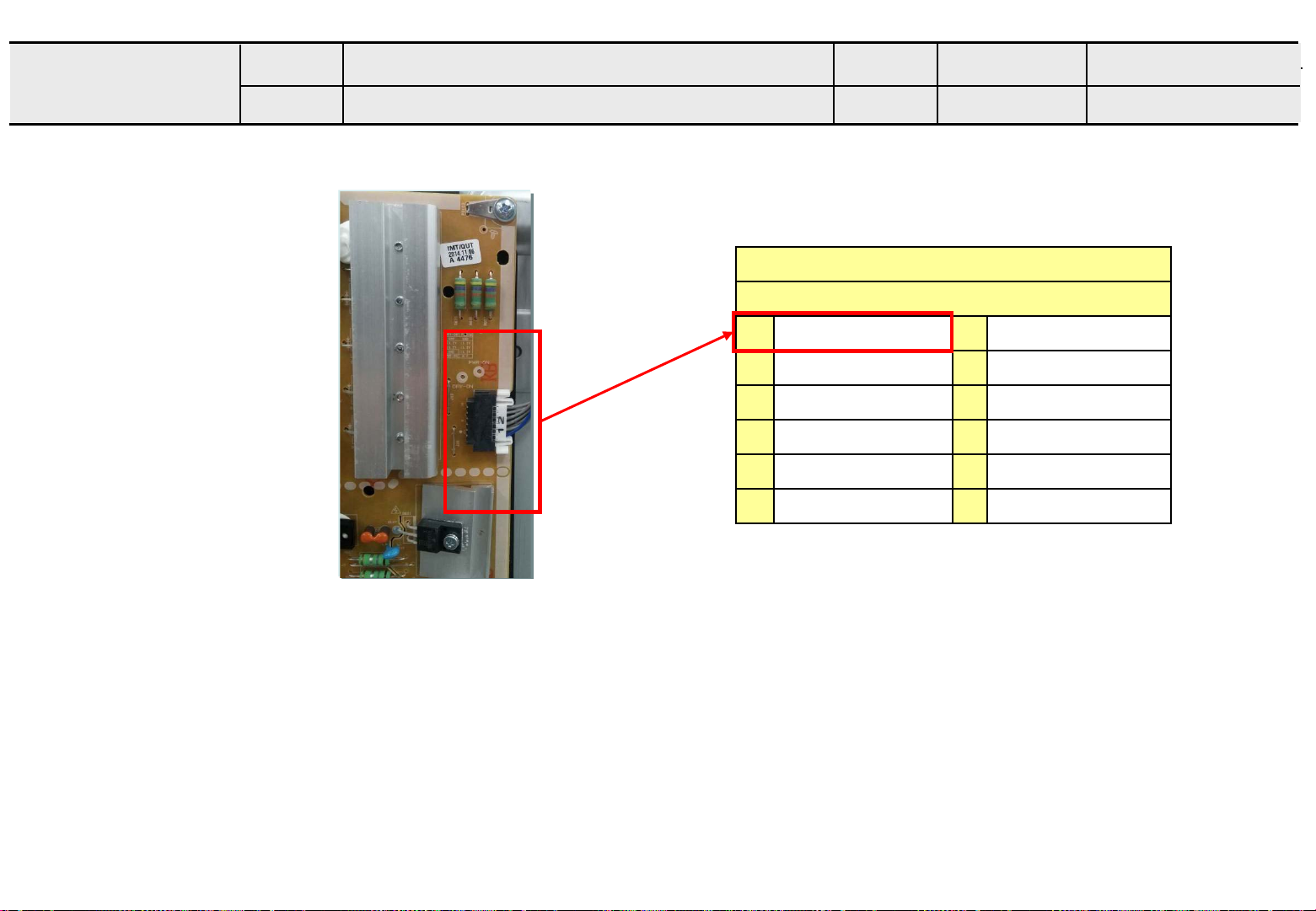

Checking method when power is ON

Established date

Revised date

A13

Check “power on(Pin 1)” pin is high(about 3.3V)

12 Pin (Power Board ↔ Main Board)

SMAW200-H12S5K

1

3

5

7

9

11

PWR_ON

GND

D13.2V

A13.2V

GND

DRV_ON

2

4

6

8

10

12

PDIM#2

D13.2V

A13.2V

GND

PDIM#1

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established date

Revised date

A14

Checking order

1. Press the IN-START button of the remote controller for adjustment

2. Check the entry into adjustment item 3.

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

C. Audio error_No audio/Normal video

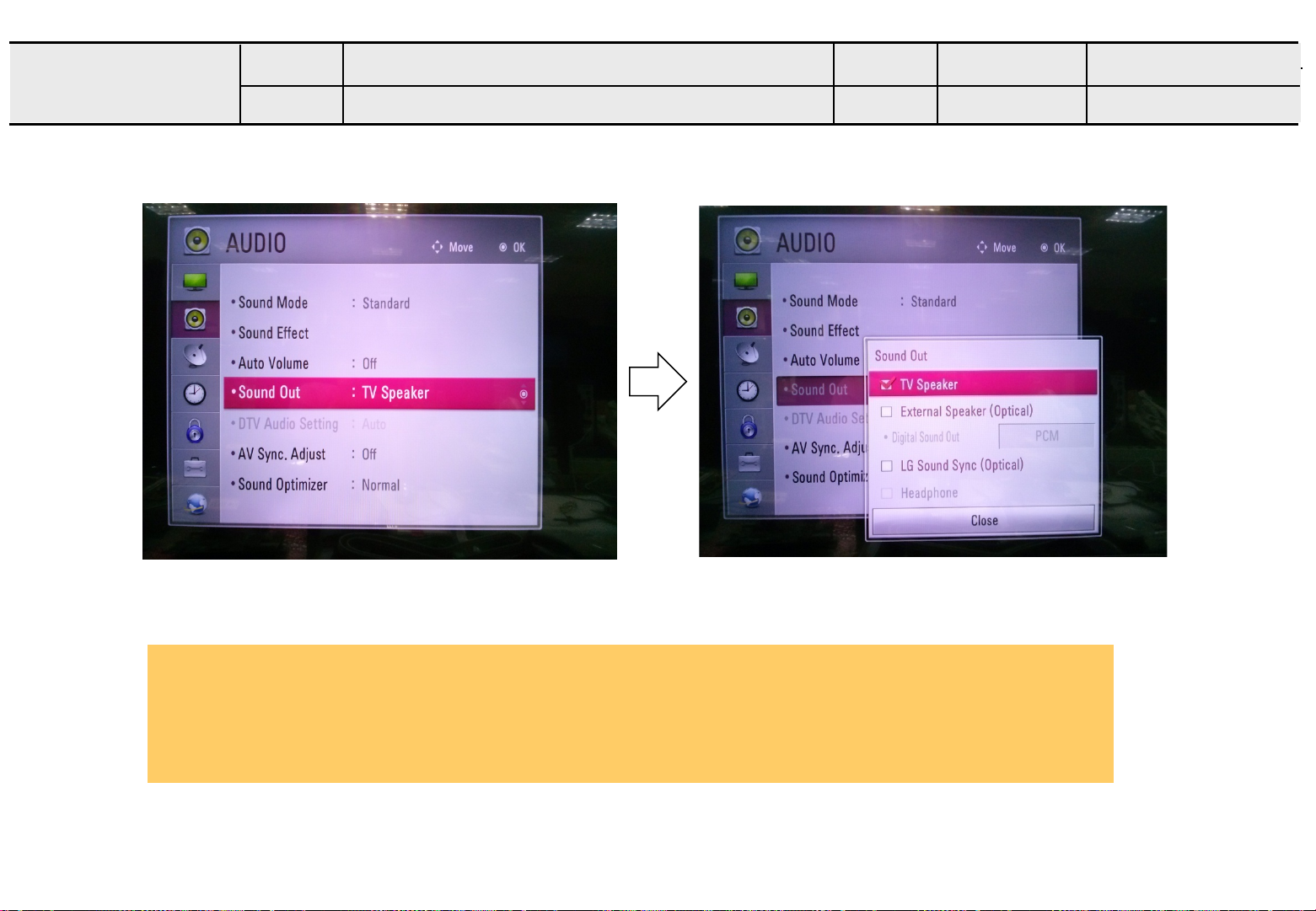

Checking method in menu when there is no audio

Established date

Revised date

A15

Checking order

1. Press the MENU button on the remote controller

2. Select the AUDIO function of the Menu

3. Select TV Speaker Check

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

Content

C. Audio error_No audio/Normal video

Voltage and speaker checking method when there is no au dio

12 Pin (Power Board ↔ Main Board)

Established date

Revised date

A16

②

1

3

5

7

9

11

SMAW200-H12S5K

PWR_ON

GND

D13.2V

A13.2V

GND

DRV_ON

2

4

6

8

10

12

PDIM#2

D13.2V

A13.2V

GND

PDIM#1

Checking order

1. Check the contact condition of or 13.2V connector of Main Board

2. Measure the 13.2V input voltag e supplied from Pow er Board (If there is no input voltage, remove and check the connector)

3. Connect the tester R X 1 to the speak er terminal and if you hear the C hi k C hi k s ound when you touch the GND and output terminal, the speak er is normal.

①

③

< Main Ass’y >

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error symptom

< Sub Ass’y>

①

Content

D. Function error_ No response in remote controller, key error

Remote controller o peration checking method

②

Established date

Revised date

③

④

A17

P4600

1 GND 2 KEY1 3 KEY2 4 3.5V_ST 5 GND 6 LED_R 7 IR 8 GND 9 SCL

10 SDA

Checking order 1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.3V on the terminal 4.

4. When checking the Pre-Amp w hen t he power is in ON condition, it is normal when the Analog Tester needle moves slow l y, and defective when it does not move at all.

< Main Ass’y >

LG 43LX310C, 43LX310C-SA-B Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
