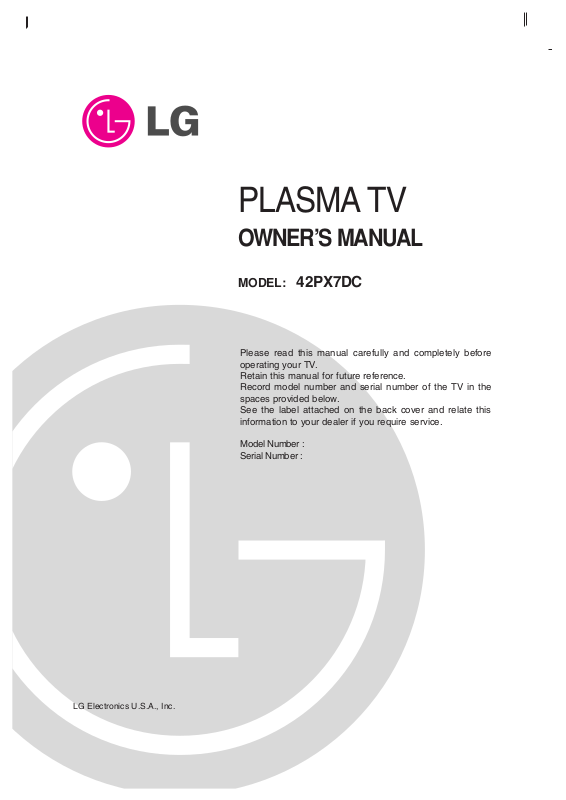

Page 1
PLASMA TV
OWNER’S MANUAL
Please read this manual carefully and completely before
operating your TV.
Retain this manual for future reference.
Record model number and serial number of the TV in the
spaces provided below.
See the label attached on the back cover and relate this
information to your dealer if you require service.
Model Number :
Serial Number :
MODEL: 42PX7DC
LG Electronics U.S.A., Inc.
Page 2
2 Plasma TV
WARNING/CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING/CAUTION:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
FCC NOTICE
• A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-800-243-0000
http://www.lgcommercial.com
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
/CAUTION
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
W
W
arning/Caution
arning/Caution
Page 3
Owner’s Manual 3
IMPORTANT SAFETY INSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or
sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The
important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding
statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-
fiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Safety Instructions
Safety Instructions
PORTABLE CART WARNING
Page 4
4 Plasma TV
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION concerning the Power Cord :
Most appliances recommend they be placed upon a dedicated circuit; that
is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of
this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
16. Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.
17. Wet Location Marking :
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
Safety Instructions
Safety Instructions
Page 5
Owner’s Manual 5
After reading this manual, keep it handy for future reference.
Warning/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Introduction
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Connection Options . . . . . . . . . . . . . . . . . . . . . .8
Remote Control Key Functions . . . . . . . . . . . 9~10
Installation
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation Instructions
Joining the TV assembly to the wall to protect the set
tumbling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Desktop Pedestal Installation . . . . . . . . . . . . . . . .12
External Equipment Connections
Antenna Connection . . . . . . . . . . . . . . . . . . . . .13
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .14
External A/V Source Setup . . . . . . . . . . . . . . . .14
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . .16

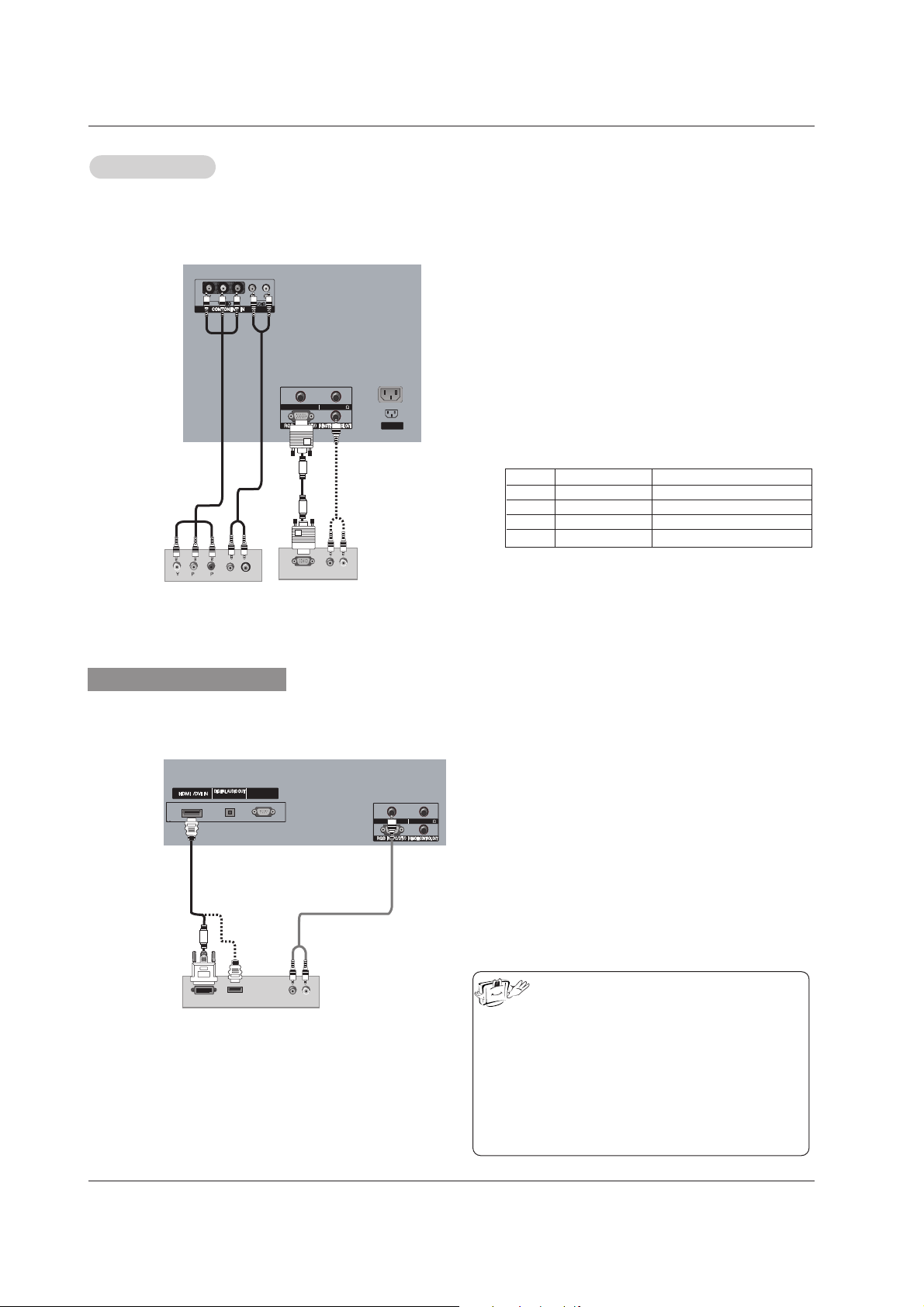

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .17~18

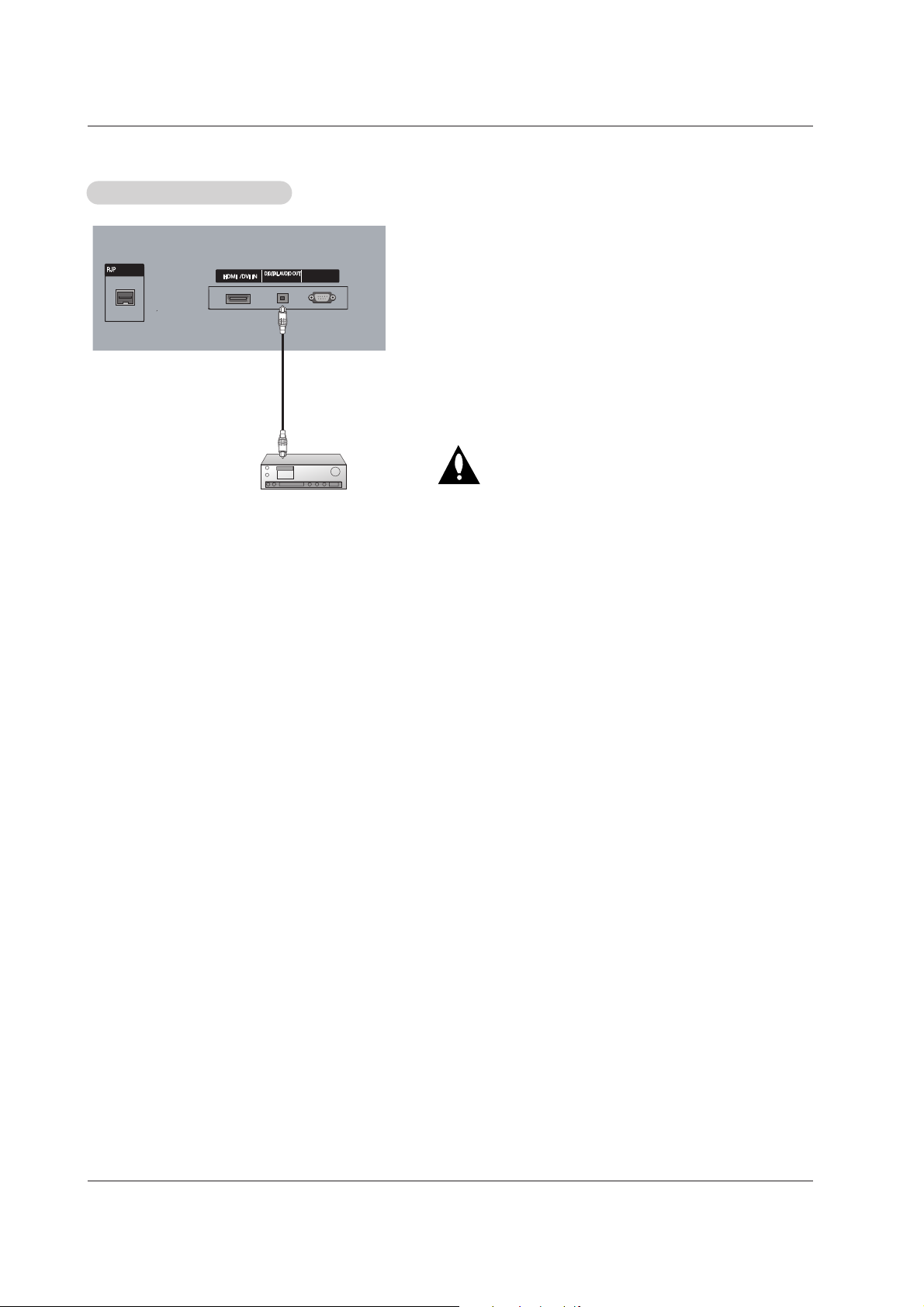

Digital Audio Output . . . . . . . . . . . . . . . . . . . . .19
Operation
Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .20
On-screen Menus Language Selection . . . . . . . . .20
Setup Menu Options

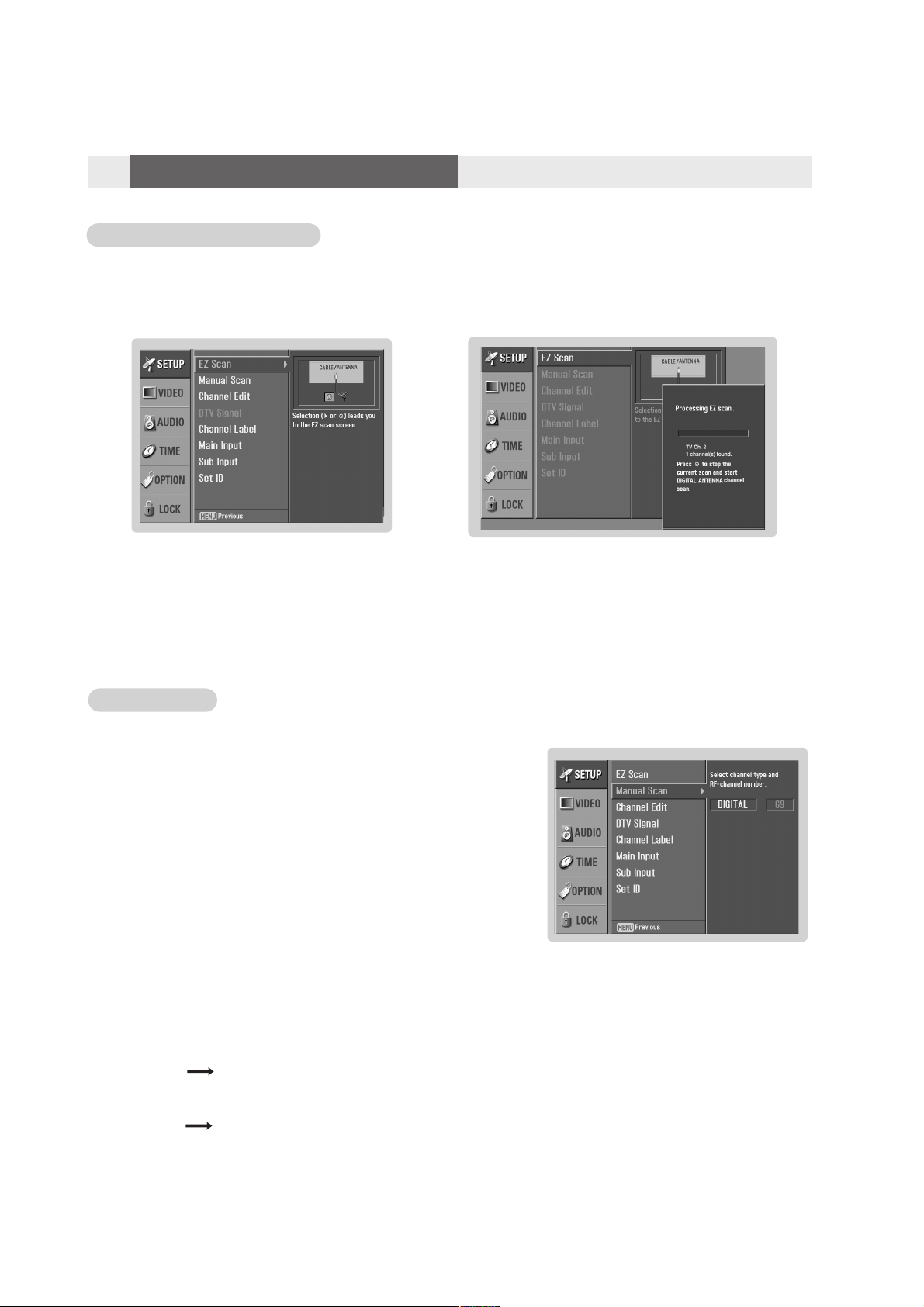

EZ Scan (Channel Search) . . . . . . . . . . . . . . . .21
Manual Scan . . . . . . . . . . . . . . . . . . . . . . . . . .21

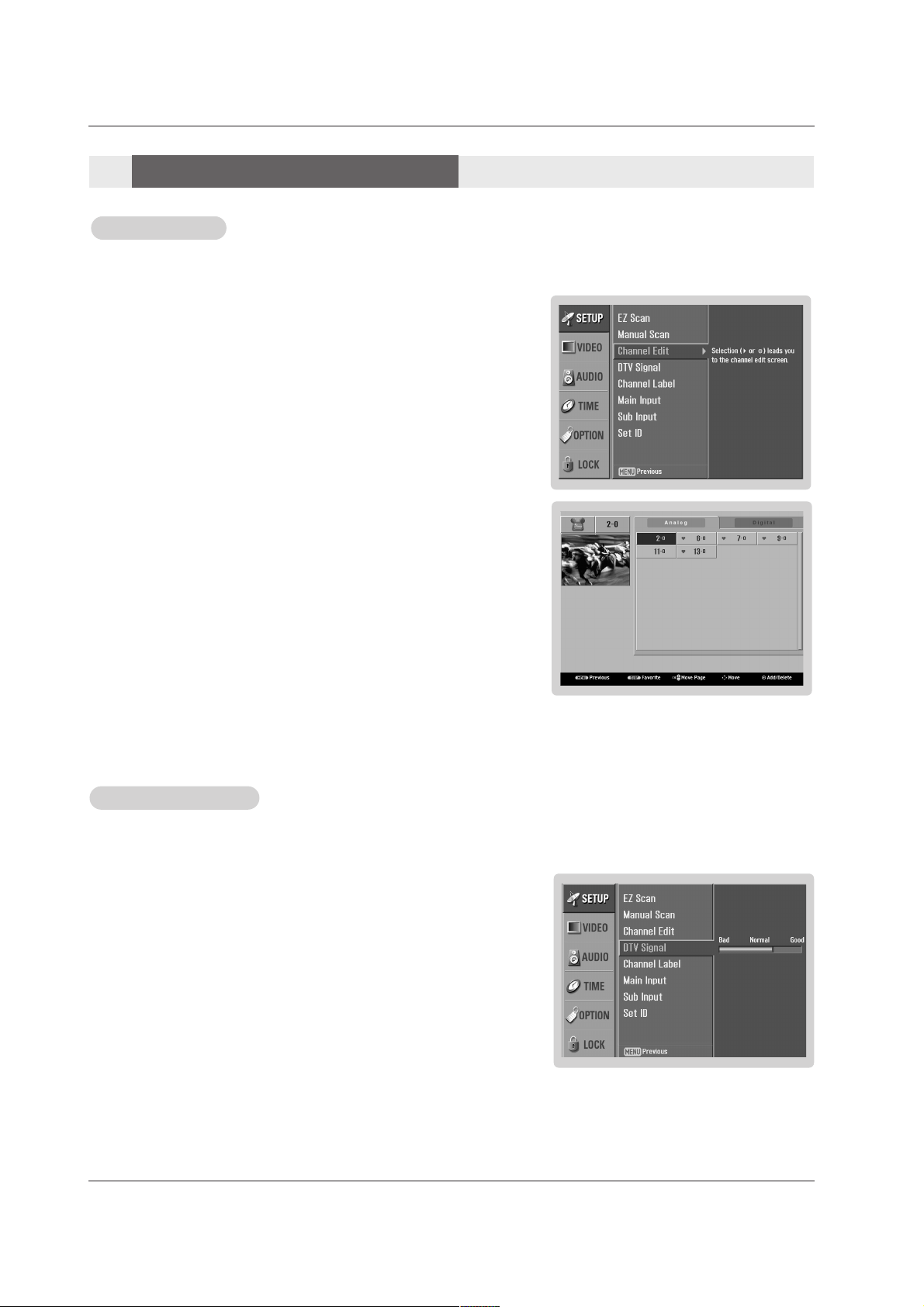

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .22
DTV Signal Strength . . . . . . . . . . . . . . . . . . . . .22

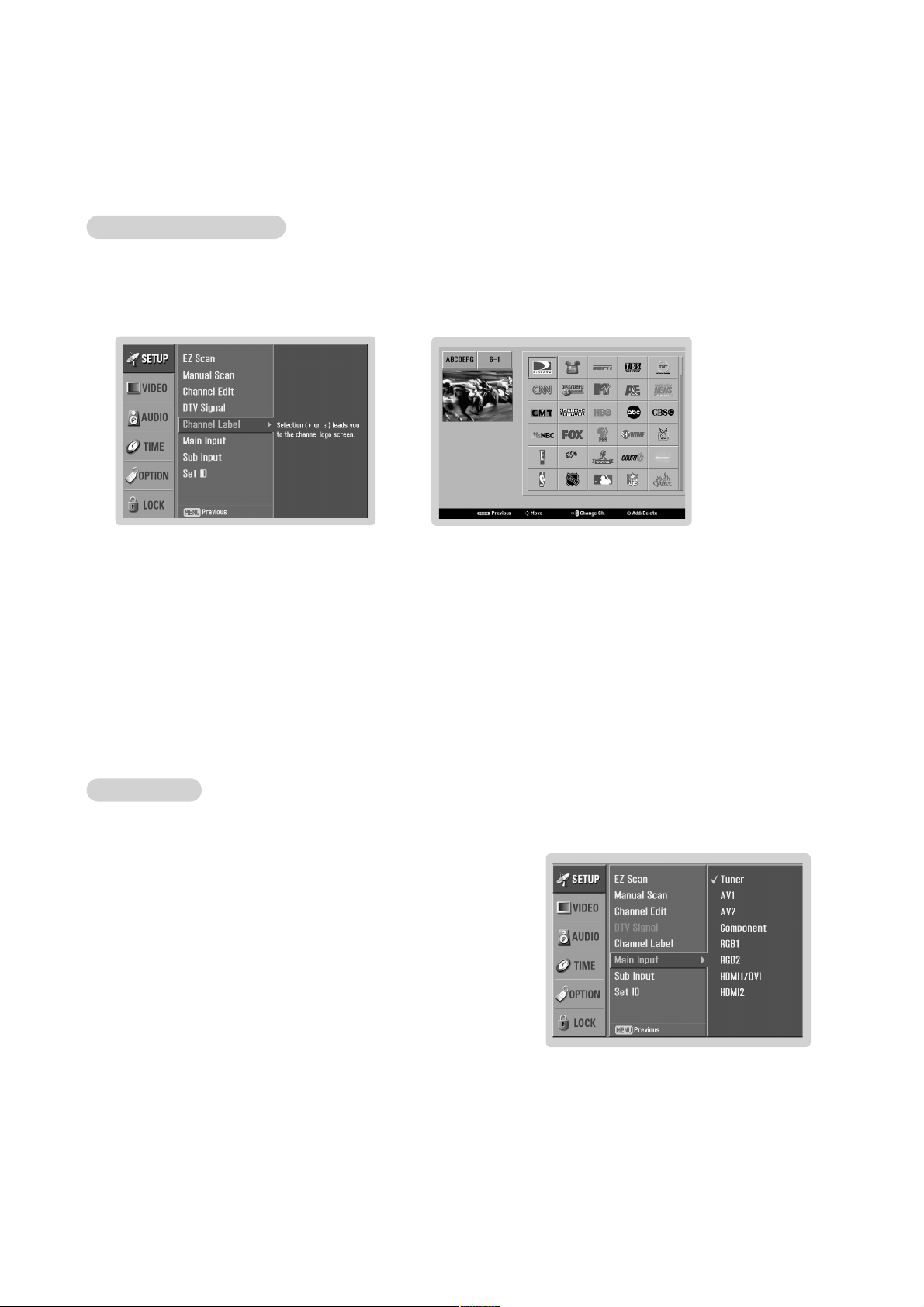

Channel Label Setup . . . . . . . . . . . . . . . . . . . .23
Main Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

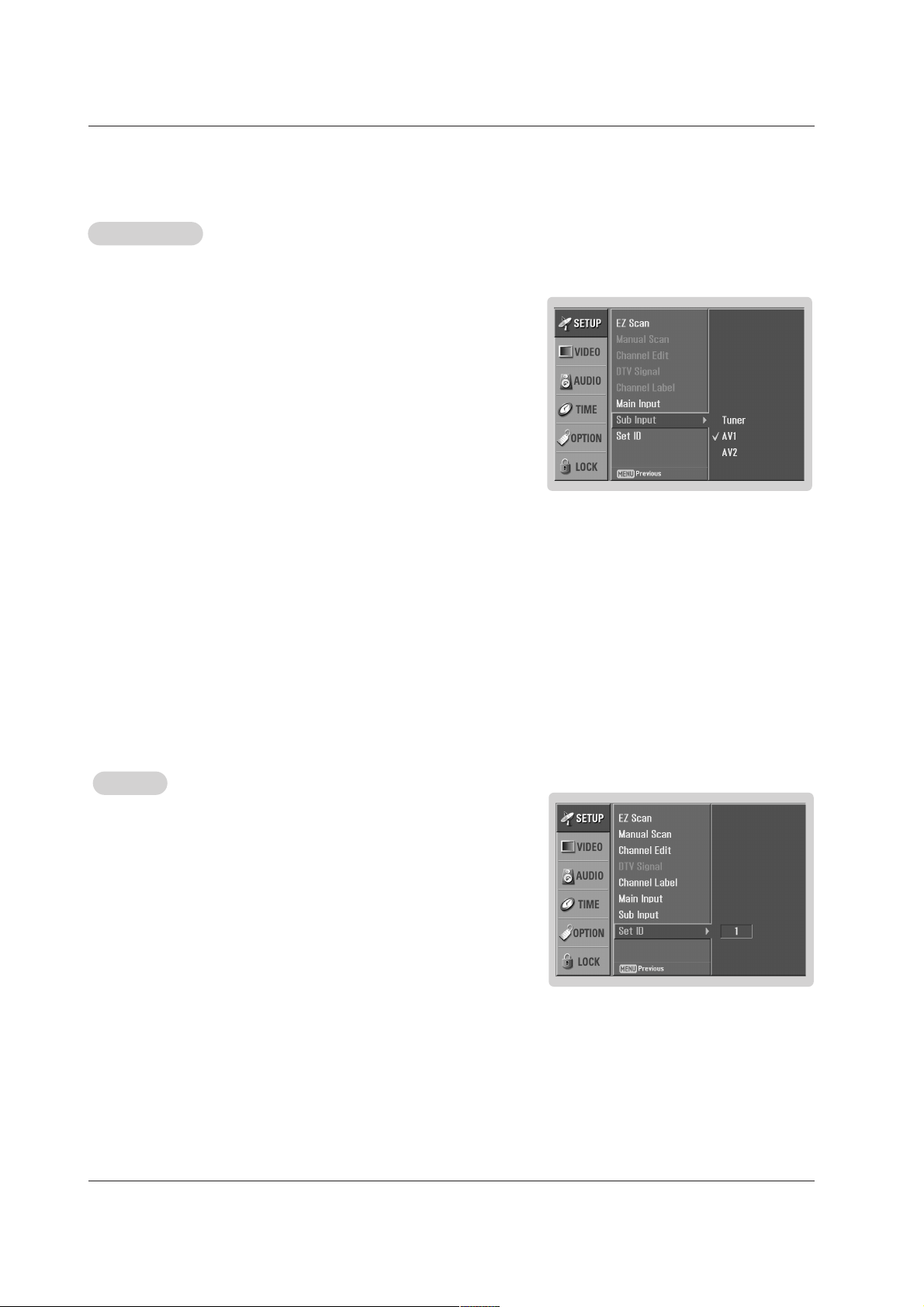

Sub Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Set ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Video Menu Options

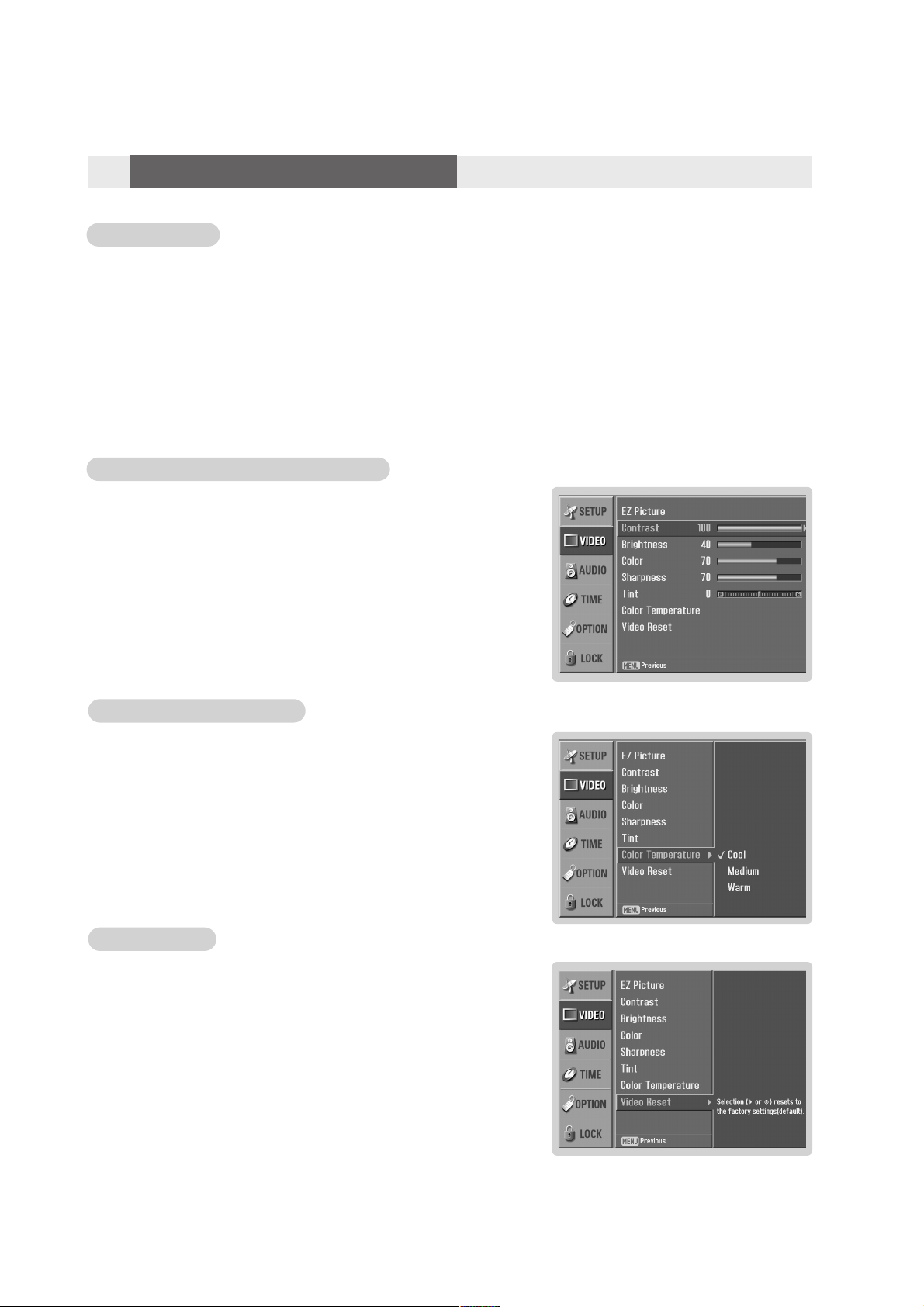

EZ Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Manual Picture Control (Custom Option) . . . . . .25
Color Temperature Control . . . . . . . . . . . . . . . .25
Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . .25

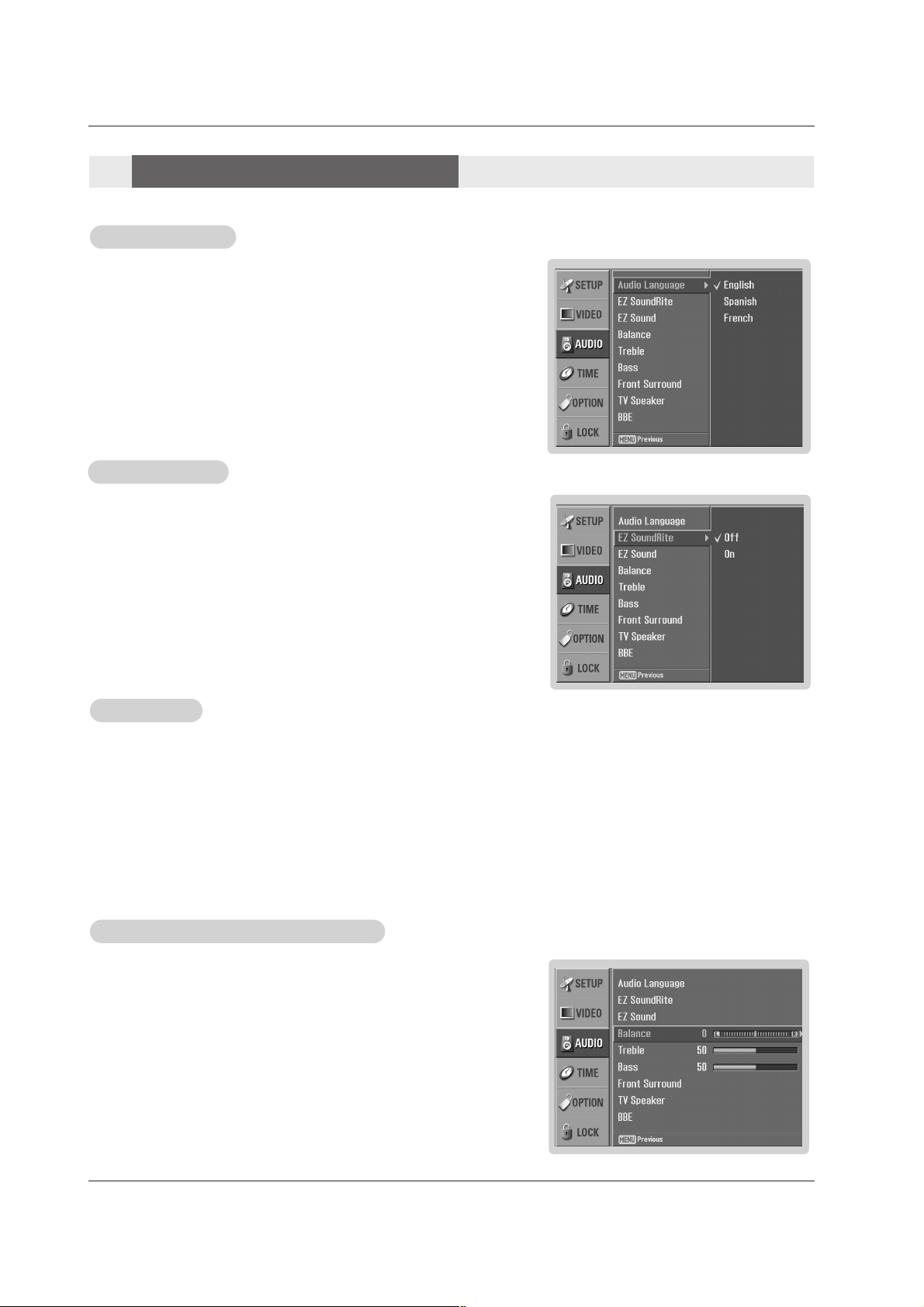

Audio Menu Options
Audio Language . . . . . . . . . . . . . . . . . . . . . . . .26
EZ SoundRite / EZ Sound . . . . . . . . . . . . . . . . .26
Manual Sound Control (Custom Option) . . . . . .26

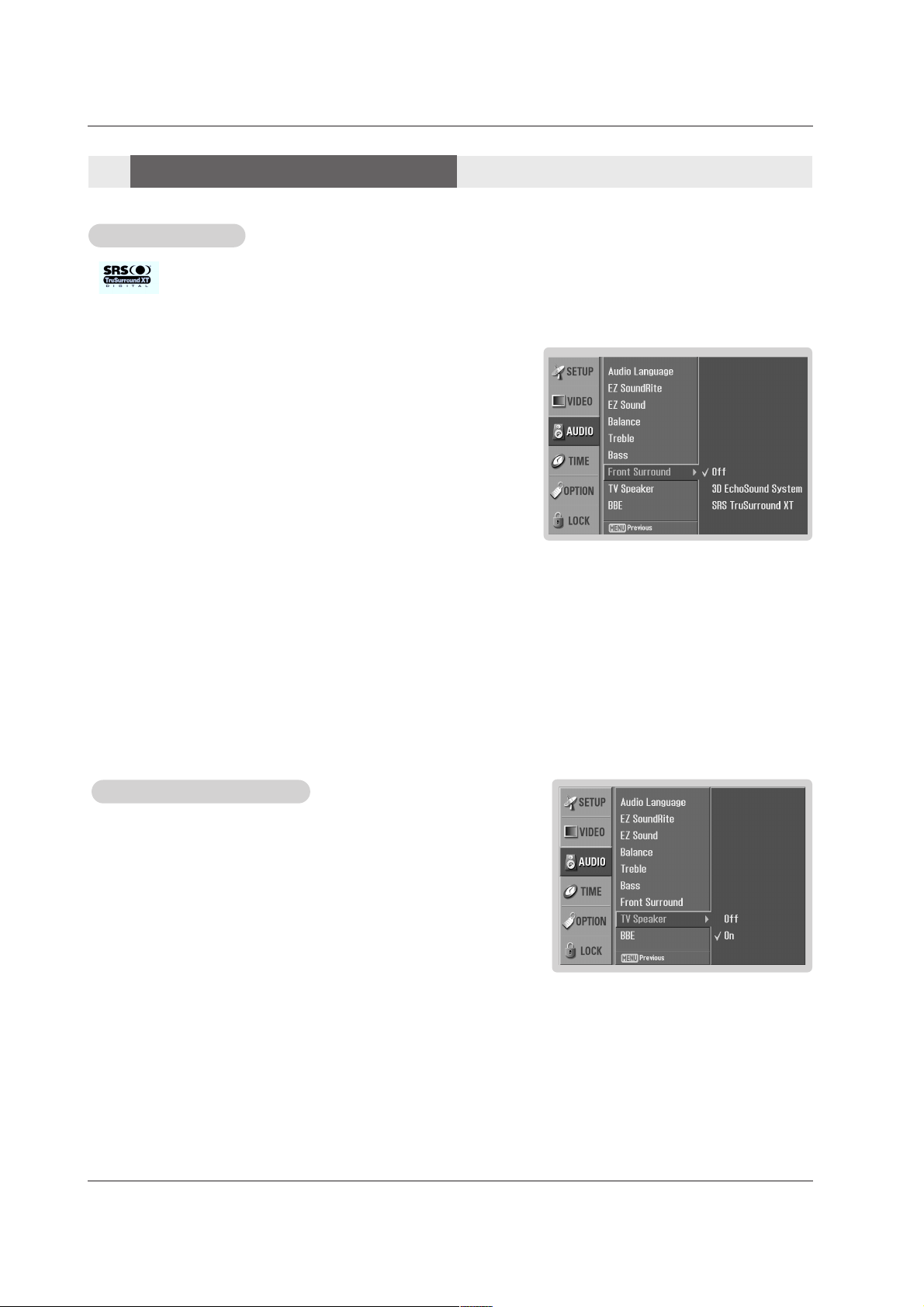

Front Surround . . . . . . . . . . . . . . . . . . . . . . . . .27
TV Speakers On/Off Setup . . . . . . . . . . . . . . . .27
BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Stereo/SAP Broadcasts Setup . . . . . . . . . . . . . .28
Time Menu Options

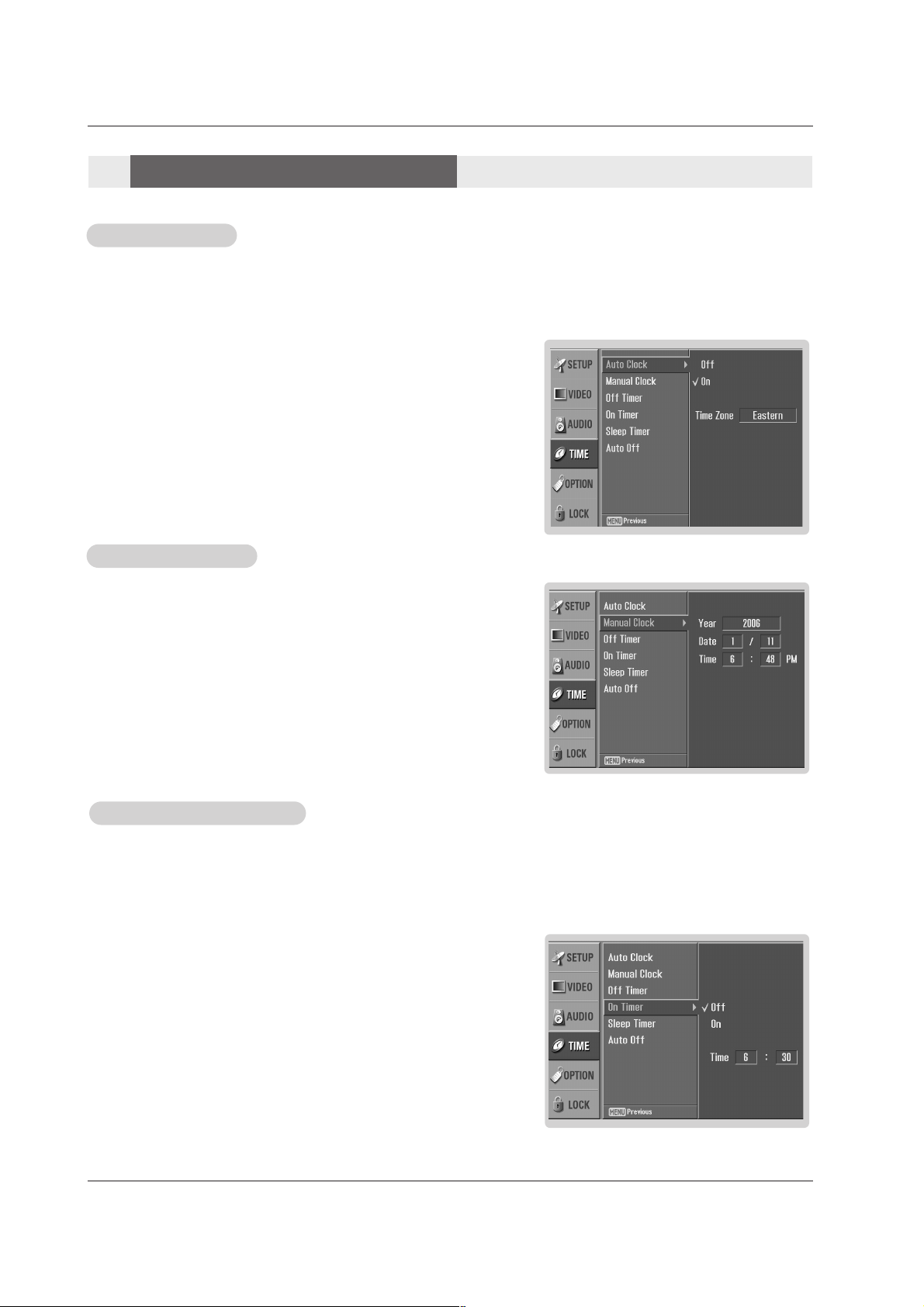

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .29
Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .29
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .29

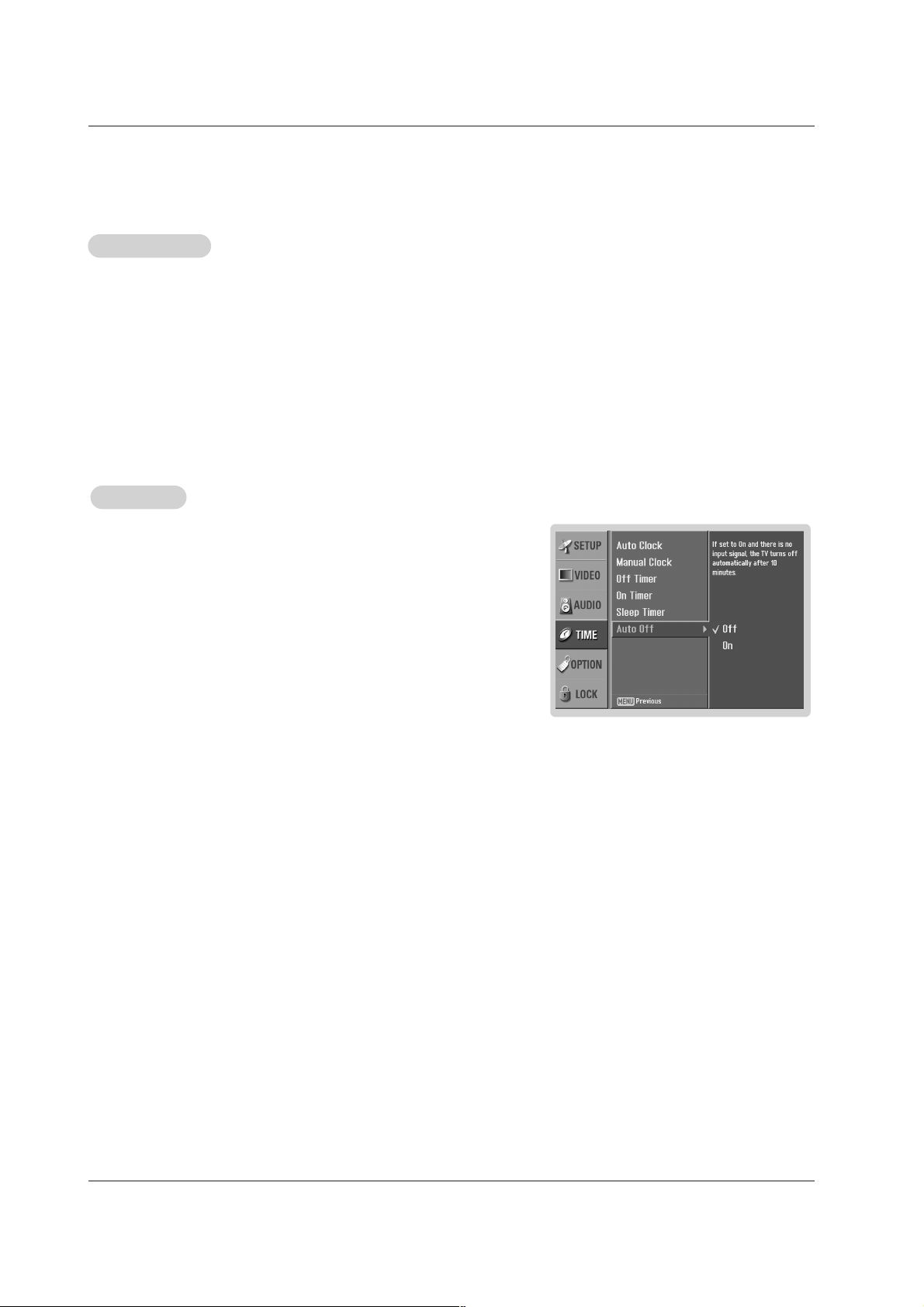

Sleep Timer / Auto Off . . . . . . . . . . . . . . . . . . . .30
Option Menu Features
Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .31

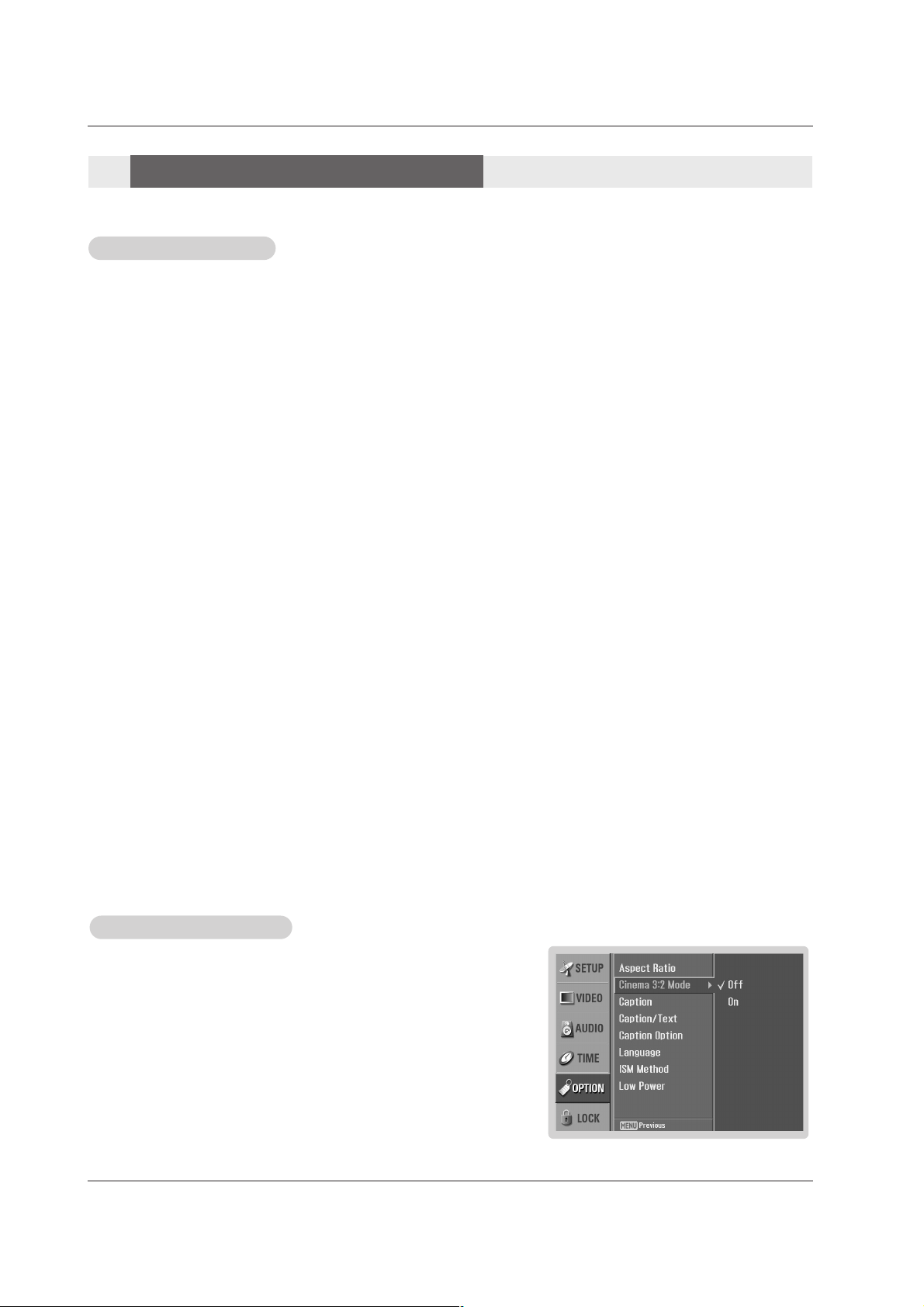

Cinema 3:2 Mode Setup . . . . . . . . . . . . . . . . . .31

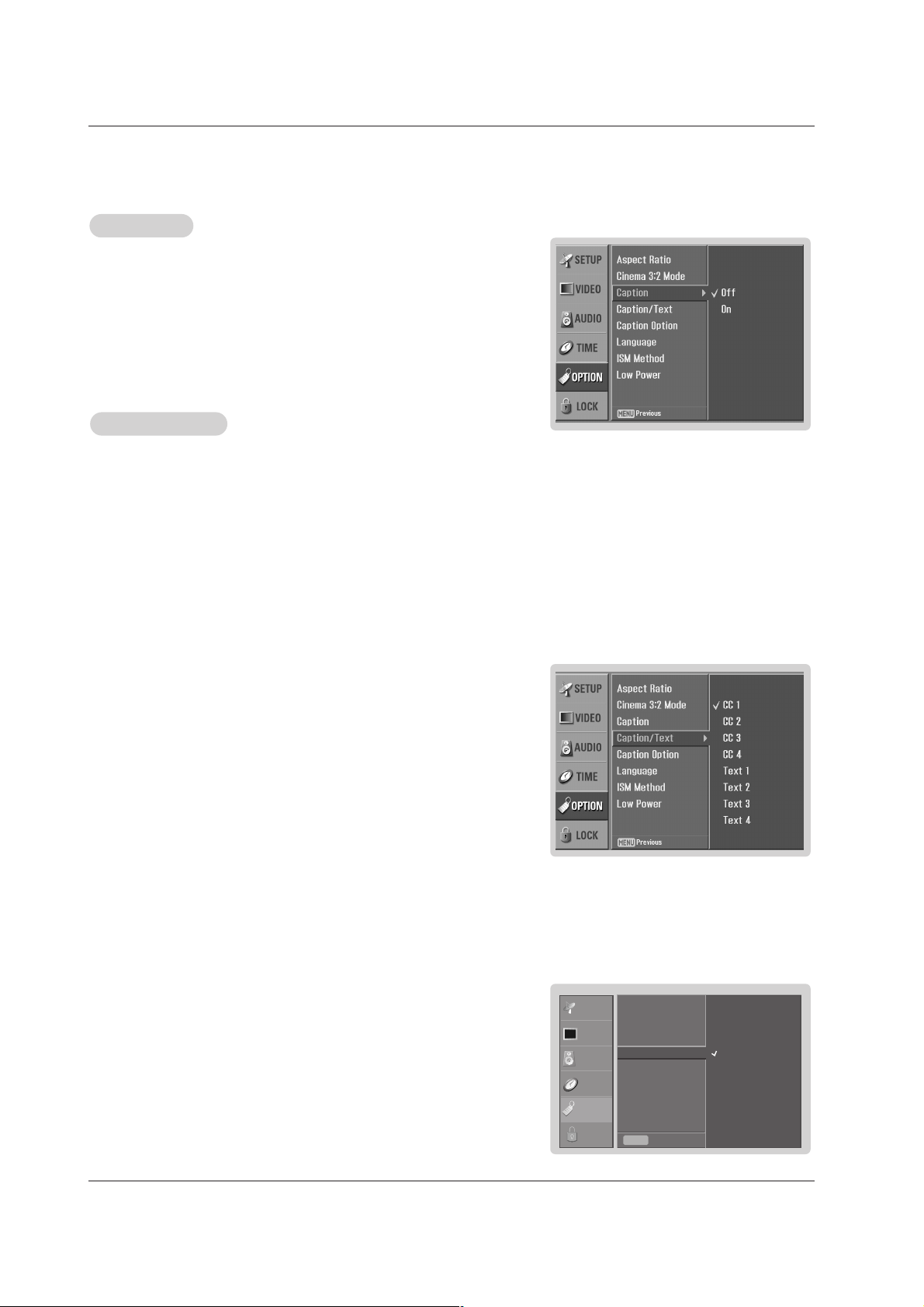

Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Caption / Text . . . . . . . . . . . . . . . . . . . . . . . . . .32

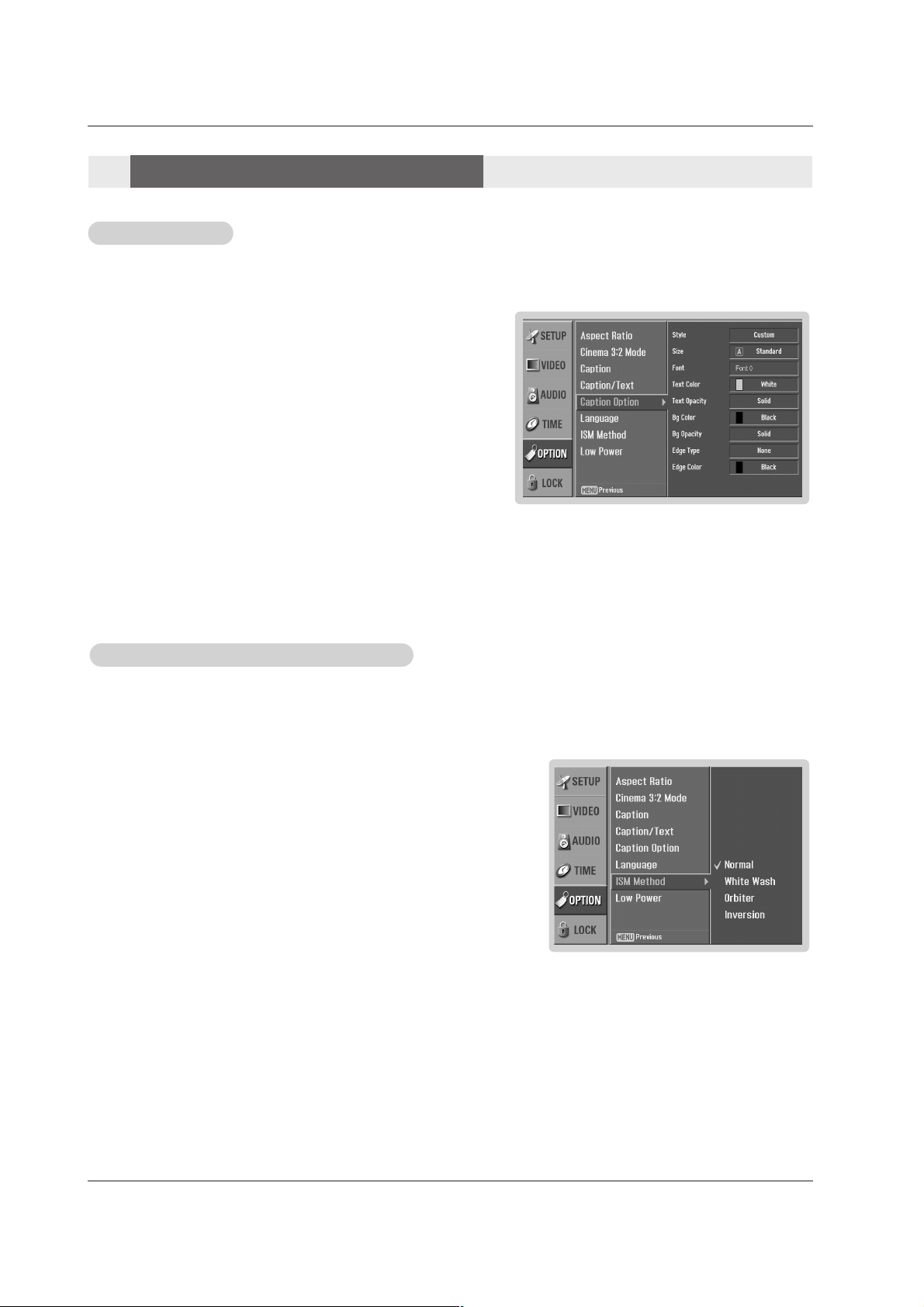

Caption Option . . . . . . . . . . . . . . . . . . . . . . . .33
ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .33

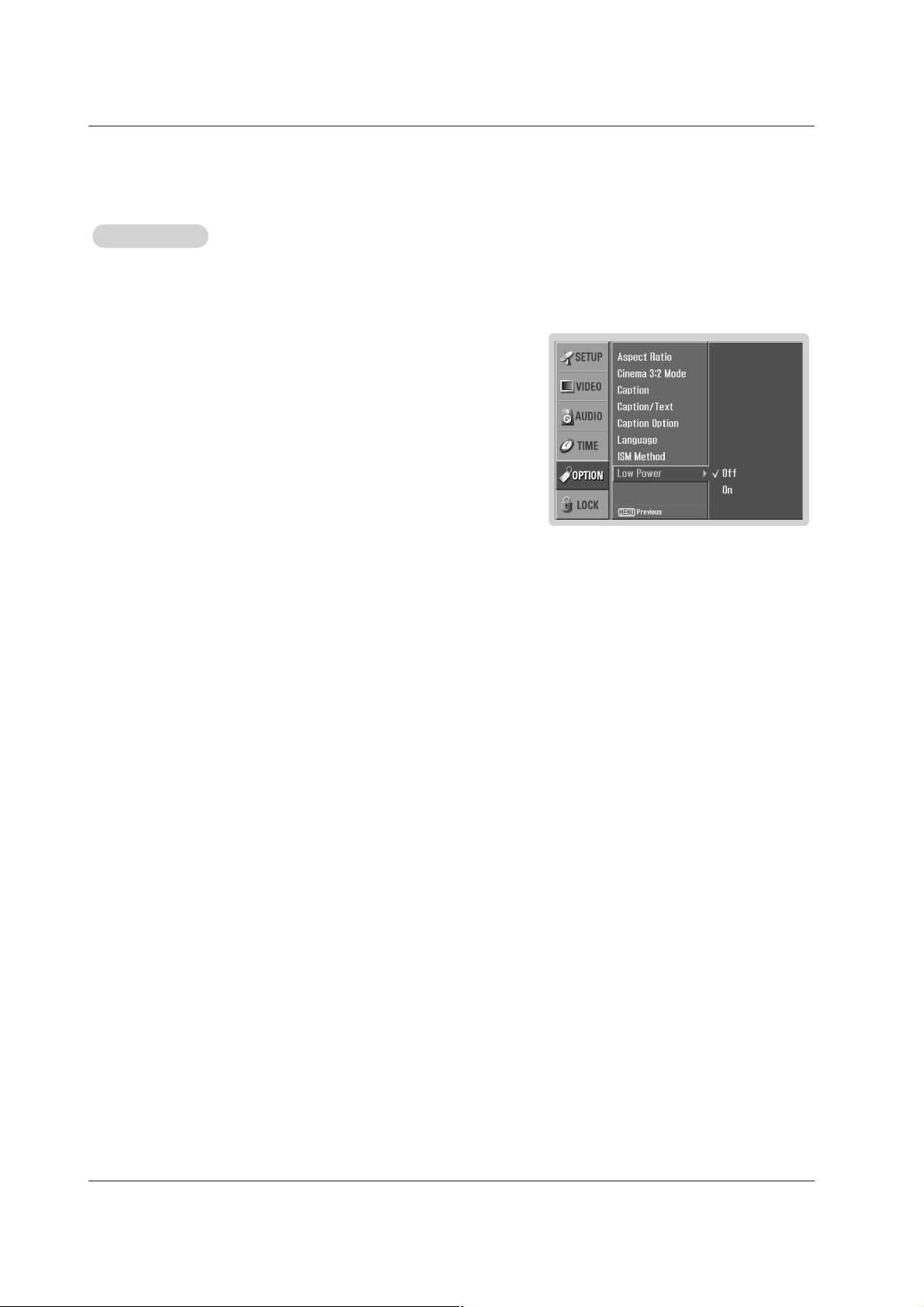

Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Lock Menu Options

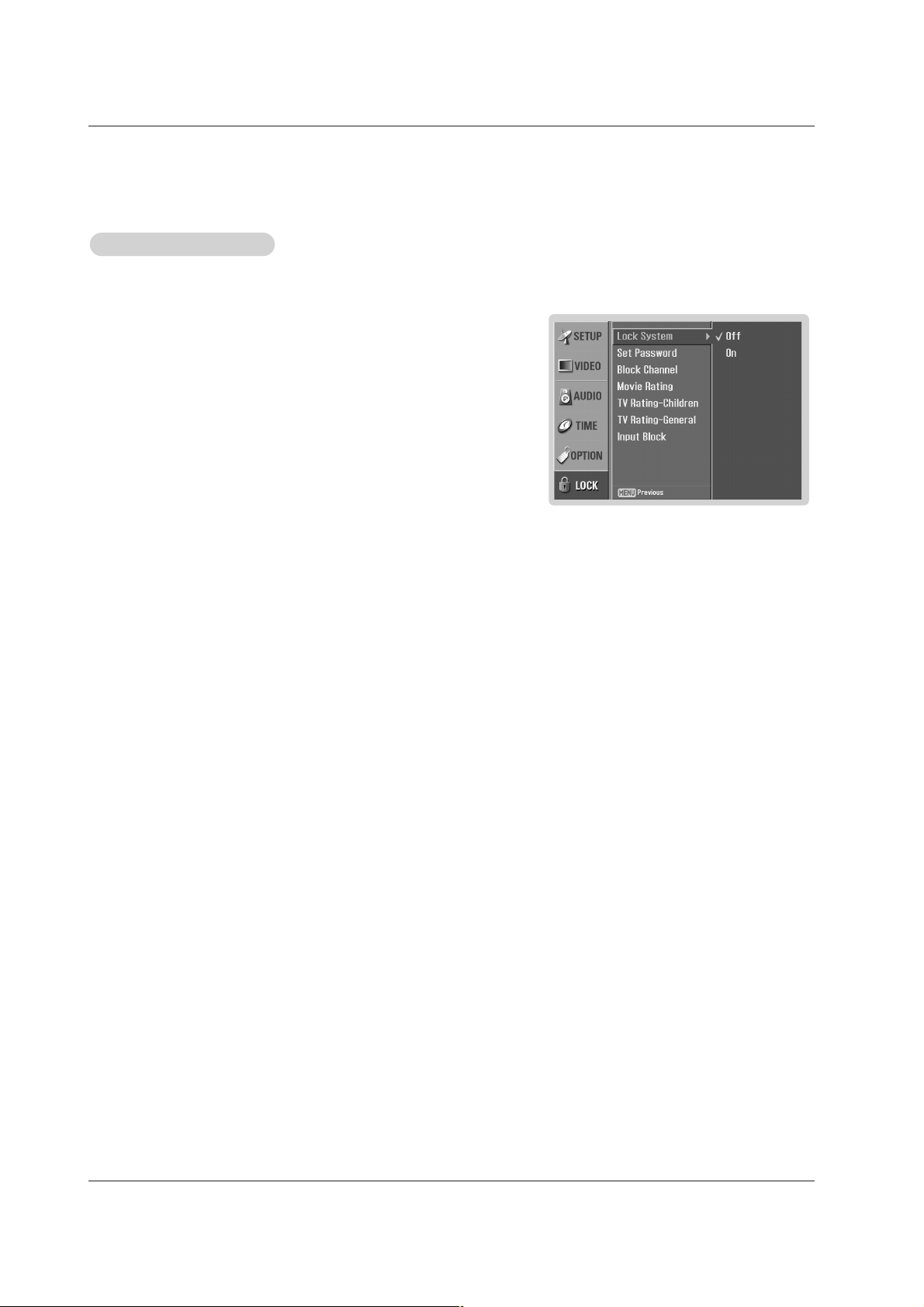

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .36

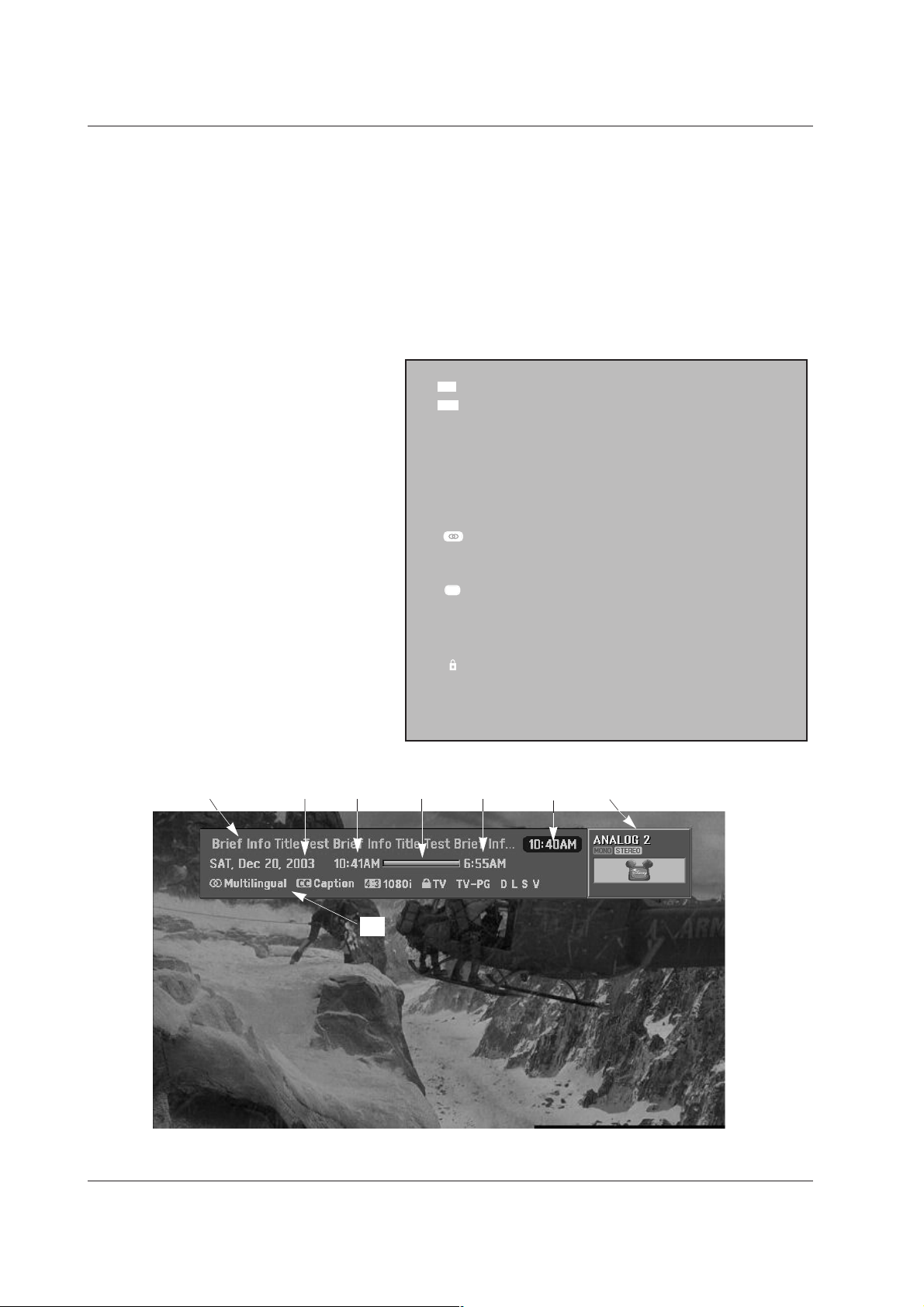

Brief Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

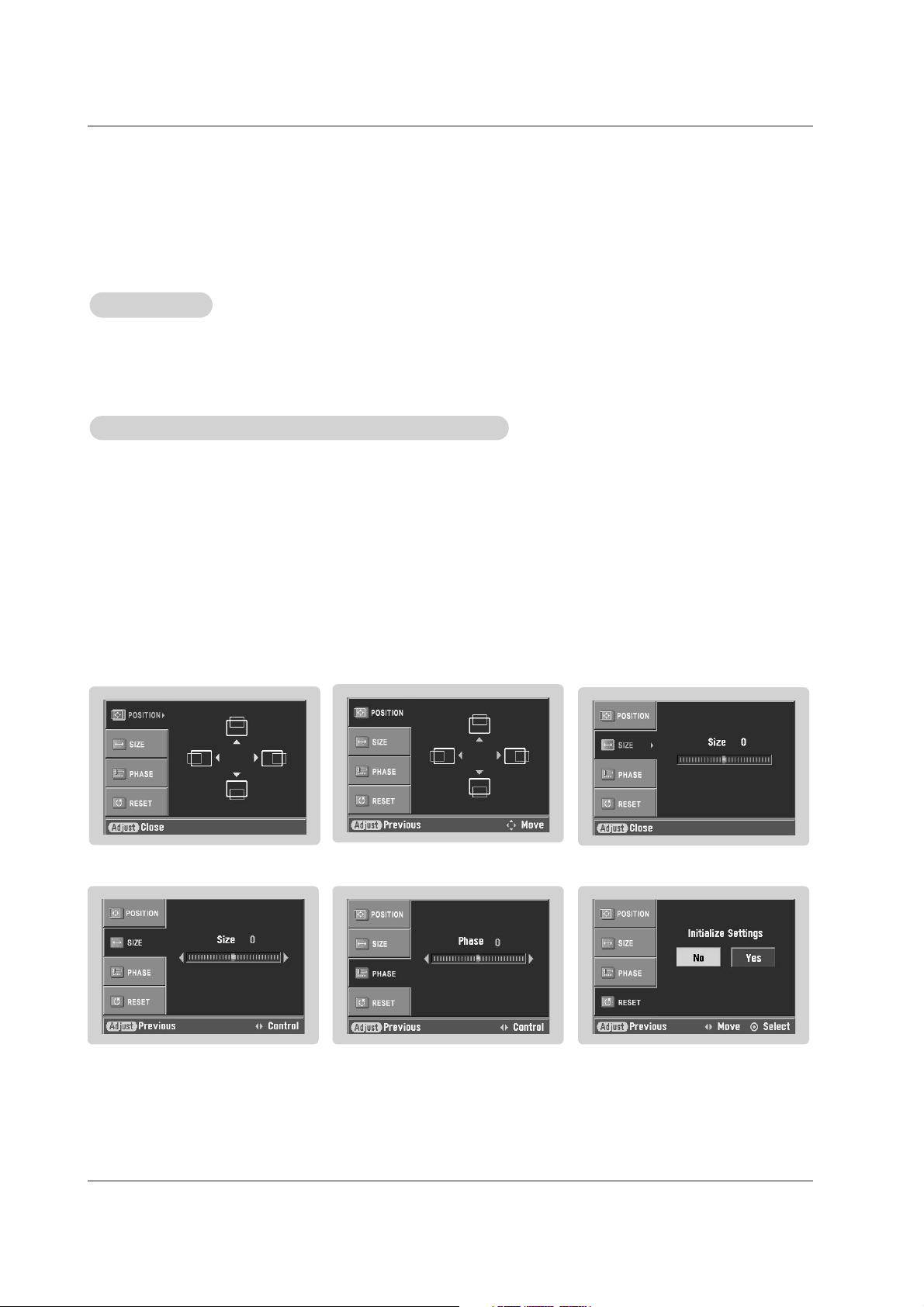

Screen Setup for PC mode . . . . . . . . . . . . . . . . . .39
Key Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Programming the Remote . . . . . . . . . . . . . . . . . . . . . .41
Programming Codes . . . . . . . . . . . . . . . . . . . . . . .42~43
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .44
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .46
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47~48
Contents
Contents
Page 6
6 Plasma TV
Introduction
Introduction
What is a Plasma Display Panel (PDP)?
A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality
and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also
be viewed as a series of fluorescent lamps.
How does it work?
PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.
Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phosphors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.
You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over
16 million different colors. All of these mean that you get perfect images that are easily viewable in a display that is less than 5
inches thick.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room who can see the screen.
Wide Screen
The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.
Multimedia
Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not
fit.
The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen
The PDP (Plasma Display Panel), which is the display device of this product, is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be
acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defective. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology minimizes these cell defects during the manufacture and operation of this product.
Page 7
Operating Guide 7
- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Controls
Controls
Front Panel Controls
Front Panel Controls
CH
VOL
MENUINPUT
ENTER
INPUTINPUT
ENTERENTER
POWER Button
Remote Control Sensor
VOLUME (
FF,GG) Buttons
CHANNEL (EE, DD) Buttons
MENU Button
INPUT Button
ENTER Button
Page 8
8 Plasma TV
AUDIO IN(RGB/DVI)AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )SPEAKER OUT(8 )
SERVICE ONLYSERVICE ONLY
AC IN
2
ANTENNA
ANTENNA INANTENNA IN
M.P.IM.P.I
L/MONOMONO
R
AUDIO
VIDEO
INTERFACEINTERFACE
RESETRESETRESETRESET
UPDATEUPDATEUPDATEUPDATE
OPTICALOPTICAL
1 1
S-VIDEO IN
VIDEO IN
AUDIO IN
Connection Options
Connection Options
Back Connection Panel
Back Connection Panel
AC IN
AUDIO IN
(RGB/DVI)
RGB IN
(PC/DTV)
REMOTE CONTROL OUT
SPEAKER
OUT
RJP INTERFACE
HDMI1/DVI IN
DIGITAL AUDIO OUT
OPTICAL
SERVICE
ONLY
AV IN 1
COMPONENT IN
HDMI IN 2
ANTENNA IN
M.P.I
RESET
UPDATE
Page 9
Owner’s Manual 9
- When using the remote control, aim it at the remote control sensor on the TV.
1 2 3
4 5 6
7 8 9
0
TV
MODE
INFO
POWER
INPUT
EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL
CH
FAV
SAP
TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
Remote Control Key Functions
Remote Control Key Functions
INDICATOR LIGHTS
Show active remote mode every time
any button is pressed.
MODE
Select the remote oper ting mode: TV,
VCR, Cable, DVD and Satellite.
INFO
Display information t the top of the screen.
(Refer to p.37)
INPUT
External input modes rotate in regular
sequence: Tuner, AV1, AV2, Component,
RGB1, RGB2, HDMI1/DVIand HDMI2
input sources.
(AV1, AV2, Component input sources
are linked automatically, only if these are
connected )
FAV
Scrolls the Favorite channels.
EZ PIC
Selects a factory preset picture mode
depending on the viewing environment.
MUTE
Switches the sound on or off.
(Refer to
p.38)
TIMER
Lets you select the amount of time
before your TV turns itself off automatically.
VOLUME UP/DOWN
Increases/decreases the sound level.
NUMBER KEYPAD
For direct channel selection and
programming functions.
RATIO
Changes the screen format or aspect
ratio.
PIP INPUT
Selects the input source for the sub
picture.
ENTER
When in the menu system and other
on-screen displays, selects highlighted
options.
MENU
Brings up the main menu to the
screen.
EXIT
Clears all on-screen displays and returns
to TV viewing from any menu.
SKIP
Playing CDs: Selects songs.
Playing DVDs: Selects movie chapters.
Page 10
10 Plasma TV
1 2 3
4 5 6
7 8 9
0
TV
MODE
INFO
POWER
INPUT
EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL
CH
FAV
SAP
TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
Remote Control Key Functions
Remote Control Key Functions
• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.
Close cover.
Installing Batteries
Installing Batteries
back of
remote
MULTIMEDIA
Selects: RGB1-2,HDMI1/DVI, HDMI2 and
Component input sources.
CC
Selects a closed caption mode for dis-
playing captioning information if avail-
able on program.
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
SIGNAL
Displays the digital signal strength.
ADJUST
Adjusts screen position, size, and
phase in PC mode.
EZ SOUND
Selects the sound appropriate for the program's character.
SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
CHANNEL UP/DOWN
Scrolls through available channels in
EZ Scan memory.
FLASHBK
Tunes to the last channel viewed.
PIPCH+
Changes to next higher PIP channel.
SWAP
Exchanges the main/sub images in
PIP/Twin picture mode.
PIPCH-
Changes to next lower PIP channel
PIP
Toggles between PIP and Twin picture
mode.
FREEZE
Freezes the currently-viewed picture.
Main picture is frozen in PIP/Twin picture
mode.
THUMBSTICK
Allows you to navigate the on-screen
menus and to adjust the system settings
and preferences, by moving to an option
with
F G
and selecting the highlighted
option with .
D
E
RECORD, PAUSE, REW, FFWD,
PLAY, STOP
Control the functions on your VCR.
Page 11
Owner’s Manual 11
Owner’s Manual
1.5V
1.5V
Batteries
Power Cord
1 2 3
4 5 6
7 8 9
0
TV
MODE
INFO
POWER
INPUT
EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL
CH
FAV
SAP
TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
75Ω Round Cable
Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.
2-Wall brackets
2-eye-bolts
Remote Control
- Secure the TV assembly by joining it to a wall by using the TV/Wall brackets.
- This TV’s stand is sold, separately .
- Here shown may be somewhat different from your TV.
Joining the TV assembly to the wall to protect the set tumbling
• If the set will be mounted on a desk top, insert
the 2 eye-bolts and tighten them securely in the upper
holes as shown.
Install the wall brackets on the wall with 2 bolts*, (not
supplied with the product), as shown.
Match the height of the eye-bolts and the wall brackets.
Check to be sure the eye-bolts and the brackets are
tightened securely.
• Secure the TV assembly to the wall with strong strings
or wire cables, (not supplied with the product), as
shown.
Installation
Installation
Installation Instructions
Installation Instructions
Accessories
Accessories
D-sub 15 pin Cable (RGB)
Page 12
12 Plasma TV
GROUNDING
Ensure that you connect the earth ground wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
INPUT
ENTER
Power
Supply
Short-circuit
Breaker
INPUT
ENTER
Desktop Pedestal Installation
Desktop Pedestal Installation
INPUT
ENTER
INPUTINPUT
ENTERENTER
• The TV can be installed in various ways such as on a wall, or on a desktop etc.
• The TV is designed to be mounted horizontally.
Installation Instructions
Installation Instructions
For proper ventilation, allow a clearance of 4” on
each side and the top, 2.36” on the bottom, and
2” from the wall. Detailed installation instructions
are included in the optional Desktop Stand
Installation.
To Install on a Desktop
Pedestal mount minimum
allowableclearances for adequate ventilation.
INPUT
ENTER
4 inches
4 inches
2 inches
4 inches
INPUT
ENTER
2.36 inches
Page 13
Owner’s Manual 13
External Equipment Connections
External Equipment Connections
- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Antenna Connection
Antenna Connection
Analog and Digital TV signals provided on one antenna
NOTE: If you are not sure of the type of signal(s) you are receiving, let EZ Scan complete all the channel signal-type searches.
The TV will let you know when the analog, cable, and digital channel scans are complete.
Analog and DTV signals provided on two separate antennas
• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV’s, install a “2Way Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your dealer for assistance.
ANTENNA IN
M.P.I
L/MONO
R
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Wall Antenna
Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Copper Wire
Turn clockwise to tighten.
Copper Wire
Be careful not to bend the
Copper wire when
connecting the antenna.
ANTENNA IN
M.P.I
L/MONO
R
Wall Antenna
Socket
RF Coaxial Wire (75 ohm)
Analog Antenna
Digital Antenna
Copper Wire
Copper Wire
Turn clockwise to tighten.
Wall Antenna
Socket
RF Coaxial Wire (75 ohm)
ANTENNA
ANTENNA INANTENNA IN
M.P.I
L/MONO
R
ANTENNA IN
ANTENNA
Signal
Amplifier
2
ANTENNA IN
ANTENNA
M.P.I
Page 14
14 Plasma TV
How to connect
Connect the audio and video cables from the external equipment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source with using the INPUT button on the
remote control.
2. Operate the corresponding external equipment.
External
External
A/V Source Setup
A/V Source Setup
MONO
Camcorder
Video Game
Device
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV
- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.
If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.
Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)
3. Select the input source with using the INPUT
button on the remote control. Note that this TV
finds the connected input sources automatically
for AV1, AV2 and Component . It is presumed
that RGB1-2 , HDMI1/DVI and HDMI2 sources
are connected.
Do not connect to both Video and
S-Video at the same time.
VCR Setup
VCR Setup
S-VIDEO
OUT
IN
(R) AUDIO (L)
VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
2
ANTENNA
ANTENNA INANTENNA IN
M.P.IM.P.I
VCR Rear
1
2
or
R
AUDIO
L/MONO
VIDEO
AUDIO VIDEO
RL
Page 15
Owner’s Manual 15
• Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports
on the TV
Y
P
B
PR
Video output ports
on DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
P
B
Pr
R-Y
Cr
P
R
How to connect
1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the TV and connect the
DVD audio outputs to the AUDIO INPUT jacks on the TV, as
shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to
the S-VIDEO input on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the
figure.
Note: If your DVD player does not have component AV out, use
S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the remote control to select
Component . (If connected to S-VIDEO, select the AV1 or
AV2 external input source.)
3. Refer to the DVD player's manual for operating instructions.
DVD Setup
DVD Setup
(R) AUDIO (L)
S-VIDEO
B
R
(R) AUDIO (L)
DVD
or
HDMI-DVD OUTPUT
INTERFACEINTERFACE
SERVICE ONLY
OPTICALOPTICAL
1 1
When supporting HDMI
1. Connect the HDMI output of the DVD to the HDMI1/DVI
IN jack on the set.
2. Select HDMI1/DVI or HDMI2 input source with using the
INPUT button on the remote control.
3. Refer to the DVD player's manual for operating instructions.
• TV can receive the video and audio signal simultaneously with using a HDMI cable.
• If the DVD supports Auto HDMI function, the DVD
output resolution will be automatically set to
1280x720p.
• If the DVD does not support Auto HDMI, you need
to set the output resolution appropriately. To get the
best picture quality, adjust the output resolution of
the DVD to 1280x720p.
DVD
Page 16
16 Plasma TV
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.
- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).
How to connect
Use the TV’s COMPONENT (Y, P
B, PR) INPUT, RGB or
HDMI1/DVI jack for video connections, depending on your
set-top box connector. Then, make the corresponding
audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
2. Use INPUT on the remote control to select Component ,
RGB-DTV, or HDMI1/DVI source.
HDSTB Setup
HDSTB Setup
Digital Set-top Box
Signal
480i
480p
720p
1080i
Component
Yes
Yes
Yes
Yes
RGB1/2-DTV , HDMI1/DVI
No
Yes
Yes
Yes
or
AUDIO IN(RGB/DVI)AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )SPEAKER OUT(8 )
AC INPUT
(R) AUDIO (L)
RGB-DTV OUTPUT
B
R
(R) AUDIO (L)
When supporting HDMI
AUDIO IN(RGB/DVI)AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )SPEAKER OUT(8 )
AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )
(R) AUDIO (L)
DVI-DTV OUTPUT
HDMI-DTV OUTPUT
SERVICE ONLYSERVICE ONLY
OPTICALOPTICAL
1 1
1. Connect the DVI output of the digital set-top box to the
HDMI1/DVI IN or HDMI IN 2 jack on the set.
2. Connect the audio output of the digital set-top box to the
AUDIO IN(RGB/DVI) jack on the set.
3. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
4. Select HDMI1/DVI or HDMI2 input source with using the
INPUT button on the remote control.
• If the digital set-top box has a DVI output and no
HDMI output, a separated audio connection is necessary.
• If the digital set-top box supports Auto DVI function,
the output resolution of the digital set-top box will be
automatically set to 1280x720p.
• If the digital set-top box does not support Auto DVI,
you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the digital set-top box to 1280x720p.
Page 17
Owner’s Manual 17
PC Setup
PC Setup
- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic
card accordingly.
AUDIO IN(RGB/DVI)AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )SPEAKER OUT(8 )
AC INPUT
(R) AUDIO (L)
RGB-PC OUTPUT
AUDIO IN(RGB/DVI)AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )SPEAKER OUT(8 )
AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )
(R) AUDIO (L)
DVI-PC OUTPUT
SERVICE ONLYSERVICE ONLY
OPTICALOPTICAL
1 1
When supporting HDMI
1. Connect the DVI output of the PC to the HDMI1/DVI IN jack
on the set.
2. Connect the PC audio output to the AUDIO IN(RGB/DVI) jack
on the set.
3. Turn on the PC and the set.
4. Select HDMI1/DVI input source with using the INPUT button
on the remote control.
• HDMI2 source does not support DVI source.
• If the PC has a DVI output and no HDMI output, a separat-
ed audio connection is necessary.
• If the PC does not support Auto DVI, you need to set the
output resolution appropriately. To get the best picture quality, adjust the output resolution of PC graphics card's output
resolution to 1024x768, 60Hz.
How to connect
1. To get the best picture quality, adjust the PC graphics card
to 1024x768, 60Hz.
2. Use the TV’s RGB INPUT or DVI (Digital Visual Interface)
INPUT port for video connections, depending on your PC
connector.
• If the graphic card on the PC does not output analog and
digital RGB simultaneously, connect only one of either
RGB INPUT or DVI INPUT to display the PC on the TV.
• If the graphic card on the PC does output analog and digital RGB simultaneously, set the TV to either RGB or DVI;
(the other mode is set to Plug and Play automatically by
the TV.)
3. Then, make the corresponding audio connections. If using a
sound card, adjust the PC sound as required.
How to use
1. Turn on the PC and the TV.
2. Turn on the display by pressing the POWER button on the
TV's remote control.
3. Select RGB1-2 input source in main input option of SETUP
menu. (Refer to P.23)
4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness
in PC mode. If noise is present, change the PC mode to
another resolution, change the refresh rate to another rate
or adjust the brightness and contrast on the menu until the
picture is clear. If the refresh rate of the PC graphic card
can not be changed, change the PC graphic card or consult
the manufacturer of the PC graphic card.
Page 18
18 Plasma TV
Resolution
640x480
800x600
Horizontal
Frequency(KHz)
31.469
37.861
37.500
35.156
37.879
48.077
46.875
59.94
72.80
75.00
56.25
60.31
72.18
75.00
48.363
56.476
60.023
60.00
70.06
75.02
Vertical
Frequency(Hz)
Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Monitor Display Specifications (HDMI1/DVI-PC Mode)
800x600
70.08
59.94
72.80
75.00
35.156
37.879
48.077
46.875
48.363
56.476
60.023
56.25
60.31
72.18
75.00
60.00
70.06
75.02
Vertical
Frequency(Hz)
Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Resolution
640x480
Horizontal
Frequency(KHz)
31.469
31.469
37.861
37.500
Monitor Display Specifications (RGB1/2-PC )
640x350
1. Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
2. When Source Devices connected with HDMI1/DVI
Input, output PC Resolution (VGA, SVGA, XGA),
Position and Size may not fit to Screen.Press the
ADJUST button to adjust the screen Position of TV
SET and contact an PC graphics card service center.
3 When Source Devices connected with HDMI1/DVI
Input, output TV SET Resolution (480p, 720p,
1080i) and TV SET Display fit EIA/CEA-861-B
Specification to Screen. If not, refer to the Manual
of HDMI1/DVI Source Devices or contact your service center.
4. In case HDMI1/DVI Source Devices is not connected Cable or poor cable connection, "NO SIGNAL" OSD display in HDMI1/DVI Input. In case
that Video Resolution is not supported TV SET
output in HDMI1/DVI Source Devices, "INVALID
FORMAT" OSD display. Refer to the Manual of
HDMI1/DVI Source Devices or contact your ser-
vice center.
5. Check the image on your TV. There may be noise
associated with the resolution, vertical pattern,
contrast or brightness in PC, HDMI1/DVI mode. If
noise is present, change the PC or HDMI1/DVI
mode to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be
changed, change the PC graphic card or consult
the manufacturer of the PC graphic card.
6. Avoid keeping a fixed image on the TV's screen for
a long period of time. The fixed image may become
permanently imprinted on the screen.
7. The synchronization input form for Horizontal and
Vertical frequencies is separate.
Page 19
Owner’s Manual 19
Send the TV’s audio to external audio equipment (stereo system) via
the Digital Audio Out(Optical) port.
How to connect
1. Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.
2. Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment.
See the external audio equipment instruction manual for operation.
Note: When connecting with external audio equipments, such as
amplifers or speakers, please turn the TV speakers off.(Refer to
p.28)
Caution: Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
Digital
Digital
Audio Output Setup
Audio Output Setup
INTERFACEINTERFACE
SERVICE ONLYSERVICE ONLY
OPTICALOPTICAL
1 1
External Audio Equipment
Page 20
20 Plasma TV

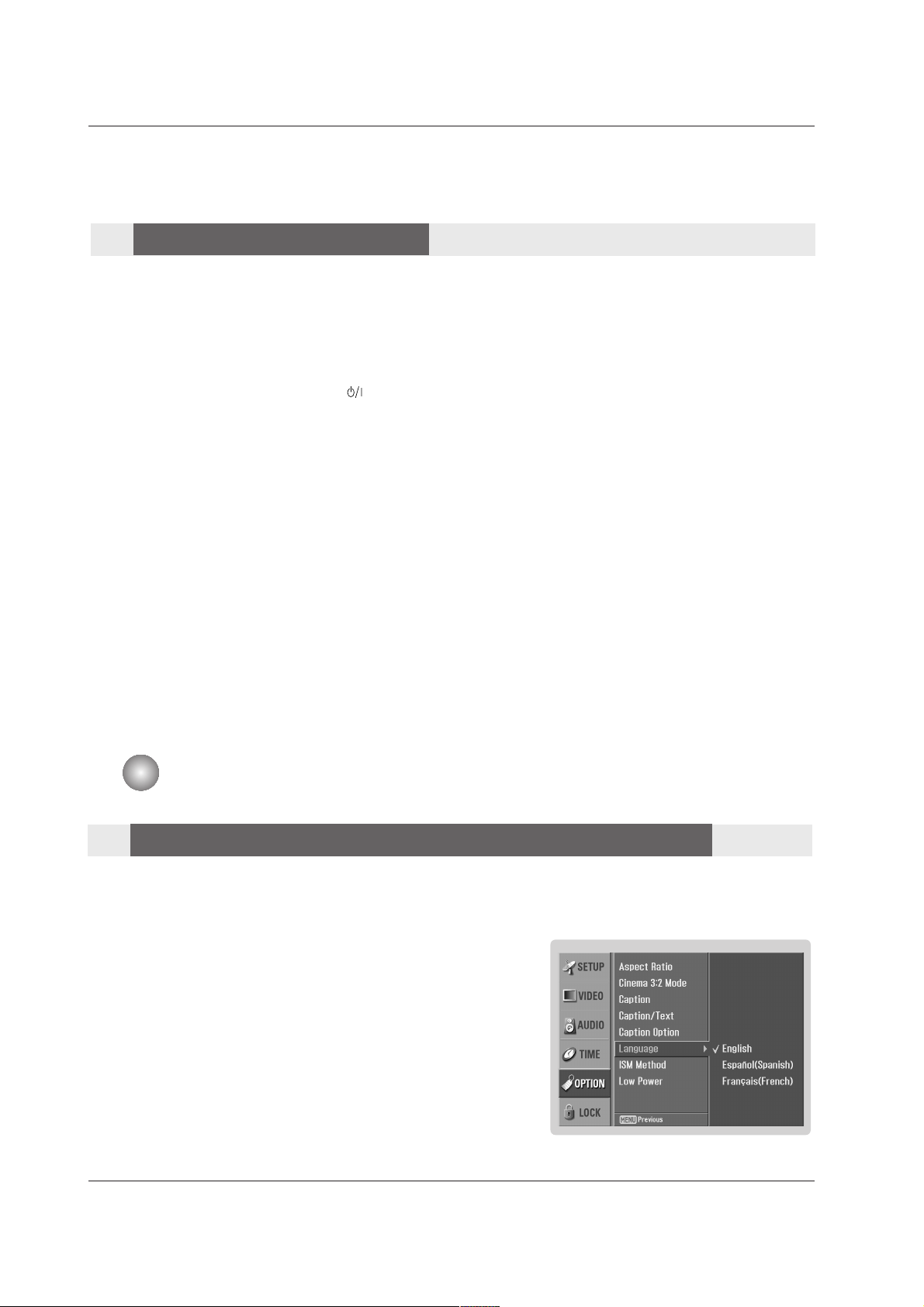

1. First, connect power cord correctly. At this moment, the TV switches to standby mode.
In standby mode to turn TV on, press the button on the TV or press the POWER button on the remote control.
- The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use
DD/ EE
button to select the OPTION
menu.
2. Press the GGbutton and then use
DD/ EE
button to select Language.
3. Press the GGbutton and then use
DD/ EE
button to select your desired language.
From this point on, the on-screen menus will be shown in the selected language.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
2. Select the viewing source by using INPUT button on the remote control.
3. When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.
TV Setup
TV Setup
On-screen Menus Language Selection
On-screen Menus Language Selection
Operation
Operation
TTurning the TV On
urning the TV On
* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an
example to help you with the TV operation.
Page 21
Owner’s Manual 21
- Automatically finds all available channels through antenna or cable inputs, and stores them in memory on the channel list.
- Run EZ Scan again after any Antenna/Cable connection changes.
- A password is required to gain access to EZ Scan menu if the Lock System is turned on.
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the GG button and then use
DD / EE
button to select EZ Scan.
3. Press the ENTER button to begin the channel search.
Allow EZ Scan to complete the channel search cycle for ANTENNA, and CABLE.
EZ Scan (Channel Search)
EZ Scan (Channel Search)
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the
GG button and then use
DD / EE
button to select Manual Scan.
3. Press the
GG button and then use
DD / EE
button to select DIGITAL and ANALOG.
4. Press the
GG button and then use
DD / EE
button to select channel number you
want to add or delete.
5. Press the ENTER button to add or delete for the channel number.
6. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Manual Scan
Manual Scan
Notes:
• This channel number is a physical channel number, which is different from the normal channel number shown in Channel
Edit.
• Antenna jack Analog TV signal
Digital DTV signal
• Cable jack Analog CATV signal
Digital CADTV signal
Setup Menu Options
Setup Menu Options
- A password is required to gain access to Manual Scan menu if the Lock System is turned on.
Page 22
22 Plasma TV
- There are two different ways in order to add or delete scanned channels. One
is "Custom List" and the other is "Favorite List" in the channel list. Both of them
are available after EZ Scan on the SETUP menu.
- A Custom List can be created by toggling each channel on or off with ENTER
button. The channels in the Custom List are displayed in black color, and the
channels deleted from the Custom List are displayed in gray color. Once a
channel is highlighted you can add or delete the channel by referring to the
small window at the top-left corner of the screen.You can create your own
Favorite List. Use the FAV button on the remote control when a channel is
highlighted and then you can add or delete the channel to/from the Favorite
List.
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the GG button and then use
DD / EE
button to select Channel Edit.
3. Press the GG button. You will now see a screen filled with channel numbers and
a preview picture.
4. Use
DD / EE
/ FF / GG button to select a channel and then use the ENTER button to
add or delete it. Press FAV button to add the channel to the Favorite List.
5. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Channel Edit
Channel Edit
- It indicates strength of the DTV signal whether you need to adjust your antenna or digital cable input.
The higher the signal strength, the less likely you are to experience picture degradation.
- DTV Signal: Only when the input signal is DTV or CADTV, this function is available.
DTV Signal Strength
DTV Signal Strength
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the GG button and then use
DD / EE
button to select DTV Signal.
3. View the on-screen signal strength monitor to see the quality of the signal being
received.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Setup Menu Options
Setup Menu Options
Page 23
Owner’s Manual 23
- Change the picture source so you can watch your TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the
GG button and then use
DD / EE
button to select Main Input.
3. Press the
GG button and then use
DD / EE
button to select the source: Tuner, AV1,
AV2, Component, RGB1, RGB2, HDMI1/DVI, HDMI2
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Main Input
Main Input
- Choose preset labels for your channels.
- If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel even if you didn't preset a label for the channel.
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the
GG button and then use
DD / EE
button to select Channel Label.
3. Press the
GG button. You will now see a screen filled with Labels and a preview screen.
4. Use the CH
DD/EE
button to select a channel to Label.
5. Use
DD / EE
/ FF / GG button to select the appropriate label for the channel, then press ENTER button to set the Label to
the selected channel.
Channel Label Setup
Channel Label Setup
Page 24
24 Plasma TV
Set ID
Set ID
Use this function to specify a monitor ID number.
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the GG button and then use
DD / EE
button to select SET ID.
3. Press the GG button and then use
DD / EE
button to adjust SET ID to choose the
desired monitor ID number. The adjustment range of SET ID is 1 ~ 99.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
- When Main Input is selected to Tuner, this function cannot be selected to Tuner.
1. Press the MENU button and then use
DD / EE
button to select the SETUP menu.
2. Press the GG button and then use
DD / EE
button to select Sub Input.
3. Press the GG button and then use
DD / EE
button to select the source: Tuner, AV1,
AV2.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
* You can also select sources as using the PIP INPUT button.
Sub Input
Sub Input
Page 25
Owner’s Manual 25
- Use to quickly reset all the Video menu options to their original factory preset
values.
1. Press the MENU button and then use
DD / EE
button to select the VIDEO menu.
2. Press the
GG button and then use
DD / EE
button to select Video Reset .
3. Press the GG button to reset the Video menu options to original values.
VVideo Reset
ideo Reset
- Adjust the picture appearance to suit your preference and viewing situations.
1. Press the MENU button and then use
DD / EE
button to select the VIDEO menu.
2. Press the GG button and then use
DD / EE
button to select the desired picture option
(
Contrast, Brightness, Color, Sharpness, or Tint )
.
3. Press the
GG button and then use FF / GG button to make appropriate adjustments.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
1. Press the EZ PIC button repeatedly to select the picture appearance setup option as shown below:
Custom (your own settings), Daylight, Normal, Night Time, Movie, Video Game, and Sports.
• You can also use the VIDEO menu to adjust EZ Picture.
2. Press the EXIT button to save and return to TV viewing or press MENU button to return to the previous menu.
EZ Picture
EZ Picture
Manual Picture Control (
Manual Picture Control (Custom
option)
option)
- Choose one of three automatic color adjustments. Set to warm to enhance hotter
colors such as red, or set to cool to see less intense colors with more blue.
1. Press the MENU button and then use
DD / EE
button to select the VIDEO menu.
2. Press the
GG button and then use
DD / EE
button to select Color Temperature .
3. Press the GG button and then use
DD / EE
button to select either Cool, Medium or
Warm.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Color
Color TT
emperature Control
emperature Control
- EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the
program category.
- When adjusting Video menu options (contrast, brightness, color, sharpness, tint, and color temperature) manually, EZ
Picture automatically changes to Custom.
-
Daylight, Normal, Night Time, Movie, Video Game, and Sports settings are preset for optimum picture quality at
the factory and are not adjustable.
VVideo Menu Options
ideo Menu Options
Page 26
26 Plasma TV
- Other languages may be available if a digital signal is provided by the broadcasting station.
1. Press the EZ SOUND button repeatedly to select the appropriate sound setup as shown below:
Custom (your own settings), Normal, Stadium, News, Music, and Theater.
• You can also adjust EZ Sound in the AUDIO menu.
2. Press EXIT button to save and return to TV viewing or press MENU button to return to the previous
menu.
EZ Sound
EZ Sound
1.
Press the MENU button and then use
DD / EE
button to select the AUDIO menu.
2. Press the
GG button and then use
DD / EE
button to select the desired sound option
(Balance, Treble, or Bass).
3. Press the
GG
button and then use
FF / GG
button to make appropriate adjustments.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Manual Sound Control (
Manual Sound Control (Custom
option)
option)
1. Press the MENU button and then use
DD / EE
button to select the AUDIO menu.
2. Press the GG button and then use
DD / EE
button to select Audio Language.
3. Press the GG button and then use
DD / EE
button to select: English, Spanish, or
French.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Audio Language
Audio Language
- EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound
options based on the program content.
- When adjusting sound options (treble, bass, and front surround) manually, EZ Sound automatically switches to Custom.
- Normal, Stadium, News, Music, and Theater are preset for good sound quality at the factory and are not adjustable.
- Scans for changes in sound level during commercials, then adjusts the sound
to match the specified audio level. EZ SoundRite makes sure that the volume
level remains consistent whether you are watching a commercial or a regular
TV program.
1. Press the MENU button and then use
DD / EE
button to select the AUDIO menu.
2. Press the GG button and then use
DD / EE
button to select EZ SoundRite.
3. Press the
GG button and then use
DD / EE
button to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
EZ SoundRite
EZ SoundRite
- Adjust the sound to suit your taste and room situations.
Audio Menu Options
Audio Menu Options
Page 27
Owner’s Manual 27
1.
Press the MENU button and then use
DD / EE
button to select the AUDIO menu.
2. Press the
GG button and then use
DD / EE
button to select TV Speaker.
3. Press the GG button and then use
DD / EE
button to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
TV Speakers On/Of
TV Speakers On/Of
f Setup
f Setup
- Turn TV speakers off if using external audio equipment. Feature turns the TV
Speakers option On or Off.
1.
Press the MENU button and then use
DD / EE
button to select the AUDIO menu.
2. Press the
GG button and then use
DD / EE
button to select Front Surround.
3. Press the GG button and then use
DD / EE
button to select Off, 3D EchoSound
System
or SRS (Sound Retrieval System) TruSurround XT..
• 3D EchoSound System
Creates a stunning simulated stereo effects from any mono sound and a
realistic three-dimensional sound with a very wide and deep sound stage
into stereo sound.
• SRS TruSurround XT
Takes advantage of any multi-channel format without needing to add extra
speakers or equipment. Dialog clarity, bass enrichment, and the addition of
stereo audio enhancement that produces an immersive sound experience
from standard stereo material.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Front Surround
Front Surround
- is a trademark of SRS Labs, Inc.
- TruSurround XT technology is incorporated under license from SRS Labs, Inc.
- Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Audio Menu Options
Audio Menu Options
Page 28
28 Plasma TV
1. Use the SAP button to select your desired MTS mode in a analog signal. Each time you press the SAP button, Mono,
Stereo, or SAP appear in turn.
• If other languages are available on the digital signal, select them with the SAP button.
2. Press EXIT button to save and return to TV viewing.
Stereo/SAP
Stereo/SAP
Broadcasts Setup
Broadcasts Setup
- This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program;
if the station transmits an additional sound signal as well as the original one.
- When having selected Stereo or SAP button on the remote control, this TV can only receive the signal when the TV station
transmits the proper signals.
- Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.
- Select Mono if you want to listen to mono sound during stereo/SAP broadcasting.
- Stereo or SAP can be received in a Analog channel.
1. Press the MENU button and then use
DD / EE
button to select the AUDIO menu.
2. Press the
GG button and then use
DD / EE
button to select BBE.
3. Press the GG button and then use
DD / EE
button to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
BBE
BBE
- BBE High Definition Sound restores clarity and presence for better speech
intelligibility and music realism.
• Manufactured under license from BBE Sound, Inc.
• Treble, Bass or BBE aren’t suitable for SRS TSXT mode.
Page 29
Owner’s Manual 29
- Timer function operates only if the current time has been set.
- Off-Timer function overrides On-Timer function if they are both set to the same time.
- The TV must be in standby mode for the On-Timer to work.
- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to
standby mode.
On/Of
On/Off f TT
imer Setup
imer Setup
1. Press the MENU button and then use
DD / EE
button to select the TIME menu.
2. Press the
GG button and then use
DD / EE
button to select Off Timer or On Timer.
3. Press the GG button and then use
DD / EE
button to select On.
• To cancel
On/Off timer function, select Off.
4. Press the GG button and then use
DD / EE
button to set the hour.
5. Press the GG button and then use
DD / EE
button to set the minutes.
6. For only On timer function
Press the
GG button and then use
DD / EE
button to select the channel at turn-on.
Press the
GG button and then use
DD / EE
button to set the sound level at turn-on.
7. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Auto Clock Setup
Auto Clock Setup
- The time is set automatically from a digital channel signal.
- The digital channel signal includes information for the current time provided by the broadcasting station.
- Set the clock manually, if the current time is set incorrectly by the auto clock function.
1. Press the MENU button and then use
DD / EE
button to select the TIME menu.
2. Press the GG button and then use
DD / EE
button to select Auto Clock.
3. Press the
GG button and then use
DD / EE
button to select On or Off.
4. Press the GG button and then use
DD / EE
button to select your viewing area time
zone:
Eastern, Central, Mountain, Pacific, Alaska, or Hawaii.
5. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Manual Clock Setup
Manual Clock Setup
- If current time setting is wrong, reset the clock manually.
1. Press the MENU button and then use
DD / EE
button to select the TIME menu.
2. Press the GG button and then use
DD / EE
button to select Manual Clock.
3. Press the
GG button and then use FF / GG button to select either the year, date,
or time option. Once selected, use the
DD / EE
button to set the year, date, and
time options.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
TTime Menu Options
ime Menu Options
Page 30
30 Plasma TV
Auto Of
Auto Offf
- If set to on and there is no input signal, the TV turns off automatically after 10
minutes.
1. Press the MENU button and then use
DD / EE
button to select the TIME menu.
2. Press the
GG button and then use
DD / EE
button to select Auto Off.
3. Press the GG button and then use
DD / EE
button to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Sleep
Sleep TT
imer
imer
- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.
- You can also set up the Sleep Timer in the TIME menu.
1. Press the TIMER button repeatedly to select the number of minutes. When the
Off option appears on the screen,
highlight one of the following sleep timer options by using the navigation : 10, 20, 30, 60, 90, 120, 180, and 240
minutes.
2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to
count down from the number of minutes selected.
3. To check the remaining minutes before the TV turns off, press the TIMER button once.
4. To cancel the Sleep Timer, press the TIMER button repeatedly to select
Off.
Page 31
Owner’s Manual 31
Aspect Ratio Control
Aspect Ratio Control
0- Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.
When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed.
- If you are viewing a picture with a 16:9 aspect ratio, you can’t use the Horizon aspect ratio option.
- Horizon aspect ratio is not available for Component (480p/720p/1080i)/RGB-DTV (480p/720p/1080i)/HDMI1/DVI-DTV (720p/1080i)
/DTV(720p/1080i) input source.
- In RGB-PC/DVI-PC input source, only either 4:3 or 16:9 aspect ratio is available.
- Note: If a fixed image is displayed on the screen for a long time, the image may become imprinted on the screen and remain
visible.
•
Set By Program
Choose the proper picture proportion to match the source’s image. (4:3 → 4:3, 16:9 → 16:9)
• 4:3
Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both
the left and right sides.
• 16:9
Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
• Horizon
Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both
sides, to create a spectacular view.
• Zoom 1
Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions
of the picture will be cropped.
• Zoom 2
Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage.
• Cinema Zoom
Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or
reducing the picture size, the image may become distorted.
You can adjust the enlarge proportion of Cinema Zoom using
DD / EE
button. The adjustment range is 1~16.
1. Press the RATIO button repeatedly to select the desired picture format.
You can also adjust Aspect Ratio in the OPTION menu.
Cinema 3:2 Mode Setup
- Most movies are 24 frames/sec, but TV signal is 30 frames/sec.
This option lets the TV do 3:2 pull-down operation for you to watch
movies at the best motion appearance.
1. Press the MENU button and then use
DD / EE
button to select the OPTION menu.
2. Press the
GG button and then use
DD / EE
button to select Cinema 3:2 Mode.
3. Press the
GG button and then use
DD / EE
button to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Option Menu Features
Option Menu Features
Note: This feature operates only in Component 480i, S-Video, AV mode.
Page 32
32 Plasma TV
Caption/T
Caption/T
ext
ext
Analog Broadcasting System Captions
- Select a caption mode for displaying captioning information if being provided on a program.
- Analog caption displays information at any position on the screen.
- Text displays information, usually at the bottom position and is used for a data service.
- Caption/Text, if being provided by the broadcaster, would be available for both digital and analog channels on the
Antenna/Cable.
- This TV is programmed to memorize the caption/text mode which was last set to, when you turn the power off.
Digital Broadcasting System Captions
- Choose the language you want the DTV/CADTV Captions to appear in.
- Languages can be chosen for digital sources only if they are included on the program.
1. Press the MENU button and then use
DD / EE
button to select the OPTION menu.
2. Press the
GG button and then use
DD / EE
button to select Caption/Text.
3. Press the GG button and then use
DD / EE
button to select caption: CC1, CC2, CC3,
CC4, Text1, Text2, Text3, or Text4.
• CAPTION
The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program is provided for the hearing impaired.
•
TEXT
The term for the words that appear in a large black frame and almost cover
the entire screen; usually messages are provided by the broadcaster.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
1. Press the MENU button and then use
DD / EE
button to select the OPTION
menu.
2. Press the GG button and then use
DD / EE
button to select Caption/Text.
3. Press the
GG button and then use
DD / EE
button to select available caption lan-
guages:
English, Spanish, or French.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Caption
Caption
1. Press the MENU button and then use
DD / EE
button to select the OPTION
menu.
2. Press the GG button and then use
DD / EE
button to select Caption.
3. Press the
GG button and then use
DD / EE
button to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
1. Use the CC button repeatedly to select Caption CC1, CC2, CC3, CC4, Text1, Text2, Text3, or Text4.
2. Press EXIT button to save and return to TV viewing.
• You can also use the OPTION menu to select Caption/Text.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption / Text GG
Caption Option
Language
ISM Method
Low Power
MENU
English
Spanish
French
Page 33
Owner’s Manual 33
Caption Option
Caption Option
- Customize the DTV/CADTV captions that appear on your screen.
1. Press the MENU button and then use
DD / EE
button to select the OPTION
menu.
2. Press the GG button and then use
DD / EE
button to select Caption Option.
3. Press the GG button and then use FF / GG button to select Custom.
4. Use
DD / EE
button to customize the Style, Font, etc., to your preference. A preview icon is provided at the bottom of the screen, use it to see the caption
language.
• Size: Set the size of the words.
• Font: Select a typeface for the words.
• Text Color: Choose a color for the text.
• Text Opacity: Specify the opacity for the text color.
• Bg (Background) Color: Select a background color.
• Bg (Background) Opacity: Select the opacity for the background
color.
• Edge Type: Select an edge type.
• Edge Color: Select a color for the edges.
5. Press EXIT button to return to TV viewing or press MENU button to return
to the previous menu.
- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost
image remaining; even though the image is changed. Use our unique method to minimize any fixed image on the
screen.
1. Press the MENU button and then use
DD / EE
button to select the OPTION
menu.
2. Press the GG button and then use
DD / EE
button to select ISM Method.
3. Press the GG button and then use
DD / EE
button to select either Normal, White
Wash
, Orbiter or Inversion.
• Normal
If image sticking is never a problem, ISM is not necessary - set to Normal.
• White wash
White Wash removes permanent images from the screen.
Note: An excessive permanent image may be impossible to clear entirely with
White Wash. To return to normal viewing, press the any button.
• Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any
fixed image to remain on the screen. To avoid a permanent image on the
screen, the image will move once per 2 minutes: Left → Right → Upside →
Downside → Right → Left → Downside → Upside.
• Inversion
Inversion will automatically invert the plasma display panel color every 30
minutes.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
ISM (Image Sticking Minimization) Method
ISM (Image Sticking Minimization) Method
Option Menu Features
Option Menu Features
Page 34
34 Plasma TV
Low Power
Low Power
- Low power reduces the plasma display power consumption.
1. Press the MENU button and then use
DD / EE
button to select the OPTION
menu.
2. Press the GG button and then use
DD / EE
button to select Low Power.
3. Press the GG button and then use
DD / EE
button to select On or Off.
• When you select On, the screen darkens.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Page 35
Owner’s Manual 35
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV
Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating
System (MPAA) only.
Ratings for Movies previously shown in theaters:
Movie Ratings :
• Blocking Off (Permits all programs)
• G (General audience)
• PG (Parental guidance suggested)
• PG-13 (Parents strongly cautioned)
• R (Restricted)
• NC-17 (No one 17 and under admitted)
• X (Adult only)
If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
Ratings for Television programs including made-for-TV movies :
• TV-G (General audience)
• TV-PG (Parental guidance suggested)
• TV-14 (Parents strongly cautioned)
• TV-MA (Mature audience only)
• TV-Y (All children)
• TV-Y7 (Children 7 years older)
TV Rating Children:
• Age (applies to TV-Y, TV-Y7)
• Fantasy Violence (applies to TV-Y7)
TV Rating General:
• Age (applies to TV-G, TV-PG, TV-14, TV-MA)
• Dialogue - sexual dialogue (applies to TV-PG, TV-14)
• Language - adult language (applies to TV-PG, TV-14, TV-MA)
• Sex - sexual situations (applies to TV-PG, TV-14, TV-MA)
• Violence (applies to TV-PG, TV-14, TV-MA)
Input Block
• AV1, AV2 (On, Off)
• Component (On, Off)
• RGB1, RGB2, HDMI1/DVI, HDMI2 (On, Off)
Lock Menu Options
Lock Menu Options
Page 36
36 Plasma TV
Parental Lock Setup
Parental Lock Setup
1. Press the MENU button and then use
DD / EE
button to select the LOCK menu.
Then, press the
GG button
• The TV is set up with the initial password “0-0-0-0”.
2. Use the
DD / EE
button to choose from the following Lock Menu options. Once the
option is selected, change the settings to your preference.
• Lock System: Enables or disables the blocking scheme you set up previ-
ously.
• Set Password: Change the password by inputting a new password twice.
• Block Channel: Blocks any channels that you do not want to watch or
that you do not want your children to watch.
• Movie Rating (MPAA): Blocks movies according to the movie ratings lim-
its specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified
level. Keep in mind that the movie ratings limit only applies to movies
shown on TV, not TV programs, such as soap operas.
• TV Rating-Children: Prevents children from watching certain children's TV
programs, according to the ratings limit set. The children rating does not
apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can
view those programs.
• TV Rating-General: Based on the ratings, blocks certain TV programs that
you and your family do not want to view.
• Input Block: Enables you to select a source to block from the external
source devices you have hooked up.
3. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Note:
• If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the remote control.
- Set up blocking schemes to block specific channels, ratings, and external viewing sources.
- A password is required to gain access to this menu.
Page 37
Owner’s Manual 37
4 : 3
16 : 9
The original aspect ratio of the video is 4:3
The original aspect ratio of the video is 16:9(wide)
The video resolution is 720x480i
The video resolution is 720x480p
The video resolution is 1280x720p
The video resolution is 1920x1080i
Multilingual : The program contains two or more audio
services. Press the SAP button to select wanted
Audio.
Caption: => The program contains one or more cap-
tion services. Press the CC button to select wanted
Closed caption.
The program contains V-Chip information. Refer to the
<LOCK Menu>.
D (Dialogue), L (Language), S (Sex), V (Violence), FV
(Fantasy Violence)
480i
480p
720p
1080i
CC
Operation: • Watching TV/DTV/CATV/CADTV
• Watching AV1, AV2
• In Component, RGB1-2, HDMI1/DVI,
HDMI2 modes, INFO button is not work
ing.
Function: • Show the present screen information.
• On Watching with the upper Input signal,
press the INFO button.
• Press the INFO button or EXIT button to
exit.
A: Banner information
B: Program title
C: Day of week, Month, Year
D: Program start time
E: Program progress bar
F: Program finish time
G: Present time
H: Additional information. Refer to the icon
explanation on the right.
- Brief Info shows the present screen information.
- Press the INFO button to show the Brief Info on the screen.
- INFO button does not work in Component, RGB1-2, and HDMI1/DVI modes.
- Press the INFO button or EXIT button to exit.
Brief Info.
B
C
D
E
A
F
H
G
Page 38
38 Plasma TV
- When you repeatedly press the MUTE button, the sound mode is changed in turn. (Refer to the picture below)
Mute
Mute : Sound is muted.
Mute Off : Sound is enabled.
1. Press the FREEZE button to freeze the screen section.
2. To return to normal viewing, press the FREEZE button again.
- Freezes the currently-viewed picture.
Freeze
Mute
24
Page 39
Owner’s Manual 39
• When RGB connect to PC input and select the RGB-PC, this function is used.
• When HDMI1/DVI connect to PC input and select HDMI1/DVI input, this function is used.
• In RGB1/2-DTV mode, SIZE and PHASE is not available.
• After connecting RGB1, 2(When setting the PC), HDMI1/DVI or HDMI2 to PC input and checking the screen quali-
ty.
- Display PC Adjust Menu using ADJUST button.
- Position : Adjust the screen position. After displaying the Adjust, select the screen position.
- Size : Adjust the screen size.
- Phase : Adjust the phase of Pixel clock.
In HDMI1/DVI-PC mode, PHASE is not available.
- Reset : Initializating Position, Size, Phase adjustment .
Operation
Operation
Adjustment for screen Position, Size, Phase, Reset
Adjustment for screen Position, Size, Phase, Reset
Screen Setup for PC mode
Page 40
40 Plasma TV
0B
0F
08
C4
C5
79
0E
10 ~ 19
4C
1A
09
02
03
00
01
1E
AA
39
40
41
07
06
44
43
A9
52
4D
5B
65
0A
CB
D6
5A
D0
BF
D5
D7
C6
76
77
AF
98
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (TV Input Selection)
Discrete IR Code (AV1 Input Selection)
Discrete IR Code (AV2 Input Selection)
Discrete IR Code (Component Input Selection)
Discrete IR Code (RGB-PC Input Selection)
Discrete IR Code (RGB-DTV Input Selection)
Discrete IR Code (HDMI1/DVI Input Selection)
Discrete IR Code (Only 4:3 Mode)
Discrete IR Code (Only 16:9 Mode)
Discrete IR Code (Only Zoom1 Mode)
Discrete IR Code (Multmedia Selection)
Code (Hexa) Function Note
INPUT
TV INPUT
POWER
POWER ON
POWER OFF
RATIO
TIMER
Number Key 0~ 9
- (Dash)
FLASHBK
MUTE
VOL
DD
VOL
EE
CH
DD
CH
EE
FAV
INFO
CC
D
E
F
G
ENTER
MENU
GUIDE
EZ SOUND
EZ PIC
EXIT
FREEZE
SAP
ADJUST
TV
AV1
AV2
Component
RGB-PC
RGB-DTV
HDMI1/DVI
Ratio 4:3
Ratio 16:9
Ratio Zoom
MULTIMEDIA
Key Code
Page 41
Owner’s Manual 41
G The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-controllable devices of
other manufacturers.
Note that the remote may not control all models of other brands.
Programming a code into a remote mode
Programming a code into a remote mode
Programming the Remote
Programming the Remote
1. To find out whether your remote can operate the device without programming, turn on the device such as a VCR and press the
corresponding mode button on the remote.
After that, press the POWER button. If the device is turned off then it responds properly and the remote need not to be programmed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.
2. Press the MENU and MUTE button continuously at the same time for 2 seconds, the current selected device button will be illuminated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from
step 2.
3. Enter code numbers using the number button on the remote by refering the code table on the following pages. When pressing
the button, the light blinks at a time. If the device turned off, the programming is successful.
4. Press the MENU button to store the code. After blinking twice, this code is stored.
5. Test the remote functions to see if the device responds properly. If not, repeat from step 2.
Page 42
42 Plasma TV
Programming Codes
Programming Codes
VCRs
VCRs
CACATV
TV
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
06 5 1 08 11 0 111
112 116 11 7 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
107 109 144 147
GO VIDEO 132 136
HARMAN KARDON
012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 106 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
133 140 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
145 147
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
105 107 109 112
113 115 120 122
125
SANSUI 022 043 048 135
SANYO 003 007 010 014
102 134
SCOTT 017 037 112 129
131
SEARS 003 008 009 010
013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK
016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
Page 43
Owner’s Manual 43
Audio
Audio
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
DVD
DVD
ALPHASTAR DSR
123
AMPLICA 050
BIRDVIEW 051 126 129
CHANNEL MASTER
013 014 015 018
036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010
011 052 112 116
141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027
133 134
GENERAL INSTRUMENT
003 004 016 029
031 059 101
HITACHI 139 140
HOUSTON TRACKER
033 037 039 051
057 104
HUGHES 068
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE
143
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO
028 035 047 057
085
SCIENTIFIC ATLANTA
032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNIDEN 016 025 042 043
044 045 048 049
078 079 080 086
101 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
HDSTB
HDSTB
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
AIWA 014 028 070 096
125 129 139 229
230
AKAI 163
ANAM 003 014 017 023
059 106 189 216
217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084
102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029
087 107 108 110
190 191 192 210
211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069
078 079 095 121
122 149 150 151
152 153 154 155
157 158 159 160
189 207 222 224
225 226 227 243
247
JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089
170 171 197 206
215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098
100 172 173 174
175 176 177 178
179 180 181 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
133 140
OPTIMUS 158
PANASONIC 007 033 064 113
142 220 241 251
PENNEY 104
PHILIPS 026 112 143
PIONEER 039 042 043 063
065 091 093 094
115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
193 194 195 203
204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 126 248 249
TAEKWANG 012 020 073 074
076 077 105 161
162 163 164 165
166 167 168 169
205 231 233 242
TEAC 010 085 106 136
185 187 237
TECHNICS 101 113 128 134
147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
Brand Codes Brand Codes Brand Codes Brand Codes
Page 44
44 Plasma TV
No output from one of
the speakers
• Adjust Balance in the AUDIO menu. (Refer to p.26)
Unusual sound from
inside the TV
• A change in ambient humidity or temperature may result in an unusual noise
when the plasma display is turned on or off and does not indicate a fault with
the TV.
No picture &
No sound
• Check whether the TV is turned on.
• Is the power cord inserted into wall power outlet?
• Test the wall power outlet, plug another product’s power cord into the outlet
where the TV’s power cord was plugged in.
No or poor color
or poor picture
• Select Color in the Video menu and press the G button.
(Refer to p.25)
• Keep a sufficient distance between the TV and the VCR.
• Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
• Check to see if there is any object between the TV and the remote control
causing obstruction.
• Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.10)
• Correct remote operating mode set: TV, VCR etc.?
• Install new batteries. (Refer to p.10)
Picture OK &
No sound
• Press the VOLUME (
DD / EE
) button.
• Sound muted? Press MUTE button.
Picture appears slowly
after switching on
• This is normal, the image is muted during the TV startup process. Please
contact your service center, if the picture has not appeared after five minutes.
Horizontal/vertical bars
or picture shaking
• Check for local interference such as an electrical appliance or power tool.
TTroubleshooting Checklist
roubleshooting Checklist
Page 45
Owner’s Manual 45
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended
Absence
Absence
Maintenance
Maintenance
Page 46
46 Plasma TV
Product Specifications
Product Specifications
• The specifications shown above may be changed without prior notice for quality improvement.
MODELS
AC100-240V~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, DTV 2 ~ 69, CADTV 1 ~ 135
75 Ω
32 ~ 104°F (0 ~ 40°C)
Less than 80%
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Resolution
Power requirement
Television System
Program Coverage
External Antenna Impedance
Operating Temperature Range
Operating Humidity Range
46.7 / 1186
27.6 / 654.7
25.8 / 119.5
58.9 / 26.7
1024x768 (Dot)
42PX7DC
( 42PX7DC-UA )
Page 47
Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it
proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”)
listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.
LG ELECTRONICS, INC.
PLASMA TV — U.S. LIMITED WARRANTY
CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV
typically contain a small number of pixels that do not function normally. Your display has been inspected and is in
compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use
of your display.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR
DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do
not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied
warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal
rights and you may also have other rights that vary from state to state.
WARRANTY PERIOD:
LABOR and PARTS: 2 YEARS from the Date of Purchase.
Your unit will be repaired or replaced with a new, substitute
model or factory reconditioned unit, at LGE’s option. If
repaired, parts used in the repair may be new or remanufactured.
Replacement Units and Repair Parts are warranted for the
remaining portion of the original unit’s warranty period.
EFFECTIVE DATE OF WARRANTY: Your warranty period
begins on the date of sale to the original consumer/end user.
KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF
DELIVERY as evidence of the purchase date. You will be
required to submit a legible copy of your bill of sale or proof
of delivery when requesting warranty service.
HOW SERVICE IS HANDLED:
In-Home Service: Please retain dealer’s
dated bill of sale or delivery ticket as evidence
of the Date of Purchase for proof of warranty,
and submit a copy of the bill of sale to the service person at the time warranty service is provided.
Please call 1-800-243-0000 to locate your
nearest LGE Authorized Service Center.
Visit our website at:
http://www.lgservice.com
IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your
product online. This information will allow us to reach you promptly should we discover a safety or reliability problem that could affect you.
Page 48
P/N : 38289U0558A
TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:
LGE Customer Interactive Center
P.O. Box 240007
201 James Record Road
Huntsville, Alabama 35824
http://www.lgservice.com
FOR SERVICE:
Before you call for warranty service, check your operating guide – you may avoid a service call.
For warranty service information, please contact the LGE Customer Interactive Center telephone number.
When calling for service, please have your product model number, serial number and the date of pur-
chase or the date of original installation available.
If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to
the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not
be charged if you return the defective unit within 10 working days.
If a replacement unit is received, please use the carton and packaging from that unit in returning the defective
unit to the LG
®
Brand Service Center.
Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without
charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory
warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently
owned and operated service organizations.
To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before
returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.
CUSTOMER INTERACTIVE CENTER NUMBERS:
To obtain customer assistance, product
information or Dealer or Service locations
Call 1-800-243-0000
24 hours a day, 365 days per year
THIS LIMITED WARRANTY DOES NOT APPLY TO:
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
● damage caused in shipping or transit
● service required as a result of improper installation,
including incorrect or insufficient AC supply (please
consult the owner’s manual for power supply
requirements)
● installation or repair of antenna systems, cable con-
verters, cable company supplied equipment, or
other components in a video system
● set-up or adjustment on consumer controls, or
damage caused by improper adjustments
● damage caused by other system components
● any panel that has been modified or incorporated
into any other product
● replacement of batteries on the remote control.
● damage (including cosmetic damage), failure, loss
or personal injury due to misuse, abuse, negli-
gence, improper maintenance or storage, or to acts
of nature or other causes beyond our control.
(Causes beyond our control include but are not limited to lightning strike, power surges, power outages and water damage.)
● image burn-in
● repair or replacement of warranted parts by other
than LGE authorized service centers.
● units purchased or serviced outside of the coverage
area.
● product where the original factory serial numbers
have been removed, defaced or changed in any
way.
● product sold and labeled as “as is, where is” or sim-
ilar disclaimer.
a
Loading...
