LG 42PC1D, 42PC1DV, 42PC1DV-EC Service Manual

PLASMA TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : PD61A

MODEL : 42PC1D/DV

42PC1D/DV-EC

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

- 2 -

CONTENTS

SAFETY PRECAUTIONS ....................................................................................3

DESCRIPTION OF CONTROLS ..........................................................................4

SPECIFICATIONS ..............................................................................................10

ADJUSTMENT INSTRUCTIONS .......................................................................12

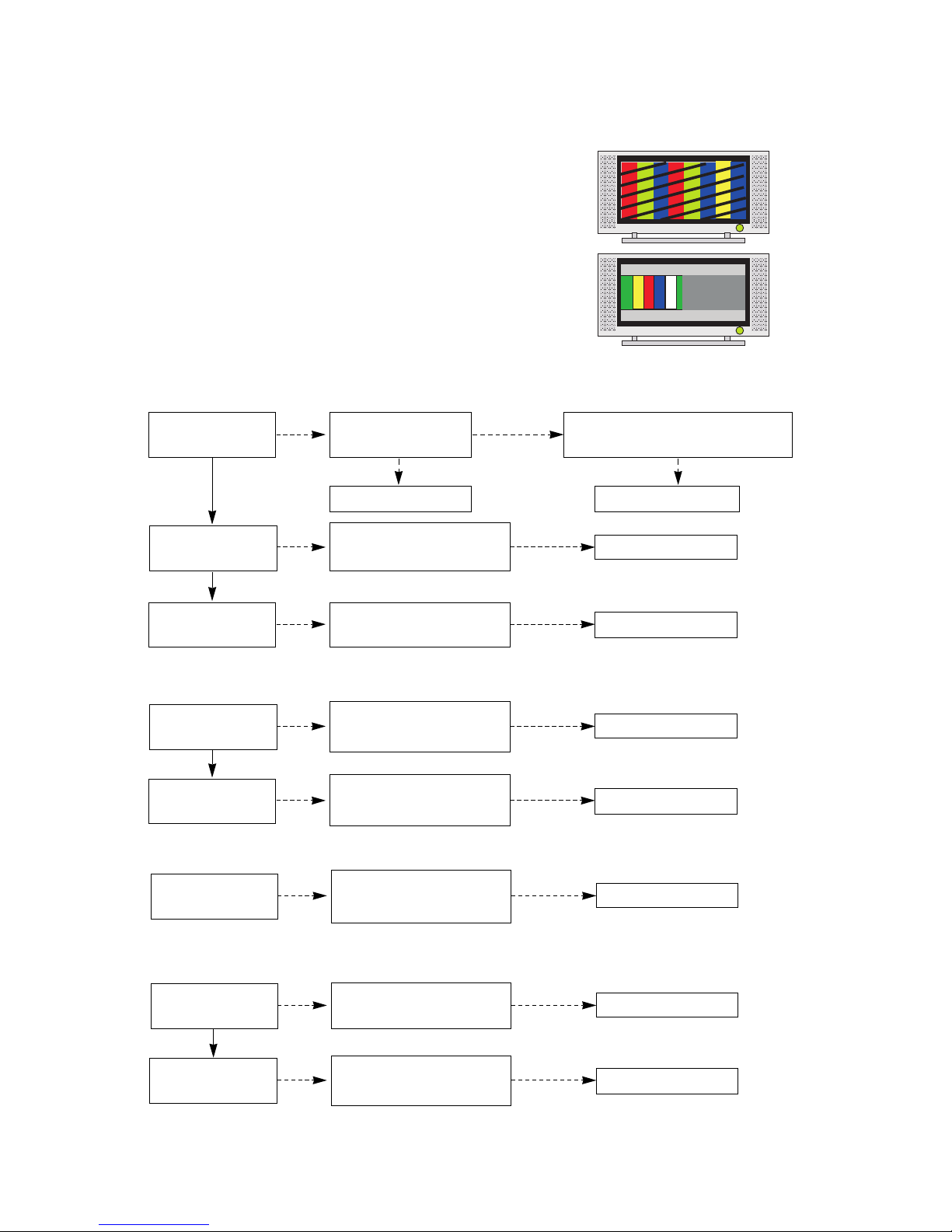

TROUBLE SHOOTING GUIDE..........................................................................17

PRINTED CIRCUIT DIAGRAM ..........................................................................22

BLOCK DIAGRAM.............................................................................................26

EXPLODED VIEW.........................................................................................28,30

EXPLODED VIEW PARTS LIST ...................................................................29,31

REPLACEMENT PARTS LIST...........................................................................32

SCHEMATIC DIAGRAM.........................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

POWER

Switches the set between ON and STANDBY.

D/A TV

INPUT

VOL

LIST

Q.VIEW

PR

POWER

1 2 3

4 5 6

7809

INDEX

POSITION

SIZE

REVEAL

I/II

TIME

GUIDE

PIP PR-

PIP

MENU

MUTE FAV

EXIT

VCR

TV

DVD

ARC

TEXT

SWAP

BACK

PIP PR+

INFO

i

?

i

OK

SUBTITLE/

PIP INPUT

SLEEP

D/A TV (Digital TV / Analogue TV)

Selects digital or analogue mode.

INPUT

Selects the DTV, TV, AV, Component, RGB or HDMI modes. switches the set on from standby.

TV, DVD, VCR

Selects the remote operating mode: TV, VCR, DVD. Select other operating modes, for the remote to operate external devices.

GUIDE

Shows programme schedule.

ARC (Aspect Ratio Control)

Selects your desired picture format.

SUBTITLE/

*

Recalls your preferred subtitle in digital mode.

PIP

Switches the sub picture on or off,select PIP, DW1/2 or POP modes.

SIZE

Adjusts the sub picture size.

POSITION

Moves the sub picture position.

PIP PR +/-

Selects a programme for the sub picture.

SWAP

Alternates between main and sub picture.

PIP INPUT

Selects the input mode for the sub picture.

BACK

Allow the user to move back one step in an interactive application, EPG or other user interaction function.

SLEEP

Sets the sleep timer.

- 4 -

DESCRIPTION OF CONTROLS

- 5 -

MENU

Displays on screen menus one by one. Exits the current menu. Memorizes menu changes.

OK

Accepts your selection or displays the current mode.

DD / EE / FF / GG

Adjusts menu settings. Selects menu item.

COLOURED BUTTONS

They are used as per the indications or functions displayed on TV screen in case of Text displays (Teletext, EPG) and programme edit.

VOL

DD / EE

(Volume Up/Down)

Increases/decreases sound level.

PR

DD / EE

(Programme Up/Down)

Selects a programme.

LIST

Displays the programme table.

Q.VIEW

Returns to the previously viewed programme.

NUMBER BUTTONS

MUTE

Switches the sound on or off.

FAV (FAVOURITE)

Displays the selected favourite programmes.

D/A TV

INPUT

VOL

LIST

Q.VIEW

PR

POWER

1 2 3

4 5 6

7809

INDEX

POSITION

SIZE

REVEAL

I/II

TIME

GUIDE

PIP PR-

PIP

MENU

MUTE FAV

EXIT

VCR

TV

DVD

ARC

TEXT

SWAP

BACK

PIP PR+

INFO

i

?

i

OK

SUBTITLE/

PIP INPUT

SLEEP

EXIT

Clears all on-screen displays and returns to TV viewing from any menu.

TELETEXT BUTTONS

These buttons are used for teletext. Text button is used to enable teletext services while other buttons are for teletext functions. * For further details, see the ‘Teletext’ section.

- 6 -

PR

VOL

OK

MENU

INPUT

PROGRAMME Buttons

VOLUME Buttons

MENU Button

OK Button

INPUT Button

POWER Button

Power/Standby Indicator

• illuminates red in standby mode.

• illuminates white when the set is switched on.

Front Panel Controls

- 7 -

AV IN 4

L/MONO

R

AUDIOAUDIO

VIDEOVIDEO

HDMI IN

DIGITAL AUDIO

OUT

OPTICAL

1(DVI)

2

RS-232C IN

(CONTROL & SERVICE)

RGB (PC/DTV)

RGB INRGB IN

AUDIO (RGB/DVI)

IN

OUT

VIDEO

AUDIO

MONO

( )

VIDEO

AUDIO

COMPONENT IN

S-VIDEO

AV IN 3V IN 3

VARIABLE

AUDIO OUT

REMOTE

CONTROL IN

AV 1 AV 2 DTV OUT

ANTENNA

IN

ANTENNA

OUT

Eject Pcmcia card slot

AUDIO Input

VIDEO Input

DIGITAL AUDIO

OUT

OPTICAL

AV IN 3

VARIABLE AUDIO OUT

AV 1/2

DTV OUT

COMPONENT IN

HDMI/DVI IN

42PC1DV/42PC1DVA

models have a unit of HDMI / DVI input jack.

ANTENNA IN

ANTENNA OUT

AUDIO IN (RGB/DVI)

RGB IN (PC/DTV)

AC IN

RS-232C INPUT (CONTROL&SERVICE)

REMOTE CONTROL Port

PCMCIA (Personal Computer Memory

Card International

Association) Card Slot

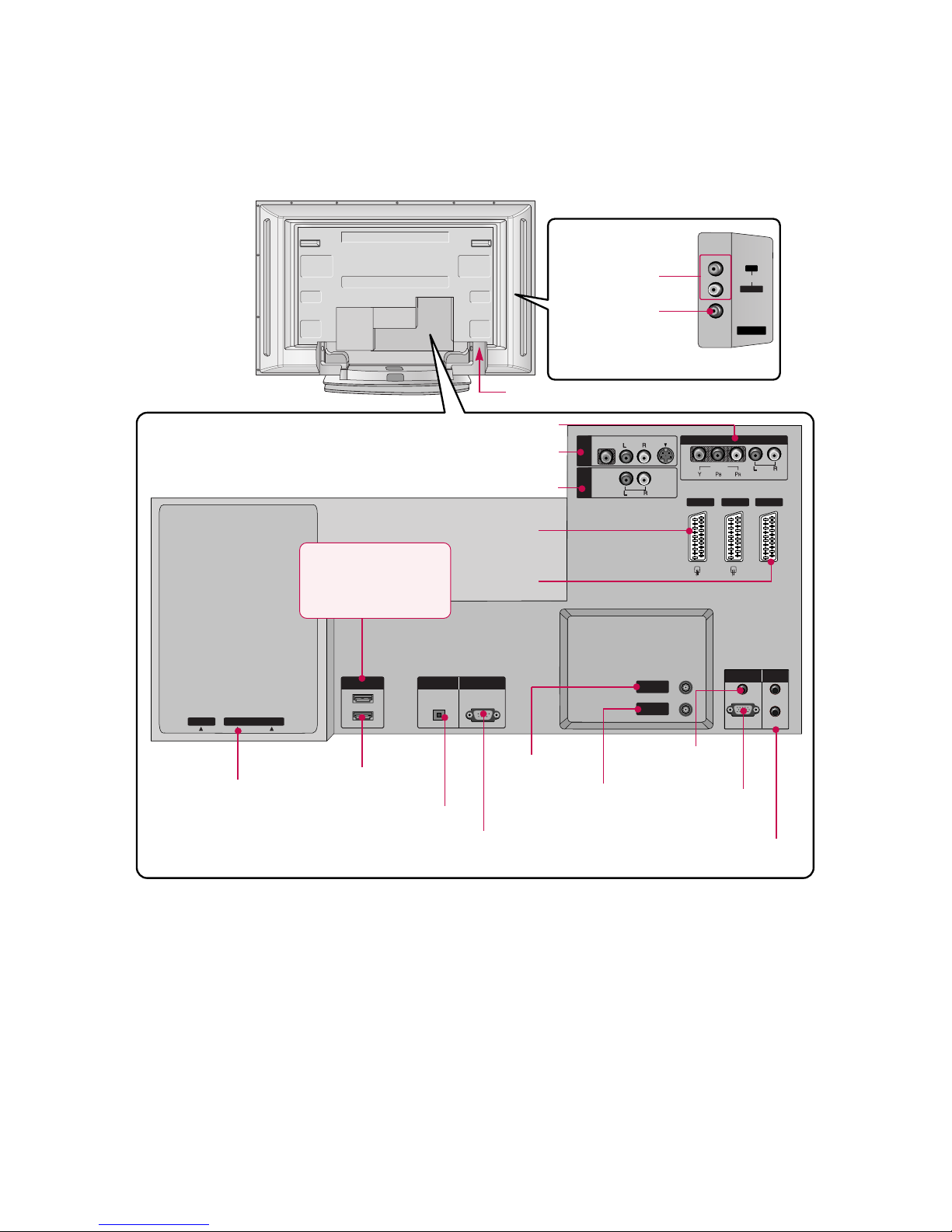

Back Connection Panel

HDMI IN

- 8 -

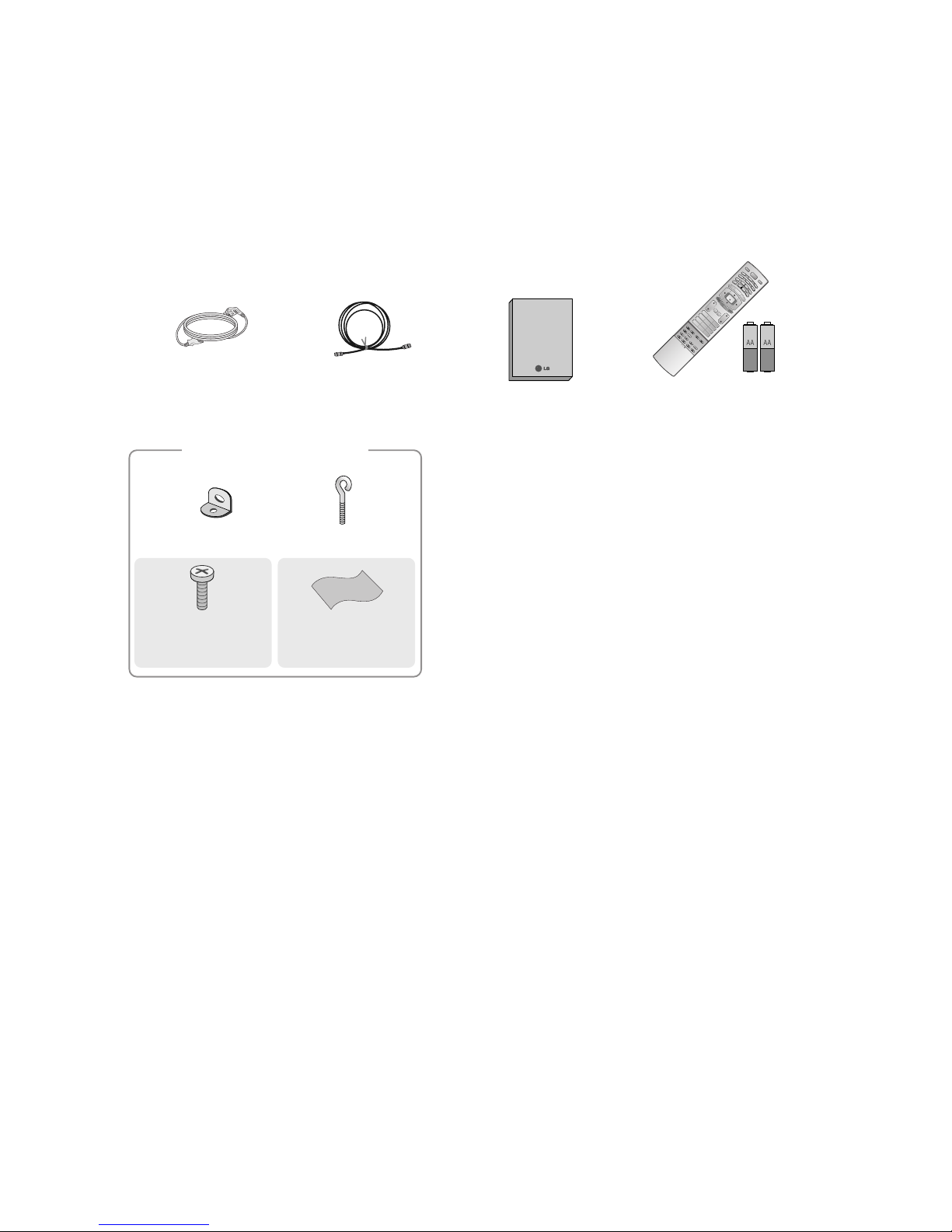

ACCESSORIES

Owner’s Manual

75Ω RF Coaxial

Power Cord

D/A TV

INPUT

VOL

LIST

Q.VIEW

PR

POWER

1 2 3

456

78

0

9

INDEX

POSITION

SIZE

REVEAL

TIME I/II

G

U ID

E

P I P

P R

-

P IP

M E

N U

MUTE FAV

E XIT

V C

R

T

V

DVD

ARC

TEXT

SW

AP

BACK

P IP P

R

+ IN F

O

i

?

i

OK

S U

B T I T L

E /

P I P IN P

U T

S L E

E P

D/A

VOL

LIST

Q.VIEW

PR

1 2 3

456

78

0

9

INDEX

POSITION

SIZE

REVEAL

I/II

TIME

G U

I D

E

P

I P

P R

-

PIP

M

E N

U

MUTE FAV

E

X IT

TV

ARC

TEXT

SW

AP

BACK

P IP

P

R

+ I N

F O

i

?

i

OK

S L E E

P

VOL

LIST

Q.VIE

1 2 3

456

78

0

9

POSITION

SIZE

TIME

MUTE FAV

Remote Control /

Batteries

2-Wall brackets

2-eye-bolts

For 42PC1D/DV/DVA, 42PC3D/DV, 50PC1D

Polishing Cloth

(42/50PC1D only)

Polish the screen

with the cloth.

2-bolts

(42PC1D/DV/DVA,

42PC3D/DV only)

- 9 -

STAND INSTALLATION (OPTION)

Figures shown here may be slightly different from your set.

When closing the stand for storage

First remove the screws in the holes (B) on the bottom

of the stand. And then pull two Hooks (D) of the stand

bottom

and fold the stand into the back of the set.

After folding, push two Locks (A) of the stand bottom

outward.

O Place the set with the screen facing down on a cushion or soft cloth as shown in Figures 1.

Before unfolding the stand, please make sure two locks (A) on the bottom of the stand push outward.

O Pull the stand out as shown above in Figures 2 ~ 3.

After unfolding the stand, please insert and tighten the screws in the holes (B) on the bottom of the stand.

O When connecting cables to the set, Do not disengage the lock (C).

This may cause the set to fall, causing serious bodily injury and serious damage to the set.

A

D

A

C

B

1

3 4

2

* NOTE

SPECIFICATIONS

NOTE : Specifications and others are subject to change without notice for improvement

.

V Application Range

This spec is applied to the 42” PLASMA TV used PD61A Chassis.

V Specification

Each part is tested as below without special appointment.

1) Temperature : 25±5°C (77±9°F), CST : 40±5

2) Relative Humidity: 65±10%

3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz) * Standard Voltage of each product is marked by models.

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with SBOM.

5) The receiver must be operated for about 20 minutes prior to the adjustment.

V Test Method

1) Performance : LGE TV test method followed.

2) Demanded other specification

Safety : CE, IEC specification EMC : CE, IEC

V General Specification

1. Module Specification

- 10 -

Display Screen Device

Aspect Ratio

PDP Module

Operating Environment

Storage Environment

Input Voltage

1

2

3

4

5

6

No Item Specification Remark

42” wide Color Display Module

16:9

42PC1D = PDP42V3

42PC1DV = PDP42V8

RGB Closed Type, Film Filter

1)Temp. : 0~40deg

2)Humidity : 0~85%

3)Temp. : -20~60deg

4)Humidity : 0~85%

100-240V~, 50/60H

Plasma Display Panel

LGE SPEC.

Maker : Sony/ LG Innotek/ Sanken

Chassis

PD61A 42PC1D/DV-EC The United Kingdom LG

Model Name Market Brand Remark

42PC1D/DV-EC Safety : IEC/EN60065

EMI : EN55013

EMS : EN55020

The United Kingdom

TEST

Model ApplianceMarket Remark

- 11 -

2. Model General Specification

Market

Broadcasting system

Receiving system

Scart Jack (3EA)

Video Input (2EA)

S-Video Input (2EA)

Component Input (1EA)

RGB Input

HDMI Input

Audio Input (4EA)

Wired Control

1

2

3

4

5

6

7

8

9

10

11

No Item Specification Remark

The United Kingdom

1) PAL-BG

2) PAL-DK

3) PAL-I, I’

4) DVB-T(ID TV)

5) SECAM-L

Analog : Upper Heterodyne

Digital : COFDM

PAL, SECAM

PAL, SECAM, NTSC

Y/Cb/Cr, Y/Pb/Pr

RGB-PC,

RGB-DTV

HDMI-PC

HDMI-DTV & SOUND

PC Audio, Component, AV (2EA)

Discrete I

UK

4 System : PAL, SECAM, NTSC, PAL60

L/R Input

- 12 -

ADJUSTMENT INSTRUCTIONS

1. Application Object

These instructions is applied all of the 42” PLASMA TV, PD61A Chassis.

2. Note

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation. (4) The input voltage of the receiver must keep 100-220V~,

50/60Hz. (5) The receiver must be operated for about 15 minutes prior

to the adjustment.

O After RGB Full white HEAT-RUN Mode, the receiver must

be operated prior to adjustment.

O Enter into HEAT-RUN MODE

1) Press the POWER ON KEY on R/C for adjustment.

2) OSD display and screen display PATTERN MODE.

[ Set is activated HEAT-RUN without signal generator in

this mode. [ Single color pattern(RED/BLUE/GREEN) of HEAT-RUN

mode uses to check PANEL.

Caution) If you turn on a still screen more than 20 minutes,

(Especially digital pattern, cross hatch pattern) after image may be occur in the black level part of the screen.

3. Channel memory

3-1. Setting up the LGIDS

1) Install the LGIDS. (idsinst.exe)

2) After installation, restart your PC.

3) Extract [files.zip] to folder [c:\LGIDS\files].

4) Start LGIDS.

3-2. Channel memory Method

1) Select “PDP” and “Hurricane” on Model dialog. And check your connection in Communication dialog. (If your connection is ‘NG’, then set your PORT(COM1,2,3,...) correctly.)

2) Connect RS-232C cable and turn on the power. (If your connection has completed, you can see “Ready”.)

[ If your set is not an end products but only a board, you

have to make your board to Stand-by state (LED_R). And you have to Download in Stand_by power state.

3) Select proper CH_memory file(*.nvm) for each model at [NVRAM Download] $ [Write Batch] Next, select proper binary file(*.bin) including the CH information for each model at [NVRAM File].

File name : H2_CH_Memory_RZ.nvm

4) Click the [Download] button. It means the completion of the CH memory download if all items show ‘OK’ and Status is changed by ‘PASS’ at the lower right corner of the window.

5) If you want to check whether the CH information is memorized correctly or not, click the [Verify] button. And then compare NVRAM File(*.bin) with the CH information downloaded.

(Fig. 1)

(Fig. 2)

(1)

(2)

(4)

(3)

(Fig. 3)

4. Sub Program Down Load

1) Select “ PDP” and “Hurricane” on Model dialog. and check your connection in Communication dialog. (If your connection is ‘NG’, then set your PORT(COM1,2,3,...) correctly.

2) Connect RS232 cable and turn on the power. (Use the special Cable for Sub-program) (If your connection has completed, you can see ‘Ready’)

3) Select proper ‘Model’ for each model.

4) Select ‘flash file’ for each model.

5) Click the [Download] button. It means the completion of the ROM download if all items show ‘OK’ and Status is changed by ‘PASS’ at the lower right corner of the window.

5. PCMCIA CARD Checking Method

1) You must adjust DTV 29 Channel and insert PCMCIA CARD to socket.

2) If PCMCIA CARD works normally, normal signal display on screen. But it works abnormally, “No CA module” words display on screen.

6. POWER PCB Assy Voltage Adjustments

(Va, Vs Voltage adjustments)

6-1. Test Equipment : D.M.M. 1EA

6-2.Connection Diagram for Measuring

: refer to fig.5

6-3. Adjustment Method

(1) Va Adjustment

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D.M.M to Va pin of P812, connect

- terminal to GND pin of P812.

3) After turning VR901, voltage of D.M.M adjustment as same as Va voltage which on label of panel right/top. (Deviation; ±0.5V)

(2) Vs Adjustment

1) Connect + terminal of D.M.M to Vs pin of P812, connect – terminal to GND pin of P812.

2) After turning VR951, voltage of D.M.M adjustment as same as Va voltage which on label of panel right/top. (Deviation; ±0.5V)

7. EDID (The Extended Display Identification Data)/ DDC (Display Data Channel) download

7-1. Required Test Equipment

1) Adjusting PC with S/W for writing EDID Data.(S/W : EDID TESTER Ver.2.5)

2) A Jig for EDID Download

3) Cable : Serial(9Pin or USB) to D-sub 15Pin cable, D-sub 15Pin cable, DVI to HDMI cable

7-2. Setting of device

7-3. Preparation for Adjustment

1) As above Fig. 6, Connect the Set, EDID Download Jig, PC & Cable.

2) Turn on the PC & EDID Download Jig. And Execute the S/W : EDID TESTER Ver,2.5.

3) Set up S/W option.

Repeat Number : 5 Device Address : A0 PageByte : 8

4) Power on the Set.

- 13 -

Each PCB assembly must be checked by check JIG set. (Because power PCB Assembly damages to PDP Module, especially be careful)

(Fig. 5) Connection diagram of power adjustment for measuring

(Fig. 6) Connection Diagram of DDC download

(1)

(2)

(3)

(Fig. 4)

- 14 -

7-4. Sequence of Adjustment

- DDC data of Analog-RGB

1) Init the data.

2) Load the EDID data.(Open File). [Analog(RGB) : 42PC1D-EC.ANA] [Analog(RGB) : 42PC1DV-EC.ANA] (for VGA, XGA) [Digital(HDMI) : 42PC1D-EC.DVI] (VGA only) [Digital(HDMI) : 42PC1DV-EC.DVI] (VGA only) [Digital(HDMI) : 42PC1D-EC.DVI] (XGA only) [Digital(HDMI) : 42PC1DV-ECI.DVI] (XGA only)

3) Set the S/W as below.

4) Push the “Write Data & Verify”button. And confirm “Yes”.

5) If the writing is finished, you will see the “OK” message.

8. Auto AV(CVBS) Color Balance

8-1. Requirement

V This AV color balance adjustment should be performed

before white Balance Adjustment.

V It is very import to use adjustment pattern like Fig.7.

1) Within the pattern, color sequence should be aligned : W-Y-C-G-M-R-BLUE-BLACK. (If color sequence is reversed (Black -> ... -> White), reverse the pattern with REV key, when using Master pattern generator like MSPG-925)

2) If minimum Black level and/or maximum White level is not correct, select 100% color bar pattern.

8-2. Required Equipment

1) Remote controller for adjustment.

2) AV Pattern Generator. : 802F Pattern Generator, Master(MSPG-925FA), etc. (Which has PAL Composite Video format output with standard(1.0 Vpp) Vertical 100% Color Bar Pattern as Fig7)

8-3. Method of Auto AV(CVBS) Color Balance

1) Input the PAL Composite Video into video input. (Input 50Hz : AV3/AV4 Input)

2) Set the PSM to Standard mode in Picture menu.

3) Press IN-STAR key on R/C for adjustment.

4) Press the

G(Vol. +) key operate to set, then it becomes

automatically.

5) Auto-RGB OK means completed adjustment.

9. Adjustment of White Balance

9-1. Required Equipment

1) Remote controller for adjustment.

2) Color Analyzer.(CA-100 or same product)

3) Auto W/B adjustment instrument.(only for Auto adjustment)

4) AV Pattern Generator.

9-2. Connecting diagram of equipment for

measuring (For Auto Adjustment)

(Fig. 7) Auto AV(CVBS) Color Balance Test Pattern

(Fig. 8) Connection Diagram of Auto W/B Adjustment

- 15 -

W Auto adjustment Map(RS-232C)

9-3. Adjustment of White Balance

(For Manual adjustment)

O Operate the zero-calibration of the CA-100, then stick

sensor to PDP module surface when you adjust.

O For manual adjustment, it is also possible by the following

sequence.

1) Select white pattern of heat-run mode by pressing power on key on remote control for adjustment then operate heat run more than 15 minutes.

2) As below Fig.9, Supply 216Level (85 IRE) full screen pattern to Video input. (Input 50Hz, 42PC1DV : AV3/AV4 Input)

3) Press the TV/AV KEY on R/C for converting input mode.

4) Set the PSM to Standard mode in Picture menu.

5) Enter the White Balance adjustment mode by pressing the INSTART key twice(White Balance) on R/C.

6) Stick sensor to center of the screen and select each items (Red/Green/Blue Gain and Offset) using

D / E(CH +/-) key

on R/C.

7) Adjust Only High Light with R Gain/ B Gain using

F / G

(VOL+/-) key on R/C.

8) Adjust it until color coordination becomes as below. (Initially, R/G/B gain and R/G/B offset values are fixed as below

Red Gain : 82, Green Gain : 80, Blue Gain : 86 Red Offset : 7D, Green Offset : 7E, Blue Offset : 80)

[PD61A]-VGA 42”, XGA 42”,50” Module Brightness : High Light : 80 ± 20cd/m2 Color-Coordinate : High Light : X : 0.285 ± 0.003

Y : 0.290 ± 0.003

Color Temperature : 9,300°K ± 500°K

9) When adjustment is completed, Exit adjustment mode using EXIT key on R/C.

10. Auto Component Color Balance

10-1. Requirement

- It is very import to use correct adjustment pattern like Fig.10.

V Within the pattern, color sequence should be aligned

: W-Y-C-G-M-R-BLUE-BLACK. (If color sequence is reversed(Black -> ... > White), reverse the pattern with REV key, when using Master pattern generator like MSPG-925)

V If Minimum Black Level and/or Maximum White Level is not

correct, select 100% Color Bar Pattern.

10-2. Required Test Equipment

1) Remote controller for adjustment.

2) 802F Pattern Generator. (Which has 720p Ypbpr output with Standard(0.7Vpp) Vertical 100% Color Bar Pattern as Fig.10)

10-3. Method of auto component color balance

1) Input the Component 720p 100% Color Bar signal into

Component1 or Component2.

2) Set the PSM to Standard mode in Picture menu.

3) Press INSTART key on R/C for adjustment.

4) Press the

G(Vol. +) key operate to set, then it becomes

automatically.

5) Auto-RGB OK means complete adjustment.

11. Auto RGB Color Balance

11-1. Requirement

- It is very import to use correct adjustment pattern like fig.11

V Within the pattern, color sequence should be aligned

: W-Y-C-G-M-R-BLUE-BLACK. (If color sequence is reversed(Black -> ... > White), reverse the pattern with REV key, when using Master pattern generator like MSPG-925)

V If Minimum Black Level and/or Maximum White Level is not

correct, Do select 100% Color Bar Pattern.

11-2. Required Test Equipment

1) Remote controller for adjustment.

2) 802F Pattern Generator, Master(MSPG-925FA), etc. (Which has XGA 60Hz PC Format output with standard (0.7Vpp) 100% Color Bar Pattern as Fig.11)

(Fig. 10) Auto Component Color Balance Test Pattern

(Fig. 9) Pattern for Adjustment of White Balance

216 Level (85 IRE)216 Level (85 IRE)

Type

Baud Rate

115200

Index

R Gain

G Gain

B Gain

R Offset

G Offset

B Offset

Data bit

8

Cmd1 Cmd2

ja

jb

jc

jd

je

jf

Stop bit

1

Parity

NONE

PD61A : 42PC1DV-EC

Protocol

Setting

Data Min Value

00(00)

Max Value

255(FF)

- 16 -

11-3. Method of Auto RGB Color Balance

1) Input the PC 1024x768 60Hz 100%Color bar into RGB.

2) Set the PSM to Standard mode in Picture menu.

3) Press ADJ key on R/C for adjustment.

4) Press the

G(Vol. +) key operate To set, then it becomes

automatically.

5) Auto-RGB OK means completed adjustment.

12. Default value in adjustment mode

12-1. Auto Color Balance (Component/RGB)

12-2. White Balance

13. EEPROM Data Write

13-1. Signal TABLE

CMD : A0h LENGTH : 85~94h (1~16 bytes) ADH : E2PROM Sub Address high (00~1F) ADL : E2PROM Sub Address low (00~FF) Data : Write data CS :

CMD + LENGTH + ADH + ADL + Data_1 + ... + Data_n

Delay : 20ms

13-2. Command Set

* Description

FOS Default write : <7mode data> write Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0, Phase Data write : Model Name and Serial Number write in EEPROM,.

13-3. Mathod & Notice

1) Serial nember D/L is using of scan equipment.

2) Setting of scan equipment operated by Manufacturing Technology Group.

3) Serial number D/L must be conformed when it is produced in production line, because serial number D/L is mandatory by D-book 4.0.

(Fig. 13) Default Value on OSD

(Fig. 12) Default Value on OSD

White Balance(Hex)

Red Gain 82

Red Offset 80 Green Gain 86 Green Offset 7F Blue Gain 7E Blue Offset 82 Reset G To Set

(Fig. 11) Auto RGB Color Balance Test Pattern

CMD

LENGTH

ADH ADL

DATA_1 DATA_N

... CS DELAY

No

1

EEPROM WRITE

A0h 84h+n n-byted Write

(n=1~16)

Adjust mode CMD(hex) LENGTH(hex) Description

- 17 -

TROUBLE SHOOTING GUIDE

1. Power Board

1-1. The whole flowchart which it follows in voltage output state

Start check

Manufacture enterprise

meaning of a passage

1. Check the Power Off condition.

Doesn't the

screen whole come

out?

Is it identical

with Power Off

condition?

Yes

No

2. Check the Interface signal condition.

Is the Interface

signal operated?

Yes

3. Check the St-by 5V signal circuit.

Doesn't the

low pressure output

come out?

Doesn't the

St-by 5V signal

come out?

Yes

No

4. Check the 5V Monitor signal circuit.

Doesn't the

5V Monitor signal

come out?

Yes

7. Check the VSC Vs-ON signal

Doesn't the

high tension output

come out?

Doesn't the

VSC signal Vs-ON

come out?

Yes

Does

high tension

output voltage Drop

occur?

When the

Y B/D Module

input connector is

removed, does output

voltage drop

occur?

When the

Y, Z B/D Module

input connector is remove,

does Power Board hightension

output voltage Drop

occur?

Yes No No

9. Check the Power Board Output high

tension circuit

Yes

10. Check the Z B/D

Module output circuit

Yes

When the

Z B/D Module

input connector is

removed, does output

voltage Drop

occurs?

11. Check the Y B/D

Module output circuit

Yes

No

8. Check the Vs, Va

voltage output circuit.

Doesn't the

Vs, Va voltage output

come out?

Yes

No

5. Check the VSC RL-ON signal.

Doesn't the

VSC signal RL-ON

come out?

Yes

6. Check the VSC low pressure output

Doesn't the

VSC low pressure

output come out?

Yes

- 18 -

1-2. 42” Power Board Structure

T801: Vs Trans

T901: Va Trans

T112: Low Voltage Trans

T501: ST-BY Trans

T601: PFC Inductor

- 19 -

2. In case of occurring strange screen into specific mode

2-1. In case the OSD does not displayed

(1) Symptom

1) LED is white.

2) The minute discharge continuously becomes accomplished from the module.

(2) Check follow

Is the LVDS cable

normal ?

Is the VSC Board

normal?

Is the LVDS cable

connected well?

Cable inserts well.

Yes

No

Yes

Does the FIL8532 IC

(IC800) Operates ?

Replace FIL8532 IC

(IC800).

No

Is the Ctrl Board of

Module normal?

Replace Ctrl B/D.

No

Yes

Replace VSC B/D

Replace the cable.

Yes

- 20 -

2-2. In case of does’t display the screen into specific mode

(1) Symptom

1) The screen does not become the display from specific input mode. (RF, AV, Component, RGB, DVI)

(2) Check following

1) Check the all input mode should become normality display

.

2) Check the Video(Main)/Data(Sub), Video(Main)/Video(Sub) should become

normality display from the PIP mode or DW mode. (Re-Check it Swap)

(3) In case of becomes unusual display from RF mode

(4) In the case of becomes unusual display from AV mode

(5) In the case of becomes unusual display from Component, RGB-DTV/ PC mode

(6) In the case of becomes unusual display from HDMI mode

Is the Tuner normal?

Is the CXA2069Q

normal?(IC300)

Is the Tuner Cable

connected well?

Cable inserts well.

Yes

No

Yes

Is the FIL8532(IC800)

normal?

Replace the Tuner.

No

Is the Input voltage, IIC Communication

and CVBS output normal?

Yes

Is the Input voltage, IIC

Communication and HV sync

normal?

No

Replace the IC.

No

Is normal the Input voltage, IIC Communication and HV sync?

No

Replace the IC.

No

Is the CXA2069Q

normal?

Yes

Is the FIL8532

normal?

Is the Input voltage, IIC

Communication and HV sync

normal?

No

Replace the IC.

No

Is the Input voltage, IIC

Communication and HV sync

normal?

No

Replace the IC.

No

Is the FIL8532

normal?

Is the Input voltage, IIC

Communication and HV sync

normal?

No

Replace the IC.

No

Is the Sil9011

normal?

Yes

Is the FIL8532

normal?

Is the Input voltage, IIC

Communication and HV sync

normal?

No

Replace the IC.

No

Is the Input voltage, IIC

Communication and HV sync

normal?

No

Replace the IC.

No

- 21 -

3. In case of no sound

(1) Symptom

1) LED is white.

2) Screen display but sound is not output.

(2) Check following

Is the SPK cable

normal?

Is the SPK cable

connected well?

Cable inserts well.

No

Is connected

the Flat cable correctly?

Cable inserts well.

No

Replace IC404.

Replace SPK cable.

Yes

Is the RF/ AV/

Component/ RGB/

HDMI sound normal?

No

Is the MSP4410K

(IC404) normal?

Replace IC403.

Yes

Is the NSP6241

(IC403) normal?

Replace IC405.

Yes

Is the TAS5122

(IC405) normal?

Replace IC800.

Yes

No No No

No

Is the FLI8532

(IC404) normal?

Replace

VSC B/D.

- 22 -

PRINTED CIRCUIT BOARD

MAIN(TOP)

- 23 -

MAIN(BOTTOM)

- 24 -

AV (TOP)

AV (BOTTOM)

- 25 -

CONTROL

PRE-AMP

SIDE A/V

- 26 -

BLOCK DIAGRAM

Comp

(DVD/DTV)

Rx0/1,Tx0/1

IR/TX

SCL/SDA

H/V(RGB)

SCL/SDA

Rx0/1/2/C•

ICL3232C

24LC02BT

74HC14D

24LC02BT

Hudson

( Sub CH.

Decoding /

2D Comb /

2D De-int. /

Scaling )

CXA2069Q

A/V Switch

Tuner

TU_Main

Sil9012

TMDS Rx

(HDCP)

RGB_PC/DTV

RGB H/V

Cortez

( Main CH.

Decoding /

3D Comb /

3D De-int. /

Scaling & FRC /

PIP Mux. /

GUI /

VSB Decoding /

Audio Delay /

CPU )

I

2

C

RS232_Rx/Tx_Cortez

Side-AV B D

AV

S-AV

YCin5

HY5DU281622E

DDRRAM (128MB X2)

AM29LV

F-ROM (2MB)

PC_Audio LR

SIF

AM_Audio

AVin5

MSP4410K

Audio SW &

Tone Control

NSP2100A

PWM Mod .

TAS5112

Digital Amp

LRCK/LRCH

SCK

R_SPK_out

AV_LR

PC_Audio LR

AM_Audio, SIF

I

2

S

Comp

Scart_RGB / FB

Comp_L/R

AVin2 (YC/CVBS/L/R/Scart_ID)

AVin4(CVBS/L/R)

YCin4

V or Y / C (Main)

L_CH

R_CH

DTV_LRout

LVDS_31P

/

Tx0/1/2/3/C•

Disp_En

SCL/SDA

V_out1

Y_in1

V or Y / C (Sub)

/

L_SPK_out

I

2

S

I

2

S

I

2

C

For DDC_RGB

For DDC_HDMI

I

2

C

RGB

(PC/DTV)

HDMI

(PC/DTV)

RS232

R/C OUT

Scart1

Scart2

DTV OUT

AV

S-AV

PC_Audio

TV_out (CVBS/L/R)

AVin1 (CVBS/L/R/Scart_ID)

DTV_out (CVBS/L/R)

CI SLOT

STi5100

Tuner

4M BYTE

FRESH

MEMORY

HY5DU561622D

DDRRAM (256MB)

T.S 7 , SYNC,CK,VALID

74LVC541

74LVC

541

74LVC

245

CVBS

27MHZ

CRYSTAL

YCbCr 656 Format _8bit

DIGITAL

ANALOG

/

Spliter

SN74

LVTH541

I

2

C

URAT_DATA_IN/OUT

IN

OUT

Wired-or 8bit

I

2

C

I

2

C

MNT_out (CVBS/L/R) ,SOUND MUTE

I

2

S (HDMI Sound) 3bit

TV_LRout

CVBS

SN74

LVTH541

/

I

2

S , 27M CLK _4bit

SPDIF OUT

SPDIF_out

SPDIF_out_A

/

HDMI_Data

24bit_A

H/V SYNC,CLK,DE 4bit

HDMI_Data

24bit_B

H/V SYNC,CLK,DE

4bit

EPF_R/L

RS232_Rx/Tx_Hud

74LCX157

RS232_Rx/Tx_STi

Comp

24bit_A

24bit_B

I

2

S (DTV Sound) 3bit

27M CLK

DTV_LRout

TV_LRout

Comp (Y/Pb/Pr)

Comp_L/R

L_CH

R_CH

Variable_L/R

74LCX157

SPDIF_out_B

SPDIF_out_A

R/C IN

74LVC541

MEMO

- 27 -

- 28 -

EXPLODED VIEW ( 42PC1D )

600

602

601

121

120

570

203

204

206

200

580

205

201

202

400

240

250

430

530

501

301

304

303

302

560

502

520

300

- 29 -

120 6400WMCX03A SPEAKER, WOOFER G1560102 MACOM WOOFER 8OHM 15/20W 82DB OTHERS 100HZ 193*57MM

121 6400DTTX02B SPEAKER, TWEETER EN15D-6659 TOPTONE TWEETER(DOME) 8OHM 15/20W 78DB OTHERS PC1 MODEL

200 6348Q-E128J PDP, 42” 1024*768 PDP42X30201.ADLGB

201 6871QCH077A PWB(PCB) ASSEMBLY, DISPLAY CTRL ASSY HAND INSERT 42”HD 42X3 CTRL ASSY HAND

202 6871QDH117A PWB(PCB) ASSEMBLY, DISPLAY YDRV ASSY HAND INSERT 42”HD 42X3 YDRV HAND INSERT

203 6871QLH059A PWB(PCB) ASSEMBLY, DISPLAY XRLT ASSY HAND INSERT 42”HD 42X3 XRLT ASSY HAND

204 6871QRH068A PWB(PCB) ASSEMBLY, DISPLAY XRRT ASSY HAND INSERT 42”HD 42X3 XRRT ASSY

205 6871QYH053B PWB(PCB) ASSEMBLY, DISPLAY YSUS ASSY HAND INSERT 42”HD 42X3 VER.B

206 6871QZH056B PWB(PCB) ASSEMBLY, DISPLAY ZSUS ASSY HAND INSERT 42”HD 42X3 VER.B

240 4980900109C SUPPORTER, ASSY AL 42PC1R-TA, VERTICAL RIGHT, C/SKD

250 4980900109D SUPPORTER, ASSY AL 42PC1R-TA, VERTICAL LEFT, C/SKD

300 30919E0024S CABINET ASSEMBLY, 42PC1D-EC BRAND 30909E0008 3211900003A C/SKD (U.K)

301 4980900113B SUPPORTER, ASSY AL FILTER TOP 42PC1R-TA C/SKD

302 4980900114B SUPPORTER, ASSY AL FILTER BOTTOM 42PC1R-TA C/SKD

303 4980900115B SUPPORTER, ASSY AL FILTER RIGHT 42PC1R-TA, C/SKD

304 4980900116B SUPPORTER, ASSY AL FILTER LEFT 42PC1-TA, C/SKD

400 3809900103R BACK COVER ASSEMBLY, 42PC1 NON LGEMA ASSY ONLY (DIGITAL)

430 3501900014C BOARD ASSEMBLY, D/T SPK STAND AP-42DC11 MF056A FOLDING STAND LGERS C/SKD

501 3301900095H PLATE ASSEMBLY, AV 3301900098A 3300900017H(PRESS) 42PC I-DTV

502 3301900092M PLATE ASSEMBLY, ASSY 42PC1D-EC DIGITAL COVER ASSY 2HDMI

520 68719MMU84A PWB(PCB) ASSEMBLY, MAIN MAIN1 M.I PD61A 42PC1D-EC AEKLLEX IDTV ENGLAND XGA MANUAL

530 68719SMJ93A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1D-FC AEKLLEX IDTV ENGLAND XGA MANUAL

560 68719SML96A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1DV-EC SEKLLJP CONTROL KEY

570 68719SMM33A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1D-EC SEKLLJP PREAMP

580 6709900019A POWER SUPPLY ASSEMBLY, 42INCH UNIFICATION PSU PDP LGIT PA61B 400W 42PB2D

600 68719SML94A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1DV-EC SEKLLJP SIDE A/V

601 4811900021C BRACKET ASSEMBLY, SIDE AV 42PC1R-ZH PP62A CORTEZ-A, EU

602 48149V0003A SHIELD, SIDE AV 42PC1R

EXPLODED VIEW PARTS LIST

No. Part No. Descriptions

The components identified by mark is critical for safety. Replace only with part number specified.

- 30 -

EXPLODED VIEW ( 42PC1DV )

600

602

601

121

120

570

203

204

206

200

580

205

201

202

400

240

250

430

530

501

301

304

303

302

560

502

520

300

- 31 -

120 6400WMCX03A SPEAKER, WOOFER G1560102 MACOM WOOFER 8OHM 15/20W 82DB OTHERS 100HZ 193*57MM

121 6400DTTX02B SPEAKER, TWEETER EN15D-6659 TOPTONE TWEETER(DOME) 8OHM 15/20W 78DB OTHERS PC1 MODEL

200 6348Q-E127T PDP, 42” 852*480 PDP42V80201.ADLGB

201 6871QCH074A PWB(PCB) ASSEMBLY, DISPLAY CTRL ASSY HAND INSERT 42” 42V8 4005 ASIC LVDS

202 6871QDH118A PWB(PCB) ASSEMBLY, DISPLAY YDRV ASSY HAND INSERT 42” 42V8 80PIN SCAN IC APLICATION

203 6871QLH057A PWB(PCB) ASSEMBLY, DISPLAY XRLT ASSY HAND INSERT 42” 42V8 XL 4004 ASIC LVDS

204 6871QRH067A PWB(PCB) ASSEMBLY, DISPLAY XRRT ASSY HAND INSERT 42” 42V8 XR 4004 ASIC LVDS

205 6871QYH048A PWB(PCB) ASSEMBLY, DISPLAY YSUS ASSY HAND INSERT 42” 42V8 Y SUS B/D

206 6871QZH053A PWB(PCB) ASSEMBLY, DISPLAY ZSUS ASSY HAND INSERT 42” 42V8

240 4980900109C SUPPORTER, ASSY AL 42PC1R-TA, VERTICAL RIGHT, C/SKD

250 4980900109D SUPPORTER, ASSY AL 42PC1R-TA, VERTICAL LEFT, C/SKD

300 30919E0006D CABINET ASSEMBLY, 42PC1DV-EC BRAND 30909E0001A C/SKD

301 4980900113B SUPPORTER, ASSY AL FILTER TOP 42PC1R-TA C/SKD

302 4980900114B SUPPORTER, ASSY AL FILTER BOTTOM 42PC1R-TA C/SKD

303 4980900115B SUPPORTER, ASSY AL FILTER RIGHT 42PC1R-TA, C/SKD

304 4980900116B SUPPORTER, ASSY AL FILTER LEFT 42PC1-TA, C/SKD

400 3809900103R BACK COVER ASSEMBLY, 42PC1 NON LGEMA ASSY ONLY (DIGITAL)

430 3501900014C BOARD ASSEMBLY, D/T SPK STAND AP-42DC11 MF056A FOLDING STAND LGERS C/SKD

501 3301900095H PLATE ASSEMBLY, AV 3301900098A 3300900017H(PRESS) 42PC I-DTV

502 3301900092B PLATE ASSEMBLY, ASSY . DIGITAL COVER ASSY (PD61A)

520 68719MMT48A PWB(PCB) ASSEMBLY, MAIN MAIN1 M.I PD61A 42PC1DV-EC AEKLLAX MANUAL

530 68719SMG90A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1DV-EC AEKLLAX JACK B/D MANUAL

560 68719SML96A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1DV-EC SEKLLJP CONTROL KEY

570 68719SML95A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1DV-EC SEKLLJP PREAMP

580 6709900019A POWER SUPPLY ASSEMBLY, 42INCH UNIFICATION PSU PDP LGIT PA61B 400W 42PB2D

600 68719SML94A PWB(PCB) ASSEMBLY, SUB SUB M.I PD61A 42PC1DV-EC SEKLLJP SIDE A/V

601 4811900021C BRACKET ASSEMBLY, SIDE AV 42PC1R-ZH PP62A CORTEZ-A, EU

602 48149V0003A SHIELD, SIDE AV 42PC1R

EXPLODED VIEW PARTS LIST

No. Part No. Descriptions

The components identified by mark is critical for safety. Replace only with part number specified.

STI5100GUB STM 336P,PBGA

MIC391002.5WS,LF MICREL 3P

BA033FPE2 ROHM 3PSOP,TO2523

KA7809R, FAIRCHILD 2P DPAK

SC156515M1.8TR SEMTECH 5P/TO2635

BA033FPE2 ROHM 3PSOP,TO2523

KIA7029AF SOT89 TP 2.9V VOLTAGE..

74LVC14APW PHILIPS 14PIN TSSOP

BA033FPE2 ROHM 3PSOP,TO2523

SC156515M1.8TR SEMTECH 5P/TO2635

KIA78R05F KEC 5PIN DPAK R/TP 1A,5V

MIC391002.5WS,LF MICREL 3P,SOT223

24LC02BTI/SNG(PB FREE) MICRO CHIP

CM202100TR CAMD TSSOP38

FLI8125BBLF GENESIS 208P/PQFP

KIA7042AF SOT89 TP 4.2V VOLTAGE DETECTOR

SC2595STR SEMTECH 8PIN SOIC8L(EDP)

HY5DU561622DTPD43,LF HYNIX 66PIN

MC34063ADR2G ON SEMI SO8P R/TP DCDC

TPS2010ADR TEXAS INSTRUMENT SOIC8 REEL

CM202100TR CAMD TSSOP38 REEL

24LC02BTI/SNG(PB FREE) MICRO CHIP

SIL9021CTU(PB FREE) SILICON IMAGE

CXA2069Q QFP64 BK I2C BUS AV S/W

74LVC541A(PW) PHILIPS 16P,TSSOP

LA7217M MFP14 TP SYNC SEPARATOR

74LCX244MTC FAIRCHILD 20P TSSOP

74LVC541A(PW) PHILIPS 16P,TSSOP

74LCX244MTC FAIRCHILD 20P TSSOP

TPS2011ADR TEXAS INSTRUMENT SOIC8

74LVC245APW PHILIPS 20 TSSOP

74LCX373MTC FAIRCHILD 20PIN TSSOP

24LC256I/SM 8P,SOP TP 256K IIC

74HC14D 14SOP TP SHITTER TRIGGER

NSP2100A,LF NEOFIDELITY TQFP 64P

ICL3232CBNZ INTERSIL 16P/SOP

MSP4410K MICRONAS 80P/PQFP

TC74LCX08FT 14P TSSOP TP QUAD

TAS5122DCARG4,LF TEXAS INSTRUMENT

74LVC32AD PHILIPS 14P SOT1081

74LVC14APW PHILIPS 14PIN TSSOP

24LC02BTI/SNG(PB FREE) MICRO CHIP

SC1565IST1.8 SEMTECH 3P SOT223

SC156515M1.8TR SEMTECH 5P/TO2635

SC1565IST2.5TR 2.5V 1.5A SEMTECH 3P

74HC14D 14SOP TP SHITTER TRIGGER

KIA78R05F KEC 5PIN DPAK R/TP 1A,5V LDO

KIA78R33F KEC 5PIN DPAK R/TP 1A,3.3V LDO

74LVC541A(PW) PHILIPS 16P,TSSOP

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

IC506

IC507

IC600

IC601

IC602

IC604

IC605

IC606

IC608

IC615

IC701

IC703

IC800

IC802

IC901

IC902

IC201

IC703

IC900

IC200

IC201

IC503

IC504

IC505

IC507

IC803

Q100

Q1000

Q1001

Q1003

Q1004

Q1006

Q1007

Q1008

Q101

Q102

Q103

Q104

Q105

Q106

Q107

Q1200

Q201

Q204

Q205

0ISTLPH003B

0ISTL00029A

0IPRP00009A

0IPMGKE032A

0ITO741570C

0IMCRFA010A

0IPMGKE030A

0IMMR00023A

0IMMR00004A

0IMCR02005A

0IMP242560A

0IMMRHY052C

692791090AC

692791120AC

692791147AA

692791151AC

692791091AC

692791121AC

0TR830009BA

0TR387500AA

0TF492509AA

0TR387500AA

0TR102009AM

0TR387500AA

0TR102009AM

0TR387500AA

0TR150400BA

0TR387500AA

74LVC541A(PW) PHILIPS 16P,TSSOP

MC33078DR2G,LF ON SEMI 8P,SOIC

ICL3232CBNZ INTERSIL 16P/SOP

KIA78R09F KEC 5PIN DPAK R/TP 1A,9V

TC74LCX157FT 16P,TSSOP TP QUAD 2CH

KA7809R, FAIRCHILD 2P DPAK

KIA78R05F KEC 5PIN DPAK R/TP 1A,5V LDO

24LC32ATI/SNG(PB FREE) MICRO CHIP

SST25VF040204CS2AET SST SOIC 8P

FLI8532BDLF GENESIS 416P/PBGA TRAY

24LC256I/SM 8P,SOP TP 256K IIC SERIAL

HY5DU281622ETP5,PB FREE HYNIX 66P

SOFT WARE, 1.05V ECD5 42PC1DV-EC

SOFT WARE, 3.00V 186E 42PC1D-EC

SOFT WARE, 1.05V . PDP 42PC1DV-EC

SOFT WARE, 2.04V 424C 42PC1D-EC

SOFT WARE, 2.03V E84D 42PC1DV-EC

SOFT WARE, 2.00V 42PC1D-EC

BSS83 TP PHILIPS NCHANNEL S/W TR

CHIP 2SC3875S(ALY) BK KEC

SI4925DY TP TEMIC 30V 6.1A SO8

CHIP 2SC3875S(ALY) BK KEC

KRA102S KEC REEL TAPING SOT23 50V 0.1A

CHIP 2SC3875S(ALY) BK KEC

KRA102S KEC REEL TAPING SOT23 50V 0.1A

CHIP 2SC3875S(ALY) BK KEC

CHIP 2SA1504S(ASY) BK KEC

CHIP 2SC3875S(ALY) BK KEC

LOCA. NO PART NO DESCRIPTION

IC100

IC1000

IC1001

IC1002

IC1003

IC1004

IC1005

IC101

IC102

IC1100

IC1102

IC1103

IC1105

IC1201

IC1204

IC1401

IC1403

IC200

IC202

IC203

IC2500

IC2501

IC2502

IC300

IC301

IC302

IC305

IC306

IC308

IC309

IC310

IC400

IC401

IC403

IC404

IC405

IC406

IC500

IC501

IC502

IC503

IC504

IC505

0IPRP00703A

0IPRPML001C

0IMCRRH001A

0IMCRFA010A

0IPMG00027A

0IMCRRH001A

0IKE702900G

0ISTLPH026A

0IMCRRH001A

0IPMG00027A

0IPMGKE030A

0IPRPML001C

0IMMR00018A

0IPRP00623A

0IMCR02006A

0IKE704200J

0IPMG78391A

0IMMRHY060B

0IPMGON013B

0IPRP00602A

0IPRP00623A

0IMMR00018A

0IPRPS5006A

0ISO206900A

0ISTLPH003B

0ISA721700C

0IMCRFA013A

0ISTLPH003B

0IMCRFA013A

0IPRP00602B

0ISTLPH048A

0ISTL00083A

0IMP242560A

0IPH741400E

0ILNR00015A

0IPRP00009A

0IMCRMN028B

0ITO740800C

0IMCRTI028C

0IMCRPH015A

0ISTLPH026A

0IMMR00018A

0IMCRSJ001A

0IPMG00027A

0IMCRSJ001B

0IPH741400E

0IPMGKE030A

0IPMGKE031A

0ISTLPH003B

IC

TRANSISTOR

- 32 -

- 33 -

LOCA. NO PART NO DESCRIPTION

Q206

Q207

Q2502

Q300

Q301

Q302

Q303

Q304

Q305

Q306

Q307

Q400

Q401

Q402

Q403

Q404

Q405

Q406

Q407

Q408

Q412

Q413

Q414

Q415

Q500

Q501

Q502

Q503

Q504

Q505

Q506

Q801

D100

D1000

D1005

D1006

D1007

D1008

D1009

D101

D1010

D1011

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR102009AM

0TR387500AA

0TR102009AM

0TR387500AA

0TR150400BA

0TR102009AM

0TR387500AA

0DS226009AA

0DD100009AM

0DS226009AA

0DD200009AF

CHIP 2SA1504S(ASY) BK KEC

CHIP 2SC3875S(ALY) BK KEC

CHIP 2SA1504S(ASY) BK KEC

CHIP 2SC3875S(ALY) BK KEC

CHIP 2SA1504S(ASY) BK KEC

CHIP 2SC3875S(ALY) BK KEC

CHIP 2SA1504S(ASY) BK KEC

CHIP 2SC3875S(ALY) BK KEC

KRA102S KEC REEL TAPING SOT23 50V 0.1A

CHIP 2SC3875S(ALY) BK KEC

KRA102S KEC REEL TAPING SOT23 50V 0.1A

CHIP 2SC3875S(ALY) BK KEC

CHIP 2SA1504S(ASY) BK KEC

KRA102S KEC REEL TAPING SOT23 50V 0.1A

CHIP 2SC3875S(ALY) BK KEC

KDS226 TP KEC 80V 4NSEC 0.5UA

EU1ZV(1) TP SANKEN E/EOTMD 200V

KDS226 TP KEC 80V 4NSEC 0.5UA

RU2M V(1) TP SANKEN RTMD 400V

LOCA. NO PART NO DESCRIPTION

D1012

D102

D103

D104

D109

D110

D1100

D1106

D1107

D111

D1110

D1200

D201

D2500

D300

D401

D500

D501

D502

D503

D504

D505

D506

D507

D508

D600

D601

D602

D607

ZD100

ZD101

ZD102

ZD301

ZD302

C100

C1000

C1001

C1002

C1003

C1004

C1005

C1006

C1007

C1008

C1009

C101

C1011

C1013

C1014

0DD200009AF

0DS226009AA

0DD184009AA

0DS113379BA

0DD184009AA

0DS226009AA

0DZRM00248A

0DS226009AA

0DR050008AA

0DZRM00178A

0DZ560009DA

0DZRM00178A

0DD100009AM

0DS226009AA

0DZRM00178A

0DR050008AA

0CE106WFKDC

0CE477WF6DC

0CK104CK56A

0CK474CH94A

0CK103CK56A

0CE477WF6DC

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE107WF6DC

0CK104CF56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

RU2M V(1) TP SANKEN RTMD 400V

KDS226 TP KEC 80V 4NSEC 0.5UA

KDS184 TP KEC 85V 300MA

1SS133 T72 TP ROHM KOREA DO34 90V

KDS184 TP KEC 85V 300MA

KDS226 TP KEC 80V 4NSEC 0.5UA

RLZ8.2BTE11 ROHM R/TP LLDS(LL34)

KDS226 TP KEC 80V 4NSEC 0.5UA

SD05.TC R/TP SEMTECH SOD323 5V 5A

UDZS TE17 5.1B ROHM R/TP SMD 0.2W

UDZ S 5.6B TP ROHMK SOD323 5.6V

UDZS TE17 5.1B ROHM R/TP SMD 0.2W

EU1ZV(1) TP SANKEN E/EOTMD 200V

KDS226 TP KEC 80V 4NSEC 0.5UA

UDZS TE17 5.1B ROHM R/TP SMD 0.2W

SD05.TC R/TP SEMTECH SOD323 5V 5A 15A

10UF MVK 16V 20%,20% SMD R/TP(SMD)

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.01UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

DIODE

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

CAPACITOR

- 34 -

LOCA. NO PART NO DESCRIPTION

C1015

C1017

C1018

C1019

C102

C1029

C103

C1030

C1035

C104

C1040

C1043

C1044

C1045

C1046

C1047

C1048

C1049

C105

C1050

C1051

C1052

C1053

C1054

C1055

C1056

C1057

C1058

C1059

C106

C1060

C1061

C1062

C1063

C1064

C1065

C1066

C1067

C1068

C1069

C107

C1070

C1071

C1072

C1073

C1074

C1075

C1076

C1077

0CE107WF6DC

0CK103CK56A

0CK104CK56A

0CE476WF6DC

0CK105CD56A

0CK104CK56A

0CE4763F618

0CK104CF56A

0CE476WF6DC

0CK104CK56A

0CE4763F618

0CK104CF56A

0CK103CK56A

0CE476WF6DC

0CK104CK56A

0CE477WF6DC

0CE476WF6DC

0CK104CK56A

0CE4763F618

0CK104CF56A

0CE477WF6DC

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CF56A

0CK103CK56A

0CE476WF6DC

0CK105CD56A

0CK104CK56A

0CE477WF6DC

0CK104CK56A

0CE477WF6DC

0CK104CK56A

100UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

1UF 1608 10V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

47UF SRE,SE 16V 20% FL TP 5

0.1UF 1608 16V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

47UF SRE,SE 16V 20% FL TP 5

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

47UF SRE,SE 16V 20% FL TP 5

0.1UF 1608 16V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

1UF 1608 10V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C1078

C1079

C108

C1080

C1081

C1082

C1083

C1084

C1085

C1086

C1087

C1088

C1089

C109

C1090

C1091

C1092

C1093

C1094

C1095

C1096

C1097

C1098

C1099

C110

C1100

C1101

C1102

C1103

C1104

C1105

C1106

C1107

C1108

C1109

C111

C1110

C1111

C1112

C1113

C1114

C1115

C1116

C112

C1125

C1126

C1129

C113

0CK103CK56A

0CE106WFKDC

0CK103CK56A

0CE476WF6DC

0CK104CK56A

0CE477WF6DC

0CK104CK56A

0CK103CK56A

0CK104CF56A

0CK104CK56A

0CK103CK56A

0CE476WF6DC

0CK102CK56A

0CK104CF56A

0CK104CK56A

0CK103CK56A

0CE476WF6DC

0CK104CK56A

0CK103CK56A

0CE107WF6DC

0CK104CK56A

0CE476WF6DC

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CF56A

0CE477WF6DC

0CK104CK56A

0CK103CK56A

0CE476WF6DC

0CK104CK56A

0CE476WF6DC

0CK102CK56A

0CK104CF56A

0CK104CK56A

0CE477WF6DC

0CK104CK56A

0CK103CK56A

0.01UF 1608 50V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 35 -

LOCA. NO PART NO DESCRIPTION

C113

C1130

C1133

C1134

C1137

C1138

C1139

C114

C1140

C1141

C1142

C1144

C1145

C1146

C1147

C1149

C115

C1150

C1151

C1152

C1155

C1157

C1159

C116

C1161

C1162

C1163

C1164

C1165

C1166

C1167

C1168

C1169

C117

C1170

C1171

C1172

C1173

C1174

C1175

C1176

C1177

C1178

C1179

C118

C1180

C1181

0CK104CF56A

0CK104CK56A

0CK103CK56A

0CE107WF6DC

0CK104CK56A

0CK102CK56A

0CK104CF56A

0CK104CK56A

0CK103CK56A

0CE107WF6DC

0CK103CK56A

0CK104CF56A

0CE107WF6DC

0CK104CK56A

0CK103CK56A

0CE476WF6DC

0CE106WFKDC

0CK102CK56A

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CK104CF56A

0CK104CK56A

0CK103CK56A

0CE106WH6DC

0CK104CF56A

0CK103CK56A

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

10UF MVK 16V 20%,20% SMD R/TP(SMD)

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C1182

C1183

C1184

C1185

C1186

C1187

C1188

C1189

C119

C1190

C1191

C1192

C1193

C1194

C1197

C1198

C1199

C120

C1200

C1201

C1202

C1203

C1204

C1205

C1206

C1207

C1208

C1209

C121

C1210

C1213

C1214

C1215

C1216

C1217

C1218

C1219

C122

C1220

C1221

C1222

C1223

C1224

C1225

C1226

C1227

C1228

C1229

C123

0CK103CK56A

0CE476WF6DC

0CE107WF6DC

0CE106WH6DC

0CK104CF56A

0CE107WF6DC

0CE477WF6DC

0CK104CK56A

0CK103CK56A

0CE107WF6DC

0CE106WH6DC

0CK104CF56A

0CE106WFKDC

0CK104CK56A

0CK102CK56A

0CK104CK56A

0CE106WH6DC

0CK104CF56A

0CK102CK56A

0CK104CK56A

0CK102CK56A

0CK104CF56A

0CK102CK56A

0CC180CK41A

0CK102CK56A

0CC180CK41A

0CK102CK56A

0CE106WFKDC

0CK103CK56A

0CK104CK56A

0CK104CF56A

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

100UF MVK 16V 20% R/TP(SMD) SMD

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

18PF 1608 50V 5% R/TP NP0

1000PF 1608 50V 0.1 R/TP X7R

18PF 1608 50V 5% R/TP NP0

1000PF 1608 50V 0.1 R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 36 -

LOCA. NO PART NO DESCRIPTION

C1230

C1231

C1232

C1233

C1234

C1235

C1236

C1237

C1238

C1239

C124

C1240

C1241

C1242

C1243

C1244

C1245

C1246

C1247

C125

C126

C127

C128

C129

C130

C131

C1310

C1311

C1313

C1314

C1317

C1318

C1319

C132

C133

C134

C135

C136

C137

C138

C139

C140

0CK105CD56A

0CK104CK56A

0CK102CK56A

0CK104CF56A

0CK102CK56A

0CE106WFKDC

0CK104CK56A

0CE476WF6DC

0CK104CF56A

0CE227SF6DC

0CK104CF56A

0CK103CK56A

0CK104CF56A

0CK102CK56A

0CK104CF56A

0CK103CK56A

0CK104CF56A

0CK102CK56A

0CK104CF56A

0CE106WH6DC

0CK104CF56A

0CE107WF6DC

0CK103CK56A

0CE107WF6DC

0CK104CK56A

0CK103CK56A

0CE107WF6DC

0CK104CK56A

0CE106WH6DC

0CK104CF56A

0CK103CK56A

0CK104CF56A

0CK103CK56A

0CK104CF56A

0CE226WF6DC

0CK104CF56A

1UF 1608 10V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

220UF MVG 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C1400

C1401

C1404

C1405

C1407

C1408

C1409

C141

C1411

C1412

C1417

C1418

C1419

C142

C143

C1430

C1431

C1432

C1433

C1434

C1435

C1439

C144

C1440

C1441

C1442

C145

C146

C147

C148

C149

C150

C1503

C1506

C1507

C1508

C1509

C151

0CK104CK56A

0CK103CK56A

0CK471CK56A

0CK104CK56A

0CK471CK56A

0CK103CK56A

0CK104CF56A

0CK103CK56A

0CK102CK56A

0CK104CK56A

0CK104CF56A

0CK104CK56A

0CK104CF56A

0CK104CK56A

0CE227WJ6DC

0CK104CK56A

0CE227WJ6DC

0CK104CK56A

0CE227WJ6DC

0CK104CK56A

0CE107WF6DC

0CE227WJ6DC

0CC331CK41A

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CF56A

0CC470CK41A

0CK104CK56A

0CC470CK41A

0CK104CK56A

0CC470CK41A

0CK104CK56A

0CK104CF56A

0CK104CK56A

0CK104CF56A

0CE227SF6DC

0CK104CF56A

0CE107WF6DC

0CE476WF6DC

0CK104CK56A

0CK104CF56A

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

470PF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

470PF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

220UF MVK/RC 35V 20% SMD TAPPING

0.1UF 1608 50V 10% R/TP X7R

220UF MVK/RC 35V 20% SMD TAPPING

0.1UF 1608 50V 10% R/TP X7R

220UF MVK/RC 35V 20% SMD TAPPING

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

220UF MVK/RC 35V 20% SMD TAPPING

330PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

220UF MVG 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 37 -

LOCA. NO PART NO DESCRIPTION

C1510

C1511

C1512

C1513

C1514

C152

C1521

C1523

C1525

C153

C154

C155

C156

C157

C158

C159

C160

C161

C162

C163

C164

C165

C166

C167

C168

C169

C170

C171

C172

C173

C174

C175

C176

C177

C178

C179

C18

C180

C1800

C1801

C1802

C1803

0CK103CK56A

0CE477WF6DC

0CK104CK56A

0CE476WF6DC

0CK103CK56A

0CE227SF6DC

0CK104CF56A

0CE107WF6DC

0CK103CK56A

0CK104CK56A

0CE227SF6DC

0CK104CF56A

0CC221CK41A

0CK104CF56A

0CC221CK41A

0CK104CF56A

0CC331CK41A

0CK104CF56A

0CC221CK41A

0CK104CF56A

0CC331CK41A

0CK104CF56A

0CK106EF56A

0CC100CK41A

0CC220CK41A

0CC101CK41A

0CK103CK56A

0CK104CF56A

0CK103CK56A

0CK104CF56A

0CE106WFKDC

0CC470CK41A

0CK105CD56A

0CK104CK56A

0.01UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

220UF MVG 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

220UF MVG 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

220PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

220PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

330PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

220PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

330PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

10PF 1608 50V 5% R/TP NP0

22PF 1608 50V 5% R/TP NP0

100PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

47PF 1608 50V 5% R/TP NP0

1UF 1608 10V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C1804

C1805

C1806

C1807

C1808

C1809

C181

C1810

C1813

C1814

C1815

C182

C183

C184

C185

C186

C187

C188

C189

C190

C191

C192

C193

C194

C195

C196

C197

C198

C199

C200

C201

C202

C203

C204

C205

C206

C207

C208

C209

C210

C211

0CK104CK56A

0CK104CF56A

0CK104CK56A

0CE227WF6DC

0CK104CK56A

0CK104CF56A

0CK103CK56A

0CK822CK46A

0CC220CK41A

0CC300CK41A

0CC100CK41A

0CC300CK41A

0CK475CC94A

0CK104CF56A

0CK103CK56A

0CC470CK41A

0CE477WF6DC

0CE475WK6DC

0CE477WF6DC

0CE227SF6DC

0CK103CK56A

0CE105WK6DC

0CK103CK56A

0CE477WF6DC

0CK103CK56A

0CC270CK41A

0CK103CK56A

0CC270CK41A

0CE107WF6DC

0CK104CF56A

0CC101CK41A

0CK104CF56A

0CK103CK56A

0CK106EF56A

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

8.2NF 1608 50V 5% X7R R/TP

22PF 1608 50V 5% R/TP NP0

30PF 1608 50V 5% R/TP NP0

10PF 1608 50V 5% R/TP NP0

30PF 1608 50V 5% R/TP NP0

4.7UF 1608 6.3V 80%,20% F(Y5V) R/TP

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

470UF MVK 16V 20% SMD R/TP(SMD)

4.7UF MVK,RC 50V 20% SMD TAPPING

470UF MVK 16V 20% SMD R/TP(SMD)

220UF MVG 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

1UF MVK 50V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.01UF 1608 50V 10% R/TP X7R

27PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

27PF 1608 50V 5% R/TP NP0

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

100PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 38 -

LOCA. NO PART NO DESCRIPTION

C212

C213

C214

C215

C216

C217

C218

C219

C220

C221

C222

C223

C224

C225

C226

C227

C228

C229

C230

C2500

C2501

C2502

C2503

C2504

C2505

C2506

C2507

C2508

C2509

C2510

C2511

C2512

C2513

0CE227SF6DC

0CK106EF56A

0CK103CK56A

0CK106EF56A

0CK103CK56A

0CK106EF56A

0CK103CK56A

0CK106EF56A

0CK153CK56A

0CE107WF6DC

0CK106EF56A

0CK104CK56A

0CK106EF56A

0CK104CK56A

0CK106EF56A

0CK104CK56A

0CK106EF56A

0CC271CK41A

0CK106EF56A

0CE476WK6DC

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CC271CK41A

0CK103CK56A

0CE476WF6DC

0CK103CK56A

0CE106WFKDC

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CE476WF6DC

0CK104CK56A

0CE477SF6DC

0CK102CK56A

0CK104CK56A

0CK102CK56A

0CK103CK56A

0CK102CK56A

0CK104CK56A

220UF MVG 16V 20% R/TP(SMD) SMD

10UF 3216 16V 10% X7R R/TP

0.01UF 1608 50V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

0.01UF 1608 50V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

0.01UF 1608 50V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

15000PF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

10UF 3216 16V 10% X7R R/TP

0.1UF 1608 50V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

0.1UF 1608 50V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

0.1UF 1608 50V 10% R/TP X7R

10UF 3216 16V 10% X7R R/TP

270PF 1608 50V 5% R/TP NP0

10UF 3216 16V 10% X7R R/TP

47UF MVK 50V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

270PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

470UF MVG 16V 20% R/TP(SMD) SMD

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C2514

C2515

C2516

C2517

C2518

C2519

C2520

C2521

C2522

C2523

C2524

C2525

C2526

C2527

C2528

C2529

C2530

C2531

C2532

C2533

C2534

C2535

C2536

C2537

C2538

C2539

C2540

C2541

C2542

C2543

C2544

C2545

C2546

C2547

C2548

C2549

C2550

C2551

C2552

C2553

C2554

C2555

C2556

C2557

C2558

C2559

C2560

C2561

C2562

C2563

C2564

C2565

0CK104CK56A

0CK102CK56A

0CK104CK56A

0CE106WFKDC

0CK102CK56A

0CK104CK56A

0CK103CK56A

0CK102CK56A

0CK104CK56A

0CK102CK56A

0CE106WFKDC

0CK102CK56A

0CE106WFKDC

0CK104CK56A

0CC180CK41A

0CK103CK56A

0CK102CK56A

0CK103CK56A

0CE106WFKDC

0CK102CK56A

0CK103CK56A

0CK102CK56A

0CK104CK56A

0CK102CK56A

0CK104CK56A

0CK102CK56A

0CK104CK56A

0CK103CK56A

0CE106WFKDC

0CK102CK56A

0CK104CK56A

0CK102CK56A

0CK103CK56A

0CE106WFKDC

0CK102CK56A

0CC180CK41A

0CK103CK56A

0CK104CK56A

0CK102CK56A

0CK104CK56A

0CK102CK56A

0CK103CK56A

0CK104CK56A

0CK102CK56A

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

1000PF 1608 50V 0.1 R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.1UF 1608 50V 10% R/TP X7R

18PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

1000PF 1608 50V 0.1 R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

10UF MVK 16V 20%,20% SMD R/TP(SMD)

1000PF 1608 50V 0.1 R/TP X7R

18PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 39 -

LOCA. NO PART NO DESCRIPTION

C2566

C2567

C2568

C2569

C2570

C2571

C2572

C2573

C2574

C2575

C2579

C290

C300

C301

C302

C303

C304

C305

C306

C307

C308

C309

C310

C311

C312

C313

C314

C315

C316

C317

C318

C319

C320

0CE476WF6DC

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CC101CK41A

0CK106EF56A

0CE227WF6DC

0CK103CK56A

0CK104CF56A

0CC470CK41A

0CE107WF6DC

0CK103CK56A

0CK104CF56A

0CC470CK41A

0CE226WF6DC

0CE107WF6DC

0CK104CF56A

0CC470CK41A

0CK104CF56A

0CC470CK41A

0CK104CF56A

0CE227WF6DC

0CE476WF6DC

0CK103CK56A

0CK104CF56A

0CE227WF6DC

0CK474CH94A

0CE227WF6DC

0CK104CF56A

0CK225DFK4A

0CK474CH94A

0CE227WF6DC

0CK104CF56A

0CK225DFK4A

0CK104CF56A

0CK225DFK4A

0CK104CF56A

0CK474CH94A

0CK104CF56A

0CK225DFK4A

0CK104CF56A

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

100PF 1608 50V 5% R/TP NP0

10UF 3216 16V 10% X7R R/TP

220UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

100UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

22UF MVK 16V 20% R/TP(SMD) SMD

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

47UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

220UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

220UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.1UF 1608 16V 10% R/TP X7R

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.1UF 1608 16V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.1UF 1608 16V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C320

C321

C322

C323

C324

C325

C326

C327

C328

C329

C330

C331

C332

C333

C334

C335

C336

C337

C338

C339

C341

C342

C343

C344

C345

C346

C347

C348

C349

C350

C351

C352

C353

C354

C355

C361

C363

C364

C373

C374

0CK474CH94A

0CK104CF56A

0CK474CH94A

0CK104CF56A

0CK474CH94A

0CK104CF56A

0CK474CH94A

0CK104CF56A

0CK225DFK4A

0CC101CK41A

0CK474CH94A

0CK225DFK4A

0CK104CF56A

0CK225DFK4A

0CK474CH94A

0CE226WF6DC

0CK474CH94A

0CK104CF56A

0CK474CH94A

0CK225DFK4A

0CK474CH94A

0CK225DFK4A

0CK474CH94A

0CE106WFKDC

0CK474CH94A

0CK104CF56A

0CK225DFK4A

0CK474CH94A

0CK104CF56A

0CK821CK56A

0CK563CK56A

0CE105WK6DC

0CK104CF56A

0CK223CK56A

0CK103CK56A

0CC151CK41A

0CK104CF56A

0CE476WF6DC

0CK104CF56A

0CE475WK6DC

0CK682CK51A

0CE475WK6DC

0CK682CK51A

0CC820CK41A

0CK104CF56A

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

100PF 1608 50V 5% R/TP NP0

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.1UF 1608 16V 10% R/TP X7R

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

22UF MVK 16V 20% R/TP(SMD) SMD

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

2.2UF 2012 16V 20%,20% F(Y5V) R/TP

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

820PF 1608 50V 10% R/TP X7R

56000PF 1608 50V 10% X7R R/TP

1UF MVK 50V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

22000PF 1608 50V 10% X7R R/TP

0.01UF 1608 50V 10% R/TP X7R

150PF 1608 50V 5% NP0 R/TP

0.1UF 1608 16V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

4.7UF MVK,RC 50V 20% SMD TAPPING

6800PF 1608 50V 10% R/TP B(Y5P)

4.7UF MVK,RC 50V 20% SMD TAPPING

6800PF 1608 50V 10% R/TP B(Y5P)

82PF 1608 50V 5% NP0 R/TP

0.1UF 1608 16V 10% R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 40 -

LOCA. NO PART NO DESCRIPTION

C375

C401

C402

C403

C404

C405

C406

C407

C408

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C419

C420

C421

C423

C424

C426

C427

C429

C431

C432

C433

C435

C436

C437

C440

C442

C443

0CK104CF56A

0CK104CK56A

0CC331CK41A

0CK103CK56A

0CC331CK41A

0CK104CK56A

0CC470CK41A

0CE476WF6DC

0CK104CF56A

0CK104CK56A

0CE226WF6DC

0CK104CF56A

0CK104CK56A

0CK104CF56A

0CK104CK56A

0CK104CF56A

0CK104CK56A

0CC560CK41A

0CK104CF56A

0CC560CK41A

0CK104CK56A

0CE107WF6DC

0CE335SK6DC

0CE106WFKDC

0CK474CH94A

0CK104CF56A

0CK474CH94A

0CE106WFKDC

0CK103CK56A

0CK104CF56A

0CK474CH94A

0CE226WF6DC

0CK474CH94A

0CK104CK56A

0CK474CH94A

0CK103CK56A

0CK102CK56A

0CK474CH94A

0CC101CK41A

0CE106WH6DC

0CK105DF64A

0CK104CK56A

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

330PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

330PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

47PF 1608 50V 5% R/TP NP0

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

56PF 1608 50V 5% R/TP NP0

0.1UF 1608 16V 10% R/TP X7R

56PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

3.3UF MVG 50V 20% SMD R/TP

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 16V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

10UF MVK 16V 20%,20% SMD R/TP(SMD)

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

22UF MVK 16V 20% R/TP(SMD) SMD

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.1UF 1608 50V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

0.01UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

100PF 1608 50V 5% R/TP NP0

10UF MVK 25V 20% R/TP(SMD) SMD

1UF 2012 16V 20% F(Y5V) R/TP

0.1UF 1608 50V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C444

C445

C446

C447

C448

C449

C450

C451

C452

C453

C454

C455

C456

C457

C458

C459

C460

C461

C462

C463

C464

C465

C466

C467

C468

C469

C470

C471

C473

C474

C475

C476

C477

C478

C479

C482

C483

C485

C486

C487

C488

C489

C490

C491

C492

C494

C495

C496

C497

C498

C499

C500

0CK103CK56A

0CK471CK56A

0CK104CK56A

0CE335WK6D8

0CE107WF6DC

0CK102CK56A

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE106WH6DC

0CK104CK56A

0CE106WH6DC

0CK104CK56A

0CK105DF64A

0CK682CK51A

0CK104CK56A

0CK102CK56A

0CK104CK56A

0CK105DF64A

0CE475WK6DC

0CK682CK51A

0CK104CK56A

0CK682CK51A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK333CK56A

0CK474CH94A

0CE475WK6DC

0CF4741L430

0CK104CK56A

0CK104CF56A

0.01UF 1608 50V 10% R/TP X7R

470PF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

3.3UF MVK,RC 50V 20% SMD TAPPING

100UF MVK 16V 20% R/TP(SMD) SMD

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

10UF MVK 25V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

1UF 2012 16V 20% F(Y5V) R/TP

6800PF 1608 50V 10% R/TP B(Y5P)

0.1UF 1608 50V 10% R/TP X7R

1000PF 1608 50V 0.1 R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

1UF 2012 16V 20% F(Y5V) R/TP

4.7UF MVK,RC 50V 20% SMD TAPPING

6800PF 1608 50V 10% R/TP B(Y5P)

0.1UF 1608 50V 10% R/TP X7R

6800PF 1608 50V 10% R/TP B(Y5P)

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

33000PF 1608 50V 10% R/TP X7R

0.47UF 1608 25V 80%,20% R/TP F(Y5V)

4.7UF MVK,RC 50V 20% SMD TAPPING

0.47UF D 63V 5% M/PE NI BULK

0.1UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 41 -

LOCA. NO PART NO DESCRIPTION

C501

C502

C503

C504

C505

C506

C507

C508

C509

C510

C511

C512

C513

C514

C515

C516

C517

C518

C519

C520

C521

C522

C523

C524

C525

C526

C527

C528

C529

C530

C531

C532

C533

C534

C535

C536

C537

C538

C539

C540

0CE477WF6DC

0CE226WF6DC

0CK103CK56A

0CK104CF56A

0CC120CK41A

0CK103CK56A

0CE107WF6DC

0CC120CK41A

0CK103CK56A

0CE477WF6DC

0CK104CF56A

0CK104CK56A

0CE476WF6DC

0CK104CF56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CE227WF6DC

0CK104CF56A

0CE477WF6DC

0CK104CF56A

0CE227WF6DC

0CK104CF56A

0CE227WF6DC

0CE477WF6DC

0CK104CF56A

0CE227WF6DC

0CE475WK6DC

0CK104CF56A

0CK682CK51A

0CK104CF56A

0CE227WF6DC

0CK682CK51A

0CE227WF6DC

0CK105CD56A

0CE226WF6DC

0CK104CF56A

0CE107WF6DC

470UF MVK 16V 20% SMD R/TP(SMD)

22UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 16V 10% R/TP X7R

12PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

12PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 16V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

470UF MVK 16V 20% SMD R/TP(SMD)

0.1UF 1608 16V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

4.7UF MVK,RC 50V 20% SMD TAPPING

0.1UF 1608 16V 10% R/TP X7R

6800PF 1608 50V 10% R/TP B(Y5P)

0.1UF 1608 16V 10% R/TP X7R

220UF MVK 16V 20% R/TP(SMD) SMD

6800PF 1608 50V 10% R/TP B(Y5P)

220UF MVK 16V 20% R/TP(SMD) SMD

1UF 1608 10V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

LOCA. NO PART NO DESCRIPTION

C540

C541

C542

C543

C544

C545

C546

C547

C600

C601

C602

C603

C604

C605

C606

C607

C608

C609

C610

C611

C612

C613

C614

C615

C616

C617

C618

C619

C620

C621

C622

C623

C624

0CE227WF6DC

0CK104CF56A

0CK105CD56A

0CE477WF6DC

0CK105CD56A

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE107VH6DC

0CK104CK56A

0CE227SF6DC

0CK104CK56A

0CE107WF6DC

0CE227SF6DC

0CK104CK56A

0CE107VH6DC

0CK104CK56A

0CE107WF6DC

0CE476WF6DC

0CK104CK56A

0CE476WF6DC

0CK104CK56A

0CE476WF6DC

0CK104CK56A

0CE476WF6DC

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CE107WF6DC

0CK103CK56A

220UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 16V 10% R/TP X7R

1UF 1608 10V 10% R/TP X7R

470UF MVK 16V 20% SMD R/TP(SMD)

1UF 1608 10V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MV 25V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

220UF MVG 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

220UF MVG 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MV 25V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

47UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 42 -

LOCA. NO PART NO DESCRIPTION

C625

C626

C627

C628

C629

C630

C631

C633

C634

C636

C637

C639

C641

C644

C645

C647

C650

C651

C652

C653

C655

C656

C658

C666

C667

C668

C681

C682

C700

C701

C703

C704

C705

C706

C708

C709

C710

C711

C713

C714

C715

C717

C721

C723

C724

C725

C727

C728

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CE107WF6DC

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CK103CK56A

0CC300CK41A

0CK103CK56A

0CE107WF6DC

0CK104CK56A

0CK103CK56A

0CE226WF6DC

0CK103CK56A

0CK104CK56A

0CC300CK41A

0CK104CK56A

0CC221CK41A

0CE226WF6DC

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

30PF 1608 50V 5% R/TP NP0

0.01UF 1608 50V 10% R/TP X7R

100UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

30PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

220PF 1608 50V 5% R/TP NP0

22UF MVK 16V 20% R/TP(SMD) SMD

LOCA. NO PART NO DESCRIPTION

C729

C730

C731

C732

C733

C734

C735

C736

C737

C738

C739

C740

C741

C742

C743

C744

C745

C746

C747

C748

C749

C750

C751

C752

C753

C754

C755

C756

C757

C758

C759

C760

C761

C762

C763

C764

C765

C766

C767

C768

C769

C770

C771

C772

C773

C774

C775

C776

C800

C803

C805

C810

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CC300CK41A

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

30PF 1608 50V 5% R/TP NP0

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 43 -

LOCA. NO PART NO DESCRIPTION

C811

C812

C813

C814

C815

C816

C817

C818

C819

C820

C821

C822

C823

C824

C825

C826

C828

C829

C830

C831

C832

C833

C834

C835

C836

C837

C838

C839

C840

C841

C842

C843

C844

C845

C846

C847

C848

C849

C850

C851

C852

C853

C854

C855

C856

C857

C858

C859

C860

C861

C862

C863

0CC300CK41A

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

30PF 1608 50V 5% R/TP NP0

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

C864

C865

C866

C867

C868

C869

C870

C871

C872

C873

C874

C875

C876

C877

C878

C879

C880

C881

C882

C883

C884

C885

C886

C887

C888

C889

C890

C891

C892

C893

C894

C895

C896

C897

C898

C899

C900

C901

C902

C903

C904

C905

C906

C907

C908

C909

C910

C911

C912

C913

C914

C915

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CK103CK56A

0CE226WF6DC

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 44 -

LOCA. NO PART NO DESCRIPTION

C916

C917

C918

C919

C920

C921

C922

C923

C924

C925

C926

C927

C928

C929

C930

C931

C932

C933

C934

C935

C936

C937

C938

C939

C940

C941

C942

C945

C946

C947

C948

C949

C950

C951

C99

R564

R565

L1000

L1124

L505

L506

L602

C1

C2

C3

C4

C5

C6

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CE226WF6DC

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CK103CK56A

0CK104CK56A

0CE226WF6DC

0CK104CK56A

0CE226WF6DC

0CK103CK56A

0CK105CD56A

6140VB0004B

6631900012K

6631900027C

6631900050C

6631900065B

6631900093A

6631900097A

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

0.01UF 1608 50V 10% R/TP X7R

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.1UF 1608 50V 10% R/TP X7R

22UF MVK 16V 20% R/TP(SMD) SMD

0.01UF 1608 50V 10% R/TP X7R

1UF 1608 10V 10% R/TP X7R

26UH 1UEWPHY 22.5TURN YL9N 0.4

10P 2.5MM 600MM HH UL1007AWG24

13P 2.5MM 200MM HH UL1007AWG24

10P 2.0MM 1200MM HH UL1185AWG26

12P 2.5MM 200MM HH UL1007AWG24

8P 1.25MM 100MM HH UL1061AWG28

3P 2.5MM 350/500MM HT UL1007AWG24

LOCA. NO PART NO DESCRIPTION

C7

C8

C9

C10

C11

C12

C13

C14

C15

C16

CN302

CN401

JK500

JK601

P501

P502

P503

R222

D1003

LD101

LED300

LED500

LED501

LED502

SW100

SW101

SW102

SW103

SW104

SW105

SW106

SW107

SW108

SW700

SW800

L100

L1001

L1002

L1003

L1004

L1005

L1006

L1008

6631900098A

6631900099A

6631900100A

6631900104C

6631900105A

6631T20033J

6631T39004D

6631V10008A

6631V12031F

6631V39013N

6630CE00168

6630G70017A

6630G70016A

6630G70017A

6630X60151A

0RD0331H609

0DL233309AC

0DLAU0410AA

0DL233309AC

6600VR1004A

140-313B

6600VR1004A

6210TCE001G

6210VC0006A

4P 2.5MM 350/500MM HT UL1007AWG24

3P 2.5MM 300MM HH UL1007AWG24 TWI

4P 2.5MM 1000MM HH UL1007AWG24

12P 2.0MM 300MM HH UL1185AWG26

12P 2.0MM 150MM HH UL1185AWG26

4P4P HH 300MM UL1061AWG26 TWI

9P9P HH 220MM UL1007AWG18 TWI

31P 1.0MM 50MM FF UL2896 FFC

4P 1.25MM 350MM HH UL1061 AWG28

8P 3.96MM 900MM HH UL1617AWG22

10003526150CALF FCI 68P 1.0MM 68POS

A020915101 SPG 9P 2.54MM RS232

A037071094 SPG 15P 2.29MM RGB

A020915101 SPG 9P 2.54MM RS232

10008HR31L YEONHO 31P 1.0MM FFC

RESISTOR,FIXED CARBON FILM3.3 OHM 1/2 W 5.00%

SAM2333 TP KWANG GREEN/RED GREEN

AUK SAW5670 BULK AMBER/WHITE LAMP

SAM2333 TP KWANG GREEN/RED GREEN

SKHMPW 5P CHIP TACT JALPS .V .A

TACT, , 2LEAD 160G(TA) LG C&D 5V 0.001A

TACT, 2LEAD 160G(TA) LG C&D 5V 0.001A

SKHMPW 5P CHIP TACT JALPS .V .A

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

COIL

CONNECTOR

RESISTOR

LED

FILTER & CRYSTAL

SWITCH

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

- 45 -

LOCA. NO PART NO DESCRIPTION

L101

L1010

L1011

L1012

L1013

L1014

L1015

L1016

L1017

L1018

L1019

L102

L1020

L1021

L1022

L1023

L1024

L1025

L1026

L1028

L104

L105

L106

L107

L109

L110

L1101

L1102

L1107

L1108

L1109

L111

L1110

L1111

L1112

L1113

L1115

L1116

L1117

L1118

L1119

L112

L1120

L1121

L1122

L1123

L1125

L1126

L1130

L1131

6210TCE001G

6210VC0006A

6210TCE001G

6210VC0006A

6210TCE001G

6210VC0006A

6210TCE001G

6210VC0006A

6210TCE001G

6210VC0006A

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

LOCA. NO PART NO DESCRIPTION

L1132

L1133

L1134

L1135

L116

L117

L1204

L1205

L1207

L1208

L1209

L122

L123

L124

L128

L129

L130

L131

L132

L1351

L1356

L1401

L200

L201

L202

L204

L208

L209

L210

L211

L212

L213

L215

L216

L217

L218

L231

L232

L2500

L2501

L2502

L2503

L2504

L2505

L300

L301

L302

L304

L401

L402

L403

6210VC0006A

6200JB8010L

6210VC0006A

6200JB8010L

6210VC0005A

6210VC0006A

6200JB8010L

6210VC0006A

6210TCE001G

6210VC0006A

6200JB8010L

6210TCE001G

6200J000013

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

MLB2012091000LN2 MAG LAYERS

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

MLB2012091000LN2 MAG LAYERS

BK2125 HS 750 2X1.25X0.85MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

MLB2012091000LN2 MAG LAYERS

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

MLB2012091000LN2 MAG LAYERS R/TP

HH1M3216501 CERATEC 3216MM R/TP

MLB3216110500PN2 MAG LAYERS R/TP

- 46 -

LOCA. NO PART NO DESCRIPTION

L403

L404

L405

L406

L407

L420

L421

L422

L423

L424

L425

L426

L500

L501

L502

L503

L504

L506

L507

L508

L509

L510

L511

L512

L513

L514

L516

L517

L601

L603

L604

L606

L607

L609

L610

L612

L616

L617

L618

L620

L623

L624

L898

L899

L901

L902

R1373

R1376

6210TCE001G

6200J000013

6210TCE001G

6210TCE001S

6210TCE001G

6210VC0006A

6210TCE001G

6200JB8010L

6210TCE001G

6200JB8010L

6210TCE001G

6210VC0006A

6210TCE001G

6210VC0006A

6210TCE0013

HH1M3216501 CERATEC 3216MM R/TP

MLB3216110500PN2 MAG LAYERS R/TP

HH1M3216501 CERATEC 3216MM R/TP

HU1M2012121 CERATECH 2012MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

MLB2012091000LN2 MAG LAYERS R/TP

HH1M3216501 CERATEC 3216MM R/TP

MLB2012091000LN2 MAG LAYERS R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

HH1M3216501 CERATEC 3216MM R/TP

FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP

CERATEC R/TP HB1M1608121J,120 OHM

LOCA. NO PART NO DESCRIPTION

R1379

T1002

X101

X1200

X2500

X300

X402

X700

X800

J1

J2

JK1

JK101

JK102

JK103

JK1200

JK2500

JK5

JK6

JK607

JK7

C17

CN302

CN500

P1

P100

P1001

P101

P1301

P1302

P1303

P1311

P201

P401

P402

P500

P601

P602

P603

P802

P803

CA1

CA2

6210TCE0013

6200JB8008S

6202TST001H

166-E02F

6202VDT002H

6212AB2015G

6612J10031B

6612J10034A

6612BBBHN4D

6612J10003V

6612M00010A

6612B00015B

6612F00099A

366-036B

6630VE01268

6602T25008L

6602T20009C

6630V90142A

6602T20009J

6602T12004G

6602T20009C

6602T20009L

6630VE00731

6602T20008J

6602T12004G

6602T25009C

6602T25009B

6602T25008M

6602T25009J

6602T20009L

6630VF00704

6630V90116A

6602T12007D

6850J00005C

6852TAZ007C

CERATEC R/TP HB1M1608121J,120 OHM

SCR470R500 NIIGATA R/TP SMD

CRYSTAL, SX1 SUNNY 27MHZ +/ 30 PPM

CERAMIC, CSBLA500KECZF09B0 CSB500F9

CRYSTAL, SX1 SUNNY 18.432000MHZ +/30 PPM

CRYSTAL, HC49/SM 19.6608MHZ +/ 30PPM

RCA, PPJ20901 PARK 5P RCA(GBRWR)

RCA, PMJ03003 PARK 6P BODY(YWR+SVHS,XWR)

DIN, TOTX177 TOSHIBA R/A, OPTICAL TX

RCA, PMJ605441 PARK ELEC. R/A,3P YL/WH/RD

SCART, PSC00301 PARK S/T,SCART,SH,LF

DIN, DC1R019WDH JAE 0.5MM,19PIN+2PIN,HDMI

PHONE, PEJ02401 PARK 7P 10MM WITH S/W

CONNECTOR (CIRC),WAFERSTAPLE

CONNECTOR (CIRC),WAFER9193131169

CONNECTOR (CIRC),WAFERSMW25012

CONNECTOR (CIRC),WAFERSMAW20004

CONNECTOR (CIRC),WAFERTPH254R14196A

CONNECTOR (CIRC),WAFERSMAW20010

CONNECTOR (CIRC),WAFER12505WS08A00

CONNECTOR (CIRC),WAFERSMAW20004

CONNECTOR (CIRC),WAFERSMAW20012

CONNECTOR (CIRC),WAFER10022HS31A02

CONNECTOR (CIRC),WAFERSMW20010

CONNECTOR (CIRC),WAFER12505WS08A00

WAFER, SMAW25004

CONNECTOR (CIRC),WAFERSMAW25003

WAFER, SMW25013

WAFER, SMAW25010

CONNECTOR (CIRC),WAFERSMAW20012

CONNECTOR (CIRC),WAFER12505WS04A00

CONNECTOR (CIRC),WAFERFIX30SSLHF

CONNECTOR (CIRC),WAFERGT12131PTD

CABLE,DVILVDS UL20276 AWG30 600MM

CABLE,COAXIALKCANS00044 RF CABLE 3C2V

MISCELLANEOUS

JACK

WAFER

- 47 -

LOCA. NO PART NO DESCRIPTION

CA3

JK606

TU201

TU300

A1

A2

A3

A4

A5

6852TAZ012X

68719SMJ52A

6700MF0012C

6700DF0002A

38289U0524B

6710V00151Y

6410TBW001B

4972V00178B

6852TAZ007C

CABLE,COAXIALCOAXIAL,LINK S/TS/T 3C 2V

PWB(PCB) ASSEMBLY,SUBSUB M.I PD61A SPDIF

TUNER, TAFMW103P LGIT MULTI

TUNER, TDFBG236P LGIT DVBT

MANUAL, USER PD61A

REMOTE CONTROLLER, AF05FD

POWER CORD, SP60+IS14 ISHENG

FIXER, WALL ASSY FOLDING STAND ONLY

CABLE,COAXIAL KCA-NS-0-0044 RF CABLE 3C2V

LOCA. NO PART NO DESCRIPTION

ACCESSORIES

The components identified by mark is critical for safety. Replace only with part number specified.

MAIN

Control

Pre-AMP

Feb., 2006

Printed in KoreaP/NO : 38289S0028A
