LG 42LP560H User Guide

Download

QUICK REFERENCE GUIDE

LED TV*

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

32LN549C 39LN549C 42LN549C 47LN549C

32LN549E 42LN549E 55LN549E

32LP560H 42LP560H 47LP560H

32LP360H 42LP360H

www.lg.comP/NO : MFL67694915 (1309-REV01)

IMPORTANT SAFETY INSTRUCTIONS

Short-circuit

Breaker

Power Supply

Short-circuit

Breaker

Power Supply

Short-circuit

Breaker

Power Supply

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT SAFETY INSTRUCTIONS

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

Read these instructions.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Keep these instructions. Heed all warnings. Follow all instructions.

Do not use this apparatus near water.



Clean only with a dry cloth.



Do not block any ventilation openings. Install in



accordance with the manufacturer’s instructions.

ENGLISH

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.

Do not install near any heat sources such as



radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized



or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet (Can differ by country).

Do not press strongly upon the panel with a hand or



a sharp object such as a nail, pencil or pen, or make a scratch on it.

IMPORTANT SAFETY INSTRUCTIONS

Short-circuit

Breaker

Power Supply

Short-circuit

Breaker

Power Supply

Protect the power cord from being walked on



or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the



manufacturer.

Use only with a cart, stand, tripod, bracket, or table



specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or



when unused for long periods of time.

CAUTION concerning the Power Cord



(Can differ by country): It is recommended that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

ENGLISH

Refer all servicing to qualified service personnel.



Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Do not stick metal objects or any other conductive



material into the power cord. Do not touch the end of the power cord while it is plugged in. Keep the packing anti-moisture material or vinyl



packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Warning



- To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

Do not expose to dripping or splashing and do not



place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

Grounding



(Except for devices which are not grounded.) Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Short-circuit

Breaker

As long as this unit is connected to the AC wall



Power Supply

outlet, it is not disconnected from the AC power source even if the unit is turned off. Do not attempt to modify this product in any way



without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.

Outdoor Antenna Grounding



(Can differ by country): If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National Electrical Code, ANSI/NFPA 70

Antenna Lead in Wire

Cleaning



When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzine.

Moving



Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

Ventilation



Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places. If you smell smoke or other odors coming from



the TV, unplug the power cord and contact an authorized service center. Keep the product away from direct sunlight.



Never touch this apparatus or antenna during a



thunder or lightning storm. When mounting a TV on the wall, make sure not



to install the TV by hanging the power and signal cables on the back of the TV. Do not allow an impact shock or any objects to fall



into the product, and do not drop anything onto the screen.

Disconnecting the Main Power



The power outlet used with this device must remain easily accessible. Store the accessories (battery, etc.) in a safe



location out of the reach of children. This apparatus use batteries. In your community



there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information. Do not dispose of batteries in a fire.



Do not short circuit, disassemble or allow the



batteries to overheat.

Ground Clamp

Electric Service

Equipment

Ground Clamp

NEC: National Electrical Code

Antenna Discharge Unit (NEC Section 810-20)

Grounding Conductor (NEC Section 810-21)

Power Service Grounding Electrode System (NEC Art 250, Part H)

Dot Defect



The Plasma or LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

Generated Sound



“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product. Take care not to touch the ventilation openings.



When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product. If the TV feels cold to the touch, there may be a



small “flicker” when it is turned on. This is normal, there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

Preventing “Image burn” or “Burn-in” on your TV screen

If a fixed image displays on the TV screen for a long



period of time, it will be imprinted and become a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the warranty. If the aspect ratio of the TV is set to 4:3 for a



long period of time, image burn may occur on the letterboxed area of the screen. Avoid displaying a fixed image on the TV screen for



a long period of time (2 or more hours for LCD, 1 or more hours for the Plasma TV) to prevent image burn.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit ‘www.lg.com’.

ENGLISH

LICENSES / OPEN SOURCE SOFTWARE NOTICE

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

“DivX Certified

, DivX Certified® and associated logos are trademarks of Rovi Corporation or its

“DivX subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274”

to play DivX® video up to HD 1080p, including premium content.”

device must be registered in order to

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit ‘http://opensource.lge.com’.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to ‘opensource@lge.com’. This offer is valid for three (3) years from the date on which you purchased the product.

TABLE OF CONTENTS

2 IMPORTANT SAFETY INSTRUCTIONS

6 LICENSES

6 OPEN SOURCE SOFTWARE NOTICE

7 TABLE OF CONTENTS

8 INSTALLATION PROCEDURE

8 ASSEMBLING AND PREPARING

8 Unpacking 10 Optional Extras (For LN549E series) 11 Parts and Buttons 12 Lifting and Moving the TV 13 Setting up the TV 13 - Attaching the Stand 14 - Mounting on a Table 16 - Mounting on a Wall 17 - Tidying Cables

18 MAKING CONNECTIONS

18 Connecting to an Antenna or Cable 19 HDMI Connection 20 DVI to HDMI Connection 21 RGB Connection 22 Connecting to an Audio System 22 - Digital Optical Audio Connection 22 Connecting a USB Device

23 REMOTE CONTROL

27 SPECIFICATIONS

29 CAUTION FOR USING EZSIGN

29 TROUBLESHOOTING

31 IR CODES

32 EXTERNAL CONTROL DEVICE SETUP

32 RS-232C Setup 32 Type of Connector;

D-Sub 9-Pin Male 33 RS-232C Configurations 34 Communication Parameters 34 Command Reference List 35 Transmission / Receiving Protocol

ENGLISH

NOTE

Image shown may differ from your TV.



Your TV’s OSD (On Screen Display) may differ



slightly from that shown in this manual. The available menus and options may differ from



the input source or product model that you are using. New features may be added to this TV in the



future.

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

INSTALLATION PROCEDURE

Open the package and make sure all the accessories are included.

Attach the stand to the TV set.

Connect an external device to the TV set.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the ldealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

ENGLISH

CAUTION

Do not use any unapproved items to ensure the safety and product life span.



Any damages or injuries by using unapproved items are not covered by the warranty.



Some models appear to have a thin film on the screen. It is actually part of the screen; do not remove it.



NOTE

The items supplied with your product may vary depending on the model.



Product specifications or contents of this manual may be changed without prior notice due to upgrade of product



functions. For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm



width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s



USB port.

*A 10 mm *B 18 mm

(For LN549C series) (For LN549E, LP560H, LP360H

series)

AV MODE

INPUT

ENERGY

SAVING

1 2 3

4 5 6

7 809

FLASHBK

LIST

MARK

FAV

P A G

CHVOL

MUTE

INFO

Q.MENU

ENTER

EXIT

BACK

L/R SELECT

FREEZE

RATIO

ASSEMBLING AND PREPARING

Remote Control, Batteries (AAA)

(See p. 23)

Stand Body, Stand Base

(See p. 13)

Cable Holder

(See p. 17)

(For LN549E series)

Remote Control, Batteries (AAA)

(See p. 25)

Stand Screws

7 EA, M4 x 14 (See p. 13)

Power Cord Holder and Screw

(See p. 17)

Quick Reference Guide

Desk-Mount Screw

(See p. 14)

ENGLISH

Power Cord

EzSign Editor CD

ASSEMBLING AND PREPARING

Optional Extras (For LN549E series)

Optional extras can be changed or modified for quality improvement without any notification. Contact your dealer for buying these items. These devices only work with certain models. The model name or design may be changed due to the manufacturer’s circumstances or policies.

AN-WF100

Wireless Dongle

ENGLISH

Parts and Buttons

ASSEMBLING AND PREPARING

For LN549E series

Wireless Dongle

USB IN

IN 3

Side Connection Panel

Screen

Speakers

Power Indicator Remote Control Sensor

ENGLISH

Buttons

/ DVI IN

OPTICA L

AUDIO OUT

RGB IN (PC)

RS-232C IN

(CONTROL & SERVICE)

AV IN

VIDEO

L/MONO

-AUDIO-

AUDIO IN (RGB DVI)

Button Description

/ ( / )

(OK )

(

SETTINGS

(

INPUT

)

( )

Scrolls through the saved channels.

Adjusts the volume level.

Selects the highlighted menu option or confirms an input.

Accesses the main menus, or saves your input and exits the menus.

Changes the input source.

Turns the power on or off.

L R

ANTENN A

CABLE

Rear Connection Panel

ASSEMBLING AND PREPARING

Lifting and Moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as this may



result in damage to the screen.

It is recommended to move the TV in the box or



packing material that the TV originally came in. Before moving or lifting the TV, disconnect the



power cord and all cables. When holding the TV, the screen should face away



from you to avoid damage.

Hold the top and bottom of the TV frame firmly.



Make sure not to hold the transparent part, speaker, or speaker grill area.

Use at least two people to move a large TV.



When transporting the TV by hand, hold the TV as



shown in the following illustration.

When transporting the TV, do not expose the TV to



jolts or excessive vibration.

When transporting the TV, keep the TV upright;



never turn the TV on its side or tilt towards the left

or right.

ENGLISH

ASSEMBLING AND PREPARING

Setting up the TV

You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other furniture.

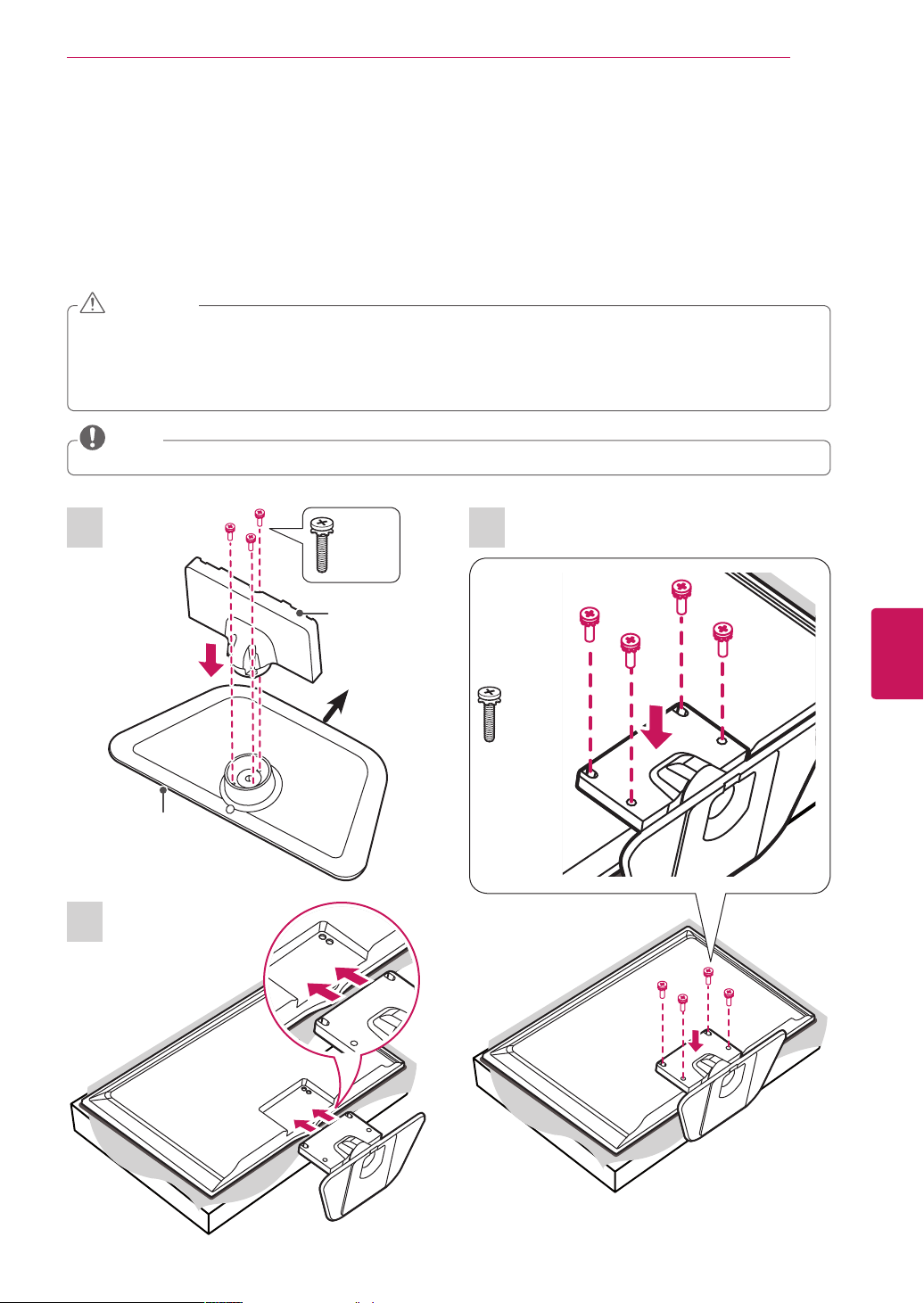

Attaching the Stand

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

CAUTION

When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to



protect the screen from scratches. Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward



after being installed.) Do not tighten the screws with too much force; otherwise they may be damaged and come loose later.



NOTE

Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.



1 3

Stand Base

3 EA M4 x 14

Stand Body

Front

ENGLISH

4 EA M4 x 14

ASSEMBLING AND PREPARING

Mounting on a Table

ENGLISH

Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

Connect the power cord to a wall outlet.

10 cm

CAUTION

Do not place the TV near or on sources of heat, as



this may result in fire or other damage.

Adjusting the angle of the TV to suit view

(For 32LN549C, 32LN549E, 32LP560H, 32LP360H)

Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view.

15˚15˚

(For 39/42/47LN549C, 42/55LN549E, 42/47LP560H, 42LP360H)

Swivel 90 degrees to the left or right and adjust the angle of the TV to suit your view.

Securing the TV to a table

Attach the TV to a table to prevent from tilting forward, damage, and potential injury. Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand.

WARNING

To prevent TV from falling over, the TV should be



securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

90˚90˚

CAUTION

When adjusting the angle of the TV, watch out for



your fingers.

- Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

ASSEMBLING AND PREPARING

Using the Kensington security system (optional)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

NOTE

The Kensington security system is optional. You



can obtain additional accessories from your local dealer.

Securing the TV to a wall (optional)

(Depending on model)

Insert and tighten the eye-bolts, or TV brackets and

bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eyebolts on the rear of the TV.

ENGLISH

Connect the eye-bolts and wall brackets tightly with

a sturdy rope or cable. Make sure to keep the rope parallel to the flat surface.

CAUTION

Make sure that children do not climb on or hang on



the TV.

NOTE

Use a platform or cabinet that is strong and large



enough to support the TV securely. Brackets, bolts, and ropes are optional. You can



obtain additional accessories from your local dealer.

ASSEMBLING AND PREPARING

Mounting on a Wall

An optional wall mount can be used with your LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount.

ENGLISH

Make sure to use screws and wall mounts that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

10 cm

CAUTION

Disconnect the power before moving or installing



the TV. Otherwise electric shock may occur. If you install the TV on a ceiling or slanted wall, it



may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. Do not over tighten the screws as this may cause



damage to the TV and void your warranty. Use the screws and wall mounts that meet the



VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

The wall mount bracket is optional. You can obtain



additional accessories from your local dealer. Use the screws that are listed in the VESA



standard screw specifications. The wall mount kit includes an installation manual



and necessary parts. The length of screws may differ depending upon



the wall mount. Make sure to use the proper length. For more information, refer to the manual supplied



with the wall mount.

Model 32LN549C

VESA (A x B)

Standard screw M4 M6

Number of screws 4 4

Wall mount bracket (optional)

Model 47LN549C

VESA (A x B)

Standard screw M6

Number of screws 4

Wall mount bracket (optional)

32LN549E 32LP560H 32LP360H

200 x 100 200 x 200

LSW130B

47LP560H 55LN549E

400 x 400

LSW430B

39LN549C 42LN549C 42LN549E 42LP560H 42LP360H

LSW230B

Tidying Cables

ASSEMBLING AND PREPARING

For 32/39/42LN549C, 32/42LN549E

32/42LP360H, 32/42LP560H

1 Install the power cord holder and cable cord. It will

help prevent the power cable from being removed by accident.

Power Cord Holder and Screw

2 Gather and bind the cables with the cable holder.

Cable Holder

For 47LN549C, 55LN549E, 47LP560H

1 Install the power cord holder and cable cord. It will

help prevent the power cable from being removed by accident.

Power Cord Holder and Screw

2 Gather and bind the cables with the cable holder.

Cable Holder

ENGLISH

Cable Holder

CAUTION

Do not move the TV by holding the cable holder



and power cord holder, as the cable holders may break, and injuries and damage to the TV may occur.

MAKING CONNECTIONS

ANTENNA

MAKING CONNECTIONS

You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device.

NOTE

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the



TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device. The external device connections shown may differ slightly from illustrations in this manual.



Connect external devices to the TV regardless of the order of the TV port.



If you connect a gaming device to the TV, use the cable supplied with the gaming device.



Refer to the external equipment’s manual for operating instructions.



It is recommended to use an HDMI connection for the best image quality.



Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.



In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise



is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. The synchronization input form for Horizontal and Vertical frequencies is separate.



Depending on the graphics card, some resolution settings may not allow the image to be positioned on the



screen properly.

ENGLISH

Connecting to an Antenna or Cable

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and a RF cable is optional.

VHF Antenna

UHF Antenna

Antenna

ANTENNA

Coaxial (75Ω)

(*Not Provided)

Terminal

CAUTION

Make sure not to bend the copper wire of the RF



cable.

Copper wire

Complete all connections between devices, and



then connect the power cord to the power outlet to prevent damage to your TV.

CABLE

Coaxial (75Ω)

(*Not Provided)

Wall Jack

NOTE

To improve the picture quality in a poor signal



area, please purchase a signal amplifier and install properly. Use a signal splitter to use more than 2 TVs.



If the antenna is not installed properly, contact your



dealer for assistance. DTV Audio Supported Codec: MPEG, Dolby Digital



MAKING CONNECTIONS

HDMI Connection

HDMI is the best way to connect a device.

Transmits digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown in the following illustration.

NOTE

Use the latest High Speed HDMI™ Cable that supports CEC (Customer Electronics Control) function.



High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.



HDMI Audio Supported Format: Dolby Digital, PCM (Up to 192 kHz, 32 kHz / 44.1 kHz / 48 kHz / 88 kHz /



96 kHz / 176 kHz / 192 kHz)

-> DTS is not supported.

Choose any HDMI input port to connect. It does not matter which port you use.

(*Not Provided)

IN 3

HDMI

/ DVI IN

Blu-Ray / HD Cable Box / HD STB / DVD / PC

ENGLISH

MAKING CONNECTIONS

DVI to HDMI Connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.

NOTE

When using the HDMI/DVI cable, Single link is only supported.



Choose any HDMI input port to connect. It does not matter which port you use.

ENGLISH

(*Not Provided)

/ DVI IN

AV IN

VIDE

L/MONO

-AUDIO-

AUDIO IN (RGB DVI)

'9,287

(*Not Provided)

L R

$8',2287

Blu-Ray / HD Cable Box / HD STB / DVD / PC

MAKING CONNECTIONS

RGB Connection

Transmits the video signal from PC to the TV. To transmit an audio signal, connect an audio cable.

AV IN

VIDE

L R

L/MONO

RGB IN (PC)

-AUDIO-

AUDIO IN (RGB DVI)

(*Not Provided)

RGB OUT (PC)

ENGLISH

(*Not Provided)

AUDIO OUT

MAKING CONNECTIONS

OPTICAL

AUDIO IN

OPTICAL

AUDIO OUT

Connecting to an Audio System

You can use an optional external audio system instead of the built-in speaker.

Digital Optical Audio Connection

Transmits the digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration.

ENGLISH

Connecting a USB Device

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV.

Digital Audio System

(*Not Provided)

USB

USB IN

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the

and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.



This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor.

For LN549C series

(POWER)

Turns the TV on or off.

Returns to the last TV channel.

CAPTION

Activates or deactivate the subtitles.

AV MODE

Selects an AV mode.

RATIO

Resizes an image.

INPUT

Changes the input source.

Q.VIEW

ENGLISH

GUIDE

Number button

Enters numbers.

- (Dash)

Inserts a dash between numbers such as 2-1 and 2-2.

LIST

Accesses the saved channel list.

Q.VIEW

Tunes to the last channel viewed.

VOL

Adjusts the volume level.

FAV

Accesses your favorite channel list.

GUIDE

Displays and removes the electronic program guide.

MUTE

Mutes all sounds.

Scrolls through the saved channels.

PAGE

Moves to the previous or next screen.

REMOTE CONTROL

ENGLISH

GUIDE

Q.VIEW


Changes the image mode.

INFO

Shows information on the current program.

SOUND

Changes the sound mode.

SETTINGS

Accesses the main menu.

Q.MENU

Accesses the quick menu.

Navigation buttons

Scrolls through menus or options.

Selects menus or options and confirms your input.

BACK

Returns to the previous screen.

EXIT

Clears all on-screen displays and returns to TV viewing.

Accesses the AV devices connected to the TV. Opens the SIMPLINK menu.

SLEEP

Sets the length of time until the TV to turns off.

Control buttons (

Controls SIMPLINK compatible devices (USB,SIMPLINK).

Color buttons

These access special functions in some menus.

(up/down/left/right)

, , , ,

: Red, : Green, : Yellow, : Blue)

(

)

CHVOL

1 2 3

4 5 6

7 809

P A G E

INPUT

PORTAL

FAV

MUTE

LIST

Q.VIEW

EXIT

SETTINGS

INFO

AV MODEENERGY

SAVING

GUIDE

Q.MENU

RATIO

For LN549E, LP560H, LP360H series

POWER

Turns the TV on or off.

ꕊ

ENERGY SAVING

Adjusts the Energy Saving settings.

AV MODE

Selects an AV mode.

INPUT

Rotates through inputs.

Returns to the last TV channel.

REMOTE CONTROL

Number button

Enters channel numbers or other numbers required.

- (Dash)

Inserts a dash between numbers such as 2-1 and 2-2.

LIST

Accesses the saved channel list.

Q.VIEW

Alternates between the two last channels selected (pressing repeatedly).

VOL

Adjusts the volume level.

FAV

Accesses your favorite channel list.

PORTAL

Displays and removes the interactive menu. (For LP560H, LP360H series) Displays the EzSign content on a TV screen. (For LN549E series)

MUTE

Mutes all sounds.

Scrolls through the saved channels.

PAGE

Moves to the previous or next screen.

ENGLISH

CHVOL

1 2 3

4 5 6

7 809

P A G E

INPUT

PORTAL

FAV

MUTE

LIST

Q.VIEW

EXIT

SETTINGS

INFO

AV MODEENERGY

SAVING

GUIDE

Q.MENU

RATIO

ENGLISH

REMOTE CONTROL

SETTINGS

Accesses the main menu.

GUIDE

Displays and removes the electronic program guide. (For LP560H, LP360H series) Shows Contents List in EzSign mode. (For LN549E series)

Q.MENU

Accesses the quick menu.

Navigation buttons

Scrolls through menus or options.

ꔉ

Selects menus or options and confirms your input.

ꕣ

Returns to the previous level.

INFO

Views the information of the current program and screen. (For LP560H, LP360H series) Shows or hides the information on TV remote control buttons in EzSign mode. (For LN549E series)

ꕯ

EXIT

Clears all on-screen displays and returns to TV viewing.

Color buttons

These access special functions in some menus.

VCR/DVD/USB control buttons

Controls video cassette recorders or DVD players or USB. Not functional when EzSign contents is on..

(up/down/left/right)

( : Red, : Green, : Yellow, : Blue)

, , , ,

(

)

Accesses the AV devices connected to the TV; Opens the SIMPLINK menu.

RATIO

Resizes an image.

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

Power requirement AC 100 - 240 V ~ 50 / 60 Hz

Television System NTSC, PAL-M/N, SBTVD

Program Coverage VHF 2-13, UHF 14-69, CATV 1-135

External Antenna Impedance 75

Environment condition

Operating Temperature 0 - 40 °C

Operating Humidity Less than 80 %

Storage Temperature -20 - 60 °C

Storage Humidity Less than 85 %

SPECIFICATIONS

MODELS

Dimensions (W x H x D)

Weight

Current Value / Power consumption 1.3 A / 80 W

Dimensions (W x H x D)

Weight

Current Value / Power consumption 1.5 A / 100 W

Dimensions (W x H x D)

Weight

Current Value / Power consumption 1.6 A / 110 W

With stand 738 x 497 x 207 (mm)

Without stand 738 x 449 x 79 (mm)

With stand 7.0 kg

Without stand 6.4 kg

MODELS

With stand 894 x 587 x 236 (mm)

Without stand 894 x 537 x 79 (mm)

With stand 9.7 kg

Without stand 8.6 kg

MODELS

With stand 968 x 629 x 236 (mm)

Without stand 968 x 579 x 79 (mm)

With stand 10.7 kg

Without stand 9.6 kg

32LN549C

(32LN549C-SA)

42LN549C

(42LN549C-SA)

32LN549E

(32LN549E-SA)

(39LN549C-SA)

42LN549E

(42LN549E-SA)

(32LP560H-SA)

39LN549C

(42LP560H-SA)

32LP560H

42LP560H

32LP360H

(32LP360H-SA)

ENGLISH

42LP360H

(42LP360H-SA)

SPECIFICATIONS

ENGLISH

MODELS

Dimensions (W x H x D)

Weight

Current Value / Power consumption 1.3 A / 130 W

Dimensions (W x H x D)

Weight

Current Value / Power consumption 1.6 A / 160 W

With stand 1,080 x 694 x 264 (mm)

Without stand 1,080 x 642 x 80.5 (mm)

With stand 14.7 kg

Without stand 13.4 kg

MODELS

With stand 1,250 x 790 x 297 (mm)

Without stand 1,250 x 737 x 79.1 (mm)

With stand 21.3 kg

Without stand 19.1 kg

47LN549C

(47LN549C-SA)

55LN549E

(55LN549E-SA)

47LP560H

(47LP560H-SA)

HDMI (DTV) supported mode

Resolution

720 x 480p

1280 x 720p

1920 x 1080i

1920 x 1080p

Horizontal

Frequency (kHz)

31.47 59.94

31.50 60.00

44.96 59.94

45.00 60.00

33.72 59.94

33.75 60.00

26.97 23.976

27.00 24.00

33.71 29.97

33.75 30.00

67.432 59.94

67.50 60.00

Vertical Frequency

(Hz)

RGB (PC), HDMI (PC) supported mode

Resolution

720 x 400 31.46 70.08

640 x 480 31.46 59.94

800 x 600 37.87 60.31

1024 x 768 48.36 60.00

1360 x 768 47.71 60.01

1280 x 1024 63.98 60.02

1920 x 1080 67.50 60.00

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

CAUTION FOR USING EzSign / TROUBLESHOOTING

CAUTION FOR USING EzSign

For LN549E series

Do not remove a USB drive while data is being copied. It can corrupt the data and EzSign may not work properly.



While loading a USB device or dongle, your TV may function slower than normal.



Some user-created subtitles may not work properly.



Some special characters are not supported in subtitles.



HTML tags are not supported in subtitles.



Subtitles in languages other than the supported languages are not available.



EzSign TV function does not work before completing the initial setup Wizard. Make sure to complete the initial setup



Wizard by turning on the TV after installation. If the time is set according to the TV signal, it may not appeared exactly for some region. In that case, set the time



manually. It is recommended that you copy files to the TV memory before playing them, as playing directly from the USB



memory for an extended period of time may cause the device to overheat. In EzSign TV mode, some remote control keys may not work.



EzSign TV dose not support the USB HUB. It is recommended that you connect a USB device directly to the TV



without using a USB extension cable as it may not work properly. It is recommended that you use EzSign TV within 8 hours per day as it is standard.



Refer to the EzSign Editor user guide for details.



EzSign TV does not support Store Demo.



Supported external subtitle format:*.smi/*.srt/*.sub(MicroDVD, Subviewer 1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.



psb(PowerDivX) Do not update the EzSign content via wireless networking and a USB drive at the same time. And do not play content



from a USB drive while updating EzSign content via wireless networking.

ENGLISH

TROUBLESHOOTING

The software version can be updated for improvement in performance. Customer needs to ensure the compatibility of customer’s equipment with LGE software. If needed, please consult with LGE and upload revised software version according to the guidance provided by LGE.

General

Problem Solution

Cannot control the TV with the remote control.

No image display and no sound is produced.

Image appears slowly when the TV turns on.

Cannot connect external devices. The TV turns off suddenly.

Check the remote control sensor on the product and try again.



Check if there is any obstacle between the product and the remote control.



Check if the batteries are still working and properly installed (



Check if the product is turned on.



Check if the power cord is connected to a wall outlet.



Check if there is a problem in the wall outlet by connecting other products.



The image is muted during the product startup process. This is normal. If the image does not



appear in a few minutes, unplug the TV for 30 seconds and try again. If the image still does not appear, contact the authorized service center in your local area.

Refer to the



Check the power control settings. The power supply may be interrupted.



Check if the Auto sleep feature is activated in the Time settings.



Refer to the

Connection Overview

Sleep Timer

and connect an external device.

to , to ).

ENGLISH

TROUBLESHOOTING

Audio

Problem Solution

No sound is produced while images are displaying.

No output from one of the speakers Unusual sound from inside the TV is

produced.

Video

Problem Solution

An image displays in black and white or the color quality is poor.

Horizontal or vertical bars appears or images blur

Lines or streaks appear on images Afterimages (ghosts) appear when the

product turns off The power is on but the screen appears

extremely dark.

appears on the screen.

No Signal

Black spots appear on the screen.

The display offset is wrong.

Thin lines appear in the background of the screen.

The reception on some channels is poor

Press



Check if the sound is muted by pressing



Scroll to other channels. There may a problem with the broadcast.



Check if the TV Speaker feature is activated in the menu option.



Adjust Balance in the menu option.



A change in ambient humidity or temperature may result in an unusual noise when the



product turns on or off. There is no problem with your product.

Adjust the color setting in the menu option.



Keep a sufficient distance between this product and other electronic products.



Scroll to other channels. There may a problem with the broadcast.



Check if there are local interferences such as an electrical appliance or power tool.



Check the antenna or aim the antenna to the proper direction.



Pixels may have been damaged from a fixed image displayed for a long time (image burn).



Use a screen saver to prevent the pixel damage on the screen. Adjust the brightness and contrast in the menu option.



Check if the signal cable is connected between the TV and products properly.



Check the selected input source by pressing



Several pixels in red, green, white, or black may appear on the screen that can attribute to



the characteristics of the panel. This is normal.



Adjust the position setting in the Picture menu.



Check if the video card resolution and frequency are supported by the product. If the



frequency is out of range, set to the recommended resolution using the display settings on the external device.

Check the video cable connections.



Scroll to other channels. There may a problem with the broadcast.



The station signal may be weak. Aim the antenna to the proper direction.



Check if there is local interferences such as an electrical appliance or power tool.



VOL +

or - button.

MUTE

INPUT

IR CODES

(Depending on model)

IR CODES

Code

(Hexa)

30 AV MODE Remote control Button

0B INPUT

0F TV Remote control Button

10-19 Number Key 0-9 Remote control Button

4C - (DASH) / LIST Remote control Button

1A Q.VIEW Remote control Button

02 VOL

03 VOL

1E FAV Remote control Button

09 MUTE Remote control Button

43 SETTINGS Remote control Button

45 Q.MENU Remote control Button

AA INFO

5B EXIT

44 OK

72 RED

71 GREEN

63 YELLOW

61 BLUE

0C PORTAL Remote control Button

(POWER)

ꕣ or

ꕯ

ꕗ

►

ꕘ

►►

◄◄

RATIO

PICTURE Remote control Button

SOUND Remote control Button

SLEEP Remote control Button

GUIDE Remote control Button

CAPTION Remote control Button

ꕊ

ENERGY SAVING

Function Note

Remote control Button (Power On/Off)

Remote control Button

PAGE

Remote control Button

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/ V control system) to control the product’s functions externally.

Connect the serial port of the control device to the RS232C jack on the product back panel.

ENGLISH

RS-232C IN

(CONTROL & SERVICE)

NOTE

RS-232C on this unit is intended to be used with



third party RS-232C control hardware and software. The instructions below are provided to help with programming software or to test functionality using telenet software. RS-232C connection cables are not supplied with the product..

Type of Connector; D-Sub 9-Pin Male

1 5

6 9

RS-232C IN

(CONTROL & SERVICE)

No. Pin name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

EXTERNAL CONTROL DEVICE SETUP

RS-232C Configurations

7-Wire Configuration (Serial female-female NULL modem cable)

PC TV

RXD

TXD

GND

DTR

DSR

RTS

CTS

3-Wire Configurations(Not standard)

RXD

TXD

GND

DTR

DSR

RTS

CTS

2 3

3 2

5 5

4 6

6 4

7 8

8 7

D-Sub 9 D-Sub 9

PC TV

2 3

3 2

5 5

4 6

6 4

7 8

8 7

D-Sub 9 D-Sub 9

TXD

RXD

GND

DSR

DTR

CTS

RTS

TXD

RXD

GND

DSR

DTR

CTS

RTS

Set ID

Set ID number.

EXIT

ꔂ Move ꔉ OK

ꔉ

OPTION

Set ID

OPTION

• Language

• Caption : Off

• Standby Light : On

• My Media Setting

• Initial Setting

• Set ID : 1

• Mode Setting : Home Use

Press

SETTINGS

to access the main menus.

2 Press the Navigation buttons to scroll to

and press OK.

3 Press the Navigation buttons to scroll to

press OK.

4 Scroll left or right to select a set ID number and

select

. The adjustment range is 1-99.

5 When you are finished, press

*Real data mapping 0 : Step 0

…

A : Step 10 (SET ID 10)

… F : Step 15 (SET ID 15) 10 : Step 16 (SET ID 16)

… 63 : Step 99 (SET ID 99) 64 : Step 100

and

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Communication Parameters

Command Reference List

ENGLISH

Baud rate: 9600 bps (UART)



Data length: 8 bits



Parity : None



Stop bit: 1 bit



COMMAND1 COMMAND2

01. Power k a 00 - 01 14. Treble k r 00 - 64

02. Input Select x b (See p. 36) 15. Bass k s 00 - 64

03. Aspect Ratio

04. Screen Mute

05. Volume Mute

06. Volume Control

07. Contrast k g 00 - 64

08. Brightness k h 00 - 64

09. Color k i 00 - 64 23. Key m c (See p. 38)

10. Tint k j 00 - 64 24. Backlight m g 00 - 64

11. Sharpness k k 00 - 64

12. OSD Select k l 00 - 01

13. Remote Control Lock Mode

k c (See p. 36) 16. Balance k t 00 - 64

k d 00 - 01

k e 00 - 01

k f 00 - 64

k m 00 - 01

DATA

(Hexadecimal)

Communication code: ASCII code



Use a null modem cable.



COMMAND1 COMMAND2

17. 3D (For 3D TV)

18. Color Temperature

19. Extended 3D (For 3D TV)

20. Auto Configuration

22. Channel Add/Del

x t (See p. 37)

x u 00 - 64

x v (See p. 37)

j u (See p. 38)

m b 00 - 01

DATA

(Hexadecimal)

21. Channel Tuning

COMMAND1 COMMAND2

m a

DATA00

(Hexadecimal)

physical program high

DATA01

(Hexadecimal)

major program low

DATA02

(Hexadecimal)

major low minor high minor low attribute

DATA03

(Hexadecimal)

DATA04

(Hexadecimal)

DATA05

(Hexadecimal)

EXTERNAL CONTROL DEVICE SETUP

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the set.(j, k, m or x) [Command 2] : Second command to control the set. [Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is 1~ 99. When selecting Set ID 0, every connected the set is controlled. Set ID is indicated as decimal (1~ 99) on menu and as Hexa decimal (0x0~ 0x63) on transmission /receiving protocol. [DATA] : To transmit the command data. Transmit the FF data to read status of command. [Cr] : Carriage Return ASCII code [ ] : ASCII code * In this model, set will not send the status during the standby mode.

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

0x0D

space (0x20)

The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer. * In this model, set will not send the status during the standby mode. * Data Format [Command 2] : Use as command. [Set ID] : Use the small character, if set ID is 10, it will send the 0, a. [DATA] : Use the small character, if data is 0 x ab, it will send the a, b. [OK] : Use the large character.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors. Data01: Illegal Code Data02: Not supported function Data03: Wait more time * In this model, set will not send the status during the standby mode. * Data Format [Command 2] : Use as command. [Set ID] : Use the small character, if set ID is 10, it will send the 0, a. [DATA] : Use the small character, if data is 0 x ab, it will send the a, b. [NG] : Use the large character

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

01. Power (Command: k a)

To control Power On/Off of the set.

Data 00: Power Off Data 01: Power On

02. Input Select (Command: x b)

To select input source for set.

Data 00: DTV (Antenna) Data 01: DTV (Cable) Data 10: Analog (Antenna) Data 11: Analog (Cable) Data 20: AV or AV1 Data 21: AV2 Data 40: Component or Component1 Data 41: Component2 Data 60: RGB-PC Data 90: HDMI1 Data 91: HDMI2 Data 92: HDMI3

ENGLISH

03. Aspect Ratio (Command: k c)

To adjust the screen format.

Data 01: 4:3 Data: 09: Just scan Data 02: 16:9 Data: 10: Cinema Zoom 1 Data 04: Zoom Data 06: Set by program Data 1F: Cinema Zoom16

04. Screen Mute (Command: k d)

To select screen mute on/off.

Data 00: Data 01: Screen mute on (Picture off) Data 10: Video-out Mute on

05. Volume Mute (Command: k e)

To control volume mute on/off. You can also adjust mute using the MUTE button on remote control.

Data 00: Volume mute on (Volume off) Data 01: Volume mute off (Volume on)

Transmission [k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]

* In a like manner, if other functions transmit ‘FF’

data based on this format, Acknowledgement data feedback presents status about each function.

* Note: In this model, set will send the Acknowledge

after power on processing completion.

There might be a time delay between command and

acknowledge.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

* Use the feature depending upon your model.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

…

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Screen mute off (Picture on), Video-out Mute off

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of Video-out Mute on only,

Screen Display (OSD). But, in case of screen mute on, TV will not display On Screen Display (OSD).

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

TV will display On

06. Volume Control (Command: k f)

To adjust volume. You can also adjust volume with the volume buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to

07. Contrast (Command: k g)

To adjust screen contrast. You can also adjust contrast in the PICTURE menu.

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

08. Brightness (Command: k h)

To adjust screen brightness. You can also adjust brightness in the PICTURE menu.

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to

09. Color (Command: k i)

To adjust screen color. You can also adjust color in the PICTURE menu.

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to

10. Tint (Command: k j)

To adjust screen tint. You can also adjust tint in the PICTURE menu.

Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal code) *Refer to

11. Sharpness (Command: k k)

To adjust screen sharpness. You can also adjust sharpness in the PICTURE menu.

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to

Real data mapping

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][g][ ][Set ID][ ][Data][Cr]

*Refer to

Real data mapping

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Real data mapping

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Real data mapping

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Real data mapping

Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Real data mapping

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

EXTERNAL CONTROL DEVICE SETUP

12. OSD Select (Command: k l)

To select OSD (On Screen Display) on/off.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD off Data 01: OSD on

Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]

13. Remote Control Lock Mode (Command: k m)

To lock the remote control and the front panel controls on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off Data 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you’re not using the remote control and front panel controls on the Monitor set, use this mode. When main power is on/off, remote control lock is released. If Key Lock is on in the standby mode, TV will not turn on by POWER button of remote control and on the TV.

14. Treble (Command: k r)

To adjust treble. You can also adjust treble in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to

15. Bass (Command: k s)

To adjust bass. You can also adjust bass in the AUDIO menu.

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

16. Balance (Command: k t)

To adjust balance. You can also adjust balance in the AUDIO menu.

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to

17. 3D (Command: x t) (For 3D TV)

Real data mapping

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Real data mapping

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Real data mapping

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

To change 3D mode for TV. Transmission [x][t][ ][Set ID][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][Cr] Data01

00: 3D On 01: 3D Off 02: 3D to 2D 03: 2D to 3D Data02 00: Top and Bottom 01: Side by Side 02: Check Board 03: Frame Sequential Data03 00: Right to Left 01: Left to Right

Data04 3D Depth: Min : 00 ~ Max : 14 (*transmit by Hexadecimal code)

*If data01 is 00(3D On), data04 has no meaning. *If data01 is 01(3D Off) or 02(3D to 2D), data02, data03 and data04 have no meaning. *If data1 is 03(2D to 3D), data2 has no meaning.

Data 01 Data 02 Data 03 Data 04 00 o o x 01 x x x 02 x x x 03 x o o

x : Don’t care

Acknowledgement [t][ ][OK][Data01][Data02] [Data03][Data04][x][t][ ][NG][Data01][x]

18. Color Temperature (Command: x u)

To adjust color temperature. Yo u can also a djust color tempe ratur e in t he PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal

code) *Refer to

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

19. Extended 3D (Command: x v) (For 3D TV)

To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data01][ ][Data02][Cr] Data01: 3D option 00: 3D Picture Correction 01: 3D Depth (2D to 3D Only) 02: 3D Viewpoint 03: 3D Picture Size 04: 3D Picture Balance 05: 3D Optimization

Data02: It has own range for each 3D option determined by Data1.

1) When Data1 is 00 00: Right to Left 01: Left to Right

2) When Data1 is 01, 02 Data Min: 00 ~ Max: 14 (*transmit by Hexadecimal code)

3) When Data1 is 03 00: Just Scan 01: 16:9

4) When Data1 is 04 00: Off 01: On

5) When Data1 is 05 Data Min: 00 ~ Max: 02 (*transmit by Hexadecimal code)

Acknowledgement [v][ ][OK][Data01][Data02][x] [v][ ][NG][Data01][x]

* Use the feature depending upon your model.

Real data mapping

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

20. Auto Configuration (Command: j u)

To adjust picture position and minimize image shaking automatically. Auto configuration only works in RGB-PC mode.

Data 01: To set

21. Channel Tuning (Command: m a)

To tune channel to following physical/major/minor number.

Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the subchannel. Since the ATSC tuner automatically maps the channel to the Major number, the Physical number is not required when sending a command. Data 00: Physical Channel Number NTSC air: 02~45, NTSC cable: 01, 0E~7D ATSC air: 01~45, ATSC cable: 01~87 Data 01 & 02: Major Channel Number Data 01: High byte Data 02: Low byte

ENGLISH

Two byte s are avai lable for the Major and Minor, normally only the second byte is used. Data 03 & 04: Minor Channel Number Not needed for NTSC. The table above lists the binary code which must be converted to Hexadecimal before sending. For example: The binary code to tune the sub source to an NTSC cable channel is Data 05: Attribute

Transmission [ j ][u][ ][Set ID][ ][Data][Cr]

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01] [ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

1000 0001

* 7th bit : For which source do you want to change

the channel.

* 6th bit: Use a two part or one part channel. Most

cases just use 0 since it’s ignored when using NTSC.

* 5th bit: Use 0 with NTSC since it can only use

the physical channel number. Normally use 1 for ATSC since most times it doesn’t matter what the

physical number is. * 4th bit: Set to 0. * 3-0 bits: Choose signal type.

, which translates to 81 in Hex.

22. Channel Add/Del (Command: m b)

To add and delete the channels.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00: Channel Delete Data 01: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

23. Key (Command: m c)

To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key Code - See p. 34

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

When TV is in the standby mode, TV will turn on by POWER button of remote control only.

24. Backlight (Command: m g)

To adjust screen backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:00 ~ Max:64 (*transmit by Hexadecimal code) *Refer to

Real data mapping

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

* Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35. Data 00 = Physical of 35 = 23 Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00 Data 05 = 0000 0001 in binary = 01 Total = ma 00 23 00 00 00 00 01

2. Tune to the digital (ATSC) local channel 30-3. Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Minor is 3 = 00 03 Data 05 = 0010 0010 in binary = 22 Total = ma 00 00 00 1E 00 03 22

* Use the feature depending on your model.

* Table List (Channel Tuning)

EXTERNAL CONTROL DEVICE SETUP

Main/Sub


0 Main 0 Two 0 Use x 0 0 0 0 NTSC Air

1 Sub 1 One 1 No Use x 0 0 0 1 NTSC Cable

Two/One

Part

Channel

Using Physical Channel

Reserved

x 0 0 1 0 ATSC Air

x 0 0 1 1 ATSC Cable_std

x 0 1 0 0 ATSC Cable_hrc

x 0 1 0 1 ATSC Cable_irc

x 0 1 1 0 ATSC cable_auto

x 0 1 1 1 Reserved

x x x x x ...

x 1 1 1 1 Reserved

3 2 1 0 Step

ENGLISH

The model and serial numbers of the TV are located on the back and one side of the TV. Record it below should you ever need service.

MODEL

SERIAL

LG 42LP560H User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
