LG 42LN549C Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LB3AC

MODEL : 42LN549C 42LN549C-TA

42LP360H 42LP360H-TA

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67715808 (1306-REV01)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION ............................................................. 10

TROUBLE SHOOTING GUIDE ............................................................... 15

BLOCK DIAGRAM ................................................................................. 20

EXPLODED VIEW .................................................................................. 21

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of th e cir cuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

Always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exp ose d metallic par t. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau­tions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharg­ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.

4. Use only an anti-static type solder removal device. Some sol­der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec­trically shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate­rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir­cuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropri­ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remain­ing on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when­ever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. Carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LB3AC
chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

ea ch drawing and s pe cificatio n b y p art number in
accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC

4. Model General Specification

No. Item Specication Remarks

1 Market

2. Broadcasting system

3 Channel Storage ATV - 135 EA, DTV - 1000 EA

4 Receiving system

5 Video(Composite) Input PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60

6 RGB Input(1EA) RGB-PC Analog(D-SUB 15PIN)

7 Component Input Y/Cb/Cr, Y/Pb/Pr Spec out

8 HDMI Input

9 Audio Input (1EA)

10 SDPIF out SPDIF out

11 USB For My Media(Movie/Photo/Music List) and SVC

12 External Speaker Max 1W @ 8 ohm Stereo SE output

Asia, Oceania, Africa, Middle East
(PAL/DVB Market)

1) PAL/SECAM-B/G/D/K

2) PAL-I

3) NTSC-M

4) DVB-T

Analog : Upper Heterodyne
Digital : COFDM(DVB-T)

HDMI1-DTV/DVI
HDMI2-DTV/DV
HDMI3-DTV/DVI

RGB/DVI Audio
AV

Only Analog for A-ASIA

PAL

► DVB-T

- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

Common Port in AV & PC input.

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. External Input Support Format

5.1. Component (Y, PB, PR) Speck out

No. Resolution H-freq(kHz) V-freq(Hz) Proposed

1. 720×480 15.73 60.00 SDTV, DVD 480i

2. 720×480 15.63 59.94 SDTV, DVD 480i

3. 720×480 31.47 59.94 480p

4. 720×480 31.50 60.00 480p

5. 720×576 15.625 50.00 SDTV, DVD 625 Line

6. 720×576 31.25 50.00 HDTV 576p

7. 1280×720 45.00 50.00 HDTV 720p

8. 1280×720 44.96 59.94 HDTV 720p

9. 1280×720 45.00 60.00 HDTV 720p

10. 1920×1080 31.25 50.00 HDTV 1080i

11. 1920×1080 33.75 60.00 HDTV 1080i

12. 1920×1080 33.72 59.94 HDTV 1080i

13. 1920×1080 56.250 50 HDTV 1080p

14. 1920×1080 67.5 60 HDTV 1080p

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.2. HDMI Input(PC/DTV)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

DTV

1 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P

2 720*576 31.25 50 54 SDTV 576P

3 1280*720 37.500 50 74.25 HDTV 720P

4 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P

5 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I

6 1920*1080 28.125 50.00 74.25 HDTV 1080I

7 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P

8 1920*1080 33.716/33.75 29.976/30.00 74.25 HDTV 1080P

9 1920*1080 56.250 50 148.5 HDTV 1080P

10 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P

PC

1 640*350 @70Hz 31.468 70.09 25.17 EGA

2 720*400 @70Hz 31.469 70.08 28.321 DOS

3 640*480 @60Hz 31.469 59.940 25.175 VESA(VGA)

4 800*600 @60Hz 37.879 60.31 40.000 VESA(SVGA)

5 1024*768 @60Hz 48.363 60.00 65.000 VESA(XGA)

6 1152*864 @60Hz 54.348 60.053 80.002 VESA

7 1280*1024 @60Hz 63.981 60.020 108 VESA(SXGA)

8 1360*768 @60Hz 47.712 60.015 85.5 VESA(WXGA)

9 1920*1080 @60Hz 67.5 60.0 148.5

WUXGA
(Reduced blanking)

FHD only(Support

to HDMI-PC)

FHD only(Support

to HDMI-PC)

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with
LB3AC chassis.

2. Designation

(1) Th e ad justm ent is accord ing to the order whic h is

designated and which must be followed, according to the

plan which can be changed only on agreeing.
(2) Power adjustment : Free Voltage.
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard.
(5) Reserve after operation : Above 5 Minutes (Heat Run)
Temperature : at 25 °C ± 5 °C
Relative humidity : 65 ± 10 %
Input voltage : 220 V, 60 Hz
(6) Adju stment equ ipments: Color Ana lyzer (CA-210 or

CA-110), DDC Adjustment Jig, Service remote control.
(7) Push the "IN STOP" key - For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot
automatically.

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push
“In-stop” key at rst.

2. Push “Power on” key for turning it on.

→ If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

(4) Click "Connect" tab. If "Can't" is displayed, check connection

between computer, jig, and set.

(2)

(3)

Please Check the Speed :
To use speed between
from 200KHz to 400KHz

(5) Click "Auto" tab and set as below.
(6) Click "Run".
(7) After downloading, check "OK" message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

3. Main PCB check process

▪ APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program "Mstar ISP Utility" and then click

"Config" tab.

(2) Set as below, and then click "Auto Detect" and check "OK"

message.
If "Error" is displayed, check connection between computer,
jig, and set.

(3) Click "Read" tab, and then load download file(XXXX.bin)

by clicking "Read".

(1)

filexxx.bin

* USB DOWNLOAD

(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low,
it didn't work. But your downloaded version is High, USB
data is automatically detecting.

(3) Show the message "Copying files from memory".

(4) Updating is starting.

(5) Updating Completed, The TV will restart automatically.
(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn’t have a DTV/
ATV test on production line.

* After downloading, have to adjust Tool Option again.

(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)

3.1. ADC Process

(1) ADC

- Enter Service Mode by pushing "ADJ" key,

- Enter Internal ADC mode by pushing "►" key at "8. ADC
Calibration".

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Commercial Tool Option

7. Country Group

8. Area Option

9. ADC Calibration ►

10. White Balance

11. 10 Point WB

12. Test Pattern

13. EDID D/L

14. Sub B/C

15. Ext. Input Adjust

ADC RGB

ADC Calibration

Start

Reset

NG

<Caution> Using "P-ONLY" key of the Adjustment remote

control, power on TV.

If there is no Component Input, disappear “ADC Comp” message.

* ADC Calibration Protocol (RS232)

NO Item CMD 1 CMD 2 Data 0
Enter Adjust
MODE

ADC adjust ADC Adjust A D 1 0

Adjust
‘Mode In’

A A 0 0

When transfer the ‘Mode In’,
Carry the command.
Automatically adjustment
(The use of a internal pattern)

Adjust Sequence
▪ aa 00 00 [Enter Adjust Mode]
▪ xb 00 40 [Component1 Input (480i)]
▪ ad 00 10 [Adjust 480i Comp1]
▪ xb 00 60 [RGB Input (1024*768)]
▪ ad 00 10 [Adjust 1024*768 RGB]
▪ aa 00 90 End Adjust mode
* Required equipment : Adjustment remote control.

3.2. Function Check

3.2.1. Check display and sound

■ Check Input and Signal items. (cf. work instructions)

1. TV

2. AV

3. COMPONENT (480i)

4. RGB (PC : 1024 x 768 @ 60hz)

5. HDMI

6. PC Audio In
* Display and Sound check is executed by Remote controller

Caution : Not to push the INSTOP key after completion if the

function inspection.

4. Total Assembly line process

4.1. Adjustment Preparation

▪ W/B Equipment condition

CA210
: CCFL/EEFL -> CH9, Test signal: Inner pattern(80IRE)
LED -> CH14, Test signal: Inner pattern(80IRE)

▪ Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

Mode Temp Coordinate spec

Cool 13,000 K

Medium 9,300 K

Warm 6,500 K

▪ Edge LED W/B Table in process of aging time (Only LGD

Edge LED Module except AUO, CMI, IPS Module)
CA210 : CH 14, Test signal : Inner pattern (80IRE)
Normal line

Aging time

GP4

(Min)

1 0-2 281 287 295 310 320 342

2 3-5 280 285 294 308 319 340

3 6-9 278 284 292 307 317 339

4 10-19 276 281 290 304 315 336

5 20-35 275 277 289 300 314 332

6 36-49 274 274 288 297 313 329

7 50-79 273 272 287 295 312 327

8 80-119 272 271 286 294 311 326

9 Over 120 271 270 285 293 310 325

X y x y x y

271 270 285 293 313 329

* Check the Table Data and the Spec after H/R

Aging chamber

Aging time

GP4

(Min)

1 0-5 280 285 294 308 319 340

2 6-10 276 280 290 303 315 335

3 11-20 272 275 286 298 311 330

4 21-30 269 272 283 295 308 327

5 31-40 267 268 281 291 306 323

6 41-50 266 265 280 288 305 320

7 51-80 265 263 279 286 304 318

8 81-119 264 261 278 284 303 316

9 Over 120 264 260 278 283 303 315

X y x y x y

271 270 285 293 313 329

* Check the Table Data and the Spec after H/R

X=0.270 (±0.002)
Y=0.271 (±0.002)

X=0.285 (±0.002)
Y=0.293 (±0.002)

X=0.310 (±0.002)
Y=0.325 (±0.002)

Cool Medium Warm

Cool Medium Warm

<Test Signal>
Inner pattern
(204gray,
80IRE)

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

* Connecting picture of the measuring instrument

(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER ON →
Enter the mode of White-Balance, the pattern will come out.

Full White Pattern

RS-232C Communication

CA-210

COLOR
ANALYZER
TYPE : CA-210

* Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10 lux).

(2) Adhere closely the Color analyzer(CA210) to the module

less than 10 cm distance, keep it with the surface of the
Module and Color analyzer's prove vertically.(80° ~ 100°).

(3) Aging time

- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.

- Using 'no signal' or 'POWER ONLY' or the others, check

the back light on.

▪ Auto adjustment Map(using RS-232C to USB cable)

RS-232C COMMAND
[CMD ID DATA]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End

RS-232C COMMAND
[CMD ID DATA]

MIN

Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128

<Caution>

Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.(When R/G/B Gain are all
C0, it is the FULL Dynamic Range of Module)

CENTER

(DEFAULT)

MAX

* Manual W/B process using adjust Remote control.

▪ After enter Service Mode by pushing "ADJ" key,
▪ Enter White Balance by pushing "►" key at "9. White

Balance".

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Commercial Tool Option

7. Country Group

8. Area Option

9. ADC Calibration

10. White Balance ►

11. 10 Point WB

12. Test Pattern

13 EDID D/L

14. Sub B/C

15. Ext. Input Adjust

16. SPK Lipsync Adjust

17. SPDIF Lipsync Adjust

■ For manual adjustment, it is also possible by the following
sequence.

(1) Set TV in Adj. mode using “P-ONLY” key on remote

controller and then operate heat run longer than 15
minutes.(If not executed this step, the condition for W/B

may be different.)
(2) Push “Exit” key.
(3) Enter White Balance mode by pushing the ADJ key and

select “9. White Balance” When KEY (►) is pressed, 206

Gray internal pattern will be displayed.
(4) Zero Calibrate the probe of Color Analyzer, then place it

on the center of LCD module within 10cm of the surface
(5) Select each items (Red/Green/Blue Gain) using ▲/▼(CH

+/-) key on R/C..
(6) Adjust R/ G/ B Gain using ◄/►(VOL +/-) key on R/C.
(7) Adjust three modes all (Cool / Medium / Warm)

- For All model w/o LS345
Fix the one of R/G/B gain and change the others

- For G-FIX model (TBD)
Cool Mode

1) Fix the one of R/G/B gain to 192 (default data) and

decrease the others.(If G gain is adjusted over 172
and R and B gain less than 192 , Adjust is O.K.)

2) If G gain is less than 172, Increase G gain by up to

172, and then increase R gain and G gain same
amount of increasing G gain.

3) If R gain or B gain is over 255, readjust G gain less

than 172, Conform to R gain is 255 or B gain is 255

Medium / Warm Mode - Fix the one of R/G/B gain to

192 (default data) and decrease the others.

(8) When adjustment is completed, exit adjustment mode

using EXIT key on R/C.

Whit Balance

Color Temp. ◄ ►

R-Gain

G-Gain

B-Gain

R-Cut

G-Cut

B-Cut

Test-Pattern

Backlight

Reset To Set

Cool

172

172

192

64

64

64

ON

100

Only for training and service purposes

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

* CASE Cool

First adjust the coordinate far away from the target value(x, y).
① x, y > target

i) Decrease the R, G.

② x, y < target

i) First decrease the B gain,
ii) Decrease the one of the others.

③ x > target, y < target

i) First decrease B, so make y a little more than the
target.
ii) Adjust x value by decreasing the R

④ x < target, y > target

i) First decrease B, so make x a little more than the

target.

ii) Adjust x value by decreasing the G

* After You finish all adjustments, Press “In-start” button and

compare Tool option and Area option value with its BOM, if
it is correctly same then unplug the AC cable.

If it is not same, then correct it same with BOM and unplug

AC cable.
For correct it to the model’s module from factory JIG model.
* Push The “IN STOP KEY” after completing the function
inspection.

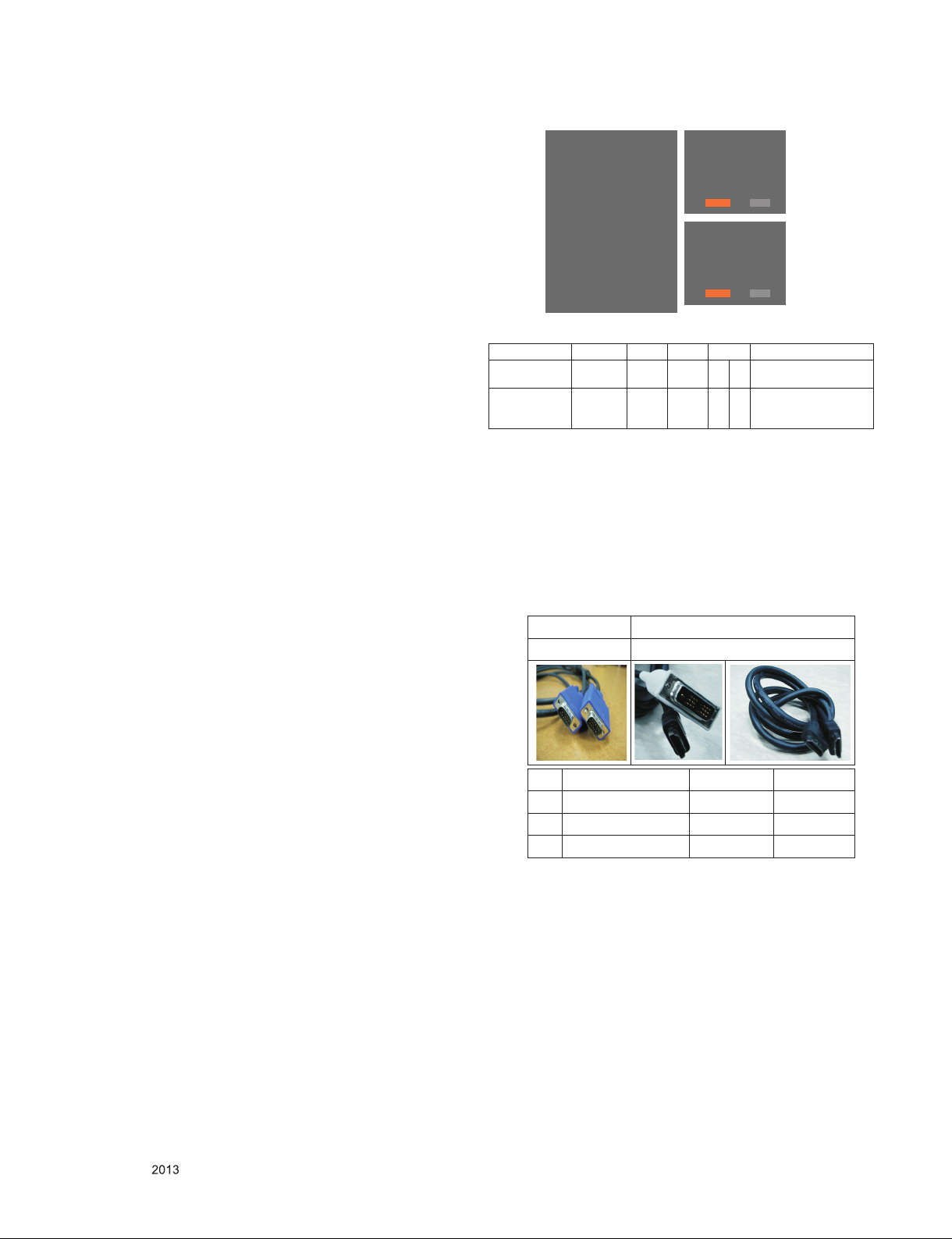

4.2. DDC EDID Write (RGB 128Byte )

■ Connect D-sub Signal Cable to D-Sub Jack.

■ Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.

■ Check whether written EDID data is correct or not.

* For Service main Assembly, EDID have to be downloaded to

Insert Process in advance.

4.3. DDC EDID Write (HDMI 256Byte)

■ Connect HDMI Signal Cable to HDMI Jack.

■ Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.

■ Check whether written EDID data is correct or not.

* For Service main Assembly, EDID have to be downloaded to

Insert Process in advance.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option Commercial

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern

12. EDID D/L ►

13. Sub B/C

14. Ext. Input Adjust

EDID

HDMI1 NG

HDMI2 NG

HDMI3 NG

RGB NG

Start Reset

EDID

HDMI1 OK

HDMI2 OK

HDMI3 OK

RGB OK

Start Reset

* EDID data and Model option download (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter download
MODE

EDID data and
Model option
download

Download
‘Mode In’

Download A E 00 10

A A 0 0

When transfer the ‘Mode
In’, Carry the command.

Automatically download
(The use of a internal
data)

4.4.2. Manual Download

<Caution>
(1) Use the proper signal cable for EDID Download

* For HDMI EDID(DVI-D to HDMI or HDMI to HDMI Cable)

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists
(2) Never connect HDMI & D-sub Cable at the same time.
(3) Use the proper cables below for EDID Writing.
(4) Download HDMI1, HDMI2 separately because HDMI1 is

different from HDMI2.

For Analog For HDMI EDID

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

4.4. EDID data

(1) All Data : HEXA Value
(2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***: Year : Controlled
****: Check sum

4.4.1. Auto Download

■ After enter Service Mode by pushing “ADJ” key,

■Enter EDID D/L mode.

■Enter “START” by pushing “OK” key.
* Caution : Never connect HDMI & D-sub Cable when EDID

downloaded.

Only for training and service purposes

- 12 -

No. Item Condition Hex Data

1 Manufacturer ID GSM 1E6D

2 Version Digital : 1 01

3 Revision Digital : 3 03

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

(1) FHD RGB EDID data

0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 00 e

(2) FHD HDMI EDID data

0 1 2 3 4 5 6 7 8 9 A B C D E F

00 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 71 4F 81 80 01 01 01 01 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 1B 21 50 A0 51 00 1E 30
50 48 88 35 00 A0 5A 00 00 00 1C 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 01 e
80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 f
A0 f E3 05 03 01 01 1D 80 18 71 1C 16 20 58 2C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20
C0 6E 28 55 00 A0 5A 00 00 00 1E 02 3A 80 18 71 38
D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 01 1D 00 BC
E0 52 D0 1E 20 B8 28 55 40 A0 5A 00 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(3) Detail EDID Options are below

a. Product ID

MODEL NAME HEX EDID Table DDC Function

HD/FHD Model 0001 01 00 Analog/Digital

b. Serial No: Controlled on production line.
c. Month, Year: Controlled on production line:

ex) Week : '01' -> '01'

Year : '2012' -> '16' fix

d. Model Name(Hex):

cf) TV set’s model name in EDID data is below.

Model name MODEL NAME(HEX)

LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)

e. Checksum: Changeable by total EDID data.

EDID C/S data

FHD

HDMI RGB

Block 0 43 5C

Check sum

(Hex)

Block 1

25 (HDMI1)

-15 (HDMI2)

5 (HDMI3)

4.

5. Model name & Serial number D/L

▪ Press "Power on" key of service remote control.

(Baud rate : 115200 bps)
▪ Connect RS232 Signal Cable to RS-232 Jack.
▪ Write Serial number by use RS-232.
▪ Must check the serial number at the Diagnostics of SET UP

menu. (Refer to below)

(1) Signal Table

CMD : A0h
LENGTH : 85~94h (1~16 bytes)

CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY

ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD + LENGTH + ADH + ADL + Data_1 +...+ Data_n
Delay : 20ms

(2) Comand Set

Adjust mode CMD(hex) LENGTH(hex) Description

EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)

* Description

FOS Default write : <7mode data> write
Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart,
0, Phase
Data write : Model Name and Serial Number write in

EEPROM,.

(3) Method & notice

1) Serial number D/L is using of scan equipment.

2) Setting of scan equipment operated by Manufacturing
Technology Group.

3) Serial numbe r D/L must be conformed when it is
produced in production line, because serial number D/L
is mandatory by D-book 4.0.

f. Vendor Specific(HDMI)

Input Model name(HEX)

HDMI1 67030C001000B82D

HDMI2 67030C002000B82D

HDMI3 67030C003000B82D

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

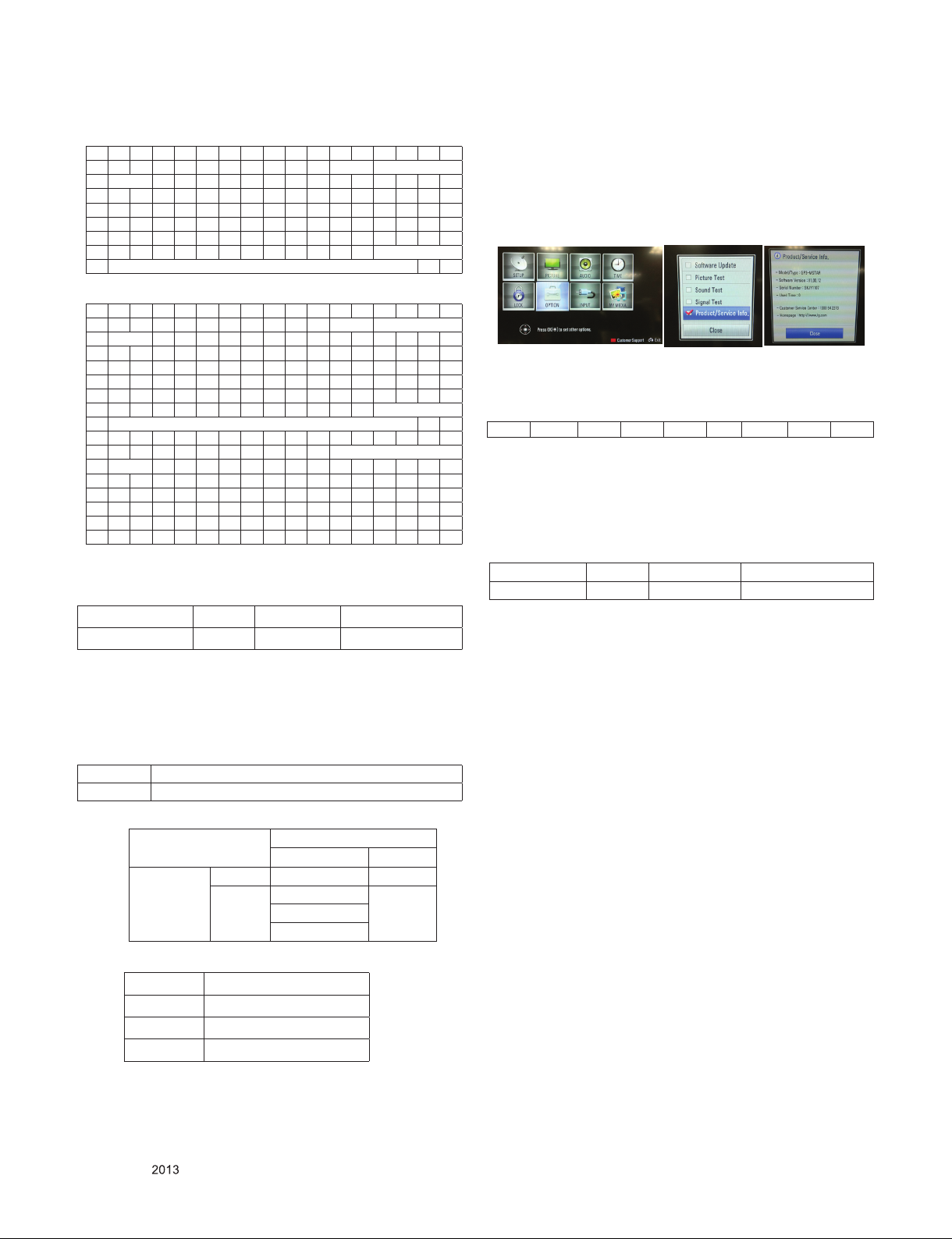

* Manual Download(Model Name and Serial Number)

If the TV set is downloaded by OTA or Service man,
sometimes model name or serial number is initialized.(Not
always)
There is impossible to download by bar code scan, so It
need Manual download.

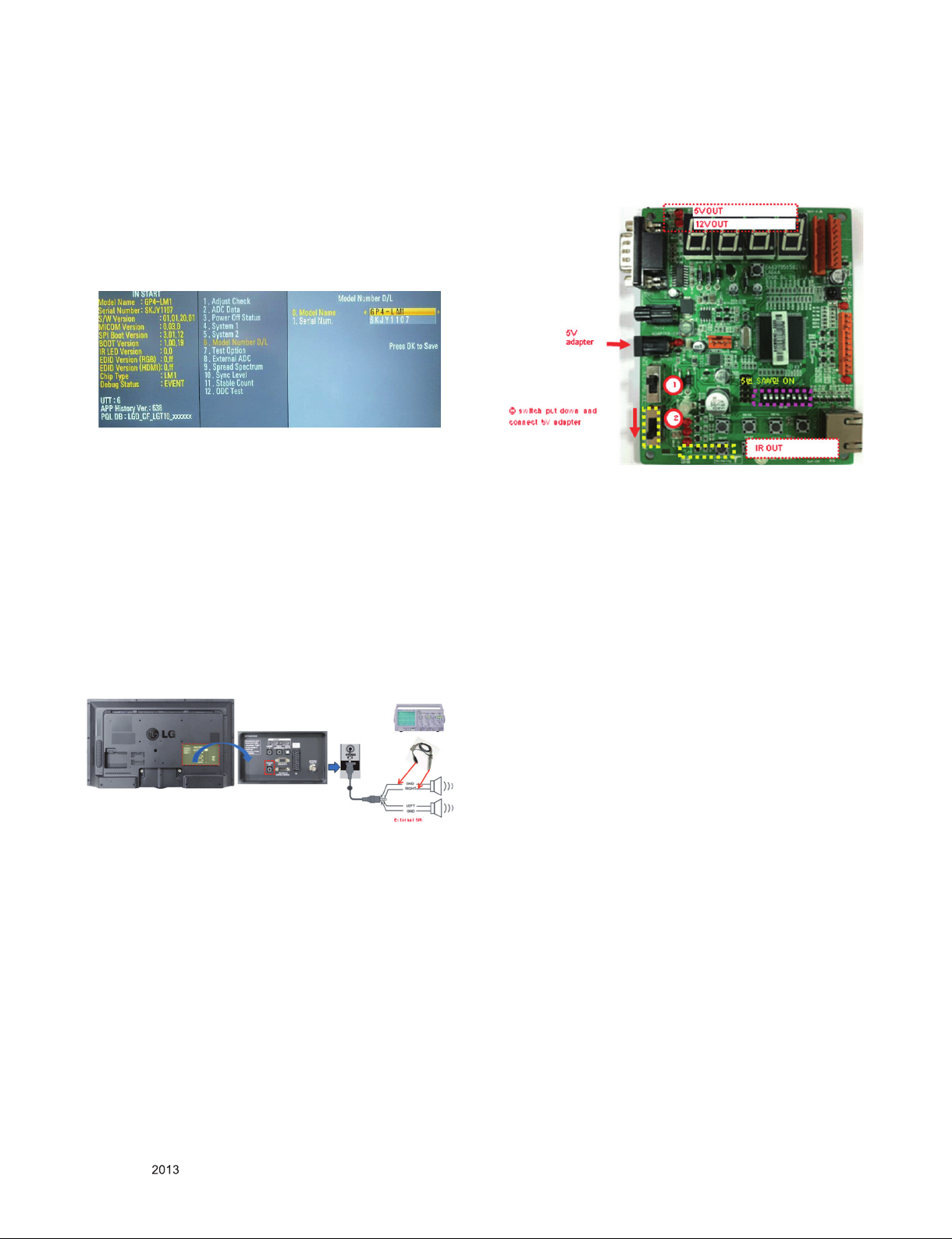

1) Press the "Instart" key of Adjustment remote control.

2) Go to the menu "6.Model Number D/L" like below photo.

3) Input the Factory model name(ex 32LV2510-TB) or Serial
number like photo.

4) Check the model name Instart menu. → Factory name
displayed. (ex 32LV2510-TB)

5) Check the Product/Service Info.(Menu Key → Red Key →
Select Product/Service Info.) → Buyer model displayed
(ex 32LV2510-TB)

4.5. Outgoing condition Configuration

■ When pressing IN-STOP key by Service remote control,
Red LED are blinked alternatively. And then automatically
turn off. (Must not AC power OFF during blinking)

5.2. IR Out

5.2.1. In using Commercial Check Jig

(1) Check the LED for IR-Out inspection.

* Please refer to the criteria of Judgement.

5.2.2. In using Mini check Jig

(1) Connect JIG for inspection to RS-232C port on TV as

below.
(2) Check the LED for IR-Out inspection.
* Please refer to the criteria of Judgement.

5. Check Commercial features

5.1. External SPK Out and Volume control

(1) Connect external speaker to speaker out port with phone

jack on TV side as below.

(2) Check the Max. speaker output is 1W or not. Sine wave

with 1KHz will be displayed.

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

TROUBLE SHOOTING GUIDE

1. Check the booting Voltage

Make sure the Stand-by Voltage
P401 3, 5pin : +3.5V_ST

Yes

Make sure the Micom voltage
L403 : +3.5V _ST

Yes

Make sure the CLK of X201
Is 24MHZ

Yes

Make sure the PWR_ON of P401
1pin : 3.5V

Yes

Make sure the Multi Voltage
P401 9, 10pin : 24V , 13~15pin : 12V

Yes

Make sure the Output Voltage of IC 402/3/7
IC402: 2.5V, IC403: 1.1V, IC407: 1.5V , Q403: 3.3V

Yes

Make sure the voltage of LVDS Power
Q406: 12V

Yes

Make sure the output of MSTAR LVDS

Yes

Make sure the Inverter control and error
P401 2pin: High

Yes

Exchange the LCD Module

Make sure the Power

No

Connector

No

Exc hange the L403

No

Exc hange the X201

No

Re- download of Firmware

No

Exc hange the circuit board

No

Exc hange the IC402/3/7,
Q403

No

Exc hange the Q406

No

Exc hange the Mstar(IC101)
Or Main board

No

Exc hange the circuit or
check the LCD Module

Make sure the disconnection of
Main board 3.5V circuit

No

Exc hange the Mstar(IC101)
Or Main board

YesYes

Exchange the
Circuit board

2. Digital TV Video

ʹΙΖ ΔΜΥΙΖ΄ΥΒΟΕΓΪ·ΠΝΥΒΘΖ
΁ΡΚΟ· ΐ΄ ΅

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ΅ΦΟΖΣ· 
ͽ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ΅ΦΟΖΣ·
ͺʹΡΚΟ·

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͺͷΐ΁ͿΤΚΘΟΒΝ
΅ΆΡΚΟ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͽ·͵΄ΠΦΥΡΦΥΤΚΘΟΒΝΠΗ;ΤΥΒΣͺʹ

Only for training and service purposes

ͿΠ

ͿΠ

ͿΠ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖͽ

ͶΩΔ ΙΒΟΘΖΥΙΖͺʹ

ͶΩΔ ΙΒΟΘΖΥΙΖ΅ΦΟΖΣ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ
΀Σ;ΒΚΟΓΠΒΣΕ

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3. Analog TV Video

ʹΙΖ ΔΜΥΙΖ΃ͷΔΒΓΝΖΒΟΕ΃ͷΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ΅ΦΟΖΣ· 
ͽ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ΅ΦΟΖΣ·
ͺʹΡΚΟ·

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖʹ·ͳ΄ΤΚΘΟΒΝ
΅ΆΡΚΟ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͽ·͵΄ΠΦΥΡΦΥΤΚΘΟΒΝΠΗ;ΤΥΒΣͺʹ

4. AV Video

;ΒΜΖ ΤΦΣΖΥΙΖΚΟΡΦΥΤΚΘΟΒΝΥΪΡΖΒΟΕ
΀Φ Σ΅·ΔΒΟΤΦΡΡΠΣΥΥΙΖΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͲ·ΔΒΓΝΖΕΖΗΖΔΥΠΣ
ΤΥΒΥΦΤΠΗΔΠΟΕΦΔΥΠΣ

Ί ΖΤ

;ΒΜΖ ΤΦΣΖΥΙΖͻͼʹ·ͳ΄ ΤΚΘΟΒΝ

ͶΩΔ ΙΒΟΘΖΥΙΖͲ·ͻΒΔΜ

ͿΠ

ͿΠ

ͿΠ

ͿΠ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖͽ

ͶΩΔ ΙΒΟΘΖΥΙΖͺʹ

ͶΩΔ ΙΒΟΘΖΥΙΖ΅ΦΟΖΣ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ
΀Σ;ΒΚΟΓΠΒΣΕ

Ί ΖΤ

;ΒΜΖ ΤΦΣΖΥΙΖʹ·ͳ΄ΐ͵Ͷ΅ΤΚΘΟΒΝ

Ί ΖΤ

;ΒΜΖ ΤΦΣΖΥΙΖͽ·͵΄ΠΦΥΡΦΥΤΚΘΟΒΝΠΗ;ΤΥΒΣͺʹ

ͶΩΔ ΙΒΟΘΖΥΙΖ΃

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ

ͿΠ

΀Σ;ΒΚΟΓΠΒΣΕ

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. RGB Video

;ΒΜΖ ΤΦΣΖΥΙΖΚΟΡΦΥΤΚΘΟΒΝΥΪΡΖΒΟΕ
΀Φ Σ΅·ΔΒΟΤΦΡΡΠΣΥΥΙΖΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ΃͸ͳΔΒΓΝΖΕΖΗΖΔΥΠΣ
ΤΥΒΥΦΤΠΗΔΠΟΕΦΔΥΠΣ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͶ͵ͺ͵ͺʹΤΚΘΟΒΝ
΃΃΄͵Ͳ ΄ʹͽ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͻͼ͹· ΐ΄ΪΟΔ΃͸ͳ
ΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ͵΄Άͳΐ͵Ͷ΅ΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͽ·͵΄ΠΦΥΡΦΥΤΚΘΟΒΝΠΗ;ΤΥΒΣͺʹ

͵ΠΨ ΟΝΠΒΕΥΙΖͶ͵ͺ͵ΕΒΥΒ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ
΀Σ;ΒΚΟΓΠΒΣΕ

ͶΩΔ ΙΒΟΘΖΥΙΖ͵΄ΆͳͻΒΔΜ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖΣΖΤΚΤΥΠΣ

ͿΠ

΃΃

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ

ͿΠ

΀Σ;ΒΚΟΓΠΒΣΕ

6. HDMI Video

;ΒΜΖ ΤΦΣΖΥΙΖΚΟΡΦΥΤΚΘΟΒΝΥΪΡΖΒΟΕ
΀Φ Σ΅·ΔΒΟΤΦΡΡΠΣΥΥΙΖΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ͹͵;ͺΔΒΓΝΖΕΖΗΖΔΥΠΣ
ΤΥΒΥΦΤΠΗΔΠΟΕΦΔΥΠΣ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͶ͵ͺ͵ͺʹΤΚΘΟΒΝ
΃ 

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ͹͵;ͺͻΒΔΜ
ͻͼͻͼͻͼ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ͹͵;ͺΐ͵Ͷ΅͹΁͵ΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ͹͵;ͺΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͽ·͵΄ΤΚΘΟΒΝΠΦΥΡΦΥ

ͶΩΔ ΙΒΟΘΖΥΙΖͺʹΠΣΕΠΨΟΝΠΒΕ

ͿΠ

΅Ι ΖͶ͵ͺ͵ΕΒΥΒ

ͶΩΔ ΙΒΟΘΖΥΙΖ͹͵;ͺͻΒΔΜ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖ΃ΖΤΚΤΥΠΣ

ͿΠ

΃ 

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ
΀Σ;ΒΚΟΓΠΒΣΕ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ

ͿΠ

΀Σ;ΒΚΟΓΠΒΣΕ

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

7. Audio of All input

ʹΙΖ ΔΜΥΙΖΤΡΖΒΜΖΣΞΖΟΦ
ΞΖΟΦΤΠΦΟΕ΅·ΤΡΖΒΜΖΣ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖΧΠΝΥΒΘΖΠΗͲ;΁ͺʹͺʹ
· ·

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ;ΤΥΒΣͲΦΕΚΠΐ;ΒΤΥΖΣΐʹͽͼΤΚΘΟΒΝ
΃

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͲ;΁ͺʹͽΚΟΖ
΃΃

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ;ΤΥΒΣͺ΄ΠΦΥΡΦΥ
ͺʹ ΡΚΟ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͲΦΕΚΠΠΦΥΡΦΥΤΚΘΟΒΝ

ͺʹΡΚΟ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖΔΠΟΟΖΔΥΠΣ΁

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖ΄ΡΖΒΜΖΣΣΖΤΚΤΥΠΣΠΣΔΠΟΟΖΔΥΠΣ

;ΖΟ ΦΥΠΘΘΝΖ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖͲ;΁ͺʹΠΣ

ͿΠ

;ΒΚΟΓΠΒΣΕ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ

ͿΠ

΀Σ;ΒΚΟΓΠΒΣΕ

ʹΙΖ ΔΜΥΙΖͺʹΤΚΘΟΒΝΠΣ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ

ʹΙΖ ΔΜΥΙΖͺʹΤΚΘΟΒΝΠΣ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖ;ΤΥΒΣͺʹ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖͲΦΕΚΠͲ;΁
ͺʹ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖΔΠΟΟΖΔΥΠΣͺΗ
ΥΙ ΖΔΠΟΟΖΔΥΠΣΚΤΕΖΗΖΔΥ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖΤΡΖΒΜΖΣ

8. TV Audio

ʹΙΖ ΔΜΥΙΖ΃ͷΔΒΓΝΖΠΗ΃ͷΤΚΘΟΒΝ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖΧΠΝΥΒΘΖΠΗ΅ΦΟΖΣ· ͽ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖΧΠΝΥΒΘΖΠΗ΅ΦΟΖΣ·
ͺʹΡΚΟ·

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖͺͷΐ΁ͿΤΚΘΟΒΝ΅ΆΡΚΟ

Ί ΖΤ

ͺΞΡΝΖΞΖΟΥΥΙΖגͲΦ ΕΚΠΠΗΒΝΝΚΟΡΦΥד
΀Η;ΒΝ ΗΦΟΔΥΚΠΟΘΦΚΕΖ

Only for training and service purposes

ͿΠ

ͿΠ

ͿΠ

ͿΠ

;ΖΟ ΦΥΠΘΘΝΖ

ͶΩΔ ΙΒΟΘΖΥΙΖͽ

ͶΩΔ ΙΒΟΘΖΥΙΖͺʹ

ͶΩΔ ΙΒΟΘΖΥΙΖ΅ΦΟΖΣ

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

9. AV Audio

ʹΙΖ ΔΜΥΙΖͲ·ΔΒΓΝΖΚΤΕΖΗΖΔΥΚΧΖ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖΤΚΘΟΒΝΠΗͻͼ

ͽͽ

Ί ΖΤ

ͺΞΡΝΖΞΖΟΥΥΙΖגͲΦ ΕΚΠΠΗΒΝΝΚΟΡΦΥד
΀Η;ΒΝ ΗΦΟΔΥΚΠΟΘΦΚΕΖ

10. RGB Audio

ʹΙΖ ΔΜΥΙΖʹΠΞΡΠΟΖΟΥΔΒΓΝΖΚΤΕΖΗΖΔΥΚΧΖ

Ί ΖΤ

ʹΙΖ ΔΜΥΙΖΤΚΘΟΒΝΠΗͻͼ

Ί ΖΤ

ͺΞΡΝΖΞΖΟΥΥΙΖגͲΦ ΕΚΠΠΗΒΝΝΚΟΡΦΥד
΀Η;ΒΝ ΗΦΟΔΥΚΠΟΘΦΚΕΖ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖͲ·ͻΒΔΜ

ͿΠ

ͶΩΔ ΙΒΟΘΖΥΙΖͲ·ͻΒΔΜ

Only for training and service purposes

- 19 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

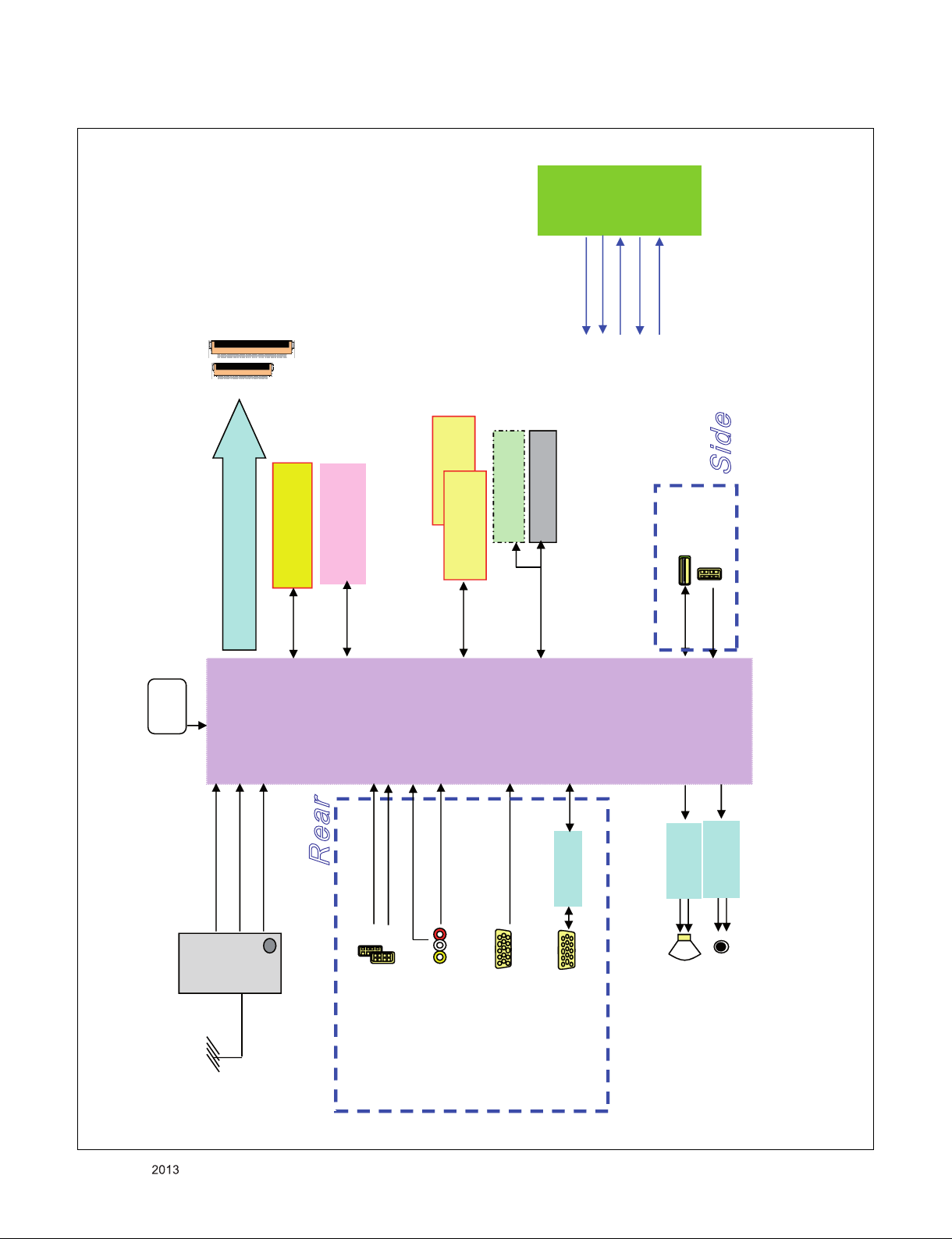

BLOCK DIAGRAM

CONTR OL

IR & LED

IR

KEY2

KEY1

51P

30P

+3.5Vst

LED_ R

Hynic

DDR3 1GB

H5TQ1G63DFR

(1Gbit)

LVDS

24M

X- tal

NAND Flash

(60Hz/FHD/HD)

PCM_A[0:7]

SER IAL FLASH

MXIC (8M bit )

NAND01GW3B2CN6E

MX25L8006EM2I

SPI

DDR3 1GB

DDR3 Add.

HDCP EEPROM

Hynic

H5TQ1G63DFR

DDR3 Data

1Mbit

CAT24WC08W - T

M24M01 - HRMN6TP

I2C

DP/DM

Side

HDMI3

USB2.0

TMDS

S7LR2

I2S

RS232C

R ear

L/R

TMDS

TMDS

CVBS, L/R

RGB/H/V

A. AMP

MAX3232

IF

SIF

TU_CVBS

IRout -Path(Pin 4)

L/R

TI AMP

NTP7400

Half

NIM

(CAN)

Only for training and service purposes

AV

RGB PC

PC/DVI Audi In

HDMI(DVI) 1/2

RS-232C

- 20 -

SPK L/R

External SPK Out

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

400

521

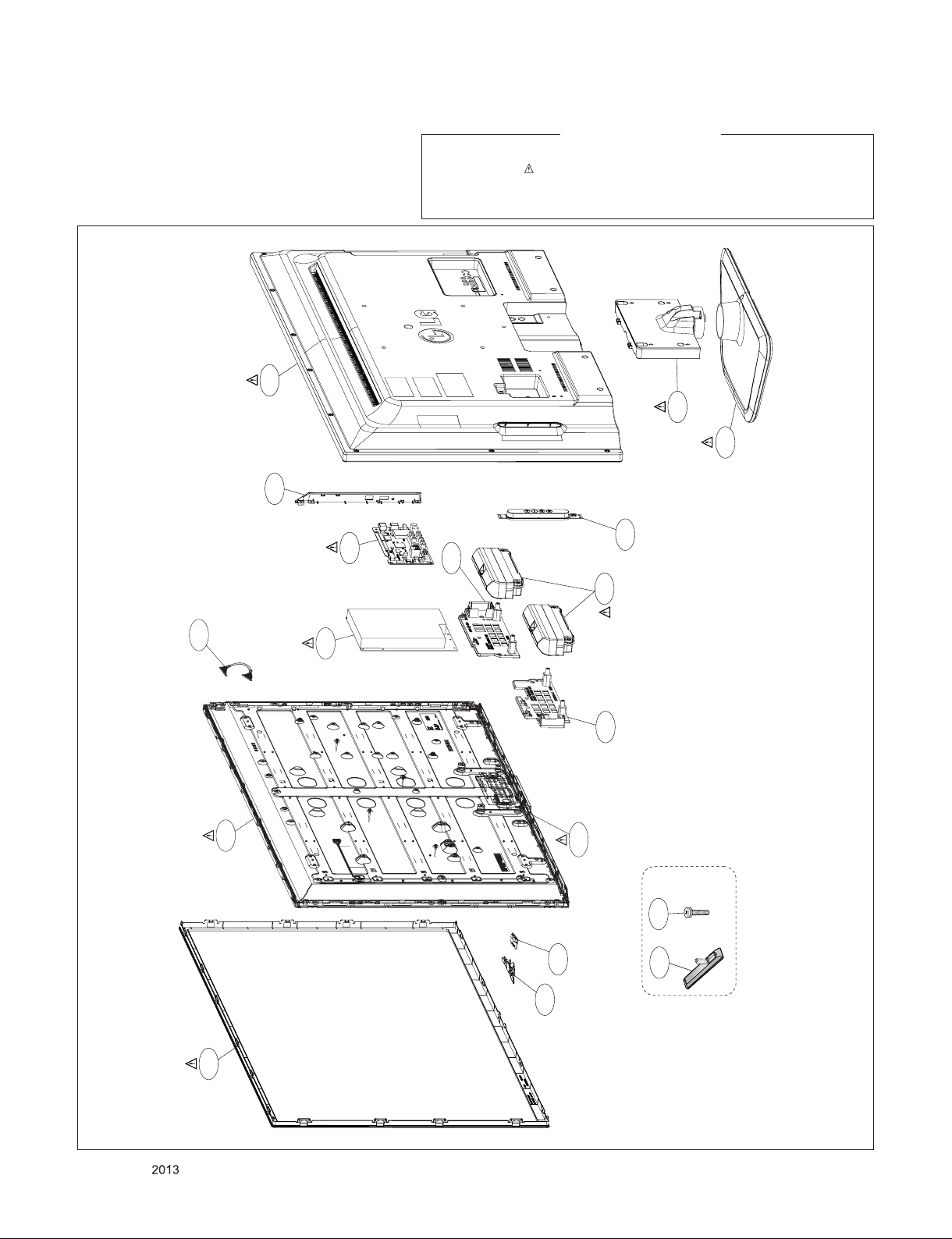

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essenti al that these special safet y parts shoul d be replac ed with the same compo nents as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

910

900

LV1

200

530

540

123

500

120

122

200T

LGD Module

510

A10

A2

Stand Base+Body

Set + Stand

300

Only for training and service purposes

- 21 -

301

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

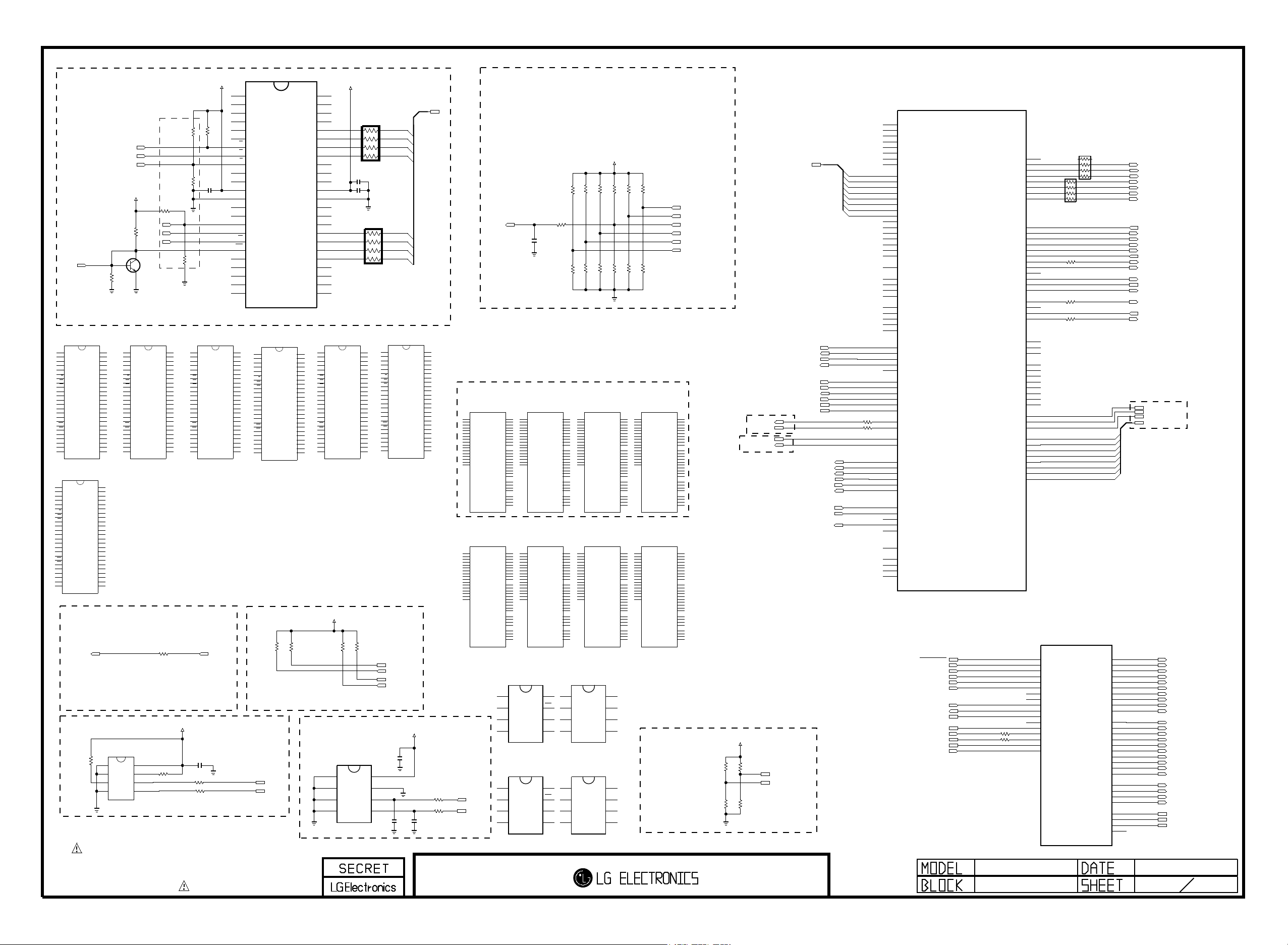

IC102

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RB

R

E

NC_7

NC_8

VSS_1

NC_9

NC_10

CL

AL

W

WP

NC_11

NC_12

NC_13

NC_14

NC_15

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

Addr:10101--

NAND01GW3B2CN6E

1

NAND_FLASH_1G_NUMONYX

EAN60762401

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

EAN60708701

NAND_FLASH_2G_HYNIX_OLD

IC102-*4

HY27UF082G2B-TPCB

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

I2C

R141

R140

1K

1K

I2C_SCL

I2C_SDA

+3.3V_Normal

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VDD_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_1

NC_29

48

NC_2

NC_28

47

NC_3

NC_27

46

NC_4

NC_26

45

NC_5

I/O7

44

NC_6

I/O6

43

RY/BY

I/O5

42

RE

I/O4

41

CE

NC_25

40

NC_7

NC_24

39

NC_8

NC_23

38

VCC_1

VCC_2

37

VSS_1

VSS_2

36

NC_9

NC_22

35

NC_10

NC_21

34

CLE

NC_20

33

ALE

I/O3

32

WE

I/O2

31

WP

I/O1

30

NC_11

I/O0

29

NC_12

NC_19

28

NC_13

NC_18

27

NC_14

NC_17

26

NC_15

NC_16

25

EAN60991001

NAND_FLASH_2G_TOSHIBA

IC102-*5

TC58NVG1S3ETA00

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

OS
C102

10uF

C103

0.1uF
OS

10V

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

+3.3V_Normal

R144

R145

2.2K

2.2K

EEPROM

IC104

AT24C256C-SSHL-T

NVRAM_ATMEL

A0

1

A1

2

A0’h

A2

3

GND

4

/PF_WP

EAN35669102

NAND_FLASH_1G_HYNIX

H27U1G8F2BTR-BC

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

EAN35669103

NAND_FLASH_1G_HYNIX_NEW

IC102-*7

H27U1G8F2CTR-BC

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

DIMMING

PWM_DIM

HDCP EEPROM

HDCP_EEPROM

NAND FLASH MEMORY

/PF_OE

/PF_CE0

OS

R102

3.3K

IC102-*1

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

HDCP_EEPROM

IC103

CAT24WC08W-T

R113

4.7K

A0

1

A1

2

A2

3

VSS

4

/F_RB

+3.3V_Normal

OPT

R104
10K

B

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

8

7

6

5

C

E

EAN61857001

NAND_FLASH_1G_SS

K9F1G08U0D-SCB0

VCC

WP

SCL

SDA

/PF_CE1

PF_ALE

OPT

IC102-*2

OPT
R105
1K

/PF_WE

Q101
MMBT3904(NXP)

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

R157

R127

HDCP_EEPROM

OS
R106
1K

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

100

+3.3V_Normal

HDCP_EEPROM

4.7K

OS

R107

1K

OPT

R108

1K

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

HDCP_EEPROM

R128

R129

HDCP_EEPROM

OS

C101

0.1uF

EAN61508001

NAND_FLASH_1G_TOSHIBA_NEW

TC58NVG0S3ETA0BBBH

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

C107

0.1uF

22

22

+3.3V_Normal

OS

R109

3.9K

IC102-*3

PWM2

VDD_1

EAN61133501

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

OS

22

AR101

AR102

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

8

7

6

5

<CHIP Config(LED_R/BUZZ)>
Boot from SPI CS1N(EXT_FLASH) 1’b0
Boot from SPI_CS0N(INT_FLASH) 1’b1

PCM_A[0-7]

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

OS

PCM_A[3]

PCM_A[2]

(I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0)

B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash
SB51_WOS : 4’b0001 Secure B51 without scramble

SB51_WS : 4’b0010 Secure B51 with scramble

MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash

MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash
MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash

MIPS_WOS : 4’b1001 Secure MIPS without scramble
MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE

AUD_MASTER_CLK

OPT

PCM_A[1]

PCM_A[0]

22

EAN60708702

NAND_FLASH_2G_HYNIX_NEW

IC102-*6

H27U2G8F2CTR

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

AMP_SDA
AMP_SCL

I2C_SDA
I2C_SCL

C105

0.1uF

VCC

WP

SCL

SDA

+3.3V_Normal

C104
8pF

OPT

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

MSTAR (IC101) Multi package (11.11.18~)

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

1

2

3

4

C7
E6
F5
B6
E5
D5
B7
E7

F7
AB5
AB3

A9

F4
AB1

N6
AB2
AC2

S7LR2_DIVX_AT_SPIL

C7

E6

F5

B6

E5

D5

B7

E7

F7
AB5
AB3

A9

F4
AB1

N6
AB2
AC2

IC104-*3

T8(EU)_Multi

LGE2111A-T8

GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO45
GPIO46
GPIO49
GPIO50
GPIO51
GPIO52
I2C_SCKM0/GPIO53
I2C_SDAM0/GPIO54
GPIO73
GPIO74

LGE2111A-TE SPIL

GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO45
GPIO46
GPIO49
GPIO50
GPIO51
GPIO52
I2C_SCKM0/GPIO53
I2C_SDAM0/GPIO54
GPIO73
GPIO74

TE(US)_Multi

LGE2111A-TE

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

S7LR2_DIVX_AT_ASE

LGE2111A-TE

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

IC101-*5

IC101-*1

LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N

LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196
GPIO193
GPIO194
GPIO195

LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N

LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196

GPIO193

GPIO194

GPIO195

NON_OS_512k_ST

M24512-RMN6TP

E0

E1

E2

VSS

EAN43349003

NVRAM_ST

IC104-*1

M24256-BRMN6TP

E0

1

22R111

I2C_SCL

22R112

C106
8pF

OPT

I2C_SDA

E1

2

E2

3

VSS

4

EAN61548301

C112
100pF
50V

IC101-*6

LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N

LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196

GPIO193

GPIO194

GPIO195

IC101-*2

LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N

LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196

GPIO193

GPIO194

GPIO195

NON_OS_512k_ATMEL

VCC

8

WC

7

SCL

6

SDA

5

VCC

8

WC

7

SCL

6

SDA

5

<CHIP Config>

1K

OPT

R103

R148

56

1K

OPT

R110

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

AB5

AB3
V23
U24
V25

AB1
V24
W25

AB2
W23

AC2
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

AB5

AB3
V23
U24
V25

AB1
V24
W25

AB2
W23

AC2
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

IC104-*4

AT24C512C-SSHD-T

A0

1

A1

2

A2

3

GND

4

EAN43349004

NVRAM_RENESAS

IC104-*2

R1EX24256BSAS0A

A0

1

A1

2

A2

3

VSS

4

EAN62389501

1KR115

OPT

1KR116

VD(CN)_Multi

IC101-*7

LGE2111A-VD

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46
GPIO49
GPIO50

A9

GPIO51

F4

GPIO52
I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54
GPIO73
GPIO74

S7LR2_DIVX_DTS_AT

IC101-*3

LGE2111A-W1

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46
GPIO49
GPIO50

A9

GPIO51

F4

GPIO52
I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54
GPIO73
GPIO74

+3.3V_Normal

1KR117

1KR165

OPT

1KR121

1KR118

LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N

LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196
GPIO193
GPIO194
GPIO195

LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N

LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196
GPIO193
GPIO194
GPIO195

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

OS

NON_OS

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

1KR123

OPT

1KR124

1KR152

OPT

1KR153

W1(KR)_Multi

IC101-*8

LGE2111A-W1 [MULTI]

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196
GPIO193
GPIO194
GPIO195

S7LR2_DIVX_CN

IC101-*4

LGE2111A-VD

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

LVACKP
LVACKN
LVBCKP
LVBCKN

GPIO196
GPIO193
GPIO194
GPIO195

PM MODEL OPTION

AB25

LVA0P

AB23

LVA0N

AC25

LVA1P

AB24

LVA1N

AD25

LVA2P

AC24

LVA2N

AE23

LVA3P

AC23

LVA3N

AC22

LVA4P

AD23

LVA4N

V23

LVB0P

U24

LVB0N

V25

LVB1P

V24

LVB1N

W25

LVB2P

W23

LVB2N

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24
AD24
Y23
W24

T25
U23
T24
T23

AB25

LVA0P

AB23

LVA0N

AC25

LVA1P

AB24

LVA1N

AD25

LVA2P

AC24

LVA2N

AE23

LVA3P

AC23

LVA3N

AC22

LVA4P

AD23

LVA4N

V23

LVB0P

U24

LVB0N

V25

LVB1P

V24

LVB1N

W25

LVB2P

W23

LVB2N

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24
AD24
Y23
W24

T25
U23
T24
T23

LED_R

AUD_SCK

AUD_MASTER_CLK_0

PWM0

PWM1

PWM2

for SYSTEM EEPROM

(IC104)

RGB_DDC_SDA
RGB_DDC_SCL

+3.5V_ST

R177

10KR174

10K
OPT

TOUCH_KEY

10K

R176
10K
12_SUB

TACT_KEY

R175

I2C_SCL
I2C_SDA

PCM_A[0-7]

MODEL_OPT_6
MODEL_OPT_7

PM_MODEL_OPT_0

PM_MODEL_OPT_1

USB1_OCD

USB1_CTL
USB2_OCD
USB2_CTL

RJP_CTRL0
RJP_CTRL1

PM_TXD
PM_RXD

EXT_SPK_DET

SUB_AMP_MUTE

PWM0
PWM1
PWM2

RJP_CTRL2

LED_R

KEY1
KEY2

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]

W21
AA18
AB22
AE20
AA15
AE21
AB21

Y15

W20

V20

W22
AB18
AA20
AA21

Y19

AB17

Y16
AB19
AB20
AA16
AA19
AC21
AA17

Y20

AB15
AA22
AD22
AD20

AD21
AC20

Y18

Y21

Y22

U21

V21

R20

T20

U22

D4

E4
N25
N24

B8

A8

P23

22R136

P24

22R137

D2

D1

P21

N23

P22

R21

P20

F6

H6

G5

G4

J5
J4

R23

R24
R25
T21
T22

PCMDATA[0]/GPIO126
PCMDATA[1]/GPIO127
PCMDATA[2]/GPIO128
PCMDATA[3]/GPIO120
PCMDATA[4]/GPIO119
PCMDATA[5]/GPIO118
PCMDATA[6]/GPIO117
PCMDATA[7]/GPIO116

PCMADR[0]/GPIO125
PCMADR[1]/GPIO124
PCMADR[2]/GPIO122
PCMADR[3]/GPIO121
PCMADR[4]/GPIO99
PCMADR[5]/GPIO101
PCMADR[6]/GPIO102
PCMADR[7]/GPIO103
PCMADR[8]/GPIO108
PCMADR[9]/GPIO110
PCMADR[10]/GPIO114
PCMADR[11]/GPIO112
PCMADR[12]/GPIO104
PCMADR[13]/GPIO107
PCMADR[14]/GPIO106

PCMREG_N/GPIO123

PCMOE_N/GPIO113
PCMWE_N/GPIO197
PCMIORD_N/GPIO111
PCMIOWR_N/GPIO109

PCMCE_N/GPIO115
PCMIRQA_N/GPIO105
PCMCD_N/GPIO130
PCMWAIT_N/GPIO100
PCM_RESET/GPIO129

PCM2_CE_N/GPIO131
PCM2_IRQA_N/GPIO132
PCM2_CD_N/GPIO135
PCM2_WAIT_N/GPIO133
PCM2_RESET/GPIO134

UART1_TX/GPIO43
UART1_RX/GPIO44
UART2_TX/GPIO65
UART2_RX/GPIO64
UART3_TX/GPIO47
UART3_RX/GPIO48

I2C_SCKM2/DDCR_CK/GPIO72
I2C_SDAM2/DDCR_DA/GPIO71

DDCA_DA/UART0_TX
DDCA_CK/UART0_RX

PWM0/GPIO66
PWM1/GPIO67
PWM2/GPIO68
PWM3/GPIO69
PWM4/GPIO70
PWM_PM/GPIO199

SAR0/GPIO31
SAR1/GPIO32
SAR2/GPIO33
SAR3/GPIO34
SAR4/GPIO35

VSYNC_LIKE/GPIO145

SPI1_CK/GPIO201
SPI1_DI/GPIO202
SPI2_CK/GPIO203
SPI2_DI/GPIO204

AMP_RESET
5V_DET_HDMI_1
5V_DET_HDMI_2
5V_DET_HDMI_4

AV_CVBS_DET

TUNER_RESET
MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

IC101

LGE2111A-T8

S7LR2_DIVX_MS10

PM_UART_TX/GPIO_PM[1]/GPIO7

PM_UART_RX/GPIO_PM[5]/GPIO11

PM_SPI_SCZ1/GPIO_PM[6]/GPIO12

PM_SPI_SCZ2/GPIO_PM[10]/GPIO16

DSUB_DET

RJP_CTRL3

AMP_SCL

AMP_SDA

RJP_CTRL4

NF_CE1Z/GPIO138

NF_WPZ/GPIO198

NF_CEZ/GPIO137
NF_CLE/GPIO136
NF_REZ/GPIO139

NF_WEZ/GPIO140

NF_ALE/GPIO141
NF_RBZ/GPIO142

GPIO_PM[0]/GPIO6

GPIO_PM[2]/GPIO8
GPIO_PM[3]/GPIO9

GPIO_PM[4]/GPIO10

GPIO_PM[7]/GPIO13
GPIO_PM[8]/GPIO14
GPIO_PM[9]/GPIO15

GPIO_PM[11]/GPIO17

PM_SPI_SCK/GPIO1

PM_SPI_CZ0/GPIO_PM[12]/GPIO0

PM_SPI_SDI/GPIO2

PM_SPI_SDO/GPIO3

TS0CLK/GPIO87

TS0VALID/GPIO85

TS0SYNC/GPIO86

TS0DATA_[0]/GPIO77
TS0DATA_[1]/GPIO78
TS0DATA_[2]/GPIO79
TS0DATA_[3]/GPIO80
TS0DATA_[4]/GPIO81
TS0DATA_[5]/GPIO82
TS0DATA_[6]/GPIO83
TS0DATA_[7]/GPIO84

TS1CLK/GPIO98

TS1VALID/GPI96

TS1SYNC/GPIO97

TS1DATA_[0]/GPIO88
TS1DATA_[1]/GPIO89
TS1DATA_[2]/GPIO90
TS1DATA_[3]/GPIO91
TS1DATA_[4]/GPIO92
TS1DATA_[5]/GPIO93
TS1DATA_[6]/GPIO94
TS1DATA_[7]/GPIO95

OPT
OPT

LA2AW

FLASH/EEPROM/GPIO

0R172
0R173

AE18
AC17
AD18
AC18
AC19
AD17
AE17
AD19

H5
K6
K5
J6
K4
L6
C2

R146
L5
M6
M5
C1
M4

A2
D3
B2
B1

for SERIAL FLASH

Y14
AA10
Y12

Y13
Y11
AA12
AB12
AA14
AB14
AA13
AB11

AC15
AD15
AC16

AD16
AE15
AE14
AC13
AC14
AD12
AD13
AD14

S7LR2_DIVX_MS10

LGE2111A-T8

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

AR104

22
OS

IC101

OS

AR103

22

33

33R147

33R151

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

LVA0P

LVA0N

LVA1P

LVA1N

LVA2P

LVA2N

LVA3P

LVA3N

LVA4P

LVA4N

LVB0P

LVB0N

LVB1P

LVB1N

LVB2P

LVB2N

LVB3P

LVB3N

LVB4P

LVB4N

LVACKP

LVACKN

LVBCKP

LVBCKN

GPIO196
GPIO193
GPIO194
GPIO195

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

/PF_WP
/PF_CE0
/PF_CE1
/PF_OE
/PF_WE
PF_ALE
/F_RB

POWER_DET
PM_TXD
INV_CTL
RL_ON
POWER_ON/OFF_1
PM_RXD
/SPI_CS
/FLASH_WP

PANEL_CTL
PM_MODEL_OPT_0
AMP_MUTE

SPI_SCK

SPI_SDI
SPI_SDO

FE_TS_CLK
FE_TS_VAL_ERR
FE_TS_SYNC

FE_TS_DATA[0-7]

Internal demod out

RXA0+
RXA0­RXA1+
RXA1­RXA2+
RXA2­RXA3+
RXA3­RXA4+
RXA4-

RXB0+
RXB0­RXB1+
RXB1­RXB2+
RXB2­RXB3+
RXB3­RXB4+
RXB4-

RXACK+
RXACK­RXBCK+
RXBCK-

MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5

2012.09.11

1

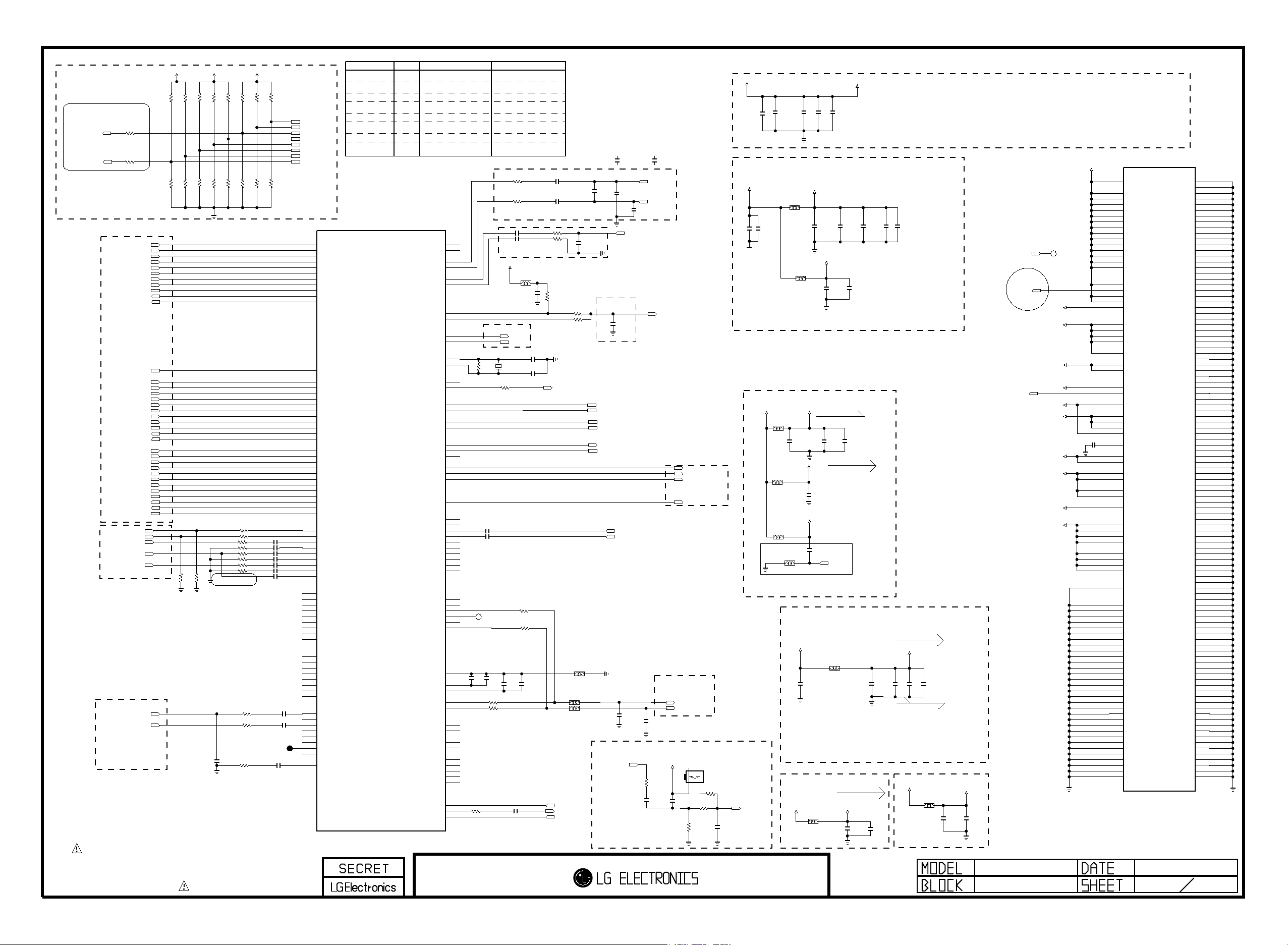

MODEL OPTION

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

OS_DualStream(O)/NonOS_ErrorOut(X)

RF_SWITCH_CTL

OPC&SCANNING_CTRL

OS_DualStream(X)/NonOS_ErrorOut(O)

RF_SW_BR_OPT

R4039

PM_MODEL_OPT_1

HDMI

CEC_REMOTE_S7

DSUB_HSYNC
DSUB_VSYNC

DSUB

CVBS In/OUT

R203

OPT

CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1

CK+_HDMI4
CK-_HDMI4
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
DDC_SDA_4
DDC_SCL_4
HPD4

CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2

DSUB_R+

DSUB_G+

DSUB_B+

TU_CVBS

AV_CVBS_IN

R290

100

100

R293

+3.3V_Normal +2.5V_Normal

1KR4027

1K

1KR4028

120HZ

R4026

R291

1KR294

NON_120HZ

10K

R4023

1KR4030

1000pF

DVB_S

1KR4029

NON_DVB_S

2.4K

C203

OPT

1K

1K

+3.3V_Normal

1K

1K

3D

OLED

R206

R208

1K

1KR209

NON_3D

NON_OLED

R207

R4024

510

R4025

510

Close to MSTAR

1K

DVB_T2

R211

1K

NON_DVB_T2

R212

33R228
68R229
33R230
68R231
33R232
68R233

33R244

33R246

68R252

PHM_ON

PHM_OFF

1K

R226

1K

R227

MODEL OPTION

PIN NAME

MODEL_OPT_0

HD

MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6
MODEL_OPT_7

FHD

MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

* Dual Stream is only Korea 3D spec

LGE2111A-T8

J2
J3

K3

J1
K2
K1
L2
L3
T5
T4
V5

R5

AE9
AC9

AC10

AD9
AC11
AD10
AE11
AD11

AE8

AD8

AC8

F2
F3

G3

F1
G2
G1
H2
H3
R6
U6

P5
R4

P2

0.047uFC204

0.047uFC205

0.047uFC206

0.047uFC207

0.047uFC208

0.047uFC209
1000pFC210

R3
N2

P3
N3
N1

M3
M2
M1

V2
V3
U3
U2
T1
T2
R2
R1
T3

AA2

Y2

AA3

W2

Y3
V1

W3
W1

AA8

0.047uFC225
Y4

W4

0.047uFC227

AA5

Y5

AA4

Y6

AA1

AB4

0.047uFC233

S7LR2_DIVX_MS10

RXACKP
RXACKN
RXA0P
RXA0N
RXA1P
RXA1N
RXA2P
RXA2N
DDCDA_DA/GPIO24
DDCDA_CK/GPIO23
HOTPLUGA/GPIO19

HOTPLUGB/GPIO20

RXCCKP
RXCCKN
RXC0P
RXC0N
RXC1P
RXC1N
RXC2P
RXC2N
DDCDC_DA/GPIO28
DDCDC_CK/GPIO27
HOTPLUGC/GPIO21

RXDCKP
RXDCKN
RXD0P
RXD0N
RXD1P
RXD1N
RXD2P
RXD2N
DDCDD_DA/GPIO30
DDCDD_CK/GPIO29
HOTPLUGD/GPIO22
CEC/GPIO5

HSYNC0
VSYNC0
RIN0P
RIN0M
GIN0P
GIN0M
BIN0P
BIN0M
SOGIN0

HSYNC1
VSYNC1
RIN1P
RIN1M
GIN1P
GIN1M
BIN1P
BIN1M
SOGIN1

HSYNC2
RIN2P
RIN2M
GIN2P
GIN2M
BIN2P
BIN2M
SOGIN2

CVBS0
CVBS1
CVBS2
CVBS3
CVBS4
CVBS5
CVBSOUT0
CVBSOUT1

VCOM

IC101

PIN NO.

AB3

PHM_OFF

F4

AB2

NON_DVB_T2

NON_3D

T25

U23

NON_OLED

NON_DVB_S

T24

NON_120HZ

B8

OS:NON_DualStream

A8

NonOS:ErrorOut

RF_AGC

I2C_SCKM1/GPIO75
I2C_SDAM1/GPIO76

SPDIF_IN/GPIO152

SPDIF_OUT/GPIO153

USB0_DM

USB0_DP

USB1_DM

USB1_DP

I2S_IN_BCK/GPIO150

I2S_IN_SD/GPIO151
I2S_IN_WS/GPIO149

I2S_OUT_BCK/GPIO156

I2S_OUT_MCK/GPIO154

I2S_OUT_SD/GPIO157

I2S_OUT_WS/GPIO155

AUOUTL0
AUOUTL2
AUOUTL3
AUOUTR0
AUOUTR2
AUOUTR3

AUVRM

AUVAG

EARPHONE_OUTL

EARPHONE_OUTR

ET_RXD[0]/RP/GPIO60
ET_TXD[0]/TP/GPIO57

ET_RXD[1]/RN/GPIO63

ET_TXD[1]/LED1/GPIO56

ET_TX_CLK/TN/GPIO59

ET_TX_EN/GPIO58

ET_MDC/GPIO61

ET_MDIO/GPIO62

ET_COL/LED0/GPIO55

IRIN/GPIO4

HWRESET

VIFM

IF_AGC

XOUT

AUL0
AUR0
AUL1
AUR1
AUL2
AUR2
AUL3
AUR3
AUL4
AUR4

AUVRP

ARC0

LOW

FHD

VIFP

SIFP

SIFM

XIN

HIGH

HD

PHM_ONMODEL_OPT_1

+1.10V_VDDC

+1.10V_VDDC

DVB_T2

3D

OLED

10uFC228

10uFC275

1uFC277

1uFC280

0.1uFC283

DVB_S

120HZ

OS:DualStream

NonOS:NON_ErrorOut

Close to MSTAR

100R288

HALF_NIM/EU_NON_T2

100R289

HALF_NIM/EU_NON_T2

0.1uFC250

AC4
AD3

AC3

IP

AE3

IM

AD4
AC5

AD2
AE2

AE6
AD6

AD1
AC1

D7
D6

E3
E2

AC12
AE12

C8
D8
D9

B10
C9
B9

C10

AB9
AA11
Y9
AA9
AA7
AB8
Y8
Y10
AC7
AD7

W6
V6
V4
Y7
W5
U5

AD5

AE5
AC6

AA6
AB6

C6
C5

A6
C4

B5
C3
A3
B3
B4

N4
T6
N5

C249

4.7uF

C246

C253

OPT
OPT

HDMI1_ARC

R287

HALF_NIM/EU_NON_T2

TUNER_I2C

1M

TP208

C256

1uF

0.1uF

33R210

ANALOG SIF

Close to MSTAR

+3.3V_Normal

TU_SCL

TU_SDA

X201
24MHz

100R213

2.2uF

2.2uFC247

C263
10uF

0

R204

0

R214

HDMI1_ARC

0.1uFC251

L227
BLM18PG121SN1D
HALF_NIM/EU_NON_T2

C4064

0.1uF

R201
0

EXT_SPK

R202
0

EXT_SPK

0.047uFC231

HALF_NIM/EU_NON_T2

HALF_NIM/EU_NON_T2

HALF_NIM/EU_NON_T2
R4019
10K

HALF_NIM/EU_NON_T2

22pFC261

22pFC262

SPDIF_OUT

0.1uFC257

0.1uFC258

47R4002
47R4003

R4004

R4001

BLM18SG121TN1D

IR
HDMI_ARC
SOC_RESET

C264
1000pF
OPT

0

OPT

0

L202

5.6uHL203

5.6uHL205

HALF_NIM/ASIA

C4067
OPT

C4065

0.047uF
25V

Close to MSTAR

USB2_DM
USB2_DP

USB1_DM
USB1_DP

AMP_SCL
AMP_SDA

AUDIO IN

AV_COMP_PC_L_IN
AV_COMP_PC_R_IN

EXT_SPK
EXT_SPK

OPT

RESET_IC_SOC_RESET

RESET_IC_SOC_RESET

HALF_NIM/ASIA

C4068-*1
68pF

HALF_NIM/EU_NON_T2
C4068
100pF

HALF_NIM/EU_NON_T2
C4069
100pF

TU_SIF

HALF_NIM/EU_NON_T2

L268

4.7uF

OPT

10V

SOC_RESET

POWER_DET_RESET

R215
470

C202

4.7uF
10V

C4069-*1
68pF

DTV_IF

IF_P_MSTAR

IF_N_MSTAR

IF_AGC_MAIN

EXT SPEAKER

L272

4.7uF
10V

+3.5V_ST

+3.5V_SOC_RESET

C200

4.7uF
10V

AUD_SCK
AUD_MASTER_CLK_0
AUD_LRCH

I2S_I/F

AUD_LRCK

EXT_AMP_L
EXT_AMP_R

SWICH
SW200

JTP-1127WEM

12

R200

62K

IC101

+1.10V_VDDC

Normal Power 3.3V

+3.3V_Normal

0.1uF

0.1uFC4044

C4043

Normal 2.5V

+2.5V_Normal

L211

BLM18PG121SN1D

L229

BLM18PG121SN1D

L219

BLM18PG121SN1D

BLM18SG121TN1D

VDD33

L204

BLM18PG121SN1D

10uFC284

AVDD_AU33

L208

BLM18PG121SN1D

AVDD2P5

C269

10uF

AVDD2P5_MOD

AVDD25_PGA

L223

Close to IC with width trace

C4070

0.1uF
16V

C4027

0.1uF

C273

0.1uF

AVDD25_PGA:13mA

AVSS_PGA

C240

0.1uF

10uFC4001

C274

0.1uF

C241

0.1uF

0.1uFC4012

0.1uFC4020

0.1uFC4025

FB_CORE

FB_CORE

AVSS_PGA

MIUVDDC

AVDD2P5

AVDD2P5_MOD

AVDD25_PGA

AVDD_NODIE

VDD33

1uFC4045

AVDD_AU33

VDD33

VDD33

AVDD_MIU

DDR3 1.5V

C278

C252

0.1uF

10uF

AVDD_DDR0:55mA

AVDD_MIU

0.1uF

C4009

C4038

AVDD_DDR1:55mA

+1.10V_VDDC

1uF

0.1uF

C4042

L228

BLM18PG121SN1D

C4071
10uF

MIUVDDC

C4062

0.1uF

+1.5V_DDR

L209

BLM18PG121SN1D

0.1uF

C4046

43

R217

SWICH
R205
100

10

C201

0.1uF

SOC_RESET

STby 3.5V

+3.5V_ST

L206

BLM18PG121SN1D

AVDD_NODIE:7.362mA

AVDD_NODIE

C286

0.1uF

LGE2111A-T8

S7LR2_DIVX_MS10

K12

AVDDLV_USB

G9

VDDC_1

H9

VDDC_2

K10

VDDC_3

K11

VDDC_4

L10

VDDC_5

M12

VDDC_6

M13

VDDC_7

N12

VDDC_8

P14

VDDC_9

P15

VDDC_10

R10

VDDC_11

R14

VDDC_12

R15

VDDC_13

T10

VDDC_14

P10

AVDD1P0

P19

FB_CORE

R16

AVDDL_MOD

L11

AVDD10_LAN

M14

DVDD_DDR

W9

AVDD2P5_ADC_1

W10

AVDD2P5_ADC_2

W11

AVDD2P5_ADC_3

W12

AVDD25_REF

Y17

AVDD25_LAN

V18

AVDD_MOD_1

U19

AVDD_MOD_2

W14

AVDD25_PGA

W15

AVSS_PGA

U7

AVDD_NODIE

L7

AVDD_DVI_USB_1

M7

AVDD_DVI_USB_2

P7

AVDD3P3_MPLL

R7

AVDD_DMPLL

M19

DVDD_NODIE

V7

AVDD_AU33

W7

AVDD_EAR33

R19

VDDP_1

T19

VDDP_2

W18

AVDD_LPLL_1

W19

AVDD_LPLL_2

V19

VDDP_NAND

J17

AVDD_DDR0_D_1

K15

AVDD_DDR0_D_2

K16

AVDD_DDR0_D_3

L15

AVDD_DDR0_C

K17

AVDD_DDR1_D_1

L17

AVDD_DDR1_D_2

M17

AVDD_DDR1_D_3

L16

AVDD_DDR1_C

E9

GND_EFUSE

A23

GND_1

B17

GND_2

C23

GND_3

A5

GND_4

C11

GND_5

C19

GND_6

C22

GND_7

D14

GND_8

D18

GND_9

D19

GND_10

E17

GND_11

E18

GND_12

E19

GND_13

E22

GND_14

F8

GND_15

F17

GND_16

F18

GND_17

F19

GND_18

G8

GND_19

H8

GND_20

N22

GND_21

N21

GND_22

N20

GND_23

M22

GND_24

M21

GND_25

M20

GND_26

F10

GND_27

V15

GND_28

W16

GND_29

V8

GND_30

T18

GND_31

GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98

GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113
GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136

G10
G11
G12
G13
G14
G17
G18
G19
G24
H11
H12
H13
H14
H15
H16
H17
H18
H19
J9
J10
J11
J12
J13
J14
J15
J16
J18
J19
J25
K9
K13
K14
H10
K18
K19
K22
L8
L9
J8
L12
L13
L18
L19
M8
K8
M10
M11
L14
M15
M16
M18
M25
N10
N11
N13
N14
N15
N16
N17
N19
K7
P8
P9
M9
P11
P13
P16
P17
P18
P12
R8
R9
R11
R12
R13
R17
T8
T9
N7
T11
T12
T13
T14
T15
T16
T17
U8
U9
U10
U11
U12
U13
U14
U15
U16
U17
R18
V9
V10
V11
V12
V14
V17
T7
E8

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

POWER,IN/OUT,H/W OPT

2

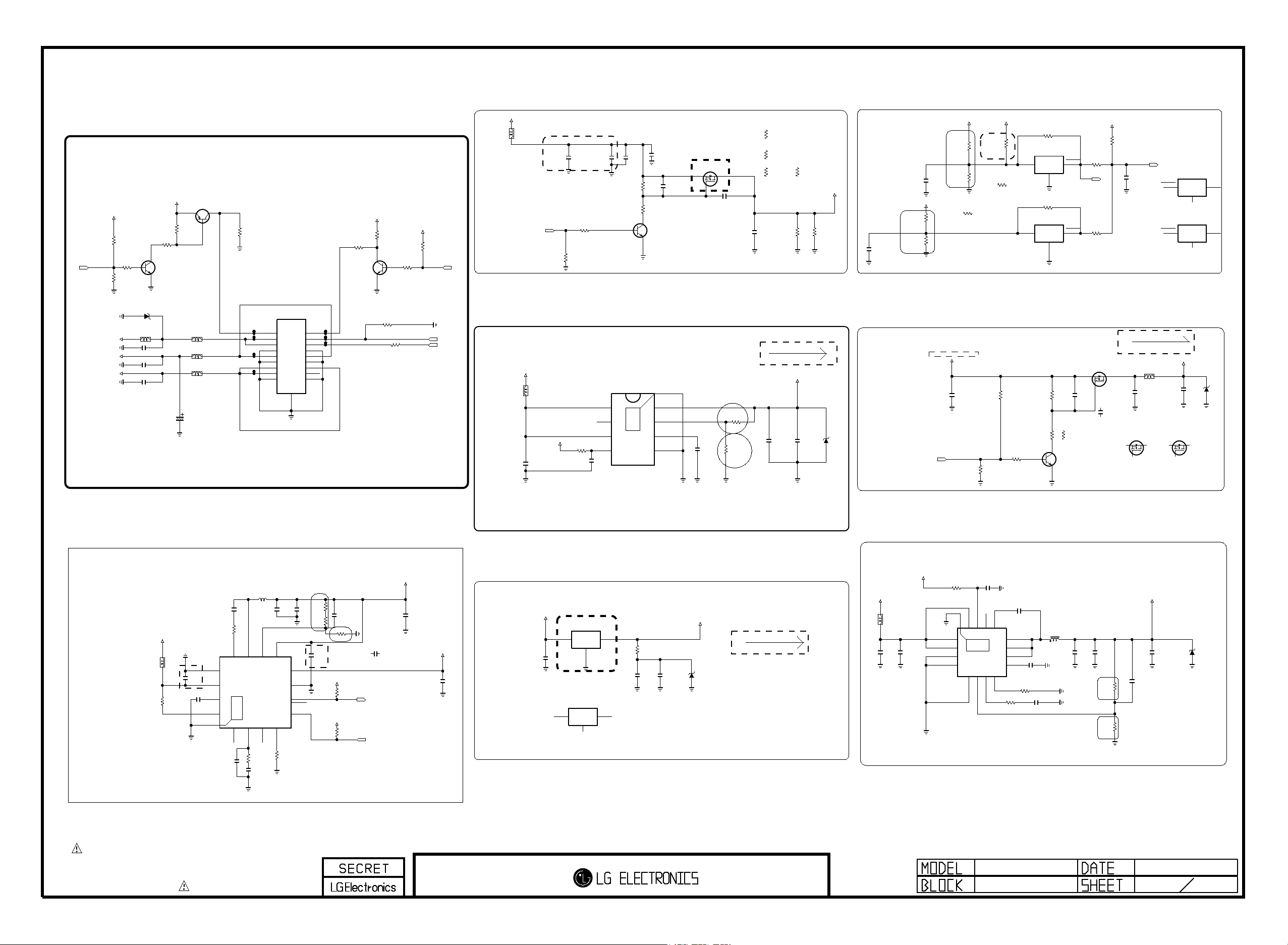

FROM LIPS & POWER B/D

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

MMBT3906(NXP)

Q402

3

1

2

RL_ON

+3.5V_ST

R406
10K

R413
10K

OPT

R409

10K

R407

10K

R410

4.7K

C

Q401

B

MMBT3904(NXP)

E

R414

+12V

L409

120

CIS21J121

0.015uF

C420

0.015uF
50V

+3.3V_Normal

OPT

33K

R415
100

R416

1K

C

E

MMBT3904(NXP)

Q403

+3.5V_ST

R418
10K

R417
10K

B

INV_CTL

PANEL_CTL
001:AL22

R425
10K

R426
10K

0.01uF

0.01uF

C423

50V

C424

0.1uF
25V

R435

33K

R436

5.6K

B

OPT

C428
10uF
25V

C

Q405
MMBT3904(NXP)

E

C431
10uF

Q406

AO3407A

S

25V

G

PANEL_POWER

5.1K_PANEL_DISCHARGE

New item

5.1K_PANEL_DISCHARGE

D

OPT
C435

0.1uF
25V

R441-*2

5.1K

R442-*2

5.1K

R441-*1

4.7K

PANEL_DISCHARGE_RES_4.7K
PANEL_DISCHARGE_RES_4.7K

NON_CI_CAP

C437

0.1uF
25V

PANEL_DISCHARGE_RES_5.6K
PANEL_DISCHARGE_RES_5.6K

R442-*1

4.7K

R441

5.6K

PANEL_VCC

R442

5.6K

+3.5V_ST --> 3.375V --> 3.46V

+20V --> 3.51V --> 3.76V (3.59V)
+24V --> 3.78V --> 3.92V (3.79V)
+12V --> 3.58V --> 3.82V (3.68V)

+18.5V --> 3.5V --> 3.75V (3.59V)

+24V

PD_+24V

R443

8.2K
1%

PD_+24V

PD_+24V
C441

0.1uF
16V

R444

1.5K
1%

C442

0.1uF
16V

PD_+12V

R450

2.7K

PD_+12V

R451

1.2K

PD_KR_42_LIPS

+12V

1%

1%

R451-*1

5.1K
1%

+3.5V_ST

PD_+3.5V

R455

PD_KR_42_LIPS

0

5%

R455-*1
100

1%

PD_+24V_PWR_DET_ON_SEMI

PWR_DET_ON_SEMI

NCP803SN293

VCC

3

GND

PD_+24V

NCP803SN293

VCC

3

GND

R457
100K

IC405

R460

100K

IC406

1

1

RESET

2

POWER_DET_RESET

RESET

2

+3.5V_ST

R465

RESET_IC_SOC_RESET

10K

R461
300

RESET_IC_SOC_RESET

PD_+24V

R462
100

Power_DET

C445

0.1uF

POWER_DET

IC405-*1

APX803D29

RESET

2

1

GND

PWR_DET_ON_DIODES

IC406-*1

APX803D29

RESET

2

1

PD_+24V_PWR_DET_DIODES

GND

VCC

3

VCC

3

D401

+3.5V_ST

+12V

+24V

C403

C405

C407

+5V_Normal
&
+5V_USB_1

CIC21J501NE

5V

CIC21J501NE
L402

0.1uF
16V

0.1uF
50V

0.1uF
16V

+12V

L401

OPT

R405

CHANGE TO

100K

L403

CIC21J501NE

L405

MLB-201209-0120P-N2

L413

MLB-201209-0120P-N2

C401
68uF
35V

OPT

16V/X5R

C404

PGND

10uF
16V

VIN

C406

4.7uF 10V

V7V

[EP]

C410

0.047uF
25V

EN

C408
100pF
50V

PWR ON

3.5V

3.5V

GND

24V

GND

12V
12V

GND

Vout=0.8*(1+R1/R2)

L404

3.6uH

R408

0

FB10LX11BST

12

13

14

IC401
TPS65281RGV

15

17

16

THERMAL

3

2

1

SS

ROSC

COMP

R411
2K

OPT

C409
3300pF
50V

P401

SMAW200-H18S1

1
3
5
7
9
11
13
15
17

19

C411
22uF
16V

SW_IN

9

8

SW_OUT

7

AGND

6

FAULT

5

EN_SW

4

RLIM

R412
20K

3.9K

R419

DRV ON

2

PDIM#1

4

PDIM#2

6

GND

8

24V

10

GND

12

12V

14

N.C

16

GND

18

.

OPT

R420

T120

BLM18SG700TN1D

16V

FET_2.5V_DIODE

DMP2130L
Q408-*1

S

G

C446

0.1uF

780 mA

L412

D

+3.3V_Normal

FET_2.5V_AOS

AO3435
Q408-*2

S

G

C448
22uF
10V

D404
5V

D

100

PWM1

PWM_DIM

+3.5V_ST

C418
10uF
10V

L410

BLM18PG121SN1D

+3.3V_Normal

+1.5V_DDR

AP7173-SPG-13 HF(DIODES)

IN

PG

VCC

R430

EN

10K

NON_CI_CAP

C421

0.1uF
16V

1

2

3

4

IC404

1.5A

9

THERMAL

Max 1000mA

+1.5V_DDR

[EP]

OUT

8

FB

7

SS

6

GND

5

C433
560pF
50V

R1

R440

4.3K
1/16W

1%

R2

R437

4.7K
1/16W
1%

C439
22uF
10V

C440

0.1uF
16V

D403
5V
OPT

POWER_ON/OFF_1

+3.3V_Normal

+3.5V_ST

NON_CI_CAP

C443

0.1uF
16V

R452

OPT

10K

R454

10K

R456
10K

FET_AOS

B

R459

100

R458
22K

FET_2.5V
R459-*1

2.2K

C

Q407
MMBT3904(NXP)

E

FET_AOS

C444

4.7uF
16V

FET_AOS

Q408

AO3407A

S

D

G

FET_2.5V

C444-*1

2.2uF
10V

Vout=0.8*(1+R1/R2)=1.5319

S7LR core 1.2V volt

EP[GND]

1

2

3

4

THERMAL

17

IC403

TPS54319TRE

5

6

AGND

VSENSE

3A

C422

0.33uF
16V

7

COMP

BOOT14PWRGD15EN16VIN_3

13

12

11

10

9

8

1/16W 330K 5%

RT/CLK

R432
15K

$ 0.165

PH_3

PH_2

PH_1

SS/TR

C426

0.1uF
16V

R433

C427
3300pF

3300pF

C429

50V

L411

3.6uH

NR8040T3R6N

C432
22uF
10V

C434
22uF
10V

+1.10V_VDDC

C438

0.1uF
16V

C436

50V

R438

R1

27K
1/16W
1%

R2

R439
56K
1/16W
1%

100pF

D405
5V
OPT

C402
22uF
16V

C416
10uF
10V

L408

+3.3V_Normal

NON_CI_CAP

C417

0.1uF
16V

VIN_1

VIN_2

GND_1

GND_2

R429
10K

+5V_Normal

R1

R404

33K
1%

C412
330pF

R401

OPT

C414
10uF

27K
1%

10V
85C

50V

R402

11K 1%

CAP_10uF_X5R

CHANGE TO

10UF/10V/X5R

+5V_Normal

+3.3V_Normal

OPT

R403
10K

R421

4.7K

R2

C414-*1

10uF 10V

CAP_10uF_X7R

USB1_OCD

USB1_CTL

C413

0.1uF
16V

OPT

+5V_USB_1

C415

22uF

10V

+3.3V_Normal

NON_CI_CAP

C419

0.1uF
16V

LDO_OLD

TJ3940S-2.5V-3L

VIN

3

Vd=550mV

LDO_NEW

IC402-*1

TJ1118S-2.5

IN

3

IC402

1

VOUT

2

1

GND

2

GND

R434

1

C425
10uF
10V

OUT

+2.5V/+1.8V

+2.5V_Normal

C430

0.1uF
16V

D402
5V
OPT

300 mA

+3.5V_ST

Vout=0.827*(1+R1/R2)=1.225V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

POWER

4

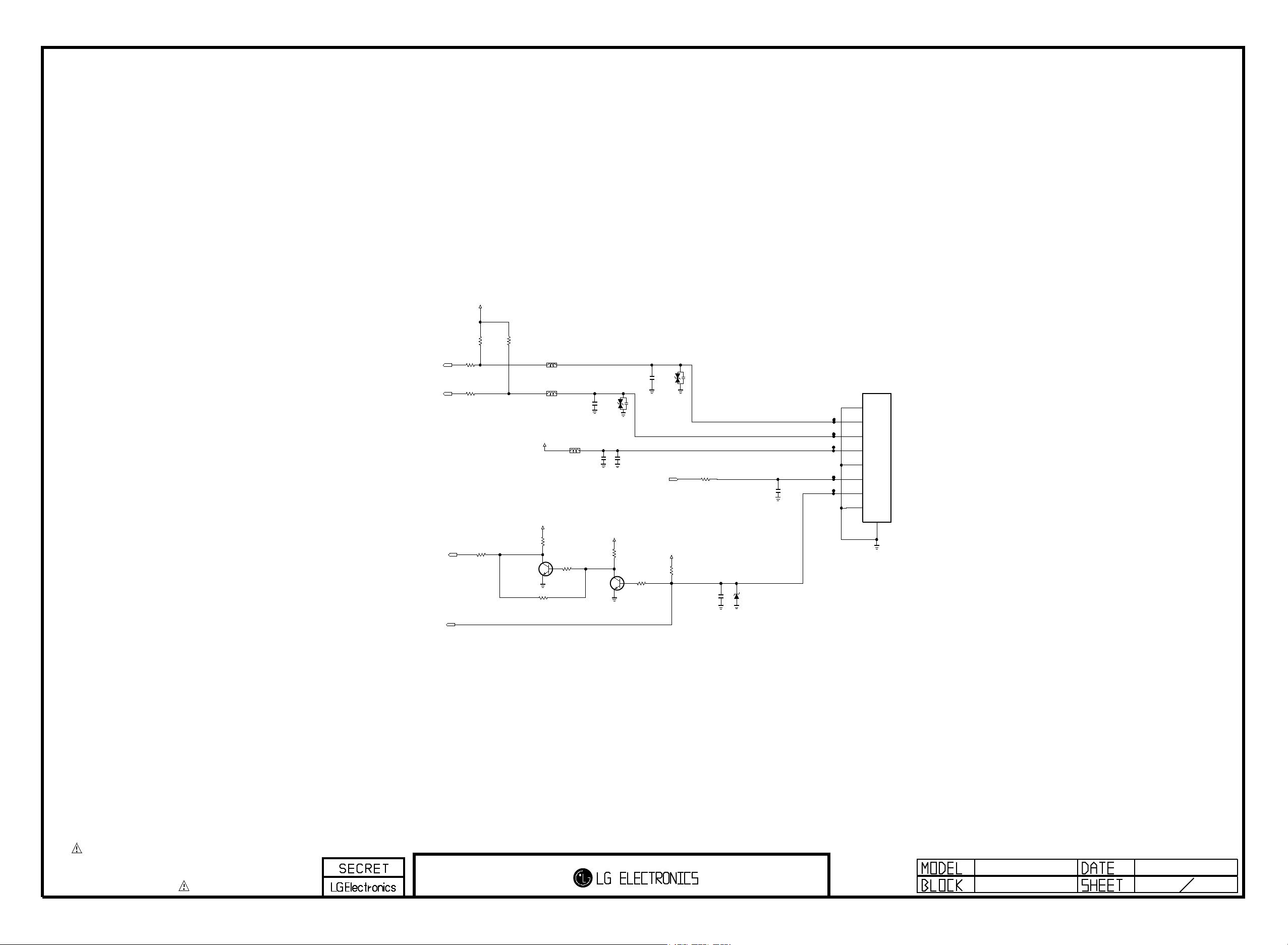

IR/LED and control for normal models.

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

R608

KEY1

KEY2

IR_OUT

R606

R602
100

R603
100

IR

10K

10K

1%

1%

L602

BLM18PG121SN1D

L603

BLM18PG121SN1D

C603

VA601

0.1uF
AMOTECH CO., LTD.

IR_OUT

R601

+3.5V_ST

+3.5V_ST

IR_OUT_EU

R605

IR_OUT_EU

2SC3052

Q601

IR_OUT_US

1K

R604

22

C

B

E

0

BLM18PG121SN1D

IR_OUT_EU

R607

10K

L601

C601

0.1uF
16V

IR_OUT

IR_OUT
2SC3052

R609

Q602

OPT

5.6V

+3.5V_ST

1K

AMOTECH CO., LTD.

LED_R

R610

47K

R611

VA602

3.3K

OPT

5.6V

+3.5V_ST

R615

1.5K

C607

100pF

P601

12507WR-08L

1

2

3

4

5

OPT

C608

0.1uF
16V

OPT
ZD603

50V

5.48VTO5.76V

6

7

8

9

C604

0.1uF

C602
1000pF
50V

IR_OUT

C

B

E

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

IR/CONTROL 6

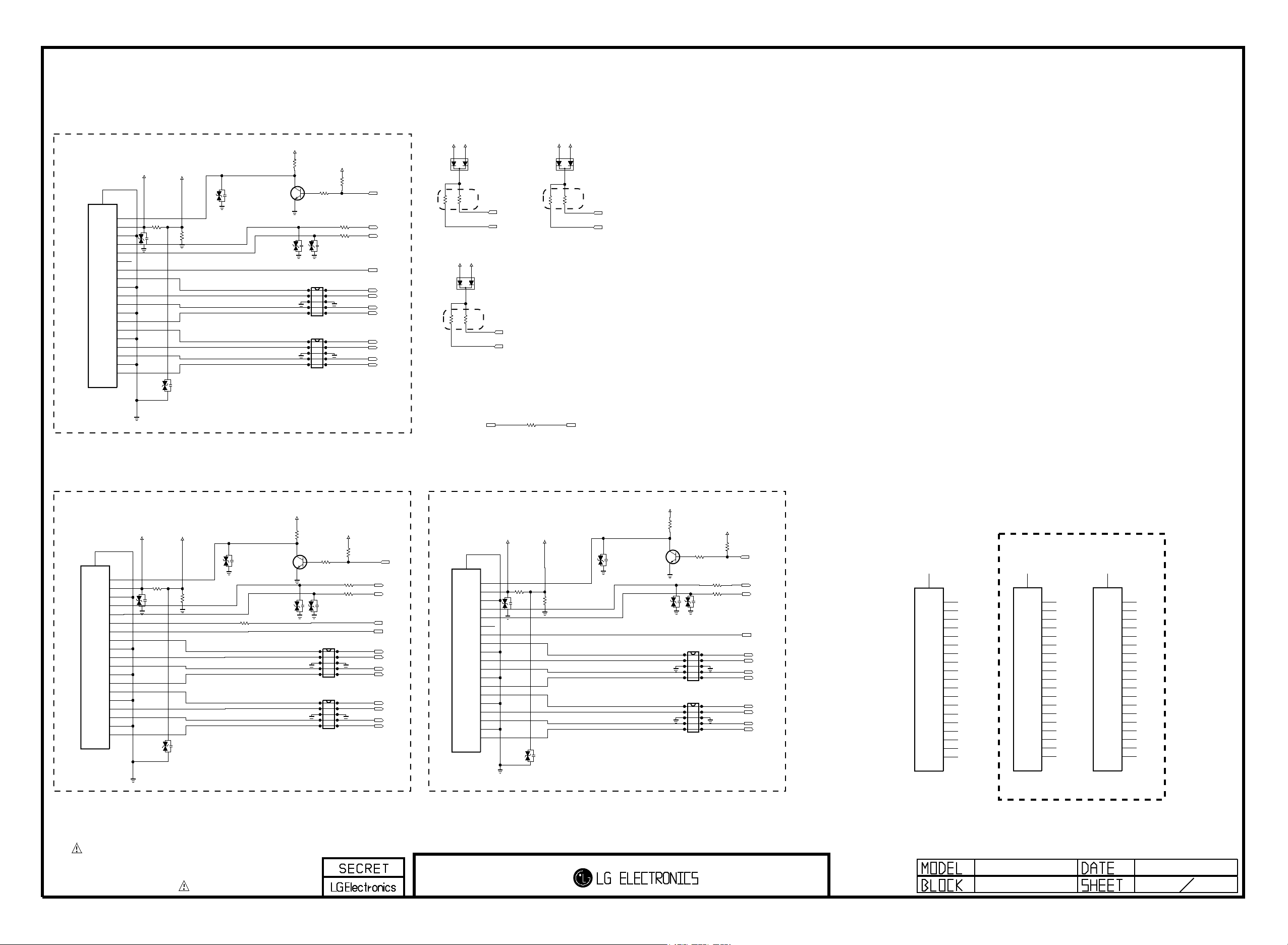

HDMI

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

HDMI_1

HDMI_1_Normal

SHIELD

20

19

18

17

16

15

14

13

12

11
10

EAG59023302

JK802

R812

2.7K

5V_HDMI_4

HDMI_SIDE

R827

2.7K

HDMI_SIDE

For CEC

+5V_Normal

A1

C

R813

2.7K

HDMI_CEC

A2

MMBD6100
D801

+5V_Normal

A2CA1

MMBD6100
D803

R828

2.7K

HDMI_SIDE

DDC_SDA_1

DDC_SCL_1

DDC_SDA_4

DDC_SCL_4

R816
100

5V_HDMI_2

R819

2.7K

HDMI_2

HDMI_2

+5V_Normal

A2CA1

MMBD6100
D802

R820

2.7K

CEC_REMOTE_S7

HDMI_2

DDC_SDA_2

DDC_SCL_2

5V_HDMI_1

1K

5V_HDMI_1

Q801EB

VA806

ESD_HDMI

R801

R811

10K

VA807

ESD_HDMI

10
9
8
7
6

10
9
8
7
6

10K
R808

HPD1

100R818

100R822

DDC_SDA_1

DDC_SCL_1

HDMI_CEC

CK-_HDMI1
CK+_HDMI1

D0-_HDMI1
D0+_HDMI1

D1-_HDMI1
D1+_HDMI1

D2-_HDMI1
D2+_HDMI1

C

D804
RCLAMP0524PA

1
2
3
4
5

ESD_HDMI

D805
RCLAMP0524PA

1
2
3
4
5

ESD_HDMI

R802

1.8K

VA804

ESD_HDMI

5V_DET_HDMI_1

R805

VA801

ESD_HDMI

3.3K

VA805

ESD_HDMI

MMBT3904(NXP)

5V_HDMI_1

CK+

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

5V_HDMI_1

HDMI_2

SHIELD

EAG59023302

HDMI_2_Normal

JK801

SIDE_HDMI

5V_HDMI_2

R803

C

Q802EB

VA810

1K

R810

10K

VA811

ESD_HDMI

1
2
3
4
5

ESD_HDMI

1
2
3
4
5

ESD_HDMI

D806
RCLAMP0524PA

10
9
8
7
6

D807
RCLAMP0524PA

10
9
8
7
6

5V_HDMI_2

R809

10K

100R824

100R825

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC

HDMI_CEC

CK-_HDMI2
CK+_HDMI2

D0-_HDMI2
D0+_HDMI2

D1-_HDMI2
D1+_HDMI2

D2-_HDMI2
D2+_HDMI2

BODY_SHIELD

EAG62611204

HDMI_SIDE

JK803

20

5V_HDMI_4

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

R815

1.8K

VA812

ESD_HDMI

5V_DET_HDMI_4

R817

VA803

ESD_HDMI

3.3K

VA813

ESD_HDMI

MMBT3904(NXP)

5V_HDMI_2

20

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

R804

1.8K

ESD_HDMI

VA808

5V_DET_HDMI_2

R806

ESD_HDMI

VA802

3.3K

R807

VA809

ESD_HDMI

HDMI1_ARC

MMBT3904(NXP)

ESD_HDMI

0

C

Q804EB

VA814

ESD_HDMI

5V_HDMI_4

R814
1K

1
2
3
4
5

ESD_HDMI

1
2
3
4
5

R823

10K

VA815

ESD_HDMI

D808
RCLAMP0524PA

D809
RCLAMP0524PA

ESD_HDMI

5V_HDMI_4

R821

10K

HPD4

100R826

100R829

10
9
8
7
6

10
9
8
7
6

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4
CK+_HDMI4

D0-_HDMI4
D0+_HDMI4

D1-_HDMI4
D1+_HDMI4

D2-_HDMI4
D2+_HDMI4

BODY_SHIELD

20

SIDE_HDMI_32LS3500

51U019S-312HFN-E-R-E-LG

JK803-*1

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

For BDP In-Packing Model

- EMI Gasket Touch Jack

SHIELD

20

19

HPD

18

+5V_POWER

17

DDC/CEC_GND

16

SDA

15

SCL

14

NC

13

CEC

12

CLK-

11

CLK_SHIELD

10

CLK+

9

DATA0-

8

DATA0_SHIELD

7

DATA0+

6

DATA1-

5

DATA1_SHIELD

4

DATA1+

3

DATA2-

2

DATA2_SHIELD

1

DATA2+

HDMI_2_BDP_Model

YKF45-7054V

JK801-*1

SHIELD

20

16

15

HDMI_1_BDP_Model

YKF45-7054V

JK802-*1

19

HPD

18

+5V_POWER

17

DDC/CEC_GND

SDA

SCL

14

NC

13

CEC

12

CLK-

11

CLK_SHIELD

10

CLK+

9

DATA0-

8

DATA0_SHIELD

7

DATA0+

6

DATA1-

5

DATA1_SHIELD

4

DATA1+

3

DATA2-

2

DATA2_SHIELD

1

DATA2+

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

HDMI/RJP 8

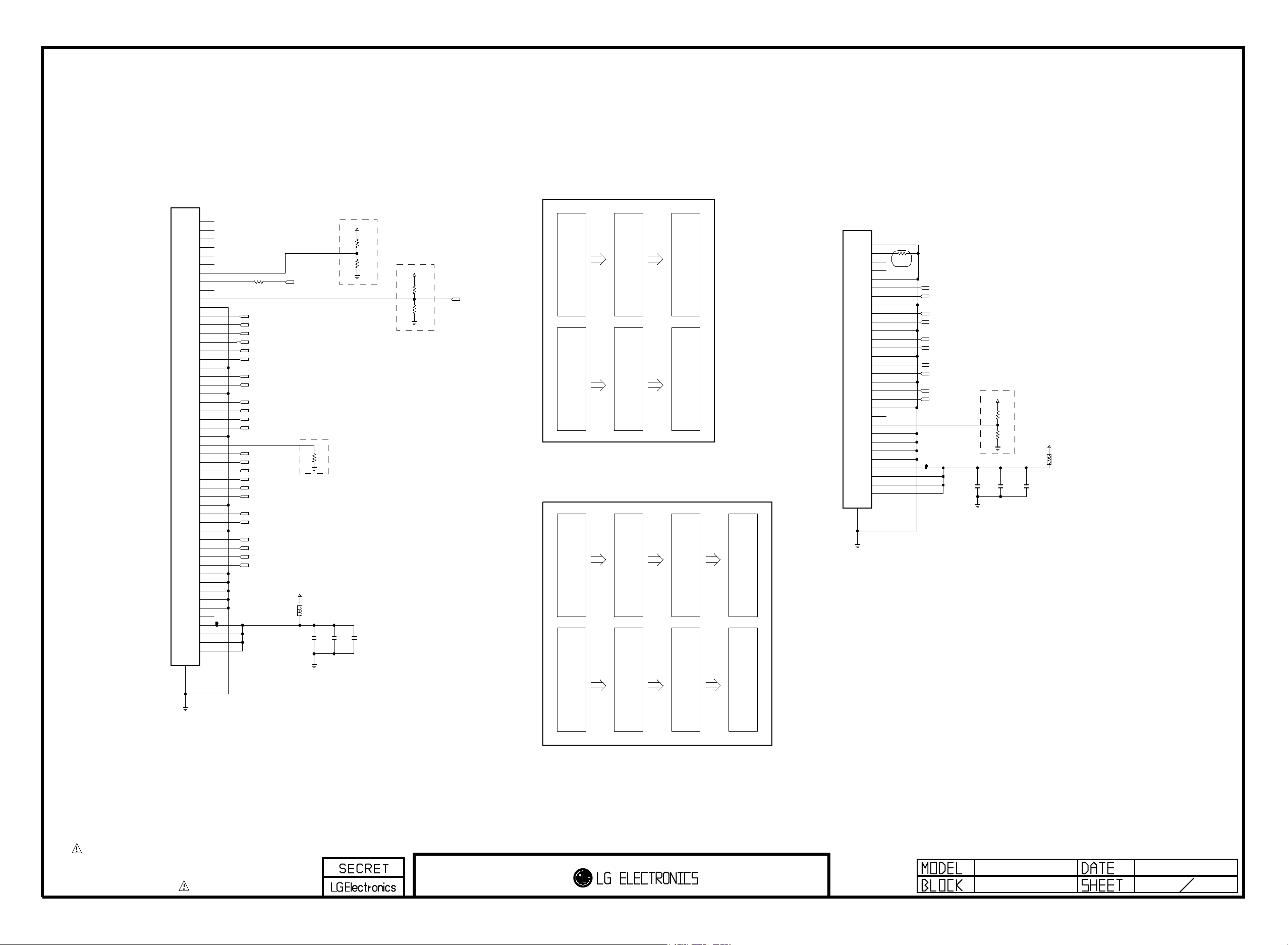

LVDS for large inch

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

[51Pin LVDS Connector]

(For FHD 60Hz)

FHD

P1100

FI-RE51S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

PSU_T120_LGD

R1100

0

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

PWM_DIM

AUO_GND/LGD_NC

PANEL_VCC

FHD

L1100

70-ohm

R1101
10K

OPT

C1100
10uF
16V

AUO_GND

OPT

C1101
1000pF
50V

LVDS_SEL

+3.3V_Normal

FHD

C1102

0.1uF
16V

OPT
R1102

3.3K

OPT
R1103

10K

SCANNING_EN

+3.3V_Normal

OPT
R1104

3.3K

OPT
R1105

10K

OPC&SCANNING_CTRL

FOR FHD REVERSE(10bit)
Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+ RXA2+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

RXA0+

RXA0-

RXA1+

RXA1-

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit)
Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3- RXA0-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3- RXB0+

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

RXA4+

RXA4-

RXA0+

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK- RXBCK+

RXB3+

RXB3-

Pol-change

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

Pol-change Shift

RXA4-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXB3-

RXB3+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[30Pin LVDS Connector]

(For HD 60Hz_Normal)

HD

P1101

FF10001-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

HD_GND_2pin

R1106

0

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

LVDS_SEL

+3.3V_Normal

OPT

C1103
10uF
16V

OPT

R1107

3.3K

OPT

R1108
10K

OPT
C1104
1000pF
50V

HD

C1105

0.1uF
16V

PANEL_VCC

HD
L1101

70-ohm

BLM18SG700TN1D

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

LVDS_LARGE 11

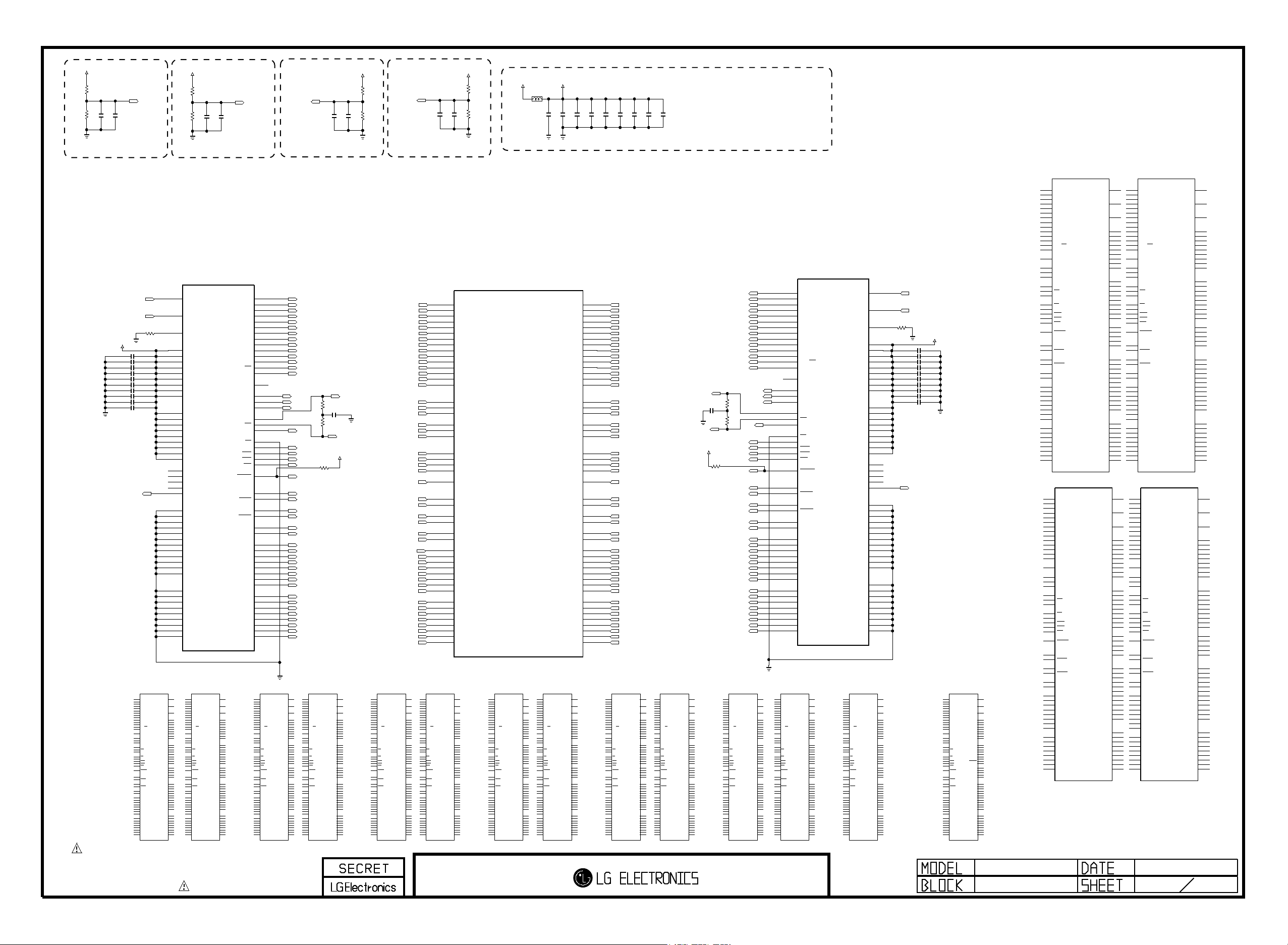

AVDD_DDR0

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

R1201

R1202

AVDD_DDR0

1K 1%

0.1uF

1K 1%

C1201

A-MVREFDQ

1000pF

C1202

R1204

R1205

1K 1%

0.1uF

1K 1%

C1203

A-MVREFCA

1000pF

C1204

B-MVREFCA

1000pF

OS

C1247

AVDD_DDR0

0.1uF

OS

OS

C1248

R1224

1K 1%

OS

B-MVREFDQ

R1225

1K 1%

1000pF

OS

C1249

AVDD_DDR0

0.1uF

OS

OS

C1250

L1202

CIC21J501NE

AVDD_DDR0

+1.5V_DDR

R1227

1K 1%

OPT

OS

R1228

1K 1%

C1251

10uF

C1206

0.1uF

C1239

0.1uF

C1217

1uF

1uF

C1218

C1219

1uF

1uF

1uF

C1241

C1238

C1220

0.1uF

EAN61829001

IC1201-*4

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

A15

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

CLose to Saturn7M IC

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13

A-MBA0
A-MBA1
A-MBA2

A-MCKE

A-MODT
A-MRASB
A-MCASB
A-MWEB

A-MRESETB

A-MDQSL
A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDML

A-MDMU

A-MDQL0 B-MDQL1
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

DDR_1600_HYNIX

H5TQ1G63DFR-PBC

M8

N3

VREFCA

P7
P3

H1

N2

VREFDQ

P8
P2

L8

R8

ZQ

R2
T8

B2

R3

VDD_1

D9

L7

VDD_2

G7

R7

VDD_3

K2

N7

VDD_4

K8

T3

VDD_5

N1

VDD_6

N9

M7

VDD_7

R1

VDD_8

R9

M2

VDD_9

N8
M3

A1

VDDQ_1

A8

J7

VDDQ_2

C1

K7

VDDQ_3

C9

K9

VDDQ_4

D2

VDDQ_5

E9

L2

VDDQ_6

F1

K1

VDDQ_7

H2

J3

VDDQ_8

H9

K3

VDDQ_9

L3

J1

NC_1

J9

T2

NC_2

L1

NC_3

L9

NC_4

T7

F3

NC_6

G3

A9

C7

VSS_1

B3

B7

VSS_2

E1

VSS_3

G8

E7

VSS_4

J2

D3

VSS_5

J8

VSS_6

M1

E3

VSS_7

M9

F7

VSS_8

P1

F2

VSS_9

P9

F8

VSS_10

T1

H3

VSS_11

T9

H8

VSS_12

G2
H7

B1

VSSQ_1

B9

D7

VSSQ_2

D1

C3

VSSQ_3

D8

C8

VSSQ_4

E2

C2

VSSQ_5

E8

A7

VSSQ_6

F9

A2

VSSQ_7

G1

B8

VSSQ_8

G9

A3

VSSQ_9

A-MCK

561%R1235

C1209

0.01uF
50V

561%R1236

A-MCKB

AVDD_DDR0

R1231
10K

EAN61829001

IC1202-*4

M8

VREFCA

A0
A1
A2

H1

VREFDQ

A3
A4
A5

L8

ZQ

A6
A7
A8

B2

VDD_1

A9

D9

VDD_2

A10/AP

G7

VDD_3

A11

K2

VDD_4

A12/BC

K8

VDD_5

A13

N1

VDD_6

N9

VDD_7

A15

R1

VDD_8

R9

VDD_9

BA0
BA1
BA2

A1

VDDQ_1

A8

VDDQ_2

CK

C1

VDDQ_3

CK

C9

VDDQ_4

CKE

D2

VDDQ_5

E9

VDDQ_6

CS

F1

VDDQ_7

ODT

H2

VDDQ_8

RAS

H9

VDDQ_9

CAS
WE

J1

NC_1

J9

NC_2

RESET

L1

NC_3

L9

NC_4

T7

NC_6

DQSL
DQSL

A9

VSS_1

DQSU

B3

VSS_2

DQSU

E1

VSS_3

G8

VSS_4

DML

J2

VSS_5

DMU

J8

VSS_6

M1

VSS_7

DQL0

M9

VSS_8

DQL1

P1

VSS_9

DQL2

P9

VSS_10

DQL3

T1

VSS_11

DQL4

T9

VSS_12

DQL5
DQL6
DQL7

B1

VSSQ_1

B9

VSSQ_2

DQU0

D1

VSSQ_3

DQU1

D8

VSSQ_4

DQU2

E2

VSSQ_5

DQU3

E8

VSSQ_6

DQU4

F9

VSSQ_7

DQU5

G1

VSSQ_8

DQU6

G9

VSSQ_9

DQU7

CLose to DDR3

A-MVREFCA

A-MVREFDQ

AVDD_DDR0

OS

A-MA14

R1203

240

1%

10uFC1205

0.1uFC1207

0.1uFC1208

0.1uFC1210

0.1uFC1211

0.1uFC1212

0.1uFC1213

0.1uFC1214

0.1uFC1215

0.1uFC1216

DDR_1600_SS

IC1201-*5

K4B1G1646G-BCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

EAN61836301

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9

F1
H2
H9

J1

J9
L1
L9
T7

A9
B3
E1
G8

J2

J8

M1
M9

P1

P9
T1
T9

B1
B9
D1
D8
E2
E8

F9
G1
G9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

CLose to Saturn7M IC

EAN61828901

IC1201

H5TQ1G63DFR-H9C

DDR_1333_HYNIX

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

EAN61836301

DDR_1600_SS

IC1202-*5

K4B1G1646G-BCK0

N3

VREFCA

A0

P7

A1

P3

A2

N2

VREFDQ

A3

P8

A4

P2

A5

R8

ZQ

A6

R2

A7

T8

A8

R3

VDD_1

A9

L7

VDD_2

A10/AP

R7

VDD_3

A11

N7

VDD_4

A12/BC

T3

VDD_5

A13

VDD_6

M7

VDD_7

NC_5

VDD_8

M2

VDD_9

BA0

N8

BA1

M3

BA2

VDDQ_1

J7

VDDQ_2

CK

K7

VDDQ_3

CK

K9

VDDQ_4

CKE

VDDQ_5

L2

VDDQ_6

CS

K1

VDDQ_7

ODT

J3

VDDQ_8

RAS

K3

VDDQ_9

CAS

L3

WE

NC_1

T2

NC_2

RESET

NC_3
NC_4

F3

NC_6

DQSL

G3

DQSL

C7

VSS_1

DQSU

B7

VSS_2

DQSU

VSS_3

E7

VSS_4

DML

D3

VSS_5

DMU

VSS_6

E3

VSS_7

DQL0

F7

VSS_8

DQL1

F2

VSS_9

DQL2

F8

VSS_10

DQL3

H3

VSS_11

DQL4

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

VSSQ_1

D7

VSSQ_2

DQU0

C3

VSSQ_3

DQU1

C8

VSSQ_4

DQU2

C2

VSSQ_5

DQU3

A7

VSSQ_6

DQU4

A2

VSSQ_7

DQU5

B8

VSSQ_8

DQU6

A3

VSSQ_9

DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_HYNIX

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

H5TQ1G63DFR-PBC

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2

N8

M3

J7
K7
K9

L2
K1

J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDR_DVB_T2_2G

IC1201-*3

K4B2G1646C

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

A-MRESETB

EAN61667501

A-MA10
A-MA11
A-MA12
A-MA13

A-MA14

A-MBA0
A-MBA1
A-MBA2

A-MCKB
A-MCKE

A-MODT
A-MRASB
A-MCASB

A-MWEB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDML
A-MDMU

A-MDQL0

A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

VREFCA

VREFDQ

VDD_1

VDD_2

VDD_3

VDD_4

VDD_5

VDD_6

VDD_7

VDD_8

VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1

VSS_2

VSS_3

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9

A-MCK

ZQ

CLose to DDR3

DDR_DVB_T2_2G

IC1202-*3

K4B2G1646C

M8

N3

A0

P7

A1

P3

A2

H1

N2

A3

P8

A4

P2

A5

L8

R8

A6

R2

A7

T8

A8

B2

R3

A9

D9

L7

A10/AP

G7

R7

A11

K2

N7

A12/BC

K8

T3

A13

N1
N9

M7

NC_5

R1
R9

M2

BA0

N8

BA1

M3

BA2

A1
A8

J7

CK

C1

K7

CK

C9

K9

CKE

D2
E9

L2

CS

F1

K1

ODT

H2

J3

RAS

H9

K3

CAS

L3

WE

J1
J9

T2

RESET

L1
L9
T7

F3

DQSL

G3

DQSL

A9

C7

DQSU

B3

B7

DQSU

E1
G8

E7

DML

J2

D3

DMU

J8
M1

E3

DQL0

M9

F7

DQL1

P1

F2

DQL2

P9

F8

DQL3

T1

H3

DQL4

T9

H8

DQL5

G2

DQL6

H7

DQL7

B1
B9

D7

DQU0

D1

C3

DQU1

D8

C8

DQU2

E2

C2

DQU3

E8

A7

DQU4

F9

A2

DQU5

G1

B8

DQU6

G9

A3

DQU7

S7LR2_DIVX_MS10

A11

A_DDR3_A[0]

C14

A_DDR3_A[1]

B11

A_DDR3_A[2]

F12

A_DDR3_A[3]

C15

A_DDR3_A[4]

E12

A_DDR3_A[5]

A14

A_DDR3_A[6]

D11

A_DDR3_A[7]

B14

A_DDR3_A[8]

D12

A_DDR3_A[9]

C16

A_DDR3_A[10]

C13

A_DDR3_A[11]

A15

A_DDR3_A[12]

E11

A_DDR3_A[13]

B13

A_DDR3_A[14]

F13

A_DDR3_BA[0]

B15

A_DDR3_BA[1]

E13

A_DDR3_BA[2]

C17

A_DDR3_MCLK

A17

A_DDR3_MCLKZ

B16

A_DDR3_MCLKE

E14

A_DDR3_ODT

B12

A_DDR3_RASZ

A12

A_DDR3_CASZ

C12

A_DDR3_WEZ

F11

A_DDR3_RESET

B19

A_DDR3_DQSL

C18

A_DDR3_DQSLB

B18

A_DDR3_DQSU

A18

A_DDR3_DQSUB

E15

A_DDR3_DQML

A21

A_DDR3_DQMU

D17

A_DDR3_DQL[0]

G15

A_DDR3_DQL[1]

B21

A_DDR3_DQL[2]

F15

A_DDR3_DQL[3]

B22

A_DDR3_DQL[4]

F14

A_DDR3_DQL[5]

A22

A_DDR3_DQL[6]

D15

A_DDR3_DQL[7]

G16

A_DDR3_DQU[0]

B20

A_DDR3_DQU[1]

F16

A_DDR3_DQU[2]

C21

A_DDR3_DQU[3]

E16

A_DDR3_DQU[4]

A20

A_DDR3_DQU[5]

D16

A_DDR3_DQU[6]

C20

A_DDR3_DQU[7]

EAN61667501

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

LGE2111A-T8

DDR_1600_MICRON

IC1201-*6

MT41J64M16JT-125:G

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

EAN62348801

IC101

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

NC_1
NC_2
NC_3
NC_4
NC_5

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

B_DDR3_A[10]
B_DDR3_A[11]
B_DDR3_A[12]
B_DDR3_A[13]
B_DDR3_A[14]

B_DDR3_BA[0]
B_DDR3_BA[1]
B_DDR3_BA[2]

B_DDR3_MCLK
B_DDR3_MCLKZ
B_DDR3_MCLKE

B_DDR3_RASZ
B_DDR3_CASZ

B_DDR3_RESET

B_DDR3_DQSL

B_DDR3_DQSLB

B_DDR3_DQSU

B_DDR3_DQSUB

B_DDR3_DQML

B_DDR3_DQMU

B_DDR3_DQL[0]
B_DDR3_DQL[1]
B_DDR3_DQL[2]
B_DDR3_DQL[3]
B_DDR3_DQL[4]
B_DDR3_DQL[5]
B_DDR3_DQL[6]
B_DDR3_DQL[7]

B_DDR3_DQU[0]
B_DDR3_DQU[1]
B_DDR3_DQU[2]
B_DDR3_DQU[3]
B_DDR3_DQU[4]
B_DDR3_DQU[5]
B_DDR3_DQU[6]
B_DDR3_DQU[7]

DDR_1600_MICRON

IC1202-*6

MT41J64M16JT-125:G

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

B_DDR3_A[0]
B_DDR3_A[1]
B_DDR3_A[2]
B_DDR3_A[3]
B_DDR3_A[4]
B_DDR3_A[5]
B_DDR3_A[6]
B_DDR3_A[7]
B_DDR3_A[8]
B_DDR3_A[9]

B_DDR3_ODT

B_DDR3_WEZ

EAN62348801

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

IC1201-*1

K4B1G1646G-BCH9

DDR_1333_SS_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

EAN61828901

IC1202

H5TQ1G63DFR-H9C

DDR_1333_HYNIX

H5TQ1G63EFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

N3

P7
P3

N2

P8

P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2

N8

M3

J7
K7
K9

L2
K1

J3
K3
L3

T2

F3

G3

C7
B7

E7
D3

E3

F7
F2

F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

EAN61829003

DDR_1600_HYNIX_NEW

IC1202-*8

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

B-MA0

C1240

0.01uF
50V

R1232

OS

10K

OS

1%

1%

OS

B-MRASB
B-MCASB

B-MRESETB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDQL0

B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7

B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7

H5TQ1G63EFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8

B-MA9
B-MA10
B-MA11
B-MA12
B-MA13

56

56

B-MODT

B-MWEB

B-MDML
B-MDMU

DDR_1600_HYNIX_NEW

IC1201-*8

R1237

B-MCKE

R1238

EAN61829003

B-MBA0
B-MBA1
B-MBA2

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1
B9
D1
D8
E2
E8
F9
G1
G9

B23
D25
F22
G22
E24
F21
E23
D22
D24
D21
C24
C25
F23
E21
D23

G20
F24
F20

G25
G23
F25

D20
B25
B24
A24

E20

K24
K25

J21
J20

H24
L20

L23
J24
L24
J23
M24
H23
M23
K23

G21
L22
H22
K20
H20
L21
H21
K21

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_5

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8
B-MA9
B-MA10
B-MA11
B-MA12
B-MA13
B-MA14

B-MBA0
B-MBA1
B-MBA2

B-MCK
B-MCKB
B-MCKE

B-MODT
B-MRASB
B-MCASB
B-MWEB

B-MRESETB

B-MDQSL
B-MDQSLB

B-MDQSU
B-MDQSUB

B-MDML
B-MDMU

B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7

B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7

EAN61848801

DDR_1600_2G_SS

IC1201-*7

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

B-MCK

OS

B-MCKB

AVDD_DDR0

EAN61848801

DDR_1600_2G_SS

IC1202-*7

K4B2G1646C-HCK0

M8

N3

VREFCA

P7
P3

H1

N2

VREFDQ

P8
P2

L8

R8

ZQ

R2
T8

B2

R3

VDD_1

D9

L7

VDD_2

G7

R7

VDD_3

K2

N7

VDD_4

K8

T3

VDD_5

N1

VDD_6

N9

M7

VDD_7

R1

VDD_8

R9

M2

VDD_9

N8
M3

A1

VDDQ_1

A8

J7

VDDQ_2

C1

K7

VDDQ_3

C9

K9

VDDQ_4

D2

VDDQ_5

E9

L2

VDDQ_6

F1

K1

VDDQ_7

H2

J3

VDDQ_8

H9

K3

VDDQ_9

L3

J1

NC_1

J9

T2

NC_2

L1

NC_3

L9

NC_4

T7

F3

NC_6

G3

A9

C7

VSS_1

B3

B7

VSS_2

E1

VSS_3

G8

E7

VSS_4

J2

D3

VSS_5

J8

VSS_6

M1

E3

VSS_7

M9

F7

VSS_8

P1

F2

VSS_9

P9

F8

VSS_10

T1

H3

VSS_11

T9

H8

VSS_12

G2
H7

B1

VSSQ_1

B9

D7

VSSQ_2

D1

C3

VSSQ_3

D8

C8

VSSQ_4

E2

C2

VSSQ_5

E8

A7

VSSQ_6

F9

A2

VSSQ_7

G1

B8

VSSQ_8

G9

A3

VSSQ_9

M8

VREFCA

A0
A1
A2

H1

VREFDQ

A3
A4
A5

L8

ZQ

A6
A7
A8

B2

VDD_1

A9

D9

VDD_2

A10/AP

G7

VDD_3

A11

K2

VDD_4

A12/BC

K8

VDD_5

A13

N1

VDD_6

N9

VDD_7

NC_5

R1

VDD_8

R9

VDD_9

BA0
BA1
BA2

A1

VDDQ_1

A8

VDDQ_2

CK

C1

VDDQ_3

CK

C9

VDDQ_4

CKE

D2

VDDQ_5

E9

VDDQ_6

CS

F1

VDDQ_7

ODT

H2

VDDQ_8

RAS

H9

VDDQ_9

CAS
WE

J1

NC_1

J9

NC_2

RESET

L1

NC_3

L9

NC_4

T7

NC_6

DQSL
DQSL

A9

VSS_1

DQSU

B3

VSS_2

DQSU

E1

VSS_3

G8

VSS_4

DML

J2

VSS_5

DMU

J8

VSS_6

M1

VSS_7

DQL0

M9

VSS_8

DQL1

P1

VSS_9

DQL2

P9

VSS_10

DQL3

T1

VSS_11

DQL4

T9

VSS_12

DQL5
DQL6
DQL7

B1

VSSQ_1

B9

VSSQ_2

DQU0

D1

VSSQ_3

DQU1

D8

VSSQ_4

DQU2

E2

VSSQ_5

DQU3

E8

VSSQ_6

DQU4

F9

VSSQ_7

DQU5

G1

VSSQ_8

DQU6

G9

VSSQ_9

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

DDR_1600_2G_SS_NEWExchange

K4B2G1646E-BCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

NC_1
NC_2
NC_3
NC_4
NC_6

EAN61848802

IC1201-*9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

R1226

B-MVREFCA

B-MVREFDQ

OS

240

AVDD_DDR0

1%

10uFC1227

0.1uFC1228

OS

0.1uFC1229

OS

0.1uFC1230

OS

0.1uFC1231

OS

0.1uFC1232

OS

0.1uFC1233

OS

0.1uFC1234

OS

0.1uFC1235

OS

0.1uFC1236

OS

B-MA14

EAN61859501

DDR_1600_NANYA_NEW

IC1201-*10

NT5CB64M16DP-DH

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2

N8

M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

M8

VREFCA

A0
A1
A2

H1

VREFDQ

A3
A4
A5

L8

ZQ

A6
A7
A8

B2

VDD_1

A9

D9

VDD_2

A10/AP

G7

VDD_3

A11

K2

VDD_4

A12

K8

VDD_5

NC_6

N1

VDD_6

N9

VDD_7

NC_5

R1

VDD_8

R9

VDD_9

BA0
BA1
BA2

A1

VDDQ_1

A8

VDDQ_2

CK

C1

VDDQ_3

CK

C9

VDDQ_4

CKE

D2

VDDQ_5

E9

VDDQ_6

CS

F1

VDDQ_7

ODT

H2

RAS

VDDQ_8

H9

VDDQ_9

CAS
WE

J1

NC_1

J9

NC_2

RESET

L1

NC_3

L9

NC_4

T7

NC_7

DQSL
DQSL

A9

VSS_1

DQSU

B3

VSS_2

DQSU

E1

VSS_3

G8

VSS_4

DML

J2

VSS_5

DMU

J8

VSS_6

M1

VSS_7

DQL0

M9

VSS_8

DQL1

P1

VSS_9

DQL2

P9

VSS_10

DQL3

T1

VSS_11

DQL4

T9

VSS_12

DQL5
DQL6
DQL7

B1

VSSQ_1

B9

VSSQ_2

DQU0

D1

VSSQ_3

DQU1

D8

VSSQ_4

DQU2

E2

VSSQ_5

DQU3

E8

VSSQ_6

DQU4

F9

VSSQ_7

DQU5

G1

VSSQ_8

DQU6

G9

VSSQ_9

DQU7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1201-*2

EAN61857201

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

K4B1G1646G-BCH9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1202-*1

DDR_1333_SS_NEW

IC1202-*2

EAN61857201

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

LA2AW 2012.09.11

DDR_256 12

Serial Flash for SPI boot_NON_OS and OS

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

/FLASH_WP

R304

+3.5V_ST

+3.5V_ST

S_FLASH_OS_MACRONIX

OPT

R302

/SPI_CS

SPI_SDO

4.7K

SO/SIO1

DO[IO1]

%WP[IO2]

+3.5V_ST

OPT
R301
10K

OPT

C

0

OPT

B

Q301
MMBT3904(NXP)

E

IC301

MX25L8006EM2I-12G

CS#

1

2

WP#

3

GND

4

S_FLASH_OS_WINBOND

IC301-*1

W25Q80BVSSIG

CS

1

2

3

GND

4

8

7

6

5

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

R303

33

S_FLASH_OS

S_FLASH_OS

C301

0.1uF

SPI_SCK

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

3Serial FLASH

Audio amp(NTP-7500)

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

AMP_MUTE

+24V

+3.3V_Normal

L502

BLM18PG121SN1D

+24V_AMP

C514

C512

C513

0.1uF
16V

0.1uF
16V

0.1uF
16V

L501

CIS21J121

C501

0.1uF
50V

C502

0.1uF
50V

AUD_LRCH

AUD_LRCK 22000pF

AUD_SCK

AMP_SDA

AMP_SCL

R520

NON_LIPS

10K

R501

10K

NON_LIPS

POWER_DET

+3.5V_ST

B

R502

10K

NON_LIPS

C

Q501

MMBT3904(NXP)

NON_LIPS

E

C503
100pF

50V

100R503

100R504

NON_LIPS
R506

R522
0

LIPS_ONLY

C504
1000pF

50V

R505

3.3K

100

10uF

C507
33pF
50V

C506
10V

0.1uF

C509
33pF
50V

C508

16V

C505

1000pF

C510

10uF

10V

OPT
C511
10uF

10V

50V

AMP_RESET

AUD_MASTER_CLK

C515
10uF
10V

AGND_PLL
AVDD_PLL
DVDD_PLL

DGND_PLL

GND_1

DGND
DVDD

SDATA

WCK

BCK

SDA

R521
10K

LF

C516

1000pF

1
2
3
4
5
6
7
8
9
10
11
12

50V

[EP]

CLK_I

VDD_IO

47

48

THERMAL

13

14

SCL

/FAULT

49

50V

C517

22000pF

PGND1A

BST1A

/RESET

GND_IO

43

44

45AD46

IC501

NTP-7500L

15

16

17

18

BST2B

PGND2B

MONITOR0

MONITOR1

MONITOR2

C518

22000pF

50V

+24V_AMP

PVDD1_1

PVDD1_2

PVDD1_3

OUT1A_1

OUT1A_2

38

39

40

41

42

19

20

OUT2B_121OUT2B_222PVDD2_123PVDD2_224PVDD2_3

37

C519

0.1uF
50V

36
35
34
33
32
31
30
29
28
27
26
25

OUT1B_2
OUT1B_1
PGND1B
BST1B
VDR1
VCC_5
AGND
VDR2
BST2A
PGND2A
OUT2A_2
OUT2A_1

+24V_AMP

C520

0.1uF
50V

C521

0.1uF
50V

C522

0.1uF
50V

C523
10uF
35V

R507

3.3

OPT

C525

0.01uF
50V

C524
10uF
35V

OPT

SPK_L+

SPEAKER_L

SPK_L-

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPK_R+

SPK_R-

WAFER-ANGLE

4

3

2

1

P501

SPEAKER_R

C526
22000pF

50V

C527

50V

C528
1uF
25V

D501

1N4148W

100V

OPT

D502

1N4148W

D503

1N4148W

100V

OPT

D504

1N4148W

100V

100V

R508

R515

12

12

C530
390pF
50V

C531
390pF
50V

R509

R513

12

R510
12

C532
390pF
50V

C533
390pF
50V

R511
12

C534
1uF
25V

R512

R514

12

12

12

OPT

C529
1uF
25V

OPT

L505

10.0uH

L506

10.0uH

L503

10.0uH

L504

10.0uH

C535

0.47uF
50V

C536

0.47uF

50V

C537

0.1uF
50V

C538

0.1uF
50V

C539

0.1uF
50V

C540

0.1uF

50V

R516

4.7K

R517

4.7K

R518

4.7K

R519

4.7K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

NTP-7500

5

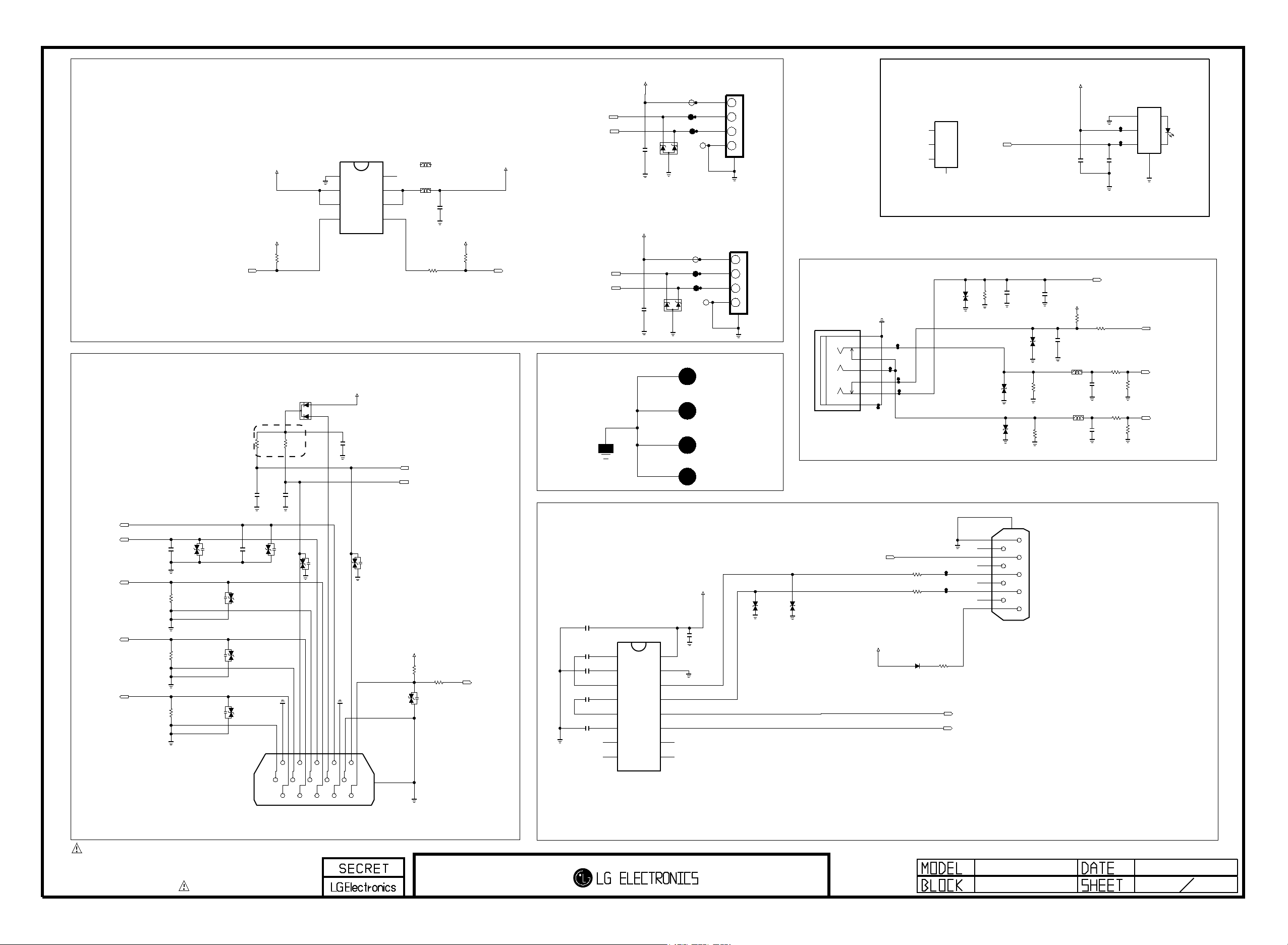

RGB PC

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

USB2_CTL

+5V_Normal

+3.3V_Normal

R713

4.7K
OPT

RGB_PC

R723

2.2K

OCP for USB_2

EAN61849601

AP2191DSG

GND

1

IN_1

2

IN_2

3

EN

4

+5V_Normal

NON_CI_CAP_RGB_PC

0.1uF

16V

RGB_PC

R724

2.2K

RGB_PC

D710

MMBD6100

C

A2

A1

TEST

IC702

C724

8

7

6

5

NC

OUT_2

OUT_1

FLG

L703-*1

MLB-201209-0120P-N2

120-ohm

TEST
L703

CIS21J121

C716

22uF

10V

TEST

TEST

USB DOWN STREAM

USB1

+5V_USB_1

USB1_DM

USB1_DP

C717
10uF

10V

+5V_USB_2

USB2

USB2_DM

USB2_DP

+5V_USB_2

TEST

C719

10uF

10V

+5V_USB_1

TEST

R714

47R715

10K

USB2_OCD

JP_GND

RCLAMP0502BA

D708

OPT

RCLAMP0502BA

D709

OPT

JP_GND1

3AU04S-305-ZC-(LG)

JK703

1234

5

USB2

3AU04S-305-ZC-(LG)

JK704

1234

USB DOWN STREAM

5

Rear AV

JK701

PPJ233-01

5C

4C

3C

4B

3A

4A

5A

[RD]E-LUG

[RD]O-SPRING

[RD]CONTACT

[WH]C-LUG

[YL]CONTACT

[YL]O-SPRING

[YL]E-LUG

JP_GND2

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF-JACK-SOLTEAM

JK702-*1

JST1223-001

GND

1

VCC

2

VINPUT

3

4

FIX_POLE

L-MONO

Fiber Optic

D701

30V

SPDIF_OUT

R701
75

D703

5.6V

D702

5.6V

C708
47pF
50V

R703
470K

470K

R702

D705

5.6V

+3.3V_Normal

SPDIF-JACK-FOXCONN

JK702

2F01TC1-CLM97-4F

GND

1

VCC

2

Fiber Optic

VIN

3

R708

4

SHIELD

AV_CVBS_DET

AV_COMP_PC_R_IN

12K

AV_COMP_PC_L_IN

R709
12K

C707

C709

0.1uF

100pF

16V

50V

R704
10K

R705

330pF

1K

C712

50V

C713
330pF
50V

AV_CVBS_IN

R706
10K

R707
10K

C710
220pF
50V

+3.3V_Normal

OPT

C711

0.1uF

OPT

16V

L701

120-ohm

L702

120-ohm

JP_GND3

DSUB_VSYNC

DSUB_HSYNC

DSUB_B+

DSUB_G+

DSUB_R+

OPT

C718
68pF
50V

RGB_PC

RGB_PC

RGB_PC

R720
75

R718
75

R719
75

OPT

VA701
20V
ADUC 20S 02 010L

RGB_VARISTOR

RGB_VARISTOR

RGB_VARISTOR

NON_CI_CAP_RGB_PC

OPT

C720
68pF
50V

ADUC 20S 02 010L

VA702
20V

ADUC 20S 02 010L

VA703
20V

ADUC 20S 02 010L

VA704
20V

NON_CI_CAP_RGB_PC

C721

18pF

50V

OPT

VA705
20V

ADUC 20S 02 010L

C723

18pF

50V

OPT

VA706

5.6V

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

11

6

1

JK705

SPG09-DB-010

RGB_PC

OPT

VA707

5.6V

16

SHILED

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

RGB_PC

R729
10K

OPT
VA708

5.6V

ADMC 5M 02 200L

RGB_PC

R732
1K

DSUB_DET

RS232C

C702

C703

C704

C705

0.33uFC701

0.1uF

0.1uF

0.1uF

0.1uF

DOUT2

RIN2

JP_GND4

10

5

IR_OUT

R710
100

+3.5V_ST

D704
CDS3C30GTH
30V

OPT

IC701

MAX3232CDR

C1+

1

V+

2

C1-

3

C2+

4

C2-

5

V-

6

7

8

16

15

14

13

12

11

10

9

EAN41348201

VCC

GND

DOUT1

RIN1

ROUT1

DIN1

DIN2

ROUT2

C706

0.1uF

D706
CDS3C30GTH
30V

OPT

+3.5V_ST

R711
100

D707
BAP70-02

50V

R712
1K

JP708

JP709

PM_RXD

PM_TXD

9

8

7

6

SPG09-DB-009

JK706

4

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

REAR JACKS

7

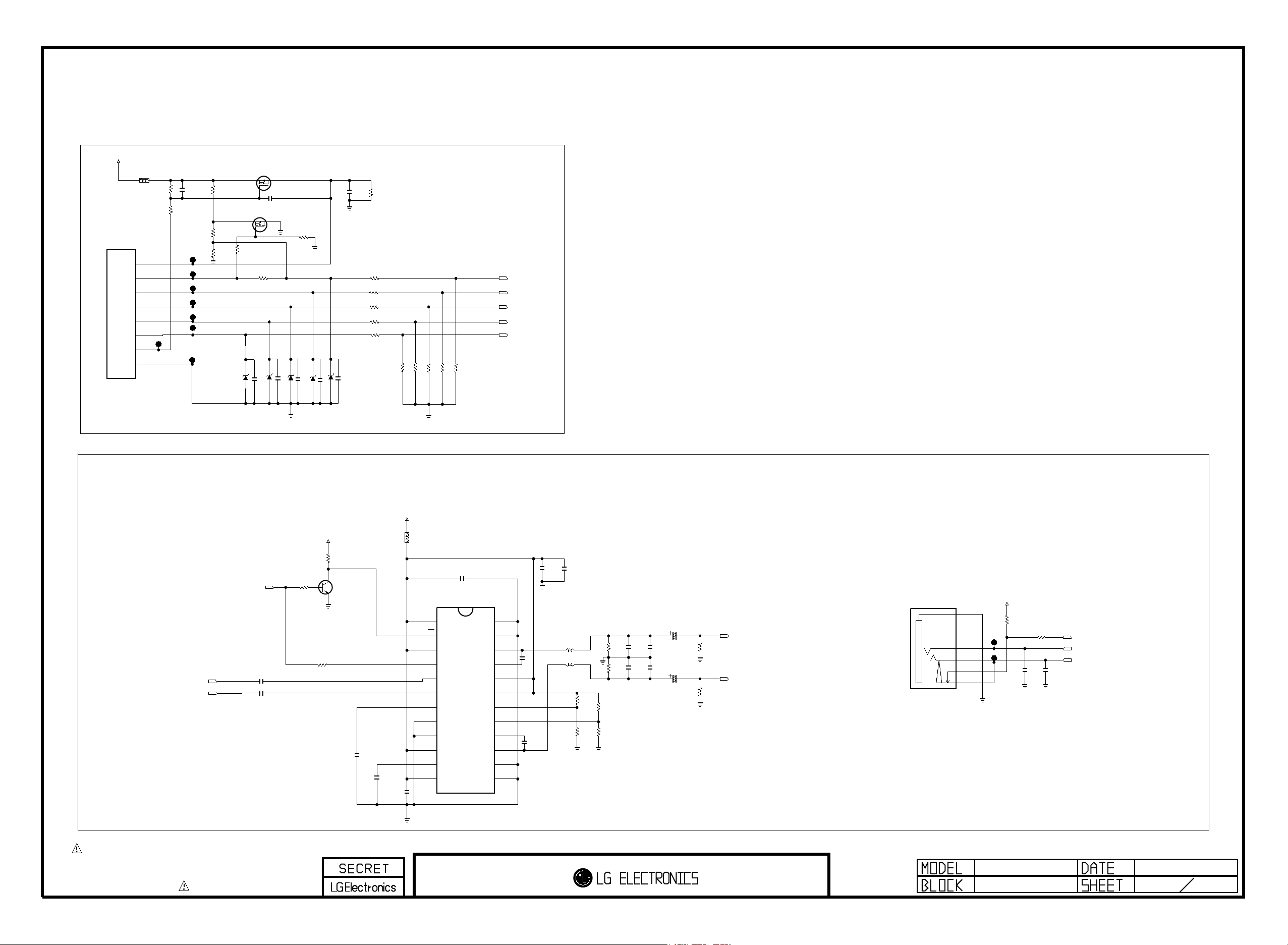

RJP

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+12V

BLM18PG121SN1D

RJP

JK901

KRJV9768-1001-024

1

2

3

4

5

6

7

8

L901

1

2

3

4

5

6

7

8

RJP

10K

C901

2.2uF
16V

RJP
R902
10K

RJP_PROTECTION

RJP_PROTECTION

R903

R904

RJP

5.1K

5.1K

R905

1K

RJP_PROTECTION

R901

RJP

Q902

AO3407A

S

Q901

AO3407A

S

G

R906

RJP_PROTECTION

RJP_NORMAL

R907

RJP

RJP

5.1V

0.01uF

ZD901

C902

RJP

D

C903

1uF
25V

G

OPT

RJP_PROTECTION

D

0

0

RJP

RJP

5.1V

0.01uF

ZD902

C904

RJP_PROTECTION

100K

R908

RJP

RJP

5.1V

0.01uF

ZD903

C905

RJP

5.1V

ZD904

RJP

0.01uF

C906

RJP

5.1V

ZD905

RJP

0.01uF

C907

C908
22uF
16V

R910

OPT

R909

R911

R912

R913

R914
10K

510

510

510

510

510

RJP

RJP

RJP

RJP

RJP

RJP

3.9K

R916

3.9K

R915

3.9K

R917

RJP

RJP

8.2K

R919

3.9K

R918

RJP

RJP

RJP

RJP_CTRL0

RJP_CTRL1

RJP_CTRL2

RJP_CTRL3

RJP_CTRL4

Single ended

SUB_AMP_MUTE

001:AC13

EXT_SPK

C928

10V

EXT_AMP_L

EXT_AMP_R

1uF

10V

C927

EXT_SPK

1uF

EXT_SPK

EXT_SPK

10K

R922

Q903

MMBT3904(NXP)

EXT_SPK

+3.5V_ST

4.7K

R923

B

EXT_SPK

R924

10K

+24V

L902

EXT_SPK

BLM18PG121SN1D

C

E

PVCCL_1

PVCCL_2

MUTE

BYPASS

AGND_1

AGND_2

EXT_SPK

C913

0.1uF
50V

PVCCR_1

VCLAMP

PVCCR_2

C911
1uF
50V

EXT_SPK

C912
1uF
50V

EXT_SPK

TPA3124D2PWPR

1

SD

2

3

4

LIN

5

RIN

6

7

8

9

10

11

12

EXT_SPK

C914

0.1uF
50V

EXT_SPK

IC901

PGNDL_2

24

PGNDL_1

23

LOUT

22

BSL

21

AVCC_2

20

AVCC_1

19

GAIN0

18

GAIN1

17

BSR

16

ROUT

15

PGNDR_2

14

PGNDR_1

13

EXT_SPK

EXT_SPK

C917

0.22uF
50V

C918

0.22uF
50V

EXT_SPK

C915

0.1uF
50V

EXT_SPK

C916
50V

EXT_SPK

L904

22.0uH

22.0uH

EXT_SPK

4.7uF

L905

R930
10K
OPT

R931
10K

EXT_SPK

R932
10K

OPT

R933
10K

EXT_SPK

R934

4.7K

EXT_SPK

R935

4.7K

EXT_SPK

C919

2.2uF
50V

EXT_SPK

C920

2.2uF
50V

EXT_SPK

C921

2.2uF
50V

EXT_SPK

C922

2.2uF
50V

EXT_SPK

C923

C924

47uF

47uF

25V

25V

EXT_SPK

EXT_SPK

EXT_SPK

10K

R936

EXT_SPK

10K

R937

EXT_OUT_L

EXT_OUT_R

EXT_SPEAKER

EXT_SPK

JK902

PEJ034-01

3

4

5

7B

6B

E_SPRING

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

+3.3V_Normal

EXT_SPK

R939
100K

EXT_SPK

C925
1uF
OPT

100R938

EXT_SPK_DET

EXT_OUT_R

EXT_OUT_L

C926
1uF
OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

RJP / EXT AMP

9

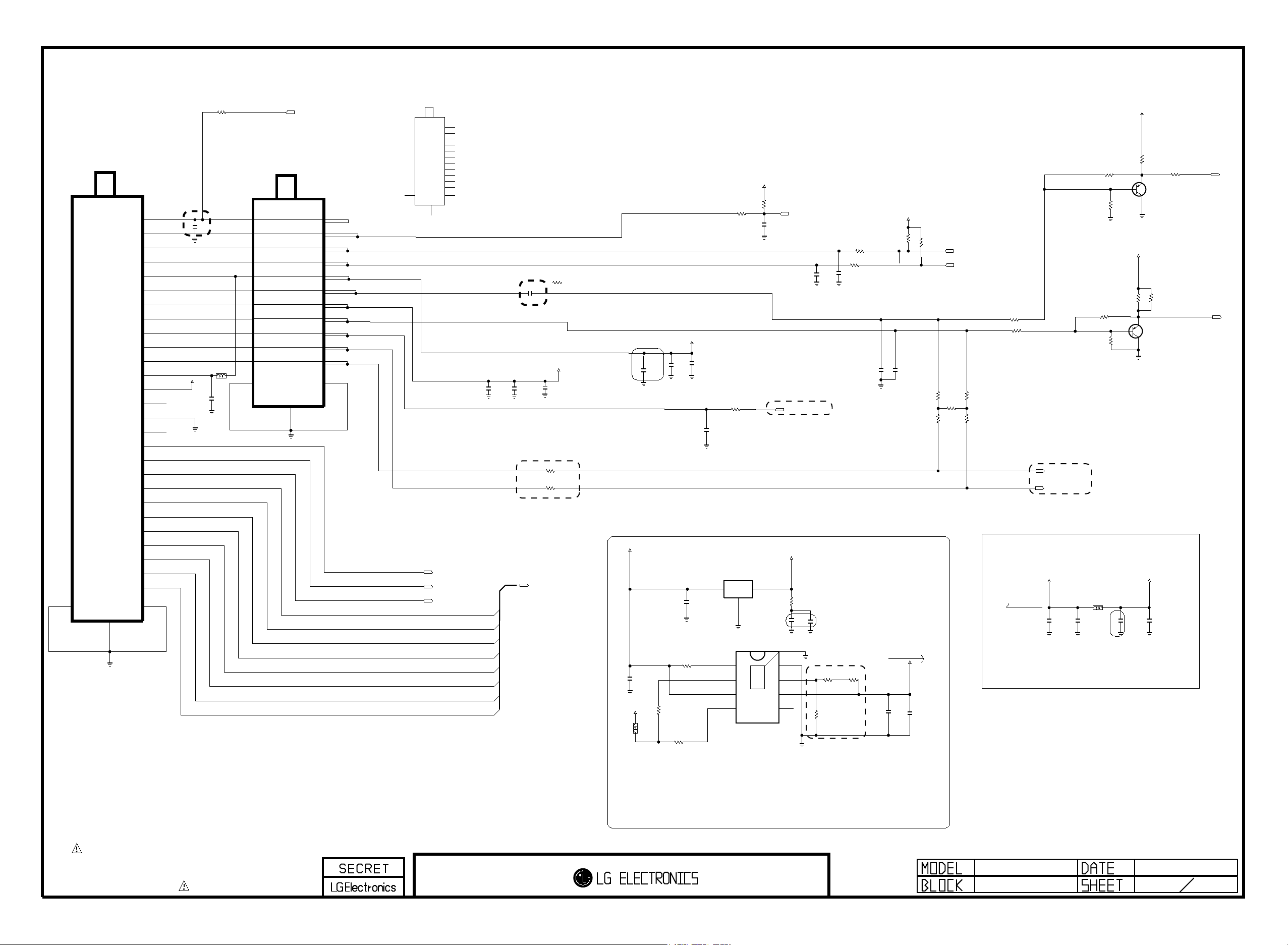

TU1001

Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

TDSN_B001F

SI2176_BR_2INPUT_H

B1

B1

28

SHIELD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

A1

RF_S/W_CTL

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

NC_1

NC_2

NC_3

+B3[3.3V]

+1.23V_TU

+B4[1.23V]

NC_4

GND

ERROR

SYNC

VALID

MCLK

D0

D1

D2

D3

D4

D5

D6

D7

A1

C1002

0.1uF

FULL_NIM

16V

C1001

0.1uF
16V

R1001

RF_SW_OPT

FULL_NIM

L1001

120

0

SI2176_DVB_1INPUT_H

B1

TU1002
TDSS-G102D

B1

12

RF_SWITCH_CTL

Pull-up can’t be applied

because of MODEL_OPT_2

NC

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

SIF

6

+B2[1.8V]

7

CVBVS

8

IF_AGC

9

DIF[P]

10

DIF[N]

11

A1

A1

SHIELD

SI2176_ATSC_1INPUT_H

B1

B1

12

SHIELD

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

TU1002-*1
TDSS-H101F

1

2

3

4

5

6

7

8

9

10

11

A1

NC

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

IF_AGC

DIF[P]

DIF[N]

A1

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

C1003
100pF
50V

C1004

0.1uF 16V

NON_ASIA

+1.2V/+1.8V_TU

C1005

0.1uF
16V

Close to the tuner

FE_TS_DATA[0-7]

C1004-*1
0
ASIA

close to TUNER

C1006

22uF

25V

NON_BR

0R1002

0R1003

NON_BR

C1008
10uF

6.3V

close to the tuner pin, add,09029

+3.3V_TU

C1007

0.1uF
16V

+5V_Normal

L1002

FULL_NIM

10K

FULL_NIM

R1004

FULL_NIM_BCD

C1009
100pF
50V

R1005

FULL_NIM_OPT

R1006
0

+3.3V_TU

C1011

0.1uF

16V

C1010

0.1uF
16V

10K

NON_BR

NON_BR

C1012

0.1uF

16V

AZ1117BH-1.8TRE1

IN

3

AP2132MP-2.5TRG1

PG

EN

VIN

VCTRL

IC1001

R1008
100

1

100R1007

2

ADJ/GND

IC1002

1

FULL_NIM_BCD

2

3

4

+3.3V_TU

R1010
100K

C1014

0.1uF

16V

should be guarded by ground

+1.2V/+1.8V_TU

OUT

C1013

0.1uF
16V

[EP]

GND

8

ADJ

9

7

THERMAL

VOUT

6

NC

5

TUNER_RESET

IF_AGC_MAIN

R1009

5%

1

1/16W

add,0929

C1016
18pF
50V

C1015
10uF
10V

FULL_NIM_BCD

R1012
11K

FULL_NIM_BCD

R1011

20K

1005

BCD Vo=0.6*(1+R1/R2)

TJ Vo=0.8*(1+R1/R2)

R1

R2

33

33

C1019
18pF
50V

FULL_NIM_BCD

R1013
10K

R1015

R1014

C1017
5pF
50V
ASIA

FULL_NIM

C1018

0.1uF
16V

+3.3V_TU

R1019
1K

C1020
5pF
50V

ASIA

+1.23V_TU

C1021
10uF
10V

FULL_NIM

R1016

3.3
ASIA

R1017
0
ASIA

R1022
1K

380mA

R1018
2K
OPT

TU_SCL

TU_SDA

R1020

3.3
ASIA

R1021
0
ASIA

NON_ASIA

NON_ASIA

60mA

R1023

R1024

0

0

IF_N_MSTAR

IF_P_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils

Signal to Signal Width = 12mils

Ground Width >= 24mils

+3.3V_TU

C1024
22uF
10V

TU_NON_BUFFER

R1026

R1027

4.7K

TU_BUFFER

TU_NON_BUFFER

R1025

R1028

1K

OPT

Size change,0929

L1003

MLB-201209-0120P-N2

C1025

0.1uF

16V

0

+3.3V_TU

TU_BUFFER

0

+3.3V_TU

R1030

470

B

R1029
220

B

+3.3V_Normal

C1026
22uF
10V

TU_BUFFER

E

TU_BUFFER
MMBT3906(NXP)

Q1002

C

TU_BUFFER

R1031

E

TU_BUFFER

Q1001
MMBT3906(NXP)

C

C1027

16V

220

0.1uF

R1032
82

TU_SIF

TU_CVBS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

TUNER

10
