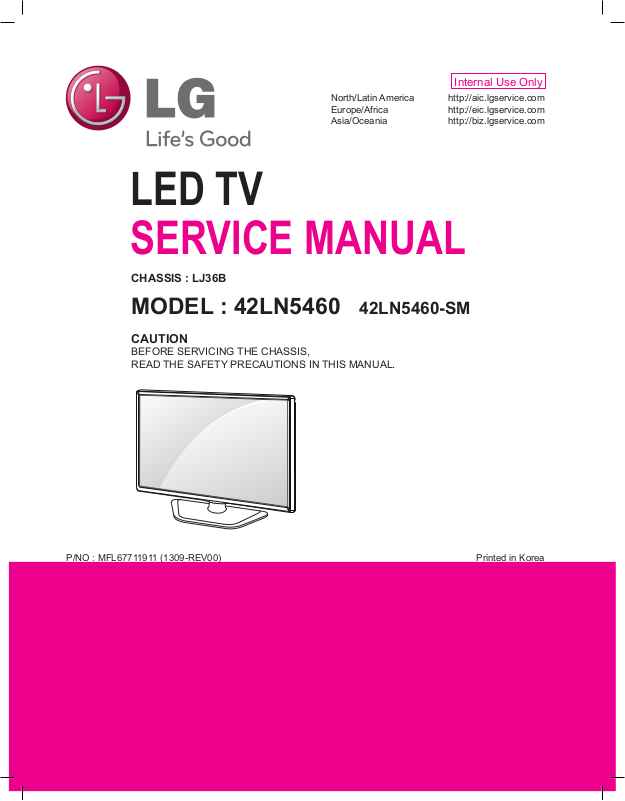

LG 42LN5460 Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LJ36B

MODEL : 42LN5460 42LN5460-SM

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67711911 (1309-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION .............................................................. 10

BLOCK DIAGRAM .................................................................................. 19

EXPLODED VIEW .................................................................................. 20

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of th e cir cuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exp ose d metallic par t. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied all of the 32”, 42”, 47”, 50” LED TV with LJ31B/LJ36B chassis.

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC, CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage Standard input voltage (100~240V@ 50/60Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

ea ch drawing and s pe cificatio n b y p art number in accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE, IEC

4. General Specification

No Item Specication Measurement Result Remark

1. Receiving System 1) SBTVD / NTSC / PAL-M / PAL-N

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) CATV : 01~135

3. Input Voltage 1) AC 100 ~ 240V 50/60Hz

4. Market Central and South AMERICA

5. Screen Size 32 inch Wide (1366 × 768) 32LN540B-SH/SA 32LA613B-SB 32LN520B-SA 32LN536B-SI 32LN546B-SM

32 inch Wide (1920 × 1080) 32LN5400-SB/SA

39 inch Wide (1920 × 1080) 39LN5400-SB/SA

42 inch Wide (1920 × 1080) 42LN5400-SB/SA

42LA6130-SB 42LN5200-SA 42LN5460-SM

47 inch Wide (1920 × 1080) 47LN5400-SB/SA

47LA6130-SB 47LM5460-SM

50 inch Wide (1920 × 1080) 50LN5400-SB/SA

50 inch Wide (1920 × 1080) 55LN5400-SB/SA

6. Aspect Ratio 16:9

7. Tuning System FS

Only for training and service purposes

- 6 -

No Item Specication Measurement Result Remark

8. Module LC320DXE-SFR5 HD, 60Hz LGD 32LN520B-SA

HC320DXN-SLFG1 HD, 60Hz LGD 32LN536B-SI

HC320DXN-SLFA1 HD, 60Hz LGD 32LN546B-SM

LC320DXE-SFR1 HD, 60Hz LGD 32LN540B-SH/SA

LC320DUE-SFR1 FHD, 60Hz LGD 32LN5400-SB/SA

HC390DUN-VCFP1 FHD, 60Hz CMI 39LN5400-SB/SA

T390HVN02.2 FHD, 60Hz AUO 39LN5400-SB/SA

LC420DUE-SFR5 FHD, 60Hz LGD 42LN5200-SA

HC420DUN-SLFA1 FHD, 60Hz LGD 42LN5460-SM

LC420DUE-SFR1 FHD, 60Hz LGD 42LN5400-SB/SA

T420HVN05.0 FHD, 60Hz AUO 42LN5400-SB/SA

LC470DUE-SFR1 FHD, 60Hz LGD 47LN5400-SB/SA

FHD, 60Hz LGD 47LN5460-SM

LC500DUE-SFR2 FHD, 60Hz LGD 50LN5400-SB/SA

LC550DUJ-SEE1 FHD, 60Hz LGD 55LN5400-SB/SA

LC320DXE-SFU2 HD, 60Hz LGD 32LA613B-SB

LC420DUE-SFU2 FHD, 60Hz LGD 42LA6130-SB

LC470DUE-SFU2 FHD, 60Hz LGD 47LA6130-SB

9. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

10. Storage Environment 1) Temp : -20 ~ 60 deg

2) Humidity : ~ 85 %

Only for training and service purposes

- 7 -

5. External Input Support Format

5.1. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*576 15.625 50.000 13.5 SDTV 576I

2. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

3. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

4. 720*480 31.50 60 27.027 SDTV 480P

5. 720*480 31.47 59.94 27.0 SDTV 480P

6. 720*576 31.250 50.000 27.000 SDTV 576P

7. 1280*720 37.500 50.000 74.25 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 44.96 59.94 74.176 HDTV 720P

10. 1920*1080 28.125 50.00 74.250 HDTV 1080I

11. 1920*1080 33.75 60.00 74.25 HDTV 1080I

12. 1920*1080 33.72 59.94 74.176 HDTV 1080I

13. 1920*1080 56.250 50.00 148.50 HDTV 1080P

14. 1920*1080 67.500 60.00 148.50 HDTV 1080P

15. 1920*1080 67.432 59.939 148.352 HDTV 1080P

16. 1920*1080 27.000 24.000 74.25 HDTV 1080P

17. 1920*1080 26.97 23.976 74.176 HDTV 1080P

18. 1920*1080 33.75 30.000 74.25 HDTV 1080P

19. 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 8 -

5.2. HDMI Input (PC/DTV)

*HDMI PC support only Rear HDMI Input *If use DVI to HDMI cable for PC, you have to use external SPK for PC audio sound.

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1152*864 54.348 60.053 80.00 VESA O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024(FHD Only) 63.981 60.02 108.00 VESA (SXGA) O

9. 1920*1080(FHD Only) 67.5 60 148.5 HDTV 1080P O

DTV

1. 720*480 31.469 59.940 27.000 SDTV 480P

2. 720*480 31.500 60.000 27.027 SDTV 480P

3. 720*576 31.250 50.000 27.000 SDTV 576P

4. 1280*720 37.500 50.000 74.25 HDTV 720P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 28.125 50.000 74.25 HDTV 1080I

8. 1920*1080 33.75 60.00 74.25 HDTV 1080I

9. 1920*1080 33.72 59.94 74.176 HDTV 1080I

10. 1920*1080 56.250 50.000 148.50 HDTV 1080P

11. 1920*1080 67.500 60.00 148.50 HDTV 1080P

12. 1920*1080 67.432 59.94 148.352 HDTV 1080P

13. 1920*1080 27.000 24.000 74.25 HDTV 1080P

14. 1920*1080 26.97 23.976 74.176 HDTV 1080P

15. 1920*1080 33.75 30.00 74.25 HDTV 1080P

16. 1920*1080 33.71 29.97 74.176 HDTV 1080P

※ HDMI Monitor Range Limits Min Vertical Freq - 58 Hz Max Vertical Freq - 62 Hz Min Horiz. Freq - 30 kHz Max Horiz. Freq - 83 kHz Pixel Clock - 160 MHz

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION

(1)

Please Check the Speed

To use speed between

from 200KHz to 400KHz

(4)

(5)

(6)

(7)...........OK

1. Application

This spec sheet is applied all of the LCD TV with LJ31B, LJ36B, LJ36M chassis.

2. Designation

(1) Th e adju stment is ac cordi ng to the order which is

designated and which must be followed, according to the

plan whic al Unit: Product Specification Standard. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation: Above 5 Minutes (Heat Run). Temperature : at 25 ºC±5 Relative humidity : 65 ± 10% Input voltage : 100~220V, 50/60Hz (6) Adjustment equipments : Color Analyzer (CA-210 or

CA-110), SVC remote controller (7) Push The “IN STOP KEY” – For memory initialization.

Case1 : Software version up

1) After downloading S/W by USB , TV set will reboot automatically

2) Push “In-stop” key

3) Push “Power on” key

4) Function inspection

5) After function inspection, Push “In-stop” key.

ºC

3. Main PCB check process

* APC – After Manual-Insert, executing APC * Boot file Download

(1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

(2) Set as below, and then click “Auto Detect” and check “OK”

message.

If “Error ” i s d is pl ayed, Check co nn ection betwe en

computer, jig, and set.

(3) Click “Read” tab, and then load download file (XXXX.bin)

by clicking “Read”

filexxx.bin

(4) Click “Connect” tab. If “Can’t ” is displaye d, Check

connection between computer, jig, and set.

Case2 : Function check at the assembly line

1) When TV set is entering on the assembly line, Push

“In-stop” key at first.

2) Push “Power on” key for turning it on.

=> If you push “Power on” key, TV set will recover channel

information by itself.

3).After function inspection, Push “In-stop” key.

(5) Click “Auto” tab and set as below. (6) Click “Run”. (7) After downloading, check “OK” message.

filexxx.bin

Only for training and service purposes

- 10 -

* USB DOWNLOAD(*.epk file download)

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low, it didn't work. But your downloaded version is High, USB data is automatically detecting

(3) Show the message "Copying files from memory"

(4) Updating is staring.

* After downloading, have to adjust Tool

Option again.

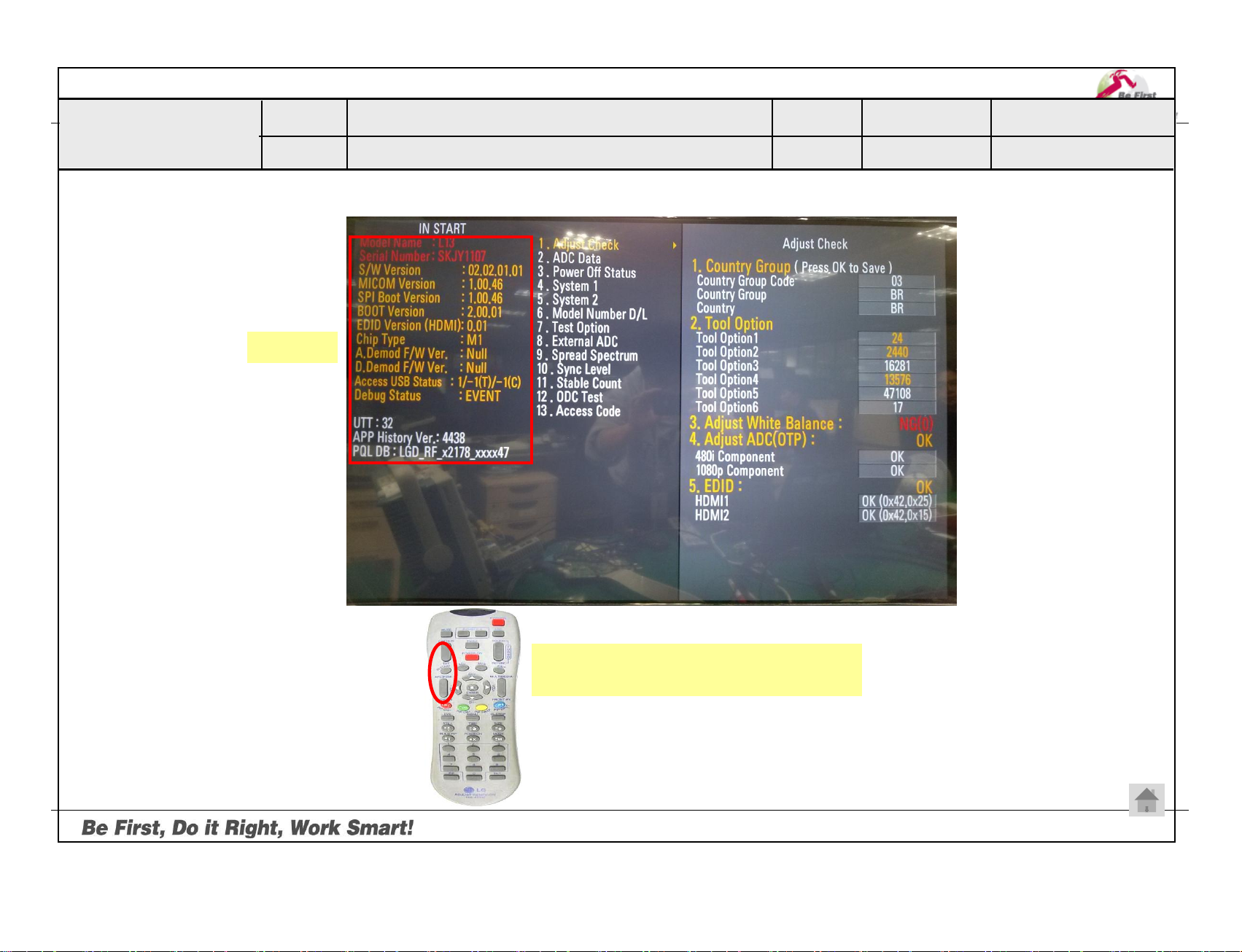

(1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push "OK" button. (3) Punch in the number. (Each model has their number.) (4) Completed selecting Tool option.

Tool

Model Module

32LA613B-

42LA6130-

47LA6130-

32LN540B-

SH/SA

32LN5400-

SB/SA

39LN5400-

SB/SA

39LN5400-

SB/SA

42LN5400-

SB/SA

42LN5400-

SB/SA

47LN5400-

SB/SA

50LN5400-

SB/SA

55LN5400-

SB/SA

32LN536B-SI LGD

32LN520B-

42LN5200-

32LN546B-

42LN5460-

47LN5460-

LGD 84 2440 32669 46344 47108 97

LGD 87 2440 32669 46344 47108 97

LGD 88 2440 32669 46344 47108 97

LGD 20 2440 16281 13576 43012 17

CMI 2070 2440 16153 13576 43012 17

AUO 4118 2440 16153 13576 43012 17

LGD 23 2440 16281 13576 43012 17

AUO 4119 2440 16153 13576 43012 17

LGD 24 2440 16281 13576 43012 17

LGD 25 2440 16281 13576 43012 17

LGD 26 2440 16153 13576 59396 17

LGD

LGD 132 426 16153 13576 10244 273

LGD

LGD POLA

option1

option2

option3

option4

option5

Tool

option6

(5) After updating is complete, The TV will restart automatically. (6) If TV turns on, check your updated version and Tool option.

(refer to the next page about tool option)

* If downloading version is higher than your TV have, TV

can lost all channel data. In thi s case, you have to channel recover. If all channel data is cleared, you didn't have a DTV/ATV test on production line.

Only for training and service purposes

* RS-232C Connection Method Connection : PCBA (USB Port) -> USB to Se ri al Ada pter

(UC-232A) -> RS-232C cable -> PC(RS-232C port)

▪ Product name of USB to Serial Adapter is UC-232A.

※ Caution: LJ31* chassis support only UC-232A driver. (only use

this one. )

- 11 -

4. Total Assembly line process

4.1. Adjustment Preparation

■ W/B Equipment condition

CA210 : CH14, Test signal : Inner pattern (80IRE) – in case of

LED back light

■ Above 5 minutes H/run in the inner pattern. (“power on” key of

adjust remote control)

► The spec of color temperature and coordinate

Model Mode Color Temp Color coordinate Remark

Cool (C50) 13,000k

Medium (0) 9,300k

All

Warm (W50) 6,500k

► CA210 : CH 14, Test signal : Inner pattern (80IRE)

- Standard color coordinate and temperature using CA-1000 (by H/R time)

▪ Normal line

model: (normal line)LN5xxx, LA6xxx, LA7xxx, LA8xxx

H/R Time(Min)

271 270 286 289 313 329

1 0-2 283 287 298 306 322 342

2 3-5 282 285 297 304 321 340

3 6-9 281 284 296 303 320 339

4 10-19 279 281 294 300 318 336

5 20-35 277 277 292 296 316 332

6 36-49 275 274 290 293 314 329

7 50-79 273 272 288 291 312 327

8 80-119 272 271 287 290 311 326

9 Over 120 271 270 286 289 310 325

▪ Aging chamber line

model: (aging chamber)LN5xxx, LA6xxx, LA7xxx, LA8xxx

H/R Time(Min)

271 270 286 289 313 329

1 0-5 282 285 297 304 321 340

2 6-10 278 280 293 299 317 335

3 11-20 275 275 290 294 314 330

4 21-30 272 272 287 291 311 327

5 31-40 269 269 284 288 308 324

6 41-50 268 267 283 286 307 322

7 51-80 267 266 282 285 306 321

8 81-119 266 264 281 283 305 319

9 Over 120 265 263 280 282 304 318

x = 0.271 (±0.002) y = 0.270 (±0.002)

x = 0.286 (±0.002) y = 0.289 (±0.002)

x = 0.313 (±0.002) y = 0.329 (±0.002)

Cool Medium Warm

x y x x y x

Cool Medium Warm

x y x x y x

※ Test signal

- Inner pattern for W/B adjust

- External white pattern (80IRE, 204gray)

※ Connecting picture of the measuring instrument (On Automatic control)

Inside PATTERN is used when W/B is controlled. Connect to auto controller or push Adjustment R/C POWER-ON -> Enter the mode of White-Balance, the pattern will come out.

● Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (Illumination is less than 10ux).

(2) Adhere closely the Color Analyzer ( CA210 ) to the module

less than 10cm distance, keep it with the surface of the Module and Color Analyzer’s Prove vertically.(80~100°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check the back light on.

● Auto adjustment Map(RS-232C)

RS-232C COMMAND [ CMD ID DATA ] Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

MIN

CENTER

(DEFAULT)

MAX

Only for training and service purposes

- 12 -

*Manual W/B process using adjusts Remote control.(TBD)

■ Color analy zer(CA10 0+, CA210) should be used in th e

calibrated ch by CS-1000

■ Operate the zero-calibration of the CA100+ or CA-210, then

stick sensor to the module when adjusting.

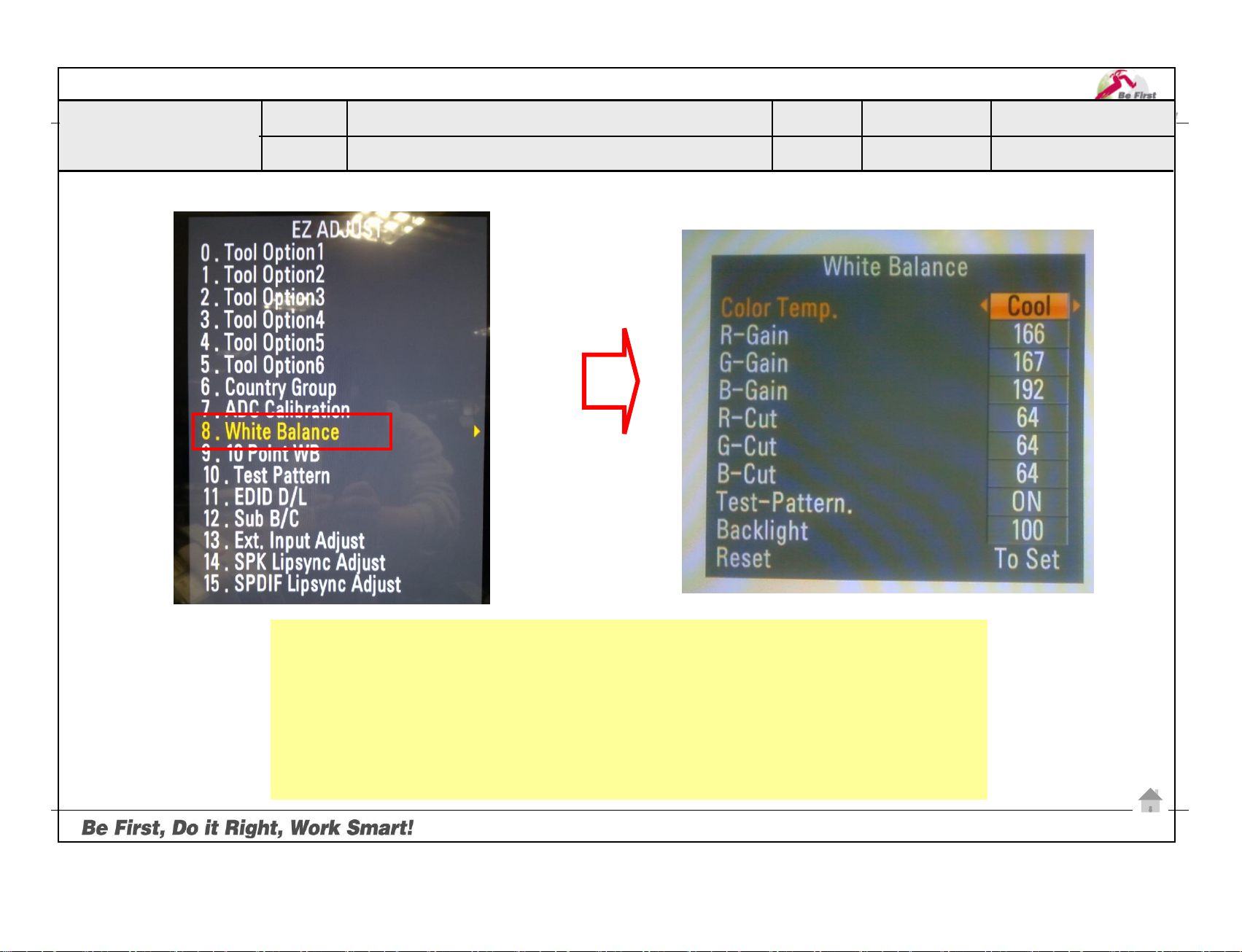

■ After enter Service Mode by pushing “ADJ” key, ■Enter White Balance by pushing “►” key at “8. White Balance”.

■ For manual adjustment, it is also possible by the following

sequence. (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface

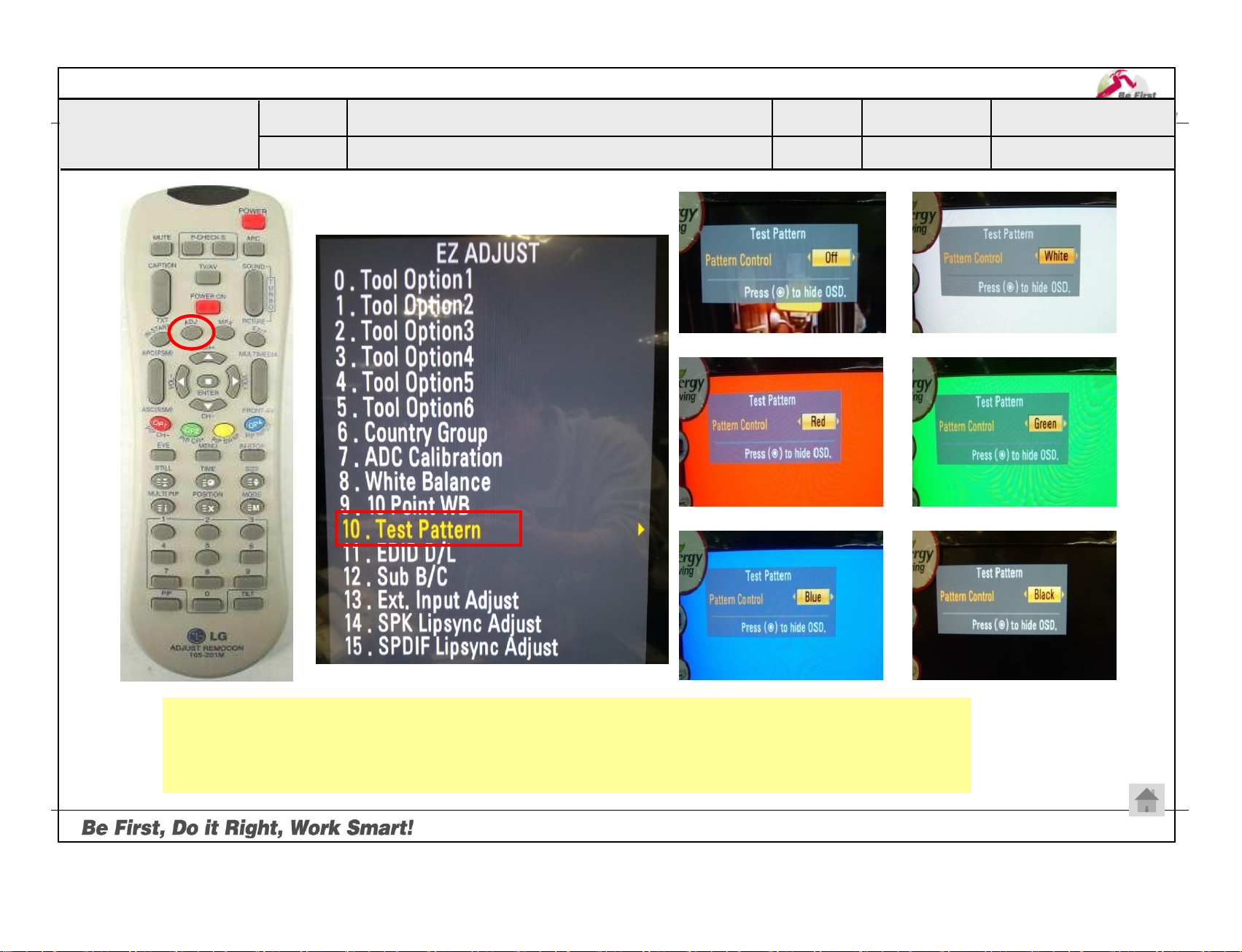

(3) Press ADJ key -> EZ adjust using adj. R/C -> 8. White-

Balance then press the cursor to the right (KEY►). When KEY(►) is pressed 206 Gray internal pattern will be displayed.

(4) Adjust Cool modes (i). Fix the one of R/G/B gain to 192 (default data) and decrease

the others

(If G gain is adjusted over 172 and R and B gain less than

192, increase G gain to 192 and increase R gain and B gain

same amount of increasing G gain.) (ii). If G gain is less than 172, Increase G gain by up to 172, and then increase R gain and

G gain same amount of increasing G gain. (iii). If R gain or B gain is over 255, Readjust G gain less than 172, Conform to R gain is 255 or B

gain is 255 (5) Adjust two modes (Medium / Warm) Fix the one of R/G/B gain

to 192 (default data) and decrease the others.

(6) Adj. is completed, Exit adjust mode using “EXIT” key on

Remote controller.

※ CASE Cool First adjust the coordinate far away from the target value(x, y). (1) x, y > target i) Decrease the R, G. (2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others. (3) x > target , y< target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y >target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

How to adjust (1) If G gain is adjusted over 172 and R gain and B gain less than 192 , Adjust is O.K. (2) If G gain is less than 172 , increase G gain by up to 172, and then increase R gain and B gain same amount of increasing G gain. (3) If R gain or B gain is over 255 , Readjust G gain less than 172, Conform to R gain is 255 or B gain is 255

※ CASE Medium / Warm First adjust the coordinate far away from the target value(x, y). (1) x, y > target i) Decrease the R, G. (2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others. (3) x > target , y< target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y >target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

▪ After You finish all adjustments, Press “In-start” button and

compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable. If it is not same, then correct it same with BOM and unplug AC cable. For correct it to the model’s module from factory JIG model.

▪ Push the “IN STOP KEY” afte r co mplet ing the funct ion

inspection.

▪ If internal pattern is not available, use RF input. In EZ Adj. menu

8. White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner (ON). By selecting OFF, you can adjust using RF signal in 206 Gray pattern.

Only for training and service purposes

- 13 -

4.2. DPM operation confirmation (Only Apply for MNT Model)

Check if Power LED Color and Power Consumption operate as standard.

■ Set Input to RGB and connect D-sub cable to set ■ Measurement Condition: (100~240V@ 50/60Hz) ■ Confirm DPM operation at the state of screen without Signal

4.3. DDC EDID Write (HDMI 256Byte)

■ Connect HDMI Signal Cable to HDMI Jack. ■ Write EDID DATA to EEPROM(24C02) by using DDC2B

protocol.

■ Check whether written EDID data is correct or not.

* For SVC Ass’y, EDID have to be downloaded.

4.4. EDID DATA

1) All Data : HEXA Value

2) Changeable Data : *: Serial No : Controlled / Data:01 **: Month : Controlled / Data:00 ***:Year : Controlled ****:Check sum

- Auto Download

■ After enter Service Mode by pushing “ADJ” key, ■ Enter EDID D/L mode. ■ Enter “START” by pushing “OK” key.

※ Caution

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

=> Caution

- Never connect HDMI & D-sub Cable at the same time.

- Use the proper cables below for EDID Writing.

- Download HDMI1, HDMI2 separately because HDMI1 is different from HDMI2.

For Analog EDID For HDMI EDID

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

No. Item Condition Hex Data

1 Manufacturer ID GSM 1E6D

2 Version Digital : 1 01

3 Revision Digital : 3 03

● EDID DATA

(1) HD 2D EDID Data

CheckSum Physical Address (0x9E)

HDMI 1 A3/5B 10

HDMI 2 A3/4B 20

※ Edid data and Model option download (RS232C)

NO Item CMD 1 CMD 2 Data 0

Enter download MODE

Edid data and Model option download

Only for training and service purposes

Download ‘Mode In’

Download A E 00 10

A A 0 0

When transfer the ‘Mode In’, Carry the command

Automatically download (The use of a internal Data)

- 14 -

(2) FHD 2D EDID Data (Support Deep Color – 10bit)

CheckSum Physical Address (0x9E)

HDMI 1 42/DE 10

HDMI 2 42/CE 20

(4) HD 3D EDID Data

CheckSum Physical Address (0x9E)

HDMI 1 A3/59 10

HDMI 2 A3/49 20

- HDMI

(5) FHD 3D EDID Data (Not Support Deep Color – 8bit)

CheckSum Physical Address (0x9E)

HDMI 1 42/23 10

HDMI 2 42/13 20

(3) FHD 2D EDID Data (Not Support Deep Color – 8bit)

CheckSum Physical Address (0x9E)

HDMI 1 42/25 10

HDMI 2 42/15 20

- HDMI

Only for training and service purposes

- 15 -

(6) FHD 3D EDID Data (Support Deep Color – 10bit)

CheckSum Physical Address (0x9E)

HDMI 1 42/DC 10

HDMI 2 42/CC 20

(7) HD 3D DTS EDID Data

CheckSum Physical Address (0x9E)

HDMI 1 A3/C0 10

HDMI 2 A3/B0 20

(8) FHD 3D DTS EDID Data (Not Support Deep Color – 8bit)

CheckSum Physical Address (0x9E)

HDMI 1 42/8A 10

HDMI 2 42/7A 20

- HDMI

(9) HD 2D DTS EDID Data

CheckSum Physical Address (0x9E)

HDMI 1 A3/C2 10

HDMI 2 A3/B2 20

- HDMI

Only for training and service purposes

- 16 -

(10) FHD 2D DTS EDID Data (Not Support Deep Color – 8bit)

CheckSum Physical Address (0x9E)

HDMI 1 42/8C 10

HDMI 2 42/7C 20

- HDMI

4.6.3. Checkpoint

(1) Test voltage ① 3 Poles

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA ② 2 Poles

- SIGNAL: 3KV/min at 100mA (2) TEST time: 1 second (3) TEST POINT ① 3 Poles

- GND Test = POWER CORD GND and SIGNAL CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.

② 2 Poles

- Hi-pot Test = Accessible Metal and LIVE & NEUTRAL.

(4) LEAKAGE CURRENT: At 0.5mArms

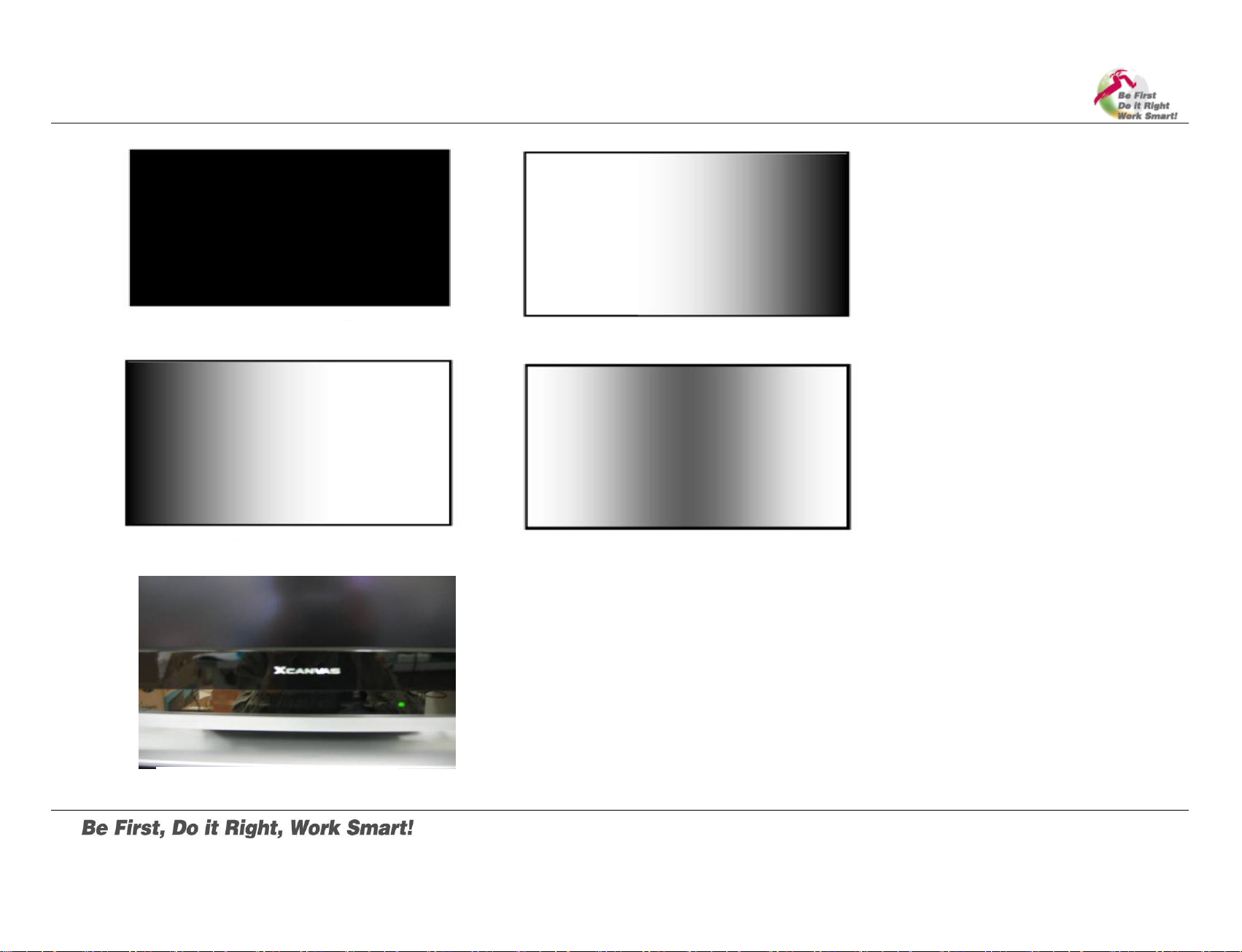

5. Local Dimming Function Check

Step1) Turn on TV. Step2) Press “P-only” key, enter to power only mode and

escape the “P-only” Mode by pressing “Exit” key Step3) Press “Tilt” key, entrance to Local Dimming mode. Step4) At the Local Dimming mode, module Edge Backlight

moving Top to bottom Back light of module moving Step5) confirm the Local Dimming mode Step6) Press “Exit” key

4.5. Outgoing condition Configuration

■ When pressing IN-STOP key by SVC remocon, Red LED

are blinked alternatively. And then automatically turn off.

(Must not AC power OFF during blinking)

4.6. GND & Hi-pot test

4.6.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

4.6.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).

(Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next

process automatically.

Only for training and service purposes

- 17 -

6. 3D Function Test (Only 3D Model)

(Pattern Genera tor MSHG-600, MSPG-6100 [SUPPORT HDMI1.4]) * HDMI mode NO. 872 , pattern No.83

1) Please input 3D test pattern like below (HDMI mode NO.

872 , pattern No.83)

2) When 3D OSD appear automatically , then select OK

button.

3) Don’t wear a 3D Glasses, Check the picture like below

Only for training and service purposes

- 18 -

BLOCK DIAGRAM

(P1101)

30P HD LVDS wafer

51P FHD LVDS wafer

(P1100)

(P1101)

30P HD LVDS wafer

51P FHD LVDS wafer

(P1100)

SIDE

USB

(JK700)

HDMI2(MHL)

(JK803)

CK+/-, D0+/-, D1+/-, D2+ /-,_HDMI4, DDC_SCL/SDA_4, HDMI_CEC

SIDE_USB_DM/DP

USB1_OCD/CTL

OCP IC : TPS65281

(IC401)

+5V_USB

SIDE

USB

(JK700)

HDMI2(MHL)

(JK803)

CK+/-, D0+/-, D1+/-, D2+ /-,_HDMI4, DDC_SCL/SDA_4, HDMI_CEC

SIDE_USB_DM/DP

USB1_OCD/CTL

OCP IC : TPS65281

(IC401)

+5V_USB

COMP2_L/R_IN

COMP2_Y+/AV_CVBS_IN, COMP2_Pb+/Pr+

AV2_L/R_IN

AV2_CVBS_IN

CK+/-, D0+/-, D1+/-, D2+ /-_HDMI2

DDC_SCL/SDA_2, HDMI_CEC

Serial Flash

(8Mbit)

IC1300

SPI_SCK/SDI/SDO/CS

Serial Flash

(8Mbit)

IC1300

Serial Flash

(8Mbit)

IC1300

SPI_SCK/SDI/SDO/CS

System EEPROM

(256Kbit)

IC104

I2C_SCL/SDA

System EEPROM

(256Kbit)

IC104

System EEPROM

(256Kbit)

IC104

I2C_SCL/SDA

NAND FLASH

(2Gbit)

IC102

PCM_A[0-7],…

NAND FLASH

(2Gbit)

IC102

NAND FLASH

(2Gbit)

IC102

PCM_A[0-7],…

DDR3 SDRAM

(2Gbit)

IC1201

A-MDQL[0-7], A-MDQU[0-7],…

DDR3 SDRAM

(2Gbit)

IC1201

DDR3 SDRAM

(2Gbit)

IC1201

A-MDQL[0-7], A-MDQU[0-7],…

RXA0+/-~RXA4+/-, RXACK+/-

RXB0+/-~RXB4+/-, RXBCK+/-

SPK_R

SPK_L

AMP_SCL/SDA

AUD_MASTER_CLK,

AUD_LRCH,

AUD_LRCK, AUD_SCK

STA380BW

(IC3401)

Main SOC

M1(MSD804KKX)

(IC101)

Connector

(P600)

KEY1/2, LED_R, IR

REAR

HDMI1

(JK801)

DDR3 SDRAM

(1Gbit)

IC1202

B-MDQL[0-7], B-MDQU[0-7],…

DDR3 SDRAM

(1Gbit)

IC1202

DDR3 SDRAM

(1Gbit)

IC1202

B-MDQL[0-7], B-MDQU[0-7],…

TU_SCL / SDA

SIF

TDSN-B601F

FULL NIM

FE_TS_DATA[8]

CVBS

TU_SCL / SDA

SIF

TDSN-B601F

FULL NIM

FE_TS_DATA[8]

CVBS

AV2

Comp1 & AV1

(JK1701)

MHL_CD_SENSE

OCP IC : BD82020FVJ

(IC802)

AVDD5V_MHL, VBUS_EN

MHL_OPC

SPDIF_OUT

SPDIF(Optic)

(JK1001)

HP_L/ROUT, SIDE_HP_MUTE

Headphone

(JK1500)

Only for training and service purposes

- 19 -

400

521

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essenti al that these special safet y parts shoul d be replac ed with the same compo nents as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

910

900

540

510

121

120

LV1

530

200T

200

A31

A10

Set + Stand

300

Only for training and service purposes

- 20 -

301

TP for NON-EU models(except EU and China)

LGE Internal Use Only

TP for CI slot

/PCM_REG

/PCM_OE

/PCM_WE

/PCM_IORD PCM_A[11]

/PCM_IOWR CI_TS_DATA[1]

/PCM_CE

/PCM_IRQA

/PCM_CD

/PCM_WAIT

PCM_RST

PCM_5V_CTL

CI_DET

TP for S2

PCM_D[0]

PCM_D[2]

PCM_D[3]

PCM_D[4]

PCM_D[5]

PCM_D[6]

PCM_D[7]

PCM_A[8]

PCM_A[9]

PCM_A[10]

PCM_A[12]

PCM_A[13]

PCM_A[14]

TP for FE_TS_DATA

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[2]

CI_TS_DATA[3]

CI_TS_DATA[4]

CI_TS_DATA[5]

CI_TS_DATA[6]

CI_TS_DATA[7]

TP for SCART

SCART1_MUTE

SC1_IDPCM_D[1]

SC1_FB

SC1_SOG_INCI_TS_DATA[0]

DTV/MNT_VOUT

SCART1_Lout

SCART1_Rout

SC1_CVBS_IN

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

SC1/COMP1_DET

SC1/COMP1_L_IN

SC1/COMP1_R_IN

TP for Headphone

HP_LOUT

HP_ROUT

SIDE_HP_MUTE

HP_DET

S2_RESET

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

TP_NON_EN

2012.07.02 3

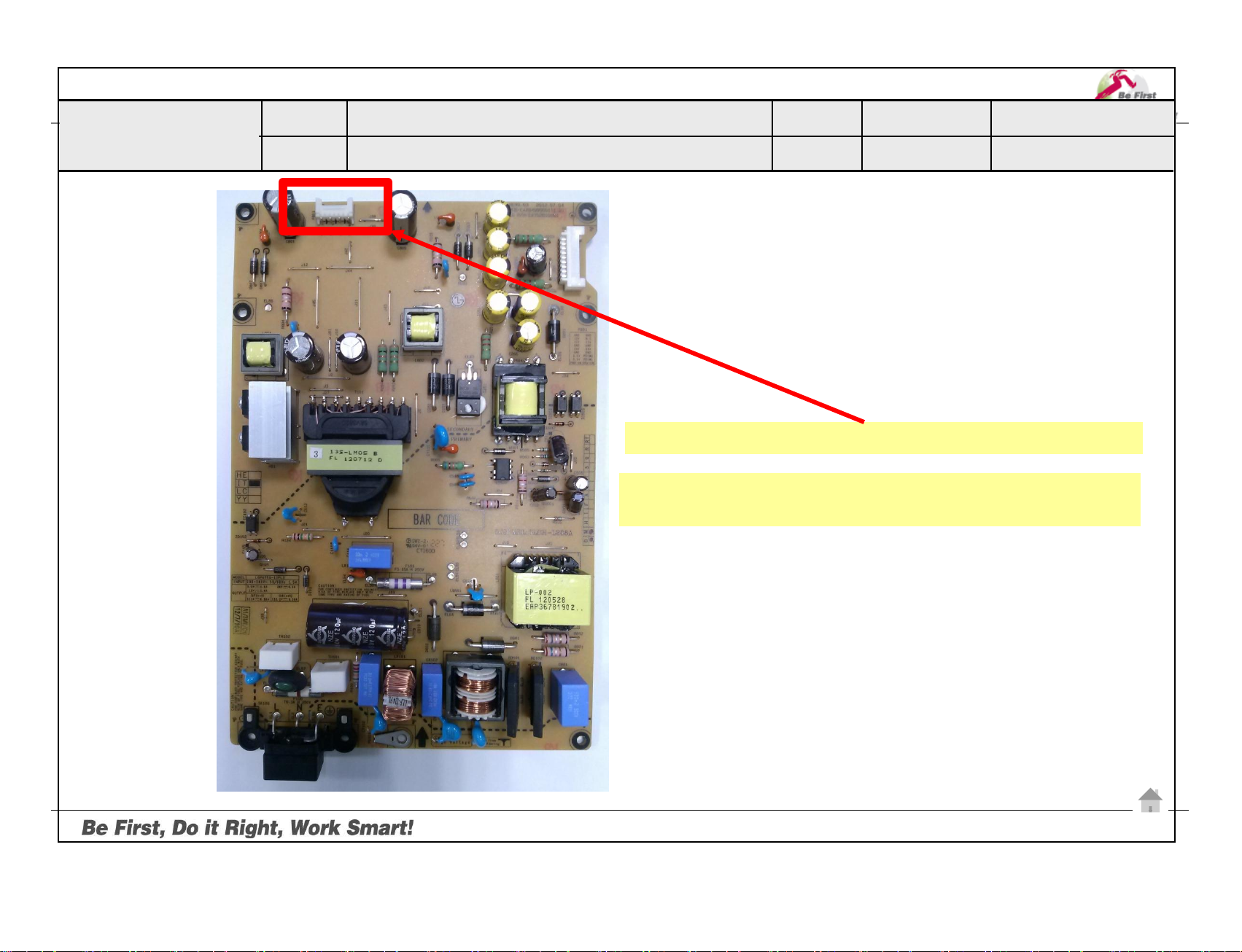

L13 POWER BLOCK (POWER DETECT 2)

LGE Internal Use Only

FROM LIPS & POWER B/D

+3.5V_ST

MMBT3906(NXP)

Q402

L404

CIC21J501NE

L407

MLB-201209-0120P-N2

L402

MLB-201209-0120P-N2

OPT

R411

33K

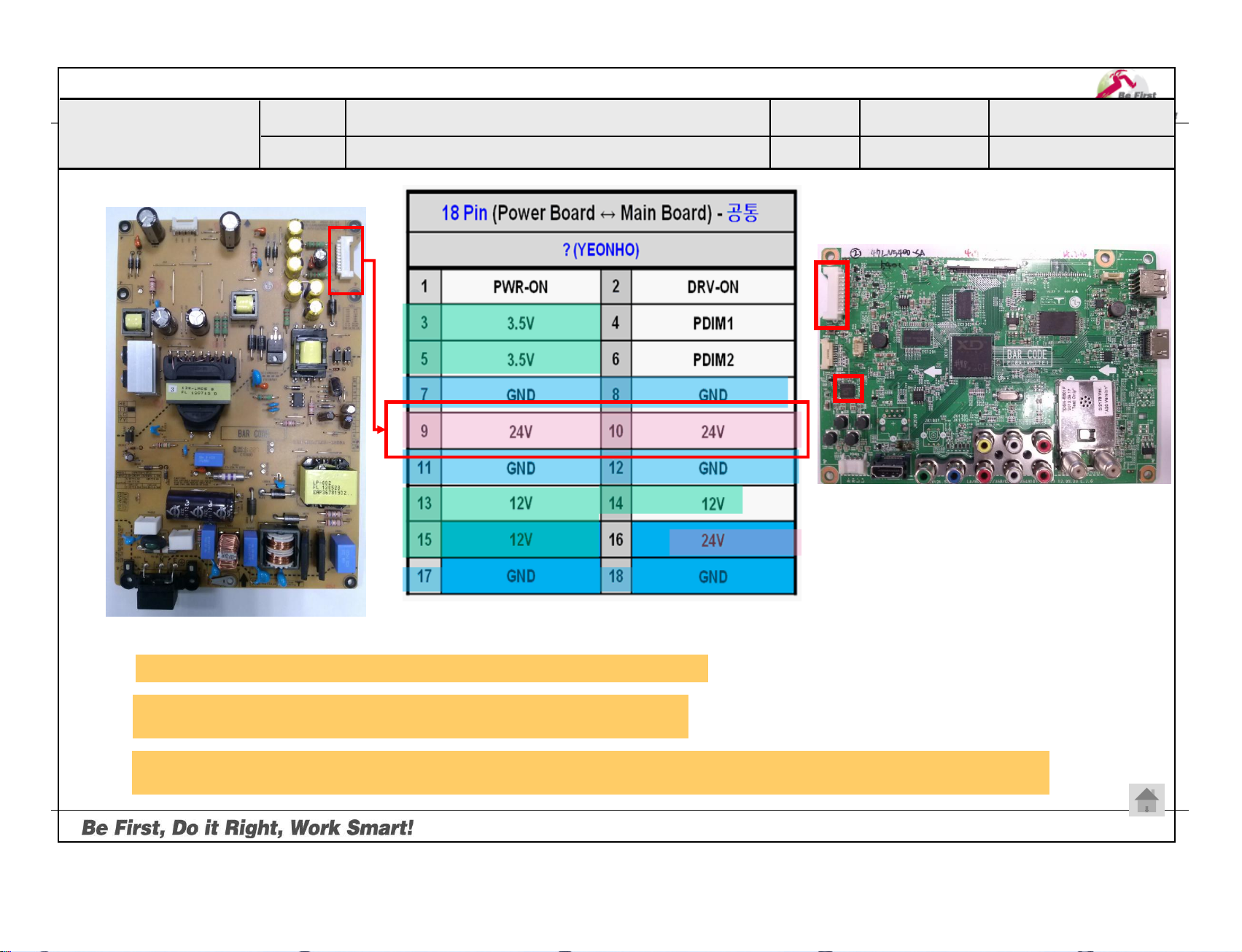

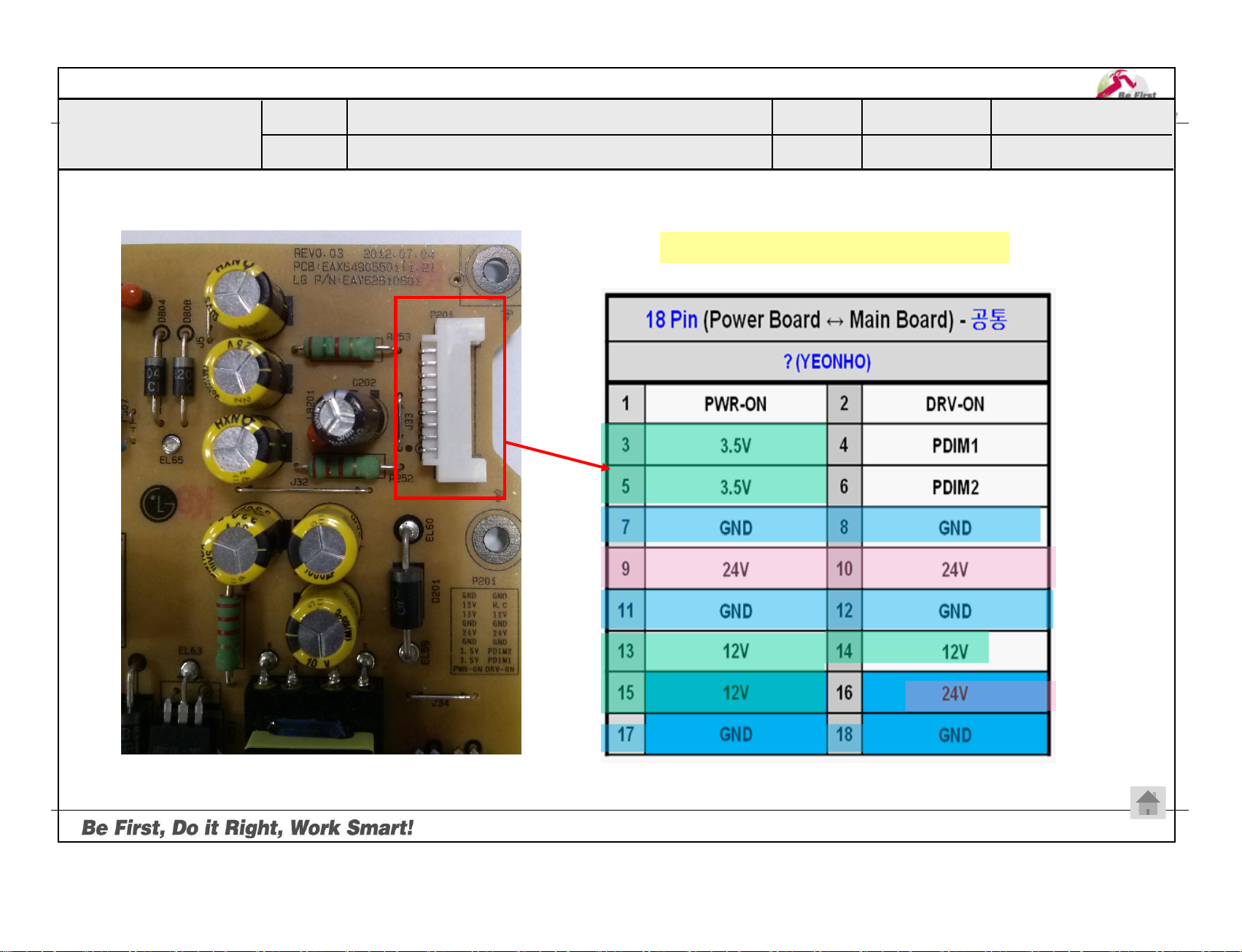

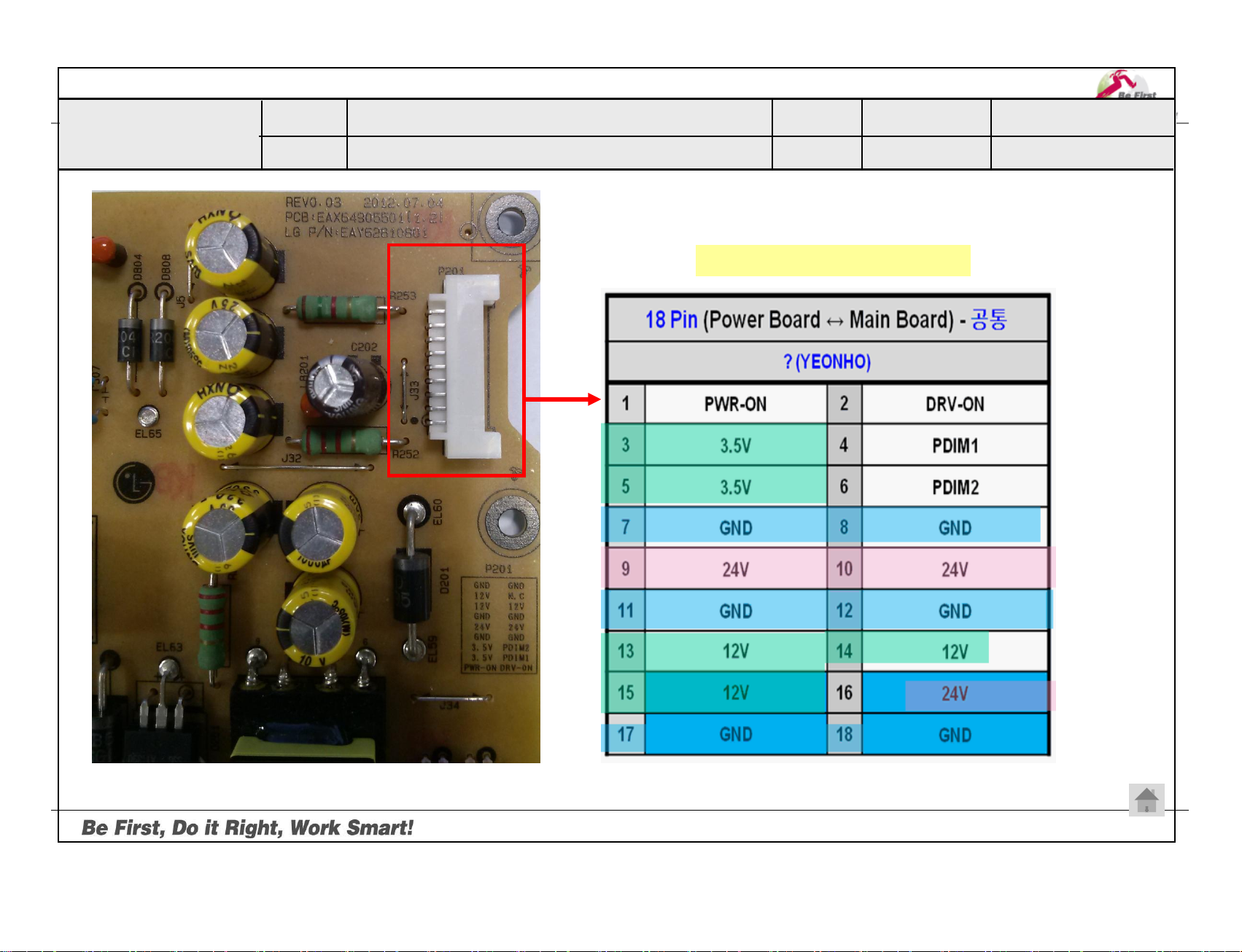

P401

SMAW200-H18S1

PWR ON

3.5V

3.5V GND 24V GND 12V 12V GND

DRV ON

PDIM#1

PDIM#2

GND

24V

GND

12V

N.C

GND

R415 100

RL_ON

+3.5V_ST

R461 10K

+3.5V_ST

+24V

+12V

OPT

R462 10K

R401

10K

D401 5V

CIC21J501NE

L408

C406 0.1uF

C418 0.1uF

C404 0.1uF

R416 10K

R406

4.7K

Q401 MMBT3904(NXP)

OPT

16V

50V

16V

+3.3V_Normal

R419

R421 10K

Q405

MMBT3904(NXP)

R412 3.9K

PWM_DIM_PULL_DOWN

*For 55LN54 Power ON Noise

R408 100

PWM2_2CH_POWER

+3.5V_ST

R426 10K

INV_CTL

PWM_DIM PWM1

PANEL_POWER

+12V

L412 120

CIS21J121

C438

0.1uF 25V

OPT

PANEL_CTL 001:AL22

R489 10K

+1.5V_DDR

+3.5V_ST

L420

BLM18PG121SN1D

C461 10uF

10V

+3.3V_Normal

R433 10K

R439

33K

R440

5.6K

1.5A

IC407

Q407 MMBT3904(NXP)

THERMAL

R430 10K

AP7173-SPG-13 HF(DIODES)

VCC

[EP]

OUT

GND

C443 10uF

16V

Q409

AO3407A

C467 560pF 50V

+3.5V_ST --> 3.375V --> 3.46V

+24V --> 3.78V --> 3.92V (3.79V)

Power_DET

+12V

+3.5V_ST

R457

4.3K

1/16W 1%

R456

4.7K 1/16W 1%

R405

5.6K

PANEL_VCC

R407

5.6K

C472 22uF 10V

C476

0.1uF 16V

+1.5V_DDR

D403 5V OPT

PD_+24V

R482

8.2K 1%

PD_+24V

PD_+24V C412

0.1uF 16V

R403

1.5K 1%

+3.3V_Normal

+24V

C411

0.1uF 16V

PD_+12V

R448

2.7K

PD_+12V

R447

1.2K

+3.5V_ST

PD_+3.5V

R434

10K

R450

PWR_DET_ON_SEMI

NCP803SN293

VCC

PD_+24V_PWR_DET_ON_SEMI

NCP803SN293

VCC

R438 22K

+12V --> 3.58V --> 3.82V (3.68V)

R402-*1 100

+3.5V_SOC_RESET

RESET_IC_SOC_RESET

R402 300

PD_+24V

R480 100

AO3435 Q403

+3.5V_ST

R463

RESET_IC_SOC_RESET

10K

BLM18PG121SN1D

C425

0.1uF 16V

R488 100K

IC408

GND

PD_+24V

R404

100K

IC409

GND

C423

2.2uF 10V

RESET

POWER_DET_RESET

RESET

FET_2.5V_AOS

C474

0.1uF

L403

POWER_DET

+3.3V_Normal

IC408-*1

APX803D29

RESET

PWR_DET_ON_DIODES

RESET

PD_+24V_PWR_DET_DIODES

C437 22uF 10V

IC409-*1

APX803D29

5V OPT

GND

D405

VCC

+5V_Normal & +5V_USB

+12V

L401

CIC21J501NE

R410

100K

CHANGE TO 16V/X5R

C405 10uF 16V

C419

4.7uF 10V

Vout=0.8*(1+R1/R2)

L406

R491

BST

THERMAL

3.6uH

10FB11LX12

IC401 TPS65281RGV

ROSC

COMP4RLIM

R409 2K

C410 3300pF 50V

C413

0.047uF 25V

PGND

VIN

V7V

[EP]

C426 100pF 50V

OPT

SW_IN

C420 22uF 16V

R413 20K

C421 22uF 16V

SW_OUT

AGND

FAULT

EN_SW

R445

R436 15K

PH_3

PH_2

PH_1

SS/TR

C441

0.1uF 16V

R432

C488 3300pF

330K1/16W 5%

2.2K

Q400 MMBT3904(NXP)

C448

3300pF

50V

L415

3.6uH

C453 22uF 10V

C456 22uF 10V

FET_2.5V_DIODE

DMP2130L Q403-*1

R442 30K 1/16W 1%

R441 75K 1/16W 1%

+1.10V_VDDC

C439

50V 100pF

C444

0.1uF 16V

D404 5V OPT

Vout=0.8*(1+R1/R2)=1.5319

POWER_ON/OFF_1

R443 10K

+2.5V_Normal

+3.3V_Normal

+5V_Normal

R452

33K

C424 330pF

R453

OPT

27K

C417 10uF

10V 85C

50V

R454

11K 1%

CAP_10uF_X5R

CHANGE TO 10UF/10V/X5R

+5V_Normal

C417-*1

10uF 10V

CAP_10uF_X7R

+3.3V_Normal

R414 10K

+5V_USB

R417

4.7K

OPT

C422

0.1uF 16V

OPT

USB1_OCD

USB1_CTL

TJ1118S-2.5

IC402

GND

OUT

CAP_10uF_X5R

CHANGE TO 10UF/10V/X5R

C403

10uF

10V

85C

C403-*1

10uF 10V

CAP_10uF_X7R

C440

0.1uF 16V

+2.5V_Normal

D402 5V OPT

S7LR core 1.15V volt

R428 10K

EP[GND]

VIN_3

THERMAL

TPS54319TRE

AGND

15EN16

IC403

VSENSE

C447

0.33uF 16V

COMP

BOOT14PWRGD

RT/CLK

+3.5V_ST

L413 CIC21J501NE

C430 10uF

10V

+3.3V_Normal

VIN_1

VIN_2

GND_1

GND_2

Vout=0.827*(1+R1/R2)

NC4_S7LRM

Power_PD2

2012/09/19

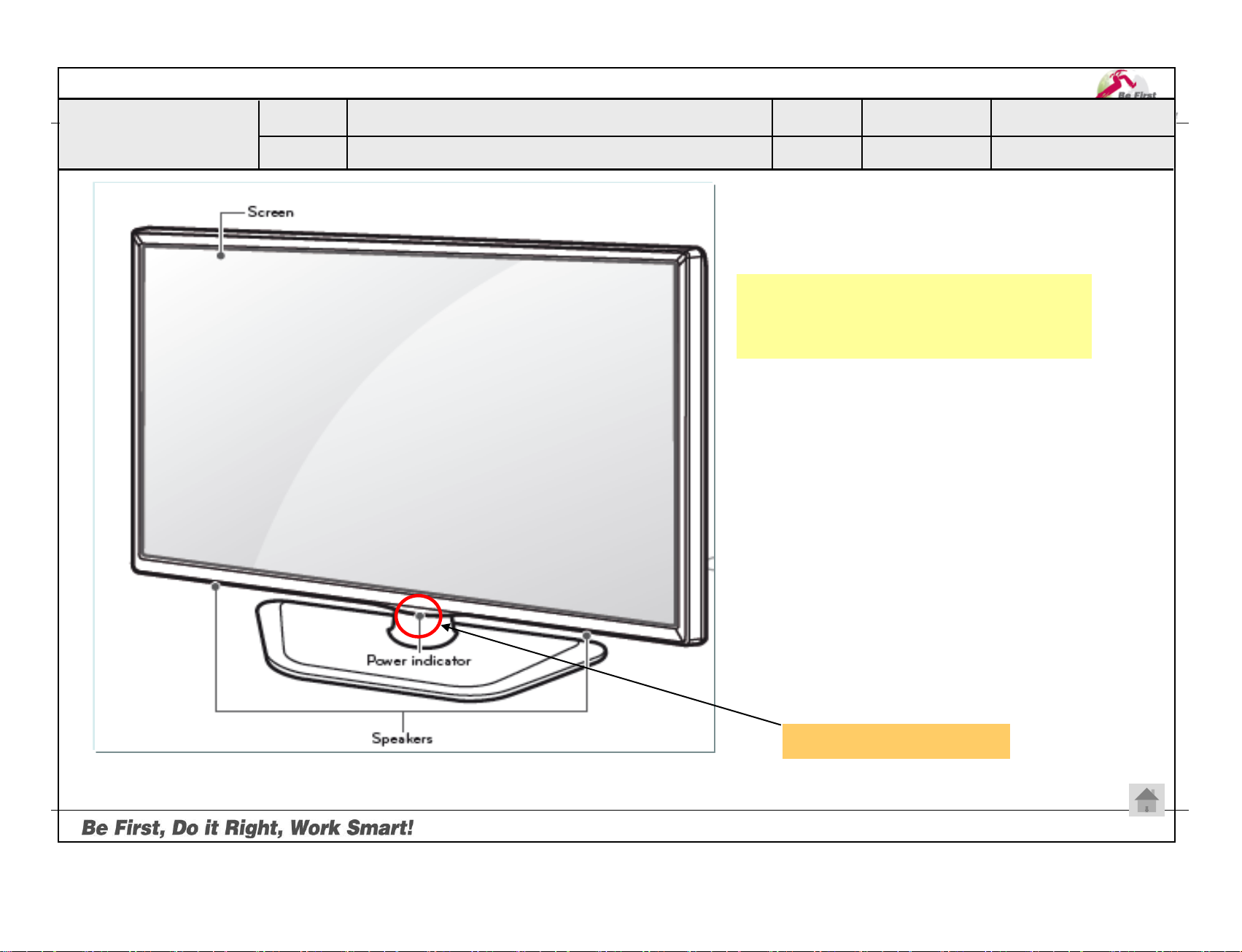

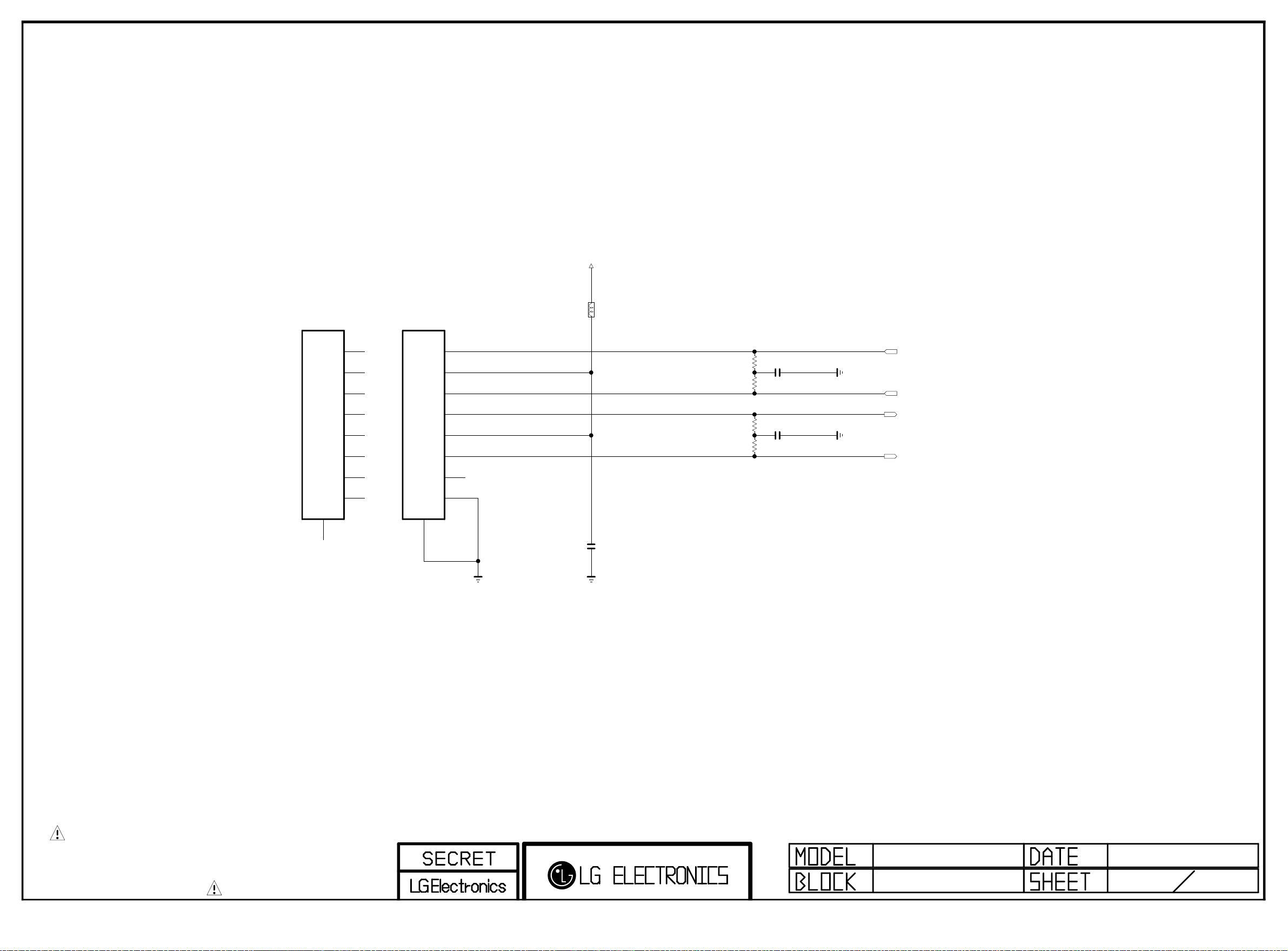

IR/LED and Control

LGE Internal Use Only

+3.5V_ST

CONTROL_NO_FILTER

R611 0

CONTROL_FILTER

L601

BLM18PG121SN1D

CONTROL_FILTER

L602

BLM18PG121SN1D

CONTROL_NO_FILTER

R612 0

CONTROL_FILTER

C609

0.1uF 16V

+3.5V_ST

L600

BLM18PG121SN1D

C602

0.1uF 16V

CONTROL_FILTER

C608

0.1uF 16V

C603 1000pF 50V

LED_R/BUZZ

C604

100pF

P600

12507WR-08L

R610

1.8K

OPT

C607

0.1uF 16V

50V

R603

R602

R600

KEY1

KEY2

100

R601 100

10K

R607

3.3K

NC4_S7LRM IR/CONTROL

2012/07/18

USB (SIDE)

LGE Internal Use Only

JK700

1234

USB DOWN STR EAM

3AU 04S-3 05-Z C-(LG )

C700 22uF 10V

D700 RCLAMP0502BA

OPT

+5V_USB

SIDE_USB1_DM

SIDE_USB1_DP

NC4_S7LRM

USB

12/06/20

+ 53 hidden pages
