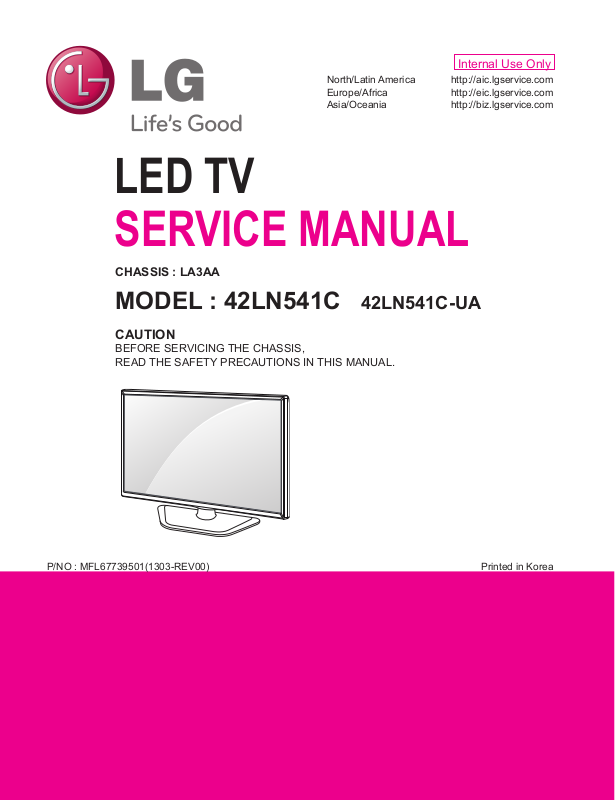

LG 42LN541C Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LA3AA

MODEL : 42LN541C 42LN541C-UA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67739501(1303-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 8

TROUBLE SHOOTING ............................................................................ 14

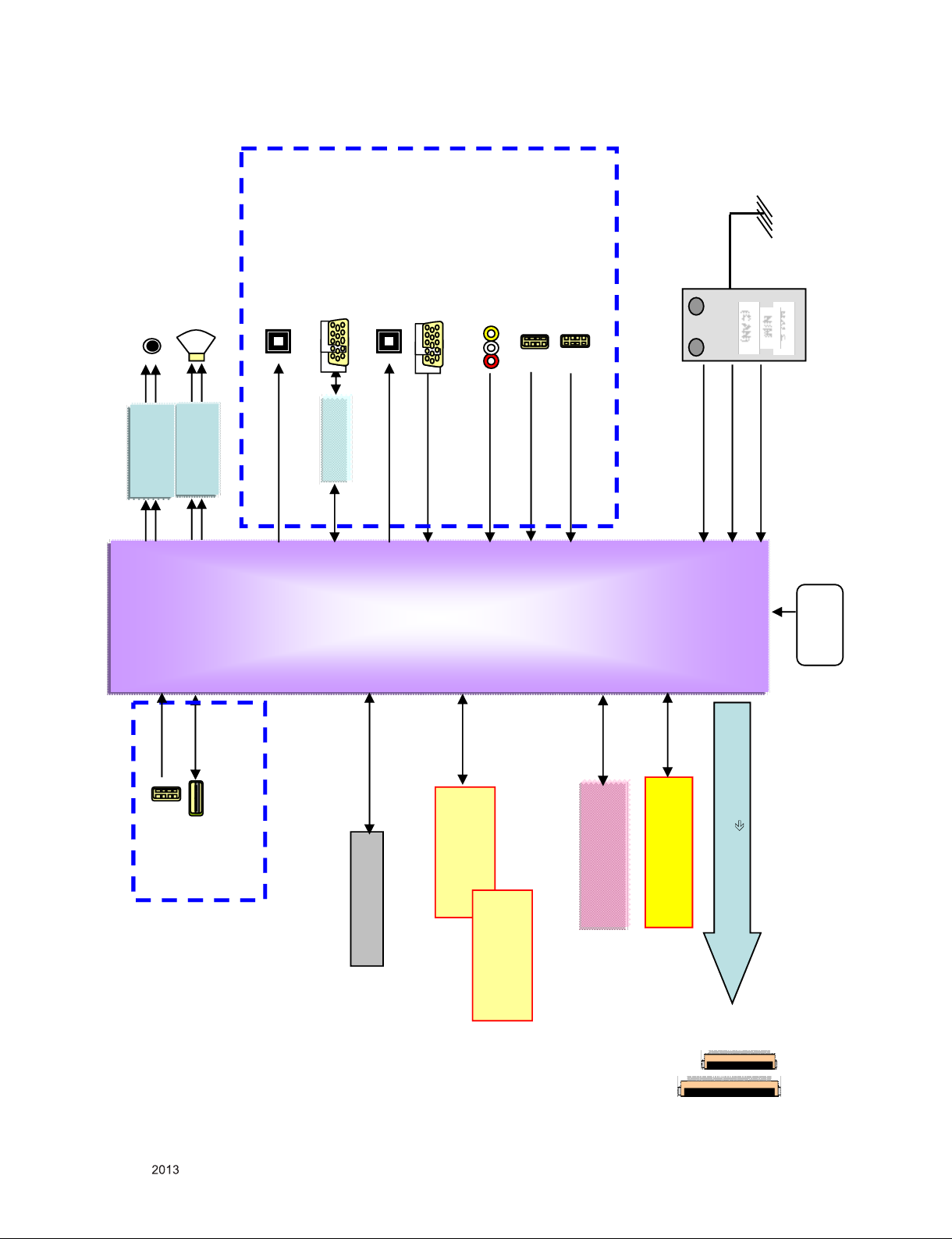

BLOCK DIAGRAM .................................................................................. 20

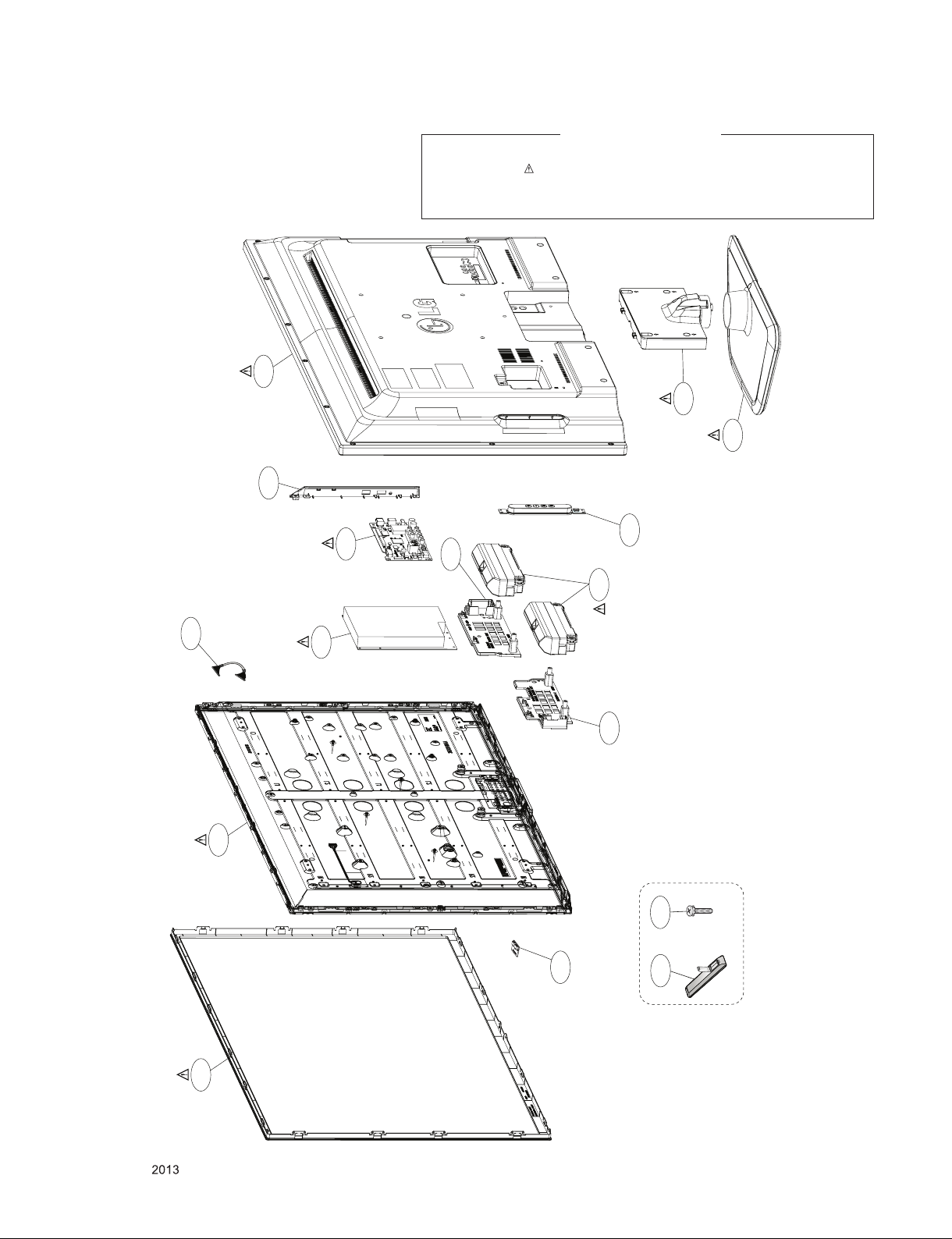

EXPLODED VIEW .................................................................................. 21

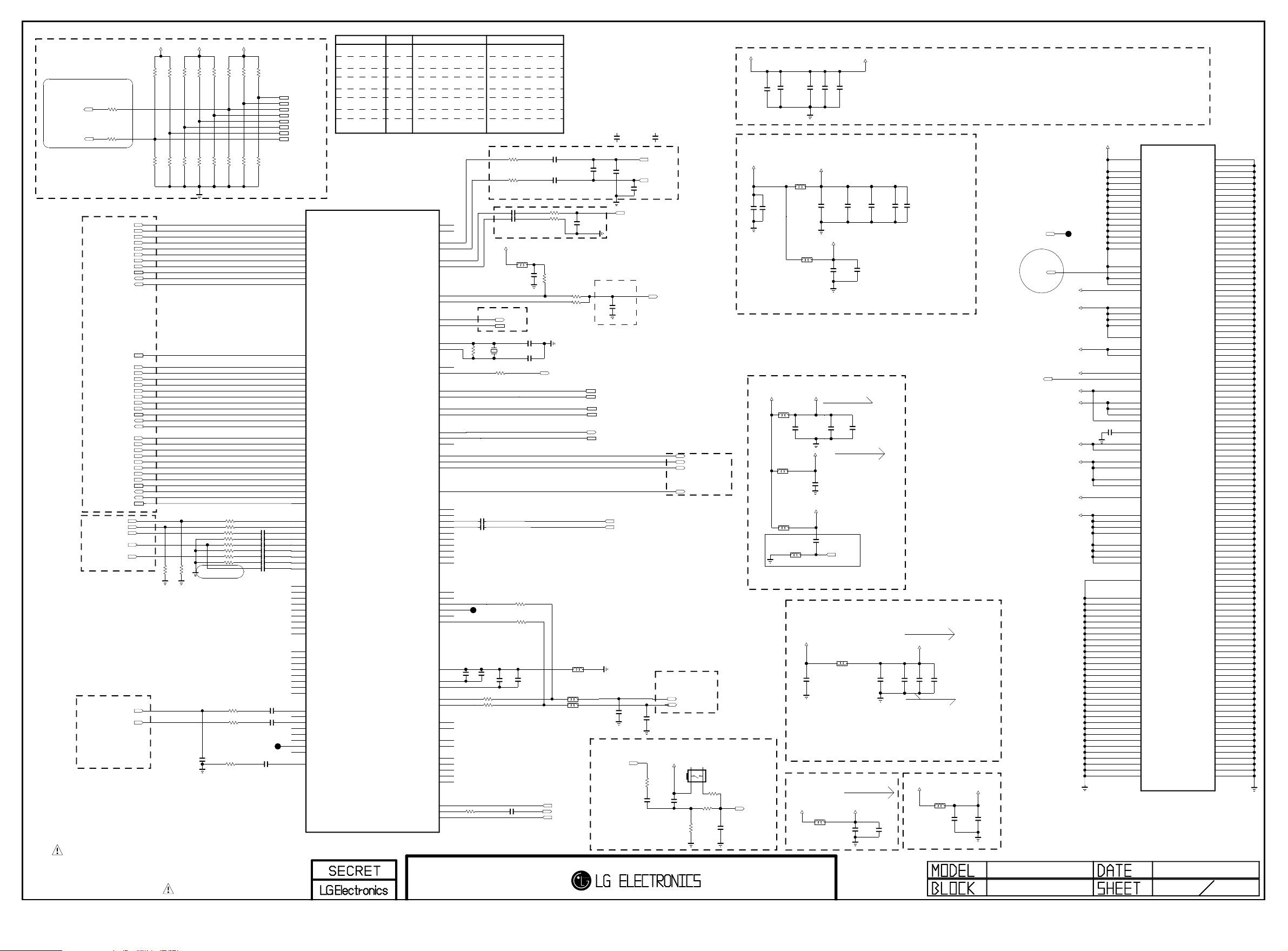

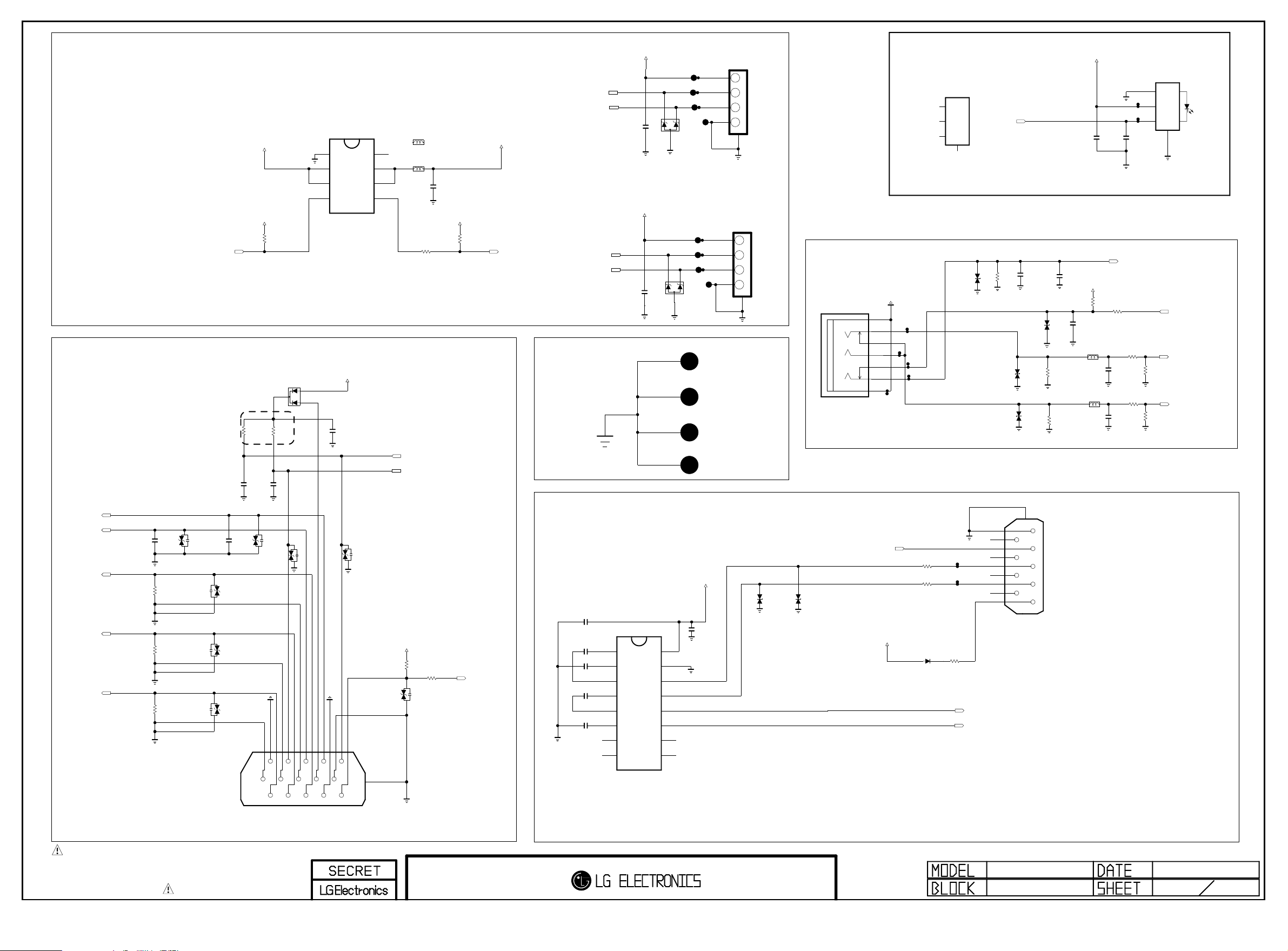

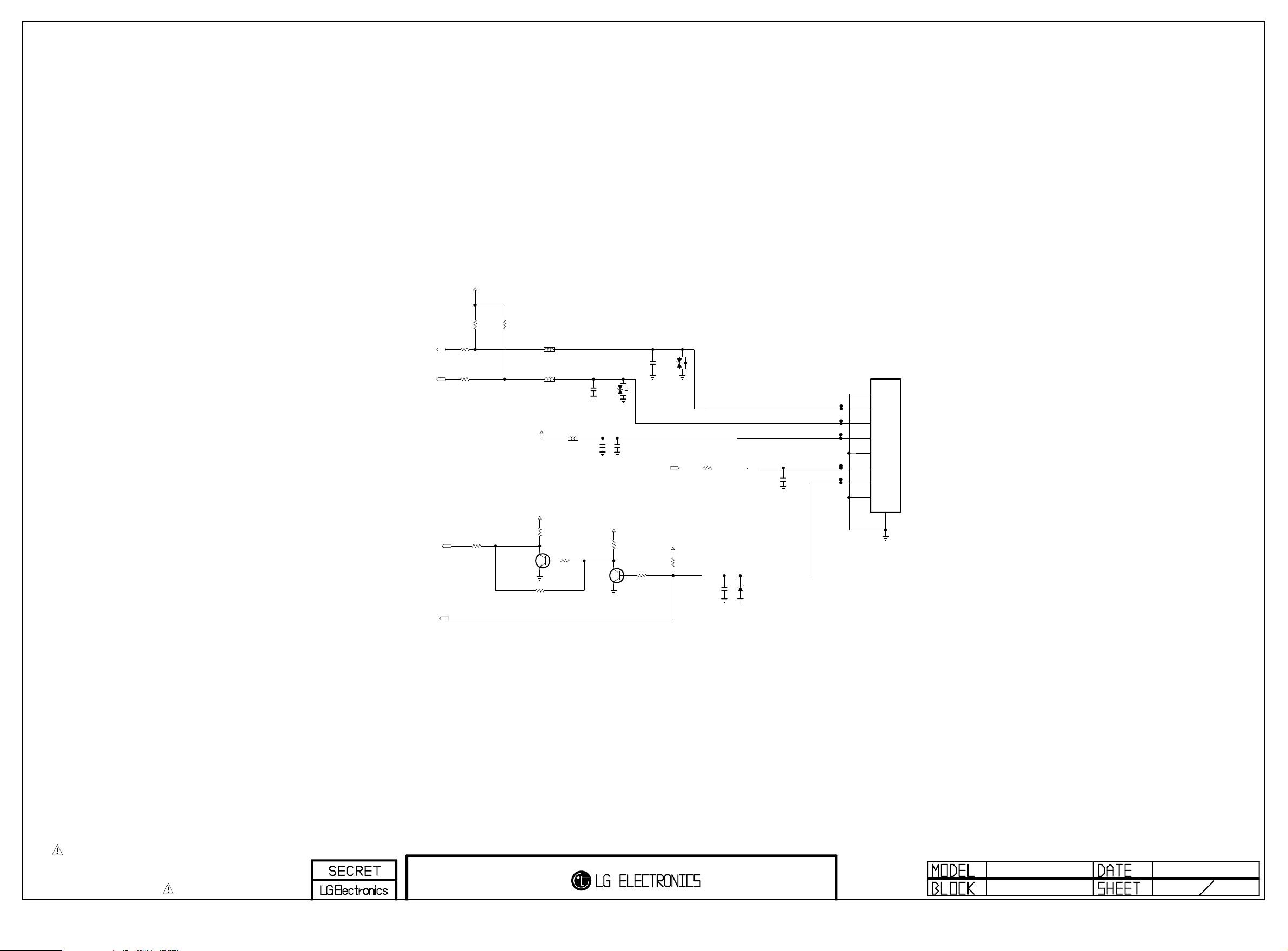

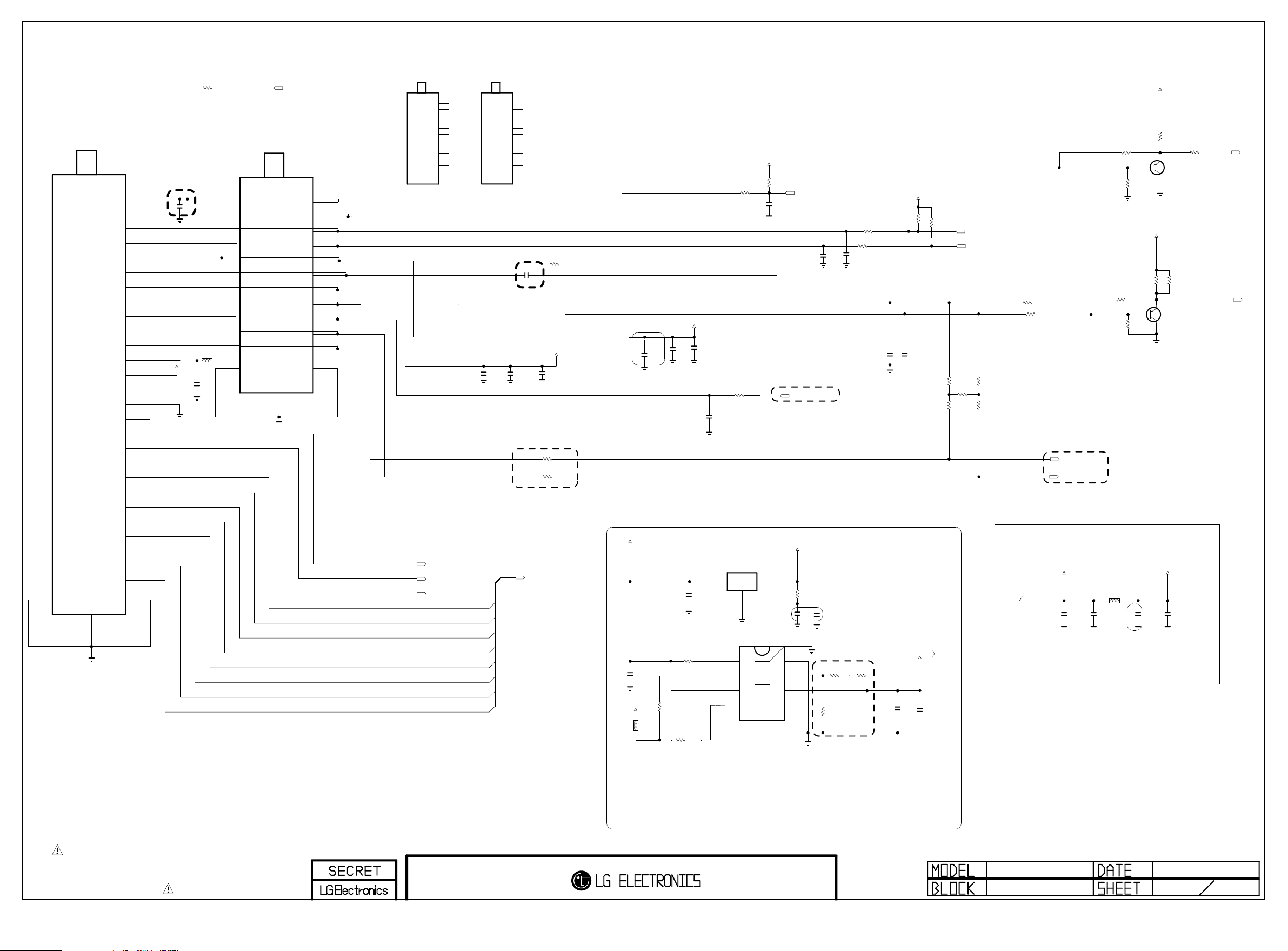

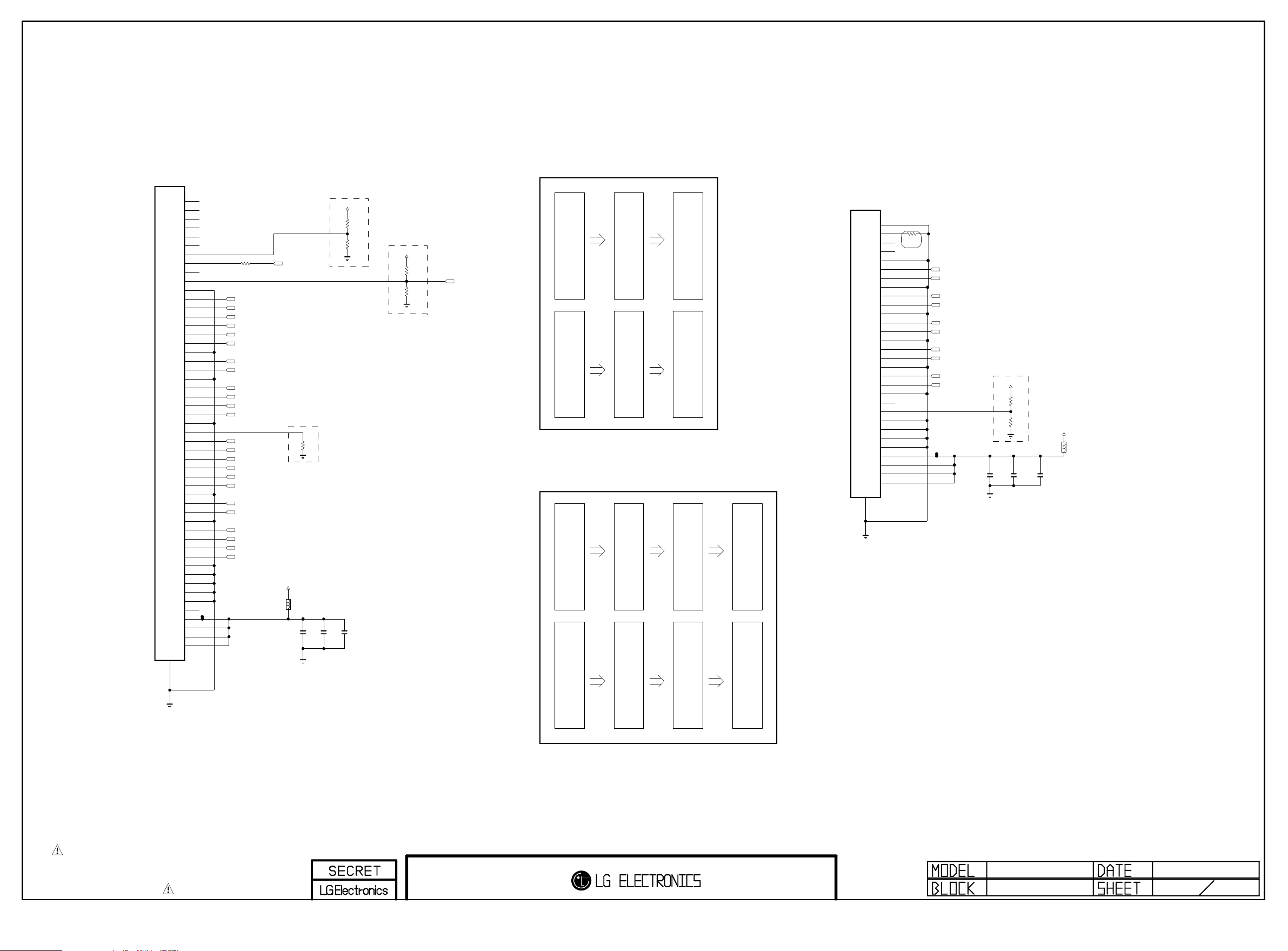

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of th e cir cuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exp ose d metallic par t. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied LED TV with LA3AA chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage

Market Input voltage Frequency Remark

USA 110~240V 50/60Hz Standard Voltage of each

product is marked by models

4) Specification and performance of each parts are followed ea ch drawing and s pe cificatio n b y p art number in accordance with BOM

5) The receiver must be operated for about 20 minutes prior to the adjustment

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

4. General Specification

No Item Specication Result Remark

1. Receiving System 1) ATSC / NTSC-M / 64 QAM / 256 QAM

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) DTV : 02-69

4) CATV : 01~135

5) CADTV : 01~135

3. Input Voltage AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz (N.America)

4. Market NORTH AMERICA

5. Screen Size 39/42/47/55 inch Wide (1920 × 1080) FHD + 60Hz All models without HD models

32 inch Wide (1366 × 768) HD + 60Hz

6. Aspect Ratio 16:9

7. Tuning System FS

8. Module Direct LED LC320DXE-SFR1 LGD 32LN541C-UA

LC420DUE-SFR1 LGD 42LN541C-UA, 42LN549E-UA

LC470DUE-SFR1 LGD 47LN541C-UA, 47LN549E-UA

POLA LC550DUJ-SEE1 LGD 55LN541C-UA

9. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

10. Storage Environment 1) Temp : -20 ~ 60 deg

2) Humidity : ~ 85 %

Only for training and service purposes

- 6 -

5. Supported video resolutions

5.1. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60.00 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.50 SDTV ,DVD 480I

3. 720*480 31.50 60.00 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.00 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.50 60.00 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

11. 1920*1080 27.00 24.00 74.25 HDTV 1080P

12. 1920*1080 26.97 23.94 74.176 HDTV 1080P

13. 1920*1080 33.75 30.00 74.25 HDTV 1080P

14. 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 7 -

ADJUSTMENT INSTRUCTION

1. Application

This spec. sheet applies to LA3AA Chassis applied LED TV all models manufactured in TV factory

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5 ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) At first Worker must turn on the SET by using Power Only

key. (6) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15

ºC

In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2

hours In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above

15°C for 3 hours.

※ Caution When still image is displayed for a period of 20 minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area

3. Adjustment items

3.1. Main PCBA Adjustments

(1) ADC adjustment : ADC adjustment is OTP (Auto ADC) (2) EDID download : HDMI

■ Above adjustment items can be also performed in Final

Assembly if needed.

Both Board-level and Final assembly adjustment items can

be check using In-Start Menu (1.Adjust Check).

4. MAIN PCBA Adjustments

4.1. ADC Adjustment

4.1.1. Overview

▪ ADC adjustment is needed to find the optimum black level

and gain in Analog-to-Digital device and to compensate RGB deviation.

4.1.2. Equipment & Condition

(1) Protocol: RS-232C (2) Inner Pattern

- Resolution : 1024*768(RGB)

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

4.1.3. Adjustment

4.1.3.1. Adjustment method

- Connect to Jig by using RS-232(USB), adjust RGB

※ Manual adj (If needed in Final Assembly)

- Required equipment : Adjustment R/C

- Enter Service Mode by pushing “ADJ” key,

- Start ‘OTP ’ ADC Type by pushing ‘►’ ke y at [7. ADC

Calibration]

4.1.3.2. Adj. protocol (only Internal patten)

Protocol

Enter adj mode

Start ADC adj

4.1.3.3. ADC RGB

1) Press the In-start Key on the ADJ remote after at least 1

2) If ADC RGB is success ful, “ ADC RG B Succes s” is

3) If ADC calibration is failure, after rechecking ADC pattern or

CMD 1 CMD 2 Data 1 Data 2

a a 00 00 When transfer the ‘Mode

a d 00 10 Automatically adjustment

min of signal reception. Then, select ADC Calibration. And Press OK Button on the menu “Start”. The adjustment will start automatically.

displayed and ADC RGB is completed. If ADC calibration is failure, “ADC RGB Fail” is displayed.

condition, retry calibration

Remark

In’,Carry the command

(Use internal pattern)

3.2. Final assembly adjustment

(1) White Balance adjustment (2) RS-232C functionality check (3) Factory Option setting per destination (4) Shipment mode setting (In-Stop) (5) GND and HI-POT test

3.3. Appendix

(1) Shipment conditions (2) Tool option menu (3) USB Download (S/W Update, Option and Service only) (4) Preset CH Information

Only for training and service purposes

- 8 -

4.2. EDID Download

4.2.1. Overview

▪ It is a VESA regulation. A PC or a MNT will display an

optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

4.2.2. Equipment

(1) Since EDID data is embedded, EDID download JIG, HDMI

cable is not need. (2) Adjust by using remote controller

4.2.3. Download method

(1) Press Adj. key on the Adj. R/C. (2) Select EDID D/L menu. (3) By pressing Enter key, EDID download will begin (4) If Download is successful, OK is display, but If Download is

failure, NG is displayed. (5) If Download is failure, Re-try downloads. ※Caution : Wh en EDID Download, must remove HDMI

Cable.

4.2.3.1. Models for EDID Data

2D

8bit-HD 8bit-FHD

North America (PCM)

32LN541C-UA 39/42/47/55

LN541C-UA LN549E-UA

4.3. Tool Option Input

- Input Model Tool Option according to BOM

5. Final Assembly Adjustment

5.1. White Balance Adjustment

5.1.1. Overview

5.1.1.1. W/B adj. Objective & How-it-works (1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range.

▪ Case : Cool Mode

- To adjust the white balance without the saturation, G gain

should be adjust at least 172 and change the others (R,B Gain)

※ When R or B gain is over 255, G gain can be adjust below

172)

▪ Case : Medium / Warm Mode

- To adjust the white balance without the saturation, Fix the

one of R/G/B gain to 192 (default data) and decrease the others.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 ºC

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

- Before White balance adjustment, Keep power on status,

don’t power off

5.1.1.2. Adj. condition and cautionary items (1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

- After Aging Start, Keep the Power ON sta tus during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

Only for training and service purposes

5.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)

(2) Adj. Computer(D uring auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Vi deo Signal Generat or MS PG-925F 720p/ 204-Gray

(Model:217, Pattern:49)

→ Only when internal pattern is not available

※ Color Anal yzer Ma trix sh ould be calibrate d using

CS-1000

- 9 -

5.1.3. Equipment connection

Color Analyzer

Probe

RS-232C

※

Signal Source

※If TV internal pattern is used, not needed

Computer

Pattern Generator

5.1.4. Adjustment Command (Protocol)

(1) RS-232C Command used during auto-adj

RS-232C COMMAND

CMD DATA ID

Wb 00 00 Begin White Balance adj.

Wb 00 ff End White Balance adj.

(internal pattern disappears )

(2) Adjustment Map

Command

Adj. item

Cool R Gain j g 00 C0 172

G Gain j h 00 C0 172

B Gain j i 00 C0 192

R Cut 128

G Cut 128

B Cut 128

Medium R Gain j a 00 C0 192

G Gain j b 00 C0 192

B Gain j c 00 C0 192

R Cut 128

G Cut 128

B Cut 128

Warm R Gain j d 00 C0 192

G Gain j e 00 C0 192

B Gain j f 00 C0 172

R Cut 128

G Cut 128

B Cut 128

(lower case ASCII)

CMD1 CMD2 MIN MAX

Explanation

Data Range

(Hex.)

RS-232C

Default

(Decimal)

5.1.5. Adjustment method

5.1.5.1. Auto WB calibration (1) Set TV in ADJ mode using P-ONLY key (or POWER ON

key)

(2) Place optical probe on the center of the display

- It need to check probe condition of zero calibration before

adjustment. (3) Connect RS-232C Cable (4) Select mode in ADJ Program and begin a adjustment. (5) When WB adjustment is completed with OK message,

check adjustment status of pre-set mode (Cool, Medium,

Warm) (6) Remove probe and RS-232C cable. ※ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

5.1.5.2. Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 204 Gray(80IRE) internal

pattern will be displayed)

(4-a) Adjust modes (Cool) : Fix the G gain at least 172 and

change the others (R/B Gain). ※ If R or B gain is over 255, G gain can be adjust below 172. (4-b) Adjust two modes ( Medium / Warm) : Fix the one of

R/G/B gain to 192 (default data) and decrease the others

※ CASE : Cool mode First adjust the coordinate far away from the target value(x, y). (1) x, y > target (2) x, y < target (3) x >target , y < target (4) x < target , y > target

- Every 4 case have to fit y value by adjusting B Gain and then

fit x value by adjusting R-Gain

- In this case, increasing/decreasing of B Gain and R Gain can

be adjusted

► How to adjust

(1) Fix G gain at least 172 : Adjust R, B Gain (In Case of

Mostly Blue Gain Saturation)

(2) When R or B Gain > 255, Release Fixed G Gain and

Readjust

※ CASE Medium / Warm First adjust the coordinate far away from the target value(x, y). (1) x, y > target i) Decrease the R, G. (2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others. (3) x > target , y < target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y > target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

Only for training and service purposes

- 10 -

5.1.6. Reference (White Balance Adj. coordinate and color

temperature)

▪ Luminance: 204 Gray, 80IRE ▪ Normal line

model: (normal line)LN5xxx, LA6xxx, LA7xxx, LA8xxx

▪ S tan d ard col o r co ord i nat e an d te m per a tur e us i ng

CA-210(CH-14) – by aging time

Cool Medium Warm

H/R Time(Min)

1 0-2 281 287 296 306 321 331

2 3-5 280 285 295 304 320 329

3 6-9 278 284 293 303 318 328

4 10-19 276 281 291 300 316 325

5 20-35 275 277 290 296 315 321

6 36-49 274 274 289 293 314 318

7 50-79 273 272 288 291 313 316

8 80-119 272 271 287 290 312 315

9 Over 120 271 270 286 289 311 314

▪ Aging chamber line

(Aging chamber) Model : LN5xxx, LA6xxx, LA7xxx, LA8xxx

▪ S tan d ard col o r co ord i nat e an d te m per a tur e us i ng

CA-210(CH-14) – by aging time

H/R Time(Min)

1 0-5 283 292 298 311 323 336

2 6-10 282 290 297 309 322 334

3 11-20 280 288 295 307 320 332

4 21-30 277 284 292 303 317 328

5 31-40 275 279 290 298 315 323

6 41-50 274 275 289 294 314 319

7 51-80 273 272 288 291 313 316

8 81-119 272 271 287 290 312 315

9 Over 120 271 270 286 289 311 314

x y x x y x

271 270 286 289 314 318

Cool Medium Warm

x y x x y x

271 270 286 289 314 318

(Aging chamber) Model : LN5xxx, LA6xxx, LA7xxx, LA8xxx

▪ S tan d ard col o r co ord i nat e an d te m per a tur e us i ng

CA-210(CH-14) – by aging time

Cool Medium Warm

H/R Time(Min)

1 0-5 280 285 295 304 320 329

2 6-10 276 280 291 299 316 324

3 11-20 272 275 287 294 312 319

4 21-30 269 272 284 291 309 316

5 31-40 267 268 282 287 307 312

6 41-50 266 265 281 284 306 309

7 51-80 265 263 280 282 305 307

8 81-119 264 261 279 280 304 305

9 Over 120 264 260 279 279 304 304

x y x x y x

271 270 286 289 314 318

5.2. Option selection per country

5.2.1. Overview

(1) Tool option selection is only done for models in Non-USA

North America due to rating

(2) Applied model: LA3AA Chassis applied to CANADA and

MEXICO

5.2.2. Country Group selection

(1) Press ADJ key on the Adj. R/C, and then select Country

Group Menu

(2) Depending on destination, select US, then on the lower

Country option, select US, CA, MX.

Selection is done using +, - KEY

5.2.3. Tool Option inspection

▪ Press Adj. key on the Adj. R/C, then select Tool option

Model Module Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 Commercial

32LN541C-UA ROW (LGD) 16452 2321 9873 29612 14340 1 71

39LN541C-UA POLA (LGD)

42LN541C-UA ROW (LGD) 16455 2321 9873 29612 14340 1 71

47LN541C-UA ROW (LGD) 16456 2321 9873 29612 14340 1 71

55LN541C-UA POLA (LGD) 16458 2321 10001 29612 14340 1 71

※ Tool option can be reconstructed by Software

Only for training and service purposes

5.3. Ship-out mode check (In-stop)

- After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode

- 11 -

6. GND and HI-POT Test

6.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

6.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).

(Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next

process automatically

6.3. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA (2) TEST time: 1 second (3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5mArms

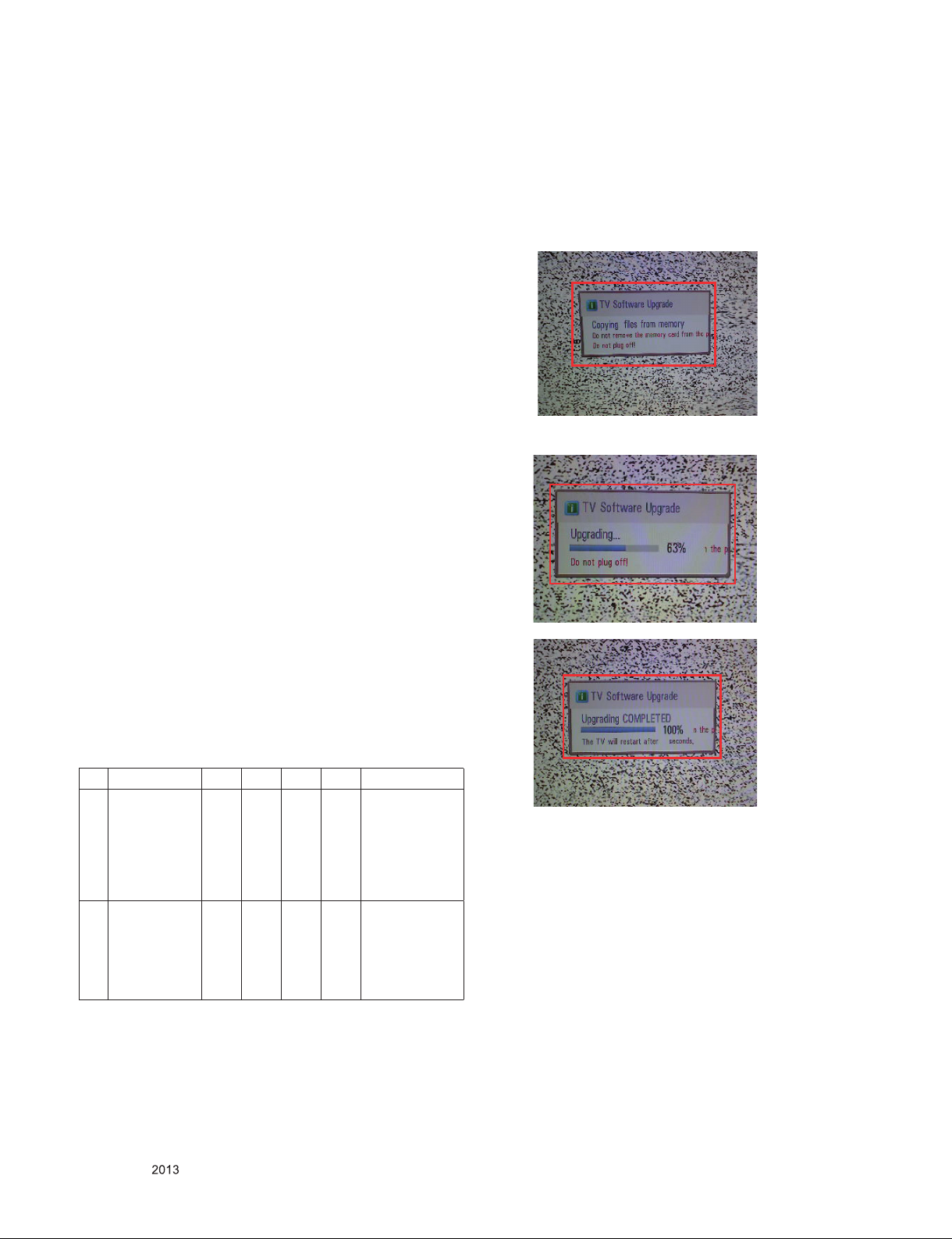

* USB S/W Download (option, Service only)

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low, it didn't work. But your downloaded version is High, USB data is automatically detecting

(3) Show the message "Copying files from memory"

(4) Updating is staring.

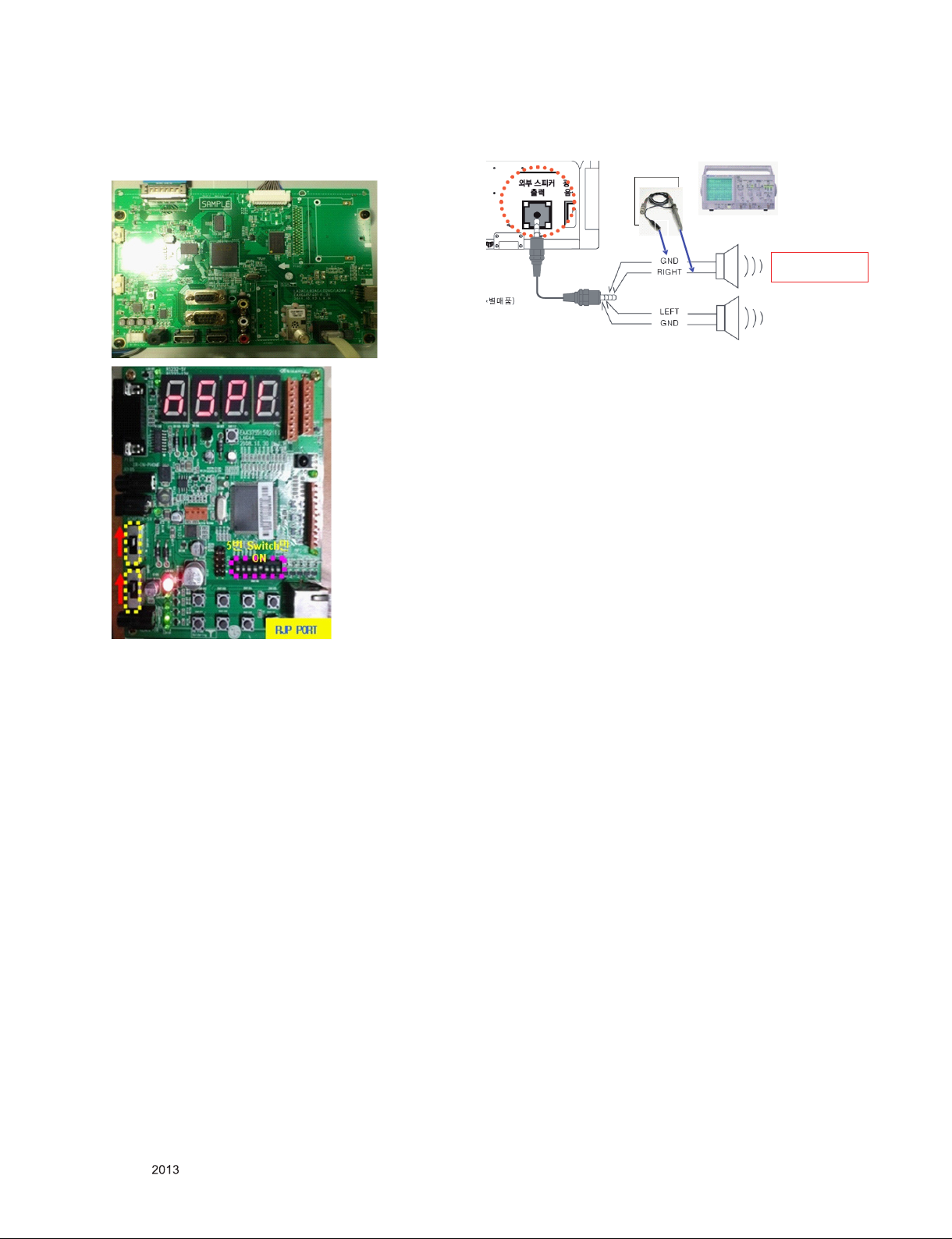

7. AUDIO output check

7.1. Audio input condition

(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)

7.2. Specification

No Item Min Typ Max Unit Remark

1 Audio practical

max Output, L/R (Distortion=10% max Output)

2 Audio practical

max Output, L/R (Distortion=10% max Output)

9.0

8.5

4.5

6.0

10.9

9.3

5.2

6.45

12.0

9.8WVrms

6.24

7.07WVrms

(1) Measurement condition

- EQ/AVL/Clear Voice: Off (2) Speaker

(8Ω Impedance)

(3) 32/37/42/47/55

INCH

(1) Measurement condition

- EQ/AVL/Clear Voice: Off (2) Speaker

(8Ω Impedance)

(3) 26 INCH

(5) After updating is complete, The TV will restart automatically. (6) If TV turns on, check your updated version and Tool option.

(refer to the next page about tool option)

* If downloading version is higher than your TV have, TV

can lost all channel data. In thi s case, you have to channel recover. If all channel data is cleared, you didn't have a DTV/ATV test on production line.

※After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 12 -

7. Test factor for commercial model

7.1. RJP TEST (Only US model)

RJP port

8. External Speaker Out

Recommended Input Signal

: RF, 1kHz, Sine wave

(1) Connect external speaker to speaker out port with phone

jack on TV side as below

(2) Check the Max. speaker output is 1W or not. Sine wave

with 1KHz will be displayed (3) Check Both of the signal in speaker. (Power only mode -> Fived 1W Default)

-> Check the input signal(1KHZ, Sine wave) and the wave

of output by utilizing oscilloscope

7.1.1. Overview

▪ Jig(Commercial Check JIG) ▪ RJ45 cable ▪ Power only mode

7.1.2. Test sequence

(1) Operate JIG(Commercial Check JIG) as shown on picture1 (2) Turn on TV an d press “P-ONLY” key on adjustment

remocon. (3) Connect RJ45 cable into RJP port of the TV set. (4) Connect RJ45 cable into the JIG. (5) If shown “OK” it’s normal, “NG” it’s defect. (6) If defect, check the connection once again as done above. (7) If the signal power is no good, check the connection of RF

cable.

Only for training and service purposes

- 13 -

1. Power-up boot check

TROUBLE SHOOTING

Check stand-by Voltage.

P401 3, 5pin : +3.5V_ST

ok

Check stand-by Voltage

L402, L403 : +3.5V

ok

Check X201 clock

24 M Hz

ok

Check P401 PWR_ON.

1pin : 3.3V

ok

Check Multi Voltage P401 9, 10pin : 24V

/ 13, 14, 15pin:12V

ok

Check IC402/3/7 Output Voltage

IC402 : 2.5V

IC403 : 1.15V

IC404 : 1.5V Q408 : 3.3V

ok

Check LVDS Power Voltage

Q406 : 12V

ok

Check Ms tar LVDS Output

ok

No

Check 18pin Power connector

Replace L402, L403

Replace X201

Re-download software.

Replace Power Board

Replace IC402, IC403, IC404, Q408

Replace Q406

Replace Ms tar(IC101) or Main Board

okNo

Main B/D 3.5V Line

Short Check

No

Replace Ms tar(IC101) or Main board

ok

Replace Power board.

Check DRV ON Control

P401 2 pin : High

ok

Change Module

Only for training and service purposes

No

Check Power Board

- 14 -

2. Digital/Analog TV Video

Check RF Cable & Signal

ok

Check Tuner 3.3V Power

L1003

ok

Check Tuner 1.8V Power

IC1001 2 pin : 1.8V

ok

Check IF_P/N Signal

TU1002 10/11 Pin

ok

Check Mstar LVDS Output

No

Replace L1003

Replace IC1001

Bad Tuner. Replace Tuner.

Replace Mstar(IC101) or Main Board.

3. AV Video

Check input signal form at.

Is it supported?

Check AV Cable for damage

for damage or open conductor

Check JK701, CVBS Signal Line

R246

Check CVBS_DET Signal

R705

Check Mstar LVDS Output

ok

No

ok

No

ok

No

Replace Jack

Replace R705

Replace Mstar(IC101) or Main Board.

Only for training and service purposes

- 15 -

4. RGB Video

Check input signal form at.

Is it supported?

Check RGB Cable

for damage or open conductor.

Check JK705

R/G/B signal Line

Check RGB_DET Signa l

Check Mstar LVDS Output

5. HDMI Video

ok

No

ok

No

ok

No

Replace Jack

Replace R1732

Replace Mstar(IC101) or Main Board.

Check input signal form at.

Is it supported?

ok

Check HDMI Cabl e conductors for damage or open conductor.

ok

Check EDID Downlaod

ok

Check JK801, JK802,JK803

ok

Check HDMI I2C Signa l

ok

Check HDMI_DET (HPD)

ok

Check HDMI Signa l

ok

Check Mstar LVDS Output

No

Replace the defective IC or re-download EDID data

Replace Jack

Replace D801. D802

Replace HDMI1 R802, R805, Q801

HDMI2 R804, R805, Q802 HDMI3 R815, R817, Q804

Check other set If no problem , check signal line

Replace Mstar(IC101) or Main Board.

No

Replace Main Board

Only for training and service purposes

- 16 -

6. All Source Audio

Check the TV Speaker Menu

(Menu -> Audio -> TV Speaker)

On

Check AMP IC(IC501) Power

24V, 3.3V

ok

Check Mstar AUDIO_MASTER_CLK

R148

ok

Check AMP I2C Line

R503, R504

ok

Check Output Signal P501

1, 2, 3, 4 pin.

ok

Check Connector & P501

ok

Check speaker resistance

and connector damage.

Off

No

Toggle the Menu

Replace Amp IC(IC501)

Replace Mstar(IC101) or Main Board.

Check signal line. Or replace Mstar(IC101)

Replace Audio AMP IC(IC501)Check signal line, L505, L506

Replace C535, C537, C538, R516, R517

Replace connector if found to be dam aged.

Replace speaker.

7. Digital/Analog TV Audio

Check RF Cable & Signal

ok

Check Tuner 3.3V Power

L1003

ok

Check Tuner 1.8V Power

IC1001 2 pin : 1.8V

ok

Check IF_P/N Signal

TU1002 6 Pin

ok

Follow procedure

‘7. All source audio’

trouble shooting guide.

Only for training and service purposes

No

Replace L1003

Replace IC1001

Bad Tuner. Replace Tuner.

- 17 -

8. AV/RGB Audio

Check AV Cable for damage

for damage or open conductor

ok

Check JK701 Signal Line

R706,R707

ok

Follow procedure

‘7. All source audio’

trouble shooting guide.

9. External Speaker Out

No

Replace Jack

Check AMP IC(IC901) Power 24V

L902

ok

Check Mstar External AUDIO output

R201, R202

ok

Check AMP IC(IC901) Mute High

R1924, 4pin

ok

Check AMP IC(IC1800) Output

2,12,14, 24 Pin

ok

Check Output Signal JK902

4,5 pin.

ok

Check JK902

ok

Check External Speaker

No

Replace L902

No

Replace Mstar(IC101) or Main Board.

Check signal line. Or replace Mstar(IC101)

replace AMP IC(IC901)

Replace Phone Jack(JK902)

Replace Phone Jack if found to be dam aged.

Replace External speaker.

Only for training and service purposes

- 18 -

10. RJP (only us model)

Check RJP RJ45 Ca ble & HDMI cable

ok

Check RJP Power 12 V

L901, JK901 1pin

ok

Check RJP Control Signal for input mode

R911, R909, R910, R912, R913

High level : above 3V

ok

Check RJ45 Jack(JK901)

ok

Check RJP

No

Replace L901, JK901 1pin

Replace R911, R909, R910, R912, R913

Replace connector if found to be dam aged.

Replace RJP.

Only for training and service purposes

- 19 -

BLOCK DIAGRAM

External SP K Ou t

SPK L/R

RJP

Only US model

NTP7500

I2S

A. AMP

RJP

I2S

L/R

TI AMP

L/R

RS-232C

IRout-Path

MAX3232

SPDIF out

RGB PC

RGB/H/V

RS232C

HDMI2

HDMI1

AV

HALF

(CAN)

NIM

148.5MHz

CVBS, L/R

TMDS

Rear

TU_CVBS

SIF

Parallel TS

S7LR2

24MHz

X-t al

Side

DDR2 Add.

DP/DM

TMDS

HDMI3

USB2.0

I2C

AT24 C256C-SSH L-T

256KBIT

DDR2 Data

SPI

K4B2G1646C-HCK0

DDR3 2G

Samsung

667MHz

H5TQ1G63EFR-PBC

DDR3 1G

667MHz

Hynix

MX25L8006EM2I-12G

SERIAL FL ASH

MXIC (8MBIT)

PCM_A[0:7]

(60Hz/120Hz/HD/FHD )

HY27UF082G2B TPCB

NAND F lash

(2GBIT)

LVDS  80MHz

30P

51P

Only for training and service purposes

- 20 -

400

521

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

910

900

540

123

120

510

LV1

530

122

200

500

A10

A2

Set + Stand

300

Only for training and service purposes

- 21 -

IC102

LGE Internal Use Only

NC_1

1

NAND_FLASH_1G_NUMONYX

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RB

7

R

8

E

9

NC_7

10

NC_8

11

12

13

NC_9

14

15

CL

16

AL

17

W

18

WP

19

20

21

22

23

24

NC_29

NC_1

NC_28

NC_2

NC_27

NC_3

NC_26

NC_4

I/O8

NC_5

I/O7

NC_6

I/O6

R/B

I/O5

RE

NC_25

CE

NC_24

NC_7

NC_23

NC_8

VCC_2

VCC_1

VSS_2

VSS_1

NC_22

NC_9

NC_21

NC_10

NC_20

CLE

I/O4

ALE

I/O3

WE

I/O2

WP

I/O1

NC_11

NC_19

NC_12

NC_18

NC_13

NC_17

NC_14

NC_16

NC_15

I2C

Addr:10101--

I2C_SCL

I2C_SDA

NAND01GW3B2CN6E

EAN60762401

EAN60708701

NAND_FLASH_2G_HYNIX_OLD

IC102-*4

HY27UF082G2B-TPCB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

R141

R140

1K

+3.3V_Normal

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VDD_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

EAN60991001

NAND_FLASH_2G_TOSHIBA

TC58NVG1S3ETA00

NC_1

NC_29

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

1

NC_2

NC_28

2

NC_3

NC_27

3

NC_4

NC_26

4

NC_5

I/O7

5

NC_6

I/O6

6

RY/BY

I/O5

7

RE

I/O4

8

CE

NC_25

9

NC_7

NC_24

10

NC_8

NC_23

11

VCC_1

VCC_2

12

VSS_1

VSS_2

13

NC_9

NC_22

14

NC_10

NC_21

15

CLE

NC_20

16

ALE

I/O3

17

WE

I/O2

18

WP

I/O1

19

NC_11

I/O0

20

NC_12

NC_19

21

NC_13

NC_18

22

NC_14

NC_17

23

NC_15

NC_16

24

IC102-*5

OS C102

10uF

C103

0.1uF OS

AR101

10V

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

OS

22

OS

AR102

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

NAND_FLASH_2G_HYNIX_NEW

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

EAN60708702

IC102-*6

H27U2G8F2CTR

PCM_A[0-7]

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

+3.3V_Normal

R144

R145

2.2K

AMP_SDA AMP_SCL

I2C_SDA I2C_SCL

EEPROM

AT24C256C-SSHL-T

A0

A1

A2

GND

IC104

NVRAM_ATMEL

1

2

A0’h

3

4

EAN61133501

+3.3V_Normal

C105

0.1uF

VCC

8

WP

7

SCL

6

SDA

5

C104 8pF OPT

R111 22

R112 22

C106 8pF OPT

/PF_WP

EAN35669102

NAND_FLASH_1G_HYNIX

H27U1G8F2BTR-BC

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

EAN35669103

NAND_FLASH_1G_HYNIX_NEW

IC102-*7

H27U1G8F2CTR-BC

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

DIMMING

PWM_DIM

HDCP EEPROM

HDCP_EEPROM

NAND FLASH MEMORY

OS

R102

3.3K

IC102-*1

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

HDCP_EEPROM

IC103

CAT24WC08W-T

R113

4.7K

A0

1

A1

2

A2

3

VSS

4

/F_RB

/PF_OE

/PF_CE0

+3.3V_Normal

OPT R104

10K

B

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

8

7

6

5

C

E

NAND_FLASH_1G_SS

VCC

WP

SCL

SDA

/PF_CE1

PF_ALE

/PF_WE

OPT

Q101 MMBT3904(NXP)

EAN61857001

IC102-*2

K9F1G08U0D-SCB0

R157

R127 4.7K HDCP_EEPROM

R105 1K

OPT

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

100

OS

R107

1K

OPT

R108

1K

OS R106 1K

RY/BY

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

+3.3V_Normal

HDCP_EEPROM

R128

R129 22 HDCP_EEPROM

C101

0.1uF

NAND_FLASH_1G_TOSHIBA_NEW

TC58NVG0S3ETA0BBBH

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

7

RE

8

CE

9

NC_7

10

NC_8

11

12

13

NC_9

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

C107

0.1uF

22

+3.3V_Normal

OS

R109

3.9K

OS

EAN61508001

IC102-*3

PWM2

VDD_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

<CHIP Config(LED_R/BUZZ)> Boot from SPI CS1N(EXT_FLASH) 1’b0 Boot from SPI_CS0N(INT_FLASH) 1’b1

<CHIP Config> (I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0)

B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash SB51_WOS : 4’b0001 Secure B51 without scramble SB51_WS : 4’b0010 Secure B51 with scramble MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash MIPS_WOS : 4’b1001 Secure MIPS without scramble MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE

AUD_MASTER_CLK

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

MSTAR (IC101) Multi package (11.11.18~)

TE(US)_Multi

IC101-*5

C7 E6 F5 B6 E5 D5 B7 E7

F7 AB5 AB3

A9

F4 AB1

N6 AB2 AC2

LGE2111A-TE

GPIO36 GPIO37 GPIO38 GPIO39 GPIO40 GPIO41 GPIO42 GPIO45 GPIO46 GPIO49 GPIO50 GPIO51 GPIO52 I2C_SCKM0/GPIO53 I2C_SDAM0/GPIO54 GPIO73 GPIO74

GPIO196 GPIO193 GPIO194 GPIO195

AB25

C7

LVA0P

AB23

E6

LVA0N

AC25

F5

LVA1P

AB24

B6

LVA1N

AD25

E5

LVA2P

AC24

D5

LVA2N

AE23

B7

LVA3P

AC23

E7

LVA3N

AC22

F7

LVA4P

AD23

AB5

LVA4N

AB3

V23

A9

LVB0P

U24

F4

LVB0N

V25

AB1

LVB1P

V24

N6

LVB1N

W25

AB2

LVB2P

W23

AC2

LVB2N

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24

LVACKP

AD24

LVACKN

Y23

LVBCKP

W24

LVBCKN

T25 U23 T24 T23

OPT

C112 100pF 50V

T8(EU)_Multi

IC101-*6

LGE2111A-T8

GPIO36 GPIO37 GPIO38 GPIO39 GPIO40 GPIO41 GPIO42 GPIO45 GPIO46 GPIO49 GPIO50 GPIO51 GPIO52 I2C_SCKM0/GPIO53 I2C_SDAM0/GPIO54 GPIO73 GPIO74

GPIO196 GPIO193 GPIO194 GPIO195

LVACKP LVACKN LVBCKP LVBCKN

R148

LVA0P LVA0N LVA1P LVA1N LVA2P LVA2N LVA3P LVA3N LVA4P LVA4N

LVB0P LVB0N LVB1P LVB1N LVB2P LVB2N LVB3P LVB3N LVB4P LVB4N

56

AB25 AB23 AC25 AB24 AD25 AC24 AE23 AC23 AC22 AD23

V23 U24 V25 V24 W25 W23 AA23 Y24 AA25 AA24

AE24 AD24 Y23 W24

T25 U23 T24 T23

+3.3V_Normal

OS

OPT

R117 1K

R115 1K

R103 1K

OPT

R165 1K

R123 1K

R152 1K

LED_R

AUD_SCK

PCM_A[0-7]

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7]

AUD_MASTER_CLK_0

PWM0

PWM1

PWM2

OPT

R116 1K

R110 1K

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

R118 1K

VD(CN)_Multi

IC101-*7

LGE2111A-VD

GPIO196 GPIO193 GPIO194 GPIO195

NON_OS

R121 1K

R153 1K

R124 1K

USB1_OCD USB1_CTL USB2_OCD USB2_CTL

RJP_CTRL0 RJP_CTRL1

PM_TXD

W1(KR)_Multi

IC101-*8

LGE2111A-W1 [MULTI]

GPIO196 GPIO193 GPIO194 GPIO195

AB25

LVA0P

AB23

LVA0N

AC25

LVA1P

AB24

LVA1N

AD25

LVA2P

AC24

LVA2N

AE23

LVA3P

AC23

LVA3N

AC22

LVA4P

AD23

LVA4N

V23

LVB0P

U24

LVB0N

V25

LVB1P

V24

LVB1N

W25

LVB2P

W23

LVB2N

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24

LVACKP

AD24

LVACKN

Y23

LVBCKP

W24

LVBCKN

T25 U23 T24 T23

AB25

C7

LVA0P

GPIO36

AB23

E6

LVA0N

GPIO37

AC25

F5

LVA1P

GPIO38

AB24

B6

LVA1N

GPIO39

AD25

E5

LVA2P

GPIO40

AC24

D5

LVA2N

GPIO41

AE23

B7

LVA3P

GPIO42

AC23

E7

LVA3N

GPIO45

AC22

F7

LVA4P

GPIO46

AD23

AB5

LVA4N

GPIO49

AB3

GPIO50

V23

A9

LVB0P

GPIO51

U24

F4

LVB0N

GPIO52

V25

AB1

LVB1P

I2C_SCKM0/GPIO53

V24

N6

LVB1N

I2C_SDAM0/GPIO54

W25

AB2

LVB2P

GPIO73

W23

AC2

LVB2N

GPIO74

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24

LVACKP

AD24

LVACKN

Y23

LVBCKP

W24

LVBCKN

T25 U23 T24 T23

for SYSTEM EEPROM (IC104)

I2C_SCL I2C_SDA

RGB_DDC_SDA RGB_DDC_SCL

PM_RXD MODEL_OPT_6 MODEL_OPT_7

EXT_SPK_DET

PWM0 PWM1 PWM2

RJP_CTRL2

LED_R

KEY1 KEY2

R136 22 R137 22

SUB_AMP_MUTE

S7LR2_DIVX_AT_ASE

IC101-*1

LGE2111A-TE

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

I2C_SCL

I2C_SDA

AB25

LVA0P

AB23

LVA0N

AC25

LVA1P

AB24

LVA1N

AD25

LVA2P

AC24

LVA2N

AE23

LVA3P

AC23

LVA3N

AC22

LVA4P

AD23

AB5

LVA4N

AB3

V23

LVB0P

U24

LVB0N

V25

AB1

LVB1P

V24

LVB1N

W25

AB2

LVB2P

W23

AC2

LVB2N

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24

LVACKP

AD24

LVACKN

Y23

LVBCKP

W24

LVBCKN

T25

GPIO196

U23

GPIO193

T24

GPIO194

T23

GPIO195

NON_OS_512k_ST

IC104-*3

M24512-RMN6TP

E0

1

E1

2

E2

3

VSS

4

EAN43349003

NVRAM_ST IC104-*1

M24256-BRMN6TP

E0

1

E1

2

E2

3

VSS

4

EAN61548301

S7LR2_DIVX_AT_SPIL

IC101-*2

LGE2111A-TE SPIL

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46 GPIO49 GPIO50

A9

GPIO51

F4

GPIO52 I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54 GPIO73 GPIO74

VCC

8

WC

7

SCL

6

SDA

5

VCC

8

WC

7

SCL

6

SDA

5

S7LR2_DIVX_DTS_AT

AB25

C7

LVA0P

GPIO36

AB23

E6

LVA0N

GPIO37

AC25

F5

LVA1P

GPIO38

AB24

B6

LVA1N

GPIO39

AD25

E5

LVA2P

GPIO40

AC24

D5

LVA2N

GPIO41

AE23

B7

LVA3P

GPIO42

AC23

E7

LVA3N

GPIO45

AC22

F7

LVA4P

GPIO46

AD23

AB5

LVA4N

GPIO49

AB3

GPIO50

V23

A9

LVB0P

GPIO51

U24

F4

LVB0N

GPIO52

V25

AB1

LVB1P

I2C_SCKM0/GPIO53

V24

N6

LVB1N

I2C_SDAM0/GPIO54

W25

AB2

LVB2P

GPIO73

W23

AC2

LVB2N

GPIO74

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24

LVACKP

AD24

LVACKN

Y23

LVBCKP

W24

LVBCKN

T25

GPIO196

U23

GPIO193

T24

GPIO194

T23

GPIO195

NON_OS_512k_ATMEL

IC104-*4

AT24C512C-SSHD-T

A0

1

A1

2

A2

3

GND

4

EAN43349004

NVRAM_RENESAS

IC104-*2

R1EX24256BSAS0A

A0

1

A1

2

A2

3

VSS

4

EAN62389501

IC101-*3

LGE2111A-W1

S7LR2_DIVX_CN

IC101-*4

LGE2111A-VD

AB25

C7

LVA0P

GPIO36

AB23

E6

LVA0N

GPIO37

AC25

F5

LVA1P

GPIO38

AB24

B6

LVA1N

GPIO39

AD25

E5

LVA2P

GPIO40

AC24

D5

LVA2N

GPIO41

AE23

B7

LVA3P

GPIO42

AC23

E7

LVA3N

GPIO45

AC22

F7

LVA4P

GPIO46

AD23

AB5

LVA4N

GPIO49

AB3

GPIO50

V23

A9

LVB0P

GPIO51

U24

F4

LVB0N

GPIO52

V25

AB1

LVB1P

I2C_SCKM0/GPIO53

V24

N6

LVB1N

I2C_SDAM0/GPIO54

W25

AB2

LVB2P

GPIO73

W23

AC2

LVB2N

GPIO74

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24

LVACKP

AD24

LVACKN

Y23

LVBCKP

W24

LVBCKN

T25

GPIO196

U23

GPIO193

T24

GPIO194

T23

GPIO195

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

AB25

LVA0P

AB23

LVA0N

AC25

LVA1P

AB24

LVA1N

AD25

LVA2P

AC24

LVA2N

AE23

LVA3P

AC23

LVA3N

AC22

LVA4P

AD23

LVA4N

V23

LVB0P

U24

LVB0N

V25

LVB1P

V24

LVB1N

W25

LVB2P

W23

LVB2N

AA23

LVB3P

Y24

LVB3N

AA25

LVB4P

AA24

LVB4N

AE24

LVACKP

AD24

LVACKN

Y23

LVBCKP

W24

LVBCKN

T25

GPIO196

U23

GPIO193

T24

GPIO194

T23

GPIO195

PM MODEL OPTION

+3.5V_ST

R174 10K

10K

R175

R177 10K OPT

TOUCH_KEY

R176 10K 12_SUB

TACT_KEY

PM_MODEL_OPT_0

PM_MODEL_OPT_1

W21

PCMDATA[0]/GPIO126

AA18

PCMDATA[1]/GPIO127

AB22

PCMDATA[2]/GPIO128

AE20

PCMDATA[3]/GPIO120

AA15

PCMDATA[4]/GPIO119

AE21

PCMDATA[5]/GPIO118

AB21

PCMDATA[6]/GPIO117

Y15

PCMDATA[7]/GPIO116

W20

PCMADR[0]/GPIO125

V20

PCMADR[1]/GPIO124

W22

PCMADR[2]/GPIO122

AB18

PCMADR[3]/GPIO121

AA20

PCMADR[4]/GPIO99

AA21

PCMADR[5]/GPIO101

Y19

PCMADR[6]/GPIO102

AB17

PCMADR[7]/GPIO103

Y16

PCMADR[8]/GPIO108

AB19

PCMADR[9]/GPIO110

AB20

PCMADR[10]/GPIO114

AA16

PCMADR[11]/GPIO112

AA19

PCMADR[12]/GPIO104

AC21

PCMADR[13]/GPIO107

AA17

PCMADR[14]/GPIO106

Y20

PCMREG_N/GPIO123

AB15

PCMOE_N/GPIO113

AA22

PCMWE_N/GPIO197

AD22

PCMIORD_N/GPIO111

AD20

PCMIOWR_N/GPIO109

AD21

PCMCE_N/GPIO115

AC20

PCMIRQA_N/GPIO105

Y18

PCMCD_N/GPIO130

Y21

PCMWAIT_N/GPIO100

Y22

PCM_RESET/GPIO129

U21

PCM2_CE_N/GPIO131

V21

PCM2_IRQA_N/GPIO132

R20

PCM2_CD_N/GPIO135

T20

PCM2_WAIT_N/GPIO133

U22

PCM2_RESET/GPIO134

D4

UART1_TX/GPIO43

E4

UART1_RX/GPIO44

N25

UART2_TX/GPIO65

N24

UART2_RX/GPIO64

B8

UART3_TX/GPIO47

A8

UART3_RX/GPIO48

P23

I2C_SCKM2/DDCR_CK/GPIO72

P24

I2C_SDAM2/DDCR_DA/GPIO71

D2

DDCA_DA/UART0_TX

D1

DDCA_CK/UART0_RX

P21

PWM0/GPIO66

N23

PWM1/GPIO67

P22

PWM2/GPIO68

R21

PWM3/GPIO69

P20

PWM4/GPIO70

F6

PWM_PM/GPIO199

H6

SAR0/GPIO31

G5

SAR1/GPIO32

G4

SAR2/GPIO33

J5

SAR3/GPIO34

J4

SAR4/GPIO35

R23

VSYNC_LIKE/GPIO145

R24

SPI1_CK/GPIO201

R25

SPI1_DI/GPIO202

T21

SPI2_CK/GPIO203

T22

SPI2_DI/GPIO204

5V_DET_HDMI_1 5V_DET_HDMI_2 5V_DET_HDMI_4

AV_CVBS_DET

TUNER_RESET MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

IC101

LGE2111A-T8

S7LR2_DIVX_MS10

PM_UART_TX/GPIO_PM[1]/GPIO7

PM_UART_RX/GPIO_PM[5]/GPIO11

PM_SPI_SCZ1/GPIO_PM[6]/GPIO12

PM_SPI_SCZ2/GPIO_PM[10]/GPIO16

PM_SPI_CZ0/GPIO_PM[12]/GPIO0

AMP_RESET

DSUB_DET

RJP_CTRL3

AMP_SCL AMP_SDA

RJP_CTRL4

NF_CE1Z/GPIO138

NF_WPZ/GPIO198 NF_CEZ/GPIO137 NF_CLE/GPIO136 NF_REZ/GPIO139 NF_WEZ/GPIO140 NF_ALE/GPIO141 NF_RBZ/GPIO142

GPIO_PM[0]/GPIO6

GPIO_PM[2]/GPIO8 GPIO_PM[3]/GPIO9

GPIO_PM[4]/GPIO10

GPIO_PM[7]/GPIO13 GPIO_PM[8]/GPIO14 GPIO_PM[9]/GPIO15

GPIO_PM[11]/GPIO17

PM_SPI_SCK/GPIO1

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

TS0CLK/GPIO87

TS0VALID/GPIO85

TS0SYNC/GPIO86

TS0DATA_[0]/GPIO77 TS0DATA_[1]/GPIO78 TS0DATA_[2]/GPIO79 TS0DATA_[3]/GPIO80 TS0DATA_[4]/GPIO81 TS0DATA_[5]/GPIO82 TS0DATA_[6]/GPIO83 TS0DATA_[7]/GPIO84

TS1CLK/GPIO98 TS1VALID/GPI96 TS1SYNC/GPIO97

TS1DATA_[0]/GPIO88 TS1DATA_[1]/GPIO89 TS1DATA_[2]/GPIO90 TS1DATA_[3]/GPIO91 TS1DATA_[4]/GPIO92 TS1DATA_[5]/GPIO93 TS1DATA_[6]/GPIO94 TS1DATA_[7]/GPIO95

R172 0 R173 0

OPT OPT

LA2AW

FLASH/EEPROM/GPIO

AE18 AC17 AD18 AC18 AC19 AD17 AE17 AD19

H5 K6 K5 J6 K4 L6 C2

R146 L5 M6 M5 C1 M4

A2

R147 33 D3 B2 B1

R151 33

for SERIAL FLASH

Y14 AA10 Y12

Y13 Y11 AA12 AB12 AA14 AB14 AA13 AB11

AC15 AD15 AC16

AD16 AE15 AE14 AC13 AC14 AD12 AD13 AD14

S7LR2_DIVX_MS10

LGE2111A-T8

C7

GPIO36

E6

GPIO37

F5

GPIO38

B6

GPIO39

E5

GPIO40

D5

GPIO41

B7

GPIO42

E7

GPIO45

F7

GPIO46

AB5

GPIO49

AB3

GPIO50

A9

GPIO51

F4

GPIO52

AB1

I2C_SCKM0/GPIO53

N6

I2C_SDAM0/GPIO54

AB2

GPIO73

AC2

GPIO74

AR104

22 OS

IC101

OS

AR103

22

33

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

GPIO196 GPIO193 GPIO194 GPIO195

LVA0P LVA0N LVA1P LVA1N LVA2P LVA2N LVA3P LVA3N LVA4P LVA4N

LVB0P LVB0N LVB1P LVB1N LVB2P LVB2N LVB3P LVB3N LVB4P LVB4N

LVACKP LVACKN LVBCKP LVBCKN

/PF_WP /PF_CE0 /PF_CE1 /PF_OE /PF_WE PF_ALE /F_RB

POWER_DET PM_TXD INV_CTL RL_ON POWER_ON/OFF_1 PM_RXD /SPI_CS /FLASH_WP

PANEL_CTL PM_MODEL_OPT_0 AMP_MUTE

SPI_SCK

SPI_SDI SPI_SDO

FE_TS_CLK FE_TS_VAL_ERR FE_TS_SYNC

FE_TS_DATA[0-7]

Internal demod out

AB25 AB23 AC25 AB24 AD25 AC24 AE23 AC23 AC22 AD23

V23 U24 V25 V24 W25 W23 AA23 Y24 AA25 AA24

AE24 AD24 Y23 W24

T25 U23 T24 T23

2012.09.11

1

RXA0+ RXA0RXA1+ RXA1RXA2+ RXA2RXA3+ RXA3RXA4+ RXA4-

RXB0+ RXB0RXB1+ RXB1RXB2+ RXB2RXB3+ RXB3RXB4+ RXB4-

RXACK+ RXACKRXBCK+ RXBCK-

MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5

MODEL OPTION

LGE Internal Use Only

OS_DualStream(O)/NonOS_ErrorOut(X)

RF_SWITCH_CTL

OPC&SCANNING_CTRL

R4039

OS_DualStream(X)/NonOS_ErrorOut(O)

HDMI

DSUB

CVBS In/OUT

RF_SW_BR_OPT

100

R203

OPT

100

CK+_HDMI1 CK-_HDMI1 D0+_HDMI1 D0-_HDMI1

D1+_HDMI1

D1-_HDMI1

D2+_HDMI1

D2-_HDMI1 DDC_SDA_1 DDC_SCL_1

HPD1

PM_MODEL_OPT_1

CK+_HDMI4 CK-_HDMI4

D0+_HDMI4 D0-_HDMI4

D1+_HDMI4 D1-_HDMI4

D2+_HDMI4 D2-_HDMI4 DDC_SDA_4

DDC_SCL_4 HPD4

CK+_HDMI2 CK-_HDMI2

D0+_HDMI2 D0-_HDMI2

D1+_HDMI2

D1-_HDMI2 D2+_HDMI2 D2-_HDMI2 DDC_SDA_2

DDC_SCL_2 HPD2

CEC_REMOTE_S7

DSUB_HSYNC DSUB_VSYNC

DSUB_R+

DSUB_G+

DSUB_B+

TU_CVBS

AV_CVBS_IN

+3.3V_Normal +2.5V_Normal

R290

R293

120HZ

R4026

R291 1K

NON_120HZ

R294 1K

10K

R4023

DVB_S

R4028 1K

NON_DVB_S

R4030 1K

2.4K

C203

1000pF

OPT

1K

+3.3V_Normal

3D

OLED

R4027 1K

R206 1K

R208 1K

NON_3D

NON_OLED

R207 1K

R209 1K

R4029 1K

R4024

510

R4025

510 R228 33 R229 68 R230 33 R231 68 R232 33 R233 68

R244 33

R246 33

R252 68

Close to MSTAR

PHM_ON

DVB_T2

R211 1K

PHM_OFF

NON_DVB_T2

R212 1K

C204 0.047uF C205 0.047uF C206 0.047uF C207 0.047uF C208 0.047uF C209 0.047uF C210 1000pF

HD

R226 1K

FHD

R227 1K

C225 0.047uF

C227 0.047uF

C233 0.047uF

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6 MODEL_OPT_7

J2

RXACKP

J3

RXACKN

K3

RXA0P

J1

RXA0N

K2

RXA1P

K1

RXA1N

L2

RXA2P

L3

RXA2N

T5

DDCDA_DA/GPIO24

T4

DDCDA_CK/GPIO23

V5

HOTPLUGA/GPIO19

R5

HOTPLUGB/GPIO20

AE9

RXCCKP

AC9

RXCCKN

AC10

RXC0P

AD9

RXC0N

AC11

RXC1P

AD10

RXC1N

AE11

RXC2P

AD11

RXC2N

AE8

DDCDC_DA/GPIO28

AD8

DDCDC_CK/GPIO27

AC8

HOTPLUGC/GPIO21

F2

RXDCKP

F3

RXDCKN

G3

RXD0P

F1

RXD0N

G2

RXD1P

G1

RXD1N

H2

RXD2P

H3

RXD2N

R6

DDCDD_DA/GPIO30

U6

DDCDD_CK/GPIO29

P5

HOTPLUGD/GPIO22

R4

CEC/GPIO5

P2

HSYNC0

R3

VSYNC0

N2

RIN0P

P3

RIN0M

N3

GIN0P

N1

GIN0M

M3

BIN0P

M2

BIN0M

M1

SOGIN0

V2

HSYNC1

V3

VSYNC1

U3

RIN1P

U2

RIN1M

T1

GIN1P

T2

GIN1M

R2

BIN1P

R1

BIN1M

T3

SOGIN1

AA2

HSYNC2

Y2

RIN2P

AA3

RIN2M

W2

GIN2P

Y3

GIN2M

V1

BIN2P

W3

BIN2M

W1

SOGIN2

AA8

CVBS0

Y4

CVBS1

W4

CVBS2

AA5

CVBS3

Y5

CVBS4

AA4

CVBS5

Y6

CVBSOUT0

AA1

CVBSOUT1

AB4

VCOM

MODEL OPTION

PIN NAME

MODEL_OPT_0

MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

PIN NO.

AB3

F4 AB2 T25

U23 T24

B8

A8

LOW

FHD

PHM_OFF

NON_DVB_T2

NON_3D

NON_OLED

NON_DVB_S

NON_120HZ OS:NON_DualStream

NonOS:ErrorOut

* Dual Stream is only Korea 3D spec

IC101

LGE2111A-T8

S7LR2_DIVX_MS10

ET_TXD[1]/LED1/GPIO56

SPDIF_OUT/GPIO153

I2S_IN_BCK/GPIO150

I2S_IN_SD/GPIO151 I2S_IN_WS/GPIO149

I2S_OUT_BCK/GPIO156 I2S_OUT_MCK/GPIO154

I2S_OUT_SD/GPIO157

I2S_OUT_WS/GPIO155

ET_RXD[0]/RP/GPIO60 ET_TXD[0]/TP/GPIO57

ET_RXD[1]/RN/GPIO63

ET_TX_CLK/TN/GPIO59

ET_COL/LED0/GPIO55

VIFP VIFM

SIFP SIFM

IF_AGC RF_AGC

I2C_SCKM1/GPIO75

I2C_SDAM1/GPIO76

XOUT

SPDIF_IN/GPIO152

USB0_DM USB0_DP

USB1_DM USB1_DP

AUL0 AUR0 AUL1 AUR1 AUL2 AUR2 AUL3 AUR3 AUL4 AUR4

AUOUTL0 AUOUTL2 AUOUTL3 AUOUTR0 AUOUTR2 AUOUTR3

AUVRM

AUVAG AUVRP

EARPHONE_OUTL EARPHONE_OUTR

ET_TX_EN/GPIO58

ET_MDC/GPIO61

ET_MDIO/GPIO62

IRIN/GPIO4

ARC0

HWRESET

IP IM

XIN

AC4 AD3

AC3 AE3

AD4 AC5

AD2 AE2

AE6 AD6

AD1 AC1

D7 D6

E3 E2

AC12 AE12

C8 D8 D9

B10 C9 B9

C10

AB9 AA11 Y9 AA9 AA7 AB8 Y8 Y10 AC7 AD7

W6 V6 V4 Y7 W5 U5

AD5

AE5 AC6

AA6 AB6

C6 C5

A6 C4

B5 C3 A3 B3 B4

N4 T6 N5

C249

4.7uF

R210 33

HDMI1_ARC

PHM_ONMODEL_OPT_1

DVB_T2

OLED

DVB_S 120HZ

OS:DualStream NonOS:NON_ErrorOut

HALF_NIM/EU_NON_T2

TUNER_I2C

1M

R287

R213 100

C246

2.2uF

C247 2.2uF

TP208

C253

C256

1uF

0.1uF

R204

OPT OPT

R214

HIGH

HD

3D

Close to MSTAR

R288 100

R289 100

C250 0.1uF C251 0.1uF

ANALOG SIF

Close to MSTAR

+3.3V_Normal

L227 BLM18PG121SN1D HALF_NIM/EU_NON_T2

C4064

0.1uF

TU_SCL TU_SDA

C261 22pF

X201 24MHz

C262 22pF

R201 0

EXT_SPK

R202 0

EXT_SPK

C263 10uF

0 0

C231 0.047uF HDMI1_ARC

C257 0.1uF

HALF_NIM/EU_NON_T2

C258 0.1uF

HALF_NIM/EU_NON_T2

R4002 47 R4003 47

HALF_NIM/EU_NON_T2 R4019 10K

HALF_NIM/EU_NON_T2

R4004

R4001

SPDIF_OUT

BLM18SG121TN1D

L203 L205

IR HDMI_ARC SOC_RESET

C264 1000pF OPT

0

OPT 0

Close to MSTAR

L202

5.6uH

EXT_SPK EXT_SPK

5.6uH

HALF_NIM/ASIA

C4068-*1 68pF

C4067

HALF_NIM/EU_NON_T2 C4068

OPT

100pF

TU_SIF

C4065

0.047uF 25V HALF_NIM/EU_NON_T2

USB2_DM USB2_DP

USB1_DM USB1_DP

AMP_SCL AMP_SDA

AUDIO IN

AV_COMP_PC_L_IN AV_COMP_PC_R_IN

L268

4.7uF

OPT

10V

POWER_DET_RESET

RESET_IC_SOC_RESET

R215 470

C202

4.7uF 10V

HALF_NIM/ASIA

C4069-*1 68pF

DTV_IF

IF_P_MSTAR

IF_N_MSTAR

HALF_NIM/EU_NON_T2 C4069 100pF

IF_AGC_MAIN

EXT SPEAKER

L272

OPT

4.7uF 10V

SOC_RESET

+3.5V_ST

+3.5V_SOC_RESET C200

4.7uF 10V

AUD_SCK AUD_MASTER_CLK_0 AUD_LRCH

I2S_I/F

AUD_LRCK

EXT_AMP_L EXT_AMP_R

SWICH SW200

JTP-1127WEM

1 2

R200

62K

43

R217

SWICH R205 100

10

C201

0.1uF

+1.10V_VDDC

10uFC275

10uFC228

+3.3V_Normal

0.1uF

C4043

C4044 0.1uF

Normal 2.5V

+2.5V_Normal

L211 BLM18PG121SN1D

L229

BLM18PG121SN1D

L219 BLM18PG121SN1D

BLM18SG121TN1D

Close to IC with width trace

SOC_RESET

C280 1uF

C277 1uF

VDD33

L204 BLM18PG121SN1D

10uFC284

AVDD_AU33

L208

BLM18PG121SN1D

AVDD2P5

C269 10uF

AVDD2P5_MOD

C4070

0.1uF 16V

AVDD25_PGA

C4027

0.1uF

L223

+1.5V_DDR

C4046

0.1uF

STby 3.5V

+3.5V_ST

L206 BLM18PG121SN1D

+1.10V_VDDC

C283 0.1uF

Normal Power 3.3V

10uFC4001

C4025 0.1uF

C4020 0.1uF

C4012 0.1uF

C241

C240

0.1uF

C274

C273

0.1uF

AVDD25_PGA:13mA

AVSS_PGA

DDR3 1.5V

AVDD_DDR0:55mA

C278

10uF

C252

0.1uF

AVDD_MIU

C4038

0.1uF

AVDD_DDR1:55mA

+1.10V_VDDC

L209

BLM18PG121SN1D

AVDD_NODIE:7.362mA

AVDD_NODIE

C286

0.1uF

C4009

0.1uF

C4042

L228

BLM18PG121SN1D

IC101

+1.10V_VDDC

FB_CORE

MIUVDDC

AVDD2P5

AVDD2P5_MOD

AVDD25_PGA

AVSS_PGA

AVDD_NODIE

VDD33

C4045 1uF

AVDD_AU33

VDD33

AVDD_MIU

1uF

MIUVDDC

C4062

C4071

0.1uF

10uF

LGE2111A-T8

S7LR2_DIVX_MS10

K12

AVDDLV_USB

G9

VDDC_1

H9

VDDC_2

K10

VDDC_3

K11

VDDC_4

L10

VDDC_5

M12

VDDC_6

M13

VDDC_7

N12

VDDC_8

P14

VDDC_9

P15

VDDC_10

R10

VDDC_11

R14

VDDC_12

R15

VDDC_13

T10

VDDC_14

P10

AVDD1P0

P19

FB_CORE

R16

AVDDL_MOD

L11

AVDD10_LAN

M14

DVDD_DDR

W9

AVDD2P5_ADC_1

W10

AVDD2P5_ADC_2

W11

AVDD2P5_ADC_3

W12

AVDD25_REF

Y17

AVDD25_LAN

V18

AVDD_MOD_1

U19

AVDD_MOD_2

W14

AVDD25_PGA

W15

AVSS_PGA

U7

AVDD_NODIE

L7

AVDD_DVI_USB_1

M7

AVDD_DVI_USB_2

P7

AVDD3P3_MPLL

R7

AVDD_DMPLL

M19

DVDD_NODIE

V7

AVDD_AU33

W7

AVDD_EAR33

R19

VDDP_1

T19

VDDP_2

W18

AVDD_LPLL_1

W19

AVDD_LPLL_2

V19

VDDP_NAND

J17

AVDD_DDR0_D_1

K15

AVDD_DDR0_D_2

K16

AVDD_DDR0_D_3

L15

AVDD_DDR0_C

K17

AVDD_DDR1_D_1

L17

AVDD_DDR1_D_2

M17

AVDD_DDR1_D_3

L16

AVDD_DDR1_C

E9

GND_EFUSE

A23

GND_1

B17

GND_2

C23

GND_3

A5

GND_4

C11

GND_5

C19

GND_6

C22

GND_7

D14

GND_8

D18

GND_9

D19

GND_10

E17

GND_11

E18

GND_12

E19

GND_13

E22

GND_14

F8

GND_15

F17

GND_16

F18

GND_17

F19

GND_18

G8

GND_19

H8

GND_20

N22

GND_21

N21

GND_22

N20

GND_23

M22

GND_24

M21

GND_25

M20

GND_26

F10

GND_27

V15

GND_28

W16

GND_29

V8

GND_30

T18

GND_31

GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84 GND_85 GND_86 GND_87 GND_88 GND_89 GND_90 GND_91 GND_92 GND_93 GND_94 GND_95 GND_96 GND_97 GND_98

GND_99 GND_100 GND_101 GND_102 GND_103 GND_104 GND_105 GND_106 GND_107 GND_108 GND_109 GND_110 GND_111 GND_112 GND_113 GND_114 GND_115 GND_116 GND_117 GND_118 GND_119 GND_120 GND_121 GND_122 GND_123 GND_124 GND_125 GND_126 GND_127 GND_128 GND_129 GND_130 GND_131 GND_132 GND_133 GND_134 GND_135 GND_136

G10 G11 G12 G13 G14 G17 G18 G19 G24 H11 H12 H13 H14 H15 H16 H17 H18 H19 J9 J10 J11 J12 J13 J14 J15 J16 J18 J19 J25 K9 K13 K14 H10 K18 K19 K22 L8 L9 J8 L12 L13 L18 L19 M8 K8 M10 M11 L14 M15 M16 M18 M25 N10 N11 N13 N14 N15 N16 N17 N19 K7 P8 P9 M9 P11 P13 P16 P17 P18 P12 R8 R9 R11 R12 R13 R17 T8 T9 N7 T11 T12 T13 T14 T15 T16 T17 U8 U9 U10 U11 U12 U13 U14 U15 U16 U17 R18 V9 V10 V11 V12 V14 V17 T7 E8

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

POWER,IN/OUT,H/W OPT

2

Serial Flash for SPI boot_NON_OS and OS

LGE Internal Use Only

/FLASH_WP

OPT

R304

+3.5V_ST

S_FLASH_OS_MACRONIX

OPT R302

+3.5V_ST

OPT

R301 10K

0

B

/SPI_CS

SPI_SDO

C

OPT Q301 MMBT3904(NXP)

E

4.7K

MX25L8006EM2I-12G

CS#

SO/SIO1

WP#

GND

1

2

3

4

IC301

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

R303

33

S_FLASH_OS

C301

0.1uF

SPI_SCK

SPI_SDI

S_FLASH_OS_WINBOND

IC301-*1

W25Q80BVSSIG

DO[IO1]

%WP[IO2]

GND

CS

1

2

3

4

VCC

8

HOLD[IO3]

7

CLK

6

DI[IO0]

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

3Serial FLASH

FROM LIPS & POWER B/D

LGE Internal Use Only

+3.5V_ST

MMBT3906(NXP)

Q402

3

1

2

OPT

R414

33K

RL_ON

+3.5V_ST

R406 10K

10K

OPT

R409

R407

R413 10K

R410

4.7K

C

10K

B

Q401 MMBT3904(NXP)

E

R415 100

+3.3V_Normal

R416

1K

C

E

MMBT3904(NXP)

Q403

+12V

L409

120

CIS21J121

0.015uF C420

0.015uF 50V

+3.5V_ST

R418 10K

R417 10K

B

INV_CTL

PANEL_CTL 001:AL22

R425 10K

R426 10K

0.01uF C423

0.01uF

50V

C424

0.1uF 25V

R435

33K

R436

5.6K

B

OPT C428 10uF 25V

C

Q405 MMBT3904(NXP)

E

C431 10uF

25V

Q406

AO3407A

S

G

D

OPT

C435

0.1uF 25V

New item

PANEL_POWER

R441-*2

5.1K

5.1K_PANEL_DISCHARGE

R442-*2

5.1K

5.1K_PANEL_DISCHARGE R441-*1

4.7K

PANEL_DISCHARGE_RES_4.7K PANEL_DISCHARGE_RES_4.7K

NON_CI_CAP C437

0.1uF 25V

PANEL_DISCHARGE_RES_5.6K PANEL_DISCHARGE_RES_5.6K

R442-*1

4.7K

R441

5.6K

PANEL_VCC

R442

5.6K

+3.5V_ST --> 3.375V --> 3.46V +20V --> 3.51V --> 3.76V (3.59V) +24V --> 3.78V --> 3.92V (3.79V) +12V --> 3.58V --> 3.82V (3.68V) +18.5V --> 3.5V --> 3.75V (3.59V)

C442

0.1uF 16V

+24V

PD_+24V

R443

8.2K 1%

PD_+24V

PD_+24V C441

0.1uF 16V

R444

1.5K 1%

+12V

PD_+12V

R450

2.7K 1%

PD_+12V

R451

1.2K 1%

PD_KR_42_LIPS

R451-*1

5.1K 1%

+3.5V_ST

PD_+3.5V

R455

0

5%

PD_KR_42_LIPS

R455-*1 100

1%

R457 100K

PWR_DET_ON_SEMI

IC405

NCP803SN293

VCC

PD_+24V_PWR_DET_ON_SEMI

VCC

3

1

GND

PD_+24V

R460

100K

IC406

NCP803SN293

3

1

GND

RESET

2

POWER_DET_RESET

RESET

2

+3.5V_ST

R465

RESET_IC_SOC_RESET

10K

R461 300

RESET_IC_SOC_RESET

PD_+24V

R462 100

C445

0.1uF

Power_DET

POWER_DET

RESET

PD_+24V_PWR_DET_DIODES

3.5V_SOC_RESET R461-*1

100

1/16W 5%

IC405-*1

APX803D29

2

1

GND

PWR_DET_ON_DIODES

IC406-*1

APX803D29

2

1

GND

VCC

3

VCC

3

D401 5V

CIC21J501NE

+3.5V_ST

+24V

+12V

L402

C403 0.1uF

16V

C405 0.1uF

50V

C407 0.1uF

16V

+5V_Normal & +5V_USB_1

L401

CIC21J501NE

OPT

+12V

MLB-201209-0120P-N2

C401 68uF 35V

OPT

CHANGE TO 16V/X5R

4.7uF 10V

R405

100K

L403

CIC21J501NE

L405

L413

C404

PGND

10uF 16V

C406

[EP]

SMAW200-H18S1

PWR ON

3.5V

3.5V GND 24V GND 12V 12V GND

Vout=0.8*(1+R1/R2)

L404

R408

0

BST

13

14

15

16

THERMAL

1

SS

3.6uH

10FB11LX12

IC401 TPS65281RGV

17

3

2

ROSC

COMP4RLIM

R411 2K

C409 3300pF 50V

SW_IN

C410

0.047uF 25V

VIN

V7V

EN

C408 100pF 50V

OPT

P401

DRV ON

1

2

PDIM#1

3

4

PDIM#2

5

6

GND

7

8

24V

10

9

GND

11

12

12V

13

14

N.C

15

16

GND

17

18

19

.

R419 3.9K

OPT

R420 100

T120

PWM_DIM PWM1

+3.5V_ST

C418 10uF 10V

L410

BLM18PG121SN1D

+3.3V_Normal

+1.5V_DDR

AP7173-SPG-13 HF(DIODES)

IN

1

PG

2

VCC

3

R430 10K

NON_CI_CAP

C421

0.1uF 16V

1.5A

EN

4

IC404

9

THERMAL

BLM18SG700TN1D

C446

0.1uF

16V

FET_2.5V_DIODE

DMP2130L Q408-*1

S

G

780 mA

L412

D

+3.3V_Normal

C448 22uF 10V

FET_2.5V_AOS

AO3435 Q408-*2

S

G

D404 5V

D

Max 1000mA

+1.5V_DDR

[EP]

OUT

8

FB

7

SS

6

GND

5

C433 560pF 50V

R1

R440

4.3K

1/16W 1%

R2

R437

4.7K 1/16W 1%

C439 22uF 10V

C440

0.1uF 16V

D403 5V OPT

POWER_ON/OFF_1

+3.3V_Normal

+3.5V_ST

NON_CI_CAP

C443

0.1uF 16V

R452

OPT 10K

R454

10K

R456 10K

FET_AOS

R459

B

100

R458 22K

FET_2.5V

R459-*1

2.2K

C

Q407 MMBT3904(NXP)

E

FET_AOS

AO3407A

FET_AOS

C444

4.7uF 16V

Q408

S

G

FET_2.5V

D

C444-*1

2.2uF 10V

Vout=0.8*(1+R1/R2)=1.5319

S7LR core 1.2V volt

+5V_Normal

R1

8

7

6

5

C402 22uF 16V

SW_OUT

AGND

FAULT

EN_SW

OPT

R404

33K 1%

R401

27K 1%

C414

CAP_10uF_X5R

10uF

10V 85C

+5V_Normal

+3.3V_Normal

C412 330pF 50V

R2

R402

11K 1%

CHANGE TO 10UF/10V/X5R

R403 10K

R421

4.7K OPT

C414-*1

10uF 10V

CAP_10uF_X7R

USB1_OCD

USB1_CTL

C413

0.1uF 16V

OPT

+5V_USB_1

C415 22uF

10V

+3.3V_Normal

NON_CI_CAP

C419

0.1uF 16V

LDO_OLD

IC402

TJ3940S-2.5V-3L

VIN

3

Vd=550mV

LDO_NEW

IC402-*1

TJ1118S-2.5

IN

3

1

VOUT

2

1

GND

2

GND

R434

1

OUT

C411 22uF 16V

9

R412 20K

+2.5V/+1.8V

+2.5V_Normal

C425 10uF 10V

C430

0.1uF 16V

D402 5V OPT

300 mA

+3.5V_ST

+3.3V_Normal

L408

VIN_1

VIN_2

GND_1

GND_2

C416 10uF 10V

NON_CI_CAP

C417

0.1uF 16V

Vout=0.827*(1+R1/R2)=1.225V

R429 10K

VIN_3

EP[GND]

1

2

3

TPS54319TRE

4

AGND

15EN16

THERMAL

17

IC403

5

6

VSENSE

3A

C422

0.33uF 16V

7

COMP

BOOT14PWRGD

13

12

11

10

9

8

RT/CLK

$ 0.165

R432 15K

PH_3

PH_2

PH_1

SS/TR

C426

0.1uF 16V

R433

C427 3300pF

330K1/16W 5%

C429

3300pF

50V

L411

3.6uH

NR8040T3R6N

C432 22uF 10V

10V

C434 22uF

+1.10V_VDDC

C438

0.1uF 16V

C436

50V

R438

R1

27K 1/16W 1%

R2

R439 56K 1/16W 1%

100pF

5V OPT

D405

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

POWER

4

Audio amp(NTP-7500)

LGE Internal Use Only

AMP_MUTE

+24V

C501

0.1uF 50V

L501

CIS21J121

AUD_LRCH

AUD_LRCK

AUD_SCK

AMP_SDA

AMP_SCL

R520

10K

NON_LIPS

R501

10K

NON_LIPS

+24V_AMP

POWER_DET

C502

0.1uF 50V

+3.5V_ST

B

C503 100pF

50V

R503 100

R504 100

R502

10K

NON_LIPS

C

Q501 MMBT3904(NXP) NON_LIPS

E

C504 1000pF

50V

R505

3.3K

NON_LIPS

R506

100

R522 0

LIPS_ONLY

10uF

C507 33pF 50V

C506 10V

C508

0.1uF 16V

C509 33pF 50V

1000pF

C505

+3.3V_Normal

L502

BLM18PG121SN1D

C514

0.1uF 16V

C510

C512

10uF

50V

10V

C511 10uF

0.1uF 16V

OPT

C513

10V

0.1uF 16V

AMP_RESET

AUD_MASTER_CLK

C515 10uF 10V

AGND_PLL AVDD_PLL DVDD_PLL

DGND_PLL

GND_1

DGND DVDD

SDATA

WCK BCK SDA

R521 10K

LF

C516

1000pF

50V

[EP]

1 2 3 4 5 6 7 8 9 10 11 12

GND_IO

CLK_I

VDD_IO

46

47

48

THERMAL

49

NTP-7500L

13

14

15

SCL

/FAULT

MONITOR0

50V

C517

BST1A

/RESET

AD

43

44

45

IC501

16

17

18

BST2B

MONITOR1

MONITOR2

C518

22000pF

50V

22000pF

OUT1A_2

PGND1A

41

42

19

20

PGND2B

OUT2B_1

PVDD1_2

PVDD1_3

OUT1A_1

38

39

40

21

22

23

OUT2B_2

PVDD2_1

PVDD2_2

+24V_AMP

C519

0.1uF 50V

PVDD1_1

37

36 35 34 33 32 31 30 29 28 27 26 25

24

PVDD2_3

C521

0.1uF 50V

OUT1B_2 OUT1B_1 PGND1B BST1B VDR1 VCC_5 AGND VDR2 BST2A PGND2A OUT2A_2 OUT2A_1

+24V_AMP

C520

0.1uF 50V

C522

0.1uF 50V

C523 10uF 35V

R507

3.3

OPT

C525

0.01uF 50V

C524 10uF 35V

C526 22000pF 50V

C527 22000pF 50V

C52 8 1uF 25V

D501

1N4148W

100V

OPT

D502

1N4148W

100V

OPT

D503

1N4148W

100V

OPT

D504

1N4148W

100V

OPT

1uF 25V

C52 9

R508

12

C530 390pF

50V

C531 390pF

50V

R509

12

R510

12

C532 390pF

50V

C533 390pF

50V

R511

12

C534 1uF 25V

R515

R513

R514

R512

12

L505

10.0uH

L506

10.0uH

L503

10.0uH

L504

10.0uH

C535

0.47uF 50V

C536

0.47uF

50V

C537

0.1uF 50V

C538

0.1uF 50V

C539

0.1uF 50V

C540

0.1uF

50V

R516

4.7K

R517

4.7K

R518

4.7K

R519

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPK_R+

SPEAKER_R

SPK_R-

WAFER-ANGLE

4

3

2

1

P501

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

NTP-7500

5

IR/LED and control for normal models.

LGE Internal Use Only

+3.5V_ST

R608

KEY1

KEY2

IR_OUT

R606

R602 100

R603 100

IR

10K

1%

IR_OUT

R601 22

1%

IR_OUT_EU

R605

Q601

2SC3052

IR_OUT_US

L602

BLM18PG121SN1D

L603

BLM18PG121SN1D

+3.5V_ST

BLM18PG121SN1D

+3.5V_ST

1K

IR_OUT_EU

C

B

E

R604

0

R607 10K

L601

C603

0.1uF AMOTECH CO., LTD.

C601

0.1uF 16V

IR_OUT

2SC3052

OPT

VA601

5.6V

IR_OUT

R609

Q602

+3.5V_ST

1K

C

E

C602 1000pF 50V

B

C604

0.1uF AMOTECH CO., LTD.

LED_R

IR_OUT

R610 47K

VA602

5.6V

+3.5V_ST

R611

3.3K

OPT

R615

1.5K

C607

100pF

50V

OPT

C608

0.1uF 16V

OPT ZD603

5.48VTO5.76V

P601

12507WR-08L

1

2

3

4

5

6

7

8

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

IR/CONTROL 6

RGB PC

LGE Internal Use Only

USB2_CTL

+5V_Normal

+3.3V_Normal

R713

4.7K OPT

RGB_PC

R723

2.2K

OCP for USB_2

TEST

EAN61849601

IC702

AP2191DSG

GND

1

IN_1

2

IN_2

3

EN

4

MMBD6100

RGB_PC R724

2.2K

RGB_PC

D710

C

A2

A1

+5V_Normal

NON_CI_CAP_RGB_PC

C724

0.1uF 16V

NC

8

OUT_2

7

OUT_1

6

FLG

5

L703-*1

MLB-201209-0120P-N2

120-ohm

TEST L703

CIS21J121

C716

22uF

10V

TEST

R715 47

TEST

+5V_USB_1

+5V_USB_2

TEST

R714 10K

USB2_OCD

JP_GND

USB1_DM

USB1_DP

USB2_DM

USB2_DP

+5V_USB_1

+5V_USB_2

TEST

C717 10uF

C719 10uF

USB1

3AU 04S-3 05-Z C-(LG )

JK7 03

1234

10V

OPT

D708

RCLAMP0502BA

USB DOWN STR EAM

5

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF-JACK-SOLTEAM

JK702-*1

JST1223-001

GND

Fiber Optic

1

VCC

2

VINPUT

3

4

FIX_POLE

SPDIF_OUT

+3.3V_Normal

C707

0.1uF 16V

SPDIF-JACK-FOXCONN

2F01TC1-CLM97-4F

GND

VCC

VIN

C709 100pF 50V

1

2

3

JK702

4

SHI ELD

Fib er Op tic

USB2

3AU 04S-3 05-Z C-(LG )

JK7 04

1234

Rear AV

R701 75

D702

5.6V

C708 47pF 50V

D701

USB DOWN STREAM

OPT

D709

10V

RCLAMP0502BA

JP_GND1

5

JK701

PPJ233-01

[RD]E-LUG

5C

[RD]O-SPRING

4C

[RD]CONTACT

3C

[WH]C-LUG

4B

[YL]CONTACT

3A

[YL]O-SPRING

4A

[YL]E-LUG

5A

L-MONO

30V

JP_GND2

D703

5.6V

R703 470K

R702 470K

D705

5.6V

C710 220pF 50V

+3.3V_Normal

OPT

C711

0.1uF

OPT

16V

L701

120-ohm

L702

120-ohm

R704 10K

R705

1K

C712

330pF

50V

C713 330pF 50V

AV_CVBS_IN

R706 10K

R708

R707 10K

12K

R709 12K

AV_CVBS_DET

AV_COMP_PC_R_IN

AV_COMP_PC_L_IN

JP_GND3

DSUB_VSYNC

DSUB_HSYNC

DSUB_B+

DSUB_G+

DSUB_R+

OPT C718 68pF 50V

RGB_PC

R718 75

RGB_PC

R719 75

RGB_PC R720 75

NON_CI_CAP_RGB_PC

OPT

VA701 20V ADUC 20S 02 010L

ADUC 20S 02 010L

RGB_VARISTOR

VA702 20V

ADUC 20S 02 010L

RGB_VARISTOR

VA703 20V

ADUC 20S 02 010L

RGB_VARISTOR

VA704 20V

OPT C720 68pF 50V

NON_CI_CAP_RGB_PC

C721 18pF

50V

OPT VA705 20V

ADUC 20S 02 010L

C723

18pF

50V

OPT VA706

5.6V

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

11

6

1

JK705

SPG09-DB-010

RGB_PC

OPT VA707

5.6V

SHILED

16

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

RGB_PC

R729 10K

OPT

VA708

5.6V

ADMC 5M 02 200L

RGB_PC

R732 1K

DSUB_DET

RS232C

C701 0.33uF

C702

0.1uF

C703

0.1uF

C704

0.1uF

C705

0.1uF DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC701 MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

JP_GND4

10

5

IR_OUT

+3.5V_ST

D704 CDS3C30GTH 30V

OPT

C706

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

D706 CDS3C30GTH 30V

OPT

+3.5V_ST

R710 100

R711 100

D707 BAP70-02

50V

R712 1K

JP708

JP709

PM_RXD

PM_TXD

9

8

7

6

SPG09-DB-009

JK706

4

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

REAR JACKS

7

HDMI

LGE Internal Use Only

HDMI_1

SHIELD

EAG59023302

HDMI_1_Normal

JK802

5V_HDMI_1

20

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

R802

1.8K

VA804

ESD_HDMI

5V_DET_HDMI_1

3.3K

R805

VA801

ESD_HDMI

VA805 ESD_HDMI

5V_HDMI_1

Q801

MMBT3904(NXP)

ESD_HDMI

VA806

C

E

1K

R801

R811

B

10K

VA807 ESD_HDMI

D804 RCLAMP0524PA

1 2 3 4 5

ESD_HDMI

D805 RCLAMP0524PA

1 2 3 4 5

ESD_HDMI

5V_HDMI_1

R818 100

R822 100

10 9 8 7 6

10K R808

HPD1

DDC_SDA_1

DDC_SCL_1

HDMI_CEC

CK-_HDMI1 CK+_HDMI1

D0-_HDMI1 D0+_HDMI1

D1-_HDMI1 D1+_HDMI1

D2-_HDMI1 D2+_HDMI1

5V_HDMI_1

R812

2.7K

5V_HDMI_4

R827

2.7K

HDMI_SIDE

For CEC

+5V_Normal

A2CA1

R813

2.7K

+5V_Normal

HDMI_SIDE

R828

2.7K

MMBD6100 D801

A2CA1

MMBD6100 D803

HDMI_SIDE

DDC_SDA_1

DDC_SCL_1

DDC_SDA_4

DDC_SCL_4

5V_HDMI_2

R819

2.7K

HDMI_2

+5V_Normal

A2CA1 MMBD6100 D802

R820

2.7K HDMI_2

DDC_SDA_2

DDC_SCL_2

HDMI_2

SHIELD

20

EAG59023302

HDMI_2_Normal

JK801

R816

5V_HDMI_4

ESD_HDMI

R815

1.8K

VA812

100

5V_DET_HDMI_4

R817

VA803

ESD_HDMI

3.3K

CEC_REMOTE_S7

VA813 ESD_HDMI

Q804

MMBT3904(NXP)

ESD_HDMI

VA814

5V_HDMI_4

R814

1K

C

E

R823

B

10K

VA815 ESD_HDMI

D808 RCLAMP0524PA

1 2 3 4 5

ESD_HDMI

D809 RCLAMP0524PA

1 2 3 4 5

ESD_HDMI

R826 100

R829 100

10 9 8 7 6

5V_HDMI_4

R821

10K

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4 CK+_HDMI4

D0-_HDMI4 D0+_HDMI4

D1-_HDMI4 D1+_HDMI4

D2-_HDMI4 D2+_HDMI4

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SIDE_HDMI_32LS3500

51U019S-312HFN-E-R-E-LG

JK803-*1

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

For BDP In-Packing Model

- EMI Gasket Touch Jack

SHIELD

20

19

HPD

18

+5V_POWER

17

DDC/CEC_GND

16

SDA

15

SCL

14

NC

13

CEC

12

CLK-

11

CLK_SHIELD

10

CLK+

9

DATA0-

8

DATA0_SHIELD

7

DATA0+

6

DATA1-

5

DATA1_SHIELD

4

DATA1+

3

DATA2-

2

DATA2_SHIELD

1

DATA2+

HDMI_2_BDP_Model

YKF45-7054V

JK801-*1

SHIELD

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HDMI_1_BDP_Model

YKF45-7054V

JK802-*1

HPD

+5V_POWER

DDC/CEC_GND

SDA

SCL

NC

CEC

CLK-

CLK_SHIELD

CLK+

DATA0-

DATA0_SHIELD

DATA0+

DATA1-

DATA1_SHIELD

DATA1+

DATA2-

DATA2_SHIELD

DATA2+

HDMI_CEC

SIDE_HDMI

5V_HDMI_2

R803

Q802

VA810

ESD_HDMI

1K

C

R810

B

E

VA811

ESD_HDMI

1 2 3 4 5

ESD_HDMI

1 2 3 4 5

10K

R824 100

R825 100

D806 RCLAMP0524PA

10 9 8 7 6

D807 RCLAMP0524PA

10 9 8 7 6

ESD_HDMI

5V_HDMI_2

R809

10K

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC

HDMI_CEC

CK-_HDMI2 CK+_HDMI2

D0-_HDMI2 D0+_HDMI2

D1-_HDMI2 D1+_HDMI2

D2-_HDMI2 D2+_HDMI2

BODY_SHIELD

20

EAG62611204

HDMI_SIDE

JK803

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

5V_HDMI_2

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

R804

1.8K

ESD_HDMI VA808

5V_DET_HDMI_2

R806

3.3K

ESD_HDMI

VA802

VA809 ESD_HDMI

R807 0

HDMI1_ARC

MMBT3904(NXP)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

HDMI/RJP 8

RJP

LGE Internal Use Only

+12V

RJP

L901

BLM18PG121SN1D

RJP

JK901

KRJV9768-1001-024

1

2

3

4

5

6

7

8

R901

RJP

10K

C901

2.2uF 16V

RJP R902 10K

RJP_PROTECTION

R904

RJP_PROTECTION

R903

RJP

5.1K

R905

1K

RJP_PROTECTION

R906

RJP_PROTECTION

Q902

AO3407A

Q901

AO3407A

S

RJP_NORMAL

R907 0

RJP

ZD901 5.1V

C902 0.01uF

RJP

D

S

C903

1uF 25V

G

OPT

RJP_PROTECTION

D

G

0

RJP

ZD902 5.1V

RJP

C904 0.01uF

RJP_PROTECTION

100K

R908

RJP

0.01uF

ZD903 5.1V

ZD904 5.1V

C905

RJP

C906 0.01uF

RJP

ZD905 5.1V

RJP

C907 0.01uF

C908

22uF 16V

OPT

R911 510

R909 510

R910 510

R912 510

R913 510

RJP R914 10K

RJP

R916

3.9K

R915

3.9K

RJP

R917

RJP

3.9K

R918

3.9K

RJP

R919

8.2K

RJP

RJP_CTRL0

RJP_CTRL1

RJP_CTRL2

RJP_CTRL3

RJP_CTRL4

Single ended

EXT_SPK

SUB_AMP_MUTE

EXT_AMP_L

EXT_AMP_R

001:AC13

EXT_SPK

C928

10V

1uF

C927

EXT_SPK

10V

1uF

MMBT3904(NXP)

10K

R922

Q903

EXT_SPK

4.7K R923

B

+3.5V_ST

EXT_SPK

R924

10K

+24V

L902

EXT_SPK

BLM18PG121SN1D

C

E

PVCCL_1

PVCCL_2

MUTE

BYPASS

AGND_1

AGND_2

C913

0.1uF 50V

PVCCR_1

VCLAMP

PVCCR_2

C911 1uF 50V

EXT_SPK

C912 1uF 50V

EXT_SPK

IC901

TPA3124D2PWPR

1

SD

2

3

4

LIN

5

RIN

6

7

8

9

10

11

12

C914

0.1uF 50V

PGNDL_2

24

PGNDL_1

23

LOUT

22

BSL

21

AVCC_2

20

AVCC_1

19

GAIN0

18

GAIN1

17

BSR

16

ROUT

15

PGNDR_2

14

PGNDR_1

13

EXT_SPK

C917

0.22uF 50V

EXT_SPK

C918

0.22uF 50V

EXT_SPK

C915

0.1uF 50V

EXT_SPK

C916

4.7uF

50V

EXT_SPK L904

22.0uH

22.0uH L905

EXT_SPK

R930 10K OPT

R931 10K

EXT_SPK

R932 10K

OPT

R933 10K EXT_SPK

R934

4.7K

R935

4.7K

C919

0.47uF 50V

EXT_SPK

C920

0.47uF 50V

EXT_SPK

C921

0.47uF 50V

EXT_SPK

C922

0.47uF 50V

EXT_SPK

C923

C924

47uF

25V

EXT_SPK

25V

EXT_SPK

10K

R936

EXT_SPK

10K

R937

EXT_OUT_L

EXT_OUT_R

EXT_SPEAKER

EXT_SPK

JK902

PEJ034-01

E_SPRING

3

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

+3.3V_Normal

EXT_SPK R939 100K

EXT_SPK

R938 100

C925 1uF OPT

C926 1uF OPT

EXT_SPK_DET

EXT_OUT_R

EXT_OUT_L

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

RJP / EXT AMP

9

GP4R_GLOBAL_TUNER_BLOCK

LGE Internal Use Only

TU1001 TDSN_B001F

SI2176_BR_2INPUT_H

B1

28

SHIELD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

A1

RF_S/W_CTL

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

NC_1

NC_2

NC_3

+B3[3.3V]

+1.23V_TU

+B4[1.23V]

NC_4

GND

ERROR

SYNC

VALID

MCLK

D0

D1

D2

D3

D4

D5

D6

D7

A1

C1001

0.1uF 16V

C1002

0.1uF 16V

FULL_NIM

R1001 0

RF_SW_OPT

FULL_NIM

L1001

120

TU1002 TDSS-G102D

SI2176_DVB_1INPUT_H

B1

12

SHIELD

RF_SWITCH_CTL Pull-up can’t be applied

because of MODEL_OPT_2

NC

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

SIF

6

+B2[1.8V]

7

CVBVS

8

IF_AGC

9

DIF[P]

10

DIF[N]

11

A1

TU1002-*1 TDSS-H101F

1

2

3

4

5

6

7

8

9

10

11

SI2176_ATSC_1INPUT_H

B1

A1

B1

12

SHIELD

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

NC

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

IF_AGC

DIF[P]

DIF[N]

A1

B1

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

TDSS-H101F(B)

B1

12

C1003 100pF 50V

TU1002-*2 TDSS-H101F(B)

1

2

3

4

5

6

7

8

9

10

11

A1

SHIELD

NC_1

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8]

CVBS

IF_AGC

DIF[P]

DIF[N]

A1

0.1uF 16V

C1005

0.1uF 16V

C1004-*1 0 ASIA

C1004

close to TUNER

NON_ASIA

+1.2V/+1.8V_TU

C1006 22uF 25V

NON_BR

R1002 0

R1003 0

NON_BR

Close to the tuner

FE_TS_DATA[0-7]

C1009 100pF

C1008

50V

10uF

6.3V

close to the tuner pin, add,09029

+3.3V_TU

R1005 10K

C1007

0.1uF 16V

FULL_NIM_OPT

+5V_Normal

FULL_NIM

R1004 10K

L1002

R1006

FULL_NIM

0

FULL_NIM_BCD

+3.3V_TU

C1011

0.1uF 16V

C10 10

0.1 uF 16V

R1007 100

NON_BR

C1012

0.1uF 16V

IC1001

AZ1117BH-1.8TRE1

IN

3

AP2132MP-2.5TRG1

PG

EN

VIN

VCTRL

+3.3V_TU

R1010 100K

R1008 100

C1014

0.1uF

16V

should be guarded by ground

+1.2V/+1.8V_TU

OUT

2

1

ADJ/GND

IC1002

1

FULL_NIM_BCD

9

2

THERMAL

3

4

IF_AGC_MAIN

5%

C1013

0.1uF 16V

[EP]

GND

8

ADJ

7

VOUT

6

NC

5

TUNER_RESET

R1009 1

1/16W

add,0929

C1019

C1016

18pF

50V

C1015 10uF 10V

FULL_NIM_BCD

FULL_NIM_BCD R1012 11K

R1

FULL_NIM_BCD

R1011

20K

1005

R2

BCD Vo=0.6*(1+R1/R2)

TJ Vo=0.8*(1+R1/R2)

33

R1013 10K

33

R1014

R1015

C1017 5pF 50V ASIA

C1018

0.1uF 16V

FULL_NIM

+3.3V_TU

R1019 1K

C1020 5pF 50V ASIA

+1.23V_TU

C1021 10uF 10V

FULL_NIM

R1022 1K

R1016

3.3 ASIA

R1017 0 ASIA

380mA

R1018 2K OPT

TU_SCL

TU_SDA

R1020

3.3 ASIA

R1021 0 ASIA

NON_ASIA

60mA

R1023 0

R1024 0

IF_N_MSTAR

IF_P_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils Signal to Signal Width = 12mils Ground Width >= 24mils

+3.3V_TU

C1024 22uF 10V

TU_NON_BUFFER

R1026 0

R1027

4.7K

TU_BUFFER

TU_NON_BUFFER

R1025 0

R1028

1K

OPT

Size change,0929

L1003

MLB-201209-0120P-N2

C1025

0.1uF 16V

+3.3V_TU

R1030

B

+3.3V_TU

TU_BUFFER

R1029 220

B

+3.3V_Normal

C1026 22uF 10V

470

E

C

TU_BUFFER

E

TU_BUFFER MMBT3906(NXP)

Q1002

C

TU_BUFFER R1031

220

TU_BUFFER Q1001

MMBT3906(NXP)

C1027

0.1uF

16V

R1032 82

TU_SIF

TU_CVBS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

TUNER

10

LVDS for large inch

LGE Internal Use Only

[51Pin LVDS Connector] (For FHD 60Hz)

FHD

P1100

FI-RE51S-HF-J-R1500

R1101

10K

OPT C1100 10uF 16V

AUO_GND

LVDS_SEL

+3.3V_Normal

OPT C1101 1000pF 50V

OPT R1102

3.3K

OPT R1103

10K

FHD

C1102

0.1uF 16V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

PSU_T120_LGD

R1100

0

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

PWM_DIM

AUO_GND/LGD_NC

PANEL_VCC

L1100

70-ohm

FHD

SCANNING_EN

+3.3V_Normal

OPT R1104

3.3K

OPT R1105

10K

OPC&SCANNING_CTRL

FOR FHD REVERSE(10bit) Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+ RXA2+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change

RXA0+

RXA0-

RXA1+

RXA1-

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit) Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3- RXA0-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3- RXB0+

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change Shift

RXA4+

RXA4-

RXA0+

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK- RXBCK+

RXB3+

RXB3-

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

RXA4-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXB3-

RXB3+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[30Pin LVDS Connector] (For HD 60Hz_Normal)

HD

P1101

FF10001-30

1

HD_GND_2pin

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

R1106

0

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

LVDS_SEL

+3.3V_Normal

OPT R1107

3.3K

OPT R1108 10K

OPT C1103 10uF 16V

OPT C1104 1000pF 50V

HD

C1105

0.1uF 16V

PANEL_VCC

HD

L1101

70-ohm

BLM18SG700TN1D

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LA2AW 2012.09.11

LVDS_LARGE 11

AVDD_DDR0

LGE Internal Use Only

R1201

R1202

AVDD_DDR0

1K 1%

0.1uF

1K 1%

C1201

A-MVREFDQ

1000pF

C1202

R1204

R1205

1K 1%

0.1uF

1K 1%

C1203

A-MVREFCA

1000pF

C1204

B-MVREFCA

1000pF

OS

C1247

AVDD_DDR0

0.1uF C1248

OS

R1224

1K 1%

B-MVREFDQ

OS

R1225

1K 1%

1000pF

OS

C1249

AVDD_DDR0

OS

0.1uF C1250

OS

L1202

CIC21J501NE

AVDD_DDR0

+1.5V_DDR

R1227

1K 1%

OPT

OS

R1228

1K 1%

C1251

10uF

C1206

0.1uF

C1239

0.1uF

C1217

1uF

C1218

C1219

1uF

C1241

C1238

C1220

0.1uF

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EAN61829001

DDR_1600_HYNIX

IC1201-*4

H5TQ1G63DFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

CLose to Saturn7M IC

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 B-MDQL1 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

DDR_1600_HYNIX

H5TQ1G63DFR-PBC

N3

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

A15

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

NC_6

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQL0

VSS_7

F7

M9

DQL1

VSS_8

F2

P1

DQL2

VSS_9

F8

P9

DQL3

VSS_10

H3

T1

DQL4

VSS_11

H8

T9

DQL5

VSS_12

G2

DQL6

H7

DQL7

B1

VSSQ_1

D7

B9

DQU0

VSSQ_2

C3

D1

DQU1

VSSQ_3

C8

D8

DQU2

VSSQ_4

C2

E2

DQU3

VSSQ_5

A7

E8

DQU4

VSSQ_6

A2

F9

DQU5

VSSQ_7

B8

G1

DQU6

VSSQ_8

A3

G9

DQU7

VSSQ_9

R1235

R1236

EAN61829001

IC1202-*4

56

R1231 10K

A-MCK

1%

C1209

0.01uF 50V

1%

A-MCKB

AVDD_DDR0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_DVB_T2_2G

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

K4B2G1646C

EAN61667501

IC1201-*3

CLose to DDR3

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDML A-MDMU

A-MDQL0

A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_DVB_T2_2G

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

CLose to DDR3

A-MVREFCA

A-MVREFDQ

AVDD_DDR0

C1205 10uF C1207 0.1uF C1208 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF C1213 0.1uF C1214 0.1uF C1215 0.1uF C1216 0.1uF

OS

A-MA14

R1203

240 1%

EAN61836301

DDR_1600_SS

IC1201-*5

K4B1G1646G-BCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

H5TQ1G63DFR-H9C

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

CLose to Saturn7M IC

EAN61828901

IC1201

DDR_1333_HYNIX

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

EAN61836301

DDR_1600_SS

IC1202-*5

K4B1G1646G-BCK0

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

M8

A0

VREFCA A1 A2

H1

A3

VREFDQ A4 A5

L8

A6

ZQ A7 A8

B2

A9

VDD_1

D9

A10/AP

VDD_2

G7

A11

VDD_3

K2

A12/BC

VDD_4

K8

A13

VDD_5

N1

VDD_6

N9

NC_5

VDD_7

R1

VDD_8

R9

BA0

VDD_9 BA1 BA2

A1

VDDQ_1

A8

CK

VDDQ_2

C1

CK

VDDQ_3

C9

CKE

VDDQ_4

D2

VDDQ_5

E9

CS

VDDQ_6

F1

ODT

VDDQ_7

H2

RAS

VDDQ_8

H9

CAS

VDDQ_9

WE

J1

NC_1

J9

RESET

NC_2

L1

NC_3

L9

NC_4

T7

DQSL

NC_6

DQSL

A9

DQSU

VSS_1

B3

DQSU

VSS_2

E1

VSS_3

G8

DML

VSS_4

J2

DMU

VSS_5

J8

VSS_6

M1

DQL0

VSS_7

M9

DQL1

VSS_8

P1

DQL2

VSS_9

P9

DQL3

VSS_10

T1

DQL4

VSS_11

T9

DQL5

VSS_12 DQL6 DQL7

B1

VSSQ_1

B9

DQU0

VSSQ_2

D1

DQU1

VSSQ_3

D8

DQU2

VSSQ_4

E2

DQU3

VSSQ_5

E8

DQU4

VSSQ_6

F9

DQU5

VSSQ_7

G1

DQU6

VSSQ_8

G9

DQU7

VSSQ_9

A10/AP

A12/BC

NC_5

RESET

DQSL DQSL

DQSU DQSU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9

A11

A13

BA0 BA1 BA2

CK CK

CKE

CS ODT RAS CAS

WE

DML DMU

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

S7LR2_DIVX_MS10

A11

A_DDR3_A[0]

C14

A_DDR3_A[1]

B11

A_DDR3_A[2]

F12

A_DDR3_A[3]

C15

A_DDR3_A[4]

E12

A_DDR3_A[5]

A14

A_DDR3_A[6]

D11

A_DDR3_A[7]

B14

A_DDR3_A[8]

D12

A_DDR3_A[9]

C16

A_DDR3_A[10]

C13

A_DDR3_A[11]

A15

A_DDR3_A[12]

E11

A_DDR3_A[13]

B13

A_DDR3_A[14]

F13

A_DDR3_BA[0]

B15

A_DDR3_BA[1]

E13

A_DDR3_BA[2]

C17

A_DDR3_MCLK

A17

A_DDR3_MCLKZ

B16

A_DDR3_MCLKE

E14

A_DDR3_ODT

B12

A_DDR3_RASZ

A12

A_DDR3_CASZ

C12

A_DDR3_WEZ

F11

A_DDR3_RESET

B19

A_DDR3_DQSL

C18

A_DDR3_DQSLB

B18

A_DDR3_DQSU

A18

A_DDR3_DQSUB

E15

A_DDR3_DQML

A21

A_DDR3_DQMU

D17

A_DDR3_DQL[0]

G15

A_DDR3_DQL[1]

B21

A_DDR3_DQL[2]

F15

A_DDR3_DQL[3]

B22

A_DDR3_DQL[4]

F14

A_DDR3_DQL[5]

A22

A_DDR3_DQL[6]

D15

A_DDR3_DQL[7]

G16

A_DDR3_DQU[0]

B20

A_DDR3_DQU[1]

F16

A_DDR3_DQU[2]

C21

A_DDR3_DQU[3]

E16

A_DDR3_DQU[4]

A20

A_DDR3_DQU[5]

D16

A_DDR3_DQU[6]

C20

A_DDR3_DQU[7]

EAN61667501

IC1202-*3

K4B2G1646C

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC101

LGE2111A-T8

EAN62348801

DDR_1600_MICRON

IC1201-*6

MT41J64M16JT-125:G

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

VREFCA

VREFDQ

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_5

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

DDR_1600_MICRON

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8]

B_DDR3_A[9] B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13] B_DDR3_A[14]

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_MCLK B_DDR3_MCLKZ B_DDR3_MCLKE

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

B_DDR3_DQSL

B_DDR3_DQSLB

B_DDR3_DQSU

B_DDR3_DQSUB

B_DDR3_DQML B_DDR3_DQMU

B_DDR3_DQL[0] B_DDR3_DQL[1] B_DDR3_DQL[2] B_DDR3_DQL[3] B_DDR3_DQL[4] B_DDR3_DQL[5] B_DDR3_DQL[6] B_DDR3_DQL[7]

B_DDR3_DQU[0] B_DDR3_DQU[1] B_DDR3_DQU[2] B_DDR3_DQU[3] B_DDR3_DQU[4] B_DDR3_DQU[5] B_DDR3_DQU[6] B_DDR3_DQU[7]

EAN62348801

IC1202-*6

MT41J64M16JT-125:G

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

IC1201-*1

K4B1G1646G-BCH9

DDR_1333_SS_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

EAN61828901

IC1202

H5TQ1G63DFR-H9C

DDR_1333_HYNIX

B-MA0

C1240

0.01uF 50V

R1232

10K

OS

B-MA1 B-MA2 B-MA3 B-MA4 B-MA5 B-MA6 B-MA7 B-MA8

B-MA9 B-MA10 B-MA11 B-MA12 B-MA13

OS

56

1%

56

1%

OS

B-MODT

B-MRASB B-MCASB

B-MWEB

B-MRESETB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDML B-MDMU

B-MDQL0

B-MDQL2 B-MDQL3 B-MDQL4 B-MDQL5 B-MDQL6 B-MDQL7

B-MDQU0 B-MDQU1 B-MDQU2 B-MDQU3 B-MDQU4 B-MDQU5 B-MDQU6 B-MDQU7

DDR_1600_HYNIX_NEW

IC1201-*8

H5TQ1G63EFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

R1237

B-MCKE R1238

EAN61829003

B-MBA0 B-MBA1 B-MBA2

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

B23 D25 F22 G22 E24 F21 E23 D22 D24 D21 C24 C25 F23 E21 D23

G20 F24 F20

G25 G23 F25

D20 B25 B24 A24

E20

K24 K25

J21 J20

H24 L20

L23 J24 L24 J23 M24 H23 M23 K23

G21 L22 H22 K20 H20 L21 H21 K21

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_5

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

B-MA0 B-MA1 B-MA2 B-MA3 B-MA4 B-MA5 B-MA6 B-MA7 B-MA8 B-MA9 B-MA10 B-MA11 B-MA12 B-MA13 B-MA14

B-MBA0 B-MBA1 B-MBA2

B-MCK B-MCKB B-MCKE

B-MODT B-MRASB B-MCASB B-MWEB

B-MRESETB

B-MDQSL B-MDQSLB

B-MDQSU B-MDQSUB

B-MDML B-MDMU

B-MDQL0 B-MDQL1 B-MDQL2 B-MDQL3 B-MDQL4 B-MDQL5 B-MDQL6 B-MDQL7

B-MDQU0 B-MDQU1 B-MDQU2 B-MDQU3 B-MDQU4 B-MDQU5 B-MDQU6 B-MDQU7

EAN61848801

DDR_1600_2G_SS

IC1201-*7

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

EAN61848801

DDR_1600_2G_SS

IC1202-*7

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

B-MCK

OS

B-MCKB

AVDD_DDR0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

EAN61829003

DDR_1600_HYNIX_NEW

IC1202-*8

H5TQ1G63EFR-PBC

N3

M8

P7 P3 N2

H1

P8 P2 R8

L8

R2 T8 R3

B2

L7

D9

R7

G7

N7

K2

T3

K8 N1

M7

N9 R1

M2

R9

N8 M3

A1

J7

A8

K7

C1

K9

C9 D2

L2

E9

K1

F1

J3

H2

K3

H9

L3

J1

T2

J9 L1 L9

F3

T7

G3

C7

A9

B7

B3 E1

E7

G8

D3

J2 J8

E3

M1

F7

M9

F2

P1

F8

P9

H3

T1

H8

T9

G2 H7

B1

D7

B9

C3

D1

C8

D8

C2

E2

A7

E8

A2

F9

B8

G1

A3

G9

M8

A0

VREFCA A1 A2

H1

A3

VREFDQ A4 A5

L8

A6

ZQ A7 A8

B2

A9

VDD_1

D9

A10/AP

VDD_2

G7

A11

VDD_3

K2

A12/BC

VDD_4

K8

NC_7

VDD_5

N1

VDD_6

N9

NC_5

VDD_7

R1

VDD_8

R9

BA0

VDD_9 BA1 BA2

A1

VDDQ_1

A8

CK

VDDQ_2

C1

CK

VDDQ_3

C9

CKE

VDDQ_4

D2

VDDQ_5

E9

CS

VDDQ_6

F1

ODT

VDDQ_7

H2

RAS

VDDQ_8

H9

CAS

VDDQ_9 WE

J1

NC_1

J9

RESET

NC_2

L1

NC_3

L9

NC_4

T7

DQSL

NC_6

DQSL

A9

DQSU

VSS_1

B3

DQSU

VSS_2

E1

VSS_3

G8

DML

VSS_4

J2

DMU

VSS_5

J8

VSS_6

M1

DQL0

VSS_7

M9

DQL1

VSS_8

P1

DQL2

VSS_9

P9

DQL3

VSS_10

T1

DQL4

VSS_11

T9

DQL5

VSS_12 DQL6 DQL7

B1

VSSQ_1

B9

DQU0

VSSQ_2

D1

DQU1

VSSQ_3

D8

DQU2

VSSQ_4

E2

DQU3

VSSQ_5

E8

DQU4

VSSQ_6

F9

DQU5

VSSQ_7

G1

DQU6

VSSQ_8

G9

DQU7

VSSQ_9

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

EAN61848802

DDR_1600_2G_SS_NEWExchange

IC1201-*9

K4B2G1646E-BCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

OS

R1226

240

1%

C1227 10uF C1228 0.1uF

OS

C1229 0.1uF

OS

C1230 0.1uF

OS

C1231 0.1uF

OS

C1232 0.1uF

OS

C1233 0.1uF

OS

C1234 0.1uF

OS

C1235 0.1uF

OS

C1236 0.1uF

OS

B-MVREFCA

B-MVREFDQ

AVDD_DDR0

B-MA14

DDR_1600_NANYA_NEW

IC1201-*10

NT5CB64M16DP-DH

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

EAN61859501

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1201-*2

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3 P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

EAN61857201A0

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

IC1202-*1

K4B1G1646G-BCH9

DDR_1333_SS_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1202-*2

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3

EAN61857201A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

LA2AW 2012.09.11

DDR_256 12

LG 42LN541C Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
