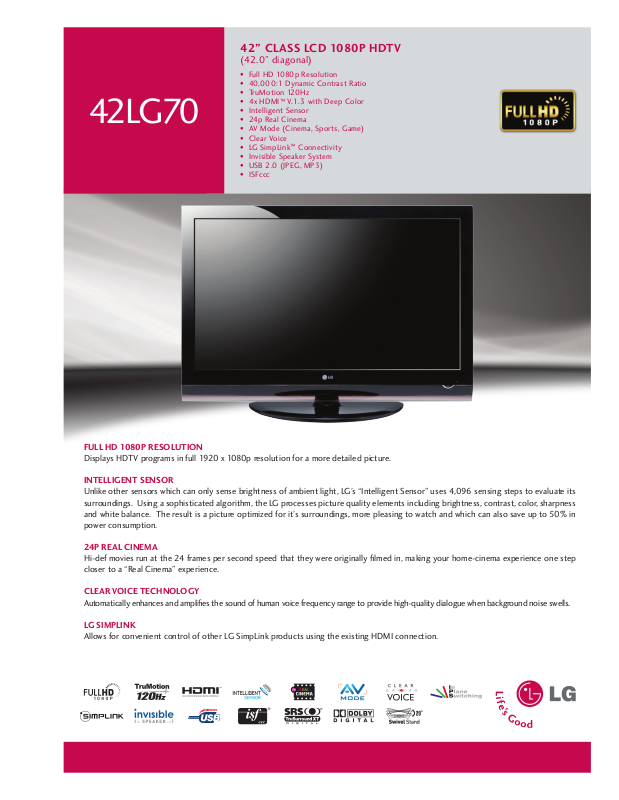

LG 42LG70-UA Specification
42LG70
42” CLASS LCD 1080P HDTV
(42.0” diagonal)
• Full HD 1080p Resolution
• 40,000:1 Dynamic Contrast Ratio
• TruMotion 120Hz
• 4x HDMI™ V.1.3 with Deep Color
• Intelligent Sensor
• 24p Real Cinema
• AV Mode (Cinema, Sports, Game)
• Clear Voice
• LG SimpLink™ Connectivity
• Invisible Speaker System
• USB 2.0 (JPEG, MP3)
• ISFccc
FULL HD 1080P RESOLUTION
Displays HDTV programs in full 1920 x 1080p resolution for a more detailed picture.
INTELLIGENT SENSOR
Unlike other sensors which can only sense brightness of ambient light, LG’s “Intelligent Sensor” uses 4,096 sensing steps to evaluate its
surroundings. Using a sophisticated algorithm, the LG processes picture quality elements including brightness, contrast, color, sharpness
and white balance. The result is a picture optimized for it’s surroundings, more pleasing to watch and which can also save up to 50% in
power consumption.
24P REAL CINEMA
Hi-def movies run at the 24 frames per second speed that they were originally lmed in, making your home-cinema experience one step
closer to a “Real Cinema” experience.
CLEAR VOICE TECHNOLOGY
Automatically enhances and amplies the sound of human voice frequency range to provide high-quality dialogue when background noise swells.
LG SIMPLINK
Allows for convenient control of other LG SimpLink products using the existing HDMI connection.
42LG70
TECHNICAL SPECIFICATIONS
L C D P A N E L
Native Display Resolution 1920 x 1080p
Brightness (cd/m2) 500
Dynamic Contrast Ratio 40,000:1
Viewing Angle 178º x 178º
Response Time (Grey to Grey) 2.7ms
Wide Color Control •
TruMotion 120Hz •
Life Span (Typical) 60,000 hours
B R O A D C A S T I N G S Y S T E M
Analog •
ATSC/NTSC/Clear QAM •
V I D E O
XD Engine™ •
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes
Just Scan (1:1 Pixel Matching)
- HDMI™ 1080p/1080i/720p
- Component 1080p/1080i/720p
- RF 1080i/720p
Enhanced Line Doubler •
Enhanced Noise Reduction (Video Noise Filter) • (3D & MPEG)
Color Temperature Control 4 Modes
Black Stretcher (Black Level Enhancer) •
24p Cinema (Film Mode) 5:5/3:2
Picture Reset •
AV Mode (Picture & Sound) 3 Modes
Picture Selection Mode 8 Modes
ISFccc •
Intelligent Sensor Mode •
DTV Signal Strength Indicator •
A U D I O
Mono/Stereo/Dual (MTS/SAP) •
Audio Outout Power (Watts - THD 10%) 10W + 10W
Speaker System Details 2 Way 4 System (Invisible Speaker)
Dolby® Digital Decoder •
Surround System Type SRS TruSurround XT™
Bass/Treble/Balance Controls •
Auto Volume Leveler •
Sound Mode 4 Modes
Mute •
S P E C I A L F E AT U R E S
Intelligent Sensor •
1080P Source Input
- HDMI 60p/30p/24p
- Component 60p/30p/24p
- RGB 60p
A/V Input Navigation •
Auto Navigation •
Input Labeling •
Quick View (Previous Channel) •
TruMotion 120Hz Demo On/Off •
Picture Still / Freeze •
Clear Voice (On/Off) •
Quick Setup Guide •
Parental Control w/V-Chip •
Key Lock •
Closed Caption •
LG SimpLink™ (HDMI CEC) •
Trilingual Menus English/French/Spanish
EZ Menus (High Performance Interface) •
Channel Add/Delete •
Favorite Channel •
Auto Clock •
Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •
S I D E A U D I O / V I D E O I N P U T S / O U T P U T S
L/R Audio/Composite Video In 1
HDMI/HDCP In 1
USB 2.0 (Music and Photos only) 1 (JPEG/MP3)
RF In (Antenna/Cable) 1
L/R Audio/Component Video In 1
LCD 1080P HDTV
42” Class (42.0” diagonal)
R E A R A U D I O / V I D E O I N P U T S / O U T P U T S
L/R Audio Out 1
S-Video In 1
HD Component Video In (Y,Pb,Pr) + L/R Audio 2
Digital Audio Out 2 (1 Coaxial/1 Optical)
HDMI/HDCP Input 3 (V.1.3 with Deep Color)
RGB In (D-Sub 15pin) - PC 1
PC Audio Input 1
RS-232c In (Control/Service) 1
Remote Control In (IR) 1
C A B I N E T / A C C E S S O R I E S
Cabinet Style Table Top
Cabinet Color Glossy Piano-black
Remote Control Type Universal
Stand Swivel (degrees) 20º / 20º
VESA® Compatible (W x H) 200mm x 200mm
P O W E R
Consumption (Typical) n/a
Stand-by Consumption >1W
S P E C I F I C A T I O N S
Dimensions w/out stand (W x H x D) 40.4” x 27.1” x 4.4”
Weight w/out stand 42.1 lbs
Dimensions w/stand (W x H x D) 40.4” x 28.9” x 11.6”
Weight w/stand 47.8 lbs
Dimensions w/packaging (W x H x D) 52.4” x 30.4” x 10.1”
Weight in package 58.4 lbs
UPC 719192172975
Limited Warranty 1 Year Parts/Labor
DIMENSIONS/REMOTE/INPUTS/OUTPUTS
11.6”
SIDE
4.4”
27.1” 28.9”
7.9”
(200mm)
BACK
40.4”
22.9”
7.9”
(200mm)
LG Electronics U.S.A., Inc. • 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
)
Customer Service and Technical Support: (800
© 2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
All other trademarks are the property of their respective owners. Design, features and specifications subject to change without notice. 11/05/08
243-0000 • LGusa.com
