Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service.
P/NO : 3828TUL309D (0503-REV00)
Printed in Korea
OWNER’S MANUAL
MODELS: 26LX1D 32LX1D
26LX2D 32LX2D 32LP1D 37LP1D 42LP1D
Internet Home Page : http://www.lge.com
http://www.lg.ca
TM
Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli­ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac­tical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.
U.S.A. only -----------------------------------------------
COMPLIANCE:
The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Phone: 1-201-816-2000 http://www.lgusa.com
---------------------------------------------------------------
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
W
W
arning
arning
Introduction
Controls
Controls
(Model Name: 32/37/42LP1D)
(Model Name: 32/37/42LP1D)
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
CH VOL
TV/VIDEO/
TV
GUIDE
ON/OFF
RR AUDIOAUDIO VIDEOVIDEO
S-VIDEOS-VIDEO
L/MONOL/MONO
IN2
MENU
1394
IEEE
Power Standby Indicator
Illuminates red when the TV is in standby mode. When the TV
is switched on, blinks green and then illuminates green.
Remote Control Sensor
TV GUIDE Button
VOLUME (
F,G) Buttons
CHANNEL (
E, D) Buttons
Memory Card Slot (For mode)
MENU Button
ON/OFF Button
S-VIDEO Input
Audio/Video Input 2
Logo Display Lamp
Channel Display
TV/VIDEO / Button
DTV, CADTV mode
TV, CATV, DTV, CADTV mode
Video1-2 mode
Component1-2 mode
PC mode
HDMI mode
IEEE1394
Stereo mode
mode
1394
IEEE
Introduction
Connection Options (Model Name: 32/37/42LP1D)
Connection Options (Model Name: 32/37/42LP1D)
R
L
COMPONENT2
VIDEO
AUDIO
ANTENNA
G-LINK
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
VIDEO1
RGB INPUT
(PC/DTV INPUT)
RS-232C INPUT
(CONTROL/SERVICE)
AUDIO INPUT
AUDIO
(MONO)
VIDEO INPUT
COMPONENT1
RL
RL
PC AUDIO
INPUT
REMOTE
CONTROL
S-VIDEO
CableCARD
IEEE 1394
CABLE
AC IN
MONITOR
OUT
VIDEO
HDMI
* The HDMI port can receive video via High-Definition Multimedia Interface (HDMI) or the Digital Visual Interface
(DVI). Note: An adapter or special cable is required to plug DVI into an HDMI port (available at home theater or computer stores).
COMPONENT2 (VIDEO / AUDIO Input)
DIGITAL AUDIO OUTPUT / DVI INPUT / COMPONENT1 INPUT
AUDIO/VIDEO INPUT1
COMPONENT1 (VIDEO / AUDIO INPUT)
MONITOR OUT
HDMI / IEEE1394 Port
CableCARD
TM
Slot
ANTENNA Input
CABLE Input
AC IN
G-LINK
TM
Port
PC AUDIO INPUT
RS-232C INPUT (CONTROL/SERVICE) / RGB INPUT (PC/DTV INPUT)
REMOTE CONTROL Port
21
Installation
Antenna or Cable Connection
Multi-family Dwellings/Apartments (Connect to wall antenna socket)
Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna)
Outdoor Antenna
Wall Antenna Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
ANTENNA
Bronze Wire
Be careful not to bend the bronze wire when connecting the antenna.
Analog and Digital TV signals provided on antenna
- Antenna or Cable Service without a Cable Box Connection.
- For optimum picture quality, adjust antenna direction if needed.
Cable TV Wall Jack
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
CABLE
Analog and Digital TV signals provided on cable
Analog and Digital TV signals provided on cable and antenna
Cable TV Wall Jack
RF Coaxial Wire (75 ohm)
Bronze Wire
Bronze Wire
Turn clockwise to tighten.
Antenna
RF Coaxial Wire (75 ohm)
• In a poor signal area to improve picture quality, purchase and install a sig­nal amplifier.
• If the antenna needs to be split for two TV’s, install a “2-Way Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your dealer for assistance.
ANTENNA

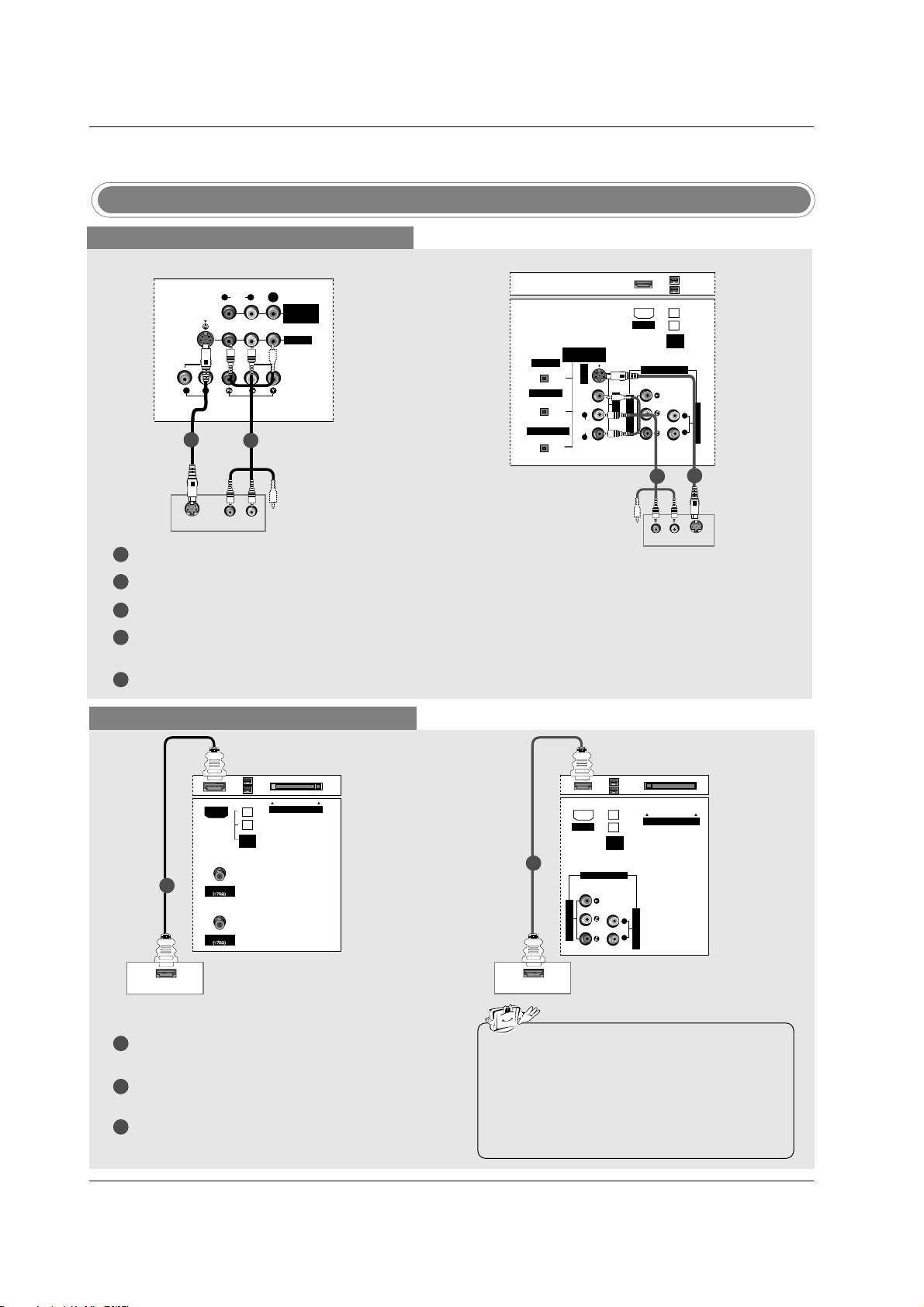

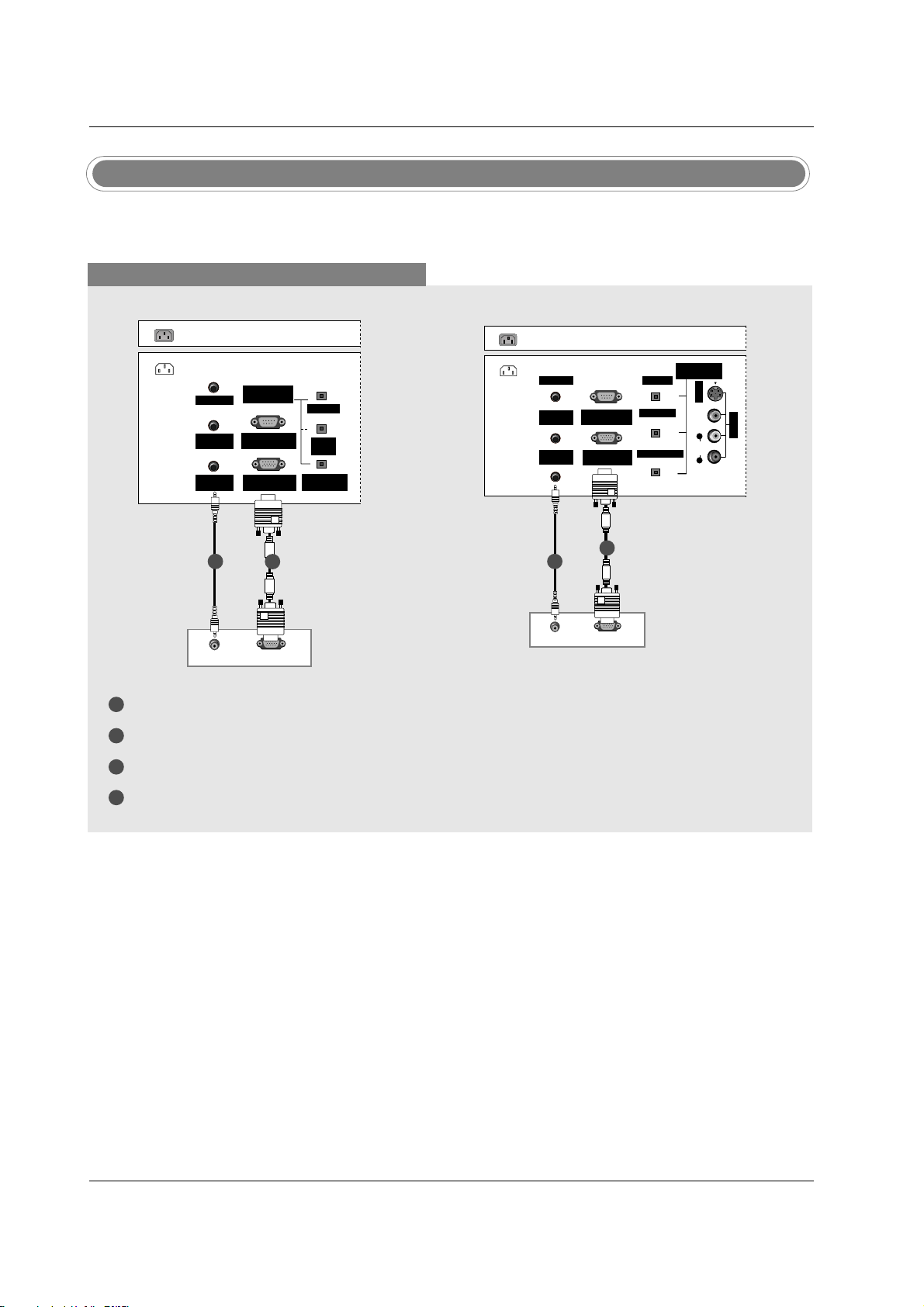

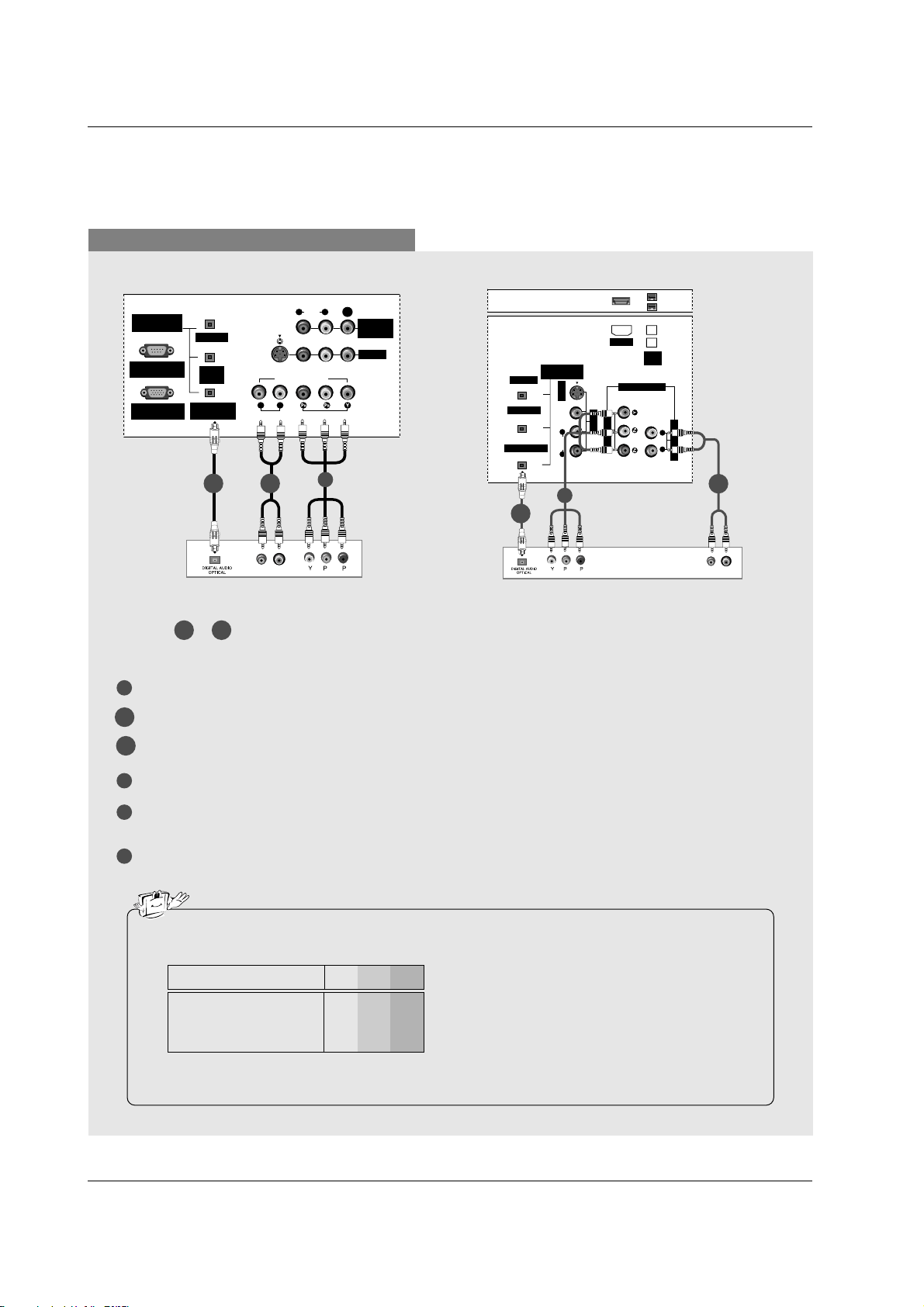

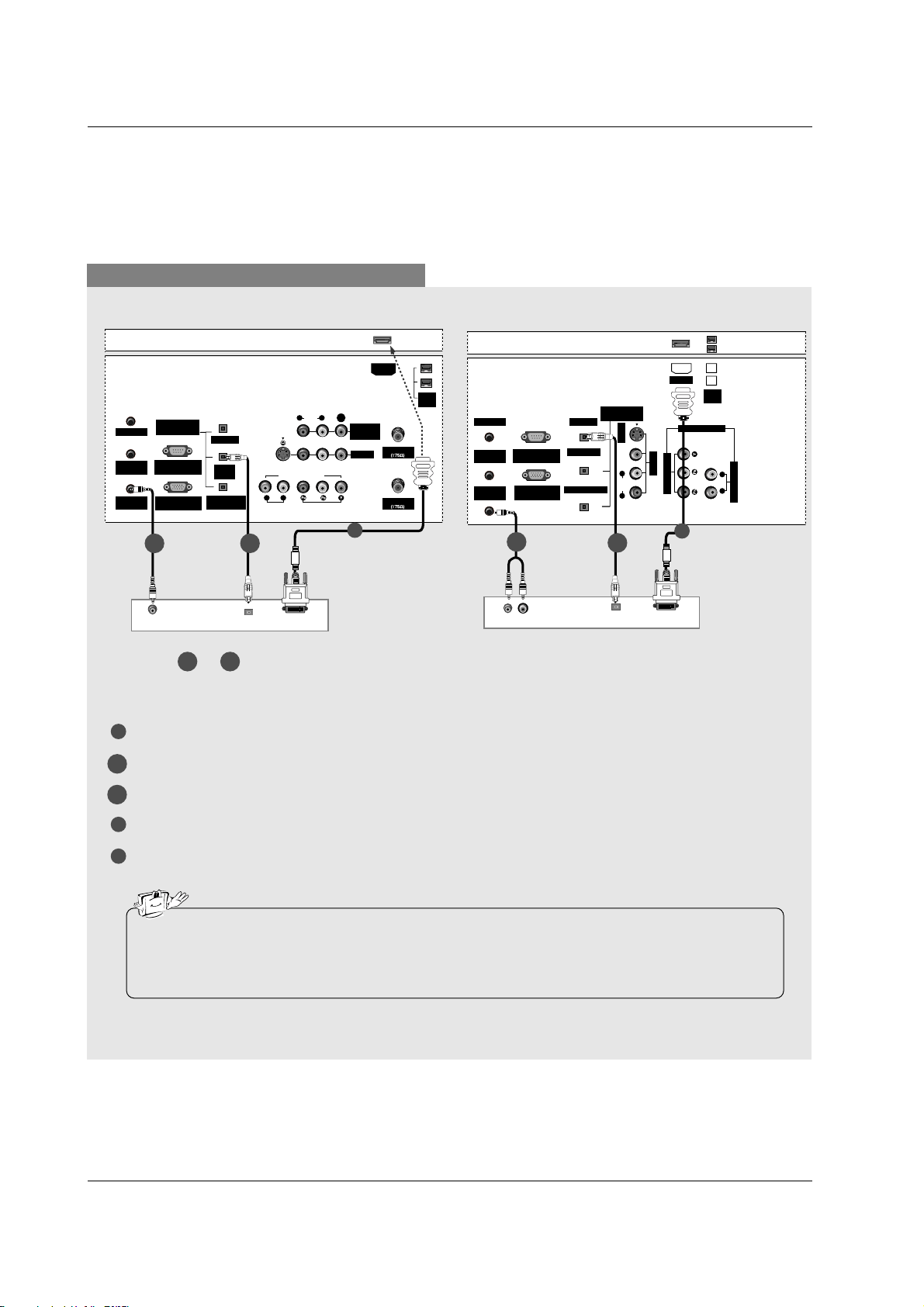

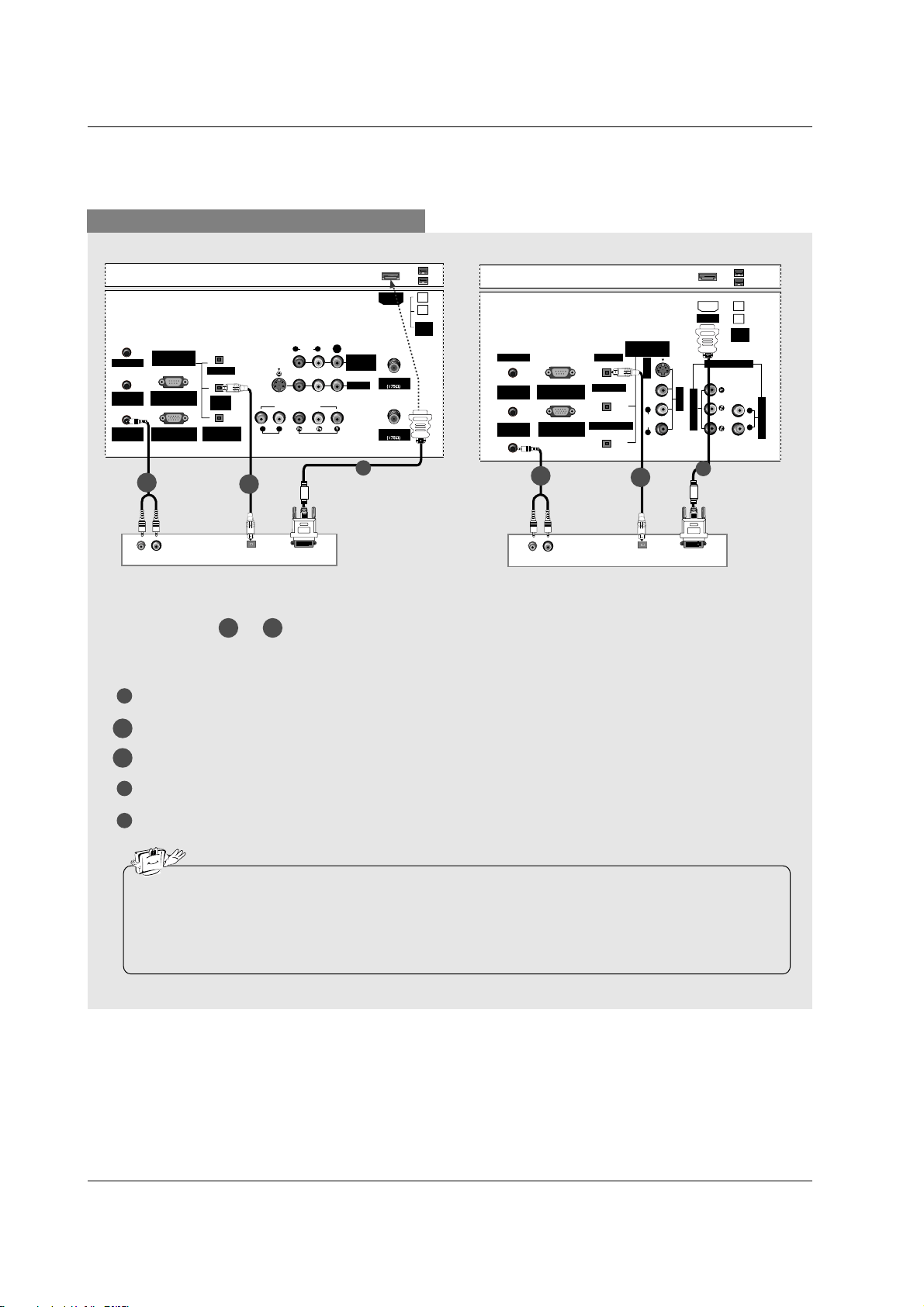

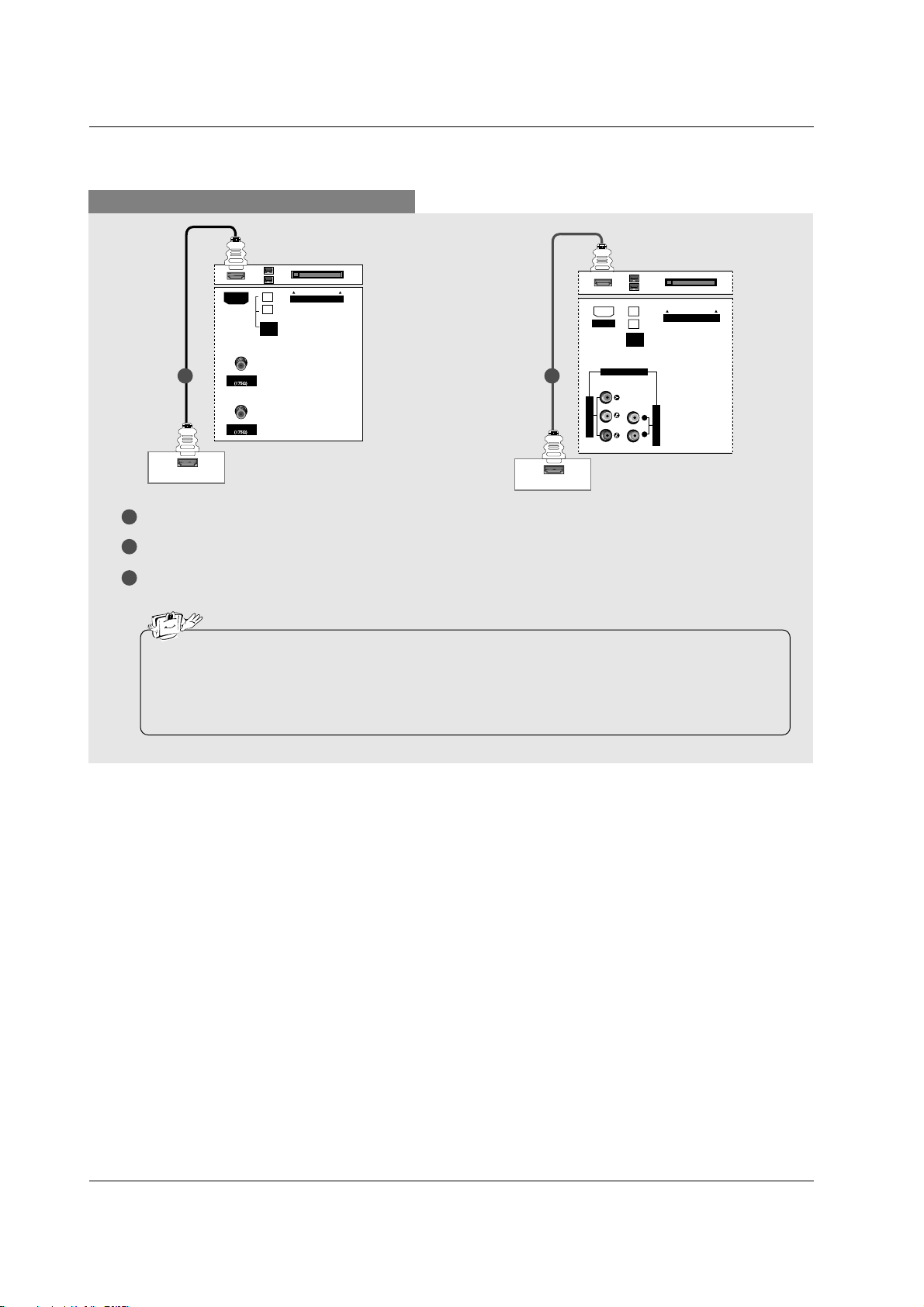

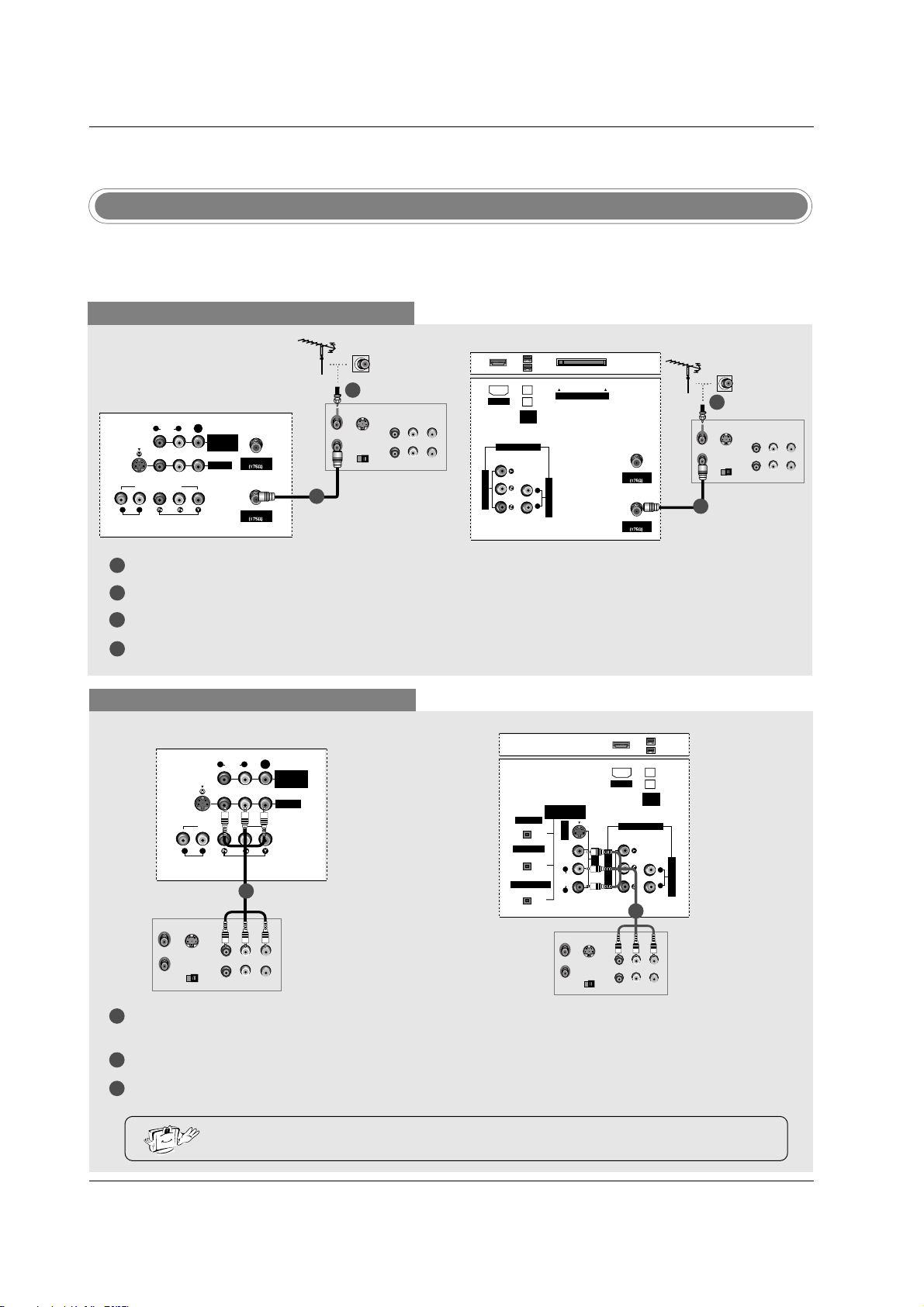

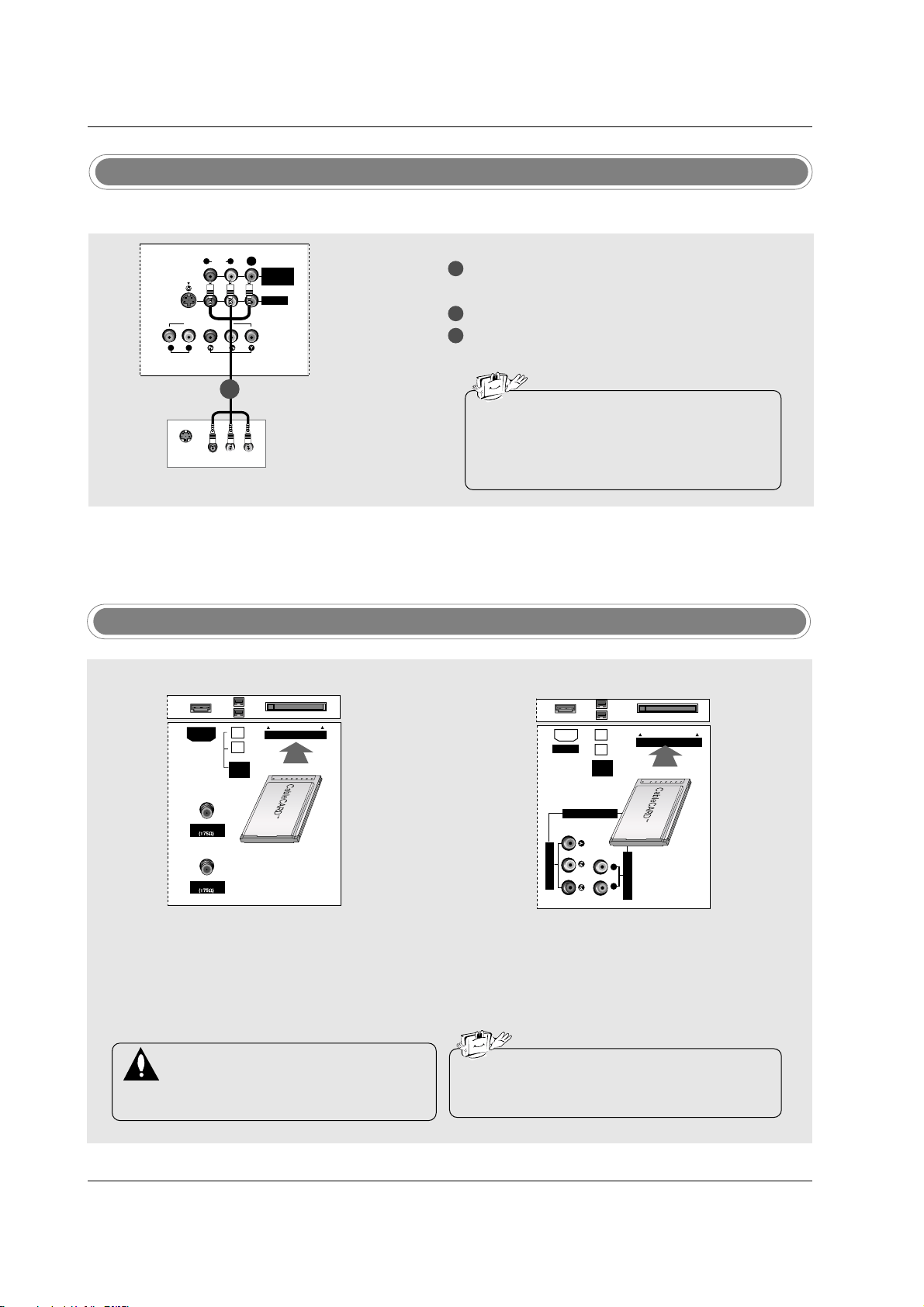

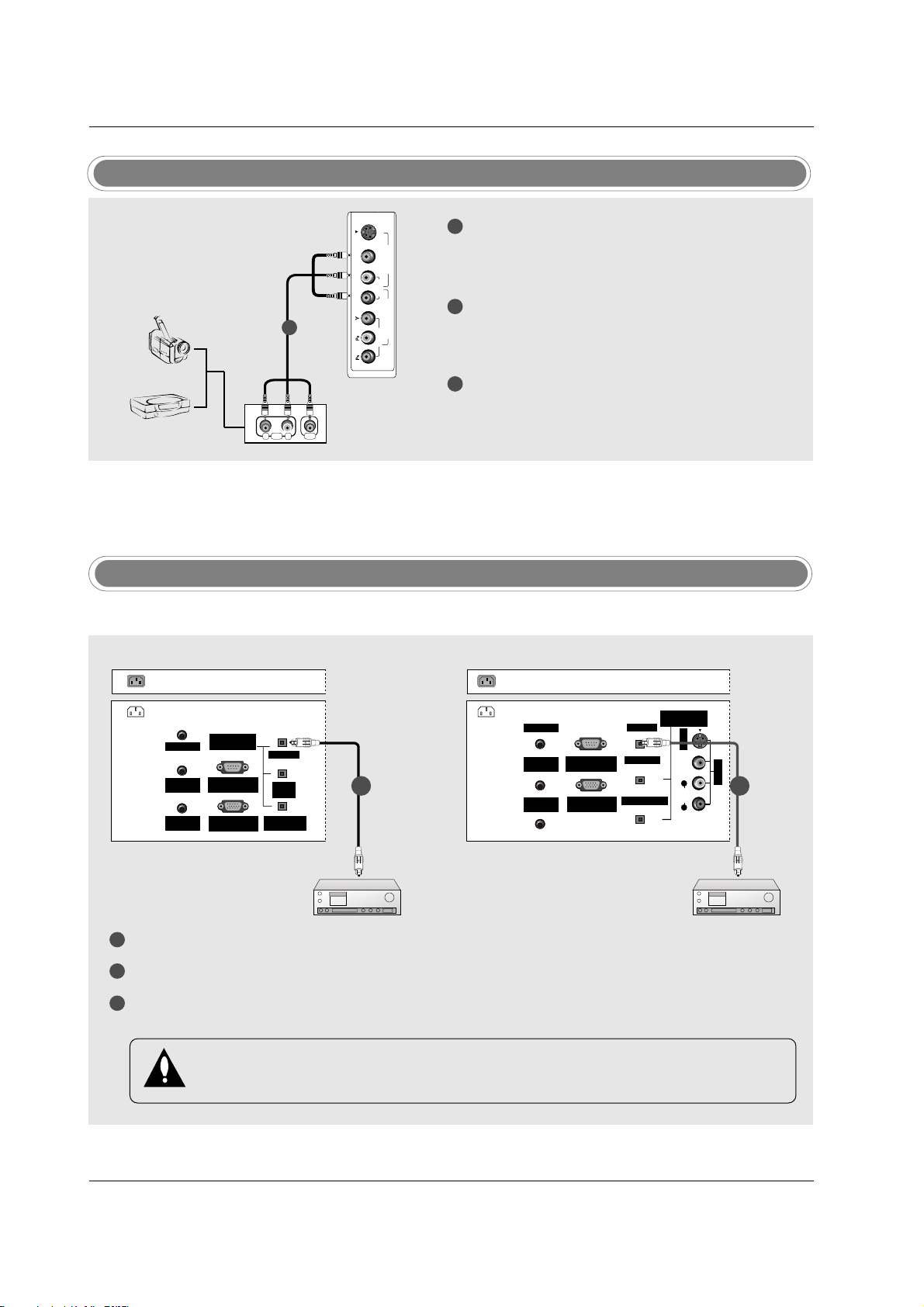

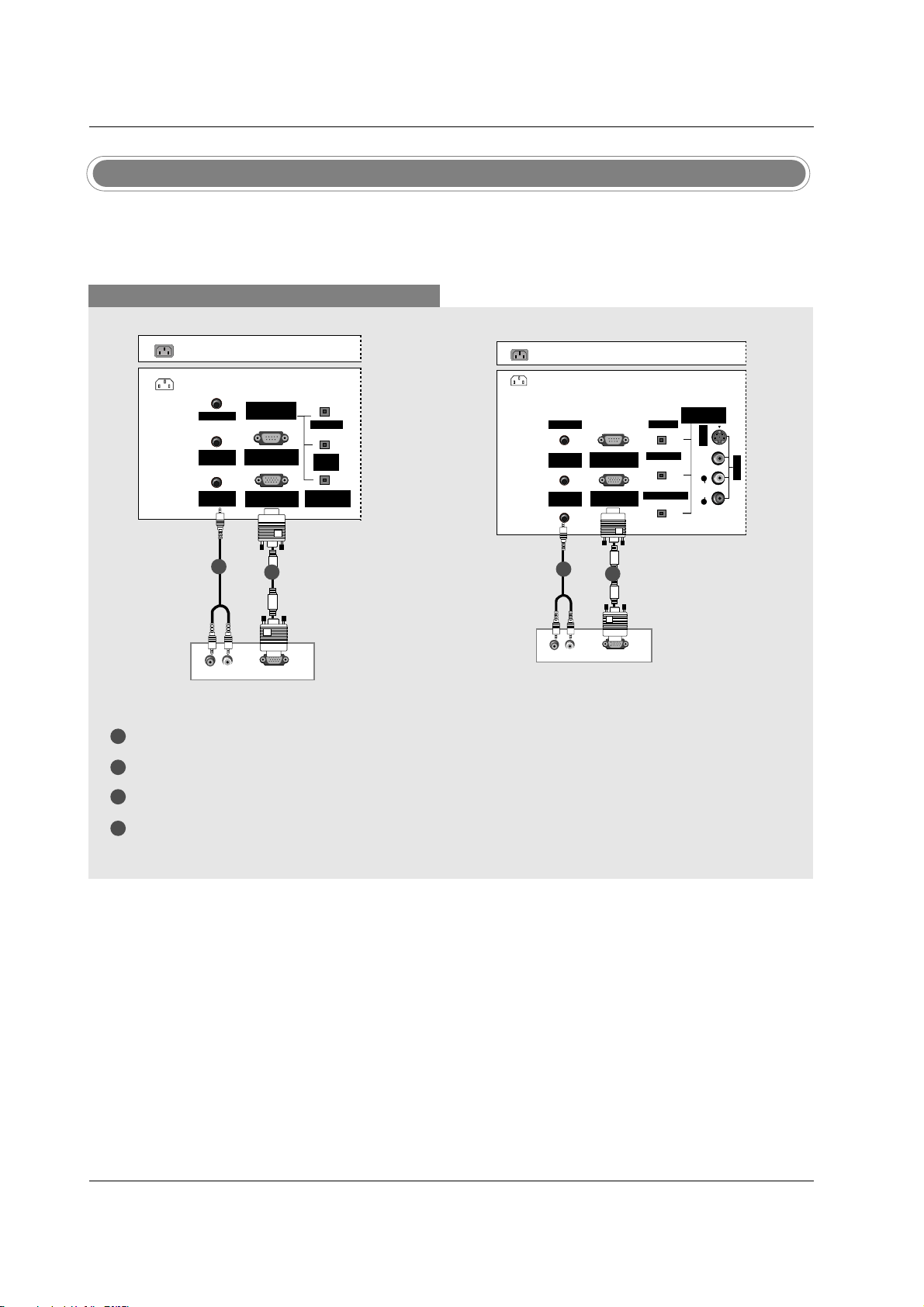

External Equipment Connections
External Equipment Connections
signal amplifier
CABLE
ANTENNA
