Page 1
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LB01B
MODEL : 42LD450/460 42LD450/460-TA
MODEL : 42LD461C 42LD461C-TA
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL62865307 (1007-REV01)
Page 2
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION ................................................................ 9
BLOCK DIAGRAM...................................................................................15
EXPLODED VIEW .................................................................................. 16
SVC. SHEET ...............................................................................................
Page 3
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

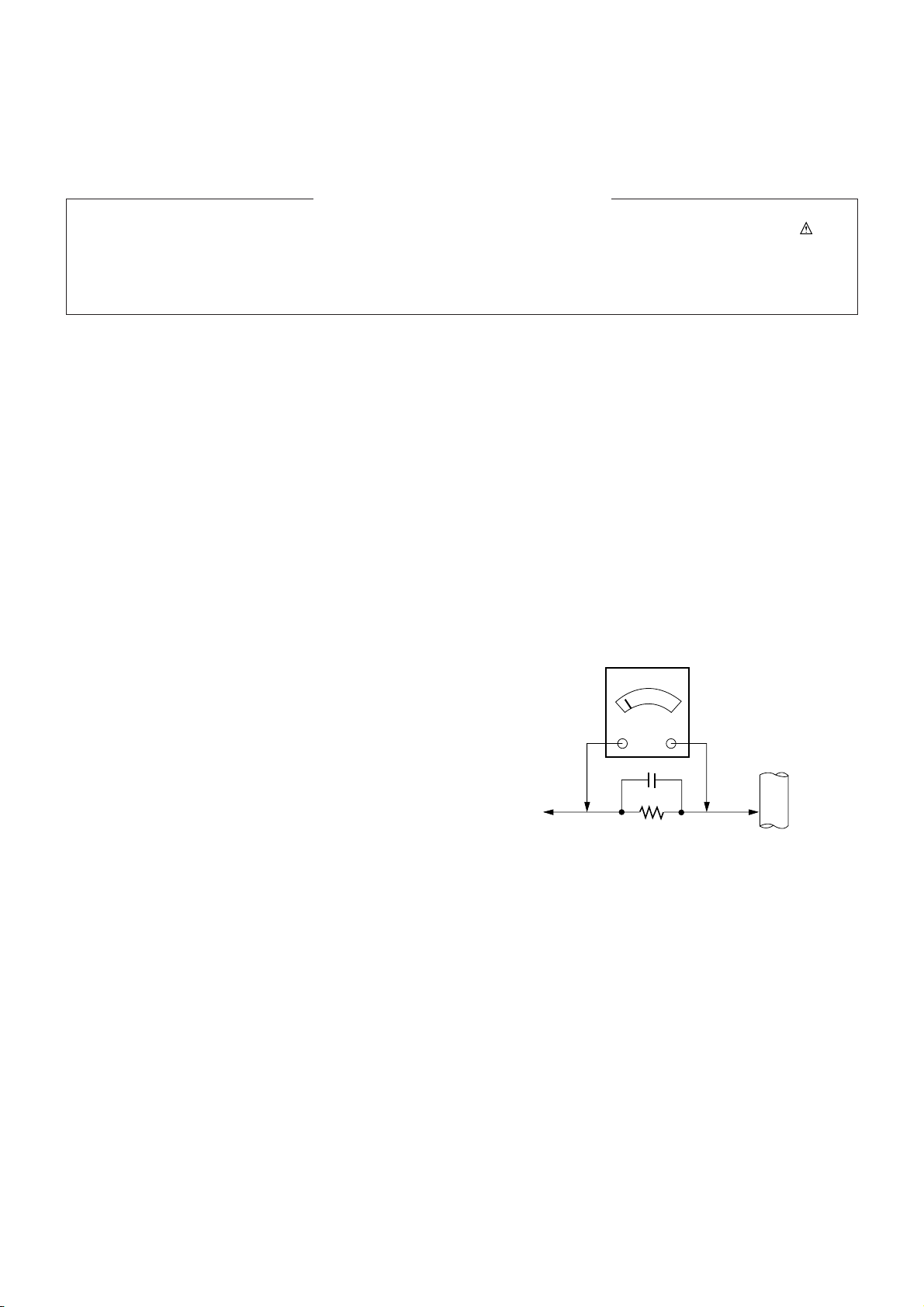

Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1
*Base on Adjustment standard
IMPORTANT SAFETY NOTICE
0.15 uF
Ω
Page 4
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500
°F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500
°F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500
°F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS
Page 5
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.
Page 6
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This specification is applied to the LCD TV used LB01B
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature
: 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC ± 5 ºC
2) Relative Humidity : 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~ 50 / 60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety: CE, IEC specification
- EMC:CE, IEC
5. Module optical specifications
(1) LGD Module
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 30 minutes in a dark environment at 25 ºC ± 2 ºC.
3) The values specified are at approximate distance 50 cm from the LCD surface.
4) Ta = 25 ºC ± 2 °C, VLCD = 12.0 V, fv = 60 Hz, Dclk = 74.25 MHz, VBR_A = 1.65 V, EXTVBR-B = 100 %
No. Item Specification Min. Typ. Max. Remark
1. Viewing Angle (CR > 10) Right/Left/Up/Down 178 Degree
2. Luminance Luminance (cd/m
2
) 400 500
Variation - 1.3 MAX / MIN
3. Contrast Ratio CR 1100 1500
4. CIE Color Coordinates White Wx 0.279
Wy 0.292
RED Rx 0.636
Ry Typ. 0.335 Typ.
Green Gx -0.03 0.291 +0.03
Gy 0.603
Blue Bx 0.146
By 0.061
Page 7
- 7 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
6. Component Video Input (Y, CB/PB, CR/PR)
No.
Specification
Remark
Resolution H-freq(kHz) V-freq(Hz)
1. 720x480 15.73 60.00 SDTV,DVD 480i
2. 720x480 15.63 59.94 SDTV,DVD 480i
3. 720x480 31.47 59.94 480p
4. 720x480 31.50 60.00 480p
5. 720x576 15.625 50.00 SDTV,DVD 625 Line
6. 720x576 31.25 50.00 HDTV 576p
7. 1280x720 45.00 50.00 HDTV 720p
8. 1280x720 44.96 59.94 HDTV 720p
9. 1280x720 45.00 60.00 HDTV 720p
10. 1920x1080 31.25 50.00 HDTV 1080i
11. 1920x1080 33.75 60.00 HDTV 1080i
12. 1920x1080 33.72 59.94 HDTV 1080i
13. 1920x1080 56.250 50 HDTV 1080p
14. 1920x1080 67.5 60 HDTV 1080p
No.
Specification
Proposed Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)
1. 720*400 31.468 70.08 28.321 For only DOS mode
2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz
-> 640*480 60 Hz Display
3. 800*600 37.879 60.31 40.00 VESA
4. 1024*768 48.363 60.00 65.00 VESA(XGA)
5. 1280*768 47.78 59.87 79.5 WXGA
6. 1360*768 47.72 59.8 84.75 WXGA
7. 1280*1024 63.981 60.02 108.875 SXGA FHD Model
8. 1920*1080 66.587 59.93 138.625 WUXGA FHD model
7. RGB (PC)
Page 8
- 8 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
8. HDMI Input
(1) DTV Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*400 31.468 70.08 28.321 HDCP
2. 640*480 31.469 59.94 25.17 VESA HDCP
3. 800*600 37.879 60.31 40.00 VESA HDCP
4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP
5. 1280*768 47.78 59.87 79.5 WXGA HDCP
6. 1360*768 47.72 59.8 84.75 WXGA HDCP
7. 1280*1024 63.981 60.02 108.875 SXGA HDCP/FHD model
8. 1920*1080 67.5 60.00 138.625 WUXGA HDCP/FHD model
(2) PC Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P
Page 9
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 9 -
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LCD TV with
LB01B chassis.
2. Designation
1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
2) Power Adjustment: Free Voltage
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specification Standard
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 ºC ± 5 ºC
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz
6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),
DDC Adjustment Jig equipment, Service remote control.
7) Push the “IN STOP” key - For memory initialization.
3. Main PCB check process
* APC - After Manual-Insult, executing APC
* Boot file Download

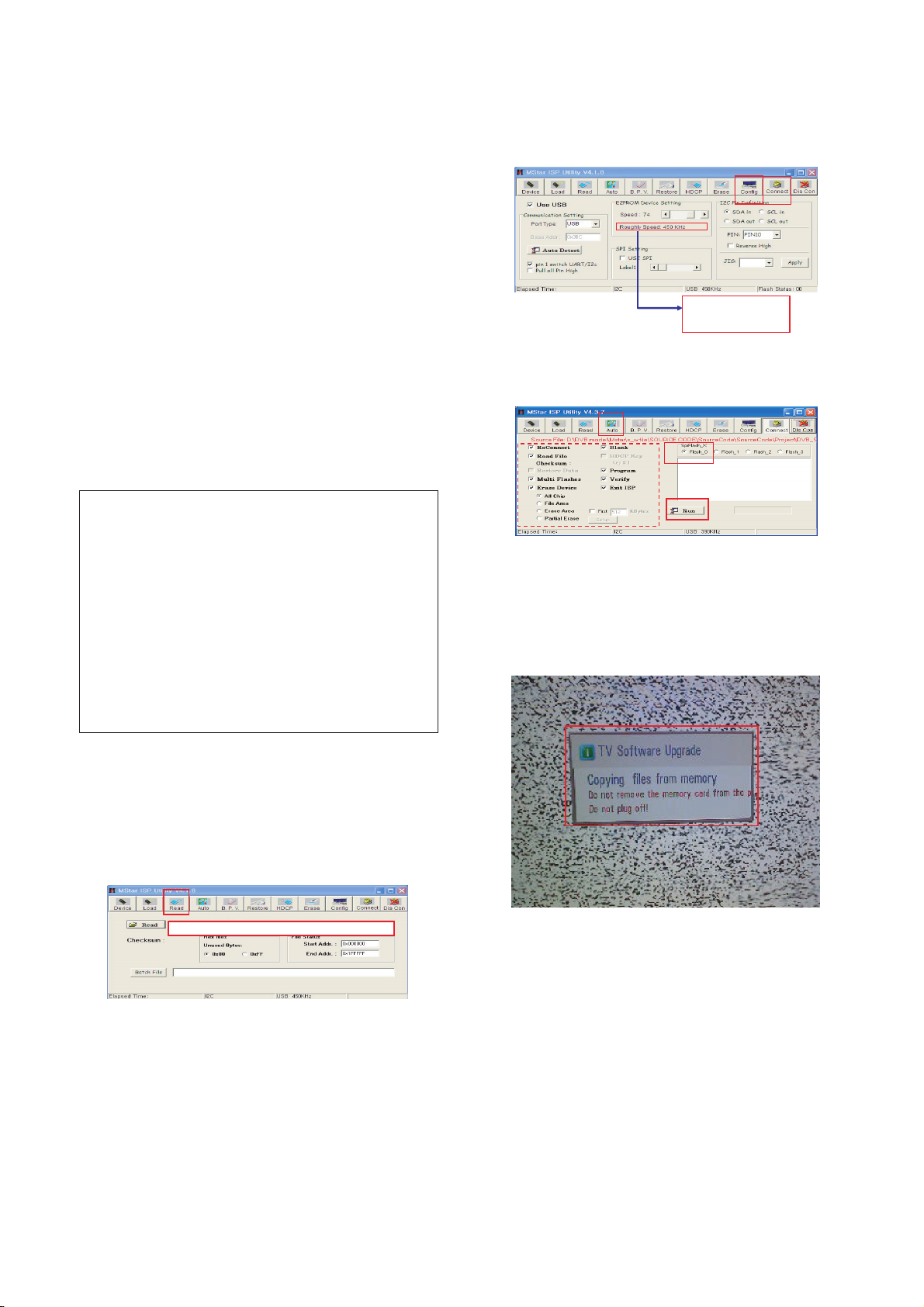

1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message
If “Error” is displayed, Check connection between
computer, jig, and set.
3) Click “Read” tab, and then load download file (XXXX.bin)
by clicking “Read”
4) Click “Connect” tab. If “Can’t” is displayed, check
connection between computer, jig, and set.
5) Click “Auto” tab and set as below
6) Click “Run”.
7) After downloading, check “OK” message.
* USB DOWNLOAD
1) Put the USB Stick to the USB socket
2) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is Low,
it didn’t work. But your downloaded version is High, USB
data is automatically detecting
3) Show the message “Copying files from memory”
filexxx.bin
(4)
(7) ……….OK
(5)
(6)
(1)
fil exxx.bi n
(2)
(3)
Please Check the Speed :
To use speed between
from 200KHz to 400KHz
Case1 : Software version up
1. After downloading S/W by USB, TV set will reboot
automatically
2. Push “In-stop” key
3. Push “Power on” key
4. Function inspection
5. After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at first.
2. Push “Power on” key for turning it on.
-> If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.
Page 10
4) Updating is staring.
5) Uploading completed, The TV will restart automatically.
6) If your TV is turned on, check your updated version and
Tool option.(explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
1) Push "IN-START" key in service remote control.
2) Select “Tool Option 1” and Push “OK” button.
3) Punch in the number. (Each model has their number)
4) Completed selecting Tool option.
3.1. ADC Process
(1) ADC
- Enter Service Mode by pushing “ADJ” key,
- Enter Internal ADC mode by pushing “
G
” key at “5. ADC
Calibration”
<Caution> Using ‘power on’ button of the Adjustment R/C,
power on TV.
* ADC Calibration Protocol (RS232)
Adjust Sequence
• aa 00 00 [Enter Adjust Mode]
• xb 00 40 [Component1 Input (480i)]
• ad 00 10 [Adjust 480i Comp1]
• xb 00 60 [RGB Input (1024*768)]
• ad 00 10 [Adjust 1024*768 RGB]
• aa 00 90 End Adjust mode
* Required equipment : Adjustment R/C.
3.2. Function Check
* Check display and sound
- Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (SCART1/SCART2/ CVBS)
3) COMPONENT (480i)
4) RGB (PC : 1024 x 768 @ 60 Hz)
5) HDMI
6) PC Audio In
* Display and Sound check is executed by Remote control.
- 10 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Module Tool option1 Tool option2 Tool option3 Tool option4 Tool option5
LGD 25313 10770 52228 26892 32
CMO 25317 10770 52228 26892 32
No Item CMD1 CMD2 Data0
Enter Adjust Adjust A A 0 0 When transfer the ‘Mode In’,
Mode ‘Mode In’ Carry the command.
ADC adjust ADC Adjust A D 1 0 Automatically adjustment
(The use of a internal pattern)
Page 11
4. Total Assembly line process
4.1. Adjustment Preparation
· W/B Equipment condition
CA210 : CH 9, Test signal : Inner pattern (85IRE)
· Above 5 minutes H/run in the inner pattern. (“power on” key
of adjust remote control)
* Connecting picture of the measuring instrument
(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER ON ->
Enter the mode of White-Balance, the pattern will come out.
* Auto-control interface and directions
1) Adjust in the place where the influx of light like floodlight
around is blocked. (illumination is less than 10 lux).
2) Adhere closely the Color Analyzer (CA210) to the module
less than 10 cm distance, keep it with the surface of the
Module and Color Analyzer’s prove vertically.(80° ~ 100°).
3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.
- Using ‘no signal’ or ‘full white pattern’ or the others,
check the back light on.
• Auto adjustment Map(RS-232C)
RS-232C COMMAND
[CMD ID DATA]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End
<Caution>
Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.
(when R/G/B Gain are all C0, it is the FULL Dynamic Range
of Module)
* Manual W/B process using adjusts Remote control.
• After enter Service Mode by pushing “ADJ” key,
• Enter White Balance by pushing “
G
” key at “6. White
Balance”.
* After done all adjustments, Press “In-start” button and
compare Tool option and Area option value with its BOM, if
it is correctly same then unplug the AC cable. If it is not
same, then correct it same with BOM and unplug AC cable.
For correct it to the model’s module from factory Jig model.
* Push the “IN STOP” key after completing the function
inspection. And Mechanical Power Switch must be set
“ON”.
4.2. DDC EDID Write (RGB 128Byte )
• Connect D-sub Signal Cable to D-sub Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.3. DDC EDID Write (HDMI 256Byte)
• Connect HDMI Signal Cable to HDMI Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum
- 11 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Cool 13,000 K X=0.269(±0.002)
Y=0.273(±0.002) <Test Signal>
Medium 9,300 K X=0.285(±0.002) Inner pattern
Y=0.293(±0.002) (216gray,85IRE)
Warm 6,500 K X=0.313(±0.002)
Y=0.329(±0.002)
Full White Pattern
COLOR
ANALYZER
TYPE: CA-210
RS-232C Communication
CA-210
RS-232C COMMAND MIN CENTER MAX
[CMD ID DATA] (DEFAULT)
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192
G Gain jh Jb je 00 172 192 192 192
B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128
Page 12
4.5. Auto Download
1) Press Adj. key on the Adj. Remote control.
2) Select EDID D/L menu.
3) By pressing Enter key, EDID download will begin
4) If Download is successful, OK is display, but If Download if
failure, NG is displayed.
5) If Download is failure, Re-try downloads.
* Edid data and Model option download (RS232)
- Manual Download
* Caution
1) Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
2) Never connect HDMI & D-sub Cable at the same time.
3) Use the proper cables below for EDID Writing
4) Download HDMI1, HDMI2, separately because HDMI1 is
different from HDMI2
1) FHD RGB EDID data
2) FHD HDMI EDID data
* Detail EDID Options are below
ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘02’ -> ‘01’
Year : ‘2010’ -> ‘14’
ⓓ Model Name(Hex):
ⓔ Checksum: Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
Model Name HEX EDID Table DDC Function
FHD Model 0001 01 00 Analog/Digital
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 12 -
MODEL MODEL NAME(HEX)
all 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
Item
Manufacturer ID
Version
Revision
Condition
GSM
Digital : 1
Digital : 3
Data(Hex)
1E6D
01
03
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
For HDMI EDIDFor Analog EDID
INPUT MODEL NAME(HEX)
HDMI1 67030C001000B82D
HDMI2 67030C002000B82D
HDMI3 67030C003000B82D
HDMI4 67030C004000B82D
012 3 4 5 67 8 9ABCD EF
00 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01036810 09780AEE91A3544C9926
20 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 00 e
80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
E0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
012 3 4 5 67 8 9ABCD EF
00 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 71 4F 81 01 01 01 01 01 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 01 e
80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 f
A0 f E3050301011D80 18711C1620582C
B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 0C 20
C0 40 80 35 00 A0 5A 00 00 00 1E 02 3A 80 18 71 38
D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0
E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F9
NO Item CMD1 CMD2 Data0
Enter Download A A 0 0 When transfer the ‘Mode In’,
download Mode ‘Mode In’ Carry the command.
EDID data Download A E 00 10 Automatically Download
and Model (The use of a internal pattern)
option download
Page 13
- 13 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.5. V-COM Adjust(Only LGD(M+S) Module)
- Why need Vcom adjustment?
A The Vcom (Common Voltage) is a Reference Voltage of
Liquid Crystal Driving.
-> Liquid Crystal need for Polarity Change with every frame.
- Adjust sequence
· Press the PIP key of th ADJ remote control.(This PIP key is
hot key to enter the VCOM adjusting mode)
(Or After enter Service Mode by pushing “ADJ” key, then
Enter V-Com Adjust mode by pushing “
G” key at “10. V-
Com”
· As pushing the right or the left key on the remote control,
and find the V-COM value which is no or minimized the
Flicker. (If there is no flicker at default value, Press the exit
key and finish the VCOM adjustment.)
· Push the “OK” key to store value. Then the message
“Saving OK” is pop.
· Press the exit key to finish VCOM adjustment.
(Visual Adjust and control the Voltage level)
4.6. Outgoing condition Configuration
- When pressing IN-STOP key by SVC remocon, Red LED are
blinked alternatively. And then Automatically turn off.
(Must not AC power OFF during blinking)
4.7. Internal pressure
Confirm whether is normal or not when between power
board’s ac block and GND is impacted on 1.5 kV(dc) or 2.2
kV(dc) for one second.
5. Model name & Serial number D/L
• Press “Power on” key of service remocon.
(Baud rate : 115200 bps)
• Connect RS232 Signal Cable to RS-232 Jack.
• Write Serial number by use RS-232.
• Must check the serial number at the Diagnostics of SET UP
menu. (Refer to below).
5.1. Signal TABLE
CMD : A0h
LENGTH : 85~94h (1~16 bytes)
ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD + LENGTH + ADH + ADL + Data_1 +…+ Data_n
Delay : 20ms
5.2. Command Set
* Description
FOS Default write : <7mode data> write
Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,
Phase
Data write : Model Name and Serial Number write in
EEPROM,.
5.3. Method & notice
A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing
Technology Group.
C. Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0.
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or Service man, Sometimes
model name or serial number is initialized.(Not always)
There is impossible to download by bar code scan, so It need
Manual download.

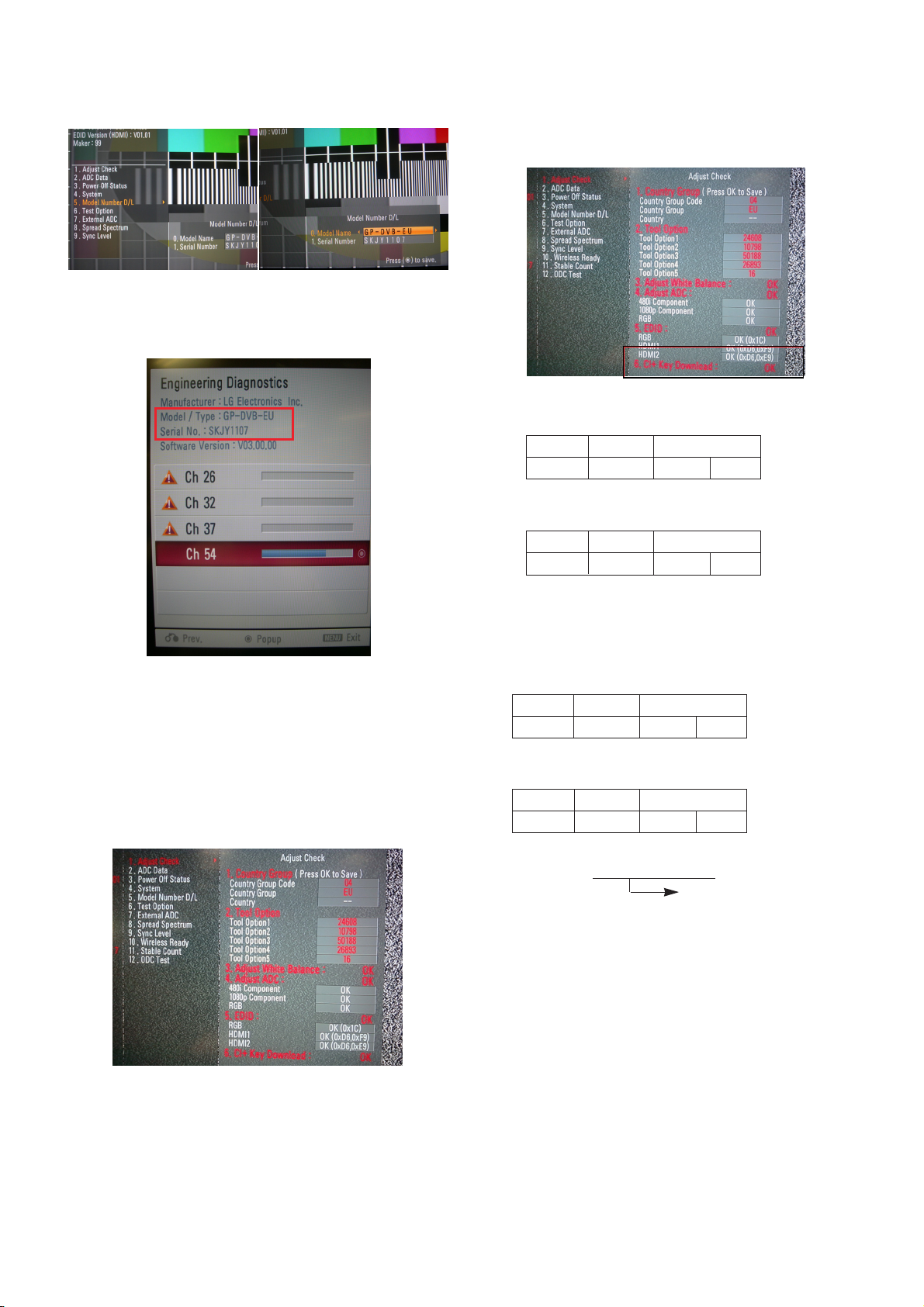

1) Press the ‘instart’ key of ADJ remote controller.
2) Go to the menu ‘5.Model Number D/L’ like below photo.
3) Input the Factory model name(ex 42LD450-ZA) or Serial
number like photo.
CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY
No. Adjust mode CMD(hex) LENGTH(hex
)
Description
1
EEPROM WRITE
A0h
84h+n
n-bytes Write (n = 1~16)
Row Li ne
Column Li ne
CLC
CST
Pane l
S
Y
S
T
E
M
Gat e Driv e IC
So urce D r iv e I C
Circuit Block
Tim i ng
Cont r o ll er
Po w er
Blo c k
V
COM
Gamma
Ref er ence V oltage
Gamm a Re ference
Volta ge
Data (R,G ,B) & C on tro l signal
Cont rol si gnal
Data (R,G,B ) &
Cont rol si gnal
In t er fa ce
TFT
Po w er I np u t
Power Input
Da ta I n pu t
Da ta I n pu t
V
COM
Liquid
Crys tal
V
COM
Page 14
4) Check the model name Instart menu -> Factory name
displayed (ex 42LD450-ZA)
5) Check the Diagnostics (DTV country only) -> Buyer model
displayed (ex 42LD450)
6. CI+ key download(Only for CI model)
6-1. Download Procedure
(1) Press "Power on" button of a service R/C.(Baud rate :
115200 bps)
(2) Connect RS232-C Signal Cable.
(3) Write CI+ Key through RS-232-C.
(4) Check whether the key was downloaded or not at ‘In Start’
menu. (Refer to below).
=> Check the Download to CI+ Key value in LGset.
6-2. check the method of CI+ Key value
(1) Check the method on Instart menu
(2) check the method of RS232C Command
1) into the main ass’y mode (RS232 : aa 00 00)
2) check the key download for transmitted command
(RS232 : ci 00 10)
3) result value
- normally status for download : OKx
- abnormally status for download : NGx
6-3. Check the method of CI+ key value (RS232)
(1) into the main ass’y mode (RS232 : aa 00 00)
(2) Check the method of CI+ key by command
(RS232 : ci 00 20)
(3) Result value
i 01 OK 1d1852d21c1ed5dcx
- 14 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CMD 1 CMD 2 Data 0
AA00
CMD 1 CMD 2 Data 0
CI10
CMD 1 CMD 2 Data 0
AA00
CMD 1 CMD 2 Data 0
CI20
CI+ key Value
Page 15
- 15 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
BLOCK DIAGRAM
Page 16
- 16 -
LGE Internal Use OnlyCopyright LG Electronics. Inc. All rights reserved.
Only for training and service purposes
300
200
530
810
400
510
120
500
A4
A2
A5
A10
A21
900
910
800
LV1
LV2
540
521
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
Page 17
NC_1
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
VCC_1
VSS_1
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
/PF_WP
R/B
RE
CE
CLE
ALE
WE
WP
NAND FLASH MEMORY
+3.5V_ST
R101
IC102-*1
HY27US08121B-TPCB
512MBIT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/PF_CE0
H : Serial Flash
L : NAND Flash
/PF_CE1
H : 16 bit
L : 8 bit
/F_RB
/PF_OE
/PF_CE0
+3.3V_Normal
OPT
R104
R103
0
OPT
3.3K
B
3.3K
R102
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
10K
/PF_CE1
C
Q101
KRC103S
E
NC_28
NC_27
NC_26
NC_25
I/O7
I/O6
I/O5
I/O4
NC_24
NC_23
PRE
VCC_2
VSS_2
NC_22
NC_21
NC_20
I/O3
I/O2
I/O1
I/O0
NC_19
NC_18
NC_17
NC_16
PF_ALE
/PF_WE
OPT
R105
1K
OPT
R106
VDD_1
VSS_1
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
1K
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
R107
R1081K
RB
R
E
CL
AL
W
WP
1K
OPT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
+3.3V_Normal
R109 3.9K
C101
0.1uF
IC102-*2
NAND01GW3B2CN6E
1GBIT
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
VCC_1
VSS_1
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
R/B
RE
CE
CLE
ALE
WE
WP
HY27UF082G2B-TPCB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NC_29
48
NC_28
47
NC_27
46
NC_26
45
I/O7
44
I/O6
43
I/O5
42
I/O4
41
NC_25
40
NC_24
39
NC_23
38
VDD_2
37
VSS_2
36
NC_22
35
NC_21
34
NC_20
33
I/O3
32
I/O2
31
I/O1
30
I/O0
29
NC_19
28
NC_18
27
NC_17
26
NC_16
25
IC102
2GBIT
+3.3V_Normal
NC_29
48
NC_28
47
NC_27
46
NC_26
45
I/O7
44
I/O6
43
I/O5
42
I/O4
41
NC_25
40
NC_24
39
NC_23
38
VCC_2
37
VSS_2
36
NC_22
35
NC_21
34
NC_20
33
I/O3
32
I/O2
31
I/O1
30
I/O0
29
NC_19
28
NC_18
27
NC_17
26
NC_16
25
S7M_NON_DIVX & MS10
IC101-*2
LGE107 (S7M Non Divx/RM)
AE1
FRC_DDR3_A0/DDR2_NC
AF16
FRC_DDR3_A1/DDR2_A6
AF1
FRC_DDR3_A2/DDR2_A7
AE3
FRC_DDR3_A3/DDR2_A1
AD14
FRC_DDR3_A4/DDR2_CASZ
AD3
FRC_DDR3_A5/DDR2_A10
AF15
FRC_DDR3_A6/DDR2_A0
AF2
FRC_DDR3_A7/DDR2_A5
AE15
FRC_DDR3_A8/DDR2_A2
AD2
FRC_DDR3_A9/DDR2_A9
AD16
FRC_DDR3_A10/DDR2_A11
AD15
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
GPIO0/TCON15/HSYNC/VDD_ODD
FRC_DDR3_DQU4/DDR2_DQ15
AE7
GPIO1/TCON14/VSYNC/VDD_EVEN
FRC_DDR3_DQU5/DDR2_DQ9
AF10
GPIO2/TCON7/LDE/GCLK4
FRC_DDR3_DQU6/DDR2_DQ10
AD8
GPIO3/TCON6/LCK/GCLK2
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_REXT
Y19
FRC_TESTPIN
<T3 CHIP Config(AUD_LRCH)>
Boot from SPI flash : 1’b0
Boot from NOR flash : 1’b1
<T3 CHIP Config>
(AUD_SCK, AUD_MASTER_CLK, PWM1, PWM0)
MIPS_no_EJ_NOR8 : 4’h3 (MIPS as host. No EJ PAD. Byte mode NAND flash.)
MIPS_EJ1_NOR8 : 4’h4 (MIPS as host. EJ use PAD1. Byte mode NAND flash.)
MIPS_EJ2_NOR8 : 4’h5 (MIPS as host. EJ use PAD2. Byte mode NAND flash.)
B51_Secure_no scramble : 4’hb (8051 as host. Internal SPI flash secure boot, no scramble)
B51_Sesure_scramble : 4’hc (8051 as host. Internal SPI flash secure boot with scarmble)
C102
10uF
C103
0.1uF
AR101
22
PCM_A[0-7]
PCM_A[7]
PCM_A[6]
PCM_A[5]
PCM_A[4]
R115
AR102
PCM_A[3]
PCM_A[2]
PCM_A[1]
PCM_A[0]
22
R116
& MS10 :Region that support MS10(ex:DTV Country)
& DD :Region that support only Dolby Digital(ex:AISA Analog/KOREA)
GSP/VST
VDD_ODD
RLV3P
RLV3N
RLV0P
RLV0N
RLV1P
RLV1N
RLV2P
RLV2N
RLVCKP
RLVCKN
RLV4P
RLV4N
WPWM
RLV5P
RLV5N
RLV6P
RLV6N
RLV7P
RLV7N
GCLK6
GCLK5
LLV3P
LLV3N
LLV0P
LLV0N
LLV1P
LLV1N
LLV2P
LLV2N
LLVCKP
LLVCKN
LLV4P
LLV4N
LLV5P
LLV5N
LLV6P
LLV6N
LLV7P
LLV7N
GSPR
GCLK4
GCLK2
NC_23
HCON
NC_15
NC_26
LEDON
NC_20
NC_19
NC_11
NC_17
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
FLK
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
SOE
AF18
POL
AB22
AB23
AC23
AC22
AB16
AA14
DPM
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
S7T_DIVX & DD
IC101-*5
LGE105DB-LF-1 (S7-Tcon Divx_ Non_RM/MS10)
AE1
NC_43
AF16
NC_73
AF1
NC_59
AE3
NC_45
AD14
NC_40
AD3
NC_29
AF15
NC_72
AF2
NC_60
AE15
NC_57
AD2
NC_28
AD16
NC_42
AD15
NC_41
AE16
NC_58
AF3
NC_61
AF14
NC_71
AD1
NC_27
AD13
NC_39
AE14
NC_56
AE13
NC_55
AE4
NC_46
AD5
NC_31
AF4
NC_62
AD4
NC_30
AE2
NC_44
AF8
NC_66
AD9
NC_35
AE9
NC_51
AF9
NC_67
AE11
NC_53
AF6
NC_64
AE6
NC_48
AF11
NC_69
AD6
NC_32
AD12
NC_38
AE5
NC_47
AF12
NC_70
AF5
NC_63
AE12
NC_54
AE10
NC_52
AF7
NC_65
AD11
NC_37
AD7
NC_33
AD10
NC_36
AE7
NC_49
AF10
NC_68
AD8
NC_34
AE8
NC_50
Y11
NC_12
Y19
GND_105
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
FRC_GPIO0/UART_RX
FRC_GPIO9/UART_TX
S7M_NON_DIVX & DD
IC101-*3
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
CCKP/LLV3P
AE23
CCKM/LLV3N
AE26
AE25
AF26
AF25
AE24
AF24
AF23
C3P/LLV4P
AD22
C3M/LLV4N
AE22
C4P/LLV5P
AF22
C4M/LLV5N
AD19
DCKP/TCON5
AE19
DCKM/TCON4
AD21
D0P/LLV6P
AE21
D0M/LLV6N
AF21
D1P/LLV7P
AD20
D1M/LLV7N
AE20
D2P/LLV8P
AF20
D2M/LLV8N
AF19
D3P/TCON3
AD18
D3M/TCON2
AE18
D4P/TCON1
AF18
D4M/TCON0
AB22
AB23
AC23
AC22
AB16
AA14
FRC_GPIO1
AC15
FRC_GPIO3
Y16
FRC_GPIO8
AC16
AC14
FRC_GPIO10
AA16
FRC_I2CM_DA
AA15
FRC_I2CM_CK
Y10
FRC_I2CS_DA
AA11
FRC_I2CS_CK
AB15
FRC_PWM0
AB14
FRC_PWM1
LGE107B-LF-1 (S7M Non Divx/RM/MS10)
AE1
FRC_DDR3_A0/DDR2_NC
AF16
FRC_DDR3_A1/DDR2_A6
AF1
FRC_DDR3_A2/DDR2_A7
AE3
FRC_DDR3_A3/DDR2_A1
AD14
FRC_DDR3_A4/DDR2_CASZ
AD3
FRC_DDR3_A5/DDR2_A10
AF15
FRC_DDR3_A6/DDR2_A0
AF2
FRC_DDR3_A7/DDR2_A5
AE15
FRC_DDR3_A8/DDR2_A2
AD2
FRC_DDR3_A9/DDR2_A9
AD16
FRC_DDR3_A10/DDR2_A11
AD15
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
GPIO0/TCON15/HSYNC/VDD_ODD
FRC_DDR3_DQU4/DDR2_DQ15
AE7
GPIO1/TCON14/VSYNC/VDD_EVEN
FRC_DDR3_DQU5/DDR2_DQ9
AF10
FRC_DDR3_DQU6/DDR2_DQ10
AD8
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_REXT
Y19
FRC_TESTPIN
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
FRC_GPIO0/UART_RX
FRC_GPIO9/UART_TX
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
CCKP/LLV3P
AE23
CCKM/LLV3N
AE26
AE25
AF26
AF25
AE24
AF24
AF23
C3P/LLV4P
AD22
C3M/LLV4N
AE22
C4P/LLV5P
AF22
C4M/LLV5N
AD19
DCKP/TCON5
AE19
DCKM/TCON4
AD21
D0P/LLV6P
AE21
D0M/LLV6N
AF21
D1P/LLV7P
AD20
D1M/LLV7N
AE20
D2P/LLV8P
AF20
D2M/LLV8N
AF19
D3P/TCON3
AD18
D3M/TCON2
AE18
D4P/TCON1
AF18
D4M/TCON0
AB22
AB23
AC23
AC22
AB16
AA14
FRC_GPIO1
AC15
FRC_GPIO3
Y16
FRC_GPIO8
AC16
AC14
FRC_GPIO10
AA16
FRC_I2CM_DA
AA15
FRC_I2CM_CK
Y10
FRC_I2CS_DA
AA11
FRC_I2CS_CK
AB15
FRC_PWM0
AB14
FRC_PWM1
S7T_DIVX & MS10
IC101-*4
LGE105D(S7-Tcon Divx_ Non_RM)
AE1
NC_43
AF16
NC_73
AF1
NC_59
AE3
NC_45
AD14
NC_40
AD3
NC_29
AF15
NC_72
AF2
NC_60
AE15
NC_57
AD2
NC_28
AD16
NC_42
AD15
NC_41
AE16
NC_58
AF3
NC_61
AF14
NC_71
AD1
NC_27
AD13
NC_39
AE14
NC_56
AE13
NC_55
AE4
NC_46
AD5
NC_31
AF4
NC_62
AD4
NC_30
AE2
NC_44
AF8
NC_66
AD9
NC_35
AE9
NC_51
AF9
NC_67
AE11
NC_53
AF6
NC_64
AE6
NC_48
AF11
NC_69
AD6
NC_32
AD12
NC_38
AE5
NC_47
AF12
NC_70
AF5
NC_63
AE12
NC_54
AE10
NC_52
AF7
NC_65
AD11
NC_37
AD7
NC_33
AD10
NC_36
AE7
NC_49
AF10
NC_68
AD8
NC_34
AE8
NC_50
Y11
NC_12
Y19
GND_105
OPTP/FLK2
OPTN/FLK3
GOE/GCLK1
GSC/GCLK3
VDD_EVEN
SCAN_BLK
SCAN_BLK1
+3.3V_Normal
R117
1K
1K
OPT
OPT
R118
1K
1K
W26
RLV3P
W25
RLV3N
U26
RLV0P
U25
RLV0N
U24
RLV1P
V26
RLV1N
V25
RLV2P
V24
RLV2N
W24
RLVCKP
Y26
RLVCKN
Y25
RLV4P
Y24
RLV4N
AC26
WPWM
AC25
OPTP/FLK2
AA26
RLV5P
AA25
RLV5N
AA24
RLV6P
AB26
RLV6N
AB25
RLV7P
AB24
RLV7N
AC24
OPTN/FLK3
AD26
FLK
AD25
GCLK6
AD24
GCLK5
AD23
LLV3P
AE23
LLV3N
AE26
LLV0P
AE25
LLV0N
AF26
LLV1P
AF25
LLV1N
AE24
LLV2P
AF24
LLV2N
AF23
LLVCKP
AD22
LLVCKN
AE22
LLV4P
AF22
LLV4N
AD19
GOE/GCLK1
AE19
GSC/GCLK3
AD21
LLV5P
AE21
LLV5N
AF21
LLV6P
AD20
LLV6N
AE20
LLV7P
AF20
LLV7N
AF19
GSPR
AD18
GSP/VST
AE18
SOE
AF18
POL
AB22
VDD_ODD
AB23
VDD_EVEN
AC23
GCLK4
AC22
GCLK2
AB16
NC_23
AA14
DPM
AC15
HCON
Y16
NC_15
AC16
NC_26
AC14
LEDON
AA16
NC_20
AA15
NC_19
Y10
NC_11
AA11
NC_17
AB15
SCAN_BLK
AB14
SCAN_BLK1
R125
1K
R123
1K
R120
1K
OPT
OPT
OPT
R121
R126
R124
1K
1K
1K
S7M_DIVX & DD
IC101-*1
LGE107DB-LF-1 (S7M Divx_Non RM/MS10)
AE1
FRC_DDR3_A0/DDR2_NC
AF16
FRC_DDR3_A1/DDR2_A6
AF1
FRC_DDR3_A2/DDR2_A7
AE3
FRC_DDR3_A3/DDR2_A1
AD14
FRC_DDR3_A4/DDR2_CASZ
AD3
FRC_DDR3_A5/DDR2_A10
AF15
FRC_DDR3_A6/DDR2_A0
AF2
FRC_DDR3_A7/DDR2_A5
AE15
FRC_DDR3_A8/DDR2_A2
AD2
FRC_DDR3_A9/DDR2_A9
AD16
FRC_DDR3_A10/DDR2_A11
AD15
FRC_DDR3_A11/DDR2_A4
AE16
FRC_DDR3_A12/DDR2_A8
AF3
FRC_DDR3_BA0/DDR2_BA2
AF14
FRC_DDR3_BA1/DDR2_ODT
AD1
FRC_DDR3_BA2/DDR2_A12
AD13
FRC_DDR3_MCLK/DDR2_MCLK
AE14
FRC_DDR3_CKE/DDR2_RASZ
AE13
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE4
FRC_DDR3_ODT/DDR2_BA1
AD5
FRC_DDR3_RASZ/DDR2_WEZ
AF4
FRC_DDR3_CASZ/DDR2_CKE
AD4
FRC_DDR3_WEZ/DDR2_BA0
AE2
FRC_DDR3_RESETB/DDR2_A3
AF8
FRC_DDR3_DQSL/DDR2_DQS0
AD9
FRC_DDR3_DQSLB/DDR2_DQSB0
AE9
FRC_DDR3_DQSU/DDR2_DQS1
AF9
FRC_DDR3_DQSUB/DDR2_DQSB1
AE11
FRC_DDR3_DML/DDR2_DQ7
AF6
FRC_DDR3_DMU/DDR2_DQ11
AE6
FRC_DDR3_DQL0/DDR2_DQ6
AF11
FRC_DDR3_DQL1/DDR2_DQ0
AD6
FRC_DDR3_DQL2/DDR2_DQ1
AD12
FRC_DDR3_DQL3/DDR2_DQ2
AE5
FRC_DDR3_DQL4/DDR2_DQ4
AF12
FRC_DDR3_DQL5/DDR2_NC
AF5
FRC_DDR3_DQL6/DDR2_DQ3
AE12
FRC_DDR3_DQL7/DDR2_DQ5
AE10
FRC_DDR3_DQU0/DDR2_DQ8
AF7
FRC_DDR3_DQU1/DDR2_DQ14
AD11
FRC_DDR3_DQU2/DDR2_DQ13
AD7
FRC_DDR3_DQU3/DDR2_DQ12
AD10
GPIO0/TCON15/HSYNC/VDD_ODD
FRC_DDR3_DQU4/DDR2_DQ15
AE7
GPIO1/TCON14/VSYNC/VDD_EVEN
FRC_DDR3_DQU5/DDR2_DQ9
AF10
FRC_DDR3_DQU6/DDR2_DQ10
AD8
FRC_DDR3_DQU7/DDR2_DQM1
AE8
FRC_DDR3_NC/DDR2_DQM0
Y11
FRC_REXT
Y19
FRC_TESTPIN
W26
ACKP/RLV3P/RED[3]
W25
ACKM/RLV3N/RED[2]
U26
A0P/RLV0P/RED[9]
U25
A0M/RLV0N/RED[8]
U24
A1P/RLV1P/RED[7]
V26
A1M/RLV1N/RED[6]
V25
A2P/RLV2P/RED[5]
V24
A2M/RLV2N/RED[4]
W24
A3P/RLV4P/RED[1]
Y26
A3M/RLV4N/RED[0]
Y25
A4P/RLV5P/GREEN[9]
Y24
A4M/RLV5N/GREEN[8]
AC26
BCKP/TCON13/GREEN[1]
AC25
BCKM/TCON12/GREEN[0]
AA26
B0P/RLV6P/GREEN[7]
AA25
B0M/RLV6N/GREEN[6]
AA24
B1P/RLV7P/GREEN[5]
AB26
B1M/RLV7N/GREEN[4]
AB25
B2P/RLV8P/GREEN[3]
AB24
B2M/RLV8N/GREEN[2]
AC24
B3P/TCON11/BLUE[9]
AD26
B3M/TCON10/BLUE[8]
AD25
B4P/TCON9/BLUE[7]
AD24
B4M/TCON8/BLUE[6]
AD23
CCKP/LLV3P
AE23
CCKM/LLV3N
AE26
C0P/LLV0P/BLUE[5]
AE25
C0M/LLV0N/BLUE[4]
AF26
C1P/LLV1P/BLUE[3]
AF25
C1M/LLV1N/BLUE[2]
AE24
C2P/LLV2P/BLUE[1]
AF24
C2M/LLV2N/BLUE[0]
AF23
C3P/LLV4P
AD22
C3M/LLV4N
AE22
C4P/LLV5P
AF22
C4M/LLV5N
AD19
DCKP/TCON5
AE19
DCKM/TCON4
AD21
D0P/LLV6P
AE21
D0M/LLV6N
AF21
D1P/LLV7P
AD20
D1M/LLV7N
AE20
D2P/LLV8P
AF20
D2M/LLV8N
AF19
D3P/TCON3
AD18
D3M/TCON2
AE18
D4P/TCON1
AF18
D4M/TCON0
AB22
AB23
AC23
GPIO2/TCON7/LDE/GCLK4
AC22
GPIO3/TCON6/LCK/GCLK2
AB16
FRC_GPIO0/UART_RX
AA14
FRC_GPIO1
AC15
FRC_GPIO3
Y16
FRC_GPIO8
AC16
FRC_GPIO9/UART_TX
AC14
FRC_GPIO10
AA16
FRC_I2CM_DA
AA15
FRC_I2CM_CK
Y10
FRC_I2CS_DA
AA11
FRC_I2CS_CK
AB15
FRC_PWM0
AB14
FRC_PWM1
S7T_NON_DIVX & MS10
LGE105 (S7-Tcon Non_Divx/RM)
AE1
NC_43
AF16
NC_73
AF1
NC_59
AE3
NC_45
AD14
NC_40
AD3
NC_29
AF15
NC_72
AF2
NC_60
AE15
NC_57
AD2
NC_28
AD16
NC_42
AD15
NC_41
AE16
NC_58
AF3
NC_61
AF14
NC_71
AD1
NC_27
AD13
NC_39
AE14
NC_56
AE13
NC_55
AE4
NC_46
AD5
NC_31
AF4
NC_62
AD4
NC_30
AE2
NC_44
AF8
NC_66
AD9
NC_35
AE9
NC_51
AF9
NC_67
AE11
NC_53
AF6
NC_64
AE6
NC_48
AF11
NC_69
AD6
NC_32
AD12
NC_38
AE5
NC_47
AF12
NC_70
AF5
NC_63
AE12
NC_54
AE10
NC_52
AF7
NC_65
AD11
NC_37
AD7
NC_33
AD10
NC_36
AE7
NC_49
AF10
NC_68
AD8
NC_34
AE8
NC_50
Y11
NC_12
Y19
GND_105
AUD_LRCH
AUD_SCK
AUD_MASTER_CLK
PWM1
PWM0
/PF_CE0
/PF_CE1
/PF_OE
/PF_WE
PF_ALE
/PF_WP
/F_RB
for SYSTEM/HDCP
EEPROM&URSA3
IC101-*6
W26
RLV3P
W25
RLV3N
U26
RLV0P
U25
RLV0N
U24
RLV1P
V26
RLV1N
V25
RLV2P
V24
RLV2N
W24
RLVCKP
Y26
RLVCKN
Y25
RLV4P
Y24
RLV4N
AC26
WPWM
AC25
OPTP/FLK2
AA26
RLV5P
AA25
RLV5N
AA24
RLV6P
AB26
RLV6N
AB25
RLV7P
AB24
RLV7N
AC24
OPTN/FLK3
AD26
FLK
AD25
GCLK6
AD24
GCLK5
AD23
LLV3P
AE23
LLV3N
AE26
LLV0P
AE25
LLV0N
AF26
LLV1P
AF25
LLV1N
AE24
LLV2P
AF24
LLV2N
AF23
LLVCKP
AD22
LLVCKN
AE22
LLV4P
AF22
LLV4N
AD19
GOE/GCLK1
AE19
GSC/GCLK3
AD21
LLV5P
AE21
LLV5N
AF21
LLV6P
AD20
LLV6N
AE20
LLV7P
AF20
LLV7N
AF19
GSPR
AD18
GSP/VST
AE18
SOE
AF18
POL
AB22
VDD_ODD
AB23
VDD_EVEN
AC23
GCLK4
AC22
GCLK2
AB16
NC_23
AA14
DPM
AC15
HCON
Y16
NC_15
AC16
NC_26
AC14
LEDON
AA16
NC_20
AA15
NC_19
Y10
NC_11
AA11
NC_17
AB15
SCAN_BLK
AB14
SCAN_BLK1
+5V_Normal
S7_TXD
S7_RXD
I2C_SDA
I2C_SCL
RGB_DDC_SDA
RGB_DDC_SCL
S7T_NON_DIVX & DD
IC101-*7
LGE105B-LF-1 (S7-Tcon Non_Divx/RM/MS10)
AE1
NC_43
AF16
NC_73
AF1
NC_59
AE3
NC_45
AD14
NC_40
AD3
NC_29
AF15
NC_72
AF2
NC_60
AE15
NC_57
AD2
NC_28
AD16
NC_42
AD15
NC_41
AE16
NC_58
AF3
NC_61
AF14
NC_71
AD1
NC_27
AD13
NC_39
AE14
NC_56
AE13
NC_55
AE4
NC_46
AD5
NC_31
AF4
NC_62
AD4
NC_30
AE2
NC_44
AF8
NC_66
AD9
NC_35
AE9
NC_51
AF9
NC_67
AE11
NC_53
AF6
NC_64
AE6
NC_48
AF11
NC_69
AD6
NC_32
AD12
NC_38
AE5
NC_47
AF12
NC_70
AF5
NC_63
AE12
NC_54
AE10
NC_52
AF7
NC_65
AD11
NC_37
AD7
NC_33
AD10
NC_36
AE7
NC_49
AF10
NC_68
AD8
NC_34
AE8
NC_50
Y11
NC_12
Y19
GND_105
AR103
22
RLV3P
RLV3N
RLV0P
RLV0N
RLV1P
RLV1N
RLV2P
RLV2N
RLVCKP
RLVCKN
RLV4P
RLV4N
WPWM
OPTP/FLK2
RLV5P
RLV5N
RLV6P
RLV6N
RLV7P
RLV7N
OPTN/FLK3
FLK
GCLK6
GCLK5
LLV3P
LLV3N
LLV0P
LLV0N
LLV1P
LLV1N
LLV2P
LLV2N
LLVCKP
LLVCKN
LLV4P
LLV4N
GOE/GCLK1
GSC/GCLK3
LLV5P
LLV5N
LLV6P
LLV6N
LLV7P
LLV7N
GSPR
GSP/VST
SOE
POL
VDD_ODD
VDD_EVEN
GCLK4
GCLK2
NC_23
DPM
HCON
NC_15
NC_26
LEDON
NC_20
NC_19
NC_11
NC_17
SCAN_BLK
SCAN_BLK1
PCM_D[0-7]
PCM_A[0-14]
R132
10K
R133
10K
AR104
TO SCART1
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
/PCM_REG
/PCM_OE
/PCM_WE
/PCM_IORD
/PCM_IOWR
/PCM_CE
/PCM_IRQA
/PCM_CD
/PCM_WAIT
PCM_RST
22
MODEL_OPT_3
PCM_5V_CTL
SC_RE2
SC_RE1
DSUB_DET
/RST_PHY
/RST_HUB
C108
0.1uF
OPT
R134 22
R135 22
R136 22
R137 22
R138 22
R139 22
PWM0
PWM1
PWM2
PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]
PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]
C109
0.1uF
LGE107D (S7M Divx_Non RM)
U22
PCM_D0
T21
PCM_D1
T22
PCM_D2
AB18
PCM_D3
AC18
PCM_D4
AC19
PCM_D5
AC20
PCM_D6
AC21
PCM_D7
U21
PCM_A0
V21
PCM_A1
Y22
PCM_A2
AA22
PCM_A3
R22
PCM_A4
R21
PCM_A5
T23
PCM_A6
T24
PCM_A7
AA23
PCM_A8
Y20
PCM_A9
AB17
PCM_A10
AA21
PCM_A11
U23
PCM_A12
Y23
PCM_A13
W23
PCM_A14
W22
PCM_REG_N
AA17
PCM_OE_N
V22
PCM_WE_N
W21
PCM_IORD_N
Y21
PCM_IOWR_N
AA20
PCM_CE_N
V23
PCM_IRQA_N
P23
PCM_CD_N
R23
PCM_WAIT_N
P22
PCM_RESET
AC17
PCM_PF_CE0Z
AB20
PCM_PF_CE1Z
AA18
PCM_PF_OEZ
AB21
PCM_PF_WEZ
AB19
PCM_PF_ALE
AD17
PCM_PF_AD[15]
AA19
PCM_PF_RBZ
M23
UART_TX2/GPIO65
N23
UART_RX2/GPIO64
M22
DDCR_DA/GPIO71
N22
DDCR_CK/GPIO72
A5
DDCA_DA/UART0_TX
B5
DDCA_CK/UART0_RX
K23
PWM0/GPIO66
K22
PWM1/GPIO67
G23
PWM2/GPIO68
G22
PWM3/GPIO69
G21
PWM4/GPIO70
C6
SAR0/GPIO31
B6
SAR1/GPIO32
C8
SAR2/GPIO33
C7
SAR3/GPIO34
A6
SAR4/GPIO35
IC101
S7M_DIVX & MS10
GPIO7/PM1/PM_UART_TX
GPIO11/PM5/PM_UART_RX/INT1
PM_SPI_CS1/GPIO12/PM6
PM_SPI_WP1/GPIO13/PM7
PM_SPI_WP2/GPIO14/PM8/INT2
PM_SPI_CS2/GPIO16/PM10
GPIO17/PM11/INT3
GPIO18/PM12/INT4
GPIO143/TCON0
GPIO145/TCON2
GPIO147/TCON4
GPIO149/TCON6
GPIO151/TCON8
GPIO36/UART3_RX
GPIO37/UART3_TX
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO50/UART1_RX
GPIO51/UART1_TX
GPIO6/PM0/INT0
GPIO8/PM2
GPIO9/PM3
GPIO10/PM4
GPIO15/PM9
PM_SPI_CK/GPIO1
GPIO0/PM_SPI_CZ
PM_SPI_DI/GPIO2
PM_SPI_DO/GPIO3
TS0_CLK
TS0_VLD
TS0_SYNC
TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7
TS1_CLK
TS1_VLD
TS1_SYNC
TS1_D0
TS1_D1
TS1_D2
TS1_D3
TS1_D4
TS1_D5
TS1_D6
TS1_D7
MPIF_CLK
MPIF_CS_N
MPIF_BUSY
MPIF_D0
MPIF_D1
MPIF_D2
MPIF_D3
N21
M21
L22
L21
P21
K21
L23
K20
L20
M20
G20
G19
F20
F19
E7
D7
E11
G9
F9
C5
E8
E9
F7
F6
D8
G12
F10
D9
D11
E10
D10
AA9
AA5
AA10
AB5
AC4
Y6
AA6
W6
AA7
Y9
AA8
AC5
AC6
AB6
AC10
AB10
AC9
AB9
AC8
AB8
AC7
AB7
D12
D14
E14
E12
F12
D13
E13
M_REMOTE
M_REMOTE
R14633
R14733
CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]
FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]
R160
1K
5V_DET_HDMI_1
5V_DET_HDMI_2
5V_DET_HDMI_4
5V_DET_HDMI_3
WIRELESS_DL_RX
WIRELESS_DL_TX
ET_RXER
FRC_RESET
SC1/COMP1_DET
ERROR_OUT
MODEL_OPT_0
R14822
M_REMOTE_RX
R14922
M_REMOTE_TX
USB1_OCD
USB1_CTL
HP_DET
R1500
CONTROL_ATTEN
R1100
MODEL_OPT_6
MODEL_OPT_1
/FLASH_WP
MODEL_OPT_2
TUNER_RESET
DEMOD_RESET
AV_CVBS_DET
R15133
/PIF_SPI_CS
URSA degug port
UART_FRC_RX
UART_FRC_TX
SIDEAV_DET
SPI_SCK
/SPI_CS
SPI_SDI
SPI_SDO
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
CI_TS_DATA[0-7]
FE_TS_CLK
FE_TS_VAL_ERR
FE_TS_SYNC
FE_TS_DATA[0-7]
for WIRELESS READY
for ETHERNET PHY
for SERIAL FLASH
from CI SLOT
Internal demod out
/External demod in
URSA_DEBUG
P3903
12505WS-03A00
1
2
FRC_SCL
3
FRC_SDA
4
URSA_DEBUG
P3904
12505WS-03A00
1
2
3
4
IC104
M24M01-HRMN6TP
NC
1
E1
2
E2
A0’h
3
VSS
4
EEPROM
8
7
6
5
VCC
WP
SCL
SDA
HDCP EEPROM
R113
4.7K
CAT24WC08W-T
A0
1
$0.199
A1
2
A2
3
VSS
4
IC103
8
7
6
5
VCC
WP
SCL
SDA
R127 4.7K
+3.3V_Normal
R128
R129 22
C107
0.1uF
Addr:10101--
22
I2C_SCL
I2C_SDA
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C105
0.1uF
+3.3V_Normal
C104
8pF
OPT
R111 22
R112 22
C106
8pF
OPT
I2C_SCL
I2C_SDA
S7_DIVX & MS10
IC101-*8
LGE101D (S7 Non_Tcon/RM)
AE1
NC_48
AF16
NC_78
AF1
NC_64
AE3
NC_50
AD14
NC_45
AD3
NC_34
AF15
NC_77
AF2
NC_65
AE15
NC_62
AD2
NC_33
AD16
NC_47
AD15
NC_46
AE16
NC_63
AF3
NC_66
AF14
NC_76
AD1
NC_32
AD13
NC_44
AE14
NC_61
AE13
NC_60
AE4
NC_51
AD5
NC_36
AF4
NC_67
AD4
NC_35
AE2
NC_49
AF8
NC_71
AD9
NC_40
AE9
NC_56
AF9
NC_72
AE11
NC_58
AF6
NC_69
AE6
NC_53
AF11
NC_74
AD6
NC_37
AD12
NC_43
AE5
NC_52
AF12
NC_75
AF5
NC_68
AE12
NC_59
AE10
NC_57
AF7
NC_70
AD11
NC_42
AD7
NC_38
AD10
NC_41
AE7
NC_54
AF10
NC_73
AD8
NC_39
AE8
NC_55
Y11
NC_12
Y19
GND_105
LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]
LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
TCON3/OE/GOE/GCLK2
TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P
TCON1/STV/GSP/VST
TCON14/SACN_BLK
TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN
TCON17/CS6/GCLK4
S7_DIVX & DD
IC101-*9
LGE101DB-LF-1 (S7 Non_Tcon/RM/MS10)
W26
AE1
W25
NC_48
AF16
U26
NC_78
AF1
U25
NC_64
AE3
U24
NC_50
AD14
V26
NC_45
AD3
V25
NC_34
AF15
V24
NC_77
AF2
W24
NC_65
AE15
Y26
NC_62
AD2
Y25
NC_33
AD16
LVA4P/LLV8P
Y24
NC_47
AD15
LVA4N/LLV8N
NC_46
AE16
NC_63
AC26
AC25
AA26
AA25
AF3
AA24
NC_66
AF14
AB26
NC_76
AD1
AB25
NC_32
AB24
AD13
AC24
NC_44
AE14
AD26
NC_61
AE13
AD25
NC_60
AD24
AE4
NC_51
AD5
AD23
NC_36
AF4
RLV3P/RED[7]
AE23
NC_67
AD4
RLV3N/RED[6]
AE26
NC_35
RLV0P/LVSYNC
AE25
AE2
RLV0N/LHSYNC
AF26
NC_49
RLV1N/LCK
AF25
RLV2P/RED[9]
AE24
AF8
RLV1P/LDE
AF24
NC_71
AD9
RLV2N/RED[8]
AF23
NC_40
RLV4P/RED[5]
AD22
AE9
RLV4N/RED[4]
AE22
NC_56
AF9
RLV5P/RED[3]
AF22
NC_72
RLV5N/RED[2]
AE11
NC_58
AF6
AD19
NC_69
AE19
AE6
AD21
NC_53
AF11
AE21
NC_74
AD6
AF21
NC_37
AD12
AD20
NC_43
AE5
AE20
NC_52
AF12
AF20
NC_75
AF5
TCON16/WPWM
AF19
NC_68
AE12
TCON12/DPM
AD18
NC_59
AE18
AE10
TCON5/TP/SOE
AF18
NC_57
AF7
NC_70
AD11
NC_42
AD7
AB22
NC_38
AD10
AB23
NC_41
AE7
AC23
NC_54
AF10
TCON13/LEDON
AC22
NC_73
AD8
NC_39
AB16
NC_26
AA14
NC_19
AC15
NC_30
Y16
NC_15
AC16
NC_31
AC14
AE8
NC_29
NC_55
AA16
Y11
NC_21
AA15
NC_12
Y19
NC_20
GND_105
Y10
NC_11
AA11
NC_17
AB15
NC_25
AB14
NC_24
LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]
LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
TCON3/OE/GOE/GCLK2
TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P
TCON1/STV/GSP/VST
TCON14/SACN_BLK
TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN
TCON17/CS6/GCLK4
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
LVA4P/LLV8P
Y24
LVA4N/LLV8N
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
RLV3P/RED[7]
AE23
RLV3N/RED[6]
AE26
RLV0P/LVSYNC
AE25
RLV0N/LHSYNC
AF26
RLV1N/LCK
AF25
RLV2P/RED[9]
AE24
RLV1P/LDE
AF24
RLV2N/RED[8]
AF23
RLV4P/RED[5]
AD22
RLV4N/RED[4]
AE22
RLV5P/RED[3]
AF22
RLV5N/RED[2]
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
TCON16/WPWM
AF19
TCON12/DPM
AD18
AE18
TCON5/TP/SOE
AF18
AB22
AB23
AC23
TCON13/LEDON
AC22
AB16
NC_26
AA14
NC_19
AC15
NC_30
Y16
NC_15
AC16
NC_31
AC14
NC_29
AA16
NC_21
AA15
NC_20
Y10
NC_11
AA11
NC_17
AB15
NC_25
AB14
NC_24

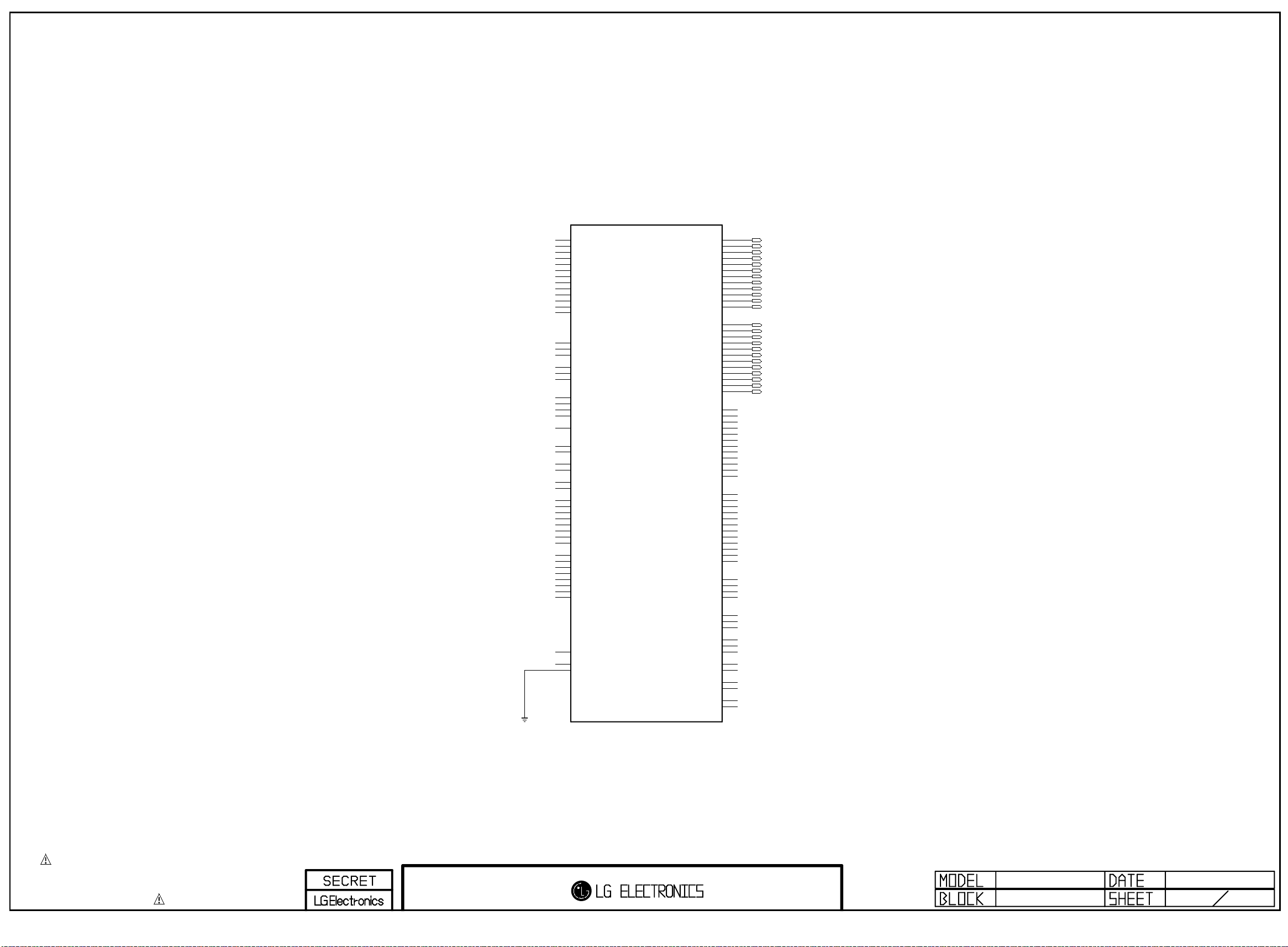

S7_NON_DIVX & MS10
IC101-*10
LGE101 (S7 NON_TON/DiX/RM)
AE1
NC_48
AF16
NC_78
AF1
NC_64
AE3
NC_50
AD14
NC_45
AD3
NC_34
AF15
NC_77
AF2
NC_65
AE15
NC_62
AD2
NC_33
AD16
NC_47
AD15
NC_46
AE16
NC_63
AF3
NC_66
AF14
NC_76
AD1
NC_32
AD13
NC_44
AE14
NC_61
AE13
NC_60
AE4
NC_51
AD5
NC_36
AF4
NC_67
AD4
NC_35
AE2
NC_49
AF8
NC_71
AD9
NC_40
AE9
NC_56
AF9
NC_72
AE11
NC_58
AF6
NC_69
AE6
NC_53
AF11
NC_74
AD6
NC_37
AD12
NC_43
AE5
NC_52
AF12
NC_75
AF5
NC_68
AE12
NC_59
AE10
NC_57
AF7
NC_70
AD11
NC_42
AD7
NC_38
AD10
NC_41
AE7
NC_54
AF10
NC_73
AD8
NC_39
AE8
NC_55
Y11
NC_12
Y19
GND_105
LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]
LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
TCON3/OE/GOE/GCLK2
TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P
TCON1/STV/GSP/VST
TCON14/SACN_BLK
TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN
TCON17/CS6/GCLK4
S7_NON_DIVX & DD
IC101-*11
LGE101B-LF-1(S7 Non_Tcon/Divx/RM/MS10)
W26
AE1
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
LVA4P/LLV8P
Y24
LVA4N/LLV8N
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
RLV3P/RED[7]
AE23
RLV3N/RED[6]
AE26
RLV0P/LVSYNC
AE25
RLV0N/LHSYNC
AF26
RLV1N/LCK
AF25
RLV2P/RED[9]
AE24
RLV1P/LDE
AF24
RLV2N/RED[8]
AF23
RLV4P/RED[5]
AD22
RLV4N/RED[4]
AE22
RLV5P/RED[3]
AF22
RLV5N/RED[2]
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
TCON16/WPWM
AF19
TCON12/DPM
AD18
AE18
TCON5/TP/SOE
AF18
AB22
AB23
AC23
TCON13/LEDON
AC22
AB16
NC_26
AA14
NC_19
AC15
NC_30
Y16
NC_15
AC16
NC_31
AC14
NC_29
AA16
NC_21
AA15
NC_20
Y10
NC_11
AA11
NC_17
AB15
NC_25
AB14
NC_24
NC_48
AF16
NC_78
AF1
NC_64
AE3
NC_50
AD14
NC_45
AD3
NC_34
AF15
NC_77
AF2
NC_65
AE15
NC_62
AD2
NC_33
AD16
NC_47
AD15
NC_46
AE16
NC_63
AF3
NC_66
AF14
NC_76
AD1
NC_32
AD13
NC_44
AE14
NC_61
AE13
NC_60
AE4
NC_51
AD5
NC_36
AF4
NC_67
AD4
NC_35
AE2
NC_49
AF8
NC_71
AD9
NC_40
AE9
NC_56
AF9
NC_72
AE11
NC_58
AF6
NC_69
AE6
NC_53
AF11
NC_74
AD6
NC_37
AD12
NC_43
AE5
NC_52
AF12
NC_75
AF5
NC_68
AE12
NC_59
AE10
NC_57
AF7
NC_70
AD11
NC_42
AD7
NC_38
AD10
NC_41
AE7
NC_54
AF10
NC_73
AD8
NC_39
AE8
NC_55
Y11
NC_12
Y19
GND_105
LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]
LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]
LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]
LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]
TCON3/OE/GOE/GCLK2
TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P
TCON1/STV/GSP/VST
TCON14/SACN_BLK
TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN
TCON17/CS6/GCLK4
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
LVA4P/LLV8P
Y24
LVA4N/LLV8N
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
RLV3P/RED[7]
AE23
RLV3N/RED[6]
AE26
RLV0P/LVSYNC
AE25
RLV0N/LHSYNC
AF26
RLV1N/LCK
AF25
RLV2P/RED[9]
AE24
RLV1P/LDE
AF24
RLV2N/RED[8]
AF23
RLV4P/RED[5]
AD22
RLV4N/RED[4]
AE22
RLV5P/RED[3]
AF22
RLV5N/RED[2]
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
TCON16/WPWM
AF19
TCON12/DPM
AD18
AE18
TCON5/TP/SOE
AF18
AB22
AB23
AC23
TCON13/LEDON
AC22
AB16
NC_26
AA14
NC_19
AC15
NC_30
Y16
NC_15
AC16
NC_31
AC14
NC_29
AA16
NC_21
AA15
NC_20
Y10
NC_11
AA11
NC_17
AB15
NC_25
AB14
NC_24
I2C
R140
+3.3V_Normal
R142
3.3K
R141
1K
1K
R143
3.3K
R144
2.2K
R145
2.2K
AMP_SDA
AMP_SCL
I2C_SDA
I2C_SCL
NEC_SDA
NEC_SCL
GP2_Saturn7M
FLASH/EEPROM/GPIO
DIMMING
A_DIM
PWM_DIM
SCAN_BLK2
SCAN_BLK1/OPC_OUT
C111
2.2uF
R156
10K
R157
100
R155
0
OPT
R158
R159
OPT
Ver. 1.3
1
LD650 Scan
100
OPT
100
PWM0
PWM2
FRC_PWM1
FRC_PWM0
Page 18
12505WS-12A00
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

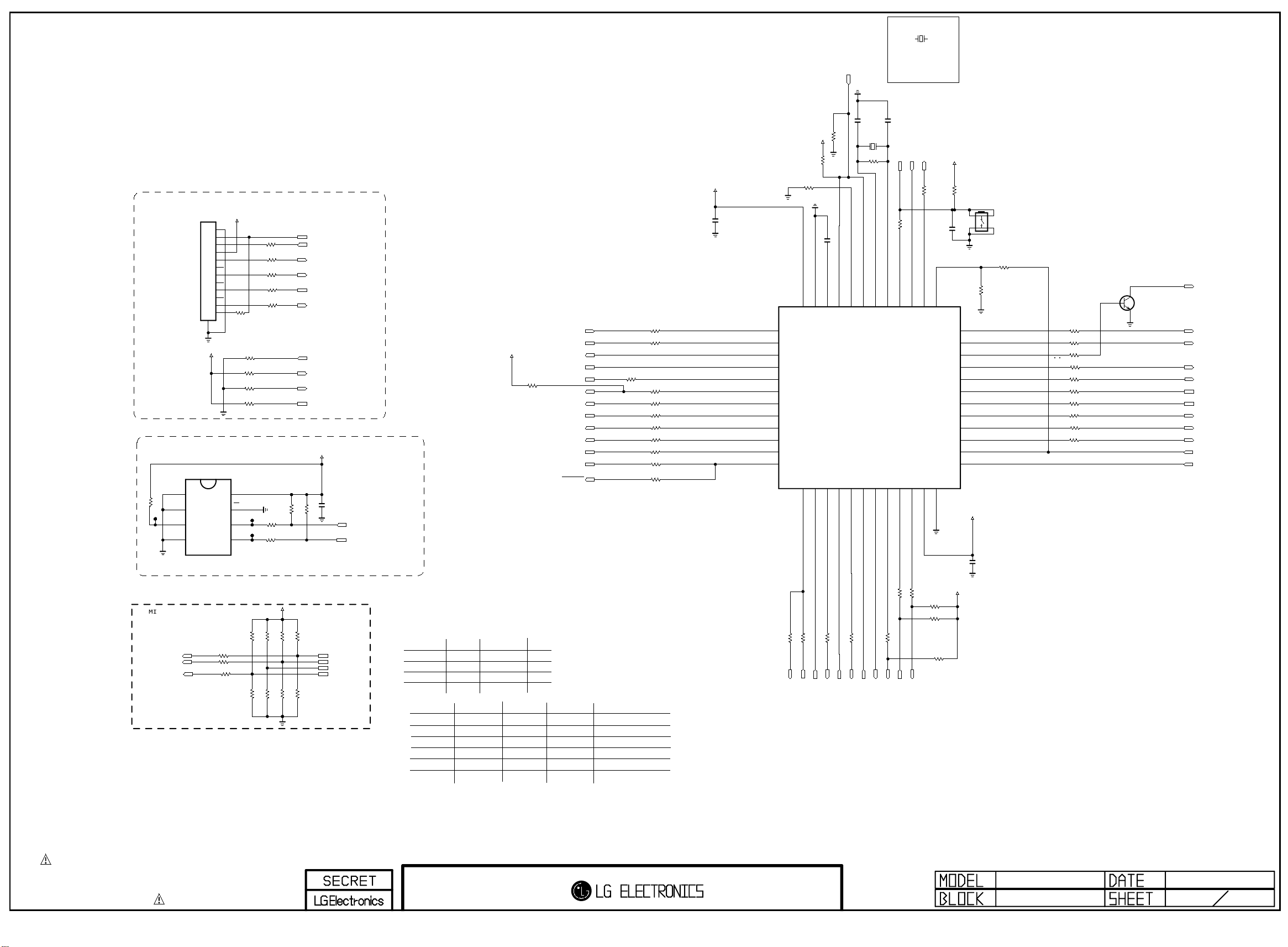

+3.5V_ST
EEPROM for Micom
IC1001
M24C16-WMN6T
NC_1
1
NC_2
47K
R10 01
TP1001
NC_3
2
3
VSS
4
MICOM_DEBUG
P1001
X1002-*1
32.768KHz
CRYSTAL_EPSON
FLMD0
15pF
+3.5V_ST
R1030 10K
47K
OPT
R1086
+3.5V_ST
for Debugger
+3.5V_ST
1
2
3
4
5
6
7
8
9
10
11
12
13
+3.5V_ST
R1002 10K
R1006
R1072
R1073
R1005
VCC
8
WC
7
SCL
6
SDA
5
R10 76 22
R10 78 22
R10 10 22
R10 81 22
R10 13 22
10K
10K
10K
10K
TP1002
R1080
22
TP1003
R1008
22
R1014 4.7K
MICOM_RESET
NEC_ISP_Tx
NEC_ISP_Rx
OCD1A
OCD1B
FLMD0
NEC_ISP_Tx
NEC_ISP_Rx
OCD1A
OCD1B
+3.5V_ST
C1002
R1015 4.7K
0.1uF
NEC_EEPROM_SCL
NEC_EEPROM_SDA
+3.5V_ST
OPT
R1084
10K
POWER_ON/OFF2_1
NEC_SCL
NEC_SDA
NEC_EEPROM_SCL
NEC_EEPROM_SDA
CEC_REMOTE_NEC
AMP_MUTE
MODEL1_OPT_0
SOC_RESET
INV_CTL
MODEL1_OPT_1
OCD1B
RF_RESET
R1020 0
22
R1018
22
R1019
P33/TI51/TO51/INTP4
R1065 22
R1067 22
R1066 22
R1023 22
R1064 22
R1063 22
R1059 22
NON_M_REMOTE
R1060 22
M_REMOTE
C1003
0.1uF
P60/SCL0
P61/SDA0
P62/EXSCL0
P63
P75
P74
P73/KR3
P72/KR2
P71/KR1
P70/KR0
P32/INTP3/OCD1B
R1091 10K
GND
C1006 0.1uF
P122/X2/EXCLK/OCD0B
P121/X1/OCD0A
REGC
VSS
VDD
44
45
46
47
48
1
2
3
4
5
6
7
8
IC1002
UPD78F0513AGA-GAM-AX
NEC_MICOM
9
10
11
12
13
14
15
16
P30/INTP1
P15/TOH0
17
C1008 15pF
C1007
CRYSTAL_KDS
X1002
32.768KHz
R1034
4.7M
CRYSTAL_KDS
R1039 22
RESET
P124/XT2/EXCLKS
P123/XT1
FLMD0
40
41
42
43
18
19
20
P14/RXD6
P13/TXD6
P12/SO10
MICOM_RESET
WIRELESS_DETECT
P40
39
21
22
+3.5V_ST
WIRELESS_PWR_EN
47K
22
SW1001
R1046
R1043
P120/INTP0/EXLVI
P41
38
23
AVSS
AVREF
JTP-1127WEM
C1010
0.1uF
37
P140/PCL/INTP6
36
P00/TI000
35
P01/TI010/TO00
34
P130
33
P20/ANI0
32
ANI1/P21
31
ANI2/P22
30
ANI3/P23
29
ANI4/P24
28
ANI5/P25
27
ANI6/P26
26
ANI7/P27
25
24
+3.5V_ST
4 3
R1089
20K
R1047 20K
12
1/16W
1/16W
1%
1%
R1048 22
R1049 22
OPT
R1050 10K
R1090 22
R1055 22
R1056 22
R10 57 22
R1051 22
19-22_LAMP
R1054 22
R1052 10K
C
Q1001
B
2SC3052
E
EDID_WP
RL_ON
OPC_EN
WIRELESS_SW_CTRL
SCART1_MUTE
MODEL1_OPT_3
MODEL1_OPT_2
POWER_ON/OFF1
OLP
SIDE_HP_MUTE
KEY2
KEY1
MICOM MODEL OPTION
AMP_RESET_N
PANEL_CTL
CEC_ON/OFF
R1007 100
R1070 100
R1003 0
+3.5V_ST
GPIO_LED
TOUCH_KEY
R1075 10K
R1079 10K
TACT_KEY
NON_GPIO_LED
R1011 10K
R1074 10K
B/L_LED
R1071 10K
R1009 10K
PWM_BUZZ/IIC_LED
PWM_LED
B/L_LAMP
R1004 10K
R1012 10K
MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
MODEL1_OPT_3
MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
MODEL OPTION
PIN NO.11HIGH
MODEL_OPT_0
LOW LOW LOW
HIGH HIGH
HIGH
HIGH
B/L_LED
8
PWM_BUZZ/IIC_LED
30
TOUCH_KEY TACT_KEY
31 GPIO_LED
MODEL_OPT_1
LOW
HIGH
HIGH
LOW LOW
HIGH
MODEL_OPT_2
HIGH
LOWLOW
LOWPIN NAME
B/L_LAMP
PWM_LED
NON_GPIO_LED
MODEL_OPT_3
LOW
LOW
LOW
LOW
HIGH
HIGH
LD350/450/550
19/22/26LE3300(5500)
32/37/42/47/55LE5300(10)
LD420
LE7300
TBD
P17/TI50/TO50
P31/INTP2/OCD1A
M_REMOTE
NON_M_REMOTE
R10 62 22
R10 61 22
RF_ENABLE
P16/TOH1/INTP5
22
R10 69
OCD1A
POWER_DET
LED_B/LG_LOGO
IR
22
R10 68
LED_R/BUZZ
NEC_ISP_Rx
P11/SL10/RXD0
P10/SCK10/TXD0
22
22
R10 41
R10 37
22
R10 36
NEC_RXD
NEC_ISP_Tx
NEC_TXD
POWER_ON/OFF2_2
R1044 10K
R1045 10K
R1083 10K
+3.5V_ST
OPT
OPT
OPT
C1009 1uF
GP2_Saturn7M
MICOM
Ver. 1.4
5
Page 19
COMMON AREA
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

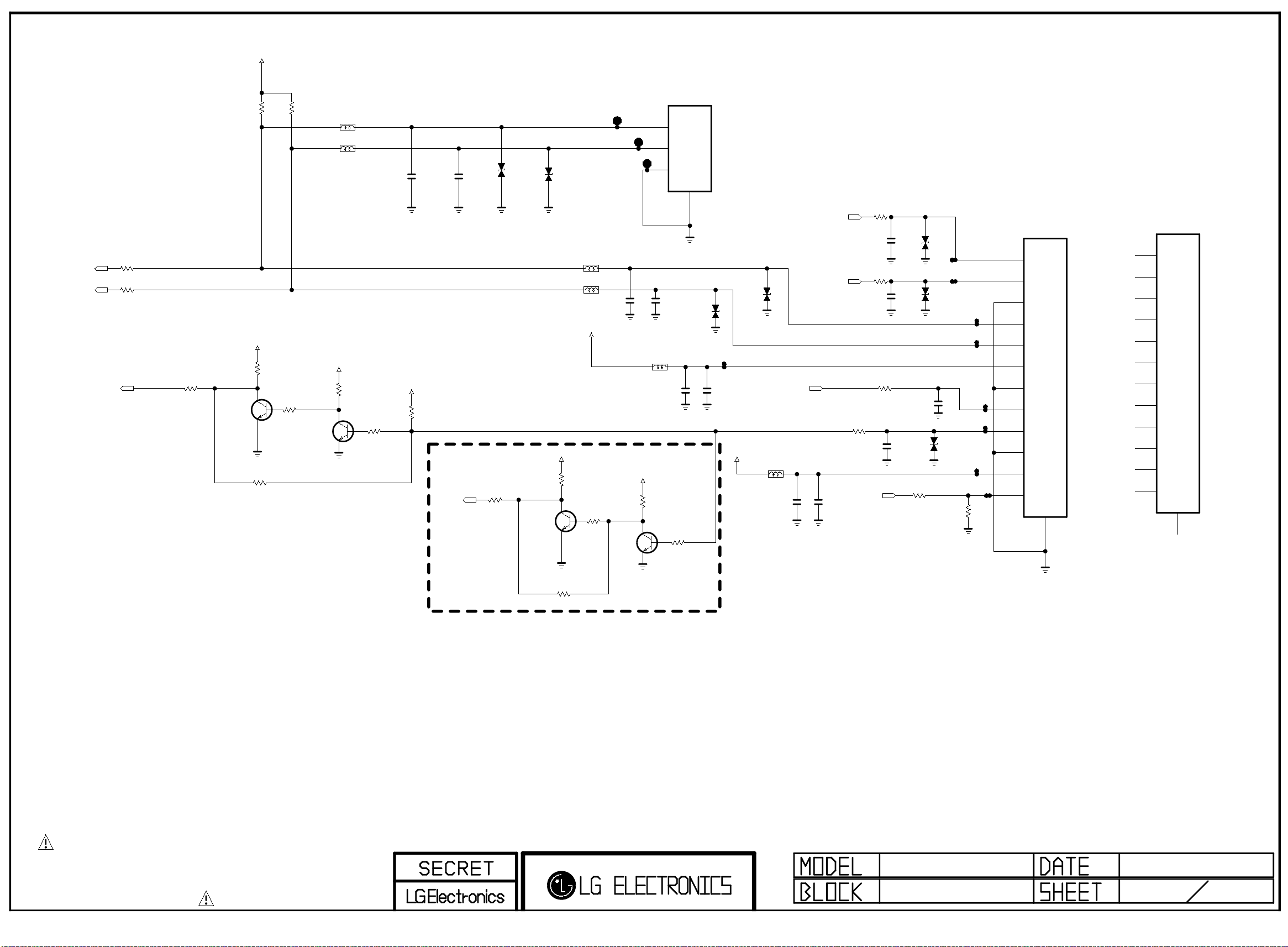

New Item Development
EARPHONE BLOCK
EXCEPT_CHINA_HOTEL_OPT
HP_LOUT
090:V9
HP_ROUT
090:V8
C1118
10uF
C1115
16V
1000pF
50V
OPT
EXCEPT_CHINA_HOTEL_OPT
C1119
10uF
16V
C1116
1000pF
50V
OPT
R1125
1K
R1128
1K
Q1101
MMBT3904-(F)
Q1102
MMBT3904-(F)
C
B
E
C
B
E
MMBT3904-(F)
B
MMBT3904-(F)
B
E
C
E
C
Q1104
HP_DET
Q1103
+3.3V_Normal
R1130
10K
R1155
1K
JK3301
KJA-PH-0-0177
5GND
4L
3DETECT
1R
052:I22
052:I22
SPK_R+_HOTEL
SPK_R-_HOTEL
C
Q1105
ISA1530AC1
E
B
R1129
3.3K
+3.5V_ST
C
E
B
Q1106
2SC3052
SIDE_HP_MUTE
PC AUDIO
JK1102
PEJ027-01
3
6A
7A
4
5
7B
6B
E_SPRING
T_TERMINAL1
B_TERMINAL1
R_SPRING
T_SPRING
B_TERMINAL2
T_TERMINAL2
D1101
AMOTECH
5.6V
OPT
D1102
AMOTECH
5.6V
OPT
C1107
100pF
50V
C1108
100pF
50V
R1102
470K
R1103
470K
R1107
15K
R1108
15K
R1110
10K
R1111
10K
R1112
0
R1113
0
PC_R_IN
PC_L_IN
090:S13
090:S13
SPDIF OPTIC JACK
5.15 Mstar Circuit Application
SPDIF_OUT
090:T20
OPT
R1152
4.7K
A
B
GND
IC1104
NL17SZ00DFT2G
OPT
1
2
3
D1116
5.6V
OPT
+5V_Normal
EDID_WP
RGB_DDC_SCL
RGB_DDC_SDA
+3.3V_Normal
R1146
10K
D1117
5.6V
R1147
1K
DSUB_DET
+3.3V_Normal
VCC
5
C1117
0.1uF
16V
OPT
R1126
Y
4
22
OPT
R1127
0
C1131
0.1uF
16V
VINPUT
C1121
100pF
50V
GND
Fiber Optic
1
VCC
2
JK1103
JST1223-001
3
4
FIX_POLE
RGB PC
DSUB_VSYNC
DSUB_HSYNC
DSUB_B+
DSUB_B-
DSUB_G+
DSUB_G-
DSUB_R+
DSUB_R-
R1133
75
0
R1135
75
0
R1137
75
0
R1134
R1136
R1138
GND
C1122
68pF
50V
OPT
IC1105
AT24C02BN-10SU-1.8
A0
1
A1
2
A2
3
4
C1123
OPT
C1124
OPT
C1125
OPT
R1148
0
OPT
OPT
OPT
D1115
ENKMC2838-T112
A1
C
A2
4.7K
R1150
0
C1128
18pF
50V
D1113
30V
R1140
4.7K
R1141
22
D1114
5.6V
OPT
R1142
10K
C1129
0.1uF
16V
R1143
22
R1139
VCC
8
WP
7
SCL
6
SDA
5
C1127
18pF
50V
C1126
D1109
68pF
30V
50V
OPT
D1110
30V
D1111
30V
D1112
30V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
RED2GREEN3BLUE4GND_15DDC_GND
RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND
GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK
11
SPG09-DB-010
6
1
JK1104
GP2_Saturn7M
COMMON AREA
SHILED
16
Ver. 1.0
9
Page 20
RS232C
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
C1101 0.33uF
C1102
0.1uF
C1103
0.1uF
C1104
0.1uF
C1105
0.1uF
DOUT2
RIN2
C1+
C1-
C2+
C2-
V+
V-
IC1101
MAX3232CDR
1
2
3
4
5
6
7
8
EAN41348201
10
5
9
8
7
6
SPG09-DB-009
JK1101
4
3
2
1
S7_RXD1
NEC_RXD
S7_TXD1
NEC_TXD
R1123
100
R1124
100
OPT
R1122
0
JP1121
JP1122
IR_OUT
+3.5V_ST
D1107
CDS3C30GTH
30V
C1106
0.1uF
VCC
16
GND
15
DOUT1
14
RIN1
13
ROUT1
12
DIN1
11
DIN2
10
ROUT2
9
+3.5V_ST
4.7K
OPT
R1109
4.7K
OPT
R1114
D1108
CDS3C30GTH
30V
R1157 0
R1156
R1154
R1153
0
0
0
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
RS232C 9PIN
Ver. 1.0GP2_Saturn7M
10
Page 21
(New Item Developmen H:9.2mm)
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

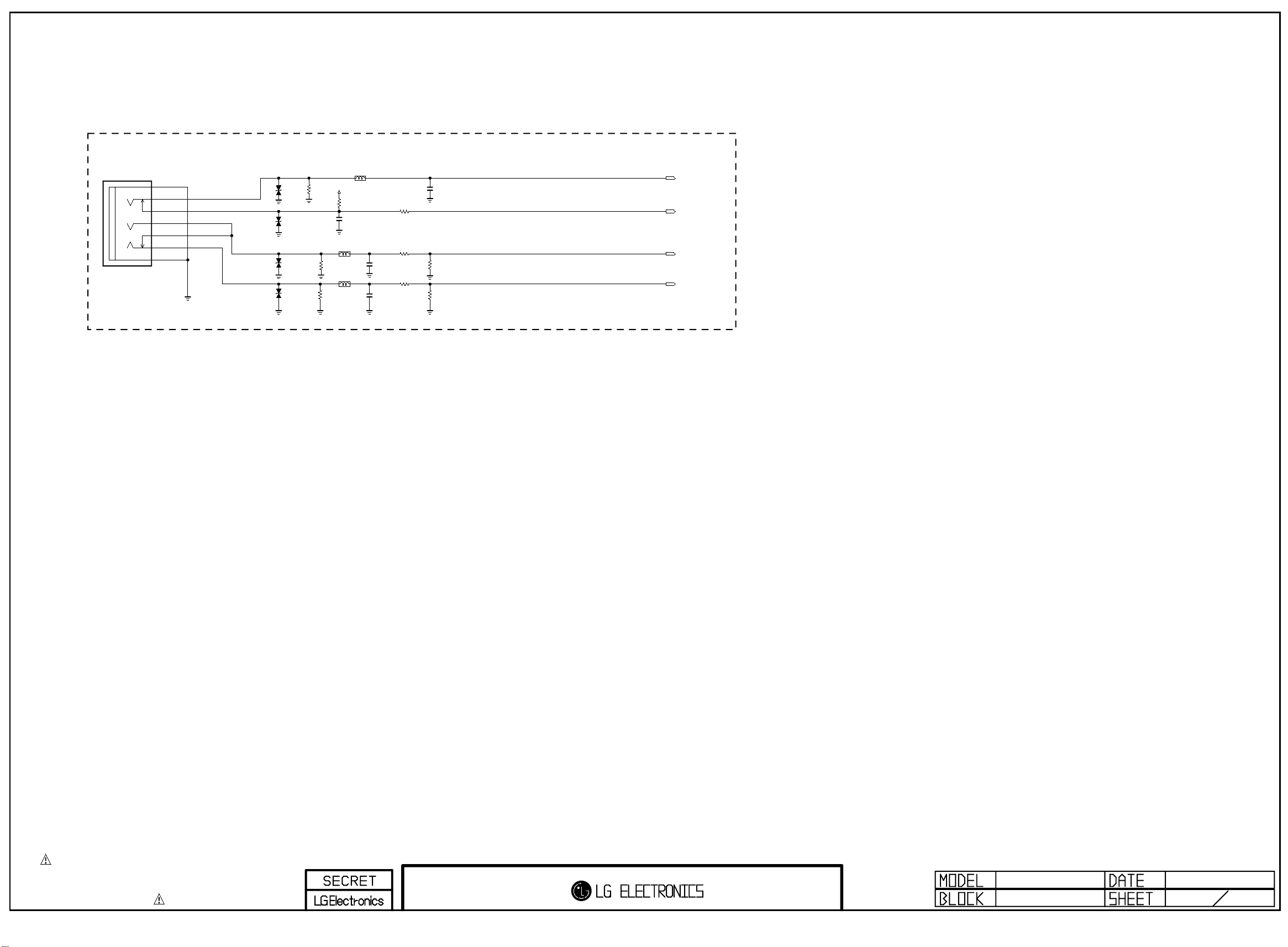

SIDE_AV
SIDE_AV_OPT
D3301
30V
SIDE_AV_OPT
D3302
5.6V
SIDE_AV_OPT
D3303
5.6V
SIDE_AV_OPT
D3304
5.6V
PPJ235-01
JK3302
SIDE_AV_OPT
5A
[YL]E-LUG
4A
[YL]O-SPRING
3A
[YL]CONTACT
4B
[WH]O-SPRING
3C
[RD]CONTACT
4C
[RD]O-SPRING
5C
[RD]E-LUG
SIDE_AV_OPT
R3301
75
SIDE_AV_OPT
SIDE_AV_OPT
C3301
100pF
SIDE_AV_OPT
R3303
470K
R3304
470K
SIDE_AV_OPT
L3303
BLM18PG121SN1D
+3.3V_Normal
SIDE_AV_OPT
10K
R3302
SIDE_AV_OPT
L3301
BLM18PG121SN1D
SIDE_AV_OPT
L3302
BLM18PG121SN1D
SIDE_AV_OPT
SIDE_AV_OPT
C3302
100pF
50V
SIDE_AV_OPT
C3303
100pF
50V
R3305
1K
SIDE_AV_OPT
R33 06
10K
SIDE_AV_OPT
R33 07
10K
C3304
100pF
OPT
SIDE_AV_OPT
R3308
12K
SIDE_AV_OPT
R3309
12K
SIDEAV_CVBS_IN
SIDEAV_DET
SIDEAV_L_IN
SIDEAV_R_IN
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
SIDE AV
Ver. 1.0
11
Page 22
USB_DIODES
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
IC1450
AP2191SG-13
NC
L1451
MLB-201209-0120P-N2
120-ohm
C1451
22uF
10V
SIGN6409
1234
USB D OWN STRE AM
JK145 0
KJA-U B-4-0004
D1451
5
CDS3C05HDMI1
5.6V
OPT
D1452
CDS3C05HDMI1
5.6V
OPT
OUT_2
OUT_1
FLG
8
$0.077
7
6
5
R1451 47
R1453 0
R1452 0
GND
1
IN_1
2
TP1451
R1454
10K
C1452
10uF
10V
USB1_OCD
IN_2
3
EN
4
SIDE_USB_DM
SIDE_USB_DP
C1453
0.1uF
/RST_HUB
+5V_USB
+3.3V_Normal
R1455
4.7K
OPT
R1456 0
USB1_CTL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Page 23

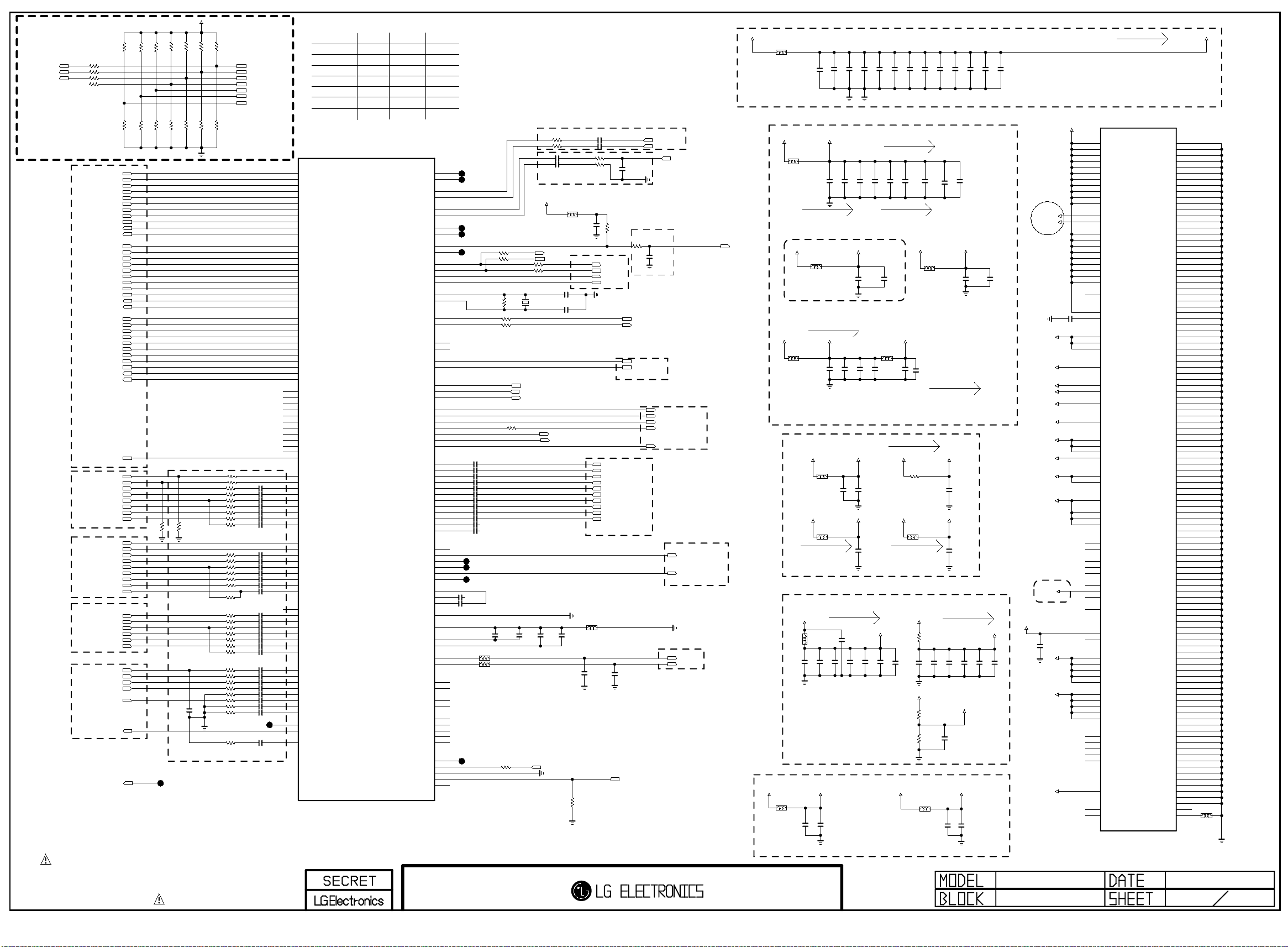

VCC_1.5V_DDR
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
R1201
1K 1%
R1202
1K 1%
0.1uF
1000pF
C1202
C1201
CLose to DDR3
A-MVREFDQ
VCC_1.5V_DDR
R1204
1K 1%
0.1uF
R1205
1K 1%
C1204
C1203
CLose to Saturn7M IC
1000pF
A-MVREFCA
VCC_1.5V_DDR
C1205
10uF
C1206
Close to DDR Power Pin
DDR3 1.5V By CAP - Place these Caps near Memory
0.1uF
C1207
0.1uF
C1208
0.1uF
C1210
0.1uF
C1211
0.1uF
C1212
0.1uF
C1213
0.1uF
C1214
0.1uF
C1215
0.1uF
C1216
0.1uF
C1217
0.1uF
C1218
0.1uF
C1219
0.1uF
C1220
0.1uF
C1221
0.1uF
C1222
0.1uF
C1223
0.1uF
C1224
0.1uF
0.1uF
DDR3 1.5V By CAP - Place these Caps near Memory
0.1uF
0.1uF
C1227
0.1uF
C1228
0.1uF
C1229
C1230
C1231
0.1uF
C1232
0.1uF
C1233
0.1uF
C1234
0.1uF
C1235
0.1uF
C1236
0.1uF
C1237
0.1uF
0.1uF
0.1uF
C1239
C1238
Close to DDR Power Pin
C1241
0.1uF
C1242
0.1uF
C1243
0.1uF
C1244
0.1uF
VCC_1.5V_DDR
C1245
10uF
B-MVREFCA
C1246
CLose to Saturn7M IC
1000pF
VCC_1.5V_DDR
0.1uF
C1247
C1248
VCC_1.5V_DDR
C1249
0.1uF
1K 1%
C1250
R1227
R1228
1K 1%
R1224
1K 1%
B-MVREFDQ
R1225
1K 1%
1000pF
CLose to DDR3
A-MVREFCA
A-MVREFDQ
VCC_1.5V_DDR
R1203
240
1%
IC1201
H5TQ1G63BFR-H9C
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_6
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
A10/AP
A12/BC
RESET
DQSL
DQSL
DQSU
DQSU
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
+1.5V_DDR
L1201
A-MA0
A-MA2
A-MA11
A-MA1
A-MA8
A-MCK
A-MCKB
A-MA6
A-MBA0
A-MA3
A-MA5
A-MA7
A-MA4
A-MA12
A-MBA1
A-MA10
A-MRESETB
A-MBA2
A-MA13
A-MA9
A-MCK
A-MCKB
A-MRASB
A-MCASB
A-MODT
A-MWEB
A-MDQSL
A-MDQSLB
A-MDQSU
A-MDQSUB
A-MDQL1
A-MDQL3
A-MDML
A-MDQU2
A-MCKE
A-MDQL7
A-MDQL5
A-MDQL0
A-MDQL2
A-MDQL6
A-MDQL4
A-MDQU7
A-MDQU3
A-MDQU5
A-MDMU
A-MDQU6
A-MDQU0
A-MDQU4
A-MDQU1
A-MCKE
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
R7
A11
N7
T3
A13
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
F3
G3
C7
B7
E7
DML
D3
DMU
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13
A-MBA0
A-MBA1
A-MBA2
A-MCKE
A-MODT
A-MRASB
A-MCASB
A-MWEB
A-MRESETB
A-MDQSL
A-MDQSLB
A-MDQSU
A-MDQSUB
A-MDML
A-MDMU
A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7
A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7
1%
R1235
56
1%
R1236
56
VCC_1.5V_DDR
R1231
10K
C1209
0.01uF
25V
R1213
10
R1214
10
AR1208
10
AR1203
10
AR1204
10
AR1201
10
R1206
10
R1207
10
AR1202
10
R1208
10
R1209
10
R1211
10
R1212
10
AR1209
10
AR1210
10
AR1205
10
AR1206
10
AR1207
10
R1210
10
R1233 10K
A-TMA0
A-TMA2
A-TMA11
A-TMA1
A-TMA8
A-TMA6
A-TMBA0
A-TMA3
A-TMA5
A-TMA7
A-TMA4
A-TMA12
A-TMBA1
A-TMA10
A-TMRESETB
A-TMBA2
A-TMA13
A-TMA9
A-TMCK
A-TMCKB
A-TMRASB
A-TMCASB
A-TMODT
A-TMWEB
A-TMDQSL
A-TMDQSLB
A-TMDQSU
A-TMDQSUB
A-TMDQL1
A-TMDQL3
A-TMDML
A-TMDQU2
A-TMCKE
A-TMDQL7
A-TMDQL5
A-TMDQL0
A-TMDQL2
A-TMDQL6
A-TMDQL4
A-TMDQU7
A-TMDQU3
A-TMDQU5
A-TMDMU
A-TMDQU6
A-TMDQU0
A-TMDQU4
A-TMDQU1
A-TMA0
A-TMA1
A-TMA2
A-TMA3
A-TMA4
A-TMA5
A-TMA6
A-TMA7
A-TMA8
A-TMA9
A-TMA10
A-TMA11
A-TMA12
A-TMA13
A-TMBA0
A-TMBA1
A-TMBA2
A-TMCK
A-TMCKB
A-TMCKE
A-TMODT
A-TMRASB
A-TMCASB
A-TMWEB
A-TMRESETB
A-TMDQSL
A-TMDQSLB
A-TMDQSU
A-TMDQSUB
A-TMDML
A-TMDMU
A-TMDQL0
A-TMDQL1
A-TMDQL2
A-TMDQL3
A-TMDQL4
A-TMDQL5
A-TMDQL6
A-TMDQL7
A-TMDQU0
A-TMDQU1
A-TMDQU2
A-TMDQU3
A-TMDQU4
A-TMDQU5
A-TMDQU6
A-TMDQU7
LGE107D (S7M Divx_Non RM)
B8
A_DDR3_A0/DDR2_A13
B9
A_DDR3_A1/DDR2_A8
A8
A_DDR3_A2/DDR2_A9
C21
A_DDR3_A3/DDR2_A1
B10
A_DDR3_A4/DDR2_A2
A22
A_DDR3_A5/DDR2_A10
A10
A_DDR3_A6/DDR2_A4
B22
A_DDR3_A7/DDR2_A3
C9
A_DDR3_A8/DDR2_A6
C23
A_DDR3_A9/DDR2_A12
B11
A_DDR3_A10/DDR2_RASZ
A9
A_DDR3_A11/DDR2_A11
C10
A_DDR3_A12/DDR2_A0
B23
A_DDR3_A13/DDR2_A7
B21
A_DDR3_BA0/DDR2_BA2
A11
A_DDR3_BA1/DDR2_CASZ
A23
A_DDR3_BA2/DDR2_A5
A12
A_DDR3_MCLK/DDR2_MCLK
C11
A_DDR3_MCLKZ/DDR2_MCLKZ
B12
A_DDR3_CKE/DDR2_DQ5
C20
A_DDR3_ODT/DDR2_ODT
A20
A_DDR3_RASZ/DDR2_WEZ
B20
A_DDR3_CASZ/DDR2_BA1
A21
A_DDR3_WEZ/DDR2_BA0
C22
A_DDR3_RESETB
C16
A_DDR3_DQSL/DDR2_DQS0
B16
A_DDR3_DQSLB/DDR2_DQSB0
A16
A_DDR3_DQSU/DDR2_DQSB1
C15
A_DDR3_DQSUB/DDR2_DQS1
A14
A_DDR3_DML//DDR2_DQ13
B18
A_DDR3_DMU/DDR2_DQ6
C18
A_DDR3_DQL0/DDR2_DQ3
B13
A_DDR3_DQL1/DDR2_DQ7
A19
A_DDR3_DQL2/DDR2_DQ1
C13
A_DDR3_DQL3/DDR2_DQ10
C19
A_DDR3_DQL4/DDR2_DQ4
A13
A_DDR3_DQL5/DDR2_DQ0
B19
A_DDR3_DQL6/DDR2_CKE
C12
A_DDR3_DQL7/DDR2_DQ2
A15
A_DDR3_DQU0/DDR2_DQ15
A17
A_DDR3_DQU1/DDR2_DQ9
B14
A_DDR3_DQU2/DDR2_DQ8
C17
A_DDR3_DQU3/DDR2_DQ11
B15
A_DDR3_DQU4/DDR2_DQM1
A18
A_DDR3_DQU5/DDR2_DQ12
C14
A_DDR3_DQU6/DDR2_DQM0
B17
A_DDR3_DQU7/DDR2_DQ14
IC101
S7M_DIVX & MS10
VCC_1.5V_DDR
C1225
C1226
10uF
0.1uF
10V
16V
B_DDR3_A0/DDR2_A13
B_DDR3_A1/DDR2_A8
B_DDR3_A2/DDR2_A9
B_DDR3_A3/DDR2_A1
B_DDR3_A4/DDR2_A2
B_DDR3_A5/DDR2_A10
B_DDR3_A6/DDR2_A4
B_DDR3_A7/DDR2_A3
B_DDR3_A8/DDR2_A6
B_DDR3_A9/DDR2_A12
B_DDR3_A10/DDR2_RASZ
B_DDR3_A11/DDR2_A11
B_DDR3_A12/DDR2_A0
B_DDR3_A13/DDR2_A7
B_DDR3_BA0/DDR2_BA2
B_DDR3_BA1/DDR2_CASZ
B_DDR3_BA2/DDR2_A5
B_DDR3_MCLK/DDR2_MCLK
B_DDR3_MCLKZ/DDR2_MCLKZ
B_DDR3_CKE/DDR2_DQ5
B_DDR3_ODT/DDR2_ODT
B_DDR3_RASZ/DDR2_WEZ
B_DDR3_CASZ/DDR2_BA1
B_DDR3_WEZ/DDR2_BA0
B_DDR3_RESETB
B_DDR3_DQSL/DDR2_DQS0
B_DDR3_DQSLB/DDR2_DQSB0
B_DDR3_DQSU/DDR2_DQSB1
B_DDR3_DQSUB/DDR2_DQS1
B_DDR3_DML/DDR2_DQ13
B_DDR3_DMU/DDR2_DQ6
B_DDR3_DQL0/DDR2_DQ3
B_DDR3_DQL1/DDR2_DQ7
B_DDR3_DQL2/DDR2_DQ1
B_DDR3_DQL3/DDR2_DQ10
B_DDR3_DQL4/DDR2_DQ4
B_DDR3_DQL5/DDR2_DQ0
B_DDR3_DQL6/DDR2_CKE
B_DDR3_DQL7/DDR2_DQ2
B_DDR3_DQU0/DDR2_DQ15
B_DDR3_DQU1/DDR2_DQ9
B_DDR3_DQU2/DDR2_DQ8
B_DDR3_DQU3/DDR2_DQ11
B_DDR3_DQU4/DDR2_DQM1
B_DDR3_DQU5/DDR2_DQ12
B_DDR3_DQU6/DDR2_DQM0
B_DDR3_DQU7/DDR2_DQ14
B-TMA0
B-TMA2
B-TMA11
B-TMA1
B-TMA8
B-TMA6
B-TMBA0
B-TMA3
B-TMA5
B-TMA7
A25
B24
A24
P25
C24
P26
B26
R24
B25
T26
D24
A26
C25
T25
P24
C26
R26
D26
D25
E24
N25
M26
N24
N26
R25
J25
J24
H26
H25
F26
L24
L25
F24
L26
F25
M25
E26
M24
E25
G26
J26
G24
K25
H24
K26
G25
K24
B-TMA0
B-TMA1
B-TMA2
B-TMA3
B-TMA4
B-TMA5
B-TMA6
B-TMA7
B-TMA8
B-TMA9
B-TMA10
B-TMA11
B-TMA12
B-TMA13
B-TMBA0
B-TMBA1
B-TMBA2
B-TMCK
B-TMCKB
B-TMCKE
B-TMODT
B-TMRASB
B-TMCASB
B-TMWEB
B-TMRESETB
B-TMDQSL
B-TMDQSLB
B-TMDQSU
B-TMDQSUB
B-TMDML
B-TMDMU
B-TMDQL0
B-TMDQL1
B-TMDQL2
B-TMDQL3
B-TMDQL4
B-TMDQL5
B-TMDQL6
B-TMDQL7
B-TMDQU0
B-TMDQU1
B-TMDQU2
B-TMDQU3
B-TMDQU4
B-TMDQU5
B-TMDQU6
B-TMDQU7
B-TMA4
B-TMA12
B-TMBA1
B-TMA10
B-TMRESETB
B-TMBA2
B-TMA13
B-TMA9
B-TMCK
B-TMCKB
B-TMRASB
B-TMCASB
B-TMODT
B-TMWEB
B-TMDQSL
B-TMDQSLB
B-TMDQSU
B-TMDQSUB
B-TMDQL1
B-TMDQL3
B-TMDML
B-TMDQU2
B-TMCKE
B-TMDQL7
B-TMDQL5
B-TMDQL0
B-TMDQL2
B-TMDQL6
B-TMDQL4
B-TMDQU7
B-TMDQU3
B-TMDQU5
B-TMDMU
B-TMDQU6
B-TMDQU0
B-TMDQU4
B-TMDQU1
R1215
R1216
AR1211
AR1214
AR1215
R1217
R1218
AR1212
AR1213
AR1216
AR1217
AR1218
10
10
10
AR1219
R1222
R1223
AR1220
R1219
10
R1220
10
10
10
10
10
R1221
10
B-MA0
B-MA2
B-MA11
B-MA1
B-MA8
B-MA6
B-MBA0
B-MA3
B-MA5
B-MA7
10
B-MA4
B-MA12
B-MBA1
B-MA10
10
B-MRESETB
B-MBA2
B-MA13
B-MA9
B-MCK
B-MCKB
B-MRASB
B-MCASB
B-MODT
B-MWEB
B-MDQSL
B-MDQSLB
B-MDQSU
B-MDQSUB
B-MDQL1
B-MDQL3
B-MDML
B-MDQU2
B-MCKE
B-MDQL7
B-MDQL5
B-MDQL0
B-MDQL2
B-MDQL6
B-MDQL4
B-MDQU7
B-MDQU3
B-MDQU5
B-MDMU
B-MDQU6
B-MDQU0
B-MDQU4
B-MDQU1
B-MCKE
B-MCK
B-MCKB
VCC_1.5V_DDR
C1240
0.01uF
25V
R1232
10
10
10
10
10
10
10
R123410K
1%
1%
10K
56
R1237
56
R1238
B-MRASB
B-MCASB
B-MRESETB
B-MDQSL
B-MDQSLB
B-MDQSU
B-MDQSUB
B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7
B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7
B-MODT
B-MWEB
B-MDML
B-MDMU
B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8
B-MA9
B-MA10
B-MA11
B-MA12
B-MA13
B-MBA0
B-MBA1
B-MBA2
B-MCKE
IC1202
H5TQ1G63BFR-H9C
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
NC_6
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
M8
B-MVREFCA
H1
B-MVREFDQ
R1226
L8
ZQ
240
1%
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
VCC_1.5V_DDR
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
DDR3(256MB)
Ver. 1.0
21
Page 24

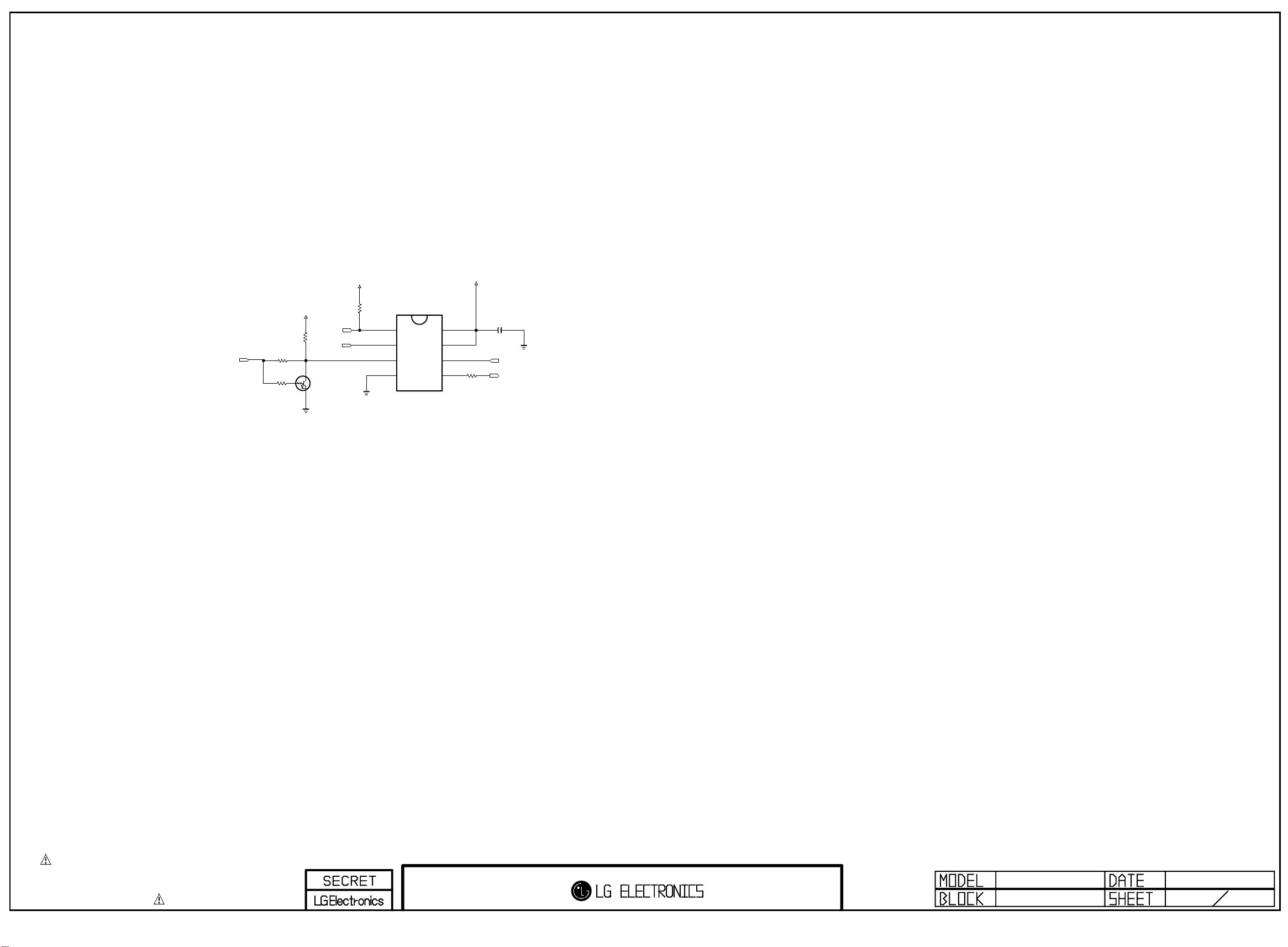

/FLASH_WP
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
R1401
OPT
R1402
0
0
+3.3V_Normal
R1403
10K
C
Q1401
B
KRC103S
E
/SPI_CS
SPI_SDO
+3.3V_Normal
R1404
4.7K
S_FLASH
IC1401
MX25L8005M2I-15G
CS#
1
SO
2
WP#
3
GND
4
+3.3V_Normal
R1405
33
C1401
0.1uF
SPI_SCK
SPI_SDI
VCC
8
HOLD#
7
SCLK
6
SI
5
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
S-Flash(1MB)
Ver. 1.2
23
Page 25
LGIT CAN H/N TUNER for US&KOR&BRAZIL&TAIWAN&AUS
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
RF_S/W_CTL
1
BST_CTL
2
+B1[5V]
3
NC_1[RF_AGC]
4
NC_2
5
SCLT
6
SDAT
7
NC_3
8
SIF
9
NC_4
10
VIDEO
11
GND
12
+B2[1.2V]
13
+B3[3.3V]
14
RESET
15
IF/AGC
16
DIF_1[N]
17
DIF_2[P]
18
19
SHIELD
TU5001-*1
TDTR-T035F
NTSC_2INPUT_H_LGIT
ANT_PWR[OPT]
1
BST_CNTL
2
+B
3
NC[RF_AGC]
4
AS
5
SCL
6
SDA
7
NC(IF_TP)
8
SIF
9
NC
10
VIDEO
11
GND
12
1.2V
13
3.3V
14
RESET
15
IF_AGC_CNTL
16
DIF_1
17
DIF_2
18
19
SHIELD
TU5001-*2
TDVJ-H031F
NTSC_1INPUT_V_LGIT
ANT_PWR[OPT]
1
BST_CNTL
2
+B
3
NC[RF_AGC]
4
AS
5
SCL
6
SDA
7
NC(IF_TP)
8
SIF
9
NC
10
VIDEO
11
GND
12
1.2V
13
3.3V
14
RESET
15
IF_AGC_CNTL
16
DIF_1
17
DIF_2
18
19
SHIELD
TU5001-*3
TDVJ-H001F
NTSC_1INPUT_H_LGIT
NTSC_1INPUT_H_SANYO
TU5001-*4
UDA45AL
ANT_PWR[OPT]
1
BST_CNTL
2
+B
3
NC[RF_AGC]
4
AS
5
SCL
6
SDA
7
NC(IF_TP)
8
SIF
9
NC
10
VIDEO
11
GND
12
1.2V
13
3.3V
14
RESET
15
IF_AGC_CNTL
16
DIF_1
17
DIF_2
18
19
SHIELD
DVB_1INPUT_H_LGIT
TU5001
TDTJ-S001D
ANT_PWR[OPT]
1
BST_CNTL
2
+B
3
NC[RF_AGC]
4
AS
5
SCL
6
SDA
7
NC[IF_TP]
8
SIF
9
NC
10
VIDEO
11
GND
12
1.2V
13
3.3V
14
RESET
15
IF_AGC_CNTL
16
DIF_1
17
DIF_2
18
19
SHIELD
R5002
0
RF_S/W_OPT
R5001
0
RF_AGC_OPT
R5003
0
+1.2V/+1.8V_TU
C5001
100pF
50V
C5002
0.1uF
16V
RF_S/W_OPT
+5V_TU
C5003
0.1uF
16V
OPTION : RF S/W
RF_SWITCH_CTL
Pull-up can’t be applied
because of MODEL_OPT_2
+3.3V_TU
C5006
C5007
100pF
0.1uF
50V
16V
NON_DEMOD_OPT
0
R5035
R5009
100
+3.3V_TU
R5011
100K
C5010
0.1uF
16V
NON_BR_TU_I2C
TUNER_RESET
NON_DEMOD_OPT
R5034
Q5001
ISA1530AC1
BOOSTER_OPT
0
+5V_TU
C5011
0.01uF
25V
BOOSTER_OPT
C5012
18pF
50V
NON_BR_TU_I2C
L5001
MLB-201209-0120P-N2
BOOSTER_OPT
R5014
0
BOOSTER_OPT
E
B
C
33
NON_BR_TU_I2C
33
NON_BR_TU_I2C
C5013
18pF
50V
IF_N_MSTAR
IF_P_MSTAR
R5017
2.2K
BOOSTER_OPT
BOOSTER_OPT
NON_BR_TU_I2C
R5018
1.2K
R5015
R5016
Q5002
2SC3052
+3.3V_TU
R5019
10K
BOOSTER_OPT
C
BOOSTER_OPT
B
E
NON_BR_TU_I2C
R5020
1.2K
R5006 100
DEMOD_OPT
R5007 100
DEMOD_OPT
OPTION : BOOSTER
R5021
10K
TU_SCL
TU_SDA
LNA2_CTL
The pull-up/down of LNA2_CTL
is depended on MODLE_OPT_1.
GPIO must be added for FE_BOOSTER_CTL
Option name:BR_TU_I2C
BRAZIL model use I2C Standard Mode
BR_TU_I2C
R5018-*1
3.3K
BR_TU_I2C
R5015-*1
100
1/16W
5%
BR_TU_I2C
C5012-*1
47pF
50V
C5016
0.1uF
16V
OPT
Close to the tuner
R5022
1K
BR_TU_I2C
R5020-*1
3.3K
BR_TU_I2C
R5016-*1
100
1/16W
5%
BR_TU_I2C
C5013-*1
47pF
50V
should be guarded by ground
IF_N_EXT
IF_P_EXT
IF_AGC
C5025
0.1uF 16V
R5024
C5026
0.1uF
16V
RF_AGC_OPT
0
Q5003
2SC3052
RF_AGC_OPT
C5027
10uF
10V
RF_AGC_OPT
C
B
E
R5025
4.7K
R5026
1K
OPT
TU_CVBS_BYPASS
R5027
1K
OPT
R5028
10K
RF_AGC_OPT
+5V_TU
R5029
470
B
+5V_TU
R5030
220
NON_TU_CVBS_BYPASS
R5039
0
B
OPTION : RF AGC
IF_AGC_SEL
R5032
E
C
E
Q5005
C
82
ISA1530AC1
Q5004
R5031
220
NON_TU_CVBS_BYPASS
ISA1530AC1
GPIO must be added.
TU_SIF
TU_CVBS
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+3.3V_TU
C5031
0.1uF
16V
IC5001
AZ1117H-ADJTRE1(EH11A)
INPUT
3
2
OUTPUT
1
ADJ/GND
R5038
1.2K
R5036
10
+1.2V/+1.8V_TU
R5033
1
C5029
10uF
10V
C5028
0.1uF
16V
60mA
200mA
+5V_TU
C5018
22uF
16V
OPT
C5017
22uF
16V
OPT
C5019
22uF
16V
+3.3V_TU
C5020
22uF
16V
+5V_General
L5002
BLM18PG121SN1D
C5021
0.1uF
16V
+3.3V_Normal
L5003
BLM18PG121SN1D
C5022
0.1uF
16V
*Change History.
C5023
0.1uF
16V
C5024
0.1uF
16V
GP2_Saturn7M
ATSC_CAN TUNER
Ver 1.0 --> 1.1:Change of chip type, 091019, w.s.jeong
Ver 1.1 --> 1.2:Change of chip type, Add of Tuner P/N for NTSC_1INPUT
1.De-reting
1) R5029,R5030,R5031 : 1005 Type ==> 1608 Type(w.s.Jeong_1019)
2) R5030,R5031 : 200/1608 Type ==> 220/2012 Type(w.s.Jeong_1116)
2.ADD of TUNER P/N (w.s.Jeong_1116)
CONTROL_ATTEN
This was being applied to the only china demod,
so this has to be deleted in both main and ISDB sheet.
Ver. 1.1
26
091116, w.s.jeong
Page 26
PANASONIC (ISDB-T)
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
MN884433
IF_N_EXT
IF_P_EXT
ISDB_DEMOD
C2901 0.1uF
C2902 0.1uF
ISDB_DEMOD
+1.2V_DE
C2903 0.1uF
ISDB_DEMOD
C2904 0.1uF
ISDB_DEMOD
C2905 0.1uF
C2906 0.1uF
ISDB_DEMOD
R2903
1%
10K
C2907 0.1uF
C2908 0.1uF
C2909 0.1uF
IF_AGC_ISDB
+3.3V_DE
ISDB_DEMOD
ISDB_DEMOD
ISDB_DEMOD
ISDB_DEMOD
ISDB_DEMOD
ISDB_DEMOD
R2904 2.2K
R2905 2.2K
ISDB_DEMOD
ISDB_DEMOD
R2907 2.2K
ISDB_DEMOD
R2908 2.2K
R2906
ISDB_DEMOD
ISDB_DEMOD
C2910
0.1uF
VSS_1
AVDD_S
AII_S
AIQ_S
AVSS_S
VRT_S
VRB_S
TCPO_S
VDDL_1
MSCL_S
MSDA_S
VSS_2
VDDL_2
TCPO_T
VRT_T
VRB_T
AVDD_T
AIN_T
AIP_T
AVSS_T
10K
VSSH
PSEL
ZSEL
ACKI
IR_T
AGC_S
100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
VSS_3
MSCL_T28MSDA_T29VDDH_1
ISDB_DEMOD
C2912
0.1uF
16V
ISDB_DEMOD
C2913
0.1uF
16V
ISDB_DEMOD
C2911
0.1uF
16V
30
GPO1
ISDB_DEMOD
ISDB_DEMOD
ISDB_DEMOD
C2916
0.1uF
16V
VSS_1192VDDL_793SCKB94TEST095SDOB96PCKB97DENB98GPO299VDDH_5
91
IC2901
MN884433
ISDB_DEMOD
31
33
34
35
GPO0
VSS_4
AGCI_T32AGCR_T
VDDL_3
ISDB_DEMOD
C2914
0.1uF
16V
ISDB_OPT
ISDB_DEMOD
C2915
15pF
50V
C2917
0.1uF
16V
36XO37XI38
ISDB_DEMOD
R2909
1M
X2901
25MHz
ISDB_DEMOD
ISDB_DEMOD
C2920
0.1uF
16V
39
GPI140GPI0
VDDH_2
C2918
0.1uF
16V
ISDB_DEMOD
ISDB_DEMOD
C2919
15pF
50V
C2922
0.1uF
16V
HDVPP86RON87NC_388HDVDDH89NC_490HDVDDL1
85
41
TEST442SHVPP
C2921
0.1uF
16V
ISDB_DEMOD
43
NC_1
SHVDDH
C2923
0.1uF
16V
44
45
VSS_5
VDDL_4
46
47
TCK48TDI
ISDB_DEMOD
C2924
0.1uF
16V
49
NRST
TEST177TEST278SCKA79GPI280SDOA81PCKA82DENA83VDDH_484VSS_10
76
50
TEST3
ISDB_DEMOD
R2910 22
ISDB_DEMOD
R2911 22
ISDB_DEMOD
R2912 22
ISDB_DEMOD
R2913 22
VSS_9
75
INTB
74
INTA
73
SADR
72
VDDH_3
71
SCL
70
SDA
69
VSS_8
68
HDVDDL0
67
SADR_S
66
NC_2
65
SADR_T
64
VDDL_6
63
VSS_7
62
ERRB
61
SYNCB
60
ERRA
59
SYNCA
58
TDO
57
CSEL1
56
CSEL0
55
TMS
54
TRST
53
VDDL_5
52
VSS_6
51
ISDB_DEMOD
C2926 0.1uF
ISDB_DEMOD
C2927 0.1uF
ISDB_DEMOD
C2928 0.1uF
ISDB_DEMOD
C2925 0.1uF
FE_TS_VAL_ERR
FE_TS_SYNC
FE_TS_DATA[0]
(FE_TS_SERIAL)
FE_TS_CLK
OPT
R2914
2.2K
+3.3V_DE
R2915
2.2K
OPT
AMP_I2C HAVE PULL-UP
DEMOD_SCL
DEMOD_SDA
FE_TS_DATA[0]
(FE_TS_SERIAL)
ISDB_DEMOD
TP2901ISDB_DEMOD
TP2902ISDB_DEMOD
TP2903ISDB_DEMOD
TP2904ISDB_DEMOD
TP2905
TP2906ISDB_DEMOD
TP2907ISDB_DEMOD
FE_TS_DATA[0-7]
FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]
DEMOD_RESET
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M Ver. 1.0
ISDB-T Demodulator
28
Page 27
Panasonic Demodulator Power(3.3V,1.2V)
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
ISDB_POWER
IC3001
SC4215ISTRT
NC_1
EN
VIN
NC_2
1
2
3
4
GND
8
7
6
5
ADJ
VO
NC_3
ISDB_POWER
R3004
5.1K
10K
R3003
ISDB_POWER
+1.2V_DE
ISDB_POWER
C3005
0.1uF
16V
ISDB_POWER
C3006
22uF
16V
+3.3V_Normal
0.1uF
ISDB_POWER
C3001
ISDB_POWER
L3001
BLM18PG121SN1D
+3.3V_DE
ISDB_POWER
C3002
0.1uF
+3.3V_DE
ISDB_POWER
C3003
0.1uF
16V
ISDB_POWER
C3004
10uF
10V
IF AGC SELECTION
IF_AGC_ISDB
R3001
0
IF_AGC
ISDB_DEMOD
R3002
MSTAR DEMOD
0
IF_AGC_MAIN
TP3002
IF_AGC_SEL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M Ver. 1.0
Demodulator
29
Page 28
NON CI Region
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
/PCM_CD
PCM_5V_CTL
/PCM_CE
/PCM_IRQA
FE_TS_SYNC
FE_TS_VAL_ERR
FE_TS_CLK
CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]
/PCM_REG
/PCM_OE
/PCM_WE
/PCM_IORD
/PCM_IOWR
PCM_RST
/PCM_WAIT
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]
FE_TS_DATA[0-7]
PCM_D[0-7]
FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]
PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M Ver. 1.0
PCMCI
46
Page 29
NON Motion Remocon Region
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
TP2501
TP2502
TP2503
TP2504
M_REMOTE_RX
M_REMOTE_TX
RF_RESET
RF_ENABLE
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
NON M REMOCON
Ver. 1.0
50
Page 30
NON CHINA HOTEL
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
AMP_MUTE_HOTEL
SPK_R+_HOTEL
SPK_R-_HOTEL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
NON CHINA HOTEL
Ver. 1.0
52
Page 31
NON-WIRELESS MODEL
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
S7_TXD
WIRELESS_SW_CTRL
WIRELESS_PWR_EN
WIRELESS_DETECT
WIRELESS_DL_RX
WIRELESS_DL_TX
R2627 0
R2626 0
S7_RXD1S7_RXD
S7_TXD1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
NON WIRELESS READY
Ver. 1.0
54
Page 32
IF_AGC_SEL
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
LNA2_CTL
RF_SWITCH_CTL
OPT
R7300 100
R7301 100
R7302 100
R7303 100
CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1
CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2
CK+_HDMI4
HDMI
CK-_HDMI4
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
DDC_SDA_4
DDC_SCL_4
HPD4
CEC_REMOTE_S7
DSUB_HSYNC
DSUB_VSYNC
DSUB_R+
DSUB_RDSUB_G+
DSUB
DSUB_GDSUB_B+
DSUB_B-
SCART1_RGB/COMP1
SC1_ID
SC1_FB
SC1_R+/COMP1_Pr+
SC1_R-/COMP1_Pr-
SC1_G+/COMP1_Y+
SC1_G-/COMP1_YSC1_B+/COMP1_Pb+
SC1_B-/COMP1_Pb-
SC1_SOG_IN
COMP2_Pr+
COMP2_Pr-
COMP2_Y+
COMP2
COMP2_YCOMP2_Pb+
COMP2_Pb-
TU_CVBS
SC1_CVBS_IN
AV_CVBS_IN
SIDEAV_CVBS_IN
AV_CVBS_IN2
CVBS In/OUT
DTV/MNT_VOUT
AV_CVBS_IN2
1K
R7834
1K
R7833
+3.3V_Normal
OPT
OPT
FHD
OPT
OPT
R7306 1K
R7379 1K
OPT
R7380 1K
R7308 1K
R7377 1K
HD
R7309 1K
R7307 1K
R7378 1K
R7310 1K
R7311 1K
OPT
R7312 1K
R7313 1K
MODEL OPTION
MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6
PIN NAME
MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6
LGE107D (S7M Divx_Non RM)
R7304
10K
C7300
1000pF
R7305
OPT
F1
F2
G2
G3
H3
G1
H1
H2
F5
F4
E6
D3
C1
D1
D2
E2
E3
F3
E1
D4
E4
D5
AA2
AA1
AB1
AA3
AB3
AB2
AC2
AC1
AB4
AA4
AC3
A2
A3
B3
A1
B1
B2
C2
C3
B4
C4
E5
D6
R7314
22
R7315
22
R7316 33
C7301 0.047uF
R7317 68
C7302 0.047uF
C7303 0.047uF
R7318 33
C7304 0.047uF
R7319 68
R7320 33
C7305 0.047uF
C7306 0.047uF
R7321 68
R7322 0
R7340 33
R7341 68
R7342
R7343
R7344 33
R7345 68
R7323 0
NON_EU
R7324 33
R7325 68
R7326
R7327
R7328 33
R7329 68
R7330 0
R7331 33
R7332 33
R7333 33
R7334 33
R7335 33
R7336 33
R7337 33
R7338 33
R7339 68
C7307 1000pF
C7308 0.047uF
C7309 0.047uF
C7310
33
C7311
68
C7312
C7313
C7314 1000pF
C7315 0.047uF
C7316 0.047uF
33
C7317 0.047uF
C7318 0.047uF
68
C7319 0.047uF
C7320 0.047uF
C7321 1000pF
C7322 0.047uF
C7323 0.047uF
C7324 0.047uF
C7325 0.047uF
C7326 0.047uF
C7327 0.047uF
C7328 0.047uF
C7329 0.047uF
TP7300
C7330 0.047uF
10K
0.047uF
0.047uF
0.047uF
0.047uF
G5
G6
K1
L3
K3
K2
J3
J2
J1
G4
H6
K5
K4
J4
K6
H4
J6
J5
H5
N3
N2
M2
M1
L2
L1
M3
N4
N6
L4
L5
L6
M4
M5
K7
M6
M7
N5
S7M_DIVX & MS10
A_RXCP
A_RXCN
A_RX0P
A_RX0N
A_RX1P
A_RX1N
A_RX2P
A_RX2N
DDCDA_DA/GPIO24
DDCDA_CK/GPIO23
HOTPLUGA/GPIO19
B_RXCP
B_RXCN
B_RX0P
B_RX0N
B_RX1P
B_RX1N
B_RX2P
B_RX2N
DDCDB_DA/GPIO26
DDCDB_CK/GPIO25
HOTPLUGB/GPIO20
C_RXCP
C_RXCN
C_RX0P
C_RX0N
C_RX1P
C_RX1N
C_RX2P
C_RX2N
DDCDC_DA/GPIO28
DDCDC_CK/GPIO27
HOTPLUGC/GPIO21
D_RXCP
D_RXCN
D_RX0P
D_RX0N
D_RX1P
D_RX1N
D_RX2P
D_RX2N
DDCDD_DA/GPIO30
DDCDD_CK/GPIO29
HOTPLUGD/GPIO22
CEC/GPIO5
HSYNC0
VSYNC0
RIN0P
RIN0M
GIN0P
GIN0M
BIN0P
BIN0M
SOGIN0
HSYNC1
VSYNC1
RIN1P
RIN1M
GIN1P
GIN1M
BIN1P
BIN1M
SOGIN1
HSYNC2
RIN2P
RIN2M
GIN2P
GIN2M
BIN2P
BIN2M
SOGIN2
CVBS0P
CVBS1P
CVBS2P
CVBS3P
CVBS4P
CVBS5P
CVBS6P
CVBS7P
CVBS_OUT1
CVBS_OUT2
VCOM0
Close to MSTAR
TP211
MODEL OPTION
PIN NO.
F7
B6
E18
D18
F9
IC101
HIGH
FRCG19
MINI LVDSC5
DDR_512MB
FHD
GIP
OLED
VIFP
VIFM
SSIF/SIFP
SSIF/SIFM
IFAGC
RF_TAGC
TGPIO0/UPGAIN
TGPIO1/DNGAIN
TGPIO2/I2C_CLK
TGPIO3/I2C_SDA
XTALIN
XTALOUT
SPDIF_IN/GPIO177
SPDIF_OUT/GPIO178
DM_P0
DP_P0
DM_P1
DP_P1
I2S_IN_BCK/GPIO175
I2S_IN_SD/GPIO176
I2S_IN_WS/GPIO174
I2S_OUT_BCK/GPIO181
I2S_OUT_MCK/GPIO179
I2S_OUT_SD/GPIO182
I2S_OUT_SD1/GPIO183
I2S_OUT_SD2/GPIO184
I2S_OUT_SD3/GPIO185
I2S_OUT_WS/GPIO180
LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R
LINE_IN_2L
LINE_IN_2R
LINE_IN_3L
LINE_IN_3R
LINE_IN_4L
LINE_IN_4R
LINE_IN_5L
LINE_IN_5R
LINE_OUT_0L
LINE_OUT_2L
LINE_OUT_3L
LINE_OUT_0R
LINE_OUT_2R
LINE_OUT_3R
MIC_DET_IN
MICCM
MICIN
AUCOM
HP_OUT_1L
HP_OUT_1R
ET_RXD0
ET_TXD0
ET_RXD1
ET_TXD1
ET_REFCLK
ET_TX_EN
ET_MDC
ET_MDIO
ET_CRS
AVLINK
IRINT
TESTPIN
RESET
U3_RESET
NO FRC
DDR_256MB
50/60Hz LVDS100/120Hz LVDS
NON_GIP
IP
IM
QP
QM
VRM
VAG
VRP
LOW
LVDS
LCD
W2
W1
V2
V1
Y2
Y1
U3
V3
Y5
Y4
U1
U2
R3
T3
T2
T1
G14
G13
B7
A7
AF17
AE17
F14
F13
F15
D20
E20
D19
F18
E18
D18
E19
N1
P3
P1
P2
P4
P5
R6
T6
U5
V5
U6
V6
U4
W3
W4
V4
Y3
W5
R4
T5
R5
T4
P7
R7
P6
R1
R2
E21
E22
D21
F21
E23
D22
F22
D23
F23
F8
G8
K8
A4
Y17
HD
C7333 2.2uF
C7334
C7335 2.2uF
C7336
C7337 2.2uF
C7338
C7339
C7340 2.2uF
C7341 2.2uF
C7342 2.2uF
C7343
C7344
OPT
C7331
C7332
OPT
L7315
TP7301
TP7302
TP7303
TP7304
TP7305
R7353 100
2.2uF
2.2uF
2.2uF
2.2uF
2.2uF
2.2uF
TP7307
TP7308
TP7309
2.2uF
2.2uF
C7345
4.7uF
CM2012F5R6KT
L7316
CM2012F5R6KT
TP7306
R7354 100
R7350
R7351
DEMOD_OPT
DEMOD_OPT
R7352
R7355
5.6uH
5.6uH
OPT
OPT
R7349
OPT
0
0
R7359 22
R7360 22
1M
OPT
0
0
C7346
1uF
R7361 100
R7362 100
C7348 0.1uF
C7349 0.1uF
ANALOG SIF
Close to MSTAR
+3.3V_Normal
X7300
24MHz
NEC_SDA
COMP2_DET
NEC_SCL
OPT
C7347
0.1uF
IR
Close to MSTAR
R7364 47
R7365 47
L7300
BLM18PG121SN1D
C7355
0.1uF
AMP_SCL
AMP_SDA
TU/DEMOD_I2C
C7350 27pF
C7351 27pF
MODEL_OPT_4
MODEL_OPT_5
BLM18SG121TN1D
C7352
10uF
10K
R7363
C7353 0.1uF
C7354 0.1uF
DEMOD_SCL
DEMOD_SDA
TU_SCL
TU_SDA
SC1/COMP1_L_IN
SC1/COMP1_R_IN
AV_L_IN
AV_R_IN
SIDEAV_L_IN
SIDEAV_R_IN
COMP2_L_IN
COMP2_R_IN
PC_L_IN
PC_R_IN
L7301
C7417
4.7uF
10V
OPT
C7357
1000pF
Close to MSTAR
R7366
1K
R7370
10K
AMP_SDA
SPDIF_OUT
SIDE_USB_DM
SIDE_USB_DP
SIDE USB
C7418
4.7uF
10V
SOC_RESET
DTV_IF
IF_P_MSTAR
IF_N_MSTAR
C7359
0.022uF
16V
AUD_SCK
AUD_MASTER_CLK
AUD_LRCH
AMP_SCL
AUD_LRCK
AUDIO IN
TU_SIF
SCART1_Lout
SCART1_Rout
H/P OUT
HP_LOUT
HP_ROUT
I2S_I/F
+1.26V_VDDC
IF_AGC_MAIN
AUDIO OUT
L7302
BLM18SG700TN1D
+3.3V_Normal
L7304
BLM18PG121SN1D
AVDD_MEMPLL:24mA
VDD33
+3.3V_Normal
L7305
BLM18PG121SN1D
Normal 2.5V
+2.5V_Normal
+2.5V_Normal
+1.5V_DDR
L7306
C7366
RSDS Power OPT
+1.26V_VDDC
L7303
BLM18SG700TN1D
10uFC7362
10uFC7361
VDD33
10uFC7370
L7314
BLM18PG121SN1D
VDD33_DVI:163mA
VDD33_DVI
C7371
10uF
L7307
BLM18PG121SN1D
L7308
BLM18PG121SN1D
AU25:10mA
AVDD_DDR0:55mA
BLM18PG121SN1D
C7369
C7374
10uF
10uF
MIU1VDDC
10uFC7363
C7372 0.1uF
C7368 0.1uF
C7365 0.1uF
Normal Power 3.3V
VDD33_T/VDDP/U3_VD33_2:47mA
10uFC7375
10uFC7381
C7389 0.1uF
C7385 0.1uF
AU33:31mA
AVDD_LPLL
C7413
C7414
0.1uF
0.1uF
090916 modified
AVDD_DMPLL
L7310
BLM18PG121SN1D
C7386
0.1uF
C7382
0.1uF
C7376
0.1uF
AVDD_DMPLL/AVDD_NODIE:7.362mA
AVDD2P5/ADC2P5:162mA
AVDD2P5
C7373 10uF
AU25
AVDD2P5
C7378 0.1uF
+2.5V_Normal
AVDD25_PGA:13mA
C7379 0.1uF
DDR3 1.5V
AVDD_DDR0
C7419
0.1uF
C7384
0.1uF
0.1uF
C7380
0.1uF
C7388
C7420
0.1uF
+1.26V_VDDC
VDDC 1.26V
C7377 0.1uF
C7383 0.1uF
C7392 0.1uF
C7398 0.1uF
VDD33
L7309
BLM18PG121SN1D
C7395
0.1uF
C7394
0.1uF
R7373
0
1/10W
5%
L7311
BLM18PG121SN1D
AVDD_DDR0
0
5%
R7374
1/10W
C7397
C7401
0.1uF
10uF
AVDD_DDR0
R73751K1/16W
1%
R73761K1/16W
1%
L7313
BLM18SG700TN1D
C7391 0.1uF
C7387 0.1uF
C7402 0.1uF
ADC2P5
AVDD25_PGA
AVDD_DDR1:55mA
C7406
10uF
C7415
0.1uF
MIU0VDDC
C7407 0.1uF
C7404 0.1uF
C7405 0.1uF
0.1uF
MVREF
AU33
C7408
C7396 0.1uF
C7393
0.1uF
0.1uF
C7400 0.1uF
AVDD_DDR1
C7409
0.1uF
C7410
C7403 0.1uF
C7399 0.1uF
0.1uF
MIU0VDDC
MIU1VDDC
AVDD_LPLL
090916 modified
VDD33
LGE107D (S7M Divx_Non RM)
VDDC
H11
H12
H13
H14
H15
J12
J13
J14
J15
J16
L18
H16
K19
L19
M18
M19
N18
N19
N20
P18
P19
P20
Y12
AB11
AB12
AC11
AC12
AA12
J11
L7
H7
J7
J8
L8
W15
Y15
U8
M8
N9
P9
N8
P8
T7
U7
T9
R8
R9
T8
V20
W20
U19
U20
V19
W19
U18
T20
Y14
R19
W14
D15
D16
E15
E16
E17
F16
F17
G16
G17
H17
G15
Y7
Y8
C7412 1uF
ADC2P5
AU25
AVDD2P5
AVDD2P5
AVDD25_PGA
AVDD_DMPLL
VDD33_DVI
AVDD_DMPLL
AU33
VDD33
C7411
0.1uF
AVDD_DDR0
AVDD_DDR1
MVREF
VDDC : 2026mA
IC101
S7M_DIVX & MS10
VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
A_DVDD
B_DVDD
FRC_VDDC_0
FRC_VDDC_1
FRC_VDDC_2
FRC_VDDC_3
FRC_VDDC_4
FRC_VDDC_5
FRC_VDDC_6
FRC_VDDC_7
FRC_VDDC_8
U3_DVDD_DDR
AVDD1P2
DVDD_NODIE
AVDD2P5_ADC_1
AVDD2P5_ADC_2
AVDD25_REF
AVDD_AU25
PVDD_1
PVDD_2
AVDD25_PGA
AVDD_NODIE
AVDD_DVI_1
AVDD_DVI_2
AVDD3P3_CVBS
AVDD_DMPLL
AVDD_AU33
AVDD_EAR33
AVDD33_T
VDDP_1
VDDP_2
VDDP_3
FRC_VD33_2_1
FRC_VD33_2_2
FRC_AVDD_RSDS_1
FRC_AVDD_RSDS_2
FRC_AVDD_RSDS_3
FRC_AVDD
FRC_AVDD_LPLL
FRC_AVDD_MPLL
FRC_VDD33_DDR
AVDD_MEMPLL
FRC_AVDD_MEMPLL
AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR0_D_4
AVDD_DDR0_C
AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3
AVDD_DDR1_D_4
AVDD_DDR1_C
FRC_AVDD_DDR_D_1
FRC_AVDD_DDR_D_2
FRC_AVDD_DDR_D_3
FRC_AVDD_DDR_D_4
FRC_AVDD_DDR_C
MVREF
NC_1
NC_2
GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_FU
PGA_VCOM
090:AI26
VDDC
G18
H9
H10
H18
H19
J10
J17
J18
J19
K9
K10
K11
K12
K13
K14
K15
K16
K17
K18
L9
L10
L11
L12
L13
L14
L15
L16
L17
M9
M10
M11
M12
M13
M14
M15
M16
M17
N10
N11
N12
N13
N14
N15
N16
N17
P10
P11
P12
P13
P14
P15
P16
P17
R10
R11
R12
R13
R14
R15
R16
R17
R18
T10
T11
T12
T13
T14
T15
T16
T17
T18
T19
U10
U11
U12
U13
U14
U15
U16
U17
V7
V8
V9
V10
V11
V12
V13
V14
V15
V16
V17
V18
W7
W8
W9
W10
W11
W12
W13
W16
W17
W18
Y13
Y18
AA13
AB13
AC13
D17
H23
AF13
J9
L7312
BLM18SG121TN1D
U9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C7364 10uF
C7367 0.1uF
C7416 10uF
C7390 0.1uF
GP2_Saturn7M
MAIN_2
Ver. 1.4
90
Page 33
LGE107D (S7M Divx_Non RM)
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
AF16
AD14
AF15
AE15
AD16
AD15
AE16
AF14
AD13
AE14
AE13
AE11
AF11
AD12
AF12
AE12
AE10
AD11
AD10
AF10
AE1
AF1
AE3
AD3
AF2
AD2
AF3
AD1
AE4
AD5
AF4
AD4
AE2
AF8
AD9
AE9
AF9
AF6
AE6
AD6
AE5
AF5
AF7
AD7
AE7
AD8
AE8
Y11
Y19
S7M_DIVX & MS10
FRC_DDR3_A0/DDR2_NC
FRC_DDR3_A1/DDR2_A6
FRC_DDR3_A2/DDR2_A7
FRC_DDR3_A3/DDR2_A1
FRC_DDR3_A4/DDR2_CASZ
FRC_DDR3_A5/DDR2_A10
FRC_DDR3_A6/DDR2_A0
FRC_DDR3_A7/DDR2_A5
FRC_DDR3_A8/DDR2_A2
FRC_DDR3_A9/DDR2_A9
FRC_DDR3_A10/DDR2_A11
FRC_DDR3_A11/DDR2_A4
FRC_DDR3_A12/DDR2_A8
FRC_DDR3_BA0/DDR2_BA2
FRC_DDR3_BA1/DDR2_ODT
FRC_DDR3_BA2/DDR2_A12
FRC_DDR3_MCLK/DDR2_MCLK
FRC_DDR3_CKE/DDR2_RASZ
FRC_DDR3_MCLKZ/DDR2_MCLKZ
FRC_DDR3_ODT/DDR2_BA1
FRC_DDR3_RASZ/DDR2_WEZ
FRC_DDR3_CASZ/DDR2_CKE
FRC_DDR3_WEZ/DDR2_BA0
FRC_DDR3_RESETB/DDR2_A3
FRC_DDR3_DQSL/DDR2_DQS0
FRC_DDR3_DQSLB/DDR2_DQSB0
FRC_DDR3_DQSU/DDR2_DQS1
FRC_DDR3_DQSUB/DDR2_DQSB1
FRC_DDR3_DML/DDR2_DQ7
FRC_DDR3_DMU/DDR2_DQ11
FRC_DDR3_DQL0/DDR2_DQ6
FRC_DDR3_DQL1/DDR2_DQ0
FRC_DDR3_DQL2/DDR2_DQ1
FRC_DDR3_DQL3/DDR2_DQ2
FRC_DDR3_DQL4/DDR2_DQ4
FRC_DDR3_DQL5/DDR2_NC
FRC_DDR3_DQL6/DDR2_DQ3
FRC_DDR3_DQL7/DDR2_DQ5
FRC_DDR3_DQU0/DDR2_DQ8
FRC_DDR3_DQU1/DDR2_DQ14
FRC_DDR3_DQU2/DDR2_DQ13
FRC_DDR3_DQU3/DDR2_DQ12
FRC_DDR3_DQU4/DDR2_DQ15
FRC_DDR3_DQU5/DDR2_DQ9
FRC_DDR3_DQU6/DDR2_DQ10
FRC_DDR3_DQU7/DDR2_DQM1
FRC_DDR3_NC/DDR2_DQM0
FRC_REXT
FRC_TESTPIN
IC101
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]
BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]
B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN
GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2
ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]
CCKP/LLV3P
CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]
C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N
DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0
FRC_GPIO0/UART_RX
FRC_GPIO1
FRC_GPIO3
FRC_GPIO8
FRC_GPIO9/UART_TX
FRC_GPIO10
FRC_I2CM_DA
FRC_I2CM_CK
FRC_I2CS_DA
FRC_I2CS_CK
FRC_PWM0
FRC_PWM1
W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24
AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24
AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22
AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18
AB22
AB23
AC23
AC22
AB16
AA14
AC15
Y16
AC16
AC14
AA16
AA15
Y10
AA11
AB15
AB14
RXBCK+
RXBCKRXB0+
RXB0RXB1+
RXB1RXB2+
RXB2RXB3+
RXB3RXB4+
RXB4-
RXACK+
RXACKRXA0+
RXA0RXA1+
RXA1RXA2+
RXA2RXA3+
RXA3RXA4+
RXA4-
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
DDR3(FRC)
Ver. 1.4
92
Page 34
+24V/+15V
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Adapter
L7912
MLB-201209-0120P-N2
C7517
C7514
68uF
0.1uF
35V
50V
+3.5V_ST
C7515
68uF
35V
NON_Adapter
OLP
3.3K -> 1K (threshold voltage up)
R7514
1K
B
Q7502
2SC3052
R7516
10K
R7515
10K
+5V_General
C7918
0.1uF
16V
+3.5V_ST
C7919
0.1uF
16V
R7517
10K
OPT
INV_CTL
+12V/+15V
JPD003N-M432-4F
SM14B-SRSS-TB
L7910
C7910
10uF
25V
NON_Adapter
P7500
SMAW200-12
Adapter
JK7500
Adapter
P7501
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
GND
1
2
3
4
5
6
7
8
9
10
11
12
24V
24V
24V
24V
24V
GND
GND
GND
GND
GND
NC
INV_ON
PWM_DIM
ERROR_OUT
+15V
+15V
GND
GND
+3.5V_ST
+3.5V_ST
GND
OLP
INV_ON
P_DIM
A_DIM
NC
24V
SW
GND
R7580
OPT
Adapter_LGD
0
C7506
1uF
6.3V
OPT
To Tuner
C7920
0.1uF
R7850
22
R7505
A_DIM
4.7K
C7580
C7502
68uF
0.1uF
35V
50V
+24V_LED_driver
C7927
C7928
0.1uF
0.01uF
50V
50V
Adapter_AUO
R7587
0
R7541 0
R7579
0
Adapter_LGD
Adapter_AUO
IC7511
MP8706EN-C247-LF-Z
IN
1
SW_1
2
SW_2
3A
3
BST
4
L7911
3.6uH
NR8040T3R6N
R7549
MLB-201209-0120P-N2
MLB-201209-0120P-N2
NON_Adapter
L7502
MLB-201209-0120P-N2
NON_Adapter
C7509
NON_Adapter
0.1uF
16V
PWM_DIM
R7506
C7507
1uF
6.3V
OPT
0
0
OPC_OUT
R7507
0
OPT
OPC_OUT
R7508
0
OPT
Adapter
L7503
NON_Adapter
C7511
0.1uF
16V
L7504
+3.3V_Normal
C
R7511
6.8K
OPT
E
ERROR_OUT
MAX 300mA
GND
8
7
6
5
VCC
FB
EN/SYNC
C7921
1uF
50V
R7851
10K
POWER_ON/OFF2_2
R7852
10K
OPT
C7913
100pF
50V
090916
R7853
33K
R7854
6.2K
OPT
1%
C7914
C7915
100pF
R1
22uF
50V
10V
1%
R2
Vout=(1+R1/R2)*0.8
+12V/+15V
L7500
C7500
10uF
25V
+5V_USB
IC7500
MP8706EN-C247-LF-Z
IN
1
SW_1
2
SW_2
3A
1/10W
BST
3
4
L7501
3.6uH
NR8040T3R6N
C7504
0.1uF
R7502
22
8
7
6
5
GND
VCC
FB
EN/SYNC
C7508
1uF
50V
R7509
10K
POWER_ON/OFF2_1
R7510
10K
OPT
C7510
100pF
50V
090916
MAX 2000mA
OPT
1%
C7512
R7512
33K
100pF
R1
50V
1%
R7513
6.2K
R2
C7513
22uF
10V
C7516
0.1uF
16V
+5V_USB
C7518
0.1uF
16V
Vout=(1+R1/R2)*0.8
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+24V_LED
+3.5V_ST
+12V/+15V
12V_PANEL
L7517
OPT
R7522
10K
R7521
10K
B
+5V_Normal
5V_PANEL
L7505
4A -> 3A modify 090916
PANEL_CTL
L7506
Placed on SMD-TOP
C7572
C IN
22uF
10V
+24V/+15V
AO3407A Vgs : 10.8V(24V input)
AO3407A Vgs : 8.3V(15V input)
C7501
C7503
2.2uF
50V
R7501
27K
B
Q7501
AO3407A
C
Q7500
E
R7503
22K
G
S
D
0.1uF
50V
R7500
10K
Adapter
POWER_ON/OFF2_2
R7832
10K
NON_Adapter
RL_ON
AO3407A Vgs : 10.8V
+15V Control
+3.5V_Normal
C IN
C7553
0.1uF
16V
300 mA
+3.5V_ST
C7520
22uF
10V
VIN
IC7505
AZ2940D-2.5TRE1
3
1
Vd=550mV
2
GND
L7507
Placed on SMD-TOP
R7524
75K
1/8W
1%
VOUT
R7523
C
E
22K
Q7503
2SC3052
C7525
0.01uF
25V
5V_PANEL
R7530-*1
22K
5V_PANEL
R7531-*1
2.7K
R7527
22K
C7526
0.1uF
16V
B
S7 DDR 1.5V
C7573
IC7504
MP2212DN
FB
R2
GND
L7913
Adapter
L7914
NON_Adapter
2A
1608
C7932
3.3uF
50V
+2.5V_Normal
Replaced Part
FB
1
GND
2
IN
3
BS
4
1
2
IN
3
BS
4
AMP_VCC
C7557
0.1uF
16V
IC7501
MP2212DN
3A
R7528
10
3A
R7576
10
1%
R7572
NON_Adapter
C7933
0.01uF
50V
R7533
1/10W
1%
R7574
11K
5%
CPI2520NHL3R3ME
BLM18PG121SN1D
C7505
0.01uF
50V
+2.5V
1
R7552
C7556
10uF
10V
R2
R7530
33K
12V_PANEL
R7531
5.6K
12V_PANEL
C
Q7505
2SC3052
E
100pF
50V
R7577 0
+12V/+15V
0
C7528
100pF
50V
22K 1%
Close to IC
EN/SYNC
8
SW_2
7
SW_1
6
VCC
5
PANEL_POWER
C7529
10uF
16V
OPT
Replaced Part
R7575
10K
Close to IC
EN/SYNC
8
SW_2
7
SW_1
6
VCC
5
+3.5V_ST
Q7506
AO3407A
C7531
4.7uF
16V
R1
1%
10K
R7578
C7574
1uF
10V
C7554
0.01uF
POWER_ON/OFF2_2
S
C7575
0.1uF
50V
G
R7545
10K
R7551
C7541
1uF
25V
OPT
L7516
3.6uH
22K
D
+3.5V_Normal
+24V_LED
RL_ON
R1
R7536
24K 1%
R7532
0
C7530
1uF
10V
C7925
2.2uF
50V
Adapter
R7860
10K
Adapter
Adapter
R7861
27K
Adapter
B
C7924
0.1uF
50V
S7 core 1.26V volt
Vout=0.8*(1+R1/R2)
10K
R7539
L7510
3.6uH
NR8040T3R6N
C7534
0.1uF
50V
New item
POWER_ON/OFF1
C7555
0.1uF
R7555
10K
R7556
C
B
E
R7862
22K
Adapter
G
Q7521
Adapter
AO3407A
C
Q7520
Adapter
E
C7546
22uF
10V
1074 mA
C7576
22uF
10V
Placed on SMD-TOP
C7559
4.7uF
16V
0
Q7507
2SC3052
S
D
AO3407A Vgs : 10.8V
Adapter
C7926
0.01uF
50V
LED Driver Power
POWER_ON/OFF2_1
Placed on SMD-TOP
2026 mA
PANEL_VCC
C7547
0.1uF
16V
Vout=0.8*(1+R1/R2)
+1.5V_DDR
C7577
0.1uF
+3.5V_Normal
Q7508
AO3407A
D
S
G
C7561
1uF
25V
+24V_LED_driver
+1.26V_VDDC
C7548
0.1uF
C7568
0.1uF
16V
24V-->3.48V
15V-->3.56V
ST_3.5V-->3.5V --> 3.375V
IC7509-*1
G691L293T73UF
VCC
3
DEV_Repalcement
IC7510-*1
G691L293T73UF
VCC
3
DEV_Repalcement
Power_DET
22
5%
R7519
1/10W
Adapter
Adapter
C7519
1uF
25V
close to IC7502
18K
R7570
Adapter
+3.3V_Normal
+12V/+15V
L7511
C7549
C7551
10uF
10uF
25V
25V
+12V/+15V
L7512
C7550
C7552
10uF
10uF
25V
25V
1
GND
1
GND
Adapter
C7522
1uF
50V
+24V/+15V
R7547
30K
1%
Adapter
RESET
2
R7548
5.1K
5%
Adapter
+3.5V_ST
RESET
2
close to pin
Adapter
Adapter
Q7504
Si4800BDY
S1
1
S2
2
$0.12
S3
3
G
4
MBRA340T3G
Adapter
R7525
68K
Adapter
PGND
VIN
C7923
0.1uF
AGND
50V
FB
MP8670DN-LF-Z
SW
BST
VCC
BG
D8
8
D7
7
D6
6
D5
5
D7500
C7524
220pF
50V
1/16W
5%
IC7506
AOZ1073AIL
1
2
3A
3
4
1%
1%
IC7502
1
2
3
4
SP-7850_4.7
SW_1
SW_2
EN
COMP
FB
+5V_Normal
PGND
VIN
C7922
0.1uF
AGND
50V
FB
Vout=0.8*(1+R1/R2)
GP2_Saturn7
POWER_SMALL
18K
R7547-*1
5.6K1%LIPS
R7548-*1
1K
LIPS
R7583
1/16W
27K
R7584
1/16W
LIPS
Adapter
$0.37
Adapter
L7508
4.7uH
Adapter
R7529
100K
Adapter
C7527
50V
IC7503
MP4460DQ-LF-Z
1
2
THERMAL
3
Adapter
4
$0.21
5
Adapter
L7509
3.6uH
NR8040T3R6N
LX_2
8
LX_1
7
EN
6
COMP
5
IC7507
AOZ1072AI
1
2
2A
3
4
11
1%
8
7
6
5
0.1uF
LIPS
IN
EN/SYNC
FB
GND
EP_GND
10
9
8
7
6
8
7
6
5
Adapter
C7533
0.1uF
50V
R1
R2
Placed on SMD-TOP
Adapter
C7532
10uF
25V
BST
VIN_2
VIN_1
FREQ
GND
Adapter
L7513
3.6uH
NR8040T3R6N
POWER_ON/OFF2_2
R7558
10K
9.1K
2200pF
R7557
C7558
LX_2
LX_1
EN
COMP
R7561
100K
IC7509
NCP803SN293
VCC
VCC
3
1
GND
R7585
100K
IC7510
NCP803SN293
3
1
GND
RESET
2
NCP
LIPS
RESET
2
NCP
Replacement Item
1%
1%
1/8W
Adapter
C7536
3.3uF
50V
6.8K
R7538
1.6K
R7581
Adapter
C7537
10uF
25V
+24V/+15V
Adapter
C7540
3.3uF
50V
Adapter
Adapter
Adapter
R7540
120K
1%
24V->15V
090916
22K
OPT
R7542
24V->3.5V
Switching noise reducing [MPS recommend]
22
R7571
Adapter
Adapter
Adapter
R7537
200K
1/8W
1%
Adapter
C7538
10uF
10V
R7562
27K
4.7K
R7563
R7564
10K
L7514
3.6uH
NR8040T3R6N
POWER_ON/OFF2_2
R7560
10K
12K
2200pF
R7559
C7560
C7571
10uF
10V
1%
1%
OPT
C7562
100pF
50V
1%
R1
R2
C7542
3.3uF
50V
Adapter
Adapter
1934 mA
R7565
R7566
R7567
1%
51K
1.5K
10K
+24V/+15V
Adapter
C7544
0.1uF
50V
30K
1/10W
C7543
0.1uF
50V
C7563
22uF
10V
Vout=(1+R1/R2)*0.8
MAX 1A
5%
R1
1%
C7565
100pF
50V
R2
1%
+3.5V_ST
R7569
10K
1%
R7582
100
LIPS
1%
R7586
100
UNDER CHECKING
+12V/+15V
real output : 12.3V
RL_ON
Adapter
C7545
0.1uF
50V
+3.5V_ST
Adapter
R7544
105K
1/10W
1%
R7543
CIC21J501NE
C7567
0.1uF
16V
C7566
22uF
10V
Ver. 1.00
92
OPT
+3.3V_Normal
L7515
C7578
0.1uF
16V
POWER_DET
C7569
0.1uF
16V
+5V_Normal
C7570
0.1uF
16V
Page 35
CONTROL
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
IR & LED
KEY1
KEY2
IR
R7600
100
R7601
100
R7602
22
R7605
R7604
Q7600
2SC3052
+3.5V_ST
10K
1%
+3.5V_ST
47K
R7603
0
C
E
OPT
R7606
B
10K
1%
R7607
10K
BLM18PG121SN1D
BLM18PG121SN1D
+3.5V_ST
R7608
47K
Q7601
2SC3052
L7600
L7601
C
B
E
R7609
47K
R7610
3.3K
OPT
C7600
0.1uF
16V
+3.5V_ST
C7601
0.1uF
16V
COMMERCIAL
IR_OUT
Commercial
5.6V
R7611
22
Commercial_EU
D7600
Commercial_EU
5.6V
R7613
47K
Q7602
2SC3052
Commercial_US
D7601
L7602
BLM18PG121SN1D
L7603
BLM18PG121SN1D
+3.5V_ST
+3.5V_ST
C
B
E
Commercial_EU
R7612
0
R7614
10K
C7602
0.1uF
Commercial
R7615
Q7603
2SC3052
Commercial
12507WR-03L
C7603
0.1uF
L7604
BLM18PG121SN1D
C7604
0.1uF
16V
+3.5V_ST
47K
R7616
C
B
Commercial
E
1
2
3
47K
P7600
4
D7602
5.6V
AMOTECH
NEC_EEPROM_SCL
L7605
C7606
0.1uF
16V
NEC_EEPROM_SDA
C7607
1000pF
50V
D7603
5.6V
AMOTECH
C7605
1000pF
50V
+3.3V_Normal
LED_B/LG_LOGO
BLM18PG121SN1D
Zener Diode is
close to wafer
EYEQ/TOUCH_KEY
EYEQ/TOUCH_KEY
R7620 1.5K
R7617
100
C7608
100pF
50V
LED_R/BUZZ
R7618
100
R7619
100
C7609
1000pF
50V
OPT
C7610
1000pF
50V
OPT
D7606
5.6V
AMOTECH
R7621
D7604
CDS3C05HDMI1
5.6V
D7605
CDS3C05HDMI1
5.6V
OPT
C7611
0.1uF
16V
1.5K
OPT
R7622
10K
12PIN_ANGLE
P7601
12507WR-12L
1
2
3
4
5
6
7
8
9
10
11
12
13
12PIN_STRAIGHT
P7601-*1
12507WS-12L
1
2
3
4
5
6
7
8
9
10
11
12
13
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
IR & LED
Ver. 1.2
6
Page 36
HDMI_1
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
$0.253
HDMI_1
HDMI_2
SHIELD
20
$0.253
HDMI_2
EAG59023302
JK7700
SHIELD
20
19
18
17
16
15
14
13
12
11
10
EAG59023302
9
8
7
6
5
4
3
2
1
JK7701
19
18
17
16
15
14
13
12
11
CK+
10
D0-
9
D0_GND
8
D0+
7
D1-
6
D1_GND
5
D1+
4
D2-
3
D2_GND
2
D2+
1
5V_HDMI_1
CK+
D0-
D0_GND
D0+
D1-
D1_GND
D1+
D2-
D2_GND
D2+
R7700
1K
R7701
1.8K
5V_HDMI_2
R7702
1K
R7703
1.8K
D7700
D7701
5V_DET_HDMI_1
3.3K
R7704
5V_DET_HDMI_2
R7705
3.3K
C7701
0.1uF
16V
C7700
0.1uF
16V
JP7700
JP7701
JP7702
JP7703
R7717
R7718
R7719
R7720
R7721
R7722
R7723
R7724
R7725
R7726
R7727
R7706 22
R7707
R7708 100
R7709
R7710
R7711
R7712
R7713
R7714
R7715
R7716
HDMI EEPROM
5V_HDMI_1
R7753
10K
R7754
4.7K
5V_HDMI_2
10K
R7755
R7756
4.7K
5V_HDMI_4
R7757
R7758
4.7K
A2
10K
+5V_Normal
C
R7759
4.7K
+5V_Normal
R7760
4.7K
+5V_Normal
A2
R7761
4.7K
A1
ENKMC2838-T112
D7704
A1CA2
ENKMC2838-T112
D7705
A1
ENKMC2838-T112
D7706
C
EDID_WP
DDC_SCL_1
DDC_SDA_1
EDID_WP
DDC_SCL_2
DDC_SDA_2
EDID_WP
DDC_SCL_4
DDC_SDA_4
SIDE_HDMI
5V_HDMI_4
C
Q7700
2SC3052
22
22
100
0
0
0
0
0
0
0
0
Q7701
2SC3052
22
0
0
0
0
0
0
0
0
R7728
B
10K
E
C
R7729
10K
B
E
HPD1
DDC_SDA_1
DDC_SCL_1
HDMI_CEC
CK-_HDMI1
CK+_HDMI1
D0-_HDMI1
D0+_HDMI1
D1-_HDMI1
D1+_HDMI1
D2-_HDMI1
D2+_HDMI1
HPD2
DDC_SDA_2
DDC_SCL_2
HDMI_CEC
CK-_HDMI2
CK+_HDMI2
D0-_HDMI2
D0+_HDMI2
D1-_HDMI2
D1+_HDMI2
D2-_HDMI2
D2+_HDMI2
JACK_GND
20
$0.253
EAG42463001
HDMI_SIDE
JK7702
19
18
17
16
15
14
13
12
11
CK+
10
D0-
9
D0_GND
8
D0+
7
D1-
6
D1_GND
5
D1+
4
D2-
3
D2_GND
2
D2+
1
HDMI_CEC
R7730
1K
R7731
1.8K
D7702
5V_DET_HDMI_4
R7732
3.3K
D7709
C7702
0.1uF
16V
JP7704
JP7705
OPT
AVRL161A1R1NT
R7733 22
R7734
R7735
R7736
R7737
R7738
R7739
R7740
R7741
R7742
D7708
D7703
22
100
0
0
0
0
0
0
0
0
C
Q7702
2SC3052
E
For CEC
68K
R7765
R7766
0
OPT
SBD
G
68K
R7745
R7763
0
OPT
SBD
B
R7744
10K
BSS83
Q7704
+3.3V_Normal
R7767
10K
C7707
0.1uF
16V
+3.5V_ST
R7762
10K
HPD4
DDC_SDA_4
DDC_SCL_4
HDMI_CEC
CK-_HDMI4
CK+_HDMI4
D0-_HDMI4
D0+_HDMI4
D1-_HDMI4
D1+_HDMI4
D2-_HDMI4
D2+_HDMI4
R7768
68K
OPT
R7764
68K
R7769
0
CEC_ON/OFF
CEC_REMOTE_NEC
CEC_REMOTE_S7
HDMI_1
IC7700
AT24C02BN-10SU-1.8
A0
1
$0.055
A1
2
A2
3
GND
4
HDMI_2
IC7701
AT24C02BN-10SU-1.8
A0
1
$0.055
A1
2
A2
3
GND
4
HDMI_SIDE
AT24C02BN-10SU-1.8
A0
1
$0.055
A1
2
A2
3
GND
4
IC7702
VCC
8
WP
7
SCL
6
SDA
5
VCC
8
WP
7
SCL
6
SDA
5
VCC
8
WP
7
SCL
6
SDA
5
JP7706
R7748 22
R7747 22
JP7707
R7750 22
R7749 22
JP7708
C7703
0.1uF
0.1uFR7743
0.1uF
R775122
R775222
C7704
C7705
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
OPT
D7707
AVRL161A1R1NT
BSS83
Q7703
G
C7706
0.1uF
16V
GP2_Saturn7M
HDMI
Ver. 1.2
94
Page 37
MICOM BLOCKMAIN1 BLOCK
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
TP7013
TP7014
TP7016
TP7017
TP7018
TP7019
TP7020
TP7021
TP7022
TP7023
TP7024
TP7025
TP7026
TP7027
TP7028
TP7029
TP7030
5V_DET_HDMI_3
FRC_RESET
SCAN_BLK2
SCAN_BLK1/OPC_OUT
WIRELESS_DL_RX
WIRELESS_DL_TX
/PIF_SPI_CS
ET_RXER
/RST_PHY
M_REMOTE_RX
M_REMOTE_TX
FRC_SCL
FRC_SDA
UART_FRC_RX
UART_FRC_TX
FRC_PWM0
FRC_PWM1
TP7032
TP7033
TP7034
TP7035
TP7036
WIRELESS_DETECT
WIRELESS_PWR_EN
WIRELESS_SW_CTRL
RF_ENABLE
RF_RESET
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7 Ver. 1.0
TP_SMALL 75
Page 38
+3.3V_Normal
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
C7800
0.1uF
16V
IC7800
AP1117E18G-13
INADJ/GND
OUT
IC7800-*1
KIA1117ST18
3IN1
2
Replacement
+1.8V_AMP
R7800
1
C7803
C7802
0.1uF
10uF
16V
10V
ADJ/GND
OUT
AMP_RESET_N
AUD_MASTER_CLK
+1.8V_AMP
+1.8V_AMP
L7801
L7800
BLM18PG121SN1D
BLM18PG121SN1D
AUD_LRCH
AUD_LRCK
AUD_SCK
AMP_SDA
AMP_SCL
OPT
C7801
10uF
10V
C7804
0.1uF
16V
OPT
C7805
10uF
10V
R7801 100
R7802 100
R7803 100
R7804 33
R7805 33
C7808
1000pF
50V
C7806
100pF
0.1uF
50V
C7807
16V
120 mA
C7809
18pF
50V
C7811
0.1uF
C7810
1000pF
50V
R7806
3.3K
+3.3V_Normal
L7802
BLM18PG121SN1D
TP7800
C7812
18pF
50V
C7813
22pF
50V
OPT
C78 16
1uF 25V
+1.8V_AMP
OPT
C7815
10uF
10V
C7814
22pF
50V
OPT
C7819
22000pF
BST1A
VDR1A
/RESET
DGND_1
GND_IO
CLK_I
VDD_IO
DGND_PLL
AGND_PLL
AVDD_PLL
DVDD_PLL
C7818
0.1uF
C7817
22pF
50V
OPT
AMP_VCC
SPK_L+
SPEAKER_L
SPK_L-
SPK_R+
SPEAKER_R
SPK_R-
WAFER-ANGLE
4
3
2
1
P7800
R7824
0
R7825
0
R7826
0
R7827
0
C7844
0.01uF
50V
R7828
3.3
R7829
3.3
C7845
0.01uF
50V
C7846
0.01uF
50V
R7830
3.3
R7831
3.3
C7847
0.01uF
50V
OPT
OPT
OPT
OPT
OPT
OPT
OPT
OPT
D7800
C7832
0.1uF
50V
R7811
10K
1N4148W
100V
OPT
D7801
1N4148W
100V
D7802
1N4148W
100V
OPT
D7803
1N4148W
100V
OPT
OPT
C7833
10uF
35V
OPT
R7809
3.3
OPT
C7829
22000pF
50V
R7810
10K
Q7800
2SC3052
C7830
0.1uF
50V
POWER_DET
+3.5V_ST
C
E
C7831
0.01uF
50V
AMP_VCC
B
C7820
0.1uF
50V
50V
PGND1B_2
OUT1B_1
OUT1B_2
PVDD1B_1
PVDD1B_2
PVDD1A_1
PVDD1A_2
OUT1A_1
OUT1A_2
PGND1A_1
PGND1A_2
EP_PAD
46
47
48
49
50
51
52
53
54
55
56
1
THERMAL
2
57
3
AD
4
5
6
IC7801
7
8
EAN60969601
9
10
LF
11
NTP-7000
12
13
GND
14
15
16
17
18
22
25
26
WCK19BCK20SDA21SCL
DVDD
SDATA
DGND_2
16V
VDR2B27BST2B
/FAULT
MONITOR023MONITOR124MONITOR2
C78 22
1uF
25V
C7821
1000pF
50V
AMP_MUTE_HOTEL
0.1uF
50V
C7823
22000pF
50V
C7825
1uF
25V
VDR1B44BST1B45PGND1B_1
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
PGND2B_1
10uF
35V
NC
VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2
R7808 100
C78 27
R7807
0
OPT
1uF25V
C7828
22000pF
50V
C7826
C7824
R7812
12
C7834
390pF
50V
C7835
390pF
50V
R7813
12
R7814
12
C7836
390pF
50V
C7837
390pF
50V
R7815
12
AMP_MUTE
R7819
12
R7817
12
R7818
12
R7816
12
L7804
AD-8770
2S
1S 1F
15uH
L7803
AD-8770
2S
1S 1F
15uH
R7820
2F
2F
C7838
0.47uF
50V
C7839
0.47uF
50V
C7840
0.1uF
50V
C7841
0.1uF
50V
C7842
0.1uF
50V
C7843
0.1uF
50V
SPK_L+
SPK_L-
SPK_R+
SPK_R-
4.7K
R7821
4.7K
R7822
4.7K
R7823
4.7K
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2.5mm -> 2.0mm changed
GP2_Saturn7M
AUDIO[NTP]
Ver. 1.1
96
Page 39
[51Pin LVDS Connector]
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
(For FHD 60Hz)
P7900
TF05-51S
FHD
1
2
3
4
5
6
7
8
R7900 0
9
EXCEPT_LGD_22
R7901 0
10
EXCEPT_LGD_22
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
PANEL_VCC
L7900
120-ohm
must be located Bottom side
FHD
C7900
C7901
10uF
1000pF
16V
50V
OPT
RXA4-
RXA4+
RXA3-
RXA3+
RXACK-
RXACK+
RXA2-
RXA2+
RXA1-
RXA1+
RXA0-
RXA0+
RXB4-
RXB4+
RXB3-
RXB3+
RXBCK-
RXBCK+
RXB2-
RXB2+
RXB1-
RXB1+
RXB0-
RXB0+
C7902
0.1uF
16V
R7910
10K
BIT_SEL_LOW
+3.3V_Normal
R7911
3.3K
LVDS_SEL_HIGH
R7912
10K
LVDS_SEL_LOW
[30Pin LVDS Connector]
(For HD 60Hz_Small)
P7903
FF10001-30
30PIN_FHD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
C7912
10uF
16V
OPT
RXA3-
RXA3+
RXACK-
RXACK+
RXA2-
RXA2+
RXA1-
RXA1+
RXA0-
RXA0+
RXB3-
RXB3+
RXBCK-
RXBCK+
RXB2-
RXB2+
RXB1-
RXB1+
RXB0-
RXB0+
PANEL_VCC
C7911
1000pF
50V
30PIN_FHD
30PIN_FHD
L7904
120-ohm
30PIN_FHD
C7909
0.1uF
16V
[30Pin LVDS Connector]
(For HD 60Hz_Normal)
P7901
FF10001-30
HD_60Hz_NORMAL
1
R7915 0
2
HD_60Hz_NORMAL
3
R7916 0
R7917 0
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
R7913 0
22
R7914 0
23
HD_60Hz_NORMAL
24
25
26
27
28
29
30
31
[30Pin LVDS Connector]
SMALL_NC1
SMALL_NC2
SMALL_OPC_OUT
OPT
OPT
OPT
PWM_DIM
OPC_OUT
RXA3-
RXA3+
RXACK-
RXACK+
RXA2-
RXA2+
RXA1-
RXA1+
RXA0-
RXA0+
OPC_EN
SMALL_OPC_EN
SMALL_NC3
SMALL_NC4
+3.3V_Normal
R7919
3.3K
LVDS_SEL_HIGH
R7920
10K
LVDS_SEL_LOW
C7905
10uF
16V
OPT
PANEL_VCC
HD_60Hz_NORMAL
HD_60Hz_NORMAL
C7904
1000pF
50V
HD_60Hz_NORMAL
L7901
120-ohm
C7903
0.1uF
16V
(For HD 60Hz_Small)
P7902
FF10001-30
HD_60Hz_SMALL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
C7908
10uF
16V
OPT
C7907
1000pF
50V
HD_60Hz_SMALL
SMALL_NC1
SMALL_NC2
SMALL_OPC_OUT
RXA3-
RXA3+
RXACK-
RXACK+
RXA2-
RXA2+
RXA1-
RXA1+
RXA0-
RXA0+
SMALL_OPC_EN
SMALL_NC3
SMALL_NC4
PANEL_VCC
L7902
120-ohm
HD_60Hz_SMALL
HD_60Hz_SMALL
C7906
0.1uF
16V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP2_Saturn7M
LVDS 33
Ver. 1.0
Page 40

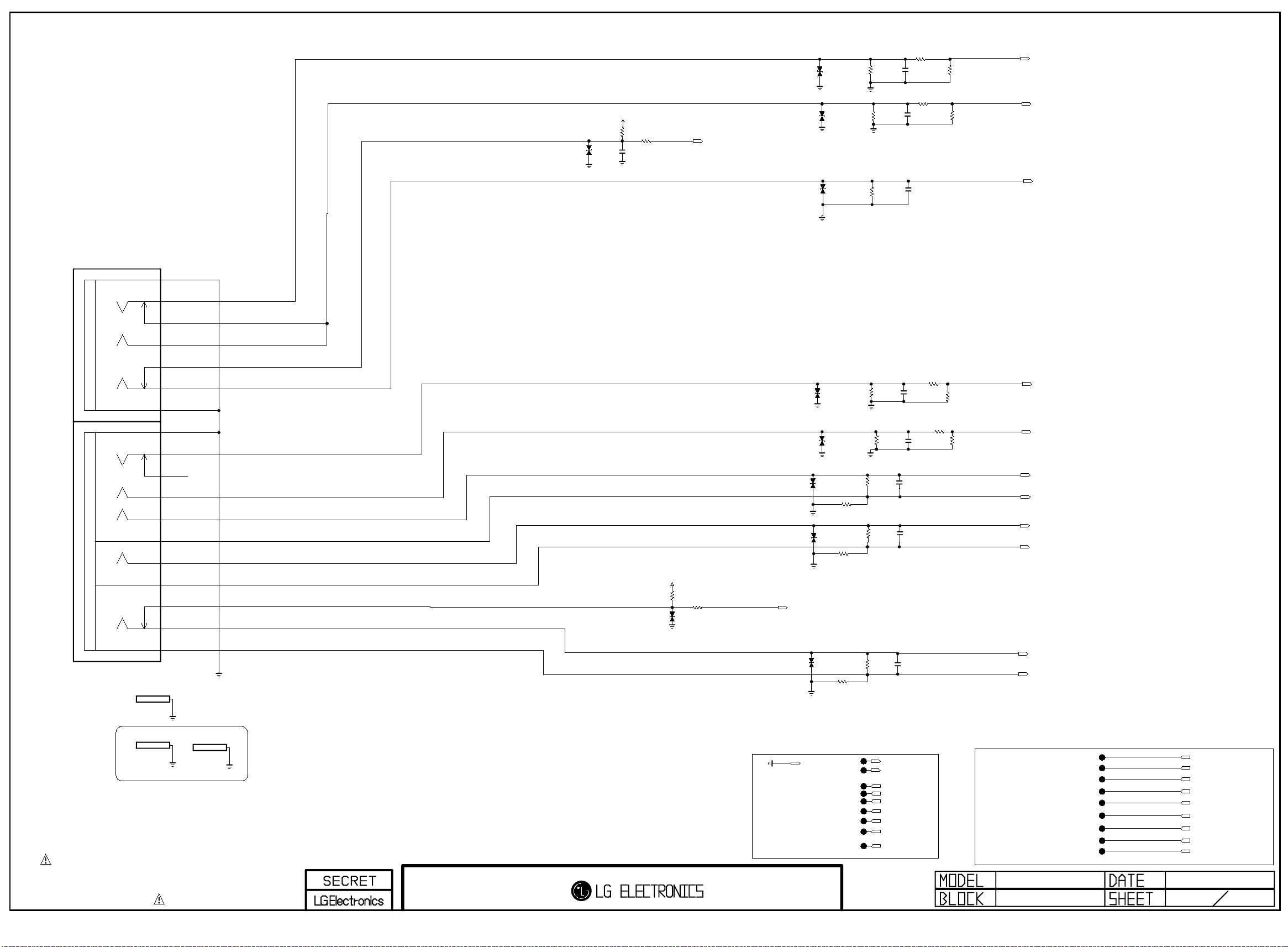

D9800
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
5.6V
+3.3V_Normal
R9802
10K
C9800
100pF
50V
SIGN4272
OPT
R9803
1K
AV_CVBS_DET
D9806
5.6V
D9807
5.6V
R9810
470K
R9813
470K
SIGN4271
C9805
1000pF
50V
C9806
1000pF
50V
R9815
10K
R9816
10K
R9820
12K
R9821
12K
AV_R_IN
AV_L_IN
JK9800
PPJ238-01
[RD1]E-LUG
6C
[RD1]O-SPRING
5C
[RD1]CONTACT
4C
[WH1]O-SPRING
5B
[YL1]CONTACT
4A
[YL1]O-SPRING
5A
[YL1]E-LUG
6A
[RD2]E-LUG
6H
[RD2]O-SPRING_2
5H
[RD2]CONTACT
4H
[WH2]O-SPRING
5G
[RD2]O-SPRING_1
5F
[RD2]E-LUG-S
7F
[BL2]O-SPRING
5E
[BL2]E-LUG-S
7E
[GN2]CONTACT
4D
[GN2]O-SPRING
5D
R9800
10K
+3.3V_Normal
R9801
1K
D9801
5.6V
COMP2_DET
D9805
5.6V
D9803
30V
D9804
30V
D9809
30V
D9808
5.6V
R9806
0
R9805
0
R9812
75
R9811
470K
R9807
75
R9809
75
R9814
470K
SIGN4269
C9804
1000pF
50V
C9802
10pF
50V
C9803
10pF
50V
OPT
C9807
10pF
50V
SIGN4270
C9808
1000pF
50V
OPT
OPT
R9817
10K
R9818
10K
R9819
12K
R9822
12K
AV_CVBS_IN
COMP2_R_IN
COMP2_L_IN
COMP2_Pr+
COMP2_Pr-
COMP2_Pb+
COMP2_Pb-
[GN2]E-LUG
6D
GAS2
MDS62110204
OPT
GAS1
MDS62110204
OPT
PLACE UNDER TUNER
GAS3
MDS62110204
OPT
SMALL_US_KR_EM_JACK PACK_HONGSU_090818
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
D9802
30V
R9804
0
R9808
SCART OPTION BLOCK
SC1_CVBS_IN
TP9801
TP9802
TP9803
TP9804
TP9805
TP9806
TP9807
TP9808
TP9809
75
SC1_FB
SC1_ID
SC_RE1
SC_RE2
SCART1_MUTE
SC1_SOG_IN
SCART1_Lout
SCART1_Rout
DTV/MNT_VOUT
OPT
C9801
10pF
50V
COMP2_Y+
COMP2_Y-
Component2 OPTION BLOCK
TP9810
TP9811
TP9812
TP9813
TP9814
TP9815
TP9816
TP9817
TP9818
GP2_Saturn7M Ver. 1.0
US_REAR_COMP_AV_SMALL
SC1_R+/COMP1_Pr+
SC1_R-/COMP1_Pr-
SC1_G+/COMP1_Y+
SC1_G-/COMP1_Y-
SC1_B+/COMP1_Pb+
SC1_B-/COMP1_Pb-
SC1/COMP1_L_IN
SC1/COMP1_R_IN
SC1/COMP1_DET
98
Page 41
Loading...
