LG 42LB9RT Schematic

Download

Page 1

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LP7BB

MODEL : 42LB9RT 42LB9RT-MD

Page 2

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ..........................................................................3

SPECIFICATION ........................................................................................6

ADJUSTMENT INSTRUCTION ...............................................................10

TROUBLE SHOOTING ............................................................................14

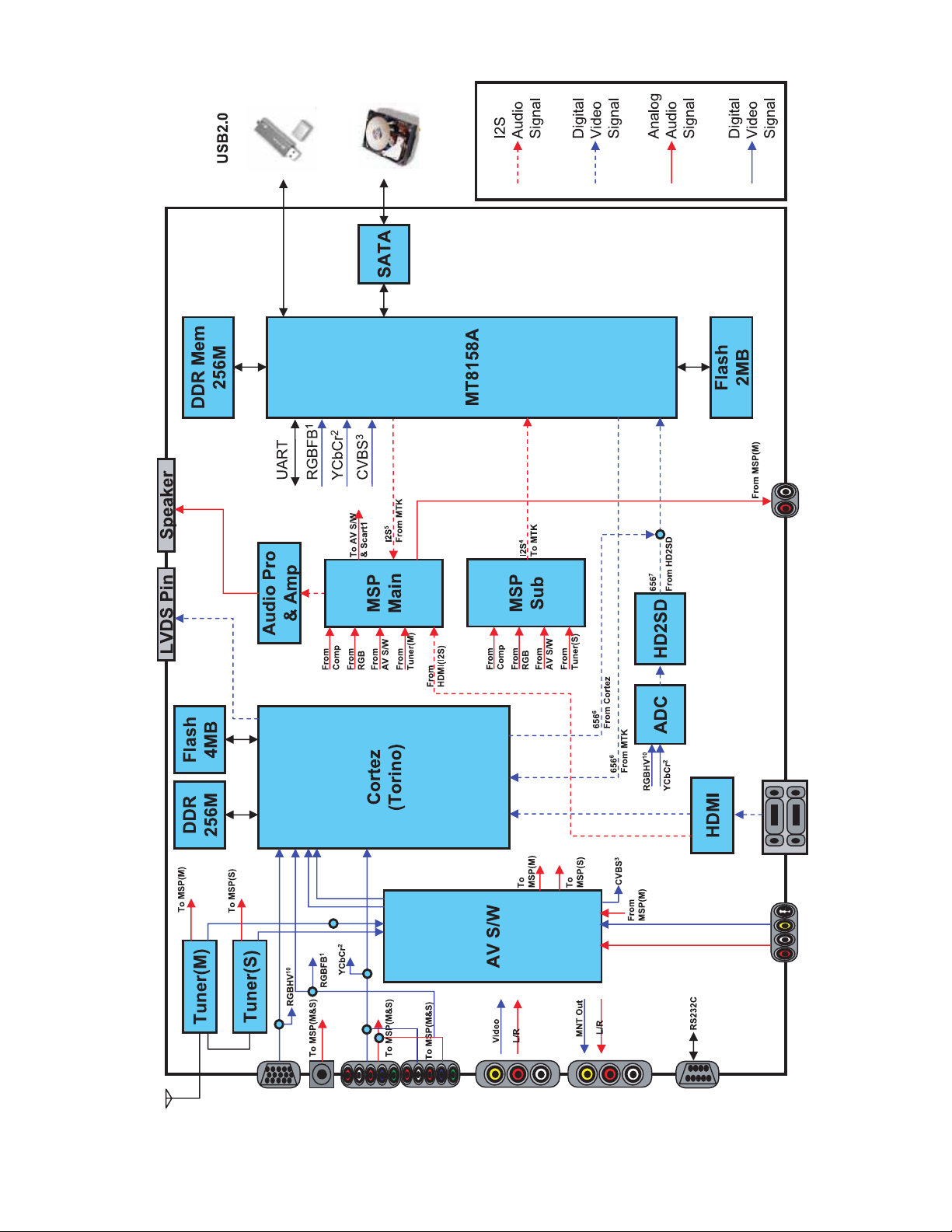

BLOCK DIAGRAM...................................................................................25

EXPLODED VIEW .................................................................................. 26

EXPLODED VIEW PARTS LIST..............................................................27

REPLACEMENT PARTS LIST ............................................................... 28

SVC. SHEET ...............................................................................................

Page 3

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Replaceable batteries

IMPORTANT SAFETY NOTICE

0.15uF

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

ADVARSEL

Lithiumbatteri - Eksplosionsfare ved fejlagtig hándtening. Udskiftning má kun ske med batteri at samme fabrikat og type. Levér det brugte batteri tilbage til leverandoren

To Instrument’s exposed METALLIC PARTS

AC Volt-meter

Good Earth Ground such as WATER PIPE, CONDUIT etc.

1.5 Kohm/10W

Page 4

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Page 5

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Page 6

1. Application range

This spec sheet is applied to the LCD TV used LP7BB chassis

2. Specification

Each part is tested as below without special appointment.

(1) Temperature : 25 ± 5°C(77 ± 9°F), CST : 40 ± 5°C (2) Relative Humidity : 65% ± 10% (3) Power Voltage : Standard input voltage (100-240V~,

50/60Hz)

*Standard Voltage of each products is marked by models

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

(1) Performance : LGE TV test method followed (2) Demanded other specification

Safety : CE, IEC Specification EMC : CE, IEC

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

4. General TV Specification

No Item Specification Remark

1. Video input applicable system NTSC-M, PAL M/N

2. Receivable Broadcasting System 1) NTSC

2) PAL M

3) PAL N

3. RF Input Channel BAND NTSC

VHF 2 ~ 13

UHF 14 ~ 69

CATV 1 ~ 125

4. Input Voltage 100-240V~ / 50Hz, 60Hz

5. Market Central & South America

6. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : 10 ~ 90 %RH

7. Storage Environment 1) Temp : -20 ~ 50 deg

2) Humidity : 10 ~ 90 %RH

8. Power Consumption Power on ≤ 260(42”)

(Green) ≤ 220(32”)

9. Stand by Cool ≤ 1W(32”, 42”)

Warm ≤ 40W(32”, 42”) When recordign the manual recording

10. Frequency range H : 31 ~ 61 khz PC Input

V : 56 ~ 75 Hz

11. Video Input (2EA) NTSC, PAL M/N

12. S-Video Input (1EA) NTSC, PAL M/N Side only

13. Component Input (2EA) Y/Cb/Cr, Y/Pb/Pr

14. RGB Input (1EA) RGB-PC

15. HDMI Input (2EA) HDMI-PC

HDMI-DTV

16. Audio Input (5EA) PC Audio, Component (2EA), AV(2EA) L/R Input

17. Audio variable out (1EA)

18. USB Input (1EA) DivX, MP3, JPEG

19. AV out (1EA)

Page 7

5. General Module Specification

No Item Specification Remark

1 . Panel 42" TFT WXGA LCD

32" TFT WXGA LCD

2. LCD Module Outline 42" 983 x 576 x 47.3 (H)mm x (V)mm x (D)mm

Dimension 32" 760.0 x 450.0 x 48.0

Pixel Pitch 42" 0.227 x 0.681 x RGB mm

32" 0.17025 x 0.51075 x RGB

Pixel Format 1366 x 768 Pixels RGB strip arrangement

Coating Hard coating(3H), Anti-glare treatment

of the front polarizer,

Back Light 42" 18CCFL

32" 18CCFL

6. Set Optical Feature (LCD Module)

No Item Min Typ Max Unit Maker Remark

1. Luminance 400 500 LPL(0RT) - 50cm from the surface

32",42" - Full White Pattern

2. View angle (R/L, U/D) 178/178 degree LPL 32”, 42” - CR > 10

3. White White X -0.03 0.279/0.279/0.279 +0.03

coordinate Y 0.292/0.292/0.292

Red X 0.635/0.636/0.635

Y 0.339/0.343/0.344

Green X 0.282/0.284/0.286

Y 0.606/0.615/0.614

Blue X 0.145/0.144/0.146

Y 0.064/0.063/0.061

4. Contrast ratio CR 600 800 32" LPL(0-RT)

800 1000 42" LPL(0-RT)

5. Luminance Variation 1.3

Page 8

7. Component Video Input (Y, PB, PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)

720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)

2. 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I)

3. 720*480 31.47 59.94 27.000 SDTV 480P

720*480 31.50 60.00 27.027 SDTV 480P

4. 720*576 31.25 50.00 27.000 SDTV 576P

5. 1280*720 44.96 59.94 74.176 HDTV 720P

1280*720 45.00 60.00 74.250 HDTV 720P

6. 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz

7. 1920*1080 33.72 59.94 74.176 HDTV 1080I

1920*1080 33.75 60.00 74.250 HDTV 1080I

8. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,

9. 1920*1080 67.5 60.00 148.5 HDTV 1080P

10. 1920*1080 56.25 50 148.5 HDTV 1080P 50Hz

8. RGB Input ( PC )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1 720*400 31.469 70.08 28.32 DOS

2. 640*480 31.469 59.94 25.17 VESA(VGA)

3 640*480 37.500 75.00 31.50 VESA(VGA)

4 800*600 37.879 60.31 40.00 VESA(SVGA)

5 800*600 46.875 75.00 49.50 VESA(SVGA)

6 1024*768 48.363 60.00 65.00 VESA(XGA)

7 1024*768 56.476 70.06 78.75 VESA(XGA)

8 1024*768 60.023 75.02 79.50 VESA(XGA)

9 1280*768 47.776 59.87 80.125 WXGA(42XGA,50",60")

10 1360*768 47.712 60.01 85.50 WXGA(42XGA,50",60")

11 1366*768 47.700 60.00 84.62 WXGA(42XGA,50",60")

9. HDMI Input ( PC )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1 720*400 31.469 70.08 28.32 DOS

2 640*480 31.469 59.94 25.17 VESA(VGA)

3 640*480 37.500 75.00 31.50 VESA(VGA)

4 800*600 37.879 60.31 40.00 VESA(SVGA)

5 800*600 46.875 75.00 49.50 VESA(SVGA)

6 1024*768 48.363 60.00 65.00 VESA(XGA)

7 1024*768 56.476 70.06 75.00 VESA(XGA)

8 1024*768 60.023 75.02 78.75 VESA(XGA)

9 1280*768 47.776 59.87 79.50 WXGA(42XGA,50",60")

10 1360*768 47.712 60.01 85.50 WXGA(42XGA,50",60")

11 1366*768 47.700 60.00 84.62 WXGA(42XGA,50",60")

Page 9

10. HDMI input ( DTV )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720*480 31.47 59.94 27.000 SDTV 480P

2. 720*480 31.50 60.00 27.027 SDTV 480P

3. 720*576 31.25 50.00 27.000 SDTV 576P

4. 1280*720 44.96 59.94 74.176 HDTV 720P

5. 1280*720 45.00 60.00 74.250 HDTV 720P

6. 1280*720 37.50 50.00 74.25 HDTV 720P 50H

7. 1920*1080 33.72 59.94 74.176 HDTV 1080I

8. 1920*1080 33.75 60.00 74.250 HDTV 1080I

9. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz

10. 1920*1080 67.5 60.00 148.5 HDTV 1080P

11. 1920*1080 56.25 50 148.5 HDTV 1080P 50Hz

Page 10

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet is applied to all of the LP7BB chassis (Saturn Analog DVR) manufactured at LG TV Plant all over the world.

2. Specification

2.1 Because this is not a hot chassis, it is not necessary to use an isolation transformer.

However, the use of isolation transformer will help to protect test instruments.

2.2 Adjustment must be done in the correct sequence.

2.3 The adjustment must be performed at 25±5°C temperature and 65±10% relative humidity if there is no specified designation.

2.4 The input voltage of the receiver must be kept between 100-220V, 50/60Hz.

2.5 Before adjustment, execute Heat-Run for 30 minutes at Full White mode.(Power on key)

3. PCB assembly adjustment items

* Channel memory

- Download the channel data from BOM to EEPROM by using LGIDS.

* Option adjustment following BOM

- Tool Option1

- Tool Option2

- Area Option

(Fig.1)

1) Push the ADJ key in the Adjust Remocon.

2) Input the Option Number that was specified in the BOM, into the Shipping area.

3) Select "Tool Option1/ Tool Option2/ Area Option" by using

(CH+/-) key , and press the number key(0~9)

consecutively

ex) If the value of Tool Option1 is 7, input the data using

number key "7" (Fig. 1)

4. SET assembly adjustment items

Auto AV Color Balance

Adjustment of White Balance

Auto Component Color Balance adjustment

- Standard equipment : MSPG925FA

Auto RGB Color Balance adjustment

- Standard equipment : MSPG925FA

(At DVR model Case, Please check DVR function like

following list )

Checking DVR Function and HDD

Check DVR Function as follow on 4.2 and find HDD failure under malfunction.

5. HDD Assembly Adjustment method

5.1. HDD FORMAT

1) Assemble MAIN , DVR Board.

2) HDD Format in progress words will create automatically.

3) Please, wait for 30~40 seconds.

5.1.1. HDD Format in progress

5.1.2. HDD Format completed

5.2. Sub Program Download for "DVR" by using USB memory stick

1) connect USB memory stick to SET

2) Set power off -> ON

- DVR s/w will be installed automatically

LP7BA LPL 42 Normal S/W Version X.XX DVR Version X.XX UTT XX hr Tool Option1 7 Tool Option2 161 Area Option 16

Page 11

- 11 -

LGE Internal Use Only

6. EDID

Caution

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

=> Caution : - Never connect HDMI & DVI-D & DVI-A Cable

at the same time.

- Use the proper cables below for EDID Writing

6.1. Data

6.1.1 ANALOG(256 Bytes ) BLOCK1 (128BYTE)

6.1.2 HDMI(256 Bytes ) BLOCK1 (128BYTE)

BLOCK2 (128BYTE)

7. ADC Calibration

=> Caution : - System control RS-232 Host should be "PC"

for adjustment. Press the FRONT-AV KEY on R/C for converting input mode. (change RS-232 Host : pc, Band Rate : 115200bps)

7.1 Adjustment of RF/AV/S-VIDEO * Required Equipments

- Remote controller for adjustment

- 802F Pattern Generator, Master (MSPG-925FA), etc.

- MSPG-925FA Pattern Generator

(Which has Video Signal: 100% Color Bar Pattern

shown in Fig. 2)

=> Model: 202 / Pattern : 65

(Fig. 2)

7.1.1 Method of Auto RF/AV/S-VIDEO Color Balance.

1) Press the FRONT-AV KEY on R/C for converting input

mode.

2) Input the Video Signal: 100% Color Bar signal into AV

3) Set the PSM to Dynamic mode in the Picture menu.

4) Press INSTART key on R/C for adjustment.

5) Press the

(Vol. +) key to operate the set, then it

becomes automatically

6) Auto-RGB OK means the adjustment is completed

7.1.2 Requirement

- This AV color balance adjustment should be performed

before White Balance Adjustment.

- After AV color balance adjustment, Change the mode

from AV to RF.

(Cancel Heat-run mode.)

ADC RF/AV/S-VIDEO Component RGB

MSPG925FA PAL NTSC Model:217 720P Model: 60

INPUT AV3-ZF VIDEO1 -MA Pattern:65 1024*768 60Hz

SELECT

AV1-TB

* 100% Color Bar

Pattern: 65

Model: 202 Model:201

* 100% Color Bar

(PAL-BGDHI) (NTSC)

Pattern: 65 Pattern: 65

* 100% Color Bar * 100% Color Bar

Page 12

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet is applied to all of the LP7BB chassis (Saturn Analog DVR) manufactured at LG TV Plant all over the world.

2. Specification

2.1 Because this is not a hot chassis, it is not necessary to use an isolation transformer.

However, the use of isolation transformer will help to protect test instruments.

2.2 Adjustment must be done in the correct sequence.

2.3 The adjustment must be performed at 25±5°C temperature and 65±10% relative humidity if there is no specified designation.

2.4 The input voltage of the receiver must be kept between 100-220V, 50/60Hz.

2.5 Before adjustment, execute Heat-Run for 30 minutes at Full White mode.(Power on key)

3. PCB assembly adjustment items

* Channel memory

- Download the channel data from BOM to EEPROM by using LGIDS.

* Option adjustment following BOM

- Tool Option1

- Tool Option2

- Area Option

(Fig.1)

1) Push the ADJ key in the Adjust Remocon.

2) Input the Option Number that was specified in the BOM, into the Shipping area.

3) Select "Tool Option1/ Tool Option2/ Area Option" by using

(CH+/-) key , and press the number key(0~9)

consecutively

ex) If the value of Tool Option1 is 7, input the data using

number key "7" (Fig. 1)

4. SET assembly adjustment items

Auto AV Color Balance

Adjustment of White Balance

Auto Component Color Balance adjustment

- Standard equipment : MSPG925FA

Auto RGB Color Balance adjustment

- Standard equipment : MSPG925FA

(At DVR model Case, Please check DVR function like

following list )

Checking DVR Function and HDD

Check DVR Function as follow on 4.2 and find HDD failure under malfunction.

5. HDD Assembly Adjustment method

5.1. HDD FORMAT

1) Assemble MAIN , DVR Board.

2) HDD Format in progress words will create automatically.

3) Please, wait for 30~40 seconds.

5.1.1. HDD Format in progress

5.1.2. HDD Format completed

5.2. Sub Program Download for "DVR" by using USB memory stick

1) connect USB memory stick to SET

2) Set power off -> ON

- DVR s/w will be installed automatically

LP7BA LPL 42 Normal S/W Version X.XX DVR Version X.XX UTT XX hr Tool Option1 7 Tool Option2 161 Area Option 16

Page 13

8. White Balance

* Caution : Before White-balance, the AV ADC should be done.

=> Notice

- Do the white balance adjustment under the 10LUX

- Before white balance, press the In-start key 2times and do the reset like Fig.5

- Use the Torino inner pattern(216 gray pattern)

- To enter White-balance mode,press the IN-START key 2times.

* Caution : - System control RS-232 Host should be "PC" for

adjustment.

White Balance(Hex)

Color Temp. Cool Red Gain. 80 Green Gain. 80 Blue Gain. 80 Red Offset 80 Green Offset 80 Blue Offset 80 Reset _ To set

(Fig. 4)

* Test Equipment

LCD : Color Analyzer ( CA-110), PDP : Color Analyzer (CA-

100) CA-210 : The both of LCD and PDP are available. PC (for communication through RS-232C) -> UART Baud rate : 115200 Pattern Generator (MSPG-925FA etc. )

* Color Temperature & Color Coordinates Setting

When adjusting the Color Temperature of LCD, Color AnalyzerCA-210(Matrix should be corrected through CH9 of CS-1000) should be used. When adjusting the Color Temperature of PDP, Color AnalyzerCA-210(Matrix should be corrected through CH10 of CS-1000) should be used. Adjust the Color Temperature based below adjustment color coordinates. Even if CH9 of CA-210 is corrected with Matrix, there may be many character of Module and Filter. Therefore Refer to the below Color Coordinates Target. But, in case of WCG module, use the CH12 of CA-210.

Page 14

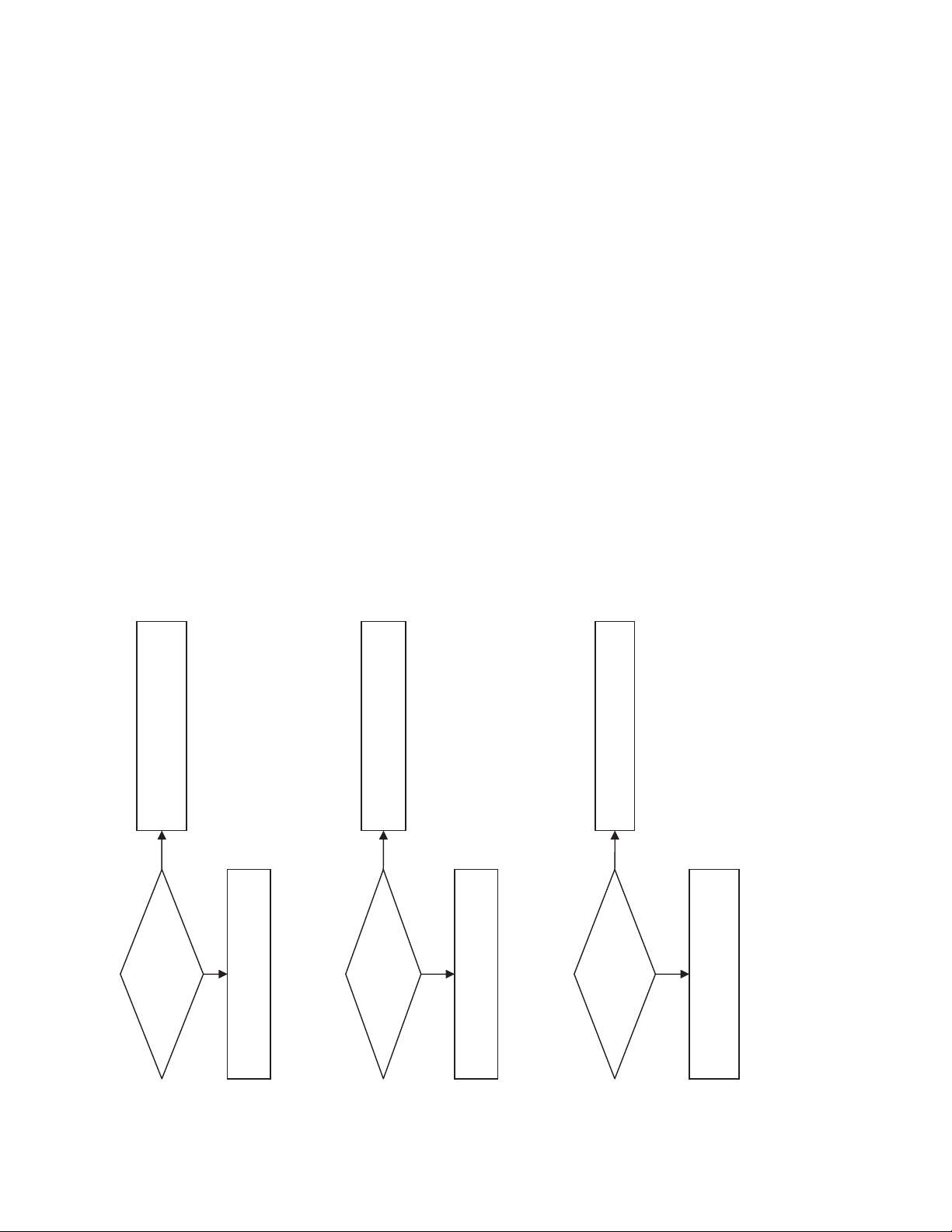

TROUBLESHOOTING

Plug in a power cord

Connect a cable .

Plasma (E L11), LC D( SC100 )

Replace the fuse

Connect the 13pin cable.

Symptom

1) Minute discharg e doesn’t occur at module.

2) Front LED does n’t come into action.

Start check

Is inser ted a pl ug

YE S

in power cord?

Is connected the Line

YE S

Filter and PSU?

Is norma l the fuse of

PSU? Plasma (F 101),

YE S

LCD(F111 )

Is it connected that

PSU and 13 p in cable

YE S

in VSC board ?

After remo ve all cab les con nec ted to

PSU (except the C N101) , author izes the AC

vo ltage marking on manual.

When ST -b y 5V doesn’t operate , replace PSU

1. No power

Page 15

Replace Y-B/D

Replace Z -B/D

Is output the no rm ality Low /H igh

Replace the power board

Voltage except Stand-by 5V ?

Replace the power board

After connecting we ll each

connector the nor mality it operates?

YE S

Is normal the output voltage after

remove P1 connector of Y-B/D?

Is normal the fuse

(FS2,FS3 ) on Y-B/D?

Is normal the output vo ltage after

Replace the fuse

YE S

Is normal the fuse

YE S

remove P1 connector of Z-B/D?

(FS1,FS2 ) on Z-B/D?

Replace the fuse

YE S

After remove P100,110 output voltage normality:

Is norm al the output vo ltage

Re pla ce Right X-B/ D

Afte r re mo ve P200,210 output voltage norm ality:

after remove P100,110,200, 210

Replace Left X- B/D

connector of X- B/D?

Symptom

1) After once shining, it doesn’t discharge minutely from module.

2. Protection mode

no rmal?

Start check

2) The relay falls. ( Th e sound is audible "Click ")

3) It is converted w ith the c o lor where the front LED is red from green .

Is the PSU

Is the each

connector norma l?

no rm al ?

Is t he Y- Board

no rm al ?

Is the Z - Board

no rm al ?

Is t he X- Board

Page 16

Replace

Is output the normality Lo w/High

Is the

the power boa rd

Voltage except Stand-by 5V?

YE S

on?

inverter/ VaV s

Sy mptom

1) No OSD and image occur at scr een.

2) It maintains the condition where the front L ED is gre en

3. No Raster

Start check

Does minute

discharge at

Module?

Reconnect the link cable

Check the PDP/LCD Module

YE S

in P600

YE S

norm al?

Is the link cable

Is the IC700’s

Replace the VSC

output norm al?

Page 17

(Check Pin5, Pin4)

Is normal the I2C communication ?

(Check Pin8, Pin6)

Is normal the Input voltage ?

Change the TunerCheck the powerCable inserts well.

Is normal the

I2C communication ?

(Check R309, R310)

YE S

Change the IC(IC300)

4. In case of becomes unusual display from RF mode(Main)

NO NO NO

connected well?

Is the Tuner Cable

NO YE S YE S

YE S

of the Tuner?

Is normal video output

(Check TU200_Pin14)

NO NO

(Check L308)

Is normal the Input voltage ?

of CXA2069Q?

Is normal video

check R324, R328)

output

(Check R324, In case of S-Video

Check the power

YE S

( Check L1004)

Cable inserts well

YE S

connected well?

Is the LVDS Cable

Change the IC(IC700)

Page 18

Check the input source

YES

of the A/V jack?

Is normal video input

Same as Block A

5. In the case of becomes unusual display from rear AV mode(main)

YES

of the A/V jack?

Is normal video input

Same as Block A

6. In the case of becomes unusual display from rear S-Video mode(main)

YES

of the A/V jack?

Is normal video input

Same as Block A

7. In the case of becomes unusual display from side AV mode(main)

Page 19

Check the input source

YES

of the A/V jack?

Is normal video input

(Check R339, R341, L310)

8. In the case of becomes unusual display from side S-Video mode(main)

Same as Block A

Page 20

(Check Pin5, Pin4)

Is normal the I2C communication ?

Change the Tuner

NO NONO

( L1103)

(Check Pin8, Pin6)

Is normal the Input voltage ?

Check the power

YES YES

connected well?

Is the Tuner Cable

Cable inserts well.

Is normal the

(Check R309, R310)

I2C communication ?

Change the IC(IC300)

NO NO

(Check L308)

Is normal the Input voltage ?

Check the power

( Check L1004)

YES YES

Cable inserts well

of the Tuner?

Is normal video output

(Check TU201_Pin14)

13. In case of becomes unusual display from RF mode(Sub)

YES

of CXA2069Q?

Is normal video

check R312, R314)

output

(Check R312, In case of S-Video

YES

connected well?

Is the LVDS Cable

YES

Change the IC(IC700)

Same as the case of main except block A should be change to B

14. In case PIP doesn’t display from other modes(Sub)

Page 21

Check the input source

of the JK102?

Is normal video

input

(Check L126, L127, L128)

15. In case of becomes unusual display from component1 mode(main/sub)

YES

of the JK103?

Change IC(IC700)

Is normal video

input

16. In case of becomes unusual display from component 2 mode(main/sub)

YES

Change IC(IC700)

(Check L129, L130, L131)

17. In case of becomes unusual display from RGB mode(main/sub)

YES

R513, R515)

Is normal R, G, B input

(Check R509, R511, R512

and H,V sync of the JK500?

Change IC(IC700)

Page 22

in menu

Set on speaker

Check the

Speaker cable

Replace IC400

Replace IC401

Replace IC402

YES

on in menu?

Is the speaker

NO NO

YES

Is the speaker

cable normal?

normally?

IC400 operate

Replace IC300

YES

normally?

IC401 operate

YES

normally?

IC402 operate

YES

Replace VSC B/D

Symptom

18. No Sound

LED is Green

Screen is exi stent, but sound isn’t

Check f ollow

YES

is no sound?

All input (mode)

Is the output

Download the EDID data

YES

no Sound?

Only HDMI is

Only AV input is

YES

normal?

of IC300(pin52,53)

no Sound?

after IC300

Check the signal

YES

refer to circuit diagram

Check the Tuner In/Out

Only RF is

no Sound?

Page 23

Down load EDID data each port.

1. Check TV input mode.

(HDMI1 port support HDM I and DVI.

So if you inpu t D VI signa l and PC audio from phone jac k,

You can hear PC audio . )

Replace IC1200

Normal video ,

is appropria tely enabled .

2. Unplug and plug HDMI ca ble.

(sometimes ESD surge occurred at HDMI port.)

3. Check HDMI Mute re gister. (0x 68, offset 0x37)

4. Check Audio - out channel mute reg is ter (0x68 , offse t 0 x32)

Check HDMI source . Change another source or cab le.

Normal aud io?

Yes

Is normal on ly video ?

19. HDMI mode

Yes

Is norm al on ly audio?

Check TMDS line wave.

(R1215 ~ R1222/ R1226 ~ R1233)

Yes

Is wave continuous?

1. Check H DMI rece iver’s status registe r. ( 0x60, offset 0x06)

rmal.

- If t he value is 0xf or 0x8, it is n

2. Check HD CP reg iste r. (0 x60, offset 0x32 )

-Enabl e bit 6: HDCP key loaded

-Enable bit 5: HDCP de cry ptio n active

Reset TMDS powe r down /on reg ister .

-0x60, offse t 0x3f : 0xf 7 => 0xff

-Enable bit 4: HDCP authen. attempted

Page 24

Change Timeshift M ode

from off to "On"

Connect a cable.

P1300, P1302

Replace the IC1300, IC1302

Replace the IC1500, IC1501

Change HDD

LED is Green

Sympto m

20.1 DVR

Doesn’t work time shift mode.

Can’t enter to r ecorde d list

Can’t re cord AV/RF/Component

Check f ollow

Start check

Menu? in

Is Timeshift Mode "On"

YE S

(P1300, P1302 )

Is connected cable?

Is operated

normally?

IC 1300,IC1302

YE S

operated

YE S

normally?

IC1500, IC150

YE S

Page 25

BLOCK DIAGRAM

Page 26

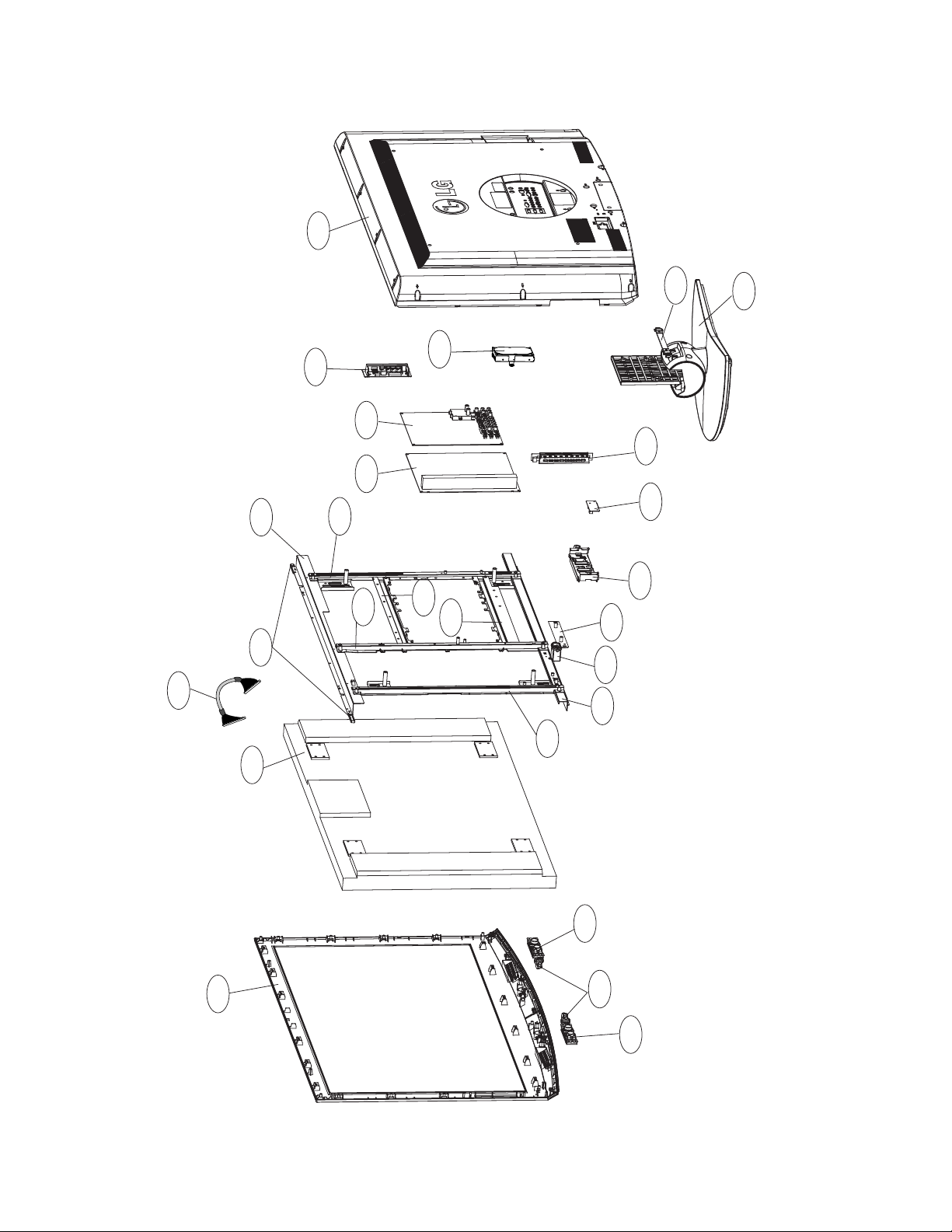

EXPLODED VIEW

400

910

540

530

610

510

600

800

807

LV1

804

803

805

806

801

500

809

808

520

900

300

802

200

120

121

120

Page 27

EXPLODED VIEW PARTS LIST

No.

PART NO.

DESCRIPTION

120 EAB37526301 Speaker,Full Range, C103A02K1400 ND 7W 8OHM 81DB 160HZ 122

121 EAB39506401 Speaker Assembly, 42LB9RT-MD.KWZZLJZ LGEAZ ASSEMBLE PHANTOM TWEETER

200 EAJ38817501

LCD,Module-TFT, LC420WX8-SLA1 WXGA 42INCH 1366X768 500CD COLOR 72% 16/9 1000:1(basic) 5ms(GTG) Zero RT Pol. 10000K Vitiaz 2 LG PHILIPS LCD

300 ABJ32993205

Cabinet Assembly, 42LB9RT-MD LP7BA 42" H4_ANALOG_DVR CABINET ASSEMBLY_FULL_CKD

400 ACQ33924404

Cover Assembly,Rear, 42LB9RT-MD lP7BA 42" 42"_H4_ANALOG_DVR_BACK COVER ASSEMBLY_FULL_CKD

500 EBR39358301 PCB Assembly, SUB T.T LP7BB 42LB9RT-MD KWZZLJZ PREAMP CKD BOM FOR LGEAZ

510 EBR39358901

PCB Assembly, CONTROL T.T LP7BB 42LB9RT-MD KWZZLJZ LOCAL KEY CKD BOM FOR LGEAZ

520 EAM35501401

Filter,AC Line, IF3-N06CEWL1 5.3mH 250VAC 6A 0.22uF 1000pF UL/CSA/VDE/K HOUSING/RING BK DONG IL TECHNOLOGY LTD.

530 EBR39358101

PCB Assembly, SUB T.T LP7BB 42LB9RT-MD KWZZLJZ SIDE A/V TOTAL CKD ASSY FOR LGEAZ

540 EBT39358001 Chassis Assembly, SUB LP7BA 42LB9RT-MD CKD HDD ASSY For LGEAZ

600 EBR38805302

PCB Assembly,Power, POWER T.T LP78A 42LC4R-MD KWZYLJZ Vitiaz2 PPB POWER CKD_NS 42LC4R-MD

610 EBU39334801 Main Total Assembly, 42LB9RT-MD BRAND LP7BB CKD BOM for LGEAZ

800 MJH37063702 Supporter, PRESS EGI 1t Supporter EGI LGEAZ_FULL_CKD_METAL TOP BAR

801 MGJ32902414

Plate, PRESS EGI 1.6 FRAME SBHG-A 42LB9_METAL BAR BOTTOM FULL_CKD FOR LPL MODULE (FULL_CKD OF P/NO 13)

802 MJH34248206

Supporter, PRESS EGI 1.2 GUIDE EGI METAL BAR LEFT FOR TORNADO MODULE, FULL CKD , WITHOUT PEMNUT LGEAZ

803 MGJ32902715

Plate, PRESS EGI 1.2 FRAME SBHG-A 42LB9RT-MD_LGEAZ_FULL_CKD_ METAL BAR CENTER 13-FULL_CKD

804 MGJ32902507

Plate, PRESS, EGI 1.2 FRAME SBHG-A 42LY3 METAL BAR RIGHT for AZ CKD W/O PAM_NUT

805 MGJ32902812

Plate, PRESS, EGI 1.2 FRAME SBHG-A 42LB9RT-MD_LGEAZ METAL BAR SIDE TOP(FULL_CKD OF P/N 01)

806 MGJ32902910

Plate, PRESS, EGI 1.2 FRAME SBHG-A 42LB9RT-MD LGEAZ METAL BAR SIDE BOTTOM FULL_CKD OF P/NO "01"

807 MGJ38974302 Plate,Metal, PRESS SBHG 1.2T SUPPORTER EGI 42LB9 SUB TOP PIECE PRESS

808 MJH34000506

Supporter, PRESS EGI 1.6 GUIDE EGI 42LB9RT-MD METAL STAND SUPPORTER FULL_CKD OF P/NO "03"

809 MGJ38733402 Plate,Metal, PRESS EGI 1.0 SUPPORTER SECC 47LB9 STAND GUIDE PRESS

900 AAN32993604

Base Assembly, STAND 42LB9RT-MD LP7BA STAND BASE ASSY FOR NOBLE BLACK DECO RING FULLCKD_PHNATOM

910 ABA32985002 Bracket Assembly, STAND 32LB9D-UA LA73A 32LB9 CABLE MANEGEMENT CKD

Page 28

- 28 -

A1 MFL36546203 "Manual,Owners" PRINTING USER LP7BA LG

A2 MKJ39170811 Remote Controller COMPLEX PP7BA 50PB4RTH

A3 6410TMW004A Power Cord "UC,LP-45 & H05VV-F 0.7"

A4 341-746B Holder MOLD ABS CABLE Holder

A5 MES36332302 Indicator MOLD ABS LED&PRE AMP 3

C1001 0CE477WF6DC "Capacitor,AL,Chip" MVK10TP16VC470M 470uF

C1007 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1009 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C1014 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C1017 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C102 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

C1020 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1021 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1024 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1026 0CE477WF6DC "Capacitor,AL,Chip" MVK10TP16VC470M 470uF

C1029 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C104 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

C1101 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1107 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1108 0CE477WF6DC "Capacitor,AL,Chip" MVK10TP16VC470M 470uF

C1109 0CE337WJ6D8 "Capacitor,AL,Chip" MVK12.5TP35VC330M 330u

C1111 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1115 0CE477WF6DC "Capacitor,AL,Chip" MVK10TP16VC470M 470uF

C1117 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1119 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1121 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1122 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1126 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1128 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1132 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1133 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1148 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C1150 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C1153 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C1162 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C117 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C1171 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C118 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C1182 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C1184 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C1187 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1201 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C1207 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C121 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C122 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C1222 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C1226 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C1244 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C1307 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1308 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1315 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C1366 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C200 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C207 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C210 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C211 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C212 0CE475SK6DC "Capacitor,AL,Chip" VMV475M050S0ANB010 4.7

C214 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C220 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C222 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C2304 0CE106SF6DC "Capacitor,AL,Chip" VMV106M016S0ANB010 10u

C2306 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C2309 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C301 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

C301 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C308 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

C308 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C310 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C311 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C400 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C403 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C405 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C412 0CE335WK6D8 "Capacitor,AL,Chip" MVK4.0TP50VC3.3M 3.3uF

C415 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C431 0CE335WK6D8 "Capacitor,AL,Chip" MVK4.0TP50VC3.3M 3.3uF

C432 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C433 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C438 0CE475WJ6DC "Capacitor,AL,Chip" MVK4.0TP35VC4.7M 4.7uF

C439 0CE475WJ6DC "Capacitor,AL,Chip" MVK4.0TP35VC4.7M 4.7uF

C440 0CE475WJ6DC "Capacitor,AL,Chip" MVK4.0TP35VC4.7M 4.7uF

C441 0CE475WJ6DC "Capacitor,AL,Chip" MVK4.0TP35VC4.7M 4.7uF

C446 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C447 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C455 0CE335WK6D8 "Capacitor,AL,Chip" MVK4.0TP50VC3.3M 3.3uF

C458 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C470 0CE335WK6D8 "Capacitor,AL,Chip" MVK4.0TP50VC3.3M 3.3uF

C471 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C472 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C475 0CE475WJ6DC "Capacitor,AL,Chip" MVK4.0TP35VC4.7M 4.7uF

C476 0CE475WJ6DC "Capacitor,AL,Chip" MVK4.0TP35VC4.7M 4.7uF

C477 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C479 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C486 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C489 0CE337WJ6D8 "Capacitor,AL,Chip" MVK12.5TP35VC330M 330u

C513 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C515 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

REPLACEMENT PARTS LIST

DATE: 2007. 08. 20.

CAPACITORs

ACCESSORY

Page 29

- 29 -

C537 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C540 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C609 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C612 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C614 0CH8106F691 "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C724 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C725 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C732 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C733 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C734 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C735 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C736 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C737 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C738 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C739 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C740 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C741 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C757 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C758 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C759 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C788 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C900 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C903 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C904 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C905 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C107 0CE337DD618 "Capacitor,AL,Radial" SMS5.0TP10VB330M 330uF

C113 EAE38262201 "Capacitor,AL,Radial" KMG5.0TP50VB22M 22uF 2

C202 0CZZTAB003X "Capacitor,AL,Radial" WB1A228M12020PL28P 220

C206 0CZZTAB003X "Capacitor,AL,Radial" WB1A228M12020PL28P 220

C208 EAE38259501 "Capacitor,AL,Radial" KMG4.0MC10VB2200M 2200

C210 0CZZTAB003V "Capacitor,AL,Radial" WB1V158M16025PA28P 150

C215 EAE38262601 "Capacitor,AL,Radial" KMG5.0TP10VB470M 470uF

C217 0CZZTAB003X "Capacitor,AL,Radial" WB1A228M12020PL28P 220

C218 EAE38259501 "Capacitor,AL,Radial" KMG4.0MC10VB2200M 2200

C221 0CZZTAB003X "Capacitor,AL,Radial" WB1A228M12020PL28P 220

C222 EAE38261701 "Capacitor,AL,Radial" KMG5.0TP25VB470M 470uF

C226 EAE38259801 "Capacitor,AL,Radial" KMG5.0MC35VB470M 470uF

C307 EAE38262501 "Capacitor,AL,Radial" KMG5.0TP50VB47M 47uF 2

C325 EAE38261801 "Capacitor,AL,Radial" KMG5.0TP50VB1M 1uF 20%

C506 EAE38261901 "Capacitor,AL,Radial" KMG5.0TP50VB10M 10uF 2

C507 EAE38262501 "Capacitor,AL,Radial" KMG5.0TP50VB47M 47uF 2

C508 EAE38262101 "Capacitor,AL,Radial" KMG5.0TP50VB100M 100uF

C510 EAE38262401 "Capacitor,AL,Radial" KMG5.0TP25VB47M 47uF 2

C511 EAE38261801 "Capacitor,AL,Radial" KMG5.0TP50VB1M 1uF 20%

C607 EAE36688101 "Capacitor,AL,Radial" LP2W157M35030HB 150uF

C608 EAE36688101 "Capacitor,AL,Radial" LP2W157M35030HB 150uF

C702 EAE36687701 "Capacitor,AL,Radial" RB1H227M10025PA200 220

C1000 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1002 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1003 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1004 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1005 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C1006 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1008 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C101 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1010 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1013 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1016 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1018 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1019 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1022 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1023 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1025 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1027 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1028 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C103 0CC330CK41A "Capacitor,Ceramic,Chip" C1608C0G1H330JT 33pF 5

C1030 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C105 0CH5101K416 "Capacitor,Ceramic,Chip" C2012C0G1H101JT 100pF

C105 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C106 0CH5101K416 "Capacitor,Ceramic,Chip" C2012C0G1H101JT 100pF

C106 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C108 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C109 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C110 0CH5331K416 "Capacitor,Ceramic,Chip" 0805N331J500LT 330pF 5

C1100 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1102 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1103 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1104 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1105 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1106 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C111 0CK225DH94A "Capacitor,Ceramic,Chip" C2012Y5V225ZFT 2.2uF -

C1110 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1112 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1113 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1114 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1116 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1118 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C112 0CK222DK56A "Capacitor,Ceramic,Chip" CS2012X7R222K500NR 2.2

C1120 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1125 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1127 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1129 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1130 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1131 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1134 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1135 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C1144 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1145 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1147 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1149 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1152 0CK105CD56A "Capacitor,Ceramic,Chip" C1608X7R1A105KT 1uF 10

C116 0CH5221K416 "Capacitor,Ceramic,Chip" 0805N221J500LT 220pF 5

C1161 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1170 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1172 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1174 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1176 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1178 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C118 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C1180 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Page 30

- 30 -

C1181 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1183 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1185 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1186 0CK272CK46A "Capacitor,Ceramic,Chip" 0603B272J500CT 2.7nF 1

C1188 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C1189 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C119 0CK224DK56A "Capacitor,Ceramic,Chip" CS2012X7R224K500NR 220

C1190 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1200 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1205 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1212 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1213 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1214 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1215 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1216 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1217 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1218 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1219 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1220 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1221 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1223 0CC180BKFAA "Capacitor,Ceramic,Chip" C1005C0G1H180JT 18pF 5

C1224 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1225 0CC180BKFAA "Capacitor,Ceramic,Chip" C1005C0G1H180JT 18pF 5

C1227 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1228 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1229 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1230 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1231 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1235 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1236 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1237 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1238 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1239 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1240 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1241 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1242 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1243 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1245 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1246 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1247 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1248 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1253 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1300 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1301 EAE32166101 "Capacitor,Ceramic,Chip" CS1005XR473K250CR 0.04

C1302 EAE32166101 "Capacitor,Ceramic,Chip" CS1005XR473K250CR 0.04

C1303 EAE32166101 "Capacitor,Ceramic,Chip" CS1005XR473K250CR 0.04

C1309 EAE32166101 "Capacitor,Ceramic,Chip" CS1005XR473K250CR 0.04

C131 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1310 EAE32166101 "Capacitor,Ceramic,Chip" CS1005XR473K250CR 0.04

C1311 EAE32166101 "Capacitor,Ceramic,Chip" CS1005XR473K250CR 0.04

C1313 0CH5470K618 "Capacitor,Ceramic,Chip" 0402N470M500LT 47pF 5%

C1314 0CH5470K618 "Capacitor,Ceramic,Chip" 0402N470M500LT 47pF 5%

C1316 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1317 0CC100BKF1A "Capacitor,Ceramic,Chip" 0402N100J500LT 10pF 5%

C1318 0CC100BKF1A "Capacitor,Ceramic,Chip" 0402N100J500LT 10pF 5%

C1319 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C132 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1320 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1321 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1322 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1323 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1324 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1325 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1326 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1327 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1328 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1329 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C133 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1330 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1331 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1332 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1333 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1334 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1335 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1336 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1337 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C1338 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1339 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1340 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1341 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1342 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1343 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1344 0CH5220K618 "Capacitor,Ceramic,Chip" 0402N220M500LT 22pF 5%

C1345 0CH5220K618 "Capacitor,Ceramic,Chip" 0402N220M500LT 22pF 5%

C1346 0CK102BK56A "Capacitor,Ceramic,Chip" 0402B102K500CT 1nF 10%

C1346 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1347 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1348 0CC120CK41A "Capacitor,Ceramic,Chip" C1608C0G1H120JT 12pF 5

C1349 0CC120CK41A "Capacitor,Ceramic,Chip" C1608C0G1H120JT 12pF 5

C1350 0CK102BK56A "Capacitor,Ceramic,Chip" 0402B102K500CT 1nF 10%

C1351 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1352 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1353 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1354 0CH5220K618 "Capacitor,Ceramic,Chip" 0402N220M500LT 22pF 5%

C1355 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1356 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1357 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1358 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1359 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C136 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1360 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1361 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1362 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1363 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1364 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1365 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1367 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1368 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1369 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C137 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Page 31

- 31 -

C1370 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1371 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1372 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1373 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1374 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1375 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1376 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1377 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1378 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1379 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C138 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1380 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1381 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1382 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1383 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1384 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1385 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1386 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1387 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C1388 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1389 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C139 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1390 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1391 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1392 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1393 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1394 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1395 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1396 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1397 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1398 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C140 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1400 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1401 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1402 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1403 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1404 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1405 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1406 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1407 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1408 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1409 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C141 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1410 0CK474EK66A "Capacitor,Ceramic,Chip" C3216X7R1H474MT 470nF

C1411 0CK474EK66A "Capacitor,Ceramic,Chip" C3216X7R1H474MT 470nF

C1412 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1413 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1414 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1415 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1416 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1417 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1418 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1419 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C142 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1420 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C1421 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C143 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C144 EAE32755801 "Capacitor,Ceramic,Chip" CL31A106K5HNNNE 10uF 1

C1500 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1501 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1502 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1503 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1504 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1505 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1506 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1507 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1508 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1509 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1510 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1511 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1512 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1513 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1514 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1515 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1516 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1517 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1518 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1519 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1520 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1521 0CK822CK56A "Capacitor,Ceramic,Chip" C1608X7R1H822KT 8.2nF

C1522 0CK823CF56A "Capacitor,Ceramic,Chip" 0603B823K160CT 82nF 10

C1523 0CK106CC67A "Capacitor,Ceramic,Chip" C1608X5R0J106MT 10uF 2

C1524 0CK473CK56A "Capacitor,Ceramic,Chip" C1608X7R1H473KT 47nF 1

C1525 0CK473CK56A "Capacitor,Ceramic,Chip" C1608X7R1H473KT 47nF 1

C1526 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1527 0CK473CK56A "Capacitor,Ceramic,Chip" C1608X7R1H473KT 47nF 1

C1528 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1529 0CK473CK56A "Capacitor,Ceramic,Chip" C1608X7R1H473KT 47nF 1

C1530 0CK473CK56A "Capacitor,Ceramic,Chip" C1608X7R1H473KT 47nF 1

C1531 0CK473CK56A "Capacitor,Ceramic,Chip" C1608X7R1H473KT 47nF 1

C1532 0CC180CK41A "Capacitor,Ceramic,Chip" C1608C0G1H180JT 18pF 5

C1533 0CC180CK41A "Capacitor,Ceramic,Chip" C1608C0G1H180JT 18pF 5

C201 0CC270CK41A "Capacitor,Ceramic,Chip" C1608C0G1H270JT 27pF 5

C202 0CC271CK41A "Capacitor,Ceramic,Chip" C1608C0G1H271JT 270pF

C203 0CC270CK41A "Capacitor,Ceramic,Chip" C1608C0G1H270JT 27pF 5

C203 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C204 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C204 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C205 0CC101CK41A "Capacitor,Ceramic,Chip" C1608C0G1H101JT 100pF

C206 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C208 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C209 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C211 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C212 0CK224DK56A "Capacitor,Ceramic,Chip" CS2012X7R224K500NR 220

C213 0CH1223K566 "Capacitor,Ceramic,Chip" 0805B223K500CT 22nF 10

C213 0CK273CK56A "Capacitor,Ceramic,Chip" 0603B273K500CT 27nF 10

C214 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C215 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C216 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C216 0CK273CK56A "Capacitor,Ceramic,Chip" 0603B273K500CT 27nF 10

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Page 32

- 32 -

C217 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C218 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C219 0CC271CK41A "Capacitor,Ceramic,Chip" C1608C0G1H271JT 270pF

C219 0CH4471K416 "Capacitor,Ceramic,Chip" C2012C0G1H471JT 470pF

C220 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C221 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C223 0CK222DK56A "Capacitor,Ceramic,Chip" CS2012X7R222K500NR 2.2

C224 0CH1223K566 "Capacitor,Ceramic,Chip" 0805B223K500CT 22nF 10

C224 0CK273CK56A "Capacitor,Ceramic,Chip" 0603B273K500CT 27nF 10

C225 0CC101CK41A "Capacitor,Ceramic,Chip" C1608C0G1H101JT 100pF

C225 0CH1223K566 "Capacitor,Ceramic,Chip" 0805B223K500CT 22nF 10

C226 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C227 0CH1102K566 "Capacitor,Ceramic,Chip" 0805B102K500CT 1nF 10%

C228 0CC270CK41A "Capacitor,Ceramic,Chip" C1608C0G1H270JT 27pF 5

C228 0CH1102K566 "Capacitor,Ceramic,Chip" 0805B102K500CT 1nF 10%

C229 0CC270CK41A "Capacitor,Ceramic,Chip" C1608C0G1H270JT 27pF 5

C229 0CH5221K416 "Capacitor,Ceramic,Chip" 0805N221J500LT 220pF 5

C230 0CC331CK41A "Capacitor,Ceramic,Chip" C1608C0G1H331JT 330pF

C2300 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2301 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2302 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2303 0CK105CD56A "Capacitor,Ceramic,Chip" C1608X7R1A105KT 1uF 10

C2307 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C2308 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C231 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C232 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C300 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C301 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C302 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C303 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C303 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C304 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C304 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C305 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C305 EAE36711901 "Capacitor,Ceramic,Chip" CS2012X7R103K500NR 100

C306 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C306 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C307 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C308 0CK225DD56A "Capacitor,Ceramic,Chip" C2012X7R1A225KT 2.2uF

C309 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C310 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C311 0CK333DK56A "Capacitor,Ceramic,Chip" C2012X7R1H333KT 33nF 1

C312 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C312 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C313 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C314 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C315 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C315 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C316 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C316 EAE36711901 "Capacitor,Ceramic,Chip" CS2012X7R103K500NR 100

C317 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C318 0CK222DK4DA "Capacitor,Ceramic,Chip" UMK212CG222JG-T 2.2nF

C319 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C319 EAE36882801 "Capacitor,Ceramic,Chip" C2012C0G1H103JT 10nF 5

C320 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C321 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C322 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C322 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C323 0CK225DD56A "Capacitor,Ceramic,Chip" C2012X7R1A225KT 2.2uF

C323 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C324 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C326 EAE36711901 "Capacitor,Ceramic,Chip" CS2012X7R103K500NR 100

C327 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C327 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C328 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C329 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C329 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C330 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C330 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C331 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C332 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C401 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C402 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C402 0CK472DK56A "Capacitor,Ceramic,Chip" C2012X7R1H472KT 4.7nF

C404 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C406 0CH6010K116 "Capacitor,Ceramic,Chip" C2012C0G1H010DT 1pF 0.

C407 0CH6010K116 "Capacitor,Ceramic,Chip" C2012C0G1H010DT 1pF 0.

C407 0CK472DK56A "Capacitor,Ceramic,Chip" C2012X7R1H472KT 4.7nF

C408 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C409 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C410 0CC560BK41A "Capacitor,Ceramic,Chip" C1005C0G1H560JT 56pF 5

C411 0CC560BK41A "Capacitor,Ceramic,Chip" C1005C0G1H560JT 56pF 5

C413 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C414 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C416 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C417 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C418 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C419 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C420 0CK101BK4EA "Capacitor,Ceramic,Chip" C1005C0G1H101JT 100pF

C421 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C422 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C423 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C424 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C425 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C426 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C427 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C428 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C429 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C430 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C434 0CK682CK51A "Capacitor,Ceramic,Chip" C1608Y5P1H682KT 6.8nF

C435 0CK682CK51A "Capacitor,Ceramic,Chip" C1608Y5P1H682KT 6.8nF

C436 0CK682CK51A "Capacitor,Ceramic,Chip" C1608Y5P1H682KT 6.8nF

C437 0CK682CK51A "Capacitor,Ceramic,Chip" C1608Y5P1H682KT 6.8nF

C442 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C443 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C444 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C445 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C448 0CH6010K116 "Capacitor,Ceramic,Chip" C2012C0G1H010DT 1pF 0.

C449 0CH6010K116 "Capacitor,Ceramic,Chip" C2012C0G1H010DT 1pF 0.

C450 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Page 33

- 33 -

C451 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C452 0CC560CK41A "Capacitor,Ceramic,Chip" C1608C0G1H560JT 56pF 5

C453 0CC560CK41A "Capacitor,Ceramic,Chip" C1608C0G1H560JT 56pF 5

C454 0CC560CK41A "Capacitor,Ceramic,Chip" C1608C0G1H560JT 56pF 5

C456 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C457 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C459 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C460 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C461 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C462 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C463 0CK101BK4EA "Capacitor,Ceramic,Chip" C1005C0G1H101JT 100pF

C464 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C465 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C466 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C467 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C468 0CK471BK56A "Capacitor,Ceramic,Chip" C1005X7R1H471KT 470pF

C469 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C473 0CK682CK51A "Capacitor,Ceramic,Chip" C1608Y5P1H682KT 6.8nF

C474 0CK682CK51A "Capacitor,Ceramic,Chip" C1608Y5P1H682KT 6.8nF

C478 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C480 0CK101BK4EA "Capacitor,Ceramic,Chip" C1005C0G1H101JT 100pF

C481 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C482 0CK102BK56A "Capacitor,Ceramic,Chip" 0402B102K500CT 1nF 10%

C483 0CK102BK56A "Capacitor,Ceramic,Chip" 0402B102K500CT 1nF 10%

C484 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C485 0CK105CD56A "Capacitor,Ceramic,Chip" C1608X7R1A105KT 1uF 10

C487 0CK223CK56A "Capacitor,Ceramic,Chip" UMK107JB223KA-T 22nF 1

C488 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C490 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C491 0CK333CK56A "Capacitor,Ceramic,Chip" C1608X7R1H333KT 33nF 1

C492 0CK223CK56A "Capacitor,Ceramic,Chip" UMK107JB223KA-T 22nF 1

C493 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C494 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C495 0CK223CK56A "Capacitor,Ceramic,Chip" UMK107JB223KA-T 22nF 1

C496 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C497 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C498 0CK223CK56A "Capacitor,Ceramic,Chip" UMK107JB223KA-T 22nF 1

C499 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C502 0CK474DK56A "Capacitor,Ceramic,Chip" UMK212BJ474KG-T 470nF

C503 0CK474DK56A "Capacitor,Ceramic,Chip" UMK212BJ474KG-T 470nF

C505 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C507 0CC120CK41A "Capacitor,Ceramic,Chip" C1608C0G1H120JT 12pF 5

C509 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C509 EAE36711901 "Capacitor,Ceramic,Chip" CS2012X7R103K500NR 100

C510 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C511 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C512 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C514 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C516 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C521 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C522 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C523 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C524 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C534 0CC150BK4AA "Capacitor,Ceramic,Chip" C1005C0G1H150JT 15pF 5

C535 0CC150BK4AA "Capacitor,Ceramic,Chip" C1005C0G1H150JT 15pF 5

C536 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C541 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C542 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C543 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C600 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C601 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C602 0CK222DK56A "Capacitor,Ceramic,Chip" CS2012X7R222K500NR 2.2

C603 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C603 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C604 0CK224DK56A "Capacitor,Ceramic,Chip" CS2012X7R224K500NR 220

C604 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C605 0CH5102K416 "Capacitor,Ceramic,Chip" 0805N102J500LT 1nF 5%

C605 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C606 0CH5102K416 "Capacitor,Ceramic,Chip" 0805N102J500LT 1nF 5%

C606 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C607 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C610 0CC470CK41A "Capacitor,Ceramic,Chip" C1608C0G1H470JT 47pF 5

C610 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C611 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C613 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C615 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C700 EAE33970001 "Capacitor,Ceramic,Chip" CS1005X5R105K6R3NR 1uF

C701 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C701 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C702 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C703 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C704 EAE33970001 "Capacitor,Ceramic,Chip" CS1005X5R105K6R3NR 1uF

C705 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C706 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C707 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C708 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C709 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C709 0CK105DH56A "Capacitor,Ceramic,Chip" C2012X7R105KFT 1uF 10%

C710 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C711 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C712 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C713 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C714 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C715 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C716 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C717 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C718 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C719 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C720 0CC300CK41A "Capacitor,Ceramic,Chip" C1608C0G1H300JT 30pF 5

C721 0CC300CK41A "Capacitor,Ceramic,Chip" C1608C0G1H300JT 30pF 5

C723 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C728 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C729 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C730 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C731 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C742 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C743 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C744 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 34

- 34 -

C745 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C746 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C747 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C748 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C749 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C750 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C751 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C752 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C753 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C754 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C755 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C756 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C760 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C761 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C762 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C763 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C764 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C765 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C766 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C767 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C768 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C769 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C770 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C771 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C772 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C773 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C774 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C775 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C776 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C777 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C778 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C779 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C780 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C781 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C782 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C783 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C784 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C785 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C786 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C787 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C789 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C790 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C791 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C792 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C793 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C794 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C795 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C796 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C797 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C798 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C799 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C800 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C801 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C802 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C803 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C804 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C805 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C806 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C807 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C808 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C809 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C810 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C811 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C812 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C901 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C902 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C906 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C907 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C908 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C909 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C910 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C911 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C912 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C913 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C914 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C915 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C916 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C917 0CK103BH56A "Capacitor,Ceramic,Chip" C1005X7R1E103KT- 10nF

C918 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C919 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C920 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C921 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C922 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C923 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C924 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C925 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C926 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C927 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C928 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C929 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C930 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C931 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C932 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C933 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C934 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C935 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C936 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C937 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C938 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C939 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C940 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C941 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C942 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C943 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C945 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C946 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C947 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C948 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C949 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C950 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 35
