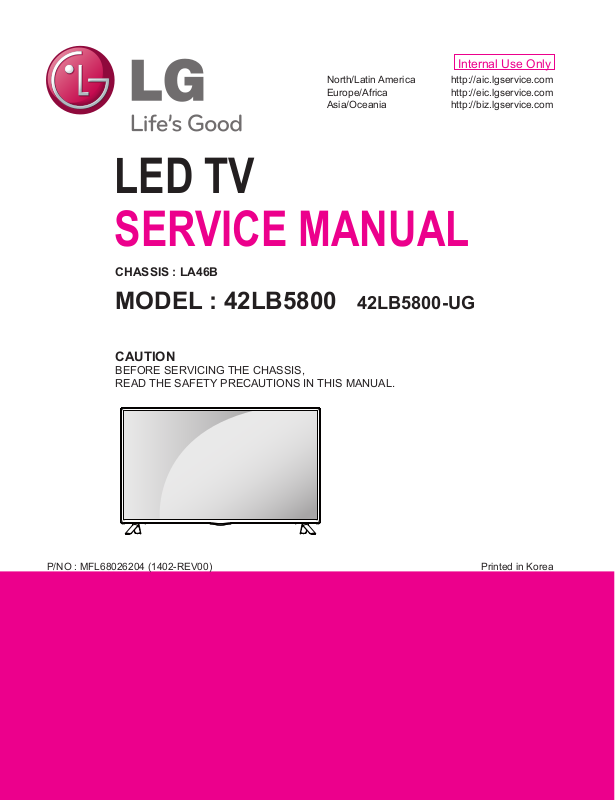

LG 42LB5800, 42LB5800UG Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LA46B

MODEL : 42LB5800 42LB5800-UG

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68026204 (1402-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 9

BLOCK DIAGRAM .................................................................................. 18

EXPLODED VIEW .................................................................................. 19

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of th e cir cuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exp ose d metallic par t. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten­tial shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri­cally shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

1.1. This spec sheet is applied all of the 32”, 39”, 42”, 47”, 50”,
55”, 60, 65” LED TV with LA46B chassis.

1.2. Not included spec and each product spec in this spec
sheet apply correspondingly to the following each country
standard and requirement of Buyer

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 20 ºC ± 5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage

Market Input voltage Frequency Remark

USA 110~240V 50/60Hz Standard Voltage of each

product is marked by
models

4) Specification and performance of each parts are followed

ea ch drawing and s pe cificatio n b y p art number in
accordance with BOM

5) The receiver must be operated for about 20 minutes prior to

the adjustment

.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

- Wireless : WirelessHD Specification (Option)

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4. General Specification

No Item Specication Remark

1 Market 1) North America

2 Television System NTSC-M, ATSC, 64 & 256 QAM

3 Input Voltage AC 100 ~ 240V 50/60Hz

4 Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) DTV : 02-69

4) CATV : 01~135

5) CADTV : 01~135

5 Aspect Ratio 16:9

6 Tuning System FS

7 LCD Module LC550DUE-FGA3 LGD 55LB5800-UA

T500HVF05.0 AUO 50LB5800-UA

LC550DUE-FGA4 LGD 55LB6100-UG

LC500DUE-FGA4 LGD 50LB5800-UG, 50LB6100-UG

LC470DUE-FGA4 LGD 47LB5800-UG, 47LB6100-UG

LC420DUE-FGA4 LGD 42LB5800-UG

LC650DUF-FGA1 LGD 65LB6190-UD

HC600DUF-VHHS2 Sharp 60LB6100-UG

T550HVF04.2 AUO 55LB6100-UG/55LB5800-UG

NC500DUN-VXBP2 INX 50LB6100-UG/50LB5800-UG

T420HVF07.0 AUO 42LB5800-UG

NC390DUN-VXBP2 INX 39LB5800-UG

LC320DUE-FGA4 LGD 32LB5800-UG

NC320DXN-VSBP2 Sharp 32LB580B-UG

LC320DXE-FGA4 LGD 32LB580B-UG

8 Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

9 Storage Environment 1) Temp : -20 ~ 60 deg

2) Humidity : ~ 85 %

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Supported video resolutions

5.1. Component 2D input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 26.97 23.976 74.176 HDTV 1080P

10. 1920*1080 27.00 24.00 74.25 HDTV 1080P

11. 1920*1080 33.71 29.97 74.176 HDTV 1080P

12. 1920*1080 33.75 30.00 74.25 HDTV 1080P

13. 1920*1080 67.432 59.94 148.352 HDTV 1080P

14. 1920*1080 67.50 60 148.50 HDTV 1080P

5.2. HDMI Input (PC/DTV)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

PC DDC

1 640*350 31.468 70.09 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 80.002 VESA O

7 1360*768 47.712 60.015 85.50 VESA (WXGA) X

8 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9 1920*1080 67.5 60 148.5 HDTV 1080P O

DTV

1 720*480 31.50 60 27.027 SDTV 480P

2 720*480 31.469 59.94 27.00 SDTV 480P

3 1280*720 45.00 60.00 74.25 HDTV 720P

4 1280*720 44.96 59.94 74.176 HDTV 720P

5 1920*1080 33.75 60.00 74.25 HDTV 1080I

6 1920*1080 33.72 59.94 74.176 HDTV 1080I

7 1920*1080 67.500 60 148.50 HDTV 1080P

8 1920*1080 67.43 59.94 148.352 HDTV 1080P

9 1920*1080 27.000 24.000 74.25 HDTV 1080P

10 1920*1080 26.97 23.97 74.176 HDTV 1080P

11 1920*1080 33.75 30.000 74.25 HDTV 1080P

12 1920*1080 33.716 29.976 74.176 HDTV 1080P

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application

This spec. sheet applies to LA46B Chassis applied LED TV all
models manufactured in TV factory

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of

25 ±5 ºC of temperature and 65±10% of relative humidity if

there is no specific designation
(4) The input voltage of the receiver must keep 100~240V,

50/60Hz
(5) At first Worker must turn on the SET by using Power Only

key.
(6) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15

ºC

In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2

hours
In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above

15°C for 3 hours.

※ Caution
When still image is displayed for a period of 20 minutes or
longer (especially where W/B scale is strong.
Digital pattern 13ch and/or Cross hatch pattern 09ch), there
can some afterimage in the black level area

4. MAIN PCBA Adjustments

4.1. ADC Calibration

- An ADC cali bra tion is not necessary because MA IN SoC
(LGExxxx) is already calibrated from IC Maker

4.2. MAC Address, ESN Key and Widevine
Key, DTCP Key, HDCP1. 4, HDCP2.0
download

4.2.1. Equipment & Condition

1) Play file: keydownload.exe

4.2.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)

2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

1) Select the download items.

2) Mode check: Online Only

3) Check the test process

- US, C anada m odels : DETECT - > MAC_ WR ITE - >
WIDEVINE_WRITE

4) Play : START

5) Check of result: Ready, Test, OK or NG

6) Printer out (MAC Address Label)

4.2.4. Communication Port connection

1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

3. Adjustment items

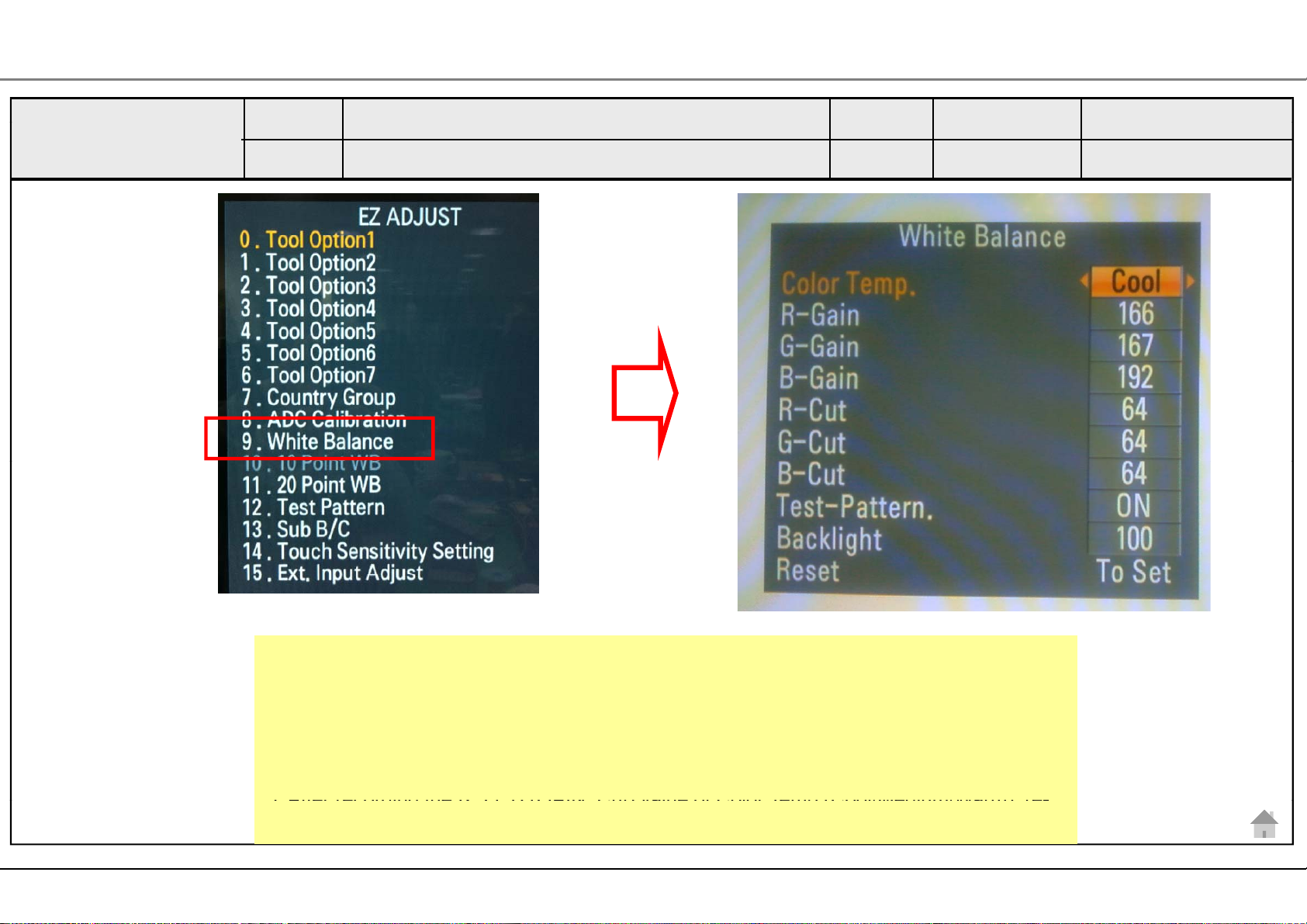

3.1. Final assembly adjustment

(1) White Balance adjustment
(2) RS-232C functionality check
(3) Factory Option setting per destination
(4) Shipment mode setting (In-Stop)
(5) GND and HI-POT test

3.2. Appendix

(1) Tool option menu, USB Download (S/W Update, Option

and Service only)
(2) Manual adjustment for ADC calibration and White balance.
(3) Shipment conditions, Channel pre-set

4.2.5. Download

1) US, Canada models (14Y LED TV + MAC + Widevine +
ESN Key + DTCP Key + HDCP1.4 and HDCP2.0)

4.2.6. Inspection

- In INSTART menu, check these keys.

Only for training and service purposes

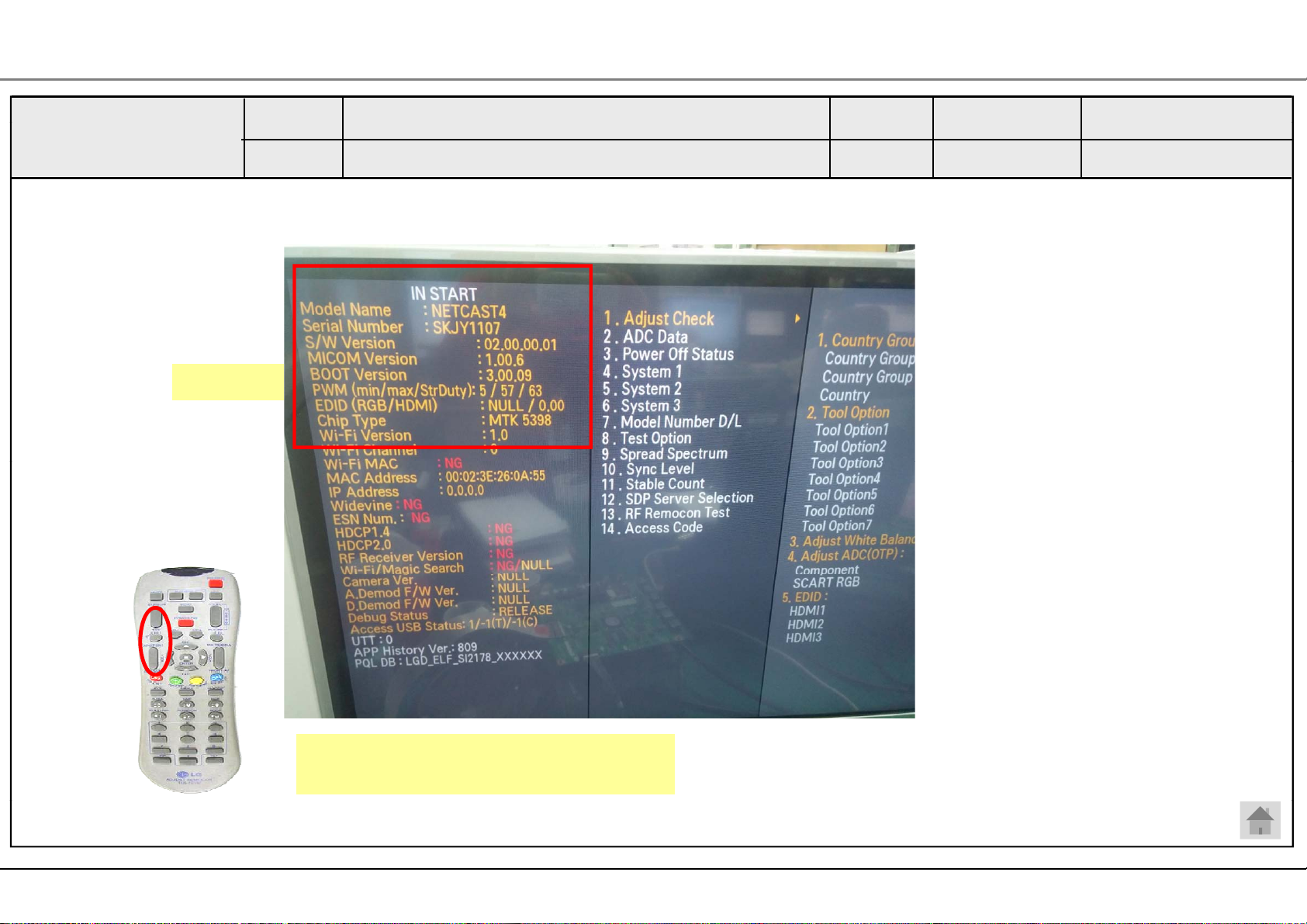

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.3. LAN port Inspection (Ping Test)

4.3.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program.

- IP number: 12.12.2.2

4.3.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) Connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) Remove LAN CABLE

4.4.3. EDID DATA

4.4.3.1. . 2D_8bit_PCM(US) _ xvYCC : off (HD)
HDMI EDID 2D_8bit_PCM(US)_xvYCC : off (HD)

▪Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by S/W or Input

mode.

ⓐ Product ID

HEX EDID Table DDC Function

0001 0100 Analog

0001 0100 Digital

ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’
Year : ‘2014’ -> ‘18’
ⓓ Model Name(Hex): LGTV

Chassis MODEL NAME(HEX)

LA46B

00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

4.4. EDID Download

4.4.1 Overview

▪ It is a VESA regulation. A PC or a MNT will display an

optimal resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.

4.4.2 Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon

Only for training and service purposes

- 10 -

ⓔ Checksum(LG TV): Changeable by total EDID data.

ⓔ1 ⓔ2 ⓔ3

HDMI1 A5 0C X

HDMI2 A5 FC X

HDMI3 A5 EC X

ⓕ Vendor Specific(HDMI)

INPUT MODEL NAME(HEX)

HDMI1 67 03 0C 00 10 00 80 1E

HDMI2 67 03 0C 00 20 00 80 1E

HDMI3 67 03 0C 00 30 00 80 1E

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.4.3.2. 2D_8bit_PCM(US) _ xvYCC : off
HDMI EDID 2D_8bit_PCM(US)_xvYCC : off

4.4.3.3. 2D_10bit_PCM(US) _ xvYCC : off
HDMI EDID 2D_10bit_PCM(US)_xvYCC : off

▪Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by S/W or Input
mode.

ⓐ Product ID

HEX EDID Table DDC Function

0001 0100 Analog

0001 0100 Digital

ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’
Year : ‘2014’ -> ‘18’
ⓓ Model Name(Hex): LGTV

Chassis MODEL NAME(HEX)

LA46B

ⓔ Checksum(LG TV): Changeable by total EDID data.

HDMI1 E7 1C X

HDMI2 E7 0C X

HDMI3 E7 FC X

ⓕ Vendor Specific(HDMI)

INPUT MODEL NAME(HEX)

HDMI1 67 03 0C 00 10 00 80 1E

HDMI2 67 03 0C 00 20 00 80 1E

HDMI3 67 03 0C 00 30 00 80 1E

00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

ⓔ1 ⓔ2 ⓔ3

▪Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by S/W or Input
mode.

ⓐ Product ID

HEX EDID Table DDC Function

0001 0100 Analog

0001 0100 Digital

ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’
Year : ‘2014’ -> ‘18’
ⓓ Model Name(Hex): LGTV

Chassis MODEL NAME(HEX)

LA46B

ⓔ Checksum(LG TV): Changeable by total EDID data.

HDMI1 E7 02 X

HDMI2 E7 F2 X

HDMI3 E7 E2 X

ⓕ Vendor Specific(HDMI)

INPUT MODEL NAME(HEX)

HDMI1 67 03 0C 00 10 00 B8 2D

HDMI2 67 03 0C 00 20 00 B8 2D

HDMI3 67 03 0C 00 30 00 B8 2D

00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

ⓔ1 ⓔ2 ⓔ3

Only for training and service purposes

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Final Assembly Adjustment

5.1. White Balance Adjustment

5.1.1. Overview

5.1.1.1. W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel’s W/B deviation
(2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 °C

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

- Before White balance adjustment, Keep power on status,
don’t power off

5.1.1.2. Adj. condition and cautionary items

(1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark
surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time

- After Aging Start, Keep the Power ON sta tus during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

5.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)
(2) Adj. Computer (During auto adj., RS-232C protocol is

needed)
(3) Adjust Remocon
(4) Vi deo Signal Generat or MS PG-925F 720p/ 204-Gray

(Model: 217, Pattern: 49)
※ Color Analyzer Matrix should be calibrated using CS-1000

5.1.3. Equipment connection

5.1.4. Adjustment Command (Protocol)

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD DATA ID

Wb 00 00 Begin White Balance adj.

Wb 00 ff End White Balance adj.

(internal pattern disappears )

(2) Adjustment Map

Adj. item Command

(lower caseASCII)

CMD1 CMD2 MIN MAX

Cool R Gain j g 00 C0

G Gain j h 00 C0

B Gain j i 00 C0

Medium R Gain j a 00 C0

G Gain j b 00 C0

B Gain j c 00 C0

Warm R Gain j d 00 C0

G Gain j e 00 C0

B Gain j f 00 C0

Explanation

Data Range
(Hex.)

5.1.5. Adjustment method

5.1.5.1. Auto WB calibration
(1) Set TV in ADJ mode using P-ONLY key (or POWER ON

key)

(2) Place optical probe on the center of the display

- It need to check probe condition of zero calibration before

adjustment.
(3) Connect RS-232C Cable
(4) Select mode in ADJ Program and begin a adjustment.
(5) When WB adjustment is completed with OK message,

check adjustment status of pre-set mode (Cool, Medium,

Warm)
(6) Remove probe and RS-232C cable.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

Only for training and service purposes

- 12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.1.5.2. Manual adjustment
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C à 9. White-

Balance then press the cursor to the right (KEY►). When
KEY(►) is pressed 206 Gray internal pa ttern will be

displayed.
(4) Adjust Cool modes
(i) Fix the one of R/G/B gain to 192 (default data) an d

decrease the others.

( If G gain is adjusted over 172 and R and B gain less than

192 , Adjust is O.K.)
(ii) If G gain is less than 172,
Increase G gain by up to 172, and then increase R gain and

G gain same amount of increasing G gain.
(iii) If R gain or B gain is over 255,
Readjust G gain less than 172, Conform to R gain is 255 or

B gain is 255
(5) Adjust two modes (Medium / Warm) Fix the one of R/G/B

gain to 192 (default data) and decrease the others.

(6) Adj. is completed, Exit adjust mode using “EXIT” key on

Remote controller.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu. 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner (ON). By selecting OFF, you can
adjust using RF signal in 206 Gray pattern.

5.1.6. Reference (White Balance Adj. coordinate and
color temperature)

▪ Luminance: 204 Gray, 80IRE
▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13,000K 0.0000

Medium 0.286 0.289 9,300K 0.0000

Warm 0.313 0.329 6,500K 0.0000

▪ S ta ndard color coord inate an d t emper at ure us ing

CA-210(CH 18) – ALEF

Mode

Cool 0.271±0.002 0.270±0.002 13,000K 0.0000

Medium 0.286±0.002 0.289±0.002 9,300K 0.0000

Warm 0.313±0.002 0.329±0.002 6,500K 0.0000

▪ S ta ndard color coord inate an d t emper at ure us ing

CA-210(CH-14)

Mode

Cool 0.271±0.002 0.270±0.002 13,000K 0.0000

Medium 0.286±0.002 0.289±0.002 9,300K 0.0000

Warm 0.313±0.002 0.329±0.002 6,500K 0.0000

Coordinate

X Y

Coordinate

X Y

Coordinate

X Y

Temp △uv

Temp △uv

Temp △uv

5.1.7. Reference (White balance table)

▪ S ta ndard color coord inate and t emper ature us ing

CA-210(CH-14) – by aging time
(1) Normal line in Korea (From January to February) LGD
(LB5xxx, LB6xxx, LB7xxx, LB8xxx).

Aging time

(Min)

1 0-2 286 295 301 314 328 354

2 3-5 284 290 299 309 326 349

3 6-9 282 287 297 306 324 346

4 10-19 279 283 294 302 321 342

5 20-35 276 278 291 297 318 337

6 36-49 274 275 289 294 316 334

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

▪ S ta ndard color coord inate and t emper ature us ing

CA-210(CH-14) – by aging time
(2) Normal line (From March to December) : LGD
(LB5xxx, LB6xxx, LB7xxx, LB8xxx)

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

▪ S ta ndard color coord inate and t emper ature us ing

CA-210(CH 14)
O/S Module (AUO, INX, Sharp, CSOT, BOE)

cool med warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.2. Tool Option setting & Inspection per
countries

5.2.1. Overview

(1) Tool option selection is only done for models in Non-USA

North America due to rating

(2) Applied model: LA46B Chassis applied to CANADA and

MEXICO

5.2.2. Country Group selection

(1) Press ADJ key on the Adj. R/C, and then select Country

Group Menu

(2) Depending on destination, select US, then on the lower

Country option, select US, CA, MX.

Selection is done using +, - KEY

5.2.3. Tool Option inspection

▪ Press Adj. key on the Adj. R/C, then select Tool option

Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 Tool 7

32LB580B-UG(Sharp) 6769 13329 33152 64070 4566 1353 41771

32LB580B-UG(LGD) 625 13329 33152 64070 4310 1354 41771

32LB5800-UG 625 13329 33152 64070 4310 1353 41771

39LB5800-UG 14963 13329 33152 64070 4566 1353 41771

42LB5800-UG(LGD) 628 13329 33152 64070 4310 1433 41771

42LB5800-UG(AUO) 4724 13329 33152 64070 4310 1353 41771

47LB5800-UG 629 13329 33152 64070 4310 1353 41771

50LB5800-UG(AUO) 4726 13329 33152 64070 4310 1353 41771

50LB5800-UG(INX) 14966 13329 33152 64070 4310 1353 41771

55LB5800-UG(LGD) 631 13329 33152 64070 4310 1402 41771

55LB5800-UA(AUO) 4727 13329 33152 64070 4310 1353 41771

47LB6100-UG 677 13329 33152 64070 12502 1353 41771

50LB6100-UG(LGD) 678 13329 33152 64070 12502 1353 41771

50LB6100-UG(AUO) 4774 13329 33152 64070 12502 1353 41771

50LB6100-UG(INX) 15014 13329 33152 64070 12502 1353 41771

55LB6100-UG(LGD) 679 13329 33152 64070 12502 1402 41771

55LB6100-UG(AUO) 4775 13329 33152 64070 12502 1353 41771

60LB6100-UG 39592 13329 33152 64070 12502 1353 41771

65LB6190-UD 34467 13329 33152 64070 12502 1353 41771

5.3. Magic Motion remote controller Check

5.3.1. Test equipment

▪ RF-remote controller for check, IR-KEY-CODE remote

controller.

▪ Check AA battery before test. A recommendation is that a

tester change battery every lots.

5.3.2. Test

(1) Make pairing with TV set by pressing “Start key(Wheel

key)” on RCU.
(2) Check a cursor on screen by pressing ‘Wheel key” of RCU
(3) Stop paring with TV set by pressing “Back+ Home” key of

RCU

5.3.3. Applied models

Chassis Model Name Magic RF receiver

LA46B 32LB580B-UG Dongle

32/39/42/47/50/55LB5800-

UG

47/50/55/60LB6100-UG

※ Dongle Model : An USB dongle-type receiver will b e

suppl ied in form of accessory. So this
pairing test is not necessary for th ese
models

5.4. Wi-Fi MAC Address Check

5.4.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

5.4.2. Check the menu on in-start

※ Tool option can be reconstructed by Software

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.5. HDMI ARC Function Inspection

5.5.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.5.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

(2) Check the sound from the TV Set

5.6. HDMI MHL Function Inspection

5.6.1. Test method

(1) Insert the HDMI Cable to the HDMI MHL port from the

master equipment, HDMI3

(2) Check the Green LED of Tester, and TV Display

5.7. EYE-Q Green Function Inspection

Step 1) Turn on the TV..
Step 2) Press ' EY E button' o n t he adjustm ent remote -

controller.

Step 3) Cover 'Eye Q sensor' on the front of set with your

hands, hold it for 6 seconds.

Step 4) Check "the Sensor Data" on the screen, make certain

that Data is below 10. If Data isn’t below 10 in 6
seconds, Eye Q sensor would be bad. You should
change Eye Q sensor.

Step 5) Uncover your hands from Eye Q sensor, hold it for 6

seconds.

Step 6) Check "Back Light(xxx)" on the screen, check data

increase . You should change Eye Q sensor

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

* Remark: Inspect in Power Only Mode and check SW version

in a master equipment

5.8. Ship-out mode check (In-stop)

▪ After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode

Only for training and service purposes

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. AUDIO output check

6.1. Audio input condition

(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation
(2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)
(3) RGB PC: 1KHz sine wave signal (0.7Vrms)

6.2. Specification

No Item Min Typ Max Unit Remark

1 Audio

practical
max Output,
L/R
(Distor­tion=10%
max Output)

9.0

8.5

10.0

8.9

12.0

9.9WVrms

(1) Measurement

condition

- EQ/AVL/Clear
Voice: Off

(2) Speaker (8Ω

Impedance)

8. USB S/W Download
(optional, Service only)

(1) Put the USB Stick to the USB socket
(2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower
than that of TV set, it didn’t work. Otherwise USB data is
automatically detected.

(3) Show the message “Copying files from memory”

7. GND and HI-POT Test

7.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

7.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process

automatically.

7.3. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA
(2) TEST time: 1 second
(3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5mArms

(4) Updating is staring.

(5) Updating Completed, The TV will restart automatically
(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. If all channel data is cleared, you didn’t have a DTV/
ATV test on production line.

* After downloading, TOOL OPTION setting is needed again.
(1) Push "IN-START" key in service remote controller.
(2) Select "Tool Option 1" and Push “OK” button.
(3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

9. Optional adjustments

9.1. Manual White balance Adjustment

9.1.1. Adj. condition and cautionary items

(1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark

surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time
i) After Aging Start, Keep the Power ON status during 5

Minutes.

ii) In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

9.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)
(2) Adj. Computer (During auto adj., RS-232C protocol is

needed)
(3) Adjust Remocon
(4) Vi deo Sig nal Generator MSP G-925F 720p/216 -Gray

(Model: 217, Pattern: 78)

9.1.3. Adjustment

(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface.

(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY►). When
KEY(►) is pressed 216 Gray interna l pattern will be

displayed.

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern.

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

BLOCK DIAGRAM

Audio AMP

(NTP7513)

MTK A2

CI Slot

P_TS

P_TS

T/C Demod

IF (+/-)

USB1

OPTIC

LAN

DDR3 1600 X 16

(512MB X 2EA)

HDMI1

HDMI2

HDMI3

Analog Demod

SYSTEM EEPROM

(256Kb)

HDMI

MUX

Air/

Cable

TUNER

(T/C/A)

LNB

USB2

USB3

41P

51P

eMMC

(4GB)

Sub Micom

(RENESAS

R5F1000G)

DDR3 1600 X 16

(256MB X 1EA)

P_TS

50P

50P

X_TAL

27MHz

T/C/S2 Without ATV

LVDS Diagram

A B

HDCP EEPROM

(16Kb)

X_TAL

32.768KHz

I2S Out

I2C 1

EPI

I2C 2

LVDS

USB

P_TS

I2C 5

I2C 1

H/P

AV/COMP

Tuner : I2C 6

DVB-S : I2C 4

OCP

2.5A

OCP

1A

(HDD)

MHL 1A

SIL1392

800MHz

MHL : I2C 4

MHL 사용시

REA

R

SID

E

SID

E

REA

R

(H)

AMP

TI

CVBS/YPbPr

SPDIF OUT

ETHERNET

I2C 3

LOCAL DIMMING

BLUTOOTH

IR / NFC

PM

IC

LEVEL

SHIFTER

WIFI

KEY

LOGO LIGHT

SUB

ASSY

I2C 1

UART

IR

KEY

USB_WIFI

800MHz

Only for training and service purposes

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

400

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

410

420

900

521

310

540

121

530

LV1

820

120

A10

Set + Stand

200

Only for training and service purposes

- 19 -

A2

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

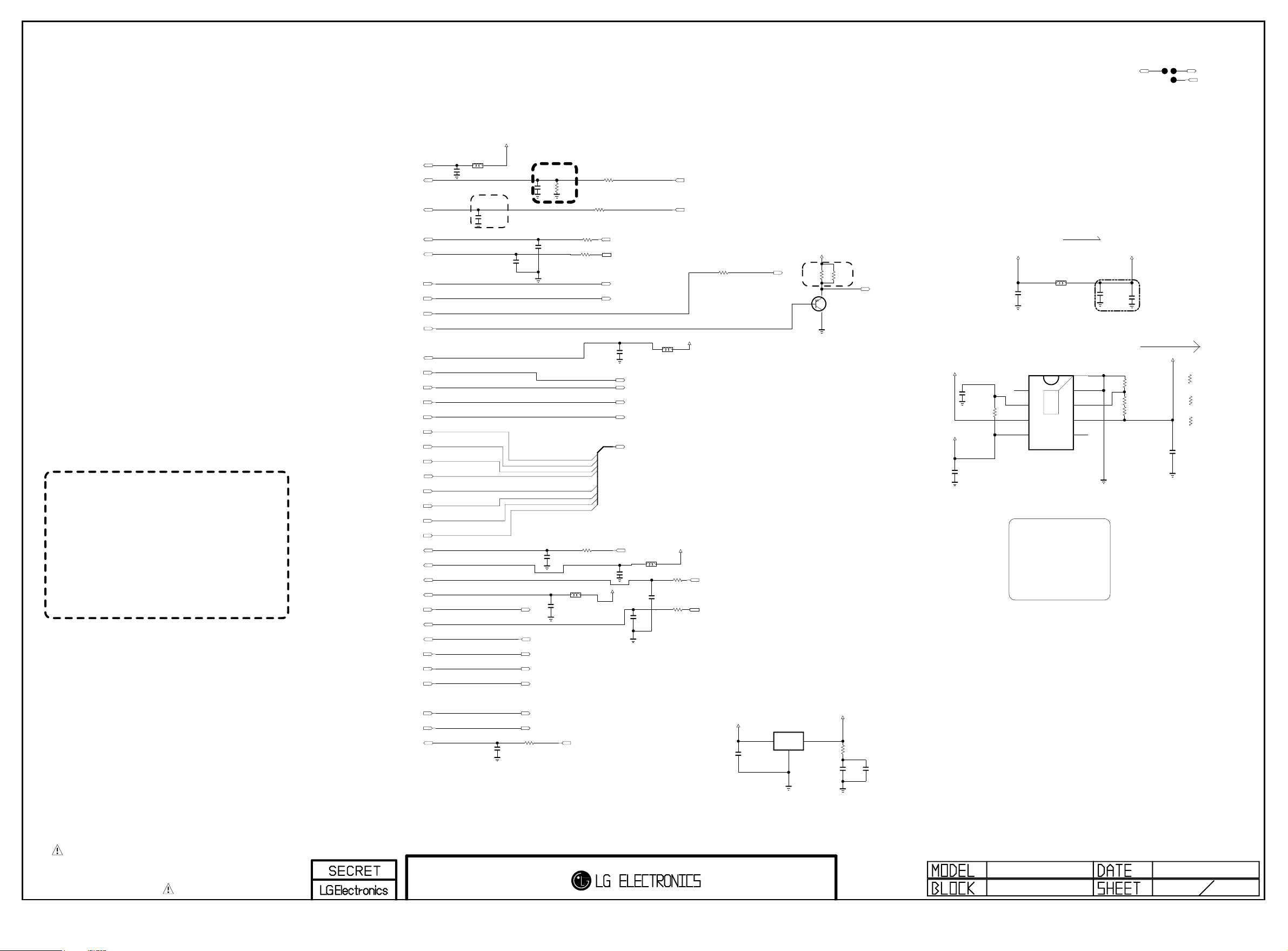

WOL_CTL

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

VDD3V3

+3.5V_ST

R500
10K

B

C500

4.7uF
10V

OPT

R502

R501

+3.5V_ST_WAKE

10K

1.8K

C

Q500
MMBT3904(NXP)

E

+3.3V_NORMAL

OPT

L503

BLM18PG121SN1D

OPT

L502

BLM18PG121SN1D

Q501

PMV48XP

S

G

C501

4.7uF
10V

L501

BLM18PG121SN1D

C503
10uF

OPT

C504

0.1uF

D

C502

0.1uF
16V

OPT

VDD3V3

C505
10uF

AVDD_33SB

C506

0.1uF

+3.5V_ST_WAKE

5V

ZD500

IC105

+1.2V_MTK_CORE

3.3V_EMMC

L505

BLM18PG121SN1D

+1.2V_MTK_CORE

OPT

C513
10uF

POWER_ON/OFF1

C531

0.1uF
16V

OPT

C527

0.1uF

TP500

OPT

C535

0.1uF

LAN_JACK_POWER

TP501

VDD3V3

C510

0.1uF
16V

+1.2V_MTK_CORE

+1.2V_MTK_CORE

IC500

AP2121N-3.3TRE1

VIN

3

1

60mA

C507

C508

0.1uF

2.2uF

+3.5V_ST_WAKE

OPT

C514
10uF

L504

BLM18PG121SN1D

VOUT

2

GND

C517
10uF

5600mA

C523

0.1uF

C518
10uF

AVDD_33SB

C512
1uF
10V

C532

C520

0.1uF

0.1uF

+1.2V_MTK_AVDD

+3.3V_NORMAL

DECAP FOR SOC (HIDDEN - UCC) DECAP FOR SOC Rework (BOTTOM)

+1.5V_DDR

C509

0.1uF

C511

0.1uF

+1.2V_MTK_CORE

+1.5V_DDR

OPT

C539

0.1uF

TP502

VDD3V3

OPT

C541

0.1uF
16V

TP503

LGE2122[A2_M13]

L11

VCCK_1

N12

VCCK_2

P12

VCCK_3

AG5

VCCK_4

AH5

VCCK_5

AJ5

VCCK_6

AK5

VCCK_7

AL5

VCCK_8

AM5

VCCK_9

AN5

VCCK_10

AK6

VCCK_11

AL6

VCCK_12

AM6

VCCK_13

AN6

VCCK_14

M11

VCCK_15

N11

VCCK_16

P11

VCCK_17

R11

VCCK_18

M12

VCCK_19

R12

VCCK_20

L13

VCCK_21

L14

VCCK_22

L15

VCCK_23

L17

VCCK_24

L18

VCCK_25

L19

VCCK_26

T11

VCCK_27

U11

VCCK_28

V11

VCCK_29

W11

VCCK_30

Y11

VCCK_31

AA11

VCCK_32

AB11

VCCK_33

AC11

VCCK_34

R23

VCCK_35

L12

VCCK_36

W12

VCCK_37

V23

VCCK_38

Y12

VCCK_39

AF6

VCCK_40

AG6

VCCK_41

AH6

VCCK_42

AJ6

VCCK_43

AE7

VCCK_44

AF7

VCCK_45

AG7

VCCK_46

AD8

VCCK_47

AE8

VCCK_48

AF8

VCCK_49

AE9

VCCK_50

AC10

VCCK_51

AD10

VCCK_52

AD11

VCCK_53

AE10

VCCK_54

AF9

VCCK_55

AG8

VCCK_56

AH7

VCCK_57

AJ7

VCCK_58

AK7

VCCK_59

AL7

VCCK_60

AM7

VCCK_61

AN7

VCCK_62

L16

VCCK_63

V12

VCCK_64

U12

VCCK_65

T12

VCCK_66

AD13

VCCK_67

AD17

VCCK_68

AD14

VCCK_69

AB12

VCCK_70

AA12

VCCK_71

AC12

VCCK_72

T9

VCC3IO_C

Y10

VCC3IO_B_1

AA10

VCC3IO_B_2

D22

VCC3IO_A_1

E22

VCC3IO_A_2

AC18

DVSS_1

AB21

DVSS_2

AB14

DVSS_3

N13

DVSS_4

P13

DVSS_5

R13

DVSS_6

T13

DVSS_7

U13

DVSS_8

V13

DVSS_9

W13

DVSS_10

Y13

DVSS_11

P18

DVSS_12

N14

DVSS_13

P14

DVSS_14

R14

DVSS_15

T14

DVSS_16

U14

DVSS_17

V14

DVSS_18

W14

DVSS_19

Y14

DVSS_20

R18

DVSS_21

N15

DVSS_22

P15

DVSS_23

DVSS_24
DVSS_25
DVSS_26
DVSS_27
DVSS_28
DVSS_29
DVSS_30
DVSS_31
DVSS_32
DVSS_33
DVSS_34
DVSS_35
DVSS_36
DVSS_37
DVSS_38
DVSS_39
DVSS_40
DVSS_41
DVSS_42
DVSS_43
DVSS_44
DVSS_45
DVSS_46
DVSS_47
DVSS_48
DVSS_49
DVSS_50
DVSS_51
DVSS_52
DVSS_53
DVSS_54
DVSS_55
DVSS_56
DVSS_57
DVSS_58
DVSS_59
DVSS_60
DVSS_61
DVSS_62
DVSS_63
DVSS_64
DVSS_65
DVSS_66
DVSS_67
DVSS_68
DVSS_69
DVSS_70
DVSS_71
DVSS_72
DVSS_73
DVSS_74
DVSS_75
DVSS_76
DVSS_77
DVSS_78
DVSS_79
DVSS_80
DVSS_81
DVSS_82
DVSS_83
DVSS_84
DVSS_85
DVSS_86
DVSS_87
DVSS_88
DVSS_89
DVSS_90
DVSS_91
DVSS_92
DVSS_93
DVSS_94
DVSS_95
DVSS_96
DVSS_97
DVSS_98

DVSS_99
DVSS_100
DVSS_101
DVSS_102
DVSS_103
DVSS_104
DVSS_105
DVSS_106
DVSS_107
DVSS_108
DVSS_109
DVSS_110
DVSS_111
DVSS_112
DVSS_113
DVSS_114
DVSS_115
DVSS_116
DVSS_117
DVSS_118
DVSS_119
DVSS_120
DVSS_121
DVSS_122
DVSS_123
DVSS_124
DVSS_125
DVSS_126
DVSS_127

R15
T15
U15
V15
W15
Y15
AA15
AB15
T18
R16
T16
U16
V16
W16
Y16
AA16
AB16
R17
T17
U17
V17
Y17
N16
V18
Y18
P16
V19
Y19
W17
AA17
AB17
N19
AC14
C13
K24
K25
L24
M17
M18
M19
P17
P19
N18
U20
V20
W20
Y20
AA20
R19
T19
M20
N20
U21
V21
W21
Y21
AA21
P20
R20
T20
U22
V22
W22
Y22
AA22
N21
P21
R21
T21
M22
N22
P22
R22
T22
M21
AC17
AA19
M13
M14
M15
AA13
AB13
AA14
AB19
D6
W19
U19
N17
L3
AB18
AA18
W18
U18
D16
AC13
M16
AC20
AC22
AD20
Y23
AA23
AB23
V24
W23

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_MAIN_3

2011.12.09

10

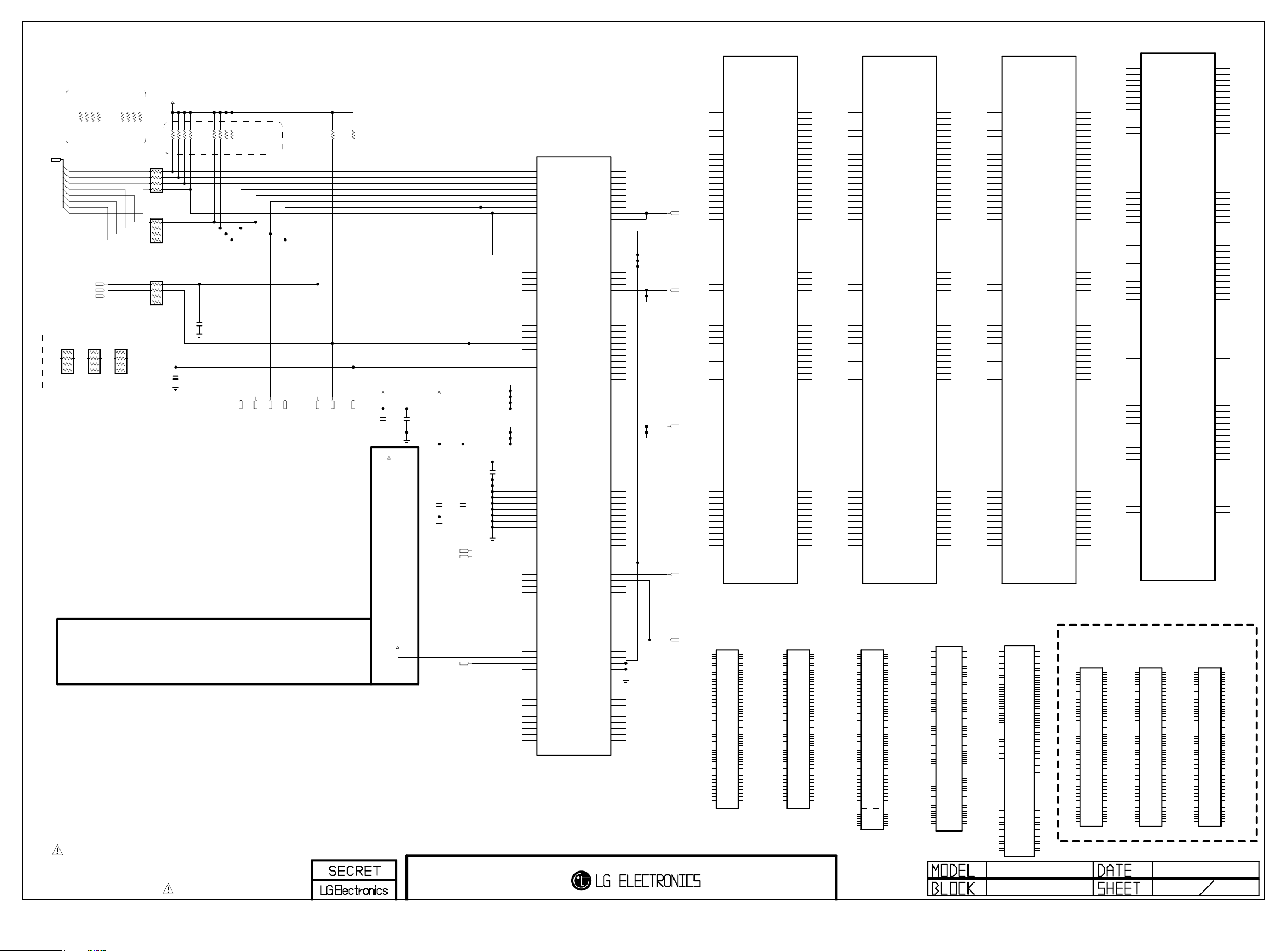

A_RVREF1

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A_RVREF4

+1.5V_DDR

+1.5V_DDR

R706
1K
1%

R707
1K
1%

R708
1K
1%

R709
1K1%C716

0.1uF

C713

0.1uF

C714

0.1uF

C715

0.1uF

R710

A_RVREF4

A_RVREF1

+1.5V_DDR

M8

H1

1%

240

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

DDR_512MB_SS

IC701

K4B4G1646B-HCK0

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

A10/AP

A12/BC

RESET

DDR_512MB_SS

IC703

ARA[0-14]

ARA[0]

N3

A0

ARA[1]

P7

A1

ARA[2]

P3

A2

ARA[3]

N2

A3

ARA[4]

P8

A4

ARA[5]

P2

A5

ARA[6]

R8

A6

ARA[7]

R2

A7

ARA[8]

T8

A8

ARA[9]

R3

A9

ARA[10]

L7

ARA[11]

R7

A11

ARA[12]

N7

ARA[13]

T3

A13

ARA[14]

T7

A14

M7

A15

M2

BA0
BA1
BA2

CK
CK

CKE

CS
ODT
RAS
CAS

WE

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

ARBA0

N8

ARBA1

M3

ARBA2

J7
K7
K9

ARCKE

L2

/ARCS

K1

ARODT

J3

/ARRAS

K3

/ARCAS

L3

/ARWE

T2

ARREST

F3

ARDQS0

G3

/ARDQS0

C7

ARDQS1

B7

/ARDQS1

E7

ARDQM0

D3

ARDQM1

ARDQ[0]

E3

ARDQ[1]

F7

ARDQ[2]

F2

ARDQ[3]

F8

ARDQ[4]

H3

ARDQ[5]

H8

ARDQ[6]

G2

ARDQ[7]

H7

ARDQ[8]

D7

ARDQ[9]

C3

ARDQ[10]

C8

ARDQ[11]

C2

ARDQ[12]

A7

ARDQ[13]

A2

ARDQ[14]

B8

ARDQ[15]

A3

ARCLK0

R712
100
5%

/ARCLK0

ARDQ[0-7]

ARDQ[8-15]

ARCLK1

/ARCLK1

ARDQ[16-23]

ARDQ[24-31]

ARA[0-14]

R714
100
5%

ARDQ[16]
ARDQ[17]
ARDQ[18]
ARDQ[19]
ARDQ[20]
ARDQ[21]
ARDQ[22]
ARDQ[23]

ARDQ[24]
ARDQ[25]
ARDQ[26]
ARDQ[27]
ARDQ[28]
ARDQ[29]
ARDQ[30]
ARDQ[31]

ARBA0
ARBA1
ARBA2

ARCKE

/ARCSX

ARODT
/ARRAS
/ARCAS

/ARWE

ARREST

ARDQS2

/ARDQS2

ARDQS3

/ARDQS3

ARDQM2
ARDQM3

ARA[0]
ARA[1]
ARA[2]
ARA[3]
ARA[4]
ARA[5]
ARA[6]
ARA[7]
ARA[8]
ARA[9]
ARA[10]
ARA[11]

ARA[12]
ARA[13]
ARA[14]

K4B4G1646B-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_DDR

C718

0.1uF

C720

0.1uF

C722

0.1uF

C726

0.1uF

C728

0.1uF

C703

10uF

1uF

10V

C701

+1.5V_DDR

C708

C717

0.1uF

C719

0.1uF

C750

0.1uF

C723

0.1uF

C725

0.1uF

C727

0.1uF

C706

10uF

1uF

10V

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

A_RVREF2

M8

A_RVREF3

H1

1%

240

R716

L8

ZQ

+1.5V_DDR

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

A_RVREF2

A_RVREF3

+1.5V_DDR

+1.5V_DDR

C735

R720

0.1uF
1K
1%

R721

C736

1K
1%

0.1uF

+1.5V_DDR

C707

C705

10uF

1uF

10V

+1.5V_DDR

C733

R718

0.1uF
1K
1%

R719

C734

1K
1%

0.1uF

H5TQ4G63AFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC701-*1

H5TQ4G63AFR-PBC

DDR_512MB_Hynix

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

N2

VREFDQ

A3

P8

A4

P2

A5

L8

R8

ZQ

A6

R2

A7

T8

A8

B2

R3

VDD_1

A9

D9

L7

VDD_2

A10/AP

G7

R7

VDD_3

A11

K2

N7

VDD_4

A12/BC

K8

T3

VDD_5

A13

N1

T7

VDD_6

A14

N9

M7

VDD_7

A15

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

F3

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

IC701-*2

IC703-*1

MT41K256M16HA-125:E

DDR_512MB_Hynix

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

MT41K256M16HA-125:E

DDR_512MB_MICRON

M8

N3

N3

VREFCA

A0

A0

P7

P7

A1

A1

P3

P3

A2

A2

N2

H1

N2

A3

VREFDQ

A3

P8

P8

A4

A4

P2

P2

A5

A5

R8

R8

L8

A6

A6

ZQ

R2

R2

A7

A7

T8

T8

A8

A8

R3

R3

B2

A9

A9

VDD_1

L7

L7

D9

A10/AP

A10/AP

VDD_2

R7

R7

G7

A11

A11

VDD_3

N7

K2

N7

A12/BC

A12/BC

VDD_4

T3

K8

T3

A13

VDD_5

A13

N1

VDD_6

N9

M7

M7

VDD_7

NC_5

NC_5

R1

VDD_8

R9

M2

M2

VDD_9

BA0

BA0

N8

N8

BA1

BA1

M3

M3

BA2

BA2

A1

VDDQ_1

A8

J7

J7

VDDQ_2

CK

CK

C1

K7

K7

VDDQ_3

CK

CK

C9

K9

K9

VDDQ_4

CKE

CKE

D2

VDDQ_5

E9

L2

L2

VDDQ_6

CS

CS

F1

K1

K1

VDDQ_7

ODT

ODT

H2

J3

J3

VDDQ_8

RAS

RAS

H9

K3

K3

VDDQ_9

CAS

CAS

L3

L3

WE

WE

J1

NC_1

J9

T2

T2

NC_2

RESET

RESET

L1

NC_3

L9

NC_4

T7

F3

F3

A14

DQSL

DQSL

G3

G3

DQSL

DQSL

A9

C7

C7

VSS_1

DQSU

DQSU

B3

B7

B7

VSS_2

DQSU

DQSU

E1

VSS_3

G8

E7

E7

VSS_4

DML

DML

J2

D3

D3

VSS_5

DMU

DMU

J8

VSS_6

M1

E3

E3

VSS_7

DQ0

DQ0

M9

F7

F7

VSS_8

DQ1

DQ1

P1

F2

F2

VSS_9

DQ2

DQ2

P9

F8

F8

VSS_10

DQ3

DQ3

T1

H3

H3

VSS_11

DQ4

DQ4

T9

H8

H8

VSS_12

DQ5

DQ5

G2

G2

DQ6

DQ6

H7

H7

DQ7

DQ7

B1

VSSQ_1

B9

D7

D7

VSSQ_2

DQ8

DQ8

D1

C3

C3

VSSQ_3

DQ9

DQ9

D8

C8

C8

VSSQ_4

DQ10

DQ10

E2

C2

C2

VSSQ_5

DQ11

DQ11

E8

A7

A7

VSSQ_6

DQ12

DQ12

F9

A2

A2

VSSQ_7

DQ13

DQ13

G1

B8

B8

VSSQ_8

DQ14

DQ14

G9

A3

A3

VSSQ_9

DQ15

DQ15

IC703-*2

DDR_512MB_MICRON

IC701-*3

MT41K128M16JT-125:K

DDR_256MB_MICRON

M8

N3

VREFCA

A0

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

VDD_6

N9

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

T7

F3

A14

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQ0

M9

F7

VSS_8

DQ1

P1

F2

VSS_9

DQ2

P9

F8

VSS_10

DQ3

T1

H3

VSS_11

DQ4

T9

H8

VSS_12

DQ5

G2

DQ6

H7

DQ7

B1

VSSQ_1

B9

D7

VSSQ_2

DQ8

D1

C3

VSSQ_3

DQ9

D8

C8

VSSQ_4

DQ10

E2

C2

VSSQ_5

DQ11

E8

A7

VSSQ_6

DQ12

F9

A2

VSSQ_7

DQ13

G1

B8

VSSQ_8

DQ14

G9

A3

VSSQ_9

DQ15

IC703-*3

MT41K128M16JT-125:K

DDR_256MB_MICRON

M8

N3

VREFCA

A0

M8

P7

VREFCA

A1

P3

A2

H1

N2

VREFDQ

A3

H1

P8

VREFDQ

A4

P2

A5

R8

L8

A6

ZQ

L8

R2

ZQ

A7

T8

A8

R3

B2

A9

VDD_1

B2

L7
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

D9

A10/AP

VDD_2

D9

R7

G7

A11

VDD_3

G7

N7

K2

A12/BC

VDD_4

K2

T3

K8

A13

VDD_5

K8

N1

VDD_6

N1

N9

M7

VDD_7

NC_5

N9

R1

VDD_8

R1

R9

M2

VDD_9

BA0

R9

N8

BA1

M3

BA2

A1

VDDQ_1

A1

A8

J7

VDDQ_2

CK

A8

C1

K7

VDDQ_3

CK

C1

C9

K9

VDDQ_4

CKE

C9

D2

VDDQ_5

D2

E9

L2

VDDQ_6

CS

E9

F1

K1

VDDQ_7

ODT

F1

H2

J3

VDDQ_8

RAS

H2

H9

K3

VDDQ_9

CAS

H9

L3

WE

J1

NC_1

J1

J9

T2

NC_2

RESET

J9

L1

NC_3

L1

L9

NC_4

L9

T7

F3

NC_6

DQSL

T7

G3

DQSL

A9

C7

VSS_1

DQSU

A9

B3

B7

VSS_2

DQSU

B3

E1

VSS_3

E1

G8

E7

VSS_4

DML

G8

J2

D3

VSS_5

DMU

J2

J8

VSS_6

J8

M1

E3

VSS_7

DQ0

M1

M9

F7

VSS_8

DQ1

M9

P1

F2

VSS_9

DQ2

P1

P9

F8

VSS_10

DQ3

P9

T1

H3

VSS_11

DQ4

T1

T9

H8

VSS_12

DQ5

T9

G2

DQ6

H7

DQ7

B1

VSSQ_1

B1

B9

D7

VSSQ_2

DQ8

B9

D1

C3

VSSQ_3

DQ9

D1

D8

C8

VSSQ_4

DQ10

D8

E2

C2

VSSQ_5

DQ11

E2

E8

A7

VSSQ_6

DQ12

E8

F9

A2

VSSQ_7

DQ13

F9

G1

B8

VSSQ_8

DQ14

G1

G9

A3

VSSQ_9

DQ15

G9

C745

0.1uF

RVREF_A

C751

0.1uF

+1.5V_DDR

C753

0.1uF

R730
1K
1%

R731
1K
1%

C746

0.1uF

C747

0.1uF

RVREF_A

C755

0.1uF

C754

0.1uF

ARCKE

ARCLK1

/ARCLK1

ARCLK0

/ARCLK0

ARODT
/ARRAS
/ARCAS

/ARCS

/ARWE

ARREST

ARBA0

ARBA1

ARBA2

/ARCSX

ARA[0-14]

C702
1uF

+1.5V_DDR

TP700
TP701

ARA[14]
ARA[13]
ARA[12]
ARA[11]
ARA[10]
ARA[9]
ARA[8]
ARA[7]
ARA[6]
ARA[5]
ARA[4]
ARA[3]
ARA[2]
ARA[1]
ARA[0]

C704
10uF
10V

LGE2122[A2_M13]

R1

DDRV_1

R2

DDRV_2

R3

DDRV_3

R4

DDRV_4

R5

DDRV_5

K3

DDRV_6

R6

DDRV_7

L8

DDRV_8

M8

DDRV_9

D17

DDRV_10

A19

DDRV_11

J22

MEMTP

K22

MEMTN

D18

RVREF_A

G8

ARCKE

B5

ARCLK1

A5

ARCLK1

B14

ARCLK0

A14

ARCLK0

F13

ARODT

E13

ARRAS

G13

ARCAS

G15

ARCS

H18

ARWE

G16

ARRESET

D15

ARBA0

F9

ARBA1

G18

ARBA2

F15

ARCSX

D11

ARA14

F16

ARA13

D8

ARA12

E11

ARA11

G9

ARA10

E16

ARA9

F11

ARA8

G17

ARA

F10

ARA6

E17

ARA5

E10

ARA4

E15

ARA3

F17

ARA2

G10

ARA1

F18

ARA0

IC105

ARDQM0
ARDQS0
ARDQS0

ARDQ0
ARDQ1
ARDQ2
ARDQ3
ARDQ4
ARDQ5
ARDQ6
ARDQ7

ARDQM1
ARDQS1
ARDQS1

ARDQ8

ARDQ9
ARDQ10
ARDQ11
ARDQ12
ARDQ13
ARDQ14
ARDQ15

ARDQM2
ARDQS2
ARDQS2
ARDQ16
ARDQ17
ARDQ18
ARDQ19
ARDQ20
ARDQ21
ARDQ22
ARDQ23

ARDQM3
ARDQS3
ARDQS3
ARDQ24
ARDQ25
ARDQ26
ARDQ27
ARDQ28
ARDQ29
ARDQ30
ARDQ31

AVDD33_MEMPLL
AVSS33_MEMPLL

D12

ARDQM0

D14

ARDQS0

C14

/ARDQS0

0.1uF

ARDQM1
ARDQS1
/ARDQS1

ARDQM2
ARDQS2
/ARDQS2

ARDQM3
ARDQS3
/ARDQS3

C700

ARDQ[0]
ARDQ[1]
ARDQ[2]
ARDQ[3]
ARDQ[4]
ARDQ[5]
ARDQ[6]
ARDQ[7]

ARDQ[8]

ARDQ[9]
ARDQ[10]
ARDQ[11]
ARDQ[12]
ARDQ[13]
ARDQ[14]
ARDQ[15]

ARDQ[16]

ARDQ[17]

ARDQ[18]

ARDQ[19]

ARDQ[20]

ARDQ[21]

ARDQ[22]

ARDQ[23]

ARDQ[24]

ARDQ[25]

ARDQ[26]

ARDQ[27]

ARDQ[28]

ARDQ[29]

ARDQ[30]

ARDQ[31]

VDD3V3

B17
D10
C17
C10
C18
B9
E18
D9

C15
A13
B13
B11
B16
A11
A17
C12
A16
C11
C16

A3
D5
C5
E7
B2
C8
B1
A9
C1
C9
C3

C6
A4
B4
A1
B7
C4
C7
B3
A7
A2
D7

A20
H9

ARDQ[0-7]

ARDQ[8-15]

ARDQ[16-23]

ARDQ[24-31]

B_RVREF5

B_RVREF6

+1.5V_DDR

+1.5V_DDR

IC702

+1.5V_DDR

BRA[14]

1%
240

MT41K128M16JT-125:K

DDR_256MB_MICRON

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

RESET

IC702-*1

BRA[0-14]

BRA[0]

N3

A0

BRA[1]

P7

A1

BRA[2]

P3

A2

BRA[3]

N2

A3

BRA[4]

P8

A4

BRA[5]

P2

A5

BRA[6]

R8

A6

BRA[7]

R2

A7

BRA[8]

T8

A8

BRA[9]

R3

A9

BRA[10]

L7

BRA[11]

R7

A11

BRA[12]

N7

BRA[13]

T3

A13

M7

NC_5

BA0
BA1
BA2

CK
CK

CKE

CS
ODT
RAS
CAS

WE

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

DQ8
DQ9

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

BRA[15]

M2

BRBA0

N8

BRBA1

M3

BRBA2

J7
K7
K9

BRCKE

L2

/BRCS

K1

BRODT

J3

/BRRAS

K3

/BRCAS

L3

/BRWE

T2

BRREST

F3

BRDQS0

G3

/BRDQS0

C7

BRDQS1

B7

/BRDQS1

E7

BRDQM0

D3

BRDQM1

E3

BRDQ[0]

F7

BRDQ[1]

F2

BRDQ[2]

F8

BRDQ[3]

H3

BRDQ[4]

H8

BRDQ[5]

G2

BRDQ[6]

H7

BRDQ[7]

BRDQ[8]

D7

BRDQ[9]

C3

BRDQ[10]

C8

BRDQ[11]

C2

BRDQ[12]

A7

BRDQ[13]

A2

BRDQ[14]

B8

BRDQ[15]

A3

R713
100
5%

BRDQ[0-7]

BRDQ[8-15]

BRCLK0

/BRCLK0

K4B2G1646E-BCK0

DDR_256MB_SS

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC702-*2

H5TQ2G63DFR-PBC

DDR_256MB_HYNIX_NC4.0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

H5TQ2G63FFR-PBC

DDR_256MB_HYNIX_NC4.5

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC702-*3

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

RVREF_C

+1.5V_DDR

C741

R726

0.1uF
1K
1%

R727

C742

1K
1%

0.1uF

BRA[0-15]

RVREF_C

BRCLK0

/BRCLK0

BRCKE

BRODT
/BRRAS
/BRCAS

/BRCS

BRBA0

BRBA1

BRBA2

/BRWE
BRA[15]
BRA[14]
BRA[13]
BRA[12]
BRA[11]
BRA[10]
BRA[9]
BRA[8]
BRA[7]
BRA[6]
BRA[5]
BRA[4]
BRA[3]
BRA[2]
BRA[1]
BRA[0]

+1.5V_DDR

C709

B_RVREF6

R702

0.1uF

C710

0.1uF

C711

0.1uF

C712

0.1uF

B_RVREF5

R711

1K
1%

R703
1K
1%

R704
1K
1%

R705
1K
1%

LGE2122[A2_M13]

C2

RVREF_C

J2

BRCLK0

J1

BRCLK0

L6

BRCKE

E3

BRODT

L4

BRRAS

D3

BRCAS

D4

BRCS

J4

BRBA0

M6

BRBA1

E4

BRBA2

K4

BRWE

J3

BRA15

P4

BRA14

G5

BRA13

P6

BRA12

P5

BRA11

L5

BRA10

F4

BRA9

P3

BRA8

H4

BRA7

P2

BRA6

K6

BRA5

M5

BRA4

K5

BRA3

G6

BRA2

N5

BRA1

E5

BRA0

B19

DDRV_12

C19

DDRV_13

D19

DDRV_14

E19

DDRV_15

F19

DDRV_16

G19

DDRV_17

F5

DDRV_18

H5

DDRV_19

N8

DDRV_20

P8

DDRV_21

D13

DDRV_22

E8

DDRV_23

G11

DDRV_24

D20

DDRV_25

E20

DDRV_26

F20

DDRV_27

G20

DDRV_28

R7

DDRV_29

R8

DDRV_30

T5

DDRV_31

T6

DDRV_32

T7

DDRV_33

T8

DDRV_34

IC105

BRDQM0
BRDQS0
BRDQS0

BRDQ0
BRDQ1
BRDQ2
BRDQ3
BRDQ4
BRDQ5
BRDQ6
BRDQ7

BRDQM1
BRDQS1
BRDQS1

BRDQ8

BRDQ9
BRDQ10
BRDQ11
BRDQ12
BRDQ13
BRDQ14
BRDQ15

BRRESET

L1

BRDQM0

H2

BRDQS0

H1

/BRDQS0

BRREST

BRDQ[0]
BRDQ[1]
BRDQ[2]
BRDQ[3]
BRDQ[4]
BRDQ[5]
BRDQ[6]
BRDQ[7]

BRDQM1
BRDQS1
/BRDQS1

BRDQ[8]

BRDQ[9]
BRDQ[10]
BRDQ[11]
BRDQ[12]
BRDQ[13]
BRDQ[14]
BRDQ[15]

E2
N3
E1
N1
D1
P1
D2
N2

H3
K1
K2
N4
F2
M3
F1
L2
F3
M4
G3

G4

BRDQ[0-7]

BRDQ[8-15]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2011.12.09

DDR ONE SIDE 12

SPDIF

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

SPDIF OUT

SPDIF_OUT

R3610

+3.3V_NORMAL

R3611

2.7K
OPT

33

C3602

0.1uF
16V

VINPUT

GND

Fiber Optic

1

VCC

2

JK3602

JST1223-001

3

4

FIX_POLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JACK HIGH / MID

2011.11.21

36

KEY1

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

KEY2

Place Near Micom

R4117

10K

5%

R4113
100

R4114
100

+3.5V_ST

R4118

10K
5%

LOGO_LIGHT

+3.5V_ST

+3.5V_ST

R4132

LOGO_LIGHT

10K

C4100

0.1uF

BLM18PG121SN1D

10K

OPT

R4133

C4120

0.1uF
16V

LOGO_LIGHT

C4102

0.1uF
D4100

5.6V

AMOTECH CO., LTD.

L4100

AMOTECH CO., LTD.

OPT

C4104
1000pF
50V

1K

R4134

LOGO_LIGHT

IR

D4101

5.6V

OPT

LED_R

LOGO_LIGHT

Q4100

MMBT3904(NXP)

+3.5V_ST

R4107

10K

B

R4125 10K

LOGO_LIGHT

C

E

C4107
100pF

50V

LED_R

R4131

22

D4104

5.6V

EYE_SCL

EYE_Q_10P

EYE_SDA

EYE_Q_10P

OPT

AMOTECH CO., LTD.

R4137
100

D4105
ADMC 5M 02 200L
OPT

R4138
100

D4106
ADMC 5M 02 200L
OPT

KEY1

KEY2

+3.5V_ST

LOGO/LED_R

12507WR-08L

12507WR-10L

GND

GND

IR

GND

NON_EYE_Q_8P

P4101

P4102

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

EYE_Q_10P

11

P4100

12507WR-06L

WIFI

7

L4111

MAX 0.4A

C4113

C4112

10uF

10uF

10V

10V

WIFI

WIFI

1

2

3

4

5

6

ZD4100

ADLC 5S 02 015

WIFI_ESD

22
R4130

OPT

22
R4136

WIFI

BLM18PG121SN1D

C4111

0.1uF
16V

WIFI

For EMI

WIFI_DM

WIFI_DP

ZD4101
ADLC 5S 02 015
WIFI_ESD

WOL/ETH_POWER_ON

WOL/WIFI_POWER_ON

WIFI

+3.5V_ST_WAKE

TP4100

TP4101

TP4102

TP4103

TP4104

RTS

M_REMOTE_RX

M_REMOTE_TX

M_RFModule_RESET

CTS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

IR / KEY

2011.11.21

41

DEBUG FOR INTERNAL AMOD.

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

OPT
R3801

0

TU_DEBUG

R3800

75
1%

DTV/MNT_V_OUT_SOC

For TU_Debug
Disconnet R374

UART FOR DEBUG

SOC_RX

SOC_TX

+3.5V_ST

UART_4PIN_STRAIGHT

P3800

12507WS-04L

1

2

3

4

5

AV/COMPONENT REAR

Mold_AV

PPJ245N2-01

JK3800-*1

7A

[GN/YL]E-LUG

6A

[GN/YL]O-SPRING

4A

[GN/YL]CONTACT

5B

[BL]O-SPRING

8C

[RD1]E-LUG-S

6C

[RD1]O-SPRING

4C

[RD1]CONTACT

5D

[WH]O-SPRING

4E

[RD2]CONTACT

6E

[RD2]O-SPRING

7E

[RD2]E-LUG

NON_Mold_AV

PPJ245-01

JK3800

7A

6A

4A

5B

8C

6C

4C

5D

4E

6E

7E

+3.3V_NORMAL

ZD3804

ADUC 5S 02 0R5L

OPT

R3806

D3803

5.6V
AV_COMP_ESD

COMP1/AV1/DVI_L_IN

D3802

5.6V

10K

R3811
1K

C3800

0.1uF
16V

COMP1/AV1/DVI_R_IN





+3.3V_NORMAL

R3810
10K

D3800

5.6V
AV_COMP_ESD

[GN]E-LUG

[GN]C-SPRING

[GN]CONTACT

[BL]C-SPRING

[RD1]E-LUG-S

[RD1]C-SPRING

[RD1]CONTACT

[WH]C-SPRING

[RD2]CONTACT

[RD2]C-SPRING

[RD2]E-LUG

COMP1_Pb

COMP1_Pr

D3801

5.6V

AV_COMP_ESD

AV_COMP_ESD

Apply "AV_COMP_ESD" when your model’s ESD Test is failed

AV1_CVBS_DET

R3812
1K

COMP1_Y/AV1_CVBS

COMP1_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

JACK_COMMON

2011.11.21

38

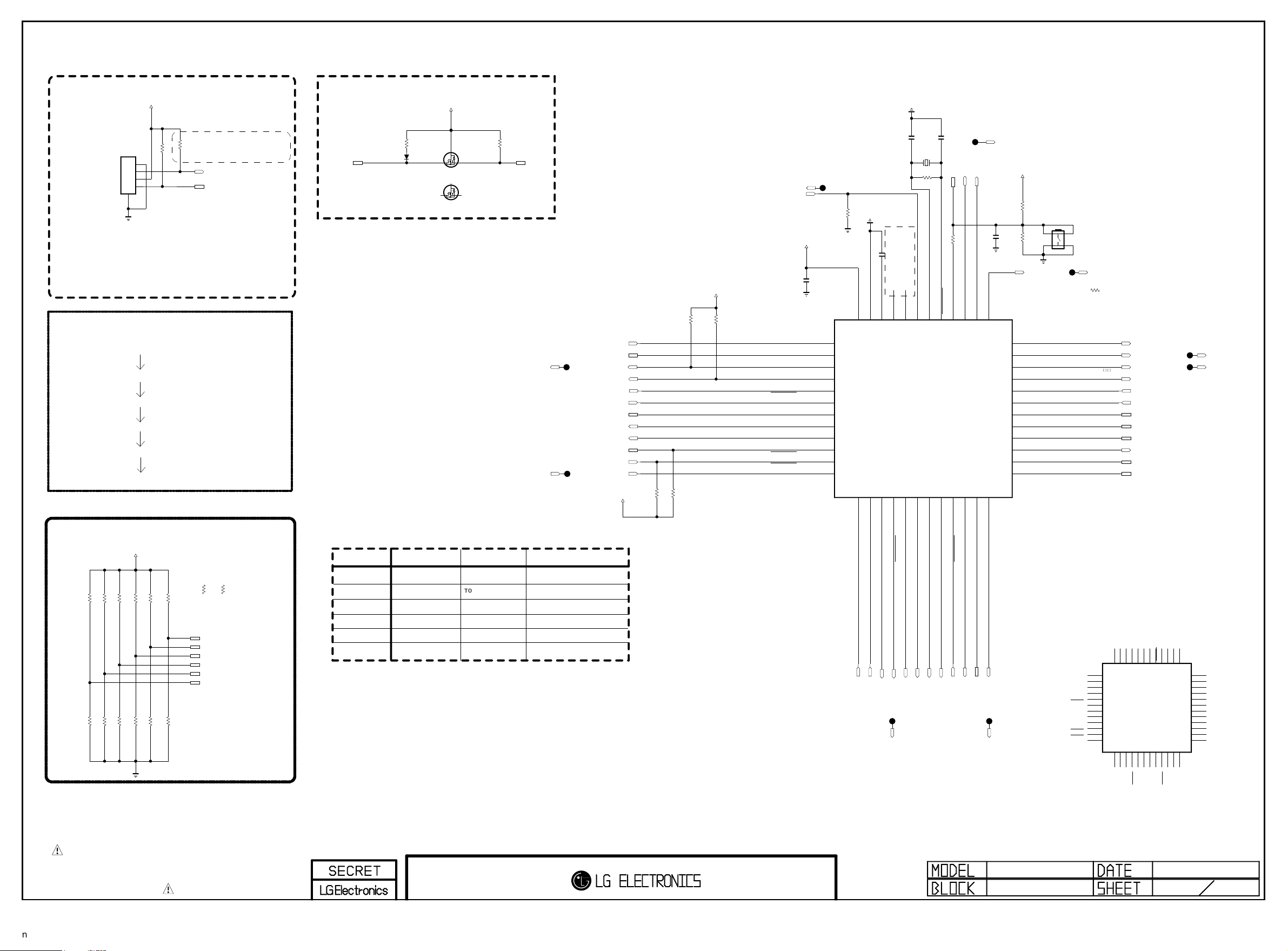

AMP_MUTE

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Q1801

+24V

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

+24V_AMP

L5400

UBW2012-121F

C5400

0.1uF
50V

AUD_LRCH

AUD_LRCK

AUD_SCK

R5400

AMP_MUTE_MICOM

I2C_SDA1

I2C_SCL1

10K

C5401

0.1uF
50V

+3.3V_NORMAL

AMP_MUTE_MICOM
R5401

10K

C

B

Q5400

MMBT3904(NXP)

AMP_MUTE_MICOM

E

R5402 100

R5403 100

R5405

AMP_MUTE_MICOM

100

POWER_DET

100

R5419

AMP_MUTE_PWR_DET

C5404

1000pF

50V

C5406
33pF
50V

C5408
33pF
50V

L5404-*1

10.0uH

L5405-*1

10.0uH

L5402-*1

10.0uH

L5403-*1

10.0uH

Audio_Coil_TAIYO

Audio_Coil_TAIYO

Audio_Coil_TAIYO

C5434

0.47uF
50V

C5435

0.47uF

50V

Audio_Coil_TAIYO

C5436

0.1uF
50V

C5437

0.1uF
50V

C5438

0.1uF
50V

C5439

0.1uF

50V

R5415

5.1K

R5416

5.1K

R5417

5.1K

R5418

5.1K

SPK_L+

SPEAKER_L

SPK_L-

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPK_R+

SPEAKER_R

SPK_R-

WAFER-ANGLE

4

3

2

1

P5400

NRS6045T100MMGK

+3.3V_NORMAL

L5401

BLM18PG121SN1D

C5413

0.1uF
16V

C5411

0.1uF
16V

OPT

C5440

C5412

0.1uF
1uF

16V

10V

AMP_RESET_N

AUD_MASTER_CLK

C5414
10uF
10V

AGND_PLL

VDD_PLL

DGND_PLL

GND
DGND
DVDD

SDATA

WCK

BCK

SDA

C5415

1000pF

50V

VDD_IO

[EP]GND

40

1
2

THERMAL

3
4
5
6
7
8
9
10

11

SCL

AD

CLK_I

GND_IO

37

38

39

41

NTP7513

12

13

14

FAULT

MONITOR_0

MONITOR_1

50V

C5416

22000pF

BST1A

RESET

35

36

IC5400

0x54

15

16

BST2B

MONITOR_2

C5417

22000pF

50V

OUT1A

PGND1A

33

34

17

18

OUT2B

PGND2B

+24V_AMP

PVDD1B

PVDD1A

31

32

30
29
28
27
26
25
24
23
22
21

19

PVDD2B20PVDD2A

C5418

0.1uF
50V

OUT1B
PGND1B
BST1B
VDR1
VCC5
AGND
VDR2
BST2A
PGND2A
OUT2A

C5419

0.1uF
50V

C5420

0.1uF
50V

+24V_AMP

C5421

0.1uF
50V

R5406

3.3

C5422
10uF
35V

OPT

OPT

C5424

0.01uF
50V

R5407

C5423
10uF
35V

C5425
22000pF
50V

C5426
22000pF
50V

C54 27
1uF
10V

C54 28
1uF
10V

12

C5429
390pF

50V

C5430
390pF

50V

R5408

12

R5409

12

C5431
390pF

50V

C5432
390pF

50V

R5410

12

C5433
1uF
10V

R5414

12

R5412

12

R5413

12

R5411

12

L5404

10uH

LPH6045T-100M

L5405

10uH

LPH6045T-100M

L5402

10uH

LPH6045T-100M

L5403

10uH

LPH6045T-100M

Audio_Coil_ABCO

Audio_Coil_ABCO

Audio_Coil_ABCO

Audio_Coil_ABCO

NRS6045T100MMGK

NRS6045T100MMGK

NRS6045T100MMGK

[AMP_MUTE_PWR_DET]

-->For fixing AC-OFF POP noise 32"POLA/ROW model

-->32"POLA/ROW LPB’s 3.5st drop time is very fast

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

AMP_NEO

2011.11.21

54

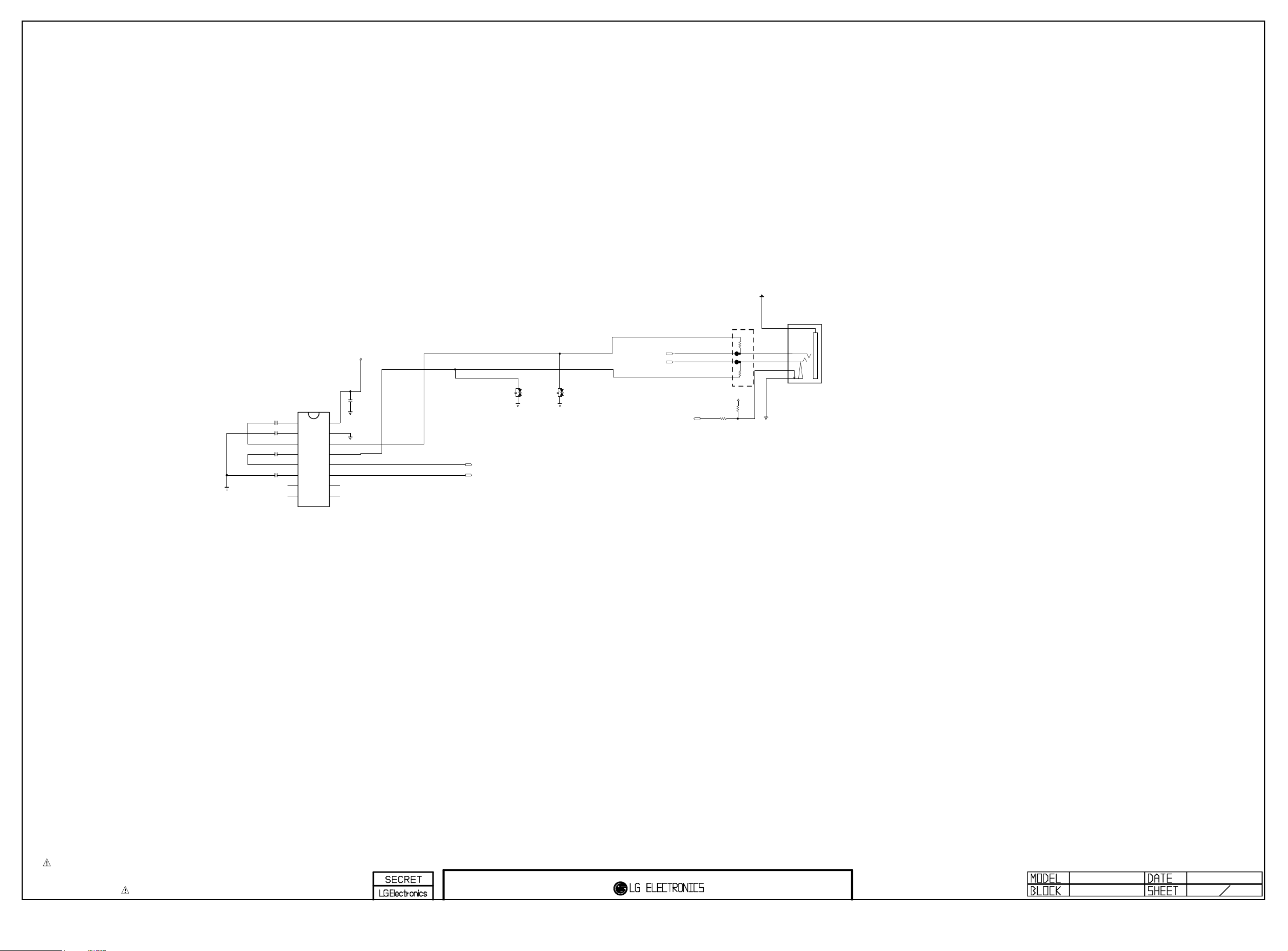

EARPHONE AMP

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

HP_OUT_H13

C6104-*1

18pF

IC6100

TPA6138A2

HP_OUT_H13

C6109-*1
18pF

HP_ROUT_MAIN

HP_OUT_H13

R6103-*1
43K

1%

C6100
1uF
10V

HP_OUT

HP_ROUT_AMP

SIDE_HP_MUTE

HP_OUT

R6100
10K

C6104

180pF

R6103

33K

HP_OUT_MTK

HP_OUT_MTK

HP_OUT

R6106
43K

+3.3V_NORMAL

4.7K

R6105

HP_OUT

+INR

1

C6108
10pF
50V

C6102
1uF
10V

-INR

OUTR

GND_1

MUTE

VSS

CN

HP_OUT

1%

HP_OUT

2

3

4

5

6

7

HP_OUT

HP_OUT

C6103
1uF

10V

+INL

14

-INL

13

12

11

10

HP_OUT

OUTL

UVP

GND_2

VDD

9

CP

8

C6106
10pF
50V

HP_OUT_MTK

HP_OUT

R6104
43K

1%

+3.3V_NORMAL

HP_OUT

HP_OUT

C6109
180pF

R6102

33K

HP_OUT_MTK

L6100

120-ohm

BLM18P G12 1SN1D

HP_OUT

C6105

1uF
10V

C6107

0.1uF

16V

HP_OUT

R6101
10K

C6101
1uF
10V

HP_OUT

HP_LOUT_AMP

HP_LOUT_MAIN

HP_OUT_H13

R6102-*1
43K

1%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HEADPHONE AMP

2011.09.29

61

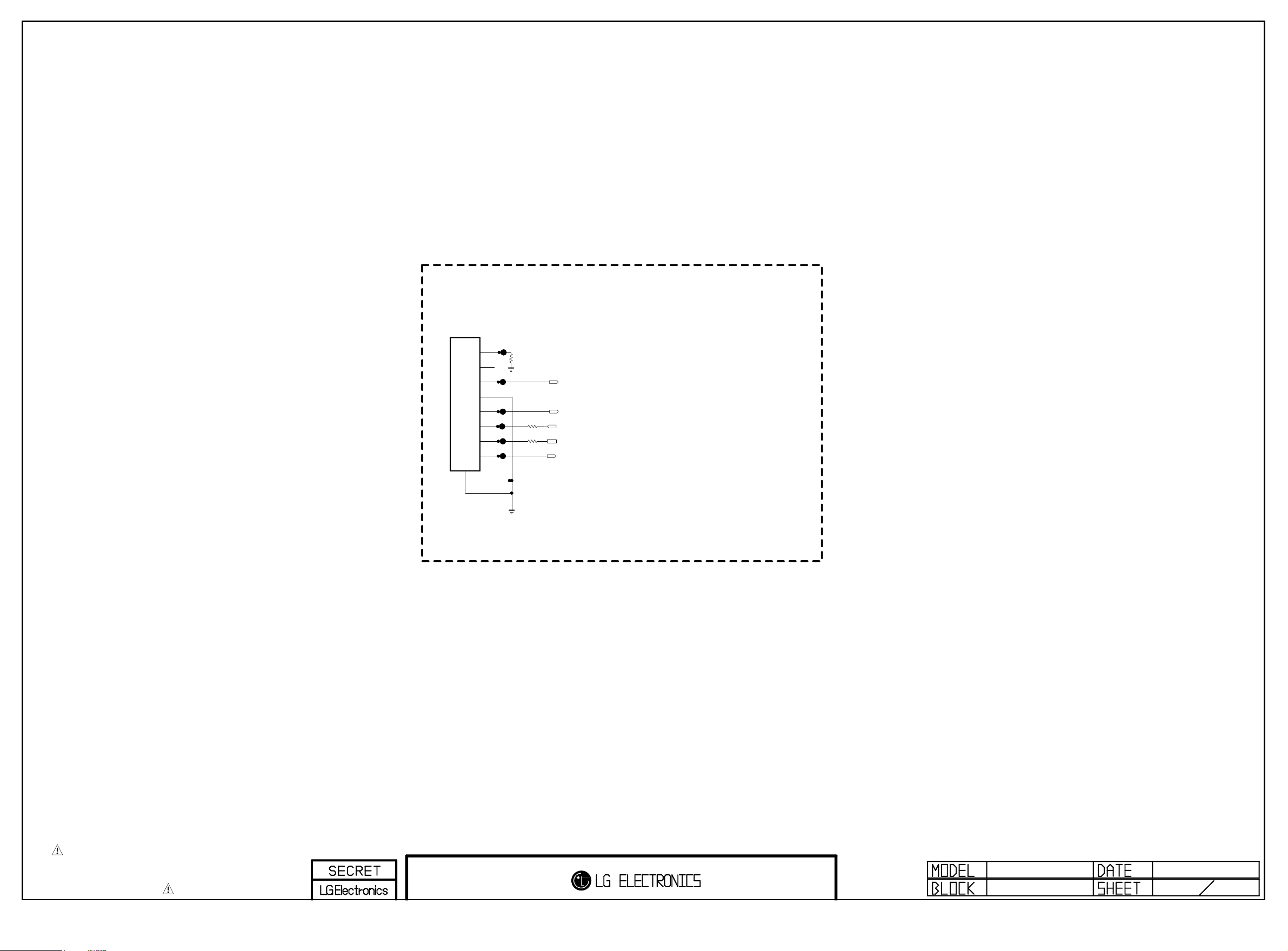

LOCAL DIMMING

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

[To LED DRIVER]

P7600

12507WR-08L

L/DIM_OUT_8P

1

2

3

4

5

6

7

8

9

R7601
10K
L/DIM_OUT_8P

R7603
33

L/DIM_OUT_8P

R7602
33

L/DIM_OUT_8P

L/DIM0_SCLK_PWR

L/DIM0_MOSI_PWR

I2C_SCL1

I2C_SDA1

L/DIM0_VS_PWR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LOCAL DIMMING

2011.12.13

76

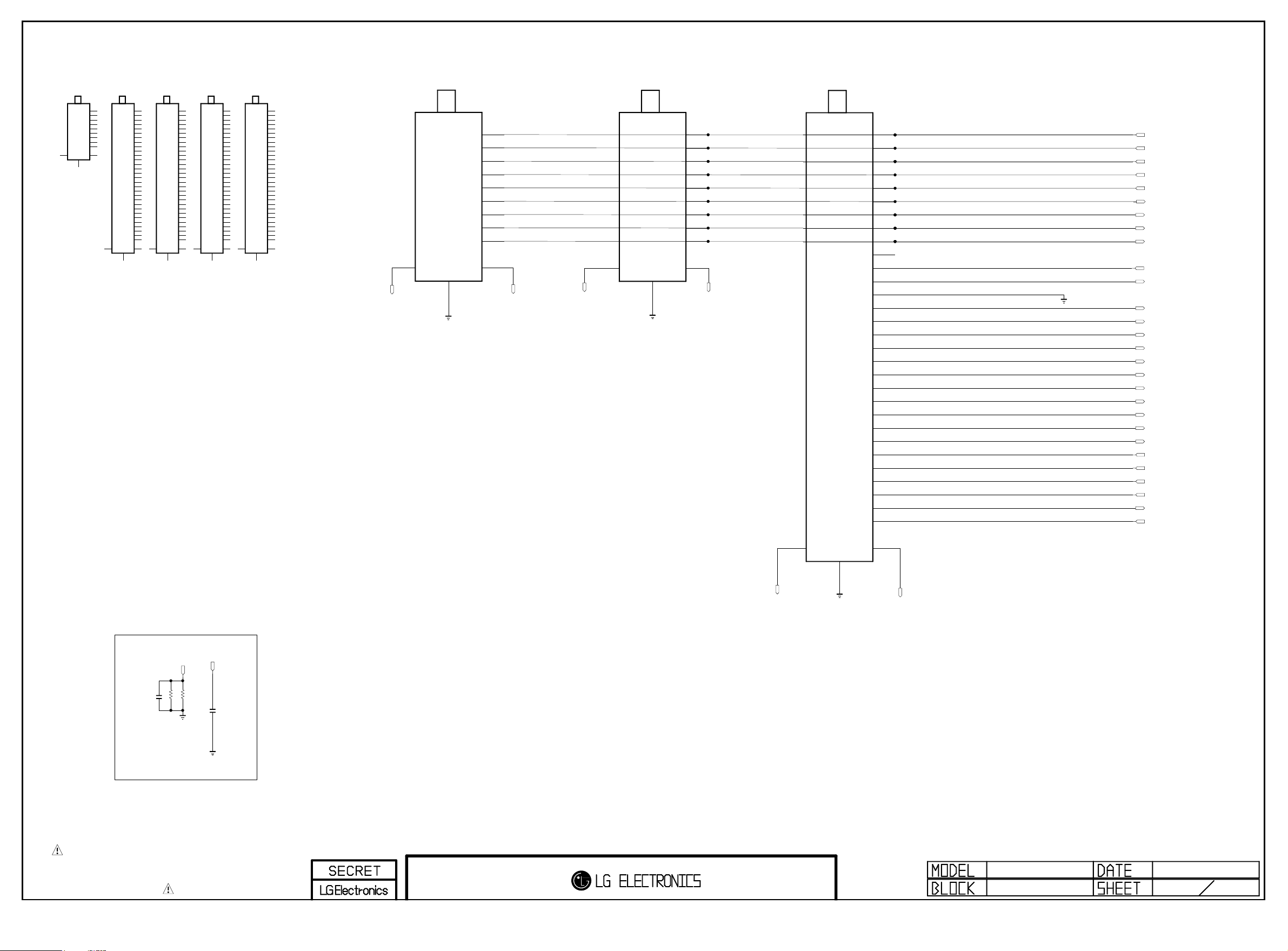

eMMC I/F

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

R8106-*1 47K

R8107-*1 47K

AR8100
22
1/16W

EMMC_SERIAL_22

AR8101
22
1/16W

EMMC_SERIAL_22

AR8102 22

3.3V_EMMC

R8100 10K

OPT

R8101 10K

R8102 10K

C8100

0.1uF
16V

EMMC DATA LINE
10K PULL/UP
FOR M13

R8104 10K

R8106 10K

C8107
10pF
50V

R8107 10K

R8105 10K

R8103 10K

OPT

10K

R8117

10K

R8116

3.3V_EMMC

C8105

C8106

DAT3

DAT4

DAT5

DAT6

EMMC_CMD_BALL

EMMC_CLK_BALL

EMMC_RESET_BALL

0.1uF
16V

EMMC_VDDI

2.2uF
10V

EMMC_VDDI

EMMC DATA LINE 47K PULL/UP

R8100-*1 47K

EMMC_DATA[0-7]

EMMC_DATA[0]
EMMC_DATA[1]
EMMC_DATA[2]

EMMC_DATA[3]

EMMC_DATA[4]
EMMC_DATA[5]
EMMC_DATA[6]
EMMC_DATA[7]

EMMC_CLK
EMMC_CMD
EMMC_RST

R8102-*1 47K

R8101-*1 47K

R8105-*1 47K

R8103-*1 47K

EMMC_SERIAL_22

R8104-*1 47K

eMMC serial 100 ohm option

AR8101-*1

AR8100-*1
100
1/16W

EMMC_SERIAL_100

AR8102-*1

100

100

1/16W

1/16W

EMMC_SERIAL_100

EMMC_SERIAL_100

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3.3V_EMMC

C8102

0.1uF
16V

DAT3
DAT4

DAT5

C8103

2.2uF
10V

C8104
1uF

6.3V

105C

A3
A4
A5
B2
B3
B4
B5
B6

M6
M5

A6
A7
C5
E5
E8

E9
E10
F10

G3
G10

H5

J5

K6

K7
K10

P7
P10

K5

C6

M4

N4

P3

P5

E6

F5
J10

K9

C2

E7

G5
H10

K8

C4

N2

N5

P4

P6

A1

A2

A8

A9
A10
A11
A12
A13
A14

B1

B7

B8

B9
B10
B11
B12
B13
B14

C1

C3

C7

DU1
DU2
DU3
DU4
DU5
DU6
DU7
DU8

H26M31002GPR

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

CLK
CMD

NC_3
NC_4
NC_23
NC_42
NC_43
NC_44
NC_45
NC_52
NC_58
NC_59
NC_66
NC_73
NC_80
NC_81
NC_82
NC_116
NC_119

RESET

VCCQ_1
VCCQ_2
VCCQ_3
VCCQ_4
VCCQ_5

VCC_1
VCC_2
VCC_3
VCC_4

VDDI

VSS_1
VSS_2
VSS_3
VSS_4
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5

NC_1
NC_2
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21
NC_22
NC_24

DUMMY_1
DUMMY_2
DUMMY_3
DUMMY_4
DUMMY_5
DUMMY_6
DUMMY_7
DUMMY_8

IC8100

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92

HYNIX_EMMC_4GB

NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108
NC_109
NC_110
NC_111
NC_112
NC_113
NC_114
NC_115
NC_117
NC_118
NC_120
NC_121
NC_122
NC_123

DUMMY_9
DUMMY_10
DUMMY_11
DUMMY_12
DUMMY_13
DUMMY_14
DUMMY_15
DUMMY_16

M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

DU9
DU10
DU11
DU12
DU13
DU14
DU15
DU16

DAT5

DAT6

EMMC_RESET_BALL

EMMC_CMD_BALL

EMMC_CLK_BALL

IC8100-*1

THGBM5G5A1JBAIR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100-*5

KLM4G1FE3B-B001

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44

E10

NC_45

F10

NC_52

G3

NC_58

G10

NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81

K10

NC_82

P7

NC_116

P10

NC_119

K5

RSTN

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2

J10

VDDF_3

K9

VDDF_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_5

C4

VSS_1

N2

VSS_6

N5

VSS_7

P4

VSS_8

P6

VSS_9

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6

A10

NC_7

A11

NC_8

SAMSUNG_EMMC_4GB

A12

NC_9

A13

NC_10

A14

NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15

B10

NC_16

B11

NC_17

B12

NC_18

B13

NC_19

B14

NC_20

C1

NC_21

C3

NC_22

C7

NC_24

TOSHIBA_EMMC_4GB

C8

NC_25

C9

NC_26

C10

NC_27

C11

NC_28

C12

NC_29

C13

NC_30

C14

NC_31

D1

NC_32

D2

NC_33

D3

NC_34

D4

NC_35

D12

NC_36

D13

NC_37

D14

NC_38

E1

NC_39

E2

NC_40

E3

NC_41

E12

NC_46

E13

NC_47

E14

NC_48

F1

NC_49

F2

NC_50

F3

NC_51

F12

NC_53

F13

NC_54

F14

NC_55

G1

NC_56

G2

NC_57

G12

NC_60

G13

NC_61

G14

NC_62

H1

NC_63

H2

NC_64

H3

NC_65

H12

NC_67

H13

NC_68

H14

NC_69

J1

NC_70

J2

NC_71

J3

NC_72

J12

NC_74

J13

NC_75

J14

NC_76

K1

NC_77

K2

NC_78

K3

NC_79

K12

NC_83

K13

NC_84

K14

NC_85

L1

NC_86

L2

NC_87

L3

NC_88

L12

NC_89

L13

NC_90

L14

NC_91

M1

NC_92

M2

NC_93

M3

NC_94

M7

NC_95

M8

NC_96

M9

NC_97

M10

NC_98

M11

NC_99

M12

NC_100

M13

NC_101

M14

NC_102

N1

NC_103

N3

NC_104

N6

NC_105

N7

NC_106

N8

NC_107

N9

NC_108

N10

NC_109

N11

NC_110

N12

NC_111

N13

NC_112

N14

NC_113

P1

NC_114

P2

NC_115

P8

NC_117

P9

NC_118

P11

NC_120

P12

NC_121

P13

NC_122

P14

NC_123

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

IC8100-*6

THGBM5G6A2JBAIR

A3

C8

DAT0

NC_23

A4

C9

DAT1

NC_24

A5

C10

DAT2

NC_25

B2

C11

DAT3

NC_26

B3

C12

DAT4

NC_27

B4

C13

DAT5

NC_28

B5

C14

DAT6

NC_29

B6

D1

DAT7

NC_30

D2

NC_31

D3

NC_32

M6

D4

CLK

NC_33

M5

D12

CMD

NC_34

D13

NC_35

D14

NC_36

A6

E1

RFU_1

NC_37

A7

E2

RFU_2

NC_38

C5

E3

NC_21

NC_39

E5

E12

RFU_3

NC_40

E8

E13

RFU_4

NC_41

E9

E14

RFU_5

NC_42

E10

F1

RFU_6

NC_43

F10

F2

RFU_7

NC_44

G3

F3

RFU_8

NC_45

G10

F12

RFU_9

NC_46

H5

F13

RFU_10

NC_47

J5

F14

RFU_11

NC_48

K6

G1

RFU_12

NC_49

K7

G2

RFU_13

NC_50

K10

G12

RFU_14

NC_51

P7

G13

RFU_15

NC_52

P10

G14

RFU_16

NC_53

H1

NC_54

H2

NC_55

K5

H3

RSTN

NC_56

H12

NC_57

H13

NC_58

C6

H14

VCCQ_1

NC_59

M4

J1

VCCQ_2

NC_60

N4

J2

VCCQ_3

NC_61

P3

J3

VCCQ_4

NC_62

P5

J12

VCCQ_5

NC_63

J13

NC_64

J14

NC_65

E6

K1

VCC_1

NC_66

F5

K2

VCC_2

NC_67

J10

K3

VCC_3

NC_68

K9

K12

VCC_4

NC_69

K13

NC_70

K14

NC_71

C2

L1

VDDI

NC_72

L2

NC_73

L3

NC_74

E7

L12

VSS_1

NC_75

G5

L13

VSS_2

NC_76

H10

L14

VSS_3

NC_77

K8

M1

VSS_4

NC_78

C4

M2

VSSQ_1

NC_79

N2

M3

VSSQ_2

NC_80

N5

M7

VSSQ_3

NC_81

P4

M8

VSSQ_4

NC_82

P6

M9

VSSQ_5

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

TOSHIBA_EMMC_8GB

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

B14

P11

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C7

P14

NC_22

NC_107

IC8100-*2

H26M21001ECR

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44

E10

NC_45

F10

NC_52

G3

NC_58

G10

NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81

K10

NC_82

P7

NC_116

P10

NC_119

K5

RESET

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6

A10

NC_7

A11

NC_8

A12

NC_9

A13

NC_10

A14

NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15

B10

NC_16

B11

NC_17

B12

NC_18

B13

NC_19

B14

NC_20

C1

NC_21

C3

NC_22

C7

NC_24

IC8100-*7

KLMAG2GE4A-A001

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

RFU_3

E5

RFU_4

E8

RFU_5

E9

RFU_6

E10

NC_39

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

NC_104

K5

RESET

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2

J10

VDDF_3

K9

VDDF_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_9

C4

VSS_1

N2

VSS_5

N5

VSS_6

P4

VSS_7

P6

VSS_8

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_21

DU1

DUMMY_1

DU2

DUMMY_2

DU3

DUMMY_3

DU4

DUMMY_4

DU5

DUMMY_5

DU6

DUMMY_6

DU7

DUMMY_7

DU8

DUMMY_8

HYNIX_EMMC_2GB

C8

NC_22

C9

NC_23

C10

NC_24

C11

NC_25

C12

NC_26

C13

NC_27

C14

NC_28

D1

NC_29

D2

NC_30

D3

NC_31

D4

NC_32

D12

NC_33

D13

NC_34

D14

NC_35

E1

NC_36

E2

NC_37

E3

NC_38

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

SAMSUNG_EMMC_16G

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

RFU_16

P12

NC_105

P13

NC_106

P14

NC_107

DU9

DUMMY_9

DU10

DUMMY_10

DU11

DUMMY_11

DU12

DUMMY_12

DU13

DUMMY_13

DU14

DUMMY_14

DU15

DUMMY_15

DU16

DUMMY_16

NC_25
NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_46
NC_47
NC_48
NC_49
NC_50
NC_51
NC_53
NC_54
NC_55
NC_56
NC_57
NC_60
NC_61
NC_62
NC_63
NC_64
NC_65
NC_67
NC_68
NC_69
NC_70
NC_71
NC_72
NC_74
NC_75
NC_76
NC_77
NC_78
NC_79
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108
NC_109
NC_110
NC_111
NC_112
NC_113
NC_114
NC_115
NC_117
NC_118
NC_120
NC_121
NC_122
NC_123

C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

IC8100-*8

H26M42002GMR

A3

DAT0

NC_25

A4

DAT1

NC_26

A5

DAT2

NC_27

B2

DAT3

NC_28

B3

DAT4

NC_29

B4

DAT5

NC_30

B5

DAT6

NC_31

B6

DAT7

NC_32
NC_33
NC_34

M6

CLK

NC_35

M5

CMD

NC_36
NC_37
NC_38

A6

NC_3

NC_39

A7

NC_4

NC_40

C5

NC_23

NC_41

E5

NC_42

NC_46

E8

NC_43

NC_47

E9

NC_44

NC_48

E10

NC_45

NC_49

F10

NC_52

NC_50

G3

NC_58

NC_51

G10

NC_59

NC_53

H5

NC_66

NC_54

J5

NC_73

NC_55

K6

NC_80

NC_56

K7

NC_81

NC_57

K10

NC_82

NC_60

P7

NC_116

NC_61

P10

NC_119

NC_62
NC_63
NC_64

K5

RESET

NC_65
NC_67
NC_68

C6

VCCQ_1

NC_69

M4

VCCQ_2

NC_70

N4

VCCQ_3

NC_71

P3

VCCQ_4

NC_72

P5

VCCQ_5

NC_74
NC_75
NC_76

E6

VCC_1

NC_77

F5

VCC_2

NC_78

J10

VCC_3

NC_79

K9

VCC_4

NC_83
NC_84
NC_85

C2

VDDI

NC_86
NC_87
NC_88

E7

VSS_1

NC_89

G5

VSS_2

NC_90

HYNIX_EMMC_8GB

H10

VSS_3

NC_91

K8

VSS_4

NC_92

C4

VSSQ_1

NC_93

N2

VSSQ_2

NC_94

N5

VSSQ_3

NC_95

P4

VSSQ_4

NC_96

P6

VSSQ_5

NC_97
NC_98
NC_99
NC_100

A1

NC_1

NC_101

A2

NC_2

NC_102

A8

NC_5

NC_103

A9

NC_6

NC_104

A10

NC_7

NC_105

A11

NC_8

NC_106

A12

NC_9

NC_107

A13

NC_10

NC_108

A14

NC_11

NC_109

B1

NC_12

NC_110

B7

NC_13

NC_111

B8

NC_14

NC_112

B9

NC_15

NC_113

B10

NC_16

NC_114

B11

NC_17

NC_115

B12

NC_18

NC_117

B13

NC_19

NC_118

B14

NC_20

NC_120

C1

NC_21

NC_121

C3

NC_22

NC_122

C7

NC_24

NC_123

E10
F10

G10

K10

P10

J10

H10

A10
A11
A12
A13
A14

B10
B11
B12
B13
B14

C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

IC8100-*3

KLM2G1HE3F-B001

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

NC_3

A7

NC_4

C5

NC_23

E5

NC_42

E8

NC_43

E9

NC_44
NC_45
NC_52

G3

NC_58
NC_59

H5

NC_66

J5

NC_73

K6

NC_80

K7

NC_81
NC_82

P7

NC_116
NC_119

K5

RSTN

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2
VDDF_3

K9

VDDF_4

C2

VDDI

C4

VSS_1

E7

VSS_2

G5

VSS_3
VSS_4

K8

VSS_5

N2

VSS_6

N5

VSS_7

P4

VSS_8

P6

VSS_9

A1

NC_1

A2

NC_2

A8

NC_5

A9

NC_6
NC_7
NC_8
NC_9
NC_10
NC_11

B1

NC_12

B7

NC_13

B8

NC_14

B9

NC_15
NC_16
NC_17
NC_18
NC_19
NC_20

C1

NC_21

C3

NC_22

C7

NC_24

IC8100-*9

MTFC4GMVEA-1M WT

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

MICRON_EMMC_4GB

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

NC_100

B11

NC_15

NC_101

B12

NC_16

NC_102

B13

NC_17

NC_103

B14

NC_18

NC_104

C1

NC_19

NC_105

C3

NC_20

NC_106

C7

NC_22

NC_107

NC_25
NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_46
NC_47
NC_48
NC_49
NC_50
NC_51
NC_53
NC_54
NC_55
NC_56
NC_57
NC_60
NC_61
NC_62
NC_63
NC_64
NC_65
NC_67
NC_68
NC_69
NC_70
NC_71
NC_72
NC_74
NC_75
NC_76
NC_77
NC_78
NC_79
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91

SAMSUNG_EMMC_2GB

NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108
NC_109
NC_110
NC_111
NC_112
NC_113
NC_114
NC_115
NC_117
NC_118
NC_120
NC_121
NC_122
NC_123

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1
P2
P8
P9
P11
P12
P13
P14

eMMC

IC8100-*4

THGBM5G7A2JBAIR

C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

RFU_1

A7

RFU_2

C5

NC_21

E5

RFU_3

E8

RFU_4

E9

RFU_5

E10

RFU_6

F10

RFU_7

G3

RFU_8

G10

RFU_9

H5

RFU_10

J5

RFU_11

K6

RFU_12

K7

RFU_13

K10

RFU_14

P7

RFU_15

P10

RFU_16

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_1

G5

VSS_2

H10

VSS_3

K8

VSS_4

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

EMMC 4.5Ver

IC8100-*10

MTFC4GMCDM-1M WT

A3

C8

DAT0

NC_23

A4

C9

DAT1

NC_24

A5

C10

DAT2

NC_25

B2

C11

DAT3

NC_26

B3

C12

DAT4

NC_27

B4

C13

DAT5

NC_28

B5

C14

DAT6

NC_29

B6

D1

DAT7

NC_30

D2

NC_31

D3

NC_32

M6

D4

CLK

NC_33

M5

D12

CMD

NC_34

D13

NC_35

D14

NC_36

A6

E1

RFU_1

NC_37

A7

E2

RFU_2

NC_38

C5

E3

NC_21

NC_39

E5

E12

RFU_3

NC_40

E8

E13

RFU_4

NC_41

E9

E14

RFU_5

NC_42

E10

F1

RFU_6

NC_43

F10

F2

RFU_7

NC_44

G3

F3

RFU_8

NC_45

G10

F12

RFU_9

NC_46

H5

F13

RFU_10

NC_47

J5

F14

RFU_11

NC_48

K6

G1

RFU_12

NC_49

K7

G2

RFU_13

NC_50

K10

G12

RFU_14

NC_51

P7

G13

RFU_15

NC_52

P10

G14

RFU_16

NC_53

H1

NC_54

H2

NC_55

K5

H3

RST_N

NC_56

H12

NC_57

H13

NC_58

C6

H14

VCCQ_1

NC_59

M4

J1

VCCQ_2

NC_60

N4

J2

VCCQ_3

NC_61

P3

J3

VCCQ_4

NC_62

P5

J12

VCCQ_5

NC_63

J13

NC_64

J14

NC_65

E6

K1

VCC_1

NC_66

F5

K2

VCC_2

NC_67

J10

K3

VCC_3

NC_68

K9

K12

VCC_4

NC_69

K13

NC_70

K14

NC_71

C2

L1

VDDI

NC_72

L2

NC_73

L3

NC_74

E7

L12

VSS_1

NC_75

G5

L13

VSS_2

NC_76

H10

L14

VSS_3

NC_77

K8

M1

VSS_4

NC_78

C4

M2

VSSQ_1

NC_79

N2

M3

VSSQ_2

NC_80

N5

M7

VSSQ_3

NC_81

P4

M8

VSSQ_4

NC_82

P6

M9

VSSQ_5

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

B14

P11

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C7

P14

NC_22

NC_107

DEV_EMMC4.5_MICRON_4G

IC8100-*11

THGBMAG5A1JBAIR

A3

C8

DAT0

NC_23

A4

C9

DAT1

NC_24

A5

C10

DAT2

NC_25

B2

C11

DAT3

NC_26

B3

C12

DAT4

NC_27

B4

C13

DAT5

NC_28

B5

C14

DAT6

NC_29

B6

D1

DAT7

NC_30

D2

NC_31

D3

NC_32

M6

D4

CLK

NC_33

M5

D12

CMD

NC_34

D13

NC_35

D14

NC_36

A6

E1

RFU_1

NC_37

A7

E2

RFU_2

NC_38

C5

E3

NC_21

NC_39

E5

E12

RFU_3

NC_40

E8

E13

RFU_4

NC_41

E9

E14

RFU_5

NC_42

E10

F1

RFU_6

NC_43

F10

F2

RFU_7

NC_44

G3

F3

RFU_8

NC_45

G10

F12

RFU_9

NC_46

H5

F13

RFU_10

NC_47

J5

F14

RFU_11

NC_48

K6

G1

RFU_12

NC_49

K7

G2

RFU_13

NC_50

K10

G12

RFU_14

NC_51

P7

G13

RFU_15

NC_52

P10

G14

RFU_16

NC_53

H1

NC_54

H2

NC_55

K5

H3

RST_N

NC_56

H12

NC_57

H13

NC_58

C6

H14

VCCQ_1

NC_59

M4

J1

VCCQ_2

NC_60

N4

J2

VCCQ_3

NC_61

P3

J3

VCCQ_4

NC_62

P5

J12

VCCQ_5

NC_63

J13

NC_64

J14

NC_65

E6

K1

VCC_1

NC_66

F5

K2

VCC_2

NC_67

J10

K3

VCC_3

NC_68

K9

K12

VCC_4

NC_69

K13

NC_70

K14

NC_71

C2

L1

VDDI

NC_72

L2

NC_73

L3

NC_74

E7

L12

VSS_1

NC_75

G5

L13

VSS_2

NC_76

H10

L14

VSS_3

NC_77

K8

M1

VSS_4

NC_78

C4

M2

VSSQ_1

NC_79

N2

M3

VSSQ_2

NC_80

N5

M7

VSSQ_3

NC_81

P4

M8

VSSQ_4

NC_82

P6

M9

VSSQ_5

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

B14

P11

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C7

P14

NC_22

NC_107

DEV_EMMC4.5_TOSHIBA_4G

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

A3

DAT0
A4

DAT1
A5

DAT2
B2

DAT3
B3

DAT4
B4

DAT5
B5

DAT6
B6

DAT7

M6

CLK
M5

CMD

A6

RFU_1
A7

RFU_2
C5

NC_21
E5

RFU_3
E8

RFU_4
E9

RFU_5

E10

RFU_6

F10

RFU_7
G3

RFU_8

G10

RFU_9
H5

RFU_10
J5

RFU_11
K6

RFU_12
K7

RFU_13

K10

RFU_14
P7

RFU_15

P10

RFU_16

K5

RST_N

C6

VCCQ_1
M4

VCCQ_2
N4

VCCQ_3
P3

VCCQ_4
P5

VCCQ_5

E6

VCC_1
F5

VCC_2

J10

VCC_3
K9

VCC_4

C2

VDDI

E7

VSS_1
G5

VSS_2

H10

VSS_3
K8

VSS_4
C4

VSSQ_1
N2

VSSQ_2
N5

VSSQ_3
P4

VSSQ_4
P6

VSSQ_5

A1

NC_1
A2

NC_2
A8

NC_3
A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9
B1

NC_10
B7

NC_11
B8

NC_12
B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18
C1

NC_19
C3

NC_20
C7

NC_22

IC8100-*12

H26M31003GMR

M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

TOSHIBA_EMMC_16GB

DEV_EMMC4.5_SKHynix_4G

11.09.29

81

+24V_AMP

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

OPT

C5450
10uF
35V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M13 EAX64872104 BASE

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

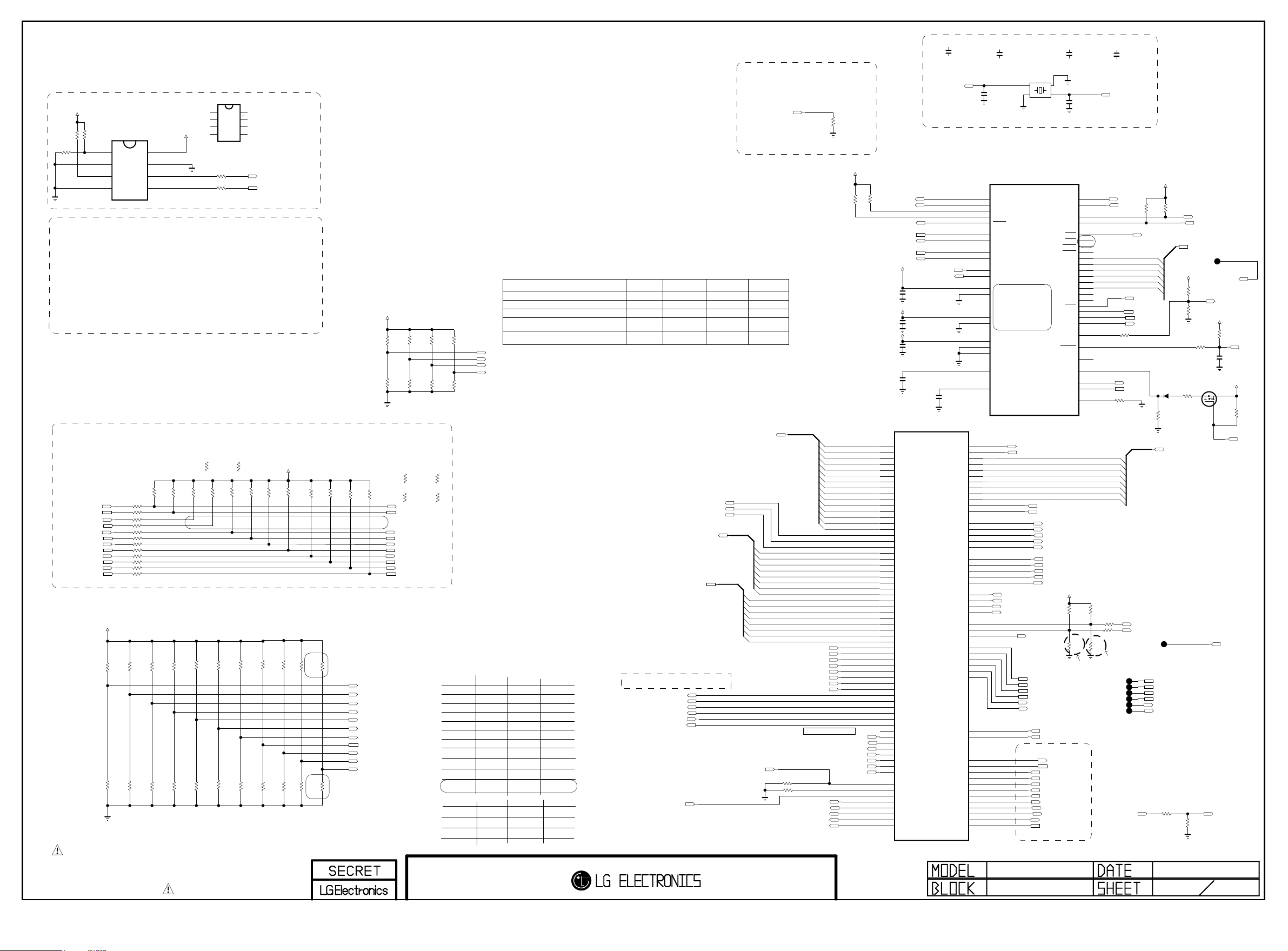

14y Smart TV

M13 PCB P/NO
EAX64797001* : LD33B
EAX64872101* : LA33B

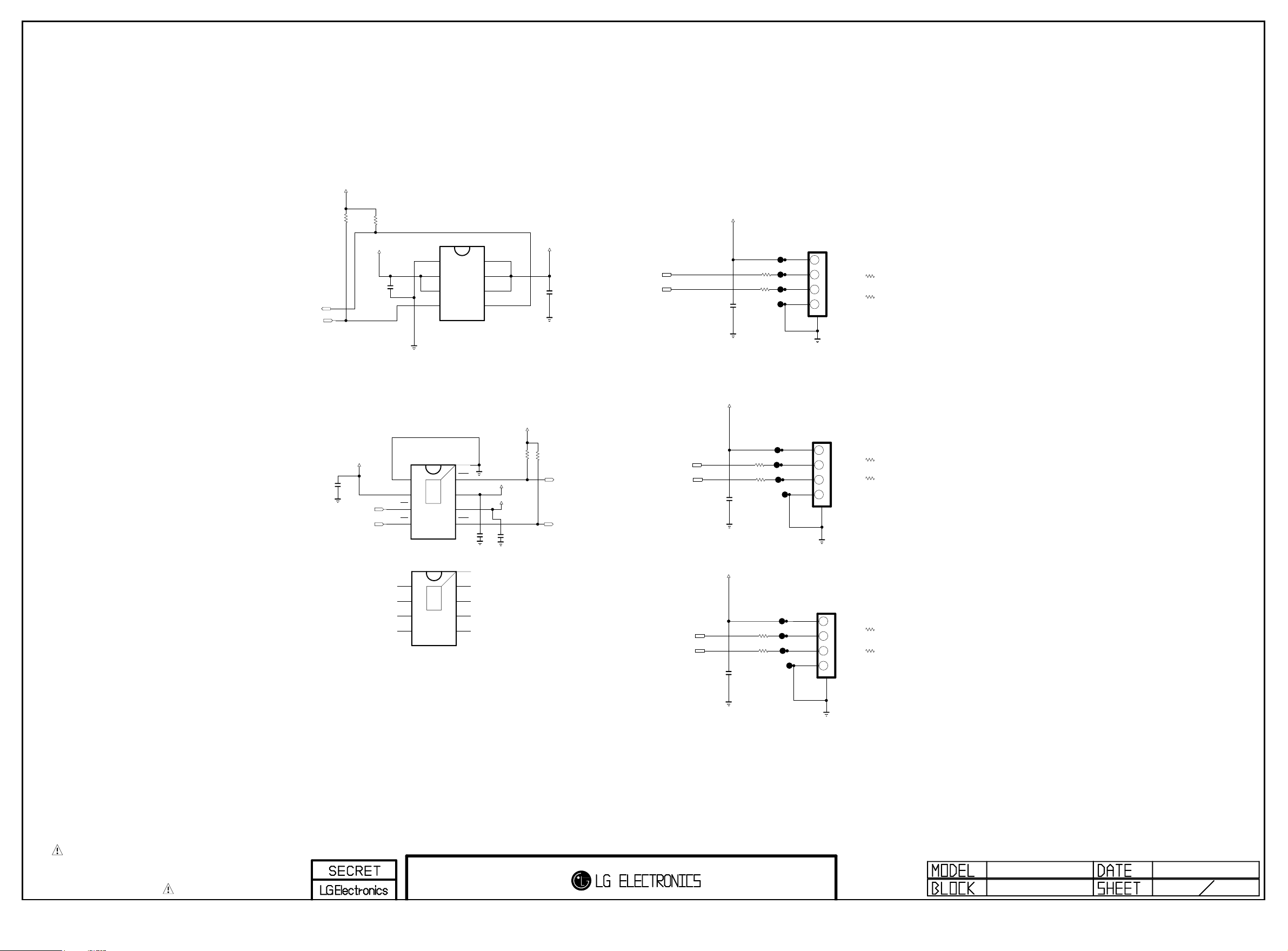

IC100-*1

+3.3V_NORMAL

R101

4.7K

R100

4.7K
OPT

R102

AT24C256C-SSHL-T

4.7K
OPT

A0

A1

A2

GND

NVRAM

IC100

1

2

3

4

M24256-BRMN6TP

E0

VCC

1

8

WC

E1

7

2

SCL

E2

6

3

SDA

+3.3V_NORMAL

VCC

8

WP

7

SCL

6

SDA

5

VSS

5

4

NVRAM_ST

Write Protection

- Low : Normal Operation

- High : Write Protection

R135 33

R134 33

I2C_SCL5

I2C_SDA5

NC4.5 PCB P/NO
NON CI : EAX65610201
CI :

NVRAM_ATMEL

HDCP EEPROM

Deleted

+3.3V_NORMAL

R155
1K

R154
1K

I2C_1 : AMP, L/DIMMING,HDCP KEY
I2C_2 : T-CON,
I2C_3 : MICOM
I2C_4 : S/Demod,T2/Demod, LNB, MHL(Sil1292)
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)

+3.3V_NORMAL

R147

R142

2.7K

NON_TU_Q_SG

R140

4.7K

MTK_DVB_T2_TUNER

R139

4.7K

MTK_NON_DVB_T2_TUNER

R150

2.7K

2.7K

NON_TU_Q_SG

R145

4.7K

OPT

R146

4.7K

MTK_SMALL

MTK_DVB_S_TUNER

R143

4.7K

R144

4.7K

MTK_LARGE

MTK_NON_DVB_S_TUNER

R149

R148

R151

R152

2.7K

2.7K

NON_TU_Q_KR

4.7K

M13 vs Lean Smart
Option Name change

4.7K

R153

TU_N_TW/BR

2.7K

NON_TU_Q_KR

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3
/S2_RESET

MODEL_OPT_5

MODEL_OPT_6
MODEL_OPT_7

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

STB_SCL
STB_SDA

OPCTRL_11_SCL
OPCTRL_10_SDA

OSCL1

OSDA1
OSCL2
OSDA2
OSCL0

OSDA0
OPCTRL_1_SCL
OPCTRL_0_SDA

+3.3V_NORMAL

I2C

R120 33
R115 33

R116 33
R117 33
R118 33
R119 33
R110 33
R111 33
R112 33
R113 33
R114 33
R109 33

R106

R105

4.7K
FRC_120Hz

Country_TW

R103

4.7K

R104

NON_FRC_60Hz

NON_Country_TW

R124

R121

1.2K

1.2K

Model Option

R123

4.7K

R108

4.7K

4.7K
MTK_FHD

Country_AJJA

4.7K

R107

MTK_HD

4.7K

R122

4.7K

Non_Country_AJJA

TU_Q_SG

R132

2.7K

R130

MODULE_V13

R128

MODULE_V12

R147-*1

1.5K

4.7K

4.7K

R133

2.7K

R142-*1

TU_Q_SG

1.5K

R138

2.7K

R137

R131

4.7K
MTK_CP_BOX

MTK_DDR_1.25GB

R129

4.7K

R136

MTK_DDR_1.5GB

MTK_NON_CP_BOX

R141

2.7K

4.7K

4.7K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

OPT

OPT

R152-*1

TU_Q_KR

1.5K

R152-*2

TU_N_TW/BR

1.2K
I2C_SCL1

I2C_SDA1

I2C_SCL2/SDA2

I2C_SCL_MICOM
I2C_SDA_MICOM
I2C_SCL4
I2C_SDA4
I2C_SCL5
I2C_SDA5
I2C_SCL6
I2C_SDA6

MODEL_OPT_4

R157
1K

R156
1K

TU_Q_KR

OPT

R163

R162

1K

1K

R160

R161

OPT

1K

1K

R153-*1

1.5K

R153-*2

1.2K

M13 vs Lean Smart
del. I2C_SCL2/SDA2
cause of EPI block deletion

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

MODEL_OPT_5

MODEL_OPT_9

STRAPPING LED_PWM0 LED_PWM1 OPCTRL3 OPCTRL7

ICE mode + 27M + serial boot 1 0 0 0

ICE mode + 27M + ROM to Nand boot 1 0 0 1

ICE mode + 27M + ROM to 60bit ECC Nand boot 1 0 1 0

ICE mode + 27M + ROM to eMMC boot from 1 0 1 1
EMMC pins (share pins w/s NAND)

ICE mode + 27M + ROM to eMMC 1 1 0 0
Boot from SDIO pins

LED_PWM0
LED_PWM1
OPCTRL3
OPCTRL7

MT5398_MCLKI

MT5398_MIVAL_ERR

MT5398_MISTRT

SOC -> CI SLOT

MT5398_TS_OUT[0-7]

CI_DATA[0-7]

GPIO45(EMMC_RST) is dedicated to reset
EMMC for improving A1’s leakage current

/USB_OCD2
/USB_OCD1
/USB_OCD3

EMMC_RST

USB_CTL1

#SIL_RESET

USB_CTL3

Country_TW

FRC

Panel

Country_AJJA

Module

DDR

CP BOX

T2 Tuner

S Tuner

DDR

EPI

DDR_1.25G DDR_1.5G DDR_0.768G

High

Low

TW

FRC(120Hz)

FHD

AJJA

DDR_1.25G

Enable

Support

Support

DDR_0.78G

OPT

Low

Low

Non_TWMODEL_OPT_0

No FRC(60Hz)

Non_AJJA

DDR_1.5G

Disable

Not Support

Not Support

NON_DDR_0.78G

Default

High

High

LOWHIGH

HD

V12V13

M13 vs Lean Smart
Option Name change
Support to Opt
Not Support to Deafult

CI_ADDR[0-14]

SOC -> CI SLOT

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

CI SLOT -> SOC

M13 vs Lean Smart
del. EPI_LOCK6
cause of EPI block deletion

SC_ID_SOC

Close to eMMC Flash
(IC8100)

EMMC_CLK

MT5398_TS_OUT[0]
MT5398_TS_OUT[1]
MT5398_TS_OUT[2]
MT5398_TS_OUT[3]
MT5398_TS_OUT[4]
MT5398_TS_OUT[5]
MT5398_TS_OUT[6]
MT5398_TS_OUT[7]

MT5398_TS_IN[0]
MT5398_TS_IN[1]
MT5398_TS_IN[2]
MT5398_TS_IN[3]

MT5398_TS_IN[4]
MT5398_TS_IN[5]
MT5398_TS_IN[6]
MT5398_TS_IN[7]

CI_ADDR[0-14]

R168

10K

EPI_LOCK6

NON_EU

R169

10K

R170

10K

MODEL_OPT_0

M_RFModule_RESET

OPC_EN

/TU_RESET1

MODEL_OPT_4

/S2_RESET

VDD3V3

R194

CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]
CI_ADDR[8]
CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

OTP_WRITE
MODEL_OPT_3
MODEL_OPT_7
MODEL_OPT_5
MODEL_OPT_6

C114-*2

3.3pF
50V

EAX6558850X_3.3pF

X-TAL

MT5398_XTAL_IN

EAX6561090X_1pF

L/DIM0_MOSI

R195

10K

10K

L/DIM0_SCLK

L/DIM0_VS

OSDA0
OSCL0

OSDA1
OSCL1

AVDD_33SB

AVDD_33SB

VDD3V3

CTS

RTS

AJ23
AH23
AE28
AD28
AF22
AK21
AG24
AM18

MT5398_XTAL_IN

MT5398_XTAL_OUT

C111

0.1uF

C110

0.1uF

C109

0.1uF

C107

4.7uF
10V

IC105

LGE2122[A2_M13]

B30

GPIO0

A31

GPIO1

B31

GPIO2

A32

GPIO3

C30

GPIO4

A33

GPIO5

B32

GPIO6

C31

GPIO7

E30

GPIO8

F29

GPIO9

F27

GPIO10

F28

GPIO11

C32

GPIO12

F30

GPIO13

F32

GPIO14

D30

GPIO15

D32

GPIO16

F31

GPIO17

F33

GPIO18

E31

GPIO19

E32

GPIO20

D31

GPIO21

D33

GPIO22

E29

GPIO23

C33

GPIO24

B33

GPIO25

A30

GPIO26

E28

GPIO27

C29

GPIO28

J28

GPIO29

H29

GPIO30

J26

GPIO31

G30

GPIO32

G27

GPIO33

E27

GPIO34

D29

GPIO35

D28

GPIO36

H28

GPIO37

J27

GPIO38

G29

GPIO39

G31

GPIO40

G28

GPIO41

B28

GPIO42

K28

GPIO43

E25

GPIO44

D21

GPIO45

G23

GPIO46

C28

GPIO47

F24

GPIO48

AB8

GPIO49

AA7

GPIO50

AD6

GPIO51

AC8

GPIO52

AC7

GPIO53

AB6

GPIO54

AC6

GPIO55

ADIN0_SRV
ADIN1_SRV
ADIN2_SRV
ADIN3_SRV
ADIN4_SRV
ADIN5_SRV
ADIN6_SRV
ADIN7_SRV

C112

4.7uF
10V

DEMOD_RST

DEMOD_TSCLK
DEMOD_TSDATA0
DEMOD_TSDATA1
DEMOD_TSDATA2
DEMOD_TSDATA3
DEMOD_TSDATA4
DEMOD_TSDATA5
DEMOD_TSDATA6
DEMOD_TSDATA7

DEMOD_TSSYNC

DEMOD_TSVAL

CI_INT

CI_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_TSVAL

PVR_TSCLK
PVR_TSVAL

PVR_TSSYNC
PVR_TSDATA0
PVR_TSDATA1

SPI_CLK1

SPI_CLK

SPI_DATA

SPI_CLE

OPWM2
OPWM1
OPWM0

SD_D0
SD_D1
SD_D2

SD_D3
SD_CMD
SD_CLK

LED_PWM1
LED_PWM0

OPCTRL11
OPCTRL10

OPCTRL9
OPCTRL8
OPCTRL7
OPCTRL6
OPCTRL5
OPCTRL4
OPCTRL3
OPCTRL2
OPCTRL1
OPCTRL0

EAX6558850X_3.3pF

C114

1.0pF
50V

LGE2122[A2_M13]

AK10

JTCK

AK11

JTDI

AL9

JTDO

AJ11

JTMS

AJ12

JTRST

AH11

OSDA0

AH10

OSCL0

AF11

OSDA1

AG11

OSCL1

AN29

XTALI

AM29

XTALO

AN30

AVDD33_XTAL_STB

AL29

AVSS33_XTAL_STB

AN17

AVDD33_VGA_STB

AL17

AVSS33_AVSS33_VGA_STB

AL26

AVDD33_PLL

AC21

AVSS33_PLLGP

H21

AVSS33_CPUPLL

AM17

AVDD10_LDO

AN16

AVDD10_ELDO

P30
N32
R27
T26
T27
P26
R28
U27
U26
R26
R29
P27

L25
N33
K26
N30
N31

M31
M27
L27
M29
M30

L30
L33
L32
K27

AL8
AM8
AM9

D27
C27
D26
C26
A28
E24

AF15
AG15

AL16
AM16
AE17
AG19
AH17
AE19
AH19
AK16
AG17
AJ17
AF19
AJ19

C115-*2

3.3pF
50V

X100

27MHz

X-TAL_1

1

GND_1

2

IC105

Wake On Lan

PCM_RST
FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL

/CI_CD2
/CI_CD1
/PCM_IORD
/PCM_IOWR

/RST_HUB

SMARTCARD_CLK/SD_EMMC_DATA[0]
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]

SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_DET/SD_EMMC_DATA[3]

SMARTCARD_VCC/SD_EMMC_CMD

SMARTCARD_DATA/SD_EMMC_CLK

MID_MAIN_1

EAX6561020X_2.7pF

GND_2

4

X-TAL_2

3

POCE1
POCE0

PACLE
PAALE

EMMC_CLK

OPWRSB

ORESET

FSRC_WR

STB_SCL
STB_SDA

POR_BND

/PCM_REG

/PCM_CE1
MT5398_TS_SYNC

/PCM_WE
/PCM_OE

MT5398_TS_VAL
CI_A_VS1

MT5398_TS_CLK
/PCM_IRQA
/PCM_WAIT

+3.3V_NORMAL

LED_PWM1
LED_PWM0

5V Tolerance

OPCTRL_11_SCL

OPCTRL_10_SDA
COMP1_DET
SC_DET
OPCTRL7
HP_DET
AV1_CVBS_DET

AMP_RESET_SOC
OPCTRL3

RF_SWITCH_CTL
OPCTRL_1_SCL
OPCTRL_0_SDA

C114-*1

2.7pF
50V

C115

EAX6561090X_1pF

1.0pF
50V

AH15

U0TX

AH14

U0RX

AH13

U1TX

AG13

U1RX

D24

POWE

B25

POOE

D25
A25
C22

PDD7

B22

PDD6

A22

PDD5

C23

PDD4

A23

PDD3

B23

PDD2

D23

PDD1

C24

PDD0

C25

PARB

A26
B26
C21

AL15

AK20

AF17

OIRI

C20

AL14
AK15

AE14

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

CI SLOT -> SOC

CI SLOT -> SOC

CI SLOT -> SOC

R174

4.7K
OPT

R173
1K

PWM1_PULL_DOWN_1K

C115-*1

2.7pF
50V

EAX6561020X_2.7pF

MT5398_XTAL_OUT

M13 vs Lean Smart
del. FE_LNA_Ctrl1/2
cause of Tuner change 13y to 14y

SOC_TX
SOC_RX

FE_LNA_Ctrl1/2

EMMC_DATA[7]
EMMC_DATA[6]
EMMC_DATA[5]
EMMC_DATA[4]
EMMC_DATA[3]
EMMC_DATA[2]

CAM_SLIDE_DET

EMMC_DATA[1]

R158

22

STB_SCL
STB_SDA

R193 4.7K

FE_DEMOD1_TS_DATA[0-7]

EXTERNAL DEMOD

-> SOC

R177

4.7K
OPT

PWM_DIM2

R179

R178

R176
1K

PWM2_PULL_DOWN_1K

AMP_RESET_SOC

PWM_DIM2

22

PWM_DIM1

22

+3.3V_NORMAL

R183

R184

4.7K

4.7K

EMMC_CMD

EMMC_DATA[0]
EMMC_CLK

1N4148W

4.7K

R180

SMARTCARD_CLK/SD_EMMC_DATA[0]
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_DET/SD_EMMC_DATA[3]
SMARTCARD_VCC/SD_EMMC_CMD

SMARTCARD_DATA/SD_EMMC_CLK

D100

100V

R182

33

AVDD_33SB

R196
240

R185

10K

EMMC_DATA[2-7]

R188

4.7K

R187

4.7K
OPT

R186

2013.07.16

M_REMOTE_TX

M_REMOTE_RX

CAM_SLIDE_DET

WOL/ETH_POWER_ON

+3.3V_NORMAL

22

Q100

PMV48XP

D

G

AMP_RESET_N

R189
10K

OPT

C117

0.1uF
16V

+3.3V_NORMAL

S

OTP_WRITE

/RST_HUB

SOC_RESET

10K

R190

508

PLACE AT JACK SIDE

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Port was changed !!!!

WIFI_DP

WIFI_DM

+1.2V_MTK_AVDD

VDD3V3_HDMI

C398
5pF
50V

WIFI

DDC_SCL_3_JACK
DDC_SCL_1_SOC

DDC_SDA_3_JACK
DDC_SDA_1_SOC

5V_HDMI_3_JACK

5V_HDMI_1_SOC

HDMI_HPD_3_JACK
HDMI_HPD_1_SOC
HDMI_HPD_4_MHL

C303

0.1uF

C399
5pF
50V

WIFI

ARC

TP381

HDMI_CEC

DDC_SCL_MHL

DDC_SDA_MHL

R305

1K

R306

1K

R307 1K

5VBUS

C306

0.1uF

C307

C304

0.1uF

0.1uF

USB_DP3
USB_DM3

USB_DP2
USB_DM2

USB_DP1
USB_DM1

WIFI

R382

0

0
R383

VDD3V3

WIFI

C302

0.1uF

HP_LOUT_AMP

HP_ROUT_AMP

Place at JACK SIDE

V26

AC27
AB27
AA26

W27

AC26
AB26

Y26
W26

AE29

Y27

AA28

V28

AD29
AA27
AA29

V29

AA33
AA32

P33
P32

AH33

AE27

T25
W25

AD27

H32
H33

J32
J31

K32
K31

AN10
AM10

K33
AN8

M25

AE11

USB_DP_P0
USB_DM_P0

USB_DP_P1
USB_DM_P1

USB_DP_P2
USB_DM_P2

USB_DP_P3
USB_DM_P3

AVDD33_USB_P0P1P2
AVDD33_USB_P3

AVSS33_USB_P1
AVSS33_USB_P3

R302

180

C311 1uF

R303

82

IC105

LGE2122[A2_M13]

HDMI_CEC

HDMI_0_SCL
HDMI_1_SCL
HDMI_2_SCL
HDMI_3_SCL

HDMI_0_SDA
HDMI_1_SDA
HDMI_2_SDA
HDMI_3_SDA

HDMI_0_PWR5V
HDMI_1_PWR5V
HDMI_2_PWR5V
HDMI_3_PWR5V

HDMI_0_HPD
HDMI_1_HPD
HDMI_2_HPD
HDMI_3_HPD

AVDD12_HDMI_0_RX
AVDD12_HDMI_1_RX
AVDD12_HDMI_2_RX
AVDD12_HDMI_3_RX

AVDD33_HDMI

AVSS33_HDMI_RX_1
AVSS33_HDMI_RX_2
AVSS33_HDMI_RX_3
AVSS33_HDMI_RX_4

IC105

LGE2122[A2_M13]

HP_OUT

L303

BLM18PG121SN1D

HP_OUT
L302

BLM18PG121SN1D

10V

HDMI_0_RX_0B

HDMI_0_RX_1B

HDMI_0_RX_2B

HDMI_0_RX_CB

HDMI_1_RX_0B

HDMI_1_RX_1B

HDMI_1_RX_2B

HDMI_1_RX_CB

HDMI_2_RX_0B

HDMI_2_RX_1B

HDMI_2_RX_2B

HDMI_2_RX_CB

HDMI_3_RX_0B

HDMI_3_RX_1B

HDMI_3_RX_2B

HDMI_3_RX_CB

HP_OUT
C332

0.22uF
10V

HP_OUT

C331

0.22uF
10V

+5V_NORMAL

R308

1.2K
OPT

R309
100K

HDMI_0_RX_0

HDMI_0_RX_1

HDMI_0_RX_2

HDMI_0_RX_C

HDMI_1_RX_0

HDMI_1_RX_1

HDMI_1_RX_2

HDMI_1_RX_C

HDMI_2_RX_0

HDMI_2_RX_1

HDMI_2_RX_2

HDMI_2_RX_C

HDMI_3_RX_0

HDMI_3_RX_1

HDMI_3_RX_2

HDMI_3_RX_C

Wake On Lan

AVDD33_ETH

AVSS33_ELDO

AVSS33_LD

AVSS33_COM

HP_LOUT

HP_ROUT

TXVP_0
TXVN_0

RXVP_1
RXVN_1

PHYLED1
PHYLED0

Close to JACK

C345
10uF

COMP1/AV1/DVI_L_IN

HDMI_ARC

COMP1/AV1/DVI_R_IN

AG30
AG31
AF30
AF31
AE32
AE33
AG32
AG33

AD30
AD31
AC32
AC33
AC30
AC31
AE30
AE31

Y30
Y31
W32
W33
W30
W31
AA30
AA31

U30
U31
T32
T33
T30
T31
V30
V31

AL13
AM13

AL12
AM12

AF13
AJ13

AN12

REXT

AN14
AE13

AC16
AC15

AVDD_33SB

D0+_HDMI3_JACK
D0-_HDMI3_JACK
D1+_HDMI3_JACK
D1-_HDMI3_JACK
D2+_HDMI3_JACK
D2-_HDMI3_JACK
CK+_HDMI3_JACK
CK-_HDMI3_JACK

D0+_HDMI1_SOC
D0-_HDMI1_SOC
D1+_HDMI1_SOC
D1-_HDMI1_SOC
D2+_HDMI1_SOC
D2-_HDMI1_SOC
CK+_HDMI1_SOC
CK-_HDMI1_SOC

D0+_HDMI4_MHL
D0-_HDMI4_MHL
D1+_HDMI4_MHL
D1-_HDMI4_MHL
D2+_HDMI4_MHL
D2-_HDMI4_MHL
CK+_HDMI4_MHL
CK-_HDMI4_MHL

C328

0.1uF

EPHY_TDP
EPHY_TDN

EPHY_RDP
EPHY_RDN

MODEL_OPT_1
/TU_RESET2

R31524K

Close to Tuner

TU_S/N/Q_T/US/KR/TW

IF_P

TU_S/N/Q_T/US/KR/TW

IF_N

COMP1/AV1/DVI_R_IN_SOC
COMP1/AV1/DVI_L_IN_SOC

TUNER_SIF

Close to MT5369

TU_S/N/Q_T/US/KR/TW

C312

R346

1K

R331

R380

1K

1K

TU_S/N/Q_T/US/KR/TW

C336

1uF

10V

TU_S/N/Q_T/US/KR/TW

C337 1uF

10V

TU_S/N/Q_T/US/KR/TW

TU_S/N/Q_T/US/KR/TW

IF_AGC

33pF

TU_S/N/Q_T/US/KR/TW

TU_S/N/Q_T/US/KR/TW

C310

33pF

TU_S/N/Q_T/US/KR/TW

R332 10K

C341

0.047uF

TU_S/N/Q_T/US/KR/TW

M13 vs Lean Smart
del. list
(cause of EPI Block deletion)
GCLK_SOC
MCLK_SOC
GST_SOC
EO_SOC
VCOM_DYN
PMIC_RESET

+1.2V_MTK_AVDD

C350

0.1uF

For PCB Pattern

SC_R_IN_SOC
SC_L_IN_SOC

Close to AVDD33_ADAC & AVDD33_AADC

VDD3V3

L304

C365
10uF
10V

R334 51

R335 51

Close to Tuner

SC_CVBS_IN_SOC

For PCB Pattern

COMP1_Y/AV1_CVBS_SOC

C354

0.1uF

PC_R_IN_SOC
PC_L_IN_SOC

C305

1uF
10V

+1.2V_MTK_AVDD

TU_CVBS

TU_HK

C347

0.1uF

R339

2.2K

C351

0.1uF

TP379
TP380

VDD3V3

C362

0.1uF

C352 0.01uF

R341 100
R340 100

MODEL_OPT_2

R343

TU_HK

C358

0.1uF

VDD3V3

TU_S/N/Q_T/US/KR/TW

TU_S/N/Q_T/US/KR/TW

Close to MT5369

TU_HK

MODEL_OPT_8
MODEL_OPT_9

MODEL_OPT_10

PCM_5V_CTL

24K
1%

AVDD3V3_AADC

C363

R342 10K
C355

0.047uF

OSCL2
OSDA2

C360 0.047uF
C359 0.047uF

C361 1uF

VDD3V3

R328
470K

OPT

R329
470K
OPT

2D/3D_CTL

USB_CTL2

1uF
10V

C364

0.1uF

TU_HK

TP300

GCLK_SOC
MCLK_SOC
GST_SOC
EO_SOC
VCOM_DYN
PMIC_RESET

AVDD3V3_AADC

Near the SOC

C338
560pF
50V
OPT

C339
560pF
50V
OPT

LGE2122[A2_M13]

AA8

TCON0

AA9

TCON1

W6

TCON2

U6

TCON3

U7

TCON4

V8

TCON5

V6

TCON6

AB7

TCON7

W9

TCON8

U8

TCON9

U9

TCON10

V9

TCON11

V7

TCON12

AN1

AVDD12_LVDS_1

AN2

AVDD12_LVDS_2

AN3

AVDD12_LVDS_3

AN4

AVDD33_LVDS

AM4

AVSS12_LVDS_1

AM3

AVSS12_LVDS_2

AF5

AVSS12_LVDS_3

AE5

AVSS33_LVDS_1

AC5

AVSS33_LVDS_2

V5

AVSS33_LVDS_3

T1

REXT_VPLL

LGE2122[A2_M13]

AL32

AIN1_R_AADC

AN32

AIN1_L_AADC

AM33

AIN2_R_AADC

AM31

AIN2_L_AADC

AM32

AIN3_R_AADC

AK33

AIN3_L_AADC

AL33

AIN4_R_AADC

AN33

AIN4_L_AADC

AJ32

AVDD33_AADC

AC24

AVSS33_AADC

AN31

VMID_AADC

AH25

MPXP

LGE2122[A2_M13]

AM27

ADCINP_DEMOD

AN27

ADCINN_DEMOD

AN26

AVDD33_DEMOD

AN28

AVDD12_DEMOD

AL28

AVSS33_DEMOD

AL27

AVSS12_DEMOD

L26

IF_AGC

M28

RF_AGC

AJ27

LOUTN

AK27

LOUTP

N27

OSCL2

N26

OSDA2

AK26

CVBS3P

AM25

CVBS2P

AH26

CVBS1P

AK25

CVBS0P

AJ26

CVBS_COM

AM26

AVDD33_CVBS

AB20

AVSS33_CVBS_1

AB22

AVSS33_CVBS_2

16V

C346
10uF
16V

IC105

IC105

IC105

1608 sizs For EMI

R344

30K

1608 sizs For EMI

R345

30K

BE0P
BE0N
BE1P
BE1N
BE2P

BE2N
BECKP
BECKN

BE3P

BE3N

BE4P

BE4N

BO0P

BO0N

BO1P

BO1N

BO2P

BO2N
BOCKP
BOCKN

BO3P

BO3N

BO4P

BO4N

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N
AECKP
AECKN

AE3P

AE3N

AE4P

AE4N

AO0P

AO0N

AO1P

AO1N

AO2P

AO2N
AOCKP
AOCKN

AO3P

AO3N

AO4P

AO4N

AR0_ADAC
AL0_ADAC

AR1_ADAC
AL1_ADAC

AR2_ADAC
AL2_ADAC

AVDD33_ADAC
AVSS33_ADAC

ALIN

ASPDIF0
ASPDIF1

AOBCK

AOLRCK

AOMCLK
AOSDATA4
AOSDATA3
AOSDATA2
AOSDATA1
AOSDATA0

HSYNC
VSYNC

VGA_SDA
VGA_SCL

VDACX_OUT

VDACY_OUT

AVDD33_VIDEO

AVDD12_RGB

AVSS33_VDAC_BG

AVSS12_RGB

AVSS33_VDAC

Close to Main Chip

C342
100pF
50V

C343
100pF
50V

Y1

TXC4N

Y2

TXC4P

W3

TXC3N

W4

TXC3P

V3

TXCCLKN

V4

TXCCLKP

V1

TXC2N

V2

TXC2P

U3

TXC1N

U4

TXC1P

T3

TXC0N

T4

TXC0P

AD1

TXD4N

AD2

TXD4P

AC3

TXD3N

AC4

TXD3P

AB3

TXDCLKN

AB4

TXDCLKP

AB1

TXD2N

AB2

TXD2P

AA3

TXD1N

AA4

TXD1P

Y3

TXD0N

Y4

TXD0P

AH1

TXA4N

AH2

TXA4P

AG3

TXA3N

AG4

TXA3P

AF3

TXACLKN

AF4

TXACLKP

AF1

TXA2N

AF2

TXA2P

AE3

TXA1N

AE4

TXA1P

AD3

TXA0N

AD4

TXA0P

AM1

TXB4N

AM2

TXB4P

AL3

TXB3N

AL4

TXB3P

AK3

TXBCLKN

AK4

TXBCLKP

AK1

TXB2N

AK2

TXB2P

AJ3

TXB1N

AJ4

TXB1P

AH3

TXB0N

AH4

TXB0P

AK30
AJ29

AJ31
AK29

AJ30

Ready For commercial Audio_R_OUT

AH28

Ready For commercial Audio_L_OUT

AJ33
AC23

AG9
AG10
V27
AK9
AJ9
AF10
AH9
AK8
AJ8
AH8
AJ10

AK18
AL18
AL20

RP

AM20

GP

AL19

BP

AN20

COM

AK19

SOG

AG22
AH22

AL21

COM1

AK22

PB1P

AL22

PR1P

AM21

Y1P

AN21

SOY1

AM23

COM0

AL23

PB0P

AL24

PR0P

AN23

Y0P

AK23

SOY0

AH24
AJ24

AN25

AN18

AC19
AK17
AE20

COMP1/AV1/DVI_L_IN_SOC

COMP1/AV1/DVI_R_IN_SOC

AVDD3V3_AADC

Don’t use as GPIO

C3710.01uF
C3720.01uF
C3730.01uF
C3740.01uF
C3751500pF

R35010

EU

VDD3V3

TP376
TP305
TP303
TP306
TP304
TP382
TP383
TP301
TP302

R36151
R36251
R36351
R36451

DTV/MNT_V_OUT_SOC

+1.2V_MTK_AVDD

C382

0.1uF

HP_OUT

HP_OUT

R3511.2K
R3521.2K

For PCB Pattern

COMP1_Y/AV1_CVBS

COMP1_Pb

COMP1_Pr

C377

C383

1200pF

1200pF

HP_OUT

HP_OUT

SPDIF_OUT

ARC

SC_COM_SOC
SC_G_SOC
SC_R_SOC
SC_B_SOC
SC_FB_SOC

COMP1_COM_SOC
COMP1_Pb_SOC
COMP1_Pr_SOC
COMP1_Y/AV1_CVBS_SOC

1.0Vpp

HP_OUT

HP_OUT

R3691.2K
R3701.2K

ZD302

ZD304

ZD306

C390
1200pF
HP_OUT

R366 100
R367 100
R368 100
R371 100

ADLC 5S 02 015

ADLC 5S 02 015

ADLC 5S 02 015

C395
1200pF
HP_OUT

1608 sizs For EMI

0

R374

C388
27pF
50V
OPT

1608 sizs For EMI

0

R373

C386
27pF
50V
OPT

1608 sizs For EMI

0

R372

C385
27pF
50V

FOR EMI

OPT

For PCB Pattern

HP_ROUT_MAIN
HP_LOUT_MAIN

SCART_Rout_SOC
SCART_Lout_SOC

C387

C389

C393

22pF
OPT

C396

22pF

22pF

33pF

OPT

OPT

OPT

C394
27pF
50V
OPT

C391
27pF
50V
OPT

C392
27pF
50V
OPT

AUD_SCK
AUD_LRCK
AUD_MASTER_CLK
AUD_LRCH

1/4W
3216

C384

R355

10pF

75

50V

R381

1%

0

1/16W

R354

C379

75

10pF
50V

1%

C378

R353
75

10pF
50V

1%

COMP1_Y/AV1_CVBS_SOC

COMP1_COM_SOC

COMP1_Pb_SOC

COMP1_Pr_SOC

MT5398_MCLKI

MT5398_MIVAL_ERR

MT5398_MISTRT

MT5398_TS_OUT[0-7]

CI_DATA[0-7]

CI_ADDR[0-14]

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

MT5398_TS_OUT[0]
MT5398_TS_OUT[1]
MT5398_TS_OUT[2]
MT5398_TS_OUT[3]
MT5398_TS_OUT[4]
MT5398_TS_OUT[5]
MT5398_TS_OUT[6]
MT5398_TS_OUT[7]

MT5398_TS_IN[0]
MT5398_TS_IN[1]
MT5398_TS_IN[2]
MT5398_TS_IN[3]

MT5398_TS_IN[4]
MT5398_TS_IN[5]
MT5398_TS_IN[6]
MT5398_TS_IN[7]

SC_ID_SOC

/CI_CD2

/CI_CD1
/PCM_IORD
/PCM_IOWR

PCM_RST

/PCM_REG

/PCM_CE1

MT5398_TS_SYNC

/PCM_WE
/PCM_OE

MT5398_TS_VAL

CI_A_VS1

MT5398_TS_CLK

/PCM_IRQA

/PCM_WAIT
SC_R_IN_SOC
SC_L_IN_SOC

SC_CVBS_IN_SOC

SC_COM_SOC

SC_G_SOC
SC_R_SOC
SC_B_SOC

SC_FB_SOC

DTV/MNT_V_OUT_SOC

SCART_Rout_SOC
SCART_Lout_SOC

PCM_5V_CTL

SC_DET

CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]
CI_ADDR[8]
CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

TP307
TP308
TP309
TP310
TP311

TP312
TP313
TP314
TP315
TP316
TP317
TP318
TP319
TP320
TP321
TP322
TP323
TP324
TP325
TP326
TP327
TP328
TP329
TP330
TP331
TP332
TP333
TP334
TP335
TP336
TP337
TP338
TP339
TP340
TP341
TP342
TP343
TP344
TP345
TP346
TP347
TP348
TP349
TP350
TP351
TP352
TP353
TP354
TP355
TP356
TP357
TP358

TP359
TP360
TP361
TP362
TP363
TP364
TP365
TP366
TP367
TP368
TP369
TP370
TP371
TP372
TP373
TP374
TP375

TP377

TP378

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_MAIN_2

2013.07.16

509

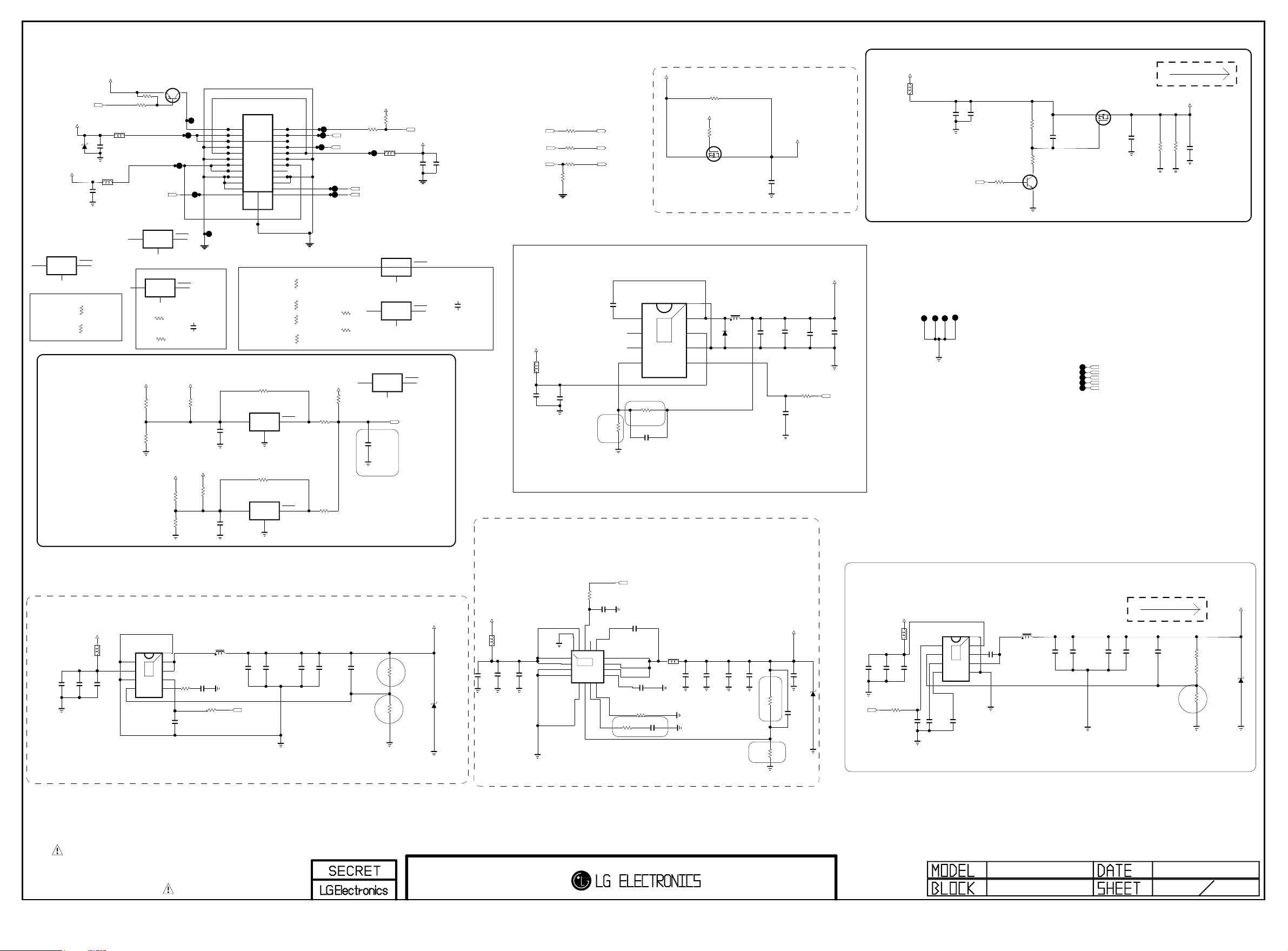

FROM LPB & PSU

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

5V

ZD2403

+12V

C2401

0.1uF
50V

IC2401-*5
APX803D29

VCC

P_DET_BOTH_12_3.5V_DIODES

P_DET_BOTH_12_3.5V

P_DET_BOTH_12_3.5V

RESET

3

2

1

GND

R2410-*1

2.7K
1%

R2409-*1

1.2K
1%

Power_DET

On-semi

+3.5V_ST

RL_ON

UBW2012-121F

C2406

0.1uF
16V

L2401

UBW2012-121F

MMBT3906(NXP)

R2408

10K

R2401

10K

L2402

L/DIM0_MOSI_PWR

IC2401-*3
APX803D29

VCC

3

1

GND

P_DET_BOTH_24_3.5V_DIODES

IC2401-*1

NCP803SN293

VCC

3

GND

R2418-*1
100

P_DET_BOTH_24_3.5V

R2416-*1
100K

P_DET_BOTH_24_3.5V

+12V

P_DET_ONLY_12V
R2410

2.7K
1%

P_DET_ONLY_12V

R2409

1.2K
1%

P_DET_BOTH_24_3.5V

P_DET_BOTH_24_3.5V

Q2401

3

1

2

RESET

2

RESET

2

1

P_DET_BOTH_24_3.5V_OnSemi

C2410-*1

0.1uF
50V

P_DET_BOTH_24_3.5V

+3.5V_ST

R2413
0
5%

P_DET_BOTH_24_3.5V

+3.5V_ST

+24V

R2400

R2412

0

8.2K

P_DET_BOTH_12_3.5V

R2411

1.5K
1%

P_DET_BOTH_12_3.5V

DEV_POWER_WAFER_18PIN

PWR ON

3.5V

3.5V
GND
24V
GND
12V
12V
GND
GND
GND

L/DIM0_MOSI

SMAW200-H18S5

DEV_POWER_WAFER_24PIN

VCC

C2411

0.1uF
16V

VCC

C2410

0.1uF
50V

P2400
SMAW200-H24S5

INV ON

1

1

2

2

PDIM#1

3

3

4

4

3.5V

5

5

6

6

PDIM#2

7

7

8

8

24V

10

10

9

9

GND

11

11

12

12

12V

13

13

14

14

NC

15

15

16

16

GND

17

17

18

18

GND

20

19

L/DIMO_VS

21

22

19

L/DIM0_SCLK

23

24

.

25

P2401

P_DET_BOTH_12_24V

P_DET_BOTH_12_24V

P_DET_BOTH_12_24V

P_DET_BOTH_12_24V

R2417
100K

IC2402

NCP803SN293

3

2

1

GND

P_DET_OnSemi

P_DET_BOTH_12_3.5V

R2416
100K

IC2401

NCP803SN293

3

2

1

GND

P_DET_BOTH_12_3.5V_OnSemi

M13 vs 14y Smart TV
Apply New Wafer (P2401-1*1)
Change Pin Assign(P2401)

R2412-*1

8.2K

R2411-*1

1.5K
1%

R2410-*2

2.7K
1%

R2409-*2

1.2K
1%

R2419

RESET

RESET

100

R2418
100

P_DET_BOTH_12_3.5V

PWM_DIM1

PWM_DIM2

P_DET_BOTH_12_24V

R2416-*2
100K

R2418-*2
100

P_DET_BOTH_12_24V

+3.5V_ST

R2421
10K
OPT

not to RESET at 8kV ESD

+3.3V_NORMAL

R2425
100

L2403

UBW2012-121F

L/DIM0_VS_PWR
L/DIM0_SCLK_PWR

IC2401-*4
APX803D29

VCC

3

GND

IC2401-*2

NCP803SN293

VCC

3

GND

IC2402-*1
APX803D29

VCC

3

1

GND

POWER_DET

C2412

0.1uF
16V

24V-->3.48V
12V-->3.58V

ST_3.5V-->3.5V

R2426
1K

INV_CTL

+24V

OPT

C2413

0.1uF
50V

RESET

2

1

P_DET_BOTH_12_24V_DIODES

RESET

2

1

P_DET_BOTH_12_24V_OnSemi

RESET

2

P_DET_DIODES

C2458
10uF
35V

C2410-*2

0.1uF
50V

P_DET_BOTH_12_24V

L/DIM_OUT

R2459

L/DIM0_SCLK

L/DIM0_MOSI

L/DIM0_VS

+24V

L/DIM_OUT

L/DIM_OUT

R2457

4.7K

L2406

BLM18PG121SN1D

C2417
10uF
35V

33

R2458
33

R2456
33

L/DIM_OUT

C2422

0.1uF
50V

DDR MAIN 1.5V

HDMI LEAKAGE Workaround in MTK A2(A0) (Default= with HDMI_LEAKAGE)

+3.3V_NORMAL

L/DIM0_SCLK_PWR

L/DIM0_MOSI_PWR

L/DIM0_VS_PWR

+5V_Normal

IC2404

RT8289GSP

C2423

0.01uF
50V

BOOT

1

NC_1

2

NC_2

3

FB

4

5A

1%

51K

R1

R2436

16K

R2438

1%

C2424
150pF
50V

R2

Vout=1.222*(1+R1/R2)

9

THERMAL

8

7

6

5

[EP]GND

SW

VIN

GND

EN

R2454
0

1/16W
5%

PANEL_VCC

R2453

10K

G

S

NTR4501NT1G

Q2408

D2401

B540C

D

L2407

4.7uH

40V

+12V

L2408

OPT

VDD3V3_HDMI

C2453

0.1uF
16V

+5V_NORMAL

125C
C2425
22uF
10V

C2427

0.1uF

125C
C2426
22uF
10V

R2439
10K

16V

C2429

C2428
10uF
10V

POWER_ON/OFF2_3

0.1uF
16V

BLM18SG121TN1D

C2432

0.01uF
50V

JP2408

JP2409

PANEL_CTL

JP2410

PANEL_POWER

C2433

0.1uF
50V

JP2411

R2437
10K

R2442

B

33K

5.6K

R2441

C

E

C2435

4.7uF
50V

Q2406
MMBT3904(NXP)

Q2407

DMP2130L

S

G

POWER_ON/OFF1
POWER_ON/OFF2_1
POWER_ON/OFF2_2
POWER_ON/OFF2_3
POWER_ON/OFF2_4

D

C2440

1uF
25V

OPT

TYP 1450mA

PANEL_VCC

C2443

2K

2K

0.1uF

1/8W

1/8W

R2452

R2451

PANEL DISCHARGE RESISTOR

50V

PANEL DISCHARGE RESISTOR

R2404

5.1K

R2406

10K

1%

1%

R2

+1.2V_MTK_CORE

R1

L2400

BLM18PG121SN1D

Placed on SMD-TOP

C2402

C2400

10uF

10uF

16V

16V

+12V

C2403

0.1uF
16V
OPT

PGND

VIN

AGND

FB

IC2400

BD86106EFJ

1

2

THERMAL

3

4

6A

L2404

C2405

0.0068uF
50V

R2403

10K

2uH

POWER_ON/OFF1

C2407
10uF
10V

C2408
10uF
10V

C2409
10uF
10V

C2414
10uF
10V

C2441
47pF
50V
OPT

[EP]

SW_2

8

SW_1

9

7

EN

6

R2402

6.8K

COMP

5

C2404

0.1uF
16V

Vout=0.8*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

OPT

2.5V

ZD2402

DDR MAIN 1.5V

POWER_ON/OFF2_1

10K

R2430

C2420

3A

EP[GND]

1

THERMAL

2

3

4

3A

AGND

0.1uF
16V

BOOT14PWRGD15EN16VIN_3

13

PH_3

12

PH_2

11

17

PH_1

10

IC2403

SS/TR

TPS54319TRE

9

7

5

8

COMP

RT/CLK6VSENSE

+3.5V_ST

L2405

BLM18PG121SN1D

VIN_1

VIN_2

C2448
10uF
10V

C2418
10uF
10V

C2419

0.1uF
16V

GND_1

GND_2

Vout=0.827*(1+R1/R2)=1.521V

R2431
15K

1/16W 5%

C2455

0.1uF

16V

0.01uF

R2432

C2450

50V

330K1/16W 5%

4700pF

NR5040T2R2N

C2421

50V

L2411

2.2uH

C2456
10uF

10V

C2451
10uF

10V

C2454
10uF

10V

C2447
10uF

10V

R2433
56K
1/16W
1%

R2455

R1

47K 1%

R2

+1.5V_DDR

C2452
100pF
50V

C2457

0.1uF
16V

OPT

2.5V

ZD2401

BLM18PG121SN1D

Placed on SMD-TOP

C2430
10uF
16V

POWER_ON/OFF2_2

L2409

+3.3V_NORMAL

+12V

IC2405

TPS54327DDAR

EN

1

VFB

9

2

THERMAL

VREG5

C2431
10uF
16V

10K

R2414

C2436

0.1uF

C2434

0.1uF
16V
OPT

16V

3

SS

4

C2415

C2416

1uF

3300pF

10V

50V

Vout=0.765*(1+R1/R2)

30K

3.3K

10K

1%

1/16W

1%

R1

1%

R2

+3.3V_NORMAL

5V

ZD2400

ZENER_3.3V_NORMAL

MAX 3.4 A

L2410

[EP]GND

VIN

16V

8

0.1uF
C2437

VBST

7

SW

6

GND

5

2uH

NR8040T2R0N

MID_POWER

C2438
10uF
10V

C2439
10uF
10V

C2442
10uF
10V

C2444
10uF
10V

C2445
100pF
50V
OPT

R2427

R2440

R2428

2011.11.25

24

Renesas MICOM

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

For Debug

+3.5V_ST

MICOM_DEBUG

P3000

12507WS-04L

1

2

3

4

5

GP4 High/MID Power SEQUENCE

POWER_ON/OFF!

POWER_ON/OFF2_1

POWER_ON/OFF2_2

POWER_ON/OFF2_3

POWER_ON/OFF2_4

SOC_RESET

Don’t remove R3014,
not making float P40

R3016 1K

R3014 10K

MICOM_DEBUG

MICOM_DEBUG

MICOM_RESET

For CEC

CEC_REMOTE

D3000

BAT54_SUZHO

R3033
27K

+3.5V_ST

G

S

D

Q3001
RUE003N02

HDMI_CEC_FET_ROHM

G

Q3001-*1
SI1012CR-T1-GE3

S

D

HDMI_CEC_FET_VISHAY

R3034

120K

CAM_PWR_ON_CMD

HDMI_CEC

EDID_WP

I2C_SCL_MICOM

I2C_SDA_MICOM

EDID_WP

PANEL_CTL

WOL/WIFI_POWER_ON

HDMI_CEC

POWER_ON/OFF2_2

POWER_ON/OFF2_3

EYE_SDA

EYE_SCL

CAM_PWR_ON_CMD

+3.5V_ST

8pF

C3003 8pF

C3002

X3000

HDMI_WAUP:HDMI_INIT

MHL_DET
MHL_DET

10K

GND

R3032

+3.5V_ST

VDD

48

13

VSS

47

14

C3001 0.47uF

REGC

46

15

C3000

+3.5V_ST

R3011

HDMI_EXT_EDID

10K

R3021

10K

P31/TI03/TO03/INTP4

IR

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P73/KR3/SO01
P72/KR2/SO21

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

EYE_Q

R3035

3.3K

R3036

3.3K

EYE_Q

0.1uF

P60/SCLA0
P61/SDAA0

P62
P63

1
2
3
4
5
6
7
8
9
10
11
12

32.768KHz
R3028

4.7M
OPT

Ready For

Commercial

P124/XT2/EXCLKS

P123/XT1

P137/INTP0

P122/X2/EXCLK

P121/X1

41

42

43

44

45

IC3000

R5F100GEAFB

MICOM_LEAD_Au

16

17

18

19

20

MICOM_RESET

R3029 22

MICOM_RESET_22OHM

P40/TOOL0

RESET

39

40

21

LOGO_LIGHT

MICOM_DEBUG

LOGO_LIGHT

C3004

0.1uF
16V

P120/ANI19

P41/TI07/TO07

37

38

36
35
34
33
32
31
30
29
28
27
26
25

22

23

24

+3.5V_ST

10K

MICOM_RESET_SW

SW3000

R3030

JTP-1127WEM

4 3

12

ST_BY_DET_CAMST_BY_DET_CAM

MICOM_RESET_33OHM

R3029-*1 33

R3031

270K

OPT

P140/PCLBUZ0/INTP6
P00/TI00/TXD1
P01/TO00/RXD1
P130
P20/ANI0/AVREFP
P21/ANI1/AVREFM
P22/ANI2
P23/ANI3
P24/ANI4
P25/ANI5
P26/ANI6
P27/ANI7





RL_ON

SCART_MUTE

POWER_ON/OFF2_4

POWER_ON/OFF2_1

KEY2

KEY1

MODEL1_OPT_1

MODEL1_OPT_4

MODEL1_OPT_0

SIDE_HP_MUTE

MODEL1_OPT_3

MODEL1_OPT_2

SCART_MUTE

POWER_ON/OFF2_4

MICOM MODEL OPTION

+3.5V_ST

MICOM_H13

R3006 10K

R3003 10K

MICOM_NC4.5_5KEY

MICOM_M13

R3004 10K

R3001 10K

MICOM_NC4_8KEY

MICOM_PDP

R3007 10K

R3010 10K

MICOM_TOUCH_KEY

R3005 10K

R3008 10K

MICOM_LCD/OLED

MICOM_TACT_KEY

R3013 10K

MICOM_LOGO_LIGHT

R3012 10K

MICOM_NON_LOGO_LIGHT

MICOM_GED

R3002 10K

R3000 10K

MICOM_NON_GED

R3007-*2

22K

R3007-*1

56K

MICOM_OLED_FRC

MICOM_OLED_MAIN

MODEL1_OPT_0

MODEL1_OPT_1

MODEL1_OPT_2

MODEL1_OPT_3

MODEL1_OPT_4

MODEL1_OPT_5

MICOM MODEL OPTION

0

MODEL_OPT_0 For LOGO LIGHT

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_5

NON LOGO

TACT_KEY

LCD / OLED

IR_wafer(12/15)

M13MODEL_OPT_4

NON_GED

1

LOGO

TOUCH_KEY

PDP

IR_wafer(10pin)

H13

GED

Ready for sample set

Need to Assign ADC port

Ready for sample set

P17/TI02/TO02

P51/INTP2/SO11

P50/INTP1/SI11/SDA11

P16/TI01/TO01/INTP5

P13/TXD2/SO20

P14/RXD2/SI20/SDA20

P12/SO00/TXD0/TOOLTXD

P15/PCLBUZ1/SCK20/SCL20

POWER_DET

POWER_ON/OFF1

WOL/ETH_POWER_ON

LED_R

LED_R

WOL_CTL

INV_CTL

SOC_RESET

SOC_TX

P146

P147/ANI18

P10/SCK00/SCL00

P11/SI00/RXD0/TOOLRXD/SDA00

P60/SCLA0
P61/SDAA0

SOC_RX

AMP_MUTE

CAM_CTL

MODEL1_OPT_5

CAM_CTL

P31/TI03/TO03/INTP4

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P73/KR3/SO01
P72/KR2/SO21

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

1
2

P62

3

P63

4
5
6
7
8
9
10
11
12

P123/XT1

P137/INTP0

P122/X2/EXCLK

P121/X1

REGC47VSS48VDD

42

43

44

45

46

IC3000-*1

R5F100GEAFB#30

MICOM_LEAD_Cu

13

14

15

16

17

18

19

20

P17/TI02/TO02

P13/TXD2/SO20

P51/INTP2/SO11

P16/TI01/TO01/INTP5

P14/RXD2/SI20/SDA20

P50/INTP1/SI11/SDA11

P12/SO00/TXD0/TOOLTXD

P15/PCLBUZ1/SCK20/SCL20

P120/ANI19

P41/TI07/TO07

P40/TOOL0

RESET41P124/XT2/EXCLKS

37

38

39

40

21

P11/SI00/RXD0/TOOLRXD/SDA00

P140/PCLBUZ0/INTP6

36

P00/TI00/TXD1

35

P01/TO00/RXD1

34

P130

33

P20/ANI0/AVREFP

32

P21/ANI1/AVREFM

31

P22/ANI2

30

P23/ANI3

29

P24/ANI4

28

P25/ANI5

27

P26/ANI6

26

P27/ANI7

25

22

23

24

P146

P147/ANI18

P10/SCK00/SCL00

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NetCast4.0

MICOM (RENESAS)

2013.02.05

530

SIDE

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

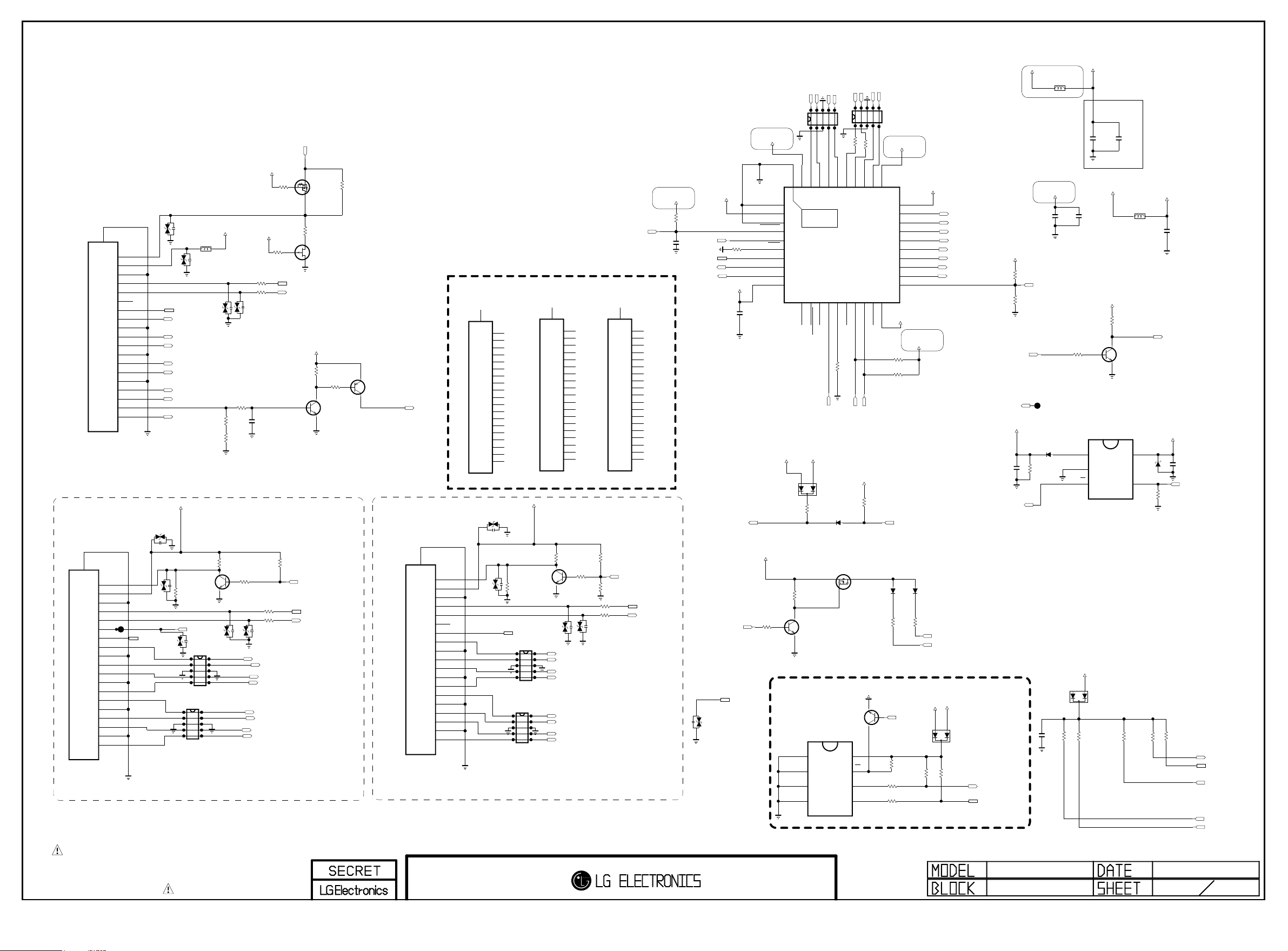

BODY_SHIELD

GND

20

FREEPORT

19

18

17

16

15

14

13

12

11
10

EAG62611204

51U019S-312HFN-E-R-B-LG

JK3301

SIDE

BODY_SHIELDGND

20

HP_DET

FREEPORT

19

5V

18

GND

17

DDC_DATA

16

DDC_CLK

15

ARC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

D0-

9

D0_GND

8

EAG62611204

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

JK3303

51U019S-312HFN-E-R-B-LG

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

VA3302

VA3304
ADUC 20S 02 010L

VA3305

ADUC 20S 02 010L

CEC_REMOTE

ADUC 20S 02 010L

BLM18PG121SN1D

VA3303

ADUC 20S 02 010L

CEC_REMOTE

CK+_HDMI4_JACK

D0-_HDMI4_JACK

D0+_HDMI4_JACK

D1-_HDMI4_JACK

D1+_HDMI4_JACK

D2-_HDMI4_JACK

D2+_HDMI4_JACK

5V_HDMI_3_JACK

MMBT3904(NXP)

R3327

100K

HDMI_ARC

D3320
IP4294CZ10-TBR

VA3313

ADUC 20S 02 010L

1
2
3
4
5

D3321
IP4294CZ10-TBR

1
2
3
4
5

5VBUS

L3303

VA3300

ADUC 20S 02 010L

R3386

180K

R3387

120K

UI : HDMI3

R3330

1K

C

Q3303

B

E

VA3306

ADUC 20S 02 010L

10
9
8
7
6

10
9
8
7
6

UI : HDMI1

+12V

+12V

R3308 100

R3309 100

VA3301

ADUC 20S 02 010L

R3373
1K

1/16W

C3322

5%

0.1uF
16V

OPT

R3331
1K

R3328 100

R3329 100

VA3307

ADUC 20S 02 010L

CK-_HDMI3_JACK

CK+_HDMI3_JACK

D0-_HDMI3_JACK
D0+_HDMI3_JACK

D1-_HDMI3_JACK

D1+_HDMI3_JACK

D2-_HDMI3_JACK

D2+_HDMI3_JACK

OPT

R3384
1K

G

R3370

1K

G

DDC_SDA_MHL

DDC_SCL_4_JACK

Q3301
MMBT3904(NXP)

R3336

4.7K

SIL_HPD/CBUS

S

OPT

Q3304

2N7002K

D

R3371

820

D

Q3314
PMBFJ177

S

+3.5V_ST

R3374

10K

C

B

E

HDMI_HPD_3_JACK

DDC_SDA_3_JACK

DDC_SCL_3_JACK

R3375
10K

R3376

0

B

E

MMBT3906(NXP)

Q3302

C

(CD_SENCE)

SIDE

BODY_SHIELD

FREEPORT

EAG62611204

JK3300

51U019S-312HFN-E-R-B-LG

MHL_DET

20

Improve EMI(Apply the Mold B/C Model)

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

5V_HDMI_1_SOC

MMBT3904(NXP)

R3301
100K

CEC_REMOTE

D3319
IP4294CZ10-TBR

1
2
3
4
5

D3318
IP4294CZ10-TBR

1
2
3
4
5

BODY_SHIELD

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC
CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

FOOSUNG

DAADR019A
JK3300-*1

VA3310
ADUC 20S 02 010L

VA3311

ADUC 20S 02 010L

10
9
8
7
6

10
9
8
7
6

Q3300

20

FOOSUNG

DAADR019A
JK3301-*1

C

E

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

R3304

1K

R3305
1K

B

R3302 100

R3303 100

VA3308

ADUC 20S 02 010L

VA3309

CK-_HDMI1_SOC
CK+_HDMI1_SOC

D0-_HDMI1_SOC
D0+_HDMI1_SOC

D1-_HDMI1_SOC
D1+_HDMI1_SOC

D2-_HDMI1_SOC
D2+_HDMI1_SOC

UI : HDMI2

#SIL_RESET

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11

10

FOOSUNG

DAADR019A
JK3303-*1

R3306

4.7K

HDMI_INTERNAL_EDID

HDMI_HPD_1_SOC

R3321

4.7K

HDMI_EXT_EDID

ADUC 20S 02 010L

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

DDC_SDA_1_SOC

DDC_SCL_1_SOC

VDD3V3_HDMI

R3356

10K

C3314

OPT

0.1uF
16V

MHL_DET

DDC_SDA_MHL

DDC_SCL_MHL

SIL_HPD/CBUS

MHL_DET

ADUC 20S 02 010L

1.2V_MHL

PWR5V_DET

R3351

OPT

4.7K

5V_MHL

C3313

0.1uF
16VCK-_HDMI4_JACK

DDC_SCL_4_JACK

CEC_REMOTE

VA3312

VDD3V3_HDMI

RSVDL1

VDD12_1

RSVDL2

RESET

INT
DSDA
DSCL

CBUS/HPD

VDD5_IN

+3.5V_ST

5V_MHL

R3379

R3381
22K

B

HDMI_EXT_EDID

D3303

IP4294CZ10-TBR

VDD33_2

[EP]GND

40

1
2
3
4
5
6
7
8
9
10

11

RSVDNC

5V_MHL

R3361

47K

22K

C

Q3311
MMBT3904(NXP)

E

E0

E1

E2

VSS

D2-_HDMI4_JACK

D2+_HDMI4_JACK

9

10

1827364

RX1+

RX2-

RX2+

37

38

39

THERMAL

41

IC3304

SIL1292CNUC

12

13

14

PS_CTRL

HDMI_DET

VREG33_OUT

HDMI_DET

A2CA1

D3301

MMBD6100

PMV48XP

HDMI_EXT_EDID

MMBT3904(NXP)

IC3300

M24C02-RMN6T

1

2

HDMI_EXT_EDID

3

4

D0+_HDMI4_JACK

D1+_HDMI4_JACK

D1-_HDMI4_JACK

9

10

D3302

IP4294CZ10-TBR

1827364

5

5.1

R3388

R3389

RXC+

RX0-

RX0+

RX1-

34

35

36

15

16

17

CSDA18CSCL

GPIO0

GPIO1/CI2CA

R3363 10K

I2C_SDA4

5V_MHL

30V

BAT54_SUZHO

D3304

Q3309

D

S

G

Q3313

VCC

8

WC

7

SCL

6

SDA

5

CK-_HDMI4_JACK

CK+_HDMI4_JACK

D0-_HDMI4_JACK

5

VDD3V3_HDMI

5.1

VDD33_1

RXC-

31

32

33

30
29
28
27
26
25
24
23
22
21

19

20

1.2V_MHL

CEC_A

VDD12_2

I2C_SCL4

R3338
10K

30V

R3380

1.8K

E

B

C

HDMI_EXT_EDID

R3319
22

HDMI_EXT_EDID

R3320
22

HDMI_EXT_EDID

Field Issue
Latch Up
(+3.3V_NORMAL -> VDD3V3)

1.2V_MHL

AVDD12
TXC­TXC+
TX0­TX0+
TX1­TX1+
TX2­TX2+
HPD_IN

VDD3V3_HDMI

OPT

R3355

4.7K
OPT

R3345

4.7K

DDC_SCL_MHL

30V

D3312

D3313

BAT54_SUZHO

BAT54_SUZHO

R3307

1.8K

DDC_SDA_MHL

DDC_SCL_MHL

5V_HDMI_1_SOC

EDID_WP

HDMI_EXT_EDID

R3390

10K

R3323
47K

HDMI_EXT_EDID

CK-_HDMI4_MHL

CK+_HDMI4_MHL

D0-_HDMI4_MHL

D0+_HDMI4_MHL

D1-_HDMI4_MHL

D1+_HDMI4_MHL

D2-_HDMI4_MHL

D2+_HDMI4_MHL

+5V_NORMAL

A2CA1

MMBD6100
D3300

R3325
47K

HDMI_EXT_EDID

R3348

10K

#MHL_OCP

C3312

10uF

10V

DDC_SCL_1_SOC

DDC_SDA_1_SOC

CHANGE NET Demod_Core

Demod_Core

BLM18PG121SN1D

TU_DEMOD_CORE

VDD3V3_HDMI

5V_MHL

HDMI_HPD_4_MHL

R3358

4.7K
OPT

MHL_DET

TP3300

5VBUS

D3322

R3359
100K

#MHL_OCP

30V

C3302

0.1uF
16V

L3302

C3311

0.1uF
16V

1.2V_MHL

C3318

0.1uF
16V

R3357

10K

Current Limit

OUT

1

GND

2

OC

3

+5V_NORMAL

A2CA1

R3339

R3337

47K

47K

Close to SIL1292

C3320

C3316

0.1uF

0.1uF
16V

16V

+5V_NORMAL

BLM18PG121SN1D

5V_MHL

R3362

10K

C

Q3310

B

MMBT3904(NXP)

E

IC3301

TPS2051BDBVR

D3314

MMBD6100

L3301

IN

5

ZD501

5V
OPT

EN

4

R3340
47K

HDMI_INTERNAL_EDID

R3377

47K

R3332

5V_MHL

HDMI_DET

5V_MHL

10K

R3378

C3321

0.1uF
16V

C3315

0.1uF
16V

MHL_DET

47K

HDMI_INTERNAL_EDID

DDC_SCL_1_SOC
DDC_SDA_1_SOC

DDC_SDA_MHL

DDC_SCL_3_JACK

DDC_SDA_3_JACK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI 4

2013.07.16

533

RS-232C Control INTERFACE(NORTH AMERICA)

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

RS232C_US

C3713

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

SOC_RX

SOC_TX

RS232C_US

RS232C_US

RS232C_US

RS232C_US

C3708

C3709

C3710

C3711

0.1uF

0.1uF

0.1uF

0.1uF
DOUT2

RS232C_US

IC3700
MAX3232CDR

C1+

1

V+

2

C1-

3

C2+

4

C2-

5

V-

6

7

RIN2

8

EAN41348201

OPT
ZD3702
ADUC 20S 02 010L
20V

OPT
ZD3703
ADUC 20S 02 010L
20V

HP_ROUT

HP_LOUT

HP_DET

Closed to Jack

+3.3V_NORMAL

R3706

10K
R3705
1K

100

100

R3720

R3721

RS232C_US

RS232C_US

E_SPRING

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

PEJ034-01

3

4

5

7B

6B

JK3700

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

14Y Phone Jack

2013.08.27

537

/USB_OCD1

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

USB_CTL1

R4500

10K
OPT

+3.3V_NORMAL

R4501

10K

+5V_NORMAL

C4500

0.1uF
16V

OCP USB1

IC4500

AP2171DM8G

GND

1

IN_1

2

IN_2

3

EN

4

USB1

DVR Ready

+5V_USB_1

MAX 1.5A

+5V_USB_1

NC

8

OUT_2

7

OUT_1

6

FLG

5

C4501

10uF

10V

USB_DM1

USB_DP1

USB_Serial_2.2ohm

USB_Serial_2.2ohm

C4502
10uF
10V

R4502

2.2

R4503

2.2

3AU 04S-3 05-Z C-(LG )

JK4 500

1234

USB DOWN STR EAM

5

USB_Serial_0ohm

R4502-*1
0

USB_Serial_0ohm

R4503-*1
0

C4302

0.1uF
16V

USB_CTL2

USB_CTL3

OCP USB2/3

+5V_NORMAL

GND

IN

EN1

EN2

USB2/3_OCP_TI

DIODES TAIWAN INC

GND

IN

EN1

EN2

USB2/3_OCP_DIODES

IC4306

TPS2066CDGNR

1

9

2

THERMAL

3

4

IC4306-*1

1

9

2

THERMAL

3

4

8

7

6

5

8

7

6

5

[EP]GND

FLT1

OUT1

OUT2

FLT2

C4337

10uF

[EP]GND

FLG1

OUT1

OUT2

FLG2

+5V_USB_2

+3.3V_NORMAL

10K

10K

R4301

R4302

+5V_USB_2

+5V_USB_3

C4301

10uF

10V

10V

/USB_OCD2

/USB_OCD3

USB_DM2

USB_DP2

+5V_USB_3

C4322

10uF

10V

USB2

MAX 1.5A

USB_Serial_2.2ohm

R4303

2.2

USB_Serial_2.2ohm

R4304

2.2

USB3

3AU 04S-3 05-Z C-(LG )

JK4 302

1234

USB DOWN STR EAM

5

USB_Serial_0ohm

R4303-*1
0

USB_Serial_0ohm

R4304-*1
0

MAX 1.5A

3AU 04S-3 05-Z C-(LG )

USB_DM3

USB_DP3

C4310

10uF

10V

USB_Serial_2.2ohm

R4305

2.2

USB_Serial_2.2ohm

R4306

2.2

JK4 300

1234

USB DOWN STREAM

5

USB_Serial_0ohm

R4305-*1
0

USB_Serial_0ohm

R4306-*1
0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

USB2_USB3

2013.11.25

543

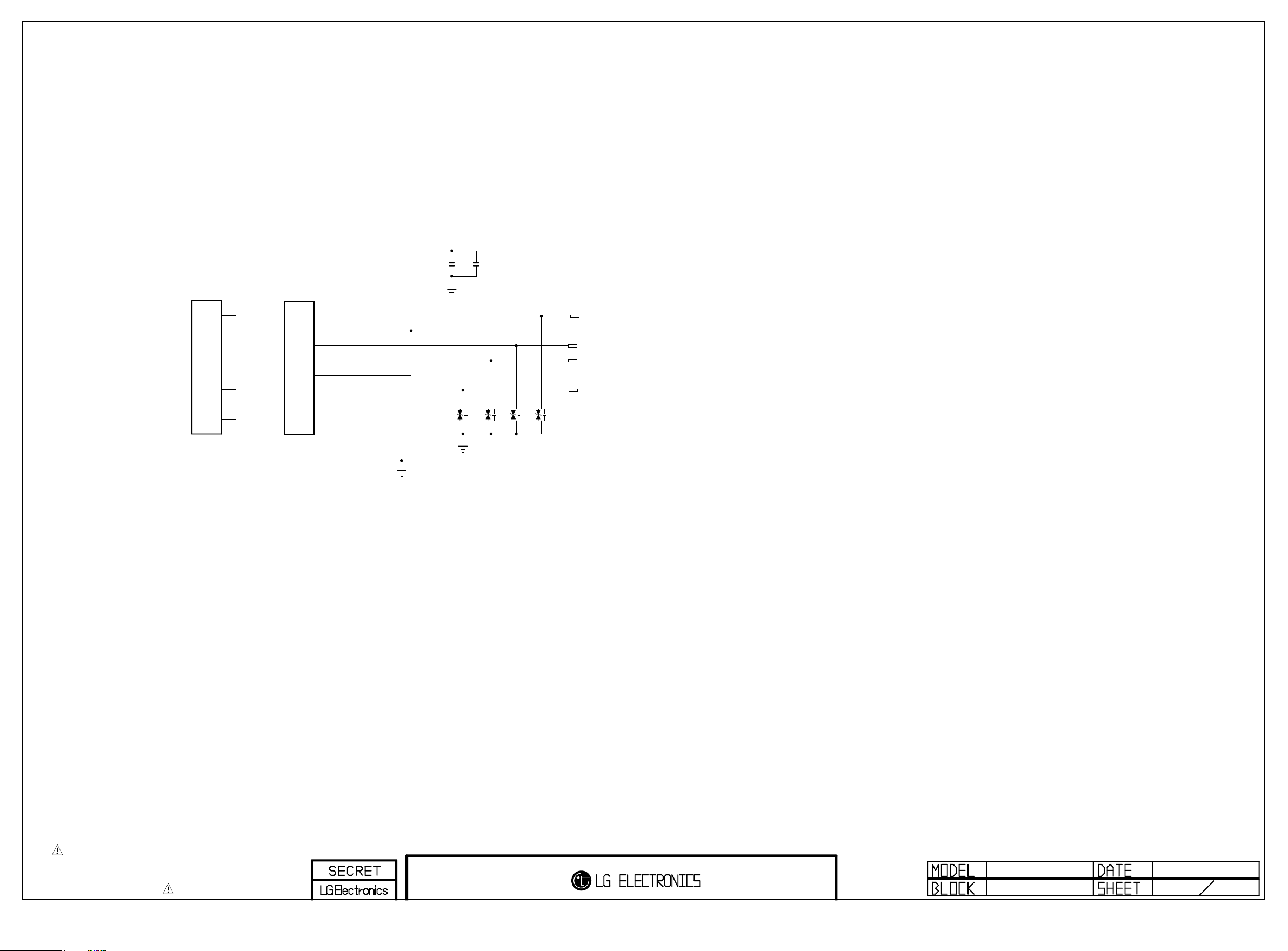

MOLD_LAN_JACK

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

JK5000-*1

RV3-2032ADA3

Ethernet Block

C5000

C5001

0.1uF

0.01uF

16V

50V

METAL_LAN_JACK

JK5000

RJ45VT-01SN002

TD+

1

TCT

2

TD-

3

RD+

4

RCT

5

RD-

6

R7

7

GND

8

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

D5000

5.5V

LAN_ESD

D5001

5.5V

LAN_ESD

D5002

5.5V

LAN_ESD

D5003

5.5V

LAN_ESD

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LAN_VERTICAL

2013.11.26

550

A1A1B1

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

47

SHIELD

DEV_TU_AJ_T

TU6401-*1
TDJH-G101D

B1[+3.3V]

1

NC_1

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_2

8

NC_3

9

B1

DEV_TU_BR

TU6402-*1
TDJM-B101F

B1[+3.3V]

1

RF_SW_CTL

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

NC_1

8

NC_2

9

NC_3

10

NC_4

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

B2[+3.3V]

26

SCL_DEMOD

27

B3[+1.1V]

28

NC_5

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

DEV_TU_CO_T2

TU6402-*2
TDJM-K101F

B1[+3.3V]

1

RF_SW_CTL

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

NC_1

8

NC_2

9

NC_3

10

NC_4

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

B2[+3.3V]

26

SCL_DEMOD

27

B3[+1.1V]

28

NC_5

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

DEV_TU_AJ_T2

TU6402-*3
TDJM-G105D

B1[+3.3V]

1

NC_1

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

NC_2

8

NC_3

9

NC_4

10

B2[+3.3V]

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.1V]

28

F22_OUTPUT

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

DEV_TU_HK

TU6402-*4
TDJM-C301D

B1[+3.3V]

1

RF_SW_CTL

2

NC_1

3

SCL_RF

4

SDA_RF

5

NC_2

6

NC_3

7

SIF

8

CVBS

9

NC_4

10

NC_5

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

B2[+3.3V]

26

SCL_DEMOD

27

B3[+1.1V]

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

A1

A1

DEV_TU_KR_US

TU6401
TDJH-H101F

B1[+3.3V]

1

NC_1

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_2

8

NC_3

9

B1

B1

47

SHIELD

TU_GND_A

TU_GND_B

TU_GND_A

DEV_TU_TW

TU6403
TDJK-T101F

B1[+3.3V]

1

RF_S/W_CTL

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_1

8

NC_2

9

A1

A1

47

SHIELD

B1

B1

TU_GND_B

DEV_TU_KR_PIP

TU6402
TDJM-H101F

B1[+3.3V]

1

NC_1

2

M_DIF_AGC

3

SCL_RF

4

SDA_RF

5

M_DIF[P]

6

M_DIF[N]

7

S_SIF

8

S_CVBS

9

NC_2

10

B2[+3.3V]

11

S_ERROR

12

GND_1

13

S_MCLK

14

S_SYNC

15

S_VALID

16

S_DATA

17

NC_3

18

NC_4

19

NC_5

20

NC_6

21

NC_7

22

NC_8

23

NC_9

24

S_RESET_DEMOD

25

B3[+3.3V]

26

SCL_DEMOD

27

B4[+1.1V]

28

NC_10

29

SDA_DEMOD

30

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P

IF_N

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL4_TU

D_Demod_Core

LNB_TX

I2C_SDA4_TU

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

TU_GND_B

TU_GND_A

C6401
1000pF

630V

TU_TW/CO/BR

R6402

R6401

0

0

TU_EU/AJ/JA

TU_EU/AJ/JA

Global flag

C6402
1000pF
630V

TU_TW/CO/BR/KR/US

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TU_GND_A

A1

A1

B1

B1

47

SHIELD

TU_GND_B

TUNER

2013.07.16

564

Global F/E Option Name

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. TU

2. Tuner Name = TDS’S’,TDS’Q’...

3. Country Name = T,T2,S2,KR,US,BR ...

Example of Option name
TU_Q_T2 = apply TDSQ type tuner and T2 country
TU_M/W = apply TDSM&TDSW Type Tuner

13’ Tuner Type for Global
TDS’S’-G501D : T/C Half NIM Horizontal Type
TDS’Q’-G501D : T/C/S2 Combo Horizontal type
TDS’Q’-G601D : T2/C/S2 Combo Horizontal Type
TDS’Q’-G651D : T2/C/S2 Combo Vertical Type
TDS’Q’-G705D : Singapore DVB-T2 (V1.3.1)
TDS’M’-C601D : China NIM with Isolater Type
TDS’W’-J551F : Japan Dual NIM
TDS’W’-B651F : Brazil 2Tuner
TDS’W’-A651F : Taiwan 2Tuner
TDS’W’-K651F : Colombia DVB-T2 2Tuner

1

2

3

4

5

6

7

8

9

10

11

12

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

34

36

37

38

39

40

45

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P

IF_N

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL4_TU

D_Demod_Core

LNB_TX

I2C_SDA4_TU

LNB_OUT

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

/TU_RESET2_TU

Global flag

close to Tuner

L6500

BLM18PG121SN1D

C6501

0.1uF

C6502

0.1uF
16V

+3.3V_TUNER

close to TUNER

1K

R6507

R6503

C6504

10K

0.1uF

R6506

R6511

R6512

33

100

I2C_SCL6

33

I2C_SDA6

IF_P

IF_N

close to Tuner

C6505
47pF
50V
OPT

C6503
47pF
50V
OPT

should be guarded by ground,Match GND VIA

close to Tuner

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

C6509

16V

0.1uF

C6507

16V

0.1uF

LNB_TX

LNB_OUT

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNCFE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

R6502
100

L6505

BLM18PG121SN1D

TU_DEMOD_CORE

C6506

0.1uF

TU_DEMOD_CORE

/TU_RESET2

R6501
100

/TU_RESET1

BLM18PG121SN1D

C6510

0.1uF

FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0-7]

L6503

BLM18PG121SN1D

C6511

0.1uF

Demod_Core

OPT

OPT

C6512
18pF
50V

+3.3V_TUNER

L6501

+3.3V_TUNER

R6510 33

C6513
18pF
50V

R6509 33

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils

RF_SWITCH_CTL

Ground Width >= 24mils

IF_AGC

TU_HK

R6513 0

I2C_SCL4

I2C_SDA4

+3.3V_NORMAL

C6508

0.1uF
16V

TUNER_SIF

TU_NO_DEMOD_CORE

IC6515

AZ1117BH-1.2TRE1

OUTIN

GND/ADJ

+3.3V_TUNER

TU_HK

R6516

200

E

TU_HK

B

Q6502
MMBT3906(NXP)

C

1.2V_MHL

TU_NO_DEMOD_CORE

1608 perallel
because of derating

TU_HK

R6517

200

TU_NO_DEMOD_CORE

R6515

1

C6514
10uF
10V

TU_CVBS

C6519

0.1uF
16V

TU_NO_DEMOD_CORE

+3.3V_TUNER

+5V_NORMAL

C6515
1uF

+3.3V_NORMAL

BLM18PG121SN1D

C6526

0.1uF
16V

TU_DEMOD_CORE

IC6500

TU_DEMOD_CORE

R6518
10K

AP2132MP-2.5TRG1

1

PG

2

EN

3

VIN

2A

4

VCTRL

EAN61387601

TU_DEMOD_CORE
C6516

0.1uF

TU_DEMOD_CORE

Vout=0.6*(1+R1/R2)

DELETE 1.8V POWER

L6502

9

THERMAL

mA(MAX)

8

7

6

5

[EP]

C6529

22uF

10V
85C

GND

ADJ

VOUT

NC

/TU_RESET2_TU

+3.3V_TUNER

C6530

0.1uF
16V

R6519
11K
1%
R6520
10K
1%

T2 : Max 1.7A

else : Max 0.7A

TU_1.2V
R6521
20K

R2

1%

TU_1.2V

R1

TU_1.2V

TU_DEMOD_CORE

Demod_Core

R6521-*1

18K

14K

R6519-*1

2K

R6520-*1

C6518
10uF
16V

/TU_RESET2

FE_DEMOD1_TS_ERROR

TU_1.1V

TU_1.1V

TU_1.1V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TUNER_CIRCUIT

2013.07.16

565

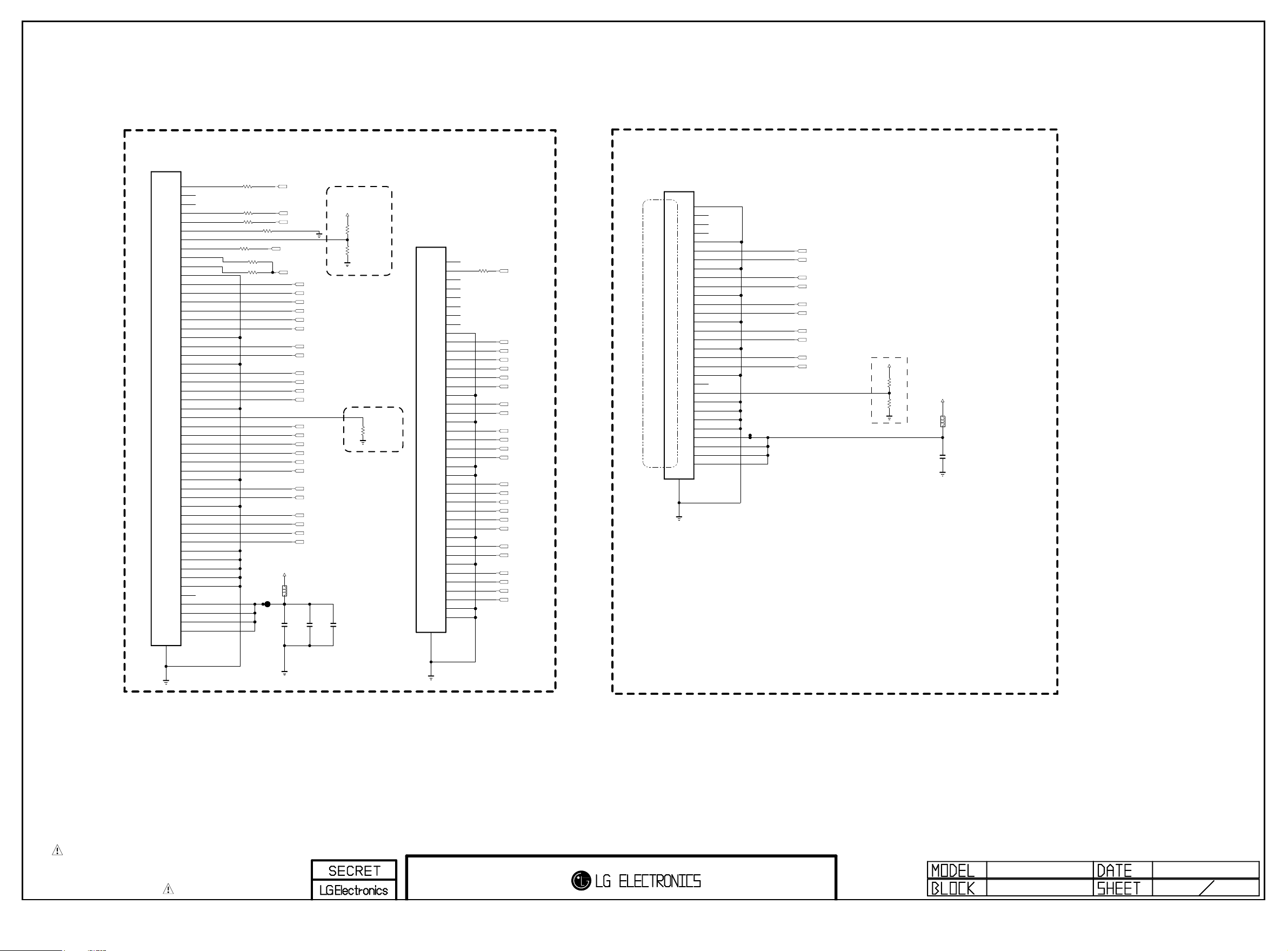

LVDS

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LVDS_51PIN

P7100

FI-RE51S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

GND

[51Pin LVDS OUTPUT Connector]

NC

NC

NC

NC

NC

AUO_65_MIRROR

LVDS_SEL

NC

NC

L/DIM_ENABLE

GND

RA0N

RA0P

RA1N

RA1P

RA2N

RA2P

GND

RACLKN

RACLKP

GND

RA3N

RA3P

RA4N

RA4P

GND

BIT_SEL

RB0N

RB0P

RB1N

RB1P

RB2N

RB2P

GND

RBCLKN

RBCLKP

GND

RB3N

RB3P

RB4N

RB4P

GND

GND

GND

GND

GND

NC

VLCD

VLCD

VLCD

VLCD

R7100 33

LGD_2D/3D_CTRL

R7105 33

CP_BOX

R7106 33

CP_BOX

R7107 33

LGD_T-Con_Scanning

R7110

33

AUO_L/D_EN

R7108

OPC_EN

33

R71090

OPT

2D/3D_CTL

PWM_DIM1

PANEL_VCC

I2C_SDA1

I2C_SCL1

OPC_EN

TXA0N

TXA0P

TXA1N

TXA1P

TXA2N

TXA2P

TXACLKN

TXACLKP

TXA3N

TXA3P

TXA4N

TXA4P

TXB0N

TXB0P

TXB1N

TXB1P

TXB2N

TXB2P

TXBCLKN

TXBCLKP

TXB3N

TXB3P

TXB4N

TXB4P

L7100
BLM18SG121TN1D
LVDS_51PIN

C7100

C7101

10uF

1000pF

16V

50V

OPT

OPT

LVDS_SEL

+3.3V_NORMAL

R7101

3.3K
LVDS_SEL_HIGH

R7102
10K

LVDS_SEL_LOW

BIT_SEL

C7102

0.1uF
50V

OPT

[41Pin LVDS OUTPUT Connector]

LVDS_41PIN

P7101

FI-RE41S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

R7103
10K

BIT_SEL_LOW

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

GND

NC

NC

NC

NC

NC

NC

NC

NC

GND

RC0N

RC0P

RC1N

RC1P

RC2N

RC2P

GND

RCCLKN

RCCLKP

GND

RC3N

RC3P

RC4N

RC4P

GND

GND

RD0N

RD0P

RD1N

RD1P

RD2N

RD2P

GND

RDCLKN

RDCLKP

GND

RD3N

RD3P

RD4N

RD4P

GND

GND

R7104 33

AUO_2D/3D_CTRL

2D/3D_CTL

TXC0N

TXC0P

TXC1N

TXC1P

TXC2N

TXC2P

TXCCLKN

TXCCLKP

TXC3N

TXC3P

TXC4N

TXC4P

TXD0N

TXD0P

TXD1N

TXD1P

TXD2N

TXD2P

TXDCLKN

TXDCLKP

TXD3N

TXD3P

TXD4N

TXD4P

LVDS_HD

[30Pin HD 60Hz]

HD

P7102

10031HR-30

T-CON
Pin
Assign

GND

NC

NC

NC

GND

RD+

RD-

GND

RCL+

RCLK-

GND

RC+

RC-

GND

RB+

RB-

GND

RA+

RA-

GND

NC

LVDS SEL

GND

GND

GND

GND

VLCD

VLCD

VLCD

VLCD

1

30

2

29

3

28

4

27

5

26

6

25

7

24

8

23

9

22

10

21

11

20

12

19

13

18

14

17

15

16

16

15

17

14

18

13

19

12

20

11

21

10

22

9

23

8

24

7

25

6

26

5

27

4

28

3

29

2

30

1

31

Pin Assign is same as
LN570B LVDS Cable
(EAD62296501)

TXA0N

TXA0P

TXA1N

TXA1P

TXA2N

TXA2P

TXACLKN

TXACLKP

TXA3N

TXA3P

LVDS_SEL

+3.3V_NORMAL

OPT
R1109

3.3K

OPT
R1110
10K

PANEL_VCC

120OHM

HD
L1101

UBW2012-121F

HD

C1101

0.1uF
16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LVDS_HIGH_MID

2013.07.16

571

Contents of LCD TV Standard Repair Process

)

)

Vertical/Horizontal bar, residual image, light spot

,

,g,p

First of all, Ch

SVC Bulletin in GCSC Syst

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom (High category

1 No video/Normal audio 1

2 No video/No audio 2

3

4 Color error 4

5

6

7 Off when on

8

9 Wrecked audio/discontinuation/noise 9

A. Video error

B. Power error

C. Audio error

Picture broken/ Freezing

external device color error

No power 6

No audio/Normal video 8

Error symptom (Mid category

,

off while viewing, power auto on/off 7

Page Remarks

3

5

10

D. Function error

11 External device recognition error 11

12 E. Noise Circuit noise, mechanical noise 12

13 F. Exterior error Exterior defect 13

14 APPENDIX Power Off History

eck whether there is

Remote control & Local switch checking

1/ 97

10

em for these model.

Contents of LCD TV Standard Repair Process Detail Technical Manual

9

LCD TV

A8

(

residual image, light spot

()

A11

A11

AUO

17

Exchange T

Con Board (2)

A-2/5

g

)

A

g()

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

Check LCD back light with naked eye A1

2 LED driver B+ 24V measuring method A2

A. Video error_ No video/Normal audio

3 Check White Balance value A3

4 Power Board voltage measuring method A5

6

TUNER input signal strength checking method A6

A. Video error_ No video/Video lag/stop

7 LCD-TV Version checking method A7

connection diagram

10 Tuner Checking Part A9

A. Video error_Color error

A10

11 Check Link Cable (LVDS) reconnection condition

A11

12 Adjustment Test pattern - ADJ Key A12

13

14 Check Link Cable

A. Video error_Vertical/Horizontal bar,

LCD TV connection diagram A8

A10

LVDS) reconnection condition

A10 : 32/37/42/47/55
A11 : 32 AUO

A10 : 32/37/42/47/55

: 32

15 Adjustment Test pattern - ADJ Key A12

16 Exchange T-Con Board (1) A-1/5

<Appendix>

18 Exchange LED driver Board (PSU) A-3/5

Defected Type caused by T-Con/ Inverter/
Module

19 Exchan

20 Exchange Module itself (2) A-5/5

-

e Module itself (1

2/ 97

55” : driver board
Other : PSU

-4/5

Standard Repair Process

dat

Error

A. Video error

(

)

2014. 1 .2

A

( ,,p,,

)

j

Repair Power

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Established

LCD TV

First of all, Check whether all of cables between board is inserted properly or not.

Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,ETC…

symptom

No video/ Normal audio

Revised date

☞A4☞A1

e

1/13

No video
Normal audio

※Precaution

Always check & record S/W Version and White
Balance value before replacing the Main Board

Normal

audio

Move to No
video/No audio

☞A7 & A3

Y

N

Check Back Light
On with naked eye

☞A2

Check Power Board 24V output

On

Normal
voltage

Board or parts

Replace Main Board

Y

N

Y

N

Check Power Board
12V,3.5V etc.

Replace Inverter
or module

Normal

voltage

Repair Power Board
or parts

End

Re-enter White Balance value

Y

N

Replace T-con Board
or module

nd Adjust VCOM

☞A28

3/ 97

Standard Repair Process

A. Video error

dat

Error

2014. 1 .2

C

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

No Video/
No audio

☞A4

heck various voltages
of Power Board
( 3.5V,12V or 24V…)

No video/ No audio

Normal

voltage?

Y

Check and
replace
MAIN B/D

Established

e

Revised date

2/13

N

Replace Power
Board and repair
parts

End

4/ 97

Standard Repair Process

dat

Error

2014. 1 .2

A. Video error

A6

N

Y

Y

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

Picture broken/ Freezing

Established

e

Revised date

3/13

☞

Check RF Signal level

Normal
Signal?

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Close

Y

N

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Menu → Settings → Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A7

Normal

Picture?

N

Contact with signal distributor

or broadcaster (Cable or Air)

Y

Check

S/W Version

SVC

Bulletin?

S/W Upgrade

Normal

Picture?

Y

N

Check

Tuner soldering

N

Replace

Main B/D

Close

5/ 97

A

r

Standard Repair Process

dat

Error

2014. 1 .2

☞

A8

contact

N

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check color by input

-External Input

-COMPONENT

-AV

-HDMI/DVI

☞A12

Check Test pattern

symptom

Color

error?

Check error color
input mode

Y

N

External Input/

Component/ AV

. Video erro

Color error

☞ A10/ A11

※ Check and

replace Link
Cable
(LVDS) and

condition

error

Color

error?

N

Check
external
device and
cable

Y

Replace Main B/D

Established

e

Revised date

External device

/Cable

normal

Color

error?

End

Y

4/13

Y

Replace module

N

Replace Main B/D

HDMI/DVI

error

Check external
device and
cable

6/ 97

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main B/D

A

r

Standard Repair Process

dat

Error

2014. 1 .2

Module

HDMI/DVI

error

and cable

Repl

Screen

HDMI/

B

End

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

. Video erro

LCD TV

symptom

Vertical / Horizontal bar, residual image,
light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A8

Check color condition by input

-External Input

-Component

-AV

-

☞A12

Check Test pattern

Screen

normal?

N

Replace
module

Check external

Y

device
connection
condition

Request repair
for external
device

External device screen error-Color error

Check screen
condition by input

Check S/W Version

Check

version

S/W Upgrade

N

Y

-External Input

-Component

-AV

-HDMI/DVI

Normal?

N

Component/AV

☞ A10/ A11

Check and

Y

replace Link
Cable

External

Input

error

Established

e

Revised date

☞ A28

Screen

normal?

N

Replace Main B/D
(adjust VCOM)

For LGD panel

Y

End

Replace Main B/D

For other panel

Connect other external device

(Check normal operation of
External Input, Component, AV
and HDMI/DVI by connecting Jig,
pattern Generator ,Set-top Box
etc.

N

normal?

Y

Request repair for
external device

5/13

Replace

N

Screen

normal?

Y

End

ace

Main B/D

Normal

screen?

Y

N

DVI

Connect other external device
and cable
(Check normal operation of
External Input, Component, AV
and HDMI/DVI by connecting
Jig, pattern Generator ,Set-top

ox etc.

Y

Screen

normal?

N

Replace
Main B/D

7/ 97

r

Standard Repair Process

dat

Error

2014. 1 .2

☞

A17

☞

A19

Check ST

5V

Normal

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check
Power LED

. Stand-By: Red or Logo Light ON
. Operating : off

Check Power cord
was inserted properly

symptom

Power LED

On?

N

Normal?

Y

Close

N

Y

※

☞A18

B. Power erro

No power

DC Power on
by pressing Power Key
On Remote control

-BY 3.

Y

Y

voltage?

N

Established

e

Revised date

Normal

operation?

N

Check Power
On ‘”High”

Y

Replace Main B/D

☞A4

Measure voltage of each output of Power B/D

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

OK?

Y

6/13

Replace
Power
B/D

Replace Power
B/D

8/ 97

r

Standard Repair Process

dat

Error

2014. 1 .2

p

p

g

1

g

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check outlet

Check A/C cord

Check for all 3- phase

ower out

symptom

Error?

Y

Fix A/C cord & Outlet
and check each 3
phase out

B. Power erro

Off when on, off while viewing, power auto on/off

☞A22

N

Check Power Off
Mode

☞A19

(If Power Off mode is
not displayed)
Check Power B/D
voltage

※ Caution

Check and fix exterior
of Power B/D Part

Established

Revised date

CPU

Abnormal

Abnormal

Normal

e?

volta

N

Replace Power B/D

e

Replace Main B/D

Y

Replace Main B/D

Normal?

Replace Power B/D

Y

N

7/13

End

* Please refer to the all cases which can be displayed on power off mode.

Click the below Hyper_link

9/ 97

Standard Repair Process

C. Audio error

dat

Error

2014. 1 .2

Screen normal

Speaker?

voltage

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

☞A24 ☞A25

No audio/ Normal video

Established

e

Revised date

8/13

No audio

Check user
menu >
Sound Out

TV

Change the TV Speaker

Check Speaker
disconnection

Y

N

Check audio B+ 24V
of Power Board

Replace Power Board and repair parts

Y

Replace Speaker / Cable

Normal

N

Replace MAIN Board

Y

N

EndDisconnection

10 / 97

Standard Repair Process

C. Audio error

dat

Error

2014.1.2

Signal

W

/

R

Repl

B/D

End

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

Check input
signal

-RF

-External Input
signal

symptom

normal?

N

Y

(When RF signal is not
received)

equest repair to external

cable/ANT provider

(In case of External
Input signal error)
Check and fix
external device

Wrecked audio/ discontinuation/noise

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

recked audio

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Established

Revised date

Check and replace
speaker and
connector

Replace Main B/D

Connect and check
other external device

e

9/13

☞A25

Check audio
B+ Voltage (24V)

Y

Normal

voltage?

N

Replace Power B/D

ace Main

N

Normal

audio?

Y

Check and fix external device

11 / 97

Standard Repair Process

dat

Error

2014.1.2

Y

N

N

p

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

Remote control & Local switch checking

1. Remote control(R/C) operating error

☞A27

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

Normal

operating?

N

Check & Replace

Baterry of R/C

Y

Normal

operating?

Check & Repair
Cable connection
Connector solder

Close

N

D. General Function Problem

☞A27

Normal

operating?

Close

N

Check B+ 3.5V

On Main B/D

Established

e

Revised date

☞A27

Normal

Voltage?

Y

Output signal

☞A4

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

Check IR

10/13

Replace

Main B/D

Normal

Signal?

Repair/Replace

IR B/D

Y

Replace R/C

12 / 97

r

Standard Repair Process

dat

Error

2014.1.2

input

g

C

t

Replace Main B/D

DVI, Optical

Replace Main B/D

Fix in

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check

signal

D. Function erro

symptom

Y

Signal
input?

N

Check and fix
external device/cable

External device recognition error

Check technical
information

- Fix information

information?

-S/W Version

accordance

with technical

Technical

Y

information

External Input and

N

Recognition error

Recognition error

omponen

HDMI/

Established

e

Revised date

11/13

13 / 97

Standard Repair Process

dat

Error

2014.1.2

of noise

noise type

noise

noise

(For models without any fix information, provide

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Identify

E. Noise

symptom

Circuit

Mechanical

noise

※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description in
“Part related to nose” in the Owner’s Manual.

Check location

Check location of

Circuit noise, mechanical noise

OR

Replace PSU(with LED driver)

Replace LED driver

※ When the nose is severe, replace the module
(For models with fix information, upgrade the S/W or
provide the description)

OR

※ If there is a “Tak Tak” noise from the cabinet,
refer to the KMS fix information and then proceed
as shown in the solution manual

the description)

Established

e

Revised date

12/13

14 / 97

Standard Repair Process

F. Exterior defect

dat

Error

2014.1.2

Cabinet

damage

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

Exterior defect

Established

e

Revised date

13/13

Zoom part with
exterior damage

Module

damage

damage

Remote

controller

Stand

dent

Replace module

Replace cabinet

Replace remote controller

Replace stand

Adjust VCOM

☞A28

15 / 97

Contents of LCD TV Standard Repair Process Detail Technical Manual

ppg

22

Check power input Voltage & ST

-

BY 3.5V

A18

25

viewing

there is no audio

controller, key error

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Continued from previous page

No. Error symptom Content Page Remarks

21 Check front display LED A17

23 Checking method when power is ON A19

24 POWER BOARD voltage measuring method A5

26

27

28

29

30

31

B. Power error_No power

B. Power error_Off when on, off while
viewing

B. Power error_Off when on, off while

C. Audio error_No audio/Normal video

C. Audio error_Wrecked
audio/discontinuation

D. Function error_ No response in remote

POWER OFF MODE checking method A22

POWER BOARD PIN voltage checking method A19

Checking method in menu when there is no
audio

Voltage and speaker checking method when

Voltage and speaker checking method in case of
audio error

Remote controller operation checking method A27

A24

A25

A25

32 D. VCOM Adjustment Sequence of the Vcom adjustment A28

16 / 97

Standard Repair Process Detail Technical Manual

A. Video error_No video/Normal audio

t

2014.1.2

3. After recording the R, G, B (GAIN, Cut) value of Color Tem p (Cool/Medium/Warm), re

-

3. After recording the R, G, B (GAIN, Cut) value of Color Tem p (Cool/Medium/Warm), re

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

om

Check White Balance value

Established

date

Revised

date

A3

Entry method

Entry method

1. Press the ADJ button on the remote controller for adjustment.

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 7.

enter the value after replacing the MAIN BOARD.

enter the value after replacing the MAIN BOARD.

17 / 97

-

Standard Repair Process Detail Technical Manual

A. Video error_No video/ Audio

t

2014.1.2

9

24V

10

24V

17

GND

18

GND

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symp

Content

om

Power Board voltage measuring method

Check the DC 24V, 12V, 3.5V.

18 or 24 Pin (Power Board ↔ Main Board) -

1 PWR ON/OFF 2 INV ON

3 3.5V 4 PDIM #1
5 3.5V 6 3.5V
7 GND 8 PDIM #2

11 GND 12 GND
13 12V 14 12V
15 12V 16 24V or N.C

Established

date

Revised

date

SMAW200-H18/24S5 (YEONHO)

A5

공통

19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIMO_MOSI 24 L/DIMO-SCLK

The Wafer,18Pin and 24Pin, is used by operating LocalDimming or not LocalDimming

- 24Pin wafer is applied operating L/D at power and main B/D

- 18Pin wafer is applied not operating L/D at power and main B/D

18 / 97

Standard Repair Process Detail Technical Manual

A. Video error_Video error, video lag/stop

t

2014.1.2

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

om

TUNER input signal strength checking method

Established

date

Revised

date

MENU -Æ Settings Æ support -Æ signal test

-Æ select channel

A6

When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)

19 / 97

Standard Repair Process Detail Technical Manual

A. Video error_Video error, video lag/stop

2014. 1

6

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Version

Error

symptom

Content

LCD-TV Version checking method

Established

date

Revised

date

1. Checking method for remote controller for adjustment

.

A7

Press the IN-START with the remote
controller for adjustment

20 / 97

Standard Repair Process Detail Technical Manual

t

2014.1.2

diti

l

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

om

A. Video error _Vertical/Horizontal bar, residual Established

image, light spot

LCD TV connection diagram (1)

date

Revised

date

A8

As the part connecting to the external input,
check the screen con

on by signa

21 / 97

Standard Repair Process Detail Technical Manual

A. Video error_Video error, video lag/stop

t

2014. 1 .6

g

gg

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

om

TUNER checking part

Established

date

Revised

date

A9

Checking method:

1. Check the si

nal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.( with Main to Power Cable, Speaker Cable and LVDS or EPI Cable)

22 / 97

Standard Repair Process Detail Technical Manual

A. Video error_Color error

t

2014.1.2

Checking item : 1. Defective pixel

Residual image

MODULE error (ADD

BAR,SCAN BAR..)

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symp

Content

om

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

A12

You can view 6 types of patterns using the ADJ Key

4.Video error (Classification of MODULE or Main-B/D!)

2.

3.

23 / 97

-

Standard Repair Process Detail Technical Manual

B. Power error _No power

t

2014.1.2

Front LED control :

gg

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symp

Content

om

Check front display LED

Established

date

Revised

date

Menu Æ Option Æ LG Logo Light
Æ Brightness and Duration

A17

ST-BY condition: Red or Logo Light ON
Power ON condition: OFF or User Settings

24 / 97

Standard Repair Process Detail Technical Manual

B. Power error _No power

t

2014. 1 .6

When st

by, only 3.5V is normally on

9

24V

10

24V

17

GND

18

GND

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

LCD TV

symp

om

Content

Check power input voltage and ST-BY 3.5V

For 13’ models, there is no voltage out for st-by purpose.

-

Edge LED

Edge LED

.

1 PWR ON/OFF 2 INV ON

3 3.5V 4 PDIM #1
5 3.5V 6 GND
7 GND 8 PDIM #2

11 GND 12 GND
13 12V 14 12V
15 12V 16 24V or N.C

Established

date

Revised

date

18 or 24 Pin (Power Board ↔ Main Board) -

FREE LGP-14PL1-IT

A18

공통

19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIMO_MOSI 24 L/DIMO_SCLK

The Wafer,18Pin and 24Pin, is used by operating LocalDimming or not LocalDimming

- 24Pin wafer is applied operating L/D at power and main B/D

- 18Pin wafer is applied not operating L/D at power and main B/D

25 / 97

Standard Repair Process Detail Technical Manual

B. Power error _No power

t

2014.1.2

9

24V

10

24V

17

GND

18

GND

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Edge LED

Edge LED

Error

symp

Content

om

Checking method when power is ON

Check “power on” pin is high

18 or 24 Pin (Power Board ↔ Main Board) -

1 PWR ON/OFF 2 INV ON

3 3.5V 4 PDIM #1
5 3.5V 6 3.5V
7 GND 8 PDIM #2

11 GND 12 GND
13 12V 14 12V
15 12V 16 24V or N.C

Established

date

Revised

date

FREE LGP-14PL1-IT

A19

공통

19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIMO_MOSI 24 L/DIMO_SCLK

The Wafer,18Pin and 24Pin, is used by operating LocalDimming or not LocalDimming

- 24Pin wafer is applied operating L/D at power and main B/D

- 18Pin wafer is applied not operating L/D at power and main B/D

26 / 97

Standard Repair Process Detail Technical Manual

B. Power error

Off when on, off whiling viewing

t

2014.1.6

Entry method

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

om

_

POWER OFF MODE checking method

Established

date

Revised

date

A22

1. Press the IN-START button of the remote controller
for adjustment

2. Check the entry into adjustment item 3

27 / 97

Standard Repair Process Detail Technical Manual

C. Audio error_No audio/Normal video

t

2014.1.2

Checking method

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

om

Checking method in menu when there is no audio

Established

date

Revised

date

A24

1. Press the MENU button on the remote controller

2. Select the SOUND function of the Menu

3. Select TV Speaker from Others

28 / 97

Standard Repair Process Detail Technical Manual

C. Audio error_No audio/Normal video

t

2014. 1 .6

18 or 24 Pin

(Power Board

Main Board)

공

13

12V

14

12V

24Pi

B/D

③

C

RX1

“Chik Chik”

GND

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

om

Voltage and speaker checking method
when there is no audio

②

FREE LGP-14PL1-IT

1 PWR ON/OFF 2 INV ON
3 3.5V 4 PDIM #1
5 3.5V 6 3.5V
7 GND 8 PDIM #2

②

9 24V 10 24V

11 GND 12 GND

15 12V 16 24V or N.C
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIMO_MOSI 24 L/DIMO_SCLK

통

↔

Established

Revised

-

date

date

③

A25

①

Checking order when there is no audio

① Check the contact condition of or 24V connector of Main Board

② Measure the 24V input voltage supplied from Power Board

(If there is no input voltage, remove and check the connector)

onnect the tester

to the speaker terminal and if you hear the

and output terminal, the speaker is normal.

29 / 97

The Wafer,18Pin and 24Pin, is used by operating LocalDimming or not
LocalDimming

-

n wafer is applied operating L/D at power and main

- 18Pin wafer is applied not operating L/D at power and main B/D

sound when you touch the

Standard Repair Process Detail Technical Manual

k

r

t

2014. 1 .6

P4102

9

EYE_SCL

g

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symp

Content

D. Function error_ No response in remote controller,

om

ey erro

Remote controller operation checking method

Established

date

Revised

date

③

④

A27

1
2
3
4
5
6
7IR
8GND

10 EYE_SDA

GND
KEY1
KEY2

+3.5V_ST

GND

LOGO/LED_R

①

Checking order

1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.5V on the terminal 6.

4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog
Tester needle moves slowly, and defective when it does not move at all.

②

30 / 97

Standard Repair Process Detail Technical Manual

D. VCOM Adjustment

t

2014.1.2

■

LCD

■

Service Remote controller

■

A

COM

Which i

y

y

j

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symp

Content

om

Sequence of the Vcom adjustment

Established

date

Revised

date

1. Case

module change

■ T-Con board change

2. Equipment

3. Adjust sequence

■ Press the ‘adj’ key

■ select V-COM

s pushing the right or the left button on the remote controller, And find the V-

minimized the Flicker.

(If there is no flicker at default value, Press the exit key and finish the VCOM adjustment.)

■ Push the OK key to store the value. Then the message “Saving OK” is pop.

■ Press the exit ke

to finish V-COM adjustment.

value

A28

s no or

31 / 97

Appendix : Power OFF History

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Status Power off List Explanation

POWER_OFF_BY_REMOTE KEY POWER_OFF_BY_REMOTE CONTROL

POWER_OFF_BY_OFF_TIMER POWER_OFF_BY_OFF TIMER

POWER_OFF_BY_SLEEP_TIMER POWER_OFF_BY_SLEEP TIMER

POWER_OFF_BY_TS_END POWER_OFF_BY_REMOTE or LOCAL KEY While recording

POWER_OFF_BY_INSTOP_KEY POWER_OFF_BY_INSTOP KEY

POWER_OFF_BY_AUTO_OFF POWER_OFF_BY_AUTO OFF

POWER_OFF_BY_ON_TIMER POWER_OFF_BY_ON TIMER

Normal

Abnormal POWER_OFF_BY_5VMNT POWER_OFF_BY_AC DETECT

POWER_OFF_BY_RS232C POWER_OFF_BY_RS232C

POWER_OFF_BY_RESREC POWER_OFF_BY_Reservated Record

POWER_OFF_BY_RECEND POWER_OFF_BY_End of Recording

POWER_OFF_BY_SWDOWN POWER_OFF_BY_S/W Download

POWER_OFF_BY_LOCAL_KEY POWER_OFF_BY_LOCAL KEY

POWER_OFF_BY_OTA POWER_OFF_BY_End of OTA

POWER_OFF_BY_SIGNAL_DETECT POWER_OFF_BY_Another MICOM (Only OLED)

POWER_OFF_BY_RESET POWER_OFF_BY_Factory Reset

POWER_OFF_BY_UNKNOWN POWER_OFF_BY_unknown status except listed case

POWER_OFF_BY_ABN POWER_OFF_BY_abnormal Panel status

POWER_OFF_BY_KEY_TIMEOUT POWER_OFF_BY_abnormal Power Off Key At Warm/Hot status

POWER_OFF_BY_ACDET POWER_OFF_BY_AC OFF

POWER_OFF_BY_NO_POLLING POWER_OFF_BY_MCU Abnormal for 15 sec.

POWER_OFF_BY_1SEC_POWER_OFF POWER_OFF_BY_MCU Abnormal status with Power Off Key

POWER_OFF_BY_20VMNT POWER_OFF_BY_abnormal Panel status (Only OLED)

32 / 97

Appendix : Exchange T-Con Board (1)

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Solder defect, CNT Broken Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

33 / 97

Appendix : Exchange T-Con Board (2)

y

Solder defect, Short/Crack

Fuse Open, Abnormal power section

py

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Abnormal Power Section

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Displa

GRADATION

Noise GRADATION

34 / 97

Appendix : Exchange PSU(LED driver)

Dim Light

Dim Light

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No Light

Dim Light

No picture/Sound Ok

35 / 97

Appendix : Exchange the Module (1)

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Press damage

Crosstalk

Un-repairable Cases

In this case please exchange the module.

Press damage

36 / 97

Appendix : Exchange the Module (2)

Source TAB IC Defect

Gate TAB IC Defect

Gate TAB IC Defect

Horizontal Block

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Vertical Block

Horizontal Block

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect

Un-repairable Cases

In this case please exchange the module.

Gate TAB IC Defect

Gate TAB IC Defect

37 / 97
