Note: Prior to cloning the Public Display Mode
Setup, be sure to set up all the other TV features
that should be included in the master TV setup.
This includes channel adding-deleting, video and
audio menu setups and other TV features that are
clonable. Refer to the TV installation guide for
specific details.
PUBLIC DISPLAY MODE SETUP
20/23LS7DC, 26/32LC7DC, 42/50PC5DC, 60PC1DC
Integrated TVs
How to use the TLL-1100A TV-Link Loader
to copy and clone a Master TV setup is
provided in the operation manual supplied
with the TV-Link Loader
P/NO : MFL34797021 (0707-REV01)
Printed in Korea
Page 2
2
WARNING / CAUTION
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
FCC NOTICE
Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the point of the cable
entry as practical.
Page 3
3
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate
booklet or sheet, or be located before any operating instructions in an instruction for installation for use and
supplied with the apparatus.
This information shall be given in a language acceptable to the country where the apparatus is intended to be used.
The important safety instructions shall be entitled “Important Safety Instructions”. The following safety
instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety
information may be included by adding statements after the end of the following safety instruction list. At the
manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be
placed immediately adjacent to that safety instruction:
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers)that produce heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Only use attachments/accessories specified by
the manufacturer.
Unplug this apparatus when unused for long
periods of time.
Owner Ma
nual
Owne r Ma nual
Owne r Ma nual
Owner Ma
nual
Owne r Ma nual
Owner Ma
nual
Owne r Ma nual
Owner Ma
nual
Owne r Ma nual
Owner ManualOwner Ma
nual
1
2
3
4
5
6
7
8
Owner Ma
nual
Page 4
4
SAFETY INSTRUCTIONS
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Never touch this apparatus or antenna during
a thunder or lighting storm.
Do not allow a impact shock or any objects to
fall into the product, and do not drop onto the
screen with something.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has exposed to rain or moisture,
does not operate normally, or has been
dropped.
CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and
has no additional outlets or branch circuits.
Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of
these conditions could result in electric shock
or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use
of the appliance, and have the cord replaced
with an exact replacement part by an authorized
servicer. Protect the power cord from physical
or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the
appliance.
Outdoor use marking :
WARNING - To reduce the risk of fire or elec-
tric shock, do not expose this appliance to rain
or moisture.
Wet Location Marking : Apparatus shall not be
exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.
GGRROOUU NNDDIINNGG
Ensure that you connect the earth ground wire
to prevent possible electric shock. If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas pipes.
DDIISSCC OONNNNEECC TT II NN GG PPOOWWEE RR ::
Power is supplied to the Link-Loader if the
power cord is connected. Unplug power cord
from AC power outlet to remove power.
Owner Ma
nual
Owne r Ma nual
nual
Owner Ma
nual
Owner Ma
nual
Owner Ma
nual
Owner Ma
nual
9
12
10
11
13
14
15
16
17
Power
Supply
Short-circuit
Breaker
Page 5
5
CONTENTS
WARNING / CAUTION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY INSTRUCTIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION MENU
Entering the Installation Menu
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Public Display Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
TV Link-Loader
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Password Change
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

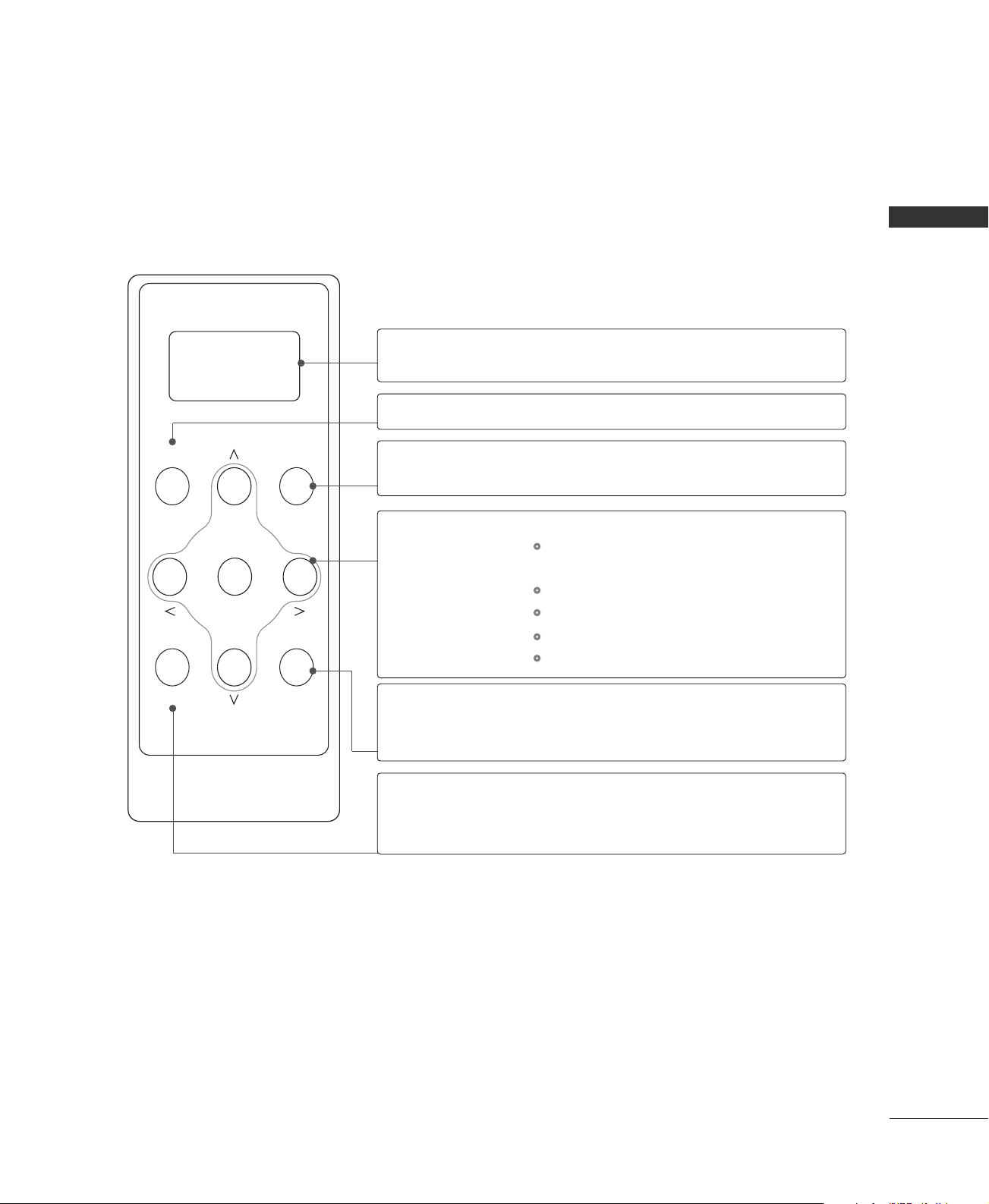

TV Link-Loader Key Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
Page 6
INSTALLATION MENU
6
INSTALLATION MENU

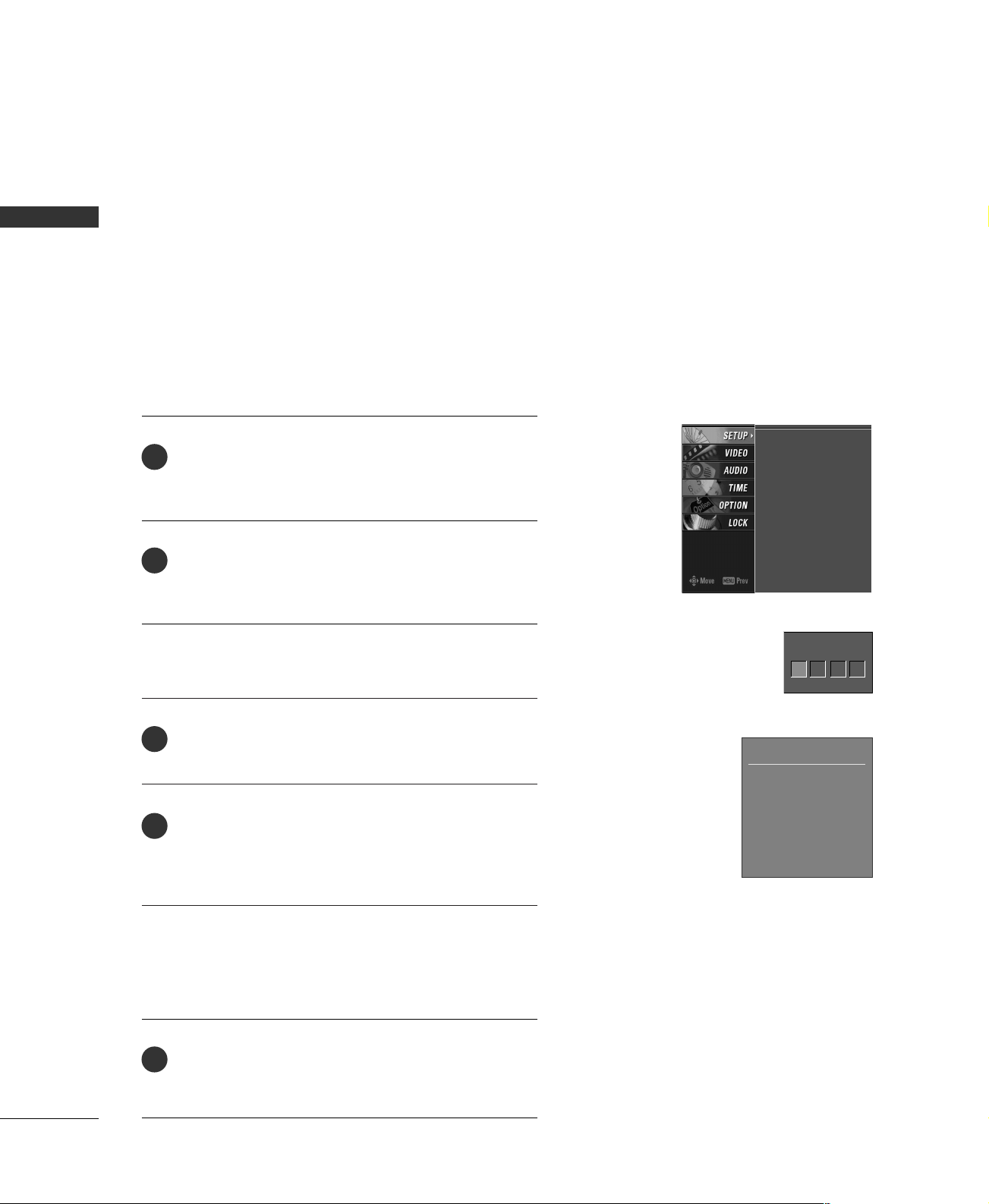

ENTERING THE INSTALLATION MENU
With an LG installer remote, press and hold down the
Menu key for five seconds. The TV screen will show
the Enter Password display.
Key in “1-1-0-5” and press
EE NN TT EERR
button. This is
the initial password. The password can be changed as
required.
The feature set up available on this LG commercial TV which features ‘TV link’ are shown on the ‘Installation
Menu ’. This simple menu is designed to make it easy and efficient for the system integrator to install and set up
the institution’s communications system.
Public Display Mode controls operation and functionality of the TV. Once set up, these settings are clonable; they
can be copied and transferred to another identical TV. See the TV Link-Loader section for cloning details.
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label
Set ID
2
1
Use the
DD
or
EE
button to select the Public Display
Settings option and press the
GG
button.
Once in the Public Display Settings menu, use the
DD
EE FF GG
button to select and adjust the menu options
to your requirements. If you want Public Display mode
to be enabled, select ‘Yes’ for that option.
4
3
Press and hold the
MMOODD EE
button for more that 3
seconds. The TV will automatically display the
Installation Menu after about 5-7 seconds.
1
Installation Menu (V1.0)
Public Display Settings
G
TV Link-Loader
G
Password Change
G
Set ID setup
G
Enter Password
** **
Accessing the Installation Menu with
the Menu Button
Accessing the Public Display Mode Menu
Accessing the Public Display Mode
Menu with the Mode Button
Page 7
INSTALLATION MENU
7
PUBLIC DISPLAY SETUP
Use the
DD
or
EE
button to select desired menu options.
Use the
FF
or
GG
button to adjust the menu option settings.
Set item to act TV with standalone.
2
1
Installation Menu (V1.0)
Public Display Settings
G
TV Link-Loader
G
Password Change
G
Set ID setup
G
Public Display Settings
Public Display Mode No
Start Channel No
Ch. Type DTV
Major 12
Minor 2
Minimum Volume 0
Maximum Volume 100
Start Volume No
Level 15
Power Management No
Setting 7
Key Management 0
Factory Reset 0
Aspect Ratio 0
0011.. PPuubblliicc DDiissppllaayy MMooddee
If ‘Public Display Mode is set to Yes (Enabled), all functions of Public Display
Settings are active. If ‘Public Display Mode is set to No (Disabled), all functions
of Public Display mode are not active.
0022.. SSttaarrtt CChhaannnneell
This function allows you to determine the initial channel number when the TV
is turned On. This feature is useful for an in-house information channel, since
the TV would always select that channel when it is turned On. Setting this to
255 causes the last channel viewed when the TV was turned Off, to be the
tuned to channel when the TV is turned On again.
0033.. MMiinniimmuumm VVoolluummee
This function determines the minimum volume level allowable with the VOLUME
(VOL) Up/Down control. In this way, for example, someone cannot set the volume too low to hear. The value range is from 0 to 63 — change values with ADJ
Left/Right arrow. The factory default is 0, which provides the full range of volume control, if item 009 MAX VOLUME is also set to 63. It may be best to set
the same value on every TV.
NOTE: The minimum volume level cannot have a value setting higher than the
MAX VOLUME level (described below).
0044.. MMaaxxiimmuumm VVoolluummee
This function determines the maximum volume level allowable with the VOLUME (VOL) Up/Down controls. In this way, for example, someone can not set
the volume level high enough to disturb others. The value range is 0 to 63, with
63 as the default, which gives the user the full range of volume control, if item
008 MIN VOLUME is also set at 0. Change values with ADJ Left/Right arrow
keys. It may be best to set the same value on every TV.
NOTE: The maximum volume level cannot have a value setting lower than the
MIN VOLUME level (described previously).
Public Display Mode Menu Items
Page 8
INSTALLATION MENU
8
INSTALLATION MENU
0055.. SSttaarrtt VVoolluummee
This function allows the Installer to determine the initial volume
level setting when the TV is turned ON. This feature is useful
for an in-house information channel, since the TV would always
select that Volume level when it is turned on. The range of values
are 0 - 63, 255. If 255 is selected, the current volume level will
be retained in memory when the TV is turned Off. At TV turn
On, Volume level is automatically set to the previous level.
Setting is retained in non-volatile memory.
0066.. PPoowweerr MMaannaaggeemmeenntt
Determines hours of no activity before automatic shutoff. The
POWER MANAGE function is for saving energy. If set to No,
Power Manage is disabled. Settings range from 1 ~ 7, repre-
senting the hours that the unit will remain On, unless there has
been activity from either the control panel or remote control.
Setting is retained in non-volatile memory.
0077.. KKeeyy MMaannaaggeemmeenntt
If set to 1, key defeat prevents the end user from accessing the
on-screen menus with the display front panel-MENU, SELECT,
and
FF
or GGbutton do not function. If set to 0, those keys do
function.
Note: The menus can always be accessed by pressing MENU
button on the remote.
Key management when enabled determines the level of control
that the guest has over the television. Key management has
four modes: (default is ‘0’)
0 = Television is unrestricted and responds to all commands.
1 = Key defeat ”prevents the television from responding
to “MENU”key presses on the front panel.
2 = “Key Lock ”prevents the television from responding to
any front panel key press.
3 = “System provider ”mode allows access to the menu
system from the front panel or remote control but
access is controlled as follows
* TV Guide if equipped – no access
* “Setup” – only access to main/pip input select screens
* “Video” – no access
* “Audio” – no access
* “Time” – only access to sleep timer
* “Option”– only access to aspect ratio, closed caption,
SimpLink
* “Lock” – full access
Setting is retained in non-volatile memory.
0088.. FFaaccttoorryy RReesseett
Set to 0 for normal.
Set to 1 to load presets to all of the previous item settings and
exit menu.
WARNING: Setting this to 1 will reload the factory defaults.
Setting is retained in non-volatile memory.
0099.. AAssppeecctt RRaattiioo
Selects default aspect ratio at power up, see settings below.
Set to 0 to disable. Aspect Ratio will stay at previous state.
Set to 1 “Set By Program”.
Set to 2 for 4:3.
Set to 3 for 16:9 (Factory Default).
Setting is retained in non-volatile memory.
Item Enable Disable Initial
Public Display Mode
Start Channel
Ch. Type
Major No.
Minor No.
Minimum Volume
Maximum Volume
Start Volume
Level
Power Management
Setting
Key Management
Factory Reset
Aspect Ratio
Yes No No
Yes No No
TV/CATV/DTV/CADTV TV
Subject to Ch. Type 2
Subject to Ch. Type 0
0 ~ 100 0
0 ~ 100 100
Yes No No
0 ~ 100
Yes No No
1 ~ 7 1
0 ~ 30
0 ~ 1 0
0 ~ 3 0
Page 9
INSTALLATION MENU
9
TV LINK-LOADER
The TLL-1100A TV TV Link-Loader is not supplied with this TV. It is available for purchase from your LG dealer as
an optional item. See your LG dealer.
The TV Link-Loader allows a Master TV setup with Public Display Mode Setup to be copied and transferred into
other identical TVs. Once copied into another identical TV, the Target TV will function exactly like the original.
Note: Please see TLL-1100A Installation and Operating Guide for complete TV Link-Loader Setup and Cloning
Operating Instructions.
CC oonnnn eeccttiioonnss
Connect the MPI cord provided with the TLL-1100A TV Link-Loader into the TV RS-232C port. Connect the other end of the cable
with the stereo mini-plug into the RS-232C input port which is located on the right side of the Link-Loader.
OOnn-- OOff ff SSwwiitt cchh
Just below the RS-232C input on the Link-Loader is the On-Off Switch. Set the switch to the On position. The display should read
‘TLL-1100A Ready’.
TTVV SSeettuupp
Turn the TV display panel on. Tune to an analog channel.
TTLLLL--11110000AA TTVV LLiinnkk--LLooaaddeerr OOppeerraattiioonn
Point the unit toward the lower center of the TV screen (IR receiver). While holding the unit steadily in this position, press and hold
the Mode button in until the TV Link Loader LCD display changes from “Ready” to “Mode in”. Continue to hold Mode in as the LED
on TV blinks while the TV goes through the access sequence and shows the Setup menu, the Password Menu and finally the Installation
menu. Release the Mode button. Use the Down arrow button to select ‘TV Link-Loader’ and press the Enter button. ‘Ready to Downl
oad’
display will appear on the TV screen.
RReecceeiivviinngg MMaasstteerr TTVV SSeettuupp DDaattaa
Press the Receive button to put the Link-Loader into Receive mode. The LCD will show Receive. Press the Enter button to begin r
eceiving.
The LCD will show 0XX Prg the progress bar. Check the TV Volume OSD to show receiving progress. The Link-Loader will record the
TV setup data in its internal memory. If an error occurs, press Receive to cancel receiving.
SSeennddiinngg MMaasstteerr TTVV SSeettuupp DDaattaa
Press the Send button to put the Link-Loader into Send mode. When IR Send or RS Send appears on the LCD, press Enter. The Link
-
Loader will transfer the TV setup data in its internal memory to the Target TV. If an error occurs, press Send to cancel sendin
g. After
the transfer is complete, the OSD is removed from the screen and the TV turns off. TV turn off indicates that the transfer is complete.
Refer to the TLL-1100A User’s Manual for more detailed information.
TV / Link-Loader Setup
Page 10
INSTALLATION MENU
10
INSTALLATION MENU
PASSWORD CHANGE
Use the
DD
or EEbutton to select the
PPaasssswwoorrdd CChhaannggee
option and then press the
GG
or
EE NN TTEERR
button.
Key in 1-1-0-5 or the old password.
■
If the password is incorrect, the unit will return to the
Installation menu.
Key in a new four digit password, key in the password
again for confirmation.
■
Password cannot be “8-7-4-1”. That sequence of
number is used to enter the calibration menu.
If security for the system is a critical issue, the password can
be changed.
1
2
SET ID SETUP
Use the
DD
or EEbutton to select the
SSeett IIDD SSeettuupp
option and then press the
GG
or
EENNTTEE RR
button.
Select Yes to enable set ID Lock or No to disable set
ID Lock.
Key in a set ID number 1 ~ 99.
1
2
3
Installation Menu (V1.0)
Public Display Settings
G
TV Link-Loader
G
Password Change
G
Set ID setup
G
New
Confirm
****
****
Installation Menu (V1.0)
Public Display Settings
G
TVLink-Loader
G
Password Change
G
Set ID setup
G
Set ID setup
Set ID Lock No
Set ID 1
Changing the Password
Page 11
INSTALLATION MENU
11
TV LINK-LOADER KEY FUNCTIONS
(See Users Manual for Key Functions)
LCD FUNCTION
DISPLAY WINDOW
MODE
MENU
UP/DOWN/LEFT
/RIGHT/ENTER
SEND
RECEIVE
Shows current operating function.
Selects ‘Ready’ and ‘Mode In’ functions.
Brings up the main menu to the screen.
Enters or exits menus and submenus.
Use to navigate menus and submenus.
ENTER: Functions like an Enter key on a regular
remote control.
Up: Channels Up.
Down: Channels Down.
Left: Controls Volume Down.
Right: Controls Volume Up.
See Users Manual for send key functions.
Send key functions change depending on operating
mode.
See Users Manual for receive key functions.
Receive key functions change depending on
operating mode.
TV LINK
Loader
TLL 1100A
Ready
MODE MENU
ENTER
RECEIVE
SEND
Page 12
For Customer Support/Service Please call:
1-888-865-3026
www.lgcommercial.com
Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.
1000 Sylvan Avenue
Englewood Cliffs, NJ 07632
©Copyright 2007, LG Electronics U.S.A., Inc.
Loading...
