LG 39LY340C-UA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LA4AA

MODEL : 39LY340H/C 39LY340H/C-UA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68080453(1406-REV01)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 9

TROUBLE SHOOTING ............................................................................ 15

BLOCK DIAGRAM .................................................................................. 21

EXPLODED VIEW .................................................................................. 22

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shor ts of the circuitr y tha t may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied LED TV with LA4AAchassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage

Market Input voltage Frequency Remark

USA 110~240V 50/60Hz Standard Voltage of each

product is marked by models

4) Specification and performance of each parts are followed ea ch drawing and sp ec ification by pa rt number in accordance with BOM

5) The receiver must be operated for about 20 minutes prior to the adjustment

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

4. General Specification

No Item Specication Result Remark

1. Receiving System ATSC / NTSC-M / 64 & 256 QAM

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) DTV : 02-69

4) CATV : 01~135

5) CADTV : 01~135

3. Input Voltage AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz (N.America)

4. Market NORTH AMERICA

5. Screen Size 42/47/55inch Wide (1920 × 1080) FHD + 60Hz

32inch Wide (1366 × 768) HD + 60Hz

6. Aspect Ratio 16:9

7. Tuning System FS

8. Module POLA LC320DXE-FGA3 LGD 32LY340C-UA

HC390DUN-VCHS3 HEESUNG 39LY340H-UA

V390HJ4-PE LGD 39LY340C-UA

LC420DUE-FGA3 LGD 42LY340C-UA

LC470DUE-FGA3 LGD 47LY340C-UA

LC550DUE-FGA3 LGD 55LY340C-UA

9. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

Only for training and service purposes

- 6 -

5. Supported video resolutions

5.1. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

7. 1280*1024 63.981 60.020 108.0 VESA (SXGA) O

8. 1600*1200 75.00 60.00 162.0 VESA (UXGA) X

9. 1920*1080 67.50 60.00 148.5 HDTV 1080P O

5.2. HDMI Input 1 (PC/DTV)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed DDC

PC (DVI) DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1152*864 54.348 60.053 81.62 VESA O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024 63.981 60.020 108.0 VESA (SXGA) O

9. 1920*1080 67.50 60.00 148.5 HDTV 1080P O

DTV

1 720*480 31.50 60.00 27.027 SDTV 480P

2 720*480 31.47 59.94 27.00 SDTV 480P

3 1280*720 45.00 60.00 74.25 HDTV 720P

4 1280*720 44.96 59.94 74.176 HDTV 720P

5 1920*1080 33.75 60.00 74.25 HDTV 1080I

6 1920*1080 33.72 59.94 74.176 HDTV 1080I

7 1920*1080 67.50 60.00 148.50 HDTV 1080P

8 1920*1080 67.432 59.94 148.352 HDTV 1080P

9 1920*1080 27.00 24.00 74.25 HDTV 1080P

10 1920*1080 26.97 23.976 74.176 HDTV 1080P

11 1920*1080 33.75 30.00 74.25 HDTV 1080P

12 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 7 -

5.3. HDMI Input

5.3.1. HDMI Input(1.4a)

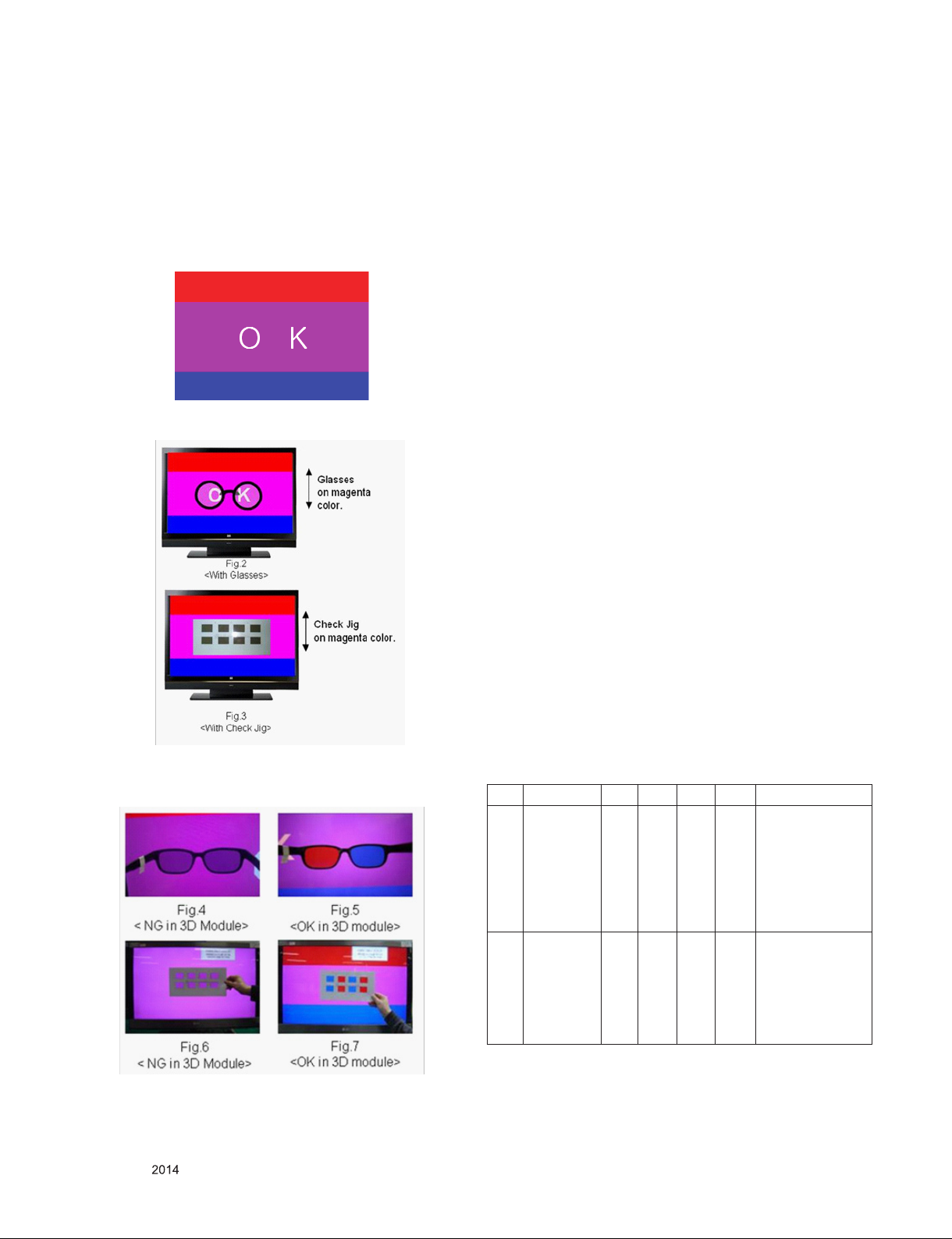

- When connect the cable on TV or change the input mode, 3D display on automatically

- Display OSD information -> 1920x2205 [1080p 24], 1280x1470 [720p 60]

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1. 1280*720 89.9 / 90 59.94/60 148.35/148.5 HDTV 720P Frame packing (720 60p)

2. 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top & Bottom

3. 1920*1080 53.95 / 54 23.98 / 24 148.35/148.5 HDTV 1080P Frame packing (1080 24p)

4. 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top & bottom

5. 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top & Bottom

6. 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top & Bottom

7. 1920*1080 33.7 30 74.25 HDTV 1080P Side by Side(half), Top &Bottom

5.3.2. HDMI Input(1.3)

- Connect the HDMI cable & receiving the HDMI signal

- Press “3D” key of remote control & select 3D format below.

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1. 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom

2. 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom

3. 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom

4. 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom

5. 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Single Frame Sequential

5.4. USB Input

5.4.1. Movie

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1. 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom

5.4.2. MPO Picture 3D : when selecting the MPO file, Automatically 3D on

5.4.3. 3D Demo in store mode

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1. 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side

5.4.4. RGB-PC Input

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1. 1920*1080 67.50 60.00 148.50 HDTV 1080P Side by Side, Top & Bottom

Only for training and service purposes

- 8 -

ADJUSTMENT INSTRUCTION

1. Application

This spec. sheet applies to LA4AA Chassis applied LED TV all models manufactured in TV factory

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5 ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) At first Worker must turn on the SET by using Power Only

key. (6) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15

ºC

In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2

hours In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above

15°C for 3 hours.

※ Caution When still image is displayed for a period of 20 minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area

3. Adjustment items

3.1. Main PCBA Adjustments

(1) ADC adjustment : ADC adjustment is OTP (Auto ADC) (2) EDID download : HDMI

■ Above adjustment items can be also performed in Final

Assembly if needed.

Both Board-level and Final assembly adjustment items can

be check using In-Start Menu (1.Adjust Check).

Component 1080p and RGB-PC Adjust will be calculated by

480i adjust value

4. MAIN PCBA Adjustments

4.1. ADC Adjustment

4.1.1. Overview

▪ ADC adjustment is needed to find the optimum black level

and gain in Analog-to-Digital device and to compensate RGB deviationI

4.1.2. Equipment & Condition

(1) Protocol: RS-232C (2) Inner Pattern

- Resolution : 1024*768(RGB)

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

4.1.3. Adjustment

4.1.3.1. Adjustment method

- Connect to Jig by using RS-232(USB), adjust RGB

* Manual adj (If needed in Final Assembly)

- Required equipment : Adjustment R/C

- Enter Service Mode by pushing “ADJ” key,

- Start ‘OTP ’ ADC Type by pushing ‘►’ key at [7. ADC

Calibration]

4.1.3.2. Adj. protocol (only Internal patten)

Protocol CMD 1 CMD 2 Data 1 Data 2 Remark

Enter adj mode

Start ADC adj

4.1.3.3. ADC RGB (1) Press the In-start Key on the ADJ remote after at least 1

min of signal reception. Then, select ADC Calibration. And Press OK Button on the menu “Start”. The adjustment will start automatically.

(2) If ADC RGB is succe ssful, “ADC RGB Succ ess” is

displayed and ADC RGB is completed. If ADC calibration is failure, “ADC RGB Fail” is displayed.

(3) If ADC calibration is failure, after rechecking ADC pattern

or condition, retry calibration

a a 00 00 When transfer the

‘Mode In’,Carry the command.

a d 00 10 Automatically

adjustment (Use internal pattern)

3.2. Final assembly adjustment

(1) White Balance adjustment (2) RS-232C functionality check (3) Factory Option setting per destination (4) Shipment mode setting (In-Stop) (5) GND and HI-POT test

3.3. Appendix

(1) Shipment conditions (2) Tool option menu (3) USB Download (S/W Update, Option and Service only) (4) Preset CH Information

Only for training and service purposes

- 9 -

4.2. EDID Download

4.2.1. Overview

▪ It is a VESA regulation. A PC or a MNT will display an

optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

4.2.2. Equipment

(1) Since EDID data is embedded, EDID download JIG, HDMI

cable is not need.

(2) Adjust by using remote controller

4.2.3. Download method

(1) Press Adj. key on the Adj. R/C. (2) Select EDID D/L menu. (3) By pressing Enter key, EDID download will begin (4) If Download is successful, OK is display, but If Download is

failure, NG is displayed. (5) If Download is failure, Re-try downloads. ※Caution : Wh en EDID Download, must remove HDMI

Cable.

4.2.3.1. Models for EDID Data

not Deep Color, DTS + AC3 + PCM

DTS

Ver 0.10

RGB 88 - - - - -

HDMI1 6F8D E78D E746 6F60 E760 E719

HDMI2 6F7D E77D E736 6F50 E750 E709

PCM

Ver 0.10

RGB 88 - - - -

HDMI1 6F08 6F08 E708 E708 E7C1

HDMI2 6FF8 - E7F8 - E7B1

(1)8Bit_HD(2)8Bit_

(7_a)8Bit_HD(7_b)8Bit_HD(8_a)8Bit_

2D 3D

(3)10Bit_

FHD

not Deep Color, DTS + AC3 + PCM

(4)8Bit_HD(5)8Bit_

2D

FHD

(8_b)8Bit_

FHD

(6)10Bit_

FHD

(9)10Bit_

4.3. Tool Option Input

- Input Model Tool Option according to BOM

FHD

5. Final Assembly Adjustment

5.1. White Balance Adjustment

5.1.1. Overview

5.1.1.1. W/B adj. Objective & How-it-works (1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 ºC

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

- Before White balance adjustment, Keep power on status,

don’t power off

5.1.1.2. Adj. condition and cautionary items (1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

- After Aging Start, Keep the Power ON sta tus during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

5.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)

(2) Adj. Computer(During auto adj., RS- 232C protocol is

needed) (3) Adjust Remocon (4) Vi deo Signal Gene rator MSPG-925F 720p/204-G ray

(Model:217, Pattern:49)

→ Only when internal pattern is not available

※ Color Anal yzer Ma trix sh ould be calibr ated us ing

CS-1000

Only for training and service purposes

- 10 -

5.1.3. Equipment connection

5.1.4. Adjustment Command (Protocol)

(1) RS-232C Command used during auto-adj

RS-232C COMMAND

CMD DATA ID

Wb 00 00 Begin White Balance adj.

Wb 00 ff End White Balance adj.

(internal pattern disappears )

(2) Adjustment Map

Command

Adj. item

Cool R Gain j g 00 C0 TBD

G Gain j h 00 C0 TBD

B Gain j i 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Medium R Gain j a 00 C0 TBD

G Gain j b 00 C0 TBD

B Gain j c 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Warm R Gain j d 00 C0 TBD

G Gain j e 00 C0 TBD

B Gain j f 00 C0 TBD

R Cut TBD

G Cut TBD

(lower case ASCII)

CMD1 CMD2 MIN MAX

Explanation

Data Range

(Hex.)

Default

(Decimal)

5.1.5. Adjustment method

5.1.5.1. Auto WB calibration (1) Set TV in ADJ mode using P-ONLY key (or POWER ON

key)

(2) Place optical probe on the center of the display

- It need to check probe condition of zero calibration before

adjustment. (3) Connect RS-232C Cable (4) Select mode in ADJ Program and begin a adjustment. (5) When WB adjustment is completed with OK message,

check adjustment status of pre-set mode (Cool, Medium,

Warm) (6) Remove probe and RS-232C cable. ※ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

5.1.5.2. Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 204 Gray(80IRE) inte rna l

pattern will be displayed)

(4) Adjust modes (Cool) : Fix the G gain at least 172 and

change the others (R/B Gain). * If R or B gain is over 255, G gain can be adjust below 172 (5) Adjust two modes ( Medium / Warm) : Fix the one of R/G/B

gain to 192 (default data) and decrease the others

※ CASE First adjust the coordinate far away from the target value(x, y). (1) x, y > target (2) x, y < target (3) x >target , y < target (4) x < target , y > target

- Every 4 case have to fit y value by adjusting B Gain and then

fit x value by adjusting R-Gain

- In this case, increasing/decreasing of B Gain and R Gain can

be adjusted.

► How to adjust

(1) Fix G gain at least 172 Adjust R, B Gain (In Case of Mostly Blue Gain Saturation) (2) When R or B Gain > 255, Release Fixed G Gain and

Readjust

※ CASE Medium / Warm First adjust the coordinate far away from the target value(x, y). (1) x, y > target i) Decrease the R, G. (2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others. (3) x > target , y < target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y > target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

Only for training and service purposes

- 11 -

5.1.6. Reference (White Balance Adj. coordinate and color

temperature)

▪ Luminance: 204 Gray, 80IRE ▪ S tan d ard col o r c o ord i nat e a n d t emp e rat u re u sin g

CA-210(CH-14) – by aging time

Mode

Cool 0.271 0.270 13,000K 0.0000

Medium 0.286 0.289 9,300K 0.0000

Warm 0.313 0.329 6,500K 0.0000

▪ Standard color coordinate and temperature using CA-210

(1) LGD , 65”AUO and 50” AUO module

Mode

Cool 0.269±0.002 0.273±0.002 13,000K 0.0000

Medium 0.286±0.002 0.289±0.002 9,300K 0.0000

Warm 0.313±0.002 0.329±0.002 6,500K 0.0000

Coordinate

x y

Coordinate

x y

Temp △uv

5.2.3. Tool Option inspection

▪ Press Adj. key on the Adj. R/C, then select Tool option

Model

Module POLA

Tool 1 100 103 104 106

Tool 2 2338 2338 2338 2338

Tool 3 11011 11011 11011 11011

Tool 4 30532 30532 30532 30532

Tool 5 23554 23554 23554 23554

Tool 6 2371 2370 2369 2371

Commercial 17 17 17 17

32LY340C-UA42LY340C-UA47LY340C-UA55LY340C-

(LGD)

POLA (LGD)

※ Tool option can be reconstructed by Software

5.3. 3D pattern test

5.3.1. Test equipment

(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4

support)

(2) Pattern: HDMI mode (model No. 872, pattern No. 83)

UA

(2) O/S Module(AUO, CMI, Sharp,IPS…)

Mode

Cool 0.271±0.002 0.276±0.002 13,000K 0.0000

Medium 0.286±0.002 0.289±0.002 9,300K 0.0000

Warm 0.313±0.002 0.329±0.002 6,500K 0.0000

Coordinate

x y

Temp △uv

5.2. Option selection per country

5.2.1. Overview

(1) Tool option selection is only done for models in Non-USA

North America due to rating

(2) Applied model: LA4AA Chassis applied to CANADA and

MEXICO

5.2.2. Country Group selection

(1) Press ADJ key on the Adj. R/C, and then select Country

Group Menu

(2) Depending on destination, select US, then on the lower

Country option, select US, CA, MX. Selection is done using +, - KEY (3) Using DFT(Auto) ※ PC (for communication through RS-232C) -> UART Baud

rate : 115200 bps

Command : ah 00 00 DATA(Area Number(hexadecimal))

ITEM DATA(Area Number) AREA

AREA OPTION1 0 USA

1 CANADA

2 MEXICO

5.3.2. Test method

(1) Input 3D test signal as Fig.1.

(2) Press ‘OK” key as a 3D input OSD is shown. (3) Check pattern as Fig2 without 3D glasses. (3D mode

without 3D glasses)

Fig.2 Fig.3

Only for training and service purposes

- 12 -

5.4. 3D Module inspection

5.4.1. Test equipment

(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4

support) (2) Pattern: HDMI mode (model No. 872, pattern No. 83)

6. GND and HI-POT Test

6.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

5.4.2. Test method

(1) Start 3D pattern inspection

(2) check the 3D patterm with 3D FPR Glasses or L/R Film

Fig.1 <model No. 872, pattern No. 83>

6.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).

(Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next

process automatically

6.3. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA (2) TEST time: 1 second (3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5mArms

7. AUDIO output check

7.1. Audio input condition

(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms)

(3) If 3D Module is correctly worked, The 3D FPR Glasses is

change Color.

Left is Red. Right is Blue

5.5. Ship-out mode check (In-stop)

- After final inspection, press In-Stop key of the Adj. R/C and check that the unit goes to Stand-by mode

Only for training and service purposes

7.2. Specification

No Item Min Typ Max Unit Remark

1 Audio practi-

cal max Output, L/R (Distortion=10% max Output)

2 Audio practi-

cal max Output, L/R (Distortion=10% max Output)

- 13 -

9.0

8.5

9.0

8.5

10.0

8.9

10.0

8.9

12.0

9.9WVrms

12.0

9.9WVrms

(1) Measurement

condition

- EQ/AVL/Clear Voice: Off

(2) Speaker (8Ω

Impedance)

(3) 32/37/42/47/55/60

INCH

(1) Measurement

condition

- EQ/AVL/Clear

Voice: Off

(2) Speaker (8Ω

Impedance)

(3) 26 INCH

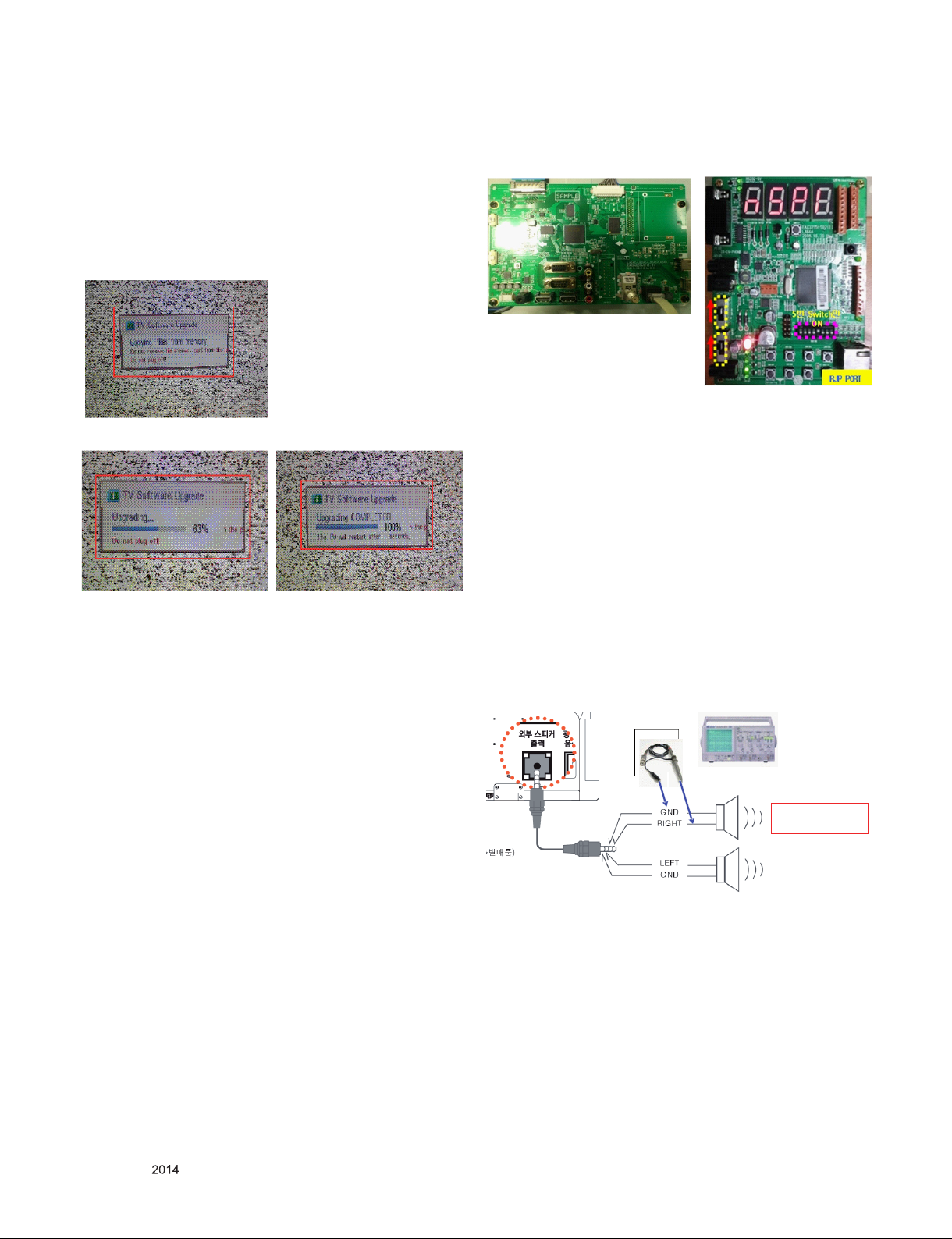

8. USB S/W Download (optional, Service only)

(1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower than that of TV set, it didn’t work. Otherwise USB data is automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring.

(5) Updating Completed, The TV will restart automatically (6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

9. Test factor for commercial model

9.1. RJP TEST (Only US model)

RJP port

9.1.1. Overview

▪ Jig(Commercial Check JIG) ▪ RJ45 cable ▪ Power only mode

9.1.2. Test sequence

(1) Operate JIG(Commercial Check JIG) as shown on picture1 (2) Turn on TV and press “P-O NLY” key on adjustment

remocon. (3) Connect RJ45 cable into RJP port of the TV set. (4) Connect RJ45 cable into the JIG. (5) If shown “OK” it’s normal, “NG” it’s defect. (6) If defect, check the connection once again as done above. (7) If the signal power is no good, check the connection of RF

cable.

10. External Speaker Out

* After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 14 -

Recommended Input Signal

: RF, 1kHz, Sine wave

(1) Connect external speaker to speaker out port with phone

jack on TV side as below (2) Check the Max. speaker output is 1W or not. Sine wave

with 1KHz will be displayed (3) Check Both of the signal in speaker. (Power only mode -> Fived 1W Default)

-> Check the input signal(1KHZ, Sine wave) and the wave

of output by utilizing oscilloscope

TROUBLE SHOOTING

1. Power-up boot check

Check stand-by Voltage. P401 3, 5pin : +3.5V_ST

Check 18pin Power connector

Main B/D 3.5V Line

Short Check

Check X101 clock

24 MHz

Replace X101

Check P401 PWR_ON.

1pin : 3.3V

Replace Mstar(IC101) or Main board

Check Multi Voltage P401 9, 10pin : 24V

/ 13, 14, 15pin:12V

Replace Power Board

Check DRV ON Control

P401 2 pin : High

Check Power Board

Check IC403/404/Q406

Output Voltage

IC403 : 1.1V IC404 : 1.5V Q406 : 3.3V

Replace IC403, IC404, Q406

Re-download software.

Check stand-by Voltage

L400, L401 : +3.5V

Replace L400, L401

Check LVDS Power Voltage

Q405 : 12V

Replace Q405

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board

Change Module

ok

okNo

No

ok

Replace Power board.

ok

No

Only for training and service purposes

- 15 -

2. Digital/Analog TV Video

Check RF Cable & Signal

Check Tuner 3.3V Power

L1600

Replace L1600

Check IF_P/N Signal

TU1601, 6/7 Pin

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

ok

No

Bad Tuner. Replace Tun er.

3. AV Video

Check input signal form at.

Is it supported?

Check AV Cable for damage

for damage or open conductor

Check JK1702, CVBS Signal Line

R1722

ok

No

Replace Jack

ok

Check CVBS_DET Signal

R1713

Replace R1713

No

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

No

4. RGB Video

Check input signal form at.

Is it supported?

Check RGB Cable

for damage or open conductor.

Check JK705

R/G/B signal Line

ok

No

Replace Jack

Check RGB_DET Signa l

Replace R732

No

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

ok

No

Only for training and service purposes

- 16 -

5. HDMI Video

Check input signal form at.

Is it supported?

Check HDMI Cabl e conductors for damage or open conductor.

Check EDID Downlaod

ok

No

Replace the defective IC or re-download EDID data

Check HDMI Signa l

Check other set If no problem , check signal line

ok

No

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

ok

No

Replace Main Board

No

Check HDMI_DET (HPD)

No

Replace HDMI1 R802, R805, Q800

HDMI2 R812, R813, R814

Check HDMI I2C Signa l

ok

No

Replace D800. D801

Check JK,800, JK801

No

Replace Jack

ok

Only for training and service purposes

- 17 -

6. All Source Audio

Check the TV Speaker Me nu

(Menu -> Audio -> TV Speaker)

On

ok

Replace C5630, C5632, C5633, C5631, C5634, C5635

Check Connector & P5600

Replace connector if found to be dam aged.

ok

No

Check speaker resistance

and connector damage.

Replace speaker.

ok

No

Off

Toggle the Menu

Check AMP IC(IC5600) Power

24V, 3.3V

No

Replace Amp IC(IC5600)

Check Output Signal P5600

1, 2, 3, 4 pin.

No

Check Mstar AUDIO_MASTER_CLK

R123

No

Replace Mstar(IC101) or Main Board.

ok

Check AMP I2C Line

R111, R112

No

Check signal line. Or replace Mstar(IC101)

Replace Audio AMP IC(IC501)

Check signal line, L5603, L5604, L5605, L5606

ok

No

Only for training and service purposes

- 18 -

8. AV/RGB Audio

Check AV Cable for damage

for damage or open conductor

Check JK1702 Signal Line

R1714,R1715

ok

No

Replace Jack

Follow procedure

‘7. All source audio’

trouble shooting guide.

7. Digital/Analog TV Audio

Check RF Cable & Signal

Follow procedure

‘7. All source audio’

trouble shooting guide.

ok

Check Tuner 3.3V Power

L1600

Replace L1600

Check IF_P/N Signal

TU1601 6,7 Pin

ok

No

Bad Tuner. Replace Tun er.

Only for training and service purposes

- 19 -

ok

Check Output Signal JK902

4,5 pin.

Replace Phone Jack(JK902)

ok

No

Check JK902

Replace Phone Jack if found to be dam aged.

ok

No

Check External Speaker

Replace External speaker.

ok

No

Check AMP IC(IC901) Power 24V

L902

No

Replace L902

Check AMP IC(IC901) Output

L904, L905

No

replace AMP IC(IC901)

Check Mstar External AUDIO output

C927, C928

No

Replace Mstar(IC101) or Main Board.

ok

Check AMP IC(IC901) Mute High

R924, 4pin

No

Check signal line. Or replace Mstar(IC101)

9. External Speaker Out

Only for training and service purposes

- 20 -

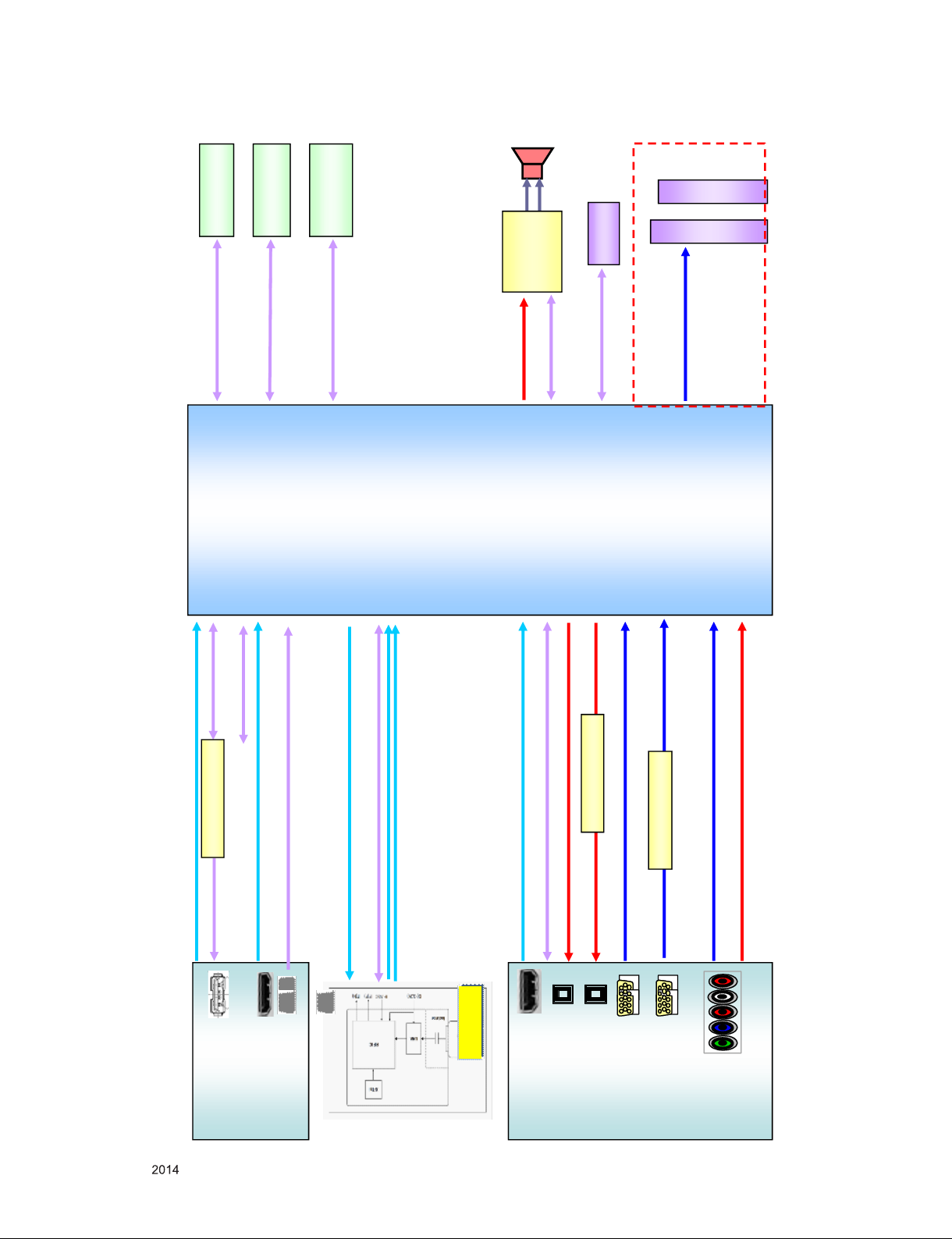

BLOCK DIAGRAM

(P1101)

30P HD LVDS wafer

51P FHD LVDS wafer

(P1100)

Serial Flash

(8Mbit)

IC1300

SPI_SCK/ SDI/SDO/ CS

System EEPROM

(256Kbit)

IC104

I2C_SC L/SDA

NAND FLASH

(1Gbit )

IC102

PCM_A[ 0-7],…

RXA0+/-~RXA4+/ -, RXAC K+/-

RXB0+/-~RXB4+/ -, RXBC K+/-

SPK_R

SPK_L

AMP_SCL/ SDA

AUD_M ASTER_CLK,

AUD_LR CH,

AUD_LR CK, AUD_SCK

TAS5733

(IC5600)

Main SOC

M1A -256MB 내장

(IC101)

Con nector

(P4600)

KEY1/2, LED_R , IR

SIDE

USB

(JK700)

HDM I2(MHL)

(JK801)

CK+/-, D0+/-, D1+/-, D2+/-_HD MI4, DDC _SCL/SDA_4, HD MI_CEC

SIDE_U SB_DM/DP

USB1_CTL

TPS65282REGR

+5V_USB

MHL_C D_SENSE

MHL_5V_EN ,MHL_OCP_D ET

SENSOR_I 2C

TU_SCL / SDA

SIF

TDJH-H 101F

Half NI M

IF_AGC _MAIN

CVBS

COMP_L/ R_IN

COMP_Y+/ AV_CVBS_IN, COM P_Pb+/Pr+

CK+/-, D0+/-, D1+/-, D2+/-_HD MI2

DDC _SCL/SDA_2, HD MI_CEC

REAR

HDM I1

(JK800)

Comp1 & AV1

(JK1702)

SPDIF _OUT

SPDIF (Optic)

(JK1001)

RS232C

RGB/H /V

RGB PC

(JK705)

RS232C

(JK706)

MAX3232CDR

IRo ut-Path

External_SPK

TPA3124D2PWPR

External SPK OU T

(JK902)

Only for training and service purposes

- 21 -

400

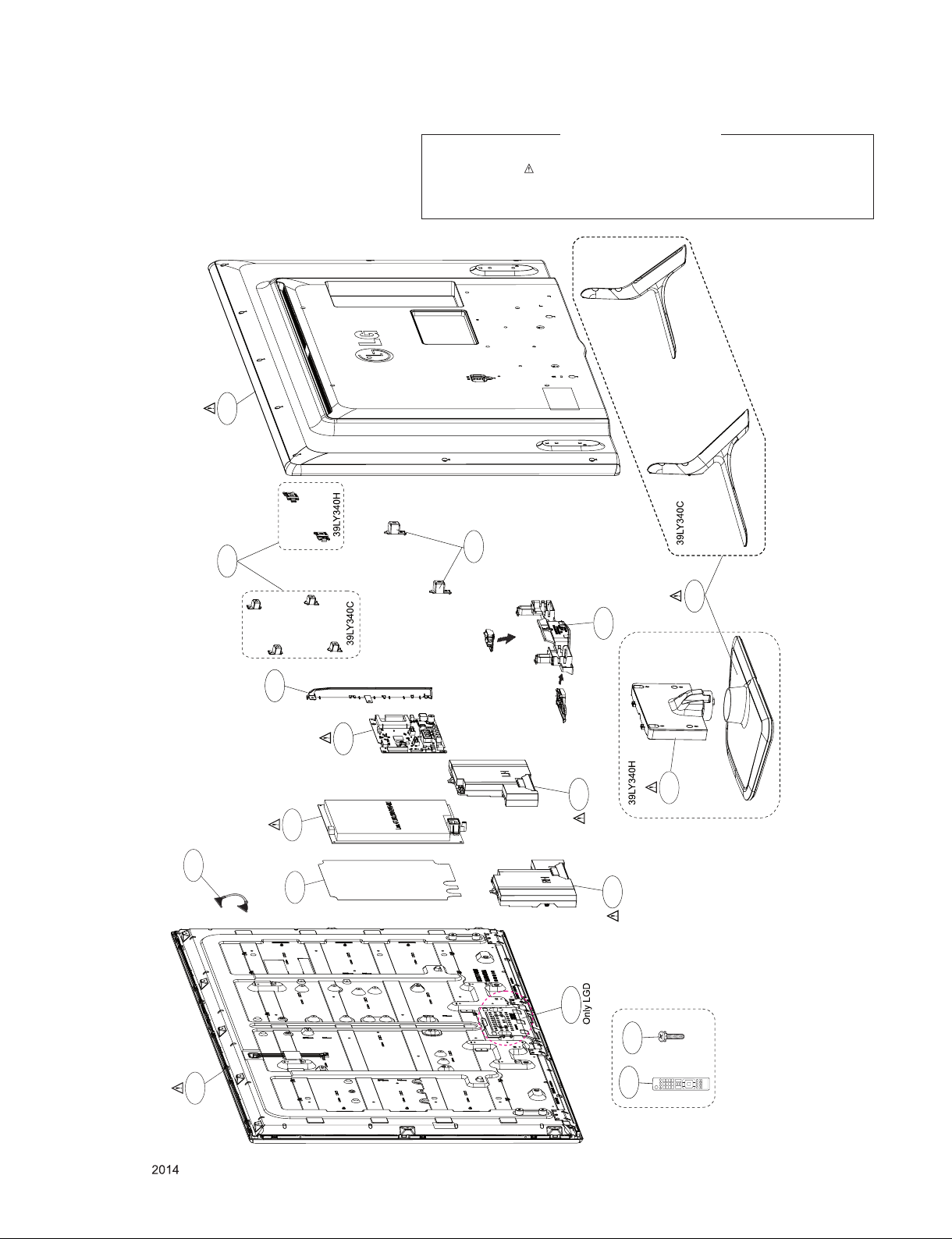

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components a s recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

410

420

900

310

521

540

121

910

530

LV1

820

120

200

Only for training and service purposes

- 22 -

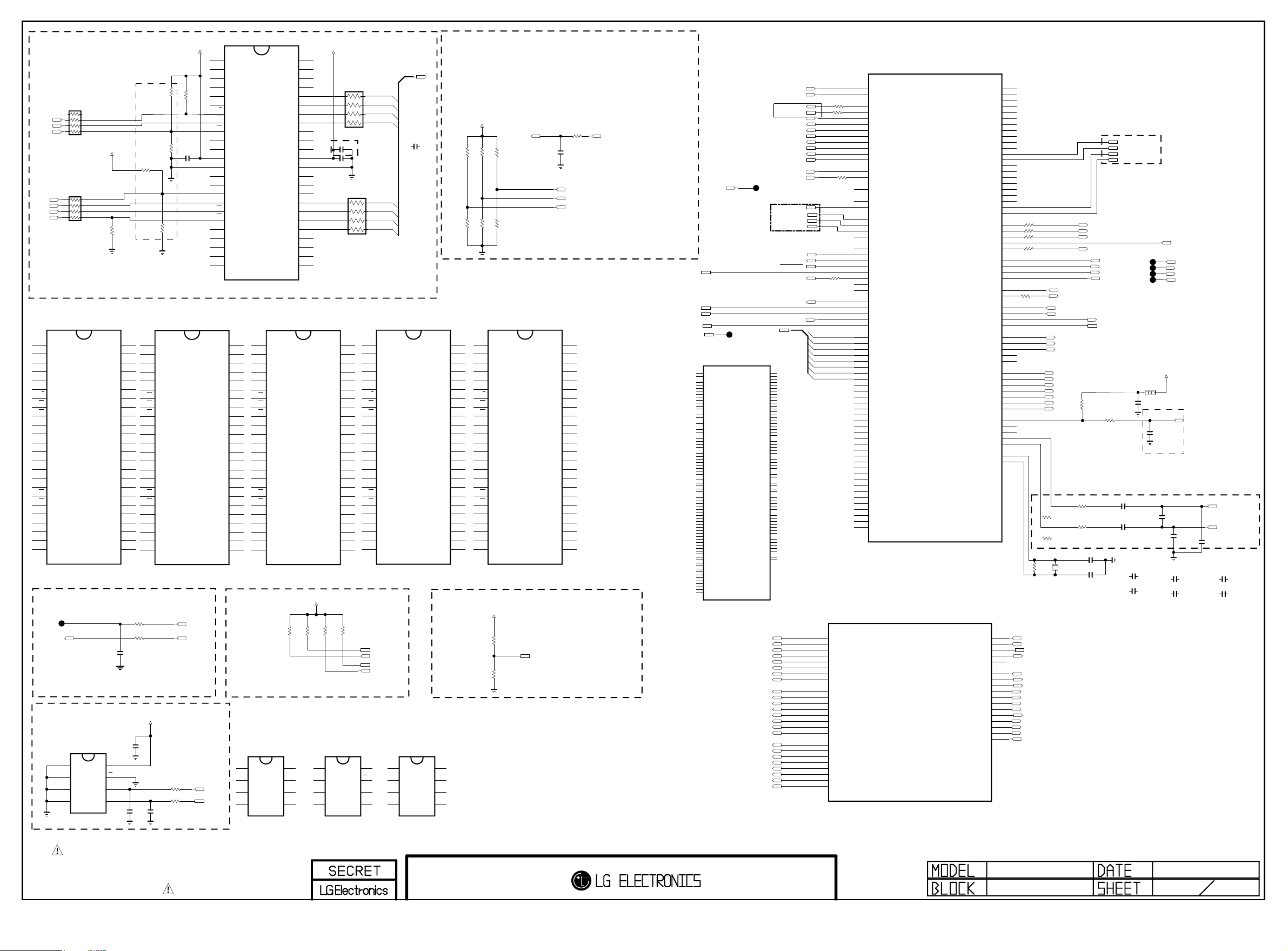

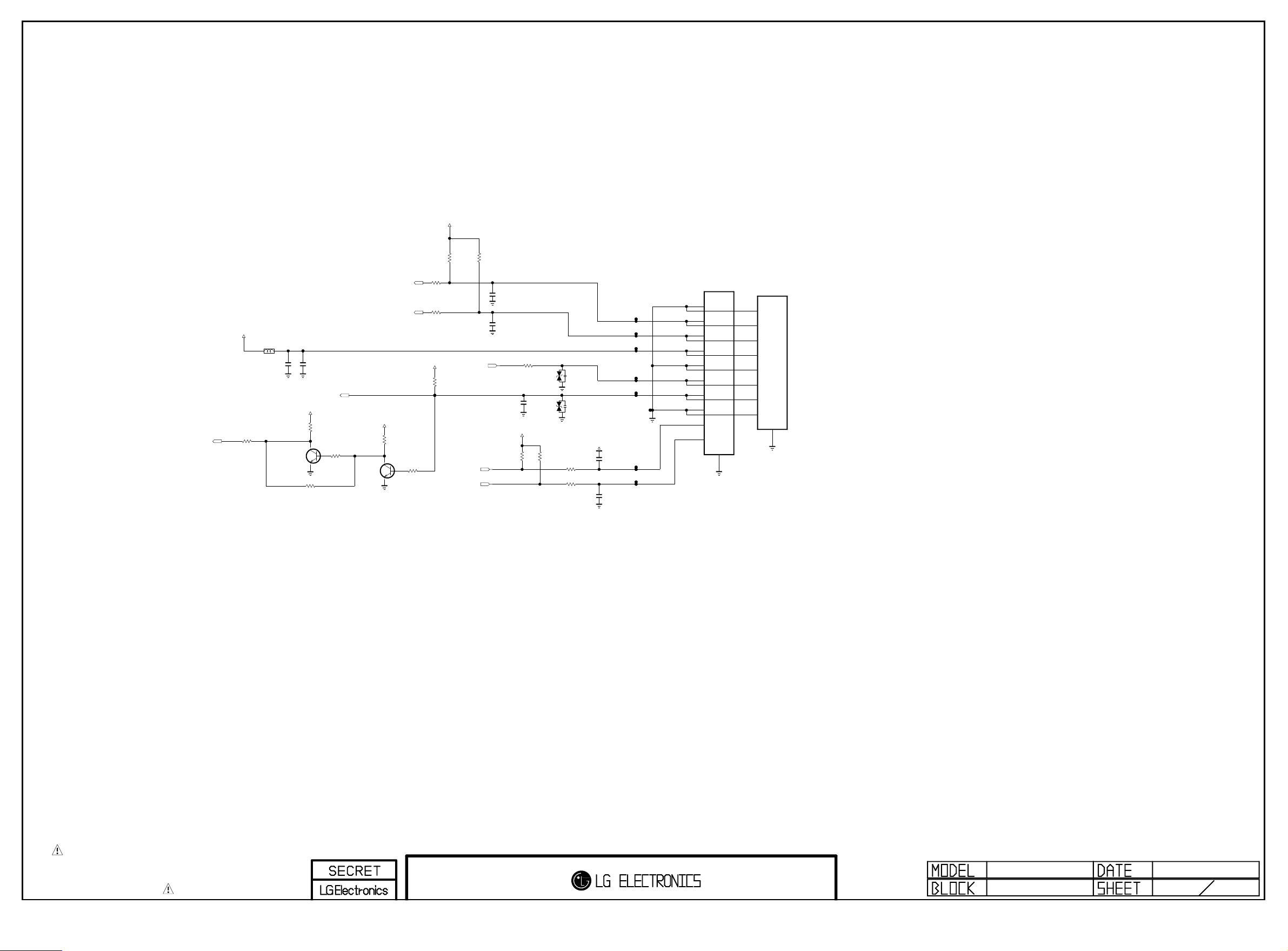

200T

A10

A2

Set + Stand

/F_RB

/PF_OE

/PF_CE0

/PF_CE1

PF_ALE /PF_WE /PF_WP

NAND_FLASH_2G_HYNIX_OLD

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

DIMMING

PWM_DIM

EEPROM

NAND FLASH MEMORY

OS

AR103

22

+3.3V_Normal

AR104

EAN60708702

H27U2G8F2CTR

M24256-BRMN6TP

E0

E1

E2

VSS

22

OS

IC102-*1

NVRAM_ST

IC104

1

2

A0’h

3

4

R101

3.3K

OS

8

7

6

5

OPT C111

2.2uF

VCC

WC

SCL

SDA

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

R102

R103

C105

0.1uF

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

OPT R104 1K

OS R105 1K

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

OPT

10K

100

+3.3V_Normal

C106

C104

8pF

OPT

+3.3V_Normal

OS

R106

OPT

R107

OS

R110

1K

3.9K

OS

C101

1K

0.1uF

NAND_FLASH_1G_TOSHIBA

EAN61508002

IC102-*2

TC58NVG0S3HTA00

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PWM0

PWM2

R108 22

R109 22

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

I2C_SCL

I2C_SDA

H27U1G8F2CTR-BC

1

NAND_FLASH_1G_HYNIX

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

I2C

NVRAM_RENESAS

R1EX24256BSAS0A

A0

A1

A2

VSS

EAN62389501

IC102

EAN35669103

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

IC104-*1

1

2

3

4

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NAND_FLASH_2G_TOSHIBA

EAN60991002

IC102-*3

TC58NVG1S3HTA00

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

+3.3V_Normal

R111

R112

1K

VCC

8

WP

7

SCL

6

SDA

5

+3.3V_Normal

CAP_10uF_X5R_OS

C102 10uF

C103

0.1uF OS

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

R113

R114

2.2K

NON_OS_512k_ST

IC104-*2

M24512-RMN6TP

E0

1

E1

2

E2

3

VSS

4

EAN43349003

OS

22

AR101

OS

AR102

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

85C

10V

CHANGE TO 10UF 10V X5R

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

AMP_SDA AMP_SCL

I2C_SDA I2C_SCL

VCC

8

WC

7

SCL

6

SDA

5

PCM_A[0-7]

C102-*1

10uF 10V

CAP_10uF_X7R_OS

NAND_FLASH_1G_SS

EAN61857001

IC102-*4

K9F1G08U0D-SCB0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NON_OS_512k_ATMEL

IC104-*3

AT24C512C-SSHD-T

A0

1

A1

2

A2

3

GND

4

EAN43349004

<CHIP Config> (SPI_SDI, PM_LED, PWM_PM)

LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI

R115 4.7K

R116 4.7K

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

PM MODEL OPTION

VCC

8

WP

7

SCL

6

SDA

5

+3.5V_ST

OPT

R117 4.7K

R121 4.7K

R118 4.7K

R122 4.7K

NAND_FLASH_2G_HYNIX_NEW

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

+3.5V_ST

R119 10K

R120 10K OPT

AUD_MASTER_CLK

OPT

EAN60708703

IC102-*5

H27U2G8F2DTR-BD

PM_MODEL_OPT_0

R123

56

OPT

C112 100pF 50V

LED_R/BUZZ

PM_LED

SPI_SDI

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

PM_MODEL_OPT_0

- HIGH : LCD

- LOW :: PDP PM_MODEL_OPT_1

- Not Use (Ready)

AUD_MASTER_CLK_0

MODEL_OPT_4

MODEL_OPT_5 MODEL_OPT_6

/CI_DET

EXT_SPK_DET

M1A_128M

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

IC101-*1

LGE2131(M1A_128M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PCM_A[0-7]

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

RXA4+ RXA4RXA3+

RXA3RXACK+ RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+ RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

EEPROM (IC104)

TUNER_RESET

5V_DET_HDMI_4

URSA/VCOM_SDA URSA/VCOM_SCL

SENSOR_SCL SENSOR_SDA

AV_CVBS_DET

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2 /MHL_OCP_DET

MHL_OCP_EN

RF_SWITCH_CTL

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

I2C_SCL I2C_SDA

AMP_SCL AMP_SDA

TU_SCL TU_SDA

DSUB_DET

COMP_DET

AMP_RESET

USB1_CTL

USB1_OCD

Y1 W4

R129 22

R128 22

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7]

U19 T20 T21 T19 R21 R20 R19 P20

P19 N20 N21 N19 M21 M20 M19 L20

L19 K20 K21 K19 J21 J20 J19 H20

K17 J15

U8 T7 U7 V7 F6 G6

AA4

Y4

J6

R130

K6

0

G7

J4 J5

H19 G20 G19 G21

J17 J16

E8 D7 U6 V6

K15

R12433

L16

H5 K5 K4 H6 L5

U17 R18 V17 R16 U16 T17 W18 U20

Y19 AA19 AA20

W21

V20

Y17

V18

V19

W19

U18

V16

W17

Y20

R15 AA18

T15

Y21

W20

V21

Y18

T16

R17

T18

W16

U15

LVA4P/TTL_B[0]/HCONV/GPIO170 LVA4M/TTL_B[1]/E_O/GPIO171 LVA3P/TTL_B[2]/FB/GPIO172 LVA3M/TTL_B[3]/OPT_P/GPIO173 LVACKP/TTL_B[4]/MCLK/GPIO174 LVACKM/TTL_B[5]/GCLK/GPIO175 LVA2P/TTL_B[6]/GST/GPIO176 LVA2M/TTL_B[7]/POL/GPIO177

LVA1P/TTL_G[0]/EPI0+/GPIO178 LVA1M/TTL_G[1]/EPI0-/GPIO179 LVA0P/TTL_G[2]/EPI1+/GPIO180 LVA0M/TTL_G[3]/EPI1-/GPIO181 LVB4P/TTL_G[4]/EPI2+/GPIO182 LVB4M/TTL_G[5]/EPI2-/GPIO183 LVB3P/TTL_G[6]/EPI3+/GPIO184 LVB3M/TTL_G[7]/EPI3-/GPIO185

LVBCKP/TTL_R[0]/EPI4+/GPIO186 LVBCKM/TTL_R[1]/EPI4-/GPIO187 LVB2P/TTL_R[2]/EPI5+/GPIO188 LVB2M/TTL_R[3]/EPI5-/GPIO189 LVB1P/TTL_R[4]/EPI6+/GPIO190 LVB1M/TTL_R[5]/EPI6-/GPIO191 LVB0P/TTL_R[6]/EPI7+/GPIO192 LVB0M/TTL_R[7]/EPI7-/GPIO193

M1A_256M

IC101

LGE2132(M1A_256M)

GPIO78 GPIO79

I2C_SCKM3/I2C_DDCR_CK/GPIO77 I2C_SDAM3/I2C_DDCR_DA/GPIO76 SDAM2/GPIO55 SCKM2/GPIO56 SCKM0/GPIO58 SDAM0/GPIO59 I2S_IN_BCK/GPIO159 I2S_IN_SD/GPIO160 I2C_SCKM1/GPIO80 I2C_SDAM1/GPIO81

ET_TXD[0]/GPIO62 EXT_TX_CLK/GPIO64

I2S_IN_WS/GPIO158

ET_COL/GPIO60 ET_TXD[1]/GPIO61

LCK/GPIO194 LDE/GPIO195 LHSYNC/GPIO196 LVSYNC/GPIO197

UART2_RX/GPIO69 UART2_TX/GPIO70 UART3_TX/GPIO52 UART3_RX/GPIO53 GPIO46[CTS] GPIO47[RTS] UART1_TX/GPIO48 UART1_RX/GPIO49

ET_TX_EN/GPIO63 ET_RXD[0]/GPIO65 ET_MDC/GPIO66 ET_MDIO/GPIO67 ET_RXD[1]/GPIO68

PCMADR[0]/NF_AD[0]/GPIO130 PCMADR[1]/NF_AD[1]/GPIO129 PCMADR[2]/NF_AD[2]/GPIO127 PCMADR[3]/NF_AD[3]/GPIO126 PCMADR[4]/NF_AD[4]/GPIO104 PCMADR[5]/NF_AD[5]/GPIO106 PCMADR[6]/NF_AD[6]/GPIO107 PCMADR[7]/NF_AD[7]/GPIO108 PCMADR[8]/GPIO113 PCMADR[9]/GPIO115 PCMADR[10]/GPIO119 PCMADR[11]/GPIO117 PCMADR[12]/GPIO109 PCMADR[13]/GPIO112 PCMADR[14]/GPIO111 PCMCD_N/GPIO135 PCMCE_N/GPIO120 PCMDATA[0]/GPIO131 PCMDATA[1]/GPIO132 PCMDATA[2]/GPIO133 PCMDATA[3]/GPIO125 PCMDATA[4]/GPIO124 PCMDATA[5]/GPIO123 PCMDATA[6]/GPIO122 PCMDATA[7]/GPIO121 PCMIORD_N/GPIO116 PCMIOWR_N/GPIO114 PCMIRQA_N/GPIO110 PCMOE_N/GPIO118 PCMREG_N/GPIO128 PCM_RESET/GPIO134 PCMWAIT_N/GPIO105 PCMWE_N/GPIO198

M1A_256M

LGE2132(M1A_256M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

IC101

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3

R134 33

A4

R145 33 C3 A2

for SERIAL FLASH

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

R132 100

D8

HWRESET

E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

R133 33

R135 33

R136

KEY1 KEY2

PM_MODEL_OPT_0

PANEL_CTL

MHL_CD_SENSE

/VBUS_EN

PM_LED POWER_DET AMP_MUTE INV_CTL POWER_ON/OFF_1

RL_ON /FLASH_WP LED_R/BUZZ PM_TXD PM_RXD

FE_TS_DATA[0]

5V_DET_HDMI_2 SPDIF_OUT

SOC_RESET IR

PWM0 PWM1 PWM2

PF_ALE /PF_CE0 /PF_CE1

/F_RB /PF_OE

/PF_WE /PF_WP

Close to MSTAR

HALF_NIM/EU_NON_T2

R138-*1

R138 0

100

100ohm_HALF_NIM/EU_NON_T2

1/16W

HALF_NIM/EU_NON_T2

5% R139-*1

R139 0

100

100ohm_HALF_NIM/EU_NON_T2 1/16W 5%

XTAL_LOAD_27pF

X101 24MHz

1M

X-TAL_SUNNY

XTAL_LOAD_27pF

Internal demod out

/SPI_CS SPI_SCK

SUB_MUTE

SPI_SDO

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

RGB_DDC_SCL RGB_DDC_SDA

HALF_NIM/EU_NON_T2 R137 10K

HALF_NIM/EU_NON_T2

R140

0

C113 27pF

C114

27pF

FE_TS_CLK FE_TS_DATA[0]

FE_TS_SYNC FE_TS_VAL_ERR

+3.3V_Normal

L101

BLM18PG121SN1D

HALF_NIM/EU_NON_T2

C119

0.1uF

HALF_NIM/EU_NON_T2

C117 0.1uF

HALF_NIM/EU_NON_T2

C118 0.1uF

XTAL_LOAD_30pF

30pF

C113-*1

XTAL_LOAD_30pF

C114-*1

30pF

SPI_SDI

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

OPT

C121

IF_FILTER_AJ/CSA C122 33pF

XTAL_LOAD_22pF

C113-*2 22pF

XTAL_LOAD_22pF

C114-*2 22pF

IF_AGC_MAIN

C120

0.047uF 25V HALF_NIM/EU_NON_T2

IF_N_MSTAR

DTV_IF

IF_P_MSTAR

IF_FILTER_AJ/CSA C124 33pF

XTAL_LOAD_15pF

C113-*3 15pF

XTAL_LOAD_15pF

C114-*3 15pF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_L14

MAIN1_NON_EU 1

13/10/16

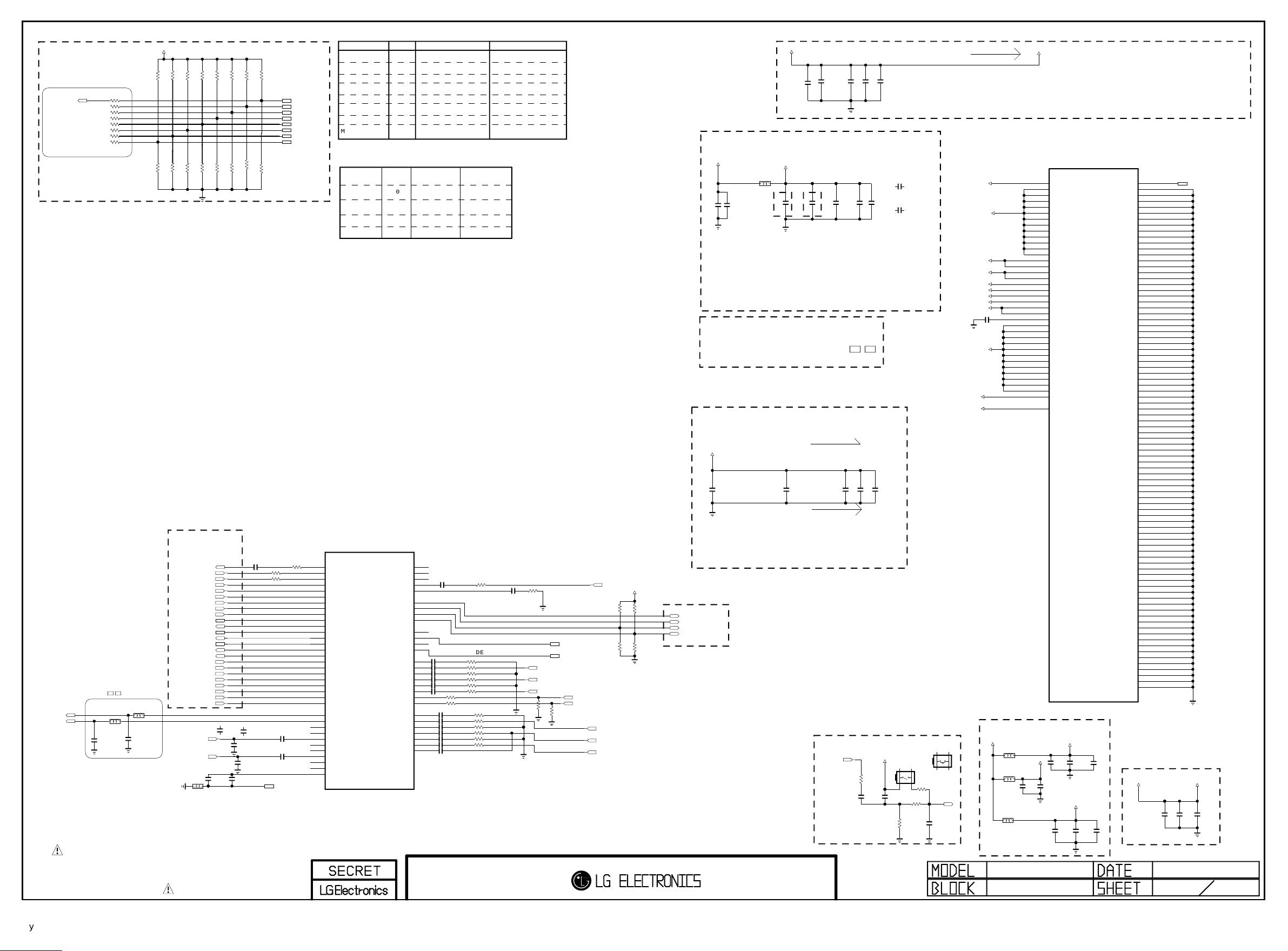

MODEL OPTION

OPT

EXT_SPK

C271

4.7uF

R206

10V

R205 100

OPT

R207

OPT

R208 100

OPT

R201 100

OPT

R202 100

OPT

R203 100

OPT

R204 100



EXT_SPK

L221

5.6uH

EXT_SPK

C270

4.7uF 10V



IF_AGC_SEL

H/P OUT => EXT SPK

EXT_AMP_L EXT_AMP_R

Close to the Main IC

100

EXT_SPK

L220

5.6uH

+3.3V_Normal

1K

DUALSTREAM

R210

1K

R209

NON_DUALSTREAM

S/W_EU/AJ

128M+256M

R214 1K

R212 1K

S/W_TW

NON_128M+256M

R211 1K

R213 1K

HDMI_ARC D0-_HDMI4 D0+_HDMI4 D1-_HDMI4 D1+_HDMI4 D2-_HDMI4 D2+_HDMI4 CK-_HDMI4 CK+_HDMI4

CEC_REMOTE_S7

DDC_SCL_2 DDC_SDA_2 DDC_SCL_4 DDC_SDA_4 HPD2 HPD4 D0-_HDMI2 D0+_HDMI2 D1-_HDMI2 D1+_HDMI2 D2-_HDMI2 D2+_HDMI2 CK-_HDMI2 CK+_HDMI2

COMP_L_IN

COMP_R_IN

BLM18SG121TN1D

L201

128M+128M

R218 1K

R216 1K

NON_128M+128M

R215 1K

R217 1K

1uF

C203

M120

R219 1K

NON_M120

R220 1K

HDMI

C200-*1 330pF 50V

4.7uF

S/W_AJ

DVB_T2/C/S2

R221 1K

S/W_NON_AJ

DVB_T/C

R222 1K

C205

HDMI1_ARC 1uF

C201-*1 330pF

50V C200 1000pF 50V

C201 1000pF 50V

C204

MODEL OPTION

PIN NAME MODEL_OPT_0 MODEL_OPT_1

HD

R224 1K

R223 1K

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

AUD_LRCH MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6

AUD_LRCK

FHD

MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

* Dual Stream is only Korea 3D spec

Memory INT+EXT

128M Only

256M Only

128M+128M

128M+256M

M1A_256M

IC101

LGE2132(M1A_256M)

M4

ARC0

0

W7

R227

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

R22510 R22610

AUVRM

HDMI1_ARC

C2092.2uF

C2112.2uF

PIN NO.

J5

H19 G20 G19

U6 K5 K4

L5

LOW

FHD

S/W_NON_AJ

DVB_T/C NON_M120

NON_128M+128M

S/W_TW

NON_128M+256M

NON_DUALSTREAM

Memory OPTION

Auto

MODEL_OPT_4

Det

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

C212 C213 C214 C215 C216 C217

510

0 0

0

1

0

C2270.047uF

0.047uF

C218

0.047uF

C219

0.047uF

C220

0.047uF

C221

0.047uF

C222

0.047uF

C223

1000pF

C224

0

1

0

CVBSOUT1

CVBS0 CVBS1 CVBS2

VCOM

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

MODEL_OPT_6

0

1

R24233

SIDE USB1_ USB 2

R22868 R22933

68

R230

33

R231 R23268

R23333 R25233 R255

R23468 R23533

68

R236

33

R237 R23868 R23933

HIGH

HD

S/W_AJ

DVB_T2/C/S2 M120

128M+128M

S/W_EU/AJ

128M+256M

DUALSTREAM

C2280.047uF

+3.3V_Normal

0.1uF

C231

C232 0.1uF

CHANGE TO 10UF 10V X5R

+1.10V_VDDC

VDD33

L204 BLM18PG121SN1D

C233

CAP_10uF_X5R

C237

C235

10uF 10V

C240 1uF

Normal Power 3.3V

85C

10uF 10V

C236

C238 0.1uF

CAP_10uF_X5R

CHANGE TO 10UF 10V X5R

C241 0.1uF

C244 1uF

C247 0.1uF

C245 0.1uF

VDDC 1.05V

C233-*1

10uF 10V

CAP_10uF_X7R

C236-*1

10uF 10V

CAP_10uF_X7R

VDDC : 2026mA

AVDD_AU33

+1.5V_DDR

AVDD_NODIE

VDD33

AVDD_NODIE

VDD33

AVDD_DMPLL

+1.10V_VDDC

C2501uF

Normal 2.5V



฀

M1A 2.5V inbeded



DDR3 1.5V

C234

10uF 10V

AVDD_DDR0:55mA

AVDD_DDR1:55mA

SOC_RESET

POWER_DET_RESET

PD_+3.5V

C239

C243

4.7uF

R248 470

10V

0.1uF

C242

C246

0.1uF

+3.5V_ST

C248

4.7uF 10V

PD_+12V

1uF

SWITCH_NAMAE JTP-1127WEM

R249 470K

SW200

1 2

43

R251

SWITCH

R250 100

C249

0.1uF

0

+1.5V_DDR

C230

0.1uF

DSUB_HSYNC DSUB_VSYNC

COMP_Y+/AV_CVBS_IN

+3.3V_Normal

10K

R244

R246

10K

OPT

10K

R247

10K

R245

OPT

COMP_Pb+

COMP_Y+/AV_CVBS_IN

COMP_Pr+

I2S_I/F

AUD_SCK AUD_MASTER_CLK_0 AUD_LRCH AUD_LRCK

R243

R254

2.4K

DSUB_B+

DSUB_G+

DSUB_R+

R253

10K

Close to MSTAR

SIDE_USB1_DM

SIDE_USB1_DP

68

SWITCH_POSTEC

SW200-*1

TMSV153BRA

43

1 2

SOC_RESET

+1.10V_VDDC

VDD33

AVDD5V_MHL

STby 3.5V

+3.5V_ST

L206 BLM18PG121SN1D

AVDD_DMPLL

L207

BLM18PG121SN1D

C251 10uF

L205

BLM18PG121SN1D

+1.10V_VDDC

LGE2132(M1A_256M)

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

AVDD_NODIE

C253 10uF

C252

0.1uF

M1A_256M

IC101

C255

0.1uF

AVDD_AU33

C256

C254

10uF

0.1uF

C257

0.1uF

C258

0.1uF

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

GND_EFUSE

U3 A6 A13 A15 A18 B12 B14 B16 B17 B19 B20 C9 C10 C21 D9 E20 F9 F11 F13 F15 F17 F19 F21 G8 G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 H7 H8 H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

+1.10V_VDDC

10uF

10V

C259

AUVRM

+1.10V_VDDC

C260

0.1uF

C261

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2

MAIN1_NON_EU

13/10/16

M1A_L14

MAIN2_NON_EU

2013.10.16

2

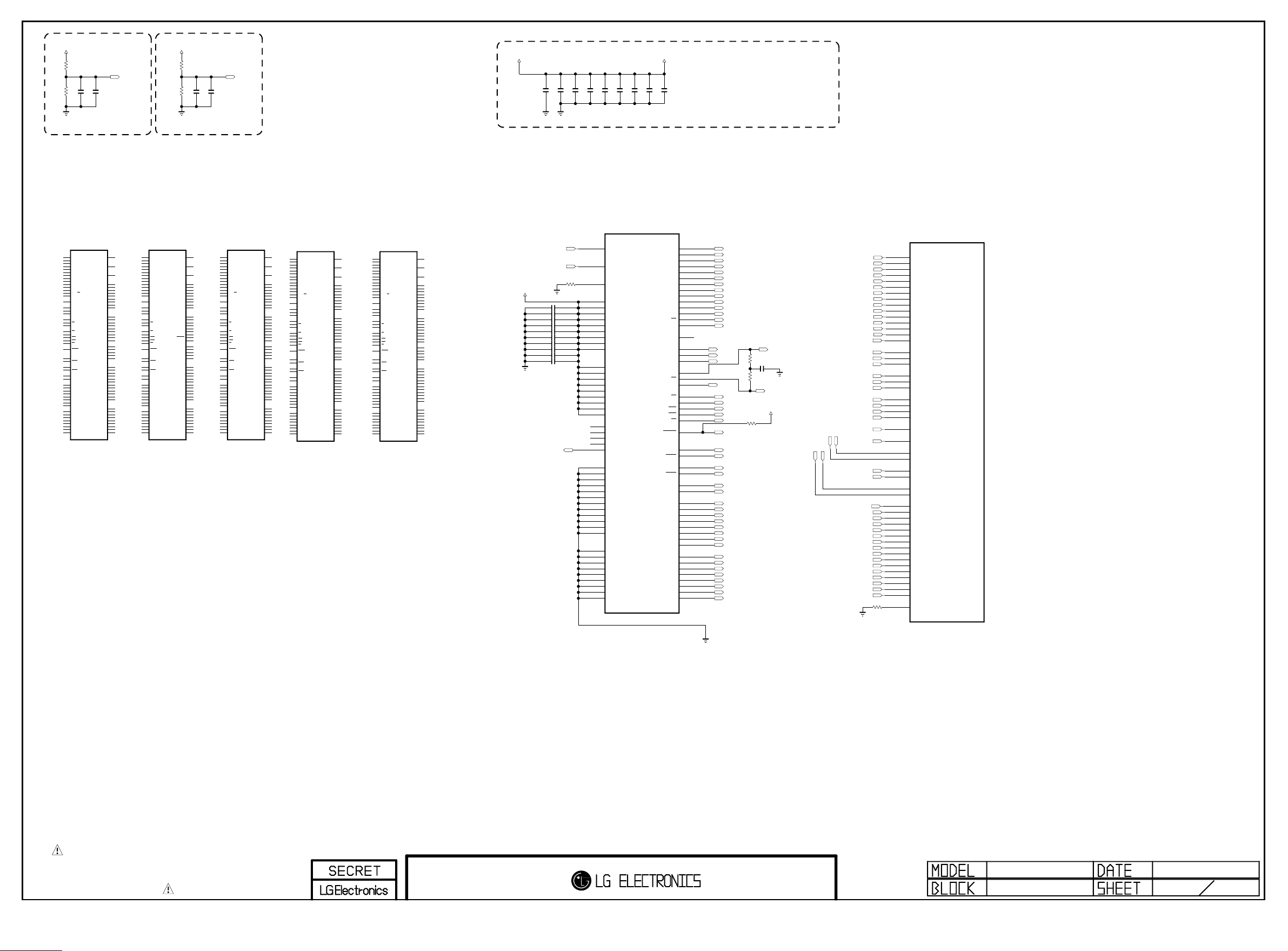

+1.5V_DDR

DDR_EXT

R12011K1%

R1202 1K1%

DDR_EXT

C1201 0.1uF

DDR_EXT

C1202 1000pF

A-MVREFDQ

+1.5V_DDR

DDR_EXT

R1204 1K1%

R1205 1K1%

DDR_EXT

C1213 0.1uF

1000pF

DDR_EXT

C1214

A-MVREFCA

Option : Ripple Check !!!

+1.5V_DDR

C1217

C1216

10uF 10V

OPT

0.1uF

C1218

OPT

0.1uF

C1219

OPT

+1.5V_DDR

1uF

C1221

OPT

C1222

OPT

1uF

C1223

0.1uF

C1224

OPT

C1220

OPT

CLose to DDR3

DDR_1600_1G_SS

IC1201-*1

K4B1G1646G-BCK0

EAN61836301

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

CLose to Saturn7M IC

DDR_1600_1G_HYNIX

IC1201

H5TQ1G63EFR-PBC

EAN61829003

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

NC_7

NC_5

RESET

DQSL DQSL

DQSU DQSU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7

A11

N7 T3

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3 G3

C7 B7

E7

DML

D3

DMU

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A/B_DDR3_CS

A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1207

DDR_EXT

R1208

DDR_EXT

DDR_EXT R1206

10K

DDR_EXT

56 1%

C1215

0.01uF 50V

56 1%

+1.5V_DDR

A-MCK

A-MCKB

A-MDQSLB

A-MDQSUB

A-MDQSL

A-MDQSU

A/B_DDR3_CS

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A-MDML A-MDMU

A-MDQL0

A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7 A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1209

240

1%

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_1600_2G_SS

IC1201-*3

K4B2G1646E-BCK0

EAN61848802

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

H5TQ2G63DFR-PBC

DDR_1600_2G_HYNIX

IC1201-*4

EAN61829203

N3

VREFCA

A0

P7

A1

P3

A2

N2

A3

VREFDQ

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

VDD_1

L7

A10/AP

VDD_2

R7

A11

VDD_3

N7

A12/BC

VDD_4

T3

VDD_5

A13

VDD_6

M7

VDD_7

NC_5

VDD_8

M2

VDD_9

BA0

N8

BA1

M3

BA2

VDDQ_1

J7

VDDQ_2

CK

K7

VDDQ_3

CK

K9

VDDQ_4

CKE

VDDQ_5

L2

VDDQ_6

CS

K1

VDDQ_7

ODT

J3

VDDQ_8

RAS

K3

VDDQ_9

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

VSS_1

DQSU

B7

VSS_2

DQSU

VSS_3

E7

VSS_4

DML

D3

VSS_5

DMU

VSS_6

E3

VSS_7

DQL0

F7

VSS_8

DQL1

F2

VSS_9

DQL2

F8

VSS_10

DQL3

H3

VSS_11

DQL4

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

VSSQ_1

D7

VSSQ_2

DQU0

C3

VSSQ_3

DQU1

C8

VSSQ_4

DQU2

C2

VSSQ_5

DQU3

A7

VSSQ_6

DQU4

A2

VSSQ_7

DQU5

B8

VSSQ_8

DQU6

A3

VSSQ_9

DQU7

DDR_1600_2G_NANYA

IC1201-*5

NT5CB128M16FP-DI

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EAN61859702

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_6

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_5

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT

+1.5V_DDR

10V

A-MVREFCA

A-MVREFDQ

DDR_EXT

C1203 10uF C1204 0.1uF C1205 0.1uF C1206 0.1uF C1207 0.1uF C1208 0.1uF C1209 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF

R1203

240

1%

DDR_1600_1G_NANYA

IC1201-*2

NT5CB64M16DP-DH

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EAN61859501

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12 NC_6

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VREFCA

VREFDQ

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_7

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

A-MA14

M1A_256M

IC101

LGE2132(M1A_256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_L14

DDR

13/10/16

3

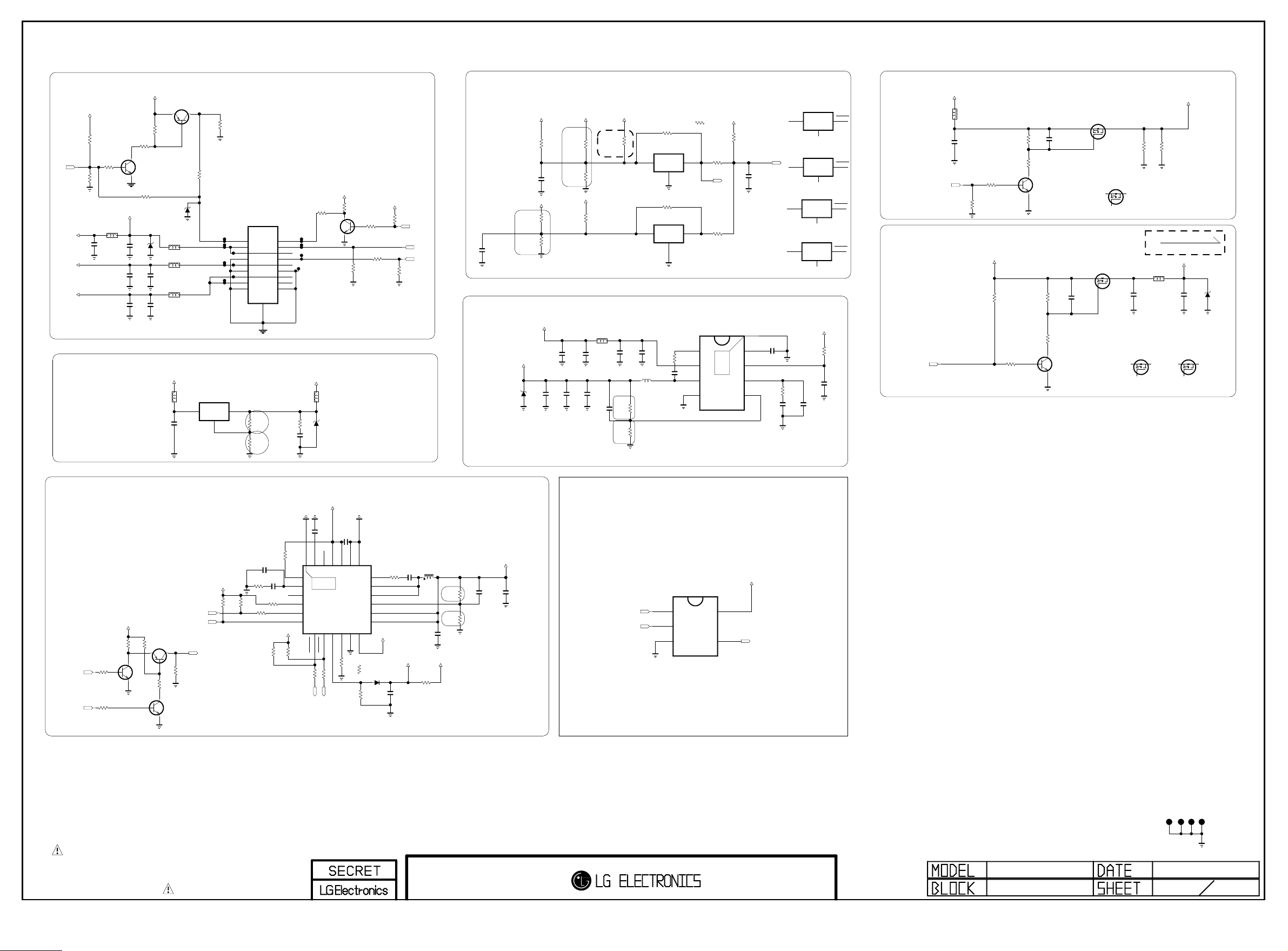

L14 POWER BLOCK (POWER DETECT 2)

FROM LIPS or POWER B/D

+3.5V_ST

OPT R400 10K

R401

10K

C407 10uF

2012

10V

R402

10K

+3.5V_POWER_DET

L400

CB2012PK501T

C400

+24V_CAP

C432

4.7uF

3216

+12V_CAP

C433

4.7uF

3216

RL_ON

+3.5V_ST

+24V

+12V

B

1005

16V

1uF 10V

50V

+3.5V_ST

R406 10K

R404

4.7K

C

Q400 MMBT3904(NXP)

E

OPT

R456

0

ZD400

5V

C401

0.1uF 50V

C402

0.1uF 16V

MMBT3906(NXP)

Q401

3

1

2

R455

0

ZD404

5V

L401

CB2012PK501T

L402

MLB-201209-0120P-N2

L403

MLB-201209-0120P-N2

+1.5V_DDR

+3.3V_Normal

L409

BLM18PG121SN1D

10uF

C426

10V

AZ1117EH-ADJTRG1

1.3A

OPT

R412

33K

+3.3V_Normal

R420

R419

1K

100

PWM_DIM_PULL_DOWN

PWR ON

3.5V

3.5V GND 24V GND 12V 12V GND

P401

SMAW200-H18S5

1

2

3

4

5

6

7

8

10

9 11

12

13

14

15

16

17

18

19

.

DRV ON PDIM#1

3.5V PDMI#2 24V GND 12V NC GND

Vout=1.25*(1+R2/R1)+Iadj*R2

+1.5V_DDR

IC404

ADJ/GND

OUTIN

R449

1K 1/16W 1%

R450 200 1/16W 1%

R1

R2

L411

CB2012PK501T

R453

0

C431 10uF

10V

ZD403

2.5V

C

B

E

Q402

MMBT3904(NXP)

R424

3.9K

+3.5V_ST

R426

R425

10K

PWM2_2CH_POWER

R423

100

INV_CTL

R467

1K OPT

PWM_DIM

PWM1

Power_DET

+24V

OPT

R457

8.2K 1%

C415

0.1uF 16V

+24V

PD_+24V

R427 27K

1%

PD_+24V

+1.10V_VDDC

ZD401

2.5V

R428

5.1K

C424

0.1uF

1%

+3.5V_ST

0.1uF

OPT

16V

PD_+24V C413

0.1uF 16V

+1.10V_VDDC

C437

16V

C421 22uF 10V

+12V

PD_+12V

R430

2.7K 1%

PD_+12V

R431

1.2K 1%

+3.5V_POWER_DET

0

R458

5%

OPT

CB2012PK501T

OPT C436 10uF

10V

C420

22uF

10V

+3.5V_POWER_DET

OPT

R432

5%

PD_+24V+PWR_DET_ROHM

L406

C414 10uF

10V

C423

50V

270pF

0

R43 9

R44 0

0.1uF

20K

1%

47K

1%

VDD

PWR_DET_ROHM

VDD

C435

16V

L407

3.6uH

R1

R2

+3.5V_ST --> 3.375V --> 3.46V +24V --> 3.78V --> 3.92V (3.79V) +12V --> 3.58V --> 3.82V (3.68V)

R454-*1 100

R435 100K

IC401

BD48K28G

3

1

PD_+24V

R436 100K

IC402

BD48K28G

3

1

R460

0

C417

0.1uF 16V

2

GND

2

GND

VOUT

POWER_DET_RESET

VOUT

BOOT

VIN

GND

PD_+12V

PD_+3.5V

PD_+24V

TPS5432DDAR

1

2

PH

3

4

R454 300

R437 100

IC403

3A

+3.5V_ST

R438

4.7K

9

THERMAL

OPT

8

7

6

5

Vout=0.808*(1+R1/R2)

C422

0.1uF

[EP]GND

SS

EN

COMP

VSENSE

POWER_DET

C418

0.01uF

R433

2.7K 1%

C419

0.039uF 50V

IC401-*2

NCP803SN293

VCC

3

2

1

GND

PWR_DET_ONSEMI

IC402-*2

NCP803SN293

VCC

3

2

1

GND

PD_+24V+PWR_DET_ONSEMI

IC401-*1

APX803D29

VCC

3

2

1

GND

PWR_DET_ON_DIODES

IC402-*1

APX803D29

VCC

3

2

1

GND

PD_+24V_PWR_DET_DIODES

+3.3V_Normal

R429

10K

C416

0.33uF 16V

C434

390pF

50V

RESET

PANEL_POWER

L408

UBW2012-121F

120OHM

PANEL_CTL 051:AG8

+12V

C425

0.1uF 25V

OPT

R441 10K

R442 10K

+3.3V_Normal

+3.5V_ST

POWER_ON/OFF_1

R443

10K

R444 10K

R445

33K

R446 12K

B

C

Q403 MMBT3904(NXP)

E

C

B

E

C427 10uF

16V

R447 22K

R448

2.2K

Q404 MMBT3904(NXP)

C428

2.2uF 10V

NXP

Q405

PMV48XP

S

G

PMV48XP Q406

D

FET_2.5V_DIODE

DMP2130L Q405-*1

S

G

NXP

D

S

G

FET_2.5V_DIODE

D

BLM18PG121SN1D

C429

0.1uF

16V

DMP2130L Q406-*1

S

G

R451

5.6K

L410

D

PANEL_VCC

R452

5.6K

+3.3V_Normal

FET_2.5V_AOS

AO3435 Q406-*2

S

C430 22uF 10V

G

ZD402

5V

D

+5V_Normal & +5V_USB with OCP

C403

100pF

R408

OPT R405

4.7K

R468 0

/VBUS_EN

(Active Low)

MHL_OCP_EN

(Active High)

+3.3V_Normal

MHL_SW_TR

R461 10K

R462 10K

MHL_SW_TR

R463

2.7K

B

MHL_SW_TR

Q407

MHL_SW_TR

R464

10K

C

E

MHL_SW_TR

Q408

MHL_SW_TR

E

R465 10K

B

Q409

+3.3V_Normal

OPT R403

4.7K

MHL_5V_EN

USB1_CTL

C

MHL_5V_EN

B

R466 20K

C

E

OPT

50V

R407

10K

C404

4700pF

50V

OPT

R459

R410 100K

COMP

0

ROSC

EN_SW2

EN_SW1

+3.3V_Normal

R409

10K

[EP]GND

EN

1

2

SS

3

4

TPS65282REGR

5

6

R411 0

+12V

C405 10uF

VIN_2

PGOOD

V7V

23

24

THERMAL

25

IC400

4A

7

8

FAULT2

FAULT1

SW_OUT2

R414 0

USB1_OCD

/MHL_OCP_DET

22

9

C406 10uF 16V

PGND_2

VIN_1

21

10

RLIM11AGND

CI_Del

R415 15K

5%

OPT R416 100K

20

PGND_1

19

18

17

16

15

14

13

12

SW_OUT1

CI

R415-*1

12K

5%

C409

L405

0.047uF

R417

BST

0

LX_2

LX_1

FB

SW_IN_2

SW_IN_1

+5V_USB

D400 MBR230LSFT1G

30V

C408 10uF

10V

5V_HDMI_4

4.7uH

25V

C410 10uF

10V

AVDD5V_MHL

R418

10

Vout=0.8*(1+R1/R2)

R422

3.3K

R421

L14 MHL SW AND GATE

+5V_Normal

R1

C411

C412

82pF

18K 1%

R2

1%

22uF

50V

16V

MHL_CD_SENSE

MHL_OCP_EN

MHL_SW_AND_GATE

74LVC1G08GW

B

1

A

2

GND

3

IC405

+3.3V_Normal

VCC

5

Y

4

MHL_5V_EN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_M1A

Power_PD2

2013.05.15 1

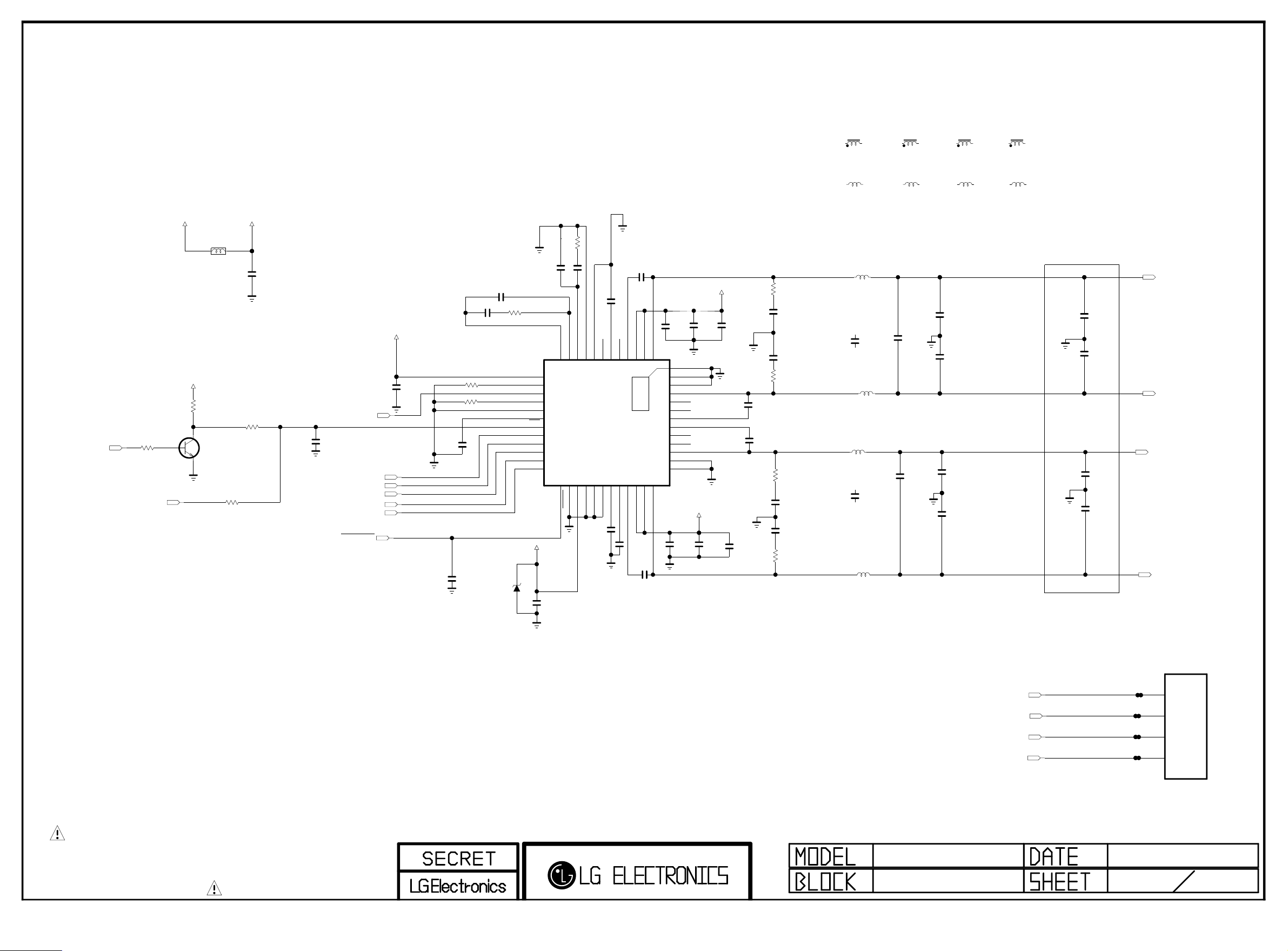

AUDIO AMP TI (TAS5733)

AMP_MUTE

L5600

OPT

R3405

0

+24V_AMP

C5601

0.1uF 50V

R5603

100

C5602

1000pF

50V

AUD_MASTER_CLK

AMP_RESET

+24V

UBW2012-121F

+3.5V_ST

R5601

10K

AMP_MUTE_CONNECT

R5600

10K

POWER_DET AMP_SDA

B

C

AMP_MUTE_CONNECT Q5600

MMBT3904(NXP)

E

AUD_LRCK

AUD_SCK

AUD_LRCH

AMP_SCL

+3.3V_Normal

C5604

0.1uF 16V

This parts are Located on AVSS area.

4700pF

PDN

SDA SCL

13 14 15 16 17 18 19 20 21 22 23 24

C5610

0.1uF 16V

C5611

0.047uF

R5608 2K

18K

R5607

C5607

0.1uF

C5606

0.1uF 16V

C5609

C5608

1%

4700pF

R5609

470

AVDD

A_SEL_FAULT

MCLK

OSC_RES

DVSSO

VR_DIG

LRCLK

SCLK SDIN

+3.3V_Normal

5V

ZD5600

OPT

R5610

470

C5612

PLL_FLTP

VR_ANA

11

12

25

RESET26STEST

0.047uF

AVSS

PLL_FLTM

8

9

10

27

29

DVDD28DVSS

C5614

0.1uF

PBTL

7

30

GND

NC_2

AGND31VREG

C5616

50V

C5613 2200pF

BST_A

NC_1

SSTIMER

3

4

5

6

THERMA L

49

IC5600

TAS5733

32

33

34

BST_D

GVDD_OUT

25V

1uF

C5615

C5617

50V

0.033uF

OUT_A

PVDD_AB_1

PVDD_AB_2

1

2

48 47 46 45 44 43 42 41 40 39 38 37

35

36

OUT_D

PVDD_CD_1

PVDD_CD_2

0.033uF 50V

C5618

0.1uF 50V

[EP] PGND_AB_2 PGND_AB_1 OUT_B NC_6 NC_5 BST_B BST_C NC_4 NC_3 OUT_C PGND_CD_2 PGND_CD_1

+24V_AMP

C5619

0.1uF 50V

+24V_AMP

C5620 10uF 35V

C5621 10uF 35V

C5640

4.7uF 50V

3216

C5641

4.7uF 50V

50V

0.033uF C5624

50V

0.033uF C5625

R5613181/16W

R5614181/16W

R5611 18

C5626 330pF 50V

C5627 330pF 50V

R5612 18

C5628 330pF 50V

C5629 330pF 50V

AMP_COIL_GET

L5603-*1

10.0uH

AMP_COIL_TAIYO

L5603-*2

10.0uH

AMP_COIL_ABCO

L5605

10uH

0.33uF C5630-*1

0.33uF 50V

AMP_COIL_ABCO

L5606

10uH

AMP_COIL_ABCO

L5604

10uH

0.33uF C5631-*1

0.33uF 50V

L5603

10uH

AMP_COIL_ABCO

AMP_COIL_GET

L5604-*1

10.0uH

AMP_COIL_TAIYO

L5604-*2

10.0uH

0.47uF C5630

0.47uF 50V

0.47uF C5631

0.47uF 50V

AMP_COIL_GET

L5605-*1

10.0uH

AMP_COIL_TAIYO

L5605-*2

10.0uH

C5632

0.1uF 50V

C5633

0.1uF 50V

C5634

0.1uF 50V

C5635

0.1uF 50V

AMP_COIL_GET

L5606-*1

10.0uH

AMP_COIL_TAIYO

L5606-*2

10.0uH

Close to Speaker

OPT C5636 2200pF

50V

OPT

C5637 2200pF

50V

OPT C5638 2200pF

50V

OPT C5639 2200pF

50V

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SPK_L+

SPK_L-

SPK_R+

SPK_R-

M1A_L14

AMP_MAIN_TI 5

WAFER-ANGLE

4

3

2

1

P5600

13/10/16

IR/LED + Digital Eye + Control

+3.5V_ST

R4604

IR_OUT

+3.5V_ST

IR_OUT

R4610

22

L4600

BLM18PG121SN1D

C4600

0.1uF 16V

IR_OUT_EU

R4612

IR_OUT_EU

Q4616

2SC3052

C4601 1000pF 50V

+3.5V_ST

1K

C

E

IR_OUT_US

R4611

0

IR_OUT_EU

B

IR

R4613

10K

IR_OUT

R4614

IR_OUT

Q4617

2SC3052

+3.5V_ST

1K

C

E

R4603

R4601 100

KEY1

R4602 100

KEY2

+3.5V_ST

R4600

3.3K

IR_OUT

R4615

47K

B

10K

1%

10K 1%

LED_R/BUZZ

SENSOR_SCL

SENSOR_SDA

C4602

0.1uF 16V

C4603

0.1uF 16V

C4604 100pF

+3.3V_Normal

50V

R4605 1K

R4606

1.8K

VA4600

LED_R_Zener

IR_Zener

VA4601

R4607 1K

R4608 100

R4609 100

C4605 18pF 50V

C4606 18pF 50V

P4600

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

OPT

P4601

12507WR-08L

1

2

3

4

5

6

7

8

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_L14

IR/LED

13/10/16

6

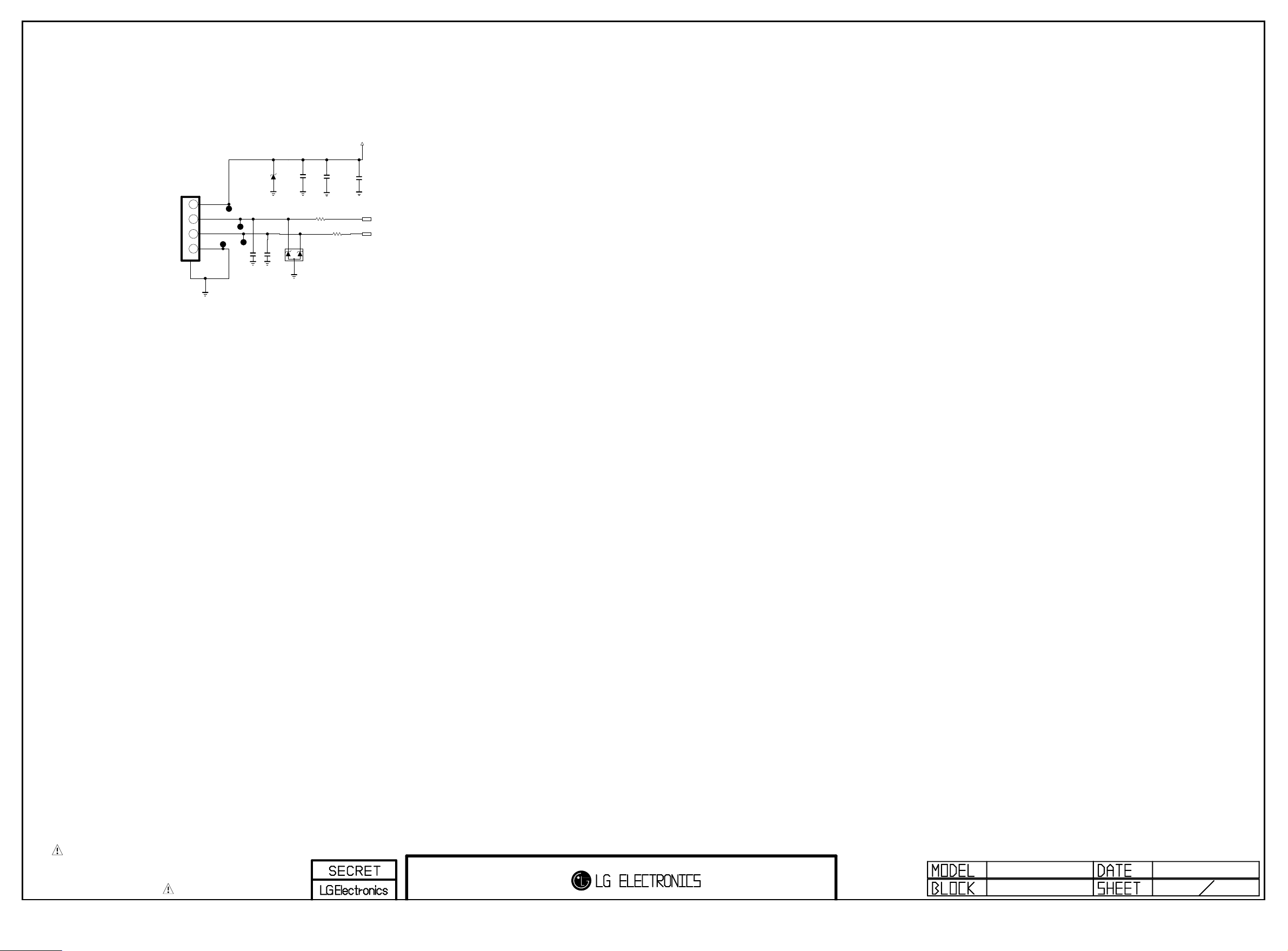

USB (SIDE)

JK700

1234

USB DOWN STR EAM

3AU 04S-3 05-Z C-(LG )

5

OPT C710

5pF 50V

+5V_USB

C700 22uF 16V

R700

2.2

1/16W 5%

D700 RCLAMP0502BA

OPT

C712 22uF 16V

R701

2.2

1/16W 5%

C713 22uF 16V

SIDE_USB1_DM

SIDE_USB1_DP

ZD700

OPT

SD05

5V

OPT C711

5pF 50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_M1A

USB_S1

13/04/30

7

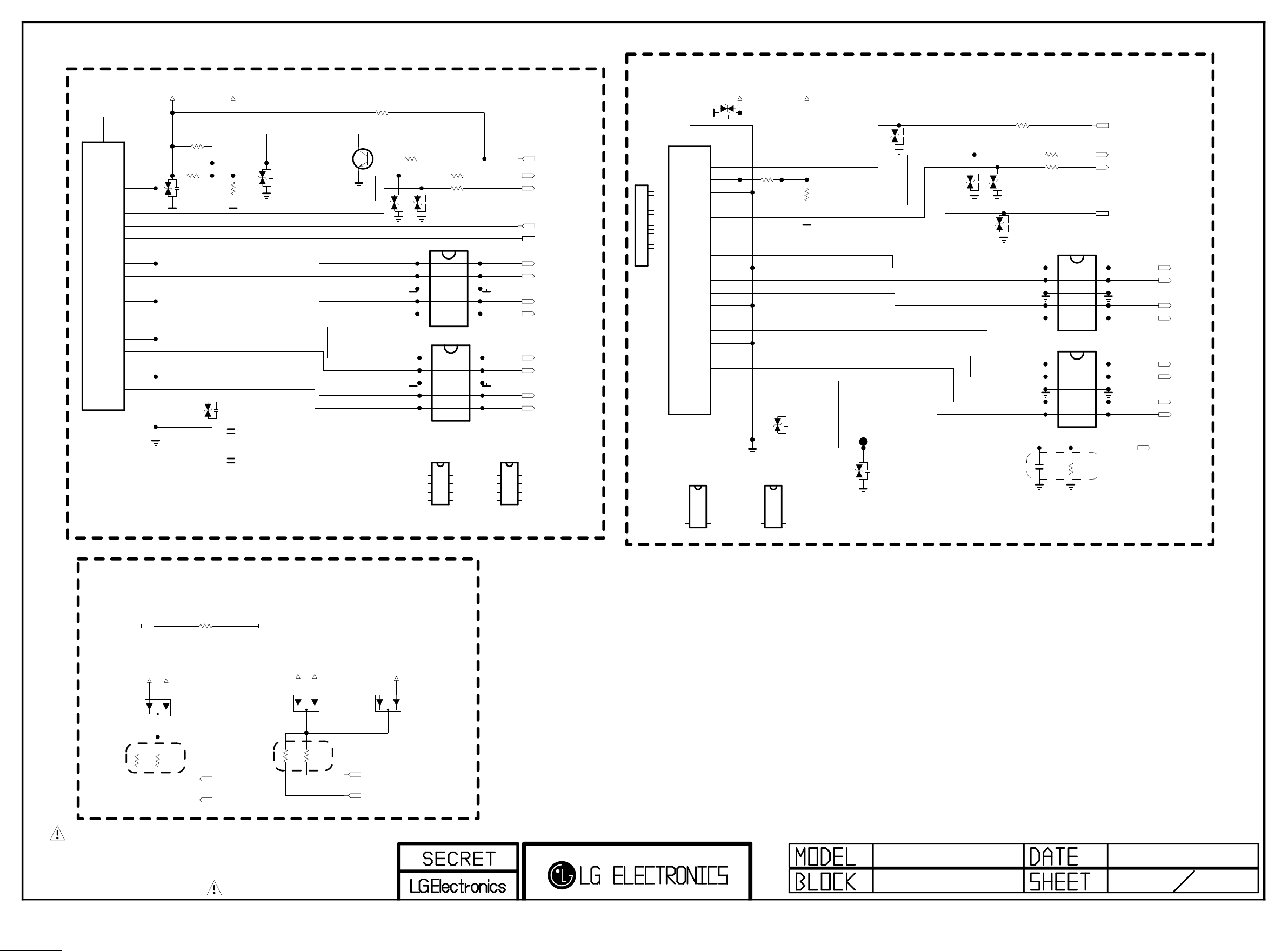

HDMI (REAR 1 / SIDE 1 MHL)

HDMI_1

SHIELD

20

19

18

17

16

15

14

13

12

11

CK+

10

EAG59023302

JK800

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R803

1K

R802

1.8K

VA800

ESD_HDMI1_VARISTOR

5V_DET_HDMI_2

ESD_HDMI1

R805

3.3K

VA801

ESD_HDMI1_VARISTOR

VA800-*1 1uF 10V

ESD_HDMI1_CAP

VA801-*1 1uF 10V

ESD_HDMI1_CAP

VA802

MMBT3904(NXP)

Q800

C

E

VA803

ESD_HDMI1

R808

10K

B

R809

10K

R810 100

R811 100

VA804

ESD_HDMI1

D803

IP4283CZ10-TBA

TMDS_CH1-

1

TMDS_CH1+

2

GND_1

3

TMDS_CH2-

4

TMDS_CH2+

5

ESD_HDMI1_NXP

D804

IP4283CZ10-TBA

TMDS_CH1-

1

TMDS_CH1+

2

GND_1

3

TMDS_CH2-

4

TMDS_CH2+

5

ESD_HDMI1_NXP

RCLAMP0524PA

D803-*1

1 2 3 4 5

ESD_HDMI1_SEMTECH

NC_4

10

NC_3

9

GND_2

8

NC_2

7

NC_1

6

NC_4

10

NC_3

9

GND_2

8

NC_2

7

NC_1

6

10 9 8 7 6

ESD_HDMI1_SEMTECH

RCLAMP0524PA

D804-*1

1

10

2

9 8

3

7

4

6

5

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI_2 MHL

VA805

ESD_HDMI2

GND

20

HP_DET

19

5V

BODY_SHIELD

DAADR019A JK801-*1

HDMI2_EMI

20

19

HOT_PLUG_DETECT

18

VDD[+5V]

17

DDC/CEC_GND

16

SDA

15

SCL

14

RESERVED

13

CEC

12

TMDS_CLK-

11

TMDS_CLK_SHIELD

10

TMDS_CLK+

9

TMDS_DATA0-

8

TMDS_DATA0_SHIELD

7

TMDS_DATA0+

6

TMDS_DATA1-

5

TMDS_DATA1_SHIELD

4

TMDS_DATA1+

3

TMDS_DATA2-

2

TMDS_DATA2_SHIELD

1

TMDS_DATA2+

ESD_HDMI2_SEMTECH

18

17

16

15

14

13

12

11

10

EAG62611204

9

8

7

6

5

4

3

2

1

JK801

HDMI-2

RCLAMP0524PA

D805-*1

1

10

2

9 8

3

7

4

6

5

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R812

1.8K

HDMI-2

ESD_HDMI2

VA806

RCLAMP0524PA

D806-*1

1

10

2

9 8

3

7

4

6

5

ESD_HDMI2_SEMTECH

5V_DET_HDMI_4

R813

3.3K HDMI-2

VA807

5.6V OPT

ESD_HDMI2

VA808

ESD_HDMI2

VA809

HDMI-2

R814

33

VA810

ESD_HDMI2

VA811

ESD_HDMI2

HDMI-2

R815 100

R816 100

HDMI-2

IP4283CZ10-TBA

TMDS_CH1-

TMDS_CH1+

GND_1

TMDS_CH2-

TMDS_CH2+

ESD_HDMI2_NXP

IP4283CZ10-TBA

TMDS_CH1-

TMDS_CH1+

GND_1

TMDS_CH2-

TMDS_CH2+

ESD_HDMI2_NXP

C800

0.047uF 25V

HDMI-2

1

2

3

4

5

1

2

3

4

5

D805

D806

10

9

8

7

6

10

9

8

7

6

R817 300K

MHL Spec

HDMI-2

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

NC_4

NC_3

GND_2

NC_2

NC_1

NC_4

NC_3

GND_2

NC_2

NC_1

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

MHL_CD_SENSE

CEC

R804

A2CA1

MMBD6100 D800

100

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE_S7

5V_HDMI_4

R806

2.7K

+5V_Normal

A2CA1

MMBD6100 D801

R807

2.7K

+3.5V_ST

DDC_SDA_4

DDC_SCL_4

A2CA1

MMBD6100 D802

HDMI_CEC

5V_HDMI_2

R800

2.7K

+5V_Normal

R801

2.7K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_M1A

2013/05/15

HDMI_R1_S1 8

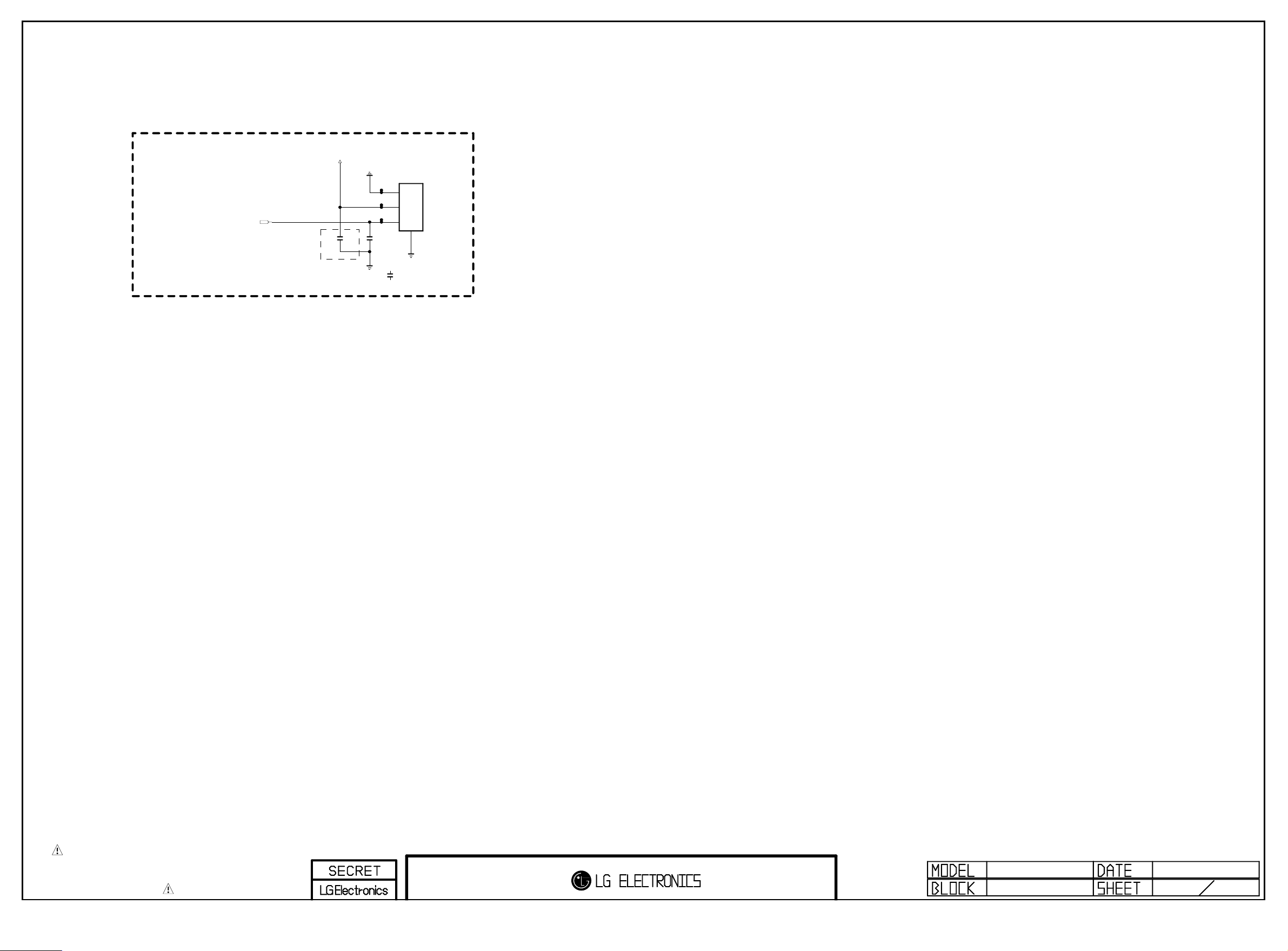

SPDIF from EAX65346302



SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

+3.3V_Normal

C1001

1uF

OPT

10V

ESD Ready

GND

VCC

VINPUT

C1002 47pF 50V

SPDIF_CAP_47pF

JK1001

JST1223-001

Fiber Optic

1

2

3

4

FIX_POLE

SPDIF_CAP_18pF C1002-*1 18pF 50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_L14

SPDIF

2013/05/15

10

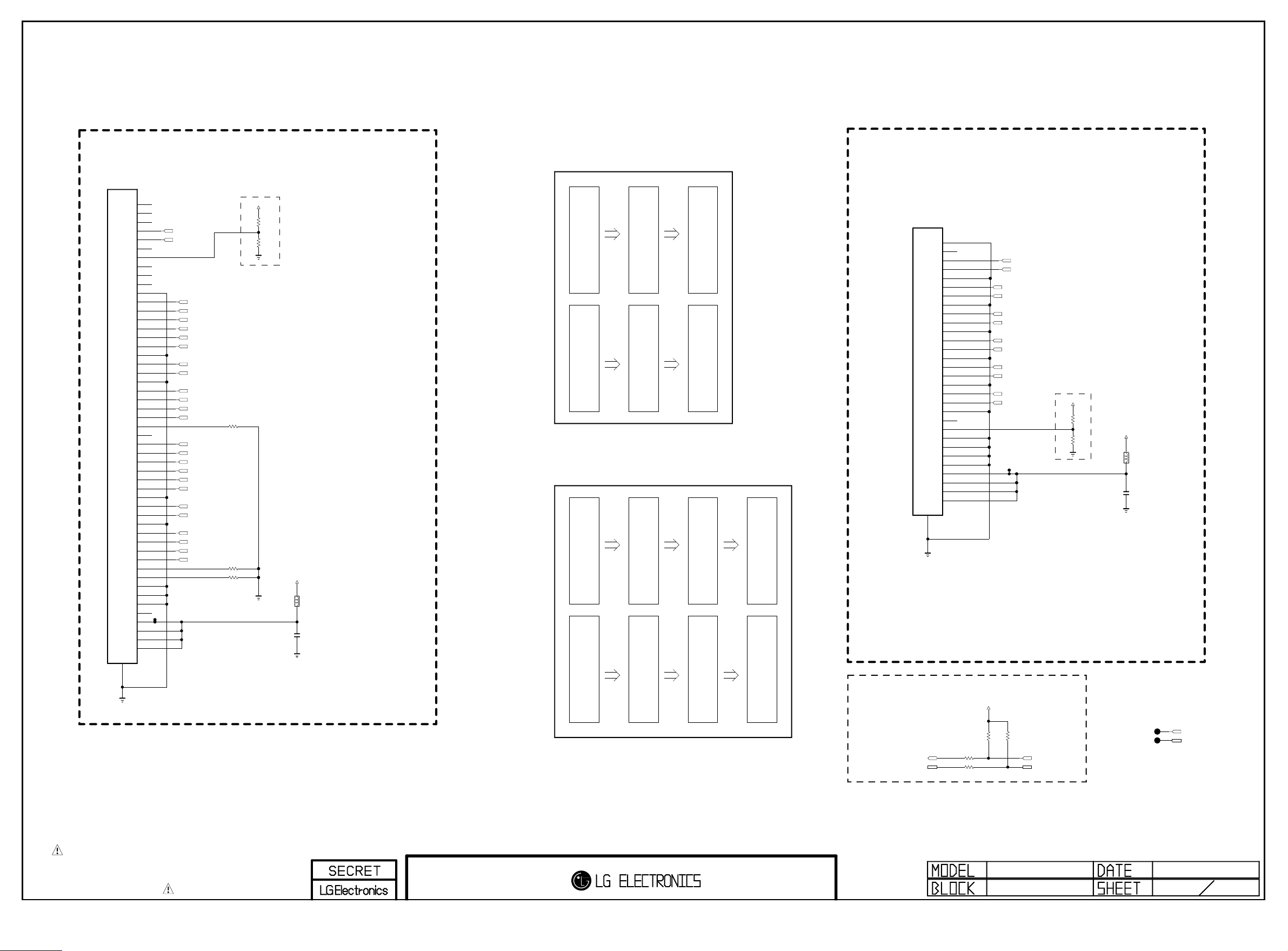

LVDS (NON EU)

[51Pin LVDS Connector] (For FHD 60Hz)

FHD

P1100

FI-RE51S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

VCOM_SDA

VCOM_SCL

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

R1100 0

FHD

R1101 0

R1102 0

FHD

LVDS_SEL

+3.3V_Normal

OPT R1103

3.3K

OPT R1104

10K

PANEL_VCC

FHD L1100 120OHM UBW2012-121F

FHD C1100

0.1uF 16V

FOR FHD REVERSE(10bit) Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2- RXBCK-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit) Change in S7LR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

MIRROR

Pol-change

RXA4+

RXA4-

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

Shift

RXA4-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2- RXACK-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[30Pin LVDS Connector] (For HD 60Hz_Normal)

HD

P1101

10031HR-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

VCOM_SCL

VCOM_SDA

+3.3V_Normal

EU pin assign is different from NON EU. Because of position of HD wafer.

V-COM I2C

+3.3V_Normal

VCOM_SCL

VCOM_SDA

VCOM_I2C_PULL_UP

R1114

VCOM_I2C

R1105

0

R1106

0

VCOM_I2C

2K

VCOM_I2C_PULL_UP

R1115 2K

URSA/VCOM_SCL

URSA/VCOM_SDA

LVDS_SEL

OPT R1109

3.3K

OPT R1110 10K

PANEL_VCC

120OHM

HD

L1101

UBW2012-121F

HD

C1101

0.1uF 16V

URSA/VCOM_SCL

URSA/VCOM_SDA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_S7LR(M1A)

LVDS_NON_EU

2013/05/01

11

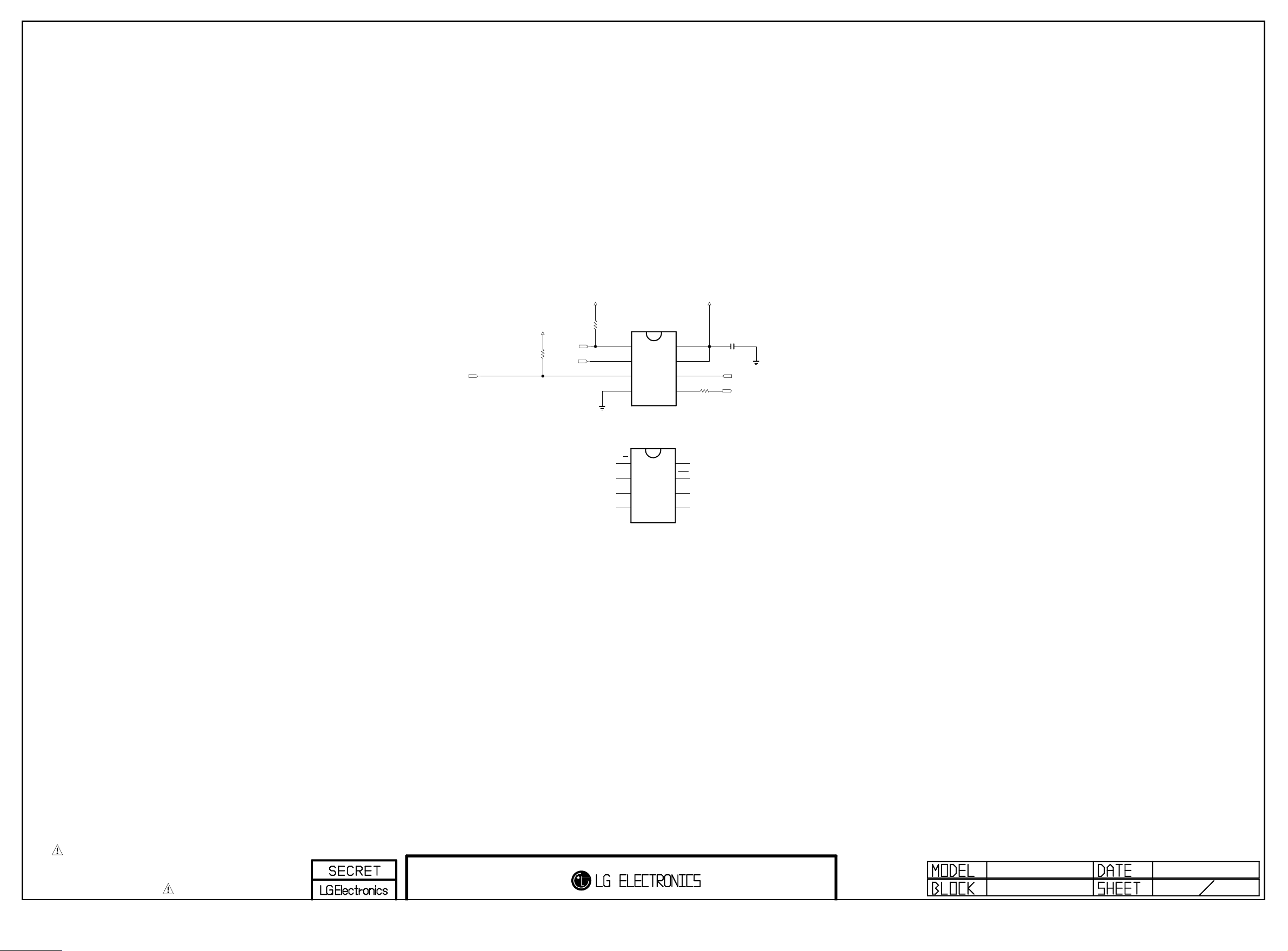

Serial Flash for SPI boot

/FLASH_WP

OPT R1300 10K

+3.5V_ST

/SPI_CS

SPI_SDO

OPT R1301

4.7K

SPI_FLASH_MACRONIX

IC1300

MX25L8006EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND

4

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

+3.5V_ST+3.5V_ST

R1302

33

C1300

0.1uF

SPI_SCK

SPI_SDI

SPI_FLASH_WINBOND

IC1300-*1

W25Q80BVSSIG

CS

1

DO[IO1]

2

%WP[IO2]

3

GND

4

8

7

6

5

VCC

HOLD[IO3]

CLK

DI[IO0]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_S7LR(M1A)

S_FLASH

2013/04/29

13

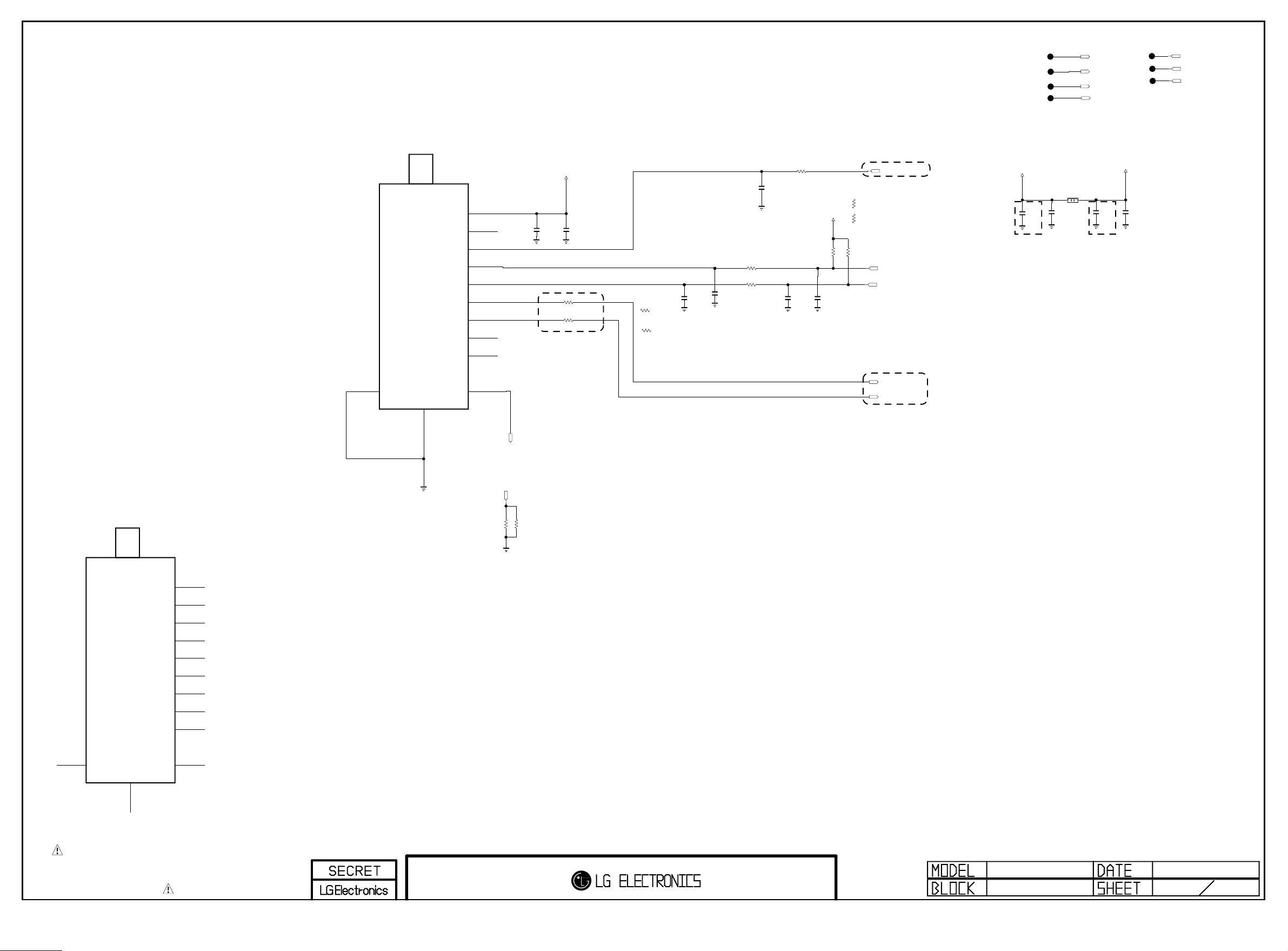

GLOBAL tuner block KR & AJ

DEV_TU_ATSC

TU1601 TDJH-H101F

B1[+3.3V]

1

NC_1

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_2

8

NC_3

9

+3.3V_TU

C1616

C1615 100pF

0.1uF

50V

16V

close to the tuner pin, add,09029

R1605 0

HALF_NIM/IF_NON_FILTER

R1606 0

HALF_NIM/IF_NON_FILTER

Close to the tuner

HALF_NIM/IF_FILTER

R1605-*1 10

HALF_NIM/IF_FILTER

R1606-*1 10

C1609 18pF 50V

C1610 18pF 50V

R1607 33

R1608 33

C1611

0.1uF 16V

R1609 100

should be guarded by ground

+3.3V_TU

R1610

1.8K

TU_IIC_ATSC_1.8K

OPT

C1614

C1613

20pF

50V

IF_AGC_MAIN

R1610-*1 1K TU_IIC_NON_ATSC_1K

R1611-*1 1K TU_IIC_NON_ATSC_1K

R1611

1.8K TU_IIC_ATSC_1.8K

TU_SCL

TU_SDA

+3.3V_TU

CHANGE TO

6.3V 2012 X5R

C1602 22uF

6.3V

Size change,0929

L1600

UBW2012-121F

C1603

0.1uF 16V

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

FE_TS_DATA[0]

+3.3V_Normal

C1605 22uF

6.3V

CHANGE TO

6.3V 2012 X5R

C1607

0.1uF 16V

FE_AGC_SPEED_CTL IF_AGC_SEL

TUNER_RESET

RF_SWITCH_CTL

TU_AJ_T/C

TU1601-*1 TDJH-G101D

B1[+3.3V]

1

NC_1

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

NC_2

8

NC_3

9

A1

47

SHIELD

B1

GND seperation for ASIS tuner

OPT

R1600

TU_GND_A

R1601

0

IF_P_MSTAR

IF_N_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils Signal to Signal Width = 12mils Ground Width >= 24mils

OPT

A1

B1

47

SHIELD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L14_S7LR(M1A)

TUNER_KR_AJ

2013.05.06 14

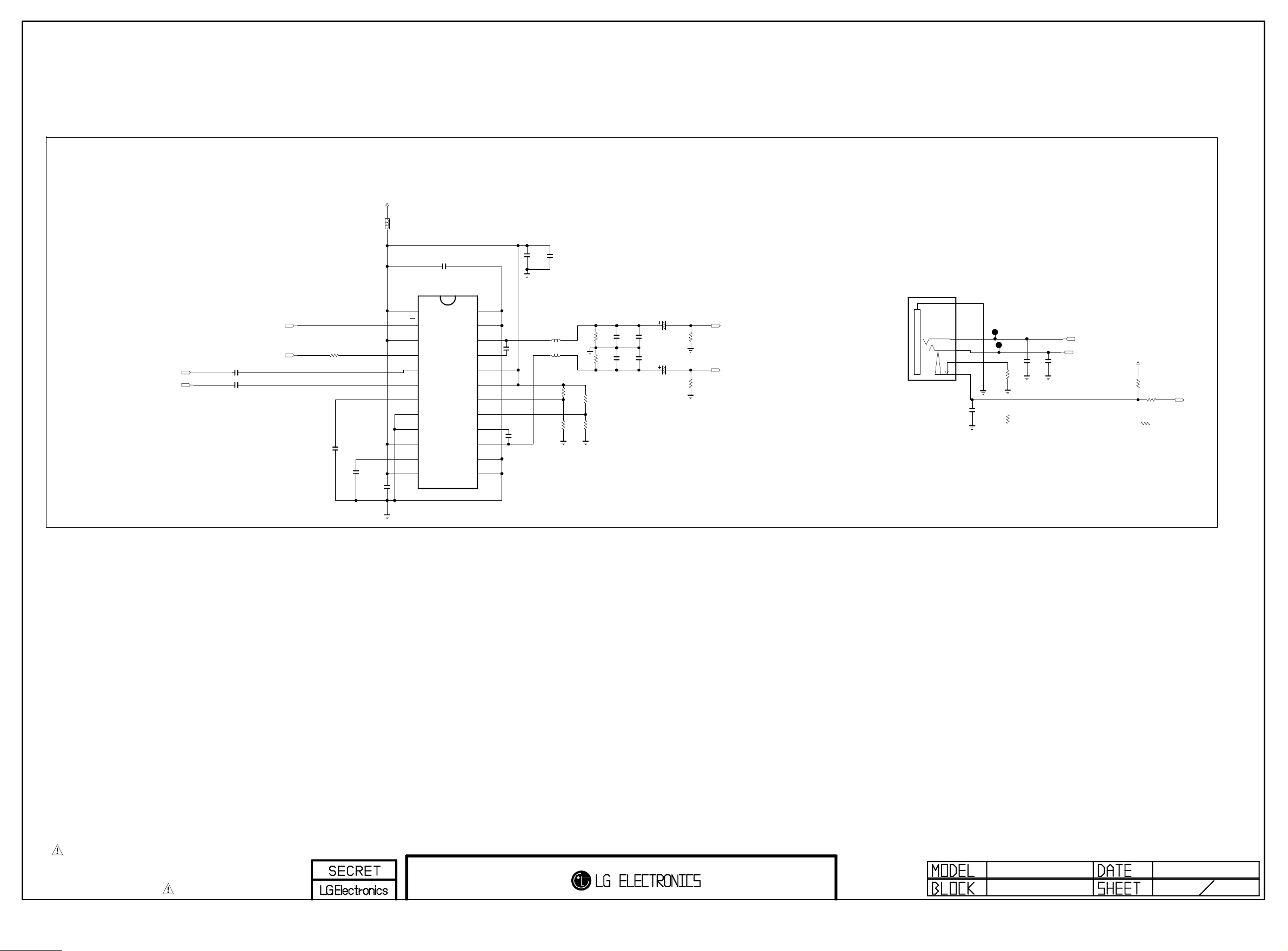

EXT_speaker Single ended

+24V

L902

EXT_SPK

BLM18PG121SN1D

EXT_SPK

C914

0.1uF 50V

EXT_SPK

C915

0.1uF 50V

EXT_SPK

C916

4.7uF 50V

EXT_SPEAKER

EXT_AMP_L

EXT_AMP_R

EXT_SPK

C928

10V

1uF

10V

1uF

C927

EXT_SPK

EXT_SPK_DET

SUB_MUTE

EXT_SPK

R924

10K

EXT_SPK

C911 1uF 50V

C912 1uF 50V

EXT_SPK

C913

0.1uF 50V

TPA3124D2PWPR

PVCCL_1

SD

PVCCL_2

MUTE

LIN

RIN

BYPASS

AGND_1

AGND_2

PVCCR_1

VCLAMP

PVCCR_2

EXT_SPK

IC901

1

2

3

4

5

6

7

8

9

10

11

12

PGNDL_2

24

PGNDL_1

23

LOUT

EXT_SPK

22

21

20

19

18

17

16

15

14

13

BSL

AVCC_2

AVCC_1

GAIN0

GAIN1

BSR

ROUT

PGNDR_2

PGNDR_1

C917

0.22uF 50V

EXT_SPK

C918

0.22uF 50V

EXT_SPK L904

22.0uH

22.0uH L905

EXT_SPK

R930 10K OPT

R931 10K

EXT_SPK

R932 10K

EXT_SPK

R933 10K OPT

R934

4.7K

EXT_SPK

R935

4.7K

C919

0.47uF 50V

EXT_SPK

C920

0.47uF 50V

EXT_SPK

C921

0.47uF 50V

EXT_SPK

C922

0.47uF 50V

EXT_SPK

C923

C924

47uF

25V

EXT_SPK

25V

EXT_SPK

EXT_SPK 10K

R936

EXT_SPK

10K

R937

EXT_OUT_L

EXT_OUT_R

EXT_SPK

JK902

PEJ034-01

E_SPRING

3

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

10V

C902 1uF

10V

R9061K1/16W

5%

CI_Del_EXT_SPK

0

CI

1/16W

5%

R906-*1

C925 1uF OPT

C926 1uF 10V

OPT

EXT_OUT_R

EXT_OUT_L

+3.5V_ST

EXT_SPK

R908 100

R908-*1 0

1/16W 5%

R907 15K

CI_Del_EXT_SPK

CI

EXT_SPK_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC5_L14

EXT. Speaker/H.P.

2013/07/18

15

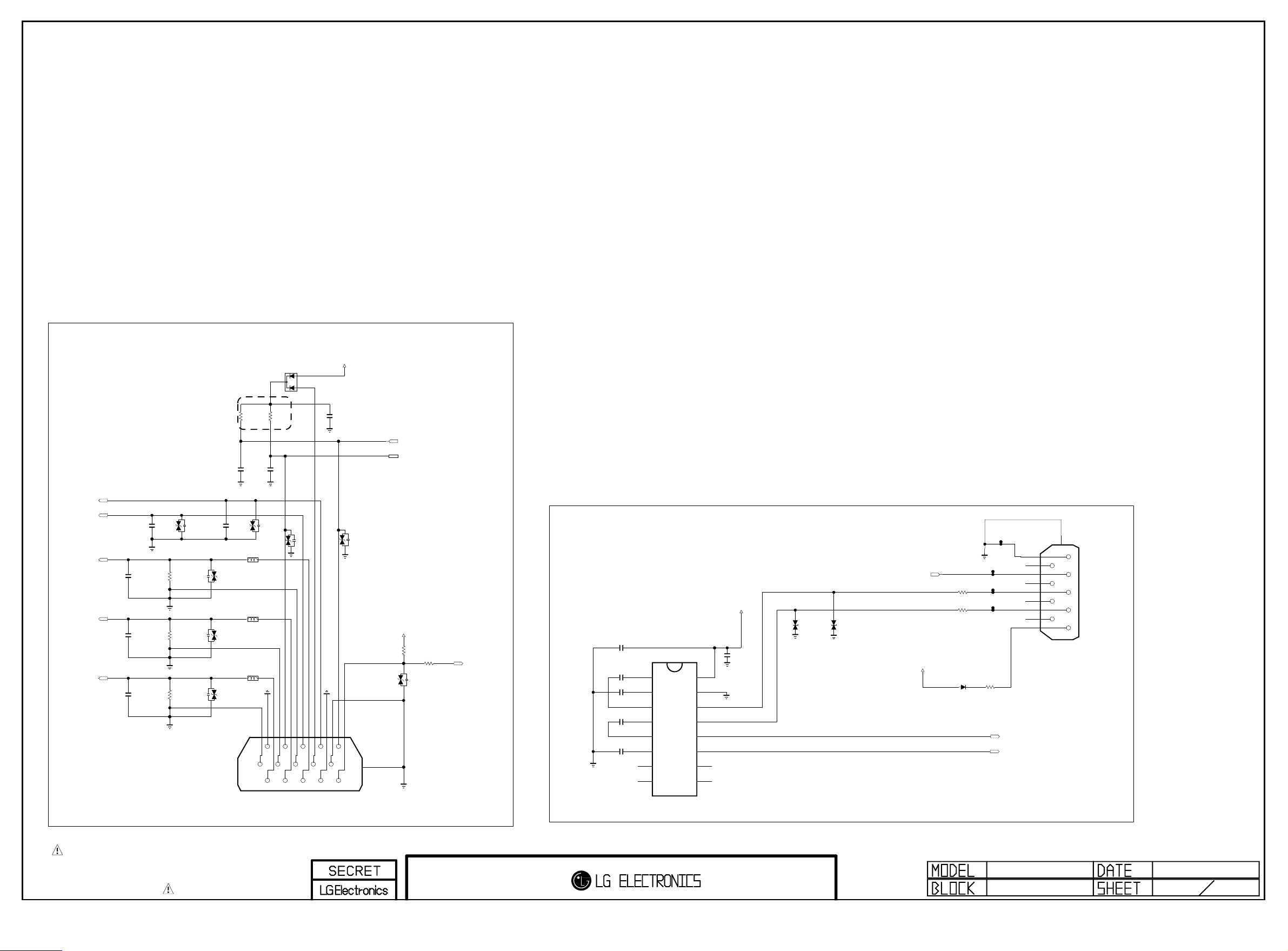

COMPONENT & AV1(COMMON), AV2 => RGB/AV/RS232C

RGB PC

RGB_PC

D710

MMBD6100

C

A2

A1

+5V_Normal

DSUB_VSYNC

DSUB_HSYNC

DSUB_B+

DSUB_G+

DSUB_R+

C707 47pF 50V

OPT

C708 47pF 50V

OPT

C709 47pF 50V

OPT

OPT C718 68pF 50V

OPT

VA701 20V ADUC 20S 02 010L

RGB_PC

R718 75

RGB_PC

R719 75

RGB_PC R720 75

NON_CI_CAP_RGB_PC

ADUC 20S 02 010L

RGB_VARISTOR

VA702 20V

ADUC 20S 02 010L

RGB_VARISTOR

VA703 20V

ADUC 20S 02 010L

RGB_VARISTOR

VA704 20V

OPT C720 68pF 50V

RGB_PC

R723

2.2K

NON_CI_CAP_RGB_PC

C721 18pF

50V

OPT VA705 20V

ADUC 20S 02 010L

RGB_EMI

BLM15BD121SN1

L704

RGB_EMI

BLM15BD121SN1

L702

RGB_EMI

BLM15BD121SN1

L701

RGB_PC R724

2.2K

C723

18pF

50V

OPT VA706

5.6V

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

11

6

1

JK705

SPG09-DB-010

NON_CI_CAP_RGB_PC

0.1uF

16V

RGB_PC

C724

OPT VA707

5.6V

SHILED

16

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

RGB_PC

R729 10K

OPT VA708

5.6V

ADMC 5M 02 200L

RGB_PC

R732 1K

DSUB_DET

RS232C

0.33uF

C701

C1+

C702

0.1uF

C703

0.1uF C1-

C2+

C704

0.1uF C2-

C705

0.1uF

DOUT2

RIN2

V+

V-

IC701

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

JP719

R712 1K

JP718

JP708

JP709

PM_RXD

PM_TXD

IR_OUT

+3.5V_ST

D704 CDS3C30GTH 30V

OPT

C706

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

D706 CDS3C30GTH 30V

OPT

+3.5V_ST

R710 100

R711 100

D707 BAP70-02

50V

10

9

8

7

6

SPG09-DB-009

JK706

5

4

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

REAR_JACK_NON_EU

2013.05.20L14_S7LR(M1A) 17

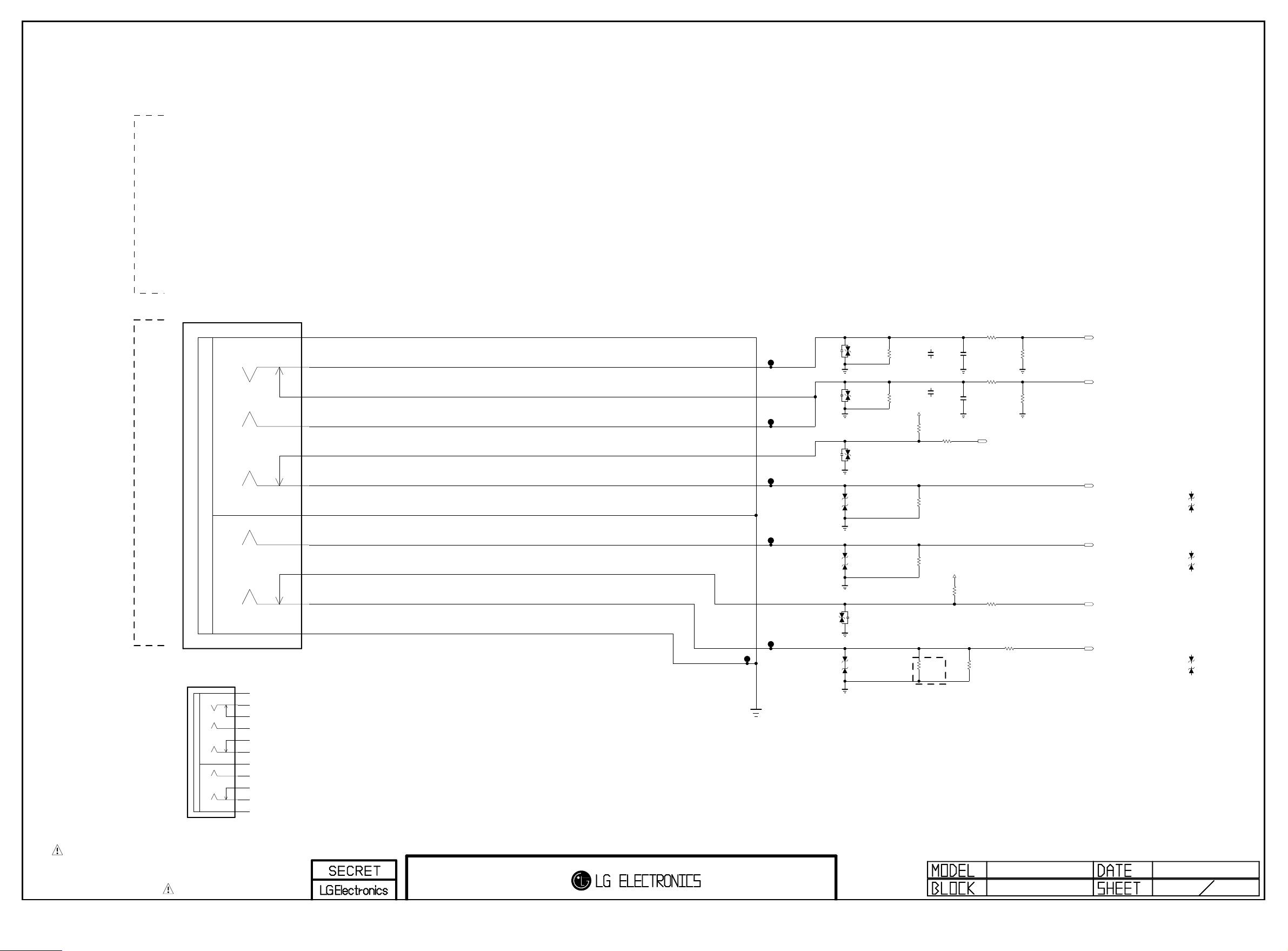

COMPONENT & AV1(COMMON)

AV2

COMP_AV1

JK1702

PPJ245-01

[RD2]E-LUG

7E

[RD2]C-SPRING

6E

[RD2]CONTACT

4E

[WH]C-SPRING

5D

[RD1]CONTACT

4C

VA1700

5.6V COMP_LR_ZENER

VA1701

5.6V COMP_LR_ZENER

VA1702

5.6V OPT

R1703 470K

R1704 470K

+3.3V_Normal

R1709 10K

C1704-*1 330pF 50V 330p

C1705-*1 330pF 50V 330p

R1712

1K

C1704 1000pF 50V 1000p

C1705 1000pF 50V 1000p

R1714 10K

R1715 10K

COMP_DET

R1720 12K

R1721 12K

COMP_R_IN

COMP_L_IN

COMPONENT & AV1

color change comp jack

JK1702-*1

PPJ245N2-01

6E

5E

4E

5D

4C

5C

7C

5B

4A

5A

6A

[RD2]E-LUG

[RD2]O-SPRING

[RD2]CONTACT

[WH]O-SPRING

[RD1]CONTACT

[RD1]O-SPRING

[RD1]E-LUG-S

[BL]O-SPRING

[GN/YL]CONTACT

[GN/YL]O-SPRING

[GN/YL]E-LUG

[RD1]C-SPRING

6C

[RD1]E-LUG-S

8C

[BL]C-SPRING

5B

[GN]CONTACT

4A

[GN]C-SPRING

6A

[GN]E-LUG

7A

COMP_Pr_ZENER_ROHM

ZD1701

ZD1703

COMP_Pb_ZENER_ROHM

ZD1705

COMP_Y_ZENER_ROHM

ZD1700

COMP_Pr_ZENER_ROHM

ZD1702

COMP_Pb_ZENER_ROHM

VA1703

5.6V OPT

ZD1704 COMP_Y_ZENER_ROHM

R1705 75

R1706

75

+3.3V_Normal

R1707 75

1608

1%

Size Check !!!

R1710 10K

OPT

R1723 75

3216

COMP_Pr+

ZD1701-*1

COMP_Pr_ZENER_KEC

COMP_Pb+

ZD1703-*1

COMP_Pb_ZENER_KEC

R1713

1K

R1722 0

1%

AV_CVBS_DET

COMP_Y+/AV_CVBS_IN

ZD1705-*1

COMP_Y_ZENER_KEC

ZD1700-*1

COMP_Pr_ZENER_KEC

ZD1702-*1

COMP_Pb_ZENER_KEC

ZD1704-*1 COMP_Y_ZENER_KEC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

REAR_JACK_NON_EU

2013.05.20L14_S7LR(M1A)

17
