OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
LN54**
LP36**
LP63**
LP86**
LA62**
www.lg.com
<![endif]>ENGLISH
2TABLE OF CONTENTS
TABLE OF CONTENTS
3LICENSES
3OPEN SOURCE SOFTWARE NOTICE
4SAFETY INSTRUCTIONS
4- Viewing 3D Imaging (Only 3D
models)
6INSTALLATION PROCEDURE
6ASSEMBLING AND PREPARING
6Unpacking
9 Separate purchase
10Parts and buttons
11Lifting and moving the TV
12Setting up the TV
12- Attaching the stand
13- Mounting on a table

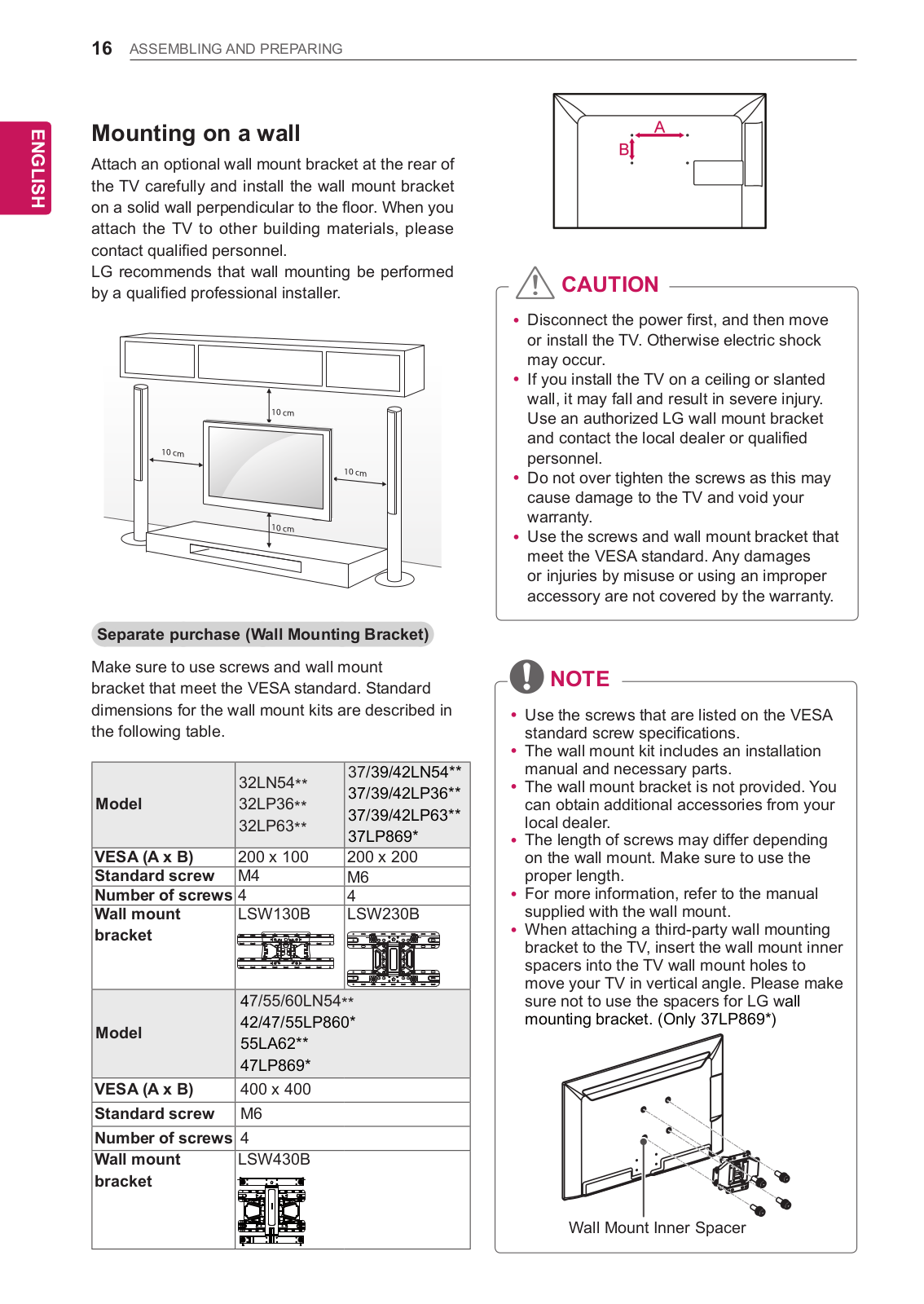

16- Mounting on a wall

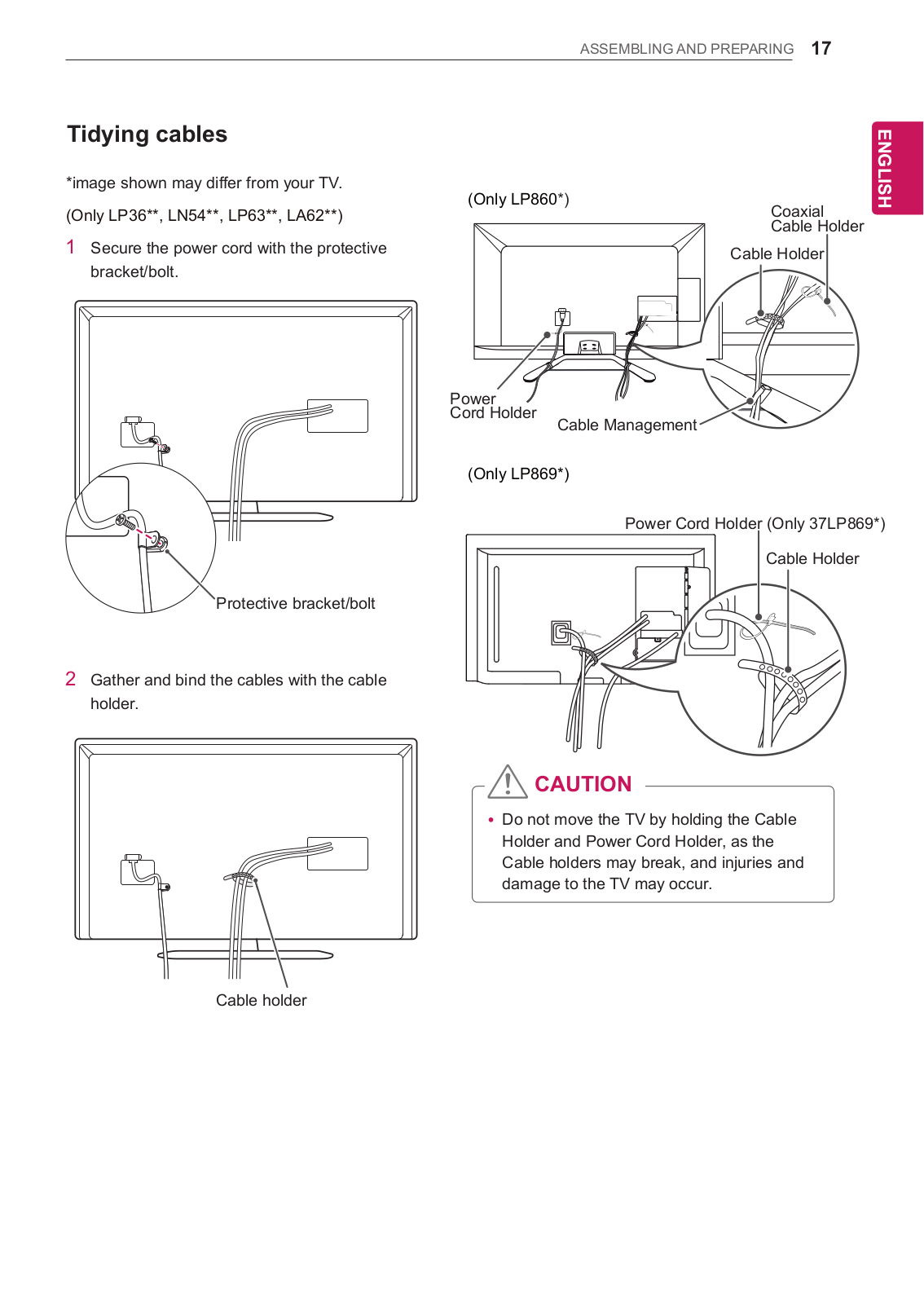

17- Tidying cables

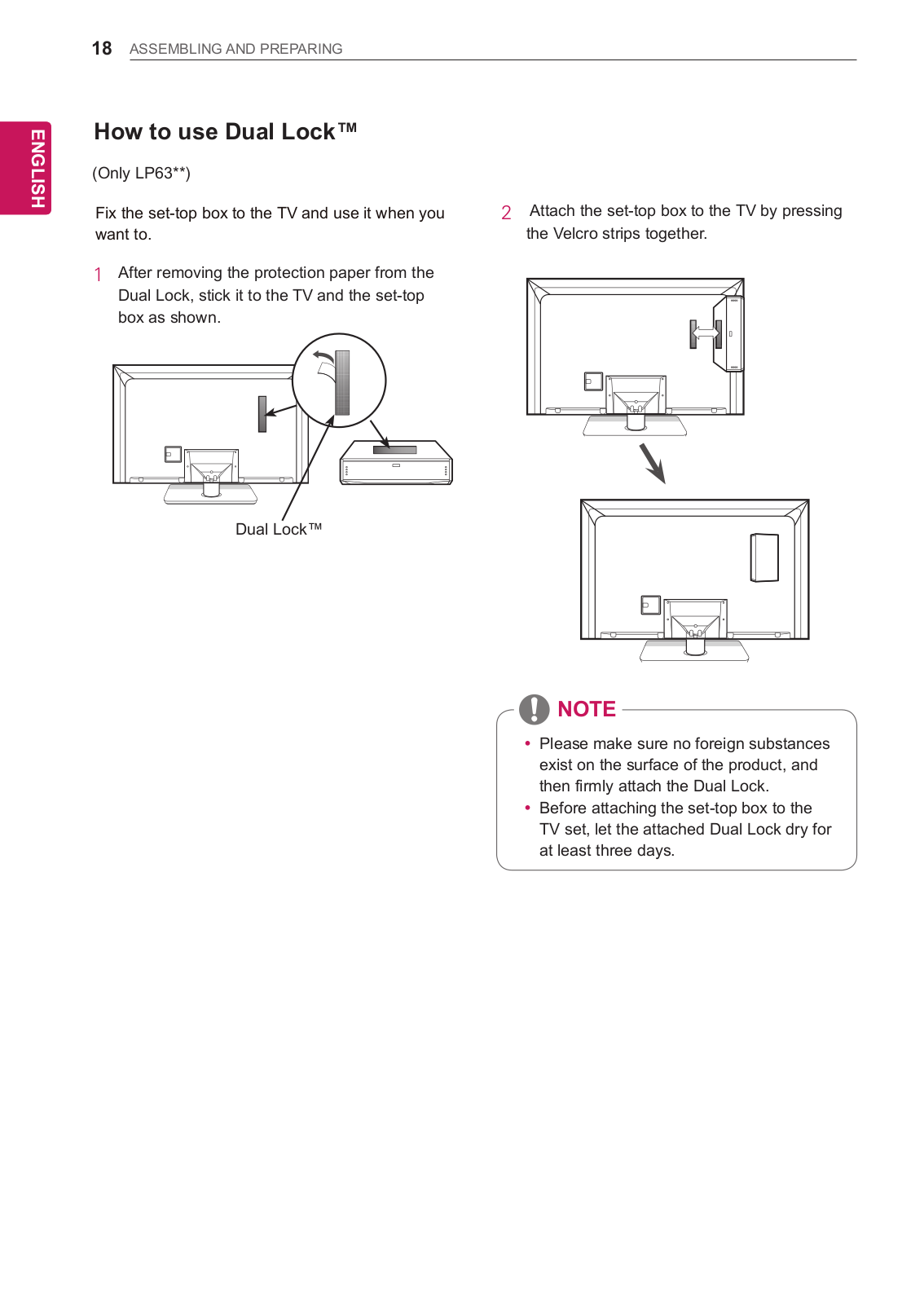

18- How to use Dual Lock™
19 MAKING CONNECTIONS

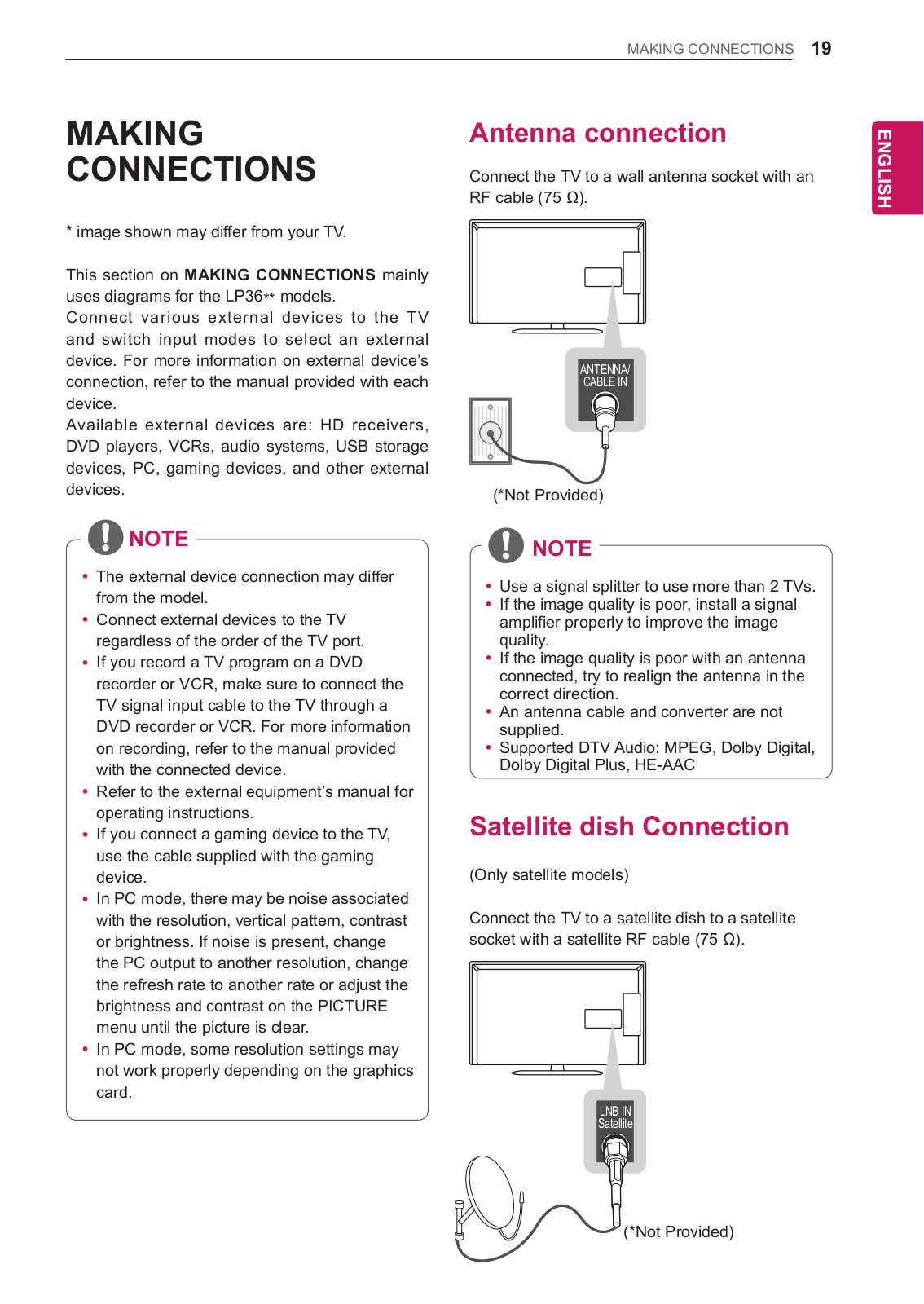

19 Antenna connection
19Satellite dish Connection

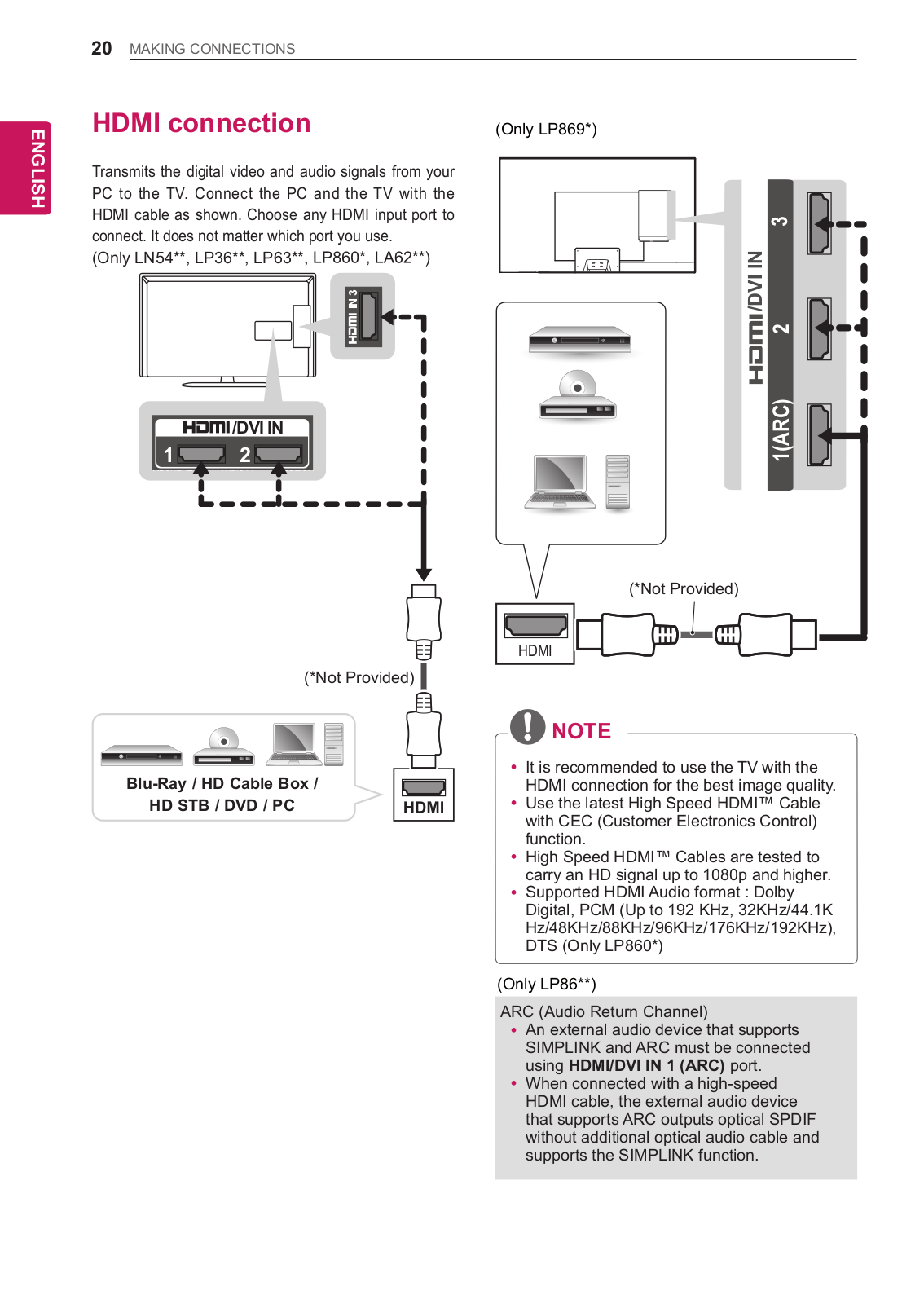

20HDMI connection

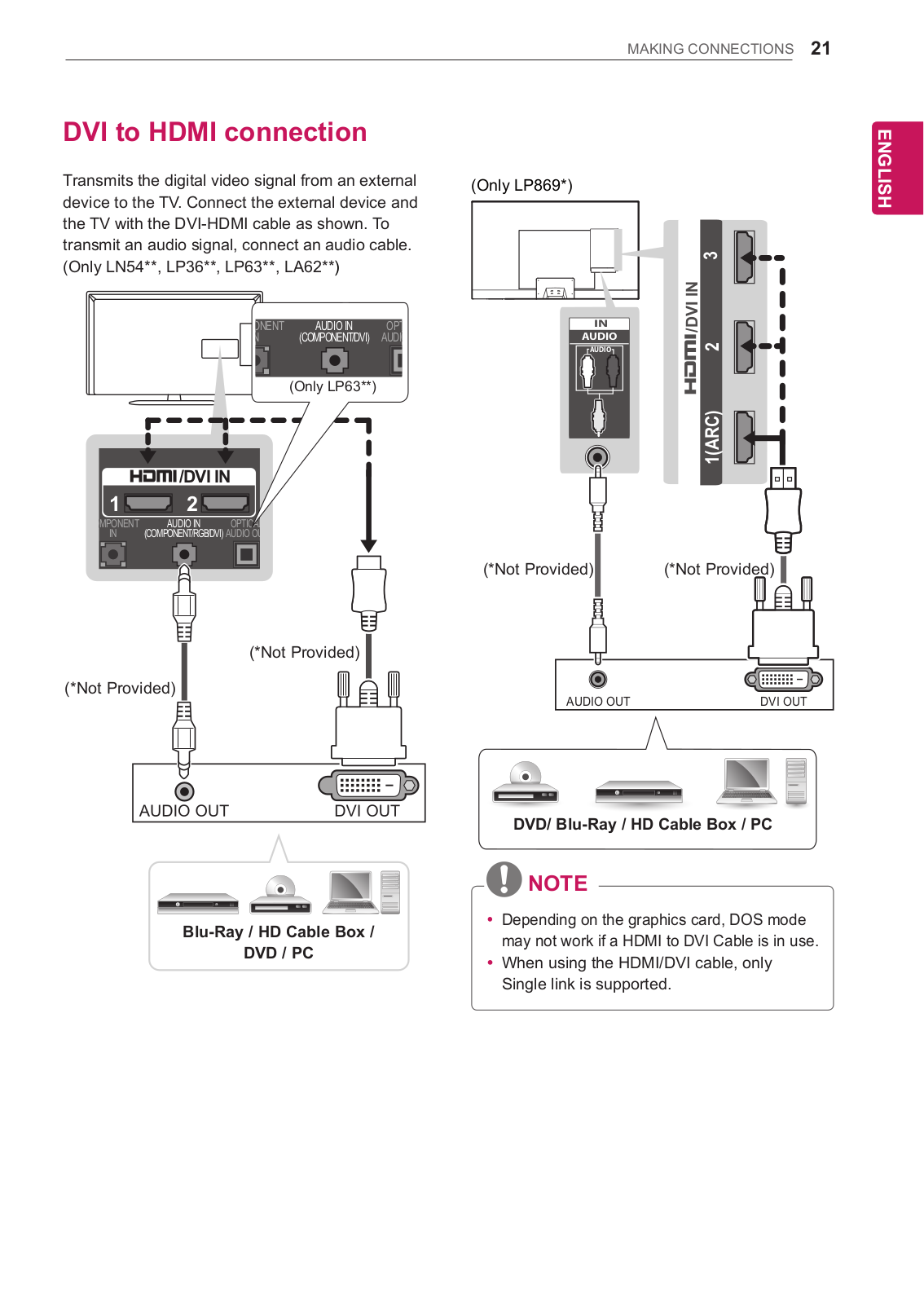

21DVI to HDMI connection

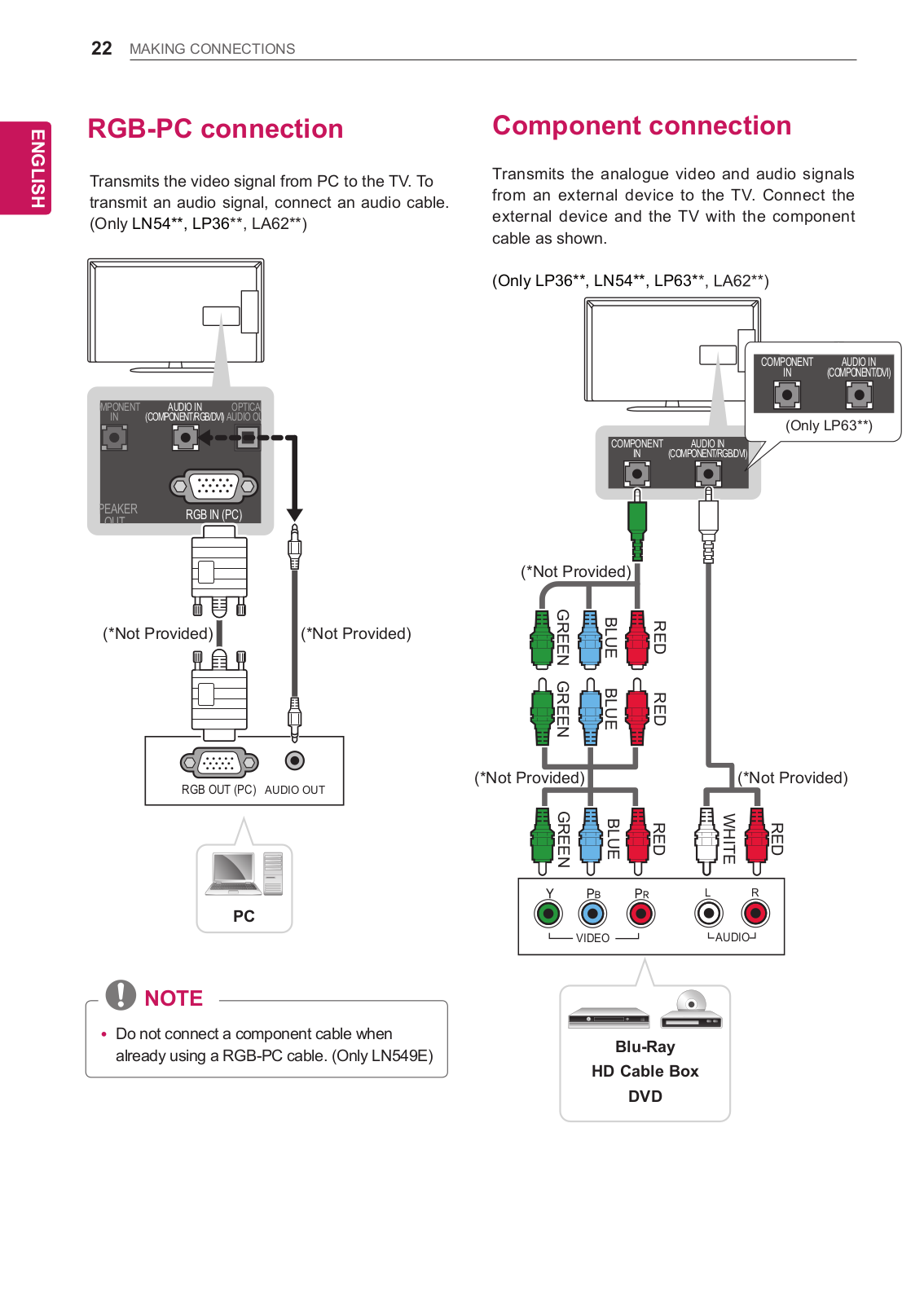

22RGB-PC connection
22Component connection

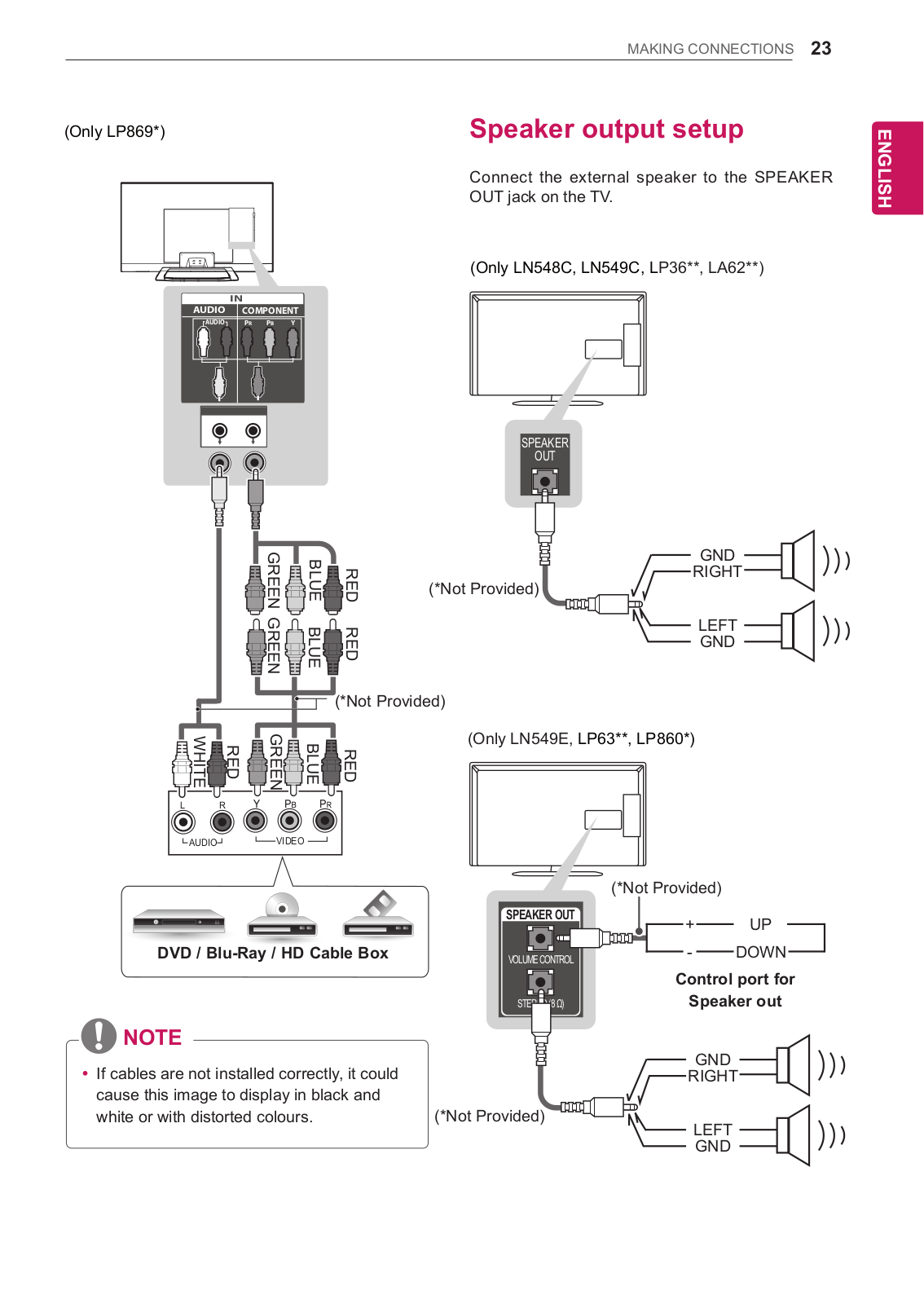

23Speaker output setup

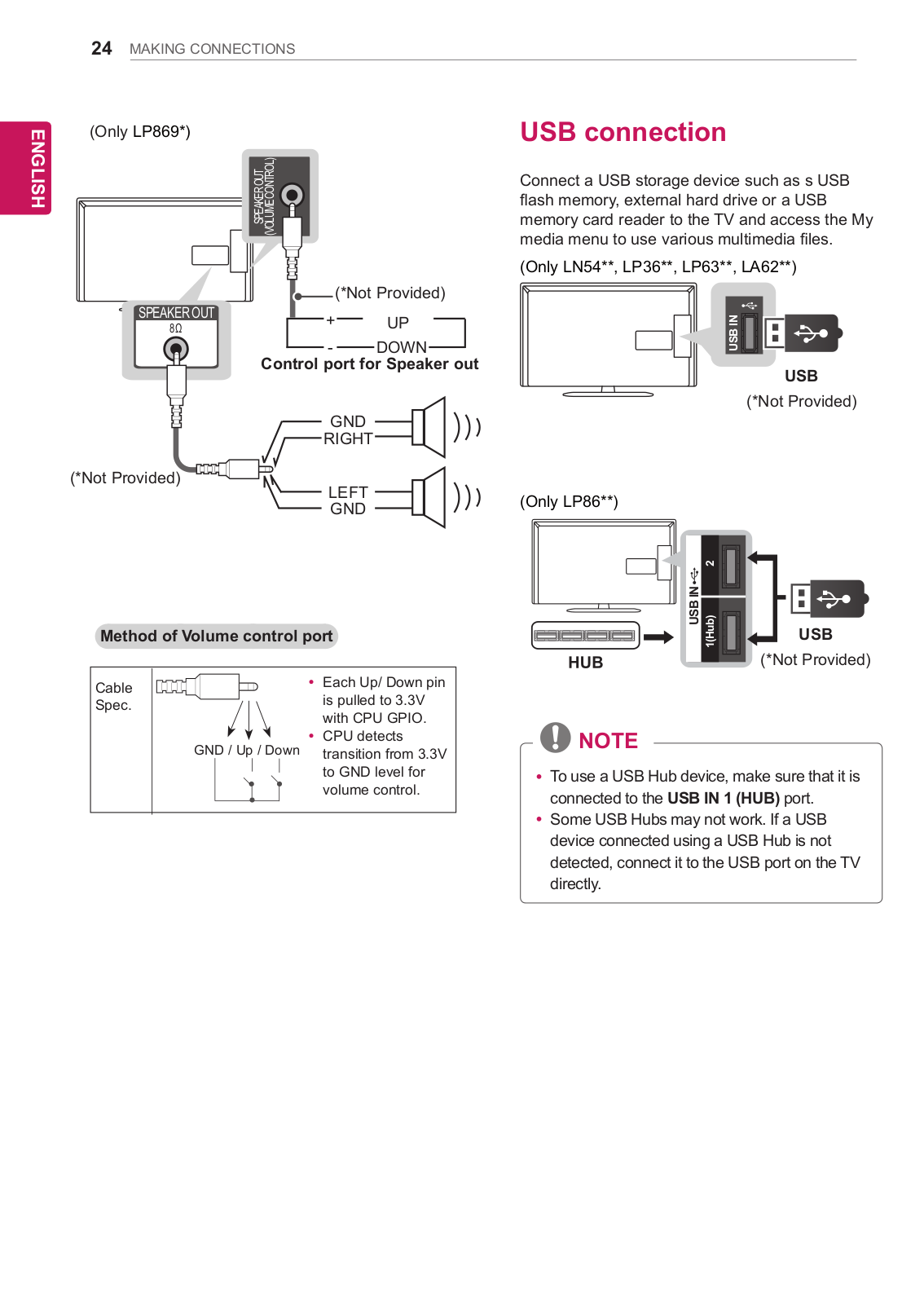

24USB connection

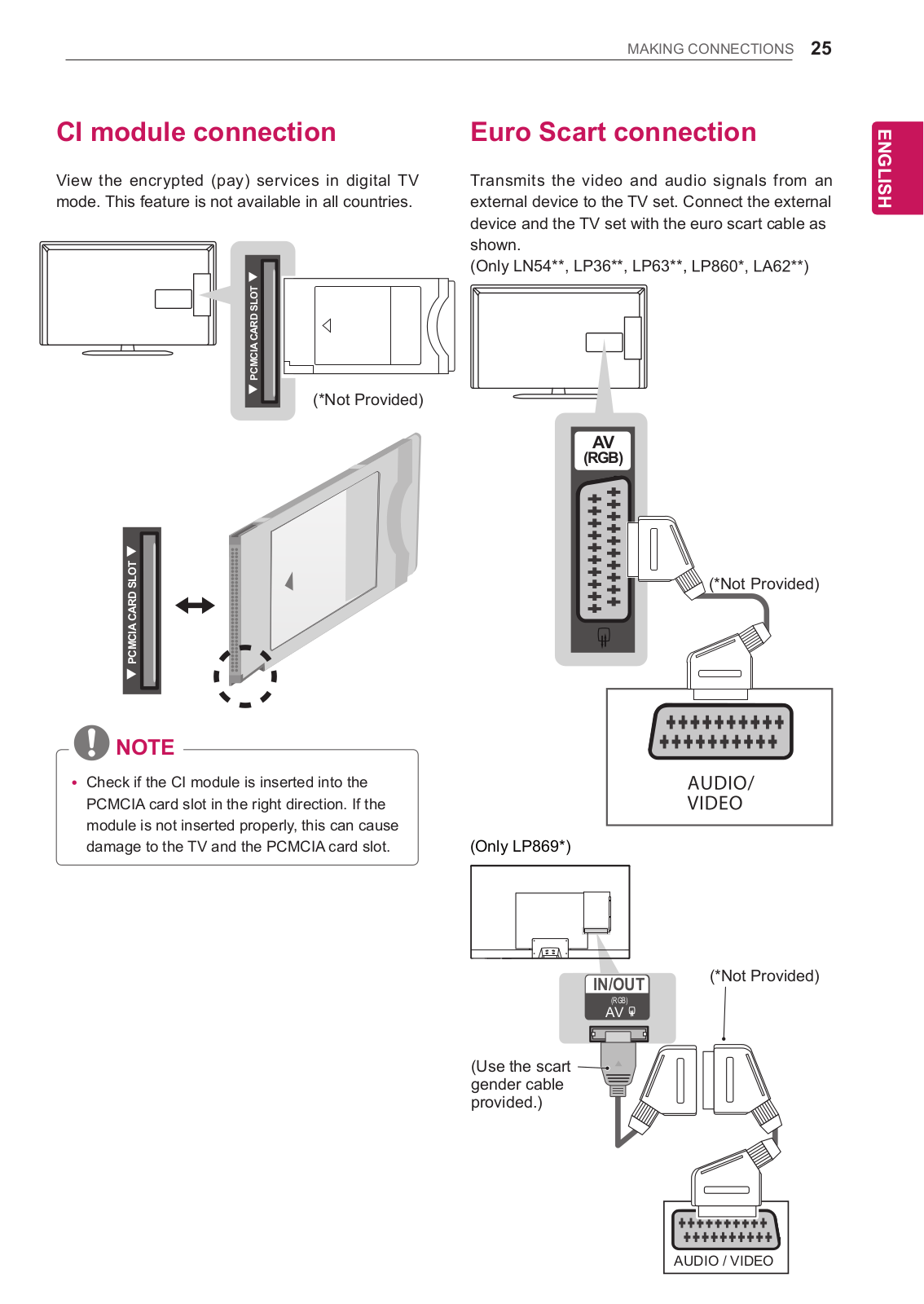

25CI module connection
25Euro Scart connection

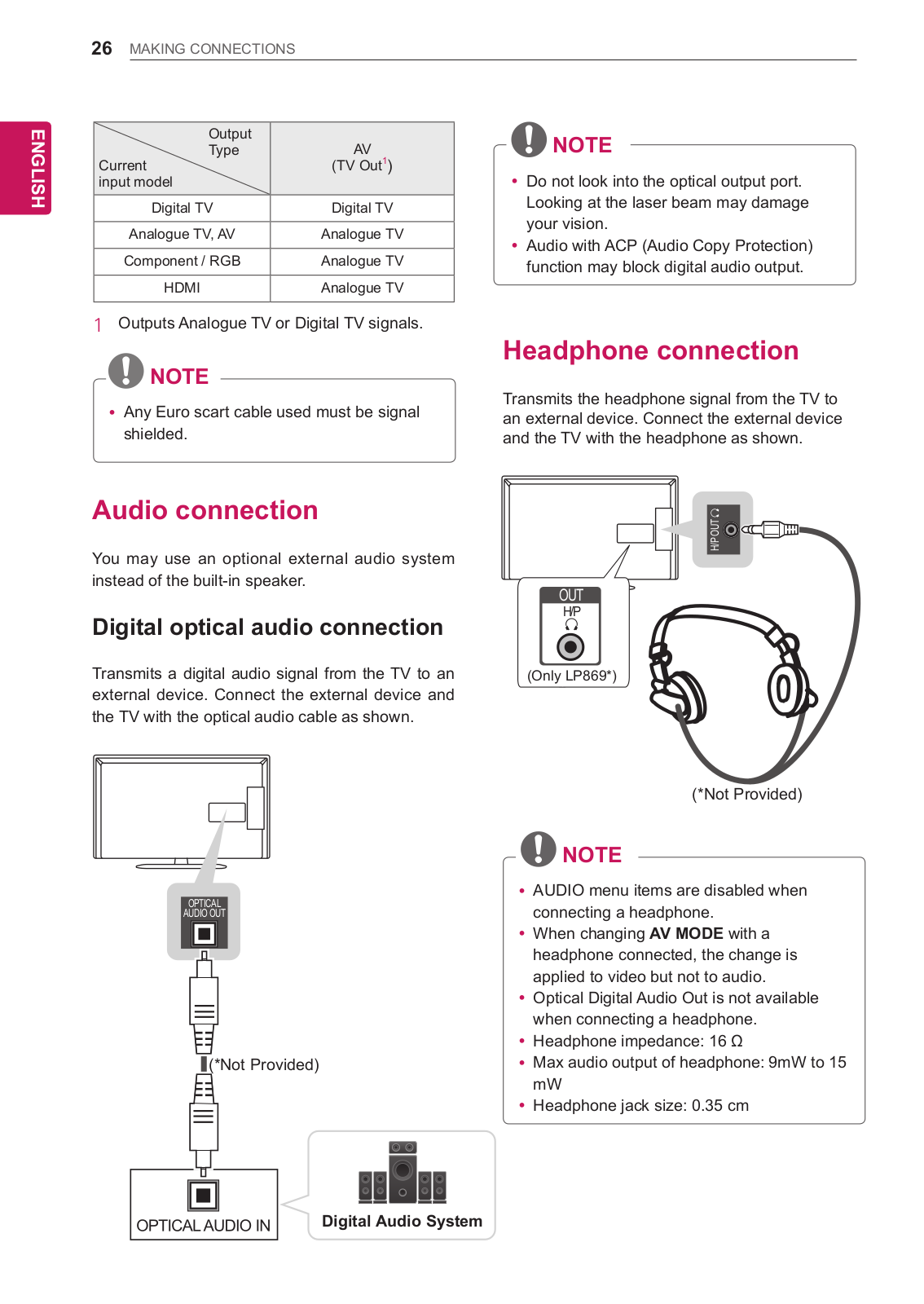

26Audio connection
26- Digital optical audio connection
26Headphone connection

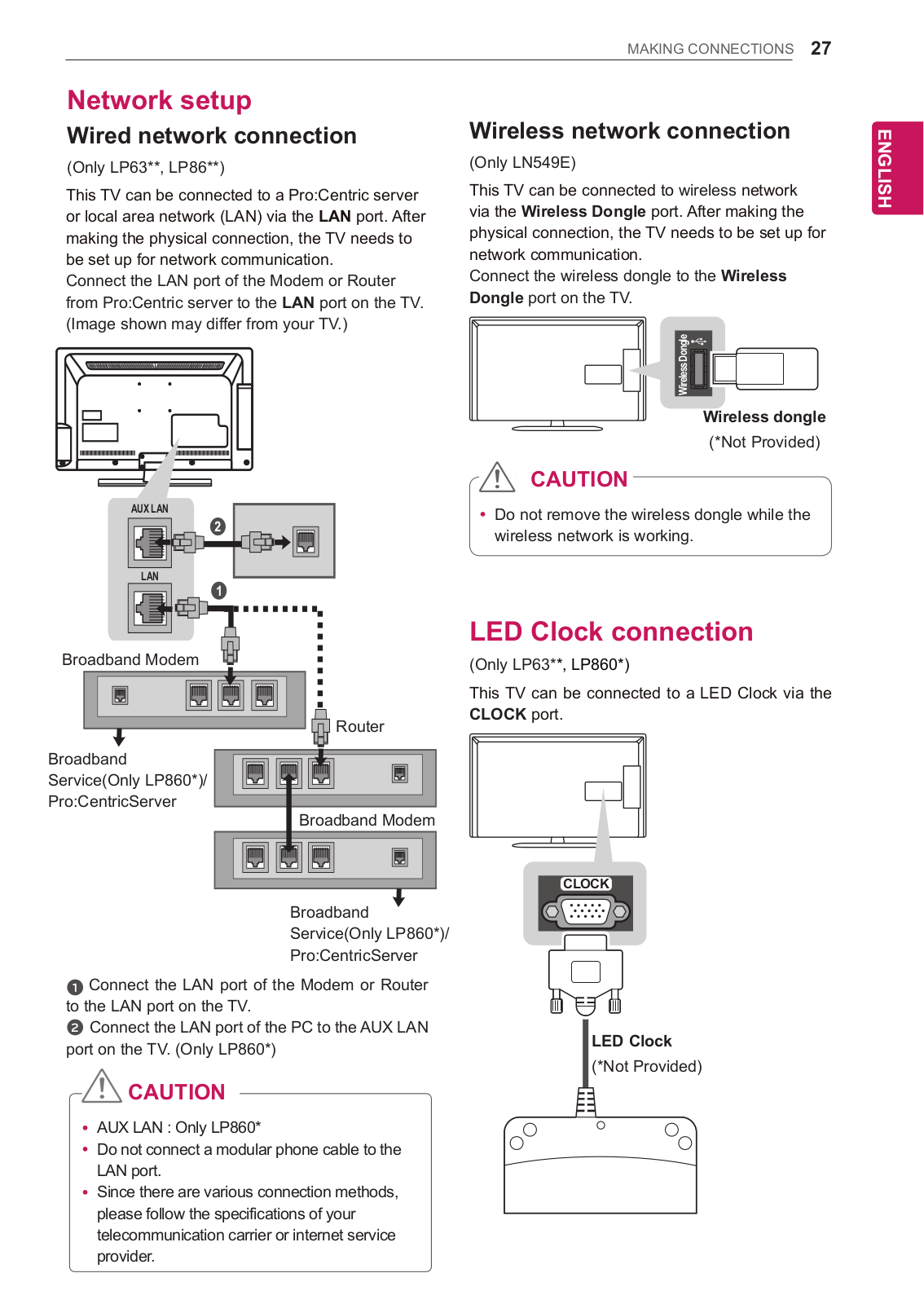

27Network setup
27 - Wired network connection
27 - Wireless network connection
27 LED Clock connection

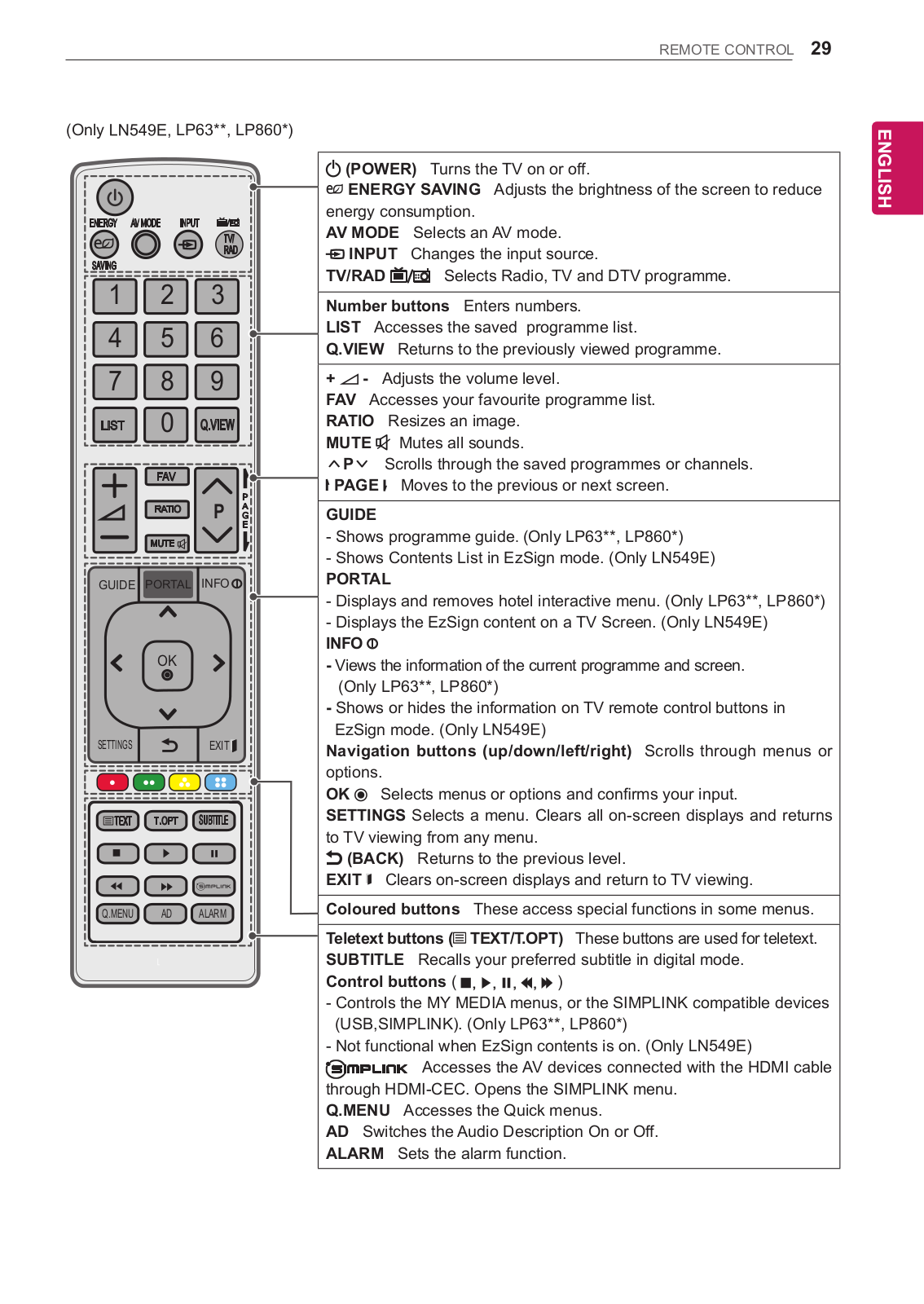

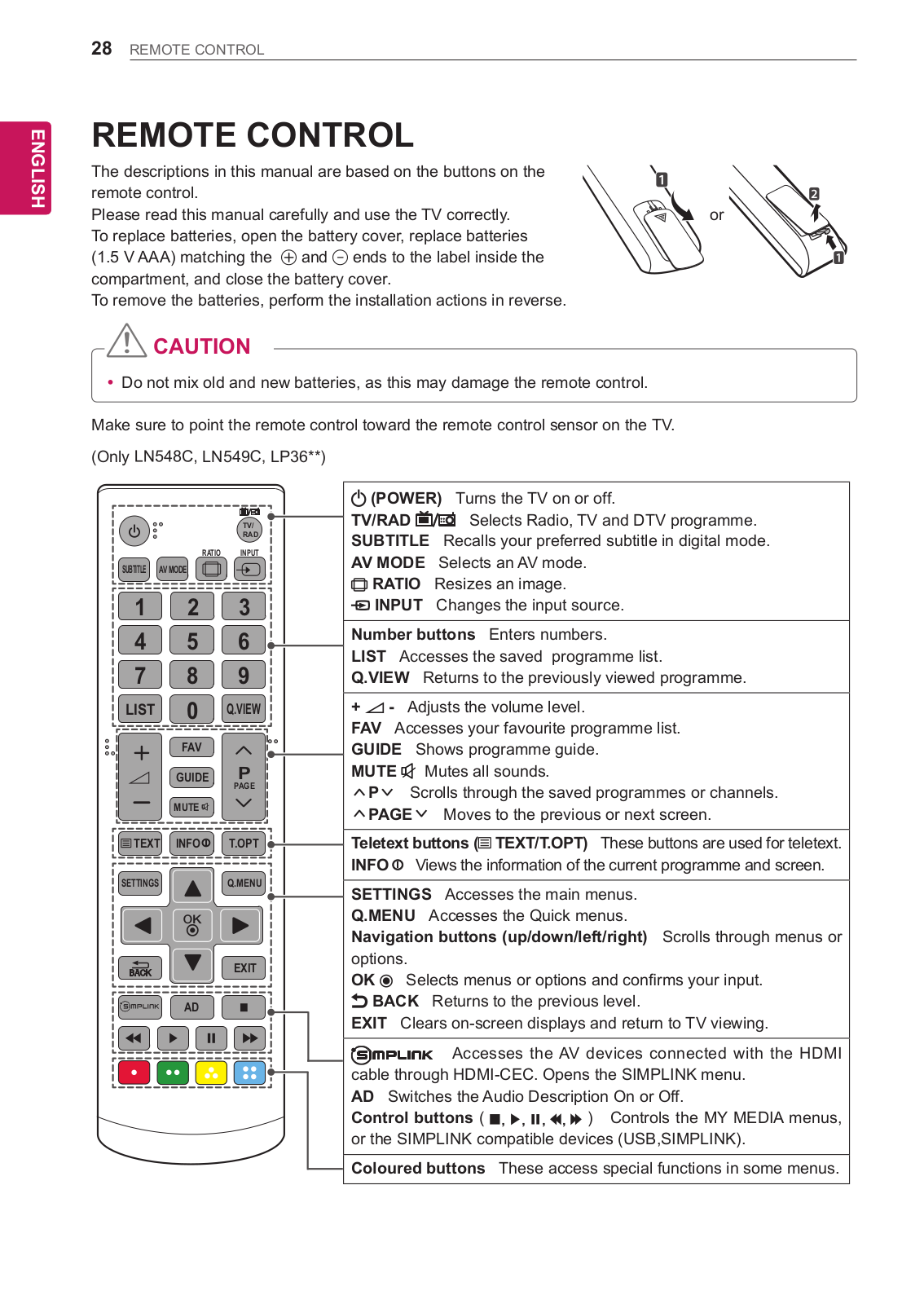

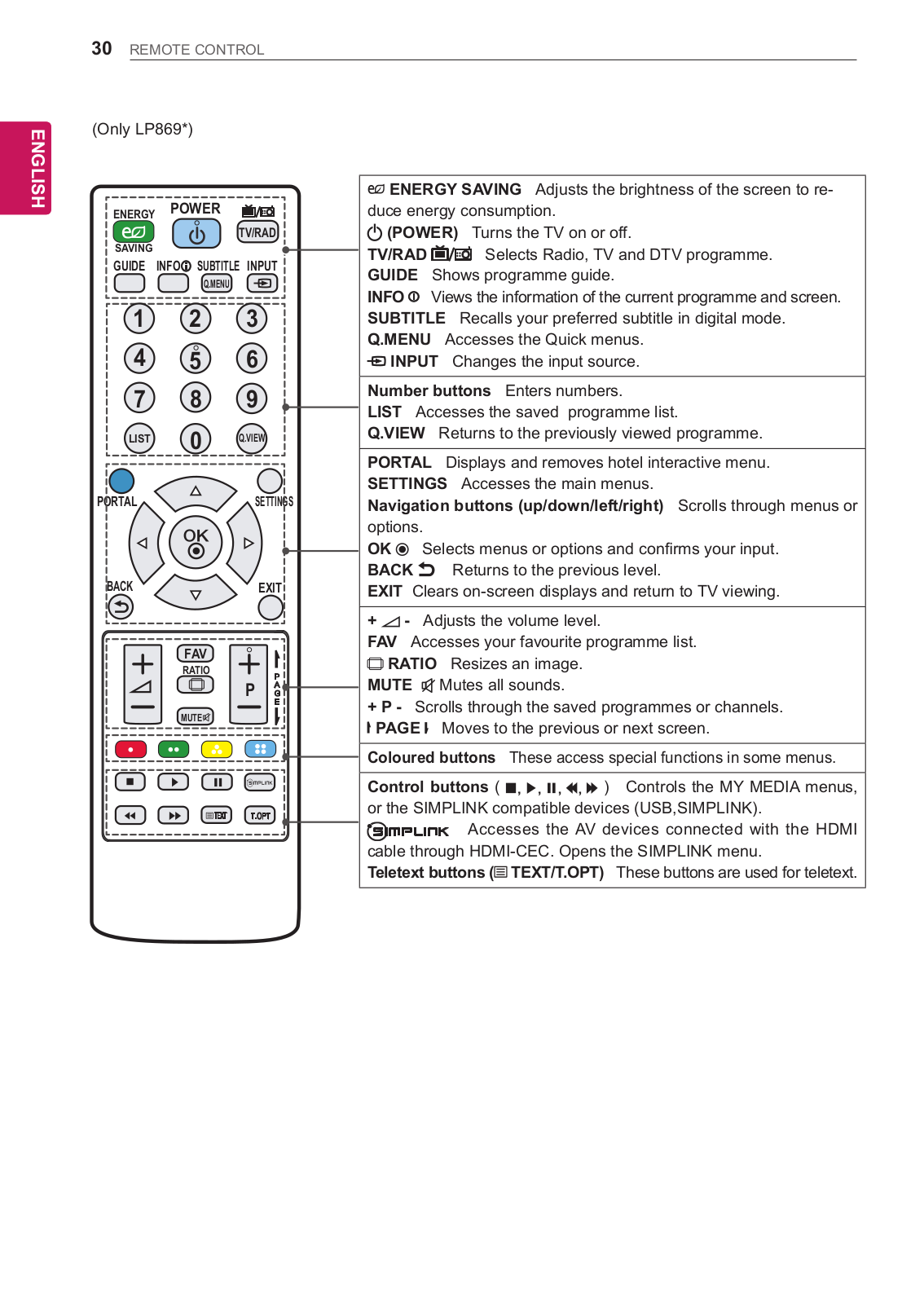

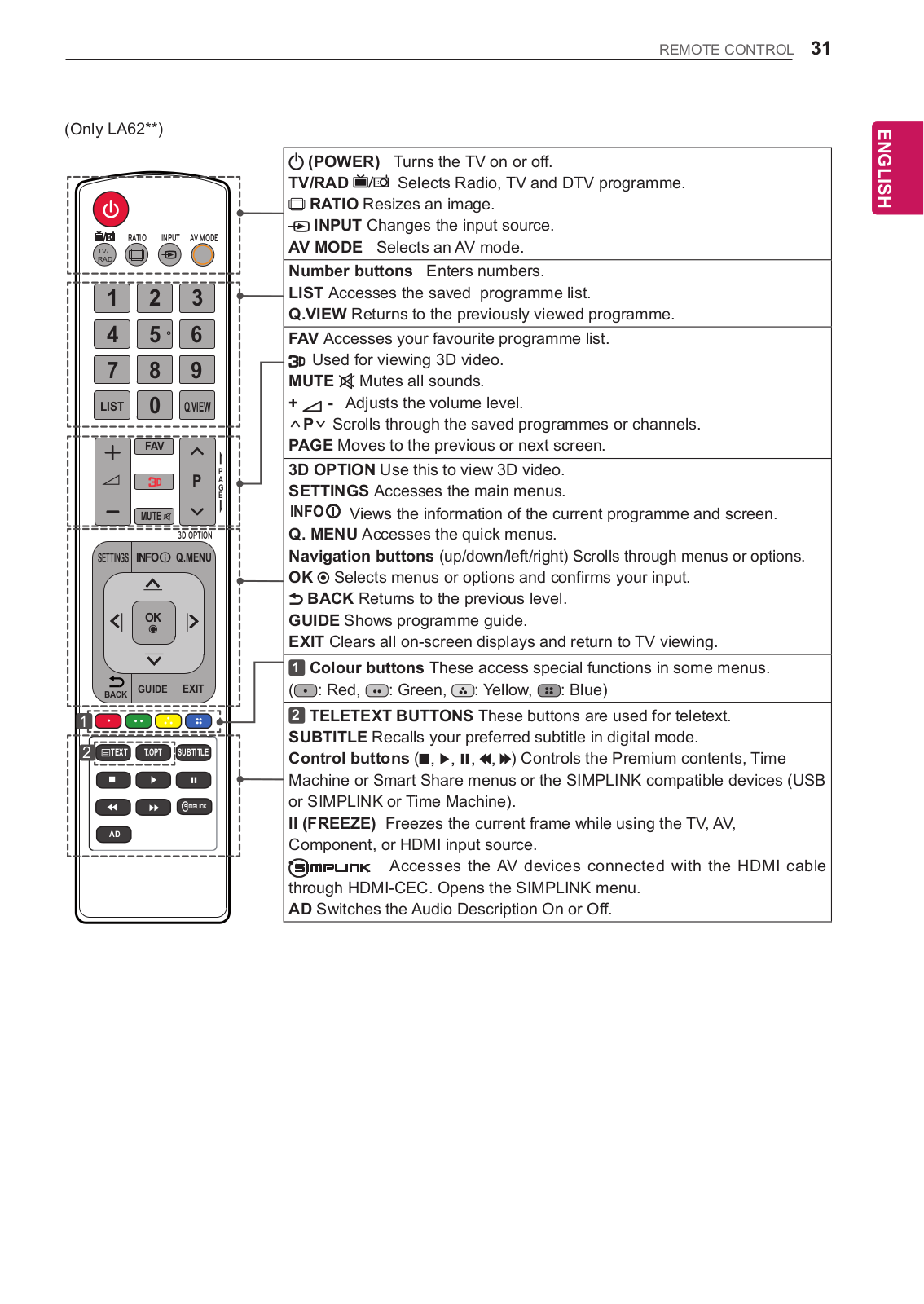

28 REMOTE CONTROL

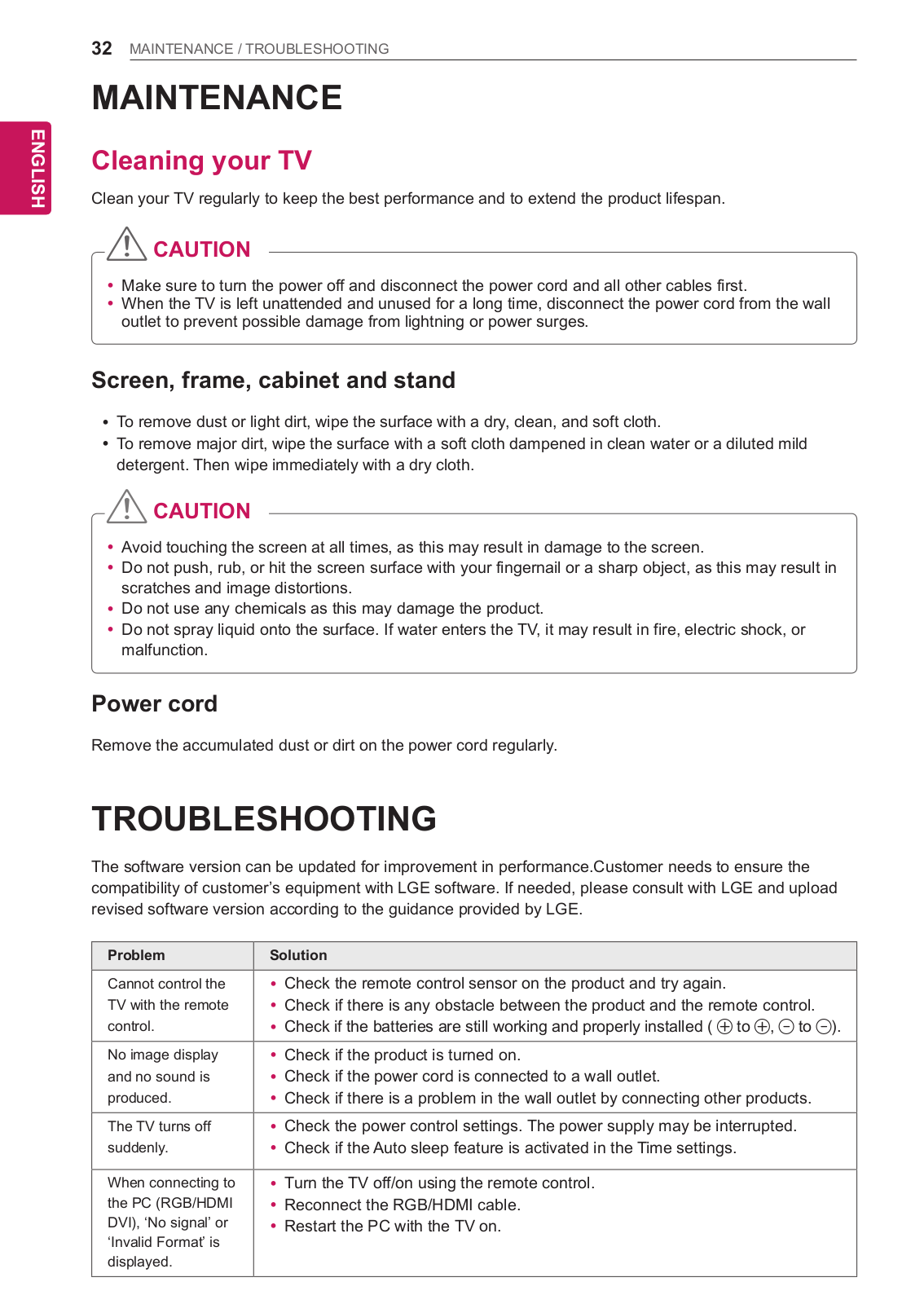

32 MAINTENANCE
32 Cleaning your TV
32- Screen, frame, cabinet and stand
32 - Power cord
32TROUBLESHOOTING

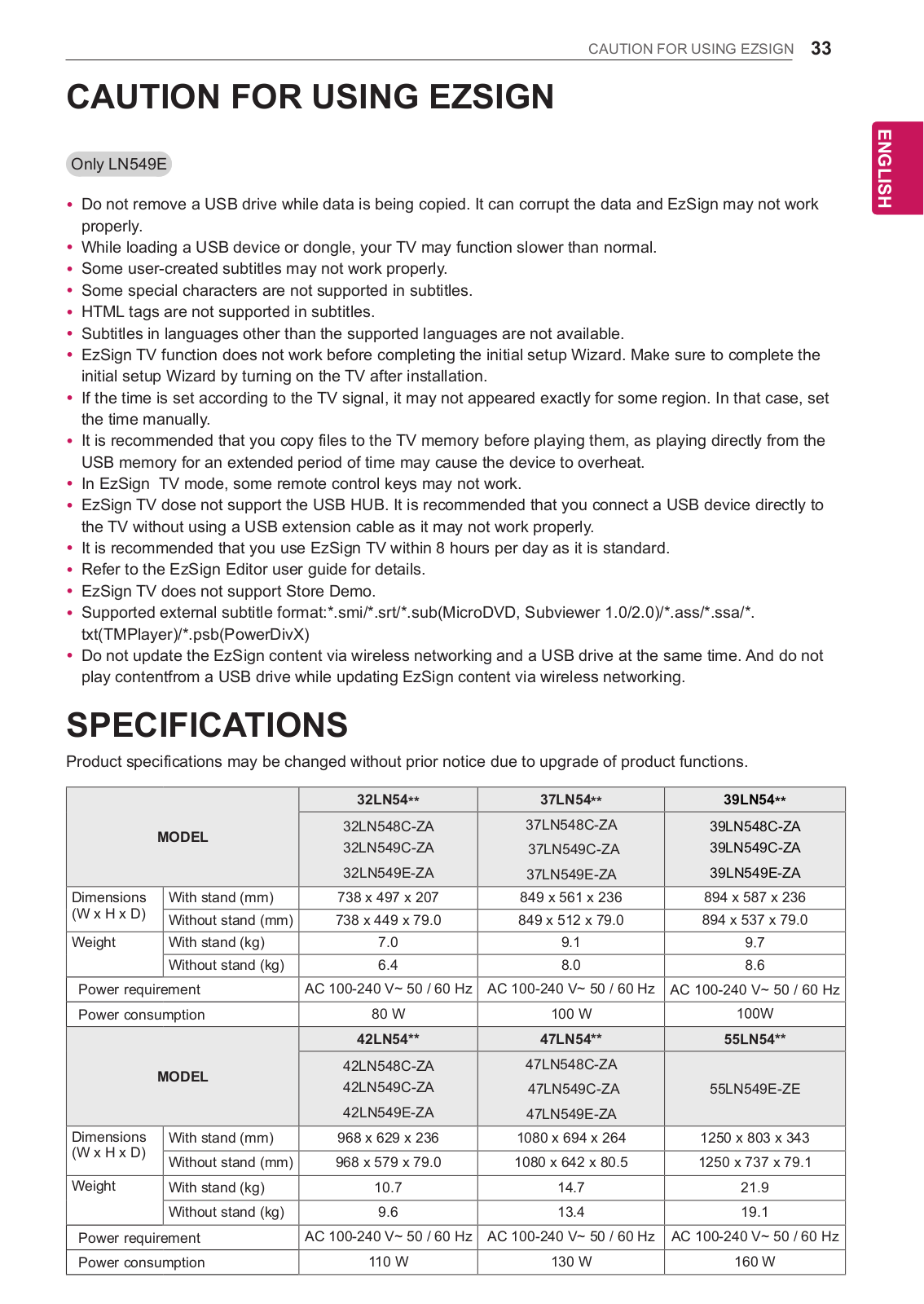

33CAUTION FOR USING EZSIGN

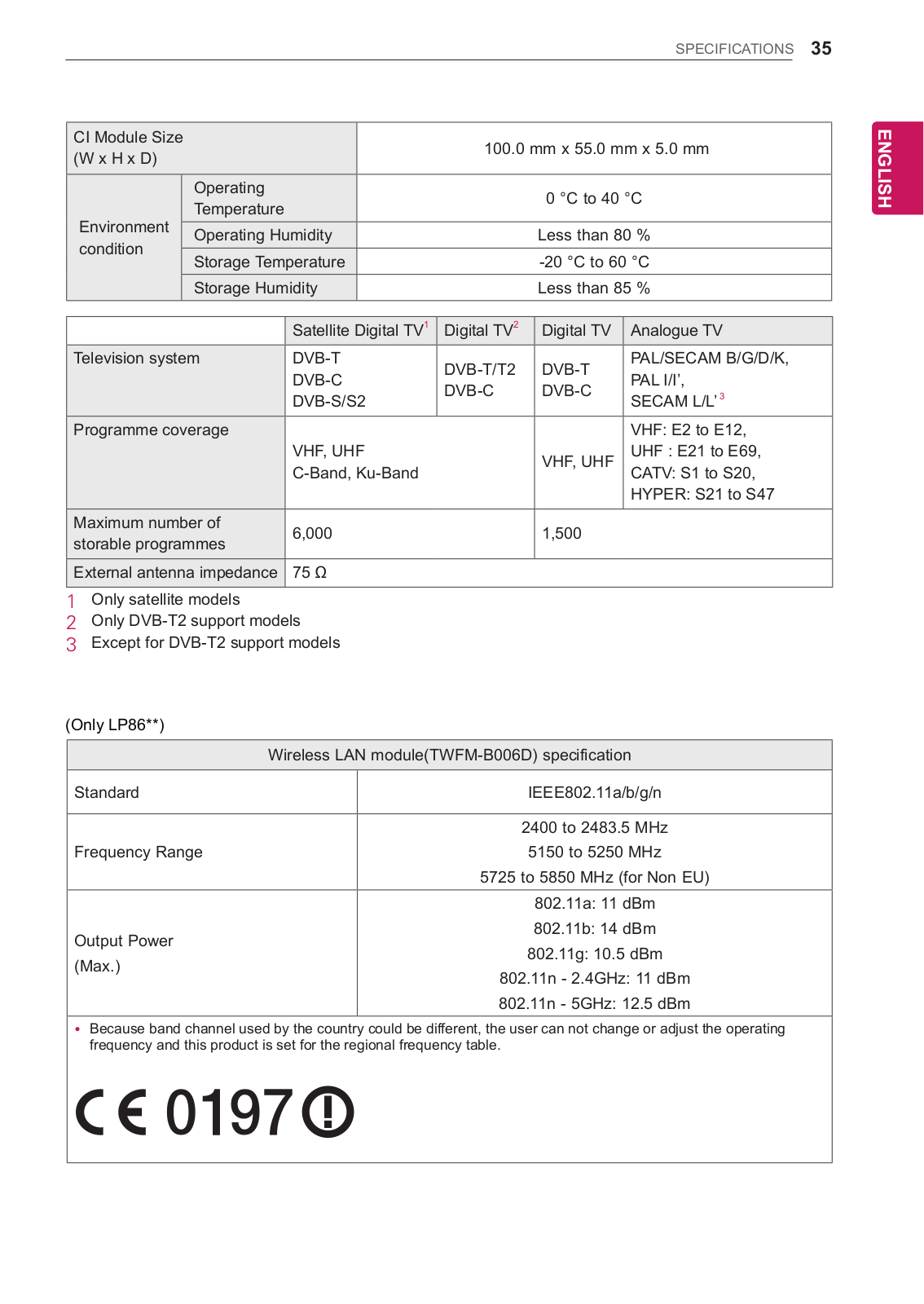

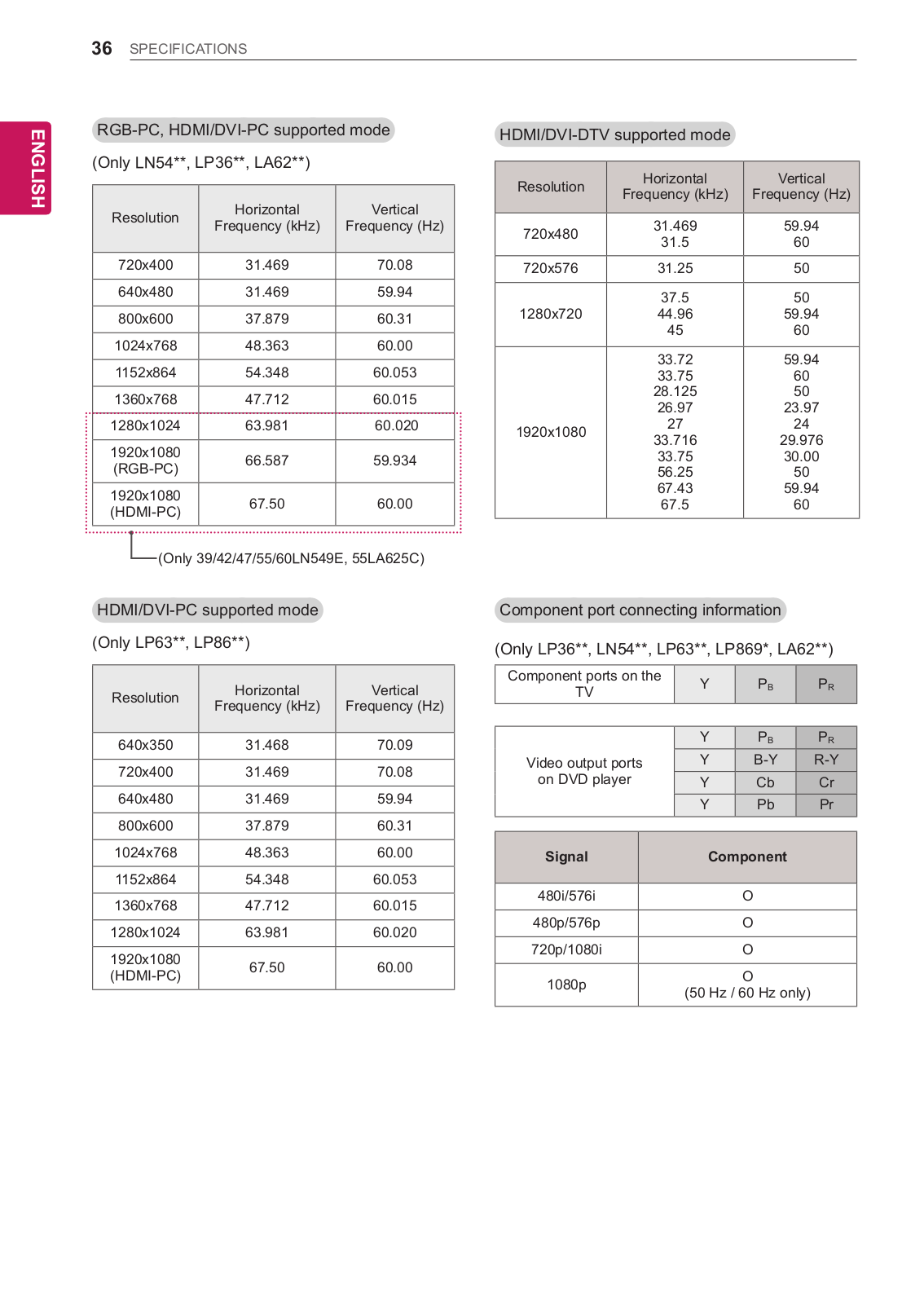

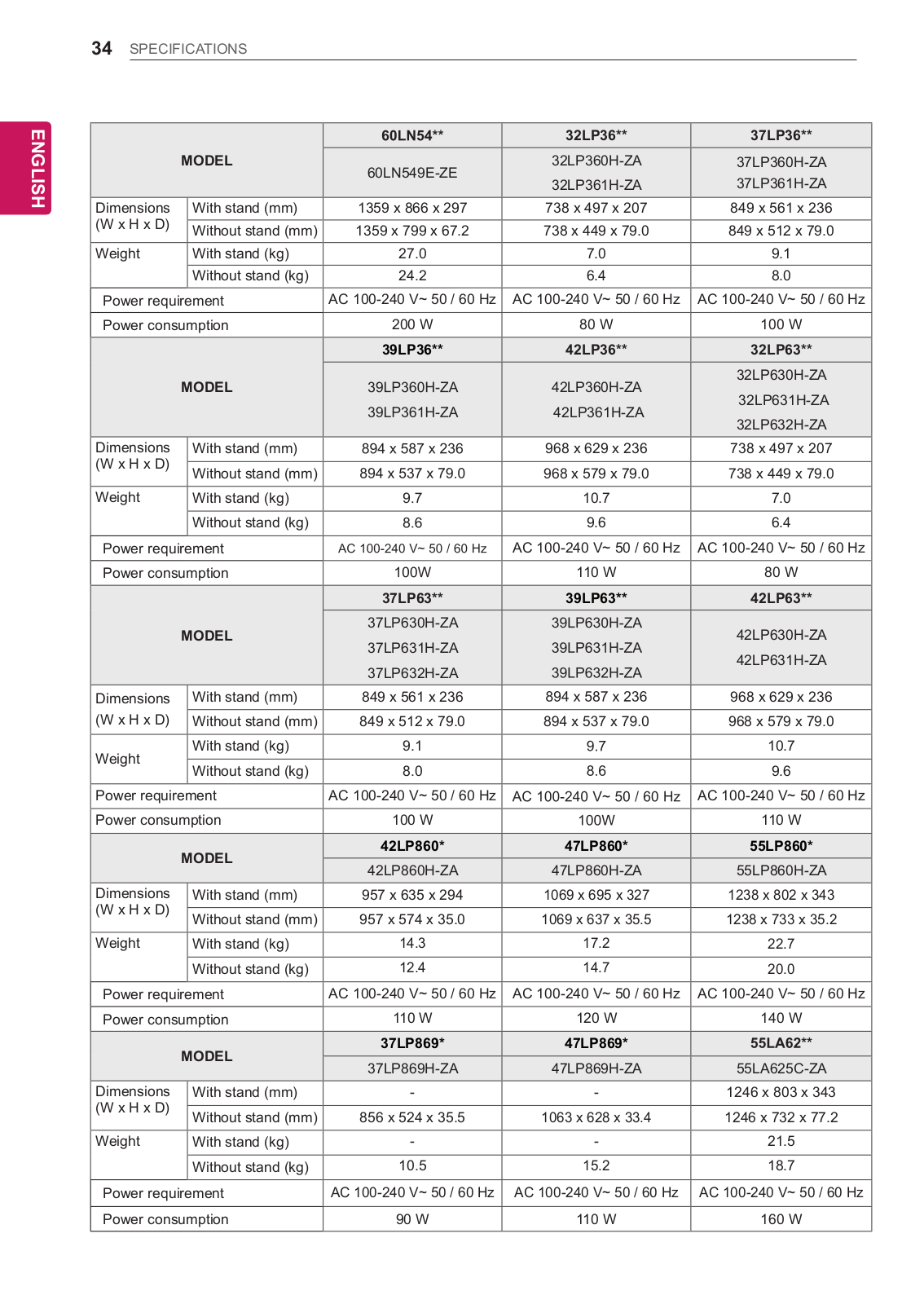

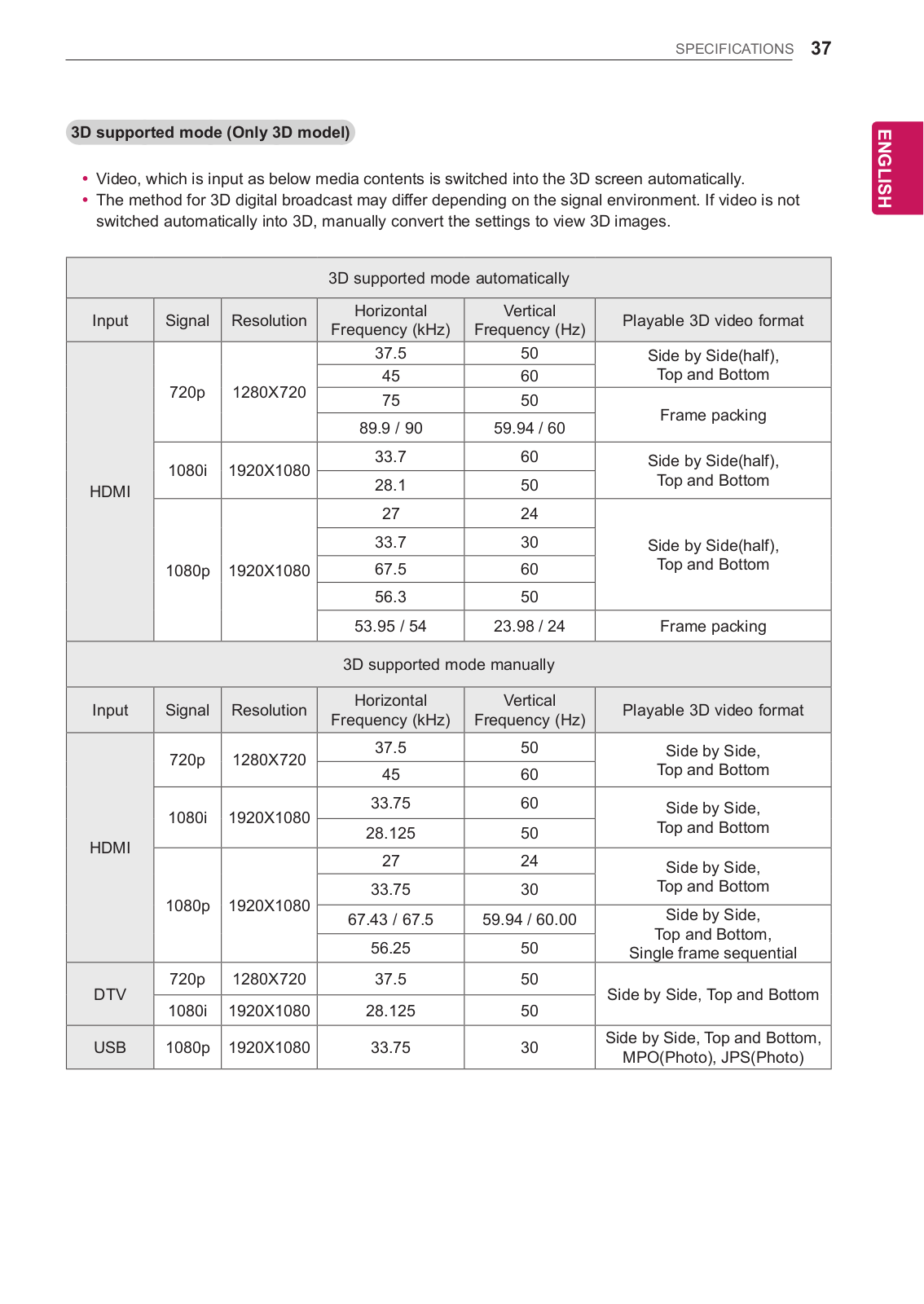

33SPECIFICATIONS

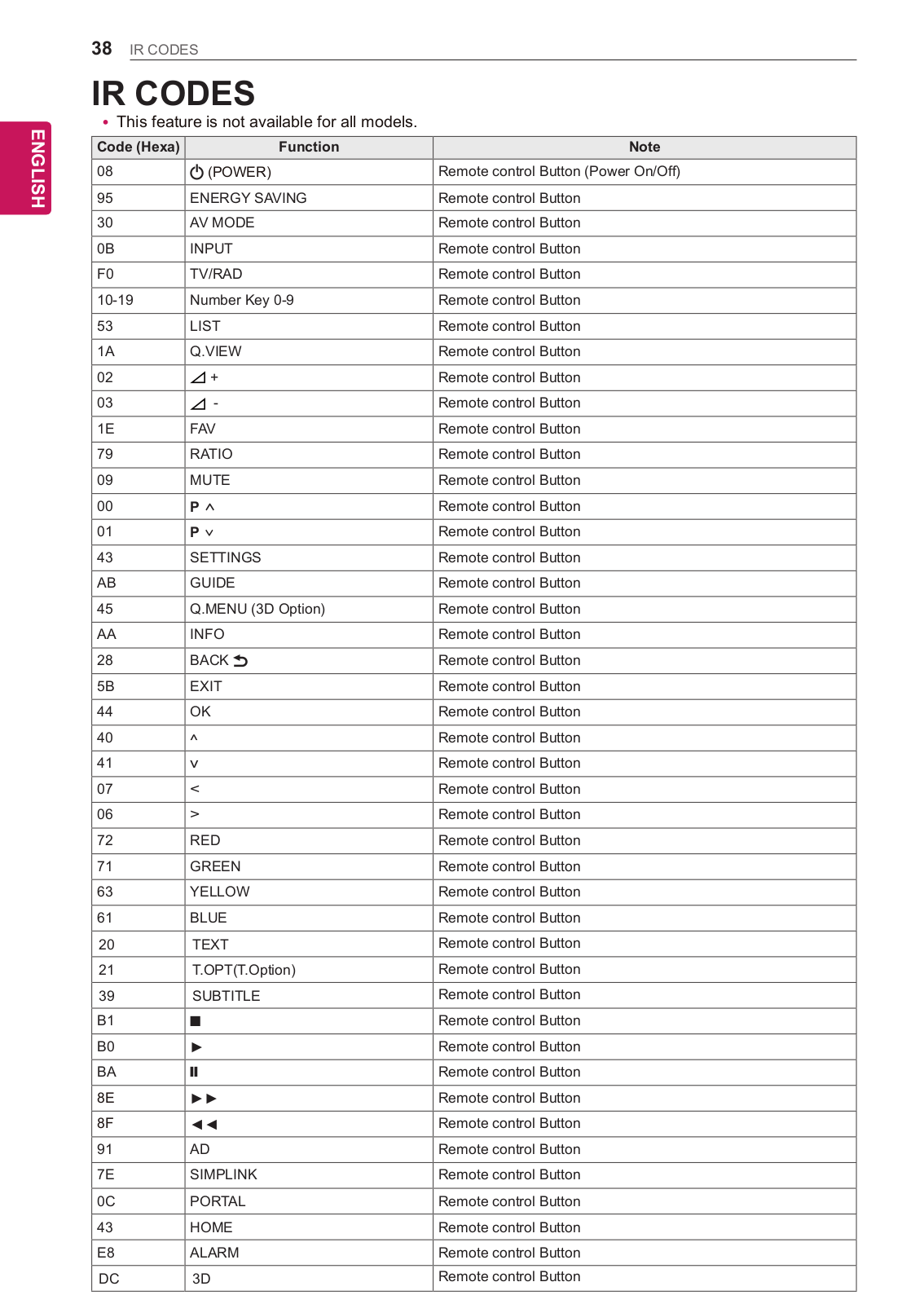

38IR CODES

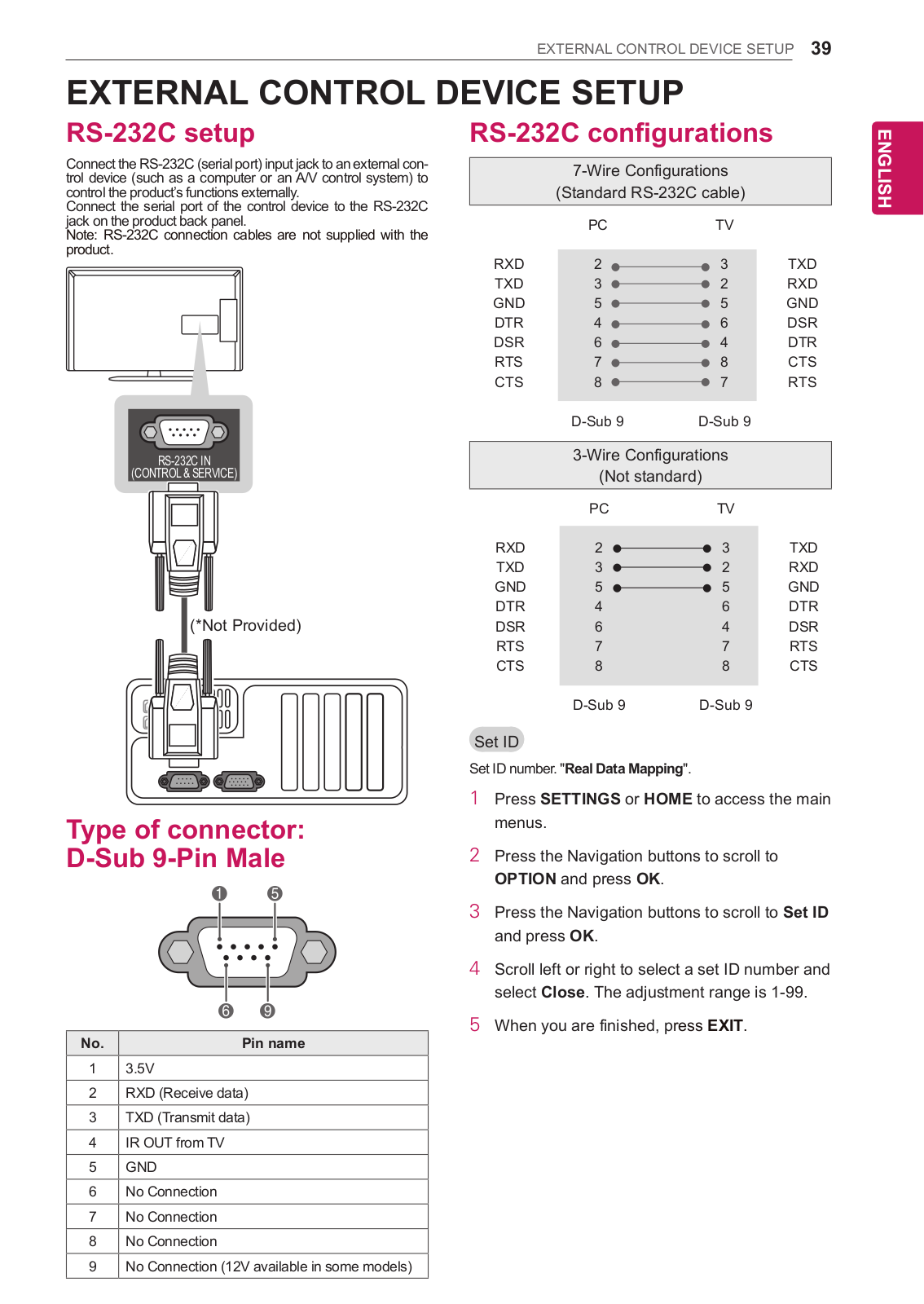

39EXTERNAL CONTROL DEVICE SETUP
39RS-232C setup
39Type of connector: D-Sub 9-Pin Male
39RS-232C configurations

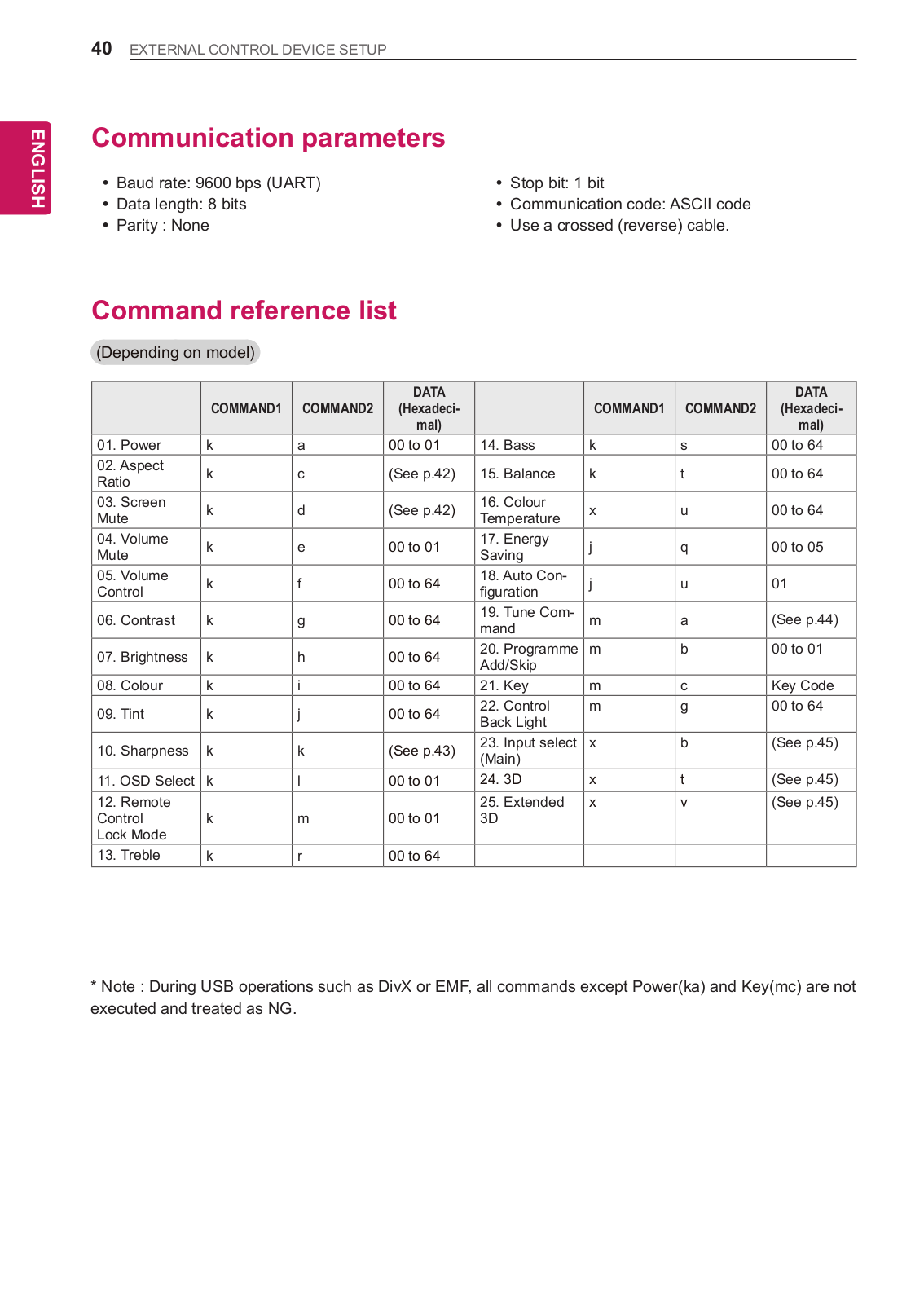

40Communication parameters
40Command reference list

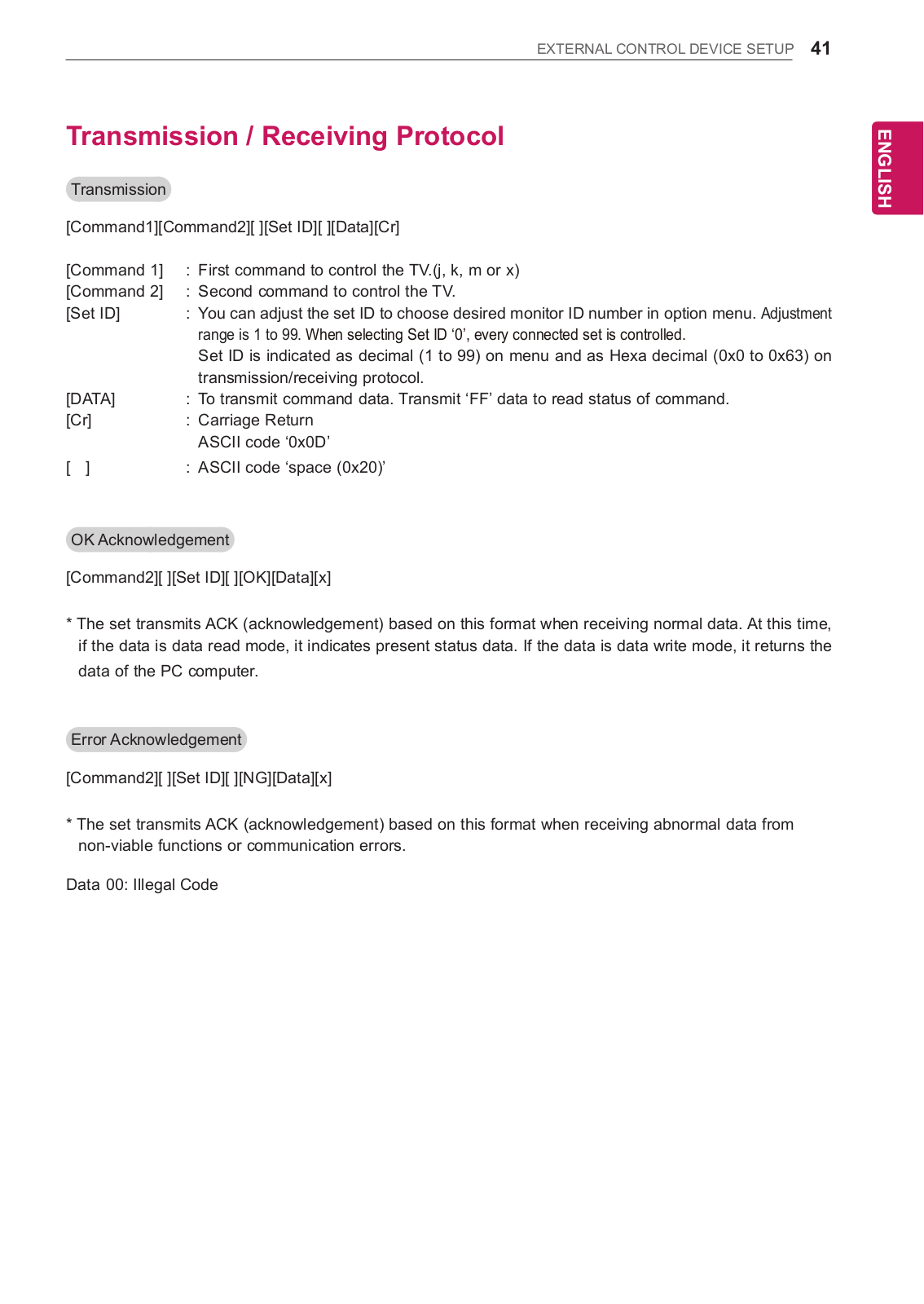

41Transmission / Receiving Protocol
WARNING
yyIf you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
yyIf you ignore the caution message, you may be slightly injured or the product may be damaged.
NOTE
yyThe note helps you understand and use the product safely. Please read the note carefully before using the product.
LICENSES / OPEN SOURCE SOFTWARE NOTICE 3
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.”
Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274
(Only LP860*)
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
<![endif]>ENGLISH
<![endif]>ENGLISH
4SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
Viewing Environment
yy Viewing Time
-- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
yy Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
yy Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
yy 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
yy If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
yy If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.
Symptoms which require discontinuation or refraining from watching 3D contents
yy Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
yy When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.
-- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
SAFETY INSTRUCTIONS 5
CAUTION
Viewing Environment
Viewing Distance
-Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.
Viewing Position
-- Face the center of the screen at eye level with the head looking straight ahead. Otherwise, you may not be able to view 3D contents properly.
Viewing Age
yy Infants/Children
-- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
-- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
-- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.
yy Teenagers
-- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.
yy Elderly
-- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.
Cautions when using the 3D glasses
Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
Using modified 3D glasses may cause eye strain or image distortion.
Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.
yy When watching 3D videos under fluorescent lights or with three wave length lamps, you may experience the screen blinking. When this occurs, turn the light off or turn it down.
yy Other electronic or communication devices should be turned off or put away from the TV because it can cause interference and prevent the 3D function from working properly.
yy When you watch TV lying down, 3D images may look darker or invisible.
<![endif]>ENGLISH
<![endif]>ENGLISH
6INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
yyImage shown may differ from your TV.
yyYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yyThe available menus and options may differ from the input source or product model that you are using.
yyNew features may be added to this TV in the future.
yyThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
yyThe energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV set.
3Connect an external device to the TV set.
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
yyDo not use any unapproved items to ensure the safety and product life span.
yyAny damages or injuries by using unapproved items are not covered by the manufacturer’s warranty. yySome models have a thin film attached on to the screen and this must not be removed.
NOTE
yyThe items supplied with your product may vary depending on the model.
yyProduct specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
yyFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
|
|
*A = 10 mm |
|
|
< |
A |
A |
*B = 18 mm |
|
|
< |
Owner’s manual
Stand Body / Stand Base
(Only LP36**, 32/37/39/42/47LN54**, LP63**)
(See p.12)
SCART Gender Cable
(Only LP869*) (See p.25)
Desk-mount screw
M4 x 20
(1EA: Only LP36**, 32/37/39/42/47LN54**, LP63**) (2EA : Only 42/47LP860*) (See p.14)
|
Power cord |
|
|
(Depending on model) |
|
|
Isolator |
|
or |
(Depending on model) |
|
(See p.8) |
||
|
Desk-mount Cable/ Bracket Screw
M4 x 8 2EA
(Only 42/47LP860*) (See p.14)
Wall mount inner spacers
4EA
(Only 37LP869*) (See p.16)
Cinema 3D Glasses
The number of 3D glasses may differ depending on the model or country. (Depending on model)
|
|
|
|
|
|
|
|
|
ASSEMBLING AND PREPARING |
7 |
|
|
|
|
|
|
|
|
|
|
batteries (AAA) |
|
<![if ! IE]> <![endif]>ENGLISH |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Remote control, |
|
|
|
|
|
|
|
|
|
|
|
(See p.28, 29, 30, 31) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stand Body / Stand Base
(Only LP860*, 55/60LN54**, LA62**)
(See p.12)
Cable holder
(Depending on model) (See p.17)
Stand screws
M4 x 14
(7EA: Only LP36**, LP63**, 32/37/39/42/47LN54**) (8EA: Only LP860*, 55/60LN54**, LA62**) (See p.12)
Protective bracket/bolt
(Only LN54**,LP36**, LP63**, LA62**) (See p.17)
Dual Lock™
(Only LP63**) (See p.18)
Power Cord Holder Coaxial Cable Holder
(Depending on model) (See p.17)
EzSign Editor CD
(Only LN549E)
<![endif]>ENGLISH
8ASSEMBLING AND PREPARING
NOTE
yyAntenna Isolator Installation Guide
-- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
»» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.
-- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
-- Before starting, be sure that the TV antenna is connected.
Wall
ANTENNA/
or
Cable / Antenna
Isolator
Connect to TV.
Connect to Set-Top box.
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
ASSEMBLING AND PREPARING 9
Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items.
These devices only work with certain models.
P
LG Audio Device |
Wireless Dongle |
LED Clock |
Magic Remote |
|
AN-WF100 |
LEC-001 |
AN-MR300 |
Cinema 3D Glasses
AG-F2**,AG-F3**,AG-F4**
Compatibility |
LN548C / LN549C |
LN549E |
LP63** |
LP860* |
LP869* |
LA62** |
|
/ LP36** |
|
|
|
|
|
LG Audio Device |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
Wireless Dongle |
|
• |
|
|
|
|
AN-WF100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
LED Clock |
|
|
• |
• |
|
|
LEC-001 |
|
|
|
|
||
|
|
|
|
|
|
|
AN-MR300 |
|
|
|
• |
• |
|
Magic Remote |
|
|
|
|
||
|
|
|
|
|
|
|
Cinema 3D Glasses |
|
|
|
|
|
• |
AG-F2**,AG-F3**,AG-F4** |
|
|
|
|
|
|
|
|
|
|
|
|
|
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.
<![endif]>ENGLISH
<![endif]>ENGLISH
10 ASSEMBLING AND PREPARING
A type : |
LP36**, LP63**, 32/37/39/42/47LN54** |
B type : |
LP860*, 55/60LN54**, LA62** |
|
|
|
Screen |
|
|
Screen |
|
|
|
|
|
|
|
|
|
OK |
|
OK |
|
|
|
|
SETTINGS |
|
|
|
|
SETTINGS |
|
|
|
|
|
|
|
|
|
|
|
INPUT |
|
INPUT |
|
|
|
|
|
|
|
Speakers |
|
|
Speakers |
|
|
Power indicator and |
|
Remote control sensor |
|
||
|
|
Buttons |
|||
Remote control sensor |
Buttons |
|
LG Logo Light |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
(Only LP860*, LA62**) |
|
|
|
|
|
Power indicator |
|
|
|
|
|
(Only 55/60LN54**) |
|
C type : |
37LP869* |
|
D type : |
47LP869* |
|
Screen |
|
|
Screen |
|
|
Power indicator and |
|
OK |
|
Remote control sensor |
|
SETTINGS |
Speakers |
|
|
|
|
Speakers |
|
|
|
|
INPUT |
|
|
|
|
|
OK |
SETTINGS INPUT |
Power indicator and |
|
Remote control sensor |
|
||
|
Touch buttons1 |
|
Buttons |
|
|
|
|
Button |
|
Description |
|
|
Scrolls through the saved programmes. |
|
|
|
Adjusts the volume level. |
|
|
OK |
Selects the highlighted menu option or confirms an input. |
|
|
SETTINGS |
Accesses the main menu, or saves your input and exits the menus. |
|
|
INPUT |
Changes the input source. |
|
|
/ I |
Turns the power on or off. |
|
|
1 C type buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
yyYou can set the LG Logo Light or Power Indicator Light to on or off by selecting OPTION in the main menus.(Depending on model)
ASSEMBLING AND PREPARING 11
When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
CAUTION
yyAvoid touching the screen at all times, as this may result in damage to the screen.
yy It is recommended to move the TV in the box or packing material that the TV originally came in.
yy Before moving or lifting the TV, disconnect the power cord and all cables.
yy When holding the TV, the screen should face away from you to avoid damage.
yy Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.
yy When transporting a large TV, there should be at least 2 people.
yy When transporting the TV by hand, hold the TV as shown in the following illustration.
yy When transporting the TV, do not expose the TV to jolts or excessive vibration.
yy When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
yy Do not apply excessive pressure to cause flexing/bending of frame chassis as it may damage screen.
<![endif]>ENGLISH
<![endif]>ENGLISH
12 ASSEMBLING AND PREPARING
|
(Only LP860*, 55/60LN54**, 55LA62**) |
|
*Image shown may differ from your TV. |
|
|
1 |
|
|
|
|
|
|
|
|
Attaching the stand |
4 EA |
(Only LP36**, LP63**, 32/37/39/42/47LN54**) |
|
3EA
M4 x 14
1
Stand Body
Front
M4 x 14 |
|
Stand Body |
Front |
Stand Base |
2
Stand Base
2
3
3
4EA
4EA |
M4 x 14 |
M4 x 14
CAUTION
yyWhen attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
yyMake sure that the screws are inserted correctly and fastened securely. If they are not fastened securely enough, the TV may tilt forward after being installed.
Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
NOTE
yyRemove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
ASSEMBLING AND PREPARING 13
1Lift and tilt the TV into its upright position on a table.
-Leave a 10 cm (minimum) space from the wall for proper ventilation.
|
10 cm |
|
10 cm |
10 |
cm |
|
||
|
|
|
|
10 cm |
2 Connect the power cord to a wall outlet.
CAUTION
yyDo not place the TV near or on sources of heat, as this may result in fire or other damage.
Attaching the TV to a table
Image shown may differ from your TV.
The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.
(Only 37/39/42/47LN54**, 37/39/42LP36**, 37/39/42LP63**)
4-Screws
(not provided as parts of the product) Stand
Table
<![endif]>ENGLISH
Screws: M5 x L (*L: Table depth + 8-10 mm) ex) Table depth: 15mm, Screw: M5 x 25
<![endif]>ENGLISH
14 ASSEMBLING AND PREPARING
Securing the TV to a table
Fix the TV to a table to prevent from tilting forward, damage, and potential injury.
Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand.
(Only 32/37/39/42/47LN54**, LP36**, LP63**)
(Only 42/47LP860*)
M4 x 20, 2EA
M4 x 8, 2EA
WARNING
yyTo prevent TV from falling over, the TV should be securely attached to the floor/ wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.
Adjusting the angle of the TV to suit view
(Only 32/55/60LN54**, 32LP36**, 32LP63**, 42/47/55LP860*, 55LA62**)
Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view.
15˚ |
15˚ |
(Only 37/39/42/47LN54**, 37/39/42LP36**, 37/39/42LP63**)
Swivel 90 degrees to the left or right and adjust the angle of the TV to suit your view.
90˚ |
90˚ |
CAUTION
yyWhen adjusting the angle of the product, watch out for your fingers.
»» Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.
