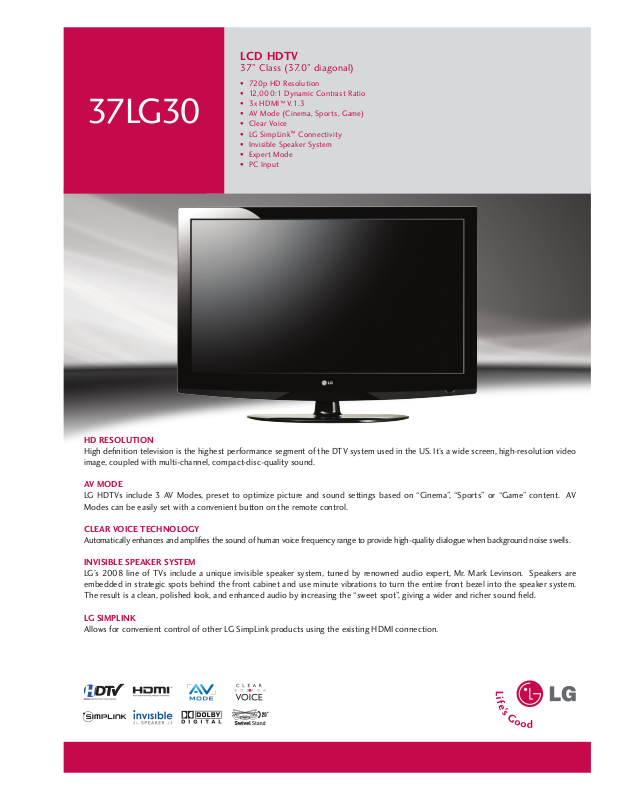

LG 37LG30-UA Specification
37LG30
LCD HDTV
37” Class (37.0” diagonal)
• 720p HD Resolution
• 12,000:1 Dynamic Contrast Ratio
• 3x HDMI™ V.1.3
• AV Mode (Cinema, Sports, Game)
• Clear Voice
• LG SimpLink™ Connectivity
• Invisible Speaker System
• Expert Mode
• PC Input
HD RESOLUTION
High denition television is the highest performance segment of the DTV system used in the US. It’s a wide screen, high-resolution video
image, coupled with multi-channel, compact-disc-quality sound.
AV MODE
LG HDTVs include 3 AV Modes, preset to optimize picture and sound settings based on “Cinema”, “Sports” or “Game” content. AV
Modes can be easily set with a convenient button on the remote control.
CLEAR VOICE TECHNOLOGY
Automatically enhances and amplies the sound of human voice frequency range to provide high-quality dialogue when background noise swells.
INVISIBLE SPEAKER SYSTEM
LG’s 2008 line of TVs include a unique invisible speaker system, tuned by renowned audio expert, Mr. Mark Levinson. Speakers are
embedded in strategic spots behind the front cabinet and use minute vibrations to turn the entire front bezel into the speaker system.
The result is a clean, polished look, and enhanced audio by increasing the “sweet spot”, giving a wider and richer sound eld.
LG SIMPLINK
Allows for convenient control of other LG SimpLink products using the existing HDMI connection.
37LG30
TECHNICAL SPECIFICATIONS
L CD P A N E L
Native Display Resolution 1366 x 768p
Brightness (cd/m2) 500
Dynamic Contrast Ratio 12,000:1
Viewing Angle 178º x 178º
Response Time (Grey to Grey) 5ms
Wide Color Control •
Pure Black Level •
Life Span (Typical) 60,000 hours
B RO A D C A S TI N G SY ST E M
Analog •
ATSC/NTSC/Clear QAM •
V I D E O
XD Engine™ •
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes
Just Scan (1:1 Pixel Matching)
- HDMI 1080p/1080i/720p
- Component 1080p/1080i/720p
- RF 1080i/720p
Enhanced Line Doubler •
Enhanced Noise Reduction (Video Noise Filter) • (3D & MPEG)
Color Temperature Control 4 Modes
Black Stretcher (Black Level Enhancer) •
Picture Reset •
AV Mode (Picture & Sound) 3 Modes
Picture Selection Mode 7 Modes
DTV Signal Strength Indicator •
A UD I O
Mono/Stereo/Dual (MTS/SAP) •
Audio Outout Power (Watts - THD 10%) 10W + 10W
Speaker System Details 2 Way 4 System (Invisible Speaker)
Dolby® Digital Decoder •
Surround System Type SRS TruSurround XT™
Bass/Treble/Balance Controls •
Auto Volume Leveler •
Sound Mode 5 Modes
Mute •
S P E C I A L F E AT U R E S
1080P Source Input
- HDMI 60p/30p/24p
- Component 60p/30p/24p
- RGB 60p
A/V Input Navigation •
Auto Navigation •
Input Labeling •
Quick View (Previous Channel) •
Clear Voice (On/Off) •
Quick Setup Guide •
Parental Control w/V-Chip •
Key Lock •
Closed Caption •
LG SimpLink™ (HDMI CEC) •
Trilingual Menus English/French/Spanish
EZ Menus (High Performance Interface) •
Channel Add/Delete •
Favorite Channel •
Auto Clock •
Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •
S I D E A U D I O / V I D E O I NP U T S / O U T P U T S
L/R Audio/Composite Video In 1
HDMI/HDCP In 1
USB 2.0 1 (Service Only)
R E A R A U D I O / V I D E O I NP U TS / O U T P U T S
RF In (Antenna/Cable) 1
L/R Audio/Component Video In 1
L/R Audio Out 1
S-Video In 1
HD Component Video In (Y,Pb,Pr) + L/R Audio 2
Digital Audio Out 2 (1 Coaxial/1 Optical)
LCD HDTV
37” Class (37.0” diagonal)
R E AR A U DI O /V I D EO I NP UT S/ OU TP UT S ( C O NT I N UE D)
HDMI™/HDCP Input 2 (V.1.3)
RGB In (D-Sub 15pin) - PC 1
PC Audio Input 1
RS-232c In (Control/Service) 1
Remote Control In (IR) 1
C A B I N E T / A C C E S S O RI E S
Cabinet Style Table Top
Cabinet Color Glossy Piano-black
Remote Control Type Universal
Stand Swivel (degrees) 20º / 20º
VESA® Compatible (W x H) 200mm x 200mm
P OW E R
Consumption (Typical) n/a
Stand-by Consumption >1W
S P E C I F I C A T I O N S
Dimensions w/out stand (W x H x D) 36.2” x 24.0” x 3.5”
Weight w/out stand 35.7 lbs
Dimensions w/stand (W x H x D) 36.2” x 26.9” x 11.6”
Weight w/stand 41.6 lbs
Dimensions w/packaging (W x H x D) 47.1” x 10.0” x 26.2”
Weight in package 50.7 lbs
UPC 719192173040
Limited Warranty 1 Year Parts/Labor
DIMENSIONS/REMOTE/INPUTS/OUTPUTS
11.6”
SIDE
3.5”
24.0” 26.9”
7.9”
(200mm)
BACK
36.2”
22.9”
7.9”
(200mm)
LG Electronics U.S.A., Inc. • 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
)
Customer Service and Technical Support: (800
© 2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
All other trademarks are the property of their respective owners. Design, features and specifications subject to change without notice. 11/05/08
243-0000 • LGusa.com
