LG 37HIZ22, 37LC2RHA-ZH Schematic

Download

Page 1

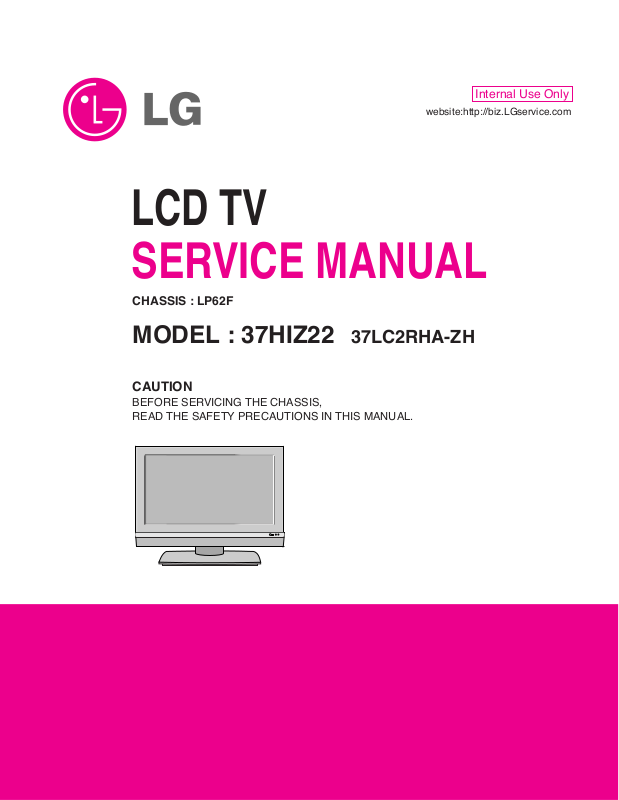

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LP62F

MODEL : 37HIZ22 37LC2RHA-ZH

website:http://biz.LGservice.com

Internal Use Only

Page 2

LGE Internal Use Only

- 2 -

CONTENTS

CONTENTS............................................................................................... 2

SAFETY PRECAUTIONS ..........................................................................3

SPECIFICATION ........................................................................................6

ADJUSTMENT INSTRUCTION................................................................11

TROUBLE SHOOTING ............................................................................16

BLOCK DIAGRAM...................................................................................22

EXPLODED VIEW....................................................................................24

EXPLODED VIEW PARTS LIST..............................................................25

REPLACEMENT PARTS LIST ................................................................26

SVC. SHEET ................................................................................................

Page 3

LGE Internal Use Only

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

IMPORTANT SAFETY NOTICE

0.15uF

To Instrument's exposed  METALLIC PARTS

AC Volt-meter

Good Earth Ground such as WATER PIPE, CONDUIT etc.

1.5 Kohm/10W

Page 4

LGE Internal Use Only

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500

°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500

°F to 600°F)

b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500

°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Page 5

LGE Internal Use Only

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Page 6

LGE Internal Use Only

- 6 -

1. Application range

This specification is applied to LP62F chassis.

2. Requirement for Test

Testing for standard of each part must be followed in below condition.

1) Temperature : 25°C±5°C(77±9°F), CST : 40±5

2) Humidity : 65%±10%

3) Power : Standard input voltage (100-240V~, 50/60Hz) *Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to the adjustment.

3. Test method

1) Performance : LGE TV test method followed

2) Demanded other specification Safety : CE, IEC Specification EMC : CE, IEC

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

4. General TV Specification

No Item Specification Remark

1. Video input applicable system PAL-D/K, B/G, I, NTSC-M, SECAM,

NTSC 4.43

2. Receivable Broadcasting System 1) PAL/SECAM BG

2) PAL/SECAM DK

3) PAL I/I

4) SECAM L/L' only ZH

5) PAL-N/M

6) NTSC M only TH

3. RF Input Channel VHF : E2 ~ E12 PAL

UHF : E21 ~ E69

CATV : S1 ~ S20

HYPER : S21~ S47

L/L' : B, C, D FRANCE

VHF : 2~13 NTSC

UHF : 14~69

CATV : 1~125

4. Input Voltage 100-240V~ /50Hz, 60Hz

5. Market Worldwide

6. Active Screen Size 800.4 mm(diagonal) 31.51 inches

940.3 mm(diagonal) 37.02 inches

1067.308 mm (diagonal) 42.02 inches

7. Tuning System FVS 100 program

8. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : 10 ~ 90 %RH

9. Storage Environment 1) Temp : -20 ~ 50 deg

2) Humidity : 10 ~ 90 %RH

10. Display LCD Module 32"/42" : LPL

37" : AUO, LPL

Page 7

LGE Internal Use Only

- 7 -

5. General Specification

No Item Specification Remark

1 Panel 32”, 37", 42" TFT WXGA LCD

2 Frequency range H : 31 ~ 61Khz, V : 56 ~ 75Hz PC Input

3 Control Function 1) Contrast/Brightness

2) H-Position / V-Position

3) Tracking : Clock / Phase

4) Auto Configure

5) Reset

4 Component Jack Y/Pb/Pr : 1EA ZH

(480i/576i/480p/576p/720p/1080i) Y/Pb/Pr : 2EA TH

5 Power ON LED Power consumption

White ≤ 140W(32”)

≤ 190W(37")

≤ 250W(42")

Stand by BRAND RED ≤ 1W

COMMERCIAL RED ≤ 2W

6 LCD Module Outline 32" 760.0 x450.0 x 48.0

Dimension 37" 877.0 x 516.8 x 55.5 (H)mmx(V)mmx(D)mm

42" 1006 x 610 x 56

Pixel Pitch 32” 0.1702 x0.5107 x RGB

37" 0.200 x 0.600 x RGB

42" 0.227 x 0.681 x RGB

Pixel Format 1366 x 768 Pixels RGB strip arrangement

Coating

Hard coating(3H), Anti-glare treatment of the front polarizer

Back Light 32" 20EEFL

37" 20EEFL

40” 20CCFL

Page 8

LGE Internal Use Only

- 8 -

6. Model Specification

No Item Specification Remark

1. Market EU

2. Broadcasting system PAL BG/I/DK, SECAM

3. Available Channel BAND PAL

VHF/UHF C1 ~ C69

CATV S1 ~ S47

4. Receiving system Upper Heterodyne

5. SCART Jack(2EA) PAL, SECAM, NTSC 4 System :

PAL, SECAM, NTSC, PAL60

6. Video Input (2EA) PAL, SECAM, NTSC 4 System :

PAL, SECAM, NTSC, PAL60

7. S-Video Input (2EA) PAL, SECAM, NTSC 4 System :

PAL, SECAM, NTSC, PAL60

8. Component Input (1EA) Y/Cb/Cr, Y/ Pb/Pr

9. RGB Input (1EA) RGB-PC/DTV

10. HDMI Input (2EA) HDMI-PC/DTV

11. Audio Input (4 EA) PC Audio, Component (1EA),

AV (2EA) L/R Input

12. Wired Control (1EA)

13. Speaker out (1EA) Stereo Phone Jack

14. RJP Interface (1EA) RJ-45 jack interface for RJP RJP : Remote Jack Pack

7. Component Video Input (Y, PB, PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 480 15.73 59.94 13.500 SDTV, DVD 480I(525I)

2. 720 x 480 15.75 60.00 13.514 SDTV, DVD 480I(525I)

3. 720 x 576 15.625 50.00 13.500 SDTV, DVD 576I(625I)

4. 720 x 480 31.47 59.94 27.000 SDTV 480P

5. 720 x 480 31.50 60.00 27.027 SDTV 480P

6. 720 x 576 31.25 50.00 27.000 SDTV 576P

7. 1280 x 720 44.96 59.94 74.176 HDTV 720P

8. 1280 x 720 45.00 60.00 74.250 HDTV 720P

9. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz

10. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I

11. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I

12. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz

Page 9

LGE Internal Use Only

- 9 -

8. RGB Input ( PC )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 400 31.469 70.08 28.32 DOS

2. 640 x 480 31.469 59.94 25.17 VESA(VGA)

3. 640 x 480 37.500 75.00 31.50 VESA(VGA)

4. 800 x 600 37.879 60.31 40.00 VESA(SVGA)

5. 800 x 600 46.875 75.00 49.50 VESA(SVGA)

6. 832 x 624 49.725 74.55 57.28 Macintosh

7. 1024 x 768 48.363 60.00 65.00 VESA(XGA)

8. 1024 x 768 56.476 70.06 75.00 VESA(XGA)

9. 1024 x 768 60.023 75.02 78.75 VESA(XGA)

10. 1280 x 768 47.693 59.99 80.125 WXGA(42XGA,50", 60")

11. 1360 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

12. 1366 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

9. RGB input ( DTV )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 480 31.47 59.94 27.000 SDTV 480P

2. 720 x 480 31.50 60.00 27.027 SDTV 480P

3. 720 x 576 31.25 50.00 27.000 SDTV 576P

4. 1280 x 720 44.96 59.94 74.176 HDTV 720P

5. 1280 x 720 45.00 60.00 74.250 HDTV 720P

6. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz

7. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I

8. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I

9. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz

10. HDMI Input ( PC )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 400 31.469 70.08 28.32 DOS

2. 640 x 480 31.469 59.94 25.17 VESA(VGA)

3. 640 x 480 37.500 75.00 31.50 VESA(VGA)

4. 800 x 600 37.879 60.31 40.00 VESA(SVGA)

5. 800 x 600 46.875 75.00 49.50 VESA(SVGA)

6. 832 x 624 49.725 74.55 57.28 Macintosh

7. 1024 x 768 48.363 60.00 65.00 VESA(XGA)

8. 1024 x 768 56.476 70.06 75.00 VESA(XGA)

9. 1024 x 768 60.023 75.02 78.75 VESA(XGA)

10. 1280 x 768 47.693 59.99 80.125 WXGA(42XGA,50", 60")

11. 1360 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

12. 1366 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

Page 10

LGE Internal Use Only

- 10 -

11. HDMI input ( DTV )

12. Mechanical Specification

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 480 31.47 59.94 27.000 SDTV 480P

2. 720 x 480 31.50 60.00 27.027 SDTV 480P

3. 720 x 576 31.25 50.00 27.000 SDTV 576P

4. 1280 x 720 44.96 59.94 74.176 HDTV 720P

5. 1280 x 720 45.00 60.00 74.250 HDTV 720P

6. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz

7. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I

8. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I

9. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz

No Item Content Remark

1. Product Width Length Height Unit

Dimension Before Packing 944 286 729 mm SET(With Stand)

After Packing 1052 383 858 mm

2. Product Weight Only SET 29.5 Kg

With BOX 35.5 Kg

3. Container Loading Individual or 20ft 40ft

Quantity Palletizing Indi Wooden Indi Wooden

60 60 132 132

4. Stand Assy Type Attached ( detachable )

Size( W x D x H ) 561 286.3 221.6 mm

Tilt Degree - Without Tilt function

Tilt force -

Swivel Degree -

Swivel Force -

5. Appearance General Refer to Standard of LG(55)G1-1020

Page 11

LGE Internal Use Only

1. Application Range

This spec. sheet is applied to all of the LP62F chassis(H3High) manufactured at LG TV Plant all over the world.

2. Specification

1) Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help to protect test instruments.

2) Adjustment must be done in the correct sequence.

3) The adjustment must be performed at 25±5°C temperature and 65±10% relative humidity if there is no specified designation.

4) The input voltage of the receiver must be kept between 100-220V, 50/60Hz.

5) Before adjustment, execute Heat-Run for 30 minutes at RF no signal

3. Adjustment items

3.1. PCB assembly adjustment items

1) Channel memory

- Download the channel data from BOM to EEPROM by

using LGIDS.

2) Option adjustment following BOM

- Tool Option1

- Tool Option2

- Area Option

3.2. SET assembly adjustment items

1) Auto AV(ZH-AV3, TH-AV1) Color Balance

2) Aging (by Power on key)

3) Adjustment of White Balance

4) Auto Component Color Balance adjustment

- Standard equipment : MSPG925FA

5) Auto RGB Color Balance adjustment

- Standard equipment : MSPG925FA

4. EDID

[Caution]

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists * Never connect HDMI & DVI-D & DVI-A cable at the same time. * Use the proper cables below for EDID Writing.

4.1. EDID Data

(1) ANALOG(256 Bytes )

- BLOCK1 (128BYTE)

(2) HDMI(256 Bytes )

- BLOCK1 (128BYTE)

- BLOCK2 (128BYTE)

=> Detail EDID Options are below (a, b, c, d, e) a. Product ID

b. Serial No : Controlled on production line c. Month, Year : Controlled on production line:

ex) Monthly : '03' => '03'

Year : '2005' => '0F'

d. Model Name/Monitor Name

e. Checksum: Changeable by total EDID data

- 11 -

ADJUSTMENT INSTRUCTION

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF FF 1E 6D 10 01 03 80 46 27 78 EA D9 B0 A3 57 49 9C 25 20 11 49 4B A5 6E 80 31 40 01 01 01 01 45 40 01 01 30 61 40 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88 40 35 00 BC 88 21 00 00 1C 4E 1F 00 80 51 00 1E 30 50 40 80 37 00 BC 88 21 00 00 18 60 00 00 00

70 00 38 4B 1F 3D 09 00 0A 20 20 20 20 20 20 01 14

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 02 03 24 F1 49 85 04 02 01 03 11 12 13 14 23 09 10 07 07 23 09 07 07 23 09 07 07 83 01 00 00 65 03 20 0C 00 10 00 01 1D 00 80 51 D0 1C 20 40 80 35 00 30 BC 88 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 40 96 00 13 8E 21 00 00 18 2A 12 00 10 41 43 17 20 50 28 60 35 00 00 00 32 00 00 1C 01 1D 80 18 71 1C 60 16 20 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6B

For Analog EDID

D-sub to DVI-I

For Digital EDID

DVI-D to DVI-D

For HDMI EDID

DVI-D to HDMI or HDMI to HDMI

No.

Item

Manufacturer ID

Version

Revision

Condition

GSM

Digital : 1

Digital : 3

Data

1E6D

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF FF 1E 6D 10 01 03 01 46 27 78 EA D9 B0 A3 57 49 9C 25 20 11 49 4B A5 6E 80 31 40 01 01 01 01 45 40 01 01 30 61 40 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88 40 35 00 BC 88 21 00 00 1C 4E 1F 00 80 51 00 1E 30 50 40 80 37 00 BC 88 21 00 00 18 00 00 00 FD 00 38 60 4B 1F 3D 09 00 0A 20 20 20 20 20 20 70 00 99

Model Name Product ID Product ID

Dec Hex EDID table

37LC2RHA 30117(A) 30117 75A5 A575

30118(D) 30118 75A6 A675

Model Name

37LC2RHA-ZH 00 00 00 FC 00 33 37 4C 43 32 52 48 41 2D 5A 48 0A 20

Page 12

LGE Internal Use Only

- 12 -

5. ADC Calibration

* Caution : System control RS-232C Host should be “PC” for

adjustment

- Press the FRONT-AV KEY on remote control for converting input mode

(Change RS-232C Host : pc, Band Rate : 115200bps)

5.1. Adjustment of RF/AV/S-VIDEO

(1) Required Equipments

1) Remote controller for adjustment

2) 802F Pattern Generator, Master (MSPG-925FA), etc.

3) MSPG-925FA Pattern Generator (Which has Video Signal: 100% Color Bar Pattern shown in Fig. 1) => Model : 202 / Pattern: 33 (PAL : ZH, TH)

Model : 201 / Pattern : 33 (NTSC : MH)

(2) Method of Auto RF/AV/S-VIDEO Color Balance

1) Press the FRONT-AV KEY on remote control for converting input mode.

2) Input the Video Signal: 100% Color Bar signal into AV3(ZH), AV1(TH), VIDEO1(MH).

3) Set the PSM to Standard mode in the Picture menu.

4) Press INSTART key on remote control for adjustment.

5) Press the

G(Vol.+) key to operate the set, then it

becomes automatically.

6) Auto-RGB OK means the adjustment is completed.

(3) Requirement

1) This AV color balance adjustment should be performed before White Balance Adjustment.

2) After AV color balance adjustment, Change the mode from AV to RF. (Cancel Heat-run mode.)

5.2. Adjustment of Component.

(1) Required Equipments

1) Remote controller for adjustment

2) 802F Pattern Generator, Master (MSPG-925FA), etc.

3) MSPG-925FA Pattern Generator

(Which has 720p YPbPr signal : 100% Color Bar Pattern shown in Fig. 2 ) => Model: 217 / Pattern: 33

4) It is very import to use correct adjustment pattern like Fig.1.

- Within the pattern, color sequence should be aligned : White-Yellow-Cyan-Green-Magenta-Red-Blue-Black (If color sequence is reversed (Black -> ... -> White), reverse the pattern with REV key, when using Master pattern generator like MSPG-925)

- If Minimum Black Level and/or Maximum White Level is not correct, select 100% Color Bar Pattern.

(2) Method of Auto Component Color Balance

1) Input the Component 720p 100% Color Bar(MSPG925FA model:217, pattern:33) signal into Component. (ZH : component , TH/MH : component 1 or 2)

2) Set the PSM to Standard mode in the Picture menu.

3) Press the INSTART key on remote control for adjustment.

4) Press the

G(Vol. +) key to operate the set , then it

becomes automatically.

5) Auto-RGB OK means the adjustment is completed.

5.3 Adjustment of RGB

(1) Required Equipments

1) Remote controller for adjustment

2) 802F Pattern Generator, Master (MSPG-925FA), etc.

3) MSPG-925FA Pattern Generator

(Which has XGA [1024x768] 60Hz PC Format output signal : 100% Color Bar Pattern shown in Fig. 1)

4) It is very import to use correct adjustment pattern like Fig.1.

- Within the pattern, color sequence should be aligned.

: White-Yellow-Cyan-Green-Magenta-Red-Blue-Black (If color sequence is reversed (Black ->...-> White), reverse the pattern with REV key, when using Master pattern generator like MSPG-925).

- If Minimum Black Level and/or Maximum White Level

is not correct, Do select 100% Color Bar Pattern.

(2) Method of Auto RGB Color Balance

1) Input the PC 1024x768 @ 60Hz 1/2 Black & White Pattern (MSPG-925FA model : 3, patter : 3) into RGB.

2) Set the PSM to Standard mode in Picture menu.

3) Press the INSTART key on remote control for adjustment.

4) Press the G(Vol. +) key operate To set , then it becomes automatically.

5) Auto-RGB OK means adjustment is completed.

* Before White-balance, the AV ADC should be done.

(ZH:AV3, TH:AV1, MH:VIDEO1)

Notice : Before White-balance, change input mode.

Move to AV3(ZH) or AV1(TH) or VIDEO1(MH) by using the FRONT-AV KEY on Remote controller.

6. White Balance

- System control RS-232 Host should be "PC" for

adjustment.

- AV ADC(ZH: AV3, TH : AV1, MH: VIDEO1) should be

done before White-balance.

MSPG-

925FA

AV ADC Condition

PAL NTSC

Input ZH model:AV3 MH model

-select TH model:AV1 :VIDEO1

Model:202(PAL-BGDHI) Model:201(NTSC)

Pattern :33 *100% Color Bar

Component

Model : 217

DVI(RGB)

Model : 3

(1024x768@6

0Hz)

<Fig. 1>

White balance ZH(AV3), TH(AV1) MH(VIDEO1)

MSPG925FA 216 Level (85IRE) Model : 202 Model : 201

Full screen pattern * Pal Video * NTSC Video

Page 13

* Test Equipment

Color Analyzer (CA-110) PC(For communication through RS-232C) =>UART Baud rate : 115200 Pattern Generator (MSPG-925FA etc.)

*Target Value [ PSM: Standard(ZH/TH), CSM: Normal]

- Normal(9300K±1000K) x:283±0.015, y: 298±0.015

- Luminance(Y) AV/COPM : Min. 250 Cd/m

(Typ : 300 Cd/m2)

PC : Min. 300 Cd/m2(Typ : 350 Cd/m2)

=> Reference Value(Automatically fixed)

- Cool (11000K ± 1000K)

- Warm (7200K ± 1000K)

6.1. Manual white Balance (AV)

1) Execute CA-110 Zero Calibration.

2) Execute the SET Heat Run for 30minutes.

3) As below Fig.2, Supply 216Level (85 IRE) full screen pattern to Video input. AV3/ AV4 (Input 50Hz)

4) Press the FRONT-AV KEY on remote control for converting input mode.

5) Set the PSM to Standard mode in Picture menu.

6) Enter the White Balance adjustment mode by pressing the INSTART key twice (White Balance) on remote control.

7) Stick sensor to center of the screen and select each items (Red/Green/Blue Gain and Offset) using

D/E(CH+/-) key

on remote control.

8) Adjust Only High Light with R Gain/B Gain using

F/G (VOL

+/-) key on remote control.

9) Adjust it until color coordination becomes as below. (Initially, R/G/B gain and R/G/B offset values are fixed as below. Red Gain : 82, Green Gain : 80, Blue Gain : 86 Red Offset : 80, Green Offset : 80, Blue Offset : 8C)

10) Adjust High light with R/B Gain.

6.2 Auto white Balance (AV)

1) LPL Module

2) AUO Module

* Input Select Data

RF(10), AV1~4(20,21,22,23), SAV(30), COMP(40), DVI (50or60), HDMI(90)

* Command Set (SET ID : 0-> ALL , 1~99 -> each SET)

- 13 -

LGE Internal Use Only

<Fig. 2>

216 Level(85IRE)

Command1 Command2 Set ID

Data

Min Max

Input Select XB B 00 00h 90h

R-Gain J A 00 00h E0h

G-Gain J B 00 00h E0h

B-Gain J C 00 00h E0h

R-Offset J D 00 00h 90h

G-Offset J E 00 00h 90h

B-Offset J F 00 00h 90h

Command1 Command2 Set ID

Data

Min Max

Input Select XB B 00 00h 90h

R-Gain J A 00 00h E0h

G-Gain J B 00 00h E0h

B-Gain J C 00 00h E0h

R-Offset J D 00 00h 90h

G-Offset J E 00 00h 90h

B-Offset J F 00 00h 90h

POWER ON/OFF

MAIN INPUT

ARC

SCREEN MUTE

AUDIO MUTE

VOLUME

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

OSD ON/OFF

CHILD LOCK

PIP MODE

PIP ARC

PIP POSITION

TREBLE

BASS

BALANCE

COLOR TEMP.

RED LEVEL

GREEN LEVEL

BLUE LEVEL

PIP INPUT

CURRENT STATE

Adjustment CMD SET ID VAL Remark

KA(ka)

XB(xb)

KC(kc)

KD(kd)

KE(ke)

KF(kf)

KG(kg)

KH(kh)

KI(ki)

KJ(kj)

KK(kk)

KL(kl)

KM(km)

KN(kn)

KO(ko)

KQ(kq)

KR(kr)

KS(ks)

KT(kt)

KU(ku)

KV(kv)

KW(kw)

K$(k$)

XY(xy)

KZ(kz)

0~99

0~1

10~90

0~6

0~1

0~64

0~1

0~3

0~64

0~3

0~60

10~90

0: OFF, 1:ON

RF(10), AV1~4(20,21,22,23),

SAV(30), COMP(40),

RGB(50 or 60), HDMI(90)

SPECTACLE, FULL, ORIGINAL

4:3, 16:9, 14:9, ZOOM

0: MUTE, 1: MUTE OFF

0:0, 64:100 (Hexadecimal)

0:R50, 64:G50 (Hexadecimal)

0: 0, 64:100 (Hexadecimal)

0: OFF, 1: ON

0: LOCK, 1: OFF

PIP_OFF, PIP, DW1, DW2

NOT USED

0:0, 64:100

0:L50, 64:R50

COOL, NORMAL, WARM, USER

0:-30, 60:30

RF(10), AV1~4(20,21,22,23),

SAV(30), COMP(41),

DVI(50 or 60), ,HDMI(61)

ACK : 0 - With signal

ACK : 1 -> Without signal

ACK : 2 -> Power Off

Page 14

7. Shipped Condition

7.1. Input the Shipping Option Data

(1) Push the ADJ key in the Adjust Remote control (2) Input the Option Number that was specified in the BOM,

into the Shipping area.

1) Select “OPTION1” by using

D/E(CH +/-) key, and press

the number key(0~9) consecutively. ex) If the value of OPTION1 is 74, input the data using

number key “7” & “4”.(Fig. 3)

2) Select “OPTION2” by using

D/E(CH +/-) key, and press

the number key (0~9).

3) Option3,4,5 are same as option1,2.

7.2. Detail list of SVC option data

- 14 -

LGE Internal Use Only

RED GAIN

GREEN GAIN

BLUE GAIN

RED OFFSET

GREEN OFFSET

BLUE OFFSET

AUTO CONFIG.

TUNER CONTROL

SELECT PR.

SELECT SUB PR.

FACTORY IR

IR CODE

ADC Calibration

Red,Blue,Green

Gain

Red,Blue,Green

offset

Adjustment

WHITE BALANCE “J”(A~F)

CMD SET ID VAL Remark

Ja,Jb,Jc

Jd,Je,Jf

0~99

direction

:00<E0

00<90

0~3F

0~C7

- F0

Min:00

Max:fe

Min:00

Max:fe

0:0, 3F:3F, FF : the state marking

0:0, 3F:3F, FF :the state marking

0:0, 3F:3F, FF : the state marking

0:0, 3F:3, FF : the state marking

0:0, 3F:3F, FF : the state marking

If Auto Adjust Condition is not,

send the NACK.

0: Pr. 0, C7: Pr.199

IR CODE 0, BITMASK = 0X01

Initial data : red -0x79

blue -0x6f

green -0x80

Initial data : red -0x80

blue -0x82

green -0x80

SYS.

Option 1 Option 2 Option 3 Option 4 Option 5

200PR(1Bit) SYS(1Bit) Scart(1Bit) Default Lan. SplitZoom Key(1Bit)

ACMS(1Bit) A2 ST(1Bit) CSM(1Bit) LANG Save Split Zoom(1Bit)

TEXT(2Bit) I II SAVE(1Bit) T LANG 2 Hour Off Opt.(1Bit)

CH+AU(1Bit) HDEV(1Bit) OSD Rotate(1Bit)

BOOST(1Bit) V-Curve(1Bit) Favorite Key(1Bit)

B-DEF(1Bit) MONO(1Bit) Exit Key(1Bit)

Navigation Key(1Bit)

Cort ez Version X..XX

Panel Used XX hr

Tool Option1 50404 Tool Option2 50404 Area Option 50

Opt ion 1 102

Opt ion 2 3 Opt ion 3 0 Opt ion 4 192 Opt ion 5 20 S ystem Control1 S ystem Control2 S ystem Control3 BlkLine Detector Pow wer- Off His to ry Panel Control Fan Control

XSTUDIO Contorl

LP62x

Page 15

LGE Internal Use Only

- 15 -

8. Shipping Conditions

No Item Condition Remark

1 Power Off

2 Volume Level 30

3 Main Picture Input TV

4 Main Last Channel Pr 01

5 Mute Off

6 ARC 16 : 9

7 Station Auto Programme

Manual Programme

Programme Edit

Favorite Programme None

8 Picture PSM Dynamic

Dynamic Contrast 100

Brightness 50

Colour 50

Sharpness 50

CSM Normal

XD Auto

Advanced

Reset

9 Sound SSM Flat

Off

AVL Off

Balance 0

Speaker On

10 Time Clock --:-- User control

Off time Off

On time Off

Auto sleep Off

11 Special Language English Area management

Child Lock Off

Set ID 1

XD Demo To start

12 Screen Auto config.

Manual config.

XGA/VGA mode Variable by each mode

ARC

PFP Transparency

Reset

Page 16

LGE Internal Use Only

- 16 -

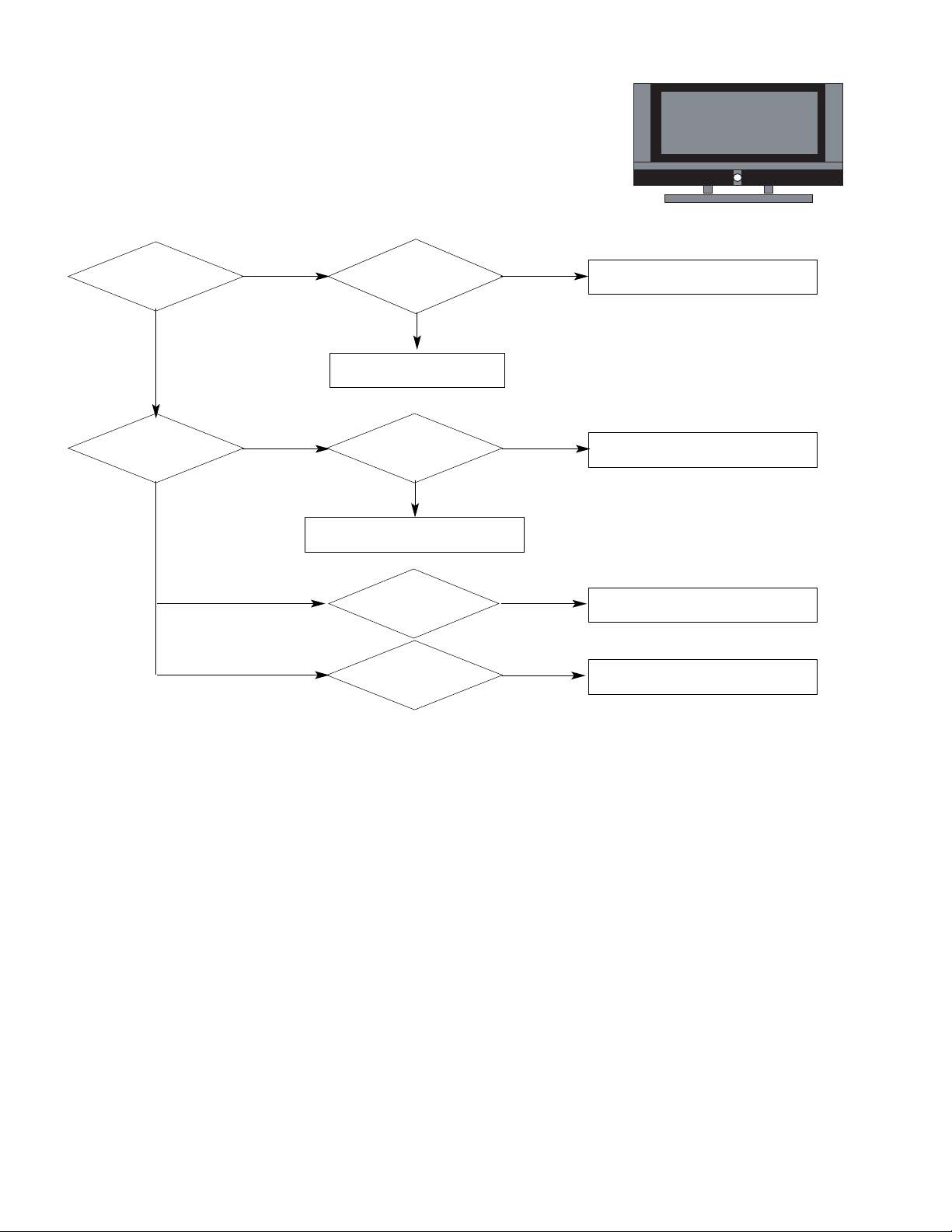

TROUBLESHOOTING

1. No power

Start check

Manufacture enterprise

meaning of a passage

1. Check the Power off condition

Yes

2. Check the Interface signal condition

3. Check the St_by 5V signal circuit

Yes

4. Check the 5V Monitor signal circuit

5. Check the VSC RL_ON signal

Yes

6. Check the VSC low pressure output

Yes No

7. Check the VSC Vs_ON signal

Yes

8. Check the Vs, Va voltage output circuit

Yes

9. Check the power board output high tension circuit

Yes

10. Check the Z B/D Module output circuit

Yes

11. Check the Y B/D Module output circuit

Yes

Yes No No

Doesn’t

the screen whole

come out?

It is

identical with power

off condition?

Is the Interface

signal operated?

Doesn’t the

5V monitor signal

come out?

Doesn’t the

VSC signal RL_ON

come out?

Doesn’t the VSC

Low pressure output

come out?

Doesn’t the

Vs,Va voltage output

come out?

Doesn’t the

St-by 5V signal

come out?

Doesn’t

the VSC signal Vs-ON

come out?

When

remove,the

Y, Z B/D Module Input

connector, Power Board high

tension output voltage

drop it occurs?

When remove

the Y B/D Module

Input connector, output

voltage drop

is occurs?

When remove

the Z B/D Module

Input connector, output

voltage drop

is occurs?

Doesn’t the

low pressure output

come out?

Doesn’t the

high tension output

come out?

High tension

output Voltage drop

it occurs?

Page 17

LGE Internal Use Only

- 17 -

2. VSC Board

2-1. No Power

(1) Symptom

1) Minute discharge doesn’t occur at module.

2) Front LED doesn’t come into action

(2) Check follow

Is the

Power Cord

plug in ?

Plug in Power Cord

Yes

Is the

Line Filter and PSU

connected?

Connect Cable (SC100)

Yes

Is the

Fuse(F100) of PSU

is normal?

Replace Fuse

Yes

Is it

connect that

PSU and 13Pin

cable in VSC

board?

After remove the cable connect to Power Board(except the CN101 connection cable), authorizes the AC voltage marking on manual. When ST-BY 5V does not operate, replace Power Board.

Connect Cable

Yes

Page 18

LGE Internal Use Only

- 18 -

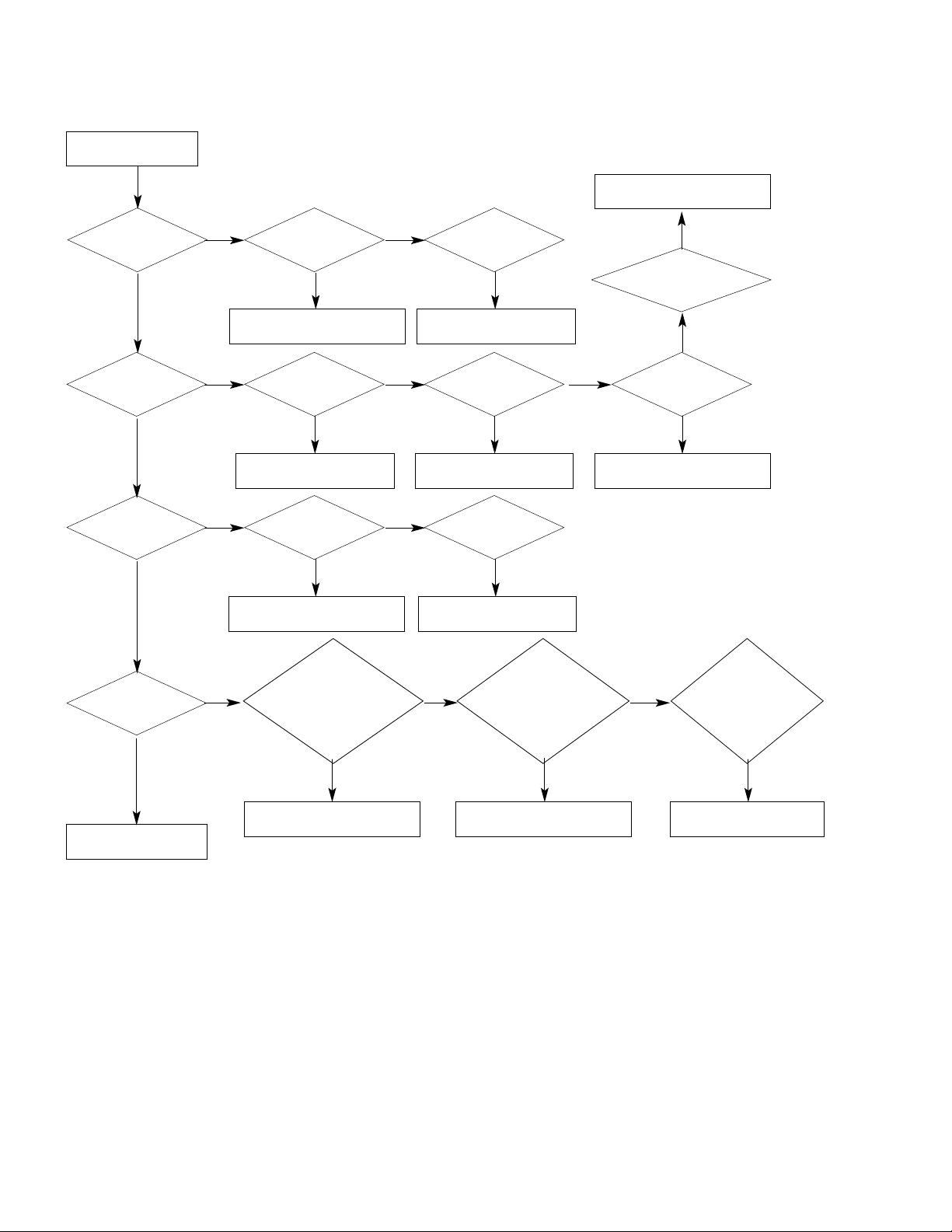

2-2. No Raster - LCD

(1) Symptom

1) Does’t minute discharge at module.

2) It maintains the condition where the front LED is normal.

(2) Check follow

Is the Inverter

On or Off

Check the Power board.

Off

Is the inverter

24V on power board

normal?

No No

Is output

the normality Low/High

voltage except stand-by

5V?

'Inverter_On'

Signal is High of 5thpin

in P1000 on Main

board

Yes

Is the link cable

normal?

1. Check the Inverter connector.

2. Check the LCD Module.

Yes

1. Check the Main Board.

1. Reconnect the link cable in P804

1. Check the Main board.

1. Change the Power Board.

1. Change the Main Board.ß

Yes

Is the Power

Board normal?

Yes

Is the VSC

Board normal?

Is the P804's

output normal?

Page 19

LGE Internal Use Only

- 19 -

Is the LVDS

cable normal?

Is the VSC

Board normal?

IC800' operation

is normal?

Is the

Ctrl Board of Module

normal?

Is the LVDS cable

connected well?

Replace cable.

Replace VSC B/D

No Yes

Replace Ctrl Board in Plasma panel.

Replace LCD Module

Yes

Is the LCD

Module normal?

Yes

Plasma

LCD TV

Cable inserts well.

Replace FIL8668 IC(IC800).

2-3. In case of occur strange screen into specific mode

2-3-1. In case of doesn’t display the OSD

(1) Symptom

1) LED is White

2) The minute discharge work continuously

(2) Check follow

Page 20

LGE Internal Use Only

- 20 -

2-3-2. In the case of doesn't work normally at specific input mode

(1) Symptom

- The screen doesn't work normally at specific input mode (RF, AV, Component, RGB, HDMI)

(2) Check follow

1) Check the all input model if all input display normally.

2) Check the PIP and Double Window if it display normally.(Re-Check it Swap)

(3) In case of unusual situation from RF mode

Is the Tuner normal?

Yes

Cable inserts well. Replace Tuner.

Replace IC300.

Is the IC300

normal?

Replace IC800.

Is the IC800

normal?

Is the Tuner Cable

connected well?

Is normal

the Input voltage, IIC

Communication and

CVBS output?

Is the

Input voltage, IIC

Communication and HV

sync normal?

Is the

Input voltage, IIC

Communication and HV

sync normal?

Yes

Replace IC300.

Is the IC300

normal?

Replace IC800.

Is the IC800

normal?

Is the

Input voltage, IIC

Communication and HV

sync normal?

Is the

Input voltage, IIC

Communication and HV

sync normal?

(4) When set doesn’t display normally at RF , AV mode

Page 21

LGE Internal Use Only

- 21 -

(5) When set doesn't display normally at Component, RGB mode

(6) In the case of becomes unusual display from HDMI mode

Yes

Replace IC1200.

Is the IC1200

normal?

Replace IC800.

Is the IC800

normal?

Replace IC800.

Is the IC800

normal?

Is the

Input voltage, IIC

Communication and HV

sync normal?

Is the

Input voltage, IIC

Communication and HV

sync normal?

Is the

Input voltage, IIC

Communication and HV

sync normal?

2-4. In case of no sound

(1) Symptom

1) LED is White.

2) Screen existent, but Sound isn’t.

(2) Check follow

All input(mode)

is no sound?

Only HDMI is

no sound?

Only AV input

is no sound?

Replace IC400.

Replace IC401.

Replace IC300.

Replace VSC B/D.

Set on speaker in menu

Download the EDID data

Check the speaker cable

Only RF is no sound?

Check the Tuner In/Out.

Replace IC402.

Is the Speaker

on in Menu?

Yes

Check the signal after IC300 refer to circuit diagram.

Is the output

Lout1 & Vout1 of IC300

normal?

Yes

Is the speaker cable normal?

Yes

IC400 operate

normally?

IC401 operate

normally?

IC402 operate

normally?

Page 22

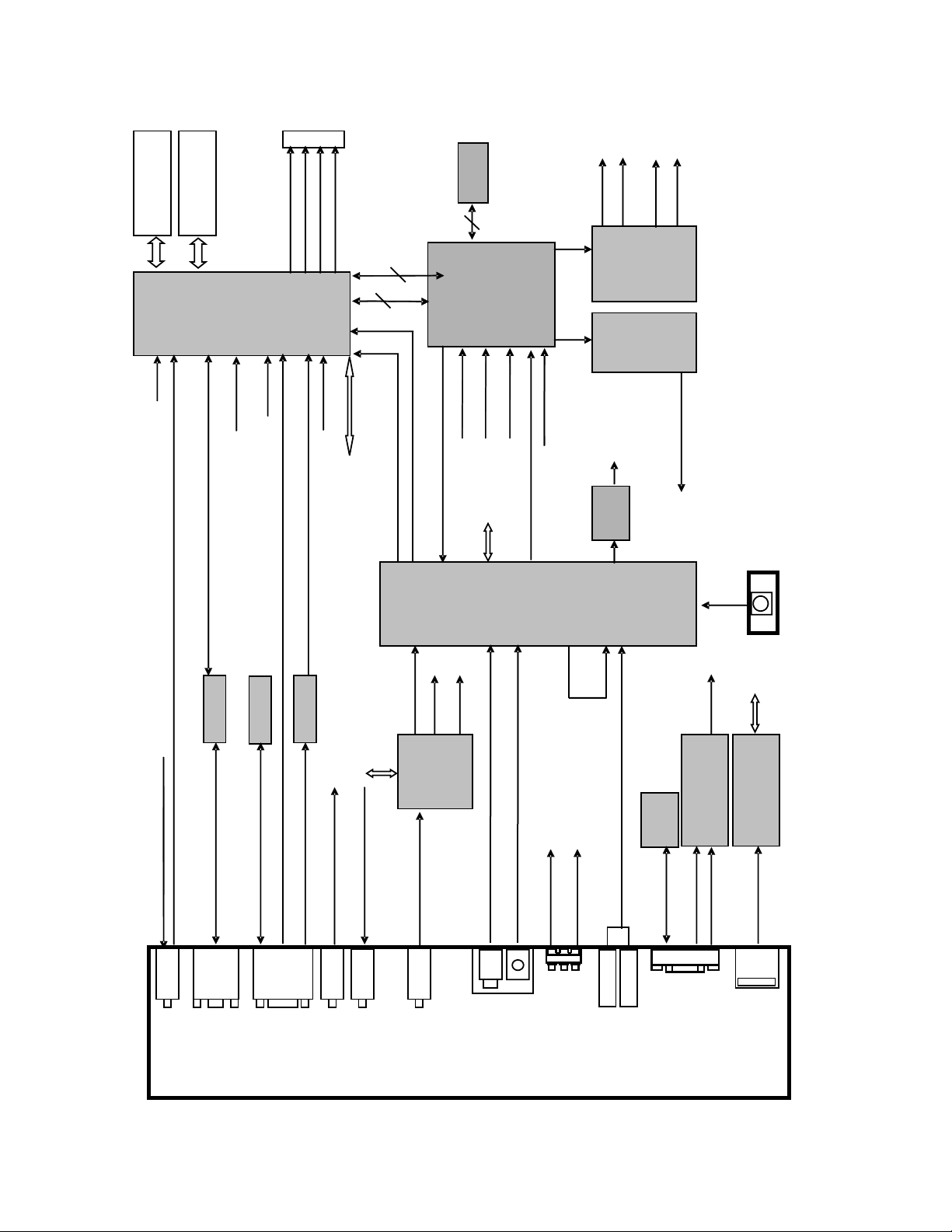

BLOCK DIAGRAM

- 22 -

LGE Internal Use Only

31P_LVDS

F-ROM (2 MB)

AT49BV160C

HY5DU281622ETP

DDRRAM(128MB X2)

Cortez

FLI866 2

HDMI

Sync det ect

TXD / RXD

COMP_Y/Pb/ Pr

DS_VS / DS_HS

VGA_RGB

DISP_EN

SCL/ SDA_Part

Tx0/ 1/2/ 3/ 4/C

I2S

I2C

SCART_RGB/ FB

SUB_V or Y/ C OUT

MAIN_V or Y/C OUT

SCART_RGB/ FB

NJU26901

I2S

MSP4450K

TV_L/ R OUT

PC_Audi o_L/ R

AM_Audi o / S I F

Ext_MONO_SPK_OU T

S/ W & CONTROL

AV_LR

COMP_RIN/LIN

I2C

Swi tc h

CXA2069Q

L_SPK_OUT

L/ R Sound 1

L/ R Sound 2

HDMI_L/R

R_SPK_OUT

L+SPK_OUT

Sync det ect

LA7217

R+SP K_OUT

TPA31 00

TPA02 42

Ext_MONO_SPK_OU T

Y_IN1

V_OU T1

TU_MAIN

24C02

ST3232C

Rx 0/ 1

Tx 0/ 1

DSUB_SCL / DSBU_SDA

RS23 2

Discret e IR

74HC14

I2 C

DS_VS / DS_HS

PC_STEREO AUDIO

Ext _MONO_SPK_OUT

RGB

PC_Aud io

(PC/DTV)

(MONO)

SPEAKER OUTPUT

S I F

AM_Audi o

YCIN3

AVIN3_RIN/ LIN

Tune r

(W303P)

24C02

SCART1, 2_ID

SCART1, 2_RIN/ LIN

SCL/ SDA

COMP_RIN/ LIN

COMP_Y/Pb/ Pr

COMP

S-AV

SCART1

SCART2

RX 0/ 1/2/ CLK–

HDMI

(PC/DTV)

AVIN4_RIN/ LIN

HDMI

SIL90 11

I2C

M62320FP

RJP_C on tro l

RJ45

Page 23

MEMO

- 23 -

LGE Internal Use Only

Page 24

LGE Internal Use Only

- 24 -

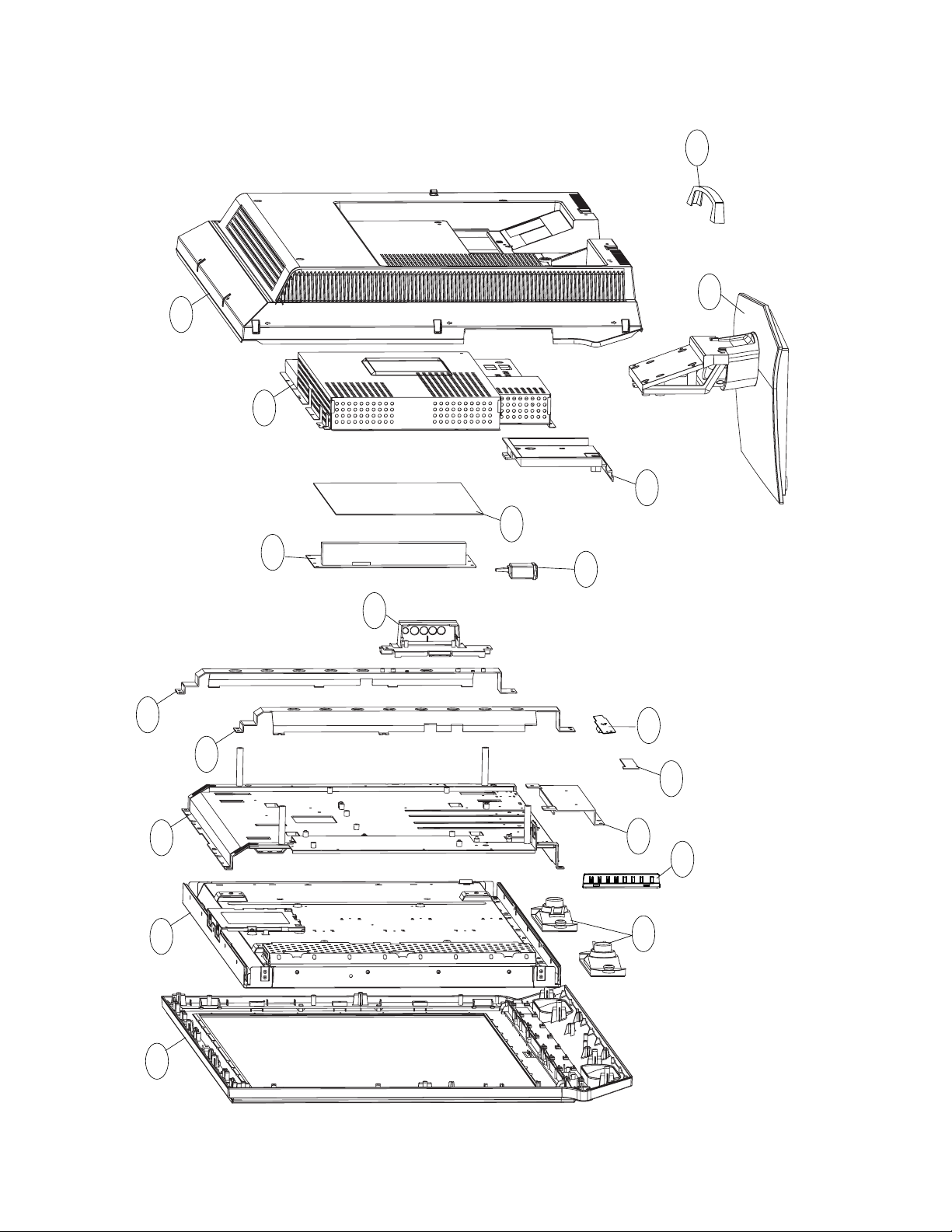

EXPLODED VIEW

400

910

900

840

830

610

600

540

810

200 800

530

510

811

500

820

520

120

300

Page 25

LGE Internal Use Only

- 25 -

EXPLODED VIEW PARTS LIST

No.

PART NO.

DESCRIPTION

120 EAB30829201 Speaker,Woofer, g1560102 ND 15W 8OHM 82DB 100HZ 193 X 57 X 50 LUG MACOM

200 EAJ32763501

LCD,Module-TFT, LC370WX1-SL15 WXGA 37.0INCH 1366X768 500CD COLOR 72% 16/9 800:1 A-TW Pol. P6 LG PHILIPS LCD

300 ACQ30192611 Cover Assembly, 37LC2RHA-ZH LP62F 37" LGEMA PHANTOM OF 37LC2RHA-ZH cabinet assy.

400 3809900164J Cover Assembly, 37LC2R-ZH LP62A 37" LGEMA PHANTOM BACKCOVER ASSY

500 EBR30798701 PCB Assembly,Sub, 1234567 SUB T.T LP62A 37,42LC2RH-ZH ALEULFX PREAMP + LED LC

510 68719STA80A PCB Assembly,Sub, SUB T.T LP61C 37 . -CLOCK BOARD

520 EBR36314301 PCB Assembly,Sub, CONTROL T.T LP62F 37/42LC2RHA-ZH . .

530 EBR35302901 PCB Assembly,Sub, SUB T.T LP62F 37LC2RHA-ZH AEULLHX Side AV for DMS COMMERCIAL

540 6200J000151

Filter,AC Line, ID-N06AESL6 1.3mH 250VAC 6A 0.1uF 1000pF UL/CSA/TUV HOUSING/RING BK DONGJI ELECTRONICS

600 6709900016D

SMPS,AC/DC, LGLP2637HEP(37INCH) 90VTO264V 215W 47TO63HZ UL/CSA/SEMKO YY / AT / HE YUYANG TELECOM CO.,LTD

610 EBU35295203 Main Total Assembly, 37LC2RHA BRAND LP62F

800 MGJ32111529 Plate, PRESS EGI 1.6 FRAME SBHG-A Main frame for 37LC2RHA-ZH C/SKD

810 49509K0023D Plate, SIDE SUPPORTER RIGHT FOR 37LC2(C/SKD)

811 49509K0024F Plate, PRESS SBHG T1.6 SIDE SUPPORTER LEFT FOR 37LC2(C/SKD)

820 49509K0222A Plate, PRESS SBHG T2.0 SUPPORTER SPTE 37LC2

830 35509K217B Cover, MOLD HIPS 37LC2R-ZH HIPS 405AF LGEMA PHANTOM

840 MGJ32550719

Plate,Shield, PRESS EGI 0.8T SHIELD EGI 37LC2RHA-ZH H3H CHASSIS(RAYOUT HEM) COMMECIAL C/SKD

900 3043900032M Base Assembly, STAND 37LC2R-ZH LP62A LGEMA PHANTOM ASSY

910 35509K0197A Cover, MOLD HIPS 32LC2 HIPS CABLE MANAGEMENT

Page 26

LGE Internal Use Only

- 26 -

A2 6710900010J Remote Controller COMPLEX PP62A 42PC1R-Z

A21 3550V00590A Cover MOLD ABS 50PC3DD-UE.AU

A3 6410TEW010A Power Cord "CEE,LP-34A&H05VV-FX3C,"

A4 341-746B Holder MOLD ABS CABLE Holder

A5 EBY36129907 Circuit Diagram DIAGRAM LP62F ITALIAN

C1001 0CE477WF6DC "Capacitor,AL,Chip" MVK10TP16VC470M 470uF

C1005 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1007 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1009 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1012 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1014 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1016 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1019 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1020 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1022 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1023 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1031 0CE476WK6DC "Capacitor,AL,Chip" MVK8.0TP50VC47M 47uF 2

C1041 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1048 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1049 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1053 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1054 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1062 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1063 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1064 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1065 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1067 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1069 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1070 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1072 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1084 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1085 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1086 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1087 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1088 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1089 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1092 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1098 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1101 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1107 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1111 0CE477WF6DC "Capacitor,AL,Chip" MVK10TP16VC470M 470uF

C1112 0CE227WJ6DC "Capacitor,AL,Chip" MVK10TP35VC220M 220uF

C1113 0CE227WF6DC "Capacitor,AL,Chip" MVK8.0TP16VC220M 220uF

C1118 0CE227WJ6DC "Capacitor,AL,Chip" MVK10TP35VC220M 220uF

C1129 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1130 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1132 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1135 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1137 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1146 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1147 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1149 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1151 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1152 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C1157 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C1158 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C118 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C119 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C1201 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C1222 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C124 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C1244 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C125 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C126 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C1260 0CZZTAT008B "Capacitor,AL,Chip" RVS-16V100MU-R 10uF 20

C1261 0CZZTAT008B "Capacitor,AL,Chip" RVS-16V100MU-R 10uF 20

C127 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C132 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C135 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C136 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C142 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C1420 0CE106WH6DC "Capacitor,AL,Chip" MVK5.0TP25VC10M 10uF 2

C1434 0CE227WJ6DC "Capacitor,AL,Chip" MVK10TP35VC220M 220uF

C1435 0CE227WJ6DC "Capacitor,AL,Chip" MVK10TP35VC220M 220uF

C1442 0CE107WK6DC "Capacitor,AL,Chip" MVK10TP50VC100M 100uF

C1449 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C148 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C149 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C174 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C175 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C1813 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C1814 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C1826 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C2001 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C2002 0CH8476F691 "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C2004 0CH8476F691 "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C202 0CE476VF6DC "Capacitor,AL,Chip" VGV476M016S0ANE010 47u

C203 0CE476VF6DC "Capacitor,AL,Chip" VGV476M016S0ANE010 47u

C204 0CE476VF6DC "Capacitor,AL,Chip" VGV476M016S0ANE010 47u

C215 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C216 0CE475WK6DC "Capacitor,AL,Chip" MVK5.0TP50VC4.7M 4.7uF

C2200 0CE476WH6DC "Capacitor,AL,Chip" MVK8.0TP25VC47M 47uF 2

C2201 0CE476WH6DC "Capacitor,AL,Chip" MVK8.0TP25VC47M 47uF 2

C2209 0CE476WH6DC "Capacitor,AL,Chip" MVK8.0TP25VC47M 47uF 2

C2211 0CE476WH6DC "Capacitor,AL,Chip" MVK8.0TP25VC47M 47uF 2

C224 0CE477SF6DC "Capacitor,AL,Chip" VMV477M016S0ANG030 470

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

REPLACEMENT PARTS LIST

DATE: 2007. 07. 15.

CAPACITORs

ACCESSORY

Page 27

- 27 -

C238 0CE227SF6DC "Capacitor,AL,Chip" MVG6.3TP16VC220M 220uF

C314 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C316 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C317 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C318 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C349 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C349 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C351 0CE105SK6DC "Capacitor,AL,Chip" VMV105M050S0ANB010 1uF

C351 0CE105WK6DC "Capacitor,AL,Chip" MVK4.0TP50VC1M 1uF 20%

C354 0CE105SK6DC "Capacitor,AL,Chip" VMV105M050S0ANB010 1uF

C401 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C401 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C405 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

C409 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C412 0CE335WK6D8 "Capacitor,AL,Chip" MVK4.0TP50VC3.3M 3.3uF

C432 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C446 0CE335WK6D8 "Capacitor,AL,Chip" MVK4.0TP50VC3.3M 3.3uF

C447 0CE105SK6DC "Capacitor,AL,Chip" VMV105M050S0ANB010 1uF

C447 0CE106VF6DC "Capacitor,AL,Chip" VGV106M016S0ANB010 10u

C448 0CE106VF6DC "Capacitor,AL,Chip" VGV106M016S0ANB010 10u

C450 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C451 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C451 0CE106WH6DC "Capacitor,AL,Chip" MVK5.0TP25VC10M 10uF 2

C452 0CE106SH6DC "Capacitor,AL,Chip" VMV106M025S0ANB010 10u

C452 0CE106WH6DC "Capacitor,AL,Chip" MVK5.0TP25VC10M 10uF 2

C453 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

C453 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C463 0CE475WK6DC "Capacitor,AL,Chip" MVK5.0TP50VC4.7M 4.7uF

C464 0CE475WK6DC "Capacitor,AL,Chip" MVK5.0TP50VC4.7M 4.7uF

C487 0CE475WK6DC "Capacitor,AL,Chip" MVK5.0TP50VC4.7M 4.7uF

C488 0CE475WK6DC "Capacitor,AL,Chip" MVK5.0TP50VC4.7M 4.7uF

C512 0CE476SF6DC "Capacitor,AL,Chip" VMV476M016S0ANC010 47u

C561 0CE107SF6DC "Capacitor,AL,Chip" VMV107M016S0ANE010 100

C834 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C835 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C836 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C837 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C838 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C839 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C840 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C841 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C842 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C853 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C855 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C886 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C898 0CE106WFKDC "Capacitor,AL,Chip" MVK4.0TP16VC10M 10uF 2

C901 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C904 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C905 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C930 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C943 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C950 0CE226WF6DC "Capacitor,AL,Chip" MVK5.0TP16VC22M 22uF 2

C952 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C957 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C982 0CE476WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC47M 47uF 2

C983 0CE107WF6DC "Capacitor,AL,Chip" MVK6.3TP16VC100M 100uF

C987 EAE30840301 "Capacitor,AL,Chip" 10SVPC68M 68uF 20% 10V

C1000 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C1002 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1003 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C1004 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1006 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1008 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1010 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1011 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1013 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1015 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1017 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1018 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1021 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1024 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1025 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1026 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1027 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1028 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1029 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1030 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1032 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1033 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1034 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1035 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1036 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1037 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1039 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1040 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1044 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1045 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1046 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1047 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1058 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1059 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1060 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1061 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1066 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1068 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1071 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1073 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1074 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1075 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1076 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1077 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1078 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 28

- 28 -

C1079 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C108 0CC221CK41A "Capacitor,Ceramic,Chip" C1608C0G1H221JT 220pF

C1080 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1081 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1082 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1083 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C109 0CC221CK41A "Capacitor,Ceramic,Chip" C1608C0G1H221JT 220pF

C1090 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1091 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C110 0CC221CK41A "Capacitor,Ceramic,Chip" C1608C0G1H221JT 220pF

C1100 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1102 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1103 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1104 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1105 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1106 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C111 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1114 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1115 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1116 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1117 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1119 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C112 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1120 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1121 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1122 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1123 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1124 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1125 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1126 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C113 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1134 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1136 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1138 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1139 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C114 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1140 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1142 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1143 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1145 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C115 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1150 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1153 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1154 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1155 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1156 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C116 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C117 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C120 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1200 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C121 0CC331CK41A "Capacitor,Ceramic,Chip" C1608C0G1H331JT 330pF

C1212 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1213 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1214 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1215 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1216 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1217 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1218 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1219 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C122 0CC331CK41A "Capacitor,Ceramic,Chip" C1608C0G1H331JT 330pF

C1220 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1221 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1227 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1229 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C123 0CC331CK41A "Capacitor,Ceramic,Chip" C1608C0G1H331JT 330pF

C1230 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1231 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1235 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1236 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1237 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1238 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1239 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1240 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1241 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1242 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1243 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C1245 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1246 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1262 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1263 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1264 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1265 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1266 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1267 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1268 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1269 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1270 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1271 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1272 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1273 0CC270CK41A "Capacitor,Ceramic,Chip" C1608C0G1H270JT 27pF 5

C1274 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1275 0CC102CK41A "Capacitor,Ceramic,Chip" C1608C0G1H102JT 1nF 5%

C1276 0CK105CD56A "Capacitor,Ceramic,Chip" C1608X7R1A105KT 1uF 10

C1277 0CC270CK41A "Capacitor,Ceramic,Chip" C1608C0G1H270JT 27pF 5

C1278 0CK105CD56A "Capacitor,Ceramic,Chip" C1608X7R1A105KT 1uF 10

C1279 0CC102CK41A "Capacitor,Ceramic,Chip" C1608C0G1H102JT 1nF 5%

C1280 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C130 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C137 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C138 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C139 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C141 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1415 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1416 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1417 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1418 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1422 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1423 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1424 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 29

- 29 -

C1425 0CK224CFG6A "Capacitor,Ceramic,Chip" C1608X7R224KET 220nF 1

C1426 0CK224CFG6A "Capacitor,Ceramic,Chip" C1608X7R224KET 220nF 1

C1427 0CK224CFG6A "Capacitor,Ceramic,Chip" C1608X7R224KET 220nF 1

C1428 0CK224CFG6A "Capacitor,Ceramic,Chip" C1608X7R224KET 220nF 1

C1429 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1430 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1431 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1432 0CK105CF94A "Capacitor,Ceramic,Chip" 0603F105Z160CT 1uF -20

C1436 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1437 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1438 0CK225DK94A "Capacitor,Ceramic,Chip" CL21F225ZBFNNNE 2.2uF

C1440 0CK225DK94A "Capacitor,Ceramic,Chip" CL21F225ZBFNNNE 2.2uF

C1441 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C1443 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1444 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1445 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C1446 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1447 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1448 0CC150CK41A "Capacitor,Ceramic,Chip" C1608C0G1H150JT 15pF 5

C1450 0CC220CK41A "Capacitor,Ceramic,Chip" C1608C0G1H220JT 22pF 5

C147 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C150 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C151 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C152 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C165 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C166 0CK102CK56A "Capacitor,Ceramic,Chip" 0603B102K500CT 1nF 10%

C178 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1800 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1801 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1802 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1803 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C1804 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1805 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1806 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1807 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1808 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1809 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1810 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1811 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1812 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1815 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1827 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C1828 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C1829 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C1830 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C1831 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C1851 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C1852 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C200 0CH5101K416 "Capacitor,Ceramic,Chip" C2012C0G1H101JT 100pF

C2000 0CC101CK41A "Capacitor,Ceramic,Chip" C1608C0G1H101JT 100pF

C2001 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C2002 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2003 0CC100CK41A "Capacitor,Ceramic,Chip" C1608C0G1H100JT 10pF 5

C2003 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C2004 0CC100CK41A "Capacitor,Ceramic,Chip" C1608C0G1H100JT 10pF 5

C2008 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C201 0CH5330K416 "Capacitor,Ceramic,Chip" C2012C0G1H330JT 33pF 5

C2010 0CH5221K416 "Capacitor,Ceramic,Chip" 0805N221J500LT 220pF 5

C2011 0CH5221K416 "Capacitor,Ceramic,Chip" 0805N221J500LT 220pF 5

C2020 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C219 0CC820CK41A "Capacitor,Ceramic,Chip" C1608C0G1H820JT 82pF 5

C220 0CC820CK41A "Capacitor,Ceramic,Chip" C1608C0G1H820JT 82pF 5

C2202 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2203 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2204 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2205 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2206 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2207 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2208 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C221 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C2210 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C2212 0CK105CD56A "Capacitor,Ceramic,Chip" C1608X7R1A105KT 1uF 10

C222 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C223 0CC101CK41A "Capacitor,Ceramic,Chip" C1608C0G1H101JT 100pF

C225 0CK273CK56A "Capacitor,Ceramic,Chip" 0603B273K500CT 27nF 10

C226 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C231 0CK273CK56A "Capacitor,Ceramic,Chip" 0603B273K500CT 27nF 10

C233 0CC271CK41A "Capacitor,Ceramic,Chip" C1608C0G1H271JT 270pF

C300 0CH5101K416 "Capacitor,Ceramic,Chip" C2012C0G1H101JT 100pF

C301 0CH5101K416 "Capacitor,Ceramic,Chip" C2012C0G1H101JT 100pF

C312 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C313 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C315 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C319 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C320 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C321 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C322 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C328 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C330 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C331 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C332 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C333 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C334 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C335 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C336 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C337 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C338 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C339 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C340 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C341 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C342 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C343 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C344 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C345 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C346 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C347 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C348 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C350 0CC102CK41A "Capacitor,Ceramic,Chip" C1608C0G1H102JT 1nF 5%

C352 0CK563CK56A "Capacitor,Ceramic,Chip" C1608X7R1H563KT 56nF 1

C353 0CK223CK56A "Capacitor,Ceramic,Chip" UMK107JB223KA-T 22nF 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 30

- 30 -

C355 0CK821CK56A "Capacitor,Ceramic,Chip" C1608X7R1H821KT 820pF

C356 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C357 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C400 0CK332CK56A "Capacitor,Ceramic,Chip" C1608X7R1H332KT 3.3nF

C402 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C403 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C404 0CK332CK56A "Capacitor,Ceramic,Chip" C1608X7R1H332KT 3.3nF

C406 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C407 0CH6010K116 "Capacitor,Ceramic,Chip" C2012C0G1H010DT 1pF 0.

C408 0CH6010K116 "Capacitor,Ceramic,Chip" C2012C0G1H010DT 1pF 0.

C410 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C411 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C413 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C414 0CC560CK41A "Capacitor,Ceramic,Chip" C1608C0G1H560JT 56pF 5

C415 0CC560CK41A "Capacitor,Ceramic,Chip" C1608C0G1H560JT 56pF 5

C416 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C417 0CK332CK56A "Capacitor,Ceramic,Chip" C1608X7R1H332KT 3.3nF

C424 0CH5150K416 "Capacitor,Ceramic,Chip" C2012C0G1H150JT 15pF 5

C428 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C429 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C430 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C431 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C433 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C434 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C435 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C436 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C437 0CC101CK41A "Capacitor,Ceramic,Chip" C1608C0G1H101JT 100pF

C438 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C439 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C440 0CH5150K416 "Capacitor,Ceramic,Chip" C2012C0G1H150JT 15pF 5

C441 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C442 0CK474CH94A "Capacitor,Ceramic,Chip" 0603F474Z250CT 470nF -

C444 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C445 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C449 0CK104DK56A "Capacitor,Ceramic,Chip" 0805B104K500CT 100nF 1

C457 0CK332CK56A "Capacitor,Ceramic,Chip" C1608X7R1H332KT 3.3nF

C458 0CK332CK56A "Capacitor,Ceramic,Chip" C1608X7R1H332KT 3.3nF

C462 0CK332CK56A "Capacitor,Ceramic,Chip" C1608X7R1H332KT 3.3nF

C469 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C480 0CK104CF56A "Capacitor,Ceramic,Chip" 0603B104K160CT 100nF 1

C500 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C501 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C502 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C503 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C506 0CC120CK41A "Capacitor,Ceramic,Chip" C1608C0G1H120JT 12pF 5

C511 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C514 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C516 0CC561CK41A "Capacitor,Ceramic,Chip" C1608C0G1H561JT 560pF

C518 0CC561CK41A "Capacitor,Ceramic,Chip" C1608C0G1H561JT 560pF

C552 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C553 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C554 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C555 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C557 0CC221CK41A "Capacitor,Ceramic,Chip" C1608C0G1H221JT 220pF

C559 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C560 0CC470CK41A "Capacitor,Ceramic,Chip" C1608C0G1H470JT 47pF 5

C562 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C563 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C600 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C800 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C803 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C805 0CK471CK56A "Capacitor,Ceramic,Chip" C1608X7R1H471KT 470pF

C806 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C809 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C810 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C812 0CC300CK41A "Capacitor,Ceramic,Chip" C1608C0G1H300JT 30pF 5

C813 0CC300CK41A "Capacitor,Ceramic,Chip" C1608C0G1H300JT 30pF 5

C814 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C815 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C816 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C817 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C818 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C819 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C820 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C821 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C822 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C823 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C824 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C825 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C826 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C827 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C828 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C829 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C830 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C831 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C832 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C833 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C834 0CK226FF67A "Capacitor,Ceramic,Chip" EMK325BJ226MM-T 22uF 2

C840 0CK226FF67A "Capacitor,Ceramic,Chip" EMK325BJ226MM-T 22uF 2

C843 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C844 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C845 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C846 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C847 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C848 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C849 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C850 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C851 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C852 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C854 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C856 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C857 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C858 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C859 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C860 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C861 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C862 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C863 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C864 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 31

- 31 -

C865 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C866 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C867 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C868 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C869 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C870 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C871 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C872 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C873 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C874 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C875 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C876 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C877 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C878 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C879 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C880 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C881 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C882 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C883 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C884 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C885 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C887 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C888 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C889 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C890 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C891 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C892 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C893 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C894 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C895 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C896 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C897 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C899 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C902 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C903 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C906 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C907 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C908 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C909 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C910 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C911 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C912 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C913 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C914 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C915 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C916 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C917 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C918 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C919 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C920 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C921 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C922 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C923 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C924 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C925 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C926 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C927 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C928 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C929 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C931 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C932 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C933 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C934 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C935 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C936 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C937 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C938 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C939 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C940 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C941 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C942 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C944 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C949 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C951 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C953 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C954 0CK225DFK4A "Capacitor,Ceramic,Chip" C2012Y5V1C225MT 2.2uF

C955 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C956 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C958 0CK103CK56A "Capacitor,Ceramic,Chip" 0603B103K500CT 10nF 10

C960 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C961 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C962 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C963 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C964 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C965 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C966 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C967 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C968 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C969 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C970 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C971 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C972 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C973 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C974 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C975 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C976 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C977 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C978 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C979 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C980 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C981 0CK104BF56A "Capacitor,Ceramic,Chip" C1005X7R104KET 100nF 1

C984 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C985 0CK226FF67A "Capacitor,Ceramic,Chip" EMK325BJ226MM-T 22uF 2

C986 0CK104CK56A "Capacitor,Ceramic,Chip" 0603B104K500CT 100nF 1

C988 0CK226FF67A "Capacitor,Ceramic,Chip" EMK325BJ226MM-T 22uF 2

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 32

- 32 -

C989 0CK226FF67A "Capacitor,Ceramic,Chip" EMK325BJ226MM-T 22uF 2

C990 0CK226FF67A "Capacitor,Ceramic,Chip" EMK325BJ226MM-T 22uF 2

D1200 0DD184009AA Diode Assembly KDS184 KDS184 TP KEC -

D1007 0DD200009AF "Diode,Rectifier" RU2M 400V 1.2V 10UA 20

D1008 0DD200009AF "Diode,Rectifier" RU2M 400V 1.2V 10UA 20

D100 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1000 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1001 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1002 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1004 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1005 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1006 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D101 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D102 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D103 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D104 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D106 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D108 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1100 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1101 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D1102 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D113 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D114 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D115 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D500 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D501 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D502 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D504 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D900 0DS226009AA "Diode,Switching" KDS226 1.2V 85V 300MA

D107 0DRSE00038A "Diode,TVS" SDC15 1.3V 14.3VTO16.4

D110 0DRSE00038A "Diode,TVS" SDC15 1.3V 14.3VTO16.4

D1202 0DRSE00048A "Diode,TVS" RLCAMP0504M 1.2V 6V 25

D1203 0DRSE00048A "Diode,TVS" RLCAMP0504M 1.2V 6V 25

D552 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

D600 0DRSE00038A "Diode,TVS" SDC15 1.3V 14.3VTO16.4

ZD100 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD100 0DRSE00038A "Diode,TVS" SDC15 1.3V 14.3VTO16.4

ZD101 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD101 0DRSE00038A "Diode,TVS" SDC15 1.3V 14.3VTO16.4

ZD102 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD103 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD104 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD300 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD301 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD500 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD501 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD502 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD503 0DR050008AA "Diode,TVS" SD05.TC - 6V 14.5V 24A

ZD1001 0DZRM00178A "Diode,Zener" UDZS5.1B 5.1V 4.98TO5.

ZD1002 0DZRM00178A "Diode,Zener" UDZS5.1B 5.1V 4.98TO5.

ZD2200 0DZRM00178A "Diode,Zener" UDZS5.1B 5.1V 4.98TO5.

ZD2201 0DZRM00178A "Diode,Zener" UDZS5.1B 5.1V 4.98TO5.

ZD2202 0DZRM00178A "Diode,Zener" UDZS5.1B 5.1V 4.98TO5.

ZD2203 0DZRM00178A "Diode,Zener" UDZS5.1B 5.1V 4.98TO5.

ZD2204 0DZRM00178A "Diode,Zener" UDZS5.1B 5.1V 4.98TO5.

ZD400 0DZRM00248A "Diode,Zener" RLZ8.2B 8.2V 7.78TO8.1

IC2002 0IZZ9H9051A IC Assembly PIC16F819-I/SO 0IMCR02

IC300 0ISO206900A "IC,Analog Switch" CXA2069Q 8.5TO9.5V - -

IC411 0IPRP00700A "IC,Audio Amplifier" TPA3100D2PHPR 10TO26V

IC501 0IPH741400E "IC,CMOS" 74HC14D 2TO6V 0.002mA

IC901 EAN32205201 "IC,DDR SDRAM" HY5DU281622FTP-5 128MB

IC902 EAN32205201 "IC,DDR SDRAM" HY5DU281622FTP-5 128MB

IC410 0IPRPJR017A "IC,Digital Signal Processors" NJU26901E2 2.25TO2.75V

IC1201 0IMMRAL014D "IC,EEPROM" AT24C02BN-SH-T 2KBIT 2

IC500 0IMMRAL014D "IC,EEPROM" AT24C02BN-SH-T 2KBIT 2

IC802 0IMP242560A "IC,EEPROM" 24LC256T-I/SM 256KBIT

IC200 0IMI623200B "IC,I/O Support Chip" M62320FP(SOP) 4.5TO5.5

IC1000 0IPRPML001A "IC,LDO Voltage Regulator" MIC39100 2.3TO26V 0 0W

IC1001 0IPMGRH001G "IC,LDO Voltage Regulator" BA33BC0FP-E2 4.3TO16V

IC1003 0IPMG00027A "IC,LDO Voltage Regulator" SC156515M-1.8TR 2.2TO5

IC1004 0IPMGRH001G "IC,LDO Voltage Regulator" BA33BC0FP-E2 4.3TO16V

IC1005 0IPMGRH001G "IC,LDO Voltage Regulator" BA33BC0FP-E2 4.3TO16V

IC1100 0IPMGKE030A "IC,LDO Voltage Regulator" KIA78R05F 6TO12V 5V 8W

IC1101 0IPRPML001A "IC,LDO Voltage Regulator" MIC39100 2.3TO26V 0 0W

IC1102 0IPMG00027A "IC,LDO Voltage Regulator" SC156515M-1.8TR 2.2TO5

IC904 0IPRPML001A "IC,LDO Voltage Regulator" MIC39100 2.3TO26V 0 0W

IC2007 0IKE650030C "IC,LED Driver" KID65003AF 30V 50V 540

IC900 0IMMRAL016D "IC,NOR Flash Memory" AT49BV160C-70TU 16MBIT

IC401 0IPRPTI063A "IC,Power Amplifier" TPA6011A4PWPRG4 4TO5.5

IC1200 0IPRPS5005A "IC,Receiver" SII9011CLU - - - - - -

IC400 0IMCRMN028C "IC,Sound/Audio Processor" MSP4450K-QA-D6 7.6TO8.

IC510 0IPRP00009A "IC,Tx/Rx" ICL3232CBNZ 3VTO5.5V -

IC301 0ISA721700C "IC,Video Processors" LA7217M 4.5VTO5.5V 16.

IC800 0IPRP00692C "IC,Video Processors" FLI8662-LF-BC-XD 1.8VT

IC2010 0IKE704200J "IC,Voltage Detector" KIA7042AF -0.3TO15V 4.

IC1001 0IPRPSG025A "IC,Voltage Regulator" LD1086D2M33 4.9TO30V 3

IC1002 EAN32662801 "IC,Voltage Regulator" KA7809ERTM 35V to 40V

IC903 0IPMG78391A "IC,Voltage Regulator" SC2595STR 2.3TO5V 0 0W

L1000 6140VB0004B "Coil,Choke" LN-15A1(26UH) 26uH AC5

L1107 6140VB0004B "Coil,Choke" LN-15A1(26UH) 26uH AC5

L100 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1001 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1004 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1005 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1008 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L101 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1011 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1012 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1013 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1014 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1015 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

DIODEs

ICs

FILTERs & INDUCTORs

Page 33

- 33 -

L1016 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1017 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1018 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1019 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1020 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1021 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1022 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1030 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1040 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1041 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1102 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1103 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1109 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1111 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1113 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1114 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1115 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1116 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1120 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1121 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1122 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1123 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1124 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1125 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1126 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1127 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L113 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L114 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L115 EAM30764201 "Filter,Bead" BG2012B102TF 1000ohm 2

L116 EAM30764201 "Filter,Bead" BG2012B102TF 1000ohm 2

L119 EAM30764201 "Filter,Bead" BG2012B102TF 1000ohm 2

L1200 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1202 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1203 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1210 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1211 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1212 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1213 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1214 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L125 EAM30764201 "Filter,Bead" BG2012B102TF 1000ohm 2

L1405 6210TCE001S "Filter,Bead" HU-1M2012-121 120OHM 2

L1407 6210TCE001S "Filter,Bead" HU-1M2012-121 120OHM 2

L1410 6210TCE001S "Filter,Bead" HU-1M2012-121 120OHM 2

L1412 6210TCE001S "Filter,Bead" HU-1M2012-121 120OHM 2

L1413 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1414 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1415 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1416 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1417 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1819 6210TCE0013 "Filter,Bead" HB-1M1608-121JT 120OHM

L1821 6210TCE0013 "Filter,Bead" HB-1M1608-121JT 120OHM

L1822 6210TCE0013 "Filter,Bead" HB-1M1608-121JT 120OHM

L1823 6210TCE0013 "Filter,Bead" HB-1M1608-121JT 120OHM

L1902 6210TCE0013 "Filter,Bead" HB-1M1608-121JT 120OHM

L1903 6210TCE0013 "Filter,Bead" HB-1M1608-121JT 120OHM

L1904 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L2001 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L2002 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L205 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L2200 0LCML00003B "Filter,Bead" MLB-201209-0120P-N2 12

L2201 0LCML00003B "Filter,Bead" MLB-201209-0120P-N2 12

L2202 0LCML00003B "Filter,Bead" MLB-201209-0120P-N2 12

L308 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L309 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L400 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L401 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L403 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L405 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L500 EAM30764201 "Filter,Bead" BG2012B102TF 1000ohm 2

L501 EAM30764201 "Filter,Bead" BG2012B102TF 1000ohm 2

L502 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L503 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L550 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L801 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L900 6210TCE001G "Filter,Bead" HH-1M3216-501JT 500OHM

L1860 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L1861 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L1862 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L1863 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L300 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L301 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L302 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L303 EAM33010402 "Filter,LCR" MEM2012P101R EMI 100MH

L102 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L103 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L104 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L105 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L106 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L107 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L108 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L109 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L110 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L111 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L112 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L120 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L121 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L122 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L123 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L200 0LC1032101A "Inductor,Multilayer,Chip" FI-C3216-103KJT 10UH 1

L206 0LCML00020G "Inductor,Multilayer,Chip" MLI-201209-3R3K 3.3UH

L311 0LCML00020C "Inductor,Multilayer,Chip" MLI-201212-100K 10UH 1

L1402 6140VR0008A "Inductor,Wire Wound,Chip" SLF12575T-330M3R2 33UH

L1403 6140VR0008A "Inductor,Wire Wound,Chip" SLF12575T-330M3R2 33UH

L1408 6140VR0008A "Inductor,Wire Wound,Chip" SLF12575T-330M3R2 33UH

L1409 6140VR0008A "Inductor,Wire Wound,Chip" SLF12575T-330M3R2 33UH

IC1006 EBK32753101 FET SI4925BDY P-CHANNEL MO

IC1203 0TR830009BA FET BSS83 N-CHANNEL MOSFET

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

TRANSISTORs & FETs

Page 34

- 34 -

IC1204 0TR830009BA FET BSS83 N-CHANNEL MOSFET

Q1202 EBK32753101 FET SI4925BDY P-CHANNEL MO

Q220 EBK32753101 FET SI4925BDY P-CHANNEL MO

Q100 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q1000 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q1001 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q1004 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q1005 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q1006 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q101 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q102 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q103 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q104 0TR102009AM "TR,Bipolar" KRA102S PNP -30V 0V -5

Q105 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q106 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q107 0TR102009AM "TR,Bipolar" KRA102S PNP -30V 0V -5

Q108 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q109 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q1200 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q1203 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q200 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q2001 0TR102008AA "TR,Bipolar" KRA102S PNP -30V 0V -5

Q2002 0TR102008AA "TR,Bipolar" KRA102S PNP -30V 0V -5

Q2003 0TR102008AA "TR,Bipolar" KRA102S PNP -30V 0V -5

Q2004 0TR102008AA "TR,Bipolar" KRA102S PNP -30V 0V -5

Q2005 0TR102008AA "TR,Bipolar" KRA102S PNP -30V 0V -5

Q201 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q202 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

Q202 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q203 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q204 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

Q205 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q206 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

Q207 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

Q208 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q209 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

Q210 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

Q212 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q300 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q301 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q302 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q303 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q304 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q305 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

Q400 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q401 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q402 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q403 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q404 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q405 0TR102009AM "TR,Bipolar" KRA102S PNP -30V 0V -5

Q420 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q421 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q422 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q500 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q501 0TR387500AA "TR,Bipolar" 2SC3875S(ALY) NPN 5V 6

Q800 0TR102009AJ "TR,Bipolar" KRC102S NPN 30V 0V 50V

Q801 0TR150400BA "TR,Bipolar" 2SA1504S(ASY) PNP -5V

AR1200 0RJ1000C687 "Resistor,Array" RCA86TRJ100R 100OHM 5%

AR1201 0RJ1000C687 "Resistor,Array" RCA86TRJ100R 100OHM 5%

AR1202 0RJ1000C687 "Resistor,Array" RCA86TRJ100R 100OHM 5%

AR1203 0RJ1000C687 "Resistor,Array" RCA86TRJ100R 100OHM 5%

AR1204 0RJ1000C687 "Resistor,Array" RCA86TRJ100R 100OHM 5%

AR1205 0RJ1000C687 "Resistor,Array" RCA86TRJ100R 100OHM 5%

AR800 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR801 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR802 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR803 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR804 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR805 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR806 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR807 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR900 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR900 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR901 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR901 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR902 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR902 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR903 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR903 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR904 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR904 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR905 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR905 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR906 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR906 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR907 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR907 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR908 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR908 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR909 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR909 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

AR910 0RZZH033273 "Resistor,Array" MNR04M0ABJ330 33OHM 5%

AR910 EBC32260405 "Resistor,Array" MNR04M0APJ680 68OHM 5%

L1820 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

L1852 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

L1853 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

L1855 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

L1857 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

L1900 0RJ0000G676 "Resistor,Chip" MCR18EZHJ00 0OHM 5% 1/

L1901 0RJ0000G676 "Resistor,Chip" MCR18EZHJ00 0OHM 5% 1/

R100 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R1003 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R1005 0RJ2000D677 "Resistor,Chip" MCR03EZPJ201 200OHM 5%

R1007 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1008 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

RESISTORs

Page 35

- 35 -

R1009 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R101 0RH1302D622 "Resistor,Chip" MCR10EZHJ133 13KOHM 5%

R101 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R1010 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1012 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1013 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R1015 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1016 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1017 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1019 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R102 0RH4701D622 "Resistor,Chip" MCR10EZHJ472 4.7KOHM 5

R102 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1020 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1021 0RJ2002D677 "Resistor,Chip" MCR03EZPJ203. 20KOHM 5

R1022 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1023 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R103 0RH1501D622 "Resistor,Chip" MCR10EZHJ152 1.5KOHM 5

R103 0RJ0682D677 "Resistor,Chip" MCR03EZPJ680 68OHM 5%

R1030 0RH0222D622 "Resistor,Chip" MCR10EZHJ220 22OHM 5%

R1031 0RH0222D622 "Resistor,Chip" MCR10EZHJ220 22OHM 5%

R1032 0RH0222D622 "Resistor,Chip" MCR10EZHJ220 22OHM 5%

R1034 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R104 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R104 0RJ4702D677 "Resistor,Chip" MCR03EZPJ473 47KOHM 5%

R105 0RH1302D622 "Resistor,Chip" MCR10EZHJ133 13KOHM 5%

R105 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R106 0RH4701D622 "Resistor,Chip" MCR10EZHJ472 4.7KOHM 5

R106 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R107 0RH1501D622 "Resistor,Chip" MCR10EZHJ152 1.5KOHM 5

R107 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R108 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R108 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R109 0RJ3002D677 "Resistor,Chip" MCR03EZPJ303 30KOHM 5%

R110 0RJ4702D677 "Resistor,Chip" MCR03EZPJ473 47KOHM 5%

R1100 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1101 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R1102 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1103 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1104 0RJ2002D677 "Resistor,Chip" MCR03EZPJ203. 20KOHM 5

R111 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R112 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R113 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R114 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R115 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R116 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R117 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R119 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R1201 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1203 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1207 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R121 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R1214 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1223 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1224 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1226 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R1227 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R1228 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R1229 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R123 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R1230 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R1231 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R1232 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R1233 0RJ0122D677 "Resistor,Chip" MCR03EZPJ120 12OHM 5%

R1234 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1235 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1246 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1247 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1248 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1249 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R125 0RJ3002D677 "Resistor,Chip" MCR03EZPJ303 30KOHM 5%

R1251 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R1252 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1254 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R1255 0RJ1002D477 "Resistor,Chip" MCR03EZPF103 10KOHM 1%

R1256 0RJ1002D477 "Resistor,Chip" MCR03EZPF103 10KOHM 1%

R1257 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1258 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1259 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R126 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R1260 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R1261 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R1262 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R1263 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1264 0RJ1004D677 "Resistor,Chip" MCR03EZPJ105 1MOHM 5%

R1265 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R1266 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1267 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R127 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R1278 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R1279 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R128 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R1280 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R1281 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R1281 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R129 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R130 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R131 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R132 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R133 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R134 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R135 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R136 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R137 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R138 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R139 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R140 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1408 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R141 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 36

- 36 -

R1410 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1411 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1413 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1418 0RJ1003D677 "Resistor,Chip" MCR03EZPJ104 100KOHM 5

R1419 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R142 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1420 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1421 0RJ3001D677 "Resistor,Chip" MCR03EZPJ302 3KOHM 5%

R1422 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1423 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1424 0RJ4300D677 "Resistor,Chip" MCR03EZPJ431 430OHM 5%

R1425 0RJ4700D677 "Resistor,Chip" MCR03EZPJ471 470OHM 5%

R1426 0RJ3601D677 "Resistor,Chip" MCR03EZPJ362 3.6KOHM 5

R143 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R144 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R147 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R148 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R149 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R150 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R151 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R152 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R154 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R155 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R157 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R158 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R159 0RJ6801D677 "Resistor,Chip" MCR03EZPJ682 6.8KOHM 5

R160 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R161 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R162 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R163 0RJ2700D677 "Resistor,Chip" MCR03EZPJ271 270OHM 5%

R164 0RJ2700D677 "Resistor,Chip" MCR03EZPJ271 270OHM 5%

R165 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R166 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R167 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R168 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R169 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R170 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R171 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R172 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R173 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R174 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R175 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R176 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R177 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R178 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R179 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R180 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R1802 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1803 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1807 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1808 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1809 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R181 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R1810 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R1816 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1817 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1818 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R182 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R1828 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R1829 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R183 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R1830 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1831 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1833 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1834 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1836 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1837 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1838 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R1839 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R184 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R1842 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1843 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1844 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1845 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1846 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1847 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1848 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1849 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1850 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1851 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1852 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1853 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1854 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1855 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1856 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R1857 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R186 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1864 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1865 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1866 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1867 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1868 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1869 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1870 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1873 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1874 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1875 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R1878 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R1879 0RJ0512D677 "Resistor,Chip" MCR03EZPJ510 51OHM 5%

R188 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R1880 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R1881 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R189 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R198 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R199 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R200 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R200 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 37

- 37 -

R201 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R201 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2010 0RH3302D622 "Resistor,Chip" MCR10EZHJ333 33KOHM 5%

R2017 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R2019 0RH4702D622 "Resistor,Chip" MCR10EZHJ473 47KOHM 5%

R202 0RH1501D622 "Resistor,Chip" MCR10EZHJ152 1.5KOHM 5

R202 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2027 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2028 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2029 0RH4701D622 "Resistor,Chip" MCR10EZHJ472 4.7KOHM 5

R203 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R203 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2030 0RH4701D622 "Resistor,Chip" MCR10EZHJ472 4.7KOHM 5

R2031 0RH4701D622 "Resistor,Chip" MCR10EZHJ472 4.7KOHM 5

R2032 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2033 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2034 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2035 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2036 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2037 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R2038 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R204 0RH1501D622 "Resistor,Chip" MCR10EZHJ152 1.5KOHM 5

R204 0RH4700D622 "Resistor,Chip" MCR10EZHJ471 470OHM 5%

R204 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2040 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R2041 0RH1000D622 "Resistor,Chip" MCR10EZHJ101 100OHM 5%

R205 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R205 0RH1501D622 "Resistor,Chip" MCR10EZHJ152 1.5KOHM 5

R206 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R206 0RH1501D622 "Resistor,Chip" MCR10EZHJ152 1.5KOHM 5

R207 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R208 0RH4700D622 "Resistor,Chip" MCR10EZHJ471 470OHM 5%

R208 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R209 0RJ2201D677 "Resistor,Chip" MCR03EZPJ222 2.2KOHM 5

R210 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2100 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2101 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R2102 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2105 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R2106 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R2108 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R2109 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R211 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R2112 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2113 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R2114 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R2115 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R2116 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R212 0RJ0102D677 "Resistor,Chip" MCR03EZPJ100 10OHM 5%

R213 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R214 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R215 0RJ3300D677 "Resistor,Chip" MCR03EZPJ331 330OHM 5%

R216 0RJ3300D677 "Resistor,Chip" MCR03EZPJ331 330OHM 5%

R217 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R218 0RJ4700D677 "Resistor,Chip" MCR03EZPJ471 470OHM 5%

R219 0RJ0822D677 "Resistor,Chip" MCR03EZPJ820 82OHM 5%

R220 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R2200 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R2201 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R2202 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R2203 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R2204 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R2205 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R2206 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R2207 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2208 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R2209 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R221 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R2210 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R222 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R223 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R224 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R225 0RJ2000D677 "Resistor,Chip" MCR03EZPJ201 200OHM 5%

R226 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R227 0RJ2700D677 "Resistor,Chip" MCR03EZPJ271 270OHM 5%

R228 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R229 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R231 0RJ1500D677 "Resistor,Chip" MCR03EZPJ151 150OHM 5%

R247 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R248 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R2800 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R2801 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R2802 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R2803 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R2811 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R2812 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R2823 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R300 0RH2203D622 "Resistor,Chip" MCR10EZHJ224 220KOHM 5

R3000 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R3001 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R3002 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R301 0RH2203D622 "Resistor,Chip" MCR10EZHJ224 220KOHM 5

R3012 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R3013 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R3014 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R3015 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R3016 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R302 0RH0752D622 "Resistor,Chip" MCR10EZHJ750 75OHM 5%

R303 0RH4700D622 "Resistor,Chip" MCR10EZHJ471 470OHM 5%

R304 0RH4700D622 "Resistor,Chip" MCR10EZHJ471 470OHM 5%

R305 0RH0000D622 "Resistor,Chip" MCR10EZHJ000 0OHM 5% 1

R305 0RJ3300D677 "Resistor,Chip" MCR03EZPJ331 330OHM 5%

R306 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R309 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R310 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R311 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R312 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R313 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R314 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R315 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 38

- 38 -

R316 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R317 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R318 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R319 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R320 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R322 0RJ1003D677 "Resistor,Chip" MCR03EZPJ104 100KOHM 5

R323 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R324 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R326 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R327 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R328 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R329 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R330 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R333 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R334 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R335 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R336 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R337 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R340 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R342 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R343 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R344 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R345 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R346 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R347 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R348 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R349 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R350 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R352 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R354 0RJ1201D677 "Resistor,Chip" MCR03EZPJ122 1.2KOHM 5

R355 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R357 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R358 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R359 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R362 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R363 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R364 0RJ2200D677 "Resistor,Chip" MCR03EZPJ221 220OHM 5%

R365 0RJ1503D677 "Resistor,Chip" MCR03EZPJ154 150KOHM 5

R371 0RJ5600D677 "Resistor,Chip" MCR03EZPJ561 560OHM 5%

R372 0RJ0472D677 "Resistor,Chip" MCR03EZPJ470 47OHM 5%

R375 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R376 0RJ3901D677 "Resistor,Chip" MCR03EZPJ392 3.9KOHM 5

R400 0RJ7502D677 "Resistor,Chip" MCR03EZPJ753 75KOHM 5%

R401 0RJ6802D677 "Resistor,Chip" MCR03EZPJ683 68KOHM 5%

R402 0RJ7502D677 "Resistor,Chip" MCR03EZPJ753 75KOHM 5%

R403 0RJ6802D677 "Resistor,Chip" MCR03EZPJ683 68KOHM 5%

R405 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R405 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R406 0RJ0432D677 "Resistor,Chip" MCR03EZPJ430 43OHM 5%

R407 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R407 0RJ2700D677 "Resistor,Chip" MCR03EZPJ271 270OHM 5%

R407 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R408 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R408 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R409 0RJ0432D677 "Resistor,Chip" MCR03EZPJ430 43OHM 5%

R410 0RJ0622D677 "Resistor,Chip" MCR03EZPJ620 62OHM 5%

R411 0RJ2402D677 "Resistor,Chip" MCR03EZPJ243 24KOHM 5%

R412 0RJ1501D677 "Resistor,Chip" MCR03EZPJ152 1.5KOHM 5

R413 0RJ4700D677 "Resistor,Chip" MCR03EZPJ471 470OHM 5%

R416 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R417 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R418 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R420 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R422 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R425 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R426 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R427 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R428 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R429 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R430 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R431 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R432 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R436 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R437 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R438 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R439 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R440 0RJ6801D677 "Resistor,Chip" MCR03EZPJ682 6.8KOHM 5

R441 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R442 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R452 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R453 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R454 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R455 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R456 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R460 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R461 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R462 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R463 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R464 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R465 0RJ1501D677 "Resistor,Chip" MCR03EZPJ152 1.5KOHM 5

R466 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R467 0RJ1501D677 "Resistor,Chip" MCR03EZPJ152 1.5KOHM 5

R469 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R477 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R492 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R493 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R494 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R495 0RJ4703D677 "Resistor,Chip" MCR03EZPJ474 470KOHM 5

R496 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R497 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R500 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R501 0RJ2203D677 "Resistor,Chip" MCR03EZPJ224 220KOHM 5

R502 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R503 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R504 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R505 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R506 0RJ0752D677 "Resistor,Chip" MCR03EZPJ750 75OHM 5%

R507 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 39

- 39 -

R508 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R509 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R510 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R511 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R512 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R513 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R514 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R515 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R516 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R517 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R518 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R519 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R520 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R521 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R522 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R523 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R524 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R525 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R526 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R527 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R533 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R534 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R544 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R544 0RJ0102D677 "Resistor,Chip" MCR03EZPJ100 10OHM 5%

R545 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R545 0RJ0102D677 "Resistor,Chip" MCR03EZPJ100 10OHM 5%

R551 0RJ1001D677 "Resistor,Chip" MCR03EZPJ102 1KOHM 5%

R553 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R554 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R555 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R556 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R558 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R559 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R562 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R563 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R564 0RJ4700D677 "Resistor,Chip" MCR03EZPJ471 470OHM 5%

R565 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R566 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R567 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R570 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R571 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R572 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R573 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R574 0RJ4702D677 "Resistor,Chip" MCR03EZPJ473 47KOHM 5%

R600 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R601 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R800 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R805 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R807 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R808 0RJ1000D677 "Resistor,Chip" MCR03EZPJ101 100OHM 5%

R810 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R811 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R814 0RJ2701D677 "Resistor,Chip" MCR03EZPJ272 2.7KOHM 5

R818 0RJ2701D677 "Resistor,Chip" MCR03EZPJ272 2.7KOHM 5

R819 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R820 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R821 0RJ5601D677 "Resistor,Chip" MCR03EZPJ562 5.6KOHM 5

R822 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R823 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R825 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R827 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R829 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R830 0RJ2001D677 "Resistor,Chip" MCR03EZPJ202 2KOHM 5%

R831 0RJ4701D677 "Resistor,Chip" MCR03EZPJ472 4.7KOHM 5

R833 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R834 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R835 0RJ0562D677 "Resistor,Chip" MCR03EZPJ560 56OHM 5%

R836 0RJ0562D677 "Resistor,Chip" MCR03EZPJ560 56OHM 5%

R837 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R838 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R839 0RJ0562D677 "Resistor,Chip" MCR03EZPJ560 56OHM 5%

R840 0RJ0562D677 "Resistor,Chip" MCR03EZPJ560 56OHM 5%

R841 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R842 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R844 0RJ0562D677 "Resistor,Chip" MCR03EZPJ560 56OHM 5%

R845 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R846 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R847 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R848 0RH0202D622 "Resistor,Chip" MCR10EZHJ200 20OHM 5%

R849 0RJ0562D677 "Resistor,Chip" MCR03EZPJ560 56OHM 5%

R852 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R853 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R854 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R856 0RJ1501D677 "Resistor,Chip" MCR03EZPJ152 1.5KOHM 5

R857 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R858 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R859 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R860 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R861 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R862 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R863 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R864 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R866 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R867 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R868 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R870 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R871 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R872 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R873 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R874 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R875 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R875 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R876 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R876 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R877 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R878 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R878 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R879 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R879 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 40

- 40 -

R880 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R880 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R881 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R881 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R882 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R882 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R883 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R883 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R884 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R884 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R885 0RJ0332C678 "Resistor,Chip" MCR01MZPJ330 33OHM 5%

R885 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R886 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R887 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R888 0RJ0332D677 "Resistor,Chip" MCR03EZPJ330 33OHM 5%

R889 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R890 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R891 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R892 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R893 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R894 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R900 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R904 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R905 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R906 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R907 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R908 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R909 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R910 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R911 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R912 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R914 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R915 0RJ0000D677 "Resistor,Chip" MCR03EZPJ000 0OHM 5% 1

R918 0RJ1601E472 "Resistor,Chip" MCR10EZHF162 1.6KOHM 1

R919 0RJ2700D677 "Resistor,Chip" MCR03EZPJ271 270OHM 5%

R920 0RJ2700D677 "Resistor,Chip" MCR03EZPJ271 270OHM 5%

R921 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R922 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R934 0RJ1002D677 "Resistor,Chip" MCR03EZPJ103 10KOHM 5%

R937 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R938 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R940 0RJ0222D677 "Resistor,Chip" MCR03EZPJ220 22OHM 5%

R960 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R961 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R962 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R963 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R964 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R965 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R966 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R967 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R972 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R973 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R974 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R975 0RJ0682C678 "Resistor,Chip" MCR01MZPJ680 68OHM 5%

R976 0RJ2700C678 "Resistor,Chip" MCR01MZPJ271 270OHM 5%

R977 0RJ2700C678 "Resistor,Chip" MCR01MZPJ271 270OHM 5%

R1890 0RS0470K607 "Resistor,Metal Oxide Film" RSD02T3JR470 0.47OHM 5

R1891 0RS0470K607 "Resistor,Metal Oxide Film" RSD02T3JR470 0.47OHM 5

X1200 6202TST001H Crystal SX-1 27MHZ 30PPM 27MHZ

X400 156-A02M Crystal HC-49/U 18.432MHZ 30PP

X800 6212AB2015J Crystal HC-49SM 19.66080HZ 19.

JK107 6612J00042K "Jack,Complex" KCN-BT-0-0049 4P PAL/R

JK106 6612F00024C "Jack,DIN" PSJ014-01 SOCKET 4P AN

JK1200 6612B00015C "Jack,DIN" DC1R019WDH. SOCKET 21P

J200 6612E00043A "Jack,Modular" MJ-657PT-8-SD 8P 1.27M

J500 6612F00099A "Jack,Phone" PEJ024-01 1P 4P STRAIG

JK501 6612F00099A "Jack,Phone" PEJ024-01 1P 4P STRAIG

JK502 6612F00099A "Jack,Phone" PEJ024-01 1P 4P STRAIG

JK102 6612J10031A "Jack,RCA" PPJ209-02 14.0MM 1RX5C

JK105 6612J10003W "Jack,RCA" PPJ148-13. 14.0MM 1RX1

JK300 6612J10003X "Jack,RCA" PMJ6054-39 14.0MM 1RX3

JK100 6612M00010B "Jack,Scart" PSC003-02 21P 21P/1C 3

JK101 6612M00010B "Jack,Scart" PSC003-02 21P 21P/1C 3

D200 0DLAU0410AA "LED,DIP" SAW5670 ROUND 5mM AMBE

X300 166-E02F "Resonator,Ceramic" CSBLA500KECZF09-B0 500

SW1 SAA30592607 "S/W,Firmware" V3.06 29DC EUROPE FLAS

SW101 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW102 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW103 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW104 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW105 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW106 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW107 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW108 140-313B "Switch,Tact" KPT-1115AM 1C1P 12VDC

SW800 6600VR1004A "Switch,Tact" SKHMPWE010 1C1P 12VDC

SW900 6600VR1004A "Switch,Tact" SKHMPWE010 1C1P 12VDC

JK500 6630G70016A "Connector,DSUB" A03-7071-094 D-SUB 15P

P500 6630G70017A "Connector,DSUB" A02-0915-101 D-SUB 9P

CN2001 6602T12002D "Connector,Wafer" 53261-0590 5P 1.25MM 1

CN2002 6602T20009D "Connector,Wafer" SMAW200-05P 5P 2.00MM

P1000 6602T25008M "Connector,Wafer" SMW250-13P 13P 2.50MM

P1001 6602T20008D "Connector,Wafer" SMW200-05P 5P 2.00MM 1

P101 6602T20009C "Connector,Wafer" SMAW200-04P 4P 2.00MM

P1100 6602T25008J "Connector,Wafer" SMW250-10P 10P 2.50MM

P200 6602T20009J "Connector,Wafer" SMAW200-10P 10P 2.00MM

P201 6602T20009C "Connector,Wafer" SMAW200-04P 4P 2.00MM

P300 6602T20009E "Connector,Wafer" SMAW200-06P 6P 2.00MM

P410 6602T25008B "Connector,Wafer" SMW250-03P 3P 2.50MM 1

P411 6602T25008C "Connector,Wafer" SMW250-04P 4P 2.50MM 1

P800 6602T20008J "Connector,Wafer" SMW200-10P 10P 2.00MM

P804 6630V90116A "Connector,Wafer" FI-X30SSL-HF 30P 1.00M

C9 6631T11020Z "Cable,Assembly" A9110994 FI-X30HL HOUS

C1 6631900012C "Harness,Single" SMH250 SMH250 200mM 2.

C10 6631T20033T "Harness,Single" SMH200-05P SMH200-05P

C11 6631T20041C "Harness,Single" 12P(PHR) PHR-12 PHR-12

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

OTHERs

CONNECTOR

Page 41

- 41 -

C2 6631900018S "Harness,Single" SPK Connector 1400mm S

C3 6631900019S "Harness,Single" SPK(4P) SMH250 110/205

C4 6631900027C "Harness,Single" SMH250 SMH250 200mM 2.

C5 6631900048A "Harness,Single" SMH200-4P SMH200-4P 20

C6 6631900050C "Harness,Single" SMH200 SMH200 1200mM 2

C7 6631900092A "Harness,Single" PHR PHR 800mM 2.00MM 1

C8 6631900108C "Harness,Single" SMH200 SMH200 350mM 2.

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

LGE Internal Use Only

Page 42

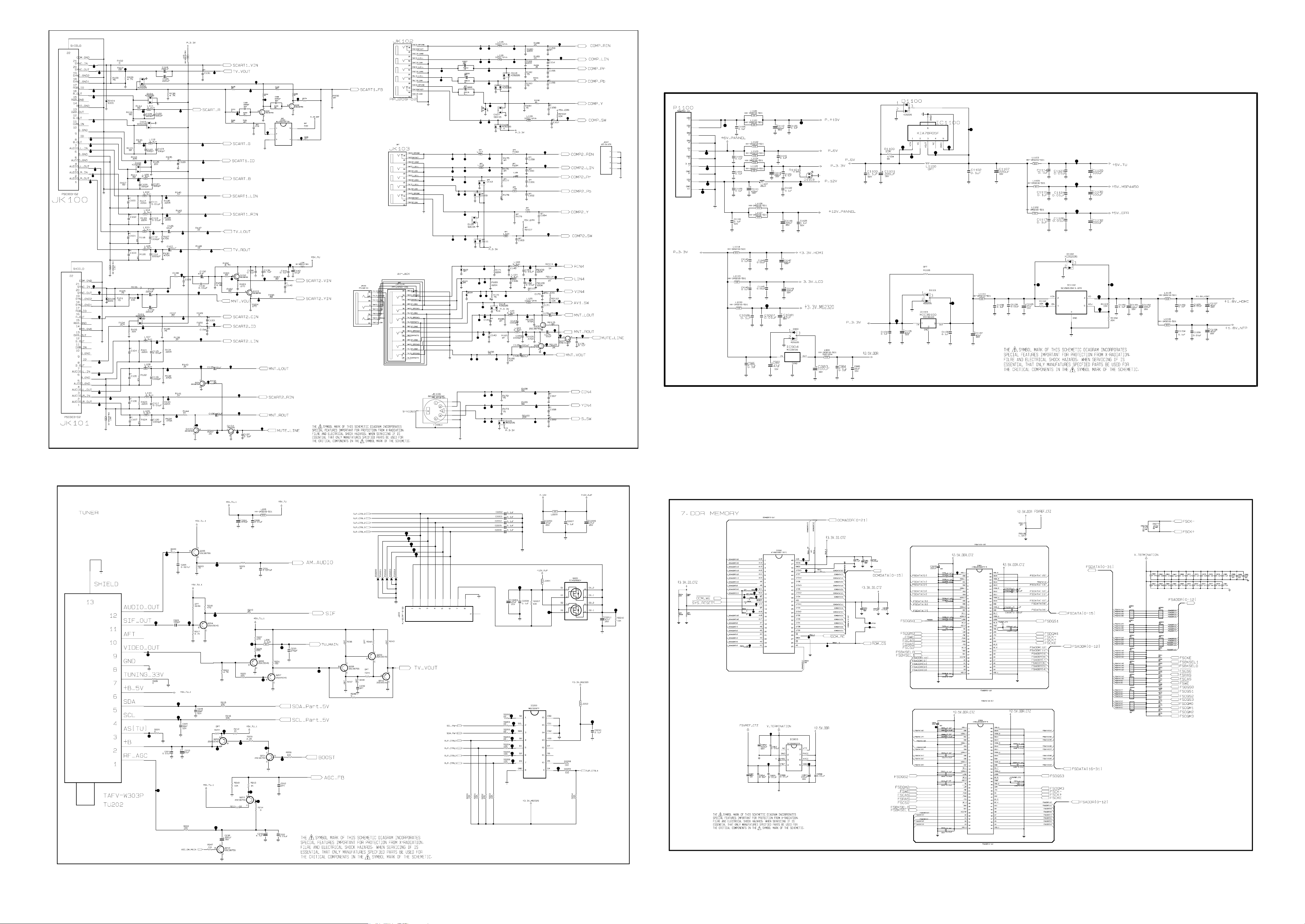

LGE Internal Use Only

Page 43

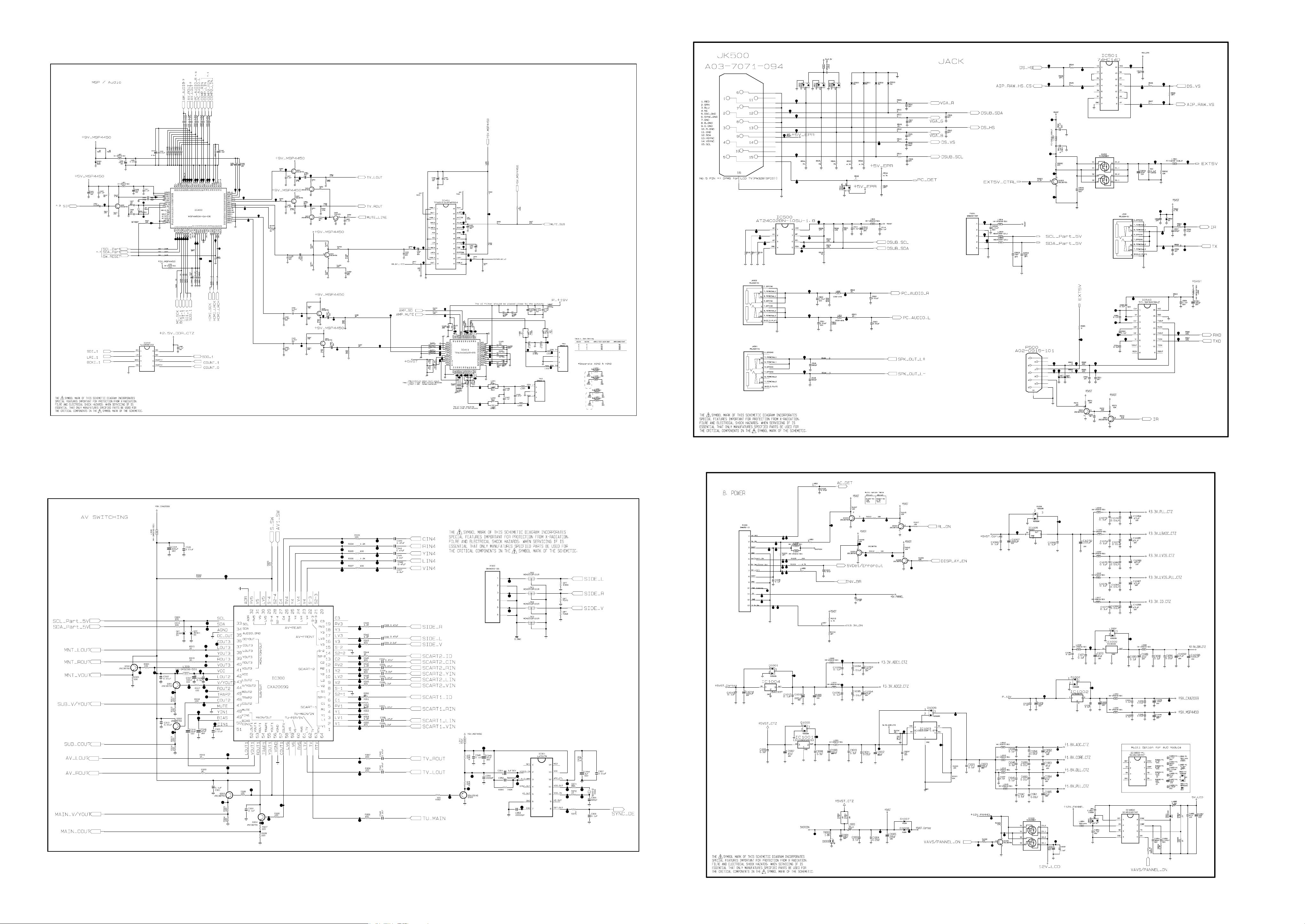

LGE Internal Use Only

Page 44

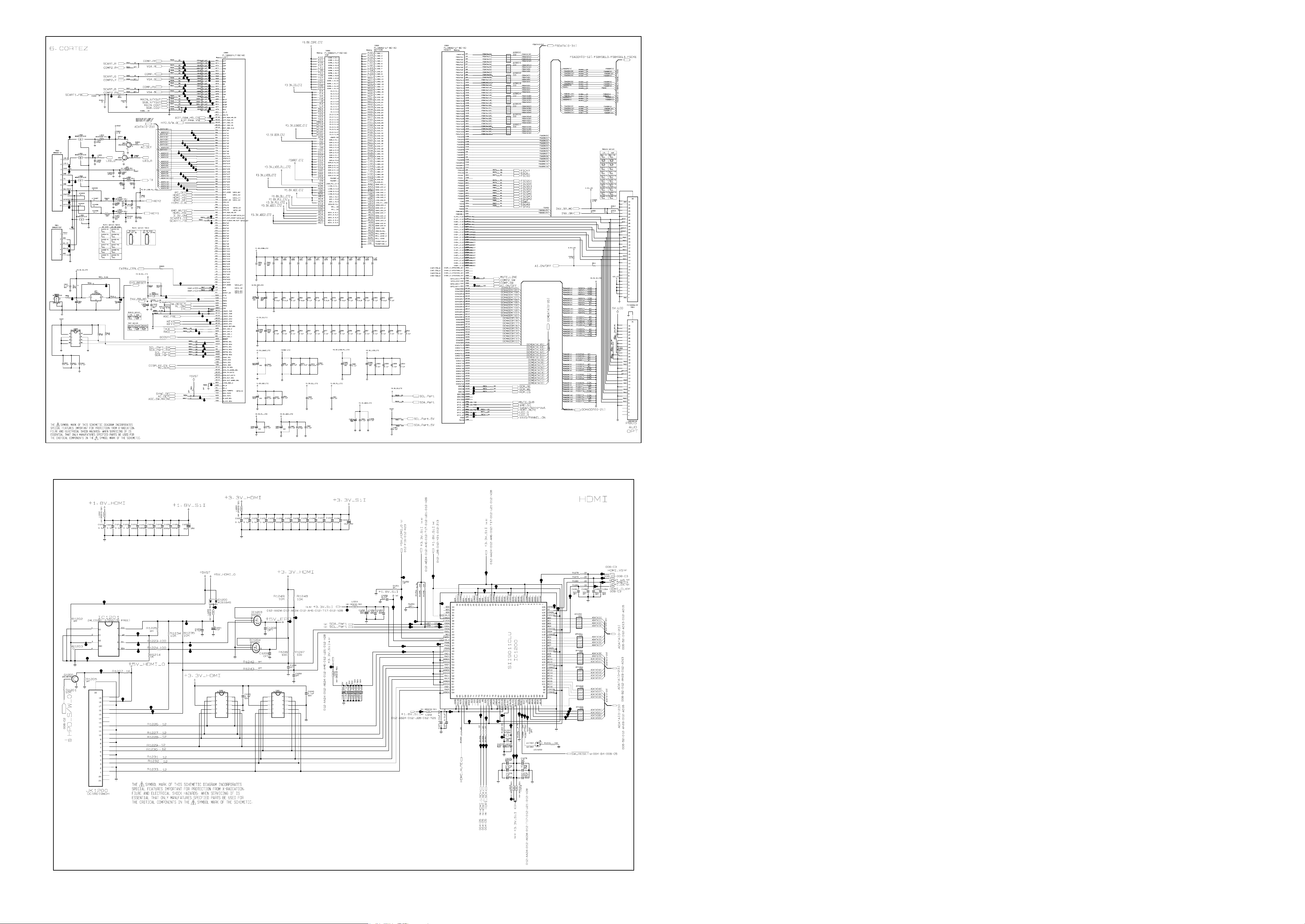

LGE Internal Use Only

Page 45

Jul., 2007

Printed in KoreaP/NO : MFL36483001
