LG 32LV3000 Schematic

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LB01V

MODEL : 32LV3000 32LV3000-TA

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL62865338 (1105-REV00)

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION ............................................................... 9

BLOCK DIAGRAM ................................................................................. 14

EXPLODED VIEW .................................................................................. 15

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s
exposed
METALLIC PARTS

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

AC Volt-meter

When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

IMPORTANT SAFETY NOTICE

0.15 uF

Ω

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.

2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500

°

F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.

(500

°F to 600 °F)

b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500

°F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as
possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

Fuse and Conventional Resistor

Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

4. Model General Specification

1. Application range

This specification is applied to the LCD TV used LB01V
chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature
: 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC ± 5 ºC

2) Relative Humidity : 65 % ± 10 %

3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50 / 60 Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety: CE, IEC specification

- EMC:CE, IEC

No. Item Specification Remarks

1. Market Australia, NewZealand, Singapore, Malaysia, only Analog for A-ASIA

Vietnam, Indonesia, South Africa, Israel, A-ASIA

2. Broadcasting system 1) PAL/SECAM-B/G/D/K PAL for NZ/SG

2) PAL-I/II

3) NTSC-M

4) DVB-T

3. Channel Storage ATV-135EA, DTV-1000EA

4. Receiving system Analog : Upper Heterodyne

G DVB-T

Digital : COFDM(DVB-T) - Guard Interval(Bitrate_Mbit/s)

1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate

QPSK : 1/2, 2/3, 3/4, 5/6, 7/8

16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

5. Video Input RCA PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60

6. Component Input Y/Cb/Cr, Y/Pb/Pr

7. RGB Input (1EA) RGB-PC Analog(D-SUB 15PIN)

8. HDMI Input HDMI1-DTV/DVI PC

HDMI2-DTV/DVI - HD Model : HDMI version 1.3

HDMI3-DTV/DVI - FHD Model : HDMI version 1.4

Support HDCP

9. Audio Input RGB/DVI Audio

Component

AV

9. SDPIF out SPDIF out

10. USB For My Media(Movie/Photo/Music List) or For SVC

- 7 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

5. Component Video Input (Y, PB, PR)

No.

Specification

Remark

Resolution H-freq(kHz) V-freq(Hz)

1. 720x480 15.73 60.00 SDTV,DVD 480i

2. 720x480 15.63 59.94 SDTV,DVD 480i

3. 720x480 31.47 59.94 480p

4. 720x480 31.50 60.00 480p

5. 720x576 15.625 50.00 SDTV,DVD 625 Line

6. 720x576 31.25 50.00 HDTV 576p

7. 1280x720 45.00 50.00 HDTV 720p

8. 1280x720 44.96 59.94 HDTV 720p

9. 1280x720 45.00 60.00 HDTV 720p

10. 1920x1080 31.25 50.00 HDTV 1080i

11. 1920x1080 33.75 60.00 HDTV 1080i

12. 1920x1080 33.72 59.94 HDTV 1080i

13. 1920x1080 56.250 50 HDTV 1080p

14. 1920x1080 67.5 60 HDTV 1080p

No.

Specification

Proposed Remark

Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz

-> 640*480 60 Hz Display

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1280*768 47.78 59.87 79.5 WXGA

6. 1360*768 47.72 59.8 84.75 WXGA

7. 1280*1024 63.981 60.02 108.875 SXGA FHD Model

8. 1920*1080 66.587 59.93 138.5 WUXGA FHD model

6. RGB Input (PC)

- 8 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

7. HDMI Input

(1) DTV Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3. 800*600 37.879 60.31 40.00 VESA HDCP

4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5. 1360*768 47.72 59.8 84.75 WXGA HDCP

6. 1280*1024 63.981 60.02 108.875 SXGA HDCP/FHD model

7. 1920*1080 67.5 60.00 138.625 WUXGA HDCP/FHD model

(2) PC Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LCD TV with
LB01V chassis.

2. Designation

1) The adjustment is according to the order which is designated

and which must be followed, according to the plan which can
be changed only on agreeing.

2) Power Adjustment: Free Voltage

3) Magnetic Field Condition: Nil.

4) Input signal Unit: Product Specification Standard

5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 ºC ± 5 ºC
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz

* In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2
hours.

* In case of keeping module is in the circumstance of below -

20°C, it should be placed in the circumstance of above 15°C
for 3 hours.

6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),

DDC Adjustment Jig equipment, Service remote control.

7) Push the “IN STOP” key - For memory initialization.

3. Main PCB check process

* APC - After Manual-Insert, executing APC

* Boot file Download

1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

2) Set as below, and then click “Auto Detect” and check “OK”

message.

If “Error” is displayed, check connection between

computer, jig, and set.

3) Click “Read” tab, and then load download file(XXXX.bin) by

clicking “Read”.

4) Click “Connect” tab. If “Can’t” is displayed, check connection
between computer, jig, and set.

5) Click “Auto” tab and set as below.

6) Click “Run”.

7) After downloading, check “OK” message.

* USB DOWNLOAD

1) Put the USB Stick to the USB socket.

2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low,
it didn’t work. But your downloaded version is High, USB
data is automatically detecting.

3) Show the message “Copying files from memory”.

filexxx.bin

(4)

(7) .OK

(5)

(6)

(1)

fil exxx.bi n

(2)

(3)

Please Check the Speed :
To use speed between
from 200KHz to 400KHz

Case1 : Software version up

1. After downloading S/W by USB, TV set will reboot
automatically

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push
“In-stop” key at first.

2. Push “Power on” key for turning it on.

-> If you push “Power on” key, TV set will recover
channel information by itself.

3. After function inspection, Push “In-stop” key.

4) Updating is starting.

5) Uploading completed, The TV will restart automatically.

6) If your TV is turned on, check your updated version and
Tool option.(explain the Tool option, next stage)

* If downloading version is more high than your TV have,

TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

1) Push “IN-START” key in service remote control.

2) Select “Tool Option 1” and push “OK” key.

3) Punch in the number. (Each model has their number)

4) Completed selecting Tool option.

3.1. ADC Process

(1) ADC

- Enter Service Mode by pushing “ADJ” key,

- Enter Internal ADC mode by pushing “

G

” key at “5. ADC

Calibration”.

<Caution> Using ‘power on’ key of the Adjustment remote

control, power on TV.

* ADC Calibration Protocol (RS232)

Adjust Sequence

• aa 00 00 [Enter Adjust Mode]

• xb 00 40 [Component1 Input (480i)]

• ad 00 10 [Adjust 480i Comp1]

• xb 00 60 [RGB Input (1024*768)]

• ad 00 10 [Adjust 1024*768 RGB]

• aa 00 90 End Adjust mode
* Required equipment : Adjustment remote control.

3.2. Function Check

* Check display and sound

- Check Input and Signal items. (cf. work instructions)

1) TV

2) AV (SCART1/SCART2/ CVBS)

3) COMPONENT (480i)

4) RGB (PC : 1024 x 768 @ 60hz)

5) HDMI

6) PC Audio In
* Display and Sound check is executed by Remote control.

- 10 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

No Item CMD1 CMD2 Data0

Enter Adjust Adjust A A 0 0 When transfer the ‘Mode In’,

Mode ‘Mode In’ Carry the command.

ADC adjust ADC Adjust A D 1 0 Automatically adjustment

(The use of a internal pattern)

EZ ADJUT

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Country Group

5. ADC Calibration

6. White Balance

7. Test Pattern

8. EDID D/L

9. Sub B/C

10. V-Com

11. P-Gamma

ADC Calibration

ADC Comp 480i

ADC Comp 1080p

ADC RGB

NG

NG

NG

Reset

Start

Module Tool option1 Tool option2 Tool option3(AU,TS) Tool option4 Tool option5

LGD 18432 18954 53545(-) 26904 288

4. Total Assembly line process

4.1. Adjustment Preparation

· W/B Equipment condition

CA210
: CCFL/EEFL -> CH9, Test signal: Inner pattern(80IRE)

LED -> CH14, Test signal: Inner pattern(80IRE)

· Above 5 minutes H/run in the inner pattern. (“power on” key

of adjustment remote control)

· Edge LED W/B Table in process of aging time(Only LGD

Edge LED Module except AUO, CMI, IPS Module)

CA210: CH14, Test signal : Inner pattern(80IRE)

* Connecting picture of the measuring instrument

(On Automatic control)
Inside Pattern is used when W/B is controlled. Connect to
auto controller or push Adjustment remote control P-ONLY->
Enter the mode of White-Balance, the pattern will come out.

* Auto-control interface and directions

1) Adjust in the place where the influx of light like floodlight
around is blocked. (Illumination is less than 10 lux).

2) Adhere closely the Color Analyzer (CA210) to the module
less than 10 cm distance, keep it with the surface of the
Module and Color Analyzer’s prove vertically.(80° ~ 100°).

3) Aging time

- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘POWER ONLY’ or the others,
check the back light on.

• Auto adjustment Map(RS-232C)
RS-232C COMMAND
[CMD ID DATA]

Wb 00 00 White Balance Start
Wb 00 ff White Balance End

<Caution>

Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.(when R/G/B Gain are all C0,
it is the FULL Dynamic Range of Module.)

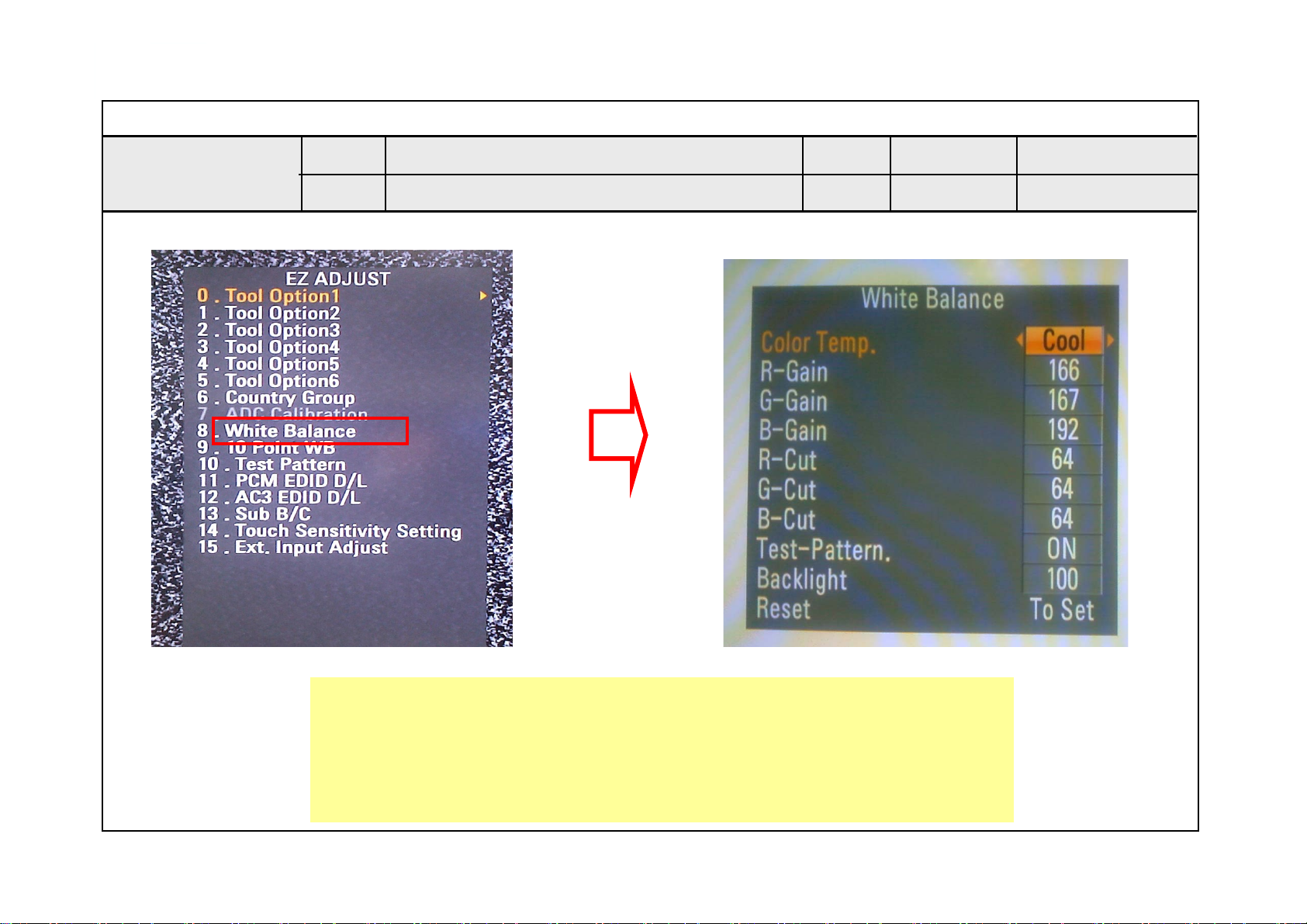

* Manual W/B process using Adjustment remote control.

• After enter Service Mode by pushing “ADJ” key,

• Enter White Balance by pushing “

G

” key at “6. White

Balance”.

* After done all adjustments, Press “In-start” key and

compare Tool option and Area option value with its BOM, if
it is correctly same then unplug the AC cable. If it is not
same, then correct it same with BOM and unplug AC cable.
For correct it to the model’s module from factory Jig model.

* Push the “IN STOP” key after completing the function

inspection. And Mechanical Power Switch must be set “ON”.

4.2. DDC EDID Write (RGB 128Byte )

• Connect D-sub Signal Cable to D-sub Jack.

• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.

• Check whether written EDID data is correct or not.

* For Service main Assembly, EDID have to be downloaded to

Insert Process in advance.

4.3. DDC EDID Write (HDMI 256Byte)

• Connect HDMI Signal Cable to HDMI Jack.

• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.

• Check whether written EDID data is correct or not.

* For Service main Assembly, EDID have to be downloaded to

Insert Process in advance.

- 11 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

Cool 13,000 K X=0.269(±0.002)

Y=0.273(±0.002) <Test Signal>

Medium 9,300 K X=0.285(±0.002) Inner pattern

Y=0.293(±0.002) (204gray,80IRE)

Warm 6,500 K X=0.313(±0.002)

Y=0.329(±0.002)

Full White Pattern

COLOR
ANALYZER
TYPE: CA-210

RS-232C Communication

CA-210

RS-232C COMMAND MIN CENTER MAX

[CMD ID DATA] (DEFAULT)

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Country Group

5. ADC Calibration

6. White Balance

7. Test Pattern

8. EDID D/L

9. Sub B/C

10. V-Com

11. P-Gamma

White Balance

Color Temp.

R-Gain
G-Gain
B-Gain
R-Cut
G-Cut
B-Cut
Test-Pattern.
Reset

Cool

172
172
192
64
64
64
ON

To set

Aging Time Cool Medium Warm

GP2R (Min.) X Y X Y X Y

269 273 285 293 313 329

1 0-2 279 288 295 308 319 338

2 3-5 278 286 294 306 318 336

3 6-9 277 285 293 305 317 335

4 10-19 276 283 292 303 316 333

5 20-35 274 280 290 300 314 330

6 36-49 272 277 288 297 312 327

7 50-79 271 275 287 295 311 325

8 8-149 270 274 286 294 310 324

9 Over 150 269 273 285 293 309 323

4.4. EDID DATA

1) All Data : HEXA Value

2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***: Year : Controlled
****: Check sum

- Auto Download

1) After ener Service Mode by pushing “ADJ” key.

2) Enter EDID D/L menu.

3) Enter “START” by pushing “OK” key.

<Caution> Never connect HDMI && D-sub cable when EDID

downloaded

* Edid data and Model option download (RS232)

- Manual Download

* Caution

1) Use the proper signal cable for EDID Download.

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

2) Never connect HDMI & D-sub Cable at the same time.

3) Use the proper cables below for EDID Writing

4) Download HDMI1, HDMI2, separately because HDMI1 is
different from HDMI2.

1) HD RGB EDID data

2) HD HDMI EDID data

* Detail EDID Options are below

ⓐ Product ID

ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Week : ‘01’ -> ‘01’

Year : ‘2011’ -> ‘15’ fix

ⓓ Model Name(Hex):

ⓔ Checksum: Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)

4.5. Hi-Spot Test

Confirm whether is normal or not when between power
board’s ac block and GND is impacted on 1.5 kV(dc) or 2.2 kV
(dc) for one second.

Model Name HEX EDID Table DDC Function

HD Model 0001 01 00 Analog/Digital

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

- 12 -

MODEL MODEL NAME(HEX)

all 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

Item

Manufacturer ID

Version

Revision

Condition

GSM

Digital : 1

Digital : 3

Data(Hex)

1E6D

01

03

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

INPUT MODEL NAME(HEX)

HDMI1 65030C001000

HDMI2 65030C002000

HDMI3 65030C003000

012 3 4 5 67 8 9 ABCDE F

0 0 ff ff ff ff ff ff 0 1e 6d ab

10 c 1 3 6810 9780aee91a3544c9926

20 0f 50 54 a1 8 0 81 c0 61 40 45 40 31 40 1 1

30 1 1 1 1 1 1 1b 21 50 a0 51 0 1e 30 48 88

40 35 0 a0 5a 0 0 0 1e 1 1d 0 72 51 d0 1e 20

50 6e 28 55 0 a0 5a 0 0 0 1e 0 0 0 fd 0 3a

60 3e 1f 46 10 0 0a 20 20 20 20 20 20 d

70 d 0e

012 3 4 5 67 8 9 ABCDE F

0 0 ff ff ff ff ff ff 0 1e 6d ab

10 c 1 3 8010 9780aee91a3544c9926

20 0f 50 54 a1 8 0 81 c0 61 40 45 40 31 40 1 1

30 1 1 1 1 1 1 1b 21 50 a0 51 0 1e 30 48 88

40 35 0 a0 5a 0 0 0 1c 1 1d 0 72 51 d0 1e 20

50 6e 28 55 0 a0 5a 0 0 0 1e 0 0 0 fd 0 3a

60 3e 1f 46 10 0 0a 20 20 20 20 20 20 d

70 d 0e

80 2 3 20 f1 4e 10 1f 84 13 5 14 3 2 12 20 21

90 22 15 1 26 15 7 50 9 57 7 f

A0 1 1d 80 18 71 1c 16 20 58 2c 25 0 a0 5a 0 0

B0 0 9e 1 1d 0 80 51 d0 0c 20 40 80 35 0 a0 5a

C00 0 0 1e8c0a d08a20 e02d10103e96 0

D0 a0 5a 0 0 0 18 2 3a 80 18 71 38 2d 40 58 2c

E0 45 0 a0 5a 0 0 0 1e 1 1d 80 d0 72 1c 16 20

F0 10 2c 25 80 a0 5a 0 0 0 9e 0 0 0 0 0 e

NO Item CMD1 CMD2 Data0

Enter Download A A 0 0 When transfer the ‘Mode In’,

download Mode ‘Mode In’ Carry the command.

EDID data and Download A E 00 10 Automatically Download

Model option (The use of a internal pattern)

download

EZ ADJUT

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Country Group

5. ADC Calibration

6. White Balance

7. Test Pattern

8. EDID D/L

9. Sub B/C

10. V-Com

11. P-Gamma

EDID D/L

HDMI1
HDMI2
HDMI3
RGB

NG
NG
NG
NG

Reset

Start

EDID D/L

Reset

Start

HDMI1
HDMI2
HDMI3
RGB

OK
OK
OK
OK

- 13 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

4.6. Model name & Serial number D/L

• Press “Power on” key of service remocon.
(Baud rate : 115200 bps)

• Connect RS232 Signal Cable to RS-232 Jack.

• Write Serial number by use RS-232.

• Must check the serial number at the Product/Service

info.(menu key -> red key -> select product/Service info)

4.6.1. Signal TABLE

CMD : A0h
LENGTH : 85~94h (1~16 bytes)
ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD + LENGTH + ADH + ADL + Data_1 +…+ Data_n
Delay : 20ms

4.6.2. Command Set

* Description

FOS Default write : <7mode data> write
Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,
Phase
Data write : Model Name and Serial Number write in

EEPROM,.

4.6.3. Method & notice

A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory
by D-book 4.0.

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded by OTA or Service man, sometimes
model name or serial number is initialized.(Not always)
There is impossible to download by bar code scan, so It need
Manual download.

1) Press the ‘Instart’ key of Adjustment remote control.

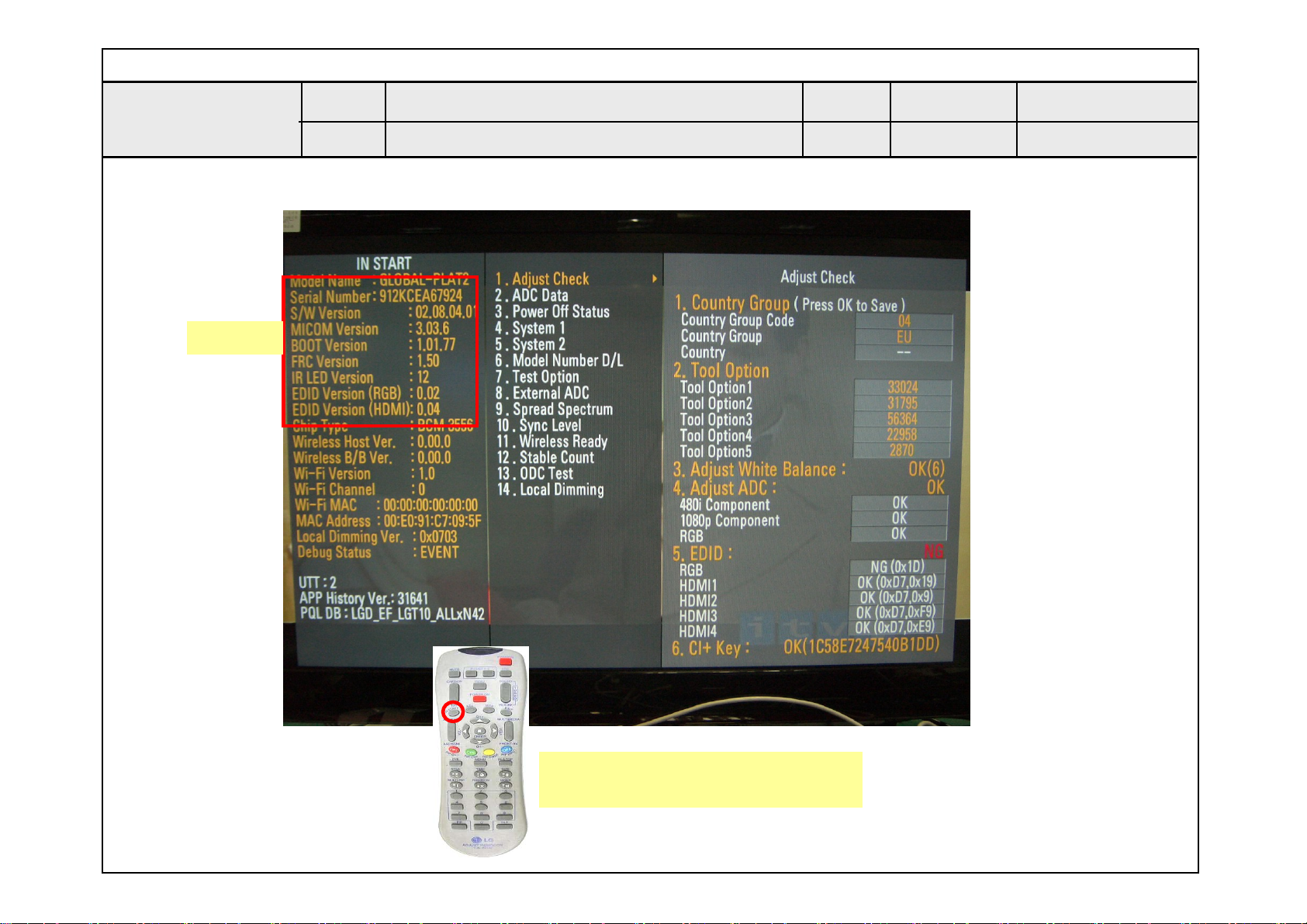

2) Go to the menu ‘6.Model Number D/L’ like below photo.

3) Input the Factory model name(ex 32LV2510-TB) or Serial

number like photo.

4) Check the model name Instart menu.

-> Factory name displayed. (ex 32LV2510-TB)

5) Check the Product/Service info..(Menu key -> Red key ->
Select product/Service info)

-> Buyer model displayed. (ex 32LV2510-TB)

CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY

No. Adjust mode CMD(hex) LENGTH(hex) Description

1

EEPROM WRITE

A0h

84h+n

n-bytes Write (n = 1~16)

- 14 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

BLOCK DIAGRAM

AT24C02BN-SH-T

RGB PC

SPDIF

Component

HDMI(DVI)

Half

NIM

(CAN)

PC/DVI Audio in

RS-232C

IF +/-

TU_CVBS

SIF

L/R

S7R

MAX3232MAX3232

MX25 L80 05M2 I

MXIC (8M bit)

MX25 L80 05M2 I

X-tal

24.69M

LVDS

(HD/60Hz )

A. AMP

NTP7100

A. AMP

NTP7100

USB2.0

DP/DM

SPK LEFT

X-tal

12M

FPC(31P)

I2S

SPDIF

L/R

CVBS, Y/Pb/Pr, L/R

RGB/H/V

RS232C

Rear

TMDS

DDR3 Add.

DDR3 Data

SPI

MICOM

UPD78F0514AGA

-GAM-A X

MICOM SDA

MICOM SCL

AV

Side

NAND Flash

(2Gbit)

HY27UF082G2B-TPCB

PCM_A[0:7]

TMDS

HDMI

CVBS, L/R

DDR3 256M

Hynic

H5T Q1G63 BFR

DDR3 256M

Hynic

H5TQ1G63BFR

IR & LED

& EYE-Q

NEC_EEPROM

_SCL/SDA

LED_R/BUZZ

KEY1

KEY2

IR

LED_B/ LG LOGO

M24M01-HRMN6TP

1Mbit

HDCP EEPROM

CAT24WC08W-T

I2C

MIC EEROM

M24C16-WMN6T

16Kbit

HDMI EEPROM

RGB EEPROM

AT24C02BN-SH-T

I2C

I2C

HDMI EEPROM

AT24C02BN-SH-T

HDMI EEPROM

AT24C02BN-SH-T

I2C

SERIAL FLASH

SERIAL FLASH

For External URSA5

SPI

SPK RIGHT

I2S

L/R

CONTROL

KEY1 KEY2

- 15 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All rights reserved.

Only for training and service purposes

A5

A2

A10

A21

540

511

500

320

510

501

LV1

300

400

530

800

700

710

910

200

120

310

* Set + Stand

* Stand body + Base

521

900

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

IC102

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RB

R

E

NC_7

NC_8

NC_9

CL

AL

W

WP

IC102-*2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

I2C_SCL

I2C_SDA

NAND01GW3B2CN6E

NAND_FLASH_1G_NUMONYX

EAN60762401

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VDD_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

VSS

M24M01-HRMN6TP

NC

E1

E2

+3.3V_Normal

AR101

C102

10uF

C103

0.1uF

AR102

NAND_FLASH_1G_TOSHIBA

EAN61508001

IC102-*3

TC58NVG0S3ETA0BBBH

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

EEPROM_1MBIT_ATMEL

IC104-*1

AT24C1024BN-SH-T

NC

1

A1

2

A2

3

GND

4

EEPROM

EEPROM_1MBIT_ST

IC104

A0’h

VCC

8

WP

7

SCL

6

SDA

5

1

2

3

4

22

22

8

7

6

5

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

VCC

WP

SCL

SDA

C105

0.1uF

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

+3.3V_Normal

C104
8pF
OPT

PCM_A[0-7]

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

C106
8pF
OPT

/PF_WP

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

CAT24C08WI-GT3-H-RECV(TV)

HDCP EEPROM

HDCP_EEPROM_CATALYST_OLD

R113

4.7K

NAND FLASH MEMORY

/PF_CE0
H : Serial Flash
L : NAND Flash
/PF_CE1
H : 16 bit
L : 8 bit

/F_RB

/PF_OE

/PF_CE0

+3.3V_Normal

/PF_CE1

10K

OPT

R104

PF_ALE

/PF_WE

C

Q101

B

KRC103S

OPT

E

3.3K

R102

NAND_FLASH_1G_HYNIX

EAN35669102

IC102-*1

H27U1G8F2BTR-BC

IC103-*1

1

2

3

4

IC103

1

$0.199

2

3

4

8

7

6

5

8

7

6

5

VCC

WP

SCL

SDA

VCC

WP

SCL

SDA

R127 4.7K

NC_1

NC_2

A2

VSS

HDCP_EEPROM_ON_SEMI_NEW

CAT24WC08W-T

A0

A1

A2

VSS

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

R105
1K

OPT

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

+3.3V_Normal

R106

1K

R128

R129 22

1K

R107

R1081K

C107

0.1uF

OPT

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

NC_11

NC_12

NC_13

NC_14

NC_15

22

+3.3V_Normal

R109 3.9K

C101

0.1uF

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

16

17

WE

18

WP

19

20

21

22

23

24

VDD_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

NAND_FLASH_1G_SS

EAN61857001

K9F1G08U0D-SCB0

Addr:10101--

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R111 22

R112 22

<T3 CHIP Config(AUD_LRCH)>

Boot from SPI flash : 1’b0
Boot from NOR flash : 1’b1

<T3 CHIP Config>
(AUD_SCK, AUD_MASTER_CLK, PWM1, PWM0)

MIPS_no_EJ_NOR8 : 4’h3 (MIPS as host. No EJ PAD. Byte mode NAND flash.)
MIPS_EJ1_NOR8 : 4’h4 (MIPS as host. EJ use PAD1. Byte mode NAND flash.)
MIPS_EJ2_NOR8 : 4’h5 (MIPS as host. EJ use PAD2. Byte mode NAND flash.)
B51_Secure_no scramble : 4’hb (8051 as host. Internal SPI flash secure boot, no scramble)
B51_Sesure_scramble : 4’hc (8051 as host. Internal SPI flash secure boot with scarmble)

AUD_MASTER_CLK R148

56

C112
100pF
50V

R115

R116

R117

1K

OPT

R118

1K

+3.3V_Normal

R123

1K

1K

OPT

OPT

R121

R124

1K

1K

1K

R125

R126

1K

OPT

AUD_LRCH

AUD_SCK
AUD_MASTER_CLK_0

PWM1

PWM0

1K

PCM_D[0-7]

PCM_A[0-14]

+5V_Normal

R132
10K

R133
10K

AR104

/PF_CE0
/PF_CE1

/PF_OE
/PF_WE
PF_ALE
/PF_WP

/F_RB

for SYSTEM/HDCP
EEPROM&URSA3

S7_NEC_TXD
S7_NEC_RXD

I2C_SDA
I2C_SCL

RGB_DDC_SDA
RGB_DDC_SCL

AR103

22

TO SCART1

LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]

LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]

LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]

LVB0P/RLV6P/RED[1]

LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]

TCON3/OE/GOE/GCLK2

TCON1/STV/GSP/VST

TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN

IC101-*13

TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P

TCON14/SACN_BLK

TCON17/CS6/GCLK4

LVA4P/LLV8P
LVA4N/LLV8N

RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC

RLV1N/LCK

RLV2P/RED[9]

RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]

TCON16/WPWM
TCON12/DPM

TCON5/TP/SOE

TCON13/LEDON

NC_26
NC_19
NC_30

NC_15
NC_31
NC_29

NC_21
NC_20

NC_11
NC_17

NC_25
NC_24

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]

A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]

B4P/TCON9/BLUE[7]

B4M/TCON8/BLUE[6]

C0P/LLV0P/BLUE[5]

C0M/LLV0N/BLUE[4]

C1P/LLV1P/BLUE[3]

C1M/LLV1N/BLUE[2]

C2P/LLV2P/BLUE[1]

C2M/LLV2N/BLUE[0]

GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

CCKP/LLV3P
CCKM/LLV3N

C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N

DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0

FRC_SPI_CZ
FRC_GPIO1

FRC_SPI1_CK

FRC_GPIO8
FRC_SPI_DO

FRC_SPI1_DI

FRC_SPI_CK
FRC_SPI_DI

FRC_I2CS_DA
FRC_I2CS_CK

FRC_PWM0
FRC_PWM1

M_RFModule_RESET

S7M-PLUS_RM

IC101-*14

LGE107RC-RP [S7M+ RM]

AE1

W26

FRC_DDR3_A0/DDR2_NC

AF16

W25

FRC_DDR3_A1/DDR2_A6

AF1

U26

FRC_DDR3_A2/DDR2_A7

AE3

U25

FRC_DDR3_A3/DDR2_A1

AD14

U24

FRC_DDR3_A4/DDR2_CASZ

AD3

V26

FRC_DDR3_A5/DDR2_A10

AF15

V25

FRC_DDR3_A6/DDR2_A0

AF2

V24

FRC_DDR3_A7/DDR2_A5

AE15

W24

FRC_DDR3_A8/DDR2_A2

AD2

Y26

FRC_DDR3_A9/DDR2_A9

AD16

Y25

FRC_DDR3_A10/DDR2_A11

AD15

Y24

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AC26
AC25
AA26

AF3

AA25

FRC_DDR3_BA0/DDR2_BA2

AF14

AA24

FRC_DDR3_BA1/DDR2_ODT

AD1

AB26

FRC_DDR3_BA2/DDR2_A12

AB25

AD13

AB24

FRC_DDR3_MCLK/DDR2_MCLK

AE14

AC24

FRC_DDR3_CKE/DDR2_RASZ

AE13

AD26

FRC_DDR3_MCLKZ/DDR2_MCLKZ
AD25
AD24

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

AD23

FRC_DDR3_CASZ/DDR2_CKE

AD4

AE23

FRC_DDR3_WEZ/DDR2_BA0
AE26

AE2

AE25

FRC_DDR3_RESETB/DDR2_A3
AF26
AF25

AF8

AE24

FRC_DDR3_DQSL/DDR2_DQS0

AD9

AF24

FRC_DDR3_DQSLB/DDR2_DQSB0
AF23

AE9

AD22

FRC_DDR3_DQSU/DDR2_DQS1

AF9

AE22

FRC_DDR3_DQSUB/DDR2_DQSB1
AF22

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11
AD19

AE6

AE19

FRC_DDR3_DQL0/DDR2_DQ6

AF11

AD21

FRC_DDR3_DQL1/DDR2_DQ0

AD6

AE21

FRC_DDR3_DQL2/DDR2_DQ1

AD12

AF21

FRC_DDR3_DQL3/DDR2_DQ2

AE5

AD20

FRC_DDR3_DQL4/DDR2_DQ4

AF12

AE20

FRC_DDR3_DQL5/DDR2_NC

AF5

AF20

FRC_DDR3_DQL6/DDR2_DQ3

AE12

AF19

FRC_DDR3_DQL7/DDR2_DQ5
AD18

AE10

AE18

FRC_DDR3_DQU0/DDR2_DQ8

AF7

AF18

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

AB22

FRC_DDR3_DQU4/DDR2_DQ15

AE7

AB23

FRC_DDR3_DQU5/DDR2_DQ9

AF10

AC23

FRC_DDR3_DQU6/DDR2_DQ10

AD8

AC22

FRC_DDR3_DQU7/DDR2_DQM1

AB16
AA14
AC15

Y16
AC16

AE8

AC14

FRC_DDR3_NC/DDR2_DQM0

Y11

AA16

FRC_VSYNC_LIKE

Y19

AA15

FRC_TESTPIN

Y10
AA11

AB15
AB14

AE1
AF16
AF1
AE3
AD14
AD3
AF15
AF2
AE15
AD2
AD16
AD15
AE16

AF3
AF14
AD1

AD13
AE14
AE13

AE4
AD5
AF4
AD4

AE2

AF8
AD9

AE9
AF9

AE11
AF6

AE6
AF11
AD6
AD12
AE5
AF12
AF5
AE12

AE10
AF7
AD11
AD7
AD10
AE7
AF10
AD8

AE8

Y11
Y19

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]

C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]

GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

S7MR_BASIC

LGE107C-R-1 [S7MR BASIC]

FRC_DDR3_A0/DDR2_NC
FRC_DDR3_A1/DDR2_A6
FRC_DDR3_A2/DDR2_A7
FRC_DDR3_A3/DDR2_A1
FRC_DDR3_A4/DDR2_CASZ
FRC_DDR3_A5/DDR2_A10
FRC_DDR3_A6/DDR2_A0
FRC_DDR3_A7/DDR2_A5
FRC_DDR3_A8/DDR2_A2
FRC_DDR3_A9/DDR2_A9
FRC_DDR3_A10/DDR2_A11
FRC_DDR3_A11/DDR2_A4
FRC_DDR3_A12/DDR2_A8

FRC_DDR3_BA0/DDR2_BA2
FRC_DDR3_BA1/DDR2_ODT
FRC_DDR3_BA2/DDR2_A12

FRC_DDR3_MCLK/DDR2_MCLK
FRC_DDR3_CKE/DDR2_RASZ
FRC_DDR3_MCLKZ/DDR2_MCLKZ

FRC_DDR3_ODT/DDR2_BA1
FRC_DDR3_RASZ/DDR2_WEZ
FRC_DDR3_CASZ/DDR2_CKE
FRC_DDR3_WEZ/DDR2_BA0

FRC_DDR3_RESETB/DDR2_A3

FRC_DDR3_DQSL/DDR2_DQS0
FRC_DDR3_DQSLB/DDR2_DQSB0

FRC_DDR3_DQSU/DDR2_DQS1
FRC_DDR3_DQSUB/DDR2_DQSB1

FRC_DDR3_DML/DDR2_DQ7
FRC_DDR3_DMU/DDR2_DQ11

FRC_DDR3_DQL0/DDR2_DQ6
FRC_DDR3_DQL1/DDR2_DQ0
FRC_DDR3_DQL2/DDR2_DQ1
FRC_DDR3_DQL3/DDR2_DQ2
FRC_DDR3_DQL4/DDR2_DQ4
FRC_DDR3_DQL5/DDR2_NC
FRC_DDR3_DQL6/DDR2_DQ3
FRC_DDR3_DQL7/DDR2_DQ5

FRC_DDR3_DQU0/DDR2_DQ8
FRC_DDR3_DQU1/DDR2_DQ14
FRC_DDR3_DQU2/DDR2_DQ13
FRC_DDR3_DQU3/DDR2_DQ12
FRC_DDR3_DQU4/DDR2_DQ15
FRC_DDR3_DQU5/DDR2_DQ9
FRC_DDR3_DQU6/DDR2_DQ10
FRC_DDR3_DQU7/DDR2_DQM1

FRC_DDR3_NC/DDR2_DQM0

FRC_REXT
FRC_TESTPIN

CCKP/LLV3P
CCKM/LLV3N

C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N

DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0

FRC_SPI_CZ
FRC_GPIO1

FRC_SPI1_CK

FRC_GPIO8
FRC_SPI_DO
FRC_SPI1_DI

FRC_SPI_CK
FRC_SPI_DI

FRC_I2CS_DA
FRC_I2CS_CK

FRC_PWM0

FRC_PWM1

3D SG

S7R S7MR

S7R_BASIC

IC101-*1

LGE101C-R-1 [S7R BASIC]

AE1

NC_48

LVACLKP/LLV6P/BLUE[3]

AF16

NC_78

LVACLKN/LLV6N/BLUE[2]

AF1

NC_64

LVA0P/LLV3P/BLUE[9]

AE3

NC_50

LVA0N/LLV3N/BLUE[8]

AD14

NC_45

LVA1P/LLV4P/BLUE[7]

AD3

NC_34

LVA1N/LLV4N/BLUE[6]

AF15

NC_77

LVA2P/LLV5P/BLUE[5]

AF2

NC_65

LVA2N/LLV5N/BLUE[4]

AE15

NC_62

LVA3P/LLV7P/BLUE[1]

AD2

NC_33

LVA3N/LLV7N/BLUE[0]

AD16

NC_47

AD15

NC_46

AE16

NC_63

LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]

LVB0P/RLV6P/RED[1]

AF3

NC_66

LVB0N/RLV6N/RED[0]

AF14

NC_76

LVB1P/RLV7P/GREEN[9]

AD1

NC_32

LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]

AD13

NC_44

LVB2N/RLV8N/GREEN[6]

AE14

NC_61

LVB3P/LLV1P/GREEN[3]

AE13

NC_60

LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]

AE4

NC_51

AD5

NC_36

AF4

NC_67

AD4

NC_35

AE2

NC_49

AF8

NC_71

AD9

NC_40

AE9

NC_56

AF9

NC_72

AE11

NC_58

AF6

NC_69

TCON3/OE/GOE/GCLK2

AE6

NC_53

TCON15/SCAN_BLK1

AF11

NC_74

TCON18/CS7/GCLK5

AD6

NC_37

TCON19/CS8/GCLK6

AD12

NC_43

TCON11/CS5/HCON

AE5

NC_52

TCON10/CS4/OPT_N

AF12

NC_75

TCON9/CS3/OPT_P

AF5

NC_68

AE12

NC_59

TCON1/STV/GSP/VST

AE10

NC_57

AF7

NC_70

TCON14/SACN_BLK

AD11

NC_42

AD7

NC_38

AD10

NC_41

TCON21/CS10/VGH_ODD

AE7

NC_54

TCON20/CS9/VGH_EVEN

AF10

NC_73

AD8

NC_39

TCON17/CS6/GCLK4

AE8

NC_55

Y11

NC_12

Y19

GND_105

I2C_SCL

I2C_SDA

S7R_MS10

IC101-*2

LGE101C-R [S7R MS10]

AE1

W26

NC_48

LVACLKP/LLV6P/BLUE[3]

AF16

W25

NC_78

LVACLKN/LLV6N/BLUE[2]

AF1

U26

NC_64

LVA0P/LLV3P/BLUE[9]

AE3

U25

NC_50

LVA0N/LLV3N/BLUE[8]

AD14

U24

NC_45

LVA1P/LLV4P/BLUE[7]

AD3

V26

NC_34

LVA1N/LLV4N/BLUE[6]

AF15

V25

NC_77

LVA2P/LLV5P/BLUE[5]

AF2

V24

NC_65

LVA2N/LLV5N/BLUE[4]

AE15

W24

NC_62

LVA3P/LLV7P/BLUE[1]

AD2

Y26

NC_33

LVA3N/LLV7N/BLUE[0]

AD16

Y25

NC_47

LVA4P/LLV8P

AD15

Y24

NC_46

LVA4N/LLV8N

AE16

NC_63

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23

RLV3P/RED[7]

AE23

RLV3N/RED[6]

AE26

RLV0P/LVSYNC

AE25

RLV0N/LHSYNC

AF26

RLV1N/LCK

AF25

RLV2P/RED[9]

AE24

RLV1P/LDE

AF24

RLV2N/RED[8]

AF23

RLV4P/RED[5]

AD22

RLV4N/RED[4]

AE22

RLV5P/RED[3]

AF22

RLV5N/RED[2]

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20

TCON16/WPWM

AF19

TCON12/DPM

AD18
AE18

TCON5/TP/SOE

AF18

AB22
AB23
AC23

TCON13/LEDON

AC22

AB16

NC_26

AA14

NC_19

AC15

NC_30

Y16

NC_15

AC16

NC_31

AC14

NC_29

AA16

NC_21

AA15

NC_20

Y10

NC_11

AA11

NC_17

AB15

NC_25

AB14

NC_24

LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]

LVB0P/RLV6P/RED[1]

AF3

NC_66

LVB0N/RLV6N/RED[0]

AF14

NC_76

LVB1P/RLV7P/GREEN[9]

AD1

NC_32

LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]

AD13

NC_44

LVB2N/RLV8N/GREEN[6]

AE14

NC_61

LVB3P/LLV1P/GREEN[3]

AE13

NC_60

LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]

AE4

NC_51

AD5

NC_36

AF4

NC_67

AD4

NC_35

AE2

NC_49

AF8

NC_71

AD9

NC_40

AE9

NC_56

AF9

NC_72

AE11

NC_58

AF6

NC_69

TCON3/OE/GOE/GCLK2

AE6

NC_53

AF11

NC_74

AD6

NC_37

AD12

NC_43

AE5

NC_52

AF12

NC_75

AF5

NC_68

AE12

NC_59

AE10

NC_57

AF7

NC_70

AD11

NC_42

AD7

NC_38

AD10

NC_41

TCON21/CS10/VGH_ODD

AE7

NC_54

TCON20/CS9/VGH_EVEN

AF10

NC_73

AD8

NC_39

AE8

NC_55

Y11

NC_12

Y19

GND_105

S7R_DivX

LGE101DC-R-1 [S7R DIVX]

AE1

W26

NC_48

AF16

W25

NC_78

AF1

U26

NC_64

AE3

U25

NC_50

AD14

U24

NC_45

AD3

V26

NC_34

AF15

V25

NC_77

AF2

V24

NC_65

AE15

W24

NC_62

AD2

Y26

NC_33

AD16

Y25

NC_47

LVA4P/LLV8P

AD15

Y24

NC_46

LVA4N/LLV8N

AE16

NC_63

AC26
AC25
AA26

AF3

AA25

NC_66

AF14

AA24

NC_76

AD1

AB26

NC_32

AB25

AD13

AB24

NC_44

AE14

AC24

NC_61

AE13

AD26

NC_60
AD25
AD24

AE4

NC_51

AD5

NC_36

AF4

AD23

NC_67

RLV3P/RED[7]

AD4

AE23

NC_35

RLV3N/RED[6]

AE26

RLV0P/LVSYNC

AE2

AE25

NC_49

RLV0N/LHSYNC

AF26

RLV1N/LCK

AF25

RLV2P/RED[9]

AF8

AE24

NC_71

RLV1P/LDE

AD9

AF24

NC_40

RLV2N/RED[8]

AF23

RLV4P/RED[5]

AE9

AD22

NC_56

RLV4N/RED[4]

AF9

AE22

NC_72

RLV5P/RED[3]

AF22

RLV5N/RED[2]

AE11

NC_58

AF6

NC_69
AD19

AE6

AE19

NC_53

TCON15/SCAN_BLK1

AF11

AD21

NC_74

TCON18/CS7/GCLK5

AD6

AE21

NC_37

TCON19/CS8/GCLK6

AD12

AF21

NC_43

TCON11/CS5/HCON

AE5

AD20

NC_52

TCON10/CS4/OPT_N

AF12

AE20

NC_75

TCON9/CS3/OPT_P

AF5

AF20

NC_68

TCON16/WPWM

AE12

AF19

NC_59

TCON12/DPM

AD18

TCON1/STV/GSP/VST

AE10

AE18

NC_57

TCON5/TP/SOE

AF7

AF18

NC_70

TCON14/SACN_BLK

AD11

NC_42

AD7

NC_38

AD10

AB22

NC_41

AE7

AB23

NC_54

AF10

AC23

NC_73

TCON13/LEDON

AD8

AC22

NC_39

TCON17/CS6/GCLK4

AB16

NC_26

AA14

NC_19

AC15

NC_30

Y16

NC_15

AC16

NC_31

AE8

AC14

NC_55

NC_29

Y11

AA16

NC_12

NC_21

Y19

AA15

GND_105

NC_20

Y10

NC_11

AA11

NC_17

AB15

NC_25

AB14

NC_24

S7MR-PLUS

S7M-PLUS_BASIC

AE1

AF16

AF1
AE3

AD14

AD3

AF15

AF2

AE15

AD2
AD16
AD15
AE16

AF3
AF14

AD1

AD13
AE14
AE13

AE4

AD5

AF4

AD4

AE2

AF8

AD9

AE9

AF9

AE11

AF6

AE6
AF11

AD6
AD12

AE5
AF12

AF5
AE12

AE10

AF7
AD11

AD7
AD10

AE7
AF10

AD8

AE8

Y11

Y19

IC101-*3

LGE107C-RP-1 [S7M+ BASIC]

FRC_DDR3_A0/DDR2_NC
FRC_DDR3_A1/DDR2_A6
FRC_DDR3_A2/DDR2_A7
FRC_DDR3_A3/DDR2_A1
FRC_DDR3_A4/DDR2_CASZ
FRC_DDR3_A5/DDR2_A10
FRC_DDR3_A6/DDR2_A0
FRC_DDR3_A7/DDR2_A5
FRC_DDR3_A8/DDR2_A2
FRC_DDR3_A9/DDR2_A9
FRC_DDR3_A10/DDR2_A11
FRC_DDR3_A11/DDR2_A4
FRC_DDR3_A12/DDR2_A8

FRC_DDR3_BA0/DDR2_BA2
FRC_DDR3_BA1/DDR2_ODT
FRC_DDR3_BA2/DDR2_A12

FRC_DDR3_MCLK/DDR2_MCLK
FRC_DDR3_CKE/DDR2_RASZ
FRC_DDR3_MCLKZ/DDR2_MCLKZ

FRC_DDR3_ODT/DDR2_BA1
FRC_DDR3_RASZ/DDR2_WEZ
FRC_DDR3_CASZ/DDR2_CKE
FRC_DDR3_WEZ/DDR2_BA0

FRC_DDR3_RESETB/DDR2_A3

FRC_DDR3_DQSL/DDR2_DQS0
FRC_DDR3_DQSLB/DDR2_DQSB0

FRC_DDR3_DQSU/DDR2_DQS1
FRC_DDR3_DQSUB/DDR2_DQSB1

FRC_DDR3_DML/DDR2_DQ7
FRC_DDR3_DMU/DDR2_DQ11

FRC_DDR3_DQL0/DDR2_DQ6
FRC_DDR3_DQL1/DDR2_DQ0
FRC_DDR3_DQL2/DDR2_DQ1
FRC_DDR3_DQL3/DDR2_DQ2
FRC_DDR3_DQL4/DDR2_DQ4
FRC_DDR3_DQL5/DDR2_NC
FRC_DDR3_DQL6/DDR2_DQ3
FRC_DDR3_DQL7/DDR2_DQ5

FRC_DDR3_DQU0/DDR2_DQ8
FRC_DDR3_DQU1/DDR2_DQ14
FRC_DDR3_DQU2/DDR2_DQ13
FRC_DDR3_DQU3/DDR2_DQ12
FRC_DDR3_DQU4/DDR2_DQ15
FRC_DDR3_DQU5/DDR2_DQ9
FRC_DDR3_DQU6/DDR2_DQ10
FRC_DDR3_DQU7/DDR2_DQM1

FRC_DDR3_NC/DDR2_DQM0

FRC_VSYNC_LIKE
FRC_TESTPIN

LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]

LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]

LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]

LVB0P/RLV6P/RED[1]
LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]

TCON3/OE/GOE/GCLK2

TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN

IC101-*11

LVA4P/LLV8P
LVA4N/LLV8N

RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC

RLV1N/LCK

RLV2P/RED[9]

RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]

TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6

TCON11/CS5/HCON

TCON10/CS4/OPT_N

TCON9/CS3/OPT_P

TCON16/WPWM
TCON12/DPM

TCON1/STV/GSP/VST

TCON5/TP/SOE

TCON14/SACN_BLK

TCON13/LEDON

TCON17/CS6/GCLK4

GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

NC_26
NC_19
NC_30

NC_15
NC_31
NC_29

NC_21
NC_20

NC_11
NC_17

NC_25
NC_24

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]

A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]

B4P/TCON9/BLUE[7]

B4M/TCON8/BLUE[6]

C0P/LLV0P/BLUE[5]

C0M/LLV0N/BLUE[4]

C1P/LLV1P/BLUE[3]

C1M/LLV1N/BLUE[2]

C2P/LLV2P/BLUE[1]

C2M/LLV2N/BLUE[0]

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

CCKP/LLV3P
CCKM/LLV3N

C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N

DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0

FRC_SPI_CZ
FRC_GPIO1

FRC_SPI1_CK

FRC_GPIO8
FRC_SPI_DO

FRC_SPI1_DI

FRC_SPI_CK
FRC_SPI_DI

FRC_I2CS_DA
FRC_I2CS_CK

FRC_PWM0
FRC_PWM1

S7R_DivX_MS10

LGE101DC-R [S7R DIVX/MS10]

AE1

NC_48

AF16

NC_78

AF1

NC_64

AE3

NC_50

AD14

NC_45

AD3

NC_34

AF15

NC_77

AF2

NC_65

AE15

NC_62

AD2

NC_33

AD16

NC_47

AD15

NC_46

AE16

NC_63

AF3

NC_66

AF14

NC_76

AD1

NC_32

AD13

NC_44

AE14

NC_61

AE13

NC_60

AE4

NC_51

AD5

NC_36

AF4

NC_67

AD4

NC_35

AE2

NC_49

AF8

NC_71

AD9

NC_40

AE9

NC_56

AF9

NC_72

AE11

NC_58

AF6

NC_69

AE6

NC_53

AF11

NC_74

AD6

NC_37

AD12

NC_43

AE5

NC_52

AF12

NC_75

AF5

NC_68

AE12

NC_59

AE10

NC_57

AF7

NC_70

AD11

NC_42

AD7

NC_38

AD10

NC_41

AE7

NC_54

AF10

NC_73

AD8

NC_39

AE8

NC_55

Y11

NC_12

Y19

GND_105

S7M-PLUS_MS10

AE1

W26

FRC_DDR3_A0/DDR2_NC

AF16

W25

FRC_DDR3_A1/DDR2_A6

AF1

U26

FRC_DDR3_A2/DDR2_A7

AE3

U25

FRC_DDR3_A3/DDR2_A1

AD14

U24

FRC_DDR3_A4/DDR2_CASZ

AD3

V26

FRC_DDR3_A5/DDR2_A10

AF15

V25

FRC_DDR3_A6/DDR2_A0

AF2

V24

FRC_DDR3_A7/DDR2_A5

AE15

W24

FRC_DDR3_A8/DDR2_A2

AD2

Y26

FRC_DDR3_A9/DDR2_A9

AD16

Y25

FRC_DDR3_A10/DDR2_A11

AD15

Y24

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AC26
AC25
AA26

AF3

AA25

FRC_DDR3_BA0/DDR2_BA2

AF14

AA24

FRC_DDR3_BA1/DDR2_ODT

AD1

AB26

FRC_DDR3_BA2/DDR2_A12

AB25

AD13

AB24

FRC_DDR3_MCLK/DDR2_MCLK

AE14

AC24

FRC_DDR3_CKE/DDR2_RASZ

AE13

AD26

FRC_DDR3_MCLKZ/DDR2_MCLKZ
AD25
AD24

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

AD23

FRC_DDR3_CASZ/DDR2_CKE

AD4

AE23

FRC_DDR3_WEZ/DDR2_BA0
AE26

AE2

AE25

FRC_DDR3_RESETB/DDR2_A3
AF26
AF25

AF8

AE24

FRC_DDR3_DQSL/DDR2_DQS0

AD9

AF24

FRC_DDR3_DQSLB/DDR2_DQSB0
AF23

AE9

AD22

FRC_DDR3_DQSU/DDR2_DQS1

AF9

AE22

FRC_DDR3_DQSUB/DDR2_DQSB1
AF22

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11
AD19

AE6

AE19

FRC_DDR3_DQL0/DDR2_DQ6

AF11

AD21

FRC_DDR3_DQL1/DDR2_DQ0

AD6

AE21

FRC_DDR3_DQL2/DDR2_DQ1

AD12

AF21

FRC_DDR3_DQL3/DDR2_DQ2

AE5

AD20

FRC_DDR3_DQL4/DDR2_DQ4

AF12

AE20

FRC_DDR3_DQL5/DDR2_NC

AF5

AF20

FRC_DDR3_DQL6/DDR2_DQ3

AE12

AF19

FRC_DDR3_DQL7/DDR2_DQ5
AD18

AE10

AE18

FRC_DDR3_DQU0/DDR2_DQ8

AF7

AF18

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

AB22

FRC_DDR3_DQU4/DDR2_DQ15

AE7

AB23

FRC_DDR3_DQU5/DDR2_DQ9

AF10

AC23

FRC_DDR3_DQU6/DDR2_DQ10

AD8

AC22

FRC_DDR3_DQU7/DDR2_DQM1

AB16
AA14
AC15

Y16
AC16

AE8

AC14

FRC_DDR3_NC/DDR2_DQM0

Y11

AA16

FRC_VSYNC_LIKE

Y19

AA15

FRC_TESTPIN

Y10
AA11

AB15
AB14

IC101-*4

LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]

LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]

LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]

LVB0P/RLV6P/RED[1]

LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]

TCON3/OE/GOE/GCLK2

TCON21/CS10/VGH_ODD

TCON20/CS9/VGH_EVEN

IC101-*12

LGE107C-RP [S7M+ MS10]

LVA4P/LLV8P
LVA4N/LLV8N

RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC

RLV1N/LCK

RLV2P/RED[9]

RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]

TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6
TCON11/CS5/HCON
TCON10/CS4/OPT_N
TCON9/CS3/OPT_P

TCON16/WPWM
TCON12/DPM

TCON1/STV/GSP/VST

TCON5/TP/SOE

TCON14/SACN_BLK

TCON13/LEDON

TCON17/CS6/GCLK4

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

NC_26
NC_19
NC_30

NC_15
NC_31
NC_29

NC_21
NC_20

NC_11
NC_17

NC_25
NC_24

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]

A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]

B4P/TCON9/BLUE[7]

B4M/TCON8/BLUE[6]

C0P/LLV0P/BLUE[5]

C0M/LLV0N/BLUE[4]

C1P/LLV1P/BLUE[3]

C1M/LLV1N/BLUE[2]

C2P/LLV2P/BLUE[1]

C2M/LLV2N/BLUE[0]

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

CCKP/LLV3P
CCKM/LLV3N

C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N

DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0

FRC_SPI_CZ
FRC_GPIO1

FRC_SPI1_CK

FRC_GPIO8
FRC_SPI_DO

FRC_SPI1_DI

FRC_SPI_CK
FRC_SPI_DI

FRC_I2CS_DA
FRC_I2CS_CK

FRC_PWM0
FRC_PWM1

AE1

NC_48

AF16

NC_78

AF1

NC_64

AE3

NC_50

AD14

NC_45

AD3

NC_34

AF15

NC_77

AF2

NC_65

AE15

NC_62

AD2

NC_33

AD16

NC_47

AD15

NC_46

AE16

NC_63

AF3

NC_66

AF14

NC_76

AD1

NC_32

AD13

NC_44

AE14

NC_61

AE13

NC_60

AE4

NC_51

AD5

NC_36

AF4

NC_67

AD4

NC_35

AE2

NC_49

AF8

NC_71

AD9

NC_40

AE9

NC_56

AF9

NC_72

AE11

NC_58

AF6

NC_69

AE6

NC_53

AF11

NC_74

AD6

NC_37

AD12

NC_43

AE5

NC_52

AF12

NC_75

AF5

NC_68

AE12

NC_59

AE10

NC_57

AF7

NC_70

AD11

NC_42

AD7

NC_38

AD10

NC_41

AE7

NC_54

AF10

NC_73

AD8

NC_39

AE8

NC_55

Y11

NC_12

Y19

GND_105

S7M-PLUS_DivX

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

S7R_RM

IC101-*5

LGE101RC-R [S7R RM]

LGE107DC-RP-1 [S7M+ DIVX]

AE1

FRC_DDR3_A0/DDR2_NC

AF16

FRC_DDR3_A1/DDR2_A6

AF1

FRC_DDR3_A2/DDR2_A7

AE3

FRC_DDR3_A3/DDR2_A1

AD14

FRC_DDR3_A4/DDR2_CASZ

AD3

FRC_DDR3_A5/DDR2_A10

AF15

FRC_DDR3_A6/DDR2_A0

AF2

FRC_DDR3_A7/DDR2_A5

AE15

FRC_DDR3_A8/DDR2_A2

AD2

FRC_DDR3_A9/DDR2_A9

AD16

FRC_DDR3_A10/DDR2_A11

AD15

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AF3

FRC_DDR3_BA0/DDR2_BA2

AF14

FRC_DDR3_BA1/DDR2_ODT

AD1

FRC_DDR3_BA2/DDR2_A12

AD13

FRC_DDR3_MCLK/DDR2_MCLK

AE14

FRC_DDR3_CKE/DDR2_RASZ

AE13

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

FRC_DDR3_CASZ/DDR2_CKE

AD4

FRC_DDR3_WEZ/DDR2_BA0

AE2

FRC_DDR3_RESETB/DDR2_A3

AF8

FRC_DDR3_DQSL/DDR2_DQS0

AD9

FRC_DDR3_DQSLB/DDR2_DQSB0

AE9

FRC_DDR3_DQSU/DDR2_DQS1

AF9

FRC_DDR3_DQSUB/DDR2_DQSB1

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11

AE6

FRC_DDR3_DQL0/DDR2_DQ6

AF11

FRC_DDR3_DQL1/DDR2_DQ0

AD6

FRC_DDR3_DQL2/DDR2_DQ1

AD12

FRC_DDR3_DQL3/DDR2_DQ2

AE5

FRC_DDR3_DQL4/DDR2_DQ4

AF12

FRC_DDR3_DQL5/DDR2_NC

AF5

FRC_DDR3_DQL6/DDR2_DQ3

AE12

FRC_DDR3_DQL7/DDR2_DQ5

AE10

FRC_DDR3_DQU0/DDR2_DQ8

AF7

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

FRC_DDR3_DQU4/DDR2_DQ15

AE7

FRC_DDR3_DQU5/DDR2_DQ9

AF10

FRC_DDR3_DQU6/DDR2_DQ10

AD8

FRC_DDR3_DQU7/DDR2_DQM1

AE8

FRC_DDR3_NC/DDR2_DQM0

Y11

FRC_VSYNC_LIKE

Y19

FRC_TESTPIN

/PCM_REG

/PCM_OE
/PCM_WE

/PCM_IORD

/PCM_IOWR

/PCM_CE

/PCM_IRQA

/PCM_CD

/PCM_WAIT

PCM_RST

22

IC101-*6

GPIO1/TCON14/VSYNC/VDD_EVEN

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

DSUB_DET

MODEL_OPT_3

PCM_5V_CTL

/RST-PHY

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]

CCKP/LLV3P

CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]

C3P/LLV4P

C3M/LLV4N

C4P/LLV5P

C4M/LLV5N

DCKP/TCON5

DCKM/TCON4

D0P/LLV6P

D0M/LLV6N

D1P/LLV7P

D1M/LLV7N

D2P/LLV8P

D2M/LLV8N

D3P/TCON3

D3M/TCON2

D4P/TCON1

D4M/TCON0

GPIO0/TCON15/HSYNC/VDD_ODD

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

FRC_GPIO0/UART_RX

FRC_GPIO1

FRC_GPIO3

FRC_GPIO8
FRC_GPIO9/UART_TX

FRC_GPIO10

FRC_I2CM_DA
FRC_I2CM_CK

FRC_I2CS_DA
FRC_I2CS_CK

FRC_PWM0
FRC_PWM1

R134 22

R135 22

R136 22

R137 22

R138 22

R139 22

PWM0
PWM1
PWM2

SC_RE2
SC_RE1

AE1

W26

FRC_DDR3_A0/DDR2_NC

AF16

W25

FRC_DDR3_A1/DDR2_A6

AF1

U26

FRC_DDR3_A2/DDR2_A7

AE3

U25

FRC_DDR3_A3/DDR2_A1

AD14

U24

FRC_DDR3_A4/DDR2_CASZ

AD3

V26

FRC_DDR3_A5/DDR2_A10

AF15

V25

FRC_DDR3_A6/DDR2_A0

AF2

V24

FRC_DDR3_A7/DDR2_A5

AE15

W24

FRC_DDR3_A8/DDR2_A2

AD2

Y26

FRC_DDR3_A9/DDR2_A9

AD16

Y25

FRC_DDR3_A10/DDR2_A11

AD15

Y24

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AC26
AC25
AA26

AF3

AA25

FRC_DDR3_BA0/DDR2_BA2

AF14

AA24

FRC_DDR3_BA1/DDR2_ODT

AD1

AB26

FRC_DDR3_BA2/DDR2_A12

AB25

AD13

AB24

FRC_DDR3_MCLK/DDR2_MCLK

AE14

AC24

FRC_DDR3_CKE/DDR2_RASZ

AE13

AD26

FRC_DDR3_MCLKZ/DDR2_MCLKZ
AD25
AD24

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

AD23

FRC_DDR3_CASZ/DDR2_CKE

AD4

AE23

FRC_DDR3_WEZ/DDR2_BA0
AE26

AE2

AE25

FRC_DDR3_RESETB/DDR2_A3
AF26
AF25

AF8

AE24

FRC_DDR3_DQSL/DDR2_DQS0

AD9

AF24

FRC_DDR3_DQSLB/DDR2_DQSB0
AF23

AE9

AD22

FRC_DDR3_DQSU/DDR2_DQS1

AF9

AE22

FRC_DDR3_DQSUB/DDR2_DQSB1
AF22

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11
AD19

AE6

AE19

FRC_DDR3_DQL0/DDR2_DQ6

AF11

AD21

FRC_DDR3_DQL1/DDR2_DQ0

AD6

AE21

FRC_DDR3_DQL2/DDR2_DQ1

AD12

AF21

FRC_DDR3_DQL3/DDR2_DQ2

AE5

AD20

FRC_DDR3_DQL4/DDR2_DQ4

AF12

AE20

FRC_DDR3_DQL5/DDR2_NC

AF5

AF20

FRC_DDR3_DQL6/DDR2_DQ3

AE12

AF19

FRC_DDR3_DQL7/DDR2_DQ5
AD18

AE10

AE18

FRC_DDR3_DQU0/DDR2_DQ8

AF7

AF18

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

AB22

FRC_DDR3_DQU4/DDR2_DQ15

AE7

AB23

FRC_DDR3_DQU5/DDR2_DQ9

AF10

AC23

FRC_DDR3_DQU6/DDR2_DQ10

AD8

AC22

FRC_DDR3_DQU7/DDR2_DQM1

AB16
AA14
AC15

Y16
AC16

AE8

AC14

FRC_DDR3_NC/DDR2_DQM0

Y11

AA16

FRC_REXT

Y19

AA15

FRC_TESTPIN

Y10
AA11

AB15
AB14

C108

0.1uF
OPT

S7MR_MS10

IC101-*7

LGE107C-R [S7MR MS10]

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]

C109

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]

CCKP/LLV3P

CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]

C3P/LLV4P

C3M/LLV4N

C4P/LLV5P

C4M/LLV5N

DCKP/TCON5

DCKM/TCON4

D0P/LLV6P

D0M/LLV6N

D1P/LLV7P

D1M/LLV7N

D2P/LLV8P

D2M/LLV8N

D3P/TCON3

D3M/TCON2

D4P/TCON1

D4M/TCON0

GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

FRC_GPIO0/UART_RX

FRC_GPIO1

FRC_GPIO3

FRC_GPIO8
FRC_GPIO9/UART_TX

FRC_GPIO10

FRC_I2CM_DA

FRC_I2CM_CK

FRC_I2CS_DA

FRC_I2CS_CK

FRC_PWM0
FRC_PWM1

0.1uF

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

I2C

S7M-PLUS_DivX_MS10

LGE107DC-RP [S7M+ DIVX/MS10]

U22

PCM_D0

T21

PCM_D1

T22

PCM_D2

AB18

PCM_D3

AC18

PCM_D4

AC19

PCM_D5

AC20

PCM_D6

AC21

PCM_D7

U21

PCM_A0

V21

PCM_A1

Y22

PCM_A2

AA22

PCM_A3

R22

PCM_A4

R21

PCM_A5

T23

PCM_A6

T24

PCM_A7

AA23

PCM_A8

Y20

PCM_A9

AB17

PCM_A10

AA21

PCM_A11

U23

PCM_A12

Y23

PCM_A13

W23

PCM_A14

W22

PCM_REG_N

AA17

PCM_OE_N

V22

PCM_WE_N

W21

PCM_IORD_N

Y21

PCM_IOWR_N

AA20

PCM_CE_N

V23

PCM_IRQA_N

P23

PCM_CD_N

R23

PCM_WAIT_N

P22

PCM_RESET

AC17

PCM_PF_CE0Z

AB20

PCM_PF_CE1Z

AA18

PCM_PF_OEZ

AB21

PCM_PF_WEZ

AB19

PCM_PF_ALE

AD17

PCM_PF_AD[15]

AA19

PCM_PF_RBZ

M23

UART_TX2/GPIO65

N23

UART_RX2/GPIO64

M22

DDCR_DA/GPIO71

N22

DDCR_CK/GPIO72

A5

DDCA_DA/UART0_TX

B5

DDCA_CK/UART0_RX

K23

PWM0/GPIO66

K22

PWM1/GPIO67

G23

PWM2/GPIO68

G22

PWM3/GPIO69

G21

PWM4/GPIO70

C6

SAR0/GPIO31

B6

SAR1/GPIO32

C8

SAR2/GPIO33

C7

SAR3/GPIO34

A6

SAR4/GPIO35

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]

C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]

GPIO0/TCON15/HSYNC/VDD_ODD
GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

FRC_GPIO0/UART_RX

FRC_GPIO9/UART_TX

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23

CCKP/LLV3P

AE23

CCKM/LLV3N

AE26
AE25
AF26
AF25
AE24
AF24
AF23

C3P/LLV4P

AD22

C3M/LLV4N

AE22

C4P/LLV5P

AF22

C4M/LLV5N

AD19

DCKP/TCON5

AE19

DCKM/TCON4

AD21

D0P/LLV6P

AE21

D0M/LLV6N

AF21

D1P/LLV7P

AD20

D1M/LLV7N

AE20

D2P/LLV8P

AF20

D2M/LLV8N

AF19

D3P/TCON3

AD18

D3M/TCON2

AE18

D4P/TCON1

AF18

D4M/TCON0

AB22
AB23
AC23
AC22

AB16
AA14

FRC_GPIO1

AC15

FRC_GPIO3

Y16

FRC_GPIO8

AC16
AC14

FRC_GPIO10

AA16

FRC_I2CM_DA

AA15

FRC_I2CM_CK

Y10

FRC_I2CS_DA

AA11

FRC_I2CS_CK

AB15

FRC_PWM0

AB14

FRC_PWM1

+3.3V_Normal

R142

3.3K

S7MR_DivX_MS10

LGE107DC-R [S7MR DIVX/MS10]

AE1

FRC_DDR3_A0/DDR2_NC

AF16

FRC_DDR3_A1/DDR2_A6

AF1

FRC_DDR3_A2/DDR2_A7

AE3

FRC_DDR3_A3/DDR2_A1

AD14

FRC_DDR3_A4/DDR2_CASZ

AD3

FRC_DDR3_A5/DDR2_A10

AF15

FRC_DDR3_A6/DDR2_A0

AF2

FRC_DDR3_A7/DDR2_A5

AE15

FRC_DDR3_A8/DDR2_A2

AD2

FRC_DDR3_A9/DDR2_A9

AD16

FRC_DDR3_A10/DDR2_A11

AD15

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AF3

FRC_DDR3_BA0/DDR2_BA2

AF14

FRC_DDR3_BA1/DDR2_ODT

AD1

FRC_DDR3_BA2/DDR2_A12

AD13

FRC_DDR3_MCLK/DDR2_MCLK

AE14

FRC_DDR3_CKE/DDR2_RASZ

AE13

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

FRC_DDR3_CASZ/DDR2_CKE

AD4

FRC_DDR3_WEZ/DDR2_BA0

AE2

FRC_DDR3_RESETB/DDR2_A3

AF8

FRC_DDR3_DQSL/DDR2_DQS0

AD9

FRC_DDR3_DQSLB/DDR2_DQSB0

AE9

FRC_DDR3_DQSU/DDR2_DQS1

AF9

FRC_DDR3_DQSUB/DDR2_DQSB1

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11

AE6

FRC_DDR3_DQL0/DDR2_DQ6

AF11

FRC_DDR3_DQL1/DDR2_DQ0

AD6

FRC_DDR3_DQL2/DDR2_DQ1

AD12

FRC_DDR3_DQL3/DDR2_DQ2

AE5

FRC_DDR3_DQL4/DDR2_DQ4

AF12

FRC_DDR3_DQL5/DDR2_NC

AF5

FRC_DDR3_DQL6/DDR2_DQ3

AE12

FRC_DDR3_DQL7/DDR2_DQ5

AE10

FRC_DDR3_DQU0/DDR2_DQ8

AF7

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

FRC_DDR3_DQU4/DDR2_DQ15

AE7

FRC_DDR3_DQU5/DDR2_DQ9

AF10

FRC_DDR3_DQU6/DDR2_DQ10

AD8

FRC_DDR3_DQU7/DDR2_DQM1

AE8

FRC_DDR3_NC/DDR2_DQM0

Y11

FRC_REXT

Y19

FRC_TESTPIN

R144

2.2K

R143

3.3K

IC101-*9

S7MR_DivX

LGE107DC-R-1 [S7MR DIVX]

AE1

FRC_DDR3_A0/DDR2_NC

AF16

FRC_DDR3_A1/DDR2_A6

AF1

FRC_DDR3_A2/DDR2_A7

AE3

FRC_DDR3_A3/DDR2_A1

AD14

FRC_DDR3_A4/DDR2_CASZ

AD3

FRC_DDR3_A5/DDR2_A10

AF15

FRC_DDR3_A6/DDR2_A0

AF2

FRC_DDR3_A7/DDR2_A5

AE15

FRC_DDR3_A8/DDR2_A2

AD2

FRC_DDR3_A9/DDR2_A9

AD16

FRC_DDR3_A10/DDR2_A11

AD15

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AF3

FRC_DDR3_BA0/DDR2_BA2

AF14

FRC_DDR3_BA1/DDR2_ODT

AD1

FRC_DDR3_BA2/DDR2_A12

AD13

FRC_DDR3_MCLK/DDR2_MCLK

AE14

FRC_DDR3_CKE/DDR2_RASZ

AE13

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

FRC_DDR3_CASZ/DDR2_CKE

AD4

FRC_DDR3_WEZ/DDR2_BA0

AE2

FRC_DDR3_RESETB/DDR2_A3

AF8

FRC_DDR3_DQSL/DDR2_DQS0

AD9

FRC_DDR3_DQSLB/DDR2_DQSB0

AE9

FRC_DDR3_DQSU/DDR2_DQS1

AF9

FRC_DDR3_DQSUB/DDR2_DQSB1

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11

AE6

FRC_DDR3_DQL0/DDR2_DQ6

AF11

FRC_DDR3_DQL1/DDR2_DQ0

AD6

FRC_DDR3_DQL2/DDR2_DQ1

AD12

FRC_DDR3_DQL3/DDR2_DQ2

AE5

FRC_DDR3_DQL4/DDR2_DQ4

AF12

FRC_DDR3_DQL5/DDR2_NC

AF5

FRC_DDR3_DQL6/DDR2_DQ3

AE12

FRC_DDR3_DQL7/DDR2_DQ5

AE10

FRC_DDR3_DQU0/DDR2_DQ8

AF7

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

FRC_DDR3_DQU4/DDR2_DQ15

AE7

FRC_DDR3_DQU5/DDR2_DQ9

AF10

FRC_DDR3_DQU6/DDR2_DQ10

AD8

FRC_DDR3_DQU7/DDR2_DQM1

AE8

FRC_DDR3_NC/DDR2_DQM0

Y11

FRC_REXT

Y19

FRC_TESTPIN

R1401KR141

IC101-*8

1K

IC101

GPIO143/TCON0
GPIO145/TCON2
GPIO147/TCON4
GPIO149/TCON6
GPIO151/TCON8

GPIO36/UART3_RX
GPIO37/UART3_TX

GPIO50/UART1_RX
GPIO51/UART1_TX

GPIO6/PM0/INT0

GPIO7/PM1/PM_UART_TX

GPIO8/PM2
GPIO9/PM3

GPIO11/PM5/PM_UART_RX/INT1

PM_SPI_WP2/GPIO14/PM8/INT2

GPIO10/PM4

PM_SPI_CS1/GPIO12/PM6
PM_SPI_WP1/GPIO13/PM7

GPIO15/PM9

PM_SPI_CS2/GPIO16/PM10

GPIO17/PM11/INT3
GPIO18/PM12/INT4

PM_SPI_CK/GPIO1
GPIO0/PM_SPI_CZ
PM_SPI_DI/GPIO2
PM_SPI_DO/GPIO3

MPIF_CS_N

MPIF_BUSY

S7MR_RM

IC101-*10

LGE107RC-R [S7MR RM]

AE1

W26

FRC_DDR3_A0/DDR2_NC

ACKP/RLV3P/RED[3]

AF16

W25

FRC_DDR3_A1/DDR2_A6

ACKM/RLV3N/RED[2]

AF1

U26

FRC_DDR3_A2/DDR2_A7

A0P/RLV0P/RED[9]

AE3

U25

FRC_DDR3_A3/DDR2_A1

A0M/RLV0N/RED[8]

AD14

U24

FRC_DDR3_A4/DDR2_CASZ

A1P/RLV1P/RED[7]

AD3

V26

FRC_DDR3_A5/DDR2_A10

A1M/RLV1N/RED[6]

AF15

V25

FRC_DDR3_A6/DDR2_A0

A2P/RLV2P/RED[5]

AF2

V24

FRC_DDR3_A7/DDR2_A5

A2M/RLV2N/RED[4]

AE15

W24

FRC_DDR3_A8/DDR2_A2

A3P/RLV4P/RED[1]

AD2

Y26

FRC_DDR3_A9/DDR2_A9

A3M/RLV4N/RED[0]

AD16

Y25

FRC_DDR3_A10/DDR2_A11

A4P/RLV5P/GREEN[9]

AD15

Y24

FRC_DDR3_A11/DDR2_A4

A4M/RLV5N/GREEN[8]

AE16

FRC_DDR3_A12/DDR2_A8

AC26

BCKP/TCON13/GREEN[1]

AC25

BCKM/TCON12/GREEN[0]

AA26

B0P/RLV6P/GREEN[7]

AF3

AA25

FRC_DDR3_BA0/DDR2_BA2

B0M/RLV6N/GREEN[6]

AF14

AA24

FRC_DDR3_BA1/DDR2_ODT

B1P/RLV7P/GREEN[5]

AD1

AB26

FRC_DDR3_BA2/DDR2_A12

B1M/RLV7N/GREEN[4]

AB25

B2P/RLV8P/GREEN[3]

AD13

AB24

FRC_DDR3_MCLK/DDR2_MCLK

B2M/RLV8N/GREEN[2]

AE14

AC24

FRC_DDR3_CKE/DDR2_RASZ

B3P/TCON11/BLUE[9]

AE13

AD26

FRC_DDR3_MCLKZ/DDR2_MCLKZ

B3M/TCON10/BLUE[8]

AD25

B4P/TCON9/BLUE[7]

AD24

B4M/TCON8/BLUE[6]

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

AD23

FRC_DDR3_CASZ/DDR2_CKE

CCKP/LLV3P

AD4

AE23

FRC_DDR3_WEZ/DDR2_BA0

CCKM/LLV3N

AE26

C0P/LLV0P/BLUE[5]

AE2

AE25

FRC_DDR3_RESETB/DDR2_A3

C0M/LLV0N/BLUE[4]

AF26

C1P/LLV1P/BLUE[3]

AF25

C1M/LLV1N/BLUE[2]

AF8

AE24

FRC_DDR3_DQSL/DDR2_DQS0

C2P/LLV2P/BLUE[1]

AD9

AF24

FRC_DDR3_DQSLB/DDR2_DQSB0

C2M/LLV2N/BLUE[0]

AF23

C3P/LLV4P

AE9

AD22

FRC_DDR3_DQSU/DDR2_DQS1

C3M/LLV4N

AF9

AE22

FRC_DDR3_DQSUB/DDR2_DQSB1

C4P/LLV5P

AF22

C4M/LLV5N

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11

AD19

DCKP/TCON5

AE6

AE19

FRC_DDR3_DQL0/DDR2_DQ6

DCKM/TCON4

AF11

AD21

FRC_DDR3_DQL1/DDR2_DQ0

D0P/LLV6P

AD6

AE21

FRC_DDR3_DQL2/DDR2_DQ1

D0M/LLV6N

AD12

AF21

FRC_DDR3_DQL3/DDR2_DQ2

D1P/LLV7P

AE5

AD20

FRC_DDR3_DQL4/DDR2_DQ4

D1M/LLV7N

AF12

AE20

FRC_DDR3_DQL5/DDR2_NC

D2P/LLV8P

AF5

AF20

FRC_DDR3_DQL6/DDR2_DQ3

D2M/LLV8N

AE12

AF19

FRC_DDR3_DQL7/DDR2_DQ5

D3P/TCON3

AD18

D3M/TCON2

AE10

AE18

FRC_DDR3_DQU0/DDR2_DQ8

D4P/TCON1

AF7

AF18

FRC_DDR3_DQU1/DDR2_DQ14

D4M/TCON0

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

AB22

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

FRC_GPIO0/UART_RX

FRC_GPIO9/UART_TX

2.2K

FRC_DDR3_DQU4/DDR2_DQ15

AE7

AB23

FRC_DDR3_DQU5/DDR2_DQ9

AF10

AC23

FRC_DDR3_DQU6/DDR2_DQ10

AD8

AC22

FRC_DDR3_DQU7/DDR2_DQM1

AB16
AA14

FRC_GPIO1

AC15

FRC_GPIO3

Y16

FRC_GPIO8

AC16

AE8

AC14

FRC_DDR3_NC/DDR2_DQM0

FRC_GPIO10

Y11

AA16

FRC_REXT

FRC_I2CM_DA

Y19

AA15

FRC_TESTPIN

FRC_I2CM_CK

Y10

FRC_I2CS_DA

AA11

FRC_I2CS_CK

AB15

FRC_PWM0

AB14

FRC_PWM1

AMP_SDA
AMP_SCL

GPIO0/TCON15/HSYNC/VDD_ODD

GPIO1/TCON14/VSYNC/VDD_EVEN

R145

I2C_SCL

NEC_SDA
NEC_SCL

GP3_Saturn7M Ver. 0.1

N21
M21
L22
L21
P21

K21
L23
K20

GPIO38

L20

GPIO39

M20

GPIO40

G20

GPIO41

G19

GPIO42

F20
F19

E7
D7
E11
G9
F9
C5
E8
E9
F7
F6
D8
G12
F10

D9
D11
E10
D10

AA9

TS0_CLK

AA5

TS0_VLD

AA10

TS0_SYNC

TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7

TS1_CLK
TS1_VLD

TS1_SYNC

TS1_D0
TS1_D1
TS1_D2
TS1_D3
TS1_D4
TS1_D5
TS1_D6
TS1_D7

MPIF_CLK

MPIF_D0
MPIF_D1
MPIF_D2
MPIF_D3

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]
A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]
A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]
B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]

C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]

GPIO0/TCON15/HSYNC/VDD_ODD

GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

FRC_GPIO0/UART_RX

FRC_GPIO9/UART_TX

CCKP/LLV3P
CCKM/LLV3N

C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N

DCKP/TCON5
DCKM/TCON4
D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0

FRC_GPIO1
FRC_GPIO3

FRC_GPIO8

FRC_GPIO10

FRC_I2CM_DA
FRC_I2CM_CK

FRC_I2CS_DA
FRC_I2CS_CK

AB5
AC4
Y6
AA6
W6
AA7
Y9
AA8

AC5
AC6
AB6

AC10
AB10
AC9
AB9
AC8
AB8
AC7
AB7

D12
D14

E14

E12
F12
D13
E13

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15

FRC_PWM0

AB14

FRC_PWM1

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

Delete /PIF_SPI_CS

I2C_SDA

FLASH/EEPROM/GPIO

R14633

R14733

R160
1K

DIMMING

A_DIM

PWM_DIM

SCAN_BLK2

R15133

5V_DET_HDMI_1
5V_DET_HDMI_2
5V_DET_HDMI_4

SIDEAV_DET

FRC_RESET

SC1/COMP1_DET
ERROR_OUT
MODEL_OPT_0

USB1_OCD

USB1_CTL
HP_DET
CONTROL_ATTEN
MODEL_OPT_6
MODEL_OPT_1

/FLASH_WP

MODEL_OPT_2

TUNER_RESET

DEMOD_RESET
AV_CVBS_DET

SPI_SCK

/SPI_CS
SPI_SDI
SPI_SDO

CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC

CI_TS_DATA[0-7]

FE_TS_CLK
FE_TS_VAL_ERR
FE_TS_SYNC

FE_TS_DATA[0-7]

M_REMOTE_RX
M_REMOTE_TX

ET_RXER

DC_MREMOTE

for SERIAL FLASH

from CI SLOT

Internal demod out
/External demod in

R156

R157

R155
0

C111

2.2uF

R158

DD_MREMOTE

10K

100

OPT

LD650 Scan

100

OPT

1

PWM0

PWM2

FRC_PWM1

3D SG
3D SG

3D SG
3D SG

LNA2_CTL

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

RF_SWITCH_CTL

3D_GPIO_1
3D_GPIO_2

OPT

R201 100

BOOSTER_OPT

R202

RF_SW_OPT

R203
R204 100

OPT

R210 100

OPT

R213

3D_SG

R216

3D_SG

CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1

CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2

CK+_HDMI4

HDMI

CK-_HDMI4
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
DDC_SDA_4
DDC_SCL_4
HPD4

CEC_REMOTE_S7

DSUB_HSYNC
DSUB_VSYNC

DSUB_R+

DSUB_G+

DSUB

DSUB_B+

SCART1_RGB/COMP1

SC1_ID
SC1_FB

COMP2_Pr+

COMP2_Y+

COMP2

COMP2_Pb+

TU_CVBS

SC1_CVBS_IN

AV_CVBS_IN

SIDEAV_CVBS_IN

AV_CVBS_IN2

CVBS In/OUT

DTV/MNT_VOUT

AV_CVBS_IN2

OPT

OPT

100

100

0

0

OPT

R214 1K

R215 1K

R294 1K

R295 1K

100/120Hz LVDS

OPT

R293 1K

R297 1K

50/60Hz LVDS

R4026

Delete CHB_CVBS_IN

+3.3V_Normal

FHD

R206 1K

HD

R207 1K

10K

R4023

C203

1000pF

OPT

TP211

3D

PHM_ON

R211 1K

R208 1K

2D

PHM_OFF

R212 1K

R209 1K

R4024
R4025

10K

Close to MSTAR

R226 1K

FRC_H/W_OPT

NO_FRC

R227 1K

22

22
R228 33
R229 68
R230 33
R231 68
R232 33
R233 68

R253 33
R254 68
R255
R256
R257 33
R258 68

R236 0

NON_EU

R237 33
R238 68
R239
R240
R241 33
R242 68

R244 33
R245 33
R246 33
R4016 33
R248 33
R249 33
R250 33
R251 33

R252 68

MODEL OPTION

MODEL_OPT_0IF_AGC_SEL
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3

MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6

C204 0.047uF
C205 0.047uF
C206 0.047uF
C207 0.047uF
C208 0.047uF
C209 0.047uF
C210 1000pF

C211 0.047uF
C212 0.047uF
C213

33

0.047uF

C214

0.047uF

68

0.047uF

C215

0.047uF

C216
C217 1000pF

C218 0.047uF
C219 0.047uF

33

C220 0.047uF

68

C221 0.047uF
C222 0.047uF
C223 0.047uF
C224 1000pF

C248

0.047uF

C225 0.047uF
C226 0.047uF
C227 0.047uF
C4057 0.047uF
C229 0.047uF
C230 0.047uF
C231 0.047uF
C232 0.047uF

TP210

C233 0.047uF

PIN NAME

MODEL_OPT_0

MODEL_OPT_4

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_5

MODEL_OPT_6

LGE107DC-RP [S7M+ DIVX/MS10]

F1

A_RXCP

F2

A_RXCN

G2

A_RX0P

G3

A_RX0N

H3

A_RX1P

G1

A_RX1N

H1

A_RX2P

H2

A_RX2N

F5

DDCDA_DA/GPIO24

F4

DDCDA_CK/GPIO23

E6

HOTPLUGA/GPIO19

D3

B_RXCP

C1

B_RXCN

D1

B_RX0P

D2

B_RX0N

E2

B_RX1P

E3

B_RX1N

F3

B_RX2P

E1

B_RX2N

D4

DDCDB_DA/GPIO26

E4

DDCDB_CK/GPIO25

D5

HOTPLUGB/GPIO20

AA2

C_RXCP

AA1

C_RXCN

AB1

C_RX0P

AA3

C_RX0N

AB3

C_RX1P

AB2

C_RX1N

AC2

C_RX2P

AC1

C_RX2N

AB4

DDCDC_DA/GPIO28

AA4

DDCDC_CK/GPIO27

AC3

HOTPLUGC/GPIO21

A2

D_RXCP

A3

D_RXCN

B3

D_RX0P

A1

D_RX0N

B1

D_RX1P

B2

D_RX1N

C2

D_RX2P

C3

D_RX2N

B4

DDCDD_DA/GPIO30

C4

DDCDD_CK/GPIO29

E5

HOTPLUGD/GPIO22

D6

CEC/GPIO5

G5

HSYNC0

G6

VSYNC0

K1

RIN0P

L3

RIN0M

K3

GIN0P

K2

GIN0M

J3

BIN0P

J2

BIN0M

J1

SOGIN0

G4

HSYNC1

H6

VSYNC1

K5

RIN1P

K4

RIN1M

J4

GIN1P

K6

GIN1M

H4

BIN1P

J6

BIN1M

J5

SOGIN1

H5

HSYNC2

N3

RIN2P

N2

RIN2M

M2

GIN2P

M1

GIN2M

L2

BIN2P

L1

BIN2M

M3

SOGIN2

N4

CVBS0P

N6

CVBS1P

L4

CVBS2P

L5

CVBS3P

L6

CVBS4P

M4

CVBS5P

M5

CVBS6P

K7

CVBS7P

M6

CVBS_OUT1

M7

CVBS_OUT2

N5

VCOM0

MODEL OPTION

PIN NO.

G19

E18

C5

F7

B6

D18

F9

S7M-PLUS_DivX_MS10

IC101

SPDIF_OUT/GPIO178

I2S_IN_BCK/GPIO175

I2S_IN_SD/GPIO176
I2S_IN_WS/GPIO174

I2S_OUT_BCK/GPIO181
I2S_OUT_MCK/GPIO179

I2S_OUT_SD/GPIO182
I2S_OUT_SD1/GPIO183
I2S_OUT_SD2/GPIO184
I2S_OUT_SD3/GPIO185

I2S_OUT_WS/GPIO180

LOW

NO FRC

50/60Hz LVDS

PHM_OFF

2D

HD

Ready

LCD

VIFP
VIFM

SSIF/SIFP
SSIF/SIFM

IFAGC

RF_TAGC

TGPIO0/UPGAIN

TGPIO1/DNGAIN
TGPIO2/I2C_CLK
TGPIO3/I2C_SDA

XTALIN

XTALOUT

SPDIF_IN/GPIO177

DM_P0
DP_P0

DM_P1
DP_P1

LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R
LINE_IN_2L
LINE_IN_2R
LINE_IN_3L
LINE_IN_3R
LINE_IN_4L
LINE_IN_4R
LINE_IN_5L
LINE_IN_5R

LINE_OUT_0L
LINE_OUT_2L
LINE_OUT_3L
LINE_OUT_0R
LINE_OUT_2R
LINE_OUT_3R

MIC_DET_IN

MICCM
MICIN

AUCOM

HP_OUT_1L
HP_OUT_1R

ET_RXD0
ET_TXD0

ET_RXD1
ET_TXD1

ET_REFCLK

ET_TX_EN

ET_MDC

ET_MDIO

ET_CRS

AVLINK

IRINT

TESTPIN

RESET

U3_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HIGH

FRC_HW_OPT

100/120Hz LVDS

PHM_ON

3D

FHD

default

OLED

W2
W1

V2

IP

V1

IM

Y2
Y1

U3

QP

V3

QM

Y5
Y4

U1
U2
R3
T3

T2
T1

G14
G13

B7
A7

AF17
AE17

F14
F13
F15

D20
E20
D19
F18
E18
D18
E19

N1
P3
P1
P2
P4
P5
R6
T6
U5
V5
U6
V6

U4
W3
W4
V4
Y3
W5

R4
T5
R5

T4

P7

VRM

R7

VAG

P6

VRP

R1
R2

E21
E22

D21
F21

E23
D22
F22
D23
F23

F8
G8
K8
A4
Y17

NO_FRC : LOW LOW
U3_INTERNAL : HIGH LOW
U5_EXTERNALBOOT :HIGH HIGH
reserved for FRC : LOW HIGH

--> This option is only applied in EU.
In case of NON_EU, default value set LOW.

-->In case of GP2, This port was used for GIP/NON_GIP

--> MODEL_OPT_5, MODEL_OPT_6
: Only 3D_SG GPIO OUTPUT CONTROL

TP201
TP202

TP203
TP204

TP205

FULL_NIM

R291 22

FULL_NIM

R292 22

1M

R287

R296 100

COMP2_DET

NEC_SCL

C236 2.2uF
C237

2.2uF
C238 2.2uF
C239

2.2uF
C4059 2.2uF
C4060

2.2uF
C242

2.2uF
C243 2.2uF
C244 2.2uF
C245 2.2uF
C246

2.2uF

2.2uF

2.2uF

TP206

TP207
TP208

TP209

5.6uH

22

OPT

2.2uF

OPT

C249

4.7uF

ET_RXD0
ET_TXD0

ET_RXD1

ET_TXD1
ET_REF_CLK

ET_TX_EN

ET_MDC

ET_MDIO
ET_CRS

OPT

R298 100

FRC

R205

10K

C253

1uF

+3.3V_Normal

C247

OPT

C234
C235

OPT

CM2012F5R6KT
L203
L205 5.6uH

CM2012F5R6KT

FRC

R4018

10K

R4017

OPT

OPT_0

R288 100
R289 100

C250 0.1uF
C251 0.1uF

ANALOG SIF
Close to MSTAR

+3.3V_Normal

AMP_SCL

AMP_SDA

X201
24MHz

NEC_SDA

MODEL_OPT_4
MODEL_OPT_5

C263

C256

10uF

0.1uF

IR

FRC_RESET

OPT_4

Close to MSTAR

C257 0.1uF
C258 0.1uF

R4002 47
R4003 47

L227

BLM18PG121SN1D

C4064

0.1uF

TU/DEMOD_I2C

C261 27pF

C262 27pF

L202

BLM18SG121TN1D

10K

R4006

RSDS Power OPT

+2.5V_Normal

OPT

C264

R4019
1K

DEMOD_SCL
DEMOD_SDA
TU_SCL
TU_SDA

SC1/COMP1_L_IN
SC1/COMP1_R_IN
AV_L_IN
AV_R_IN
SIDEAV_L_IN
SIDEAV_R_IN
COMP2_L_IN
COMP2_R_IN
PC_L_IN
PC_R_IN

C268

4.7uF

SOC_RESET

L213
BLM18PG121SN1D

L214
BLM18PG121SN1D

VDD33

IF_P_MSTAR
IF_N_MSTAR

1000pF

Close to MSTAR

R4020

10K

C4065

0.022uF
16V

LED_DRIVER_D/L_SDA

SPDIF_OUT

B/T USB

SIDE_USB_DM
SIDE_USB_DP

SIDE USB

AUDIO IN

C272

4.7uF

VDD_RSDS:88mA

VDD_RSDS

OPT

FRC

C4005

0.1uF

DTV_IF

TU_SIF

AUD_SCK
AUD_MASTER_CLK_0
AUD_LRCH
LED_DRIVER_D/L_SCL

AUD_LRCK

SCART1_Lout

SCART1_Rout

H/P OUT

HP_LOUT

HP_ROUT

IF_AGC_MAIN

I2S_I/F

+1.26V_VDDC

AUDIO OUT

10uFC276

10uFC275

10uFC228

+3.3V_Normal

L204
BLM18PG121SN1D

0.1uF

C4044 0.1uF

C4043

AVDD_MEMPLL:24mA

VDD33

L206

BLM18PG121SN1D

+3.3V_Normal

L207

BLM18PG121SN1D

Normal 2.5V

+2.5V_Normal

+2.5V_Normal

+1.5V_DDR

+1.5V_FRC_DDR

RSDS Power OPT

+1.26V_VDDC

L228

BLM18SG700TN1D

L226

BLM18SG700TN1D

C280 0.1uF

C277 0.1uF

VDD33

10uFC284

OPT

FRC_LPLL:13mA

FRC_LPLL

OPT

VDD33_DVI:163mA

VDD33_DVI

C287
10uF

L211

BLM18PG121SN1D

L212

BLM18PG121SN1D

AU25:10mA

L209

BLM18PG121SN1D

OPT

C281

C278

10uF

FRC

L210

BLM18PG121SN1D

FRC

FRC

10uF

C279

C282

MIU1VDDC

C4063 10uF

OPT

OPT

C292 0.1uF

C283 0.1uF

C299 0.1uF

Normal Power 3.3V

VDD33_T/VDDP/U3_VD33_2:47mA

10uFC4001

10uFC293

OPT

OPT

C4007 0.1uF

VDD33

L215

BLM18PG121SN1D

C286 0.1uF

C4016 0.1uF

C294

0.1uF

C4008

C4002

0.1uF

OPT

AVDD2P5

C289 10uF

C295 0.1uF

AU25

C296 0.1uF

DDR3 1.5V

AVDD_DDR0:55mA

10uF

AVDD_DDR_FRC:55mA

10uF

C4056 0.1uF

C290

FRC

C291

OPT

C4046

0.1uF

0.1uF

0.1uF

C297

0.1uF

OPT

AVDD_DDR_FRC

OPT

0.1uF

C298

MIU0VDDC

C4066 10uF

AVDD_DDR0

C4003

OPT

C4004

VDDC 1.26V

OPT

C4011 0.1uF

C4006 0.1uF

C4013 0.1uF

OPT

C4020 0.1uF

C4014 0.1uF

C4012 0.1uF

AU33

C4015

0.1uF
OPT

FRC_MPLL:4mA

AVDD_DMPLL

L217

BLM18PG121SN1D

C288

0.1uF

AVDD2P5/ADC2P5:162mA

+2.5V_Normal

C4009

0.1uF

FRC

0.1uF
C4010

C4062 0.1uF

0.1uF

C4017

0.1uF

AVDD_DMPLL/AVDD_NODIE:7.362mA

AVDD2P5

L219
BLM18PG121SN1D

AVDD25_PGA:13mA

AVDD_DDR0

C4018

0.1uF
10uF

C4042

0.1uF

OPT

AVDD_DDR0

R40141K1/16W

FRC

R40151K1/16W

0.1uF

0.1uF

C240

+1.26V_VDDC

OPT

C4019 0.1uF

C4024 0.1uF

C4025 0.1uF

+2.5V_Normal

C4023 0.1uF

FRC_VDD33_DDR:50mA

VDD33

AVDD2P5

C4026 0.1uF

AVDD25_PGA

C4027 0.1uF

AVDD_DDR1:55mA

C4022

C4028

0.1uF

10uF

OPT

1%

1%

C241

0.1uF

FRC

L225

BLM18SG700TN1D

FRC

C4061 10uF

C4031 0.1uF

FRC_AVDD:60mAAU33:31mA

L221

BLM18PG121SN1D

FRC

FRC_VDD33_DDR

FRC

L222

BLM18PG121SN1D

AVDD_DDR0

C4032

0.1uF

C4036

OPT

MVREF

FRCVDDC

C4058 0.1uF

VDDC : 2026mA

S7M-PLUS_DivX_MS10

IC101

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11

A_DVDD
B_DVDD

FRC_VDDC_0
FRC_VDDC_1
FRC_VDDC_2
FRC_VDDC_3
FRC_VDDC_4
FRC_VDDC_5
FRC_VDDC_6
FRC_VDDC_7
FRC_VDDC_8

U3_DVDD_DDR

AVDD1P2
DVDD_NODIE

AVDD2P5_ADC_1
AVDD2P5_ADC_2
AVDD25_REF

AVDD_AU25

PVDD_1
PVDD_2

AVDD25_PGA

AVDD_NODIE

AVDD_DVI_1
AVDD_DVI_2
AVDD3P3_CVBS
AVDD_DMPLL

AVDD_AU33
AVDD_EAR33

AVDD33_T

VDDP_1
VDDP_2
VDDP_3

FRC_VD33_2_1
FRC_VD33_2_2

FRC_AVDD_RSDS_1
FRC_AVDD_RSDS_2
FRC_AVDD_RSDS_3

FRC_AVDD
FRC_AVDD_LPLL
FRC_AVDD_MPLL

FRC_VDD33_DDR

AVDD_MEMPLL
FRC_AVDD_MEMPLL

AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR0_D_4
AVDD_DDR0_C

AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3
AVDD_DDR1_D_4
AVDD_DDR1_C

FRC_AVDD_DDR_D_1
FRC_AVDD_DDR_D_2
FRC_AVDD_DDR_D_3
FRC_AVDD_DDR_D_4
FRC_AVDD_DDR_C

MVREF

NC_1
NC_2

GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8

GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99

GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110

GND_FU

PGA_VCOM

FRC_AVDD

FRC

C4038

0.1uF

FRC

0.1uF

C4040 0.1uF

C4041 0.1uF

VDD33

MIU0VDDC
MIU1VDDC

FRCVDDC

FRC_AVDD
FRC_LPLL

LGE107DC-RP [S7M+ DIVX/MS10]

+1.26V_VDDC

H11
H12
H13
H14
H15
J12
J13
J14
J15
J16
L18

H16
K19

L19
M18
M19
N18
N19
N20
P18
P19
P20

Y12

AB11
AB12
AC11
AC12
AA12

J11

L7

H7
J7
J8

L8

W15
Y15

U8

M8

N9
P9
N8
P8

T7
U7

T9

R8
R9
T8

V20
W20

U19
U20
V19

W19
U18
T20

Y14

R19
W14

D15
D16
E15
E16
E17

F16
F17
G16
G17
H17

G15

Y7
Y8

C4045 1uF

AVDD2P5

AU25

AVDD2P5
AVDD2P5

AVDD25_PGA

AVDD_DMPLL

VDD33_DVI

AVDD_DMPLL

AU33

VDD33

VDD_RSDS

FRC_VDD33_DDR

AVDD_DDR0
C285 0.1uF

AVDD_DDR0

AVDD_DDR_FRC

MVREF

GP2R

MAIN2, HW OPT 2

+1.26V_VDDC

G18
H9
H10
H18
H19
J10
J17
J18
J19
K9
K10
K11
K12
K13
K14
K15
K16
K17
K18
L9
L10
L11
L12
L13
L14
L15
L16
L17
M9
M10
M11
M12
M13
M14
M15
M16
M17
N10
N11
N12
N13
N14
N15
N16
N17
P10
P11
P12
P13
P14
P15
P16
P17
R10
R11
R12
R13
R14
R15
R16
R17
R18
T10
T11
T12
T13
T14
T15
T16
T17
T18
T19
U10
U11
U12
U13
U14
U15
U16
U17
V7
V8
V9
V10
V11
V12
V13
V14
V15
V16
V17
V18
W7
W8
W9
W10
W11
W12
W13
W16
W17
W18
Y13
Y18
AA13
AB13
AC13
D17
H23
AF13
J9

L223

BLM18SG121TN1D

U9

20101023

MICOM_DEBUG_WAFER

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

12505WS-12A00

+3.5V_ST

EEPROM for Micom

IC1001

M24C16-WMN6T

NC/E0

1

NC/E1

47K

R10 01

TP1001

2

NC/E2

3

VSS

4

EEPROM_NEC_16KBIT_STM

P1001

13

1

2

3

4

5

6

7

8

9

10

11

12

+3.5V_ST

+3.5V_ST

MICOM_DEBUG

R1002 10K

R1006

OPT

R1072

OPT

R1073

OPT

R1005

VCC

8

WC

7

SCL

6

SDA

5

R10 76 22

R10 78 22

R10 10 22

R10 81 22

R10 13 22

OPT

10K

10K

10K

MICOM_DEBUG

MICOM_DEBUG

MICOM_DEBUG

MICOM_DEBUG

MICOM_DEBUG

10K

TP1002

R1080

TP1003

R1008

CRYSTAL_KDS

X1002-*1

FLMD0

15pF

C1007

X1002

32.768KHz

R1030 10K

CRYSTAL_EPSON

R1034

4.7M

CRYSTAL_KDS

R1091 10K

for Debugger

MICOM_RESET
NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

22

R1020 0

R1018

22

R1019

P33/TI51/TO51/INTP4

R1065 22

R1066 22

R1023 22

R1063 22

NEC_SCL

NEC CONFIGURATION

NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

+3.5V_ST

OPT

R1084

10K

+3.5V_ST

IC1001-*1

AT24C16BN-SH-B

NC_1

1

NC_2

C1002

R1015 2.7K

0.1uF

NEC_EEPROM_SCL

NEC_EEPROM_SDA

R1014 2.7K

22

22

2

NC_3

3

GND

4

EEPROM_NEC_16KBIT_ATMEL

VCC

8

WP

7

SCL

6

SDA

5

NEC_SDA

NEC_EEPROM_SCL

NEC_EEPROM_SDA

CEC_REMOTE_NEC

POWER_ON/OFF2_1

AMP_MUTE

AMP_RESET

(MODEL_OPT_0)

SOC_RESET

INV_CTL

PANEL_CTL

(MODEL_OPT_1)

OCD1B

+3.5V_ST

C1003

0.1uF

P60/SCL0
P61/SDA0

P62/EXSCL0

P63

P75

P74
P73/KR3
P72/KR2
P71/KR1
P70/KR0

P32/INTP3/OCD1B

GND

C1006 0.1uF

P121/X1/OCD0A

REGC

VSS

VDD

45

46

47

48

1
2
3
4
5

IC1002

6
7
8
9
10
11
12

13

14

15

16

P30/INTP1

P17/TI50/TO50

P31/INTP2/OCD1A

P16/TOH1/INTP5

P123/XT1

FLMD0

P122/X2/EXCLK/OCD0B

42

43

44

uPD78F0514

NEC_MICOM

17

18

19

P15/TOH0

P14/RXD6

P13/TXD6

32.768KHz

S/T_SCL

S/T_SDA

NEW_SUB

R4034

C1008 15pF

MICOM_RESET

R1039 22

RESET

P124/XT2/EXCLKS

40

41

4.7K

NEW_SUB

R4035

4.7K

+3.5V_ST

47K

22

NEW_SUB

NEW_SUB

R10 60 22

P40

39

R1046

R1043

P120/INTP0/EXLVI

P41

37

38

36
35
34
33
32
31
30
29
28
27
26
25

20

21

22

23

24

AVSS

AVREF

P12/SO10

P11/SL10/RXD0

P10/SCK10/TXD0

22

22

+3.5V_ST

+3.5V_ST

TP1601

C1010

0.1uF

TOP SIDE for reset.

TP1602

R1047 20K

1/16W
1%

R1089

20K

1/16W

1%

P140/PCL/INTP6
P00/TI000
P01/TI010/TO00
P130
P20/ANI0
ANI1/P21
ANI2/P22
ANI3/P23
ANI4/P24
ANI5/P25
ANI6/P26
ANI7/P27

+3.5V_ST

C1009 1uF

R1048 22

R1049 22

OPT

R1050 10K





R1090 22

OPT

R1055 22

R1056 22

R10 57 22

R1054 22

R1052 10K

C

Q1001

B

2SC3052

E

OPT

EDID_WP

RL_ON

SCART1_MUTE

CEC_ON/OFF

(MODEL_OPT_3)

MODEL1_OPT_2

POWER_ON/OFF1

OLP

SIDE_HP_MUTE

KEY2

KEY1

GP2

R1079 10K

GP3

R1074 10K

+3.5V_ST

TOUCH_KEY

R1075 10K

TACT_KEY

R1011 10K

B/L_LED

R1009 10K

R1071 10K

PWM_BUZZ/IIC_LED

PWM_LED

B/L_LAMP

R1012 10K

R1004 10K

MODEL_OPT_0

MODEL_OPT_1
MODEL1_OPT_2

MODEL_OPT_3

MICOM MODEL OPTION

AMP_RESET
PANEL_CTL

CEC_ON/OFF

2011Y,GP2R, 101125 Update

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

PWM_BUZZ/IIC_LED :Using IIC for LED Breathing & PWM Buzz
PWM_LED : Using PWM Signal for LED Lighting

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MODEL OPTION

PIN NO.

8

11

30

31

HIGH

B/L_LED

PWM_BUZZ/IIC_LED

TOUCH_KEY

GP2

LOW

B/L_LAMP

PWM_LED

TACT_KEY

GP3

MODEL_OPT_0

LOW

LOW

LOW : LED
HIGH : LAMP

MODEL_OPT_1

LOW

LOW

HIGH

HIGH

Low

MODEL_OPT_2

LOW

LOW

HIGH

LOW

HIGH

MODEL_OPT_3

LOW

HIGH

LOW

LOW

LOW

Description

LK330/LK430 for KR/US

10Y EYE-Q Sensor

KEY & PWM LED & No Buzz & No LED Blink

LK330/LK430/LK530

KEY & PWM LED & No Buzz & No LED Blink

LV25/LV35/LV45/LW45/LV55/LK45/LK55

S/T & IIC LED & NO BUZZ & LED Blink

IIC LED(09Y IIC Protocol) & No BUZZ

S/T & IIC LED & No Buzz & LED Blink

TBD

TBD

R10 41

R10 37

22

22

R10 68

R10 69

IR

OCD1A

POWER_DET

LED_R/BUZZ

LED_B/LG_LOGO

NEC_ISP_Tx

NEC_ISP_Rx

S7_NEC_RXD

S7_NEC_TXD

POWER_ON/OFF2_2

MODEL OPTION

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

PWM_BUZZ/IIC_LED : For model that use LED Lighting used IIC
PWM_LED : For model that use LED Lighting used PWM Signal

PIN NO.

8

11

30

31

PWM_BUZZ/IIC_LED

R1083 10K

B/L_LED

TOUCH_KEY

GPIO_LED

OPT

2010Y,GP2

LOW

B/L_LAMP

PWM_LED

TACT_KEY

NON_GPIO_LED

MODEL_OPT_0

HIGH

HIGH

HIGH

MODEL_OPT_1

LOW

LOW

LOW

LOW

HIGH

HIGH

GP2R

MICOM Rev.4

LOW

HIGH

HIGH

LOW

LOW

MODEL_OPT_3

LOW

PWM LED & No Buzz & No LED Blink

LOW

LOW

LOW

HIGH

19/22/26LE5300/5300

IIC LED & PWM IIC BUZZ

32/37/42/47/55LE5300

IIC LED & PWM BUZZ

IIC LED(09Y IIC Protocol) & No BUZZ

LD350/450/550HIGH

LD420

LE7300

GPIO LED & NO BUZZ

MODEL_OPT_2

LOW

20101125
5

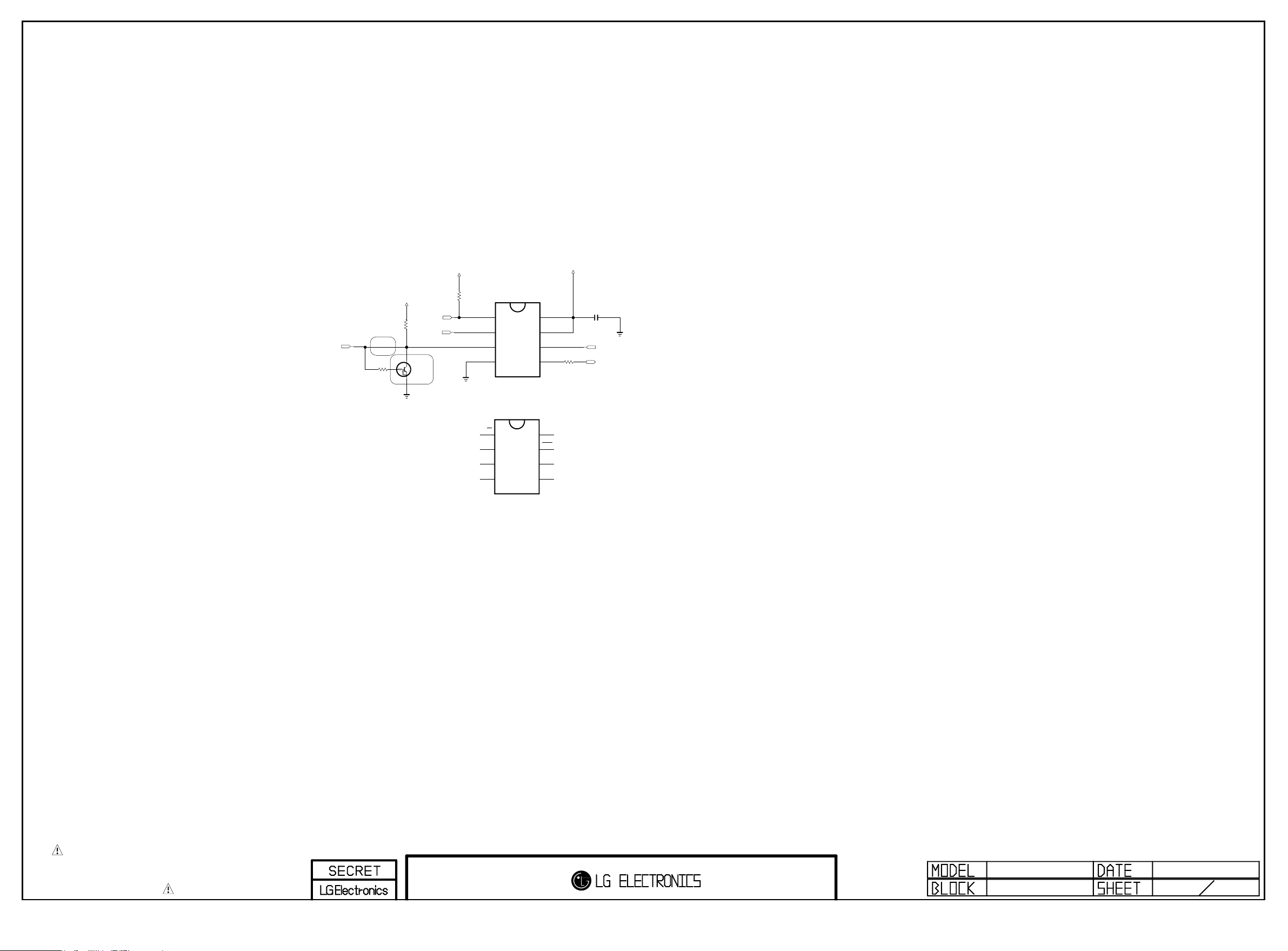

USB_DIODES

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

R1458
2K
1/8W
1%

SIGN6409

1234

USB DOW N S TREA M

JK1 450

3AU 04S- 305 -ZC- (LG)

L1451-*1

CIS21J121

L1451

MLB-201209-0120P-N2

120-ohm

R1459
2K

C1451
1/8W
1%

22uF

16V

OUT_2

OUT_1

NC

FLG

EAN61849601

IC1450

AP2191DSG

8

$0.077

7

6

5

R1451 47

GND

1

IN_1

2

IN_2

3

EN

4

SIDE_USB_DM

SIDE_USB_DP

R1454
10K

C1452
10uF
10V

USB1_OCD

C1453

0.1uF

+5V_USB

+3.3V_Normal

R1455

4.7K
OPT

USB1_CTL

5

D1451
RCLAMP0502BA

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

20101023GP2R

USB_OCP_DIODE 7

HDMI_1

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

SHIELD

HDMI_1

EAG59023302

20

JK802

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

5V_HDMI_1

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

R896
1K

R804

1.8K

OPT

D802

5V_DET_HDMI_1

3.3K

R802

C802

0.1uF
16V

R824

HDMI EEPROM

5V_HDMI_1

+5V_Normal

A1CA2

ENKMC2838-T112

R874

10K

R884

2.7K

5V_HDMI_2

10K

R873

R885

2.7K

D821

R888

2.7K

+5V_Normal

A2

A1

ENKMC2838-T112
D822

C

R889

2.7K

EDID_WP

DDC_SCL_1

DDC_SDA_1

EDID_WP

DDC_SCL_2

DDC_SDA_2

HDMI_1_RENESAS

IC801-*1

R1EX24002ASAS0A

C

Q802

2SC3052

0

R830

B

10K

E

HPD1

DDC_SDA_1

DDC_SCL_1

HDMI_CEC

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

A0

1

A1

2

A2

3

VSS

4

HDMI_2_RENESAS

IC802-*1

R1EX24002ASAS0A

A0

1

A1

2

A2

3

VSS

4

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

HDMI_1_ATMEL

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

IC801

$0.055

HDMI_2_ATMEL

IC802

$0.055

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

R876 22

R875 22

JP810

R878 22

R877 22

C806

0.1uF

0.1uF

C807

HDMI_2

SHIELD

20

HDMI_2

EAG59023302

JK801

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R895

1K

R803

1.8K

5V_DET_HDMI_2

C

R828

Q801

2SC3052

C801

0.1uF
16V

R801

3.3K

R815 0

OPT

D801

10K

B

E

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SIDE_HDMI

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11
10

EAG62611201

9

HDMI_SIDE

8

7

6

5

4

3

2

1

JK803

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R897

1K
R837

1.8K

+5V_Normal

C809

0.1uF

+3.3V_Normal

R856
10K

C805

0.1uF
16V

GND

GND

5V_HDMI_4

R871

R887

2.7K

R893
10K

C810

0.1uF
16V

10K

R891

2.7K

+3.5V_ST

A1CA2
ENKMC2838-T112
D824

R857

68K

OPT

CEC_ON/OFF

R853

68K

EDID_WP

DDC_SCL_4

DDC_SDA_4

CEC_REMOTE_S7

CEC_REMOTE_NEC

5V_DET_HDMI_4

C

Q803

2SC3052

C803

0.1uF
16V

3.3K

JP806

JP805

R841

0

R835

OPT

D811

R862

B

10K

E

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

HDMI_SIDE_RENESAS

IC804-*1

R1EX24002ASAS0A

A0

1

A1

2

A2

3

VSS

4

VCC

8

WP

7

SCL

6

SDA

5

For CEC

HDMI_CEC

OPT

D803

AVRL161A1R1NT

GND

OPT

D826

AVRL161A1R1NT

GND

HDMI_SIDE_ATMEL

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

D804

D825

IC804

$0.055

VCC

8

WP

7

JP812

SCL

6

5

R881 22

SDA

R882 22

68K

R854

R855

0

OPT

SBD

Q806

G

BSS83

68K

R892

R883

0

OPT

SBD

Q805

G

BSS83

20101023 GP2R

HDMI 8

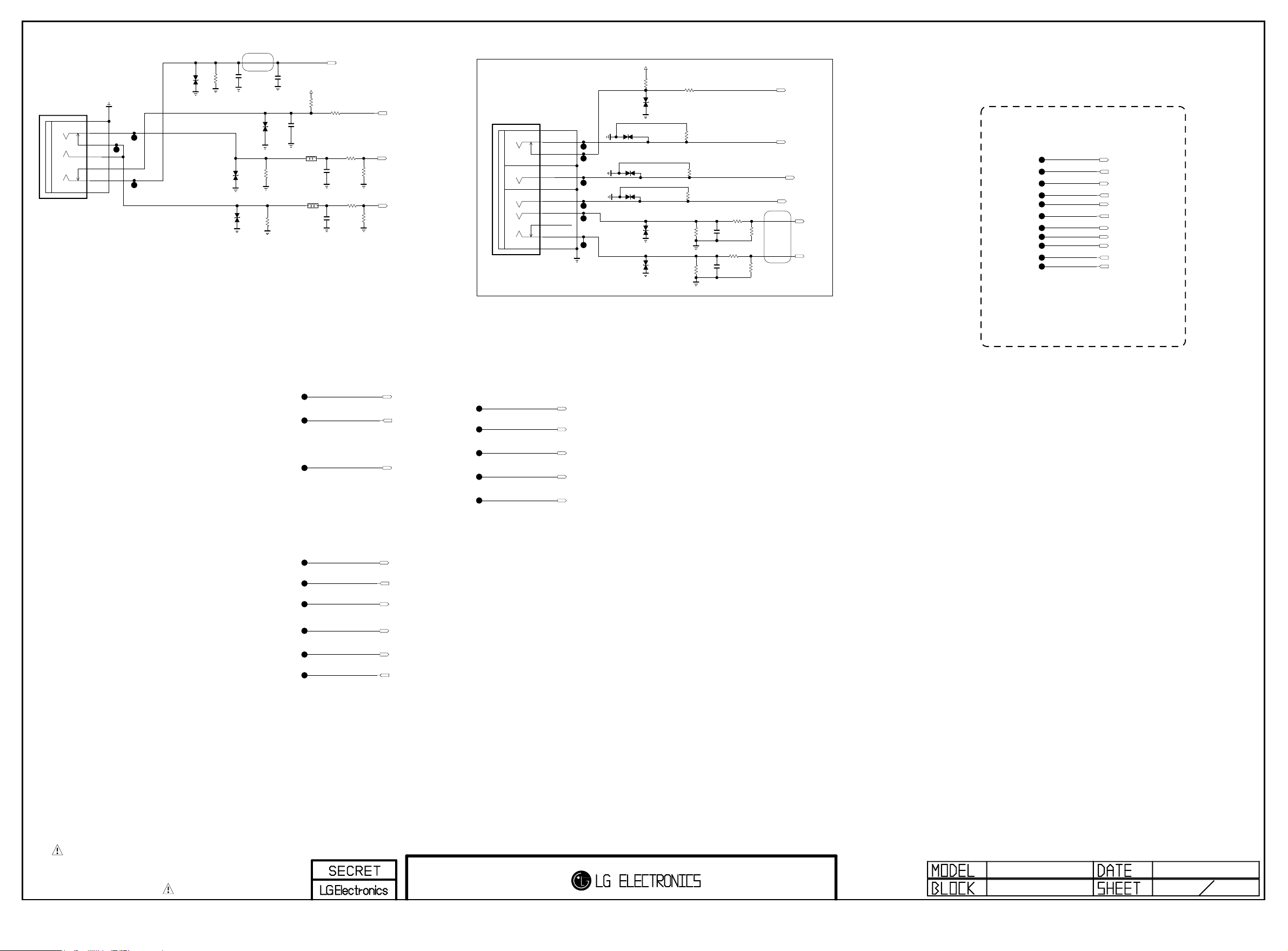

RGB/SPDIF/PC/HP

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

SIDE_HP_MUTE

HP_LOUT

002:V7

HP_ROUT

002:V7

R1112
1K

002:V7

HP_DET

HP_DET Default Low

PC AUDIO

JK1102

PEJ027-01

E_SPRING

3

T_TERMINAL1

6A

B_TERMINAL1

7A

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

D1101

AMOTECH

5.6V

OPT

D1102

AMOTECH

5.6V
OPT

C1107

100pF

50V

C1108
100pF
50V

R1102
470K

R1103
470K

R1107
15K

R1108
15K

R1110
10K

R1111
10K

PC_R_IN

PC_L_IN

002:S12

002:S12

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

002:T18

+3.3V_Normal

C1131

0.1uF
16V

VINPUT

C1121
100pF
50V

D1116

5.6V
OPT

+5V_Normal

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

R1146
10K

D1117

5.6V

OPT

R1147
1K

DSUB_DET

RGB PC

GND

Fiber Optic

1

VCC

2

JK1103

JST1223-001

3

4

FIX_POLE

RGB_EEMPROM_RENESAS

R1EX24002ASAS0A

A0

A1

A2

VSS

DSUB_VSYNC

DSUB_HSYNC

DSUB_B+

DSUB_G+

DSUB_R+

IC1105-*1

1

2

3

4

VCC

8

WP

7

SCL

6

SDA

5

R1133
75

R1135
75

R1137
75

RGB_EEMPROM_ATMEL

A0

A1

A2

GND

C1122
68pF
50V
OPT

IC1105

AT24C02BN-SH-T

1

2

3

4

R1139

D1109
30V

D1110
30V

D1111
30V

D1112
30V

C1127

18pF

2.2K

50V

C1126
68pF
50V
OPT

VCC

8

WP

7

SCL

6

SDA

5

C1128
18pF

50V

D1113

30V

D1115

ENKMC2838-T112

A1

C

A2

R1140

2.2K

R1141
22

D1114

5.6V
OPT

R1142

10K

C1129

0.1uF

16V

R1143
22

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

JK1104

SPG09-DB-010

11

6

1

SHILED

16

RGB/SPDIF/HP 9

20101023GP2R

RS232C

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

0.33uF

C1101

C1102

0.1uF

C1103

0.1uF

C1104

0.1uF

C1105

0.1uF
DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC1101

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

10

5

9

4

R1123
100

S7_NEC_RXD

S7_NEC_TXD

R1124
100

+3.5V_ST

D1107
CDS3C30GTH
30V

OPT

C1106

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

D1108
CDS3C30GTH
30V

OPT

JP1121

JP1122

8

7

6

SPG09-DB-009

JK1101

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

20101023GP2R

RS232C_9PIN 10

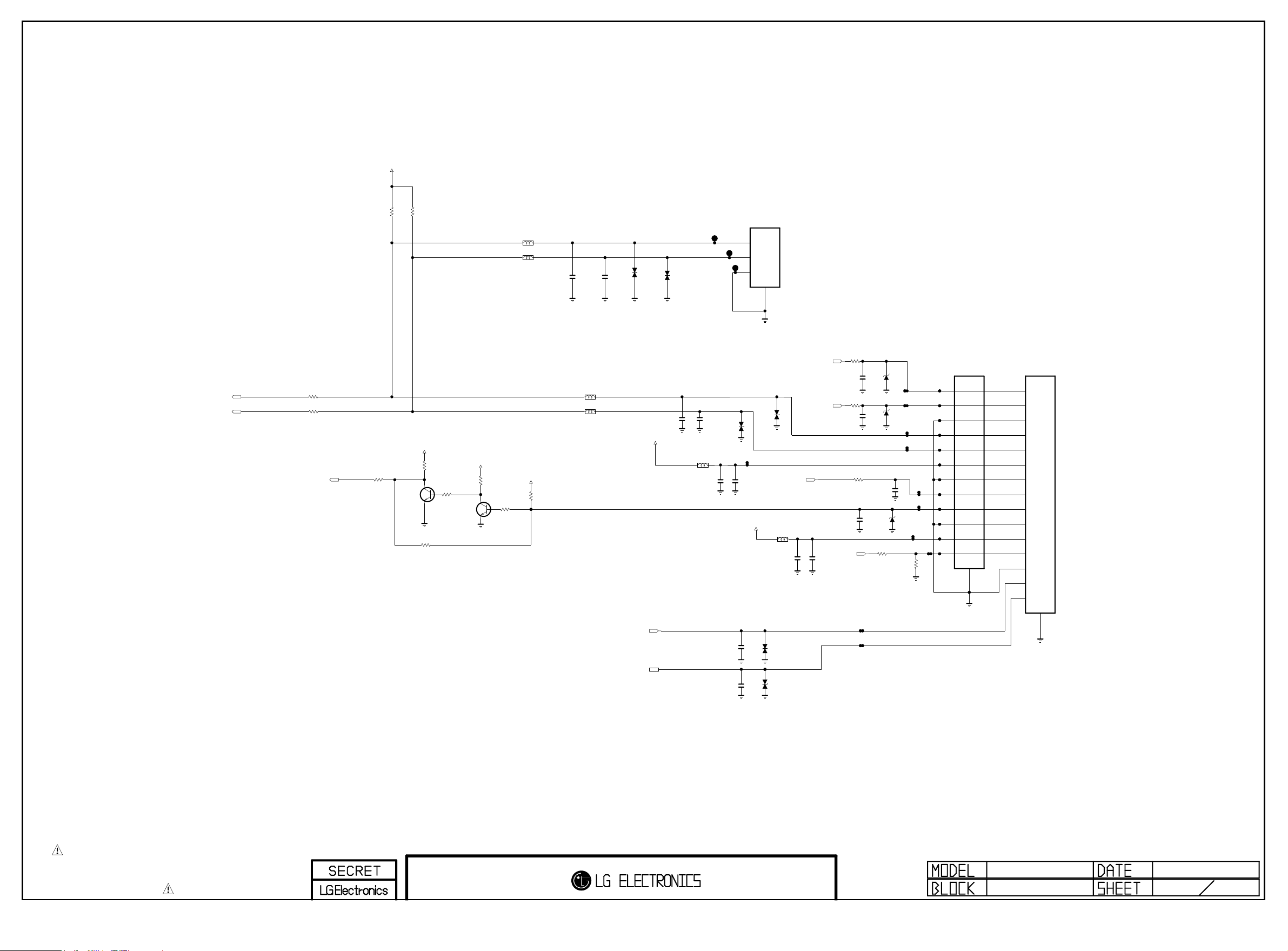

[51Pin LVDS Connector]

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

(For FHD 60/120Hz)

P703

FI-RE51S-HF-J-R1500

WAFER_FHD

52

PANEL_VCC

L702
120-ohm
WAFER_FHD

C709

C700
10uF
16V

R703

0

LVDS_PWM_44

OPT

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

RXB4-

RXB4+

RXB3-

RXB3+

RXBCK-

RXBCK+

RXB2-

RXB2+

RXB1-

RXB1+

RXB0-

RXB0+

R707
0

LVDS_51PIN_GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

1000pF
50V

OPT

RXA4-

RXA4+

RXA3-

RXA3+

BIT_SEL

SCAN_BLK2

PWM_DIM

C710

0.1uF
16V

WAFER_FHD

R709

10K

BIT_SEL_LOW

LVDS_SEL

+3.3V_Normal

R705

3.3K
OPT

R710
10K

OPT

RXD1-

RXD2+

RXD3+

RXD0-

RXD3-

RXD0+

RXD1+

RXD2-

RXD4-

RXD4+

[30Pin LVDS Connector]
(For HD 60Hz_Normal)

P704

FF10001-30

WAFER_HD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

OPT

RXC3-

RXA4+

RXC2-

RXC1+

RXC1-

RXC2+

RXC3+

RXA4-

RXC0-

RXCCK-

R7130

TP721

RXA3-

RXA3+

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

PWM_DIM

+3.3V_Normal

C701
10uF
16V
OPT

LED_DRIVER_D/L_SDA

LED_DRIVER_D/L_SCL

LVDS_SEL

R712

3.3K

R711

10K

OPT

OPT

C702
1000pF
50V

PANEL_VCC

L701

120-ohm

WAFER_HD

OPT

WAFER_HD

C703

0.1uF
16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RXB4-

RXB4+

RXC4-

RXC0+

RXCCK+RXC4+

RXDCK-

RXDCK+

RXC4-

20101023GP2R

LVDS_LARGE 11

A-MVREFCA

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

A-MVREFDQ

VCC_1.5V_DDR

VCC_1.5V_DDR

R1201

1K 1%

R1202

1K 1%

R1203

240

1%

0.1uF
1000pF

C1202

C1201

CLose to DDR3

H5TQ1G63DFR-H9C

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A-MVREFDQ

EAN61828901

IC1201

DDR_1333_HYNIX

VCC_1.5V_DDR

R1204

1K 1%

R1205

1K 1%

C1203

CLose to Saturn7M IC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

0.1uF

C1204

1000pF

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13

A-MBA0
A-MBA1
A-MBA2

A-MCKE

A-MVREFCA

A-MODT
A-MRASB
A-MCASB
A-MWEB

A-MRESETB

A-MDQSL
A-MDQSLB

A-MDQSU
A-MDQSUB

A-MDML
A-MDMU

A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

R1235

56

R1236

56

VCC_1.5V_DDR

R1231
10K

1%

C1209

0.01uF

1%

25V

VCC_1.5V_DDR

C1205

10uF

Close to DDR Power Pin

A-MA0

A-MA2

A-MA11

A-MA1
A-MA8
A-MA6

A-MBA0

A-MA3
A-MA5
A-MA7

A-MA4
A-MA12
A-MBA1
A-MA10

A-MRESETB

A-MBA2
A-MA13

A-MA9

A-MCK

A-MCK

A-MCKB

A-MCKB

A-MRASB
A-MCASB

A-MODT
A-MWEB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDQL1
A-MDQL3

A-MDML

A-MDQU2

A-MCKE

A-MDQL7
A-MDQL5

A-MDQL0
A-MDQL2
A-MDQL6
A-MDQL4

A-MDQU7
A-MDQU3
A-MDQU5

A-MDMU

A-MDQU6
A-MDQU0
A-MDQU4

A-MDQU1

A-MCKE

DDR3 1.5V By CAP - Place these Caps near Memory

C1206

0.1uF

0.1uF

C1207

C1208

R1213

1%

56

R1214

1%

56

AR1208

56

AR1203

56

AR1204

56

AR1201

56

R1206

22

R1207

22

AR1202

56

R1208

22

R1209

22

R1211

22

R1212

22

AR1209

22

AR1210

22

AR1205

22

AR1206

22

AR1207

22

R1210

22

R1233 10K

0.1uF

C1210

0.1uF

0.1uF

C1211

A-TMA0

A-TMA2

A-TMA11
A-TMA1
A-TMA8
A-TMA6

A-TMBA0
A-TMA3
A-TMA5
A-TMA7

A-TMA4
A-TMA12
A-TMBA1
A-TMA10

A-TMRESETB
A-TMBA2
A-TMA13
A-TMA9

A-TMCK

A-TMCKB

A-TMRASB
A-TMCASB
A-TMODT
A-TMWEB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB

A-TMDQL1
A-TMDQL3
A-TMDML

A-TMDQU2

A-TMCKE
A-TMDQL7
A-TMDQL5

A-TMDQL0
A-TMDQL2
A-TMDQL6
A-TMDQL4

A-TMDQU7
A-TMDQU3
A-TMDQU5
A-TMDMU

A-TMDQU6
A-TMDQU0
A-TMDQU4

A-TMDQU1

C1212

0.1uF

C1213

A-TMRASB
A-TMCASB

A-TMRESETB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB

A-TMDQL0
A-TMDQL1
A-TMDQL2
A-TMDQL3
A-TMDQL4
A-TMDQL5
A-TMDQL6
A-TMDQL7

A-TMDQU0
A-TMDQU1
A-TMDQU2
A-TMDQU3
A-TMDQU4
A-TMDQU5
A-TMDQU6
A-TMDQU7

0.1uF

C1214

A-TMA0
A-TMA1
A-TMA2
A-TMA3
A-TMA4
A-TMA5
A-TMA6
A-TMA7
A-TMA8

A-TMA9
A-TMA10
A-TMA11
A-TMA12
A-TMA13

A-TMBA0
A-TMBA1
A-TMBA2

A-TMCK
A-TMCKB
A-TMCKE

A-TMODT

A-TMWEB

A-TMDML
A-TMDMU

0.1uF

C1215

C1216

0.1uF

0.1uF

0.1uF

0.1uF

C1217

C1218

C1219

0.1uF

C1220

+1.5V_DDR

L1201

S7M-PLUS_DivX_MS10

LGE107DC-RP [S7M+ DIVX/MS10]

B8

A_DDR3_A0/DDR2_A13

B9

A_DDR3_A1/DDR2_A8

A8

A_DDR3_A2/DDR2_A9

C21

A_DDR3_A3/DDR2_A1

B10

A_DDR3_A4/DDR2_A2

A22

A_DDR3_A5/DDR2_A10

A10

A_DDR3_A6/DDR2_A4

B22

A_DDR3_A7/DDR2_A3

C9

A_DDR3_A8/DDR2_A6

C23

A_DDR3_A9/DDR2_A12

B11

A_DDR3_A10/DDR2_RASZ

A9

A_DDR3_A11/DDR2_A11

C10

A_DDR3_A12/DDR2_A0

B23

A_DDR3_A13/DDR2_A7

B21

A_DDR3_BA0/DDR2_BA2

A11

A_DDR3_BA1/DDR2_CASZ

A23

A_DDR3_BA2/DDR2_A5

A12

A_DDR3_MCLK/DDR2_MCLK

C11

A_DDR3_MCLKZ/DDR2_MCLKZ

B12

A_DDR3_CKE/DDR2_DQ5

C20

A_DDR3_ODT/DDR2_ODT

A20

A_DDR3_RASZ/DDR2_WEZ

B20

A_DDR3_CASZ/DDR2_BA1

A21

A_DDR3_WEZ/DDR2_BA0

C22

A_DDR3_RESETB

C16

A_DDR3_DQSL/DDR2_DQS0

B16

A_DDR3_DQSLB/DDR2_DQSB0

A16

A_DDR3_DQSU/DDR2_DQSB1

C15

A_DDR3_DQSUB/DDR2_DQS1

A14

A_DDR3_DML//DDR2_DQ13

B18

A_DDR3_DMU/DDR2_DQ6

C18

A_DDR3_DQL0/DDR2_DQ3

B13

A_DDR3_DQL1/DDR2_DQ7

A19

A_DDR3_DQL2/DDR2_DQ1

C13

A_DDR3_DQL3/DDR2_DQ10

C19

A_DDR3_DQL4/DDR2_DQ4

A13

A_DDR3_DQL5/DDR2_DQ0

B19

A_DDR3_DQL6/DDR2_CKE

C12

A_DDR3_DQL7/DDR2_DQ2

A15

A_DDR3_DQU0/DDR2_DQ15

A17

A_DDR3_DQU1/DDR2_DQ9

B14

A_DDR3_DQU2/DDR2_DQ8

C17

A_DDR3_DQU3/DDR2_DQ11

B15

A_DDR3_DQU4/DDR2_DQM1

A18

A_DDR3_DQU5/DDR2_DQ12

C14

A_DDR3_DQU6/DDR2_DQM0

B17

A_DDR3_DQU7/DDR2_DQ14

0.1uF

0.1uF

0.1uF

C1221

C1222

C1225
10uF
10V

IC101

B_DDR3_MCLK/DDR2_MCLK

B_DDR3_MCLKZ/DDR2_MCLKZ

B_DDR3_DQSL/DDR2_DQS0

B_DDR3_DQSLB/DDR2_DQSB0

B_DDR3_DQSU/DDR2_DQSB1
B_DDR3_DQSUB/DDR2_DQS1

B_DDR3_DQL3/DDR2_DQ10

B_DDR3_DQU0/DDR2_DQ15

B_DDR3_DQU3/DDR2_DQ11
B_DDR3_DQU4/DDR2_DQM1
B_DDR3_DQU5/DDR2_DQ12
B_DDR3_DQU6/DDR2_DQM0
B_DDR3_DQU7/DDR2_DQ14

0.1uF

0.1uF

C1223

C1224

VCC_1.5V_DDR

C1226

0.1uF
16V

B_DDR3_A0/DDR2_A13

B_DDR3_A1/DDR2_A8
B_DDR3_A2/DDR2_A9
B_DDR3_A3/DDR2_A1
B_DDR3_A4/DDR2_A2

B_DDR3_A5/DDR2_A10

B_DDR3_A6/DDR2_A4
B_DDR3_A7/DDR2_A3
B_DDR3_A8/DDR2_A6

B_DDR3_A9/DDR2_A12

B_DDR3_A10/DDR2_RASZ

B_DDR3_A11/DDR2_A11

B_DDR3_A12/DDR2_A0
B_DDR3_A13/DDR2_A7

B_DDR3_BA0/DDR2_BA2

B_DDR3_BA1/DDR2_CASZ

B_DDR3_BA2/DDR2_A5

B_DDR3_CKE/DDR2_DQ5

B_DDR3_ODT/DDR2_ODT
B_DDR3_RASZ/DDR2_WEZ
B_DDR3_CASZ/DDR2_BA1

B_DDR3_WEZ/DDR2_BA0

B_DDR3_RESETB

B_DDR3_DML/DDR2_DQ13

B_DDR3_DMU/DDR2_DQ6

B_DDR3_DQL0/DDR2_DQ3
B_DDR3_DQL1/DDR2_DQ7
B_DDR3_DQL2/DDR2_DQ1

B_DDR3_DQL4/DDR2_DQ4
B_DDR3_DQL5/DDR2_DQ0
B_DDR3_DQL6/DDR2_CKE
B_DDR3_DQL7/DDR2_DQ2

B_DDR3_DQU1/DDR2_DQ9
B_DDR3_DQU2/DDR2_DQ8

0.1uF

DDR3 1.5V By CAP - Place these Caps near Memory

C1227

0.1uF

C1228

0.1uF

C1229

0.1uF

C1230

0.1uF

C1231

0.1uF

C1232

0.1uF

C1233

0.1uF

C1234

0.1uF

C1235

0.1uF

C1236

0.1uF

C1237

0.1uF

C1238

0.1uF

C1239

0.1uF

C1241

0.1uF

C1242

0.1uF

C1243

0.1uF

C1244

0.1uF

VCC_1.5V_DDR

C1245

10uF

C1246

B-MVREFCA

1000pF

VCC_1.5V_DDR

0.1uF

C1247

C1248

R1224

1K 1%

B-MVREFDQ

R1225

1K 1%

1000pF

VCC_1.5V_DDR

0.1uF

C1249

C1250

R1227

1K 1%

R1228

1K 1%

Close to DDR Power Pin

CLose to Saturn7M IC

B-TMA0

B-TMA2

B-TMA11

B-TMA1
B-TMA8
B-TMA6

B-TMBA0

B-TMA3
B-TMA5
B-TMA7

A25
B24
A24
P25
C24
P26
B26
R24
B25
T26
D24
A26
C25
T25

P24
C26
R26

D26
D25
E24

N25
M26
N24
N26

R25

J25
J24

H26
H25

F26
L24

L25
F24
L26
F25
M25
E26
M24
E25

G26
J26
G24
K25
H24
K26
G25
K24

B-TMA0
B-TMA1
B-TMA2
B-TMA3
B-TMA4
B-TMA5
B-TMA6
B-TMA7
B-TMA8
B-TMA9
B-TMA10
B-TMA11
B-TMA12
B-TMA13

B-TMBA0
B-TMBA1
B-TMBA2

B-TMCK
B-TMCKB
B-TMCKE

B-TMODT
B-TMRASB
B-TMCASB
B-TMWEB

B-TMRESETB

B-TMDQSL
B-TMDQSLB

B-TMDQSU
B-TMDQSUB

B-TMDML
B-TMDMU

B-TMDQL0
B-TMDQL1
B-TMDQL2
B-TMDQL3
B-TMDQL4
B-TMDQL5
B-TMDQL6
B-TMDQL7

B-TMDQU0
B-TMDQU1
B-TMDQU2
B-TMDQU3
B-TMDQU4
B-TMDQU5
B-TMDQU6
B-TMDQU7

B-TMA4
B-TMA12
B-TMBA1
B-TMA10

B-TMRESETB

B-TMBA2
B-TMA13

B-TMA9

B-TMCK

B-TMCKB

B-TMRASB
B-TMCASB

B-TMODT
B-TMWEB

B-TMDQSL

B-TMDQSLB

B-TMDQSU

B-TMDQSUB

B-TMDQL1
B-TMDQL3

B-TMDML

B-TMDQU2

B-TMCKE

B-TMDQL7
B-TMDQL5

B-TMDQL0
B-TMDQL2
B-TMDQL6
B-TMDQL4

B-TMDQU7
B-TMDQU3
B-TMDQU5

B-TMDMU

B-TMDQU6
B-TMDQU0
B-TMDQU4

B-TMDQU1

R1215

56

R1216

56

AR1211

56

AR1214

AR1215

AR1219

R1222

R1223

AR1220

R1219

22

R1220

22

R1217

22

R1218

22

AR1212

22

AR1213

22

AR1216

AR1217

AR1218

R1221

22

B-MA0

1%

B-MA2

1%

B-MA11
B-MA1
B-MA8
B-MA6

B-MBA0
B-MA3
B-MA5
B-MA7

56

B-MA4
B-MA12
B-MBA1
B-MA10

56

B-MRESETB
B-MBA2
B-MA13
B-MA9

B-MCK

B-MCKB

B-MRASB
B-MCASB
B-MODT
B-MWEB

B-MDQSL

B-MCK

B-MCKB

VCC_1.5V_DDR

C1240

0.01uF
25V

1%

1%

R1232

10K

56

22

22

56

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDQL1
B-MDQL3
B-MDML
B-MDQU2

B-MCKE
B-MDQL7
B-MDQL5

B-MDQL0
B-MDQL2
B-MDQL6
B-MDQL4

22

B-MDQU7
B-MDQU3
B-MDQU5
B-MDMU

22

B-MDQU6
B-MDQU0
B-MDQU4

56

R1237

56

R1238

B-MRASB
B-MCASB

B-MRESETB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7

B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7

B-MODT

B-MWEB

B-MDML
B-MDMU

B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8

B-MA9
B-MA10
B-MA11
B-MA12
B-MA13

B-MBA0
B-MBA1
B-MBA2

B-MCKE

EAN61828901

IC1202

H5TQ1G63DFR-H9C

DDR_1333_HYNIX

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

B-MVREFCA

H1

B-MVREFDQ

R1226

L8

ZQ

240

1%
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

VCC_1.5V_DDR

22

B-MDQU1

R123410K

B-MCKE

CLose to DDR3

IC1201-*1

K4B1G1646G-BCH9

DDR_1333_SS_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1201-*2

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3

EAN61857201A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

IC1202-*1

K4B1G1646G-BCH9

DDR_1333_SS_NEW

N3

M8

A0

P7

A1

P3

A2

N2

H1

A3

P8

A4

P2

A5

R8

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1202-*2

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3
P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

EAN61857201A0

ZQ

ZQ

NC_1
NC_2
NC_3
NC_4
NC_7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

DDR_256

20101023

12

/FLASH_WP

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

R1401

OPT

+3.3V_Normal

B

0

R1403

10K

C

Q1401
KRC103S

E

/SPI_CS

SPI_SDO

OPT

+3.3V_Normal

R1404

4.7K

S_FLASH_MAIN_MACRONIX

MX25L8006EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND

4

S_FLASH_MAIN_WINBOND

IC1401-*1

W25Q80BVSSIG

CS

1

DO[IO1]

2

%WP[IO2]

3

GND

4

IC1401

8

7

6

5

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

+3.3V_Normal

R1405
33

C1401

0.1uF

SPI_SCK

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

SFLASH_1MB

20101023

13

+3.3V_Normal

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

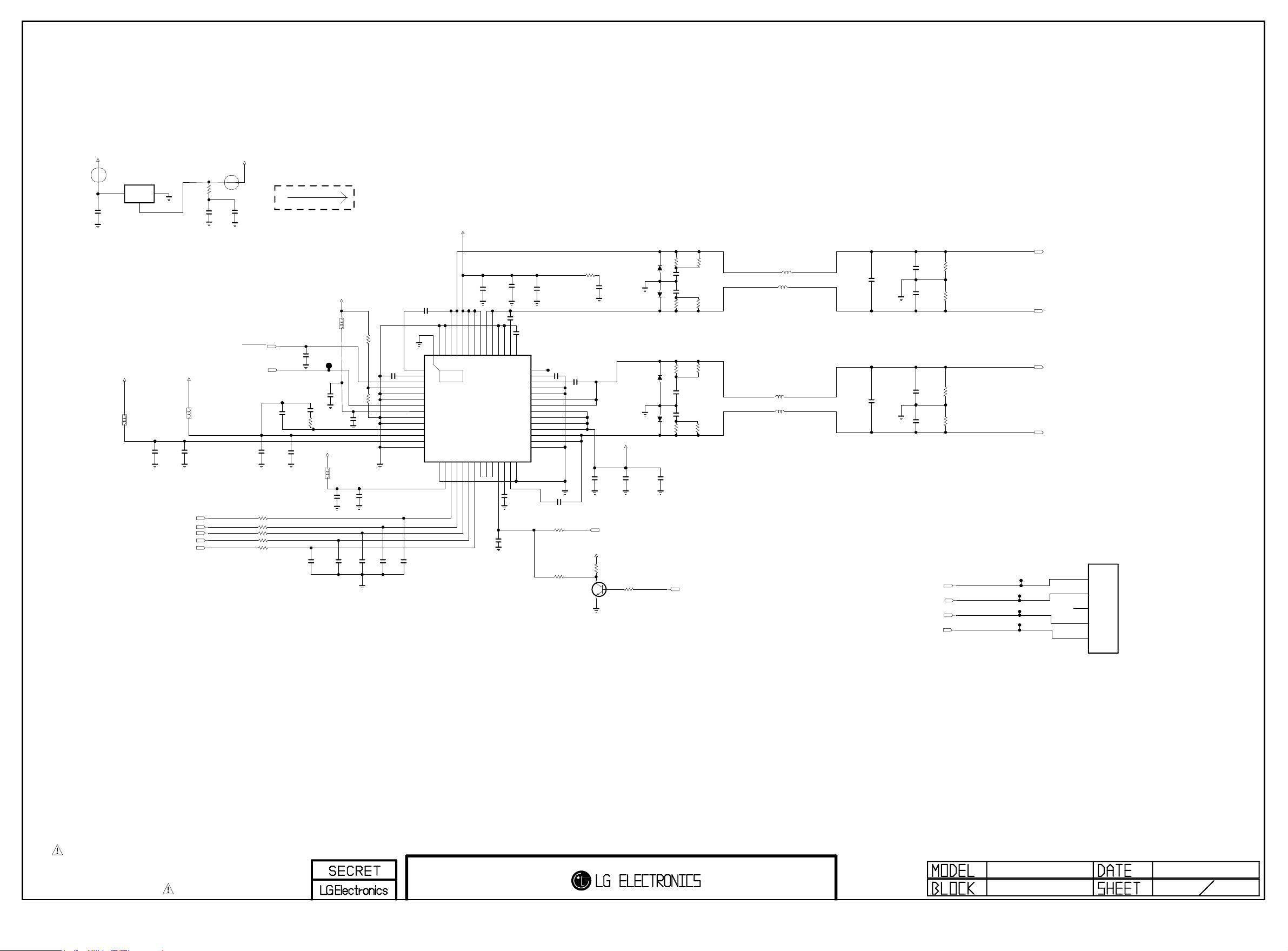

C5059

0.1uF
16V

IC503

AP1117E18G-13

IN

Vd=1.4V

3

2

OUT

1

ADJ/GND

R5068

1

C5069
10uF
10V

+1.8V_AMP2

C5004

0.1uF
16V

AMP2 RIGHT

120 mA

+24V

+1.8V_AMP2

BLM18PG121SN1D

L5053

C5064

10uF

10V

+1.8V_AMP2

BLM18PG121SN1D

AUD_LRCH

AUD_LRCK

AUD_SCK
AMP_SDA
AMP_SCL

L5054

C5005

0.1uF
16V

AMP_RESET

AUD_MASTER_CLK

R5054 100

R5060 100
R5004 100

R5005 33
R5063 33

C5072

10uF

10V

C5009

1000pF

C5062
100pF

50V

50V

C5008

0.1uF
16V

C5073

0.1uF

C5071
1000pF

50V

R5064

3.3K

+1.8V_AMP2

BLM18PG121SN1D

C5063
18pF
50V

+3.3V_Normal

L5052

BLM18PG121SN1D

TP5002

L5055

C5058
10uF

10V

C5054
18pF
50V

OPT

C5074
10uF
10V

OPT

R5077

10K

R5076

10K

C5051

0.1uF
16V

C5014
22pF
50V
SMD

1/16W

1/16W

5%

C50 53

1uF 25V

5%

OPT

C5015
22pF
50V
SMD

C5052

22000pF

BST1A
VDR1A

/RESET

DGND_1
GND_IO

CLK_I

VDD_IO
DGND_PLL
AGND_PLL

AVDD_PLL
DVDD_PLL

OPT

C5065
22pF
50V
SMD

D5001

OPT
R5010

3.3

C5030

22000pF

50V

R5055

10K

Q5050

2SC3052

C5056

50V

POWER_DET

+3.5V_ST

C

E

C5032

0.01uF
50V

C5070

0.1uF
50V

C5066
22000pF

50V

C5057
1uF
25V

VDR1B44BST1B45PGND1B_1

43

42
41
40
39
38
37
36
35
34
33
32
31
30
29

28

PGND2B_1

C5050
10uF
35V

NC
VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2

R5070 100

TP5001

C50 68

R5008
0

OPT

1uF25V

C5067
22000pF

50V

C5061

0.1uF
50V

50V

EP_PAD

PVDD1A_2

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

52

53

54

55

56

1

THERMAL

2

57

3

AD

4
5
6

IC502
7
8

EAN60969603
9

10

LF

11

NTP-7100
12
13

GND

14

15

16

17

18

WCK19BCK20SDA21SCL

DVDD

SDATA

DGND_2

PVDD1B_2

PVDD1A_1

50

51

PGND1B_2

OUT1B_1

OUT1B_2

PVDD1B_1

46

47

48

49

22

25

VDR2B27BST2B

/FAULT

MONITOR023MONITOR124MONITOR2

C50 55
1uF
25V

C5060
1000pF
50V

26

1N4148W

100V

OPT

OPT

D5002

1N4148W

OPT

D5003

1N4148W

100V

OPT

D5004

1N4148W

+24V

C5033

0.1uF
50V

R5012

B

10K

100V

100V

OPT

C5034
10uF
35V0.1uF

R5013

12

C5035
390pF

50V

C5036
390pF

50V

R5052

12

R5061

12

C5037
390pF

50V

C5038
390pF

50V

R5050

12

AMP_MUTE

R5073

12

R5059

12

R5071

12

R5065

12

L5004

10.0uH

NRS6045T100MMGK

L5005

10.0uH

NRS6045T100MMGK

L5006

10.0uH

NRS6045T100MMGK

L5007

10.0uH

NRS6045T100MMGK

C5039

0.47uF
50V

C5040

0.47uF
50V

C5041

0.1uF
50V

C5042

0.1uF
50V

C5043

0.1uF
50V

C5044

0.1uF

50V

SPK_R1+

SPK_R2+

SPK_R2-

SPK_R1-

R5058

4.7K

R5053

4.7K

R5023

4.7K

R5074

4.7K

SPK_R1+

SPEAKER_R1

SPK_R1-

SPK_R2+

SPEAKER_R2

SPK_R2-

JP5053

JP5050

JP5051

JP5052

5

4

3

2

1

SMAW250-05

P5050

SPEAKER_R1+
SPEAKER_R1-

SPEAKER_R2+
SPEAKER_R2-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

WOOFER_NTP

20101023

15

+3.3V_Normal

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

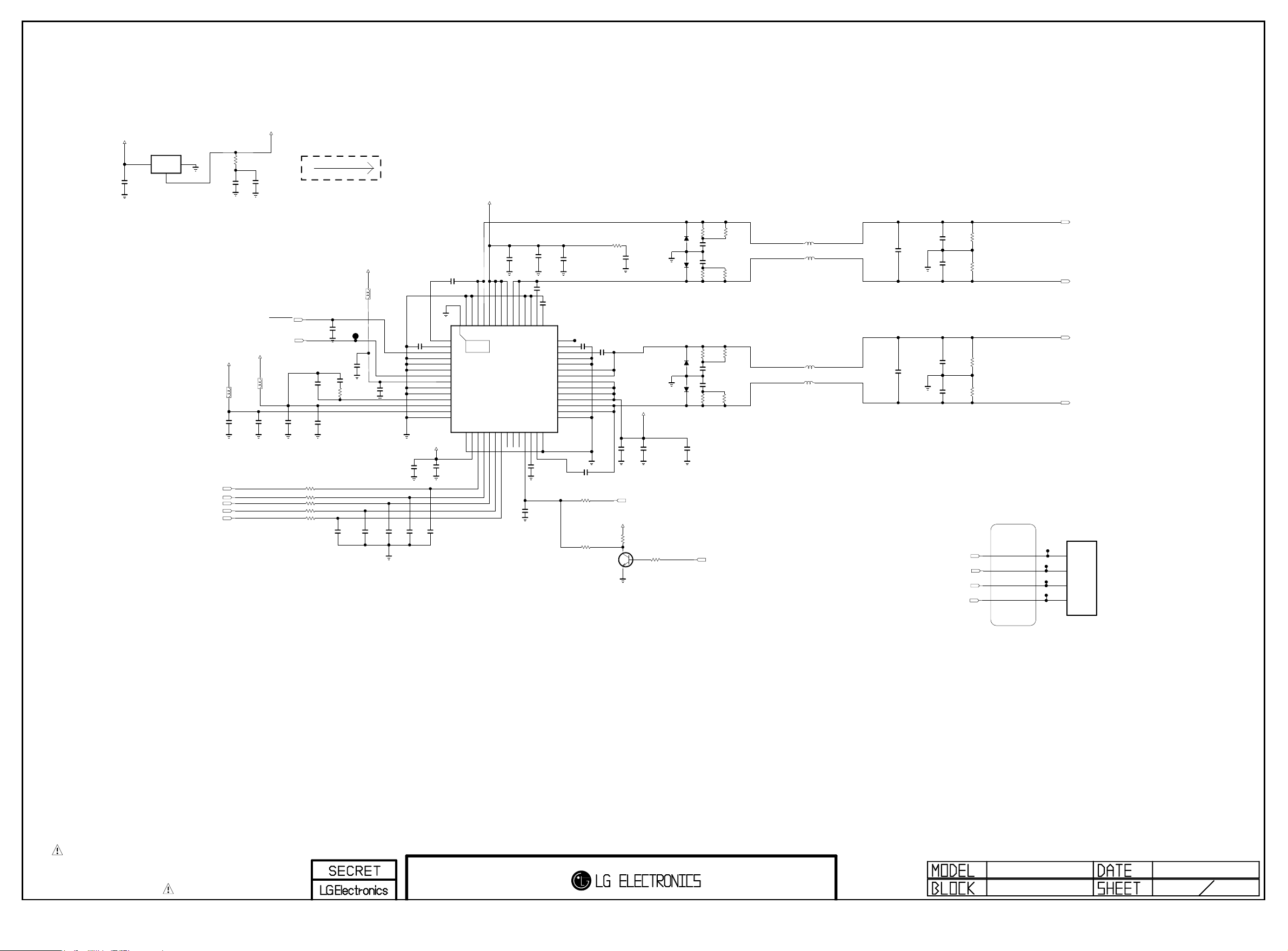

C434

0.1uF
16V

IC404

AP1117E18G-13

IN

Vd=1.4V

3

2

OUT

1

ADJ/GND

R474

+1.8V_AMP

1

C446

C421

0.1uF

10uF

16V

10V

120 mA

+24V

AMP1 LEFE

AUD_LRCH

AUD_LRCK

AUD_SCK
AMP_SDA
AMP_SCL

+1.8V_AMP

L501

BLM18PG121SN1D

C501

10uF

10V

AMP_RESET

AUD_MASTER_CLK

+1.8V_AMP

L502

BLM18PG121SN1D

C502

0.1uF
16V

C503

10uF

10V

R503 100

R504 100
R505 100

R506 33
R507 33

C506

1000pF

50V

C504
100pF

0.1uF

50V

C505

D501

C527

0.1uF
50V

R517

1N4148W

100V

OPT

D502

1N4148W

100V

OPT

D503

1N4148W

100V

OPT

D504

1N4148W

100V

OPT

C528
10uF
35V

10K

OPT

R535

3.3
OPT

C525

22000pF

50V

R515

10K

Q501

2SC3052

C526

0.1uF
50V

POWER_DET

+3.5V_ST

C

E

C547

0.01uF
50V

+24V

B

C519

0.1uF
50V

C518
22000pF
50V

C520
1uF
25V

VDR1B44BST1B45PGND1B_1

43

42
41
40
39
38
37
36
35
34
33
32
31
30
29

28

PGND2B_1

C521
10uF
35V

NC
VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2

R514 100

C52 2

R513
0

OPT

1uF25V

C524
22000pF

50V

C515

0.1uF

PVDD1A_1

PVDD1A_2

OUT1A_1

51

52

53

18

WCK19BCK20SDA21SCL

50V

OUT1B_1

OUT1B_2

PVDD1B_1

PVDD1B_2

47

48

49

50

22

MONITOR023MONITOR124MONITOR2

C51 7
1uF
25V

PGND1B_2

46

25

26

VDR2B27BST2B

/FAULT

C516
1000pF
50V

+3.3V_Normal

C514

22000pF

C51 2

1uF 25V

+1.8V_AMP

C511
10uF

10V

C544
22pF
50V

OPT

BST1A
VDR1A

/RESET

DGND_1
GND_IO

CLK_I

VDD_IO
DGND_PLL
AGND_PLL

AVDD_PLL
DVDD_PLL

C513

0.1uF

C545
22pF
50V

OPT

50V

OUT1A_2

PGND1A_1

PGND1A_2

EP_PAD

54

55

56

1

THERMAL

2

57

3

AD

4
5
6

IC501
7
8

EAN60969603
9

10

LF

11

NTP-7100
12
13

GND

14

15

16

17

DVDD

SDATA

DGND_2

16V

L504

BLM18PG121SN1D

TP502

C509

0.1uF

C508
1000pF

50V

R508

3.3K

16V

C507
18pF
50V

C510
18pF
50V

C523
10uF
10V

C546
22pF
50V

OPT

R519
12

C529
390pF
50V

C530
390pF
50V

R520
12

R521
12

C531
390pF
50V

C532
390pF
50V

R522
12

AMP_MUTE

R526

R524

R525

R523

12

12

12

12

L506

10.0uH

NRS6045T100MMGK

10.0uH

L507

NRS6045T100MMGK

NRS6045T100MMGK

L508

10.0uH

L509

10.0uH

NRS6045T100MMGK

C534

0.47uF
50V

C535

0.47uF
50V

C536

0.1uF
50V

C537

0.1uF
50V

C538

0.1uF
50V

C539

0.1uF

50V

SPK_L1+

SPK_L2+

SPK_L2-

SPK_L1-

R527

4.7K

R528

4.7K

R529

4.7K

R530

4.7K

SPK_L1+

SPEAKER_L1

SPK_L1-

SPK_L2+

SPEAKER_L2

SPK_L2-

WAFER-ANGLE

4

3

2

1

P501

SPEAKER_L1+
SPEAKER_L1-

SPEAKER_L2+
SPEAKER_L2-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

AMP_NTP

20101023

16

Rear AV

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

JK1604

PPJ233-01

REAR_AV

5C

4C

3C

4B

3A

4A

5A

[RD]E-LUG

[RD]O-SPRING

[RD]CONTACT

[WH]C-LUG

[YL]CONTACT

[YL]O-SPRING

[YL]E-LUG

L-MONO

REAR_AV

D1619
30V

R1654
75

REAR_AV

REAR_AV

D1626

5.6V

C1643
47pF
50V
REAR_AV

D1625

5.6V

REAR_AV

R1672

470K

REAR_AV

D1624

5.6V
OPT

R1671

470K

REAR_AV

C1648
220pF
50V

OPT

+3.3V_Normal

R1660
10K

REAR_AV

C1646

0.1uF
16V

REAR_AV

L1609

120-ohm

REAR_AV

L1610

120-ohm

REAR_AV

R1666

1K

REAR_AV

C1663
330pF

50V

REAR_AV

C1662
330pF
50V
REAR_AV

AV_CVBS_IN

REAR_AV

R1685
10K

R1689

REAR_AV

R1684
10K

12K

REAR_AV

R1688
12K
REAR_AV

AV_CVBS_DET

AV_R_IN

AV_L_IN

COMPONENT2

6A

5A

4A

7B

5B

7C

5C

5D

4E

5E

6E

PPJ234-01

JK1603

REAR_COMP2

[GN]E-LUG

[GN]O-SPRING

[GN]CONTACT

[BL]E-LUG-S

[BL]O-SPRING

[RD]E-LUG-S

[RD]O-SPRING_1

[WH]O-SPRING

[RD]CONTACT

[RD]O-SPRING_2

[RD]E-LUG

D1612

30V

D1614 30V

D1615

+3.3V_Normal

OPT

30V

R1612

10K

D1616

5.6V

D1617

5.6V

D1613

5.6V

R1625
470K

R1626

470K

R1615
1K

R1619
75

R16 20
75

R16 21

75

C1616
1000pF
50V

C1617
1000pF
50V

R1633
10K

R1632
10K

COMP2_DET

COMP2_Y+

COMP2_Pb+

COMP2_Pr+

R1636

12K

OPT

R1634

12K

OPT

COMP2_L_IN

COMP2_R_IN

ETHERNET FOR DVB_T2

TP1610

TP1611

TP1612

TP1613

TP1614

TP1615

TP1616

TP1617

TP1618

TP1619

TP1620

ET_RXD0
ET_TXD0

ET_RXD1
ET_TXD1
ET_REF_CLK

ET_TX_EN
ET_MDC

ET_MDIO
ET_CRS

ET_RXER
/RST-PHY

REC_8

SC1/COMP1_DET

SC1_CVBS_IN

SC1_FB

REC_8

SC1_ID

SC1/COMP1_L_IN

SC1/COMP1_R_IN

SCART1_MUTE

SCART1_Rout

DTV/MNT_VOUT

SCART1_Lout

SC_RE2

SC_RE1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

REAR_JACK

20101023

17

SMD GASKET

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

GAS2

GAS1

6.5T_GAS

6.5T_GAS
MDS62110206

5.5T_GAS

7.5T_GAS

GAS1-*1

5.5T_GAS

MDS62110204

GAS1-*2

7.5T_GAS

MDS62110205

MDS62110206

GAS2-*1

MDS62110204

7.5T_GAS

GAS2-*2

MDS62110205

6.5T_GAS

5.5T_GAS
MDS62110204

MDS62110205

GAS3

MDS62110206

5.5T_GAS

GAS3-*1

MDS62110204

GAS3-*2

7.5T_GAS
MDS62110205

6.5T_GAS
MDS62110206

GAS4-*1

GAS4-*2

GAS4

5.5T_GAS
MDS62110204

7.5T_GAS
MDS62110205

6.5T_GAS
MDS62110206

GAS5-*1

GAS5-*2

GAS5

5.5T_GAS

7.5T_GAS

6.5T_GAS
MDS62110206

GAS6-*1

MDS62110204

GAS6-*2

MDS62110205

GAS6

5.5T_GAS
MDS62110204

7.5T_GAS
MDS62110205

6.5T_GAS
MDS62110206

GAS7-*1

GAS7-*2

GAS7

GAS1-*3

9.5T_GAS
MDS61887710

GAS1-*4

12.5T_GAS

MDS61887708

GAS1-*5

8.5T_GAS
MDS62110209

GAS2-*3

9.5T_GAS

MDS61887710

12.5T_GAS

MDS61887708

8.5T_GAS
MDS62110209

GAS2-*4

GAS2-*5

9.5T_GAS
MDS61887710

12.5T_GAS
MDS61887708

8.5T_GAS
MDS62110209

GAS3-*3

GAS3-*4

GAS3-*5

9.5T_GAS
MDS61887710

12.5T_GAS
MDS61887708

8.5T_GAS
MDS62110209

GAS4-*3

GAS4-*4

GAS4-*5

9.5T_GAS
MDS61887710

12.5T_GAS
MDS61887708

8.5T_GAS
MDS62110209

GAS5-*3

GAS5-*4

GAS5-*5

9.5T_GAS
MDS61887710

12.5T_GAS
MDS61887708

8.5T_GAS
MDS62110209

GAS6-*3

GAS6-*4

GAS6-*5

9.5T_GAS
MDS61887710

12.5T_GAS
MDS61887708

8.5T_GAS
MDS62110209

GAS7-*3

GAS7-*4

GAS7-*5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

SMD_GAS

20101023

20

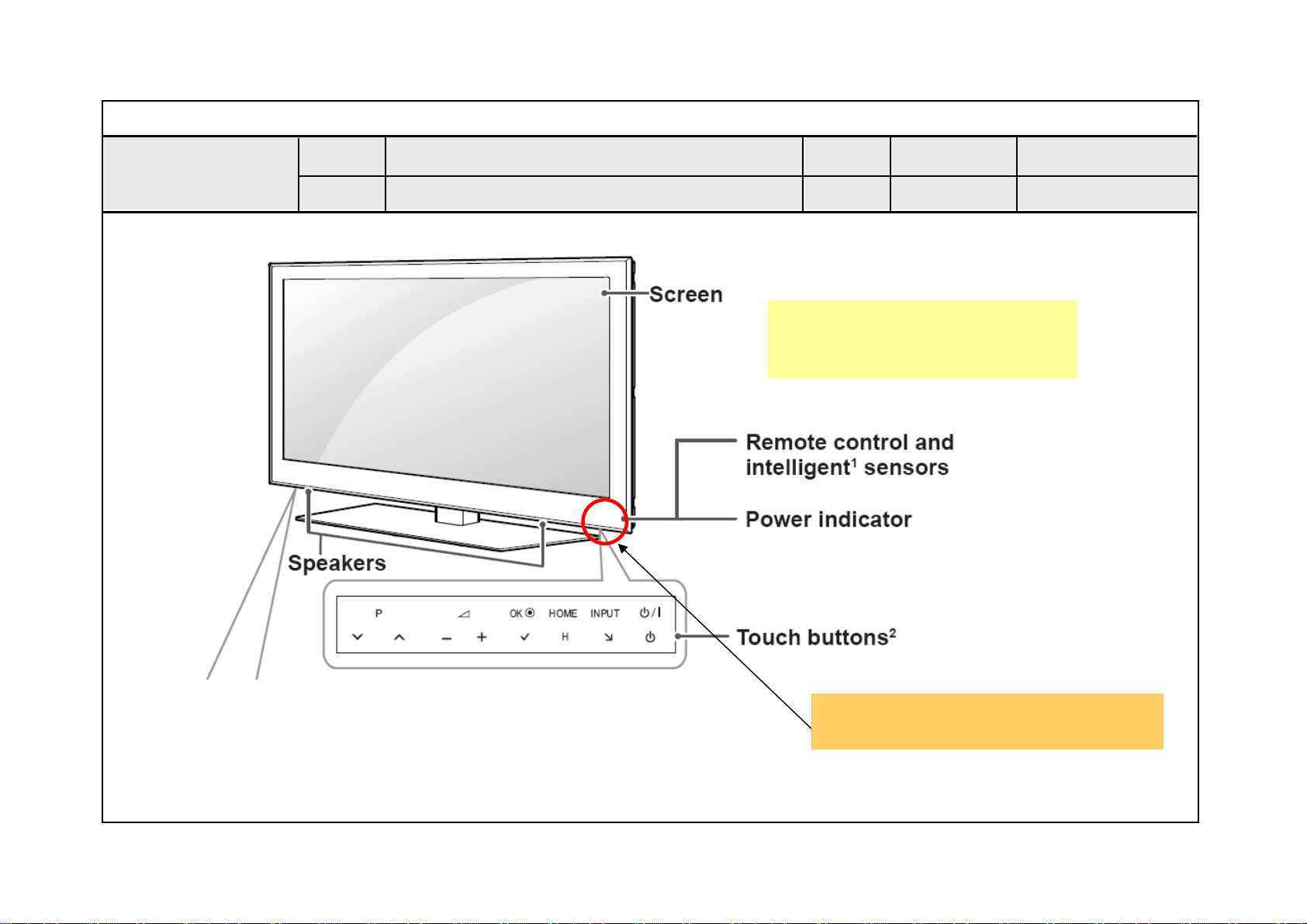

CONTROL

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

IR & LED

+3.5V_ST

R2405

R2404

10K

10K

1%

1%

R2401

KEY1

KEY2 C2409

100

R2402
100

+3.5V_ST

R2425

Q2406

2SC3052

47K
OPT

R2430

C

B

E

OPT

R2427
0

R2428

IR

22

+3.5V_ST

R2429

47K
OPT

10K

OPT

Q2405

2SC3052

C

E

OPT

B

BLM18PG121SN1D

BLM18PG121SN1D

R2431

47K

OPT

22_Control

L7600

L7601

22_Control

+3.5V_ST

R2426

47K

C7600

0.1uF
16V

22_Control

L2401

BLM18PG121SN1D

L2402

BLM18PG121SN1D

C7601

0.1uF
16V

22_Control

5.6V
D7600

22_Control

S/T_SCL

S/T_SDA

+3.5V_ST

D7601

5.6V
22_Control

C2401

0.1uF

C2402

0.1uF

L2403

BLM18PG121SN1D

C2403

0.1uF
16V

D2401

AMOTECH

5.6V

22_Control

P7600

12507WR-03L

1

2

3

D2402

5.6V

AMOTECH

C2404
1000pF
50V

+3.3V_Normal

C906
18pF
50V

OPT

C907
18pF
50V

OPT

4

LED_B/LG_LOGO

L2404

BLM18PG121SN1D

C2405

0.1uF
16V

NEW_SUB

D902

CDS3C05HDMI1

5.6V

NEW_SUB

D903

CDS3C05HDMI1

5.6V

NEC_EEPROM_SCL

NEC_EEPROM_SDA

C2406

1000pF

50V

EYEQ/TOUCH_KEY

EYEQ/TOUCH_KEY

R2412

R2413 1.5K

C2407
100pF

LED_R/BUZZ

R2411
100

100

50V

C2408
18pF
50V

OPT

18pF
50V

OPT

EYEQ/TOUCH_KEY

EYEQ/TOUCH_KEY

OPT

C2410

0.1uF
16V

D2405

5.6V

R2414

1.5K

5.6V
D2403

5.6V
D2404

OPT

R2416

OLD_SUB

P2401

12507WR-12L

1

2

3

JP2407

JP2408

JP2409

JP2410

JP2411

10K

4

5

6

7

8

9

10

11

12

13

NEW_SUB

P2402

12507WR-15L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

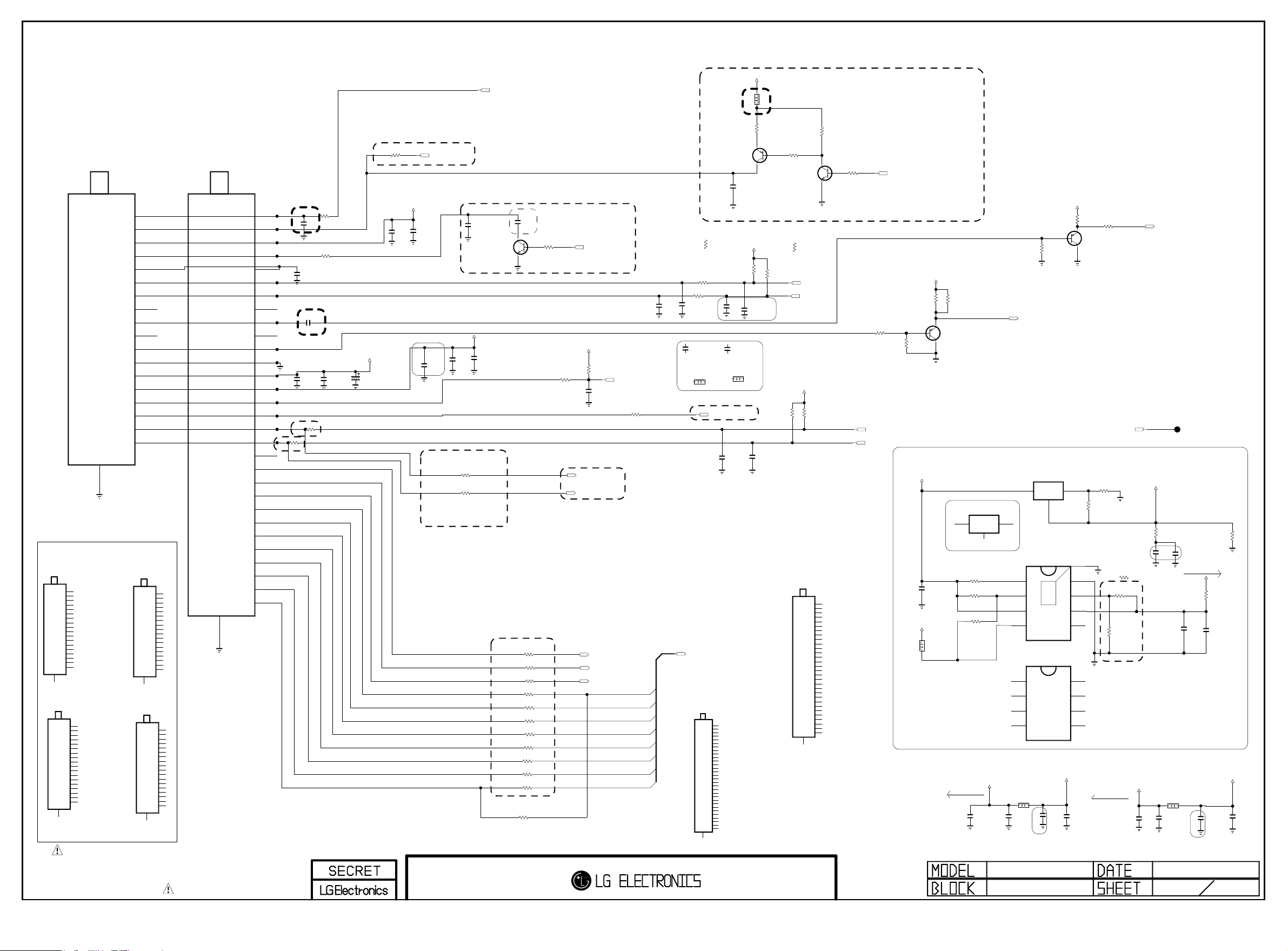

GP2R

IR/CONT_SMALL

20101023

23

GP2R_GLOBAL_TUNER_BLOCK for Small Model

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

RF_SWITCH_CTL

Pull-up can’t be applied
because of MODEL_OPT_2

close to TUNER

OPT

R3762

0

CN_2INPUT_H_LG3911

31

SHIELD

TU3701
TDFR-C036D

close to TUNER

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

R3701 100

FULL_NIM

18

19

20

21

22

23

24

25

26

27

28

29

30

R3705 0
C3701

0.1uF
16V

R3707 0

C3706

0.1uF
16V

C3702

0.1uF 16V

C3737
100pF
50V

FULL_NIM

R3702 100

close to IF line

RF_SW_OPT

OPT

close to TUNER

+1.2V/+1.8V_TU

FULL_NIM

C3738

C3705

0.1uF
16V

100uF
16V

+5V_TU

C3703
100pF
50V

close to the tuner pin, add,09029

DVB_1INPUT_H_LGIT

TUNER MULTI-OPTION

RF_S/W_CTL

1

BST_CTL

2

+B1[5V]

3

NC_1[RF_AGC]

4

NC_2

5

SCLT

6

SDAT

7

NC_3

8

SIF

9

NC_4

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

NTSC_2INPUT_H_LGIT

RESET

15

IF/AGC

16

DIF_1[N]

17

DIF_2[P]

18

19

SHIELD

TU3702-*2
TDTR-T036F

TU3702-*1
TDVJ-H101F

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

19

GP3_ATSC_1INPUT_H_LGIT

SHIELD

19

SHIELD

TU3702
TDTJ-S001D

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC[IF_TP]

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

TU3702-*3
UDA55AL

NC_1

1

NC_2

2

+B[+5V]

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+1.2V

13

+3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

GP3_ATSC_1INPUT_H_SANYO

19

SHIELD

TU3702-*4
TDTJ-S101D

ANT_PWR

1

NC_1

2

+B1[5V]

3

RF_AGC

4

MOPLL_AS

5

SCL

6

SDA

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

GP2R_AU_1INPUT_H_LGIT

RESET

15

IF_AGC

16

DIF_1[N]

17

DIF_2[P]

18

19

SHIELD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C3704

0.1uF
16V

CN
C3739
10uF

6.3V

CONTROL_ATTEN

C3707
100pF
50V

HALF_NIM

R3760 0

R3761 0

HALF_NIM

Close to the tuner

C3728

0.1uF
16V

OPT

2SC3052

+3.3V_TU

C3708

0.1uF
16V

FULL_NIM_CHINA

FULL_NIM_CHINA

FULL_NIM_BR

C3731
10uF
10V

OPT

C

Q3704

B

OPT

E

R3724

FULL_NIM

R3730

FULL_NIM

R3731

FULL_NIM

R3725

R3727

FULL_NIM

R3728

FULL_NIM

R3729

FULL_NIM

R3726

FULL_NIM

R3721

FULL_NIM

R3722

FULL_NIM

R3723

Close to the CI Slot

R3706

GPIO must be added.

OPTION : RF AGC

R3754
10K

OPT

FE_AGC_SPEED_CTL
IF_AGC_SEL

+3.3V_TU

R3733

R3732

100K

100

C3710

0.1uF

16V

IF_N_MSTAR

IF_P_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils
Ground Width >= 24mils

0

0

0

0

0

0

0

0

0

0

0

0

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

TU_I2C_NON_FILTER

TU_I2C_NON_FILTER

TUNER_RESET

R3704

HALF_NIM

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

TU_IIC_NON_ATSC_SANYO

R3740-*1
1K

TU_IIC_ATSC_SANYO

33

R3735

TU_I2C_NON_FILTER

33

R3736

TU_I2C_NON_FILTER
C3713

C3711

18pF

18pF

50V

50V

TU_I2C_FILTER

C3711-*1
20pF
50V

TU_I2C_FILTER

TU_I2C_FILTER

R3735-*1

MLG1005SR27JT

0

IF_AGC_MAIN

should be guarded by ground

FE_TS_DATA[0-7]

FULL_NIM_BR

TU3701-*2
TDFR-B036F

RF_S/W_CNTL

1

BST_CNTL

2

+B1[5V]

3

NC_1[RF_AGC]

4

NC_2

5

SCLT

6

SDAT

7

NC_3

8

SIF

9

NC_4

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_5

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

31

SHIELD

+5V_TU

C3709

0.01uF
25V

BOOSTER_OPT

+3.3V_TU

R3740

1.2K

C3742

C3743

20pF

20pF

50V

50V

TU_I2C_FILTER

C3713-*1
20pF
50V

TU_I2C_FILTER

TU_I2C_FILTER

R3736-*1

MLG1005SR27JT

C3712
22pF
50V

FULL_NIM

L3701

BLM18PG121SN1D

BOOSTER_OPT

R3734
0

Q3701
ISA1530AC1

E

B

C

BOOSTER_OPT

TU_IIC_ATSC_SANYO

R3741

1.2K

FULL_NIM

C3714
22pF
50V

FULL_NIM

BOOSTER_OPT

BOOSTER_OPT

R3737

2.2K

Q3702

2SC3052

TU_IIC_NON_ATSC_SANYO

R3741-*1
1K

TU_SCL

TU_SDA

+3.3V_TU

R3742

4.7K

CN_2INPUT_H_ALTO

31

SHIELD

4.7K

R3744

FULL_NIM

TU3701-*4
TDFR-C236D

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

BOOSTER_OPT

R3743
10K

C

E

BOOSTER_OPT

BOOSTER : CHINA OPT

BOOSTER_OPT

R3745
10K

B

R3749 0

FE_BOOSTER_CTL
LNA2_CTL

The pull-up/down of LNA2_CTL
is depended on MODLE_OPT_1.
GPIO must be added for FE_BOOSTER_CTL

+5V_TU

R3751

R3752

220

220

E

B

R3750

OPT

1K

Q3703

ISA1530AC1

C

DEMOD_SCL

DEMOD_SDA

+3.3V_TU

HALF_NIM_1.2V_DIODES

Please, check Multi Item! 10/12

L3704

200mA

R3771 10K

R3770 10K

FULL_NIM_SEMTEK

R3769 10K

FULL_NIM_BCD

C3717

0.1uF
16V

+5V_Normal

FULL_NIM_BCD

TU_CVBS

INPUT

IC3703-*1

AP1117EG-13

OUTIN

ADJ/GND

AP2132MP-2.5TRG1

FULL_NIM_BCD

+5V_TU

C3719
22uF
10V

PG

EN

VIN

VCTRL

NC_1

EN

VIN

NC_2

Size change,0929

L3702

MLB-201209-0120P-N2

C3724

0.1uF
16V

GP2R

TUNER_SMALL

+5V_TU

R3755

470

IC3703

3

OUTPUT

B

ADJ/GND

1

2

HALF_NIM

R3768

1.2K

R3753

4.7K

HALF_NIM_1.2V_BCD

AZ1117BH-ADJTRE1

IC3701

1

2

3

4

IC3701-*1

SC4215ISTRT

1
FULL_NIM_SEMTEK

2

3

4

FULL_NIM_BCD

9

THERMAL

8

7

6

5

8

7

6

5

+5V_General

C3722

C3726

22uF

0.1uF

16V

16V

location movement,0929

R3758
82

E

ISA1530AC1

Q3705

C

DEMOD_RESET

This was being applied to the only china demod,
so this has to be deleted in both main and ISDB sheet.

R2

HALF_NIM

R3767

10

TU_SIF

+1.2V/+1.8V_TU

R1

HALF_NIM

R3766
1

1/10W

[EP]

GND

ADJ

VOUT

NC

HALF_NIM

FULL_NIM_BCD

R3748-*1
10K

FULL_NIM_SEMTEK

R3748

5.1K

R1

R3747

9.1K

FULL_NIM

1005

R2

C3740

0.1uF
16V

add,0929

C3729

0.1uF
16V

FULL_NIM

C3741
10uF
10V
HALF_NIM

+1.2V/+1.8V_TU

Vo=0.8*(1+R1/R2)

GND

ADJ

VO

NC_3

+3.3V_TU

60mA

Size change,0929

L3703

MLB-201209-0120P-N2

C3725

C3723

0.1uF

22uF

16V

10V

20101023

25

C3715
22uF
10V

Add,0929

R3703

380mA

R3764

0

1/10W

FULL_NIM

C3730
10uF
10V

FULL_NIM

+3.3V_Normal

C3727

150
OPT

0.1uF
16V

NON_L/DIM_LED/DRIVER

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

NON_3D_SG

LED_DRIVER_D/L_SCL

LED_DRIVER_D/L_SDA

L/DIM_MOSI

L/DIM_SCLK

V_SYNC

M_REMOTE_RX

M_REMOTE_TX

M_RFModule_RESET

DC_MREMOTE

DD_MREMOTE

3D_GPIO_1

3D_GPIO_2

3D_SYNC_RF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

NON_L/DIM

20101023

26

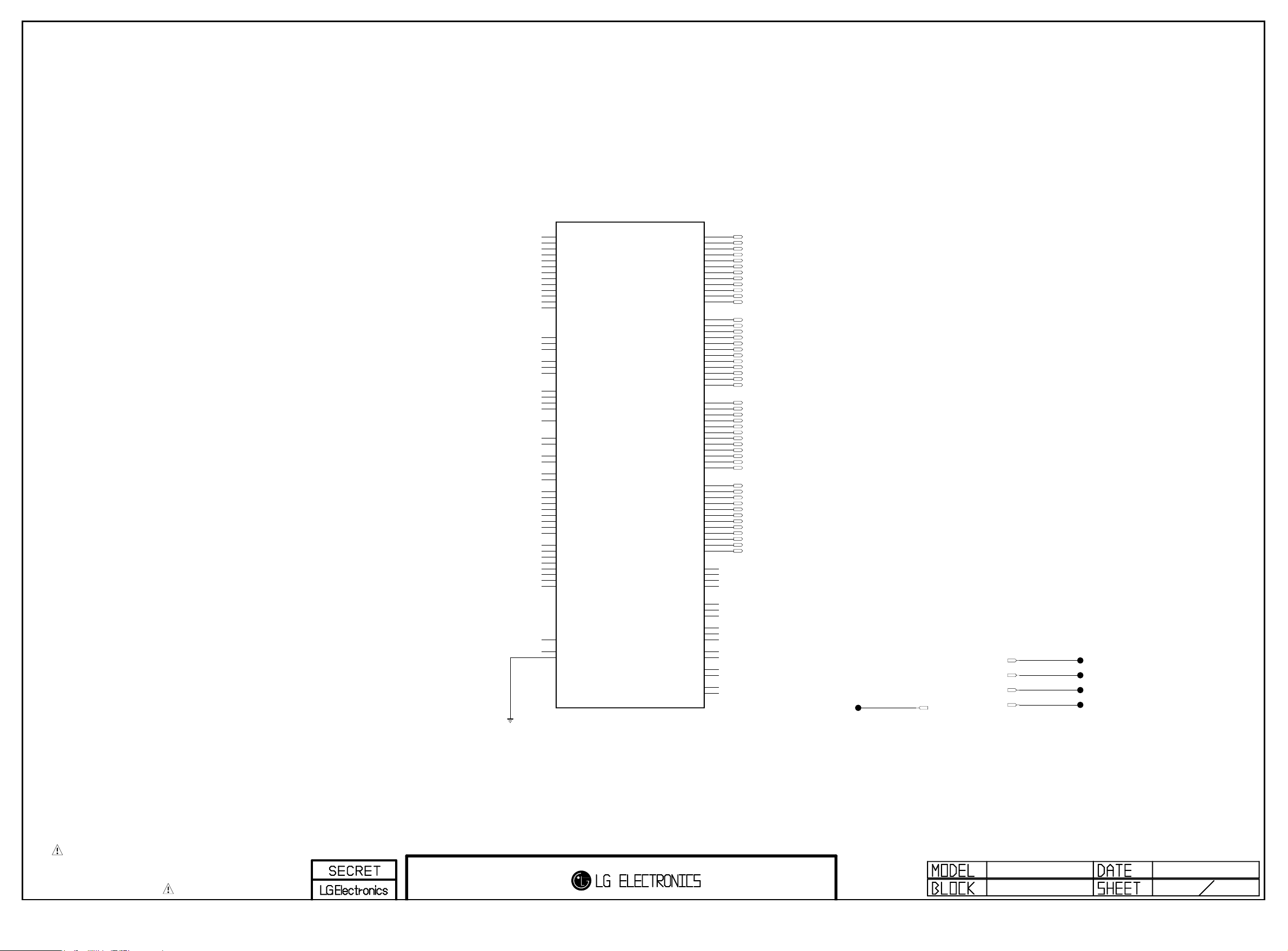

S7M-PLUS

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LGE107DC-RP [S7M+ DIVX/MS10]

AE1

FRC_DDR3_A0/DDR2_NC

AF16

FRC_DDR3_A1/DDR2_A6

AF1

FRC_DDR3_A2/DDR2_A7

AE3

FRC_DDR3_A3/DDR2_A1

AD14

FRC_DDR3_A4/DDR2_CASZ

AD3

FRC_DDR3_A5/DDR2_A10

AF15

FRC_DDR3_A6/DDR2_A0

AF2

FRC_DDR3_A7/DDR2_A5

AE15

FRC_DDR3_A8/DDR2_A2

AD2

FRC_DDR3_A9/DDR2_A9

AD16

FRC_DDR3_A10/DDR2_A11

AD15

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AF3

FRC_DDR3_BA0/DDR2_BA2

AF14

FRC_DDR3_BA1/DDR2_ODT

AD1

FRC_DDR3_BA2/DDR2_A12

AD13

FRC_DDR3_MCLK/DDR2_MCLK

AE14

FRC_DDR3_CKE/DDR2_RASZ

AE13

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

FRC_DDR3_CASZ/DDR2_CKE

AD4

FRC_DDR3_WEZ/DDR2_BA0

AE2

FRC_DDR3_RESETB/DDR2_A3

AF8

FRC_DDR3_DQSL/DDR2_DQS0

AD9

FRC_DDR3_DQSLB/DDR2_DQSB0

AE9

FRC_DDR3_DQSU/DDR2_DQS1

AF9

FRC_DDR3_DQSUB/DDR2_DQSB1

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11

AE6

FRC_DDR3_DQL0/DDR2_DQ6

AF11

FRC_DDR3_DQL1/DDR2_DQ0

AD6

FRC_DDR3_DQL2/DDR2_DQ1

AD12

FRC_DDR3_DQL3/DDR2_DQ2

AE5

FRC_DDR3_DQL4/DDR2_DQ4

AF12

FRC_DDR3_DQL5/DDR2_NC

AF5

FRC_DDR3_DQL6/DDR2_DQ3

AE12

FRC_DDR3_DQL7/DDR2_DQ5

AE10

FRC_DDR3_DQU0/DDR2_DQ8

AF7

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

FRC_DDR3_DQU4/DDR2_DQ15

AE7

FRC_DDR3_DQU5/DDR2_DQ9

AF10

FRC_DDR3_DQU6/DDR2_DQ10

AD8

FRC_DDR3_DQU7/DDR2_DQM1

AE8

FRC_DDR3_NC/DDR2_DQM0

Y11

FRC_VSYNC_LIKE

Y19

FRC_TESTPIN

IC101

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]

A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]

A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]

B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]

CCKP/LLV3P

CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]

C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N

DCKP/TCON5

DCKM/TCON4

D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0

GPIO0/TCON15/HSYNC/VDD_ODD

GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

FRC_SPI_CZ

FRC_GPIO1

FRC_SPI1_CK

FRC_GPIO8

FRC_SPI_DO

FRC_SPI1_DI

FRC_SPI_CK

FRC_SPI_DI

FRC_I2CS_DA
FRC_I2CS_CK

FRC_PWM0
FRC_PWM1

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

RXBCK+
RXBCK­RXB0+
RXB0­RXB1+
RXB1­RXB2+
RXB2­RXB3+
RXB3­RXB4+
RXB4-

RXACK+
RXACK­RXA0+
RXA0­RXA1+
RXA1­RXA2+
RXA2­RXA3+
RXA3­RXA4+
RXA4-

RXCCK+
RXCCK­RXC0+
RXC0­RXC1+
RXC1­RXC2+
RXC2­RXC3+
RXC3­RXC4+
RXC4-

RXDCK+
RXDCK­RXD0+
RXD0­RXD1+
RXD1­RXD2+
RXD2­RXD3+
RXD3­RXD4+
RXD4-

FRC_PWM1

V_SYNC

L/DIM_SCLK

L/DIM_MOSI

3D_SYNC_RF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NON CI Region

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

/PCM_CD

PCM_5V_CTL

/PCM_CE

/PCM_IRQA

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

NON Side AV

/PCM_REG

/PCM_OE

/PCM_WE
/PCM_IORD
/PCM_IOWR

PCM_RST

/PCM_WAIT

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]

PCM_A[4]

PCM_A[5]

PCM_A[6]

PCM_A[7]

PCM_A[8]

PCM_A[9]
PCM_A[10]
PCM_A[11]

PCM_A[12]
PCM_A[13]
PCM_A[14]

FE_TS_DATA[0-7]

PCM_D[0-7]

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]

FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]

FE_TS_DATA[7]

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]

PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]

SIDEAV_DET

SIDEAV_L_IN

SIDEAV_R_IN

SIDEAV_CVBS_IN

R4600 0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

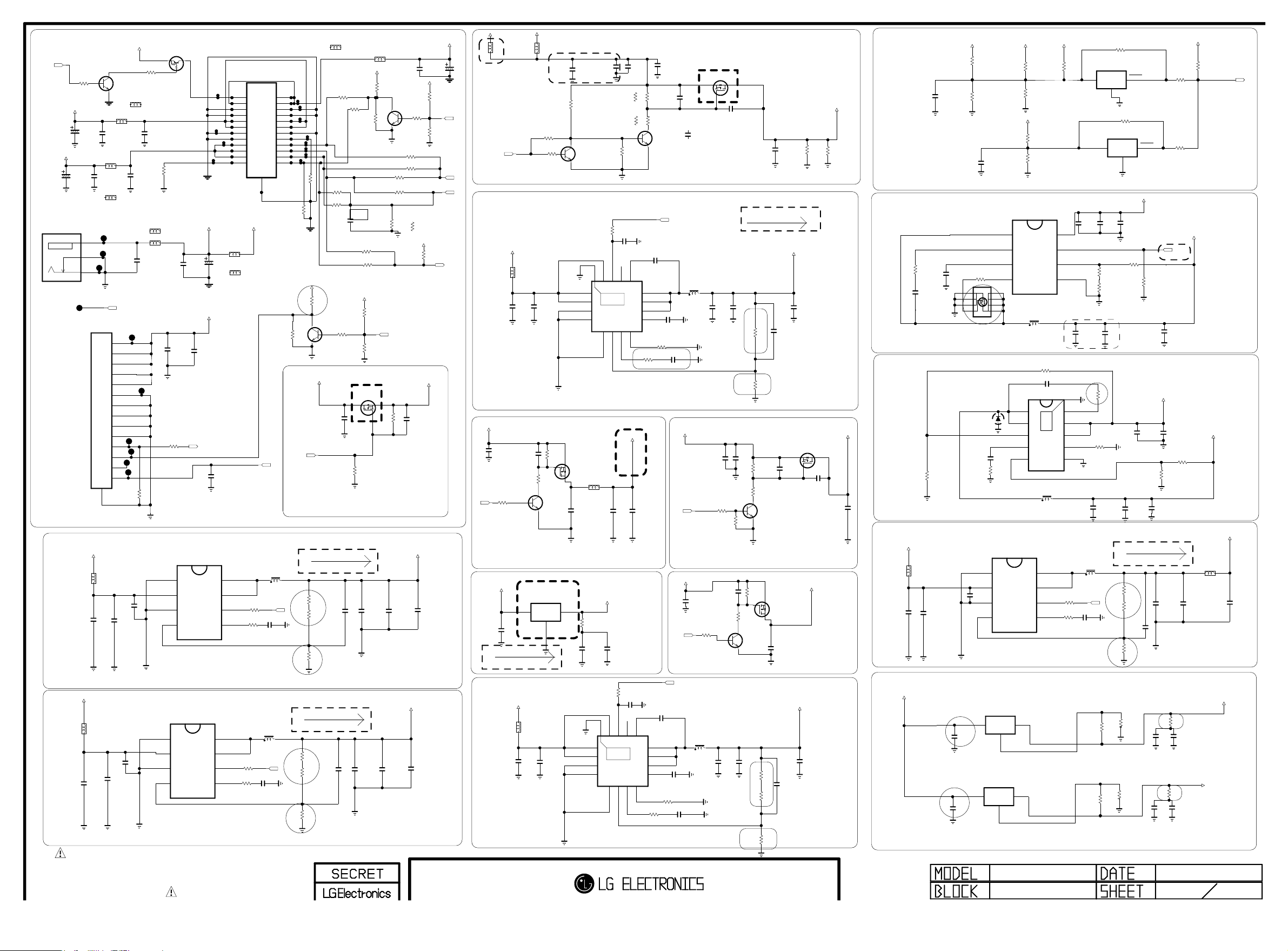

GP2R Ver. 1.0

NON_Option

35

L7520-*1

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

RL_ON

+3.5V_ST

C7583

100uF

16V

+12V/+15V

C7582

100uF

16V

32

Adapter

JK7500

JPD003N-M432-4F

TP7500

32

R7592

10K

B

32

MLB-201209-0120P-N2

32_BEAD_MAG
C7585

0.1uF
16V

32

32_BEAD_MAG

L7518

MLB-201209-0120P-N2

C7584

0.1uF
16V

32

L7518-*1

CIS21J121

32_BEAD_SS

24V

MLB-201209-0120P-N2

SW

GND

Adapter

P7501

SM14B-SRSS-TB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

GND

C

Q7523
2SC3052

E

24V

24V

24V

24V

24V

GND

GND

GND

GND

GND

ERROR_OUT

INV_ON

NC

PWM_DIM

L7519

+3.5V_ST

32_BEAD_SS

L7519-*1

CIS21J121

C7586

0.1uF
16V

OPT

Adapter

OLP

R7580

0

R7593

4.7K

32

C7587

0.1uF
16V

32

R7594

Adapter_SS

L7504-*1

CIS21J121

Adapter_MAG

C7502

0.1uF
50V

RT1P141C-T112

Q7524

32

1

2

0

POWER_23_GND

L7504

C7514

0.1uF
50V

Adapter

+24V_LED_driver

C7927

0.1uF
50V

Adapter

Adapter

R7588

100

3

+24V/+15V

C7517

68uF
35V

Adapter

Adapter

C7928

0.01uF
50V

ERROR_OUT

C7507
1uF

6.3V
OPT

NORMAL_EXPEPT_32

P7504

FW20020-24S

PWR ON

24V
GND
GND

3.5V

3.5V
GND
GND
12V
12V
12V

GND/P.DIM2

+24V_LED

Adapter_MAG

L7912

MLB-201209-0120P-N2

L7912-*1
CIS21J121

Adapter_SS

1

1

1
3

3

3
5

5

5
7

7

7
9

9

9
11

11

11
13

13

13
15

15

15
17

17

17
19

19

19
21

21 22

21 22
23

23 24

23 24

25

25

SLIM_32~52
P7502

SMAW200-H24S2

PWM_DIM

NORMAL_32

P7503
FM20020-24

2

2

2
4

4

4
6

6

6
8

8

8

10

10

10
12

12

12
14

14

14
16

16

16
18

18

18
20

20

20
22
24

24V
24V
GND
GND

3.5V

3.5V
GND
GND/V-sync
INV ON
A.DIM
P.DIM1
Err OUT

POWER_24_GND

R7511

6.8K
OPT

CIS21J121

32_BEAD_SS

POWER_18_INV_CTL

POWER_24_PWM_DIM

R7596 0

POWER_16_GND

POWER_22_PWM_DIM

R7595

0

+3.3V_Normal

3.3K -> 1K (threshold voltage up)
R7514

1K

Adapter

Adapter

C

B

Q7502
2SC3052

E

+1.5V_DDR

C7580

4.7uF
10V

OPT

POWER_ON/OFF2_1

32_BEAD_MAG

MLB-201209-0120P-N2

R7597
100

R7600
100

POWER_24_INV_CTL

0R7599

0R7598

C7588

OPT

0.1uF
16V

POWER_20_ERROR_OUT

POWER_24_ERROR_OUT

R7602

+3.5V_ST

R7516
10K

Adapter

R7515
10K

Adapter

Q7522
AO3438

FRC

D

OPT

R7590

120K

L7520

+3.3V_Normal

32
R7604
1K

32

C

R7603

6.8K
OPT

E

POWER_18_A_DIM

R7608

POWER_22_A_DIM

R7609 0

POWER_20_A_DIM

R7606

POWER_20_PWM_DIM

R7607

PWM_PULL-DOWN_3.9K

R7605

3.9K

100R7601

100

Adapter

INV_CTL

R7517

10K

S

G

R7591

10K

FRC

32

C7589

0.1uF
50V

+3.5V_ST

R7612
10K

32
R7610
10K

B

Q7525
2SC3052

0

0

0

R7605-*1

1K

PWM_PULL-DOWN_1K

+3.3V_Normal

R7611

4.7K

+1.5V_FRC_DDR

OPT

4.7uF

C7581

+1.5V_DDR_FRC

+12V/+15V

L7861

C7861
10uF
25V

+5V to Normal & Tuner

IC7861

C7862
10uF
25V

C7921

0.1uF
16V

AOZ1072AI-3

PGND

1

VIN

2

AGND

3

FB

4

2A

LX_2

8

LX_1

7

EN

6

COMP

5

L7862

3.6uH

NR8040T3R6N

POWER_ON/OFF2_2

R7867

10K

12K

2200pF

R7866

C7863

R465

24K

51K

R466

R7870

10K

Max 1A

6.8V

1%

OPT

C7864

R1

100pF

50V

1%

1%

R2

C7865
22uF
16V

Vout=(1+R1/R2)*0.8

+12V/+15V

+5V_USB

IC7951

L7951

C7951
10uF
25V

C7952
10uF
25V

C7920

0.1uF
16V

AOZ1073AIL-3

PGND

1

VIN

2

AGND

3

FB

4

3A

LX_2

8

LX_1

7

EN

6

COMP

5

L7952

3.6uH

NR8040T3R6N

POWER_ON/OFF2_1

R7952

10K

12K

2200pF

R7951

C7953

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2000 mA

1%

R7953

51K

OPT

1.5K

R7954

R7955

10K

C7954

R1

100pF

50V

1%

1%

R2

C7955
22uF
16V

Vout=(1+R1/R2)*0.8

C7956

0.1uF
16V

C7866

0.1uF
16V

+5V_USB

+5V

C7957

0.1uF

16V

OPT

C7867

0.1uF
16V

+24V

C7590

68uF
35V

OPT

R7613

10K

OPT

PWM_DIM

OPT

ERROR_OUT

32

INV_CTL

A_DIM

+5V_Normal

5V_PANEL

L7505

4A -> 3A modify 090916

PANEL_CTL

+3.5V_ST

+12V/+15V

12V_PANEL

L7517

OPT
R7522
10K

R7521
10K

0.015uF

B

L420

C461

C468

10uF

0.1uF

10V

16V

Vout=0.827*(1+R1/R2)=1.521V

+24V/+15V

POWER_ON/OFF2_2

AO3407A Vgs : 10.8V(24V input)

AO3407A Vgs : 8.3V(15V input)

C7501

C7503

0.1uF

2.2uF

50V

50V

Adapter

Adapter

R7501
27K

Adapter

R7500
10K

Adapter

B

Q7501

Adapter

AO3407A

C

Q7500

Adapter

E

R7503
22K

Adapter

G

0.01uF

C7505

50V

Adapter

+15V Control

+3.5V_Normal

C7553

0.1uF
16V

300 mA

+3.5V_ST

IC7505

AZ2940D-2.5TRE1

VIN

1

Vd=550mV

L413

C430

C431

10uF

0.1uF

10V

16V

VOUT

3

2

GND

25V

5V_PANEL
R7530-*1

22K

5V_PANEL

R7531-*1

2.7K

R7527

22K

C7526

0.1uF
16V

B

10uF

16V

OPT

R7530

33K

12V_PANEL

NON_22_CCFL_PANEL_ON

R7531

5.6K

12V_PANEL
C

Q7505
2SC3052

E

C7504

0.015uF
50V

R7523
22K

C

Q7503
2SC3052

E

C7525

0.01uF

0.01uF

C7529

S7M DDR 1.5V

10K

R464

C475

0.1uF
C462

16V

0.1uF

16V

EP[GND]

VIN_1

1

VIN_2

2

GND_1

3

GND_2

4

S

Adapter

L7913

CPI2520NHL3R3ME

D

+2.5V

1

R7552

C7556
10uF
10V

VIN_1

VIN_2

GND_1

GND_2

3A

$ 0.165

Vout=0.8*(1+R1/R2)

THERMAL

17

IC407

TPS54319TRE

5

6

COMP

AGND

VSENSE

3A

AMP_VCC

3.3uH
2520

Adapter

C7932

3.3uF
50V

+2.5V_Normal

C7557

0.1uF
16V

10K

R445

VIN_3

EP[GND]

15EN16

1

THERMAL

2

17

IC403

3

SN1007054RTER

4

5

6

AGND

VSENSE

BOOT14PWRGD15EN16VIN_3

13

PH_3

12

PH_2

11

PH_1

10

C465

SS/TR

9

8

RT/CLK

1/16W 5%

R455
15K

0.01uF

R452

330K1/16W 5%

50V

4700pF

7

$ 0.145

+24V

Adapter

C7933

0.01uF
50V

S7M core 1.26V volt

C447

C441

0.1uF

0.1uF

16V

16V

BOOT14PWRGD

13

PH_3

12

PH_2

11

PH_1

10

SS

9

8

RT/CLK

1/16W 5%

R436

7.5K

R432

330K1/10W 5%

0.01uF

7

COMP

PANEL_POWER

Q7506

C7531
10uF

25V

22_CCFL_PANEL_ON

POWER_ON/OFF1

L423

3.6uH

NR8040T3R6N

C467

50V

+3.5V_ST

POWER_ON/OFF2_2

C7531-*1

4.7uF
16V

C472
22uF
10V

AO3407A

0.01uF

C7554

S

G

C476
22uF
10V

R7545
10K

R7551

C7541

0.1uF
50V

OPT

22K

D

R1

R2

New item

R449
56K

1/16W

1%

C7555

0.1uF

B

R457

R7555
10K

C

E

R7556

Q7507
2SC3052

+3.5V_Normal

+24V_LED

RL_ON

POWER_ON/OFF2_1

NR8040T3R6N

C488

50V

C448

3300pF

50V

C7924

0.1uF
50V

Adapter

3.6uH

R7860

Adapter

L415

10V

10K

C453
22uF

C7925

2.2uF
50V

Adapter

R7861
27K

Adapter

B

C456
22uF
10V

Q7521

AO3407A

C

Q7520

E

R1

R2

R7862
22K

Adapter

Adapter

Adapter

R441
75K
1/8W
1%

G

R442

R444

C7547

0.1uF
16V

1074 mA

+1.5V_DDR

C470

0.1uF
16V

C463
100pF
50V

47K 1%

Q7508

AO3407A

C7559

4.7uF
16V

0

S

D

AO3407A Vgs : 10.8V

Adapter

C7926

0.01uF
50V

LED Driver Power

+1.26V_VDDC

24K 1%

50V
100pF

1%

C439

22K

OPT

R7863

2.2K
R7864

2.2K

+3.5V_Normal

D

S

G

C7561

1uF
25V

C7568

+24V_LED_driver

C444

0.1uF
16V

PANEL_VCC

OPT

0.1uF
16V

24V-->3.48V
15V-->3.56V

ST_3.5V-->3.5V --> 3.375V

C7958

0.1uF
16V

Power_DET

Adapter

22

5%

Adapter

+12V/+15V

+5V

1/16W

L7511

C7549
10uF
25V

C7522
1uF

R7519

50V

Adapter

C7519
1uF
25V

close to IC7502

18K

R7570

Adapter

+3.3V_Normal

C7551
10uF
25V

C7934,C7962 Close to LDO

+24V/+15V

R7547

8.2K

1%

Adapter

R7548

1.5K

1%

Adapter

C7959

0.1uF
16V

PD_+12V

Adapter

R7865
0

Adapter
Q7504

SI4124DY-T1-GE3(VISHAY)

D_4

S_1

8

1

D_3

S_2

7

2

D_2

S_3

6

3

G

D_1

4

5

MBRA340T3G

close to pin

Adapter

Adapter

C7524
220pF

50V

R7525

68K

1/16W

Adapter

AOZ1073AIL-3

PGND

1

VIN

2

C7923

0.1uF
AGND

16V

3

FB

4

IC7953

AP1117EG-13

C7934

0.1uF
16V

C7962

0.1uF
16V

1

ADJ/GND

IC7952

AP1117EG-13

1

ADJ/GND

POWER_SMALL

+12V/+15V

PD_+12V

R7549

1.21K

+24V

1%

1/10W

1%

1/10W

PD_+24V

IC7502

MP8670DN-LF-Z

SW

1

Adapter

BST

2

$0.37

VCC

3

BG

4

Adapter

L7508

4.7uH

SP-7850_4.7

SW_1

SW_2

D7500

EN

COMP

FB

5%

IC7506

3A

$0.17

2 OUT3IN

2 OUT3IN

GP2R

2.7K
R7546

PD_+12V

8.2K
R7583

PD_+24V

1.5K
R7584

Adapter

R7529
100K

Adapter

C7527

50V

IC7503

MP4460DQ-LF-Z

1

2

THERMAL

3

Adapter

4

$0.21

5

Adapter

L7509

3.6uH

NR8040T3R6N

LX_2

8

LX_1

7

EN

6

COMP

5

+3.5V_ST

0

PD_+3.5V

R7550

VCC

UNDER CHECKING

Adapter

C7533

0.1uF
50V

IN

8

EN/SYNC

7

FB

6

R2

GND

5

Placed on SMD-TOP

Adapter

C7532
10uF

25V

0.1uF

EP_GND

BST

10

VIN_2

11

9

VIN_1

8

FREQ

7

GND

6

Adapter

L7513

3.6uH

NR8040T3R6N

POWER_ON/OFF2_2

R7558

10K

12K

2200pF

R7557

C7558

+5V_Normal

+5V_TUNER

R7561
100K

IC7509

NCP803SN293

RESET

3

2

1

GND

PD_+12V
R7585
100K

IC7512

PD_+12V

NCP803SN293

VCC

Adapter

C7536

3.3uF
50V

R1

1%

6.8K

1%

1.6K

1/8W

Adapter

3

GND

+24V/+15V

R7538

Adapter

R7581

Adapter

C7537
10uF

25V

1

Adapter

C7540

3.3uF
50V

Adapter

R7540
120K

RESET

2

1%

22K

OPT

R7542

24V->3.5V

Switching noise reducing [MPS recommend]

22

R7571

Adapter

Adapter

C7542

Adapter

R7562

27K

4.7K

R7563

C7562

R7564

10K

1/10W
R7960

330

1/10W
R7957

330

C7571
10uF
10V

1%

R1

1%

OPT

100pF

50V

1%

R2

3.3uF
50V

1%

Adapter

Adapter

C7543

0.1uF
50V

1934 mA

Vout=(1+R1/R2)*0.8

C7935

0.1uF
16V

C7960

0.1uF
16V

Adapter

R7537
200K

1/8W
1%

C7538
10uF
10V

1/10W

R7959

110

1/10W
R7956
110

+3.5V_ST

1%

OPT

R7569

10K
R7582
100

PD_+12V

1%
R7586
100

24V->15V

+12V/+15V

090916

Adapter

+24V/+15V

Adapter

C7544

0.1uF
50V

30K

1/10W

C7563
22uF
16V

R7961

R7958

C7545

0.1uF
50V

R7543

RL_ON

Adapter

1

1

R7544
105K

1/10W
1%

C7936
10uF
10V

C7961
10uF
10V

C7567

0.1uF
16V

real output : 12.3V

+3.5V_ST

L7515

CIC21J501NE

20101023

36

POWER_DET

+3.3V_Normal

+5V_Normal

+5V_General

C7569

0.1uF
16V

LCD TV Repair Guide III

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

`11 years New Models ( GP2R MSTAR)

Trouble Shooting Guide

1. Trouble Shooting

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Contents of LCD TV Standard Repair Process

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1
2 No video/No audio 2
3 Video error, video lag/stop 3
4 Color error 4

5

6

7

8
9 Wrecked audio/discontinuation/noise 9

10

A. Video error

B. Power error

C. Audio error

D. Function error

No video/Normal audio 1

Vertical/Horizontal bar, residual image,
light spot, external device color error

No power 6
Off when on, off while viewing, power auto

on/off
No audio/Normal video 8

No response in remote controller, key error,
recording error, memory error

5

7

10

11 External device recognition error 11
12 E. Noise Circuit noise, mechanical noise 12
13 F. Exterior error Exterior defect 13

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Established

date

Revised date

LCD TV

Error

symptom

A. Video error

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)

☞A4☞A1

No video
Normal audio

Normal

audio

N

Move to No
video/No audio

Y

Check Back Light
On with naked eye

☞A2

Check Power Board 24V,12V,3.5V output

On

Normal
voltage

Repair Power
Board or parts

Y

Check Main Board

3.5V,12V,3.3V,

1.26V, 1.5V etc.

N

Replace Inverter

Y

or module

N

Normal

voltage

Repair Power
Board or parts

N

End

Y

Replace T-con
Board or module

☞A28

1/13

※Precaution

Always check & record S/W Version and White
Balance value before replacing the Main Board

☞A7 & A3

Replace Main Board

1

Re-enter White Balance value

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

symptom

No Video/
No audio

Error

☞A4

Check various
voltages of Power
Board
( 3.5V,12V,20V or
24V…)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power
Board and repair
parts

Y

N

Check and
replace
MAIN B/D

Established

date

Revised date

End

2/13

2

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check RF Signal level

Normal
Signal?

N

Check RF Cable

Connection

1. Reconnection

Y

Error

symptom

A. Picture Problem

Picture broken/ Freezing

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Menu→Setup→Manual Tuning)

- Signal strength (Normal : over 30%)

- Signal Quality (Normal: over 30%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

Normal

Picture?

Y

Check

S/W Version

SVC

Bulletin?

Established

date

Revised date

N

Tuner soldering

Check

Normal

Picture?

3/13

Y

Close

Normal

Picture?

Y

Close

N

N

Contact with signal distributor

or broadcaster (Cable or Air)

3

Y

S/W Upgrade

Normal

Picture?

Y

Close

N

N

Replace

Main B/D

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

Check Test pattern

Error

symptom

Color

error?

N

Check error
color input
mode

A. Video error

※ Check
and replace

Y

Link Cable
(LVDS) and
contact
condition

External Input/

Component

error

Color error

Color

error?

N

Check
external
device and
cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

4/13

Y

Replace module

N

Replace Main B/D

RGB/

HDMI/DVI

error

Check external
device and
cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main B/D

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

A. Video error

LCD TV

Error

symptom

Vertical / Horizontal bar, residual image,
light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

Check color condition by input

-External Input

-Component

-RGB

-HDMI/DVI

Check Test pattern

Screen

normal?

N

Replace
module

Check external

Y

device
connection
condition

Normal?

N

Request repair
for external
device

External device screen error-Color error

Check screen
condition by

Check S/W Version

Check

version

Y

S/W Upgrade

Normal

screen?

Y

End

N

N

input

-External Input

-Component

-RGB

-HDMI/DVI

Check and

Y

replace Link
Cable

External

Input
error

Component

error

RGB
error

HDMI/

DVI

5

Established

date

Revised date

Screen

normal?

End

N

Replace Main B/D

Y

Connect other external
device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

Connect other external
device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

Screen

normal?

Request repair for
external device

Screen

normal?

N

Y

Y

N

5/13

Replace
Module

N

Screen

normal?

Y

End

Replace
Main B/D

Replace
Main B/D

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

☞A17

Check
Power LED

. Stand-By: Red
. Operating: white

Error

symptom

Power LED

On?

N

Check Power cord
was inserted properly

N

Normal?

Y

※

Close

Y

Check ST-BY 3.5V

☞A18

B. Power error

No power

DC Power on
by pressing Power Key
On Remote control

Normal

voltage?

Established

date

Revised date

6/13

☞A19

Normal

operation?

Y

N

Check Power
On ‘”High”

OK?

N

Replace Main B/D

Y

Replace
Power
B/D

☞A4

Measure voltage of each output of Power B/D

Y

Y

N

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

Replace Power
B/D

6

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check outlet

Check A/C cord

Check for all 3- phase

power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet
and check each 3
phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A22

N

Check Power Off
Starus(instart menu

(If Power Off mode
is not displayed)
Check Power B/D
voltage

※ Caution

Check and fix exterior
of Power B/D Part

Abnormal

Abnormal

☞A19

Established

date

Revised date

CPU

1

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

Replace Main B/D

7/13

Normal?

Replace Power B/D

Y

N

End

* Please refer to the all cases which

can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Po wer off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

No audio
Screen normal

Error

C. Audio error

symptom

No audio/ Normal video

☞A24 ☞A25

Check user
menu >
Speaker off

Off

Y

Cancel OFF

Check audio B+

N

20V or 24V of
Power Board

Established

date

Revised date

Normal
voltage

Replace Power Board and repair parts

Y

N

8/13

Check
Speaker
disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board End

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check input
signal

-RF

-External Input
signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A25

Signal

normal?

Y

N

(When RF signal is not
received)
Request repair to external
cable/ANT provider

(In case of
External Input
signal error)
Check and fix
external device

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace
speaker and
connector

Replace Main B/D

Connect and check
other external
device

Check audio
B+ Voltage (20V or 24V)

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

Normal

audio?

Y

N

Y

9/13

End

Check and fix external device

9

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

D. General Function Problem

Remote control & Local switch checking

LCD TV

Error

symptom

1. Remote control(R/C) operating error

☞A27

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

Check & Replace

Y

N

Baterry of R/C

Normal

operating?

Replace R/C

Check & Repair
Cable connection
Connector solder

Close

N

Normal

operating?

Y

Close

☞A27

N

Check 3.5V

On Main B/D

Established

date

Revised date

☞A27

Normal

Voltage?

N

Y

Check IR

Output signal

☞A4

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

10/13

Replace

Main B/D

Normal

Signal?

N

Repair/Replace

IR B/D

Y

10

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Check
input
signal

Error

symptom

Y

Signal

input?

N

Check and fix
external device/cable

D. Function error

External device recognition error

Check technical
information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Established

date

Revised date

External Input and

N

Y

Component

Recognition error

RGB,HDMI/
DVI, Optical

Recognition error

Replace Main B/D

Replace Main B/D

11/13

11

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Identify
nose
type

Error

symptom

Circuit

noise

Mechanical

noise

Circuit noise, mechanica l noise

Check
location of
noise

Check location
of noise

E. Noise

※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description
in “Part related to nose” in the Owner’s
Manual.

Replace PSU(with LED driver)

OR

Replace LED driver

※ When the nose is severe, replace the module
(For models with fix information, upgrade the
S/W or provide the description)

OR

※ If there is a “Tak Tak” noise from the
cabinet, refer to the KMS fix information and
then proceed as shown in the solution manual

OR

(For models without any fix information,
provide the description)

Established

date

Revised date

12/13

12

Standard Repair Process

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Zoom part with
exterior damage

Module

damage

Cabinet

damage

Remote

controller

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

13/13

Stand

dent

Replace stand

13

Contents of LCD TV Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

2

A. Video error_ No video/Normal audio

3

4

5

A. Video error_ No video/Video lag/stop

6
7
8

A. Video error_Color error

9

10
11

A. Video error_Vertical/Horizontal bar, residual

12

image, light spot

Check LCD back light with naked eye A1

LED driver B+ 24V measuring method A2

Check White Balance value A3

Power Board voltage measuring method A4

TUNER input signal strength checking method A6
LCD-TV Version checking method A7
LCD TV connection diagram A8
Tuner Checking Part A9

Check Link Cable (LVDS) reconnection condition A10

Adjustment Test pattern - ADJ Key A12
LCD TV connection diagram A8

Check Link Cable (LVDS) reconnection condition A10

13
14

<Appendix>
Defected Type caused by T-Con/ Inverter/

15

Module

16

Adjustment Test pattern - ADJ Key A12

Exchange LED driver Board (PSU) A-1/3

Exchange Module itself (1) A-2/3
Exchange Module itself (2) A-3/3

Continue to the next page

Contents of LCD TV Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Continued from previous page

No. Error symptom Content Page Remarks

17

18 Check power input Voltage & ST-BY 5V A18

B. Power error_No power

19 Checking method when power is ON A19

20 POWER BOARD voltage measuring method A4

21

22

23

24

25

26

B. Power error_Off when on, off while
viewing

B. Power error_Off when on, off while
viewing

C. Audio error_No audio/Normal video

C. Audio error_Wrecked
audio/discontinuation

D. Function error_ No response in remote
controller, key error

Check front display LED A17

POWER OFF MODE checking method A22

POWER BOARD PIN voltage checking method A19

Checking method in menu when there is no audio A24
Voltage and speaker checking method when there

is no audio
Voltage and speaker checking method in case of

audio error

Remote controller operation checking method A27

A25

A25

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_No video/Normal audio

Check LCD back light with naked eye

Established

date

Revised

date

2011.01.20

A1

After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from 4 locations.

A1

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Error

LCD TV

symptom

Content

Edge LED : PSU + LED Driver Type

A. Video error_No video/Normal audio

LED driver B+ 24V measuring method

Check the DC 24V and Inverter on

Established

date

Revised

date

2011.01.20

A2

P202

1~5 24V

6~10 GND

11 NC
12 NC

P203

1~5 24V

6~10 GND

11 NC
12 Inverter ON
13 PWM Dim#1
14 NC

A2-1

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Error

LCD TV

symptom

Content

Edge LED / LAMP : PSU Type

A. Video error_No video/Normal audio

LED driver B+ 24V measuring method

Check the DC 24V and Inverter on

Established

date

Revised

date

2011.01.20

A2

A2-1

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

2011. 1 .19

A3

Entry method

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 6.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A3

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_No video/ Audio

Power Board voltage meas uring method

Edge LED

Established

date

2011. 1 .19

Revised

date

Check the DC 20V/24V, 12V, 3.5V.

24pin

Pin layout

1

Power on

2

20V (24V)

A4

Lamp : PSU, LIPS

A4-1

3
5
7

9
11
13 GND 14
15 GND 16

17 12V 18
19 12V 20

21 12V 22
23 NC

20V (24V)

GND
GND

3.5V

3.5V

(Lamp
SCANNING 모델:
PWM Dim #2)

10
12

24 Error-out

4
6
8

20V (24V)

GND
GND

3.5V

3.5V

GND

NC

Inverter ON

NC

PWM Dim #1

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_No video/ Audio

Power Board voltage meas uring method

LAMP : LIPS (Only 22LK33)

Established

date

Revised

date

2011. 1 .19

Check the DC 15V, 3.3V, 3.5V.

A4

A4-1

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Established

date

Revised

date

A6

MENU Æ red key (customer support Æ signal test

Æ select channel

When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)

A6

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

LCD-TV Version checking method

Established

date

Revised

date

A7

<ALL MODELS>

Version

1. Checking method for remote controller for adjustment

Press the IN-START with the
remote controller for adjustment

A7

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error _Vertical/Horizontal bar,

residual image, light spot

LCD TV connection diagram (1)

Established

date

Revised

date

A8

A8

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

2010. 2 .19

A9

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

A9

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

Check Link Cable (LVDS) reconnection condition

A. Video error_Color error

Established

date

Revised

date

2011.01.20

A10

Check the contact condition of the Link Cable, especially dust or mis insertion.

A10-1

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

A12

You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A12

Appendix : Exchange T-Con Board (1)

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Solder defect, CNT Broken

Solder defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

A - 1/5

Appendix : Exchange T-Con Board (2)

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

A - 2/5

GRADATION

Appendix : Exchange PSU(LED driver)

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

No Light

Dim Light

Dim Light

Dim Light

No picture/Sound Ok

A - 3/5

Appendix : Exchange the Module (1)

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Press damage

Crosstalk

Un-repairable Cases
In this case please exchange the module.

Press damage

A - 4/5

Appendix : Exchange the Module (2)

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect
Gate TAB IC Defect

Un-repairable Cases
In this case please exchange the module.

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

A - 5/5

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

B. Power error _No power

Check front display LED

Established

date

Revised

date

2011.01.20

Front LED control :
Menu Æ Option Æ Power Indicator
Æ Standby light ON

A17

ST-BY condition: Red
Power ON condition: white

A17

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

B. Power error _No power

Check power input voltage and ST-BY 3.5V

For ’11 models, there is no voltage out for st-by purpose.
When TV is st-by status(DC OFF), only 3.5V output is normally on.

Check the 3.5V signal of 24pin power out when

TV is st-by status

Established

date

Revised

date

2011. 1. 20

A18

Edge LED : LPB (PSU+LED Driver)

LAMP Edge LED : PSU

Edge LED
32/37 PSU

A18

A19

Pin layout (24P)

1
3

5
7

9
11
13 GND 14
15 GND 16 PSU : GND, LPB : NC
17 12V 18

19 12V 20
21 12V 22

23

Power on

20/24V

GND
GND

3.5V

3.5V

NC

(Lamp Scanning Model

: PWM Dim #2)

10
12

24

2

20V (Edge 32/37 Only)
4
6
8

24V

20/24V

GND
GND

3.5V

3.5V

GND

Inverter ON

LED : NC

PWM Dim #1

Error-out

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Error

LCD TV

symptom

Content

Edge LED : LPB (PSU+LED Driver)

LAMP Edge LED : PSU

B. Power error _No power

Checking method when power is ON

There are several wafers on power board.
Don’t get confused about 24P power out wafer.
You can refer to not only left pictures and ‘P201’ silk print near by wafer.

Edge LED
32/37 PSU

Established

date

2011. 1. 20

Revised

date

Check “power on” pin is high

Pin layout (24P)

1
3

5
7

9
11
13 GND 14
15 GND 16
17 12V 18

19 12V 20
21 12V 22

23

Power on

20/24V

GND
GND

3.5V

3.5V

NC

(Lamp Scanning Model

: PWM Dim #2)

2
4

6

8
10
12

24

A19

24V

20V (Edge 32/37 Only)

20/24V

GND
GND

3.5V

3.5V

GND

PSU : GND, LPB : NC

Inverter ON

LED : NC

PWM Dim #1

Error-out

A18A19

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established

date

Revised

date

A22

Entry method

1. Press the IN-START button of the remote
controller for adjustment

2. Check the entry into adjustment item 3

A22

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

C. Audio error_No audio/Normal video

Checking method in menu when there is no audio

Established

date

Revised

date

A24

Checking method

1. Press the MENU button on the remote controller

2. Select the AUDIO function of the Menu

3. Select TV Speaker from Off to On

A24

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

<ALL MODELS>

Error

symptom

Content

C. Audio error_No audio/Normal video

Voltage and speaker checki ng metho d
when there is no audio

②

①

Established

date

Revised

date

2011. 01 .18

A25

Audio

Amp

IC

Checking order when there is no audio

1. Measure the 24V input voltage supplied from Power Board
(If there is no input voltage, replace power board or connector )

2. Connect the tester RX1 to the speaker terminal and if you hear the Buzzer sound

when you touch the GND and output terminal, the speaker is normal.

3. Check signal input to the Audio amp IC. Such as below

- MCLK ( master clock) : 12.288 MHz

- RESET : normal status is high

- VDD (Power)

- LRCLK : 48KHz

- SCLK : 3.072MHz

A25

Standard Repair Process Detail Technical Manual

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

LCD TV

Error

symptom

Content

D. Function error_ No response in remote controller,

key error

Remote controller operation checking method

Established

date

Revised

date

2010. 2 .19

A27

<ALL MODELS>

1

LW45,LV35

LV25

P2402
1
2
3
4
5
6

3

4

2

7 GND
8 LED_B
9 IR

10 GND
11 Normal 3.3V

12 LED_R
13 GND
14 S/T_SCL
15 S/T_SDA

SCL
SDA
GND

KEY1
KEY2

St 3.3V

LV34,LK43
LK53,LK33

P2401
1
2
3
4
5
6
7 GND
8 LED_B
9 IR

10 GND
11 Normal 3.3V

12 LED_R

SCL
SDA
GND

KEY1
KEY2

St 3.3V

Checking order

1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.3V on the terminal 6.

4. When checking the Pre-Amp when the power is in ON condition, it is normal when
the Analog Tester needle moves slowly, and defective when it does not move at all.

A27
