LG 32LP1DA Users manual

Test Report No.: GETEC-E3-05-008
FCC Class B Certification

APPENDIX H

: USER’S MANUAL

EUT Type: 32” LCD TV/Monitor

FCC ID: BEJ32LP1DA

Digital LCD TV

OWNER’S MANUAL 32LP1DC

Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer
when you require service.

P/NO : 3828TUL298C(0411-REV00)

Printed in Korea

Warning

W

arning

W

arning

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli­ance.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac­tical.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

REGULATORY INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation.
Unauthorized modification could void the user’s authority to operate this product.

U.S.A. only -----------------------------------------------

COMPLIANCE:

The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
Phone: [phone]
http://www.lgusa.com

---------------------------------------------------------------

Safety Instructions

Safety Instructions

Safety Instructions

WARNING :

To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the
apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

Owner's Manual

8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including ampli­fiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. When the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

7. Do not block any of the ventilation openings. Install in
accordance with the manufacturer’s instructions.

11. Only use the attachments / accessories specified by
the manufacturer.

Safety Instructions

Safety Instructions continued

Safety Instructions continued

12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart /
apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when
unused for long periods of time.

Note

- If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on. This is normal, there is noth­ing wrong with TV.

- Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have
no adverse effect on the monitor's performance.

- Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some
temporary distortion effects on the screen.

14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been dam­aged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discon­tinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

On Disposal

a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.

Disposal of this product must be carried out in accordance to the regulations of your local authority.

Introduction

L
I
G

H
T

T
V/

VI
DEO

MODE

COMP/RGB/DVI

MUTE

SURF

VOL CH

INFO

SAP

RATIO

CC

MENU

SOUND VIDEO

EXIT

PLAY PAUSE STOPRECORD

PIP PIPCH- PIPCH+ PIPINPUT

FREEZE

ADJUST

ENTER

ZOOM SIGNAL SWAP

REW FF SKIP

P
O

W
E

R

T
I
M

E
R

FLASHBK

Introduction

Controls

Controls

- This is a simplified representation of front panel.

- Here shown may be somewhat different from your TV.

CH VOL ENTER MENU

ENTER Button

VOLUME (F,G) Buttons

CHANNEL (E, D) Buttons

Remote Control Sensor

ON/OFF

TV VIDEO

ON/OFF Button

TV VIDEO Button

MENU Button

Illuminates red when the TV is in standby mode,

illuminates green when the TV is switched on.

RR AUDIOAUDIO VIDEOVIDEO

L/MONOL/MONO

Audio/Video Input 2

S-VIDEOS-VIDEO

VIDEO2

S-VIDEO Input

Power Standby Indicator

Accessories

Ensure that the following accessories are included with your TV. If any accessory is missing, please contact the
dealer from where you purchased the product.

1.5V

1.5V

Owner’s Manual

D-sub 15 pin Cable

Power Cord

Remote Control /

AA Batteries

Introduction

Connection Options

Connection Options

COMPONENT2

VIDEO

L

AUDIO

R

COMPONENT2 INPUT

B, PR / Audio Input)

(Y, P

Power Cord Socket

DIGITAL AUDIO INPUT/ OUTPUT

* PC INPUT2

(For service)

AC INPUT

PC AUDIO

INPUT2

SPEAKER

OUT

PC AUDIO

INPUT1

PC INPUT2

UPGRADE PORT

PC INPUT1

PC AUDIO INPUT1

PC INPUT1/ UPGRADE PORT

* PC AUDIO INPUT2 / SPEAKER OUT

(For service)

S-VIDEO INPUT

DIGITAL AUDIO

(OPTICAL)

INPUT

OUTPUT

S-VIDEO

COMPONENT1

RL

AUDIO INPUT

COMPONENT1 (Y, P

DVI INPUT

DVI INPUT

R

L/MONO

AUDIO VIDEO

VIDEO1

VIDEO INPUT

AUDIO/VIDEO INPUT1

B, PR / AUDIO INPUT)

* RJP INTERFACE

(For service)

RJP INTERFACE

Antenna

ANTENNA INPUT

* For Service Jacks: PC INPUT2, PC AUDIO INPUT2, SPEAKER OUT, and RJP INTERFACE

Be careful not to use this jack. Just contact your dealer or service center.

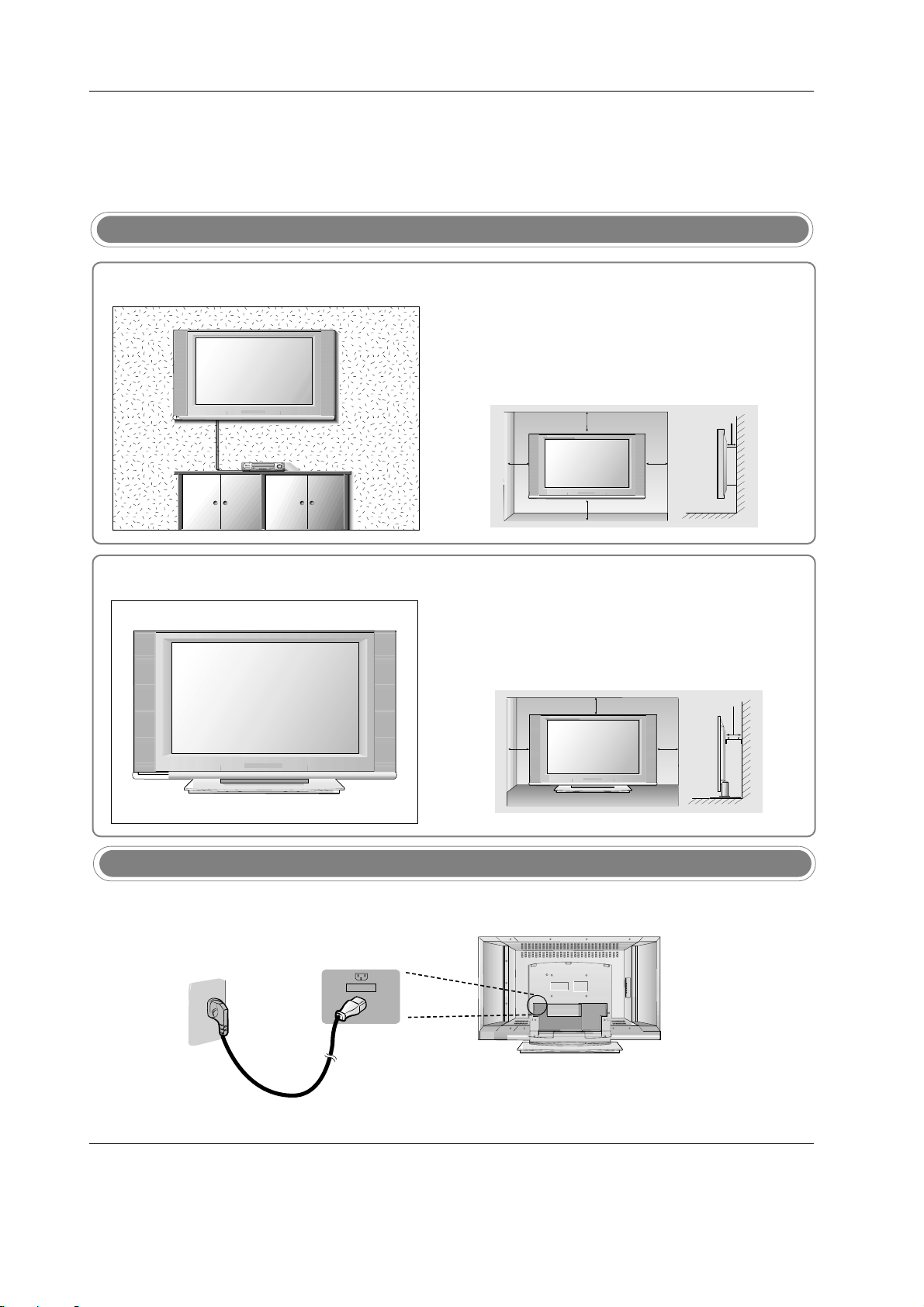

Installation

Installation

Wall Mount: Horizontal installation

Various Installation

For proper ventilation, allow a clearance of 4" on each side
and 2" from the wall. Detailed installation instructions are
available from your dealer, see the optional Tilt Wall
Mounting Bracket Installation and Setup Guide.

Desktop Pedestal Installation

Power Cord Connection

4 inches

4 inches4 inches

4 inches

2 inches

For proper ventilation, allow a clearance of 4" on each side
and the top, and 2" from the wall.

4 inches

4 inches4 inches

2 inches

- Connect the power cord correctly as shown.

AC INPUT

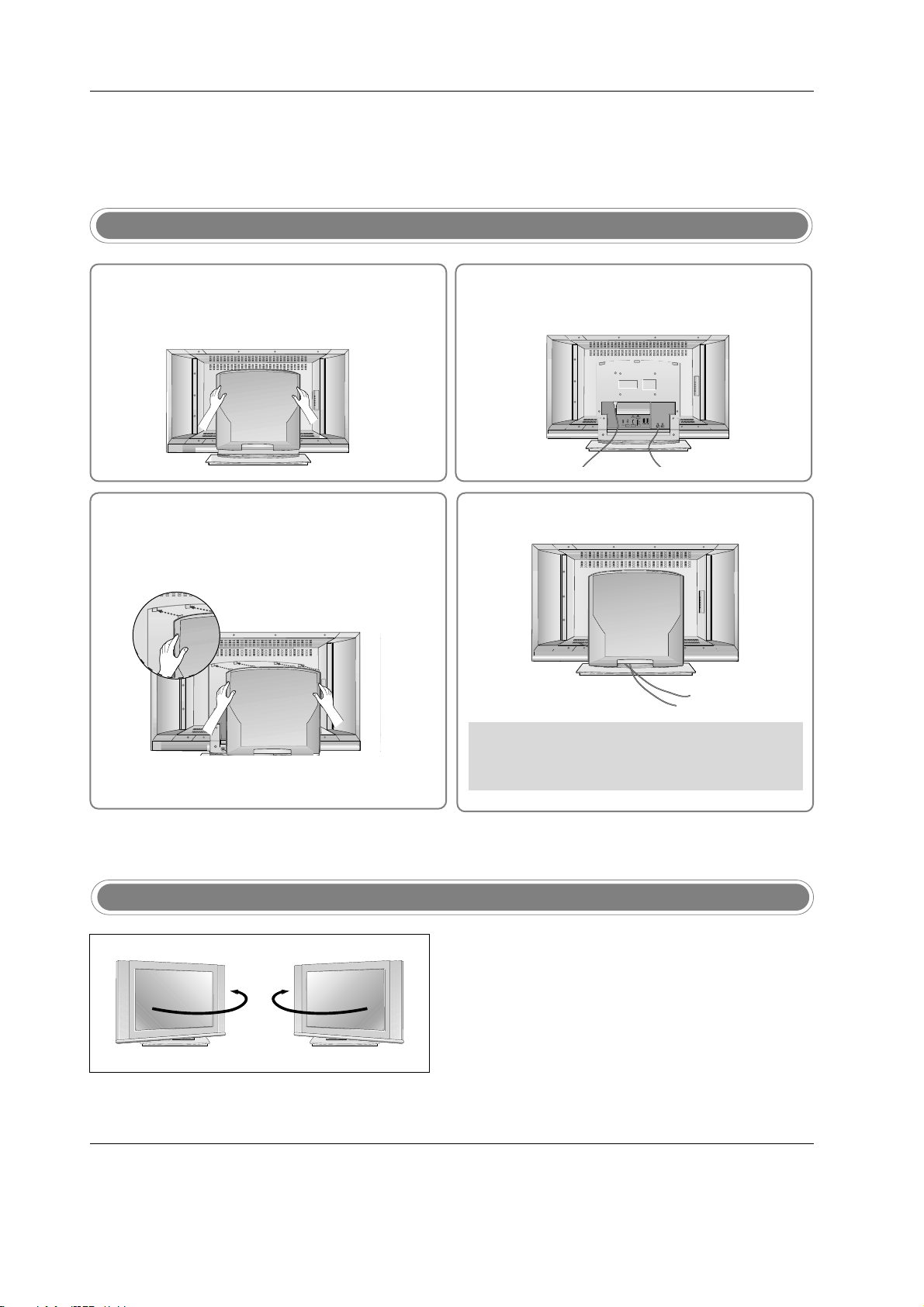

How to use rear AV cover

Hold the cover with both hands and pull it

1

backward.

REMOTE

PC SOUND

CONTROL

VIDEO

L
AUDIO
R

AV2

AV1

MONITOR

HDMI

DVI INPUT

UPGRADE

OUT

Antenna

LOOP THROUGH

(PC INPUT)

PORT

Align the holes on the TV back panel with the

34

four protuberance on the rear AV cover and

Install wires as necessary.

2

(To install various wires, refer to p.14~20.)

REMOTE

PC SOUND

CONTROL

VIDEO

L
AUDIO
R

AV2

AV1

MONITOR

HDMI

DVI INPUT

UPGRADE

OUT

Antenna

LOOP THROUGH

(PC INPUT)

PORT

Reinstall the cover such as open it.

insert.

REMOTE

PC SOUND

CONTROL

VIDEO

L
AUDIO
R

AV2

AV1

MONITOR

HDMI

DVI INPUT

UPGRADE

OUT

Antenna

LOOP THROUGH

(PC INPUT)

PORT

REMOTE

PC SOUND

CONTROL

VIDEO

L
AUDIO
R

AV2

AV1

MONITOR

HDMI

DVI INPUT

UPGRADE

OUT

Antenna

LOOP THROUGH

(PC INPUT)

PORT

Wire Arrangement

- Pull the cables through the hole on the set.

Swivel Stand

- The TV can be conveniently swiveled on its stand 90° to
the left or right to provide the optimum viewing angle.

Installation

External Equipment Connections

External Equipment Connections

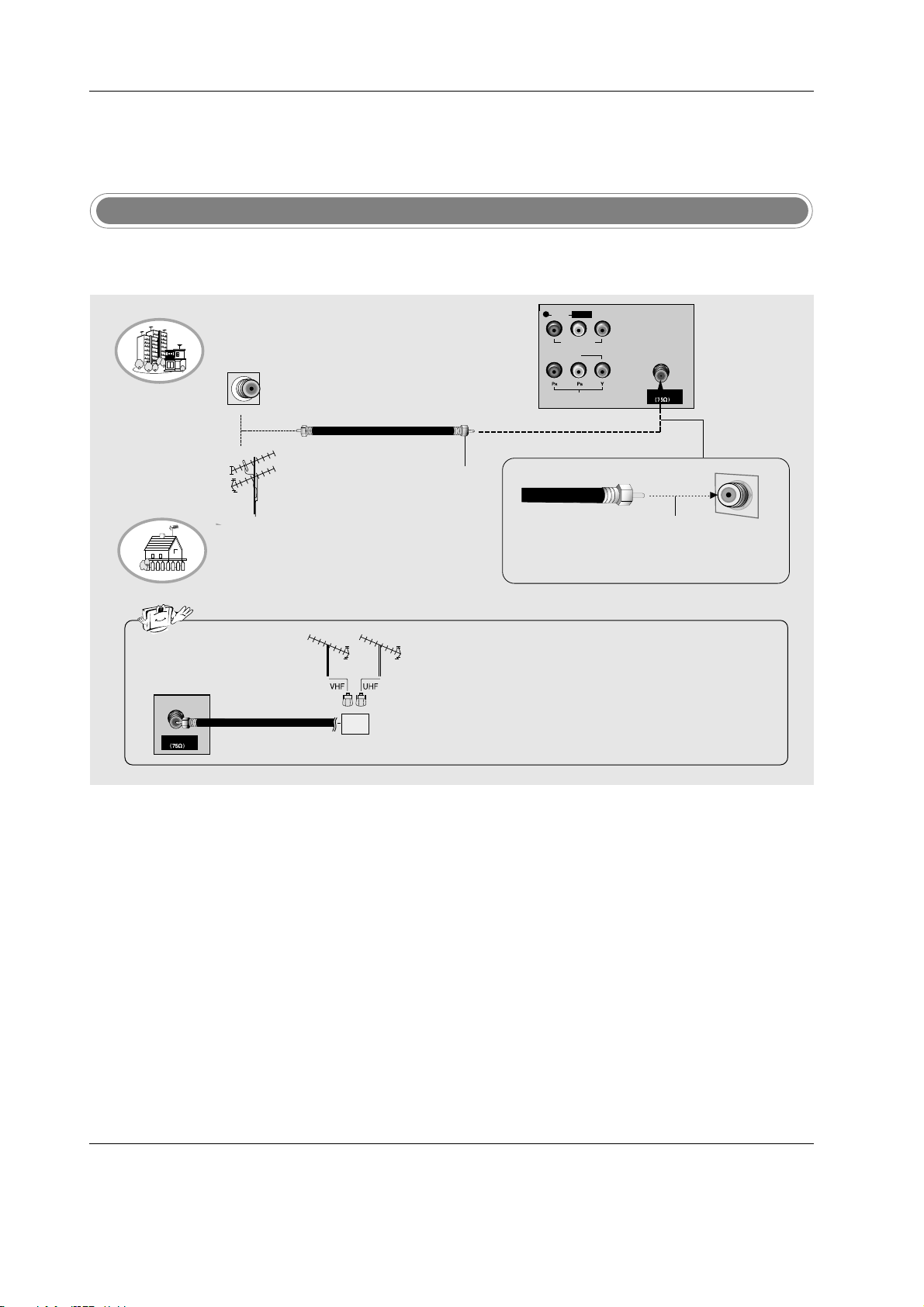

Antenna Connection

- Antenna or Cable Service without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

R

Multi-family Dwellings/Apartments
(Connect to wall antenna socket)

Wall Antenna Socket

RF Coaxial Wire (75 ohm)

AUDIO VIDEO

PONENT1

T

L/MONO

VIDEO1

VIDEO INPUT

Antenna

VHF Antenna

Turn clockwise to tighten.

UHF Antenna

Outdoor Antenna

Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)

Be careful not to bend the bronze wire when
connecting the antenna.

Bronze Wire

• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.

• If the antenna needs to be split for two TV’s, install a “2­Way Signal Splitter” in the connections.

Antenna

Signal

Amplifier

• If the antenna is not installed properly, contact your deal­er for assistance.

NOTE: If you are not sure of the type of signal(s) you are receiving, let EZ Scan complete all the channel signal-

type searches. The TV will let you know when the analog, cable, and digital channel scans are complete.

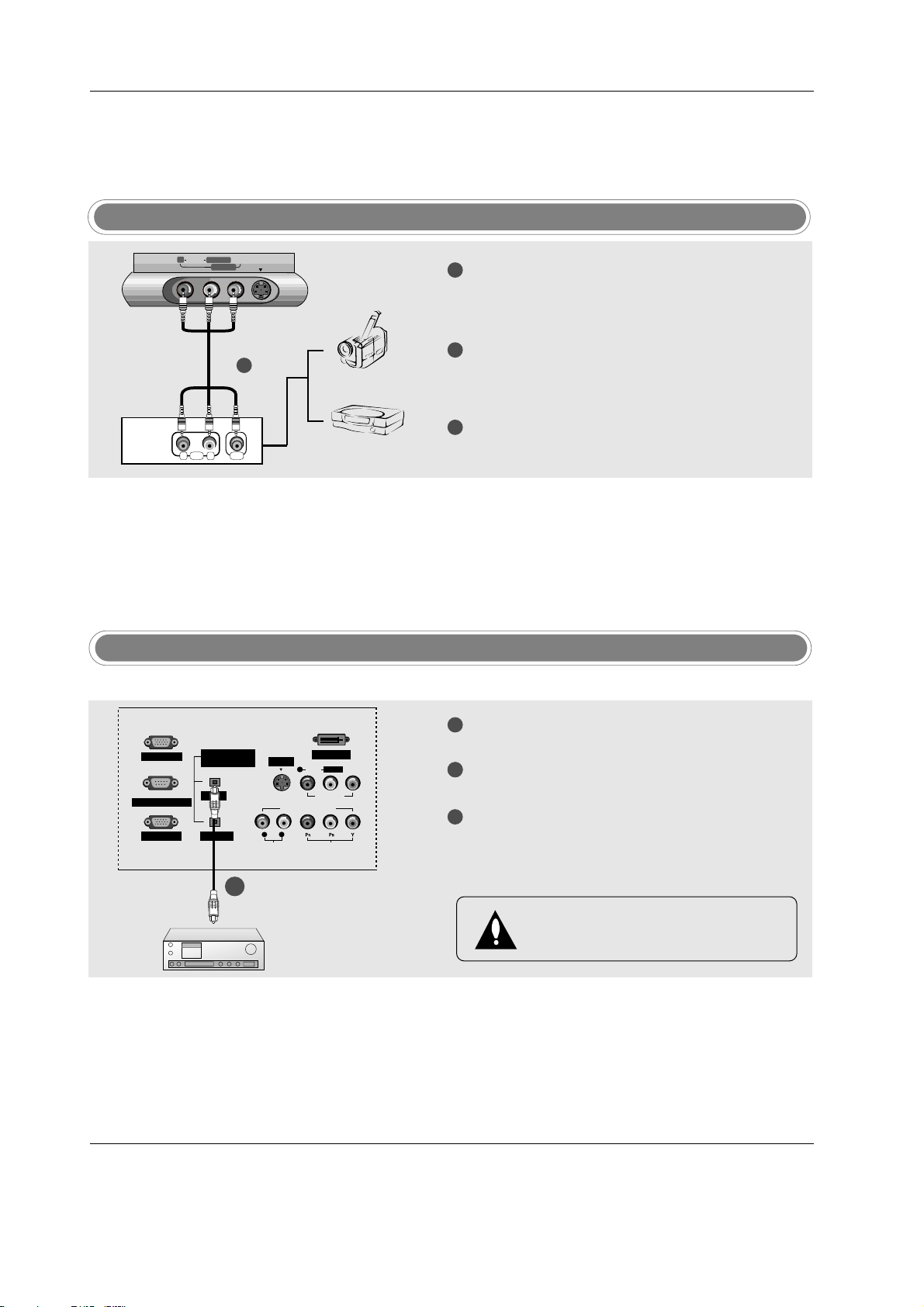

External AV Source Setup

Installation

R AUDIO

L/MONO

VIDEO2

VIDEO

S-VIDEO

TV front

1

Connect the AUDIO/VIDEO jacks between TV
and external equipment. Match the jack colours
(Video = yellow, Audio Left = white, and Audio
Right = red).

Select Video 2 input source with using the

1

Camcorder

2

TV/VIDEO button on the remote control.

- If connected to VIDEO1 input (the back side),
select Video 1 input source.

3

Operate the corresponding external equipment.

AUDIO VIDEO

RL

Video Game Set

Refer to external equipment operating guide.

Digital Audio Output

- Send the TV’s audio to external audio equipment (stereo system) via the Digital Audio Output Optical port.

PC INPUT2

UPGRADE PORT

PC INPUT1

DIGITAL AUDIO

(OPTICAL)

INPUT

OUTPUT

1/2

S-VIDEO

COMPONENT1

RL

AUDIO INPUT

DVI INPUT

R

L/MONO

AUDIO VIDEO

VIDEO1

VIDEO INPUT

TV Back

1

Connect one end of an optical cable to the TV
Digital Audio Optical Output port.

2

Connect the other end of the optical cable to the
digital audio optical input on the audio equipment.

Set the “

3

TV Speaker option - Off” in the AUDIO

menu. Refer to page 35.
See the external audio equipment instruction
manual for operation.

CAUTION

Do not look into the optical output port. Looking
at the laser beam may damage your vision.

Installation

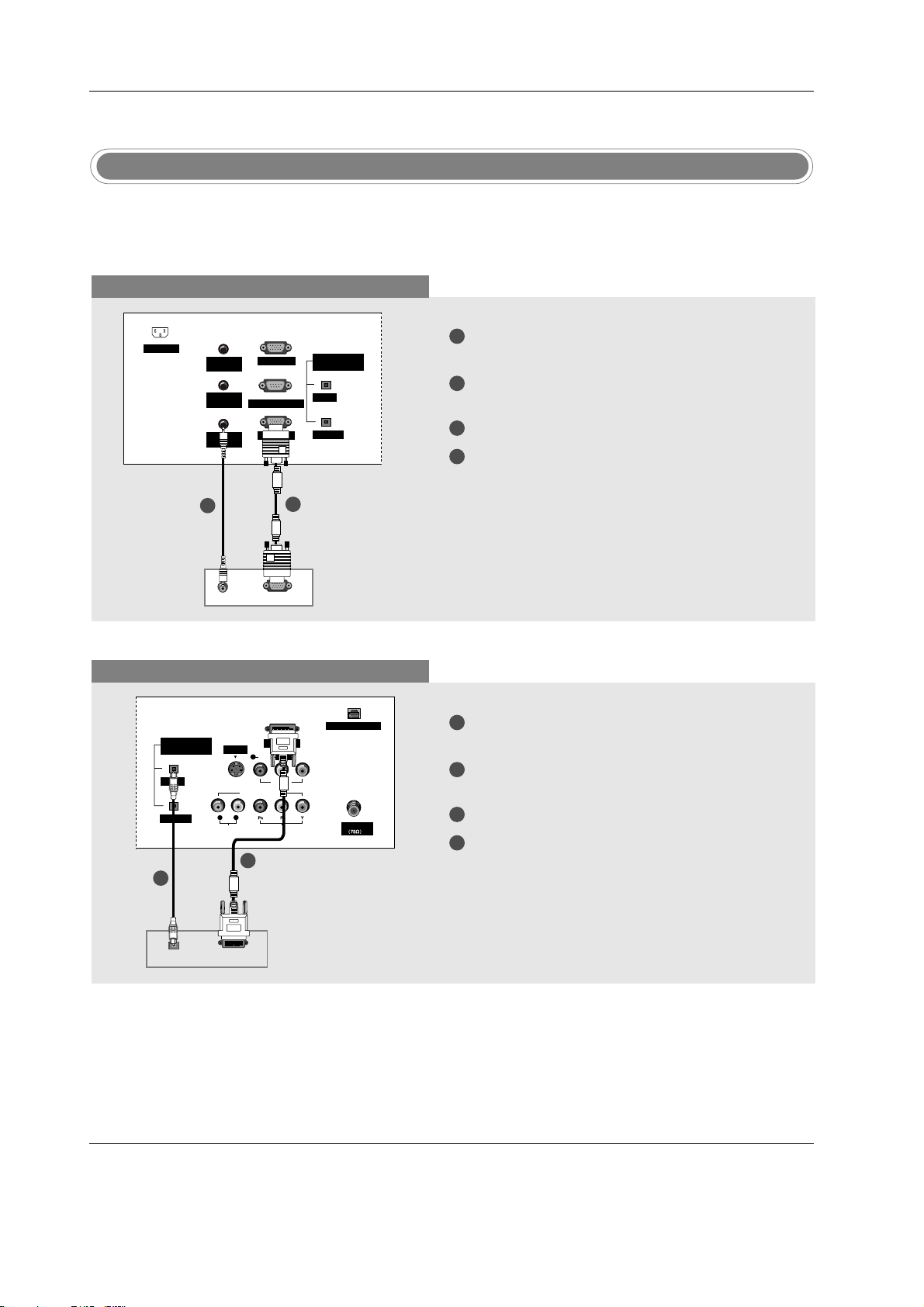

PC Setup

- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
The TV sends configuration information (EDID) to the PC using the Video Electronics Standard Association
(VESA) Display Data Channel (DDC) protocol.

When connecting with a D-sub 15 pin cable

1

AC INPUT

PC AUDIO

INPUT2

SPEAKER

OUT

PC AUDIO

INPUT1

2

PC INPUT2

UPGRADE PORT

PC INPUT1

1

DIGITAL AUDIO

(OPTICAL)

INPUT

OUTPUT

TV Back

Connect the RGB output of the PC to the PC
INPUT1 jack on the set.

Connect the PC audio outputs to the PC AUDIO

2

INPUT1 jack on the set.

Turn on the PC and the set.

3

Select RGB1-PC input source in main input

4

option of SETUP menu. (Refer to P.28)

AUDIO

RGB-PC OUPUT

PC

When connecting with a DVI cable

RJP INTERFACE

DIGITAL AUDIO

(OPTICAL)

INPUT

OUTPUT

2

DIGITAL AUDIO

OPTICAL

RL

AUDIO INPUT

DVI-PC OUPUT

S-VIDEO

DVI INPUT

R

AUDIO VIDEO

VIDEO1

COMPONENT1

VIDEO INPUT

1

PC

L/MONO

TV Back

Antenna

1

Connect the DVI output of the PC to the DVI
INPUT jack on the set.

Connect the PC audio outputs to the DIGITAL

2

AUDIO INPUT jack on the set.

Turn on the PC and the set.

3

Select DVI-PC input source in main input option

4

of SETUP menu. (Refer to P.28)

Installation

1. To get the best picture quality, adjust the PC graph­ics card to 1024x768, 60Hz.

2. If the graphic card on the PC does not output ana­log and digital RGB simultaneously, connect only
one of either PC INPUT or DVI INPUT to display
the PC on the TV.

If the graphic card on the PC does output analog
and digital RGB simultaneously, set the TV to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the TV.)

3. If using a sound card, adjust the PC sound as

required.

4. Check the image on your TV. There may be noise
associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is pre­sent, change the PC mode to another resolution,
change the refresh rate to another rate or adjust
the brightness and contrast on the menu until the
picture is clear. If the refresh rate of the PC graphic
card can not be changed, change the PC graphic
card or consult the manufacturer of the PC graphic
card.

Monitor Display Specifications (RGB1-PC / DVI-PC Mode)

5. Avoid keeping a fixed image on the TV's screen for
a long period of time. The fixed image may become
permanently imprinted on the screen.

6. The synchronization input form for Horizontal and
Vertical frequencies is separate.

* DPM (Display Power Management) Mode

When the PC is in the power saving mode, auto­matically the set goes into DPM mode to save the
energy.

* Use the supplied signal cable with the set. Otherwise,

DPM mode may not work.

Resolution

640x350

720x400

640x480

800x600

1024x768

Horizontal Frequency

(KHz)

31.468

31.469

37.927

31.469

37.861

37.500

35.156

37.879

48.077

46.875

48.363

56.476

60.023

Vertical Frequency

(Hz)

70.09

70.08

85.03

59.94

72.80

75.00

56.25

60.31

72.18

75.00

60.00

70.06

75.02

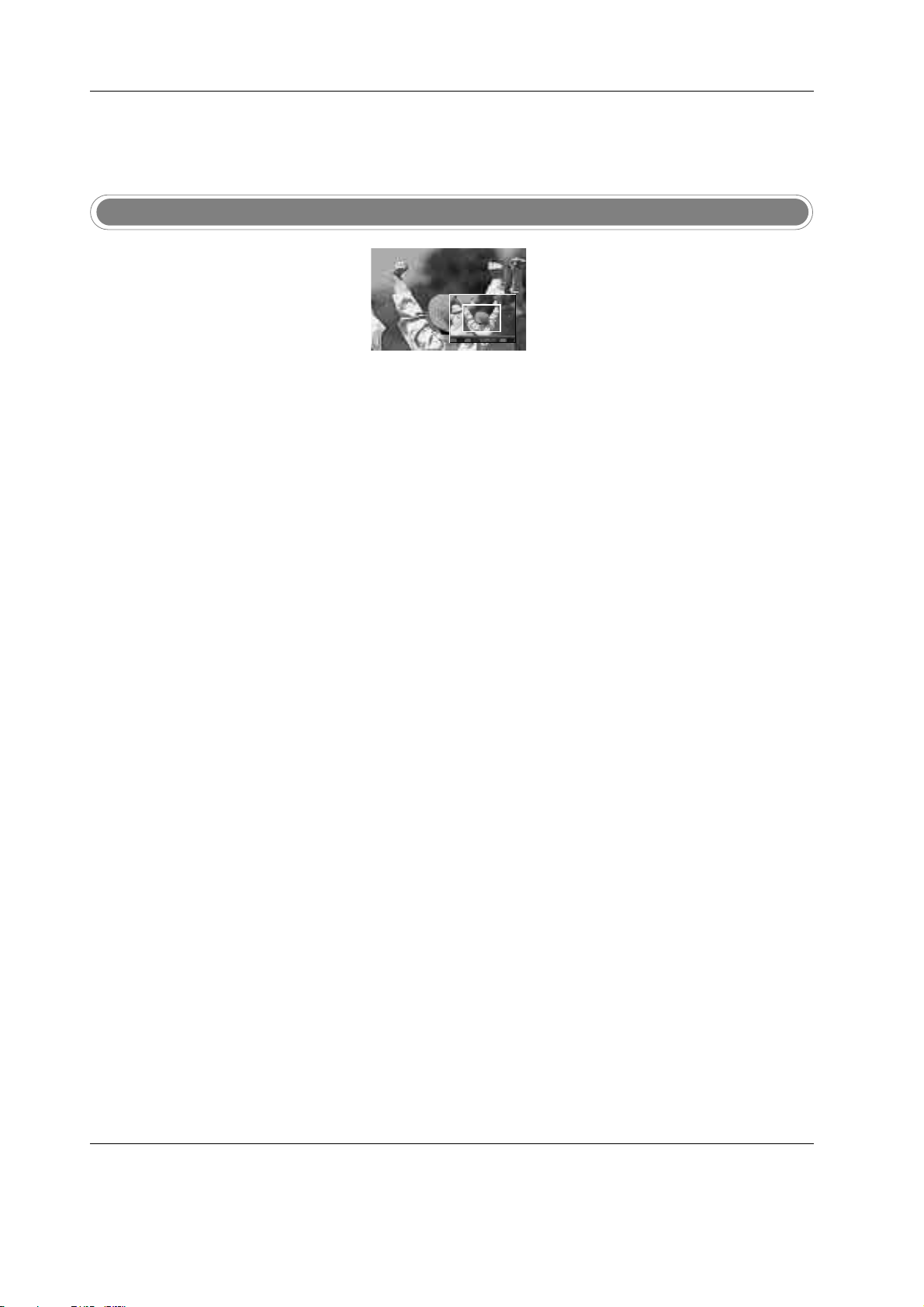

Split Zoom (DTV 720p, or 1080i mode only)

- Enlarges the picture with correct propor­tions.

- When enlarging the picture, the image
may become distorted.

F

F

F

F

1.Press the ZOOM button in DTV 720p, or 1080i modes.

2.Use the

D/E

G

/F/

buttons to select the screen split zoom section.

3.To return to normal viewing, press the ZOOM button again.

Operation

Operation

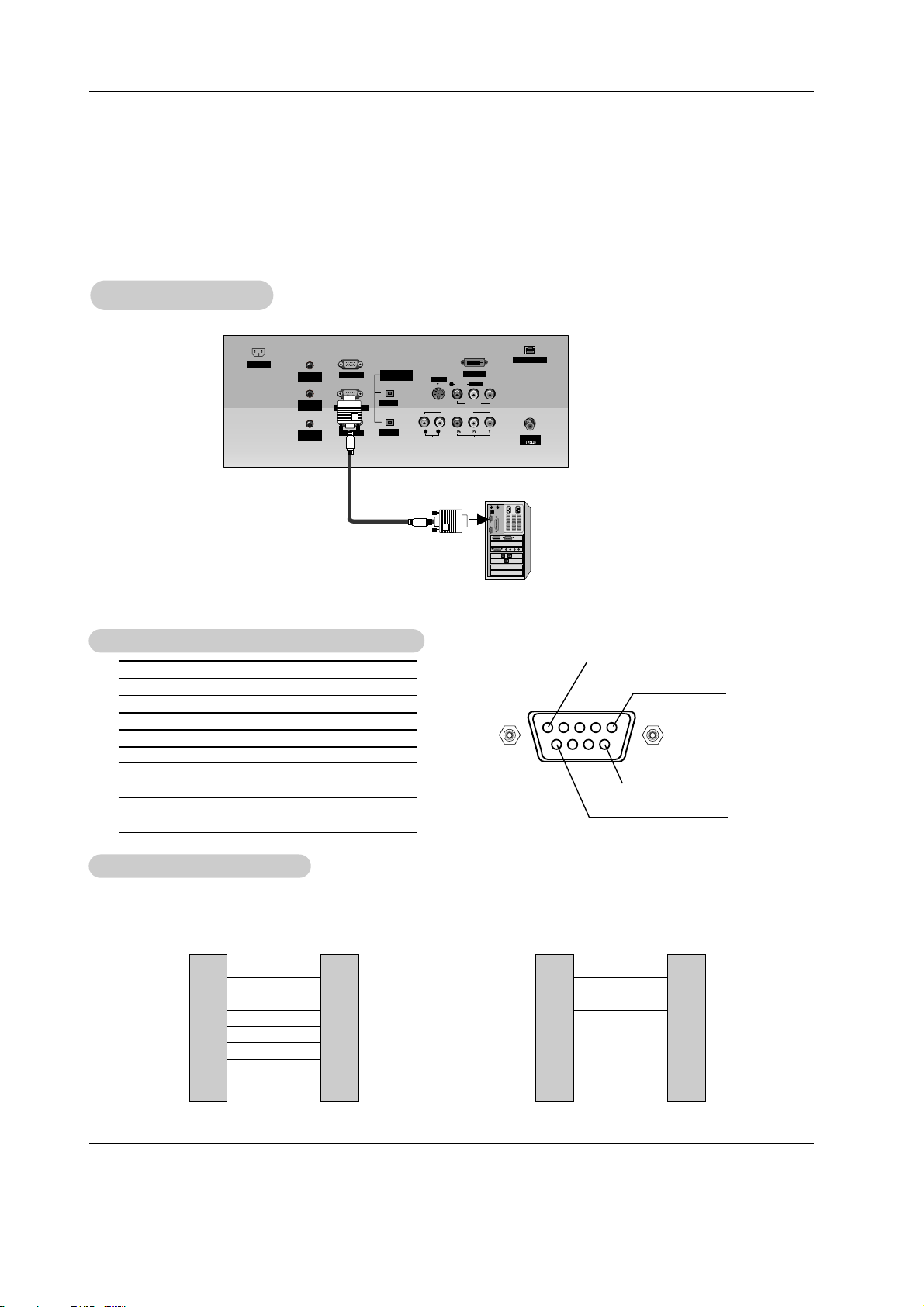

External Control Device Setup

External Control Device Setup

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V con­trol system) and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the TV back panel.

- RS-232C connection cables are not supplied with the TV.

RS-232C Setup

RS-232C Setup

AC INPUT

ype of Connector; D-Sub 9-Pin Male

TType of Connector; D-Sub 9-Pin Male

PC AUDIO

INPUT2

SPEAKER

OUT

PC AUDIO

INPUT1

PC INPUT2

UPGRADE PORT

PC INPUT1

No. Pin Name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection

DIGITAL AUDIO

(OPTICAL)

INPUT

OUTPUT

S-VIDEO

RL

AUDIO INPUT

R

AUDIO VIDEO

COMPONENT1

DVI INPUT

L/MONO

VIDEO1

VIDEO INPUT

RJP INTERFACE

Antenna

PC

1

5

9

6

RS-232C Configurations

RS-232C Configurations

7-Wire Configurations

(Standard RS-232C cable)

PC

RXD
TXD
GND
DTR
DSR
RTS
CTS

2
3
5
4
6
7
8

D-Sub 9

TV

3
2
5
6
4
8
7

D-Sub 9

TXD
RXD
GND
DSR
DTR

CTS

RTS

RXD

TXD

GND

DTR

DSR

RTS
CTS

3-Wire Configurations

(Not standard)

PC

2
3
5
4
6
7
8

D-Sub 9

TV

3
2
5
4
6
7
8

D-Sub 9

TXD
RXD

GND

DTR

DSR

RTS
CTS

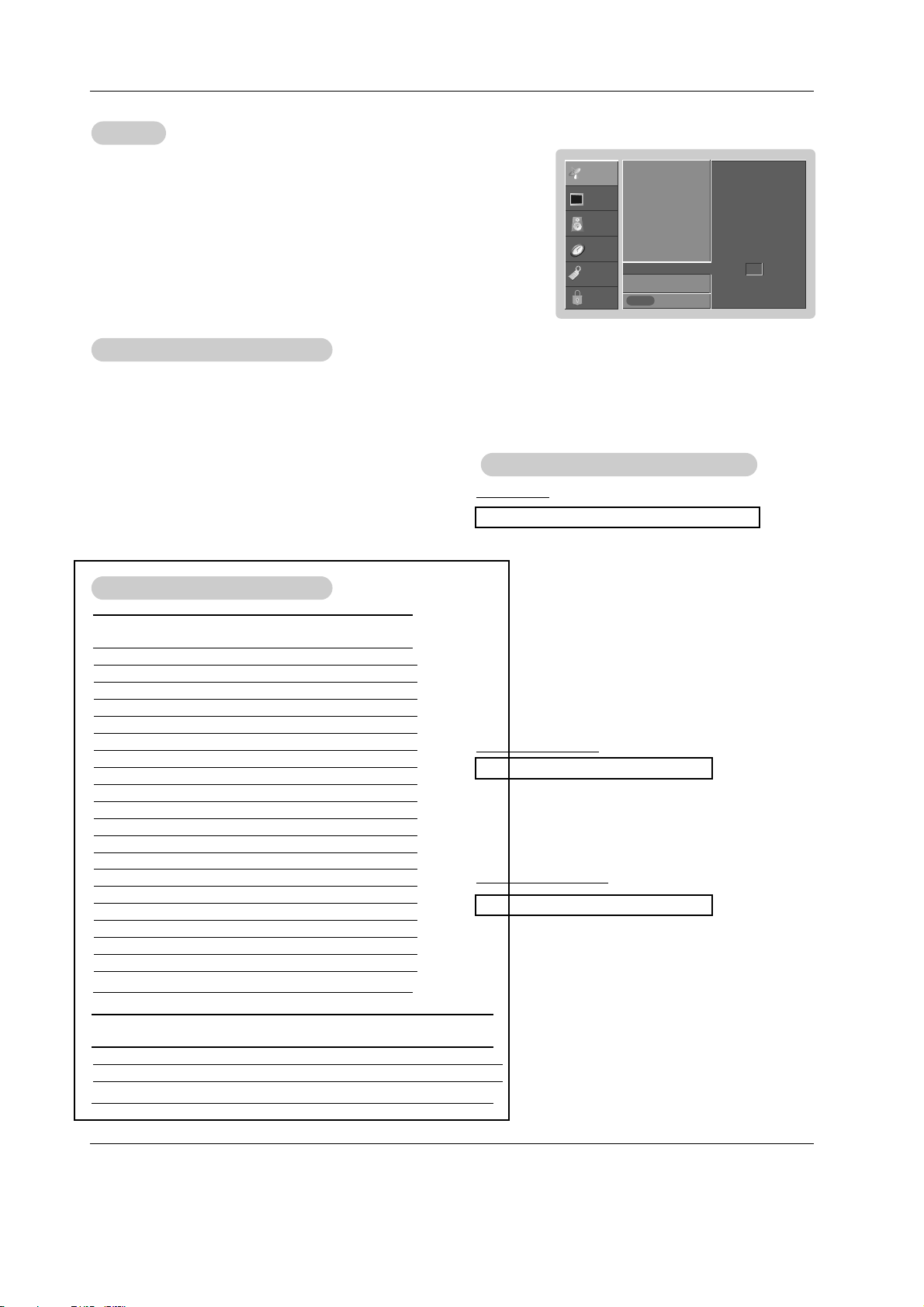

Set ID

Set ID

- Use this function to specify a monitor ID number.

- Refer to ‘Real Data Mapping’. See page 50.

1. Press the MENU button and then use

2. Press the

3. Press the

G

button and then use

G

button and then use

D/E

D/E

desired monitor ID number. The adjustment range of

button to select the SETUP menu.

D/E

button to select SET ID.

button to adjust SET ID to choose the

SET ID is 1 ~ 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.

Communication Parameters

Communication Parameters

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

External Control Device Setup

EZ Scan

Ch.Edit

DTV Signal

Ch. Label

Main Input

Sub Input

Front Display

SET ID

Prev.

MENU

G

1

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Stop bit : 1 bit

• Communication code : ASCII code

• Parity : None

* Use a crossed (reverse) cable.

Command Reference List

Command Reference List

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 9

03. Aspect Ratio k c 1 ~ 1F

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 1

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote Control Lock Mode

k m 0 ~ 1

14. PIP/Twin k n 0 ~ 3

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19. Color Temperature k u 0 ~ 2

20. PIP Input Source k y 0 ~ 3

COM-

COM­MAND 1

MAND 2

DATA 0

(Hexadecimal)

DATA 1

(Hexadecimal)

DATA 2

(Hexadecimal)

DATA 3

(Hexadecimal)

21. Channel Tuning m a 01 ~ 87 01 ~ 87 00 ~ FE 00 ~ 15

22. Channel Add/Del m b 00 ~ 01

23. Key m c

ransmission / Receiving Protocol

TTransmission / Receiving Protocol

ransmission

T

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1]: First command to control the set. (j or k)

*

[Command 2]: Second command to control the set.

*

[Set ID]: You can adjust the set ID to choose desired monitor

*

ID number in Setup menu. Adjustment range is 1
~ 99. When selecting Set ID ‘0’, every connected
the TV is controlled. Set ID is indicated as decimal
(1~99) on menu and as Hexa decimal (0x0~0x63)
on transmission/receiving protocol.

[DATA]: To transmit command data.

*

*

*

Transmit ‘FF’ data to read status of command.

[Cr]: Carriage Return

ASCII code ‘0x0D’

[ ]: ASCII code ‘space (0x20)’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from non-viable
functions or communication errors.

Data 1: Illegal Code

2: Not supported function
3: Wait more time

External Control Device Setup

01. Power (Command2:a)

G To control Power On/Off of the TV.

ransmission

T

[k][a][ ][Set ID][ ][Data][Cr]

Data 0 : Power Off 1 : Power On

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback
presents status about each function.

02. Input Select (Command2:b) (Main Picture Input)

G To select input source for the TV.

T

ransmission

[k][b][ ][Set ID][ ][Data][Cr]

Data 0: DTV

1: Analog
2: Video 1
3: Video 2
4: Component 1

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

5: Component 2
6: RGB-DTV
7: RGB-PC
8: DVI-DTV
9: DVI-PC

03. Aspect Ratio (Command2:c) (Main picture format)

G To adjust the screen format.

You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.

ransmission

T

[k][c][ ][Set ID][ ][Data][Cr]

Data 1: Normal screen (4:3)

2: Wide screen (16:9)
3: Horizon
4: Zoom 1
5: Zoom 2

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

6: Auto (Set by program)
10: Cinema Zoom (1)

1F: Cinema Zoom (16)

04. Screen Mute (Command2:d)

G To select screen mute on/off.

ransmission

T

[k][d][ ][Set ID][ ][Data][Cr]

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

05. Volume Mute (Command2:e)

G To control volume mute on/off.

You can also adjust mute using the MUTE button on
remote control.

T

ransmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

G To adjust volume.

You can also adjust volume with the volume buttons
on remote control.

T

ransmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command2:g)

G To adjust screen contrast.

You can also adjust contrast in the Video menu.

T

ransmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

G To adjust screen brightness.

You can also adjust brightness in the Video menu.

T

ransmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

Real data mapping

*

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

64 : Step 100

roubleshooting Checklist

TTroubleshooting Checklist

• Check whether the TV is turned on.

No picture &

No sound

Picture OK &

No sound

• Try another channel. The problem may be with the broadcast.

• Is the power cord inserted into wall power outlet?

• Check your antenna direction and/or location.

• Test the wall power outlet, plug another product’s power cord into the
outlet where the TV’s power cord was plugged in.

• Press the VOLUME (G) button.

• Sound muted? Press MUTE button.

• Try another channel. The problem may be with the broadcast.

• Are the audio cables installed properly?

Troubleshooting Checklist

The remote control

doesn’t work

Picture appears slowly

after switching on

No or poor color

or poor picture

• Check to see if there is any object between the TV and the remote
control causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries.

• This is normal, the image is muted during the TV startup process.
Please contact your service center, if the picture has not appeared
after five minutes.

• Select Color in the Video menu and press the VOLUME (G) button.

• Keep a sufficient distance between the TV and the VCR.

• Try another channel. The problem may be with the broadcast.

• Are the video cables installed properly?

• Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets
dark.)

Horizontal/vertical

bars or picture shak-

ing

• Check for local interference such as an electrical appliance or power
tool.

Troubleshooting Checklist

No output from one

of the speakers

Unusual sound from

inside the TV

Poor reception on

some channels

Poor stereo sound

• Adjust Balance in the AUDIO menu.

• A change in ambient humidity or temperature may result in an
unusual noise when the plasma display is turned on or off and does
not indicate a fault with the TV.

• Station or cable TV experiencing problems, tune to another station.

• Station signal is weak, reorient antenna to receive weaker staion.

• Check for sources of possible interference.

• Check the kind of input signal and select Mono, Stereo, SAP with

SAP the button.

Lines or streaks in

pictures

Power is suddenly

turned off

• Check antenna (Change the direction of the antenna).

• Is the sleep timer set?

• Check the power control settings. /Power interrupted

• No broadcast on station tuned with Auto off activated.

Maintenance

Maintenance

Maintenance

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Screen

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water

and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe
the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.

Extended

Extended

Product Specifications

Product Specifications

External Antenna Impedance

Absence

Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to
unplug the power cord to protect against possible damage from lightning or power surges.

MODEL

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Power requirement

Television System

Program Coverage

AC 100-240V~ 50/60Hz 2.0A

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125, CADTV 1 ~ 135. DTV 2 ~ 69

32LP1DC

40.12 / 1019

24.7 / 627.5

8.03 / 204

NTSC-M, ATSC

73.4 / 32

75 :

• The specifications shown above may be changed without prior notice for quality improvement.
