LG 32LN570B-TB, 55LA6610, 47LA6210-TD, 42LA6210-TD, 50LA6210-TD Owner’s Manual

...
OWNER’S MANUAL
LED TV
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
LA62** LA64** LA66** LA69** LA74** LN57**
P/NO : MFL67706423 (1303-REV01) Printed in Korea
www.lg.com
TABLE OF CONTENTS
2
ENGLISH
ENG
TABLE OF CONTENTS
3 SAFETY INSTRUCTIONS
8 Viewing 3D Imaging (Only 3D models)
9 INSTALLATION PROCEDURE
9 ASSEMBLING AND PREPARING
9 Unpacking 13 Separate purchase 14 Parts and buttons 15 Lifting and moving the TV 16 Setting up the TV 16 - Attaching the stand 18 Mounting on a table 21 Mounting on a wall 22 Tidying cables
23 MAKING CONNECTIONS
23 Antenna connection 24 HDMI connection 24 DVI to HDMI connection 25 Component connection 25 Composite connection 26 Audio connection 26 - Digital optical audio connection 26 Headphone connection 27 USB connection 27 MHL connection
43 LICENSES
43 OPEN SOURCE SOFTWARE NOTICE
43 EXTERNAL CONTROL DEVICE
SETUP
28 REMOTE CONTROL
30 MAGIC REMOTE CONTROL
FUNCTIONS
31 Registering Magic Remote Control 31 How to use Magic Remote Control 31 Precautions to Take when Using the Magic
Remote Control
32 USING THE USER GUIDE
33 MAINTENANCE
33 Cleaning your TV 33 - Screen, frame, cabinet and stand 33 - Power cord
33 TROUBLESHOOTING
34 SPECIFICATIONS
WARNING
yIf you ignore the warning message, you may
be seriously injured or there is a possibility of accident or death.
CAUTION
yIf you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
yThe note helps you understand and use the
product safely. Please read the note carefully before using the product.
SAFETY INSTRUCTIONS
3
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
Do not place the TV and/or
y
remote control in the following environments:
- A location exposed to direct sunlight
- An area with high humidity such as a bathroom
- Near any heat source such as stoves and other devices that produce heat
- Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
- An area exposed to rain or wind
- Near containers of water such as vases
Otherwise, this may result in fire, electric shock, malfunction or product deformation.
Do not place the product
y
where it might be exposed to dust. This may cause a fire hazard.
Mains Plug is the TV
y
connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.
Do not touch the power plug
y
with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.
Make sure to connect Mains
y
cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.
Insert power cable plug
y
completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.
Ensure the power cord does
y
not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.
Do not place a heavy object,
y
or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
Bend antenna cable between
y
inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.
When mounting TV onto wall
y
make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.
Do not plug too many
y
electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
Do not drop the product or let
y
it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
ENGENGLISH
SAFETY INSTRUCTIONS
Desiccant
4
ENGLISH
ENG
Keep the anti-moisture
y
packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not let your children climb
y
or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
Dispose of used batteries
y
carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.
Do not insert any metal
y
objects/conductors (like a metal chopstick/cutlery/ screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)
Do not put or store
y
inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
Do not drop metallic objects
y
such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
Do not spray water on the
y
product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
Do not allow any impact,
y
shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.
Never touch this product or
y
antenna during a thunder or lighting storm. You may be electrocuted.
Never touch the wall outlet
y
when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.
Do not disassemble, repair
y
or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.
If any of the following
y
occur, unplug the product immediately and contact your local service centre.
- The product has been impacted by shock
- The product has been damaged
- Foreign objects have entered the product
- The product produced smoke or a strange smell
This may result in fire or electric shock.
Unplug the TV from AC
y
mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.
Apparatus shall not be
y
exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
Install the product where no
y
radio wave occurs.
There should be enough
y
distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.
Do not install the product
y
on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.
If you install the TV on a
y
stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
If you intend to mount the product to a wall,
y
attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
Only use the attachments / accessories specified
y
by the manufacturer.
SAFETY INSTRUCTIONS
When installing the antenna,
y
consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.
We recommend that you
y
maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.
Only use the specified type of
y
battery. This could cause damage to the remote control.
Do not mix new batteries with
y
old batteries. This may cause the batteries to overheat and leak.
Batteries should not be exposed to excessive
y
heat. For example, keep away from direct sunlight, open fireplace and electric heaters.
Do not place non-rechargeable batteries in
y
charging device.
Make sure there are no
y
objects between the remote control and its sensor.
Signal from Remote Control
y
can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.
When connecting external
y
devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.
Do not turn the product
y
On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.
5
ENGENGLISH
SAFETY INSTRUCTIONS
6
ENGLISH
ENG
Please follow the installation
y
instructions below to prevent the product from overheating.
- The distance between the product and the wall should be more than 10 cm.
- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
- Do not install the product on a carpet or cushion.
- Make sure the air vent is not blocked by a tablecloth or curtain.
Otherwise, this may result in fire.
Take care not to touch the
y
ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance,
y
and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Prevent dust collecting on the
y
power plug pins or outlet. This may cause a fire hazard.
Protect the power cord from
y
physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Do not press strongly upon
y
the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.
Avoid touching the screen or
y
holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.
When cleaning the product
y
and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall
y
outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
When unplugging the cable,
y
grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous.
When moving the product,
y
make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
When moving or unpacking
y
the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
Contact the service centre
y
once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
Refer all servicing to
y
qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
If the product feels cold to the
y
touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
The panel is a high
y
technology display product with resolution of two million to six million pixels. You may see tiny black dots and/ or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
You may find different
y
brightness and colour of the panel depending on your viewing position(left/right/top/ down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.
SAFETY INSTRUCTIONS
Displaying a still image (e.g., broadcasting
y
channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
Generated Sound
y
“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera­ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depend­ing on the product. This generated sound does not affect the performance and reliability of the product.
7
ENGENGLISH
SAFETY INSTRUCTIONS
8
ENGLISH
ENG
Viewing 3D Imaging (Only 3D models)
WARNING
Viewing Environment
yViewing Time
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
ySome users may experience a seizure or other
abnormal symptoms when they are exposed to a
ashing light or particular pattern from 3D contents.
yDo not watch 3D videos if you feel nausea, are
pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
y3D Contents are not recommended to those who
suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
yIf you have strabismus (cross-eyed), amblyopia (weak
eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
yIf your eyesight varies between your right and left
eye, revise your eyesight prior to watching 3D contents.
CAUTION
Viewing Environment
Viewing Distance
y
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.
Viewing Age
yInfants/Children
- Usage/ Viewing 3D contents for children under the age of 5 are prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.
yTeenagers
- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.
yElderly
- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance.
Symptoms which require discontinuation or refraining from watching 3D contents
yDo not watch 3D contents when you feel fatigue from
lack of sleep, overwork or drinking.
yWhen these symptoms are experienced, stop using/
watching 3D contents and get enough rest until the symptom subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
Cautions when using the 3D glasses
Make sure to use LG 3D glasses. Otherwise, you
y
may not be able to view 3D videos properly.
Do not use 3D glasses instead of your normal
y
glasses, sunglasses or protective goggles.
Using modied 3D glasses may cause eye strain or
y
image distortion.
Do not keep your 3D glasses in extremely high or low
y
temperatures. It will cause deformation.
The 3D glasses are fragile and are easy to be
y
scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
<
<
9
NOTE
yImage shown may differ from your TV. yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. yThe available menus and options may differ from the input source or product model that you are using. yNew features may be added to this TV in the future. yThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned
off if it will not be watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced,
and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included. 2 Attach the stand to the TV set. 3 Connect an external device to the TV set. 4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
ENGENGLISH
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
yDo not use any unapproved items to ensure the safety and product life span. yAny damages or injuries by using unapproved items are not covered by the manufacturer’s warranty. ySome models have a thin film attached on to the screen and this must not be removed.
NOTE
yThe items supplied with your product may vary depending on the model. yProduct specifications or contents of this manual may be changed without prior notice due to upgrade of product
functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm
width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
B
A
B
*A
10 mm
=
18 mm
*B
A
=
ENGLISH
ENG
ASSEMBLING AND PREPARING
10
AV MODE
INPUT
ENERGY
TV
SAVING
1 2 3
4 5 6
7 809
FLASHBK
LIST
MARK
FAV
P A G
3D
CHVOL
E
MUTE
INFO
MENU
Q.MENU
ENTER
EXIT
BACK
L/R SELECT
FREEZE
RATIO
P
Tag On
Remote control, batteries (AAA)
(Depending on model) (See p. 28, 29)
Cinema 3D Glasses
The number of 3D glasses may differ depending on the model or country. (Depending on model)
Desk-mount Screw
(1EA : Only 32/42/47/50/60LN570*, 32/42/47/50/60LN572*) (2EA : Only 32/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**, 32/42/47/50LN571*) (See p. 18, 19)
Magic remote control, batteries (AA)
(Only LA620*, LA621*, LA64**, LA66**, LA69**, LA74**, LN570*, LN572*) (Depending on model) (See p. 30)
Dual play glasses
(Depending on model)
Desk-mount Cable
2EA (Only 32/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**,
32/42/47/50LN571*)
(See p. 19)
Owner’s manual Tag on
(Depending on model)
Cable holder
(Depending on model) (See p. 22)
Bracket Screw
2EA, M4 x 8 (Only 32/42LA62**, 32/42LA64**, 32/42LA66**,
32/42LN571*)
(See p. 19)
Power Cord
(Depending on model)
Bracket Screw
2EA, P4 x 8 (Only 47/50LA62**, 47/50LA64**, 47/50LA66**,
47/50LN571*)
(See p. 19)
Stand Screws
8EA, M4 x 14 (Only LA62**, LA64**, LA66**, LN571*) (See p. 16)
Stand Screws
4EA, M4 x 20 (Only LA69**, LA74**) (See p. 17)
Stand Screws
3EA, P5 x 25 4EA, M4 x 14 (Only LN570*, LN572*) (See p. 17)
or
Isolator
(Depending on model) (See p. 12)
ASSEMBLING AND PREPARING
11
ENGENGLISH
Wall mount inner spacers
4EA (Only LA64**) (See p. 22)
Stand Body / Stand Base
(Only LN570*, LN572*) (See p. 17)
Blu-Ray
(Only LA6980)
Stand Body / Stand Base
(Only LA62**, LA64**, LA66**, LN571*) (See p. 16)
Stand Body / Stand Base
(Only LA69**, LA74**) (See p. 17)
ENGLISH
ENG
ASSEMBLING AND PREPARING
12
NOTE
yAntenna Isolator Installation Guide
- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
»If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be
heated and excessive heat might cause an accident.
- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
- Before starting, be sure that the TV antenna is connected.
Wall
ANTENNA/
CABLE IN
Cable / Antenna
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable,
may in some circumstances create a re hazard. Connection to a cable distribution system has therefore to be
provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
or
Isolator
1. Connect to TV.
2. Connect to Set-Top box.
ASSEMBLING AND PREPARING
13
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models.
P
AG-F***DP
Dual play glasses
Tag On
Tag on AN-VC4**
AG-F***
Cinema 3D glasses
Video call camera
AN-MR400
Magic remote
LG Audio device
ENGENGLISH
Compatibility
AG-F***DP
Dual play glasses
AG-F***
Cinema 3D glasses
AN-MR400
Magic remote
AN-VC4**
Video call camera
LG Audio device
Tag on
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.
LN57**
LA62**, LA64**, LA66**, LA69**, LA74**
ASSEMBLING AND PREPARING
H
H
H
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
14
ENGLISH
ENG
Parts and buttons
A type : LA62**, LA64**, LA66**, LN571*
Screen
Speakers
Remote control sensor LG Logo light (Only LA64**, LA66**) Power Indicator (Only LN571*, LA62**)
C type : 60LA74**
Screen
OK
SETTINGS
INPUT
Buttons
Buttons
B type : LA69**, 42/47/55LA74**
Screen
Remote control sensor LG Logo light
D type : LN570*, LN572*
Screen
Buttons
Speakers
Buttons
Speakers
Remote control sensor LG Logo light
Remote control sensor Power Indicator
Speakers
Button Description
Scrolls through the saved programmes.
Adjusts the volume level.
Selects the highlighted menu option or confirms an input.
S
Accesses the main menu, or saves your input and exits the menus.
Changes the input source.
Turns the power on or off.
NOTE
yYou can set the LG Logo light to on or off by selecting OPTION in the main menus. (Depending on model)
ASSEMBLING AND PREPARING
15
Lifting and moving the TV
Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
CAUTION
yAvoid touching the screen at all times, as this may
result in damage to the screen.
yIt is recommended to move the TV in the box or
packing material that the TV originally came in.
yBefore moving or lifting the TV, disconnect the power
cord and all cables.
yWhen holding the TV, the screen should face away
from you to avoid damage.
yWhen transporting a large TV, there should be at
least 2 people.
yWhen transporting the TV by hand, hold the TV as
shown in the following illustration.
yWhen transporting the TV, do not expose the TV to
jolts or excessive vibration.
yWhen transporting the TV, keep the TV upright, never
turn the TV on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause exing /
bending of frame chassis as it may damage screen.
ENGENGLISH
yHold the top and bottom of the TV frame rmly. Make
sure not to hold the transparent part, speaker, or speaker grill area.
ASSEMBLING AND PREPARING
16
ENGLISH
ENG
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
LA62**, LA64**, LA66**, LN571*
1
Stand Body
Stand Base
2
(Only LA62**, LN571*)
M4 x 14
4 EA
3
(Only LA62**, LN571*)
Front
M4 x 14
(Only LA64**, LA66**)
4 EA
(Only LA64**, LA66**)
M4 x 14
4 EA
ASSEMBLING AND PREPARING
17
LA69**, LA74**
1
2
LN570*, LN572*
ENGENGLISH
P5 x 25
1
3EA
Stand Body
Front
Stand Base
Stand Base
2
3
3
M4 x 20
4EA
M4 x 14
4EA
ASSEMBLING AND PREPARING
18
ENGLISH
ENG
CAUTION
yWhen attaching the stand to the TV set, place the
screen facing down on a cushioned table or flat surface to protect the screen from scratches.
yMake sure that the screws are fastened
completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not fasten the screws with excessive force otherwise they may be worn out and become loose.
NOTE
yRemove the stand before installing the TV on a
wall mount by performing the stand attachment in reverse.
yRemoving the protective film (from the bottom)
(Depending on model)
»Protective film is temporarily attached to
prevent the surface of the product from being damaged during delivery.
»Once the TV has been installed, please
remove the protective film on the bottom of the unit as shown in the figure.
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall for proper ventilation.
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources of heat,
as this may result in fire or other damage.
10 cm
10 cm
Securing the TV to a table
Fix the TV to a table to prevent from tilting forward, damage, and potential injury. To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand. (Only 32/42/47/50/60LN570*, 32/42/47/50/60LN572*)
ASSEMBLING AND PREPARING
19
(Only 32/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**, 32/42/47/50LN571*)
M4 x 8, 2EA (Only 32/42LA62**, 32/42LA64**, 32/42LA66**, 32/42LN571*) P4 x 8, 2EA (Only 47/50LA62**, 47/50LA64**, 47/50LA66**, 47/50LN571*)
NOTE
(Only 32/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**, 32/42/47/50LN571*) How to fix the TV to a table
1 Connect the Desk-mount Cables to the Stand Base
using the Bracket Screws.
2 Fix the Desk-mount Cables to a table using the
Desk-mount Screws.
3 Once the TV is xed, move the table close to the
wall. Children may go in, causing injuries.

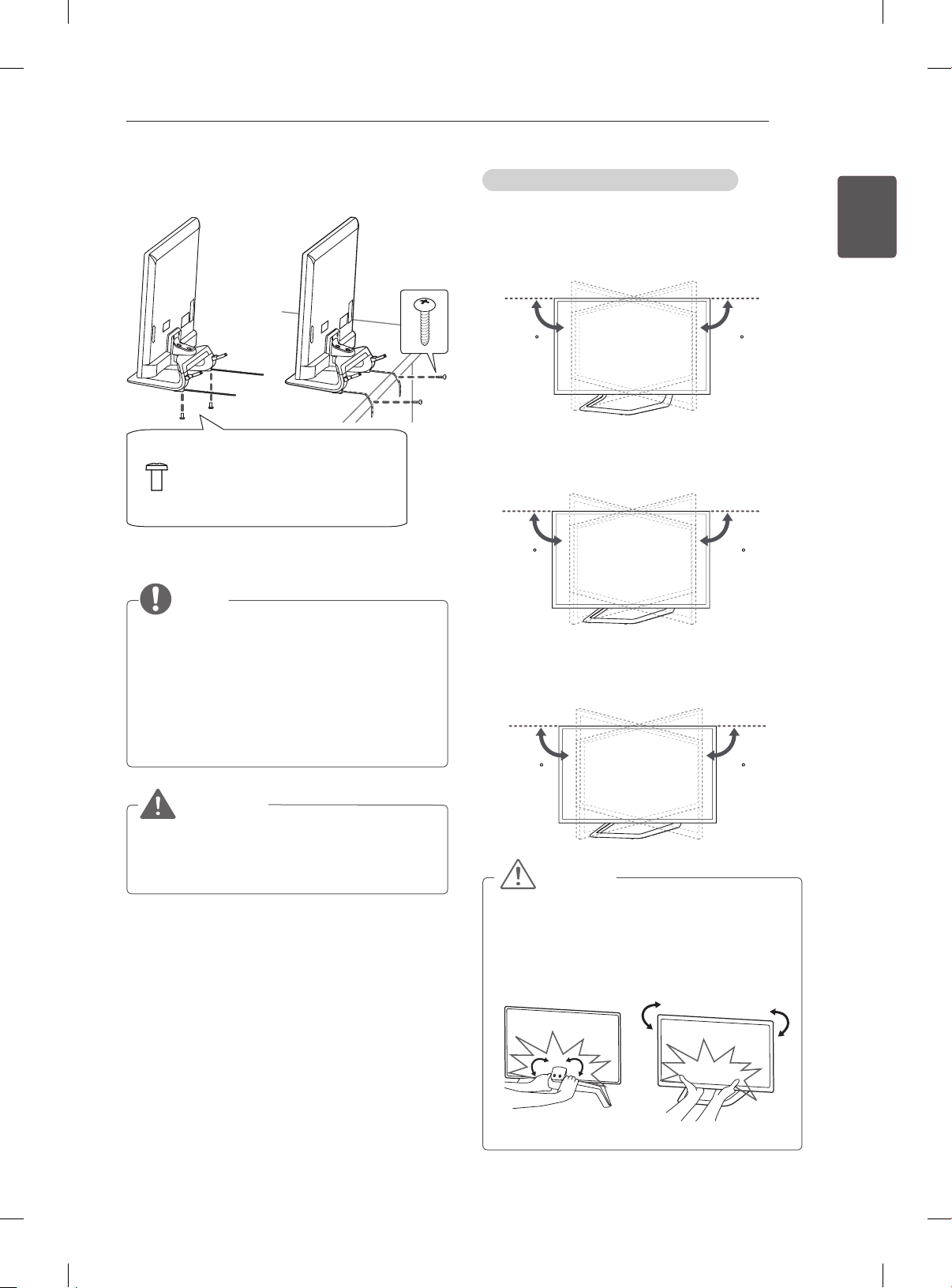

Adjusting the angle of the TV to suit view
(This feature is not available for all models.)
Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view. (Only LA62**, LA64**, LA66**, LN571*)
1515
Swivel 10 degrees to the left or right and adjust the angle of the TV to suit your view. (Only 42/47LA69**, 42/47LA74**)
1010
Swivel 8 degrees to the left or right and adjust the angle of the TV to suit your view. (Only 55LA69**, 55/60LA74**)
88
ENGENGLISH
WARNING
yTo prevent TV from falling over, the TV should be
securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.
CAUTION
yWhen adjusting the angle of the product, watch
out for your fingers.
»
Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.
(Only LA62**, LA64**, LA66**, LN571*)
<Rear> <Front>
ASSEMBLING AND PREPARING
20
ENGLISH
ENG

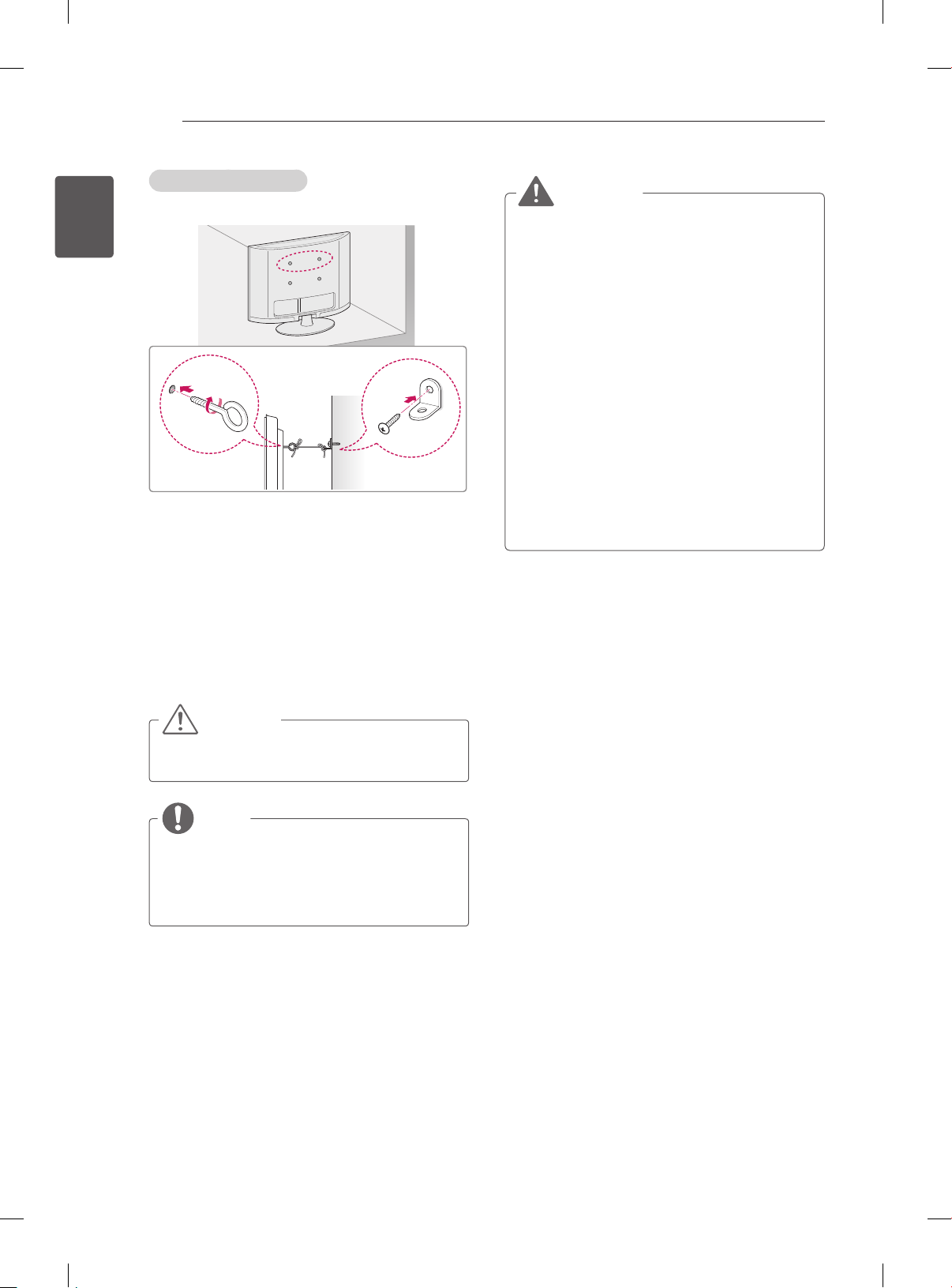

Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye­bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a
sturdy rope.
Make sure to keep the rope horizontal with the at
surface.
WARNING
yIf a television is not positioned in a sufficiently
stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
»Using cabinets or stands recommended by the
manufacturer of the television.
»Only using furniture that can safely support the
television.
»Ensuring the television is not overhanging the
edge of the supporting furniture.
»Not placing the television on tall furniture (for
example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
»Not standing the televisions on cloth or other
materials placed between the television and supporting furniture.
»Educating children about the dangers of
climbing on furniture to reach the television or its controls.
CAUTION
yMake sure that children do not climb on or hang
on the TV.
NOTE
yUse a platform or cabinet that is strong and large
enough to support the TV securely.
yBrackets, bolts and ropes are not provided. You
can obtain additional accessories from your local dealer.
ASSEMBLING AND PREPARING
21
Using the Kensington security system
(This feature is not available for all models.)
The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.
Connect the Kensington security system cable between the TV and a table.
Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.
Separate purchase(Wall Mounting Bracket)
Model 32LA62**
VESA (A x B) 200 x 100 200 x 200 Standard screw M4 M6 Number of screws 4 4 Wall mount bracket LSW130B
Model 47/50/55/60LA62**
VESA (A x B) 400 x 400 Standard screw M6 Number of screws 4 Wall mount bracket LSW430B
32LN57**
42/47/50/55LA64** 42/47/50/55LA66** 42/47/55LA69** 42/47/55/60LA74** 47/50/55/60LN57**
42LA62** 32LA64** 32LA66** 42LN57**
LSW230B
ENGENGLISH
Mounting on a wall
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.
LG recommends that wall mounting be performed by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
A
B
ASSEMBLING AND PREPARING
⨲㘶ᖂ2
㏪ⱞ⋾#Ɐᴏ
22
ENGLISH
ENG
CAUTION
yDisconnect the power first, and then move or
install the TV. Otherwise electric shock may occur.
yIf you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
yDo not over tighten the screws as this may cause
damage to the TV and void your warranty.
yUse the screws and wall mounts that meet the
VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer’s warranty.
NOTE
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit includes an installation manual
and necessary parts.
yThe wall mount bracket is not provided. You can
obtain additional accessories from your local dealer.
yThe length of screws may differ depending on the
wall mount. Make sure to use the proper length.
yFor more information, refer to the manual supplied
with the wall mount.
yWhen attaching a third-party wall mounting
bracket to the TV, insert the wall mount inner spacers into the TV wall mount holes to move your TV in vertical angle. Please make sure not to use the spacers for LG wall mounting bracket. (Only LA64**)

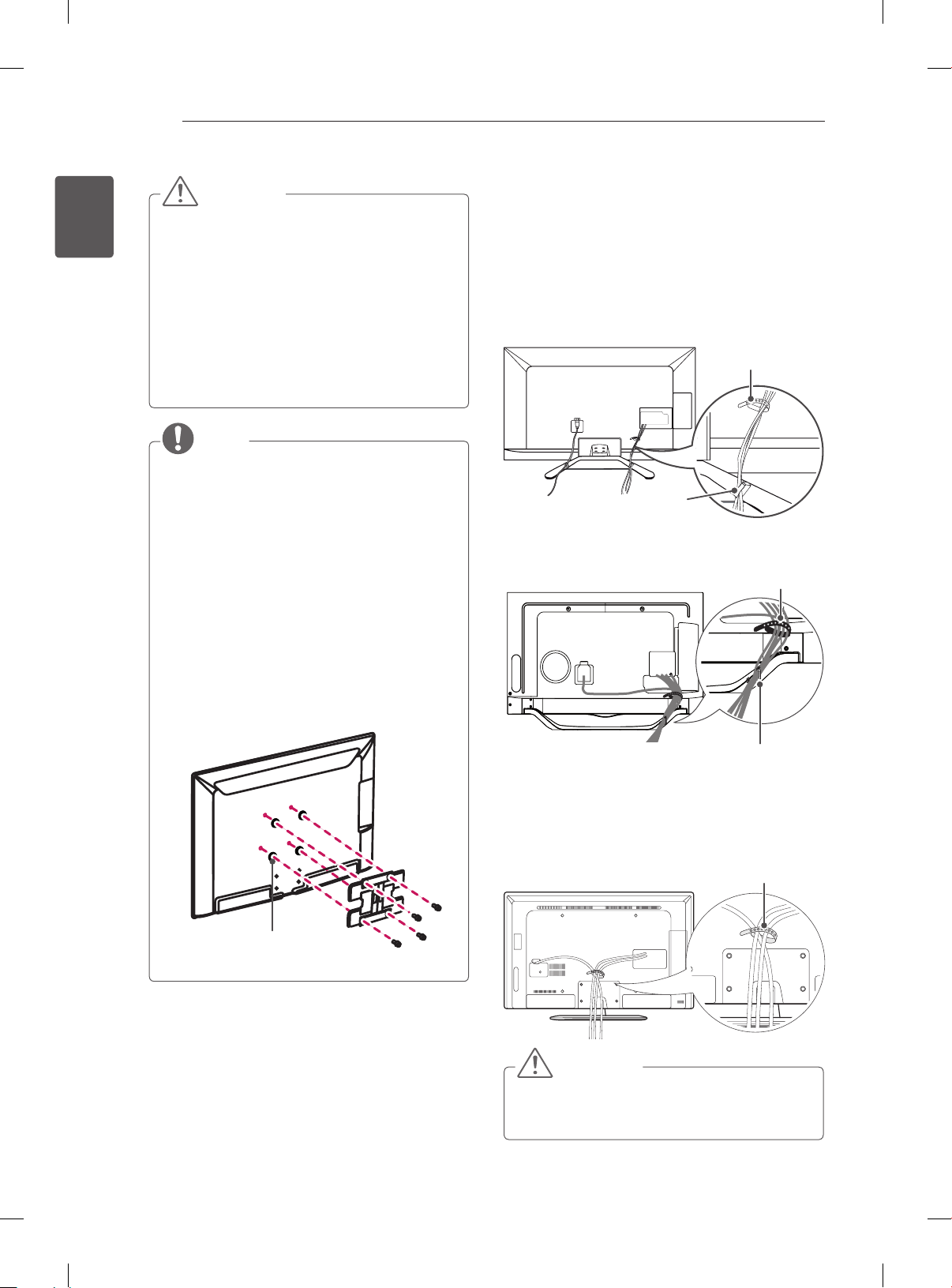

Tidying cables
1 Gather and bind the cables with the Cable Holder
and the Cable Management.
2 Attach the cable management to TV.
(Only LA62**, LA64**, LA66**, LN571*)
Cable Holder
Cable Management
(Only LA69**, LA74**)
Cable Holder
Wall Mount Inner Spacer
Gather and bind the cables with the Cable Holder.
(Only LN570*, LN572*)
Cable Management
Cable Holder
CAUTION
yDo not move the TV by holding the cable holders,
as the cable holders may break, and injuries and damage to the TV may occur.
MAKING CONNECTIONS
23
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses diagrams for the LA64** models.
Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
NOTE
yThe external device connection may differ from
the model.
yConnect external devices to the TV regardless of
the order of the TV port.
yIf you record a TV programme on a DVD recorder
or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
yRefer to the external equipment’s manual for
operating instructions.
yIf you connect a gaming device to the TV, use the
cable supplied with the gaming device.
yIn PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
yIn PC mode, some resolution settings may not
work properly depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 ).
ANTENNA/
CABLE IN
NOTE
yUse a signal splitter to use more than 2 TVs. yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the correct
direction. yAn antenna cable and converter are not supplied. ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
ENGENGLISH
MAKING CONNECTIONS
24
ENGLISH
ENG

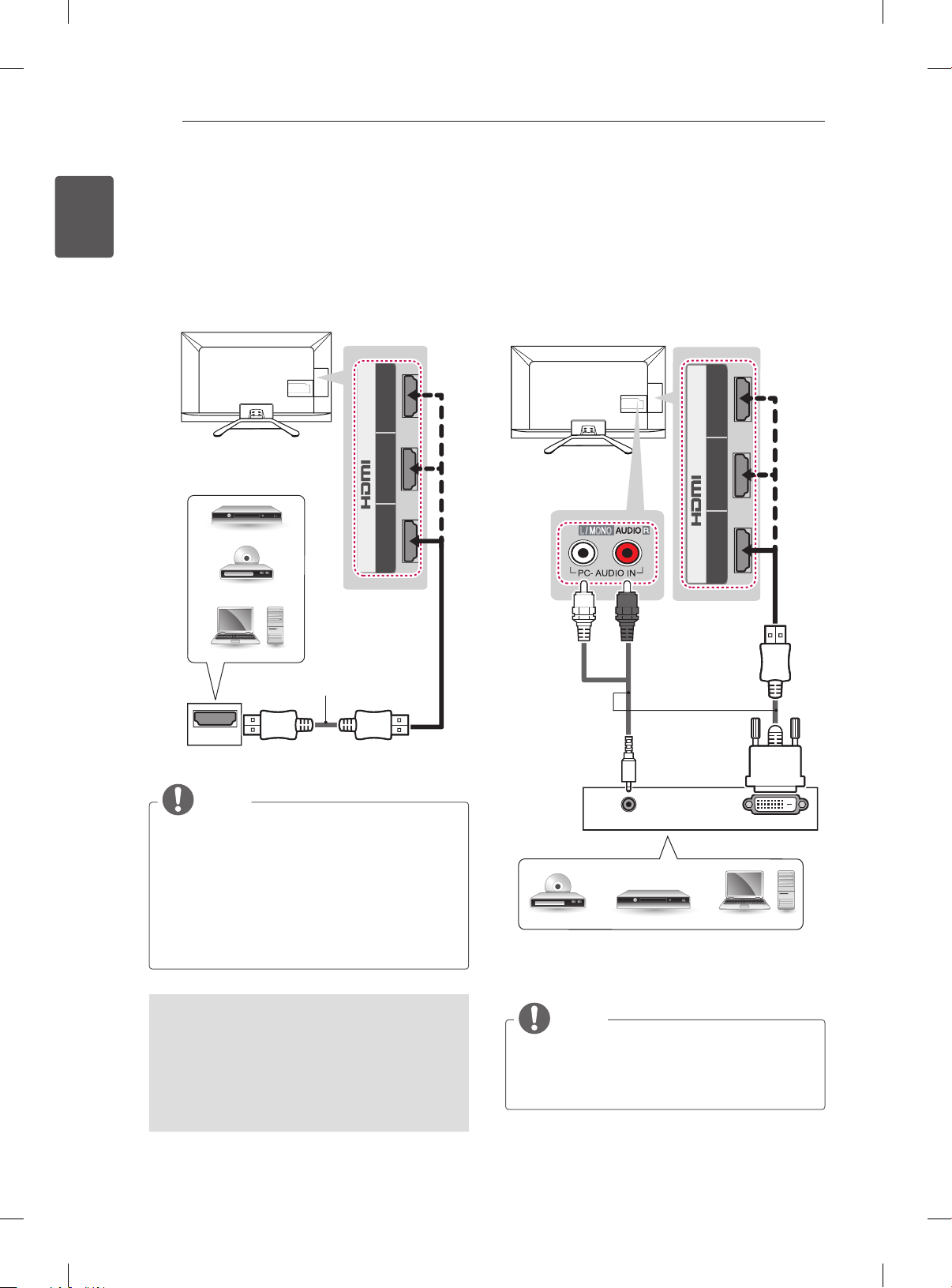

HDMI connection
Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown.
Choose any HDMI input port to connect. It does not matter which port you use.
(MHL)
3
DVD/ Blu-Ray / HD Cable Box / HD STB / PC
/DVI IN
2
(ARC)
1
DVI to HDMI connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does not matter which port you use.
(MHL)
3
/DVI IN
2
L / MONO
WHITE
RED
(ARC)
1
(*Not Provided)
HDMI
NOTE
yIt is recommended to use the TV with the HDMI
connection for the best image quality.
yUse the latest High Speed HDMI™ Cable with
CEC (Customer Electronics Control) function.
yHigh Speed HDMI™ Cables are tested to carry an
HD signal up to 1080p and higher.
ySupported HDMI Audio format : Dolby Digital,
DTS, PCM (Up to 192 KHz, 32KHz/44.1KHz/48K Hz/88KHz/96KHz/176KHz/192KHz).
ARC (Audio Return Channel)
An external audio device that supports SIMPLINK
y
and ARC must be connected using HDMI/DVI IN 1 (ARC) port. When connected with a high-speed HDMI cable,
y
the external audio device that supports ARC outputs optical SPDIF without additional optical audio cable and supports the SIMPLINK function.
(*Not Provided)
AUDIO OUT
DVD/ Blu-Ray / HD Cable Box / PC
DVI OUT
NOTE
yDepending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
yWhen using the HDMI/DVI cable, Single link is
only supported.
MAKING CONNECTIONS
VIDEO
AUDIO
/ AV IN
L / MONO
VIDEO
AUDIO
COMPONENT IN
25

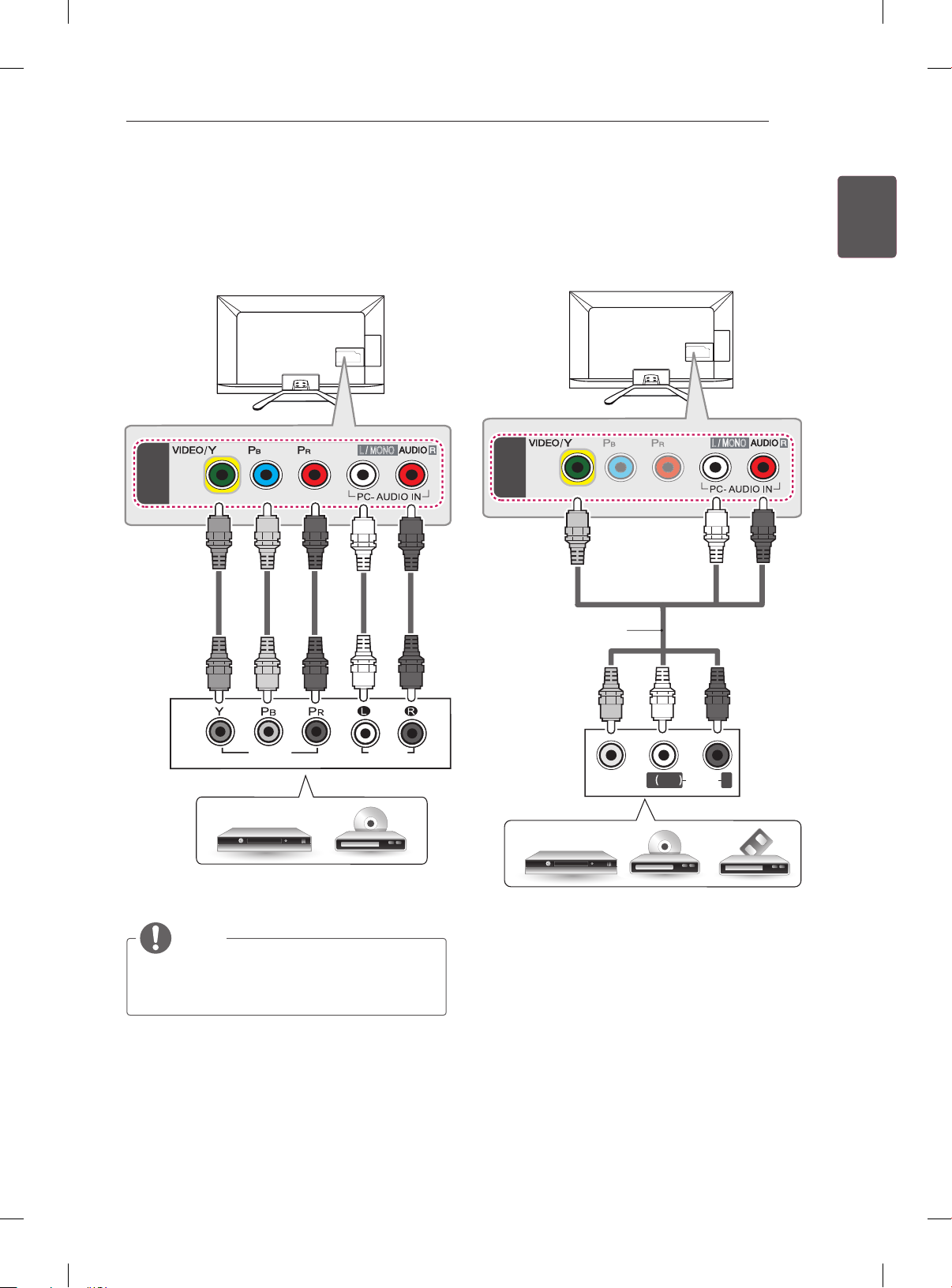

Component connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown.
GREEN
(*Not Provided)
BLUE
RED
WHITE
RED
Composite connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.
L / MONO
/ AV IN
COMPONENT IN
YELLOW
(*Not Provided)
YELLOW
WHITE
WHITE
RED
ENGENGLISH
RED
DVD/ Blu-Ray / HD Cable Box
NOTE
yIf cables are not installed correctly, it could cause
this image to display in black and white or with distorted colours.
VIDEO
DVD/ Blu-Ray / HD Cable Box / VCR
( )
MONO
AUDIOL R
MAKING CONNECTIONS
26
ENGLISH
ENG

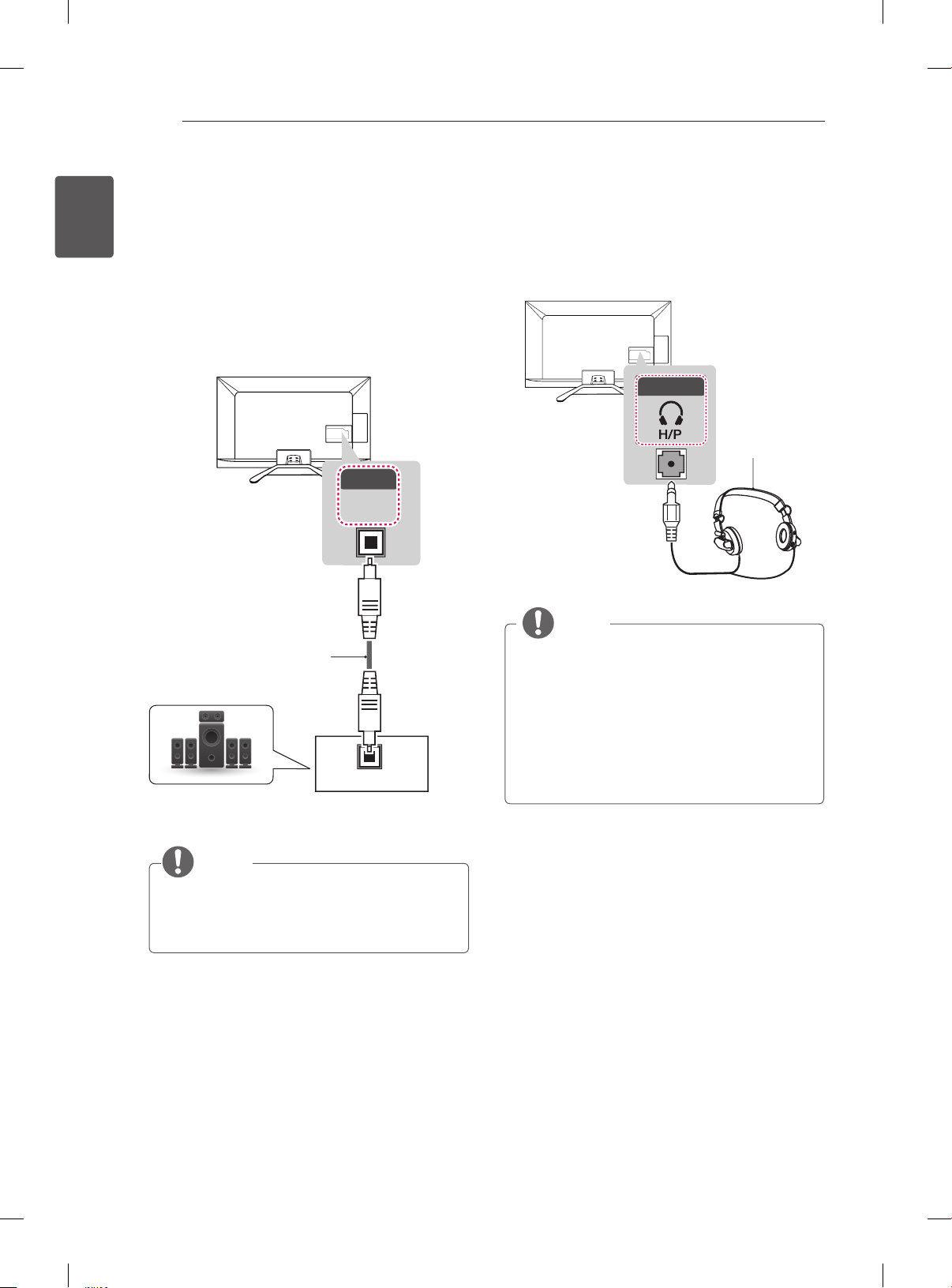

Audio connection
You may use an optional external audio system instead of the built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.
OUT
OPTICAL
DIGITAL
AUDIO
(*Not Provided)
OPTICAL
AUDIO IN
Digital Audio System
Headphone connection
Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown on the following illustration.
OUT
(*Not Provided)
NOTE
AUDIO menu items are disabled when connecting
y
a headphone. When changing AV MODE with a headphone
y
connected, the change is applied to video but not to audio. Optical Digital Audio Out is not available when
y
connecting a headphone. Headphone impedance: 16
y
Max audio output of headphone: 9 mW to 15 mW
y
Headphone jack size: 0.35 cm
y
NOTE
yDo not look into the optical output port. Looking at
the laser beam may damage your vision.
yAudio with ACP (Audio Copy Protection) function
may block digital audio output.
MAKING CONNECTIONS
USB IN
1
2
3
HDD IN
27
USB connection
Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files.
HUB
USB
HDD
(*Not Provided)
NOTE
ySome USB Hubs may not work. If a USB device
connected using a USB Hub is not detected, connect it to the USB port on the TV directly.
yConnect the external power source if your USB is
needed.
MHL connection
Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.
(MHL)
3
/DVI IN
MHL passive cable
(*Not Provided)
Mobile phone
ENGENGLISH
NOTE
Connect the mobile phone to the HDMI/DVI IN 3
y
(MHL) port to view the phone screen on the TV. The MHL passive cable is needed to connect the
y
TV and a mobile phone. This only works for the MHL-enabled phone.
y
Some applications can be operated by the remote
y
control. For some mobile phones supporting MHL, you can
y
control with the magic remote control. Remove the MHL passive cable from the TV when:
y
»the MHL function is disabled »your mobile device is fully charged in standby
mode
REMOTE CONTROL
1 2 3
4
5 6
7 809
P A G E
TV/ RAD
RATIO INPUT
FAV
MUTE
LIST
Q.VIEW
EXIT
OK
GUIDE
MY APPS
LIVE TV
REC
TEXT
T.OPT
SUBTITLE
Q.MENU
AV MODE
BACK
SETTINGS
INFO
28
ENGLISH
ENG
REMOTE CONTROL
(Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the
ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
y
In Analogue TV and some countries, some remote control buttons may not work.
y
Make sure to point the remote control toward the remote control sensor on the TV.

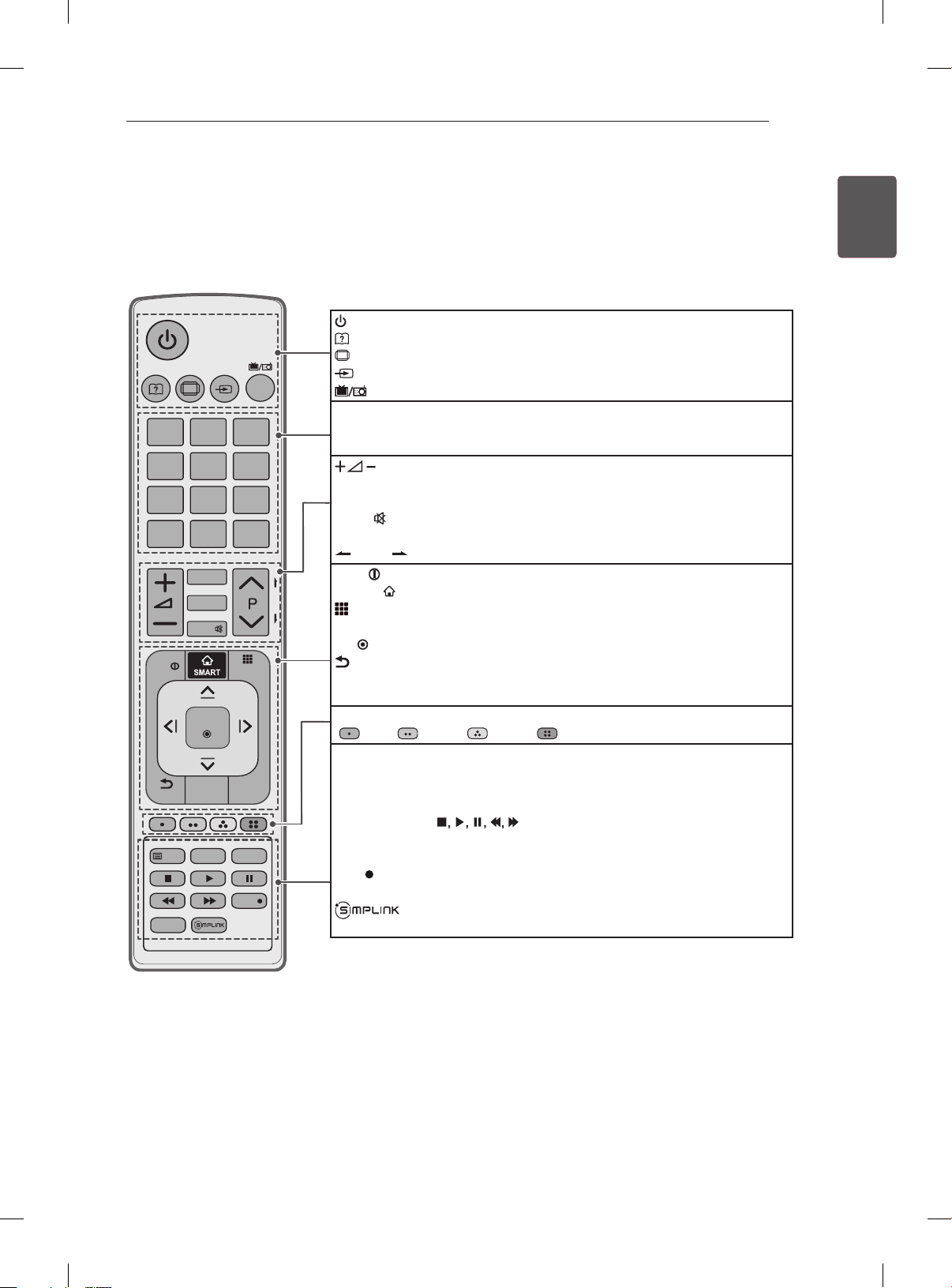

(Only LA62**, LA64**, LA66**, LA69**, LA74**)
(POWER) Turns the TV on or off.
(User Guide) Sees user- guide. RATIO Resizes an image.
INPUT Changes the input source.
TV/RAD Selects Radio, TV and DTV programme.
Number buttons Enters numbers. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme.
Adjusts the volume level.
FAV Accesses your favourite programme list. 3D Used for viewing 3D video. MUTE Mutes all sounds.
ꕌPꕍ
Scrolls through the saved programmes.
PAGE Moves to the previous or next screen.
Views the information of the current programme and screen.
INFO SMART Accesses the Smart Home menus.
MY APPS Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK
Selects menus or options and confirms your input.
BACK Returns to the previous level. GUIDE Shows programme guide. EXIT Clears on-screen displays and return to TV viewing.
Control buttons These access special functions in some menus.
: Red, : Green, : Yellow, : Blue)
(
TELETEXT BUTTONS (TEXT, T.OPT) These buttons are used for teletext. SUBTITLE Recalls your preferred subtitle in digital mode. Q. MENU Accesses the quick menus. LIVE TV Return to LIVE TV. Control buttons (
) Controls the Premium contents, Time MachineⅡ or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time MachineⅡ).
REC Start to record and display record menu. SETTINGS Accesses the main menus. AV MODE Selects an AV mode.
Accesses the AV devices connected with the HDMI cable through
HDMI-CEC. Opens the SIMPLINK menu.
and
1 2 3
4
5 6
7 809
P A G E
TV/ RAD
RATIO INPUT
FAV
MUTE
LIST
Q.VIEW
EXIT
OK
GUIDE
MY APPS
LIVE TV
REC
TEXT
T.OPT
SUBTITLE
Q.MENU
AV MODE
BACK
INFO
SETTINGS
(Only LN57**)
REMOTE CONTROL
(POWER) Turns the TV on or off.
(User Guide) Sees user- guide. RATIO Resizes an image.
INPUT Changes the input source.
TV/RAD Selects Radio, TV and DTV programme.
Number buttons Enters numbers. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme.
Adjusts the volume level.
FAV Accesses your favourite programme list. SETTINGS Accesses the main menus. MUTE
ꕌPꕍ
INFO SMART Accesses the Smart Home menus.
Navigation buttons (up/down/left/right) Scrolls through menus or options. OK
GUIDE Shows programme guide. EXIT Clears on-screen displays and return to TV viewing.
Control buttons These access special functions in some menus.
(
TELETEXT BUTTONS (TEXT, T.OPT) These buttons are used for teletext. SUBTITLE Recalls your preferred subtitle in digital mode. Q. MENU Accesses the quick menus. LIVE TV Return to LIVE TV. Control buttons (
MachineⅡ or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time MachineⅡ).
REC Start to record and display record menu. AV MODE Selects an AV mode.
HDMI-CEC. Opens the SIMPLINK menu.
Mutes all sounds.
Scrolls through the saved programmes.
PAGE Moves to the previous or next screen.
Views the information of the current programme and screen.
MY APPS Shows the list of Apps.
Selects menus or options and confirms your input.
BACK Returns to the previous level.
: Red, : Green, : Yellow, : Blue)
) Controls the Premium contents, Time
Accesses the AV devices connected with the HDMI cable through
29
ENGENGLISH

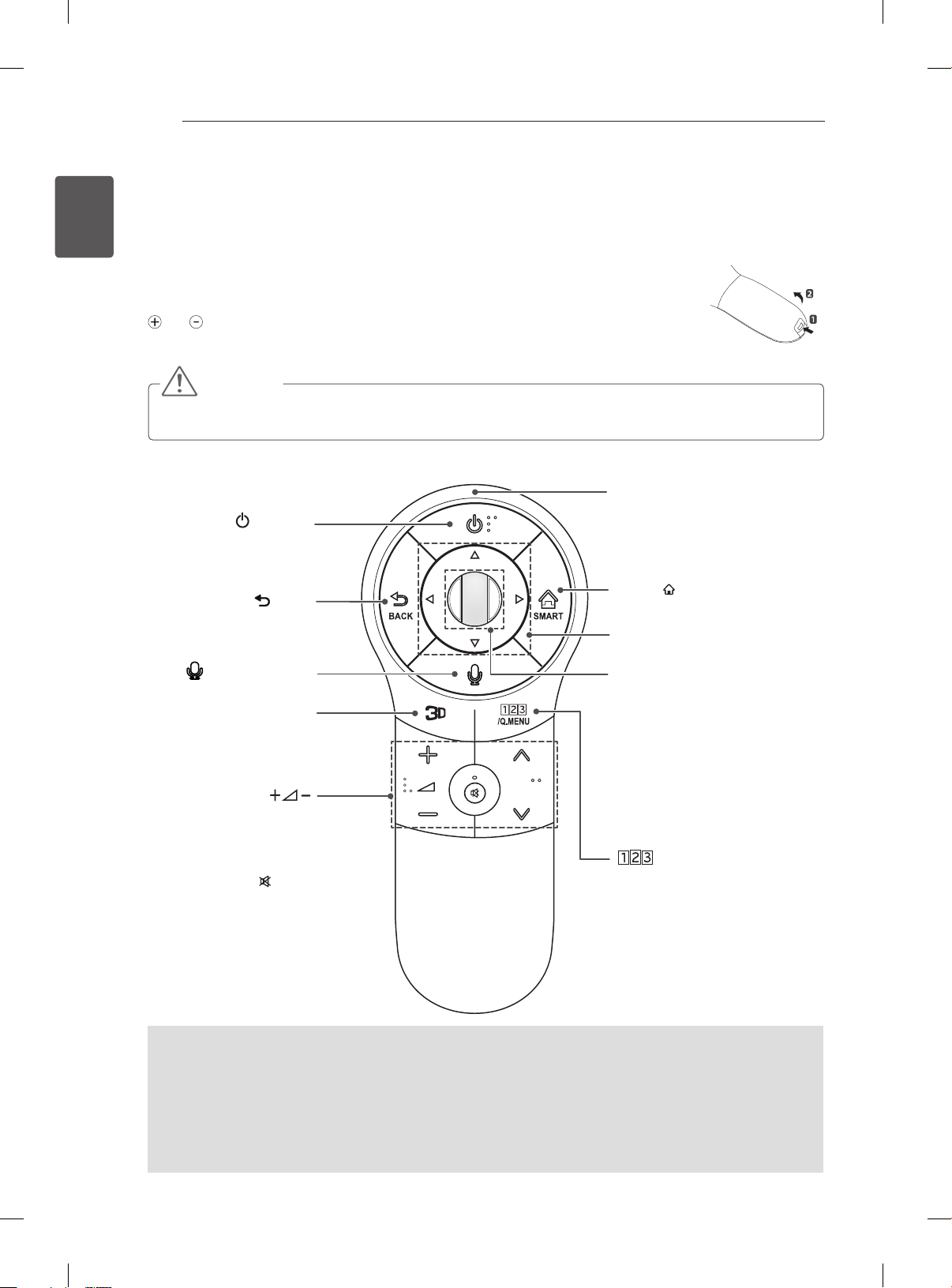

MAGIC REMOTE CONTROL FUNCTIONS
30
ENGLISH
ENG

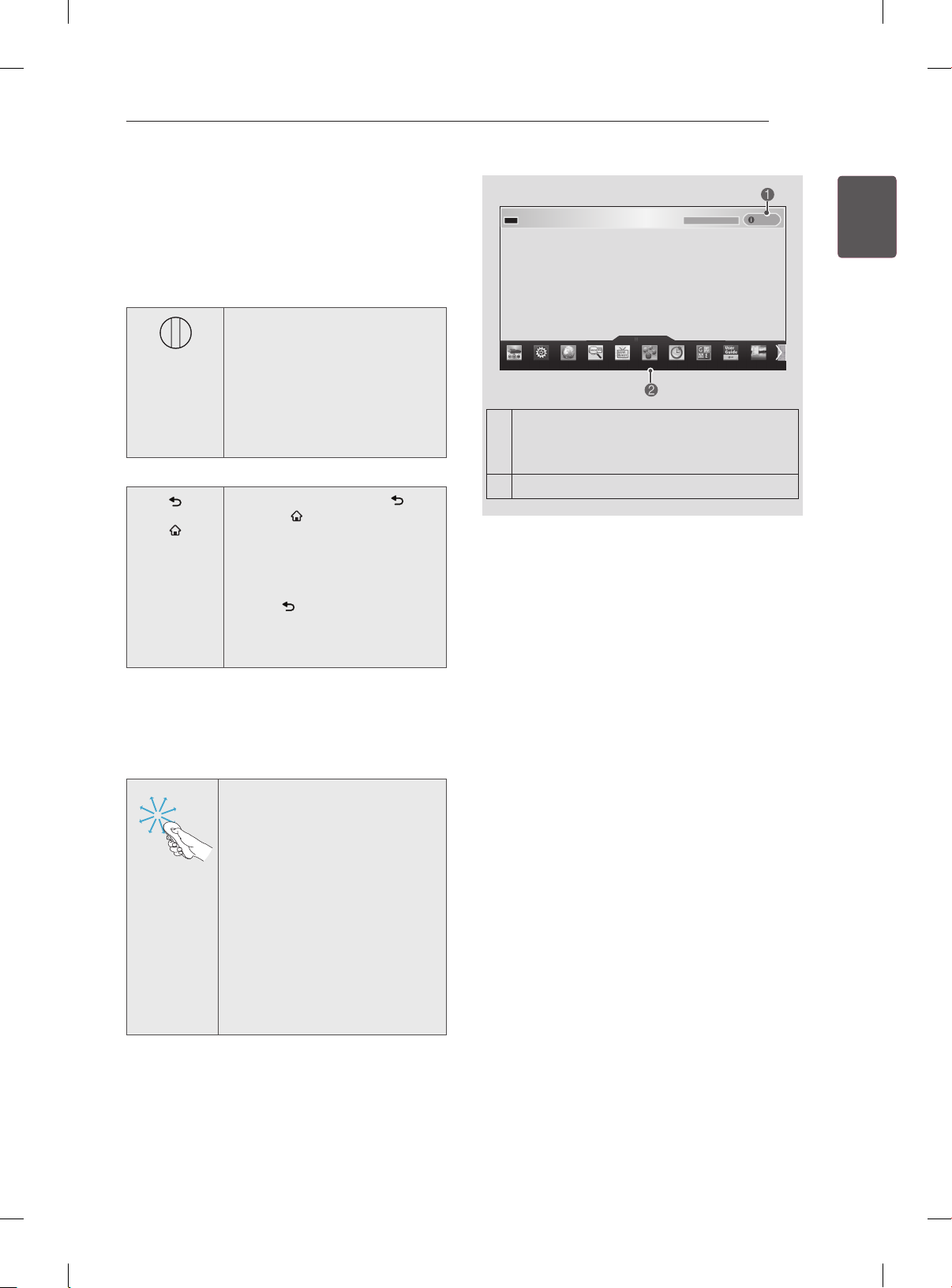

MAGIC REMOTE CONTROL FUNCTIONS
This item is not included for all models.
When the message “Magic Remote Control battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching
the remote control toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.
(Only LA620*, LA621*, LA64**, LA66**, LA69**, LA74**, LN570*, LN572*)
Returns to the previous level.
and ends to the label inside the compartment, and close the battery cover. Be sure to point
CAUTION
yDo not mix old and new batteries, as this may damage the remote control. yIn Analogue TV and some countries, some remote control buttons may not work.
Pointer (RF transmitter)
(POWER)
Turns the TV on or off.
BACK
Voice recognition
(Depending on model)
3D
Used for viewing 3D video.
(Depending on model)
P
Adjusts the volume level.
P
Scrolls through the saved programmes or channels.
MUTE
Mutes all sounds.
SMART
Accesses the Smart Home menu.
Navigation buttons Scrolls through menus or options.
Wheel(OK)
Selects menus or options and confirms your input. Scrolls through the saved programmes. If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the magic remote control works as a regular remote control. To display the pointer again, shake the magic remote control from side to side.
/Q.MENU
Accesses the quick menus. Accesses the Universal Control.
(up/down/left/right)
Voice recognition (Depending on model) Network connection is required to use the voice recognition function. The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation and speed) and the environment (noise and TV volume).
1 Press the Voice recognition button. 2 Speak when the voice display window appears on the left of the TV screen.
The voice recognition may fail when you speak too fast or too slow.
Use the Magic remote control no further than 10 cm from your face.
MAGIC REMOTE CONTROL FUNCTIONS
HOME
31
Registering Magic Remote Control
It is necessary to ‘pair’ (register) the magic remote control to your TV before it will work.
How to register the Magic Remote Control
1 To register automatically, turn the
TV on and press the Wheel(OK) button. When registration is completed, the completion message appears on the screen.
2 If registration fails, turn the TV
off and back on, then press the Wheel(OK) button to complete registration.
How to re-register the Magic Remote Control
BACK
SMART
1 Press and hold the BACK
SMART
seconds to reset, then register it by following “How to register the Magic Remote Control” above.
2 To re-register the Magic Remote
Control, press and hold the
BACK
toward the TV. When registration is completed, the completion message appears on the screen.
buttons together for 5
button for 5 seconds
and
How to use Magic Remote Control
1 If the pointer disappears, move
the Magic Remote Control slightly to left or right. Then, it will automatically appear on the screen.
»
If the pointer has not been used for a certain period of time, it will disappear.
2 You can move the pointer by
aiming the Pointer Receiver of the Magic Remote Control at your TV then move it left, right, up or down.
»
If the pointer does not work properly, leave the Magic Remote Control for 10 seconds then use it again.
11-1 Brief Info Title Test...
More
If you press Wheel(OK) on the Magic Remote Control, the following screen appears.
1
Shows information about the current programme and screen.
You can select More Menu.
2
Info.
Precautions to Take when Using the Magic Remote Control
Use the Magic Remote Control within the maximum
y
communication distance (10 m). Using the Magic Remote Control beyond this distance, or with an object obstructing it, may cause a communication failure. A communication failure may occur due to nearby
y
devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz) as the Magic Remote Control. The Magic Remote Control may be damaged
y
or may malfunction if it is dropped or receives a heavy impact. Take care not to bump into nearby furniture or
y
other people when using the Magic Remote Control. Manufacturer and installer cannot provide service
y
related to human safety as the applicable wireless device has possibility of electric wave interference. It is recommended that an Access Point (AP) be
y
located more than 1 m away from the TV. If the AP is installed closer than 1 m, the Magic Remote Control may not perform as expected due to frequency interference.
ENGENGLISH
USING THE USER GUIDE
32
ENGLISH
ENG
USING THE USER GUIDE
User Guide allows you to more easily access the detailed TV information.
1 Press the SMART button to access the Smart home
menu.
2 Select User Guide and press Wheel(OK).
User Guide
User Guide
NOTE
yYou can also access the User Guide by pressing
(User Guide) in the remote control.
OPTION > To set language
SMART Settings OPTION Language Selects Menu Language and Audio Language displayed on the screen.
Shows the description of the selected menu.
1
You can use ꕌ/ꕍ to move between pages.
Moves to the selected menu directly from the User
2
Guide.
Menu Language
Selects a language for the display text. [In Digital Mode Only]
Audio Language
When watching a digital broadcast containing several audio languages, you can select the language you want.
[In Digital mode Only] Use the Subtitle function when two or more subtitle
Subtitle
languages are broadcast.
Language
If subtitle data in a selected language is not broadcast,
the default language subtitle will be displayed.
Index
1
Try Now
Close
Online User Guide
2
User Guide
1
PROGRAMME Setting
PICTURE, SOUND Setting
OPTION
LG SMART Function
Advanced Function
Information
3
To use input device
To set time options
To set TV lock options
To set language
To set country
To set subtitle
2
To set Magic remote control
Index
Online User Guide
4 5
Shows the current watching programme or input
1
source screen.
Allows to select the category you want.
2
Allows to select the item you want.
3
You can use ꕌ/ꕍ to move between pages.
Allows to browse the description of the function
4
you want from the index.
Provides the detailed information on the functions
5
of LG Smart TV when the Internet is connected. (It may not be available depending on the country/ language.)
MAINTENANCE / TROUBLESHOOTING
33
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
yMake sure to turn the power off and disconnect the power cord and all other cables first. yWhen the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to
prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
yTo remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. yTo remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then
wipe immediately with a dry cloth.
CAUTION
yAvoid touching the screen at all times, as this may result in damage to the screen. yDo not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches
and image distortions. yDo not use any chemicals as this may damage the product. yDo not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
ENGENGLISH
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the remote control.
No image display and no sound is produced.
The TV turns off suddenly.
When connecting to the PC (HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed.
yCheck the remote control sensor on the product and try again. yCheck if there is any obstacle between the product and the remote control. yCheck if the batteries are still working and properly installed (
yCheck if the product is turned on. yCheck if the power cord is connected to a wall outlet. yCheck if there is a problem in the wall outlet by connecting other products.
yCheck the power control settings. The power supply may be interrupted. yCheck if the Auto sleep feature is activated in the Time settings. yIf there is no signal while the TV is on, the TV will turn off automatically after 15 minutes
of inactivity.
yTurn the TV off/on using the remote control. yReconnect the HDMI cable. yRestart the PC with the TV on.
to , to ).
SPECIFICATIONS
34
ENGLISH
ENG
SPECIFICATIONS
(Only LA620*, LA621*, LA64**, LA66**, LA69**, LA74**, LN570*, LN572*)
Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
2400 to 2483.5 MHz
Frequency Range
Output Power
(Max.)
Bluetooth module (BM-LDS401) specification
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
Because band channel used by the country could be different, the user can not change or adjust the operating
y
frequency and this product is set for the regional frequency table.
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
802.11a: 11 dBm
802.11b: 14 dBm
802.11g: 10.5 dBm
802.11n - 2.4GHz: 11 dBm
802.11n - 5GHz: 12.5 dBm
(Only LA623*, LN571*)
Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
2400 to 2483.5 MHz
Frequency Range
Output Power
(Max.)
Because band channel used by the country could be different, the user can not change or adjust the operating
y
frequency and this product is set for the regional frequency table.
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
802.11a: 11 dBm
802.11b: 14 dBm
802.11g: 10.5 dBm
802.11n - 2.4GHz: 11 dBm
802.11n - 5GHz: 12.5 dBm
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product.
32LA62** 42LA62** 47LA62**
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
With stand (
Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
mm
mm
mm
mm
)
mm)
)
mm)
)
mm)
)
mm)
32LA6200-TA 32LA6210-TD 32LA6230-TB 32LA620T-TA 32LA620Y-TA 32LA621Y-TD 32LA623T-TB 32LA623Y-TB
733.0 x 499.0 x 242.0 964.0 x 631.0 x 294.0 1076.0 x 695.0 x 327.0
733.0 x 444.0 x 78.0 964.0 x 573.0 x 78.0 1076.0
7.6 11.8 15.0
6.4 10.0 12.8 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
50LA62** 55LA62** 60LA62**
50LA6200-TA 50LA6210-TD 50LA6230-TB 50LA620T-TA 50LA620Y-TA 50LA621Y-TD 50LA623T-TB 50LA623Y-TB
1131.0 x 725.0 x 327.0 1246.0 x 803.0 x 343.0 1355.0 x 865.0 x 343.0
1131.0 x 667.0 x 80.9 1246.0 x 732.0 x 77.2 1355.0
17.0 21.5 25.9
14.5 18.7 23.1
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
32LA64** 42LA64** 47LA64**
32LA6400-TA 32LA640Y-TA
743.0 x 518.0 x 241.0 973.0 x 652.0 x 294.0 1086.0 x 711.0 x 327.0
743.0 x 461.0 x 36.4 973.0
9.2 14.2 17.5
8.0 12.4 15.0 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
50LA64** 55LA64**
50LA6400-TA 50LA640Y-TA
1137.0 x 732.0 x 327.0 1260.0 x 821.0 x 343.0
1137.0 x 677.0 x 37.2 1260.0 x 753.0 x 36.3
19.2 24.2
16.7 21.5 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
42LA6200-TA 42LA6210-TD 42LA6230-TB 42LA620T-TA 42LA620Y-TA 42LA621Y-TD 42LA623T-TB 42LA623Y-TB
55LA6200-TA 55LA6210-TD 55LA6230-TB 55LA620T-TA 55LA620Y-TA 55LA621Y-TD 55LA623T-TB 55LA623Y-TB
42LA6400-TA 42LA640Y-TA
x
591.0
55LA6400-TA 55LA640Y-TA
x
36.3 1086.0
47LA6200-TA 47LA6210-TD 47LA6230-TB 47LA620T-TA 47LA620Y-TA 47LA621Y-TD 47LA623T-TB 47LA623Y-TB
x
637.0
60LA6200-TA 60LA6210-TD 60LA6230-TB 60LA620T-TA 60LA620Y-TA 60LA621Y-TD 60LA623T-TB 60LA623Y-TB
x
793.0
47LA6400-TA 47LA640Y-TA
x
654.0
x
x
x
35
ENGENGLISH
79.4
65.3
36.3
SPECIFICATIONS
36
ENGLISH
ENG
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
With stand (
Without stand(
Without stand (kg)
With stand (
Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
mm
mm
mm
32LA66** 42LA66** 47LA66**
32LA6600-TA 32LA6610-TB 32LA6620-TD 32LA660Y-TA 32LA661Y-TB 32LA662Y-TD
725.0 x 501.0 x 241.0 957.0 x 635.0 x 294.0 1069.0 x 695.0 x 327.0
)
mm)
mm) 1129.0
mm)
725.0
8.7 14.3 17.2
7.5 12.4 14.7 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
50LA66** 55LA66**
50LA6600-TA 50LA6610-TB 50LA6620-TD 50LA660Y-TA 50LA661Y-TB 50LA662Y-TD
)
1129.0 x 730.0 x 326.0 1238.0 x 802.0 x 343.0
19.8 22.7
17.3 20.0
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
42LA69** 47LA69** 55LA69**
42LA6980-TA 42LA6910-TB 42LA698Y-TA 42LA691Y-TB
951.0 x 634.0 x 269.0
)
951.0 x 564.0 x 34.5
14.3 16.7
12.2 14.6 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
x
443.0
x
672.0
x
37.1 957.0
x
37.2 1238.0
42LA6600-TA 42LA6610-TB 42LA6620-TD 42LA660Y-TA 42LA661Y-TB 42LA662Y-TD
x
574.0
x
35.0 1069.0
55LA6600-TA 55LA6610-TB 55LA6620-TD 55LA660Y-TA 55LA661Y-TB 55LA662Y-TD
x
733.0
x
35.2
47LA6980-TA 47LA6910-TB 47LA698Y-TA 47LA691Y-TB
1063.0 x 697.0 x 269.0
1063.0 x 627.0 x 34.5
47LA6600-TA 47LA6610-TB 47LA6620-TD 47LA660Y-TA 47LA661Y-TB 47LA662Y-TD
x
637.0
x
35.0
55LA6980-TA 55LA6910-TB 55LA698Y-TA 55LA691Y-TB
1233.0 x 793.0 x 316.0
1233.0
x
723.0
x
34.7
22.8
20.0
SPECIFICATIONS
37
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
With stand (
Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
mm
mm
mm
mm
)
mm)
)
mm)
)
mm)
)
mm)
42LA74** 47LA74** 55LA74**
42LA7400-TC 42LA740Y-TC
951.0 x 634.0 x 269.0
951.0 x 564.0 x 34.5
14.3 16.7
12.2 14.6 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
60LA74**
60LA7400-TA 60LA740Y-TA
1352.0 x 848.0 x 316.0
1352.0 x 794.0 x 59.9
27.6
24.8 AC 100-240 V~ 50 / 60 Hz
32LN570* 32LN572*
32LN5700-TB 32LN570B-TA 32LN570B-TB 32LN5720-TH 32LN572B-TH 32LN570Y-TB 32LN570Z-TB 32LN572Y-TH 32LN572Z-TH
738.0 x 497.0 x 207.0 968.0 x 629.0 x 236.0 1080.0 x 694.0 x 264.0
738.0 x 449.0 x 79.0 968.0 x 579.0 x 79.0 1080.0
7.0 10.7 14.7
6.4 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
50LN570* 50LN572*
50LN5700-TB 50LN570B-TA 50LN570B-TB 50LN5720-TH 50LN572B-TH 50LN570Y-TB 50LN570Z-TB 50LN572Y-TH 50LN572Z-TH
1136.0 x 727.0 x 264.0 1250.0 x 790.0 x 297.0 1359.0 x 852.0 x 297.0
1136.0 x 673.0 x 82.1 1250.0 x 737.0 x 79.1 1359.0 x 799.0 x 67.2
15.6 21.2 26.3
14.2 19.1 24.2 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
47LA7400-TC 47LA740Y-TC
1063.0 x 697.0 x 269.0
1063.0 x 627.0 x 34.5
42LN570* 42LN572*
42LN5700-TB 42LN570B-TA 42LN570B-TB 42LN5720-TH 42LN572B-TH 42LN570Y-TB 42LN570Z-TB 42LN572Y-TH 42LN572Z-TH
9.6 13.4
55LN570* 55LN572*
55LN5700-TB 55LN570B-TA 55LN570B-TB 55LN5720-TH 55LN572B-TH 55LN570Y-TB 55LN570Z-TB 55LN572Y-TH 55LN572Z-TH
55LA7400-TC 55LA740Y-TC
1233.0 x 793.0 x 316.0
1233.0
22.8
20.0
47LN570* 47LN572*
47LN5700-TB 47LN570B-TA 47LN570B-TB 47LN5720-TH 47LN572B-TH 47LN570Y-TB 47LN570Z-TB 47LN572Y-TH 47LN572Z-TH
60LN570* 60LN572*
60LN5700-TB 60LN570B-TA 60LN570B-TB 60LN5720-TH 60LN572B-TH 60LN570Y-TB 60LN570Z-TB 60LN572Y-TH 60LN572Z-TH
x
x
723.0
642.0
x
x
34.7
80.5
ENGENGLISH
SPECIFICATIONS
38
ENGLISH
ENG
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
MODELS
Dimensions (W x H x D)
Weight With stand (kg)
Power requirement
With stand ( Without stand(
Without stand (kg)
With stand ( Without stand(
Without stand (kg)
mm
mm
)
mm)
)
mm)
32LN571* 42LN571* 47LN571*
32LN5710-TE 32LN571B-TE 32LN571Y-TE
738.0 x 502.0 x 242.0 968.0 x 637.0 x 294.0 1080.0 x 701.0 x 327.0
738.0 x 449.0 x 79.0 968.0 x 579.0 x 79.0 1080.0
7.6 11.4 15.9
7.0 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
50LN571* 55LN571* 60LN571*
50LN5710-TE 50LN571B-TE 50LN571Y-TE
1136.0 x 745.0 x 327.0 1250.0 x 804.0 x 343.0 1359.0 x 867.0 x 343.0
1136.0 x 673.0 x 82.1 1250.0 x 737.0 x 79.1 1359.0 x 799.0 x 67.2
16.8 21.9 27.0
14.2 19.1 24.2 AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
42LN5710-TE 42LN571B-TE 42LN571Y-TE
9.6 13.4
55LN5710-TE 55LN571B-TE 55LN571Y-TE
47LN5710-TE 47LN571B-TE 47LN571Y-TE
60LN5710-TE 60LN571B-TE 60LN571Y-TE
x
642.0
x
80.5
SPECIFICATIONS
39
Environment condition
New Zealand,
Singapore
Australia Television System DVB-T PAL B/B
Indonesia, Israel,
Myanmar, Sri Lanka
Vietnam, Malaysia Television System DVB-T PAL/SECAM-B/G/D/K
Iran, Algeria,
Tunisia, Digital
model
Analogue model,
India, Thailand,
South Africa --
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Television System DVB-T PAL/SECAM-B/G/D/K
Programme Coverage UHF 21 to 69
Programme Coverage
Television System DVB-T PAL/SECAM-B/G/D/K
Programme Coverage UHF 21 to 69
Programme Coverage
Television System DVB-T PAL/SECAM-B/G/D/K
Programme Coverage
Television System - PAL/SECAM-B/G/D/K
Programme Coverage -
External Antenna
Impedance
40 °C
0 °C
to
Less than 80 %
-20 °C to 60 °C
Less than 85 %
Digital TV Analogue TV
VHF 06 to 12, UHF 27 to 69
VHF 6 to 12,
UHF 21 to 69
VHF 5 to 12,
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
B/B : VHF/UHF 0 to 75, CATV : 2 to 44
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
75 Ω 75 Ω
ENGENGLISH
, PAL-I
, PAL-I, NTSC-M
, PAL-I, NTSC-M
, PAL-I, NTSC-M
, PAL-I, NTSC-M
SPECIFICATIONS
40
ENGLISH
ENG
HDMI/DVI-DTV supported mode
Resolution
Horizontal
Frequency (kHz)
Frequency (Hz)
640x480 31.469
31.5
720x480 31.469
31.5
720x576 31.25
15.625
1280x720 37.5
44.96 45
1920x1080 33.72
33.75
28.125
26.97 27
28.125
33.716
33.75
56.25
67.43
67.5
HDMI/DVI-PC supported mode
Horizontal
Resolution
Frequency
(kHz)
640x350 31.468 70.09 720x400 31.469 70.08 640x480 31.469 59.94
800x600 37.879 60.31 1024x768 48.363 60.00 1152x864 54.348 60.053 1360x768 47.712 60.015
1280x1024 63.981 60.020 1920x1080 67.50 60.00
Vertical
59.94 60
59.94 60
50 50
50
59.94 60
59.94 60 50
23.97 24 25
29.976
30.00 50
59.94 60
Vertical
Frequency
(Hz)
Component port connecting information
Component ports on the TV Y P
Video output ports on DVD
player
Y P
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p O
(50 Hz / 60 Hz only)
P
B
R
P
B
R
(Except for 32LN57**)
3D supported mode
Video, which is input as below media contents is switched into the 3D screen automatically.
y
3D supported mode automatically
SPECIFICATIONS
41
ENGENGLISH
Input Signal
640 X 480
480p
576p
720p
HDMI
1080i
1080p
USB
DLNA
1080p 1080p
Horizontal
Frequency (kHz)
31.469 / 31.5
62.938 / 63 Frame Packing, Line Alternative
31.469 / 31.5
62.938 / 63
31.25
62.5
37.50
44.96 / 45 75
89.91 / 90
28.125
33.72 / 33.75 59.94 / 60
56.25
67.432 / 67.5
26.97 / 27
28.125
33.716 / 33.75
43.94 / 54
56.25
67.432 / 67.5
56.25
67.432 / 67.5
33.75
33.75
Vertical
Frequency (Hz)
59.94 / 60
50
50
59.94 / 60 50
59.94 / 60 50
50
59.94 / 60
23.97 / 24
25
29.976 / 30
23.97 / 24 25
29.976 / 30 50
59.94 / 60 30 30
Playable 3D video format
Top & Bottom,
Side by Side(Half), Side by Side(Full)
Top & Bottom,
Side by Side(Half), Side by Side(Full)
Frame Packing, Line Alternative
Top & Bottom,
Side by Side(Half), Side by Side(Full)
Frame Packing, Line Alternative
Top & Bottom,
Side by Side(Half), Side by Side(Full)
Frame Packing, Line Alternative
Top & Bottom,
Side by Side(Half), Side by Side(Full)
Frame Packing, Field Alternative
Top & Bottom,
Side by Side(Half), Side by Side(Full)
Frame Packing, Line Alternative
Top & Bottom, Side by Side(Half)
Side by Side(Half), Top & Bottom,
Checker Board, MPO(Photo), JPS(Photo)
SPECIFICATIONS
42
ENGLISH
ENG
3D supported mode manually
Signal
Input
DTV HD / SD - ­ATV(CVBS) SD - ­Component HD / SD - -
HDMI-PC
HDMI-DTV
USB ,DLNA
(Movie)
USB, DLNA
(Photo)
Miracast/Widi
Resolution
1024X768 48.36 1360X768 47.71
1920X1080 67.5
Others - -
480P 31.5 60 576P 31.25 50
720p
1080i
1080p
Under 704x480 - - 2D to 3D
Over 704x480
interlaced
Over 704x480
progressive
Over 704x480
progressive
Under 320x240 - - 2D to 3D
Over 320x240 - -
1024X768p - 30 / 60
1280x720p - 30 / 60
1920X1080p - 30 / 60
Others - - 2D to 3D
Horizontal
Frequency
(kHz)
37.5 50 45 60
28.12 50
33.75 60 27 24
28.12 25
33.75 30
56.25 50
67.5 60
- -
- 50 / 60
- others
Frequency (Hz)
Verticla
60
Playable 3D video format
2D to 3D, Side by Side(Half), Top &
Bottom
2D to 3D, Side by Side(Half), Top &
Bottom, Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
2D to 3D, Side by Side(Half), Top &
Bottom
2D to 3D, Side by Side(Half), Top &
Bottom, Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
2D to 3D, Side by Sied(Half), Top &
Bottom
2D to 3D, Side by Side(Half), Top &
Bottom,Checker Board, Row
Interleaving, Column Interleaving
2D to 3D, Side by Side(Half), Top &
Bottom, Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
2D to 3D, Side by Side(Half), Top &
Bottom
2D to 3D, Side by Side(Half), Top &
Bottom,Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
2D to 3D, Side by Side(Half), Top &
Bottom,Checker Board, Row
Interleaving, Column Interleaving
2D to 3D, Side by Side(Half), Top &
Bottom
2D to 3D, Side by Side(Half), Top &
Bottom
LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP
43
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274”
ENGENGLISH
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www.lg.com
For any Suggestion, Opinion,
Complaints, Please Call
800 54 in UAE
0800 54 54 54 in South Africa
080 100 54 54 in Morocco
19960 in Egypt
Other countries, Please contact our
local dealer or log into
http://www.lg.com
Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.
MODEL
SERIAL
(Only DTV)
OWNER’S MANUAL
EXTERNAL CONTROL DEVICE SETUP
Please read this manual carefully before operating the set and retain it for future reference.
www.lg.com
KEY CODES
2
2
ENGLISH
ENG
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
00
CH +, PR + R/C Button
01 CH -, PR -
02 Volume +
03 Volume -
06 >
07 <
08 Power
09 Mute
0B Input
0E SLEEP
0F TV, TV/RAD
10 - 19 * Number Key 0 - 9
Function Note
(Arrow Key / Right Key)
(Arrow Key / Left Key)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Code
(Hexa)
45 Q.Menu
4C List, - (ATSC Only)
53 List
5B Exit
61 Blue R/C Button
63 Yellow
71 Green
72 Red
79 Ratio / Aspect Ratio
91 AD (Audio Description)
7A User Guide
7C Smart/ Home
Function Note
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
1A Q.View / Flashback
1E
FAV
(Favorite Channel)
20 Text (Teletext)
21 T. Opt (Teletext Option)
28 Return (BACK)
30 AV (Audio/ Video) Mode
39 Caption/Subtitle
Λ
40
41
42 My Apps
43
44 OK / Enter
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
(Arrow Key/ Cursor Up)
V
(Arrow Key/ Cursor Down)
Menu / Settings
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
7E Simplink
8E
►►(Forward) R/C Button
8F
◄◄(Rewind) R/C Button
AA Info
AB Program Guide
B0 ►(Play)
B1
BA
BD
DC 3D
9F App/ *
(Stop/ Live TV)
(
Freeze/Slow Play/Pause)
(REC)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
EXTERNAL CONTROL DEVICE SETUP
3
3
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.
Note: There are several ways to connect TV based on model’s support port.
* Please be advised that not all models support these connectivity. * Cable is not provided.
USB to Serial converter with USB Cable
USB Type
(PC)
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
USB IN
(TV)
ENGENGLISH
EXTERNAL CONTROL DEVICE SETUP
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(PC
SERVICE ONLY
1
3
2
4
4
ENGLISH
ENG
RS-232C with RS-232C Cable (Legacy)
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
1
3
(PC)
2
- This connection can only be used for the following models: 55/47/39LN5450-UA, 55/50/47/42LN5400­UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.
1
3
SERVICE ONLY
)
RS-232C IN
2
- This connection can only be used for the following models: 60PN6550-UA, 50/60PN6500-UA, 50/60PN5300-UF, and 42/50PN4500-UA.
(CONTROL & SERVICE)
(TV)
(TV)
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p. 6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to OPTION and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
5
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
9
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
PC TV
OR
D-Sub 9 Phone
EXTERNAL CONTROL DEVICE SETUP
5
5
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
01. Power off
02. Aspect Ratio
03. Screen Mute
04. Volume Mute
05. Volume Control
06. Contrast k g 00 to 64
07. Brightness
08. Color/ Colour
09. Tint k j 00 to 64
10. Sharpness
11. OSD Select
12. Remote Control Lock Mode
k a 00 13. Balance k t 00 to 64
k c (See p.7)
k d (See p.7)
k e 00 to 01
k f 00 to 64
k h 00 to 64 19. Key m c
k i 00 to 64
k k 00 to 32
k l 00 to 01
k m 00 to 01
DATA
(Hexadecimal)
14. Color (Colour) Temperature
15. ISM Method (Only Plasma TV)
16. Energy Saving
17. Tune Command
18. Channel (Programme) Add/Del(Skip)
20. Control Back Light, Control
Panel
Light
21. Input select (Main)
22. 3D (Only 3D models)
23. Extended 3D (Only 3D models)
COMMAND1 COMMAND2
x u 00 to 64
j p (See p.8)
j q 00 to 05
m a (See p.8)
m b 00 to 01
m g 00 to 64
x b (See p.10)
x t (See p.11)
x v (See p.11)
* Note: During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are
not executed and treated as NG.
DATA
(Hexadecimal)
Key Codes
ENGENGLISH
EXTERNAL CONTROL DEVICE SETUP
6
6
ENGLISH
ENG
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol. [DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command. [Cr] : Carriage Return - ASCII code ‘0x0D’ [ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-
viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table. * Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254 01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998 10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
7
7
01. Power (Command: k a)
► To control Power Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show Power On. (Works TV is On Only)
Transmission [k][a][ ][Set ID][ ][FF][Cr] Ack [a][ ][Set ID][ ][OK][01][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback presents status about each function.
02. Aspect Ratio (Command: k c) (Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9) 04 : Zoom 05 : Zoom 2 (Latin America
except Colombia Only) 06 : Set by Program/
Original
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
07 : 14:9 (Europe, Colombia, Mid-East, Asia except South Korea and Japan) 09 : * Just Scan 0B : Full Wide (Europe, Colombia, Mid­East, Asia except South Korea and Japan) 10 to 1F : Cinema Zoom 1
to 16
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV, AV partially.
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off 01 : Screen mute on (Picture off) 10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off) 01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
ENGENGLISH
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.
EXTERNAL CONTROL DEVICE SETUP
8
8
ENGLISH
ENG
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
14. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
15. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal 20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
16. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data 00 : Off 01 : Minimum 02 : Medium 03 : Maximum 04 : Auto 05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode. When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.
13. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
17. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ][Data 01] [ ][Data 02][Cr]
* Analogue Terrestrial/Cable
[Data 00][Data 01] Channel Data Data 00 : High byte channel data Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 80 : Cable TV (CATV)
EXTERNAL CONTROL DEVICE SETUP
9
9
* Digital Terrestrial/Cable/Satellite
[Data 00][Data 01]: Channel Data Data 00 : High Channel data Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Terrestrial TV (DTV)
- 20 : Terrestrial Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the analogue terrestrial (PAL) Channel 10.
Set ID = All = 00 Data 00 & 01 = Channel Data is 10 = 00 0a Data 02 = Analogue Terrestrial TV = 00 Result = ma 00 00 0a 00
2. Tune to the digital terrestrial (DVB-T) Channel 01.
Set ID = All = 00 Data 00 & 01 = Channel Data is 1 = 00 01 Data 02 = Digital Terrestrial TV = 10 Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00 Data 00 & 01 = Channel Data is 1000 = 03 E8 Data 02 = Digital Satellite TV = 40 Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][x] [a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01] [ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.
* Analogue Terrestrial/Cable
Data 00 : Physical Channel Number
- Terrestrial (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number Data 01 & 02: xx (Don't care) Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 01 : Cable TV (CATV) * Digital Terrestrial/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number Data 01 : High byte Channel Data Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999) [Data 03][Data 04]: Minor Channel Number Data 03 : High byte Channel Data Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Terrestrial TV (DTV) – Use Physical Channel Number
- 06 : Cable TV (CADTV) – Use Physical Channel Number
- 22 : Terrestrial TV (DTV) – Don’t Use Physical Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel Number Only (One Part Channel)
Two bytes are available for each major and minor channel data, but usually the low byte is used alone (high byte is 0).
* Tune Command Examples:
1. Tune to the analogue cable (NTSC) channel 35.
Set ID = All = 00 Data 00 = Channel Data is 35 = 23 Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00 Data 05 = Analogue Cable TV = 01 Total = ma 00 23 00 00 00 00 01
2. Tune to the digital terrestrial (ATSC) channel 30-3.
Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Minor is 3 = 00 03 Data 05 = Digital Terrestrial TV = 22 Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01] [Data 02][Data 03][Data 04][Data 05] [x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01] [ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Terrestrial/Satellite
Data 00: xx (Don't care)
ENGENGLISH
EXTERNAL CONTROL DEVICE SETUP
10
10
ENGLISH
ENG
[Data 01][Data 02]: Major Channel Number Data 01: High byte Channel Data Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite) Data 03: High byte Channel Data Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Terrestrial TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples: 1
Tune to the digital terrestrial (ISDB-T) channel 17-1 Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 17 = 00 11 Data 03 & 04 = Minor/Branch is 1 = 00 01 Data 05 = Digital Terrestrial TV = 02 Total = ma 00 00 00 11 00 01 02
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Don’t Care = 00 00 Data 05 = Digital BS TV = 07 Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01] [Data 02][Data 03][Data 04][Data 05] [x][a][ ][Set ID][ ][NG][Data 00][x]
20. Control Back Light (Command: m g)
• For LCD TV / LED TV
► To control the back light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
.
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
21. Input select (Command: x b) (Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00 : DTV 02 : Satellite DTV
ISDB-BS (Japan) 03 : ISDB-CS1 (Japan) 04 : ISDB-CS2 (Japan) 11 : CATV
20 : AV or AV1 21 : AV2
01 : CADTV 10 : ATV
18. Channel(Programme) Add/Del(Skip) (Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
19. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - See p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
40 : Component1 41 : Component2
90 : HDMI1 92 : HDMI3
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
91 : HDMI2 93 : HDMI4
EXTERNAL CONTROL DEVICE SETUP
11
11
22. 3D(Command: x t) (only 3D models) (Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01] [ ][Data 02][ ][Data 03][Cr]
Data Structure [Data 00] 00 : 3D On
01 : 3D Off 02 : 3D to 2D 03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side 02 : Checker Board 03 : Frame Sequential 04 : Column interleaving 05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03(2D to 3D), [Data 01] and [Data 02]
have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O O 01 X X X 02 X X X 03 X X O
X : don’t care
07 : 3D Sound Zooming 08 : Normal Image View 09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00 00 : Right to Left 01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range (-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When [Data 00] is 06, 07 00 : Off 01 : On
4) When [Data 00] is 08 00 : Revert to 3D video from 3D-to-2D
converted 3D video
01 : Change 3D video to 2D video, except
2D-to-3D video * If conversion condition doesn’t meet, command is treated as NG.
5) When [Data 00] is 09 00 : Standard
02 : Cinema 04 : Manual
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x] [v][ ][Set ID][ ][NG][Data00][x]
01 : Sport 03 : Extreme
ENGENGLISH
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] [Data03][x] [t][ ][Set ID][ ][NG][Data00][x]
23. Extended 3D(Command: x v) (only 3D models) (Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ] [Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction 01 : 3D Depth (3D Mode is Manual Only) 02 : 3D Viewpoint 06 : 3D Color Correction
Loading...
