LG Electronics 3000 User Manual

Iris Technology Division

1095 Cranbury South River Rd., Suite #1, Jamesburg, NJ 08831
Tel: [phone] • Fax: [phone]

www.LGiris.com

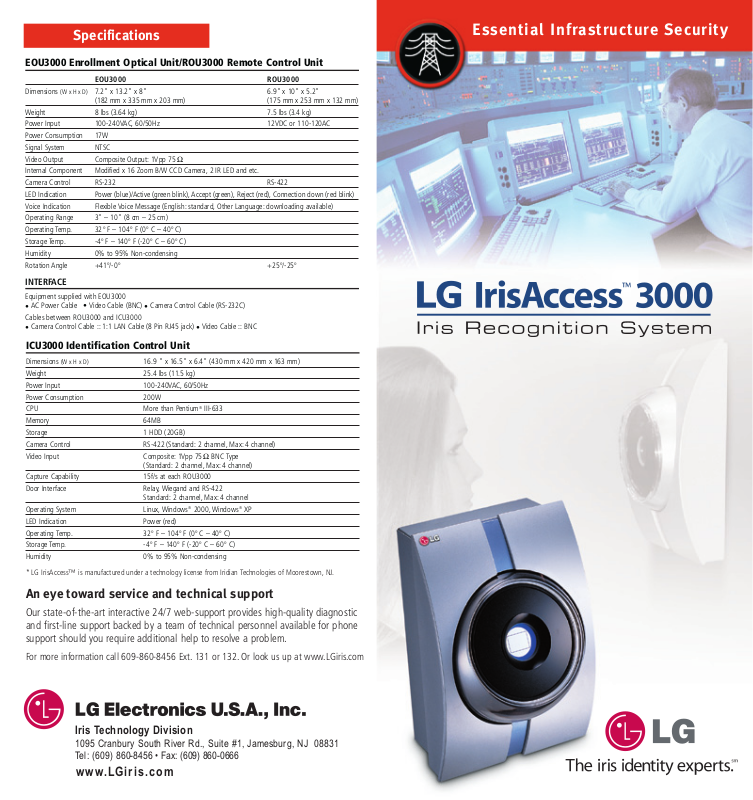

Specifications

ICU3000 Identification Control Unit

Dimensions (W x H x D) 16.9 " x 16.5" x 6.4" (430 mm x 420 mm x 163 mm)
Weight 25.4 lbs (11.5 kg)
Power Input 100-240VAC, 60/50Hz
Power Consumption 200W
CPU More than Pentium®III-633
Memory 64MB
Storage 1 HDD (20GB)
Camera Control RS-422 (Standard: 2 channel, Max: 4 channel)
Video Input Composite: 1Vpp 75Ω BNC Type

(Standard: 2 channel, Max: 4 channel)
Capture Capability 15f/s at each ROU3000
Door Interface Relay, Wiegand and RS-422

Standard: 2 channel, Max: 4 channel
Operating System Linux, Windows®2000, Windows®XP
LED Indication Power (red)
Operating Temp. 32º F – 104º F (0 º C – 40º C)
Storage Temp. -4 º F – 140º F (-20º C – 60º C)
Humidity 0% to 95% Non-condensing

EOU3000 Enrollment Optical Unit/ROU3000 Remote Control Unit

EOU3000 ROU3000

Dimensions (W x H x D) 7.2" x 13.2" x 8" 6.9" x 10" x 5.2"

(182 mm x 335 mm x 203 mm) (175 mm x 253 mm x 132 mm)
Weight 8 lbs (3.64 kg) 7.5 lbs (3.4 kg)
Power Input 100-240VAC, 60/50Hz 12VDC or 110-120AC
Power Consumption 17W
Signal System NTSC
Video Output Composite Output: 1Vpp 75Ω
Internal Component Modified x 16 Zoom B/W CCD Camera, 2 IR LED and etc.
Camera Control RS-232 RS-422
LED Indication Power (blue)/Active (green blink), Accept (green), Reject (red), Connection down (red blink)
Voice Indication Flexible Voice Message (English: standard, Other Language: downloading available)
Operating Range 3" – 10" (8 cm – 25 cm)
Operating Temp. 32º F – 104º F (0 º C – 40º C)
Storage Temp. -4º F – 140º F (-20º C – 60 º C)
Humidity 0% to 95% Non-condensing
Rotation Angle +41º/-0º +25º/-25º

INTERFACE

Equipment supplied with EOU3000

•

AC Power Cable • Video Cable (BNC) • Camera Control Cable (RS-232C)

Cables between ROU3000 and ICU3000

•

Camera Control Cable :: 1:1 LAN Cable (8 Pin RJ45 jack) • Video Cable :: BNC

* LG IrisAccess™ is manufactured under a technology license from Iridian Technologies of Moorestown,NJ.

An eye toward service and technical support

Our state-of-the-art interactive 24/7 web-support provides high-quality diagnostic
and first-line support backed by a team of technical personnel available for phone
support should you require additional help to resolve a problem.

For more information call 609-860-8456 Ext. 131 or 132. Or look us up at www.LGiris.com

Essential Infrastructure Security

IrisAccess™3000

Server (Case 2)

Server/Enrollment Station Monitoring Station Management Station

EOU3000

(Enrollment Optical Unit)

ICU3000

(Identification
Control Unit)

EOU3000

(Enrollment Optical Unit)

ROU3000

(Remote Optical Unit)

SERVER PC

Maximum distance between

ICU3000 and ROU3000: 100m/110yds

LG IrisAccess™ 3000 consists of EOU3000, ROU3000, ICU3000, Frame Grabber
Board, Door Interface and Server PC. Multiple Remote Units including the
ICU3000 and ROU3000 can be connected to the Server PC through a LAN
if multiple portal or a door control is required.

System Configuration

Server (Case 1)

LAN (TCP/IP)
RS 422 (ICU ↔ ROU)
RS 232C (EOU↔ PC)
Door Control

The focus is on infrastructure

Never before has the responsibility for protecting our essential infrastructure
been greater than it is today. Because even the smallest security breach can
portend disaster.

With today’s increased demand to keep unauthorized persons away from bridges,
tunnels, subways, power plants, land borders and other sensitive areas, government
agencies, telecommunications companies and security-minded corporations are
turning to LG IrisAccess™ 3000 – the world’s leading iris recognition solution –
to protect essential infrastructure from unauthorized or illegal entry.

Open your eyes to iris recognition

Like snowflakes, every human iris is entirely unique. This uniqueness is the
core of iris recognition – the most accurate, stable, scalable and rapid human
authentication technology in existence.

Unlike retinal scanning, which is too up-close and personal for many, iris
recognition is non-contact and quick, offering unmatched accuracy when
compared to any other security alternative…from distances as far as 3 to
10 inches!

Video-based technology makes it easy to enroll

Guided by a mirror and an audio-assisted interactive interface, each person looks
into the camera where the complex structure of the iris is captured, digitized and
verified – along with appropriate user data and access privileges…all in a matter
of minutes. And all without PIN numbers, passwords, cards or tokens.

To o many advantages for you to overlook

No other system performs like LG IrisAccess™ 3000. Uniquely designed
to work in one to many search mode – even on large databases without
PINs, passwords, or tokens, the system can also be configured as a
high-security overlay within traditional security infrastructures
employing PIN codes or tokens.

• Accurate – Iris recognition is orders of magnitude more accurate than

any other security alternative – biometric or otherwise.

• Fast – Enrollment/usage instruction takes less than 2 minutes.

Authentication takes less than 2 seconds.

• Non-Invasive, Non-Contact – captures iris image as far as
3-10 inches! Unlike fingerprint or hand-geometry, no physical contact
is required for authentication, and no bright lights or lasers are used in
the imaging process.

• Expandable and Scalable – Supports up to 128 remote stations from
a single PC-based host. Data templates require only 512 bytes of storage
per iris and even very large databases do not compromise search speed
or degrade performance accuracy.

A valuable investment in the most accurate
system there is

In light of today’s demanding new security imperatives, LG IrisAccess™ 3000
is surprisingly affordable, especially when measured against the cost and
consequences of a breach in security. And as a security overlay in a PIN or
token-based environment, it is often the most cost-effective way to deliver
a high-integrity enhancement to an installed legacy security system.

So when you’re looking for absolute integrity of authentication – to keep
essential infrastructure secure and protected from unauthorized entry, look into
LG IrisAccess™ 3000 – the world’s leading iris recognition solution from LG,
the iris identity experts.
