2SC2500
4.700
5.100
1.730
2.030
0.400
0.600
0.900
1.100
0.400
0.500
5.800
6.200
4.000
8.400
8.800
2.900
3.100
13.800
14.200
1.600
0.000
0.380
1.500 TYP

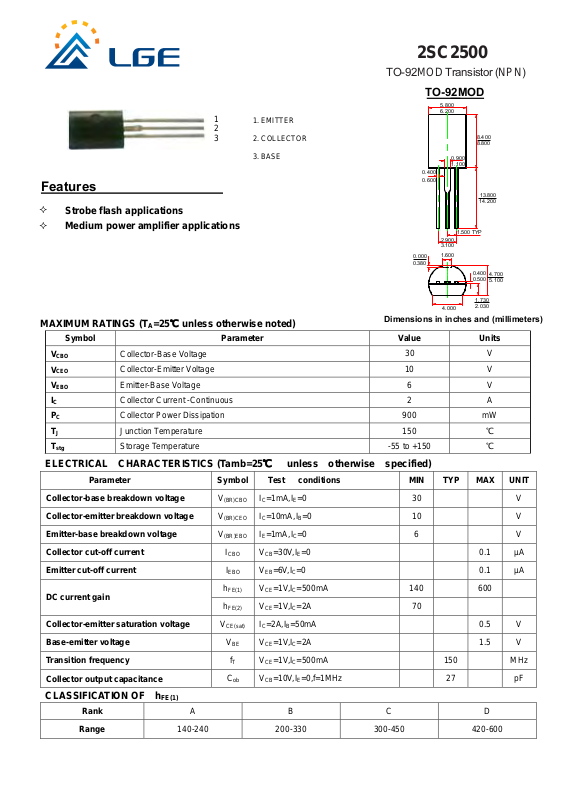

TO-92MOD Transistor (NPN)
TO-92MOD
1
2
3
Features
Strobe flash applications
Medium power amplifier applications
MAXIMUM RATINGS (TA=25℃ unless otherwise noted)
Symbol Parameter Value Units
V
V
V
IC
PC
TJ
T
CBO
CEO
EBO
stg
Collector-Base Voltage
Collector-Emitter Voltage 10 V
Emitter-Base Voltage 6 V
Collector Current -Continuous 2 A
Collector Power Dissipation 900 mW
Junction Temperature 150
Storage Temperature -55 to +150
1. EMITTER
2. COLLECTOR
3. BASE
Dimensions in inches and (millimeters)
30 V
℃
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter Symbol Test conditions MIN TYP MAX UNIT
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
CLASSIFICATION OF h
Rank
Range
V
(BR)CBOIC
V
(BR)CEOIC
V
(BR)EBOIE
I
CBO
I
EBO
h
FE(1)
h
FE(2)
V
CE(sat)
V
BE
VCE=1V,IC=500mA 150 MHz
f
T
C
ob
FE(1)
A B C D
140-240 200-330 300-450 420-600
=1mA,IE=0 30 V
=10mA,IB=0 10 V
=1mA,IC=0 6 V
VCB=30V,IE=0 0.1 µA
VEB=6V,IC=0 0.1 µA
VCE=1V,IC=500mA 140 600
VCE=1V,IC=2A 70
IC=2A,IB=50mA 0.5 V
VCE=1V,IC=2A 1.5 V
VCB=10V,IE=0,f=1MHz 27 pF
Page 2

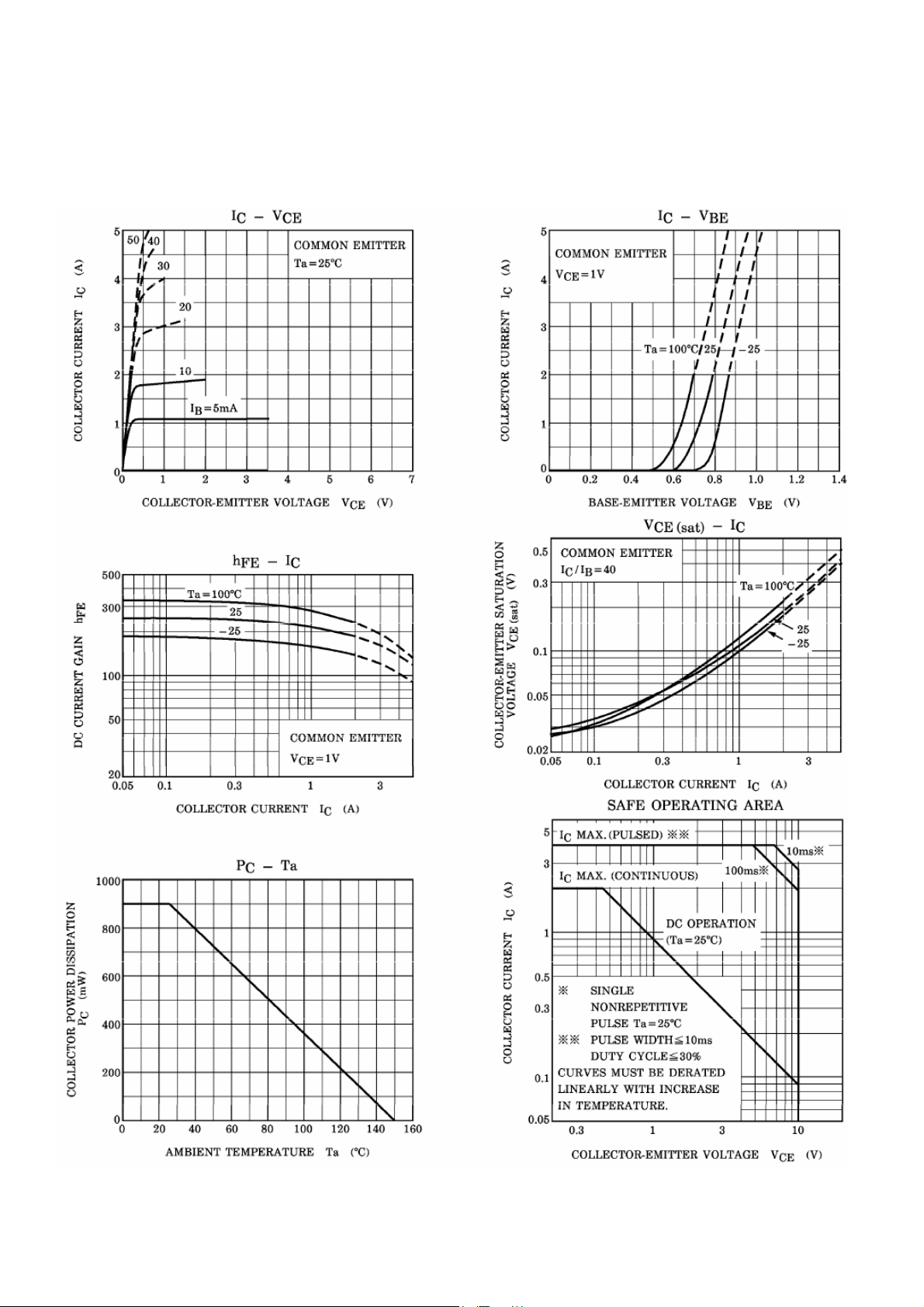

Typical Characteristics
2SC2500
TO-92MOD Transistor (NPN)
