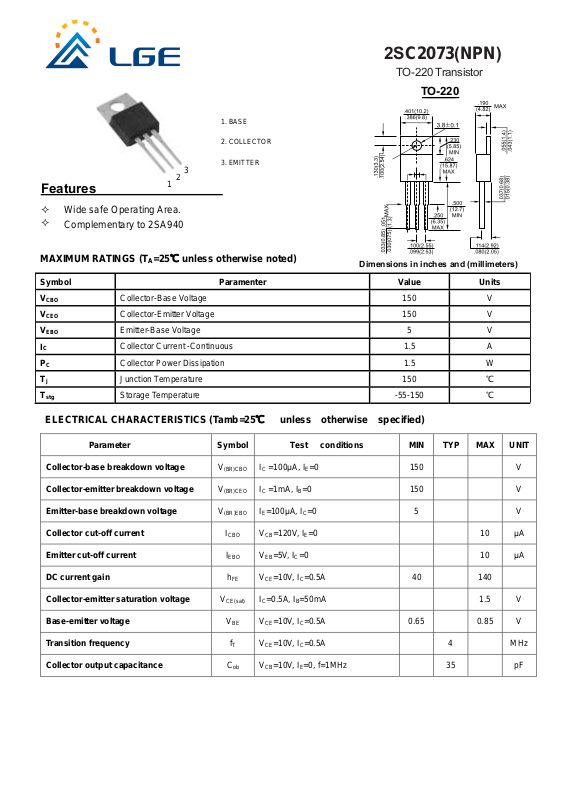

Features
Wide safe Operating Area.
Complementary to 2SA940
2SC2073(NPN)
TO-220 Transistor
TO-220
1. BASE
2. COLLECTOR
3
2
1
3. EMITTER
MAXIMUM RATINGS (T
=25℃ unless otherwise noted)
A
Dimensions in inches and (millimeters)
Symbol Paramenter Value Units
V
V
V
IC
PC
Tj
T
CBO
CEO
EBO
stg
Collector-Base Voltage 150 V
Collector-Emitter Voltage 150 V
Emitter-Base Voltage 5 V
Collector Current -Continuous 1.5 A
Collector Power Dissipation 1.5 W
Junction Temperature 150
Storage Temperature -55-150
℃
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter Symbol Test conditions MIN TYP MAX UNIT
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
V
(BR)CBOIC
V
(BR)CEOIC
V
(BR)EBOIE
I
CBO
=100μA, IE=0 150 V
=1mA, IB=0 150 V
=100μA, IC=0 5 V
VCB=120V, IE=0 10 μA
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
VEB=5V, IC=0 10 μA
I
EBO
VCE=10V, IC=0.5A 40 140
h
FE
IC=0.5A, IB=50mA 1.5 V
V
CE(sat)
VCE=10V, IC=0.5A 0.65 0.85 V
V
BE
VCE=10V, IC=0.5A 4 MHz
f
T
VCB=10V, IE=0, f=1MHz 35 pF
C
ob
Page 2

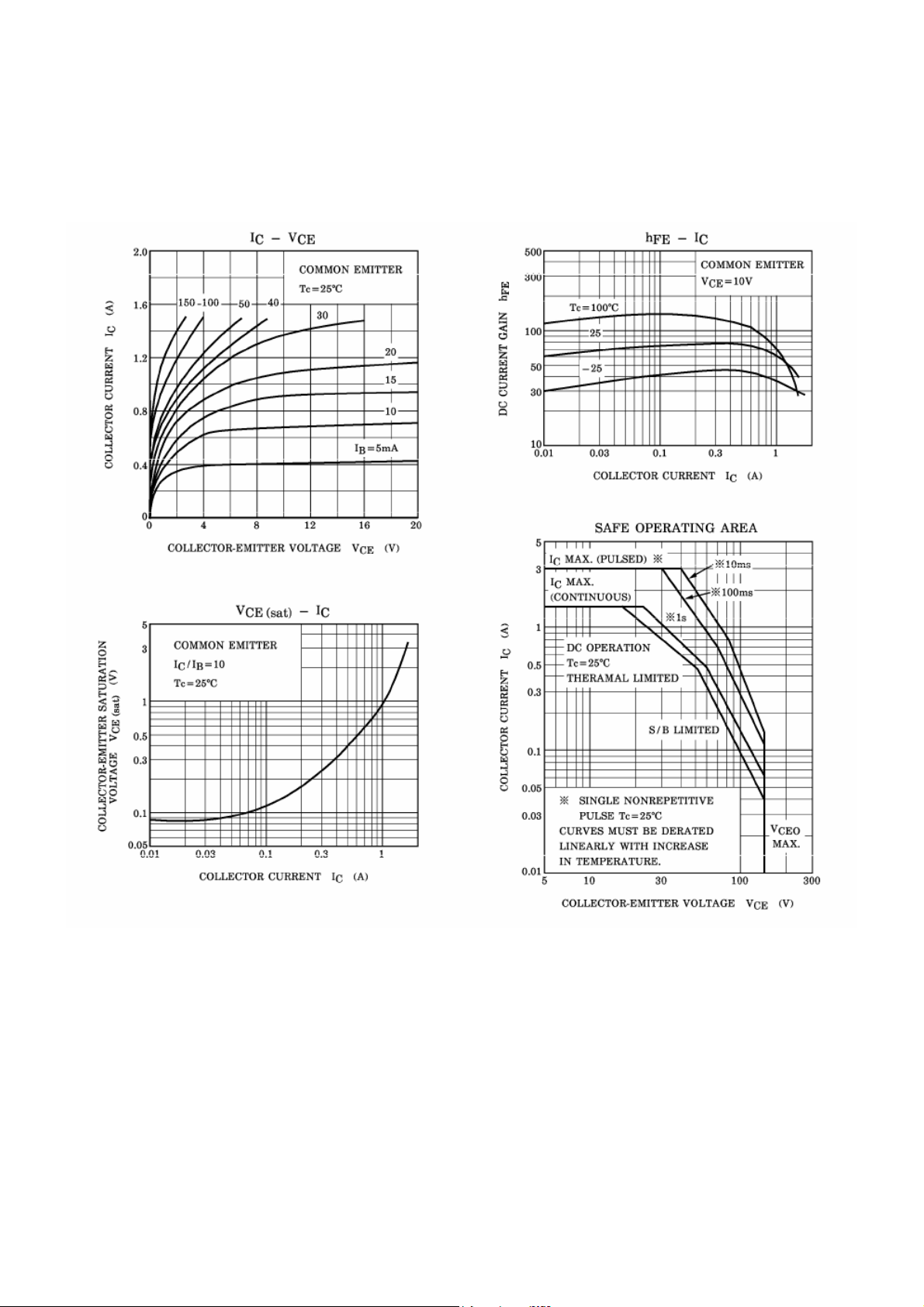

Typical Characteristics
2SC2073(NPN)
TO-220 Transistor
