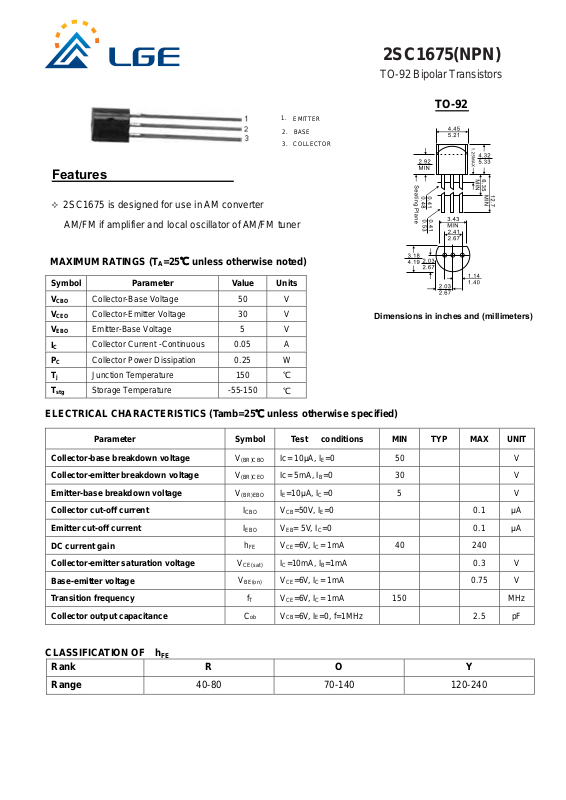

Page 1
2SC1675(NPN)
TO-92 Bipolar Transistors
1.
EMITTER
2. BASE
3. COLLECTOR
Features
2SC1675 is designed for use in AM converter
AM/FM if amplifier and local oscillator of AM/FM tuner
MAXIMUM RATINGS (T
Symbol Parameter Value Units
V
V
V
IC
PC
Tj
T
CBO
CEO
EBO
stg
Collector-Base Voltage 50 V
Collector-Emitter Voltage 30 V
Emitter-Base Voltage 5 V
Collector Current -Continuous 0.05 A
Collector Power Dissipation 0.25 W
Junction Temperature 150
Storage Temperature -55-150
=25℃ unless otherwise noted)
A
℃
℃
TO-92

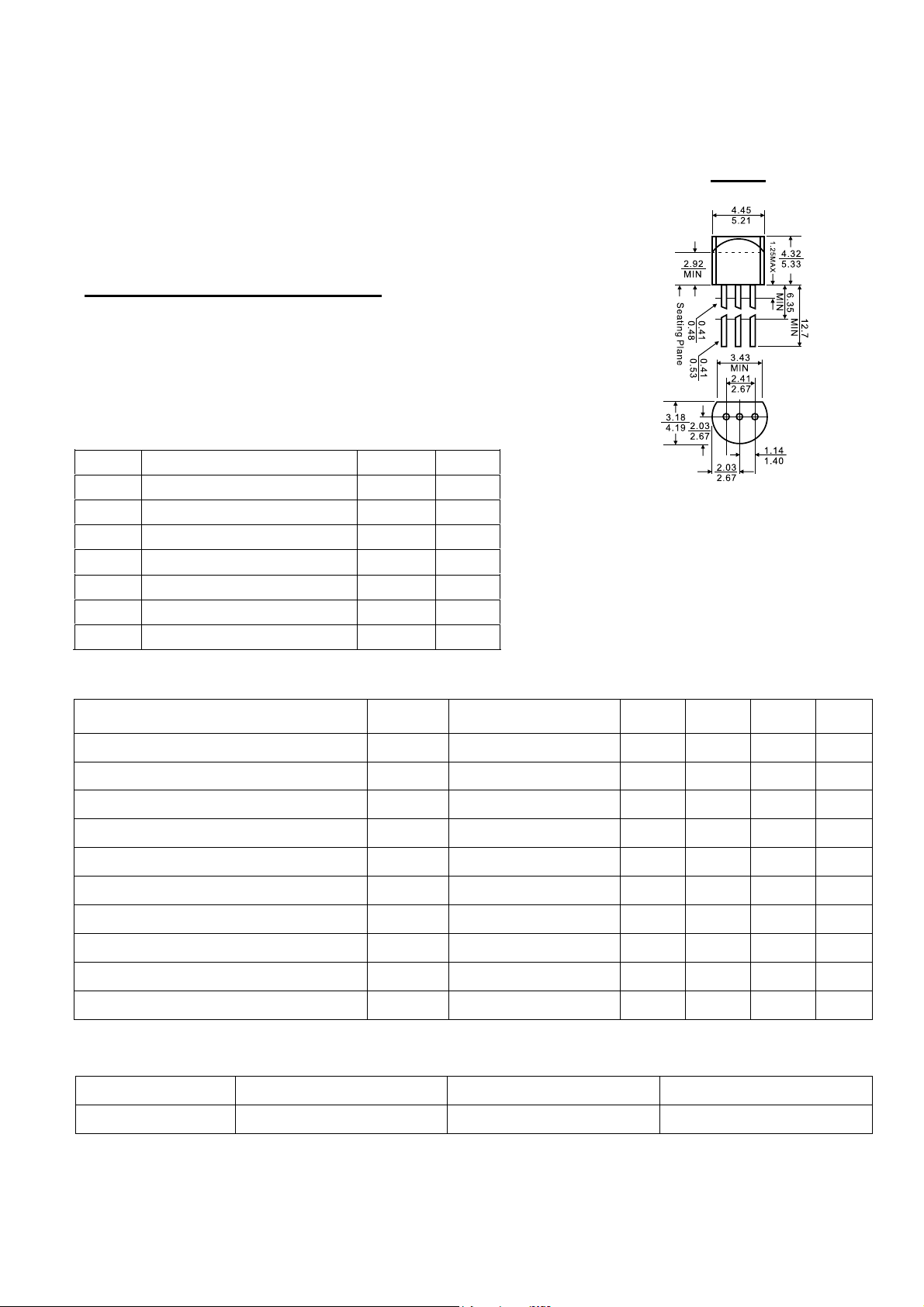

Dimensions in inches and (millimeters)
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter Symbol Test conditions MIN TYP MAX UNIT
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
V
V
V
Ic= 10μA, IE=0 50 V
(BR)CBO
Ic= 5mA, IB=0 30 V
(BR)CEO
IE=10μA, IC=0 5 V
(BR)EBO
VCB=50V, IE=0 0.1 μA
I
CBO
VEB= 5V, IC=0 0.1 μA
I
EBO
VCE=6V, IC= 1mA 40 240
h
FE
IC=10mA, IB=1mA 0.3 V
V
CE(sat)
VCE=6V, IC= 1mA 0.75 V
V
BE(on)
VCE=6V, IC= 1mA 150 MHz
f
T
VCB=6V, IE=0, f=1MHz 2.5 pF
C
ob
CLASSIFICATION OF h
FE
Rank R O Y
Range
40-80 70-140 120-240
Page 2

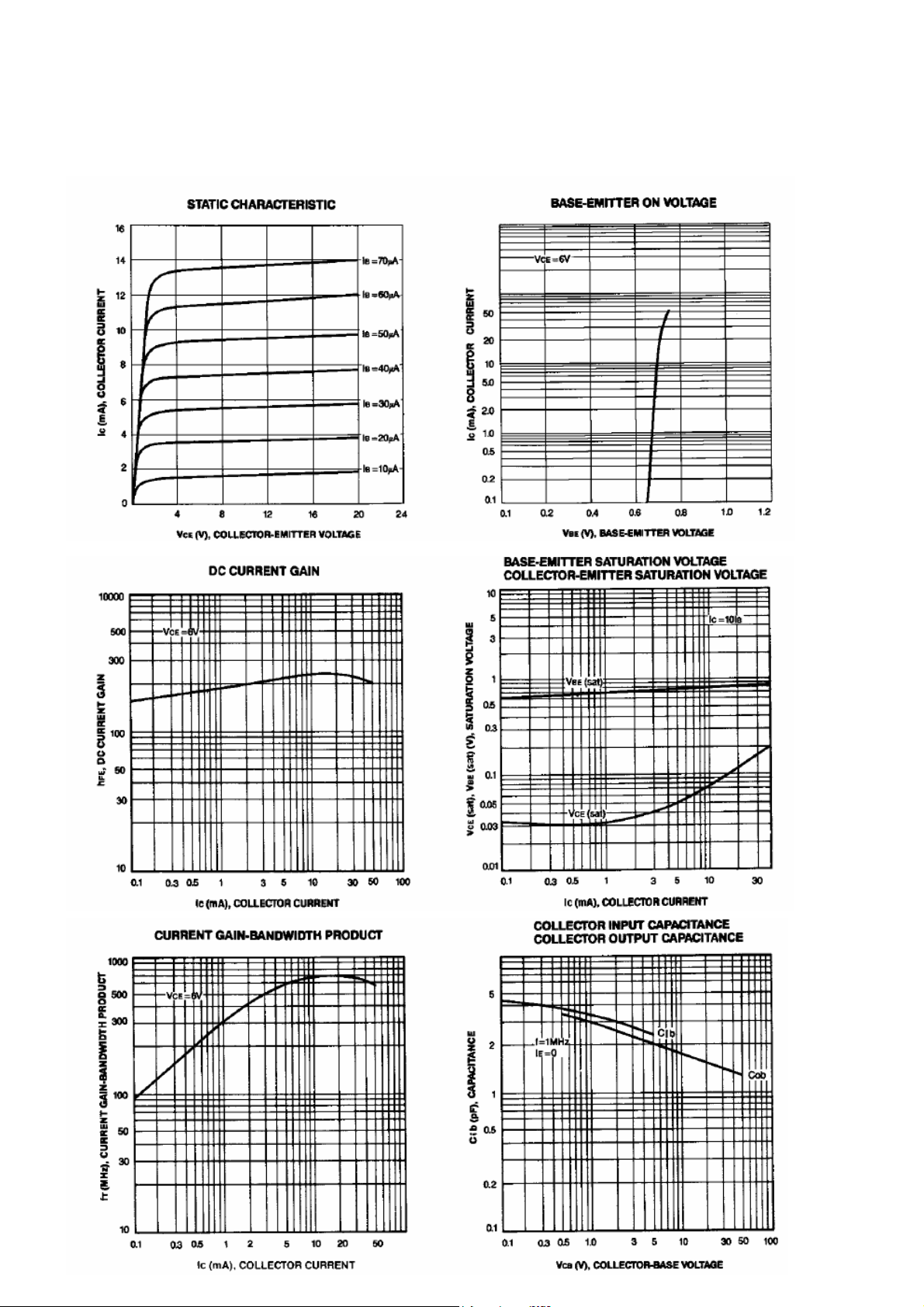

TypicalCharacteristics
2SC1675(NPN)
TO-92 Bipolar Transistors
