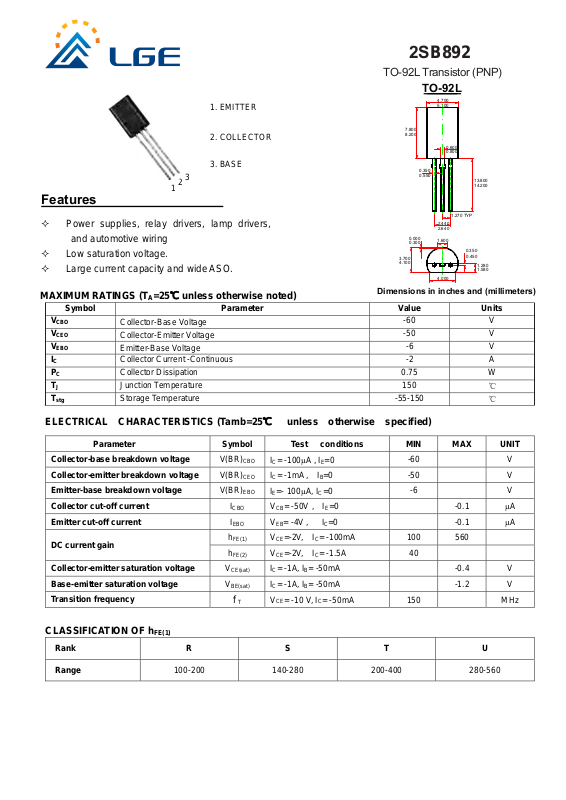

Page 1
2SB892
3.700
4.100
1.280
1.580
0.350
0.550
0.600
0.800
0.350
0.450
4.700
5.100
4.000
7.800
8.200
2.440
2.640
13.800
14.200
1.600
0.000
0.300
1.270 TYP
TO-92L Transistor (PNP)
TO-92L
1. EMITTER
2. COLLECTOR
3. BASE
3
2
1
Features
Power supplies, relay drivers, lamp drivers,
and automotive wiring
Low saturation voltage.
Large current capacity and wide ASO.
MAXIMUM RATINGS (T
Symbol Parameter Value Units
V
V
V
IC
PC
TJ
T
CBO
CEO
EBO
stg
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous -2 A
Collector Dissipation 0.75 W
Junction Temperature 150
Storage Temperature -55-150
=25℃ unless otherwise noted)
A
Dimensions in inches and (millimeters)
-60 V
-50 V
-6 V
℃
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter Symbol Test conditions MIN MAX UNIT
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Transition frequency
CLASSIFICATION OF h
FE(1)
V(BR)
V(BR)
V(BR)
V
V
I
CBO
CEO
EBO
VCB= -50V , IE=0 -0.1
I
CBO
VEB= -4V , IC=0 -0.1
I
EBO
h
VCE=-2V, IC= -100mA 100 560
FE(1)
VCE=-2V, IC= -1.5A 40
h
FE(2)
CE(sat)
BE(sat)
f
T
= -100μA , IE=0
C
IC= -1mA , IB=0 -50 V
I
=- 100μA, IC=0
E
IC= -1A, IB= -50mA -0.4 V
IC= -1A, IB= -50mA -1.2 V
= -10 V, IC= -50mA 150 MHz
V
CE
-60 V
-6 V
Rank R S T U
Range
100-200 140-280 200-400 280-560
μA
μA
Page 2

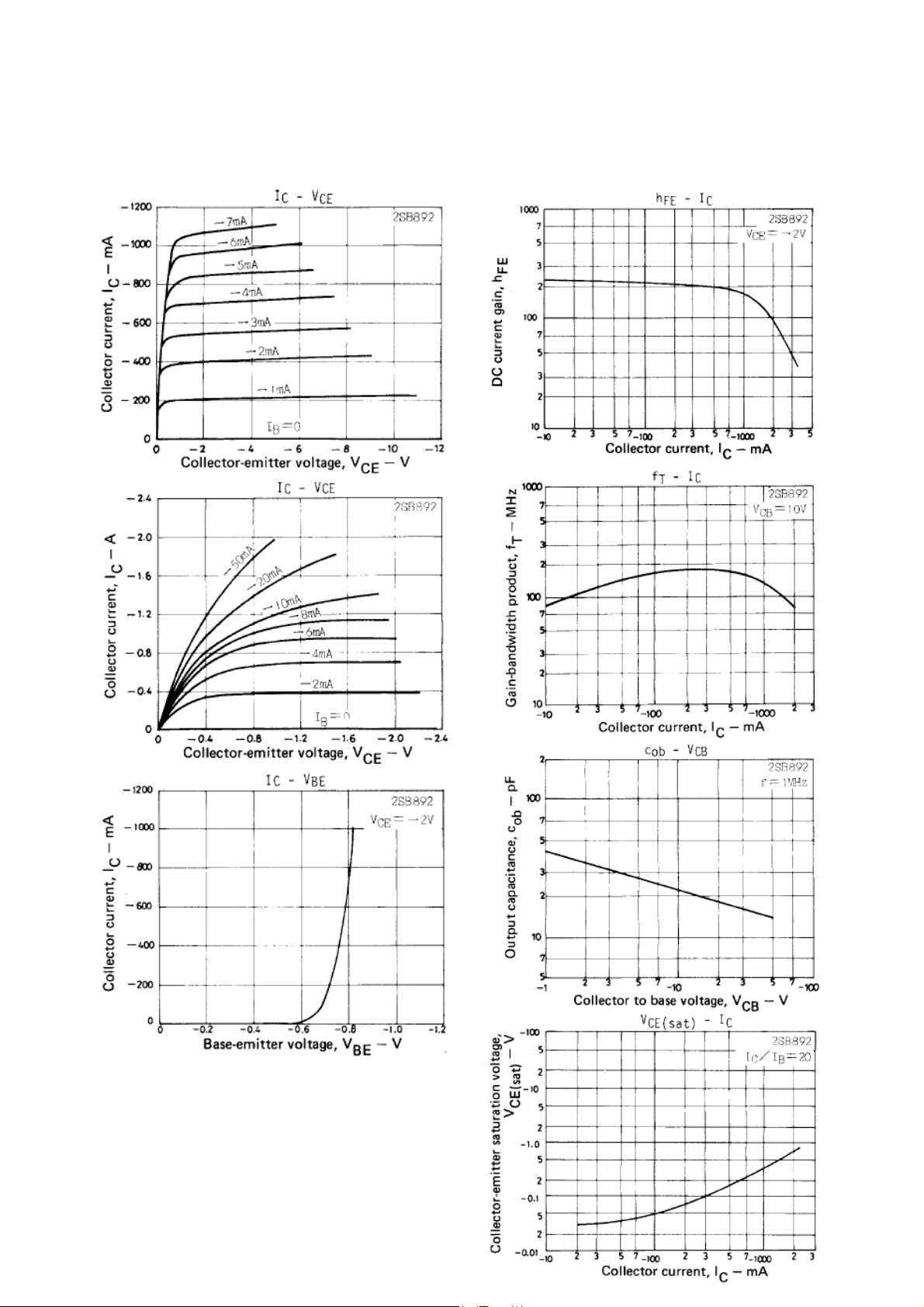

Typical characteristics
2SB892
TO-92L Transistor (PNP)
