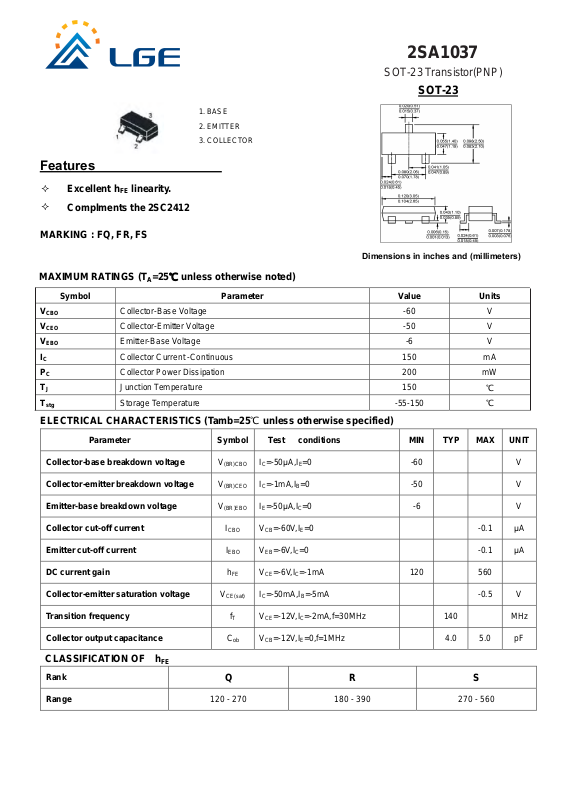

Page 1
2SA1037
SOT-23 Transistor(PNP)
1. BASE
2. EMITTER
3. COLLECTOR
SOT-23
Features
Excellent h
Complments the 2SC2412
MARKING : FQ, FR, FS
MAXIMUM RATINGS (T
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
IC
PC
TJ
T
stg
linearity.
FE
Dimensions in inches and (millimeters)
=25℃ unless otherwise noted)
A
Collector-Base Voltage -60 V
Collector-Emitter Voltage -50 V
Emitter-Base Voltage -6 V
Collector Current -Continuous 150 mA
Collector Power Dissipation 200 mW
Junction Temperature 150
Storage Temperature -55-150
℃
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter Symbol Test conditions MIN TYP MAX UNIT
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
CLASSIFICATION OF h
Rank
FE
V
(BR)CBOIC
V
(BR)CEOIC
V
(BR)EBOIE
I
CBO
I
EBO
h
FE
V
CE(sat)
VCE=-12V,IC=-2mA,f=30MHz 140 MHz
f
T
C
ob
Q R S
=-50μA,IE=0 -60 V
=-1mA,IB=0 -50 V
=-50μA,IC=0 -6 V
VCB=-60V,IE=0 -0.1 μA
VEB=-6V,IC=0 -0.1 μA
VCE=-6V,IC=-1mA 120 560
IC=-50mA,IB=-5mA -0.5 V
VCB=-12V,IE=0,f=1MHz 4.0 5.0 pF
Range
120 - 270 180 - 390 270 - 560
Page 2
2SA1037
SOT-23 Transistor(PNP)

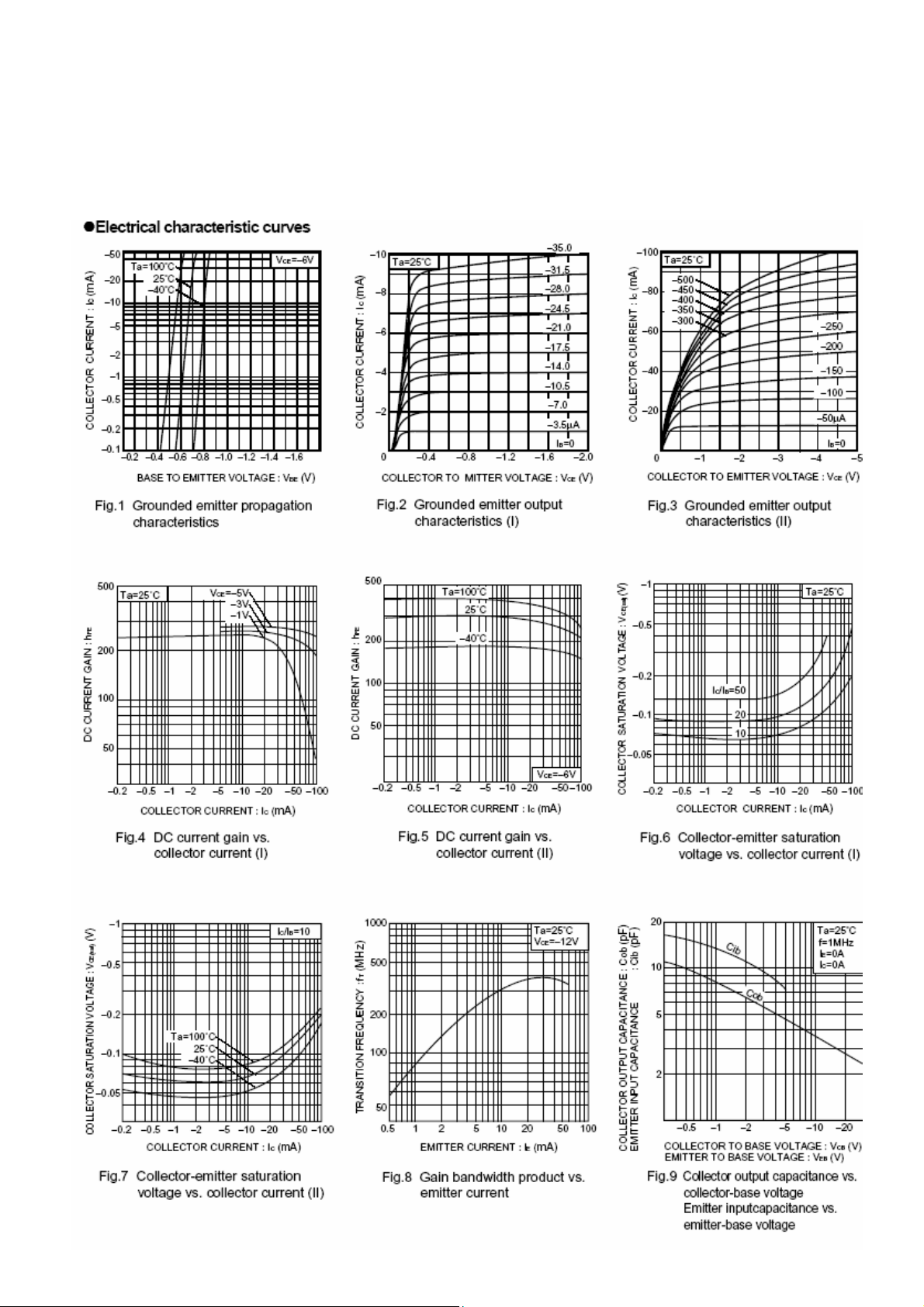

Typical Characteristics
