LG 29MN33D Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS :

MODEL :

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

LA31R

29MN33D 29MN33D-PSP

MFL67580683 (1301-REV00)

Printed in KoreaP/NO :

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SERVICING PRECAUTIONS .................................................................... 4

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION ................................................................ 9

TROUBLE SHOOTING ........................................................................... 13

BLOCK DIAGRAM .................................................................................. 20

EXPLODED VIEW .................................................................................. 21

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 2 -

LGE Internal Use Only

AC Volt-meter

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transfo rmer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of th e circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exp ose d metallic par t. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Good Earth Ground
such as WATER PIPE,

To Instrument's
exposed
METALLIC PARTS

When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

0.15µF

1.5 Kohm/10W

CONDUIT etc.

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 3 -

LGE Internal Use Only

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.

CAUTION: A wrong part substitution or incorrect polarity

installation of electrolytic capacitors may result in an
explosion hazard.

2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.

Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unl ess sp ecified othe rwise in this service manua l, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)

CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.

Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this
service manual.

CAUTION: Do not connect the test fixture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components com monly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" compon ents. The following techniques
should be used to help reduce the incide nce of component
damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alter natively, obtain and wear a comme rcially availab le
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most re pla cem ent ES dev ice s are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.

CAUTION: Be sure no power is applied to the chassis or circuit,

and observe all other safety precautions.

8. Mi nimiz e bodil y motions w hen h an dl ing u np ac kaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carp eted floor can ge ner ate st atic electricit y
sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 ˚F to 600 ˚F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25cm) brush with a metal handle.

Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 ˚F to 600 ˚F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 ˚F to 600 ˚F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only un til the solder fl ows onto and around both the
component lead and the foil.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 4 -

LGE Internal Use Only

IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.

(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as
possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

CAUTION: Maintain original spacing between the replaced

component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
si de of the circuit board. (Use this techniq ue onl y on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.

At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous

condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break an d loc ate the nearest component that is dir ect ly
connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.

Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the

it does not touch components or sharp edges.

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 5 -

LGE Internal Use Only

SPECIFICATION

NOTE : Specications and others are subject to change without notice for improvement.

1. Application Range

This spec sheet is applied all of the TV used LA31R chassis.

2. Specication

Each part is tested as below without special appointment

1) Temperature : 25 ˚C ± 5 ˚C (77 ˚F ± 9 ˚F),
CST : 40 ˚C ± 5 ˚C

2) Relative Humidity : 65 % ± 10 %

3) Power Voltage : Standard input voltage
(100 V - 240 V ~, 50 / 60 Hz)

· Standard Voltage of each products is marked by mod­els

4) Specication and performance of each parts are followed

each drawing and specication by part number in accord­ance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3.Test method

1) Performance : LGE TV test method followed

2) Demanded other specication

- Safety : CE,IEC specication

- EMC : CE,IEC specication

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 6 -

LGE Internal Use Only

4. General specication

4.1. TV

No Item Specification Remarks

1 Market Brazil

2 Broadcasting system ISDB-T/ PAL-M/ PAL-N

3 C om p o n e n t I n put

(1EA)

4 RGB Input RGB-PC Analog (D-SUB 15Pin)

5 HDMI Input (1EA) HDMI Rear / HDMI version 1.4/ support PC

6 Audio Input (2EA) RGB/ DVI Audio

7 USB (1EA) Picture, Music, Movie, SVC Software Update + Picture + Music + Move

Y/Cb/Cr , Y/Pb/Pr

Support HDCP

L/ R Input

Component

8 Local Key (Touch)

4.2. RGB/HDMI(PC) Specication

No Item Specication Remarks

1 Supported Sync. Type Separate Sync., Digital

2 Operating Frequency Analog Horizontal 30 ~ 61 kHz

Vertical 56 ~ 75 Hz

Digital Horizontal 30 ~ 61 kHz

Vertical 56 ~ 75 Hz

3 Resolution Analog Max. 1366 x 768 @ 60Hz

Recommend 1366 x 768 @ 60Hz

Digital Max. 1366 x 768 @ 60Hz

Recommend 1366 x 768 @ 60Hz

4 Operating Environment Temp : 10 ˚C ~ 35 ˚C

Humidity : 20 % ~ 80 %

5 Storage Environment Temp : -10 ˚C ~ 60 ˚C non condensing

Humidity : 5 % ~ 90 % non condensing

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 7 -

LGE Internal Use Only

5. Timing

5.1. RGB/ HDMI (PC)

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark

1. 720*400 31.468 70.080 28.321

2. 640*480 31.469 59.940 25.175

3. 640*480 37.500 75.000 31.500

4. 800*600 37.879 60.317 40.000

5. 800*600 46.875 75.000 49.500

6. 1024*768 48.363 60.004 65.000

7. 1024*768 60.023 75.029 78.750

8. 1280*800 49.702 59.810 83.500

9. 1366*768 47.717 59.79 85.5

5.2. HDMI (DTV)

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark

1 720* 480 31.469 / 31.5 59.94 / 60 27.00/ 27.03 SDTV 480P

2. 720*576 31.25 50.00 27.864 SDTV 576P

3. 1280*720 37.50 50.00 74.250 HDTV 720P

4 1280* 720 44.96 / 45 59.94 / 60 74.17/ 74.25 HDTV 720P

5 1920* 1080 33.72 / 33.75 59.94 / 60 74.17/ 74.25 HDTV 1080I

6 1920* 1080 28.125 50.00 74.25 HDTV 1080I

7 1920* 1080 27.00 24 74.25 HDTV 1080P

8 1920* 1080 33.75 30.00 74.25 HDTV 1080P

9 1920* 1080 56.250 50 148.5 HDTV 1080P

10 1920* 1080 67.43 / 67.5 59.94 / 60 148.35/ 148.50 HDTV 1080P

5.3. Component

No

1 720* 480 15.730 59.940 13.500 SDTV, DVD 480I( 525I)

2 720* 480 15.750 60.000 13.514 SDTV, DVD 480I( 525I)

3 720* 576 15.625 50.000 13.500 SDTV, DVD 576I( 625I) 50Hz

4 720* 480 31.470 59.940 27.000 SDTV 480P

5 720* 480 31.500 60.000 27.027 SDTV 480P

6 720* 576 31.250 50.000 27.000 SDTV 576P 50Hz

7 1280* 720 44.960 59.940 74.176 HDTV 720P

8 1280* 720 45.000 60.000 74.250 HDTV 720P

9 1280* 720 37.500 50.000 74.250 HDTV 720P 50Hz

10 1920* 1080 33.720 59.940 74.176 HDTV 1080I

11 1920* 1080 33.750 60.000 74.250 HDTV 1080I

12 1920* 1080 28.125 50.000 74.250 HDTV 1080I 50Hz

13 1920* 1080 56.250 50 .000 148.500 HDTV 1080P

14. 1920* 1080 67.432 59.940 148.350 HDTV 1080P

15 1920* 1080 67.5 00 60.000 148.500 HDTV 1080P

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

Resolution H-freq(kHz) V-freq(Hz) Pixel clock( MHz)

Specication

- 8 -

Remark

LGE Internal Use Only

ADJUSTMENT INSTRUCTION

(2)

(6)

(5)

1. Application Range

This document is applied to LA31R chassis TV which is
manufactured in TV (or Monitor) Factory or is produced on the
basis of this data.

2. Designation

1) The adjustment is according to the order which is designat-

ed and which must be followed, according to the plan which
can be changed only on agreeing.

2) Power adjustment : Free Voltage.

3) Magnetic Field Condition: Nil.

4) Input signal Unit: Product Specication Standard.

5) Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25 °C ± 5 °C
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz

6) Adjustment equipments : Color Analyzer (CA-210 or CA-

110), DDC Adjustment Jig equipment, SVC remote control­ler.

7) Push The "IN STOP KEY" – For memory initialization

Case1 : Software version up

1) After downloading S/W by USB , Multi-vision set will
reboot automatically

2) Push "In-stop" key

3) Push "Power on" key

4) Function inspection

5) After function inspection, Push "In-stop" key.

Case2 : Function check at the assembly line

1) When TV set is entering on the assembly line, Push "In­stop" ke y at rst.

2) Push "Power on" key for turning it on.

→ If you push "Power on" key, TV set will recover channel

information by itself.

3) After function inspection, Push "In-stop" key.

4) Click “Read” tab, and then load download le(XXXX.bin) by
clicking “Read”

(4)

filexxx.bin

5) Click “Auto” tab and set as below

6) Click “Run”.

7) After downloading, check “OK” message.

(5)

(7) ……….OK

* USB DOWNLOAD(*.epk le download)

1) Make New folder named “LG_DTV” and put ISP le(*.epk)
in the folder.

2) Put the USB Stick to the USB socket.

3) Automatically detecting update le in USB Stick

- If your downloaded program version in USB Stick is

Low, it didn’t work. But your downloaded version is
High, USB data is automatically detecting.

4) Show the message “Copy the le from the Memory…”

3. Main PCB check process

* APC - After Manual-Insult, executing APC

* Boot le Download

1) Execute ISP program “Mstar ISP Utility” and then click
“Cong” tab.

2) Set as below, and then click “Auto Detect” and check “OK”
message. If display “Error”, Check connect computer, jig,
and set.

3) Click “Connect” tab. If display “Can’t ”, Check connect
computer, jig, and set.

(1) (3)

Please Check the Speed :

Use the speed under

OK

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

200KHz.

5) Updating is starting.

6) Updating Completed, The TV will restart automatically.

7) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV

have, TV can lost all channel data. In this case, you
have to channel recover. if all channel data is cleared,
you didn’t have a DTV/ATV test on production line.

- 9 -

LGE Internal Use Only

3.1. EDID Process

3.2.1. EDID download

1) Press "Power only" key of service remote control.

2) Press the ADJ KEY on R/C and enter EZ ADJUST

3) Enter EDID D/L mode by pushing "►" key at "EDID D/L".

4) EDID download is executed automatically.

5) Press EXIT key on R/C.

G

WUG{GvXG G G

XUG{GvYG G G

YUG{GvZG G G

ZUG{Gv[G G G

[UG{Gv\G G G

\UG{Gv]G

]UGjGnG

^UGhkjGjG G G

_UG~GiG G G

`UGXWGwG~iGG G G

XWUG{GwGGG G G

XXUGlkpkGkVsG ඖ G

XYUGzGiVjG

XZUG{GzGzG

X[UGlUGpGhG

X\UGzwrGsGhG

X]UzwkpmGsGhG

G G G

→ Caution: - Never connect HDMI & D-sub Cable when

- Download HDMI

* Edid data and Model option download (USB)

NO Item CMD 1CMD 2Data 0

G G

lkpkGkVsG

oktpXGG GG GG GGG GG GvrG G G

G G

yniGG GG GG GGG GG GG GvrG G G

G G G

G zG G yG G

download EDID.

G

G

3.1.2. RGB EDID Data

- All models (Product ID : 22984/HEXA: 59C8)

*(week), **(year), ***(Check sum) : Adjustable Data

: Screen size,

: Color Characteristics

3.2.3. HDMI EDID Data

- All models (Product ID : 22986/HEXA:59CA)

Enter

download

MODE

EDID data and

Model option

download

Download
‘Mode In’

Download A E 00 10 Automatically download

A A 0 0 When transfer the

‘Mode In’,

Carry the command.

(The use of a internal

Data)

*(week), **(year), ***(Check sum) : Adjustable Data
**** (physical address) : (HDMI : 10),
****(Check sum) : (HDMI : CE)

: Screen size,

: Color Characteristics

3.3. Function Check

3.3.1. Check display and sound

*Check Input and Signal items. (cf. work instructions)

1) TV

2) AV (CVBS)

3) COMPONENT (480i)

4) RGB (PC : 1366 x 768 @ 60 Hz)

5) HDMI (PC : 1366 x 768 @ 60 Hz)

6) PC Audio In

* Display and Sound check is executed by Remote controller.

→ Caution : Not to push the INSTOP KEY after completion if

the function inspection.

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 10 -

LGE Internal Use Only

4. Total Assembly line process

4.1. Tool option & ADC Check

1) Press "Power on" key of service remote control.

2) Connect RS232 Signal Cable to RS-232 Jack.

3) Check the 'Tool Option' (Refer to the BOM Comments or
Adjustment spec)

4) Check the ‘ADC’ is ok.

4.2. Model name & Serial number Down­load

4.2.1. Model name & Serial number D/L

1) Press "Power on" key of service remote control.

2) Connect RS232 Signal Cable to RS-232 Jack.

3) Write Serial number by use RS-232.

4) Must check the serial number at the Diagnostics of SET UP
menu. (Refer to below).

4.2.2. Method & notice

1) Serial number D/L is using of scan equipment.

2) Setting of scan equipment operated by Manufacturing
Technology Group.

3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0

4.3. Function Check

4.3.1. Check display and sound

*Check Input and Signal items. (cf. work instructions)

1) TV

2) AV (CVBS)

3) COMPONENT (480i)

4) RGB (PC : 1366 x 768 @ 60 Hz)

5) HDMI (PC : 1366 x 768 @ 60 Hz)

6) PC Audio In
* Display and Sound check is executed by Remote controller

→ Caution : Not to push the INSTOP KEY after completion if

the function inspection.

4.3.2. PIP Check

1) Press "Power on" key of service remote control.

2) Input RGB & TV(ATV or DTV) signal.

3) Set Input mode to RGB.

4) Press ‘PIP" key of ADJ remote controller

5) Check TV Video & Audio signal of Sub picture.

* Manual Download (Model Name and Serial

Number)

If the TV set is downloaded By OTA or Service man, Some­times model name or serial number is initialized.( Not always)
There is impossible to download by bar code scan, so It need
Manual download.

1) Press the 'Instart' key of ADJ remote controller.

2) Go to the menu 'Model Number D/L' like below photo.

3) Input the Factory model name(ex 24MN33D) or Serial
number like photo.

4) Check the model name Instart menu → Factory name
displayed (ex GP4-LOW)

5) Check the Diagnostics (DTV country only) → Buyer model

displayed (ex 24MN33D)

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 11 -

LGE Internal Use Only

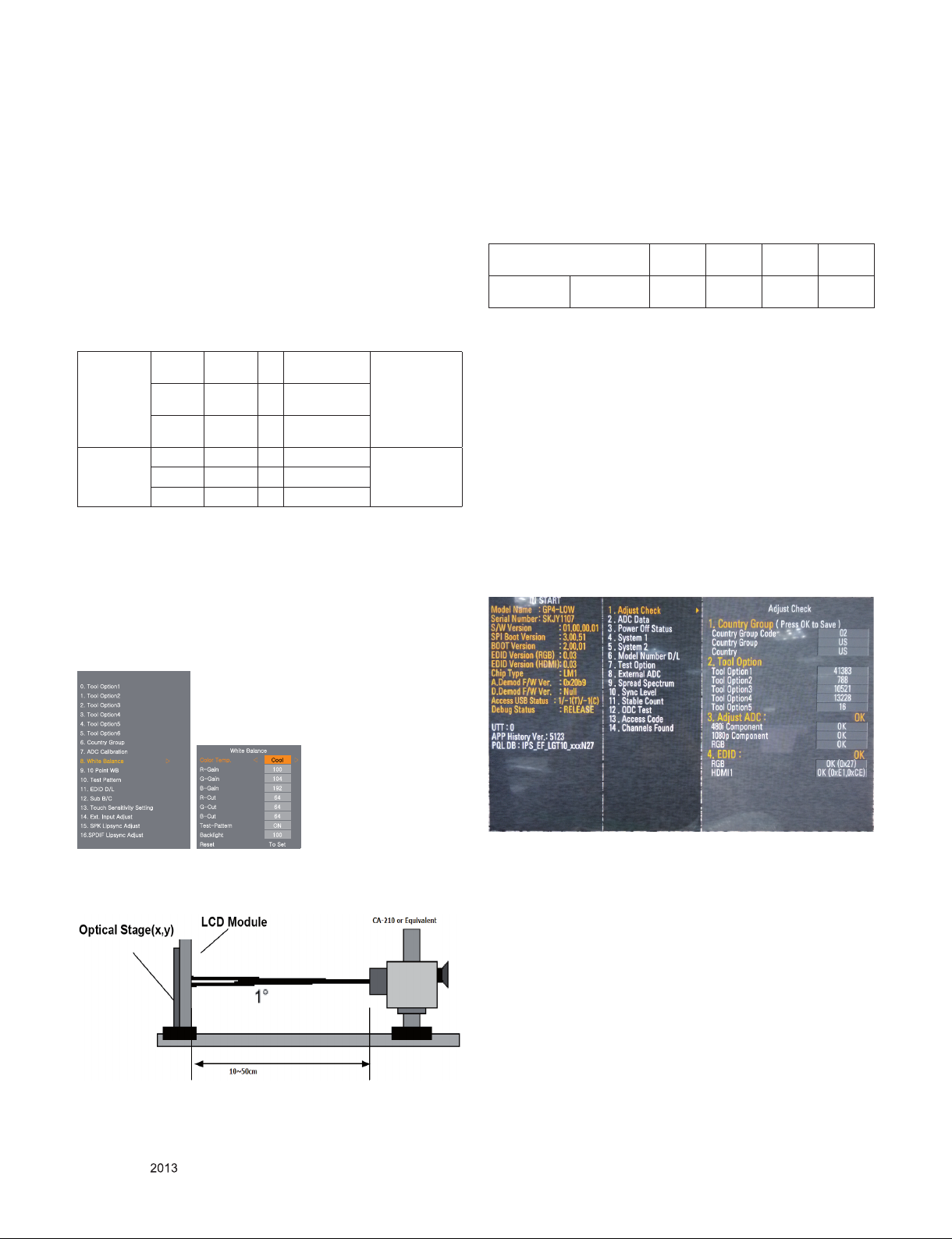

4.4. White balance adjustment

-Equipment

1) Color Analyzer: CA-210 (LED Module : CH 14)

2) Adj. Computer(During auto adj., RS-232C protocol is
needed)

3) Adjust Remocon

RGB_Gains are xed data for each model.

Insert RS-232C Jack which is connected with PC for White
Balance or equivalent device.
* Total Assembly line should be check whether the color

coordinate(x,y) data refer to below table were meet or not.

*Note : x,y coordinates are drifted about 0.007 after 30 mins

Color
Temperature

Luminance
(cd/m²)

*Note : Manual W/B process using adjusts Remote control.

1) After enter Service Mode by pushing "ADJ" key,

2) Enter "White Balance" by pushing "►" key at "White Bal-

Cool 13,000k °K X=0.276 (±0.03)

Medium 9,300k °K X=0.290 (±0.03)

Warm 6,500k °K X=0.318 (±0.03)

Cool Min : 80 Typ : 110 <Test Signal>

Medium Min : 80 Typ : 110

Warm Min : 70 Typ : 110

Y=0.275 (±0.03)

Y=0.298 (±0.03)

Y=0.334 (±0.03)

<Test Signal>
Inner pattern
(204gray,80IRE)

Inner pattern
(204gray,80IRE)

heat-run. So checking color coordinate within 5-min at
total assembly line, consider x,y coordinates might be
up to 0.007 than x,y target of each color temperature.

ance".

4.5. DPM Operation check

■ Measurement Condition: 100~240V@ 50/60Hz

1) Set Input to RGB-PC and connect D-sub cable to set –
RGB Mode. Set Input to HDMI(with Input Label set to PC)
and connect HDMI cable to set – HDMI Mode

2) Cut off H sync or V sync of signal.

3) Check DPM operation refer to the below table.

Operating Condition Sync

Power S/W On Sleep mode -

RGB,HDMI

(H/V)

Off/Off Off Amber 1

Video LED

(SET)

Wattage

4.6. Model Name & SW Version & Adjust
check.

* Press the ‘Instart’ key of ADJ remote controller

4.6.1. Model Name& SW Version Check

1) Check ‘Model Name’.

2) Check ‘S/W Version’ (Refer to the IC Ver. in the BOM)

4.6.2. Adjust Check

1) Check ‘Country Group’

2) Check ‘Area Option’

3) Check ‘Tool Option’ (Refer to the BOM Comments)

4) Check ‘Adjust ADC[Comp&RGB]’ is OK.

5) Check ‘EDID[RGB&HDMI]’ is OK.
* After check all, Press the 'EXIT' key of ADJ remote controller

to go out SVC menu.

(W)

G

WUG{GvXG G G

XUG{GvYG G G

YUG{GvZG G G

ZUG{Gv[G G G

[UG{Gv\G G G

\UG{Gv]G

]UGjGnG

^UGhkjGjG G G

_UG~GiG ඖG G

`UGXWGwG~iGG G G

XWUG{GwGGG G G

XXUGlkpkGkVsG G G

XYUGzGiVjG

XZUG{GzGzG

X[UGlUGpGhG

X\UGzwrGsGhG

X]UzwkpmGsGhG

G G G

G G

jG{UG ඔG jG ඖG

yTnG G XWWG G

nTnG G XW[G G

iTnG G X`YG G

yTjG G ][G G

G G

nTjG G ][G G

iTjG G ][G G

{TwG G vuG G

iG G XWWG G

yG G {GzG G

~GiG

* When doing Adjustment, Please make circumstance as

below.

4.7. Outgoing condition Conguration

* After all function test., press IN-STOP Key by SVC Remote

controller. And make Outgoing Condition

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 12 -

LGE Internal Use Only

1. No Power

Check C820 All

Voltage Level (19V)

Check Power connector

OK ?

Replace Adapter

N N

Check IC802 output

Voltage Level (5V)

Replace IC802 &

Recheck

N

Check IC2602 Output

Voltage Level (3.3V_ST)

Replace IC2602

N

Y

Check IC800 Output

Voltage Level (5V)

Replace IC800

N

Y

Y

Y

Y

Check IC804 Output

Voltage Level (12V)

Replace IC804

N

Y

Check IC810 Output

Voltage Level (2.5V)

Replace IC810

N

Check X201 Clock

24MHz

Replace X201

N

Check X201 Clock

24MHz

Replace X201

N

Replace IC100 Flash Memory

Y

Check IC806 Output
Voltage Level (1.15V)

Replace IC806

N

Y

Y

Check IC807 Output

Voltage Level (1.5V)

Replace IC807

N

TROUBLE SHOOTING

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 13 -

LGE Internal Use Only

2. No Picture

Module
Back Light On ?

Check WLED_ENABLE high

R131

Check IC101

Replace Main Scaler IC

N N

Check Panel clock

P601(#9,10)

Check IC101

Repair Main B/D

N

Check Panel power

P601(#27,28,29,30) 12V

IC804Output 12V

Replace IC804

N

Y

Replace T-con

Board or module

Check FFC Cable for damage

or open conductors.

Replace Cable

N

Y

Y

Y

Check LED Driver output

(LED Driver B’d P1101 #1)

Check LED Driver IC1100

Replace LED Driver IC

N

Y

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 14 -

LGE Internal Use Only

3. No Video - Digital TV

Check RF Cable

Check Tuner(TU2603)

Data, CLK, SYN, VAL

Replace Tuner(TU2603)

Recheck

Y

N

1. Check Tuner(TU2603 #5) Power (3.3V)

2. Check IC803 Output voltage(3.3V)

Replace IC803

Y

N

Check Tuner(TU2602) I2C Signal

SCL(R3735), SDA(R3736)

Check IC101

Y

N

1. Check Tuner(TU2602 #7) Power (1.8V)

2. Check IC805 Output voltage(1.8V)

Replace IC805

Y

N

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 15 -

LGE Internal Use Only

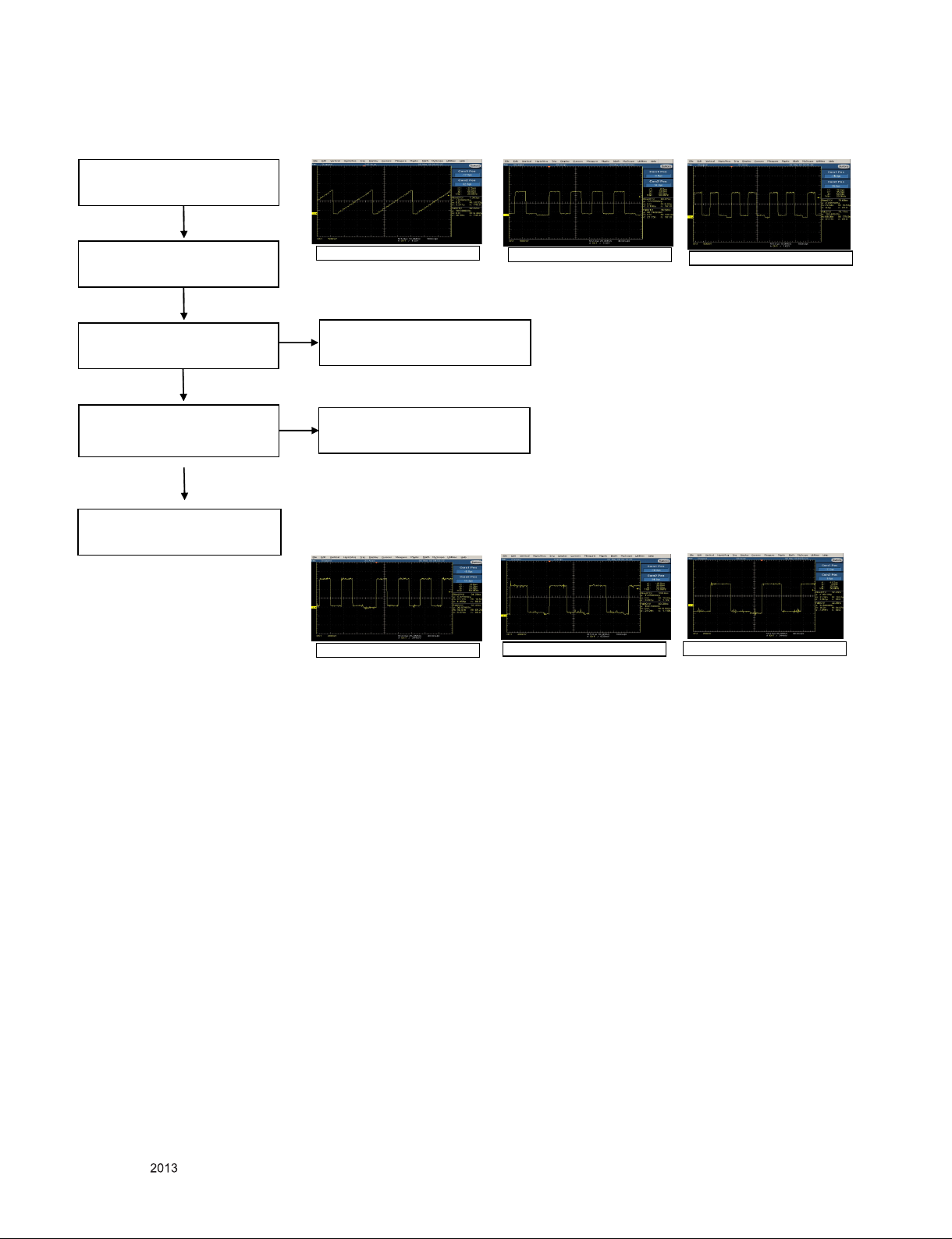

4. No Video - Component

Wave form of C220

Wave form of C218

Wave form of C222

Wave form of Comp Y

Wave form of Comp Pb

Wave form of Comp Pr

Check input signal format

Is it supported?

Check signal
R239,R237,R241
C220,C218,C222

Replace R239,R237,R241

C220,C218,C222

Y

N

Check JK2800

Replace JK2800 or

Check Device

Y

N

Y

IC101 has problem

Y

Check Component Cable

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 16 -

LGE Internal Use Only

5. No Video - RGB

Wave form of R4025(Vsync)

Wave form of R4024(Hsync)

Wave form of R230/C206

Wave form of R228/C204

Wave form of R232/C208

Check input signal format

Is it supported?

Check Hsync, Vsync

R4024, R4025

Replace R4024, R4025

Check signal RGB

R228,R230,R232
C204,C206,C208

N

Check JK406

Replace JK406 or
Check Device

Y

N

Y

Replace R228,R230,R232

C204,C206,C208

N

IC101 has problem

Y

Check RGB Cable

Y

Y

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 17 -

LGE Internal Use Only

6. No Video - HDMI

Check input signal format

Is it supported?

Y

Check JK501

for proper connection or damage

Replace connector

Y

N

Y

Check HDMI Cable for damage

or open connector

Check I2C Signal (JK501)

(#15, #16)

Re download EDID data

Y

N

Check HDCP Key (IC101)

Replace Scaler(IC101)

N

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 18 -

LGE Internal Use Only

7. No Audio

Make sure you can’t hear any audio and

Device support the audio signal normally.

Check Speaker and

its wire connection (P700)

and the resistance

Check Signal from IC700

L700,L701, L706, L709

Y

Replace IC700

N

Check R4045 Voltage Level (3.3V)

Y

Replace IC807(3.3V)

N

Y

Check Signal from IC101

SDA/SCL

(R703/R214, R707/R213)

Y

Replace IC101

N

Replace connector or Speaker

N

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 19 -

LGE Internal Use Only

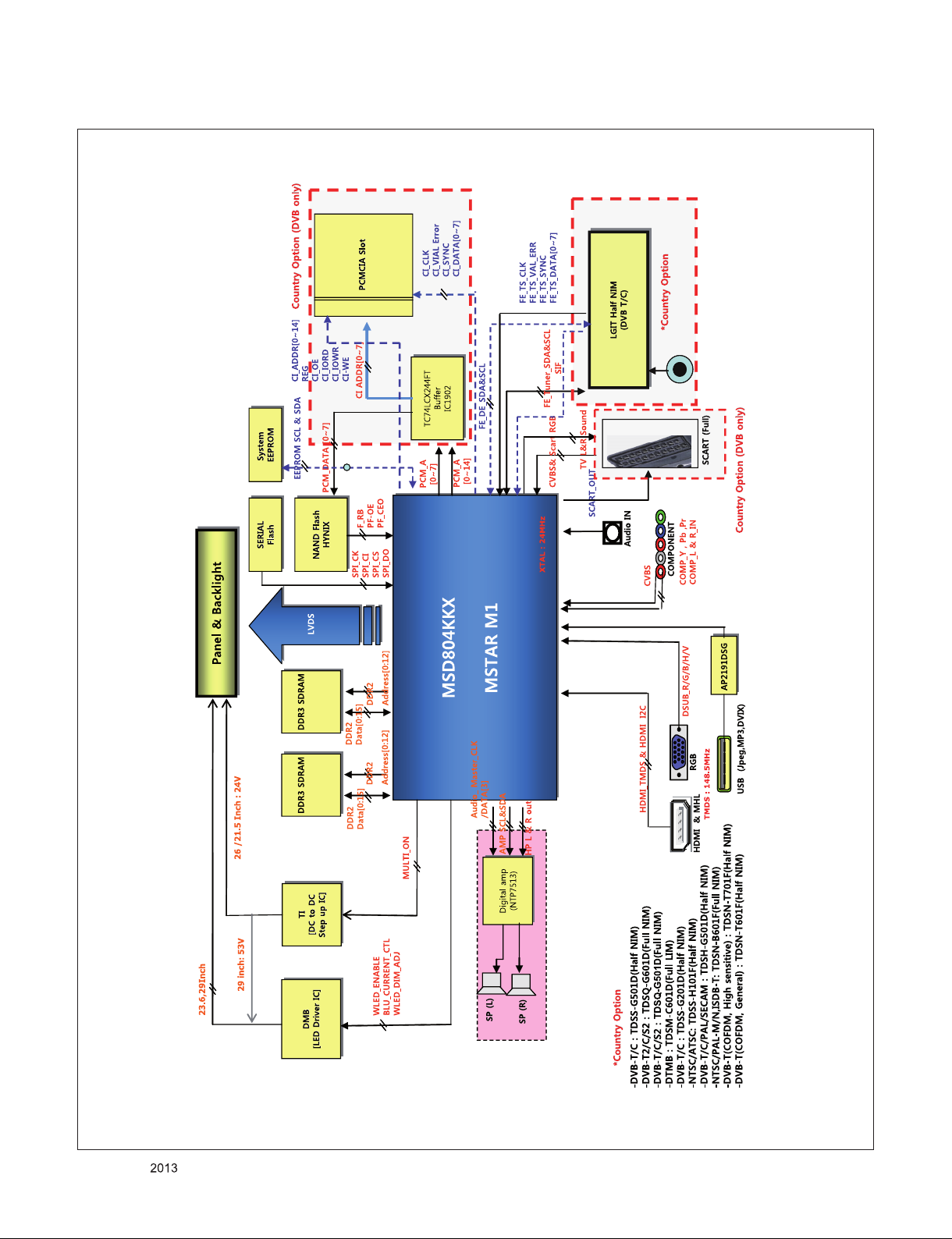

BLOCK DIAGRAM

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 20 -

LGE Internal Use Only

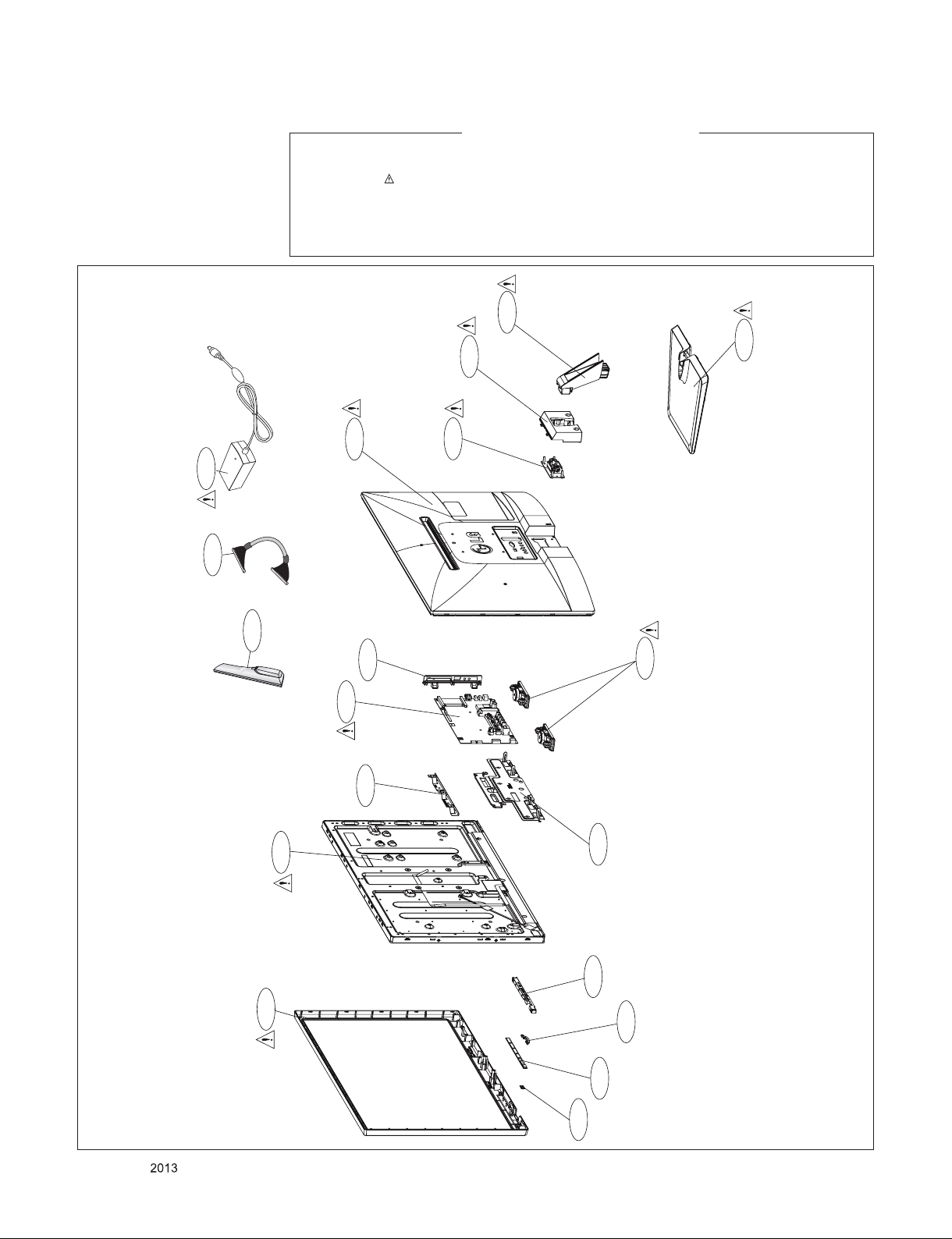

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts
are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as recommended
in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

910

900

921

535

LV1

A2

200

400

540

820

810

920

120

800

300

Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 21 -

511

302

510

301

LGE Internal Use Only

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

/F_RB

/PF_OE

/PF_CE0

/PF_CE1

PF_ALE

/PF_WE

/PF_WP

R/B

RE

CE

CLE

ALE

WE

WP

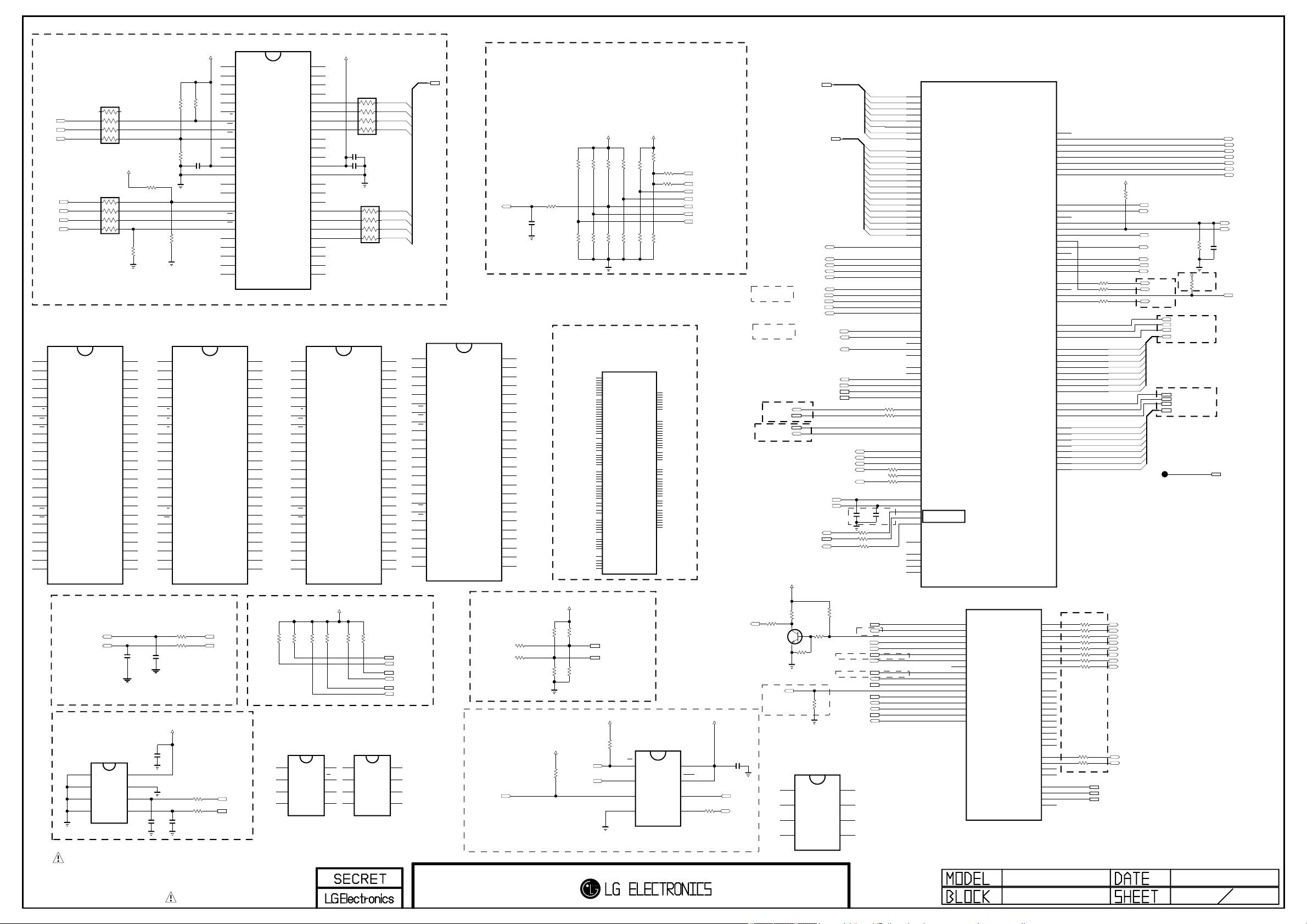

NAND FLASH MEMORY

NAND_1G_SS

EAN61857001

IC102-*1

K9F1G08U0D-SCB0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

DIMMING

BLU_CURRENT_CTL

WLED_DIM_ADJ

EEPROM

22

AR103

22

AR104

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

C100

1uF
OPT

IC103

AT24C256C-SSHL-T

NVRAM_ATMEL

A0

1

A1

2

A0’h

A2

3

GND

4

EAN61133501

+3.3V_Normal

R102

3.3K

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

C111

2.2uF

0.1uF

VCC

8

WP

7

SCL

6

SDA

5

C105

OPT
R105
1K

R107

1K

OPT

R108

1K

R106
1K

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RB

7

R

8

E

9

NC_7

10

NC_8

11

VDD_1

12

VSS_1

13

NC_9

14

NC_10

15

CL

16

AL

17

W

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

R156

R157

+3.3V_Normal

C106

C104

8pF

8pF

OPT

OPT

+3.3V_Normal

R109

3.9K

C101

0.1uF

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

NAND_1G_NUMONYX(DEV)

EAN60762401

IC102-*2

NAND01GW3B2CN6E

10K

PWM0

100

PWM2

R111 22

R112 22

H27U1G8F2CTR-BC

NC_1

1

NAND_1G_HYNIX_9103(DEV)

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

12

13

NC_9

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VDD_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

I2C_SCL

I2C_SDA

IC102

EAN35669103

I2C

R140
1K

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

R141

R160

1K

4.7K

NVRAM_ST
IC103-*1

M24256-BRMN6TP

E0

1

E1

2

E2

3

VSS

4

EAN61548301

+3.3V_Normal

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

C102

10uF

C103

0.1uF

10V

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

(BR)NAND_2G_HYNIX(DEV)

EAN60708702

IC102-*3

H27U2G8F2CTR

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

+3.3V_Normal

R144

2.2K

R145

2.2K

R161

4.7K

NVRAM_RENESAS

R1EX24256BSAS0A

VCC

A0

8

WC

A1

7

SCL

A2

6

SDA

VSS

5

EAN62389501

22

AR101

AR102

IC103-*2

1

2

3

4

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

VCC

8

WP

7

SCL

6

SDA

5

AMP_SDA
AMP_SCL

I2C_SDA
I2C_SCL

KEY_SDA
KEY_SCL

PCM_A[0-7]

(BR)NAND_2G_TOSHIBA(DEV)

TC58NVG1S3ETA00

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

AUD_MASTER_CLK

EAN60991001

IC102-*4

PM MODEL OPTION

SERIAL FLASH MEMORY

/FLASH_WP

<CHIP Config(LED_R/BUZZ)>
Boot from SPI CS1N(EXT_FLASH) 1’b0
Boot from SPI_CS0N(INT_FLASH) 1’b1

<CHIP Config>
(I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0)

B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash
SB51_WOS : 4’b0001 Secure B51 without scramble
SB51_WS : 4’b0010 Secure B51 with scramble
MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash
MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash
MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash
MIPS_WOS : 4’b1001 Secure MIPS without scramble
MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE

4.7K

R115

+3.3V_Normal

4.7K

OPT

R117

4.7K

4.7K

4.7K

OPT

OPT

R123

R165

R142

R148

33

OPT

C112
100pF
50V

4.7K

R116

LGE2121-NonMS10 (MSD804KKX)
: EAN62651201 (KR/US REGION)

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

LGE2121-MS10 (MSD804KKX)
: EAN62674101 (NON_KR/US REGION)

4.7K

R118

W21

PCMDATA[0]/GPIO129

AA18

PCMDATA[1]/GPIO130

AB22

PCMDATA[2]/GPIO131

AE20

PCMDATA[3]/GPIO123

AA15

PCMDATA[4]/GPIO122

AE21

PCMDATA[5]/GPIO121

AB21

PCMDATA[6]/GPIO120

Y15

PCMDATA[7]/GPIO119

W20

PCMADR[0]/GPIO128

V20

PCMADR[1]/GPIO127

W22

PCMADR[2]/GPIO125

AB18

PCMADR[3]/GPIO124

AA20

PCMADR[4]/GPIO102

AA21

PCMADR[5]/GPIO104

Y19

PCMADR[6]/GPIO105

AB17

PCMADR[7]/GPIO106

Y16

PCMADR[8]/GPIO111

AB19

PCMADR[9]/GPIO113

AB20

PCMADR[10]/GPIO117

AA16

PCMADR[11]/GPIO115

AA19

PCMADR[12]/GPIO107

AC21

PCMADR[13]/GPIO110

AA17

PCMADR[14]/GPIO109

Y20

PCMREG_N/GPIO126

AB15

PCMOE_N/GPIO116

AA22

PCMWE_N/GPIO195

AD22

PCMIORD_N/GPIO114

AD20

PCMIOWR_N/GPIO112

AD21

PCMCE_N/GPIO118

AC20

PCMIRQA_N/GPIO108

Y18

PCMCD_N/GPIO133

Y21

PCMWAIT_N/GPIO103

Y22

PCM_RESET/GPIO132

U21

PCM2_CE_N/GPIO134

V21

PCM2_IRQA_N/GPIO135

R20

PCM2_CD_N/GPIO138

T20

PCM2_WAIT_N/GPIO136

U22

PCM2_RESET/GPIO137

D4

UART1_TX/GPIO46

E4

UART1_RX/GPIO47

N25

UART2_TX/GPIO68

N24

UART2_RX/GPIO67

B8

UART3_TX/GPIO50

A8

UART3_RX/GPIO51

P23

I2C_SCKM2/DDCR_CK/GPIO75

P24

I2C_SDAM2/DDCR_DA/GPIO74

D2

DDCA_DA/UART0_TX

D1

DDCA_CK/UART0_RX

P21

PWM0/GPIO69

N23

PWM1/GPIO70

P22

PWM2/GPIO71

R21

PWM3/GPIO72

P20

PWM4/GPIO73

F6

PWM_PM/GPIO197

H6

SAR0/GPIO34

G5

SAR1/GPIO35

G4

SAR2/GPIO36

J5

SAR3/GPIO37

J4

SAR4/GPIO38

R23

VSYNC_LIKE/GPIO146

R24

SPI1_CK/GPIO199

R25

SPI1_DI/GPIO200

T21

SPI2_CK/GPIO201

T22

SPI2_DI/GPIO202

4.7K

4.7K

OPT

R124

R121

S7LR-M_MS10(NON KR/US)

IC101-*1

LGE2121-MS (M1_L13_MS10)

PM_UART_TX/GPIO_PM[1]/GPIO7

PM_UART_RX/GPIO_PM[5]/GPIO11
PM_SPI_SCZ1/GPIO_PM[6]/GPIO12

PM_SPI_SCZ2/GPIO_PM[10]/GPIO16

PM_SPI_CZ0/GPIO_PM[12]/GPIO0

4.7K

R143

NF_CE1Z/GPIO141

NF_WPZ/GPIO196
NF_CEZ/GPIO140
NF_CLE/GPIO139
NF_REZ/GPIO142
NF_WEZ/GPIO143
NF_ALE/GPIO144
NF_RBZ/GPIO145

GPIO_PM[0]/GPIO6

GPIO_PM[2]/GPIO8
GPIO_PM[3]/GPIO9
GPIO_PM[4]/GPIO10

GPIO_PM[7]/GPIO13
GPIO_PM[8]/GPIO14
GPIO_PM[9]/GPIO15

GPIO_PM[11]/GPIO17

PM_SPI_SCK/GPIO1

PM_SPI_SDI/GPIO2
PM_SPI_SDO/GPIO3

TS0CLK/GPIO90

TS0VALID/GPIO88

TS0SYNC/GPIO89

TS0DATA_[0]/GPIO80
TS0DATA_[1]/GPIO81
TS0DATA_[2]/GPIO82
TS0DATA_[3]/GPIO83
TS0DATA_[4]/GPIO84
TS0DATA_[5]/GPIO85
TS0DATA_[6]/GPIO86
TS0DATA_[7]/GPIO87

TS1CLK/GPIO101
TS1VALID/GPI99

TS1SYNC/GPIO100

TS1DATA_[0]/GPIO91
TS1DATA_[1]/GPIO92
TS1DATA_[2]/GPIO93
TS1DATA_[3]/GPIO94
TS1DATA_[4]/GPIO95
TS1DATA_[5]/GPIO96
TS1DATA_[6]/GPIO97
TS1DATA_[7]/GPIO98

+3.3V_ST

R178 100 OPT

R179 100 OPT

OPT
R174

10K

OPT
R175

10K

OPT
R177

10K

OPT
R176

10K

BOOT_POWER_OPTION_0

BOOT_POWER_OPTION_1

+3.3V_ST

S_FLASH_MAIN_MACRONIX

OPT

OPT
R135
10K

+3.3V_ST

/SPI_CS

SPI_SDO

R138

4.7K

DO[IO1]

%WP[IO2]

W25Q80BVSSIG

CS

1

2

3

GND

4

+3.3V_ST

OPT

R103 0

OPT

R100 0

4.7K

OPT

R153

IC100

4.7K

AE18
AC17
AD18
AC18
AC19
AD17
AE17
AD19

H5
K6
K5
J6
K4
L6
C2
L5
M6
M5
C1
M4

A2
D3
B2
B1

Y14
AA10
Y12

Y13
Y11
AA12
AB12
AA14
AB14
AA13
AB11

AC15
AD15
AC16

AD16
AE15
AE14
AC13
AC14
AD12
AD13
AD14

R152

OPT

8

7

6

5

VCC

HOLD[IO3]

CLK

DI[IO0]

LED_AMBER

LED_RED

SPI_SDI
AUD_SCK
AUD_MASTER_CLK_0
PWM1
PWM0

1211118
Delete the 5V Pull-up(CI SLOT)

for SYSTEM EEPROM
(IC103)

WLED_ENABLE

+3.3V_ST

C114

0.1uF

SPI_SCK

R139

33

SPI_SDI

1211118
Delete

I2C_SCL
I2C_SDA

RGB_DDC_SDA
RGB_DDC_SCL

+5V_Normal

R131

100

Q100

MMBT3904(NXP)

120915
ADDED

NAND_EN

S_FLASH_MAIN_WINBOND

SO/SIO1

PCM_D[0-7]

PCM_A[0-14]

/PCM_REG

/PCM_OE

/PCM_WE
/PCM_IORD
/PCM_IOWR

/PCM_CE
/PCM_IRQA

/PCM_CD
/PCM_WAIT

PCM_RST

USB_OCD
USB_CTL

PCM_5V_CTL

PM_TXD

PM_RXD
MODEL_OPT_6
MODEL_OPT_7

SCART1_MUTE

LED_AMBER

KEY1
KEY2

2011.11.15
WalkieTalkie Issue

KEY_SCL
KEY_SDA

LED_RED

R130

10K

C

R127

4.7K

B

E

4.7K
R129

OPT

R181

10K

BR_RESET_DEMOD

IC100-*1

MX25L8006EM2I-12G

CS#

1

2

WP#

3

GND

4

PWM0
PWM1
PWM2

C107

R101 22
R163 22

R164 22

R126

10K

AMP_RST

PC_AUDIO_DET

AV_CVBS_DET
MODEL_OPT_8

SCART1_DET

MODEL_OPT_9
TUNER_RESET
MODEL_OPT_0

MODEL_OPT_1

LNA_CTRL_1
LNA_CTRL_2

MODEL_OPT_2

VCC

8

HOLD#

7

SCLK

6

SI/SIO0

5

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]

PCM_D[5]

PCM_D[6]
PCM_D[7]

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]

R136 22
R137 22

R110 22
R154 22
R113 22

C110

0.1uF

0.1uF
16V

16V

applied on only SMALL PCB

OLP

2012.10.18
ADDED

2012.10.18
ADDED

W21

PCMDATA[0]/GPIO129

AA18

PCMDATA[1]/GPIO130

AB22

PCMDATA[2]/GPIO131

AE20

PCMDATA[3]/GPIO123

AA15

PCMDATA[4]/GPIO122

AE21

PCMDATA[5]/GPIO121

AB21

PCMDATA[6]/GPIO120

Y15

PCMDATA[7]/GPIO119

W20

PCMADR[0]/GPIO128

V20

PCMADR[1]/GPIO127

W22

PCMADR[2]/GPIO125

AB18

PCMADR[3]/GPIO124

AA20

PCMADR[4]/GPIO102

AA21

PCMADR[5]/GPIO104

Y19

PCMADR[6]/GPIO105

AB17

PCMADR[7]/GPIO106

Y16

PCMADR[8]/GPIO111

AB19

PCMADR[9]/GPIO113

AB20

PCMADR[10]/GPIO117

AA16

PCMADR[11]/GPIO115

AA19

PCMADR[12]/GPIO107

AC21

PCMADR[13]/GPIO110

AA17

PCMADR[14]/GPIO109

Y20

PCMREG_N/GPIO126

AB15

PCMOE_N/GPIO116

AA22

PCMWE_N/GPIO195

AD22

PCMIORD_N/GPIO114

AD20

PCMIOWR_N/GPIO112

AD21

PCMCE_N/GPIO118

AC20

PCMIRQA_N/GPIO108

Y18

PCMCD_N/GPIO133

Y21

PCMWAIT_N/GPIO103

Y22

PCM_RESET/GPIO132

U21

PCM2_CE_N/GPIO134

V21

PCM2_IRQA_N/GPIO135

R20

PCM2_CD_N/GPIO138

T20

PCM2_WAIT_N/GPIO136

U22

PCM2_RESET/GPIO137

D4

UART1_TX/GPIO46

E4

UART1_RX/GPIO47

N25

UART2_TX/GPIO68

N24

UART2_RX/GPIO67

B8

UART3_TX/GPIO50

A8

UART3_RX/GPIO51

P23

I2C_SCKM2/DDCR_CK/GPIO75

P24

I2C_SDAM2/DDCR_DA/GPIO74

D2

DDCA_DA/UART0_TX

D1

DDCA_CK/UART0_RX

P21

PWM0/GPIO69

N23

PWM1/GPIO70

P22

PWM2/GPIO71

R21

PWM3/GPIO72

P20

PWM4/GPIO73

F6

PWM_PM/GPIO197

H6

SAR0/GPIO34

G5

SAR1/GPIO35

G4

SAR2/GPIO36

J5

SAR3/GPIO37

J4

SAR4/GPIO38

R23

VSYNC_LIKE/GPIO146

R24

SPI1_CK/GPIO199

R25

SPI1_DI/GPIO200

T21

SPI2_CK/GPIO201

T22

SPI2_DI/GPIO202

IC101

MSD804KKX

S7LR-M_NON_MS10

PM_UART_TX/GPIO_PM[1]/GPIO7

GPIO_PM[4]/GPIO10

PM_UART_RX/GPIO_PM[5]/GPIO11

PM_SPI_SCZ1/GPIO_PM[6]/GPIO12

GPIO_PM[7]/GPIO13
GPIO_PM[8]/GPIO14

PM_SPI_SCZ2/GPIO_PM[10]/GPIO16

S7LR-M_NON_MS10

C7

GPIO39

E6

GPIO40

F5

GPIO41

B6

GPIO42

E5

GPIO43

D5

GPIO44

B7

GPIO45

E7

GPIO48

F7

GPIO49

AB5

GPIO52

AB3

GPIO53

A9

GPIO54

F4

GPIO55

AB1

I2C_SCKM0/GPIO56

N6

I2C_SDAM0/GPIO57

AB2

GPIO76

AC2

GPIO77

GPIO_PM[9]/GPIO15

GPIO_PM[11]/GPIO17

PM_SPI_CZ0/GPIO_PM[12]/GPIO0

TS0DATA_[0]/GPIO80
TS0DATA_[1]/GPIO81
TS0DATA_[2]/GPIO82
TS0DATA_[3]/GPIO83
TS0DATA_[4]/GPIO84
TS0DATA_[5]/GPIO85
TS0DATA_[6]/GPIO86
TS0DATA_[7]/GPIO87

TS1DATA_[0]/GPIO91
TS1DATA_[1]/GPIO92
TS1DATA_[2]/GPIO93
TS1DATA_[3]/GPIO94
TS1DATA_[4]/GPIO95
TS1DATA_[5]/GPIO96
TS1DATA_[6]/GPIO97
TS1DATA_[7]/GPIO98

IC101

MSD804KKX

NF_CE1Z/GPIO141

NF_WPZ/GPIO196
NF_CEZ/GPIO140
NF_CLE/GPIO139
NF_REZ/GPIO142
NF_WEZ/GPIO143
NF_ALE/GPIO144
NF_RBZ/GPIO145

GPIO_PM[0]/GPIO6

GPIO_PM[2]/GPIO8
GPIO_PM[3]/GPIO9

PM_SPI_SCK/GPIO1

PM_SPI_SDI/GPIO2
PM_SPI_SDO/GPIO3

TS0CLK/GPIO90

TS0VALID/GPIO88

TS0SYNC/GPIO89

TS1CLK/GPIO101
TS1VALID/GPI99

TS1SYNC/GPIO100

LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N

LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N

LVACLKP
LVACLKN
LVBCLKP
LVBCLKN

GPIO194
GPIO191
GPIO192
GPIO193

AE18
AC17
AD18
AC18
AC19
AD17
AE17
AD19

H5
K6
K5
J6
K4
L6
C2
L5
M6
M5
C1
M4

A2

R147 33
D3
B2
B1

R151 33

for SERIAL FLASH

Y14
AA10
Y12

Y13
Y11
AA12
AB12
AA14
AB14
AA13
AB11

AC15
AD15
AC16

AD16
AE15
AE14
AC13
AC14
AD12
AD13
AD14

121118
Ready to imporve EMI(LVDS Noise)

AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23

V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24

AE24
AD24
Y23
W24

T25
U23
T24
T23

R182 0
R183 0
R184 0
R185 0
R186 0
R187 0
R188 0
R189 0

R190 0
R191 0

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5

+3.3V_ST

R125

10K

R146 33

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

LVA_0P
LVA_0M
LVA_1P
LVA_1M
LVA_2P
LVA_2M
LVA_3P
LVA_3M

LVA_CKP

LVA_CKM

DSUB_DET
PM_TXD

PM_RXD

/FLASH_WP

PANEL_CTL
5V_DET_HDMI_2
NTP_MUTE

SPI_SCK
/SPI_CS

OPT

+3.3V_ST

R128

R180

4.7K

SPI_SDO

CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC

CI_TS_DATA[0-7]

from CI SLOT

FE_TS_CLK
FE_TS_VAL_ERR
FE_TS_SYNC

FE_TS_DATA[0-7]

Internal demod out

FE_TS_DATA[0]

47K

0.1uF

/PF_WP
/PF_CE0
/PF_CE1

/PF_OE
/PF_WE
PF_ALE
/F_RB

MULTI_ON
POWER_ON/OFF1

50V

C113

121118
Pull up added

SPI_SDI

FE_TS_DATA[0]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

29MN33

FLASH/EEPROM/GPIO

EAX64998104

2012.11.18

1 13

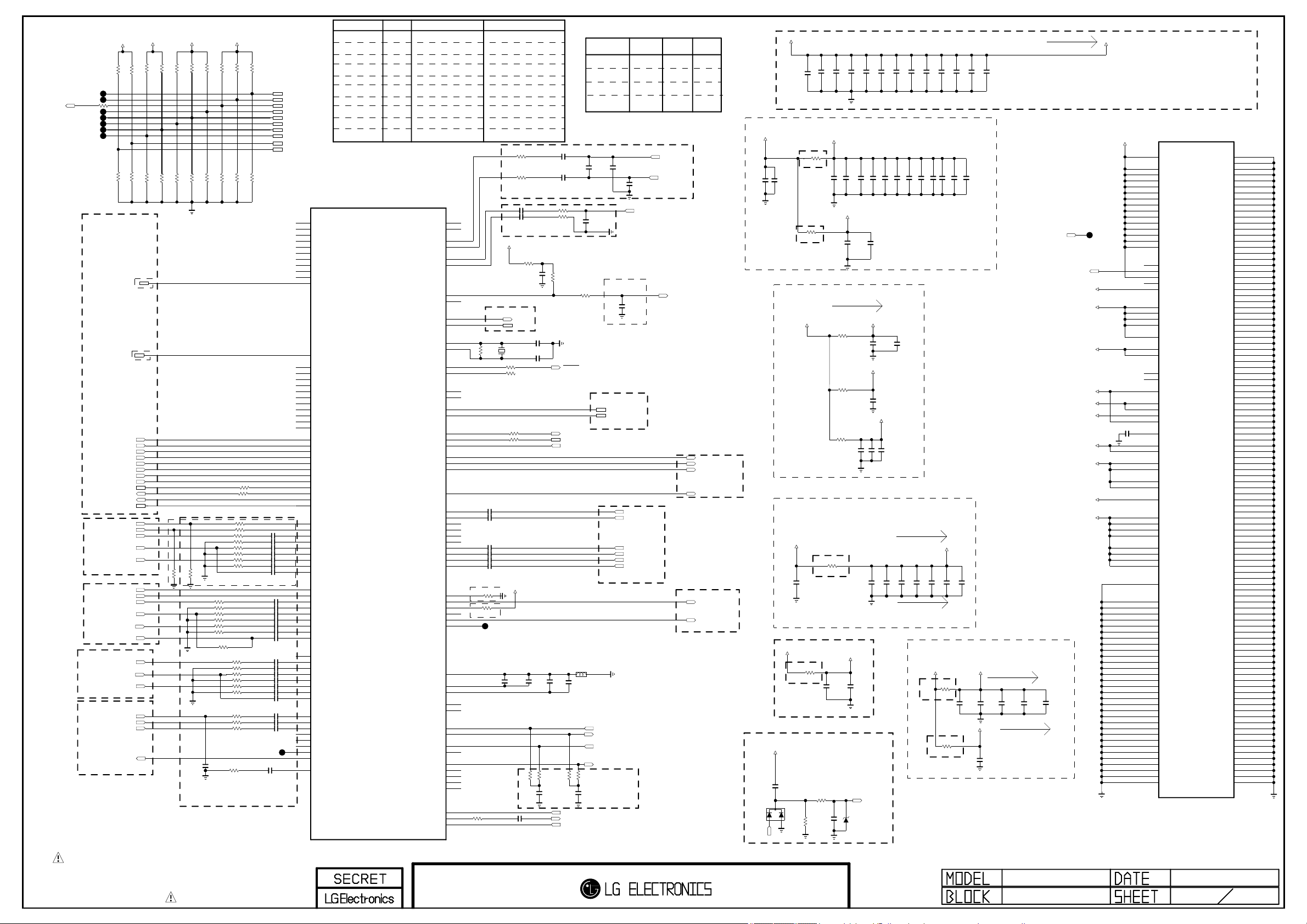

PIN NAME PIN NO.

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5

MODEL_OPT_6 MIU1-NO_DDR

MODEL_OPT_7
MODEL_OPT_8
MODEL_OPT_9

MSD804KKX

S7LR-M_NON_MS10

RXACKP
RXACKN
RXA0P
RXA0N
RXA1P
RXA1N
RXA2P
RXA2N
DDCDA_DA/GPIO27
DDCDA_CK/GPIO26
HOTPLUGA/GPIO22

HOTPLUGD/GPIO25

RXCCKP
RXCCKN
RXC0P
RXC0N
RXC1P
RXC1N
RXC2P
RXC2N
DDCDC_DA/GPIO31
DDCDC_CK/GPIO30
HOTPLUGC/GPIO24

RXBCKP
RXBCKN
RXB0P
RXB0N
RXB1P
RXB1N
RXB2P
RXB2N
DDCDB_DA/GPIO29
DDCDB_CK/GPIO28
HOTPLUGB/GPIO23
CEC/GPIO5

HSYNC0
VSYNC0
RIN0P
RIN0M
GIN0P
GIN0M
BIN0P
BIN0M
SOGIN0

HSYNC1
VSYNC1
RIN1P
RIN1M
GIN1P
GIN1M
BIN1P
BIN1M
SOGIN1

HSYNC2
RIN2P
RIN2M
GIN2P
GIN2M
BIN2P
BIN2M
SOGIN2

CVBS0
CVBS1
CVBS2
CVBS3
NC_5
NC_7
NC_6
CVBSOUT1

VCOM

IC101

AB3

F4
AB2
T25

U23
T24

B8

A8

F7

A9

I2C_SCKM1/GPIO78
I2C_SDAM1/GPIO79

SPDIF_IN/GPIO150

SPDIF_OUT/GPIO151

I2S_IN_BCK/GPIO148

I2S_IN_SD/GPIO149
I2S_IN_WS/GPIO147

I2S_OUT_BCK/GPIO154

I2S_OUT_MCK/GPIO152

I2S_OUT_SD/GPIO155

I2S_OUT_WS/GPIO153

GPIO_PM[13]/GPIO19

GPIO_PM[14]/GPIO20

GPIO_PM[15]/GPIO21

Dual Stream is only Korea 3D spec

EARPHONE_OUTL
EARPHONE_OUTR

LED1/GPIO59

LED0/GPIO58

RF_SWITCH_CTL

MODEL OPTION

+3.3V_ST

OPT

OPT

(OPT)TAIWAN

R301 10K

R300 10K

R203 100

(BR)RF_SW_OPT

10K

10K

EU/AJ

R303

R302

BOOT_POWER_OPTION_0

121018
PM_MODEL_OPT_0

->BOOT_POWER_OPTION_0

BOOT_POWER_OPTION_1

121018
PM_MODEL_OPT_1

->BOOT_POWER_OPTION_1

CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2

HDMI

D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2

CEC_REMOTE_S7

DSUB_HSYNC
DSUB_VSYNC

DSUB_R+

DSUB_G+

DSUB

DSUB_B+

SCART1_RGB

COMP2

COMP_Y+/AV_CVBS_IN

CVBS In/OUT

COMP_Y+/AV_CVBS_IN

SC1_ID
SC1_FB

SC1_R+

SC1_G+

SC1_B+

SC1_SOG_IN

COMP_Pr+

COMP_Pb+

TU_CVBS

SC1_CVBS_IN

DTV/MNT_VOUT

R290 1K

1K

R293

+2.5V_Normal+3.3V_Normal

OPT

R222 1K

R291 1K

R224 1K

OPT

R225 1K

R294 1K

R223 1K

OPT(DSUB_block)

10K

R4026

R4023

EU
EU
EU
EU
EU
EU

C203

1000pF

OPT

+3.3V_Normal

OPT

OPT

R206 1K

R211 1K

R208 1K

R226 1K

MODEL_OPT1_(AJ)

MODEL_OPT_MIU0-256M(BR/EU/ASIA)

OPT

R212 1K

R227 1K

R209 1K

R207 1K

MODEL_OPT_MIU0-128M(KR/US)

2.4K

R253 33
R254 68
R255
R256
R257 33
R258 68

R4024 510
R4025 510

R236 0

NON_EU

R237 33
R238 68
R239
R240
R241 33
R242 68

R244 33
R245 33

EU

R246 33

R252 68

50V

MODEL_OPT1(NON_AJ)

R201 22

R202 22

R228 33
R229 68
R230 33
R231 68
R232 33
R233 68

33
68

33
68

C204 0.047uF
C205 0.047uF
C206 0.047uF
C207 0.047uF
C208 0.047uF
C209 0.047uF
C210 1000pF

C211 0.047uF

EU

C212 0.047uF

EU

C213

EU

C214

EU
EU

C215

EU

C216

EU

C217 1000pF

C218 0.047uF
C219 0.047uF
C220 0.047uF
C221 0.047uF
C222 0.047uF
C223 0.047uF
C224 1000pF

C225 0.047uF
C226 0.047uF

EU

C227 0.047uF

C233 0.047uF

Close to MSTAR

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7
MODEL_OPT_8

MODEL_OPT_9

0.047uF

0.047uF

0.047uF

0.047uF

AC10

AC11
AD10
AE11
AD11

J2
J3
K3
J1
K2
K1
L2
L3
T5
T4
V5

R5

AE9
AC9

AD9

AE8
AD8
AC8

F2
F3
G3
F1
G2
G1
H2
H3
R6
U6
P5
R4

P2
R3
N2
P3
N3
N1
M3
M2
M1

V2
V3
U3
U2
T1
T2
R2
R1
T3

AA2

Y2

AA3

W2
Y3
V1
W3
W1

AA8

Y4
W4

AA5

Y5

AA4

Y6

AA1

AB4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LOW

FHD

NON_AJ
NON_DVB_T2
NON_M120

MIU0-128M
NON_DVB_S

NON_DualStream

HD_LVDS_EU

EU,AJ

AC4

NC_8

AD3

NC_9

AC3

IP

AE3

IM

AD4

SIFP

AC5

SIFM

AD2

IF_AGC

AE2

RF_AGC

AE6
AD6

AD1

XIN

AC1

XOUT

D7
D6

E3

USB0_DM

E2

USB0_DP

AC12

USB1_DM

AE12

USB1_DP

C8
D8
D9

B10
C9
B9

C10

AB9

AUL0

AA11

AUR0

Y9

AUL1

AA9

AUR1

AA7

AUL2

AB8

AUR2

Y8

AUL3

Y10

AUR3

AC7

AUL4

AD7

AUR4

W6
V6

AUOUTL2

V4

AVDD5V_MHL

Y7
W5

AUOUTR2

U5

AD5

AUVRM

AE5

AUVAG

AC6

AUVRP

AA6
AB6

C6

RP/GPIO63

C5

TP/GPIO60

A6

RN/GPIO66

C4

B5

TN/GPIO62

C3

GPIO61

A3

GPIO64

B3

GPIO65

B4

N4

IRIN/GPIO4

T6

ARC0

N5

HWRESET

R287

C236 2.2uF
C237

C242
C243 2.2uF
C244 2.2uF
C245 2.2uF

121024
Added

R299 0

R306 0

R210 0

OPT

HIGH

HD

AJ

DVB_T2

M120

MIU0-256M

DVB_S

MIU1-128M

DualStream

HD_LVDS_NON_EU

TAIWAN

R288 100

(NON_BR)HALF_NIM

R289 100

(NON_BR)HALF_NIM

C250 0.1uF
C251 0.1uF

ANALOG SIF

Close to MSTAR

+3.3V_Normal

TUNER_I2C

X201
24MHz

1M

R297 0OPT

R296 100OPT

R213 22

R214 22

2.2uF

2.2uF

121118

OPT

Added

TP209

C249

4.7uF

C231 1uF

Other: N.C

Close to MSTAR

C257 0.1uF

C258 0.1uF

R4002 47
R4003 47

R4052
0

C4064

0.1uF

TU_SCL
TU_SDA

C261 27pF

C262 27pF

5V_HDMI_2

C256

C253

0.1uF

1uF

R265

R264

49.9

49.9

C294

0.1uF

OPT

MEMORY OPTION

Memory

128M

128M+128M

256M 1

256M+128M

(NON_BR)HALF_NIM

R4019
10K

C263
10uF

R262

49.9

C4074
100pF
OPT

(NON_BR)HALF_NIM

C264
1000pF
OPT

R4004

0

Close to MSTAR

CI_DET

SIDE USB

AMP_SCL
AMP_SDA
COMP_DET

L202

BLM18SG121TN1D

EPHY_RP
EPHY_TP

EPHY_RN

EPHY_TN

R263

49.9

C295

0.1uF

OPTION - ETHERNET(T2_UK/BR_GINGA)

IR
HDMI_ARC
SOC_RESET

Model
OPT 4

0

0

1

C4067

33pF (NON_BR)HALF_NIM

C4073
33pF

(NON_BR)HALF_NIM

50V

TU_SIF

C4065

0.047uF
25V

(NON_BR)HALF_NIM

USB_DM
USB_DP

SC1_L_IN
SC1_R_IN

COMP_L_IN
COMP_R_IN
PC_L_IN
PC_R_IN

AUDIO IN

Model
OPT 6

0

1

0

1

DTV_IF

IF_P_MSTAR

IF_N_MSTAR

IF_AGC_MAIN

Note

Ginga

AUD_SCK

AUD_MASTER_CLK_0
AUD_LRCH

I2S_I/F

AUD_LRCK

AUDIO OUT

SCART1_Lout

SCART1_Rout

+1.15V_VDDC

10uFC228

+3.3V_Normal

121118
Change from bead to 0 ohm for Cost down

R304 0

0.1uF

C4043

1/10W 5%

C4044 0.1uF

R305 0

1/10W 5%

121118
Change from bead to 0 ohm for Cost down

STby 3.3V

+3.3V_ST

+1.5V_DDR

C4046

0.1uF

+1.15V_VDDC

R308 0

1/10W 5%

121118
Change from bead to 0 ohm for Cost down

SOC_RESET

+3.3V_ST

C200

4.7uF
10V

D200

MMBD6100

A2CA1

SB_MUTE

R200

62K

10uFC276

10uFC275

OPT

C277 1uF

Normal Power 3.3V

VDD33

OPT

10uFC293

10uFC284

10uFC4001

AVDD_AU33

C240

0.1uF

AVDD_NODIE:7.362mA

AVDD_NODIE

R216
0

1/10W
5%

AVDD_MPLL

R217
0

1/10W
5%

R215
0

1/10W

10uFC202

5%

C280 1uF

C4007 0.1uF

AVDD_DVI

C229 0.1uF

C283 0.1uF

OPT

C241

0.1uF

C286

0.1uF

C234

0.1uF

C235 0.1uF

C4012 0.1uF

OPT

C292 0.1uF

C4014 0.1uF

OPT

C252

0.1uF

C4020 0.1uF

DDR3 1.5V

C278

10uF

C281

SOC_RESET

AVDD_DDR0:55mA

C290

10uF OPT

AVDD_DDR1:55mA

121118
Change from bead to 0 ohm for Cost down

R307 0

1/10W 5%

MIUVDDC

C4062

C4071

0.1uF

10uF

111026Switch
EBF32593901 Deletion

R205

10

OPT

C201

0.1uF

3.3V
OPT

ZD1101

VDDC 1.15V

C299 0.1uF

0.1uF OPT

OPT

C4036

OPT

C4025 0.1uF

C4006 0.1uF

0.1uF

OPT

C4031 0.1uF

AVDD_MIU

C4038

C4011 0.1uF

OPT

C265 0.1uF

0.1uF

OPT

OPT

C4009

C4013 0.1uF

C267 0.1uF

0.1uF

OPT

C4042

C232 0.1uF

C4019 0.1uF

OPT

1uF

OPT

C4024 0.1uF

OPT

OPT

Normal 2.5V

121118
Change from bead to 0 ohm for Cost down

+2.5V_Normal

1/10W 5%

121118
Change from bead to 0 ohm for Cost down

R309 0

R310 0

1/10W 5%

AVDD2P5

OPT
C269
10uF

AVDD2P5_MOD

AVDD2P5:172mA

C270

0.1uF

C238

0.1uF
16V

VDDC : 2026mA

FB_CORE

OPT

C273

0.1uF

C274

0.1uF

C271

0.1uF

AVDD25_PGA:13mA

29MN33

POWER,IN/OUT,H/W OPT

FB_CORE

MIUVDDC

AVDD2P5

AVDD2P5_MOD

AVDD_NODIE

AVDD_DVI

AVDD_MPLL

AVDD_AU33

VDD33

VDD33

AVDD_MIU

+1.15V_VDDC

+1.15V_VDDC

C4045 1uF

IC101

MSD804KKX

S7LR-M_NON_MS10

K12

AVDDLV_USB

G9

VDDC_1

H9

VDDC_2

K10

VDDC_3

K11

VDDC_4

L10

VDDC_5

M12

VDDC_6

M13

VDDC_7

N12

VDDC_8

P14

VDDC_9

P15

VDDC_10

R10

VDDC_11

R14

VDDC_12

R15

VDDC_13

T10

VDDC_14

P10

NC_2

P19

FB_CORE

R16

AVDDL_MOD

L11

NC_1

M14

DVDD_DDR

W9

AVDD2P5_ADC_1

W10

AVDD2P5_ADC_2

W11

AVDD2P5_ADC_3

W12

AVDD2P5_ADC_4

Y17

AVDD25_LAN

V18

AVDD_MOD_1

U19

AVDD_MOD_2

W14

NC_3

W15

NC_4

U7

AVDD_NODIE

L7

AVDD_DVI_USB_1

M7

AVDD_DVI_USB_2

P7

AVDD3P3_MPLL

R7

AVDD_DMPLL

M19

DVDD_NODIE

V7

AVDD_AU33

W7

AVDD_EAR33

R19

VDDP_1

T19

VDDP_2

W18

AVDD_LPLL_1

W19

AVDD_LPLL_2

V19

VDDP_NAND

J17

AVDD_DDR0_D_1

K15

AVDD_DDR0_D_2

K16

AVDD_DDR0_D_3

L15

AVDD_DDR0_C

K17

AVDD_DDR1_D_1

L17

AVDD_DDR1_D_2

M17

AVDD_DDR1_D_3

L16

AVDD_DDR1_C

E9

GND_EFUSE

A23

GND_1

B17

GND_2

C23

GND_3

A5

GND_4

C11

GND_5

C19

GND_6

C22

GND_7

D14

GND_8

D18

GND_9

D19

GND_10

E17

GND_11

E18

GND_12

E19

GND_13

E22

GND_14

F8

GND_15

F17

GND_16

F18

GND_17

F19

GND_18

G8

GND_19

H8

GND_20

N22

GND_21

N21

GND_22

N20

GND_23

M22

GND_24

M21

GND_25

M20

GND_26

F10

GND_27

V15

GND_28

W16

GND_29

V8

GND_30

T18

GND_31

GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98

GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113
GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136

EAX64998104

2012.11.18
2 13

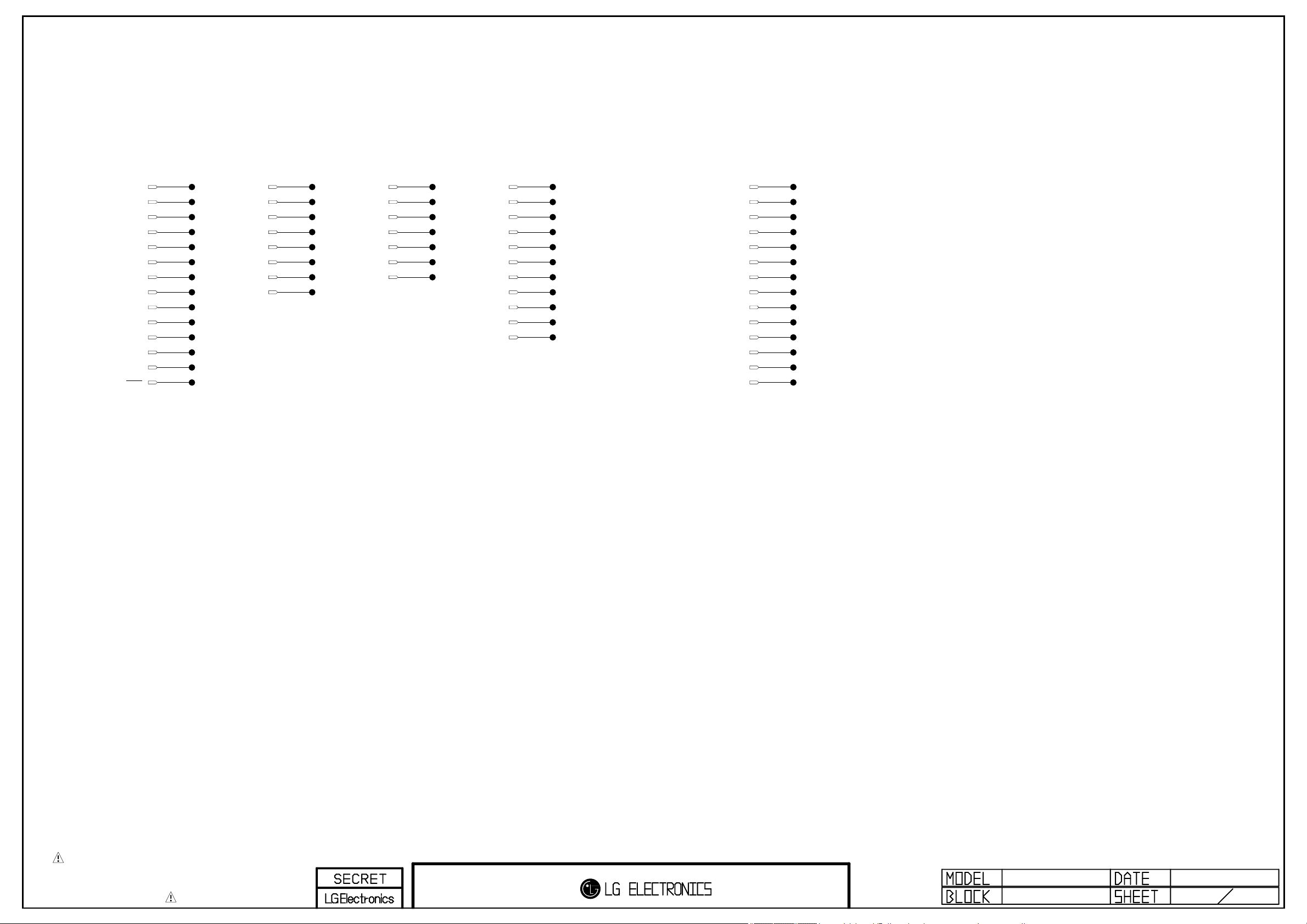

G10
G11
G12
G13
G14
G17
G18
G19
G24
H11
H12
H13
H14
H15
H16
H17
H18
H19
J9
J10
J11
J12
J13
J14
J15
J16
J18
J19
J25
K9
K13
K14
H10
K18
K19
K22
L8
L9
J8
L12
L13
L18
L19
M8
K8
M10
M11
L14
M15
M16
M18
M25
N10
N11
N13
N14
N15
N16
N17
N19
K7
P8
P9
M9
P11
P13
P16
P17
P18
P12
R8
R9
R11
R12
R13
R17
T8
T9
N7
T11
T12
T13
T14
T15
T16
T17
U8
U9
U10
U11
U12
U13
U14
U15
U16
U17
R18
V9
V10
V11
V12
V14
V17
T7
E8

TP for EU_T/C

TP for CI slot

/PCM_REG

/PCM_OE

/PCM_WE

/PCM_IORD

/PCM_IOWR

/PCM_CE PCM_A[13]PCM_D[5]

/PCM_IRQA

/PCM_CD

/PCM_WAIT

PCM_RST

/CI_CD1

/CI_CD2

PCM_5V_CTL

CI_DET

TP for SCART

PCM_D[0]

PCM_D[1]

PCM_D[2]

PCM_D[3]

PCM_D[4] DTV/MNT_VOUT

PCM_D[6]

PCM_D[7]

PCM_A[8]

PCM_A[9]

PCM_A[10]

PCM_A[11]

PCM_A[12]

PCM_A[14]

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0]

CI_TS_DATA[1]

CI_TS_DATA[2]

CI_TS_DATA[3]

CI_TS_DATA[4]

CI_TS_DATA[5]

CI_TS_DATA[6]

CI_TS_DATA[7]

SCART1_MUTE

SC1_ID

SC1_FB

SC1_SOG_IN

SCART1_Lout

SCART1_Rout

SC1_CVBS_IN

SC1_R+

SC1_G+

SC1_B+

SCART1_DET

SC1_L_IN

SC1_R_IN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

29MN33

TP_EU

EAX64998104

2012.11.18
3 12

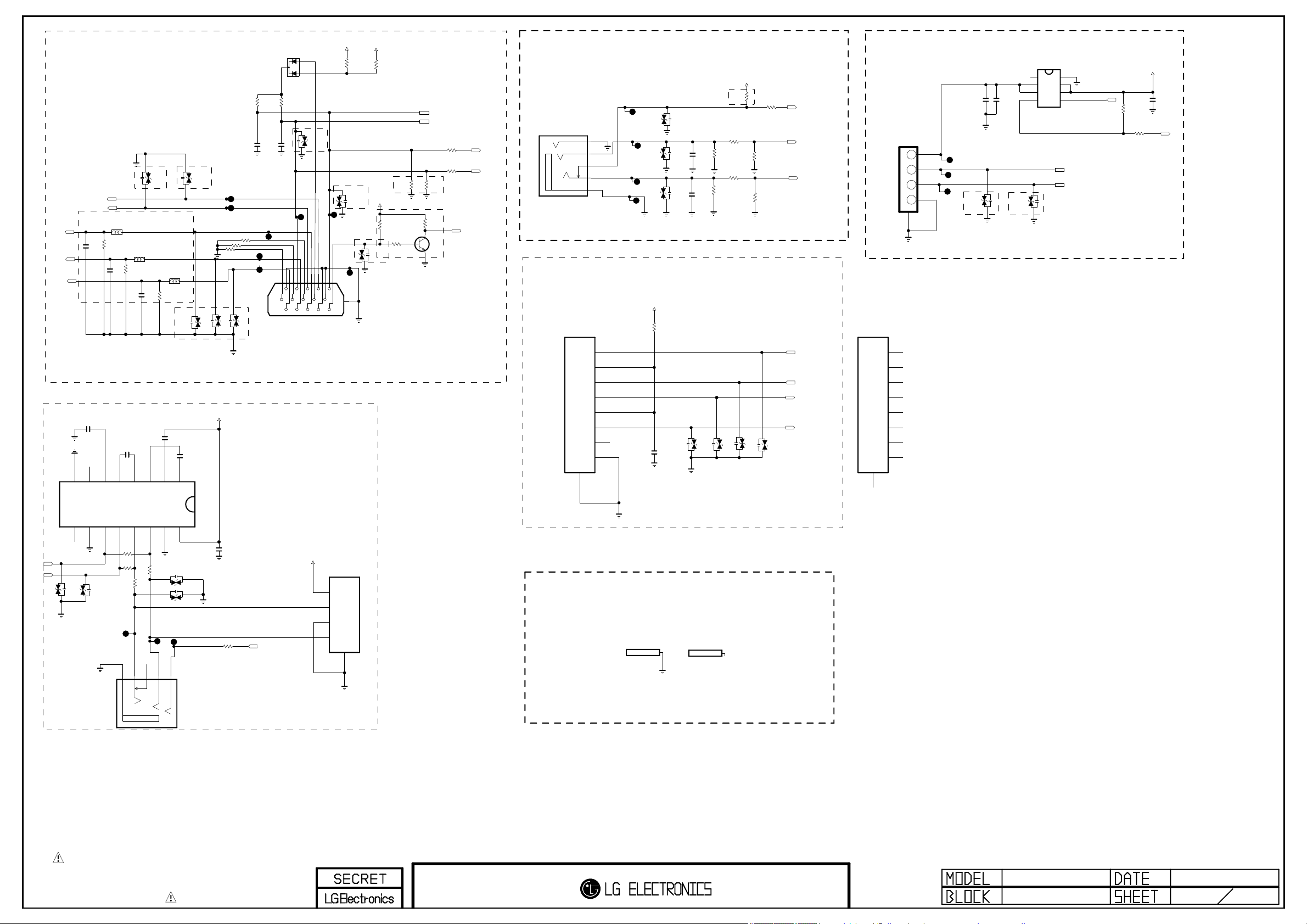

DSUB RGB

OPTION:DSUB_block

121128
ESD improve
OPT->APPLY

2:E18

DSUB_VSYNC

DSUB_HSYNC

2:E18

L401

DSUB_B+

DSUB_G+

DSUB_R+

11.10.31
To Improve EMI

Hotel_Model(RS232C apply)

NON_Hotel_Model(RS232C Bypass)

PM_TXD

PM_RXD

NON_Hotel_Model(RS232C Bypass)

VA427

VA428

20V

20V
OPT

OPT

BLM15BD121SN1

R441

C419

75

47pF
50V

C420
47pF

50V

C422

0.33uF
16V

Hotel_Model(RS232C apply)

C423

0.33uF
16V

V-

RIN 2

DOU T2

6

8

7

IC401

MAX3232CDR

Hotel_Model(RS232C apply)

11

10

9

DIN 1

DIN 2

ROU T2

JP413

M5_ GND

5

VA400
20V

L402
BLM15BD121SN1

R442
75

L403

BLM15BD121SN1

C421

R443

47pF

75

50V

To Improve Ringing issue
LOW capacitance Part apply

Hotel_Model(RS232C apply)

C2-

C2+

5

12

R459
0

R460
0

R461

C1-

4

3

13

14

RIN 1

ROU T1

DOU T1

R462

100

100

JP412

M3_ DETEC T

1 M1

3

4 M4

VA401
20V

5.5V
VA403

VA402

11.10.27

+3.3V_ST

C424

0.33uF
16V

C425

0.1uF
16V

Hotel_Model(RS232C apply)

C1+

V+

1

2

16

15

VCC

GND

Hotel_Model(RS232C apply)

VA422

20V

VA423
20V

JP416

6 M6

121128
ESD improve
OPT->APPLY

R445 0

R444 0

5.5V
VA406

C426

0.1uF

16V

(OPT)IR_OUT

R463

0

JP400

JP401

R446 0

C401
18pF

5.5V

+3.3V_ST

OPT

R449

121128
ESD improve
OPT->APPLY

JP409

DDC_G ND

15

SHILE D

16

5

0

VA417

20V

JP410

+5V_Normal

R451

+3.3V_ST

VA418
20V

121128
ESD improve
OPT->APPLY

0

R452

47K

R435

10K

OPT

R454

0

B

RGB_DDC_SCL

RGB_DDC_SDA

OPT

R457

OPT

R458

OPT

12.07.02

R455

BY.Hwang

0

R418

47K

C

Q400
MMBT3904(NXP)

E

121226
use to keep DET LOW

0

PM_RXD

0

PM_TXD

DSUB_DET

D416

MMBD6100

A2

C

A1

R448

R447

10K

10K

121128

JP408

DDC_D ATA

BLUE_ GND

GREEN

12

8

2

JK406

SPG09-DB-010

20V

H_SYN C

VA415

BLUE

13

3

V_SYN C

NC

14

9

4

ESD improve
OPT->APPLY

DDC_C LOCK

SYNC_ GND

GND_1

10

OPT

OPT

C403

18pF

50V

50V

JP407

JP405

JP406

GND_2

GREEN _GND

RED_G ND

RED

11

7

6

1

RS232C

+3.3V_ST

IR_OUT

P1104

12507WS-04L

1

2

3

4

5

PC AUDIO(SIDE)

6 M6

1 M1

3 M3_DETECT

4 M4

KJA-PH-1-0177

5 M5_GND

JK401

ETHERNET

(Sub)ETHERNET(T2_UK/BR_GINGA)

JK402

XRJV-01V-0-D12-080

1

2

3

4

5

6

7

8

9

9

Jack Shield (HDMI1,RGB)

VA407

JP411

20V

OPT

JP404

VA419

20V

JP403

VA420

20V

JP402

+3.3V_Normal

ETHERNET(T2_UK/BR_GINGA)

R411
0

ETHERNET(T2_UK/BR_GINGA)

C410

0.01uF
50V

JackShield(for NonCKD)

M1

MGJ63348201

C414

220pF

50V

C413

220pF

50V

OPT

VA404

12.08.10
47K->470K

R465
470K

OPT

R464
470K

OPT

OPT

5.5V
VA405

JackShield(for CKD)

M1-*1

MGJ63348202

+3.3V_Normal

R468

470K

R466
15K

R467
15K

OPT

5.5V
VA409

5.5V

OPT

R469
10K

R470
10K

VA426

R471
1K

PC_AUDIO_DET

PC_R_IN

PC_L_IN

EPHY_TP

EPHY_TN

EPHY_RP

EPHY_RN

5.5V

USB(SIDE)

3AU04S-305-ZC-(LG)

JK403

1234

USB DOWN STR EAM

5

(Main)ETHERNET(T2_UK/BR_GINGA)

JK402-*1

RJ45VT-01SN002

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

JP429

JP428

JP427

C400

0.1uF

VA424

20V

121128
ESD improve
OPT->APPLY

C404
10uF
10V
OPT

VA425

121128
ESD improve
OPT->APPLY

IC400

AP2191DSG

GND

NC

1

8

IN_1

OUT_2

2

7

IN_2

OUT_1

3

6

EN

FLG

4

5

111026

20V

ESD diode deletion
EAH39491601 2EA

120103
ESD diode addition
EAF61530301 2EA

USB_DM

USB_DP

USB_CTL

1:AL8

1:AL7

R472

10K

R473
47

+5V_USB

USB_OCD

C405

0.1uF

KJA-PH-1-0177

JK404

Hotel_Model(RS232C apply)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

29MN33

INTERFACE

EAX64998104

2012.11.18

4 13

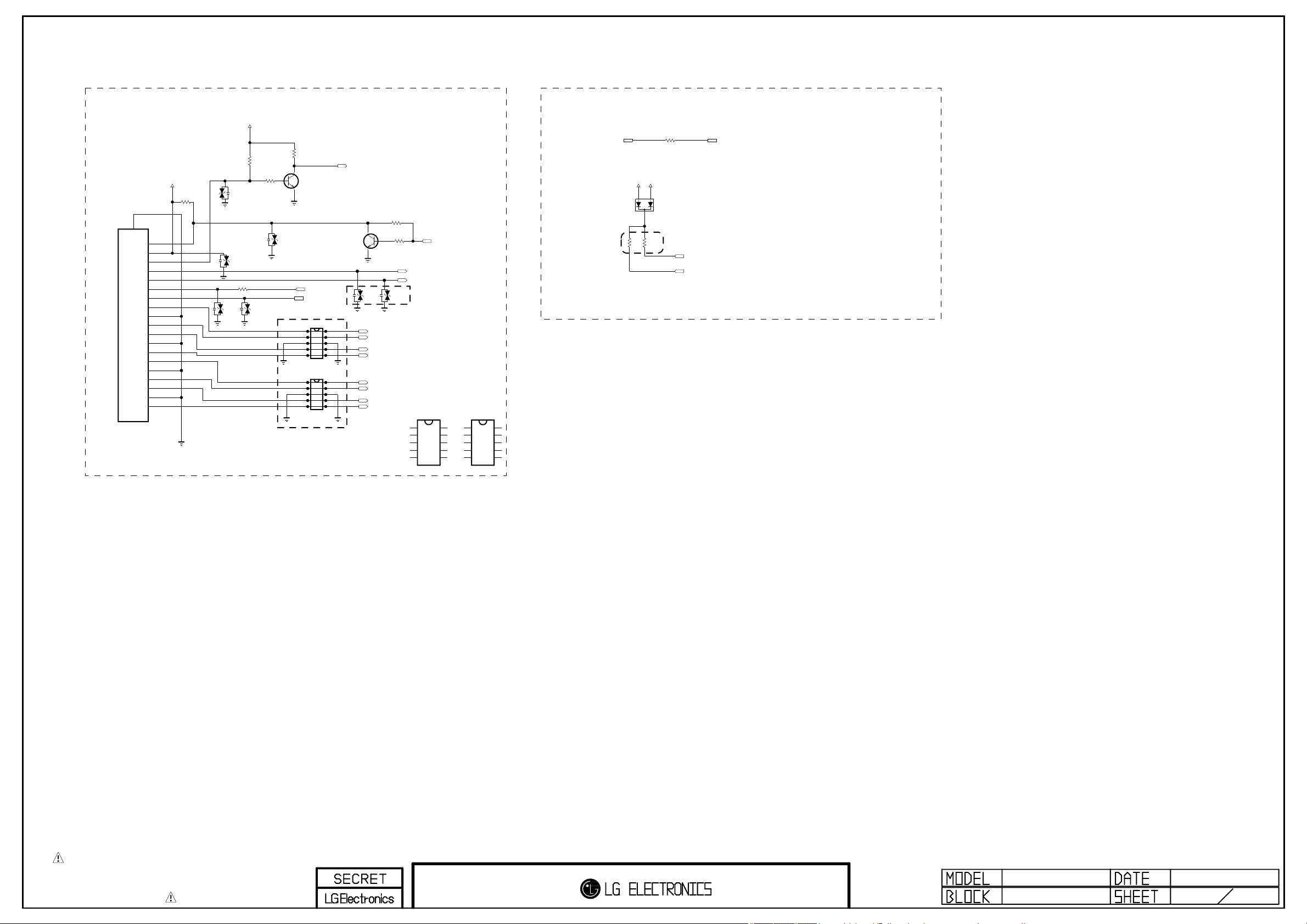

HDMI

HDMI

SHIELD

20

19

18

17

16

15

14

13

12

11
10

EAG61491201

9

8

7

6

5

4

3

2

1

JK501

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R528

1K

+3.3V_ST

R500

47K

OPT
VA505

OPT

VA511

20V

R527 0

(OPT)HDMI2_ARC

OPT

VA507

20V

R503

R501
10K

B

OPT

VA512

20V

OPT

VA508

20V

(OPT)ESD_HDMI_SEMTECH(DEV)

(OPT)ESD_HDMI_SEMTECH(DEV)

47K

C

Q501

MMBT3904(NXP)

E

HDMI_ARC

HDMI_CEC

1
2
3
4
5

1
2
3
4
5

MMBT3904(NXP)

D504
RCLAMP0524PA

10
9
8
7
6

D505
RCLAMP0524PA

10
9
8
7
6

5V_DET_HDMI_2

C

Q505

E

VA502

20V

CK-_HDMI2
CK+_HDMI2

D0-_HDMI2
D0+_HDMI2

D1-_HDMI2
D1+_HDMI2

D2-_HDMI2
D2+_HDMI2

OPT
R509

10K

R529

10K

B

DDC_SDA_2

DDC_SCL_2

VA503

20V

120715
Added for ESD prevention
120825
OPT->APPLY

D504-*1

IP4283CZ10-TBA

TMDS_CH1-

1

TMDS_CH1+

2

GND_1

3

TMDS_CH2-

4

TMDS_CH2+

5

ESD_HDMI_NXP

HPD2

10

For CEC

R520

+5V_Normal

A1

A2
MMBD6100
D502

C

R522

2.7K

100

HDMI_CEC

5V_HDMI_2

R521

2.7K

D505-*1

IP4283CZ10-TBA

GND_1

1

2

3

4

5

ESD_HDMI_NXP

NC_4

10

NC_3

9

GND_2

8

NC_2

7

NC_1

6

NC_4

TMDS_CH1-

NC_3

TMDS_CH1+

9

GND_2

8

NC_2

TMDS_CH2-

7

TMDS_CH2+

NC_1

6

CEC_REMOTE_S7

DDC_SDA_2

DDC_SCL_2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX64998104

29MN33

HDMI 5 12

2012.11.18

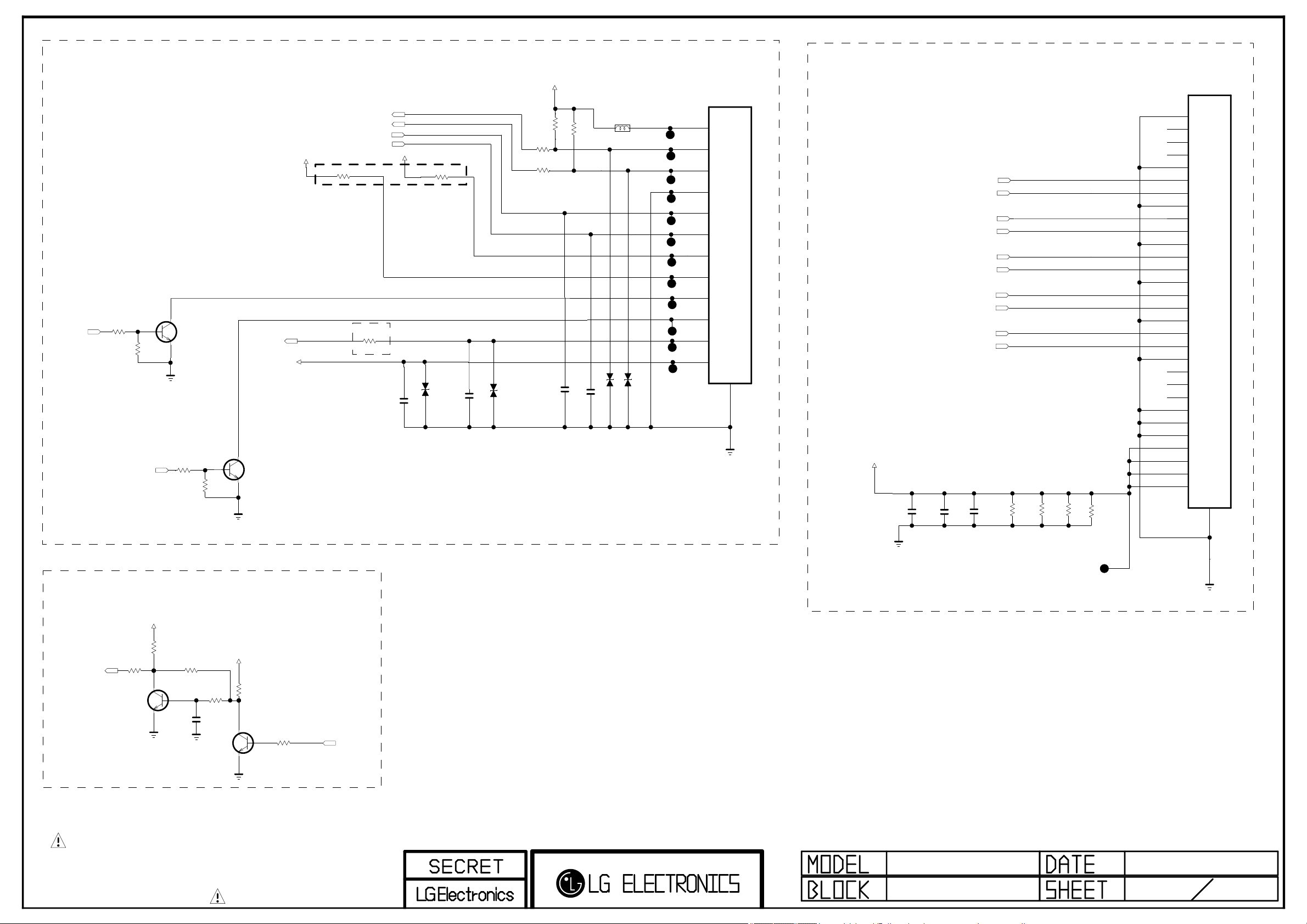

IR/LED and Control

LED_RED

R600

10K

R601

10K

LED_AMBER

B

C

Q600
MMBT3904(NXP)

E

R602

10K

R603

10K

B

C

Q601
MMBT3904(NXP)

E

IR

KEY2
KEY1

KEY_SCL
KEY_SDA

+3.3V_ST

R604 270

1/10W 1%

Amber LED:9.5mA

(IR Port protection against ESD)

121118
100ohm->200ohm

R4044
200

+3.3V_ST

+3.3V_ST

R610 330
1/10W 1%

Red LED:7.8mA
121118
R604,R610

2012->1608

30V

50V

D600

C600

0.1uF

50V

C601

1000pF

30V

D601

+3.3V_ST

R616

3.3K

R614
100

R615
100

OPT

50V

C602

100pF

BLM18PG121SN1D

R617

3.3K

50V

OPT

C603

100pF

L600

30V

D602

OPT

30V

D603

OPT

JP600

JP601

JP602

JP605

JP604

JP603

JP607

JP606

JP608

JP609

JP610

JP611

P600

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

Module

+12V_PANEL_POWER

C605

0.1uF
50V

C606
10uF
25V

LVA_3P

LVA_3M

LVA_CKP

LVA_CKM

LVA_2P

LVA_2M

LVA_1P

LVA_1M

LVA_0P

LVA_0M

C607
1000pF
50V

P601

10031HR-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

4.7K

4.7K
R624

4.7K

R625

4.7K

R626

R627

IR_OUT(Ready)

+3.3V_ST

(OPT)IR_OUT

R619

IR_OUT

MMBT3904(NXP)

R618

22

(OPT)IR_OUT

Q602

(OPT)IR_OUT

10K

C

E

(OPT)IR_OUT

OPT

R620
0

B

C604

1000pF

MMBT3904(NXP)

+3.3V_ST

(OPT)IR_OUT

R621

10K

Q603

(OPT)IR_OUT

R622
10K

(OPT)IR_OUT

C

B

E

R623

47K

(OPT)IR_OUT

IR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

29MN33

MODULE&CONTROL

JP612

EAX64998104

2012.11.18

6 13

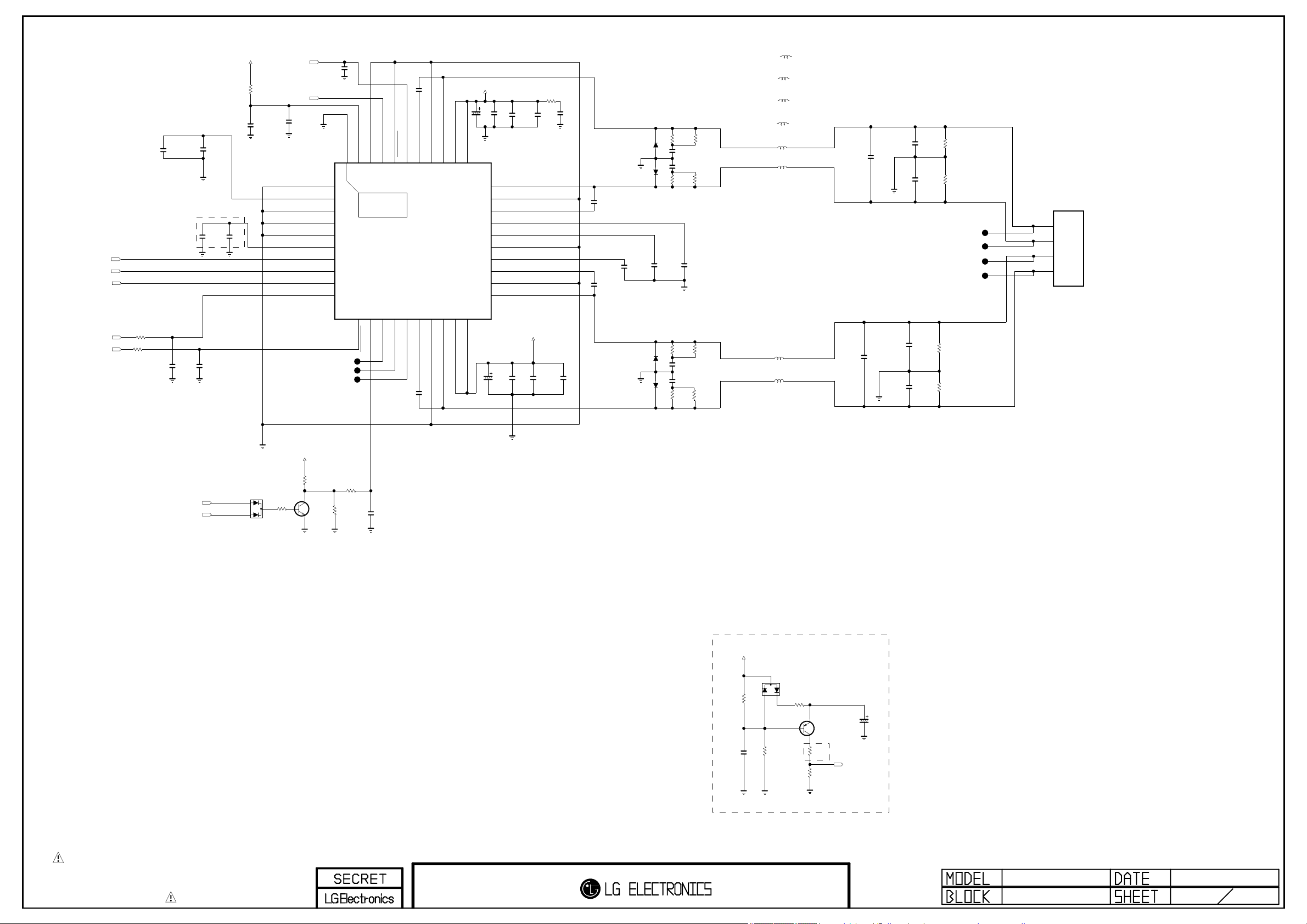

AUDIO AMP

AUD_LRCH

AUD_LRCK

AUD_SCK

OPT

C701

0.1uF
16V

C700

0.1uF

12.08.09

OPT

C704

0.1uF
16V

L700-*1

10.0uH

+3.3V_AMP

0

R4045

C707

0.1uF
16V

16V

C4072
1uF
10V

AMP_RST

AUD_MASTER_CLK

C702
10uF
10V

AGND_PLL

VDD_PLL

DGND_PLL

GND
DGND
DVDD

SDATA

WCK

BCK

SDA

C706

1000pF

50V

VDD_IO

[EP]GND

40

1
2

THERMAL

3
4
5
6
7
8
9
10

11

GND_IO

39

41

12

13

50V

C711

BST1A

RESET

AD38CLK_I

35

36

37

IC700

NTP7513

0x54

14

15

16

22000pF

OUT1A

PGND1A

33

34

17

18

+19V_AMP_VCC

PVDD1B

PVDD1A

31

32

30
29
28
27
26
25
24
23
22
21

19

C744
47uF
25V

C712

C715

0.1uF

0.1uF

50V

50V

OUT1B
PGND1B
BST1B
VDR1
VCC5
AGND
VDR2
BST2A
PGND2A
OUT2A

C718
10uF
25V

OPT

R700

3.3
OPT

C703

0.01uF
50V

C722
22000pF
50V

C723
22000pF
50V

C72 7
1uF
25V

D706

1N4148W

100V

OPT

D707

1N4148W

100V

R719

R715

12

12

C730
390pF

50V

C731
390pF

50V

R704

R720

12

12

OPT

C74 3

C726

1uF

1uF

25V

25V

NRS6045T100MMGK

NRS6045T100MMGK

NRS6045T100MMGK

L706-*1

10.0uH

NRS6045T100MMGK

L701-*1

10.0uH

NRS6045T100MMGK

L709-*1

10.0uH

NRS6045T100MMGK

L700

10.0uH
Audio_Coil_ABCO

L706

10.0uH

Audio_Coil_ABCO

(OPT)Audio_Coil_TAIYO

(OPT)Audio_Coil_TAIYO

(OPT)Audio_Coil_TAIYO

(OPT)Audio_Coil_TAIYO

C735

0.47uF
50V

C739

0.1uF
50V

C740

0.1uF
50V

R727

5.1K

R728

5.1K

JP704

JP705

JP706

JP707

P700

SMAW250-H04R

4

SPK_L+

3

SPK_L-

2

SPK_R+

1

SPK_R-

WAFER-ANGLE

AMP_SDA

AMP_SCL

R707

R703

C745
47uF
25V

+19V_AMP_VCC

C713

0.1uF
50V

C714

0.1uF
50V

C716
10uF
25V

D704

1N4148W

100V

OPT

D705

1N4148W

100V

C737

R712

R717

12

12

C728
390pF

50V

C729
390pF

50V

R702

R718

12

12

OPT

L701

10.0uH

NRS6045T100MMGK

L709

10.0uH

NRS6045T100MMGK

Audio_Coil_ABCO

Audio_Coil_ABCO

C734

0.47uF
50V

0.1uF
50V

C738

0.1uF

50V

R729

5.1K

R730

5.1K

100

100

C708

C705

33pF

33pF

50V

50V

+3.3V_ST

R705

SB_MUTE

NTP_MUTE

D700

MMBD6100
A2

A1

C

MMBT3904(NXP)

R701

B

10K

10K

C

Q700

E

TP700

TP701

TP702

R709 100

OPT

R708
33K

SCL

FAULT

MONITOR_0

MONITOR_1

MONITOR_2

C710

22000pF

C709
1000pF
50V

50V

BST2B

PGND2B

OUT2B

PVDD2B20PVDD2A

Pop-up noise killer

+19V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R734

220K

C742

4.7uF
50V

KDS226

AC

D710

C

A

R736

470

E

MMBT3906(NXP)

B

Q702

OPT

R735
220K

C

R737
12K

R738
12K

SB_MUTE

C724

121118

47uF

R737 3K for SCART MUTE DEL

25V

3K:
With SCART MUTE BLOCK

12K:
Without SCART MUTE BLOCK

EAX64998104

29MN33

AUDIO AMP 7 13

2012.11.18

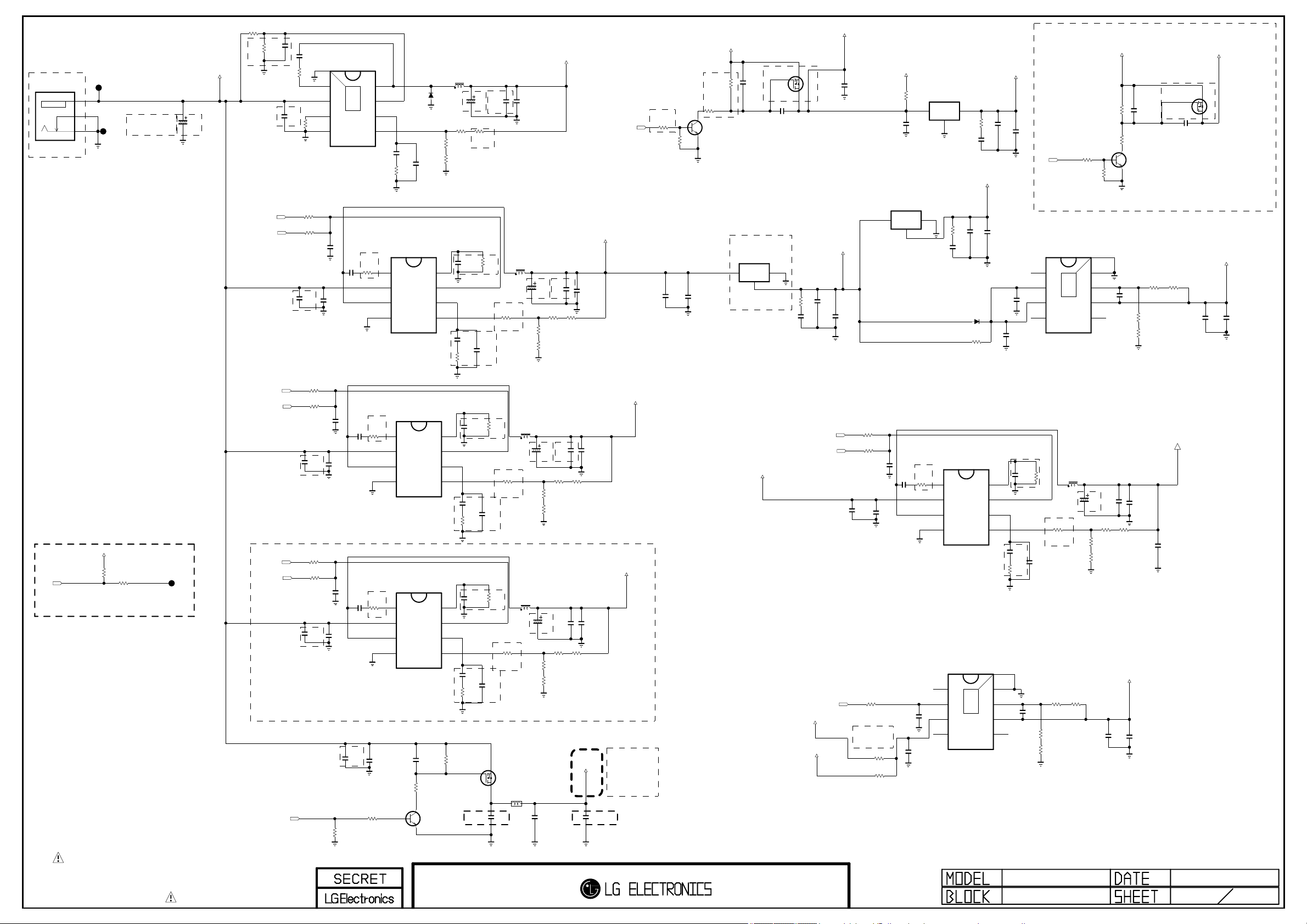

JK800

KJA-DC-1-0032

11.11.07
6604->6601

OLP

Not used :
only for small(ready)

JP801

4

2

1

JP800

+3.3V_Normal

R806
10K
OPT

111129
Discharging R DEL
(0RJ2201J674)

R807
1K

OPT

TEST-POINT

11.10.27
1000Hr->2000Hr

111129

C820

47uF DEL

47uF
25V

+19V

R801

11.10.27

100K

C818

R803

0.1uF

36K

50V

12.03.08
EAE42868301(3225)->
EAE61081701(3216)

MULTI_ON

POWER_ON/OFF1

12.03.08
EAE42868301(3225)->
EAE61081701(3216)

MULTI_ON

POWER_ON/OFF1

12.03.08
EAE42868301(3225)->
EAE61081701(3216)

MULTI_ON

POWER_ON/OFF1

12.03.08
EAE42868301(3225)->
EAE61081701(3216)

MULTI_ON

C807

0.1uF

C803
10uF
25V

R809

10

16V

R800
100K1%

R802

4.7K

OPT

C804
10uF
25V

R804
100K1%

4.7K

R808
100K1%

4.7K

[EP]GND

300K

0.47uF

OPT

R805

C800
10uF
25V

OPT

R813

C815
10uF
25V

IC2602

MP1584EN

BST

8

VIN

7

FREQ

6

GND

5

R815

19V TO 5V DCDC CONVERTER

C811

16V

OPT

C868

0.01uF

C810

0.1uF
50V

19V TO 5V DCDC CONVERTER

C813

0.47uF
16V

OPT

C806

0.1uF
50V

19V TO 12V DCDC CONVERTER

C822

0.47uF
16V

OPT

C821

0.1uF
50V

AMP_VCC Control

12.03.08
EAE42868301(3225)->
EAE61081701(3216)

R836

10K

50V

THERMAL

9

C825

0.01uF
50V

C829

0.01uF
50V

OPT

C801
10uF

25V

1

2

3

4

11.11.07
0->47

R888

47

11.11.07
0->47

R869

11.11.07
0->47

R823

R810
10K

47

47

OPT
C809

0.1uF

SW

EN

COMP

FB

BST

IN

SW

GND

BST

IN

SW

GND

BST

IN

SW

GND

50V

D802

11.11.14
0CE476WH6DC(1000hr)->
EAE61423901(2000hr)

C869
220pF

OPT

50V

C808
150pF
50V

R816

68K

IC800

MP1472GJ-C452-Z

8

7

6

5

11.11.14
2200pF->4700pF
10K->8.2K
150pF->330pF

IC802

MP1472GJ-C452-Z

8

7

6

5

11.11.14
2200pF->4700pF
10K->8.2K
150pF->330pF

IC804

MP1472GJ-C452-Z

8

7

6

5

11.11.14
2200pF->4700pF
10K->8.2K
150pF->330pF

C839

2.2uF
50V

R821
12K

C

Q806

B

MMBT3904(NXP)

E

L802 10uH

40V

SMAB34

R851

1%

47K

2K

R855

R819

0

11.11.28

1.2K->2K

R838

15K

1%

11.11.29

0.047uF->0.033uF
150K->180K

C835

0.033uF
50V

SS

1

EN

2

3

4

R880
10K

11.11.14
0CE476WH6DC(1000hr)->

COMP

EAE61423901(2000hr)

FB

C832
4700pF
50V

R818

8.2K

11.11.29

0.047uF->0.033uF
150K->180K

C838

0.033uF
50V

SS

1

EN

2

3

4

1

2

3

4

11.11.14
0CE476WH6DC(1000hr)->

COMP

EAE61423901(2000hr)

FB

C833
4700pF
50V

R820

8.2K

11.11.29

0.047uF->0.033uF
150K->180K

C844

0.033uF
50V

SS

EN

11.11.14
0CE476WH6DC(1000hr)->

COMP

EAE61423901(2000hr)

FB

C831
4700pF
50V

R828

8.2K

AO3407A Vgs : 10.8V(24V input)

AO3407A Vgs : 10.36V(19V input)

Q807

AO3407A

0.01uF

C834

50V

C812
47uF
25V

G

C845
330pF
50V

11.10.27

1%

R884

180K

C847
330pF
50V

C848
330pF
50V

C840
10uF

10V

R885

180K

R829

180K

S

D

121118
Size : 1608->1005
for Cost Down

C814

0.1uF
50V

L803 10uH

C852

47uF

25V

R891
47K

11.11.07
0->47K

L805
10uH

C853

47uF
25V

R892
47K

11.11.07
0->47K

L800
10uH

R837
47K

11.11.07
0->47K

L807

3.3uH

CPI2520NHL3R3ME 2520

C870
10uF
25V

+3.3V_ST

12.03.08
EAE61081701(25V)->
EAE52158501(10V)

OPT

C858
10uF

10V

R834

1%

33K

1%

12K

R845

R824

0

R825

10K

1%

12.03.08
EAE61081701(25V)->
EAE52158501(10V)

OPT

C859
10uF

10V

R835

1%

33K

12K

R846

R826

0

R827

10K

1%

OPT

C849

C851

47uF

10uF

25V

25V

R852

1%

120K

0

R853

R847

0

R850

10K

1%

AMP_VCC

+19V_AMP_VCC

POWER_ON/OFF1

+5V_USB

C861

0.1uF
50V

C863

0.1uF
50V

1%

+12V_Normal

C854

0.1uF
50V

5%

2012.08.12
R852 : 33k -> 120k
R853 : 12K -> 0

121118
+19V_SCART DEL

C865

0.01uF
50V

121118
Size : 1608->1005
for Cost Down

POWER_ON/OFF1
VOLTAGE HIGHER

+5V_Normal

11.11.05

R870
100K

R873

OPT

10K

C836
10uF
10V

B

111116
10K->22K
1K->100

R874

C

Q804
MMBT3904(NXP)

E

C837

0.1uF
50V

+3.3V_ST

R875

22K

100

11.12.01
LDO change
EAN56716601 (5A)

->EAN54428101 (1A)

11.12.20
LDO change
EAN54428101 (1A) adj

->EAN54428601 (1A) 3.3v

AP1117E33G-13

IN

111116
EBK61011501(Diode)

->EBK38029201(Rohm)

->EBK61913601(NXP) 3.3V drive

OPT
C890

4.7uF
10V

IC803

3

OUT

1

2

+5V_Normal

PMV48XP

Q805

C891

1uF

25V

ADJ/GND

G

S

D

R865

1

C842
10uF
10V

+3.3V_AMP

+3.3V_ST

+3.3V_AMP

+3.3V_TUNER

C843
1uF
10V

OPT

C906

0.1uF
50V

MULTI_ON

POWER_ON/OFF1

POWER_ON/OFF1

C895

0.1uF
50V

C802
10uF
10V

OPT
R811
100K1%

R812

4.7K

C819

0.47uF
16V

OPT

R817

4.7K

11.11.29
Diode DEL
0DSKE00048A

R879
0

R814
0

OPT

+3.3V_Normal

R889

IC810

0

AP2114H-2.5TRG1

VOUTVIN

GND

C896
10uF
10V

IC805

AP1117E18G-13

IN

ADJ/GND

3

1

2

OUT

5V TO 1.15V DCDC CONVERTER

M1 Core

MP1472GJ-C452-Z

11.11.07
0->47

C830

0.01uF

R871

47

C816

0.1uF

50V

50V

BST

8

IN

7

SW

6

GND

5

11.11.07
R822 68K->1.8K
C841 4700pF->8200pF

3.3V TO 1.5V LDO

NC_1

EN2

C817

VIN3

0.1uF
50V

OPT

NC4

C805
10uF
10V

+1.8V_TUNER

C892

R872

1uF

1

10V

C856
10uF
10V

(BR)FULL_NIM

D805
SMAB34

40V

R854
0

OPT

IC806

IC807

TJ4220GDP-ADJ

1

9

2

THERMAL

3

4

OPT
R877

C897
10uF
10V

1

2

3

4

1
OPT

OPT

C894

0.1uF
50V

SS

EN

COMP

FB

8

7

6

5

+2.5V_Normal

C898

4.7uF
10V

C823

0.1uF
50V

OPT

(BR)FULL_NIM

C828
10uF
10V

11.11.07

0.1uF->0.22uF

[EP]GND

GND

ADJ/SENSE

VOUT

NC_2

C841
8200pF
25V

R822

1.8K

PANEL POWER CONTROL

10K->22K->33K

OPT

for T1 rising time.

C899

0.1uF
50V

C846

0.22uF
16V

11.11.14
0CE476WH6DC(1000hr)->
EAE61423901(2000hr)

NC_1

VIN3

C850
150pF
50V

C857

0.01uF
50V

PANEL_CTL

EN2

NC4

OPT

R898

180K

OPT

1%

R832

1K

R833

10K

12.05.15

(BR)FULL_NIM

IC801

TJ4220GDP-ADJ

1

9

2

THERMAL

3

4

L806
10uH

R893
47K

11.11.07
0->47K

1%

0

10K

R849

R844

1%

R839

4.7K

R840

10K

3.3V TO 1.23V LDO

[EP]GND

GND

8

ADJ/SENSE

7

VOUT

6

NC_2

5

C855
47uF
25V

R841
2K

0

R830

10K

R831

5%

+12V_Normal

OPT

C879

4.7uF

33K

10V

R842

R843

2K

C

Q802

B

MMBT3904(NXP)

E

H/W Option:FULL_NIM

(BR)FULL_NIM

R862

(BR)FULL_NIM

R858

2.7K
1%

(BR)FULL_NIM

R859

30K
1%

C866

0.1uF
50V

OPT

C867

0.1uF
50V

1%

13K

(BR)FULL_NIM

+1.15V_VDDC

OPT
C881
47pF
50V

OPT

C862
10uF

10V

1%

5%

(BR)FULL_NIM

C824

0.01uF
50V

1%

560

R848

+1.5V_DDR

C864
10uF
10V

+12V_PANEL_POWER

Q803

AO3407A

G

1uF

C882

25V

111116
Panel switch deletion
111201
Panel switch recover

1%

4.7K

R867

(BR)FULL_NIM

S

D

+1.23V_TUNER

C826
10uF
10V

(BR)FULL_NIM

11.11.15
Maker:Diode->Rohm

11.12.22
Maker:Rohm->Diode
Supply issue
due to Typoon

12.11.18
MP issue(burn)

EBK38029201(Rohm)
EBK61011501(Diode)
EBK60752501(AOS)

C827

0.1uF
50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

29MN33

POWER

EAX64998104

2012.11.18
8 13

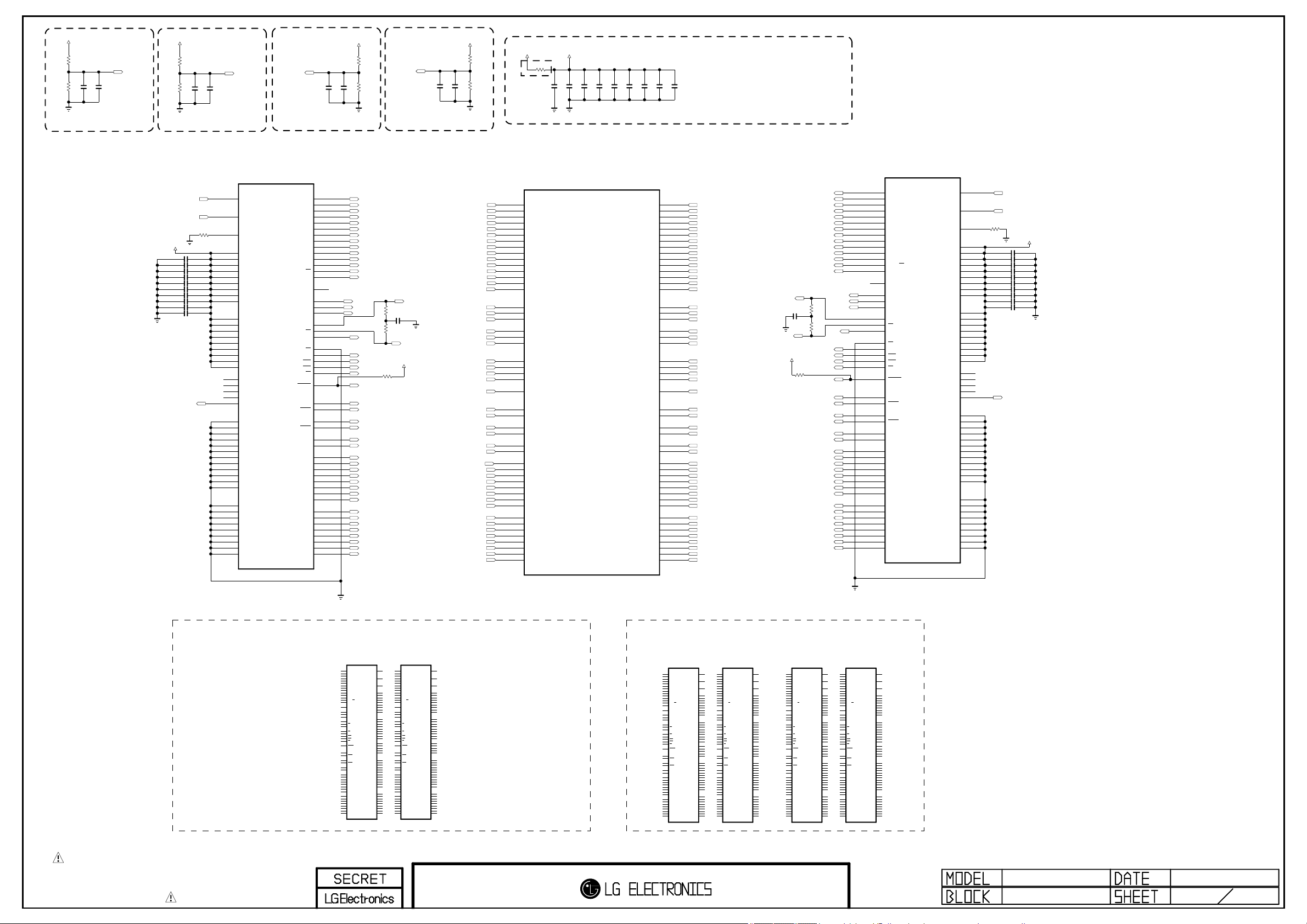

AVDD_DDR0

R1201

R1202

AVDD_DDR0

1K 1%

0.1uF

1K 1%

C1201

A-MVREFDQ

1000pF

C1202

R1204

R1205

1K 1%

0.1uF

1K 1%

C1203

A-MVREFCA

1000pF

C1204

B-MVREFCA

1000pF

C1247

AVDD_DDR0

0.1uF
C1248

R1224

1K 1%

B-MVREFDQ

R1225

1K 1%

1000pF

C1249

AVDD_DDR0

0.1uF
C1250

121118
Change from bead to 0 ohm for Cost down

+1.5V_DDR

R1227

1K 1%

AVDD_DDR0

R1206

0

OPT

1uF

1uF

R1228

1K 1%

C1251

10uF

C1206

0.1uF

C1239

0.1uF

C1217

1uF

C1218

C1219

C1238

1uF

1uF

C1241

0.1uF

C1220

CLose to DDR3

CLose to Saturn7M IC

A-MVREFCA

A-MVREFDQ

R1203

240

AVDD_DDR0

C1205 10uF
C1207 0.1uF
C1208 0.1uF
C1210 0.1uF
C1211 0.1uF
C1212 0.1uF
C1213 0.1uF
C1214 0.1uF
C1215 0.1uF
C1216 0.1uF

1%

A-MA14

EAN61836301

IC1201

K4B1G1646G-BCK0

DDR_1600_SS

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

CLose to Saturn7M IC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

CLose to DDR3

IC101

MSD804KKX

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13

R1235

56

R1236

56

R1231
10K

1%

C1209

0.01uF

1%

50V

A-MCKB

AVDD_DDR0

A-MCK

A-MBA0
A-MBA1
A-MBA2

A-MCKE

A-MODT
A-MRASB
A-MCASB
A-MWEB

A-MRESETB

A-MDQSL
A-MDQSLB

A-MDQSU
A-MDQSUB

A-MDML
A-MDMU

A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1 B-MDQU0
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8

A-MA9
A-MA10
A-MA11
A-MA12
A-MA13

A-MA14

A-MBA0
A-MBA1
A-MBA2

A-MCK
A-MCKB
A-MCKE

A-MODT

A-MRASB
A-MCASB

A-MWEB

A-MRESETB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDML
A-MDMU

A-MDQL0

A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

S7LR-M_NON_MS10

A11

A_DDR3_A[0]

C14

A_DDR3_A[1]

B11

A_DDR3_A[2]

F12

A_DDR3_A[3]

C15

A_DDR3_A[4]

E12

A_DDR3_A[5]

A14

A_DDR3_A[6]

D11

A_DDR3_A[7]

B14

A_DDR3_A[8]

D12

A_DDR3_A[9]

C16

A_DDR3_A[10]

C13

A_DDR3_A[11]

A15

A_DDR3_A[12]

E11

A_DDR3_A[13]

B13

A_DDR3_A[14]

F13

A_DDR3_BA[0]

B15

A_DDR3_BA[1]

E13

A_DDR3_BA[2]

C17

A_DDR3_MCLK

A17

A_DDR3_MCLKZ

B16

A_DDR3_MCLKE

E14

A_DDR3_ODT

B12

A_DDR3_RASZ

A12

A_DDR3_CASZ

C12

A_DDR3_WEZ

F11

A_DDR3_RESET

B19

A_DDR3_DQSL

C18

A_DDR3_DQSLB

B18

A_DDR3_DQSU

A18

A_DDR3_DQSUB

E15

A_DDR3_DQML

A21

A_DDR3_DQMU

D17

A_DDR3_DQL[0]

G15

A_DDR3_DQL[1]

B21

A_DDR3_DQL[2]

F15

A_DDR3_DQL[3]

B22

A_DDR3_DQL[4]

F14

A_DDR3_DQL[5]

A22

A_DDR3_DQL[6]

D15

A_DDR3_DQL[7]

G16

A_DDR3_DQU[0]

B20

A_DDR3_DQU[1]

F16

A_DDR3_DQU[2]

C21

A_DDR3_DQU[3]

E16

A_DDR3_DQU[4]

A20

A_DDR3_DQU[5]

D16

A_DDR3_DQU[6]

C20

A_DDR3_DQU[7]

B_DDR3_A[0]
B_DDR3_A[1]
B_DDR3_A[2]
B_DDR3_A[3]
B_DDR3_A[4]
B_DDR3_A[5]
B_DDR3_A[6]
B_DDR3_A[7]
B_DDR3_A[8]

B_DDR3_A[9]
B_DDR3_A[10]
B_DDR3_A[11]
B_DDR3_A[12]
B_DDR3_A[13]
B_DDR3_A[14]

B_DDR3_BA[0]
B_DDR3_BA[1]
B_DDR3_BA[2]

B_DDR3_MCLK
B_DDR3_MCLKZ
B_DDR3_MCLKE

B_DDR3_ODT
B_DDR3_RASZ
B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

B_DDR3_DQSL

B_DDR3_DQSLB

B_DDR3_DQSU

B_DDR3_DQSUB

B_DDR3_DQML
B_DDR3_DQMU

B_DDR3_DQL[0]
B_DDR3_DQL[1]
B_DDR3_DQL[2]
B_DDR3_DQL[3]
B_DDR3_DQL[4]
B_DDR3_DQL[5]
B_DDR3_DQL[6]
B_DDR3_DQL[7]

B_DDR3_DQU[0]
B_DDR3_DQU[1]
B_DDR3_DQU[2]
B_DDR3_DQU[3]
B_DDR3_DQU[4]
B_DDR3_DQU[5]
B_DDR3_DQU[6]
B_DDR3_DQU[7]

B23
D25
F22
G22
E24
F21
E23
D22
D24
D21
C24
C25
F23
E21
D23

G20
F24
F20

G25
G23
F25

D20
B25
B24
A24

E20

K24
K25

J21
J20

H24
L20

L23
J24
L24
J23
M24
H23
M23
K23

G21
L22
H22
K20
H20
L21
H21
K21

B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8
B-MA9
B-MA10
B-MA11
B-MA12
B-MA13
B-MA14

B-MBA0
B-MBA1
B-MBA2

B-MCK
B-MCKB
B-MCKE

B-MODT
B-MRASB
B-MCASB
B-MWEB

B-MRESETB

B-MDQSL
B-MDQSLB

B-MDQSU
B-MDQSUB

B-MDML
B-MDMU

B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7

B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7

B-MCK

B-MCKB

AVDD_DDR0

C1240

0.01uF
50V

R1232

10K

B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8

B-MA9
B-MA10
B-MA11
B-MA12
B-MA13

56

1%

R1237

56

1%

R1238

B-MODT

B-MRASB
B-MCASB

B-MWEB

B-MRESETB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDML
B-MDMU

B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7

B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7

B-MCKE

B-MBA0
B-MBA1
B-MBA2

EAN61836301

IC1202

K4B1G1646G-BCK0

DDR_1600_SS

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

R1226

240

1%

C1227 10uF
C1228 0.1uF
C1229 0.1uF
C1230 0.1uF
C1231 0.1uF
C1232 0.1uF
C1233 0.1uF
C1234 0.1uF
C1235 0.1uF
C1236 0.1uF

B-MVREFCA

B-MVREFDQ

AVDD_DDR0

B-MA14

1G 1600

DDR_1600_HYNIX_9003(DEV)

IC1201-*1

H5TQ1G63EFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDR_1600_HYNIX_9003(DEV)

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC1202-*1

H5TQ1G63EFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

2G 1600(BRAZIL - GINGA)

DDR_2G_1600_HYNIX

IC1201-*4

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

H5TQ2G63DFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_2G_1600_HYNIX

IC1202-*4

H5TQ2G63DFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

DDR_2G_1600_SS

IC1201-*5

K4B2G1646E-BCK0

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_2G_1600_SS

IC1202-*5

K4B2G1646E-BCK0

N3

M8

VREFCA

P7
P3
N2

H1

VREFDQ

P8
P2
R8

L8

ZQ

R2
T8
R3

B2

VDD_1

L7

D9

VDD_2

R7

G7

VDD_3

N7

K2

VDD_4

T3

K8

VDD_5

N1

VDD_6

M7

N9

VDD_7

R1

VDD_8

M2

R9

VDD_9

N8
M3

A1

VDDQ_1

J7

A8

VDDQ_2

K7

C1

VDDQ_3

K9

C9

VDDQ_4

D2

VDDQ_5

L2

E9

VDDQ_6

K1

F1

VDDQ_7

J3

H2

VDDQ_8

K3

H9

VDDQ_9

L3

J1

NC_1

T2

J9

NC_2

L1

NC_3

L9

NC_4

F3

T7

NC_6

G3

A9

C7

VSS_1

B7

B3

VSS_2

E1

VSS_3

E7

G8

VSS_4

D3

J2

VSS_5

J8

VSS_6

E3

M1

VSS_7

F7

M9

VSS_8

F2

P1

VSS_9

F8

P9

VSS_10

H3

T1

VSS_11

H8

T9

VSS_12

G2
H7

B1

VSSQ_1

D7

B9

VSSQ_2

C3

D1

VSSQ_3

C8

D8

VSSQ_4

C2

E2

VSSQ_5

A7

E8

VSSQ_6

A2

F9

VSSQ_7

B8

G1

VSSQ_8

A3

G9

VSSQ_9

M8

A0

VREFCA
A1
A2

H1

A3

VREFDQ
A4
A5

L8

A6

ZQ
A7
A8

B2

A9

VDD_1

D9

A10/AP

VDD_2

G7

A11

VDD_3

K2

A12/BC

VDD_4

K8

A13

VDD_5

N1

VDD_6

N9

NC_5

VDD_7

R1

VDD_8

R9

BA0

VDD_9
BA1
BA2

A1

VDDQ_1

A8

CK

VDDQ_2

C1

CK

VDDQ_3

C9

CKE

VDDQ_4

D2

VDDQ_5

E9

CS

VDDQ_6

F1

ODT

VDDQ_7

H2

RAS

VDDQ_8

H9

CAS

VDDQ_9

WE

J1

NC_1

J9

NC_2

RESET

L1

NC_3

L9

NC_4

T7

DQSL

NC_6

DQSL

A9

VSS_1

DQSU

B3

VSS_2

DQSU

E1

VSS_3

G8

DML

VSS_4

J2

DMU

VSS_5

J8

VSS_6

M1

DQL0

VSS_7

M9

DQL1

VSS_8

P1

DQL2

VSS_9

P9

DQL3

VSS_10

T1

DQL4

VSS_11

T9

DQL5

VSS_12
DQL6
DQL7

B1

VSSQ_1

B9

DQU0

VSSQ_2

D1

DQU1

VSSQ_3

D8

DQU2

VSSQ_4

E2

DQU3

VSSQ_5

E8

DQU4

VSSQ_6

F9

DQU5

VSSQ_7

G1

DQU6

VSSQ_8

G9

DQU7

VSSQ_9

EAX64998104

29MN33

DDR_256 12 13

2012.11.18

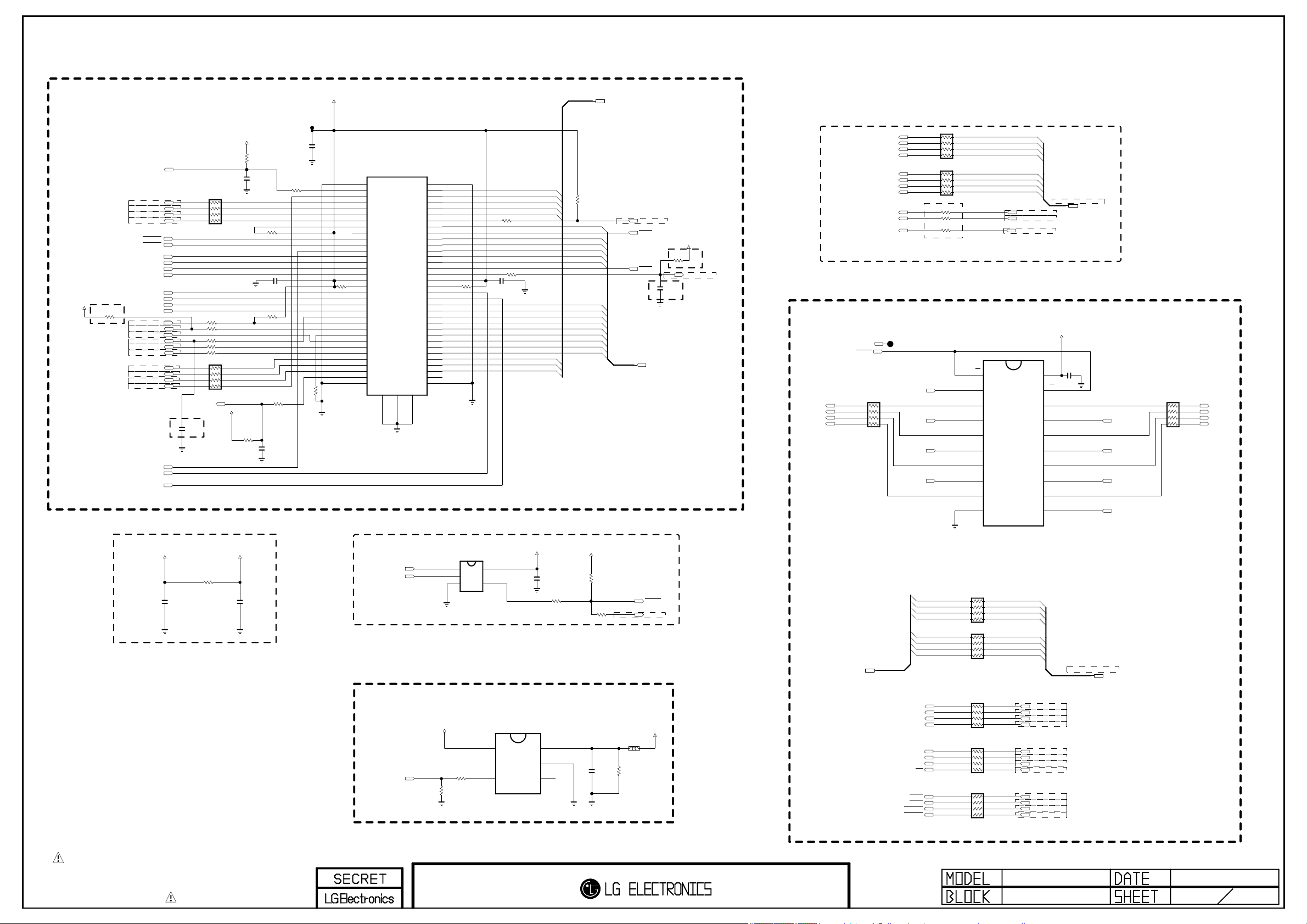

* Option name of this page : CI_SLOT

CI Region

CI SLOT

120915
ADDED

+5V_Normal

CLOSE TO MSTAR

R1928
10K

/CI_CD1

CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

CI_IORD
CI_IOWR

CI_MDI[0]
CI_MDI[1]
CI_MDI[2]
CI_MDI[3]

CI_MDI[4]
CI_MDI[5]
CI_MDI[6]
CI_MDI[7]

PCM_RST

/PCM_WAIT

CI_TS_CLK
CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]

CLOSE TO MSTAR

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

(because of Hong Kong)

+5V_CI_ON

+5V_Normal

R1903

10K

C1903

0.1uF
16V

AR1901

33

R1905 10K

GND

R1904

10K

R1906

R1902

47

R1901

C1914
2pF
50V

/CI_CD2

R1925 100
R1926
R1927 33

AR1903 33

47

33

+5V_Normal

REG

C1905

0.1uF

C1904

0.1uF
16V

R1907

100

C1906

10uF

10V

R1908

100

OPT

R1910 0

10K

OPT

R1909

0

GND

P1900
EAG41860102

10067972-000LF

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

65
66
67
68

2

CI_SLOT

69

GND

CI_DATA[3]

R1920

C1909

0.1uF

47

100

GND

CI_DATA[4]
CI_DATA[5]
CI_DATA[6]

CI_DATA[7]

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2660
2761
2862
2963
3064
31
32
33
34

G1G2

1

OPT

R1916 0

R1919

GND

CI DETECT

CI_DATA[0-7]

CI_DATA[0-7]

R1921

CI_DATA[0-7]

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

CI TS INPUT

CI_MDI[7]
CI_MDI[6]
CI_MDI[5]
CI_MDI[4]

CI_MDI[3]
CI_MDI[2]
CI_MDI[1]

10K

/PCM_CE

CI_OE

CI_WE

+5V_Normal

R1911
10K

/PCM_IRQA

C1915

120915

0.1uF
ADDED

16V

CLOSE TO MSTAR

GND

120915
ADDED

120915 BufferIC change
0ITO742440D

->0ISTLPH048A

CI HOST I/F

CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

AR1905 33

AR1906 33

R1929 33
R1930 33

R1931 100

120915
Array->normal resistor

121022 BufferIC change
0ISTLPH048A

->0ITO742440D

FE_TS_DATA[7]
FE_TS_DATA[6]
FE_TS_DATA[5]
FE_TS_DATA[4]

FE_TS_DATA[3]
FE_TS_DATA[2]
FE_TS_DATA[1]
FE_TS_DATA[0]

FE_TS_SYNC
FE_TS_VAL_ERR

FE_TS_CLK

FE_TS_DATA[0-7]

FE_TS_DATA[0-7]

+3.3V_Normal

NAND_EN

CI_ADDR[0-14]

CI_ADDR[7]
CI_ADDR[6]
CI_ADDR[5]
CI_ADDR[4]

CI_DET

AR1915
33

PCM_A[0]

PCM_A[1]

PCM_A[2]

PCM_A[3]

IC1902

1OE

1

TOSHIBA

1A1

2

0ITO742440D

2Y4

3

1A2

4

2Y3

5

1A3

6

2Y2

1A4

2Y1

GND

TC74LCX244FT

7

8

9

10

C1913

0.1uF

VCC

16V

20

2OE

19

1Y1

18

2A4

17

1Y2

16

2A3

15

1Y3

14

2A2

13

1Y4

12

2A1

11

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

AR1914
33

CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3]

L1901

0

+3.3V_CI

C1902

0.1uF

/CI_CD2

/CI_CD1

121022 Swich block change
FET->IC

+3.3V_Normal

OPT

C1901

0.1uF

CI POWER ENABLE CONTROL

PCM_5V_CTL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+5V_Normal

R1913
10K

74LVC1G32GW

1B 5 VCC

2A

3GND

R1914
100

IC1903

AP2151WG-7

5

4

+3.3V_CI

C1908

0.1uF
16V

GND

1

2

3

IC1901

4 Y

IN

EN

+3.3V_CI

R1917

10K

R1915

47

OUT

GND

FLG

R1918

47

C1910
1uF
25V

+5V_CI_ON

L1902

BLM18PG121SN1D

R1922

100K

CI_DET

/PCM_CD

CI_DATA[0-7]

CI_DATA[0-7]

CI_ADDR[8]

CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]

CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

CI_OE

CI_WE
CI_IORD
CI_IOWR

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]

CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

REG

AR1907 33

AR1908 33

AR1912 33

AR1913 33

AR1909 33

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]

PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]

PCM_A[8]
PCM_A[9]

PCM_A[12]
PCM_A[13]
PCM_A[14]
/PCM_REG

/PCM_OE
/PCM_WE
/PCM_IORD
/PCM_IOWR

PCM_A[10]
PCM_A[11]

PCM_D[0-7]

PCM_D[0-7]

EAX64998104

29MN33

PCMCI

2012.11.18
19 13

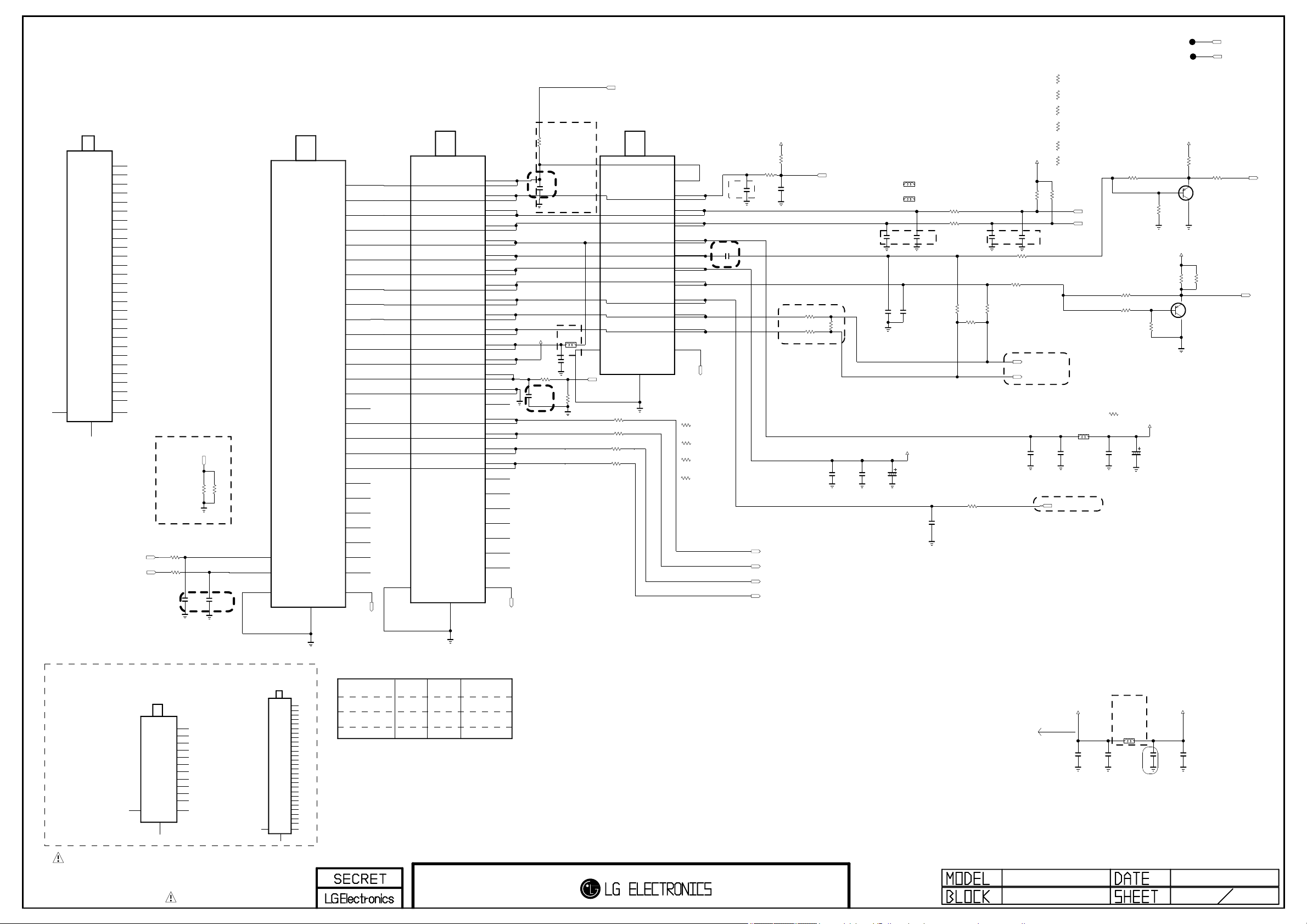

GLOBAL tuner block except T2/S2

Pull-up can’t be applied
because of MODEL_OPT_2

TU3703-*1

TDSN-B601F(C)

(BR_CKD)SI2178_BR_2INPUT_H

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

28

27

A1

SHIELD

B1

B1

RF_S/W_CTL

RESET_TUNER

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

NC_1

NC_2

NC_3

+B3[3.3V]

+B4[1.23V]

RESET_DEMOD

GND

ERROR

SYNC

VALID

MCLK

DATA

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

NC_10

A1

LNA_CTRL_1

LNA_CTRL_2

GND seperation for ASIS tuner

TU_GND_A

R4042

R4041

0

0

(OPT)TW_FE_LNA

R3796

2.2K

(OPT)TW_FE_LNA

R3797

2.2K

LNA_CTRL_1

LNA_CTRL_2

close to TUNER

C3752

C3753

0.1uF

0.1uF

16V

16V

(OPT)TW_FE_LNA

(OPT)TW_FE_LNA

TU3704
TDSN-T701F

(OPT)SI2178_TW_LNA_2INPUT_H

RF_S/W_CTL

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

SIF

6

+B2[1.8V]

7

CVBS

8

IF_AGC

9

DIF[P]

10

DIF[N]

11

NC_1

12

NC_2

13

NC_3

14

GND

15

NC_4

16

NC_5

17

NC_6

18

NC_7

19

NC_8

20

NC_9

21

NC_10

22

NC_11

23

NC_12

24

NC_13

25

57

58

B1

59

SHIELD

NC_14

26

NC_15

27

A1B1

A1

TU_GND_A

TU3703
TDSN-B601F(B)

(BR)SI2178_BR_2INPUT_H

B1

B1

28

SHIELD

RF_S/W_CTL

1

RESET_TUNER

2

SCL

3

SDA

4

+B1[3.3V]

5

SIF

6

+B2[1.8V]

7

CVBS

8

NC_1

9

NC_2

10

NC_3

11

+B3[3.3V]

12

+B4[1.23V]

13

RESET_DEMOD

14

GND

15

ERROR

16

SYNC

17

VALID

18

MCLK

19

DATA

20

NC_4

21

NC_5

22

NC_6

23

NC_7

24

NC_8

25

NC_9

26

NC_10

27

A1

A1

R3705

0

121118
C3701 : RF_SW_OPT

(BR)RF_SW_OPT

(BR)RF_SW_OPT

121118
SS Bead -> SUNLORD Bead

R3705 : 1k -> 0 ohm

C3701

0.1uF
16V

close to TUNER

+1.23V_TUNER

R3798
1K

(BR)FULL_NIM

(BR)FULL_NIM

C3754

0.1uF
16V

close to TUNER

TU_GND_A

L3706

120OHM

(BR)FULL_NIM

C3718

0.1uF
16V

(BR)FULL_NIM

(BR)FULL_NIM

TU3700

TDSS-G501D(B)

(EU/ASIA)SI2156_DVB_1INPUT_H

B1

B1

BR_RESET_DEMOD

R3799
10K

(OPT)(BR)FULL_NIM_D_DEMODE_0

(OPT)(BR)FULL_NIM_D_DEMODE_0

R3801
0

(OPT)(BR)FULL_NIM_D_DEMODE_0

R3802
0

(OPT)(BR)FULL_NIM_D_DEMODE_0

R3803
0

R3804
0

RF_SWITCH_CTL

12

1

2

3

4

5

6

7

8

9

10

11

A1

SHIELD

12.08.14
diagonal noise improve

NC_1

RESET

SCL

SDA

3.3V

NC_2

1.8V

C3702

0.1uF 16V
(BR)FULL_NIM

NC_3

IF_AGC

DLIF_[P]

DLIF_[N]

A1

TU_GND_A

R3801-1*
47

(BR)FULL_NIM_D_DEMODE_47

R3802-1*
47

(BR)FULL_NIM_D_DEMODE_47

R3803-*1
47

(BR)FULL_NIM_D_DEMODE_47

R3804-*1
47

(BR)FULL_NIM_D_DEMODE_47

OPT
C3703

0.1uF

16V

close to TUNER

+3.3V_TU

R3733
100K

R3732
100

C3710

0.1uF
16V

Close to the tuner

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

FE_TS_DATA[0]

R3761 10
(NON_BR)HALF_NIM
R3760 10
(NON_BR)HALF_NIM

TUNER_RESET

121118
Apply TU_I2C_FILTER
(18pF->20pF)

R3762
2K
OPT

C3737

C3738

100pF

0.1uF

50V

16V

(OPT)TU_I2C_FILTER

(OPT)TU_I2C_FILTER

C3711
20pF
50V

C3750
5pF
50V
OPT

+1.8V_TUNER

R3735-*1

R3736-*1

C3751
5pF
50V

OPT

C3705
100uF
16V

OPT

TU_I2C_NON_FILTER

R3735

R3736

TU_I2C_NON_FILTER
C3713
20pF
50V

R3780

3.3
OPT

C3716

0.1uF
16V
(NON_BR)HALF_NIM

(KR)TU_IIC_ATSC_1.8K

33

33

C3742
20pF
50V

R3784 0

R3781

3.3

R3782

OPT
2K
OPT

close to the tuner pin, add,09029

C3704 100

(NON_BR)HALF_NIM

should be guarded by ground

R3741-*3

2.2K
(BR)TU_IIC_2.2K

R3740-*3

2.2K

(BR)TU_IIC_2.2K

R3741-*2

1.2K

(US)TU_IIC_ATSC_1.2K

R3740-*2

1.2K
(US)TU_IIC_ATSC_1.2K

R3740-*1
1K

+3.3V_TU

R3740

1.8K

R3783 0

(BR)FULL_NIM

(BR)FULL_NIM

C3743
20pF
50V

(ASIA)TU_IIC_NON_ATSC_1K

R3741-*1
1K
(ASIA)TU_IIC_NON_ATSC_1K

R3741

1.8K
(KR)TU_IIC_ATSC_1.8K

121118
Apply TU_I2C_FILTER

IF_P_MSTAR

IF_N_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils
Ground Width >= 24mils

L3707

UBW2012-121F

(NON_EU)3.3V_TU

C3707

C3739

100pF

10uF

50V

10V

OPT

IF_AGC_MAIN

R3775
0

(BR)TU_NON_BUFFER_SIF

R3753

TU_SCL

TU_SDA

R3756 0

(OPT)(BR)TU_NON_BUFFER_VIDEO

R3749 0

(BR)TU_BUFFER_VIDEO

(EU)3.3V_TU

L3707-*10

4.7K

(OPT)(BR)TU_BUFFER_SIF

(BR)TU_BUFFER_VIDEO

R3750
1K
OPT

1/8W

+3.3V_TU

C3708

C3706

0.1uF

100uF

16V

16V

OPT

+3.3V_TU

B

+3.3V_TU

R3751
220

B

E

C

FE_AGC_SPEED_CTL
IF_AGC_SEL

FE_BOOSTER_CTL
LNA2_CTL

(OPT)(BR)TU_BUFFER_SIF

R3774
470

(BR)FULL_NIM

R3758
82

E

Q3705
MMBT3906(NXP)

(OPT)(BR)TU_BUFFER_SIF

C

R3752
220

(BR)TU_BUFFER_VIDEO

Q3703
MMBT3906(NXP)

(BR)TU_BUFFER_VIDEO

TU_SIF

TU_CVBS

TUNER MULTI-OPTION

TU3700-*2
TDSS-H501F(B)

(US/KR)SI2158_ATSC_1INPUT_H

NC_1

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

NC_2

6

+B2[1.8]

7

NC_3

8

IF_AGC

9

DIF[P]

10

DIF[N]

11

X

B1

A1

A1

12

SHIELD

TU3704-*1
TDSN-T601F

(OPT)SI2176_TW_2INPUT_H

B1

28

SHIELD

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

A1A1B1

1

2

3

4

5

6

7

8

9

RF_S/W_CTL

RESET_TUNER

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

IF_AGC

DIF[P]

DIF[N]

NC_1

NC_2

NC_3

GND

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

TW_FE_LNA FILTER_SETTING

Frequence

54MHz~350MHz

350Hz~450MHz

450Hz~870MHz

CTRL_1

1

0

0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

CTRL_2

0

0

1

Filter_Type

LPF

Through

HPF

+3.3V_TU

60mA

29MN33

GLOBAL TUNER

C3723
22uF
10V

121118
SS Bead -> SUNLORD Bead

Size change,0929
2012 SIZE

L3703

UBW2012-121F

C3725

0.1uF
16V

Add,0929

C3715
22uF
10V

EAX64998104

+3.3V_TUNER

C3727

0.1uF
16V

2012.11.18
26 12

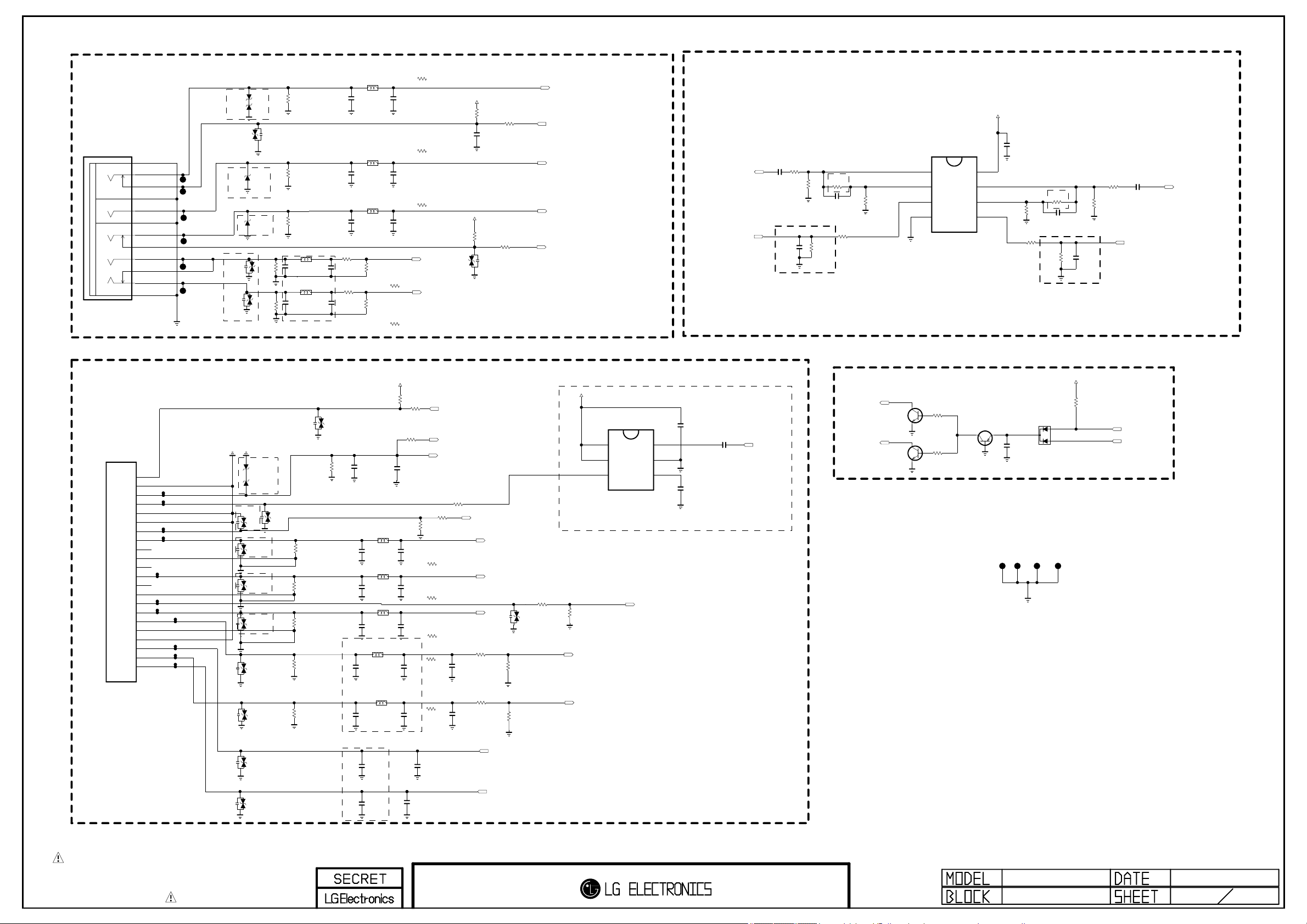

SCART / COMPONENT&CVBS

COMPONENT&CVBS

[GN]E-LUG

6A

[GN]O-SPRING

5A

[GN]CONTACT

4A

[BL]E-LUG-S

7B

[BL]O-SPRING

5B

[RD]E-LUG-S

7C

[RD]O-SPRING_1

5C

[RD]CONTACT_1

4C

5D

[WH]O-SPRING

4E

[RD]CONTACT_2

5E

[RD]O-SPRING_2

6E

JK2800

[RD]E-LUG

PPJ234-05

FULL SCART

AV_DET

22

COM_GND

21

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

JP2800

JP2801

JP2802

JP2803

JP2804

JP2805

JP2806

JP2807

JP2808

JP2809

SCART JACK

JK2801

PSC008-01

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

JP2810

JP2811

JP2814

JP2815

JP2812

JP2813

121017

ZD2801

Change

5.6B

ZD2800

5.6B

121017
Change

121017
Change

D2815

D2816

5.6V

121229
OPT -> APPLY for ESD

121219
OPT->APPLY

120927
OPT->APPLY

120927
OPT->APPLY

OPT

D2817

5.6V

ZD2803

5.6B

ZD2802

5.6B

(OPT)COMP_ADC_FILTER_L(AUDIO)

R2825
470K

5.6V

R2826

470K

SCART JACK

ZD2805

5.6B

ZD2804

5.6B
SCART JACK

D2802

20V

SCART JACK

D2803

20V

SCART JACK

D2804

20V

D2805
20V

SCART JACK

120927
OPT->APPLY

OPT

D2806

20V

OPT

D2808

20V

OPT

D2807

20V

OPT

D2800

20V

(OPT)COMP_ADC_FILTER

R2822

75

R28 24

75

R28 23

75

CM2012FR10KT

C2837
1000pF
50V

(OPT)COMP_ADC_FILTER_L(AUDIO)

L2812

CM2012FR10KT

C2838

1000pF
50V

OPT:
COMP_ADC_FILTER(AUDIO)

OPT

D2809

20V

SCART JACK
R2806
75

SCART JACK

R2802
75

SCART JACK

R2803
75

SCART JACK

R2804
470K

SCART JACK

R2805
470K

C2829
47pF
50V

(OPT)COMP_ADC_FILTER

C2827
47pF
50V

(OPT)COMP_ADC_FILTER

C2825
47pF
50V

L2811

C2810
47pF

OPT

SCART JACK

(OPT)SCART_ADC_FILTER

(OPT)SCART_ADC_FILTER

(OPT)SCART_ADC_FILTER

50V

C2811
47pF
50V

R2807
75

(OPT)COMP_ADC_FILTER(AUDIO)

D2810

20V

(OPT)COMP_ADC_FILTER_L

CM2012FR10KT

(OPT)COMP_ADC_FILTER_L

CM2012FR10KT

(OPT)COMP_ADC_FILTER_L

CM2012FR10KT

R2832
10K

R2831
10K

SCART JACK
C2800
47pF
50V

(OPT)SCART_ADC_FILTER_L

(OPT)SCART_ADC_FILTER_L

(OPT)SCART_ADC_FILTER_L

(OPT)SCART_ADC_FILTER_L(AUDIO)

CM2012FR10KT

C2839
1000pF
50V

(OPT)SCART_ADC_FILTER_L(AUDIO)

C2841
1000pF
50V

COMP_NON_ADC_FILTER

L2807

(OPT)COMP_ADC_FILTER

C2830
47pF
50V

COMP_NON_ADC_FILTER

L2806

(OPT)COMP_ADC_FILTER

C2828
47pF
50V

COMP_NON_ADC_FILTER

L2805

(OPT)COMP_ADC_FILTER

C2826
47pF
50V

R2834
12K

COMP_NON_ADC_FILTER(AUDIO)

L2811-*1
0

R2833
12K

COMP_NON_ADC_FILTER(AUDIO)

L2812-*1
0

+3.3V_Normal

SCART JACK

SCART JACK

R2808

4.7K

SCART JACK

R2809

OPT
C2802
220pF
50V

L2808

CM2012FR10KT

C2831
47pF
50V

CM2012FR10KT

C2833
47pF
50V

CM2012FR10KT

C2835
47pF
50V

CM2012FR10KT

121019
ADC_FILTER(AUDIO) ADD

(OPT)SCART_ADC_FILTER

C2832
47pF
50V

L2809

(OPT)SCART_ADC_FILTER

C2834
47pF
50V

L2810

(OPT)SCART_ADC_FILTER

C2836
47pF
50V

L2813

SCART_NON_ADC_FILTER(AUDIO)

(OPT)SCART_ADC_FILTER(AUDIO)

L2814

SCART_NON_ADC_FILTER(AUDIO)

(OPT)SCART_ADC_FILTER(AUDIO)

C2803
1000pF
50V

130124
OPT->APPLY for EMS S2a

C2804
1000pF
50V

L2807-*1
0

L2806-*1
0

L2805-*1
0

COMP_L_IN

COMP_R_IN

R2810

1K

0

SCART JACK

R2815

SCART JACK

R2811
75

SCART_NON_ADC_FILTER

L2808-*1
0

SCART_NON_ADC_FILTER
L2809-*1
0

SCART_NON_ADC_FILTER

L2810-*1
0

L2813-*1
0

C2840
47pF
50V

L2814-*1
0

C2842
47pF
50V

OPT
C2807
4700pF

OPT
C2808
4700pF

R2837

10K

+3.3V_Normal

SCART1_DET

SC1_SOG_IN

SC1_CVBS_IN

SCART JACK

R2816

75

22

C2805
330pF
50V

OPT

C2806

330pF

50V

+3.3V_Normal

C2813

0.1uF

R2841

10K

OPT

D2818

5.6V

SC1_FB

SCART JACK

R2812
10K

OPT

SCART JACK

R2813
10K

R2838

1K

16V

R2842

1K

SC1_R+

SC1_G+

SC1_B+

DTV/MNT_L_OUT

DTV/MNT_R_OUT

SCART JACK
D2811

20V

SCART JACK

R2818
12K

SCART JACK
R2819
12K

SCART JACK

R2814

15K

COMP_Y+/AV_CVBS_IN

AV_CVBS_DET

COMP_Pb+

COMP_Pr+

COMP_DET

121118
Change FET -> OP AMP

+3.3V_Normal

SCART JACK

R2817

3.9K

SC1_L_IN

SC1_R_IN

SCART AMP

+5V_USB

C2817

VCC

OUT2

IN2-

IN2+

Q2804

1

(OPT)EU_SCART mute

2

0.1uF
50V

R2855

10K

R2849

5.6K

(OPT)EU_SCART mute

C2816

0.1uF

JP2816

JP2817

130114
33K->5.1K

R2853

5.1K

C2824

33pF

R2843

220K

CLOSE TO MSTAR

(OPT)EU_SCART mute

D2819

MMBD6100

A2

C

A1

JP2818

JP2819

R2850

470K

C2819
330pF

+3.3V_ST

R2844

R2846

2.2K

C2822

10uF

16V

SCART1_Rout

10K

SCART1_MUTE

SB_MUTE

DTV/MNT_R_OUT

IC2800

AZ4580MTR-E1

OUT1

1

IN1-

2

IN1+

3

VEE

4

8

7

6

5

DTV/MNT_L_OUT

SCART1_Lout

C2821
10uF
16V

330pF
C2820

R2847

2.2K

R2851
470K

220K

R2845

130114
33K->5.1K

R2852

5.1K

C2823
33pF

R2848

5.6K

R2854
10K

CLOSE TO MSTAR

[SCART AUDIO MUTE]

Q2802

Q2803

(OPT)EU_SCART mute

R2839

2K

(OPT)EU_SCART mute

R2840

2K

(OPT)EU_SCART mute

MMBT3906(NXP)

3

DTV/MNT_L_OUT

DTV/MNT_R_OUT

(OPT)EU_SCART mute

MMBT3904(NXP)

(OPT)EU_SCART mute

MMBT3904(NXP)

SCART JACK

IC2801

MM1756DURE

VCC

6

PS

5

OUT

4

1

2

3

SC1_ID

IN

GND

BIAS

C2812

0.1uF
SCART JACK

C2815

4.7uF
SCART JACK

C2814

0.1uF

SCART JACK

DTV/MNT_VOUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX64998104

29MN33

SCART&COMP 28 13

2012.11.18

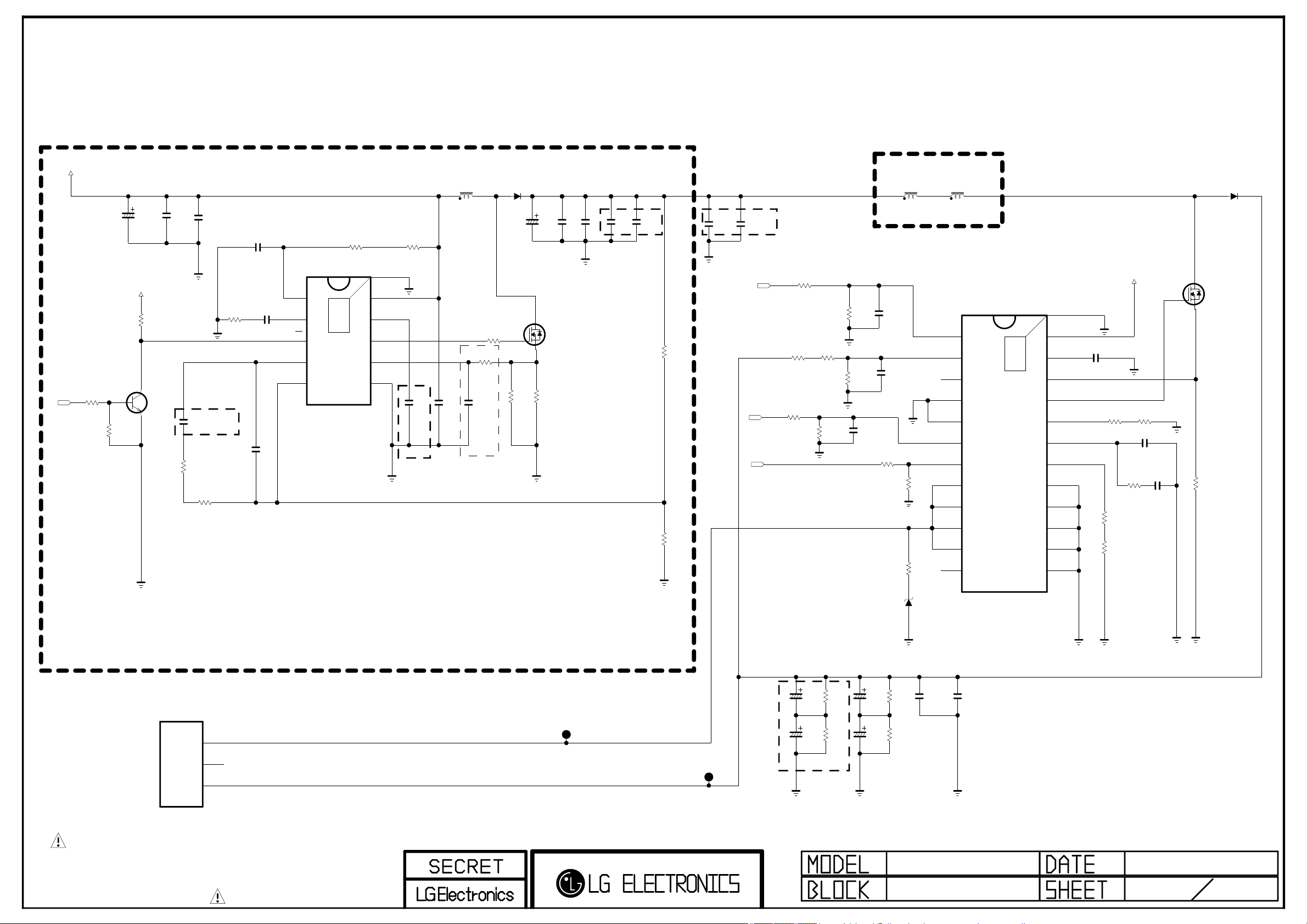

TOTAL LED DRIVER BLOCK

REDUCE INDUCTOR TEMP ISSUE

+19V

MULTI_ON

R2901

4.7K

R2902

10K

C2901

+3.3V_ST

B

47uF
25V

10K

1/16W

R2903

C

Q2901
MMBT3904(NXP)

E

C2902

C2903

10uF

0.1uF

25V

50V

OPT

C2904

0.033uF
50V

121118
Change 2012 -> 1608
for cost down

1%

1/16W

18K

R2904

R2905
1K

1/16W
1%

R2906
10K

1/16W

C2905
100pF

50V

C2907

0.22uF

C2906

16V

470pF
50V

DIS/EN

COMP

RC

1

SS

2

3

4

FB

5

R2909
220K

1/16W

IC2901

TPS40210DGQR

11

THERMAL

47K

1%

R1147

L1102

33uH

OVP

NC_1

PGND_1

PGND_2

PDIM

RISET

LS8

LS7

LS6

LS5

NC_2

EN

IC1100

DT1641AS

1

2

3

4

5

6

7

8

9

10

11

12

25

THERMAL

24

23

22

21

20

19

18

17

16

15

14

13

[EP]GND

VIN

VREF

CS

NDRV

RSS

COMP

RT

LS1

LS2

LS3

LS4

LGND

C1122 1uF

25V

220K

R1131

39K
1%

R1133

1.5K
1%

R1132

+19V

1%

4700pF

R1135

1.5K 1%

R1134

30K

C1123

50V

1%

C1125

0.1uF
25V

D1103

UF3D(SUZHOU GRANDE)

D

Q1103
SMK630D

G

S

R1137

0.1
1%
1W

50V

C1116
100pF
50V

C1114
1000pF
50V

R1123
75K

1%

L1101

33uH

R1124

L2901

33uH

R2911
30K

1/16W

[EP]

VDD

10

BP

9

GDRV

8

ISNS

7

GND

6

C2908

C2909

1uF

0.1uF

25V

50V

121118
Change 10V -> 25V
for derating

R2914

3.9K

1/16W
1%

C2910
330pF
50V

121211
1K -> 3.9K
220p -> 330p

R2913

3.3

1/16W

D2901
BR210

100V

R2915

0.1

G

1W

D

S

R2916

0.1

C2911
33uF
100V

Q2902
AOD478

1W

C2912
1uF
100V

VOUT#1=53.2V

C2913
1uF
100V

REDUCE RIPPLE CURRENT REDUCE RIPPLE CURRENT

C2914
1uF
100V

C2915
1uF
100V

R2912

51K

1/16W

1%

C2916
1uF
100V

C2917
1uF
100V

WLED_ENABLE

R1121
100

WLED_DIM_ADJ

BLU_CURRENT_CTL

R1126
120K

1/8W
1%

R1127
100

R1100
270K

1/8W
1%

R1122

100K

R1129

100K

1%

R1128

6.2K
1%

C1111

100pF

VOUT = VREF*(1+51K/680)
= 0.7 *(1+51K/680)
= 53.2V

R2907
680
1/8W
1%

10K

FIRST BOOST UP

JP1101

P1101

SMAW200-03

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3

2

1

VOUT#2

JP1102

REDUCE RIPPLE CURRENT

C1129
33uF
100V

C1130

33uF
100V

R1148
1/8W

R1149
1/8W

C1124

1M

33uF
100V

1%

C1126

33uF

1M

100V

1%

33V

ZD1102

R1145

1M

1/8W

1%

R1146

1M

1/8W

1%

C1127

0.1uF
250V

C1128

0.1uF
250V

EAX64998104

29MN33

LED DRIVER 29 13

2012.11.18
