Colour Television
OWNER’S MANUAL
ME06
Please read this manual carefully before operating your set. Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this information to your dealer when you require service.
Model number |
: |
Serial number |
: |
Contents
Installation |
3 |
Location and function of controls |
4 |
Remote control handset / Battery installation |
|
Front panel / Side panel |
|
Basic operation |
8 |
On and off / Programme selection |
|
Volume adjustment / Quick view |
|
Mute function / Auto Demonstration |
|
On screen language selection (option) |
|
On screen menus |
9 |
Menu selection |
|
Setting up TV stations |
10 |
Auto programme tuning |
|
Manual programme tuning |
|
Fine Tuning / Programme edit |
|
Favourite programme |
|
Calling the programme table |
|
Picture adjustment |
15 |
PSM (Picture Status Memory) / XD / Cinema (option) |
|
VM (Velocity Modulation) / Virtual HD (option) |
|
Picture adjustment / Eye (option) |
|
Turbo picture selection (option) / Picture format |
|
Sound adjustment |
19 |
SSM (Sound Status Memory) / Sound adjustment |
|
X-WAVE (Wireless Sound) (option) |
|
Turbo sound selection (option) |
|
Sound output selection / Stereo/Dual reception |
|
NICAM reception (option) |
|
Time setting |
22 |
Setting the clock / Setting the On/Off timer |
|
Auto sleep |
|
Other functions |
23 |
TV and AV modes / Auto AV switching (option) |
|
Child lock / XD Demo (option) / Blue back (option) |
|
Tilt / Degaussing (option) / Sleep timer |
|

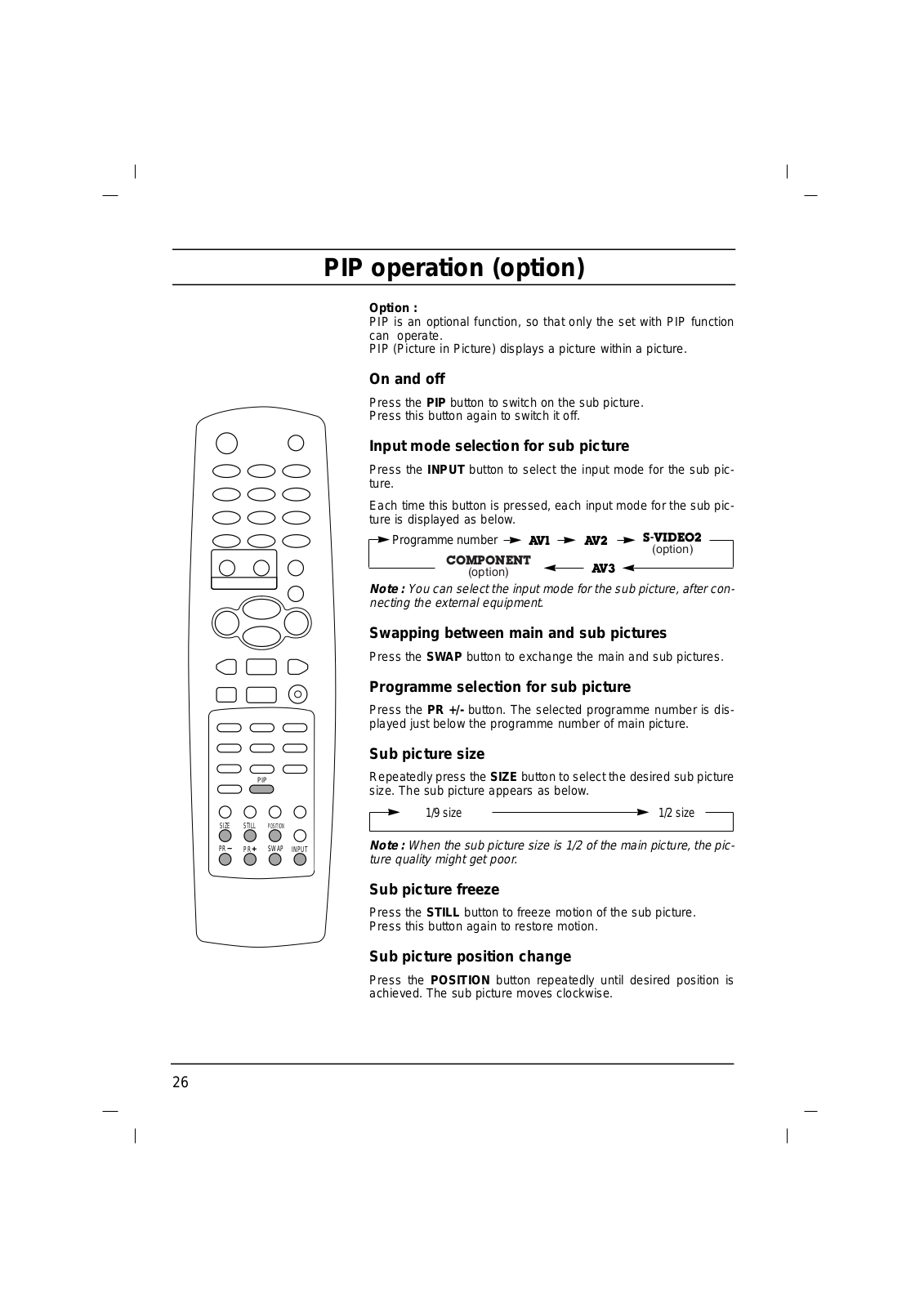

PIP operation (option) |
26 |
On and off / Input mode selection for sub picture |
|
Swapping between main and sub pictures |
|
Programme selection for sub picture |
|
Sub picture size / Sub picture freeze |
|
Sub picture position change |
|
Teletext (option) |
27 |
Switch on/off |
|
SIMPLE text / TOP text (option) |
|
FASTEXT / Special teletext functions |
|
Connection of external equipment |
30 |
Aerial socket |
|
Audio/Video in/out sockets (option)
Euro scart sockets (option)
S-Video/Audio in sockets (S-AV) (option)
Component in sockets
DTV in sockets / AV out sockets
Headphone socket (option)
Troubleshooting check list
2
Installation
Power
This set operates on an AC mains supply, the voltage is as indicated on the label on the back cover. Never apply DC power to the set. In the event of thunderstorms or powercuts, please pull out the aerial and mains plugs.
Warning
To prevent fire or shock hazard, do not expose the set to rain or moisture.
Do not place anything containing liquid on top of the set, this may cause a fire or could give an electric shock.
The working life of this set is 7 years since the date of delivery to consumer.
Service
Never remove the back cover of the set as this can expose you to very high voltage and other hazards. If the set does not operate properly, unplug it and call your dealer.
Aerial
Connect the aerial cable to the socket marked on the back cover. For the best reception an outdoor aerial should be used.
Location
Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken not to expose the set to any unnecessary vibration, moisture, dust or heat. Also ensure that the set is placed in a position to allow a free flow of air. Do not cover the ventilation openings on the back cover.
3
Location and function of controls
1
2
3
4
5
6
21
7
8
9
10
11
10
POWER |
MUTE |
1 |
|
2 |
3 |
4 |
|
5 |
6 |
7 |
|
8 |
9 |
ARC |
|
0 |
TV/AV |
SOUND |
|
PICTURE |
MENU |
|
|
||
T U R B O |
OK |
||
|
|||
VOL |
|
PR |
VOL |
|
|
||
|
|
PR |
|
REW |
|
PLAY |
FF |
FAVOURITE |
STOP |
REC |
|
I/II |
|
SSM |
LIST |
PSM |
SLEEP |
EYE/ |
|
MAIN STILL/ |
INDEX/ |
Q.VIEW |
|
TEXT |
|
|
|
MIX |
TIME |
REVEAL |
? MODE M |
SIZE |
STILL |
UPDATE |
i |
All the functions can be controlled with the remote control handset. Some functions can also be adjusted with the buttons on the
front panel of the set.
12
Remote control handset
Before you use the remote control handset, please install the batteries. See the next page.
13 1. POWER
switches the set on from standby or off to standby.
14
2.NUMBER BUTTONS
Switches the set on from standby or directly select a number.
3.ARC (Aspect Ratio Control) changes the picture format.
4.TURBO PICTURE BUTTON / SOUND BUTTON (option) selects Turbo picture/sound.
5.D / E (Programme Up/Down)
15selects a programme or a menu item.
16switches the set on from standby.
17F / G (Volume Up/Down) adjusts the volume.
18adjusts menu settings.
19OK
accepts your selection or displays the current mode.
6.VCR BUTTONS (option)
control a LG video cassette recorder.
7.I/II
selects the language during dual language broadcast. selects the sound output (option).
(With TELETEXT / Without PIP) |
8. |
PSM (Picture Status Memory) |
|||
|
|
|
|
|
recalls your preferred picture setting. |
|
|
|
|
9. |
SLEEP |
I/II |
|
SSM |
LIST |
|
sets the sleep timer. |
|
|
|
|||
PSM |
SLEEP |
EYE/ |
10. |
MAIN STILL/ (or STILL) |
|
MAIN STILL/ INDEX/ |
Q.VIEW |
|
freezes motion* of the picture. |
||
TEXT |
PIP |
|
11. |
TELETEXT BUTTONS (option) |
|
|
|
|
20 |
|
These buttons are used for teletext. |
MIX |
TIME |
|
|
For further details, see the ‘Teletext’ section. |
|
REVEAL ? MODE M |
|
||||
SIZE |
STILL |
POSITION |
i |
12. |
MUTE |
|
|
|
|
||
PR |
PR |
SWAP |
INPUT |
|
switches the sound on or off. |
13.TV/AV
selects TV or AV mode.
switches the set on from standby.
4
|
Location and function of controls |
|
|
|||
14. MENU |
|
|
|
|
|
|
selects a menu. |
|
POWER |
|
MUTE |
|
|
15. LIST |
|
1 |
1 |
2 |
3 |
12 |
displays the programme table. |
|
|
||||
16. SSM (Sound Status Memory) |
|
4 |
5 |
6 |
|
|
recalls your preferred sound setting. |
2 |
7 |
8 |
9 |
|
|
|
|
|
|
|||
17. EYE/ |
(option) |
|
ARC |
0 |
TV/AV |
|
switches* the eye function on or off. |
3 |
|
||||
|
|
|
13 |
|||
|
|
|
|
|
||
|
|
|
|
|
MENU |
|
18. Q.VIEW |
|
SOUND |
PICTURE |
|
||
|
|
|
||||
4 |
|
|
|
14 |
||
returns to the previously viewed programme. |
T U R B O |
OK |
||||
|
|
|
|
|||
19. INDEX/* (option) |
|
|
|
|||
|
|
PR |
|
|
||
switches FRONT DISPLAY on or off. |
5 |
VOL |
|
VOL |
|
|
20. PIP BUTTONS (option) |
|
PR |
|
|
||
|
|
|
|
|||
PIP |
|
|
|
|
|
|
switches the sub picture on or off. |
|
REW |
PLAY |
FF |
|
|
PR +/- |
|
6 |
|
|
|
|
selects a programme for the sub picture. |
FAVOURITE |
STOP |
REC |
|
||
|
|
|||||
SWAP |
|
21 |
|
|
|
|
alternates between main and sub picture. |
|
|
|
|
||
|
|
|
|
|
||
INPUT |
|
|
I/II |
SSM |
LIST |
15 |
selects the input mode for the sub picture. |
|
|||||
7 |
|
|
|
|||
SIZE |
|
PSM |
SLEEP |
EYE/ |
16 |
|
|
8 |
|||||
adjusts the sub picture size. |
|
|
|
17 |
||
STILL |
|
9 |
MAIN STILL/ |
|
Q.VIEW |
18 |
freezes motion of the sub picture. |
10 |
|
|
|
||
POSITION |
|
|
|
|
|
|
relocates the sub picture in clockwise direction. |
|
|
|
|
|
|
21. FAVOURITE |
|
|
|
|
|
|
selects a favourite programme. |
|
|
|
|
|
|
* : No function |
|
|
|
|
|
|
COLOURED BUTTONS : These buttons are used for teletext (only |
|
|
|
|
|
|
TELETEXT models) or programme edit. |
|
|
|
|
|
|
Battery installation |
|
(Without TELETEXT / PIP) |
|
|||
|
|
|
|
The remote control handset is powered by two AA type batteries. To load the batteries, turn the remote control handset over and open the battery compartment. Install two batteries as indicated by the polarity symbols ( + and - ) marked inside the compartment.
Note : To avoid damage possible battery leakage, remove the batteries if you do not plan to use the remote control handset for an extended period of time.
FAVOURITE |
STOP |
REC |
|
I/II |
SSM |
LIST |
|
PSM |
SLEEP |
EYE/ |
|
MAIN STILL/ |
INDEX/ |
Q.VIEW |
|
|
PIP |
|
|
|
|
|
20 |
SIZE |
STILL |
POSITION |
|
PR |
PR |
SWAP |
INPUT |
(Without TELETEXT / With PIP)
5
Location and function of controls
Front panel
29/32FS2 series |
29FC9 series |
|
|
3 |
|
|
|
|
|
|
|
3 |
MENU |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
OK |
|
|
|
|
4 |
|
|
|
|
|
|
|
ON/OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
5 |
|
|
|
|
PR |
4 |
|
|
|
|
|
2 |
7 |
|
1 |
2 5 |
7 |
|
VOL |
|
|
|
|
|
|
|||
29/32FS4 series |
|
|
|
25/29FX5 series |
|
|
|
|
|
|
|
|
MENU |
3 |
|
|
|
|
|
OK |
|
|
|
|
|
|
VOL |
4 |
1 |
2 5 |
3 |
4 |
7 |
|
|
|
|
|
25/29FB9 series |
|
|
||||
|
|
|
|
|
PR |
|
|
|
|
|
|
1 |
ON/OFF |
|
|
|
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
29FY1 series |
|
|
1 |
2 5 |
3 |
4 |
|
|
7 |
||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
25/29CC2 series |
|
|
|
|||
|
|
|
|
|
|
|
|
|
MENU OK |
VOL |
PR |
|
|
|
|
|
ON/OFF |
|
|
|
|
|
|
7 |
5 |
1 |
2 |
3 |
4 |
1 |
2 |
5 |
3 |
|
4 |
|
|
|
|
|
|
25/29FA5 series |
|
|
|
25/29FX6 series |
|
|
|
|
|
|
|
|
MENU VOL |
PR |
OK |
|
5 |
|
|
|
|
|
7 |
1 |
3 |
4 |
2 5 |
7 |
2 |
25/29FE6 series |
|
|
|
|
1 |
2 5 |
3 |
4 |
29FB5 series |
|
|
|
||
25/29FC1 series |
|
|
|
MENU OK |
VOL |
VIDEO L |
R |
||
|
|
|
|
|
|
PR |
|
||
|
|
|
|
ON/OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
AV IN3 |
|
|
|
|
MENU OK |
VOL PR |
|
|
|
|
|
|
|
|
|
1 |
2 5 |
3 |
4 |
6 |
7 |
1 |
2 |
5 |
3 |
4 |
|
|
|
|
|
6
|
|
Location and function of controls |
||||||
25/29FA3 series |
|
|
|
1. |
MAIN POWER (ON/OFF) |
|||
|
|
|
|
|
|
|
switches the set on or off. |
|
|
MENU OK VOL |
PR |
|
|
2. |
POWER/STANDBY INDICATOR |
||
ON/OFF |
|
|
|
|
|
|||
1 |
23 |
4 |
5 |
8 |
6 |
7 |
illuminates brightly when the set is in standby |
|
mode. |
||||||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
dims when the set is switched on. |
29FC2 series |
|
|
|
3. |
MENU |
|
|
|
|
|
|
||
|
|
|
|
|
|
selects a menu. |
|
|
|
|
|
4. |
OK |
1 |
2 |
5 |
3 |
4 |
|
accepts your selection or displays the current |
|
mode. |
|||||
29FX4 series |
|
|
|
|
F / G (Volume Down/Up) |
|
|
|
|
|
|
|
adjusts the volume. |
|
|
|
|
|
|
adjusts menu settings. |
|
|
|
|
|
|
D / E (Programme Up/Down) |
|
|
|
|
|
|
selects a programme or a menu item. |
|
|
|
|
|
|
switches the set on from standby. |
|
|
|
|
7 |
5. |
REMOTE CONTROL SENSOR |
|
|
|
|
|
|
Note : Only use the supplied remote control |
|
|
|
|
|
|
handset. (When you use others, they will not |
|
|
|
|
|
|
be able to function.) |
29Q9 series |
6. AUDIO/VIDEO IN SOCKETS (AV IN3) |
MENU |
VOL |
SOUND |
ON/OFF |
|
TURBO |
OK |
PR |
PICTURE |
1 |
2 5 |
3 |
4 |
9 |
7 |
Side panel
Connect the audio/video out sockets of external equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-VIDEO
VCR to the audio sockets as in AV IN3.
8
6
<![endif]>VIDEO-S VIDEO
<![if ! IE]><![endif]>L/MONO
<![if ! IE]><![endif]>AUDIO
R AV IN3
<![endif]>VIDEO-S VIDEO
<![if ! IE]><![endif]>L/MONO
<![if ! IE]><![endif]>AUDIO
R AV IN3
AV IN3
<![if ! IE]><![endif]>VIDEO-S VIDEO
<![if ! IE]><![endif]>L/MONO
<![if ! IE]><![endif]>AUDIO
<![if ! IE]><![endif]>R
7.EYE (option)
adjusts picture according to the surrounding conditions.
8.HEADPHONE SOCKET (option)
6Connect the headphone plug to this socket.
9.TURBO SOUND / PICTURE (option) switches Turbo sound or Turbo picture function on or off.
7
Basic operation
POWER
1 |
2 |
4 |
5 |
7 |
8 |
ARC |
0 |
SOUND |
PICTURE |
T U R B O
PR
VOL
PR
I/II SSM
On and off
1. Press the main power button to switch the set on.
2. If the set is in standby mode, press the POWER, D / E, TV/AV or NUMBER buttons on the remote control handset to switch it on fully.
3. Press the POWER button on the remote control handset. The set reverts to standby mode.
4. Press the main power button again to switch the set off.
Note : If, while the set is switched on, the mains plug is discon-
MUTE |
nected the set will switch to standby or power on when the mains |
|
|
||
|
plug is replaced in the mains power socket. |
|
3 |
Programme selection |
|
6 |
||
You can select a programme number with the D / E or NUMBER |
||
|
||
9 |
buttons. |
|
TV/AV |
Volume adjustment |
|
|
||
MENU |
Press the F / G button to adjust the volume. |
|
|
||
OK |
Quick view |
|
|
Press the Q.VIEW button to view the last programme you were |
|
VOL |
watching. |
|
|
Mute function |
|
|
Press the MUTE button. The sound is switched off and the display |
|
|
W appears. |
|
|
You can cancel it by pressing the MUTE, F / G, SSM, I/II, TURBO |
|
|
SOUND button. |
|
|
Auto Demonstration |
|
Q.VIEW |
To review all the menus programmed in the set, press the OK but- |
|
|
||
|
ton of the panel control for about 10 seconds. To stop auto demon- |
|
|
stration, press any button of the panel control or POWER button of |
|
|
the remote control. |
|
|
On screen language selection (option) |
|
|
The menu can be displayed on the screen in desired language. |
|
|
First select your language. |
|
|
1. Press the MENU button and then D / E button to select the |
|
|
Special menu. |
|
|
2. Press the G button and then D / E button to select Language. |
|
|
3. Press the G button and then D / E button to select your desired |
|
|
language. |
|
|
All the on screen displays will appear in the selected language. |
|
|
Press the OK or F button to select the Special menu. |
|
|
4. Repeatedly press the MENU button to return to normal TV |
|
|
viewing. |
8
On screen menus
The dialogue between you and your set takes place on screen with an operator menu. The buttons required for the operating steps are also displayed.
Menu selection
1.Press the MENU button and then D / E button to display each menu.
2.Press the G button and then D / E button to select a menu item.
3.Press the G button to display the sub menu or the pull-down menu.
4.Change the setting of an item in the sub or pull-down menu with
the F / G or D / E.
You can move to the higher level menu with the OK or F but-
ton and to move to the lower level menu press the G button.
Note :
a.In the teletext mode, menus are not displayed.
b.In some models, the Normal/Turbo search will not display, only the Start will display in the Auto programme menu.
c.On some models, the Language, Cinema, XD Demo,
X-WAVE or Virtual HDwill not display.
Station
|
AutoOprogramme |
{ |
|
|
ManualOprogramme |
{ |
|
|
Program meOedit |
{ |
|
|
FavouriteOprogramme |
{ |
|
|
|
|
|
|
|
|
|
|
|
|
|
()O}{OOKOMENU
|
Station menu |
||
|
Picture |
|
|
|
PSM |
{ |
|
|
XD |
{ |
|
|
Cinema |
{ |
|
|
VM |
{ |
|
|
VirtualOHD |
{ |
|
|
Contrast |
{ |
|
|
Brightness |
{ |
|
|
Colour |
{ |
|
|
Sharpness |
{ |
|
|
()O}{OOKOMENU |
|
|
|
Picture menu |
||
|
Sound |
|
|
|
SSM |
{ |
|
|
DBS |
{ |
|
|
AVL |
{ |
|
|
Balance |
{ |
|
|
X-WAVE |
{ |
|
|
|
|
|
|
|
|
|
|
|
|
|
()O}{OOKOMENU
Sound menu
Time
|
Clock |
{ |
|
Offotime |
{ |
|
Onotime |
{ |
|
Autoosleep |
{ |
|
|
|
|
|
|
|
|
|
()O}{OOKOMENU
|
|
Time menu |
|
|
Special |
|
|
|
Language |
{ |
|
|
Input |
{ |
|
|
Childolock |
{ |
|
|
XDoDemo |
{ |
|
|
Blueoback |
{ |
|
|
Tilt |
{ |
|
|
Degauss |
{ |
|
|
|
|
|
()O}{OOKOMENU
Special menu TV programme
Auto programme
SystemS |
{ |
BG |
StorageOfrom |
{ |
I |
NormalOsearch |
{ |
DK |
TurboOsearch |
{ |
L |
|
|
|
()O}{OOKOMENU |
|
|
Manual programme |
|
|
Storage |
{ |
2 |
System |
{ |
|
Channel |
{ |
|
Fine |
{ |
|
Search |
{ |
|
Name |
{ |
|
Booster |
{ |
|
|
|
|
()O}{OOKOMENU
Programme edit
0OO0OOARCO1D03OOO5OOSO69 1OOCO03OOO6OOSO17 2OOCO12OOO7OOSO22 3OOSO66OOO8OOCO09 4OOSO67OOO9OOCO11
Copy
MoveOOOOOSkip
()}{OOKOMENU
ARC
|
MENU |
|
OK |
|
PR |
VOL |
VOL |
|
PR |
9
Setting up TV stations
Station
|
AutoOprogramme |
{ |
|
ManualOprogramme |
{ |
|
Program meOedit |
{ |
|
FavouriteOprogramme |
{ |
|
|
|
|
|
|
|
()O}{OOKOMENU |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
ARC |
0 |
|
|
|
MENU |
|
|
OK |
VOL |
PR |
VOL |
|
PR
Up to 100 TV stations can be stored by programme numbers (0 to 99). Once you have preset the stations, you will be able to use the D / E or NUMBER buttons to scan the stations you programmed.
Stations can be tuned using automatic or manual modes.
Auto programme tuning
All stations that can be received are stored by this method. It is recommended that you use auto programme during installation of this set.
1.Press the MENU button and then D / E button to select the Station menu.
2.Press the G button and then D / E button to select Auto programme.
3.Press the G button to display the Auto programme menu.
Auto programme
|
System |
{ |
BG |
|
StorageOfrom |
{ |
I |
|
NormalOsearch |
{ |
DK |
|
TurboOsearch |
{ |
L |
|
|
|
|
()O}{OOKOMENU
4.Press the G button. Select a TV system with the D / E button on the System pull-down menu;
BG : PAL B/G, SECAM B/G (Europe/East Europe) I : PAL I/II (U.K./Ireland)
DK : PAL D/K, SECAM D/K (East Europe) L : SECAM L/L’ (France)
5.Press the F button.
6.Press the D / E button to select Storage from.
7.Press the G button. Select the beginning programme number with the F / G button or NUMBER buttons on the Storage from pull-down menu. Any number under 10 is entered with a numeric ‘0’ in front of it, i.e. ‘05’ for 5.
8.Press the OK button.
9.Press the D / E button to select Normal or Turbo search. Option: In some models, you can only select Start.
Note :
a.Turbo search is faster than Normal search and in some models, these searches will automatically store all receivable stations.
b.If the programmed station has poor quality and sound, select the system again in the Manual programme menu.
10. Press the G button to begin auto programming.
|
Auto programme |
|
|
Normal search |
|
|
||
|
|
|
|
|
|
|
|
|
|
System |
{ |
|
|
|
|
|
|
|
StorageOfrom |
{ |
|
|
|
|
|
|
|
NormalOsearch |
{ |
|
|
|
|
|
|
|
TurboOsearch |
{ |
|
|
OOCO01O(BG) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
7 |
36% |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MENU
MENU
All receivable stations are stored. The station name is stored for stations which broadcast VPS (Video Programme Service), PDC (Programme Delivery Control) or TELETEXT data. If no station name can be assigned to a station, the channel number is assigned and stored as C (V/UHF 01-69) or S (Cable 01-47), followed by a number.
To stop auto programming, press the MENU button.
When auto programming is completed, the Programme edit menu appears on the screen. See the ‘Programme edit’ section to edit the stored programme.
11.Repeatedly press the MENU button to return to normal TV viewing.
10
