OWNER’S MANUAL
LED TV*
*LG LED TVs are LCD TVs with LED backlighting.
Please read this manual carefully before operating your set and retain it for future reference.
LY31**
LY33**
LY34**
LY54**
LY53**
www.lg.com
<![endif]>ENGLISH
2 TABLE OF CONTENTS
2TABLE OF CONTENTS
3LICENSES
3OPEN SOURCE SOFTWARE NOTICE
4ASSEMBLING AND PREPARING
4 Unpacking
7Separate Purchase
8Parts and Button
9- Using the Joystick button
10Lifting and Moving the TV
11Setting up the TV
11 - Attaching the stand
14 Mounting on a table

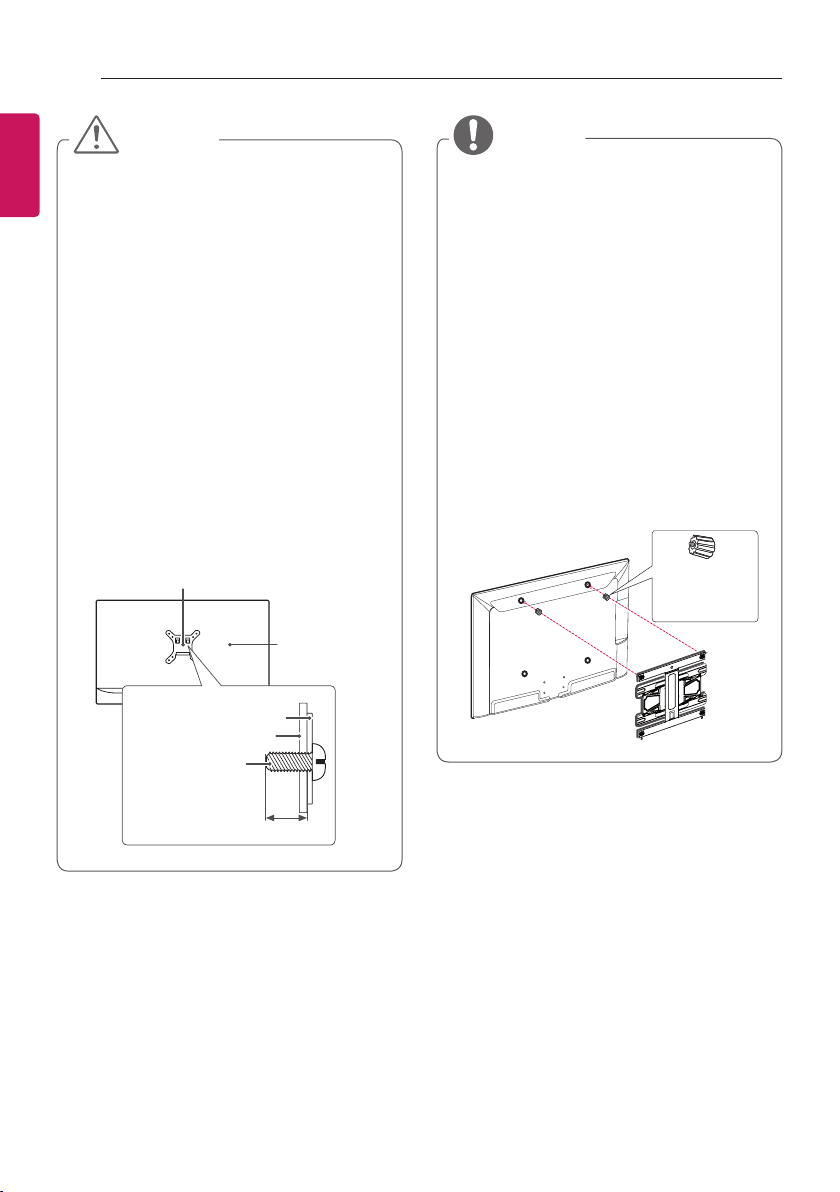

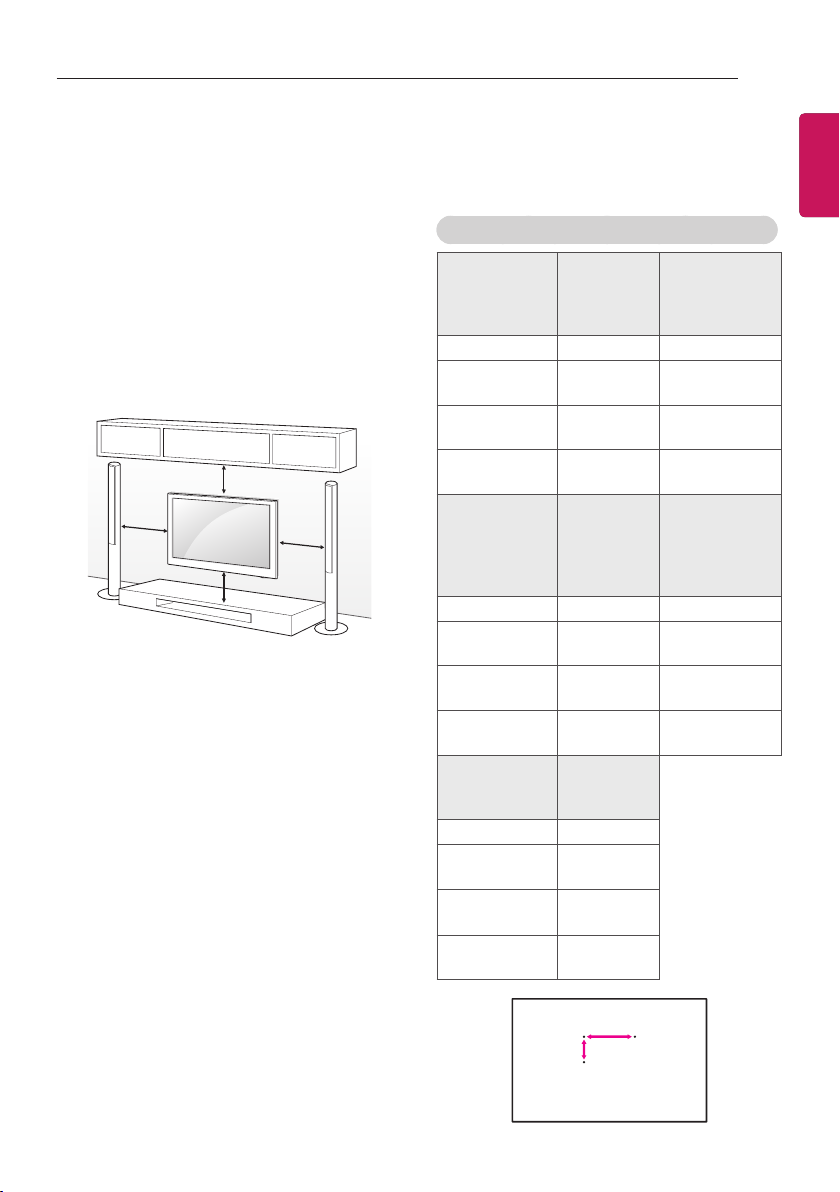

17 Mounting on a wall

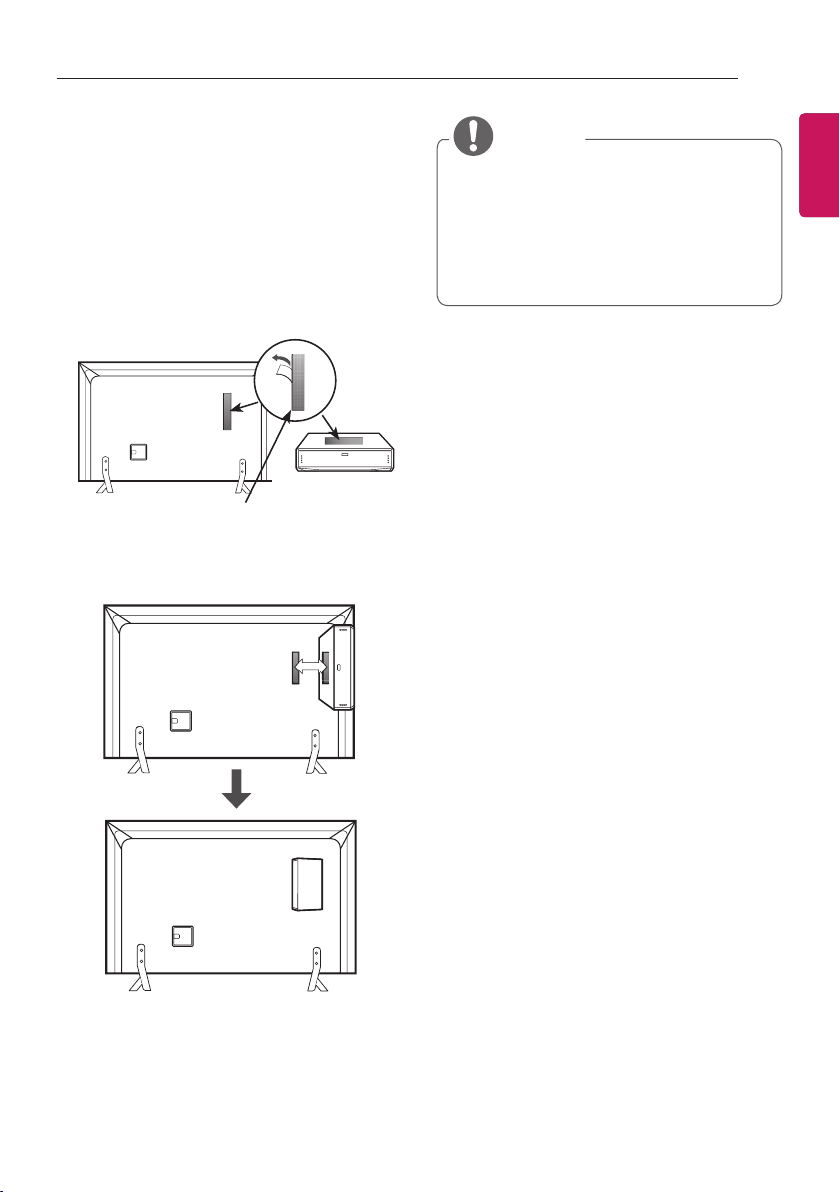

19How to use Dual Lock™

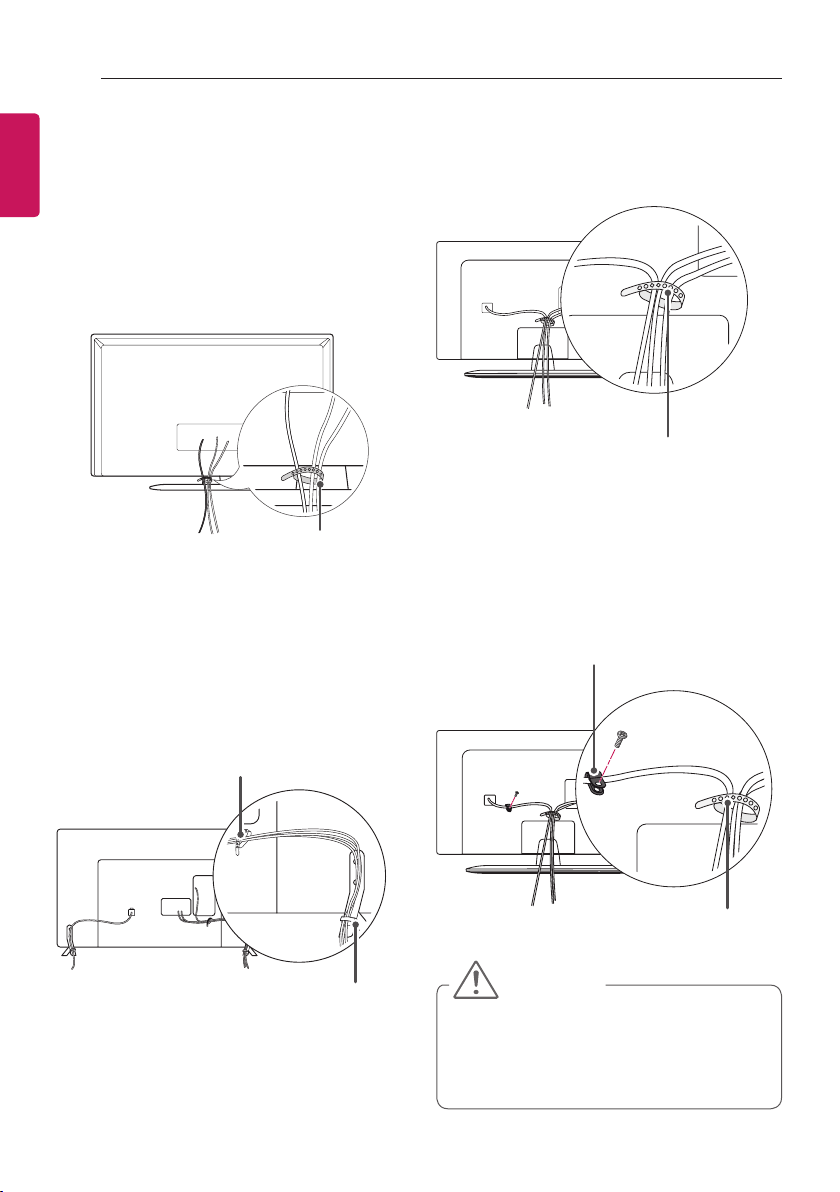

20Tidying cables
21MAKING CONNECTIONS

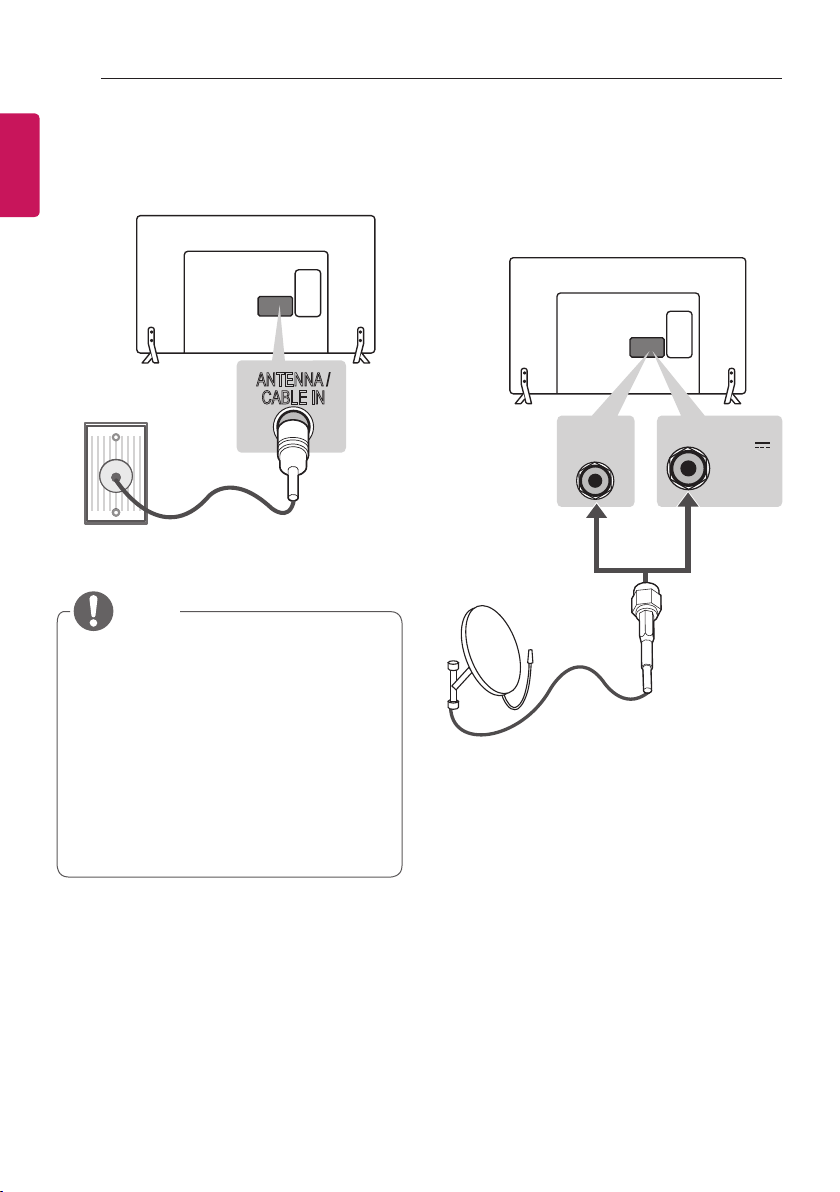

22Antenna Connection
22Satellite Dish Connection

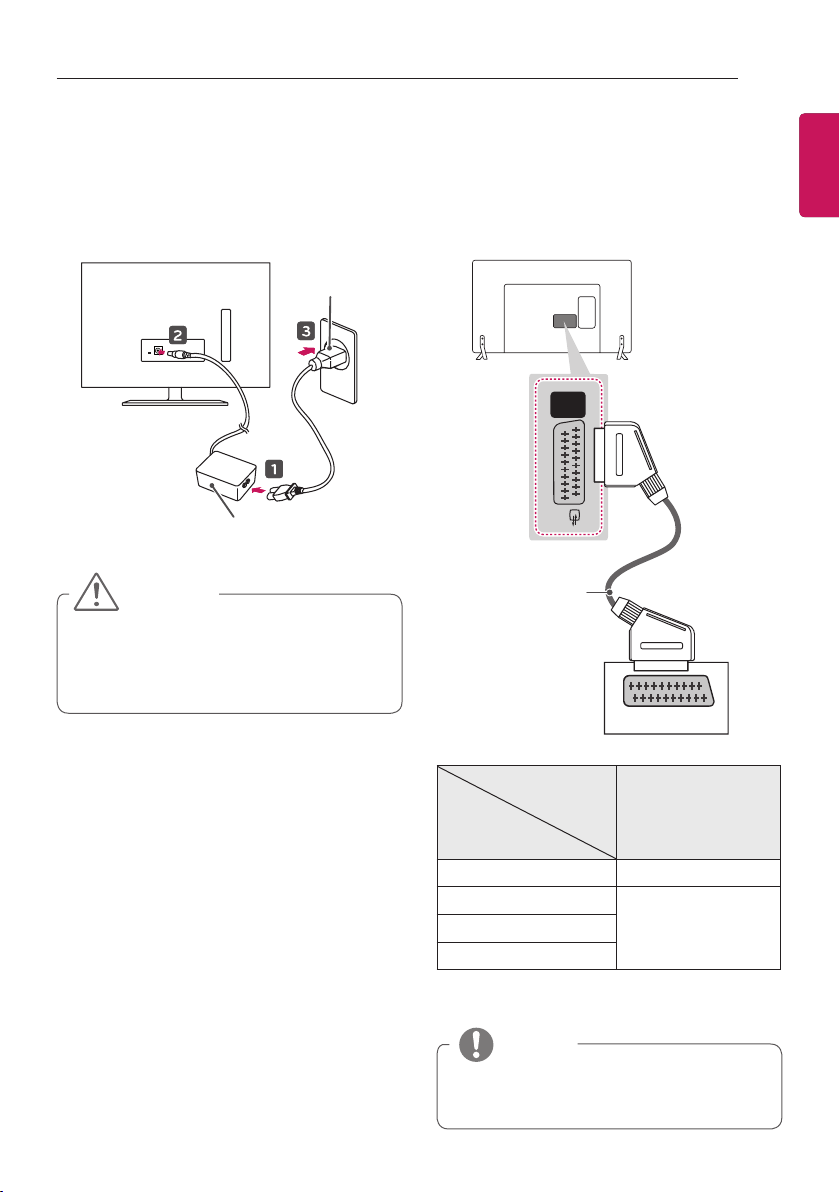

23Adapter Connection
23Euro Scart Connection

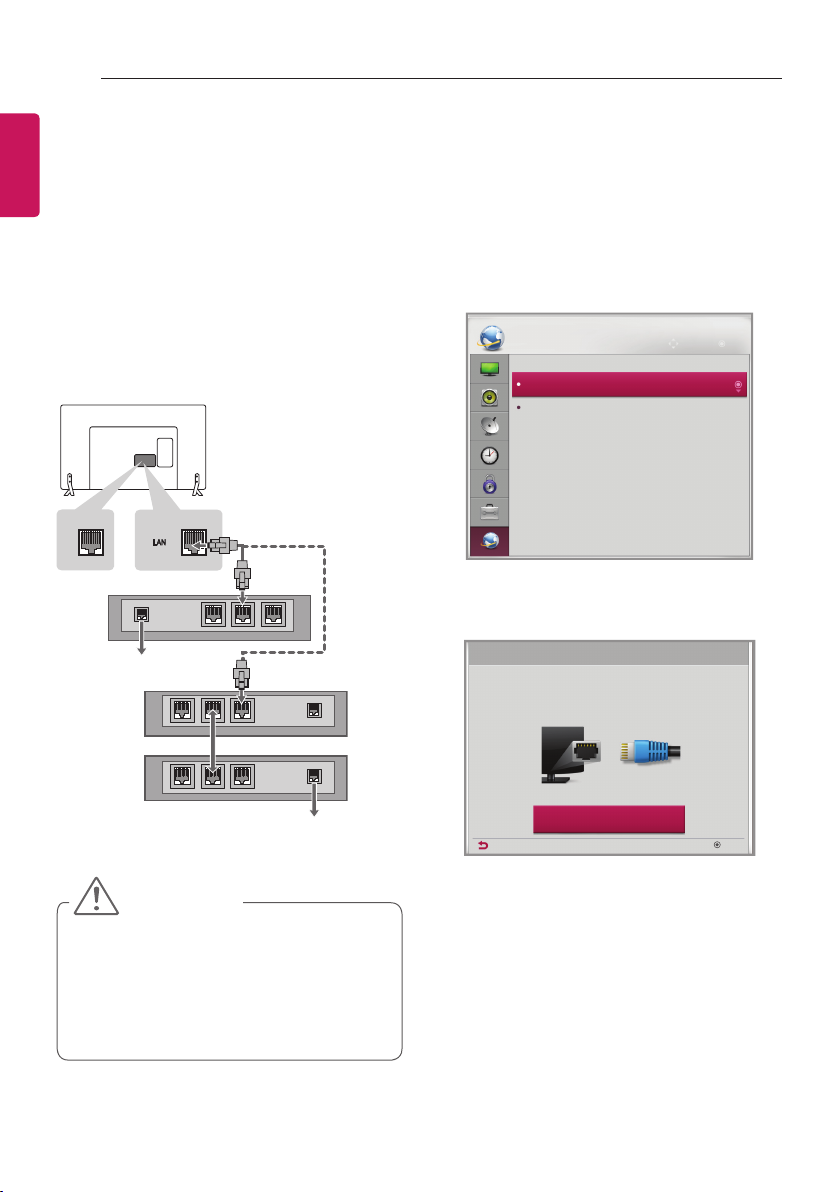

24Network Setup
24 - Wired network connection
24 - Network setting

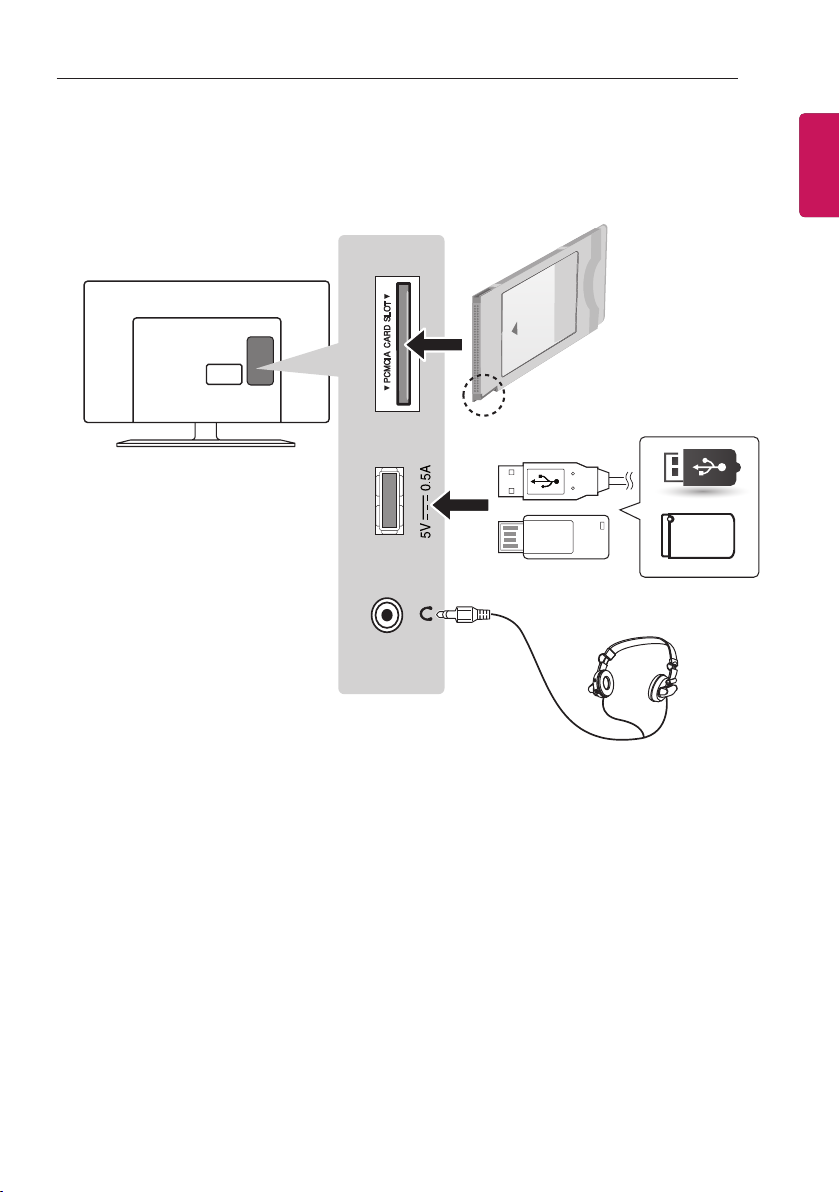

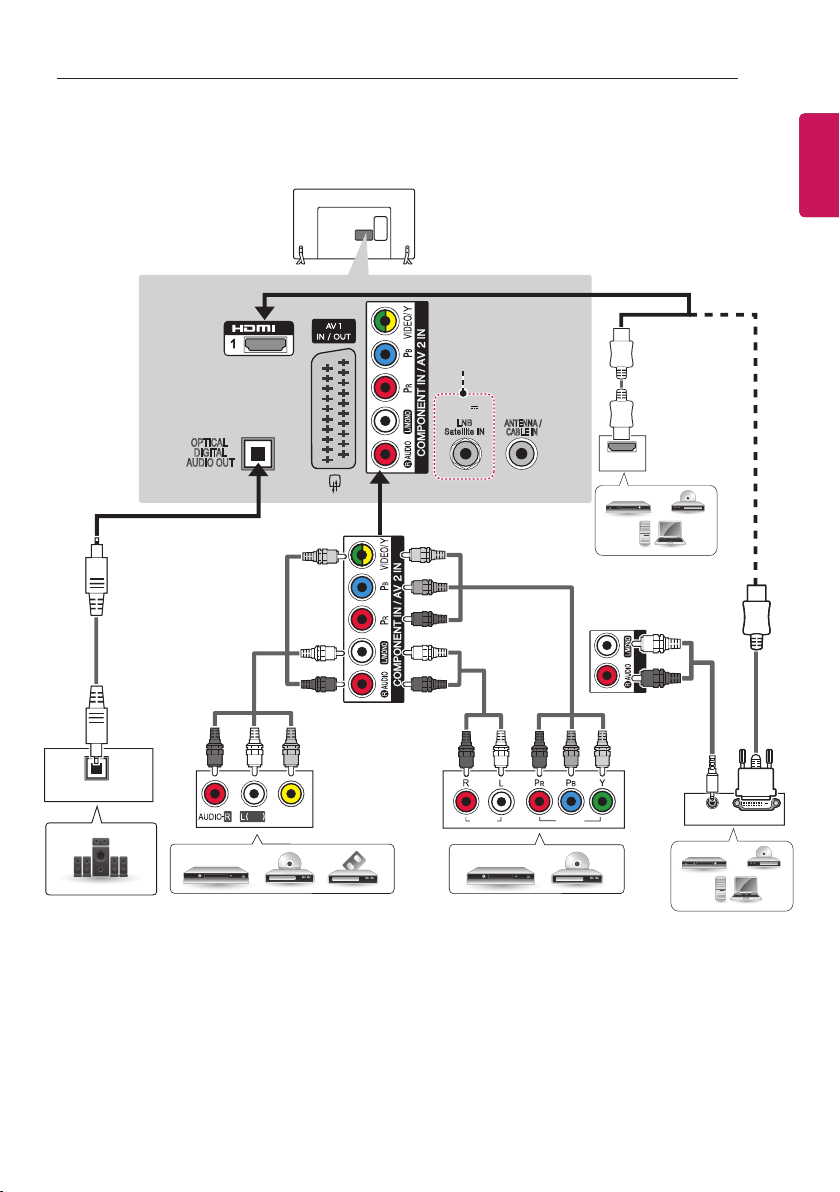

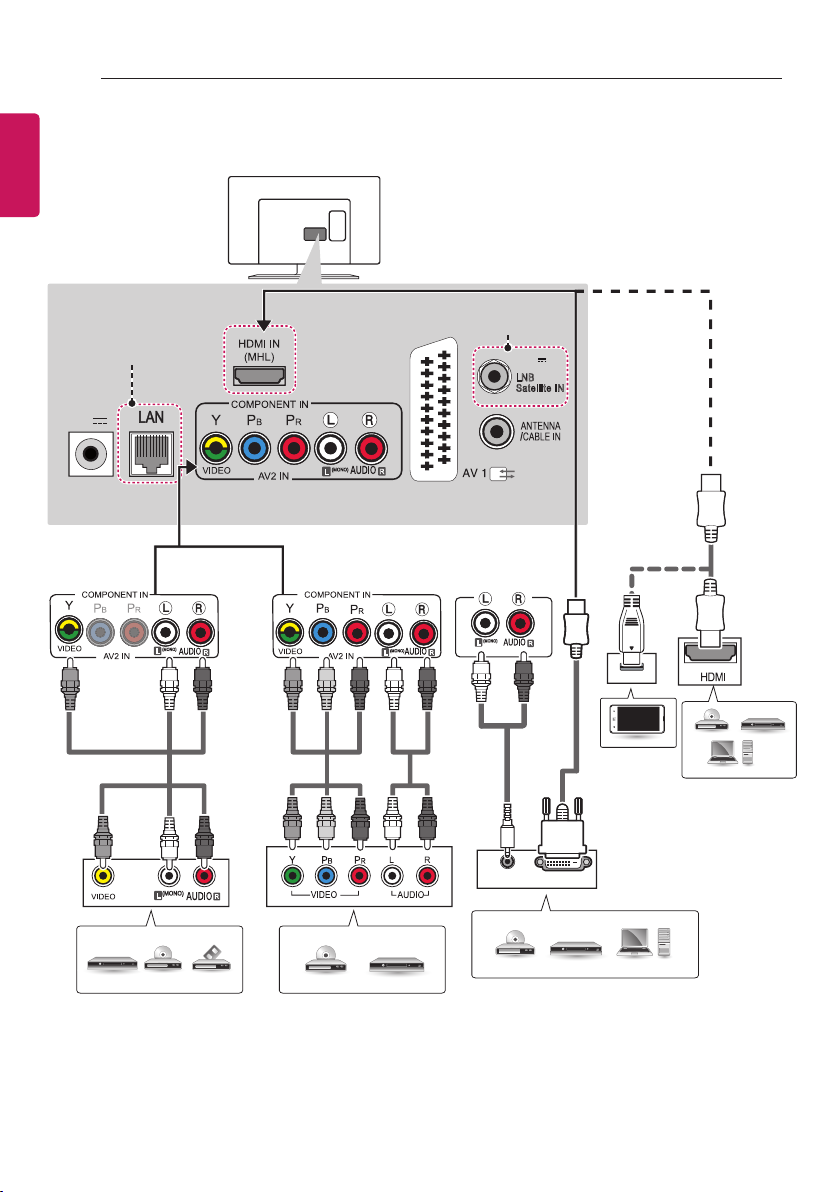

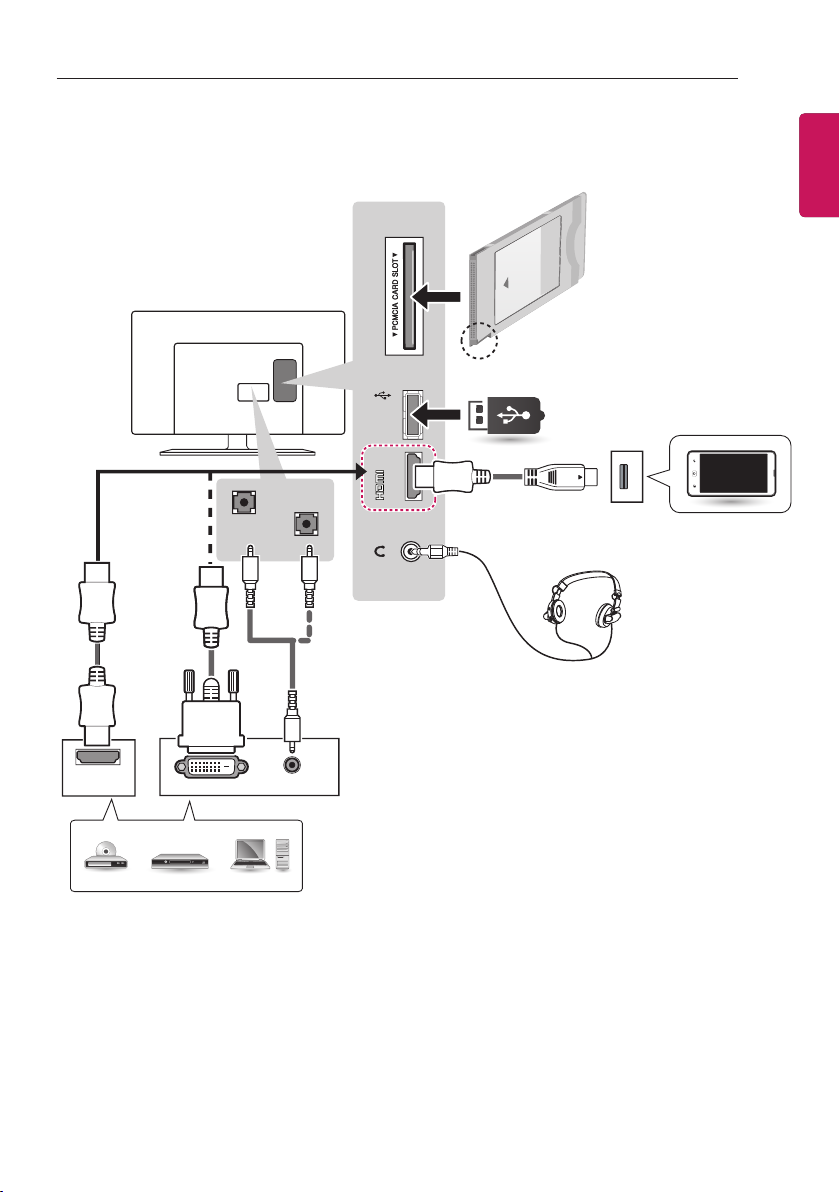

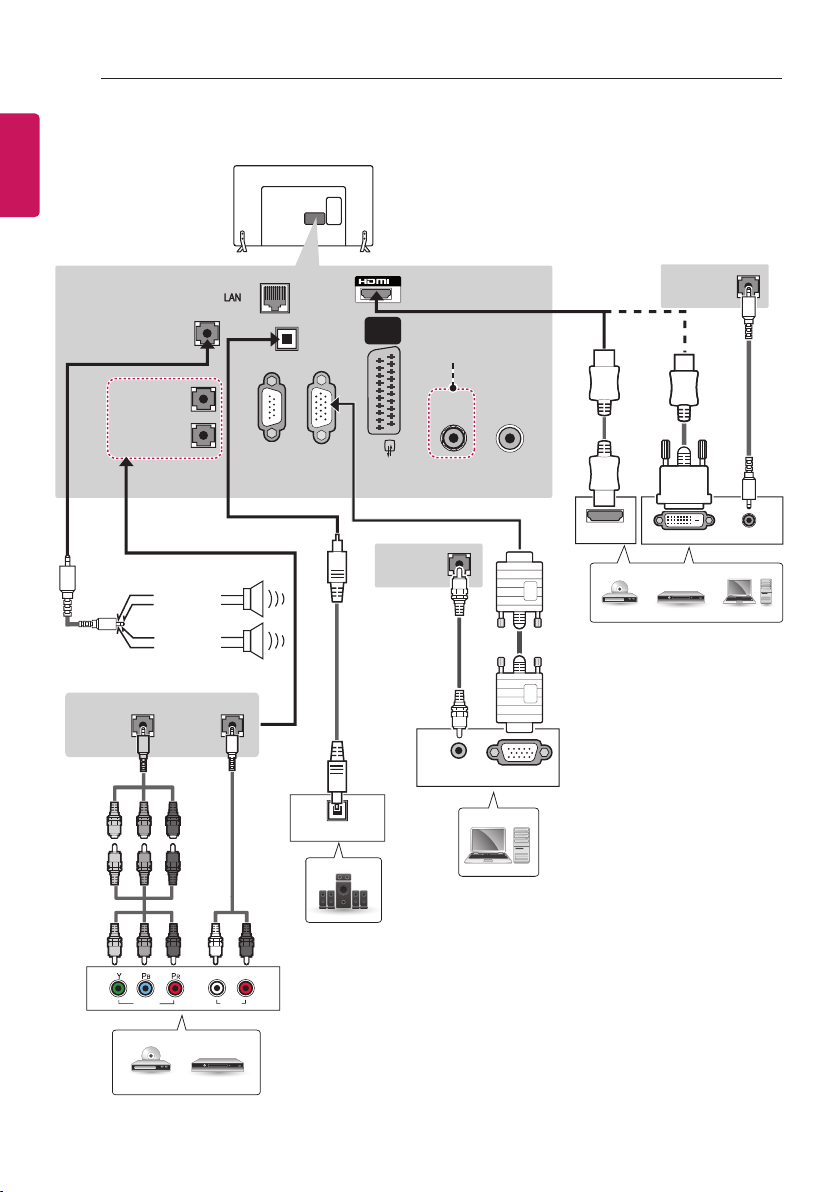

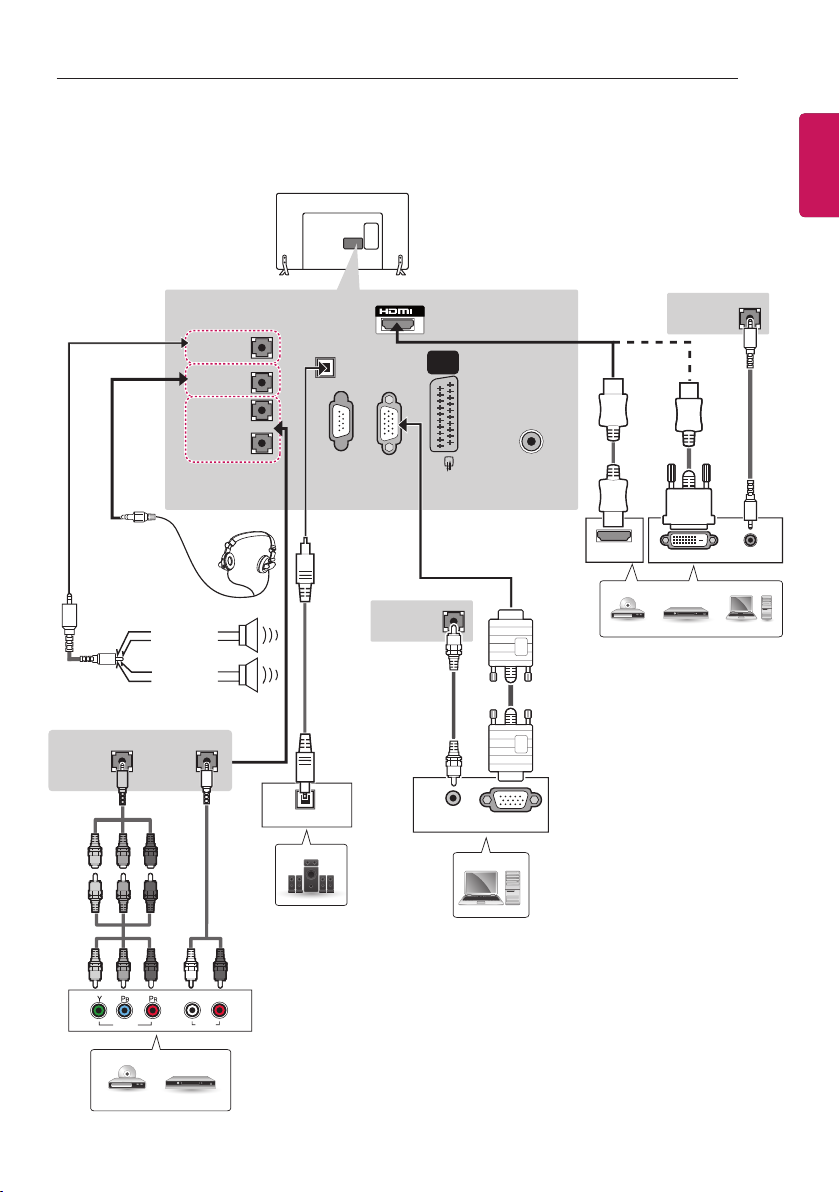

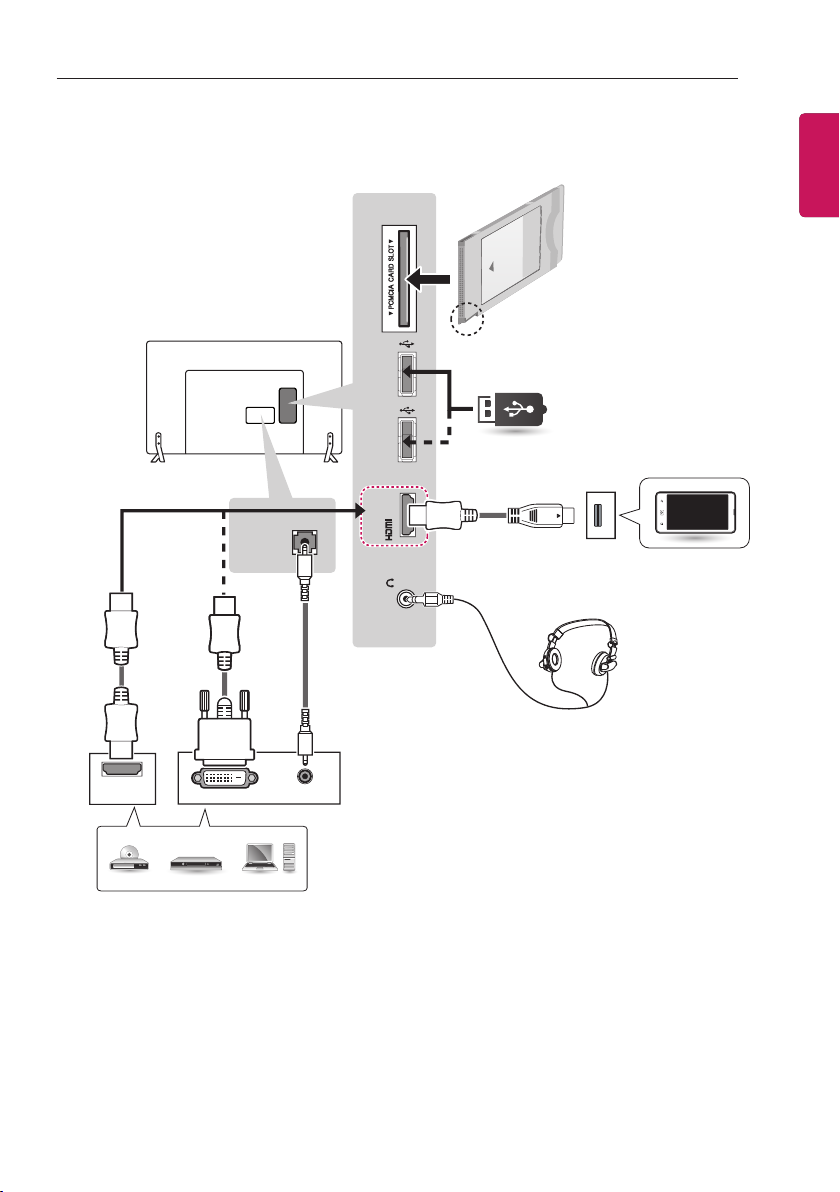

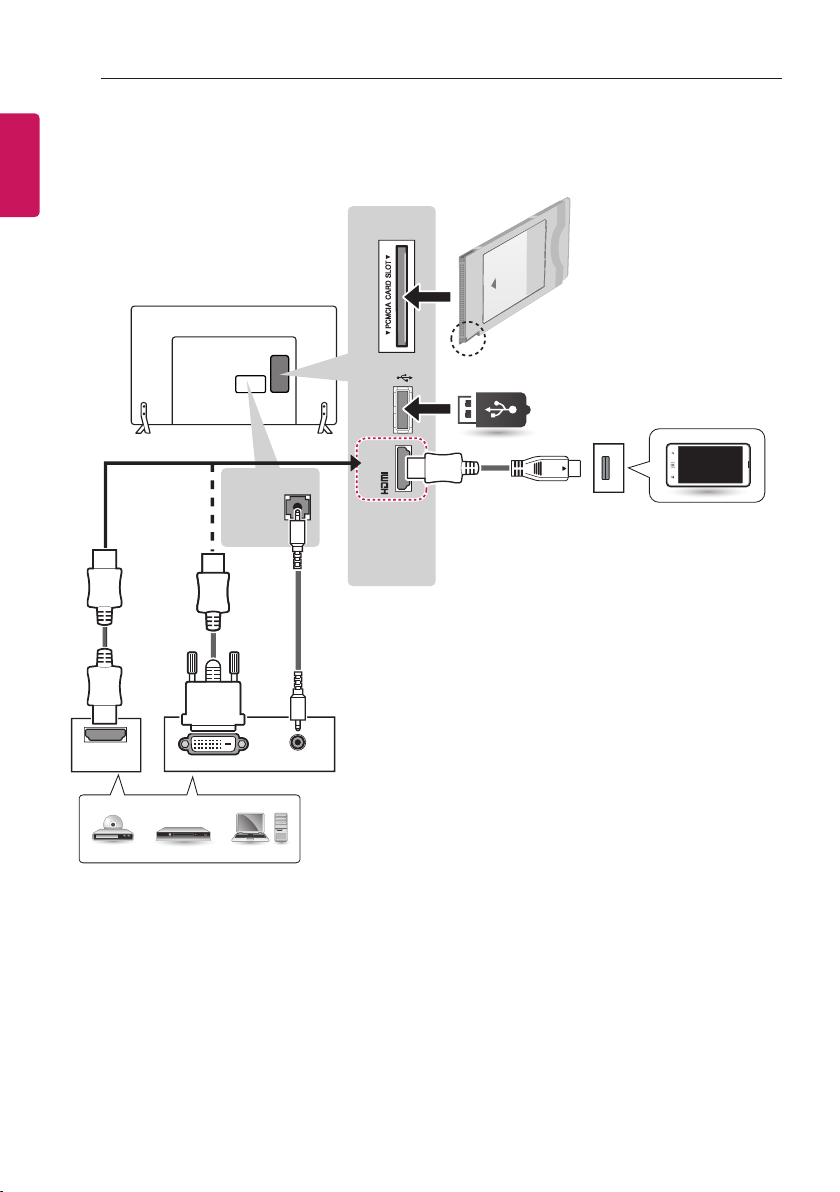

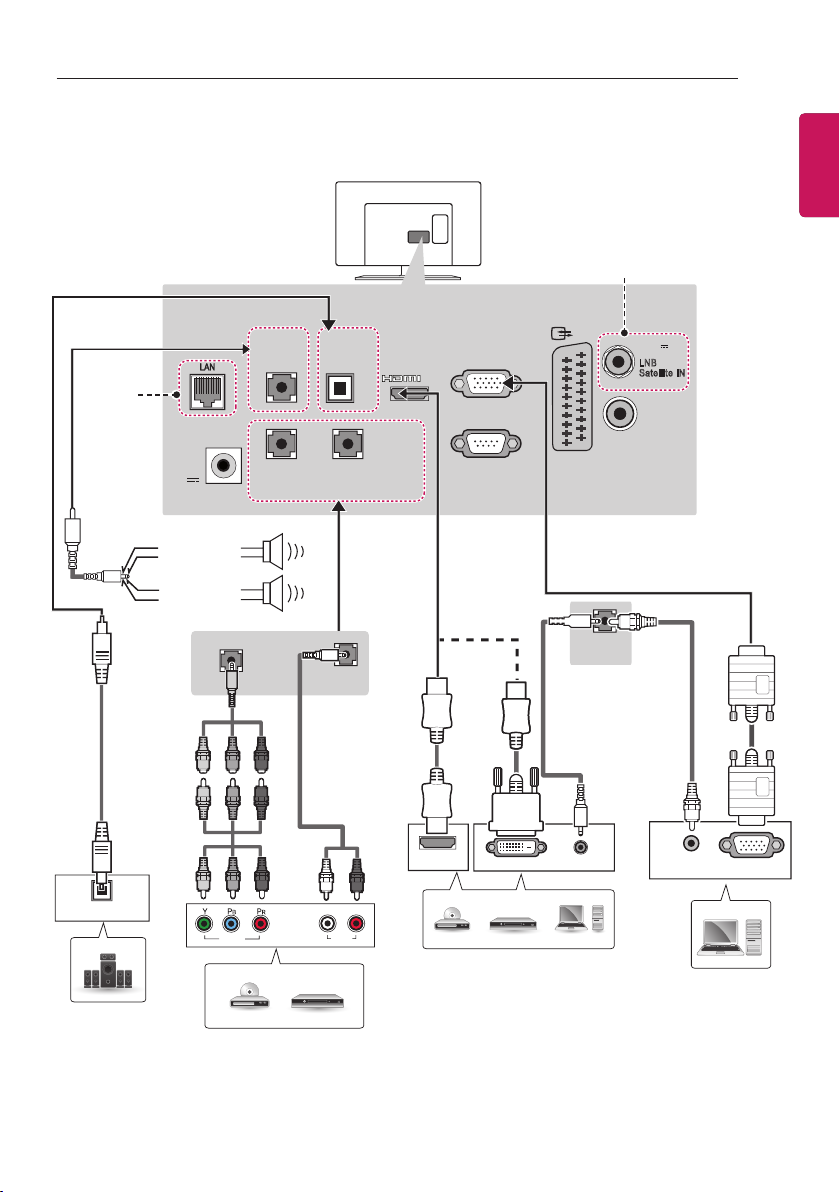

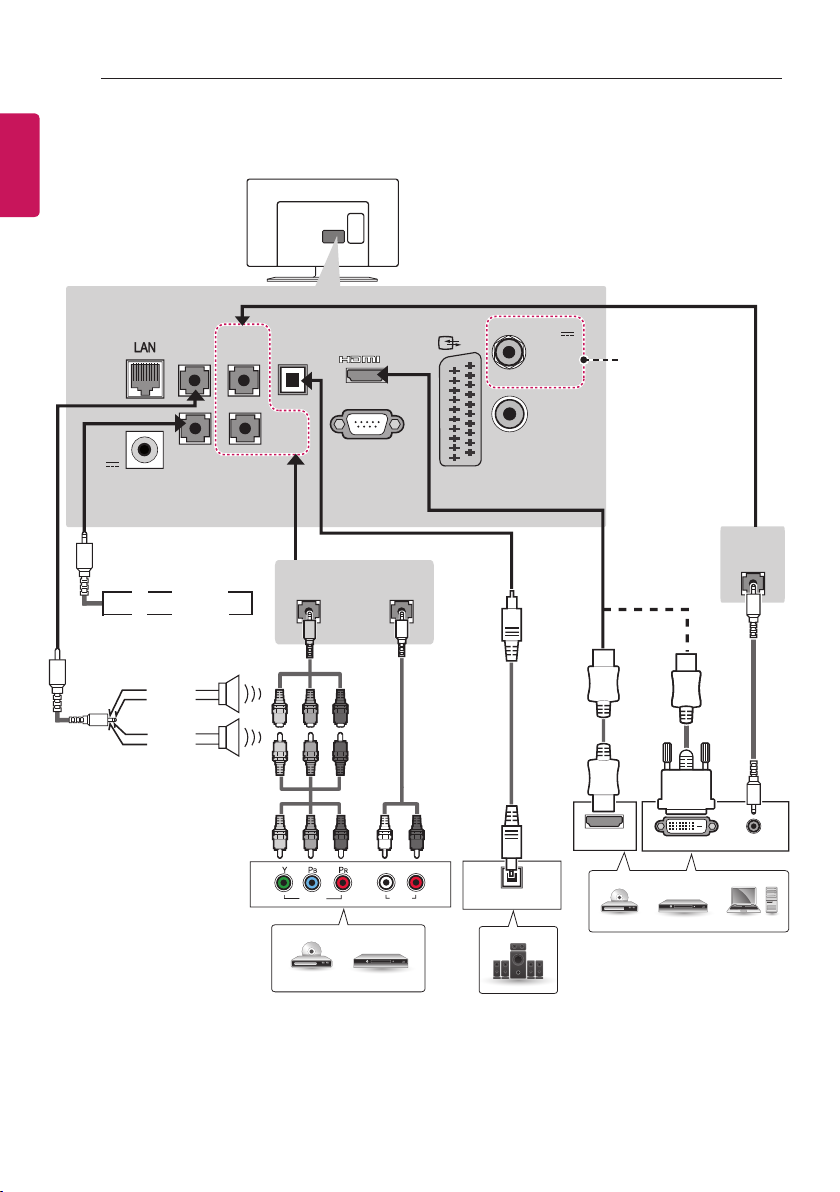

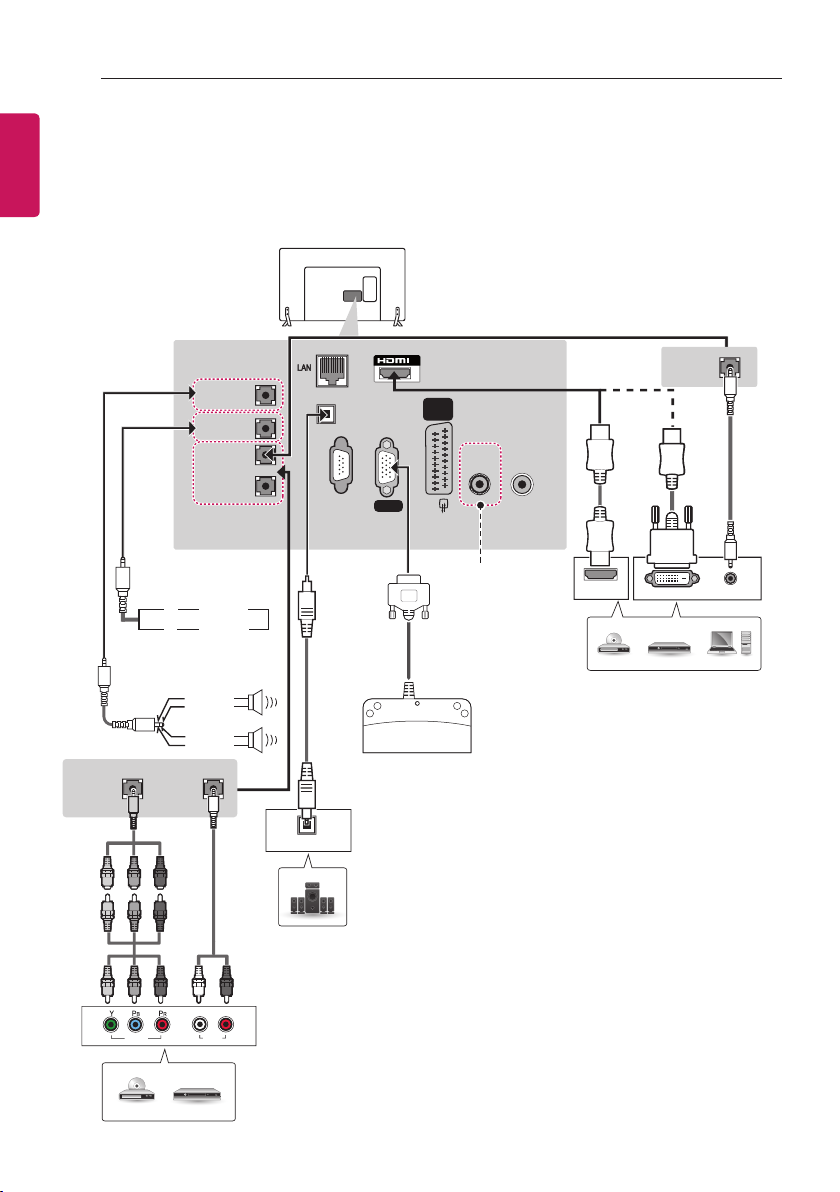

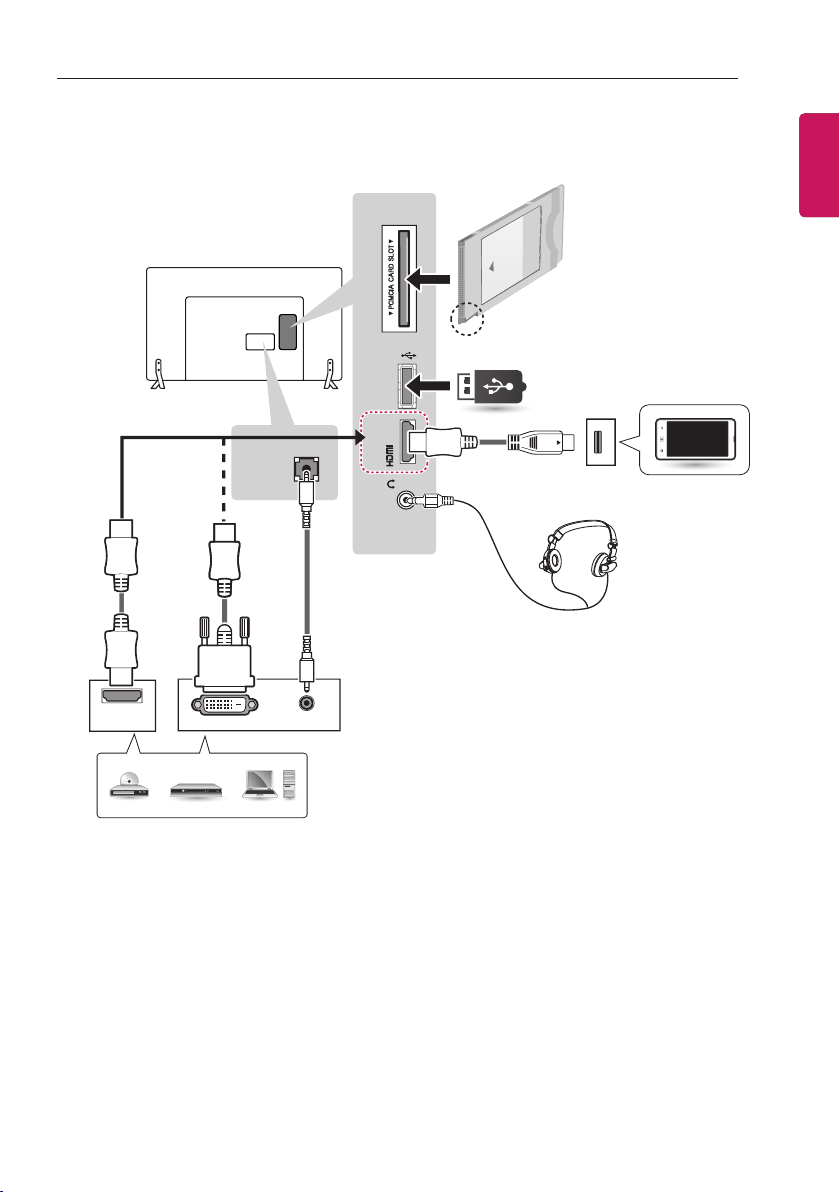

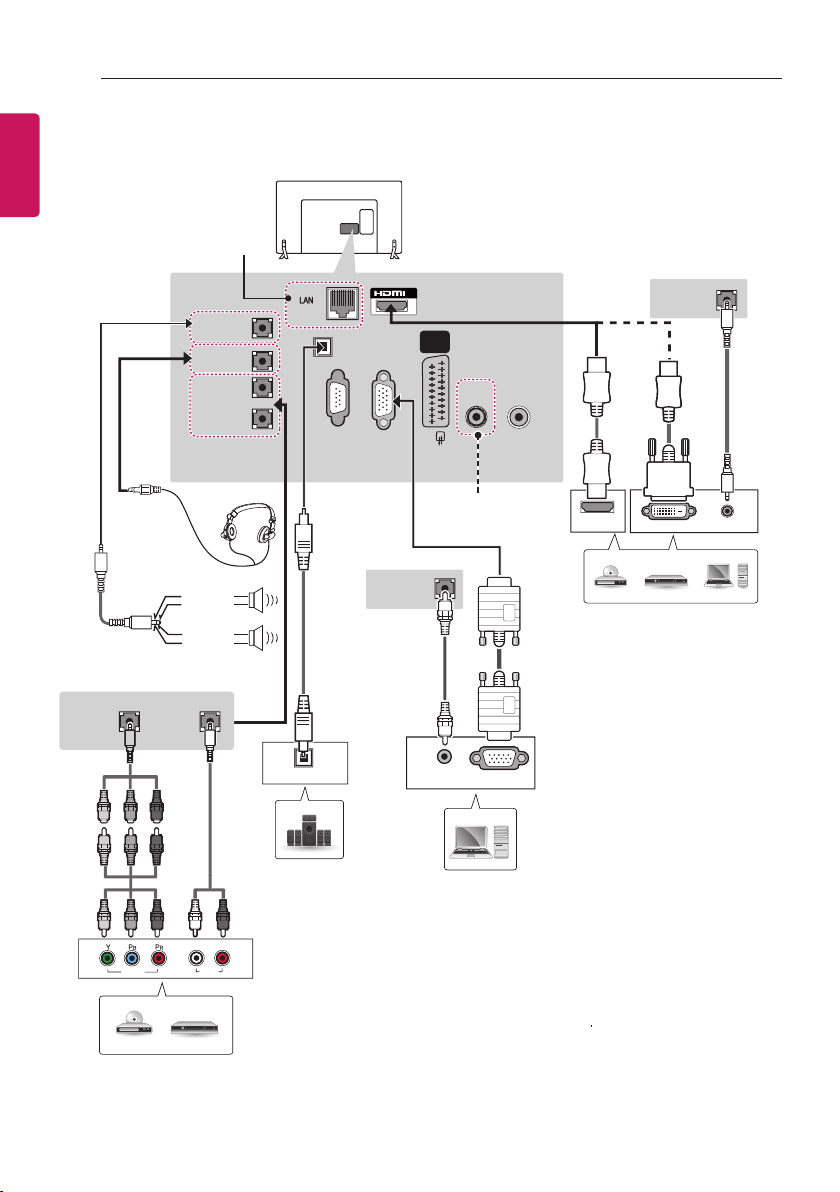

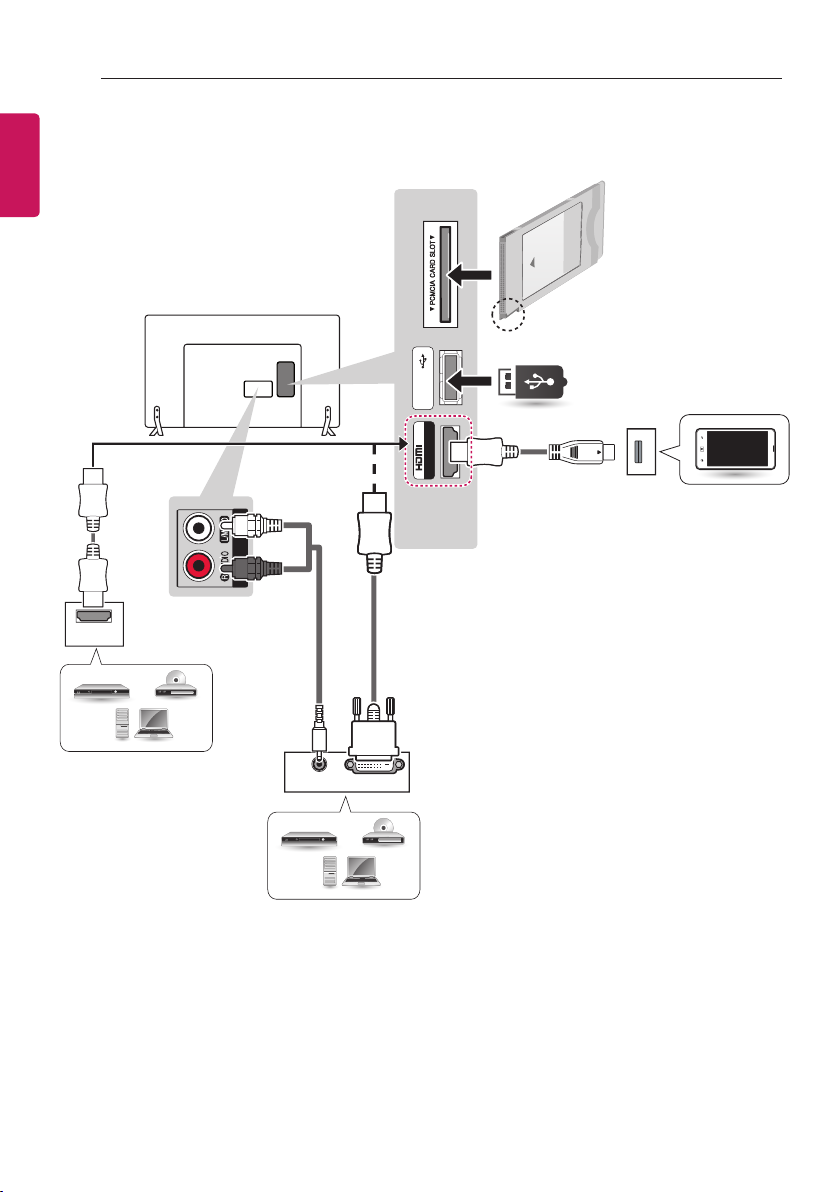

26 Other Connections

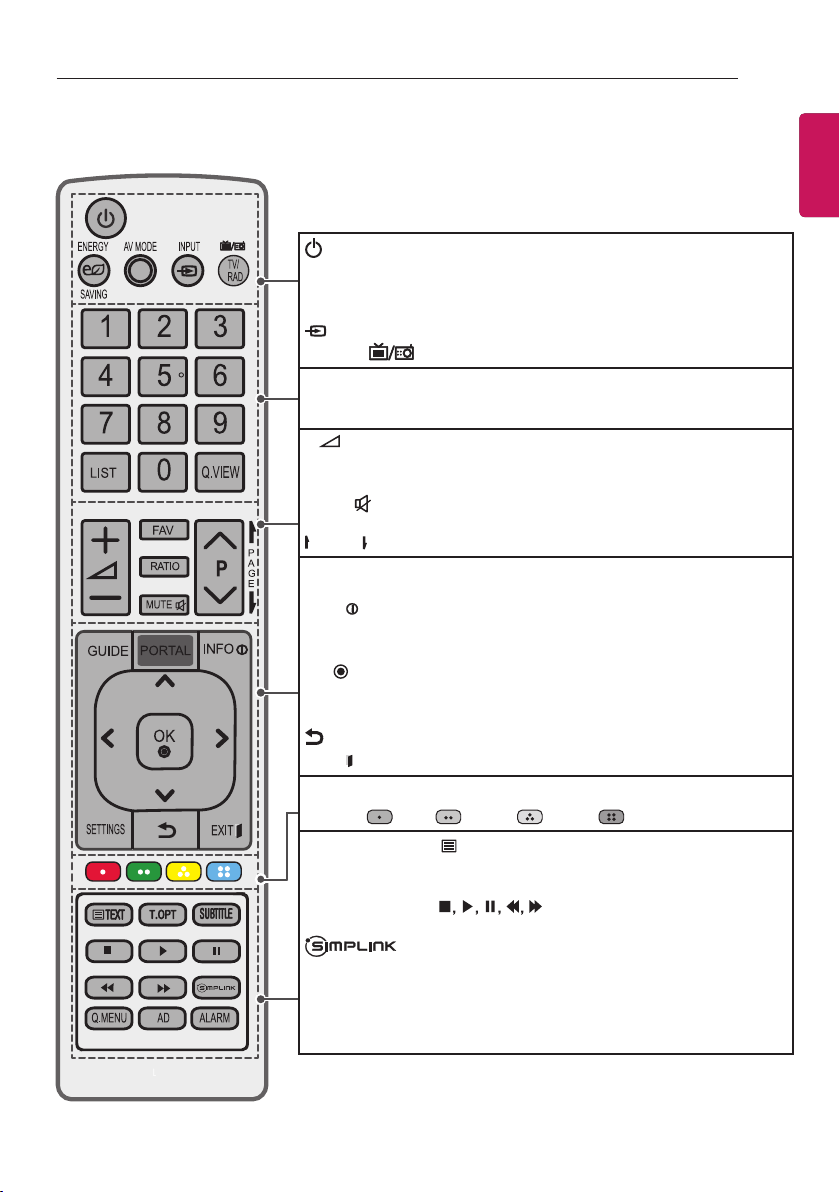

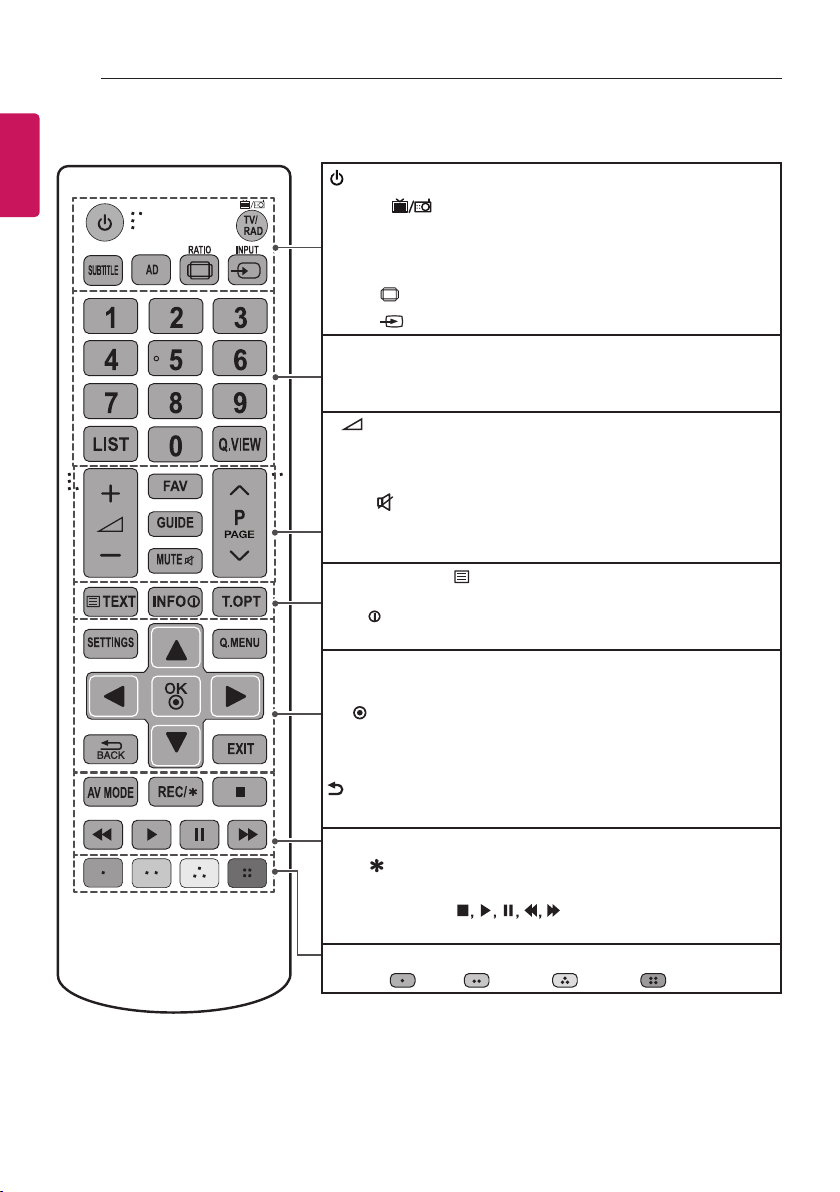

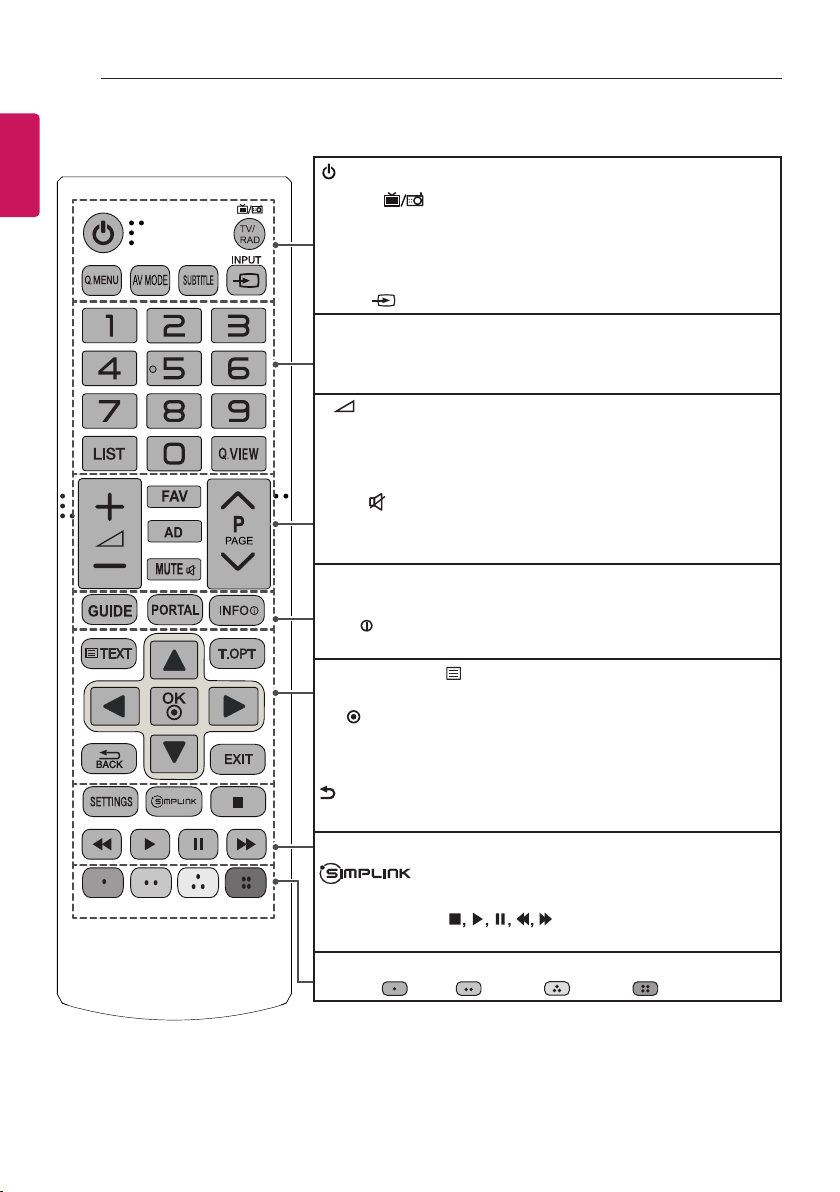

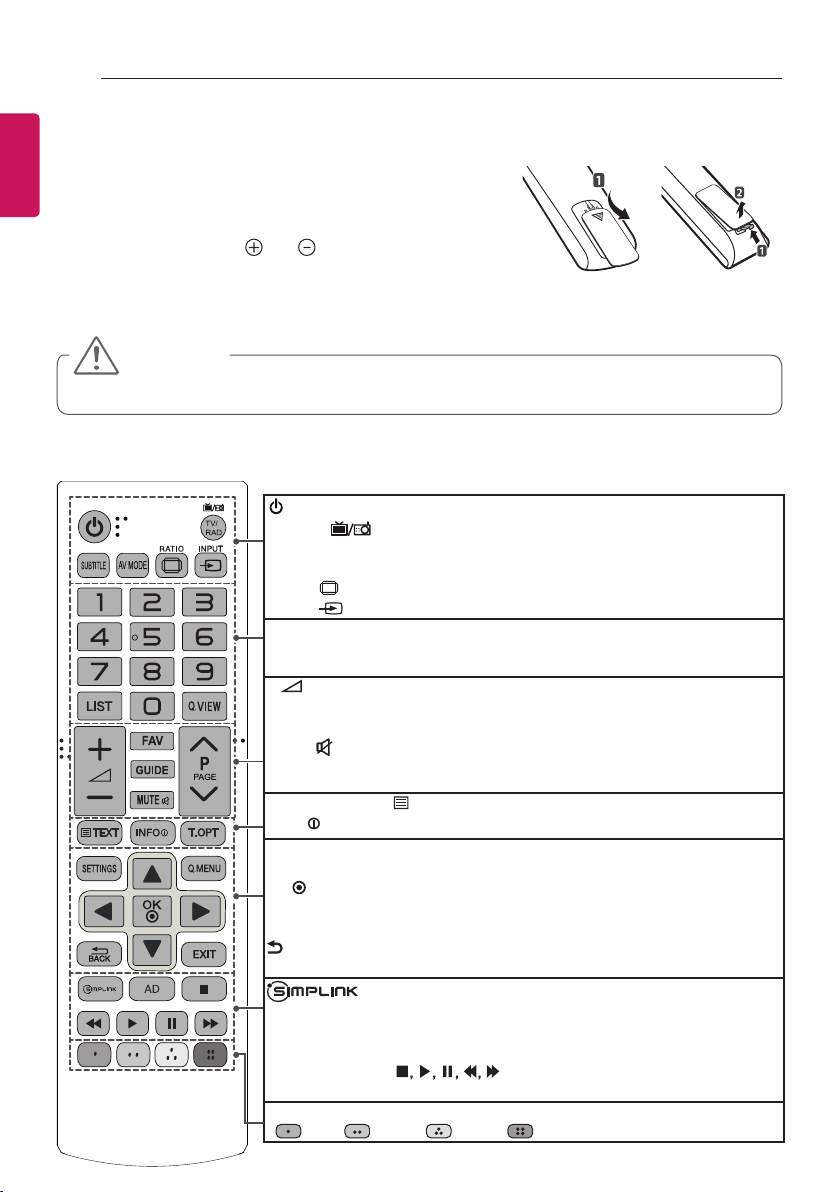

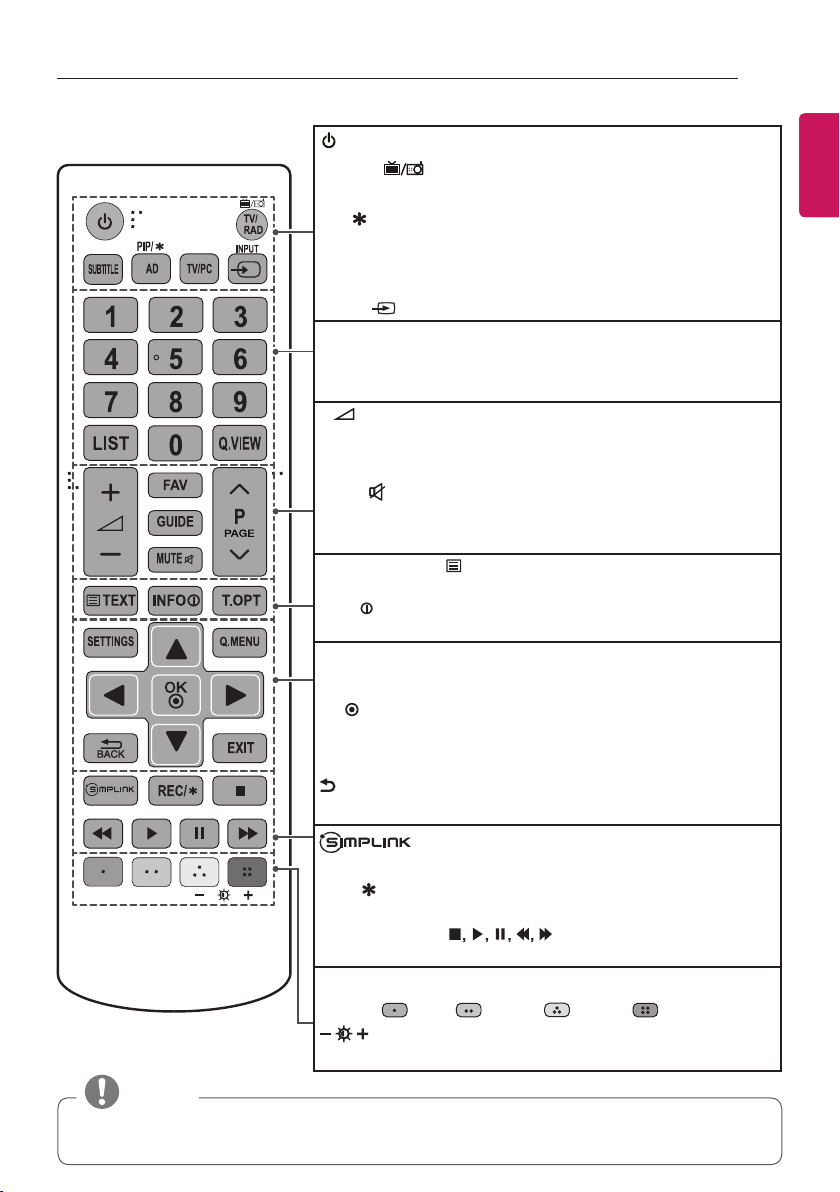

40 REMOTE CONTROL
45 MAINTENANCE
45 Cleaning your TV
45- Screen, frame, cabinet and stand
45- Power cord
46TROUBLESHOOTING

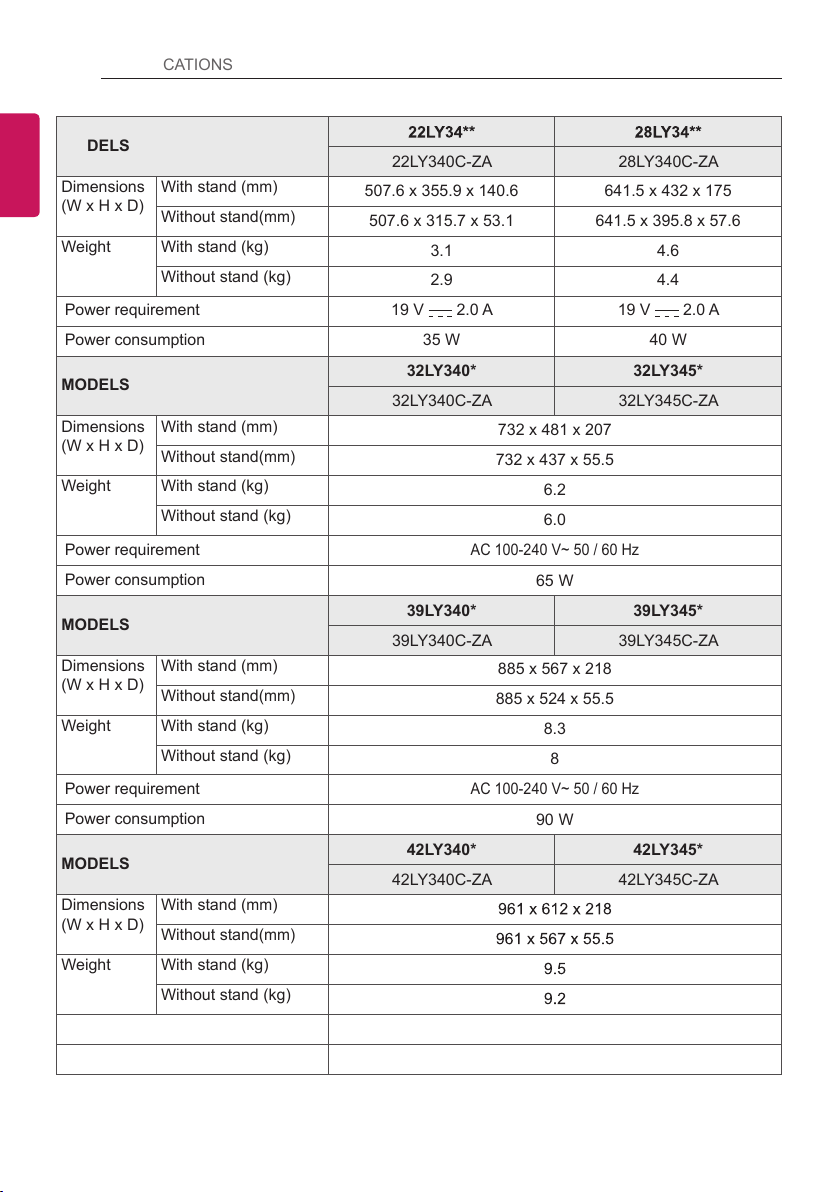

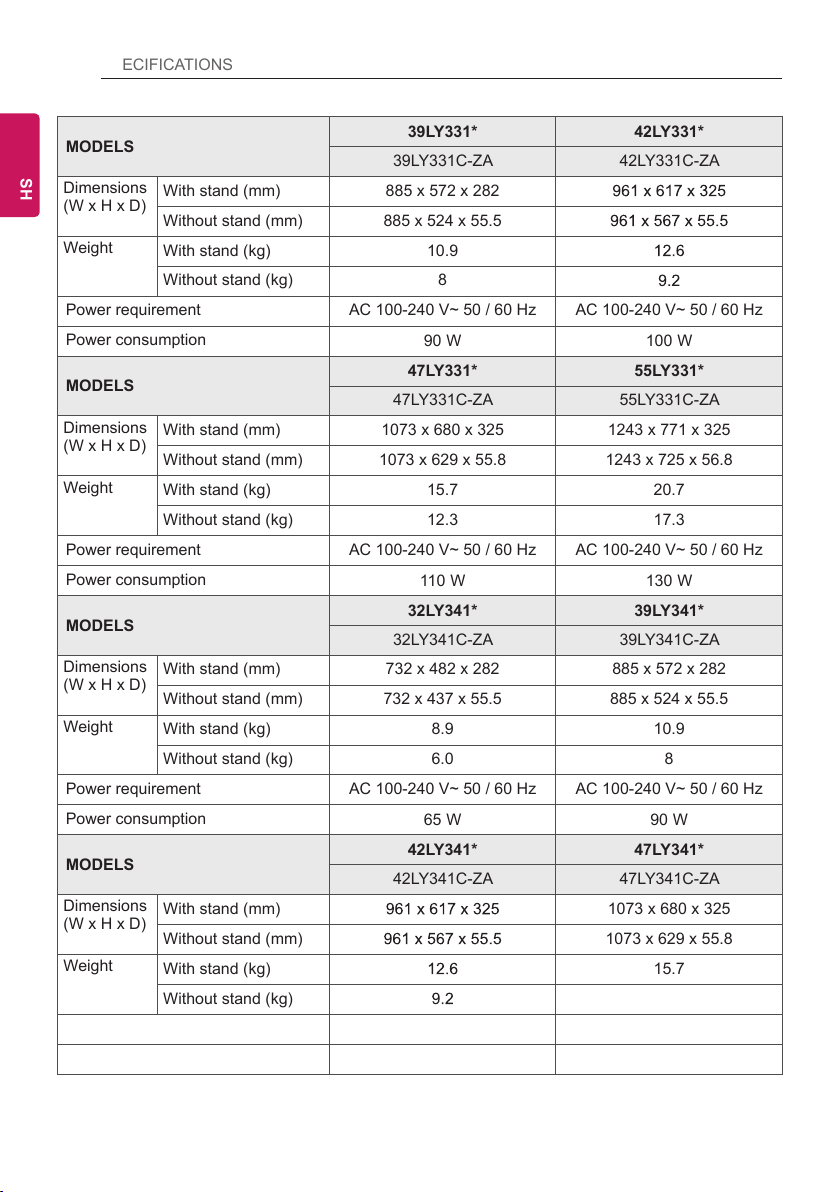

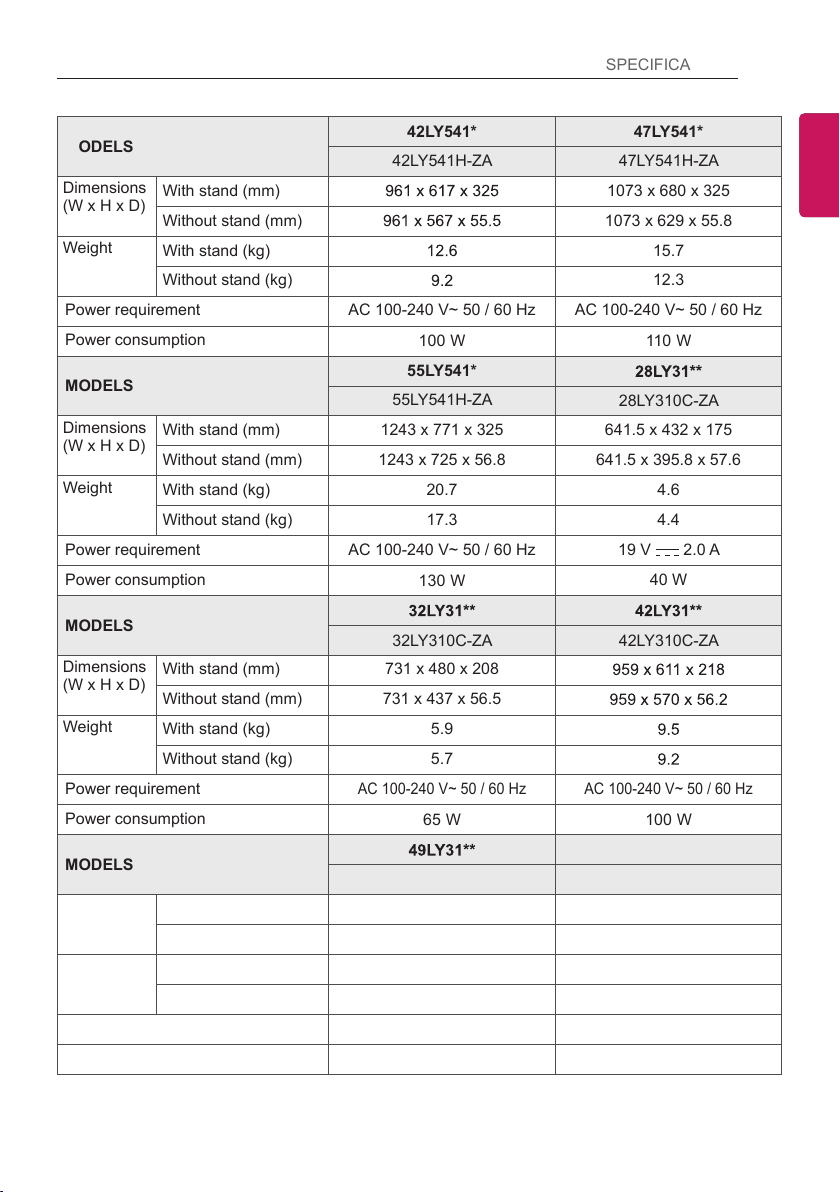

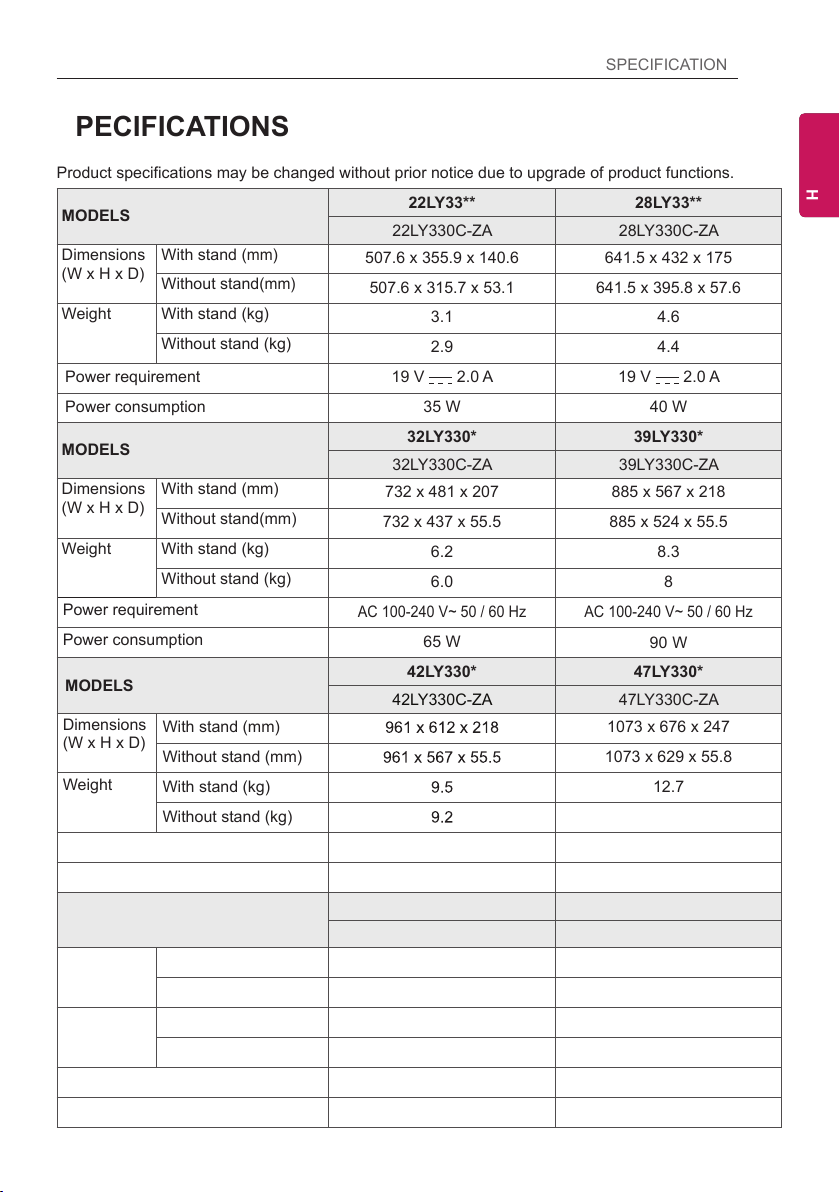

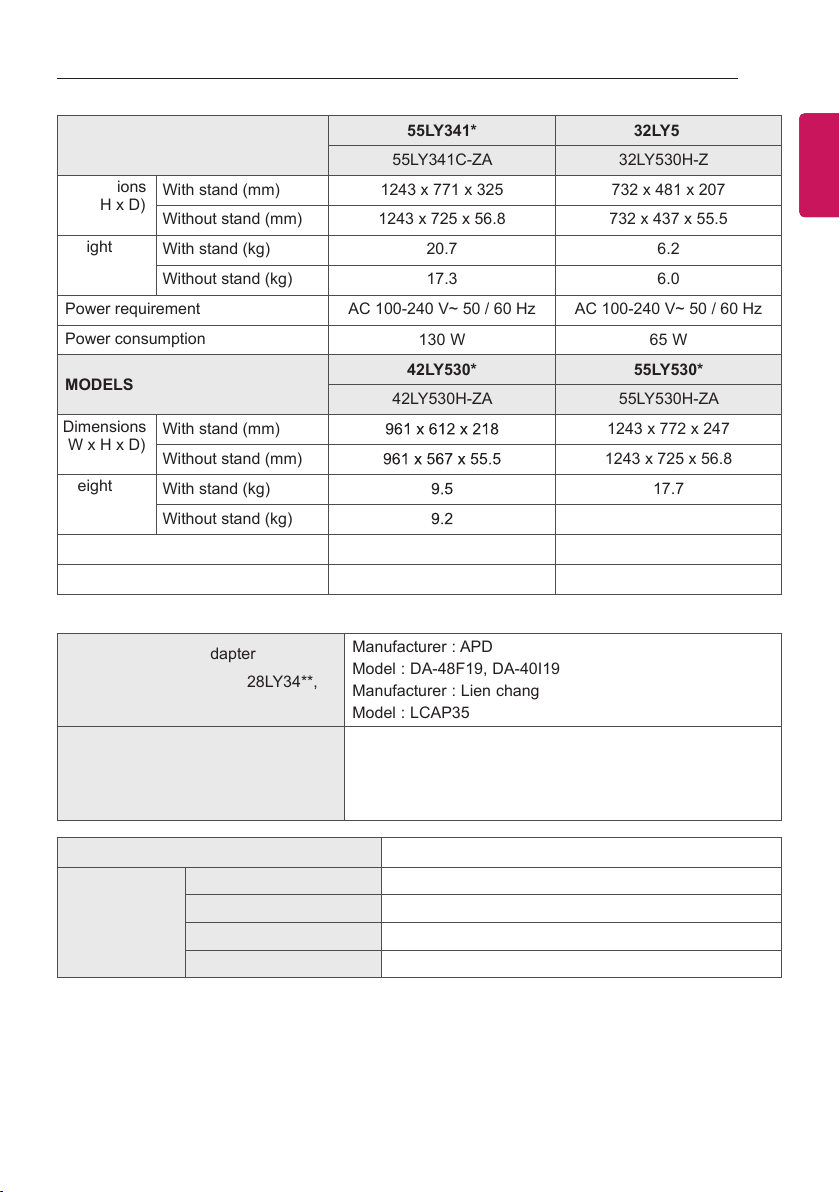

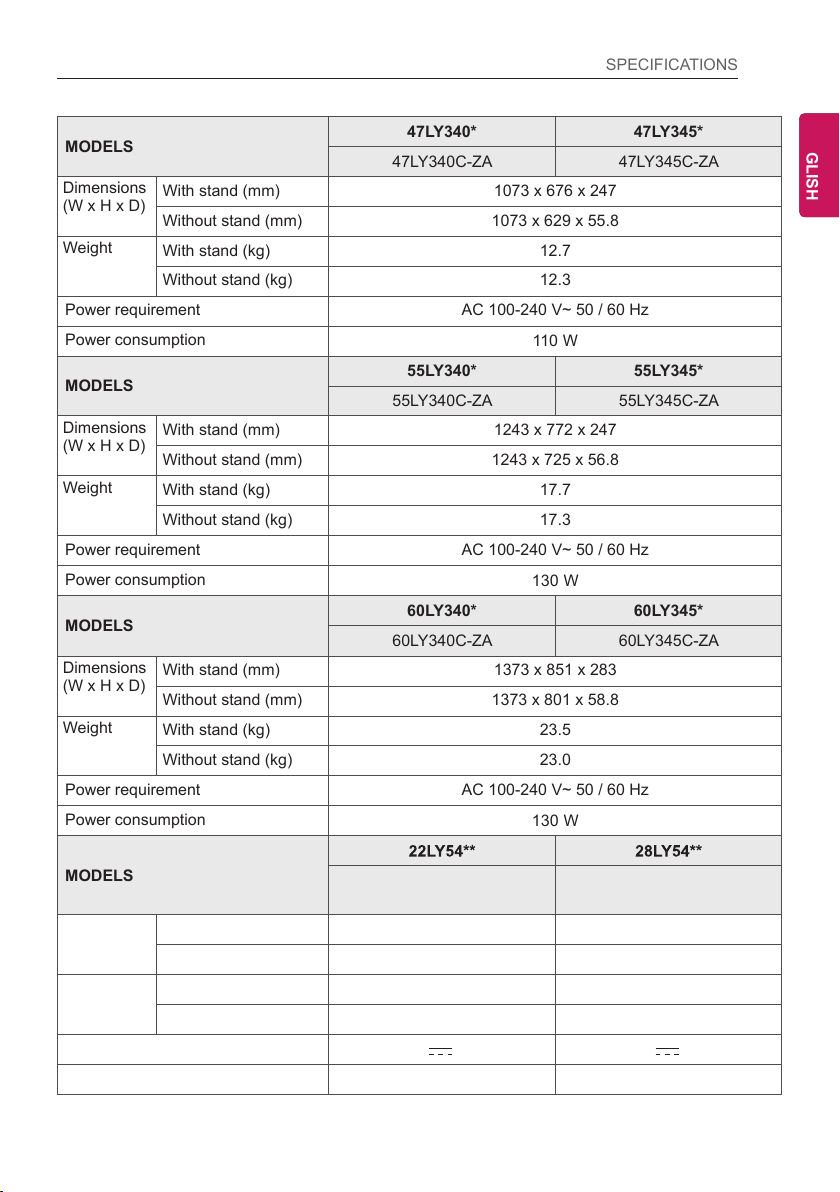

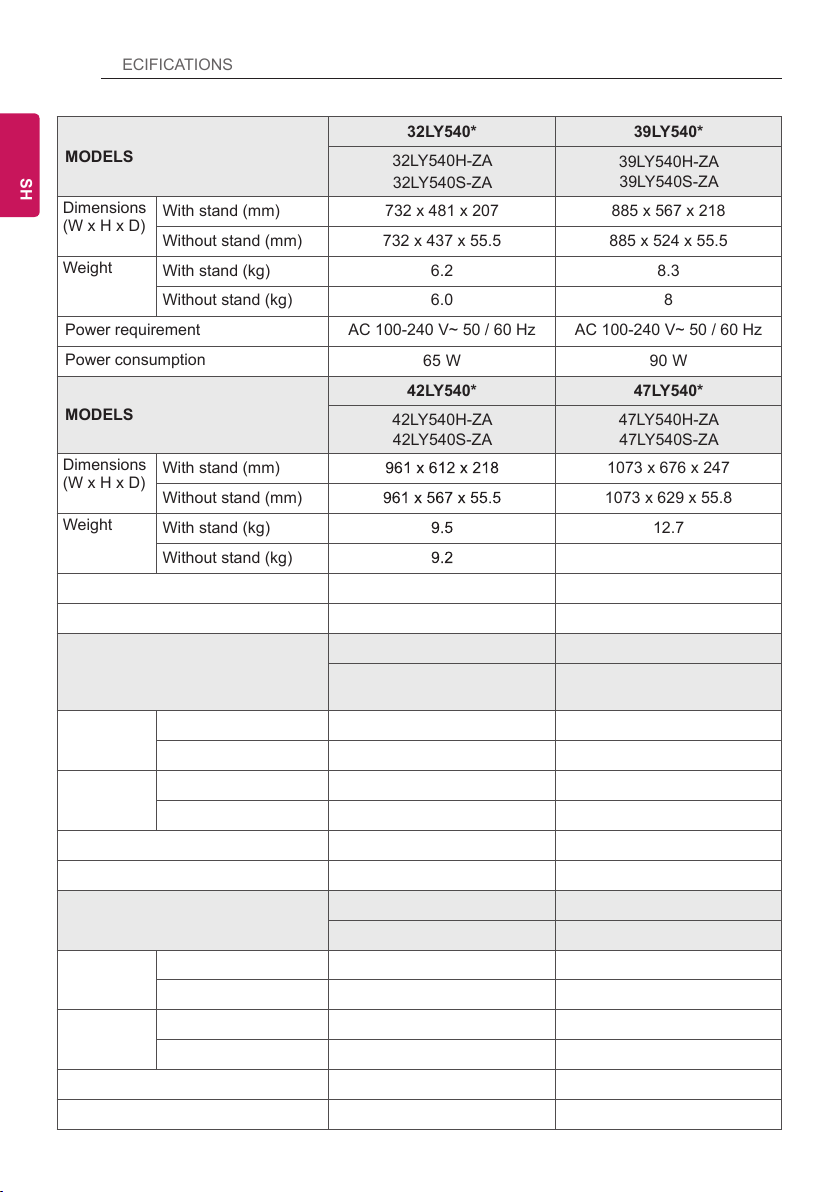

47 SPECIFICATIONS
56IR CODES
57EXTERNAL CONTROL DEVICE SETUP

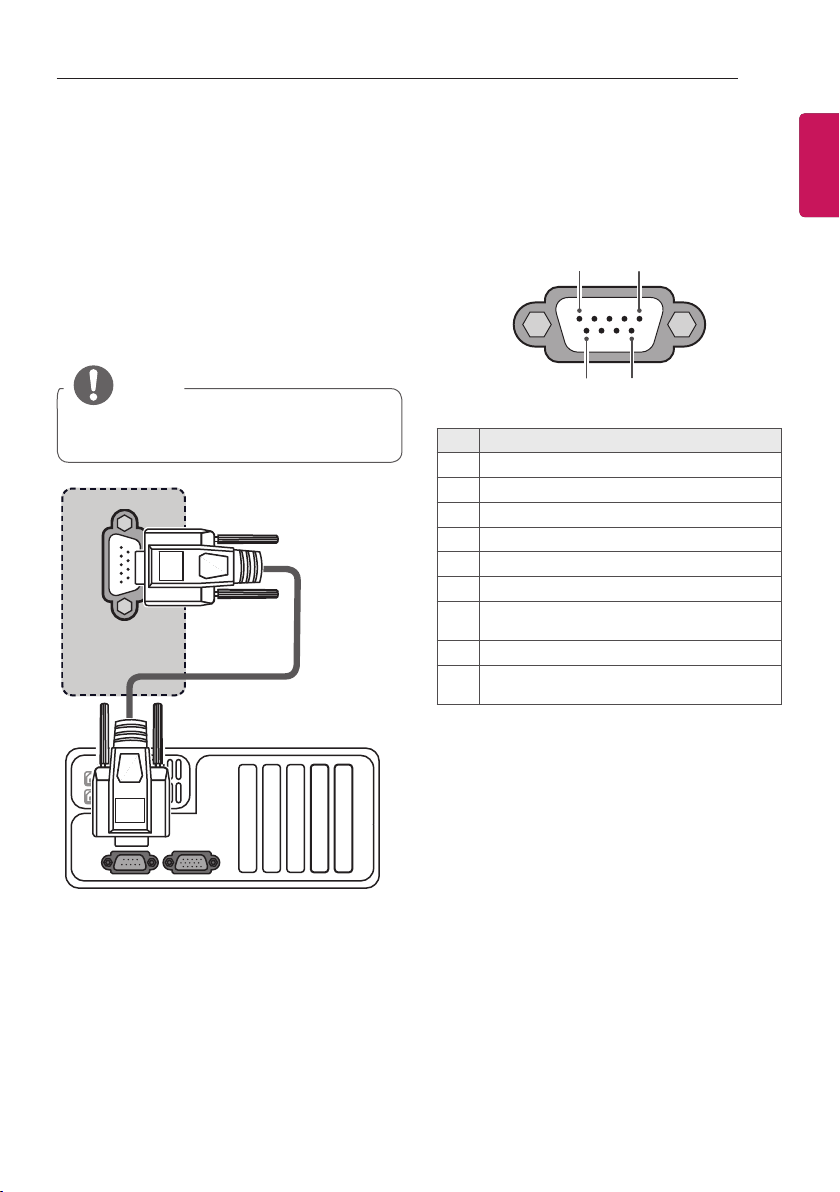

57RS-232C Setup
57Type of Connector: D-Sub 9-Pin Male
58RS-232C Configurations
59Communication Parameters
59Command Reference List
60Transmission / Receiving Protocol
WARNING
yy If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
yy If you ignore the caution message, you may be slightly injured or the product may be damaged.
NOTE
yy The note helps you understand and use the product safely. Please read the note carefully before using the product.
LICENSES / OPEN SOURCE SOFTWARE NOTICE 3
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx. com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in
your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
<![endif]>ENGLISH
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
4 ASSEMBLING AND PREPARING
<![endif]>ENGLISH
NOTE
yy Image shown may differ from your TV.
yy Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yy The available menus and options may differ from the input source or product model that you are using.
yy New features may be added to this TV in the future.
yy The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
yy The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

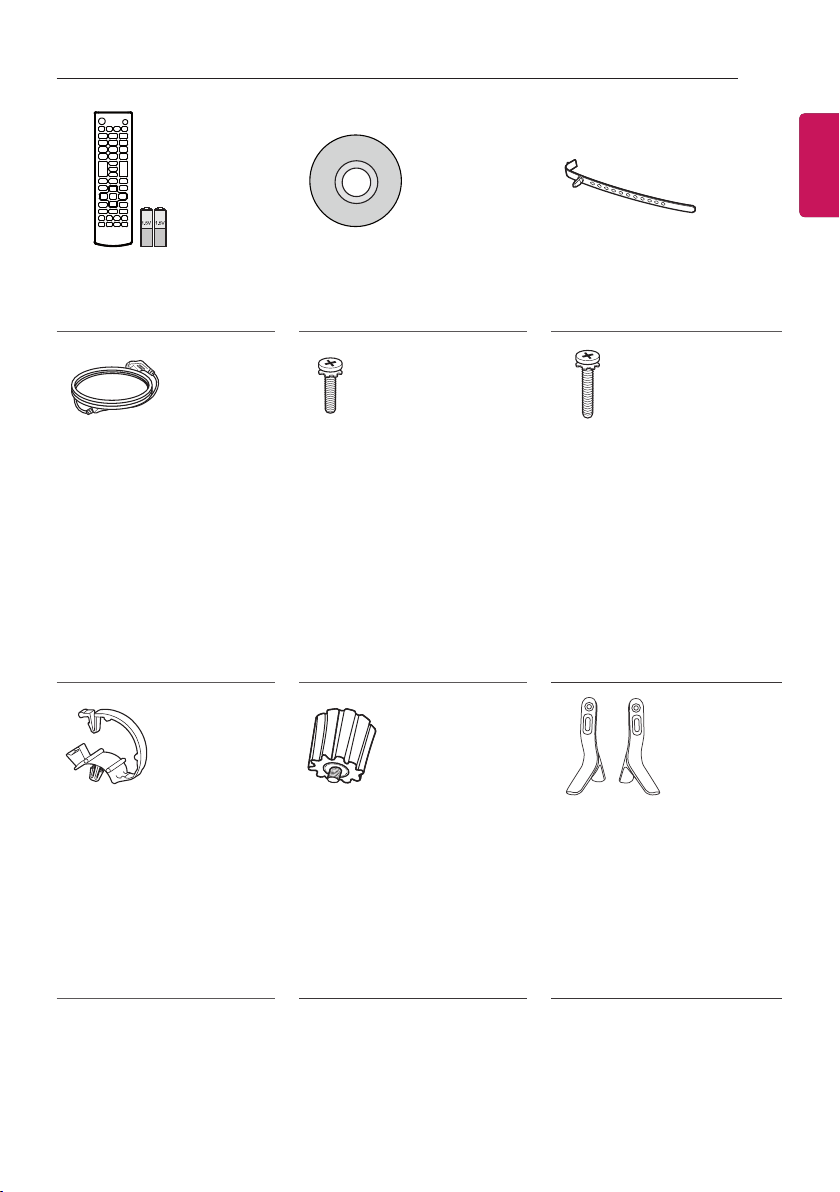

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
yy Do not use any unapproved items to ensure the safety and product life span.
yy Any damages or injuries by using unapproved items are not covered by the warranty. yy Some models have a thin film attached on to the screen and this must not be removed.

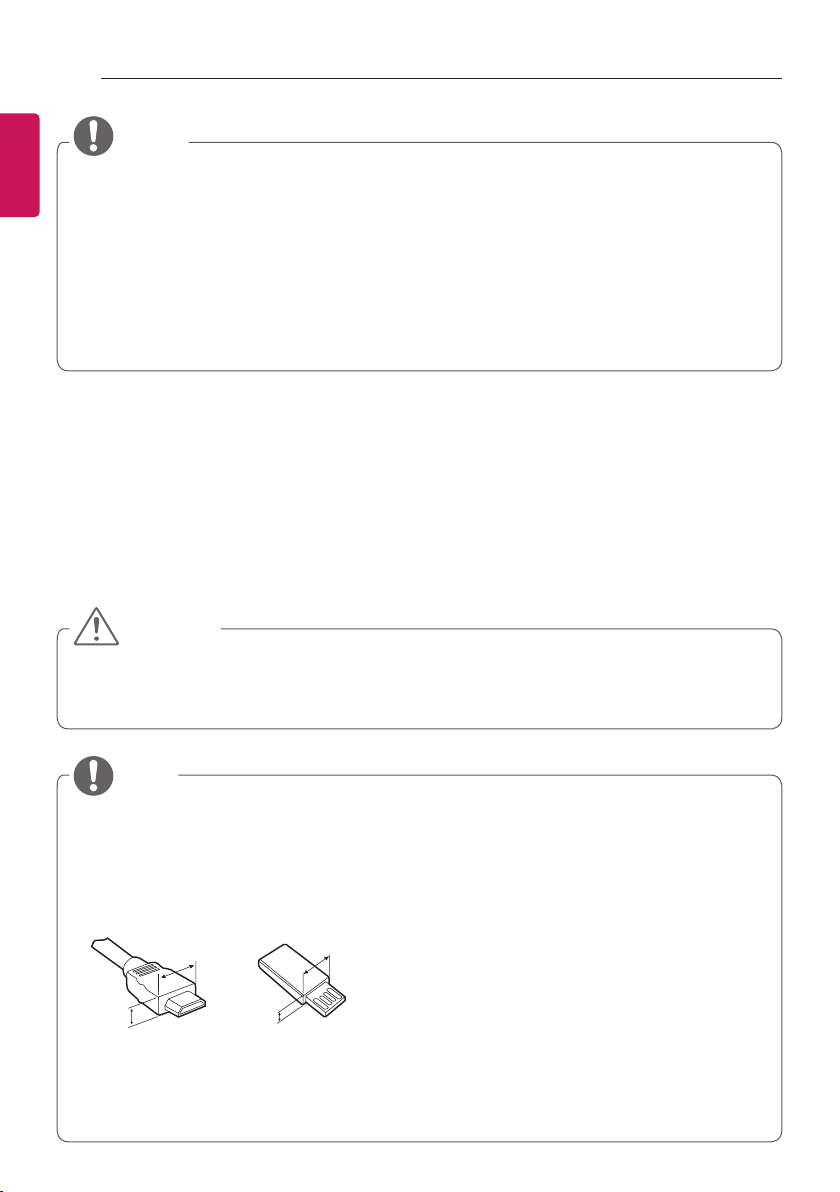

NOTE
yy The items supplied with your product may vary depending on the model.
yy Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
yy For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
|
B |
B |
|
|
< |
10 mm |
|
|
|
||
|
|
*A = |
|
A |
A |
< |
18 mm |
*B = |
yy Use a certified cable with the HDMI logo attached.
yy If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)
-High-Speed HDMI®/TM Cable
-High-Speed HDMI®/TM Cable with Ethernet
ASSEMBLING AND PREPARING |
5 |
<![endif]>ENGLISH
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Remote control, |
|
Owner’s manual |
|
Cable Holder |
|||
batteries (AAA) |
|
|
|
(Depending on model) |
|||
(See p.40, 41, 42, 43, 44) |
|
|
|
(See p.20) |
|||
|
|
|
|
|
|
|
|
Power cord |
|
Stand Screws |
|
Stand Screws |
(Depending on model) |
|
4EA, M4 x L14 |
|
4EA, M4 x L20 |
|
|
(Only 42/49LY31**, |
|
(Only 32LY31**, 32LY330*, |
|
|
39/42/47/55/60LY330*, |
|
32LY340*, 32LY345*, |
|
|
39/42/47/55/60LY340*, |
|
32LY540*, 32LY530*, |
|
|
39/42/47/55/60LY345*, |
|
42/47/55LY541*, |
|
|
39/42/47/55/60LY540*, |
|
42/47/55LY341*, |
|
|
42/55LY530*, |
|
42/47/55LY331*) |
|
|
42/47/55LY541*, |
|
6EA, M4 x L20 |
|
|
42/47/55LY341*, |
|
(Only 32/39LY541*, |
|
|
42/47/55LY331*) |
|
32/39LY341*, 32/39LY331*) |
|
|
(See p.11, 13) |
|
(See p.11, 12, 13) |
|
|
|
|
|
Cable Managements |
|
Wall Mount Spacers |
|
Stand Bases |
2EA |
|
2EA |
|
(Only 32/42/49LY31**, |
(Only 32/42/49LY31**, |
|
(Only 42LY31**, 42LY33**, |
|
32/39/42/47/55/60LY330*, |
32/39/42/47/55/60LY330*, |
|
42LY34**, 42LY54**, |
|
32/39/42/47/55/60LY340*, |
32/39/42/47/55/60LY340*, |
|
42LY53**) |
|
32/39/42/47/55/60LY345*, |
32/39/42/47/55/60LY345*, |
|
(See p.18) |
|
32/39/42/47/55/60LY540*, |
32/39/42/47/55/60LY540*, |
|
|
|
32/42/55LY530*) |
32/42/55LY530*) |
|
|
|
(See p.11) |
(See p.20) |
|
|
|
|
|
|
|
|
|
6 ASSEMBLING AND PREPARING
<![if ! IE]><![endif]>ENGLISH

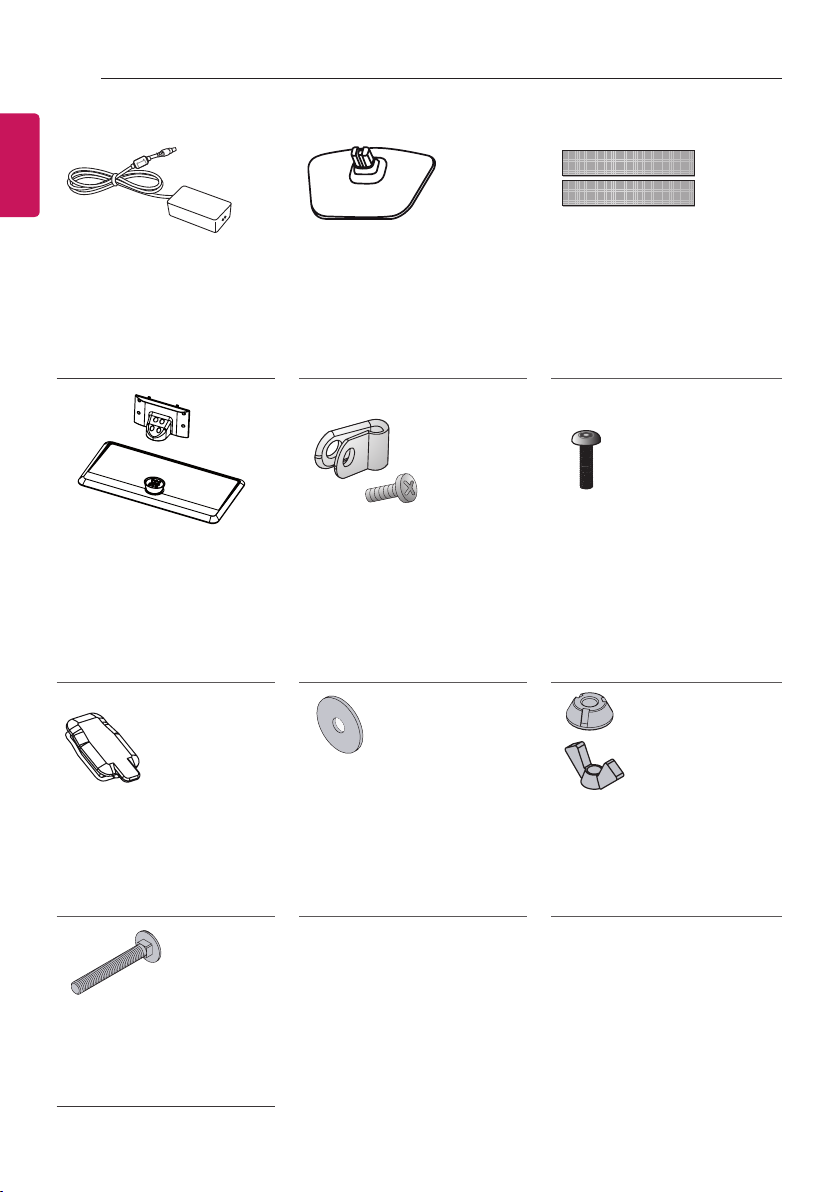

AC-DC Adaptor
(Only 28LY31**, 22/28LY33**, 22/28LY34**, 22/28LY54**)
(Depending on model)
(See p.23)
Stand Base/Stand Body
(Only LY541*, LY331*, LY341*)
(See p.12, 13)
Rubbers
2EA
(Only LY541*, LY331*, LY341*)
(See p.14)

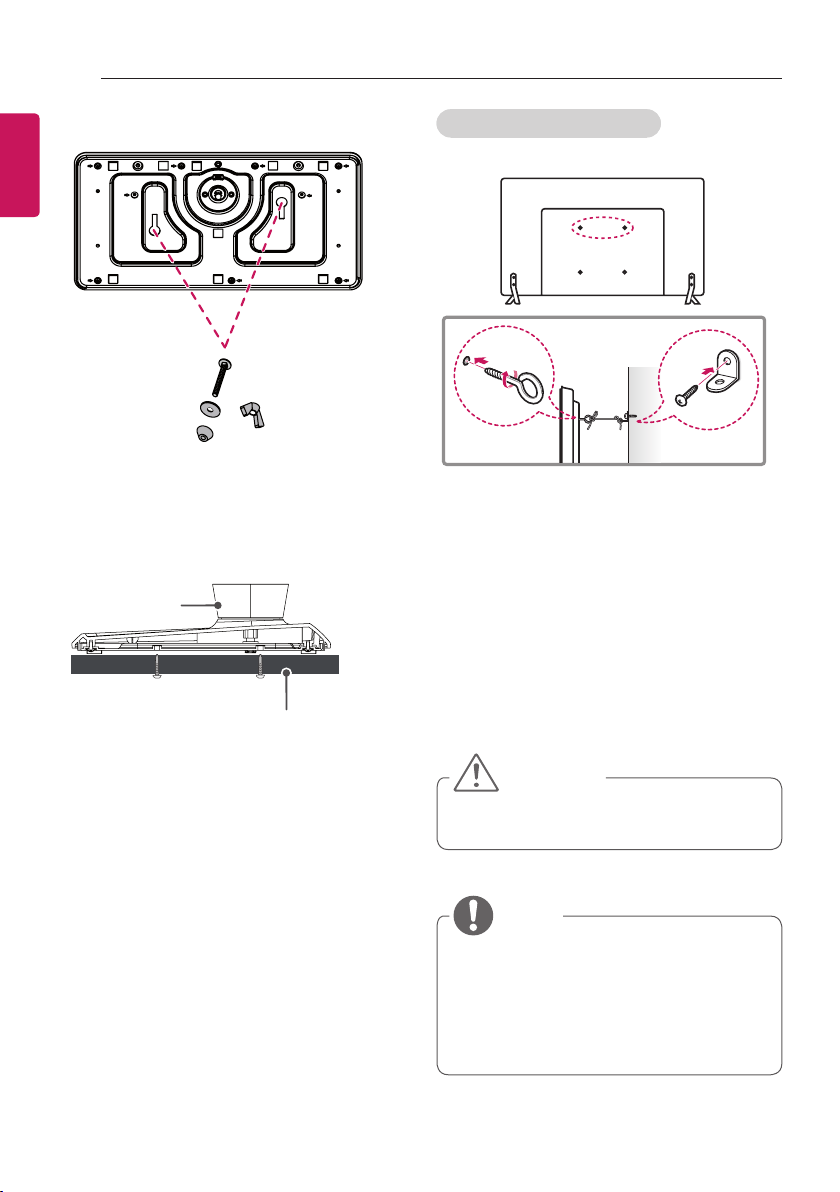

Screws for Stand Fixing
2EA
(Depending on model) (See p.16)
Stand Base
(Only 28LY31**, 22/28LY33**,
22/28LY34**, 22/28LY54**) (See p.11)
Power Cord Holder/Screw
1EA
(Only 39/42/47/55LY541*, 39/42/47/55LY341*, 39/42/47/55LY331*) (See p.20)
Washers for Stand Fixing
2EA
(Depending on model) (See p.16)
Dual Lock™
(Only LY540H, LY541H, LY540M, LY530H) (See p.19)
Torx Plus Star-Head Screws
2EA
(Only LY541*, LY331*, LY341*)
(See p.12, 13)
Nuts for Stand Fixing
2EA
(Depending on model) (See p.16)
ASSEMBLING AND PREPARING |
7 |
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items. These devices only work with certain models.
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.
LG Audio Device |
|
LED Clock |
|
|
LEC-003 |
|
|
(Only 32/39/42/47/55LY540H, |
|
|
32/39/42/47/55LY541H, |
|
|
32/42/55LY530H) |
|
|
|
<![endif]>ENGLISH

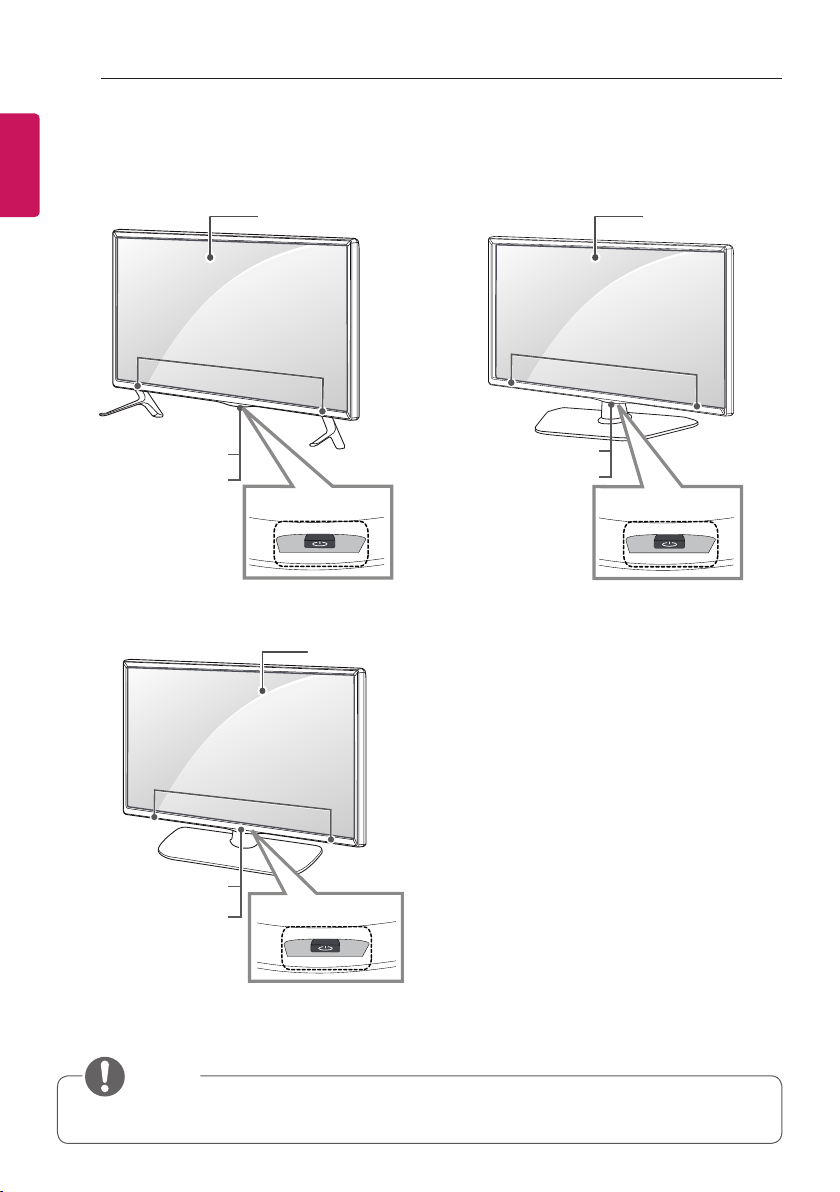

8 ASSEMBLING AND PREPARING
<![endif]>ENGLISH
A type : 32/42/49LY31**, 32/39/42/47/55/60LY330*, |
B type : 28LY31**, 22/28LY33**, |
||||
32/39/42/47/55/60LY340*, 32/39/42/47/55/60LY345*, |
22/28LY34**, 22/28LY54** |
||||
32/39/42/47/55/60LY540*, 32/42/55LY530* |
|
|
|
||
|
|
Screen |
|
|
Screen |
|
|
|
|||
|
|
|
|
|
|
Speakers Speakers
Remote control |
Remote control |
|
and intelligent sensors |
1 |
|
|
and intelligent sensors1 |
|
Power Indicator |
Power Indicator |
|
|
Joystick Button2 |
Joystick Button2 |
C type : 32/39/42/47/55LY331*, 32/39/42/47/55LY541*,
32/39/42/47/55LY341*
Screen
Speakers
Remote control and |
|
|
intelligent sensors1 |
Joystick button2 |
|
Power Indicator |
||
|
1Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2Joystick Button - This button is located below the TV screen.
NOTE
yy You can set the power indicator light to on or off by selecting OPTION in the main menus.
ASSEMBLING AND PREPARING |
9 |

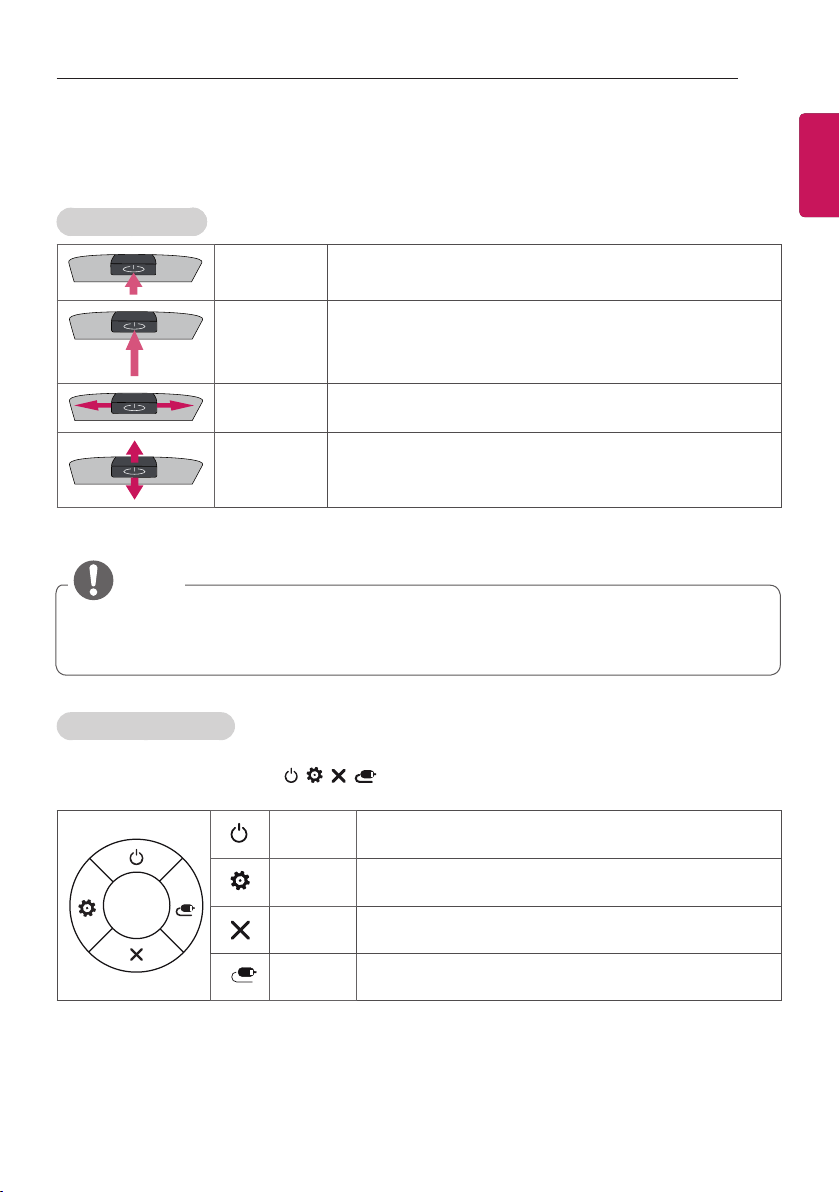

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.
Basic Functions
Power On
Power Off
Volume
Control
Programmes
Control
When the TV is turned off, place your finger on the joystick button and press it once and release it.
When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.
NOTE
yy When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level and saved programmes.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items (, , ,) moving the joystick button up, down, left or right.
TV off Turns the power off.
Settings Accesses the main menu.
Close Clears on-screen displays and returns to TV viewing.
Input List Changes the input source.
<![endif]>ENGLISH
10 ASSEMBLING AND PREPARING
<![endif]>ENGLISH

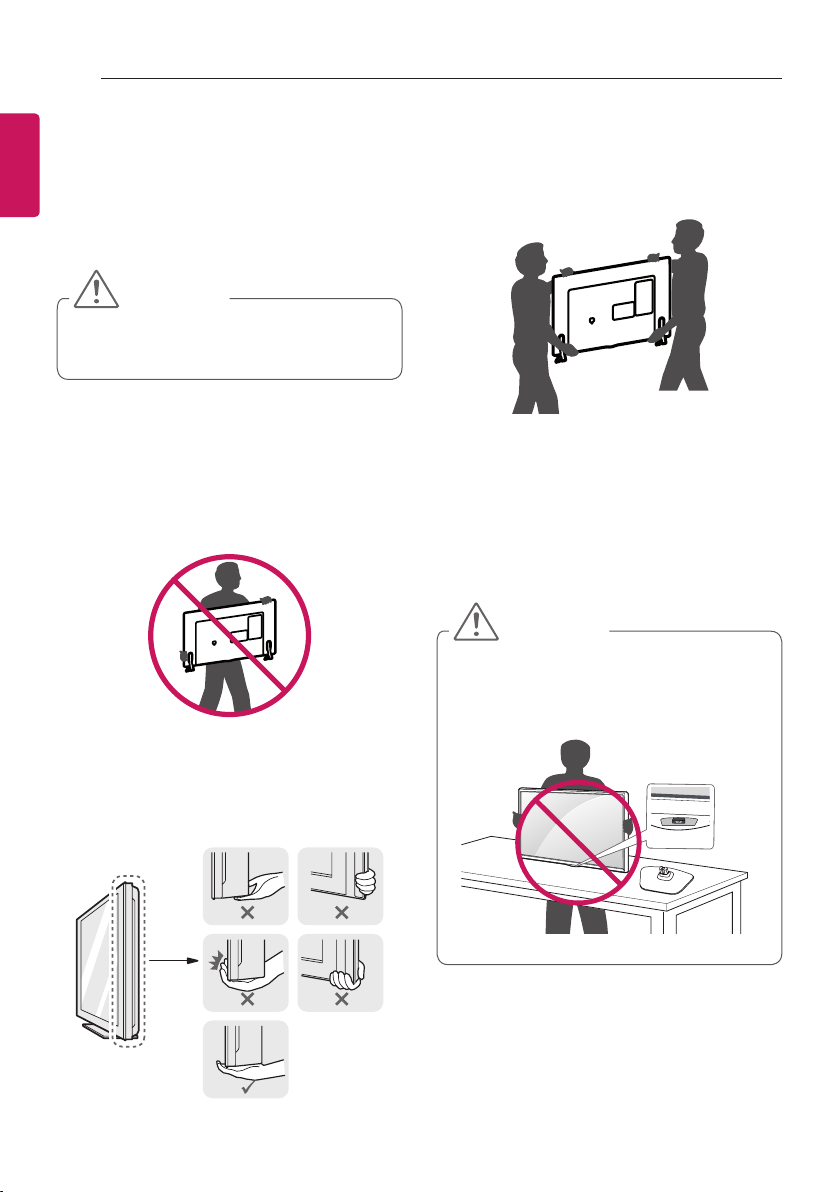

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
CAUTION
yy Avoid touching the screen at all times, as this may result in damage to the screen.
yy It is recommended to move the TV in the box or packing material that the TV originally came in.
yy Before moving or lifting the TV, disconnect the power cord and all cables.
yy When holding the TV, the screen should face away from you to avoid damage.
yy Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.
yy When transporting a large TV, there should be at least 2 people.
yy When transporting the TV by hand, hold the TV as shown in the following illustration.
yy When transporting the TV, do not expose the
TV to jolts or excessive vibration.
yy When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
yy Do not apply excessive pressure to cause flexing /bending of frame chassis as it may damage screen.
CAUTION
yy When handling the TV, be careful not to damage the protruding joystick button.
(Depending on model)
|
ASSEMBLING AND PREPARING 11 |
|
Setting up the TV |
(Only 28LY31**, 22/28LY33**, 22/28LY34**, |
|
|
22/28LY54**) |
|
Image shown may differ from your TV. |
1 |
|

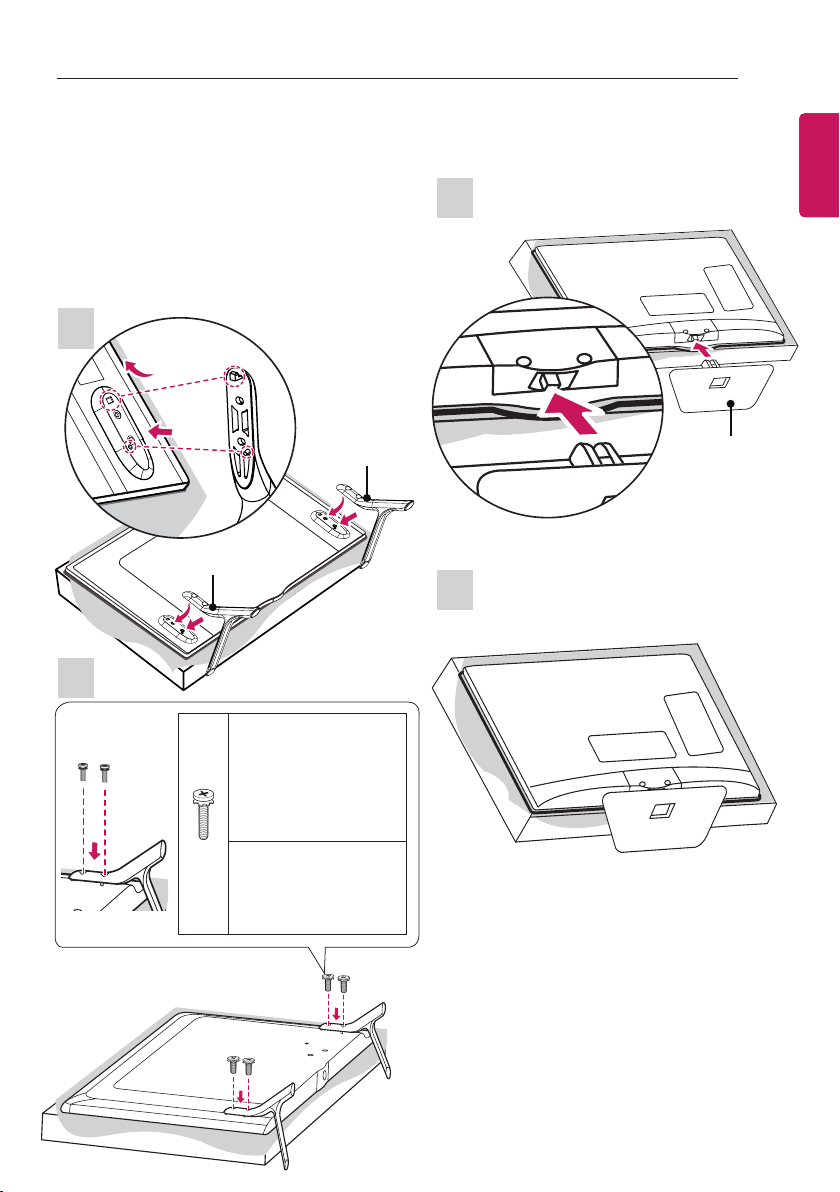

Attaching the stand |
||
|
||
(Only 32/42/49LY31**, 32/39/42/47/55/60LY330*, |
|
|
32/39/42/47/55/60LY340*, 32/39/42/47/55/60LY345*, |
|
|
32/39/42/47/55/60LY540*, 32/42/55LY530*) |
|
|
1 |
|
|
2 |
Stand Base |
|
A Stand Base |
||
|
B Stand Base
2
2
|
M4 x L14 |
|
(Only 42/49LY31**, |
|
39/42/47/55/60LY330*, |
|
39/42/47/55/60LY340*, |
|
39/42/47/55/60LY345*, |
|
39/42/47/55/60LY540*, |
|
42/55LY530*) |
4EA |
M4 x L20 |
|
(Only 32LY31**, |
|
32LY330*, 32LY340*, |
|
32LY345*, 32LY540*, |
|
32LY530*) |
<![endif]>ENGLISH

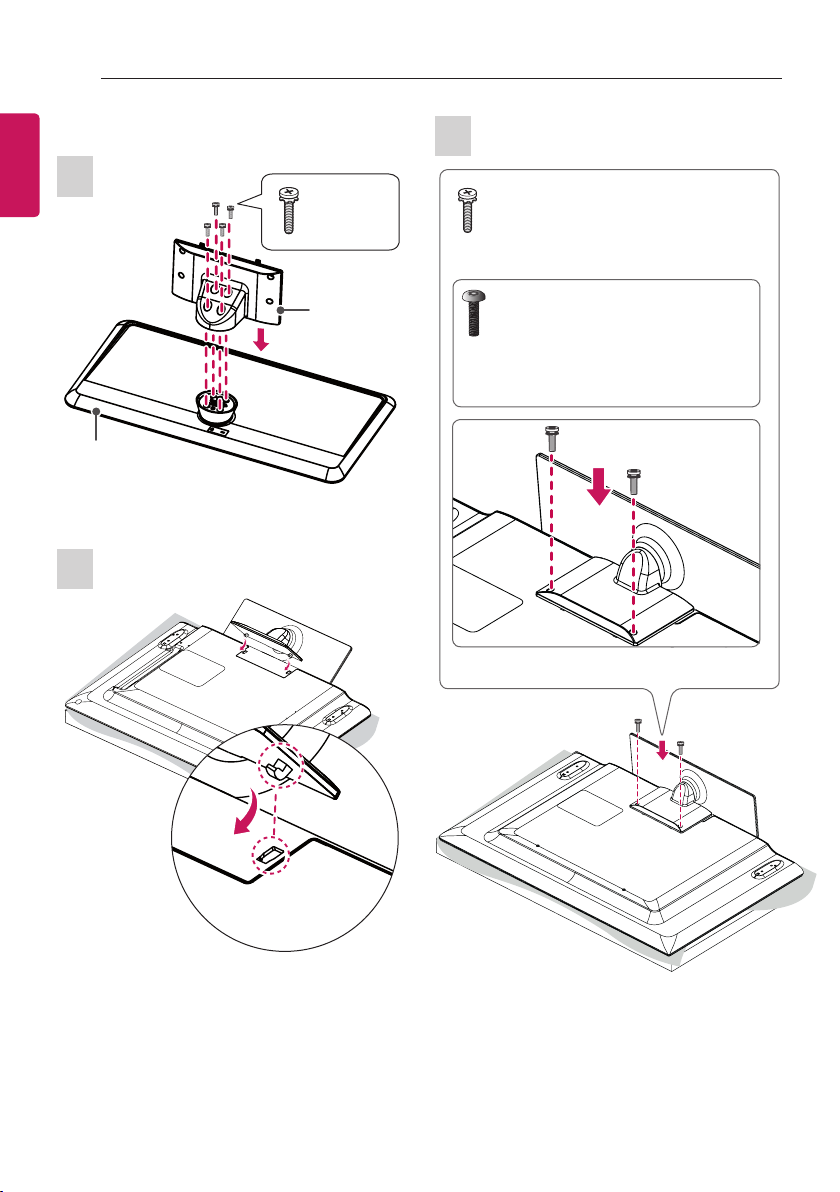

12 ASSEMBLING AND PREPARING
<![endif]>ENGLISH
(Only 32/39LY541*, 32/39LY331*, 32/39LY341*) |
3 |
|
|
||
1 |
M4 x L20 |
|
4 EA |
||
2EA |
||
M4 x L20 |
||
|
||
|
or |
Stand Body |
Torx Plus Star-Head Screws
2EA
Tighten the two Torx head screws
(supplied with TV) with a Torx Bit Driver (not supplied with TV).
Stand Base
2

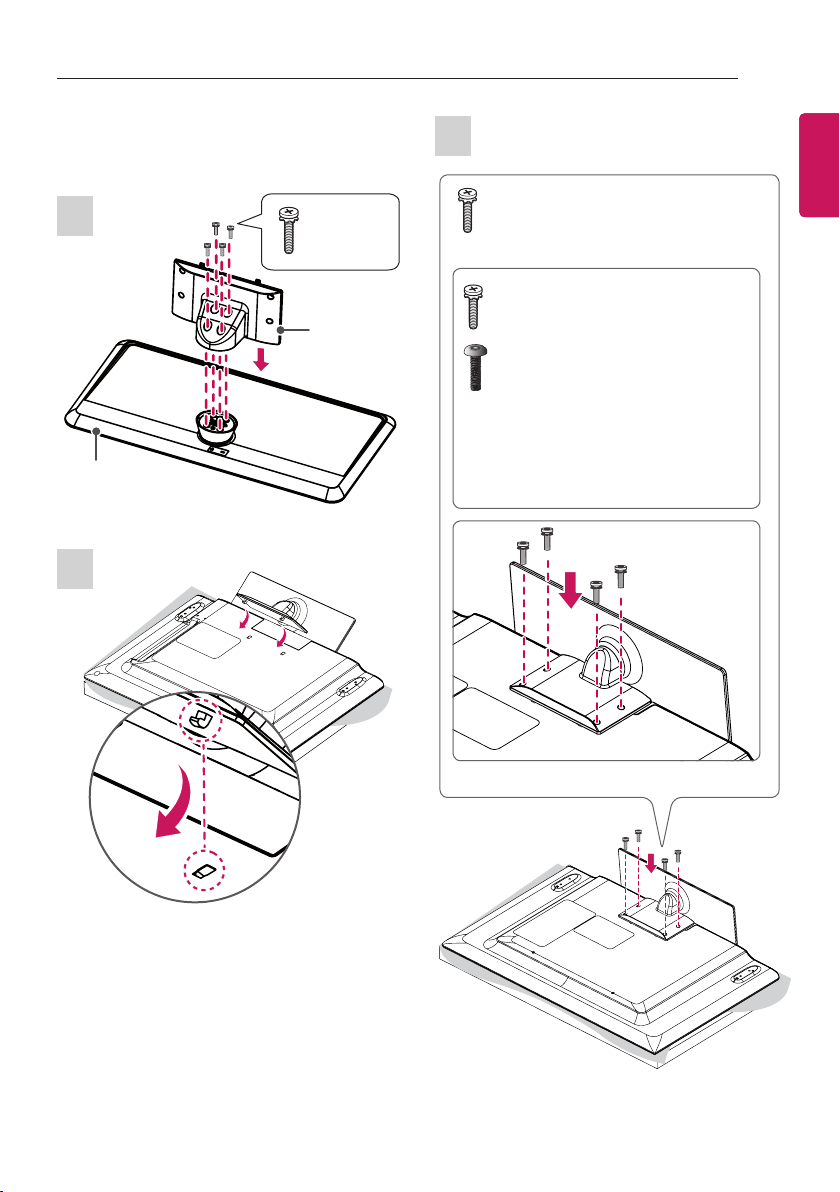

ASSEMBLING AND PREPARING 13
(Only 42/47/55LY541*, 42/47/55LY331*, |
3 |
|
42/47/55LY341*) |
|
|
1 |
|
M4 x L14 |
4 EA |
4EA |
|
|
M4 x L20 |
or |
|
|
Stand Body |
Stand Base
M4 x L14
2EA
Torx Plus Star-Head Screws
2EA
Tighten the two of these four screws and the two Torx screws (supplied with
TV) to secure the TV. Tighten the two Torx screws with a Torx Bit Driver (not supplied with TV).
<![endif]>ENGLISH
2

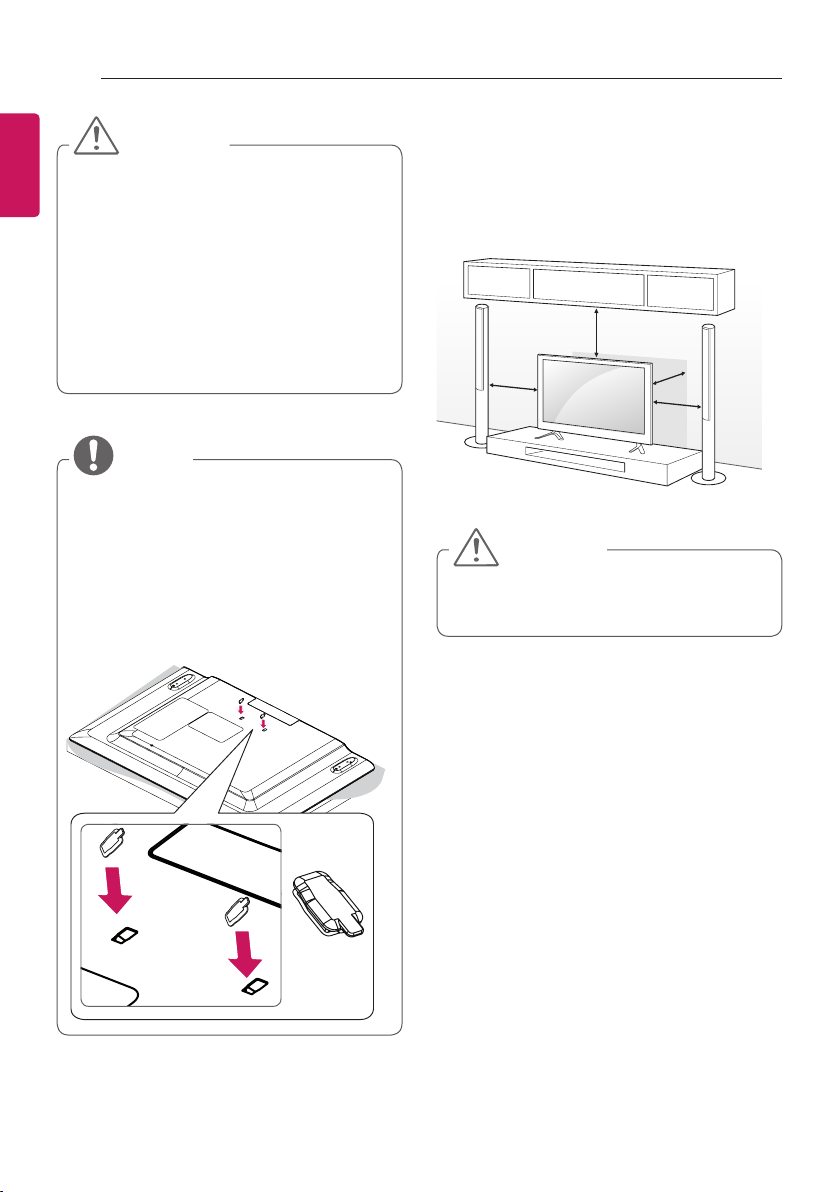

14 ASSEMBLING AND PREPARING
<![if ! IE]> <![endif]>ENGLISH |
CAUTION |
|
|
|
yy When attaching the stand to the TV |
|
set, place the screen facing down on a |
|
cushioned table or flat surface to protect |
|
the screen from scratches. |
|
yy Make sure that the screws are fastened |
|
completely. (If they are not fastened |
|
securely enough, the TV may tilt forward |
|
after being installed.) Do not use too |
|
much force and over tighten the screws; |
|
otherwise screw may be damaged and |
|
not tighten correctly. |
NOTE
yy Remove the stand before installing the
TV on a wall mount by performing the stand attachment in reverse.
yy The Rubber will protect the opening from accumulating dust and dirt. When installing the wall mounting bracket, use the Rubber. (Only LY541*, LY331*, LY341*)
1Lift and tilt the TV into its upright position on a table.
-- Leave a 10 cm (minimum) space from the wall for proper ventilation.
|
|
10 cm |
10 |
|
cm |
cm |
10 |
|
|
10 cm |
|
|
|
2 Connect the power cord to a wall outlet.
CAUTION
yy Do not place the TV near or on sources of heat, as this may result in fire or other damage.
Rubber
2EA
ASSEMBLING AND PREPARING 15

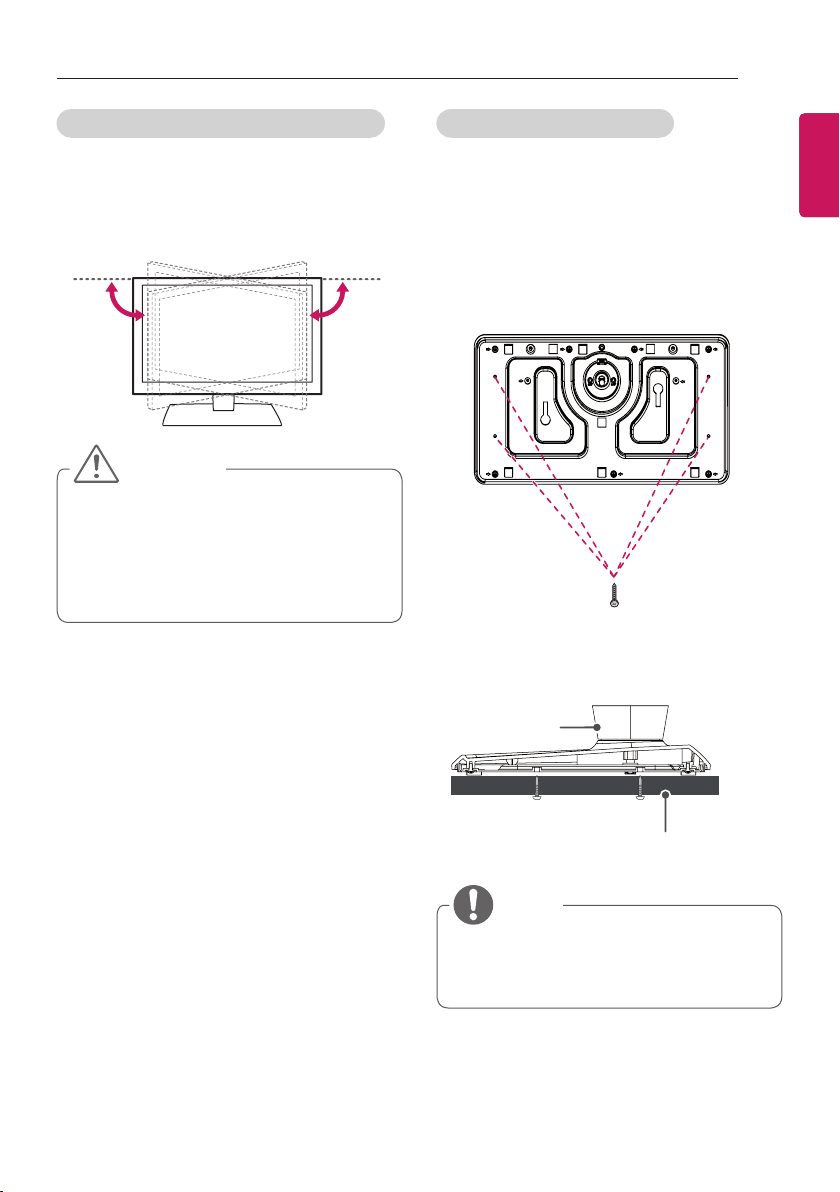

Adjusting the angle of the TV to suit view
(Only LY541*, LY331*, LY341*)
Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.
Attaching the TV to a desk
(Depending on model)
The TV should be attached to a desk so it cannot be pulled in a forward/backward
direction, potentially causing injury or damaging the product.
A type )
<![endif]>ENGLISH
CAUTION
yy When adjusting the angle of the product, watch out for your fingers.
»» Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing
damage or injury. 4-Screws
(Not supplied with TV)
Stand
Desk
NOTE
yy Screw : M5 x L (*L: Table depth + 8~10 mm)
ex) Table depth: 15 mm, Screw: M5 x 25
16 ASSEMBLING AND PREPARING
B type )
<![if ! IE]><![endif]>ENGLISH
2-Screws for Stand Fixing,
2-Washers for Stand Fixing,
2-Nuts for Stand Fixing (Supplied with TV)
Stand
Desk
Securing the TV to a wall
(This feature is not available for all models.)
1Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
-- If there are bolts inserted at the eyebolts position, remove the bolts first.
2Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3Connect the eye-bolts and wall brackets tightly with a sturdy rope.
Make sure to keep the rope horizontal with the flat surface.
CAUTION
yy Make sure that children do not climb on or hang on the TV.
NOTE
yy Use a platform or cabinet that is strong and large enough to support the TV securely.
yy Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket.
When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
|
10 cm |
10 cm |
10 cm |
|
|
|
10 cm |
ASSEMBLING AND PREPARING 17
Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.
Separate purchase(Wall Mounting Bracket)
|
22LY33** |
28LY31** |
|
Model |
28LY33** |
||
22LY34** |
|||
28LY34** |
|||
|
22LY54** |
||
|
28LY54** |
||
|
|
||
|
|
|
|
VESA (A x B) |
75 x 75 |
100 x 100 |
|
Standard |
M4 X L10 |
M4 X L10 |
|
screw |
|||
|
|
||
Number of |
4 |
4 |
|
screws |
|||
|
|
||
Wall mount |
LSW140B |
LSW140B |
|
bracket |
|||
|
|
||
|
32LY31** |
42/49LY31** |
|
Model |
32/39LY33** |
42/47/55LY33** |
|
32/39LY34** |
42/47/55LY34** |
||
|
32/39LY54** |
42/47/55LY54** |
|
|
32LY53** |
42/55LY53** |
|
VESA (A x B) |
200 x 200 |
400 x 400 |
|
Standard |
M6 |
M6 |
|
screw |
|||
|
|
||
Number of |
4 |
4 |
|
screws |
|||
|
|
||
Wall mount |
LSW240B |
LSW440B |
|
bracket |
MSW240 |
MSW240 |
|
Model |
60LY33** |
|
|
60LY34** |
|
||
|
60LY54** |
|
|
VESA (A x B) |
400 x 400 |
|
|
Standard |
M6 |
|
|
screw |
|
||
|
|
||
Number of |
4 |
|
|
screws |
|
||
|
|
||
Wall mount |
LSW440B |
|
|
bracket |
|
||
|
|
||
|
A |
|
|
|
B |
|
<![endif]>ENGLISH
18 ASSEMBLING AND PREPARING
<![endif]>ENGLISH
CAUTION
yy Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
yy If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact the local dealer or qualified personnel.
yy Do not over tighten the screws as this may cause damage to the TV and void your warranty.
yy Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.
yy Screw length from outer surface of back cover should be under 8 mm.
(Only 28LY31**, 22/28LY33**,
22/28LY34**, 22/28LY54**)
Wall mount Pad
Cover
Wall mount Pad Back Cover
Standard screw
: M4 x L10
Max.8 mm
NOTE
yy Use the screws that are listed on the
VESA standard screw specifications.
yy The wall mount kit includes an installation manual and necessary parts.
yy The wall mount bracket is not provided.
You can obtain additional accessories from your local dealer.
yy The length of screws may differ depending on the wall mount. Make sure to use the proper length.
yy For more information, refer to the manual supplied with the wall mount.
yy When attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV.
(Only 42LY31**, 42LY33**, 42LY34**, 42LY54**, 42LY53**)
Wall Mount
Spacers
ASSEMBLING AND PREPARING 19
NOTE
(Only LY540H, LY541H, LY540M, LY530H)
Fix the set-top box to the TV and use it when you want to.
1After removing the protection paper from the Dual Lock, stick it to the TV and the set-top box as shown.
yy Please make sure no foreign substances exist on the surface of the product, and then firmly attach the Dual Lock™.
yy Before attaching the set-top box to the TV set, let the attached Dual Lock™ dry for at least three days.
Dual Lock™
2Attach the set-top box to the TV by pressing the Velcro strips together.
<![endif]>ENGLISH
<![endif]>ENGLISH
20 ASSEMBLING AND PREPARING
Image shown may differ from your TV.
(Only 22/28LY33**, 22/28LY34**, 22/28LY54**, 28LY31**)
1Gather and bind the cables with the cable holder.
Cable Holder
(Only 32/39/42/47/55/60LY540*, 32/39/42/47/55/60LY330*, 32/39/42/47/55/60LY340*, 32/39/42/47/55/60LY345*, 32/42/49LY31**, 32/42/55LY530*)
1Gather and bind the cables with the cable holder.
2Fix the Cable Management firmly to the TV.
Cable Holder
Cable Management
(Only 32LY541*, 32LY331*, 32LY341*)
1Gather and bind the cables with the cable holder.
Cable Holder
(Only 39/42/47/55LY541*, 39/42/47/55LY331*, 39/42/47/55LY341*)
1Install the power cord holder and power cord. It will help prevent the power cable from being removed by accident.
2Gather and bind the cables with the cable holder.
Power Cord Holder/
Screw
Cable Holder
CAUTION
yy Do not move the TV by holding the cable holder, as the cable holder may break, and injuries and damage to the TV may occur.
